15DNN_IM387_Ref_K_en_00 (K/R)© 2014 JVC KENWOOD Corporation
DNN992
DNN9150BT
CONNECTED NAVIGATION SYSTEM
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new
Navigation System.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or
service on the product.
Model DNN992/ DNN9150BT Serial number
US Residence Only
Register Online
Register your Kenwood product at www.Kenwoodusa.com
Before reading this manual, click the button below to check the latest edition and the
modified pages.
http://manual.kenwood.com/edition/im387/
Check the latest edition
1
Return to the Top page
What Do You Want To Do?
Thank you for purchasing the KENWOOD CONNECTED SYSTEM.
In this manual, you will learn various convenient functions of the system.
Click the icon of the media you want to play.
With one-click, you can jump to the section of each media!
iPod
USB SD
VCD
DVD VIDEO
Music CD
Disc Media
BT Audio
Pandora Apps
HD Radio
Radio
SiriusXM
Wireless Link
Storage
2
Before Use 4
# WARNING _______________________ 4
How to Read this Manual 6
Features of Connected systems
8
Basic Operations 10
Functions of the Buttons
on the Front Panel __________________ 10
Turning on the Unit _________________ 12
How to Play Media __________________ 18
Operation on the Home Screen ________ 20
Common Operation _________________ 24
Navigation Operation ________________ 26
OEM Feature Operation (DNN992) _____ 30
Network Setup 32

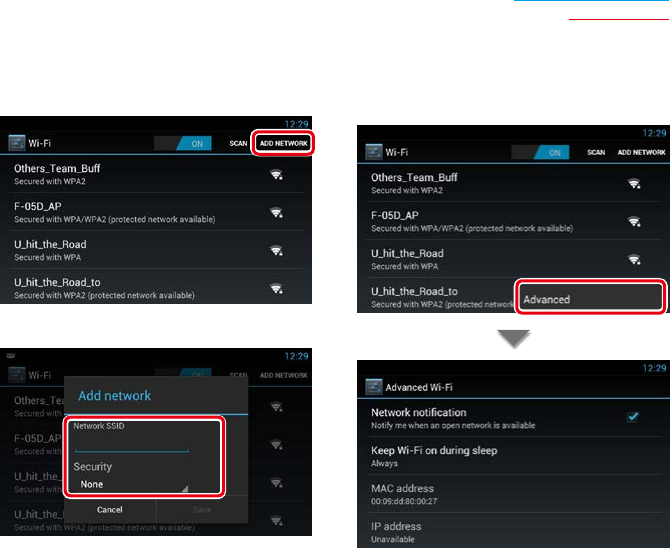

Wi-Fi Setup ________________________ 32
Wi-Fi Hotspot Setup _________________ 34
4G/ 3G Dongle Setup (DNN992) _______ 35

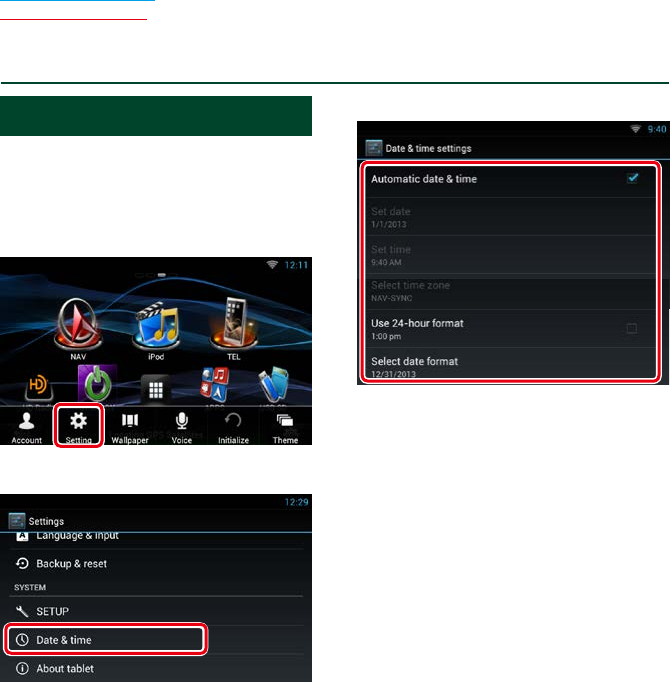

Clock and Date Setup 36
Clock and Date Setup ________________ 36
Account Setup 38
About Account _____________________ 38
Create User Account _________________ 38
Set Owner Account _________________ 39
Set User Account ___________________ 40
Switch the User Login _______________ 40
Delete User Account _________________ 41
Reset Owner Account ________________ 41
Widget and Application
Operation 42
Weather Widget (DNN992) ___________ 42
Weather Application (DNN992) _______ 43
SNS Widget ________________________ 45
RSS Widget ________________________ 45
Facebook (SNS Application) ___________ 46
Twitter (SNS Application) _____________ 48
E-mail (SNS Application) _____________ 50
RSS Application ____________________ 52
Now playing Widget _________________ 54
Photo Frame Widget_________________ 56
Mixed Media Search _________________ 57
DVD/Video CD (VCD)
Operation 58

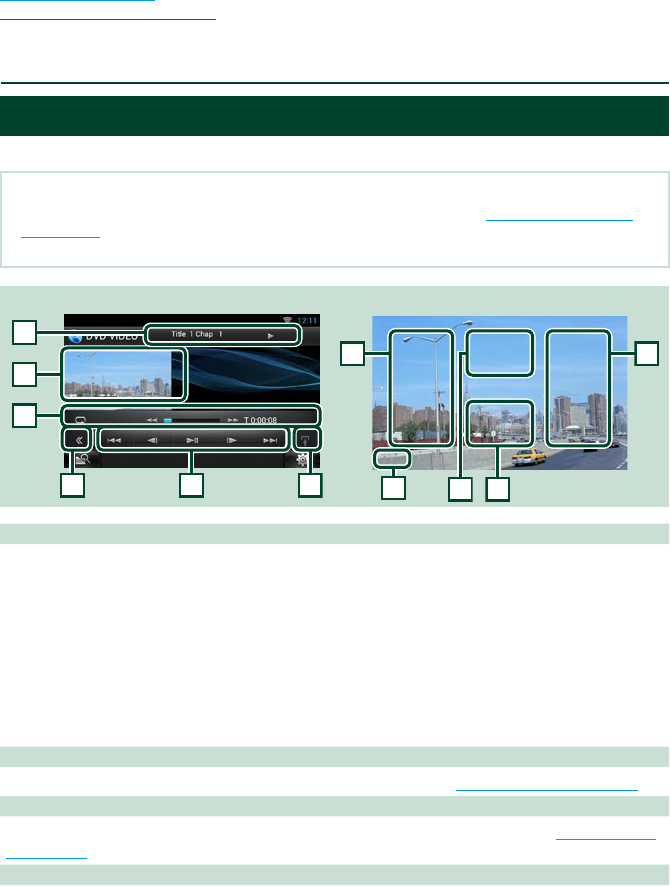

DVD/VCD Basic Operation ____________ 58
DVD Disc Menu Operation ____________ 61
Zoom Control for DVD and VCD _______ 62
DVD Setup ________________________ 63
CD/Audio and Visual Files/iPod/
Apps Operation 66
Music/Video Basic Operation __________ 66
Search Operation ___________________ 72
Movie Control ______________________ 76

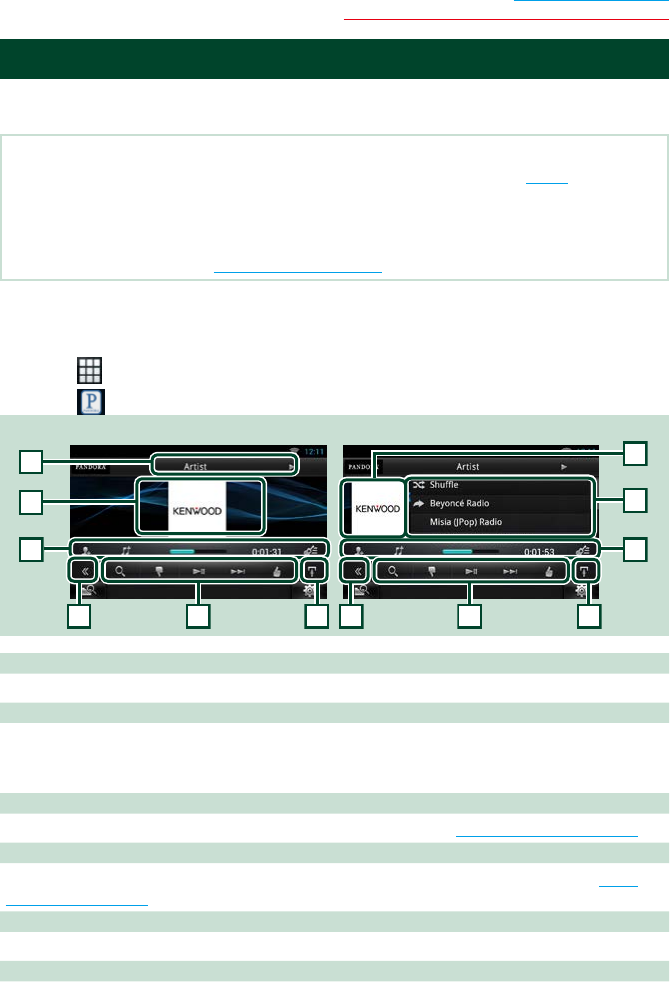

Pandora® Operation _________________ 77
Apps Operation ____________________ 80
USB/SD/iPod/App/DivX Setup _________ 81
Cloud Storage Operation 86
Starting procedure __________________ 86
Music Basic Operation _______________ 86
Category search ____________________ 87
Kenwood Wireless Link
Operation 88
Starting procedure __________________ 88
Media Server function _______________ 89
Media Player function _______________ 89
Media Controller function ____________ 90
Media Renderer function _____________ 91
ñ
Contents
3
Radio, HD Radio™ tuner
Operation 92
About HD Radio™ Technology _________ 92
Radio/ HD Radio tuner Basic Operation _ 93
Memory Operation __________________ 95
Selecting Operation _________________ 95
Traffic Information (HD Radio tuner only) _
97
Receive Mode (HD Radio tuner only) ___ 98
Bookmark _________________________ 98
SiriusXM® Satellite Radio
Operation (DNN992) 100
SiriusXM® Basic Operation ____________ 100
Memory Operation __________________ 103
Selecting Operation _________________ 103
Content Alert ______________________ 105
Replay ____________________________ 106
Smart Favorites, TuneStart™ ___________ 107
TuneScan™ ________________________ 107
SiriusXM Setup _____________________ 108
Streaming Service Application 112
AUPEO!Application _________________ 112
AV Browser Application ______________ 114
Bluetooth Control 116
Registering and Connecting
Bluetooth Unit _____________________ 116
Playing Bluetooth Audio Device _______ 119
Using Hands-Free Feature ____________ 120
Hands-Free Setup ___________________ 124
Voice Control (DNN992) 126
Voice Control ______________________ 126
Camera Control 127
Camera Control_____________________ 127
Switching the View Camera ___________ 127
Setting Up 128
Monitor Screen Setup _______________ 128
System Setup ______________________ 129
Display Setup ______________________ 132
Navigation Setup ___________________ 134
Camera Setup ______________________ 134
Software Information ________________ 136
AV Input Setup _____________________ 137
AV Output Interface Setup ____________ 137
External Device Control ______________ 138
Controlling Audio 140
Setting Audio ______________________ 140
Controlling General Audio ____________ 143
Equalizer Control ___________________ 144
Zone Control _______________________ 145
Sound Effect _______________________ 146
Listening Position ___________________ 148
Remote Control 150
Battery Installation __________________ 150
Functions of the Remote Control Buttons _
151
Troubleshooting 154
Problems and Solutions ______________ 154
Error Messages _____________________ 155
Resetting the Unit __________________ 157
Appendix 158
Playable Media and Files _____________ 158
Status Bar Indicator Items ____________ 161
Region Codes in the World ____________ 163
DVD Language Codes _______________ 164
Specifications ______________________ 165
Trademarks ________________________ 168
Safety precaution ___________________ 171
4
Return to the Top page
Before Use
# WARNING
ÑTo prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or
leave any metallic objects (such as coins or
metal tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any
extended period.
• If you experience problems during
installation, consult your Kenwood dealer.
ÑPrecautions on using this unit
• When you purchase optional accessories,
check with your Kenwood dealer to make
sure that they work with your model and in
your area.
• You can select language to display menus,
audio file tags, etc. See Language setup
(P.130).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where
the service is not supported by any
broadcasting station.
ÑProtecting the monitor
To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
ÑCleaning the unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
!
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
ÑLens fogging
When you turn on the car heater in cold
weather, dew or condensation may form
on the lens in the disc player of the unit.
Called lens fogging, this condensation on
the lens may not allow discs to play. In such
a situation, remove the disc and wait for the
condensation to evaporate. If the unit still
does not operate normally after a while,
consult your Kenwood dealer.
ÑPrecautions on handling discs
• Do not touch the recording surface of the
disc.
• Do not stick tape etc. on the disc, or use a
disc with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull
them out horizontally.
• If the disc center hole or outside rim has
burrs, use the disc only after removing the
burrs with a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording
surface or discs that are dirty cannot be
used.
• This unit can only play the CDs with
.
This unit may not correctly play discs which
do not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process see
your writing software, and your recorder
instruction manual.)
ñ
Before Use
5
Return to the Top page
Before Use
ÑErase the personal information
Before giving or selling this unit to others, be
sure to delete the information (mail, search
logs, etc.) stored in this unit by yourself and
confirm that the data has been deleted.
We shall not be liable for any damage caused
by leakage of undeleted data.

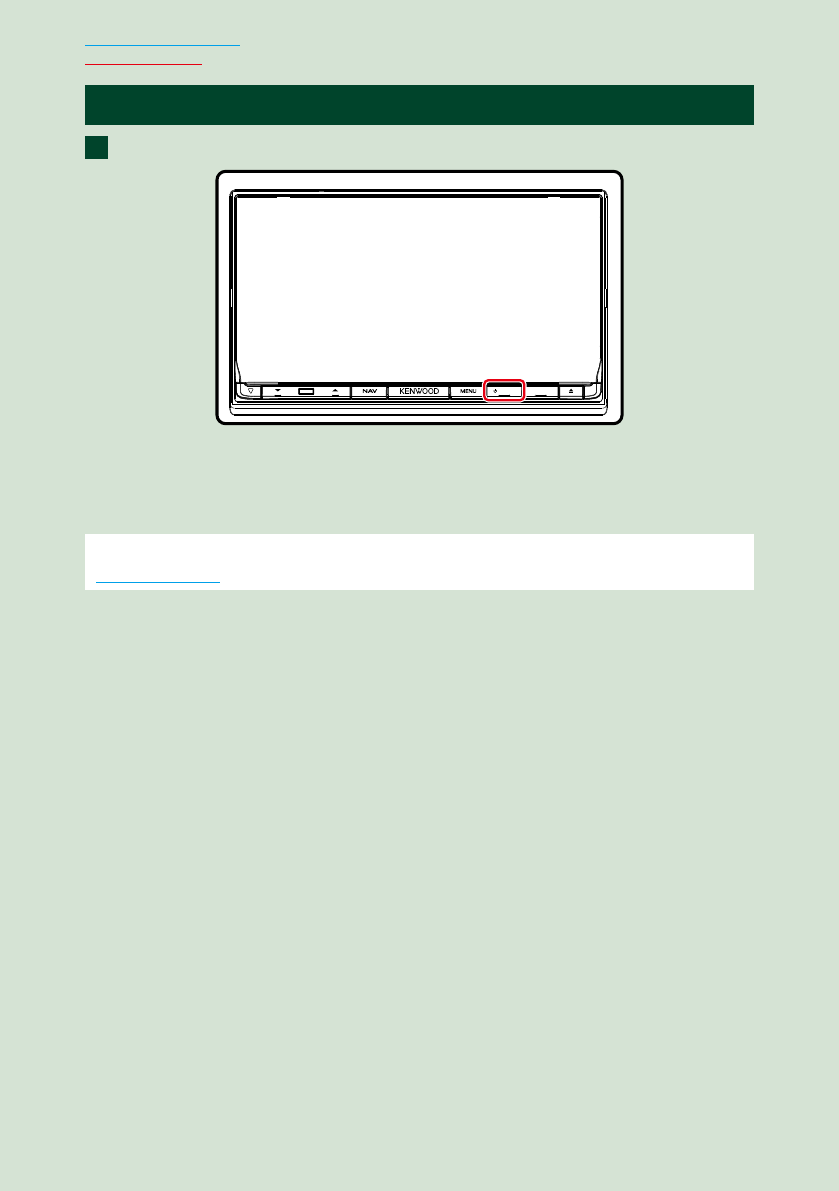

1 Press the <HOME> button.
HOME 6
2 Press the <MENU> button.
HOME 6
3 Touch [Setting].
4 Touch [Backup & Reset].
5 Touch [Factory data reset].
6 Enter owner password. Touch [Reset].
7 Touch [ERASE].
6
Return to the Top page
How To Read This Manual
30
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
30
Search Operation
You can search music, video or picture files
by the following operations.
NOTE
• If you use a remote controller, you can jump
directly to the desired track/file with entering the
track/folder/file number, play time, etc. For details,
see Direct search mode (P.155).

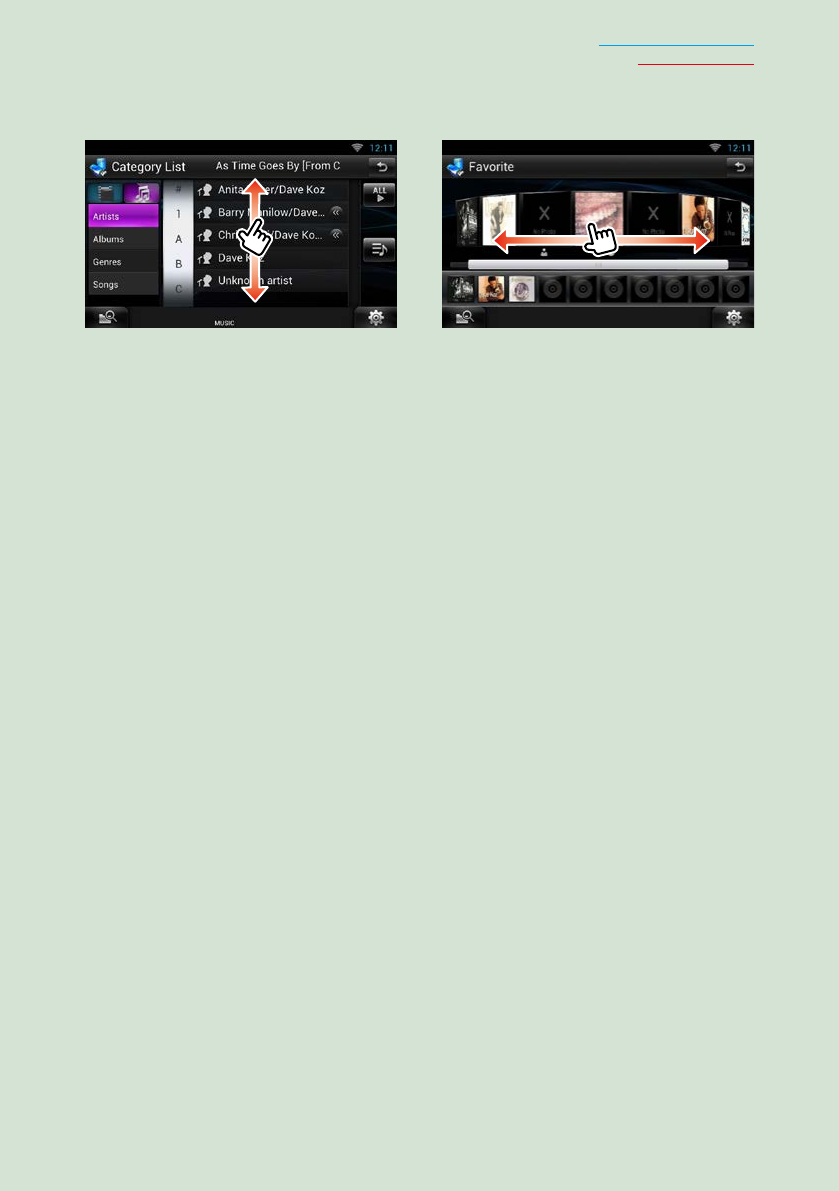

ÑList search
You can search tracks, folders, and files
according to hierarchy.
1 Touch illustrated area.
List Control screen appears.
2 Touch desired track/file.
Playback starts.
ÑOther search
When you want to narrow the list down,
there are other search ways.
This function is not available when music CD
is the current source.
1 Touch [ ] in the control screen.
The search type screen appears.
2 Touch desired search way.
ñ
How to Read this Manual
NOTE
• The screens and panels shown in this
manual are examples used to provide clear
explanations of the operations.
For this reason, they may be different from the
actual screens or panels used, or some display
patterns may be different.
Link header
You can refer each section or top page with
one-click.
Reference mark
Displayed in blue notes.
With one-click, you can jump to the
article related to the current section.
Screen shot
Shows some screen shots displayed during
operation for reference.
The area or keys to touch are surrounded
with a red frame.
Operation procedure
Explains necessary procedures to
achieve the operation.
< >: Indicates the name of panel
buttons.
[ ]: Indicates the name of touch
keys.
Operation title
Introduces the function.
NOTE
Introduces some tips, notes, etc.
7
Return to the Top page
How To Read This Manual
8
Return to the Top page
Basic Operations
ñ
Features of Connected systems
By connecting this unit to Internet, you can use various services.
Use of internet service
• Streaming service such as Aupeo!, iHeartRadio*.
• Internet service such as email, and social networking service such as Facebook and Twitter.
• Information (weather*, traffic*, RSS, etc.) service.
Cooperation with Route Collector site
• Destinations and routes specified on the PC can be input to this navigation system.
• The routes you have traveled and the songs you have listened to can be logged. (P.27)
• By uploading music files to Dropbox and creating a play list on Route Collector site, you can listen
to music anywhere through streaming without music files on this unit. (P.86)
• Speech to Text (STT) and Text to Speech (TTS).
Notes
You can use following feature for 2 years after
registration of the owner account. To use it
continuously, a usage fee is required. For details,
see web site of Route Collector.
http://www.route-collector.com/
• Weather (by INRIX)*
• Traffic (by INRIX)*
• Dynamic Parking (by INRIX)*
• Fuel Prices (by INRIX)*
• Real-Time Traffic Camera (by INRIX)*
• Movie Show Times (by WWM)*
• TTS (by Nuance)
• STT (by Nuance)
To use the following services, you need to
register the corresponding free or paid accounts.
• Aupeo!
• Facebook
• Twitter
• Dropbox
• iHeartRadio*
* DNN992 only
About the account
• To use internet services via this system,
you need to create an account in the
Route Collector site.
• In addition to the owner account, you
can register up to four user accounts.
• You can use a guest account as well.
• By switching among accounts, you can
secure the privacy when using the mail
feature or social media.
For details, see About Account (P.38).
http://www.route-collector.com/
9
Return to the Top page
Basic Operations
• Media player for DVD video, CD, USB
memory, SD card*, iPod, etc.
• HD Radio Technology and SiriusXM
Satellite Radio. (DNN992)
• Radio
• Navigation
Wi-Fi access point
• Connect to Internet using the tethering
function of your smartphone or an
Internet device. (P.32)
4G/ 3G Dongle (DNN992)
• Connect to the Internet directly
with 4G/3G Dongle. The Internet
device like smartphone is not
necessary. (P.35)
• You can also connect to the
Internet while using the Wi-Fi
Hotspot mode.
Wi-Fi hotspot
• This unit becomes the Wi-Fi access
point and you can enjoy music and
video in a smartphone Wi-Fi connected
by Kenwood Wireless Link. (P.34)
Wi-Fi (11n/g/b)
4G, LTE, 3G or EDGE
HOME 6
10
Return to the Top page
Basic Operations
ñ
Functions of the Buttons on the Front Panel
HOME 6
10
9
1 4 5 6 7 82 3
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
How to insert an SD Card
1) Press
8
<G> button for 1 second.
The panel fully opens.
2) Hold the SD card as the illustration in the right
and insert it into the slot until it clicks.
V To eject the card:
Push the card until it clicks and then remove your finger
from the card.
The card pops up so that you can pull it out with your
fingers.
ñ
Basic Operations
0
Labelled
side
11
Return to the Top page
Basic Operations
Number Name Motion
s (Reset) • If the unit or the connected unit fails to operate properly, the unit
returns to initial settings when this button is pressed (P.157).
• If the SI function is turned on, this indicator flashes when the vehicle
ignition is off (P.130).
S, R (Vol) Adjusts volume.
Remote
Sensor
Receives the remote control signal.
NAV • Displays the navigation screen.
• Pressing for 1 second switches camera view display on/off.*1
MENU • Displays the option menu screen.
• Pressing for 1 second switches AV out sources.
HOME • Displays the Home screen (P.20).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
6 (Back) • Return to the previously viewed screen.
• Pressing for 1 second displays the Hands Free screen (P.120).
G (Eject) • Ejects the disc.
• When the panel is opened, pressing closes the panel and pressing for 1
second ejects the disc forcibly.
• When the panel is closed, pressing for 1 second fully opens the panel to
the location of the SD card slot.
Disc insert
slot
A slot to insert a disc media.
SD card slot • A slot to insert an SD card.
• An SD card slot for upgrading the map. For how to upgrade the map,
refer to the instruction manual of the navigation system.
• DNN992: You can play audio/visual file in the card. *2
*1 The function of the [NAV] button can be changed to the display off function. See User interface
(P.129).
*2 If the map update file remains in the SD card, you cannot play audio/visual file.
12
Return to the Top page
Basic Operations
ñ
Turning on the Unit
Press the <HOME> button.
HOME 6
The unit is turned on.
ö To turn off the unit:
Press the <HOME> button for 1 second.
If it is your first time turning the unit on after installation, it will be necessary to perform
Initial setup (P.14).
1
13
Return to the Top page
Basic Operations
Login
Select the login user.
When the owner has not been registered
When the owner has been registered
Enter the password.
When you selected Administrator or Guest, you do not need to enter a password.
[Auto Login?]: Checking this checkbox allows you to log in to the system automatically from
the next time.
Touch [Login].
NOTE
• If you forgot your password, create your new password on the Route Collector site.
http://www.route-collector.com/
1
2
3
14
Return to the Top page
Basic Operations
Initial setup
Perform this setup when you use this unit for the first time or when you reset the unit. See
Resetting the Unit (P.157).
Set each item as follows.
Language Setup
Select the language used for the GUI and input methods. Default is “English (United States)”.
1Touch [Language Setup].
2Select a language from the list.
WiFi Setup
Configure settings for connection to Wi-Fi.
1Touch [WiFi Setup].
2Slide Wi-Fi to ON.
3Touch [Wi-Fi].
4Select the Wi-Fi access point to register from the list.
5Enter the Password.
6Touch [Connect].
7After setting, press the < 6 > button.
For details on operation, see Wi-Fi Setup (P.32).
Mobile Network Setup (DNN992)
Set the direct Internet connection with 4G/3G Dongle.
1Touch [Mobile Network Setup].
2Touch [Mobile Network configuration].
3Enter the network information.
4Touch [Save].
5Touch [Mobile Network].
6After setting, press the < 6 > button.
For details on operation, see 4G/ 3G Dongle Setup (P.35).
1
15
Return to the Top page
Basic Operations
Date Setup
Set the date and time.
1Touch [Date Setup].
2After setting, press the < 6 > button.
For details on operation, see Clock and Date Setup (P.36).
Account Setup
Set the information about the user of this unit.
1Touch [Account Setup].
For details on operation, see About Account (P.38).
Touch [Next].
2
Continued
16
Return to the Top page
Basic Operations
Set each item as follows.
Locale
Select the country for the navigation system.
The language, the distance unit, and the gasoline unit are set.
1Touch [SET].
2Select the desired country.
Language
Select the language used for the control screen and setting items. Default is “American English (en)”.
1Touch [SET].
2Touch [C] or [D] to select the desired language.
3Touch [Enter].
For details on operation, see Language setup (P.130).
Angle
Adjust the position of the monitor. Default is “0”.
1Touch [SET].
2Touch desired angle number and [ ].
For details on operation, see Monitor angle control (P.132).
3
17
Return to the Top page
Basic Operations
Color
Set the screen and button illumination color. You can select whether to allow color scan operation or
select a fixed color for operation.
1Touch [SET].
2Touch [ON] or [OFF] of [Panel Color Scan].
3If you want to change color, touch [SET] of [Panel Color Coordinate].
4Touch your desired color and [ ].
For details on operation, see Panel color coordinate (P.133).
EXT SW
Control the external devices.
1Touch [SET].
2Set output pattern, and pulse set for device. Then, touch [ ].
For details on operation, see EXT SW setup (P.131).
Camera
Set the parameters for the camera.
1Touch [SET].
2Set each item and touch [ ].
For details on operation, see Camera Setup (P.134).
OEM SETUP (North America Sales area only)
This function requires a commercial adaptor.
Consult your Kenwood dealer for details.
DEMO
Set the demonstration mode. Default is “ON”.
1Touch [ON] or [OFF].
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu. See Setting Up (P.128).
4
18
Return to the Top page
Basic Operations
ñ
How to Play Media
Music CD and disc media
Press the <G> button.
HOME 6
The panel opens.
Insert the disc into the slot.
The panel closes automatically.
The unit loads the disc and playback
starts.
ö To eject the disc:
Press the <G> button.
USB device
Connect the USB device with the
USB cable.
The unit reads the device and playback
starts.
ö To disconnect the device:
Touch [G] on the screen and disconnect
the device from the cable.
1
2
1
19
Return to the Top page
Basic Operations
iPod
Connect the iPod.
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video Basic Operation (P.66).
The unit reads the iPod and playback
starts.
ö To disconnect the iPod/iPhone
connected with the cable:
Touch [G] on the screen and disconnect
the device from the cable.
SD card (DNN992)
Press the <G> button for 1 second
to open the front panel.
0
The panel fully opens.
Hold the SD card as the diagram
below and insert it into the slot
until it clicks.
Notched section
Labeled side
The unit loads the card and playback starts.
ö To remove:
Push the SD card until it clicks and then
remove your finger from the card.
The card pops up so that you can pull it out
with your fingers.
1 1
2
20
Return to the Top page
Basic Operations
ñ
Operation on the Home Screen
Most functions can be operated on the Home screen.
Press the <HOME> button.
HOME 6
Home screen appears.
Flick the screen left or right to select the Service panel, Media panel, Source
launcher panel, or Network contents panel.
Panel Description
1 Service panel Weather widget: Displays the weather forecast for the selected region.
Network widget: Displays the SNS, or RSS.
2 Media panel Now playing: Displays the title of the song being played or the name
of the station you are listening to, and allows you to perform simple
operations.
Photo Frame Widget: Displays the Photo frame that shows photos.
3 Source launcher panel Allows you select a source.
4 Network contents panel Allows you to select a network-related application.
1
2
21
Return to the Top page
Basic Operations
Source launcher panel and Network contents panel
(Shortcut)
You can register sources and applications
you use frequently so that you can start them
quickly.
(All source list/ All apps list)
Displays all sources and applications.
All source list/ All apps list
(All source list/ All apps list)
You can scroll the list screen by flicking the
screen up/down.
(Home)
Returns to the Source launcher panel or the
Network contents panel.
From All source list, you can perform the following functions.
Function Icon Operation
Switch the audio source
etc.
Touch the icon of the
desired source.
Switch the video source
etc.
Touch the icon of the
desired video source.
Display navigation
screen
or
Touch [NAV] or
navigation information.
Turn off all audio
function
Touch [STANDBY].
Vehicle information
display
Touch [OEM].
22
Return to the Top page
Basic Operations
Moving or deleting of an icon on the Source launcher panel and Network
contents panel
Touch and hold the icon.
Drag the icon to the desired
position or Recycle Bin.
Adding of a shortcut icon to Source launcher panel or Network contents panel
Touch [ ] in Source launcher
panel or Network contents panel.
Touching the icon continuously to
display the Source launcher panel
or Network contents panel screen.
Drag the icon to an empty space.
Media panel
2
1
1 Now playing widget
Displays the title of the song being played or
the name of the station you are listening to,
and allows you to perform simple operations.
See Now playing Widget (P.54).
2 Photo Frame Widget
Displays the Photo frame that shows photos.
See Photo Frame Widget (P.56).
Service panel
2
1
1 Weather widget
DNN992: Displays the today's weather
forecast. See Weather Widget (P.42).
DNN9150BT: Displays the clock and date.
2 Network widget
Touching [ ] allows you to switch
between RSS, and SNS.
See SNS Widget (P.45), RSS Widget
(P.45).
1
2
1
2
3
23
Return to the Top page
Basic Operations

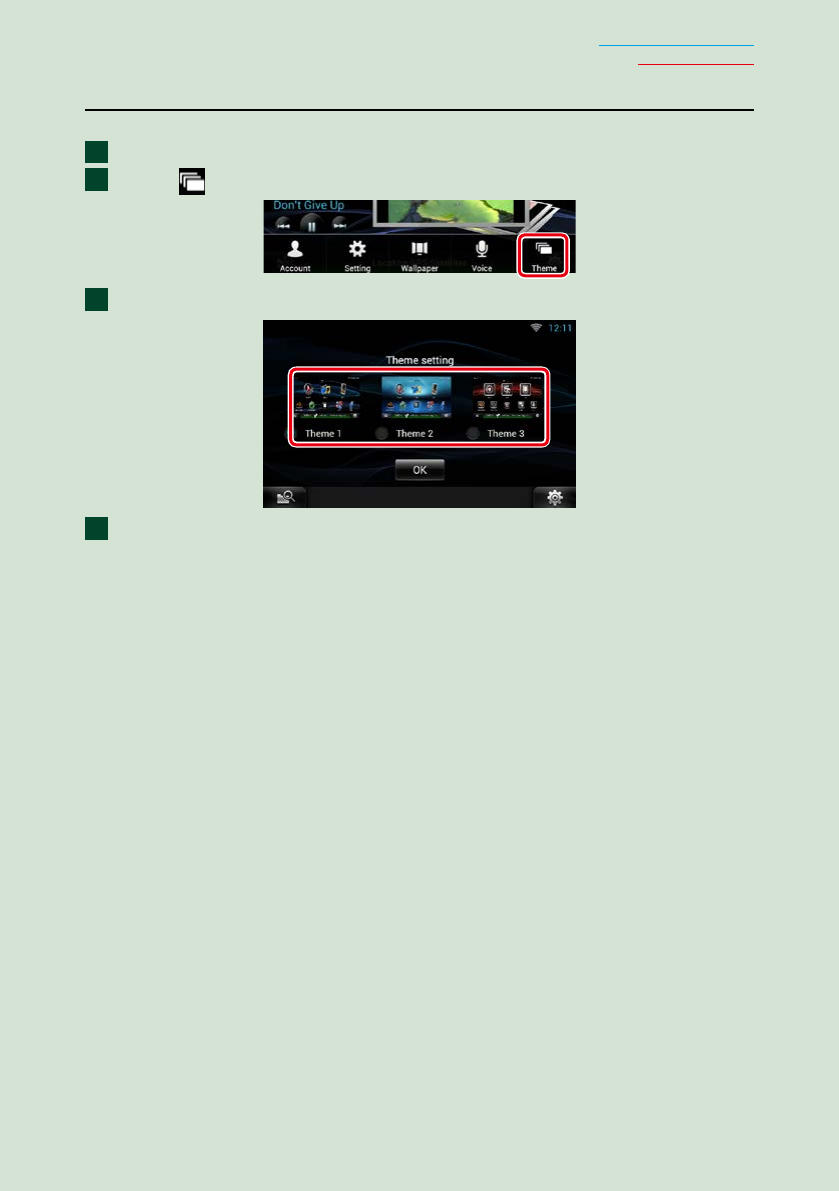

Change the skin for home screen
You can select a home screen skin from 3 types.
Press the <MENU> button.
Touch [ Theme].
Select a skin.
Touch [OK].
1
2
3
4
24
Return to the Top page
Basic Operations
ñ
Common Operation
Introduces the common operation.
General
There are some functions which can be operated from most screens.
Quick menu screen
(Mixed Media Search)
Touch to display the Mixed Media Search
screen. (P.57)
(Quick menu)
Touch to display the quick menu. The
content of the menu are as follows.
: Touch to turn on or off the external
device power supply.
: Displays the SETUP Menu screen.
: Displays the Audio Control Menu screen.
: Displays the control screen of current
source. Icon feature differs depending
on the source.
List screen
There are some common function keys in the list screens of most sources.
(Scroll)
Touch to scroll through texts on the display.
etc.
Touch keys with various functions are
displayed here.
Displayed keys differ depending on the
current audio source, status, etc.
For examples of functions of each key, refer
to the table below.
Returns to previous screen.
Key Function
Lists all the music in the lower hierarchy.
Moves to the upper hierarchy.
Displays current category folder.
Displays music/movie file list.
25
Return to the Top page
Basic Operations
Flick scrolling
You can scroll the list screen by flicking the screen up/down or right/left.
26
Return to the Top page
Basic Operations
ñ
Navigation Operation
For details on the navigation function, please
refer to the Navigation Instruction Manual.
Display the navigation screen
Press the <NAV> button.
HOME
6
The navigation screen appears.

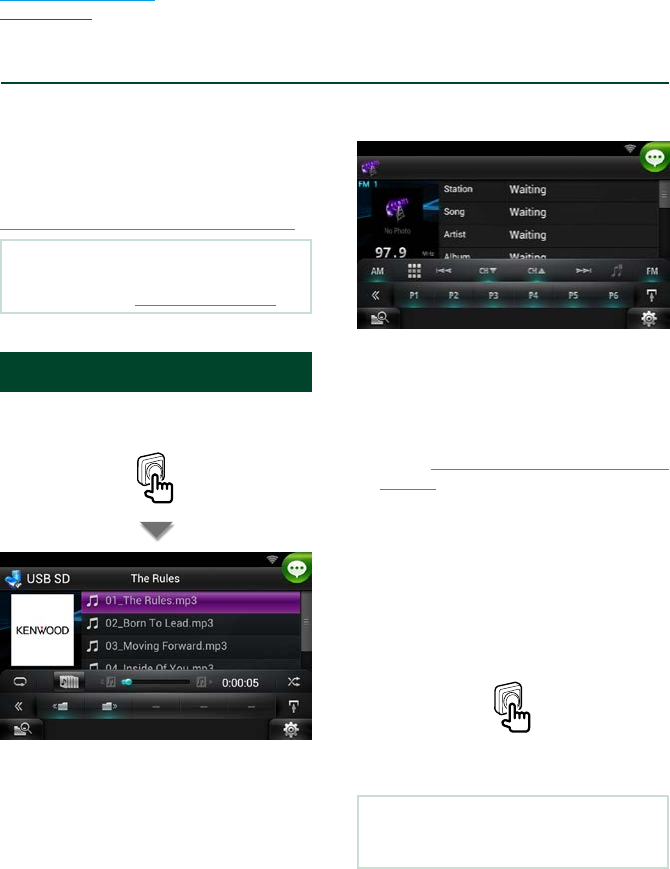

Control audio from the
navigation screen
You can control audio sources while the
navigation screen is displayed.
Also, you can view the navigation
information while the source control screen
is displayed.
Touch the information bar.
The navigation screen with audio
information appears.
Touch [ ] or [ ] in the
navigation screen.
Touching this area displays
the audio screen.
: Displays the navigation and control
keys of the current source.
: Displays the navigation and current
video playback display.
NOTE
• The screen switches between playback screen
and camera view each time the viewing area is
touched.
• Touching the source icon in the bottom of the
screen displays the full audio screen.
• AUPEO! just plays music. You cannot control it.
1
1
2
27
Return to the Top page
Basic Operations
ö To return to the full navigation
screen:
Touch [ ].
NOTE
• For details on control keys, refer to the instructions
in each section.
Trip log function
You can upload the routes you traveled and
the songs you listened to the Route Collector
site so that you can confirm them later.
Precaution
• Trip log function can be used to log information
such as routes you have traveled and songs you
have listened to. Such information is uploaded
to our Route Collector site, for later access by
you through your computer. Non-personal data
from this log is also kept and used by us for
statistical purposes to improve the quality of our
products. By selecting to use this function, you
are accepting use of the data for such statistical
purposes.
This is an optional function that can be activated
at your sole option and responsibility the
procedures set forth in the left column.
Press the <MENU> button in
the navigation screen or source
control screen.
Touch [ Triplog On].
Touch [Yes].
When the Trip log is active, ” ” appears
in the status bar.
NOTE
• You must have a connection with the internet.
• You can use the Trip log function when you have
logged in the system as Owner or User.
Where To function
You can set the destination of the navigation
easily by setting the destination of the
Route Collector site from your PC or your
smartphone.
Log in to Route Collector site by
the owner account.
http://www.route-collector.com/
Set the destination in the Route
Collector site.
You will be notified by “ ” icon
on the status bar.
Drag the status bar downward.
Touch [ ].
It will be set as the destination of the
navigation.
Touch [GO] to start the route
guide.
NOTE
• You can set a user account when you have logged
in the Owner.
• You must have a connection with the internet.
• For the operation of the Route Collector site refer
to the instruction in its website.
1
2
3
1
2
3
4
5
28
Return to the Top page
Basic Operations
Come Here function
When you go to pick up your family or
friends, send them the mail to decide the
meeting point. After they enter the meeting
point you can easily set it as the destination
of your navigation.
Press the <HOME> button.
Flick the screen left or right to
select the Network contents panel.
Touch [ ].
Touch [ SNS].
Touch [ (mail)].
Touch [ ].
Touch [ ].
The address for setting the meeting point
is added in the text part.
Enter the address, subject, etc. to
complete the mail and send it.
Your family or friend will enter the
meeting point.
Check the address in the mail, register as
the meeting point and press Send.
You will be notified by the “ ”
icon on the status bar when they
enter the meeting point.
Drag the status bar downward.
Touch [ ].
It will be set as the destination of the
navigation.
Touch [GO] to start the route
guide.
1
2
3
4
5
6
7
8
9
10
11
12
29
Return to the Top page
Basic Operations
NOTE
• You must have a connection with the internet.
• The address of the meeting point is effective only
2 hours after adding the address. After that you
can not enter it.
• Come Here function can be used for one person
(one meeting point) at a time.
Tracking function
When you upload the location of you car to
the Route Collector site, you can check it in
case your car is stolen.
Precaution
• Tracking function is a handy function to be used
for the primary purpose of tracking the location
of your vehicle. This function can also be used
for secondary purposes, at your sole option and
responsibility. In any event, we cannot accept any
responsibility for any results of your use of the
function, for whatever purpose.
Should you select to use this option, please
activate the function through the procedures set
forth in the left column.
Log in to Route Collector site by
the owner account.
http://www.route-collector.com/
Set to ON the Tracking function in
the Route Collector site.
You can check the location of your car in
the Route Collector site.
NOTE
• You must have a connection with the internet.
• You can set this function and check the location
of you car only when you log in by the owner
account.
• To get the correct information we recommend
using 4G/3G Dongle. (DNN992 only)
• For the operation of the Route Collector site refer
to the instruction in its website.
1
1
2
30
Return to the Top page
Basic Operations
ñ
OEM Feature Operation (DNN992)
By connecting this unit to the bus system of the vehicle using an iDataLink (commercially
available), this unit can access the satellite radio source provided for the vehicle and vehicle
information can be displayed on this unit.
Press the <HOME> button.
Flick the screen left or right to select the Source launcher panel.
Touch [ ].
Touch [ OEM Features].
OEM Features screen appears.
: Displays the control screen of the
satellite radio source provided for the
vehicle.
: Displays the control screen of the
media player source provided for the
vehicle.
: Displays the control screen of the
Bluetooth Hands Free function
provided for the vehicle.
: Displays the control screen of the
Bluetooth streaming source provided
for the vehicle.
1
2
3
4
31
Return to the Top page
Basic Operations
: Displays information about the
instruments such as a speedometer.
: Displays information about the air
conditioner of the vehicle.
: Displays information about the
Parking Distance Sensor of the vehicle.
: Displays information about the tire
pressures of the vehicle.
NOTE
• Displayable screens, button names, and screen names vary depending on the type of the connected iDataLink
and the model of the vehicle. For more details, access the following URL:
www.idatalink.com/
32
Return to the Top page
Network setup
You can not use Wi-Fi setup and Wi-Fi
Hotspot, 4G/3G Dongle setup at the same
time. You can make it effective either Wi-Fi or
Wi-Fi Hotspot, 4G/3G Dongle.
• Wi-Fi Setup (P.32)
• Wi-Fi Hotspot Setup (P.34)
• 4G/ 3G Dongle Setup (P.35)
(DNN992)
Wi-Fi Setup
You can connect to a Wi-Fi access point to
connect to Internet.
Preparation
• Make preparations for using the Wi-Fi access
point for Internet connection through use of the
tethering function of the smartphone.
• Set to OFF the Wi-Fi Hotspot in Wi-Fi Hotspot
Setup (P.34) and 4G/3G Dongle in 4G/ 3G
Dongle Setup (P.35).
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Setting].
4 Slide Wi-Fi to ON.
5 Touch [Wi-Fi].
6 Select the Wi-Fi access point to register
from the list.
7 Enter the Password.
8 Touch [Connect].
ñ
Network Setup
33
Return to the Top page
Network setup
Register the Wi-Fi access point
manually
1 Touch [ADD NETWORK].
2 Enter the SSID code.
3 Select the security.
4 Enter the security code.
5 Touch [SAVE].
Confirm the MAC address
1 Press the <MENU> button.
2 Touch [Advanced].
3 Press the < 6 > button.
34
Return to the Top page
Network setup
Wi-Fi Hotspot Setup
If there is no Wi-Fi access point, this unit
becomes a Wi-Fi access point. You can
connect your smartphone and your tablet
PC, and enjoy Kenwood Wireless Link
function. (P.88)
Preparation
• When Wi-Fi Hotspot is in use you can not
connect to the Internet via Wi-Fi. To connect to
the Internet, 4G/3G Dongle (sold separately) is
necessary. (P.35)
• Set to OFF the Wi-Fi in Wi-Fi Setup (P.32).
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Setting].
4 Touch [Portable hotspot].
5 Touch [Configure Wi-Fi hotspot].
6 Enter the SSID code. Select the security.
Enter the password.
When you check Show password, the
password that you set is displayed.
7 Touch [Save].
8 Touch [Portable Wi-Fi hotspot].
This unit works as the Wi-Fi access point.
35
Return to the Top page
Network setup
4G/ 3G Dongle Setup
(DNN992)
This unit is designed to work with 4G/3G
Dongle by Verizon (sold separately). You
can connect to the Internet without a
smartphone. With 4G/3G Dongle you can use
the following functions.
• Internet connection while using Wi-Fi Hotspot.
• Certain update of the information of your car
location in the Tracking function.
Preparation
• Set to OFF the Wi-Fi in Wi-Fi Setup (P.32).
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Setting].
4 Touch [Mobile Network setting].
5 Touch [Mobile Network configuration].
6 Enter the network information.
7 Touch [Save].
8 Touch [Mobile Network].
Connect to the Internet.
36
Return to the Top page
Clock and Date Setup
Clock and Date Setup
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Setting].
4 Touch [Date & time].
5 Set each item as follows.
6 Press the < 6 > button.
ñ
Clock and Date Setup
37
Return to the Top page
Clock and Date Setup
Adjust the date and time manually.
1 Touch [Automatic date & time] to
remove the check.
2 Touch [Select time zone].
3 Select a time zone.
4 Touch [Set date].
5 Adjust the date.
6 Touch [Set].
7 Touch [Set time].
8 Adjust the time.
9 Touch [Set].
10
Press the < 6 > button.
38
Return to the Top page
Account setup
About Account
To use this unit, you must register an
account.
ÑTypes of accounts
You can create accounts to maintain privacy
when using the mail feature or social media.
Administrator
As Administrator, you can create an owner
account and perform initial setup.
You can log in to the system if you have not
created an owner account.
Guest
An account for guests such as your friends.
The guest can operate this unit, but cannot
use the functions related to mail, social media,
and Route Collector site.
Owner
The account for the person who manages this
unit.
The owner can use the functions related to
mail, social media, and Route Collector site.
You can register users such as your family.
User
The account for the user of this unit.
The user can use the functions related to mail,
social media, and Route Collector site.
You can register up to 4 user accounts.
ÑAccount registration
procedure
1 Create an account in the Route
Collector site.
Create an account refering to Create User
Account (P.38) or the Route Collector
site.
http://www.route-collector.com/
2 Register the account in this unit.
To register an Owner account, refer to Set
Owner Account (P.39).
To register an User account, refer to Set
User Account (P.40).
3 Switch between login accounts.
See Switch the User Login (P.40).
Create User Account
To use this unit, you need to create an
account in the Route Collector site.
Preparation
• To register yourself in the Route Collector site as a
user, you need a mail address.
• You can register yourself via the Web.
http://www.route-collector.com/
• This step may be skipped if you have already
registered yourself in the Route Collector site.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
ñ
Account Setup
39
Return to the Top page
Account setup
4 Touch [Create Account].
5 Enter account information.
You cannot register an account which
has already been used. Register another
account name.
6 Touch [OK].
The account is temporarily registered in the
Route Collector site.
7 Activate the account.
A confirmation mail is sent to the
registered mail address. Open the indicated
URL to complete account registration.
Set Owner Account
You can register an owner account for the
person who manages this system.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• First create an account in the Route Collector site.
See Create User Account (P.38).
• If you have not created an owner account, log in
to the system as Administrator.
• If you have created an owner account, log in to
the system after account resetting.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
4 Touch [Set Owner Account].
5 Enter account information.
Enter the information registered in the
Route Collector site.
6 Touch [OK].
40
Return to the Top page
Account setup
Set User Account
You can register a user account for the user
of this unit.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• First create an account in the Route Collector site.
See Create User Account (P.38).
• You can set a user account when you have
logged in the Owner.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
4 Touch [Set Account].
5 Enter account information.
Enter the information registered in the
Route Collector site.
6 Touch [OK].
Switch the User Login
You can switch to a different account from
the one currently logged in.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
4 Touch [Login User select].
5 Select an account.
6 Enter the password.
41
Return to the Top page
Account setup
Delete User Account
You can delete a previously registered user
account.
Preparation
• You can set a user account when you have
logged in the Owner.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
4 Touch [Delete Account].
5 Select an account.
6 Touch [OK].
Confirmation screen appears.
7 Touch [Yes].
Reset Owner Account
You can delete previously registered owner
and user accounts.
Preparation
• You can set a user account when you have
logged in the Owner.
1 Press the <HOME> button to display
the Home screen.
2 Press the <MENU> button.
3 Touch [Account].
4 Touch [Reset Account].
5 Enter the owner account’s password.
6 Touch [OK].
Confirmation screen appears.
7 Touch [Yes].
Note
• The data, log, and settings used in the account
are deleted.
42
Return to the Top page
Widget and Application Operation
Weather Widget (DNN992)
Displays the weather forecast for the
selected region.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• You can use this feature for 2 years after
registration of the owner account. To use it
continuously, a usage fee is required. For details,
see web site of Route Collector.
http://www.route-collector.com/
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Service panel.
2
3
1
1 Time & Date
Displays the current time and date.
2 Weather information
Displays the weather forecast for the selected
region.
Touching this starts the weather application.
3 City information
Displays the selected region.
Touching this displays a region selection
screen. See City select (P.42).
ÑCity select
1 Touch [(City name)] in the Weather
Widget.
1
2
1 City list
Displays a region list.
Touching this displays the selected region.
2 [Add City]
Starts the weather application to add the
region. See Add a City (P.43).
ñ
Widget and Application Operation
43
Return to the Top page
Widget and Application Operation
Weather Application
(DNN992)
Displays the weather forecast for the
selected region.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• You can use this feature for 2 years after
registration of the owner account. To use it
continuously, a usage fee is required. For details,
see web site of Route Collector.
http://www.route-collector.com/
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ Weather].
5 Perform desired operation as follows.
2
1
1 City list
Displays a region list.
Touching this displays the selected region.
2
: Reads information again.
: Adds a region.
: Terminates the application.
(Weather information)
Displays the today’s weather forecast and the
weather forecast for the next 6 days.
ÑMenu
1 Press the <MENU> button.
Delete
Deletes a region from the City list. See Delete
City (P.44).
Setting
Allows you to set the information update
interval, etc. See Weather setup (P.44).
ÑAdd a City
Adds a region to the City list.
1 Touch [ ].
2 Search for a region.
(Voice recognition)
You can enter a region using the voice
recognition function. When "Speak now" is
displayed, pronounce the region name.
[Search]
Search starts.
3 Select a region.
Touching the region adds it to the list, and
displays the weather forecast.
44
Return to the Top page
Widget and Application Operation
ÑDelete City
You can delete a region from the City list.
1 Press the <MENU> button.
2 Touch [Delete] in the Menu.
3 Delete the region.
4 Touch [Yes].
5 Touch [ 6 ].
ÑWeather setup
Performs setup when using Weather
Application.
1 Press the <MENU> button.
2 Touch [Setting] in the Menu.
3 Select an option as follows.
Show temperature in
Select a temperature scale.
Update interval
Set an information update interval.
4 Touch [ 6 ].
45
Return to the Top page
Widget and Application Operation
SNS Widget
You can use Facebook, Twitter, and email
(IMAP).
Preparation
• To use each service, the Facebook, Twitter or
email account is required.
• You can use a user account when you have
logged in the Owner or User.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Service panel.
3 Touch [ / ].
4 Select the SNS Widget.
1
2
3
1
: Starts the SNS application.
: Reads out all contents in an auditory
fashion.
/ : Switches to the RSS.
2 Category
Select a service category.
3 SNS article list
Displays the contents selected in Category in
a new order.
Touching this starts the SNS application and
displays its contents.
When the latest information is displayed at the
top, sliding the list allows you to update the
information.
: Reads out the SNS contents in an auditory
fashion.
RSS Widget
Displays the RSS news.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Service panel.
3 Touch [ / ].
4 Select the RSS Widget.
1
2
3
1
: Starts the RSS application.
: Reads out all the contents in an auditory
fashion.
/ : Switches to the SNS.
2 Category
Select a service category.
3 RSS article list
Displays the contents selected in Category in
a new order.
Touching this starts the RSS application and
displays its contents.
When the latest information is displayed at the
top, sliding the list allows you to update the
information.
: Reads out the RSS contents in an auditory
fashion.
46
Return to the Top page
Widget and Application Operation
Facebook (SNS Application)
Displays the screen for using Facebook.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• To use a Facebook service, the corresponding
account is required.
• You can use a user account when you have
logged in the Owner or User.
ÑRegister an account
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (Facebook)].
6 Touch [Sign in].
7 Enter the Email address/Phone and
Password.
8 Touch [Log in].
ÑOperation
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (Facebook)].
6 Perform desired operation as follows.
1
2
1
: Create a new article.
: Posting the current place.
: Reads out all articles by voice.
: Terminates the application.
2 Article list
Displays an article or message.
Touching this displays details.
While the latest information is displayed at
the top, sliding the list down updates the
information.
: Reads out the article by voice.
47
Return to the Top page
Widget and Application Operation
7 Detailed article or message view.
2
1
1
: Votes as “Like”.
: Posts a comment.
2
: Deletes an article written by you. When the
confirmation screen appears, touch “Ok”.
: Reads the content of the comment by
voice.
: Returns to previous screen.
ÑMenu
1 Press the <MENU> button.
Article list view
Setting
Set an update interval.
Sign out
Logs out from the current account.
ÑAdd to post
Create an article to be posted to the SNS
service of the selected category.
1 Touch [ ] in the SNS application.
2 Create an article to post.
2
1
3
1
Enter an article to post.
: Enter a comment using the voice
recognition function. When “Speak now”
appears, speak the comment.
[Post] : Posts the article.
2
: Post photo.
: Returns to previous screen.
3
Select a fixed phrase.
48
Return to the Top page
Widget and Application Operation
Twitter (SNS Application)
Displays the screen for using Twitter.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• To use a Twitter service, the corresponding
account is required.
• You can use a user account when you have
logged in the Owner or User.
ÑRegister an account
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (Twitter)].
6 Touch [Sign in].
7 Enter the Username/email and
Password.
8 Touch [Authorize app].
ÑOperation
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (Twitter)].
6 Perform desired operation as follows.
1
2
1
: Create a new article.
: Posting the current place.
: Reads out all articles by voice.
: Terminates the application.
2 Article list
Displays an article or message.
Touching this displays details.
While the latest information is displayed at
the top, sliding the list down updates the
information.
: Reads out the article by voice.
49
Return to the Top page
Widget and Application Operation
7 Detailed article or message view.
2
1
1
: Create a reply.
: Create a ReTweet.
: Adds to Favorites.
2
: Delete the Tweet written by you.
: Reads the content of the comment by
voice.
: Returns to previous screen.
ÑMenu
1 Press the <MENU> button.
Article list view
Setting
Set an update interval.
Sign out
Logs out from the current account.
ÑAdd to post
Create an article to be posted to the SNS
service of the selected category.
1 Touch [ ] in the SNS application.
2 Create an article to post.
2
1
3
1
Enter an article to post.
: Enter a comment using the voice
recognition function. When “Speak now”
appears, speak the comment.
[Post] : Posts the article.
2
: Post current location.
: Returns to previous screen.
3
Select a fixed phrase.
50
Return to the Top page
Widget and Application Operation
E-mail (SNS Application)
Displays the screen for using E-mail (IMAP).
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• To use a email service, the corresponding account
is required.
• You can use a user account when you have
logged in the Owner or User.
ÑRegister an account
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (mail)].
6 Touch [Sign in].
7 Enter the Email and Password.
8 Touch [Next].
9 Enter the IMAP server ,Port and
Security type.
10
Touch [Next].
11
Enter the SMTP server ,Port and
Security type.
12
Touch [Done].
ÑOperation
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ SNS].
5 Touch [ (mail)].
6 Perform desired operation as follows.
1
2
1
: Create a new article.
: Reads out all articles by voice.
: Terminates the application.
2 Inbox list
Displays an article or message.
Touching this displays details.
While the latest information is displayed at
the top, sliding the list down updates the
information.
: Reads out the article by voice.
51
Return to the Top page
Widget and Application Operation
7 Detailed article or message view.
2
1
1
: Creates a reply mail.
: Creates a reply mail for all.
: Creates a forwarded mail.
2
: Deletes an article. When the confirmation
screen appears, touch “Ok”.
: Reads the content of the comment by
voice.
: Returns to previous screen.
ÑMenu
1 Press the <MENU> button.
Inbox list view
Setting
Set an update interval.
Account
Select the account and label to be displayed.
1 Select an account.
2 Select a label.
Add account
Register a new account.
Delete account
Delete a registered account.
Select the account to delete by putting a
checkmark, and then touch [OK].
ÑAdd to post
Create an article to be posted to the SNS
service of the selected category.
1 Touch [ ] in the SNS application.
2 Create an article to post.
2
1
3
1
: Sends the mail.
: Stores the mail temporarily.
: Deletes the mail.
: Enters the address of the meeting point
for Come Here function. See Come Here
function (P.28).
2
: Returns to previous screen.
3
Create a mail message to send.
: Enter a comment using the voice
recognition function. When “Speak now”
appears, speak the comment.
[Add Cc/Bcc] : Displays cc and Bcc.
52
Return to the Top page
Widget and Application Operation
RSS Application
Displays an RSS feed.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• You can use a user account when you have
logged in the Owner or User.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ (RSS)].
5 Perform desired operation as follows.
21
3
1
: Adds an RSS feed. See Add RSS feed
(P.53)
: Reads out all articles by voice.
: Terminates the application.
2 Category
Select the RSS feed to be displayed.
3 Article list
Display the article.
Touching this displays details.
While the latest information is displayed at
the top, sliding the list down updates the
information.
: Reads out the article by voice.
6 Detailed article view.
22
1
1
: Registers the RSS feed in the bookmark
of the Route Collector site. You can read it
later in the Route Collector site.
: Reads the content by voice.
: Returns to previous screen.
2
Moves to the previous or next article.
ÑMenu
1 Press the <MENU> button.
Article list view
Delete
Delete an RSS feed. See Delete RSS feed
(P.53)
Setting
Set the update interval. See RSS setup
(P.53)
53
Return to the Top page
Widget and Application Operation
ÑAdd RSS feed
Add an RSS feed.
1 Touch [ ] in the RSS application.
2 Select a category.
3 Touch [Add].
Note
• In order to add an selectable RSS feed, you need
to edit it in the Route Collector site.
See www.route-collector.com/
ÑDelete RSS feed
Delete an RSS feed.
1 Press the <MENU> button.
2 Touch [Delete].
3 Touch [Yes] to confirm.
ÑRSS setup
Performs setup when using RSS Application.
1 Press the <MENU> button.
2 Touch [Setting] in the Menu.
3 Select an option as follows.
Update interval
Set the information update interval.
54
Return to the Top page
Widget and Application Operation
Now playing Widget
Displays the information about the song or
station you are listening to, and allows you to
perform simple operations.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Media panel.
Media source such as CD or USB
4
3
2
1
1 (I'm listening)
You can post the information about the song
you are listening to, on twitter, Fecebook. See
Posting the information about the song you
are listening to (P.55).
2 Album art
Touching Album art displays the Source
control screen.
3 Information display
Displays the information (title, etc.) about the
song being played.
4
Allow you to stop playback temporarily and
select songs.
Radio source such as Radio, HD Radio
Technology or SiriusXM
4
3
2
1
1 (I'm listening)
You can post the information about the song
you are listening to, on twitter, Fecebook. See
Posting the information about the song you
are listening to (P.55).
The mark does not appear if there is no
information of the song.
2 Artwork
Touching artwork displays the Source control
screen.
3 Information display
Displays the band, frequency, etc.
Touching this displays the Preset list screen.
See Preset select (P.55).
4
Allows you to select a band and a station.
55
Return to the Top page
Widget and Application Operation
ÑPosting the information about
the song you are listening to
You can post the information about the song
you are listening to, on Twitter, Facebook, or
Route Collector site.
1 Touch [ ].
2 Create the information you want to
post.
1
2
3
1
Enter the information you want to post.
: Enter a comment using the voice
recognition function. When "Speak now" is
displayed, pronounce the comment.
[Post] : Posts the information.
2 Fixed phrase
Select the information about the song you are
listening to and a fixed phrase.
3
: Select the service on which you want to
post the information.
Select the service, and then touch [OK].
: Returns to previous screen.
ÑPreset select
1 Touch illustrated area.
2 Select a station or channel from the list.
56
Return to the Top page
Widget and Application Operation
Photo Frame Widget
You can display the photos stored in the USB
memory or SD card as a slide show.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Media panel.
2
1
1 Edit
Edit the photo to be displayed.
2 Picture
Sliding the photo vertically scrolls through
photos.
ÑSelect the photo you want to
display.
1 Touch [ ].
21
1
: Displays the screen for selecting the photo
to be added.
: Ends editing, and returns to the Photo
frame screen.
2 Thumbnail
Touch and hold the photo. When the photo
shaking, drag the photo to change the order.
: Deletes the photo from the list.
2 Touch [ ].
3 Select a picture.
4 Touch [ ].
57
Return to the Top page
Widget and Application Operation
Mixed Media Search
You can search media like USB,iPod for the
song by artist or album name and play it.
1 Touch [ ].
2 Select whether you search for the song
by artist name or album name
.
3 Enter the Artist or Album.
Enter the keyword using the voice recognition
function. When "Speak now" is displayed,
pronounce the keyword.
* You cannot use this function if you have not
registered the Owner account.
4 Select a Source.
The source changes and playback starts.
58
Return to the Top page
DVD/Video CD (VCD) Operation
DVD/VCD Basic Operation
Most functions can be controlled from the source control screen and playback screen.
NOTE
• Set the remote controller mode switch to DVD mode before starting operation, see Switching the operation
mode (P.151).
• The screen shot below is for DVD. It may be different from the one for VCD.
2
3
4
1
5
6
Playback screenControl screen
7
7
8
9
10
1 Information display
Displays the following information.
• Title #, Chap #: DVD title and chapter number display
• Track #/Scene #: VCD track or scene number display
*Scene # is displayed only when PBC is on.
• D, B, F, I, etc.: Current play mode display
The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward),
F (search up), E (search down), I (stop), IR (resume stop), H (pause), ½ (slow playback),
¼ (slow reverse playback).
Touch this area to display the disc label name.
2 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.60).
3 Multi function menu
Various functions can be operated using keys in this menu. For details on the keys, see Multi function
menu (P.60).
4 Control switching key
Unavailable in DVD/VCD source.
ñ
DVD/Video CD (VCD) Operation
59
Return to the Top page
DVD/Video CD (VCD) Operation
5 Sub function menu
The following functions can be performed by using keys in this area.
• Repeats the current content: Touch [ ]. Each time you touch the key, repeat mode switches in the
following sequence;
DVD: "title repeat" , "chapter repeat" , "function off"
VCD (PBC On): Does not repeat
VCD (PBC Off ): "track repeat" , "function off"
• Fast forward or fast backward: Touch [A] or [B]. Each time you touch the key, the speed
changes; standard, 2 times, 3 times.
• For confirmation of play time: See #:##:##.
DVD: You can switch the time display between title play time, chapter play time,
and title remaining time. Each time you touch, the display switches between
“T #:##:##” (title play time display), “C #:##:##” (chapter play time display), and “R
#:##:##” (title remaining time display).
As well as the time display, the bar indicating current location appears.
VCD (PBC off): You can also confirm disc remaining time by touching time display.
Each time you touch, the display switches between “P ##:##” (play time
display) and “R ##:##” (disc remaining time).
• For confirmation of current playing position:
See the bar in center (DVD only). The bar does not appear while the remaining time is
being displayed.
6 Movie display area
Touch to display Video screen.
7 Searching area
Touch to search the next/previous content.
Scrolling from center of display to left or right performs fast backward or fast forward. Each time you
touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch
center of the display.
8 Menu display area
This area functions differently depending on the current status.
• During DVD playback: Displays the Movie control screen. During the menu display, displays the
highlight control screen. See DVD Disc Menu Operation (P.61).
• During VCD playback: Displays the Movie control screen. See Zoom Control for DVD and VCD
(P.62).
9 Key display area
Touch to display the last control screen.
10 Screen setup display area
Touch and hold to display the screen control screen. See Monitor Screen Setup (P.128).
NOTE
• If you use a remote controller, you can jump directly to the desired video scene by entering the chapter number,
scene number, play time, etc Direct search mode (P.151).
60
Return to the Top page
DVD/Video CD (VCD) Operation
ÑMulti function menu
DVD VCD
The functions of each key are as follows.
[E] [F]
Searches the previous/next content.
[DH]
Plays or pauses.
[¼] or [½] (DVD only)
Plays in slow motion forward or backward.
[I]
Stops playback. When touched twice, the disc is played from the beginning when you play it the next
time.
[PBC] (VCD only)
Turn PBC on or off.
61
Return to the Top page
DVD/Video CD (VCD) Operation
DVD Disc Menu Operation
You can set up some items in the DVD-VIDEO
disc menu.
1 Touch illustrated area during playback.
Movie control screen appears.
2 Touch [Disc CTRL].
Menu Control screen appears.
3 Perform desired operation as follows.
Displays the top menu
Touch [Top].*
Displays the menu
Touch [Menu].*
Displays the previous menu
Touch [Return].*
Enters selected item
Touch [Enter].
Enables direct operation
Touch [Highlight] to enter the highlight control
mode. See Highlight control (P.61).
Moves the cursor
Touch [R], [S], [C], [D].
* These keys may not function depending on
the disc.
ÑHighlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1 Touch [Highlight] in the Menu Control
screen.
2 Touch desired item on the screen.
NOTE
• The highlight control is cleared automatically if
you do not operate for a constant time.
62
Return to the Top page
DVD/Video CD (VCD) Operation
ÑDVD Play Mode Setting
You can select DVD play mode.
1 Touch [Next] in the Menu Control
screen.
Menu Control 2 screen appears.
2 Touch the key which corresponds to
desired setting item.
Switches the subtitle language
Touch [Subtitle]. Each time you touch this key,
language is switched.
Switches the audio language
Touch [Audio]. Each time you touch this key,
language is switched.
Controls zoom ratio
Touch [Zoom]. For details, see step2 in Zoom
Control for DVD and VCD (P.62).
Switches the picture angle
Touch [Angle]. Each time you touch this key,
picture angle is switched.
Exits menu control
Touch [Exit].
Displays the Menu Control 1 screen
Touch [Previous].
Zoom Control for DVD and VCD
You can enlarge Playback screen for DVD and
VCD.
1 For VCD, touch illustrated area during
playback.
Movie control screen appears.
2 Touch [Disc CTRL].
Zoom Control screen appears.
NOTE
• For DVD, please refer to DVD Play Mode Setting
(P.62) to display the Zoom Control screen.
3 Perform desired operation as follows.
63
Return to the Top page
DVD/Video CD (VCD) Operation
Switches zoom ratio
Touch [Zoom].
For DVD, changes the zoom ratio at 4 levels;
Off, 2 times, 3 times, 4 times.
For VCD, changes the zoom ratio at 2 levels;
Off, 2 times.
Scrolls the screen
Touch [R], [S], [C], or [D] to scroll the screen
in the direction you touch.
Exits menu control
Touch [Exit].
Displays the previous menu*
Touch [Return].
* This function may not be performed
depending on the disc.
NOTE
• You cannot touch the menu keys directly on the
screen when zooming.
DVD Setup
You can set up the DVD playback functions.
1 Touch [ ].
Quick menu appears.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [DVD SETUP] in the list.
DVD SETUP screen appears.
5 Set each item as follows.
Menu/Subtitle/Audio Language*
See Language setup (P.64).
Dynamic Range Control*
Set the dynamic range.
Wide: The dynamic range is wide.
Normal: The dynamic range is normal.
Dialog (Default): Makes the total sound
volume larger than other
modes. This is effective only
when you are using Dolby
Digital software.
Angle Mark
Set an angle mark display.
ON (Default): An angle mark appears.
OFF: An angle mark does not appear.
Screen Ratio*
Set the screen display mode.
16:9 (Default): Displays wide pictures.
4:3 LB: Displays wide pictures in the Letter Box
format (having black stripes at the top
and bottom of screen).
4:3 PS: Displays wide pictures in the Pan &
Scan format (showing pictures cut at
the right and left ends).
Continued
64
Return to the Top page
DVD/Video CD (VCD) Operation
Parental Level*
See Parental level (P.65).
DISC SETUP
See Disc setup (P.65).
Stream Information
Displays the present source information.
The stream (Dolby Digital, Linear PCM, MPEG,
WMA or AAC) appears.
* These items are disabled when a DVD is
being played.
ÑLanguage setup
This setting is for the language used in the
menu, subtitle, and voice. You cannot setup
these items during DVD playback.
1 Touch [SET] of the desired item;
[Menu Language], [Subtitle Language],
[Audio Language].
Language Set screen appears.
2 Enter the desired language code and
touch [Enter].
For language code, refer to DVD Language
Codes (P.164).
Sets the entered language and returns to
the DVD SETUP screen.
NOTE
• To cancel the setup and return to the previous
screen, touch [Cancel].
• To clear the entered code, touch [Clear].
• To set the DVD’s original language for audio
language, touch [Original].
65
Return to the Top page
DVD/Video CD (VCD) Operation
ÑParental level
Set a parental lock level to prohibit children
to watch video. You cannot set a parental
lock level during DVD playback.
1 Touch [SET] of [Parental Level].
Parental Pass screen appears.
2 Enter the parental code and touch
[Enter].
Parental Level screen appears.
NOTE
• To cancel the setup and return to the previous
screen, touch [Cancel].
• To clear the entered code, touch [Clear].
• Current parental lock level appears as [Level#].
3 Touch [C] or [D] to select a parental
lock level.
NOTE
• If a disc has higher parental lock level, you need
to enter the code number.
• The parental lock level varies depending on a
loaded disc.
• If a disc has no parental lock, anybody can play it
even though you have set the parental lock.
ÑDisc setup
Performs setup when using disc media.
1 Touch [SET] of [DISC SETUP].
DISC SETUP screen appears.
2 Select an option as follows.
CD Read
Sets the motion of this unit when a music CD
is played.
1 (Default): Automatically recognizes and plays
an audio file disc, a DVD or a music CD.
2: Forcibly plays a disc as a music CD. Select [2]
if you wish to play a music CD having a special
format or if you cannot play a disc with the
option [1] set..
On Screen DVD
Sets an on-screen display.
Auto: When updated, information appears for
5 seconds.
OFF (Default): Information does not appear.
NOTE
• [CD Read] is disabled when a disc is already in
the unit.
• You cannot play an audio file/VCD disc with the
option [2] set. Also, you may not play some music
CDs with the option [2] set.
66
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Music/Video Basic Operation
Most functions can be controlled from the source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation
mode (P.151).
• To connect the Android device with this unit, the cable (sold separately) and the profile which your Android
device supports are necessary as follows:
A To listen to music and watch video of APPS source
−MHL device
−KCA-MH100
−Bluetooth profile: SPP
−Application link setup: HDMI/MHL + BT
B To listen to music of APPS source
−Bluetooth profile: A2DP
−Bluetooth profile: SPP
−Application link setup: Bluetooth
C To listen to music of Bluetooth Audio source (P.119)
−Bluetooth profile: A2DP
−Bluetooth profile: AVRCP
• To connect the iPod/iPhone with this unit, the cable, adapter (both sold separately), and the profile which your
iPod/iPhone supports are necessary as follows:
A To listen music and watch video with Lightning connector device
−Lightning Digital AV Adapter
−KCA-HD100
−KCA-iP103
−Bluetooth profile: SPP
−iPod connection setup: HDMI + BT
B To listen music with Lightning connector device
−KCA-iP103
−iPod connection setup: USB 1Wire
C To listen music and watch video with 30-pin connector device (analog)
−KCA-iP202
−iPod connection setup: USB + AV-IN
D To listen music with 30-pin connector device
−KCA-iP102
−iPod connection setup: USB 1Wire
E To listen to music via Bluetooth
−Bluetooth profile: A2DP
−Bluetooth profile: SPP
−iPod connection setup: Bluetooth
F To listen to music of Bluetooth Audio source (P.119)
−Bluetooth profile: A2DP
−Bluetooth profile: AVRCP
• When connecting with Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter some applications can be
controlled from this unit. The operable functions depend on the application.
• Do not leave the cable or the adapter made by other makers inside the car. It might lead the malfunction caused
by heat.
• Some settings are necessary to meet the connected iPod/iPhone or Android device. See iPod/iPhone
connection setup (P.83) or Application link setup (P.84).
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
A
B
A
B
C
D
E
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
HOME 6
A
B
A
B
C
D
E
ñ
CD/Audio and Visual Files/iPod/Apps Operation
67
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
See the following sections for each source operation.
• Music CD (P.67)
• Disc media (P.67)
• USB device (P.69)
• SD Card (P.69)
• iPod (P.69)
• Pandora (P.77)
• Apps (P.80)
ÑMusic CD and disc media
NOTE
• In this manual, “Music CD” will be referred to as the general CDs which include music tracks in.
“Disc media” will be referred to as CD/DVD disc which includes audio, picture or video files.
• The screen shot below is for CD. It may be different from the one for disc media.
2
6
2
7
Simple Control screen List Control screen
1
7
3
3
4
4
5
8
1 Information display
Displays the following information.
• Track #: Each time you touch this area, display switches between current track number, text, etc.
• D, B, F, I, etc.: Current play mode display
The meanings of each icon are as follows; D (play), B (fast forward), A (fast
backward), F (search up), E (search down), I (stop), IR (resume stop), H
(pause).
2 Movie display area/Control switching area
Touch to switch between the Simple Control and List Control screen. (Only for Music file)
Touch to display Video screen. (Only for Video file)
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.70).
4 Multi function menu
Various functions can be performed by using keys in this area. For details on the menu, see Multi
function menu (P.70).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Track information
Displays the information of the current track.
For disc media, you can switch the current track information and the current folder list by touching the
list switching key (8 in this table).
Continued
68
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.71).
8 Sub function/ List switching key
Touch to display “Sub function menu” (7 in this table).
Touch and hold to switch between the track list and the ID3 tag information (disc media only).
Playback screen (disc media only)
9
9
10
11
12
9 Searching file area (disc media only)
Touch to search the next/previous file.
Scrolling from center of display to left or right performs fast backward or fast forward. Each time you
touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch
center of the display.
10 Menu display area (disc media only)
Touch to display the Control screen. For details, see Movie Control (P.76).
11 Key display area (disc media only)
Touch to display the last control screen.
12 Screen setup display area
Touch and hold to display the screen control screen. See Monitor Screen Setup (P.128).
69
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑUSB device, SD card and iPod
NOTE
• SD card is for DNN992 only.
• The screen shot below is for USB device. It may be different from the one for iPod and SD card.
2
6
2
7
Simple Control screen List Control screen
1
7
3
3
4
4
5
8
1 Information display
Displays the following information.
• Current file name: Each time you touch this area, display switches between file number/folder
number and file name.
• D, B, etc.: Current play mode display
The meanings of each icon are as follows; D (play, searching), H (pause), B (forward
manual search), A (reverse manual search).
2 Artwork/Control switching area
Touch to switch between the Simple Control and List Control screen. (Only for Music file)
Touch to display Video screen. (Only for Video file)
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.70).
4 Multi function menu
Various functions can be performed by using keys in this area. For details on the keys, see Multi
function menu (P.70).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Content list
Displays the list and content. The content of the list differ depending on the playback status and
source.
When you select the video source on the device connected with the Lightning connecter, the source is
switched to Apps (P.80) automatically.
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.71).
8 Sub function/ List switching key
Touch to display “Sub function menu” (7 in this table).
Touch and hold to switch between the file list and the current file information.
Continued
70
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Playback screen
9
9
10
11
12
9 Searching file area (Video file only)
• Touch to search the next/previous file.
• Scrolling from center of display to left or right performs fast backward or fast forward. To stop fast
backward/forward, touch center of the display. This function is not available when there is no music
file in the current folder.
10 Movie control display area
Touch to display the Movie control screen. For details, see Movie Control (P.76).
11 Key display area (Video file only)
Touch to display the last control screen.
12 Screen setup display area
Touch and hold to display the screen control screen. See Monitor Screen Setup (P.128).
ÑMulti function menu
Music CD
iPod
Disc media
USB device and SD card
The following functions can be performed by using keys in this area.
[ ] (Only for disc media, iPod, USB device, and SD card)
Searches track/file. For details on search operation, see Search Operation (P.72).
[E] [F]
Searches the previous/next track/file.
[L]
Plays or pauses.
[I] (Only for music CD and disc media)
Stops playback.
[G] (Only for iPod, USB device, and SD card)
Touch to disconnect the device. For details, see How to Play Media (P.18).
[ ] [ ] (Only for disc media, USB device, and SD card)
Searches previous/next folder.
71
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑSub function menu
Music CD
iPod
Disc media
USB device and SD card
The following functions can be performed by using keys in this area.
[ ]
Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following
sequence;
CD: "track repeat" , "repeat off"
iPod: "song repeat" , "all songs repeat" , "repeat off"
Disc media, USB device, SD card: "file repeat" , "folder repeat" , "repeat off"
[ ] (Only for iPod, USB device, and SD card)
Searches track from the album artwork list. For details on search operation, see Search from album
artwork (P.74).
[A] [B] (Only for music CD and disc media)
Fast forward or fast backward.
[ ] [ ] (Only for iPod, USB device, and SD card)
Plays the previous or next album in Favorite list (P.75).
#:##:## or ##:##
For confirmation of play time.
During music CD playback, you can also confirm disc remaining time by touching time display.
Each time you touch, the display switches between “P ##:##” (track play time display) and “R ##:##” (disc
remaining time).
[ ]
Randomly plays all tracks in current folder/disc or in current playlist in the connected iPod.
Each time you touch the key, random mode switches in the following sequence;
CD: "track random" , "random off"
Disc media, USB device, SD card: "file random" , "random off"
iPod: "track random" , "album random" , "random off"
Status bar in center (Only for iPod, USB device, and SD card)
For confirmation of current playing position.
During USB device and iPod playback, you can drag the circle left or right to change the playing
position.
72
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Search Operation
You can search music or video files by the
following operations.
NOTE
• If you use a remote controller, you can jump
directly to the desired track/file with entering the
track/folder/file number, play time, etc. For details,
see Direct search mode (P.151).
ÑList search
You can search tracks, folders, and files
according to hierarchy.
1 Touch illustrated area.
List Control screen appears.
2 Touch desired track/file.
Playback starts.
NOTE
• For disc media, you can switch the file list and
folder list by touching [ ].
• For disc media, you cannot display the list during
random play and stop.
ÑOther search
There are other search methods in order to
narrow search for a song.
This function is not available when music CD
is the current source.
1 Touch [ ] in the control screen.
The search type screen appears.
2 Touch desired search method.
USB device and SD card
iPod
The list sorted in the way you selected
appears.
See the following sections for each
operation.
• [Category List]: You can search a file by
selecting category (P.73).
• [Link Search]: You can search a file of
same artist/album/genre/composer as the
current track (P.73).
• [Folder List]: You can search a file according
to hierarchy (P.74).
NOTE
• For disc media, you can display the folder list
directly by touching [ ].
73
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Category search (Only for iPod, USB
device, and SD card)
1 Touch the desired category from the
left part of the screen.
2 The list is sorted by selected category.
3 Touch desired song.
Playback starts.
NOTE
• To narrow the search you can select a letter from
the alphabet list in the center of the display.
• For operations in the list screen, see Common
Operation (P.24).
Link search (Only for iPod, USB device,
and SD card)
1 Touch the desired link from the left
part of the screen. You can select from
artist, album, genre and composer.
The link list corresponding to your
selection appears.
NOTE
• The list is sorted by the way you selected.
–Artist: Displays the album list of the artist.
–Album: Displays all tunes of the current album.
–Genre: Displays the artists list in which artists
belong to the same genre.
–Composer: Displays the album list of the
composer of the current file.
2 Touch to select desired item in the
list. Repeat this step until you find the
desired file.
NOTE
• To narrow the search you can select a letter from
the alphabet list in the center of the display.
• For operations in the list screen, see Common
Operation (P.24).
74
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Folder search (Only for disc media,
USB device, and SD card)
1 Touch the desired folder.
Folders in the selected source are displayed
in the center.
When you touch a folder its contents are
displayed.
The hierarchy till the current folder is
displayed on the left.
2 Touch desired item from the content
list.
Playback starts.
NOTE
• For operations in the list screen, see Common
Operation (P.24).
ÑSearch from album artwork
(Only for iPod, USB device, and
SD card)
You can search music files by selecting the
album artwork.
1 Touch [ ].
Sub function menu appears.
2 Touch [ ].
Favorite screen appears.
3 Touch desired artwork in the upper
line.
NOTE
• The key in the upper side of the screen functions
differently depending on the status.
–When [Load Albums] appears:
You have not yet loaded any artwork. Touch the
key to start loading.
–When [Load More Albums] appears:
Some artwork are not loaded. Touch the key to
load all artwork. If you touch the key, the track
being played may stop and another track may
start playback.
–When the key does not available:
All artwork are already loaded.
75
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
4 Touch [ D ] on the selected artwork.
The first song in the album is played.
In addition, you can create your original
playlist from this screen. For details, see
Favorite list (P.75).
NOTE
• After all tracks in the album are played, the same
album is played again from the first track.
• The albums with no photo are not displayed.
Favorite list
You can create an original playlist of your
favorite 10 albums by selecting album
artworks.
1 Touch and drag the desired album
artwork in the upper line to the lower
line.
Selected album is registered to the favorite
list.
NOTE
• The added album is placed on farthest right.
• You cannot register the same album already
registered to the favorite list.
• Up to 10 albums can be registered to the list.
2 Touch the desired artwork in the
favorite list.
The selected album is played and the
control screen appears.
NOTE
• The favorite list is played to the right starting with
the selected album.
• To delete the album from the favorite list, touch
and drag it to the upper line.
• You can change the playing order of the favorite
list by dragging the artwork in the list.
• The favorite list mode is canceled in the following
situations.
–Playing another album from other list (folder list,
category list, etc.)
–Playing another album by touching the artwork
in the upper line in the artwork list screen.
• The favorite list mode resumes after
disconnecting/connecting the device or turning
on/off. File being played, playing time code,
favorite list content, favorite list order, etc.
resumes if file configuration of the device is not
changed.
76
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Movie Control
You can adjust the movie playback.
1 In the playback screen, touch
illustrated area.
Movie control screen appears.
2 Touch [Disc CTRL]. (Disc media only)
Movie Control screen appears.
3 Perform desired operation as follows.
Changes subtitle language
Touch [Subtitle].
Changes audio language
Touch [Audio].
Exits the menu
Touch [Exit].
77
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Pandora® Operation
You can listen to the Pandora® on this unit by controlling the application installed in the iPhone,
Android or BlackBerry.
NOTE
• Install the latest version of the Pandora® application on your iPhone, Android or BlackBerry. (P.170)
iPhone: Search for "Pandora" in the Apple App Store to find and install the most current version.
Android: Visit the Google Play and search for Pandora to install.
BlackBerry: Visit www.pandora.com from the built in browser to download the Pandora application.
• When you first select Pandora as a source, the setting screen for the connection with the device installed the apps
will appear. For the details, refer to Application link setup (P.84).
1 Press the <HOME> button.
2 Flick the screen left or right to select the Source launcher panel.
3 Touch [ ].
4 Touch [ Pandora].
2
6
2
7
Simple Control screen List Control screen
1
7
3
3
4
4
5
8
1 Information display
Displays text information of current content that is being played.
2 Artwork/Control switching area
The artwork is displayed if available from current content. When the artwork is not available, “No Photo”
is displayed.
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.78).
4 Multi function menu
Various functions can be performed by using the keys in this area. For details on the keys, see Multi
function menu (P.78).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Content information
Displays the information of the current content being played.
Continued
78
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑMulti function menu
The following functions can be performed by
using keys in this area.
[ ]
Searches the station. For details on searching,
see Station list screen (P.79).
[ ] (Thumbs down)
Thumbs down to the current track and skip to
the next track.
[ L ]
Plays or pauses the content of the current
station/channel.
[ F ]
Skips the current track.
(Note this function is disabled when the
Pandora skip limitation is exceeded.)
[ ] (Thumbs up)
Registers the current content as favorite
content.
[
] (Bookmark Artist)
Bookmark an artist in the current content.
[ ] (Bookmark track)
Bookmark a track in the current content.
ÑSub function menu
The following functions can be performed by
using keys in this area.
Status bar in center
Displays the elapsed time since when you
select the station and status bar which shows
current location.
[ ]
Creates a new station based on an artist being
played.
[ ]
Creates a new station based on a track being
played.
[ ]
Displays the genre list screen. For details on
searching, see Genre list screen (P.79).
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.78).
8 Sub function/ List switching key
Touch to display “Sub function menu” (7 in this table).
Touch and hold to switch between the content list and the current content information.
79
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑGenre list screen
You can perform the following functions
from this screen.
The selected genre is created as a new
station.
ÑStation list screen
You can perform the following functions
from this screen.
Selects the station
Touch the station name in the list.
Sort the list in alphabetical order
You can select the desired letter from the list
which corresponds to the station name to help
narrow the search.
Display the genre list
Displays the genre list.
Sort the list by date
Touch [ByDate]. The list is sorted to begin with
the last registered station.
NOTE
• You can operate Pandora by using the remote
controller. However, only playing, pausing, and
skipping are available.
• You cannot select iPod as rear source when
you select Pandora as main source in dual zone
function.
80
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
Apps Operation
You can listen to music or watch video from the Apps operating on iPod touch/iPhone or Android.
NOTE
• When you first select APPS as a source, the setting screen for the connection with the device installed the apps
will appear. For the details, refer to Application link setup (P.84).
• If the conditions below are satisfied, the touch keys will not appear, but the touch operation from the screen of
the unit to the Android device becomes possible.
–The unit and the Android device are connected with KCA-MH100 (sold separately) and over Bluetooth profile
HID and SPP.
–To enable the touch operation on this unit, install "Kenwood Smartphone Control" and start it.
Search for "Kenwood Smartphone Control" in Google play to find and install the most current version.
For details, see web site. http://www.kenwood.com/products/car_audio/app/kenwood_smartphone_
control/eng/index.html
–If you drive using an app that is prohibited from using while driving,
the confirmation screen appears. As you select [Yes], the launcher of
"Kenwood Smartphone Control" starts.
• Depending on the app, the touch keys may not work or be displayed.
• When you turn on the power and select apps as the source, the caution
for the operation, watching video and listening music appears. With your
acceptance, you can control apps, listen to music and watch video from
apps when you are driving.
1 Press the <HOME> button.
2 Flick the screen left or right to select the Source launcher panel.
3 Touch [ ].
4 Touch [ APPS].
When the touch keys appear When the touch operation is
possible
1
2
1
2
3
3
1 [D] [H] (iPod only) / [L]
Plays or pauses.
2 [E] [F]
Searches the previous/next file.
Touch and hold to fast backward/ forward. (iPod/ iPhone only)
3 Key display area
Touch to display the operation buttons. Touch again to erase them.
81
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
USB/SD/iPod/App/DivX Setup
You can perform setup when using USB/SD/
iPod/ App/ DivX.
1 Touch [ ].
Quick menu appears.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [USB SETUP], [iPod SETUP], [APP
SETUP] or [DivX VOD] in the list.
Each setup screen appears.
See the following section for each setting.
• USB setup (P.82)
• iPod setup (P.82)
• App setup (P.84)
• DivX® VOD (P.81)
ÑDivX® VOD
1 Set each item as follows.
DivX(R) Registration Code
Checks the registration code. This code is
needed when making a disc which has DRM
(Digital Rights Management).
DivX(R) Deactivation
Deregisters the unit which is already registered.
After you touch the key, a confirmation
message appears. Follow the message and
complete the operation.
NOTE
• [DivX(R) Registration Code] is disabled when a
DVD is being played.
• When downloading a DivX VOD file controlled
by DRM, register the code appeared on the
screen. Otherwise the file may not be able to play
with this unit. Remaining number of viewing is
displayed when playing a DivX VOD file with the
viewing restriction. When the remaining number
of viewing reached 0, a warning message appears
and the file cannot be played.
82
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑUSB setup
1 Set each item as follows.
On Screen USB
Set how information from a USB device or SD
is displayed.
Auto (Default): Information appears for 5
seconds when updated.
OFF: Does not display any information.
ÑiPod setup
1 Set each item as follows.
AudioBook Speed
Set the audio book playback speed. Select
from [Slow], [Normal] (default), and [Fast].
Wide Screen*1
Set Wide Screen. Set [ON] (default) or [OFF].
On Screen iPod
Set how to display the information of the iPod.
Auto (Default): Information appears for 5
seconds when updated.
OFF: Does not display any information.
iPod Connection Setup*2
Sets the way to connect the iPod/iPhone with
this unit.
*1 This setting is not available when an iPod
is connected.
*2 This item can be set when in STANDBY
source.
83
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
iPod/iPhone connection setup
1 Press the <HOME> button twice to the
Source launcher panel.
2 Touch [ ].
3 Touch [ STANDBY].
4 Touch [ ].
5 Touch [SETUP].
6 Touch [Source].
7 Touch [iPod SETUP].
8 Touch [iPod Connection Setup] in the
iPod SETUP screen.
iPod connection setup screen appears.
9 Touch [CHANGE].
10
Set each item as follows.
USB + AV-IN
Select when connecting with KCA-iP202.
USB 1Wire
Select when connecting with KCA-iP103 or
KCA-iP102.
HDMI + BT
Select when connecting with KCA-HD100 and
Lightning Digital AV Adapter.
Bluetooth
Select when connecting via Bluetooth only.
11
Touch [Next].
Confirmation screen appears.
12
Touch [Done].
13
Touch [6].
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video Basic Operation (P.66).
• When you select “HDMI + BT” or “Bluetooth” in
step 10, Bluetooth device selection screen will
appear. Select the iPod/iPhone to be connected.
• If a connectable Bluetooth device is not
displayed, touch [Search] and do the pairing of
the devices.
• The setting of “iPod connection setup” is just for
the unit and regardless of the account.
84
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
ÑApp setup
1 Set each item as follows.
APP Settings*
Makes the detailed setting of the device in
which APPS are installed.
Screen Control
Touch [SET] to display the screen control
screen. See Monitor Screen Setup (P.128).
* This item can be set when in STANDBY
source.
Application link setup
1 Press the <HOME> button twice to the
Source launcher panel.
2 Touch [ ].
3 Touch [ STANDBY].
4 Touch [ ].
5 Touch [SETUP].
6 Touch [Source].
7 Touch [APP SETUP].
8 Touch [SET] on [APP Settings] in the
APP SETUP screen.
Application link setup screen appears.
9 Touch [CHANGE].
10
Select the device installed the apps.
iPod/iPhone
Select when using iPod/iPhone.
Android/Other
Select when using Android or BlackBerry
device.
11
Touch [Next].
85
Return to the Top page
CD/Audio and Visual Files/iPod/Apps Operation
12
Select the way to connect the device
with this unit.
When selecting [iPod/iPhone]
USB + AV-IN
Select when connecting with KCA-iP202.
USB 1Wire
Select when connecting with KCA-iP103 or
KCA-iP102.
HDMI + BT
Select when connecting with KCA-HD100 and
Lightning Digital AV Adapter.
Bluetooth
Select when connecting via Bluetooth only.
When selecting [Android/Other]
HDMI/MHL + BT
Select when connecting with KCA-MH100.
Bluetooth
Select when connecting via Bluetooth only.
13
Touch [Next].
Confirmation screen appears.
14
Touch [Done].
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone and Android device,
refer to Music/Video Basic Operation (P.66).
• When you select “HDMI + BT”, “HDMI/MHL +
BT” or “Bluetooth” in step 12, Bluetooth device
selection screen will appear. Select the device to
be connected.
If a connectable Bluetooth device is not
displayed, touch [Search] and do the pairing of
the devices.
• When you select “iPod/iPhone” in App Setup,
select “iPod”as the source, and select App on the
iPod, the source of this unit is also changed to
App automatically.
• The setting of “Application link setup” is just for
the unit and regardless of the account.
86
Return to the Top page
Cloud Storage Operation
Starting procedure
Make preparations for allowing this unit to
play the music files uploaded to Dropbox.
Preparation
• You must have a connection with the internet.
See Network Setup (P.32).
• You can use a user account when you have
logged in the Owner or User.
• To use this service, a Dropbox account is required.
1 Upload music files to Dropbox.
2 In the Route Collector site, create a
folder and playlist of the files to be
played.
For how to set the folder and playlist of the
files to be played, refer to the website.
http://www.route-collector.com/
Available content
Content that can be delivered or played by
this unit are as follows:
• Audio file: MP3 (.mp3), AAC-LC (.m4a/ .aac), WMA
(.wma), WAV (.wav), FLAC (.flac)
• Copyrighted content cannot be played.
Music Basic Operation
The music files uploaded to Dropbox can be
played.
Preparation
• To play the files uploaded to Dropbox, setting is
required. See Starting procedure (P.86).
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Source launcher panel.
3 Touch [ ].
4 Touch [ Storage].
[L]
Plays or pauses.
[E] [F]
Searches the previous/next file.
[ ]
Searches file. For details on search operation,
see Category search (P.87).
[ ]
The data base like the song information in the
server is reorganized. Press it when you change
the file in the Dropbox.
[ ]
Touch to display “Sub function menu”.
Touch and hold to switch between the file list
and the current file information.
[ ]
Repeats the current file. Each time you touch
the key, repeat mode switches on or off.
ññ
CloudñStorageñOperation
87
Return to the Top page
Cloud Storage Operation
[ ]
Randomly plays all files in current folder or in
current playlist.
Each time you touch the key, random mode
switches in the following sequence;
"file random" , "random off"
#:##:##
For confirmation of play time.
Status bar in center
For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
Category search
You can search music files by the following
operations.
1 Touch [ ] in the control screen.
The search type screen appears.
2 Touch the desired category from the
left part of the screen.
3 The list is sorted by selected category.
4 Touch desired music file.
Playback starts.
NOTE
• To narrow the search you can select a letter from
the alphabet list in the center of the display.
• For operations in the list screen, see Common
Operation (P.24).
88
Return to the Top page
Kenwood Wireless Link Operation
Starting procedure
By using the Wi-Fi function, media files can
be shared with another media server device
or client (player) device.
Preparation
• Turn on the function of Wi-Fi connection to a
media server device or client device.
About Network connection
There are two types of network to connect to
the media server device or the client (player)
device.
• Wi-Fi access: The internet device that becomes the
Wi-Fi access point is necessary. Smartphone and
tablet PC can be connected through the Wi-Fi access
point. See Wi-Fi Setup (P.32).
–You cannot listen to music or watch video in the
smartphone when its tethering function is in use.
Wireless Link
HOME 6
DNN
HOME 6
DNN
Wi-Fi
Wi-Fi
Wi-Fi access point
• Wi-Fi hotspot: This unit becomes the Wi-Fi access
point and can connect with smartphone and tablet
PC. See Wi-Fi Hotspot Setup (P.34).
HOME 6
DNN
HOME 6
DNN
Wi-Fi
Wi-Fi
Wi-Fi access point
Wireless Link
Media Server function
Plays the content stored in the USB memory
or SD card connected to this unit via another
network media player (client device).
• We confirmed normal operation using the following
network media players (software):
• Windows Media Player 12
Media Player function
Plays the content stored in another media
server device via this unit.
• We confirmed normal operation using the following
media servers (software):
• Windows Media Player 12
Media Controller function
Allows you to handle the content stored in
another media server device via this unit and
play them on another network media player
(client device).
Media Renderer function
Plays the content being operated on another
media controller through this unit.
Available content
Content that can be delivered or played by
this unit are as follows:
• Audio file: MP3 (.mp3), AAC-LC (.m4a/ .aac), WMA
(.wma), WAV (.wav), FLAC (.flac)
• Video file: MPEG-1/2 (.mpg/ .mpeg/ .m2p), MPEG-4
(.mp4/ .m4v), WMV (.wmv/ .m2ts), MKV
(.mkv)
• Copyrighted content cannot be played.
ñ
Kenwood Wireless Link Operation
89
Return to the Top page
Kenwood Wireless Link Operation
Media Server function
Plays the content stored in the USB memory
or SD card connected to this unit via another
network media player (client device).
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Source launcher panel.
3 Touch [ ].
4 Touch [ Wireless Link].
5 Touch [DMS].
The server function is turned on.
6 Connect from the client device.
Operate the client device to connect to the
server.
Server name: DNN992 or DNN9150BT.
Media Player function
Plays the content stored in another media
server device via this unit.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Source launcher panel.
3 Touch [ ].
4 Touch [ Wireless Link].
5 Connect to the media server.
A list of detected media servers is
displayed.
Touch the server name of the server to
connect.
6 Select the content to play.
Select the category of the content to play.
A list of detected content is displayed.
90
Return to the Top page
Kenwood Wireless Link Operation
ÑPlays screen
[L]
Plays or pauses.
[E] [F]
Searches the previous/next file.
[ ]
Repeats the current file. Each time you touch
the key, repeat mode switches on or off.
[ ]
Switches between music and video files.
#:##:## or ##:##
For confirmation of play time.
Status bar in center
For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
[ ]
Touch to display “Sub function menu”.
Touch and hold to switch between the file list
and the current file information.
Media Controller function
Allows you to handle the content stored in
another media server device via this unit and
play them on another network media player
(client device).
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Source launcher panel.
3 Touch [ ].
4 Touch [ Wireless Link].
5 Connect to the media server.
A list of detected media servers is
displayed.
Touch the server name of the server to
connect.
6 Select a network media player to be
used for playback.
A list of detected network media players is
displayed.
Touch the name of the network media
player to be used for playback.
91
Return to the Top page
Kenwood Wireless Link Operation
Media Renderer function
Plays the content being operated on another
media controller through this unit.
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Source launcher panel.
3 Touch [ ].
4 Touch [ Wireless Link].
5 Touch [DMR].
The Rendering function is turned on.
6 Establish connection from the media
controller.
Operate the media controller to connect to
this unit.
This unit:DNN992 or DNN9150BT.
92
Return to the Top page
Radio, HD Radio™ tuner Operation
About HD Radio™ Technology
This HD Radio receiver enables:
• Program Service Data provides song name, artist,
station ID, and other relevant data streams
• Adjacent to traditional main stations are HD2/HD3
Channels, providing new original formats on the
FM dial
• Bookmark is a music & product discovery feature
that enables users to store information about
content on the radio and delivers interactive
information via QR codes
• HD Radio broadcasts deliver crystal clear, CD-like
digital audio quality to consumers
• Visual images, such as album art of over-the-air
broadcasts from HD Radio stations
ñ
Radio, HD Radio™ tuner Operation
93
Return to the Top page
Radio, HD Radio™ tuner Operation
Radio/ HD Radio tuner Basic Operation
Most functions can be controlled from the source control screen.
NOTE
• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation
mode (P.151).
• HD Radio broadcasting can be received only by the DNN992.
• HD Radio broadcasting is for North American sales area only.
• The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.
Simple Control screen List Control screen
2
6
2
7
1
7
3
3
4
4
5
8
1 PS/Station name display
Displays the PS name or station name.
2 Information display/Control switching area
Displays the following information.
• Picture: The picture data or station Logo data is displayed if available from current content.
• [FM1] etc.: Band display
• MHz/kHz: Frequency display
• Preset #: Preset number
• HD# (HD Radio tuner only): Channel display
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.94).
4 Preset key/Multi function menu
Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving
station or channel in memory.
When switched, various functions can be performed by using keys in this area.
For details on the menu, see Multi function menu (P.94).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
Continued
94
Return to the Top page
Radio, HD Radio™ tuner Operation
6 Preset list
Displays the list of preset stations or channels and the information.
7 Sub function menu
The following functions can be performed by using keys in this area.
• Switches the band: Touch [AM] or [FM].
• Tunes in a station: Touch [E] or [F]. The method of frequency switching can be changed. See
Seek mode.
• Selects a channel (HD Radio tuner only): Touch [CH S] or [CH R].
• Stores the information about the song being received: Touch [ ]. See Bookmark (P.98).
• Tunes in by entering direct number (HD Radio tuner only):
Touch [ ] and enter the desired number. For details, see Direct search (P.96).
The bar in center (tuner only) shows the current frequency location.
8 Sub function/ List switching key
Touch to display “Sub function menu” (7 in this table).
Touch and hold to switch between the preset list and the information list.
In HD Radio tuner mode, tuned program information will be displayed.
ÑMulti function menu
The functions of each key are as follows.
[P1] - [P6]
Select the preset station. Touch for 2 seconds to store the current station into the preset memory.
[ ]
Select search method from preset station selection, channel selection or bookmark selection. For
details on search operation, see Selecting Operation (P.95), Bookmark (P.98).
[TI] (FM Tuner and HD Radio tuner only)
Sets the traffic information mode on. For details, see Traffic Information (P.97).
[SEEK]
Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].
• AUTO1: Tunes in a station with good reception automatically.
• AUTO2: Tunes in stations in memory one after another.
• MANUAL: Switches to the next frequency manually.
[AME]
Selects the auto memory mode. For details, see Auto memory (P.95).
[RCV] (HD Radio tuner only)
Switches the receive mode in the following sequence; [AUTO], [DIGITAL], [ANALOG]. For details, see
Receive Mode (P.98).
[PTY] (FM Tuner and HD Radio tuner only)
Searches a program by setting program type. For details, see Search by program type (P.96).
95
Return to the Top page
Radio, HD Radio™ tuner Operation
Memory Operation
ÑAuto memory
You can automatically store stations with
good reception to memory.
NOTE
• Auto memory terminates when 6 stations are
stored or when all stations are tuned in.
• Auto memory ends automatically if you do not
operate within 10 seconds.
1 Touch [ ].
Sub function menu appears.
2 Touch desired band key.
3 Touch [ ] in the control screen.
The multi function menu appears.
4 Touch [AME] in the multi function
menu.
5 Touch [A] or [B] in the sub function
menu.
Auto memory starts.
ÑManual memory
You can store the current receiving station or
channel in memory.
1 Select a station or channel you wish to
store in memory.
2 Touch [P#] (#:1-6) in which you want
to store the station or channel for 2
seconds until a beep sounds.
Selecting Operation
ÑPreset select
You can list and select memorized station or
channel.
Selecting from the multi function
menu
1 Touch the desired number from P1 to
P6.
The unit will tune to the selected station or
channel.
Selecting from the preset list
1 Touch illustrated area.
List Control screen appears.
2 Touch and hold [ ].
Preset list appears.
3 Select a station or channel from the list.
NOTE
• Touching [ ] and then [Preset List] displays
the preset channel list. You can also select your
desired channel from the list.
96
Return to the Top page
Radio, HD Radio™ tuner Operation
ÑSearch by program type
You can tune to a station with a specific
program type when listening to FM.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [PTY] in the multi function menu.
TUNER PTY Mode screen appears.
3 Select a program type from the list.
4 Touch [Search].
You can search a station of the selected
program type.
ÑDirect search
(HD Radio tuner only)
You can tune in by entering the desired
frequency or channel number.
1 Touch [ ].
10Key Direct screen appears.
2 Enter the frequency/ channel number
and touch [Enter].
NOTE
• To cancel the direct search, touch [Cancel].
• To clear the number you entered, touch [Clear].
• For HD Radio tuner, you can search by frequency.
Each time you touch [Mode] in the left part of the
screen, it changes the mode between frequency
entering mode and channel entering mode.
97
Return to the Top page
Radio, HD Radio™ tuner Operation
ÑCategory/Channel search
(HD Radio tuner only)
You can specify the desired category and
select a channel.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
The list type screen appears.
3 Touch [Preset List] or [Channel List].
The previously used category or channel
list appears.
4 Select the desired content from the list.
NOTE
• Each time you touch [Info Change] in the channel
list, switches the sequence of the list.
Song title, artist name, album name
Traffic Information
(HD Radio tuner only)
You can listen and watch the traffic
information automatically when a traffic
bulletin starts.
However, this feature requires a Radio
Broadcast Data System that includes the TI
information.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [TI] in the multi function menu.
Traffic information mode is set.
ÑWhen the traffic bulletin starts
The Traffic Information screen appears
automatically.
NOTE
• It is necessary to have Traffic Information function
set to on in order to have the Traffic Information
screen appear automatically.
• The volume setting during reception of traffic
information is automatically stored. The next time
the traffic information is received, this unit recalls
the volume setting automatically.
98
Return to the Top page
Radio, HD Radio™ tuner Operation
Receive Mode
(HD Radio tuner only)
You can set the radio broadcasts receive
mode.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [RCV] in the multi function menu.
HD Radio tuner Mode screen appears.
3 Select the receive mode from [Auto],
[Digital], and [Analog] using [C] and
[D].
NOTE
• If you select [Auto], tunes to analog broadcast
automatically when there is no digital broadcast.
Bookmark
Stores tag information (title, artist, album,
URL, and description) about the song you are
listening to now.
Detailed information and QR codes can
be displayed according to the stored tag
information.
ÑRegistering a bookmark
1 Touch [ ].
Sub function menu appears.
2 Touch [ ].
Registers a bookmark.
NOTE
• Up to 100 bookmarks can be registered to this
unit.
ÑBookmark list
Displaying a list of registered bookmarks
and detailed information and QR code of the
song.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
The list type screen appears.
3 Touch [Bookmark].
The Bookmark List appears.
99
Return to the Top page
Radio, HD Radio™ tuner Operation
4 Select the desired bookmark from the
list.
The bookmark information appears.
[ ]
Deletes the bookmarks being displayed.
ÑBookmark delete
Deleting a bookmark.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
The list type screen appears.
3 Touch [Bookmark].
The Bookmark List appears.
4 Touch [Delete List].
The Bookmark Delete List appears.
5 Select the bookmark to delete from
the list.
All
Select all bookmarks.
6 Touch [ ].
Deletes all the selected bookmark(s)
100
Return to the Top page
SiriusXM® Satellite Radio Operation
SiriusXM® Basic Operation
Most functions can be controlled from the source control screen.
Before use
• SiriusXM Satellite Radio operation requires the connection of the optional SiriusXM Connect Vehicle Tuner. To
activate the SiriusXM Vehicle Connect tuner, you will need the Radio ID.
• Make a note of your Radio ID: To confirm your Radio ID, tune to channel 0. The letters I, O, S and F are not used in
any Radio ID. The Radio ID is also located on the label of the SiriusXM Connect Vehicle Tuner.
• How to activate your SiriusXM Service: Go to www.siriusxm.com/activatenow or call 1-866-635-2349 to activate
your SiriusXM Vehicle Connect Tuner.
To activate SiriusXM Canada service go to www.xmradio.ca and click on “ACTIVATE RADIO” in the top right corner,
or call 1-877-438-9677
NOTE
• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation
mode (P.151).
• To use SiriusXM® Satellite Radio, the optional accessory is necessary.
• SiriusXM® Satellite Radio are for North American sales area only.
Simple Control screen List Control screen
2
6
2
7
1
7
3
3
4
4
5
8
1 Signal Strength indication
Displays the received signal strength of the SiriusXM tuner.
2 Information display/Control switching area
Displays the following information.
• [SiriusXM1], etc.: Band display
• Preset #: Preset number
• #CH: Channel display
• Logo: Channel logo display
Touch to switch between the Simple Control and List Control screen.
ñ
SiriusXM® Satellite Radio Operation (DNN992)
101
Return to the Top page
SiriusXM® Satellite Radio Operation
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.102).
4 Preset key/Multi function menu
Recalls the memorized channel. When touched for 2 seconds, the current channel being received is
stored to the memory.
When switched, various functions can be performed by using keys in this area.
For details on the menu, see Multi function menu (P.102).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Information list
Displays information about the current music being played: Channel Name, Artist Name, Song Title,
Content Info, Category Name, Channel Description, Similar Channels
7 Sub function menu
The following functions can be performed by using keys in this area.
• Tunes in a station: Touch [CHS] or [CHR].
• Searches the previous/next track: Touch [E] or [F]. Fast forward/fast backward when keep on
touching. See SiriusXM Replay™ (P.106).
• Tunes in by entering direct number: Touch [ ] and enter the desired number. For details, see
Direct search (P.104).
8 Sub function/ List switching key
Touch to display “Sub function menu” (7 in this table).
Touch and hold to switch between the preset list and the information list.
102
Return to the Top page
SiriusXM® Satellite Radio Operation
ÑMulti function menu
The functions of each key are as follows.
[P1] - [P6]
Select the preset channel. Touch for 2 seconds to store the current station into the preset memory.
[ ]
Select search method from preset channel selection or category/channel search. For details on search
operation, see Selecting Operation (P.103).
[L]
Plays or pauses. See Replay (P.106).
[SEEK]
Switches the seek mode in the following sequence; [SEEK1], [SEEK2].
• SEEK1: Tunes channels one after the other.
• SEEK2: Selects channels in preset (memory) one after the other.
[BAND]
Switches the band.
[ ]/[ ]
Touch for 2 seconds to register content as Alert content.
• [ ]: Registers the artist of the song you are listening to now as alert content.
• [ ]: Registers the song you are listening to now as alert content.
For details, see Content Alert (P.105).
[ ]
Turns the Traffic & Weather Jump function on or off.
For details, see City select for Traffic & Weather Jump (P.111).
[ ]
Listen to the on-air song (live).
[TUNE SCAN]
Hear a few seconds of the songs from each of the SmartFavorite music channels on the current preset
band. See TuneScan™ (P.107).
103
Return to the Top page
SiriusXM® Satellite Radio Operation
Memory Operation
ÑManual memory
You can store the current receiving station or
channel in memory.
1 Select a station or channel you wish to
store in memory.
2 Touch [P#] (#:1-6) in which you want
to store the station or channel for 2
seconds until a beep sounds.
Selecting Operation
ÑPreset select
You can list and select memorized station or
channel.
Selecting from the multi function
menu
1 Touch the desired number from P1 to
P6.
The unit will tune to the selected station or
channel.
Selecting from the preset list
1 Touch illustrated area.
List Control screen appears.
2 Touch and hold [ ].
Preset list appears.
3 Select a station or channel from the list.
NOTE
• Touching [ ] and then [Preset List] displays
the preset channel list. You can also select your
desired channel from the list.
104
Return to the Top page
SiriusXM® Satellite Radio Operation
ÑDirect search
You can tune in by entering the desired
frequency or channel number.
1 Touch [ ].
10Key Direct screen appears.
2 Enter the frequency/ channel number
and touch [Enter].
NOTE
• To cancel the direct search, touch [Cancel].
• To clear the number you entered, touch [Clear].
ÑCategory/Channel search
You can specify the desired category and
select a channel.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
The list type screen appears.
3 Touch [Category List].
The previously used category or channel
list appears.
4 Select the desired content from the list.
NOTE
• All the channels in the selected category appear.
• Touching [All Channel] displays all the channels.
• Each time you touch [Info Change] in the channel
list, switches the sequence of the list.
Channel name, artist name, song title, category
name, content info
105
Return to the Top page
SiriusXM® Satellite Radio Operation
Content Alert
When a broadcast program related to the
registered artist, song, team or city starts, a
message appears to allow you to switch the
current channel to the relevant channel.
1 When the broadcast of the registered
content starts, an Alert screen appears.
Jump
Touch to display the Alert Content List screen.
Ignore
Touch to cancel the Content alert.
2 Select content from the list.
NOTE
• Each time you touched [Type], switches the
sequence of the Content alert list as follows;
Artist alert, Song alert, GameAlert™.
• For how to register artists and songs and turn on/
off the Team alert function, see Multi function
menu (P.102).
• For how to set up the Content alert function, see
SiriusXM Setup (P.108).
106
Return to the Top page
SiriusXM® Satellite Radio Operation
Replay
You can replay up to the last 60 minutes
broadcasting of current channel
1 Simple Control screen or List Control
screen.
Multi function menu
[L]
Plays or pauses.
[BAND]
Switches the band.
[ ]
Listen to the on-air song (live).
[ ]
Displays a list of recorded data on a program
basis when a broadcast is replaying.
Sub function menu
[E] [F]
Searches the previous/next track. Fast forward/
fast backward when keep on touching.
[CHS] [CHR]
Tunes in a station.
Replay time bar
Display recorded capacity and playback
position.
2 Touch [ ] to display a program list.
Program list
Touching this plays back the displayed
program.
[Info Change]
Touching this allows you to switch among the
Artist name, Song title, Category name, and
Content info cyclically.
107
Return to the Top page
SiriusXM® Satellite Radio Operation
Smart Favorites, TuneStart™
Station memory number 1 though 6 of
current band are Smart Favorite channels.
SiriusXM Vehicle Tuner automatically
buffered the broadcast audio content of the
Smart Favorites channels in the background.
You can rewind and replay up to 30 minutes
of any of the missed news, talk, sports or
music content when you tune to a Smart
Favorite channel. (see Replay (P.106))
When tuning Smart Favorites channels,
songs will play from the beginning of each
track (Tune Start). You can enable/disable
Tune Start. (see TuneStart™ setup (P.111))
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the Smart Favorite channels
that predominantly play music selections.
You have easy access to a large sampling of
music content and can enjoy hearing a full
song when stopping the scan on a song of
interest.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [TUNE SCAN] in the multi
function menu.
The introductions of the songs will be
played in recorded order.
3 Touch [TUNE SCAN] while your favorite
song is being played.
Scan finishes and continues playing the
song.
NOTE
• To cancel Tune Scan, Touch [TUNE SCAN] for 2
seconds.
After cancel, the channel before starting Tune
Scan will be played.
108
Return to the Top page
SiriusXM® Satellite Radio Operation
SiriusXM Setup
1 Touch [ ].
Quick menu appears.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [SiriusXM SETUP] in the list.
SiriusXM SETUP screen appears.
See the following section for each setting.
• Set up the parental code (P.108)
• Set up the parental control (P.109)
• Set up the skip channel select (P.110)
• Set up the Content alerts (P.110)
• Set up the content for Content alerts
(P.110)
• Select the city for Content alerts (P.111)
• Set up the TuneStart™ (P.111)
• Reset to the default settings (P.111)
ÑParental code
You can set a SiriusXM parental code.
1 Touch [Change] of [Parental Code] in
the SiriusXM SETUP screen.
Parental Pass Check screen appears.
NOTE
• The code number is set to “0000” as default.
2 Enter the current code number.
Parental Pass 1st entering screen appears.
3 Enter the new code number and touch
[Enter].
Parental Pass 2nd entering screen appears.
4 Enter the same code number as you
input in step 3 and touch [Enter].
The code number is confirmed and
SiriusXM parental code is now set.
109
Return to the Top page
SiriusXM® Satellite Radio Operation
ÑParental control
Parental control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1 Touch [ON] or [OFF] of [Parental Lock
Mature] in the SiriusXM SETUP screen.
2 Enter the same code number as you
originally input in Parental code (P.108)
and touch [Enter].
Turns the Mature on or off.
Default is “OFF”.
If you want to separately set the parental
lock for each channel, select OFF and
proceed to step 3 onward.
3 Touch [SET] of [Parental Lock Channel
Select] in the SiriusXM SETUP screen.
Parental Pass Check screen appears.
NOTE
• You need to complete Parental code (P.108)
beforehand.
• To delete the parental lock channel setting, touch
and hold [Unlock All] for 2 seconds, enter the
Parental code number, then touch [Enter].
4 Enter the same code number as you
originally input in Parental code (P.108)
and touch [Enter].
Parental Lock Category Select screen
appears.
5 Touch the desired category from the
list.
Displays all the channels in the selected
category.
NOTE
• Touch [All Channel] to display all the channels.
6 Touch each channel list and set on or
off.
NOTE
• Each time you touched [Info Change], switches
the sequence of the channel list as follows;
Channel name, Artist name, Song title, Category
name, Content information.
• Touch [y] to return to Parental Lock Category
Select screen.
• Touch [ ] to return to SiriusXM SETUP screen.
110
Return to the Top page
SiriusXM® Satellite Radio Operation
ÑSkip channel select
You can set the undesired channels to skip.
1 Touch [SET] of [Skip Channel Select].
Skip Category Select screen appears.
2 Touch the desired category from the
list.
Displays all the channels in the selected
category.
3 Touch each channel and set ON or OFF.
NOTE
• Operations in each list screen are same as
Parental control (P.109).
ÑContent alerts setup
You can turn on or off the Content alerts
function.
1 Touch [ON] or [OFF] of [Content alerts]
in the SiriusXM SETUP screen.
Turns the Content alerts on or off.
Default is “ON”.
ÑContent alerts Content Set
You can set a content for Content alerts.
1 Touch [SET] of [Content alerts Contents
Set] in the SiriusXM SETUP screen.
Artist list screen appears.
NOTE
• To set all the content alerts off, touch and hold
[Disable All] for 2 seconds.
2 Touch [Type] to select the screen of the
content you want to set up.
Touching this allows you to switch among
the Artist list, Song list, and Team list
cyclically.
3 Touch each content list and set ON or
OFF.
NOTE
• Touch “Delete” to delete the currently selected
content from the Artist list and Song list.
• Available teams were pre-registered in the Team
list. Team(s) cannot be registered or deleted
manually.
111
Return to the Top page
SiriusXM® Satellite Radio Operation
ÑCity select for Traffic &
Weather Jump
You can select a city for which traffic
information or weather forecast is to be
received with the Content alerts function.
1 Touch [C] and [D] of [Traffic Weather
Jump City Select] to select a city.
ÑTuneStart™ setup
1 Touch [ON] or [OFF] of [Tune Start] in
the SiriusXM SETUP screen.
Turns the Tune start on or off.
Default is “ON”.
Ñ Reset
1 Touch [Reset] of [SiriusXM Reset] for 2
seconds in the SiriusXM SETUP screen.
All SiriusXM setting returns to default.
112
Return to the Top page
Streaming Service Application
AUPEO!Application
You can listen to music on the online radio
AUPEO!.
Preparation
• You need to connect to Internet. See Network
Setup (P.32).
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ Aupeo].
5 Select a genre.
ÑLog in
By registering an account, you can listen to
your favorite songs.
1 Touch [log in].
2 Enter the User Name and Password.
3 Touch [log in].
ñ
Streaming Service Application
113
Return to the Top page
Streaming Service Application
ÑPlay screen
[ ]
Plays or pauses.
[ ] (Love)
I like this song.
[ ] (Skip)
Play the next song.
[ ] (Ban)
I do not like this song.
[ ]
Select a sub genre.
[ ] (Mood)
Music matching your mood.
[ ]
Select a new genre.
[FEATURED]
Select a Featured Stations
[GENRE STATIONS]
Select a Genre Stations
[ARTIST STATIONS]
Create a station of your type by searching
stations by the artist name.
[ ] (Favorites)
Edit the titles registered in Loves and Bans.
You can use this button only when you have
logged in to this service.
ÑEditing Favorites
You can edit the titles registered in Loves and
Bans.
Preparation
• You can only use this function when you have
logged in this service.
1 Touch [ ].
[ ]/ [ ]
Switches between Love and Ban.
[ ]
Deletes this title.
[ ]
Registers this artist as Ban.
114
Return to the Top page
Streaming Service Application
AV Browser Application
This app is the dedicated web browser to
playback streaming video and audio.
Preparation
• You need to connect to Internet. See Network
Setup (P.32).
1 Press the <HOME> button.
2 Flick the screen left or right to select
the Network contents panel.
3 Touch [ ].
4 Touch [ AV Browser].
Icons linked with web sites are displayed.
[ ]
The portal site which shows recommended
streaming services is displayed.
[ ]
The list of tabs is displayed.
ÑPlay video and audio
1 Select the content you want to play.
2 Play the content.
3 Press the <6> button to previous
screen.
Note
• The instruction above is an example of operation.
Actual operation is depended on the streaming
service.
115
Return to the Top page
Streaming Service Application
116
Return to the Top page
Bluetooth Control
Using the Bluetooth function, various
functions can be used: listening to the audio
file, making/receiving a call.
ÑAbout the Smartphone/cell-
phone and Bluetooth audio
player
This unit conforms to the following
Bluetooth specifications:
Version
Bluetooth Ver. 3.0+EDR Certified
Profile
Smartphone/cell-phone:
HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
GAP (Generic Access Profile)
HID (Human Interface Device Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
Sound codec
aptX, MP3, AAC, SBC
NOTE
• For the smartphones/cell-phones verified for
compatibility, access the following URL:
http://www.kenwood.com/cs/ce/bt/.
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard following the procedure prescribed by
Bluetooth SIG.
However, it may be impossible for such units to
communicate with your smartphone/cell-phone
depending on its type.
Registering and Connecting
Bluetooth Unit
It is necessary to register the Bluetooth audio
player or smartphone/cell-phone to this unit
before using the Bluetooth function.
You can register up to 5 Bluetooth units.
1 Press and hold the < 6 > button.
HOME 6
Hands Free screen appears.
2 Touch [ ].
Bluetooth SETUP screen appears.
See the following section for each setting.
• Registering from this unit (P.117)
• Connecting the Bluetooth unit (P.117)
• Registering from the Bluetooth unit
(P.118)
• Change the PIN code (P.118)
ñ
Bluetooth Control
117
Return to the Top page
Bluetooth Control
ÑRegistering from this unit
Preparation
• You cannot register the Bluetooth unit when you
are using the following sources:
iPod, Bluetooth Audio, APPS, Pandora
If you want to register the Bluetooth unit while
using one of the above mentioned sources, send
the connection request from the Bluetooth unit
and register it.
1 Touch [Search].
Searched Device List screen appears.
NOTE
• A new device cannot be registered if there are 5
registered Bluetooth units. Delete unnecessary
registration. See Connecting the Bluetooth unit
(P.117).
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or iPhone
is connected to this unit using Dock Connector
to USB Cable, an authentication dialog appears.
Performing operation for authentication on this
unit or iOS smartphone registers the smartphone
as a Bluetooth device.
• If two Bluetooth units are connected, this unit will
not start the search. In this case disconnect one
of the Bluetooth units.
2 Select the Bluetooth unit to register
from the list.
NOTE
• If the Bluetooth unit cannot be searched in step
1, you can search it again by touching [Search] in
above screen.
• Touch [Cancel] to cancel searching for the
Bluetooth unit.
3 Enter PIN code form the cell-phone.
ÑConnecting the Bluetooth unit
1 Touch the name of device to connect.
Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
2 Set each profile as follows.
TEL (HFP)
Means that the Bluetooth unit is a
smartphone/cell-phone.
Audio (A2DP)
Means that the Bluetooth unit is an audio
player or smartphone/cell-phone with audio
player.
NOTE
• If a device has been paired, the Bluetooth unit
cannot be connected from the paired device.
• Touching [Remove] of [Device Remove Confirm]
removes registration information. After you touch
the key, a confirmation message appears. Follow
the message and complete the operation.
118
Return to the Top page
Bluetooth Control
ÑRegistering from the
Bluetooth unit
1 Search the unit (“DNN****”) from your
smartphone/cell-phone.
2 Input the PIN code in your smartphone/
cell-phone.
PIN code is set to “0000” as the default.
SSP (Secure Simple Pairing of
Bluetooth 2.1 or later)
1 Search the unit (“DNN****”) from your
smartphone/cell-phone.
2 Confirm the request both on the
smartphone/cell-phone and the unit.
ÑChange the PIN code
1 Touch [PIN Code Set].
PIN Code Set screen appears.
2 Input the PIN code
3 Touch [Enter].
119
Return to the Top page
Bluetooth Control
Playing Bluetooth Audio Device
ÑBluetooth basic operation
2
2
4
Simple Control screen List Control screen
1
3
5
5
1 Information display
Displays the name of the content information. If the information is not available, Bluetooth unit name
is displayed.
2 Multi function menu
The functions of each key are as follows.
• [E] [F]: Searches the previous/next content.*
• [D]: Plays.*
• [H]: Pauses.*
• [I]: Stops playback.*
3 Control switching area
Touch to switch between the Simple Control and List Control screen.
4 Content information
Displays the information of the current content.
5 Status bar
Displays the current play location, play time, and play mode.
* These items appear only when the audio player which supports AVRCP profile is connected.
NOTE
• If the operation keys do not appear, operate from the player.
• Depending on your smartphone/cell-phone or audio player, audio may be heard and controlled but text
information may not appear.
• If the volume is too low, raise it on your smartphone/cell-phone or audio player.
120
Return to the Top page
Bluetooth Control
Using Hands-Free Feature
You can make or answer a call with Hand-
Free by connecting a smartphone/cell-phone
with built-in Bluetooth connected to this
unit.
ÑMaking a call
1 Press and hold the < 6 > button.
HOME 6
Hands Free screen appears.
NOTE
• If your cell-phone supports auto-download of
phonebook but not downloaded automatically,
follow the procedure above to download
manually.
• See the instruction manual of your cell-phone for
the operation.
• Up to 600 phone numbers can be registered for
each registered cell-phone.
• Up to 30 digits can be registered for each
phone number along with up to 50 characters
representing a name. (50 is the number of
alphabetical characters. Fewer characters can be
input depending on the type of characters.)
• Depending on the type of your cell-phone, the
following restrictions are placed;
–The phonebook data cannot be downloaded
normally.
–Characters in the phonebook are garbled.
• To cancel downloading the phonebook data,
operate the cell-phone.
2 Select a dialing method.
See the following table for each method.
Select the cell-phone to use
When you connect two cell-phones
1 Touch [ ] to select the phone you want
to use.
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Call using call records
1 Touch [ ] (Incoming Calls), [ ]
(Outgoing Calls), or [ ] (Missed Calls).
2 Select the phone number from the list.
3 Touch [ ].
Call using the phonebook
1 Touch [ ].
2 Select the name from the list.*1*2
3 Select the number from the list.
4 Touch [ ].
Call using the preset number
1 Touch [Preset #] to start calling the
corresponding phone number.
Voice Recognition
You can access the voice recognition function
of the smartphone/cell-phone connected to
this unit.
You can search a phone number in the
smartphone/cell-phone phonebook by
pronouncing a name. (The functionality
depends on the cell-phone.)
1 Touch [ ] to Voice Recognition screen
appears.
2 Pronounce a name.
121
Return to the Top page
Bluetooth Control
*1 You can sort the list to begin with touched
character.
• Characters with no corresponding name
will not appear.
• During search, a non-accent character
such as “u” is searched for instead of an
accent character such as “ü”.
*2 You can set the list to arrange in the order
of last name or first name. For details, see
Hands-Free Setup (P.124).
NOTE
• If you edited the phonebook in your cell-phone,
touch “Download” on top of the phonebook list in
this unit to download it from your cell-phone. The
phonebook in this unit will be updated with the
latest downloaded data.
• The status icons such as battery and antenna
displayed may differ from those displayed on the
cell-phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
ÑVoice Recognition
You can access the voice recognition function
of the smartphone/cell-phone connected to
this unit.
You can search a phone number in the
smartphone/cell-phone phonebook by
pronouncing a name. (The functionality
depends on the cell-phone.)
1 Press the <MENU> button.
NOTE
• This function is not displayed in the menu when
you are operating an application. Press the
<HOME> button to use this function.
2 Touch [Voice].
Voice Recognition screen appears.
3 Pronounce a name.
ÑPhone number preset
You can register frequently used phone
numbers to this unit.
1 Enter the number you want to register
in Hands Free screen.
2 Touch [Preset 1], [Preset 2], or [Preset 3]
for 2 seconds in the Hands Free screen.
122
Return to the Top page
Bluetooth Control
ÑAnswering a call
1 Touch [ ] to answer a call or
[ ] to reject a call.
NOTE
• While monitoring the camera view, this screen
does not appear even if a call comes in. To display
this screen, press the <TEL> button or return the
shift knob of car to the driver position.
Operation during a call
Adjust the receiver volume
Press the <S> or <R> button.
HOME 6
Switch the voice output
Touch [ ] / [ ] to switch
the voice output between phone and speaker.
Sending DTMF tone signal
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
Call waiting
You can answer a second call while talking
with the first caller by placing the first call
on hold and switching to the second call. You
can switch back and forth between first and
second caller as well.
To answer the second call
Touch [ ]. The first call is placed on hold and
answers the second waiting call.
To switch back and forth between the first
and second caller
Touch [ ] again.
Each time you touch [ ], the caller is
switched.
To terminate the first call
Touch [ ].
The caller switches to the second caller.
123
Return to the Top page
Bluetooth Control
ÑPhone Number Search
You can search the address book in your
cell phone for the number or the name, and
make a call.
1 Touch [ ].
2 Select whether you search by
Phonebook name or Phone
number .
3 Enter the Phonebook name or Phone
number.
Enter the keyword using the voice recognition
function. When "Speak now" is displayed,
pronounce the keyword.
* You can use a user account when you have
logged in the Owner or User.
4 Touch [TEL].
When searched by Phonebook name
5 Touch [Û].
When searched by Phonebook number
The unit make a call.
124
Return to the Top page
Bluetooth Control
Hands-Free Setup
You can perform various setup about hands-
free function.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Bluetooth].
Bluetooth SETUP screen appears.
4 Touch [TEL SETUP].
Hands-free SETUP screen appears.
5 Set each item as follows.
Auto Response*1
Set the ringing time interval until the system
automatically answers a call.
OFF (Default): Automatic response is not
available.
0-99: Set ringing time interval (second).
Auto Pairing
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically register
the iPod touch or iPhone connected to this
unit.
ON (Default): Uses Apple Auto Pairing
function.
OFF: Not uses Apple Auto Pairing function.
Call Beep
Select whether or not to beep upon receiving
a call.
ON (Default): Beeps.
OFF: Not beeps.
Phone Information Use
Set whether to download phonebook for
outgoing, incoming and missed calls list.
ON (Default): Yes.
OFF: No.
125
Return to the Top page
Bluetooth Control
Sort Order
Set how to arrange the cell-phone phonebook.
First: Arranges in the order of first name.
Last (Default): Arranges in the order of last
name.
Echo Cancel Level
Adjust the level of echo cancellation.
Default is “1”.
Microphone Level
Adjust the sensitivity of the telephone
microphone. Default is “3”.
Noise Reduction Level
Reduces the noises generated by surrounding
environment without changing the
microphone volume. Use this setting when the
voice of caller is not clear. Default is “-10”.
[Restore]
Resets the settings to the default settings.
*1 Either the time interval for automatic
answer set on this unit or the time interval
set on your smartphone/cell-phone,
whichever is shorter takes effect.
126
Return to the Top page
Voice Control
The unit is equipped with Advanced Voice
Recognition function which allows you to
operate it with your voice. The supported
languages are US English, UK English, French,
German, Dutch, Italian, and Spanish. For
information on the voice commands, refer to
<Voice command table> (separate volume).
NOTE
• ASR on the Language Setting screen should be
set to “Enabled”. See Language setup (P.130).
Voice Control
1 Press the Push-To-Talk switch to enter
the Voice control mode.
The buttons enclosed in a green square
support the voice control.
2 Speak the command. (Ex: Speak “HD
RADIO”.)
The screen has changed to the HD Radio
Control screen.
You will hear a beep again.
3 Repeat the same procedure as step 2.
For information on the voice commands,
refer to <Voice command table> (separate
volume).
4 Press the Push-To-Talk switch to end
the voice control mode.
ÑDisplaying Voice Commands
To display the list of operable voice
commands.
1 Press and hold the Push-To-Talk switch.
The list of operable voice commands
appears. Pronounce a command.
NOTE
• To cancel the commands list display, press Push-
To-Talk switch or touch the screen.
ñ
Voice Control (DNN992)
127
Return to the Top page
Camera Control
When a CMOS-3xx (optional accessory) is
connected, the camera can be controlled
from this unit.
Preparation
• [NAV Key Longer than 1 Second] must be set to
“CAM”. See User interface (P.129).
Camera Control
You can adjust the camera angle of the
camera system and display of the guideline.
1 Press the <NAV> button for 1 second.
HOME 6
Camera view screen appears.
2 Adjust each item as follows.
1
2
3
1 Guideline
Pressing each time turns on or off the
guideline display alternately. (Rear view camera
only)
2 Angle
Pressing each time changes camera angles in
the following order:
Super wide view/ Wide view/ Overhead view/
Wide view + Top view/ Corner view
3
Clearing the Camera View display.
Switching the View Camera
Switching between the front view camera
and the rear view camera.
1 Press the <NAV> button for 1 second.
HOME 6
Camera view screen appears.
2 Touch illustrated area during Camera
view screen.
Switches between the front view camera
and rear view camera each time you touch
the illustrated area.
ñ
Camera Control
128
Return to the Top page
Setting Up
Monitor Screen Setup
You can adjust image quality of playback
screen, background screen, etc.
1 Touch and hold the lower left area of
any screen.
Screen Control screen appears.
2 Adjust each item as follows.
Background screen
Bright / Tint / Color / Contrast / Black /
Sharpness
Adjusts each item.
Dimmer
Select dimmer mode.
ON: The display and buttons dim.
OFF: The display and buttons do not dim.
SYNC (Default): Turns the dimmer function on
or off when the vehicle light
control switch is turned on
or off.
NAV-SYNC: Turns the dimmer function on or
off according to the Navigation
Day/Night display setting.
Mode (Playback screen only)
Select screen mode.
Full: Full picture mode
Just: Justify picture mode
Zoom: Zoom picture mode
Normal: Normal picture mode
NOTE
• Adjusting items are different depending on the
current source.
• You can perform this function only when you
have applied the parking brake.
• The image quality can be set for each source.
ñ
Setting Up
129
Return to the Top page
Setting Up
System Setup
NOTE
• Each operation in this section can be started from
the multi function menu.
1 Touch [ ] on any screen.
Quick Menu screen appears.
2 Touch [SETUP].
3 Touch [System].
System screen appears.
See the following section for each setting.
• Set up the user interface (P.129)
• Set up security (P.130)
• Set up external switch (P.131)
• Set up memory (P.131)
ÑUser interface
You can setup user interface parameters.
1 Touch [User Interface] in the list.
User Interface screen appears.
2 Set each item as follows.
Beep
Turns the key touch tone on or off.
Default is “ON”.
Language
Select the language used for the control
screen and setting items. See Language setup
(P.130).
Text Scroll
Allows scrolling of text display on the source
control screen. Select from “Auto”/”Once”/”OFF”.
Auto (Default): Scrolls the text automatically.
Once: Allows you to scroll the text only once
automatically when updated.
OFF: Does not scroll the text automatically.
NAV Key Longer than 1 Second
You can set the operation performed when the
NAV key is pressed for 1 second. Select from
”V.OFF”/”CAM”.
V.OFF:
Turn the display off.
CAM
(Default)
: Switches to the front or rear
view camera video display.*
Secondary
Set whether to display the navigation
information in the audio screen or vice versa.
Default is “ON”.
DEMO
Set the demonstration mode. Default is “ON”.
* When you set [Front Camera] to OFF, the
display will change to the rear view camera
and when you set it to “CMOS-3xx”/ “Other”,
the display will change to the front view
camera. See Camera Setup (P.134)
130
Return to the Top page
Setting Up
Language setup
1 Touch [SET] of [Language] in the User
Interface screen.
Language Setting screen appears.
2 Set each item as follows.
GUI Language Select
Select the language used for the GUI and input
methods.
ASR (DNN992)
Select the language used for voice control
function.
Navigation Language Select
Select the language used for navigation.
STT
Select the language used for Speech to Text
(STT).
TTS
Select the language used for Text to Speech
(TTS).
3 Touch [Enter].
NOTE
• To cancel the language setup, touch [Cancel].
ÑSecurity setup
A red indicator will blink on the unit after the
ACC is set to OFF, warning potential thieves.
If turned to “ON” (default), the security
indicator on the front panel flashes when the
vehicle ignition is off.
1 Touch [Security] in the System Menu
screen.
Security screen appears.
2 Touch [ON] or [OFF] of [SI].
131
Return to the Top page
Setting Up
ÑEXT SW setup
Set up the external switch power mode.
1 Touch [EXT SW] in the System Menu
screen.
EXT SW screen appears.
2 Set each item as follows.
Output Pattern
Set the power signal output mode among
“Pulse”/“Level”. Default is “Pulse”.
You can set to turn output on/off each time
the button on the EXT SW screen is touched.
See External Device Control (P.138).
Pulse Set
Set the pulse signal output time.
Outputs 500ms when “1” is set.
Increases by 200ms with each step. Up to 100
steps can be set.
NOTE
• You can enter characters only after you have
applied the parking brake.
• “Pulse”: Generates a single power signal pulse.
• “Level”: Continues output of high power signal.
ÑSetup memory
Audio Control, AV-IN SETUP, Camera, and
Audio SETUP settings can be memorized. The
memorized settings can be recalled at any
time. For example, even when the settings
are cleared due to replacement of the
battery, the settings can be restored.
1 Touch [SETUP Memory] in the System
Menu screen.
SETUP Memory screen appears.
2 Follow the instruction on the screen.
[Lock] / [Unlock]*
Locks or unlocks the AV-IN SETUP, and Audio
SETUP settings.
Yes
Memorizes or recalls the settings.
No
Cancels the function or memorization.
The SETUP Menu screen appears again.
* When [Lock] is selected, you cannot change
the AV-IN SETUP, and Audio SETUP settings.
Also, the locked key mark is displayed
under each setting icon in the setup menu.
Continued
132
Return to the Top page
Setting Up
3 Follow the instruction on the screen.
Recall
Recalls the memorized settings.
Memory
Memorizes the current settings.
Clear
Clears the currently memorized settings.
Cancel
Cancels memorization/recalling of settings.
Display Setup
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Display].
Display screen appears.
See the following section for each setting.
• Control monitor angle (P.132)
• Adjust panel color (P.133)
ÑMonitor angle control
You can adjust the angle of the monitor.
1 Touch [Angle] in the Display Menu
screen.
Angle setup screen appears.
2 Select a number below an angle that
will best suit your monitor viewing.
Default is “0”.
NOTE
• You can store the current monitor angle as the
angle during power off. Touch [Memory] when
the desired angle is selected.
133
Return to the Top page
Setting Up
ÑPanel color coordinate
You can set the button illumination color.
The selectable items differ depending on the
unit.
1 Touch [Color] in the Display Menu
screen.
Color screen appears.
2 Touch [OFF] of [Panel Color Scan].
3 Touch [SET] of [Panel Color Coordinate].
Panel Color Coordinate screen appears.
NOTE
• You can touch [SET] or [Initialize] when
[Panel Color Scan] is set to off.
• Touch [Initialize] to reset the settings to the
default settings.
4 Touch the desired color.
Registering original color
You can register your original color.
1 Touch [Adjust] in the Panel Color
Coordinate screen.
Panel Color RGB Coordinate screen
appears.
2 Use [C] and [D] to adjust each color
value.
3 Touch the desired preset key for 2
seconds.
Panel color scan
You can set the panel color to continuously
scan through the color spectrum.
1 Touch [ON] of [Panel Color Scan] in the
Color screen.
Panel Color Scan is set to on.
134
Return to the Top page
Setting Up
Navigation Setup
You can set navigation parameters.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Navigation].
Navigation SETUP screen appears.
4 Set each item as follows.
NAV Interrupt Speaker
Select speaker(s) used for voice guidance of
the navigation system.
Front L: Uses the front left side speaker for
voice guidance.
Front R: Uses the front right side speaker for
voice guidance.
Front All (Default): Uses both front speakers
for voice guidance.
NAV Voice Volume
Adjust the volume for voice guidance of the
navigation system. Default is “20”.
NAV Mute
Mutes the volume of rear speakers during
voice guidance of the navigation system.
Default is “ON”.
Camera Setup
You can set camera parameters.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Camera].
Camera SETUP screen appears.
4 Set each item as follows.
Rear Camera*1
Select the type of rear camera to use.
CMOS-310: When the CMOS-3xx series with ID
1 set is connected.
Other (Default): When the other camera is
connected.
135
Return to the Top page
Setting Up
R-CAM Interruption
Set a method for switching the display. Setting
values are ON and OFF.
ON: Switches to the rear view camera video
display when shifting to reverse or
pressing the <NAV>*5 button for 1 second.
OFF (Default): Switches to the rear view
camera video display when
pressing the <NAV>*5 button
for 1 second.
R-CAM Settings*2
Adjust the CMOS-3xx series with ID 1 set. For
details, see the instruction manual of your
camera.
Parking Guidelines*3
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
Guidelines Setup*3
Adjust the parking guidelines. See Adjusting
the parking guidelines (P.135).
Front Camera
Select the type of front camera to use.
CMOS-310: When the CMOS-3xx series with ID
2 set is connected.
Other: When the other camera is connected.
OFF (Default): When the front camera is not
used.
F-CAM Settings*4
Adjust the CMOS-3xx series with ID 2 set. For
details, see the instruction manual of your
camera.
*1 These settings become settable only when
the parking brake is on.
*2 This setting becomes settable only when
the parking brake is on and “Rear Camera”
is set to [CMOS-310].
*3 This setting becomes settable only when
the “Rear Camera” is set to [Other].
*4 This setting becomes settable only
when the parking brake is on and “Front
Camera” is set to [CMOS-310].
*5 [NAV Key Longer than 1 Second] must be
set to “CAM”. See User interface (P.129).
Adjusting the parking guidelines
1 Touch [ON] of [Parking Guidelines] in
the Camera SETUP screen.
2 Touch [Adjust] of [Guidelines Setup] in
the Camera SETUP screen.
3 Adjust the parking guidelines by
selecting the mark.
4 Adjusting the position of the selected
mark.
A
B
C D
Make sure that A and B are horizontally
parallel, and that C and D are the same
length.
• Touch and hold [Initialize] to set all the
marks to the initial default position.•
136
Return to the Top page
Setting Up
Software Information
Check the software version of this unit.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Software].
Software Information screen appears.
4 Confirm the software version. Touch
[Update] as necessary.
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
Notify the update
When the program is updated you will be
notified by the icon on the status bar.
Preparation
• You need to connect to Internet.
Minor update
If it is the minor update you can update the
program via the Internet.
1 Drag the status bar downward.
2 Touch [Download] to start download.
Touch [Detail] to display details.
3 Touch [Update].
4 Touch [Update] to update starts.
When the update is complete “Update
completed”appears.
137
Return to the Top page
Setting Up
AV Input Setup
You can set AV input parameters.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
4 Touch [AV-IN SETUP] in the list.
AV-IN SETUP screen appears.
5 Set each item as follows.
AV-IN1 Name / AV-IN2 Name
Set a name to be displayed when you select
a system that is connected via the AV INPUT
port. Default is “VIDEO”.
AV Output Interface Setup
You can select an AV source to be output at
the AV OUTPUT port. Default is “VIDEO1”.
1 Touch [ ] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [AV-OUT].
AV-OUT Interface screen appears.
4 Touch [C] or [D] to set [AV-OUT] to
VIDEO, DISC, iPod, or OFF.
NOTE
• You can select “iPod” only when iPod is connected
to this unit with KCA-iP202. For the connection
setting, refer to iPod/iPhone connection setup
(P.83).
138
Return to the Top page
Setting Up
External Device Control
Control the external device power supply.
1 Touch [ ] on any screen.
2 Touch [EXT SW].
You can turn on or off the external device
power supply.
NOTE
• You must connect a commercially available relay
unit in order to use this function. Connect the
external device to be controlled to that relay unit.
• See EXT SW setup (P.131) for information on
setting the power on or off specification.
139
Return to the Top page
Setting Up
140
Return to the Top page
Controlling Audio
NOTE
• Each operation in this section can be started from
the multi function menu.
You can adjust the various settings such as
audio balance or subwoofer level.
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
See the following section for each setting.
• Setting audio (P.140)
• Controlling audio (P.143)
• Controlling equalizer (P.144)
• Controlling sound effect (P.146)
• Performing zone control (P.145)
• Set listening position (P.148)
Setting Audio
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Audio SETUP].
Audio SETUP screen appears.
See the following section for each setting.
• Set up speakers (P.141)
• Set up your car type (P.142)
• Select DSP (P.143)
ñ
Controlling Audio
141
Return to the Top page
Controlling Audio
ÑSpeaker setup
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are set,
the speaker crossover network is set
automatically.
1 Touch [Speaker Select] in the Audio
SETUP screen.
Speaker Select screen appears.
2 Touch the speaker you wish to adjust
and set each item as follows.
Tweeter
You can set the tweeter when you are
selecting front speakers.
None, Small, Middle, Large
X’over
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was set
automatically when you selected the speaker
type.
For details, see Crossover network setup
(P.142)
3 Select a speaker size using [C] and [D].
The speaker size is different depending
on the speaker type and the unit.
Front
OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch,
6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8,
6x9, 7x10
Rear
None, OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5
inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7,
6x8, 6x9, 7x10
Subwoofer
None, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15
inch over
NOTE
• Select “None” if you have no speakers.
142
Return to the Top page
Controlling Audio
Crossover network setup
You can set a crossover frequency of
speakers.
1 Touch the speaker to set the crossover
in the Speaker Select screen.
2 Touch [X’over].
X’over screen appears.
3 Set each item as follows.
TW (Tweeter) Gain *1
Adjust the tweeter level. (When front is
selected on Speaker Select screen)
Gain
Adjust the front speaker, rear speaker, or
subwoofer level.
Phase *2
Set the phase of subwoofer output.
The phase is reversed 180 degrees when set
to “Reverse”. (When subwoofer is selected on
Speaker Select screen)
HPF FREQ
High Pass Filter adjustment. (When front or rear
speaker is selected on Speaker Select screen)
LPF FREQ
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
Slope *3
Set a crossover slope.
*1 Only when “Tweeter” is set to “Small”,
“Middle”, “Large” in <Speaker Setup>.
*2 Only when “Subwoofer” is set to a mode
other than “None”/”OFF” in <Speaker
Setup>.
*3 Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in <X’over>.
ÑCar type setup
You can setup the car type and speaker
network, etc.
1 Touch [Car Type] in the Audio SETUP
screen.
Car Type screen appears.
2 Select your car type from the list.
NOTE
• If your car type is selected, the Delay Time
Alignment is set automatically (for timing
adjustment of sound output for each channel) to
have the highest surround effects.
Speaker location setup
1 In the Car Type screen, touch [Location].
Speaker Location screen appears.
2 Select the speaker locations using [D].
Front Speaker
Select the location from “Door”/ “On Dash”/
“Under Dash”.
Rear Speaker
Select the location from “Door”/ “Rear Deck”,
“2nd Row”/ “3rd Row” (Minivan, Minivan
(Long)).
143
Return to the Top page
Controlling Audio
ÑDSP select
You can select whether using DSP (Digital
Signal Processor) System.
1 Touch [Bypass] or [Through] of [DSP
Select] in the Audio SETUP screen.
Bypass
There is no effect by DSP.
Through
There is an effect by DSP.
NOTE
• When the mode is set to [Bypass], DSP System
cannot be adjusted.
Controlling General Audio
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Audio Control].
4 Set each item as follows.
Fader # / Balance #
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
Volume Offset*
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
Subwoofer Level
Adjust the subwoofer volume. This setting is
not available when subwoofer is set to “None”.
See Speaker setup (P.141).
Bass Boost
Set the amount of bass boost among “OFF”/
“Level1”/ “Level2”/ “Level3”.
* If you have increased the volume first, then
reduced the volume using the “Volume
Offset”, the sound generated if you
suddenly switch to another source may be
extremely loud.
144
Return to the Top page
Controlling Audio
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Equalizer].
Equalizer screen appears.
Controlling EQ curves
1 Select EQ curve from [Natural],
[Rock], [Pops], [Easy], [Top40], [Jazz],
[Powerful], [iPod], and [User].
NOTE
• [iPod] is available only during iPod source.
Controlling equalizer manually
The Graphic Equalizer cannot be set when
you select [iPod] in the Equalizer screen.
1 Touch [EQ] in the Equalizer screen.
2 Touch the screen and set the Graphic
Equalizer as desired.
Gain level (light green boxed area)
Adjust the gain level by touching the each
frequency bar.
Touching [C], [D], [R] and [S] can also
adjust the level. Use [C] and [D] to select a
frequency, and [R] and [S] to set the level.
EQ INIT
Returns to the previous level which the gain
level is adjusted.
Flat
Tone curve becomes flat.
Bass EXT (Bass Extend Settings)
When turned on, the frequency lower than
62.5 Hz is set to the same gain level as 62.5 Hz.
Loudness
Set the amounts of boost of low and high
tones. “OFF”, “Low”, “High”
SW Level
Adjust the subwoofer volume. This setting is
not available when subwoofer is set to “None”.
See Speaker setup (P.141).
145
Return to the Top page
Controlling Audio
Zone Control
You can select different sources for both
front and rear positions in the vehicle.
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Zone Control].
Zone Control screen appears.
4 Touch [Dual Zone].
5 Set each source as follows.
[D] (Front Source, Rear Source)
Select the audio source for each.
[S], [R] (Rear VOL.)
Adjust the rear channel volume.
[Single Zone]
Touch to turn off the dual zone function.
NOTE
• When the rear speaker sound is switched, the
audio source that is output at the AV OUTPUT
terminal is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
–Output from the subwoofer
–Subwoofer Level/Bass Boost (P.143)
–Equalizer Control/Sound Effect/Listening
Position (P.144, 146, 148)
–DSP Bypass Control/Speaker Setup/Car Type
Setup (P.143, 141, 142)
146
Return to the Top page
Controlling Audio
Sound Effect
You can set sound effects.
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Sound Effect].
Sound Effect screen appears.
See the following section for each setting.
• Set Space Enhancer (P.146)
• Set Drive Equalizer + (P.147)
• Set up Raise the Sound Position (P.147)
• Set up Realizer or Supreme (P.147)
ÑSpace Enhancer
1 Touch [Space Enhancer] in the Sound
Effect screen.
Space Enhancer screen appears.
2 Touch [Small], [Large], or [OFF].
Each setting value indicates the
soundscape level.
NOTE
• This setting is not available during HD Radio tuner
source.
147
Return to the Top page
Controlling Audio
ÑDrive Equalizer +
The sound quality is automatically optimized
to meet the current car speed by GPS.
1 Touch [ON] or [OFF] of [Drive EQ+].
ÑRaise the Sound Position
You can raise the sound position heard from
the speakers virtually.
1 Touch [Raise the Sound Position] in the
Sound Effect screen.
2 Select Elevation level from [High],
[Low], and [OFF].
ÑRealizer and Supreme
You can restore the sound lost due to audio
compression to a realistic sound.
1 Touch the screen in the Sound Effect
screen.
Realizer
Realizer is sound enhancement and boosting
low frequencies (bass boost).
Select the level from “OFF”/ “Level1”/ “Level2”/
“Level3”.
Supreme
Turns ON/OFF the Supreme function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-frequency
range that is cut off when encoding.
This function works on DVD MEDIA, USB, SD
and iPod sources.
148
Return to the Top page
Controlling Audio
Listening Position
You can adjust the sound effects according
to your listening position.
1 Touch [ ] on any screen.
2 Touch [Audio].
Audio screen appears.
3 Touch [Position].
Position screen appears.
4 Select listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All] using [C]
and [D].
ÑPosition DTA Control
You can fine-adjust your listening position.
1 In Position screen, touch [Adjust].
2 Select the speaker you wish to adjust
by touching speaker icon.
3 Set DTA as follows.
[C], [D]
Adjust the settings of the DTA position.
Gain
Touch to adjust the gain of each speaker.
Initialize
Initializes the setting values.
149
Return to the Top page
Controlling Audio
NOTE
• Make fine adjustment of the delay time of the
speaker output specified here to have a more
suitable environment for your vehicle.
• If you specify the distance from the center of the
currently set listening position to every speaker,
the delay time will be automatically computed
and set.
1 Determine the center of the currently set
listening position as the reference point.
2 Measure the distances from the reference point
to the speakers.
3 Calculate the differences between the distance
of the furthest speaker and other speakers.
4 Input the differences calculated in step 3 for
individual speakers.
5 Adjust gain for individual speakers. A sound
image will be shifted to the speaker with
increased gain.
Example: When [Front All] is selected as the
listening position
1.6feet
2.5feet
5feet
+2.5feet
+0feet
+3.4feet
150
Return to the Top page
Remote Control
ñ
Remote Control
This unit can be operated using the remote control.
#CAUTION
• Put the remote control in a place where it will not move during braking or other operations. A
dangerous situation could result, if the remote control falls down and gets wedged under the pedals
while driving.
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat
generation may result.
• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause
the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately
rinse with water and consult a physician.
• Place the battery out of reach of children. In the unlikely event that a child swallows the battery,
immediately consult a physician.
Battery Installation
If the remote control operates only over shorter distances or does not operate at all, it is possible
that the batteries are depleted.
In such instances, replace the both batteries with new ones.
1 Insert two “AAA”/“R03”-size batteries with the ¢ and ¤ poles aligned properly,
following the illustration inside the case.
151
Return to the Top page
Remote Control
ÑSwitching the operation mode
The functions operated from the remote
control differ depending on the position of
the mode switch.
DVD
T V
NAV
AUD
•
•
•
•
AUD mode
Switch to this mode when controlling a
selected source or tuner source, etc.
DVD mode
Switch to this mode when playing a disc
media including DVD, VCD, and CD.
NAV mode
Switch to this mode when controlling
navigation function.
NOTE
• When controlling a player that is not integrated in
the unit, select “AUD” mode.
ÑDirect search mode
Using the remote control, you can jump
directly to the desired file, track chapter, etc.
with entering the number corresponding to
the content.
NOTE
• This operation cannot be performed for USB
device and iPod.
1 Press the <#BS> button several times
until the desired content appears.
The available contents are different
depending on the source.
DVD
Title number/Chapter number/Play time/Item
number*
* You may not be able to use this function with
some discs or scenes.
VCD 1.X and 2.X (PBC OFF)
Track number
VCD 2.X (PBC ON)
Scene number/number
Music CD
Track number/Play time
Audio files
Folder number/File number
Radio
Frequency value
HD Radio tuner
Frequency value/Channel number
SiriusXM
Channel number
2 Enter the number of the content you
want to play using the numeric keypad.
3 For DVD or VCD, press the <POSITION>
button.
For music CD or audio files, press the
<POSITION> button.
For radio, press the <C> or <D> button.
The content you entered is played.
Functions of the Remote Control Buttons
152
Return to the Top page
Remote Control
12
5
17
19
21
22
23
24
25
26
18
20
3
6
7
8
10
12
13
14
15
16
9
11
4
Key
Name
Location of
the mode
switch
Function
1SRC AUD, DVD Switches to the source to be played.
In hands-free mode, hangs up the phone.
2NAV −Switches between the navigation and the source screens.
3MENU DVD Stops playing and memorizes the last point where the disc
stopped. The last point is deleted by pressing twice.
NAV Displays Main menu.
4OUT, IN NAV Zooms in or out the navigation map.
5POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.
During Radio, HD Radio, and SiriusXM source in AUD mode,
switches the seek mode.
NAV Displays the current position.
6Cursor Key DVD Moves the cursor in the DVD menu.
NAV Moves the cursor or scrolls the map.
7ENTER DVD Performs the selected function.
NAV • Registers the selected position.
• Performs the selected function.
153
Return to the Top page
Remote Control
Key
Name
Location of
the mode
switch
Function
8ROUTE M AUD Screen mode changes each time you press this key during video
playback.
DVD Returns to the DVD top menu.
NAV Displays Route Option menu.
9VOICE AUD Switches navigation display on/off.
DVD Displays the DVD menu.
Turns the playback control on or off while playing VCD.
NAV Speaks the voice guidance.
10 VIEW AUD, DVD Switches the AV source to be output.
NAV Switches between 2D and 3D map displays.
11 MAP DIR AUD, DVD Switches the display angle each time it is pressed.
NAV Switches between the heading up navigation and north up
navigation map displays.
12 R/SAUD, DVD Selects the folder to be played.
During Radio, HD Radio, and SiriusXM source in AUD mode,
switches the bands to be received.
13 C/DAUD, DVD Selects the track or file to be played.
During Radio, HD Radio, and SiriusXM source in AUD mode,
switches to broadcast stations received by the unit.
14 Numeric
Keypad
AUD Specifies the number to search in direct search.
For details on the direct search mode, see Direct search mode
(P.151).
DVD • Press [1] [2] to fast forward/backward. Switches the fast forward/
backward speed each time you press this key.*
• Press [4] [5] to slow forward/backward. Switches the slow
playback speed each time you press this key.*
*DVD only
15 * + DVD Clears the number.
16 # BS AUD, DVD Switches to the direct search mode.
For details on the direct search mode, see Direct search mode
(P.151).
17 AUDIO DVD Switches the voice language each time you press this key.
18 CANCEL DVD Displays previous screen.
NAV Cancels the operations.
19 SUBTITLE DVD Switches the subtitle language.
20 Û−When a call comes in, answers the call.
21 ANGLE DVD Switches the picture angle each time you press this key.
22 Vol RS −Adjusts the volume.
23 ZOOM DVD Switches the zoom ratio (1, 2, 3, Off ) each time you press this key.
24 2 ZONE AUD, DVD Switches the Dual Zone function on and off.
25 R.VOL 32 −Adjusts volume at rear when the Dual Zone function is on.
26 AT T −Lowers the volume by pressing the key once.
Restores the previous volume by pressing the key twice.
154
Return to the Top page
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following table for possible problems.
• Some functions of this unit may be disabled by some settings made on this unit.
• What might seem to be a malfunction in your unit may just be the result of slight misoperation
or miswiring.
ÑAbout settings
Problem Reason Solution
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass
filter.
Subwoofer is not set
to on.
Set the subwoofer to on.
See Speaker setup (P.141).
The dual zone function
is enabled.
Set the dual zone function to off.
See Zone Control (P.145).
• Cannot select the output
destination of the subsource in
the dual zone.
• Cannot adjust the volume of the
rear speakers.
The dual zone function
is disabled.
Set the dual zone function to on.
See Zone Control (P.145).
• Cannot set up the equalizer.
• Cannot set up the crossover
network.
The dual zone function
is enabled.
Set the dual zone function to off.
See Zone Control (P.145).
“DSP Select” is set to
“Bypass”.
Set “DSP Select” to “Through”.
See DSP select (P.143).
ÑAbout audio operations
Problem Reason Solution
Radio reception is poor. The car antenna is not
extended.
Pull out the antenna all the way.
The antenna control
wire is not connected.
Connect the wire correctly.
See “Connection” in the Quick Start Guide.
Cannot play audio files stored in
a disc.
“CD Read” is set to “2”. Set “CD Read” to “1”.
See Disc setup (P.65).
Cannot select a folder. The random play
function is enabled.
Turn off the random function.
Cannot perform repeat play
during VCD playback.
The PBC function is
enabled.
Turn off the PBC function.
The specified disc does not play,
but another one plays instead.
The disc is quite dirty. Clean the disc.
See Precautions on handling discs
(P.4).
The disc is severely
scratched.
Try another disc instead.
ñ
Troubleshooting
155
Return to the Top page
Troubleshooting
Problem Reason Solution
The sound skips when an audio
file is being played.
The disc is scratched
or dirty.
Clean the disc.
See Precautions on handling discs
(P.4).
The recording
condition is bad.
Record the file again or use another disc.
Audio is interrupted on AUPEO! The communication
environment is not
stable.
Audio may be interrupted depending on
the communication environment and
this unit’s operation condition.
Audio is playing in the
background.
ÑOther
Problem Reason Solution
The Touch Sensor Tone doesn’t
sound.
The preout jack is being
used.
The Touch Sensor Tone cannot be output
from the preout jack.
Error Messages
When you fail to operate the unit correctly, the cause of the failure appears as the message on
the screen.
Error Message Cause Solution
Protect Protective circuit has been activated
because a speaker cord has shorted
or it has come in contact with the
car chassis.
Wire or insulate the speaker cord as
appropriate and then press the <Reset>
button (P.157).
Hot Error When the internal temperature of
this unit rises to 60°C or more, the
protection circuit is activated and
you may not be able to operate
the unit.
Use the unit again after reducing the
temperature of the unit.
Mecha Error The disc player is malfunctioning. Eject the disc and try inserting it again. Contact
the Kenwood dealer if this indicator continues
blinking or the disc cannot be ejected.
Disc Error An unplayable disc is inserted. Change the disc.
See Playable Media and Files (P.158).
Read Error The disc is quite dirty. Clean the disc.
See Precautions on handling discs (P.4).
Disc is upside down. Load the disc with the labeled side up.
Region Code
Error
The disc you wanted to play has a
region code that cannot be played
with this unit.
See Region Codes in the World (P.163) or
try another disc.
Parental Level
Error
The disc you wanted to play has a
higher level than the parental level
you set.
Set the parental level.
See Parental level (P.65).
156
Return to the Top page
Troubleshooting
Error Message Cause Solution
Error 07–67 The unit is not operating correctly
due to some reason or other.
Push the unit’s Reset button. If the “Error
07−67” message does not disappear, see your
nearest Kenwood dealer.
No Device (USB
device)
The USB device is selected as a
source although no USB device is
connected.
Change the source to any source other than
USB/iPod. Connect a USB device, and change
the source to USB again.
Disconnected
(iPod, Bluetooth
audio player)
The iPod/Bluetooth audio player
is selected as a source although
no iPod/Bluetooth audio player is
connected.
Change the source to any source other than
iPod/Bluetooth. Connect an iPod/Bluetooth
audio player, and change the source to iPod/
Bluetooth again.
No Media file The connected USB device contains
no playable audio file. Media was
played that doesn’t have data
recorded that the unit can play.
See Playable Media and Files (P.158) and
try another USB device.
USB Device
Error!!
The connected USB device is rated
a current capacity higher than the
allowable limit.
Check the USB device. Some trouble may have
occurred to the connected USB device.
Change the source to any source other than
USB. Remove the USB device.
Authorization
Error
Connection to the iPod has failed. • Remove the iPod and then reconnect it.
• The unit does not support the iPod.
See Connectable iPod/iPhone (P.160).
Update your
iPod
The iPod’s software is an older
version which the unit can not
support.
The unit may not support the connected iPod
model.
Confirm that the software for the iPod is the
latest version.
See Connectable iPod/iPhone (P.160).
Navigation
Error. Please
turn on power
again later.
The communication error has
occurred due to severely cold
temperature.
Turn on power again after warming your car
interior.
Network is
disconnected
Not connected to Wi-Fi. Connect to Wi-Fi.
Your Dropbox
and Kenwood
accounts are
not linked.
Dropbox account information is not
registered to the logged in Owner
or User account.
Log in Route Collector site and register the
Dropbox account
157
Return to the Top page
Troubleshooting
ÑSiriusXM
Error Message Cause Solution
Check Tuner A SiriusXM tuner is not connected
to this navigation system.
Check the connection to the SiriusXM tuner.
Subscription
Updated - Press
Return To
Continue
The SiriusXM subscription has been
renewed.
Touch [ 6 ] to clear the error message.
Channel Not
Available
The currently selected channel is
unavailable. —
Ch
Unsubscribed
The currently selected channel is
not subscribed to. —
Check Antenna No antenna is connected to the
SiriusXM tuner.
Check that an antenna is connected to the
SiriusXM tuner.
No Signal No SiriusXM radio signal is received. —
Resetting the Unit
If the unit or the connected device fails to operate properly, reset the unit.
1 Press the <Reset> button.
The unit returns to factory settings.
HOME 6
NOTE
• Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device
connected can damage the data stored in the USB device. For how to disconnect the USB device, see How to
Play Media (P.18).
• When the unit is turned on after resetting, the Initial SETUP screen appears. See Initial setup (P.14).
158
Return to the Top page
Appendix
ñ
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
ÑList of playable discs
Disc types Standard Support Remark
DVD DVD Video v
DVD Audio ×
DVD-VR ×
DVD-R*1 v• MP3/WMA/AAC/MPEG1/MPEG2/DivX playback
• Multi-border/Multisession playback (Playback
depends on authoring conditions)
DVD-RW v
DVD+R v
DVD+RW v
DVD-R DL (Dual layer) vOnly video format
DVD+R DL (Double layer) v
DVD-RAM ×
CD Music CD*1vCD-TEXT
CD-ROM v• MP3/WMA/AAC/MPEG1/MPEG2/DivX playback
• Multisession is supported.
• Packet write is not supported.
CD-R v
CD-RW v
DTS-CD ×
Video CD (VCD) v
Super video CD ×
Photo CD ×
CD-EXTRA rOnly music CD session can be played.
HDCD v
CCCD ×
Others Dualdisc ×
Super audio CD rOnly CD layer can be played.
*1 Incompatible with 8 cm (3 inch) discs.
v : Playback is possible.
r : Playback is partly possible.
× : Playback is impossible.
NOTE
• When buying DRM enabled content, check the Registration Code in the DivX® VOD (P.81). Each time a file
with the displayed code is played and protected against copying, the code changes.
• DivX can be played only from a DVD disc media.
159
Return to the Top page
Appendix
öUse of DualDisc
When playing a “DualDisc” on this unit, the surface of
the disc that is not played may be scratched while the
disc is inserted or ejected. Since the music CD surface
does not conform to the CD standard, playback may be
impossible.
(A “DualDisc” is a disc with one surface containing DVD
standard signals and the other surface containing
music CD signals.)
öAbout disc format
The disc format should be the one of the following.
• ISO 9660 Level 1/2
• Joliet
• Romeo
• Long file name
ÑAbout files
The following audio, video, and picture files
are supported.
öAudio files
• AAC-LC (.m4a)
• MP3 (.mp3)
• WMA (.wma)
• Linear PCM (WAVE) (.wav)
*Mass-storage-class USB device only
• FLAC (.flac)
*Mass-storage-class USB device only
NOTE
• If music of normal CD and other playback systems
are recorded in the same disc, only the playback
system recorded at the first setout is played.
• WMA and AAC of which is covered with DRM
cannot be played.
• Although the audio files are complied with
the standards listed above, the play may be
impossible depending on the types or conditions
of media or device.
• An online manual about audio files is posted on
the site, www.kenwood.com/cs/ce/audiofile/.
On this online manual, detailed information and
notes which are not written in this manual are
provided. Make sure to read through the online
manual as well.
öVideo files
• MPEG1 (.mpg, .mpeg, .m1v)
• MPEG2 (.mpg, .mpeg, .m2v)
• DivX (.divx, .div, .avi)
*Only for DVD
• H.264/MPEG-4 AVC (.mp4, .m4v)
*Mass-storage-class USB device only
• WMV 9 (.wmv, .m2ts)
*Mass-storage-class USB device only
• MKV (.mkv)
*Mass-storage-class USB device only
öPicture files
Only picture files in USB device and SD card can be
displayed.
Files stored in disc media is not supported.
• JPEG (.jpg, .jpeg)
• PNG (.png)
• BMP (.bmp)
NOTE
• BMP and PNG can be set only as wallpaper.
öPlaying order of files
In the example of folder/file tree shown below, the files
are played in the order from 1 to 0.
Root
¡!
2
(1)
^
¡
3
¡$
4
¡"
¡#
¡P
5 ¡%
: Folder
: Audio file
160
Return to the Top page
Appendix
ÑConnectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
• iPod touch (5th generation)
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video Basic Operation (P.66).
• Latest compatible list of iPod/iPhone. For details,
see www.kenwood.com/cs/ce/ipod/.
• By connecting your iPod/iPhone to this unit
with an optional accessory iPod connection
cable (KCA-iP103, KCA-iP102 or KCA-iP202), you
can supply power to your iPod/iPhone as well
as charge it while playing music. However, the
power of this unit must be on.
• If you start playback after connecting the iPod,
the music that has been played by the iPod is
played first.
In this case, “Reading” is displayed without
displaying a folder name, etc. Changing the
browse item will display a correct title, etc.
• When the iPod is connected to this unit,
“KENWOOD” or “ä” is displayed on the iPod to
indicate that you cannot operate the iPod.
ÑUsable USB device
You can use a mass-storage-class USB device
on this unit.
The word “USB device” appearing in this
manual indicates a flash memory device and
digital audio players can be recognized as
mass-storage.
öAbout file system
The file system should be the one of the following.
• FAT16
• FAT32
NOTE
• When the USB device is connected to this unit, it
can be charged through the USB cable.
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• When connecting the USB device, usage of the
CA-U1EX (option) is recommended. (However,
maximum supply current of CA-U1EX is 500mA.)
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
ÑUsable SD card (DNN992)
The unit is capable of playback of SD/SDHC
memory cards complying with the SD or
SDHC standard.
A special adapter is required to use a miniSD
card, miniSDHC card, microSD card or
microSDHC card.
The MultiMedia Card (MMC) cannot be used.
161
Return to the Top page
Appendix
öGeneral
ATT
The attenuator is active.
DUAL
The dual zone function is on.
TEL
Indicates the connection state of the Bluetooth
hands-free unit.
• White: Connected
• Orange: Not connected
LOUD
The loudness control function is on.
öDVD/CD
FO-REP
Folder repeat function is on.
IN
A disc is inserted.
• White: A Disc is inside the unit.
• Orange: Error at the disc player
VIDEO
Identifies the video file.
MUSIC
Identifies the music file.
RDM
The random function is on.
REP
The repeat function is on.
C-REP
The chapter repeat function is on.
T-REP
The title repeat function is on.
öVCD
1chLL/2chLL
Identifies the left audio output of channel 1
or 2.
1chLR/2chLR
Identifies the monaural audio output of
channel 1 or 2.
1chRR/2chRR
Identifies the right audio output of channel 1
or 2.
1chST/2chST
Identifies the stereo audio output of channel
1 or 2.
LL
Identifies the left audio output.
LR
Identifies the monaural audio output.
RR
Identifies the right audio output.
STEREO
Identifies the stereo audio output.
PBC
The PBC function is on.
SVCD
Identifies the Super Video CD.
VER1
The VCD version is 1.
VER2
The VCD version is 2.
REP
The repeat function is on.
Status Bar Indicator Items
Shown below is a list of indicators displayed on the status bar in the screen.
Current status of this unit is displayed on the bar.
Status bar
162
Return to the Top page
Appendix
öUSB SD
FO-REP
The folder repeat function is on.
VIDEO
Identifies the video file.
MUSIC
Identifies the music file.
RDM
The random function is on.
REP
The repeat function is on.
PLST
The play list mode is selected now.
öiPod
MUSIC
Identifies the music file.
VIDEO
Identifies the video file.
RDM
The random function is on.
A-RDM
The album random function is on.
REP
The repeat function is on.
öTuner
AUTO1
Seek mode is set to AUTO1.
AUTO2
Seek mode is set to AUTO2.
MANUAL
Seek mode is set to MANUAL.
ST
A stereo broadcast is being received.
TI
Indicates the reception state of traffic
information.
• White: TP is being received.
• Orange: TP is not being received.
öHD Radio reception
AUTO1
Seek mode is set to AUTO1.
AUTO2
Seek mode is set to AUTO2.
MANU
Seek mode is set to MANUAL.
HD
HD Radio station is being received.
ANALOG
An analog broadcast is being received.
DIGITAL
A digital broadcast is being received.
ST
A stereo broadcast is being received.
TI
Indicates the reception state of traffic
information.
• White: TP is being received.
• Orange: TP is not being received.
öSiriusXM
SEEK1
Seek mode is set to SEEK1.
SEEK2
Seek mode is set to SEEK2.
163
Return to the Top page
Appendix
öDVD disc marks
ALL
Indicates a region number. The discs with this mark can
be played with any DVD player.
8
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
32
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The left mark
indicates that a wide image picture (16:9) is displayed
on a standard TV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
öOperation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the DVD is playing. In this case, the
following marks will appear on the screen. For more
information, refer to the disc manual.
Prohibition Mark
öDiscs with limited period of use
Do not leave discs with a limited period of use in this
unit. If you load an already expired disc, you may not be
able to remove it from this unit.
Region Codes in the World
The DVD players are given a region code according to the country or area it is marketed, as
shown in the following map.
1
2
4
1
5
4
5
2
1
2
6
3
164
Return to the Top page
Appendix
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
Code Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
Code Language
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
DVD Language Codes
165
Return to the Top page
Appendix
Specifications
öMonitor section
Picture Size
: 6.95 inches (diagonal) wide
: 156.6 mm (W) x 81.6 mm (H)
6-3/16 x 3-3/16 inch
Display System
: Transparent TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
öDVD player section
D/A Converter
: 24 bit
Audio Decoder
: Linear PCM/Dolby Digital/MP3/WMA/AAC
Video Decoder
: MPEG1/ MPEG2/ DivX
Wow & Flutter
: Below Measurable Limit
Frequency Response
• 96 kHz : 20 – 20,000 Hz
• 48 kHz : 20 – 20,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.008 % (1 kHz)
S/N Ratio (dB)
: 90 dB (DVD-Video 96 kHz)
Dynamic Range
: 91 dB (DVD-Video 96 kHz)
Disc Format
: DVD-Video/ VIDEO-CD/ CD-DA
Sampling Frequency
: 44.1/48/96 kHz
Quantifying Bit Number
: 16/20/24 bit
öUSB interface section
USB Standard
: USB 2.0 Full/ High speed
File System
: FAT 16/ 32
Maximum Power Supply Current
iPod/iPhone: DC 5 V 1 A
USB: DC 5 V 500 mA
D/A Converter
: 24 Bit
Video Decoder
: MPEG1/MPEG2/MPEG4/WMV/H.264/mkv
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC
öSD (DNN992)
SD Standard
: SD/ SD-HC
Compatible File System
: FAT 16/32
Capacity
: Maximum 32G Byte
Data Transfer Rate
: Maximum 24MB/sec
Video Decoder
: MPEG1/MPEG2/MPEG4/WMV/H.264/mkv
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC
166
Return to the Top page
Appendix
öNetwork section
uPnp
: Media Controller/Media Server/Media player/Media
Renderer
Video Decoder
: MPEG1/MPEG2/MPEG4/WMV/H.264/mkv
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC
öWi-Fi section
IEEE Standard
: 802.11b/g/n
Security Support
: 64/128bit WEP / WPA & WPA2
Frequency Range
DNN992: 2.401 – 2.473 GHz
DNN9150BT: 2.401 – 2.483 GHz
Transfer rates (MAX)
DNN992
: 802.11n(150 Mbps) / 802.11g(54 Mbps) /
802.11b(11 Mbps)
DNN9150BT
802.11n(150 Mbps) / 802.11g(54 Mbps) /
802.11b(11 Mbps)
Output Power
DNN992
: DSSS: 15 – 19dBm,
OFDM (11g): 13 – 17dBm, OFDM (11n): 11 – 15dBm
DNN9150BT
: DSSS: 15 – 19dBm,
OFDM (11g): 13 – 17dBm, OFDM (11n): 11 – 15dBm
öBluetooth section
Technology
: Bluetooth Ver3.0+EDR
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), 0dBm (AVE), Power Class2
Maximum Communication Range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
SBC/ AAC/ MP3/ aptX
Profile
• HFP (V1.6) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• HID (Human Interface Device Profile)
• PBAP (Phonebook Access Profile)
• GAP (Generic Access Profile)
• Multi Profile support
öHDMI/ MHL section
HDMI
: HDMI Type-A
MHL Supported Version
: MHL 2
MHL Maximum Power Supply Current
: DC 5 V 900 mA
öDSP section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/
10k/16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
X’over
Front/ Rear High pass filter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/
120/ 150 / 180/ 220/ 250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Subwoofer Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
Position
Front / Rear /Subwoofer Delay
: 0 – 20.0ft (0.07ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -50 – +10 dB
167
Return to the Top page
Appendix
öDigital FM tuner section (DNN992)
Frequency Range
: 87.9 MHz – 107.9 MHz (200 kHz)
Frequency Response (± 3.0 dB)
: 20 Hz – 20 kHz
S/N Ratio (dB)
: 75 dB (STEREO)
öDigital AM tuner section (DNN992)
Frequency Range (10 kHz)
: 530 kHz – 1700 kHz
Frequency Response (± 3.0 dB)
: 40 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (STEREO)
öFM tuner section
Frequency Range
DNN992 : 87.9 MHz – 107.9 MHz (200 kHz)
DNN9150BT : 87.5 MHz – 108.0 MHz (50 kHz)
Usable Sensitivity (S/N : 30 dB)
DNN992 : 7.2 dBf (0.8 μV/75 Ω)
DNN9150BT : 0.63 μV/75 Ω
Quieting Sensitivity (S/N : 50 dB)
DNN992 : 10.2 dBf (1.13 μV/75 Ω)
DNN9150BT : 15.2 dBf (1.6 μV/75 Ω)
Frequency Response (± 3.0 dB)
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (MONO)
Selectivity (± 400 kHz)
: ≥ 80 dB
Stereo Separation
: 45 dB (1 kHz)
öAM tuner section
Frequency Range (10 kHz)
: 530 kHz – 1700 kHz
Usable Sensitivity
: 28 dBμV
öVideo section
Color System of External Video Input
: NTSC/PAL
External Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (RCA jacks)
: 2 V/ 25 kΩ
Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Audio Output Level (Mini jack)
: 1.2 V/ 10 kΩ
öAudio section
Maximum Power (Front & Rear)
: 50 W x 4
Full Bandwidth Power (Front & Rear) (4 Ω, 14.4 V, 1
% THD)
: 22 W x 4
Preout Level (V)
: 5 V/ 10 kΩ
Preout Impedance
: ≤ 250 Ω
Speaker Impedance
: 4 – 8 Ω
öExternal SW
Maximum Power Supply Current
: 500 mA
168
Return to the Top page
Appendix
öNavigation section
Receiver
: High-sensitivity GPS receiver
Reception Frequency
: 1575.42 MHz (C/A code)
Acquisition Times
Cold : 29 seconds (typ)
(All satellites at -130 dBm Without aiding)
Update Rate
: 1/second, continuous
Accuracy
Position: <2.5 meters, CEP, at -130 dBm
Velocity: 0.1 meter/sec RMS
Position Method
: GPS
Antenna
: External GPS antenna
öGeneral
Operating Voltage
: 14.4 V (10.5 – 16 V allowable)
Maximum Current Consumption
: 10 A
Installation Dimensions (W × H × D)
: 182 × 112 × 163 mm
7-3/16 × 4-7/16 × 6-7/16 inch
Operational Temperature Range
: -10 °C – +60 °C
Weight
: 2.5 kg (5.5 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications subject to change without
notice.
Trademarks
• The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by JVC KENWOOD Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with iPod, or iPhone may affect
wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S. and
other countries.
Lightning is a trademark of Apple Inc.
• is a trademark of DVD Format/Logo
Licensing Corporation registered in the U.S., Japan and
other countries.
• This item incorporates copy protection technology
that is protected by U.S. patents and other intellectual
property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
169
Return to the Top page
Appendix
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio™ and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital
Corp.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• PANDORA, the PANDORA logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission.
• iHeartRadio® is a registered mark of Clear Channel
Broadcasting, Inc. in the United States and other
countries. Such marks are used under license.
• “aupeo” is a trade mark of Aupeo GmbH.
• Wi-Fi is a registered trademark of the Wi-Fi Alliance.
• Android is a trademark of Google Inc.
• SDHC Logo is a trademark of SD-3C, LLC.
• Twitter is a registered trademark of Twitter, Inc.
• Facebook® is a registered trademark of Facebook Inc.
• INRIX is a registered trademark of INRIX, Inc.
• Nuance is a registered trademark of Nuance
Communications, Inc.
• Dropbox is a trademark of Dropbox Inc.
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registed trademarks of HDMI Licensing
LLC in the United States and other countries.
• MHL and the MHL logo are a trademark or registered
trademark of MHL, LLC.
- Incorporates MHL 2
• BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of
Research In Motion Limited and are registered and/or
used in the U.S. and countries around the world. Used
under license from Research In Motion Limited.
• ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX, LLC, a subsidiary of Rovi Corporation.
This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and
software tools to convert your files into DivX videos.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
device must be registered in order to play purchased
DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
• DivX®, DivX Certified® and associated logos are
trademarks of Rovi Corporation or its subsidiaries and
are used under license.
• QR Code ® is registered trademarks of DENSO WAVE
INCORPORATED in JAPAN and other countries.
• The aptX® software is copyright CSR plc or its group
companies. All rights reserved. The aptX® mark and
the aptX logo are trade marks of CSR plc or one of its
group companies and may be registered in one or
more jurisdictions.
170
Return to the Top page
Appendix
• AVC
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE PERSONAL USE OF A
CONSUMER OR OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• MPEG-4 Visual
THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4
VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://
WWW.MPEGLA.COM.
• libFLAC
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,20
07,2008,2009 Josh Coalson
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
- Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
- Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
• Requirements Pandora®:
Requirements for listening to the Pandora® are as
follows:
• A smartphone with the latest Pandora application
installed.
• A Pandora account (if you do not have an account,
create one for free using the mobile app or on www.
pandora.com).
• An active internet connection.
iPhone or iPod touch
• Apple iPhone or iPod touch with iOS 3 or later
installed.
• Latest version of the Pandora application (search
App Store for Pandora and install).
Android™
• Latest version of the Pandora Android application
(search Google Play for Pandora and install).
BlackBerry®
• Visit www.pandora.com from the built in browser to
download the Pandora application.
• Bluetooth must be built in and the following profiles
must be supported.
–SPP (Serial Port Profile)
–A2DP (Advanced Audio Distribution Profile)
Note
• Pandora® is available only in the U.S, Australia and
New Zealand.
• Because Pandora® is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may be
impaired or some or all of the services may become
unavailable.
• Some functions of Pandora® cannot be operated
from this unit.
• For issues using the application, please contact
Pandora® at pandora-support@pandora.com
• Requirements iHeartRadio™:
Requirements for listening to iHeartRadio are as
follows:
• In the application on your device, log in and create a
free account with iHeartRadio.
• An active internet connection.
Note
• Because iHeartRadio™ is a third-party service,
the specifications are subject to change without
prior notice. Accordingly, compatibility may be
impaired or some or all of the services may become
unavailable.
• Some iHeartRadio™ functionality cannot be
operated from this unit.
171
Return to the Top page
Appendix
Safety precaution
öFCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in the
instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or
modification is made.
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment may cause harmful interference to
radio communications, if it is not installed and used
in accordance with the instructions. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
#CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS
RULES 21 CFR SUBCHAPTER J IN EFFECT AT
DATE OF MANUFACTURE.
Location: Top plate
öIC (Industry Canada) Notice
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)This device may not cause interference, and
(2)this device must accept any interference, including
interference that may cause undesired operation of
the device.
The term “IC: ” before the certification/ registration
number only signifies that the Industry Canada
technical specification were met.
#CAUTION
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment has very low levels of RF energy that
it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the radiator
at least 20cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
• Contains Transmitter Module
FCC ID : YZP-RBFAC21XX
• Contains Transmitter Module
IC: 7414A-RBFAC21XX
172
Return to the Top page
Appendix
DNN9150BT :
öThe marking of products using lasers
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says
that the component uses laser beams that have been
classified as Class 1. It means that the unit is utilizing
laser beams that are of a weaker class. There is no
danger of hazardous radiation outside the unit.
öInformación acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
öPara cumplimiento de la COFETEL:
“La operación de este equipo esta sujeta a las siguientes
dos condiciones:
(1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier
interferencia,
incluyendo la que pueda causar su operación no
deseada.”
öInformação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
173
Return to the Top page
Appendix
About QAU0568 (USB Wi-Fi® Adapter)
(DNN992)
About QAU0569 (USB Wi-Fi® Adapter)
(DNN9150BT)
The Wi-Fi Adapter is attached to this unit when shipped
from the factory. When the adapter is removed, store it
in a safe place.
General opreration
Screen Operation Voice Command
US English UK English French German Dutch Italian Spanish
Any screen Canceling the voice control mode Cancel Cancel Annuler Abbr. Terug Annulla Cancelar
Displays the Top Menu screen Top menu Top menu Menu sup Hauptmenü Hoofdmenu Menu princ. Menú superior
Switches to DAB source *1DAB DAB DAB DAB DAB DAB DAB
Switches to Wireless Link source Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link
Switches to DVD source DVD DVD DVD DVD DVD DVD DVD
Switches to HD Radio source *2HD Radio HD Radio Radio HD HD Radio HD Radio HD Radio HD Radio
Switches to iPod source iPod iPod iPod iPod iPod iPod iPod
Switches to Bluetooth Audio source Bluetooth audio Bluetooth audio Audio Bluetooth Bluetooth audio Bluetooth audio Audio Bluetooth Audio Bluetooth
Switches to SiriusXM source *2SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM
Switches to STANDBY source Standby Standby Veille Standby Stand by Attesa En espera
Switches to Cloud Storage source Storage Storage Storage Storage Storage Storage Storage
Switches to Tuner source *1Tuner Tuner Tuner Tuner Tuner Radio Sintonizador
Switches to USB source USB USB USB USB USB USB USB
Switches to Pandora source *2Pandora Pandora Pandora Pandora Pandora Pandora Pandora
Switches to AUPEO! source AUPEO! AUPEO! AUPEO! AUPEO! AUPEO! AUPEO! AUPEO!
Switches to iHeart Radio source *2iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio
Switches to APPS source Apps Apps Apps Apps Apps Apps Apps
Switches to HDMI source HDMI HDMI HDMI HDMI HDMI HDMI HDMI
MHL MHL MHL MHL MHL MHL MHL
Switches the AV OUT source AV out AV out sortie AV AV out AV uit AV out salida AV
Displays Hands Free screen Hands free Hands free Mains libres Telefon Handsfree Vivavoce Manos libres
Switches to Mixed Media Search Media Search Media Search Media Search Media Search Media Search Media Search Media Search
Switches to Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search
Displays OEM Features screen *2OEM OEM OEM OEM OEM OEM OEM
Displays the view from the Front View camera Front camera Front camera Caméra avant Frontkamera Vooruitzicht camera Telecamera frontale Cámara delantera
Displays the view from the Rear View camera Rear camera Rear camera Caméra arrière Rückfahrkamera Camera achter Retrocamera Cámara trasera
Displays Current Source Control screen Control screen Control screen Écran de commande Steuerbildschirm Scherm besturen Scherm. di controllo Pantalla de control
Searches the previous station/channel. Seek down Seek down Rechercher vers le bas Suche abwärts Omlaag zoeken Ricerca giù Buscar anterior
Searches the next station/channel. Seek up Seek up Rechercher vers le haut Suche aufwärts Omhoog zoeken Ricerca su Buscar siguiente
Searches the previous track/file. Track down Track down Piste précédente Titel abwärts Track omlaag Traccia giù Pista anterior
Searches the next track/file. Track up Track up Piste suivante Titel aufwärts Track omhoog Traccia su Pista siguiente
Switches to RSS Application RSS RSS RSS RSS RSS RSS RSS
Switches to Weather Application Weather Weather Météo Wetter weer Tempo tiempo
Switches to Facebook in SNS Application Facebook Facebook Facebook Facebook Facebook Facebook Facebook
Create a Facebook Status in SNS Application Status Status Statut Status status Stato Estatus
Switches to Twitter in SNS Application Twitter Twitter Twitter Twitter Twitter Twitter Twitter
Create a Tweet in SNS Application Tweet Tweet Tweet Twitter-Nachricht Tweet Tweet Tweet
Switches to email in SNS Application Mail Mail Message Email E-mail Mail Correo
Posting the current place. I'm Here I'm Here Je suis ici Mein Standort Ik ben hier Ci sono Estoy aquí
Posting the information about the song you are listening to. I'm Listening I'm Listening J'écoute Ich höre gerade Ik luister In ascolto Escucho
Displays the Current Location Information View Map View Map View Map View Map View Map View Map View Map
CONNECTED NAVIGATION SYSTEM
DNN992
DNN9150DAB
Voice Command Table
15DNN_IM387_VoiceCommand_en_00 (K/E)
© 2014 JVC KENWOOD Corporation
Displaying Voice Commands
The available voice commands depend on each screen and you can
find them by pressing and holding the Push-To Talk switch.
1 Press and hold the Push-To-Talk
switch.
The list of operable voice commands appears.
Pronounce a command.
General opreration
Screen Operation Voice Command
US English UK English French German Dutch Italian Spanish
Any screen Canceling the voice control mode Cancel Cancel Annuler Abbr. Terug Annulla Cancelar
Displays the Top Menu screen Top menu Top menu Menu sup Hauptmenü Hoofdmenu Menu princ. Menú superior
Switches to DAB source *1DAB DAB DAB DAB DAB DAB DAB
Switches to Wireless Link source Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link Wireless Link
Switches to DVD source DVD DVD DVD DVD DVD DVD DVD
Switches to HD Radio source *2HD Radio HD Radio Radio HD HD Radio HD Radio HD Radio HD Radio
Switches to iPod source iPod iPod iPod iPod iPod iPod iPod
Switches to Bluetooth Audio source Bluetooth audio Bluetooth audio Audio Bluetooth Bluetooth audio Bluetooth audio Audio Bluetooth Audio Bluetooth
Switches to SiriusXM source *2SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM SiriusXM
Switches to STANDBY source Standby Standby Veille Standby Stand by Attesa En espera
Switches to Cloud Storage source Storage Storage Storage Storage Storage Storage Storage
Switches to Tuner source *1Tuner Tuner Tuner Tuner Tuner Radio Sintonizador
Switches to USB source USB USB USB USB USB USB USB
Switches to Pandora source *2Pandora Pandora Pandora Pandora Pandora Pandora Pandora
Switches to AUPEO! source AUPEO! AUPEO! AUPEO! AUPEO! AUPEO! AUPEO! AUPEO!
Switches to iHeart Radio source *2iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio iHeart Radio
Switches to APPS source Apps Apps Apps Apps Apps Apps Apps
Switches to HDMI source HDMI HDMI HDMI HDMI HDMI HDMI HDMI
MHL MHL MHL MHL MHL MHL MHL
Switches the AV OUT source AV out AV out sortie AV AV out AV uit AV out salida AV
Displays Hands Free screen Hands free Hands free Mains libres Telefon Handsfree Vivavoce Manos libres
Switches to Mixed Media Search Media Search Media Search Media Search Media Search Media Search Media Search Media Search
Switches to Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search Phone Search
Displays OEM Features screen *2OEM OEM OEM OEM OEM OEM OEM
Displays the view from the Front View camera Front camera Front camera Caméra avant Frontkamera Vooruitzicht camera Telecamera frontale Cámara delantera
Displays the view from the Rear View camera Rear camera Rear camera Caméra arrière Rückfahrkamera Camera achter Retrocamera Cámara trasera
Displays Current Source Control screen Control screen Control screen Écran de commande Steuerbildschirm Scherm besturen Scherm. di controllo Pantalla de control
Searches the previous station/channel. Seek down Seek down Rechercher vers le bas Suche abwärts Omlaag zoeken Ricerca giù Buscar anterior
Searches the next station/channel. Seek up Seek up Rechercher vers le haut Suche aufwärts Omhoog zoeken Ricerca su Buscar siguiente
Searches the previous track/file. Track down Track down Piste précédente Titel abwärts Track omlaag Traccia giù Pista anterior
Searches the next track/file. Track up Track up Piste suivante Titel aufwärts Track omhoog Traccia su Pista siguiente
Switches to RSS Application RSS RSS RSS RSS RSS RSS RSS
Switches to Weather Application Weather Weather Météo Wetter weer Tempo tiempo
Switches to Facebook in SNS Application Facebook Facebook Facebook Facebook Facebook Facebook Facebook
Create a Facebook Status in SNS Application Status Status Statut Status status Stato Estatus
Switches to Twitter in SNS Application Twitter Twitter Twitter Twitter Twitter Twitter Twitter
Create a Tweet in SNS Application Tweet Tweet Tweet Twitter-Nachricht Tweet Tweet Tweet
Switches to email in SNS Application Mail Mail Message Email E-mail Mail Correo
Posting the current place. I'm Here I'm Here Je suis ici Mein Standort Ik ben hier Ci sono Estoy aquí
Posting the information about the song you are listening to. I'm Listening I'm Listening J'écoute Ich höre gerade Ik luister In ascolto Escucho
Displays the Current Location Information View Map View Map View Map View Map View Map View Map View Map
Note
• About the voice command for navigation system, refer to
the instruction manual of the navigation system.
• *1 DNN9150DAB only
• *2 DNN992 only

Navigation menu
