1
What Do You Want To Do?
Thank you for purchasing the KENWOOD GPS NAVIGATION SYSTEM.
In this manual, you will learn various convenient functions of the system.
Click the icon of the media you want to play.
With one-click, you can jump to the section of each media!
iPod USB VCD
DVD VIDEO
Music CD
Disc Media
BT Audio
Pandora
iHeartRadio
Tuner
HD Radio
SiriusXM
22
Before Use 4
2 WARNING _______________________ 4
How to Read this Manual 5
Basic Operations 6
Functions of the Buttons
on the Front Panel _________________ 6
Turning on the Unit _________________ 10
How to Play Media __________________ 13
Operating with the Top Menu Screen ___ 14
Common Operations ________________ 16
Navigation Operation ________________ 18
OEM Features Operation _____________ 20
DVD/Video CD (VCD)
Operation 22
DVD/VCD Basic Operation ____________ 22
DVD Disc Menu Operation ____________ 25
Zoom Control For DVD And VCD _______ 26
DVD Setup ________________________ 28
CD/Audio and Visual Files/
iPod/App Operation 32
Music/Video/Picture Basic Operation ___ 32
Search Operation ___________________ 39
Movie Control ______________________ 44
Pandora® Operation _________________ 45
iHeartRadio Operation _______________ 48
Apps Operation ____________________ 51
USB/iPod/DivX Setup ________________ 52
Radio and HD Radio™ Tunzwer
Operation 58
Radio/HD Radio Tuner Basic Operation __ 58
Memory Operation __________________ 61
Selecting Operation _________________ 62
Traffic Information __________________ 64
Receive Mode ______________________ 64
Bookmark _________________________ 65
SiriusXM® Operation 68
SiriusXM® Basic Operation ____________ 68
Memory Operation __________________ 71
Selecting Operation _________________ 71
Content alert _______________________ 73
SiriusXM Replay™ ___________________ 74
Smart Favorites, TuneStart™ ___________ 75
TuneScan™ ________________________ 75
SiriusXM Setup _____________________ 76
Bluetooth Control 82
Registering And
Connecting Bluetooth Unit __________ 82
Playing Bluetooth Audio Device _______ 84
Using Hands-Free Unit _______________ 85
Smartphone Link ___________________ 88
Hands-Free Setup ___________________ 90
Contents
3
Setting Up 92
Monitor Screen Setup _______________ 92
View Camera Control ________________ 93
System Setup ______________________ 93
Display Setup ______________________ 98
Navigation Setup ___________________ 101
Camera Setup ______________________ 102
Software Information ________________ 103
AV Input Setup _____________________ 103
AV Output Interface Setup ____________ 104
External Device Control ______________ 104
Controlling Audio 106
Setting Audio ______________________ 106
Controlling General Audio ____________ 110
Equalizer Control ___________________ 110
Zone Control _______________________ 112
Sound Effect _______________________ 113
Listening Position ___________________ 115
Remote control 118
Battery Installation __________________ 118
Functions of the Remote control Buttons 119
Troubleshooting 122
Problems and Solutions ______________ 122
Error Messages _____________________ 123
Resetting the Unit __________________ 125
Appendix 126
Playable Media and Files _____________ 126
Status Bar Indicator Items ____________ 130
Region Codes in the World ____________ 132
DVD Language Codes _______________ 133
Specifications ______________________ 134
About this Unit _____________________ 137
44
Return to the Top page
Before Use
2 WARNING
To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or
leave any metallic objects (such as coins or
metal tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any
extended period.
• If you experience problems during
installation, consult your Kenwood dealer.
Precautions on using this unit
• When you purchase optional accessories,
check with your Kenwood dealer to make
sure that they work with your model and in
your area.
• You can select language to display menus,
audio file tags, etc. See Language setup
(P.95).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where
the service is not supported by any
broadcasting station.
Protecting the monitor
To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Cleaning the unit
If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
¤
• Applying spray cleaner directly to the unit
may affect its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch
the surface or erase screened print.
Lens fogging
When you turn on the car heater in cold
weather, dew or condensation may form
on the lens in the disc player of the unit.
Called lens fogging, this condensation on
the lens may not allow discs to play. In such
a situation, remove the disc and wait for the
condensation to evaporate. If the unit still
does not operate normally after a while,
consult your Kenwood dealer.
Precautions on handling discs
• Do not touch the recording surface of the
disc.
• Do not stick tape etc. on the disc, or use a
disc with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull
them out horizontally.
• If the disc center hole or outside rim has
burrs, use the disc only after removing the
burrs with a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording
surface or discs that are dirty cannot be
used.
• This unit can only play the CDs with
.
This unit may not correctly play discs which
do not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process see
your writing software, and your recorder
instruction manual.)
Before Use
5
Return to the Top page
How To Read This Manual
How to Read this Manual
27
Return to the Top page
CD, Disc, iPod, USB device
Search Operation
You can search the music, video, or picture
file by some operations.
NOTE
• If you use a remote controller, you can jump
directly to the desired track/file with entering the
track/folder/file number, play time, etc. For details,
see “Direct search mode” (p.81).
List search
You can search tracks, folders, and files
according to hierarchy.
For USB devices and iPods, you can list and
search files in the device by using playlist.
1 Press the <MENU> button during
playback.
Simple Control screen appears.
2 Touch [ ].
List Control screen appears.
3 Touch desired track/file.
Playback starts.
Other search
When you want to narrow the list down,
there are other search ways.
1 Press the <MENU> button during
playback.
Simple Control screen appears.
2 Touch [ ].
The search type screen appears.
NOTE
• The screens and panels shown in this
manual are examples used to provide clear
explanations of the operations.
For this reason, they may be different from the
actual screens or panels used, or some display
patterns may be different.
Link header
You can refer each section or top page
with one-click.
Reference mark
Displayed in blue notes.
With one-click, you can jump to the
article related to the current section.
Screen shot
Shows some screen shots displayed during
operation for reference.
The area or keys to touch are surrounded
with a red frame.
Operation procedure
Explains necessary procedures to
achieve the operation.
< >: Indicates the name of panel
buttons.
[ ]: Indicates the name of touch
keys.
Operation title
Introduces the function.
NOTE
Introduces some tips, notes, etc.
66
Return to the Top page
Basic Operations
Functions of the Buttons on the Front Panel
DNX891HD/ DNX7710BT/ DNX771HD
1
3
4
5
6
7
9
8
2
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
• In this manual, each model name is abbreviated as follows.
DNX891HD:
DNX7710BT, DNX771HD:
If above icon is showed, read the article applicable to the unit you use.
How to insert an SD Card
1) Press
7
<0> button for 1 second.
The panel fully opens.
2) Hold the SD card as the illustration in the right
and insert it into the slot until it clicks.
● To eject the card:
Push the card until it clicks and then remove your finger
from the card.
The card pops up so that you can pull it out with your
fingers.
Basic Operations
0
Labelled
side
7
Return to the Top page
Basic Operations
Number Name Motion
1
fi (Reset) • If the unit or the connected unit fails to operate properly, the unit
returns to factory settings when this button is pressed (P.125).
• This indicator flashes when the vehicle ignition is off (P.96).
2
∞, 5 (Vol) • Adjusts volume.
3
NAV • Displays the navigation screen.
• Pressing for 1 second switches AV out sources.
4
AUD • Displays Graphic Equalizer screen (P.111).*
• Pressing for 1 second switches camera view display on/off.
5
MENU • Displays the Top Menu screen (P.14).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
6
TEL • Displays the Hands Free screen (P.85).
• Pressing for 1 second displays the Voice Recognition screen. (P.88)
7
0 (Eject) • Ejects the disc.
• When the panel is opened, pressing closes the panel and pressing for 1
second ejects the disc forcibly.
• When the panel is closed, pressing for 1 second fully opens the panel to
the location of the SD card slot.
8
Disc insert
slot
• A slot to insert a disc media.
9
SD card slot An SD card slot for upgrading the map. For how to upgrade the map, refer
to the instruction manual of the navigation system.
* The display may not switch to the Graphic Equalizer screen in some conditions.
88
Return to the Top page
Basic Operations
DNX691HD/DNX571HD/DNX5710BT/DNX571EX
4
3
1
2
5
6
7
8
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
• In this manual, each model name is abbreviated as follows.
DNX691HD:
DNX571HD, DNX571EX, DNX5710BT:
If above icons are showed, read the article applicable to the unit you use.
How to insert a microSD Card
1) Open the
8
microSD card slot cover
as the illustration in the right.
2) Hold the microSD card with the label
facing up and the notched section right,
and insert it into the slot until it clicks.
● To eject the card:
Push the card until it clicks and then remove your
finger from the card.
The card pops up so that you can pull it out with
your fingers.
9
Return to the Top page
Basic Operations
Number Name Motion
1
Disc insert
slot
• A slot to insert a disc media.
2
0 (Eject) • Ejects the disc.
• Pressing for 1 second ejects the disc forcibly.
3
fi (Reset) • If the unit or the connected unit fails to operate properly, the unit
returns to factory settings when this button is pressed (P.125).
• This indicator flashes when the vehicle ignition is off (P.96).
4
MENU • Displays the Top Menu screen (P.14).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
5
NAV • Displays the navigation screen.
• Pressing for 1 second switches AV out sources.
6
Volume Knob • Turning adjusts volume up or down.
• Pressing switches attenuation of the volume on/off.
• Pressing for 1 second displays Graphic Equalizer screen (P.111).*
7
TEL • Displays the Hands Free screen (P.85).
• Pressing for 1 second displays the Voice Recognition screen. (P.88)
8
microSD
card slot
• A microSD card slot for upgrading the map. For how to upgrade the
map, refer to the instruction manual of the navigation system.
* The display may not switch to the Graphic Equalizer screen in some conditions.
1010
Return to the Top page
Basic Operations
Turning on the Unit
The method of turning on is different depending on the model.
Press the <MENU> button.
The unit is turned on.
● To turn off the unit:
Press the <MENU> button for 1 second.
If it is your first time turning the unit on after installation, it will be necessary to perform
Initial setup (P.11).
1
11
Return to the Top page
Basic Operations
Initial setup
Perform this setup when you use this unit first time or when you reset the unit (P.125).
Set each item as follows.
Locale
Select the country for the navigation system.
The language, the distance unit, and the gasoline unit are set.
After setting, touch [Enter].
1 Touch [SET].
2 Select the desired country.
3 Touch [Enter].
Language
Select the language used for the control screen and setting items. Default is “American English (en)”.
1 Touch [SET].
2 Touch [2] or [3] to select the desired language.
3 Touch [Enter].
For detailed operation, see Language setup (P.95).
Angle
Adjust the position of the monitor. Default is “0”.
1 Touch [SET].
2 Touch desired angle number and [6].
For detailed operation, see Monitor angle control (P.98).
Color
Set the screen and button illumination color. You can select whether to allow color scan operation or
select a fixed color for operation.
1 Touch [SET].
2 Touch [ON] or [OFF] of [Panel Color Scan].
3 If you want to change color, touch [SET] of [Panel Color Coordinate].
4 Touch your desired color and [6].
For detailed operation, see Panel color coordinate (P.99).
1
Continued
1212
Return to the Top page
Basic Operations
EXT SW (DNX891HD, DNX7710BT only)
Control the external devices.
1 Touch [SET].
2 Set device name, output pattern, and pulse set for each device. Then, touch [6].
For detailed operation, see EXT SW setup (P.96).
Camera
Set the parameters for the camera.
1 Touch [SET].
2 Set each item and touch [ ].
For detailed operation, see Camera Setup (P.102).
OEM SETUP (North America Sales area only)
This function requires a commercial adaptor.
Consult your Kenwood dealer for details.
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu. See Setting Up (P.92).
2
13
Return to the Top page
Basic Operations
How to Play Media
Music CD and disc media
Press the <0> button.
The panel opens.
Insert the disc into the slot.
The panel closes automatically.
The unit loads the disc and playback
starts.
● To eject the disc:
Press the <0> button.
Insert the disc into the slot.
The unit loads the disc and playback
starts.
● To eject the disc:
Press the <0> button.
USB device
Connect the USB device with the
USB cable.
The unit reads the device and playback
starts.
● To disconnect the device:
Touch [0] on the screen and disconnect
the device from the cable.
iPod
Connect the iPod.
The unit reads the iPod and playback
starts.
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video/Picture Basic Operation (P.32).
● To disconnect the iPod/iPhone
connected with the cable:
Touch [ ] on the screen and then touch
[0]. Disconnect the iPod from the cable.
1
2
1
1
1
1414
Return to the Top page
Basic Operations
Operating with the Top Menu Screen
Most functions can be performed from the Top Menu screen.
Touch [Menu] on any screen.
NOTE
• If [Menu] is not
displayed during
video/picture
playback, press the
<MENU> button.
(P.6)
Top Menu screen appears.
NOTE
• Top Menu screen can
be changed by flicking
left or right.
● Customizing Top Menu screen
You can arrange the position of the
source icons as you like.
1. Touch and hold the icon which
you want to move to go into the
customizing mode.
2. Drag it where you want to move.
Customizing mode screen
1
15
Return to the Top page
Basic Operations
From this screen, you can perform the following functions.
Function Icon Operation
Switch the audio source
etc.
Touch the icon of the
desired source.
Switch the video source
etc.
Touch the icon of the
desired video source.
Switch the application
installed in the iPhone/
iPod or Android.
Touch the icon of the
desired application.
Switch the Apps source Touch the icon of the
desired App source.
Enter setup mode
etc.
Touch the icon of the
desired setup function.
Display navigation
screen
or
Touch [NAV] or
navigation information.
Turn off all audio
function
Touch [STANDBY].
Vehicle information
display
Touch [OEM Features].
1616
Return to the Top page
Basic Operations
Common Operations
Introduces the common operations.
General
There are some functions which can be operated from most screens.
[Menu] (Screen control)
Returns to the Top Menu screen.
Touching for at least 1 second displays the
Screen Control screen. (Even when an image
is displayed, touching for at least 1 second
displays the Screen Control screen.)
(RETURN)
Returns to previous screen.
(common menu key)
Touch to display the common menu. The
contents of the menu are as follows.
: Displays the EXT SW Control screen.
(DNX891HD, DNX7710BT only)
: Displays the SETUP Menu screen.
: Displays the Audio Control Menu
screen.
: Displays the control screen of current
source. Icon feature differs depending
on the source.
: Closes the menu.

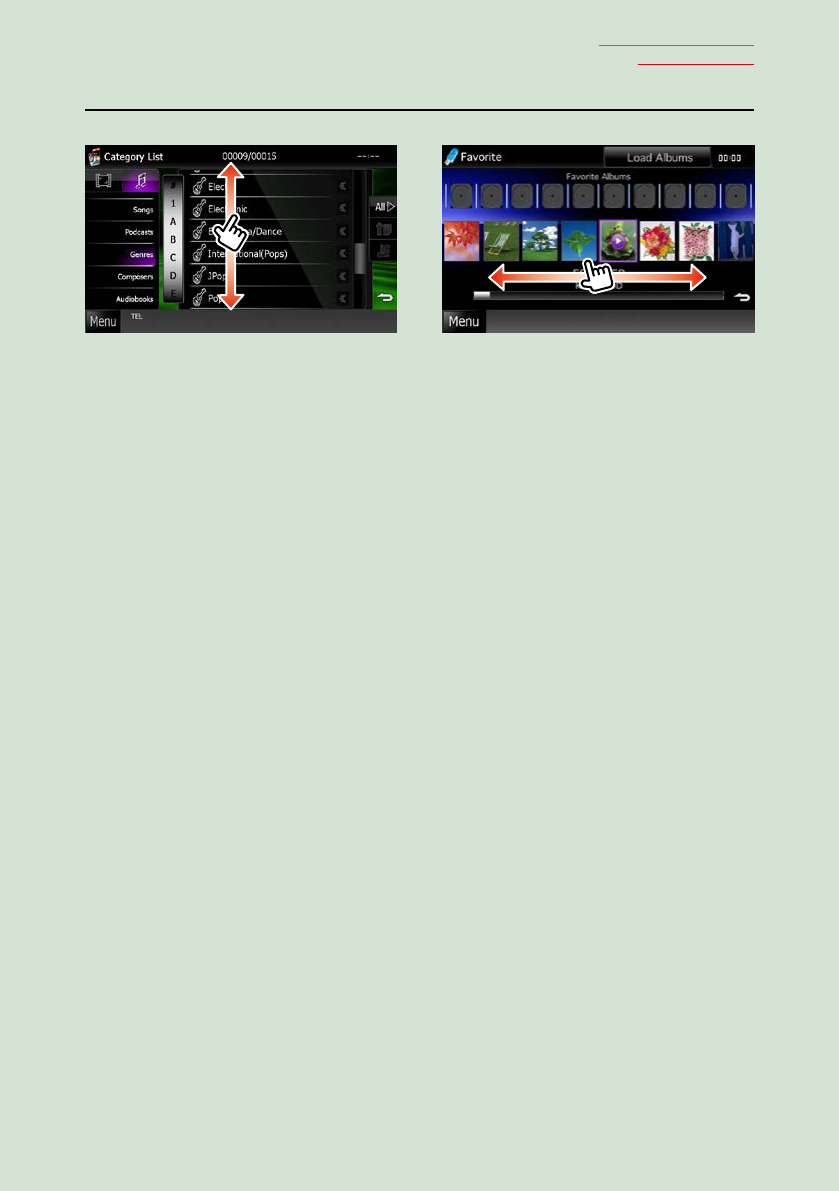

List screen
There are some common function keys in the list screens of most sources.
(Scroll)
Scrolls the displayed text.
etc.
Touch keys with various functions are
displayed here.
Displayed keys differ depending on the
current audio source, status, etc.
For examples of functions of each key, refer
to the table below.
Key Function
Lists all the music in the lower hierarchy.
Moves to the upper hierarchy.
Displays current category folder.
Displays music/picture/movie file list.
1818
Return to the Top page
Basic Operations
Navigation Operation
For details on the navigation function, please refer to the Navigation Instruction Manual.
Display the navigation screen
Press the <NAV> button.
The navigation screen appears.
Control audio from the navigation screen
You can control audio sources while the navigation screen is displayed.
Also, you can view the navigation information while the source control screen is displayed.
Touch the information bar.
The navigation screen with audio information appears.
1
1
19
Return to the Top page
Basic Operations
Touch [ ] or [ ] in the navigation screen.
Touching this area displays
the audio screen.
: Displays the navigation and control
keys of the current source.
: Displays the navigation and current
video/picture playback display.
NOTE
• The screen switches between playback screen
and camera view each time the viewing area is
touched.
• Touching the source icon in the bottom of the
screen displays the full audio screen.
● To return to the full navigation screen:
Touch [ ].
NOTE
• For details on control keys, refer to the instructions in each section.
2
2020
Return to the Top page
Basic Operations
OEM Features Operation
By connecting this unit to the bus system of the vehicle using an iDataLink (commercially
available), this unit can access the satellite radio source provided for the vehicle and vehicle
information can be displayed on this unit.
Touch [Menu] on any screen.
Top Menu screen appears.
Touch [OEM Features] in the Top Menu screen.
OEM Features screen appears.
: Displays the control screen of the
satellite radio source provided for the
vehicle.
: Displays the control screen of the
media player source provided for the
vehicle.
: Displays the control screen of the
Bluetooth Hands Free function
provided for the vehicle.
: Displays the control screen of the
Bluetooth streaming source provided
for the vehicle.
1
2
21
Return to the Top page
Basic Operations
: Displays information about the
instruments such as a speedometer.
: Displays information about the air
conditioner of the vehicle.
: Displays information about the
Parking Distance Sensor of the vehicle.
: Displays information about the tire
pressures of the vehicle.
NOTE
• Displayable screens, button names, and screen names vary depending on the type of the connected iDataLink
and the model of the vehicle. For more details, access the following URL:
www.idatalink.com/
2222
Return to the Top page
DVD/Video CD Operation
DVD/VCD Basic Operation
Most functions can be controlled from the source control screen and playback screen.
NOTE
• Set the remote control mode switch to DVD mode before starting operation, see Switching the operation mode
(P.119).
• The screen shot below is for DVD. It may be different from the one for VCD.
2
3
4
1
5
Video screenControl screen
6
6
7
8
1 Information display
Displays the following information.
• Title #, Chap #: DVD title and chapter number display
• Track #/Scene #: VCD track or scene number display
Scene # is displayed only when Playback control (PBC) is on.
• 3, ¡, ¢, 7, etc.: Current play mode display
The meanings of each icon are as follows; 3 (play), ¡ (fast forward), 1 (fast backward),
¢ (search up), 4 (search down), 7 (stop), R (resume stop), 8 (pause), (slow playback),
(slow reverse playback).
Touch this area to display the disc lable name.
2 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.24).
3 Multi function menu
Various functions can be performed by using keys in this area. For details on the keys, see Multi
function menu (P.24).
4 Control switching key
Unavailable in DVD/VCD source.
DVD/Video CD (VCD) Operation
23
Return to the Top page
DVD/Video CD Operation
5 Sub function menu
The following functions can be performed by using keys in this area.
• Repeats the current content: Touch [ ]. Each time you touch the key, repeat mode switches in the
following sequence;
DVD: "title repeat" , "chapter repeat" , "function off"
VCD (PBC On): Does not repeat
VCD (PBC Off ): "track repeat" , "function off"
• Hides all keys: Touch [ ].
• Fast forward or fast backward: Touch [1] or [¡]. Each time you touch the key, the speed
changes; standard, 2 times, 3 times.
• Confirms play time: See #:##:##.
DVD: You can switch the time display between title play time, chapter play
time, and title remaining time. Each time you touch, the display switches
between “T #:##:##” (title play time display), “C #:##:##” (chapter play time
display), and “R #:##:##” (title remaining time display).
As well as the time display, the bar indicating current location appears.
VCD (PBC off): You can also confirm disc remaining time by touching time
display. Each time you touch, the display switches between “P
##:##” (play time display) and “R ##:##” (disc remaining time).
• Confirms the current location: See the bar in center (DVD only). The bar does not appear when the
time display is remaining time display.
6 Searching area
Touch to search the next/previous content.
Scrolling from center of display to left or right performs fast backward or fast forward. Each time you
touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch
center of the display.
7 Menu display area
This area functions differently depending on the current status.
• During DVD playback: Displays the DVD menu. During the menu display, displays the highlight
control screen.
• During VCD playback: Displays the Zoom Control screen (P.26).
8 Key display area
Touch to display the last control screen.
NOTE
• If you use a remote control, you can jump directly to the desired image with entering the chapter number, scene
number, play time, etc (P.119).
2424
Return to the Top page
DVD/Video CD Operation
Multi function menu
DVD VCD
The functions of each key are as follows.
[4] [¢]
Searches the previous/next content.
[38]
Plays or pauses.
[] or [ ] (DVD only)
Plays in slow motion forward or backward.
[7]
Stops playback. When touched twice, the disc is played from the beginning when you play it the next
time.
[PBC] (VCD only)
Turn Playback control (PBC) on or off.
[
SETUP]
Touch to display the SETUP Menu screen. See Setting Up (P.92).
[
AUDIO]
Touch to display the Audio Control screen. See Controlling Audio (P.106).
[
EXT SW] (DNX891HD, DNX7710BT only)
Touch to control the external device power supply. For details, see External Device Control (P.104).
[ REAR
]
Touch to mute the rear speaker.
25
Return to the Top page
DVD/Video CD Operation
DVD Disc Menu Operation
You can set up some items in the DVD-VIDEO
disc menu.
1 Touch illustrated area during playback.
Menu Control screen appears.
2 Perform desired operation as follows.
Displays the top menu
Touch [Top].*
Displays the menu
Touch [Menu].*
Displays the previous menu
Touch [Return].*
Enters selected item
Touch [Enter].
Enables direct operation
Touch [Highlight] to enter the highlight control
mode (P.25).
Moves the cursor
Touch [5], [∞], [2], [3].
* These keys may not function depending on
the disc.
Highlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1 Touch [Highlight] in the Menu Control
screen.
2 Touch desired item on the screen.
NOTE
• The highlight control is cleared automatically if
you do not operate for a constant time.
2626
Return to the Top page
DVD/Video CD Operation
DVD play mode setting
You can select DVD play mode.
1 Touch [Next] in the Menu Control
screen.
Menu Control 2 screen appears.
2 Touch the key which corresponds to
desired setting item.
Switches the subtitle language
Touch [Subtitle]. Each time you touch this key,
language is switched.
Switches the audio language
Touch [Audio]. Each time you touch this key,
language is switched.
Controls zoom ratio
Touch [Zoom]. For details, see step2 in Zoom
Control For DVD And VCD (P.26).
Switches the picture angle
Touch [Angle]. Each time you touch this key,
picture angle is switched.
Exits menu control
Touch [Exit].
Displays the Menu Control 1 screen
Touch [Previous].
Zoom Control For DVD And VCD
You can enlarge Playback screen for DVD and
VCD.
1 For VCD, touch illustrated area during
playback.
Zoom Control screen appears.
NOTE
• For DVD, please refer to DVD play mode setting
(P.26) to display the Zoom Control screen.
2 Perform desired operation as follows.
Switches zoom ratio
Touch [Zoom].
For DVD, changes the zoom ratio at 4 levels;
Off, 2 times, 3 times, 4 times.
For VCD, changes the zoom ratio at 2 levels;
Off, 2 times.
Scrolls the screen
Touch [5], [∞], [2], or [3] to scroll the screen
in the direction you touch.
Exits menu control
Touch [Exit].
Displays the previous menu*
Touch [Return].
2828
Return to the Top page
DVD/Video CD Operation
DVD Setup
You can set up the DVD playback functions.
NOTE
• Each operation in this section can be started from
the Top Menu screen. For details, see Operating
with the Top Menu Screen (P.14).
• Some setup items can only be set in standby
mode.
1 Touch [ ] in the control screen.
Multi function menu appears.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [DVD SETUP] in the list.
DVD SETUP screen appears.
5 Set each item as follows.
Menu/Subtitle/Audio Language*
See Language setup (P.29).
Dynamic Range Control*
Sets the dynamic range.
Wide: The dynamic range is wide.
Normal: The dynamic range is normal.
Dialog (Default): Makes the total sound
volume larger than other
modes. This is effective only
when you are using Dolby
Digital software.
Angle Mark
Sets an angle mark display.
ON (Default): An angle mark appears.
OFF: An angle mark does not appear.
Screen Ratio*
Sets the screen display mode.
16:9 (Default): Displays wide pictures.
4:3 LB: Displays wide pictures in the Letter Box
format (having black stripes at the top
and bottom of screen).
4:3 PS: Displays wide pictures in the Pan &
Scan format (showing pictures cut at
the right and left ends).
Parental Level*
See Parental level (P.30).
DISC SETUP
See Disc setup (P.30).
29
Return to the Top page
DVD/Video CD Operation
Stream Information
Displays the present source information.
The stream (Dolby Digital, Linear PCM, MPEG,
WMA or AAC) appears.
* These items are disabled when a DVD is
inserted.
Language setup
This setting is for the language used in the
menu, subtitle, and voice. You cannot setup
these items during DVD playback.
1 Touch [SET] of the desired item;
[Menu Language], [Subtitle Language],
[Audio Language].
Language Set screen appears.
2 Enter the desired language code and
touch [Enter].
For language code, refer to DVD Language
Codes (P.133).
Sets the entered language and returns to
the DVD SETUP screen.
NOTE
• To cancel the setup and return to the previous
screen, touch [Cancel].
• To clear the entered code, touch [Clear].
• To set the DVD’s original language for audio
language, touch [Original].
3030
Return to the Top page
DVD/Video CD Operation
Parental level
Sets a parental level. You cannot setup this
item during DVD playback.
1 Touch [SET] of [Parental Level].
Parental Pass screen appears.
2 Enter the parental code and touch
[Enter].
Parental Level screen appears.
NOTE
• The parental code is set to “0000” as default.
• To cancel the setup and return to the previous
screen, touch [Cancel].
• To clear the entered code, touch [Clear].
• Current parental level appears as [Level#].
3 Touch [2] or [3] to select a parental
level.
NOTE
• If a disc has higher parental lock level, you need
to enter the code number.
• The parental lock level varies depending on a
loaded disc.
• If a disc has no parental lock, anybody can play it
back even when you have set the parental lock.
Disc setup
Performs setup when using disc media.
1 Touch [SET] of [DISC SETUP].
DISC SETUP screen appears.
2 Select an option as follows.
CD Read
Sets the motion of this unit when a music CD
is played.
1 (Default): Automatically recognizes and plays
back an audio file disc, a DVD or a music
CD.
2: Forcibly plays back a disc as a music CD.
Select [2] if you wish to play a music CD
having a special format or if you cannot
play a disc in [1] position.
On Screen DVD
Sets an on-screen display.
Auto: When updated, information appears for
5 seconds.
OFF (Default): Information does not appear.
NOTE
• [CD Read] is not available when a disc is in the
unit.
• You cannot play an audio file/VCD disc in the [2]
position. Also, you may not play some music CDs
in the [2] position.
3232
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Music/Video/Picture Basic Operation
Most functions can be controlled from the source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation
mode (P.119).
• To connect the Android device with this unit, the cable (sold separately) and the profile which your Android
device supports are necessary as follows:
• To listen to music and watch video of APPS source
−MHL device
−KCA-MH100
−Bluetooth profile: SPP
• To listen to music of APPS source
−Bluetooth profile: A2DP
−Bluetooth profile: SPP
• To listen to music of Bluetooth Audio source
−Bluetooth profile: A2DP
−Bluetooth profile: AVRCP
• To connect the iPod/iPhone with this unit, the cable, adapter (both sold separately), and the profile which your
iPod/iPhone supports are necessary as follows:
• To listen music and watch video with Lightning connector device
−Lightning Digital AV Adapter
−KCA-HD100
−Lightning to USB Cable (accessory of the iPod/iPhone)
−Bluetooth profile: SPP
• To listen music with Lightning connector device
−Lightning to USB Cable (accessory of the iPod/iPhone)
• To listen music and watch video with 30-pin connector device (1)
−Apple 30-pin Digital AV Adapter
−KCA-HD100
−KCA-iP102
−Bluetooth profile: SPP
• To listen music and watch video with 30-pin connector device (2)
−KCA-iP202
• To listen music with 30-pin connector device
−KCA-iP102
• To listen to music via Bluetooth
−Bluetooth profile: A2DP
−Bluetooth profile: SPP
When connecting with Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter some applications can be
controlled from this unit. The operable functions depend on the application.
• Do not leave the cable or the adapter made by other makers inside the car. It might lead the malfunction caused
by heat.
• Some settings are necessary to meet the connected iPod/iPhone or Android device. Refer to iPod/iPhone
connection setup (P.54) and Application link setup (P.56) .
See the following sections for each source operation.
• Music CD (P.33)
• Disc media (P.33)
• USB device (P.35)
CD/Audio and Visual Files/iPod/App Operation
33
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
• iPod (P.35)
• Pandora (P.45)
• iHeartRadio (P.48)
• Apps (P.51)
Music CD and disc media
NOTE
• In this manual, “Music CD” will be referred to as the general CDs which include music tracks in.
“Disc media” will be referred to as CD/DVD disc which includes audio, picture or video files.
• The screen shot below is for CD. It may be different from the one for disc media.
2
3
3
4
4
5
8
6
2
7
Simple Control screen List Control screen
1
1 Information display
Displays the following information.
• Track #: Each time you touch this area, display switches between current track number, text, etc.
• 3, ¡, ¢, 7, etc.: Current play mode display
The meanings of each icon are as follows; 3 (play), ¡ (fast forward), 1 (fast
backward), ¢ (search up), 4 (search down), 7 (stop), R (resume stop), 8
(pause).
2 Movie display area/Control switching area
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.37).
4 Multi function menu
Various functions can be performed by using keys in this area. For details on the menu, see Multi
function menu (P.37).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Track information
Displays the information of the current track.
For music CD and disc media, you can switch the current track information and the current folder list by
touching the list switching key (8 in this table).
However, only "No Information" is displayed for music CD.
3434
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.38).
8 List switching key
Touch to switch between the track list and the CD-TEXT display (CD)/ID3 tag information (disc media
only).
Video screen (disc media only)
9
9
10
11
9 Searching file area (disc media only)
Touch to search the next/previous file.
Scrolling from center of display to left or right performs fast backward or fast forward. Each time you
touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch
center of the display.
10
Menu display area (disc media only)
Touch to display the disc menu. For details, see Movie Control (P.44).
11
Key display area (disc media only)
Touch to display the last control screen.
35
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
USB device and iPod
NOTE
• The screen shot below is for USB device. It may be different from the one for iPod.
2
3
3
4
4
5
8
6
2
7
Simple Control screen List Control screen
1
1 Information display
Displays the following information.
• Current file name: Each time you touch this area, display switches between file number/folder
number and file name.
• 3, ¡, etc.: Current play mode display
The meanings of each icon are as follows; 3 (play, searching), 8 (pause), ¡ (forward
manual search), 1 (reverse manual search).
2 Artwork/Control switching area
The picture data is displayed if available from the current file. When the picture is not available, “No
Photo” is displayed.
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.37).
4 Multi function menu
Various functions can be performed by using keys in this area. For details on the keys, see Multi
function menu (P.37).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Contents list
Displays the list and contents. The contents of the list differ depending on the playback status and
source.
When you select the video source on the device connected with the Lightning connecter, the source is
switched to Apps (P.51) automatically.
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.38).
8 List switching key
Touch to switch between the file list and the current file information.
3636
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Picture/video screen
9
9
10
9 Searching file area (picture/video file only)
• Touch to search the next/previous file.
• During slide show in USB mode, touching each area searches the next/previous music file.
• Scrolling from center of display to left or right performs fast backward or fast forward. To stop fast
backward/forward, touch center of the display. This function is not available when there is no music
file in the current folder.
10
Key display area (picture/video file only)
Touch to display the last control screen.
37
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Multi function menu
Music CD
iPod
Disc media
USB device
The following functions can be performed by using keys in this area.
[ ] (Disc media, iPod, USB device only)
Searches track/file. For details on search operation, see Search Operation (P.39).
[4] [¢]
Searches the previous/next track/file.
[3] [8] / [38]
Plays or pauses.
[7] (music CD and disc media only)
Stops playback.
[0] (iPod and USB device only)
Touch to disconnect the device. For details, see How to Play Media (P.13).
[ ] [ ] (disc media and USB device only)
Searches previous/next folder.
[
] (picture files in USB device only)
During picture playback, switches to picture display.
[
SETUP]
Touch to display the SETUP Menu screen. See Setting Up (P.92).
[
AUDIO]
Touch to display the Audio Control screen. See Controlling Audio (P.106).
[
EXT SW] (DNX891HD, DNX7710BT only)
Touch to control the external device power supply. For details, see External Device Control (P.104).
[ REAR
]
Touch to mute the rear speaker.
3838
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Sub function menu
Music CD
iPod
Disc media
USB device
The following functions can be performed by using keys in this area.
[ ]
Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following
sequence;
CD: "track repeat" , "repeat off"
iPod: "song repeat" , "all songs repeat" , "repeat off"
Disc media, USB device: "file repeat" , "folder repeat" , "repeat off"
[ ] (USB device and iPod only)
Searches track from the album artwork list. For details on search operation, see Search from album
artwork (P.42).
[ ] (During video file playback only)
Hides all keys.
[1] [¡] (Music CD and disc media only)
Fast forward or fast backward.
[ ] [ ] (USB device and iPod only)
Plays the previous or next album in Favorite list (P.43).
#:##:## or ##:##
Confirms play time.
During music CD playback, you can also confirm disc remaining time by touching time display.
Each time you touch, the display switches between “P ##:##” (track play time display) and “R ##:##” (disc
remaining time).
[ ]
Randomly plays all tracks in current folder/disc or in current playlist in the connected iPod.
Each time you touch the key, random mode switches in the following sequence;
CD: "track random" , "random off"
Disc media, USB device: "file random" , "random off"
iPod: "track random" , "album random" , "random off"
Status bar in center (USB device and iPod only)
Confirms the current location.
During USB device and iPod playback, you can drag the circle left or right to change the playing
position.
39
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Search Operation
You can search music, video or picture files
by the following operations.
NOTE
• If you use a remote control, you can jump directly
to the desired track/file with entering the track/
folder/file number, play time, etc. For details, see
Direct search mode (P.119).
List search
You can search tracks, folders, and files
according to hierarchy.
1 Touch illustrated area.
List Control screen appears.
2 Touch desired track/file.
Playback starts.
NOTE
• For disc media, you can switch the file list and
folder list by touching [ ].
• For disc media, you cannot display the list during
random play and stop.
Other search
When you want to narrow the list down,
there are other search ways.
This function is not available when music CD
is the current source.
1 Touch [ ] in the control screen.
The search type screen appears.
2 Touch desired search way.
USB device
iPod
The list sorted in the way you selected
appears.
See the following sections for each
operation.
• [Category List]: You can search a file by
selecting category (P.40).
• [Link Search]: You can search a file of
same artist/album/genre/composer as the
current track (P.40).
• [Folder List]: You can search a file according
to hierarchy (P.41).
• [Thumbnail Viewer]: You can search a
picture file (P.41).
NOTE
• For disc media, you can display the folder list
directly by touching [ ].
4040
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Category search (USB device and iPod
only)
1 Touch the desired category from the
left part of the screen.
2 The list is sorted by selected category.
3 Touch desired item.
Playback starts.
NOTE
• To narrow the search you can select a letter from
the alphabet list in the center of the display.
• For operations in the list screen, see Common
Operations (P.16).
Link search (USB device and iPod only)
1 Touch the desired item from the left
part of the screen. You can select from
artist, album, genre and composer.
The list corresponding to your selection
appears.
NOTE
• The list is sorted by the way you selected.
• artist: Displays the album list of the artist.
• album: Displays all tunes of the current album.
• genre: Displays the artists list in which artists
belong to the same genre.
• composer: Displays the album list of the
composer of the current file.
2 Touch to select desired item in the
list. Repeat this step until you find the
desired file.
NOTE
• To narrow the search you can select a letter from
the alphabet list in the center of the display.
• For operations in the list screen, see Common
Operations (P.16).
41
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Folder search (USB device and disc
media only)
1 Touch the desired folder.
Folders in the selected source are displayed
in the center.
When you touch a folder its contents are
displayed.
The hierarchy till the current folder is
displayed on the left.
2 Touch desired item from the content
list.
Playback starts.
NOTE
• For operations in the list screen, see Common
Operations (P.16).
Picture search (USB device only)
1 Touch the desired picture.
The selected picture appears in full screen.
See number 9-10 in USB device and iPod
(P.35) for operation of picture screen.
4242
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Search from album artwork
(USB device and iPod only)
You can search music files by selecting the
album artwork.
1 Touch [ ].
Sub function menu appears.
2 Touch [ ].
Favorite screen appears.
3 Touch desired artwork in the lower line.
NOTE
• The key in the upper side of the screen functions
differently depending on the status.
When [Load Albums] appears:
You have not yet loaded any artworks. Touch the
key to start loading.
When [Load More Albums] appears:
Some artworks are not loaded. Touch the key to
load all artworks. If you touch the key, the track
being played may stop and another track may
start playback.
When the key does not available:
All artworks are already loaded.
4 Touch [ 3 ] on the selected artwork.
The first song in the album is played.
In addition, you can create your original
playlist from this screen. For details, see
Favorite list (P.43).
NOTE
• After all tracks in the album are played, the same
album is played again from the first track.
• The albums with no photo are not displayed.
43
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Favorite list
You can create an original playlist of your
favorite 10 albums by selecting album
artworks.
1 Touch and drag the desired album
artwork in the lower line to the upper
line.
Selected album is registered to the favorite
list.
NOTE
• The added album is placed on the extreme right.
• You cannot register the same album already
registered to the favorite list.
• Up to 10 albums can be registered to the list.
2 Touch the desired artwork in the
favorite list.
Selected album is played and the control
screen appears.
NOTE
• The favorite list is played to the right starting with
the selected album.
• To delete the album from the favorite list, touch
and drag it to the lower line.
• You can change the playing order of the favorite
list by dragging the artwork in the list.
• The favorite list mode is canceled in the following
situations.
• Playing another album from other list (folder list,
category list, etc.)
• Playing another album by touching the artwork
in the lower line in the artwork list screen.
• The favorite list mode resumes after
disconnecting/connecting the device or turning
on/off. File being played, playing time code,
favorite list contents, favorite list order, etc.
resumes if file configuration of the device is not
changed.
4444
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Movie Control
You can adjust the movie playback from a
disc media.
1 In the playback screen, touch
illustrated area.
Movie Control screen appears.
2 Perform desired operation as follows.
Changes subtitle language
Touch [Subtitle].
Changes audio language
Touch [Audio].
Exits the menu
Touch [Exit].
45
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Pandora® Operation
You can listen to the Pandora® on this unit by controlling the application installed in the iPhone
or Bluetooth device.
To enter Pandora mode, touch [Pandora] icon in the Top Menu screen.
NOTE
• Install the latest version of the Pandora® application on your iPhone, Android or BlackBerry.
iPhone: Search for "Pandora" in the Apple App Store to find and install the most current version.
Android: Visit the Google play and search for Pandora to install.
BlackBerry: Visit www.pandora.com from the built in browser to download the Pandora application.
• When you first select Pandora as a source, the setting screen for the connection with the device installed the apps
will appear. For the details, refer to Application link setup (P.56).
2
3
3
4
4
5
8
6
2
7
Simple Control screen List Control screen
1
1 Information display
Displays text information of current contents that is being played.
2 Artwork/Control switching area
The picture data is displayed if available from current content.
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.46).
4 Multi function menu
Various functions can be performed by using the keys in this area. For details on the keys, see Multi
function menu (P.46).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Content information
Displays the information of the current content being played.
7 Sub function menu
Various functions can be performed by using keys in this area. For details on the keys, see Sub function
menu (P.46).
8 List switching key
Touch to switch between the content list and the current content information.
4646
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Multi function menu
The following functions can be performed by
using keys in this area.
[ ]
Searches for a station. For details on searching,
see Station list screen (P.47).
[ ] (Thumbs down)
Thumbs down to the current song and skip to
the next song.
[ 38 ]
Plays or pauses the content of the current
station.
[ ¢ ]
Skips the current song.
(Note this function is disabled when the
Pandora skip limitation is exceeded.)
[ ] (Thumbs up)
Registers the current contents as favorite
content.
[
] (Bookmark Artist)
Bookmark an artist in the current contents.
[ ] (Bookmark Song)
Bookmark a song in the current contents.
NOTE
• [SETUP], [AUDIO], [EXT SW], and [REAR] functions
same as iPod.
Sub function menu
The following functions can be performed by
using keys in this area.
Status bar in center
Displays the elapsed time since when you
select the station and status bar which shows
current location.
[ ]
Creates a new station based on an artist being
played.
[ ]
Creates a new station based on a song being
played.
[ ]
Displays the genre list screen. For details on
searching, see Genre list screen (P.47).
47
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Station list screen
You can perform the following functions
from this screen.
Selects the station
Touch the station name in the list.
Sort the list in alphabetical order
You can select the desired letter from the list
which corresponds to the station name to help
narrow the search.
Sort the list by registered date
Touch [ByDate]. The list is sorted to begin with
the last registered station.
NOTE
• You can operate Pandora by using the
remote control. However, only playing,
pausing, and skipping are available.
• You cannot select iPod as rear source when
you select Pandora as main source in dual
zone function.
Genre list screen
You can perform the following functions
from this screen.
The selected genre is created as a new
station.
4848
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
iHeartRadio Operation
You can listen to the iHeartRadio on this unit by controlling the application installed in the
iPhone or Android.
To enter iHeartRadio mode, touch [iHeartRadio] icon in the Top Menu screen.
NOTE
• Install the latest version of the iHeartRadio application "iHeartAuto" on your iPhone or Android.
iPhone: Search for "iHeartAuto" in the Apple App Store to find and install the most current version.
Android: Search for "iHeartAuto" in Google play to find and install the most current version.
• When you first select iHeartRadio as a source, the setting screen for the connection with the device installed the
apps will appear. For the details, refer to Application link setup (P.56).
2
3
4
5
1
1 Artwork switching area
The picture data is displayed if available from current content. When the picture is not available, “No
Photo” is displayed.
2 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.49).
3 Multi function menu
Various functions can be performed by using the keys in this area. For details on the keys, see Multi
function menu (P.49).
4 Sub function menu
The following functions can be performed by using keys in this area.
• Thumbs up to the current song: Touch [ ].
• Thumbs down to the current song. : Touch [ ].
5 Content information
Displays the information of the current content being played.
49
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Multi function menu
The following functions can be performed by
using keys in this area.
[ 37 ]
Stops or pauses. (Live station only)
[ 38 ]
Plays or pauses. (Custom station only)
[ ¢ ]
Skips the current song. (Custom station only)
[SCAN]
Scans for another station of the same genre.
(Live station only)
[ ]
Creates a custom station based on the current
song.
[ ]
Searches for a station. For details on searching,
see Station search (P.49).
[ ]
Saves currently playing station to My Stations.
(Live station only)
[ ]
Use the Discovery Tuner to set the variety level
of a station. For details, see Discovery tuner
(P.50). (Custom station only)
Station search
You can list and select station.
1 Touch [ ] in the control screen.
The Station Search screen appears.
Selects the category and station
Touch the category and station name in the
list.
[ ]
Returns to the first hierarchy of the category
list.
[ ]
Returns to the previous category list.
[ ]
Deletes a saved station from My Stations. For
details, see My stations edit (P.50).
5050
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
My stations edit
1 Touch [ ] in the Station Search
screen.
Station Edit screen appears.
2 Select the station to delete from My
stations.
Selects the station
Touch to check the station name you want to
delete.
You can uncheck if you touch it again.
[ ]
Returns to the first hierarchy of the category
list.
[ ]
Returns to the previous category list.
3 Touch [ ].
Station Delete screen appears.
4 Touch [Yes].
My station selected is deleted.
Discovery tuner
You can set the variety level in a custom
station.
1 Touch [ ] in the control screen.
The Discovery tuner select screen appears.
Selects the variety
Touch the variety you want to set.
51
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Apps Operation
You can listen to music or watch video from the Apps operating on iPod touch/iPhone or Android.
To enter Apps mode, touch [APPS] icon in the Top Menu screen.
NOTE
• When you turn on the power and select apps as the source, the caution for the operation, watching video and
listening music appears. With your acceptance, you can control apps, listen to music and watch video from apps
when you are driving.
• When you first select APPS as a source, the setting screen for the connection with the device installed the apps
will appear. For the details, refer to Application link setup (P.56).
2
3
1
1 Multi function key (iPod touch/iPhone only)
Touch to switch the multi function menu.
2 Multi function menu (iPod touch/iPhone only)
The following functions can be performed by using keys in this area.
• Plays or pauses: Touch [3], [8], or [38] (iPod only).
• Searches the previous/next track/file: Touch [4] or [¢].
• Fast forward or fast backward (iPod only): Touch [1] or [¡].
3 Sub function menu (iPod touch/iPhone only)
The following functions can be performed by using keys in this area.
• Hides all keys (During video file playback only): Touch [ ]
NOTE
• The operable functions depend on the application.
5252
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
USB/iPod/DivX Setup
You can perform setup when using USB/
iPod/ DivX (DNX891HD/ DNX7710BT/
DNX5710BT).
NOTE
• Each operation in this section can be started from
the Top Menu screen. For details, see Operating
with the Top Menu Screen (P.14).
• Some setup items can only be set in standby
mode.
1 Touch [ ] in the control screen.
Multi function menu appears.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [USB SETUP], [iPod SETUP], [APPS
SETUP], or [DivX SETUP] in the list.
Each setup screen appears.
See the following section for each setting.
• USB setup (P.52)
• iPod setup (P.53)
• AppsApplication link setup (P.56)
• DivX(R) VOD (P.57)
USB setup
1 Set each item as follows.
Picture Display Time
Selects length of time to display JPEG picture
file in the screen. Select from [Short], [Middle],
and [Long] (default).
On Screen USB
Sets how to display the information of the USB
device.
Auto (Default): Information appears for 5
seconds when updated.
OFF: Does not display any information.
53
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
iPod setup
1 Set each item as follows.
AudioBook Speed
Sets the audio book playback speed. Select
from [Slow], [Normal] (default), and [Fast].
Wide Screen*
Sets Wide Screen. Set [ON] (default) or [OFF].
On Screen iPod
Sets how to display the information of the
iPod.
Auto (Default): Information appears for 5
seconds when updated.
OFF: Does not display any information.
iPod connection setup
Sets the way to connect the iPod/iPhone with
this unit For details on searching, see iPod/
iPhone connection setup (P.54).
* This setting is not available when an iPod is
connected.
5454
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
iPod/iPhone connection setup
1 Touch [iPod Connection Setup] in the
iPod Settings screen.
iPod connection setup screen appears.
2 Touch [CHANGE].
3 Select the way to connect the iPod/
iPhone with this unit.
USB + AV-IN
Select when connecting with KCA-iP202.
USB 1Wire
Select when connecting with KCA-iP102/
Lightning to USB Cable.
HDMI + BT
Select when connecting with KCA-HD100 and
Lightning Digital AV Adapter or Apple 30-pin
Digital AV Adapter.
Bluetooth
Select when connecting via Bluetooth only.
4 Touch [Next].
Confirmation screen appears.
5 Touch [Done].
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video/Picture Basic Operation (P.32).
• When you select “HDMI + BT” or “Bluetooth” in
step 3, Bluetooth device selection screen will
appear. Select the iPod/iPhone to be connected.
If a connectable Bluetooth device is not
displayed, touch [Search] and do the pairing of
the devices.
5656
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
Application link setup
Sets the device an application is installed in
and the app is selected as the source.
1 Touch [CHANGE].
2 Select the device installed the apps.
iPod / iPhone
Select when using iPod/iPhone.
Android / Other
Select when using Android or BlackBerry
device.
3 Touch [Next].
Connection setup screen appears.
4 Select the way to connect the device
with this unit.
When selecting [iPod / iPhone]
USB + AV-IN
Select when connecting with KCA-iP202.
USB 1Wire
Select when connecting with KCA-iP102/
Lightning to USB Cable.
HDMI + BT
Select when connecting with KCA-HD100 and
Lightning Digital AV Adapter or Apple 30-pin
Digital AV Adapter.
Bluetooth
Select when connecting via Bluetooth only.
When selecting [Android / Other]
HDMI/MHL + BT
Select when connecting with KCA-MH100.
Bluetooth
Select when connecting via Bluetooth only.
5 Touch [Next].
Confirmation screen appears.
6 Touch [Done].
57
Return to the Top page
CD/Audio and Visual Files/iPod/App Operation
NOTE
• This setup can be set when in STANDBY source.
• For the details of the necessary cable and adapter
to connect with iPod/iPhone and Android, refer to
Music/Video/Picture Basic Operation (P.32).
• When you select “HDMI + BT”, “HDMI/MHL +
BT” or ”Bluetooth” in step 4, Bluetooth device
selection screen will appear. Select the device to
be connected.
If a connectable Bluetooth device is not
displayed, touch [Search] and do the pairing of
the devices.
• When you select “iPod/ iPhone” in Apps Setup,
select “iPod” as the source, and select App on the
iPod, the source of this unit is also changed to
App automatically.
DivX(R) VOD (DNX891HD/
DNX7710BT/ DNX5710BT)
This feature is available only for Central and
South America sales area.
1 Set each item as follows.
DivX(R) Registration Code
Checks the registration code. This code is
needed when making a disc which has DRM
(Digital Rights Management).
DivX(R) Deactivation
Deregisters the unit which is already registered.
After you touch the key, a confirmation
message appears. Follow the message and
complete the operation.
NOTE
• [DivX(R) VOD] is disabled when a disc is being
played.
• When downloading a DivX VOD file controlled
by DRM, register the code appeared on the
screen. Otherwise the file may not be able to play
with this unit. Remaining number of viewing is
displayed when playing a DivX VOD file with the
viewing restriction. When the used number of
viewing reached maximum number, a warning
message appears and the file cannot be played.
5858
Return to the Top page
Radio and HD Radio Tuner Operation
Radio/HD Radio Tuner Basic Operation
Most functions can be controlled from the source control screen.
NOTE
• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode
(P.119).
• HD Radio broadcasting can be received only by the DNX891HD, DNX771HD, DNX691HD, DNX571HD, and
DNX571EX.
• HD Radio broadcasting is for North American sales area only.
• The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.
2
1
3
3
4
4
5
8
6
2
7
Simple Control screen List Control screen
1 PS/Station name display
Displays the PS name or station name.
2 Information display/Control switching area
Displays the following information.
• Picture: The picture data or station Logo data is displayed if available from current content.
• [FM1] etc.: Band display
• MHz/kHz: Frequency display
• Preset #: Preset number
• HD# (HD Radio tuner only): Channel display
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.59).
4 Preset key/Multi function menu
Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving
station or channel in memory.
When switched, various functions can be performed by using keys in this area.
For details on the menu, see Multi function menu (P.59).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
Radio and HD Radio™ Tuner Operation
59
Return to the Top page
Radio and HD Radio Tuner Operation
6 Preset list
Displays the list of preset stations or channels and the information.
7 Sub function menu
The following functions can be performed by using keys in this area.
• Switches the band: Touch [AM] or [FM].
• Tunes in a station: Touch [1] [¡]. The method of frequency switching can be changed. See Multi
function menu (P.59).
• Selects a channel (HD Radio tuner only): Touch [CH∞] or [CH5].
• Stores the information about the song being received: Touch [ ]. See Bookmark (P.65).
• Tunes in by entering direct number (HD Radio tuner only):
Touch [ ] and enter the desired number. For details, see Direct search (P.63).
The bar in center (tuner only) shows the current frequency location.
8 List switching key
Touch to switch between the preset list and the information list.
In tuner mode, radio text plus will be displayed.
In HD Radio tuner mode, tuned program information will be displayed.
Multi function menu
Tuner HD Radio tuner
The functions of each key are as follows.
[P1] - [P6]
Selects the preset station. Touch for 2 seconds to store the current station into the preset memory.
[ ]
Selects the method of searching from preset stations selecting or channel searching. For details on
search operation, see Selecting Operation (P.62).
[TI] (FM Tuner and HD Radio tuner only)
Sets the traffic information mode on. For details, see Traffic Information (P.64).
[SEEK]
Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].
• AUTO1: Tunes in a station with good reception automatically.
• AUTO2: Tunes in stations in memory one after another.
• MANUAL: Switches to the next frequency manually.
[AME]
Selects the auto memory mode. For details, see Auto memory (P.61).
[PTY] (FM Tuner and HD Radio tuner only)
Searches a program by setting program type. For details, see Search by program type (P.62).
[RCV] (HD Radio tuner only)
Switches the receive mode in the following sequence; [AUTO], [DIGITAL], [ANALOG]. For details, see
Receive Mode (P.64).
Continued
6060
Return to the Top page
Radio and HD Radio Tuner Operation
[
SETUP]
Touch to display the SETUP Menu screen. See Setting Up (P.92).
[
AUDIO]
Touch to display the Audio Control screen. See Controlling Audio (P.106).
[
EXT SW] (DNX891HD, DNX7710BT only)
Touch to control the external device power supply. For details, see External Device Control (P.104).
[ REAR
]
Touch to mute the rear speaker.
This HD Radio receiver enables:
• Program Service Data provides song name, artist,
station ID, and other relevant data streams
• Adjacent to traditional main stations are HD2/HD3
Channels, providing new original formats on the
FM dial
• Bookmark is a music & product discovery feature
that enables users to store information about
content on the radio and delivers interactive
information via QR codes
• HD Radio broadcasts deliver crystal clear, CD-like
digital audio quality to consumers
• Visual images, such as album art of over-the-air
broadcasts from HD Radio stations
61
Return to the Top page
Radio and HD Radio Tuner Operation
Memory Operation
Auto memory
You can store stations with good reception in
memory automatically.
NOTE
• Auto memory terminates when 6 stations are
stored or when all stations are tuned in.
• The operation ends automatically if you do not
operate within 10 seconds.
1 Touch [ ].
Sub function menu appears.
2 Touch desired band key.
3 Touch [ ] in the control screen.
The multi function menu appears.
4 Touch [AME] in the multi function
menu.
5 Touch [1] or [¡] in the sub function
menu.
Auto memory starts.
Manual memory
You can store the current receiving station or
channel in memory.
1 Select a station or channel you wish to
store in memory.
2 Touch [P#] (#:1-6) in which you want
to store the station or channel for 2
seconds until a beep sounds.
6262
Return to the Top page
Radio and HD Radio Tuner Operation
Selecting Operation
Preset select
You can list and select memorized station or
channel.
Selecting from the multi function menu
1 Touch the desired number from P1 to
P6.
The unit will tune to the selected station or
channel.
Selecting from the preset list
1 Touch illustrated area.
List Control screen appears.
2 Select a station or channel from the list.
NOTE
• For HD Radio tuner, touching [ ] and then
[Preset List] displays the preset channel list. You
can also select your desired channel from the list.
Search by program type
(FM tuner and HD Radio tuner
only)
You can tune to a station with a specific
program type when listening to FM.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [PTY] in the multi function menu.
TUNER PTY Mode screen appears.
3 Select a program type from the list.
4 Touch [Search].
You can search a station of the selected
program type.
63
Return to the Top page
Radio and HD Radio Tuner Operation
Direct search (HD Radio tuner
only)
You can tune in by entering the desired
frequency or channel number.
1 Touch illustrated area.
List Control screen appears.
2 Touch [ ].
10Key Direct screen appears.
3 Enter the channel number and touch
[Enter].
NOTE
• To cancel the direct search, touch [Cancel].
• To clear the number you entered, touch [Clear].
• You can search by frequency. Each time you
touch [Mode] in the left part of the screen, it
changes the mode between frequency entering
mode and channel entering mode.
Category/Channel search (HD
Radio tuner only)
You can specify the desired category and
select a channel.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
List select screen appears.
3 Touch [Preset list] or [Category/
Channel list].
The previously used category or channel
list appears.
4 Select the desired content from the list.
NOTE
• Each time you touch [Info Change] in the channel
list, switches the sequence of the list.
Song title, artist name, album name
6464
Return to the Top page
Radio and HD Radio Tuner Operation
Traffic Information
(HD Radio tuner only)
You can listen and watch the traffic
information automatically when a traffic
bulletin starts.
However, this feature requires a Radio
Broadcast Data System that includes the TI
information.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [TI] in the multi function menu.
Traffic information mode is set.
When the traffic bulletin starts
The Traffic Information screen appears
automatically.
NOTE
• It is necessary to have Traffic Information function
set to on in order to have the Traffic Information
screen appear automatically.
• The volume setting during reception of traffic
information is automatically stored. The next time
the traffic information is received, this unit recalls
the volume setting automatically.
Receive Mode (HD Radio tuner
only)
You can set the radio broadcasts receive
mode.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [RCV] in the multi function menu.
HD Radio tuner Mode screen appears.
3 Select the receive mode from [Auto],
[Digital], and [Analog] using [2] and
[3].
NOTE
• If you select [Auto], tunes to analog broadcast
automatically when there is no digital broadcast.
65
Return to the Top page
Radio and HD Radio Tuner Operation
Bookmark
(HD Radio tuner only)
Stores tag information (title, artist, album,
URL, and description) about the song you are
listening to now.
Detailed information and QR codes can
be displayed according to the stored tag
information.
Registering a bookmark
1 Touch [ ].
Sub function menu appears.
2 Touch [ ].
Registers a bookmark.
NOTE
• Up to 100 bookmarks can be registered to this
unit.
Bookmark list
Displaying a list of registered bookmarks
and detailed information and QR code of the
song.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
List select screen appears.
3 Touch [Bookmark].
The Bookmark List appears.
4 Select the desired bookmark from the
list.
The bookmark infomation appears.
[]
Deletes the bookmarks being displayed.
6666
Return to the Top page
Radio and HD Radio Tuner Operation
Bookmark delete
Deleting a bookmark.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
List select screen appears.
3 Touch [Bookmark].
The Bookmark List appears.
4 Touch [Delete List].
The Bookmark Delete List appears.
5 Select the bookmark to delete from
the list.
[All]
Select all bookmarks.
6 Touch [ ].
Deletes all the selected bookmark(s)
6868
Return to the Top page
SiriusXM Operation
SiriusXM® Basic Operation
Most functions can be controlled from the source control screen.
Before use
• SiriusXM® Satellite Radio operation requires the connection of the optional SiriusXM Connect Vehicle Tuner and
service. To activate the SiriusXM Connect Vehicle Tuner, you will need the Radio ID.
• Make a note of your Radio ID: For each SiriusXM Connect Vehicle Tuner, peculiar Radio ID is assigned. To confirm
your Radio ID, tune to channel 0. The letters I, O, S and F are not used in any Radio ID.
The Radio ID is also located on the label of the SiriusXM Connect Vehicle Tuner.
• How to activate your SiriusXM Service: Go to www.siriusxm.com/activatenow or call 1-866-635-2349 to activate
your SiriusXM Vehicle Connect Tuner.
To activate SiriusXM Canada service go to www.xmradio.ca and click on “ACTIVATE RADIO” in the top right corner,
or call 1-877-438-9677
NOTE
• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode
(P.119).
• To use SiriusXM® Satellite Radio, the optional accessory is necessary.
• SiriusXM® Satellite Radio are for North American sales area only.
Simple Control screen List Control screen
7
5
6
8
1
2
2
3
3
4
4
1 Signal Strength indication
Displays the received signal strength of the SiriusXM tuner.
2 Information display/Control switching area
Displays the following information.
• [SXM1], etc.: Band display
• Preset #: Preset number
• #CH: Channel display
• Logo: Channel logo display
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.69).
SiriusXM® Operation
69
Return to the Top page
SiriusXM Operation
4 Preset key/Multi function menu
Recalls the memorized channel. When touched for 2 seconds, store the current receiving channel in
memory.
When switched, various functions can be performed by using keys in this area.
For details on the menu, see Multi function menu (P.69).
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
6 Music information
Displays the information of the current channel: Channel Name, Artist Name, Song Title, Content Info,
Category Name, Channel Description, Similar Channels
7 Sub function menu
The following functions can be performed by using keys in this area.
• Tunes in a station: Touch [CHS] [CHR].
• Searches the previous/next track: Touch [4] [¢]. fast forward/fast backward when keep on
touching. see SiriusXM Replay™ (P.74).
• Tunes in by entering direct number: Touch [ ] and enter the desired number. For details, see
Direct search (P.72).
8 List switching key
Touch to switch between the preset list and the information list.
Multi function menu
The functions of each key are as follows.
[P1] - [P6]
Selects the preset channel. Touch for 2 seconds to store the current station into the preset memory.
[ ]
Selects the method of searching from preset channel selecting or category/channel searching. For
details on search operation, see Selecting Operation (P.71).
[SEEK]
Switches the seek mode in the following sequence; [SEEK1], [SEEK2].
• SEEK1: Tunes channels one after the other.
• SEEK2: Selects channels in preset (memory) one after the other.
[BAND]
Switches the band.
[38]
Plays or pauses. see SiriusXM Replay™ (P.74).
[
]/[
]
Touch for 2 seconds to register content as Alert content.
• [ ]: Registers the artist of the song you are listening to now as an alert content.
• [ ]: Registers the song you are listening to now as an alert content.
For details, see Content alert (P.73).
Continued
7070
Return to the Top page
SiriusXM Operation
[
]
Turns the Traffic & Weather Jump function on or off.
For details, see City select for Traffic & Weather Jump (P.79).
[ ]
Listen to live.
[TuneScan]
Plays samples from the starts of multiple buffered songs from each of the Smart Favorite channels that
predominantly play music selections. See TuneScan™ (P.75).
[
SETUP]
Touch to display the SETUP Menu screen. See Setting Up (P.92).
[
AUDIO]
Touch to display the Audio Control screen. See Controlling Audio (P.106).
[
EXT SW] (DNX891HD only)
Touch to control the external device power supply. For details, see External Device Control (P.104).
[ REAR
]
Touch to mute the rear speaker.
71
Return to the Top page
SiriusXM Operation
Memory Operation
Manual memory
You can store the current receiving station or
channel in memory.
1 Select a station or channel you wish to
store in memory.
2 Touch [P#] (#:1-6) in which you want
to store the station or channel for 2
seconds until a beep sounds.
Selecting Operation
Preset select
You can list and select memorized station or
channel.
Selecting from the multi function menu
1 Touch the desired number from P1 to
P6.
The unit will tune to the selected station or
channel.
Selecting from the preset list
1 Touch illustrated area.
List Control screen appears.
2 Select a station or channel from the list.
NOTE
• For SiriusXM tuner, touching [ ] and then
[Preset List] displays the preset channel list. You
can also select your desired channel from the list.
7272
Return to the Top page
SiriusXM Operation
Direct search
You can tune in by entering the desired
frequency or channel number.
1 Touch illustrated area.
List Control screen appears.
2 Touch [ ].
10Key Direct screen appears.
3 Enter the channel number and touch
[Enter].
NOTE
• To cancel the direct search, touch [Cancel].
• To clear the number you entered, touch [Clear].
Category/Channel search
You can specify the desired category and
select a channel.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [ ] in the multi function menu.
List select screen appears.
3 Touch [Category/ Channel list].
The previously used category or channel
list appears.
4 Select the desired content from the list.
NOTE
• All the channels in the selected category appear.
• Touching [All Channels] displays all the channels.
• Each time you touch [Info Change] in the channel
list, switches the sequence of the list.
Channel name, artist name, song title, category
name, content info
73
Return to the Top page
SiriusXM Operation
Content alert
When a broadcast program related to the
registered artist, song or team starts, a
message appears to allow you to switch the
current channel to the relevant channel.
1 When the broadcast of the registered
content starts, an Alert screen appears.
Jump
Touch to display the Alert Content List screen.
Ignore
Touch to cancel the Content alert.
2 Select a content from the list.
NOTE
• Each time you touched [Type], switches the
sequence of the Content alert list as follows;
Artist Alert, Song Alert, GameAlert™
• For how to register artists and songs and turn on/
off the Team alert function, see Multi function
menu (P.69).
• For how to set up the Content alert function, see
SiriusXM Setup (P.76).
7474
Return to the Top page
SiriusXM Operation
SiriusXM Replay™
You can replay last 60 minutes of current
channel.
1 Touch [SiriusXM] in the Top Menu.
[4] [¢]
Searches the previous/next track. Fast forward/
fast backward when keep on touching.
[38]
Plays or pauses.
[CHS] [CHR]
Tunes in a station.
Replay time bar
Display recorded capacity and playback
position.
[ ]
Listen to live.
[ ]
Displays a list of recorded data on a program
basis.
[BAND]
Switches the band.
2 Touch [ ] to display a program list.
Program list
Touching this plays back the displayed
program.
[Info Change]
Touching this allows you to switch among the
Artist name, Song title, Category name, and
Content info cyclically.
75
Return to the Top page
SiriusXM Operation
Smart Favorites, TuneStart™
Station memory number 1 though 6 of
current band are Smart Favorite channels.
SiriusXM Vehicle Tuner automatically
buffered the broadcast audio content of the
Smart Favorites channels in the background.
You can rewind and replay up to 30 minutes
of any of the missed news, talk, sports or
music content when you tune to a Smart
Favorite channel. (see SiriusXM Replay™
(P.74))
When tuning Smart Favorites channels,
songs will play from the beginning of each
track (Tune Start). You can enable/disable
Tune Start. (see TuneStart™ (P.80))
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the Smart Favorite channels
that predominantly play music selections.
You have easy access to a large sampling of
music content and can enjoy hearing a full
song when stopping the scan on a song of
interest.
1 Touch [ ] in the control screen.
The multi function menu appears.
2 Touch [TuneScan] in the multi function
menu.
The introductions of the songs will be
played in recorded order.
3 Touch [TuneScan] while your favorite
song is being played.
Scan finishes and continues playing the
song.
NOTE
• To cancel Tune Scan, Touch [TuneScan] for 2
seconds.
After cancel, the channel before starting Tune
Scan will be played.
7676
Return to the Top page
SiriusXM Operation
SiriusXM Setup
NOTE
• Each operation in this section can be started from
the Top Menu screen. For details, see Operating
with the Top Menu Screen (P.14).
1 Touch [ ] in the control screen.
Multi function menu appears.
2 Touch [SETUP] in the multi function
menu.
SETUP Menu screen appears.
3 Touch [Source].
Source SETUP Menu screen appears.
4 Touch [SiriusXM SETUP] in the list.
SiriusXM SETUP screen appears.
See the following section for each setting.
• Set up the parental code (P.76)
• Set up the parental control (P.77)
• Set up the skip channel select (P.78)
• Set up the Content alerts (P.78)
• Set up the content for Content alerts
(P.79)
• Select the city for Content alerts (P.79)
• Set up the TuneStart™ (P.80)
• Reset to the default settings (P.80)
Parental code
You can set a SiriusXM parental code.
1 Touch [Change] of [Parental Code] in
the SiriusXM SETUP screen.
Parental Pass Check screen appears.
NOTE
• The code number is set to “0000” as default.
2 Enter the current code number.
Parental Pass 1st entering screen appears.
3 Enter the new code number and touch
[Enter].
Parental Pass 2nd entering screen appears.
4 Enter the same code number as you
input in step 3 and touch [Enter].
The code number is confirmed and
SiriusXM parental code is now set.
77
Return to the Top page
SiriusXM Operation
Parental control
Parental control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1 Touch [ON] or [OFF] of [Parental Lock
Mature] in the SiriusXM SETUP screen.
2 Enter the same code number as you
originally input in Parental code (P.76)
and touch [Enter].
Turns the Mature on or off.
Default is “OFF”.
If you want to separately set the parental
lock for each channel, select OFF and
proceed to step 3 onward.
3 Touch [SET] of [Parental Lock Channel
Select] in the SiriusXM SETUP screen.
Parental Pass Check screen appears.
NOTE
• You need to complete Parental code (P.76)
beforehand.
• To delete the parental lock channel setting, touch
and hold [Unlock All] for 2 seconds, enter the
Parental code number, then touch [Enter].
4 Enter the same code number as you
originally input in Parental code (P.76)
and touch [Enter].
Parental Lock Category Select screen
appears.
5 Touch the desired category from the
list.
Displays all the channels in the selected
category.
NOTE
• Touch [All Channels] to display all the channels.
6 Touch each channel list and set on or
off.
NOTE
• Each time you touched [Info Change], switches
the sequence of the channel list as follows;
Channel name, Artist name, Song title, Category
name, Content information.
• Touch [’] to return to Parental Lock Category
Select screen.
• Touch [ ] to return to SiriusXM SETUP screen.
7878
Return to the Top page
SiriusXM Operation
Skip channel select
You can set the undesired channels to skip.
1 Touch [SET] of [Skip Channel Select].
Skip Category Select screen appears.
2 Touch the desired category from the
list.
Displays all the channels in the selected
category.
3 Touch each channel list and set ON or
OFF.
NOTE
• Operations in each list screen are same as
Parental control (P.77).
• To delete the skip channel setting, touch and
hold [Unskip All] for 2 seconds, enter the Parental
code number, then touch [Enter].
Content alerts setup
You can turn on or off the Content alerts
function.
1 Touch [ON] or [OFF] of [Content alerts]
in the SiriusXM SETUP screen.
Turns the Content alerts on or off.
Default is “ON”.
79
Return to the Top page
SiriusXM Operation
Content alerts Content Set
You can set a content for Content alerts.
1 Touch [SET] of [Content alerts Content
Set] in the SiriusXM SETUP screen.
Artist list screen appears.
NOTE
• Touching [Disable All] of [Content alerts Content
Set] turns all content of Content alerts “OFF”.
2 Touch [Type] to select the screen of the
content you want to set up.
Touching this allows you to switch among
the Artist list, Song list, and Team list
cyclically.
3 Touch each content list and set ON or
OFF.
NOTE
• Touch “Delete” to delete the currently selected
content from the Artist list and Song list.
• Available teams were pre-registered in the Team
list. Team(s) cannot be registered or deleted
manually.
City select for Traffic &
Weather Jump
You can select a city for which traffic
information or weather forecast is to be
received with the Content alerts function.
1 Touch [2] and [3] of [Traffic Weather
Jump City Select] to select a city.
8282
Return to the Top page
Bluetooth Control
Using the Bluetooth function, various
functions can be used: listening to the audio
file, making/receiving a call.
About the cell-phone and
Bluetooth audio player
This unit conforms to the following
Bluetooth specifications:
Version
Bluetooth Ver. 3.0+EDR Certified
Profile
Cell-phone:
HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
SDP (Service Discovery Profile)
PBAP (Phonebook Access Profile)
GAP (Generic Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.4) (Audio/Video Remote Control
Profile)
Sound codec
SBC, AAC, MP3, aptX (DNX891HD, DNX7710BT
only)
NOTE
• For the cell-phones verified for compatibility,
access the following URL:
http://www.kenwood.com/cs/ce/bt/.
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard following the procedure prescribed by
Bluetooth SIG.
However, it may be impossible for such units to
communicate with your cell-phone depending
on its type.
Registering And Connecting
Bluetooth Unit
It is necessary to register the Bluetooth audio
player or cell-phone to this unit before using
the Bluetooth function.
You can register up to 5 Bluetooth units.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Bluetooth].
Bluetooth SETUP screen appears.
See the following section for each setting.
• Registering the Bluetooth Unit (P.83)
• Connecting the Bluetooth unit (P.83)
Bluetooth Control
83
Return to the Top page
Bluetooth Control
Registering the Bluetooth Unit
1 Touch [Search].
Searched Device List screen appears.
NOTE
• You cannot register the Bluetooth unit when you
are using the following sources:
iPod, Bluetooth Audio, APPS, iHeart, Pandora
If you want to register the Bluetooth unit while
using one of the above mentioned sources, send
the connection request from the Bluetooth unit
and register it.
• A new device cannot be registered if there are 5
registered Bluetooth units. Delete unnecessary
registration. See Connecting the Bluetooth unit
(P.83).
• The Searched Device List screen cannot be
displayed, when the receiving source is Pandora,
iHeartRadio, or Bluetooth Audio.
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or iPhone is
connected to this unit, an authentication dialog
appears. Performing operation for authentication
on this unit or iOS smartphone registers the
smartphone as a Bluetooth device.
2 Select the Bluetooth unit to register
from the list.
NOTE
• If the unit cannot be searched in step 1, you can
search the unit again by touching [Search] in
above screen.
• A Bluetooth device cannot be searched while
the source is Pandora, iHeartRadio, or Bluetooth
audio.
• Touch [Cancel] to cancel searching for the
Bluetooth unit.
3 Enter PIN code form the cell-phone.
Profile select screen appears.
Connecting the Bluetooth unit
1 Touch the device name you want to
connect.
Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
2 Set each profile as follows.
TEL (HFP)
Means that the device is a cell-phone.
Audio (A2DP)
Means that the device is an audio player or
cell-phone with audio player.
NOTE
• If a device has been paired, the Bluetooth unit
cannot be connected from the paired device.
• Touching [Remove] of [Device Remove Confirm]
removes registration information. After you touch
the key, a confirmation message appears. Follow
the message and complete the operation.
8484
Return to the Top page
Bluetooth Control
Playing Bluetooth Audio Device
Bluetooth basic operation
2
2
3
3
5
Simple Control screen List Control screen
1
4
1 Information display
Displays the name of the track information. If the information is not available, device name is displayed.
2 Multi function key
Touch to switch the multi function menu.
3 Multi function menu
The functions of each key are as follows.
• [4] [¢]: Searches the previous/next content.*
• [3]: Plays.*
• [8]: Pauses.*
• [7]: Stops playback.*
• [
AUDIO]: Touch to display the Audio Control screen. See Registering the Bluetooth Unit
(P.83).
• [
SETUP]: Touch to display the SETUP Menu screen. See Setting Up (P.92).
• [
EXT SW] Control the external device power supply. (DNX891HD, DNX7710BT only)
For details, see External Device Control (P.104).
• [ REAR ]: Touch to mute the rear speaker.
4 Control switching area
Touch to switch between the Simple Control and List Control screen.
5 File information
Displays the information of the current file.
* These items appear only when the audio player which supports AVRCP profile is connected.
NOTE
• If the operation keys do not appear, operate from the player.
• Depending on your cell-phone or audio player, audio may be heard and controlled but text information may not
appear.
• If the volume is too low, raise it on your cell-phone or audio player.
85
Return to the Top page
Bluetooth Control
Using Hands-Free Unit
You can use telephone function by
connecting the Bluetooth telephone to this
unit.
Making a call
1 Press the <TEL> button.
Hands Free screen appears.
NOTE
• When registration of your cell-phone is
completed, the phone book of the cell-phone is
automatically downloaded to this unit.
• Up to 600 phone numbers can be registered for
each registered cell-phone.
• Up to 30 digits can be registered for each
phone number along with up to 127 characters
representing a name. (127 is the number of
alphabetical characters. Fewer characters can be
input depending on the type of characters.)
• Depending on the type of your cell-phone, the
following restrictions are placed;
• The phonebook data cannot be downloaded
normally.
• Characters in the phonebook are garbled.
• To cancel downloading the phonebook data,
operate the cell-phone.
2 Select a dialing method.
See the following table for each method.
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Call using call records
1 Touch [ ], [ ], or [ ].
2 Select the phone number from the list.
3 Touch [ ].
Call using the phonebook
1 Touch [ ].
2 Select the name from the list.*1*2
3 Select the number from the list.
4 Touch [ ].
Call using the preset number
1 Touch [Preset #] to start calling the
corresponding phone number.
2 Touch [ ].
Continued
8686
Return to the Top page
Bluetooth Control
*1 You can sort the list to begin with touched
character.
• Characters with no corresponding name
will not appear.
• During search, a non-accent character
such as “u” is searched for instead of an
accent character such as “ü”.
*2 You can set the list to arrange in the order
of last name or first name. For details, see
Hands-Free Setup (P.90).
NOTE
• If you edited the phonebook in your cell-phone,
touch “Download” on top of the phonebook list in
this unit to download it from your cell-phone. The
phonebook in this unit will be updated with the
latest downloaded data.
• While your car is moving, some functions are
disabled for safety reasons. The keys associated
with the disabled functions become ineffective
if touched.
• The status icons such as battery and antenna
displayed may differ from those displayed on the
cell-phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Receiving a call
1 Touch [ ] to answer a phone call or
[ ] to reject an incoming call.
NOTE
• While monitoring the camera view, this screen
does not appear even if a call comes in. To display
this screen, press the <TEL> button or return the
shift knob of car to the driver position.
87
Return to the Top page
Bluetooth Control
Operations during a call
Adjust the receiver volume
Press the <∞> or <5> button.
Turn the volume knob.
Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
Switching the speaking voice output
Touching [ ]/ [ ] each time
switches the speaking voice output between
cell-phone and speaker.
Call-waiting
When you receive a call while talking on
another call, you can answer the newly
received call by touching [ ]. The current call
is on hold.
Each time you touch [ ], the caller will
change.
When you touch [ ], the current call will end
and switch to the call in hold.
Phone number preset
You can register frequently used phone
numbers to this unit.
1 Enter the number you want to register
in Hands Free screen.
2 Touch [Preset 1], [Preset 2], or [Preset 3]
for 2 seconds in the Hands Free screen.
8888
Return to the Top page
Bluetooth Control
Voice Recognition
You can access the voice recognition function
of the cell-phone connected to this unit.
You can search the cell-phone phonebook
by voice. (The functionality depends on the
cell-phone.)
1 Press the <TEL> button for 1second.
Press for 1 second
Press for 1 second
Voice Recognition screen appears.
2 Start speaking.
NOTE
• You can use voice recognition function by
touching [ ] on the Hands Free screen.
Smartphone Link
You can receive Garmin’s traffic information
and weather forecast by connecting
your Android smartphone in which the
Smartphone Link application is installed to
this unit.
1 Press the <NAV> button.
Navigation screen appears.
Touch [Apps] on the Main Menu screen and
then an icon of your desired content
For details, see Navigation system manual.
NOTE
• Install the latest version of the Smartphone Link
application on your Android.
Search for “Smartphone Link” in the Google play
to find and install the most current version.
• For how to register the Bluetooth device
(Android), see Registering the Bluetooth
Unit (P.83).
9090
Return to the Top page
Bluetooth Control
Hands-Free Setup
You can perform various setup about
handsfree function.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Bluetooth].
Bluetooth SETUP screen appears.
4 Touch [TEL SET-UP] in the Bluetooth
SET-UP screen.
Hands-free SETUP screen appears.
5 Set each item as follows.
Bluetooth HF/Audio
Select the speakers to output the sound from
cell-phone (such as phone call voice and
ringing tone) and Bluetooth audio player.
Front Only: Outputs from the front speakers.
All (Default): Outputs from all speakers.
Auto Response*
Sets an automatic response time to pick-up an
incoming call.
OFF (Default): Automatic response is not
available.
0-99: Set calling ring time (second).
Auto Pairing
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically register
the iPod touch or iPhone connected to this
unit.
ON (Default): Uses Apple Auto Pairing
function.
OFF: Not uses Apple Auto Pairing function.
Phone Information Use
Sets whether to use phonebook, outgoing,
incoming and missed calls list.
ON (Default): Yes.
OFF: No.
91
Return to the Top page
Bluetooth Control
Sort Order
Sets how to arrange the cell-phone
phonebook.
First: Arranges in the order of first name.
Last (Default): Arranges in the order of last
name.
Echo Cancel Level
Adjusts the level of echo cancellation.
Default is “0”.
Microphone Level
Adjusts the sensitivity of the telephone
microphone. Default is “15”.
Noise Reduction Level
Reduces the noises generated by surrounding
environment without changing the
microphone volume. Use this setting when the
voice of caller is not clear. Default is “-10”.
[Restore]
Resets the settings to the default settings.
* Either the time interval for automatic
answer set on this unit or the time interval
set on the cell-phone, whichever is shorter
takes effect.
9292
Return to the Top page
Setting Up
Monitor Screen Setup
You can adjust image quality in iPod video,
picture file, menu screen, etc.
1 Touch the lower left area of any screen
for at least 1 second.
Screen Control screen appears.
2 Adjust each item as follows.
iPod/ AV-IN/ Camera
DVD/ USB
Bright / Tint* / Color* / Contrast / Black /
Sharpness*
Adjusts each item.
Dimmer
Select dimmer mode.
ON: The display and buttons dim.
OFF: The display and buttons do not dim.
SYNC (Default): Turns the dimmer function on
or off when the vehicle light
control switch is turned on
or off.
NAV-SYNC: Turns the dimmer function on or
off according to the Navigation
Day/Night display setting.
Mode* (except USB)
Select screen mode.
Full: Full picture mode
Just: Justify picture mode
Zoom: Zoom picture mode
Normal: Normal picture mode
* Playback screen only
NOTE
• Adjusting items are different depending on the
current source.
• You can perform this function only when you
have applied the parking brake.
• The image quality can be set for each source.
Setting Up
93
Return to the Top page
Setting Up
View Camera Control
You can set up display when a CMOS-3xx
Series view camera is used.
1 Press the <AUD> button for 1second.
Camera view screen appears.
2 Adjust each item as follows.
3
2
1
1 Guideline
Touching each time turns on or off the
guideline display alternately.
2 Switching the View Camera
Touching each time changes between the
front view camera and rear view camera.
3 Angle
Touching each time changes camera angles in
the following order:
Super wide view/ Wide view/ Overhead view/
Wide view + Top view/ Corner view
NOTE
• The video camera controls described above
may not be operable depending the connected
cameras.
• [AUD Key Longer than 1 Second] must be set to
“CAM”. See User interface (P.94)
System Setup
NOTE
• Each operation in this section can be started from
the multi function menu.
1 Touch [Menu] on any screen.
TOP Menu screen appears.
2 Touch [SETUP].
3 Touch [System].
System Menu screen appears.
See the following section for each setting.
• Set up the user interface (P.94)
• Adjust touch panel (P.95)
• Set up securityl (P.96)
• Set up external switch (DNX891HD,
DNX7710BT only) (P.96)
• Set up memory (P.97)
9494
Return to the Top page
Setting Up
User interface
You can setup user interface parameters.
1 Touch [User Interface] in the list.
User Interface screen appears.
2 Set each item as follows.
Beep
Turns the key touch tone on or off.
Default is “ON”.
Language
Select the language used for the control
screen and setting items. See Language setup
(P.95).
Text Scroll
Allows scrolling of text display on the source
control screen. Select from “Auto”/”Once”/”OFF”.
Auto (Default): Scrolls the text automatically.
Once:
Allows you to scroll the text only once
automatically when updated.
OFF: Does not scroll the text automatically.
Drawer Close
Sets whether to close the common menu
(P.16) automatically. Default is “Auto”.
AUD Key Longer than 1 Second
You can set the operation performed when the
AUDIO key is pressed for 1 second. Select from
”V.OFF”/”CAM”.
V.OFF:
Turn the display off.
CAM
(Default)
:
Switches to the front or rear
view camera video display
.*
TEL Key Longer than 1 Second
You can set the operation performed when
the TEL key is pressed for 1 second. Select from
“Voice”/”V.OFF”/”R-CAM”.
Voice (Default): Displays the Voice Recognition
screen. (P.88).
V.OFF:
Turn the display off.
R-CAM:
Switches to the rear view camera video
display
.
Animation
Sets whether to display animation. Default is “ON”.
Secondary
Sets whether to display the navigation
information in the audio screen or vice versa.
Default is “ON”.
* When you set [Front Camera] to OFF, the
display will change to the rear view camera
and when you set it to “CMOS-3xx”/ “Other”,
the display will change to the front view
camera. See Camera Setup (P.102)
95
Return to the Top page
Setting Up
Language setup
1 Touch [SET] of [Language] in the User
Interface screen.
Language Setting screen appears.
2 Set each item as follows.
Select Mode
Selects the mode to select a language.
Easy (Default): Selects a language easily.
Advanced: Allows you to select languages for
respective items.*
Language Select
Selects a language.
* If you select [Advanced] for Select Mode,
the following screen appears.
GUI Language Select:
Selects the display language used for the
control screen and so forth.
Navigation Language Select:
Selects the language used for navigation.
Text Language Select:
Selects the language used for tag text (song
information).
3 Touch [Enter].
NOTE
• To cancel the language setup, touch [Cancel].
Touch panel adjustment
1 Touch [Touch] in the System Menu
screen.
Touch Panel Adjustment screen appears.
2 Follow the instruction on the screen
and touch the center of each .
NOTE
• To cancel the touch panel adjustment, touch
[Cancel].
• To reset to the initial status, touch [Reset].
9696
Return to the Top page
Setting Up
Security setup
A red indicator will blink on the unit after the
ACC is set to OFF, warning potential thieves.
If turned to “ON” (default), the security
indicator on the front panel flashes when the
vehicle ignition is off.
1 Touch [Security] in the System Menu
screen.
Security screen appears.
2 Touch [ON] or [OFF] of [SI].
EXT SW setup (DNX891HD,
DNX7710BT)
Set up the external switch power mode.
1 Touch [EXT SW] in the System Menu
screen.
EXT SW screen appears.
2 Set each item as follows.
SW Name
Sets the name of the external device.
Output Pattern
Sets the power signal output mode among
“Pulse”/“Level”. Default is “Pulse”.
You can set to turn output on/off each time
the button on the EXT SW screen is touched.
See External Device Control (P.104).
Pulse Set
Sets the pulse signal output time.
Outputs 500ms when “1” is set.
Increases by 200ms with each step. Up to 100
steps can be set.
NOTE
• You can enter characters only after you have
applied the parking brake.
• “Pulse”: Generates a single power signal pulse.
• “Level”: Continues output of high power signal.
97
Return to the Top page
Setting Up
Setup memory
Audio Control, AV-IN SETUP, Camera, and
Audio SETUP settings can be memorized. The
memorized settings can be recalled at any
time. For example, even when the settings
are cleared due to replacement of the
battery, the settings can be restored.
1 Touch [SETUP Memory] in the System
Menu screen.
SETUP Memory screen appears.
2 Follow the instruction on the screen.
[Lock]/[Unlock]*
Locks or unlocks the AV-IN SETUP, and Audio
SETUP settings.
Yes
Memorizes or recalls the settings.
No
Cancels the function or memorization.
The SETUP Menu screen appears again.
* When [Lock] is selected, you cannot change
the AV-IN SETUP, and Audio SETUP settings.
Also, the locked key mark is displayed
under each setting icon in the setup menu.
3 Follow the instruction on the screen.
Recall
Recalls the memorized settings.
Memory
Memorizes the current settings.
Clear
Clears the currently memorized settings.
Cancel
Quits memorization/recalling of settings.
9898
Return to the Top page
Setting Up
Display Setup
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Display].
Display Menu screen appears.
See the following section for each setting.
• Control monitor angle
(P.98)
• Adjust panel color (P.99)
• Changing background image (P.100)
Monitor angle control
You can adjust the position of the monitor.
1 Touch [Angle] in the Display Menu
screen.
Angle setup screen appears.
2 Select a below number that represents
your desired angle setting.
Default is “0”.
NOTE
• You can store the current monitor angle as the
angle during power off. Touch [Memory] when
the desired angle is selected.
99
Return to the Top page
Setting Up
Panel color coordinate
You can set the screen and button
illumination color.
The selectable items differ depending on the
unit.
1 Touch [Color] in the Display Menu
screen.
Color screen appears.
2 Touch [SET] of [Panel Color Coordinate].
Panel Color Coordinate screen appears.
NOTE
• You can touch [SET] or [Initialize] when
[Panel Color Scan] is set to off.
• Touch [Initialize] to reset the settings to the
default settings.
3 Touch the desired color.
Registering original color
You can register your original color.
1 Touch [Adjust] in the Panel Color
Coordinate screen.
Panel Color RGB Coordinate screen
appears.
2 Use [2] and [3] to adjust each color
value.
3 Touch the desired preset key for 2
seconds.
Panel color scan
You can set the panel color to continuously
scan through the color spectrum.
1 Touch [ON] of [Panel Color Scan] in the
Color screen.
Panel Color Scan is set to on.
100100
Return to the Top page
Setting Up
Changing background image
You can load an image from the connected
USB device and set it for the background
image.
Before operating this procedure, it is
necessary to connect the device which has
the image to load.
1 Touch [Background] in the Display
Menu screen.
Background screen appears.
2 Touch [STANDBY].
3 Touch [Memory] of [User Background].
User Background File Select screen
appears.
4 Select the image to load.
5 Touch [Enter].
The selected image is loaded and the
display returns to the Background screen.
NOTE
• Touching [ ] rotates counter clockwise.
• Touching [ ] rotates clockwise.
6 Touch [Change] of [Background
Change] in the Background screen.
7 Select an image for background and
touch [Enter].
NOTE
• See Playable Media and Files (P.126) for
readable image specifications.
• Touching [Delete] in the Background screen
deletes the background image. After you touch
[Delete], a confirmation message appears. Follow
the message and complete the operation.
101
Return to the Top page
Setting Up
Navigation Setup
You can set navigation parameters.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Navigation].
Navigation SETUP screen appears.
4 Set each item as follows.
NAV Interrupt Speaker
Selects speakers used for voice guidance of the
navigation system.
Front L: Uses the front left side speaker for
voice guidance.
Front R: Uses the front right side speaker for
voice guidance.
Front All (Default): Uses both front speakers
for voice guidance.
NAV Voice Volume
Adjusts the volume for voice guidance of the
navigation system. Default is “20”.
NAV Mute
Mutes the volume of rear speakers during
voice guidance of the navigation system.
Default is “ON”.
102102
Return to the Top page
Setting Up
Camera Setup
You can set camera parameters.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Camera].
Camera SETUP screen appears.
4 Set each item as follows.
Rear Camera*1
Selects the type of rear camera to use.
CMOS-3xx: When the CMOS-300 series with ID
1 set is connected.
Other (Default): When the other camera is
connected.
R-CAM Interruption
Sets a method for switching the display.
Setting values are ON and OFF.
ON: Switches to the rear view camera video
display when shifting to revers.
OFF (Default): Does not switches to the rear
view camera video display
when shifting to revers.
R-CAM Settings*2
Adjusts the CMOS-300 series with ID 1 set.
For details, see the instruction manual of your
camera.
Front Camera*1
Selects the type of front camera to use.
CMOS-3xx: When the CMOS-300 series with ID
2 set is connected.
Other: When the other camera is connected.
OFF (Default): When the front camera is not
used.
F-CAM Settings*3
Adjusts the CMOS-300 series with ID 2 set.
For details, see the instruction manual of your
camera.
*1 These settings become settable only when
the parking brake is on.
*2 This setting becomes settable only when
the parking brake is on and the CMOS-300
series is selected.
*3 This setting becomes settable only
when the parking brake is on and “Front
Camera” is set to CMOS-300 series.
103
Return to the Top page
Setting Up
Software Information
Check the software version of this unit.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Software].
Software Information screen appears.
4 Confirm the software version. Touch
[Update] as necessary.
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
AV Input Setup
You can set AV input parameters.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [Source].
4 Touch [AV-IN SETUP] in the list.
AV-IN SETUP screen appears.
5 Set each item as follows.
AV-IN1 Name/AV-IN2 Name
Sets a name to be displayed when you select
a system that is connected via the AV INPUT
port. Default is “VIDEO”.
104104
Return to the Top page
Setting Up
AV Output Interface Setup
You can select an AV source to be output at
the AV OUTPUT port. Default is “VIDEO1”.
1 Touch [Menu] on any screen.
2 Touch [SETUP].
SETUP Menu screen appears.
3 Touch [AV-OUT].
AV-OUT Interface screen appears.
4 Touch [2] or [3] to set [AV-OUT] to
VIDEO1, DISC, iPod, USB, or OFF.
NOTE
• Only when iPod is connected to this unit with
KCA-iP202, “USB” can be selected as AV output
source. For the connection setting, refer to iPod/
iPhone connection setup (P.54).
External Device Control
(DNX891HD, DNX7710BT only)
Control the external device power supply.
1 Touch [EXT SW] in the Source Control
screen.
EXT SW Control screen appears.
NOTE
• If [EXT SW] is not displayed, touch [ ].
2 Touch the desired switch key.
You can turn on or off the external device
power supply.
NOTE
• You must connect a commercially available relay
unit in order to use this function. Connect the
external device to be controlled to that relay unit.
• See EXT SW setup (P.96) for information on
setting the power on or off specification.
106106
Return to the Top page
Controlling Audio
NOTE
• Each operation in this section can be started from
the multi function menu.
You can adjust the various settings such as
audio balance or subwoofer level.
1 Touch [Menu] on any screen.
2 Touch [Audio].
Audio screen appears.
See the following section for each setting.
• Setting audio (P.106)
• Controlling audio (P.110)
• Controlling equalizer (P.110)
• Performing zone control (P.112)
• Set sound effect (P.113)
• Set listening position (P.115)
Setting Audio
1 Touch [Audio SETUP].
Audio SETUP screen appears.
See the following section for each setting.
• Set up speakers (P.107)
• Set up your car type (P.108)
• Select DSP (P.109)
Controlling Audio
107
Return to the Top page
Controlling Audio
Speaker setup
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are set,
the speaker crossover network is set
automatically.
1 Touch [Speaker Select] in the Audio
SETUP screen.
Speaker Select screen appears.
2 Touch the speaker you wish to adjust
and set each item as follows.
Tweeter (DNX891HD, DNX7710BT,
DNX691HD only)
You can set the tweeter when you are
selecting front speakers.
None, Small, Middle, Large
X’over
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was set
automatically when you selected the speaker
type.
For details, see Crossover network setup
(P.108)
3 Select a speaker size using [2] and [3].
The speaker size is different depending
on the speaker type and the unit.
Front
OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch,
6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8,
6x9, 7x10
Rear
None, OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5
inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7,
6x8, 6x9, 7x10
Subwoofer
None, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15
inch over
NOTE
• Select “None” if you have no speakers.
108108
Return to the Top page
Controlling Audio
Crossover network setup
You can set a crossover frequency of
speakers.
1 Touch the speaker to set the crossover
in the Speaker Select screen.
2 Touch [X’over].
X’over screen appears.
3 Set each item as follows.
TW (Tweeter) Gain *1 (DNX891HD,
DNX7710BT, DNX691HD only)
Adjusts the tweeter level. (When front is
selected on Speaker Select screen)
Gain (DNX891HD, DNX7710BT,
DNX691HD only)
Adjusts the front speaker, rear speaker, or
subwoofer level.
Phase*2
Sets the phase of subwoofer output.
The phase is reversed 180 degrees when set
to “Reverse”. (When subwoofer is selected on
Speaker Select screen)
HPF FREQ
High Pass Filter adjustment. (When front or rear
speaker is selected on Speaker Select screen)
LPF FREQ
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
Slope*3
Sets a crossover slope.
*1 Only when “Tweeter” is set to “Small”,
“Middle”, “Large” in <Speaker Setup>.
*2 Only when “Subwoofer” is set to a mode
other than “None” in <Speaker Setup>.
*3 Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in <X’over>.
Car type setup
You can setup the car type and speaker
network, etc.
1 Touch [Car Type] in the Audio SETUP
screen.
Car Type screen appears.
2 Select your car type from the list.
NOTE
• If your car type is selected, the Delay Time
Alignment is set automatically (for timing
adjustment of sound output for each channel) to
have the highest surround effects.
109
Return to the Top page
Controlling Audio
Speaker location setup
1 In the Car Type screen, touch [Location].
Speaker Location screen appears.
2 Select the speaker locations using [3].
Front Speaker
Select the location from “Door”/ “On Dash”/
“Under Dash”.
Rear Speaker
Select the location from “Door”/ “Rear Deck”,
“2nd Row”/ “3rd Row” (Minivan, Minivan
(Long)).
DSP select
You can select whether using DSP (Digital
Signal Processor) System.
1 Touch [Bypass] or [Through] of [DSP
Select] in the Audio SETUP screen.
Bypass
There is no effect by DSP.
Through
There is an effect by DSP.
NOTE
• When the mode is set to [Bypass], DSP System
cannot be adjusted.
110110
Return to the Top page
Controlling Audio
Controlling General Audio
1 Touch [Audio Control].
2 Set each item as follows.
Fader #/Balance #
Adjust the volume balance around the
touched area.
[2] and [3] adjust the right and left volume
balance.
[5] and [∞] adjust the front and rear volume
balance.
Volume Offset*
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
Subwoofer Level
Adjusts the subwoofer volume. This setting is
not available when subwoofer is set to “None”.
See Speaker setup (P.107).
Bass Boost
Sets the amount of bass boost among “OFF”/
“Level1”/ “Level2”/ “Level3”.
* If you have increased the volume first, then
reduced the volume using the “Volume
Offset”, the sound generated if you
suddenly switch to another source may be
extremely loud.
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1 Touch [Equalizer].
Equalizer screen appears.
111
Return to the Top page
Controlling Audio
Operation
Controlling EQ curves
1 Select EQ curve from [Natural],
[Rock], [Pops], [Easy], [Top40], [Jazz],
[Powerful], [iPod], and [User].
NOTE
• [iPod] is available only during iPod source.
Controlling equalizer manually
This setting cannot be performed when you
select [iPod] in the Equalizer screen.
1 Touch [EQ] in the Equalizer screen.
2 Touch the screen and set the Graphic
Equalizer as desired.
DNX891HD, DNX7710BT, DNX691HD
DNX771HD,
Gain level (light green boxed area)
Adjust the gain level by touching the each
frequency bar.
Touching [2], [3], [5] and [∞] can also
adjust the level. Use [2] and [3] to select a
frequency, and [5] and [∞] to set the level.
EQ INIT
Returns to the previous level which the gain
level is adjusted.
Flat
Tone curve becomes flat.
Bass EXT (Bass Extend Settings)
When turned on, the frequency lower than
62.5 Hz is set to the same gain level as 62.5 Hz.
Loudness
Sets the amounts of boost of low and high
tones.
DNX891HD, DNX7710BT, DNX691HD:
“OFF”, “Low”, “High”
DNX771HD, : “OFF”, “ON”
SW Level
Adjusts the subwoofer volume. This setting is
not available when subwoofer is set to “None”.
See Speaker setup (P.107).
112112
Return to the Top page
Controlling Audio
Zone Control
You can select different sources for both
front and rear positions in the vehicle.
1 Touch [Zone Control].
Zone Control screen appears.
2 Touch [Dual Zone].
3 Set each source as follows.
[3] (Front Source, Rear Source)
Select the audio source for each.
[∞], [5] (Rear VOL.)
Adjusts the rear channel volume.
[Single Zone]
Touch to turn off the dual zone function.
NOTE
• When the rear speaker sound is switched, the
audio source that is output at the AV OUTPUT
terminal is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
• Output from the subwoofer
• Subwoofer Level/ Bass Boost (P.110)
• Equalizer Control/ Space Enhancer (DNX891HD,
DNX7710BT, DNX691HD)/ Listening Position
(P.110, 113, 115)
• DSP Bypass Control/ Speaker Setup/ Car Type
Setup (P.109, 107, 108)
• Different sources from iPod/iPhone (apps) cannot
be set as front source and rear source separately.
Only one source (app) can be set as front and
rear sources.
113
Return to the Top page
Controlling Audio
Sound Effect
You can set sound effects.
1 Touch [Sound Effect].
Sound Effect screen appears.
See the following section for each setting.
• Set space enhancer (DNX891HD,
DNX7710BT, DNX691HD) (P.113)
• Set drive equalizer (P.114)
• Set up elevation (DNX891HD,
DNX7710BT, DNX691HD) (P.114)
• Set up realizer or supreme (DNX891HD,
DNX7710BT, DNX691HD) (P.115)
Space Enhancer
(DNX891HD, DNX7710BT,
DNX691HD)
1 Touch [Space Enhancer] in the Sound
Effect screen.
Space Enhancer screen appears.
2 Touch [Small], [Large], or [OFF].
Each setting value indicates the
soundscape level.
NOTE
• This setting is not available during HD Radio tuner
source.
114114
Return to the Top page
Controlling Audio
Drive Equalizer setting
The sound quality is automatically adjusted.
1 Touch [ON] or [OFF] of
[Drive Equalizer+].
DNX891HD, DNX7710BT, DNX691HD:
The sound quality is automatically
optimized to meet the current car speed
by GPS.
DNX771HD :
The sound quality is automatically
optimized to meet the current volume
level.
Elevation
(DNX891HD, DNX7710BT,
DNX691HD)
You can raise the sound position heard from
the speakers virtually.
1 Touch [Elevation] in the Sound Effect
screen.
Elevation screen appears.
2 Select Elevation level from [High],
[Low], and [OFF].
115
Return to the Top page
Controlling Audio
Realizer and Supreme
(DNX891HD, DNX7710BT,
DNX691HD)
You can restore the sound lost due to audio
compression to a realistic sound.
1 Touch the screen in the Sound Effect
screen.
Realizer
Realizer is sound enhancement and boosting
low frequencies (bass boost).
Select the level from “OFF”/ “Level1”/ “Level2”/
“Level3”.
Supreme
Turns ON/OFF the Supreme function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-frequency
range that is cut off when encoding.
This function works on DVD MEDIA, USB and
iPod sources.
Listening Position
You can adjust the sound effects according
to your listening position.
1 Touch [Position].
Position screen appears.
2 Select listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All] using [2]
and [3].
116116
Return to the Top page
Controlling Audio
Position DTA control
You can fine-adjust your listening position.
1 In Position screen, touch [Adjust].
2 Select the speaker you wish to adjust
by touching speaker icon.
3 Set DTA as follows.
[2], [3]
Adjust the settings of the DTA position.
Gain
Touch to adjust the gain of each speaker.
NOTE
• Make fine adjustment of the delay time of the
speaker output specified here to have a more
suitable environment for your vehicle.
• If you specify the distance from the center of the
currently set listening position to every speaker,
the delay time will be automatically computed
and set.
1 Determine the center of the currently set
listening position as the reference point.
2 Measure the distances from the reference
point to the speakers.
3 Calculate the differences between the distance
of the furthest speaker and other speakers.
4 Input the differences calculated in step 3 for
individual speakers.
5 Adjust gain for individual speakers. A sound
image will be shifted to the speaker with
increased gain.
Example: When [Front All] is selected as the
listening position
1.6feet
2.5feet
5feet
+2.5feet
+0feet
+3.4feet
118118
Return to the Top page
Remote control
Remote control
This unit can be operated using the remote control.
For DNX891HD, DNX7710BT, DNX691HD, and DNX5710BT, the remote control is supplied with
the unit.
For DNX771HD, DNX571HD and DNX571EX the remote control is the optional accessory (KCA-
RCDV331).
2CAUTION
• Put the remote control in a place where it will not move during braking or other operations. A
dangerous situation could result, if the remote control falls down and gets wedged under the pedals
while driving.
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat
generation may result.
• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause
the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately
rinse with water and consult a physician.
• Place the battery out of reach of children. In the unlikely event that a child swallows the battery,
immediately consult a physician.
Battery Installation
If the remote control operates only over shorter distances or does not operate at all, it is possible
that the batteries are depleted.
In such instances, replace the both batteries with new ones.
1 Insert two “AAA”/“R03”-size batteries with the and poles aligned properly, following
the illustration inside the case.
119
Return to the Top page
Remote control
Functions of the Remote control Buttons
Switching the operation mode
The functions operated from the remote
control differ depending on the position of
the mode switch.
DVD
T V
NAV
AUD
•
•
•
•
AUD mode
Switch to this mode when controlling a
selected source or tuner source, etc.
DVD mode
Switch to this mode when playing a disc
media including DVD, VCD, and CD.
NAV mode
Switch to this mode when controlling
navigation function.
NOTE
• When controlling a player that is not integrated in
the unit, select “AUD” mode.
Direct search mode
Using the remote control, you can jump
directly to the desired file, track chapter, etc.
with entering the number corresponding to
the content.
NOTE
• This operation cannot be performed for USB
device and iPod.
1 Press the <#BS> button several times
until the desired content appears.
The available contents are different
depending on the source.
DVD
Title number/Chapter number/Play time/Item
number*
* You may not be able to use this function with
some discs or scenes.
VCD 1.X and 2.X (PBC OFF)
Track number
VCD 2.X (PBC ON)
Scene number/number
Music CD
Track number/Play time
Audio files
Folder number/File number
Radio
Frequency value
HD Radio tuner
Frequency value/Channel number
SiriusXM
Channel number
2 Enter the number of the content you
want to play using the numeric keypad.
3 For DVD or VCD, press the <ENTER>
button.
For music CD or audio files, press the
<POSITION> button.
For radio, press the <2> or <3> button.
The content you entered is played.
120120
Return to the Top page
Remote control
12
5
17
19
21
22
23
24
25
26
18
20
3
6
7
8
10
12
13
14
15
16
9
11
4
Key
Name
Location of
the mode switch
Function
1SRC − Switches to the source to be played.
In hands-free mode, hangs up the phone.
2NAV −Switches between the navigation and the source screens.
3MENU DVD Stops playing and memorizes the last point where the disc
stopped. The last point is deleted by pressing twice.
NAV Displays Main menu.
4OUT, IN NAV Zooms in or out the navigation map.
5POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.
During radio, HD Radio, and SiriusXM source in AUD mode,
switches the seek mode.
NAV Displays the current position.
6Cursor Key DVD Moves the cursor in the DVD menu.
NAV Moves the cursor or scrolls the map.
7ENTER AUD, DVD Performs the selected function.
NAV • Registers the selected position.
• Performs the selected function.
8ROUTE M AUD Screen mode changes each time you press this key during video
playback.
DVD Returns to the DVD top menu.
NAV Displays Route Option menu.
121
Return to the Top page
Remote control
Key
Name
Location of
the mode switch
Function
9VOICE AUD Switches navigation display on/off.
DVD Displays the DVD menu.
Turns the playback control on or off while playing VCD.
NAV Speaks the voice guidance.
10 VIEW AUD, DVD Switches the AV source to be output.
NAV Switches between 2D and 3D map displays.
11 MAP DIR AUD, DVD Switches the display angle each time it is pressed.
NAV Switches between the heading up navigation and north up
navigation map displays.
12 5/∞AUD, DVD Selects the folder to be played.
During radio, HD Radio, and SiriusXM source in AUD mode,
switches the bands to be received.
13 2/3AUD, DVD Selects the track or file to be played.
During radio, HD Radio, and SIRIUS/XM source in AUD mode,
switches to broadcast stations received by the unit.
14 Numeric
Keypad
AUD Specifies the number to search in direct search.
For details on the direct search mode, see Direct search mode
(P.119).
DVD • Press [1] [2] to fast forward/backward. Switches the fast forward/
backward speed each time you press this key.
• Press [4] [5] to slow forward/backward. Switches the slow
playback speed each time you press this key.*
*DVD only
15 * + DVD Clears the number.
16 # BS AUD, DVD Switches to the direct search mode.
For details on the direct search mode, see Direct search mode
(P.119).
17 AUDIO DVD Switches the voice language each time you press this key.
18 CANCEL DVD Displays previous screen.
NAV Cancels the operations.
19 SUBTITLE DVD Switches the subtitle language.
20 −When a call comes in, answers the call.
21 ANGLE DVD Switches the picture angle each time you press this key.
22 Vol 5∞ −Adjusts the volume.
23 ZOOM DVD Switches the zoom ratio (2, 3, 4, Off ) each time you press this key.
24 2 ZONE AUD, DVD Switches the Dual Zone function on and off.
25 R.VOL −Adjusts volume at rear when the Dual Zone function is on.
26 AT T −Lowers the volume by pressing the key once.
Restores the previous volume by pressing the key twice.
122122
Return to the Top page
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following table for possible problems.
• Some functions of this unit may be disabled by some settings made on this unit.
• What might seem to be a malfunction in your unit may just be the result of slight misoperation
or miswiring.
About settings
Problem Reason Solution
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
Subwoofer is not set
to on.
Set the subwoofer to on.
See Speaker setup (P.107).
The dual zone function
is enabled.
Set the dual zone function to off.
See Zone Control (P.112).
• Cannot select the output
destination of the subsource in
the dual zone.
• Cannot adjust the volume of the
rear speakers.
The dual zone function
is disabled.
Set the dual zone function to on.
See Zone Control (P.112).
• Cannot set up the equalizer.
• Cannot set up the crossover
network.
The dual zone function
is enabled.
Set the dual zone function to off.
See Zone Control (P.112).
“DSP Select” is set to
“Bypass”.
Set “DSP Select” to “Through”.
See DSP select (P.109).
About audio operations
Problem Reason Solution
Radio reception is poor. The car antenna is not
extended.
Pull out the antenna all the way.
The antenna control
wire is not connected.
Connect the wire correctly.
See “Connection” in the Quick Start Guide.
Cannot play audio files stored in
a disc.
“CD Read” is set to “2”. Set “CD Read” to “1”.
See Disc setup (P.30).
Cannot select a folder. The random play
function is enabled.
Turn off the random function.
Cannot perform repeat play
during VCD playback.
The PBC function is
enabled.
Turn off the PBC function.
The specified disc does not play,
but another one plays instead.
The disc is quite dirty. Clean the disc.
See Precautions on handling discs
(P.4).
The disc is severely
scratched.
Try another disc instead.
Troubleshooting
123
Return to the Top page
Troubleshooting
Problem Reason Solution
The sound skips when an audio
file is being played.
The disc is scratched
or dirty.
Clean the disc.
See Precautions on handling discs
(P.4).
The recording
condition is bad.
Record the file again or use another disc.
Other
Problem Reason Solution
The Touch Sensor Tone doesn’t
sound.
The preout jack is being
used.
The Touch Sensor Tone cannot be output
from the preout jack.
Error Messages
When you fail to operate the unit correctly, the cause of the failure appears as the message on
the screen.
Error Message Cause Solution
Protect Protective circuit has been activated
because a speaker cord has shorted
or it has come in contact with the
car chassis.
Wire or insulate the speaker cord as
appropriate and then push the <Reset>
button (P.125).
Hot Error When the internal temperature of
this unit rises to 60°C or more, the
protection circuit is activated and
you may not be able to operate
the unit.
Use the unit again after reducing the
temperature of the unit.
Mecha Error The disc player is malfunctioning. Eject the disc and try inserting it again. Contact
the Kenwood dealer if this indicator continues
blinking or the disc cannot be ejected.
Disc Error An unplayable disc is inserted. Change the disc.
See Playable Media and Files (P.126).
Read Error The disc is quite dirty. Clean the disc.
See Precautions on handling discs (P.4).
Disc is upside down. Load the disc with the labeled side up.
Region Code
Error
The disc you wanted to play has a
region code that cannot be played
with this unit.
See Region Codes in the World (P.132) or
try another disc.
Parental Level
Error
The disc you wanted to play has a
higher level than the parental level
you set.
Set the parental level.
See Parental level (P.30).
Error 07–67 The unit is not operating correctly
due to some reason or other.
Push the unit’s Reset button. If the “Error
07−67” message does not disappear, see your
nearest Kenwood dealer.
No Device
(USB device,
Bluetooth
audio player)
The USB device is selected as a
source although no USB device is
connected.
Change the source to any source other than
USB/iPod. Connect a USB device, and change
the source to USB again.
124124
Return to the Top page
Troubleshooting
Error Message Cause Solution
Disconnected
(iPod)
The iPod/Bluetooth audio player
is selected as a source although
no iPod/Bluetooth audio player is
connected.
Change the source to any source other than
iPod/Bluetooth. Connect an iPod/Bluetooth
audio player, and change the source to iPod/
Bluetooth again.
No Media file The connected USB device contains
no playable audio file. Media was
played that doesn’t have data
recorded that the unit can play.
See Playable Media and Files (P.126) and
try another USB device.
USB Device
Error!!
The connected USB device is rated
a current capacity higher than the
allowable limit.
Check the USB device. Some trouble may have
occurred to the connected USB device.
Change the source to any source other than
USB. Remove the USB device.
Authorization
Error
Connection to the iPod has failed. • Remove the iPod and then reconnect it.
• The unit does not support the iPod.
See Connectable iPod/iPhone (P.128).
Update your
iPod
The iPod’s software is an older
version which the unit can not
support.
The unit may not support the connected iPod
model.
Confirm that the software for the iPod is the
latest version.
See Connectable iPod/iPhone (P.128).
Navigation
Error. Please
turn on power
again later.
The communication error has
occurred due to severely cold
temperature.
Turn on power again after warming your car
interior.
Check
Application
The Aha application is stopped. Start the Aha application of the your device.
Please update
your Aha
application
The Aha application is an older
version which the unit can not
support.
Confirm that the Aha application is the latest
version.
SiriusXM
Check Tuner A SiriusXM tuner is not connected
to this unit.
Check that the connected SiriusXM Connect
Vehicle Tuner is connected.
Subscription
Updated - Press
Return To
Continue
The SiriusXM subscription has been
renewed.
Pressing the Control knob will clear the error
message.
Channel Not
Available
The currently selected channel is
unavailable. —
Ch
Unsubscribed
The currently selected channel is
not subscribed to. —
Check Antenna No antenna is connected to the
SiriusXM tuner.
Check that an antenna is connected to the
SiriusXM tuner.
No Signal No SiriusXM radio signal is received. —
125
Return to the Top page
Troubleshooting
Resetting the Unit
If the unit or the connected unit fails to operate properly, reset the unit.
1 Press the <Reset> button.
The unit returns to factory settings.
NOTE
• Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device
connected can damage the data stored in the USB device. For how to disconnect the USB device, see How to
Play Media (P.13).
• When the unit is turned on after resetting, the Initial SETUP screen appears. See Initial setup (P.11).
126126
Return to the Top page
Appendix
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
List of playable discs
Disc types Standard Support Remark
DVD DVD Video ‡
DVD Audio ×
DVD-VR ×
DVD-R*1ॠMP3/WMA/AAC/MPEG1/MPEG2/DivX*2 playback
• Multi-border/Multisession playback (Playback
depends on authoring conditions)
DVD-RW ‡
DVD+R ‡
DVD+RW ‡
DVD-R DL (Dual layer) ‡Only video format
DVD+R DL (Double layer) ‡
DVD-RAM ×
CD Music CD*1‡CD-TEXT
CD-ROM ॠMP3/WMA/AAC/MPEG1/MPEG2 playback
• Multisession is supported.
• Packet write is not supported.
CD-R ‡
CD-RW ‡
DTS-CD ×
Video CD (VCD) ‡
Super video CD ×
Photo CD ×
CD-EXTRA %Only music CD session can be played.
HDCD ‡
CCCD ×
Others Dualdisc ×
Super audio CD %Only CD layer can be played.
*1 Incompatible with 8 cm (3 inch) discs.
*2 Function of DNX891HD, DNX7710BT, DNX5710BT
‡ : Playback is possible.
% : Playback is partly possible.
× : Playback is impossible.
NOTE
• When buying DRM enabled contents, check the Registration Code in the DivX(R) VOD (P.57). Each time a file
with the displayed code is played and protected against copying, the code changes.
• DivX can be played only from a DVD disc media.
127
Return to the Top page
Appendix
■ Use of DualDisc
When playing a “DualDisc” on this unit, the surface of
the disc that is not played may be scratched while the
disc is inserted or ejected. Since the music CD surface
does not conform to the CD standard, playback may be
impossible.
(A “DualDisc” is a disc with one surface containing DVD
standard signals and the other surface containing
music CD signals.)
■ About disc format
The disc format should be the one of the following.
• ISO 9660 Level 1/2
• Joliet
• Romeo
• Long file name
About files
The following audio, video, and picture files
are supported.
■ Audio files
• AAC-LC (.m4a)
• MP3 (.mp3)
• WMA (.wma)
• Linear PCM (WAVE) (.wav)
Mass-storage-class USB device only
• FLAC (.flac)
Mass-storage-class USB device only
NOTE
• If music of normal CD and other playback systems
are recorded in the same disc, only the playback
system recorded at the first setout is played.
• WMA and AAC of which is covered with DRM
cannot be played.
• Although the audio files are complied with
the standards listed above, the play may be
impossible depending on the types or conditions
of media or device.
• An online manual about audio files is put on the
site, www.kenwood.com/cs/ce/audiofile/.
On this online manual, detailed information and
notes which are not written in this manual are
provided. Make sure to read through the online
manual as well.
■ Video files
• MPEG1 (.mpg, .mpeg, .m1v*)
*Mass-storage-class USB device only
• MPEG2 (.mpg, .mpeg, .m2v*)
*Mass-storage-class USB device only
• DivX (.divx, .div, .avi)
Function of DNX891HD, DNX7710BT, DNX5710BT
DVD only
• H.264/MPEG-4 AVC (.mp4, .m4v)
Mass-storage-class USB device only
• WMV 9 (.wmv, .m2ts)
Mass-storage-class USB device only
■ Picture files
Only picture files in USB device can be displayed.
Files stored in disc media is not supported.
• JPEG (.jpg, .jpeg)
• PNG (.png)
• BMP (.bmp)
NOTE
• BMP and PNG can be set only as wallpaper.
■ Playing order of files
In the example of folder/file tree shown below, the files
are played in the order from ! to P.
Root
¡!
2
(1)
^
¡
3
¡$
4
¡"
¡#
¡P
5 ¡%
: Folder
: Audio file
128128
Return to the Top page
Appendix
Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
• iPod touch (5th generation)
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
NOTE
• For the details of the necessary cable and adapter
to connect with iPod/iPhone, refer to Music/
Video/Picture Basic Operation (P.32).
• For the conformity information on iPod/iPhone
software,
access www.kenwood.com/cs/ce/ipod/.
• By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable
KCA-iP202 or KCA-iP102, you can supply power
to your iPod/iPhone as well as charge it while
playing music. However, the power of this unit
must be on.
• If you start playback after connecting the iPod,
the music that has been played by the iPod is
played first.
In this case, “Reading” is displayed without
displaying a folder name, etc. Changing the
browse item will display a correct title, etc.
• When the iPod is connected to this unit,
“KENWOOD” or “✓” is displayed on the iPod to
indicate that you cannot operate the iPod.
Usable USB device
You can use a mass-storage-class USB device
on this unit.
The word “USB device” appearing in this
manual indicates a flash memory device and
digital audio players can be recognized as
mass-storage.
■ About file system
The file system should be the one of the following.
• FAT16
• FAT32
NOTE
• When the USB device is connected to this unit, it
can be charged through the USB cable.
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• When connecting the USB device, usage of the
CA-U1EX (option) is recommended. (However,
maximum supply current of CA-U1EX is 500mA.)
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
130130
Return to the Top page
Appendix
Status Bar Indicator Items
Shown below is a list of indicators displayed on the status bar in the screen.
Current status of this unit is displayed on the bar.
Status bar
■ General
ATT
The attenuator is active.
DUAL
The dual zone function is on.
TEL
Indicates the connection state of the Bluetooth
hands-free unit.
• White: Connected
• Orange: Not connected
MUTE
The mute function is active.
LOUD
The loudness control function is on.
■ DVD/CD
FO-REP
Folder repeat function is on.
IN
A disc is inserted.
• White: A Disc is inside the unit.
• Orange: Error at the disc player
VIDEO
Identifies the video file.
MUSIC
Identifies the music file.
RDM
The random function is on.
REP
The repeat function is on.
C-REP
The chapter repeat function is on.
T-REP
The title repeat function is on.
■ VCD
1chLL/2chLL
Identifies the left audio output of channel 1
or 2.
1chLR/2chLR
Identifies the monaural audio output of
channel 1 or 2.
1chRR/2chRR
Identifies the right audio output of channel 1
or 2.
1chST/2chST
Identifies the stereo audio output of channel
1 or 2.
LL
Identifies the left audio output.
LR
Identifies the monaural audio output.
RR
Identifies the right audio output.
STEREO
Identifies the stereo audio output.
PBC
The PBC function is on.
SVCD
Identifies the Super Video CD.
131
Return to the Top page
Appendix
VER1
The VCD version is 1.
VER2
The VCD version is 2.
REP
The repeat function is on.
■ USB
FO-REP
The folder repeat function is on.
VIDEO
Identifies the video file.
MUSIC
Identifies the music file.
Identifies the picture file.
RDM
The random function is on.
REP
The repeat function is on.
PLST
The play list mode is selected now.
■ iPod
MUSIC
Identifies the music file.
VIDEO
Identifies the video file.
RDM
The random function is on.
A-RDM
The album random function is on.
REP
The repeat function is on.
■ Tuner
AUTO1
Seek mode is set to AUTO1.
AUTO2
Seek mode is set to AUTO2.
MANUAL
Seek mode is set to MANUAL.
ST
A stereo broadcast is being received.
TI
Indicates the reception state of traffic
information.
• White: TP is being received.
• Orange: TP is not being received.
■ HD Radio reception
AUTO1
Seek mode is set to AUTO1.
AUTO2
Seek mode is set to AUTO2.
MANUAL
Seek mode is set to MANUAL.
HD
HD Radio station is being received.
M/S
A multicast digital broadcast is being received.
ANALOG
An analog broadcast is being received.
DIGITAL
A digital broadcast is being received.
ST
A stereo broadcast is being received.
■ SiriusXM
SEEK1
Seek mode is set to SEEK1.
SEEK2
Seek mode is set to SEEK2.
132132
Return to the Top page
Appendix
Region Codes in the World
The DVD players are given a region code according to the country or area it is marketed, as
shown in the following map.
1
2
4
1
5
4
5
2
1
2
6
3
■ DVD disc marks
ALL
Indicates a region number. The discs with this mark can
be played with any DVD player.
8
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
32
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The left mark
indicates that a wide image picture (16:9) is displayed
on a standard TV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
■ Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the DVD is playing. In this case, the
following marks will appear on the screen. For more
information, refer to the disc manual.
Prohibition Mark
■ Discs with limited period of use
Do not leave discs with a limited period of use in this
unit. If you load an already expired disc, you may not be
able to remove it from this unit.
133
Return to the Top page
Appendix
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
Code Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
Code Language
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
DVD Language Codes
134134
Return to the Top page
Appendix
Specifications
■ Monitor section
Picture Size
DNX891HD, DNX7710BT, DNX771HD
: 6.95 inches (diagonal) wide
: 156.6 mm (W) x 81.6 mm (H)
6-3/16 x 3-3/16 inch
DNX691HD, DNX571HD, DNX571EX, DNX5710BT
: 6.1 inches (diagonal) wide
: 136.2 mm (W) x 72.0 mm (H)
5-6/16 x 2-13/16 inch
Display System
: Transparent TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■ DVD player section
D/A Converter
: 24 bit
Audio Decoder
: Linear PCM/ Dolby Digital/ MP3/ WMA/ AAC
Video Decoder
: MPEG1/ MPEG2/ DivX (DNX891HD/ DNX7710BT/
DNX5710BT only)
Wow & Flutter
: Below Measurable Limit
Frequency Response
• 96 kHz : 20 – 20,000 Hz
• 48 kHz : 20 – 20,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
DNX891HD, DNX7710BT
: 0.008 % (1 kHz)
DNX771HD, DNX691HD, DNX571HD, DNX571EX,
DNX5710BT
: 0.010 % (1 kHz)
S/N Ratio (dB)
DNX891HD, DNX7710BT
: 100 dB (DVD-Video 96 kHz)
DNX771HD, DNX691HD, DNX571HD, DNX571EX,
DNX5710BT
: 98 dB (DVD-Video 96 kHz)
Dynamic Range
DNX891HD, DNX7710BT
: 100 dB (DVD-Video 96 kHz)
DNX771HD, DNX691HD, DNX571HD, DNX571EX,
DNX5710BT
: 98 dB (DVD-Video 96 kHz)
Disc Format
: DVD-Video/ VIDEO-CD/ CD-DA
Sampling Frequency
: 44.1/ 48/ 96 kHz
Quantifying Bit Number
: 16/ 20/ 24 bit
■ USB interface section
USB Standard
DNX891HD, DNX7710BT
: USB 2.0 Full/ High Speed
DNX771HD, DNX691HD, DNX571HD, DNX571EX,
DNX5710BT
: USB 2.0 High Speed
File System
: FAT 16/ 32
Maximum Power Supply Current
DNX891HD, DNX7710BT
iPod/iPhone: DC 5 V 1 A
USB: DC 5 V 500 mA
DNX771HD, DNX691HD, DNX571HD, DNX571EX,
DNX5710BT
: DC 5 V 1 A
D/A Converter
: 24 Bit
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264
■ Bluetooth section
Technology
: Bluetooth Ver.3.0+EDR
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), 0dBm (AVE), Power Class2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
SBC/ AAC/ MP3/ aptX (DNX891HD, DNX7710BT only)
135
Return to the Top page
Appendix
Profile
• HFP (V1.6) (Hands Free Profile)
• SPP (Serial Port Profile)
• SDP (Service Discovery Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.4) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
• GAP (Generic Access Profile)
• Multi Profile support
■ HDMI/ MHL section
HDMI
: HDMI Type-A
MHL Supported Version
: MHL 2
MHL Maximum Power Supply Current
: DC 5 V 900 mA
■ DSP section
Graphics equalizer
DNX891HD, DNX7710BT, DNX691HD
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/
6.3k/ 10k/ 16k Hz
DNX771HD, DNX571HD, DNX571EX, DNX5710BT
Band: 7 Band
Frequency (BAND1 – 7)
: 62.5/ 160/ 400/ 1k/ 2.5k/ 6.3k/ 16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
2Way X'Over
DNX891HD, DNX7710BT, DNX691HD
High pass filter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/
120/ 150 / 180/ 220/ 250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
DNX771HD, DNX571HD, DNX571EX, DNX5710BT
High pass filter
Frequency: Through, 50/ 60/ 80/ 100/ 120/ 150/ 180/
220 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Low pass filter
Frequency: 50/ 60/ 80/ 100/ 120/ 150/ 180/ 220 Hz,
Through
Slope: -6/-12/-18/-24 dB/Oct.
Position
Front / Rear /Subwoofer Delay
: 0 – 20.0ft (0.07ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -50 – +10 dB
■ Digital FM tuner section (DNX891HD,
DNX771HD, DNX691HD, DNX571HD,
DNX571EX)
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Frequency Response (± 3.0 dB)
: 20 Hz – 20 kHz
S/N Ratio
: 75 dB (STEREO)
■ Digital AM tuner section (DNX891HD,
DNX771HD, DNX691HD, DNX571HD,
DNX571EX)
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Frequency Response (± 3.0 dB)
: 40 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (STEREO)
■ FM tuner section
Frequency Range (step)
DNX891HD, DNX771HD, DNX691HD, DNX571HD,
DNX571EX
: 87.9 MHz – 107.9 MHz (200 kHz)
DNX7710BT, DNX5710BT
: 87.5 MHz – 108.0 MHz (50 kHz)
Usable Sensitivity
DNX891HD, DNX771HD, DNX691HD, DNX571HD,
DNX571EX (S/N : 30 dB)
: 7.2 dBf (0.8 μV/ 75 Ω)
DNX7710BT, DNX5710BT (S/N : 26 dB)
: 0.63 μV/ 75 Ω
Quieting Sensitivity (S/N : 50 dB)
DNX891HD, DNX771HD, DNX691HD, DNX571HD,
DNX571EX (S/N : 50 dB)
: 10.2 dBf (1.13 μV/ 75 Ω)
DNX7710BT, DNX5710BT (S/N : 46 dB)
: 15.2 dBf (1.6 μV/ 75 Ω)
Frequency Response (± 3.0 dB)
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (MONO)
Selectivity (± 400 kHz)
: Over 80 dB
Stereo Separation
: 45 dB (1 kHz)
136136
Return to the Top page
Appendix
■ AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Usable Sensitivity
: 28 dBμ
■ Video section
Color System of External Video Input
: NTSC/PAL
External Video Input Level (RCA jack)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (RCA/mini jack)
: 2 V/ 25 kΩ
Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Audio Output Level (RCA jacks)
: 1.2 V/ 10 kΩ
■ Audio section
Maximum Power (Front & Rear)
: 50 W x 4
Full Bandwidth Power (Front & Rear) (4 Ω, 14.4 V,
1 % THD)
: 22 W x 4
Preout Level (V)
DNX891HD, DNX7710BT, DNX691HD
: 5 V/ 10 kΩ
DNX771HD, DNX571HD, DNX571EX, DNX5710BT
: 2 V/ 10 kΩ
Preout Impedance
DNX891HD, DNX7710BT, DNX691HD
: ≤ 80 Ω
DNX771HD, DNX571HD, DNX571EX, DNX5710BT
: ≤ 600 Ω
Speaker Impedance
: 4 – 8 Ω
■ External SW (DNX891HD, DNX7710BT)
Maximum Power Supply Current
: 500 mA
■ Navigation section
Receiver
: High-sensitivity GPS receiver
Reception Frequency
: 1575.42 MHz (C/A code)
Acquisition Times
Cold : 26 seconds (typ)
(All satellites at -130 dBm Without aiding)
Update Rate
: 1/second, continuous
Accuracy
Position: <2.5 meters, CEP, at -130 dBm
Velocity: 0.1 meter/sec
Position Method
: GPS
Antenna
: External GPS antenna
■ General
Operating Voltage
: 14.4 V (10.5 – 16 V allowable)
Maximum Current Consumption
: 10 A
Installation Dimensions (W x H x D)
DNX891HD, DNX7710BT, DNX771HD
: 181.7 x 112.2 x 163.0 mm
7-2/16 x 4-6/16 x 6-7/16 inch
DNX691HD, DNX571HD, DNX571EX, DNX5710BT
: 181.7 x 112.2 x 160.3 mm
7-2/16 x 4-6/16 x 6-5/16 inch
Operational Temperature Range
: -10 °C – +60 °C
Weight
DNX891HD, DNX7710BT, DNX771HD
: 2.5 kg (5.4 lbs)
DNX691HD, DNX571HD, DNX571EX, DNX5710BT
: 2.0 kg (4.4 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications subject to change without notice.
137
Return to the Top page
Appendix
About this Unit
■ Copyrights
• The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by JVC KENWOOD Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has
been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with iPod, iPhone, or iPad may
affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S. and
other countries.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio™ and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital
Corp.
• is a trademark of DVD Format/Logo
Licensing Corporation registered in the U.S., Japan and
other countries.
• This item incorporates copy protection technology
that is protected by U.S. patents and other intellectual
property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
• Android is a trademark of Google Inc.
• BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of
Research In Motion Limited and are registered and/or
used in the U.S. and countries around the world. Used
under license from Research In Motion Limited.
• Adobe, Acrobat and Reader are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other
countries.
• QR Code ® is registered trademarks of DENSO WAVE
INCORPORATED in JAPAN and other countries.
• The aptX® software is copyright CSR plc or its group
companies. All rights reserved. The aptX® mark and
the aptX logo are trade marks of CSR plc or one of its
group companies and may be registered in one or
more jurisdictions.
• ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX, LLC, a subsidiary of Rovi Corporation.
This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and
software tools to convert your files into DivX videos.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
device must be registered in order to play purchased
DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
• DivX®, DivX Certified® and associated logos are
trademarks of Rovi Corporation or its subsidiaries and
are used under license.
• The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registed trademarks of HDMI Licensing
LLC in the United States and other countries.
• MHL and the MHL logo are a trademark or registered
trademark of MHL, LLC.
- Incorporates MHL 2
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE PERSONAL USE OF A
CONSUMER OR OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER FOR (¡) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4
VIDEO”) AND/OR (¡¡) DECODING MPEG-4 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://
WWW.MPEGLA.COM.
138138
Return to the Top page
Appendix
• libFLAC
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,20
07,2008,2009 Josh Coalson
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
- Redistributions of source code must retain the
above copyright notice, this list of conditions and the
following disclaimer.
- Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
• About Pandora®:
Requirements for listening to the Pandora® are as
follows:
iPhone or iPod touch
• Use an Apple iPhone or iPod touch running under
iOS3 or later.
• Search for “Pandora” in the Apple App Store to find
and install the most current version of the Pandora®
application on your device.
Android™
• Visit the Google play and search for Pandora to
install.
BlackBerry®
• Visit www.pandora.com from the built in browser to
download the Pandora application.
• Bluetooth must be built in and the following profiles
must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
NOTE
• In the application on your device, log in and create
an account with Pandora.
• (If you are not already a registered user, an account
can also be created at www.pandora.com.)
• Internet connection by LTE, 3G, EDGE, or WiFi.
• Pandora® is only available in the United States,
Australia, and New Zealand.
• Because Pandora® is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may be
impaired or some or all of the services may become
unavailable.
• Some functions of Pandora® cannot be operated
from this unit.
• For issues using the application, please contact
Pandora® at pandora-support@pandora.com.
139
Return to the Top page
Appendix
• About iHeartRadio®:
Requirements for using iHeartAuto™ are as follows:
iPhone or iPod touch
• Use an Apple iPhone or iPod touch running iOS5
or later.
• Search for “iHeartAuto” in the Apple App Store to
find and install the most current version of the
iHeartAuto™ application on your device.
Android™
• Use an Android device with firmware 2.2 or later.
• Search for “iHeartAuto” on Google play to find and
install the most current version of the iHeartAuto™
application on your device.
Note
• iHeartRadio® is available only in the United States
and U.S. Territories
• For the best application experience, a 3G/4G or Wi-Fi
connection is recommended.
• Because iHeartAuto™ is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may be
impaired or some or all of the services may become
unavailable.
• Some functions of iHeartRadio® cannot be operated
from this unit.
• If you experience issues while using the application,
please contact iHeartRadio® Customer Care at
http://help.iheartradio.com.
• iHeartRadio® and iHeartAuto™ are trademarks
owned by Clear Channel Broadcasting, Inc. All uses
are authorized under license.
140140
Return to the Top page
Appendix
DNX891HD/ DNX771HD/ DNX691HD/ DNX571HD/
DNX571EX:
■ FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in the
instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or
modification is made.
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment may cause harmful interference to
radio communications, if it is not installed and used
in accordance with the instructions. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
2CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS
RULES 21 CFR SUBCHAPTER J IN EFFECT AT
DATE OF MANUFACTURE.
Location: Top plate
DNX891HD/ DNX771HD/ DNX691HD/ DNX571HD/
DNX571EX:
■ IC (Industry Canada) Notice
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)This device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
The term “IC: ” before the certification/ registration
number only signifies that the Industry Canada
technical specification were met.
2CAUTION
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment has very low levels of RF energy that
it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the radiator
at least 20cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
DNX891HD/ DNX771HD/ DNX691HD/ DNX571HD/
DNX571EX:
• Contains Transmitter Module
FCC ID: YZP-RBFAC21XX
• Contains Transmitter Module
IC: 7414A-RBFAC21XX
141
Return to the Top page
Appendix
■ CALIFORNIA, USA
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material – special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
■ Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■ Para cumplimiento de la COFETEL:
“La operación de este equipo esta sujeta a las siguientes
dos condiciones:
(1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier
interferencia,
incluyendo la que pueda causar su operación no
deseada.”
■ Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
