DV-5700

INSTRUCTION MANUAL

DV-5700

B60-5167-00 00 CS (K) AP 0104

Connection of Equipment

Chapter 1: Connection of Equipment

Before applying power

Units are designed for operation as follows.

U.S.A. and Canada........................ AC 120 V only

Europe and U.K. ........................... AC 230 V only

Other countries ............................ AC 110 - 240 V

For the United Kingdom

Factory fitted moulded mains plug

1. The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS1362) fuse.

2. The fuse cover must be refitted when replacing the fuse in the moulded plug.

3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in

your home or the cable is too short to reach a power point, then obtain an appropriate safety approved

extension lead or adapter, or consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a

possible shock hazard by inadvertent connection to the mains supply.

IMPORTANT : The wires in the mains lead are coloured in accordance with the following code:

Blue : Neutral Brown : Live

Do not connect those leads to the earth terminal of a three-pin plug.

CLASS 1

LASER PRODUCT

The marking of products using lasers

(For countries other than U.S.A., U.S.-

Military and Canada)

Safety precautions

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN

EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE

PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE

PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO

CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS

INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT

OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE APPLIANCE.

CAUTION

VISIBLE LASER RADIATION

WHEN OPEN. DO NOT

STARE INTO BEAM.

The marking this product has been classified as Class

1. It means that there is no danger of hazardous

radiation outside the product.

Location: Back panel

Inside this laser product, a laser diode classified as

Class 2 laser radiation is contained as alerted by the

internal caution label shown above. Do not stare into

beam.

Location: DVD laser pick-up unit cover inside this

product

Caution : Read this page carefully to ensure safe operation.

Connection of Equipment

Chapter 1: Connection of Equipment

Features

Compatible with DVD AUDIO, one of the latest

digital audio formats

The DVD AUDIO reproduces 2-channel, 192 kHz,

24-bit sampled digital audio or 6-channel, 96 kHz,

24-bit sampled audio. This innovative technology

has made possible audio reproduction in

unprecedented high quality. Picture information

and character information (DVD TEXT) are also

provided.

Versatile DVD VIDEO Functions

The DVD VIDEO provides horizontal resolution

of 430 lines, which exceeds that of DVD or S VHS

video (400 lines) or laserdisc (430 lines).

Multi-audio function: With DVD discs marked

with the

icon, the desired language can be

played back by selecting it from up to 8 languages.

(The number of available languages is variable

depending on the discs.)

Multi-subtitle function: With DVD discs marked

with the

icon, the subtitle language can be

selected from up to 32 languages. (The number of

subtitle languages is variable depending on the

discs.)

Angle function: With DVD discs marked with the

icon, a single object can be viewed in up to 9

angles by switching. (The number of available

angles is variable depending on the discs.)

Compatibility with Wide Range of Digital

Surround Software

The unit incorporates Dolby Digital decoder, DTS

decoder, MPEG multi-channel decoder and Packed

PCM decoder so that the users can enjoy the sound

of real cinemas. The unit can also be connected to

the user's existing TV set

6-Channel Output Terminals

These output terminals can be connected to an

amplifier with 6-channel input compatibility to

enjoy high-bit, high-sampling rate multi-channel

sound.

5-Disc Carousel Disc Changer

The disc tray can accommodate up to 5 discs and

the disc can be changed while another disc is being

played.

DVD player with CD-R and CD-RW disc

compatibility

This DVD player can play back tracks recorded in

CD-R (Compact Disc Recordable) and CD-RW

(Compact Disc Rewritable) as well as those in

music CD.

* Only finalized discs can be played back. However,

certain discs may still be unplayable on this player.

MP3 playback capabilities

This player can also play back the MP3 files which

are the latest formats for storage of music data.

However, certain MP3 files may still be unplayable

on this player.

Progressive scanning

The video display format can be switched between

"Interlaced" and "Progressive" scanning.

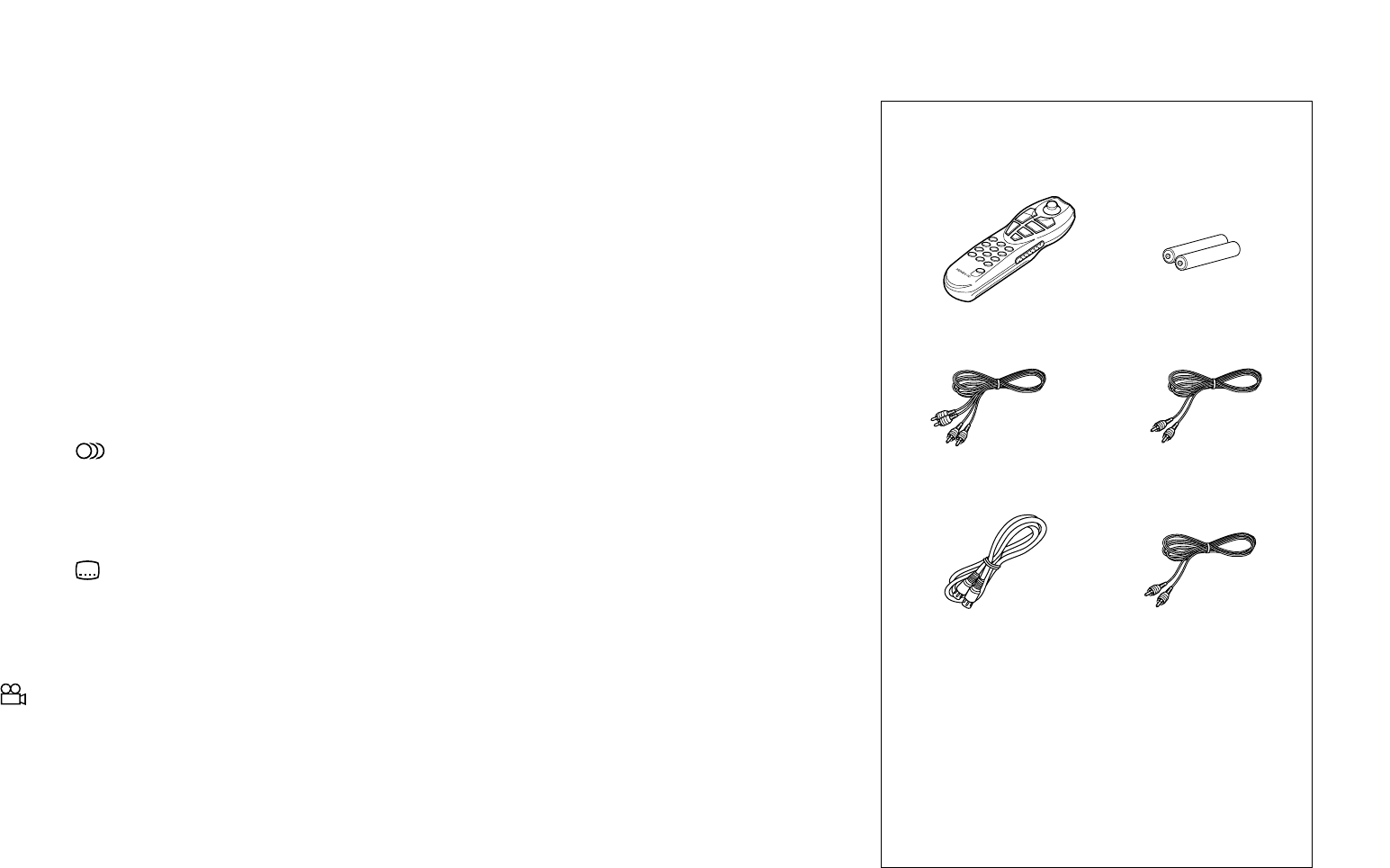

Accessories

Joystick remote

control unit (1)

Batteries (R6/AA) (2)

Video cable (1)Audio cables (3)

Unpacking

Unpack the unit carefully and make sure that all the

accessories are present.

If any accessories are missing, or if the unit is damaged

or fails to operate, notify your dealer immediately. If

the unit was shipped to you directly, notify your

shipper immediately. Kenwood recommends that you

retain the original carton and packing materials in case

you need to move or ship the unit in the future.

Keep this manual handy for future reference.

Coaxial cable (1)S Video cable (1)

Connection of Equipment

Chapter 1: Connection of Equipment

Contents Caution : Read the pages marked carefully to ensure safe operation.

Before applying power ................... 2

Safety precautions...................................... 2

Features ............................................................. 3

Accessories ........................................................ 3

Systems and Types of Playable Discs ................ 6

Unplayable Discs ............................................... 6

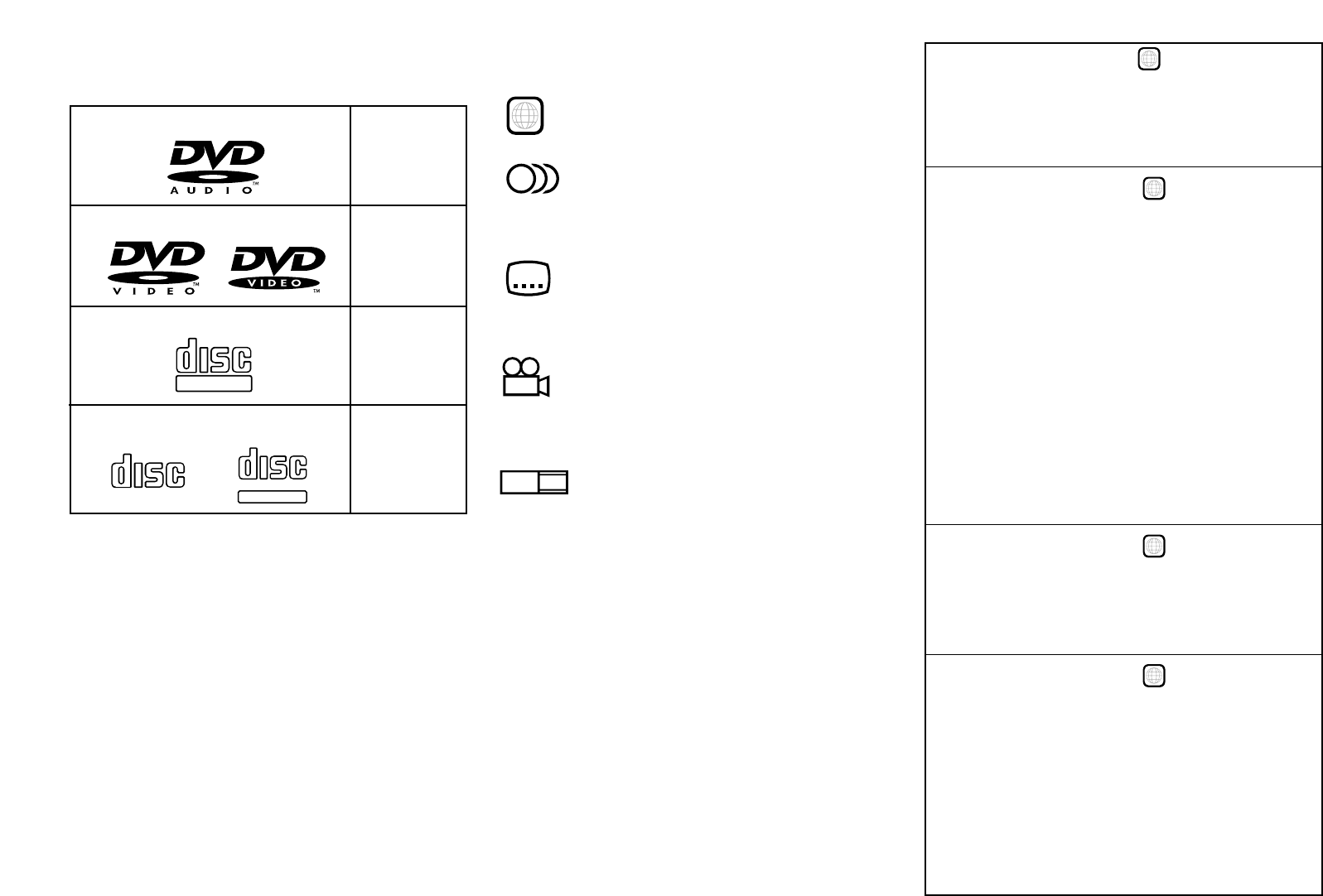

Icons Inscribed on DVD Discs .......................... 6

Region Codes of This Player (DVD VIDEO disc

only) ............................................................... 6

Region codes of the DVD VIDEO discs that can be played

with this player .................................................................7

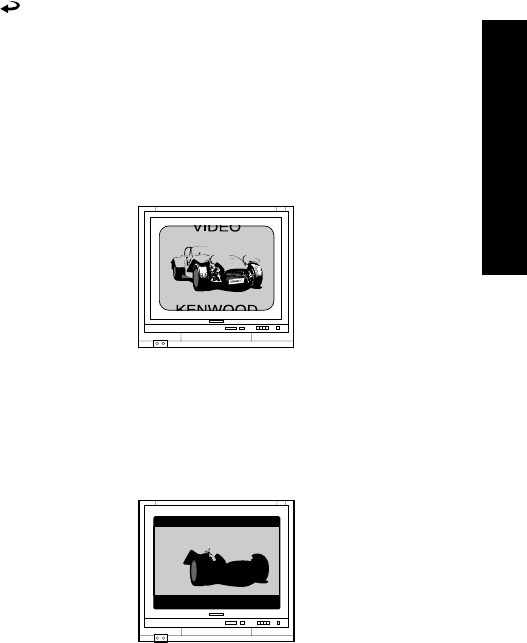

Video Formats ................................................... 7

Checking the Video Format .................................................7

Chapter 1: Connection of Equipment ... 8

Bofore Start....................................................... 9

Preparation of Remote Control Unit ................ 9

Installing the batteries ........................................................ 9

Remote control range.......................................................... 9

MP3 Files That Can Be Played Back with This

Equipment ...................................................... 9

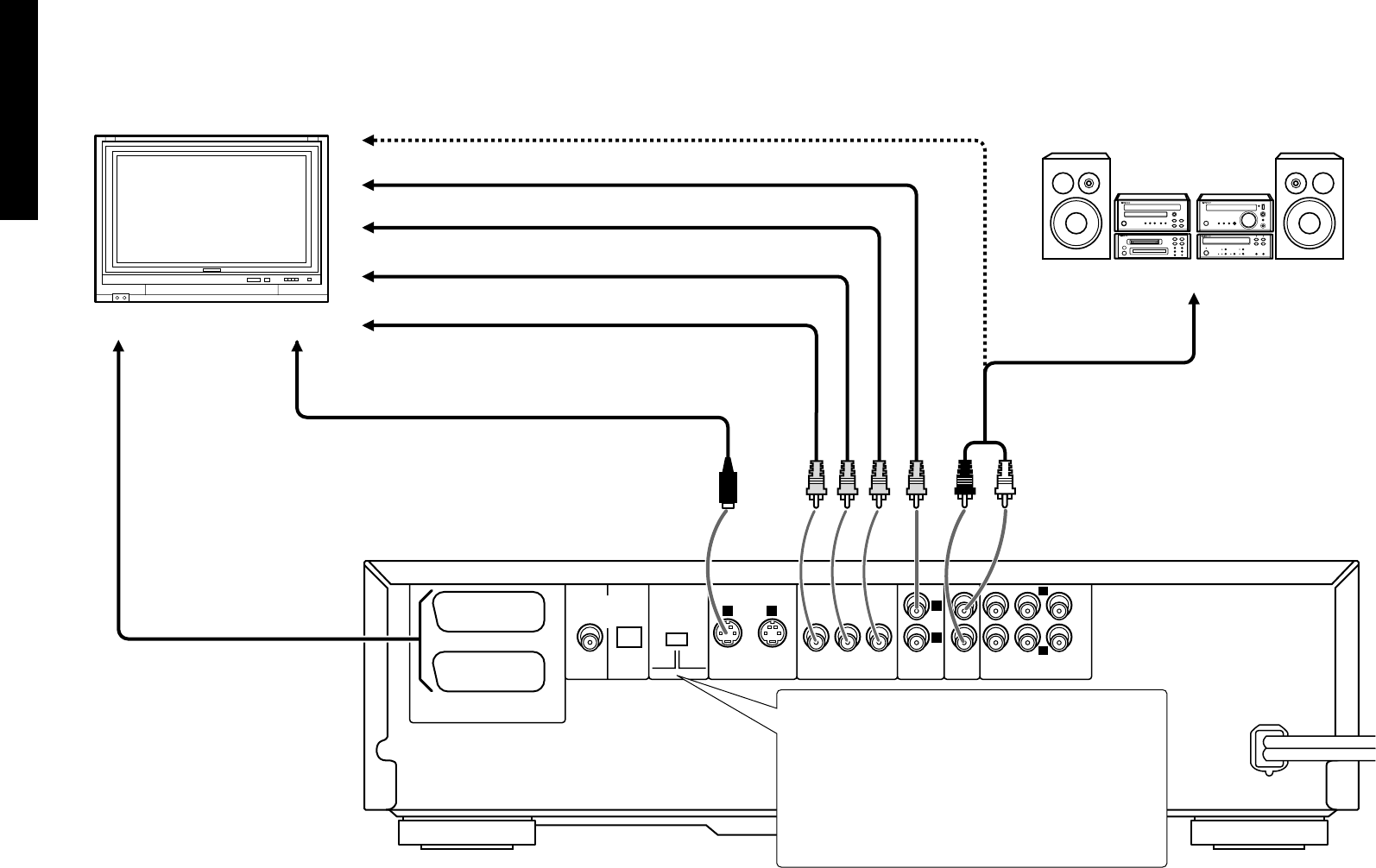

Connection with a TV or Stereo System.......... 10

To Connect a TV ................................................................. 11

To Connect a Stereo System .............................................. 11

To Set Up of the Player ...................................................... 11

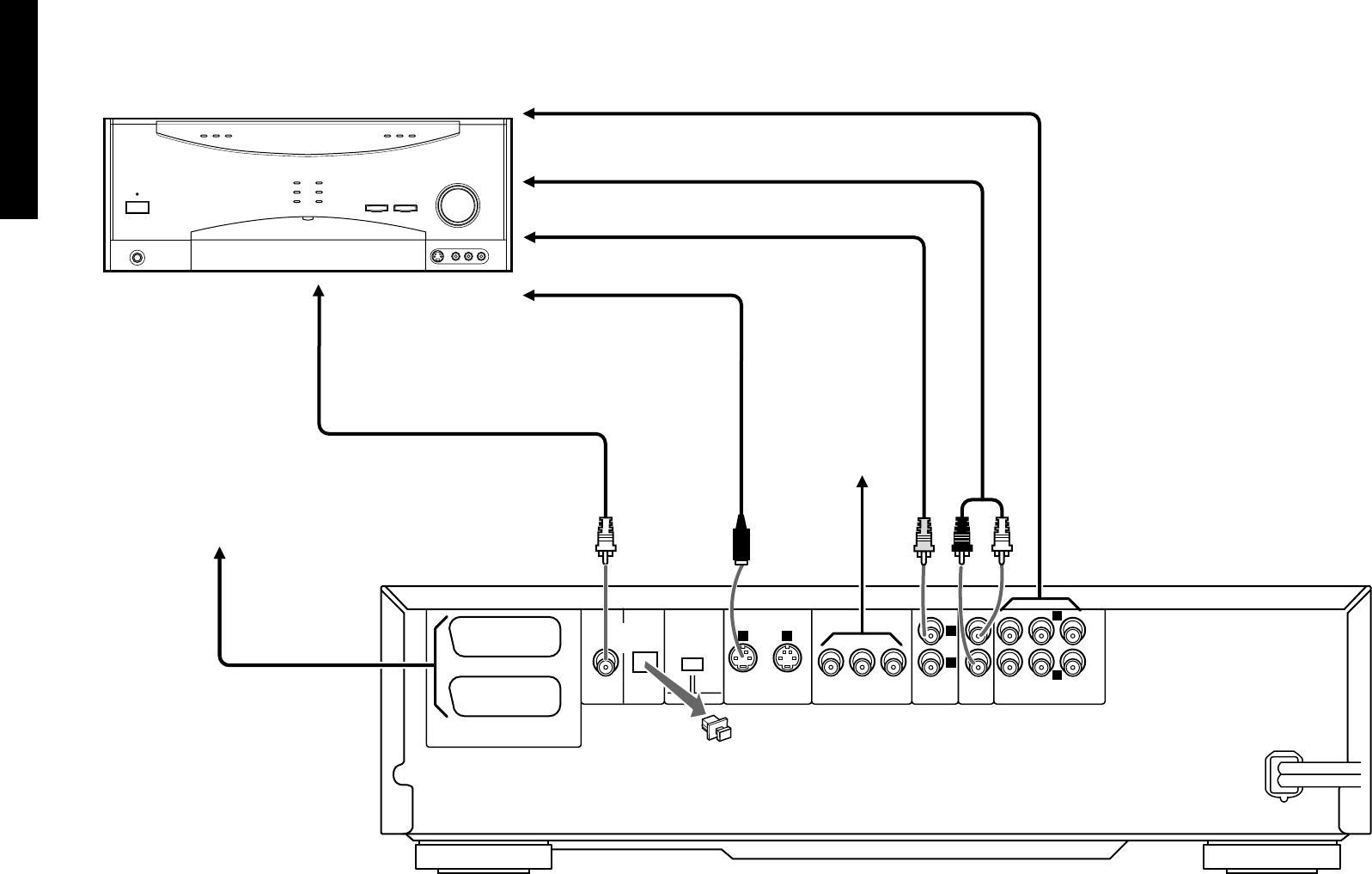

Connection with an AV Amplifier .................... 12

To Connect an AV Amplifier ............................................. 13

To Set Up of the Player ..................................................... 13

Chapter 2: Controls and indicators .... 14

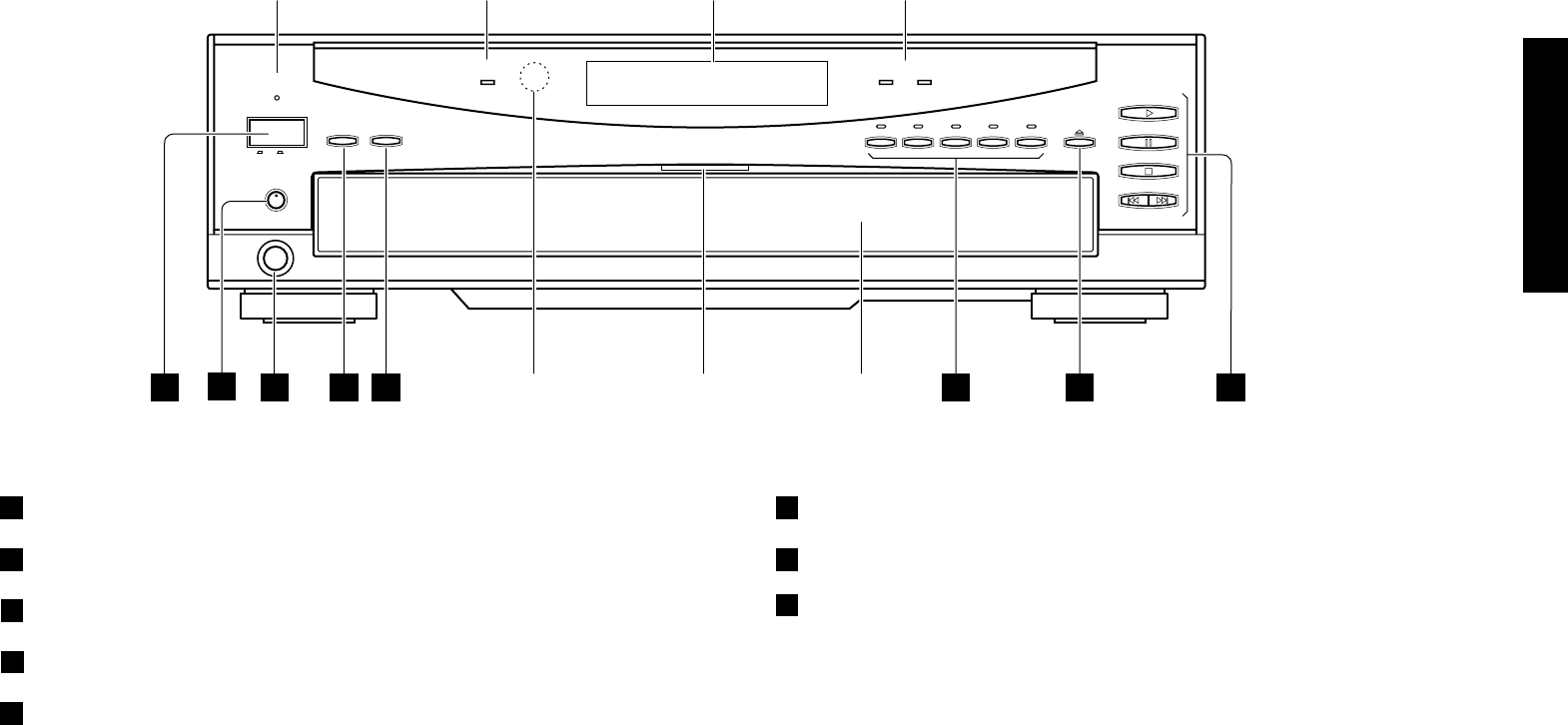

Front Panel ...................................................... 15

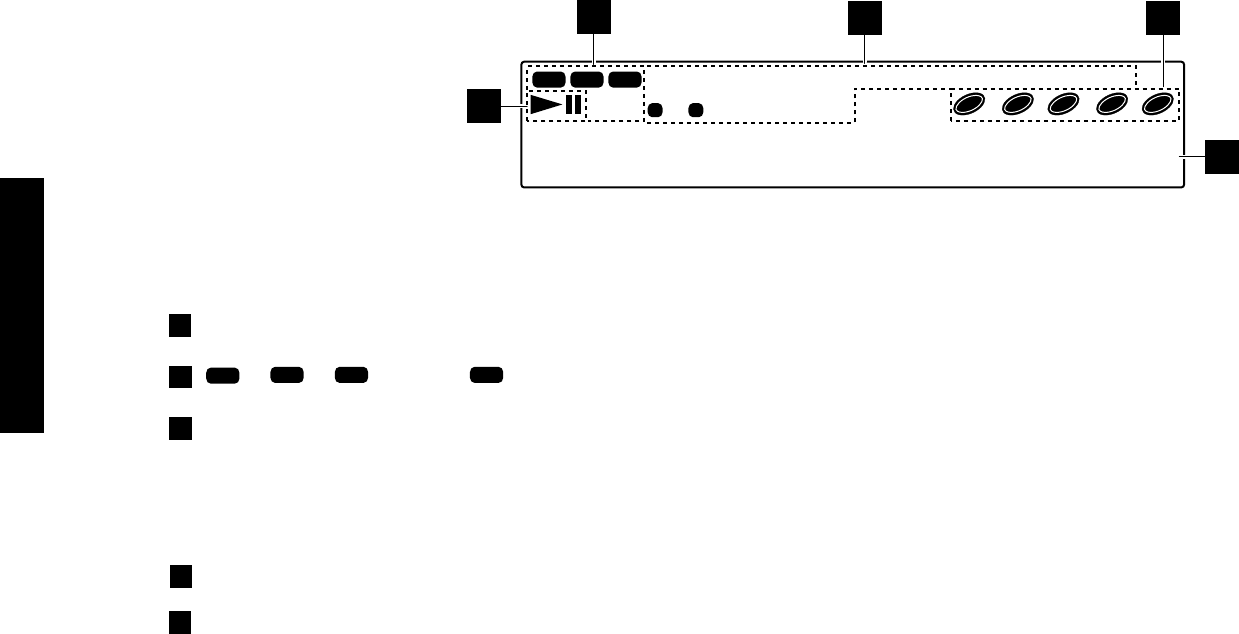

Display ............................................................ 16

Switching the Display Brightness..................................... 16

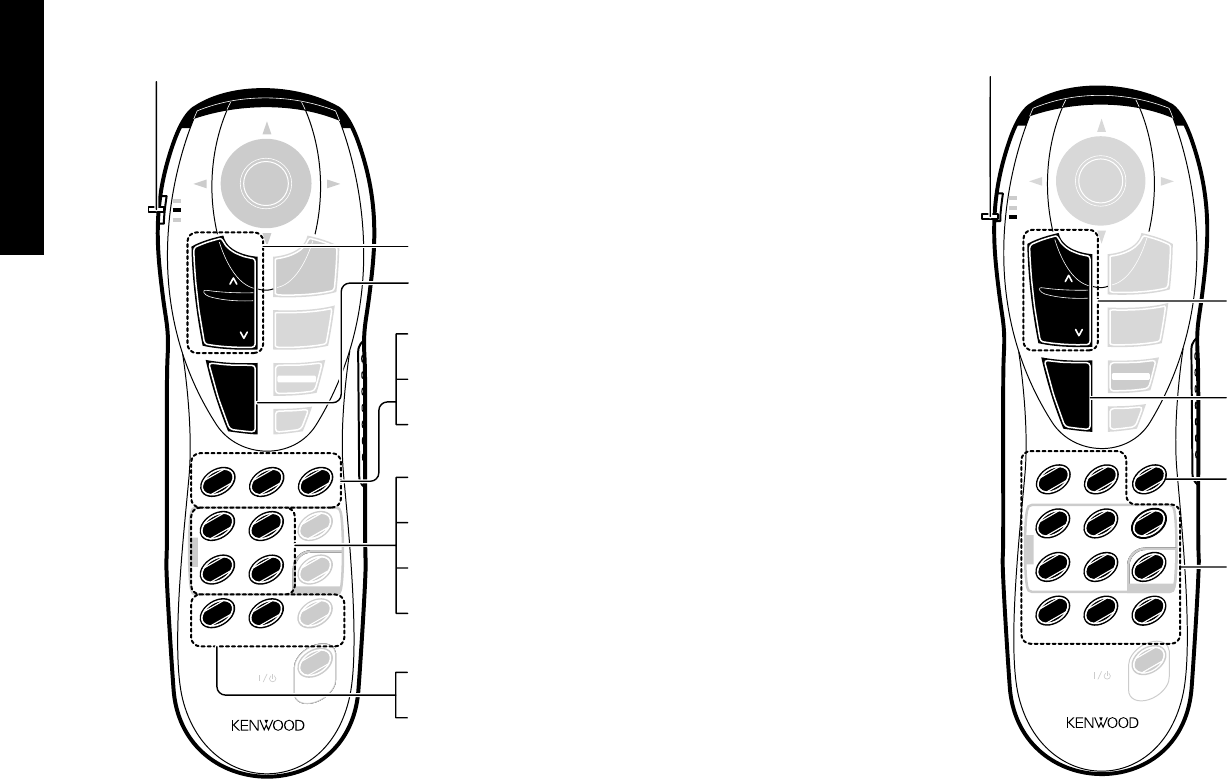

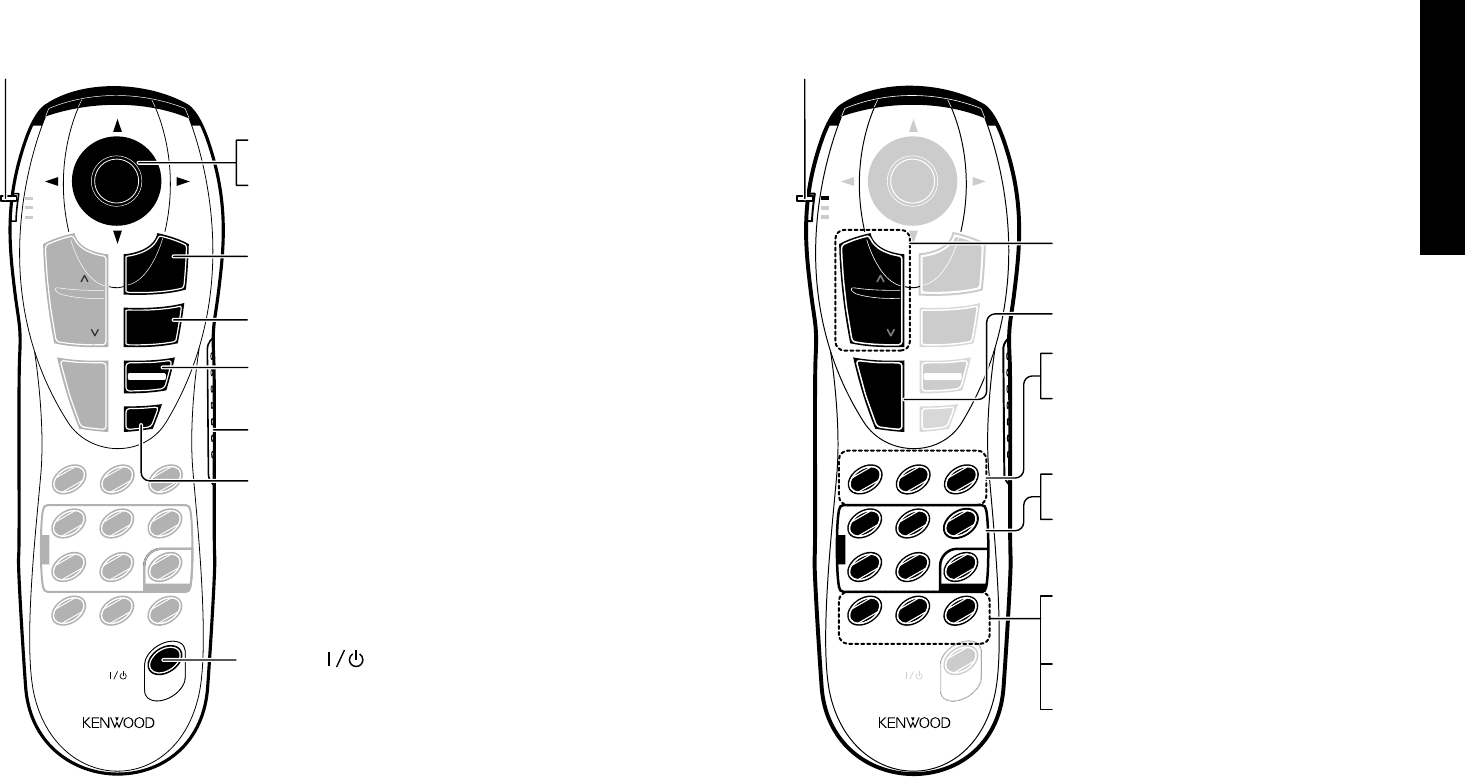

Joystick Remote Control Unit .......................... 17

When selecting a disc, displaying a still picture or letting

playback pause temporarily .......................................... 17

When repeating playback or switching the displayed

information .................................................................... 18

When performing special playback or inputting a number

........................................................................................ 18

Chapter 3: Basic Operation ................ 19

Configuration of Discs .................................... 20

Turning Power on ........................................... 20

STANDBY mode ................................................................. 21

Inserting discs ................................................. 21

On Basic Operation ......................................... 21

Opetaion restriction according to the disc or player status

........................................................................................ 21

Playing discs ....................................................................... 21

Playing discs by changing them ....................................... 22

Playing from the selected disc .......................................... 22

Playing discs by selecting the group, title, chapter , track

........................................................................................ 22

Skipping a track, chapter or file ....................................... 22

Stopping playback ............................................................. 22

Still picture display and playback pause ......................... 23

Frame-by-frame advance................................................... 23

Forward search and reverse search ................................... 23

Slow playback and reverse slow playback ....................... 23

Menu playback of DVD .................................................... 24

Menu playback of P.B.C.-compatible VCD ..................... 24

Skipping indexes in DVD AUDIO ................................... 25

Switching still pictures of DVD AUDIO .......................... 25

Switching the sequential play mode................................ 25

Switching the time display ............................................... 26

Repeat playback ................................................................. 26

A-B repeat playback ........................................................... 27

Pure Audio function.......................................................... 27

Switching the audio language .......................................... 28

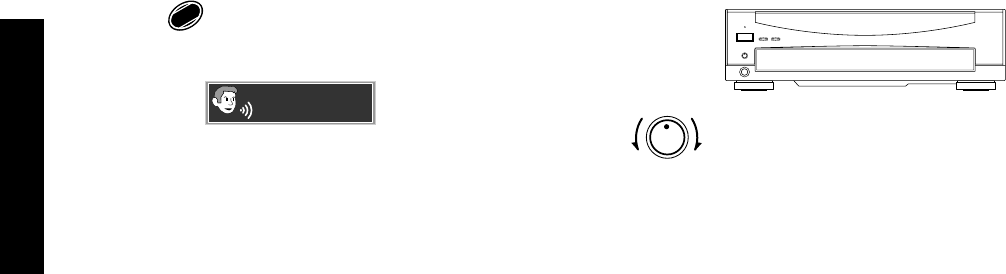

Using Headphones .......................................... 28

Chapter 4: OSD Operation ................. 29

Basic OSD Operation ...................................... 30

“MAIN” OSD Operation ................................... 31

Selecting the disc to be played .......................................... 31

Selecting a group, title, chapter, track, folder or file

......................................................................................... 31

Time display switching and time search ......................... 32

Memory playback .............................................................. 33

Repeat playback ................................................................. 33

A-B repeat playback ........................................................... 34

“SOUND” OSD Operation ............................... 35

Switching the audio language .......................................... 35

Virtual Surround function ................................................ 35

Cinema Voice function ..................................................... 35

Down Mix function ........................................................... 36

“VISUAL” OSD Operation ............................... 36

Switching the subtitle language ....................................... 36

Adjusting the picture quality ............................................ 36

Switching the viewing angle ............................................. 37

Chapter 5: Applied Operations ........... 38

Switching the Play Modes ............................... 39

Program Playback ........................................... 39

Registering and playing the program............................... 39

Clearing the program ........................................................ 40

Stopping program playback ............................................. 40

Checking the program ...................................................... 40

Connection of Equipment

Chapter 1: Connection of Equipment

Disc Random Playback .................................... 40

Stopping disc random playback ....................................... 41

All Random Playback ...................................... 41

Stopping all random playback .......................................... 41

TEXT DISC Operation ..................................... 41

Title search .......................................................................... 41

Switching the character information ............................... 42

Displaying all character information .............................. 42

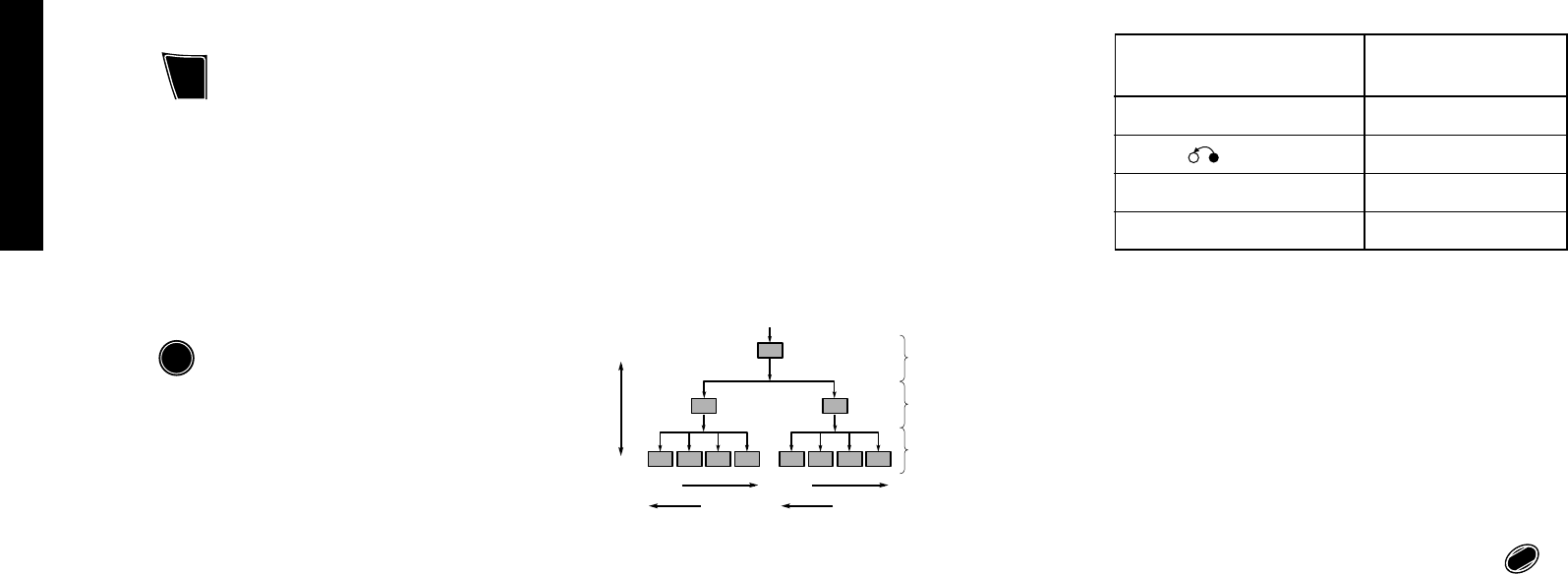

MP3 disc Operation......................................... 42

Switching the character information ............................... 42

Searching a desired folder/file by its title ........................ 43

Switching the “DVD VIDEO Mode” ................. 43

Bonus Group ................................................... 43

Chapter 6: Various Setups .................. 44

Control Buttons Used in Setups ..................... 45

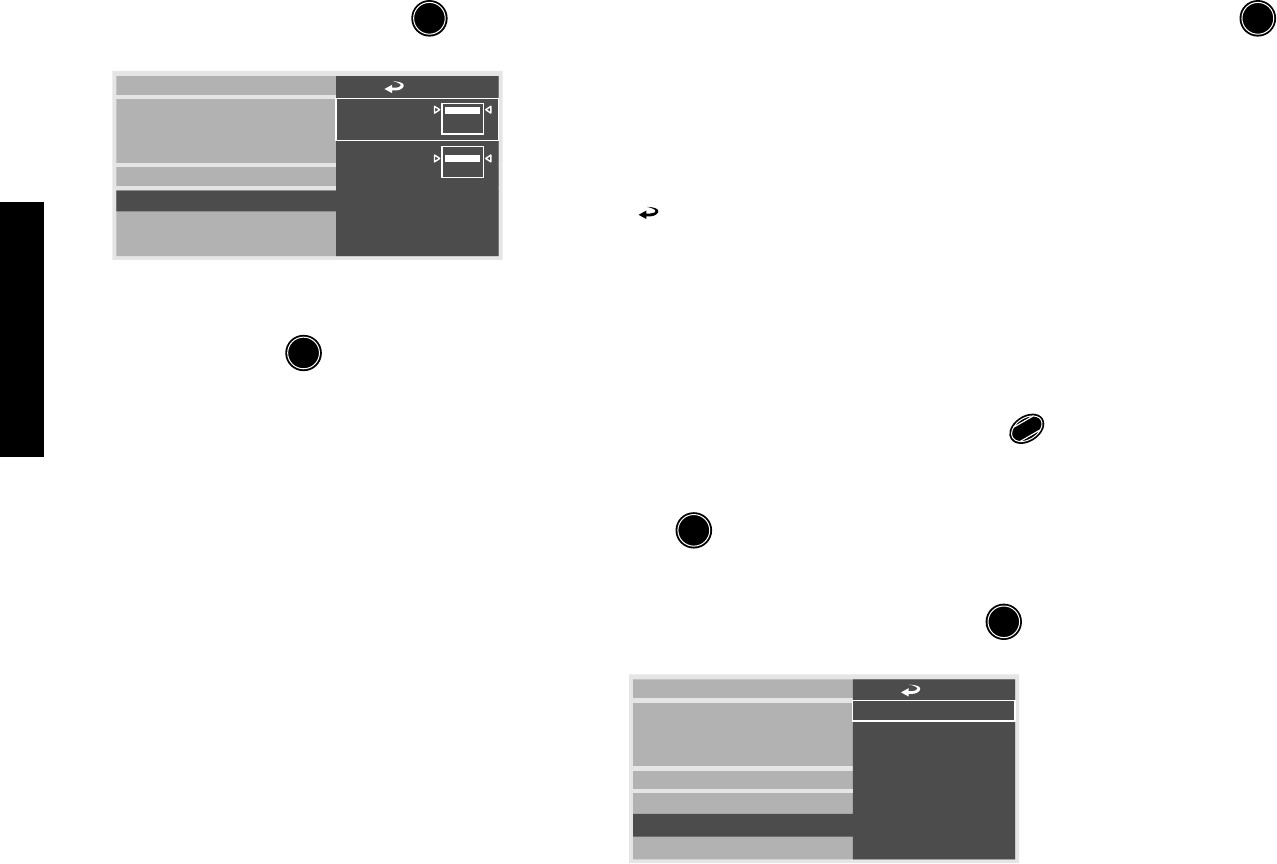

Basic Operations in Setup Screen ................... 45

“MAIN” Setting ................................................ 47

“Rating” Setting ................................................................. 47

“TV Aspect” Setting ........................................................... 49

“TV Mode” Setting ............................................................. 49

“TV Monitor Type” Setting ............................................... 50

“DVD VIDEO Mode” Setting ............................................. 51

“OSD Position” Setting...................................................... 51

“On Screen Message” Setting ........................................... 52

“IPB Display” Setting ........................................................ 53

“SOUND” Setting ............................................ 54

“Digital Audio PCM Down Conversion” Setting (DVD

VIDEO disc only) .......................................................... 54

“Digital Audio Dolby Digital” Setting ............................. 54

“Digital Audio DTS” Setting ............................................. 55

“Digital Audio MPEG” Setting ......................................... 56

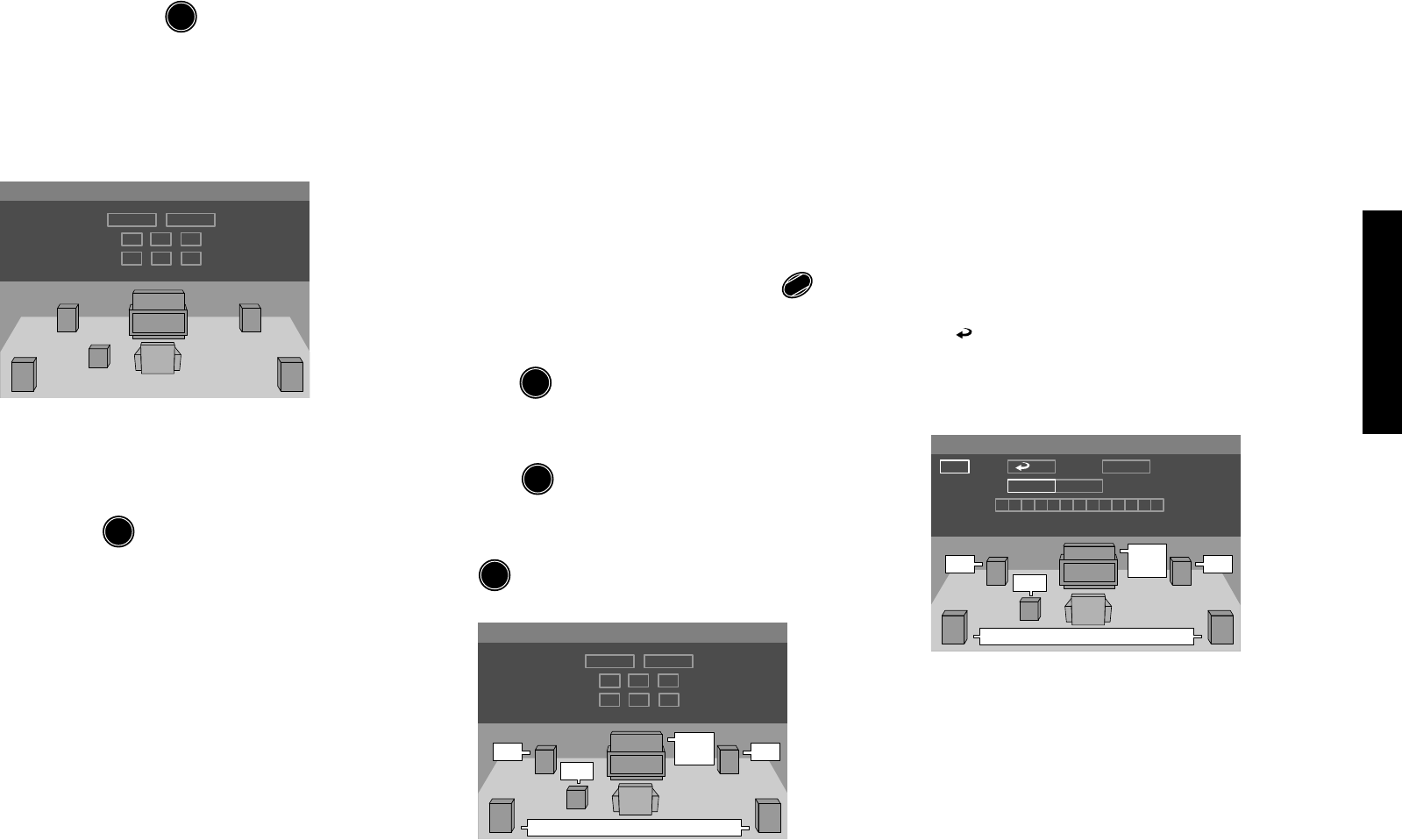

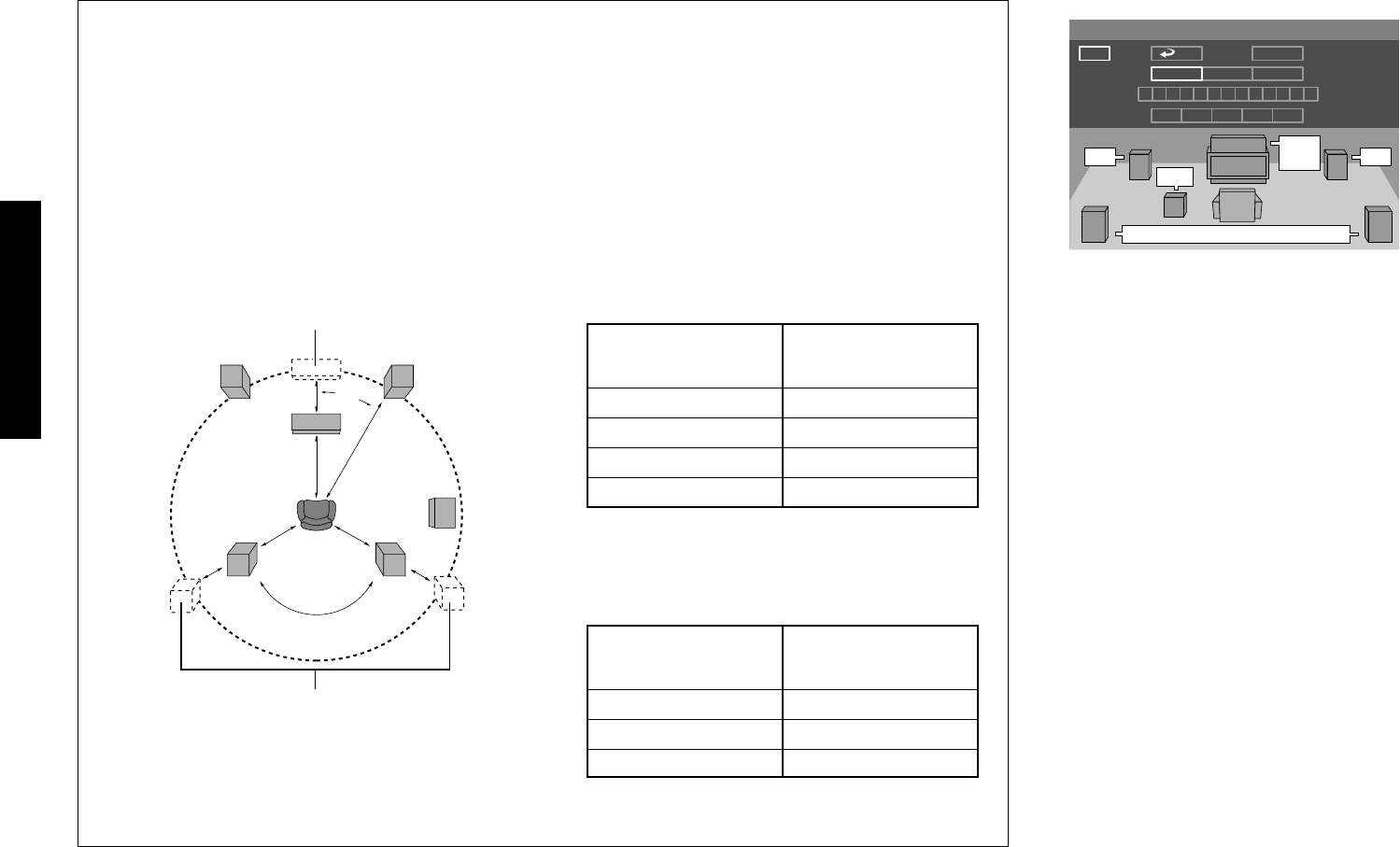

“Speaker Setting” ............................................................... 56

“Audio During Search” Setting ......................................... 60

“Dynamic Range Control” Setting ................................... 60

“Audio Filter” Setting .........................................................61

“VISUAL” Setting ............................................. 62

“Player Menu Language” Setting ...................................... 62

“Disc Menu Language” Setting ......................................... 62

“Audio Language” Setting ................................................. 63

“Subtitle Language” Setting .............................................. 64

“Still Mode” Setting .......................................................... 64

“FL Mode” Setting ............................................................. 65

“NTSC = PAL” Setting ..................................................... 66

“SCART Output Select” Setting ........................................ 66

“Black Level Setup” Setting............................................... 67

Disc Language Code Table ................................................ 68

Chapter 7: Other Information ............ 69

To Be Noted ..................................................... 70

Symptoms and Treatment ............................... 72

Glossary .......................................................... 74

Specifications .................................................. 76

Connection of Equipment

Chapter 1: Connection of Equipment

Unplayable Discs

Never attempt to play a Photo CD on this unit.

Other discs which cannot be played on this unit:

¶SACD, DVD-ROM, DVD-R/RAM, DVD-RW, CD-

ROM, VSD, CDV*, CD-G*, CD-EG*, CD-EXTRA*,

etc.

* Only the audio part can be reproduced.

¶A DVD VIDEO disc with a region code which does

not match this unit or without a region code. For

details, see "Region Codes of This Player".

¶When the video format of a disc differs from that

of the TV in use, the disc cannot be played normally.

For details, see "Video Formats". 7

12 cm

8 cm

TEXT

DIGITAL AUDIO

COMPACT

DVD AUDIO

DVD VIDEO

CD (CD-R, CD-RW)

VCD

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

COMPACT

Systems and Types of Playable

Discs

Icons Inscribed on DVD Discs

ALL

Indicates the playable region code.

Indicates the number of languages in the audio.

The figure in the icon shows the number (max. 8

languages).

Indicates the number of available subtitle

languages. The figure in the icon shows the number (max.

32 subtitle languages).

Indicates the number of viewing angles which

can be viewed with the angle function. The figure in the

icon shows the number (max. 9 angles).

16:9 LB

Indicates the number of available aspect ratios.

LB stands for Letter Box and PS stands for Pan & Scan.

(The example shown means that the 16:9 video can be

converted into letterbox.)

Region Code of Player:

Usable Country or Area : Canada, United States,

American Samoa, Bermuda, Johnston Island,

Midway Islands, Puerto Rico, St. Pierre and

Miquelon, United States Virgin, Wake Island

Region Code of Player :

Usable Country or Area : Albania, Andorra,

Austria, Bahrain, Belgium, Bosnia and

Herzegovina, Bulgaria, Croatia, Cyprus, Czech,

Denmark, Egypt, Finland, France, Germany,

Greece, Hungary, Iceland, Iran, Iraq, Ireland,

Israel, Italy, Japan, Jordan, Kuwait, Lebanon,

Lesotho, Liechtenstein, Luxembourg,

Macedonia, Malta, Monaco, Netherlands,

Norway, Oman, Poland, Portugal, Qatar,

Romania, San Marino, Saudi Arabia, Slovakia,

Slovenia, South Africa, Spain, Swaziland,

Sweden, Switzerland, Syrian Arab Republic,

Turkey, United Arab Emirates, United Kingdom,

Vatican City State, Yemen, Yugoslavia, Channel

Islands, Faeroe Islands, Gibraltar, Greenland,

Isle of Man, Svalbard and Jan Mayen Islands

Region Code of Player :

Usable Country or Area : Brunei Darussalam,

Cambodia, Indonesia, Korea, Laos, Malaysia,

Myanmar, Philippines, Singapore, Thailand, Viet

Nam, East Timor, Hong Kong, Macau, Taiwan

Region Code of Player :

Usable Country or Area : Antigua and Barbuda,

Argentina, Australia, Bahamas, Barbados, Belize,

Bolivia, Brazil, Chile, Colombia, Costa Rica,

Cuba, Dominica, Dominican Republic, Ecuador,

El Salvador, Fiji, Grenada, Guatemala, Guyana,

Haiti, Honduras, Jamaica, Kiribati, Marshall

Islands, Mexico, Micronesia, Nauru, New

Zealand, Nicaragua, Palau, Panama, Papua

New Guinea, Paraguay, Peru, Saint

Christopher and Nevis, Saint Lucia,

Region Codes of This Player

(DVD VIDEO disc only)

A region code defined for each country or area is

assigned for each DVD VIDEO player, so it cannot play

a DVD VIDEO disc if its region code do not match

that of this unit. Also, a disc which does not contain

any region code may sometimes be unable to be played

on the player.

When purchasing a DVD VIDEO disc, make sure that

it has a region code which can be played on your

player.

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

Connection of Equipment

Chapter 1: Connection of Equipment

Region codes of the DVD VIDEO discs

that can be played with this player

This player can play back a DVD VIDEO disc which carries

the corresponding code to the region code of the player

shown in the table above, a marking containing the

region code of the player or the “ALL” marking shown

below. Even when a DVD VIDEO disc does not carry any

indication of the region code, it may sometimes unable

to be played on this player due to certain restrictions.

ALL

Video Formats

Connection of Equipment

Chapter 1: Connection of Equipment

This manual describes the standard, most typical connections of the player. When an associated system component

is connected, also refer to their instruction manuals.

For details on the connection of the following components, see the indicated reference pages.

Before Start 9

Preparation of Remote Control Unit 9

MP3 Files That Can Be Played Back with This Equipment 9

Connection with a TV or Stereo System 0

Connection with an AV Amplifier @

Connection of Equipment

Chapter 1: Connection of Equipment

Before Start

Do not insert the power cord plugs of the player and the

connected components until all of the components have

been connected.

Be sure to insert all connection cables securely. If a cable

is plugged incompletely, lack of video, lack of audio or

noise may result.

Before connecting or disconnecting a connection cord,

be sure to unplug the power plug from the wall power

outlet. If a connection cable is connected or disconnected

while the power plug is left connected, malfunction or

equipment damage may result.

When a DVD AUDIO disc is played, the player can output

audio signals at very high frequencies. As this may

sometimes lead to speaker damage due to a high-volume

sound, do not set "Audio Filter" to "Filter 110 kHz" when

the speakers in use are not suitable for high-frequency

reproduction. Œ

Also, be sure to check the actual sound level when

increasing or decreasing the volume control setting.

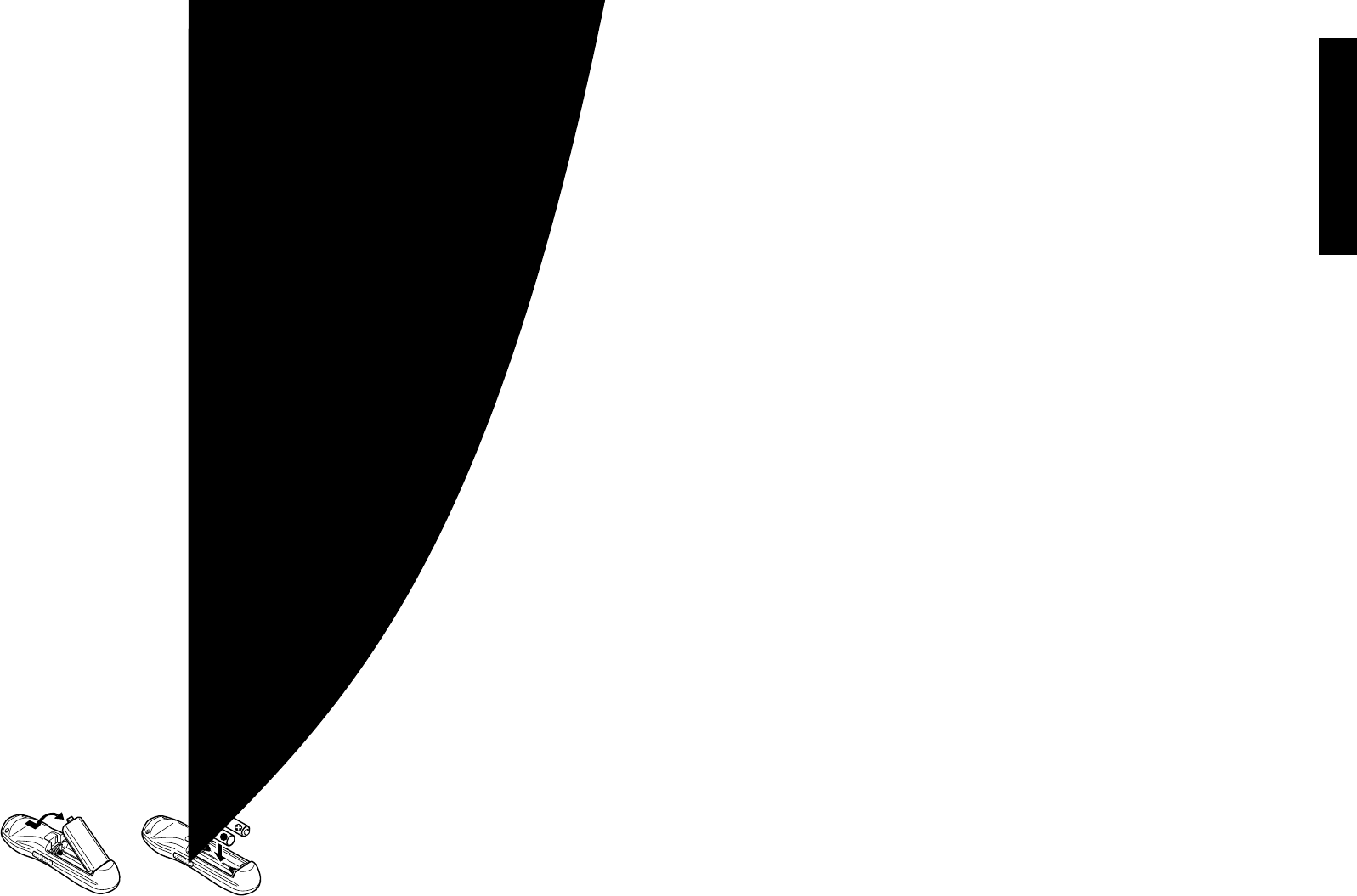

Remote control range:

¶When the controllable distance of the joystick remote

reduces, replace both batteries with new ones.

¶Do not install the player in a place where the remote

control sensor is subjected to direct sunlight or the

light of a fluorescent lamp base on high-frequency

lighting (inverter system, etc.). Otherwise, the control

range of the joystick remote will be reduced.

If the joystick remote is used

outside this area, correct operations

will not be possible.

Preparation of Remote Control

Unit

Installing the batteries:

Open the cover and insert the batteries (R6/AA) by

observing the polarity marking.

Connection of Equipment

Chapter 1: Connection of Equipment

TV SCART

VCR SCART

COAXIAL

COMPONENT

VIDEO OUTPUT

DIGITAL OUTPUT

(PCM/BIT STREAM)

INTERFACE

PROGRESSIVE

OPTICAL

S VIDEO OUTPUT

1 2

VIDEO

OUTPUT

6CH. OUTPUT

COMPONENT VIDEO OUTPUT

FRONT

SURROUND SUB WOOFER

CENTER

MIX LINE

OUTPUT

Connection with a TV or Stereo System

S Video cable (provided)

Video cable (optional)

Audio cable (provided)

Audio connection: To audio input jacks

Video connection: To video input jack

Audio cable (provided)

Audio connection: To audio input jacks

Video cable (optional)

Video cable (provided)

Component video connection: To color difference (CR) input jack

Stereo system

To color difference (CB) input jack

To luminance (Y) input jack

Select the video connection method

according to the TV in use. When S-Video

cable is connected, the ordinary video

connection is not necessary.

S Video connection: To S Video input connector

SCART connection (For U.K. and Europe):

Connect the TV SCART connector to the TV's input connector.

Connect the VCR SCART connector to the VCR's input

connector.

Select the scanning method of the Component Video output

using the COMPONENT VIDEO OUTPUT switch on the

rear panel.

INTERLACE: Scanning method is fixed at interlaced

scanning.

PROGRESSIVE: When progressive scanning is unavailable

with certain discs, the scanning method is switched

automatically to interlaced scanning. When the scanning

method is changed, the scanning status will be displayed

for a few seconds.

Connection of Equipment

Chapter 1: Connection of Equipment

Connection with a TV or Stereo

System

Do not insert the power cord plugs of the player and the

connected components until all of the components have

been connected.

For details on the connection terminals and functions of

the TV, refer to its instruction manual.

The video output from the player should be connected

directly to the TV. If the video output is connected through

a VCR, the picture displayed on the TV may be disturbed

due to the copy protect function.

To Connect a TV

Video connection: Connect the VIDEO OUTPUT jack of

the player to the video input of the TV using the pro-

vided video cable.

S Video connection: If the TV has an S Video input con-

nector, connect the S VIDEO OUTPUT connector of

the player to it using the provided S Video cable.

¶As S Video separates video signal into the luminance

signal (Y) and color signal (C), it can provide sharper

pictures than ordinary video connection.

Component video connection: If the TV has component

video input jacks, connect the Y, CB and CR COMPO-

NENT VIDEO OUTPUT jacks of the player to the cor-

responding jacks on the TV using video cables.

¶As component video separate video signal into the

luminance signal (Y) and color difference signals (CB,

CR), it can provide sharper image than the S Video

connection.

¶Depending on the TV or video monitor in use, the

terminal names may be different from those used

with the player (Y/Pb/Pr or Y/B-Y/R-Y, etc.)

¶When the TV in use is a HDTV or "Hi-Vision" TV,

connect the component video signals from the player

only to the DVD-compatible input jacks.

SCART connection (For Europe and U.K.): If the TV or

VCR has SCART connectors, connect the TV SCART or

VCR SCART connector of this unit to the TV or VCR

using SCART cables.

¶The audio and video signals can be output using a

single cable. The signal output from the TV SCART

connector can be switched between composite video,

S Video and RGB. (The VCR SCART connector always

outputs composite video signals so its output signals

cannot be selected.)

¶When the TV is connected through a VCR using

SCART connection, the picture displayed on the TV

may be disturbed due to the copy protect function.

¶When using only the TV and VCR which are both

connected with the player using the SCART

connection, the signal from the VCR cannot be sent

to the TV if the player is switched off. (In this case, set

the player to the power standby mode.)

Audio connection: Connect the MIX LINE OUTPUT jacks

of the player to the audio input jacks of the TV using

the provided audio cables.

COMPONENT VIDEO OUTPUT switch: Use this switch

to switch the video display format (between Interlaced

and Progressive scanning). Be sure to unplug the power

cord from the power outlet before changing the posi-

tion of this switch.

¶When using the Component Video Output, do not

set the "SCART OUTPUT SELECT" setting in the

"SET UP MENU" to "RGB". (For Europe and U.K.)

To Connect a Stereo System

Audio connection: Connect the MIX LINE OUTPUT jack

of the player to the audio input jacks of the connected

audio component such as a stereo system using the pro-

vided audio cables.

¶When playing a disc containing MPEG multi-

channel audio recording, connect the stereo input

to the 6CH. OUTPUT L/R jacks and activate the

DOWN MIX function .ﬂ

To Set Up of the Player

Setup of Menu screen: The language to be used in the

menus of the player can be selected.

¶The default language set at the factory is English.

"Player Menu Language" Setting „

Setups Related to TV: The following setups can be made

according to the TV connected to the player.

"TV Aspect" Setting o

"TV Mode" Setting o

"TV Monitor Type" Setting p

Setup of SCART output signals: The signals output from

the TV SCART connector of the player can be selected.

"SCART Output Select" Setting Á

CAUTION

Be sure to adhere to the following, or proper

ventilation will be blocked causing damage or

fire hazard.

÷Do not place any objects impairing heat radiation

onto the top of the unit.

÷Leave some space around the unit (from the larg-

est outside dimension including projection) equal to

or greater than, shown below.

Top panel : 10 cm Back panel : 10 cm

Connection of Equipment

Chapter 1: Connection of Equipment

TV SCART

VCR SCART

COAXIAL

COMPONENT

VIDEO OUTPUT

DIGITAL OUTPUT

(PCM/BIT STREAM)

INTERFACE

PROGRESSIVE

OPTICAL

S VIDEO OUTPUT

1 2

VIDEO

OUTPUT

6CH. OUTPUT

COMPONENT VIDEO OUTPUT

FRONT

SURROUND

MIX LINE

OUTPUT

SUB WOOFER

CENTER

Connection with an AV Amplifier

AV amp

Coaxial cable (provided)

Audio connection: To audio input jacks

Video cable (provided)

Audio cable (provided)

Video connection: To video input jack*

Digital audio connection

Used when the AV amp has 6-channel

inputs.

Used when the AV

amplifier and TV have the

component video

connection capability.

S Video connection: To S Video input connector*

S Video cable (provided)

6-channel audio connection: To 6-channel audio input jacks

Audio cable (provided)

Used when the TV or VCR has the SCART

connection capability.!

* Select the video connection method according to the TV in use. When S-Video cable is connected, the ordinary video connection is not necessary.

Remove the protective cap before using the

DIGITAL OUTPUT OPTICAL.

Connection of Equipment

Chapter 1: Connection of Equipment

Connection with an AV Amplifier

Do not insert the power cord plugs of the player and the

connected components until all of the components have

been connected.

For details on the connection terminals and functions

of the AV amplifier, refer to its instruction manual.

The video output from the player should be connected

directly to the AV amplifier. If the video output is

connected through a VCR, the picture displayed on the

TV may be disturbed due to the copy protect function.

To Connect an AV amplifier

6-Channel audio connection: When the connected AV

amplifier has 6-channel audio input jacks, connect

the 6CH. OUTPUT jacks of the player to them.

¶When an amplifier which is not compatible with 6-

channel inputs is connected, use the signals from

the MIX LINE OUTPUT jacks of the player. The

multi-channel surround audio will be down-mixed

and output. 0

Audio connection: Connect the MIX LINE OUTPUT

jacks of the player to the audio input jacks of the AV

amplifier using the provided audio cables.

Digital audio connection: Connect the COAXIAL

DIGITAL OUTPUT connector of the player to the

digital audio input connector of the AV amplifier.

¶It is also possible to perform digital connection

using a commercially available optical fiber cable

and the OPTICAL DIGITAL OUTPUT jack.

Video connection: Connect the VIDEO OUTPUT jack

of the player to the video input jack of the AV ampli-

fier using the provided video cable.

S Video connection: When the connected TV has an S

Video connector, connect the S VIDEO OUTPUT

connector of the player to it using the provided S

Video cable.

¶As S Video separates video signal into the

luminance signal (Y) and color signal (C), it can

provide sharper pictures than ordinary video

connection.

To Set Up of the Player

Setup of Menu screen: The language to be used in the

menus of the player can be selected.

¶The default language set at the factory is English.

"Player Menu Language" Setting „

Setup for digital audio connection: If the connected

AV amplifier does not contain any of Dolby Digital,

DTS and MPEG decoder, be sure to set the "Digital

Audio" settings after connecting the player to it.

For the nonexistent decoders, set the "Digital Audio" set-

ting to "PCM". If the player is played without chang-

ing the initial "Bitstream" setting, extremely loud

noise will be produced and may damage the speak-

ers.

"Digital Audio PCM Down Conversion" Setting

"Digital Audio Dolby Digital" Setting R

"Digital Audio DTS" Setting T

"Digital Audio MPEG" Setting Y

Setup for 6-channel audio connection: When the

audio is connected using the 6CH. OUTPUT jacks of

the player, set the player as follows.

"Speaker Setting" Y

Audio output from DVD AUDIO

When the "D.MIX" (down-mix) indicator is not lit, the

MIX LINE OUTPUT, DIGITAL OUTPUT and PHONES

output jacks output the front (L/R) channel signals

instead of the down-mixed 2-channel signals. The 6CH.

OUTPUT jacks output the same number of channels as

the original number of channels recorded in the DVD

AUDIO disc, regardless of the speaker setting. When the

"P.PCM" indicator is lit, the 6CH. OUTPUT jacks output

the same number of channels as the original number of

channels regardless of whether the "D.MIX" indicator is

lit or not.

DTS disclaimer clause

DTS Digital Surround™ is a discrete 5.1 channel digital

audio format available on CD, LD, and DVD software

which consequently cannot be decoded and played

back inside most CD, LD, or DVD players. For this

reason, when DTS-encoded software is played back

through the analog outputs of the CD, LD, or DVD

player, excessive noise will be exhibited. To avoid

possible damage to the audio system, proper

precautions should be taken by the consumer if the

analog outputs are connected directly to an

amplification system. To enjoy DTS Digital Surround™

playback, an external 5.1 channel DTS Digital

Surround™ decoder system must be connected to the

digital output (S/P DIF, AES/EBU, or TosLink) of the

CD, LD or DVD player.

This unit is equipped with DTS Digital Surround™

decoder.

Controls and indicators

Chapter 2: Controls and indicators

This chapter gives description on the front panel buttons, display panel of the player main unit and the provided

joystick remote control unit.

This chapter is composed of the following sections.

Front Panel %

Display ^

Joystick Remote Control Unit &

Chapter 2: Controls and indicators

Controls and indicators

Chapter 2: Controls and indicators

Front Panel

DISC 1 ~ 5 buttons/indicators ™

OPEN/CLOSE 0 button ¡

3 (play) button ¡

8 (pause, still) button £

7 (stop) button ™

4 / ¢ (skip down & skip up) buttons ™

POWER button )

PHONES LEVEL knob •

PHONES jack •

DISC SKIP button ™

PURE AUDIO MODE button/ indicator ¶

PHONES

STANDBY

DISC SKIP

PURE AUDIO

MODE

PHONES LEVEL

POWER

VIRTUAL

SURROUND

ON OFF

MIN MAX

SAMPLING

192kHzfs

DISC 1 DISC 2 DISC 3 DISC 4 DISC 5

OPEN/CLOSE

96kHzfs

123 4 5 678

SAMPLING indicators (192kHzfs/96kHzfs)

STANDBY

indicator

VIRTUAL SURROUND

indicator Display

Remote sensor Disc trayDVD indicator

Controls and indicators

Chapter 2: Controls and indicators

Display

Switching the Display Brightness

Press the DISPLAY button on the joystick remote to switch the display brightness in

the following sequence.

"BRIGHTNESS" : The display is permanently in high brightness.

"DIMMER" : The display is permanently displayed in low brightness.

"AUTO OFF" : The display is automatically turned off with DVD or VCD. (The

display is shown when DVD AUDIO without video is played.) At this time, the

"Disc 1 to 5" indicators light in low brightness and other indicators are off.

"FL OFF" : The display is turned off. At this time, the "Disc 1 to 5" indicators

light in low brightness and other indicators are off.

¶When the power is off or standby, the setting performed in "FL Mode" is given

priority. ("FL OFF" cannot be selected with the "FL Mode" setting) ˇ

000 000000000000

ANGLERANDOMPGMP.B.C.P.PCMMPEGDOLBYDTS

REPEAT TEXT

INDEX

SEQ.1

SEQ.2

D.MIX

TOTAL

VIDEO

AUDIO

DIGITAL

DVD

CD VCD

112 3344552

AA B

DVD

3 4

Operation indicators

", "

VCD

", "

DVDDVD

VIDEO", "

DVDDVD

AUDIO" indicators

CD(CD-R/RW), VCD and DVD related indicators

Special playback related indicators

∞¶›‚q

Disc number indicators

Character information display ¡·qw

Controls and indicators

Chapter 2: Controls and indicators

ENTER button ¡¢º

3 PLAY button ¡

7 STOP button ™

ON SCREEN button º

DISPLAY button w

RETURN button ¢

POWER button )

Mode switch (& to *)

Joystick º

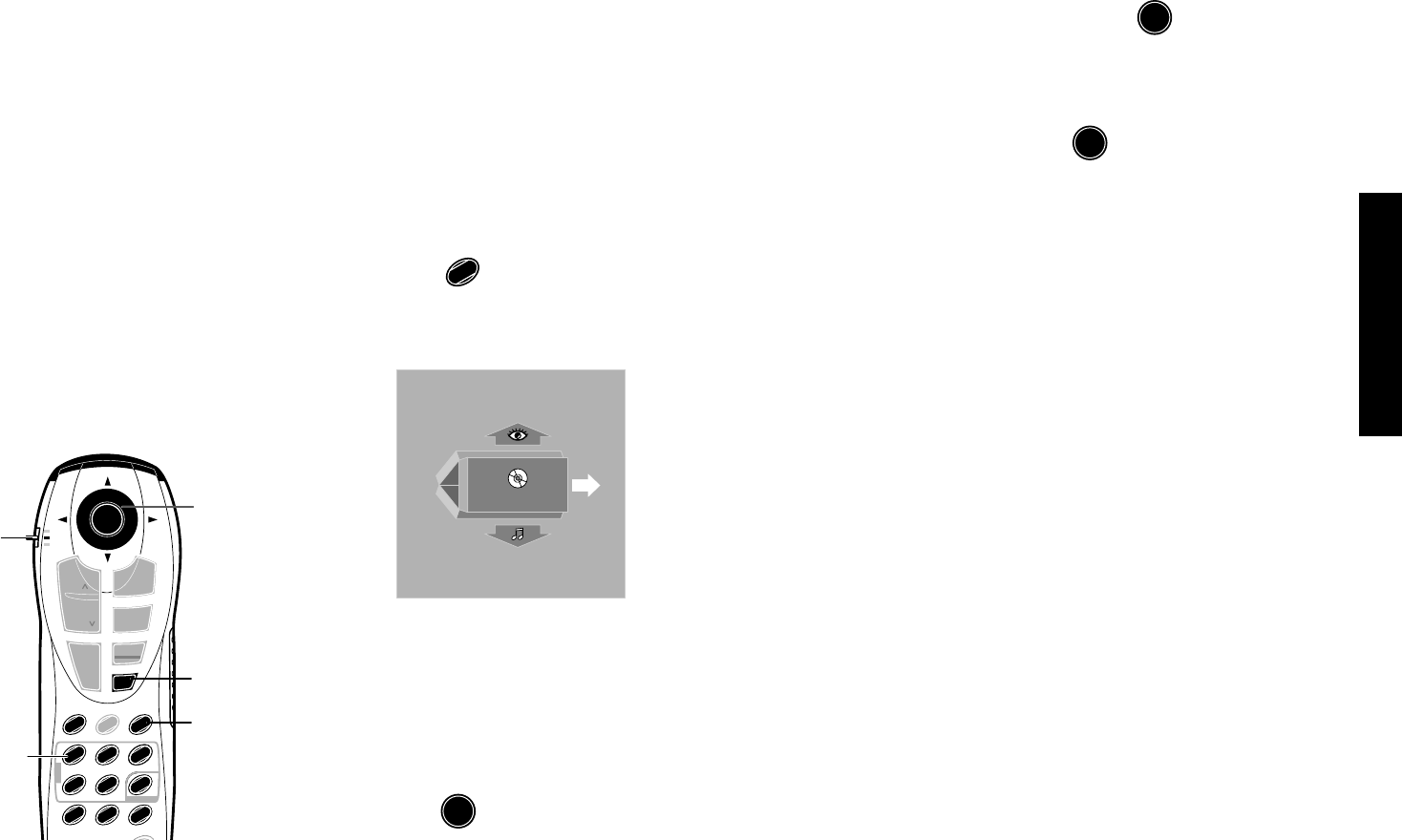

Joystick Remote Control Unit

When operating the joystick remote, first set the mode switch to the Blue, Purple

or Orange position according to the purpose.

The buttons shown in the following figure always function in the same way

regardless of the position of the mode switch. (The buttons with the same names

as those on the player main unit have the same functions as the main unit

buttons.)

Set to the Blue position

¢/ 4 buttons ™

TOP MENU/FOLDER S. button ¢w

8 button £

DISC 1 to 5 buttons ™

P.B.C. (PlayBack Control) button ¢

When selecting a disc, displaying a still

picture or letting playback pause

temporarily

Set the mode switch to the Blue position. The

functions of some buttons change as shown below.

1/ ¡ buttons £

DISC SKIP button ™

P.AUDIO button ¶

MENU/FILE S. button ¢w

ENTER

DISPLAY

PAGE

INDEX

PLAY

STOP

TOP MENU

/FOLDER S.

SQ.MODE

P.MODE

RETURN

REPEAT A-B REPEAT

RC-D0711

CHECK

ALL INFO.SET UP

TEXT DISP.

T.SEARCH

P.B.C.

TIME DISP.

P.AUDIO

AUDIO MENU/FILE S.

PAGE

INDEX

POWER

+10

789

SKIP

DISC

ON SCREEN

ENTER

DISPLAY

PAGE

INDEX

PLAY

STOP

SQ.MODE

P.MODE

RETURN

REPEAT A-B REPEAT CHECK

ALL INFO.SET UP

TEXT DISP.

T.SEARCH

P.B.C.

TIME DISP.

P.AUDIO

AUDIO

PAGE

INDEX

POWER

+10

789

SKIP

DISC

TOP MENU

/FOLDER S.

RC-D0711

MENU/FILE S.

ON SCREEN

Controls and indicators

Chapter 2: Controls and indicators

Set to the Purple position

PAGE buttons ∞

SQ.MODE (Sequential play mode) button ∞

REPEAT button §

SET UP button t

AUDIO button •

When repeating playback or switching

the displayed information

Set the mode switch to the Purple position. The functions

of some buttons change as shown below.

A-B REPEAT button ¶

CHECK button ‚

ALL INFO. button w

TEXT DISP. button w

T.SEARCH button q

TIME DISP. button §

Set to the Orange position

INDEX buttons∞

P.MODE (Play Mode) button ·‚q

C buttont

When performing special playback or

inputting a number

Set the mode switch to the Orange position. The

functions of some buttons change as shown below.

Numeric buttons ™¤t

MENU/FILE S.

ENTER

DISPLAY

PAGE

INDEX

PLAY

STOP

SQ.MODE

P.MODE

RETURN

REPEAT A-B REPEAT CHECK

ALL INFO.SET UP

TEXT DISP.

T.SEARCH

P.B.C.

TIME DISP.

P.AUDIO

AUDIO

PAGE

INDEX

POWER

+10

789

SKIP

DISC

TOP MENU

/FOLDER S.

RC-D0711

ON SCREEN

ENTER

DISPLAY

PAGE

INDEX

PLAY

STOP

SQ.MODE

P.MODE

RETURN

REPEAT A-B REPEAT CHECK

ALL INFO.SET UP

TEXT DISP.

T.SEARCH

P.B.C.

TIME DISP.

P.AUDIO

AUDIO

PAGE

INDEX

POWER

+10

789

SKIP

DISC

TOP MENU

/FOLDER S.

RC-D0711

ON SCREEN

MENU/FILE S.

Basic Operation

Chapter 3: Basic Operation

This chapter gives description on the basic operations of the control buttons on the player main unit and joystick remote.

This chapter is composed of the following sections.

Configuration of Discs )

Turning power on )

Inserting discs ¡

On Basic Operation ¡

Using Headphones •

Chapter 3: Basic Operation

Basic Operation

Chapter 3: Basic Operation

Configuration of Discs

DVD AUDIO disc configuration

AUDIO DVD

Group 1 Group 2

Track 1 22 3 4 5

22345

Index 1

Track 1 22

DVD VIDEO disc configuration

The group is the largest unit composing the music in an

DVD AUDIO disc. Each group is composed of multiple

tracks, and each track is composed of multiple indices.

VIDEO DVD

Title 1 Title 2

Chapter 1 22 3 4 5 Chapter 1 22

CD, VCD

Track 1 22 3 4 5

The title is the largest unit composing the music and/or

pictures in an DVD VIDEO disc. Each title is composed of

multiple chapters.

CD and VCD disc configuration

MP3 disc configuration

MP3 disc

Folder 1 Folder 2

File 1 22 3 4 5 6 7 File 8 2

Turning power on

1. Turn the connected components on and set the in-

put selector of the connected amplification compo-

nent to "DVD"

2. Press

- ON – OFF

POWER

on the player. The "STANDBY" indicator

lights, indicating that the power of the player is in

the standby mode.

When the power of the player is in the standby mode,

press

POWER

on the joystick remote.

¶When the player is turned on, it reads the discs in

the tray and lights the disc number indicators on

the display to inform the user of presence and

absence of discs. If there is any disc in the tray at

this moment, the disc will be played back

automatically.

"NO PLAY" is displayed when the loaded disc is

not playable on this player.

[To put the player power in the standby mode]

¶When the power is on, press the POWER

button on the joystick remote. The "STANDBY"

indicator lights up to indicate that the player is in

the standby mode of power.

[To turn the player off]

¶When the power is on or standby, press the POWER

button on the player main unit to turn it off.

The folder is the storage unit at the highest level in the

disc. Sometimes a single folder contains more than one

file, or sometimes files are recorded directly in the disc in

place of being included in a folder. Some discs also have a

hierarchical structure in which a folder includes sub-folders.

Note that the file numbers are not assigned on a per-folder

basis but they are assigned consecutively for all the files in

the whole disc.

Basic Operation

Chapter 3: Basic Operation

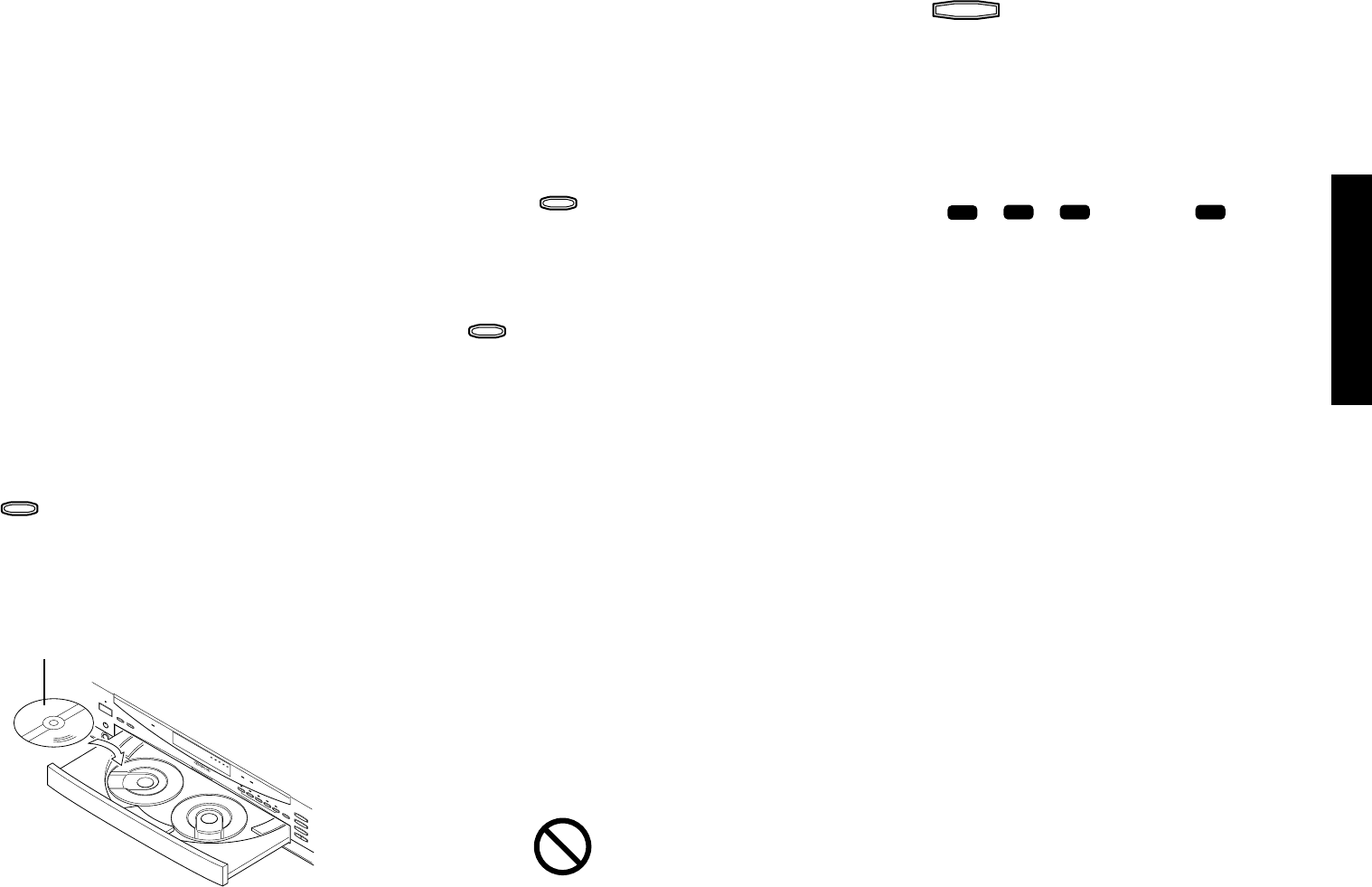

Inserting discs

The disc tray accommodates up to five discs. The discs

can be changed during playback without stopping the

currently played disc.

Be sure to operate a button when opening/closing

the tray or rotating the tray. Never attempt to move

the tray with your hand.

1. Press

OPEN/CLOSE

on the player main unit to open the tray.

(Pressing the button again closes the tray.)

STANDBY mode:

While the STANDBY indicator is lit, a small amount of

power is supplied to the system to back up the memory.

This is called standby mode. Under the condition, the

system can be turned ON by the remote control unit.

[When you are going to leave the listening room]

When the power is on or standby, it can be turned off by

pressing the POWER button on the player main unit.

(The "STANDBY" indicator does not lit in this status.)

¶Place the disc to be played along the groove on the

tray. (To prevent malfunction, do not place a disc

obliquely or on another disc.)

¶When handling a disc, take care not to touch the

disc surface.

¶Commercially available CD single (8 cm) disc

adapters cannot be used with this player.

2. To insert or remove another disc by changing the tray

position, press

DISC SKIP

on the player main unit.

¶If you are operating the joystick remote, set the

mode switch to the Blue position then press the

DISC SKIP button.

3. Press

OPEN/CLOSE

on the player main unit to close the tray.

On Basic Operation

Operation restriction according to the

disc or player status

Operations of some DVDs and VCDs are restricted by

the intention of the software producers. Operations may

also be restricted due to the status of the player.

As this player plays discs in accordance with the

intentions of software producers, some functions may

not work as intended by the user. Be sure to read the

manual provided with the disc to be played. When an

inhibition icon is displayed on the connected TV screen

during operation, it indicates that the player is in the

operation restricted status.

Inhibition icon

Playing discs

Press 3 in stop mode to start playback.

¶When you are operating the joystick remote, press

the 3 PLAY or ENTER button.

¶Playback starts with the disc indicator of which is

lit.

¶The TV screen shows "Play" and the 3 indicator

in the display lights up.

¶The "

", "

VCD

", "

DVDDVD

AUDIO" or "

DVDDVD

VIDEO"

indicator in the display lights up according to the

type of the disc.

¶Certain CD-R and CD-RW discs may not be

playable on this player. ("NO PLAY" is displayed

in this case.)

¶ The CD indicator lights when a CD-DA, MP3 disc

is loaded.

¶ When the loaded disc contains text data such as

the disc title, the text will be scrolled on the display

on this player.

¶ With certain DVD and VCD discs, a menu is

displayed in the beginning.

The label surface must face upward. (With a double-

sided disc, load it so that the label information for

the side you want to play faces upward.)

Basic Operation

Chapter 3: Basic Operation

Playing discs by changing them

Press

DISC SKIP

to skip a disc.

¶When you are operating the joystick remote, set the

mode switch to the Blue position and press the

DISC SKIP button.

¶When the DISC SKIP button is pressed while the

tray is open in stop mode, the tray simply rotates.

¶The disc number indicator above one of the DISC

1 to 5 buttons on the player main unit lights up

and playback starts.

¶The DISC SKIP button is invalid when the tray is

closed in the all random and program modes.

Playing from the selected disc

Press one of

DISC

to select a disc.

¶When you are operating the joystick remote, set the

mode switch to the Blue position and press one of

the DISC 1 to 5 buttons.

¶The disc number indicator above one of the DISC

1 to 5 buttons on the player main unit lights up

and playback starts.

¶The DISC 1 to 5 buttons are invalid in the all

random and program play modes.

Playing discs by selecting the group,

title, chapter, track

Set the mode switch of the joystick remote to the

Orange position and input the number of the group,

title, chapter or track using

REPEAT

MENU/FILE S.

9 and

A-B REPEAT

+10

¶With a DVD disc when a number is input during

playback, playback of the chapter or track having

the same number as the input number in the same

group, or title starts. When a number is input in

stop mode, playback the first chapter, or track

having the same number as the input number

starts.

¶With a CD or VCD (when P.B.C. is off), playback

starts with the beginning of the track having the

same number as the input number.

¶With a MP3 disc, playback starts with the beginning

of the file having the same number as the input

number.

Skipping a track, chapter, or file

Press

or ¢

Basic Operation

Chapter 3: Basic Operation

Still picture display and playback

pause

Press 8 during playback.

¶If you are operating the joystick remote, set the

mode switch to the Blue position and press the 8

button.

¶The TV screen shows "Pause" or "Still" and the 8

indicator in the display lights up.

¶To restart normal playback, press the 3 button on

the player main unit or the 3 PLAY button on the

joystick remote.

¶When the "IPB Display" is set to On, the TV screen

shows "Still (I)", "Still (P)" or "Still (B)" with

every still picture of DVD VIDEO.

¶This operation is not available with a MP3 disc.

Frame-by-frame advance

While a still picture of DVD VIDEO or VCD is dis-

played, press 8 .

¶If you are operating the joystick remote, set the

mode switch to the Blue position and press the 8

button.

¶The picture returns to still picture when the 8

button is released.

¶The picture frame is advanced for the same number

of times as the button is pressed. Hold the button

when you want to advance picture frames

sequentially.

¶To restart normal playback, press the 3 button on

the player main unit or the 3 PLAY button on the

joystick remote.

¶When the "IPB Display" is set to On, the TV screen

shows "Still (I)", "Still (P)" or "Still (B)" every

time the picture frame of DVD is advanced.

Forward search and reverse search

During playback, set the mode switch of the joystick

remote to the Blue position and press

REPEAT

CHECK

¶When OSD is displayed, pressing the ON SCREEN

button turns it off and shows the speed in place.

¶The first press of the 1 or ¡ button starts

forward search or reverse search at the lowest speed

step. Each further press increase the speed up to

the fifth speed step.

The TV screen shows the speed as shown above.

The indicator varies according to the speed of the

forward search or reverse search.

¶The display of the player shows the time display or

"SEARCH =" according to the status of the disc

and player.

"SEARCH =" is displayed :

When the time infomation is not displayed

during DVD playback.

When P.B.C. is on during VCD playback.

¶To restart normal playback, press the 3 button on

the player main unit or the 3 PLAY button on the

joystick remote.

¶Video may be disturbed during forward search or

reverse search.

¶When performing forward search with a VCD, DVD

VIDEO or DVD AUDIO containing video and

moving pictures (AVTT: Audio Video Title), the

audio output can be switched on or off only while

the search is at the lowest speed step. The audio is

muted in the second and later speed steps.

¶This operation is not available with a MP3 disc.

Slow playback and reverse slow

playback

While a still picture is displayed, set the mode switch

of the joystick remote to the Blue position and press

REPEAT

CHECK

¶When OSD is displayed, pressing the ON SCREEN

button turns it off and shows the speed in place.

¶The first press of the1 or ¡ button starts slow

playback or reverse slow playback at the lowest

speed step. Each further press increase the speed

up to the fifth speed step.

The TV screen shows the speed as shown above.

The indicator varies according to the speed of the

slow playback or reverse slow playback.

¶The display of the player shows the time display

or "SEARCH =" according to the status of the disc

and player.

"SEARCH =" is displayed :

When the time infomation is not displayed

during DVD playback.

When P.B.C. is on during VCD playback.

¶To restart normal playback, press the 3 button on

the player main unit or the 3 PLAY button on the

joystick remote.

¶Audio is not output during slow playback or reverse

slow playback.

¶Reverse slow playback is not available with VCD.

¶Slow playback and reverse slow playback are not

available with CD(MP3) or DVD AUDIO

containing only still pictures and audio (AOTT:

Audio Only Title).

Basic Operation

Chapter 3: Basic Operation

Menu playback of DVD

When a DVD containing the recording of the top menu

or menu is played, the top menu or menu is displayed.

These menus allow you to select the position you want

to play easily based on an interactive method. The

following operation procedure is the basic procedure.

The functions vary depending on certain softwares.

1. Set the mode switch of the joystick remote to the Blue

position.

2. Press

SQ.MODE

P.MODE

TOP MENU

/FOLDER S.

to display the top menu.

¶When the TOP MENU button is pressed again

while the top menu is displayed during playback,

the played position returns to the position where

the button was pressed for the first time and

playback restarts from there.

3. Select the scene to be played by tilting the joystick.

(The scene may sometimes be selected using the nu-

meric buttons.)

4. Press

ENTER

to play the DVD from the selected title.

¶To display multiple menus sequentially, repeat

steps 3 and 4 above. If the menus are provided in

a hierarchical structure, this operation allows you

to move to the menus in the lower hierarchy level.

¶When the mode switch of the joystick remote is

set to the Blue position and the MENU button is

pressed, the menu is displayed. The operation is

the same as that of the top menu.

Menu playback of P.B.C.-compatible

VCD

When a P.B.C. (PlayBack Control) capable VCD is played

with P.B.C. on, the menu is displayed. Perform operation

according to the procedure indicated by the menu. (For

details on the operation method and control buttons,

refer to the manual provided with the played software.)

Hierarchical structure of VCD menus

When a P.B.C.-compatible VCD containing menus is

played and an item is selected in the displayed menu, a

menu with more detailed items may sometimes be

displayed. Such a structure in which multiple menus are

distributed in different levels and interconnected is

referred to as the hierarchical structure. In this structure,

the target scene can be reached by repeatedly selecting

items in multiple menus.

Hierarchy level 1

(Menu)

Hierarchy level 2

(Submenus)

Hierarchy level 3

(Scenes)

Example of hierarchical structure

PLAY

SELECT

RETURN

PREVIOUS PREVIOUS

NEXT NEXT

To advance in the hierarchy: When an item is

selected in the menu using the ENTER (Select)

button or numeric buttons, you can advance to the

menu at the level immediately below the current

level. When the selected item is a [scene], the scene

will be played back.

sofu

ENTER button

RETURN button

4 button

¢ button

Indication on

software jacket

Control button

on the player

3 (Select)

(Return)

4 (Previous)

¢ (Next)

To return in the hierarchy: You can return to the

level immediately above the current level every

time you press the RETURN button.

¶When there are multiple menus (scenes) in a

hierarchy level, they can be switched over by

pressing the 4 (Previous) button or ¢ (Next)

button.

Main control buttons used in VCD playback, and

examples of indications

¶The indication on the jacket is variable depending

on the software.

Switching P.B.C. On and Off

1. Set the mode switch of the joystick remote to the Blue

position.

2. When there is a VCD in the played position of the

tray and the player is in stop mode, press P.B.C.

TIME DISP.

8 to

switch P.B.C. on or off.

P.B.C. on: The TV screen shows "P.B.C. On" and the

P.B.C.-compatible VCD is played according to

P.B.C.

The "P.B.C." indicator in the display lights up.

Basic Operation

Chapter 3: Basic Operation

Skipping indexes in DVD AUDIO

DVD AUDIO tracks contain the recording of indexes. The

following operation makes it possible to skip the

currently played track index and restart playback from

the next index.

1. Set the mode switch of the joystick remote to the

Orange position.

2. Press

PAGE

INDEX

PAGE

INDEX

during playback. The same

number of indexes as the number of times the button

is pressed can be skipped.

¶Indexes in the direction corresponding to the

pressed button are skipped and the destination

index is played back from the beginning.

¶The display shows the index number together with

the group and track numbers.

Switching still pictures of DVD AUDIO

When a DVD AUDIO (AOTT: Audio Only Title) disc

containing the recording of still pictures is played, the

still pictures can be displayed. (The operation may be

restricted with certain discs.)

1. Set the mode switch of the joystick remote to the

Purple position.

2. To switch the still pictures, press

PAGE

INDEX

PAGE

INDEX

during playback.

¶Press the RETURN button to switch to the home

still picture.

Switching the sequential play mode

The player is capable of sequential playback using the 5-

disc carousel disc changer. If a DVD and/or VCD is mixed

in the discs to be played sequentially, the sequential

playback may stall in the middle while the menu remains

displayed. In such a case, switch the sequential play mode

of the player.

Set the sequential play mode of the player to "SEQ.2"

using the joystick remote as described below. The DVD

VIDEO playback will be skipped in order not to interrupt

the sequential playback.

When playing a VCD with menu playback or playing a

DVD VIDEO, set the sequential play mode of the player

to "SEQ.1".

1. Set the player to normal play mode.·

¶If the player is in the program or random play

mode, the sequential play mode cannot be

switched.

2. Set the mode switch of the joystick remote to the

Purple position.

3. Each press of

SQ.MODE

P.MODE

TOP MENU

/FOLDER S.

switches the sequential play

mode of the player alternately.

[Sequential play mode 1 ("SEQ.1" lit)]

All discs can be played including DVD VIDEO discs.

When there is a P.B.C.-compatible VCD or a DVD

on the tray, sequential playback may sometimes

be interrupted and the menu displayed. In this case,

perform menu playback. ¢

[Sequential play mode 2 ("SEQ.2" lit)]

Playback of DVD VIDEO discs is skipped in order

not to interrupt sequential playback. (The display

shows "SKIP DVD VIDEO" to indicate this.)

With a DVD AUDIO disc containing the recording

of menu, menu playback is not available.

With a P.B.C.-compatible VCD, playback is

performed by switching P.B.C. automatically to off.

¶When the sequential play mode is changed,

"SEQ.1" or "SEQ.2" is displayed on the TV screen

and the "SEQ.1" or "SEQ.2" indicator light in the

display to indicate the current sequential play

mode.

P.B.C. off: The TV screen shows "P.B.C. Off" and

the P.B.C.-compatible VCD is played in normal

playback without P.B.C.

The "P.B.C." indicator in the display turns off.

Basic Operation

Chapter 3: Basic Operation

Switching the time display

The information in the time display can be switched over.

(The information can also be switched by the OSD

operation. ¤)

This operation is not available in stop mode, during

menu playback of DVD or with a DVD for which time

display is disabled.

If P.B.C. is set to On with a VCD, set P.B.C. to Off.¢

1. Set the mode switch of the joystick remote to the

Purple position.

2. Press P.B.C.

TIME DISP.

8 during playback to display the "MAIN"

OSD. Each further press of the button changes the

time display icons as shown below.

1: 3 0

SINGLE

"Total Remain Time": Remaining time in a

disc, group or title.

"Single Time": Elapsed play time of a track or

chapter.

"Total Time": Elapsed play time of a disc, group

or title.

"Single Remain Time": Remaining time in a

track or chapter.

:30

SINGLE

28: 5 0

TOTAL

:50

TOTAL

¶The time display on the player's display is also

switched accordingly. When "Total Time" or

"Total Remain Time" is selected, the "TOTAL"

indicator in the display lights up.

¶In the program or random play mode, only "Single

Time" and "Single Remain Time" can be switched

over.

¶With a MP3 disc, only the "Single Time"

information is displayed.

Repeat playback

Repeat playback allows you to play the desired audio or

video repeatedly. (Repeat playback is also available with

the OSD operation. ‹)

This function may be unavailable with certain discs.

1. Set the mode switch of the joystick remote to the Purple

position.

2. Press

REPEAT

during playback to display the "MAIN"

OSD. Each further press of the button switches the

repeat icons as shown.

¶Repeat playback is canceled when it is stopped,

except when "All" is selected.

¶When the player is set to the repeat play mode, the

"REPEAT" indicator in the display lights up. The

character information display also shows the repeat

mode information for a few seconds.

¶When the player is in stop mode, only "All" or

"OFF" can be selected.

¶This operation is not available with a DVD with

which the elapsed play time information is not

displayed.

[ During playback of DVD AUDIO ]

Trk

: Repeat playback of the track being played.

Grp

: Repeat playback of the group being played.

Disc

: Repeat playback of the disc being played.

All

: Repeat playback of all discs in the tray.

Off

: Repeat playback Off.

¶"Disc" is displayed only when "SEQ.2" indicator

is lit.

[During playback of DVD VIDEO]

Chp

: Repeat playback of the chapter being played.

: Repeat playback of the title being played.

All

: Repeat playback of all discs in the tray.

Off

: Repeat playback Off.

[During playback of CD or VCD]

Trk

: Repeat playback of the track being played.

Disc

: Repeat playback of the disc being played.

All

: Repeat playback of all discs in the tray.

Off

: Repeat playback Off.

Basic Operation

Chapter 3: Basic Operation

[During playback of MP3 disc]

File

: Repeat playback of the file being played.

Folder

: Repeat playback of the folder being played.

Disc

: Repeat playback of the disc being played.

All

: Repeat playback of all discs in the tray.

Off

: Repeat playback Off.

[In the program mode]·

Pgm

: Repeat playback of programmed contents.

Off

: Repeat playback Off.

[In the random mode]‚

Rnd

Off

: Repeat playback Off.

A-B repeat playback

A-B repeat playback allows you to play a specified section

repeatedly. (A-B repeat playback is also available with

the OSD operation. ›)

A-B repeat playback may sometimes be unavailable

during playback of certain DVD.

1. Set the mode switch of the joystick remote to the

Purple position.

2. Press

A-B REPEAT

+10

during playback to display the "MAIN"

OSD. Repeat icon

A B

is displayed and the current

disc position is stored in memory as point A where

the repeat playback is to be started.

¶The "REPEAT" and "

3" indicators in the display

light up.

3. When point B where you want to stop repeat playback

comes, press

A-B REPEAT

+10

again. Repeat icon

A B

displayed and repeat playback of the section between

points A and B starts.

¶The "REPEAT" and "

" indicators light in the

display.

¶To cancel repeat playback and return to normal

playback, press the A-B REPEAT button during A-B

repeat playback. The "REPEAT" and "

indicators turn off and normal playback starts.

¶This operation is not available with a DVD with which

the elapsed play time information is not displayed.

¶A-B Repeat playback can be used only within a

same title. (DVD Video)

¶A-B Repeat playback can be used only within a

same track. (DVD Audio)

Pure Audio function

It blocks the video signal to prevent interference between

the video and audio signals so pure audio can be

reproduced by switching the Pure Audio function On.

When the video signal is blocked, the TV screen shows

no picture during audio playback.

Press

PURE

AUDIO MODE

on the player main unit to switch the Pure

Audio function on/off.

¶When you are operating the joystick remote, set

the mode switch to the Blue position then press

the P.AUDIO button.

¶When the Pure Audio function is activated, the

PURE AUDIO MODE button on the player main

unit lights up. Pressing the button again switches

the Pure Audio function off and turns the indicator

off.

¶When an operation for displaying the on-screen

message (the display of the performed operation

contents on the TV screen) or OSD is performed,

the video signal is output temporarily.

¶With some DVD and VCD discs, the menu may be

displayed.

: Repeat playback according to the current random play

mode.

¶This operation is not available with a MP3 disc.

¶This operation is unavailable in the all-random and

program modes.

Basic Operation

Chapter 3: Basic Operation

Switching the audio language

When a VCD or a DVD containing the recording of audio

in multiple languages is played, the language used in

the voice can be switched over. (The audio language can

also be switched by the OSD operation. ﬁ)

1. Set the mode switch of the joystick remote to the

Purple position.

2. Press P.AUDIO

AUDIO

7 during playback to display the "SOUND"

OSD. Each further press of the button switches the

displayed

ENG 5.1ch

1 Dolby

(Audio icon).

¶With a DVD AUDIO disc, an audio language

number can be selected from up to 2 numbers.

¶With a DVD VIDEO disc, an audio language

number can be selected from up to 8 numbers.

¶With VCD, "STEREO", "L", "R" or "L+R" can be

selected.

¶The default audio language set by the user is

selected when the power is turned on or the disc is

changed. If the default language is not contained

in the disc, the priority language defined for the

disc will be played back.

¶The above operation is not available in stop mode.

It is also unavailable with ordinary music CD(CD-

R/RW)s.

Using Headphones

Connect stereo headphones (with a standard stereo

phone plug) into the PHONES jack and adjust the

volume level with the PHONES LEVEL knob. The player

incorporates the headphone Virtual Surround facility

allowing the use of surround audio through

headphones.ﬁ

PHONES LEVEL

MIN MAX

OSD Operation

Chapter 4: OSD Operation

The operations described in this chapter allows the user to perform operations and settings by referring to the OSD (On-Screen Display). As the OSD operation uses only the

specific buttons on the joystick remote, the user can enjoy the functions of the player even before memorizing the functions of all buttons.

This chapter is composed of the following sections.

Basic OSD Operationº

"MAIN" OSD Operation⁄

"SOUND" OSD Operationﬁ

"VISUAL" OSD Operationﬂ

¶If the on-screen message or OSD is displayed outside the TV screen when using a widescreen TV or similar monitoring device, set the "OSD Position" setting to "Cinema".

¶The OSD cannot be displayed when DVD is played by menu playback. It may also be unavailable with certain discs.

¶The "SOUND" OSD and "VISUAL" OSD can be displayed only in a play mode.

OSD Operation

Chapter 4: OSD Operation

Basic OSD Operation

Various operations can be performed by selecting the

OSD icons on the TV screen using the joystick.

1. Press

ON SCREEN

to display OSD.

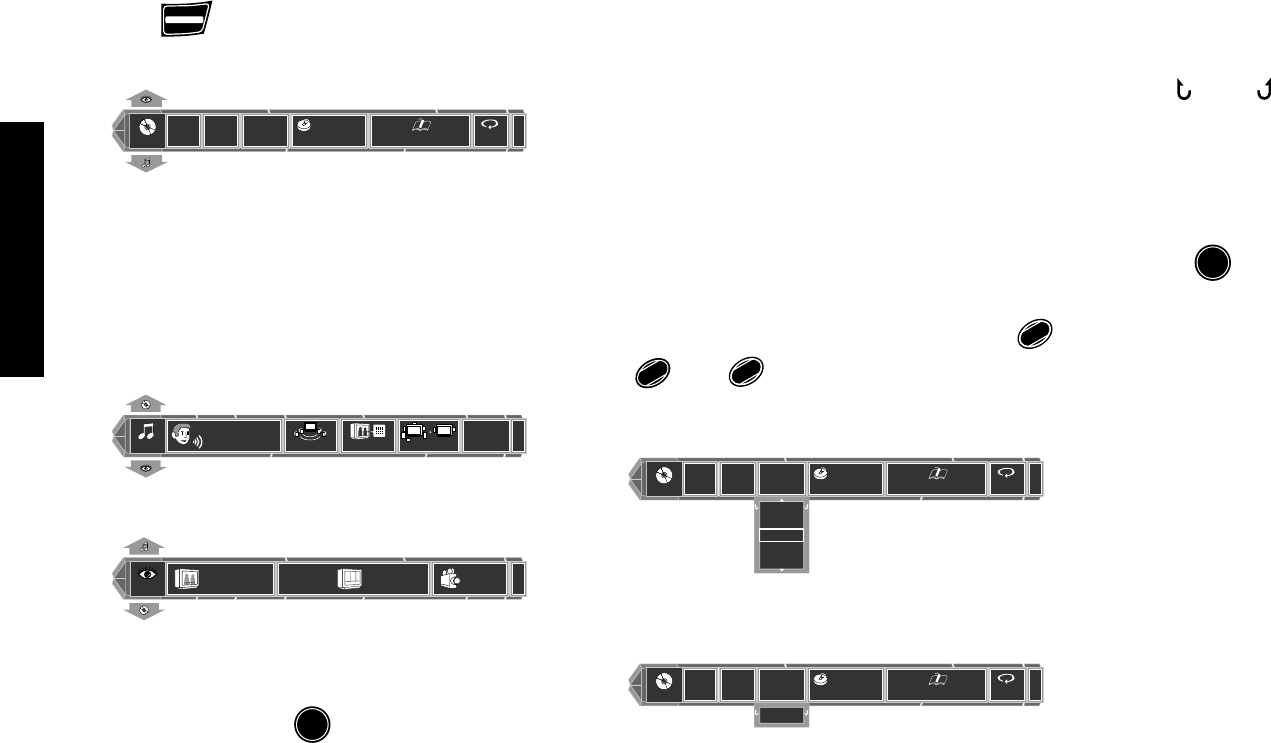

"MAIN" OSD :

: 4 0 Play Set Off

MAIN

TOTAL

Disc

Title

Chapter

EXIT

Only the "MAIN" OSD can be displayed when the

button is pressed in stop mode. (The up and down

arrows shown in the above figure are not

displayed.)

When the button is pressed in a play mode, the

OSD can be changed by tilting the joystick up or

down.

"SOUND" OSD :

SOUND

Off Off

ENG 5.1ch

1 Dolby

EXIT

Off

"VISUAL" OSD :

VISUAL

Progressive

Scan

Interlace

1 ENG

EXIT

2. Select an OSD icon by tilting the joystick to the left

or right, then press

ENTER

to display the pull-down

menu.

¶Tilt the joystick to move the cursor. But the cursor

cannot be moved to the icons of currently

unavailable functions.

¶The OSD includes icons with a variety of functions.

The displayed icons are variable depending on the

player status and played disc.

¶When the cursor is located on the left or right end,

if you attempt to move the cursor toward the

outside, the cursor will move to the opposite end.

¶To clear the OSD display, move the cursor to the

EXIT icon and press the ENTER button. (The same

effect can also be obtained by pressing the ON

SCREEN button.)

3. From the displayed pull-down menu, select the

desired item by tilting the joystick up or down or by

setting the mode switch to the Orange position and

inputting the desired item number using

REPEAT

MENU/FILE S.

9 and

A-B REPEAT

+10

Example of pull-down menu display:

: 4 0 Play Set Off

MAIN

TOTAL

Disc

Title

Chapter

EXIT

Example of menu display when a number is in-

put:

: 4 0 Play Set Off

MAIN

TOTAL

Disc

Title

Chapter

EXIT

2 34

¶When 5 and ∞ are displayed on the top and

bottom of the pull-down menu, the menu has

more pages above or below the current page. When

the cursor is located on the bottom edge, tilting

the joystick downward makes it possible to advance

to the next page. (When the cursor is located on

the top edge, tilting the cursor upward makes it

possible to return to the previous page.)

¶"" and " " on the left and right edges of pull-

down menu indicates that tilting the joystick

toward the left or right makes it possible to clear

the pull-down menu and move the cursor to the

originally pressed icon. (The same effect is also

available by pressing the RETURN button.)

4. Press ENTER to enter the selection in memory.

¶The OSD icon display varies depending on the

content of change.

When a group, title, chapter, track, folder, or file number is input

using numeric buttons, the pull-down menu display changes and

the input number blinks in it. (The figure on the right of the input

number shows the number of chapters in the disc.)

If you commit a mistake in the numeric button input, press the

C button and restart the input from the beginning.

OSD Operation

Chapter 4: OSD Operation

Selecting the disc to be played

Use the following procedure to select a new disc to be

played using OSD. (The disc can also be selected directly

by pressing the DISC SKIP button or one of the DISC 1

to 5 buttons. ™)

1. Press

ON SCREEN

to display the "MAIN" OSD.

2. Move the cursor to the

Disc

(Disc icon) by tilting the

joystick to the left or right, then press

ENTER

¶This operation is not available in the all random

and program mode.

3. Select the disc number by tilting the joystick up or

down, then press

ENTER

to start playback.

Selecting a group, title, chapter, track,

folder or file

Use the following procedure to select a new group, title,

chapter or track to be played using OSD. (They can also

be selected directly by pressing the numeric buttons or a

4,¢ buttons. ™)

When performing this operation with a P.B.C.-

compatible VCD, set P.B.C. to off.¢

1. Press

ON SCREEN

during playback to display the "MAIN"

OSD.

2. Move the cursor to the "Group", "Title",

"Chapter","Track","Folder", or "File" icon by tilting

the joystick to the left or right, then press

ENTER

DVD AUDIO: Select Group

3 or Track

DVD VIDEO: Select Title

3 or

Chapter

CD, VCD : Select

Track

MP3 disc: Select Folder

3 or File

3. Select the number by tilting the joystick up or down,

then press

ENTER

to start playback.

¶Only the title or group icon can be selected in stop

mode of DVD.

The cursor is displayed on the currently selected

disc number.

During playback, the cursor is located on the

current group, title, chapter, track, folder or file

number. (In this figure, the last number can be

displayed by tilting the joystick upward.)

The number can also1 be selected by setting the

mode switch of the joystick remote to the Orange

position and composing the number with

numeric buttons.

"MAIN" OSD Operation

This section describes the display contents and

controllable items of the "MAIN" OSD. (Note that certain

items may not be controllable depending on the played

disc and player status.)

: 4 0 Play Set Off

MAIN

TOTAL

Disc

Title

Chapter

EXIT

21 3 4 5

Disc icon: Shows the disc number. Select to change

the disc.⁄

Group icon: Shows the group number in DVD AU-

DIO disc.

Track icon: Shows the track number in DVD AU-

DIO, VCD or CD disc.

Folder icon: Shows the folder number in MP3 disc.

Title icon: Shows the title number in DVD VIDEO

disc.

Chapter icon: Shows the chapter number in DVD

VIDEO disc.

File icon: Shows the file number in MP3 disc.

Select an icon to change its content.⁄

Time display icon: Shows the disc time. Select to

perform time search or change the time display.¤

Memory Play/Memory Set icon: Select to register

or recall memory.‹

Repeat icon: Shows the repeat mode. Select to use

repeat play mode. ‹

OSD Operation

Chapter 4: OSD Operation

Time display switching and time

Use the following procedure to switch the type of

information shown by the time display shown in the

OSD or player display. Time search is also available

for specifying the position to start playback by

inputting the time information. (The time display

information type can also be changed using the TIME

DISP. button. §)

Time search is not available in stop mode, during menu

playback of a DVD or with a DVD VIDEO which does not

provide the time display.

When performing this operation with a P.B.C.-

compatible VCD, set P.B.C. to off.¢

1. Press

ON SCREEN

during playback to display the "MAIN"

OSD.

2. Move the cursor to

28: 5 0

TOTAL

(Time Display icon)

by tilting the joystick to the left or right, then press

ENTER

3. Select the type of time display information by tilting

the joystick up or down, then press ENTER . If time search

is required, move the cursor to the time display icon to

select the type of time display information, then perform

the operations in steps 4 and 5.

Single Time

Single Remain Time

Total Time

Total Remain Time

" : The time search target time can be input. ("

" is displayed with a CD or VCD.)

"Single Time": Elapsed play time of track,chapter, or file.

Single Remain Time": Remaining play time of track, chapter or

file.

"Total Time": Elapsed play time of disc, group or title.

"Total Remain Time": Remaining play time of disc, group or

title.

¶Time search is not available in the program and

random modes. The time display can be switched

between "Single Time" and "Single Remain

Time".

¶The time display icon in the OSD and the time

display in the player display varies according to

the change.

¶When "Total Time" or "Total Remain Time" is

selected, the "TOTAL" indicator in the display light

up.

4. Set the mode switch of the joystick remote to the

Orange position.

5. Input the time to start playback using

REPEAT

MENU/FILE S.

, then press

ENTER

Input examples:

1 hr. 05 min. 00 sec. (with a DVD):

SET UP

REPEAT

TEXT DISP.

REPEAT

65 min. 00 sec. (with a CD or VCD):

SKIP

TEXT DISP.

REPEAT

1 min. 28 sec.:

SET UP

ALL INFO.

P.B.C.

TIME DISP.

¶If you commit a mistake in the numeric button

input, press the C button and restart the input from

the beginning.

¶This operation is not available with a MP3 disc.

OSD Operation

Chapter 4: OSD Operation

Memory playback

When you register a scene you like in memory, you can

start playback from that scene any time you want. Up to

10 scenes can be registered in memory.

Memory registration and deletion are not available

during menu playback of DVD or with a DVD VIDEO

for which time display is disabled.

When performing this operation with a P.B.C.-

compatible VCD, set P.B.C. to off.¢

This function may be unavailable with certain discs.

Registering a scene in memory

1. Press

ON SCREEN

during playback to display the "MAIN"

OSD.

2. Move the cursor to

Set

(Memory Set icon) by

tilting the joystick to the left or right, then press ENTER .

3. Select the memory number to be used in registration

by tilting the joystick up or down, then press ENTER

when the scene to be registered comes.

Ti/Grp/Trk

1 1

Time

0 : 0

8 : 2 8

Disc

¶The displayed time value is the accumulated count

since second 0 of the first track in the same group.

¶Up to 10 scenes can be registered in memory.

¶When a number in which a scene has already been

registered is selected, the scene will overwrite the

existing memory.

¶To delete a scene from memory, set the mode

switch of the joystick remote to the Orange

position, select the memory number and press the

C button.

¶The memory of the disc at the disc replacement

position of the tray is cleared when the power is

turned off or standby or the tray is opened.

¶This operation is not available with a MP3 disc.

Recalling memory

1. Press

ON SCREEN

to display the "MAIN" OSD.

2. Move the cursor to

Play

(Memory Play icon) and

press ENTER .

3. Select the memory number of the scene to be recalled

by tilting the joystick up or down, then press

ENTER

Repeat playback

Desired video and audio can be played repeatedly.

However, with some DVDs and VCDs, the partitions

in the recording are not related with the track number

assignment. As a result, repeat playback may not be

available with such software. (The same effect can also

be obtained directly by pressing the REPEAT button.

§)

This function may be unavailable with certain discs.

1. Press

ON SCREEN

during playback to display the "MAIN"

OSD.

2. Move the cursor to

Off

(Repeat icon) by tilting the

joystick to the left or right, then press ENTER .

3. Select the repeat mode by tilting the joystick up or

down, then press ENTER .

¶Repeat playback is canceled when it is stopped,

except when "All" is selected.

¶When the repeat mode is changed, the repeat icon

varies according to the change. When the player is

set to a repeat play mode, the "REPEAT" indicator

in the display lights up and the character

information display also shows the repeat mode

information for a few seconds.

¶When the player is in stop mode, only "All" or

"OFF" can be selected.

¶This operation is not available with a DVD with

which the elapsed play time information is not

displayed.

The memory numbers in which

scenes have already been registered

show the disc number, title, group or

track number and the time. Memory

numbers 5 to 10 are displayed on the

next display page.

OSD Operation

Chapter 4: OSD Operation

[During playback of DVD AUDIO]

Off

Track

Group

All

[During playback of DVD VIDEO]

Off

Chapter

Title

All

[During playback of CD or VCD]

Off

Track

Disc

All

"Off": Repeat playback off.

"Chapter": Repeat playback of the chapter being

played.

"Title": Repeat playback of the title being played.

"All": Repeat playback of all discs in the tray.

"A": A-B repeat playback.

"Off": Repeat playback off.

"Track": Repeat playback of the track being

played.

"Disc": Repeat playback of the disc being played.

"All": Repeat playback of all discs in the tray.

"A": A-B repeat playback.

"Off": Repeat playback off.

"Track": Repeat playback of the track being

played.

"Group": Repeat playback of the group being

played.

¶"Disc" is displayed only when "SEQ.2"

indicator is lit.

"All": Repeat playback of all discs in the tray.

"A": A-B repeat playback.

A-B repeat playback

A-B repeat playback allows you to play a specified

section repeatedly. (A-B repeat playback is also

available by pressing the A-B REPEAT button. ¶)

A-B Repeat playback may sometimes be unavailable

during playback of certain DVD.

1. Perform the repeat playback procedure steps 1. and

2. ¶

[During playback of MP3 disc]

Off

File

Folder

Disc

All

[In the program mode]·

Off

Program

[In the random mode]‚q

Off

Random

"Off": Repeat playback off.

"File": Repeat playback of the file being played.

"Folder": Repeat playback of the folder being

played.

"Disc": Repeat playback of the disc being played.

"All": Repeat playback of all discs in the tray.

2. Select "A" by tilting the joystick up or down, then

press ENTER . The current disc position is stored in

memory as point A where the repeat playback is to

be started and the cursor is moved to "B".

¶The Repeat icon changes to "A" and the "REPEAT"

and "

3" indicators in the display light up.

3. When point B where you want to stop repeat playback

comes, press ENTER again. Repeat playback of the

section between points A and B starts.

¶The Repeat icon changes to "A B" and the

"REPEAT" and "

" indicators light in the

display.

¶To cancel repeat playback, select "Off".

¶This operation is not available with a DVD with

which the elapsed play time information is not

displayed.

¶A-B Repeat playback can be used only within a

same title. (DVD Video)

¶A-B Repeat playback can be used only within a

same track. (DVD Audio)

¶This operation is not available with a MP3 disc.

¶This operation is not available in the all random

and program mode.

"Off": Repeat playback off.

"Program": Repeat playback of programmed

contents.

"Off": Repeat playback Off.

"Random": Repeat playback according to the

current random play mode.

OSD Operation

Chapter 4: OSD Operation

"SOUND" OSD Operation

This section describes the items which can be controlled

with the "SOUND" OSD. (Some items may be

uncontrollable depending on the played disc and player

status.)

SOUND

Off Off

ENG 5.1ch

1 Dolby

EXIT

Off

21 3 4

Audio icon: Shows the audio signal, audio language

and number of audio channels. Select to switch the

audio language. ﬁ

Virtual Surround icon: Shows the level of the Vir-

tual Surround effect. Select to adjust the level of Vir-

tual Surround or switch it off.ﬁ

Cinema voice icon: Shows the on/off status of Cin-

ema Voice. Select to switch Cinema Voice on or off.

ﬁ

Down Mix icon: Shows the on/off status of Down

mix. Select to switch Down mix on or off.ﬂ

Switching the audio language

When a VCD or a DVD containing the recording of audio

in multiple languages is played, the language used in the

voice can be switched over. (The audio language can also

be switched directly by pressing the AUDIO button. •)

1. Press

ON SCREEN

during DVD playback and select the

"SOUND" OSD by tilting the joystick up or down.

2. Move the cursor to

ENG 5.1ch

1 Dolby

(Audio icon)

by tilting the joystick to the left or right, then press

ENTER .

Virtual Surround function

When playing a DVD recorded with Dolby Digital

Surround audio, powerful sound can be reproduced even

when you use headphones or only two speakers.

1. Press

ON SCREEN

during DVD playback, and select the

"SOUND" OSD by tilting the joystick up or down.

2. Move the cursor to

Off

(Virtual Surround icon)

by tilting the joystick to the left or right, then press

ENTER

¶The icon can be selected only when the played

software is recorded in Dolby Digital audio (with

2 or more channels).

3. Select the level of Virtual Surround effect by tilting

the joystick up or down, then press ENTER .

3. Select the desired audio language number by tilting the

joystick up or down, then press

ENTER

¶With a DVD AUDIO disc, an audio language

number can be selected from up to 2 numbers.

¶With a DVD VIDEO disc, an audio language

number can be selected from up to 8 numbers.

¶With VCD, "STEREO", "L", "R" or "L+R" can be

selected.

¶The default audio language set by the user is

selected when the power is turned on or the disc is

changed. If the default language is not contained

in the disc, the priority language defined for the

disc will be played back.

Off

HP1

HP2

¶When a DVD recorded with Dolby Digital audio

(with 2 or more channels) is played, the "DOLBY

DIGITAL" indicator on the player main unit lights

up.

The effect is increased when the

selected level is higher. Select "Off"

to switch the effect Off. To select

the level of the Virtual Surround

effect through headphones, select

"HP1" or "HP2".

Cinema Voice function

This function to be used when words are hard to be

distinguished during playback of DVD recorded with

Dolby Digital Surround, Dolby Digital, DTS, or DVD

Audio LPCM. To use this function, it is required that the

disc being played provides the center channel audio.

÷When the digital output terminal is used, the

“Digital Audio” setting should be set to “PCM”

or “Off”.R

1. Press

ON SCREEN

during playback of DVD, then select the

"SOUND" OSD by tilting the joystick up or down.

2. Move the cursor to

Off

(Cinema Voice icon) by

tilting the joystick to the left or right, then press

ENTER

¶The icon can be selected only when the played software

is recorded in Dolby Digital audio (with center channel).

3. Select on or off by tilting the joystick up or down,

then press

ENTER

OSD Operation

Chapter 4: OSD Operation

"VISUAL" OSD Operation

This section describes the items which can be controlled

with the "VISUAL" OSD. (Some items may be

uncontrollable depending on the played disc and player

status.)

VISUAL 1

Progressive

Scan

Interlace

1 ENG

EXIT

1 2 3

Subtitle icon: Shows the language used in subtitles.

Select to change the subtitle language(ﬂ). Dur-

ing playback of a DVD-AUDIO disc containing the

recording of still pictures (ASV ; Audio Still Video),

the Sub-title icon shows the still image display infor-

mation (display timing, image display sequence, etc.).

Picture quality icon: Shows the current picture qual-

ity. Select to adjust the picture quality.ﬂ

Angle icon: Shows the angle number. Select to change

the viewing angle.‡

Switching the subtitle language

When a DVD contains recording of subtitles in multiple

languages, the desired subtitle language can be selected.

1. Press

ON SCREEN

during playback of DVD, and select the

"VISUAL" OSD by tilting the joystick up or down.

2. Move the cursor to

1 ENG

(Subtitle icon)

by tilting the joystick to the left or right, then press

ENTER

3. Select the desired subtitle language number by tilting

the joystick up or down, then press

ENTER

¶The desired subtitle language number can be

selected from up to 32 numbers.

¶No subtitle is displayed when "Off" is selected.

When the desired language is not included in the

options, the language is not recorded in the disc.

¶The default subtitle language set by the user is

selected when the power is turned on or the disc is

changed. If the default language is not contained

in the disc, the priority language defined for the

disc will be played.

Adjusting the picture quality

Use the following procedure to adjust the picture quality.

(If the desired picture quality cannot be obtained by the

following operation, adjust it on the TV.)

The setting items vary depending on the position of the

COMPONENT VIDEO OUTPUT switch on the rear of

the player.

When "Interlace" is setﬂ

When "Progressive" is set‡

When "Interlace" is set

1. Press

ON SCREEN

during playback, then display the "VISUAL"

OSD by tilting the joystick up or down.

2. Move the cursor to

Progressive

Scan

Interlace

(Picture

quality adjustment icon) by tilting the joystick to the

left or right, then press ENTER .

Down Mix function

This function is available with a DVD containing the

recording of multi-channel audio.

This function converts the multi-channel audio into 2-

channel audio and outputs the converted signals.

1. Press

ON SCREEN

during playback of DVD, then select the

"SOUND" OSD by tilting the joystick up or down.

2. Move the cursor to

Off

(Down Mix icon) by

tilting the joystick to the left or right, then press

ENTER

3. Select "on" or "off" by tilting the joystick up or down,

then press

ENTER

OSD Operation

Chapter 4: OSD Operation

When "Progressive" is set

1. Press

Applied Operations

Chapter 5: Applied Operations

This chapter gives descriptions on the special playback operation, character display of TEXT DISC (CD-TEXT or DVD TEXT) and headphones operation.

This chapter is composed of the following sections.

Switching the Play Modes ·

Program Playback ·

Disc Random Playback ‚

All Random Playback q

TEXT DISC Operation q

MP3 disc Operation w

Switching the "DVD VIDEO Mode" e

Bonus Group e

Applied Operations

Chapter 5: Applied Operations

Switching the Play Modes

The play modes of the player include the program mode,

disc random mode and all random mode in addition to

the track mode for normal playback.

However, with some DVDs and VCDs, the partitions in

the recording are not related with the track number

assignment. As a result, repeat playback may not be

available with such software.

1. Set the mode switch of the joystick remote to the

Orange position.

2. While the player is in stop mode, each press of

Applied Operations

Chapter 5: Applied Operations

7.Select

Play

in the screen using the joystick, then press

ENTER to start program playback.

¶When the mode switch of the joystick remote is

set to the Blue position and ¢ is pressed, the

current track is skipped and the next track in the

program will be played.

¶Even when a disc is changed during programming,

the program playback plays the disc and track

numbers as registered with the previous disc. In

this case, the programming should be restarted

from the beginning.

Checking the program

Set the mode switch of the joystick remote to the

Purple position and press

CHECK

during program

playback.

¶The program list is displayed on the TV screen.

When a program number is selected by tilting the

joystick up or down and the ENTER button is

pressed, program playback starts from the selected

program number. The contents of the program

numbers are also shown on the player display. (A

program number can also be selected by pressing

the CHECK button to move the cursor in the

program list.)

¶When 17 or more tracks are programmed, the

program list is displayed in more than one page.

In this case, when the cursor is located on the

bottom edge, tilting the joystick downward makes

it possible to advance to the next page. (When the

cursor is located on the top edge, tilting the cursor

upward makes it possible to return to the previous

page.)

Disc Random Playback

Tracks in a desired disc can be played back in a random

order. (Disc random playback is not available with DVD

VIDEO, MP3 disc.)

1. Set the mode switch of the joystick remote to the

Orange position.

2. While the player is in stop mode, press

SQ.MODE

P.MODE

TOP MENU

/FOLDER S.

repeatedly until the player enters the disc random

mode.

DISC RANDOM MODE

DISC NO.

Press P.MODE to ALL RANDOM MODE

13254

¶When the player enters the disc random mode, the

screen as shown in the figure appears and the

"RANDOM" indicator in the display lights to

indicate that the player is in the disc random mode.

3. Select the disc by tilting the joystick to the left or right,

then press

ENTER

to start disc random playback.

¶Disc random playback can also be started by

pressing the 3 PLAY button.

Clearing the program

1. Perform operations in steps 1 and 2 of the procedure in

"Registering and playing the program".·

2. Move the cursor to

Last Clear

All Clear

in the

screen, then press ENTER .

¶Every time "Last Clear" is selected, the last track

in the program list is cleared. (The program can

also be cleared by pressing the C button.)

¶When "All Clear" is selected, all tracks in the entire

program list are cleared.

Stopping program playback

Perform operations in steps 1 and 2 of the procedure

in "Registering and playing the program", then

press

SQ.MODE

P.MODE

TOP MENU

/FOLDER S.

repeatedly until the player enters normal

play mode (track mode).·

¶The "PGM" indicator turns off

Applied Operations

Chapter 5: Applied Operations

Stopping disc random playback

Applied Operations

Chapter 5: Applied Operations

Switching the character information

When a TEXT DISC is played, the displayed character

information can be switched over.

1. Set the mode switch of the joystick remote to the

Purple position.

2. Each press of

TEXT DISP.

displays the character

information by scrolling then switches it.

Order of information in stop mode:

1 Disc Title = 2 Disc Artist = 3 Maximum

track number and total time display.

With DVD TEXT

1 Disc Title = 2 Disc Artist = 3 "STOP"

(If the button operation is stopped while

information2 is displayed, information 1is

displayed again.)

Order of information in play mode:

1 Track Title = 2 Track Artist = 3 Disc Title,

Group Title =4 Title Artist, Group Artist =5 Disc

Title = 6 Disc Artist = 7 Track No. being played,

time information. (If the button operation is

stopped while information 2, 3 or 6 is displayed,

information 1 is displayed again.)

With DVD VIDEO TEXT

1 Chapter Title = 2 Chapter Artist = 3 Title Title

=4 Title Artist =5 Disc Title = 6 Disc Artist

¶When the disc contains a part without character

information, the display shows "

----

¶This operation is not available when the FL Mode

is set to "FL OFF" by the DISPLAY button.ˇ

Displaying all character information

When a TEXT DISC is played, all character information

recorded in the disc can be displayed at once.

1. Set the player in normal play mode. ·

2. Set the mode switch of the joystick remote to the

Purple position.

3. Press ALL INFO.

2 to display the character information

items in the order shown below. Pressing the button

while an information item is displayed advances

to the next item.

1 Title = 2 Artist = 3 Songwriter = 4

Composer = 5 Arranger = 6 Message = 7

ID INFO. (record company, date of release, etc.)

= 8 Genre INFO. =9 ALL INFO. END (end

of information display)

¶When the mode switch of the joystick remote is

set to the Blue position, pressing the 4 or ¢

button skips the information of the previous or

next track.

¶Information items 1 to 6 are displayed in order

of disc, group or track. (The group information

is not displayed with CD TEXT.)

¶Information items 3 to 5 are not displayed with

DVD VIDEO TEXT.

¶When information item 9 has been displayed,

the player returns to the original status. The

character information display is canceled when

any other button is pressed during display.

¶If the played disc is not a TEXT DISC, the display

shows "NO TEXT DISC" for 5 seconds to

indicate that this operation is not possible. An

information item which is not recorded is

displayed as "

-----

" .

¶This operation is not available when the FL Mode

is set to "FL OFF" by the DISPLAY button.ˇ

MP3 disc Operation

Switching the character information

When a MP3 disc is played, the displayed character

information can be switched over.

1. Set the mode switch of the joystick remote to the

Purple position.

2. Each press of

TEXT DISP.

displays the character

information by scrolling then switches it.

Order of information in play mode:

1 File Title = 2 Folder Title = 3 Disc Title

= 4 File Number

¶The "All character information" function is not

available with a MP3 disc.

Applied Operations

Chapter 5: Applied Operations

Switching the "DVD VIDEO

Mode"

When playing a disc in which DVD VIDEO and DVD

AUDIO are mixed, this setting makes it possible to select

whether the DVD VIDEO part or DVD AUDIO part is to

be played. To reproduce only the DVD VIDEO part, set

this item to "On".

At the factory, the player has been set to "Off" with

which the DVD AUDIO part is played back.

Setting items

"" : Select to return to the previous screen.

"On" : Select to play only the DVD VIDEO part in a

DVD VIDEO/DVD AUDIO mixed disc.

"Off" : Select to play only the DVD AUDIO part in a

DVD VIDEO/DVD AUDIO mixed disc.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup screen, select "DVD VIDEO Mode" by

tilting the joystick up or down and press ENTER .

7 On

7 Off

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

Bonus Group

In addition to ordinary groups, some DVD AUDIO discs

provide information hidden in a special group as a user

service. When this group is selected, the password input

screen appears on the TV screen to inform the user of the

presence of the bonus group in the disc. The bonus group

can be played by inputting the password. (For the

registration of password, consult the software producer.)

Input a 4 - digit BONUS GROUP's password.

Then press ENTER.

----

1. Set the mode switch of the joystick remote to the

Orange position.

2. Input the password using

REPEAT

to MENU/FILE S.

9, then press

ENTER

to start playback of the bonus group.

5. Select "On" or "Off" by tilting the joystick up or down,

then press ENTER to enter the selection in memory.

¶This setting is reset to default "Off" when the disc

is changed or the power is set to off or standby.

Searching a desired folder/file by its

title

MP3 files can be searched based on the title of the file or

the folder containing the file.

1. Set the mode switch of the joystick remote to the

Blue position.

÷The maximum number of folders or files that can

be searched is 999. Folders or files exceeding this

number cannot be searched.

2. Press the

SQ.MODE

P.MODE

TOP MENU

/FOLDER S.

button.

÷If file search is required, press the MENU/FILE S.

9 button

instead.

3. Select the desired folder or file by tilting the joystick

up or down, then press

ENTER

4. Press the

ENTER

button.

÷In folder search, playback begins with the file with

the minimum file number in the searched folder.

÷In file search, playback begins with the searched

file.

Various Setups

Chapter 6: Various Setups

This chapter describes the setup operations of the player according to the connected components. Most of the operations described below can be performed using the

provided standard remote control unit.

This chapter is composed of the following sections.

SET UP/MAIN

“Rating”..........................................................u

“TV Aspect”.....................................................o

“TV Mode”......................................................o

“TV Monitor Type”.........................................p

“DVD VIDEO Mode”.......................................Q

“OSD Position”..............................................Q

“On Screen Message”......................................W

“IPB Display”.................................................E

SET UP/SOUND

“Digital Audio”

“PCM Down Conversion”..........................R

“Dolby”......................................................R

“DTS”.........................................................T

“MPEG”......................................................Y

“Speaker Setting”...........................................Y

“Audio During Search”...................................P

“Dynamic Range Control”..............................P

“Audio Filter”..................................................Œ

SET UP/VISUAL

“Player Menu Language”................................„

“Disc Menu Language”...................................„

“Audio Language”...........................................´

“Subtitle Language”.......................................‰

“Still Mode”....................................................‰

“FL Mode”.......................................................ˇ

“NTSC = PAL” (For Europe and U.K.) ...........Á

“SCART Output Select” (For Europe and U.K.)

..............................................................Á

“Black Level Setup (Except for Europe and U.K.)

..............................................................¨

Disc Language Code Table .............................ˆ

Various Setups

Chapter 6: Various Setups

Basic Operations in Setup Screen

The "SET UP MENU" includes the "MAIN", "SOUND"

and "VISUAL" menus. When a setup screen is displayed,

select the desired item according to the purpose.

If the power is turned off while the setup screen remains

displayed after setting changes, the changes will be

invalid. Be sure to close the setup screen before turning

power off.

1. Set the mode switch of the joystick remote to the

Purple position.

2. Press

SET UP

to open the "SET UP MENU" in which

"MAIN" is displayed.

MAIN

SET UP MENU

EXIT

Tilt the joystick up or down to switch the displayed

menu name to "SOUND" or "VISUAL".

¶When you press the RETURN button or tilt the

joystick in the direction of arrow "EXIT" while the

"SET UP MENU" screen is displayed, the setup

mode can be canceled.

3. Press

ENTER

to open the setup screen.

¶While a setup screen is displayed, tilting the joystick

toward "EXIT" allows the setup mode to be

canceled and tilting it toward "MENU" returns to

the "SET UP MENU".

ENTER button

Joystick

RETURN button

SET UP button

Numeric buttons

ENTER

DISPLAY

PAGE

INDEX

PLAY

STOP

TOP MENU

/FOLDER.S

SQ.MODE

ON SCREEN

RETURN

REPEAT A-B REPEAT CHECK

ALL INFO.SET UP

TEXT DISP.

T.SEARCH

P.B.C.

TIME DISP.

P.AUDIO

AUDIO MENU/FILE.S

PAGE

INDEX

SKIP

DISC

0+10

789

Mode switch

C button

4. Select the desired item by tilting the joystick in the

required direction, then press

ENTER

to open the setup

change screen.

5. Select a setting by tilting the joystick in the required

direction and press

ENTER

to enter the change in

memory.

¶Press the RETURN button or tilt the joystick to

the left to return to the setup screen.

For actual setup operations, see page 47 and after.

Control Buttons Used in Setups

SET UP button: Press to display the "SET UP MENU".

(Set the mode switch to the Purple position before

pressing this button.)

Joystick: Tilt the joystick in the 4 directions of up, down,

left and right to move the cursor to the desired point.

ENTER button: After moving the cursor to the desired

point, press the ENTER button to enter the point and

display the next setup screen.

RETURN button: Press to return to the previous setup

screen.

Numeric buttons, C button: Use these buttons to in-

put a figure using numeric buttons or to clear an in-

put with the C button. (Set the mode switch to Or-

ange position before pressing any of these buttons.)

Various Setups

Chapter 6: Various Setups

When "MAIN" is selected in "SET UP MENU":

The setups according to the connected TV, viewing

restriction, DVD VIDEO mode, OSD position, on-screen

messages and IPB display can be set.

OSD Position

Normal

On Screen Message

IPB Display

Off

MAIN

EXIT

Level 8

TV Aspect

TV Mode

TV Monitor Type

4:3

Letterbox

Standard

Off

DVD VIDEO Mode

Rating

"Rating" Settingu

¶Sets the viewing restriction of DVD VIDEO. (This

functions only with DVD VIDEO discs compatible

with viewing restriction.)

"TV Aspect" Settingo

¶Sets the picture aspect ratio according to that of

the connected TV.

"TV Mode" Settingo

¶This setting is required when the aspect ratio of

the connected TV is 4:3.

"TV Monitor Type" Settingp

¶Set this item according to the format of the

connected TV or video monitor.

"DVD VIDEO Mode" SettingQ

¶Sets the play mode of DVD discs.

"OSD Position" SettingQ

¶Sets the position of the OSD (On-Screen Display).

"On Screen Message" SettingW

¶Switches the on-screen message on/off.

"IPB Display" Setting E

¶Switches the IPB display on/off.

When "SOUND" is selected in "SET UP

MENU":

"SOUND" is to be selected when you want to set the

audio output method when system components are

connected using the digital audio output connector of

the player.

When the system is connected using the 6CH. OUTPUT

jacks of the player, also select "SOUND" to set the

speakers, audio output during DVD or VCD search,

dynamic range control function and audio filters.

EXIT

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

SOUND

Bitstream

Wide

Filter 60kHz

"Digital Audio PCM Down Conversion" SettingR

¶Switches on/off the down-sampling conversion for

the digital signal output with a high sampling rate.

"Digital Audio Dolby Digital" SettingR

¶Sets the Dolby Digital output.

"Digital Audio DTS" SettingT

¶Sets the DTS output.

"Digital Audio MPEG" SettingY

¶Sets the MPEG output.

"Speaker Setting"Y

¶This setting is required when the 6CH. OUTPUT

jacks of the player is used in system connection.

"Audio During Search" SettingP

¶Switches on/off the audio during search.

"Dynamic Range Control" SettingP

¶Switches the dynamic range control function.

"Audio Filter" SettingŒ

¶Sets the audio filters for protecting the connected

speakers.

Various Setups

Chapter 6: Various Setups

"Disc Menu Language" Setting„

¶Sets the language used to display the menu screens

of the disc.

"Audio Language" Setting´

¶Sets the language of the disc audio.

"Subtitle Language" Setting‰

¶Sets the language of the disc subtitles.

"Still Mode" Setting‰

¶Reduces blur in still images.

"FL Mode" Settingˇ

¶Sets the brightness of the FL display. (on the player

front panel.)

"NTSC = PAL" SettingÁ

¶Switches if the signal from an NTSC format disc is

to be converted into PAL or not.

"SCART Output Select" SettingÁ

¶Switches the output signals from the TV SCART

connector of the player.

"Black Level Setup" Setting¨

¶This function makes the adjustment of the black

level. Set to your preference and monitor's ability.

When "VISUAL" is selected in "SET UP

MENU":

Select "VISUAL" when you want to change the language

used to display the menu screens, language use in menus

on the disc, audio language, subtitle language, etc.

Also select "VISUAL" to set the still mode, FL mode, video

format conversion system or TV SCART connector output

signals.

EXIT

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

VISUAL

English

Auto

English

Brightness

7 Composit

EXIT

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

VISUAL

English

Auto

English

7.5 IRE

Brightness

¶The "NTSC = PAL" and "SCART Output Select"

settings are not displayed in certain countries and

areas.

"Player Menu Language" Setting„

¶Sets the language used to display the menu screens

of the player.

"Rating" Setting

This setting makes it possible to inhibit the playback of

adult DVD videodiscs that you do not want the children

to view. However, there are some discs which carries an

X-rating indication on the jacket but do not contain

recording of the viewing restriction label. With such discs,

the viewing restriction of the player is invalid and

playback cannot be inhibited.

The default setting is "Level 8" which means no

restriction. When you change the restriction level for the

first time, you will also be requested to register a

password.

Setting items

"": Select to return to the previous screen.

"8 No Limit" : Select to enable playback of any DVD

discs whether their targets are adults, general public

or children.

"7" to "1": When DVD software containing the

recording of restriction level (an adult-oriented disc

or a disc including violence), playback is restricted

in accordance with the restriction level.

"0 Lock All": Select to inhibit any DVD. Use this

setting for example when you want to inhibit

playback of an adult-oriented DVD which does not

contain the restriction information.

"Change Password": Select to change the viewing

restriction password which has been registered

before. (This item cannot be selected unless a

password has already been registered.)

"MAIN" Setting

Except for Europe and U.K.

For Europe and U.K.

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Rating" by tilting the

joystick up or down and press ENTER .

7 8 No Limit

7 7

7 6

7 5

7 4

7 3

7 2

7 1

7 0 Lock All

7 Change Password

7 Temporary Unlocked

Rating

5. Select a viewing level by tilting the joystick up or

down, then press ENTER to display the password input

screen.

¶See "Input of Password".

3Note the password in a memo and retain it in a

safe place before pressing the ENTER button. The

password is required when setting the viewing re-

striction.

When a password has already been set:

In step 5, the password input screen as shown be-

low appears. Now set the mode switch of the joy-

stick remote to the Orange position, input the pass-

word using the numeric buttons and press the EN-

TER button.

7 Cange Level

Input a 4-digit password.

Then press ENTER.

Rating

----

¶When " " in the screen is selected and the ENTER

button is pressed, the display returns to the setting

screen. (This effect can also be achieved by pressing

the RETURN button or tilting the joystick toward

the left.)

If you select "Change Password", the screen for in-

put of the new password will open. Input the new

password using the numeric buttons and press the

ENTER button. When the password confirmation

screen appears, note the password in a memo and

retain it in a safe place then pressing the ENTER but-

ton.

When no password has been set previously:

1In step 5, the password input screen as shown be-

low appears. Now, set the mode switch of the joy-

stick remote to the Orange position, compose the

password using the numeric buttons and press the

ENTER button.

7 Cange Level

Input a 4-digit password.

Then press ENTER.

Rating

----

¶When " " in the screen is selected and the ENTER

button is pressed, the display returns to the setting

screen. (This effect can also be achieved by pressing

the RETURN button or tilting the joystick toward

the left.)

2The password input screen changes to the confir-

mation screen, and the input password is shown

on the TV screen.

The player is locked.

Please remember the password.

Press ENTER to continue.

Rating

0214

Input of Password

"Temporary Unlocked": Select to disable

temporarily the viewing restriction which has been

set previously. (This item cannot be selected unless

a password has been set previously.)

Various Setups

Chapter 6: Various Setups

"TV Mode" Setting

When the connected TV has a 4:3 aspect ratio while the

played software is recorded in widescreen video, the

mode of TV screen display can be selected.

At the factory, the player has been set to "Letterbox".

Setting items

"" : Select to return to the previous screen.

"Pan & Scan" : Select to play widescreen software

with pan & scan specification on a pan & scan

screen (screen with the left and/or right edges cut

off). When widescreen software without pan & scan

specification is played with this setting, it will be

reproduced in the Letterbox screen mode.

"Letterbox" : Widescreen software without pan &

scan specification is reproduced in the Letterbox

screen (screen with black bands on the top and

bottom).

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "TV Mode" by tilting the

joystick up or down and press

ENTER

Pan & Scan

Letterbox

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select a TV screen mode by tilting the joystick up or

down, then press

ENTER

to enter the selection in

memory.

"TV Monitor Type" Setting

This setting adjusts the picture quality according to the

type of the connected TV. If you use a means of display

other than ordinary CRT TV, such as a video monitor or

projector, you can adjust this setting according to your

taste.

At the factory, the player has been set to "Standard" for

using a CRT-based TV.

Setting items

"" : Select to return to the previous screen.

"Standard" : Select when connecting a CRT-based

TV. Usually select this item.

"CRT Projector" : Select when connecting a 3-tube

front projector.

"LCD Projector" : Select when connecting a LCD

front projector.

"Projection TV" : Select when connecting a

projection TV.

"PDP" : Select when connecting a plasma display

panel.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "TV Monitor Type" by

tilting the joystick up or down and press ENTER .

Standard

CRT Projector

LCD Projector

Projection TV

PDP

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select a monitor type by tilting the joystick up or

down, and press ENTER to enter the selection in

memory.

Various Setups

Chapter 6: Various Setups

"OSD Position" Setting

When the connected TV is a widescreen TV, the OSD (On-

Screen Display) or on-screen messages may be displayed

incorrectly or overflow outside the screen depending on

the TV screen mode setting. The OSD position switching

makes it possible to display the OSD and on-screen

messages normally.

At the factory, the player has been set to "Normal".

Setting items

"" : Select to return to the previous screen.

"Normal" : Select to display the OSD and messages

on the top of the TV screen. Usually select this

setting.

"Cinema" : Select to display the OSD and messages

on the lower part of the TV screen. Select this setting

when the OSD or messages are deviated outside

the TV screen.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

"DVD VIDEO Mode" Setting

When playing a disc in which DVD VIDEO and DVD

AUDIO are mixed, this setting makes it possible to select

whether the DVD VIDEO part or DVD AUDIO part is to

be played. To reproduce only the DVD VIDEO part, set

this item to "On".

At the factory, the player has been set to "Off" with

which the DVD AUDIO part is played back.

Setting items

"" : Select to return to the previous screen.

"On" : Select to play only the DVD VIDEO part in a

DVD VIDEO/DVD AUDIO mixed disc.

"Off" : Select to play only the DVD AUDIO part in a

DVD VIDEO/DVD AUDIO mixed disc.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "DVD VIDEO Mode" by

tilting the joystick up or down and press

ENTER

7 On

7 Off

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select "On" or "Off" by tilting the joystick up or down,

then press ENTER to enter the selection in memory.

¶This setting is reset to default "Off" when the disc

is changed or the power is set to off or standby.

Various Setups

Chapter 6: Various Setups

"On Screen Message" Setting

This setting makes it possible to enable or display of on-

screen messages which notifies the user of various

information.

At the factory, the player has been set to "On" for

displaying on-screen messages.

Setting items

"" : Select to return to the previous screen.

"On" : Select to display on-screen messages.

"Off" : Select to not to display on-screen messages.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "On Screen Message" by

tilting the joystick up or down and press ENTER .

Off

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select "On" or "Off" by tilting the joystick up or down,

then press ENTER to enter the selection in memory.

4. In the setup menu, select "OSD Position" by tilting

the joystick up or down and press

ENTER

Normal

Cinema

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select the OSD position by tilting the joystick up or

down, then press

ENTER

to enter the selection in

memory.

Various Setups

Chapter 6: Various Setups

"IPB Display" Setting

With the MPEG2 which is one of the video display

methods of DVD, each picture is divided into the

following three picture types before being coded in digital

signal.

I-picture (in-frame coding): This is the standard video

and can constitute a picture by itself. As the highest

picture quality can be obtained, the still image of I-

picture is most suitable for use when adjusting the

picture quality.

P-picture (forward prediction coding): Picture cal-

culated based on past pictures (I-picture or P-picture).

B-picture (bidirectional prediction coding): Picture

calculated by comparing the previous and next pic-

tures (I-pictures or P-pictures). This picture type con-

tains least amount of video information.

When IPB Display is set to "On", the I, P or B type of

DVD still picture is displayed on the TV screen to help

identify whether the picture is I-picture, P-picture or B-

picture. This makes it possible to find the I-picture which

is the standard video containing most amount of

information.

At the factory, the player has been set to "Off" with which

the IPB display is not shown.

Setting items

"" : Select to return to the previous screen.

"On" : Select to view the IPB display.

"Off" : Select to not to view the IPB display.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

display the "MAIN" menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "IPB Display" by tilting

the joystick up or down and press

ENTER

Off

OSD Position

On Screen Message

IPB Display

TV Aspect

TV Mode

TV Monitor Type

DVD VIDEO Mode

Rating

5. Select "On" or "Off" by tilting the joystick up or down,

then press ENTER to enter the selection in memory.

Various Setups

Chapter 6: Various Setups

"Digital Audio PCM Down

Conversion" Setting (DVD VIDEO

disc only)

The player can output digital signal with maximum

sampling rate of 96 kHz from the digital audio output

connector. When a DVD disc recorded in high sampling

rate PCM is played, this setting makes it possible to select

whether the signal is converted into 48 kHz signal or

44.1 kHz/16-bit signal.

At the factory, the player has been set to "On" for AV

amplifiers incompatible with high sampling rate digital

signal connection. If the connected AV amplifier is

compatible with 96 kHz digital input, change the setting

to "Off".

Setting items

"" : Select to return to the previous screen.

"On" : Select to down-convert the signal to 44.1 kHz/

16-bit PCM signal. Select this setting when the

connected AV amplifier is incompatible with 96

kHz digital input.

¶The analog output signals are also converted

accordingly.

"Off" : Select to skip down conversion. Select this

setting when the connected AV amplifier is

compatible with 96 kHz digital input. However, if

the disc inhibits the 96 kHz digital output, the

signal is down-converted even when this setting is

selected.

¶With DVD AUDIO discs, the signal is always

output after down sampling conversion.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Digital Audio PCM Down

Conversion" by tilting the joystick up or down and

press

ENTER

Off

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select "On" or "Off" by tilting the joystick up or down,

then press ENTER to enter the selection in memory.

"Digital Audio Dolby Digital"

Setting

When a DVD recorded in Dolby Digital is played, this

setting makes it possible to select the audio signal from

the digital output connector of the player.

At the factory, the player has been set to "Bitstream" to

enable digital connection to an AV amplifier with built-in

Dolby Digital decoder. For the nonexistent decoders, set

the "Digital Audio" setting to "PCM".

Setting items

"" : Select to return to the previous screen.

"Bitstream" : The signal is output as a bitstream.

Select when connecting a component containing

Dolby Digital decoder.

"PCM" : The signal is converted onto 48 kHz (2CH.)

PCM signal before being output. Select when

connecting a component without Dolby Digital

decoder.

"SOUND" Setting

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup menu.

4. In the setup menu, select "Digital Audio Dolby

Digital" by tilting the joystick up or down and press

ENTER

Bitstream

PCM

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select the audio output by tilting the joystick up or

down, and press ENTER to enter the selection in

memory.

"Digital Audio DTS" Setting

When a DVD or DTS-CD recorded in DTS is played, this

setting makes it possible to select the audio signal output

from the digital output connector.

At the factory, the player has been set to "Bitstream" to

enable digital connection to an AV amplifier with built-

in DTS decoder. For the nonexistent decoders, set the

"Digital Audio" setting to "PCM".

Setting items

"" : Select to return to the previous screen.

"Bitstream" : The signal is output as a bitstream.

Select when connecting a component containing

DTS decoder.

"PCM" : The signal is converted onto 48 kHz (2CH.)

PCM signal before being output. Select when

connecting a component without DTS decoder.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Digital Audio DTS" by

tilting the joystick up or down and press

ENTER

Bitstream

PCM

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select the audio output by tilting the joystick up or

down, and press ENTER to enter the selection in

memory.

Various Setups

Chapter 6: Various Setups

"Digital Audio MPEG" Setting

When a DVD recorded in MPEG Audio is played, this

setting makes it possible to select the audio signal output

from the digital output connector.

At the factory, the player has been set to "Bitstream" to

enable digital connection to an AV amplifier with built-

in MPEG decoder. For the nonexistent decoders, set the

"Digital Audio" setting to "PCM".

Setting items

"" : Select to return to the previous screen.

"Bitstream" : The signal is output as a bitstream.

Select when connecting a component containing

MPEG decoder.

"PCM" : The signal is converted onto 48 kHz (2CH)

PCM signal before being output. Select when

connecting a component without MPEG decoder.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Digital Audio MPEG" by

tilting the joystick up or down and press ENTER .

Bitstream

PCM

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select the audio output by tilting the joystick up or

down, and press

ENTER

to enter the selection in

memory.

"Speaker Setting"

When an associated system component is connected to

the 6CH. OUTPUT jacks of the player, this setting is

required on the player.

At the factory, the player has been set to the standard

setting with which the speakers can reproduce the 6-

channel signals as soon as the connections are made.

This setting can be changed according to each listening

environment. When you want to change this setting, be

sure to perform it in the listening area in your own

listening environment.

¶For the "Speaker Setting" when an AV amplifier

is connected digitally to the player, refer to the

instruction manual of the AV amplifier.

"Speaker Setting (Quick)"

Three kinds of speakers can be set, including the "Center

Speaker", "Surround Speakers" and "SubWoofer".

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Speaker Setting (Quick)"

by tilting the joystick up or down and press

ENTER

5. Place the cursor on the speaker name you want to set

to "Use" or "Do not use", then press the ENTER button.

Various Setups

Chapter 6: Various Setups

6. Each press of the ENTER button turns on and off the

corresponding speaker icon in the graphic room at

the lower half of screen alternately. When the selected

kind of speaker is to be used, the corresponding

speaker icon should be displayed.

Test

RSLS

Exit

Speaker Setting (Quick)

7. To set the use of other kinds of speakers, repeat step

5 for each of them.

8. After completing the setting, place the cursor on "Exit"

and press ENTER .

"Speaker Setting (Custom)"

Setting items

Front speakers (L, R)

Size: "Large"

Level: "0 dB"

Center speaker (C)

Size: "Large"

Use of center speaker: Used

Level: "0 dB"

Delay time: "0 ms"

Surround speakers (SL, SR)

Size: "Large"

Use of surround speakers: Used

Level: "0 dB"

Delay time: "0 ms"

Subwoofer

Use of subwoofer: Used

Level: "0 dB"

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Speaker Setting

(Custom)" by tilting the joystick up or down and

press

ENTER

5. Set each speaker by tilting the joystick up/down and

to the left/right. Select the item to be set and press

ENTER .

0 dB

0 dB 0 dB

0 ms

0 ms 0 dB0 dB

Speaker Setting (Custom)

Test

RSLS

Exit

To set the front speakers: Select and adjust "L" or

"R". The other, non-selected front speaker will

automatically set to the same setting as the selected

speaker.

To set the center speaker: Select "C".

To set the surround speakers: Select and adjust

"SL" and "SR" separately.

To set the subwoofer: Select "SW".

To output the test tone: Select "Test"

To exit from the screen: Select "Exit"

6. Select the desired speaker setting by tilting the joy-

stick up/down and to the left/right.

If " " is selected, the screen in step 5 appears again

without entering the performed changes in the

speaker setting in memory.

[Front Speakers setting]

0 dB

0 ms

0 ms 0 dB0 dB

Speaker Setting (Custom)

Exit

Size Normal

Large

0 dB 0 dB

-12 -11 -10

-9 -8 -7 -6 -5 -4 -3 -2 -1 0

Level

Size: Select "Normal" when the connected speaker

is incapable of reproducing audio below 100 Hz.

Select "Large" when the connected speaker can

reproduce audio below 100 Hz.

Level: Set the volume level.(0 ~ -12 dB)

After completing the speaker setting, select "Exit"

to enter the setting and return to the screen in step

Various Setups

Chapter 6: Various Setups

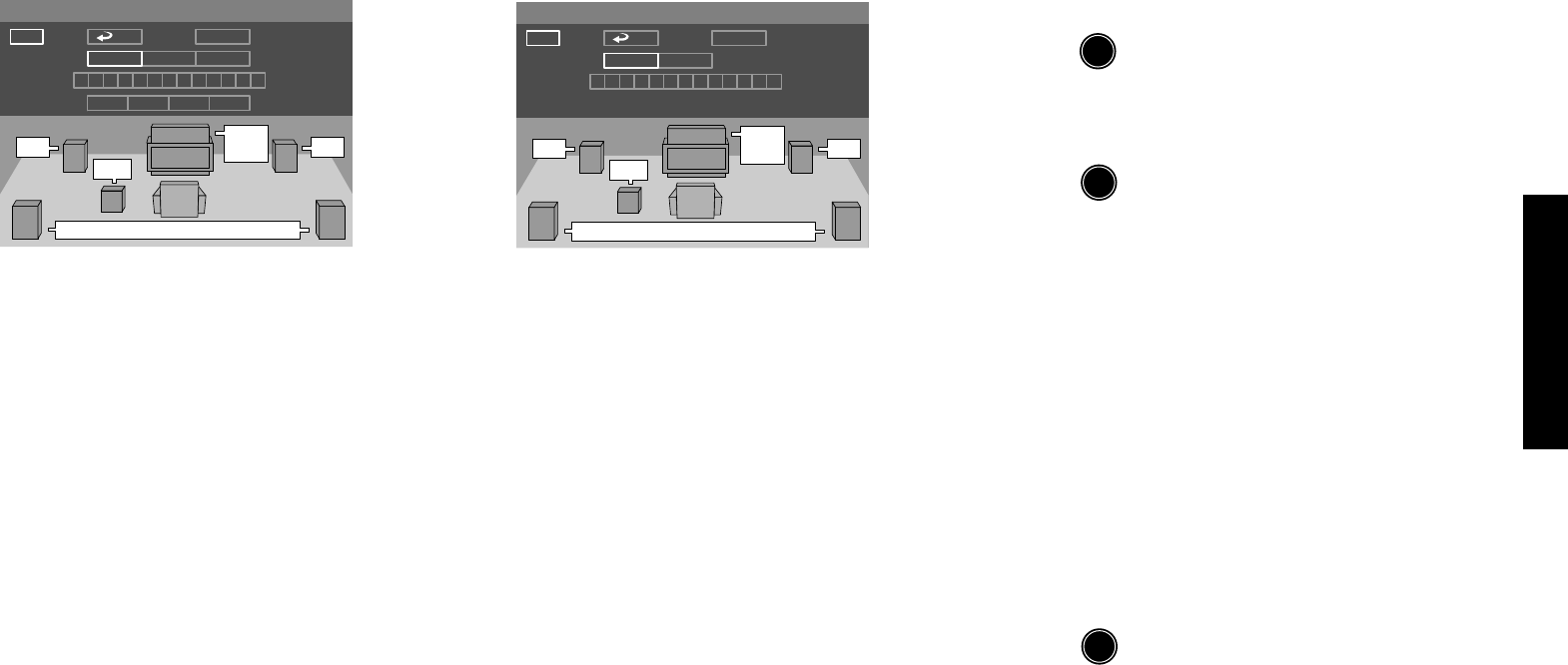

[Center speaker setting]

0 dB

0 ms

0 ms 0 dB0 dB

Speaker Setting (Custom)

Exit

Size Normal Off

Large

0 dB 0 dB

-12 -11 -10

-9 -8 -7 -6 -5 -4 -3 -2 -1 0

Level

0 1.3 2.6 3.9 5.3

Delay Time

Size: Select "Normal" when the connected speaker

is incapable of reproducing audio below 100 Hz.

Select "Large" when the connected speaker can

reproduce audio below 100 Hz.

Use of center speaker: Select "Off" if the center

speaker is not used.

Level: Set the volume level.(0 ~ -12 dB)

Delay Time: Set the delay time. For the setting value,

see "Delay Time Setting".

After completing the speaker setting, select "Exit"

to enter the setting and return to the screen in step

Delay Time Setting

Ideal center speaker position

Ideal surround speaker positions

Delay time of center speaker

When playing a DVD recorded with Dolby Digital audio, the distances from the listening position to the

center and surround speakers should ideally be identical to those of all other speakers except for the subwoofer.

The delay time setting makes it possible to compensate for the difference in distances of actual speakers by

delaying the audio output from the center speaker and surround speakers so that the sounds from all speakers

reach the listening position at the same timing. (The delay time adjustment is available only with Dolby

Digital.)

Before starting the speaker setting, see the following figure and measure distance A of the center speaker (A =

Df - Dc) and distance B for the surround speakers (B = Df - Ds). The standard delay time settings can be

identified based on these values and the following tables.

SL SR

Dc Df

120°

30°

¶All speakers should be laid out within a circle

as shown in the figure.

Distance A

(A = Df - Dc) Setting Value

Approx. 50 cm "1.3" ms

Approx. 100 cm "2.6" ms

Approx. 150 cm "3.9" ms

Approx. 200 cm "5.3" ms

¶If distance Df is equal to or shorter than

Dc, set to "0".

Delay time of surround speakers

Distance B

(B = Df - Ds) Setting Value

Approx. 200 cm "5.3" ms

Approx. 400 cm "10.6" ms

Approx. 600 cm "15.9" ms

¶If distance Df is equal to or shorter than

Ds, set to "0".

Various Setups

Chapter 6: Various Setups

[Subwoofer setting]

0 dB

0 ms

0 ms 0 dB0 dB

Speaker Setting (Custom)

Exit

0 dB 0 dB

-12 -11 -10

-9 -8 -7 -6 -5 -4 -3 -2 -1 0

Level

Size Off

Use of subwoofer: Select "Off" if the subwoofer is

not used.

Level: Set the volume level.

After completing the speaker setting, select "Exit"

to enter the setting and return to the screen in step

7. After completing the speaker settings, select "Test"

by tilting the joystick up/down or to the left/right and

press

ENTER

. The cursor will automatically move across

the speakers in sequence from "L" and the test tone

is output from each speaker indicated by the cursor.

Press ENTER again to display the speaker setting screen

for the speaker being indicated by the cursor.

¶The cursor skips the subwoofer and the speakers

set to "Off" and test tone is not output from them.

¶After adjusting the level of each speaker channel

by tilting the joystick to the left or right, press the

ENTER button, then select "Exit" and press the

ENTER button to restart the test tone output.

Repeat the volume level adjustment until the

volumes of all speakers are identical.

¶When the joystick is tilted in any direction during

the test tone output, the test tone output stops.

(The same effect can also be obtained by pressing

the RETURN button)

8. After completing the speaker setting, select "Exit" and

press ENTER to enter the setting in memory.

¶As the test tone is not output from the subwoofer,

its volume level should be adjusted after listening

to the actual sound.

[Surround speakers setting]

0 dB

0 ms

0 ms 0 dB0 dB

Speaker Setting (Custom)

Exit

Size Normal Off

Large

0 dB 0 dB

-12 -11 -10

-9 -8 -7 -6 -5 -4 -3 -2 -1 0

Level

0 5.3 10.6 15.9

Delay Time

Size: Select "Normal" when the connected speaker

is incapable of reproducing audio below 100 Hz.

Select "Large" when the connected speaker can

reproduce audio below 100 Hz.

Use of surround speaker: Select "Off" if the

surround speaker is not used.

Level: Set the volume level.(0 ~ -12 dB)

Delay Time: Set the delay time. For the setting value,

see "Delay Time Setting".

After completing the speaker setting, select "Exit"

to enter the setting and return to the screen in step

Various Setups

Chapter 6: Various Setups

"Audio During Search" Setting

During DVD or VCD search at the first speed step, this

setting makes it possible to select whether the reproduced

audio is output or not.

At the factory, the player has been set to "On" for outputting

the reproduced audio during search.

Setting items

"" : Select to return to the previous screen.

"On" : Select to output audio during search.

"Off" : Select to mute audio during search.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Audio During Search" by

tilting the joystick up or down and press ENTER .

Off

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select "On" or "Off" by tilting the joystick up or

down, then press

ENTER

to enter the selection in

memory.

"Dynamic Range Control"

Setting

When playing a DVD recorded with Dolby Digital

Surround, set the dynamic range control according to

the software being played. For instance, when the words

are hard to be listened to due to effects sound in a movie,

this setting makes it possible to adjust the volume level

of only the low-level sound and can reduce repetition of

complicated volume level adjustments.

At the factory, the player has been set to "Normal" with

which the audio levels recorded in discs are reproduced

as they are.

Setting items

"" : Select to return to the previous screen.

"Wide" : Select to reproduced the audio at the level

recorded in the disc.

"Normal" : Select to reduce the difference between

the maximum and minimum volume levels.

"Midnight" : Select to further reduce the difference

between the maximum and minimum volume

levels. This setting is suitable for low-level listening

in late at night, etc.

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Dynamic Range Control"

by tilting the joystick up or down and press ENTER .

Wide

Normal

Midnight

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select the level by tilting the joystick up or down, then

press ENTER to enter the selection in memory.

Filter 60kHz

Filter 110kHz

Digital Audio

Dolby Digital

Speaker Setting (Custom)

Speaker Setting (Quick)

Audio During Search

Dynamic Range Control

Audio Filter

DTS

MPEG

PCM Down Conversion

5. Select "Filter 60 kHz" or "Filter 110 kHz" by tilting

the joystick up or down, then press

ENTER

to enter the

selection in memory.

"Audio Filter" Setting

DVD AUDIO is recorded with a maximum sampling rate

of 192 kHz and theoretically capable of reproducing up

to 96 kHz. As a result, the speakers used may be damaged

if they are not compatible with high frequencies. When

an ordinary speaker system is connected, set the "Audio

Filter" setting to "Filter 60 kHz" to protect the speakers.

When the speaker in use are compatible with high

frequencies, set this setting to "Filter 110 kHz". (For

details, refer to the instruction manuals provided with

your speakers.)

At the factory, the player has been set to "Filter 60 kHz"

to protect the speakers from damage.

Setting items

"" : Select to return to the previous screen.

"Filter 60 kHz" : Select when the speakers in use are

not suitable for reproduction of high frequencies.

"Filter 110 kHz" : Select when the speakers in use

are suitable for reproduction of high frequencies.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "SOUND"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Audio Filter" by tilting

the joystick up or down and press

ENTER

Various Setups

Chapter 6: Various Setups

"Player Menu Language" Setting

This setting makes it possible to select the language used

to display the menus of the player.

At the factory, the language used in displaying the menus

of the player has been set to "English".

Setting items

"" : Select to return to the previous screen.

"English" : Select to display menus in English.

"French" : Select to display menus in French.

"Spanish" : Select to display menus in Spanish.

"German" : Select to display menus in German.

"Italian" : Select to display menus in Italian.

"Japanese" : Select to display menus in Japanese.

"Chinese" : Select to display menus in Chinese.

"Taiwanese" : Select to display menus in traditional

Chinese letters.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "Player Menu Language"

by tilting the joystick up or down and press ENTER .

Japanese

Taiwanese

Chinese

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

Italian

Spanish

French

German

English

Japanese

Taiwanese

Chinese

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

Italian

Spanish

French

German

English

5. Select the language by tilting the joystick up or down,

then press

ENTER

to enter the selection in memory.

"VISUAL" Setting "Disc Menu Language" Setting

This setting makes it possible to select the language used

to display the menus recorded in discs. (If the selected

language is not used in a specific disc, the language

specified as the priority language for the disc will be

used.)

At the factory, the language used in displaying the menus

of the disc has been set to "English".

Setting items

"" : Select to return to the previous screen.

"English" : Select to display menus in English.

"French" : Select to display menus in French.

"Spanish" : Select to display menus in Spanish.

"German" : Select to display menus in German.

"Italian" : Select to display menus in Italian.

"Chinese" : Select to display menus in Chinese.

"Other

----

" : Select to specify the language using

a code No. listed in the "Disc Language Code

Table". ˆ

¶The languages displayed with this setting item are

variable depending on country and area.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

Except for Europe and U.K.

For Europe and U.K.

Various Setups

Chapter 6: Various Setups

"Audio Language" Setting

This setting makes it possible to select the language used

to reproduce the audio recorded in the disc in the desired

language. (If the selected language is not used in a specific

disc, the language specified as the priority language for

the disc will be used.)

At the factory, the audio language has been set to

"English".

Setting items

"" : Select to return to the previous screen.

"Original" : Select to play audio in the language

specified as the priority language by the disc.

"English" : Select to play menus in English.

"French" : Select to play menus in French.

"Spanish" : Select to play menus in Spanish.

"German" : Select to play menus in German.

"Italian" : Select to play menus in Italian.

"Chinese" : Select to play menus in Chinese.

"Other

----

" : Select to specify the language using

a code No. listed in the "Disc Language Code

Table". ˆ

¶The languages displayed with this setting item are

variable depending on country and area.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Audio Language" by tilting

the joystick up or down and press

ENTER

Other

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

Italian

Spanish

French

German

Original

English

Other

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

Italian

Spanish

French

German

Original

English

5. Select the desired audio language by tilting the

joystick up or down, then press

ENTER

to enter the

selection in memory.

¶When "Other

----

"is selected, set the mode

switch of the joystick remote to the Purple position,

input the desired code No. using the numeric keys

and press the ENTER button.

¶If you make a mistake when pressing numeric keys,

press the C button and restart the code No. input

from the beginning.

4. In the setup menu, select "Disc Menu Language" by

tilting the joystick up or down and press ENTER .

Other

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

Italian

Spanish

French

German

English

Other

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

Italian

Spanish

French

German

English

5. Select the language by tilting the joystick up or down,

then press

ENTER

to enter the selection in memory.

¶When "Other

----

"is selected, set the mode

switch of the joystick remote to the Orange

position, input the desired code No. using the

numeric keys and press the ENTER button.

¶If you make a mistake when pressing numeric keys,

press the C button and restart the code No. input

from the beginning.

Except for Europe and U.K.

For Europe and U.K.

Except for Europe and U.K.

For Europe and U.K.

Various Setups

Chapter 6: Various Setups

"Subtitle Language" Setting

This setting makes it possible to select the language used

to display the subtitles recorded in discs. (When the disc

does not contain the recording of the selected subtitle

language, the default subtitle language defined for the

disc will be used.)

At the factory, the language used in displaying the

subtitles has been set to "English".

Setting items

"" : Select to return to the previous screen.

"Auto" : The subtitle language is selected automatically

according to the "Audio language" setting.

Case in which subtitles are not displayed: When

the voices are reproduced in the language selected

with "Audio language", the subtitles are not

displayed.

Case in which subtitles are displayed: When the

voices cannot be reproduced in the language

selected with "Audio language", subtitles are

displayed in the language selected with "Audio

language".

"English" : Select to display menus in English.

"French" : Select to display menus in French.

"Spanish" : Select to display menus in Spanish.

"German" : Select to display menus in German.

"Italian" : Select to display menus in Italian.

"Chinese" : Select to display menus in Chinese.

"Other

----

" : Select to specify the language using

a code No. listed in the "Disc Language Code

Table". ˆ

¶The languages displayed with this setting item are

variable depending on country and area.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Subtitle Language" by

tilting the joystick up or down and press

ENTER

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

Auto

Other

Italian

Spanish

French

German

English

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

Auto

Other

Italian

Spanish

French

German

English

5. Select the desired subtitle language by tilting the

joystick up or down, then press ENTER to enter the

selection in memory.

¶When "Other

----

" is selected, set the mode

switch of the joystick remote to the Orange

position, input the desired code No. using the

numeric keys and press the ENTER button.

¶If you make a mistake when pressing numeric keys,

press the C button and restart the code No. input

from the beginning.

"Still Mode" Setting

This setting makes it possible to reduce blur in still

pictures automatically. In addition, it also allows you

to select the frame still or field still picture.

At the factory, the player has been set to "Auto", with

which frame still and field still pictures are switched

automatically.

Setting items

"" : Select to return to the previous screen.

"Auto" : Frame still and field still pictures are

switched automatically. Usually select this

setting.

"Frame" : Select to display still pictures in a higher

picture quality. (As the field and still pictures are

displayed alternately, the picture may blur

accordingly.)

"Field" : Select to display still pictures without blur.

(As the video information is halved compared

to the frame pictures, the picture quality

deteriorates accordingly.)

Except for Europe and U.K.

For Europe and U.K.

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Still Mode" by tilting the

joystick up or down and press ENTER .

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

Auto

Field

Frame

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

Auto

Field

Frame

5. Select the desired still mode by tilting the joystick up

or down, then press ENTER to enter the selection in

memory.

"FL Mode" Setting

This setting makes it possible to select the brightness of

the player's display panel.

At the factory, the player has been set to "Brightness",

with which the display is permanently displayed in high

brightness.

Setting items

"" : Select to return to the previous screen.

"Brightness" : The display is permanently in high

brightness.

"Dimmer" : The display is permanently displayed in

low brightness.

"Auto Off" : The display is automatically turned off

with DVD or VCD. (The display is shown when

DVD AUDIO without video is played.) At this time,

the "Disc 1 to 5" indicators light in low brightness

and other indicators are off.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "FL Mode" by tilting the

joystick up or down and press ENTER .

7 Dimmer

Brightness

7 Auto Off

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

7 Dimmer

Brightness

7 Auto Off

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

5. Select the FL mode by tilting the joystick up or down,

then press

ENTER

to enter the selection in memory.

Except for Europe and U.K.

For Europe and U.K.

Except for Europe and U.K.

For Europe and U.K.

Various Setups

Chapter 6: Various Setups

5. Select "On" or "Off" by tilting the joystick up or down,

then press

ENTER

to enter the selection in memory.

"NTSC = PAL" Setting

(For Europe and U.K.)

This setting makes it possible to play an NTSC-format

disc by converting signal into PAL format. Select "On"

when it is required to convert NTSC-format discs into

PAL signals.

Setting items

"" : Select to return to the previous screen.

"On" : Select to enable conversion from NTSC to PAL.

"Off" : Select to disable conversion from NTSC to

PAL.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press ENTER to open the setup screen.

4. In the setup menu, select "NTSC = PAL" by tilting

the joystick up or down and press

ENTER

7 Off

7 On

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

"SCART Output Select" Setting

(For Europe and U.K.)

This setting makes it possible to select the output signals

from the TV SCART connector of the player. (The VCR

SCART connector always outputs composite video

signals so its output signals cannot be selected.)

When the "RGB" output signals are selected with this

setting, the COMPONENT VIDEO OUTPUT jacks of the

player do not output any video signal.

At the factory, the TV SCART connector output signals

of the player has been set to "Composite".

Setting items

"" : Select to return to the previous screen.

"Composite" : Select to output composite video

signal.

"S Video" : Select to output S Video signals.

"RGB" : Select to output RGB signals.

Various Setups

Chapter 6: Various Setups

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "SCART Output Select" by

tilting the joystick up or down and press

ENTER

7 S Video

7 Composite

7 RGB

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

SCART Output Select

NTSC = PAL

Player Menu Language

5. Select the desired output signals by tilting the joystick

up or down, then press

ENTER

to enter the selection in

memory.

"Black Level Setup" Setting

(Except for Europe and U.K.)

This function makes the adjustment of the black level.

Set to your preference and monitor's ability.

Setting items

"" : Select to return to the previous screen.

"7.5 IRE" : Standard black level.

"0 IRE" : Expanded black level.

¶As for this function, only interlace output is

effective.

Operation procedure

1. Set the mode switch of the joystick remote to the

Purple position.

2. While the player is in stop mode, press

SET UP

and tilt

the joystick up or down to display the "VISUAL"

menu of "SET UP MENU".

3. Press

ENTER

to open the setup screen.

4. In the setup menu, select "Black Level Setup" by tilting

the joystick up or down and press

ENTER

7 0 IRE

7 7.5 IRE

Disc Menu Language

Audio Language

Subtitle Language

Still Mode

FL Mode

Black Level Setup

Player Menu Language

5. In the setup menu, select "7.5 IRE" or "0 IRE" by

tilting the joystick up or down and press ENTER .

Various Setups

Chapter 6: Various Setups

Disc Language Code Table

Cord No. : Language

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bengali; Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

German

Bhutani

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Faroese

French

6565 :

6566 :

6570 :

6577 :

6582 :

6583 :

6588 :

6590 :

6665 :

6669 :

6671 :

6672 :

6678 :

6679 :

6682 :

6765 :

6779 :

6783 :

6789 :

6865 :

6869 :

6890 :

6976 :

6978 :

6979 :

6983 :

6984 :

6985 :

7065 :

7073 :

7074 :

7079 :

7082 :

Cord No. : Language

7089 :

7165 :

7168 :

7176 :

7178 :

7185 :

7265 :

7273 :

7282 :

7285 :

7289 :

7365 :

7378 :

7383 :

7384 :

7387 :

7465 :

7473 :

7487 :

7565 :

7575 :

7576 :

7577 :

7578 :

7579 :

7583 :

7585 :

7589 :

7665 :

7678 :

7679 :

7684 :

7686 :

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Geogian

Kazakh

Greenlandic

Cambodian

Kannada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian; Lettish

7771 :

7773 :

7775 :

7776 :

7778 :

7779 :

7782 :

7783 :

7784 :

7789 :

7865 :

7869 :

7876 :

7879 :

7982 :

8065 :

8076 :

8083 :

8084 :

8185 :

8277 :

8279 :

8285 :

8365 :

8368 :

8372 :

8373 :

8375 :

8376 :

8377 :

8378 :

8379 :

8381 :

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Nowegian

Oriya

Punjabi

Polish

Pashto; Pushto

Portuguese

Quechua

Rhaeto-Romance

Romanian

Russian

Sanskrit

Sindhi

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

8382 :

8385 :

8386 :

8387 :

8465 :

8469 :

8471 :

8472 :

8473 :

8475 :

8476 :

8479 :

8482 :

8484 :

8487 :

8575 :

8582 :

8590 :

8673 :

8679 :

8779 :

8872 :

8979 :

9072 :

9085 :

Serbian

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Tonga

Turkish

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Wolof

Xhosa

Yoruda

Chinese

Zulu

Cord No. : Language Cord No. : Language

Other Information

Chapter 7: Other Information

To Be Noted ∏

Symptoms and Treatment s

Glossary f

Specifications h

Other Information

Chapter 7: Other Information

Maintenance of the unit

When the front panel or case becomes dirty, wipe with a

soft, dry cloth. Do not use thinner, benzine, alcohol, etc.

for these agents may cause discoloration.

In regard to contact cleaner

Do not use contact cleaners because it could cause a

malfunction. Be specially careful not to use contact

cleaners containing oil, for they may deform the plastic

component.

Never play a cracked or warped disc

During playback, the disc rotates at high speed in the

player. Therefore, to avoid danger, never use a cracked or

deformed disc or a disc repaired with tape or adhesive

agent. Please do not use discs which are not round

because they may cause malfunction.

Disc accessories

The disc accessories (stabilizer, protection sheet,

protection ring, etc.) which are marketed for improving

the sound quality or protecting discs as well as the disc

cleaner should not be used with this system because they

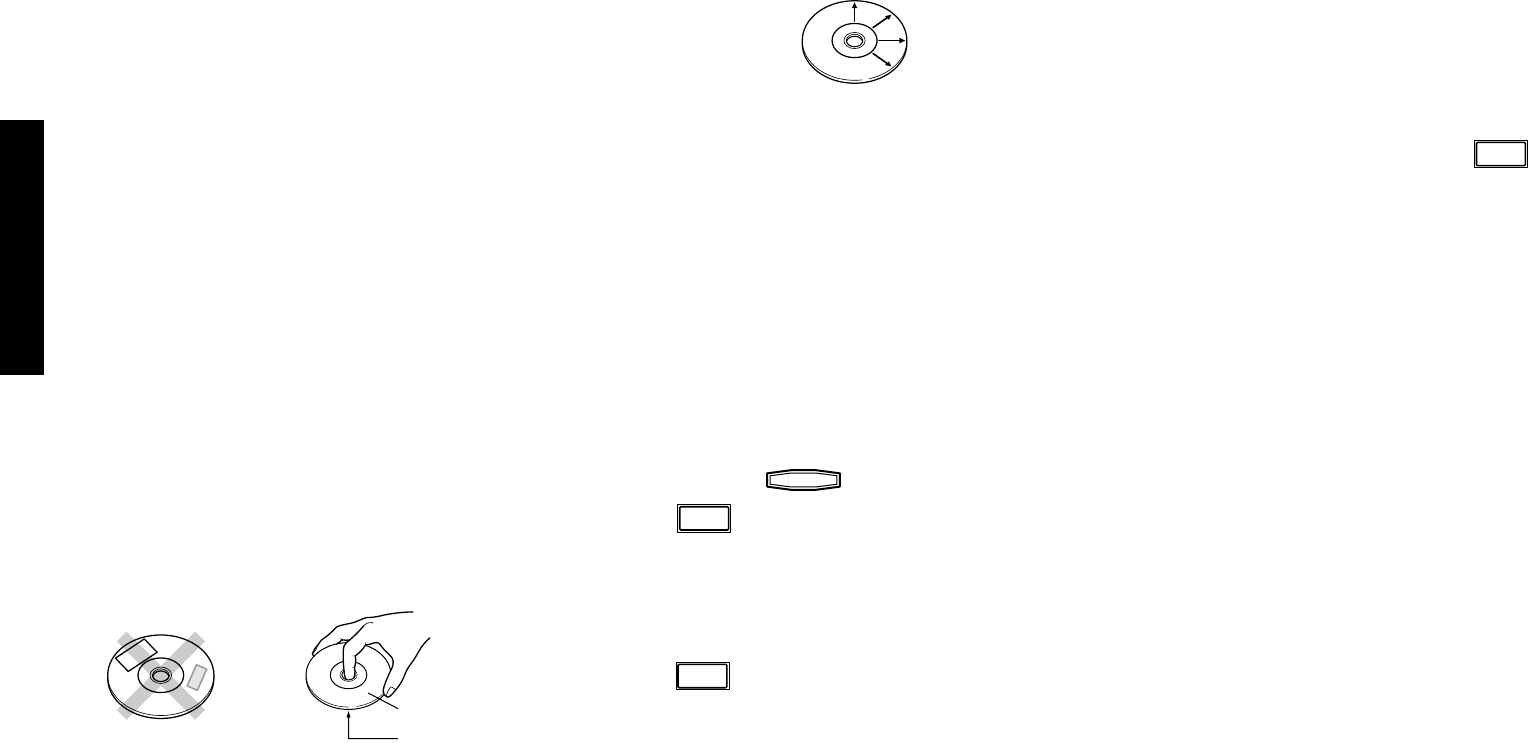

may cause malfunction.Disc handling precautions

Handling : Hold the disc so that you do not touch the

playing surface.

Do not attach paper or tape to either the playing

side or the label side of the discs.

To Be Noted Cleaning : If there fingerprint marks or foreign matter

found on the disc, lightly wipe the disc with a soft cotton

cloth (or similar) from the center of the disc outwards

in a radial manner.

Storage : When a disc is not to be played for a long

period of time, remove it from the player and store it in

its case.

Sticker

Sticky paste

Caution on condensation

Condensation (of dew) may occur inside the unit when

there is a great difference in temperature between this

unit and the outside.

This unit may not function properly if condensation occurs.

In this case, leave the unit for a few hours and restart the

operation after the condensation has dried up.

Be specially cautious against condensation in the

following circumsatances:

When this unit is carried from one place to another across

a large difference in temperature, when the humidity in

the room where this unit is installed increases, etc.

Transport or moving precautions

When transporting or moving the player, first remove the disc

and observe the following procedure.

1. Turn the player power on.

2. If any disc is left in the player, eject all of the discs left

in it.

3. Wait for a few seconds, until the display shows "NO

DISC".

4. Turn the player power off by pressing

- ON – OFF

POWER

Malfunction of Microcomputer

In case the microcomputer malfunctions, making

operations impossible or showing wrong messages on

the display even if you connected everything properly.

When the microcomputer malfunctions, perform the

following procedure to reset the microcomputer and

return it to the normal condition.

1. While holding 7 on the player main unit,

press

- ON – OFF

POWER

2. The display on the main unit shows blinking

"INIT"(initializing), then shows "INIT OK!" (Ini-

tialization OK) to indicate that the microcomputer

is reset.

3. Press

- ON – OFF

POWER

on the main unit to turn it off, then press

it again to turn it on.

¶The resetting clears the setups stored in the

microcomputer and returns it to the factory-set

initial condition. After resetting, you should

perform the various setups of the player again from

the beginning.

Other Information

Chapter 7: Other Information

CAUTION (For the U.S.A.)

Use of controls or adjustments or performance of

procedures other than those specified herein may result

in hazardous radiation exposure.

In compliance with Federal Regulations, the following are

reproductions of labels on, or inside the product relating

to laser product safety.

KENWOOD CORPORATION

2967-3, ISHIKAWA-CHO,

HACHIOJI-SHI,

TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS

EQUIPMENT CONFORMS TO DHHS

REGULATIONS NO. 21 CFR

1040.10, CHAPTER 1, SUBCHAPTER J.

FCC WARNING (For the U.S.A.)

This equipment may generate or use radio frequency

energy. Changes or modifications to this equipment

may cause harmful interference unless the

modifications are expressly approved in the

instruction manual. The user could lose the authority

to operate this equipment if an unauthorized change

or modification is made.

NOTE :

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This

equipment may cause harmful interference to radio

communications, if it is not installed and used in

accordance with the instructions. However, there is

no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– –

Reorient or relocate the receiving antenna.

– –

Increase the separation between the equipment

and receiver.

– –

Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

– –

Consult the dealer or an experienced radio / TV

technician for help.

Location: Back Panel

Manufactured under license from Dolby

Laboratories. “DOLBY” and the double-D symbol are trademarks of

Dolby Laboratories.

Manufactured under license from Digital Theater

Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380,

5,978,762 and other worldwide patents issues and pending. “DTS”

and “DTS Digital Surround” are registered trademarks of Digital

rights reserved.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,

4,819,098, and 4,907,093 licensed for limited viewing uses only.

This product incorporates copyright protection technology that

is protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation

and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

Consumers should note that not all high definition television

sets are fully compatible with this product and may cause artifacts

to be displayed in the picture. In case of 525 progressive scan

picture problems, it is recommended that the user switch the

connection to the “STANDARD DEFINITION” output. If there

are questions regarding our TV set compatibility with this model

525p DVD player, please contact our customer service center.

As an ENERGY STAR® Partner,

Kenwood Corporation has deter-

mined that this products meets the

ENERGY STAR® guidelines for en-

ergy efficiency. This product can save energy. Saving

energy reduces air pollution and lowers utility bills.

Other Information

Chapter 7: Other Information

A warning is displayed on the TV screen and play-

back is not possible.

¶The reproduced video may be disturbed or audio may

be skipped when the disc surface is stained with fin-

gerprints or dirt. Clean the disc surface by wiping it in

the radial directions using a soft cloth. ∏

¶If the disc is placed obliquely or on another disc, place

the disc correctly. ¡

¶Playback may be unavailable due to viewing restric-

tion or region code problem. 6u

The top and bottom edges of the picture are cut off.

¶The video format of the played disc does not match

that of the connected TV. 7

VCD cannot be played with menu playback.

¶Menu playback is not available when P.B.C. is Off or

the sequential play mode of the player is set to

"SEQ.2". ∞

¶Menu playback is possible only with P.B.C.-compat-

ible VCDs. ¢

DVD VIDEO cannot be played.

¶DVD VIDEO cannot be played when the sequential

mode of the player is set to "SEQ.2". Switch it to

"SEQ.1". ∞

Subtitles are not displayed.

¶Subtitles are not displayed when the played DVD does

not contain the recording of subtitles.

¶The subtitle language is set to "Off". ﬂ‰

Audio (or subtitle) language cannot be changed.

¶The language cannot be switched when the played

DVD does not contain the recording of multiple au-

dio (or subtitle) languages. ﬂ´‰

Viewing angle cannot be changed.

¶The viewing angle cannot be switched when the played

DVD does not contain the recording of multiple angles.

The viewing angle can neither be switched in part

where no angle is recorded. ‡

Symptoms and Treatment

Playback starts but the video is not output.

¶The Pure Audio function is set to on. ¶

¶The input selection of the TV and/or AV amplifier is

incorrect or these devices are not turned on.

¶Connection cords are connected improperly.

Playback starts but the audio is not output.

¶ The "Speaker Setting" is incorrect. Y

¶The input selection of the TV and/or AV amplifier is

incorrect or these devices are not turned on.

¶The volume of the TV and/or AV amplifier is not ad-

justed properly.

¶Audio output cords are connected improperly.

The picture is disturbed during forward search or

reverse search.

¶The picture disturbance during forward search or re-

verse is normal. This is not a malfunction.

The picture is not neat or the video or audio quality

is poor.

¶Connection cords are connected improperly.

¶A device generating noise is installed near the signal

path.

¶The disc is dirty or damaged. To prevent this, remove

dirt and handle discs carefully so as not to damage

them. ∏

¶There may be condensation of dew on the optical

lenses. In this case, leave the player with power ON

for a few hours to dry up the condensation, then retry

operation. ∏

It takes long time before playback starts.

¶The disc type should be detected and motor rotation

stabilized before starting playback. This is normal and

not a malfunction.

The viewing restriction (Rating) cannot be changed.

¶If you have lost the password, initialize the default

setting by the user to the factory setting as described

below.

While holding the 7 button on the main unit, press

the POWER button. When the display shows "INIT

OK!", switch the power on again. ∏

The selected audio or subtitle languages is not

played.

¶If the played DVD does not contain the default lan-

guage set by the user, the priority language specified

for the disc will be selected. ´‰

The TV screen does not show any message when a

button is pressed.

¶If "On Screen Message" is set to "Off", switch it "On".

The messages in the menus are not displayed in the

selected language.

¶If the played DVD does not contain the recording of

the default language set by the user, the priority lan-

guage specified for the disc will be selected. ´

Other Information

Chapter 7: Other Information

Remote control with the joystick remote is

impossible.

¶The batteries are exhausted.

¶The controller position is too apart from the remote

sensor, the control angle is deviated or there is an

obstacle between the remote and remote sensor.9

¶The mode switch is not set to the proper position.

& to *

An inhibition icon is displayed and no operation is

accepted.

¶The operations of certain DVDs and VCDs are restricted

by the intention of the software producers. Such discs

should be operated in accordance with the software.

Operations may also be restricted depending on the

player status.

DVD playback cannot be stopped by pressing the

STOP button.

¶With certain DVDs, the inhibition icon is displayed

and playback cannot be stopped even when the 7

button is pressed. In this case, press the DISC SKIP

button to select another disc then press the 7 button

to stop playback.

If there is only one disc in the tray, open the tray, place

another disc, close the tray, press the DISC SKIP

button to select the second disc, then press the 7

button to stop playback.

Other Information

Chapter 7: Other Information

Glossary

DVD (Digital Versatile Disc): DVD VIDEO is a disc

featuring high video/audio quality, made possible by

large recording capacity of video and audio signals

of movie software, etc. and by digital signal process-

ing. DVD AUDIO has been desired to provide even

higher audio quality than DVD VIDEO by using high-

bit, high sampling rate processing.

VIDEO CD (VCD): This is a CD containing moving pic-

ture. By compressing video data to about 1/120 and

audio data to about 1/6, a 12 cm disc with the same

size as ordinary music CD can store moving pictures

and audio for up to about 74 minutes.

The VCD includes the P.B.C.-incompatible discs with

only the playback capability (Version 1.1) and P.B.C.-

compatible discs with the menu playback and spe-

cial playback capabilities (Version 2.0)

MPEG (Moving Picture Expert Group) (DVD, VCD):

A digital video and audio compression and decom-

pression system which is standardized as an interna-

tional standard.

Decoder: A device for restoring standard audio signal

from audio data recorded based on coding into DVD

data, etc. This processing is referred to as decoding.

Downmixing: Conversion of multichannel audio sig-

nals of DVD or DTS-CD into 2-channel stereo sig-

nals.

Sampling rate: Sampling refers to converting an ana-

log signal into digital signal by slicing the analog sig-

nal into fine parts at a certain time interval and digi-

tizing every sliced part. The sampling rate is the count

of slicing per second. The original sound can be re-

produced more faithfully when the sampling rate is

higher.

Quantization bit: The quantization bit count refers to

the number used in digitizing the sliced parts ob-

tained by slicing the analog signal as described above.

The quantization bit count is the number of bits used

in digitization per second. The original sound can be

reproduced more faithfully when the quantization

bit count is larger.

Linear PCM (Pulse Code Modulation): Audio signal

format without using compression. In the DVD which

has a very large disc capacity, the linear PCM signal

using high sampling rate can be recorded.

Packed PCM : The packed PCM(P.PCM) signal is ob-

tained by compressing the linear PCM signal featur-

ing large data amount and high sampling rate. With

this compression, the signal before compression can

be restored perfectly.

Bitstream (DVD): This is the generic name given for

the flow of data based on a standard such as Dolby

Digital, DTS, MPEG, etc.

Dolby Digital: A digital audio compression technology

developed by Dolby Laboratories, Inc. It is compat-

ible with 6-channel surround audio as well as 2-chan-

nel stereo, and capable of recording a large amount

of audio data efficiently in a disc.

DTS : Digital surround system developed by Digital The-

ater Systems, Inc.

Title/Title No. (DVD VIDEO): The title is the largest

unit of video or audio recorded in DVD VIDEO. Usu-

ally, a title corresponding to a movie product with

video software or an album (or a piece of music) with

music software. The numbers assigned to the titles

are referred to as title numbers.

Chapter/Chapter No. (DVD VIDEO): The chapter is a

partition of video or audio that is smaller than the

title. A title is composed of multiple chapters. The

numbers assigned to the chapters are referred to as

chapter numbers.

Group/Group No. (DVD AUDIO): The group is the

largest unit of the contents in DVD AUDIO. Usually,

a group corresponds to an album. The numbers as-

signed to the groups are referred to as group num-

bers.

Track/Track No. (DVD AUDIO, VCD, CD): The track

is a partition of audio (such as a piece of music or

music chapter) in a disc. These partitions are num-

bered and the numbers are referred to as track num-

bers. While a track usually corresponds to a piece of

music with DVD AUDIO or ordinary music CD, the

partitions of contents and track numbers are not al-

ways corresponding with VCD. As a result, while all

of the playback operations including track skipping

and programming of ordinary music CD are based

on the track number information, such operations

may sometimes be unavailable with VCD.

AVTT (Audio Video Title): Part of DVD AUDIO that

contains moving pictures. The audio language, sub-

title language and viewing angles in this part can be

switched by the user.

AOTT (Audio Only Title): Part of DVD AUDIO that

contains audio and still pictures. The audio language

and still pictures in this part can be switched by the

user.

Subtitle language (DVD): Some DVDs contain the re-

cording of multiple subtitle languages. This player

allows the user to select desired one of the recorded

subtitle languages during playback of such a DVD.

Other Information

Chapter 7: Other Information

Angle (DVD): Some DVDs contain the recording of

multiple viewing angles. This player allows the user

to select desired one of the recorded angles during

playback of such a DVD.

Audio language (DVD): Some DVDs contain the re-

cording of multiple audio languages. This player al-

lows the user to select desired one of the recorded

audio languages during playback of such a DVD.

Aspect ratio: The ratio between the horizontal and ver-

tical sizes of picture displayed on a TV screen. The

aspect ratio of ordinary TV is 4:3, and that of

widescreen TV is 16:9.

Pan & scan (DVD): Method of displaying a horizon-

tally-long picture recorded in 16:9 aspect ratio on a

4:3 TV screen by trimming part of picture.

In general, the trimming positions for pan & scan are

determined uniformly by the reproducing device.

However, the pan & scan of DVD allows the software

producer to specify the trimming positions to be used

in playback.

Letterbox (DVD): Method of displaying a horizontally-

long picture recorded in 16:9 aspect ratio on a 4:3 TV

screen by attaching bands at the top and bottom of

the screen and displaying the horizontally-long pic-

ture at the center of screen.

Frame (DVD, VCD): Each frame of a moving picture,

that is displayed 30 times a second with NTSC and

25 times a second with PAL. These TV formats repro-

duce moving pictures by displaying still pictures se-

quentially.

Field (DVD, VCD): Part of a frame obtained by divid-

ing the video data of each frame by two. Each frame

of ordinary TV is constituted by displaying the fields

alternately.

Frame still/Field still (DVD, VCD): Types of still pic-

tures obtained by temporarily stopping a moving pic-

ture. The frame still picture may produce blur in the

picture because it displays two specific fields alter-

nately, but the picture quality is higher. The field still

picture has lower picture quality because it uses half

the picture information of frame still, but is not ac-

companies with picture blur.

IPB display (DVD): With the MPEG2 which is one of

the video display methods of DVD, each picture is

divided into the following three picture types before

being coded in digital signal.

I-picture (Intra coded): This is the standard video

and can constitute a picture by itself. As the highest

picture quality can be obtained, the still image of I-

picture is most suitable for use when adjusting the

picture quality.

P-picture (Predictive coded): Picture calculated

based on past pictures (I-picture or P-picture).

B-picture (Bidirectionally predictive coded): Pic-

ture calculated by comparing the previous and next

pictures (I-pictures or P-pictures). This picture type

contains least amount of video information.

P.B.C. (PlayBack Control) (VCD): VIDEO CDs carry-

ing messages such as "Playback Control Capable" can

be played interactively by selecting the desired play

position or information in hierarchical structures

while watching the menus displayed on the TV screen.

OSD (On-Screen Display): OSD is a method of inter-

active operations using the menus and icons displayed

on the TV screen.

On-Screen Message: Message displayed on the TV screen

when an operation is performed.

Downconversion: Conversion of PCM signal with high

sampling rate such as 96 kHz and 192 kHz into a

signal with a sampling rate of 48 kHz or 44.1 kHz.

Dynamic range: Difference between the minimum re-

producible audio signal and maximum reproducible

audio signal.

Other Information

Chapter 7: Other Information

Video Section

Video output format ........................................ PAL/PAL60*/NTSC*

...................................................... (*NTSC disc play only)

Composite video output level ................................... 1 Vp-p (75 Ω)

S-video output level

(Y-signal) .............................................................. 1 Vp-p (75 Ω)

(C-signal) ...................................................... 0.286 Vp-p (75 Ω)

Component video output level

[For Europe and U.K.]

(Y-signal) .............................................................. 1 Vp-p (75 Ω)

(CB-signal) ......................................................... 0.7 Vp-p (75 Ω)

(CR-signal) ......................................................... 0.7 Vp-p (75 Ω)

Component video output level

(Interlace/”Black Level Setup”=7.5 IRE)

[Except for Europe and U.K.]

(Y-signal) .............................................................. 1 Vp-p (75 Ω)

(CB-signal) ....................................................... 0.68 Vp-p (75 Ω)

(CR-signal) ....................................................... 0.68 Vp-p (75 Ω)

RGB output level (SCART) ...................................... 0.7 Vp-p (75 Ω)

Video signal to noise ratio ....................................................... 65 dB

Horizontal resolution ......................................................... 500 lines

Format section

Format ............................. DVD audio ver. 1.2 / DVD video ver.1.1

Laser ............................................................. Semiconductor laser

Audio section

Frequency response

Sampling frequency: 44.1kHz (CD only) ........... 4 Hz~20 kHz

Sampling frequency: 48 kHz ............................... 4 Hz~22 kHz

Sampling frequency: 96 kHz ............................... 4 Hz~44 kHz

Sampling frequency: 192 kHz (DVD AUDIO only)

........................................................................ 4 Hz~88 kHz

Signal to noise ratio ............................................. More than 120 dB

Dynamic range ..................................................... More than 100 dB

Total harmonic distortion ..................... Less than 0.003 % (1kHz)

Channel separation .................................. More than 95 dB (1kHz)

Analog output level/impedance

MIX LINE OUTPUT ................................................... 2 V/ 510 Ω

6 CH. OUTPUT ........................................................ 2 V / 510 Ω

Digital output level/impedance

COAXIAL ............................................................ 0.5 Vp-p/ 75 Ω

OPTICAL (Wave length 660 nm) ............... -21 dBm ~ -15 dBm

Headphone output ........... 30 mW/ 32 Ω load (Phones level MAX)

KENWOOD follows a policy of continuous

advancements in development. For this reason

specifications may be changed without notice.

Sufficient performance may not be exhibited at extremely

cold locations (Where water freezes).

Specifications

Laser Section (DVD)

Wavelength .................................................................. 643 ~ 683 nm

Laser power class ............................................................ class 2 (IEC)

General Section

Power consumption ................................................................. 40 W

Dimensions ............................................... W : 440 mm (17-5/16”)

H : 127 mm (5”)

D : 410 mm (16-1/8”)

Weight (net) ................................................................. 6.8 kg (15 lb)

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the

space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or

service on this product.

Model Serial Number

Kenwood DV 5700 User Manual To The 673820f5 3406 4d34 8c6b 03d3586000ec

Navigation menu

Versions of this User Manual:

Views

Navigation
