4 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

IN-DASH CD RECEIVERS

Listen closely. You can almost hear the competition sweating it out. With

better receivers priced below $250 (where most of the business is), we’re

squishing the other guys like bugs, and connectivity features they’re just

rolling out are “been there, done that” for Kenwood.

Most Kenwood receivers and all eXcelon receivers include the kind of

features and connectivity you’ve come to expect like WMA, MP3, AAC

file compatibility, USB connectivity, front or back aux inputs, and satellite,

Bluetooth, and HD Ready. Heck, even our entry-level Kenwood models

include front Aux and RCA pre-outs with crossovers. This year, we’re

tilting the scales with things like built-in Bluetooth and wireless music

streaming, FL full-dot displays with four lines of text, interactive lighting,

and 1-wire iPod connection.

Selling CD Receivers is all about

connectivity, and connects

like Kenwood!

Bonus Round! Don’t forget that every receiver in our 2008 line-up

has aux inputs, 50W x 4 MOSFET power, at least one set of RCA pre-

outs, and low-pass filters.

Salute the KDC-X991 and KDC-BT838U Flagships!

The KDC-X991 is back by popular demand with a modification that will

allow the unit to accept our new 1-wire iPod connection (we’ll cover the

1-wire iPod connection later). This all-digital platform receiver is for cus-

tomers who crave high-end audio and rely on the advice of a trusted

In case your boss gives you a pop quiz, here’s

a little cheat sheet for 2008 Kenwood receivers:

• Built-inBluetoothmodule(KDC-BT838U)

• AllModelswithUSBDirectControlhave1-wireiPodconnection

• BluetoothcompatibilitywithA2DPmusicstreaming

(KDC-MP238 and up)

• Auxinputonallunits,frontauxonentrylevelunits

(customers love that!)

• Interactivelightingeffect(KDC-MP538Uandup)

• Steeringwheelremotecontrolinterface

(KDC-MP438U and up)

• Newflipfacemechanism(KDC-MP638Uandup)

• 3-linefulldotdisplays(KDC-BT838U,KDC-MP538U)

Key features to remember about

2008 eXcelon receivers:

• USBDirectControland1-wireiPodconnection

• Highvoltagepre-outs(front,rearandsub)

• SystemQ-EX/E’s+

• Bluetoothcompatibilitywithmusicstreaming

• Steeringwheelcontrolinterface

• BlueIlluminationEffect

• 24-bitDtoAconverters

• Newflipfacemechanism(KDC-X991ismotorized)

• GraphicMotionAnalyzer(KDC-X991andKDC-X792)

• 2-yearwarranty

IN-DASH CD RECEIVERSIN-DASH CD RECEIVERS

WWW.KENWOODUSA.COM IN-DASH CD RECEIVERS 5

dealer.Besuretotakethetimetoexplainthefeaturesofthisamazing

piece,like USBDirect Control,SystemQ-EX, 3gold-plated RCA pre-

outs(5V)withHPF&LPF,DSP,4-BandparametricEQ(front&rear),

and 512MB internal storage.

In addition to being the tightest in-dash

receiver ever built, the KDC-X991 can rip

regular CDs to WMA format and copy USB

data to its built-in 512MB ash memory.

A Little DAP Will Do

The KDC-X991’s Digital Audio Platform (DAP) lets users tailor the sound

to their car to create an exceptional front soundstage and very well-de-

fined center image. The DSP portion also features audio enhancements

like SRS WOW HD for clarity and acoustic presence, a sound manage-

ment system, 5-channel digital time alignment, and high performance

audio capacitors. Remember, a big bonus of the DAP is that it can rip

regular CDs to WMA format and copy USB data to its built-in 512MB

flash memory. You can do this while you’re playing tunes, and you can rip

in real time while you’re listening to your music from CD.

OEL Is Not

Your Average Display

The bright 4096 color customiz-

ableOELdisplayisarealeye-catcher,especiallywithGraphicMotion

Analyzer,andit’seasytoseeeveninbrightdaylight.Itprojectsbright,

vivid colors, responds faster than conventional LCD displays, and OEL

is a very efficient, self-emitting device that will project uniform brightness

acrosstheentiredisplay.CombinetheOELdisplaywithourcustomized

motiongraphicsandcustomersseedigitalimageswithamazingclarity.

The Receiver that Swallowed Bluetooth®!

The KDC-BT838U with built-in Bluetooth module and in-

teractive lighting effect is turning more heads than a swim-

suit model. Beautiful inside and out, the KDC-BT838U

includes our KCA-BT200 Bluetooth hands-free cell phone module with

Parrot technology. All your customer needs is a Bluetooth compatible

phone and away they go.

The KCA-BT200 incorporates Parrot technology that offers some excit-

ingfeatureslikeA2DPmusicstreamingandtextmessaging.Nerdofthe

year award goes to this acronym, but A2DP is cool. Basically, it’s a profile

that defines how high quality audio (stereo or mono) can be streamed

from one device to another over a Bluetooth connection, like music

streamed from a mobile phone to a Kenwood head unit. (All of our 2008

Digital SRS WOW offers 10 adjust-

ment levels and enhanced adjust-

ments for TruBass with separate

front and rear settings. Having sepa-

rate front and rear TruBass settings is great for systems with

a subwoofer because it can be used on just the front speak-

ers, creating a strong presence for the bass. This will make the

bass sound more like it’s coming from the front of the car, which

integrates the bass better with the rest of the sound.

Time Alignment—Find Your Sweet Spot

You’ve probably heard the term “sweet spot,” which refers to

the most optimum seat or position in which to listen to audio.

The home theater guys have the luxury of space, but a car’s

interior is difficult to manipulate to find the sweet spot. Achiev-

ing a good soundstage is tough because some speakers are

close and some are further away. Vocals can smear, and the

soundstage can be undefined or inaccurate. Time Alignment on

the KDC-X991 fixes this and lets you and your customers adjust

their vehicle speaker distance from 0 to 20.3 feet.

Picture Engine

Customized graphics and

personal photos can be

copied to a USB thumb drive and downloaded on the KDC-

X991 and KDC-X792’s displays. We also offer Picture En-

ginethatletscustomerscustomizewallpaperontheirsingle

DIN Kenwood displays. The picture engine website is at

http://www.kenwood.net-disp.com

The KDC-X991 uses O.D.D. (Offset Dual Differential) that cre-

ateshighqualitysoundbyeliminatingthedigitaldistortion/noise

in the digital-to-analog converter. O.D.D. uses two sets of 24 bit

D/Aconverterswithoneslightlyoffset.Whenthesesignalsare

recombined, the digital noise is greatly reduced, making this

one of the best sounding digital-to-analog converters out there.

6 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

Bluetooth Ready receivers have music streaming capability, which we’ll

cover in the section on our new KCA-BT200 hands-free unit.)

The KDC-BT838U includes an external microphone that can be mounted

away from noisy dashboards. Some radios have the microphones built

intothefaceoftheradiowhereitcanpickupambientnoiseslikeheater/

AC vents. And don’t forget to remind customers that many states are

cracking down on using hand-held cell phones while driving, making the

KDC-BT838U an ideal all-in-one unit.

Other features you’ll find on the KDC-BT838U include 3-line text, full

dotdisplay,interactiveilluminationeffect,spectrumanalyzer,USBDirect

Control, 1-wire iPod connection, Kenwood Music Editor, 3 RCA pre-outs

(2.5V) and a multi-control wheel that makes finding music fast and easy.

It’s A Better Way to Play

The ability to have high-speed control of iPods or

other music media devices and control them directly

from the receiver is a great selling feature. Kenwood saw the value of USB

connection long before our competitors got on board, and

we offer USB Direct Control on models across the board (not

just as a step-up feature). Front or rear-mounted USB inputs

are on all 2008 eXcelon head units and Kenwood receivers

offer this feature on the KDC-MP438U up.

Inaddition,Kenwood’sUSBControlisthespeediestconnectionintown

(12 MB/bps). Be careful, however, to inform customers that our USB

High Speed Control (and the ability to control iPod functions through the

receiver),referstofifthgeneration(Nano)devicesthathaveadopteda

USB“control”protocol.Mostcustomerswillhavenewer5Gs;however,

customers with older iPods should know the facts.

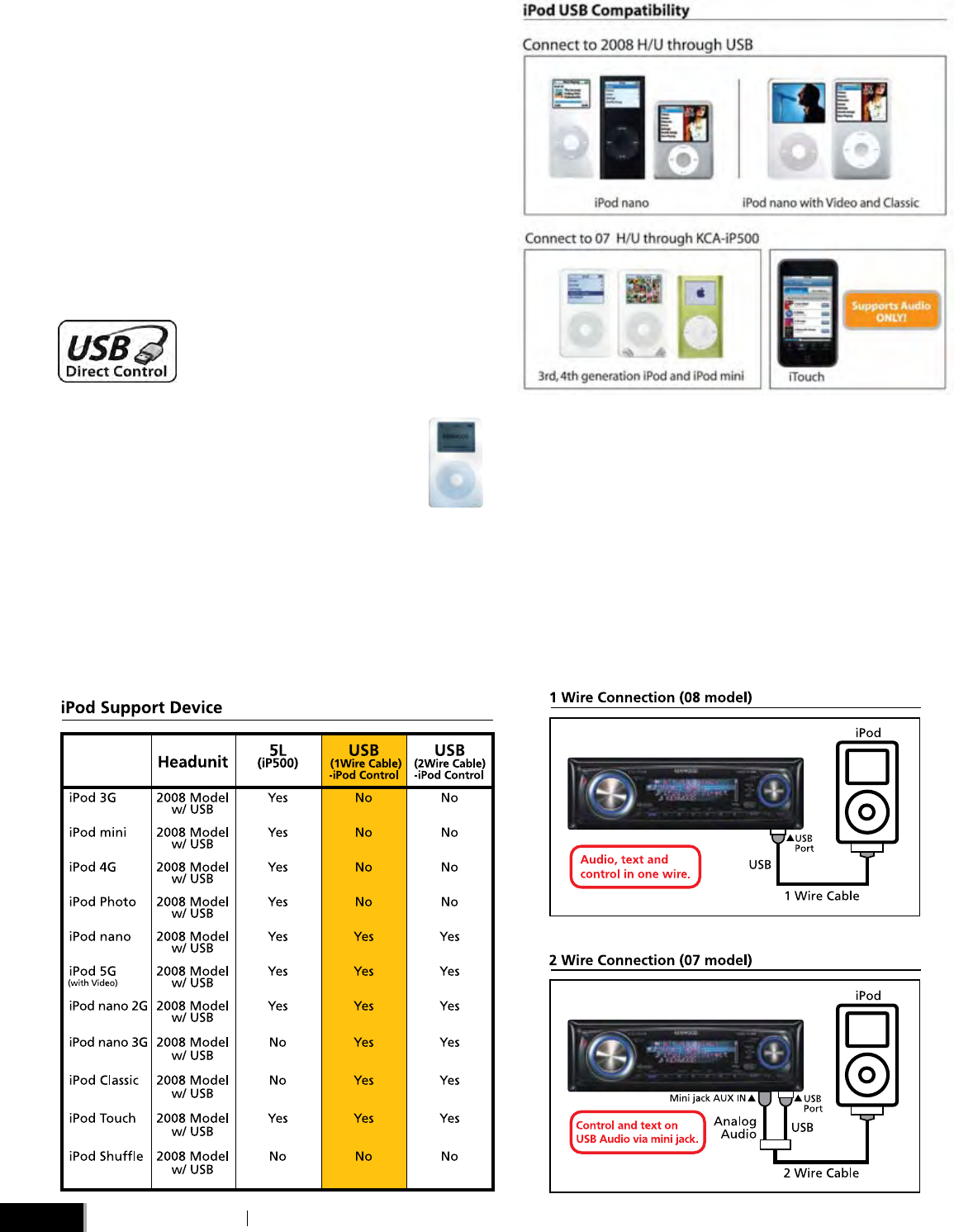

1-Wire High Speed iPod Control

All Kenwood and eXcelon head units with USB Direct Control include our

new 1-wire iPod connection feature. Our training crew is giddy about this

one because 1-wire iPod connection allows customers to use the USB

cablethatcomeswiththeiriPod.NowyoucantellMr.“I’mnotbuyingany-

thing extra” that when he purchases a 2008 Kenwood or eXcelon receiver

with USB Direct Control, he can plug in his iPod and control it directly from

thereceiver.Nofuss,nomuss!Noextrado-dadsorcablestobuy—just

the receiver and that little white iPod USB cable that came in the fancy

iPod box. Again, be sure to remind customers that this feature only works

onthenewer(5thgeneration)iPods.Nospecialdownloadsarerequired

but customers should make sure the software on their iPod is up to date.

WWW.KENWOODUSA.COM IN-DASH CD RECEIVERS 7

While the USB cable that comes with the iPod works just fine,

it’s not an automotive-rated device and isn’t designed to

withstand the hot temperatures of a car interior.

We recommend your customer use our KCA-

iP100iPoddirect1-wirecable.It’sinexpensive and

and it can take the heat.

Inadditiontotheconvenience,thereareaudiobenefitsto1-wireiPod

connection. Because the audio signal leaves the iPod as a digital signal,

the D to A conversion takes place on the high quality D to A converters in

the Kenwood head units as opposed to the D to A converter in the iPod.

Most other manufacturers are still using the old analog serial bus cables

which are not as fast and offer ho-hum sound quality.

Think Outside the Port

USB direct connect works on iPods and media devices but there are

other benefits. The USB input is also a power source that can charge cell

phones, Palm Pilots, Bluetooth headsets and can even work on in-car de-

vices like mini coolers and portable fans (the limit is 500mV of current).

Enough with the One Liners

Kenwood is leading the pack with dis-

plays that are better in color, readability, and functionality. Many Ken-

wood and eXcelon head units offer 3 or 4 lines of text that make it easier

for customers to use. Our competitors are offering one and two lines of

text, but when you think of all the stuff folks are using with their head units

thesedays—cellphones,satelliteradio,Bluetoothadaptors—twolines

just ain’t enough.

Display and Amplifier On and Off Function

With the exception of the KDC-X991, all models KDC-MP338U or higher

include an optional display off function that temporarily turns off the display

when buttons are idle. Anytime the display senses idle time (not pushing a

button), it turns off, but the lighting surrounding the radio stays on. This is a

great feature at night when you don’t want the lights on but need to see the

radio to operate it. As soon as you operate the radio, it lights back up!

Amplifier Shut off

Amplifier shut off is available on KDC-MP438U and higher and can be

adjustedinthestand-by.Ifyouareusingtheradioasapreampheadunit

with amplifiers, it helps reduce noise and keeps the radio cooler because

theinternalamplifierisnoton.Ifit’snotbeingused,whyturniton?

External Media Control

With the exception of the KDC-MP208 and KDC-138, all 2008 Kenwood

receivers have External Media Control for iPod connectivity with the

KCA-iP500 iPod interface. The Kenwood receiver’s disc up and down

buttonselectsplaylists;theScanbuttonchangesthesearchmode,Play-

list,Artist,Album,andGenre.InadditiontoiPodconnectivity,External

Media Control allows hook up of satellite and HD Radio. (Keep in mind

that units with USB inputs offer superior iPod control.)

Our PC Is PC

Kenwood’s PC Editor (Music

Editor) program is included in the KDC-X991 and Ken-

wood models KDC-MP538U and higher. This year

we’re doing something different and including the

owner’s manuals on disc for models that have the

PC Editor disc. We figure the disc is already in

thebox,sowhynotsaveatreeortwo?

Music Editor is an optional PC desktop program

that allows you to search, manage and select

music files from your PC, so no matter what

you’re in the mood to hear, Kenwood makes it even

easier to find. Original desktop software, Kenwood Music Editor

performs powerful search functions on USB mass storage

devices or portables that can be configured as mass storage

devices.SearchformusicfilesfromyourentirePClibrary;

searchbyGenre,Artist,AlbumandPlaylist.KenwoodMusic

EditoralsoincludesPlaylistGenerationtechnologythatana-

lyzeseachsongbasedonthetempoandcategorizesthem

into familiar genres like Pop, Rock, etc.

TheKCA-iP200cableisstillavailableforcustomerswith2007

Kenwood head units. This inexpensive 2-wire cable enables high-

speediPoddataat12MB/bpsandhasa30-pincablethattermi-

nates at the receiver by USB and stereo mini.

Once connected, digital control, text

from the files, etc., passes through

USB;theaudiopassesthroughthe

analog (stereo mini) cable.

IfacustomerhasanolderiPodthatcan’tbecontrolledbyourUSB,

they can purchase the KCA-iP500 that plugs into our 5L changer

bus.Ifheorshewantstobuyaunitthatdoesn’thaveUSBcontrol

like the KDC-MP338 or KDC-MP238, they’ll need the KCA-iP500

as well. This adapter is one of the smallest and easiest to connect

onthemarket.ItplugsintothechangerportofKenwoodradios

2002 and newer. Our iPod adapter doesn’t require extra

power and ground connections, so it’s easy to

install.(Note:theKCA-iP500does

not have a pass through for other 5L

connected devices.)

8 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

It’s Lava Lamp Kind of Cool

Kenwood models with 3-line full dot display (KDC-

BT838U and KDC-MP538U) include an interactive

illumination that gives the radio a smooth, relaxing

blue glow. (This feature is actually on all radios from

the5seriesup;however,the5and8serieshave

moreillumination.)Itnotonlylookscoolindashandonthesalesfloor,it

enhances user operation by illuminating each time you turn the volume,

trackforwardorbackward,etc.Iflightingisn’tyourcustomer’sthing,you

can adjust the setting in the standby mode menu. Blue illumination is also

offered on the KDC-MP438U and KDC-X492 surrounding the front USB

and aux input ports (a handy feature while driving at night).

All Kenwood and eXcelon in-dash CD re-

ceivers include either front aux or back aux

inputs. Rear Aux inputs are for customers

who prefer a cleaner look and would rather

tuck their media devices in the glove box than connect it directly to the

front of the receiver. Customers love the aux input feature because it

offers so much flexibility when connecting auxiliary audio devices like

iPods, MP3 players, video game systems, rear-seat video systems, and

more.

The Dr. Phil of Aux Inputs

Our Aux connections are sensitive and can change the volume or input

level according to the device being plugged into the radio. The output

levels of most portable devices connected to the aux terminal are low

becausetheyareadjustedforheadphones.Inordertore-adjustthis,we

added an input sensitivity adjustment function. This allows the input to be

gainedupordowntomatchothersources.How’sthatworkingforya?

Multi-Control Wheel

All eXcelon receivers and Kenwood receivers from the

KDC-MP438Uutilizeaneasy tooperatemulti-control

knob. On the KDC-X492 and KDC-MP438U, it’s com-

bined with the volume control. On receivers above

these models, it functions as a separate knob. Search by turning the

knob/jog,thenpushintheknob.It’sveryeasyandintuitive!

Eyes on the Road, Hands on the Wheel

All 2008 Kenwood models KDC-MP438U and up (and all eXcelon

units)includeahard-wiredIRinputthatmakesiteasytointerfacewith

your customer’s existing steering wheel control. The input interfaces

withthePAC(SWI-JAK)andPeripheralsteeringwheelcontroladapters

Previous Flip Models

Previous models had two motions for opening the panel.

2008 Flip Models

This year’s flip models have only one motion for the opening panel.

New Mechanism to Flip Over

Kenwood and eXcelon 2008 models with flip down removable

faceplates are redesigned for quick and easy removal. Our pre-

viousmodelshadtwomotionsforopeningthepanel;2008units

onlyhaveonlyonemotion.It’squieterandsmoothertoo!

Interactive Lighting

The lights surrounding the knobs flash when

operating.Justtheknobbeingusedflashes.

Found on models 5 series and higher (except KDC-X991)

These lights can be turned off

The lights surrounding the knobs flash (5 seconds) when in

modesoroperating.Justtheknobbeingusedflashes.

WWW.KENWOODUSA.COM IN-DASH CD RECEIVERS 9

(PESWIAKJC)andgoesfromamulti-wiretoasinglewireinstall.There

isnoexternalIRflashertoinstallandtheadapteralreadyhasKenwood

codes on-board so the programming goes much faster. The OEM Steer-

ing wheel interface can even be used with our KCA-RC50MR in marine

installationswheremultiplemarineremotes(upto6)canbewiredtothe

remote control input. So whether you’re fishing on the bow or steering

her back to port, you can control the radio.

That eXcelon Edge

TheKDC-X991maybeamightytitan;however,theKDC-X792,KDC-

X692,KDC-X592,andKDC-X492sporteXcelonexclusivefeatureslike

special audio-grade capacitors on the power supply that provide stable

current and reduce unwanted engine noise. All eXcelon receivers use

24-bit D-to-A converters, high pass (8 point) crossovers for front and rear,

and5lowpassfiltersfortherear.Inaddition,alleXcelonheadunitshave

a high gloss black finish and the KDC-X592 and higher offer either 3 or

4-line displays.

Don’t forget that all eXcelon CD receivers play AAC, MP3, WMA files,

have high-voltage pre-outs, USB Direct Control, 1 Wire Direct iPod Con-

nection,auxinputs,SystemQEX/E’s+,andaresatellite,Bluetoothand

HD Radio Ready.

The KDC-X792 has a few tricks up its

sleeve, like a high-resolution (64-color full

dot) customizable display. This unit also

includes RDS technology and Kenwood’s

exclusive Graphic Motion Analyzer.

The KDC-X692’s 4-tone full dot display

makes it easy to browse a song list,

search for a phone number, or read a

short text message.

Graphic Motion Analyzer

GMAisfeaturedontheKDC-X991andKDC-X792andletsdriverssee

the performance of their vehicle on the receiver display. (GMA allows

some performance feedback to be displayed on the screen instead of

standard full motion graphics, but no, it’s not a video game.)

GMA offers five displays:G-Graphicshowslateral(sideways)

movementofyourcarwhileyou’retakingcorners.G-Meterdisplaysa

numericreadoutofG-forceswhileyou’reaccelerating.TurningG-Coun-

tershowsG-forcesforaccelerationovera1-hourtimeperiodandwill

display average past, which, by the way, is a great way to monitor the use

ofyourcarwhensomeone borrowsit. GMA’sbuilt-inmotion-activated

stopwatch can be started and stopped when a key is pressed or when

yourcarexperiencesforwardG-forcesand,horsepowerfunctionmea-

sures and records the max horsepower of your car.

[

High Voltage Pre-outs

Make Bag Pipes Sound Good

The 5-Volt and 4-Volt pre-outs on 2008 eXcelon receivers offer a larger

signal to the amplifiers. The larger signal means that the amplifier gains

don’t need to be turned up as high so music is more dynamic with a lower

noise floor and much cleaner, clearer sound. Take the time to explain this

to a customer and it’ll be simple to step them up to a Kenwood eXcelon

in-dash receiver.

RDS (Radio Data System)

AfeatureontheKDC-X991andKDC-X792,RDSallows

small amounts of digital information to be carried over

conventional FM radio broadcasts. This technology is widely used by the

radio stations, and the benefit of radio with RDS is that it can transmit

thingsliketrack/artistinfoonscreen.

KDC-X592 includes the features of the

KDC-X692 but uses a 3-line full-dot display.

This unit also includes blue illumination

effect that can enhance operation and make

the dullest of dashboards look snazzy.

Demonstrating Graphic Motion Analyzer

ToshowthecustomertheinsandoutsofGMA:

1.Pressthefunction(FNC)keyonthefaceplateto

display the on-screen menu options.

2. Turn the multi-control wheel to Display Select

3. Push in the multi-control wheel knob to select

4. Turn the multi-control wheel to Display Type F

5. Push in the multi-control wheel knob to select

6.Thescreenwilldisplayanimageofavehicle

10 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

The next generation of affordable

eXcelon is the KDC-X492 that includes

a USB Direct Control, 1-wire iPod

connection and illuminated front USB

port and aux input.

KDC-X492: Amazing and Moderately Priced

Last year’s KDC-X491 was a big hit with dealers because it offered many

eXcelon step-up features at a price that attracted a broader range of

customers. This year we’re introducing the KDC-X492 with a 14 seg-

ment 13 digital display, 1-wire iPod connection and 3 4V RCA pre-outs.

The KDC-X492 has many of the features of its eXcelon older brothers

but is slot-loaded instead of flip down faceplate. Similar to the Kenwood

KDC-MP438U, the KDC-X492 has front aux and USB inputs with blue

illumination and sliding cover.

Kenwood Receivers: We’ll Take Them All On!

There’s a Kenwood receiver for any budget, from the KDC-BT838U Ad-

vanced USB, AAC, WMA, MP3, CD receiver with built-in Bluetooth, to

the easy-in KDC-138 CD receiver with front aux in. Models with USB

Direct Control have 1-wire iPod connection, and Bluetooth compatible

head units are ready for our new hands-free cell phone unit with A2DP

musicstreaming.Interactiveilluminationcanbefoundonseveral2008

models, and we even added a steering wheel remote control interface on

the KDC-MP438U and up.

OurKDC-MP738Uincludesa64-colorfulldotdisplay,USBDirectCon-

trol, 1 Wire iPod direct Connection, Supreme technology for compressed

audio, Kenwood’s Music Editor for PC, and a multi-function control wheel

that makes finding your entertainment easier than ever.

One of the lowest priced receivers

with a high-resolution display, the

KDC-MP738U features the Multi-Control

wheel for easy operation and plays

AAC, MP3, and WMA les.

The KDC-MP638U includes the features

of the KDC-MP738U but uses a 4-tone full

dot high-resolution mono color display.

Activating Aux Inputs on 2008 Receivers

The aux input comes in the OFF position from the factory and will

not be seen as a SOURCE until activated. All aux inputs (RCA

type or 3.5mm type) need to be turned on. When the aux input is

activated, it will appear as a SOURCE along with Tuner, CD, or

SAT.Forexample:

To Activate the aux input:

1.PushtheSRCbuttonuntiltheunitisinSTANDBYmode.

2.HolddowntheMENUbuttonuntiltheMENUisaccessed.

3. Use the multi jog control to toggle up or down until AUX Off appears.

4. Press the multi jog control to the right until AUX On appears.

5. Press the SRC button.

*Head-units with Soft key interface use the Function button to access the menu.

To Adjust aux input volume:

Theauxinputcanbedecreased-8dBorincreased+15dBtocom-

pensate for wide range of voltage and output by portable devices.

1. Press the SRC button until AUX appears.

2. Press and HOLD the Volume knob in until the Audio settings appear.

3. Use the multi control wheel jog to toggle up or down until V Offset

appears.

4. Turn the Volume knob until the desired increase or decrease is reached.

5. Press any preset to exit.

AUX 1 and Aux 2

Aux 1 activates the aux in with no adjustments made to it. Aux

2 has the attenuation volume reduction engaged when the user

switches between sources. This is to reduce noise if a device is

not connected to the aux input. You must press the Att button to

reactivate the aux input after it is chosen as a source to listen to

the device.

WWW.KENWOODUSA.COM IN-DASH CD RECEIVERS 11

The KDC-MP538U and KDC-MP438U

are moderately priced models that

offer USB Direct Control, 1-Wire iPod

connection, and 3 RCA preouts. A

unique feature of the KDC-MP438U is

the front USB and aux in with blue

illumination and sliding cover. The

KDC-MP538U uses 3-line full dot

display, while the KDC-MP438U has

a 14 segment, 13-digit display.

Moderately Priced and Still Loaded

Four entry-level receivers are great buys for customers who want an ex-

cellent unit but can’t fork out much cash. The KDC-138 CD receiver has a

front-panel aux input with sensitivity control, subwoofer level control with

bass boost, and even an RCA pre-out that can be used as a full range or

subwooferoutput.Itsbiggerbrother,theKDC-MP208WMA/MP3/CDre-

ceiver, has front panel aux input with sensitivity control, subwoofer level

control with bass boost, RCA pre-out, and includes a remote control. The

KDC-MP208 also includes a 14 segment 8-digit display.

The KDC-MP338 and KDC-MP238 have two RCA preouts and are

Satellite, HD Radio, and Bluetooth Ready. Both have external media

control so you can play and control your iPod with the KCA-iP500 iPod

interface and include Supreme technology for compressed audio files.

The KDC-MP338 even comes with blue illumination around the front

aux input.

Priced to sell, the KDC-MP338 and

KDC-238 are satellite, HD Radio and

Bluetooth Ready.

For customers who want a great radio

at a penny-pincher’s price, our 2008

receiver line includes the KDC-MP208

and KDC-138. Both have a front-mounted

stereo mini aux input for connection to

external audio sources or an iPod and

both offer up 50 Watts x 4 MOSFET power.

Supreme Technology

An exclusive Kenwood technology, Supreme brings

sparkle back to compressed music files by restoring the critical high-

frequency information lost during the compression process. With the Su-

preme function turned on (it’s selectable in the setup Menu), your lower

bit-rate (96 kbps) MP3, WMA, andAAC files will approach the sound

quality of higher bit-rate recordings. Supreme is on all new eXcelon re-

ceivers and all Kenwood receivers above the KDC-208.

Full Range or Switched—Your Choice

The pre-out (rear or single depending on the model) can be full range

or switched to accommodate a subwoofer amplifier. The output has a

selectable low-pass crossover so that if the amp doesn’t have it, or you’d

like to tune the system from the driver’s seat, now you can. The advan-

tage is you can add a subwoofer amp and control it from the radio. This

subwoofer out also includes a level adjustment, so the subwoofer volume

can be adjusted from the radio, too.

12 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

Satellite Radio Options

Whether your customer is an XM fan or loves Sirius, 2008 Kenwood re-

ceivers are ready to play both. All Kenwood eXcelon in-dash CD receiv-

ers are satellite radio ready and other than the KDC-MP208 and KDC-

138, all Kenwood in-dash CD receivers are satellite ready as well.

The overwhelming benefit is the vast number of music streams, sports

stations, and the huge variety of talk programming available. Be sure to

demonstrate Sirius or XM to customers and let them search through and

listen to the different streams. Once they see that they can get all the

entertainmenttheylove,they’llbesold.GettingthesubscriptiontoSirius

or XM is quick. Visit www.sirius.com or www.xmradio.com for more info.

Double the Fun

Our 2008 Kenwood line includes two double DINS, the DPX502 and

DPX302.DoubleDINoptionsmeanabiggercustomerbase,andKen-

wood in-dash models set the standard for performance and function.

Replaceyourcustomer’sfactorydoubleDINwiththeDPX302andthey’ll

enjoy MP3, AAC and WMA playback. Expand the system by adding sat-

ellite radio, an iPod adapter, or even multi-channel HD radio. There’s

even a front aux input. Step up to the DPX502 and gain a front USB

input,USBDirectControl,andKenwoodMusicEditor.BothdoubleDINs

are satellite ready, HD ready, and Bluetooth Ready.

Hands Free and Happy

All eXcelon and most of our Ken-

wood 2008 in-dash receivers are

Bluetooth Ready (it’s built-in on the KDC-

BT838U). Add our optional KCA-BT200 Blu-

etooth hands-free unit to one of our Bluetooth

Ready receivers and your customers will bask in wireless freedom. The

KCA-BT200BluetoothmodulehascallerIDandcanbepairedwithup

to five Bluetooth enabled phones and download each phone’s address

book so they can be stored in your receiver. The receiver’s keys can be

used to dial a number, answer an in-coming call or end a call. The unit

also has a microphone that can be mounted in the dash or headliner, and

you can listen to the conversation through your car’s front speakers. This

hands-free unit dramatically improves the driving experience and pro-

motes driver safety. (Note: Compatibility may vary. Users should always

check their phone and service provider for degree of compatibility. Check

the Kenwood website for the latest compatibility chart.)

KCA-SR50 Kenwood Sirius Radio Translator

For In-dash Head Units In addition to the Sirius tuner, to

add Sirius satellite, your customer will need to purchase the

KCA-SR50. This interface box converts 5L CD Changer Protocol

toSiriusSSP.It’scompatiblewithSCC1tunerandisforusewith

all2008CDReceiversandall2007andsomeolderCDand

video receivers.

WWW.KENWOODUSA.COM IN-DASH CD RECEIVERS 13

The KCA-BT200 has a single 5L changer bus connection as well as a

KAB adaptor cable for the new KAB bus line. This is for our 2008 multime-

diaproducts.Itconnectstocompatiblereceiversusingoursingle-wire5L

bus connection, and even includes a “pass-through” for additional devices

likesatelliteradiooraKCA-iP500iPodinterface.ItalsohasaKABpass

through for other KAB devices. The KCA-BT200 Bluetooth unit is compat-

ible with all eXcelon models and Kenwood models, with the exception of

theKDC-138andKDC-MP208.Note:Theinputsignalhastobethesame

asthepass-through.KABin/KABoutor5linein/5Lineout.

Let’s Talk Parrot

Our KCA-BT200 includes chipsets by Parrot, creators

of some of the most clever wireless chip technologies on

the market. Benefits include updatable firmware for future

phone compatibility, voice tagging, music streaming, text messaging and

control over Bluetooth AVRCP and A2DP. Parrot chipsets embed a power-

ful DSP with a hardware accelerator, have low power consumption, and

offer wide compatibility. They also provide extremely robust voice recogni-

tion capabilities in noisy environments. With voice tagging, you can select

anamefromyouraddressbookandhitrecordandsaythename.Ittags

the address with the name and allows you to dial that person by saying

their name.

Come to the Display Board

Kenwood CD players’ performance and features speak for themselves,

but we’ve given them (and you) a little extra help with a cool demo mode.

Unitswiththebright64-colorfluorescentdisplayscrollthroughfeatures

andevendemographicsacrossthescreen.It’lldefinitelygetyourcus-

tomers’ attention!

High-Pass/Low-Pass Crossovers

All 2008 Kenwood receivers have low-pass filters that allow only low fre-

quencies to go to a subwoofer amplifier. Step up models have high-pass

filters that keep low frequencies from reaching the full range speakers. This

lets you listen to tunes louder with less distortion and reduces the chance

of damage. Also, any Kenwood receiver with built-in electronic crossovers

have either a dedicated or switchable non-fading (subwoofer) pre-out with

a ±15 dB level control. These features make it easy for your customer to

add a subwoofer to the system, giving them control over the sub’s volume

and the ability to improve the system’s sound by experimenting with low-

pass crossover settings, all without having to leave the driver’s seat.

System E’s

System E’s has five high-pass crossover points for both front and rear

independentlyat80,100,120,150, and180Hz.SystemE’salsohasa

low-passfilterat60,80,and120Hz.Ontheunitsthathaveonlyfront

and rear pre-outs, the rear pre-out can be switched to a non-fading sub

out with selectable low-pass filter for this output.

System E’s+

Fortheultimatecrossoverexperience,checkouttheSystemE’s+.Itworks

the same as System E’s but offers more crossover points – eight high-

passandthreelow-pass.IndependentFrontandRearHighPassfilters

selectableat40,60,80,100,120,150,180,220Hzorthroughat12dB

perOctave.Lowpassfilter50,60,80,100,120Hzorthroughat12dB

per Octave.

Digital System E’s +

FoundontheKDC-X991,thisisthesameasSystemE’s+with12high-

pass and 13 subwoofer crossover points and selectable slopes at 12,

18,and24dBperoctave.In-

dependent front, rear high pass

filters and subwoofer low pass

filter selectable at 30, 40, 50,

60,70,80,90, 100, 120,150,

180,220,250Hzorthroughat

12/18or24dBperoctave.

System Q and System QEX

You’ll find powerful sound controls on all Kenwood head units. Even our

entrylevelproducthasSystemQwhichallowsforBass,midrangeand

trebleadjustments.eXcelonproductfeaturesSystemQEXwhichadds

adjustmentofthecenteringfrequency,Q,andeventhelow-endexten-

sion in the bass frequencies. With this much adjustment capability, the

sound can be perfectly tailored to the listener’s taste.

Dual Zone Source & Volume Control

Customers with kids will love the Dual Zone Source and Volume Con-

trol feature found on all eXcelon in-dash receivers, KDC-MP438U and

up in the Kenwood line, and our

DPX502 double din. With Dual

Zone Source and Volume Con-

trol, the kids in the back can

zoneoutoncartoonswhilethe

grown ups listen to tunes.

Calling All Motor Mouths!

Kenwood’s KCA-BT200 hands-free cell phone unit is the perfect

solution for chatty drivers, not only because it has so many cool

features and A2DP music streaming, but because 2008 ushers

in new laws banning the use of hand-held cell phones while driv-

ing.Fivestates(California,Connecticut,NewJersey,NewYork

and Washington), and the District of Columbia have enacted

jurisdiction-wide cell phone laws prohibiting driving while talking

on hand-held cell phones. Our KCA-BT200 lets you make and

receive calls right from a compatible Kenwood receiver, call via

direct dialing, phone book, or history and hear conversations

through your vehicle’s front speakers.

14 IN-DASH CD RECEIVERS WWW.KENWOODUSA.COM

Dual Zone Source Control plays different sources through the front

speakers and the rear speakers at the same time, which is perfect for ve-

hiclesthathaverear-seatvideosystems.Generally,thein-dashsources

are available to play up front, while any sources connected via the 5-Line

(changer) bus or aux input can play in the rear. Remember that activat-

ing Dual Zone shuts the subwoofer off, and SRS WOW has to be off to

activate Dual Zone. Also, it is possible to reverse the sources (play the

in-dashsourcesintherearandthe5-Line/auxinputsourcesinthefront)

via the menu system. All 2008 eXcelon receivers come with a remote

with a Dual Zone button and rear volume control.

Handy Remotes

Don’t forget about the remote controls included with all

eXcelon receivers and all Kenwood in-dash receivers

except the KDC-138. The grip-type line is ergonomic,

sleek, and just large enough that it won’t get swallowed

bycarseats.It’sagreatsalestool,sobesureandhave

one handy and let the customer use it.

Mostofour2008remotemodelsoffera2-zonebuttonandavolumecontrol

fortherearzone.Thisfeatureallowsaudiofromarearvideosourcetoplay

through the rear speakers while the driver listens to a different source in the

front.Havingthe2-zoneandrearvolumebuttonsontheremoteisavaluable

feature because the driver doesn’t have to search through the menu to turn

the feature on and off. With the remote, it’s instant access.

Experience HD Radio

All eXcelon receivers are HD Ready, and with

the exception of our KDC-MP208 and KDC-

138, all Kenwood receivers are as well. Combine a Kenwood HD Radio

Ready receiver with our KTC-HR200 HD Radio Tuner and customers will

experience a new world of digital broadcasting. With HD radio, FM broad-

casts sound is close to CD quality and AM broadcasts sounds close to

current FM analog. HD radio will also display the Artist, Song Title, etc.,

on the receiver’s screen.

Perhaps the coolest feature of HD Radio is multi-casting or the ability

tobroadcasttwoormoreprogramssimultaneously.JustascableTVal-

lowedspecializedlocalnetworks,multi-castingprovidesthepotentialfor

stations to offer more niche programming. Multi-casting is a pretty big deal

because it lets stations tailor broadcasts and gives listeners a much big-

ger variety of programs. For instance, a public radio station can broadcast

morning news on one “channel” and classical music programming on an-

otherchannel.It’sthesameradiostation,thesamefrequencyonthedial,

but multiple options for the listener.

The KTC-HR200 is for use on the 5-Line

for head units and KAB on video units.

It’s compatible with HD Multicasting and

has RDS technology.

Most major markets have local stations

already transmitting in HD Radio, which

means your customer is sure to find either

their favorite morning show, local traffic,

orfavoritelocalDJincrystal-cleardigi-

tal. HD Radio programming content is

the same as its analog counterpart and so is the same broadcast frequency,

but its higher-quality sound and reception are available with no service fees.

KDV-412: Ifyouhavevideoscreensinstalledfortherear-seatpassen-

gers but want to control the system from an in-dash DVD player, the KDV-

412 is a full-featured DVD receiver with 50 x 4 output, CD, MP3 and WMA

playback.It’salsocompatiblewithourKCA-BT200.

With Dual Zone capability, you can send a fixed-level audio signal from the

DVDtotheback-seatmonitors(likeourLZ-702IRwithbuilt-inIRtransmit-

ter), while the front seat enjoys music from satellite radio or an iPod.

Installation

The KTC-HR200 HD Radio tuner is your customers’ gateway to HD

Radioandrequiresonlytwoconnections:a5-Linecablefromthe

receiver’s changer port (or the KAB adaptor included), and a con-

nection to the vehicle’s standardAM/FM antenna. The tuner also

hasapass-throughto connectotheraccessories.Note: theKTC-

HR200 has switches to set it up for either KAB or standard 5 Line

communications. The output can only be used for the same type

ofcommunicationtheinputissetto.(Example:KABin/KABout.)

The KTC-HR200 serves as both the analog and digital tuner for the

connected receiver, and it switches seamlessly between both types

of reception as required. The customer can also manually switch

between broadcast reception modes in the in-dash receiver’s menu

system: Auto Mode allows the KTC-HR200TR to automatically

switch between analog and digital reception depending on what the

stationisbroadcasting;DigitalModewillonlyreceivedigitalsignals;

Analog Mode only receives analog signals.

The artist, song title, and other text information that are broadcast

along with the station’s content can be shown on the receiver’s dis-

play whenever the KTC-HR-200 is receiving a digital signal.

Make sure your customers know that Kenwood backs up Kenwood

andeXcelonproductswithgreatwarranties:

• KenwoodeXcelonin-dashreceivers:twoyearsparts&labor

• Kenwoodreceivers/amps/speakers:1yearparts&labor

• KenwoodeXcelonpoweramplifiers:twoyearsparts&labor

• AllKenwoodeXcelonspeakers:twoyearsparts&labor

System E’s + and Electronic Crossovers

To build a cost effective system, power the rear speakers from the in-

dash receiver’s speaker outputs with the receiver’s high-pass crossover

activated. With the high-pass crossover in the system, the speakers

typically won’t need as much power as the front speakers and they’ll

play almost twice as loud as they would if they were driven full range.

This lets the customer budget more money for the front and sub ampli-

fiers, giving them a better-performing system all the way around!

WWW.KENWOODUSA.COM CarPortal 15

KENWOOD CarPortal™

EXPANSION SOLUTIONS

Kenwoodbelievestherearetwotypes ofdealers:thosewholove

CarPortal™ and those who will. CarPortal™ Expansion Solutions are

putting energy back into the install bay and helping dealers reclaim profit.

This year, we’re introducing the KOS-L432 4.3-inch touchscreen.

The KOS-A200 Slam Dunk

For customers who want a cost-effective solution for adding satellite ra-

dio, HD Radio, or portable music players, the KOS-A200 is a slam dunk.

The KOS-A200 lets customers leave their factory radios in tact and add

great after-market technologies like our KCA-iP500 iPod adapter, Sirius

or XM radio, the KTC-HR200TR multi-channel HD Radio tuner, as well

as Kenwood CD players and changers. An auxiliary RCA-input also lets

you add audio from portable DVD players or game consoles.

The KOS-A200 is an easy install. Find

power, ground, and switched power, run

a remote eye, two antenna adaptors and

your customer’s two-year-old vehicle

now has the latest technology.

Inaddition,ifthefactoryradiohasRDS(andmostcarsdo)theKOS-

A200 will take the text information from your text-based sources (satellite

radio, HD Radio, USB player, iPod, or CD-Text enabled changer) and

convert it to RDS. So along with the audio, the text information is modu-

lated and transmitted to the factory radio.

There’s Money in Them Frills!

Our CarPortal™ V Series is where the serious scratch is, and it’s a

wise dealer who learns how flexible (and profitable) these products can

be. USB inputs allow you to add USB storage devices, satellite radio,

HD Radio and high-speed control of both iPod audio and video. The

KOS-V1000andKOS-V500alsoincludeGUIfunctionslikechanging

skins,backgroundcustomization,remotecontrolledGUIoperationas

well as support of USB mass-storage devices and full iPod control.

16 CarPortal WWW.KENWOODUSA.COM

The KOS-V1000 (eXcelon line) includes

two USB inputs, 3 sets of 5V pre-outs,

2AV inputs/2 AV outputs, and four

relayed outputs (external switches).

The KOS-V500 has 1 USB port, 3 sets of

2V pre-outs, 2 AV inputs, 1 AV output and

2 relayed outputs (external switches).

With CarPortal KOS-V1000 and KOS-V500, the expansion capabili-

tiesarepracticallyendless:SystemE’s+crossovers,reversecamera

input,andRGBinputfornavigation.Convergencefeaturesinclude

external switches to control things like garage doors, security gates,

caraccentlighting,andmore.BothdisplayID3taginformationfrom

MP3 players, and both systems are Bluetooth Ready.

Both systems accept speaker-level output from factory radios (100mv-

15 volts) and work with floating ground, common ground, and balanced

output. Both turn on with accessory power or by detecting the audio signal.

Add the KOS-CV100 RGB-to-Composite

adaptor and a third party factory screen

interface and the KOS-V1000/KOS-V500

can display the information on the vehicle’s

factory LCD screen. You can install the in-

cluded IR receiver on/near the dash and con-

trol the system with the included remote.

The CarPortal™ KOS-V1000 is

a great solution for customers

with classic cars. This 1968

Firebird has a state-of-the art

A/V system and the dash board

remains in tact.

External Switches: Let Your Custom Side Shine

The external switches on the KOS-V1000 and KOS-V500 are a

great opportunity to show off your custom skills. These switches

are a trigger that must be properly wired to an external relay for

powering electrical devices. The external switch has 100 steps.

On position 1, it will send a 500 ms pulse. With each step after

the first pulse, the length increases 200 ms. For instance, if you

have the pulse set to position 3, then the pulse length is 900 ms

or almost one second.

WWW.KENWOODUSA.COM CarPortal 17

The KOS-V1000 or KOS-V500 can turn

your customer’s ordinary factory system

into the ultimate cruisin’ machine.

The KOS-L702 Touchscreen Powerhouse

TheKOS-L702isa6.95inchLCDtouchscreenmonitorthatcontrolsthe

CarPortal™KOS-V1000/V500andofferscustomersthelatestintouch-

screentechnology.Itworksharmoniouslywithexistingfactoryradiosand

screens, or it can replace factory screens.

TheKOS-L702comeswithaflush-mounttrimbezelandoffersflexible

installation options. It can be mounted just about anywhere—inside a

car’sinterior,insideacustommount,hiddenawayintheglovebox.It

controls the functions of the KOS-V Series so users have instant access

to mobile entertainment, high-speed iPod control, Bluetooth hands-free

cell phone technology, satellite radio, navigation and more.

TheKOS-L702includesashieldedconnectioncable,hardkeycontrols

for volume, video, Menu, etc., and direct select for sources like satellite

radio, navigation iPod, USB, video, HD Radio, DVD, etc., via the graphic

user interface from the KOS-V1000.

The KOS-L432

Space Saver

This year, Kenwood introduces the KOS-L432 4.3-inch touch-

screen monitor for use with CarPortal™. Paired with CarPortal™

KOS-V1000 or KOS-V500, the KOS-L432 offers direct select of satel-

literadio,iPod,USB,Video,HDRadio,andmore.Itscompactsize

makes it ideal for on-dash mounting in smaller vehicles as well as

where space for a video monitor is limited. The KOS-L432 includes a

7-metershieldedconnectioncable,aflush-mountbracketforcustom

installations, and an AAMPS-compatible bracket.

Another example of CarPortal™ versatility!

Problem: If the factory radio is removed, the

customer loses the trip computer functions.

Solution: The KOS-L432 is mounted in the con-

sole, and the factory radio becomes another

source on the KOS-V500 or KOS-V1000.

With the

KOS-L702, the fac-

tory radio becomes

one of many sources

in the system.

18 MARINE WWW.KENWOODUSA.COM

MARINE

MARINE ENTERTAINMENT

Did you know that Kenwood offers a full line of marine receivers, speak-

ersandamps?Nowyoudo!Weputextensiveplanningandresearchin

developing a line of marine products specifically for boating enthusiasts.

Receivers and Remotes

Designed for the rough marine climate, Kenwood marine CD receivers

deliver superb audio quality and include conformal-coated PCB for dura-

bility and large LED displays. All three Kenwood marine receivers have

RCA pre-outs, External Media control for portables like iPods, and are

HD Radio and Satellite Ready.

Both the KTS-MP300MR and the KTS-MP400MR are single-din but the

frontpanelislargerthanDINtoenablethescrewsonboththeleftand

right sides to be used to bolt the unit to the mounting surface. This cre-

ates a water-tight seal around the rubber gasket. Both models have full

memory back-up, conformal coating, easy-to-read displays and are HD

and Satellite ready.

The KDC-232MR marine receiver includes a detachable face-

plate and conformal coating for the main PCB. The rotary

encoder and jog control knob make nding music easy!

Available in black or white,

the KCA-RC50MR wired

marine remote is a great

way to control your Ken-

wood marine receiver.

Speakers, Subs and Amps

Complementing our marine receivers is a full line of speakers. Features

likea6½”water-resistantconeandsurround,afullyUV-resistantgrilleand

frame, anti-corrosive speaker terminals, and rubber coated tinsel leads al-

low these speakers to perform well in the harsh marine environment.

Available in either black or

white, the KFC-1652MRW

includes a UV-resistant

grille and frame, anti-corro-

sive speaker terminals and

rubber coated tinsel leads.

The KFC-1653MRG

6.5-inch 2-Way

speaker has a

water-resistant

polypropylene cone

and grey UV-resistant

grille and frame.

The KFC-W254MRW 10-inch woofer

features 700 Watts power handling,

high-roll butyl rubber surround as

well as a long-throw single voice coil.

Since it can be difficult to find space

for a woofer enclosure on a boat, the

KFC-W254MR performs exception-

ally well in a free-air application.

Inaddition,theP-WD250MRWmarineamplifierisavailableinapackagewith

adualvoicecoilversionofthestand-alone10”subwoofer.ItfeaturesClass

D amplification, allowing it to power the subwoofer with 200 watts, all while

remaining extremely efficient.

The P-WD250MR combines a

Kenwood amplier designed

for marine use and a 10-inch

Marine grade dual voice coil

subwoofer.

WWW.KENWOODUSA.COM MOBILE VIDEO 19

MOBILE VIDEO

KENWOOD MULTIMEDIA

Ifyouthoughtlastyear’svideoandnavigationlineupwasahit,you’re

right,itwas.Thisyear,evenbetterentertainment/navigationsystemshit

shelves, including the DNX8120 with built-in navigation, entertainment

andBluetooth.TheDNX7120improvesonthealreadypopularplatformof

theDNX7100,andwe’readdingseveralprice-friendlyunitstothemix.

Features you’ll find on all new 2008 Kenwood and eXcelon

modelsinclude:

 • USBDirectControl

 • 50WX4Power

 • KABExternalMediaControl

 • Multiplepre-outsforsystemexpansion

 • Customizablewallpaper

 • Rearviewcameraconnection

 • USB,DVD,AAC,MP3,WMAcompatibility

 • Navigation,Bluetooth,SatelliteandHDRadioReady

Step-upfeaturesintheeXcelonlineupinclude:

 • USBDirectControl(2interfaces)

 • Highvoltage(5V)pre-outs

 • TwoExternalSwitchesforoperationofexternalelectronicdevices

 • Built-inBluetooth(DNX8120andDDX812)

 • Dolbyanddts5.1Surround(DNX8120andDDX812)

 • 13bandEQ(DNX8120andDDX812)

See the connection? Kenwood

multimedia gives customers options!

Built-in navigation,

built-in entertain-

ment and built-in

Bluetooth…you

have to ask your-

self, what’s not

inside this box?

DNX8120: The Best All-in-One Indash in the Universe

There’s some back-patting going on at Kenwood over this year’s eXcelon

8series,especiallytheDNX8120.Thiscrazyfreshall-in-onesystemin-

cludestheBluetoothhands-freecellphoneoperation,Garminnavigation

technologysystem,andthelatestNAVTEQmappingtechnology.Com-

binedwithoureasy-to-useGUI,theDNX8120isperfectforcustomers

looking for an all-in-one solution.

EntertainmentfeaturesoftheDNX8120includea6.95-inchfullymotor-

izedtouchscreenwithimproved3DGUIand3-skinselection.Thescreen

also includes an industry exclusive reverse angle setting which reduces

glare and increases on-axis viewing for vehicles with a sloped dash. We

alsoaddedaniftycustomizablefeaturethatallowsyoutocreateyour

own boot-up screen.

The DNX8120 includes 2 USB interfaces with USB Direct Control for

easy access to portable music devices. Add our KCA-iP300 iPod cable

and your customer gains the fastest control of iPod audio and video files.

Inaddition,twoexternalswitchcontrolrelaysallowuserstocontrolelec-

tronic devices directly from the touchscreen.

There’s a Message in Our Model Names

DNXreferstoDoubleDINmodelswithbuilt-inentertainment

andnavigation.DDXreferstoDoubleDINvideomonitors.KVT

equalsretractable1DINvideomonitors.

20 MOBILE VIDEO WWW.KENWOODUSA.COM

TheDNX8120 alsocaterstocus-

tomers who appreciate high quality

audio features like 5.1 (5V) pre-

outs for Dolby and dts surround,

digital time alignment, and a unique

EQfeaturethatallowsyoutopaint

yourEQcurverightontheinterac-

tive touchscreen.

Sure Beats Dialing from A Cell Phone!

Bluetooth technology really shines on our video monitors because it offers

customers so much freedom and ease of use. Features of the KCA-BT200

Bluetoothhands-freecellphonemodulearebuiltintotheDNX8120and

DNX812.Bothunitsofferhands-freecellphoneoperationwithvoicedi-

aling, even in noisy surroundings, and users can text message directly

through the touchscreens. All your customer needs is a Bluetooth com-

patible phone and they’re on their way. (We’ll cover more about the KCA-

BT200 later.) (Note: Compatibility may vary. Users should always check their phone

and service provider for degree of compatibility. Check the Kenwood website for the latest

compatibility chart.)

The DDX812 includes the clever

entertainment features of the DNX8120

minus the built-in navigation.

CustomerswholiketheentertainmentfeaturesoftheDNX8120andthe

built-inBluetoothbutarenotintothewholeNavthing(oralreadyhave

a portable navigation system) should check out the DDX812. Like the

DNX8120,ithasa6.95”fully-motorizedtouchscreenwithreversetilt,new

GUIwithchangeableskinandacustomizablestart-upscreen.

Boththe DNX8120 and DDX812incorporate new front panelcosmet-

ics that look very sleek installed, and the touchscreen controls and on-

screen menu system are easy to operate.

The Fastest Connection Available

(We love saying that)

Kenwood’s high-speed USB interface offers super

fast access to iPods and other portable music devices. All 2008 eXcelon

and Kenwood monitors have rear-mounted USB inputs (2 inputs for eX-

celon) accessed via a one-meter pigtail cable. Our USB 2.0 Direct Con-

nectionhasadatarateof12MB/bps(wayfasterthanconventionalserial

connections), and Kenwood’s USB Direct Control can play almost any

musicformatandalmostanyUSBmassstoragedevice.Itevencharges

the device’s battery!

Remember that iPod High Speed control (and the ability to control iPod

functionsviathemonitor)referstofifthgeneration(NanoandiPodVideo

released after September 2005) devices. Kenwood multimedia units will

playandcontrolvideofilesontheNewNano,ClassicandtheiPodVid-

eo. Most customers will have newer iPods but save yourself from “angry

guy”andmakecompatibilityclearupfront.Gotokenwoodusa.comfor

firmwareupgradesandiPodcompatibilitycharts.(ImportantNote:Ifyour

customer has iPod Touch, it will play audio only.)

Our video monitors let you browse the contents of your iPod without inter-

ruptingcurrentsong/videoplayback(multi-taskerswilllovethis).Usethe

easy scroll bar to flip through your files page by page, or just slide your fin-

ger down the bar to find music at a specific point. Although video playback

on the monitor is restricted while the vehicle is in motion, you can control all

video functions and the signal can be output for the backseat monitors.

To enjoy high-speed iPod control of video files, customers need

to purchase our KCA-iP300V iPod cable. This inexpensive

cable has a 30-pin cable and terminates at the monitor by USB

and includes two mini jacks. Kenwood offers one of the few sys-

tems on the market that offers full control over iPod video files

from the touchscreen. Most other systems require you to start

the files from the iPod. Simply connect the iPod to the USB and

two separate mini-jack inputs, one for audio and the other for

video. This multi-wire scheme

lets you control and

charge the iPod, play

back audio and video

files, and even displays

multi-line text with album

artwork on-screen.

WWW.KENWOODUSA.COM MOBILE VIDEO 21

External Switch Control:

For A James Bond Kind of Touchscreen

All2008eXcelonmultimediaunitsandtheKenwoodtheDNX7120

andDDX712 includetwo externalswitch controlsaccessible from

the main screen. This truly custom feature lets your customers con-

trol external electronic devices right from on-screen icons and is an

excellent selling feature.

Remember, the External Switches are just a trigger and need to be prop-

erlywiredtoanexternalrelayforpoweringelectricaldevices.Individual

switches can be set to either “latched”or “pulse.” The latched setting is

likeflippingalightswitch—it’seitheralwaysonoroff.Thepulsedset-

ting turns on at the button push, but only stays on for a pre-determined

amount of time before automatically switching off.

Unleashyourcreativitywithendlesspossibilities:

• LoweringthirdrowseatsonSUVs

 • Controllingrearseatmonitors

 • Controllinginteriororunder-carlighting

 • Poppingthetrunk

 • Openingelectronicgatesorgaragedoors

 • Drivinglightsorfoglights

eXcelon and Kenwood DNX and DDX

video units have super intuitive

touchscreens with three skin patterns.

So Easy A Grown-up Can Use It

Our 2008 touchscreen interfaces are so easy to use, your technophobic

grandmother will be hooked. Don’t look for the V Select button on our

new 7 and 8 series monitors because it’s not there. When users se-

lect the source, like navigation on the front screen, it takes them right to

navigationscreen.Whataconcept!HittheDVDiconandthemotorized

screen is ready to load. Plug in an iPod and the screen goes right to that

source.(Hardkeyselectbuttonsarestilllocatedonthefrontpanel.)Itwill

alsodisplayalbumartwork(ifavailable)forbothaudioandvideofiles;the

artwork is displayed in the window on left side of the screen.

Three-skinmenuisbackonthe7and8seriesmodelswithafewtwists,

like a motion graphic flame and carbon-like background. Three skin se-

lect is available in fire, water and line pattern and is accessed directly

from the main screen.

Pick Your Faves

Our 2008 eXcelon and Kenwood video

units include a Source Select feature

that lets you pick three favorite icons,

like iPod, Tuner, and DVD. Selectable from the Setup menu, choose

any source you want, and you can even name the icons like PlayStation

instead something lame like Video 1 or Video 2.

Bring It on Back

Thisyear’s7 and8 seriesDDXandDNXmodelsalsoallowusersto

select the panel close position that best matches the tilt of the vehicle’s

console. Whenever the key is turned off, the unit will go back to the home

position or saved position. The panel’s close position is stored in non-

volatile memory so it remains even if battery power is lost.

Background Check Our 2008 line lets you trans-

fer and store three digital

images to use as a wall-

paper background. Simply

save the images to a USB

thumb drive and transfer

the images to the monitor’s

memory using the USB con-

nection. Up to three images

Timing and Increments of the Pulse

The external switch has 100 incremental settings. These settings

can be adjusted from a half a second up to 50 seconds. This is help-

fulwhensettingvarioustimeddeviceslikeamotorizedamprack(10

seconds), a sunroof (8 seconds), or closing the gates (15 seconds).

Pattern 1: Carbon-like

line pattern Pattern 2: Fire Pattern 3: Water

•FoundonExcelonMultiMedia, 

 DNX7120,andKOSVproduct.

•ConnectEXTSWwiretodeviceorrelay

•Sendsapositivetrigger

•On-screenbuttonscanbelabeled

•Canbesetto:

-Latched

-Pulsed (timed from 0-20 seconds)

Multimedia - External Switch (Relay Switch)

For Example:Garageopener•Rearmonitor

Opener Remote-controller SW relay

22 MOBILE VIDEO WWW.KENWOODUSA.COM

can be stored into memory and changed at will. Because these monitors

feature a widescreen display, digital photos and images in widescreen

workbest.Imagescanbedeletedindividuallytofreeuproomforad-

ditionalwallpaper.Picturessizedto480x260seemtoworkbestandfill

the screen. Tip: On 2008 models press the “SOURCE SELECT” for

3 seconds and the icons will be removed from the screen. Touch

the screen again and the icons will reappear.

Audio Geek Heaven

Foryouraudiophilecustomers,the8SeriesoffersacustomizableEQ

featurethatallowsuserstocustomizeaudiosetupbasedona13-band

EQcurve.Accessthisfeaturefromaudioset,gotoequalizer,and“paint”

your musical preference for front, rear, and center channels.

KAB (Kenwood Advanced Bus)

A new feature on all new release video pieces is the Kenwood Advanced

BusorKAB.It’samuchfasterinterfaceforaccessorydevices(10times

faster than our 5L bus) and has automatic device recognition. For exam-

ple, if you’re installing Sirius Satellite, you no longer need the KCA-SR50

interface box but simply the CA-SR20 cable. (Don’t worry, our accessories

likeBluetooth/Sirius/XMandHDradiowillallsupportbothconnections.)

We believe KAB is a giant step toward future expansion and will even-

tually transition all of our products to this new communication system.

Fornow,itcanonlybefoundonthe2008doubleDINandtheKVT-512

multimedia products.

Behold the next generation all-in-one

entertainment/navigation system, the

DNX7120!

Kenwood 7 Series (We made the DNX7100 Even Better)

Lastyear’sDNX7100all-in-oneentertainment/navigationsystemwasthe

industry golden boy with sales that exceeded all expectations. Of course,

weimprovedthisalreadypopularplatformwiththeDNX7120.Thenew

unitcarriesoverallthefunfeaturesontheDNX7100andincludesnew

frontpanelcosmeticsandenhancedGUIsfunctions.

Withabuilt-in GarminNavigation board,theDNX7120 usesNAVTEQ

mapping technology for premium-quality map data. The system also

uses flash memory for mapping so there are no discs to worry about,

and it allows mapping upgrades through an SD card. Other navigation

featuresincludeXMNAVTraffic(optional)forlivetrafficinformationand

XMSatelliteentertainment. (KenwoodGXM30XM tunerandXMsub-

scription required.) XM NAVTraffic displays real-time traffic conditions

andsuggestsalternativerouting.TheDNX7120alsoincludesRDS-TMC

(optional) for live traffic information through local FM broadcasts (Ken-

woodGTM10tunerandsubscriptionrequired).

Therearetonsofentertainmentfeaturesstartingwitha6.95-inchvideo

touchscreen with simple controls and expanded screen with reverse-tilt

autoslidemechanism.TheDNX7120offersdriversvisualsimplicityand

one-touch control over USB storage devices, including iPod music and

video, and is Bluetooth compatible (KCA-BT200 unit required) for hands-

free cell phone conversation and touchscreen operation. This unit is also

RT+compatiblesoitallowsFMradiotoshowthetextinformationthatis

most popular with consumers, such as artist and title information.

Digitalfilefriendly,theDNX7120playsMPEG1&2,JPEG,MP3,WMA,

MPEG-4,AAC,andDivX,whilethe6.95”videotouchscreenallowssim-

ple control of DVDs, CDs, and VCDs. An expanded screen with reverse-

tilt mechanism provides a stunning viewing area for movies, navigation

and photos and one-touch control over USB storage devices, including

iPod music and video.

The following chart is a handy guide to finding the best picture size.

USB Options

You can use the rear-panel USB connection for either a USB device

or iPod with the KCA-iP300V cable. When using the KCA-iP300V, the

USBisusedinconjunctionwithtwomini-jack(1/8”)connectionsfor

Direct USB Control of Video iPods. The USB always stays “hot” when

the unit is on, so when it’s not in use it can charge portable electronics

like cell phones, PDAs or a Bluetooth headset.

OurCA-U1EXUSB mounting/extension kitletsyou put aUSB port

just about anywhere your customer’s heart desires. Mount it in the

dash, under the dash—the possibilities are endless! The kit comes

withaflush-mountbezel,whichiscoolwhenyousee

it installed, and an under dash mount. There’s

USB-to-USB and a USB-mini-to-USB 1

meter cable, so it will work with just

about any cord combination.

WWW.KENWOODUSA.COM MOBILE VIDEO 23

The DDX712 contains the entertainment

features of the DNX7120 but does not

include built-in navigation. Customers

can always add KNA-G510 navigation

later with our Nav ready inputs.

The DNX5120 All-in-One Entertainment/

Navigation has a 6.1” xed screen, USB

Direct Control and is Bluetooth, satel-

lite and HD Radio ready.

The New Kenwood 5 Series: Tastes Great, Less Filling

Even budget-conscious customers can enjoy awesome in-dash video

withournewKenwood5Series:theDNX5120,DDX512andKVT-512.

Thesemodelsoffermanyoftheadvancedfeaturesofthe7Seriesminus

a few, so we can pass on the savings.

TheDNX5120istheDNX7120“light”withafixed6.1”touchscreen,front

auxinput,and2RCApre-outswithswitch-ablerear/subandCrossover.

LiketheDNX7120,itincludesabuilt-inGarminNavigationBoardwith

maps of U.S., PR, Alaska and Hawaii. This unit does not include 3 skin

selectandhas2RCApre-outsasopposedtothree.TheGUIdoeshave

thecustomizablestart-upandVariableIlluminationthatallowsusersto

customizetheirdisplaytomatchtheinteriorsoftheircars.(Keepinmind

that there is no SD card slot, so mapping updates are done via DVD.)

LOADING/CHANGING START-UP SCREEN (5SERIES)

1. First connect the USB Thumbdrive containing image file.

 2.ToentersetupMode,pressSRC+EJECT,thenRESET.

 • PressandholdSRC&EJECTkeys,thenpressRESETKey.

 • Releaseresetkey,andholdSRC&EJECTKeyuntilRedLEDactivates.

   • Ifyouwanttochangetheopening 

image to your own image (i.e.,

    companylogo),PressOEMImage.

   • IfyouwanttoputoriginalKENWOOD

    openingback,pressKENWOODimage.

   • Selecttheimageyouwanttouse.

   • Whentheimageisloaded,selectEnter

Your new opening will remain for few

seconds and then switch to the Source

Select menu.

LOADING/CHANGING START-UP SCREEN (7&8SERIES)

1. First connect the USB Thumbdrive containing image file.

 2.ToentersetupMode,pressSRC+EJECT,thenRESET.

 • PressandholdFNC&EJECTkeys,thenpressRESETKey.

 • Releaseresetkey,andholdFNC&EJECTKeyuntililluminationactivates.

 • Ifyouwanttochangetheopening 

image to your own image (i.e.,

  companylogo),PressOEMImage.

 • IfyouwanttoputoriginalKENWOOD

  openingback,pressKENWOODimage.

 • Selecttheimageyouwanttouse.

 • Whentheimageisloaded,selectEnter

Your new opening will remain for few

seconds and then switch to the Source

Select menu.

24 MOBILE VIDEO WWW.KENWOODUSA.COM

The DDX512 offers the same entertain-

ment features of the DNX5120 but does

not include a built-in navigation system.

It uses a 6.1” xed touchscreen with cus-

tomizable start-up, USB Direct Control,

2V pre-out, and front aux input.

ThenewKVT-512isafullfeaturedDVDEntertainmentSystemwitha7”

motorizedtouchscreen andVariable Illumination.Italso includesUSB

DirectControlandtwosetsof(2V)pre-outswithswitchablerear/suband

crossover.Otherfeaturesincludeacustomizableopeningscreen,and

Source Select customization.And here’s a big plus—this unit doesn’t

haveahideawayboxsoinstallationisabreeze.

KVT-819DVD and KVT-719DVD

These two beauties carry over from last year with software updates for

newer iPods. Both include superb video images and intuitive touch-

screens and are packed technologies like two USB Direct control ports

onthe KVT-819DVD—one forDirectiPod audio/videocontrol andthe

other for almost any type of USB mass storage device. Other features

include two External Switch control outputs (KVT-819DVD) for triggering

electronic devices like rear seat monitors, under car lighting, or even

garage door openers! These models also include advanced performance

featureslike24-bithigh-resolutionDAC,SystemE’s+/SystemQ-EXand

Dual Zone capability.

DVD-Audio

For the ultimate in recorded sound, all 8 series models

can play DVD-Audio discs, the format of choice for au-

diophiles.In2-channelplaybackmode,DVD-Audiodiscsfeaturea24-bit

resolutionandasamplingrateofupto192kHz(vs.a16-bit,44kHzsam-

pling rate of a standard CD) resulting in a stunning clarity and realism.

RDS (Radio Data System) with RT+

AfeatureonalleXcelonvideounitsandtheDNX7120,

RDS allows small amounts of digital information to be

carried over conventional FM radio broadcasts. Ken-

woodhasadoptedthelatestversionofRDSwithRT+,

whichgivesradiostationsalotofflexibility.RDSwithRT+canbroadcast

information like artist, album, song title, call-in numbers for talk shows or

contests, and more.

KVT-719DVD

KVT-819DVD

WWW.KENWOODUSA.COM MOBILE VIDEO 25

Camera Happy

All Kenwood video receiv-

ers include a dedicated

rear-view camera video

connection. This standard

RCA style connection

works with the Kenwood

CCD-2000 back-up cam-

era, or any brand using a

RCA connection. There’s also a wire on the receiver that connects to the

reverse light circuit. When the vehicle is put into reverse, the back-up

cameraimageappearsonscreen.Inthereceivermenutheimagecanbe

set to normal or reverse image.

Bring on the Bass

When your customer is ready to add external amps for speakers and

subs, they can choose between the 5.1 (5V) RCA pre-outs on the 8 series

DNXandDDX,3(5V)RCApre-outsontheKVT-819DVD,3(2V)RCA

pre-outsontheKenwood7series,and2(2V)RCApre-outs(withswitch-

ablerearorsub)onthe5seriesDNX,DDX,andKVT.Enhancedaudio

featureslikeDualZoneaudiocontrol,andA/Vswitching(2A/Vinputs

for eXcelon, 1 AV input for Kenwood) make Kenwood video the perfect

source and controller. For systems without external amps, the internal 50

Watts x 4 MOSFET power amp is ready to take on their speakers.

Security Details

All Kenwood video receivers have two built-in security features. All multi-

media receivers have a user-selectable four-digit security code that renders

the unit unusable if someone’s dumb enough to steal it. Some single

DINunitshavearemovablefaceplatewithacarryingcaseaswellasa

securitycode.Adetachablefaceplateisaneffectivetheftdeterrent—few

people want to steal a radio that has missing parts.

KCA-BT200 Bluetooth Hands-Free Unit

with A2DP Music Streaming

All new-release video monitors are compatible with our KCA-BT200

Bluetooth hands-free module. Now, the cell phone becomes another

“source” in your multi-media system! The two units connect via the KAB

or 5L changer connections (the KCA-BT200 includes a 5L pass-through)

to bring the latest wireless technology into your dash.

The KCA-BT200 incorporates Parrot technology that offers some exciting

features like A2DP music streaming and text messaging. The KCA-BT200

BluetoothmodulehascallerIDandcanbepairedwithuptofiveBluetooth

enabled phones and download each phone’s address book so they can

be stored in your receiver. The monitors can be used to dial a number,

answer an in-coming call or end a call. The unit also has a microphone

that can be mounted in the dash or headliner, and you can listen to the

conversation through your car speakers.

Newfeaturesinclude:

 • WirelessCellPhoneConnectionviaBluetoothTechnology

 • SMS(ShortMessagingService)Support

 • AutomaticPhonebookSynchronization(StorageCapacityof1000

contacts per phone)

 • VoiceRecognitioninNoisySurroundings(35voicetagcapable)

 • CompatiblewithmostofBluetoothphoneswithHFP

The CCD-2000 Rear View Camera is a great add-on to Kenwood

systems.Ithas a reverseimagefunction, high resolution color

picture(Approx.270,000pixels),wideviewingangles,anda1.5

LUXforexcellentnightvision.Ithasaweather-resistanthousing

and the mounting bracket and accessories are included.

26 MOBILE VIDEO WWW.KENWOODUSA.COM

Paired with a Bluetooth-enabled cell-phone (you can pair up to five dif-

ferent phones), the KCA-BT200 lets you make and receive phone calls

directly from the in-dash touchscreen display. Dial out (when parked, of

course) using the on-screen Direct Dial keypad, or download the ad-

dress book from your phone to search by name or number. You can even

program pre-sets for frequently used contacts. Onscreen icons indicate

system status, cellular network signal strength, and even battery level

remaining, all while the cell phone is still tucked away in a pocket, purse,

briefcase, or backpack. (Note: A Bluetooth Connectivity Chart is included

in the Appendix section in the back of the manual.)

eXcelon’s DNX8120 and DDX812 have the

Bluetooth modules built-in. All other 2008

Video units are Bluetooth compatible!

Universal Frame for Double DIN

Not all double-DIN sized openings are created equal. That’s why we

package our double din monitors with exclusive Universal Frame instal-

lationpanel.DesignedwithnewGMandToyotasinmind(thetwobiggest

carmanufacturersusingdouble-DIN),thisuniqueover-sizedtrimbezel

framecanbetrimmedtofityourspecificinstallation.Now,it’seasierthan

ever to get a custom looking install without extensive fabrication.

Display Monitors: LZ-702IR & LZ702W

These two monitors may look identical, but the LZ-702IR and the

LZ702W address two entirely different video solutions.The LZ-702IR

isa6.95”back-seatentertainmentscreen.The336,960-pixeldisplayis

perfect for headrest installations and includes a custom headrest mount-

ingtrimbezel.TheunitfeaturestwoAVinputsandabuilt-in2-channel

IRtransmitterforusewithIRwirelessheadphones(likeourKHP-IR70).

Auto Dimmer control means the picture stays bright during daylight but

dims at night so it’s easier on the eyes.

TheLZ-702W6.95”touchscreenmonitorhasanRGBnavigationinput

and built-in speaker, so it’s a perfect match with the KNA-G510 as a

stand-alonenavigationunit.TheLZ-702Wcomessuppliedwithbothflush

mounttrimbezelanddash-mountingbracket.

Safer Cells

Remember, states are becoming less tolerant of drivers talking

fromtheirhand-heldcellphones.TheDNX8120,DDX812,and

any of our Bluetooth compatible video units are great solutions

for blabby drivers.

Steering Wheel Remote Wire

All 2008 Kenwood Video receivers have a dedicated steering

wheel remote wire on the main harness. Using a 3rd party inter-

face, you can continue to use the factory steering wheel controls,

all with just a four-wire hook-up! The interface is easy to program

withonboardKenwoodcodes,andbecausethere’snoIRFlasher

to mount, you’ll save install time.

WWW.KENWOODUSA.COM MOBILE VIDEO 27

Better Navigation Hands Down!

TheKNA-G510HideawayNavigationsystemcontinueswithsomerun-

ningchanges,includingimprovementstotheGPSreceiver.Improvements

includefasterGPSpositioningtime(from15secondsdownto1second),

improved auto locate time (from two minutes down to 45 seconds), and an

improvedSirfStar3GPSreceiver.

TheKNA-G510includesmapsoftheUSA,Canada,andPuertoRico,

and is ready for XM Live Traffic feeds as well. Add the XM chip set tuner,

subscribe to XM radio and you’ll hear live traffic reports and XM radio.

You’regoingtoloveXMInstantTraffic&Weatherbecauseitprovides

constant traffic and weather conditions with continuous, real-time up-

dates—that’s24hoursaday,sevendaysaweek.Imaginelearningabout

that overturned big rig before you get on the freeway!

Formappingupdates,theKNA-G510usesFlashmemorynotdiscs,so

you never have to worry about changing discs. To purchase map updates

visittheGarminwebsiteandselectmapupdates/Kenwood.

Othercutting-edgenavigationfeaturesincludeXMNAVTraffic(optional)

for live traffic information and XM Satellite entertainment. (Kenwood

GXM30XMtunerandXMsubscriptionrequired.)Analternativetothe

XMLiveTrafficistheGTM-10LiveTrafficTuner(subscriptionrequired)

and receive the same type of traffic information through local FM broad-

casts. (Note: 5 Series multi-media products are not compatible with the

XM Nav Traffic tuner.)

Easy-to-Use Interface

The interface is simple and easy to read. The main Menu offers the sim-

plequestion“ViewMap?”or“WhereTo?”Usetheplusandminussign

oneachsideofthescreentozoominorout.Themapcanalsobesetup

to be viewed in 2D or 3D.

Text To Speech

TheKNA-G510notonlytellsyouthatyourturniscoming,itwilleven

announce the name of the street that the turn is on. This eliminates

confusion when there is more than one turn choice and they are close

together. It’ssafer aswell.The driver’seyes spendmoretime onthe

road rather than on the map, and all of these commands are produced

seamlessly through the stereo system. The music is muted and the com-

mand comes through, then you’re back to your music. Choose English,

Spanish, or French.

Live Traffic and Weather

The KNA-G510 is compatible with the GXM30 Live Traffic,

weathertuner/antenna.Asingleconnectionfromtheantennato

the navigation unit is all it takes. Connect and subscribe. (The

standard navigation antenna is still necessary.) XM music can

beplayedthroughtheGXM-30alsowhenconnectedtocompat-

ible receivers. (Music requires additional subscription charges.)

TheKNA-G510isalsocompatiblewiththeRDSbasedTMCLive

traffic Receiver. TheGTM-10isareceiverthatplugsinbetween

theradioandthefactoryFMantenna.It’salocalterrestrial-based

system and also requires a subscription.

Installation Is Easy

Installationof the KNA-G510couldn’tbe easier. It requirescon-

stant 12 Volts, Switched 12 Volts, ground, parking brake safety

wire, antenna and one cable connection to the in-dash controller.

Nospeedsensewireisneeded.

28 MOBILE VIDEO WWW.KENWOODUSA.COM

Remote Controls

All eXcelon video receivers and the Kenwood

DNX7120 come with an ultra cool 8-direc-

tion remote for easy navigation through the

screenmenus.Navigationmodeallowsthe

eXcelon remote to control a connected navi-

gation unit (KNA-G510), and the remotes

include a Telephone button that answers the

phone and can be used for dialing.

The7SeriesalsocomeswithanAVremote

without the navigation capability. Kenwood

Video Remotes are full featured and control

DVD and audio. Bluetooth capable models

also include a Telephone button that an-

swers the phone and can be used for dialing.

On the 5 series, remote control is optional.

Start with the DNX8120 and just

keep going! This system offers

both the highest sound quality

and the best connectivity that

Kenwood has to offer.

WWW.KENWOODUSA.COM AMPLIFIERS 29

AMPLIFIERS

AMPLIFIERS

Amplifiers go a long way in improving the overall performance of any

audio system, and Kenwood is the leader in amp technology. With gas

prices climbing, smaller, more fuel-efficient vehicles are working their

wayintotheinstallbay—goodfortheenvironment(hooray!),hardon

themobileelectronicsspecialisttryingtosqueezeinanamportwo.

Fortunately, Kenwood is ahead of the game with a new line of amps

that are potent and remarkably small.

Honey, I Shrunk the Amps

NewKenwoodampspackpowerintoamuchsmallerchassissize—up

to44%smallerthanpreviousmodels—andincludetheKAC-9104Dand

KAC-8104DClass DMono poweramps, theKAC-8404 4/3/2-channel

powerampandtheKAC-7204stereo/bridgeableamp.

These amps are a serious break-through in technology, but how did we

squeeze all that juice into a smaller chassis? For starters, engineers

moved the transistors and fixed them directly to the heat sink, which

helps dissipate heat better. They also expanded the path of airflow by

going from one larger fan to two smaller ones. Two fans mean two paths

of airflow, which dramatically improves distribution of cool air. This and

other design evolutions result in amplifiers as powerful as their bigger

ancestors but smaller and more adaptable to new environments.

You’ll also notice a redesigned cover with blue illumination that looks

great installed, and we’ve added signal sensing turn-on and bass boost

control to all four models.

Class D Prize Fighters

The KAC-9104D and KAC-8104D are 30% and 33% smaller than last

year’s models. The KAC-9104D is 500 Watts X 1 @ 4 ohms and is 1-ohm

stable. The KAC-8104D is 300 Watts x 1 @ 4 ohms. Key features of both

include built-in variable low-pass filter, built-in infrasonic filter, signal sens-

ing turn-on, blue illumination, speaker level input, and bass boost (up to

+18dBofboostat40Hz).

Different Amps for Different Systems

eXcelon and Kenwood offer different amplifiers to fit any vehicle

andsystemconfiguration:

Class D Mono Power Amp: Designed for subwoofers,

Class D amps offer big power and are less demanding on

electrical systems.

Class D 4-channel Amp: This digital 4-channel amp is

small, efficient, and produces high power. Use this to run

all your full range speakers.

Class A/B 4-channel Amp: This amp is flexible and can

be used to run four full range speakers or a sub and two

full range speakers.

Class A/B 2-channel or Stereo/Bridgeable Amp:

A great amp for a pair of front speakers, or bridge it to

a subwoofer.

30 AMPLIFIERS WWW.KENWOODUSA.COM

For power hungry people (you know who you are), the KAC-9104D offers

a Dual Mono Drive connection that allows you to strap two KAC-9104D

ampstogethertopowerasinglesubwoofer—that’s1800Wattsofpower!

Combine this with a Kenwood sub and your system could be banned in

several counties. Don’t say we didn’t warn you!

Imagine the installation opportunities

of a crushingly powerful Class D amp

that’s just over 13 inches by 9 inches!

Dual Mono Drive on the KCA-9104D means

you can use up to two KAC-9104D per

subwoofer and double the power to an

earth-shaking 1800 Watts RMS!

Boost Your Bass

We’veaddedbassboostcircuitryonallnewcompactsizeamps.Acousti-

cally speaking, low frequency sound (bass) is harder to hear than high

frequency sound, and you have to tweak it to get the most out of low range

sound. By amplifying a specific frequency range, bass boost results in

well-balanced sound and better sound from the bass and bass drum.

Inaudible Frequency, You Are Cut Off!

The KAC-9104D and KAC-8104D (and all 2008 eXcelon amps) have a

built-in infrasonic filter that helps subwoofers perform their best by sharp-

ly cutting off inaudible frequencies below 15 or 25 Hz (depending on

amplifier model). Although this will improve the sound of subs in sealed

enclosures, the biggest audible benefit is for subs in vented boxes. A

subwoofer in a vented enclosure acts like a free-air subwoofer below

the tuned frequency of the box. At these infrasonic frequencies, the air

in the box offers no resistance to the movement of the woofer cone, so

the only thing keeping the woofer in-line are its suspension and spider.

This dramatically increases distortion and reduces the woofer’s power

handling, sometimes resulting in blown woofers. By eliminating the inau-

dible junk, the infrasonic filter improves the woofer’s control, improves its

sound quality, increases its power handling, and saves amplifier energy

for the music that we can hear.

The infrasonic lter reduces distortion

by ltering out super low frequencies

that subwoofers can’t reproduce.

WWW.KENWOODUSA.COM AMPLIFIERS 31

Signal Sensing—What a Turn-on!

Kenwood compact amps also include signal sensing turn-on. This feature

is used when connecting to a radio that doesn’t have RCA outputs (can

yousayfactoryradio?).Simplywirethespeakerleadsfromtheradioto

the input of the amplifier, and when the radio is turned on, the amp comes

on.Noneedtolookforaleadtoturntheampon.

Inaddition,allregular-lineKenwoodampshavehigh-levelinputcapabil-

ity, so it’s easy to add an amp to any vehicle no matter what type of radio

it has. By making it possible to use the speaker outputs from a factory

radio to drive a power amp, Kenwood makes it easy to upgrade a factory

system without rebuilding the dash.

Always check the factory system to see what kind of power output it has.

The high-level inputs on Kenwood amps can take 35 watts into each

channel, so they can be used with most factory stereo systems.

The cover plate on Kenwood 2008 amps

completely covers the wire connections,

making for a cleaner installation.

The KAC-8104 500 Watt Class D mono

power amp has a variable low pass

lter, variable high pass lter and

blue illumination.

The KAC-8404 is a 75 Watts x 4 RMS @

4 ohms, 4-channel amplier with power

MOSFET switching, built-in variable low-

pass lter (50Hz-200Hz @ 18dB/Oct), and

built-in variable high-pass lter (50Hz-

200Hz @ 24 dB/Oct), signal sensing turn-

on, and cooling fan.

The KAC-7204 is a 170 x 2 Watts @

4 Ohms, 2-channel amp with built-in

variable low-pass lter (50Hz-200Hz)

24dB/Oct; built-in variable high-pass lter

(50Hz-200Hz) 12dB/Oct; Power MOSFET

switching; and built-in cooling fan.

TheKAC-64044/3/2-channelpoweramplifieris40Wattsx4@4ohms

with power MOSFET switching, built-in variable low-pass filter, high pass

filter,andcoolingfan.TheKAC-62022-channelpoweramplifierincludes

a cast aluminum heat sink, built-in variable low-pass filter, power MOS-

FET switching, and speaker level input. And finally, the KAC-5203 is an

economically priced amp with 55 Watts x 2 @ 4 ohms that is included in

our party packs.

Kenwood and specialty line amps feature 24-dB per octave low-

pass crossovers. This better crossover is more expensive to make,

but the improved sound quality is worth it. All other standard line

amps have 18 dB low-pass crossovers. High-pass crossovers are

set at 12 dB per octave on all amps.

32 AMPLIFIERS WWW.KENWOODUSA.COM

Kings Among Amps

Reference Series eXcelon amplifiers carry over and include the KAC-

X1R mono Class D power amp and the KAC-X4R 4-channel digital

power amp. We’re also bringing back our KAC-X10D Class D amp, the

KAC-X20 2-channel amp, and the KAC-X40 4-channel amp.

Part of our eXcelon Reference

Series, the KAC-X1R mono digital power amp

features Dual Sigma Drive, dual power supply,

and is 1-Ohm capable.

Features include Dual Sigma Drive and DSP technology, and several

eXcelon amps (and the KAC-9104D) are 1-ohm load capable, so when it

comes to system demands, these amps deliver.

Rated at 1200 Watts RMS (2400 Watts max power), the KAC-X1R mono

digital Class D amp uses Dual Sigma Drive technology that provides an

excellent damping factor. Damping factor measures how well an ampli-

fier controls a woofer. The higher the number, the more it limits distortion

caused by unwanted woofer movement.

The Class D Difference

Class D amps give your customers stronger, louder, more chest-thump-

ingbasswithreducedcurrentdemandsthanClassA/Bamps.ClassD

amps are also easier on the vehicle’s electrical system, which means

they are less apt to make the lights dim during bass notes.

For subwoofer applications, Class D amps are efficient and their small

sizeoffersinstallationflexibility.Beforeamplifyinganincomingsignal,a

Class D amp converts the signal to digital. Digital signals can be ampli-

fied very efficiently, so you get a lot more power with less current. Less

inputcurrentreducespowersupplysizeandgenerateslesswasteheat,

thusreducingtheheatsinksize.Theampthenconvertstheamplified

signal back to analog. This process allows Class D amps, like the KAC-

X1R, KAC-X10D, Kenwood KAC-9104D, and KAC-8104D, to crank more

powerthanClassA/Bampsofthesamesize.

Kenwood’s Power Couple

More potent than Brad-jolina and Tom-Kat combined, the dual power

supply on the KAC-1XR and KAC-X4R provide one power supply for

positive current and one power supply for negative current. The result is

a cleaner voltage source, less failure due to short circuit or power loss

due to variances in transformer tolerances, and less transformer noise.

A dual power supply with two

transformers ensures steady

operation, even when the positive

and negative loads are unstable!

The KAC-X4R Reference Series Amplier

is a 4-channel, full range digital amplier.

The Full Range Digital Amp

The KAC-X4R 4-channel amp uses digital amplifier technology in a full

rangeapplicationalongwithauniqueDSP.This600WattRMSamplifier

Talk about your threesome! The KAC-X1R works perfect-

ly with a pair of KFC-XW1200F or KFC-XW1000F shallow-

mount subs. The amplifier is small, easy to install and, in

this configuration, delivers 1200 Watts RMS!

WWW.KENWOODUSA.COM AMPLIFIERS 33

(1200 Watts max power) is well suited for any number of system ap-

plicationsbecauseallfunctionsareperformedinthedigitaldomain.Its

on-boardDSPincludesfeaturesliketimealignment,parametricEQ,and

audio feedback circuitry for clean, precise power.

Amps at Work

A very cool feature of both of our Reference Series amps is the 14-seg-

ment, five-digit blue fluorescent display that shows voltage, current, tem-

perature,andsetupmenu.Here’saplusforinstallers:theeXcelonDigital

Reference line retains installer memory so you can

lock in those settings. The amp information dis-

playalsoincludesanover/underinputsetup.

This feature helps precisely match the input

sensitivity to the headunit for best sound

quality and volume. (The KAC-X4R full digi-

tal amplifier comes with a setup disk to adjust

input sensitivity.)

Dual Sigma(Σ) Drive

eXcelon Class D mono amplifiers (KAC-X1R & KAC-X10D) use Dual

Sigma Drive, which is an advanced negative feed back circuit. When a

signalispassedtoasubwoofer,saya50Hznote,thespeakerwillmove

and create the note. However, because the speaker has mass and a sus-

pension, it won’t stop moving once it’s in motion. This extra movement

(sound) creates a type of distortion because it is not part of the original

signal. The negative feedback circuit senses this unwanted movement

as back EMF (electro motive force), which are voltage pulses sent back

to the amplifier caused by the speaker movement. The negative feed-

back loop senses these pulses and sends out an opposite pulse to stop

the speaker. Think of it as an electronic brake for your subwoofers.

Kenwood’s Dual Sigma Drive extends the negative feedback loop out to

the speaker output terminals. This makes the feedback loop more accu-

rate because it considers all of the impedance-changing devices that are

after the output transistor (like crossovers, etc.).

Dual Sigma Drive circuitry ensures a

precise reproduction of music by con-

trolling unwanted speaker movement.

The KAC-X10D

Class D mono power

amp pumps out more

power than Class

A/B amps of the

same size and will

give your customers

stronger, louder, more

chest-thumping bass.

eXcelon Digital Reference amps are de-

signed to provide more contact with less

resistance for maximum performance,

and you don’t need external connectors!

Stay in Phase

Phase inverter for subwoofer applications is a key feature on all eXce-

lon amps (and the Kenwood KAC-9104D). A phase inverter switches the

output of the amp 180 degrees out of phase. Why would you want to do

that?Becauseitcanhelpwhentheinstallationresultsinasubwoofer

being out of phase in the listening position. Flipping the phase inverter

switch can increase volume by putting the system back in phase.

Dial in the Decibels

The KCA-WR10 optional remote

controller is designed for the KAC-

X1R, KAC-X10D, and the KAC-X20.

This little knob allows bass boost frequency

adjustments and level adjustments for bass. Say

youwant to add8 dBworthof boostat 43 Hz.With the KCA-

WR10, it’s just a matter of turning the knobs. And if you are

using two amps, you can use a phone cord splitter so one bass

boost controller operates both amps.

1-Ohm Stable

The eXcelon KAC-X1R, KAC-X10D and Kenwood KAC-9104D

are 1-Ohm load capable. There is little benefit to running a Ken-

wood amplifier at 1-Ohm, because in most cases they produce the

same power at 2-Ohms. There is also a down side to running an

amp at 1-Ohm. The amp will run hotter, which can affect longevity

and put large demands on the car’s electrical system. So why

botherwith1-Ohm?Therearecaseswherethenumber/imped-

anceofspeakersyou’reconnectingwillcreatea1-Ohmload.If

you do run an amp at 1-Ohm, it will draw more current and should

be addressed by running heavier gauge power and ground wire

to the amp from the power source. Note: Always match up your

speakers properly to the specification of the amplifier.

34 AMPLIFIERS WWW.KENWOODUSA.COM

4-Channel & 2-Channel Amps

If you’re working with full-range or component speaker systems, the

KAC-X20 2-channel and KAC-X40 4-channel amplifiers are an excellent

match.TheKAC-X404-channelampis70Wattsx4RMS@4ohmswith

variable low pass filter, infrasonic filter, selectable phase inverter, K-STAT

technology, and an advanced cooling system. The KAC-X20 2-channel

amp is 180 Watts x 2 RMS @ 4 ohms with variable low pass filter, vari-

able high pass filter, infrasonic filter, phase inverter, K-STAT technology,

and cooling system.

Kenwood4/3/2-channelampsincludetheKAC-8404andKAC-6404.The

KAC-7204,KAC-6202,andKAC-5203arestereo/bridgeable.Depending

on the number of speakers you want to power, use a 2-channel amp to

power two full range speakers or two subs, with one on each channel.

Otherwise, you can bridge the amp to single channel operation for a

single woofer or woofers (be careful not to drop the impedance below 4

ohms bridged). A 4-channel amp can be bridged to 2-channel mode to

power a pair of subs or full range speakers.

K-STAT: Better Sound at All Volume Levels

Many amplifiers will have higher distortion when they first power up be-

cause it takes time to reach the optimal operating temperature. K-STAT

(Kenwood Self Tracking Audio Transistor) technology on the KAC-X20

and KAC-X40 multi-channel amplifiers is a Kenwood patented output

transistor that biases automatically based on heat. It does this much

faster than a conventional transistor and offers solid audio benefits. The

biasing circuit, which ensures the amplifier adjusts property, is built into

the device rather than installed separately. This streamlined design re-

sults in lower distortion both when the amp powers up, and at full power.

K-STAT technology also reduces thermal resistance but increases power

for improved sound quality.

eXcelon multi-channel amplifers

KAC-X20 and KAC-X40 have K-STAT

output devices with built-in thermistors

with temperature detection and com-

pensation.

High Pass/Low Pass Crossovers

All Kenwood amplifiers have built in crossover networks that should be

properly set to maximize performance. Not even a Kenwood speaker

can cover the entire range of human hearing, so most speakers are de-

signed to cover sections of that range. Woofers cover low frequencies.

Mid range drivers pick up where the woofers leave off, and the tweeters

take over at the high frequencies. Woofers sound really bad playing mid

range, and mid range drivers distort and bottom out trying to play bass.

Tweeters just burn up if they play anything but the highest frequencies.

Pay attention to electronic crossovers because they filter out frequencies

speakers shouldn’t play.

The high-pass crossovers in Kenwood amplifiers cut-off low frequencies

so that the front and rear speakers get only the frequencies that they

were designed to handle. This improves power handling so they can play

louder with more clarity and less distortion.

Low-passcrossoversdobasicallythesamething—subwoofersarede-

signed to play bass notes. The low-pass crossovers in Kenwood amps

cut off higher frequencies, letting the front and rear speakers do all the

singing while the subwoofer happily thumps out low bass notes.

eXcelon Two-year Warranty

Don’t forget to remind customers that eXcelon amplifiers include a two-

yearwarranty—twicethewarrantyperiodofmanyothermanufacturers.

Double Your Bass

When two 4-ohm speakers of the same impedance are connected

inparallelto a singleamp channel (both speakers’‘+’terminals

areconnecteddirectlytothe‘+’terminalontheamplifier,andthe

same for the ‘–‘ side), it cuts the impedance in half. Therefore, two

4-ohm woofers become one 2-ohm woofer system, which doubles

the power output of the amp. This also doubles the amount of cone

area producing sound. So instead of doubling the amount of amps

in the car to get more bass, you can just double the number of

subs in the car! (Keep in mind, this same system connected to

a bridged 2-channel amplifier would be unstable as the bridged

amplifier would see a 1-ohm load.)

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 35

SPEAKERS

SPEAKERS AND SUBS

Kenwood engineers are obsessed with sound, and while this doesn’t

lead to a well-balanced life, it does result in some remarkable speak-

ers and subs. This year, we’re launching better sounding speakers

with smaller mounting depths and factory replacement speakers that

offer big sound for small budgets. Of course, both eXcelon and Ken-

wood subwoofers register on the Richter scale, and our famous woofer

graphs are included at the end.

Performance Enhancing Subs

eXcelon earth-shakers include four new dual voice coil models that will

blow other manufacturers into yesterday’s news. The KFC-XW1224D

and KFC-XW1222D are 12-inch mammoths that handle 2000 Watts of

pure power. The KFC-XW1024D and KFC-XW1022D 10-inchers share

thesamefeaturesandhandle1600Wattsofpower.Thesesubsare

dualvoicecoildesigns:4+4ohmand2+2ohm.Withthechoiceof

either dual 2-ohm or 4-ohm voice coils, the system can be designed to

maximizetheamplifier’spoweroutput.

Other features that work together to ensure the cleanest possible signal

include rubber magnet covers that improve cosmetics and performance

by reducing basket vibration, dual magnet drive, super linear spider, and

gold-plated push terminals.

Dual Voice Coils (DVC)

The voice coil in subwoofer design is important because it converts the

sub’s magnet energy into cone motion. Although many subwoofers have

a single voice coil, dual voice coil subwoofers use two separate voice

coils, each with separate connections mounted on one former (also called

a bobbin) and connected to a common cone. The biggest benefit is that

the voice coils can be configured to meet your system requirements.

Carbon Glass Fiber Makes

A Mighty Strong Woofer

Coating carbon material onto glass

fibers makes the material wickedly

strongandreducesneedlessresonanceinlowfrequency.Newmodels

with this material show faster and clearer sound with less distortion.

Itsy Bitsy Super Linear Spider

Inspeakerdesign,thespidercontrolsthecone’smovementand

keepsthevoicecoilcentered.It’skindoflikeashockabsorber,

smoothing out the cone’s ride. The super linear spider on the

KFC-XW12R, KFC-XW1024D, KFC-XW1022D, KFC-XW1222DVD,

KFC-XW1224D, and eXcelon flat woofers rolls gradually and be-

comes higher towards the center. This design allows more control

over the speaker because there’s less stress. Less stress means

less failure due to high excursion. The small-to-large pleats also

work in a progressive manner so that the speaker remains linear

over its entire range of movement.

New eXcelon dual

voice coil subs work

in small sealed or vented enclosures.

You can even add an optional grille.

36 SPEAKERS AND SUBS WWW.KENWOODUSA.COM

From Big and Beefy to Lean and Mean

eXcelon super subs are the choice for customers into serious bass. The

KFC-XW12R has a 12-inch carbon fiberglass cone woofer, two-piece

cast aluminum basket, double stacked magnet, and dual voice coil (3

ohm+3ohm).Thispuppyoffersup1000WattsRMSandincludessmart

cosmetic designs, like high damping fins and a vented basket that make it

very heat efficient. The KFC-XW12R can take a whole lot of punishment

because the design creates more strength and surface area for heat to

dissipate from the motor and spider (it even has fuses just in case).

Rated at an intestine-twisting 3000 Watts

Max, the KFC-XW12R 12” Super Sub isn’t

for the High School Musical crowd.

The KFC-XW12R uses a black trim and black cast frame that look great

installed, and the butyl rubber surround is treated to give the rubber a

stifferquality.Itevenincludessmartswitchingthat,withaflipoftheswitch,

lets you put the voice coils in series or parallel, depending on whether

you’re using a mono or stereo amp. Other key audio features include a

symmetrical voice coil, a heat transfer system that keeps heat away from

the motor, a super linear spider, and smooth linear rubber surround.

For tight squeezes,

the KFC-XW1200F 12-inch and KFC-

XW1000F 10-inch have a mere 4”

mounting depth and pack in 350/250

Watts RMS. Put these babies in a

Mazda Miata and see what happens!

Our lean and mean KFC-XW1200F and KFC-XW1000F shallow subs of-

fer big bass flavor without the unwanted pounds. With a 4-inch mounting

depth, these subs have a single voice coil at 4 ohm, a cast aluminum

basket, and a removable front trim ring with a clean finish. Both the 10-

inch and the 12-inch will fit nicely in a small, sealed custom or prefab

enclosure (installers will likely build their own).

Carbon Fiber Honeycomb

Carbon fiber material makes for super strong cones, but what you can’t

see is on the back side of our shallow subs. A honeycomb design (it looks

like a bee’s nest) dramatically adds to cone strength. Other key features

of these slender beasts are the aluminum die-cast basket heat transfer

system, super linear spider and surround, and silver-plate push terminals

thatacceptupto8AWG.

Kenwood Subwoofers: Success through Excess

Kenwood subwoofers offer mega doses of bass as well. Returning

champions include the KFC-W3514DVC, KFC-W3011, and the KFC-

W2511.NewtothelineupistheKSC-SW10easy-fitsubthat’ssmall

enough to fit under car seats and offers up 150 Watts of power.

The KFC-W3514DVC

has a deep cone design

that can move 20% more

air volume than ordinary designs.

The KFC-3514DVC 12” sub handles 380 Watts of continuous power,

1500 Watts at peak, and includes a titanium coated cone woofer and

rubbersurroundfordurability.Itsoversizedconecanmovemoreairand

produce louder and lower bass.

Noticehowtheterminalsarepositionedon

one side, making parallel wiring a snap.

The new magnet cover overlaps part of

the basket for better sound and cosmetic

appearance, and even the gasket is de-

tachable for two-way installation. Because

the woofer can be mounted either “magnet-in” or

“cone-in,” the installation trim-ring can be placed either on the front

or rear of the basket for a custom-looking finish.

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 37

No Customer Left Behind

Super-sturdy, super powerful, and priced to please, the KFC-W3011 and

KFC-W2511 are a real deal for woofers. The KFC-W2511 is a 10-inch

wooferratedat1000Wpeak;theKFC-W3011isa12-inchsubthatcan

handle 1200W peak input power. These high performance subs feature a

single 4-ohm voice coil, titanium coated woofer, and super linear spider.

A long stroke design thumps out the low frequency and the silver-plate

finish looks very clean installed. The titanium coated polypropylene cone

gives it a nice brushed aluminum look, while a high-roll rubber surround

design adds rigidity to the cone’s top edge and provides a large contact

areasothecone/surroundstaystogether,evenwhenbasscrazycus-

tomers get greedy.

Rated at 300/250 Watts RMS, 1200/1000

peak, the KFC-W3011 and KFC-W2511

offer clean, loud and powerful bass.

Other features include a reversible trim ring that lets you pull off the front

and mount it on the back, depending if you’re mounting cone out or bas-

ket out. Push terminals on the back will take up to an 8-gauge wire, and

these subs are easier on installers because they can simply push and

release the speaker terminals.

A little bling on back!

The silver-plated

push terminals on the

KFC-W3011 and KFC-

W2511 will take up to

an 8-gauge wire.

Happy Little Thumpers

The KSC-WD250, KSC-W250T and KSC-SW10 compact subs are a quick

and easy way to add bass to just about any system. Our new KSC-SW10

5x7”compactpoweredsubwooferincludesa5x7”dualvoicecoilWoofer,

5x7”passiveradiatorwoofer,speakerlevelinputandaremotecontrol.

Oh, it’ll t. Slip the

KSC-SW10 compact

sub underneath

the seat and shake

things up with 150

Watts of power.

The KSC-WD250 10-inch powered subwoofer works perfectly with a

highly efficient 200 Watt Class D amplifier. The KSC-WD250T is a 10-inch

powered subwoofer with a dual voice coil, bass reflex enclosure, and a

Class D amplifier circuit. This sub is similar to the KSC-WD250 but has

a smaller enclosure, which makes it ideal for trucks, hatchbacks and any

other places where space is a premium.

eXcelon Speakers—An Ear’s Best Friend

TwonewcomponentspeakersmakeittotheeXcelonline:theXR-S17P

slimpackageandtheKFC-X1720P.Withpeakpowerat270Watts,theeX-

celonKFC-X1720Pcomponentspeakersystemincludeshigh-endfeatures

like a cast aluminum basket and crossovers with Zobel networks. What’s so

greataboutZobelnetworks?Welove‘embecausetheykeepohmimped-

ance constant. This means the amplifier never sees an ohm load fluctuation

andallowstheamptoruncoolerandwithlessdistortion.Inaddition,this

year’s package requires less mounting depth than last year and it’s a direct

fitonFord,GM,andHonda.

TheKFC-X1720P,S17PandtheKFC-Pseriesincorporateanew

component tweeter installation that offers a lot of flexibility. Three

types of tweeter mounting are available: flush mount, surface

mount and factory location. A swivel function is also available in

flush mounting.

New Component

Tweeter Installation

In2008newmodel,three

types of tweeter mounting

are available. (Previous

models had only two types.)

To install the tweeter using

surface and factory location

bracket.

Don’t forget to give your subwoofers plenty of power. Make sure to

use a good subwoofer amplifier and large gauge power and ground

cables. Subwoofer amplifiers draw a lot of current, so you might

want to look at very efficient Class D type amplifiers like the Ken-

wood KAC-9104D or KAC-X10D.

PUSH TURN PULL

OUT

Flush Mount

Push the tweeter

unit to the end. Remove the unit

from flush bracket.

While pushing the unit,

turn left to the stopper.

Surface Mount Factory Location

38 SPEAKERS AND SUBS WWW.KENWOODUSA.COM

Check out the XR-S17P

shallow-mount package with

1-9/16” mounting depth and

300 Watts of peak power.

TheXR-S17Pshallowpackageisoneofourbestsoundingspeakers,

and it just happens to be our thinnest. With a carbon polypropylene

hybridcone,theXR-S17Phasamountingdepthofonly19/16”—that’s

unheardofat300Wpeakpower!Italsoincludesa6x8”plateforusein

FordandMazdavehiclesandahighqualitycrossovernetwork.

Flush Mount Systems

TheKFC-X1726¾-inchandKFC-X1325-inch2-wayflush-mountspeak-

ersandKFC-X6926X93-wayspeakersystemfeatureverycooldesign

advantages like the carbon polypropylene hybrid. These speakers share

the same cast aluminum baskets as component speakers, with shallow

mounting depth that allows for easy fit into import vehicles.

TheKFC-X1710isahighperformance2-waysystemthatfeaturesthe

same 6¾” midrange driver, and a spacing adapter is included so the

speakersfitinstandard6½”applications.

Notice the tweeter on the KFC-X1710

is suspended in mid air with the bridge

support. The dust cap on the midrange

driver is a cloth material and is used

to tune the midrange driver for best

sound quality.

The KFC-X1720P and KFC-X1710 use 2 Ohm

drive and serve up 220/270 Watts of power

handling. The 2-ohm drive will maximize

the power from external amps.

2-Ohm Drive

TheKFC-X1710andKFC-X1720Pare2-ohmdrive,soyou’regoing

tomaximizethepoweroutputofthefull-rangeampsthatdrivethese

speakers. The 2-ohm design will give you more headroom, more dy-

namics, and a lot more “loud.” Both models are a great solution for

replacing factory speakers, and they make good factory replacement

speakers in OEM systems where the speakers are 2 ohm. We strong-

ly recommend using external amps on these speakers because a 50

X 4 chip’s not going to cut it.

eXcelon Shallow Speaker/Comparison

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 39

Performance

You Can Bank On

With the exception of

price, there’s nothing moder-

ate about our new Performance

Series speakers. Five new models fill in

the gap for customers who want to replace

their factory speakers but won’t go beyond a

hundred bucks.

TheKFC-1682ie,KFC-1382ieandKFC-1082ieareseriouslytight3-way

speakers. Listen to them and you’ll notice higher performance than

any speaker in this price range. Secret ingredients include fiber texture

polypropylene cones that are stronger and lighter than conventional dia-

phragms and produce smoother and more natural-sounding mid-bass

response. The Performance Series speakers also include our third-gen-

erationImage Enhancertweeter technology(IE-3)withwidermid and

high-frequency dispersion for better imaging and soundstage.

The KFC-6972ie and KFC-6982ie are

5-way and 4-way 6 x 9s that will blow

the socks off other speakers in their

price range.

.

New Image Enhancer III

OurengineerskeepimprovingtheImageEnhancertechnology,andthis

year’slineincludespatentedImageEnhancerIII.ImageEnhancerelimi-

nates diffraction, creating clear, detailed sound even for listeners who

aren’t sitting directly in front of the speaker.

ImageEnhancerincorporatesatweeterbezelthat’spreciselycurvedto

reducediffraction.Infact,they’recurvedwithtwodifferentradiisothey

reduce diffraction over a very wide range of frequencies. By eliminat-

ing most of this destructive interference, we’ve evened-out the high-

frequencyresponseandincreasedhigh-frequencydispersion,soImage

Enhancerspeakershaveamazingclaritywithoutharshness,evenwhen

you’re listening off-axis.

The KFC-P680C 6x8 is

an easy t for Ford/Mazda.

Upgrades for Ford and Mazda

TheKFC-P680Cisaneasyfit6X8speakersystemthatprovides65

Watts RMS and 200 Watts peak. We built these especially for Ford and

Mazda,whichexclusivelyadoptedthissizeforbothfrontandrear.With

asmooth,elegantblackfinish,theKFC-P680Cis aneasywayto get

component sound, and the high quality crossover network is built in to

the back of the panel.

Kenwood’s promotional line speaker systems are priced to sell and in-

cludeamazingaudiotechnologiesseldomseeninthispricerange—the

KFC-1661S6.5”3-waysystemat35WattsRMSand180peak,theKFC-

1361s5.25”3-Wayat28WattsRMS/150peak,andtheKFC-1061s4”

3-wayat20WattsRMS/120peak.Keyfeaturesofthese3-waysystems

includeapolypropyleneinjectioncone,½”Piezotweeter,andtheshal-

lowmountingdepthwhichareGM6¾”sizecompatible.

40 SPEAKERS AND SUBS WWW.KENWOODUSA.COM

THE KFC-P708 & KFC-P508S

BoththeKFC-P708andtheKFC-P508componentspeakerpackages

areagiganticsoundupgradefromfactorycomponents.TheKFC-P708

isa6¾”componentwithkillerfeatureslikeapolypropylenewithfiber

texture woofer. The KFC-P508 has equally impressive features in a

5¼” component set. Our engineers pushed the surrounds to the very

edge of the basket, making room for an extended cone surface area

that is up to 20% larger than previous models. The oversized cone

results in deeper bass and increased output, and the woofer cone sur-

face is coated with a metallic titanium finish, giving these speakers an

undeniably future-looking design.

Our dual cone 2-way speakers include

KFC-1651S 6.5”, KFC-1351s 5.25”, and

KFC-1051S 4”.

For That Extra Sparkle

Adding tweeters high in the front of the car (A-pillars) can raise the

soundstage of the system and give the listener that extra detail he or she

wants.For these applications,we offerour KFC-T207andKFC-ST30

componenttweetersthathaveaP.E.I.balanceddometweeterandahigh

powerhandling.TheKFC-T207componenttweeterincludesaU.F.L.C.

softdometweeterandtwo-waymounting:flush/surface.

IneXcelon,theKFC-XT15iecomponenttweetersareverysimilartothe

tweeters that come with the eXcelon component speakers, which make

them a great match for systems that use those components. They are a

3/4”titaniumdometweeterwith3-waymountingandincludeImageEn-

hancer technology. Hit the high notes with the KFC-XT15ie component

tune-uptweeterortheKFC-T207componenttweeter.

Thiele-Small Parameters and Graphs

The following parameters are useful if you’re using a woofer box

computer program, and the graphs are excellent performance

parameters for each woofer.

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 41

42 SPEAKERS AND SUBS WWW.KENWOODUSA.COM

INSTALLERS NOTE: Kenwood woofers are designed primarily for sealed enclosures. Although they will work in a vented box, we recommend a

sealed enclosure for maximum performance. Also note that the shallow woofers display graphs only for sealed enclosures.

KFC-XW12R Sealed

KFC-W2511 SealedKFC-W2511 VentedKFC-W3011 SealedKFC-W3011 Vented

KFC-XW12R VentedKFC-XW1000F SealedKFC-XW1200F Sealed

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 43

KFC-W3514DVD Sealed

KFC-W110S VentedKFC-W112S SealedKFC-W112S Vented

KFC-W3514 VentedKFC-W110S Sealed

44 SPEAKERS AND SUBS WWW.KENWOODUSA.COM

WWW.KENWOODUSA.COM SPEAKERS AND SUBS 45

46 APPENDIX WWW.KENWOODUSA.COM

Connection Chart

Connection Chart - 2008 CD

APPENDIX

WWW.KENWOODUSA.COM APPENDIX 47

2008 Multi Media Adaptor/Accessory Chart

48 WWW.KENWOODUSA.COM

NOTES:

WWW.KENWOODUSA.COM 49

NOTES:

50 WWW.KENWOODUSA.COM

NOTES:

WWW.KENWOODUSA.COM 51

NOTES:
