GPS NAVIGATION SYSTEM

DNX5220BT

DNX5220

MONITOR WITH DVD RECEIVER

DDX5022

DDX5022Y

DDX52RY

INSTRUCTION MANUAL

B64_3978_0000EN_P01_55.indd 1B64_3978_0000EN_P01_55.indd 1 07.12.21 10:48:40 AM07.12.21 10:48:40 AM

2 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Contents

Basic Operations 10

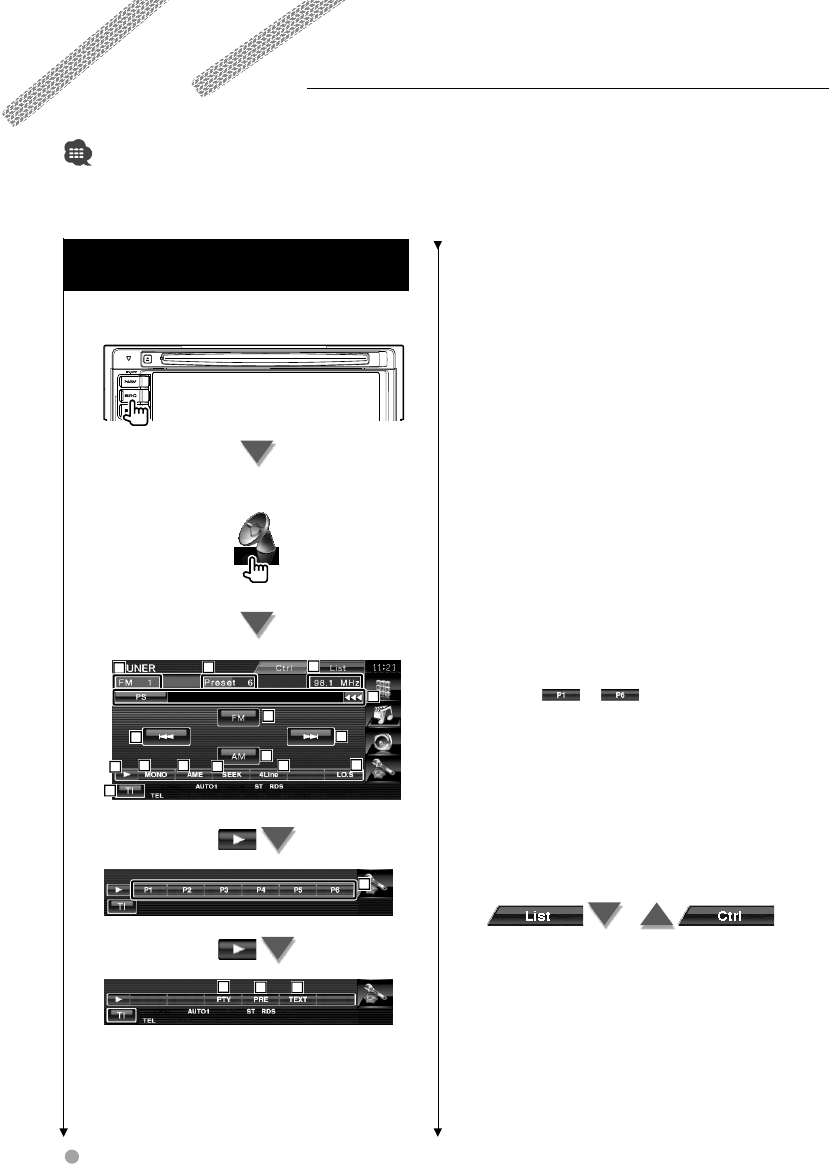

Radio Listening 26

Functions While Displaying the Control Screen

Seek Mode 27

Auto Memory 28

Manual Memory 28

Radio Text 29

Traffic Information 29

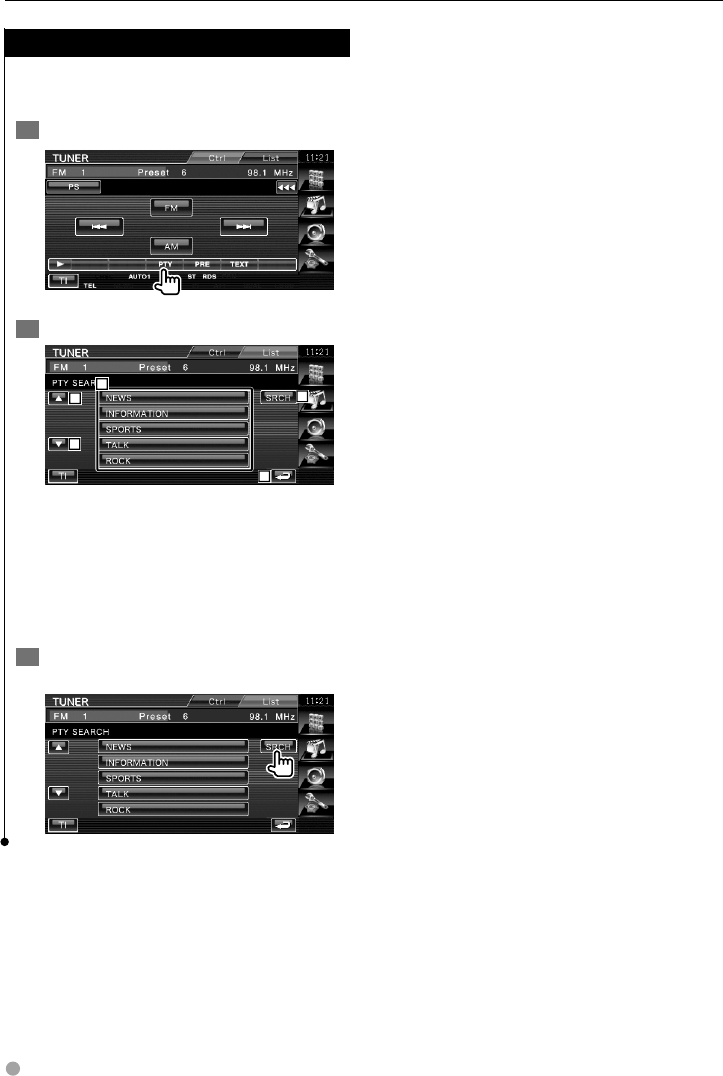

Search for Program Type 30

Video File/Picture Watching 23

Function During Playback Screen 23

Functions When Displaying the Easy Control

Panel 24

Functions While Displaying the Control Screen

Picture Control 25

How to read this manual 4

Before Use 6

Notes 7

Navigation Control 14

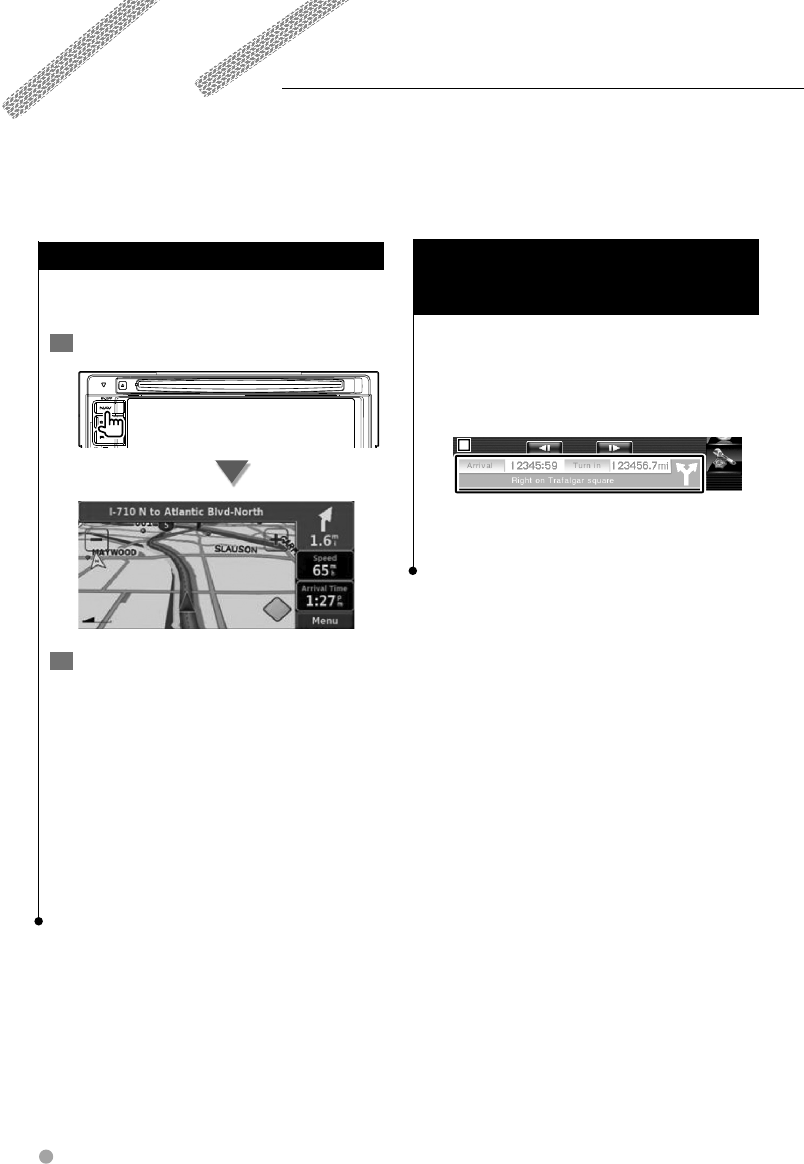

Using the Navigation System 14

Navigatoin Information Interrupt on the

Screen of Other Sources

(DNX5220BT/DNX5220 only) 14

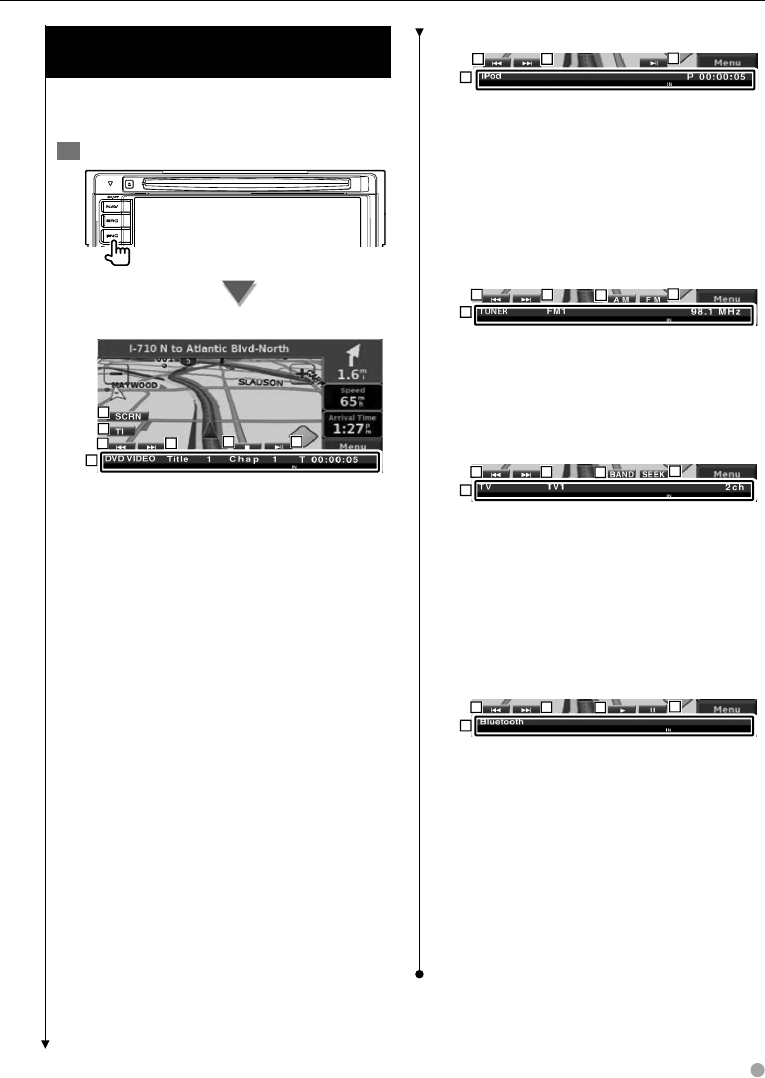

Control of Other Sources While Displaying the

Navigation Screen 15

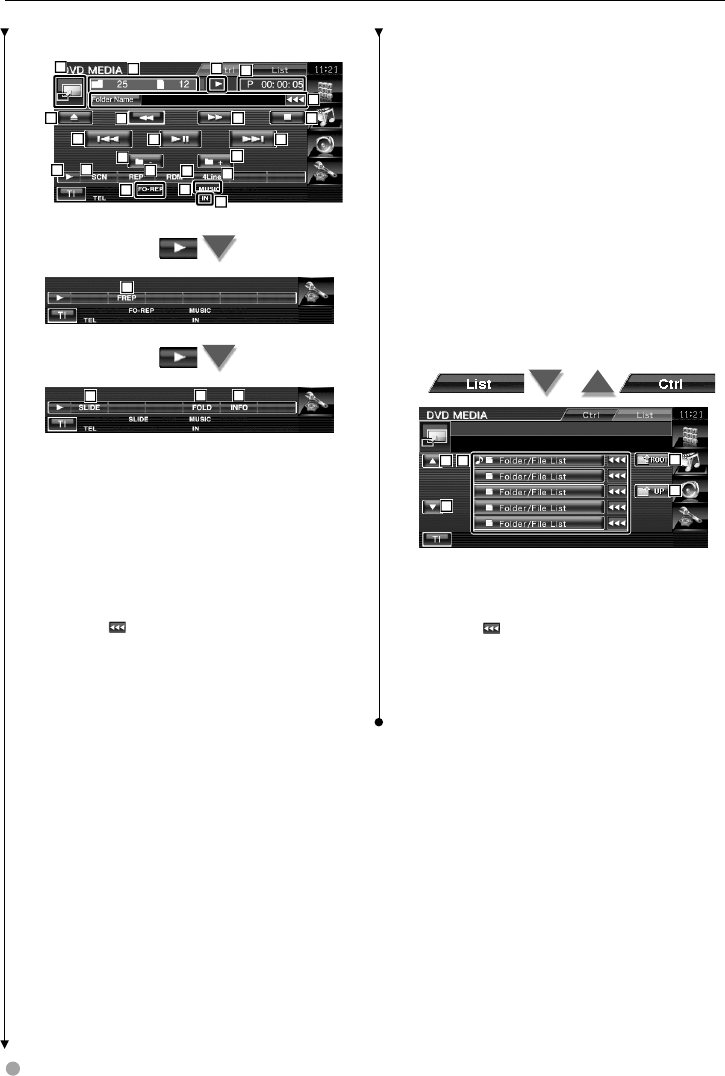

Music Disc & Audio File Listening 21

Functions While Displaying the Control Screen

iPod Control 31

Connecting an iPod 31

Functions When Displaying the Easy Control

Panel 31

Functions While Displaying the Control Screen

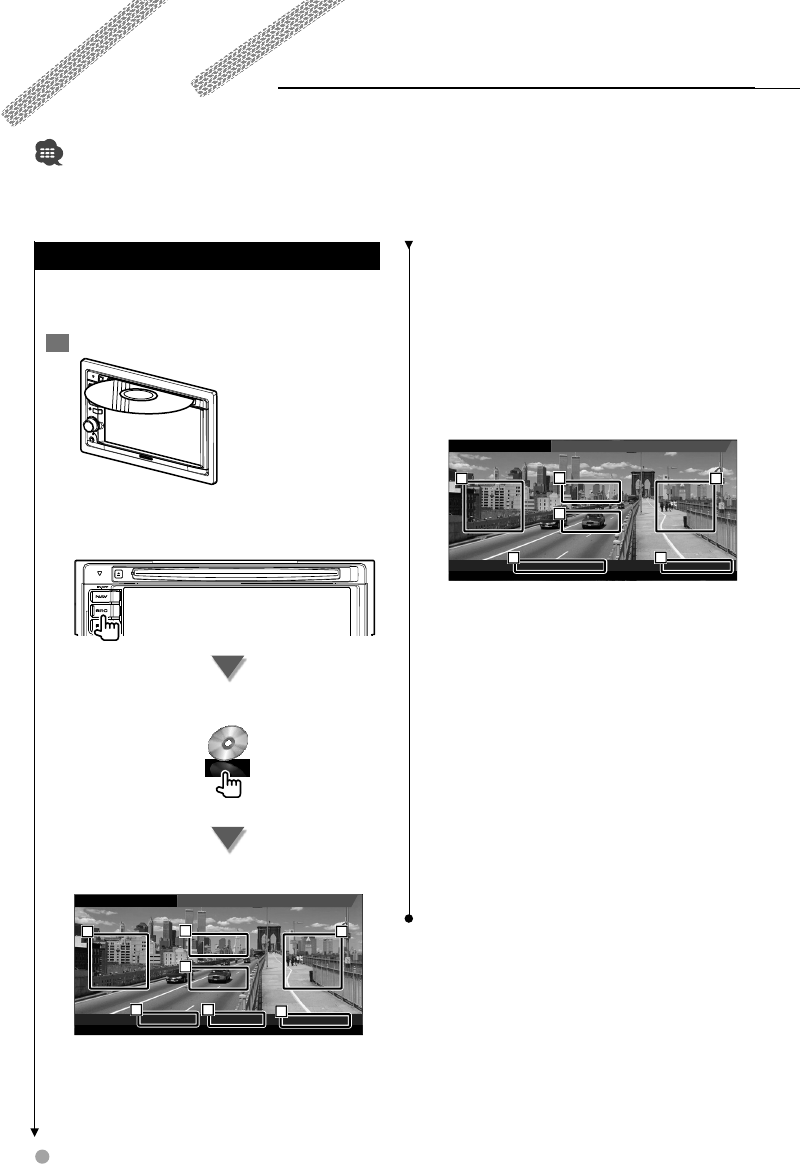

Watching DVD/VCD 16

Functions During the Playback Screen 16

Functions When Displaying the Easy Control

Panel 17

Functions While Displaying the Control Screen

DVD Disc Menu 18

VCD Zoom Control 20

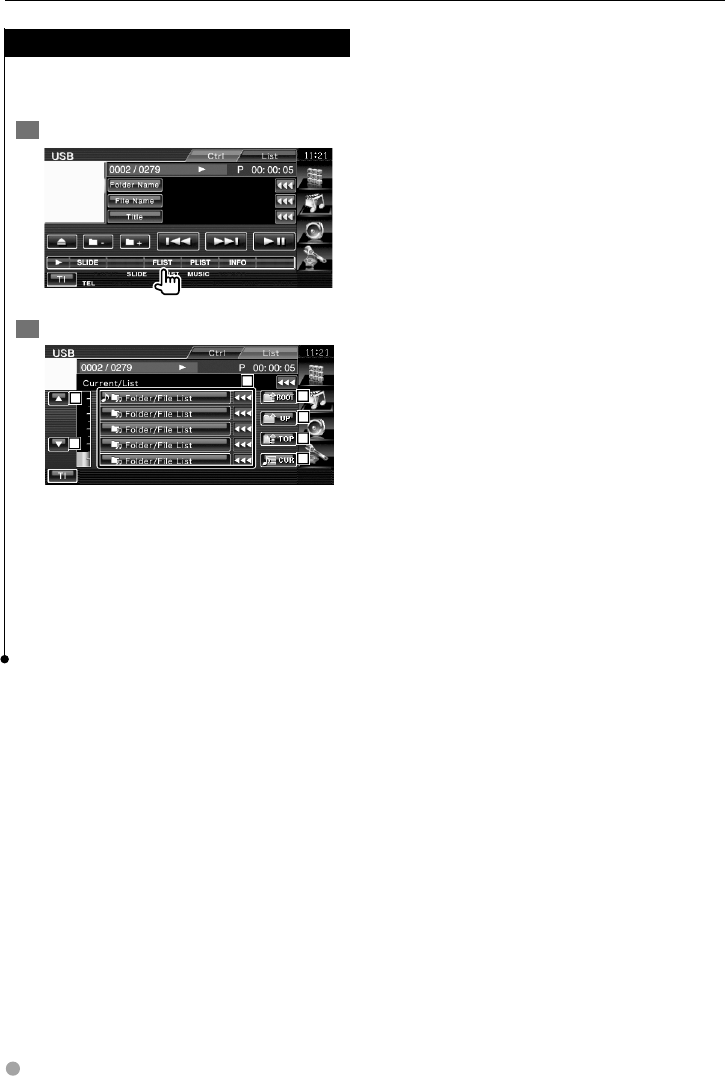

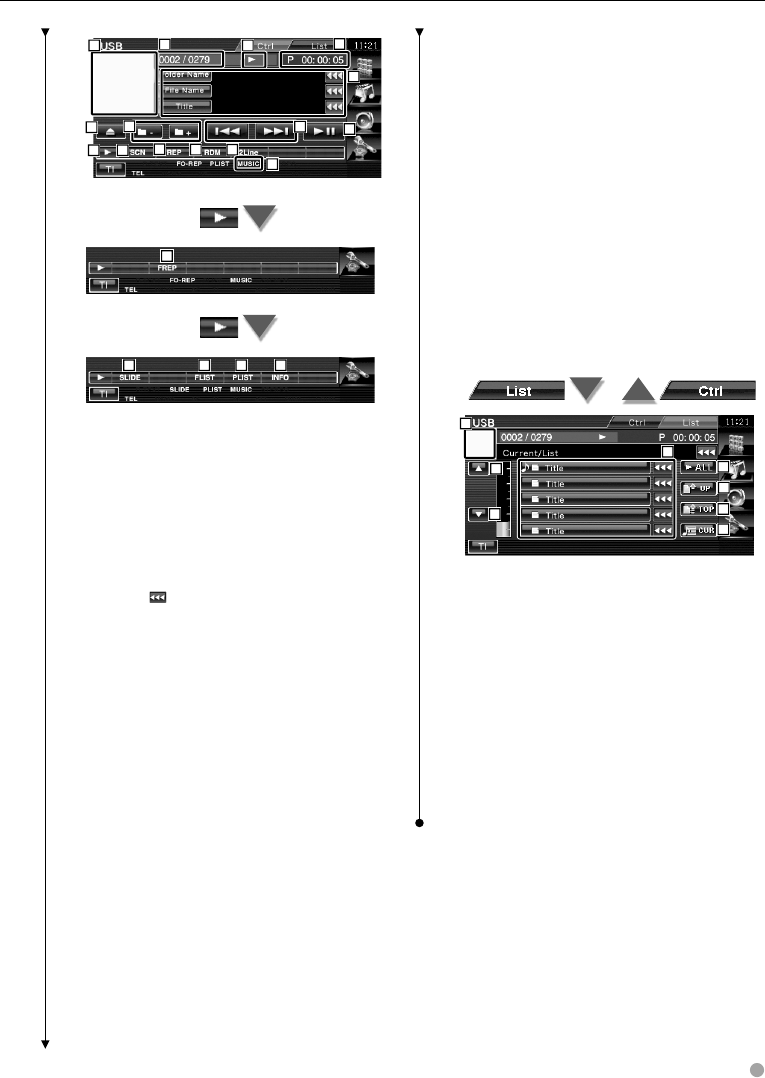

USB Device Control 34

Functions When Displaying the Easy Control

Panel 34

Functions While displaying the Control Screen

Folder Select 36

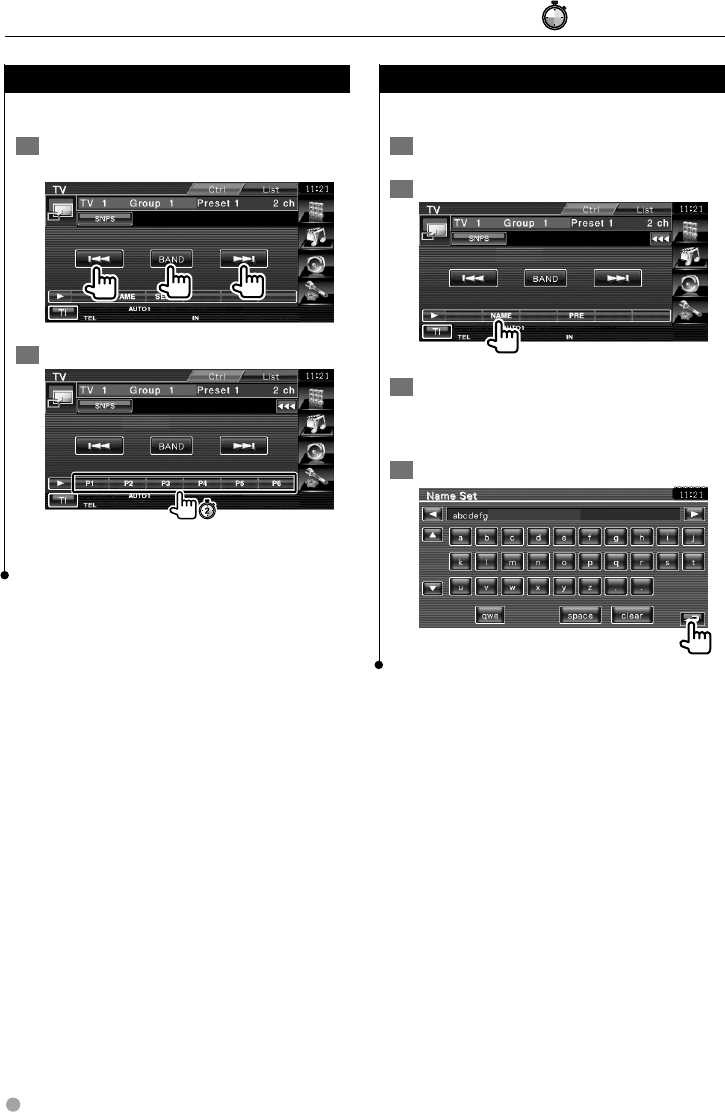

TV Watching 37

Function During TV Screen 37

Functions When Displaying the Easy Control

Panel 37

Functions While Displaying the Control Screen

TV Menu (with KTC-D500E (optional

accessory) connected only) 39

Seek Mode 39

Auto Memory 39

Manual Memory 40

Set Station Name 40

Bluetooth Audio Control 41

Before Use 41

Functions While Displaying the Control Screen

B64_3978_0000EN_P01_55.indd 2B64_3978_0000EN_P01_55.indd 2 07.12.21 10:48:42 AM07.12.21 10:48:42 AM

English 3

Setup Menu 56

Audio Setup 56

Crossover Network Setup 57

DVD Setup 57

Language Setup 58

Parental Level Setup 59

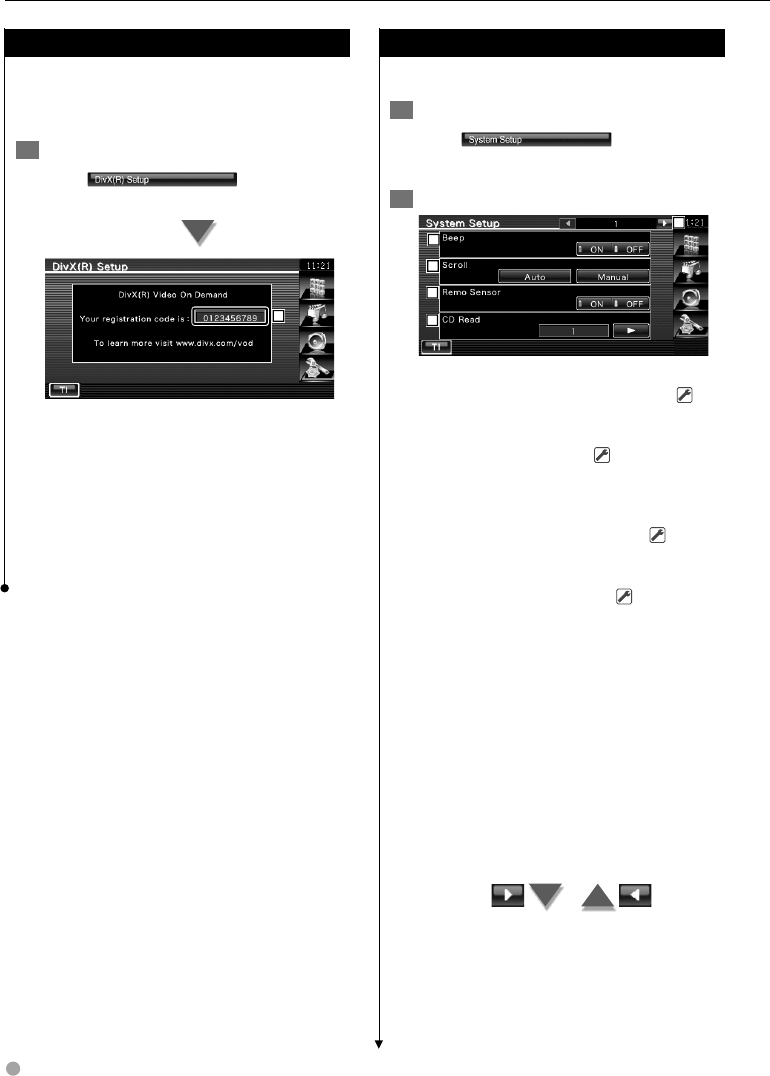

DivX Setup 60

System Setup 60

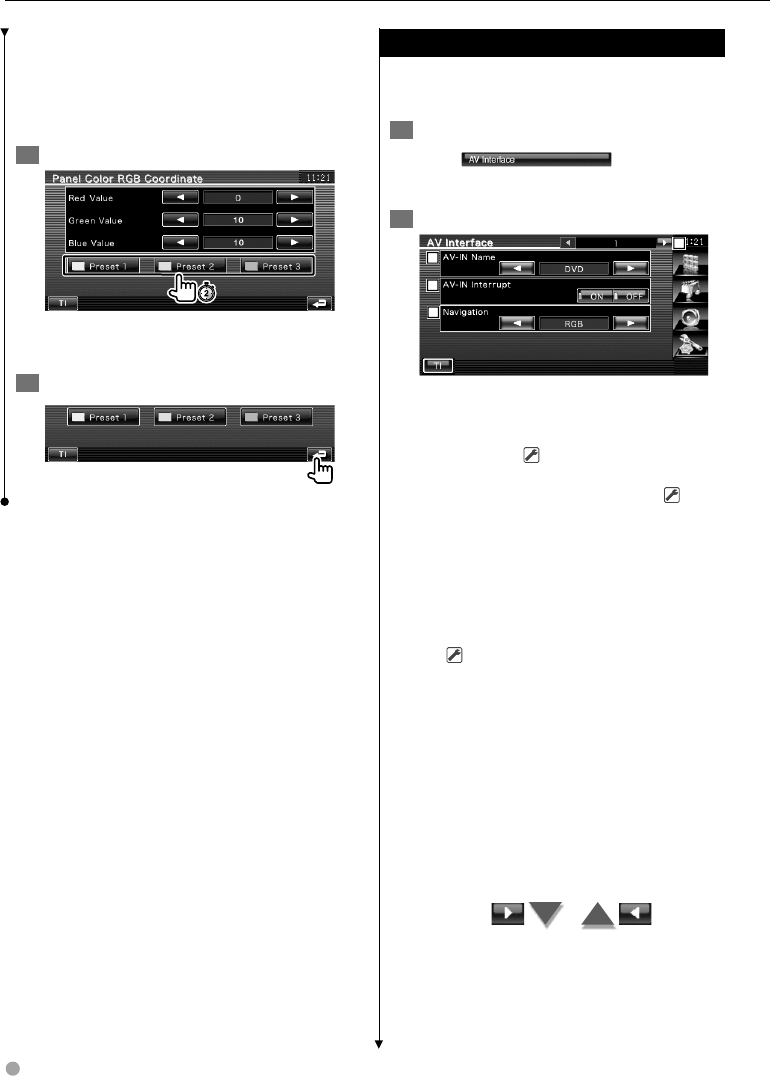

Panel Color Coordinate 61

AV Interface Setup 62

User Interface 64

Direct Source Button Setup 65

Entering Background 66

Background Delete 66

Background Select 67

Touch Panel Adjustment 67

Clock Setup 68

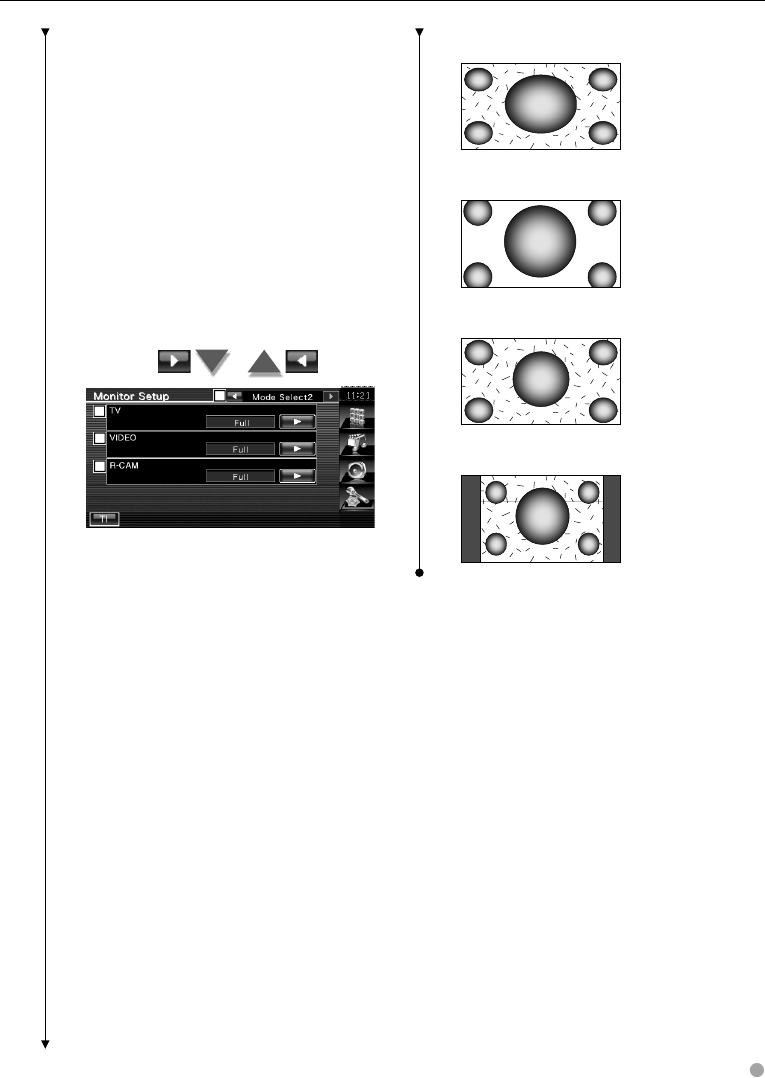

Monitor Setup 68

Security Code Setup 70

iPod Setup 71

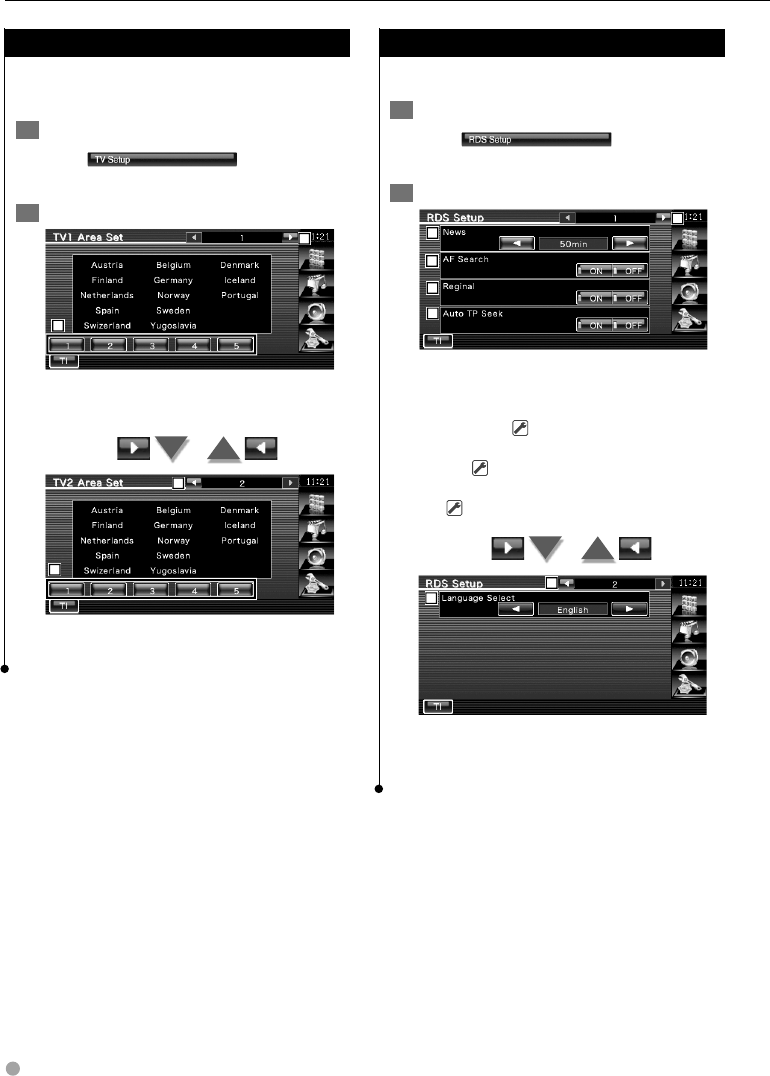

TV Setup 72

RDS Setup 72

Bluetooth Setup 73

Registering Bluetooth Unit 73

Registering Bluetooth Unit PIN Code 74

Registering Special Bluetooth Unit 75

Bluetooth Unit Connection 75

Deleting Bluetooth Unit 76

Software Information 76

Setup Memory 77

DVD Language Codes 88

Help? Error 89

Help? Troubleshooting 90

Specifications 92

Audio Control 78

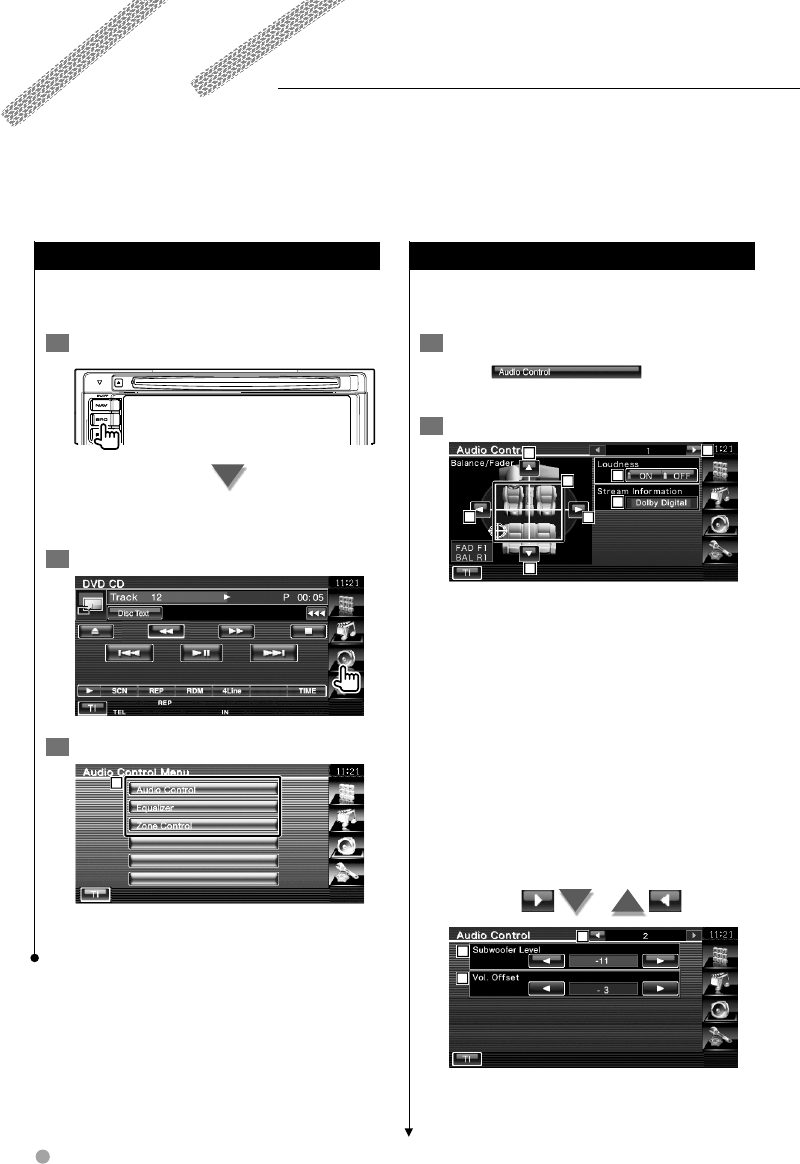

Audio Control Menu 78

Audio Control 78

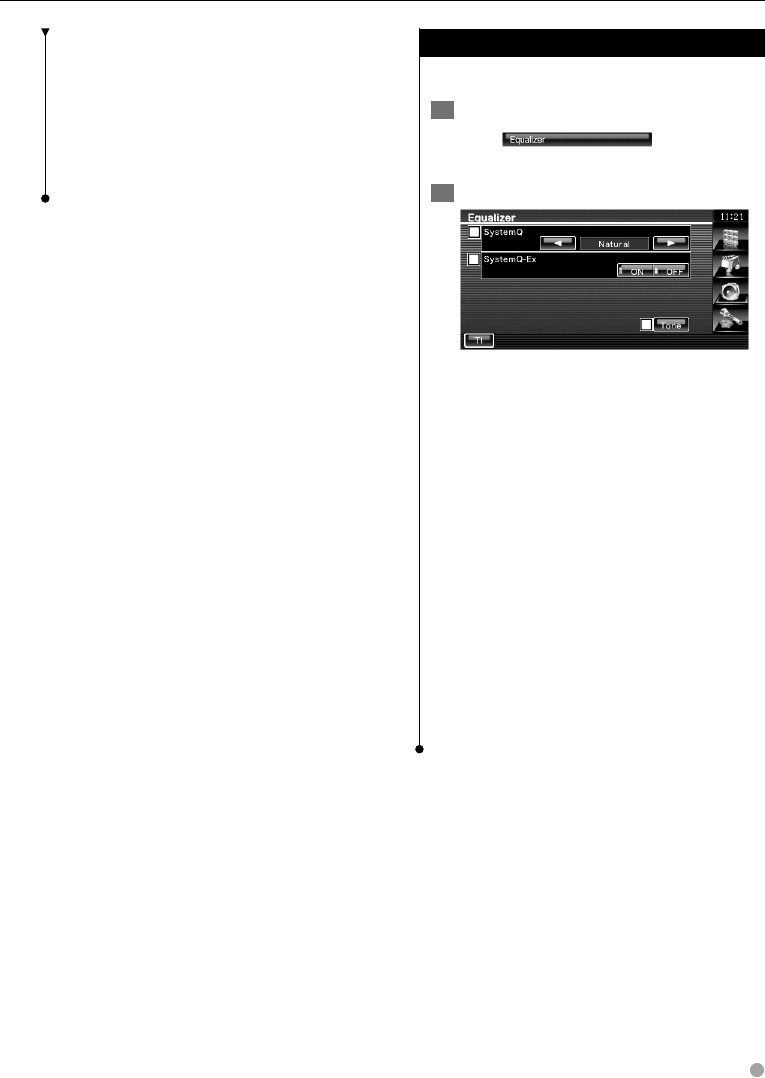

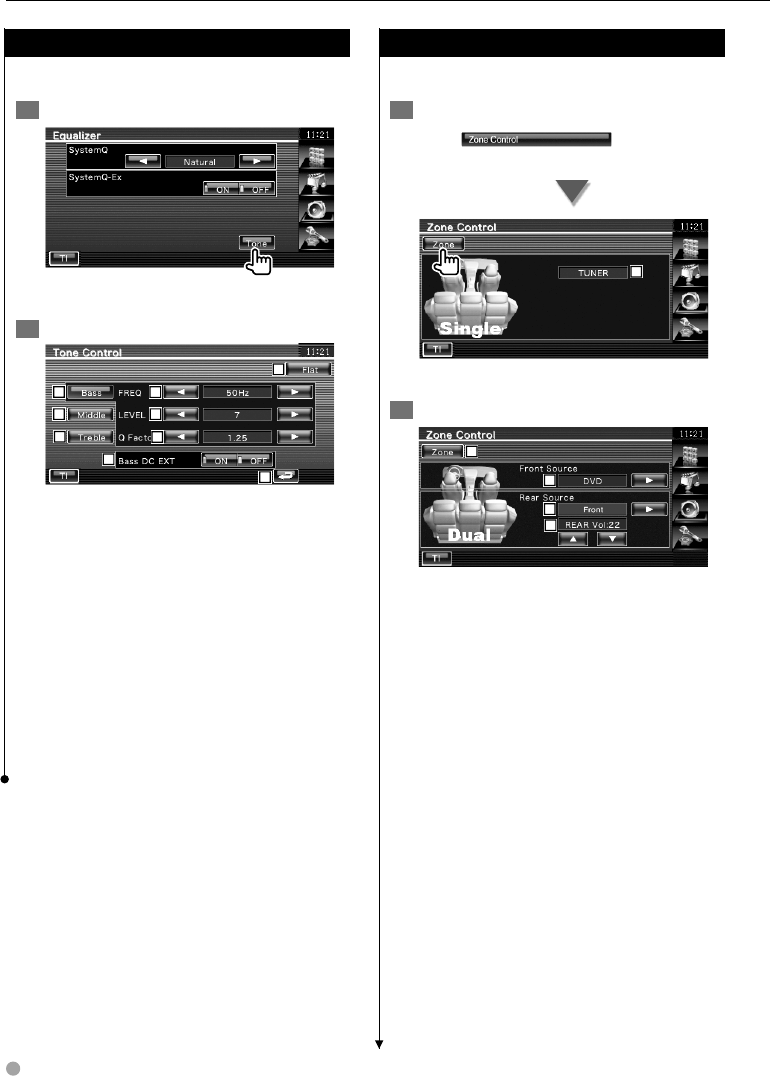

Equalizer Control 79

Tone Setup 80

Zone Control 80

Muting Audio Volume upon

Reception of Phone Call 42

Muting Audio Volume upon Reception of

Phone Call 42

Character Entry 43

How to Use the Character Entry Screen 43

Screen Control 44

Hands Free Unit Control 45

Before Use 45

Downloading the Phonebook 45

Control Screen Function 45

When Received a Call 46

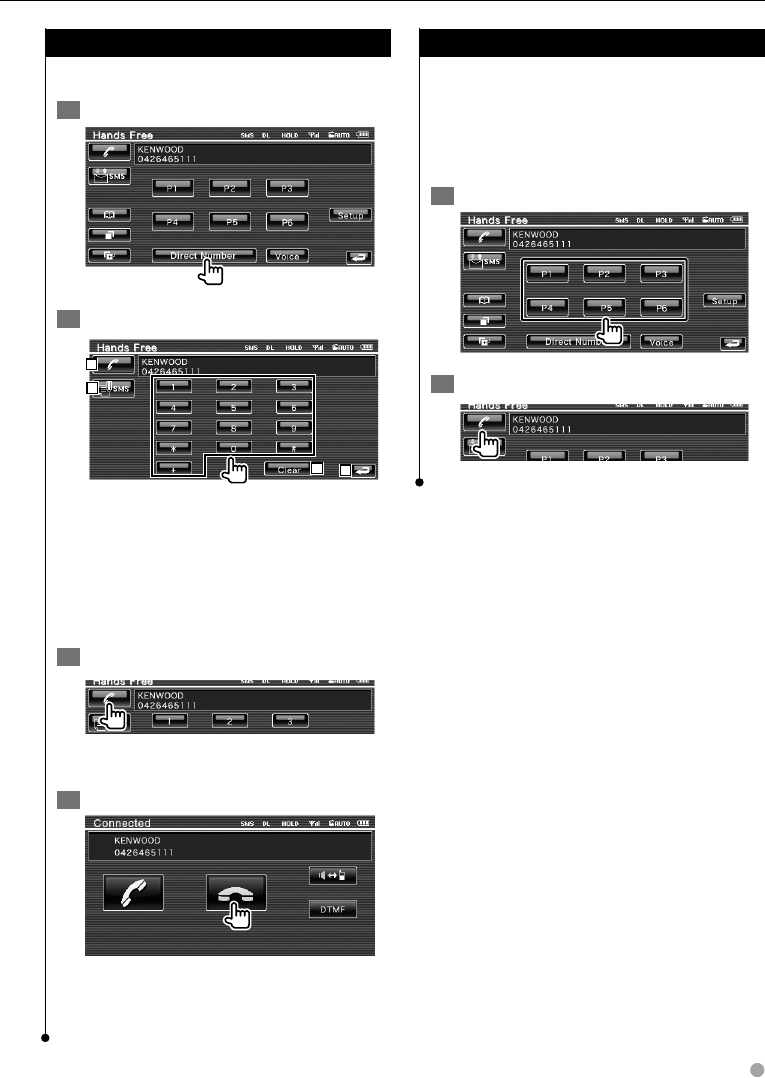

Calling by Entering a Phone Number 47

Quick Dialing 47

Controlling Tone-based Services 48

Calling by Phonebook 48

Making a Call Using Outgoing/Incoming Call

Records 50

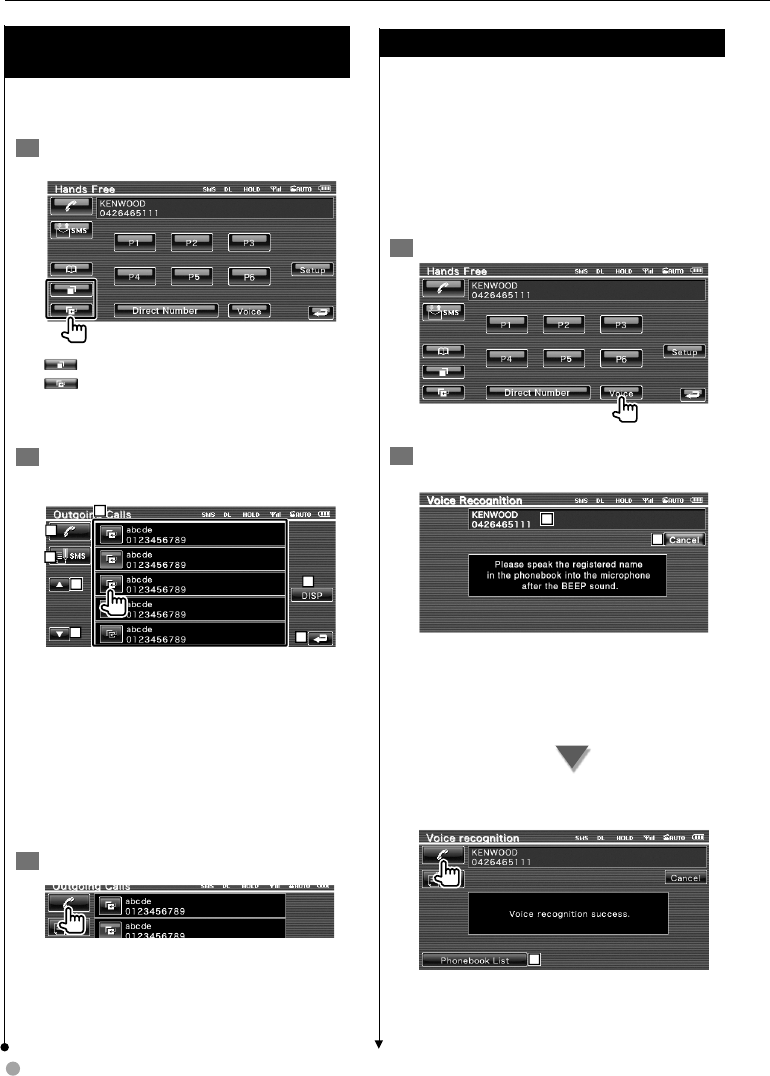

Calling by Voice Recognition 50

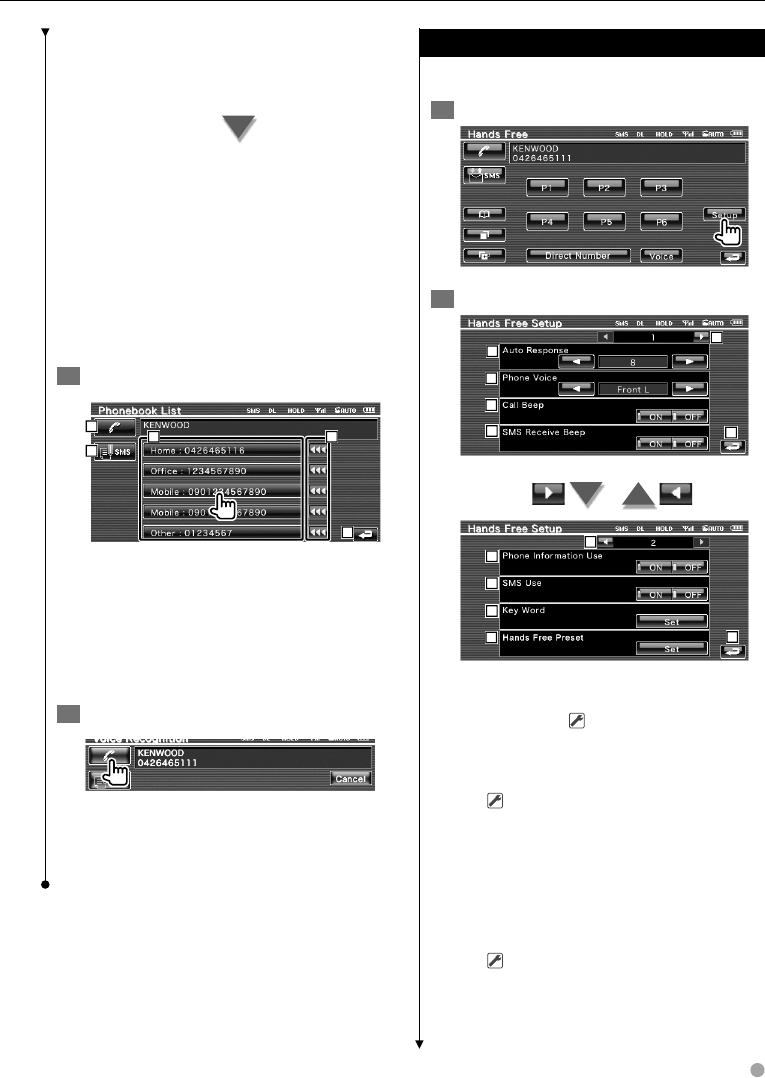

Setting Up the Hands-Free Phone 51

Voice Recognition 52

Key Word Voice Recognition 53

Phone Number Preset 54

SMS (Short Message Service) 55

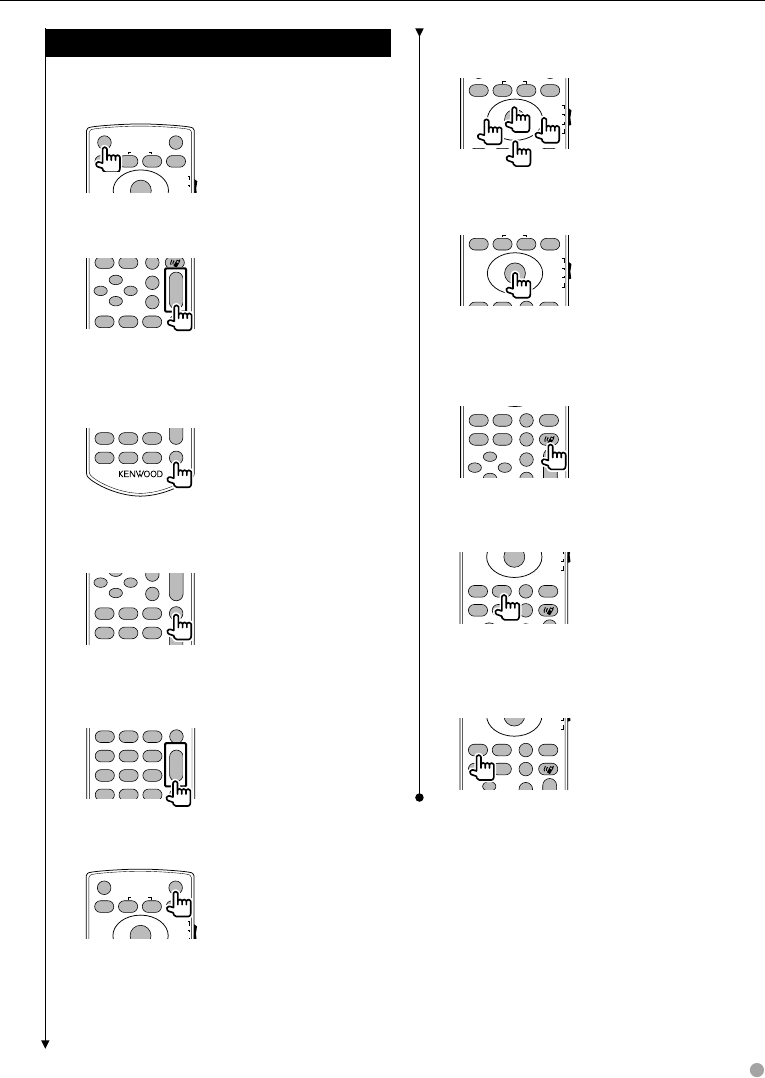

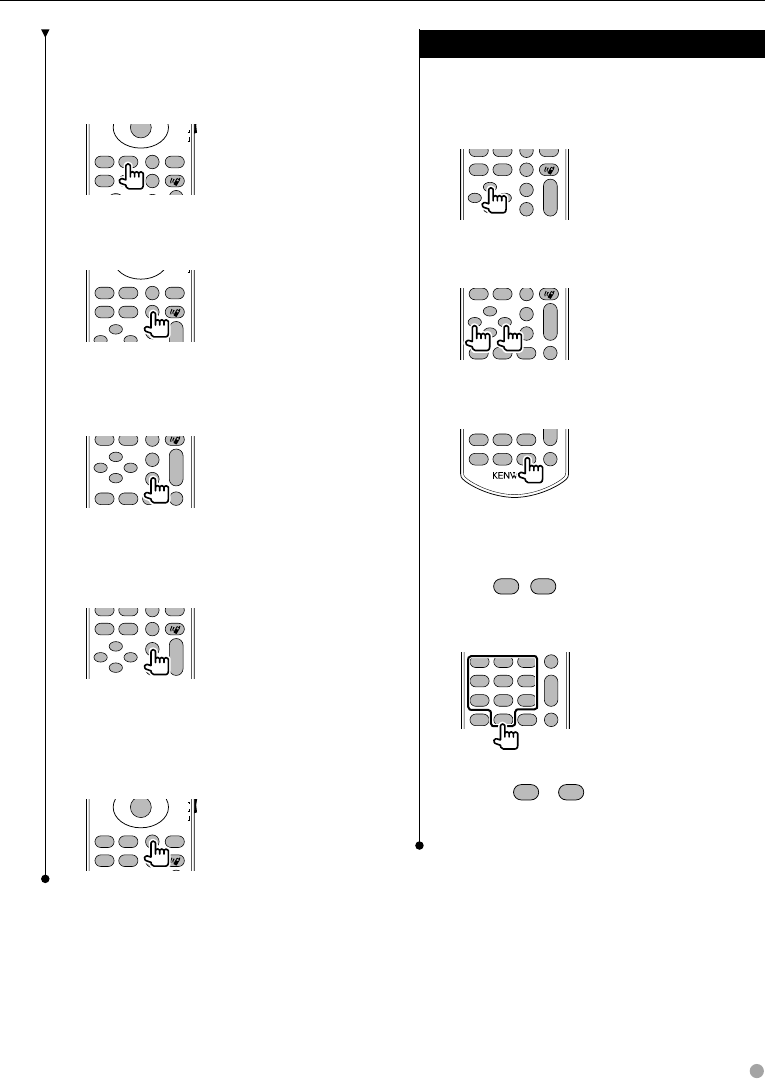

Remote Controller 82

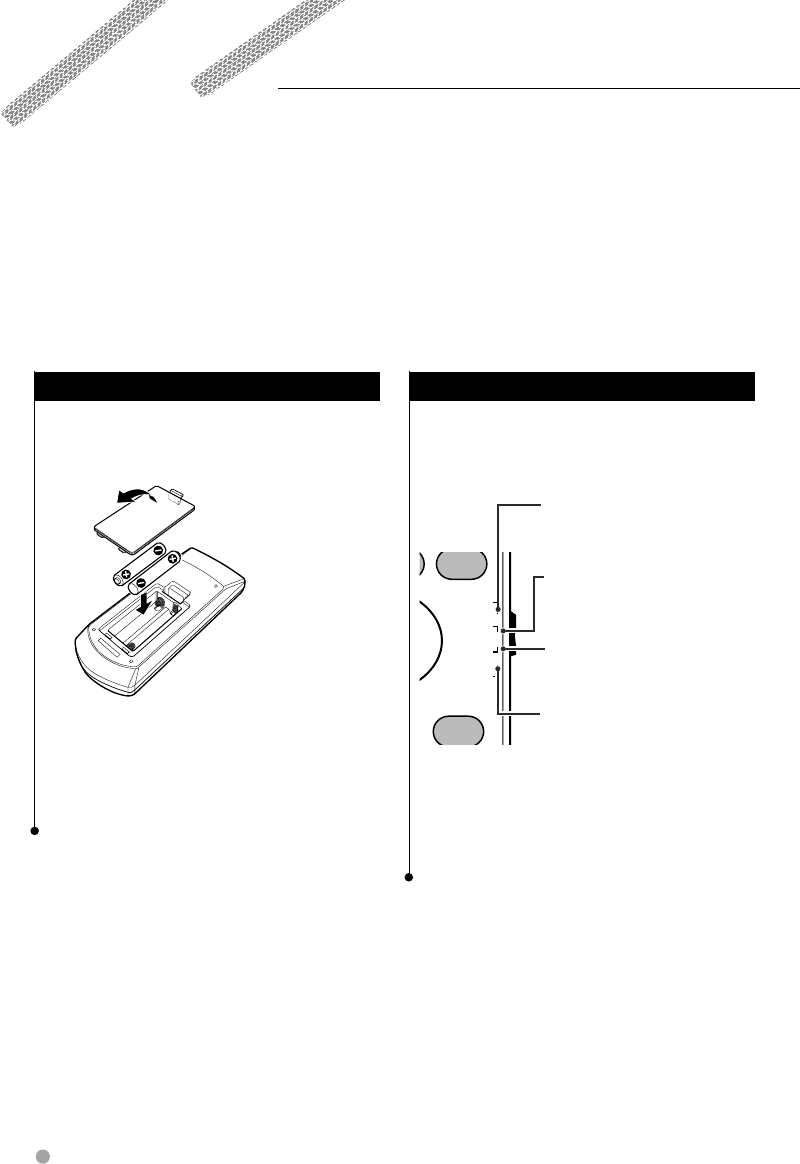

Battery installation 82

Remote Controller mode switch 82

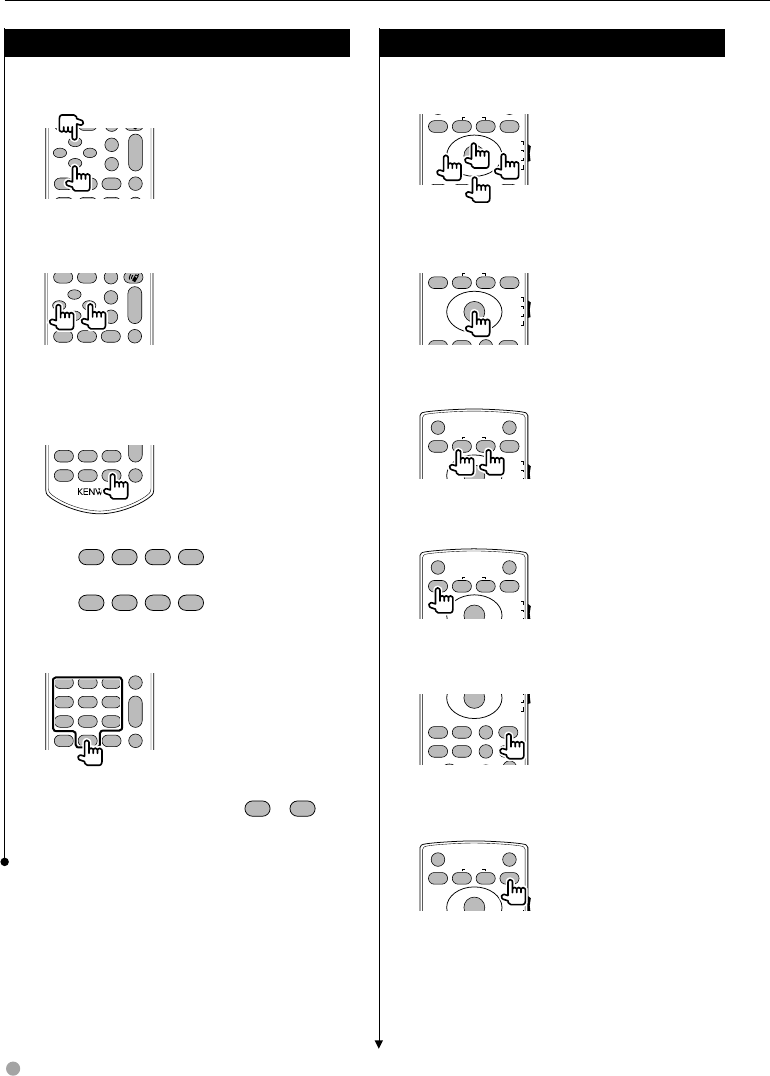

Common operations (AUD mode) 83

DVD/VCD/CD/Audio files (DVD mode) 84

TV (TV mode) 85

Radio (AUD mode) 86

NAVI (NAVI mode) 86

B64_3978_0000EN_P01_55.indd 3B64_3978_0000EN_P01_55.indd 3 07.12.21 10:48:43 AM07.12.21 10:48:43 AM

Seek Mode

Sets a station selection.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

Manual Memory

Stores the current receiving station in memory.

1 Select a station you wish to store in

memory

2 Store in memory

Next page 3

4 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

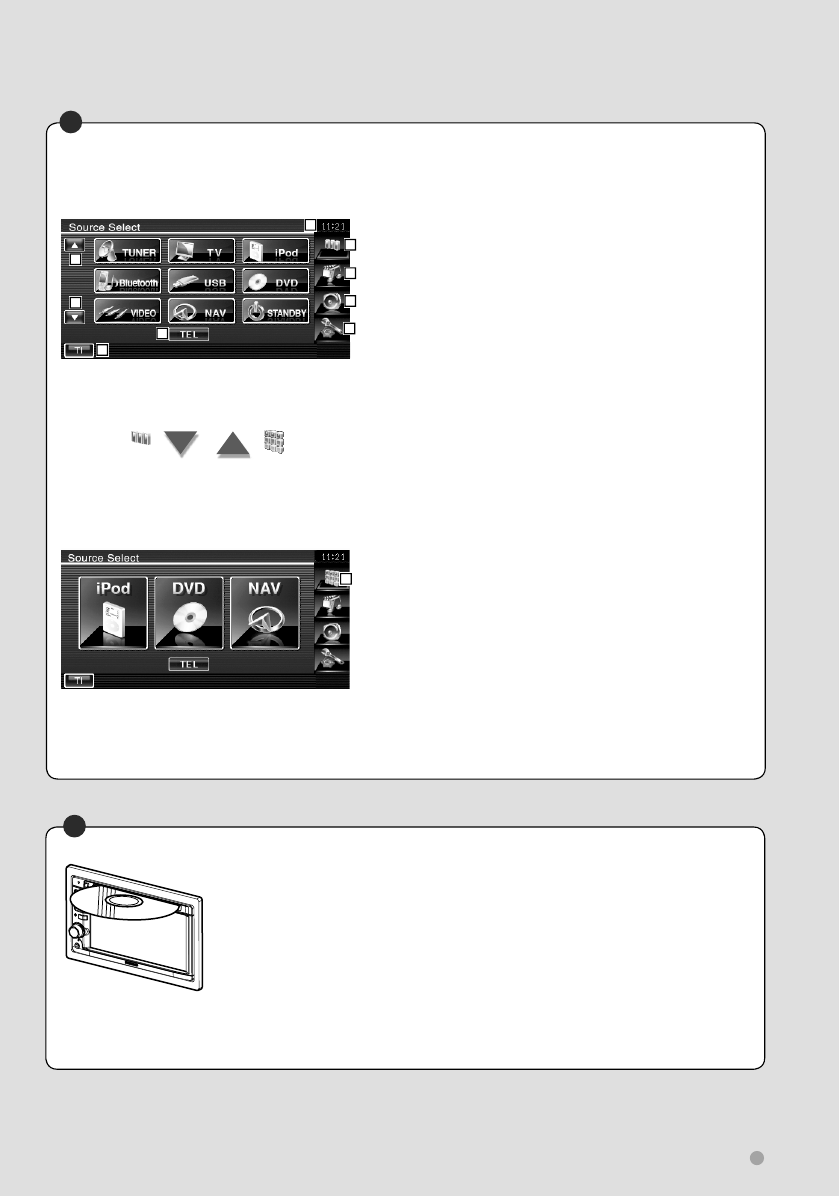

How to read this manual

This manual uses illustrations to explain its

operations.

The displays and panels shown in this manual

are examples used to provide clear explanations

of the operations.

For this reason, they may be different from the

actual displays or panels used, or some display

patterns may be different.

The above operation example with the mark

differs from the actual operation.

B64_3978_0000EN_P01_55.indd 4B64_3978_0000EN_P01_55.indd 4 07.12.21 10:48:44 AM07.12.21 10:48:44 AM

English 5

B64_3978_0000EN_P01_55.indd 5B64_3978_0000EN_P01_55.indd 5 07.12.21 10:48:46 AM07.12.21 10:48:46 AM

6 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

2WARNING

To prevent injury or fire, take the following

precautions:

• To prevent a short circuit, never put or leave any

metallic objects (such as coins or metal tools) inside

the unit.

• Do not watch or fix your eyes on the unit’s display

when you are driving for any extended period.

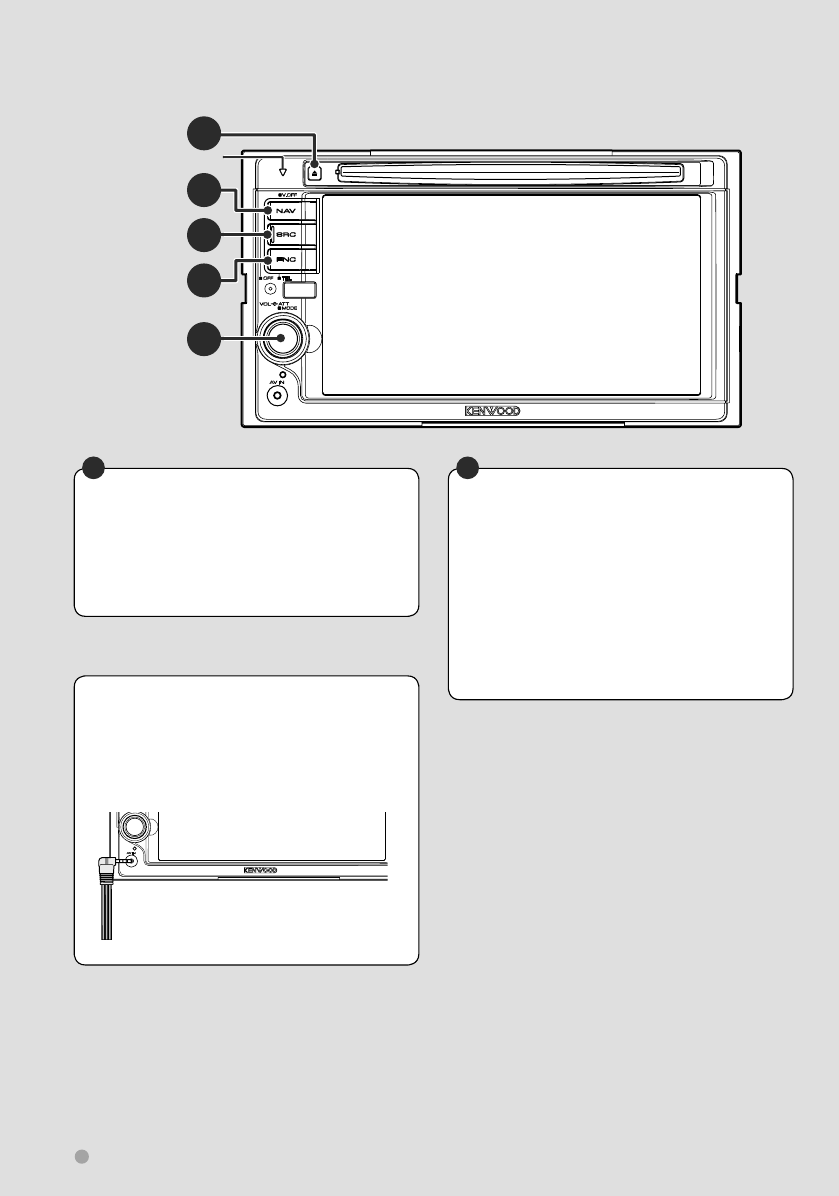

How to reset your unit

• If the unit or the connected unit (disc auto

changer, etc.) fails to operate properly, press the

Reset button. The unit returns to factory settings

when the Reset button is pressed.

• Remove the USB device before pressing the Reset

button. Pressing the Reset button with the USB

device installed can damage the data contained in

the USB device. For how to remove the USB device,

see <Playing a USB device> (page 10).

Reset button

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a

dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the stain off

with a cloth moistened with neutral cleaner, then

wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its

mechanical parts. Wiping the faceplate with a hard cloth

or using a volatile liquid such as thinner or alcohol may

scratch the surface or erases characters.

Lens Fogging

When you turn on the car heater in cold weather,

dew or condensation may form on the lens in the

disc player of the unit. Called lens fogging, this

condensation on the lens may not allow discs to play.

In such a situation, remove the disc and wait for the

condensation to evaporate. If the unit still does not

operate normally after a while, consult your Kenwood

dealer.

Before Use

Handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with

tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move

outward.

• When removing discs from this unit, pull them out

horizontally.

• If the disc center hole or outside rim has burrs,

use the disc only after removing the burrs with a

ballpoint pen etc.

Discs that cannot be used

• Discs that are not round cannot be used.

• Discs with coloring on the recording surface or

discs that are dirty cannot be used.

• This unit can only play the CDs with .

This unit may not correctly play discs which do not

have the mark.

• You cannot play a CD-R or CD-RW that has not

been finalized. (For the finalization process refer to

your CD-R/CD-RW writing software, and your CD-

R/CD-RW recorder instruction manual.)

• If you try to load a 3-inch-disc with its adapter into

the unit, the adapter might separate from the disc

and damage the unit.

Other notes

• If you experience problems during installation,

consult your Kenwood dealer.

• When you purchase optional accessories, check

with your Kenwood dealer to make sure that they

work with your model and in your area.

• The characters conforming to ISO 8859-1 character

set can be displayed.

• The RDS or RBDS feature won’t work where the

service is not supported by any broadcasting

station.

B64_3978_0000EN_P01_55.indd 6B64_3978_0000EN_P01_55.indd 6 07.12.21 10:48:47 AM07.12.21 10:48:47 AM

English 7

Navigation units that can be connected to

this unit (DDX5022/DDX5022Y/DDX52RY

only)

• KNA-G520*

• KNA-G420*

• KNA-G421*

• KNA-DV3200

• KNA-DV2200

* Update the navigation software to the latest

version. For how to update the software, refer to the

instruction manual of the navigation unit.

iPod that can be connected to this unit

You can control an iPod from this unit by connecting

an iPod (commercial product) with Dock connector

using an optional accessory iPod connection cable

(KCA-iP300V).

The following iPods can be controlled from this unit.

• iPod nano

• iPod nano (Second Generation)

• iPod nano (3rd Generation)

• Fifth Generation iPod (iPod with video)

• iPod classic

• iPod touch

Update iPod software to the latest version.

The latest iPod software updater can be downloaded

from the Apple Inc. web site.

By connecting your iPod to this unit with an optional

accessory iPod connection cable (KCA-iP300V), you

can supply power to your iPod as well as charge it

while playing music. However, the power of this unit

must be on.

Bluetooth unit that can be connected to

this unit

(DNX5220/DDX5022/DDX5022Y/DDX52RY

only)

• KCA-BT200

TV tuner that can be connected to this unit

• KTC-D500E

• KTC-V300E

List of playable discs

Disc

types

Standard Support Remark

DVD DVD Video ‡

DVD Audio ×

DVD-R ‡

MP3/WMA/AAC/JPEG/

MPEG/DivX Playback

Multi-border/Multisession/

(Playback depends on

authoring conditions)

Compatible with 8-cm (3

inch) discs

DVD-RW ‡

DVD+R ‡

DVD+RW ‡

DVD-R DL (Dual layer) ‡Only video format

DVD+R DL (Double layer) ‡

DVD-RAM ×

CD Music CD ‡CD-TEXT/8-cm (3 inch)

discs supported.

CD-ROM ‡MP3/WMA/AAC/JPEG/

DivX playback

Multisession supported

Packet write not supported.

CD-R ‡

CD-RW ‡

DTS-CD ‡

Video CD (VCD) ‡

Super video CD ×

Photo CD ×

CD-EXTRA %Only music CD session can

be played.

HDCD %Sound quality of normal

CD music

CCCD ×

Others Dualdisc ×

Super audio CD %Only CD layer can be

played.

‡ : Playback is possible.

% : Playback is partly possible.

× : Playback is impossible.

⁄

• When buying DRM enabled contents, check the

Registration Code in the <DivX Setup> (page 60).

Registration Code changes each time a file with the

displayed Registration Code is played to protect against

copying.

Use of "DualDisc"

When playing a "DualDisc" on this unit, the surface

of the disc that is not played may be scratched

while the disc is inserted or ejected. Since the music

CD surface does not conform to the CD standard,

playback may be impossible.

(A "DualDisc" is a disc with one surface containing

DVD standard signals and the other surface

containing music CD signals.)

Notes

B64_3978_0000EN_P01_55.indd 7B64_3978_0000EN_P01_55.indd 7 07.12.21 10:48:49 AM07.12.21 10:48:49 AM

8 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

About Audio files

• Playable Audio file

AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)

⁄

• If music of normal CD and other playback systems are

recorded in the same disc, only the playback system

recorded at the first setout is played.

• Playable disc media

CD-R/RW/ROM, DVD±R/RW

• Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name.

• Playable USB device

USB mass storage class, iPod with KCA-iP300V

• Playable USB device file system

FAT16, FAT32

Although the audio files are complied with the standards

listed above, the play maybe impossible depending on

the types or conditions of media or device.

• Playing order of the Audio file

In the example of folder/file tree shown below, the

files are played in the order from ① to ⑩.

v



()

<: Folder

v: Audio 



v



v

v

v.

 v

Folder

Audio file

An online manual about audio files is put on the

site, www.kenwood.com/audiofile/. On this online

manual, detailed information and notes which are

not written in this manual are provided. Make sure

to read through the online manual as well.

⁄

• In this manual, the word "USB device" is used for flash

memories and digital audio players which have USB

terminals.

• The word "iPod" appearing in this manual indicates the

iPod connected with the KCA-iP300V (optional accessory).

About Video files

• Acceptable video files

MPEG1, MPEG2, DivX

• Extensions

mpg, mpeg, m1v, m2v, divx, div, avi

• Acceptable media

CD-R/RW/ROM, DVD±R/RW, VCD, mass-storage-

Notes

class USB device, iPod with KCA-iP300V

Acceptable discs, disc formats, USB device file system,

file and folder names and playing order are the same

as those for audio files. See <About Audio files>.

About Picture files

• Acceptable picture files

JPEG

• Extensions

jpg, jpeg

• Acceptable media

CD-R/RW/ROM, DVD±R/RW, mass-storage-class

USB device

Acceptable discs, disc formats, USB device file system,

file and folder names and playing order are the same

as those for audio files. See <About Audio files>.

About USB device

• If you start playback after connecting the iPod, the

music that has been played by the iPod is played

first.

In this case, "RESUMING" is displayed without

displaying a folder name, etc. Changing the browse

item will display a correct title, etc.

• When the iPod is connected to this unit,

"KENWOOD" or "✓" is displayed on the iPod to

indicate that you cannot operate the iPod.

• When the USB device is connected to this unit,

it can be charged up provided that this unit is

powered.

• Install the USB device in the place where it will not

prevent you from driving your vehicle properly.

• You cannot connect a USB device via a USB hub

and Multi Card Reader.

• Take backups of the audio files used with this unit.

The files can be erased depending on the operating

conditions of the USB device.

We shall have no compensation for any damage

arising out of erasure of the stored data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

• When connecting the USB device, usage of the CA-

U1EX (option) is recommended.

Normal playback is not guaranteed when a cable

other than the USB compatible cable is used.

Connecting a cable whose total length is longer

than 5 m can result in abnormal playback.

B64_3978_0000EN_P01_55.indd 8B64_3978_0000EN_P01_55.indd 8 07.12.21 10:48:49 AM07.12.21 10:48:49 AM

English 9

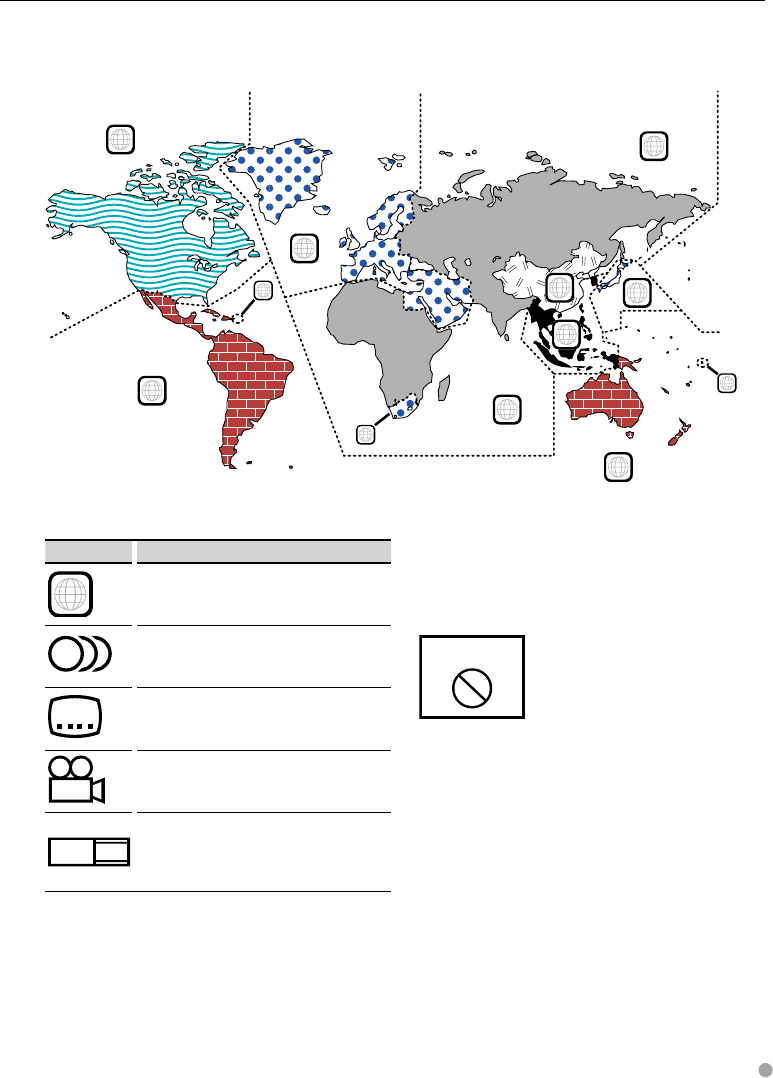

Region codes in the world

The DVD players are given a region code according to the country or area it is marketed, as shown in the

following map.

Operation regulatory marks

With this DVD, some functions of this unit such as the

play function may be restricted depending on the

location where the DVD is playing. In this case, the

following marks will appear on the screen. For more

information, refer to the disc manual.

禁止マーク

Prohibition Mark

Discs with limited period of use

Do not leave discs with a limited period of use in this

unit. If you load an already expired disc, you may not

be able to remove it from this unit.

DVD disc marks

Symbol Description

ALL

Indicates a region number. The discs with this mark can

be played with any DVD player.

Indicates the number of audio languages recorded. Up

to 8 languages can be recorded in a movie. You can

select a favorite language.

Indicates the number of subtitled languages recorded.

Up to 32 languages can be recorded.

If a DVD disc has scenes shot from multiple angles, you

can select a favorite angle.

16:9 LB

Indicates the type of screen for the image. The left mark

indicates that a wide image picture (16:9) is displayed

on a standard TV set screen (4:3) with a black band at

both the top and bottom of the screen (letter box).

B64_3978_0000EN_P01_55.indd 9B64_3978_0000EN_P01_55.indd 9 07.12.21 10:48:50 AM07.12.21 10:48:50 AM

10 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Basic Operations

Adjusts the volume

Turn it either way to adjust the volume.

Attenuates the volume

Press it to attenuate the volume.

Press it again to cancel muting.

Turns power ON/OFF

Press the button to turn on the power.

When the button is pressed and held down for

1 second or more, the power is turned off.

Switches to the Navigation system

Press the button to switch the display to the

navigation system screen.

Playing a USB device

When connecting a USB device, playback starts automatically.

Removing the USB device

Press on the USB control screen to enter the USB suspend mode, and then remove the USB

device. See <USB Device Control> (page 34).

• Removing the USB device before entering the USB suspend mode may result in damaging the data in the USB device.

⁄

• If the USB source is selected when a USB device is not connected, "No Device"

is displayed.

• When the playback is stopped and then restarted, the playback will start from

the point where it was stopped at the last time. Even if the USB is removed

and connected again, the playback will start from the last stopped point

unless the contents in the USB device is changed.

• Make sure that the USB device is connected firmly.

SI indicator

B64_3978_0000EN_P01_55.indd 10B64_3978_0000EN_P01_55.indd 10 07.12.21 10:48:51 AM07.12.21 10:48:51 AM

English 11

Playing a disc

When you load a disc into disc loading slot, the disc starts playing.

If a menu appears, when playing a video disc, select the desired item.

⁄

• See <List of playable discs> (page 7) for a list of supported discs and formats.

Removing a disc

Press [0] (Eject) button.

Selecting a source

Press it to display the source select screen. Touch the source button to select the source.

Full Source Select screen

Favorite Source Select screen

1 Scrolls the source display.

2 Displays the Hands Free screen. (page 45)

⁄

• The displayed source depends on the type of device

connected. In addition, you cannot press the button of

currently unavailable source.

The following buttons are always displayed on the

source select screen and source control screen.

3 Displays the Source Select screen.

The display switches between Favorite Source Select

screen and Full Source Select screen by touching the

button.

4 Displays Source Control screen.

5 Displays the Audio Control Menu screen. (page 78)

6 Displays the Setup Menu screen. (page 56)

7 Clock display

8 Turns the traffic information function On or Off. (page

29)

⁄

• DNX5220/DDX5022/DDX5022Y/DDX52RY only:

If a Bluetooth Unit is not connected, [TEL] will not appear.

9 Displays the Full Source Select screen.

⁄

• For how to register the frequently used source buttons to

Favorite Source Select screen, see <Direct Source Button

Setup> (page 65).

B64_3978_0000EN_P01_55.indd 11B64_3978_0000EN_P01_55.indd 11 07.12.21 10:48:52 AM07.12.21 10:48:52 AM

12 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Basic Operations

Turns the display OFF

Press it for more than 1 second to turn the

display off.

Press [NAV], [SRC] or [FNC] button, or touch the

screen to resume the normal display.

⁄

• Functions of the [NAV] button can be changed to rear

view function. See <System Setup> (page 60) for the

function setting of the [NAV] button.

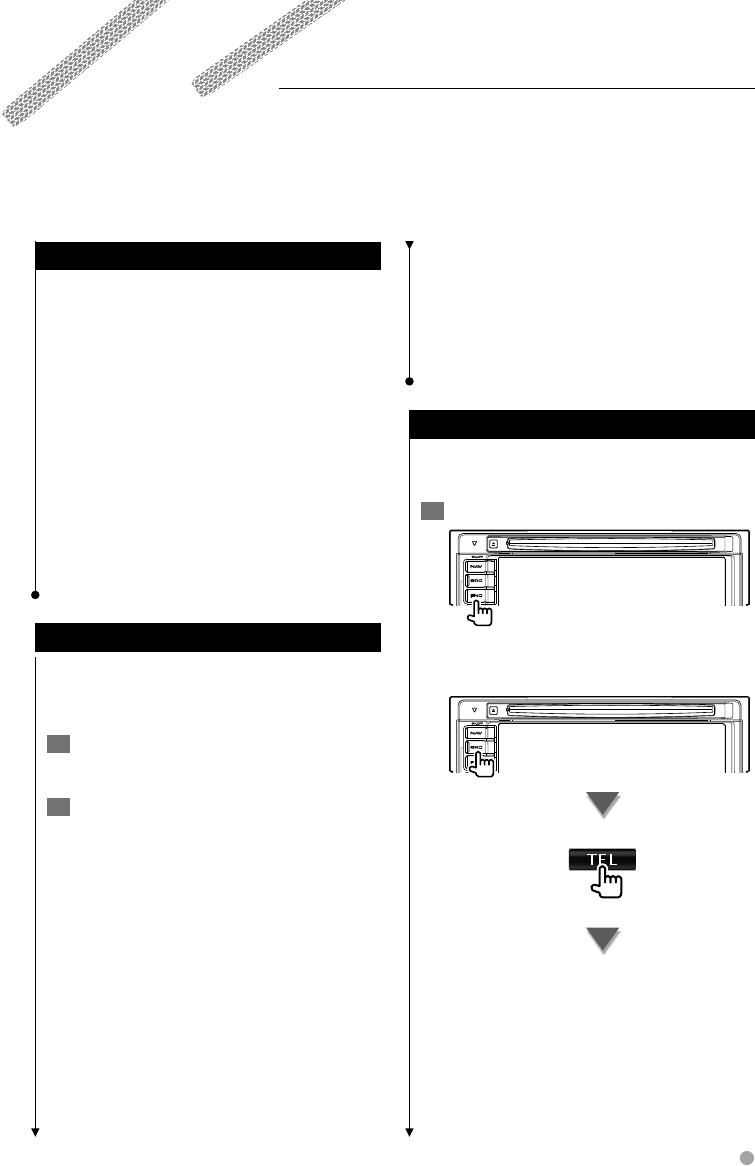

Switches to the Hands Free control

Press it for more than 1 second to the Hands

Free control screen.

Press it again for more than 1 second to

resume the normal display.

SI indicator

Playing an external player

Connect an external player such as a digital

audio player to AV IN jack. Use of the optional

cable CA-C3AV is recommended for connecting

an external player.

B64_3978_0000EN_P01_55.indd 12B64_3978_0000EN_P01_55.indd 12 07.12.21 10:48:53 AM07.12.21 10:48:53 AM

English 13

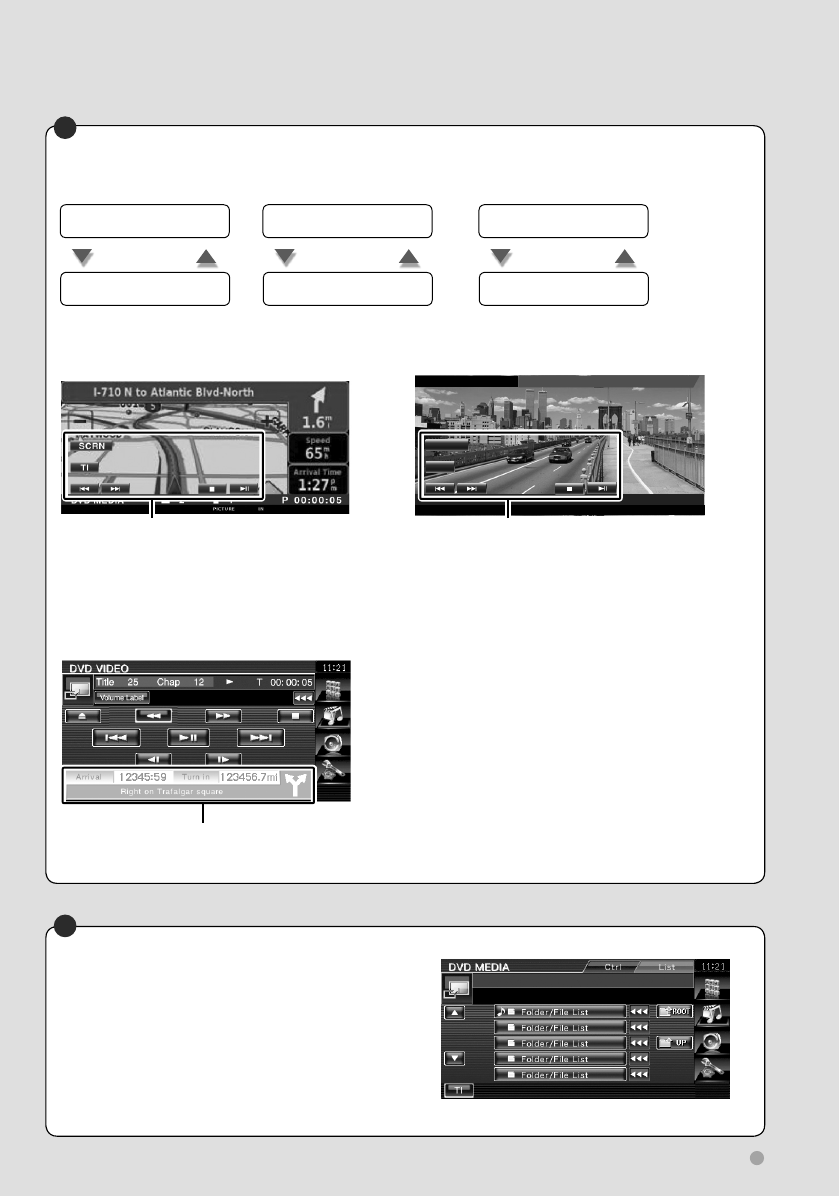

Switching the function screen

The function control screen switches in the following order each time you press the button.

Navigation screen

Easy Control buttons

appear.

[FNC] button

Picture or Video playback

screen

Easy Control buttons

appear.

[FNC] button

Source Control screen

Navigation information

appears.*

[FNC] button

*DNX5220BT/DNX5220 only

Navigation screen Picture or Video playback screen

Easy Control button

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

SCRN

Easy Control button

⁄

• For the functions of Easy Control buttons, see <Control of Other Sources While Displaying the Navigation Screen> (page

15).

Source Control screen

Navigation information

(DNX5220BT/DNX5220 only)

⁄

• For the functions of Navigation information, see <Navigation

Information Interrupt on the Screen of Other Sources> (page

14).

Scrolls the list and makes a selection

When the list screen of a source control screen is

displayed, press it for more than 1 second to enter list

control mode.

Turn it either way to scroll the list. Press it to make a

selection.

Press it again for more than 1 second to return to the

volume control mode.

Example: List screen of DVD MEDIA source

B64_3978_0000EN_P01_55.indd 13B64_3978_0000EN_P01_55.indd 13 07.12.21 10:48:55 AM07.12.21 10:48:55 AM

14 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Using the Navigation System

Displays the navigation system screen and makes

the navigation function available.

1 Displaying the navigation screen

2 Setting the navigation system function

Touch the navigation system button displayed

on the screen. See the included NAVIGATION

SYSTEM's INSTRUCTION MANUAL for

information on using the navigation system.

⁄

• You can set the navigation system function when

nothing else is displayed on the screen. If anything else,

such as Easy control panel is displayed, erase it first.

• For DDX5022/DDX5022Y/DDX52RY, an optional

navigation system needs to be connected. See

(page 7) for connectable navigation units.

Navigation Control

Navigatoin Information Interrupt on the

Screen of Other Sources

(DNX5220BT/DNX5220 only)

Interrupts other source screen and displays

information such as guide point.

While a control screen is displaying:

Navigation information appears on the bottom

of the screen.

1 Displays the Navigation information.

When touched this area, the navigation

screen appears.

Sets and controls the navigation system function.

B64_3978_0000EN_P01_55.indd 14B64_3978_0000EN_P01_55.indd 14 07.12.21 10:48:56 AM07.12.21 10:48:56 AM

English 15

Control of Other Sources While Displaying

the Navigation Screen

Selected source can be controlled while

displaying navigation screen.

1 Display the easy control buttons

When "DVD" is selected:

334 5

1 Displays the Screen Control screen.

See <Screen Control> (page 44).

2 Turns the traffic information function On or

Off.

3 During DVD play :

Selects a chapter.

During VCD play :

Selects a scene (when PBC is On) or a track

(when PBC is Off ).

During CD play :

Selects music. When you continue to touch

the button, fast forwards or fast backwards.

During Audio file, Video file, or Picture file

play :

Selects a file.

4 Stops playing.

When pressed twice, the disc is played from

its beginning when you play it in the next

time. (DVD play only)

5 Plays or pauses.

6 When touched this area, the source control

screen appears.

When "USB" or "iPod" is selected:

7 7 8

7 During iPod play :

Searches Music or Video.

During USB play :

Selects a file.

8 Plays or pauses.

9 When touched this area, the source control

screen appears.

When "TUNER" is selected:

10 10 11

p Tunes in a station.

q Switches the band (to AM or FM 1/2/3).

w When touched this area, the source control

screen appears.

When "TV" is selected:

13 13

14 15

e Selects a channel.

Use the <Seek Mode> (page 39) to change

the channel tuning sequence.

r Switches to TV1 or TV2.*1

t Switches the Seek mode.*1

y When touched this area, the source control

screen appears.

When "Bluetooth" is selected:

17 17

18 19

u Selects a file.

i Plays.

o Pauses.

; When touched this area, the source control

screen appears.

⁄

• The Easy Control buttons are hidden when you touch the

central part of the screen.

• *1

Not available for the optional digital TV tuner KTC-

D500E.

B64_3978_0000EN_P01_55.indd 15B64_3978_0000EN_P01_55.indd 15 07.12.21 10:48:57 AM07.12.21 10:48:57 AM

16 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Watching DVD/VCD

You can play DVD/VCD using various functions.

• For the basic method of how to watch DVD/VCD, see <Basic Operations> (page 10).

• Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>

(page 82).

Functions During the Playback Screen

Basic functions are available even when the

playback screen is displayed.

1 Display the playback screen

[DVD] button on the "Source Select" screen

DVD playback screen

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

1 2 3

5 4

1 Title Number Display

2 Chapter Number Display

3 Play Time Display

4 Forward Chapter Search Area

Selects the next chapter.

5 Backward Chapter Search Area

Selects the previous chapter.

6 DVD Disc Menu Control Buttons Area

Displays the Disc Menu Control buttons

(page 18).

7 Information Display Button Area

VCD playback screen

Mode:Full

P 00:05

Scene

DVD VCD

AV–OUT:AV–IN

PBC VER2 ST IN AF

11 10

8 Scene/Track Number Display

9 Play time Display

p Forward Scene/Track Search Area

Selects the next scene (when PBC is On) or

track (when PBC is Off ).

q Backward Scene/Track Search Area

Selects the previous scene (when PBC is On)

or track (when PBC is Off ).

w Zoom Control Button Area

Displays the Zoom Control buttons (page

20).

e Information Display Button Area

⁄

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

B64_3978_0000EN_P01_55.indd 16B64_3978_0000EN_P01_55.indd 16 07.12.21 10:48:59 AM07.12.21 10:48:59 AM

English 17

Functions When Displaying the Easy

Control Panel

Displays the basic operation buttons on the

screen.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

SCRN

1 Chapter Search (during DVD play)

Searches for a chapter.

Scene/Track Search (during VCD play)

Selects a scene (when PBC is On) or a track

(when PBC is Off ).

2 Stops playing.

When pressed twice, the disc is played from

its beginning when you play it in the next

time.

3 Plays or pauses.

⁄

• When the navigation screen is displayed, press the [NAV]

button to switch to the source playback screen.

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

Functions While Displaying the Control

Screen

Switches to the source control screen to use

various playback functions.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

SCRN

When playing a DVD

788

11 10

12 12

13 14 15

345

When playing a VCD

19 20 21

1 Switches to the playback screen.

2 Title Number Display (during DVD play)

3 Chapter/Scene/Track Number Display

4 Play Mode Display

5 Play Time Display

6 Volume Label Display

When is appeared, the text display is

scrolled by pressing it.

7 Ejects the disc.

8 Fast Forwards or Fast Backwards.

Next page 3

B64_3978_0000EN_P01_55.indd 17B64_3978_0000EN_P01_55.indd 17 07.12.21 10:49:02 AM07.12.21 10:49:02 AM

18 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Watching DVD/VCD

9 Stops playing.

When pressed twice, the disc is played from

its beginning when you play it in the next

time.

p Selects a chapter, a scene or a track.

When the DVD-VIDEO/VCD is paused, touch

this button to start single-frame stepping.

q Plays or pauses.

w Slow Forwards or Backwards. (during DVD

play)

e Switches the button display.

r Switches the Repeat Play operations in the

following sequence.

DVD: Title Repeat, Chapter Repeat, Repeat

Off

VCD: Track Repeat, Repeat Off (Available

when the PBC is off )

t Switches the play time display in the

following sequence.

DVD: Chapter, Title, remaining titles

VCD: Track, disc, remaining discs (Effective

only when the PBC function is off )

y Function Indicator

u Appears when a disc is inserted.

i Sound indicator

o Turns the PBC function of VCD On or Off.

(only when VCD Ver 2.0 is in use)

; Appears when PBC is On.

a VCD version indicator

DVD Disc Menu

Selects an option from the DVD Disc Menu.

1 Display the Disc Menu Control screen

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

EnterEnter Canc e lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

1 Calls the Menu.

2 Returns to the Disc Menu screen.

3 Selects a menu option.

4 Enters your menu selection.

5 Returns to the previous menu screen.

6 Displays the Top Menu.

7 Highlight Control.

8 Clears the Disc Menu Control.

B64_3978_0000EN_P01_55.indd 18B64_3978_0000EN_P01_55.indd 18 07.12.21 10:49:05 AM07.12.21 10:49:05 AM

English 19

Highlight Control

You can select a chapter and title for the DVD

Menu screen. When you touch the screen, you

can select the DVD menu.

EnterEnter Canc e lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

Hi gh l i ght On

⁄

• To cancel Highlight Control, press [FNC] button.

2 Select Disc Menu options

Disc Menu

EnterEnter Canc e lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

1/1

ZoomZoom

SUB

Audio

Angle

1/2

enuCtrl

Ex i tEx i t

3/ 3

1413 10

11 12

9 Calls the Menu Control.

p Switches the picture angle.

(during program playback only)

q Switches the subtitle language.

(during program playback only)

w Switches the voice language.

(during program playback only)

e Displays the Zoom Control screen.

r Clears the Disc Menu Control.

Zoom Control

1/1

ZoomZoom

SUB

Audio

Angle

1/2

enuCtrl

Ex i tEx i t

3/ 3

x2 Canc e lCanc e l

ZoomCtrlZoomCtrl

ZoomZoom Ex i tEx i t

16 16

17 18

t Changes the zoom ratio at 4 levels (2 times,

3 times, 4 times, or off) each time you

touch.

y Scrolls the screen in the direction you

touch.

u Returns to the Disc Menu Control screen.

i Clears the Disc Menu Control.

B64_3978_0000EN_P01_55.indd 19B64_3978_0000EN_P01_55.indd 19 07.12.21 10:49:06 AM07.12.21 10:49:06 AM

20 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Watching DVD/VCD

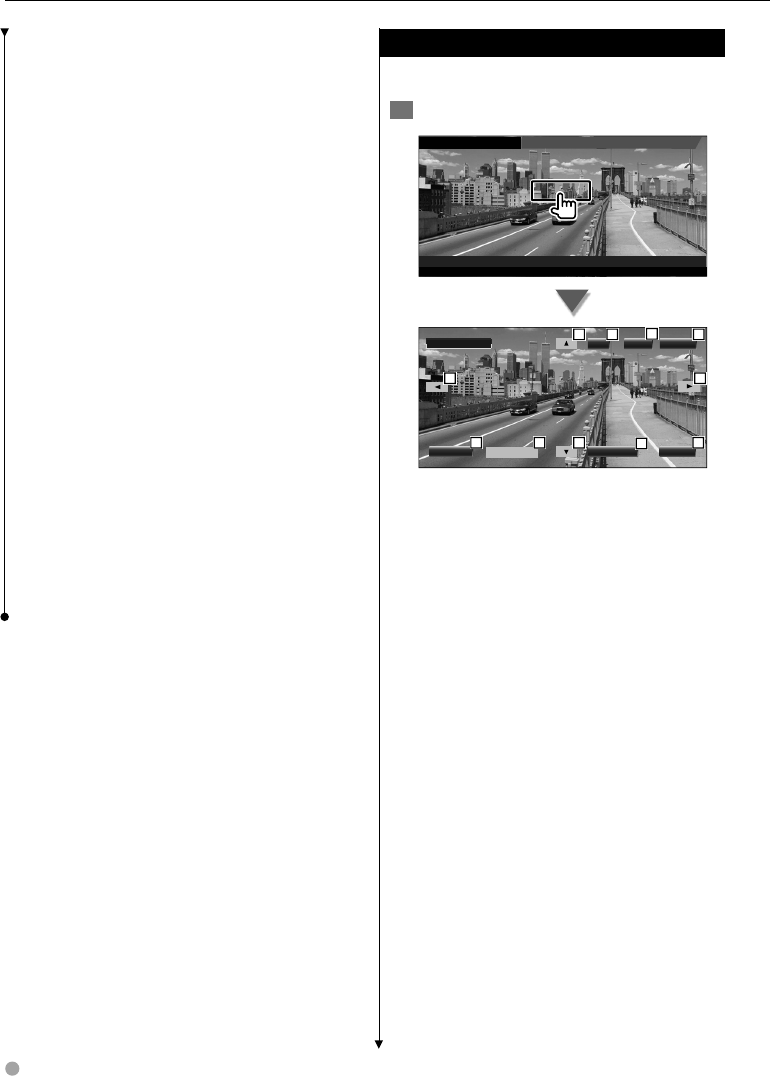

VCD Zoom Control

Displays an enlarged VCD screen.

1 Display the Zoom Control screen

Mode:Full

P 00:05

Scene

DVD VCD

AV–OUT:AV–IN

PBC VER2 ST IN AF

ZoomCtrlZoomCtrl

ZoomZoom Ex i tEx i t

1 Changes the zoom ratio at 2 levels (2 times

or off ) each time you touch.

2 Scrolls the screen in the direction you

touch.

3 Clears the Zoom Control button.

B64_3978_0000EN_P01_55.indd 20B64_3978_0000EN_P01_55.indd 20 07.12.21 10:49:09 AM07.12.21 10:49:09 AM

English 21

Music Disc & Audio File Listening

You can recall various control screens during CD/Audio file playback.

• For the basic method of how to play a music disc/audio file, see <Basic Operations> (page 10).

• See <List of playable discs> (page 7) for playable discs.

• See <About Audio file> (page 8) for playable files.

Functions While Displaying the Control

Screen

Switches to the source control screen to use

various playback functions.

[DVD] button on the "Source Select" screen

During CD playback

42 3

16 17

910 9

11 12 13 14 15

1 Switches to the wallpaper.

2 Track (Music) Number Display

3 Play Mode Display

4 Play Time Display

5 Music information display

Selects the Disc Text or Track Text.

When

is appeared, the text display is

scrolled by pressing it.

6 Ejects the disc.

7 Fast Forwards or Fast Backwards.

8 Stops playing the built-in disc player. When

pressed twice, the disc is played from its

beginning when you play it in the next

time.

9 Selects a track.

p Plays or pauses.

q Starts or stops Scan Play (that plays the

beginning of each music one after the

other).

w Repeats to play (the present track).

e Starts or stops Random Play (to play music

in random order).

r Switches the number of lines displayed in

the Information Display.

t Switches the play time display between

Track, Disc, and Disc Remaining Time.

y Function Indicator

u Appears when a disc is inserted.

Next page 3

B64_3978_0000EN_P01_55.indd 21B64_3978_0000EN_P01_55.indd 21 07.12.21 10:49:11 AM07.12.21 10:49:11 AM

22 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

During Audio file playback

19 20

23 24 24 25

26 27 26

28 28

29 30 31 32 33

38 39 40

i Switches to the playback screen. If there is

no playback screen, wallpaper is displalyed.

o Folder and File Number Display

; Play Mode Display

a Play Time Display

s Music information display

Selects Folder Name, File Name, Title, Artist

Name, or Album Name.

When is appeared, the text display is

scrolled by pressing it.

d Ejects the disc.

f Fast Forwards or Fast Backwards.

(Disabled when a JPEG is being played.)

g Stops playing.

When pressed twice, the disc is played back

from its beginning in the next time.

h Selects a file.

j Plays or pauses.

k Selects a folder.

l Switches the button display.

/ Starts or stops Scan Play (that plays the

beginning of each music or data one after

the other).

z Repeats to play (the preset files or data).

x Starts or stops Random Play (to play files of

the present folder in random order).

c Switches the number of lines displayed in

the Information Display.

v Function Indicator

Music Disc & Audio File Listening

b MUSIC, MOVIE or PICTURE indicator

n Appears when a disc is inserted.

m Repeats to play the music or data of the

present folder.

, Displays images in the folder currently

being played one after another.

If there is no image in the folder currently

being played, initial background is

displayed.

For information on setting the image

display time, see <System Setup> (page 60).

. You can search for folders and Audio files

through a hierarchy.

P Displays music information (such as Tag

and content property) of Audio file being

played.

42 43

Q Lists folders and Audio files

Folder opens when touched, and the Audio

file is played.

When is appeared, the text display is

scrolled by pressing it.

W Scrolls the list.

E Moves to the top hierarchy level.

R Moves up a hierarchy level.

B64_3978_0000EN_P01_55.indd 22B64_3978_0000EN_P01_55.indd 22 07.12.21 10:49:13 AM07.12.21 10:49:13 AM

English 23

Function During Playback Screen

Basic functions are available even when the

playback screen is displayed.

1 Display the playback screen

[DVD] button on the "Source Select" screen

Mode:Full AV–OUT:AV–IN

P 00:00:05

DVD MEDIA

4 3

1 Folder/File Number Display

2 Play Time Display

3 Forward File Search Area

Selects the next file.

4 Backward File Search Area

Selects the previous file.

5 JPEG: Picture Control Button Area (page 25)

DivX: Sub=Off, Audio 1/1

MPEG: Not effective

6 Information Display Button Area

⁄

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

You can recall various control screens during playback of video file (MPEG 1, MPEG 2 and DivX file) and

picture file (JPEG file).

Video File/Picture Watching

B64_3978_0000EN_P01_55.indd 23B64_3978_0000EN_P01_55.indd 23 07.12.21 10:49:14 AM07.12.21 10:49:14 AM

24 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Functions When Displaying the Easy

Control Panel

Displays the basic operation buttons on the

screen.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

P 00:00:05

DVD MEDIA

INPICTURE

SCRN

1123

1 Selects a file.

2 Stops playing.

3 Plays or pauses.

⁄

• When the navigation screen is displayed, press the [NAV]

button to switch to the source playback screen.

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

Functions While Displaying the Control

Screen

Switches to the source control screen to use

various playback functions.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

P 00:00:05

DVD MEDIA

INPICTURE

SCRN

677 8

910 9

11 11

12 13 14 15 16

21 22 23

1 Switches to the playback screen.

2 Folder and File Number Display

3 Play Mode Display

4 Play Time Display

Video File/Picture File Watching

B64_3978_0000EN_P01_55.indd 24B64_3978_0000EN_P01_55.indd 24 07.12.21 10:49:17 AM07.12.21 10:49:17 AM

English 25

g Scrolls the list.

h Moves to the top hierarchy level.

j Moves up a hierarchy level.

Picture Control

Adjusting the video display.

1 Start Picture Control

Mode:Full AV–OUT:AV–IN

P 00:00:05

DVD MEDIA

2 Adjust the video display

ExitEnter

Picture Ctrl

1 Reverses the picture horizontally.

2 Rotates counter clockwise.

3 Rotates clockwise.

4 Ends Picture Control.

5 Applies the effect.

5 Video/Picture information display

Selects Folder Name, File Name, Title, Artist

Name, or Album Name.

When

is appeared, the text display is

scrolled by pressing it.

6 Ejects a disc.

7 Fast Forwards or Fast Backwards.

(Disabled when a JPEG is being played.)

8 Stops playing.

When pressed twice, the disc is played back

from its beginning in the next time.

9 Selects a file.

p Plays or pauses.

q Selects a folder.

w Switches the button display.

e Starts or stops Scan Play (that plays the

beginning of each song or data one after

the other).

r Repeats to play (the preset files or data).

t Starts or stops Random Play (to play files of

the present folder in random order).

y Switches the number of lines displayed in

the Information Display.

u Function Indicator

i PICTURE, MOVIE or MUSIC indicator

o Appears when a disc is inserted.

; Repeats to play the file of the present folder.

a Displays images in the folder currently

being played one after another.

If there is no image in the folder currently

being played, initial background is

displayed.

For information on setting the image

display time, see <System Setup> (page 60).

s You can search for folders and files through

a hierarchy.

d Displays information of file being played.

25 26

f Lists folders and Video files/Picture files.

Folder opens when touched, and the Video/

Picture file is played.

B64_3978_0000EN_P01_55.indd 25B64_3978_0000EN_P01_55.indd 25 07.12.21 10:49:20 AM07.12.21 10:49:20 AM

26 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Radio Listening

Functions While Displaying the Control

Screen

Switches to the source control screen to use

various functions.

[TUNER] button on the "Source Select" screen

9 10 11 12

123

16 17 18

1 Band display

2 Preset number

3 Frequency display

Various control screens appear in the Tuner Source mode.

• For the basic method of receiver button operations, see <Basic Operations> (page 10).

• Set the remote controller mode switch to "AUD" mode before starting operation, see <Remote Controller mode switch>

(page 82).

4 Radio station information display.

Selects the Program Service Name, Title &

Artist name, Station Name, Category Name

1/2, or Radio Text.

5 Switches to the FM1/2/3 band.

6 Switches to the AM band.

7 Tunes in a station.

Use the <Seek Mode> (page 27) to change

the frequency switching.

8 Switches the button display.

9 Selects the Monaural reception mode. (Only

when receiving the FM broadcast)

p Selects the Auto Memory mode.

(See page 28 for the <Auto Memory>)

q Switches the Seek mode.

(See page 27 for the <Seek Mode>)

w Switches the number of lines displayed in

the Information Display.

e Turns the Local Seek function On or Off.

r Turns the Traffic Information function On or

Off.

See <Traffic Information>, (page 29).

t When to buttons appear, you

can recall the stations on memory.

For memory of broadcasting stations, see

<Auto Memory> (page 28) or <Manual

Memory> (page 28).

y Searches station by program type. See

<Search for Program Type> (page 30).

u Lists and selects memorized station.

i Displays Radio Text screen. See <Radio

Text> (page 29).

B64_3978_0000EN_P01_55.indd 26B64_3978_0000EN_P01_55.indd 26 07.12.21 10:49:21 AM07.12.21 10:49:21 AM

English 27

o Memorized stations are displayed. Touch to

tune in.

; Scrolls the list.

Seek Mode

Sets a station selection.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

B64_3978_0000EN_P01_55.indd 27B64_3978_0000EN_P01_55.indd 27 07.12.21 10:49:23 AM07.12.21 10:49:23 AM

28 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Auto Memory

Stores stations with good reception in memory

automatically.

1 Select a band you wish to store in memory

2 Select the Auto Memory mode

3 Start Auto Memory

Touch or .

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

Manual Memory

Stores the current receiving station in memory.

1 Select a station you wish to store in

memory

2 Store in memory

Continue to touch until the memory number

appears.

Radio Listening

B64_3978_0000EN_P01_55.indd 28B64_3978_0000EN_P01_55.indd 28 07.12.21 10:49:24 AM07.12.21 10:49:24 AM

English 29

# : Press for # seconds.

Radio Text

You can display the radio text. (Only when

receiving the FM broadcast)

1 Select a station

2 Display the radio text

1 Selects the Program Service Name, Title &

Artist name, Station Name, Radio Text Plus,

or Radio Text for text display.

When is appeared, the text display is

scrolled by pressing it.

2 Scrolls the text display.

Traffic Information

When a traffic bulletin starts, any source is

switched to the traffic information and it is

displayed automatically.

1 Set the Traffic information mode

When the traffic bulletin starts...

The Traffic Information screen appears

automatically.

Traffic Information screen

⁄

• It is necessary to have Traffic Information function set to

On in order to have the Traffic Information screen appear

automatically.

• During reception of traffic information the adjusted

volume is automatically remembered, and the next time

it switches to traffic information it's automatically the

remembered volume.

B64_3978_0000EN_P01_55.indd 29B64_3978_0000EN_P01_55.indd 29 07.12.21 10:49:25 AM07.12.21 10:49:25 AM

30 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Search for Program Type

A program is tuned when you set its program

type. (Only when receiving the FM broadcast)

1 Enter Program Type mode

2 Select a Program Type

1 Program Type is displayed. Touch to select a

Program Type.

2 Scrolls the Program Type list.

3 Searches for the program type.

It is displayed when the Program type is

selected.

4 Returns to the previous screen.

3 Search a station of the selected Program

Type

Radio Listening

B64_3978_0000EN_P01_55.indd 30B64_3978_0000EN_P01_55.indd 30 07.12.21 10:49:26 AM07.12.21 10:49:26 AM

English 31

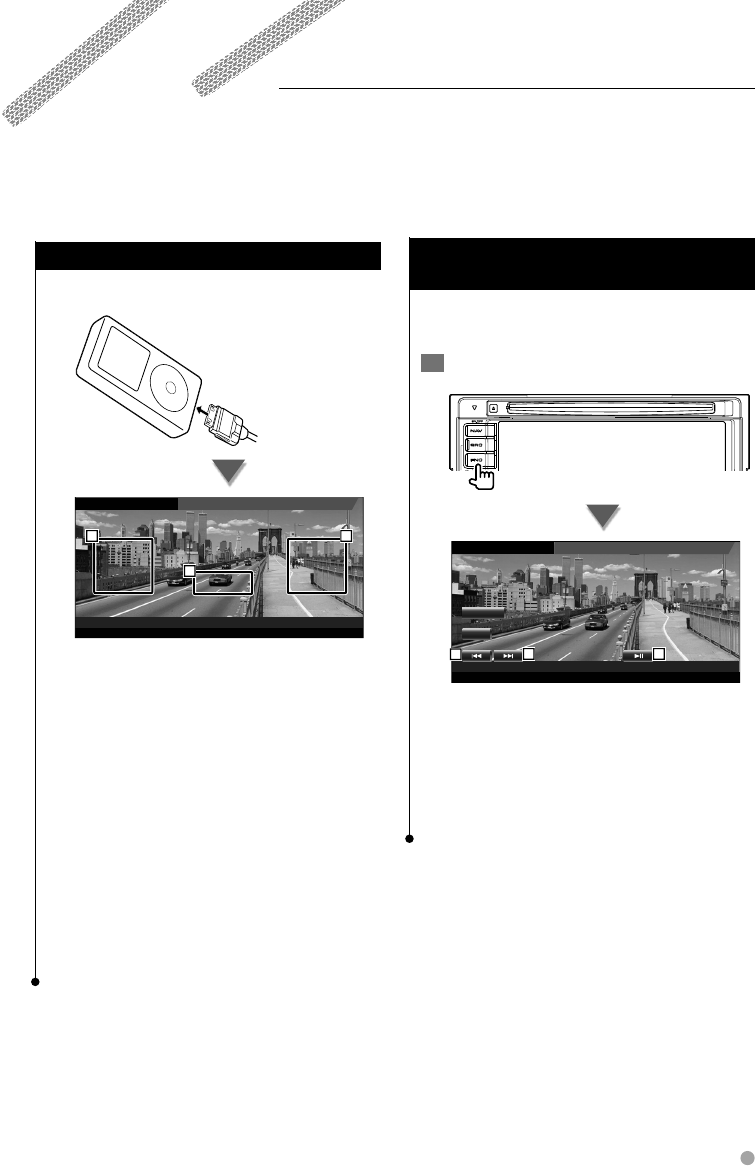

iPod Control

Connecting an iPod

Connect an iPod to this unit.

Mode:Full AV–OUT:AV–IN

P 00:00:05

iPod

2 1

1 Forward music/video search area

Selects the next music/video.

2 Backward music/video search area

Selects the previous music/video.

3 Information display button area

The information is displayed for 5 seconds.

⁄

• Remove all accessories such as headphone before

connecting an iPod. You may not be able to control the

iPod if you connect it with accessories attached.

• When you connect an iPod to this unit, playback starts

from the song you were playing on the iPod itself

(Resume Function).

• If the played song is not a video content, "No iPod Video

Signal" is displayed on the video screen.

• While connecting an iPod, "KENWOOD" appears on the

iPod and the iPod's control is disabled.

You can control and listen to songs in your iPod by connecting an iPod to this unit with KCA-iP300V

(optional accessory). You can also display video contents on this unit when connecting an iPod with video.

Functions When Displaying the Easy

Control Panel

Displays the basic operation buttons on the

screen.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

P 00:00:05

iPod

SCRN

121

1 Music/Video Search.

2 Plays or pauses.

⁄

• When the navigation screen is displayed, press the [NAV]

button to switch to the source playback screen.

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

B64_3978_0000EN_P01_55.indd 31B64_3978_0000EN_P01_55.indd 31 07.12.21 10:49:27 AM07.12.21 10:49:27 AM

32 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Functions While Displaying the Control

Screen

Switches to the source control screen to use

various playback functions.

When Video or picture is playing, press the

[FNC] button.

Mode:Full AV–OUT:AV–IN

P 00:00:05

iPod

SCRN

[iPod] button on the "Source Select" screen

15 16 17 18

1 Image picture

Switches to the playback screen. If there is

no playback screen, wallpaper is displalyed.

2 Total number of music in the iPod and the

music number display

3 Play Mode Display

4 Play Time Display

5 Music/Video Information Display

Selects the Title, Artist Name, Album Name

or iPod Name.

When is appeared, the text display is

scrolled by pressing it.

6 Fast Forwards or Fast Backwards.

7 Selects Music/Video.

8 Plays or pauses.

9 Switches the button display.

p Starts or stops Scan Play (that plays the

beginning of each music or video one after

the other).

q Repeats to play (the preset files or data).

w Starts or stops Random play.*

e MUSIC or VIDEO indicator

r Starts or stops Album Random Play (plays

randomly from current album).*

t Displays the list of music category.

y Displays the list of video category.

u Displays the previous music/video list

screen.

i Displays information screen of music/video

being played.

⁄

* Disabled when VIDEO is being played.

iPod Control

B64_3978_0000EN_P01_55.indd 32B64_3978_0000EN_P01_55.indd 32 07.12.21 10:49:29 AM07.12.21 10:49:29 AM

English 33

o Categories and music are listed.

Touch a category name to move its lower

level. If music title is displayed, the music is

played by touching it.

When is appeared, the text display is

scrolled by pressing it.

When is appeared, all the music in its

category is played by touching the button.

; Switches list page.

a Returns to previous category.

s Moves to the top category.

d Displays the currently playing category.

B64_3978_0000EN_P01_55.indd 33B64_3978_0000EN_P01_55.indd 33 07.12.21 10:49:32 AM07.12.21 10:49:32 AM

34 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

You can control and listen to songs in your USB device by simply connecting it to the USB connector of this

unit.

• For the connection of a USB device, see <Basic Operations> (page 10).

USB Device Control

Functions When Displaying the Easy

Control Panel

Displays the basic operation buttons on the

screen.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

P 00:00:05

USB

SCRN

0002/0006

USB

112

1 Selects a file.

2 Plays or pauses.

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

Functions While displaying the Control

Screen

Switches to the source control screen to use

various playback functions.

When Video or picture is playing, press the

[FNC] button.

Mode:Full AV–OUT:AV–IN

P 00:00:05

USB

SCRN

0002/0006

USB

[USB] button on the "Source Select" screen

B64_3978_0000EN_P01_55.indd 34B64_3978_0000EN_P01_55.indd 34 07.12.21 10:49:32 AM07.12.21 10:49:32 AM

English 35

13 14

17 18 19 20

1 Image picture

Switches to the playback screen. If there is

no playback screen, wallpaper is displalyed.

2 Track Number Display

3 Play Mode Display

4 Play Time Display

5 Music information display

Selects the Folder Name, File Name, TItle,

Artist Name, or Album Name.

When is appeared, the text display is

scrolled by pressing it.

6 Removes the USB device.

When "No Device" is shown, the USB device

can be removed safely.

If you wish to play it again while the USB

device is connected, press it again.

7 Selects a folder. (Only in Folder Select

Mode)*

8 Selects a file.

9 Plays or pauses.

p Switches the button display.

q Starts or stops Scan Play (that plays the

beginning of each music one after the

other).

w Repeats to play (the present music).

e Starts or stops Random Play (to play music

in random order).*

r Switches the number of lines displayed in

the Information Display.

t MUSIC, VIDEO or PICTURE indicator

y Repeats to play the music or data of the

present folder. (Only in Folder Select Mode)

u Displays images in the folder currently

being played one after another.

If there is no image in the folder currently

being played, initial background is

displayed.

For information on setting the image

display time, see <System Setup> (page 60).

i Displays the folder list. See <Folder Select>

(page 36).

o Displays the list of category.

; Displays information screen of music being

played.

⁄

* Disabled during play list mode.

The display above can also be the folder list

display. See <Folder Select> (page 36).

a Switches to the lower level of the category.

If the file is displayed, the music is played by

touching it.

s Scrolls the list.

d Lists all the music in the selected category.

f Moves to the upper level of the category.

g Moves to the top category.

h Displays the currently playing category.

(Only in Category Mode)

B64_3978_0000EN_P01_55.indd 35B64_3978_0000EN_P01_55.indd 35 07.12.21 10:49:36 AM07.12.21 10:49:36 AM

36 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Folder Select

Searches folders and Audio files stored in the USB

device according to hierarchy.

1 Start Folder Select

2 Select music

1 Lists folders and Audio files

Folder opens when touched, and the Audio

file is played.

2 Scrolls the list.

3 Moves to the top hierarchy level.

4 Moves up a hierarchy level.

5 Moves to the top category.

6 Displays the currently playing file.

USB Device Control

B64_3978_0000EN_P01_55.indd 36B64_3978_0000EN_P01_55.indd 36 07.12.21 10:49:37 AM07.12.21 10:49:37 AM

English 37

TV Watching

Function During TV Screen

Basic functions are available even when the TV

screen is displayed.

1 Display the TV screen

[TV] button on the "Source Select" screen

AUTO1 AF

Mode:Full AV–OUT:AV–IN

TV TV1

2chGroup 1 Preset 1

6 5

2 3

1 TV Band Number Display

2 TV Area Group Display. See <TV Setup>

(page 72).

3 Memory Number Display

4 Channel Number Display

5 Channel Up Area

Increases the channel.

6 Channel Down Area

Decreases the channel.

7 Band Switch Area

Switches to TV1 or TV2.

8 Information Display Button Area

⁄

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

Various control screens appear in the TV source mode. You can only operate TV with the optional accessory

TV Tuner connected.

Functions When Displaying the Easy

Control Panel

Displays the basic operation buttons on the

screen.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

TV TV1

SCRN

2ch

Preset 1

BAND SEEK

1123

1 Selects a channel.

Use the <Seek Mode> (page 39) to change

the channel tuning sequence.

2 Switches to TV1 or TV2.*1

3 Switches the Seek mode.*1

⁄

• When the navigation screen is displayed, press the [NAV]

button to switch to the source playback screen.

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

• *1

Not available for the optional digital TV Tuner KTC-

D500E.

B64_3978_0000EN_P01_55.indd 37B64_3978_0000EN_P01_55.indd 37 07.12.21 10:49:37 AM07.12.21 10:49:37 AM

38 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Functions While Displaying the Control

Screen

Switches to source control screen to use various

functions.

1 While the source is playing, press the [FNC]

button

Mode:Full AV–OUT:AV–IN

TV TV1

SCRN

2ch

Preset 1

BAND SEEK

123 4 5

7 7

910 11

14 15

1 Switches to the TV screen.

2 Band display

3 TV Area Group Display

See <TV Setup> (page 72).

4 Memory Number Display

5 Channel display

6 Channel information display

7 Select a channel.

Use the <Seek Mode> (page 39) to change

the channel tuning sequence.

8 Switches to TV1 or TV2.

9 Switches the button display.

p Selects the Auto Memory mode.

See <Auto Memory> (page 39).

q Switches the Seek mode.

See <Seek Mode> (page 39).

w Indicates current Seek mode.

e When to buttons, you can

recall channels on memory.

For memory of broadcasting stations, see

<Auto Memory> (page 39) or <Manual

Memory> (page 40).

r Sets a name to the tuned station. (page 40)

t Lists and selects memorized station.*1

y Memorized stations are displayed. Touch to

tune in.*1

⁄

*1 Not available for the optional digital TV Tuner KTC-D500E.

TV Watching

B64_3978_0000EN_P01_55.indd 38B64_3978_0000EN_P01_55.indd 38 07.12.21 10:49:40 AM07.12.21 10:49:40 AM

English 39

TV Menu (with KTC-D500E (optional

accessory) connected only)

Menu Control screen appears by touching the

area shown below.

AUTO1 AF

Mode:Full AV–OUT:AV–IN

TV TV1

2chGroup 1 Preset 1

EnterEnter

EPGEPG MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

1 3

1 Shows EPG (Electric Program Guide) screen.

2 Shows Digital TV Broadcansting menu

screen.

3 Returns to the previous screen.

4 Executes selected menu item.

5 Returns to Digital TV screen.

6 Moves highlight in Digital TV Broadcansting

menu.

Seek Mode

Sets a station selection.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

Auto Memory

Stores stations with good reception in memory

automatically.

1 Select a band you wish to store in memory

2 Select the Auto Memory mode

3 Start Auto Memory

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

B64_3978_0000EN_P01_55.indd 39B64_3978_0000EN_P01_55.indd 39 07.12.21 10:49:42 AM07.12.21 10:49:42 AM

40 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Manual Memory

Stores the current receiving channel in memory.

1 Select a station you wish to store in

memory

2 Store in memory

Continue to touch until the memory number

appears.

Set Station Name

Assigns a name to a station.

1 Select a station you wish to name

2 Start Name set

3 Enter the name

See <Character Entry> (page 43) for

information on how to enter a name.

4 End Name set

TV Watching # : Press for # seconds.

B64_3978_0000EN_P01_55.indd 40B64_3978_0000EN_P01_55.indd 40 07.12.21 10:49:45 AM07.12.21 10:49:45 AM

English 41

Bluetooth Audio Control

You can listen to audio files stored in Bluetooth audio player and cell-phone.

For DNX5220/DDX5022/DDX5022Y/DDX52RY, Bluetooth unit KCA-BT200 (optional accessory) is necessary.

Before Use

For DNX5220BT :

• You need to register your audio player and cell-phone

before using it with this unit. For more details, see

<Registering Bluetooth Unit> (page 73).

• If you have registered two or more audio players or cell-

phones, you need to select one of them. For more details,

see <Bluetooth Unit Connection> (page 75).

For DNX5220/DDX5022/DDX5022Y/DDX52RY :

• You need to register your audio player and cell-phone to

your Bluetooth Unit beforehand. Make sure to read the

instruction manual of the Bluetooth Unit as well.

Functions While Displaying the Control

Screen

Switches to control screen to use various

functions.

[Bluetooth] button on the "Source Select"

screen

1 Plays.

2 Pauses.

3 Stops playing.

4 Selects a file.

⁄

• If the Bluetooth Audio player does not support AVRCP

profile, buttons 1 to 4 are not displayed. Operate from

the Audio player.

B64_3978_0000EN_P01_55.indd 41B64_3978_0000EN_P01_55.indd 41 07.12.21 10:49:46 AM07.12.21 10:49:46 AM

42 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Muting Audio Volume upon Reception of Phone call

When the telephone is called, the system is paused automatically.

Muting Audio Volume upon Reception of

Phone Call

When the telephone is called...

The Phone Call ("CALL") screen appears, and

system is paused.

Phone Call ("CALL") screen

When the call ends...

Hang up the phone.

The system resumes playing automatically.

⁄

• To use the TEL Mute feature, you need to hook up

the MUTE wire to your telephone using a commercial

telephone accessory. Refer to <INSTALLATION MANUAL>.

B64_3978_0000EN_P01_55.indd 42B64_3978_0000EN_P01_55.indd 42 07.12.21 10:49:47 AM07.12.21 10:49:47 AM

English 43

Character Entry

How To Use the Character Entry Screen

Character Entry screen

4567

1 Shifts the cursor.

2 Enters characters.

3 Scrolls up or down the character button

display.

4 Sets the key layout of the character buttons.

abc : Alphabetical key layout.

qwe : Qwerty key layout.

5 Enters a space.

If you erase a character, locate the cursor on

it and touch this button.

6 Clears the character.

7 Exits the Character Entry mode and returns

to the previous screen.

⁄

• You can enter characters only after you have applied the

parking brake.

When you select the Set Station Name mode or others, the following screen appears for character entry.

B64_3978_0000EN_P01_55.indd 43B64_3978_0000EN_P01_55.indd 43 07.12.21 10:49:48 AM07.12.21 10:49:48 AM

44 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Screen Control

1 Display Easy Control panel

2 Display the Screen Control screen

Mode:Full AV–OUT:AV–IN

T 00:00:05

Title

Chap

DVD VIDEO

SCRN

3 Adjust the picture quality

DIM

SYNC

OFF

Return

NAV-SYNC

1 1

2 2

3 3

4 4

5 5

1 Brightness Control

2 Tint Control

Displayed for an NTSC system image on TV,

Video, iPod, USB or Rear View Camera.

3 Color Control

Displayed on the TV, Video, iPod, USB or

Rear View Camera screen only.

4 Contrast Control

5 Black Level Adjustment

6 Dimmer Mode Setup

"ON": The display dims.

"OFF": The display doesn’t dim.

"SYNC": Turning the Dimmer function

On or Off when the vehicle light

control switch is turned On or Off.

"NAV-SYNC" (DNX5220BT/DNX5220 only):

Turning the Dimmer function On

or Off according to the Navigation

Day/Night display setting.

7 Returns to the previous screen.

⁄

• The Screen Control screen is displayed only when you

have applied the parking brake.

• The picture quality can be set for each source.

• You can set image quality of screens such as menu from

<Monitor Setup> (page 68) of the <Setup Menu>.

Setting the monitor screen.

B64_3978_0000EN_P01_55.indd 44B64_3978_0000EN_P01_55.indd 44 07.12.21 10:49:49 AM07.12.21 10:49:49 AM

English 45

Hands Free Unit Control

Before Use

• To use the Phonebook, it must be downloaded to this

unit in advance. For details, see <Downloading the

Phonbook> (page 45).

For DNX5220BT :

• You need to register your cell-phone before using it with

this unit. For more details, see <Registering Bluetooth

Unit> (page 73).

• If you have registered two or more cell-phones, you need

to select one of them. For more details, see <Bluetooth

Unit Connection> (page 75).

For DNX5220/DDX5022/DDX5022Y/DDX52RY :

• You need to register your cell-phone to your Bluetooth

Unit beforehand. Make sure to read the instruction

manual of the Bluetooth Unit as well.

Downloading the Phonebook

Downloads the phonebook data from the

cell-phone to this unit so that you can use the

Phonebook of this unit.

1 By operating the cell-phone, send the

phonebook data to this unit.

2 By operating the cell-phone, start the

hands-free connection.

⁄

• For the cell-phones which support auto-download of

phonebook:

If the phonebook is not downloaded automatically for

some reasons, follow the procedure above to download

manually.

• For how to operate the cell-phone, refer to the

Instruction Manual that comes with your cell-phone.

• Up to 1000 phone numbers can be registered for each

registered cell-phone.

• Up to 32 digits can be registered for each phone number

along with up to 40 characters representing a name.

• Depending on the type of your cell-phone, the following

restrictions are placed:

- The phonebook data cannot be downloaded normally.

Various functions can be used in the Hands Free control mode.

For DNX5220/DDX5022/DDX5022Y/DDX52RY, Bluetooth unit KCA-BT200 (optional accessory) is necessary.

- Characters in the Phonebook are garbled.

- The phonebook data cannot be downloaded normally

if it contains images. It may take several hours to a full

day to download the phone book depending on the

total image size.

• To cancel downloading of the phonebook data, operate

the cell-phone.

Control Screen Function

Displaying the control screen and using various

functions.

1 Display the Hands-Free Control screen

Press the [FNC] button for more than 1 second.

[TEL] button on the "Source Select" screen

Next page 3

B64_3978_0000EN_P01_55.indd 45B64_3978_0000EN_P01_55.indd 45 07.12.21 10:49:50 AM07.12.21 10:49:50 AM

46 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

10 11 12

1 Displays the various conditions.

: Displays short message status. If a cell-

phone which supports SMS function

is not connected, this mark does not

appear.

: There is unread short message.

: There is no unread short message.

: Downloading Phonebook.

: Indicates there is a call on hold.

: Displays the signal strength.*

The more the number of bar segments,

the stronger the signal.

: Displays the present Auto Answering

status

: When Auto Answering is on

: When Auto Answering is off

: Displays the battery drain of the cell-

phone.*

The more the number of bar segments,

the higher the battery level.

2 Displays the called phone numbers.

If you have registered a phone number in

the Phonebook, the destination person

name is displayed.

3 Calls the displayed preset phone number.

4 Displays the SMS Select screen.

See <SMS (Short Message Service)> (page

55).

5 Displays the Search for Phonebook screen.

See <Calling by Phonebook> (page 48).

6 Displays the Outgoing Calls screen.

See <Making a Call Using Outgoing/

Incoming Call Records> (page 50).

7 Displays the Incoming Calls screen.

See <Making a Call Using Outgoing/

Incoming Call Records> (page 50).

8 Calls the preset phone number.

For information on how to preset a phone

number, see <Phone Number Preset> (page

54).

9 Displays the Hands-Free Set Up screen.

See <Setting Up the Hands-Free Phone>

(page 51).

p Displays the Dialing Display screen.

See <Calling by Entering a Phone Number>

(page 47).

q Starts voice recognition.

See <Voice Recognition> (page 52).

w Returns to the previous screen.

⁄

• While your car is moving, some functions are disabled for

safety’s sake. The buttons associated with the disabled

functions become ineffective if pressed.

• When the Hands-Free Control screen appears, the name

of the connected cell-phone is displayed for 5 seconds.

• * Since the number of steps of the control unit is different

from that of the cell-phone, the statuses displayed on

the control unit may discord from those displayed on

the cell-phone. No status is displayed if information

about it cannot be obtained.

• Setting the cell-phone in the private mode can disable

the hands-free function.

When Received a Call

When you receive a call, you can use the hands-

free phone.

1 Respond to a call

When a call arrives, the Talking screen appears

automatically.

1 Starts conversation with a person called.

Switches the call destination if you hear a

tone of call-waiting.

Resumes conversation with the person on

hold after completed conversation with the

other party.

2 Disconnects the phone.

3 Switches the voice output between phone

and speaker.

4 Outputs dial tone.

See <Controlling Tone-based Services>

(page 48).

Hands Free Unit Control

B64_3978_0000EN_P01_55.indd 46B64_3978_0000EN_P01_55.indd 46 07.12.21 10:49:52 AM07.12.21 10:49:52 AM

English 47

Calling by Entering a Phone Number

Makes a call by entering a phone number.

1 Display the number input screen

2 Enter a phone number

1 Calls the entered phone number.

2 Creates an SMS for the entered phone

number.

See <SMS (Short Message Service)> (page

55).

3 Clears the number.

4 Returns to the previous screen.

3 Make a call

You can start talking when the destination

responds.

4 End the call

The Hand Free screen reappears.

⁄

• You can input max 32 digits.

Quick Dialing

You can register up to 6 phone numbers for quick

dialing.

⁄

• Phone numbers must be registered in advance.

See <Phone Number Preset> (page 54).

1 Recall the phone number

2 Make a call

B64_3978_0000EN_P01_55.indd 47B64_3978_0000EN_P01_55.indd 47 07.12.21 10:49:54 AM07.12.21 10:49:54 AM

48 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Controlling Tone-based Services

Uses tone base service using DTMF (Dual Tone

Multi Frequency).

1 Display the DTMF input screen

Display the Talking screen. See <Calling by

Entering a Phone Number> (page 47).

2 You can send tones during a call

1 Returns to the previous screen.

Calling by Phonebook

You can call a person using his/her phone

number that you have registered in the

Phonebook.

1 Display the Phonebook screen

The Initial Input screen appears.

2 Select the Phonebook search method

You can search by the initial of the Phonebook

data.

Initial alphabet screen

1 Displays the Phonebook beginning with

the name whose first character you have

touched.

2 Scrolls the character array display.

3 Returns to the Hands-Free Control screen.

Initial number screen

4 Displays a list of numbers in the Phonebook

starting with the selected number.

Hands Free Unit Control

B64_3978_0000EN_P01_55.indd 48B64_3978_0000EN_P01_55.indd 48 07.12.21 10:49:54 AM07.12.21 10:49:54 AM

English 49

Cyrillic alphabet search screen

5 Displays the Phonebook beginning with

the name whose first character you have

touched.

3 Select the name to call

6 Phonebook data list.

"REC" turns on for data with voice for voice

recognition already registered.

7 Scrolls the Phonebook data list.

8 Scrolls the name.

9 Registers the voice for voice recognition to

the selected Phonebook.

If there are already 35 voice tag registered

in the same cell-phone, [Record] button is

deactivated.

See <Voice Recognition> (page 52).

p Plays the voice registered in the selected

Phonebook data.

q Deletes the voice registered in the selected

Phonebook data.

Touch to display the confirmation screen.

Touch [YES] to delete or [NO] to cancel.

w Displays the detail of the selected

Phonebook data.

e Returns to the Initial Input screen.

4 Select the phone number to call

r Calls the selected phone number.

t Creates an SMS for the displayed phone

number.

See <SMS (Short Message Service)> (page

55).

y Scrolls the phone number.

u Returns to the Name List screen.

5 Make a call

⁄

• To use the Phonebook, it must have been downloaded

from the cell-phone. For more details, see the instruction

manual of your Bluetooth Unit and your cell-phone.

• Initials including no corresponding name will not be

displayed.

• During search, a non-accent character such as "u" is

searched for instead of an accent character such as "ü".

B64_3978_0000EN_P01_55.indd 49B64_3978_0000EN_P01_55.indd 49 07.12.21 10:49:56 AM07.12.21 10:49:56 AM

50 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Making a Call Using Outgoing/Incoming

Call Records

Calls by selecting a phone number from the

outgoing or incoming calls list.

1 Display the Outgoing Calls or Incoming

Calls screen

: Outgoing Calls

: Incoming Calls

The Outgoing Calls or Incoming Calls list screen

appears.

2 Select from calls list

Example : Outgoing Calls screen

1 Outgoing Calls list.

2 Scrolls the list.

3 Makes a call to the selected number.

4 Creates an SMS for the selected phone

number. See <SMS (Short Message

Service)> (page 55).

5 Displays the detail of the selected phone

number.

6 Returns to the Hands-Free Control screen.

3 Make a call

⁄

• The Outgoing Calls list screen or Incoming Calls list

screen shows the list of the calls originated from or

received at this unit. They are not the ones stored in the

cell-phone memory.

Calling by Voice Recognition

Calls by recognizing the registered voice.

⁄

• In order to perform voice recognition, voice must

be registered in the Phonebook data. See <Voice

Recognition> (page 52). Or, to perform voice recognition

by Phone number category (Home, Office, Mobile etc.)

of Phonebook data, a key word voice must be registered.

See <Key Word Voice Recognition> (page 53).

1 Display the Voice Recognition screen

2 Utter the voice registered in the

PhoneBook

Utter within 2 seconds after the Beep.

1 Displays the recognized phone number or

address.

2 Cancels voice recognition.

If the voice recognition is succeeded and

there is only one phone number found:

Make a call.

3 Displays the phonebook list.

Hands Free Unit Control

B64_3978_0000EN_P01_55.indd 50B64_3978_0000EN_P01_55.indd 50 07.12.21 10:49:57 AM07.12.21 10:49:57 AM

English 51

If you hear another Beep sound:

Speak the key word within 2 seconds after the

Beep, or touch the [Phonebook List] button to

select the phone number.

Make a call.

⁄

• If there are more than one phone numbers registered

under the same name, and the key word voice is

registered for each phone number, you will hear another

beep. For how to register key word, see <Key Word Voice

Recognition> (page 53).

If there are more than one phone numbers

registered under the same name, go to step

3 Select a Phone number category

4 Calls the displayed phone number.

5 Creates an SMS to the displayed address.

See <SMS (Short Message Service)> (page

55).

6 Selects the Phone number category.

7 Scrolls the phone number.

8 Returns to the previous screen.

4 Make a call

⁄

• A message is displayed if the voice is not recognized.

Read the message for the further operation.

Setting Up the Hands-Free Phone

The Hands-Free system can be set as follows.

1 Display the Hands Free Setup screen

2 Setup each item

11 12

1 Moves to the "Hands Free Setup 2" screen.

2 Sets an automatic response time after call

termination. ( "8")

"Off": This function can not use.

"0-99": Sets to calling ring time (second).

3 Sets a ringing tone output position.

( "Front R")

"Front L": Outputs the tone from the front

left-hand side speaker.

"Front R": Outputs the tone from the front

right-hand side speaker.

"Front All": Outputs the tone from the both

front speakers.

4 Sets the beep of the incoming call.

( "ON")

"ON": Beep is heard.

"OFF": Beep is canceled.

Next page 3

B64_3978_0000EN_P01_55.indd 51B64_3978_0000EN_P01_55.indd 51 07.12.21 10:49:58 AM07.12.21 10:49:58 AM

52 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Hands Free Unit Control

5 Sets the beep of the incoming SMS.

( "ON")

"ON": Beep is heard.

"OFF": Beep is canceled.

6 Returns to the Hands-Free Control screen.

7 Returns to the "Hands Free Setup 1" screen.

8 Sets whether to use cell-phone phonebook,

outgoing calls list and incoming calls list.

( "ON")

"ON": Yes.

"OFF": No.

9 Sets the SMS function. ( "ON")

"ON": Use SMS function.

"OFF": SMS not available.

p Registers the voice to select phone number

category with voice recognition.

See <Key Word Voice Recognition> (page

53).

q Registers the phone number to Hands Free

Control screen preset button.

See <Phone Number Preset> (page 54).

w Returns to the Hands-Free Control screen.

⁄

• Either the time interval for automatic answer set on this

unit or the time interval set on the cell-phone, whichever

is shorter, takes effect.

• Select the speaker which is further from the microphone

in order to prevent howling or echoes.

Voice Recognition

Registers voice for voice recognition in

Phonebook. Up to 35 voices can be recorded in

one cell-phone.

1 Select the name to register

Go through the procedure of <Calling by

Phonebook> (page 48).

1 Selects a name.

"REC" turns on for data with voice for voice

recognition already registered.

2 Display the voice registration screen

3 Utter the voice to register (1st try)

2 Registers the voice.

3 Cancels voice registration.

Utter within 2 seconds after the Beep.

4 Utter the voice to register (2nd try)

B64_3978_0000EN_P01_55.indd 52B64_3978_0000EN_P01_55.indd 52 07.12.21 10:49:59 AM07.12.21 10:49:59 AM

English 53

5 End voice registration

⁄

• A message is displayed if the voice is not recognized.

Read the message for the further operation.

• Repeat from 1st try if the voice is different from the 1st

try.

Key Word Voice Recognition

Registers the voice to select the Phone number

category by Voice Recognition.

1 Display the Key Word List screen

Display the "Hands Free" screen and touch

[Setup]. See <Control Screen Function> (page

45).

2 Select the Phone number category to

1 Selects the Phone number category. "REC"

turns on for data with voice for voice

recognition already registered.

2 Registers voice for the selected Phone

number category.

3 Plays voice registered for the selected

Phone number category.

4 Deletes voice registered for the selected

Phone number category. Touch to display

the confirmation screen. Touch [YES] to

delete or [NO] to cancel.

5 Returns to the Hands-Free Set Up screen.

3 Display voice registration screen

4 Utter the voice to register (1st try)

6 Registers the voice.

7 Cancels voice registration.

Utter within 2 seconds after the Beep.

5 Utter the voice to register (2nd try)

6 End voice registration

⁄

• A message is displayed if the voice is not recognized.

Read tha message for the further operation.

• Repeat from 1st try if the voice is different from the 1st

try.

B64_3978_0000EN_P01_55.indd 53B64_3978_0000EN_P01_55.indd 53 07.12.21 10:50:01 AM07.12.21 10:50:01 AM

54 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Hands Free Unit Control

Phone Number Preset

Registers frequently used phone number to

Hands Free control screen preset button.

1 Display the Hands Free Preset List screen

Display the "Hands Free" screen and touch

[Setup]. See <Control Screen Function> (page

45).

2 Select the Preset number to register

1 Returns to the Hands-Free Set Up screen.

3 Select the search destination of the

number to register

7 8

9 10

2 Registers from SMS incoming calls list.

3 Registers from SMS outgoing calls list.

4 Registers from Phonebook.

5 Registers from outgoing calls list.

6 Registers from incoming calls list.

7 Registers by entering phone numbers.

8 Registers voice for voice recognition to

preset number.

9 Registers the currently displayed phone

number.

p Deletes the currently displayed phone

number.

q Returns to the previous screen.

4 Search phone number to register with

each function

5 Register phone number

⁄

• Press [Delete] to delete the registered phone number.

B64_3978_0000EN_P01_55.indd 54B64_3978_0000EN_P01_55.indd 54 07.12.21 10:50:02 AM07.12.21 10:50:02 AM

English 55

SMS (Short Message Service)

Uses SMS function.

1 Display the SMS Select screen

2 Select a function

1 Displays received message list.

2 Displays sent message list.

3 Displays the Message screen. If there is an

unfinished message, the button will be

active.

4 Retrieves SMS messages from the cell-

phone.

5 Returns to the Hands Free screen.

3 Select message to display

6 Calls the number in the selected message.

7 Creates a new message for the selected

message.

8 Scrolls the list.

9 Displays the selected message.

SMS Message screen

p Calls the number in the selected message.

q Creates a new message for the selected

message.

w Scrolls the message.

e Returns to the previous screen.

4 Create a message

14 14

18 19 20 21 22

r Moves the cursor.

t Displays remaining number of characters

allowed.

y Enters character.

u Changes keyboard character type.

i Sends the message.

o Sets the key layout of the character buttons.

abc : Alphabetical key layout.

qwe : Qwerty key layout.

; Enters space.

a Erases the entered character.

If pressed more than 1 second, all the input

characters are erased.

s Returns to the previous screen.

B64_3978_0000EN_P01_55.indd 55B64_3978_0000EN_P01_55.indd 55 07.12.21 10:50:03 AM07.12.21 10:50:03 AM

56 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Setup Menu

Displays the Setup menu to set various functions.

1 Display the control screen of any source

Touch any source button on the "Source Select"

screen.

2 Display the Setup Menu

3 Select the setup item

1 The selected setup screen appears.

2 Scrolls the setup menu.

⁄

• [Audio Setup] and [AV Interface] options can be locked.

The key mark ( ) is displayed in reverse video for the

locked option. See <Setup Memory> (page 77).

You can set up various receiver parameters.

Setup Menu

Audio Setup

You can setup a speaker network, etc.

1 Display the Audio SETUP screen

Touch in the "Setup

Menu" screen (page 56).

⁄

• [Audio Setup] cannot be selected under the following

conditions:

– When no source is selected.

– When dual zone function is set to on. See <Zone

Control> (page 80)

2 Setup each item

1 Selects the speaker to set the crossover. See

<Crossover Network Setup> (page 57).

2 Sets the availability of subwoofers. This

can be selected only when Preout is set to

"Subwoofer". See <System Setup> (page

60).

3 Selects the type of front speakers.

"Standard": Setup for general diameter

speakers

"Narrow": Setup for small diameter

speakers

"Middle": Setup for middle diameter

speakers

"Wide": Setup for large diameter

speakers

4 Switches to the crossover setup screen.

See <Crossover Network Setup> (page 57).

B64_3978_0000EN_P56_96.indd 56B64_3978_0000EN_P56_96.indd 56 07.12.21 10:52:46 AM07.12.21 10:52:46 AM

English 57

Next page 3

Crossover Network Setup

You can set a crossover frequency of speakers.

1 Select the speaker to set the crossover

1 Sets the High Pass Filter of the front speaker.

2 Sets the High Pass Filter of the rear speaker.

3 Sets the Low Pass Filter of the sub woofer.

4 Switches to the crossover setup screen.

2 Display the Crossover setup screen

3 Set the crossover

5 Sets the cross over frequency.

When front speaker or rear speaker is

selected in step 1:

High Pass Filter adjustment

When Subwoofer is selected in step 1 :

Low Pass Filter adjustment

6 Sets the sub woofer phase. (Only when

"Subwoofer" is set to "ON" in Audio Setup

and "LPF SUB FREQ" is set to other than

"Through")

7 Returns to the "Audio Setup" screen.

DVD Setup

You can set up the DVD play.

1 Display the DVD Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to the "DVD Setup 2" screen.

2 Selects a disc menu language.*1

(See <Language Setup>, page 58)

3 Selects a subtitle language.*1

(See <Language Setup>, page 58)

4 Selects an audio language.*1

(See <Language Setup>, page 58)

5 Sets the dynamic range.*1 ( "Wide")

The dynamic range is reduced by changing

from "Wide" to "Normal" and from "Normal"

to "Dialog". "Dialog" makes the total sound

volume becomes larger as compared with

"Wide" and "Normal", allowing you to listen

to the movie's dialog more clearly.

This is effective only when you are using a

Dolby Digital software.

The operation is available during the play

stop mode.

B64_3978_0000EN_P56_96.indd 57B64_3978_0000EN_P56_96.indd 57 07.12.21 10:52:49 AM07.12.21 10:52:49 AM

58 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

6 Returns to the "DVD Setup 1" screen.

7 Sets an angle mark display. ( "On")

8 Selects the screen display mode.*1 (

"16:9")

"16:9": Displays wide pictures.

"4:3 LB": Displays wide pictures in the Letter

Box format (having black stripes at

the top and bottom of screen).

"4:3 PS": Displays wide pictures in the Pan &

Scan format (showing pictures cut

at the right and left ends).

9 Displays the Parental Lock screen.*1 (

"Off")

(See <Parental Level Setup>, page 59)

p Keep "Auto" to use.*1

⁄

• * Disabled when a DVD is being played.

Setup Menu

Language Setup

Selects a language you use for the speech and

menus.

1 Select the language item to set

See <DVD Setup> (page 57) and select [Menu

Language], [Sub Title Language] or [Audio

Language].

2 Display the Language Setup screen

1 Enters a language code.

2 Cancels the language setup and returns to

the "DVD Setup 1" screen.

3 Sets the original audio language.

(It appears during Audio Language setup.)

4 Sets the language and returns to the "DVD

Setup 1" screen.

(It appears after you have entered a

language code.)

5 Clears the language code.

3 Enter a language code

See <DVD Language Codes> (page 88) and

select the desired language.

4 Set the language you use

B64_3978_0000EN_P56_96.indd 58B64_3978_0000EN_P56_96.indd 58 07.12.21 10:52:50 AM07.12.21 10:52:50 AM

English 59

Parental Level Setup

Sets a parental level.

1 Display the Parental Level code number

screen

See <DVD Setup> (page 57) and touch

[Parental Level].

2 Enter the code number

1 Enters a code number.

2 Cancels the current setup and returns to

the "DVD Setup 2" screen.

3 Indicates the present parental lock level.

4 Determines the code number and displays

the Parental Level setup screen.

5 Clears the code number.

⁄

• The number you enter first is set as your code number.

• You can clear the code number by pressing the Reset

button.

3 Display the Parental Level Setup screen

4 Select a parental level and complete the

setup

6 Selects a parental level.

7 Complete the parental level setup and

returns to the "DVD Setup 2" screen.

⁄

• If a disc has higher parental lock level, you need to enter

the code number.

• The parental lock level varies depending on a loaded

disc.

• If a disc has no parental lock, anybody can play it back

even when you have set the parental lock.

B64_3978_0000EN_P56_96.indd 59B64_3978_0000EN_P56_96.indd 59 07.12.21 10:52:51 AM07.12.21 10:52:51 AM

60 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Setup Menu

DivX Setup

Checks the registration code. This code is needed

when making a disc which has DRM (Digital

Rights Management).

1 Display the DivX Setup screen

Touch in the "Setup

Menu" screen (page 56).

1 Displays the registration code.

⁄

• When downloading a DivX VOD file controlled by DRM,

one above. Otherwise the file may not be able to play

with this unit. Remaining number of viewing is displayed

when playing a DivX VOD file with the viewing restriction.

When the remaining number of viewing reached 0, a

warning message appears and the file cannot be played.

System Setup

You can set up the system parameters.

1 Display the System Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to the "System Setup 2" screen.

2 Turns the key touch tone On or Off. (

"ON")

3 Allows scrolling of text display on the

Source Control screen. ( "Auto")

"Auto": Scrolls the screen automatically.

"Manual": Allows you to scroll the screen

manually.

4 Selects a remote control signal. ( "ON")

When turned "OFF", the remote control of

TV reception is rejected.

5 Sets a music CD playback. ( "1")

"1": Automatically recognizes and plays

back an Audio file disc, a DVD or a

music CD.

"2": Forcibly plays back a disc as a music

CD. Select "2" if you wish to play a

music CD having a special format or

if you cannot play a disc in the "1"

position.

⁄

• You cannot play an Audio file/VCD disc in the "2"

position. Also, you may not play some music CDs in the

"2" position.

• Your setup is disabled when the disc is being played.

B64_3978_0000EN_P56_96.indd 60B64_3978_0000EN_P56_96.indd 60 07.12.21 10:52:52 AM07.12.21 10:52:52 AM

English 61

6 Returns to the "System Setup 1" screen.

7 Moves to the "System Setup 3" screen.

8 Sets the button illumination color.

See <Panel Color Coordinate> (page 61).

9 When set to "ON", the illumination color of

the screen and buttons changes one after

another.

p Returns to the "System Setup 2" screen.

q Moves to the "System Setup 4" screen.

w Sets the Preout output. (Settable only when

in Standby mode)

"Rear" : Rear sound is output.

"Subwoofer" : Subwoofer sound is output.

e Sets the function of the [NAV] button.

"V. OFF" : Press the [NAV] button for more

than 1 second to turn the display

off.

"R-CAM" : Press the [NAV] button for more

than 1 second to switch to rear

view.

r Returns to the "System Setup 3" screen.

t Selects a picture display time. ( "Middle")

The Display of a JPEG picture is changed.

("Short", "Middle", "Long")

Panel Color Coordinate

Sets the screen and button illumination color.

1 Display the Panel Color Coordinate screen

See <System Setup> (page 60).

2 Select a color

1 Sets to the touched color.

2 Sets and registers favorite color.

3 Returns to the "System Setup 2" screen.

To register your original color

1 Start the RGB coordinate

2 Adjust the each color value

1 Selects a preset number to register.

Next page 3

B64_3978_0000EN_P56_96.indd 61B64_3978_0000EN_P56_96.indd 61 07.12.21 10:52:53 AM07.12.21 10:52:53 AM

62 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

2 Adjusts the Red value.

3 Adjusts the Green value.

4 Adjusts the Blue.

5 Returns to the "Panel Color Coordinate"

screen.

3 Select a Preset number to register

Adjusted color is registered to the selected

Preset button.

4 Complete the color coordination

Setup Menu

AV Interface Setup

You can set audio and visual (AV) interface

parameters.

1 Display the AV Interface screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to the "AV Interface 2" screen.

2 Sets a name to be displayed when you

select a system that is connected via the AV

INPUT port. ( "VIDEO")

3 Sets an image display of the system that is

connected via the AV INPUT port. ( "OFF")

"OFF": When the image source is switched,

an image entered via the AV INPUT

port is displayed.

"ON": When an image signal is entered

via the AV INPUT port, this image is

displayed.

4 Selects a navigation system connection.

( "RGB") (DDX5022/DDX5022Y/DDX52RY

only)

"RGB": Allows the Kenwood's Navigation

System to connect via the AV INPUT

port.

"AV-IN": Allows a third-party navigation

system to connect via the AV INPUT

port.

"Off": Must be used if no navigation

system is connected. (The

navigation display is cancelled

when the AV source is switched.)

B64_3978_0000EN_P56_96.indd 62B64_3978_0000EN_P56_96.indd 62 07.12.21 10:52:54 AM07.12.21 10:52:54 AM

English 63

5 Returns to the "AV Interface 1" screen.

6 Moves to the "AV Interface 3" screen.

7 Selects an AV source to be output at the AV

OUTPUT port. ( "AV-IN")

⁄

• When in DVD source, "AV-OUT" cannot be set to USB. Or,

when in USB source, "AV-OUT" cannot be set to DVD.

• If "AV-OUT" is set to DVD or USB, the same source video

or control screen as the front monitor is displayed in the

rear monitor.

• If the front source is switched from DVD (or USB) to

another source, the rear source is also switched to

the same source as front. In this case, displaying the

navigation screen in front monitor allows the rear source

to return to the DVD (or USB). Use the easy control

buttons to operate the front source.

8 Sets output of operation screen such as

control screen to AV-OUT . Operation screen

is not output when set to "Black".

( "Through")

9 Sets a method to switch to the rear view

camera video display. ( "OFF")

"ON": Switches to the rear view camera

video display when engaging the

shift knob of car to "Reverse".

"OFF": Switches to the rear view camera

video display when engaging the

shift knob of car to "Reverse" and

then pressing the [NAV] button for

more than 1 second.

p You can flip the left and right of the rear

view camera video display. Set to "ON" and

the the rear view will be displayed left and

right in mirror image on the screen.

( "OFF")

q Returns to the "AV Interface 2" screen.

w Selects speakers used for voice guidance of

the navigation system. ( "Front L")

"Front L": Uses the front left side speaker

for voice guidance.

"Front R": Uses the front right side speaker

for voice guidance.

"Front LR": Uses both front speakers for

voice guidance.

e Adjusts the volume for voice guidance of

the navigation system. ( "21")

r Mutes the volume during voice guidance of

the navigation system. ( "ON")

When turned "ON", the volume level drops

for voice guidance.

t Sets the guide display method of the

Navigation system. ( "ON") (DNX5220BT/

DNX5220 only)

"ON" : Pops up the guide.

"OFF" : Guide is not displayed.

# : Press for # seconds.

B64_3978_0000EN_P56_96.indd 63B64_3978_0000EN_P56_96.indd 63 07.12.21 10:52:55 AM07.12.21 10:52:55 AM

64 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Setup Menu

User Interface

You can set up user interface parameters.

1 Display the User Interface screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to the "User Interface 2" screen.

2 Selects the background to display.

"Change": Displays images entered into this

unit. See <Background Select>

(page 67).

3 Enables entering or deleting of background

images into or from this unit.

Press to enter the USB suspend

mode, and then remove the USB device.

"Memory": Enables entering of background

images. See <Entering

Background> (page 66).

"Delete": Enables deleting of background

image entered into this unit. See

<Background Delete> (page 66).

4 Sets whether to display the target when

touching the panel.

5 Sets the display method of the

unrecognized characters.

"ON": Displays in the Russian character.

"OFF": Displays in the European character.

6 Returns to the "User Interface 1" screen.

7 Moves to the "User Interface 3" screen.

8 Sets an on-screen display of the iPod

Playback screen. ( "Auto")

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

9 Sets an on-screen display of the navigation

screen. ( "Off")

"Auto": Information is displayed for 5

seconds when updated.

"Off": Information is not displayed.

p Sets an on-screen display of the video

playback screen. ( "Auto")

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

11 12

q Returns to the "User Interface 2" screen.

w Moves to the "User Interface 4" screen.

e Sets an on-screen display of the DVD

Playback screen. ( "Manual")

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

r Sets an on-screen display of the TV screen.

( "Auto") (with the optional accessory TV

tuner connected only)

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

t Sets an on-screen display of the USB screen.

( "Manual")

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

B64_3978_0000EN_P56_96.indd 64B64_3978_0000EN_P56_96.indd 64 07.12.21 10:52:57 AM07.12.21 10:52:57 AM

English 65

y Returns to the "User Interface 3" screen.

u Sets whether to display the name of the

, , , and buttons on the

right side of the menu screen.

i Registers the source displayed in the

favorite source screen.

See <Direct Source ButtonSetup> (page 65).

Direct Source Button Setup

Registers the source displayed in the favorite

source screen.

1 Displays the Direct SRC button Setup

screen

See <User Interface> (page 64).

2 Select a preset button

1 Selects the preset button to register.

2 Selects the source to register.

3 Scrolls the source button list.

4 Returns to the "User Interface 4" screen.

3 Select a source to register

4 Complete the registration

The selected source is registered to the preset

button.

B64_3978_0000EN_P56_96.indd 65B64_3978_0000EN_P56_96.indd 65 07.12.21 10:52:58 AM07.12.21 10:52:58 AM

66 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Entering Background

Loads a image for background.

1 Connect the device which has the image to

load

2 Display the User Interface screen

Touch in the "Setup

Menu" screen (page 56).

3 Display the Background Memory screen

4 Select the image to load

1 Lists the files.

2 Scroll the list.

3 Returns to Media Select screen.

4 Returns to the previous folder.

5 Returns to the "User Interface" screen.

5 Load the image

6 Rotates the image.

7 Returns to the Picture Select screen.

⁄

• See <About Picture files> (page 8) for readable image

specifications.

• This operation is not possible when USB is selected as the

source.

Setup Menu

Background Delete

Deletes the background image.

1 Delete the image you have loaded

2 Confirm

1 Returns to the Pictrue Select screen.

B64_3978_0000EN_P56_96.indd 66B64_3978_0000EN_P56_96.indd 66 07.12.21 10:52:59 AM07.12.21 10:52:59 AM

English 67

Background Select

Selects a image for background.

1 Select Background Change screen

2 Select a image for background

1 Returns to the initial background.

2 Returns to the original screen.

3 Set the image as the background

Touch Panel Adjustment

You can adjust the touch panel operations.

1 Display the Touch panel Adjustment

screen

Touch in the "Setup

Menu" screen (page 56).

2 Start Touch panel setup

3 Adjust the Touch panel

Follow the instruction on the screen and touch

the center of .

1 Cancels the adjustment and returns to the

Touch Panel Adjust screen.

2 Resets to the initial status.

B64_3978_0000EN_P56_96.indd 67B64_3978_0000EN_P56_96.indd 67 07.12.21 10:53:01 AM07.12.21 10:53:01 AM

68 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Setup Menu

Clock Setup

You can adjust the clock time.

1 Display the Clock Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup the Clock

1 Clock time display

2 Adjusts hours.

3 Adjusts minutes.

4 Sets "00" minute.

Setup examples: 3:00 – 3:29 \ 3:00

3:30 – 3:59 \ 4:00

5 Sets the clock time in synchronization with

the time data sent from the navigation

system or the RDS station. (DNX5220BT/

DNX5220; DDX5022/DDX5022Y/DDX52RY

with KNA-G520, KNA-G420 or KNA-G421)

Sets the clock time in synchronization with

the time data sent from the RDS station.

(DDX5022/DDX5022Y/DDX52RY with KNA-

DV3200 or KNA-DV2200)

When the synchronized mode is set, the

clock cannot be adjusted manually.

3 Adjust the clock time

Monitor Setup

You can adjust the position, picture quality and

the screen mode of the monitor.

1 Displaying the Monitor Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to "Mode Select 1" screen.

2 Brightness control

3 Contrast Control

4 Black Level Adjustment

5 Dimmer Mode Setup

"ON": The display dims.

"OFF": The display doesn’t dim.

"SYNC": Turning the Dimmer function

On or Off when the vehicle light

control switch is turned On or Off.

"NAV-SYNC" (DNX5220BT/DNX5220 only):

Turning the Dimmer function On

or Off according to the Navigation

Day/Night display setting.

⁄

• In this Screen Control screen, you can perform setups for

the menu screen. Setups for videos such as DVD can be

performed on the <Screen Control> (page 44).

6 Returns to the "Screen Adjust" screen.

7 Moves to the "Mode Select 2" screen.

B64_3978_0000EN_P56_96.indd 68B64_3978_0000EN_P56_96.indd 68 07.12.21 10:53:02 AM07.12.21 10:53:02 AM

English 69

8 Selects a screen mode of the DVD playback

screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

9 Selects a screen mode of the iPod VIDEO

playback screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

p Selects a screen mode of the USB playback

screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

q Returns to the "Mode Select 1" screen.

w Selects a screen mode of the TV screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

e Selects a screen mode of the VIDEO

playback screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

r Selects a screen mode of the rear view

camera (R-CAM) screen.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

⁄

• When you select the Menu or Navigation, the display is

shown in the full-size display mode automatically. The

screen mode of these displays cannot be changed.

• The picture quality can be set for each source.

Full picture mode ("Full")

Zoom picture mode ("Zoom")

Justify picture mode ("Just")

Normal picture mode ("Normal")

B64_3978_0000EN_P56_96.indd 69B64_3978_0000EN_P56_96.indd 69 07.12.21 10:53:03 AM07.12.21 10:53:03 AM

70 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Setup Menu

Security Code Setup

You can set a security code to protect your

receiver system against theft.

⁄

• When the Security Code function is activated, it cannot

be released.

Note that your Security Code is in the 4 digit number

entered in your "Car Audio Passport" in this package.

1 Display the Security Code Setup screen

Touch in the "Setup

Menu" screen (page 56).

1 Displays the Security code input screen.

2 Turns the SI function on or off.

If turned "ON", the burglar alarm lamp

flashes when the vehicle ignition is off.

( "ON")

2 Start Security Code setup

⁄

• If you have already completed the code registration, you

cannot touch .

3 Enter a security Code

Input four-digit number.

4 Register your security code

5 Reenter the security code

Reenter the same security code as that you

have entered in Step 3 for confirmation.

⁄

• If you enter a different security code, the screen returns

to Step 3 (for the first code entry).

6 Register the security code again

Now, your security code is registered.

If you press the Reset button or if you

disconnect your receiver from the battery after

the code registration, you need to enter the

registered security code.

B64_3978_0000EN_P56_96.indd 70B64_3978_0000EN_P56_96.indd 70 07.12.21 10:53:04 AM07.12.21 10:53:04 AM

English 71

If you have pressed the Reset button or if

you have disconnected the Receiver from

battery...

1 Enter the correct security code

You must enter the same security code as that

you have entered in Step 3.

2 Enter the security code

Now, you can use your Receiver.

⁄

• If you enter an incorrect security code, you cannot use

your Receiver for a while.

Incorrect entry count Receiver inoperable time

2 5 minutes

3 1 hour

4 or more 24 hours

iPod Setup

Performs setup when using iPod.

1 Display the iPod Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Sets the Audio book playback speed.

2 Sets Wide Screen on or off.

⁄

• "Wide Screen" cannot be set while the iPod is connected.

B64_3978_0000EN_P56_96.indd 71B64_3978_0000EN_P56_96.indd 71 07.12.21 10:53:05 AM07.12.21 10:53:05 AM

72 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

TV Setup

The TV signal receiving areas can be set. (with the

optional accessory TV Tuner connected only)

1 Displaying TV Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setting up TV

1 Moves to "TV2 Area Set" screen.

2 Sets the present TV1 receiving area.

3 Returns to the "TV1 Area Set" screen.

4 Sets the present TV2 receiving area.

RDS Setup

You can set RDS related parameters.

1 Display the RDS Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Moves to "RDS Setup 2" screen.

2 Sets a news bulletin interrupt time.

3 Turns the Alternative Frequency function

On or Off. ( "ON")

4 Turns the Region Restriction function On or

Off. ( "ON")

5 Turns the Auto TP Seek function On or Off.

( "ON")

6 Returns to the "RDS Setup 1" screen.

7 Selects a display language for the PTY

function.

Setup Menu

B64_3978_0000EN_P56_96.indd 72B64_3978_0000EN_P56_96.indd 72 07.12.21 10:53:06 AM07.12.21 10:53:06 AM

English 73

Bluetooth Setup

Registers and selects Bluetooth unit.

1 Display the Bluetooth Setup screen

Touch in the "Setup

Menu" screen (page 56).

2 Setup each item

1 Sets cell-phone for Hands Free and Audio

player for Bluetooth Audio.

2 Sets the PIN code of this unit (DNX5220BT

only) or KCA-BT200 to enter when

registering (pairing) from the cell-phone or

audio player side.

Registering Bluetooth Unit

Registers the Bluetooth unit to be connected.

1 Display the Connect Device List screen

2 Search for a Bluetooth unit

1 2

1 Displays the registered Bluetooth unit.

Displays the busy service in red. Displays

the available service in gray.

2 Scrolls the name of the Bluetooth unit.

3 Searches for Bluetooth unit.

4 Registers Bluetooth unit that cannot be

registered by normal register (paring)

operation.

5 Returns to the previous screen.

⁄

• A new device cannot be registered if there are 5

registered Bluetooth units. Delete unnecessary

registration. See <Deleting Bluetooth Unit> (page 76).

3 Select the Bluetooth unit to register

6 Displays the searched Bluetooth unit.

7 Scrolls the name of the Bluetooth unit.

8 Cancels searching of Bluetooth unit.

9 Starts search.

p Scrolls.

Next page 3

B64_3978_0000EN_P56_96.indd 73B64_3978_0000EN_P56_96.indd 73 07.12.21 10:53:07 AM07.12.21 10:53:07 AM

74 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

q Returns to the previous screen.

4 Enter PIN code

Enter the PIN code specified for the Bluetooth

unit to register.

w Enters a code number.

e Cancels registration of PIN code.

r Enters PIN code.

t Clears the code number.

⁄

• You can also register from the Bluetooth unit side. For

the PIN code necessary for registration, see <Registering

Bluetooth Unit PIN Code> (page 74).

• If the error message appears even though the PIN code

is correct, try <Registering Special Bluetooth Unit> (page

75).

Registering Bluetooth Unit PIN Code

Sets the PIN code of this unit (DNX5220BT only)

or KCA-BT200 to enter when registering (pairing)

from the cell-phone or audio player side.

1 Display the Receiver PIN Code screen

2 Enter PIN code

1 Enters a code number.

2 Cancels registration of PIN code.

3 Enters PIN code.

4 Clears the code number.

Setup Menu

B64_3978_0000EN_P56_96.indd 74B64_3978_0000EN_P56_96.indd 74 07.12.21 10:53:08 AM07.12.21 10:53:08 AM

English 75

Registering Special Bluetooth Unit

Registers Special Bluetooth unit that results in

error by normal operation by selecting from

model name.

1 Display the Special Device List screen

2 Select a model name

1 Displays the Bluetooth unit name that can

be registered.

2 Scrolls the name of the Bluetooth unit.

3 Scrolls.

4 Returns to the previous screen.

3 Confirm whether to register

5 Cancels registration.

⁄

• Only models in Bluetooth unit name list can be

registered.

4 Go through the procedure of <Registering

Bluetooth Unit> (page 73) and complete

the registration (pairing).

Bluetooth Unit Connection

Selects the Bluetooth unit to connect.

1 Display the Connect Device List screen

2 Select a registered Bluetooth unit

1 2

1 Displays the registered Bluetooth unit.

2 Scrolls the name of the Bluetooth unit.

3 Returns to the previous screen.

3 Select the service to use

4 Connects/disconnects cell-phone to use for

Hands Free.

5 Connects/disconnects Audio player to use

for Bluetooth Audio.

6 Deletes registration (pairing).

7 Returns to the previous screen.

B64_3978_0000EN_P56_96.indd 75B64_3978_0000EN_P56_96.indd 75 07.12.21 10:53:08 AM07.12.21 10:53:08 AM

76 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Deleting Bluetooth Unit

Deletes the registered Bluetooth unit.

1 Display the Connect Device List screen

2 Select a Bluetooth unit to delete

3 Delete the Bluetooth unit

4 Confirm deleting of Bluetooth unit

Setup Menu

Software Information

Checks the software version of this unit.

1 Display the Software Information screen

Touch in the "Setup

Menu" screen (page 56).

1 Displays the software version.

2 Uses for Bluetooth firmware update.

B64_3978_0000EN_P56_96.indd 76B64_3978_0000EN_P56_96.indd 76 07.12.21 10:53:09 AM07.12.21 10:53:09 AM

English 77

Setup Memory

Audio Setup and AV Interface settings can be

memorized. The memorized settings can be

recalled at any time. For example, even when the

settings are cleared due to replacement of the

battery, the settings can be restored.

1 Display the Setup Memory screen

Touch in the "Setup

Menu" screen (page 56).

1 Locks the Audio Setup and AV Interface

settings. When is selected, you

cannot set the Audio Setup and AV

Interface settings.

2 Memorizes or recalls the settings. To cancel

the function, touch . To cancel

memorization, touch .

The "Setup Menu" screen appears again.

2 Start Setup Memory

345

3 Recalls the memorized settings.

4 Memorizes the current Audio Set Up and AV

Interface settings.

5 Clears the currently memorized settings.

6 Returns to "Setup Memory" screen.

3 Memorize or recall the settings

When memorizing the Audio Setup and AV

Interface settings:

If settings have already been memorized, a

confirmation message appears. Touch .

To cancel memorization, touch .

When recalling the memorized settings:

Touching the screen displays a confirmation

message. Touch . To cancel recalling,

touch .

When clearing the currently memorized

settings:

Touching the screen displays a confirmation

message. Touch . To cancel clearing,

touch .

4 Quit memorization/recalling of settings

B64_3978_0000EN_P56_96.indd 77B64_3978_0000EN_P56_96.indd 77 07.12.21 10:53:11 AM07.12.21 10:53:11 AM

78 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Audio Control

Audio Control Menu

Displays the Audio Control menu to set the sound

effect function of this unit.

1 Display the control screen of any source

Touch any source button on the "Source Select"

screen.

2 Display the Audio Control menu

3 Select the Audio Control item

1 Switches to the selected Audio Control

screen.

Audio Control

You can adjust the front/rear and right/left audio

balance.

1 Display Audio Control screen

Touch in the "Audio

Control Menu" screen (page 78).

2 Set the each item

1 Moves to the "Audio Control 2" screen.

2 Adjust the front/back and left/right volume

around the touched area.

3 Adjusts the right and left volume balance.

4 Adjusts the front and rear volume balance.

5 Turns the Loudness control function On or

Off.

If turned "ON", high and low tones are

automatically enhanced during low volume.

Settable Only when zone function is set to

Off. See <Zone Control> (page 80).

6 Displays the present source information.

The stream (Dolby Digital, dts, Linear PCM,

MPEG, MP3, WMA or AAC) is displayed.

7 Returns to the "Audio Control 1" screen.

8 Adjusts the subwoofer volume.

B64_3978_0000EN_P56_96.indd 78B64_3978_0000EN_P56_96.indd 78 07.12.21 10:53:12 AM07.12.21 10:53:12 AM

English 79

9 Adjusts the volume of the present source

based on the difference level of original

volume.

⁄

• If you have increased the volume first, then reduced the

volume using the "Vol. Offset", the sound generated if

you suddenly switch to another source may be extremely

loud.

Equalizer Control

You can set up the equalizer.

1 Display Equalizer Control

Touch in the "Audio

Control Menu" screen (page 78).

2 Display the Equalizer screen

1 Selects an equalizer curve type.

You can select any of the following

equalizer curves.

• "Natural"

• "Rock"

• "Pops"

• "Easy"

• "Top40"

• "Jazz"

• "User"

⁄

• "User" can be selected after tone adjustment is carried

out. See <Tone Setup> (page 80).

2 Selects items to be adjusted for tone curve

setup.

If turned "OFF", only Level can be setup for

tone curves.

3 Displays the Tone curve setup screen. (page

80)

B64_3978_0000EN_P56_96.indd 79B64_3978_0000EN_P56_96.indd 79 07.12.21 10:53:14 AM07.12.21 10:53:14 AM

80 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Tone Setup

You can set a Tone curve.

1 Display the Tone screen

See <Equalizer Control> (page 79).

2 Set the Tone

1 Tone curve becomes flat.

2 Bass adjustment items are displayed.

3 Middle adjustment items are displayed.

4 Treble adjustment items are displayed.

5 Sets the Center frequency.

6 Sets the level.

7 Sets the Q factor. (Only Bass and Middle can

be set)

8 Bass DC Extend settings (Only when Bass is

selected)

If turned "ON", it extends the bass

center frequency to the low register by

approximately 20%.

9 Returns to the "Equalizer" screen.

Audio Control

Zone Control

You can set the front and rear audio source.

1 Display Zone Control

Touch in the "Audio

Control Menu" screen (page 78).

1 Displays the current source.

2 Set the Zone Control

2 Turns the Zone Function (that sets different

source sounds for front and rear speakers)

On or Off.

3 Sets the front and rear audio source

separately.

(This button appears when the Zone

function is On.)

⁄

• When the rear speaker sound is switched, the audio

source that is output at the AV OUTPUT terminal is also

switched to the same source.

4 Adjusts the volume of the rear channel.

(This button appears when the Zone

function is On.)

⁄

• There are following limitations when zone function is set

to "On".

- There is no output from the subwoofer.

- <Audio Setup> (page 56) and <Equalizer Control>

(page 79) are not available.

- When "DVD" or "USB" is selected as the front source, the

rear source can be selected from "Front" (same source

as front), "iPod" or "VIDEO", etc. When the rear source is

B64_3978_0000EN_P56_96.indd 80B64_3978_0000EN_P56_96.indd 80 07.12.21 10:53:14 AM07.12.21 10:53:14 AM

English 81

set to "Front", "DVD" or "USB", the same source screen or

control screen is displayed in the rear monitor. See <AV

Interface Setup> (page 62).

B64_3978_0000EN_P56_96.indd 81B64_3978_0000EN_P56_96.indd 81 07.12.21 10:53:15 AM07.12.21 10:53:15 AM

82 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Remote Controller

For DDX5022Y/DDX52RY : This unit can be operated using the Remote Controller supplied with this unit.

For DNX5220BT/DNX5220/DDX5022 : Optional Remote Controller KNA-RCDV330 is designed for controlling

this unit.

• Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could

result, if the Remote Controller falls down and gets wedged under the pedals while driving.

• Do not place the battery near an open flame or heat source. This may cause the battery to explode.

• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak

fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.

• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a

physician.

Battery installation

Use two "AAA"/"R03"-size batteries.

Insert the batteries with the + and – poles aligned

properly, following the illustration inside the case.

⁄

• If the Remote Controller operates only over shorter

distances or does not operate at all, it is possible that

the batteries are depleted. In such instances, replace the

both batteries with new ones.

Remote Controller mode switch

The functions operated from the remote

controller differ depending on the position of the

mode switch.

RETURN

DVD

NAVI

AUD

POSITION

CANCEL

•

DVD mode

Switch to this mode when playing

DVDs or CDs etc. with the player

integrated in this unit.

AUD mode

Switch to this mode when

controlling a selected source or

tuner source, etc.

NAVI mode

Switch to this mode when

controlling Navigation unit.

TV mode

Switch to this mode when

controlling TV.

⁄

• The position of the remote control mode switch is

indicated in the title of each mode, e.g., "(AUD mode)".

• When controlling a player that is not integrated in the

unit, select "AUD" mode.

B64_3978_0000EN_P56_96.indd 82B64_3978_0000EN_P56_96.indd 82 07.12.21 10:53:15 AM07.12.21 10:53:15 AM

English 83

Common operations (AUD mode)

Source switching

Switches to the source to be played.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Volume control

Adjusts the volume.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D



MAP DIR

VIEW

Volume attenuator

Press the key once to lower the volume. Press again

to restore the previous volume.

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Dual Zone

Switches the Dual Zone function ON and OFF.

R.VOL

ZOOM

12ABC 3DEF

4GHI 5JKL 6

MNO

2ZONE

VOL

AM−









Rear volume control

Adjusts volume at rear when the Dual Zone

function is ON.

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

V.SEL

Switches to the navigation screen.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Cursor key

Moves the cursor when displaying menu.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ENTER

Enters options.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

Hands-free communication

Enters the dialing method selection mode.

When a call comes in, it answers the call.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Function

Switches the function screen.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

DVD

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

MODE

Switches the screen mode.

Screen mode changes each time you press this key.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

B64_3978_0000EN_P56_96.indd 83B64_3978_0000EN_P56_96.indd 83 07.12.21 10:53:16 AM07.12.21 10:53:16 AM

84 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Track number

Play time

Cancel

Audio files

Folder number

File number

Cancel

VCD 1.X, VCD 2.X (PBC OFF)

Track number

Cancel

VCD 2.X (PBC ON)

Scene number

Number

Cancel

Once you have switched to the direct search

feature, specify the search number from the

numeric keypad, and then press [ENTER] key.

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

• Specify the number to search in direct search.

• Press

2ABC

to fast forward/backward.

Switches the fast forward/backward speed each

time you press this key.

• Press

4GHI

5JKL

to slow forward/backward.

Switches the slow playback speed each time you

press this key.

DVD Top Menu

Returns to the DVD top menu.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

DVD/VCD/CD/Audio files (DVD mode)

Folder search

Selects the folder to be played.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D





Track search and file search

Selects the track or file to be played.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D



MAP DIR

VIEW

Play/Pause

Pauses the track.

Press again to resume playing.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Stop

Memorizes the last point where the disc stopped.

When pressed again, the last point is deleted.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Direct search

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Pressing this button switches the features that can

be searched directly.

DVD

Title number

Chapter number

Play time

Item number*

Cancel

* You may not be able to use this function with some discs

or scenes.

Remote Controller

B64_3978_0000EN_P56_96.indd 84B64_3978_0000EN_P56_96.indd 84 07.12.21 10:53:20 AM07.12.21 10:53:20 AM

English 85

DVD Menu

Displays the DVD menu.

Turns the playback control on or off while playing

VCD.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

SUBTITLE

Switches the subtitle language.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

ZOOM

Switches the zoom ratio each time you press this

key.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D





MAP DIR

VIEW

Picture Angle

Switches the picture angle each time you press this

key.

ANGLE

ZOOM

2 ZONE

VOL

AM−

D



VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

AUDIO

Switch Voice Language

Switches the voice language each time you press

this key.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

DVD

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

TV (TV mode)

Switching Band/Video

It switches between the station of the TV band to

receive and video input.

ANGLE

ZOOM

2ZONE

VOL

AM−

D



VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Channel Selection

The TV channel to receive is selected.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D



MAP DIR

VIEW

Direct tuning

(NTSC TV type only)

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Press this key first, and then specify the station to

receive with the numeric keypad.

Example: In case of Channel 6 (2-digit)

MNO

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

• The number of the memorized station is

selected. (

–

MNO )

• Press the direct tuning key first, then specify the

channel of the station to receive.

B64_3978_0000EN_P56_96.indd 85B64_3978_0000EN_P56_96.indd 85 07.12.21 10:53:23 AM07.12.21 10:53:23 AM

86 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Remote Controller

Radio (AUD mode)

Band switching

Switches to bands received by the unit.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D





Station selection

Switches to broadcast stations received by the unit.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D



MAP DIR

VIEW

Direct tuning

After pressing this key, use the keypad to specify

the broadcast station you wish to receive.

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Example: 92.1MHz (FM)

WXYZ

2ABC

Example: 810kHz (AM)

8TUV

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2ZONE









CLEAR DIRECT

• To use preset tuning, press the number of a

programmed broadcast station. (

–

MNO )

• Press the direct tuning key first, then specify the

frequency of the station to receive.

NAVI (NAVI mode)

Joystick

Scrolls the map, or moves the cursor.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ENTER

Performs the selected function.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ZOOM

Zooms in or out the navigation map.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Displays Main menu.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

CANCEL

Displays previous screen.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

POSITION

Displays the current position.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

B64_3978_0000EN_P56_96.indd 86B64_3978_0000EN_P56_96.indd 86 07.12.21 10:53:27 AM07.12.21 10:53:27 AM

English 87

ROUTEM

Displays Route Option menu.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

VIEW

Switches between 2D and 3D map displays.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

VOICE

Plays Voice guidance.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

MAP DIR

Switches between the heading up navigation and

north up navigation map displays.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

B64_3978_0000EN_P56_96.indd 87B64_3978_0000EN_P56_96.indd 87 07.12.21 10:53:31 AM07.12.21 10:53:31 AM

88 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

DVD Language Codes

Code Language

aa Afar

ab Abkhazian

af Afrikaans

am Amharic

ar Arabic

as Assamese

ay Aymara

az Azerbaijani

ba Bashkir

be Byelorussian

bg Bulgarian

bh Bihari

bi Bislama

bn Bengali, Bangla

bo Tibetan

br Breton

ca Catalan

co Corsican

cs Czech

cy Welsh

da Danish

de German

dz Bhutani

el Greek

en English

eo Esperanto

es Spanish

et Estonian

eu Basque

fa Persian

fi Finnish

fj Fiji

fo Faroese

fr French

fy Frisian

ga Irish

gd Scots Gaelic

gli Galician

gn Guarani

gu Gujarati

ha Hausa

he Hebrew

hi Hindi

hr Croatian

hu Hungarian

hy Armenian

ia Interlingua

ie Interlingue

ik Inupiak

id Indonesian

Code Language

is Icelandic

it Italian

ja Japanese

jv Javanese

ka Georgian

kk Kazakh

kl Greenlandic

km Cambodian

kn Kannada

ko Korean

ks Kashmiri

ku Kurdish

ky Kirghiz

la Latin

lb Luxembourgish

ln Lingala

lo Laotian

lt Lithuanian

lv Latvian, Lettish

mg Malagasy

mi Maori

mk Macedonian

ml Malayalam

mn Mongolian

mo Moldavian

mr Marathi

ms Malay

mt Maltese

my Burmese

na Nauru

ne Nepali

nl Dutch

no Norwegian

oc Occitan

om (Afan) Oromo

or Oriya

pa Punjabi

pl Polish

ps Pashto, Pushto

pt Portuguese

qu Quechua

rm Rhaeto-Romance

rn Kirundi

ro Romanian

ru Russian

rw Kinyarwanda

sa Sanskrit

sd Sindhi

sg Sangho

sh Serbo-Croatian

Code Language

si Singhalese

sk Slovak

sl Slovenian

sm Samoan

sn Shona

so Somali

sq Albanian

sr Serbian

ss Siswati

st Sesotho

su Sundanese

sv Swedish

sw Swahili

ta Tamil

te Telugu

tg Tajik

th Thai

ti Tigrinya

tk Turkmen

tl Tagalog

tn Setswana

to Tongan

tr Turkish

ts Tsonga

tt Tatar

tw Twi

uk Ukrainian

ur Urdu

uz Uzbek

vi Vietnamese

vo Volapuk

wo Wolof

xh Xhosa

yo Yoruba

zh Chinese

zu Zulu

B64_3978_0000EN_P56_96.indd 88B64_3978_0000EN_P56_96.indd 88 07.12.21 10:53:33 AM07.12.21 10:53:33 AM

English 89

Help? Error

When the unit fails to operate correctly, the

cause of the failure appears on the display.

Protect :

Protective circuit has been activated because a speaker

cord has shorted or it has come in contact with the car

chassis.

➡ Wire or insulate the speaker cord as appropriate

and then push the Reset button (page 6).

Hot Error :

When the internal temperature of this unit rises to 60°C

or more, the protection circuit is activated and you

may not be able to operate the unit. At such times this

message will appear.

➡ Use the unit again after reducing the

temperature inside the vehicle.

Hold Error :

Activation of the protective circuit when the

temperature inside the disc changer is higher than 60

degrees Celsius stops the disc changer from operating.

At such times this message will appear.

➡ Use when the temperature at the site where the

disc changer has been fitted has dropped.

Mecha Error :

The disc player is malfunctioning.

➡ Eject the disc and try inserting it again. Contact

the Kenwood dealer if this indicator continues

blinking or the disc cannot be ejected.

Disc Error :

An unplayable disc is inserted.

Read Error :

Disc is quite dirty.

➡ Clean the disc, referring tot he section on

<Handling discs> (page 6).

Disc is upside down.

➡ Load the disc with the labeled side up.

Region code Error :

The disc you wanted to play has a region code that

cannot be played with this unit.

Parental level Error:

The disc you wanted to play has a higher level than the

parental level you set.

Error 07–67:

The unit is not operating correctly due to some reason

or other.

➡ Push the unit's Reset button. If the "Error 07−67"

message does not disappear, see your nearest

Kenwood dealer.

No Device (USB device)/Disconnected (iPod):

The USB device/iPod is selected as a source although

no USB device/iPod is connected.

➡ Change the source to any source other than

USB/iPod. Connect an USB device/iPod, and

change the source to USB/iPod again.

No Music:

The connected USB device contains no playable audio

file.

Media was played that doesn’t have data recorded that

the unit can play.

USB Device Error!!:

The connected USB device is rated a current capacity

higher than the allowable limit.

➡ Check the USB device.

Some trouble may have occurred to the connected

USB device.

➡ Change the source to any source other than USB.

Remove the USB device.

Authorization Error:

Connection to the iPod has failed.

➡ Remove the iPod and then reconnect it.

The unit does not support the iPod.

➡ See <iPod that can be connected to this unit>

(page 7).

Update your iPod:

The iPod's software is an older version which the unit

can not support.

➡ Confirm that the software for the iPod is the

latest version. See <iPod that can be connected

to this unit> (page 7).

B64_3978_0000EN_P56_96.indd 89B64_3978_0000EN_P56_96.indd 89 07.12.21 10:53:33 AM07.12.21 10:53:33 AM

90 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Some functions of this unit may be disabled by

some settings made on this unit.

! • Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

• Cannot set up the high pass filter.

▲

Subwoofer is not set to On. ☞ <Audio Setup>

(page 56)

▲

Preout is set to "Rear". ☞ <System Setup> (page

60)

▲

The Dual zone function is enabled. ☞ <Zone

Control> (page 80)

! Cannot set up the subwoofer phase.

▲

Subwoofer is not set to On. ☞ <Audio Setup>

(page 56)

▲

Low pass filter is set to Through. ☞ <Crossover

Network Setup> (page 57)

! • Cannot select the output destination of the

subsource in the Dual zone.

• Cannot adjust the volume of the rear

speakers.

▲

The Dual zone function is disabled. ☞ <Zone

Control> (page 80)

! Cannot play audio files.

▲

"CD Read" of <System Setup> (page 60) is set

to "2".

! Cannot Folder select.

▲

The Scan play or Random play function is

enabled.

! Cannot perform Repeat play.

▲

The PBC function is enabled.

! • Cannot set up the equalizer.

• Cannot set up the crossover network.

▲

The Dual zone function is enabled. ☞ <Zone

Control> (page 80)

! Cannot watch the source selected as AV-OUT

in the rear monitor.

▲

A source control screen is displayed in front. ☞

<AV lnterface Setup> (page 62)

▲

"AV-OUT Graphic Output" of <AV Interface

Setup> is set to "Black".

What might seem to be a malfunction in your unit

may just be the result of slight misoperation or

miswiring. Before calling service, first check the

following table for possible problems.

General

? The Touch Sensor Tone doesn’t sound.

✔ The preout jack is being used.

☞ The Touch Sensor Tone can’t be output from

the preout jack.

Tuner source

? Radio reception is poor.

✔ The car antenna is not extended.

☞ Pull the antenna out all the way.

✔ The antenna control wire is not connected.

☞ Connect the wire correctly, referring to the

section on <INSTALLATION MANUAL>.

Disc source

? The specified disc does not play, but another

one plays instead.

✔ The specified disc is quite dirty.

☞ Clean the disc.

✔ The disc is severely scratched.

☞ Try another disc instead.

Audio file source

? The sound skips when an Audio file is being

played.

✔ The media is scratched or dirty.

☞ Clean the media, referring to the CD

cleaning of the section on <Handling discs>

(page 6).

✔ The recording condition is bad.

☞ Record the media again or use another

media.

Navigation

? The touch panel control of the navigation

system does not work.

✔ Navigation software is not the latest version.

☞ Update the navigation software. For how to

update the software, refer to the instruction

manual of the navigation unit.

Help? Troubleshooting

B64_3978_0000EN_P56_96.indd 90B64_3978_0000EN_P56_96.indd 90 07.12.21 10:53:34 AM07.12.21 10:53:34 AM

English 91

B64_3978_0000EN_P56_96.indd 91B64_3978_0000EN_P56_96.indd 91 07.12.21 10:53:35 AM07.12.21 10:53:35 AM

92 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

Specifications

Monitor section

Picture Size

: 6.1 inches (diagonal) wide

: 136.08 mm (W) x 71.96 mm (H)

Display Sytem

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 336,960 (480H x 234V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: Cold Cathode Fluorescent Tube

DVD player section

D/A Converter

: 24 bit

Audio Decoder

: Linear PCM/ Dolby Digital/ dts/ MP3/ WMA/ AAC

Video Decoder

: MPEG1/ MPEG2/ MPEG4 (Divx)

Wow & Flutter

: Below Measurable Limit

Frequency Response

Sampling frequency; 96 kHz : 20 – 44,000 Hz

Sampling frequency; 48 kHz : 20 – 22,000 Hz

Sampling frequency; 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 98 dB (DVD-Video 96 kHz)

Dynamic Range

: 98 dB (DVD-Video 96 kHz)

Disc Format

: DVD-Video/ VIDEO-CD/ CD-DA

Sampling Frequency

: 44.1/ 48/ 96 kHz

Quantifying Bit Number

: 16/ 20/ 24 bit

USB interface section

USB Standard

: USB 1.1/ 2.0

File Sytem

: FAT 16/ 32

Maximum Power Supply Current

: 500 mA

D/A Converter

: 24 Bit

Audio Decoder

: MP3/ WMA/ AAC

Video Decoder

: MPEG1/ MPEG2/ MPEG4 (Divx)

FM tuner section

Frequency Range (50 kHz)

: 87.5 MHz – 108.0 MHz

Usable Sensitivity (S/N : 26 dB)

: 0.7 V/ 75 

Quieting Sensitivity (S/N : 46 dB)

: 1.6 V/ 75 

Frequency Response (± 3.0 dB)

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 65 dB (MONO)

Selectivity (± 400 kHz)

: ≥ 80 dB

Stereo Separation

: 35 dB (1 kHz)

LW tuner section

Frequency Range (9 kHz)

: 153 kHz – 281 kHz

Usable Sensitivity

: 45 V

MW tuner section

Frequency Range (9 kHz)

: 531 kHz – 1611 kHz

Usable Sensitivity

: 25 V

B64_3978_0000EN_P56_96.indd 92B64_3978_0000EN_P56_96.indd 92 07.12.21 10:53:35 AM07.12.21 10:53:35 AM

English 93

Video section

Color System of External Video Input

: NTSC/PAL

External Video Input Level (mini jack)

: 1 Vp-p/ 75 

External Audio Max Input Level (mini jack)

: 2 V/ 25 k

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 

Audio Output Level (RCA jacks)

: 1.2 V/ 10 k

Analog RGB input (DDX5022/DDX5022Y/

DDX52RY only)

: 0.7 Vp-p/ 75 

Audio section

Maximum Power (Front & Rear)

: 50 W x 4

Full Bandwidth Power (Front & Rear)

(PWR DIN 45324, +B=14.4V)

: 30 W x 4

Preout Level (V)

: 2 V/ 10 k

Preout Impedance

: 600 

Speaker Impedance

: 4 – 8 

Tone action

Bass : 100 Hz ± 10 dB

Middle : 1 kHz ± 10 dB

Treble : 10 kHz ± 10 dB

Bluetooth section (DNX5220BT only)

Technology

: Bluetooth Ver.1.2 Certified

Frequency

: 2.402 – 2.480 GHz

Output Power

: +4 dBm (MAX), 0 dBm (AVE), Power Class 2

Profile

HFP (Hands Free Profile), SPP (Serial Port Profile),

HSP (Headset Profile), A2DP (Advanced Audio

Distribution Profile), AVRCP (Audio/Video

Remote Control Profile), OPP (Object Push

Profile), PBAP (Phonebook Access Profile), SYNC

(Synchronization Profile)

Navigation section

(DNX5220BT/DNX5220 only)

Receiver

: High-sensitivity GPS receiver

Reception Frequency

: 1575.42 MHz (C/A code)

Acquisition Times

Cold : < 38 seconds

Factory Reset : < 45 seconds

(On average for a stationary receiver with a clear

view of the sky)

Accuracy

Position : < 10 meters typical

Velocity : 0.05 m/sec. RMS

Position Method

: GPS

Antenna

: External GPS antenna

General

Operating voltage

: 14.4 V (10.5 – 16 V allowable)

Current Consumption

: 15 A (Max)

Dimensions (W × H × D)

: 182 × 112 × 158 mm

Operational Temperature Range

: -10 °C – +60 °C

Storage Temperature Range

: -20 °C – +85 °C

Weight (DNX5220BT/DNX5220)

: 1.90 kg

Weight (DDX5022/DDX5022Y/DDX52RY)

: 1.87 kg

Although the effective pixels for the liquid crystal panel is

given as 99.99% or more, 0.01% of pixels may not light or

may light incorrectly.

Specifications subject to change without notice.

B64_3978_0000EN_P56_96.indd 93B64_3978_0000EN_P56_96.indd 93 07.12.21 10:53:35 AM07.12.21 10:53:35 AM

94 DNX5220BT/DNX5220/DDX5022/DDX5022Y/DDX52RY

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Apple, the Apple logo, and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

About DivX

DivX is a popular media technology created by DivX, Inc. DivX media Files contain highly compressed video

with high visual quality that maintains a relatively small file size. DivX files can also include advanced media

features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download

online, and you can create your own using your personal content and easy-to-use tools from DivX.com.

About DivX Certified

DivX Certified products are officially tested by the creators of DivX and guaranteed to play all versions of DivX

video, including DivX 6. Certified products qualify for one of several DivX Profiles that designate the type of

video the product supports, from compact portable video to high-definition video.

The "AAC" logo is trademark of Dolby Laboratories.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation

is under license. Other trademarks and trade names are those of their respective owners.

The marking of products using lasers (Except for some areas)

The label is attached to the chassis/case and says that the component

uses laser beams that have been classified as Class 1. It means that the

unit is utilizing laser beams that are of a weaker class. There is no danger

of hazardous radiation outside the unit.

Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU

countries that have adopted separate waste collection systems)

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment should be recycled at a facility capable of handling these

items and their waste byproducts. Contact your local authority for details in locating a recycle facility

nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing

detrimental effects on our health and the environment.

This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional

importer of a vehicle into an EU Member State.

CLASS 1

LASER PRODUCT

B64_3978_0000EN_P56_96.indd 94B64_3978_0000EN_P56_96.indd 94 07.12.21 10:53:36 AM07.12.21 10:53:36 AM

English 95

DNX5220/DDX5022/DDX5022Y/DDX52RY:

Declaration of Conformity with regard to the EMC Directive 2004/108/EC

DNX5220BT:

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

Kenwood Corporation

2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan

EU Representative's:

Kenwood Electronics Europe BV

Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

English

Hereby, Kenwood declares that this unit DNX5220BT is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

Par la présente Kenwood déclare que l’appareil DNX5220BT est conforme aux

exigences essentielles et aux autres dispositions pertinentes de la directive

1999/5/CE.

Par la présente, Kenwood déclare que ce DNX5220BT est conforme aux

exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui

lui sont applicables.

Deutsch

Hiermit erklärt Kenwood, dass sich dieser DNX5220BT in Übereinstimmung mit

den grundlegenden Anforderungen und den anderen relevanten Vorschriften

der Richtlinie 1999/5/EG befindet. (BMWi)

Hiermit erklärt Kenwood die Übereinstimmung des Gerätes DNX5220BT mit

den grundlegenden Anforderungen und den anderen relevanten Festlegungen

der Richitlinie 1999/5/EG. (Wien)

Nederlands

Hierbij verklaart Kenwood dat het toestel DNX5220BT in overeenstemming

is met de essentiële eisen en de andere relevante bepalingen van richtlijn

1999/5/EG.

Bij deze verklaat Kenwood dat deze DNX5220BT voldoet aan de essentiële

eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

Italiano

Con la presente Kenwood dichiara che questo DNX5220BT è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva

1999/5/CE.

Español

Por medio de la presente Kenwood declara que el DNX5220BT cumple con los

requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de

la Directiva 1999/5/CE.

Português

Kenwood declara que este DNX5220BT está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Polska

Kenwood niniejszym oświadcza, że DNX5220BT spełnia zasadnicze wymogi

oraz inne istotne postanowienia dyrektywy 1999/5/EC.

Český

Kenwood timto prohlasuje, ze DNX5220BT je ve shode se zakladnimi

pozadavky a s dalsimi prislusnymi ustanoveni Narizeni vlady c. 426/2000 Sb.

Magyar

Alulírott, Kenwood, kijelenti, hogy a jelen DNX5220BT megfelel az 1999/5/EC

irányelvben meghatározott alapvető követelményeknek és egyéb vonatkozó

előírásoknak.

Svenska

Härmed intygar Kenwood att denna DNX5220BT stär l överensstämelse med de

väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av

direktiv 1999/5/EG.

Suomi

Kenwood vakuuttaa täten että DNX5220BT tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

Slovensko

S tem Kenwood izjavlja, da je ta DNX5220BT v skladu z osnovnimi zahtevami

in ostalimi ustreznimi predpisi Direktive 1999/5/EC.

Slovensky

Spoločnosť Kenwood týmto vyhlasuje, že DNX5220BT spĺňa zákldné

požiadavky a ďalšie prislušné ustanovenia Direktĺvy 1999/5/EC.

Dansk

Undertegnede Kenwood erklærer harved, at følgende udstyr DNX5220BT

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Ελληνικά

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Kenwood ΔΗΛΩΝΕΙ ΟΤΙ DNX5220BT ΣΥΜΜΟΡΦΩΝΕΤΑΙ

ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ

ΟΔΗΓΙΑΣ 1999/5/EK.

Eesti

Sellega kinnitab Kenwood, et see DNX5220BT vastab direktiivi 1999/5/EC

põhilistele nõudmistele ja muudele asjakohastele määrustele.

Latviešu

Ar šo, Kenwood, apstiprina, ka DNX5220BT atbilst Direktīvas 1999/5/EK

galvenajām prasībām un citiem tās nosacījumiem.

Lietuviškai

Šiuo, Kenwood, pareiškia, kad šis DNX5220BT atitinka pagrindinius Direktyvos

1999/5/EB reikalavimus ir kitas svarbias nuostatas.

Malti

Hawnhekk, Kenwood, jiddikjara li dan DNX5220BT jikkonforma mal-ħtiġijiet

essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/

EC.

Українська

Компанія Kenwood заявляє, що цей виріб DNX5220BT відповідає

ключовим вимогам та іншим пов’язаним положенням Директиви

1999/5/EC.

B64_3978_0000EN_P56_96.indd 95B64_3978_0000EN_P56_96.indd 95 07.12.21 10:53:36 AM07.12.21 10:53:36 AM

B64_3978_0000EN_P56_96.indd 96B64_3978_0000EN_P56_96.indd 96 07.12.21 10:53:37 AM07.12.21 10:53:37 AM

Kenwood Ddx 5022 Instruction Manual B64_3978_0000EN_P01_55

Kenwood GPS Receiver DNX5230BT B64-3978-00_EN

DNX 5220 - Operating Instructions Dnx5220Bt_Dnx5220_Ddx5022_Ddx5022Y_Ddx52Ry_En Free User Guide for Kenwood DNX Series GPS, Manual - page2

Navigation menu

Versions of this User Manual:

Views

Navigation
