Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new DVD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial

numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model DDX9902S/DDX9702S Serial number

US Residents Only

DDX9902S

DDX9702S

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

DDX_High_K.indb 1DDX_High_K.indb 1 2015/04/15 16:152015/04/15 16:15

CONTENTSCONTENTS

BEFORE USE............................................................ 2

How to reset your unit.................................................... 3

INITIAL SETTINGS .................................................. 4

BASICS .................................................................... 6

Component names and functions ............................. 6

Common operations ....................................................... 6

Common screen operations ......................................... 7

Selecting the playback source ..................................... 9

DISCS .................................................................... 10

USB........................................................................ 15

iPod/iPhone ......................................................... 17

APPS ..................................................................... 20

Using Apps of iPhone—Apple CarPlay ..................20

Using the Apps of an Android device—Android

Auto™ ..................................................................................21

Using an App—APPs.....................................................22

Pandora® .............................................................. 24

iHeartRADIO ......................................................... 26

Spotify .................................................................. 28

AUPEO! ................................................................. 30

HD Radio™ tuner .................................................. 32

SiriusXM® Satellite Radio .................................... 35

OTHER EXTERNAL COMPONENTS ...................... 42

Using external audio/video players—AV-IN ........42

Using a rear view camera ............................................42

Using a smartphone—HDMI/MHL ...........................44

Using an external component via ADS adapter—

OEM Features...................................................................44

BLUETOOTH ......................................................... 45

SETTINGS .............................................................. 53

Settings for using applications of iPod/iPhone/

Android ..............................................................................53

Sound adjustment .........................................................54

Adjustment for video playback .................................56

Changing the display design .....................................58

Customizing the <TOP MENU> screen .................59

Customizing the system settings .............................59

Setting menu items .......................................................61

CONNECTION/INSTALLATION ............................ 64

REFERENCES ......................................................... 71

Maintenance ....................................................................71

More information ...........................................................71

Error message list ...........................................................74

Troubleshooting .............................................................76

Specifications ...................................................................77

How to read this manual:

• Illustrations of DDX9902S are mainly used for explanation. The displays and panels shown in this manual

are examples used to provide clear explanations of the operations. For this reason, they may be different

from the actual displays or panels.

• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For

operations using the remote controller (KNA-RCDV331: optional accessory), see the instructions supplied

with the remote controller.

• < > indicates the various screens/menus/operations/settings that appear on the touch panel.

• [ ] indicates the buttons on the touch panel.

• Indication language: English indications are used for the purpose of explanation. You can select the

indication language from the <Setup> menu. (Page63)

• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available

from <http://www.kenwood.com/cs/ce/>.

BEFORE USEBEFORE USE

IMPORTANT

To ensure proper use, please read through this

manual before using this product. It is especially

important that you read and observe WARNINGS

and CAUTIONS in this manual. Please keep the

manual in a safe and accessible place for future

reference.

V WARNINGS: (To prevent accidents and

damage)

• DO NOT install any unit or wire any cable in a

location where;

– it may obstruct the steering wheel and gearshift

lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while

driving.

V CAUTION

Use of controls or adjustments or performance

of procedures other than those specified herein

may result in hazardous radiation exposure. In

compliance with Federal Regulations, the following

are reproductions of labels on, or inside the product

relating to laser product safety.

JVCKENWOOD Corporation

2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI, TOKYO,

JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES

21CFR SUBCHAPTER J IN EFFECT AT DATE OF

MANUFACTURE.

Location : Top plate

DDX_High_K.indb 2DDX_High_K.indb 2 2015/04/15 16:152015/04/15 16:15

ENGLISH 3

FCC WARNING

This equipment may generate or use radio

frequency energy. Changes or modifications to this

equipment may cause harmful interference unless

the modifications are expressly approved in the

instruction manual. The user could lose the authority to

operate this equipment if an unauthorized change or

modification is made.

FCC NOTE

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment may cause harmful interference to

radio communications, if it is not installed and used

in accordance with the instructions. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct

the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

IC (Industry Canada) Notice

This device complies with Industry Canada license-

exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2)

this device must accept any interference, including

interference that may cause undesired operation of the

device.

The term “IC: ” before the certification/registration

number only signifies that the Industry Canada

technical specification were met.

CAUTION

This equipment complies with FCC/IC radiation

exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF)

Exposure Guidelines in Supplement C to OET65 and

RSS-102 of the IC radio frequency (RF) Exposure rules.

This equipment has very low levels of RF energy that

it deemed to comply without maximum permissive

exposure evaluation (MPE). But it is desirable that it

should be installed and operated keeping the radiator

at least 20 cm or more away from person’s body

(excluding extremities: hands, wrists, feet and ankles).

Under Industry Canada regulations, this radio

transmitter may only operate using an antenna of a

type and maximum (or lesser) gain approved for the

transmitter by Industry Canada. To reduce potential

radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than

that necessary for successful communication.

• Contains Transmitter Module

FCC ID : YZP-RBFAC21XX

• Contains Transmitter Module

IC: 7414A-RBFAC21XX

V Cautions on the monitor:

• The monitor built into this unit has been

produced with high precision, but it may have

some ineffective dots. This is inevitable and is not

considered defective.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point

pen or similar tool with a sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you are wearing a glove, take it

off).

• When the temperature is very cold or very hot...

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with

the sound or picture quality may decline in such

environments.

For safety...

• Do not raise the volume level too much, as this

will make driving dangerous by blocking outside

sounds, and may cause hearing loss.

• Stop the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or

cold weather, wait until the temperature in the car

becomes normal before operating the unit.

R How to reset your unit

If the unit fails to operate properly, press the reset

button.

BEFORE USEBEFORE USE

DDX_High_K.indb 3DDX_High_K.indb 3 2015/04/15 16:152015/04/15 16:15

INITIAL SETTINGSINITIAL SETTINGS

Initial setup

When you power on the unit for the first time or

reset the unit, the initial setting screen appears.

• You can also change the settings on the <Setup>

screen. (Page61)

(Page62)

Activate or deactivate the

display demonstration.

(Page63)

Select the text language

used for on-screen

information.

• Set <GUI Language>

to display the operation

buttons and menu items

in the selected language

([Local]) or English

([English]).

<Angle>

(Page7)

Adjust the panel angle.

<R-CAM

Interrupt>

(Page62)

Select [ON] when

connecting the rear view

camera.

(Page58)

Select the color of the

buttons on the monitor

panel.

2 Finish the procedure.

The <TOP MENU> screen is displayed.

Activating the security function

You can activate the security function to protect

your receiver system against theft.

1 Display the <System> setting screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

The security indicator on the monitor panel

flashes when the vehicle ignition is off.

To deactivate the security function: Select [OFF]

for <SI>.

DDX_High_K.indb 4DDX_High_K.indb 4 2015/04/15 16:152015/04/15 16:15

ENGLISH 5

INITIAL SETTINGSINITIAL SETTINGS

Clock settings

1 Display the <TOP MENU> screen.

On the source control screen:

2 Display the <Setup> screen.

3 Display the <Clock> screen.

4 Set date (1), time (2), then confirm the

setting (3).

• Adjust the date/time by pressing [J]/[K].

5 Finish the procedure.

DDX_High_K.indb 5DDX_High_K.indb 5 2015/04/15 16:152015/04/15 16:15

BASICSBASICS

Component names and functions

V Caution on the volume setting:

Digital devices produce very little noise compared

with other sources. Lower the volume before

playing these digital sources to avoid damaging

the speakers by sudden increase of the output

level.

1 Monitor panel*

2 Screen (touch panel)

3 Reset button/Power indicator/Security indicator

• Resets the unit. (Page 3)

• Lights up while the unit is turned on.

• Flashes when the security function is activated.

(Page 4)

4 Volume K/J button

Adjusts the audio volume. (See the far right

column.)

5 AV/AV OUT button

• Displays the current source screen. (Press)

• When displaying CarPlay/Android Auto/Apps

screen: Displays the picture adjustment menu.

(Page56) (Press)

• The function of the button when held varies

depending on the <AV Key Long Press>

setting. (Page 63)

6 AUD/R-CAM button

• Displays the <Equalizer> screen. (Press)

(Page 54)

• The function of the button when held varies

depending on the <AUD Key Long Press>

setting. (Page 63)

7 BMENU button

• Displays the <TOP MENU> screen. (Press)

(Page 8)

• Turns on the power. (Press) (See the right

column.)

• Turns off the power. (Hold) (See the right

column.)

8 TEL/VOICE button

• Displays the phone control screen. (Press)

(Page 49)

• Activates voice dialing. (Hold) (Page 50)

9 M (Eject) button

• Ejects the disc. (Tilts the monitor panel fully.)

• Opens/closes the monitor panel.

* You can change the color of the buttons on the monitor panel.

(Page 58)

Common operations

R Turning on the power

R Turning off the power

(Hold)

R Adjusting the volume

To adjust the volume

You can adjust the volume for the following four

situations.

• While listening to a source (0 to 35)

• During a call (0 to 35)

• During voice guidance (0 to 35)

• While receiving Traffic Information (0 to 35)

Press J to increase, and press K to decrease.

• Holding the button increases/decreases the

volume continuously.

R Turning off the screen

(Hold)

• This operation works only when <AUD Key Long

Press> is set to [V-OFF]. (Page63)

To turn on the screen: Press and hold AUD on the

monitor panel, or touch the display.

DDX_High_K.indb 6DDX_High_K.indb 6 2015/04/15 16:152015/04/15 16:15

ENGLISH 7

BASICSBASICS

R Adjusting the panel angle

1 Display the <Angle Adjust> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Display> menu screen.

2 Select an angle (0 – 6).

• To set the current position as the power off

position, select [Memory].

R Putting the unit in standby

1 Display all <TOP MENU> items.

On the <TOP MENU> screen:

Common screen operations

RCommon screen descriptions

You can display other screens any time to change

the source, show the information, or change the

settings, etc.

Source control screen

Performs source playback operations.

• The operation buttons vary depending on the

selected source.

Common operation buttons:

1 Displays other operation buttons.

• Disabled when there are no other buttons.

2 Switches between the normal source control

screen and easy control screen. (Page8)

3 Displays the <TOP MENU> screen. (Page8)

• Pressing BMENU on the monitor panel also

displays the <TOP MENU> screen.

4 Displays/hides short-cut buttons. (Page9)

Continued on the next page...

DDX_High_K.indb 7DDX_High_K.indb 7 2015/04/15 16:152015/04/15 16:15

BASICSBASICS

Easy control screen

Pressing [ ] switches between the normal source

control screen and easy control screen.

The easy control screen allows you to control the

source easily with simple buttons.

• The displayed buttons vary depending on the

selected source.

<TOP MENU> screen

Displays the source control screen and settings

screen.

• You can arrange the items to display on the <TOP

MENU> screen. (Page 59)

Common operating buttons:

1 Changes the playback source. (Page 9)

2 Displays all playback sources and items.

(Page9)

3 Displays the <Setup> screen. (See the right

column.)

<Setup> screen

Changes the detailed settings. (Page 61)

Common operating buttons:

1 Selects the menu category.

2 Displays the <TOP MENU> screen.

3 Changes the page.

4 Returns to the previous screen.

R Touch screen operations

1 Displays the video control menu while playing a

video.

2 Displays the source control screen while playing

a video.

• The operation buttons disappear when the

screen is touched or when no operation is

done for about 5 seconds.

3 Goes to the previous chapter/track.*

4 Goes to the next chapter/track.*

* Not available for video from an external component.

DDX_High_K.indb 8DDX_High_K.indb 8 2015/04/15 16:152015/04/15 16:15

ENGLISH 9

BASICSBASICS

Selecting the playback source

On the <TOP MENU> screen:

• You can change the page to display more items by

pressing [J]/[K].

[DISC] Plays a disc. (Page 10)

[HD Radio] Switches to the HD Radio

broadcast. (Page 32)

[iPod] Plays an iPod/iPhone. (Page 17)

[USB] Plays files on a USB device.

(Page 15)

[HDMI/MHL] Plays a device connected to

the HDMI/MHL input terminal.

(Page 44)

[SiriusXM] Switches to the SiriusXM® radio

broadcast. (Page 35)

[APPs]/[Apple CarPlay]/[Android Auto]*

Switches to the App/Apple CarPlay/

Android Auto™ screen from the

connected iPod touch/iPhone/

Android device. (Page 20)

[PANDORA] Switches to the Pandora broadcast.

(Page 24)

[iHeartRadio] Switches to the iHeartRADIO

broadcast. (Page 26)

[Spotify] Switches to the Spotify application.

(Page 28)

[AUPEO!] Switches to the AUPEO! application.

(Page 30)

[Bluetooth] Plays a Bluetooth audio player.

(Page 51)

[TEL] Displays the phone control screen.

(Page 49)

[OEM Features] Switches to the source connected

via ADS adapter. (Page 44)

[AV-IN1][AV-IN2]

Switches to an external component

connected to the AV-IN1 or iPod/

AV-IN2 input terminal. (Page 42)

* When iPhone compatible with CarPlay is connected and

<CarPlay Connection> is set to [ON] (Page20),

[Apple CarPlay] is displayed. When an Android device

compatible with Android Auto is connected, [Android Auto]

is displayed.

R Selecting the playback source on the

<TOP MENU> screen

• You can change the items (other than [SETUP]) to

display on the <TOP MENU> screen. (Page59)

R Using short-cut buttons

While displaying the source control screen or the

<Setup> screen, you can use the short-cut buttons

to go to the items on the <TOP MENU> screen

indicated below.

To display the short-cut buttons

On the source control screen:

On the <Setup> screen:

To hide the short-cut buttons: Press [ ].

DDX_High_K.indb 9DDX_High_K.indb 9 2015/04/15 16:152015/04/15 16:15

DISCS DISCS

Playing a disc

• If a disc does not have a disc menu, all tracks on

it will be played repeatedly until you change the

source or eject the disc.

• For playable disc types/file types, see page 72.

RInserting a disc

Insert a disc with the label side facing up.

The source changes to “DISC” and playback starts.

• The IN indicator lights up while a disc is inserted.

• If “ ” appears on the screen, the unit cannot

accept the operation you have tried to do.

– In some cases, without showing “ ,”

operations will not be accepted.

• When playing back a multi-channel encoded

disc, the multi-channel signals are downmixed

to stereo.

R Ejecting a disc

• When removing a disc, pull it horizontally.

• You can eject a disc when playing another AV

source.

• If the ejected disc is not removed within

60 seconds, the disc is automatically inserted

again into the loading slot to protect it from dust.

Closing the monitor panel

After removing the disc, press M on the monitor

panel. The monitor panel closes.

Playback operations

When the operation buttons are

not displayed on the screen, touch

the area shown on the illustration.

• To change settings for video

playback, see page 56.

RIndications and buttons on the source

control screen

For video playback

54 6

Playback information

• The information displayed on the screen differs

depending on the type of disc/file being played

back.

1 Media type

2 Current playback item information (title no./

chapter no./folder no./file no./track no.)

3 Playing time

4 Playback mode (Page13)

5 File type

6 IN indicator

DDX_High_K.indb 10DDX_High_K.indb 10 2015/04/15 16:152015/04/15 16:15

ENGLISH 11

DISCSDISCS

Operation buttons

• Available buttons on the screen and operations

differ depending on the type of disc/file being

played back.

[ ] Displays the folder/track list.

(Page12)

[O] [N]Reverse/forward search during

playback.

[S] [T]• Selects a chapter/track. (Press)

• Reverse/forward search. (Hold)

[IW]Starts/pauses playback.

[o]Stops playback.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the settings for disc

playback on the <DISC Mode>

screen. (Page14)

[ ] [ ] Selects playback mode. (Page13)

[Playlist] Displays the Original Program/

Playlist screen.

[ ] [ ] Plays in frame-by-frame.

[ ] [ ] Selects a folder.

[PBC] Activates or deactivates the VCD PBC

(Playback Control) function.

[MENU] Displays the <TOP MENU> screen.

For audio playback

876

Playback information

• The information displayed on the screen differs

depending on the type of disc/file being played

back.

1 Media type

2 Track/file information

• Pressing [<] scrolls the text if not all of the text

is shown.

3 Current playback item information (folder no./file

no./track no.)

4 Playback status

5 Playing time

6 Playback mode (Page13)

7 File type

8 IN indicator

Operation buttons

• Available buttons on the screen and operations

differ depending on the type of disc/file being

played back.

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the folder/track list.

(Page12)

[S] [T]Selects a track.

[O] [N]Reverse/forward search.

[IW]Starts/pauses playback.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the settings for disc

playback on the <DISC Mode>

screen. (Page14)

[ ] [ ] Selects a folder.

[ ] [ ] Selects playback mode. (Page13)

[o]Stops playback.

[MENU] Displays the <TOP MENU> screen.

DDX_High_K.indb 11DDX_High_K.indb 11 2015/04/15 16:152015/04/15 16:15

DISCSDISCS

R Selecting a folder/track on the list

2 Select the folder (1), then the item in the

selected folder (2).

• Repeat the procedure until you select the

desired track.

• You can change the page to display more

items by pressing [J]/[K].

• Press [ ] to open the folder containing the

current track.

• Press [ ] to return to the root folder.

• Press [ ] to return to the upper layer.

RVideo menu operations

You can display the video menu screen during video

playback.

• The operation buttons disappear when the screen

is touched or when no operation is done for about

5 seconds.

For video playback except VCD

• Available buttons on the screen and operations

differ depending on the type of disc/file being

played back.

[ZOOM] Displays the picture size selection

screen. (Page57)

[Aspect] Selects the aspect ratio.

(Page57)

[PictureAdjust] Displays the picture adjustment

screen. (Page56)

[Audio] Selects the audio type (or channel

for DVD-VR).

[Subtitle] Selects the subtitle type.

[Angle] Selects the view angle.

[MENU] Displays the disc menu.

[T MENU] Displays the disc menu (DVD).

[Highlight] Switches to the direct disc menu

mode. Touch the target item to

select.

• To restore the screen, press AV

on the monitor panel.

[CUR] Displays the menu/scene

selection screen.

• [J] [K] [H] [I]: Selects an item.

• [Enter]: Confirms the selection.

• [Return]: Returns to the

previous screen.

DDX_High_K.indb 12DDX_High_K.indb 12 2015/04/15 16:152015/04/15 16:15

ENGLISH 13

DISCSDISCS

For VCD

[ZOOM] Displays the picture size selection

screen. (Page57)

[Aspect] Selects the aspect ratio.

(Page57)

[PictureAdjust] Displays the picture adjustment

screen. (Page56)

[Audio] Selects the audio channel (ST:

stereo, LL: left, RR: right).

[Return] Displays the previous screen or

menu.

[Direct] Displays/hides the direct selection

buttons. (See the right column.)

To select a track directly on a VCD

• When you enter a wrong number, press [CLR] to

delete the last entry.

RSelecting playback mode

[ ] Selects Repeat playback mode.

[ ] Selects Random playback mode.

• Available playback modes differ depending on the

type of disc/file being played back.

• You cannot activate the repeat mode and the

random mode at the same time.

• Each time you press the button, the playback

mode changes. (The corresponding indicator

lights up.)

– Available items differ depending on the type of

disc/file being played back.

C-REP Repeats current chapter.

T-REP Repeats current title/program.

REP Repeats current track.

FO-REP Repeats all tracks of the

current folder.

FO-RDM Randomly plays all tracks of

the current folder, then tracks

of the next folders.

RDM Randomly plays all tracks.

To cancel Repeat/Random playback: Press the

button repeatedly until the indicator disappears.

DDX_High_K.indb 13DDX_High_K.indb 13 2015/04/15 16:152015/04/15 16:15

DISCSDISCS

Settings for disc playback

• Available items shown on the <DISC Mode>

screen differ depending on the type of disc/file

being played back.

RSetting items

<Menu

Language>*

Select the initial disc menu language.

(Initial: English) (Page74)

<Subtitle

Language>*

Select the initial subtitle language

or turn subtitles off (Off). (Initial:

English) (Page74)

<Audio

Language>*

Select the initial audio language.

(Initial: Original) (Page74)

<Dynamic

Range

Control>*

You can change the dynamic range

while playing using Dolby Digital

software.

• Wide: Select this to enjoy a

powerful sound at a low volume

level with its full dynamic range.

• Normal: Select this to reduce the

dynamic range a little.

• Dialog (Initial): Select this to

reproduce movie dialog more

clearly.

<Angle

Mark>

Select whether to display the angle

mark.

• ON (Initial): Select this to display

the angle mark.

• OFF: Select this to hide the angle

mark.

<Screen

Ratio>*

Select the monitor type to watch a

wide screen picture on the external

monitor.

16:9 (Initial) 4:3 LB 4:3 PS

<Parental

Level>*

Set the parental level.

(See the right column.)

<CD Read> Select the files to play on a disc

containing music files. You cannot

change the setting when a disc is

inserted.

• 1 (Initial): Automatically

distinguishes between audio file

discs and music CDs.

• 2: Forces to play as a music CD. No

sound can be heard if an audio file

disc is played.

* You can change these settings only while playback is stopped.

Setting the parental lock

The parental lock cannot be set during DVD

playback.

1 Display the <Parental Pass> screen.

On the <DISC Mode> screen:

• Press [K] repeatedly to change the page on

the <DISC Mode> screen.

2 Enter the 4-digit parental pass code (1),

and press [Enter] (2).

• To clear the entry, press [Clear].

• To cancel setting the code, press [Cancel].

3 Adjust the parental level (<OFF>,

<Level1> to <Level 8>).

To deactivate the parental lock: Select [OFF] for

<Parental Level>.

DDX_High_K.indb 14DDX_High_K.indb 14 2015/04/15 16:152015/04/15 16:15

ENGLISH 15

USB USB

Connecting a USB device

You can connect a USB mass storage class device

such as a USB memory, Digital Audio Player etc. to

the unit.

• For details about connecting USB devices, see

page 67.

• You cannot connect a computer or portable HDD

to the USB input terminal.

• For playable file types and notes on using USB

devices, see page 73.

When a USB device is connected...

The source changes to “USB” and playback starts.

• All tracks in the USB device will be played

repeatedly until you change the source.

To disconnect the USB device safely:

Press [M], then disconnect the USB device after “No

Device” appears.

Playback operations

When the operation buttons are

not displayed on the screen, touch

the area shown on the illustration.

• To change settings for video

playback, see page 56.

RIndications and buttons on the source

control screen

Playback information

• The information displayed on the screen differs

depending on the type of file being played back.

1 Track/file information

• Pressing [<] scrolls the text if not all of the text

is shown.

2 Current playback item information (folder no./file

no.)

3 Playback status

4 Playing time

5 Jacket picture (Shown while playing if the file has

tag data that includes the jacket picture)

6 Playback mode (See the right column.)

7 File type

Operation buttons

• Available buttons on the screen and operations

differ depending on the type of file being played

back.

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the list selection screen.

(Page16)

[S] [T]Selects a track.

[O] [N]Reverse/forward search.

[IW]Starts/pauses playback.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the picture display time

setting on the <USB Mode> screen.

(Page16)

[ ] [ ] Selects a folder.

[ ] Selects repeat playback mode.*1 *2

• REP: Repeats the current track/file.

• FO-REP: Repeats all tracks/files

in the current folder or specified

category.

[ ] Activates random playback mode.*1 *2

• RDM:

– When selecting the track/file from

the folder, randomly plays all

tracks/files of the current folder,

then the tracks/files of the next

folder.

– When selecting the track/file from

the category, randomly plays

all tracks/files of the specified

category.

[M]Disconnects the USB device safely.

[MENU] Displays the <TOP MENU> screen.

*1 To cancel random or repeat mode, press the button repeatedly until

the indicator disappears.

*2 You cannot activate the repeat mode and the random mode at the

same time.

DDX_High_K.indb 15DDX_High_K.indb 15 2015/04/15 16:152015/04/15 16:15

USBUSB

R Setting <Picture Display Time>

Set the interval between slides during slide-shows of

the picture files.

R Selecting a track in a list

2 Select the list.

3 Select the track.

• You can change the page to display more

items by pressing [J]/[K].

• Press [ ] to return to the root folder.

• Press [ ] to return to the upper layer.

• Press [ ] to open the folder containing the

current track.

• If you want to play all tracks in the folder,

press [I] on the right of the desired folder.

• On the <Category List>/<Folder List>: You

can switch the file type to list: Press [ ] to list

audio files, [ ] to list video files, or [ ] to

list still picture files.

• On the <Category List>/<Link Search>: To

list the items in alphabetical order, press [A-Z],

then select the first character.

From <Category List>:

Select the category (1), then the item in the

selected category (2).

From <Link Search>:

Select the tag type (1) to display a list of

content that contains the same tag as the track/

file currently being played, then the item (2).

From <Folder List>:

Select the folder (1), then the item in the

selected folder (2).

DDX_High_K.indb 16DDX_High_K.indb 16 2015/04/15 16:152015/04/15 16:15

ENGLISH 17

iPod/iPhone iPod/iPhone

Preparation

R Connecting iPod/iPhone

• For details about connecting iPod/iPhone, see

page 67.

• For playable iPod/iPhone types, see page 73.

Connect your iPod/iPhone according to your

purpose or the type of iPod/iPhone.

Wired connection

• To listen to music: USB Audio cable for iPod/

iPhone

– For Lightning connector models: Use KCA-iP103

(optional accessory).

– For 30-pin connector models: Use KCA-iP102

(optional accessory).

• To watch video and listen to music: USB Audio

and Video cable for iPod/iPhone

– For Lightning connector models: Use the

HDMI cable KCA-HD100 (optional accessory)

and KCA-iP103 (optional accessory) through a

Lightning-Digital AV adapter (accessory of the

iPod/iPhone).

– For 30-pin connector models: Use KCA-iP202

(optional accessory).

Bluetooth connection

Pair the iPod/iPhone through Bluetooth. (Page45)

• For Lightning connector models: To watch video,

connect your iPod/iPhone to the HDMI/MHL input

terminal using KCA-HD100 (optional accessory).

(Page67)

• For 30-pin connector models: You cannot watch

video with a Bluetooth connection.

R Selecting the iPod/iPhone device to

play and connection method

When connecting the iPod/iPhone device for

first time, the setup screen (for connection, etc.)

appears. Follow the procedure on the setup screen

to configure the settings.

1 Display the <iPod Settings> screen.

On the <TOP MENU> screen:

• If [Enter] for <iPod Setup> cannot be

selected, put the unit in standby. (Page7)

• If you do not need to change the settings,

press [OK] to exit from the setup screen.

3 Select the connection method (1), then

press [Next] (2).

[USB + AV-IN] Select this when the iPod/

iPhone is connected using

KCA-iP202 (optional accessory).

[USB 1 Wire] Select this when the iPod/

iPhone is connected using

KCA-iP102 (optional accessory)

or KCA-iP103 (optional

accessory).

[HDMI +

Bluetooth]*

Select this when the iPod/

iPhone is connected using

HDMI cable KCA-HD100

(optional accessory) and

KCA-iP103 (optional accessory)

through a Lightning-Digital AV

adapter (accessory of the iPod/

iPhone).

[Bluetooth]* Select this when the iPod/

iPhone is connected via

Bluetooth.

• When selecting [USB + AV-IN] or [USB 1

Wire], go to step 5.

* When <CarPlay Connection> is set to [ON] (Page20),

these settings cannot be selected.

Continued on the next page...

DDX_High_K.indb 17DDX_High_K.indb 17 2015/04/15 16:152015/04/15 16:15

iPod/iPhoneiPod/iPhone

4 When selecting <HDMI + Bluetooth> or

<Bluetooth> as the connection method,

the device selection screen appears.

Search for the available iPod/iPhone

devices (1), select the target device from

the list (2), then press [Next].

• You can change the page to display more

items by pressing [J]/[K].

• If the device is already listed, skip step 1.

• To stop searching, press [Cancel].

5 Confirm the settings.

R Selecting preference settings for iPod/

iPhone playback

When the source is “iPod”...

<Audiobooks> Select the speed of audio

books.

<Wide

Screen>*

• [ON]: Select this to display

video compatible with

wide-screen display in wide-

screen.

• [OFF]: Select this to

deactivate.

* You cannot change the setting when iPod/iPhone is connected.

Playback operations

When the operation buttons are

not displayed on the screen, touch

the area shown on the illustration.

• To change settings for video

playback, see page 56.

RIndications and buttons on the source

control screen

12 43

Playback information

1 Song/video information

• Pressing [<] scrolls the text if not all of the text

is shown.

2 Track no./Total track number

3 Playback status

4 Playing time

5 Artwork (Shown if the song contains artwork)

6 Playback mode (Page19)

DDX_High_K.indb 18DDX_High_K.indb 18 2015/04/15 16:152015/04/15 16:15

ENGLISH 19

iPod/iPhoneiPod/iPhone

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the audio/video file list. (See

the right column.)

[S] [T]Selects an audio/video file.

[O] [N]Reverse/forward search.

[IW]Starts/pauses playback.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the settings for iPod/iPhone

playback on the <iPod Mode>

screen. (Page18)

[ ] Selects repeat playback mode.

• 1: Functions the same as

Repeat One.

• All: Functions the same as

Repeat All.

• : Cancels the repeat mode.

[ ] Selects random playback mode.*

• : Functions the same as Shuffle

Songs.

• Album: Functions the same as

Shuffle Albums.

[MENU] Displays the <TOP MENU> screen.

* To cancel random mode, press the button repeatedly until the

indicator disappears.

R Selecting an audio/video file from the

2 Select the menu ( : audio or : video)

(1), a category (2), then a desired item

(3).

• Select an item in each layer until you reach

and select the desired file.

• You can change the page to display more

items by pressing [J]/[K].

• Press [All E] to play all songs/videos.

• Press [A-Z] to sort the list in alphabetical

order.

• Press [ ] to return to the top layer.

• Press [ ] to return to the upper layer.

Audio menu:

Video menu:

• Available categories differ depending on the type

of your iPod/iPhone.

DDX_High_K.indb 19DDX_High_K.indb 19 2015/04/15 16:152015/04/15 16:15

APPS APPS

You can use an App of the connected iPod touch/

iPhone/Android on this unit.

• You can use an App on the following sources:

– When iPhone compatible with CarPlay is

connected: “Apple CarPlay” (see below) or

“APPs” (Page22)

– When Android device compatible with Android

Auto is connected: “Android Auto” (Page21)

– When a device other than above is connected:

“APPs” (Page22)

Using Apps of iPhone—Apple

CarPlay

RAbout CarPlay

CarPlay is a smarter, safer way to use your iPhone

in the car. CarPlay takes the things you want to do

with iPhone while driving and displays them on the

screen of the product. You can get directions, make

calls, send and receive messages, and listen to the

music from iPhone while driving. You can also use

Siri voice control to make it easier to operate iPhone.

• For details about CarPlay, visit <https://ssl.apple.

com/ios/carplay/>.

Compatible iPhone devices

You can use CarPlay with the following iPhone

models.

• iPhone 5

• iPhone 5C

• iPhone 5S

• iPhone 6

• iPhone 6 Plus

R Preparation

To use the navigation function of the maps App,

connect the GPS antenna. (Page 70)

1 Select the device to use and connection

method on the <APP Setup> screen.

(Page53)

• Select [iPod/iPhone] as the device type.

• Select [USB 1 Wire] as the connection

method.

2 Select [ON] for <CarPlay Connection> on

the <System> menu screen.

3 Connect iPhone via USB input terminal.

(Page68)

• When iPhone compatible with CarPlay is

connected to the USB input terminal, the

Bluetooth mobile phone currently connected

is disconnected.

• Unlock your iPhone.

4 Select “Apple CarPlay” as the source.

• Press [K] to change the page on the <TOP

MENU> screen.

• [Apple CarPlay] is displayed only when a

compatible iPhone is connected.

DDX_High_K.indb 20DDX_High_K.indb 20 2015/04/15 16:152015/04/15 16:15

ENGLISH 21

APPS APPS

ROperation buttons and available Apps

on the home screen of CarPlay

You can use the Apps of the connected iPhone.

• The items displayed and the language used on the

screen differ among the connected devices.

1 Application buttons

Starts the application.

2 [ ] button

• On the App screen: Displays the home screen

of CarPlay. (Touch)

• On the home screen of CarPlay: Activates Siri.

(Hold) (See the right column.)

3 [Main Menu] button

Exits the CarPlay screen and displays the

<Home> screen.

To exit the CarPlay screen: Press BMENU on the

monitor panel.

R Using Siri

You can activate Siri while the CarPlay screen is

displayed.

On the home screen of CarPlay:

1 Touch and hold [ ] to activate Siri.

(Hold)

2 Talk to Siri.

• You can also activate Siri by pressing and holding

TEL on the monitor panel.

– To deactivate, press TEL on the monitor panel.

Using the Apps of an Android

device—Android Auto™

RAbout Android Auto

Android Auto enables you to use functions of your

Android device convenient for driving. You can

easily access route guidance, make calls, listen to

music, and access convenient functions on the

Android device while driving.

• For details about Android Auto, visit <https://

www.android.com/auto/> and <https://support.

google.com/androidauto>.

Compatible Android devices

You can use Android Auto with Android devices of

Android version 5.0 (Lollipop) or later.

Android Auto may not be available on all

devices and is not available in all countries or

regions.

DDX_High_K.indb 21DDX_High_K.indb 21 2015/04/15 16:152015/04/15 16:15

APPSAPPS

RPreparation

To use the navigation function of the Google

Map™, connect the GPS antenna. (Page 70)

1 Connect an Android device via USB input

terminal. (Page68)

• To use the hands-free function, connect the

Android device via Bluetooth. (Page45)

– When an Android device compatible with

Android Auto is connected to the USB

input terminal, the device is connected via

Bluetooth automatically, and the Bluetooth

mobile phone currently connected is

disconnected.

• Unlock your Android device.

2 Select “Android Auto” as the source.

• Press [K] to change the page on the <TOP

MENU> screen.

• [Android Auto] is displayed only when a

compatible Android device is connected.

ROperation buttons and available Apps

on the Android Auto screen

You can perform the operations of the Apps of the

connected Android device.

• The items displayed on the screen differ among

the connected Android devices.

1 Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen: Press BMENU on

the monitor panel.

R Using voice control

(Hold)

• To cancel the voice control, press and hold the

same button again.

Using an App—APPs

For Apps you can use on this unit, visit

<http://www.kenwood.com/cs/ce>.

R Preparation

1 Connect the iPod/iPhone/Android.

• For wired connection, see page67 for iPod/

iPhone or page68 for Android.

– To view video, connect the device using

KCA-iP202 or KCA-HD100 (optional

accessory).

• For Bluetooth connection, see page 45.

2 Select the iPod touch/iPhone/Android

device to use and connection method on

the <APP Settings> screen. (Page 53)

• When connecting the device for the first time,

the setup screen (for connection, etc.) appears.

Follow the procedure on the setup screen to

configure the settings.

• When iPhone compatible with CarPlay is

connected (Page20) to use “APPs”, set

<CarPlay Connection> to [OFF]. (Page63)

DDX_High_K.indb 22DDX_High_K.indb 22 2015/04/15 16:152015/04/15 16:15

ENGLISH 23

APPSAPPS

R Playback operations

When the operation buttons are not displayed on

the screen, touch the screen to show them.

• To change settings for video playback, see page

56.

1 Start the App on your iPod/iPhone/

Android.

2 Select “APPs” as the source.

• Press [K] to change the page on the <TOP

MENU> screen.

ROperation buttons on the source

control screen

[I]Starts playback.

[W]Pauses playback.

[S] [T]Selects an audio/video file.

[O] [N]Reverse/forward search.

[IW]Starts/pauses playback.

[MENU] Displays the <TOP MENU> screen.

• You can operate some functions of the App on the

touch panel.

• For some applications such as navigation

applications, the operation buttons and

information are not shown. You can perform the

operations on the touch panel, such as scrolling

the map.

– If “ ” appears on the screen, the unit cannot

accept the touch operation you have tried to do.

• You can also play back the audio/video using

iPod/iPhone/Android itself instead of the unit.

R Switching to the App screen while

listening to another source

(Hold)

• This operation works only when <AV Key Long

Press> is set to [APPs]. (Page63)

To return to the source control screen: Press the

same button again.

DDX_High_K.indb 23DDX_High_K.indb 23 2015/04/15 16:152015/04/15 16:15

Pandora® Pandora®

You can stream Pandora from iPod touch/iPhone,

Android or BlackBerry devices.

• Install the latest version of the Pandora

application on your iPod touch/iPhone/Android/

BlackBerry.

Preparation

Connect the device, then start the Pandora

application.

1 Connect the device.

• For Android/BlackBerry: Pair the Android/

BlackBerry device through Bluetooth.

(Page45)

• For iPod touch/iPhone: Connect iPod touch/

iPhone. (Page17)

2 Select the device to use and connection

method on the <APP Settings> screen.

(Page53)

3 Select “PANDORA” as the source.

On the <TOP MENU> screen:

The Pandora application is started.

Playback operations

You can operate Pandora using the remote

controller (optional accessory). Only playing,

pausing, and skipping are available.

RIndications and buttons on the source

control screen

21 43

Playback information

1 Picture data

2 Track information

• Pressing [<] scrolls the text if not all of the text

is shown.

3 Playback status

4 Playing time

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the list selection screen.

(Page 25)

[ ] Thumbs down to the current track

and skips to the next track.

[ ] Registers the current track as a

favorite.

[IW]Starts/pauses playback.

[T]Skips the current track.

• Not available when the Pandora

skip reaches its limit.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[ ] Bookmarks the artist.

[ ] Bookmarks the current track.

[ ] Adds the current artist to the Station

List.

[ ] Adds the current track to the Station

List.

[MENU] Displays the <TOP MENU> screen.

DDX_High_K.indb 24DDX_High_K.indb 24 2015/04/15 16:152015/04/15 16:15

ENGLISH 25

Pandora® Pandora®

R Selecting a station from the list

1 Display the list selection screen.

2 Select the list type.

<Station List> Selects from the station

names (Station List).

<Genre List> Selects from the genre names

(Genre List).

3 Select a station from the list.

On the Station List

[Shuffle] Plays all the songs in the registered

stations randomly.

[By Date] Sorts the list in reverse

chronological order.

[By Name] Sorts the list in alphabetical order.

• You can change the page to display more

items by pressing [J]/[K].

• The indicator appears on the left of the

item when Shuffle is activated. (All songs on

the registered stations are played randomly.)

• The indicator appears on the right of the

item when the station is shared.

On the Genre List

Select a genre (1), then a station (2).

• You can change the page to display more

items by pressing [J]/[K].

• The selected station is added to the Station

List.

Requirements for Pandora®

iPhone or iPod touch

• Install the latest version of the Pandora application

on your iPhone or iPod touch. (Search for

“Pandora” in the Apple iTunes App Store to find

and install the most recent version.)

• Connect iPod touch/iPhone to this unit with a

cable or via Bluetooth.

– When connecting with a cable: Use KCA-iP202,

KCA-HD100, KCA-iP102 (optional accessory) or

KCA-iP103 (optional accessory).

– When connecting via Bluetooth, the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

Android™

• Visit Google Play™ and search for “Pandora” to

install.

• Bluetooth must be built in and the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

BlackBerry®

• Visit www.pandora.com from the built in browser

to download the Pandora application.

• Bluetooth must be built in and the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

NOTE

• Ensure you are logged in to your smartphone

application. If you do not have a Pandora account,

you can create one for free from your smartphone

or at www.pandora.com.

• Pandora is available only in the U.S./Australia/New

Zealand.

• Because Pandora is a third-party service, the

specifications are subject to change without

prior notice. Accordingly, compatibility may

be impaired or some or all of the services may

become unavailable.

• Some functions of Pandora cannot be operated

from this unit.

• For issues using the application, contact Pandora

at pandora-support@pandora.com

• Establish an Internet connection using LTE, 3G,

EDGE, or WiFi.

DDX_High_K.indb 25DDX_High_K.indb 25 2015/04/15 16:152015/04/15 16:15

iHeartRADIO iHeartRADIO

iHeartRADIO is a free, all-in-one digital radio service

that lets you listen to your favorite Live Stations or

create commercial-free, all-music Custom Stations

featuring songs from the artists you select and

similar music.

You can stream iHeartRADIO from iPod touch/

iPhone or Android devices.

• Install the latest version of the iHeartRADIO

application on your iPod touch/iPhone/Android.

Preparation

Connect the device, then start the iHeartRADIO

application.

1 Connect the device.

• For Android: Pair the Android device through

Bluetooth. (Page45)

• For iPod touch/iPhone: Connect iPod touch/

iPhone. (Page17)

2 Select the device to use and connection

method on the <APP Settings> screen.

(Page53)

3 Select “iHeartRADIO” as the source.

On the <TOP MENU> screen:

iHeartRADIO application is started.

Playback operations

You can operate iHeartRADIO using the remote

controller (optional accessory). Only playing,

pausing, and skipping are available.

RIndications and buttons on the source

control screen

Live station screen:

Custom station screen:

Playback information

1 Picture data

2 Playback status

3 Track information

• Pressing [<] scrolls the text if not all of the text

is shown.

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the <Station Search> screen or

the station list. (Page27)

[ ] Thumbs down to the current track and

skips to the next track.

[ ] Registers the current track as a favorite.

[ ]Adds the current track to the <My

Stations> list.

[ ]*1Saves the current station to the <My

Stations> list.

[SCAN]*1Scans stations randomly.

[ ]*2Displays the variety level selection

screen. (Page27)

[T]*2Skips the current track.

[IW]Starts/pauses playback.

[MENU] Displays the <TOP MENU> screen.

*1 Appears only for the live station screen.

*2 Appears only for the custom station screen.

DDX_High_K.indb 26DDX_High_K.indb 26 2015/04/15 16:152015/04/15 16:15

ENGLISH 27

iHeartRADIOiHeartRADIO

R Selecting the variety level for your

custom station

You can adjust the amount of lesser-known music

that gets pushed into your custom station.

1 Display the variety level selection screen.

On the custom station screen:

2 Select the variety level.

<Familiar> Distributes well-known

tracks.

<Mixed> Distributes a mix of the

artists and track names.

<Less Familiar> Distributes a wide variety

of tracks including lesser-

known ones.

R Searching for a station

1 Display the <Station Search> screen.

2 Select a station.

• Press [ ] to return to the top layer.

• Press [ ] to return to the upper layer.

REditing the <My Stations> list

1 Select <My Stations> on the <Station

Search> screen. (See the left column.)

2 Display the <Station Edit> screen.

3 Select stations (1), then press [ ] to

delete the selected stations (2).

• Press [ ] to return to the top layer.

• Press [ ] to return to the upper layer.

Requirements for iHeartRADIO

iPhone or iPod touch

• Install the latest version of the iHeartRADIO

application on your iPhone or iPod touch. (Search

for “iHeartRADIO for Auto” in the Apple iTunes

App Store to find and install the most recent

version.)

• Connect iPod touch/iPhone to this unit with a

cable or via Bluetooth. When connecting with

a cable: Use KCA-iP202, KCA-HD100, KCA-iP102

(optional accessory) or KCA-iP103 (optional

accessory).

– When connecting via Bluetooth, the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

Android™

• Visit Google Play™ and search for “iHeartRADIO for

Auto” to install.

• Bluetooth must be built in and the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

NOTE

• Ensure you are logged in to your smartphone

application. If you do not have an iHeartRADIO

account, you can create one for free from your

smartphone or at http://www.iheart.com/.

• Because iHeartRADIO is a third-party service,

the specifications are subject to change without

prior notice. Accordingly, compatibility may

be impaired or some or all of the services may

become unavailable.

• Some functions of iHeartRADIO cannot be

operated from this unit.

• For issues using the application, contact

iHeartRADIO at http://www.iheart.com/.

• Establish an Internet connection using LTE, 3G,

EDGE, or WiFi.

DDX_High_K.indb 27DDX_High_K.indb 27 2015/04/15 16:152015/04/15 16:15

Spotify Spotify

With Spotify, your music is everywhere. Working out,

partying or relaxing, the right music is always at your

fingertips. There are millions of songs on Spotify—

from old favorites to the latest hits. Just choose the

music you love, or let Spotify surprise you.

You can stream Spotify from connected iPod

touch/iPhone or Android devices.

• Install the latest version of the Spotify

application on your iPod touch/iPhone/Android

and create an account.

Preparation

Connect the device, then start the Spotify

application.

1 Connect the device.

• For Android: Pair the Android device through

Bluetooth. (Page45)

• For iPod touch/iPhone: Connect iPod touch/

iPhone. (Page17)

2 Select the device to use and connection

method on the <APP Settings> screen.

(Page53)

3 Select “Spotify” as the source.

On the <TOP MENU> screen:

The Spotify application is started.

Playback operations

You can operate Spotify using the remote

controller (optional accessory). Only playing,

pausing, and skipping are available.

RIndications and buttons on the source

control screen

321 4

Playback information

1 Picture data

2 Track information

• Pressing [<] scrolls the text if not all of the text

is shown.

3 Track no./Total track number

4 Playback status

Operation buttons

[Artist Name]/

[Album Name]

Changes the displayed

information each time this button

is pressed.

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the <Menu> screen.

[ ] [ ] Selects a track.

[ ] *Starts playback.

[ ] *Pauses playback.

[ ] Saves the current track/artist to

<Your Music>.

[ ] Creates new station.

[ ] Thumbs down to the current track

and skips to the next track.

[ ] Registers the current track as a

favorite.

[ ] Activates/deactivates the shuffle

playback mode.

[ ] Activates/deactivates the repeat

playback mode.

[MENU] Displays the <TOP MENU> screen.

* During playback, [ ] is displayed, and when playback is paused,

[ ] is displayed.

RCreating your station (Start Radio)

2 Enter a track/artist/playlist in the search

box, then select the desired track.

The playback of your station starts with the

selected track.

• You can personalize your station by thumb up

([ ]) or thumb down ([ ]).

DDX_High_K.indb 28DDX_High_K.indb 28 2015/04/15 16:152015/04/15 16:15

ENGLISH 29

SpotifySpotify

R Selecting a track

1 Display the <Menu> screen.

2 Select the list type (<Your

Music>/<Browse>/<Radio>/<Play

Queue>), then select a desired item.

• Press [ ] to return to the top layer.

• Press [ ] to return to the upper layer.

Requirements for Spotify

iPhone or iPod touch

• Install the latest version of the Spotify application

on your iPhone or iPod touch. (Search for “Spotify”

in the Apple iTunes App Store to find and install

the most recent version.)

• Connect iPod touch/iPhone to this unit with a

cable or via Bluetooth.

– When connecting with a cable: Use KCA-iP202,

KCA-HD100, KCA-iP102 (optional accessory) or

KCA-iP103 (optional accessory).

– When connecting via Bluetooth, the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

Android™

• Visit Google Play™ and search for “Spotify” to

install.

• Bluetooth must be built in and the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

NOTE

• Ensure you are logged in to your smartphone

application. If you do not have a Spotify account,

you can create one for free from your smartphone

or at www.spotify.com.

• Because Spotify is a third-party service, the

specifications are subject to change without

prior notice. Accordingly, compatibility may

be impaired or some or all of the services may

become unavailable.

• Some functions of Spotify cannot be operated

from this unit.

• For issues using the application, contact Spotify at

www.spotify.com.

• Establish an Internet connection using LTE, 3G,

EDGE, or WiFi.

DDX_High_K.indb 29DDX_High_K.indb 29 2015/04/15 16:152015/04/15 16:15

AUPEO! AUPEO!

AUPEO! Personal Radio plays free music you really

like. You can develop your own personalized

Internet radio by rating or skipping tracks.

You can stream AUPEO! from connected iPod

touch/iPhone or Android devices.

• Install the latest version of the AUPEO!

application on your iPod touch/iPhone/Android

and create an account.

Preparation

Connect the device, then start the AUPEO!

application.

1 Connect the device.

• For Android: Pair the Android device through

Bluetooth. (Page45)

• For iPod touch/iPhone: Connect iPod touch/

iPhone. (Page17)

2 Select the device to use and connection

method on the <APP Settings> screen.

(Page53)

3 Select “AUPEO!” as the source.

On the <TOP MENU> screen:

The AUPEO! application is started.

Playback operations

You can operate AUPEO! using the remote

controller (optional accessory). Only playing,

pausing, and skipping are available.

RIndications and buttons on the source

control screen

21 3

Playback information

1 Picture data

2 Track information

• Pressing [<] scrolls the text if not all of the text

is shown.

3 Playback status

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[ ] Displays the <Station Search>

screen. (Page31)

[ ] “Loves” and registers the current

track as a favorite.

[IW]Starts/pauses playback.

[T]Skips the current track.

[ ] “Bans” the current track and skips to

the next track.

[MENU] Displays the <TOP MENU> screen.

DDX_High_K.indb 30DDX_High_K.indb 30 2015/04/15 16:152015/04/15 16:15

ENGLISH 31

AUPEO! AUPEO!

R Selecting a station

1 Display the <Station Search> screen.

2 Select the category, then the station.

• To return to the previous layer, press [ ] .

Requirements for AUPEO!

iPhone or iPod touch

• Install the latest version of the AUPEO! application

on your iPhone or iPod touch. (Search for

“AUPEO!” in the Apple iTunes App Store to find

and install the most recent version.)

• Connect iPod touch/iPhone to this unit with a

cable or via Bluetooth.

– When connecting with a cable: Use KCA-iP202,

KCA-HD100, KCA-iP102 (optional accessory) or

KCA-iP103 (optional accessory).

– When connecting via Bluetooth, the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

Android™

• Visit Google Play™ and search for “AUPEO!” to

install.

• Bluetooth must be built in and the following

profiles must be supported.

– SPP (Serial Port Profile)

– A2DP (Advanced Audio Distribution Profile)

NOTE

• Ensure you are logged in to your smartphone

application. If you do not have an AUPEO! account,

you can create one for free from your smartphone

or at www.aupeo.com.

• Because AUPEO! is a third-party service, the

specifications are subject to change without

prior notice. Accordingly, compatibility may

be impaired or some or all of the services may

become unavailable.

• Some functions of AUPEO! cannot be operated

from this unit.

• For issues using the application, contact AUPEO! at

www.aupeo.com.

• Establish an Internet connection using LTE, 3G,

EDGE, or WiFi.

DDX_High_K.indb 31DDX_High_K.indb 31 2015/04/15 16:152015/04/15 16:15

HD Radio™ tuner HD Radio™ tuner

About HD Radio™ Technology

• Program Service Data provides the song name,

artist, station ID, and other relevant data streams

• Adjacent to traditional main stations are HD2/HD3

Channels, providing new original formats on the

FM dial

• HD Radio broadcasts deliver crystal-clear, CD-like

digital audio quality to consumers

• Artist Experience is the synchronous transmission,

delivery, and display of images on the HD Radio

receiver that are related to the specific audio

segment.

Listening to the HD Radio™

broadcast

RIndications and buttons on the source

control screen

78 pqw

469

HD Radio reception information

1 Band

2 Preset no.

3 Text information

• Pressing [<] scrolls the text if not all of the text

is shown.

• Pressing [PTY] switches the information

between PTY cord, Radio Text, Message and

Station Name.

4 Channel no.

5 Picture or station logo if available

6 The station frequency currently tuned in

7 ST indicator: Lights up when receiving an FM

stereo broadcast with sufficient signal strength.

8 Seek mode

9 TI indicator

p HD indicator: Lights up when receiving an HD

Radio broadcast.

q MC indicator: Lights up when receiving an HD

Radio multicast channel.

w HD Radio reception mode (Page 33)

• When digital signals are emitted, the DIGITAL

indicator lights up.

• When analog signals are emitted, the ANALOG

indicator lights up.

DDX_High_K.indb 32DDX_High_K.indb 32 2015/04/15 16:152015/04/15 16:15

ENGLISH 33

HD Radio™ tuner HD Radio™ tuner

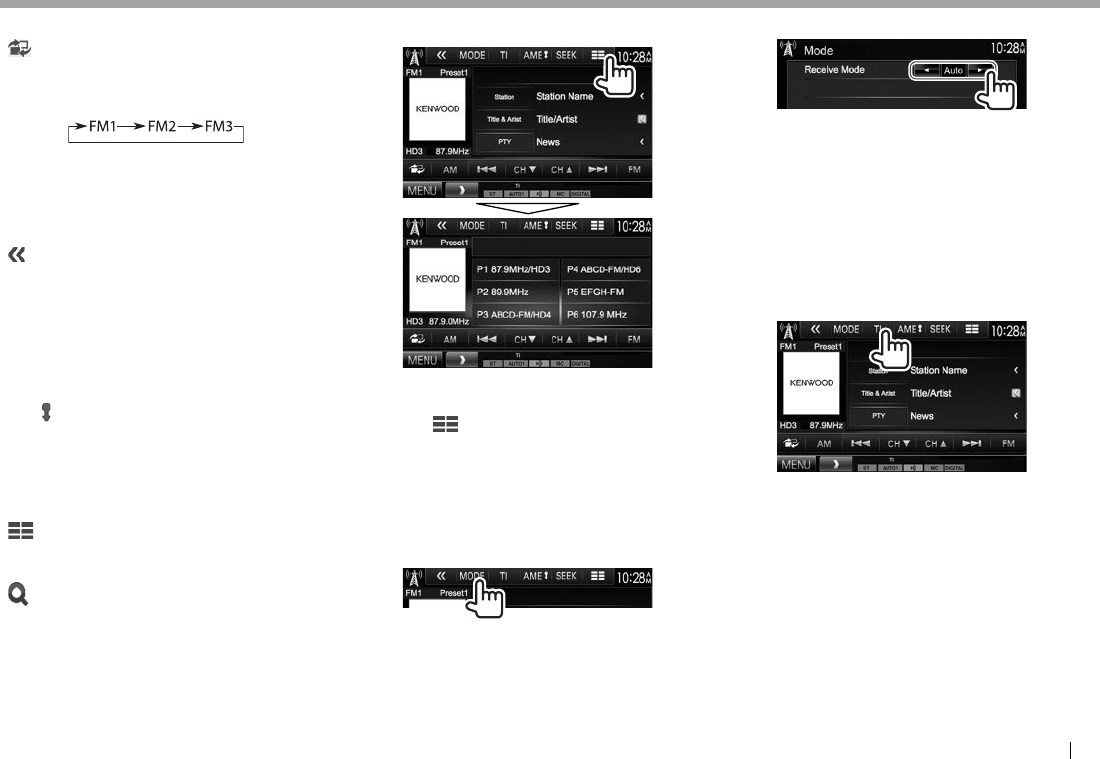

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[AM] Selects the AM band.

[FM] Selects the FM band.

[S]

[T]

Searches for a station.

• The search method differs according to

the selected seek mode. (See below.)

[CHK]

[CHJ]

Selects a sub-channel when receiving an

HD Radio multicast channel.

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the settings for HD Radio tuner

reception on the <Mode> screen. (See the

right column.)

[TI]* Activates/deactivates TI standby reception

mode. (See the far right column.)

[AME ]Presets stations automatically. (Page34)

[SEEK] Changes the seek mode.

• AUTO1: Auto Search

• AUTO2: Tunes in stations in the

memory one after another.

• MANU: Manual Search

[ ] Displays/hides the information of the

current station. (See the right column.)

[PTY]* Enters PTY search mode. (Page34)

[ ] Displays the <Preset List> screen.

(Page34)

[MENU] Displays the <TOP MENU> screen.

* Appears only when FM is selected as the source.

R Changing the display information

The preset list containing the station names is

displayed.

• Press [ ] again to display the text information

for the station currently being received.

R Changing the HD Radio reception mode

While receiving an HD Radio broadcast, the unit

tunes to digital or analog audio automatically

according to the receiving condition.

2 Press [H] [I] to change the mode.

<Auto> Switch between digital and analog

audio automatically.

<Digital> Select this to tune to digital audio

only.

<Analog> Select this to tune to analog audio

only.

R Activating/deactivating TI Standby

Reception

The unit is in standby to switch to Traffic Information

(TI) if available. (The TI indicator lights up in white.)

• If the TI indicator is lit in orange, tune into another

station.

To deactivate TI Standby Reception: Press [TI].

(The TI indicator turns off.)

• The volume adjustment for Traffic Information is

automatically memorized. The next time the unit

switches to Traffic Information, the volume is set

to the previous level.

DDX_High_K.indb 33DDX_High_K.indb 33 2015/04/15 16:152015/04/15 16:15

HD Radio™ tuner HD Radio™ tuner

R Searching for FM HD Radio programs—

PTY Search

You can search for your favorite programs being

broadcast by selecting the PTY code.

2 Select a PTY code.

(Hold)

• You can change the page to display more

items by pressing [J]/[K].

PTY Search starts.

If there is a station broadcasting a program of

the same PTY code as you have selected, that

station is tuned in.

Presetting stations

R Storing stations in the memory

You can preset 6 stations for each band.

Automatic presetting — AME (Auto Memory)

(Hold)

Local stations with the strongest signals are found

and stored automatically.

Manual presetting

1 Tune in to a station you want to preset.

(Page 33)

2 Select a preset number.

(Hold)

The station selected in step 1 is stored.

R Selecting a preset station from the list

2 Select a station from the list.

DDX_High_K.indb 34DDX_High_K.indb 34 2015/04/15 16:152015/04/15 16:15

ENGLISH 35

SiriusXM® Satellite Radio SiriusXM® Satellite Radio

Only SiriusXM® brings you more of what you love

to listen to, all in one place. Get over 140 channels,

including commercial-free music plus the best

sports, news, talk, comedy and entertainment.

Welcome to the world of satellite radio. A SiriusXM

Vehicle Tuner and Subscription are required. For

more information, visit www.siriusxm.com.

Activating your subscription

1 Check your Radio ID.

The SiriusXM Satellite Radio ID is required

for activation and can be found by tuning to

Channel 0 as well as on the label found on the

SiriusXM Connect tuner and its packaging.

• The Radio ID does not include the letters I, O,

S or F.

2 Activate the SiriusXM Connect Vehicle

Tuner using one of the two methods

below:

• For users in the U.S.A:

– Online:

Visit www.siriusxm.com/activatenow

– Phone: Call SiriusXM Listener Care at

1-866-635-2349

• For users in Canada:

– Online:

Visit www.siriusxm.ca/activatexm

– Phone: Call XM customer Care at

1-877-438-9677

3 When the following screen appears, press

[Return]. Listening to the SiriusXM® Satellite

Radio

R Indications and buttons on the source

control screen

678

12 3

SiriusXM® Satellite Radio reception information

1 Band

2 Preset number

3 Information for the recorded data and the replay

mode (Page37)

4 Channel Logo/Album art

5 Channel number

6 Seek mode

7 Signal strength indicator

8 Text information

• Pressing [<] scrolls the text if not all of the text

is shown.

Continued on the next page...

DDX_High_K.indb 35DDX_High_K.indb 35 2015/04/15 16:152015/04/15 16:15

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

Operation buttons

[Song Title]/

[Info]/

[Category]/

[Channel

Description]

Changes the displayed information

each time this button is pressed.

[ ] Displays the easy control screen.

(Page8)

[ ] Obtain information on channels

or select a category and then a

channel. (Page37)

[SEEK] Changes the seek mode.

• SEEK1: Skip to another available

channel.

• SEEK2: Skip to another preset

channel.

[CHK]/[CHJ]Selects the channel.

[BAND] Selects the band.

[IW]Starts/pauses the content replay.

(Page 38)

[ ] Displays other operation buttons.

• Disabled when there are no other

buttons.

[MODE] Changes the settings for SiriusXM

Satellite Radio reception on

the <SiriusXM Mode> screen.

(Pages38–41)

[ ] Registers the artist of the

current song as an alert content.

(Page39)

[ ] Registers the current song as an

alert content. (Page39)

[ ] Activates/deactivates the content

alert for traffic and weather

information. (Page40)

[ ] Displays the preset list. (See below.)

[S]/[T]/

[SCAN]/[Live]

Used while replaying content.

(Page38)

[MENU] Displays the <TOP MENU> screen.

Presetting channels

R Displaying the preset list

• Pressing [ ] again displays the text information

for the channel currently being received.

R Storing channels in the memory

You can preset 6 channels for each band.

1 Tune in to a channel you want to preset.

(See the far left column.)

2 Display the preset list. (See the left

column.)

3 Select a preset number.

(Hold)

The channel selected in step 1 is stored.

RSelecting a preset channel

1 Display the preset list. (See the left

column.)

2 Select the preset number for the channel

you want.

DDX_High_K.indb 36DDX_High_K.indb 36 2015/04/15 16:152015/04/15 16:15

ENGLISH 37

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

Selecting a channel

R Selecting a channel on the list

You can obtain information on channels or select a

category and then a channel.

1 Display the <List Type Select> screen.

2 Select the list type.

<Preset List> Selects from the preset list.

• To preset the channels, see

page36.

<Channel List> Selects from the channel

names (Channel List).

3 Select a channel.

On the <Preset List> screen

Select a band (1), and then select a preset

channel (2).

On the <Channel List> screen

Select a category (1), and then select a channel

(2).

• You can change the page to display more

items by pressing [J]/[K].

• To list all the channels, select [All Channels].

• Pressing the info change button above the list

displays information in the following order:

Channel Name, Artist Name, Song Title,

Content Info

Replay

You can pause, rewind and replay content from the

currently tuned channel.

• The SiriusXM Connect Vehicle Tuner continually

buffers up to 60 minutes of audio.

• If you change to another channel during playback,

the Replay buffer content will be lost.

R Indications on the source control

screen

231

1 Playback status

2 Progress bar

Shows the remaining capacity (gray) and the

amount of buffered content (blue). If the Replay

buffer is full, the entire bar becomes blue.

• Updated every second.

3 Time code

Shows you the point in the Replay buffer you are

listening to.

• Example: –5:00

– You are listening to audio that is 5 minutes

behind the current broadcast.

• Updated every second.

DDX_High_K.indb 37DDX_High_K.indb 37 2015/04/15 16:152015/04/15 16:15

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

R Replaying content

1 Display operations buttons for replay.

• To start/pause the playback, press [IW].

• To skip the current track segment, press [S]/

[T].

– Pressing [S] within 2 seconds of the

beginning of the current track/segment returns

to the previous track.

– Pressing [S] after 2 seconds or more of

the track has been replayed returns to the

beginning of the current track/segment.

• To rewind/fast forward, press and hold [S]/

[T].

• To return to the live position, press [Live].

SmartFavorites

User stored channels (P1 to P6) are recognized as

SmartFavorites channels. The SiriusXM Connect

Vehicle Tuner automatically buffers their broadcast

content in the background. When you select a

SmartFavorite channel, you can rewind and replay

up to 30 minutes of any of the missed news, talk,

sports or music content.

• SmartFavorites is available only when you connect

an SXV200 or later SiriusXM Connect Vehicle

Tuner.

• If you change to another band, the buffered

content is cleared and new channels in the current

band will start buffering.

TuneStart™

When you select a preset channel, you can listen to

the current song from the beginning.

Activating TuneStart™

To deactivate TuneStart: Select [OFF] for

<TuneStart>.

TuneScan™

When you activate TuneScan™, you will hear 6

seconds of the songs, which have not been listened

to, from each of the music channel presets on the

current Band.

The unit starts scanning.

• To select the previous/next content, press [S]

or [T].

• To end scanning and continue listening to the

current song/content, press [SCAN].

• To exit scanning, press and hold [SCAN].

DDX_High_K.indb 38DDX_High_K.indb 38 2015/04/15 16:152015/04/15 16:15

ENGLISH 39

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

Receiving alerts for desired content

— Content Alert

The unit informs you when receiving the content

you are interested in such as music, information

about a sports team or weather and traffic

information.

R Registering content alerts

For artists/songs

(Hold)

[ ] Registers the artist of the current

song.

[ ] Registers the current song.

For sports teams

• Press [K] repeatedly to change the page on

the <SiriusXM Mode> screen.

3 Select the league (1) and the team (2)

then register the content alert (3).

RSelecting the content for the content

alert

For artists/songs/sports teams

• Press [K] repeatedly to change the page on

the <SiriusXM Mode> screen.

3 Select the category (1), then the item (2).

The checkmark appears besides the selected

item.

• To show the details of the item, press [<].

• To delete the registered items, press and hold

the item you want to delete (1). ([ ] and a

checkmark are shown beside the selected item.)

Then, press [ ] (2).

(Hold)

• To delete all registered items, press and hold [All

Clear ] for <Content Alerts Contents Set>.

For traffic and weather information

• Press [K] repeatedly to change the page on

the <SiriusXM Mode> screen.

2 Select the city for which you want to

receive traffic and weather information.

DDX_High_K.indb 39DDX_High_K.indb 39 2015/04/15 16:152015/04/15 16:15

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

R Activating content alerts

For artists/songs/sports teams

• Press [K] repeatedly to change the page on

the <SiriusXM Mode> screen.

• To deactivate content alerts: Select [OFF] for

<Content Alerts>.

For traffic and weather information

• To deactivate the content alert : press [ ]

again.

RSwitching registered content

When receiving the contents registered for content

alerts, an alert appears on the screen. Press [Jump],

then select the item to jump on the <Content

Alerts> screen.

• To show the details of the item, press [<].

Setting reception restrictions

R Setting the parental control

You can limit access to SiriusXM channels, such as

those with mature content.

Setting/Changing the parental code

• The initial setting is “0000.”

• Changing the code does not change the

<Parental Control>/<Parental Lock Channel

Selection> settings.

1 Display the <Parental Code Check>

screen.

2 Enter a four-digit code (1), and then

confirm (2).

• To clear the entry, press [Clear].

• To cancel setting the code, press [Cancel].

3 Enter a new four-digit code (1), and then

confirm (2).

• To clear the entry, press [Clear].

• To cancel setting the code, press [Cancel].

4 Enter the four-digit code and then press

[Enter] again to confirm the code.

Activating/Deactivating the parental control

You can set the parental control feature to lock

any SiriusXM channel(s) or automatically lock all

channels classified as “mature” by SiriusXM®.

[OFF] Deactivates the parental mature and

user lock.

[Mature] Locks channels classified as “mature”

only.

[User] Locks only the selected channels.

3 Enter the parental code to confirm your

choice.

DDX_High_K.indb 40DDX_High_K.indb 40 2015/04/15 16:152015/04/15 16:15

ENGLISH 41

SiriusXM® Satellite RadioSiriusXM® Satellite Radio

Selecting the channels to lock—Parental Lock

Channel

This parental control option allows you to pick

the channels to be locked by the parental control

feature.

• When <Parental Control> is set to [Mature] or

[OFF], you cannot change the <Parental Lock

Channel Selection> setting.

2 Enter the parental code.

3 Select a category (1), and then a channel

(2).

• You can change the page to display more

items by pressing [J]/[K].

• To list all the channels, select [All Channels].

• A check mark appears beside the selected

channel.

Repeat this step if you want to set the lock on

multiple channels.

To deactivate the parental lock for all locked

channels: Select [All Clear] for <Parental Lock

Channel Selection> on the <SiriusXM Mode>

screen, then enter the parental code number.

R Skipping unwanted channels

If you do not want to receive some channels, you

can skip them.

Activating the channel skipping

2 Select a category (1), and then select a

channel (2).

• You can change the page to display more

items by pressing [J]/[K].

• To list all the channels, select [All Channels].

• A check mark appears beside the selected

channel.

Repeat this step if you want to skip multiple

channels.

To clear the channel skipping for all skipped

channels: Press and hold [All Clear] in <Skip

Channel Selection> on the <SiriusXM Mode>

screen.

RResetting the SiriusXM Satellite Radio

settings

You can reset the SiriusXM Satellite Radio settings

you set up and restore the default settings.

• Press [K] repeatedly to change the page on

the <SiriusXM Mode> screen.

(Hold)

DDX_High_K.indb 41DDX_High_K.indb 41 2015/04/15 16:152015/04/15 16:15

OTHER EXTERNAL COMPONENTSOTHER EXTERNAL COMPONENTS

Using external audio/video

players—AV-IN

When the operation buttons are

not displayed on the screen, touch

the area shown on the illustration.

• To change settings for video

playback, see page 56.

You can connect an external component to the

AV-IN1 and iPod/AV-IN2 input terminals. (Page69)

RIndications and buttons on the source

control screen

AV-IN name

Operation buttons

[MODE] Changes the AV-IN name.

• Press [H] or [I] to select an AV-IN

name.

• This setting does not affect the

source name “AV-IN 1”/ “AV-IN 2”

displayed on the <TOP MENU>.

[MENU] Displays the <TOP MENU> screen.

RStarting playback

1 Connect an external component to the

AV-IN1 or iPod/AV-IN2 input terminal.

(Page69)

2 Select “AV-IN1” or “AV-IN2” as the

source.

• Press [K] to change the page on the <TOP

MENU> screen.

3 Turn on the connected component and

start playing the source.

Using a rear view camera

• To connect a rear view camera, see page69.

• To use a rear view camera, a REVERSE lead

connection is required. (Pages66)

RActivating the rear view camera

1 Display the <Input> setting screen.

On the <TOP MENU> screen:

To deactivate: Select [OFF] for <R-CAM Interrupt>.

DDX_High_K.indb 42DDX_High_K.indb 42 2015/04/15 16:152015/04/15 16:15

ENGLISH 43

OTHER EXTERNAL COMPONENTSOTHER EXTERNAL COMPONENTS

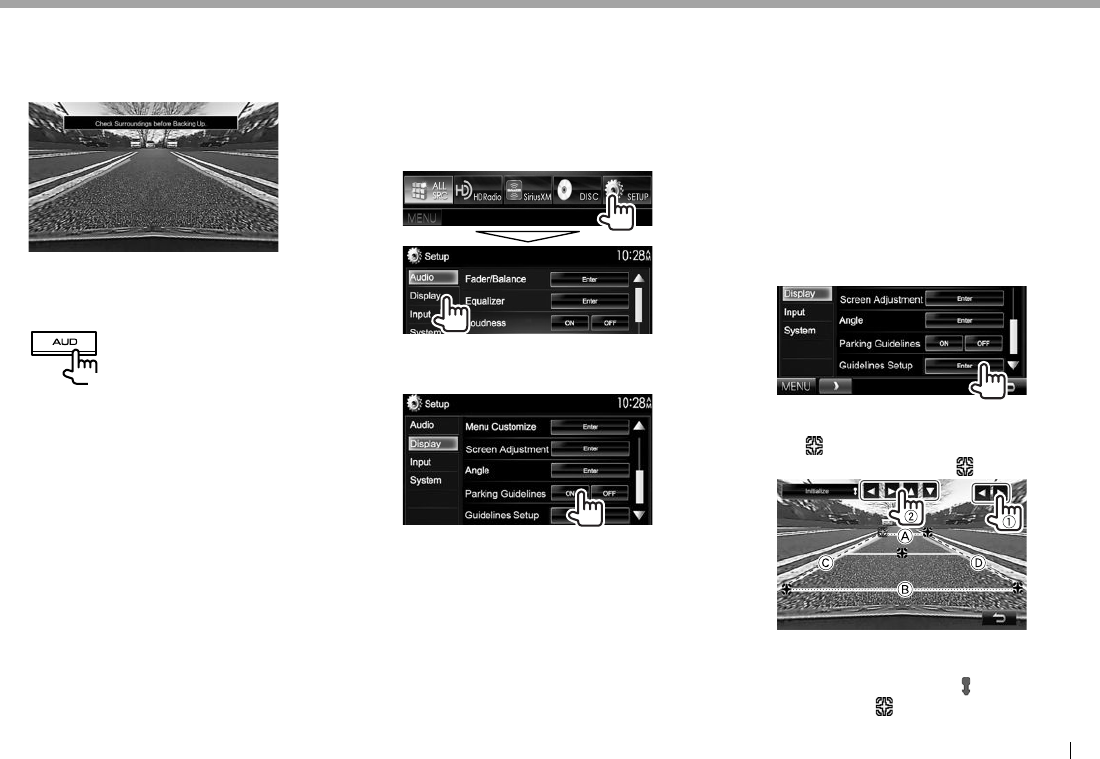

R Displaying the picture from the rear

view camera

The rear view screen is displayed when you shift the

gear to the reverse (R) position.

• To erase the caution message, touch the screen.

To display the picture from the rear view camera

manually

(Hold)

• This operation works only when <AUD Key Long

Press> is set to [R-CAM]. (Page63)

• You can change the picture settings using

[Aspect]/[PictureAdjust]. (Page56)

To exit the rear view screen: Press and hold the

same button again.

R Using the parking guidelines

You can display parking guidelines to enable easier

parking when you shift the gear to the reverse (R)

position.

Displaying the parking guidelines

1 Display the <Display> setting screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Display> menu screen.

To deactivate: Select [OFF] for <Parking

Guidelines>.

Adjusting the parking guidelines

Adjust the parking guidelines according to the size

of the car, parking space and so on.

• Install the rear view camera in the appropriate

position according to the instructions supplied

with the rear view camera.

• When adjusting the parking guidelines, make sure

to use the parking brake to prevent the car from

moving.

1 Display the <Display> setting screen. (See

the left column).

• Press [K] repeatedly to change the page on

the <Display> menu screen.

3 Adjust the parking guidelines by selecting

the mark (1), then adjusting the

position of the selected mark (2).

Make sure that A and B are horizontally

parallel, and that C and D are the same length.

• Press and hold [Initialize ] for 2 seconds

to set all the marks to the initial default

position.

DDX_High_K.indb 43DDX_High_K.indb 43 2015/04/15 16:152015/04/15 16:15

OTHER EXTERNAL COMPONENTSOTHER EXTERNAL COMPONENTS

Using a smartphone—HDMI/MHL

RWhat is HDMI/MHL?

HDMI stands for High Definition Multi-media

Interface. HDMI connections can transfer digital

video source signals (such as from a DVD player)

without converting them to analog.

A new feature that has been added to HDMI that

extends its capabilities further is MHL, or Mobile

High-definition Link.

Both interfaces allow your smartphone to connect to

the device. When it is connected, you can see your

smartphone’s screen on the monitor.

About Miracast Dongles

This unit is compatible with Miracast Dongles.

Connecting a Miracast Dongle (KCA-WL100:

optional accessory) to the HDMI/MHL input terminal

(Page69) enables you to enjoy listening to music,

watching videos, or viewing pictures over a wireless

connection.

• For details about Miracast Dongle settings, etc.,

refer to the instructions supplied with the Miracast

Dongle.

RDisplaying the screen of the

smartphone

You can display the screen of smartphones

connected via the HDMI/MHL input terminal.

1 Connect your smartphone to the HDMI/

MHL input terminal. (Page68)

• Use HDMI cable KCA-HD100 (optional

accessory) or MHL cable KCA-MH100 (optional

accessory).

2 Select “HDMI/MHL” as the source.

On the <TOP MENU> screen:

3 Start an application or playback on your

smartphone.

Using an external component via

ADS adapter—OEM Features

You can control the sources from the component via

ADS adapter.

• Preparation: Configure the settings on the <OEM

Setup> screen beforehand. (Page63)

1 Connect the ADS adapter to the iDatalink

input terminal. (Page69)

2 Select “OEM Features” as the source.

(Page9)

On the <TOP MENU> screen:

• Press [K] to change the page on the <TOP

MENU> screen.

3 Turn on the connected component and

start playing the source.

DDX_High_K.indb 44DDX_High_K.indb 44 2015/04/15 16:152015/04/15 16:15

ENGLISH 45

BLUETOOTHBLUETOOTH

Information for using Bluetooth®

devices

Bluetooth is a short-range wireless radio

communication technology for mobile devices such

as mobile phones, portable PCs, and other devices.

Bluetooth devices can be connected without cables

and communicate with each other.

Notes

• While driving, do not perform complicated

operations such as dialing numbers, using the

phone book, etc. When you perform these

operations, stop your car in a safe place.

• Some Bluetooth devices may not connect to this

unit depending on the Bluetooth version of the

device.

• This unit may not work for some Bluetooth

devices.

• Connecting conditions may vary depending on

your environment.

• For some Bluetooth devices, the device is

disconnected when the unit is turned off.

About mobile phones compatible with Phone

book Access Profile (PBAP)

If your mobile phone supports PBAP, you can

display the phone book and call lists on the

touch panel screen when the mobile phone is

connected.

• Phone book: up to 600 entries

• Dialed calls, received calls, and missed calls: up

to 10 entries each

Connecting Bluetooth devices

R Registering a new Bluetooth device

When you connect a Bluetooth device to the unit for

the first time, pair the unit and the device. Pairing

allows Bluetooth devices to communicate with each

other.

• The pairing method differs depending on the

Bluetooth version of the device.

– For devices with Bluetooth 2.1: You can pair the

device and the unit using SSP (Secure Simple

Pairing) which only requires confirmation.

– For devices with Bluetooth 2.0: You need to

enter a PIN code both on the device and unit for

pairing.

• Once the connection is established, it is registered

in the unit even if you reset the unit. Up to 5

devices can be registered in total.

• Two devices for Bluetooth phone and one for

Bluetooth audio can be connected at a time.

• To use the Bluetooth function, you need to turn on

the Bluetooth function of the device.

• To use the registered device, you need to connect

the device to the unit. (Page47)

Auto pairing

When <Auto Pairing> is set to [ON], iOS devices

(such as iPhone) are automatically paired when

connected via USB. (Page52)

Pairing a Bluetooth device using SSP (for

Bluetooth 2.1)

When the Bluetooth device is compatible with

Bluetooth 2.1, a pairing request is sent from an

available device.

1 Search the unit (“DDX****”) from your

Bluetooth device.

2 Confirm the request both on the device

and the unit.

256950

• Press [Cancel] to reject the request.

Continued on the next page...

DDX_High_K.indb 45DDX_High_K.indb 45 2015/04/15 16:152015/04/15 16:15

BLUETOOTHBLUETOOTH

Pairing a Bluetooth device from the target device

using a PIN code (for Bluetooth 2.0)

1 Display the <Bluetooth Setup> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

• You can also display the <Bluetooth Setup>

screen by pressing [ ] on the phone control

screen. (Page49)

2 Change the PIN code.

• If you wish to skip changing the PIN code, go

to step 3.

• The PIN code is initially set to “0000”.

• The maximum number of digits in the PIN

code is 15.

• Press [Clear] to delete the last entry.

3 Search for the unit (“DDX****”) from your

Bluetooth device.

4 Select the unit (“DDX****”) on your

Bluetooth device.

• If a PIN code is required, enter “0000” (initial).

When pairing is complete, the device is listed on

the <Paired Device List>.

• To use the paired device, connect the device

on the <Paired Device List>. (Page47)

Continued on the next page...

DDX_High_K.indb 46DDX_High_K.indb 46 2015/04/15 16:152015/04/15 16:15

ENGLISH 47

BLUETOOTHBLUETOOTH

Pairing a Bluetooth device from this unit using a

PIN code (for Bluetooth 2.0)

1 Display the <Bluetooth Setup> screen.

(Page46)

3 Search for the available devices.

• To cancel searching devices, press [Cancel].

4 Select the device you want to pair.

• If a PIN code is required, enter “0000” (initial).

R Connecting/disconnecting a registered

Bluetooth device

Two devices can be connected simultaneously.

1 Display the <Bluetooth Setup> screen.

(Page46)

3 Select the device you want to connect (1),

then press [Connection] (2).

4 Select [ON] or [OFF] for the target.

: Mobile phone

: Audio device

• The status is shown as follows:

– “Connected”: A connection has been

established.

– “Connect Ready”: A connection can be

established.

– “Disconnected”: No connection is

established.

• Press [Change] for <APP Setup> to display

the <APP Settings> screen to configure

settings for applications of iPod/iPhone/

Android. (Page53)

• When a Bluetooth mobile phone is connected,

the signal strength and battery level are displayed

when the information is acquired from the device.

R Deleting a registered Bluetooth device

1 Display the <Bluetooth Setup> screen.

(Page46)

3 Select a device to delete (1), then press

[Remove] (2).

A confirmation message appears. Press [Yes].

DDX_High_K.indb 47DDX_High_K.indb 47 2015/04/15 16:152015/04/15 16:15

BLUETOOTHBLUETOOTH

Using a Bluetooth mobile phone

RReceiving a call

When a call comes in...

• Call information is displayed if acquired.

• Phone operation is not available while the

picture from the rear view camera is displayed.

(Page42)

To reject a call

When <Auto Response> is set to [ON] (Page52)

The unit answers incoming calls automatically.

REnding a call

While talking...

RAdjusting the volume of calls/earpiece/

microphone

While talking...

• You can adjust the volume level between 0 to 15

(initial: 3).

• Press J / K on the monitor panel to adjust the

call/earpiece volume. (Page6)

RSwitching between handsfree mode

and phone mode

While talking...

Each time you press the button, the talking method

is switched ( : handsfree mode /

phone mode).

R Adjusting the echo cancel level/

reducing noise

While talking...

• To adjust the echo volume (between −1 to +1,

initial: 0): Adjust <EC LEVEL>.

• To adjust the noise reduction volume (between

0 to −20, initial: −10) : Adjust <NR LEVEL>.

DDX_High_K.indb 48DDX_High_K.indb 48 2015/04/15 16:152015/04/15 16:15

ENGLISH 49

BLUETOOTHBLUETOOTH

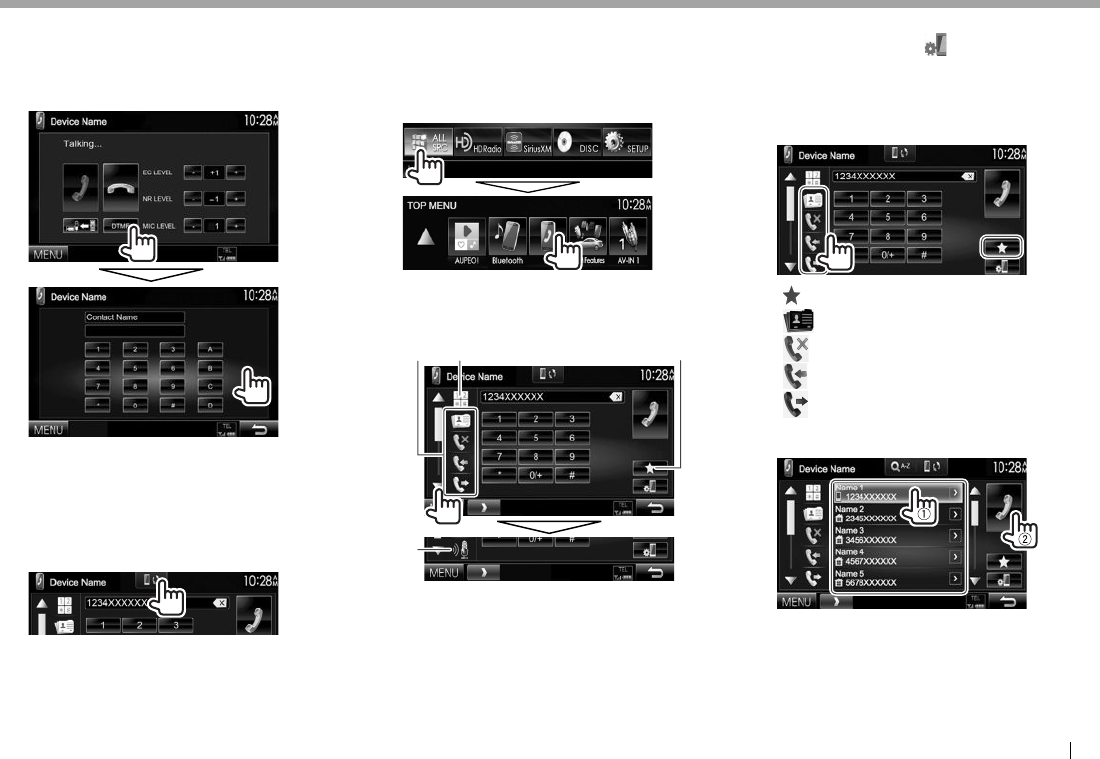

R Sending text during a call

You can send text during a call using the DTMF (Dual

Tone Multi Frequency) function.

While talking...

R Switching between two connected

devices

When 2 devices are connected, you can change the

device to use.

On the phone control screen:

• The name of the active device appears. The

devices are switched each time the button is

pressed.

R Making a call

1 Display the phone control screen.

On the <TOP MENU> screen:

• Press [K] to change the page on the <TOP

MENU> screen.

• You can also display the phone control screen

by pressing TEL on the monitor panel.

2 Select a method to make a call.

• You can show more items by pressing [J]/[K].

1From the phone book*/call lists

2Direct number entry

3From the preset list

• To preset, see page51.

4Voice dialing

• You can display the <Bluetooth Setup>

screen by pressing [ ] .

* When the mobile phone is not compatible with Phone Book Access

Profile (PBAP), the phone book is not displayed.

From the preset list/phone book/call lists

[ ] From the preset list

[] From the phone book

[]From the missed call list

[]From the received call list

[]From the dialed call list

2 Select the target (1), then make a call (2).

• You can change the page to display more

items by pressing [J]/[K].

Continued on the next page...

DDX_High_K.indb 49DDX_High_K.indb 49 2015/04/15 16:152015/04/15 16:15

BLUETOOTHBLUETOOTH

• To use the A to Z search in the phone book:

When the phone book list is displayed, you can

search by initial.

2 Select the initial.

• If the initial character is a number, press

[1,2,3...] and then select the number.

3 Select a phone number from the list.

• To display other phone numbers:

When the phone book list is displayed, you can

switch between phone numbers if several phone

numbers are registered for the same person.

1 Switch the phone number.

• The phone number switches each time [>] is

pressed.

2 Select a phone number to call.

Direct number entry

You can enter up to 31 numbers.

• Press [ ] to delete the last entry.

• Press and hold [0/+] to add “+” to the phone

number.

Voice dialing

• Available only when the connected mobile phone

has a voice recognition system.

1 Activate voice dialing.

On the phone control screen:

• Press [K] repeatedly to change the page on

the phone control screen.

• You can also activate voice dialing by holding

TEL on the monitor panel.

2 Say the name of the person you want to

call.

• If the unit cannot find the target, the following

screen appears. Press [Start], then say the

name again.

To cancel voice dialing: Press [Cancel].

DDX_High_K.indb 50DDX_High_K.indb 50 2015/04/15 16:152015/04/15 16:15

ENGLISH 51

BLUETOOTHBLUETOOTH

R Presetting phone numbers

You can preset up to 5 phone numbers.

1 Display the phone control screen.

(Page49)

2 Enter the numbers on the direct number

entry screen, then display the preset list.

3 Select a preset number to store into.

(Hold)

• To display the preset list, press [ ] on the phone

control screen.

Using the Bluetooth audio player

• To register a new device, see page45.

• To connect/disconnect a device, see page47.

RIndications and buttons on the source

control screen

123

• The operation buttons, indications and

information displayed on the screen differ

depending on the connected device.

Playback information

1 Playback status*

2 Playing time*

3 Tag data (current track title/artist name/album

title)*

• Pressing [<] scrolls the text if not all of the text

is shown.

4 The signal strength and battery level (only when

the information is acquired from the device)

Operation buttons

[ ] Displays the easy control screen.

(Page8)

[S] [T]• Selects a track. (Press)

• Reverse/forward search.* (Hold)

[I]Starts playback.

[W]Pauses playback.

[MENU] Displays the <TOP MENU> screen.

* Available only for devices compatible with AVRCP 1.3.

DDX_High_K.indb 51DDX_High_K.indb 51 2015/04/15 16:152015/04/15 16:15

BLUETOOTHBLUETOOTH

Settings for Bluetooth devices

You can change various settings for using Bluetooth

devices on the <Bluetooth Setup> screen.

1 Display the <Bluetooth Setup> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

• You can also display the <Bluetooth Setup>

screen by pressing [ ] on the phone control

screen. (Page49)

2 Configure the Bluetooth settings.

RSetting items

<Paired Device

List>

Press [Enter] to show the list

of registered devices. You can

connect a device or delete

registered devices. (Page47)

<PIN Code> Changes the PIN code of the unit.

(Page46)

<Device

Name>

Shows the device name to be

shown on the Bluetooth device —

DDX****.

<Device

Address>

Shows the device address of the

unit.

<Auto

Connect>

• ON (Initial): A connection is

automatically established with

the last connected Bluetooth

device when the unit is turned

on.

• OFF: Cancels.

<Bluetooth HF/

Audio>

Select the speakers used for

Bluetooth (both phone and audio

player).

• Front Only: Front speakers only.

• All (Initial): All speakers.

<Auto

Response>

• ON: The unit answers the

incoming calls automatically

after 5 seconds.

• OFF (Initial): The unit does not

answer the calls automatically.

Answer the calls manually.

< Auto Pairing> • ON (Initial): Establishes

pairing automatically with the

connected iOS device (such as

iPhone) even if the Bluetooth

function is deactivated on

the device. (Auto pairing may

not work for some devices

depending on the iOS version.)

• OFF: Cancels.

<Ring Mode> • System (Initial): The ring tone

set on the unit is used.

• Phone: The ring tone set on

the mobile phone is used.

(This function may not work

depending on the mobile

phone.)

<Ring Tone

Change>

When <Ring Mode> is set to

<System>, select the ring tone

for received calls from [Tone1]

(Initial), [Tone2], [Tone3].

<Initialize> Hold [Enter] to reset all settings

you have made for using

Bluetooth mobile phones and

Bluetooth audio players.

DDX_High_K.indb 52DDX_High_K.indb 52 2015/04/15 16:152015/04/15 16:15

ENGLISH 53

SETTINGSSETTINGS

Settings for using applications of

iPod/iPhone/Android

Before using applications of iPod/iPhone/Android

such as Pandora, iHeartRADIO, AUPEO!, or Spotify

select the device to use and connection method.

When connecting the device for first time, the

setup screen (for connection, etc.) appears. Follow

the procedure on the setup screen to configure

the settings.

1 Pair the iPod/iPhone/Android device

through Bluetooth. (Page45)

2 Display the <APP Setup> screen.

On the <TOP MENU> screen:

3 Display the <APP Settings> screen.

• If you do not need to change the setting,

press [OK] to exit from the setup screen.

5 Select the device type (1), then press

[Next] (2).

6 Select the connection method (1), then

press [Next] (2).

For Android:

<HDMI/MHL

+ Bluetooth>

Select this when the Android is

connected both by cable to the

HDMI/MHL input terminal and

via Bluetooth.

<Bluetooth> Select this when the device is

connected via Bluetooth.

For iPod/iPhone:

<USB +

AV-IN>

Select this when the iPod/

iPhone is connected using

KCA-iP202 (optional accessory).

<USB 1 Wire> Select this when the iPod/

iPhone is connected using KCA-

iP102 (optional accessory) or

KCA-iP103 (optional accessory).

<HDMI +

Bluetooth>*

Select this when the iPod/

iPhone is connected using

HDMI cable KCA-HD100

(optional accessory) and

KCA-iP103 (optional accessory)

through a Lightning-Digital AV

adapter (accessory of the iPod/

iPhone).

<Bluetooth>* Select this when the iPod/

iPhone is connected via

Bluetooth.

• When selecting <USB + AV-IN> or <USB 1

Wire>, go to step 8.

7 When selecting <HDMI + Bluetooth> or

<Bluetooth> as the connection method,

the device selection screen appears.

Search for the available iPod/iPhone/

Android devices (1), select the target

device from the list (2), then press [Next].

• You can change the page to display more

items by pressing [J]/[K].

• If the device is already listed, skip step 1.

• To stop searching, press [Cancel].

8 Confirm the settings.

* When <CarPlay Connection> is set to [ON] (Page20),

these settings cannot be selected.

DDX_High_K.indb 53DDX_High_K.indb 53 2015/04/15 16:152015/04/15 16:15

SETTINGSSETTINGS

Sound adjustment

R Using the sound equalization

• The adjustment is memorized for each source until

you adjust the sound again. If the source is a disc,

the adjustment is stored for each of the following

categories.

– DVD/DVD-VR/VCD

– CD

– MPEG1/MPEG2/MP3/WMA/AAC

• You cannot adjust the sound when the unit is in

standby.

Selecting a preset sound mode

1 Display the <Equalizer> screen.

On the <TOP MENU> screen:

2 Select a sound mode.

• You can change the page to display more

items by pressing [J]/[K].

• You can also display the <Equalizer> screen by

pressing AUD on the monitor panel.

Storing your own adjustment—Adjusting the

sound precisely

1 Select a sound mode. (See the left column.)

2 Select a band and adjust the level of the

selected band.

• The number of bands depends on the model.

• You can adjust the level by dragging the slider

or using [J]/[K].

• Repeat this step to adjust the level of other

bands.

The adjustments are stored and <User> is

activated.

3 Activate ([ON]) or deactivate ([OFF]) the

bass (<Bass EXT>) (1), and then adjust

the subwoofer level (2).

R Setting the car type and speakers

1 Display the <Car Setting> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Audio> menu screen.

2 Select a car type (1), and then select the

location of the speakers (2).

DDX_High_K.indb 54DDX_High_K.indb 54 2015/04/15 16:152015/04/15 16:15

ENGLISH 55

SETTINGSSETTINGS

R Setting the speakers—speaker size and

crossover frequency

1 Display the <Speaker Select> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Audio> menu screen.

2 Select the speaker type (front speakers,

rear speakers, or subwoofer).

3 Select the size of the selected speaker.

4 Adjust the crossover frequency of the

selected speaker.

<Gain> Adjusts the output volume of

the selected speaker.

<HPF FREQ> Adjusts the crossover frequency

for the front or rear speakers

(high pass filter).*1

<LPF FREQ> Adjusts the crossover for the

subwoofer (low pass filter).*2

<Slope> Adjusts the crossover slope.

<Phase> Selects the phase for the

subwoofer.*2

*1 Appears only when the front or rear speakers are selected.

*2 Appears only when the subwoofer is selected.

R Setting the listening position

You can adjust the sound effects according to your

listening position.

1 Display the <Position> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Audio> menu screen.

2 Select the listening position ([All],

[FrontL], [Front R] or [Front All]).

DDX_High_K.indb 55DDX_High_K.indb 55 2015/04/15 16:152015/04/15 16:15

SETTINGSSETTINGS

Adjusting the Digital Time Alignment (DTA)

Make fine adjustments to the delay time of

the speaker output to create a more suitable

environment for your vehicle.

1 Display the <Position> screen. (Page55)

2 Display the <Position DTA> screen.

3 Select the speaker you want to adjust (1),

and then adjust each item (2).

<Distance> Adjusts the Digital Time

Alignment (DTA) value.

<Gain> Adjusts the output volume of

the selected speaker.

• To determine the adjustment value, see the

right column.

• To initialize the setting value, press

[Initialize].

Determining the value for <Position DTA>

adjustment

If you specify the distance from the center of the

currently set listening position to every speaker,

the delay time will be automatically computed

and set.

1 Determine the center of the currently set

listening position as the reference point.

2 Measure the distances from the reference point

to the speakers.

3 Calculate the differences between the distance

of the furthest speaker and other speakers.

4 Set the DTA value calculated in step 3 for

individual speakers.

5 Adjust gain for individual speakers.

Example: When [Front All] is selected as the

listening position

4.9 ft

1.4 ft

2.45 ft

+0 ft

+3.5 ft

+2.45 ft

Adjustment for video playback

R Adjusting the picture

You can adjust the picture quality.

1 Display the adjustment menu.

2 Select [DIM ON] (dimmer on) or [DIM OFF]

(dimmer off).

DDX_High_K.indb 56DDX_High_K.indb 56 2015/04/15 16:152015/04/15 16:15

ENGLISH 57

SETTINGSSETTINGS

3 Adjust the picture.

<Bright> Adjusts the brightness. (−15

to +15)

<Contrast> Adjusts the contrast. (−10 to

+10)

<Black> Adjusts the blackness. (−10 to

+10)

<Color> Adjusts the color. (−10 to +10)

<Tint> Adjusts the tint. (−10 to +10)

<Sharpness> Adjusts the sharpness. (−2 to

+2)

RChanging the aspect ratio

You can change the aspect ratio for video playback.

1 Display the adjustment menu.

2 Select the aspect ratio.

<Full> For 16:9 original pictures

4:3 signal 16:9 signal

<Normal> For 4:3 original pictures

4:3 signal 16:9 signal

<Zoom> Changes the magnification.

• The aspect ratio is

automatically selected to

match the video source.

R Zooming the picture

You can zoom the picture. Zooming is available only

when discs are played back.

1 Display the adjustment menu.

2 Change the magnification (1), then move

the zooming frame (2).

• The zoom function cannot be used for some video

sources.

DDX_High_K.indb 57DDX_High_K.indb 57 2015/04/15 16:152015/04/15 16:15

SETTINGSSETTINGS

Changing the display design

You can change the background and panel color.

1 Display the <User Customize> screen.

On the <TOP MENU> screen:

2 Select an item to change (background

design: [Background]/panel color: [Panel

Color]).

3 Select a background/panel color.

To select a background

• The number of preset backgrounds and the

designs available differ depending on the

model.

To select a panel color

• Selecting [Scan] changes the illumination

color gradually.

*1 Store your own scene beforehand. (See the right column.)

*2 Store your own color adjustment beforehand. (See below.)

RMaking your own color adjustment

1 Select [Panel Color] on the <User

Customize> screen. (See the left column.)

3 Select the dimmer setting for the color (1),

then adjust the color (2).

RStoring your favorite image for the

background

You can set your favorite image stored on the

connected USB device.

• Use a JPEG/PNG/BMP file with a resolution of 800

x 480 pixels.

• The color of the captured image may look

different from that of the actual scene.

1 Connect the USB device on which the

image is stored. (Page 67)

2 Display the <User Customize> screen.

(See the far left column.)

3 Display the file selection screen.

4 Select the folder (1), then the file for the

background image in the selected folder

(2).

• You can change the page to display more

items by pressing [J]/[K].

A confirmation message appears. Press [OK]

to store the new image. (The existing image is

replaced with the new one.)

DDX_High_K.indb 58DDX_High_K.indb 58 2015/04/15 16:152015/04/15 16:15

ENGLISH 59

SETTINGSSETTINGS

Customizing the <TOP MENU>

screen

You can arrange the items to display on the <TOP

MENU> screen.

1 Display the <Menu Customize> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <Display> menu screen.

2 Select the position to place the icon (1),

then select the item you want to display in

the selected position (2).

Repeat this step to place icons for other items.

Customizing the system settings

R Memorizing/recalling the settings

• You can memorize the settings changed in the

<Setup> menu and recall the memorized settings

any time.

• The memorized settings are kept even when the

unit is reset.

1 Display the <SETUP Memory> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

• To cancel, press [No].

3 Select an operation.

[Recall] Recalls the memorized settings.

[Memory] Memorizes the current settings.

[Clear] Clears the currently memorized

settings.

• To cancel, press [Cancel].

A confirmation message appears. Press [Yes].

DDX_High_K.indb 59DDX_High_K.indb 59 2015/04/15 16:152015/04/15 16:15

SETTINGSSETTINGS

R Locking the settings

You can lock the settings to prevent them from

being changed.

• is shown beside the settings that can be

locked.

1 Display the <SETUP Memory> screen.

(Page59)

To unlock the setting: Press [Unlock].

R Updating the system

You can update the system by connecting a USB

device containing an update file.

• To update the system, visit <http://www2.

jvckenwood.com/cs/ce/>.

1 Create an update file, copy it to a USB

device, and connect it to the unit.

• To connect a USB device, see page67.

2 Display the <System Information>

screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

<Application

Version>

Updates the system

application.

<System Version> Updates the system.

<Bluetooth

Version>

Updates the Bluetooth

application.

It may take a while.

If the update has been completed successfully,

“Update Completed” appears. Reset the unit.

• Do not disconnect the USB device while updating.

• If the update has failed, turn the power off and

then on, and retry the update.

• Even if you have turned off the power during the

update, you can restart the update after the power

is turned on. The update will be performed from

the beginning.

R Adjusting the touch position

You can adjust the touch position on the touch

panel if the position touched and the operation

performed do not match.

1 Display the <Touch Panel Adjust> screen.

On the <TOP MENU> screen:

• Press [K] repeatedly to change the page on

the <System> menu screen.

2 Touch the center of the marks at the lower

left and at the upper right as instructed.

• To reset the touch position, press [Reset].

• To cancel the current operation, press

[Cancel].

DDX_High_K.indb 60DDX_High_K.indb 60 2015/04/15 16:152015/04/15 16:15

ENGLISH 61

SETTINGSSETTINGS

Setting menu items

RDisplaying the <Setup> menu screen

• You can change the page to display more items by

pressing [J]/[K].

• You cannot change the <Audio> menu items

when [STANDBY] is selected on the <TOP

MENU>. (Page7)

R<Audio> setting screen

Fader: Adjust the front and rear speaker output

balance.

• F6 to R6 (Initial: 0)

– When using a two-speaker system, set the fader

to the center (0).

Balance: Adjust the left and right speaker output

balance.

• L6 to R6 (Initial: 0)

Press [J]/[K]/[H]/[I] or drag [ ] to adjust.

– To clear the adjustment, press [Center].

Change the sound mode or adjust and store the

equalization for each source. (Page54)

• Natural (Initial)/Rock/Pops/Easy/Top40/Jazz/

Powerful/iPod*1/User

You can activate/deactivate loudness.

• ON (Initial): Boost low and high frequencies to

produce a well-balanced sound at a low volume

level.

• OFF: Cancels.

Adjust and store the auto-adjustment volume level

for each source. (For discs, the adjustment is stored

for each of the following categories: DVD/DVD-VR/

VCD, CD, and MPEG1/MPEG2/MP3/WMA/AAC.) The

volume level will automatically increase or decrease

when you change the source.

• –15 to +6 (Initial: 0)

Adjust the subwoofer level.

• –50 to +10 (Initial: 0)

Select your preferred bass boost level.

• OFF (Initial)/Level 1/Level 2/Level 3

<Car Setting>*2

Select a car type and speaker location. (Page54)

• Car type: Off (Initial)/Compact/Full Size Car/

Wagon/Minivan/SUV/Minivan (Long)

• Speaker Location: Select the location of the

speakers in your car.

– Front: Door (Initial)/On Dash/Under Dash

– Rear*3: Door/ Rear Deck/2nd Row/3rd Row

<Speaker Select>*2

Select the speaker size and adjust the crossover

frequency. (Page55)

Adjust the sound effects according to your listening

position. (Page55)

Select whether to use the Digital Signal Processor

(DSP) system.

• Bypass: Invalidates all the settings for the DSP.

• Through (Initial): Uses the DSP.

You can reduce the driving noise by raising the

bandwidth.

• ON (Initial): Activates the Drive Equalizer.

• OFF: Cancels.

*1 Appears only when iPod is selected as the source.

*2 When an item is grayed out, you cannot change the setting. Select

[Unlock] on the <SETUP Memory> screen to change the

setting. (Page60)

*3 The initial setting varies depending on the car type setting.

DDX_High_K.indb 61DDX_High_K.indb 61 2015/04/15 16:152015/04/15 16:15

SETTINGSSETTINGS

R<Display> setting screen

• Auto (Initial): Dims the screen and button

illumination when you turn on the headlights.

– The ILLUMI lead connection is required.

(Page66)

• ON: Activates dimmer.

• OFF: Cancels.

Change the display design (background and panel

color). (Page58)

• ON: Displays the clock while a video source is

playing.

• OFF (Initial): Cancels.

• ON (Initial): Activates the demonstration on the

screen.

• OFF: Cancels.

• ON (Initial): Scrolls the displayed information

repeatedly.

• Once: Scrolls the displayed information once.

• OFF: Cancels.

Pressing [<] scrolls the text regardless of this setting.

Change the items to display on the <TOP MENU>

screen. (Page59)

Adjust the brightness and blackness of the screen.

Press [Enter] to display the setting screen, select

[DIM ON] (dimmer on)/[DIM OFF] (dimmer off),

then change the following settings:

• Bright: Adjusts brightness.

– –15 to +15 (Initial: 0 for dimmer on/+15 for

dimmer off)

• Black: Adjusts blackness.

– –10 to +10 (Initial: 0)

<Angle>

Adjust the panel angle. (Page7)

• ON (Initial): Displays the parking guidelines.

(Page43)

• OFF: Cancels.

Adjusts the parking guidelines. (Page43)

When an ADS adapter is connected, you can display

information about obstacles around the car.

• ON: Always displays information.

• Dyn. (Initial): Displays information when the

sensor detects obstacles.

• OFF: Cancels.

Select where information about obstacles is

displayed on the screen (left or right).

• Left/Right (Initial)

R<Input> setting screen

<R-CAM Interrupt>

• ON: Displays the picture from the rear view

camera when you shift the gear to the reverse (R)

position.

• OFF (Initial): Select this when no camera is

connected.

DDX_High_K.indb 62DDX_High_K.indb 62 2015/04/15 16:152015/04/15 16:15

ENGLISH 63

SETTINGSSETTINGS

R<System> setting screen

Select the text language used for on-screen

information.

• English (Initial)/Español/Français/Deutsch/

Italiano/Nederlands/Ελληνικά/Português/

Türkçe/Čeština/Polski/Magyar/Руccĸий/

/ / / / / /Bahasa

Indonesia/

• GUI Language: Select the language used for

displaying operation buttons and menu items.

– English (Initial)/Local (the language selected

above)

<Clock>

Adjust the clock time. (Page5)

Configure the settings of iPod. (Page17)

• APP Connection Setup: Configure the Apps

settings. (Page53)

• APP Interrupt Volume: Adjust the App volume.

– 0 to 35 (Initial: 17)

Select the usage of the iPhone compatible with

CarPlay. (Page20)

• ON (Initial): Allows “Apple CarPlay”* to be

selected on the <TOP MENU> screen.

• OFF: Allows “APPs” to be selected on the <TOP

MENU> screen.

Configure settings for using a Bluetooth device,

such as connection and other general operations.

(Page52)

<Beep>

• ON (Initial): Activates the key-touch tone.

• OFF: Cancels.

You can memorize, recall, or clear the settings you

have made. (Page59)

Shows information about/changes the settings for

using the ADS adapter.

<AV-OUT>

You can determine the use of the external

component connected to the AV-OUT terminal.

• OFF (Initial)/AV-IN1/AV-IN2/DVD

Assigns the function of the AV button when held.

• AV-OUT (Initial): Selects the AV source for extra

monitors or amplifiers.

• APPs: Displays the Apps screen. (Page23)

Assigns the function of the AUD button when held.

• R-CAM (Initial): Displays the picture from the rear

view camera. (Page43)

• V-OFF: Turns off the screen. (Page6)

<SI>

Activate or deactivate the security function.

(Page4)

Displays the serial number.

Adjust the touch position of the buttons on the

screen. (Page60)

Displays the version information of the software.

You can update the software. (Page60)

Shows the Open Source Licenses.

* “Apple CarPlay” is displayed as the source on the <TOP

MENU> screen when iPhone compatible with CarPlay is

connected.

DDX_High_K.indb 63DDX_High_K.indb 63 2015/04/15 16:152015/04/15 16:15

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

Before installing the unit

V WARNING

• If you connect the ignition wire (red) and the

battery wire (yellow) to the car chassis (ground),

you may cause a short circuit, that in turn may

start a fire. Always connect those wires to the

power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red)

and the battery wire (yellow). The power supply

must be connected to the wires via the fuse.

V Precautions on installation and connection

• Mounting and wiring this product requires

skills and experience. For best safety, leave the

mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V

DC power supply.

• Do not install the unit in a spot exposed to direct

sunlight or excessive heat or humidity. Also avoid

places with too much dust or the possibility of

water splashing.

• Do not use your own screws. Use only the screws

provided. If you use the wrong screws, you could

damage the unit.

• If the power is not turned on (“Miswiring DC Offset

Error”, “Warning DC Offset Error” is displayed),

the speaker wire may have a short circuit or

have touched the chassis of the vehicle and the

protection function may have been activated.

Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC

position, connect the ignition wires to a power

source that can be turned on and off with the

ignition key. If you connect the ignition wire to a

power source with a constant voltage supply, such

as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the

unit so that the monitor panel will not hit the lid

when closing and opening.

• If the fuse blows, first make sure the wires are not

touching to cause a short circuit, then replace the

old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or

other similar material. To prevent a short circuit,

do not remove the caps on the ends of the

unconnected wires or the terminals.

• Connect the speaker wires correctly to the

terminals to which they correspond. The unit may

be damaged or fail to work if you share the [

wires or ground them to any metal part in the car.

• When only two speakers are being connected to

the system, connect both connectors either to

the front output terminals or to the rear output

terminals (do not mix front and rear). For example,

if you connect the ] connector of the left speaker

to a front output terminal, do not connect the [

connector to a rear output terminal.

• After the unit is installed, check whether the brake

lamps, blinkers, wipers, etc. on the car are working

properly.

• Mount the unit so that the mounting angle is 30°

or less.

• Do not press hard on the panel surface when

installing the unit in the vehicle. Otherwise

scratches, damage, or failure may result.

• This unit has a cooling fan to decrease the

internal temperature. Do not mount the unit

in a place where the cooling fan of the unit is

blocked. Blocking these openings will prevent the

cooling of the internal temperature and result in

malfunction.

•

Cooling fan

V CAUTION

Install this unit in the console of your vehicle.

Do not touch the metal part of this unit during and

shortly after the use of the unit. Metal parts such as

the heat sink and enclosure become hot.

RSupplied accessories for installation

1 Wiring harness × 1

2 Trim plate × 1

3 Extension wire (2 m) × 1

4 Extraction keys × 2

5 Flat head screws (M5 x 7 mm) × 6

6 Round head screws (M5 x 6 mm) × 6

7 Microphone (3 m) × 1

8 Fixture for HDMI/MHL connector × 1

9 Screws for the fixture (M2.6 x 6 mm) × 1

0 GPS antenna (3.5 m) × 1

- Metal plate × 1

DDX_High_K.indb 64DDX_High_K.indb 64 2015/04/15 16:152015/04/15 16:15

ENGLISH 65

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

RInstallation procedure

1 To prevent a short circuit, remove the key

from the ignition and disconnect the ·

battery.

2 Make the proper input and output wire

connections for each unit.

3 Connect the speaker wires of the wiring

harness.

4 Connect the wiring harness wires in the

following order: ground, battery, ignition.

5 Connect the wiring harness connector to

the unit.

6 Install the unit in your car.

• Make sure that the unit is installed securely

in place. If the unit is unstable, it may

malfunction (e.g., the sound may skip).

7 Reconnect the · battery.

8 Press the reset button.

9 Configure <Initial Setup>. (Page4)

Installing the unit

R Installing the unit

• Bend the tabs of the mounting sleeve with a

screwdriver or similar utensil and attach it in place.

R When installing the unit using the

mounting bracket removed from the

car

Car Bracket

5 or 6

• Select the appropriate type of screw for the

mounting bracket: flat head (5) or round head

(6).

RInstalling the trim plate

1 Attach the trim plate (2).

DDX_High_K.indb 65DDX_High_K.indb 65 2015/04/15 16:152015/04/15 16:15

(ACC)

(BATT)

(GND)

Pages67 – 69 Pages67 – 69

Page69

USB input terminal (1.0 m):

Pages67 – 68

GPS antenna terminal:

Page70

10 A fuse

Ignition key switch

Fuse box

Battery

Connect to the vehicle’s reverse lamp harness when

using the optional rear view camera.

Connect to the vehicle’s parking

brake detection switch harness.

• For best safety, be sure to

connect the parking sensor.

Depending on what antenna you are using, connect either to the control

terminal of the motor antenna, or to the power terminal for the booster

amplifier of the film-type antenna. (Max. 300 mA, 12 V)

When using the optional power amplifier, connect to its power control terminal.

Not used.

To use the steering wheel remote control feature, an exclusive remote adapter

(not supplied) matching your car is required.

To car light control switch

To car chassis

Purple with white stripe

(Reverse sensor wire)

Light green (Parking

sensor wire)

Connect SiriusXM Connect Vehicle Tuner

(commercially available). See page 69.

White ª / White with black stripe · : To front speaker (left)

Gray ª / Gray with black stripe · : To front speaker (right)

Green ª / Green with black stripe · : To rear speaker (left)

Purple ª / Purple with black stripe · : To rear speaker (right)

Blue (Antenna control wire)

Blue with white stripe (Power control wire)

Brown (Mute control wire)

Light blue with yellow stripe (Steering remote control wire)

Orange with white stripe (Dimmer control wire)

Red (Ignition wire)

Yellow (Battery wire)

Black (Ground wire)

* If no connections are made, do not let the cable come out from the

tab.

Connect the antenna

cord to the antenna

terminal.

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

Connection

R Connecting wires to terminals

DDX_High_K.indb 66DDX_High_K.indb 66 2015/04/15 16:152015/04/15 16:15

ENGLISH 67

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

R Connecting a USB device

USB device*

(commercially available)

1.0 m

* Use CA-U1EX to extend the cable if necessary. (Max 500 mA, 5V)

R Connecting an iPod/iPhone for

“iPod”/”APPs”

iPod/iPhone (Lightning connector models)

(commercially available)

Lightning-Digital AV

adapter (accessory of the

iPod/iPhone)

KCA-iP103

(optional accessory)

KCA-HD100

(optional accessory)

If you connect the HDMI/MHL connector, fix the HDMI/MHL

cable using the fixture (8) and screw (9).

HDMI/MHL cable

0.8 m 0.8 m

1.8 m

KCA-iP103

(optional accessory)

1.0 m

iPod/iPhone (30-pin connector models)

(commercially available)

KCA-iP202

(optional accessory)

KCA-iP102

(optional accessory)

1.8 m

0.8 m

1.0 m

DDX_High_K.indb 67DDX_High_K.indb 67 2015/04/15 16:152015/04/15 16:15

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

R Connecting an iPhone for “Apple

CarPlay”

iPhone compatible with CarPlay

(commercially available)

0.8 m

KCA-iP103

(optional accessory)

1.0 m

R Connecting a smartphone for

“APPs”/”HDMI/MHL”

Android, etc.

(with HDMI)

(commercially available)

Android, etc.

(with MHL)

(commercially available)

Micro USB Micro HDMI (Type D)

Micro HDMI to HDMI

adapter (commercially

available)

KCA-HD100

(optional accessory)

Micro USB

to USB cable

(commercially

available)

KCA-MH100

(optional accessory)*

HDMI/MHL cable

If you connect the HDMI/MHL connector, fix the HDMI/MHL

cable using the fixture (8) and screw (9).

1.8 m

1.0 m 1.8 m

* Use conversion adapter to connect to smartphones if necessary.

R Connecting an Android device for

“Android Auto”

Android device compatible with Android Auto

(commercially available)

1.0 m

Micro USB USB 2.0 cable

(commercially available)

DDX_High_K.indb 68DDX_High_K.indb 68 2015/04/15 16:152015/04/15 16:15

ENGLISH 69

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

R Connecting the Miracast Dongle to

use smartphone/iPod/iPhone over a

wireless connection

Miracast Dongle: KCA-WL100

(optional accessory)

R Connecting external components

1 AV-OUT/Video output (Yellow)

2 Rear view camera input (Yellow)

3 Audio Video input (AV-IN1)*1

4 iPod/Audio Video input (iPod/AV-IN2)*1

5 iDatalink input for connecting ADS adapter

(commercially available)

6 HDMI/MHL input

7 Subwoofer preout (monaural output)*2

• Subwoofer left output (White)

• Subwoofer right output (Red)

8 Rear preout*2

• Audio left output (White)

• Audio right output (Red)

9 Front preout*2

• Audio left output (White)

• Audio right output (Red)

p Audio output (ø3.5 mini jack)

Resistance-free stereo type mini plug

q Expansion port for connecting SiriusXM Connect

Vehicle Tuner (commercially available)

*1 When connecting the component to play on “AV-IN1” or “AV-

IN2”, use the Audio and Video cable CA-C3AV (optional accessory).

*2 When connecting an external amplifier, connect its ground wire to

the chassis of the car; otherwise the unit may be damaged.

R Connecting microphone for Bluetooth

Connect the microphone (7) to the MIC terminal.

• To install the microphone, peel off the adhesive

tape, fix it on the installation position, then adjust

the direction of the microphone to face the driver.

After installing, fix the microphone cable to the car

with clamps (commercially available).

DDX_High_K.indb 69DDX_High_K.indb 69 2015/04/15 16:152015/04/15 16:15

CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

R Connecting the GPS antenna

Connect the GPS antenna (0) to the GPS terminal.

• To install the GPS antenna, fix the metal plate

(-) firmly on the dashboard, then place the GPS

antenna (0) on the metal plate (-).

– Clean the dashboard or other surface

beforehand.

– Install the GPS antenna (0) inside of the car, as

horizontally as possible to allow easy reception

of the GPS satellite signals.

– You can bend the metal plate (-) to conform to

a curved surface, if necessary.

• Depending on the type of car, reception of the

GPS satellite signals might not be possible with an

internal installation.

• Install this GPS antenna in an area away from any

antennas that are used with CB radios or satellite

televisions.

• The GPS antenna should be installed at a position

that at least 30 cm (12 inches) from mobile phone

or other transmitting antennas.

• The above types of communication may interfere

with signals from the GPS satellite.

• Painting the GPS antenna with (metallic) paint

may cause reduced performance.

Removing the unit

RRemoving the trim plate

1 Engage the catch pins on the extraction

key (4) and remove the two locks on the

lower part. Lower the frame and pull it

forward.

2 Remove from the upper two catches.

• The frame can be removed from the top side in

the same manner.

RRemoving the unit

1 Remove the trim plate. (See the left

column.)

2 Insert the two extraction keys (4), then

pull them as illustrated so that the unit can

be removed.

• Be careful to avoid injury from the catch pins on

the extraction key.

DDX_High_K.indb 70DDX_High_K.indb 70 2015/04/15 16:162015/04/15 16:16

ENGLISH 71

REFERENCESREFERENCES

Maintenance

RCaution on cleaning the unit

Do not use any solvent (for example, thinner,

benzine, etc.), detergent, or insecticide. This may

damage the monitor or the unit.

Recommended cleaning method:

Gently wipe the panel with a soft, dry cloth.

RMoisture condensation

Moisture may condense on the lens inside the unit in

the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction. In this

case, eject the disc and leave the unit turned on for a

few hours until the moisture evaporates.

RHow to handle discs

• When removing a disc from its case, press down

the center holder of the case and lift the disc out,

holding it by the edges.

– Always hold the disc by the edges. Do not touch

its recording surface.

• When storing a disc in its case, gently insert the

disc around the center holder (with the printed

surface facing up).

– Make sure to store discs in their cases after use.

RTo keep discs clean

Dirty discs may not play correctly.

If a disc does become dirty, wipe it with a soft cloth

in a straight line from the center to the edge.

• Do not use any solvents (for example,

conventional record cleaner, spray, thinner,

benzine, etc.) to clean discs.

RTo play new discs

New discs may have some rough spots around the

inner and outer edges. If such a disc is used, this unit

may reject the disc.

• To remove these rough spots, rub the edges with

a pencil or ball-point pen, etc.

More information

RFile playback

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with

the extension code <.mpg> or <.mpeg>.

• The stream format should conform to MPEG

system/program stream.

The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/

MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio

Layer-2.

Playing JPEG/BMP/PNG files (for USB only)

• This unit can play back picture files with the

extension code <.jpg>, <.jpeg>, <.bmp> or

<.png>.

• This unit can play back files that are at 32 x 32 to

2000 x 2000 resolution.

It may take time to display the file depending on

its resolution.

• Interlaced PNG files cannot be played.

• This unit can play back baseline JPEG files.

Progressive JPEG files or lossless JPEG files cannot

be played.

Playing audio files (for discs: MP3/WMA/AAC, for

USB: MP3/WMA/WAV/AAC/FLAC)

• This unit can play back files with the extension

code <.mp3>, <.wma>, <.wav>, <.m4a> or <.flac>

(regardless of the letter case—upper/lower).

• This unit can play back files that meet the

conditions below:

– Bit rate:

MP3: 8 kbps – 320 kbps

WMA: 48 kbps – 192 kbps

AAC: For discs: 16 kbps – 320 kbps

For USB: 32 kbps – 320 kbps

– Sampling frequency:

MP3: 8 kHz – 48 kHz

WMA: For discs: 32 kHz – 48 kHz

For USB: 8 kHz – 48 kHz

WAV: 44.1 kHz

AAC: 16 kHz – 48 kHz

FLAC : 8 kHz – 48 kHz

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3).

• This unit can also show WMA/AAC/FLAC Tag.

Continued on the next page...

DDX_High_K.indb 71DDX_High_K.indb 71 2015/04/15 16:162015/04/15 16:16

REFERENCESREFERENCES

• This unit can play back files recorded in VBR

(variable bit rate).

• Files recorded in VBR have a discrepancy in

elapsed time indication.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO

format.

– MP3 files encoded with Layer 1/2.

– WMA files encoded with lossless, professional,

and voice format.

– WMA files which are not based upon Windows

Media® Audio.

– WMA/AAC files copy-protected with DRM.

– AAC files encoded using any other application

than iTunes.

– AAC files copy-protected with FairPlay (except

those stored on an iPod).

– Files which have data such as AIFF, ATRAC3, etc.

• This unit can display jacket pictures that meet the

conditions below:

– Picture size: 32 x 32 to 1 232 x 672 (PNG: 800 x

480) resolution

– Data size: less than 650 KB.

– File type: JPEG/PNG/BMP

Playing H.264/WMV files (for USB only)

• This unit can play back files with the extension

code <.mp4>, <.flv>, <.avi>, <.mkv> or <.wmv>.

• This unit can only play back files that are 1 280 x

720 pixels@30 fps or less.

• The stream format should conform to MPEG

system/program stream.

• For some files, the picture is not fully displayed

(black bars appear on the top and bottom or right

and left sides depending on the horizontal to

vertical ratio).

RDisc playback

Playable disc types

Disc type Recording format,

file type, etc.

DVD

• DTS sound cannot be

reproduced or emitted from

this unit.

DVD Video*1

DVD Recordable/Rewritable

(DVD-R/-RW*2, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• MPEG1/MPEG2/MP3/WMA/

AAC: ISO 9660 level1,

level2, Romeo, Joliet

• DVD Video

• DVD-VR*4

• MPEG1/MPEG2

• MP3/WMA/AAC

Dual Disc DVD side

CD/VCD • VCD (Video CD)

• Audio CD/

CDText (CD-DA)

CD Recordable/Rewritable

(CD-R/-RW)

• ISO 9660 level1, level2,

Romeo, Joliet

• VCD (Video CD)

• CD-DA

• MPEG1/MPEG2

• MP3/WMA/AAC

*1 DVD Region code: 1

If you insert a DVD Video disc of an incorrect Region Code, “Region

Code Error” appears on the screen.

*2 DVD-R recorded in multi-border format are also playable (except for

dual layer discs). DVD-RW dual layer discs are not playable.

*3 It is possible to play back finalized +R/+RW (Video format only)

discs. “DVD” is selected as the disc type when a +R/+RW disc is

loaded. +RW double layer discs are not playable.

*4 This unit cannot play back content protected with CPRM.

Unplayable discs

• Unplayable disc types and formats are as follows:

– DVD-Audio/DVD-ROM discs

– MPEG4/DivX/JPEG/FLAC/MKV/DVD+VR/DVD-

RAM recorded on DVD-R/RW or +R/+RW

– SVCD (Super Video CD), CD-ROM, CD-I (CD-I

Ready), DTS-CD

– MPEG4/JPEG/FLAC/MKV recorded on CD-R/RW

• Discs that are not round.

• Discs with coloring on the recording surface or

discs that are dirty.

• Recordable/Rewritable discs that have not been

finalized.

• 3 inch discs. Attempting to insert these discs using

an adapter may cause a malfunction.

DualDisc playback

The Non-DVD side of a “DualDisc” does not comply

with the “Compact Disc Digital Audio” standard.

Therefore, the use of the Non-DVD side of a DualDisc

on this product cannot be recommended.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 64 770 files and

254 folders (a maximum of 255 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs;

however, unclosed sessions will be skipped while

playing.

• Some discs or files may not be played back due to

their characteristics or recording conditions.

DDX_High_K.indb 72DDX_High_K.indb 72 2015/04/15 16:162015/04/15 16:16

ENGLISH 73

REFERENCESREFERENCES

RAbout data stored in the connected

USB device/iPod/iPhone/Android

device

• We bear no responsibility for any loss of data in

iPod/iPhone, USB mass storage class devices, and

Android devices while using this unit.

R USB playback

Playable files on a USB device

• This unit can play the following types of files

stored in a USB mass storage class device.

– JPEG/BMP/PNG/MPEG1/MPEG2/MP3/WMA/

WAV/AAC/FLAC/H.264/WMV (VC-1)

• This unit can recognize a total of 5 000 files and

250 folders (a maximum of 999 files per folder).

• Make sure all important data has been backed up

to avoid losing the data.

Notes on using a USB device:

• This unit cannot play back files whose file name or

folder name contains “#” or “%”.

• This unit may not play back files in a USB device

properly when using a USB extension cable.

• USB devices equipped with special functions such

as data security functions cannot be used with the

unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and

connection ports, some USB devices may not be

attached properly or the connection might be

loose.

• This unit may not recognize a memory card

inserted into the USB card reader.

• When connecting with a USB cable, use the USB

2.0 cable.

• The maximum number of characters (when the

characters are 1 byte):

– Folder names: 128 characters

– File names: 128 characters

• Avoid using the USB device if it might affect

driving safety.

• Do not pull out and connect the USB device

repeatedly while “Reading” is shown on the

screen.

• Electrostatic shock at connecting a USB device

may cause abnormal playback of the device. In this

case, disconnect the USB device then reset this

unit and the USB device.

• Operation and power supply may not work as

intended for some USB devices.

• Do not leave a USB device in the car, or expose to

direct sunlight or high temperatures to prevent

deformation or damage to the device.

RNotes on playing iPod/iPhone

• iPod/iPhone that can be connected to this unit:

Made for

– iPod with video

– iPod classic

– iPod nano (7th Generation)

– iPod nano (6th Generation)

– iPod nano (5th Generation)

– iPod nano (4th Generation)

– iPod nano (3rd Generation)

– iPod touch (5th Generation)

– iPod touch (4th Generation)

– iPod touch (3rd Generation)

– iPod touch (2nd Generation)

– iPod touch (1st Generation)

– iPhone 6 Plus

– iPhone 6

– iPhone 5S

– iPhone 5C

– iPhone 5

– iPhone 4S

– iPhone 4

– iPhone 3GS

– iPhone 3G

– iPhone

• When operating an iPod/iPhone, some operations

may not be performed correctly or as intended. In

this case, visit the following KENWOOD web site:

<www.kenwood.com/cs/ce/ipod>

• For some iPod/iPhone models, the performance

may be abnormal or unstable during operation. In

this case, disconnect the iPod/iPhone device, then

check its condition.

If the performance is not improved or slow, reset

your iPod/iPhone.

• When you turn on this unit, the iPod/iPhone is

charged through the unit.

• The text information may not be displayed

correctly.

DDX_High_K.indb 73DDX_High_K.indb 73 2015/04/15 16:162015/04/15 16:16

REFERENCESREFERENCES

R Language codes (for DVD/DVD-VR language selection)

AA Afar GL Galician MI Maori SO Somali

AB Abkhazian GN Guarani MK Macedonian SQ Albanian

AF Afrikaans GU Gujarati ML Malayalam SR Serbian

AM Ameharic HA Hausa MN Mongolian SS Siswati

AR Arabic HI Hindi MO Moldavian ST Sesotho

AS Assamese HR Croatian MR Marathi SU Sundanese

AY Aymara HU Hungarian MS Malay (MAY) SW Swahili

AZ Azerbaijani HY Armenian MT Maltese TA Tamil

BA Bashkir IA Interlingua MY Burmese TE Telugu

BE Byelorussian IE Interlingue NA Nauru TG Tajik

BG Bulgarian IK Inupiak NE Nepali TH Thai

BH Bihari IN Indonesian NO Norwegian TI Tigrinya

BI Bislama IS Icelandic OC Occitan TK Turkmen

BN Bengali, Bangla IW Hebrew OM (Afan) Oromo TL Tagalog

BO Tibetan JA Japanese OR Oriya TN Setswana

BR Breton JI Yiddish PA Panjabi TO Tonga

CA Catalan JW Javanese PL Polish TR Turkish

CO Corsican KA Georgian PS Pashto, Pushto TS Tsonga

CS Czech KK Kazakh QU Quechua TT Tatar

CY Welsh KL Greenlandic RM Rhaeto-Romance TW Twi

DZ Bhutani KM Cambodian RN Kirundi UK Ukrainian

EL Greek KN Kannada RO Rumanian UR Urdu

EO Esperanto KO Korean (KOR) RW Kinyarwanda UZ Uzbek

ET Estonian KS Kashmiri SA Sanskrit VI Vietnamese

EU Basque KU Kurdish SD Sindhi VO Volapuk

FA Persian KY Kirghiz SG Sangho WO Wolof

FI Finnish LA Latin SH Serbo-Croatian XH Xhosa

FJ Fiji LN Lingala SI Singhalese YO Yoruba

FO Faroese LO Laothian SK Slovak ZU Zulu

FY Frisian LT Lithuanian SL Slovenian

GA Irish LV Latvian, Lettish SM Samoan

GD Scots Gaelic MG Malagasy SN Shona

Error message list

If an error occurs while using the unit, a message

appears. Take appropriate action according to the

following message/remedy/cause list.

“No Signal”:

• Start playback on the external component

connected to the AV-IN1 or iPod/AV-IN2 input

terminal.

• Start playback on the smartphone connected to

HDMI/MHL input terminal.

• Check the cords and connections.

• Signal input is too weak.

“No Video Signal”:

• When selecting “APPs” with <USB 1 Wire> or

<Bluetooth> selected as the connection method

on the <APP Setup> screen, video cannot be

displayed. Select appropriate setting as the

connection method on the <APP Setup> screen.

(Page53)

“Miswiring DC Offset Error”/“Warning DC Offset

Error”:

• A speaker cord has shorted or it has come into

contact with the car chassis. Wire or insulate the

speaker cord as appropriate, then reset the unit.

(Pages3 and66)

“Parking off”:

• No playback picture is shown when the parking

brake is not engaged.

“Authorization Error”:

• Check whether the connected iPod/iPhone is

compatible with this unit. (Page73)

DDX_High_K.indb 74DDX_High_K.indb 74 2015/04/15 16:162015/04/15 16:16

ENGLISH 75

“USB Device Error”:

• The USB power voltage is abnormal.

• Turn off and turn on the unit.

• Connect another USB device.

“Panel Mecha Error”:

• The panel does not work properly. Reset the unit.

“Please Wait...”:

• The unit is preparing to use the Bluetooth

function. If the message does not disappear, turn

off and turn on the unit, then connect the device

again (or reset the unit).

“Disconnected”:

• The device is not connected.

“Check device”:

• The application is not active.

“Check App”:

• A connection to the application cannot be

established.

“Please update Pandora App”:

• The Pandora application on your iPod touch/

iPhone/Android/BlackBerry is not the latest

version. Update the application.

“Please check device.”:

• The Pandora application on your iPod touch/

iPhone/Android/BlackBerry is not started up.

• The Pandora application is not installed in the

connected device.

• An error has occurred on the Pandora application.

“Login Error”:

• You have not been signed into Pandora.

“No skips remaining”:

• No more songs can be skipped.

“Failed to save your thumb rating”:

• Thumb-up/down is prohibited.

“No Station”:

• No station is available.

“No Active Station”:

• No station is being played.

“Station limit reached”:

• The Station List is full and no more stations can be

registered.

“Failed to save your bookmark”:

• The unit has failed to save a bookmark. Try the

operation again.

“Limited Connectivity”:

• The connection with the Pandora application

cannot be established.

“Pandora not available”:

• You cannot use the Pandora application from

the area where you are currently trying to access

Pandora.

“Try again later”:

• The Pandora server is under maintenance.

“Station does not exist”:

• The selected station has been deleted by another

device or has expired.

“Cannot create a Station”:

• You cannot create a station during the read-

only mode or when network connection is not

established.

“SXM No Signal”:

• Make sure the SiriusXM Satellite Radio antenna is

mounted outside the vehicle. Move the vehicle to

an area with a clear view of the sky.

“SXM Check Antenna”:

• Check the SiriusXM Satellite Radio antenna

connection, and make sure the antenna is firmly

attached to the tuner.

• Check whether the SiriusXM Satellite Radio

antenna cable is bent or broken. If it is damaged,

replace the whole antenna unit.

“SXM Check Tuner”:

• Make sure the SiriusXM Connect Vehicle Tuner is

connected to the unit.

“SXM Chan Unavailable” (appears on the screen

for about 2 seconds, then returns to the previous

channel):

• The selected channel is no longer available. Select

another channel or continue listening to the

previous channel.

“SXM Ch Unsubscribed” (appears on the screen

for about 2 seconds, then returns to the previous

channel):

• The selected channel is not part of your current

subscription plan.

– In the U.S.A., visit www.siriusxm.com or call

1-866-635-2349 if you have questions about

your subscription package or would like to

subscribe to this channel.

– In Canada, visit www.siriusxm.ca or call 1-877-

438-9677.

REFERENCESREFERENCES

Continued on the next page...

DDX_High_K.indb 75DDX_High_K.indb 75 2015/04/15 16:162015/04/15 16:16

“SXM Subscription Updated – Press Enter to

Continue”:

• Your subscription has been updated. Press the

appropriate button to continue.

“SXM Channel Locked”

• The selected channel has been locked by the

parental controls. Enter the parental code when

you are asked. (Page40)

“SXM Incorrect Lock Code”

• The selected channel is a mature or parental lock

channel, and locked by the parental code. Enter

the correct parental code to unlock it.

Troubleshooting

What appears to be trouble is not always serious.

Check the following points before calling a service

center.

• For operations with the external components,

refer also to the instructions supplied with the

adapters used for the connections (as well as

the instructions supplied with the external

components).

RGeneral

No sound comes out of the speakers.

• Adjust the volume to the optimum level.

• Check the cords and connections.

No picture is displayed on the screen.

• Turn on the screen. (Page6)

The unit does not work at all.

• Reset the unit. (Page3)

RDiscs

Recordable/Rewritable discs cannot be played

back.

• Insert a finalized disc.

• Finalize the discs with the component which you

used for recording.

Tracks on the Recordable/Rewritable discs

cannot be skipped.

• Insert a finalized disc.

• Finalize the discs with the component which you

used for recording.

Playback does not start.

• The format of files is not supported by the unit.

No picture appears on the external monitor.

• Connect the video cord correctly.

• Select the correct input on the external monitor.

MPEG1/MPEG2/MP3/WMA/AAC discs cannot be

played back.

• Record the tracks using a compatible application

on the appropriate discs. (Page72)

• Add appropriate extension codes to the file

names.

Tracks on the Recordable/Rewritable discs are

not played back as you have intended them to

play.

• Playback order may differ from the one played

back using other players.

RUSB

“Reading” does not disappear from the screen.

• Turn the power off and on again.

While playing a track, sound is sometimes

interrupted.

• The tracks are not properly copied into the USB

device. Copy the tracks again, and try again.

Tracks are not played back as you have intended

them to play.

• Playback order may differ from the one played

back using other players.

RiPod/iPhone

No sound comes out of the speakers.

• Disconnect the iPod/iPhone, then connect it again.

• Select another source, then reselect “iPod”.

The iPod/iPhone does not turn on or does not

work.

• Check the connecting cable and its connection.

• Update the firmware version.

• Charge the battery.

• Reset the iPod/iPhone.

Sound is distorted.

• Deactivate the equalizer either on this unit or the

iPod/iPhone.

A lot of noise is generated.

• Turn off (uncheck) “VoiceOver” on the iPod/

iPhone. For details, visit <http://www.apple.com>.

No operations are available when playing back a

track containing artwork.

• Operate the unit after the artwork has loaded.

The iPod/iPhone not compatible with CarPlay

cannot be connected via Bluetooth.

• Select [ON] for <CarPlay Connection> on the

<System> menu screen. (Page20)

REFERENCESREFERENCES

DDX_High_K.indb 76DDX_High_K.indb 76 2015/04/15 16:162015/04/15 16:16

ENGLISH 77

Videos cannot be played.

• Connect with USB Audio and Video cable

KCA-iP202 for 30-pin connector models or

KCA-HD100 and KCA-iP103 through a Lightning-

Digital AV adapter for Lightning connector

models. Other cables cannot be used.

No sound of videos comes out.

• Connect with USB Audio and Video cable

KCA-iP202 for 30-pin connector models or KCA-

HD100 and KCA-iP103 through a Lightning-Digital

AV adapter for Lightning connector models. Other

cables cannot be used.

RApple CarPlay/Android Auto/APPs

Desired source (“Apple CarPlay”/“Android

Auto”/“APPs”) is not displayed on the <TOP

MENU> screen.

• Check whether the connected device is

compatible with CarPlay or Android Auto.

• When iPhone compatible with CarPlay is

connected, check the <CarPlay Connection>

setting. (Page63)

RAV-IN1/AV-IN2

No picture appears on the screen.

• Turn on the video component if it is not on.

• Connect the video component correctly.

RHD Radio reception

AME automatic presetting does not work.

• Store stations manually. (Page34)

Static noise while listening to the radio.

• Connect the antenna firmly.

Sound quality changes when receiving HD Radio

stations.

• Fix the reception mode either to <Digital> or

<Analog>. (Page33)

No sound can be heard.

• The HD Radio reception mode is not appropriate.

Select the appropriate mode from <Digital>,

<Analog> or <Auto>.

RiHeartRADIO/Pandora/AUPEO!/Spotify

The application does not work.

• The application on your iPod touch/iPhone/

Android is not the latest version. Update the

application.

RBluetooth

Phone sound quality is poor.

• Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to a place where you can get a better

signal reception.

The sound is interrupted or skipped while using a

Bluetooth audio player.

• Reduce the distance between the unit and the

Bluetooth audio player.

• Disconnect the device connected for Bluetooth

phone.

• Turn off, then turn on the unit.

(When the sound is not yet restored) connect the

player again.

The connected audio player cannot be

controlled.

• Check whether the connected audio player

supports AVRCP (Audio Video Remote Control

Profile).

The Bluetooth device does not detect the unit.

• Search from the Bluetooth device again.

The unit does not pair with the Bluetooth device.

• For devices compatible with Bluetooth 2.1:

• For devices compatible with Bluetooth 2.0:

Enter the same PIN code for both the unit and

target device. If the PIN code of the device is not

indicated in its instructions, try “0000” or “1234.”

• Turn off, then turn on the Bluetooth device.

Echo or noise occurs.

• Adjust the microphone unit position.

• Adjust the echo volume or noise reduction

volume. (Page48)

The unit does not respond when you try to copy

the phone book to the unit.

• You may have tried to copy the same entries (as

stored) to the unit.

Specifications

RMonitor section

Picture Size (W x H)

6.95 inches (diagonal) wide

156.6 mm × 81.6 mm (6-3/16" ×

3-3/16")

Display System Transparent TN LCD panel

Drive System TFT active matrix system

Number of Pixels 1 152 000 (800H × 480V × RGB)

Effective Pixels 99.99%

Pixel Arrangement

RGB striped arrangement

Back Lighting LED

REFERENCESREFERENCES

DDX_High_K.indb 77DDX_High_K.indb 77 2015/04/15 16:162015/04/15 16:16

RDVD player section

D/A Converter 24 bit

Audio Decoder Linear PCM/Dolby Digital/MP3/

WMA/AAC

Video Decoder MPEG1/MPEG2

Wow & Flutter Below Measurable Limit

Frequency Response

96 kHz Sampling: 20 Hz to 20 000 Hz

48 kHz Sampling: 20 Hz to 20 000 Hz

44.1 kHz Sampling: 20 Hz to 20 000 Hz

Total Harmonic Distortion

0.010% (1 kHz)

Signal to Noise Ratio

94 dB (DVD-Video 96 kHz)

Dynamic Range 91 dB (DVD-Video 96 kHz)

Disc Format DVD-Video/DVD-VR/VIDEO-CD/

CD-DA

Sampling Frequency

44.1 kHz/48 kHz/96 kHz

Quantifying Bit Number

16/20/24 bit

RUSB interface section

USB Standard USB 2.0 High Speed

File System FAT 16/32

Maximum Power Supply Current

DC 5 V 1.5 A

D/A Converter 24 bit

Audio Decoder MP3/WMA/AAC/WAV/FLAC

Video Decoder MPEG1/MPEG2/H.264/WMV/

JPEG/BMP/PNG

RHDMI interface section

Connector Type TYPE-A

RMHL interface section

Supported Version

MHL 2

Maximum Power Supply Current

DC 5 V 900 mA

RBluetooth section

Technology Bluetooth Ver 3.0 + EDR

Frequency 2.402 GHz to 2.480 GHz

Output Power +4 dBm (MAX), 0 dBm (AVE),

Power Class 2

Maximum Communication Range

Line of sight approx. 10 m

(32.8ft)

Audio Codec SBC/AAC/MP3/aptX*

Profile HFP (Hands Free Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

GAP (Generic Access Profile)

HID (Human Interface Device

Profile )

PBAP (Phonebook Access Profile)

SDP (Service Discovery Profile)

SPP (Serial Port Profile)

* aptX is compatible only with DDX9902S.

RDSP section

Graphics equalizer

DDX9902S:

BAND 7 Band

Frequency (Hz) (BAND1-7)

62.5/160/400/1k/2.5k/6.3k/16k

Gain –9/–8/–7/–6/–5/–4/–3/–2/

–1/0/1/2/3/4/5/6/7/8/9 dB

DDX9702S:

BAND 5 Band

Frequency (Hz) (BAND1-5)

62.5/250/1k/4k/16k

Gain -9/-8/-7/-6/-5/-4/-3/-2/

-1/0/1/2/3/4/5/6/7/8/9 dB

2 Way X'Over

HIGH PASS FILTER frequency

Through/50/60/80/100/120/150/

180/220

SLOPE –6/–12/–18/–24 dB/Oct.

LOW PASS FILTER frequency

50/60/80/100/120/Through

SLOPE –6/–12/–18/–24 dB/Oct.

Position

Front/Rear/Subwoofer Delay

0 ft to 20.0 ft (0.07 ft Step)

Gain –8 dB to 0 dB

Subwoofer Level –50 dB to +10 dB

REFERENCESREFERENCES

DDX_High_K.indb 78DDX_High_K.indb 78 2015/04/15 16:162015/04/15 16:16

ENGLISH 79

RFM tuner section

Frequency Range

87.9 MHz to 107.9 MHz (200 kHz)

Usable Sensitivity (S/N: 30 dB)

7.2 dBf (0.63 μV/75 Ω)

Quieting Sensitivity (S/N: 50 dB)

15.2 dBf (1.58 μV/75 Ω)

Frequency Response (±3.0 dB)

Digital: 20 Hz to 20 kHz

Analog: 30 Hz to 15 kHz

Signal to Noise Ratio

Digital: 75 dB (STEREO)

Analog: 68 dB (MONO)

Selectivity (±400 kHz)

≥ 80 dB

Stereo Separation 40 dB (1 kHz)

RAM tuner section

Frequency Range (10 kHz)

530 kHz to 1 700 kHz

Usable Sensitivity 29 dBμ

Frequency Response (±3.0 dB)

Digital: 40 Hz to 15 kHz

Signal to Noise Ratio

Digital: 75 dB (STEREO)

RVideo section

Color System of External Video Input

NTSC/PAL

External Video Input Level (mini jack)

1 Vp-p/75 Ω

External Audio Max Input Level (mini jack)

2 V/25 kΩ

Video Output Level (RCA jacks)

1 Vp-p/75 Ω

Audio Output Level (mini jacks)

1.2 V/10 kΩ

RAudio section

Maximum Power

50 W × 4

Full Bandwidth Power

22 W × 4 (at less than 1%THD)

Preout Level 5 V/10 kΩ

Preout Impedance

DDX9902S: ≤ 250 Ω

DDX9702S: ≤ 600 Ω

Speaker Impedance

4 Ω to 8 Ω

RGeneral

Operating Voltage

14.4 V (10.5 V to 16 V allowable)

Maximum Current Consumption

10 A

Installation Dimensions (W × H × D)

182 mm × 112 mm × 162 mm

(7-3/16" × 4-7/16" × 6-6/16")

Operational Temperature Range

–10°C to +60°C

Weight 2.6 kg (5.7 lbs)

Design and specifications are subject to change

without notice.

RTrademarks and licenses

• Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

• “DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation registered in the US, Japan

and other countries.

• The “AAC” logo is a trademark of Dolby

Laboratories.

• Microsoft and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean

that an electronic accessory has been designed

to connect specifically to iPod, or iPhone,

respectively, and has been certified by the

developer to meet Apple performance standards.

Apple is not responsible for the operation of

this device or its compliance with safety and

regulatory standards. Please note that the use

of this accessory with iPod, or iPhone may affect

wireless performance. iPhone, iPod, iPod classic,

iPod nano, and iPod touch are trademarks of

Apple Inc., registered in the U.S. and other

countries.

• Lightning is a trademark of Apple Inc.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo

are trademarks of Apple Inc., registered in the U.S.

and other countries.

• Android, Android Auto, Google Play and other

marks are trademarks of Google Inc.

• This item incorporates copy protection technology

that is protected by U.S. patents and other

intellectual property rights of Rovi Corporation.

Reverse engineering and disassembly are

prohibited.

• Font for this product is designed by Ricoh.

REFERENCESREFERENCES

DDX_High_K.indb 79DDX_High_K.indb 79 2015/04/15 16:162015/04/15 16:16

• THIS PRODUCT IS LICENSED UNDER THE MPEG-

4 VISUAL PATENT PORTFOLIO LICENSE FOR

THE PERSONAL AND NON-COMMERCIAL USE

OF A CONSUMER FOR (i) ENCODING VIDEO

IN COMPLIANCE WITH THE MPEG-4 VISUAL

STANDARD (“MPEG-4 VIDEO”) AND/OR (ii)

DECODING MPEG-4 VIDEO THAT WAS ENCODED

BY A CONSUMER ENGAGED IN A PERSONAL

AND NON-COMMERCIAL ACTIVITY AND/OR WAS

OBTAINED FROM A VIDEO PROVIDER LICENSED

BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO

LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO PROMOTIONAL,

INTERNAL AND COMMERCIAL USES AND

LICENSING MAY BE OBTAINED FROM MPEG LA,

LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE AVC

PATENT PORTFOLIO LICENSE FOR THE PERSONAL

USE OF A CONSUMER OR OTHER USES IN WHICH

IT DOES NOT RECEIVE REMUNERATION TO

(i)ENCODE VIDEO IN COMPLIANCE WITH THE AVC

STANDARD ("AVC VIDEO") AND/OR (ii)DECODE

AVC VIDEO THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS

OBTAINED FROM A VIDEO PROVIDER LICENSED

TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED

OR SHALL BE IMPLIED FOR ANY OTHER USE.

ADDITIONAL INFORMATION MAY BE OBTAINED

FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.

COM

• Pandora, the Pandora logo, and the Pandora trade

dress are trademarks or registered trademarks of

Pandora Media, Inc., used with permission.

• HD Radio Technology manufactured under license

from iBiquity Digital Corporation. U.S. and Foreign

Patents. HD Radio™ and the HD, HD Radio, and

“Arc” logos are proprietary trademarks of iBiquity

Digital Corp.

• Sirius, XM and all related marks and logos are

trademarks of Sirius XM Radio Inc. All rights

reserved.

• BlackBerry®, RIM®, Research In Motion® and related

trademarks, names and logos are the property

of Research In Motion Limited and are registered

and/or used in the U.S. and countries around

the world. Used under license from Research In

Motion Limited.

• The Bluetooth® word mark and logos are

registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by JVC KENWOOD

Corporation is under license. Other trademarks

and trade names are those of their respective

owners.

• The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

• MHL and the MHL logo are a trademark or

registered trademark of MHL, LLC.

- Incorporates MHL 2

• iHeartRadio® is a registered mark of Clear Channel

Broadcasting, Inc. in the United States and other

countries. Such marks are used under license.

• libFLAC

2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms,

with or without modification, are permitted

provided that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions

and the following disclaimer.

– Redistributions in binary form must reproduce

the above copyright notice, this list of

conditions and the following disclaimer in the

documentation and/or other materials provided

with the distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used

to endorse or promote products derived from

this software without specific prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL THE FOUNDATION OR

CONTRIBUTORS BE LIABLE FOR ANY DIRECT,

INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR

TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

• “aupeo” is a trade mark of Aupeo Ltd.

• The aptX® software is copyright CSR plc or its

mark and the aptX logo are trade marks of CSR

plc or one of its group companies and may be

registered in one or more jurisdictions.

• SPOTIFY and the Spotify logo are among the

registered trademarks of Spotify AB.

REFERENCESREFERENCES

DDX_High_K.indb 80DDX_High_K.indb 80 2015/04/15 16:162015/04/15 16:16

Kenwood Ddx 9702 S User Guide

DDX 9902 S - User Guide DDX9902S_DDX9702S_EN Free User Guide for Kenwood GPS, Manual - page1

Navigation menu

Versions of this User Manual:

Views

Navigation
