NAVIGATION

INSTRUCTION MANUAL

AUDIO & VISUAL CONTROL

B64_3946_0000_EN_P01_63.indd 1B64_3946_0000_EN_P01_63.indd 1 07.8.10 9:32:26 AM07.8.10 9:32:26 AM

Basic Operations 12

Radio Listening 31

Functions When Displaying the Easy

Control Panel 31

Functions While Displaying the

Control Screen 31

Seek Mode 32

Auto Memory 32

Manual Memory 33

Preset Select 33

Radio Text 34

Direct Search 34

Traffic Information 35

Search for Program Type 35

Video File/Picture File Watching 28

Function During Playback Screen 28

Functions When Displaying the Easy

Control Panel 28

Functions While Displaying the

Control Screen 29

Picture Control 30

Folder Select 30

How to read this manual 4

Safety precautions 6

Notes 7

Navigation Control 16

Using the Navigation System 16

Accessing the SD Memory Card

Insertion Slot 16

Music Disc & Audio File Listening 22

Functions When Displayig the

Easy Control Panel 22

Functions While Displaying the

Control Screen 23

Set Disc Name 26

Folder Select (Function of Audio File) 26

Disc Select (Function of Disc Changer) 27

Direct Search 27

iPod Control 36

Connecting an iPod 36

Functions when Displaying the

Easy Control Panel 36

Functions while Displaying the

Control Screen 37

iPod List 38

Watching DVD/VCD 17

Functions During the Playback Screen 17

Functions When Displaying the Easy

Control Panel 18

Functions While Displaying the

Control Screen 18

DVD Disc Menu 19

VCD Zoom Control 21

Direct Search 21

USB Device Control 39

Functions when Displaying the

Easy Control Panel 39

Functions while Displaying the

Control Screen 39

USB List 40

Folder Select 41

TV Watching 42

Functions During TV Screen 42

Functions when Displaying the

Easy Control Panel 42

Functions while Displaying the

Control Screen 43

Seek Mode 43

Auto Memory 44

Manual Memory 44

Preset Select 45

Set Station Name 45

2 DNX7200

Contents

B64_3824_1001_EN_P01_63.indd 2B64_3824_1001_EN_P01_63.indd 2 07.6.8 10:45:09 AM07.6.8 10:45:09 AM

Setup Menu 64

Audio Setup 64

Crossover Network Setup 65

DVD Setup 65

Language Setup 66

Parental Level Setup 67

DivX Setup 68

Software Information 69

iPod Setup 69

System Setup 70

AV Interface Setup 70

User Interface 72

Entering Background 73

Background Delete 74

Background Select 74

Touch Panel Adjustment 75

Clock Setup 75

Monitor Setup 76

Security Code Setup 78

TV Setup 79

RDS Setup 80

DAB Setup 80

Announcement Select 81

Amp Control 81

Setup Memory 82

EXT SW Setup 83

Help? Troubleshooting 94

Help? Error 95

DVD Language Codes 96

Specifications 97

Audio Control 84

Audio Control Menu 84

Audio Control 84

Equalizer Control 85

Tone Setup 86

Zone Control 86

Video Watching 46

Functions when Displaying the

Easy Control Panel 46

Functions while Displaying the

Control Screen 46

DAB Tuner Control 47

Functions when Displaying the

Easy Control Panel 47

Functions while Displaying the

Control Screen 47

Seek Mode 48

Auto Ensemble Memory 49

Service Preset Memory 49

Service Select 50

Language Filter Setting 50

Search for Program Type 51

DAB Announcement 51

Source Select 52

Displaying the Control Screen 52

External Device Power

Supply Control 53

External Device Power Supply Control 53

Muting Audio Volume upon

Reception of Phone Call 54

Muting Audio Volume upon Reception of

Phone Call 54

Character Entry 55

How to Use the Character Entry Screen 55

Screen Control 56

Hands Free Unit Control 57

Control Screen Function 57

When Called 58

When Dialing 58

Quick Dialing 59

Calling by Phone Book 59

Redialing 61

Setting Up the Hands-Free Phone 62

Selecting a Hands-Free Phone 62

Deleting the Hands-Free Phone 63

Remote Controller 88

Battery installation 88

Remote Controller mode switch 88

Common operations (AUD mode) 89

DVD/VCD/CD/Audio files (DVD mode) 90

TV (TV mode) 91

Radio (AUD mode) 92

NAVI (NAVI mode) 92

English 3

B64_3824_1001_EN_P01_63.indd 3B64_3824_1001_EN_P01_63.indd 3 07.6.8 10:45:11 AM07.6.8 10:45:11 AM

How to read this manual

This manual uses illustrations to explain its

operations.

The displays and panels shown in this manual

are examples used to provide clear explanations

of the operations.

For this reason, they may be different from the

actual displays or panels used, or some display

patterns may be different.

The above operation example with the mark

differs from the actual operation.

Seek mode

Sets a station selection.

10:10

LO.SAME SEEK 4LineMONO

PS AUTO1 RDS

IN LOUD

FM1

T I

98.1

MHz

TUNER

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

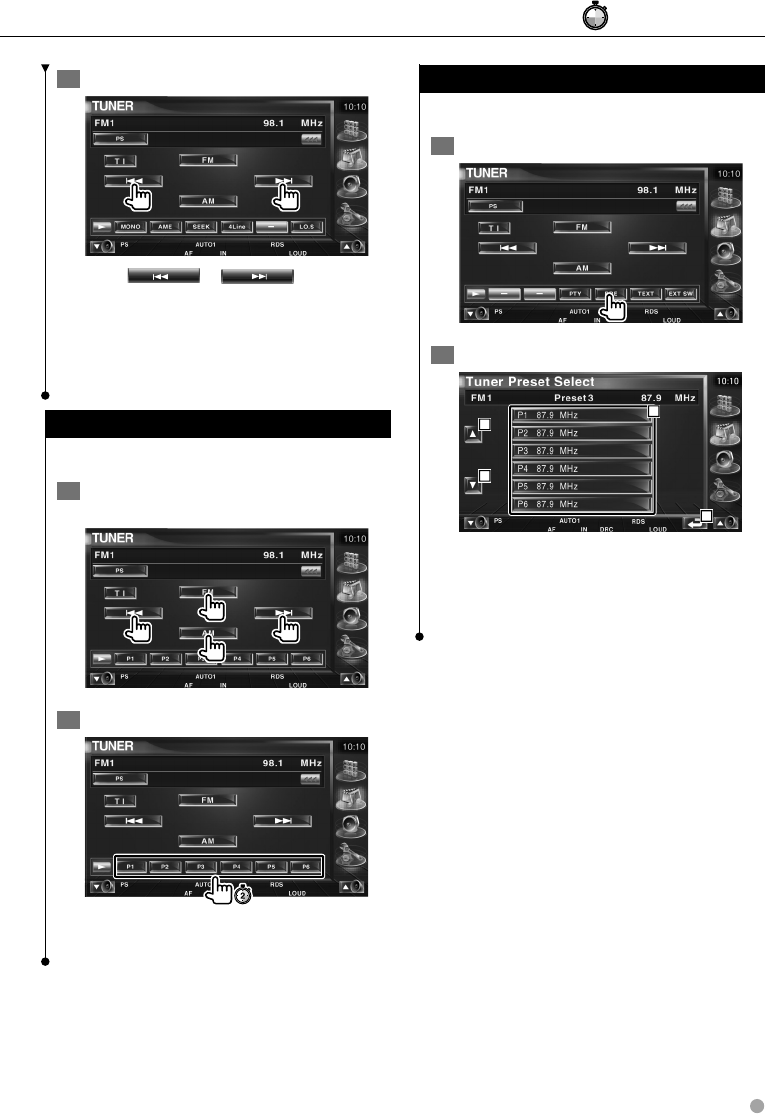

Manual Memory

Stores the current receiving station in memory.

NAV

1 Select a station you wish to store in

memory

P6P2 P3 P4 P5P1

PS AUTO1 RDS

IN LOUD

FM1

T I

98.1

MHz

TUNER

2 Store in memory

P6P2 P3 P4 P5P1

PS AUTO1 RDS

IN LOUD

FM1

T I

98.1

MHz

TUNER

Next page 3

4 DNX7200

B64_3824_1001_EN_P01_63.indd 4B64_3824_1001_EN_P01_63.indd 4 07.6.8 10:45:12 AM07.6.8 10:45:12 AM

English 5

B64_3824_1001_EN_P01_63.indd 5B64_3824_1001_EN_P01_63.indd 5 07.6.8 10:45:53 AM07.6.8 10:45:53 AM

2WARNING

To prevent injury or fire, take the following

precautions:

• To prevent a short circuit, never put or leave any

metallic objects (such as coins or metal tools) inside

the unit.

• Do not watch or fix your eyes on the unit’s display

when you are driving for any extended period.

• Mounting and wiring this product requires skills and

experience. For safety’s sake, leave the mounting

and wiring work to professionals.

2CAUTION

To prevent damage to the machine, take

the following precautions:

• Make sure to ground the unit to a negative 12V DC

power supply.

• Do not install the unit in a spot exposed to direct

sunlight or excessive heat or humidity. Also avoid

places with too much dust or the possibility of

water splashing.

• When replacing a fuse, only use a new fuse with

the prescribed rating. Using a fuse with the wrong

rating may cause your unit to malfunction.

• Do not apply excessive force to the open faceplate

or place objects on it. Doing so will cause damage

or breakdown.

• Do not use your own screws. Use only the screws

provided. If you use the wrong screws, you could

damage the unit.

Do Not Load 3-in. CDs in the CD slot

If you try to load a 3 in. CD with its adapter into the

unit, the adapter might separate from the CD and

damage the unit.

About CD players/disc changers connected

to this unit

Kenwood disc changers/ CD players released in 1998

or later can be connected to this unit.

Refer to the catalog or consult your Kenwood dealer

for connectable models of disc changers/ CD players.

Note that any Kenwood disc changers/ CD players

released in 1997 or earlier and disc changers made by

other makers cannot be connected to this unit.

Connecting unsupported disc changers/CD players to

this unit may result in damage.

Set the "O-N" Switch to the "N" position for the

applicable Kenwood disc changers/ CD players.

The functions you can use and the information

that can be displayed may differ depending on the

models being connected.

• You can damage both your unit and the CD changer if you

connect them incorrectly.

Lens Fogging

When you turn on the car heater in cold weather,

dew or condensation may form on the lens in the

CD player of the unit. Called lens fogging, this

condensation on the lens may not allow CDs to play.

In such a situation, remove the disc and wait for the

condensation to evaporate. If the unit still does not

operate normally after a while, consult your Kenwood

dealer.

6 DNX7200

Safety precautions

B64_3824_1001_EN_P01_63.indd 6B64_3824_1001_EN_P01_63.indd 6 07.6.8 10:45:54 AM07.6.8 10:45:54 AM

• If you experience problems during installation,

consult your Kenwood dealer.

• When you purchase optional accessories, check

with your Kenwood dealer to make sure that they

work with your model and in your area.

• The characters conforming to ISO 8859-1 character

set can be displayed.

• The RDS or RBDS feature won’t work where the

service is not supported by any broadcasting

station.

• The illustrations of the display and the panel

appearing in this manual are examples used to

explain more clearly how the controls are used.

Therefore, what appears on the display in the

illustrations may differ from what appears on the

display on the actual equipment, and some of the

illustrations on the display may be inapplicable.

How to reset your unit

• If the unit fails to operate properly, press the Reset

button. The unit returns to factory settings when

the Reset button is pressed.

• Remove the USB device before pressing the Reset

button. Pressing the Reset button with the USB

device installed can damage the data contained in

the USB device. For how to remove the USB device,

refer to <Playing a USB device> (page 15).

• Press the reset button if the disc auto changer fails

to operate correctly. Normal operation should be

restored.

Reset button

NAV

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a

dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the stain off

with a cloth moistened with neutral cleaner, then

wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its

mechanical parts. Wiping the faceplate with a hard cloth

or using a volatile liquid such as thinner or alcohol may

scratch the surface or erases characters.

TV tuner that can be connected to this unit

• KTC-V500E

• KTC-V300E

About iPod that can be connected to this

unit

You can control an iPod from this unit by connecting

an iPod (commercial product) with Dock connector

using an optional accessory iPod connection cable

(KCA-iP300V).

The following iPods can be controlled from this unit.

Controllable iPod Software version

iPod nano iPod nano software 1.2

iPod nano second generation iPod software 1.1.1

iPod with video iPod software 1.2

You must update your iPod software if its version is

less than the above.

The iPod software version is displayed in the "Version"

field by pressing the iPod MENU button and then

selecting "Set", "Information". The latest iPod software

updater can be downloaded from the Apple

Computer web site.

The character set supported by this unit is ISO 8859-1.

Characters that cannot be displayed correctly appear

as "*".

By connecting your iPod to this unit with an optional

accessory iPod connection cable (KCA-iP300V), you

can supply power to your iPod as well as charge it

while playing music. However, the power of this unit

must be on.

Notes

English 7

B64_3824_1001_EN_P01_63.indd 7B64_3824_1001_EN_P01_63.indd 7 07.6.8 10:45:55 AM07.6.8 10:45:55 AM

Handling CDs

• Do not touch the recording surface of the CD.

• Do not stick tape etc. on the CD, or use a CD with

tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move

outward.

• When removing CDs from this unit, pull them out

horizontally.

• If the CD center hole or outside rim has burrs,

use the CD only after removing the burrs with a

ballpoint pen etc.

CDs that cannot be used

• CDs that are not round cannot be used.

• CDs with coloring on the recording surface or CDs

that are dirty cannot be used.

• This unit can only play the CDs with .

This unit may not correctly play discs which do not

have the mark.

• You cannot play a CD-R or CD-RW that has not

been finalized. (For the finalization process refer to

your CD-R/CD-RW writing software, and your CD-

R/CD-RW recorder instruction manual.)

List of playable discs

Disc

types

Standard Support Remark

DVD DVD Video ‡

DVD Audio ×

DVD-R ‡

MP3/WMA/AAC/JPEG/

MPEG/DivX Playback

Multi-border/Multisession/

(Playback depends on

authoring conditions)

Compatible with 8-cm (3

inch) discs

DVD-RW ‡

DVD+R ‡

DVD+RW ‡

DVD-R DL (Dual layer) ‡Only video format

DVD+R DL (Double layer) ‡

DVD-RAM ×

CD Music CD ‡CD-TEXT/8-cm (3 inch)

discs supported.

CD-ROM ‡MP3/WMA/AAC/JPEG/

DivX playback

Multisession supported

Packet write not supported.

CD-R ‡

CD-RW ‡

DTS-CD ‡

Video CD (VCD) ‡

Super video CD ×

Photo CD ×

CD-EXTRA %Only music CD session can

be played.

HDCD %Sound quality of normal

CD music

CCCD ×

Others Dualdisc ×

Super audio CD %Only CD layer can be

played.

‡ : Playback is possible.

% : Playback is partly possible.

× : Playback is impossible.

⁄

• DivX file must have the extension ".divx", ".div", or ".avi".

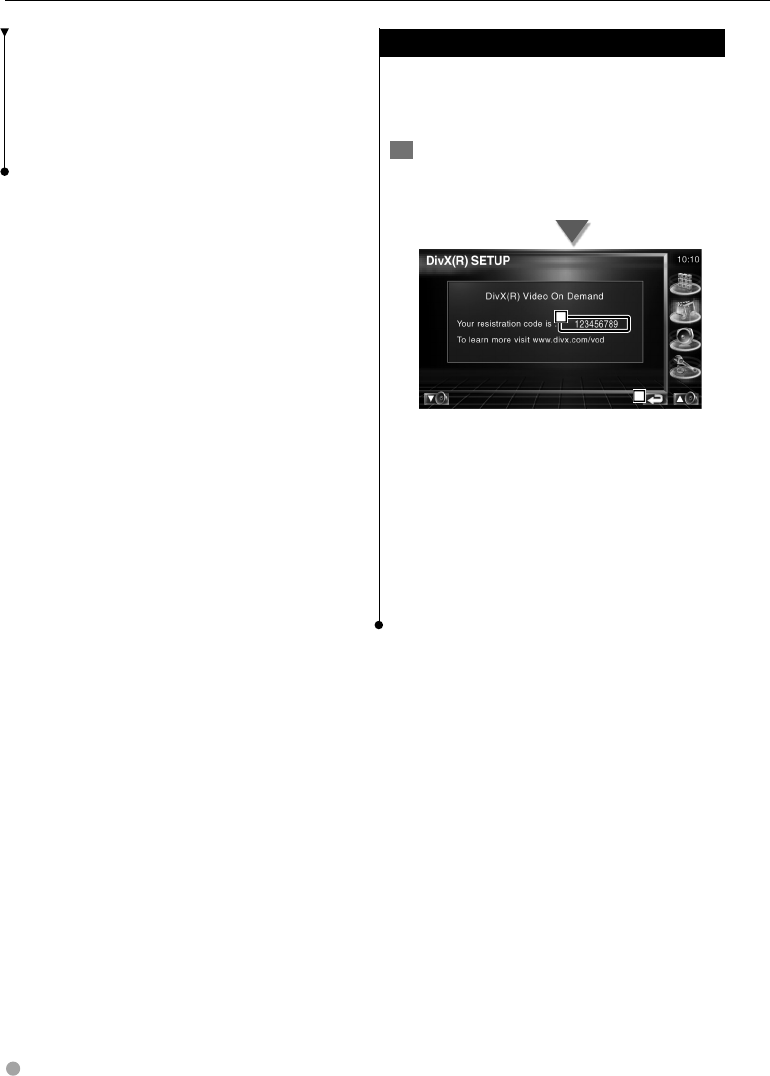

• When buying DRM enabled contents, check the

Registration Code in the <DivX Setup> (page 68).

Registration Code changes each time a file with the

displayed Registration Code is played to protect against

copying.

Notes

8 DNX7200

B64_3824_1001_EN_P01_63.indd 8B64_3824_1001_EN_P01_63.indd 8 07.6.8 10:45:56 AM07.6.8 10:45:56 AM

Region codes in the world

The DVD players are given a region code according to the country or area it is marketed, as shown in the

following map.

Operation regulatory marks

With this DVD, some functions of this unit such as the

play function may be restricted depending on the

location where the DVD is playing. In this case, the

following marks will appear on the screen. For more

information, refer to the disc manual.

禁止マーク

Prohibition Mark

Discs with limited period of use

Do not leave discs with a limited period of use in this

unit. If you load an already expired disc, you may not

be able to remove it from this unit.

DVD disc marks

Symbol Description

ALL

Indicates a region number. The discs with this mark can

be played with any DVD player.

Indicates the number of audio languages recorded. Up

to 8 languages can be recorded in a movie. You can

select a favorite language.

Indicates the number of subtitled languages recorded.

Up to 32 languages can be recorded.

If a DVD disc has scenes shot from multiple angles, you

can select a favorite angle.

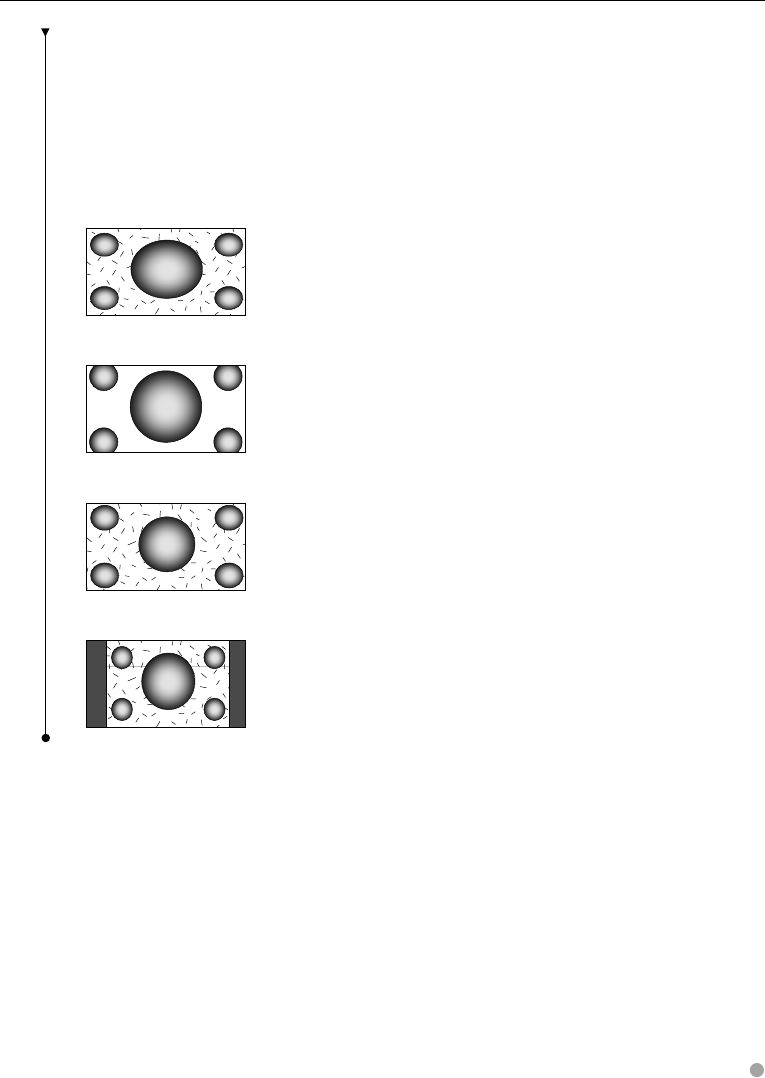

16:9 LB

Indicates the type of screen for the image. The left mark

indicates that a wide image picture (16:9) is displayed

on a standard TV set screen (4:3) with a black band at

both the top and bottom of the screen (letter box).

English 9

B64_3824_1001_EN_P01_63.indd 9B64_3824_1001_EN_P01_63.indd 9 07.6.8 10:45:56 AM07.6.8 10:45:56 AM

10 DNX7200

Notes

About Audio files

• Playable Audio file

AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)

⁄

• If music of normal CD and other playback systems are

recorded in the same disc, only the playback system

recorded at the first setout is played.

• Playable AAC file

".m4a" file encoded by AAC-LC format.

Transfer bit rate: 16 – 320 kbps

Sampling frequency: 16 – 48 kHz

• Playable MP3 file

MPEG 1/2 Audio Layer 3 file

Transfer bit rate: 8 – 320 kbps

Sampling frequency: 8 – 48 kHz

• Playable WMA file

The file in accordance with Windows Media Audio

(Except for the file for Windows Media Player 9 or

after which applies the new functions)

Transfer bit rate: 48-192 kbps

Sampling frequency: 32, 44.1, 48 kHz

• Playable disc media

CD-R/RW/ROM, DVD±R/RW

• Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name.

• The maximum number of characters for display

(CD-R/RW/DVD±R/RW)

File/Folder name: 128 characters

MP3 ID3 Tag version 1.x: 30 characters

• Limitation of structure for the file and the

folder (CD-R/RW/DVD±R/RW/USB device)

Maximum number of directory levels: 8

Maximum number of folders: 254

Maximum number of files per folder: 255

Maximum number of files per playlist: 7000 (USB

device)

• Playable USB device

USB mass storage class, iPod with KCA-iP300V

• Playable USB device file system

FAT16, FAT32

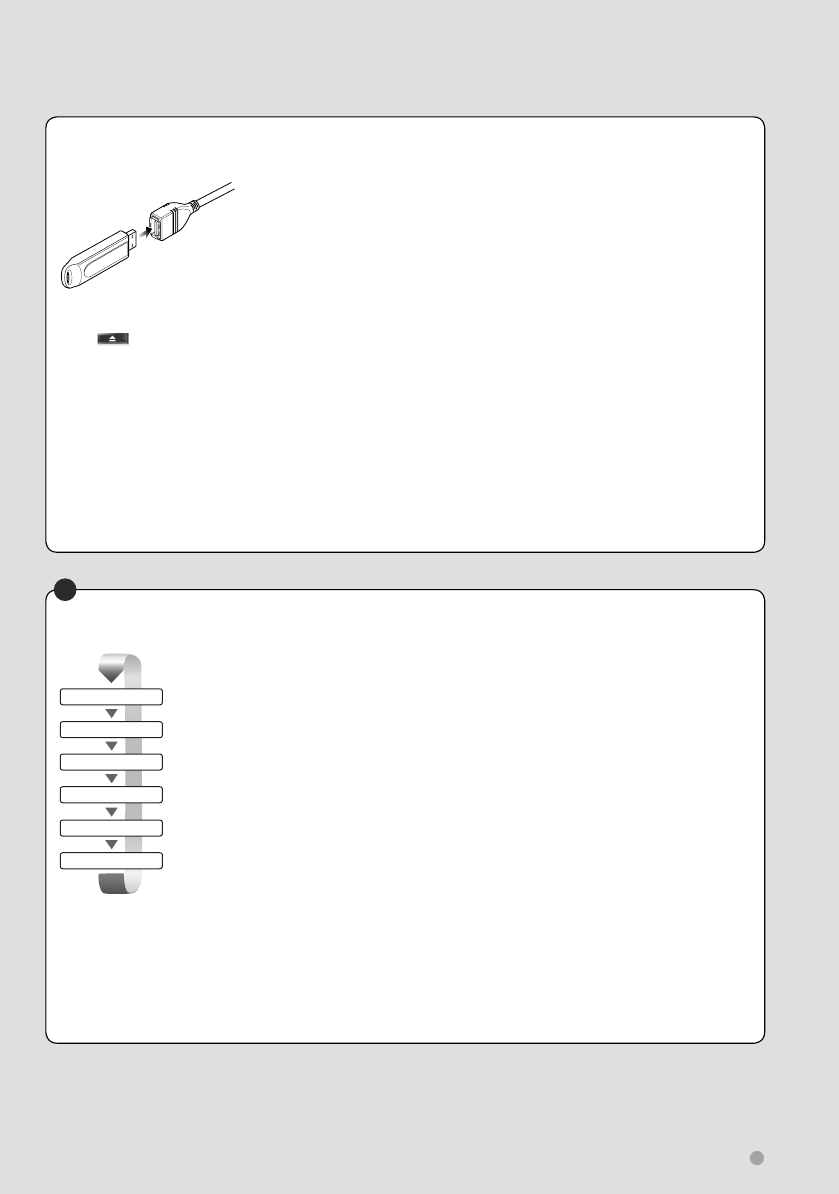

• About the Connection of the USB device

If an extension cable is needed for USB device

connection, usage of the CA-U1EX (option) is

recommended.

Normal playback is not guaranteed when a cable

other than the USB compatible cable is used.

Connecting a cable whose total length is longer

than 5 m can result in abnormal playback.

Although the audio files are complied with the standards

listed above, the play maybe impossible depending on

the types or conditions of media or device.

• Playing order of the Audio file

In the example of folder/file tree shown below, the

files are played in the order from ① to ⑩.

v



()

<: Folder

v: Audio 



v



v

v

v.

 v

Folder

Audio file

The Audio file plays in the order which is written

by CD writing software. You may be able to set

the playing order by writing the play sequence

numbers such as "01" to "99" at the beginning of

the file name.

Audio files are played in the order the files are

written. You can specify the order of playback by

numbering files in a folder and writing them by

folder. (USB device)

⁄

• In this manual, the word "USB device" is used for flash

memories and digital audio players which work as mass-

storage-class devices.

• "iPod" in this manual refers to iPod connected with KCA-

iP300V (Optional accessory). iPod connected with KCA-

iP300V can be controlled from this unit. iPods that can be

connected to KCA-iP300V are iPod nano and iPod with

video. If you connect an iPod with commercially available

USB cable, it is treated as a mass storage class device.

• For the supported formats and types of USB device, refer to

www.kenwood.com/usb/.

• Attach the correct extension for the Audio file (AAC: ".M4A",

MP3: ".MP3", WMA: ".WMA")

• Do not attach the extensions to files other than the Audio

file. If the extension is attached, the file, which is not the

Audio file, will play and outputs a loud noise, causing

damage to the speaker.

• The files with copy protection cannot be played.

• The unit may not be compatible with upgrade of

compression format standard and additional specifications.

• CD-RW discs which are quick formatted by the writing

software cannot be used.

• When recording to the maximum CD-R/RW media capacity

at once, the writing software is set to "Disc at once".

• File/Folder name is the number of the characters including

the extensions.

• This unit can display the following versions of MP3 ID3 tag:

version 1.0/ 1.1/ 2.2 (USB device)/ 2.3 (USB device)

• AAC ID3 Tag cannot be displayed.

• Contact the sales agent as to whether your USB device

conforms to the USB mass storage class specs.

B64_3824_1001_EN_P01_63.indd 10B64_3824_1001_EN_P01_63.indd 10 07.6.8 10:45:57 AM07.6.8 10:45:57 AM

English 11

• Using an unsupported USB device can result in abnormal

playback or display of the audio file.

Even if you use the USB device conforming to the above

specs, audio files cannot be played normally depending on

the type or condition of the USB device.

• Do not leave the USB device in the vehicle for a long time.

It can deform or damage due to direct sunlight, high

temperature, etc.

About Video files

Acceptable video files

• Format: MPEG1, MPEG2, DivX

• Picture size:

MPEG1: 320 × 240, 352 × 240

MPEG2: 640 × 480, 704 × 480

DivX: 352 x 240, 352 x 288, 720 x 450, 720 x 576

• Audio format:

MPEG1/2: MPEG Audio Layer 2

DivX: MP3, Dolby Digital

• Audio sampling frequencies: 32/ 44.1/ 48 kHz

• Audio bit rate: 32–384 kbps (Only constant bit

rates)

Extensions

Video files must have one of the following extensions:

mpg, mpeg, mpe, m1v, m2v, divx, div, avi

Disc formats, file and folder names and playing order

are the same as those for audio files. Refer to <About

Audio files> (page 10).

About Picture files

Acceptable picture files

• Format: JPEG

• Baseline format:

Up to a maximum of 8192(W) × 7680(H) pixels

• Progressive format:

Up to a maximum of 1600(W) × 1200(H) pixels

⁄

• Enlarges and reduces images up to the size shown above

to fit to the screen.

• The picture files with information attached (such as Exif)

may not be displayed or operated (e.g.: rotation display)

properly.

Extensions

Picture files must have one of the following

extensions:

jpg, jpeg, jpe

Acceptable discs, disc formats, file and folder names

and playing order are the same as those for audio

files. Refer to <About Audio files> (page 10).

About USB device

• Install the USB device in the place where it will not

prevent you from driving your vehicle properly.

• You cannot connect a USB device via a USB hub.

• Take backups of the audio files used with this unit.

The files can be erased depending on the operating

conditions of the USB device.

We shall have no compensation for any damage

arising out of erasure of the stored data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

Use of "DualDisc"

When playing a "DualDisc" on this unit, the surface

of the disc that is not played may be scratched

while the disc is inserted or ejected. Since the music

CD surface does not conform to the CD standard,

playback may be impossible.

(A "DualDisc" is a disc with one surface containing

DVD standard signals and the other surface

containing music CD signals.)

B64_3824_1001_EN_P01_63.indd 11B64_3824_1001_EN_P01_63.indd 11 07.6.8 10:45:58 AM07.6.8 10:45:58 AM

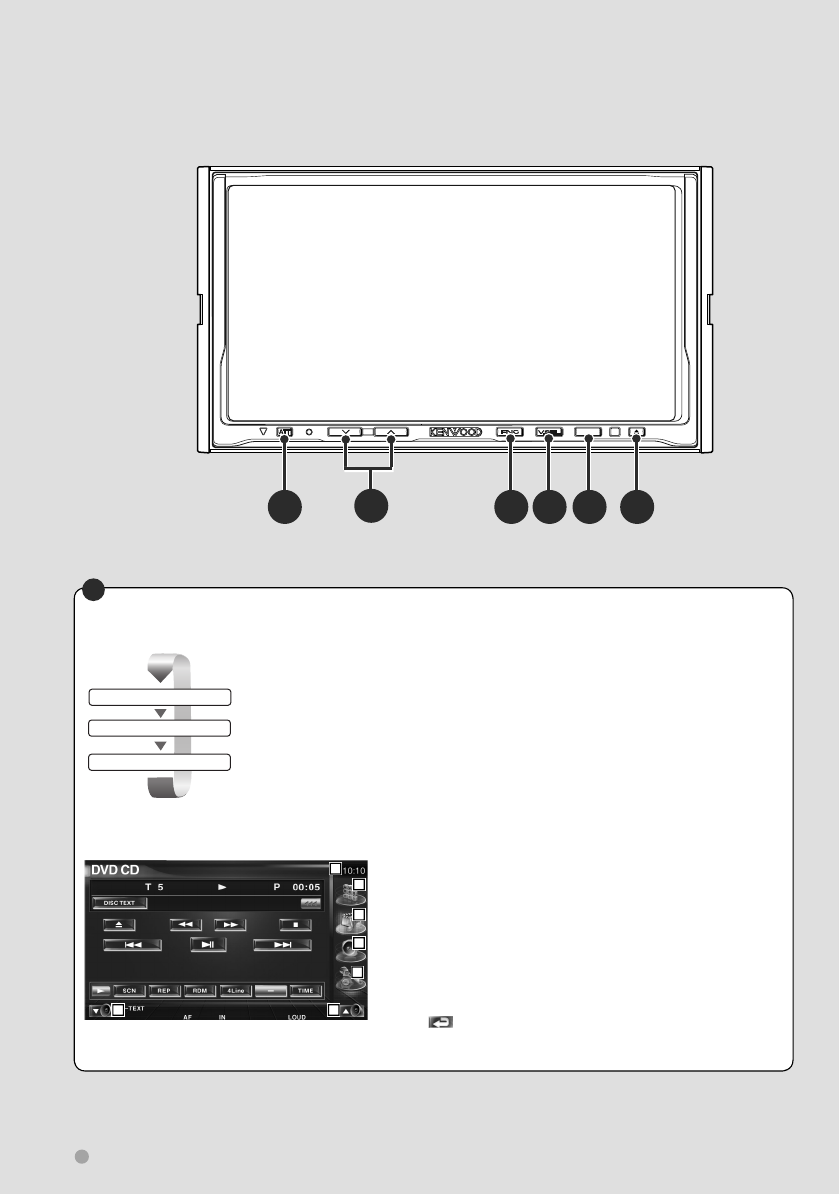

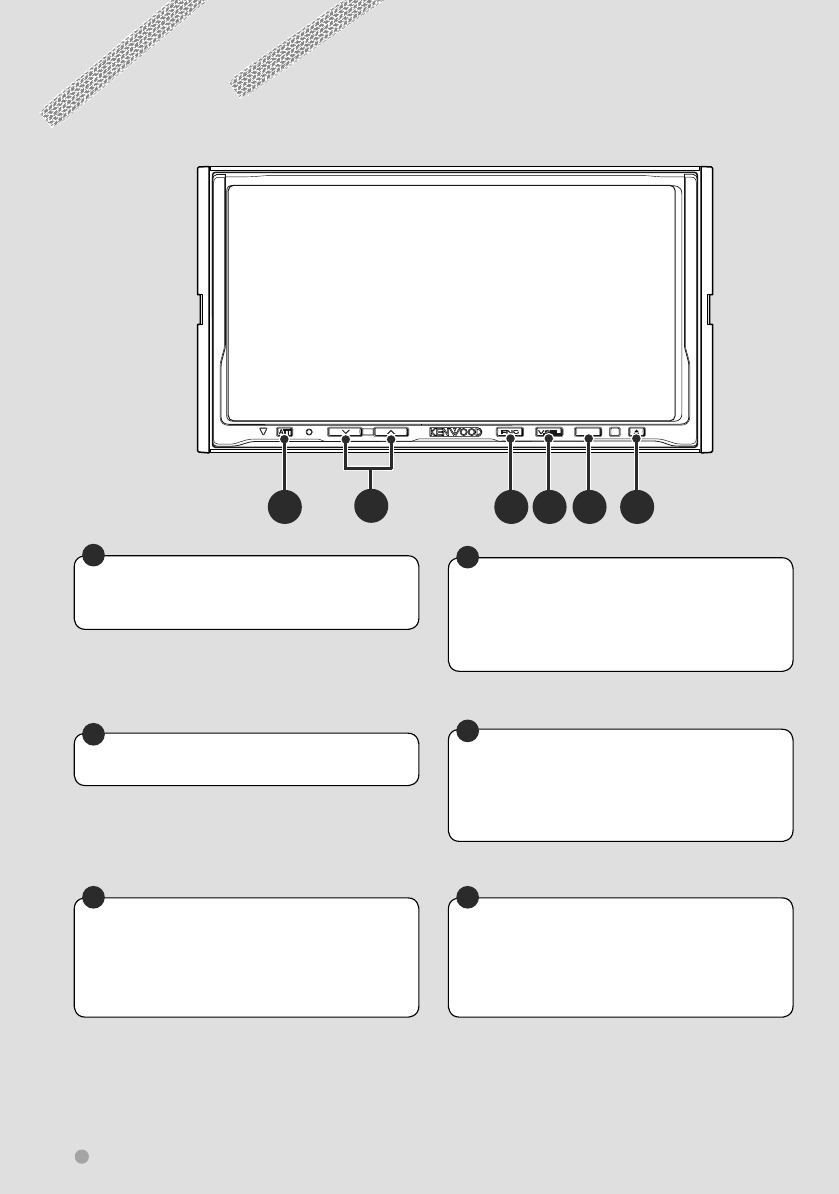

NAV

A EDC F

12 DNX7200

Adjusts the volume

Attenuates the volume

Press it again to cancel muting.

Basic Operations

Switches AV OUT source

Switches the source that is output at the AV

OUTPUT terminal when it is pressed more than

1 second.

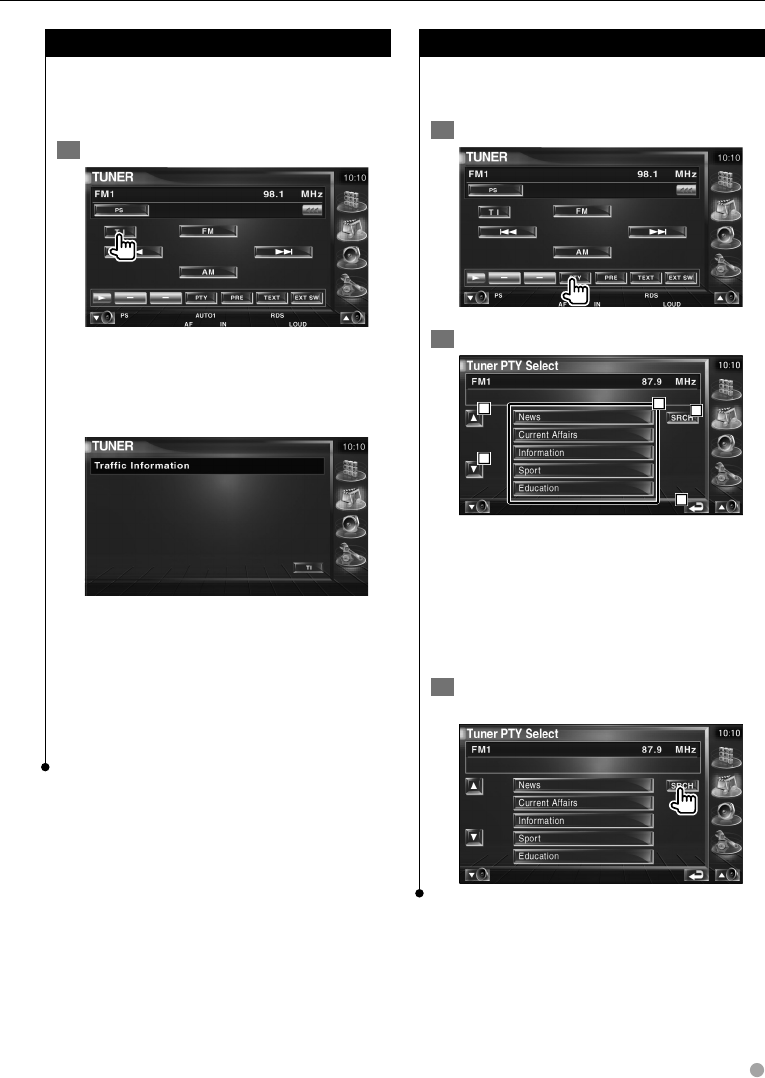

Listening the traffic information

Press it for more than 1 second to turn the

Traffic Information function On or Off.

(page 35)

Turns power ON/OFF

Press the button to turn on the power.

When the button is pressed and held down for

1 second or more, the power is turned off.

Switches to the Navigation system

Press the button to switch the display to the

navigation system screen.

B64_3824_1001_EN_P01_63.indd 12B64_3824_1001_EN_P01_63.indd 12 07.6.8 10:45:58 AM07.6.8 10:45:58 AM

English 13

Next page 3

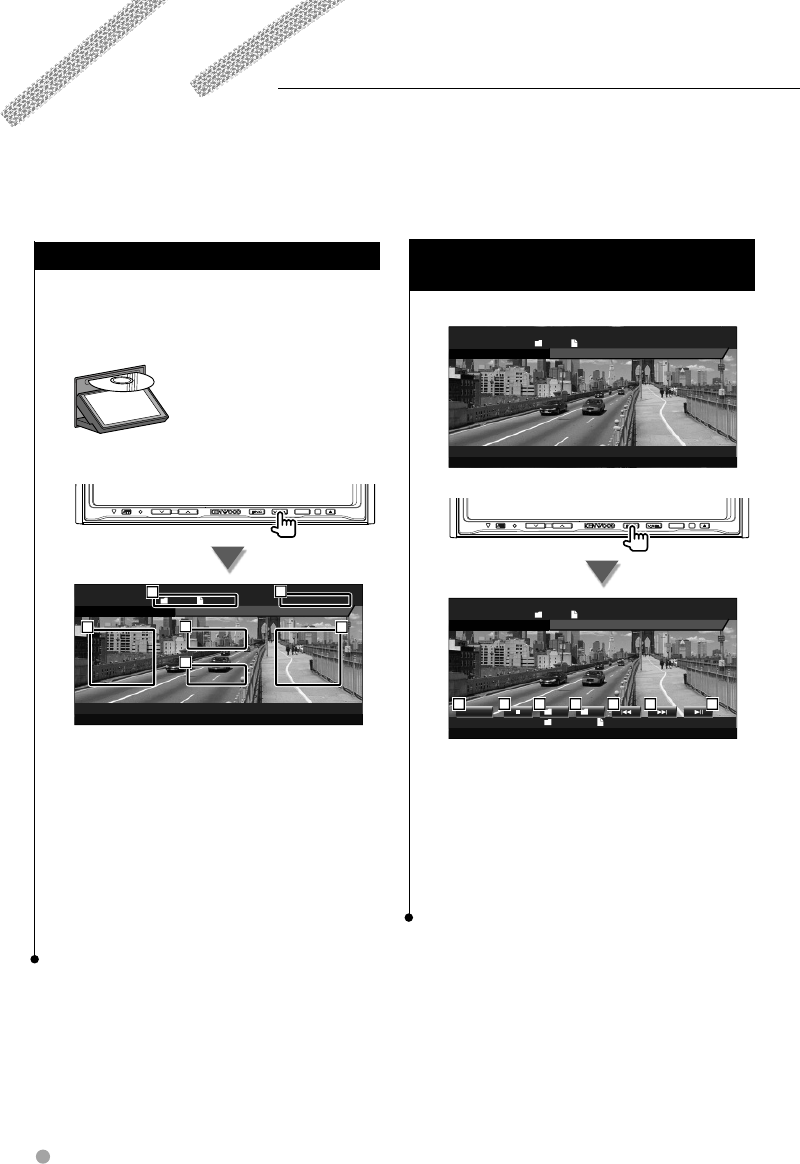

Playing a disc

Press [0] (Eject) button to open the operation panel.

When you load a disc into disc loading slot, the disc starts playing.

If a menu appears, when playing a video disc, select the desired item.

⁄

• See <List of playable discs> (page 8) for a list of supported discs and formats.

Removing a disc

Press [0] (Eject) button to open the operation panel.

After removing the disc, press [0] (Eject) button to close the operation panel.

B64_3824_1001_EN_P01_63.indd 13B64_3824_1001_EN_P01_63.indd 13 07.6.8 10:45:59 AM07.6.8 10:45:59 AM

NAV

A EDC F

14 DNX7200

Basic Operations

Switches the function screen

The function control screen switches in the following order each time you press the button.

Picture & Easy Control Panel

Source Control Screen

Picture Panel (OFF)

The following buttons are always displayed on the source control screen.

1 Displays the Source Select screen. (page 52)

2 Returns to the Source Control screen.

3 Displays the Audio Control Menu screen. (page 84)

4 Displays the SETUP Menu screen. (page 64)

5 Adjusts the Volume.

6 Clock display

⁄

• Touch displayed at bottom right of various screens to return to

the original screen.

B64_3824_1001_EN_P01_63.indd 14B64_3824_1001_EN_P01_63.indd 14 07.6.8 10:45:59 AM07.6.8 10:45:59 AM

English 15

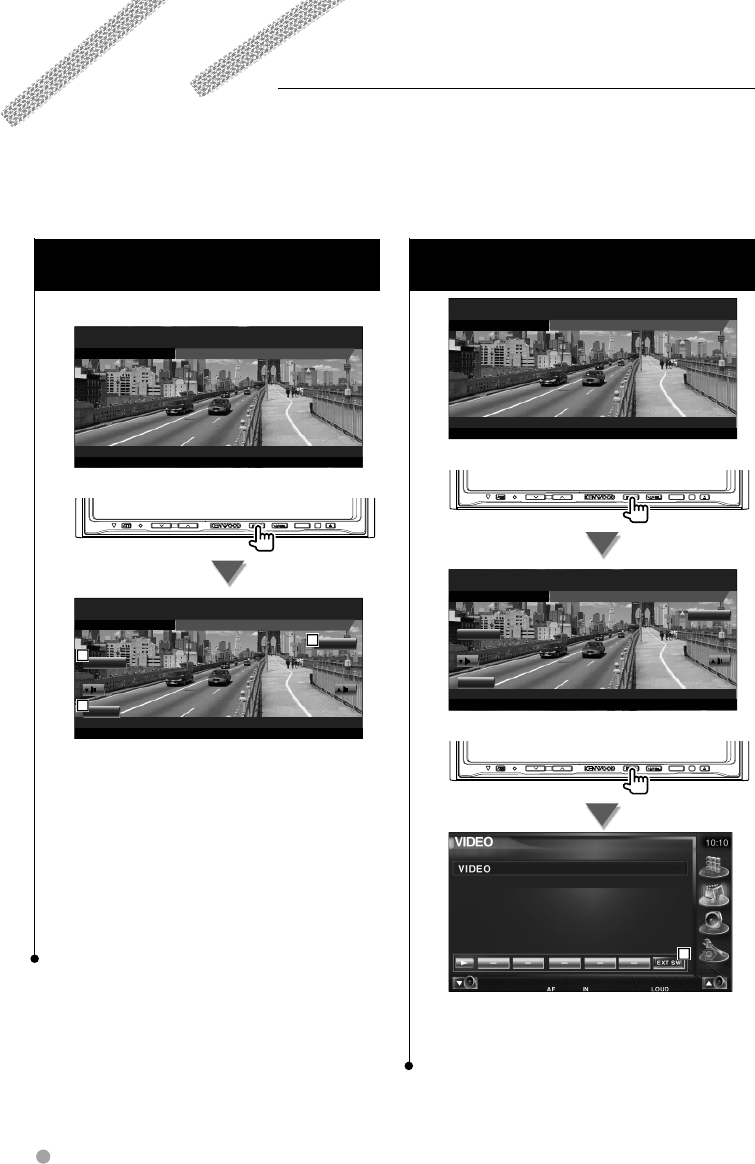

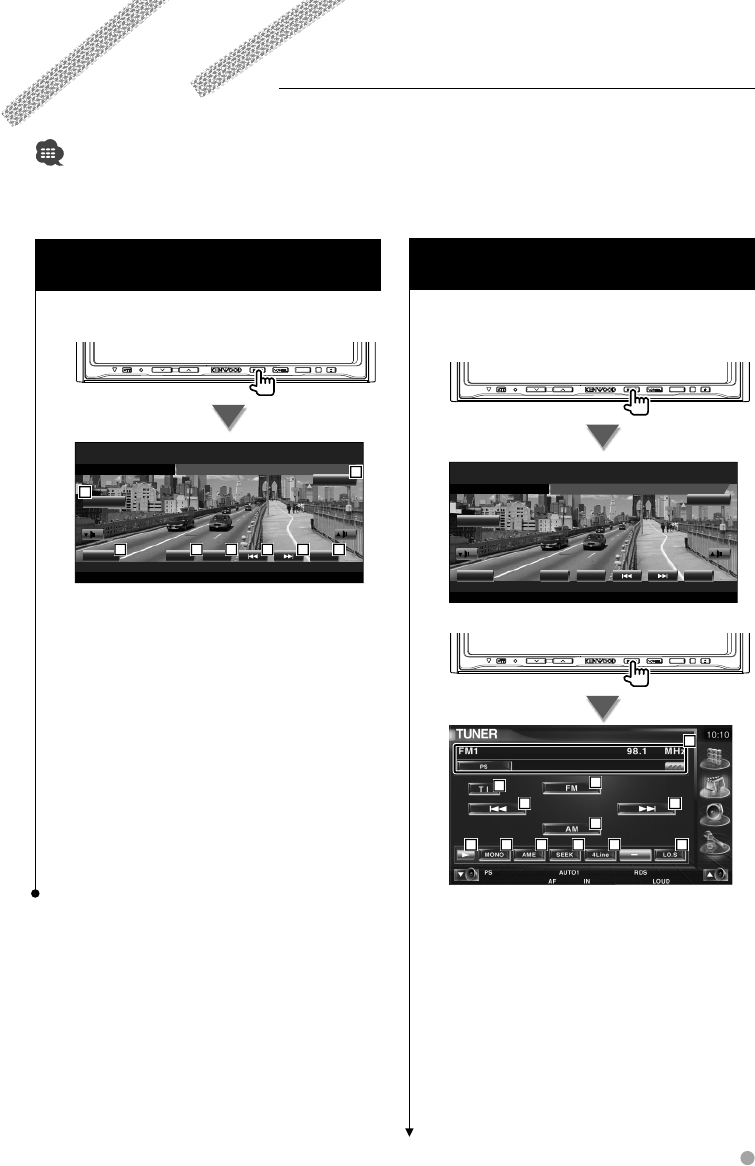

Switches the video source

The video source switches in the following order each time you press the button.

Built-in Disc Player

Video

iPod

Rear View Camera

Navigation

You can also turn off the video display by pressing the button longer than 1 second.

When you press the button again, the previous video display comes back on.

⁄

• You cannot switch to a source that is not connected or inserted.

• The Rear view camera video is displayed when the vehicle's gear is in "Reverse".

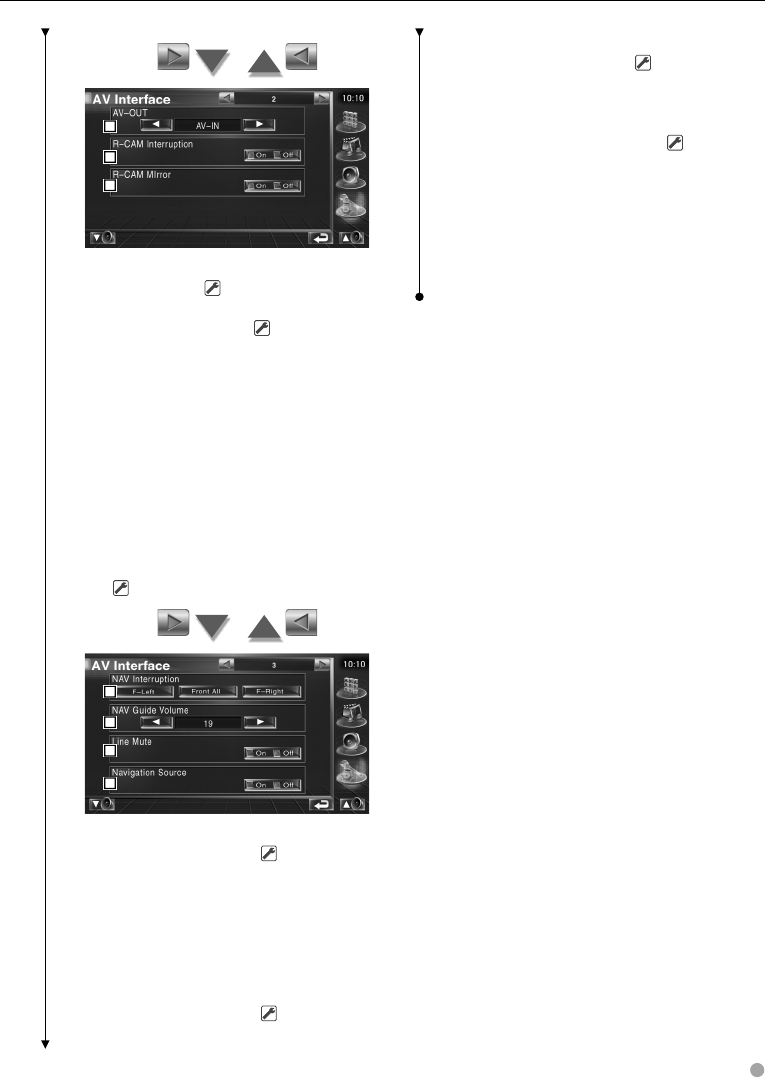

• Turn "On" the "Navigation Source" of the <AV Interface Setup> (page70) to display the Navigation video.

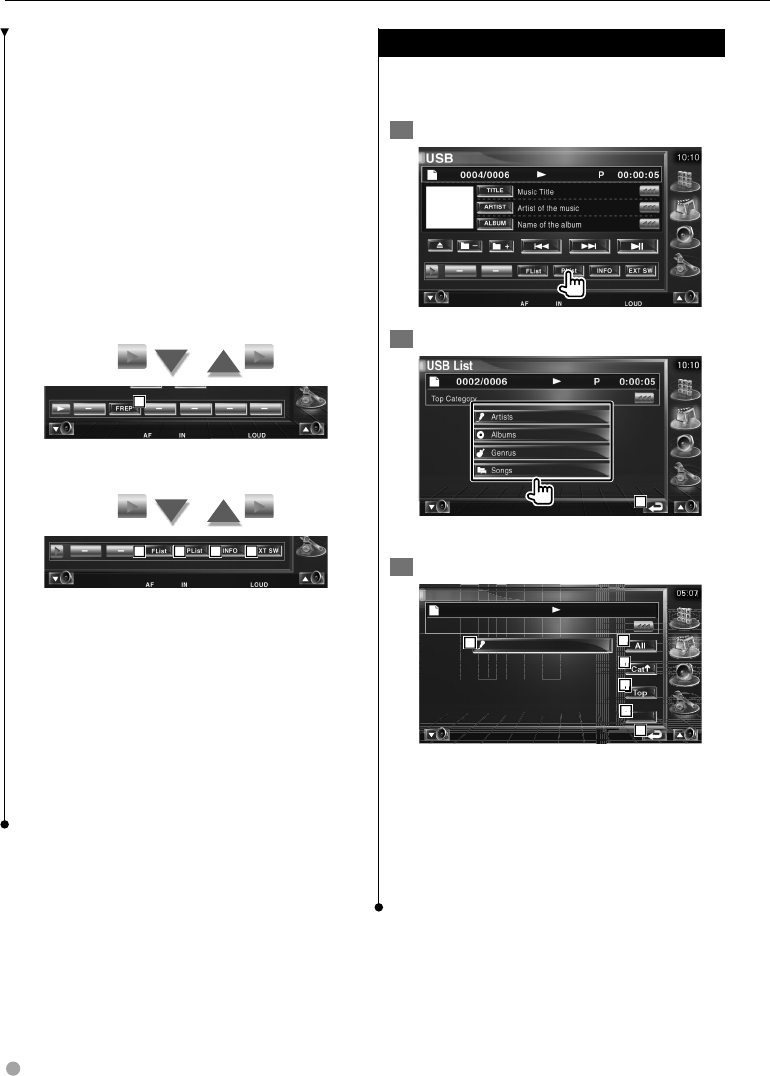

Playing a USB device

When connecting a USB device, playback starts automatically.

Removing the USB device

Press on the USB control screen to enter the USB suspend mode, and then remove the USB

device. Refer to <USB Device Control> (page 39).

• Removing the USB device before entering the USB suspend mode may result in damaging the data in the USB device.

⁄

• If the USB source is selected when a USB device is not connected, "No Device" is displayed.

• When the playback is stopped and then restarted, the playback will start from the point where it was stopped at the last

time. Even if the USB is removed and connected again, the playback will start from the last stopped point unless the

contents in the USB device is changed.

• Make sure that the USB device is connected firmly.

B64_3824_1001_EN_P01_63.indd 15B64_3824_1001_EN_P01_63.indd 15 07.6.8 10:46:00 AM07.6.8 10:46:00 AM

16 DNX7200

Sets and controls the navigation system function.

Using the Navigation System

Displays the navigation system screen and makes

the navigation function available.

1 Displaying the navigation screen

NAV

Press several times until the navigation screen

appears.

2 Setting the navigation system function

Touch the navigation system button displayed

on the screen. See the included NAVIGATION

SYSTEM's INSTRUCTION MANUAL for

information on using the navigation system.

⁄

• You can set the navigation system function when

nothing else is displayed on the screen. If anything else,

such as Easy control panel is displayed, erase it first.

Navigation Control

Accessing the SD Memory Card Insertion

Slot

An SD memory card is used to upgrade the map.

1 Press [NAV] to turn the power on

NAV

2 Press [0] to close the panel

NAV

3 Press [0] for at least 1 second to fully open

the panel

NAV

⁄

• See the NAVIGATION SYSTEM's INSTRUCTION MANUAL

for the detail upgrade method.

B64_3824_1001_EN_P01_63.indd 16B64_3824_1001_EN_P01_63.indd 16 07.6.8 10:46:01 AM07.6.8 10:46:01 AM

English 17

Watching DVD/VCD

You can play DVD/VCD using various functions.

• For the basic method of how to watch DVD/VCD, refer to <Basic Operations> (page 12).

• Set the remote controller mode switch to "DVD" mode before starting operation, refer to <Remote Controller mode switch>

(page 88).

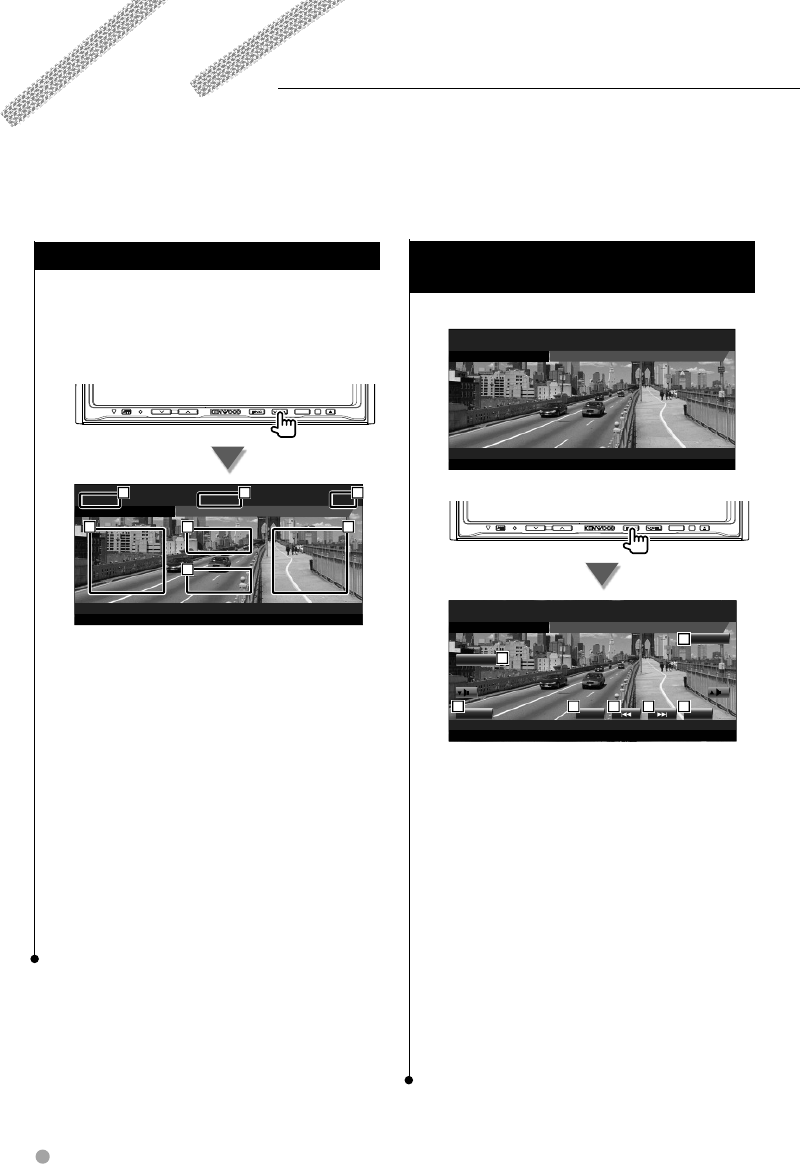

Functions During the Playback Screen

Basic functions are available even when the

playback screen is displayed.

Display the playback screen.

NAV

DVD playback screen

Mode:Full

P 00:00:05

AV–OUT:AV–IN

Title

Chap

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

1 2 3

5 4

1 Title Number Display

2 Chapter Number Display

3 Play Time Display

4 Forward Chapter Search Area

Selects the next chapter.

5 Backward Chapter Search Area

Selects the previous chapter.

6 DVD Disc Menu Control Buttons Area

Displays the Disc Menu Control buttons

(page 19).

7 Information Display Button Area

VCD playback screen

Mode:Full

P 00:05

Scene

DVD VCD

P 00:05

Scene

DVD VCD

AV–OUT:AV–IN

PBC VER2 ST IN AF

8 9

11 10

8 Scene/Track Number Display

9 Play time Display

p Forward Scene/Track Search Area

Selects the next scene (when PBC is On) or

track (when PBC is Off ).

q Backward Scene/Track Search Area

Selects the previous scene (when PBC is On)

or track (when PBC is Off ).

w Zoom Control Button Area

Displays the Zoom Control buttons (page

21).

e Information Display Button Area

⁄

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

B64_3824_1001_EN_P01_63.indd 17B64_3824_1001_EN_P01_63.indd 17 07.6.8 10:46:03 AM07.6.8 10:46:03 AM

18 DNX7200

Functions When Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

Mode:Full

P 00:00:05

AV–OUT:AV–IN

Title

Chap

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

NAV

P 00:00:05

Title

Chap

IN AT T

SRC

SCRN

EXT SW

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

Mode:Full AV–OUT:AV–IN

12 3 4 5

3 4

1 Switches the source.

2 Stops playing.

When pressed twice, the disc is played from

its beginning when you play it in the next

time.

3 Fast Forwards or Fast Backwards.

4 Chapter Search (during DVD play)

Searches for a chapter.

Scene/Track Search (during VCD play)

Selects a scene (when PBC is On) or a track

(when PBC is Off ).

5 Plays or pauses.

6 Displays the Screen Control screen.

Refer to <Screen Control> (page 56).

7 Displays the external device control screen.

Refer to <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

Watching DVD/VCD

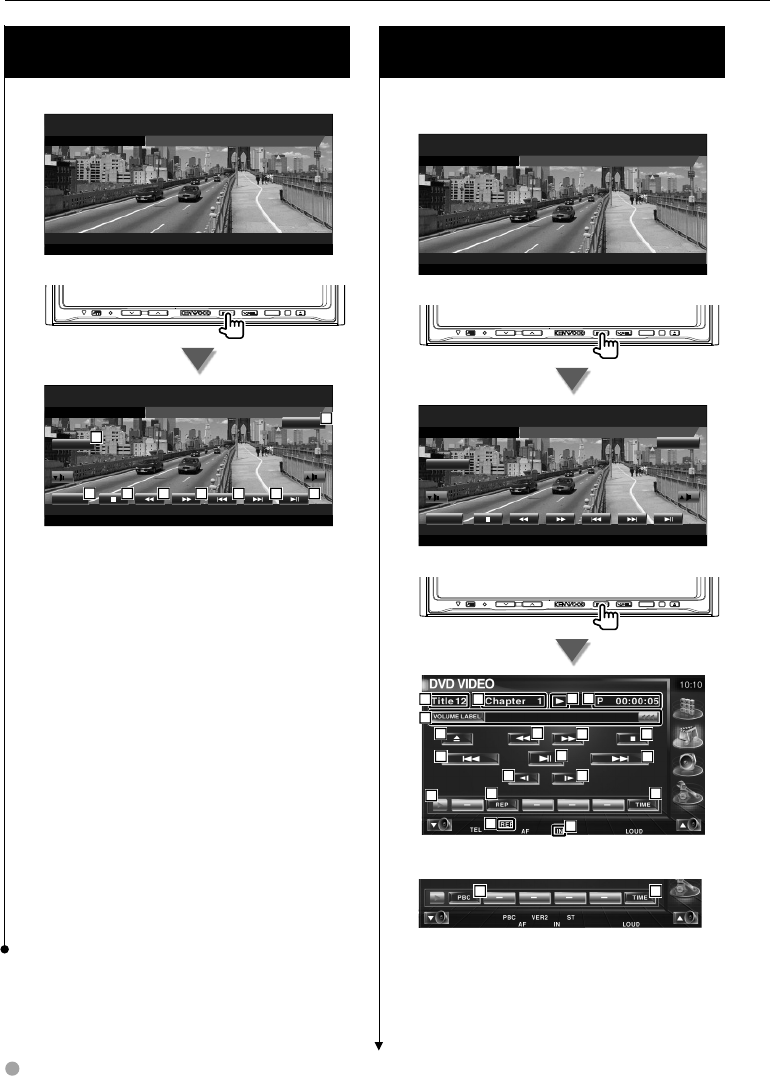

Functions While Displaying the Control

Screen

Switches to control screen to use various

playback functions.

Mode:Full

P 00:00:05

AV–OUT:AV–IN

Title

Chap

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

NAV

P 00:00:05

Title

Chap

IN AT T

SRC

SCRN

EXT SW

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

Mode:Full AV–OUT:AV–IN

NAV

8 9

11 13

When playing a VCD

17 9

1 Ejects the disc from the built-in disc player.

2 Fast Forwards or Fast Backwards.

3 Stops playing.

When pressed twice, the disc is played from

its beginning when you play it in the next

time.

B64_3824_1001_EN_P01_63.indd 18B64_3824_1001_EN_P01_63.indd 18 07.6.8 10:46:05 AM07.6.8 10:46:05 AM

English 19

4 Selects a chapter, a scene or a track.

When the DVD-VIDEO/VCD is paused, touch

this button to start single-frame stepping.

5 Plays or pauses.

6 Slow Forwards or Backwards. (during DVD

play)

7 Switches the button display.

8 Switches the Repeat Play operations in the

following sequence.

DVD: Title Repeat, Chapter Repeat, Repeat

Off

VCD: Track Repeat, Repeat Off (Available

when the PBC is off )

9 Switches the play time display in the

following sequence.

DVD: Chapter, Title, remaining titles

VCD: Track, disc, remaining discs (Effective

only when the PBC function is off )

p Title Number Display (during DVD play)

q Chapter/Scene/Track Number Display

w Play Mode Display

e Play Time Display

r Volume Label Display

When is appeared, the text display is

scrolled by pressing it.

t Function Indicator

y Appears when a disc is inserted.

u Turns the PBC function of VCD On or Off.

(only when VCD Ver 2.0 is in use)

i Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

DVD Disc Menu

Selects an option from the DVD Disc Menu.

1 Display the Disc Menu Control screen

Mode:Full

P 00:00:05

AV–OUT:AV–IN

Title

Chap

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

Ente rEnte r Cance lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

1 Calls the Menu.

2 Returns to the Disc Menu screen.

3 Selects a menu option.

4 Enters your menu selection.

5 Returns to the previous menu screen.

6 Displays the Top Menu.

7 Highlight Control.

8 Clears the Disc Menu Control.

Next page 3

B64_3824_1001_EN_P01_63.indd 19B64_3824_1001_EN_P01_63.indd 19 07.6.8 10:46:08 AM07.6.8 10:46:08 AM

20 DNX7200

Watching DVD/VCD

Highlight Control

You can select a chapter and title for the DVD

Menu screen. When you touch the screen, you

can select the DVD menu.

Ente rEnte r Cance lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

Hi gh l i ght On

⁄

• To cancel Highlight Control, press [V.SEL] button.

2 Select Disc Menu options

Disc Menu

Ente rEnte r Cance lCanc e l

TopTop

Highlight

MenuMenu

enuCtrl

Ex i tEx i t

ReturnReturn

1/11/1

ZoomZoom

3 / 3

SUB

Audio

Angle

1/21/2

enuCtrl

Ex i tEx i t

3/ 3

1413 10

11 12

9 Calls the Menu Control.

p Switches the picture angle.

(during program playback only)

q Switches the subtitle language.

(during program playback only)

w Switches the voice language.

(during program playback only)

e Displays the Zoom Control screen.

r Clears the Disc Menu Control.

Zoom Control

1/11/1

ZoomZoom

3 / 3

SUB

Audio

Angle

1/21/2

enuCtrl

Ex i tEx i t

3/ 3

x2x2 Canc e lCanc e l

ZoomCtrlZoomCtrl

ZoomZoom Ex i tEx i t

16 16

17 18

t Changes the zoom ratio at 4 levels (2 times,

3 times, 4 times, or off) each time you

touch.

y Scrolls the screen in the direction you

touch.

u Returns to the Disc Menu Control screen.

i Clears the Disc Menu Control.

B64_3824_1001_EN_P01_63.indd 20B64_3824_1001_EN_P01_63.indd 20 07.6.8 10:46:09 AM07.6.8 10:46:09 AM

English 21

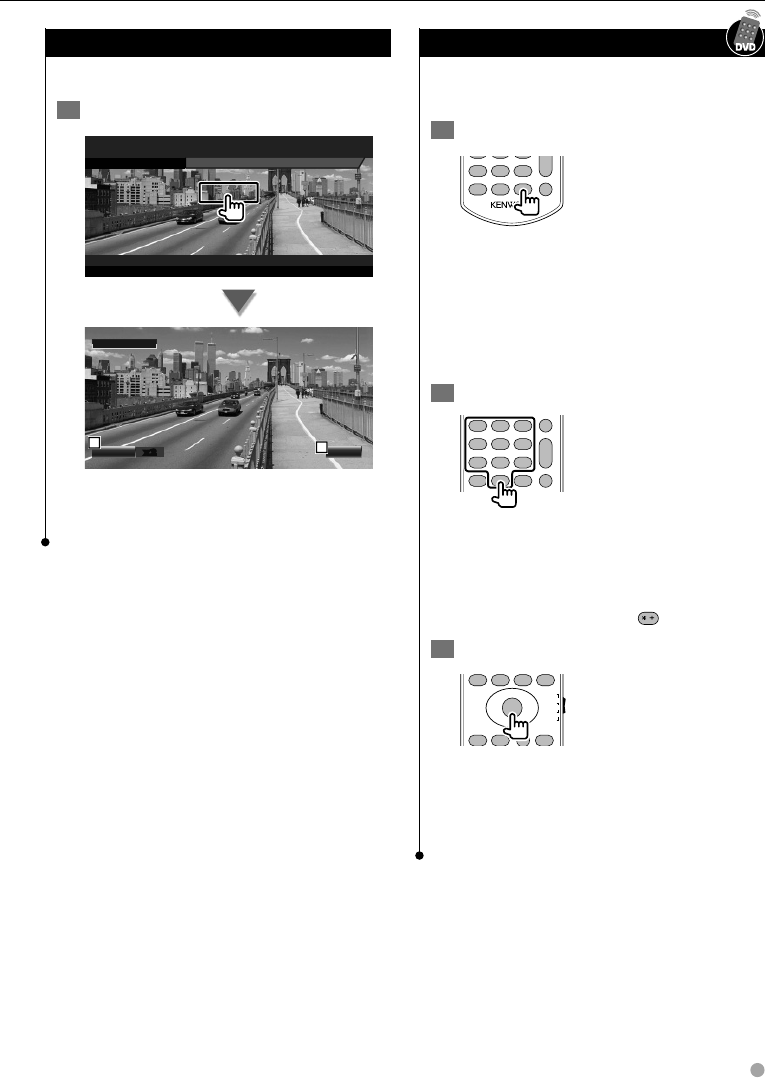

VCD Zoom Control

Displays an enlarged VCD screen.

1 Display the Zoom Control screen

Mode:Full

P 00:05

Scene

DVD VCD

P 00:05

Scene

DVD VCD

AV–OUT:AV–IN

PBC VER2 ST IN AF

x2x2

ZoomCtrlZoomCtrl

ZoomZoom Ex i tEx i t

1 Changes the zoom ratio at 2 levels (2 times

or off ) each time you touch.

2 Clears the Zoom Control button.

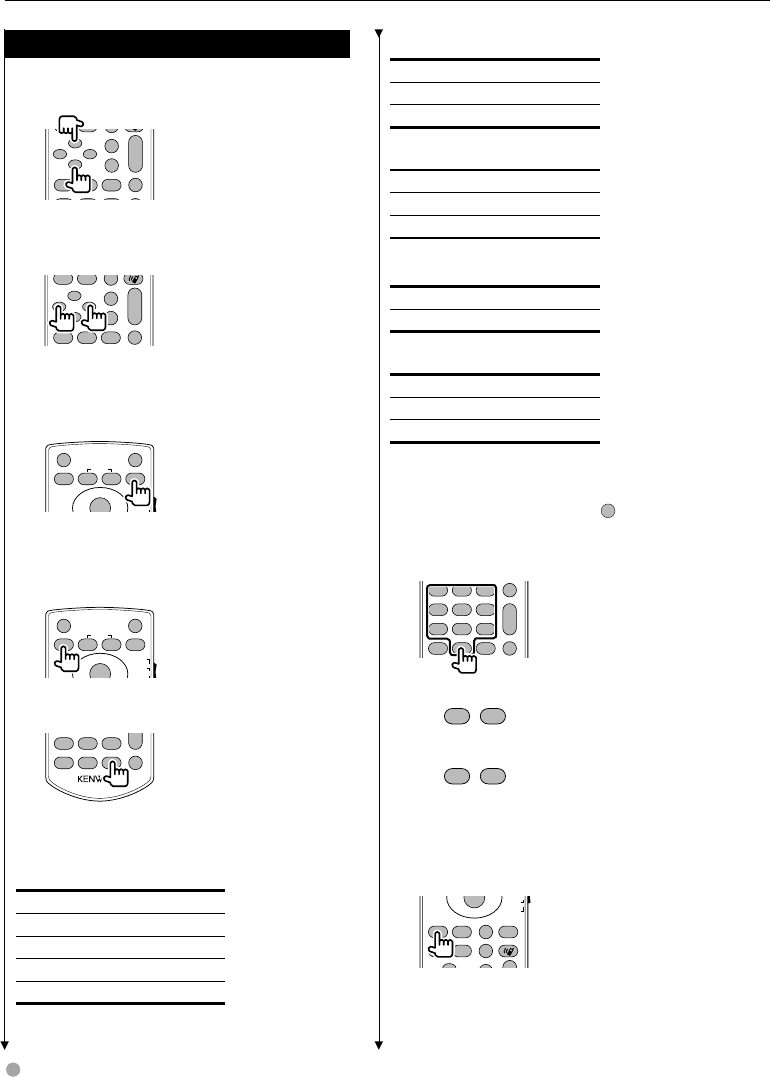

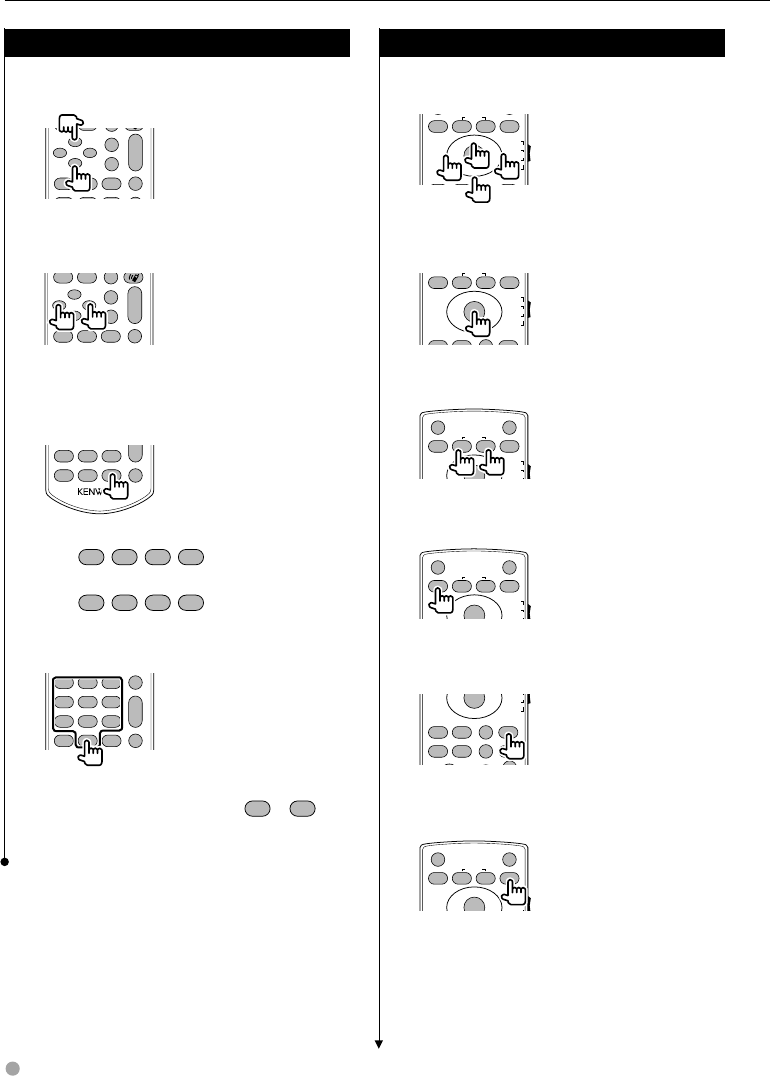

Direct Search

You can search for a DVD/VCD chapter, scene or

track by entering its number.

1 Select the Direct Search mode

R.VOL

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT



CLEAR DIRECT

The following items can be searched directly

each time it is pressed.

DVD: Title, Chapter, Time, Direct number

VCD (when PBC is On): Scene, Direct number

VCD (when PBC is Off ): Track

However, the direct search may not be

supported for some discs.

2 Enter a number or time

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

When playing back a VCD, enter a PBC scene

number (if PBC is On) or a track number (if PBC

is Off ).

⁄

• To clear your incorrect entry, press

CLEAR

(CLEAR).

3 Search

OUT

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION

VOICE

CANCEL

ROUTEM

•

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

• The time search function cannot be searched correctly at

the time set up depending on particular disc.

B64_3824_1001_EN_P01_63.indd 21B64_3824_1001_EN_P01_63.indd 21 07.6.8 10:46:12 AM07.6.8 10:46:12 AM

22 DNX7200

Music Disc & Audio File Listening

You can recall various control screens during CD/Audio file/Disc Changer playback.

• For the basic method of how to play a music disc/audio file, refer to <Basic Operations> (page 12).

• Refer to <List of playable discs> (page 8) for playable discs.

• Refer to <About Audio files> (page 10) for playable files.

Functions When Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

NAV

During CD playback

Mode : Full

P00 0:0

DVD CD

AV - I NAV-OUT:

Track

P00 0:0

DVD CD T r a c k

IN AT T

SRC

SCRN

EXT SW

1 2 3 3 4 4 5

During Audio file playback

P 00:00:05

IN AT T

SRC

– +

DVD MEDIA

1 2 6 6 4 4 5

During playback on disc changer

P00:05

CD CH

D 2 T 1

SRC

D– D+

1 7 7 4 4 5

1 Switches the source.

2 Stops playing.

3 Fast Forwards or Fast Backwards. (only when

a CD is played back on the built-in disc

player).

4 Selects a music.

When you continue to touch button:

Fast Forwards or Fast Backwards.

Disabled when a CD (built-in disc player) are

being played.

5 Plays or pauses.

6 Selects a folder. (only when an Audio file is

played back on the built-in disc player)

7 Selects a disc. (only when a disc is played

back on the disc changer)

8 Displays the Screen Control screen.

(page 56 for the <Screen Control>)

9 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

B64_3824_1001_EN_P01_63.indd 22B64_3824_1001_EN_P01_63.indd 22 07.6.8 10:46:15 AM07.6.8 10:46:15 AM

English 23

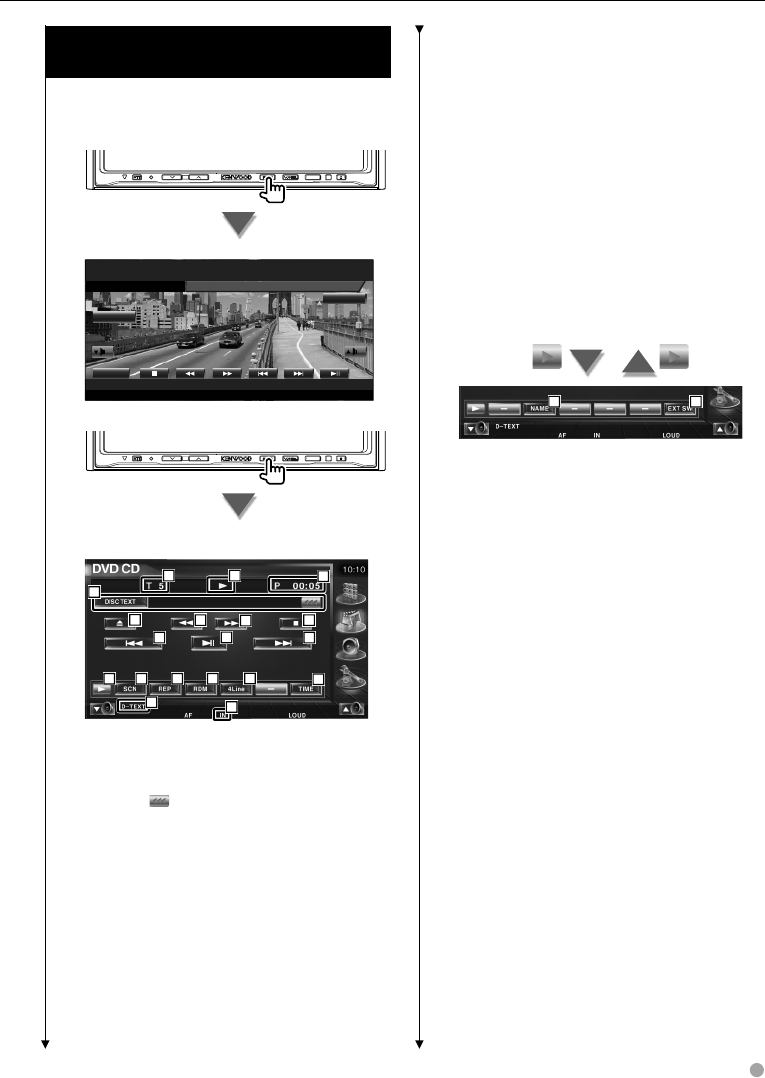

Functions While Displaying the Control

Screen

Switches to control screen to use various playback

functions.

NAV

Mode : Full

P00 0:0

DVD CD

AV - I NAV-OUT:

Track

P00 0:0

DVD CD Track

IN AT T

SRC

SCRN

EXT SW

NAV

During CD playback

2334

7 8 9 10

1 Music information display

Selects the Disc Name (See <Set Disc

Name>, page 26), Disc Text or Track Text.

When is appeared, the text display is

scrolled by pressing it.

2 Ejects the disc from the built-in disc player.

3 Fast Forwards or Fast Backwards.

4 Stops playing the built-in disc player. When

pressed twice, the disc is played from its

beginning when you play it in the next

time.

5 Selects a track.

6 Plays or pauses.

7 Switches the button display.

8 Starts or stops Scan Play (that plays the

beginning of each music one after the

other).

9 Repeats to play (the present track).

p Starts or stops Random Play (to play music

in random order).

q Switches the number of lines displayed in

the Information Display.

w Switches the play time display between

Track, Disc, and Disc Remaining Time.

e Track (Music) Number Display

r Play Mode Display

t Play Time Display

y Function Indicator

u Appears when a disc is inserted.

18 19

i Sets a name to the disc being played. See

<Set Disc Name> (page 26).

o Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

Next page 3

B64_3824_1001_EN_P01_63.indd 23B64_3824_1001_EN_P01_63.indd 23 07.6.8 10:46:18 AM07.6.8 10:46:18 AM

24 DNX7200

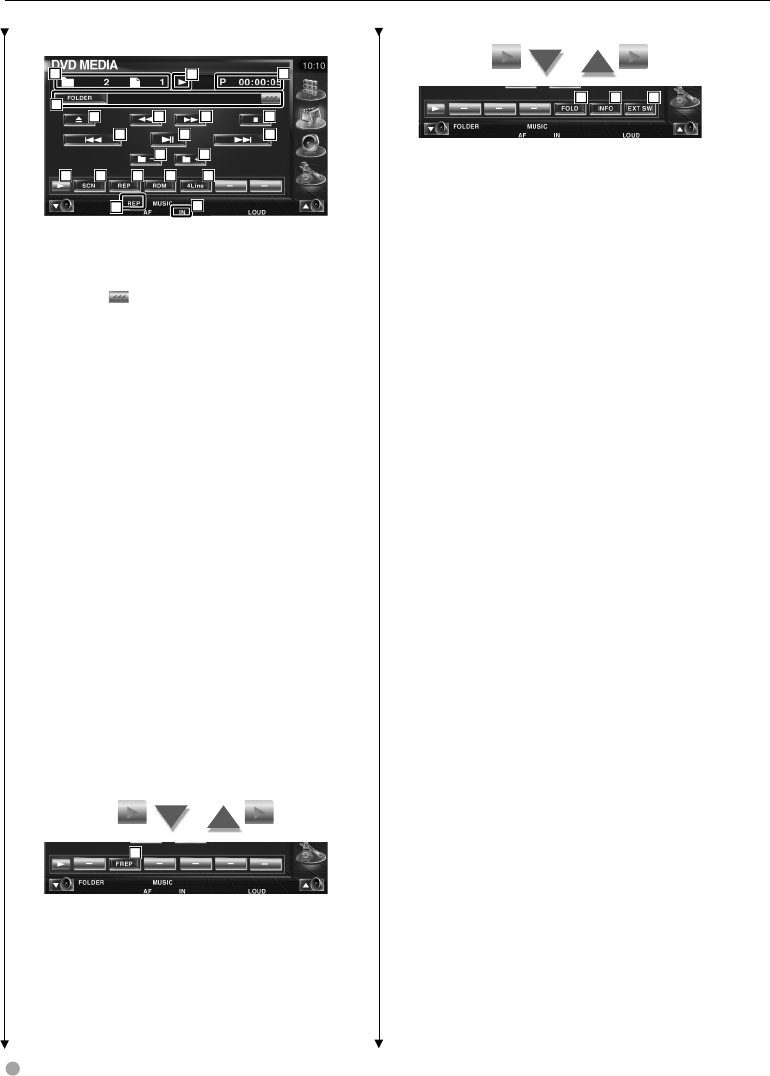

During Audio file playback

24 24

27 28 29 30 31

22 23

26 26

32 33

; Music information display

Selects Folder Name, File Name, Title, Artist

Name, or Album Name.

When is appeared, the text display is

scrolled by pressing it.

a Ejects a disc

s Fast Forwards or Fast Backwards.

(Disabled when a JPEG is being played.)

d Stops playing.

When pressed twice, the disc is played back

from its beginning in the next time.

f Selects a file.

g Plays or pauses.

h Selects a folder.

j Switches the button display.

k Starts or stops Scan Play (that plays the

beginning of each music or data one after

the other).

l Repeats to play (the preset files or data).

/ Starts or stops Random Play (to play files of

the present folder in random order).

z Switches the number of lines displayed in

the Information Display.

x Folder and File Number Display

c Play Mode Display

v Play Time Display

b Function Indicator

n Appears when a disc is inserted.

m Repeats to play the music or data of the

present folder.

Music Disc & Audio File Listening

38 39 40

, You can search for folders and Audio files

through a hierarchy. See <Folder Select>

(page 26).

. Displays music information (such as Tag

and content property) of Audio file being

played.

P Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

B64_3824_1001_EN_P01_63.indd 24B64_3824_1001_EN_P01_63.indd 24 07.6.8 10:46:19 AM07.6.8 10:46:19 AM

English 25

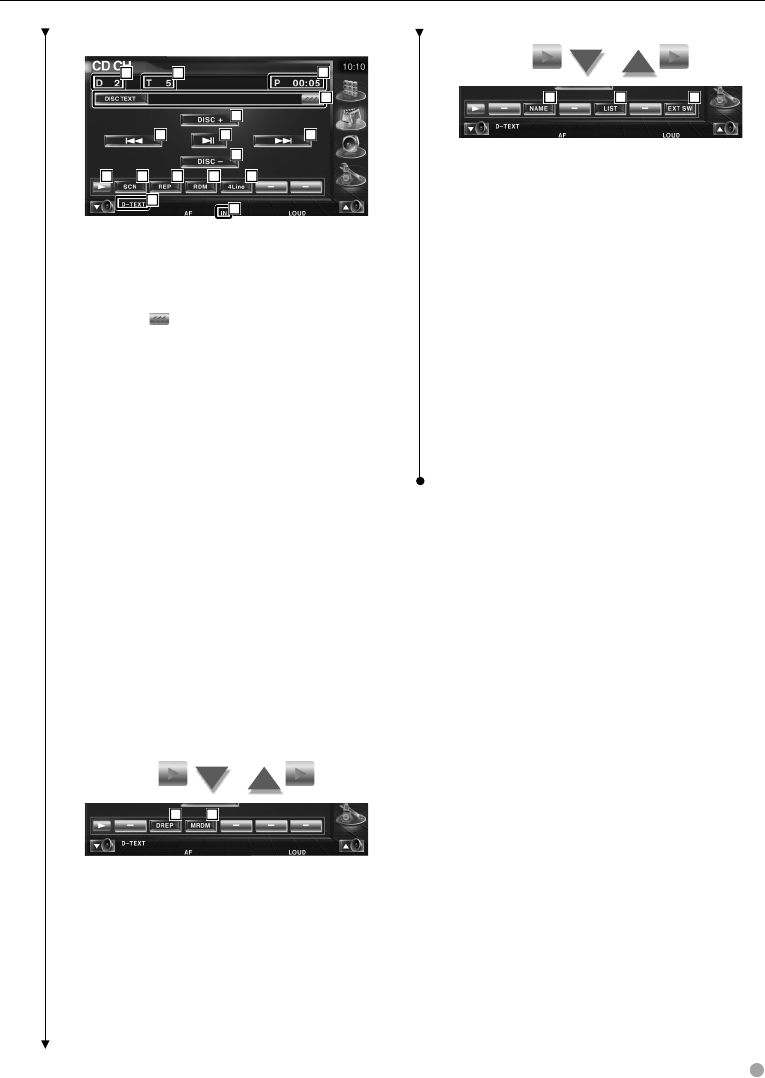

During playback on disc changer

42 42

46 47 48 4945

50 51

Q Music information display

Selects the Disc Name (see <Set Disc

Name>, page 26) or Track Text mode for

text display.

When is appeared, the text display is

scrolled by pressing it.

W Selects a track.

Starts Fast Forward or Fast Backward when

it is held down.

E Selects a disc. (Function of Disc Changer)

R Plays or pauses.

T Switches the button display.

Y Starts or stops Scan Play (that plays the

beginning of each music one after the

other).

U Repeats to play (the present music).

I Starts or stops Random Play (to play music

in random order).

O Switches the number of lines displayed in

the Information Display.

: Disc Number Display (Function of Disc

Changer)

A Track Number Display

S Play Time Display

D Function Indicator

F Appears when a disc is inserted.

55 56

G Repeats to play a disc (the present disc).

(Function of Disc Changer)

H Starts or stops Magazine Random Play (to

play songs of the disc changer in random

order). (Function of Disc Changer)

57 58 59

J Sets a name to the disc being played. (page

26)

K Displays a list of discs in the Disc changer

and allows you to select the disc to listen.

See <Disc Select> (page 27).

L Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

• The functions that can be used and the information that

can be displayed will differ depending on the models

being connected.

• The information shown will be different depending on

the Disc Changer being used.

• The buttons and information displayed depend on

the Audio file being played and CD and Disc changer

functions.

B64_3824_1001_EN_P01_63.indd 25B64_3824_1001_EN_P01_63.indd 25 07.6.8 10:46:20 AM07.6.8 10:46:20 AM

26 DNX7200

Music Disc & Audio File Listening

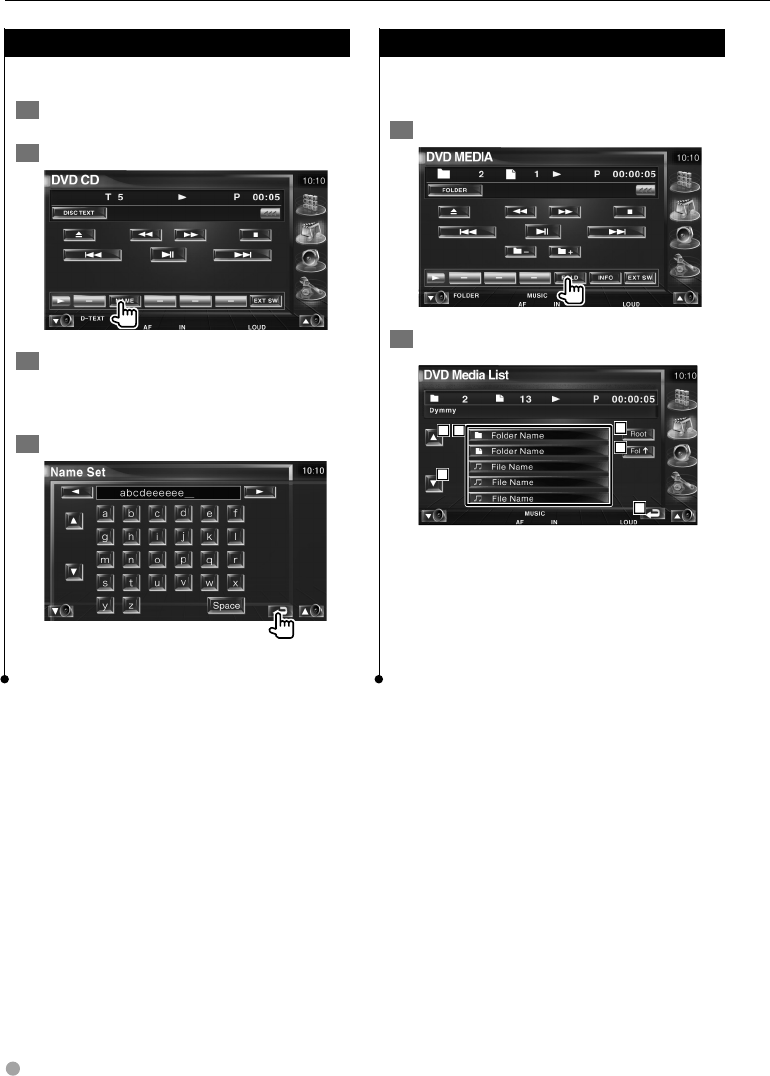

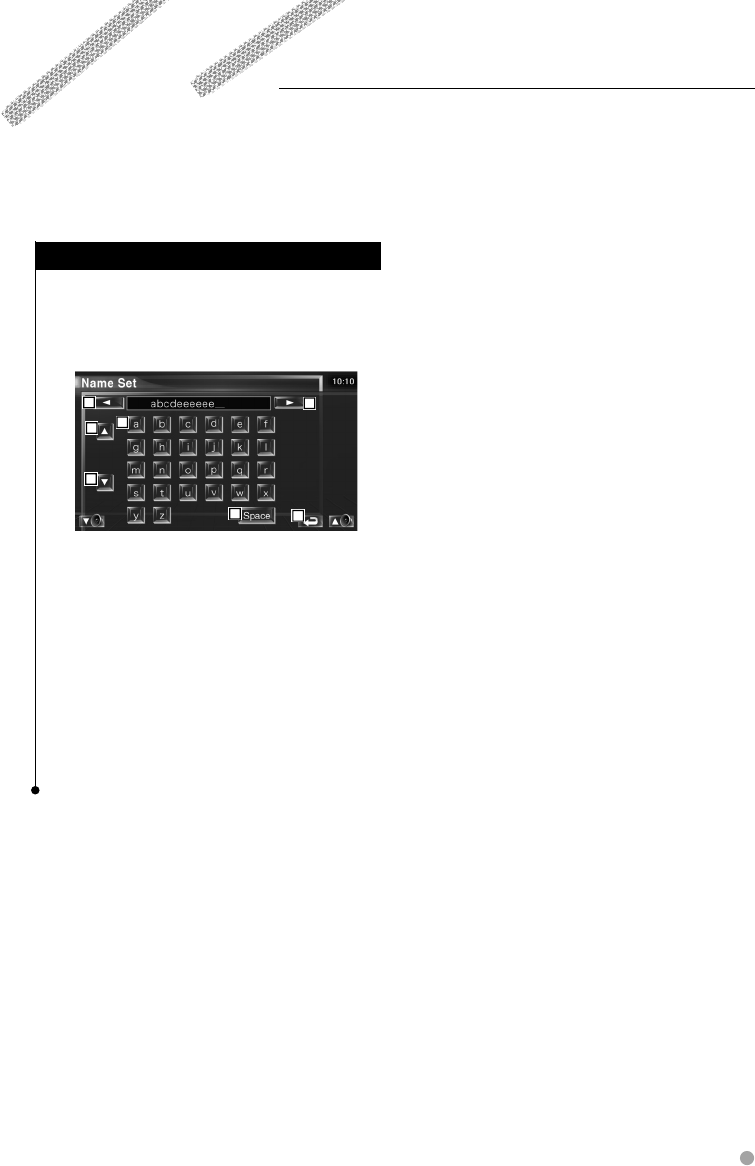

Set Disc Name

Assigns a name to a CD.

1 Play a CD you wish to name

2 Start Name set

3 Enter the name

See <Character Entry> (page 55) for

information on how to enter a name.

4 End Name set

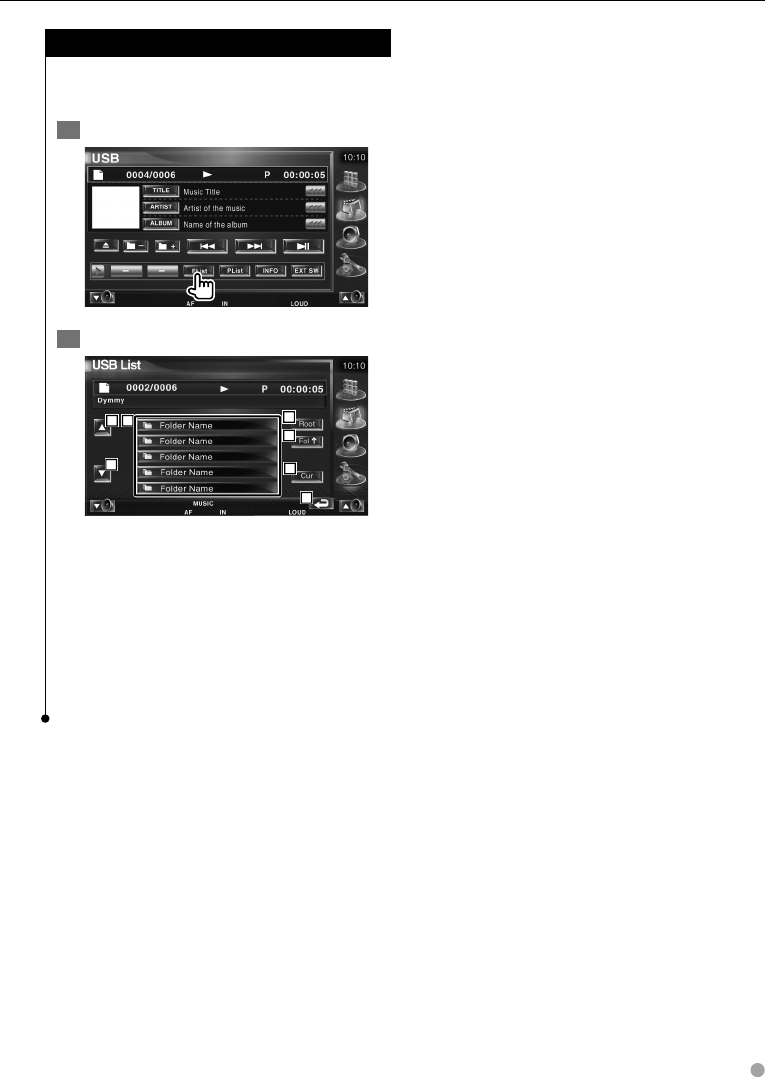

Folder Select (Function of Audio File)

Searches folders and Audio files stored in media

and devices according to hierarchy.

1 Start Folder Select

2 Select a song

1 Scrolls the list.

2 Lists folders and Audio files

Folder opens when touched, and the Audio

file is played.

3 Moves to the top hierarchy level.

4 Moves up a hierarchy level.

5 Returns to the original screen.

B64_3824_1001_EN_P01_63.indd 26B64_3824_1001_EN_P01_63.indd 26 07.6.8 10:46:21 AM07.6.8 10:46:21 AM

English 27

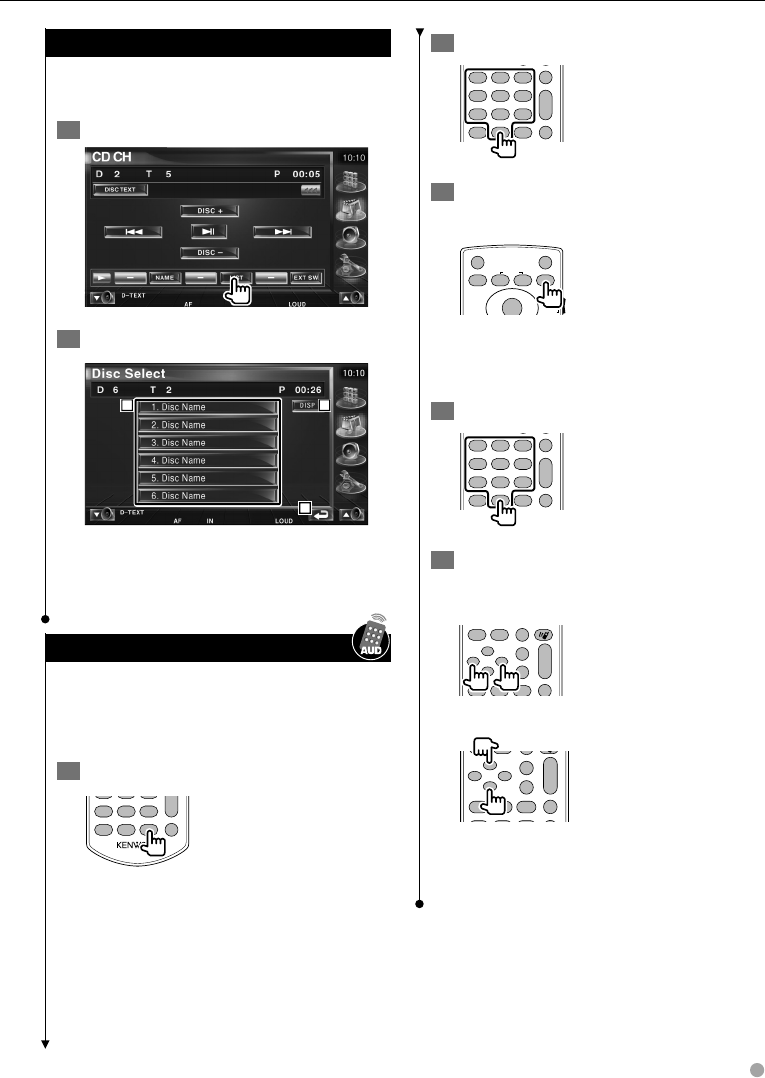

Disc Select (Function of Disc Changer)

Displays a list of discs in the Disc changer and

allows you to select the disc to listen.

1 Start Direct Select

2 Select a Disc

1 Lists the discs. Plays when touched.

2 Switches the list name to Disc name or Disc

Text.

3 Returns to the original screen.

Direct Search

Searches for a disc or a track when its number is

entered.

During play on the built-in disc player

1 Select the Direct Search mode

R.VOL

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT



CLEAR DIRECT

The following items can be searched directly

each time it is pressed.

CD: Track number, Total play time

Audio file: Folder, File

2 Enter a track number

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

3 Search

When searching for a track:

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

During play on an external in disc player or

disc changer

1 Enter a disc or track number

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

2 Search

When searching for a track:

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D



SUBTITLE

OUT OPEN

MAP DIR

VIEW

When searching for a disc:

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D





⁄

• The operation ends automatically if you do not operate

within 10 seconds.

B64_3824_1001_EN_P01_63.indd 27B64_3824_1001_EN_P01_63.indd 27 07.6.8 10:46:23 AM07.6.8 10:46:23 AM

28 DNX7200

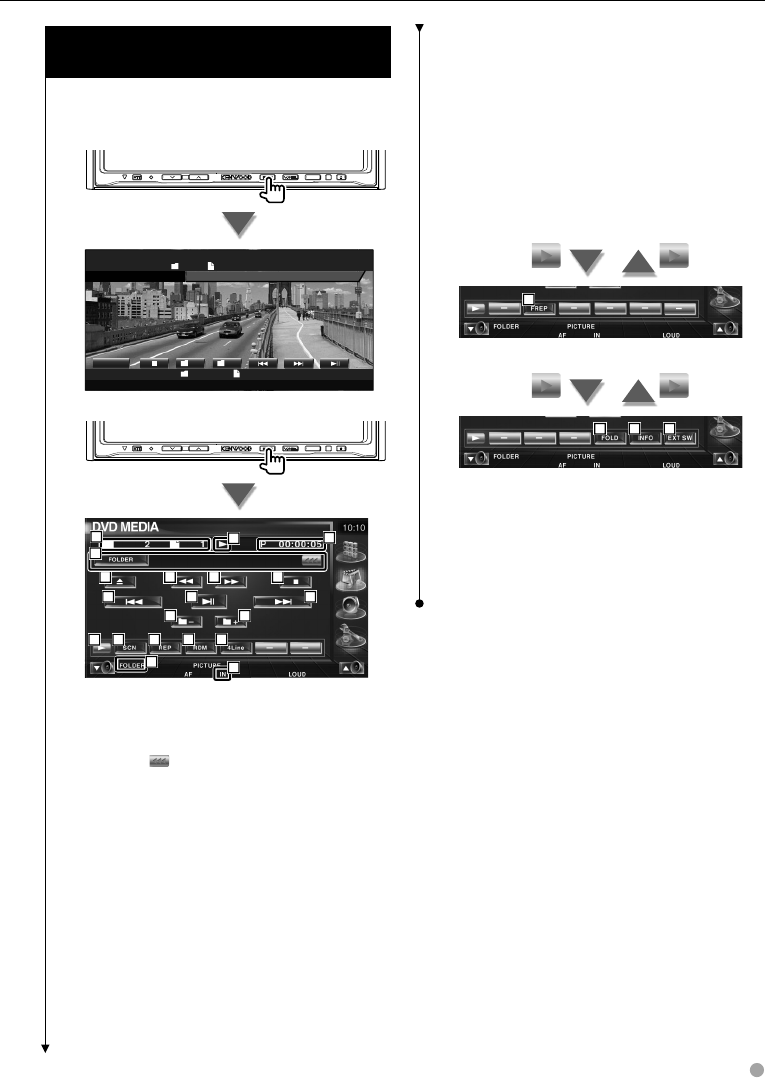

Video File/Picture File Watching

Function During Playback Screen

Basic functions are available even when the

playback screen is displayed.

Display the playback screen.

NAV

Mode : Full


255 P 000

0::0

DVD MEDIA

AV-INAV-OUT:

4 3

1 Folder/File Number Display

2 Play Time Display

3 Forward File Search Area

Selects the next file.

4 Backward File Search Area

Selects the previous file.

5 JPEG: Picture Control Button Area (page

30)

DivX: Sub=Off, Audio 1/1

MPEG: Not effective

6 Information Display Button Area

Functions When Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

Mode : Full


255 P 000

0::0

DVD MEDIA

AV-INAV-OUT:

NAV

P000

0::5

DVD MEDIA 1

IN AFPICTURE

Mode : Full


5P000

0::5

DVD MEDIA

AV - I NAV-OUT:

SRC -

1 2 3 3 4 4 5

1 Switches the source.

2 Stops playing.

3 Selects a folder.

4 Selects a file.

5 Plays or pauses.

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

You can recall various control screens during playback of video file (MPEG 1, MPEG 2 and DivX file) and

picture file (JPEG file).

B64_3824_1001_EN_P01_63.indd 28B64_3824_1001_EN_P01_63.indd 28 07.6.8 10:46:27 AM07.6.8 10:46:27 AM

English 29

Functions While Displaying the Control

Screen

Switches to control screen to use various playback

functions.

NAV

P000

0::5

DVD MEDIA 1

IN AFPICTURE

Mode : Full


5P000

0::5

DVD MEDIA

AV - I NAV-OUT:

SRC -

NAV

2 3 3 4

5 56

7 7

8 9 10 11 12

16 17

1 Music/Video information display

Selects Folder Name, File Name, Title, Artist

Name, or Album Name.

When is appeared, the text display is

scrolled by pressing it.

2 Ejects a disc.

3 Fast Forwards or Fast Backwards.

(Disabled when a JPEG is being played.)

4 Stops playing.

When pressed twice, the disc is played back

from its beginning in the next time.

5 Selects a file.

6 Plays or pauses.

7 Selects a folder.

8 Switches the button display.

9 Starts or stops Scan Play (that plays the

beginning of each song or data one after

the other).

p Repeats to play (the preset files or data).

q Starts or stops Random Play (to play files of

the present folder in random order).

w Switches the number of lines displayed in

the Information Display.

e Folder and File Number Display

r Play Mode Display

t Play Time Display

y Function Indicator

u Appears when a disc is inserted

i Repeats to play the file of the present folder.

19 20 21

o You can search for folders and files through

a hierarchy. See <Folder Select> (page 30).

; Displays information of file being played.

a Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

B64_3824_1001_EN_P01_63.indd 29B64_3824_1001_EN_P01_63.indd 29 07.6.8 10:46:30 AM07.6.8 10:46:30 AM

30 DNX7200

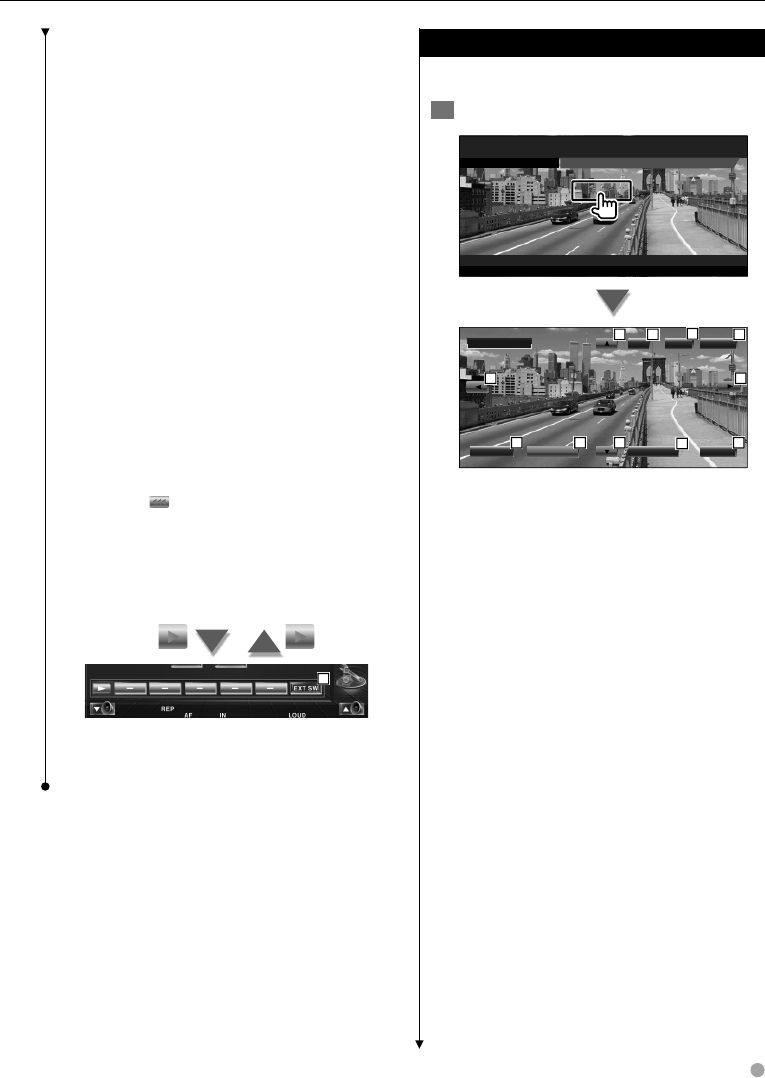

Picture Control

Adjusting the video display.

1 Start Picture Control

Mode : Full


255 P 000

0::0

DVD MEDIA

AV-INAV-OUT:

2 Adjust the video display

Exit

Picture Ctrl

1 Reverses the picture horizontally.

2 Rotates counter clockwise.

3 Rotates clockwise.

4 Ends Picture Control.

Video File/Picture File Watching

Folder Select

Searches folders and Video files/Pictures stored in

media and devices according to hierarchy.

1 Start Folder Select

2 Select a file

1 Scrolls the list.

2 Lists folders and Video files/Picture files.

Folder opens when touched, and the Video

/Picture file is played.

3 Moves to the top hierarchy level.

4 Moves up a hierarchy level.

5 Returns to the original screen.

B64_3824_1001_EN_P01_63.indd 30B64_3824_1001_EN_P01_63.indd 30 07.6.8 10:46:32 AM07.6.8 10:46:32 AM

English 31

Radio Listening

Functions When Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

NAV

Mode : Full

P 00:00:05

AV - I NAV-OU T :

Title

Chap

IN AT T

SRC

SCRN

EXT SW

DVD VIDEO

98.1 MHz

FM1

TUNER

A M F M SEEK

1 2 2 3 3 4

1 Switches the source.

2 Switches the band (to AM or FM1/2/3).

3 Tunes in a station.

4 Switches the Seek mode.

See <Seek Mode> (page 32).

5 Displays the Screen Control screen.

See <Screen Control> (page 56).

6 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

Various control screens appear in the Tuner Source mode.

• For the basic method of receiver button operations, refer to <Basic Operations> (page 12).

• Set the remote controller mode switch to "AUD" mode before starting operation, refer to <Remote Controller mode switch>

(page 88).

Next page 3

Functions While Displaying the Control

Screen

Switches to control screen to use various

functions.

NAV

Mode : Full

P 00:00:05

AV - I NAV-OU T :

Title

Chap

IN AT T

SRC

SCRN

EXT SW

DVD VIDEO

98.1 MHz

FM1

TUNER

A M F M SEEK

NAV

5 5

7 8 9 10 116

1 Radio station information display.

Selects the Program Service Name, Title &

Artist name, Station Name, Category Name

1/2, or Radio Text.

2 Turns the Traffic Information function On or

Off.

See <Traffic Information>, (page 35).

3 Switches to the FM1/2/3 band.

4 Switches to the AM band.

5 Tunes in a station.

Use the <Seek Mode> (page 32) to change

the frequency switching.

B64_3824_1001_EN_P01_63.indd 31B64_3824_1001_EN_P01_63.indd 31 07.6.8 10:46:33 AM07.6.8 10:46:33 AM

32 DNX7200

Radio Listening

6 Switches the button display.

7 Selects the Monaural reception mode. (Only

when receiving the FM broadcast)

8 Selects the Auto Memory mode.

(Refer to page 32 for the <Auto Memory>)

9 Switches the Seek mode.

(Refer to page 32 for the <Seek Mode>)

p Switches the number of lines displayed in

the Information Display.

q Turns the Local Seek function On or Off.

w When to buttons appear, you

can recall the stations on memory.

For memory of broadcasting stations, refer

to <Auto Memory> (page 32) or <Manual

Memory> (page 33).

14 15 16

e Searches station by program type. See

<Search for Program Type> (page 35).

r Lists and selects memorized station. See

<Preset Select> (page 33).

t Displays Radio Text screen. See <Radio

Text> (page 34).

y Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

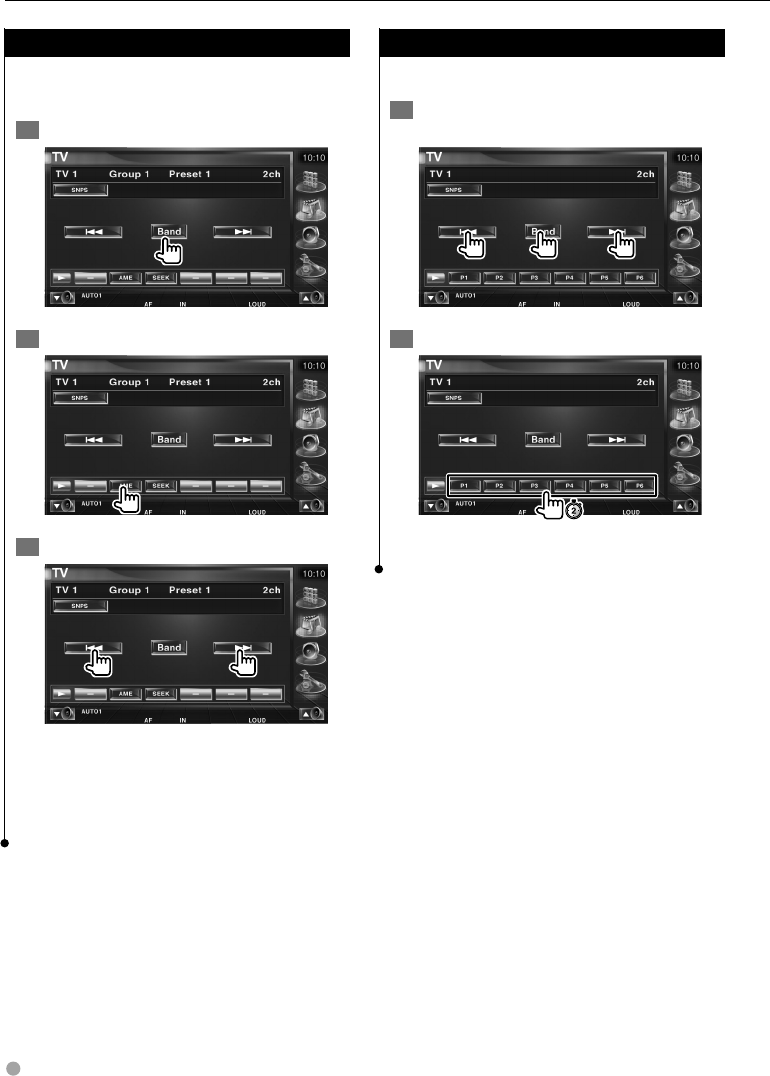

Seek Mode

Sets a station selection.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

Auto Memory

Stores stations with good reception in memory

automatically.

1 Select a band you wish to store in memory

2 Select the Auto Memory mode

B64_3824_1001_EN_P01_63.indd 32B64_3824_1001_EN_P01_63.indd 32 07.6.8 10:46:36 AM07.6.8 10:46:36 AM

English 33

3 Start Auto Memory

Touch or .

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

Manual Memory

Stores the current receiving station in memory.

1 Select a station you wish to store in

memory

2 Store in memory

Continue to touch until the memory number

appears.

# : Press for # seconds.

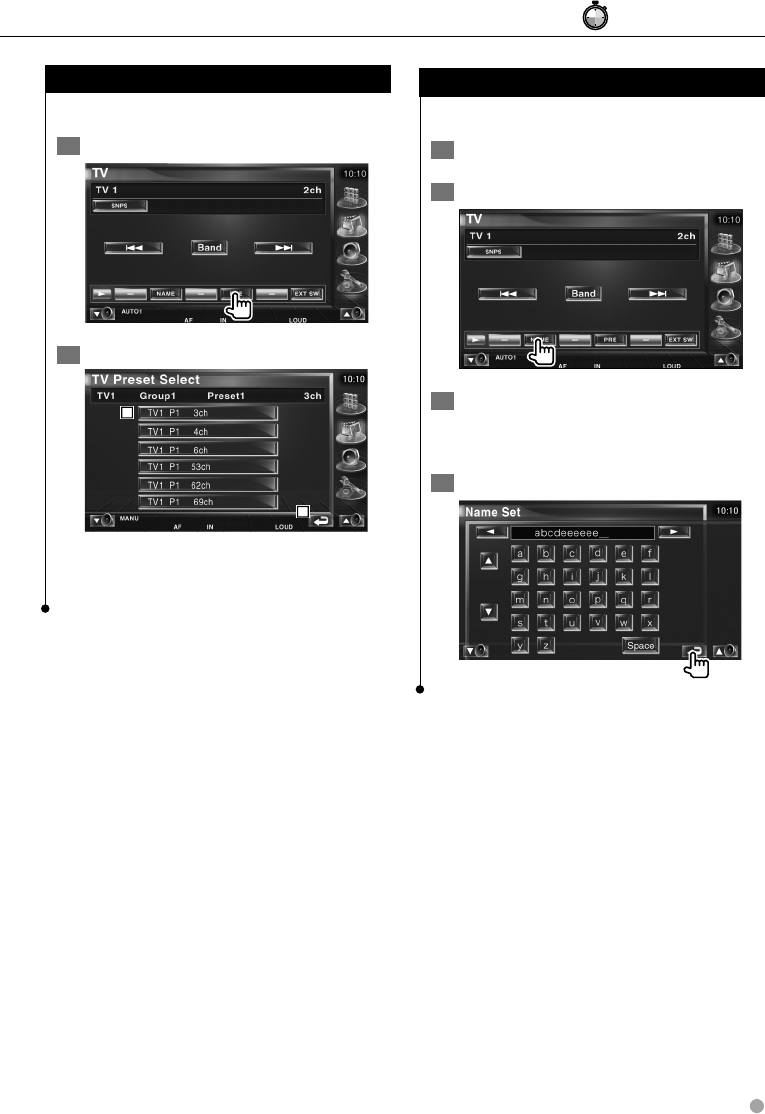

Preset Select

Lists and selects memorized station.

1 Start Preset Select

2 Select a station

1 Scrolls the list.

2 Memorized stations are displayed. Touch to

tune in.

3 Returns to the original screen.

B64_3824_1001_EN_P01_63.indd 33B64_3824_1001_EN_P01_63.indd 33 07.6.8 10:46:37 AM07.6.8 10:46:37 AM

34 DNX7200

Radio Listening

Radio Text

You can display the radio text. (Only when

receiving the FM broadcast).

1 Select a station

2 Display the radio text

1 Selects the Program Service Name, Title &

Artist name, Station Name, Radio Text Plus,

or Radio Text for text display.

When is appeared, the text display is

scrolled by pressing it.

2 Scrolls the text display.

3 Returns to the original screen.

Direct Search

Tunes in a station when its frequency is entered.

1 Select a band

ANGLE

ZOOM

12 3

2ZONE

VOL

AM−

D



SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

2 Select the Direct Search mode

R.VOL

GHI

PQRS

#+ BS

JKL

8TUV

WXYZ

MNO

1ATT





CLEAR DIRECT

3 Enter frequency

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

When you enter frequency, signal reception

starts.

Example: When you receive FM 92.1 MHz

WXYZ

2ABC

Example: When you receive AM 810 kHz

8TUV

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

B64_3824_1001_EN_P01_63.indd 34B64_3824_1001_EN_P01_63.indd 34 07.6.8 10:46:42 AM07.6.8 10:46:42 AM

English 35

Traffic Information

When a traffic bulletin starts, any source is

switched to the traffic information and it is

displayed automatically.

1 Set the Traffice information mode

When the traffic bulletin starts...

The Traffic Information screen appears

automatically.

Traffic Information screen

⁄

• It is necessary to have Traffic Information function set to

On in order to have the Traffic Information screen appear

automatically.

• During reception of traffic information the adjusted

volume is automatically remembered, and the next time

it switches to traffic information it's automatically the

remembered volume.

Search for Program Type

A program is tuned when you set its program

type. (Only when receiving the FM broadcast)

1 Enter Program Type mode

2 Select a Program Type

1 Program Type is displayed. Touch to select a

Program Type.

2 Scrolls the Program Type list.

3 Searches for the program type.

It is displayed when the Program type is

selected.

4 Returns to the original screen.

3 Search station of the selected Program

Type

B64_3824_1001_EN_P01_63.indd 35B64_3824_1001_EN_P01_63.indd 35 07.6.8 10:46:46 AM07.6.8 10:46:46 AM

36 DNX7200

iPod Control

You can control and listen to songs in your iPod by connecting iPod with video or iPod nano to this unit

with KCA-iP300V (optional accessory). You can also display video contents on this unit when connecting an

iPod with video.

Functions when Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

Mode : Full

AUTO MAIN

ST TI

P 00:00:00

iPod

AV - I NAV-OU T :

NAV

Mode : Full AV-INAV-OUT:

P00:00:05

iPod

IN AT T

SRC

SCRN

EXT SW

1 2 2 43 3

1 Switches the source.

2 Fast Forward or Fast Backward.

3 Music/Video Search.

4 Plays or pauses.

5 Displays the Screen control screen. Refer to

<Screen Control> (page 56).

6 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

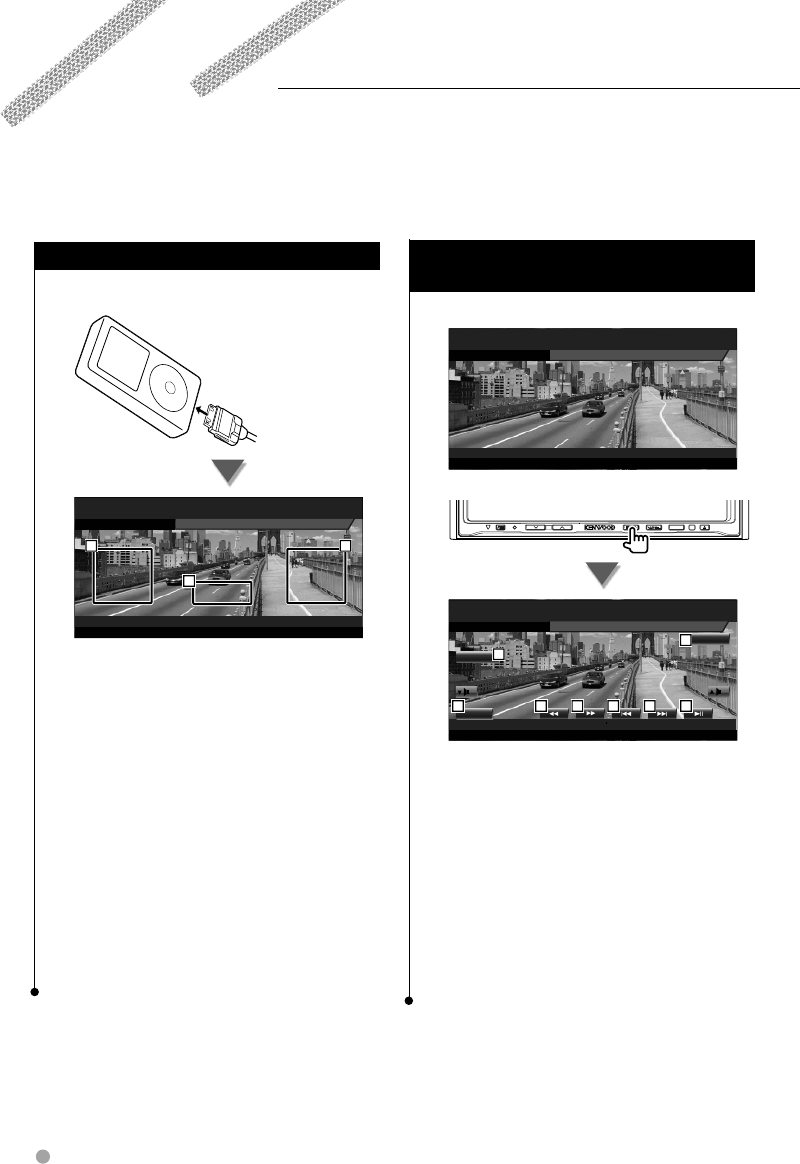

Connecting an iPod

Connect an iPod to this unit.

Mode : Full

AUTO MAIN

ST TI

P 00:00:00

iPod

AV - I NAV-OU T :

2 1

1 Forward music/video search area

Selects the next music/video.

2 Backward music/video search area

Selects the previous music/video.

3 Information display button area

The information is displayed for 5 seconds.

⁄

• Remove all accessories such as headphone before

connecting an iPod. You may not be able to control the

iPod if you connect it with accessories attached.

• When you connect an iPod to this unit, playback starts

from the song you were playing on the iPod itself

(Resume Function).

• If the played song is not a video content, "No iPod Video

Signal" is displayed on the video screen.

• While connecting an iPod, "KENWOOD" appears on the

iPod and the iPod's control is disabled.

B64_3824_1001_EN_P01_63.indd 36B64_3824_1001_EN_P01_63.indd 36 07.6.8 10:46:47 AM07.6.8 10:46:47 AM

English 37

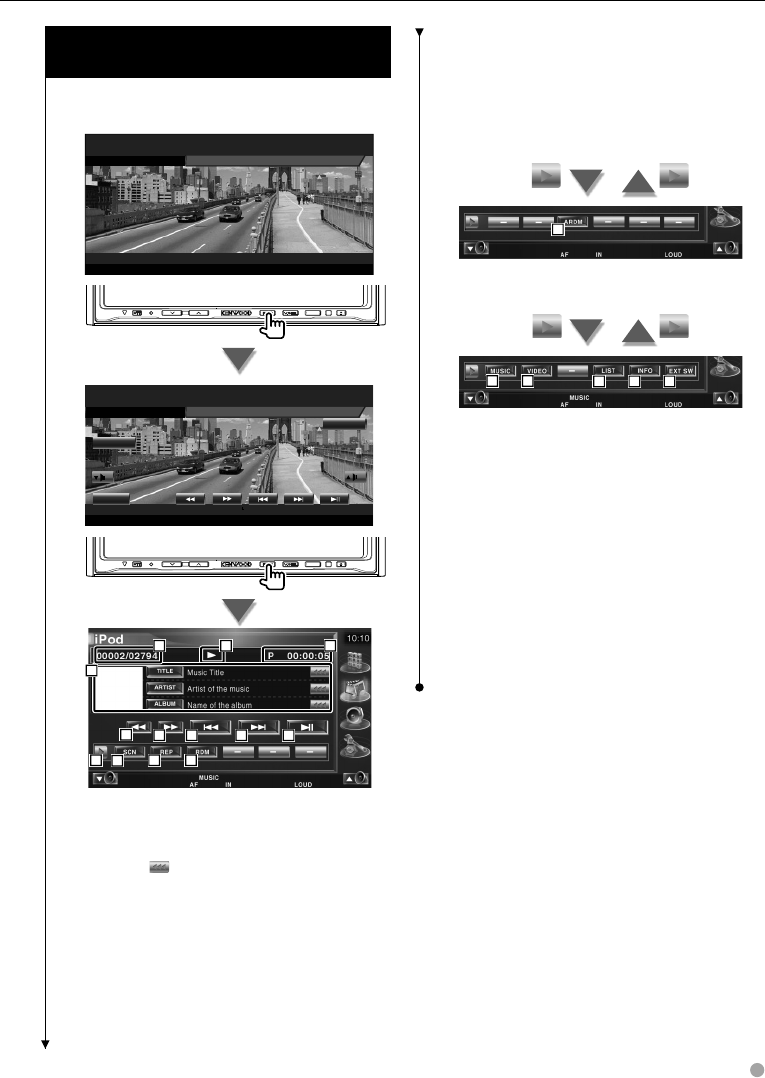

Functions while Displaying the Control

Screen

Switches to control screen to use various playback

functions.

Mode : Full

AUTO MAIN

ST TI

P 00:00:00

iPod

AV - I NAV-OU T :

NAV

Mode : Full AV-INAV-OUT:

P00:00:05

iPod

IN AT T

SRC

SCRN

EXT SW

NAV

567

22 43

1 Music/Video Information Display

Selects the Title, Artist Name, Album Name

or iPod Name.

When is appeared, the text display is

scrolled by pressing it.

2 Fast Forwards or Fast Backwards.

3 Selects Music/Video.

4 Plays or pauses.

5 Switches the button display.

6 Starts or stops Scan Play (that plays the

beginning of each music or video one after

the other).

7 Repeats to play (the preset files or data).

8 Starts or stops Random play.*

9 Total number of music in the iPod and the

music number display

p Play Mode Display

q Play Time Display

w Starts or stops Album Random Play (plays

randomly from current album).*

15 16 17

13 14

e Displays the list of music category. See

<iPod List> (page 38).

r Displays the list of video category. See

<iPod List> (page 38).

t Displays the previous music/video list

screen. See <iPod List> (page 38).

y Displays information screen of music/video

being played.

u Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

* Disabled when VIDEO is being played.

B64_3824_1001_EN_P01_63.indd 37B64_3824_1001_EN_P01_63.indd 37 07.6.8 10:46:49 AM07.6.8 10:46:49 AM

38 DNX7200

iPod Control

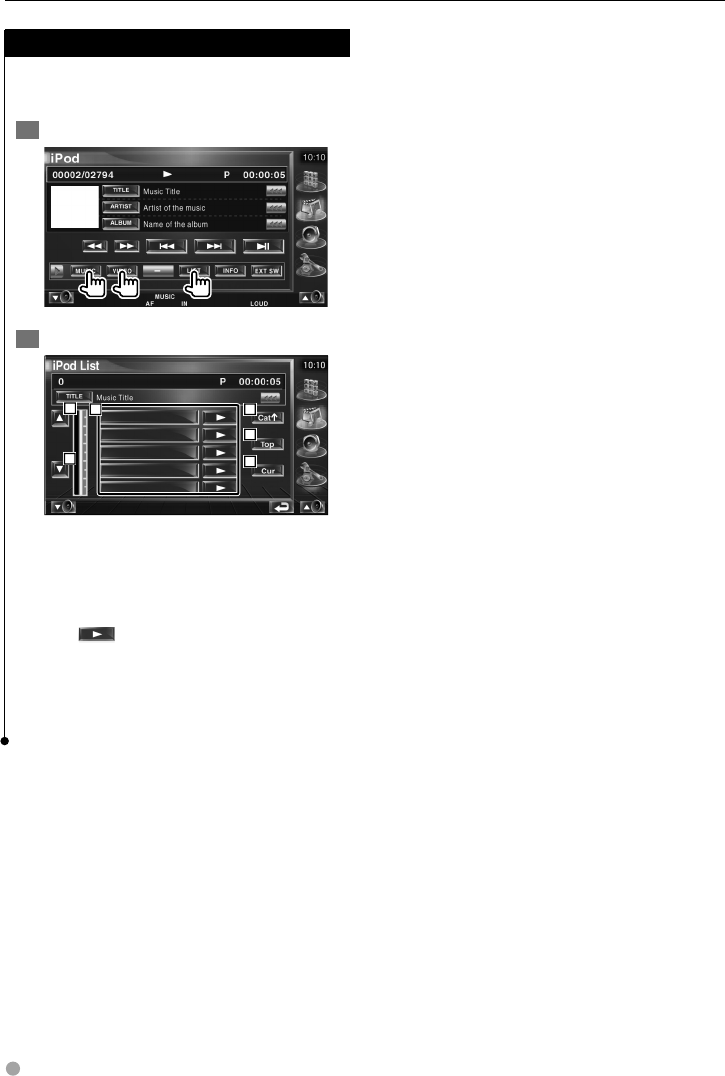

iPod List

Lists and searches music/video contained in the

iPod.

1 Display the iPod List

2 Select music/video

1 Switches list page.

2 Categories and music are listed.

Touch a category name to move its lower

level. If music title is displayed, the music is

played by touching it.

If is touched, all the music in its

category is played.

3 Returns to previous category.

4 Moves to the top category.

5 Displays the currently playing category.

B64_3824_1001_EN_P01_63.indd 38B64_3824_1001_EN_P01_63.indd 38 07.6.8 10:46:51 AM07.6.8 10:46:51 AM

English 39

Functions when Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

NAV

Mode : Full

DVD MEDIA

AV - I NAV-OUT:

P 0:00:05

P 00:00:05

0002/0006

IN AF

SRC

SCRN

EXT SW

– +

USB

1 2 2 43 3

1 Switches the source.

2 Selects a folder. (Only in Folder Select

mode)

3 Selects a file.

4 Plays or pause.

5 Displays the Screen control screen. Refer to

<Screen Control> (page 56).

6 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel is hidden when you touch a

central part of the monitor.

You can control and listen to songs in your USB device by simply connecting it to the USB connector of this

unit.

• For the connection of a USB device, refer to <Basic Operations> (page 12).

USB Device Control

Next page 3

Functions while Displaying the Control

Screen

Switches to control screen to use various playback

functions.

NAV

Mode : Full

DVD MEDIA

AV - I NAV-OUT:

P 0:00:05

P 00:00:05

0002/0006

IN AF

SRC

SCRN

EXT SW

– +

USB

NAV

2 3 3 4

67 8 9 10

11 13

1 Music information display

Selects the Folder Name, File Name, TItle,

Artist Name, or Album Name.

When is appeared, the text display is

scrolled by pressing it.

2 Removes the USB device.

When "No Device" is shown, the USB device

can be removed safely.

If you wish to play it again while the USB

device is connected, press it again.

3 Selects a folder. (Only in Folder Select

Mode)*

B64_3824_1001_EN_P01_63.indd 39B64_3824_1001_EN_P01_63.indd 39 07.6.8 10:46:53 AM07.6.8 10:46:53 AM

40 DNX7200

USB Device Control

4 Selects a file.

5 Plays or pauses.

6 Switches the button display.

7 Starts or stops Scan Play (that plays the

beginning of each music one after the

other).

8 Repeats to play (the present music).

9 Starts or stops Random Play (to play music

in random order). (Only in Folder Select

Mode)*

p Switches the number of lines displayed in

the Information Display.

q Track (Music) Number Display

w Play Mode Display

e Play Time Display

r Repeats to play the music or data of the

present folder. (Only in Folder Select Mode)

15 16 17 18

t Displays the folder list. Refer to <Folder

Select> (page 41).

y Displays the list of category. Refer to <USB

List> (page 40).

u Displays information screen of music being

played.

i Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

⁄

* Disabled during play list mode.

USB List

Lists and searches music contained in the USB

device.

1 Display the Category List

2 Select a category

1 Returns to the original screen.

3 Select music

USB List

P 0:00:05

All

Cur

Artists

PLST

Artist_01

0002/0006

Cat

Top

2 Switches to the lower level of the category.

3 Lists all the music in the selected category.

4 Moves to the upper level of the category.

5 Moves to the top category.

6 Displays the currently playing category.

(Only in Category Mode)

7 Returns to the original screen.

B64_3824_1001_EN_P01_63.indd 40B64_3824_1001_EN_P01_63.indd 40 07.6.8 10:46:55 AM07.6.8 10:46:55 AM

English 41

Folder Select

Searches folders and Audio files stored in the USB

device according to hierarchy.

1 Start Folder Select

2 Select music

1 Scrolls the list.

2 Lists folders and Audio files

Folder opens when touched, and the Audio

file is played.

3 Moves to the top hierarchy level.

4 Moves up a hierarchy level.

5 Displays the currently playing file.

6 Returns to the original screen.

B64_3824_1001_EN_P01_63.indd 41B64_3824_1001_EN_P01_63.indd 41 07.6.8 10:47:27 AM07.6.8 10:47:27 AM

42 DNX7200

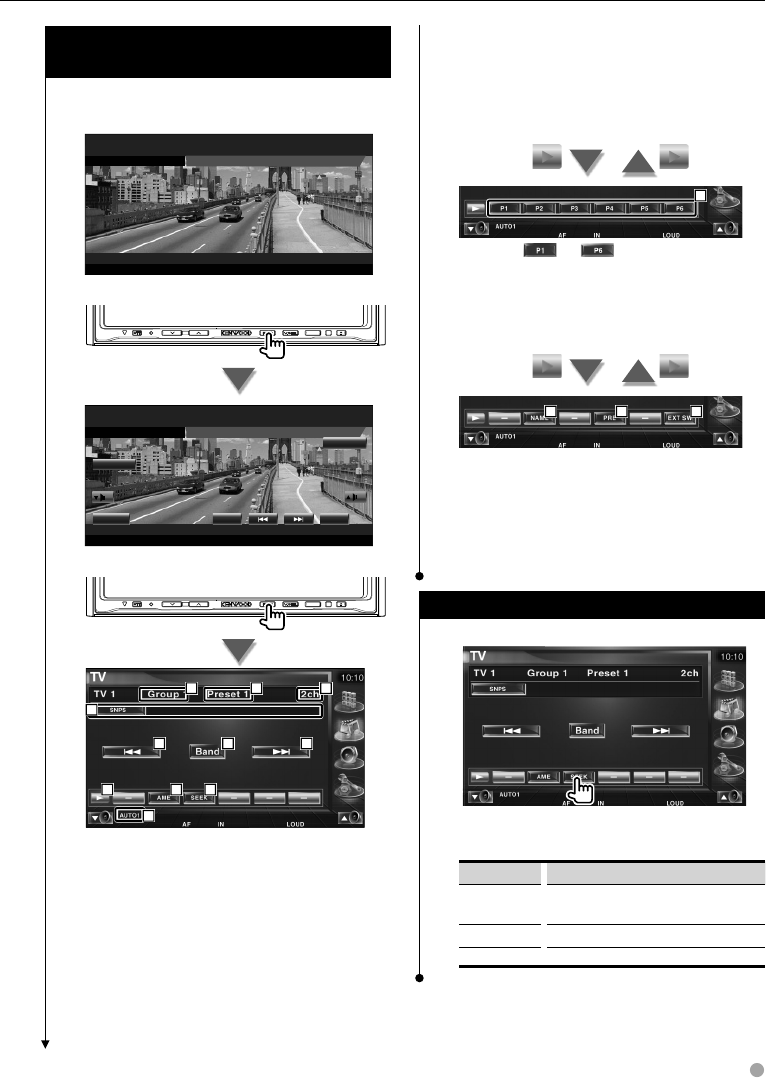

TV Watching

Functions During TV Screen

Basic functions are available even when the TV

screen is displayed.

Display the TV screen

NAV

Mode : Full

2ch

AV-IN

AV-OUT:

AUTO1

AUTO1 AF

TV TV1

2ch

Preset 3

1 3

5 4

1 TV Band Number Display

2 Memory Number Display

3 Channel Number Display

4 Channel Up Area

Increases the channel.

5 Channel Down Area

Decreases the channel.

6 Band Switch Area

Switches to TV1 or TV2.

7 Information Display Button Area

⁄

• For TV picture selection and receiver button operations,

see <Basic operations> (page 12).

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

Various control screens appear in the TV Source mode. (You can only operate TV with the optional

accessory TV Tuner connected.)

Functions when Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

Mode : Full

2ch

AV-IN

AV-OUT:

AUTO1

AUTO1 AF

TV TV1

2ch

Preset 3

NAV

Mode : Full

2ch

AV - I NAV-OUT:

AUTO1

AUTO1 AF

SRC

Band SEEK

SCRN

EXT SW

TV TV1

2ch

1 2 3 3 4

1 Switches the source.

2 Switches the TV band (to TV1 or TV2).

3 Selects a channel.

Use the <Seek Mode> (page 43) to change

the channel tuning sequence.

4 Switches the Seek mode.

(page 43 for the <Seek Mode>)

5 Displays the Screen Control screen.

(page 56 for the <Screen Control>)

6 Displays the external device control screen.

See <External Device Power Supply

Control> (page 53).

⁄

• The Easy Control Panel display is hidden when you touch

a central area of the monitor.

B64_3824_1001_EN_P01_63.indd 42B64_3824_1001_EN_P01_63.indd 42 07.6.8 10:47:28 AM07.6.8 10:47:28 AM

English 43

Functions while Displaying the Control

Screen

Switches to control screen to use various playback

functions.

Mode : Full

2ch

AV-IN

AV-OUT:

AUTO1

AUTO1 AF

TV TV1

2ch

Preset 3

NAV

Mode : Full

2ch

AV - I NAV-OUT:

AUTO1

AUTO1 AF

SRC

Band SEEK

SCRN

EXT SW

TV TV1

2ch

NAV

3 3

5 6

8 9 10

1 Channel information display

2 Switches to TV1 or TV2.

3 Select a channel.

Use the <Seek Mode> (page 43) to change

the channel tuning sequence.

4 Switches the button display.

5 Selects the Auto Memory mode.

Refer to <Auto Memory> (page 44).

6 Switches the Seek mode.

Refer to <Seek Mode> (page 43).

7 Indicates current Seek mode.

8 TV Area Group Display

Refer to <TV Setup> (page 79).

9 Memory Number Display

p Channel Number Display

q When to buttons appear, you

can recall channels on memory.

For memory of broadcasting stations, see

<Auto Memory> (page 44) or <Manual

Memory> (page 44).

12 13 14

w Sets a name to the tuned station. (page 45)

e Lists and selects memorized station. See

<Preset Select> (page 45).

r Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

Seek Mode

Sets a station selection.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

B64_3824_1001_EN_P01_63.indd 43B64_3824_1001_EN_P01_63.indd 43 07.6.8 10:47:30 AM07.6.8 10:47:30 AM

44 DNX7200

Auto Memory

Stores stations with good reception in memory

automatically.

1 Select a band you wish to store in memory

2 Select the Auto Memory mode

3 Start Auto Memory

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

TV Watching

Manual Memory

Stores the current receiving channel in memory.

1 Select a station you wish to store in

memory

2 Store in memory

Continue to touch until the memory number

appears.

B64_3824_1001_EN_P01_63.indd 44B64_3824_1001_EN_P01_63.indd 44 07.6.8 10:47:33 AM07.6.8 10:47:33 AM

English 45

Preset Select

Lists and selects memorized station.

1 Start Preset Select

2 Selects a station

1 Memorized stations are displayed. Touch to

tune in.

2 Returns to the original screen.

# : Press for # seconds.

Set Station Name

Assigns a name to a station.

1 Select a station you wish to name

2 Start Name set

3 Enter the name

See <Character Entry> (page 55) for

information on how to enter a name.

4 End Name set

B64_3824_1001_EN_P01_63.indd 45B64_3824_1001_EN_P01_63.indd 45 07.6.8 10:47:34 AM07.6.8 10:47:34 AM

46 DNX7200

Functions when Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

Mode : Full AV - I NAV-OUT:

IN AF

VIDEO

VIDEO VIDEO

VIDEO

NAV

Mode : Full AV - I NAV-OUT:

IN AF

VIDEO

VIDEO VIDEO

VIDEO

SRC

SCRN

EXT SW

1 Switches the source.

2 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53)

3 Displays the Screen Control screen.

(page 56 for the <Screen Control>)

⁄

• The Easy Control Panel display is hidden when you touch

a central area of the monitor.

Video Watching

Functions while Displaying the Control

Screen

Mode : Full AV - I NAV-OUT:

IN AF

VIDEO

VIDEO VIDEO

VIDEO

NAV

Mode : Full AV - I NAV-OUT:

IN AF

VIDEO

VIDEO VIDEO

VIDEO

SRC

SCRN

EXT SW

NAV

1 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53)

B64_3824_1001_EN_P01_63.indd 46B64_3824_1001_EN_P01_63.indd 46 07.6.8 10:47:36 AM07.6.8 10:47:36 AM

English 47

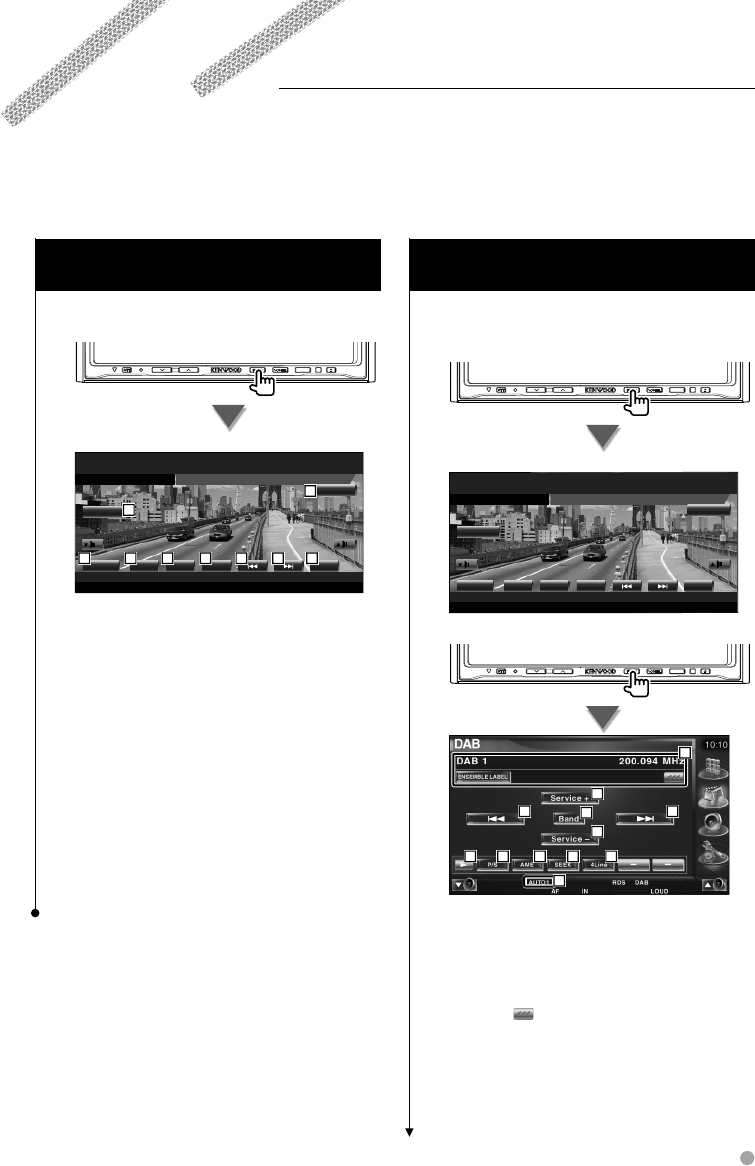

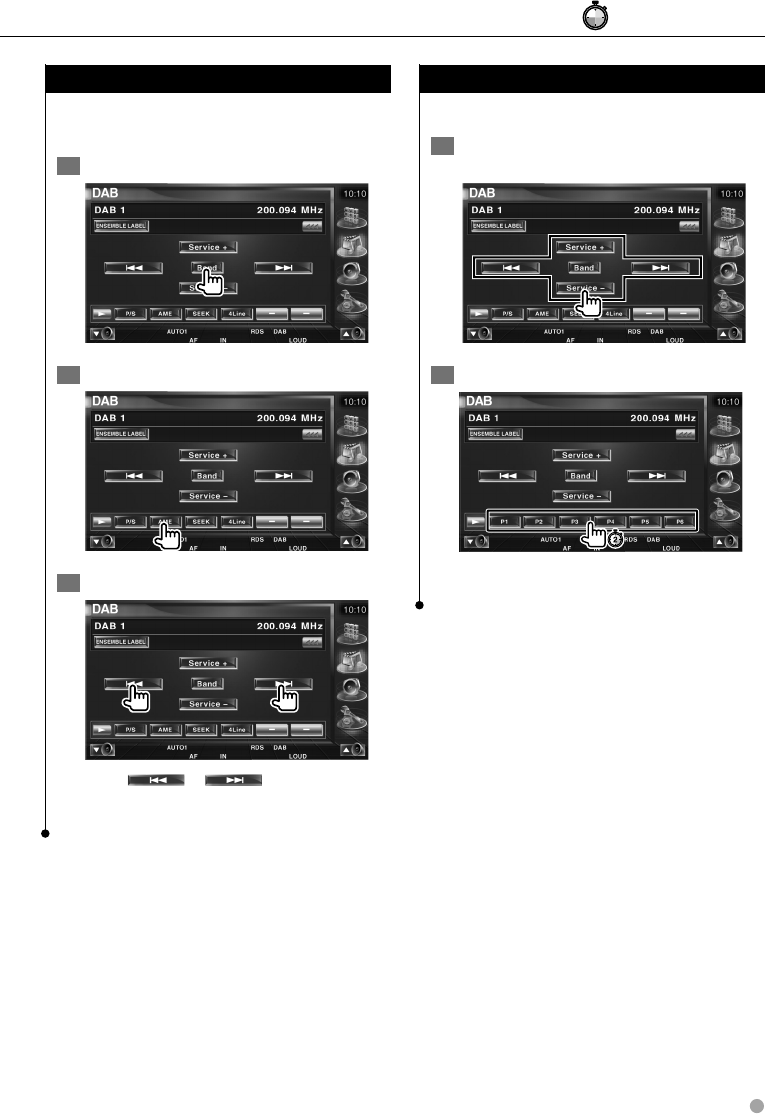

DAB Tuner Control

Various control screens appear in the DAB Tuner source mode. (with the optional accessory DAB tuner

connected only)

Functions when Displaying the Easy

Control Panel

Displays a floating control panel in the screen.

NAV

Mode : Full AV - I NAV-OUT:

INAUTO1 RDS DAB

SRC

SCRN

EXT SW

98.1 MHz

DAB 1

DAB

SEEKBand S – S +

1 3 4

2 3 4 5

1 Switches the source.

2 Switches the band (to DAB1/2/3).

3 Selects a service.

4 Selects the Ensemble.

5 Switches the Seek mode.

(See page 48 for the <Seek Mode>)

6 Displays the Screen Control screen.

(page 56 for the <Screen Control>)

7 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53)

⁄

• The Easy Control Panel display is hidden when you touch

a central area of the monitor.

Next page 3

Functions While Displaying the Control

Screen

Switches to control screen to use various

functions.

NAV

Mode : Full AV - I NAV-OUT:

INAUTO1 RDS DAB

SRC

SCRN

EXT SW

98.1 MHz

DAB 1

DAB

SEEKBand S – S +

NAV

6 8

1 Displays information concerning music

being played.

Changes the display between Ensemble

label, PTY label, Component label, Region

label, and Audio quality.

When is appeared, the text display is

scrolled by pressing it.

2 Switches the band (to DAB1/2/3).

3 Selects a service.

4 Selects the Ensemble.

5 Switches the button display.

B64_3824_1001_EN_P01_63.indd 47B64_3824_1001_EN_P01_63.indd 47 07.6.8 10:47:38 AM07.6.8 10:47:38 AM

48 DNX7200

6 Selects the primary or secondary operation.

7 Selects the Auto memory mode.

(page 49 for the <Auto Ensemble

memory>)

8 Switches the Seek mode.

(page 48 for the <Seek Mode>)

9 Switches the number of lines displayed in

the Information Display.

p Indicates current Seek mode.

q When to buttons appear, you

can recall a service from memory.

12 13 14 1615

w You can set the menu language. See

<Language Filter Setting> (page 50)

e Searches station by specifying program

type. See <Search for Program Type> (page

51).

r You can list and select services. See

<Service Select> (page 50).

t Displays DAB information.

y Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

DAB Tuner Control

Seek Mode

Sets a station selection mode.

The mode is switched in following order each

time you touch the button.

Display Setting

"AUTO1" Tunes in a ensemble with good reception

automatically.

"AUTO2" Tunes in service in memory one after another.

"MANU" Switches to the next channel manually.

B64_3824_1001_EN_P01_63.indd 48B64_3824_1001_EN_P01_63.indd 48 07.6.8 10:47:41 AM07.6.8 10:47:41 AM

English 49

# : Press for # seconds.

Auto Ensemble Memory

An ensemble with good reception is stored in

memory automatically.

1 Select a band you wish to store in memory

2 Select the Auto Memory mode

3 Start Auto Memory

Touch or .

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

Service Preset Memory

The current receiving service is stored in memory.

1 Select a service you wish to store in

memory

2 Store in memory

Continue to touch until the memory number

appears.

B64_3824_1001_EN_P01_63.indd 49B64_3824_1001_EN_P01_63.indd 49 07.6.8 10:47:42 AM07.6.8 10:47:42 AM

50 DNX7200

DAB Tuner Control

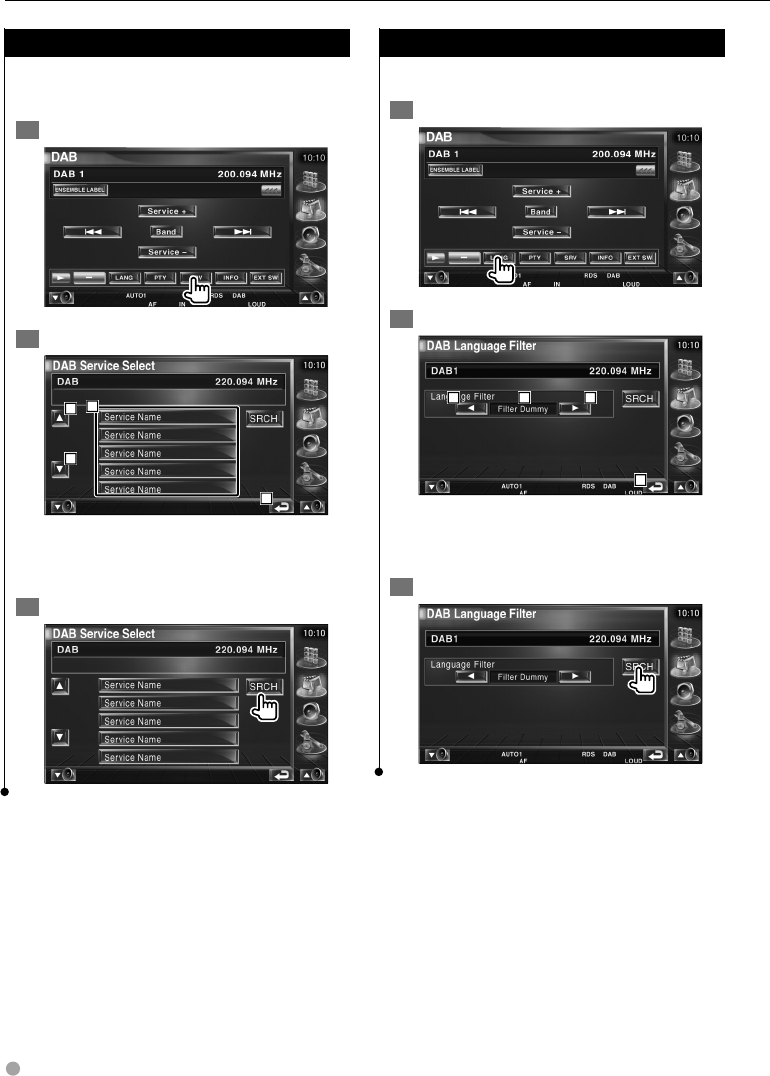

Service Select

Listing and selecting service in the current

ensemble.

1 Start Service Select

2 Select a service

1 Selects a service.

2 Scrolls the service list.

3 Returns to the original screen.

3 Search the service

Language Filter Setting

Setting the menu language.

1 Start Language Filter Setting

2 Select a language

1 Language display

2 Switches language list.

3 Returns to the original screen.

3 Search the language

B64_3824_1001_EN_P01_63.indd 50B64_3824_1001_EN_P01_63.indd 50 07.6.8 10:47:44 AM07.6.8 10:47:44 AM

English 51

Search for Program Type

Specifying program type and searching service.

1 Start Program Type mode

2 Select Program Type

1 22

455

1 Program Type display

2 Switches Program Type.

3 4 5 are displayed and you can switch the

language. Touching once more erases 4 5

and then you can switch the program type.

4 Language display

5 Switches language list.

6 Returns to the original screen.

3 Searches service of the selected Program

Type

DAB Announcement

When the Announcement you have turned

on starts, any source is switched to the

Announcement automatically.

When the announcement starts...

The Announcement screen appears

automatically.

Announcement screen

B64_3824_1001_EN_P01_63.indd 51B64_3824_1001_EN_P01_63.indd 51 07.6.8 10:47:45 AM07.6.8 10:47:45 AM

52 DNX7200

Source Select

The source you wish to listen to can be selected quickly.

Displaying the Control Screen

1 Display control screen

NAV

Press several times until the Control Screen

appears.

2 Display source select screen

3 Select a source

1 Switches to the selected source.

2 Scrolls the source display.

3 Displays the external device control

screen. See <External Device Power Supply

Control> (page 53).

4 Switches the skin. (3 types)

5 Displays the Hands-Free Control screen. See

<Hands Free Unit Control> (page57).

⁄

• The displayed source depends on the type of device

connected. In addition, you cannot press the button of

currently unavailable source.

B64_3824_1001_EN_P01_63.indd 52B64_3824_1001_EN_P01_63.indd 52 07.6.8 10:47:47 AM07.6.8 10:47:47 AM

English 53

External Device Power Supply Control

Controlling the external device power supply.

External Device Power Supply Control

1 Display the EXT SW Control screen

[EXT SW] appears when the control screen of

each source or Easy control panel is displayed.

2 Control the external device power supply

1 You can turn on or off the external device

power supply.

2 Returns to the original screen.

⁄

• You must connect a commercially available relay unit in

order to use this function.

Connect the external device to be controlled to that

relay unit.

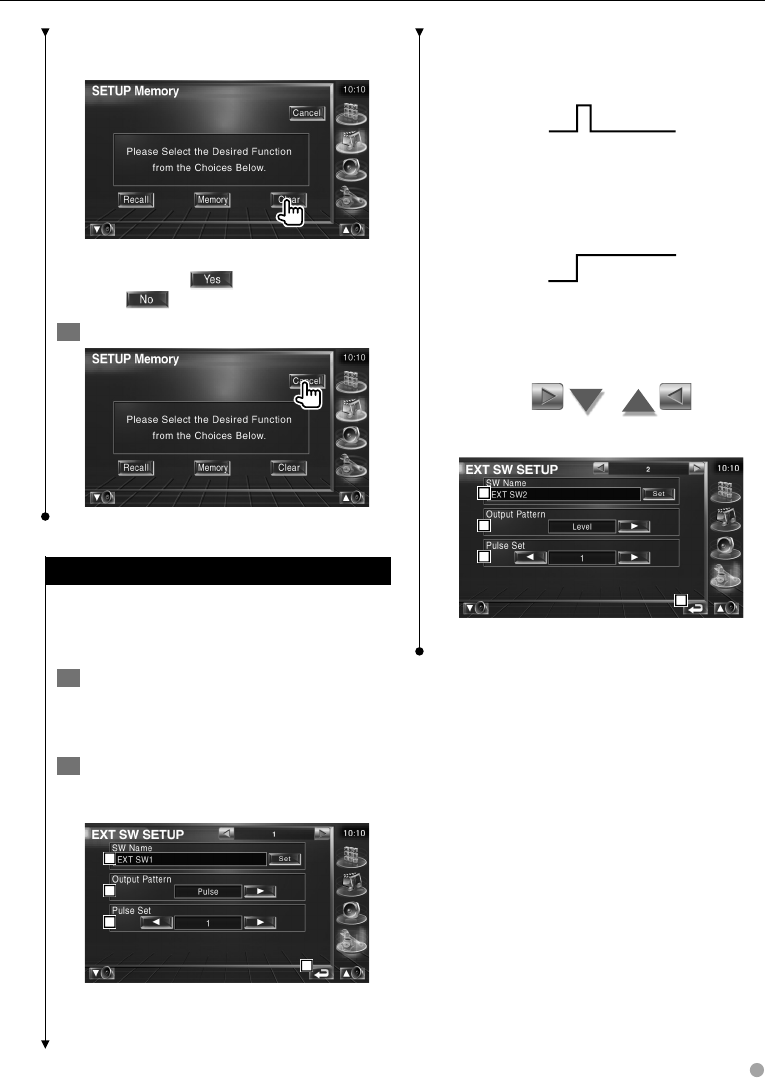

• Refer to <EXT SW Setup> (page 83) for information on

setting the power on or off specification.

B64_3824_1001_EN_P01_63.indd 53B64_3824_1001_EN_P01_63.indd 53 07.6.8 10:47:48 AM07.6.8 10:47:48 AM

54 DNX7200

Muting Audio Volume upon Reception of

Phone Call

When the telephone is called, the system is

paused automatically.

When the telephone is called...

The Phone Call ("CALL") screen appears, and

system is paused.

Phone Call ("CALL") screen

When the call ends...

Hang up the phone.

The system resumes playing automatically.

⁄

• To use the TEL Mute feature, you need to hook up

the MUTE wire to your telephone using a commercial

telephone accessory. Refer to <INSTALLATION MANUAL>.

Muting Audio Volume upon Reception of Phone Call

B64_3824_1001_EN_P01_63.indd 54B64_3824_1001_EN_P01_63.indd 54 07.6.8 10:47:49 AM07.6.8 10:47:49 AM

English 55

How To Use the Character Entry Screen

When you select the Set Disc Name mode or

others, the following screen appears for character

entry.

Character Entry screen

1 Shifts the cursor.

2 Enters a space.

If you erase a character, locate the cursor on

it and touch this button.

3 Enters characters.

4 Scrolls up or down the character button

display.

5 Exits the Character Entry mode and returns

to the previous screen.

⁄

• You can enter characters only after you have applied the

parking brake.

Character Entry

B64_3824_1001_EN_P01_63.indd 55B64_3824_1001_EN_P01_63.indd 55 07.6.8 10:47:50 AM07.6.8 10:47:50 AM

56 DNX7200

Screen Control

Setting the monitor screen.

1 Display Easy control panel

NAV

2 Display the Screen Control screen

P 00:00:05

Title

Chap

IN AT T

SRC

SCRN

EXT SW

DVD VIDEO

P 00:00:05

Title

Chap

DVD VIDEO

Mode:Full AV–OUT:AV–IN

3 Adjust the picture quality

SYNC

ON OFF

odeDi

1 1

2 2

3 3

4 4

5 5

1 Brightness Control

2 Tint Control

Displayed for an NTSC system image on TV,

Video, iPod or Rear View Camera.

3 Color Control

Displayed on the TV, Video, iPod or Rear

View Camera screen only.

4 Contrast Control

5 Black Level Adjustment

6 Dimmer Mode Setup

"SYNC": Turning the Dimmer function

On or Off when the vehicle light

control switch is turned On or Off.

"On": The display dims.

"Off": The display doesn’t dim.

7 Returns to the previous screen.

⁄

• The Screen Control screen is displayed only when you

have applied the parking brake.

• The picture quality can be set for each source.

• You can set image quality of screens such as menu from

<Monitor Setup> (page 76) of the <Setup Menu>.

B64_3824_1001_EN_P01_63.indd 56B64_3824_1001_EN_P01_63.indd 56 07.6.8 10:47:50 AM07.6.8 10:47:50 AM

English 57

10 11

14 15

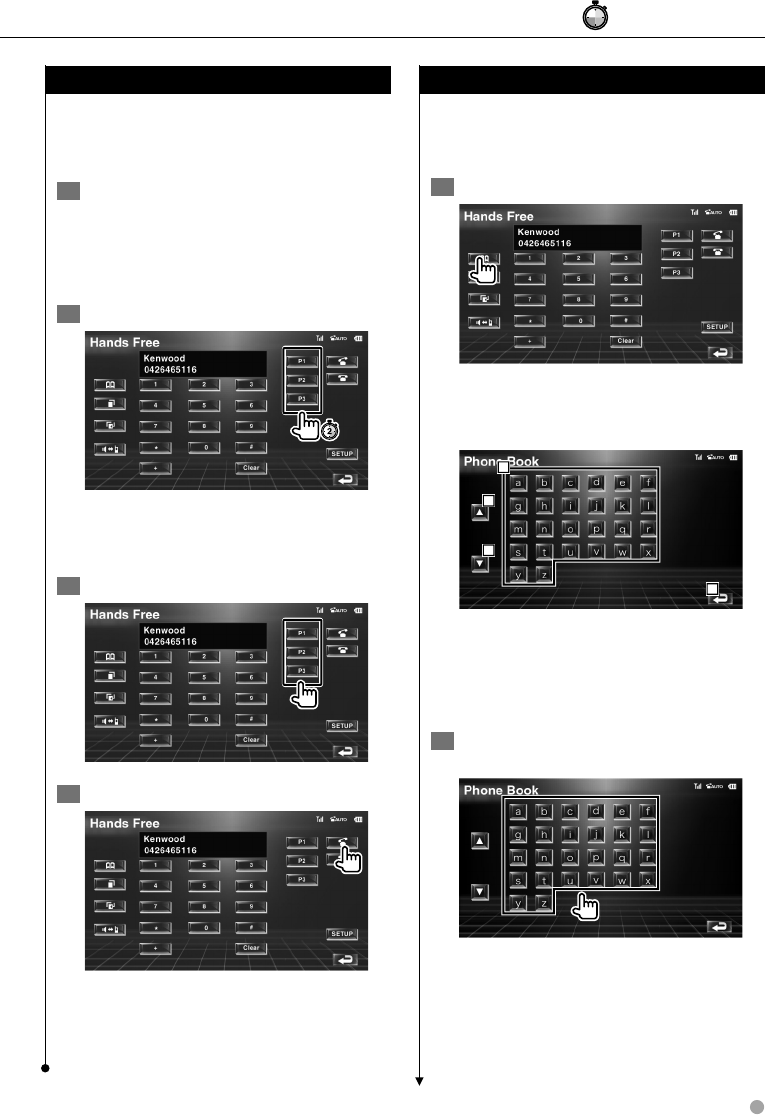

2 Displays the Search for Phone Book screen.

Refer to <Calling by Phone Book> (page 59).

3 Displays the Out Going Calls screen.

Refer to <Redialing> (page 61).

4 Displays the Incoming Calls screen.

Refer to <Redialing> (page 61).

5 Switches between the private and hands-

free modes (only when a call in progress).

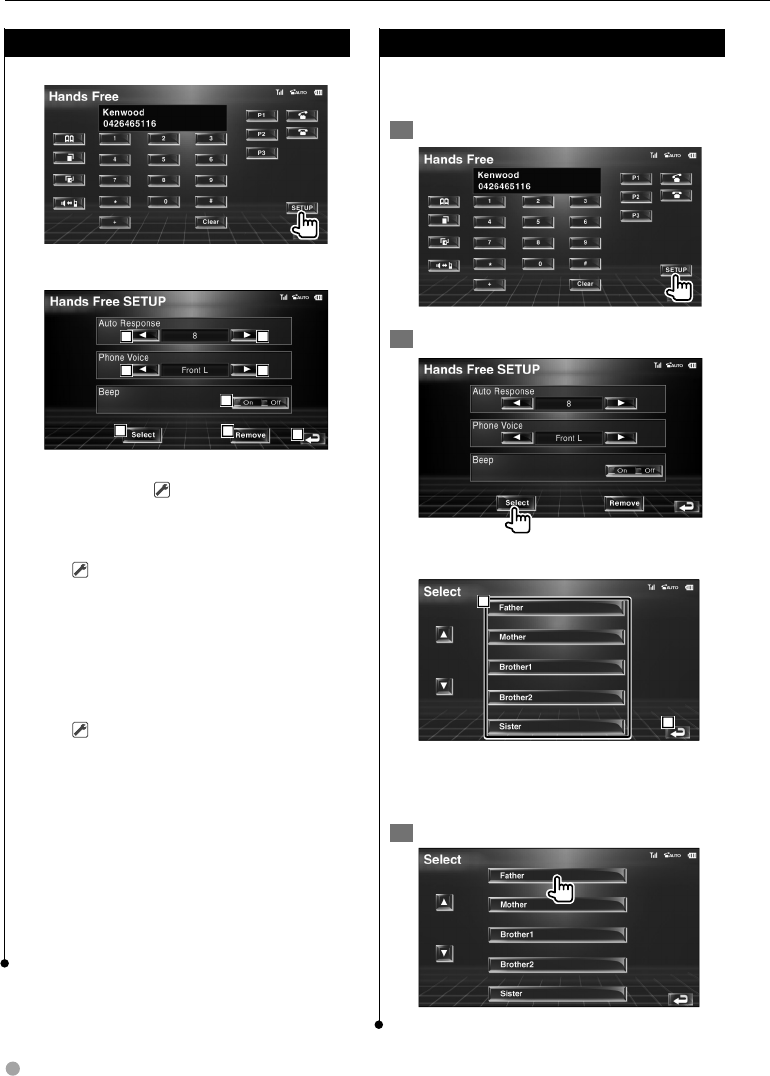

6 Displays the Hands-Free Set Up screen.

Refer to <Setting Up the Hands-Free

Phone> (page 62).

7 Enters three phone numbers for quick

dialing.

Refer to <Quick Dialing> (page 59).

8 Enters a phone number.

Refer to <When Dialing> (page 58).

9 Displays the signal strength.*

The more the number of bar segments, the

stronger the signal.

p Displays the present Auto Answering status

When Auto Answering is on:

AUT

When Auto Answering is off:

q Displays the battery drain of the cell-

phone.*

The more the number of bar segments, the

higher the battery level.

w Starts the call.

e Ends the call.

Clears the phone number being entered.

r Clears the entered phone number.

t Returns to the previous screen.

Hands Free Unit Control

• You need to register your cell-phone to your Bluetooth Hands Free Box beforehand. Make sure to read the instruction manual

of the Bluetooth Hands Free Box as well.

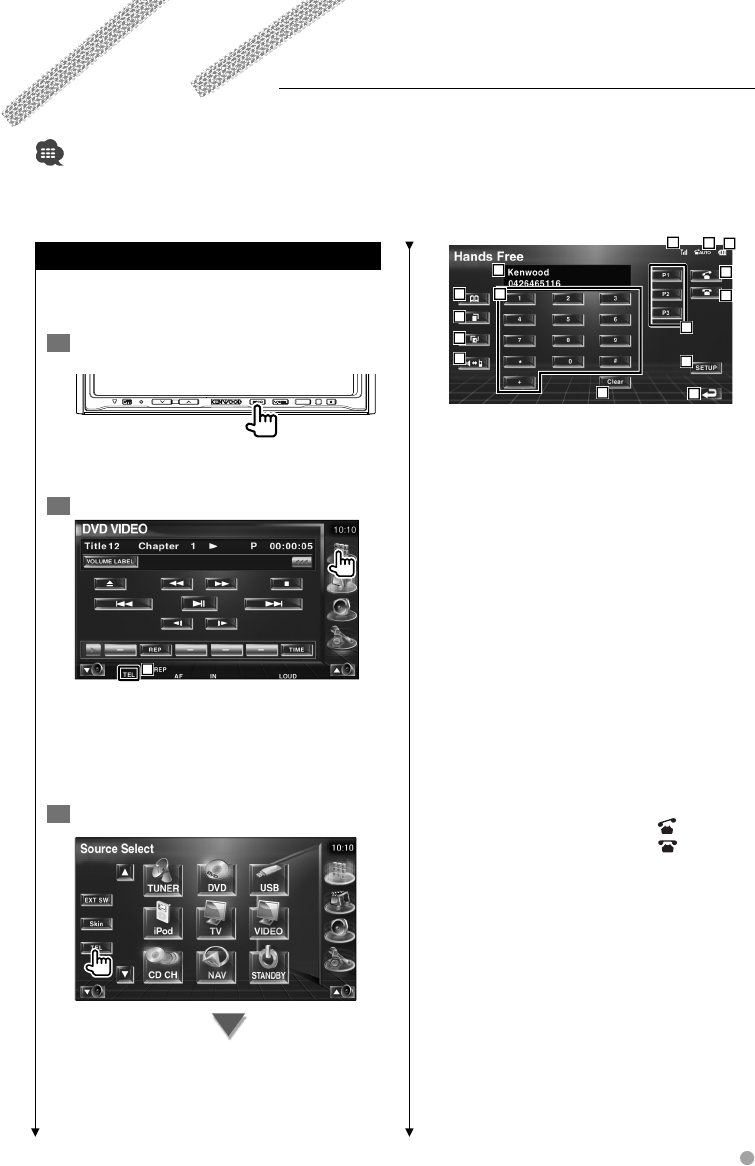

Control Screen Function

Displaying the control screen and using various

functions.

1 Display the control screen

NAV

Press several times until the Control Screen

appears.

2 Display the source select screen

1 Displays the status of connection with the

cell-phone.

White: The cell-phone is connected.

Orange: The cell-phone is not connected,

or it is outside the service range.

3 Display the Hands-Free Control screen

Next page 3

B64_3824_1001_EN_P01_63.indd 57B64_3824_1001_EN_P01_63.indd 57 07.6.8 10:47:52 AM07.6.8 10:47:52 AM

58 DNX7200

y Displays the calling and called phone

numbers.

If you have registered a phone number in

the Phone Book, the destination person

name is displayed.

⁄

• While your car is moving, some functions are disabled for

safety’s sake. The buttons associated with the disabled

functions become ineffective if pressed.

• When the Hands-Free Control screen appears, the name

of the connected cell-phone is displayed for 5 seconds.

• * Since the number of steps of the control unit is different

from that of the cell-phone, the statuses displayed on

the control unit may discord from those displayed on

the cell-phone. No status is displayed if information

about it cannot be obtained.

• Setting the cell-phone in the private mode can disable

the hands-free function.

When Called

When you receive a call, you can use the hands-

free phone.

1 Respond to a call

When a call arrives, the Hands-Free Control

screen appears automatically.

2 End the call

The previous screen reappears.

Hands Free Unit Control

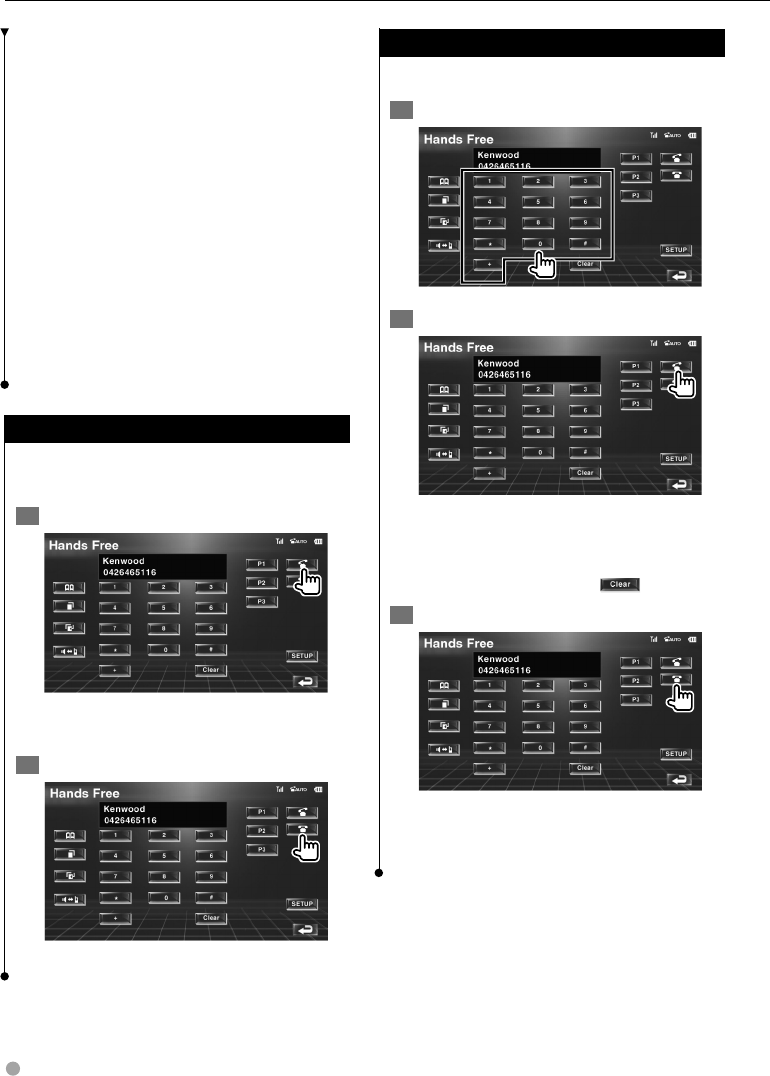

When Dialing

Make a call by entering a phone number.

1 Enter a phone number

2 Make a call

You can start talking when the destination

responds.

⁄

• To clear your incorrect entry, touch .

3 End the call

The previous screen reappears.

⁄

• You can input max 32 digits.

B64_3824_1001_EN_P01_63.indd 58B64_3824_1001_EN_P01_63.indd 58 07.6.8 10:47:54 AM07.6.8 10:47:54 AM

English 59

Quick Dialing

You can register up to 3 phone numbers for quick

dialing.

To register a phone number:

1 Display a phone number you wish to

See the <Calling by Phone Book> (page 59),

(page 58).

2 Register the phone number

Continue to touch more than 2 seconds.

To call a phone number from memory:

1 Recall the phone number

2 Make a call

⁄

• Only the phone numbers can be registered for Quick

Dialing. Therefore, the destination subscriber name and

others are not displayed during dialing.

# : Press for # seconds.

Calling by Phone Book

You can call a person using his/her phone

number that you have registered in the Phone

Book.

1 Display the Phone Book screen

The Initial Input screen appears.

Initial Input screen

1 Scrolls the character array display.

2 Displays the Phone Book beginning with

the name whose first character you have

touched.

3 Returns to the Hands-Free Control screen.

2 Select the initial character of a person

name in memory

The Phone Book List screen appears.

Next page 3

B64_3824_1001_EN_P01_63.indd 59B64_3824_1001_EN_P01_63.indd 59 07.6.8 10:47:56 AM07.6.8 10:47:56 AM

60 DNX7200

Hands Free Unit Control

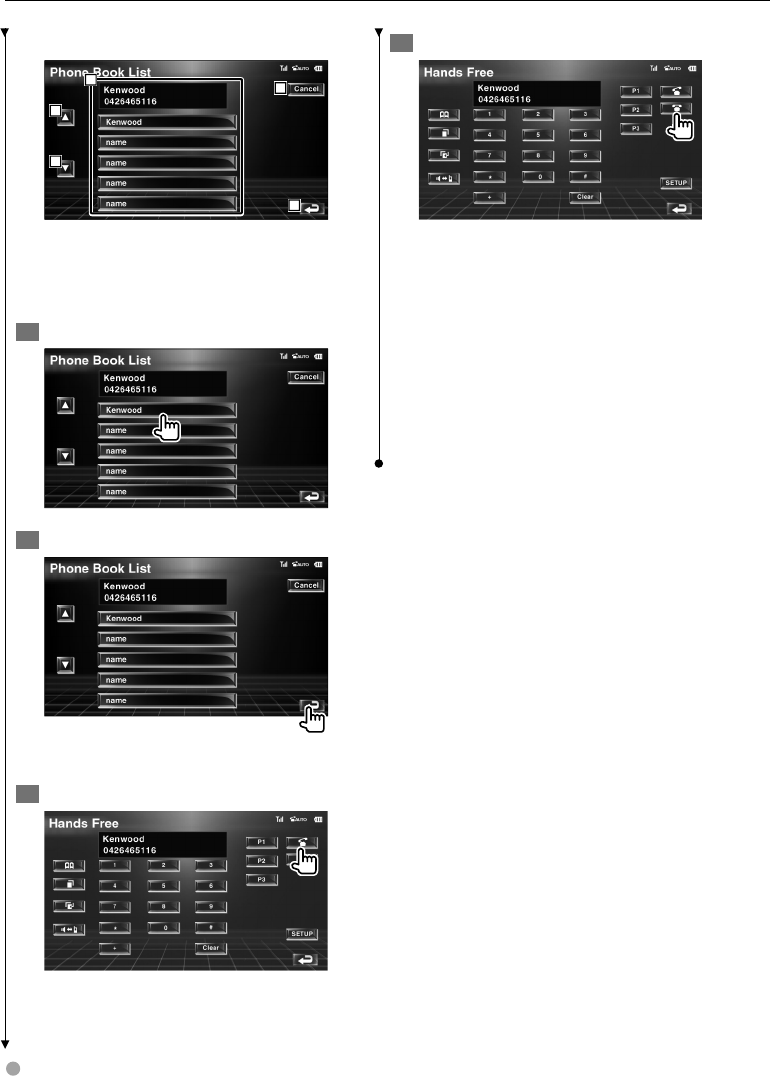

Phone Book List screen

4 Scrolls the list.

5 Enters the destination name.

6 Cancels the operation.

7 Returns to the Hands-Free Control screen.

3 Select a destination you wish to call

4 Confirm the destination

The Hands-Free Control screen appears again.

The selected destination data is displayed.

5 Make a call

You can start talking when the destination

responds.

6 End the call

The previous screen reappears.

⁄

• To use the Phone Book, it must have been downloaded

from the cell-phone. For more details, see the instruction

manual of your Bluetooth Hands Free Box and your cell-

phone.

• Up to 16 characters can be displayed for each name in

the Phone Book.

• Initials including no corresponding name will not be

displayed.

• During search, a non-accent character such as "u" is

searched for instead of an accent character such as "ü".

B64_3824_1001_EN_P01_63.indd 60B64_3824_1001_EN_P01_63.indd 60 07.6.8 10:47:58 AM07.6.8 10:47:58 AM

English 61

Redialing

You can redial, one of the last 10 phone numbers

that you have called or received.

1 Display the Search for Outgoing Calls or

Incoming Calls screen

: Outgoing Calls

: Incoming Calls

The Outgoing Calls or Incoming Calls list screen

appears.

Outgoing Calls or Incoming Calls screen

1 Scrolls the list.

2 Enters the destination name.

3 Switches the Redial List between 5 numbers

display and single number display.

4 Enters the destination data and returns to

the Hands-Free Control screen.

5 Returns to the Hands-Free Control screen.

2 Select a destination you wish to call

3 Confirm the destination

The Hands-Free Control screen appears again.

The selected destination data is displayed.

4 Make a call

You can start talking when the destination

responds.

5 End the call

The previous screen reappears.

⁄

• The Outgoing Calls list screen or Incoming Calls list

screen shows the list of the calls originated from or

received at this unit. They are not the ones stored in the

cell-phone memory.

B64_3824_1001_EN_P01_63.indd 61B64_3824_1001_EN_P01_63.indd 61 07.6.8 10:47:59 AM07.6.8 10:47:59 AM

62 DNX7200

Hands Free Unit Control

Setting Up the Hands-Free Phone

The Hands-Free system can be set as follows.

Hands-Free Set Up screen

1 1

2 2

456

1 Sets an automatic response time after call

termination. ( "8")

"Off": This function can not use.

"0-99": Sets to calling ring time (second).

2 Sets a ringing tone output position.

( "Front R")

"Front L": Outputs the tone from the front

left-hand side speaker.

"Front R": Outputs the tone from the front

right-hand side speaker.

"Front All": Outputs the tone from the both

front speakers.

3 Sets the beep of the incoming call.

( "On")

"On": Beep is heard.

"Off": Beep is canceled.

4 Displays the Phone Select screen.

5 Displays the Phone Delete screen.

6 Returns to the Hands-Free Control screen.

⁄

• Either the time interval for automatic answer set on this

unit or the time interval set on the cell-phone, whichever

is shorter, takes effect.

• Select the speaker which is further from the microphone

in order to prevent howling or echoes.

Selecting a Hands-Free Phone

You can choose the Hands-Free phone from the

list.

1 Display the Hands-Free Set Up screen

2 Display the Phone Select list

Phone Select screen

1 Selects the cell-phone to be used as a

hands-free phone.

2 Returns to the Hands-Free Set Up screen.

3 Select a Hands-Free phone you wish to use

B64_3824_1001_EN_P01_63.indd 62B64_3824_1001_EN_P01_63.indd 62 07.6.8 10:48:01 AM07.6.8 10:48:01 AM

English 63

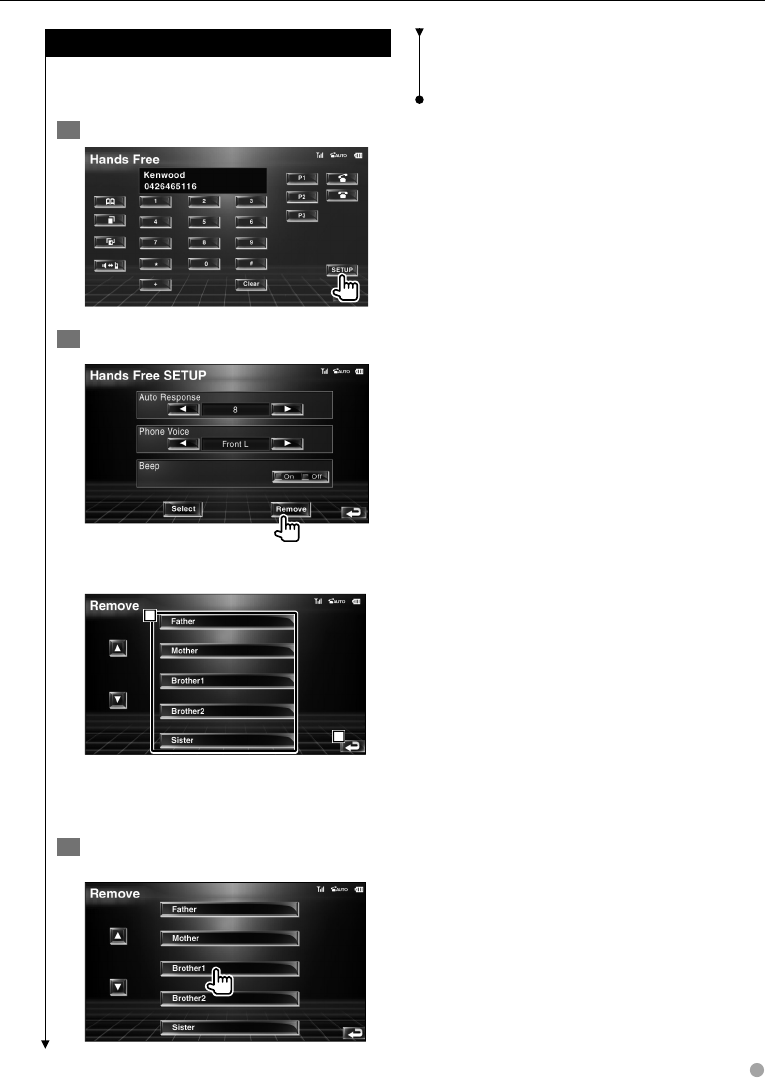

Deleting the Hands-Free Phone

You can cancel a registration of Hands-Free

phone.

1 Display the Hands-Free Set Up screen

2 Display the Phone Delete list

Phone Delete screen

1 Selects the cell-phone to be deleted from

the list.

2 Returns to the Hands-Free Set Up screen.

3 Select a Hands-Free phone you wish to

delete

⁄

• The Phone Book, outgoing call list, and incoming call list

are deleted together with the deleted Hands-Free phone.

B64_3824_1001_EN_P01_63.indd 63B64_3824_1001_EN_P01_63.indd 63 07.6.8 10:48:03 AM07.6.8 10:48:03 AM

64 DNX7200

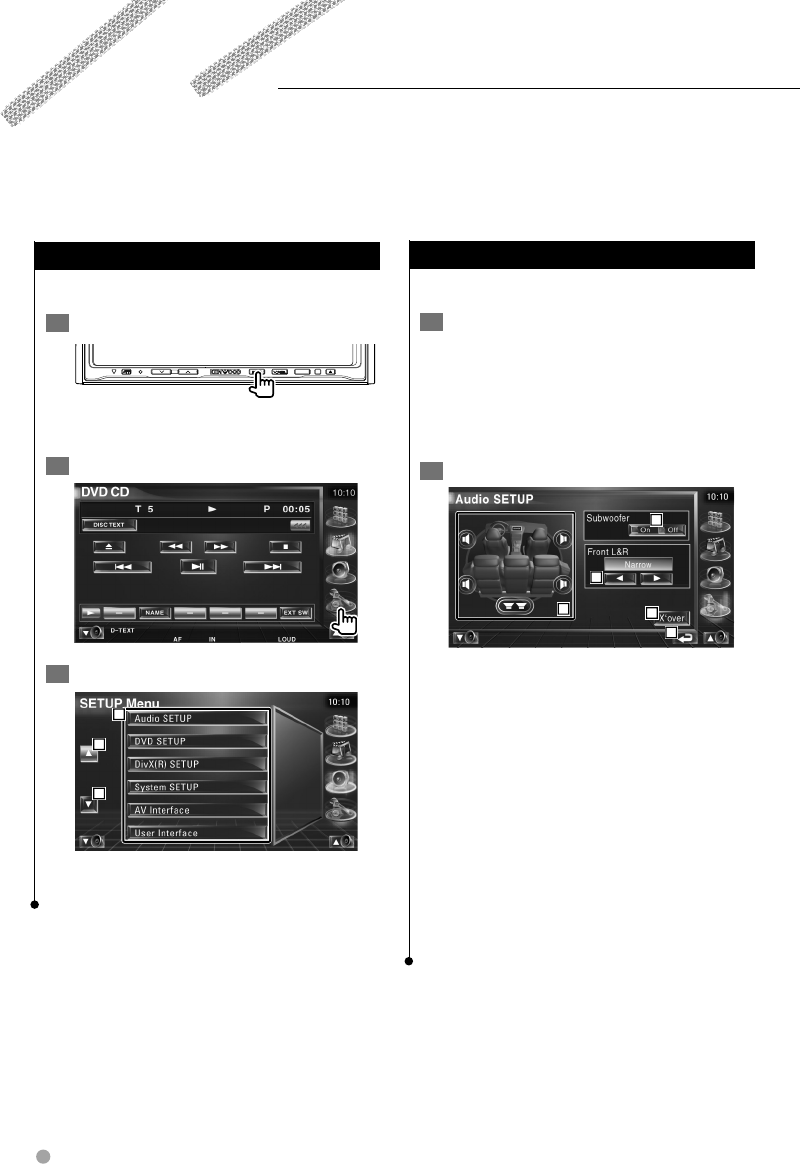

Setup Menu

Displays the Setup menu to set various functions.

1 Display the control screen

NAV

Press several times until the control screen

appears.

2 Display the SETUP Menu

3 Select the setup item

1 The selected setup screen appears.

2 Scrolls the setup menu.

You can set up various receiver parameters.

Setup Menu

Audio Setup

You can setup a speaker network, etc.

1 Display the Audio SETUP screen

Touch [Audio SETUP] in the SETUP Menu (page

64).

⁄

• [Audio SETUP] cannot be selected when no source is

selected.

2 Setup each item

1 Selects the speaker to set the crossover. See

<Crossover Network Setup> (page 65).

2 Sets the availability of subwoofers.

3 Selects the type of front speakers.

"Standard": Setup for general diameter

speakers

"Narrow": Setup for small diameter

speakers

"Middle": Setup for middle diameter

speakers

"Wide": Setup for large diameter

speakers

4 Switches to the crossover setup screen.

See <Crossover Network Setup> (page 65).

5 Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 64B64_3824_0000_EN_P64_100.indd 64 07.4.26 5:23:16 PM07.4.26 5:23:16 PM

English 65

Crossover Network Setup

You can set a crossover frequency of speakers.

1 Select the speaker to set the crossover

2 2

1 Sets the High Pass Filter of the front speaker.

2 Sets the High Pass Filter of the rear speaker.

3 Sets the Low Pass Filter of the sub woofer.

4 Switches to the crossover setup screen.

5 Returns to the original screen.

2 Display the Crossover setup screen

3 Set the crossover

6 Sets the cross over frequency.

7 Sets the subwoofer phase. (Only when

"Subwoofer" is set to "On" in Audio Setup

and "LPF SUB FREQ" is set to other than

"Through")

8 Returns to the original screen.

Next page 3

DVD Setup

You can set up the DVD play.

1 Display the DVD SETUP screen

Touch [DVD SETUP] in the SETUP Menu (page

64).

2 Setup each item

1 Selects a disc menu language.*1

(See <Language Setup>, page 66)

2 Selects a subtitle language.*1

(See <Language Setup>, page 66)

3 Selects an audio language.*1

(See <Language Setup>, page 66)

4 Sets the dynamic range.*1 ( Wide)

The dynamic range is reduced by changing

from "Wide" to "Normal" and from "Normal"

to "Dialog". "Dialog" makes the total sound

volume becomes larger as compared with

"Wide" and "Normal", allowing you to listen

to the movie's dialog more clearly.

This is effective only when you are using a

Dolby Digital software.

5 Returns to the original screen.

⁄

• * Disabled when a DVD is being played.

B64_3824_0000_EN_P64_100.indd 65B64_3824_0000_EN_P64_100.indd 65 07.4.26 5:23:18 PM07.4.26 5:23:18 PM

66 DNX7200

6 Sets an angle mark display. ( On)

7 Selects the screen display mode.*1 ( 16:9)

"16:9": Displays wide pictures.

"4:3 LB": Displays wide pictures in the Letter

Box format (having black stripes at

the top and bottom of screen).

"4:3 PS": Displays wide pictures in the Pan &

Scan format (showing pictures cut

at the right and left ends).

8 Displays the Parental Lock screen.*1 ( Off )

(See <Parental Level Setup>, page 67)

9 Keep "Auto" to use.*1

⁄

• * Disabled when a DVD is being played.

p Selects a picture display time. *1 ( Middle)

The Display of a JPEG picture is changed.

"Short", "Middle", "Long"

⁄

• * Disabled when a DVD is being played.

Setup menu

Language Setup

Selects a language you use for the speech and

menus.

1 Select the language item to set

Refer to <DVD Setup> (page 65) and select

[Menu Language], [Subtitle Language] or

[Audio Language].

2 Display the Language SETUP screen

1 Enters a language code.

2 Cancels the language setup and returns to

the DVD SETUP 1screen.

3 Sets the original audio language.

(It appears during Audio Language setup.)

4 Sets the language and returns to the DVD

SETUP 1 screen.

(It appears after you have entered a

language code.)

5 Clears the language code.

3 Enter a language code

See <DVD Language Codes> (page 96) and

select the desired language.

B64_3824_0000_EN_P64_100.indd 66B64_3824_0000_EN_P64_100.indd 66 07.4.26 5:23:19 PM07.4.26 5:23:19 PM

English 67

4 Set the language you use

Parental Level Setup

Sets a parental level.

1 Display the Parental Level code number

screen

Refer to <DVD Setup> (page 65) and touch

[Parental Level].

1 Enters a code number.

2 Cancels the current setup and returns to

the DVD SETUP 2 screen.

3 Indicates the present parental lock level.

4 Determines the code number and displays

the Parental Level setup screen.

5 Clears the code number.

Next page 3

2 Enter the code number

⁄

• The number you enter first is set as your code number.

• You can clear the code number by pressing the Reset

button.

3 Display the Parental Level SETUP screen

4 Select a parental level and complete the

setup

6 Selects a parental level.

7 Complete the parental level setup and

returns to DVD SETUP 2 screen.

B64_3824_0000_EN_P64_100.indd 67B64_3824_0000_EN_P64_100.indd 67 07.4.26 5:23:22 PM07.4.26 5:23:22 PM

68 DNX7200

Setup menu

⁄

• If a disc has higher parental lock level, you need to enter

the code number.

• The parental lock level varies depending on a loaded

disc.

• If a disc has no parental lock, anybody can play it back

even when you have set the parental lock.

DivX Setup

Checks the registration code. This code is needed

when making a disc which has DRM (Digital

Rights Management).

1 Display the DivX SETUP screen

Touch [DivX SETUP] in the SETUP Menu (page

64).

1 Displays the registration code.

2 Returns to the original screen.

⁄

• When downloading a DivX VOD file controlled by DRM,

one above. Otherwise the file may not be able to play

with this unit. Remaining number of viewing is displayed

when playing a DivX VOD file with the viewing restriction.

When the remaining number of viewing reached 0, a

warning message appears and the file cannot be played.

B64_3824_0000_EN_P64_100.indd 68B64_3824_0000_EN_P64_100.indd 68 07.4.26 5:23:23 PM07.4.26 5:23:23 PM

English 69

Software Information

Checks the software version of this unit.

1 Display the Software Information screen

Touch [Software Information] in the SETUP

Menu (page 64).

05:07

Software Information

Versi on

xx.xx.xx

1 Displays the software version.

2 Returns to the original screen.

iPod Setup

Performs setup when using iPod.

1 Display the iPod SETUP screen

Touch [iPod SETUP] in the SETUP Menu (page

64).

2 Setup each item

1 Sets the Audio book playback speed.

2 Sets Wide Screen on or off.

3 Returns to the original screen.

⁄

• "Wide Screen" cannot be set while the iPod is connected.

B64_3824_0000_EN_P64_100.indd 69B64_3824_0000_EN_P64_100.indd 69 07.4.26 5:23:24 PM07.4.26 5:23:24 PM

70 DNX7200

System Setup

You can set up the system parameters.

1 Display the System SETUP screen

Touch [System SETUP] in the SETUP Menu

(page 64).

2 Setup each item

1 Turns the key touch tone On or Off. ( On)

2 Allows scrolling of text display on the

Source Control screen. ( Manual)

"Auto": Scrolls the screen automatically.

"Manual": Allows you to scroll the screen

manually.

3 Selects a remote control signal. ( On)

When turned "Off", the remote control of TV

reception is rejected.

4 Sets a music CD playback. ( 1)

"1": Automatically recognizes and plays

back an Audio file disc, a DVD or a

music CD.

"2": Forcibly plays back a disc as a music

CD. Select "2" if you wish to play a

music CD having a special format or

if you cannot play a disc in the "1"

position.

5 Returns to the original screen.

⁄

• You cannot play an Audio file/VCD disc in the "2"

position. Also, you may not play some music CDs in the

"2" position.

• Your setup is disabled when the disc is being played.

Setup menu

AV Interface Setup

You can set audio and visual (AV) interface

parameters.

1 Display the AV Interface screen

Touch [AV Interface] in the SETUP Menu (page

64).

2 Setup each item

1 Sets a name to be displayed when you

select a system that is connected via the AV

INPUT port. ( VIDEO)

2 Sets an image display of the system that is

connected via the AV INPUT port. ( Off)

"Off": When the image source is switched,

an image entered via the AV INPUT

port is displayed.

"On": When an image signal is entered

via the AV INPUT port, this image is

displayed.

3 Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 70B64_3824_0000_EN_P64_100.indd 70 07.4.26 5:23:40 PM07.4.26 5:23:40 PM

English 71

4 Selects an AV source to be output at the AV

OUTPUT port. ( AV-IN)

5 Sets a method to switch to the rear view

camera video display. ( Off )

"On": Switches to the rear view camera

video display when engaging the

shift knob of car to "Reverse".

"Off": Switches to the the rear view camera

video display when engaging the

shift knob of car to "Reverse" and

then pressing the [V.SEL] switch

several times.

6 You can flip the left and right of the rear

view camera video display. Set to "Reverse"

and the the rear view will be displayed left

and right in mirror image on the screen.

( Off)

7 Selects speakers used for voice guidance of

the navigation system. ( F-Left)

"F-Left": Uses the front left side speaker

for voice guidance.

"F-Right": Uses the front right side speaker

for voice guidance.

"Front All": Uses both front speakers for

voice guidance.

8 Adjusts the volume for voice guidance of

the navigation system. ( 19)

9 Mutes the volume during voice guidance of

the navigation system. ( On)

When turned "On", the volume level drops

for voice guidance.

p Sets a selecting method of audio source

from the Navigation system.( Off)

"On": Allows you to select the audio source

input from the Navigation system

interface by selecting it on Source

Select screen.

"Off": The audio source cannot be selected

on Source Select screen.

B64_3824_0000_EN_P64_100.indd 71B64_3824_0000_EN_P64_100.indd 71 07.4.26 5:23:42 PM07.4.26 5:23:42 PM

72 DNX7200

Setup menu

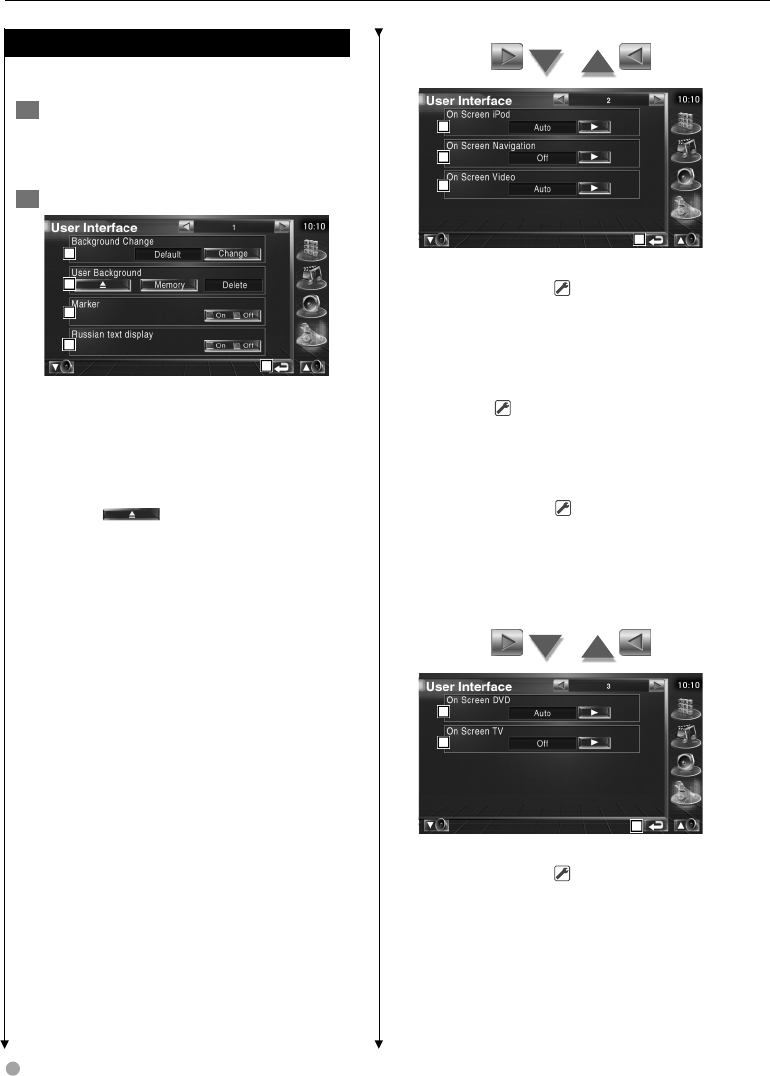

User Interface

You can set up user interface parameters.

1 Display the User Interface screen

Touch [User Interface] in the SETUP Menu

(page 64).

2 Setup each item

1 Selects the background to display.

"Change": Displays images entered into

this unit. Refer to <Background

Select> (page 74)

2 Enables entering or deleting of background

images into of from this unit.

Press to enter the USB suspend

mode, and then remove the USB device.

"Memory": Enables entering of background

images. Refer to <Entering

Background> (page 73).

"Delete": Enables deleting of background

image entered into this unit.

Refer to <Background Delete>

(page 74).

3 Sets whether to display the target when

touching the panel.

4 Sets the display method of the

unrecognized characters.

"On": Displays in the Russian character.

"Off": Displays in the European character.

5 Returns to the original screen.

6 Sets an on-screen display of the iPod

Playback screen. ( Auto)

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

7 Sets an on-screen display of the navigation

screen. ( Off)

"Auto": Information is displayed for 5

seconds when updated.

"Off": Information is not displayed.

8 Sets an on-screen display of the video

playback screen. ( Auto)

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

9 Returns to the original screen.

p Sets an on-screen display of the DVD

Playback screen. ( Manual)

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

B64_3824_0000_EN_P64_100.indd 72B64_3824_0000_EN_P64_100.indd 72 07.4.26 5:23:43 PM07.4.26 5:23:43 PM

English 73

q Sets an on-screen display of the TV screen.

( Auto) (with the optional accessory TV

tuner connected only)

"Auto": Information is displayed for 5

seconds when updated.

"Manual": Information is displayed when you

touch on the screen.

w Returns to the original screen.

e Sets whether to display animation when

switching screens.

r Sets whether to display the name of the

, , , and buttons on

the right side of the menu screen.

t Returns to the original screen.

Entering Background

Loads images for background.

1 Connect the device which has the image to

load

2 Display the User Interface screen

3 Select the image to load

1 Returns to Media Select screen.

2 Returns to the previous folder.

3 Scrolls the list.

4 Load the image

4 4

4 Rotates the image.

5 Returns to the Picture Select screen.

⁄

• Refer to <About Picture files> (page 11) for readable

image specifications.

• Up to 3 images can be loaded.

• This operation is not possible when USB is selected as the

source.

B64_3824_0000_EN_P64_100.indd 73B64_3824_0000_EN_P64_100.indd 73 07.4.26 5:23:44 PM07.4.26 5:23:44 PM

74 DNX7200

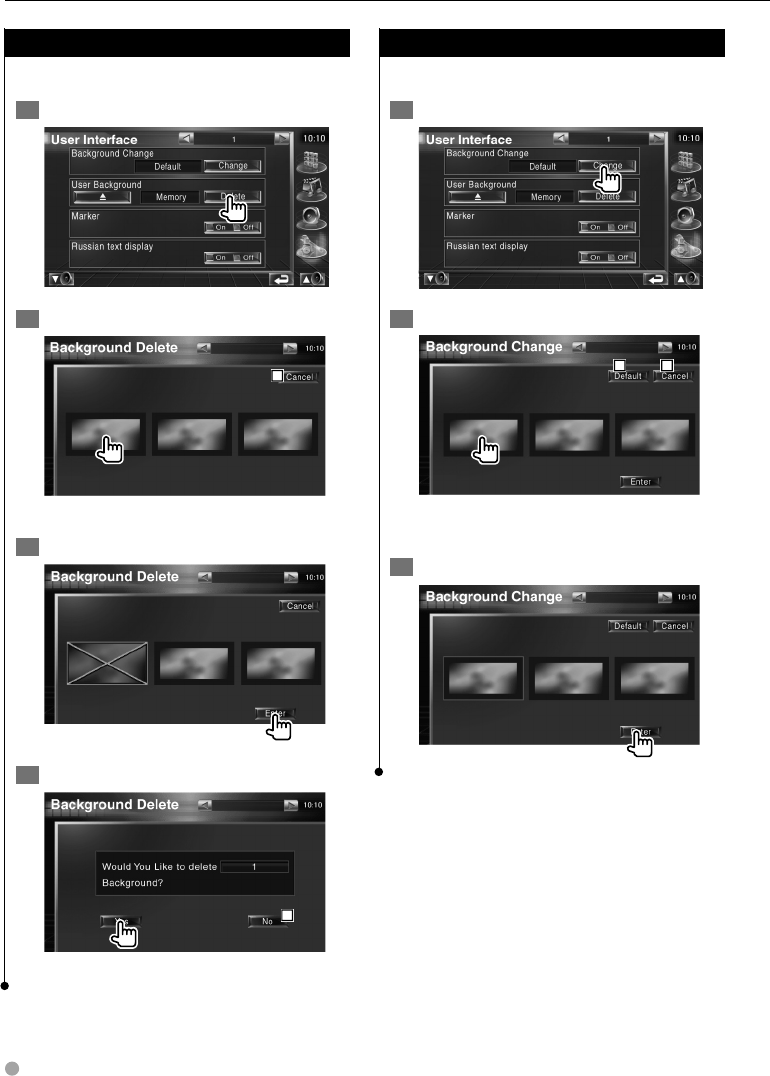

Background Delete

Deletes the background image.

1 Display Delete Image Select screen

2 Select the image to be deleted

1 Returns to the original screen.

3 Delete the image

4 Confirm

2 Returns to the Pictrue Select screen.

Setup menu

Background Select

Selects a image for background.

1 Select Background Select screen

2 Select a image for background

1 2

1 Returns to the original screen.

2 Returns to the initial background.

3 Set the image as the background

B64_3824_0000_EN_P64_100.indd 74B64_3824_0000_EN_P64_100.indd 74 07.4.26 5:23:46 PM07.4.26 5:23:46 PM

English 75

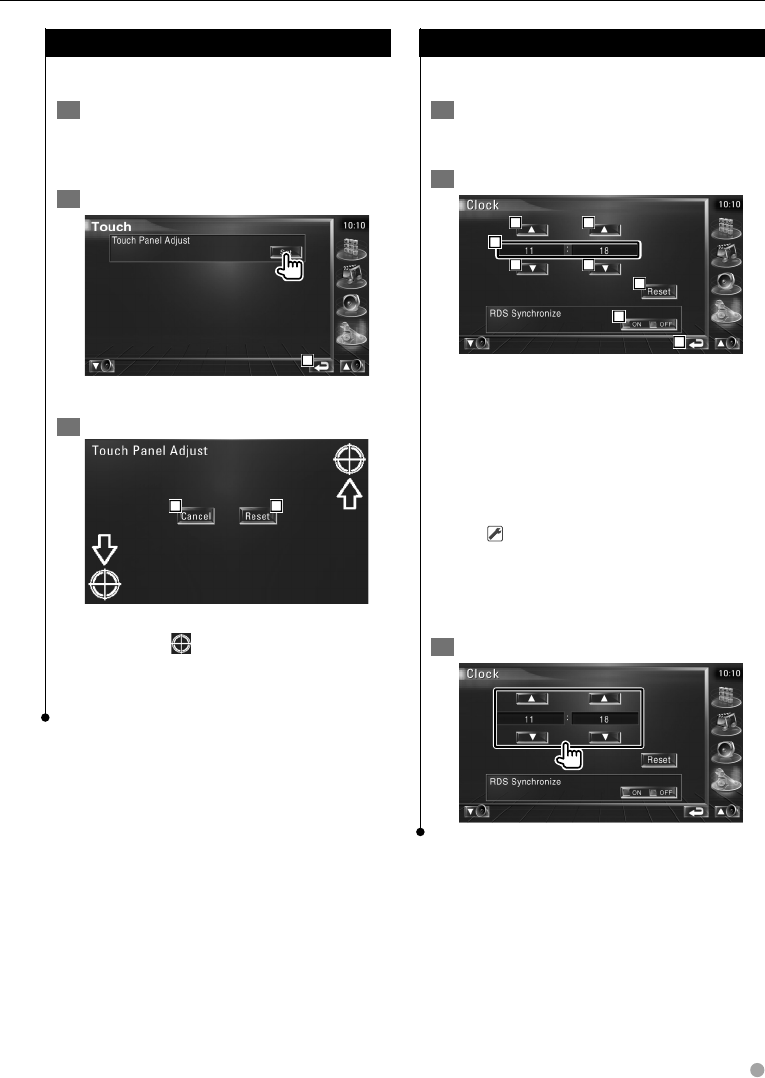

Touch Panel Adjustment

You can adjust the touch panel operations.

1 Display the Touch panel Adjustment

screen

Touch [Touch] in the SETUP Menu (page 64).

2 Start Touch panel setup

1 Returns to the original screen.

3 Adjust the Touch panel

2 3

Follow the instruction on the screen and touch

the center of .

2 Cancels the adjustment and returns to the

Touch Panel Adjust screen.

3 Resets to the initial status.

Clock Setup

You can adjust the clock time.

1 Display the Clock Setup screen

Touch [Clock] in the SETUP Menu (page 64).

2 Setup the Clock

1 Clock time display

2 Adjusts hours.

3 Adjusts minutes.

4 Sets "00" minute.

Setup examples: 3:00–3:29 \ 3:00

3:30–3:59 \ 4:00

5 Sets the clock time in synchronization with

the time data sent from the RDS station.

( On)

When turned "On", the synchronized mode

starts and the clock cannot be adjusted

manually.

6 Returns to the original screen.

3 Adjust the clock time

B64_3824_0000_EN_P64_100.indd 75B64_3824_0000_EN_P64_100.indd 75 07.4.26 5:23:48 PM07.4.26 5:23:48 PM

76 DNX7200

Setup menu

Monitor Setup

You can adjust the position, picture quality and

the screen mode of the monitor.

1 Displaying the Monitor SETUP screen

Touch [Monitor SETUP] in the SETUP Menu

(page 64).

2 Setup each item

1 Brightness Control

2 Contrast Control

3 Black Level Adjustment

4 Dimmer Mode Setup

"SYNC": Turning the Dimmer function On or

Off when the vehicle light control

switch is turned On or Off.

"On": The display dims.

"Off": The display doesn’t dim.

5 Returns to the original screen.

⁄

• In this Screen Control screen, you can perform setups for

the menu screen. Setups for videos such as DVD can be

performed on the <Screen Control> (page 56).

6 Sets the Monitor angle.

7 Returns to the original screen.

8 Selects a screen mode of the iPod Video

playback screen.

You can select any of the following screen

mode.

"FULL", "JUST", "ZOOM", "NORMAL"

9 Selects a screen mode of the DVD playback

screen.

You can select any of the following screen

mode.

"FULL", "JUST", "ZOOM", "NORMAL"

p Selects a screen mode of the VIDEO

playback screen.

You can select any of the following screen

mode.

"FULL", "JUST", "ZOOM", "NORMAL"

q Returns to the original screen.

w Selects a screen mode of the rear view

camera (R-CAM) screen.

You can select any of the following screen

mode.

"FULL", "JUST", "ZOOM", "NORMAL"

e Selects a screen mode of the TV screen.

You can select any of the following screen

mode.

"FULL", "JUST", "ZOOM", "NORMAL"

r Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 76B64_3824_0000_EN_P64_100.indd 76 07.4.26 5:23:49 PM07.4.26 5:23:49 PM

English 77

⁄

• When you select the Menu, Easy Control screen, or

Navigation, the display is shown in the full-size display

mode automatically. The screen mode of these displays

cannot be changed.

• The picture qua¡lity can be set for each source.

Full picture mode (FULL)

Zoom picture mode (ZOOM)

Justify picture mode (JUST)

Normal picture mode (NORMAL)

B64_3824_0000_EN_P64_100.indd 77B64_3824_0000_EN_P64_100.indd 77 07.4.26 5:23:50 PM07.4.26 5:23:50 PM

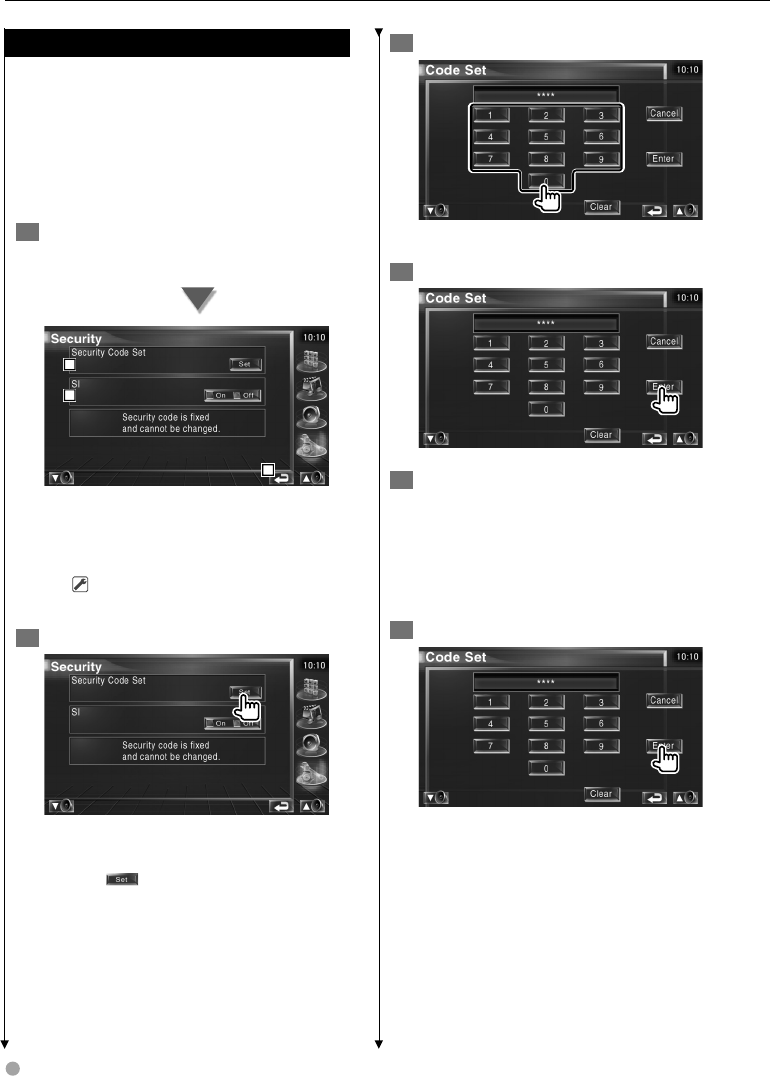

78 DNX7200

Setup menu

Security Code Setup

You can set a security code to protect your

receiver system against theft.

⁄

• When the Security Code function is activated it cannot

be released.

Note, your Security Code is the 4 digit number entered in

your "Car Audio Passport" in this package.

1 Display the Security Code Setup screen

Touch [Security] in the SETUP Menu (page 64).

1 Displays the Security code input screen.

2 Turns the SI function on or off.

If turned "On", the burglar alarm lamp

flashes when the vehicle ignition is off.

( On)

3 Returns to the original screen.

2 Start Security Code setup

⁄

• If you have already completed the code registration,

cannot touch .

3 Enter a security Code

Input four-digit number.

4 Register your security code

5 Reenter the security code

Reenter the same security code as that you

have entered in Step 3 for confirmation.

⁄

• If you enter a different security code, the screen returns

to Step 3 (for the first code entry).

6 Register the security code again

Now, your security code is registered.

If you press the Reset button or if you

disconnect your receiver from the battery after

the code registration, you need to enter the

registered security code.

B64_3824_0000_EN_P64_100.indd 78B64_3824_0000_EN_P64_100.indd 78 07.4.26 5:23:51 PM07.4.26 5:23:51 PM

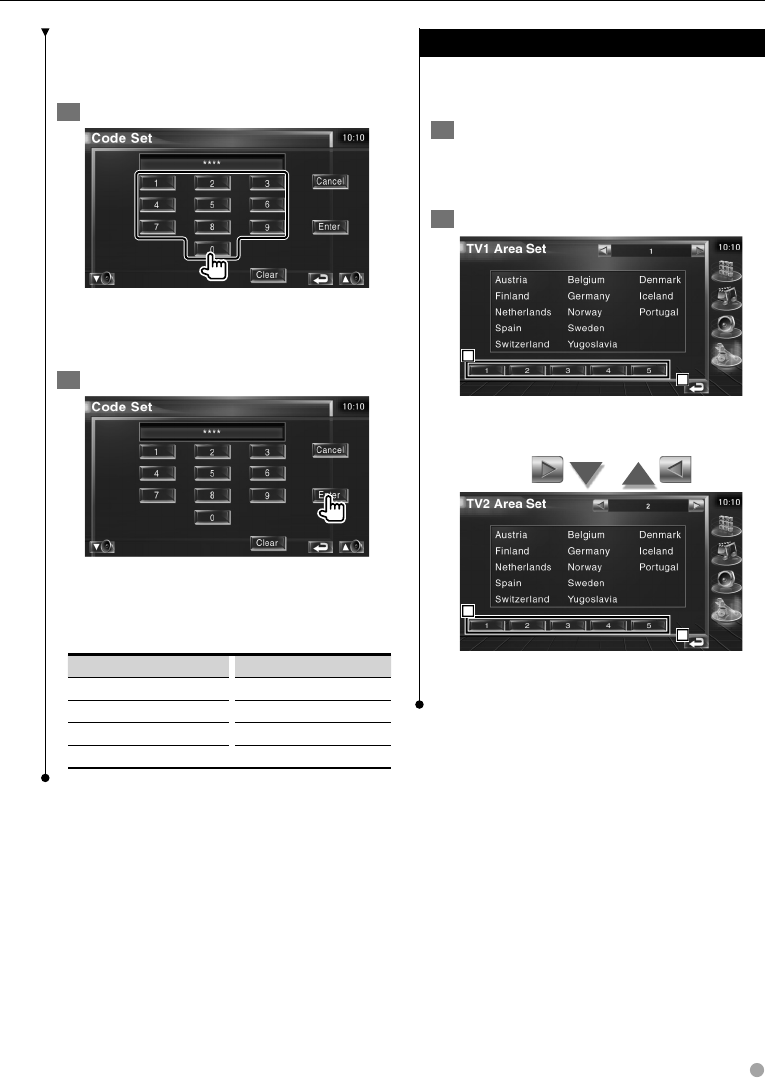

English 79

If you have pressed the Reset button or if

you have disconnected the Receiver from

battery...

1 Enter the correct security code

You must enter the same security code as that

you have entered in Step 3.

2 Enter the security code

Now, you can use your Receiver.

⁄

• If you enter an incorrect security code, you cannot use

your Receiver for a while.

Incorrect entry count Receiver inoperable time

2 5 minutes

3 1 hour

4 or more 24hours

TV Setup

The TV signal receiving areas can be set. (with the

optional accessory TV Tuner connected only)

1 Displaying TV SETUP screen

Touch [TV SETUP] in the SETUP Menu (page

64).

2 Setting up TV

1 Sets the present TV1 receiving area.

2 Returns to the original screen.

3 Sets the present TV2 receiving area.

4 Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 79B64_3824_0000_EN_P64_100.indd 79 07.4.26 5:23:53 PM07.4.26 5:23:53 PM

80 DNX7200

RDS Setup

The related RDS parameters can be set.

1 Display RDS SETUP screen

Touch [RDS SETUP] in the SETUP Menu (page

64).

2 Setup each item

1 Sets a news bulletin interrupt time.

2 Turns the Alternative Frequency function

On or Off. ( On)

3 Turns the Region Restriction function On or

Off. ( On)

4 Turns the Auto TP Seek function On or Off.

( On)

5 Returns to the original screen.

6 Selects a display language for the PTY

function.

7 Returns to the original screen.

Setup menu

DAB Setup

You can set the DAB reception. (only with the

optional accessory DAB Tuner connected)

1 Display the DAB Setup screen

Touch [DAB SETUP] in the SETUP Menu (page

64).

2 Setup each item

1 Turns the DAB Priority On or Off.

2 Turns the Dynamic Range Control function

On or Off.

3 Turns the Regional Announcement function

On or Off.

4 Sets a program type to be selected

automatically when the receiving ensemble

starts.

5 Returns to the original screen.

6 Displays the Announcement Selection

screen. (page 81)

B64_3824_0000_EN_P64_100.indd 80B64_3824_0000_EN_P64_100.indd 80 07.4.26 5:23:55 PM07.4.26 5:23:55 PM

English 81

Announcement Select

You can set various announcement reception

parameters.

1 Display the Announcement screen

See <DAB Setup> (page 80).

2 Set the announcement parameters

1 Turns the Announcement Reception

function On or Off.

2 Returns to the original screen.

Amp Control

Sets the power amp connected via the LX bus.

(with the optional accessory LX Power Amp

connected only)

1 Displaying the Amp Control screen

Touch [Amp Control] in the SETUP Menu (page

64).

2 Setting up Amp Control

3 3

1 Setup option and value display

2 Selects a setup option.

3 Selects a set value.

4 Enters the set value.

5 Returns to the original screen.

⁄

• For the model name of amp you can control from the

system, see the amp’s catalog.

• For the options and values you can change and for the

amp’s operation when changed, see the amp’s instruction

manual.

B64_3824_0000_EN_P64_100.indd 81B64_3824_0000_EN_P64_100.indd 81 07.4.26 5:23:56 PM07.4.26 5:23:56 PM

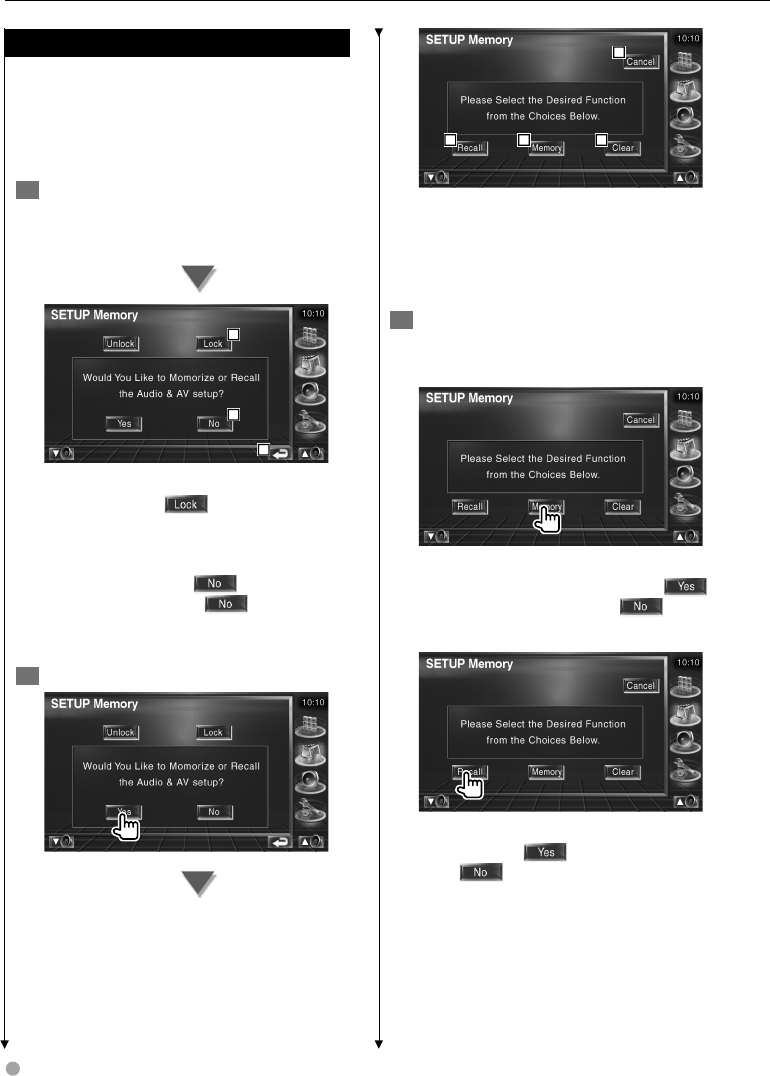

82 DNX7200

Setup menu

Setup Memory

Audio Set Up and AV Interface settings can be

memorized. The memorized settings can be

recalled at any time. For example, even when the

settings are cleared due to replacement of the

battery, the settings can be restored.

1 Display the SETUP Memory screen

Touch [SETUP Memory] in the SETUP Menu

(page 64).

1 Locks the Audio Set Up and AV Interface

settings. When is selected, you

cannot set the Audio SETUP and AV

Interface settings.

2 Memorizes or recalls the settings. To cancel

the function, touch .To cancel

memorization, touch .

The Setup Menu screen appears again.

3 Returns to the original screen.

2 Start Set Up Memory

1 2 3

1 Recalls the memorized settings.

2 Memorizes the current Audio Set Up and AV

Interface settings.

3 Clears the currently memorized settings.

4 Returns to Set Up Memory screen.

3 Memorize or recall the settings

When memorizing the Audio Set Up and AV

Interface settings:

If settings have already been memorized, a

confirmation message appears. Touch .

To cancel memorization, touch .

When recalling the memorized settings:

Touching the screen displays a confirmation

message. Touch . To cancel recalling,

touch .

B64_3824_0000_EN_P64_100.indd 82B64_3824_0000_EN_P64_100.indd 82 07.4.26 5:23:57 PM07.4.26 5:23:57 PM

English 83

When clearing the currently memorized

settings:

Touching the screen displays a confirmation

message. Touch . To cancel clearing,

touch .

4 Quit memorization/recalling of settings

EXT SW Setup

Setting up power specification of the external

device for which the power is controlled from

this unit.

1 Display the EXT SW SETUP screen

Touch [EXT SW SETUP] in the SETUP Menu

(page 64).

2 Perform EXT SW Setup

Setting EXT SW Control 1 (EXT SW1)

1 Sets the name of the external device. See

<Character Entry> (page 55) for information

on how to enter the name.

2 Sets the power signal output mode.

Pulse: Generates a single power signal

pulse.

Level: Continues output of high power

signal.

Sets to turn output on/off each time

the button on the EXT SW Control

screen is pressed.

3 Sets the Pulse signal output time.

Outputs 500ms when "1" is set. Increases

by 200ms with each step. Up to 100 steps

can be set.

Setting EXT SW Control 2 (EXT SW2)

The setup method is the same as "EXT SW1".

B64_3824_0000_EN_P64_100.indd 83B64_3824_0000_EN_P64_100.indd 83 07.4.26 5:23:58 PM07.4.26 5:23:58 PM

84 DNX7200

Audio Control

Audio Control Menu

Displays the Audio Control menu to set the sound

effect function of this unit.

1 Display the control screen

NAV

Press several times until the control screen

appears.

2 Display the Audio Control menu

3 Select the Audio Control item

1 Switches to the selected Audio Control

screen.

Audio Control

You can adjust the front/rear and right/left audio

balance.

1 Display Audio Control

Touch [Audio Control] in the Audio Control

Menu (page 84).

2 Display the Audio Control screen

1 1

1 Adjusts the right and left volume balance.

2 Adjusts the front and rear volume balance.

3 Turns the Loudness control function On or

Off.

If turned "On", high and low tones are

automatically enhanced during low volume.

4 Displays the present source information.

The stream (Dolby Digital, dts, Linear PCM,

MPEG, MP3, WMA or AAC) is displayed.

5 Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 84B64_3824_0000_EN_P64_100.indd 84 07.4.26 5:24:00 PM07.4.26 5:24:00 PM

English 85

6 Adjusts the bass boost of the B.M.S power

amplifier (optional accessory).

7 Sets the center frequency of bass boost you

have set for "AMP Bass".

If you set the center frequency to "Low", it

will be dropped approximately 20% to 30%.

8 Adjusts the subwoofer volume.

9 Adjusts the volume of the present source

based on the difference level of original

volume.

p Returns to the original screen.

⁄

• If you have increased the volume first, then reduced the

volume using the "Vol. Offset", the sound generated if

you suddenly switch to another source may be extremely

loud.

• You may not set some models of power amp boost to

"+18". See the catalog or instruction manual of power

amplifier.

Equalizer Control

You can set up the equalizer.

1 Display Equalizer Control

Touch [Equalizer] in the Audio Control Menu

(page 84).

2 Display the Equalizer screen

1 Selects an equalizer curve type.

You can select any of the following

equalizer curves.

• "Natural"

• "Rock"

• "Pops"

• "Easy"

• "Top40"

• "Jazz"

2 Selects items to be adjusted for tone curve

setup.

If turned "Off", only Level can be setup for

tone curves.

3 Displays the Tone curve setup screen. (page

86)

4 Returns to the original screen.

B64_3824_0000_EN_P64_100.indd 85B64_3824_0000_EN_P64_100.indd 85 07.4.26 5:24:01 PM07.4.26 5:24:01 PM

86 DNX7200

Tone Setup

You can set a Tone curve.

1 Display the Tone screen

See <Equalizer Control> (page 85).

2 Set the Tone

1 Bass adjustment items are displayed.

2 Middle adjustment items are displayed.

3 Treble adjustment items are displayed.

4 Bass DC Extend settings (Only when Bass is

selected)

If turned "On", it extends the bass

center frequency to the low register by

approximately 20%.

5 Tone curve becomes flat.

6 Sets the Center frequency.

7 Sets the level.

8 Sets the Q factor. (Only Bass and Middle can

be set)

9 Returns to the original screen.

Audio Control

Zone Control

You can set the front and rear audio source.

1 Display Zone Control

Touch [Zone Control] in the Audio Control

Menu (page 84).

2 Set the Zone Control

1 Turns the Zone Function (that sets different

source sounds for front and rear speakers)

On or Off.

2 Sets the front and rear audio source

separately.

(This button appears when the Zone

function is On.)

B64_3824_0000_EN_P64_100.indd 86B64_3824_0000_EN_P64_100.indd 86 07.4.26 5:24:02 PM07.4.26 5:24:02 PM

English 87

⁄

• When the rear speaker sound is switched, the audio

source that is output at the AV OUTPUT terminal is also

switched to the same source.

However, if you have set the "Area" to "Reverse", the

audio source that is output at the AV OUTPUT terminal is

switched depending on the front sound source.

3 Switches the front and rear audio sources.

(This button appears when the Zone

function is On.)

Use "Reverse" to change over the front and

rear audio sources.

4 Adjusts the volume of the rear channel.

(This button appears when the Zone

function is On.)

5 Returns to the original screen.

⁄

• There are following limitations when zone function is set

to "On".

- There is no output from the subwoofer.

- <Audio Setup> (page 64) and <Equalizer Control>

(page 85) are not available.

B64_3824_0000_EN_P64_100.indd 87B64_3824_0000_EN_P64_100.indd 87 07.4.26 5:24:04 PM07.4.26 5:24:04 PM

88 DNX7200

Remote Controller

This unit can be operated using the Remote Controller supplied with the unit.

• Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could

result, if the Remote Controller falls down and gets wedged under the pedals while driving.

• Do not place the battery near an open flame or heat source. This may cause the battery to explode.

• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak

fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.

• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a

physician.

Battery installation

Use two "AAA"/"R03"-size batteries.

Slide the cover while pressing downwards to

remove it as illustrated.

Insert the batteries with the + and – poles aligned

properly, following the illustration inside the case.

⁄

• If the Remote Controller operates only over shorter

distances or does not operate at all, it is possible that

the batteries are depleted. In such instances, replace the

both batteries with new ones.

Remote Controller mode switch

The functions operated from the remote

controller differ depending on the position of the

mode switch.

RETURN

DVD

NAVI

AUD

POSITION

CANCEL

•

DVD mode

Switch to this mode when playing

DVDs or CDs etc. with the player

integrated in this unit.

AUD mode

Switch to this mode when

controlling a selected source or a

CD changer etc.

NAVI mode

This is switched when controlling

Navigation unit.

TV mode

This is switched when controlling

TV.

⁄

• The position of the remote control mode switch is

indicated in the title of each mode, e.g., "(AUD mode)".

• When controlling a player that is not integrated in the

unit, select "AUD" mode.

B64_3824_0000_EN_P64_100.indd 88B64_3824_0000_EN_P64_100.indd 88 07.4.26 5:24:04 PM07.4.26 5:24:04 PM

English 89

Common operations (AUD mode)

Source switching

Switches to the source to be played.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Volume control

Adjusts the volume.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D



MAP DIR

VIEW

Volume attenuator

Press the key once to lower the volume. Press again

to restore the previous volume.

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Dual Zone

Switches the Dual Zone function ON and OFF.

R.VOL

ZOOM

12ABC 3DEF

4GHI 5JKL 6

MNO

2ZONE

VOL

AM−









Rear volume control

Adjusts volume at rear when the Dual Zone

function is ON.

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

V.SEL

Switch video

Switches the video each time it is pressed.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Display angle

Switches the display angle each time it is pressed.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Cursor key

Moves the cursor when displaying menu.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ENTER

Enters options.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

Hands-free communication

Enters the dialing method selection mode.

When a call comes in, it answers the call.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Function

Switches the function screen.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

DVD

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

MODE

Switches the screen mode.

Screen mode changes each time you press this key.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

B64_3824_0000_EN_P64_100.indd 89B64_3824_0000_EN_P64_100.indd 89 07.4.26 5:24:05 PM07.4.26 5:24:05 PM

90 DNX7200

Track number

Play time

Cancel

Audio files

Folder number

File number

Cancel

VCD 1.X, VCD 2.X (PBC OFF)

Track number

Cancel

VCD 2.X (PBC ON)

Scene number

Number

Cancel

Once you have switched to the direct search

feature, specify the search number from the

numeric keypad, and then press

ENTER

[ENTER] key.

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

• Specify the number to search in direct search.

• Press

2ABC

to fast forward/backward.

Switches the fast forward/backward speed each

time you press this key.

• Press

4GHI

5JKL

to slow forward/backward.

Switches the slow playback speed each time you

press this key.

DVD Top Menu

Returns to the DVD top menu.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

DVD/VCD/CD/Audio files (DVD mode)

Folder search

Selects the folder to be played.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D





Track search and file search

Selects the track or file to be played.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D



MAP DIR

VIEW

Play/Pause

Pauses the track.

Press again to resume playing.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Stop

Memorizes the last point where the disc stopped.

When pressed again, the last point is deleted.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Direct search

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Pressing this button switches the features that can

be searched directly.

DVD

Title number

Chapter number

Play time

Item number*

Cancel

* You may not be able to use this function with some discs

or scenes.

Remote Controller

B64_3824_0000_EN_P64_100.indd 90B64_3824_0000_EN_P64_100.indd 90 07.4.26 5:24:10 PM07.4.26 5:24:10 PM

English 91

DVD Menu

Displays the DVD menu.

Turns the playback control on or off while playing

VCD.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

SUBTITLE

Switches the subtitle language.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

ZOOM

Switches the zoom ratio each time you press this

key.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D





MAP DIR

VIEW

Picture Angle

Switches the picture angle each time you press this

key.

ANGLE

ZOOM

2 ZONE

VOL

AM−

D



VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

AUDIO

Switch Voice Language

Switches the voice language each time you press

this key.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

DVD

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

TV (TV mode)

Switching Band/Video

It switches between the station of the TV band to

receive and video input.

ANGLE

ZOOM

2ZONE

VOL

AM−

D



VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Channel Selection

The TV channel to receive is selected.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D



MAP DIR

VIEW

Direct tuning

(NTSC TV type only)

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Press this key first, and then specify the station to

receive with the numeric keypad.

Example: In case of Channel 6 (2-digit)

MNO

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2 ZONE









CLEAR DIRECT

• The number of the memorized station is

selected. (

–

MNO )

• Press the direct tuning key first, then specify the

channel of the station to receive.

B64_3824_0000_EN_P64_100.indd 91B64_3824_0000_EN_P64_100.indd 91 07.4.26 5:24:13 PM07.4.26 5:24:13 PM

92 DNX7200

Remote Controller

Radio (AUD mode)

Band switching

Switches to bands received by the unit.

ANGLE

ZOOM

12ABC 3DEF

2ZONE

VOL

AM−

D





Station selection

Switches to broadcast stations received by the unit.

ANGLE

ZOOM

12ABC 3DEF

2 ZONE

VOL

AM−

D



MAP DIR

VIEW

Direct tuning

After pressing this key, use the keypad to specify

the broadcast station you wish to receive.

VOL

PQRS

#+ BS

8TUV

WXYZ

1ATT



CLEAR DIRECT

Example: 92.1MHz (FM)

WXYZ

2ABC

Example: 810kHz (AM)

8TUV

Numeric keypad

R.VOL

12ABC 3DEF

4GHI

PQRS

#+ BS

5JKL

8TUV

WXYZ

MNO

1ATT

2ZONE









CLEAR DIRECT

• To use preset tuning, press the number of a

programmed broadcast station. (

–

MNO )

• Press the direct tuning key first, then specify the

frequency of the station to receive.

NAVI (NAVI mode)

Joystick

Scrolls the map, or moves the cursor.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ENTER

Performs the selected function.

OUT

ENTER

ZOOM

FNC/MENU/PBCMODE/TOP MENU

AUDIO RETURN

DVD

NAVI

AUD

POSITION



•

ZOOM

Zooms in or out the navigation map.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

Displays Main menu.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

CANCEL

Displays previous screen.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

POSITION

Displays the current position.

V.SEL

OUT

ENTER

ZOOM

DVD

AUD

DISP

POSITION

SRC



•

B64_3824_0000_EN_P64_100.indd 92B64_3824_0000_EN_P64_100.indd 92 07.4.26 5:24:17 PM07.4.26 5:24:17 PM

English 93

ROUTEM

Displays Route Option menu.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

VIEW

Switches between 2D and 3D map displays.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

VOICE

Plays Voice guidance.

ENTER

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

RETURN

NAVI

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

•

MAP DIR

Switches between the heading up navigation and

north up navigation map displays.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

Hands-free communication

Enters the dialing method selection mode.

When a call comes in, it answers the call.

FNC/MENU/PBCMODE/TOP MENU

AUDIO

ANGLE

ZOOM

RETURN

NAVI

VOL

D

VOICE

CANCEL

ROUTEM

SUBTITLE

AV OUT OPEN

MAP DIR

VIEW

B64_3824_0000_EN_P64_100.indd 93B64_3824_0000_EN_P64_100.indd 93 07.4.26 5:24:23 PM07.4.26 5:24:23 PM

94 DNX7200

Help? Troubleshooting

Some functions of this unit may be disabled by

some settings made on this unit.

! • Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

• Cannot set up the high pass filter.

▲

Subwoofer is not set to On. ☞ <Audio Setup>

(page 64)

▲

The Dual zone function is enabled. ☞ <Zone

Control> (page 86)

! Cannot set up the subwoofer phase.

▲

Subwoofer is not set to On. ☞ <Audio Setup>

(page 64)

▲

Low pass filter is set to Through. ☞ <Crossover

Network Setup> (page 65)

! • Cannot select the output destination of the

subsource in the Dual zone.

• Cannot adjust the volume of the rear

speakers.

▲

The Dual zone function is disabled. ☞ <Zone

Control> (page 86)

! Cannot play audio files.

▲

"CD Read" of <System Setup> (page 70) is set

to "2".

! Cannot Folder select.

▲

The Scan play or Random play function is

enabled.

! Cannot perform Repeat play.

▲

The PBC function is enabled.

! • Cannot set up the equalizer.

• Cannot set up the crossover network.

▲

The Dual zone function is enabled. ☞ <Zone

Control> (page 86)

What might seem to be a malfunction in your unit

may just be the result of slight misoperation or

miswiring. Before calling service, first check the

following table for possible problems.

General

? The Touch Sensor Tone doesn’t sound.

✔ The preout jack is being used.

☞ The Touch Sensor Tone can’t be output from

the preout jack.

Tuner source

? Radio reception is poor.

✔ The car antenna is not extended.

☞ Pull the antenna out all the way.

✔ The antenna control wire is not connected.

☞ Connect the wire correctly, referring to the

section on <INSTALLATION MANUAL>.

Disc source

? The specified disc does not play, but another

one plays instead.

✔ The specified CD is quite dirty.

☞ Clean the CD.

✔ The disc is loaded in a different slot from that

specified.

☞ Eject the disc magazine and check the

number for the specified disc.

✔ The disc is severely scratched.

☞ Try another disc instead.

Audio file source

? The sound skips when an Audio file is being

played.

✔ The media is scratched or dirty.

☞ Clean the media, referring to the CD

cleaning of the section on <Handling CDs>

(page 8).

✔ The recording condition is bad.

☞ Record the media again or use another

media.

B64_3824_0000_EN_P64_100.indd 94B64_3824_0000_EN_P64_100.indd 94 07.4.26 5:24:24 PM07.4.26 5:24:24 PM

English 95

When the unit fails to operate correctly, the

cause of the failure appears on the display.

Protect :

Protective circuit has been activated because a speaker

cord has shorted or it has come in contact with the car

chassis.

➡ Wire or insulate the speaker cord as appropriate

and then push the Reset button.

Hot Error :

When the internal temperature of this unit rises to 60°C

or more, the protection circuit is activated and you

may not be able to operate the unit. At such times this

message will appear.

➡ Use the unit again after reducing the

temperature inside the vehicle.

Hold Error :

Activation of the protective circuit when the

temperature inside the disc changer is higher than 60

degrees Celsius stops the disc changer from operating.

At such times this message will appear.

➡ Use when the temperature at the site where the

disc changer has been fitted has dropped.

Mecha Error :

The disc player is malfunctioning.

➡ Eject the disc and try inserting it again. Contact

the Kenwood dealer if this indicator continues

blinking or the disc cannot be ejected.

Disc Error :

An unplayable disc is inserted.

Read Error :

• Disc is quite dirty.

➡ Clean the disc, referring tot he section on

<Handling CDs> (page 8).

• Disc is upside down.

➡ Load the disc with the labeled side up.

Region code Error :

The disc you wanted to play has a region code that

cannot be played with this unit.

Parental level Error:

The disc you wanted to play has a higher level than the

parental level you set.

Error 07–67:

The unit is not operating correctly due to some reason

or other.

➡ Push the unit's Reset button. If the "Error 07−67"

message does not disappear, see your nearest

Kenwood dealer.

No Device (USB device)/Disconnected (iPod):

The USB device/iPod is selected as a source although

no USB device/iPod is connected.

➡ Change the source to any source other than

USB/iPod. Connect an USB device/iPod, and

change the source to USB/iPod again.

No Music:

The connected USB device contains no playable audio

file.

Media was played that doesn’t have data recorded that

the unit can play.

USB Device Error!!:

The connected USB device is rated a current capacity

higher than the allowable limit.

➡ Check the USB device.

Some trouble may have occurred to the connected

USB device.

➡ Change the source to any source other than USB.

Remove the USB device.

Authorization Error:

Connection to the iPod has failed.

➡ Remove the iPod and then reconnect it.

The unit does not support the iPod.

➡ Refer to <About iPod that can be connected to

this unit> (page 7).

Update your iPod:

The iPod's software is an older version which the unit

can not support.

➡ Confirm that the software for the iPod is the

latest version. Refer to <About iPod that can be

connected to this unit> (page 7).

EXT SW: Error:

Connection to the external device has failed.

➡ Remove the external device and then reconnect

it.

➡ Turn off the power or ACC and turn it back on.

Help? Error

B64_3824_0000_EN_P64_100.indd 95B64_3824_0000_EN_P64_100.indd 95 07.4.26 5:24:25 PM07.4.26 5:24:25 PM

96 DNX7200

Code Language

aa Afar

ab Abkhazian

af Afrikaans

am Amharic

ar Arabic

as Assamese

ay Aymara

az Azerbaijani

ba Bashkir

be Byelorussian

bg Bulgarian

bh Bihari

bi Bislama

bn Bengali, Bangla

bo Tibetan

br Breton

ca Catalan

co Corsican

cs Czech

cy Welsh

da Danish

de German

dz Bhutani

el Greek

en English

eo Esperanto

es Spanish

et Estonian

eu Basque

fa Persian

fi Finnish

fj Fiji

fo Faroese

fr French

fy Frisian

ga Irish

gd Scots Gaelic

gli Galician

gn Guarani

gu Gujarati

ha Hausa

he Hebrew

hi Hindi

hr Croatian

hu Hungarian

hy Armenian

ia Interlingua

ie Interlingue

ik Inupiak

id Indonesian

Code Language

is Icelandic

it Italian

ja Japanese

jv Javanese

ka Georgian

kk Kazakh

kl Greenlandic

km Cambodian

kn Kannada

ko Korean

ks Kashmiri

ku Kurdish

ky Kirghiz

la Latin

lb Luxembourgish

ln Lingala

lo Laotian

lt Lithuanian

lv Latvian, Lettish

mg Malagasy

mi Maori

mk Macedonian

ml Malayalam

mn Mongolian

mo Moldavian

mr Marathi

ms Malay

mt Maltese

my Burmese

na Nauru

ne Nepali

nl Dutch

no Norwegian

oc Occitan

om (Afan) Oromo

or Oriya

pa Punjabi

pl Polish

ps Pashto, Pushto

pt Portuguese

qu Quechua

rm Rhaeto-Romance

rn Kirundi

ro Romanian

ru Russian

rw Kinyarwanda

sa Sanskrit

sd Sindhi

sg Sangho

sh Serbo-Croatian

Code Language

si Singhalese

sk Slovak

sl Slovenian

sm Samoan

sn Shona

so Somali

sq Albanian

sr Serbian

ss Siswati

st Sesotho

su Sundanese

sv Swedish

sw Swahili

ta Tamil

te Telugu

tg Tajik

th Thai

ti Tigrinya

tk Turkmen

tl Tagalog

tn Setswana

to Tongan

tr Turkish

ts Tsonga

tt Tatar

tw Twi

uk Ukrainian

ur Urdu

uz Uzbek

vi Vietnamese

vo Volapuk

wo Wolof

xh Xhosa

yo Yoruba

zh Chinese

zu Zulu

DVD Language Codes

B64_3824_0000_EN_P64_100.indd 96B64_3824_0000_EN_P64_100.indd 96 07.4.26 5:24:26 PM07.4.26 5:24:26 PM

English 97

Monitor section

Picture Size

: 6.95 inches (diagonal) wide

: 156.2 mm (W) x 82.4 mm (H)

Display Sytem

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 336,960 (480H x 234V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: Cold Cathode Fluorescent Tube

DVD player section

D/A Converter

: 24 bit

Decoder

: Linear PCM/ Dolby Digital/ dts/ MP3/ WMA/ AAC

Wow & Flutter

: Below Measurable Limit

Frequency Response

Sampling frequency; 96 kHz : 20 – 44,000 Hz

Sampling frequency; 48 kHz : 20 – 22,000 Hz

Sampling frequency; 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 98 dB (DVD-Video 96 kHz)

Dynamic Range

: 98 dB (DVD-Video 96 kHz)

Disc Format

: DVD-Video/ VIDEO-CD/ CD-DA

Sampling Frequency

: 44.1/ 48/ 96 kHz

Quantifying Bit Number

: 16/ 20/ 24 bit

USB interface section

USB Standard

: USB 1.1/ 2.0

File Sytem

: FAT 16/ 32

Maximum Power Supply Current

: 500 mA

D/A Converter

: 24 Bit

Decoder

: MP3/ WMA/ AAC

FM tuner section

Frequency Range (50 kHz)

: 87.5 MHz – 108.0 MHz

Usable Sensitivity (S/N : 26 dB)

: 0.7 V/75 

Quieting Sensitivity (S/N : 46 dB)

: 1.6 V/75 

Frequency Response (± 3.0 dB)

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 65 dB (MONO)

Selectivity (± 400 kHz)

: ≥ 80 dB

Stereo Separation

: 35 dB (1 kHz)

Specifications

B64_3824_0000_EN_P64_100.indd 97B64_3824_0000_EN_P64_100.indd 97 07.4.26 5:24:26 PM07.4.26 5:24:26 PM

98 DNX7200

LW tuner section

Frequency Range (9 kHz)

: 153 kHz – 281 kHz

Usable Sensitivity

: 45 v

MW tuner section

Frequency Range (9 kHz)

: 531 kHz – 1611 kHz

Usable Sensitivity

: 25 v

Video section

Color System of External Video Input

: NTSC/PAL

External Video Input Level (RCA jacks)

: 1 Vp-p/ 75 

External Audio Max Input Level (RCA jacks)

: 2 V/ 25 k

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 

Audio Output Level (RCA jacks)

: 1.2 V/ 10 k

Specifications

Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light

incorrectly.

Audio section

Maximum Power (Front & Rear)

: 50 W x 4

Fullband Width Power (Front & Rear)

( PWR DIN 45324, +B=14.4 V)

: 30 W x 4

Preout Level (V)

: 2 V/ 10 k

Preout Impedance

: 600 

Speaker Impedance

: 4 – 8 

Tone action

Bass : 100 Hz ± 8 dB

Middle : 1 kHz ± 8 dB

Treble : 10 kHz ± 8 dB

External SW

Maximum Power Supply Current

: 500 mA

General

Operating voltage

: 14.4 V (11 – 16 V allowable)

Current Consumption

: 15 A

DImensions (W × H × D)

: 182 × 112 × 163 mm

Operational Temperature Range

: -10 °C – +60 °C

Storage Temperature Range

: -20 °C – +85 °C

Weight

: 2.85 kg

Specifications subject to change without notice.

B64_3824_0000_EN_P64_100.indd 98B64_3824_0000_EN_P64_100.indd 98 07.4.26 5:24:27 PM07.4.26 5:24:27 PM

English 99

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Apple, the Apple logo, and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

About DivX

DivX is a popular media technology created by DivX, Inc. DivX media Files contain highly compressed video

with high visual quality that maintains a relatively small file size. DivX files can also include advanced media

features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download

online, and you can create your own using your personal content and easy-to-use tools from DivX.com.

About DivX Certified

DivX Certified products are officially tested by the creators of DivX and guaranteed to play all versions of DivX

video, including DivX 6. Certified products qualify for one of several DivX Profiles that designate the type of

video the product supports, from compact portable video to high-definition video.

The "AAC" logo is trademark of Dolby Laboratories.

B64_3824_0000_EN_P64_100.indd 99B64_3824_0000_EN_P64_100.indd 99 07.4.26 5:24:27 PM07.4.26 5:24:27 PM

The marking of products using lasers (Except for some areas)

CLASS 1

LASER PRODUCT

The label is attached to the chassis/case and says that the component uses laser beams that have been

classied as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger

of hazardous radiation outside the unit.

B64_3824_0000_EN_P64_100.indd 100 07.4.26 5:24:28 PM
