DDX7015

DDX7045

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

MONITEUR AVEC RÉCEPTEUR DVD

MODE D’EMPLOI

©PRINTED IN JAPAN B64-2841-10/01 (K)(AI)

MONITOR CON RECEPTOR DVD

MANUAL DE INSTRUCCIONES

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ1

Before Use ..............................................................4

About discs ............................................................6

Notes on playing MP3/WMA ................................7

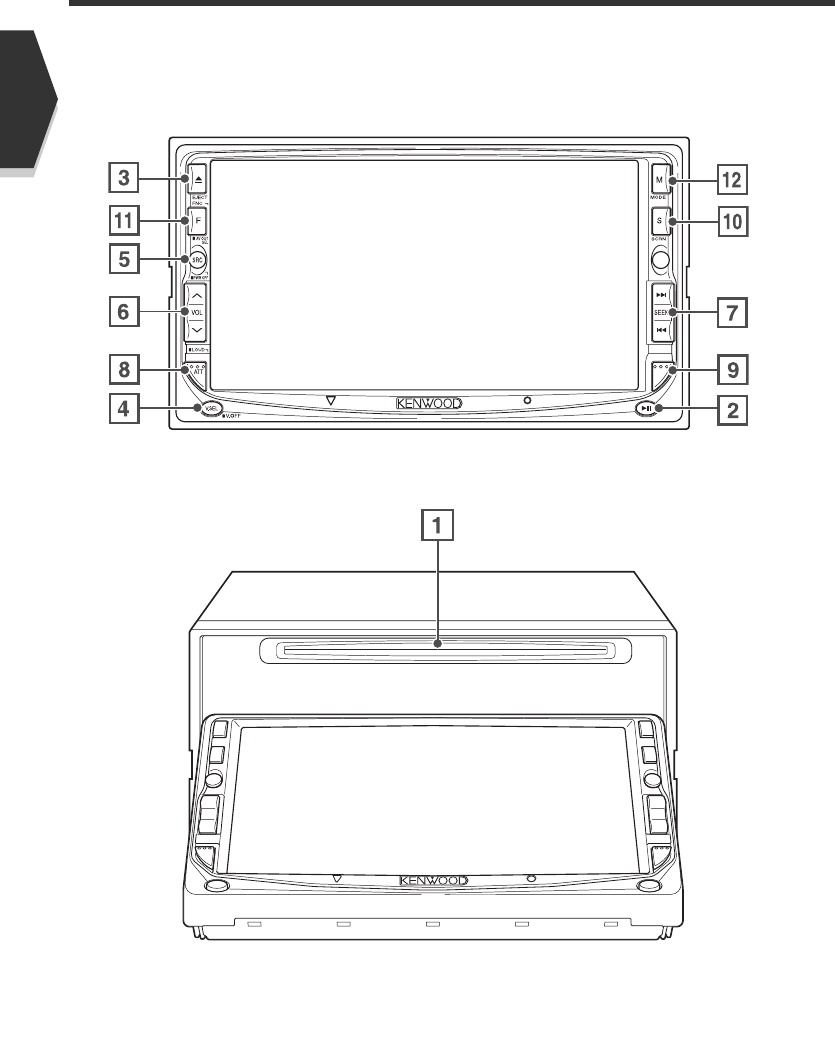

DDX7015/7045 Basic operations ..........................8

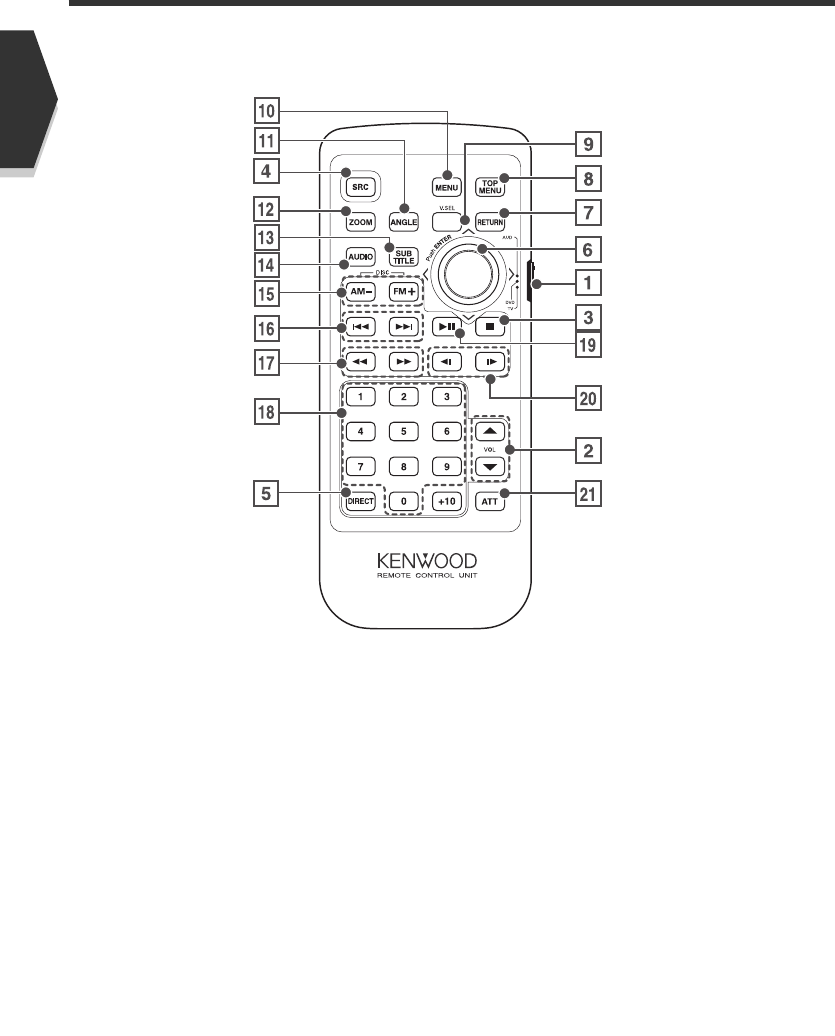

Basic Operations of Remote Controller ............10

Switch Screen Mode............................................12

Control during DVD Video or

Video CD Playback............................................14

•Displaying the DVD/VCD Playback screen

•Displaying the Easy Control Panel

•Displaying the DVD/VCD Control screen

•DVD Disc Menu

•VCD Zoom Control

•Information Display

•Direct Search

Tuner Control........................................................20

•Displaying the Easy Control Panel

•Displaying the Tuner Control screen

•Displaying the Tuner Menu screen

•Seek Mode

•Auto Memory

•Manual Memory

•Preset Select

•Set Station Name

•Direct Search

•Traffic Information

•Search for Program Type

•Radio Text

CD/MP3/WMA/Disc Changer Play Control........26

•Displaying the Easy Control Panel

•Displaying the CD/MP3/WMA/Disc Changer

Control screen

•Displaying the CD/MP3/WMA/Disc Changer

Menu screen

•Set Disc Name

•Directory List (during MP3/WMA play)

•ID3/WMA TAG Display (during MP3/WMA play)

•Disc Select (during play by disc changer)

•Direct Search

Mute Telephone ..................................................33

•Mute Telephone

TV Control ............................................................34

•Displaying the TV Picture screen

•Displaying the Easy Control Panel

•Displaying the TV Control screen

•Displaying the TV Menu screen

•Seek Mode

•Auto Memory

•Manual Memory

•Preset Select

•Set Station Name

•Direct Search

SIRIUS Tuner Control

<North American sales only> ........................38

•Displaying the Easy Control Panel

•Displaying the SIRIUS Tuner Control screen

•Displaying the SIRIUS Tuner Menu

•Channel Search

•Channel Memory

•Direct Channel Search

•Information Display

HD Radio Control

<North American sales only> ........................42

•Displaying the Easy Control Panel

•Displaying the HD Radio Control screen

•Displaying the HD Radio Menu screen

•Seek Mode

•Auto Memory

•Manual Memory

•Receive Mode

•Title Display

DAB Tuner control................................................46

•Displaying the Easy Control Panel

•Displaying the DAB Tuner Control screen

•Displaying the DAB Tuner Menu screen

•Seek Mode

•Auto Ensemble Memory

•Service Preset Memory

•Service Select

•Language Filter

•Search for Program Type

•DAB Information

•DAB Announcement

Weather Band Tuner Control ..............................52

•Displaying the Easy Control Panel

•Displaying the Weather Band Tuner Control

screen

Character Entry ....................................................54

•How To Use the Character Entry screen

Source Select........................................................55

•Displaying the Control screen

•Displaying the Source Select screen

Adjusting the Monitor Display Position and

Quality................................................................56

•Displaying the Screen Control screen

•Displaying the Tilt Adjust screen

Contents

2English

English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ2

English 3

Setup Menu

Setup Menu ......................................................57

•Displaying the Control screen

•Displaying the Setup Menu screen

Audio Set Up ....................................................58

•Displaying the Audio Set Up screen

•Crossover Network Setup

Audio Set Up ....................................................60

•Displaying the Car Type Set Up screen

•Displaying the Speaker Set Up screen

•Displaying the Channel Level screen

•Channel Level

•DTA Setup

•High Pass Filter Setup

•Low Pass Filter Setup

DVD Setup ........................................................66

•Displaying the DVD SETUP 1 screen

•Displaying the DVD SETUP 2 screen

•Language Setup

•Parental Level Setup

System Setup ..................................................70

•Displaying the System Set Up 1 screen

•Displaying the System Set Up 2 screen

AV Interface ......................................................72

•Displaying the AV I/F 1 screen

•Displaying the AV I/F 2 screen

User Interface ..................................................74

•Displaying the User I/F 1 screen

•Displaying the User I/F 2 screen

•Touch Panel Adjust

•Clock

•Security Code Setup

SIRIUS Setup <North American sales only> ..80

•Displaying the SIRIUS Set Up screen

AMP Control ......................................................81

•Displaying the AMP Control screen

DAB Set Up........................................................82

•Displaying the DAB Set Up screen

•Announcement Selection

Sound Effects Menu

Sound Effects Menu ........................................84

•Displaying the Control screen

•Displaying the Sound Effects Menu screen

Audio Control ..................................................85

•Displaying the Audio Control 1 screen

•Displaying the Audio Control 2 screen

Equalizer ..........................................................86

•Displaying the Equalizer screen

•Tone curve setup

•Parametric Equalizer

Zone Control ....................................................90

•Displaying the Zone Control screen

Digital Effect ....................................................91

•Displaying the Digital Effect screen

Position ..............................................................92

•Displaying the Position screen

Glossary ................................................................94

Troubleshooting Guide........................................95

Specifications ..................................................100

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ3

4English

English

To prevent injury and/or fire, take the following

precautions:

•Ensure that the unit is securely installed. Otherwise it

may fly out of place during collisions and other jolts.

•When extending the ignition, battery or ground wires,

make sure to use automotive-grade wires or other wires

with an area of 0.75mm2(AWG18) or more to prevent

cable deterioration and damage to the cable coating.

•To prevent short circuits, never put or leave any metallic

objects (e.g., coins or metal tools) inside the unit.

•If the unit starts to emit smoke or strange smells, turn

off the power immediately and consult your Kenwood

dealer.

•Do not touch the liquid crystal fluid if the LCD is

damaged or broken due to shock. The liquid crystal fluid

may be dangerous to your health or even fatal.

If the liquid crystal fluid from the LCD contacts your body

or clothing, wash it off with soap immediately.

To prevent damage to the machine, take the

following precautions:

•Make sure to ground the unit to a negative 12V DC

power supply.

•Do not open the top or bottom covers of the unit.

•Do not install the unit in a spot exposed to direct sunlight

or excessive heat or humidity. Also avoid places with too

much dust or the possibility of water splashing.

•Do not subject the faceplate to excessive shock, as it is

a piece of precision equipment.

•When replacing a fuse, only use a new one with the

prescribed rating. Using a fuse with the wrong rating

may cause your unit to malfunction.

•To prevent short circuits when replacing a fuse, first

disconnect the wiring harness.

•Do not use any screws except for the ones provided.

The use of improper screws might result in damage to

the main unit.

•You cannot view video pictures whilst the vehicle is

moving. To enjoy TV/video pictures, find a safe place to

park and engage the parking brake.

•If you experience problems during installation, consult

your Kenwood dealer.

•If the unit does not seem to be working right, try

pressing the reset button first. If that does not solve the

problem, consult your Kenwood dealer.

Screen brightness during low temperatures

When the temperature of the unit falls such as during

winter, the liquid crystal panel's screen will become darker

than usual. Normal brightness will return after using the

monitor for a whilst.

Audio units you can control from the

DDX7015/7045 Receiver (in November of 2003):

KDC-CX89, KDC-CX87, KDC-CX85, KDC-C719, KDC-C717,

KDC-C715, KDC-C669, KDC-C667, KDC-C665, KDC-C469,

KDC-C467, KDC-C465, KDC-D301, KTC-9090DAB,

KDV-C830, KDV-C840, KDV-C860, KDC-CX89, KTC-SR901,

KTC-SR902, KPA-CP100, KTC-WB100, KTC-V500N/P/E

(Set the "O-N" switch to "N" position if provided.)

Navigation units you can control from the

DDX7015/7045 Receiver (in November of 2003):

KNA-DV2100, KNA-DV3100

Loading and Replacing the battery

Use one lithium battery (CR2025).

Insert the batteries with the +and -poles aligned

properly, following the illustration inside the case.

Store unused batteries out of the reach of children. Contact

a doctor immediately if the battery is accidentally

swallowed.

Do not set the remote on hot places such as above the

dashboard.

• The provided batteries are intended for use in operation

checking, and their service life may be short.

• When the remote controllable distance becomes short,

replace both of the batteries with new ones.

Cleaning the panel and monitor

When the operator panel and monitor panels are dirty, wipe

and clean them using a soft cloth (such as a commercially

available silicon coated cloth). When contaminated

excessively, clean them using a cloth dipped in a neutral

detergent first, then remove the detergent using a dry

cloth.

Do not use a hard cloth and a volatile chemical (such as an

alcohol). If used, the panel surface may be scratched or

printed letters may be erased.

Cleaning the disc slot

As dust can accumulate in the disc slot, clean it

occasionally. Your discs can get scratched if you put them

in a dusty disc slot.

Lens Fogging

Right after you turn on the car heater in cold weather, dew

or condensation may form on the lens in the disc player of

the unit. Called lens fogging, discs may be impossible to

play. In such a situation, remove the disc and wait for the

condensation to evaporate. If the unit still does not operate

normally after a whilst, consult your Kenwood dealer.

2WARNING

AUTO

NOTE

2CAUTION

2WARNING

Before Use

Reset button

Keep on slide

Pull out

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ4

Region codes in the world

The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.

Icons on the DVD discs

Unplayable discs

This player cannot play back any of the following discs.

• DVD-ROM/DVD-RAM discs • HQ-VCD discs

• CDV discs (Only the audio part can be reproduced) • CD-G/CD-EG/CD-EXTRA discs (Only the audio can be reproduced)

• Photo CD discs • DVD-Audio

Also, you cannot play back the DVD-R/RW and DVD+R/RW discs if not recorded in the DVD-Video format.

English 5

Icon Description

Indicates the region code where the disc can be played.

Number of voice languages recorded with the audio function. The number in the icon indicates the number

of voice languages. (Max. 8 languages)

Number of subtitle languages recorded with the subtitle function. The number in the icon indicates the

number of subtitle languages. (Max. 32 languages)

Number of angles provided by the angle function. The number in the icon indicates the number of angles.

(Max. 9 angles)

Aspect ratios that can be selected. "LB" stands for Letter Box and “PS” for Pan/Scan. In the example on the

left, the 16:9 video can be converted into letter box video.

16:9 LB

The illustrations of the display and the panel appearing in this

manual are examples used to explain more clearly how the

controls are used. Therefore, what appears on the display in the

illustrations may differ from what appears on the display on the

actual equipment, and some of the illustrations on the display

may represent something impossible in actual operation.

Explanation of icons used on this manual

Indicates the key operation on the receiver.

Indicates the button you must touch.

Indicates the key or joystick operation on the remote

controller.

The initial value of each setup is shown.

Gives an additional information or an operation advice.

Restrictions due to difference between discs

Some DVD and VCD discs can be played only in

certain playback modes according to the intentions

of the software producers. As this player plays

discs according to their intentions, some functions

may not work as intended by you. Please be sure

to read the instructions provided with each disc.

When an inhibition icon is displayed on the

monitor, it indicates that the disc being played is

under the restriction as described above.

Inhibition

icon

Time is displayed on each control screen in the 12 hour clock display type (with AM/PM displayed) or in the 24 hour clock display type

(without AM/PM displayed) depending on the sales area. The display type cannot be changed. In this instruction manual, screens of the

24 hour display type are used as examples.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ5

About discs

Handling discs

•Don’t touch the recording surface of the disc.

•CD-R/RW, DVD-R/RW, and DVD+R/RW are easier to

damage than a normal music CD. Use a CD-R/RW, DVD-

R/RW, or DVD+R/RW after reading the caution items on

the package etc.

•Don’t stick tape etc. on the disc.

Also, don’t use a disc with tape stuck on it.

When using a new disc

If the disc center hole or outside rim has burrs, use it after

removing them with a ball pen etc.

Disc accessories

Don’t use disc type accessories.

Disc cleaning

Clean from the center of the disc and move outward.

Removing discs

When removing discs from this unit pull them out

horizontally.

Discs that can’t be used

•Discs that aren’t round can’t be used.

•Discs with coloring on the recording surface or that are

dirty can’t be used.

•This unit can only play the CDs with .

It may not correctly play discs which do not have the

mark.

•A CD-R or CD-RW that hasn’t been finalized can’t be

played. (For the finalization process refer to your CD-

R/CD-RW writing software, and your CD-R/CD-RW

recorder instruction manual.)

Disc storage

•Don’t place them in direct sunlight (On the seat or

dashboard etc.) and where the temperature is high.

•Store discs in their cases.

English

6English

Burrs

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ6

Notes on playing MP3/WMA

This unit can play MP3 (MPEG1 Audio Layer 3)/WMA.

Note, however, that the MP3/WMA recording media

and formats acceptable are limited. When writing

MP3/WMA, pay attention to the following restrictions.

Acceptable media

The MP3/WMA recording media acceptable to this unit are

CD-ROM, CD-R, and CD-RW.

When using CD-RW, do full format not quick format to

prevent malfunction.

Acceptable medium formats

The following formats are available for the media used in

this unit. The maximum number of characters used for file

name including the delimiter (".") and three-character

extension are indicated in parentheses.

• ISO 9660 Level 1 (12 characters)

• ISO 9660 Level 2 (31 characters)

• Joliet (64 characters)

• Romeo (128 characters)

Up to 170 characters can be displayed in the long file name

format. For a list of available characters, see the instruction

manual of the writing software and the section Entering file

and folder names below.

The media reproducible on this unit has the following

limitations:

• Maximum number of directory levels: 8

• Maximum number of files per folder: 255

• Maximum number of characters for folder name: 64

• Maximum number of folders: 100

MP3/WMA written in the formats other than the above

may not be successfully played and their file names or

folder names are not properly displayed.

Settings for your MP3/WMA encoder and CD

writer

Do the following setting when compressing audio data in

MP3/WMA data with the MP3/WMA encoder.

• Transfer bit rate: MP3: 8 —320 kbps

WMA: 48 —192 kbps

• Sampling frequency: MP3: 32, 44.1, 48 kHz

WMA: 32, 44.1, 48 kHz

When you use your CD writer to record MP3/WMA up to

the maximum disc capacity, disable additional writing. For

recording on an empty disc up to the maximum capacity at

once, check Disc at Once.

Play mode may not be possible when portions of the

functions of Windows Media Player 9 or higher are used.

Entering ID3 tag

The Displayable ID3 tag is ID3 version 1.x.

For the character code, refer to the List of Codes.

Entering file and folder names

The code list characters are the only file names and folder

names that can be entered and displayed.

If you use any other character for entry, the file and folder

names are not displayed correctly. They may neither be

displayed correctly depending on the CD writer used.

The unit recognizes and plays only those MP3/WMA which

have the MP3/WMA extension (.MP3/.WMA).

A file with a name entered with characters not on the code

list may not play correctly.

Writing files into a medium

When a medium containing MP3/WMA data is loaded, the

unit checks all the data on the medium. If the medium

contains a lot of folders or non-MP3/WMA files, therefore,

it takes a long time until the unit starts playing MP3/WMA.

In addition, it may take time for the unit to move to the

next MP3/WMA file or a File Search or Folder Search may

not be performed smoothly.

Loading such a medium may produce loud noise to damage

the speakers.

• Do no attempt to play a medium containing a non-

MP3/WMA file with the MP3/WMA extension.

The unit mistakes non-MP3/WMA files for MP3/WMA data

as long as they have the MP3/WMA extension.

• Do not attempt to play a medium containing non

MP3/WMA.

MP3/WMA playing order

When selected for play, Folder Search, File Search, or for

Folder Select, files and folders are accessed in the order in

which they were written by the CD writer.

Because of this, the order in which they are expected to be

played may not match the order in which they are actually

played. You may be able to set the order in which

MP3/WMA are to be played by writing them onto a

medium such as a CD-R with their file names beginning

with play sequence numbers such as "01" to "99",

depending on your CD writer.

English 7

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ7

8English

English

DDX7015/7045 Basic operations

AUTO

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ8

English 9

1Play Disc

[Disc insertion slot]

A disc is played when you insert it.

2Play/Pause

[38] key

Pauses and replays a disc.

3Eject Disc

[EJECT] key

The disc is ejected.

4Switch Video Sources

[V.SEL] key

The video sources are switched each time you press

the key.

Clears the video image when pressed more than one

second. When pressed again, the original image is

redisplayed.

5Switch Audio Source/Power Supply

[SRC] key

The audio sources are switched each time you press

the key.

Hold down more than 1 second to turn the power

supply Off.

Push it again to turn power supply On.

6Volume Controls

[VOL] key

7Track/Station Selectors

[SEEK] key

Selects a music or chapter, track, or frequency.

8Attenuator/Loudness

[ATT]/[LOUD] key

Attenuates the volume.

Press it again to cancel muting.

Press it for more than one second to turn the Loudness

function on or off. (see page 85)

If turned on, high and low tones are enhanced during

low volume.

9Select Seek Mode

[AUTO] key

Selects the Seek mode. (see pages 22/36 for the

<Seek Mode>)

pScreen Setup

[SCRN] key

Displays the Screen Control or Tilt Control screen. (see

page 56)

qFunction

[FNC] key

The video sources are switched each time you press

the key.

Switches the source that is output at the AV OUTPUT

terminal when it is pressed more than 1 second.

wSwitch Screen Mode

[MODE] key

The screen mode is switched. (see page 12)

The display turns on when you put the parking brake,

except for the navigation system.

* Optional accessory

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ9

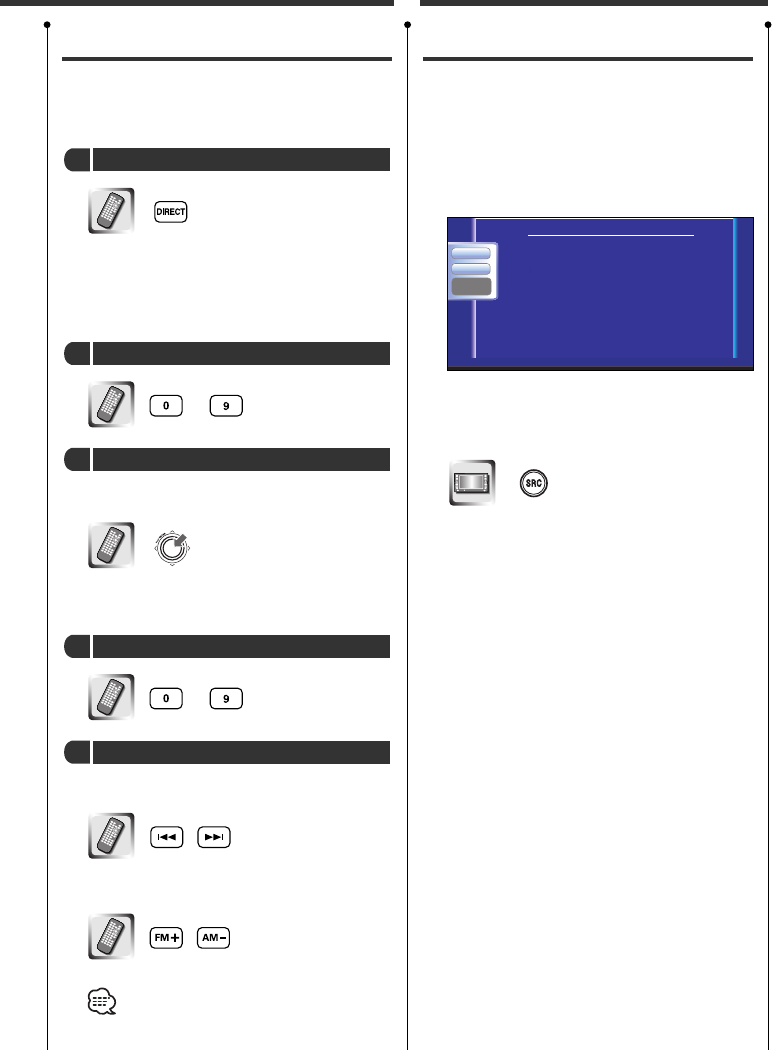

Basic Operations of Remote Controller

1Remote Control Mode selector

Selects one of the following remote control modes.

TV: TV source

DVD: Built-in DVD/VCD/CD/MP3/WMA player source

AUD: Tuner source or attached disc changer/disc

player source

2Volume Control

Adjusts the volume.

3[DISC]

Stops to play the built-in disc player.

4Switches over the sound source each time it is

pressed.

5Selects the Direct Search mode.

(see pages 19/24/33/37 for <Direct Search>)

English

10 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ10

6Joystick

[DVD]

Enters your selection from the DVD Disc Menu.

7[DVD] [VCD]

Returns to the previous screen when the DVD/VCD

Disc Menu is used.

8[DVD]

Calls the Top menu of DVD Disc Menu.

9Switch Video Sources

[V.SEL] key (When 1is set to "TV")

The video sources are switched each time you press

the key.

p[DVD]

Calls the DVD Disc Menu.

q[DVD]

Each time you press the button, the angle switches.

w[DVD] [VCD]

Each time you press the button, the zoom ratio

switches.

e[DVD]

Switches a subtitle language.

r[DVD]

Switches an audio language.

t[DISC]

Select a folder or a disc.

[TV]

FM: Switches to TV1, TV2, or VIDEO.

[TUNER]

FM: Switches to the FM1, FM2, or FM3 band.

AM: Switches to the AM band.

y[DISC]

Selects a chapter, a track or a song.

[TV]

Select a channel.

[TUNER]

Selects a station.

u[DVD] [VCD]

1: Fast Backward (Rewind). The speed changes each

time it is pressed.

¡: Fast Forward. The speed changes each time it is

pressed.

i[TV] [TUNER]

—: Call the stations from memory.

o[DISC]

Plays or pauses.

[TUNER]

Selects the Seek mode. (see page 22/44 for the <Seek

Mode>)

;[DVD]

:Slow Backward.

:Slow Forward.

aAttenuator

[ATT] key

Attenuates the volume.

Press it again to cancel muting.

[DVD] : An operation during DVD playback

[VCD] : An operation during VCD playback

[DISC] : An operation during DVD, VCD, CD, MP3/WMA or MD playback

[TV] : An operation during TV source

[TUNER] : An operation during FM/AM broadcasting source

English 11

* Optional accessory

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ11

12 English

English

Switch Screen Mode

•When the Menu, Easy Control screen, or Navigation is selected, it is shown in the full-size display mode automatically.

Their Screen mode cannot be changed.

•The Screen mode can be set for each of DVD/VCD, TV, and video images.

The Screen mode of the monitor changes each time the [MODE] key is pressed.

AUTO

[MODE] key

Full picture mode [FULL]

Justify picture mode [JUST]

Cinema picture mode [CINEMA]

Zoom picture mode [ZOOM]

Normal picture mode [NORMAL]

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ12

English 13

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ13

Displaying the DVD/VCD

Playback screen

You can use the following operations when displaying

DVD/VCD images.

DVD playback screen

VCD playback screen

Control during DVD Video or Video CD Playback

1Title Number Display

2Chapter Number Display

3Play Time Display

4Forward Chapter Search Area

Selects the next chapter.

5Backward Chapter Search Area

Selects the previous chapter.

6DVD Disc Menu Control Buttons Area

Displays the Disc Menu Control buttons (see page

18).

7Information Display Button Area (see page 19)

8Scene/Track Number Display

9Forward Scene/Track Search Area

Selects the next scene (when PBC is On) or track

(when PBC is Off).

pBackward Scene/Track Search Area

Selects the previous scene (when PBC is On) or

track (when PBC is Off).

qZoom Control Button Area

Displays the Zoom Control buttons (see page 19).

wInformation Display Button Area (see page 19)

• For DVD/VCD playback, DVD/VCD picture

selection, or controller key operations, see

<DDX7015/7045 Basic Operations> (see page 8).

• The information display is cleared automatically

after approximately 5 seconds. Also, the

information can be displayed automatically when

it is updated (see page 75).

Plays back the

DVD or VCD.

MODE: FU L L

DVD VIDEO Title 1 Chap 3 T 0:02:37

AV - I NAV-OUT:

PBC VER2

DVD VCD Scene 255 P 2:37

MODE:FULL

AV - I NAV-OUT:

123

English

14 English

Control during DVD Video or Video CD Playback

Various control screens appear when you play back a DVD Video (DVD) or a Video

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ14

eSwitches the source.

rStops to play.

tRewinds or fast forwards.

yChapter Search (DVD)

Searches for a chapter.

Scene/Track Search (VCD)

Selects a scene (when PBC is On) or a track (when

PBC is Off).

uPlays or pauses.

The Easy Control Panel display is cleared when you

touch the center of image display area.

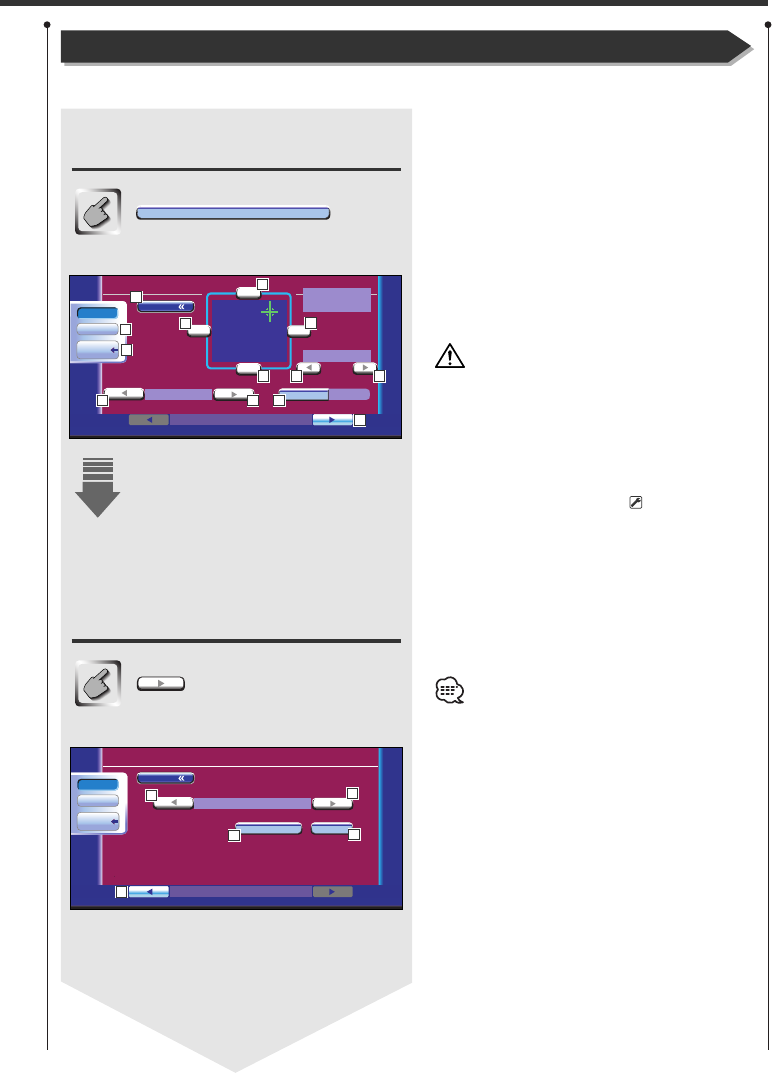

Displaying the Easy Control

Panel

The Control Panel is displayed in a floating position of the

DVD/VCD screen.

Display of Easy Control Panel

English 15

CD (VCD) disc.

SRC

Title 1 Chap 3 T 0:05:32

DVD VIDEO

Title 1 Chap 3 T 0:05:32

DVD VIDEO

AV -INAV-OUT:MODE: FU L L

13 14 15

15 16 16 17

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ15

Control during DVD Video or Video CD Playback

Displaying the DVD/VCD

Control screen

Plays a DVD/VCD using various functions.

DVD/VCD Control screen

iEjects the disc from the built-in disc player.

oCalls the Sound Effects Menu. (see page 84)

;Calls the Setup Menu. (see page 57)

aDisplays the Source Select screen. (see page 55)

sFast Forwards or Rewinds.

dStops to play.

When pressed twice, the disc is played from its

beginning when you play it in the next time.

fSelects a chapter, a scene or a track.

When the DVD is paused, touch this button to start

single-frame stepping.

gPlays or pauses.

hSlow Forwards or Backwards. (during DVD playback

only)

jTurns the PBC function of VCD On or Off. (when

VCD Ver 2.0 or SVCD is in use only)

kSwitches the Repeat Play operations in the

following sequence.

DVD: Title Repeat, Chapter Repeat, Repeat Off

VCD: Track Repeat, Repeat Off (Available when the

PBC is off)

lScrolls the display text.

/Switches the play time display in the following

sequence.

DVD: Title, chapter, remaining titles

VCD: Track, disc, remaining discs (Effective only

when the PBC function is off)

zTitle Number Display (DVD)

xChapter/Scene/Track Number Display

cPlay Time Display

vAppears when a disc is inserted.

bFunction Indicator

English

16 English

13:50

DVD V I DEO

REPPBC

SCRL TIME

Set Up

Audio

Direct

SRC

Title 1 Chap 3 T0:05:20

KENWOOD

T-REP

22 22

29 30

20 24

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ16

English 17

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ17

Control during DVD Video or Video CD Playback

DVD Disc Menu

Selects an option from the DVD Disc Menu.

DVD Disc Menu Control Buttons

Area (page 14)

1Calls the Menu Control.

2Switches the picture angle.

(during program playback only)

3Switches the caption language.

(during program playback only)

4Switches the voice language.

(during program playback only)

5Displays the Zoom Control screen.

6Clears the Disc Menu Control.

Displays the Disc Menu Control screen

Disc Menu

1Calls the Menu.

2Returns to the Disc Menu Control screen.

3Selects a menu option.

4Enters your menu selection.

5Returns to the previous menu screen.

6Displays the Top Menu.

7Clears the Disc Menu Control.

Zoom Control

1Changes the zoom ratio at 4 levels (2 times, 3

times, 4 times, or off) each time you touch.

2Scrolls the screen in the direction you touch.

3Returns to the Disc Menu Control screen.

4Clears the Disc Menu Control.

Zoom

Ctrl

Select Disc Menu options

Zoom

Angle

1/1 Exit

Ctrl

10/10SUB

Audio

1/1

Top

Enter

Return

Cancel

Ctrl Menu

Exit

Zoom

Ctrl

Exit

Cancel

Zoom

Off

English

18 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ18

VCD Zoom Control

Displays an enlarged VCD screen.

Zoom Control Button Area

(page 14)

1Changes the zoom ratio at 4 levels (2 times, 3

times, 4 times, or off) each time you touch.

2Scrolls the screen in the direction you touch.

3Clears the Zoom Control button.

Information Display

Displays the DVD and AV information.

Information Display Button Area

(Page 14)

The information is displayed for 5 seconds.

Displays the Zoom Control screen

Direct Search

You can search for a DVD/VCD chapter, scene

or track by entering its number.

The following items can be searched directly each

time it is pressed.

DVD: Title, Chapter, Time, Direct number

VCD (when PBC is On): Scene, Direct number

VCD (when PBC is Off): Track, Time

However, the direct search may not be supported for

some discs.

—

The operation ends automatically if you do not

operate within 10 seconds.

Enter a number or time

Selects the Direct Search mode

Zoom

Ctrl

Exit

Zoom

Off

English 19

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ19

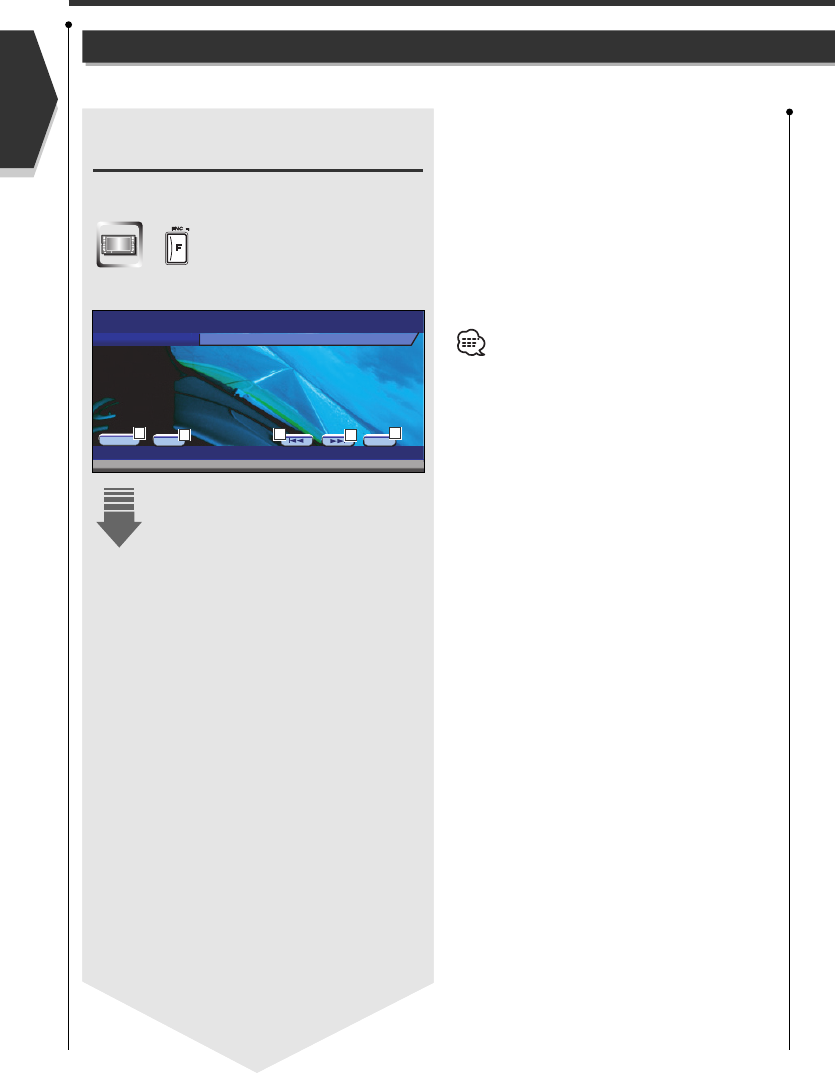

Displaying the Easy Control

Panel

The Tuner Control Panel is displayed in a floating position

of the selected picture.

Displaying the Easy Control Panel

1Switches the source.

2Switches the band (to AM or FM1/2/3).

3Tunes in a station

4Switches the Seek mode.

(see page 22 for the <Seek Mode>)

• For receiver key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

Tuner Control

English

20 English

SRC

SEEK

A M F M

FM1 98.1 MHzPreset 1

TUNER

MODE: FU L L AV - I NAV-OUT:

122334

Tuner Control

Various control screens appear in the Tuner Source mode.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ20

Displaying the Tuner Control

screen

You can tune in a station using various functions.

Tuner Control screen

Displaying the Tuner Menu

screen

You can select menu options using various functions.

Tuner Menu screen

5Calls the Tuner Menu.

6Calls the Sound Effects Menu. (see page 84)

7Displays the Source Select screen. (see page 55)

8Calls the Setup Menu. (see page 57)

9Turns the Traffic Information function On or Off.

(see <Traffic Information>, page 24)

pSwitches to the FM1/2/3 band.

qSwitches to the AM band.

wTunes in a station.

Use the <Seek Mode> to change the frequency

switching.

eSwitches between to buttons and

Function buttons to use.

rTurns the CRSC function On or Off. (Only when

receiving the FM broadcast)

tSelects the Auto Memory mode.

(See page 22 for the <Auto Memory>)

ySwitches the Seek mode.

(see page 22 for the <Seek Mode>)

uSelects the Program Service Name, Station Name,

or Radio Text mode for text display.

iScrolls the display text.

oWhen to buttons appear, you can call

up the stations from memory.

For memory of broadcasting stations, see <Auto

Memory> (see page 22) or <Manual Memory> (see

page 22).

;Seek Mode Indicator

aMemory Number Display

sSelects options from various function menus.

dReturns to the Tuner Control screen.

The available functions vary depending on the

model used (the tuner specifications and the

broadcasting system that can be received).

TUNER

Preset Select

Name Se t

PTY Search

Radio Text

Set Up

Audio

SRC

English 21

13:50

123456

TUNER

FM TI

AME

SEEK DISPCRSC SCRL

NextNext

Set Up

Audio

FM1 98.1 MHzPreset 1

Direct

SRC

AUTO1

12 12

13 14 15 18

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ21

English

22 English

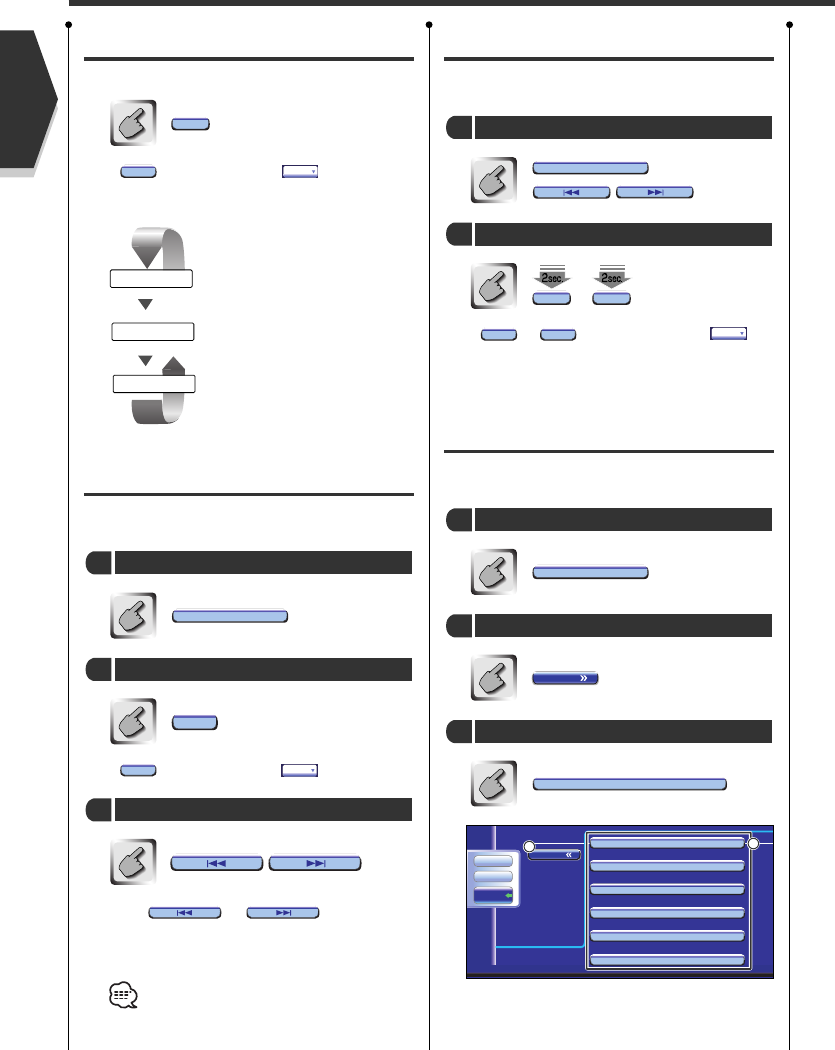

Seek Mode

Sets a station selection.

If is not shown, touch .

The mode is switched each time you touch the

button.

Tunes in a station with good

reception automatically.

Tune in stations in memory one

after another.

Switches to the next channel

manually.

Auto Memory

Stores stations with good reception in memory

automatically.

If is not shown, touch .

Touch or .

Auto Memory terminates when 6 stations are stored

or when all stations are tuned in.

The operation ends automatically if you do not

operate within 10 seconds.

Start Auto Memory

NextNext

AME

Select the Auto Memory mode

Select a band you wish to store in memory

NextNext

SEEK

Tuner Control

Manual Memory

Stores the current receiving station in memory.

—

If to are not shown, touch .

Continue to touch until the memory number appears.

NextNext

Store in memory

Select a station you wish to store in memory

AUTO 1

AUTO 2

MANUAL

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ22

Preset Select

Lists and tunes in stations in memory one after

the other.

1Tunes in the displayed station.

If the station name is displayed if it has been set.

2Switches the band of the displayed station list.

3Band Display.

4Returns to the Tuner Menu.

5Switches the Station List display between the

Program Service Name and SNPS (Frequency).

Preset Select

Call the Preset Select Menu

Call the Tuner Menu

Set Station Name

Names a station.

For character entry details, see <Character Entry>

(see page 54).

•You can store up to 30 stations in memory.

•You can set a station name only after you have

applied the parking brake.

Exit the Set Name mode

Enter a name

Name Se t

Selects the Set Name mode

Call the Tuner Menu

Tune in a station you wish to name

English 23

TUNER

FM 98.1

FM3 1) 100. 5 MHz

FM3 2) 100. 5 MHz

FM3 3) 100. 5 MHz

FM3 4) 100. 5 MHz

FM3 5) 100. 5 MHz

FM3 6) 100. 5 MHz

DISP

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ23

Tuner Control

Direct Search

Tunes in a station when its frequency is

entered.

—

When you enter them, signal reception starts.

Example: When you receive FM 92.1 MHz

Example: When you receive AM 810 kHz

The operation ends automatically if you do not

operate within 10 seconds.

Enter a frequency

Selects the Direct Search mode

Select a band

Traffic Information

When a traffic bulletin starts, any source is

switched to the traffic information and it is

displayed automatically.

When the traffic bulletin starts...

The Traffic Information screen appears automatically.

Traffic Information screen

1Calls the Sound Effects Menu. (see page 84)

2Calls the Setup Menu. (see page 57)

3Turns the Traffic Information function on or off.

During reception of traffic information the

adjusted volume is automatically remembered,

and the next time it switches to traffic

information it's automatically the remembered

volume.

Please note that if DSP unit (optional accessory)

is connected, the volume will be preset by

pressing the button for 2 seconds or

more.

English

24 English

ATT

NEWS

Traffic Infomation

13:50

TUNER

Set Up

Audio TI

Direct

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ24

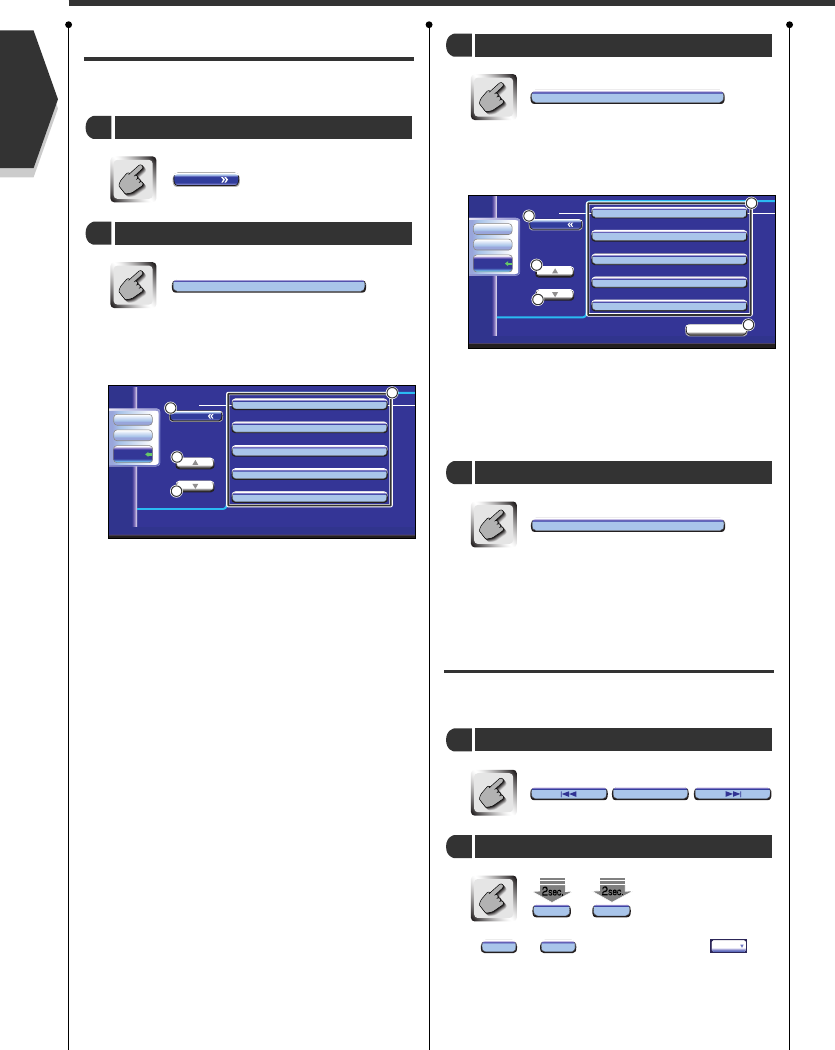

Radio Text

You can display the radio text.

1Displays the Radio Text.

2Returns to the Tuner Menu.

Radio Text

Display the Radio Text

Call the Tuner Menu

Search for Program Type

A program is tuned when you set its program

type.

1Selects a program type.

2Scrolls the program type list.

3Searches for the program type.

It is displayed when the Program Type is selected.

4Continue to touch more than 2 seconds, the

currently receiving station is registered to have

the selected program type. (The registered

program type is displayed.)

If you touch it the program type registered in the

currently receiving station is displayed.

5Returns to the Tuner Menu.

etc.

SRCH

Search for the program type

News

Select a program type

PTY Search

Call the PTY Search Menu

Call the Tuner Menu

English 25

TUNER

Radio text:

Set Up

Audio

SRC

TUNER

FM 98.1 ReturnReturn

SRCH

USER

Set Up

Audio

All Speech

All Music

News

Current Affairs

Information

Not Found

Direct

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ25

English

26 English

Displaying the Easy Control

Panel

The CD/MP3/WMA/Disc Changer Play Control Panel is

displayed in a floating position of the selected picture.

Display of Easy Control Panel

During CD playback

During MP3/WMA playback

During playback on disc changer

During playback on CD player

1Switches the source.

2Stops to play the built-in disc player.

3When a CD is played back on the built-in disc player:

Rewinds or fast forwards.

4Selects a song.

5Plays or pauses.

6When an MP3/WMA is played back on the built-in

disc player:

Selects a folder.

7When a disc is played back on the disc changer:

Selects a disc.

• For CD/MP3/WMA/Disc Changer playback and

receiver key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

CD/MP3/WMA/Disc Changer Play Control

You can call various control screens during CD/MP3/WMA/Disc Changer playback.

CD/MP3/WMA/Disc Changer Play Control

SRC

Track 3 P 5:32

DVD CD

MODE:FULL

AV - I NAV-OUT:

123344 5

SRC

–+

P 0:05:32

DVD MP3/WMA

SRC

D - D +

T3D1 P 5:32

CD CH

245

SRC

T3 P 5:32

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ26

During CD playback

8Calls the CD Menu.

9Calls the Sound Effects Menu. (see page 84)

pDisplays the Source Select screen. (see page 55)

qCalls the Setup Menu. (see page 57)

wEjects the disc from the built-in disc player.

eSelects a track.

rFast Forwards or Rewinds.

tPlays or pauses.

yStarts or stops Scan Play (that plays the beginning

of each song one after the other).

uRepeats to play (the present track).

iStarts or stops Random Play (to play songs in

random order).

oSelects the Disc Name (see <Set Disc Name>, page

31), Disc Text, or Track Text mode for text display.

;Scrolls the display text.

aSwitches the play time display between Track, Disc,

and Disc Remaining Time.

sTrack Number Display

dPlay Time Display

fAppears when a disc is inserted.

gStops to play the built-in disc player.

When pressed twice, the disc is played from its

beginning when you play it in the next time.

hFunction Indicator

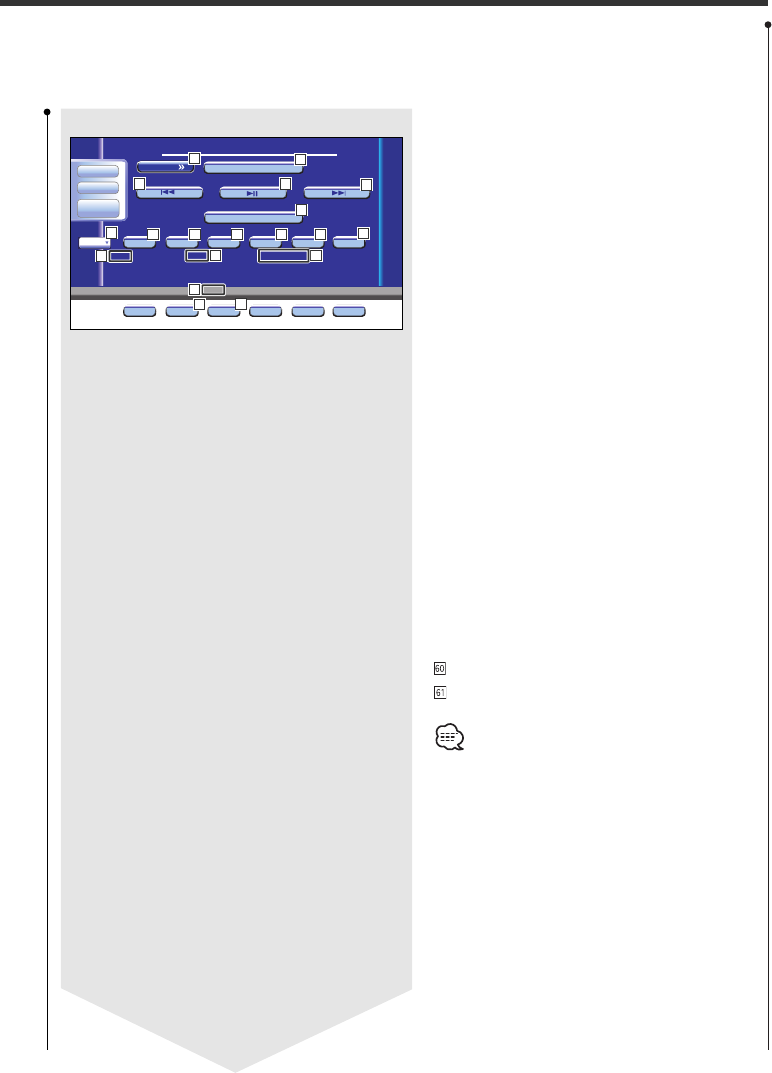

Displaying the CD/MP3/WMA/

Disc Changer Control screen

You can play the CD/MP3/WMA/disc changer using

various functions.

CD Control screen

English 27

13:50

REP RDM

SCN

SCRL TIME

DISP

DVD CD

Set Up

Audio

Track 4 P 2:09

Direct

SRC

REP

13 13

14 14

22 23

18 19 20

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ27

CD/MP3/WMA/Disc Changer Play Control

MP3/WMA Control screen

During MP3/WMA play

jCalls the MP3/WMA Menu.

kFast Forwards.

lStops to play.

When pressed twice, the disc is played back from

its beginning in the next time.

/Selects a song.

zPlays or pauses.

xSelects a folder.

cStarts or stops Scan Play (that plays the beginning

of each song one after the other).

vRepeats to play (the present song).

bStarts or stops Random Play (to play songs of the

present folder in random order).

nSelects the Folder name, File name, Title (ID3/WMA

tag), Artist name (ID3/WMA tag), or Album name

(ID3 tag) for text display.

mScrolls the display text.

,Switches the button display.

.Repeats to play the song of the present folder.

PFolder and File Number Display

QPlay Time Display

WAppears when a disc is inserted.

EFunction Indicator

REjects a disc.

English

28 English

13:50

DVD MP3/WMA

PEP

SCRL

DISP

RDMSCN

FREP

NextNext

Set Up

Audio

P 0:00:3813

KENWOOD

Direct

SRC

REP

32 32

33 35 36 37

30 30

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ28

During play by the disc changer/CD player

TCalls the Disc Changer/CD player Menu.

YSelects a track.

Starts Fast Forward or Fast Rewind when it is held

down.

USelects a disc. (Function of Disc Changer)

IPlays or pauses.

OStarts or stops Scan Play (that plays the beginning

of each song one after the other).

:Repeats to play (the present track).

AStarts or stops Random Play (to play songs in

random order).

SRepeats to play disc (the present disc). (Function of

Disc Changer)

DStarts or stops Magazine Random Play (to play

songs of the disc changer in random order).

(Function of Disc Changer)

FSwitches the button display.

GSelects the Disc Name (see <Set Disc Name>,

page 31), Disc Text, or Track Text mode for text

display.

HScrolls the display text.

JSwitches the play time display between Track, Disc,

and Disc Remaining Time.

KDisc Number Display (Function of Disc Changer)

LTrack Number Display

Play Time Display

Function Indicator

The functions that can be used and the information

that can be displayed will differ depending on the

models being connected.

Disc Changer/CD player Control screen

English 29

D1 T5 P 1:24

CD- CH 13:50

Disc

DREP

MRDM

NextNext

TIME

REP RDM SCN

DISP SCRL

Set Up

Audio

Direct

SRC

REP

46 48

52 53

56 57

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ29

Selects options from various function menus.

Returns to the CD/MP3/WMA/Disc Changer Control

screen.

The available functions vary depending on the

source used.

CD/MP3/WMA/Disc Changer Play Control

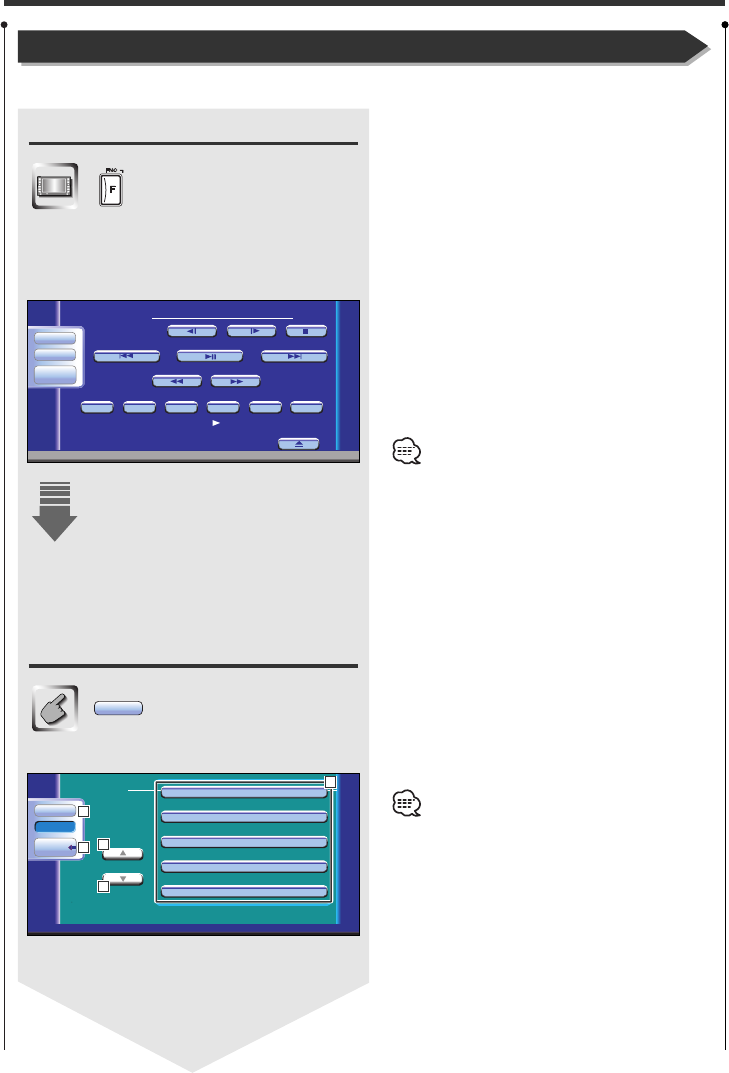

Displaying the CD/MP3/WMA/

Disc Changer Menu screen

You can select menu options using various functions.

CD Menu screen

Name Set

DVD CD

Set Up

Audio

SRC

English

30 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ30

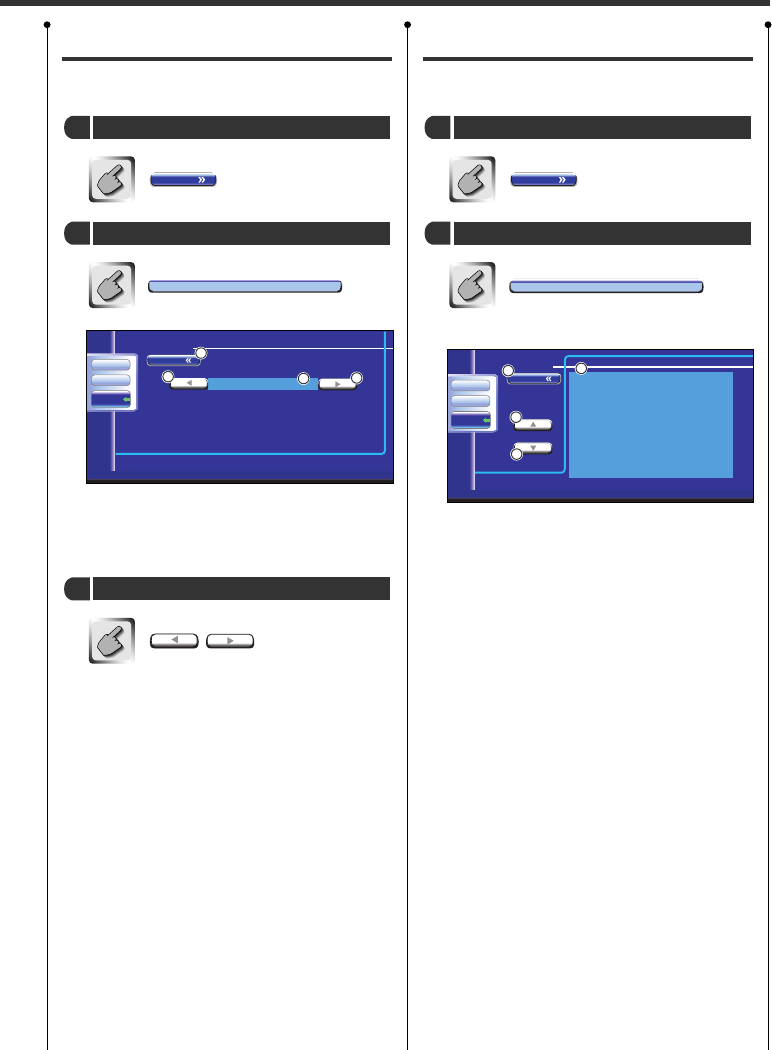

Set Disc Name

Names a CD.

The position varies

depending on the disc you are playing.

For character entry details, see <Character Entry>

(see page 54).

•You cannot name an MD or MP3/WMA disc.

•Number of discs that can be stored in memory

Built-in disc player: 10

External CD changer/ player:

Varies depending on the CD changer/ player.

Refer to the CD changer/ player manual.

Exit the Set Name mode

Enter a name

Name Set

Name Se t

Select the Set Name mode

Call the CD/Disc Changer Menu

Play a CD you wish to name

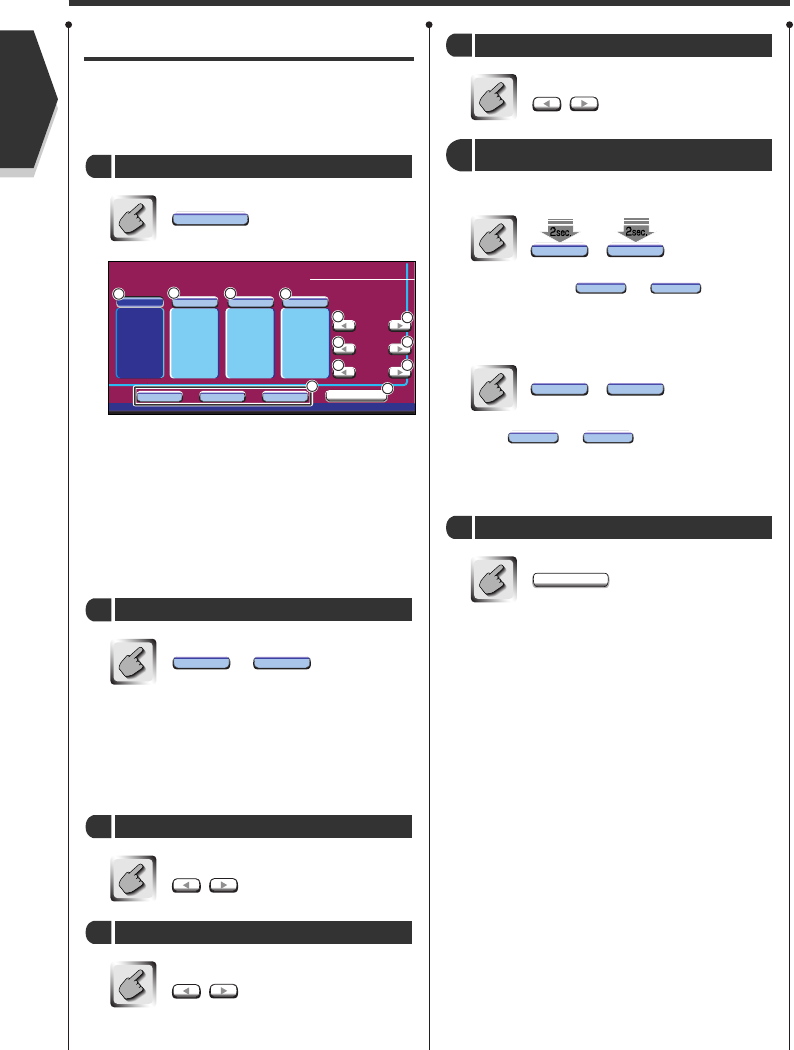

Directory List (during

MP3/WMA play)

The directory of an MP3/WMA disc are listed

for quick search.

1Returns to the root directory.

2Displays the next higher level of hierarchy.

3Displays a directory if the subdirectory has a

directory. When you touch the directory, it opens.

4Displays a directory if the subdirectory has files

without a directory. When you touch the directory,

it opens and songs in the directory are played.

5Displays the MP3/WMA files. When you touch a

file, its song is played back.

6Plays the selected directory.

7Scrolls the list.

Display the desired song and touch the file display.

File Name

Select a song

Directory List

Start the Directory List

Call the MP3/WMA Menu

MP3/WMA

0:35:27

Folder Name

File Name

Fol d e r Name

File Name

Folder Name

File Name

Fol

Open

Root

Set Up

Audio

SRC

English 31

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ31

CD/MP3/WMA/Disc Changer Play Control

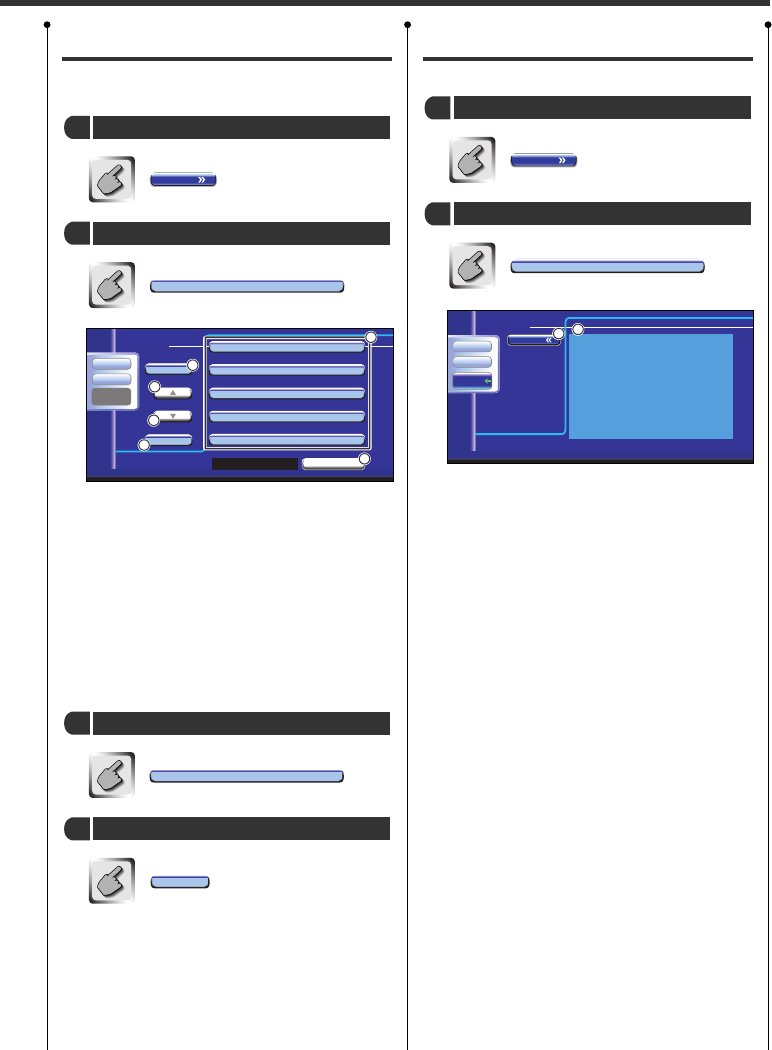

ID3/WMA TAG Display (during

MP3/WMA play)

The ID3/WMA TAG information of MP3/WMA

file is listed.

1Scrolls the list.

Information

Display the ID3/WMA TAG

Call the MP3/WMA Menu

Disc Select (during play by

disc changer)

The discs loaded on the disc changer are listed

for quick disc selection.

1Plays the displayed disc.

2Selects the Disc Name or Disc Text mode for text

display.

3Scrolls the list.

(It is not displayed when a disc changer having 6

or less discs is used.)

Touch the desired disc display.

1. Disc Name

Select the desired disc

Disc Select

Call the Disc Select Menu

Calls the Disc Changer Menu

English

32 English

TITLE:

ARTIST:

ALBUM:

MP3

Set Up

Audio

SRC

CD- CH

P 2:35

1. D i s c Name

2. D isc Name

3. D isc Name

4. D isc Name

5. D isc Name

6. D isc Name

Set Up

Audio

SRC

DISP

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ32

English 33

Direct Search

Searches for a disc or a song when its number

is entered.

During play on the built-in disc player

The following items can be searched directly each

time it is pressed.

CD: Track number, Total play time

MP3/WMA: Folder, File

—

When searching for a song:

During play on an external in disc player or disc

changer

—

When searching for a song:

When searching for a disc:

The operation ends automatically if you do not

operate within 10 seconds.

Enter a disc or track number

Select the Direct Search mode

Mute Telephone

When the telephone is called, the system is

paused automatically.

When the telephone is called...

The Phone Call ("CALL") screen appears, and system

is paused.

Phone Call ("CALL") screen

If you continue to listen the source audio

during phone call...

The system restarts to play while the phone call is

continued.

When the call ends...

Hang up the phone.

The system restarts to play.

13:50

CALL

Set Up

Audio

Direct

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ33

English

34 English

Displaying the TV Picture

screen

Various control screens appear in the TV Source mode.

TV Picture screen

Displaying the Easy Control

Panel

The Control Panel is displayed in a floating position of the

TV picture.

Displaying the Easy Control Panel

1TV Band Number Display

2Memory Number Display

3Channel Number Display

4Channel Up Area

Increase the channel.

5Channel Down Area

Decrease the channel.

6Band/Video Switch Area

Switches to TV1, TV2, or VIDEO.

7Information Display Button Area

• For TV picture selection and receiver key

operations, see <DDX7015/7045 Basic

Operations> (see page 8).

• The information display is cleared automatically

after approximately 5 seconds. Also, the

information can be displayed automatically when

it is updated (see page 75).

8Switches the source.

9Switches to Video (VIDEO).

pSwitches the TV band (to TV1 or TV2).

qCalls up a channel.

wSwitches the Seek mode.

(see page 36 for the <Seek Mode>)

The Easy Control Panel display is cleared when you

touch the center of image display area.

TV Control (with the optional accessory TV Tuner connected only)

Various control screens appear in the TV Source mode.

TV Control

Selects the

TV Pictures.

TV1 2ch

Preset 3

TV TV1 2ch

Preset 3

MODE: FU L L AV - I NAV-OUT:

SRC

SEEK

V I D T V

TV TV1

TV1

2ch

Preset 3

MODE:FULL AV - I NAV-OUT:

10 11 12

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ34

English 35

Displaying the TV Control

screen

You can tune in a TV station using various functions.

TV Control screen

Displaying the TV Menu screen

You can select menu options using various functions.

TV Menu screen

eCalls the TV Menu.

rCalls the Sound Effects Menu. (see page 84)

tDisplays the Source Select screen. (see page 55)

yCalls the Setup Menu. (see page 57)

uSwitches to VIDEO.

iSwitches to TV1 or TV2.

oSelect a channel.

Use the <Seek Mode> (see page 36) to change the

channel tuning sequence.

;Switches between to buttons and

Function buttons to use.

aSelects the Auto Memory mode.

(see page 36 for the <Auto Memory>)

sSwitches the Seek mode.

(see page 36 for the <Seek Mode>)

dWhen to buttons appear, you can

call up the channels from memory.

For memory of broadcasting stations, see <Auto

Memory> (see page 36) or <Manual Memory> (see

page 36).

fSeek Mode Indicator

gMemory Number Display

hSelects options from various function menus.

jReturns to the TV Control screen.

The available functions vary depending on the

model used (the tuner specifications and the

broadcasting system that can be received).

13:50

123456

AME SEEK

NextNext

VIDEO

Set Up

Audio

TV 1 Preset 3 2 ch

Direct

SRC

AUTO 1

20 21 22

19 19

Preset Select

Name Set

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ35

TV Control

English

36 English

Seek Mode

Sets a TV station selection.

If is not shown, touch .

The mode is switched each time you touch the

button.

Tunes in a station with good

reception automatically.

Tune in stations in memory one

after another.

Switches to the next channel

manually.

Auto Memory

Stores stations with good reception in memory

automatically.

If is not shown, touch .

Touch or .

Auto Memory terminates when 6 stations are stored

or when all stations are tuned in.

The operation ends automatically if you do not

operate within 10 seconds.

Start Auto Memory

NextNext

AME

Select the Auto Memory mode

Select a band you wish to store in memory

NextNext

SEEK

Manual Memory

Stores the current receiving channel in

memory.

—

If to are not shown, touch .

Continue to touch until the memory number appears.

Preset Select

Lists and tunes in stations in memory one after

the other.

(P 35 e)

1Tunes in the displayed station.

If the station name is displayed if it has been set.

2Returns to the TV Menu.

Preset Select

Call the Preset Select Menu

Call the TV Menu

Select a band you wish to call

NextNext

Store in memory

Select a channel you wish to store in memory

AUTO 1

AUTO 2

MANUAL

TV 3ch

TV1 1) 1ch

TV1 2) 1ch

TV1 3) 1ch

TV1 4) 1ch

TV1 5) 1ch

TV1 6) 1ch

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ36

English 37

Set Station Name

Names a station.

For character entry details, see <Character Entry>

(see page 54).

•You can store up to 20 stations in memory.

•You can set a station name only after you have

applied the parking brake.

Exit the Set Name mode

Enter a name

Name Set

Selects the Set Name mode

Call the TV Menu

Select a station you wish to name

Direct Search

Tunes in a station when its channel number is

entered.

—

When you enter a channel number, signal reception

starts.

Example: When you receive Channel 06

Direct Search ends automatically if you do not

operate within 10 seconds.

Enter a channel number

Selects the Direct Search mode

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ37

English

38 English

SIRIUS Tuner Control

SIRIUS Tuner Control <North American sales only> (with the optional accessory

Various control screens appear in the SIRIUS Tuner source mode.

Displaying the Easy Control

Panel

The SIRIUS Tuner Control Panel is displayed in a floating

position of the selected picture.

Display of Easy Control Panel

1Switches the source.

2Switches the band.

3Tunes in a station.

4Switches the Seek mode.

SEEK 1: Tunes channels one after the other.

SEEK 2: Selects channels in memory one after the

other.

• For system key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

SRC

BAND SEEK

SIRIUS SR1 1ch

MODE: FU L L AV - I NAV-OUT:

2334

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ38

English 39

5Calls the SIRIUS Tuner Menu.

6Calls the Sound Effects Menu. (see page 84)

7Displays the Source Select screen. (see page 55)

8Calls the Setup Menu. (see page 57)

9Tunes in a station.

pSwitches the band.

qSwitches between to buttons and

Function button to use.

wStarts or stops Channel Scan (that tunes channels

one after the other).

eSwitches the Seek mode.

SEEK 1: Tunes channels one after the other.

SEEK 2: Selects channels in memory one after the

other.

rChanges the display from Song Title & Artist Name,

Composer Name, Channel Name, to Category

Name.

tScrolls the display text.

yWhen to buttons appear, you can

call up the channel from memory.

For memory of channel stations, see <Channel

Memory> (see page 40) .

uSeek Mode Indicator

iSelects options from various function menus.

oReturns to the SIRIUS Tuner Control screen.

For SIRIUS Tuner function details, see the

Instruction Manual of SIRIUS Satellite Radio Tuner

(optional accessory).

Displaying the SIRIUS Tuner

Control screen

SIRIUS Tuner Control screen

Displaying the SIRIUS Tuner

You can select menu options using various functions.

SIRIUS Tuner Menu screen

SIRIUS

10Key Di re ct

SIRIUS I nformati on

Channel Search

Set Up

Audio

SRC

SCN

SEEK DISP SCRL

SIRIUS

13:50

Band

123456

NextNext

Set Up

Audio

SIRIUS 1SR1 1ch

Direct

SRC

SEEK 1

899

11 13

12 15

SIRIUS Tuner connected only)

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ39

English

40 English

SIRIUS Tuner Control

Channel Search

The categories and channels are listed for your

channel selection.

The category list appears.

Category Selection screen

1Selects a category.

2Scrolls the list.

3Returns to the SIRIUS Tuner Menu.

Channel Search

Start Channel Searching

Call the SIRIUS Tuner Menu

etc.

The channel list of the selected category appears.

Channel Selection screen

1Tunes in a channel.

2Scrolls the list.

3Returns to the Category Selection screen.

4Returns to the SIRIUS Tuner Menu.

etc.

The selected channel is tuned.

Channel Memory

Stores the current receiving channel in

memory.

—

If to are not shown, touch .

Continue to touch until the memory number appears.

NextNext

Store in memory

Band

Select a channel you wish to store in memory

CH.JAZZ 5

Select a channel

cat.HITS 0

Select a category

SIRIUS

cat.HITS 0

cat.ROCK 1

cat.CTRY 2

cat.R&B 3

cat.JAZZ 5

16CH 1 234567

Set Up

Audio

SRC

SIRIUS

CH.Pop

CH.Rock

CH.Country

CH.Jazz&Standard

CH.Clasical

CH 16 Re t u r n

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ40

English 41

Direct Channel Search

A channel is tuned when you enter its number.

Direct Search screen

1Enters a channel number.

2Returns to the SIRIUS Tuner Menu.

3Tunes in a channel when you enter is number.

—

Enter

Tuning

Enter a channel number

10Key Di re ct

Display the Direct Search screen

Call the SIRIUS Tuner Menu

Information Display

The tuned program information is displayed.

Information screen

1Displays the information (such as Channel Name,

Category Name, Artist Name, Song Title, and

Composer).

2Scrolls the information display.

3Returns to the SIRIUS Tuner Menu.

SIRIUS I nformation

Display the Information screen

Call the SIRIUS Tuner Menu

SIRIUS

EnterCancel

123

456

999ch Jazz En Clave

Set Up

Audio

SRC

SIRIUS

Channel Name:

Artist Name:

Song Title:

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ41

HD Radio Control

English

42 English

HD Radio Control <North American sales only> (with the optional accessory HD Radio

Various control screens appear in the HD Radio Source mode.

Displaying the Easy Control

Panel

The HD Radio Control Panel is displayed in a floating

position of the selected picture.

Displaying the Easy Control Panel

1Switches the source.

2Switches the band (HD FM1/2/3, HD AM).

3Tunes in a station.

4Switches the Seek mode.

(see page 44 for the <Seek Mode>)

• For receiver key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

SRC

HDFM 1 98.1 MHZ

SEEK

HD AM HD FM

HD RADIO

MODE:FULL AV - I NAV-OUT:

2233 41

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ42

English 43

tuner connected only)

Displaying the HD Radio

Control screen

You can tune in a station using various functions.

HD Radio Control screen

Displaying the HD Radio

Menu screen

You can select menu options using various functions.

HD Radio Menu screen

5Calls the HD Radio Menu.

6Calls the Sound Effects Menu. (see page 84)

7Displays the Source Select screen. (see page 55)

8Calls the Setup Menu. (see page 57)

9Switches to the HD FM1/2/3 band.

pSwitches to the HD AM band.

qTunes in a station.

Use the <Seek Mode> to change the frequency

switching.

wSwitches between to buttons and

Function buttons to use.

eSelects the Auto Memory mode.

(See page 44 for the <Auto Memory>)

rSwitches the Seek mode.

(see page 44 for the <Seek Mode>)

tSwitches between Station Name and Song Title

display modes.

yScrolls the display text.

uWhen to buttons appear, you can

call up the stations from memory.

For memory of broadcasting stations, see <Auto

Memory> (see page 44) or <Manual Memory> (see

page 44).

iSeek Mode Indicator

oSelects options from various function menus.

;Returns to the HD Radio Control screen.

For HD Radio function details, see the Instruction

Manual of HD Radio tuner (optional accessory).

HD Radio Recei v e Mode

Title

Set Up

Audio

SRC

HDFM1 98.1MHz

13:50

123456

AME SEEKDISP SCRL

HD FM

HD AM

HD Radio

NextNext

Set Up

Audio

Direct

SRC

AUTO 1

11 11

12 13 15

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ43

HD Radio Control

English

44 English

Seek Mode

Sets a station selection.

If is not shown, touch .

The mode is switched each time you touch the

button.

Tunes in a station with good

reception automatically.

Tune in stations in memory one

after another.

Switches to the next channel

manually.

Auto Memory

Stores stations with good reception in memory

automatically.

If is not shown, touch .

Touch or .

Auto Memory terminates when 6 stations are stored

or when all stations are tuned in.

Start Auto Memory

NextNext

AME

Select the Auto Memory mode

HD AM

HD FM

Select a band you wish to store in memory

NextNext

SEEK

AUTO 1

AUTO 2

MANUAL

Manual Memory

Stores the current receiving station in memory.

—

If to are not shown, touch .

Continue to touch until the memory number appears.

NextNext

Store in memory

HD AM

HD FM

Select a station you wish to store in memory

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ44

English 45

Receive Mode

The digital or analog program is selected and

received.

1Switches the Receive mode.

2Receive mode Display.

3Returns to the HD Radio Menu.

AUTO: Automatically switches between the

Digital and Analog Receive modes

depending on the broadcasting type. If

programs are broadcasted in both modes,

the digital program is received. Also, if a

program is received in the Ball Game

mode (the non-displayed broadcast

program), the analog program is

automatically received.

DIGITAL: Receives the digital program only.

ANALOG: Receives the analog program only.

Select the Receive mode

Receive Mode

Call the Receive mode Menu

Call the HD Radio Menu

Title Display

An information about the received song is

displayed.

Title screen

1Displays the information.

2Scrolls the information display.

3Returns to the HD Radio Menu.

Title

Display the Title screen

Call the HD Radio Menu

HD Radio

Title:

Set Up

Audio

SRC

HD Radio

Receive Mode

AU T O

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ45

English

46 English

DAB Tuner control

DAB Tuner control (with the optional accessory DAB tuner connected only)

Various control screens appear in the DAB Tuner source mode.

Displaying the Easy Control

Panel

The DAB Tuner Control Panel is displayed in a floating

position of the selected picture.

Display of Easy Control Panel

1Switches the source.

2Switches the band (to DAB1/2/3).

3Selects a service.

4Selects the Ensemble.

5Switches the Seek mode.

(see page 48 for the <Seek Mode>)

• For system key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

SRC

DAB DAB1 220.094MHZ

BAND SEEK

S - S +

MODE:FULL AV - I NAV-OUT:

1445

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ46

English 47

6Calls the DAB Tuner Menu.

7Calls the Sound Effects Menu. (see page 84)

8Displays the Source Select screen. (see page 55)

9Calls the Setup Menu. (see page 57)

pSwitches the band (to DAB1/2/3).

qSelects a service.

wSelects the Ensemble.

eSwitches between to buttons and

Function button to use.

rSelects the primary or secondary operation.

tSelects the Auto memory mode. (see page 48 for

the <Auto Ensemble memory>)

ySwitches the Seek mode.

(see page 48 for the <Seek Mode>)

uChanges the display between Ensemble label, PTY

label, Component label, Region label, and Audio

quality.

iWhen to buttons appear, you can

call a service from memory.

oSeek Mode Indicator

;Selects options from various function menus.

aReturns to the DAB Tuner Control screen.

For DAB Tuner function details, see the Instruction

Manual of DAB Tuner (optional accessory).

Displaying the DAB Tuner

Control screen

You can select the Ensemble and services using various

functions.

DAB Tuner Control screen

Displaying the DAB Tuner

Menu screen

You can select menu options using various functions.

DAB Tuner Menu screen

DAB

Service Select

Language Filter

PTY Sear c h

DAB I n fo r m a t i o n

Set Up

Audio

SRC

13:50

123456

DAB

Band

Se r v i c e

AMEP/S SEEK DISP

Set Up

Audio

DAB1 Preset2 Service Label

Direct

SRC

AUTO1

NextNext

12 12

13 17

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ47

English

48 English

DAB Tuner control

Seek Mode

A service selection method can be set.

If is not shown, touch .

The mode display is switched each time you touch

the button.

Tunes in an ensemble with good

reception automatically.

Selects services in memory one

after another.

Switches to the next channel

manually.

Auto Ensemble Memory

An ensemble with good reception is stored in

memory automatically.

If is not shown, touch .

Touch or .

Auto Memory terminates when 6 ensembles are

stored or when all ensembles are tuned in.

Start Auto Memory

NextNext

AME

Select the Auto Memory mode

Band

Select a band you wish to store in memory

NextNext

SEEK

Service Preset Memory

The current receiving service is stored in

memory.

—

If to are not shown, touch .

NextNext

Store in memory

Band

Select a service you wish to store in memory

AUTO 1

AUTO 2

MANUAL

Ser v ice

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ48

English 49

Service Select

The service list of the currently receiving

ensemble is displayed for your selection.

1Selects a service.

2Scrolls the service list.

3Returns to the DAB Tuner Menu.

Ser v i ce Name

Select a service

Service Select

Call the Service Select Menu

Call the DAB Tuner Menu

Language Filter

The languages are list for your selection.

1Selects a language.

2Searches for the selected language.

3Returns to the DAB Tuner Menu.

SRCH

Search for the language

Select a language you wish to use

Languag e Filter

Call the Language Filter Menu

Call the DAB Tuner Menu

220.094 MHz

DAB

Ser v i ce Name

Ser vice Name

Ser v i ce Name

Set Up

Audio

SRC

DAB

English

Language

SRCH

Re t u r n

Set Up

Audio

Direct

SRC

1 1

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ49

English

50 English

DAB Tuner control

Search for Program Type

The services are received when you set its

program type.

1Selects a program type.

2Searches for the program type.

3Displays the Language select screen.

4Returns to the DAB Tuner Menu.

Select a program type

PTY Sea r c h

Call the PTY Search Menu

Call the DAB Tuner Menu

Display the Language select screen

1Selects a Language.

2Searches for the program type.

3Returns to the PTY Search Menu.

Select a Language

SRCH

Search for the program type

LANG

Select a Language

DAB

SRCH LANG

News

PTY

Re turn

Set Up

Audio

Direct

SRC

DAB

Language

SRCH

News

PTY

English

Re t u r n

Set Up

Audio

Direct

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ50

English 51

DAB Announcement

When the Announcement you have turned on

starts, any source is switched to the

Announcement automatically.

When the announcement starts...

The Announcement screen appears automatically.

Announcement screen

1Calls the Sound Effects Menu. (see page 84)

2Calls the Setup Menu. (see page 57)

DAB Information

The DAB information is displayed.

1Displays the DAB information (such as Service

label, Ensemble label, Component label, Audio

quality, Region label, and Dynamic label).

2Scrolls the information display.

3Returns to the DAB Tuner Menu.

DAB Information

Display the DAB Information screen

Call the DAB Tuner Menu

13:50

DAB

Set Up

Audio

Direct

SRC

Traffic News

Service Label:

Ensemble Label:

Component Label:

Set Up

Audio

SRC

DAB

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ51

English

52 English

Weather Band Tuner Control

Weather Band Tuner Control (with the optional accessory Weather Band Tuner

Various control screens appear in the Weather Band Tuner source mode.

Displaying the Easy Control

Panel

The Weather Band Tuner Control Panel is displayed in a

floating position of the selected picture.

Display of Easy Control Panel

1Switches the source.

2Tunes in a station.

• For system key operations, see <DDX7015/7045

Basic Operations> (see page 8).

• The Easy Control Panel display is cleared when

you touch the center of image display area.

SRC

WBT 1ch 162.550 MHz

MODE: FU L L AV - I NAV-OUT:

2 2

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ52

English 53

3Calls the Sound Effects Menu. (see page 84)

4Displays the Source Select screen. (see page 55)

5Calls the Setup Menu. (see page 57)

6Tunes in a station.

Displaying the Weather Band

Tuner Control screen

Weather Band Tuner Control screen

WBT 1ch 162.550 MHz

13:50

WBT

Set Up

Audio

Direct

SRC

566

connected only)

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ53

English

54 English

Character Entry

How To Use the Character

Entry screen

When you select the Set Disc Name mode or

others, the following screen appears for

character entry.

Character Entry screen

1Shifts the cursor.

2Enters a space.

If you erase a character, locate the cursor on it

and touch this button.

3Enters characters.

4Scrolls up or down the character button display.

5Exits the Character Entry mode and returns to the

previous screen.

You can enter characters only after you have

applied the parking brake.

bcde fg

hi jklmn

opqrstu

vwx yz

OkSpace

KENWOOD

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ54

Source Select

The Source Select screen can be displayed from

the control screen of any source.

1Select the source.

2Returns to the Control screen previously displayed.

Displaying the Control screen

Press this key several times unit the Control screen

appears.

Control screen

Displaying the Source Select

screen

Source Select screen

Direct

SRC

Source Select

The source you wish to listen to can be selected quickly.

English 55

13:50

DVD V I DEO

REP

SCRL TIME

Set Up

Audio

Direct

SRC

Title 1 Chap 3 T0:05:20

KENWOOD

T-REP

STANDBY

TUNER

DVD

VIDEO

CD CH

MD CH

Set Up

Audio

SRC

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ55

English

56 English

Adjusting the Monitor Display Position and Quality

You can adjust the position and picture quality of the monitor.

1Brightness Control

2Tint Control

Displayed for an NTSC system image on TV or

Video.

3Color Control

Displayed on the TV and Video screen only.

4Contrast Control

5Black Level Adjustment

6Displays the Adjust Monitor Position screen.

(see <Displaying the Tilt Adjust screen>, page 56)

7Returns to the previous screen.

The Screen Control screen is displayed only when

you have applied the parking brake.

8Monitor Tilt Adjustment

9The monitor fully closes.

pReturns to the Screen Control screen.

qReturns to the previous screen.

If you turn the power off, the panel will close.

However, if you turn the power back on, it will

return to the adjusted tilt.

Displaying the Screen Control

screen

You can adjust the picture quality using the following

keys.

Screen Control screen

Displaying the Tilt Adjust

screen

You can set the monitor tilt.

Tilt Adjust screen

Tilt

Adjusting the Monitor Display Position and Quality

Tilt

ScreenScreen

Full CloseFull Close

112233445566

Tilt Adjust

Tilt

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ56

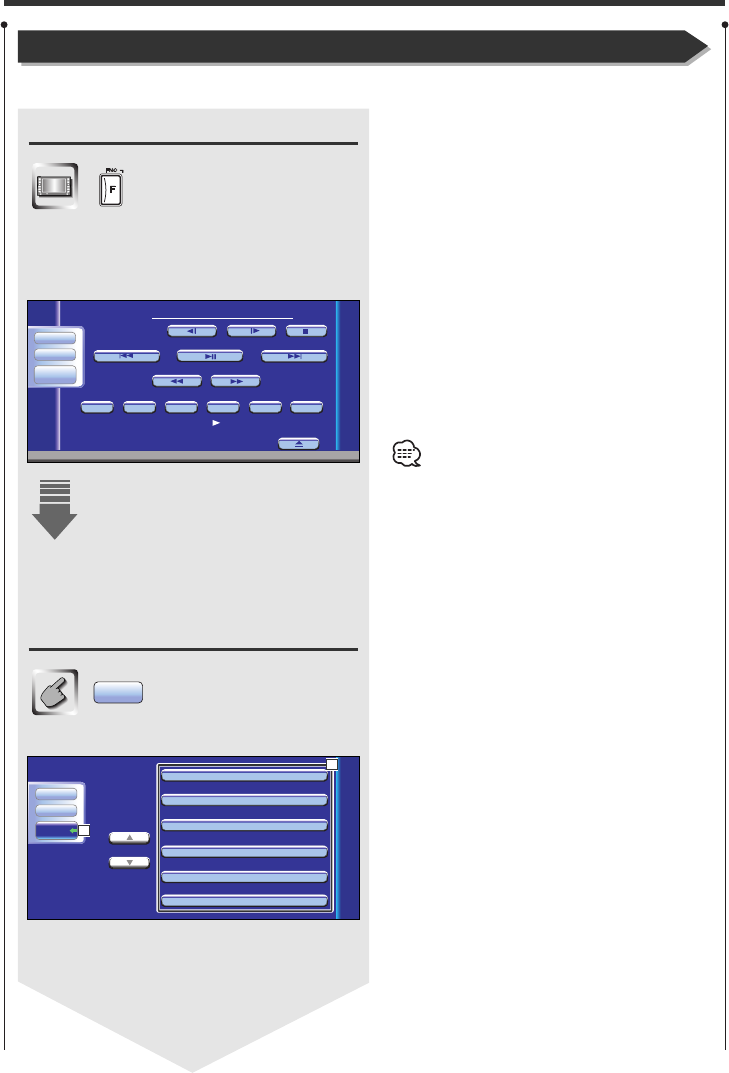

Setup Menu

You can set up various receiver parameters.

English 57

Displaying the Control screen

Press this key several times until the Control screen

appears.

Control screen

Displaying the Setup Menu

screen

Setup Menu screen

Set Up

You can call the same Setup Menu for the Control

screen of each source.

1Scrolls the Setup Menu.

2Calls each Setup Menu.

3Calls the Sound Effects Menu. (see page 84)

4Returns to the Control screen of the previous

source.

• Your setup on the Sound Effects menu is

adjusted automatically according to your <Audio

Set Up> (see page 58) on the Setup menu. We

recommend you to complete the <Audio Set Up>

first, then set up the <Sound Effects menu>.

• The available functions vary depending on the

model used (the tuner specifications and the

broadcasting system that can be received).

13:50

DVD V I DEO

REP

SCRL TIME

Set Up

Audio

Direct

SRC

Title 1 Chap 3 T0:05:20

KENWOOD

T-REP

Set Up

Audio Set Up

DVD SETUP

Sys t em Set Up

AV I /F Set Up

User I / F Set Up

Set Up

SRC

Audio

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ57

English

58 English

Setup Menu

Displaying the Audio Set Up

screen

Speaker setup screen

Audio Set Up

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Displays the X'Over setup screen. (see page 59)

5Sets up the front speaker type to fine-tune for the

optimal equalizer curves.

Standard: Setup for general diameter speakers

Narrow: Setup for small diameter speakers

Middle: Setup for small diameter woofer

Wide: Setup for large diameter woofer

X' Over

Standard

FrontL&R

Speaker

Set Up

SRC

Audio

Audio Set Up

You can setup a speaker network, etc.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ58

English 59

Crossover Network Setup

You can set a crossover frequency of speakers.

(P 58 4)

X'Over setup screen

1Sets a Front High Pass Filter frequency.

You can select any of the following frequency.

Through, 40, 60, 80, 100, 120, 150, 180, 220 Hz

2Sets a Rear High Pass Filter frequency.

You can select any of the following frequency.

Through, 40, 60, 80, 100, 120, 150, 180, 220 Hz

3Sets a Sub woofer Low Pass Filter frequency.

You can select any of the following frequency.

50, 80, 120, Through Hz

4Sets the phase of subwoofer output.

The phase is reversed 180 degrees when set to

"Reverse".

5Returns to the Speaker setup screen.

X' Over

Return

X' Over

THR

HPF Rear FREQ

LPF SUB FREQ

HPF Front FREQ

Rev e r s e

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ59

Displaying the Car Type Set Up

screen

If your vehicle type is selected, the Digital Time

Alignment is set automatically (for timing adjustment of

sound output for each channel) to have the highest

surround effects.

Car Type Set Up screen

Audio Set Up

Setup Menu

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Sets up the car type you use together with this unit.

5Displays the DTA (Digital Time Alignment) Setup

screen. (see page 62)

You can adjust the digital time alignment that was

set automatically when you selected the car type.

6Displays the Speaker Set Up screen.

You cannot set up "Car Type" when "Position

Setting" (see page 92) is "All".

DTA

Car Type

Sma l l

Set Up

SRC

Audio

English

60 English

Audio Set Up (with the optional accessory DSP unit connected only)

You can set up more detailed settings by connecting the optional accessory DSP

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ60

Displaying the Speaker Set Up

screen

When the speaker type and size are set, the speaker

crossover network and equalizer curve are set

automatically.

Speaker Set Up screen

Displaying the Channel Level

screen

You can set the volume at each setup position.

Channel Level screen

7Displays the X'over (HPF) screen.

(See <High Pass Filter Setup>, page 64)

8Display the X'over (LPF) screen.

(See <Low Pass Filter Setup>, page 64)

9Sets up the front speaker type to fine-tune for the

optimal equalizer curves.

Standard: Setup for general diameter speakers

Narrow: Setup for small diameter speakers

Middle: Setup for small diameter woofer

Wide: Setup for large diameter woofer

pSelect the speakers for Multi-channel sounds.

"3/2": Center speaker, Front speaker, Rear speaker

"2/2": Front speaker, Rear speaker

"3/0": Center speaker, Front speaker

"2/0": Front speaker

qSet the use or no use of Sub Woofer.

wDisplays the Channel Level Setup screen.

eDisplays the Car Type Set Up screen.

• "X’Over HPF" and "X’Over LPF" can be set only

when "Sub Woofer" is set to "On".

• To turn the Center speaker on in the "Multi

channel" settings, turn "Dolby Pro Logic" (see

page 91) on.

rSelects a speaker to be set.

(see <Channel Level>, page 62)

tSets the speaker volume.

(see <Channel Level>, page 62)

yStarts or stops test signal tone output for setup

check.

uDisplays the Speaker Set Up screen.

• Your setup on the <Sound Effects Menu> is

adjusted automatically to get the best sound

effects according to the car type and speaker you

have set on the <Audio Set Up> (see page 60).

We recommend you to complete the <Audio Set

Up> first, then set up the <Sound Effects

Menu>.

You can fine-adjust the automatic set value by

<DTA Setup> (see page 62) or <Parametric

Equalizer> (see page 88).

• Stop the test signal tone if you have finished

setting up the Channel Level. If you leave the test

signal tone on, you may not be able to set up

other settings.

+10dB

Cent er

Chann e l Level

Test

Set Up

SRC

Audio

English 61

unit.

X' Over HPF

X' Over LPF

Sub Woo f er Off

Standard

FrontL&R

3/2

Mu l t i Channel

Speaker

Set Up

SRC

Audio

9 9

10 10

15 15

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ61

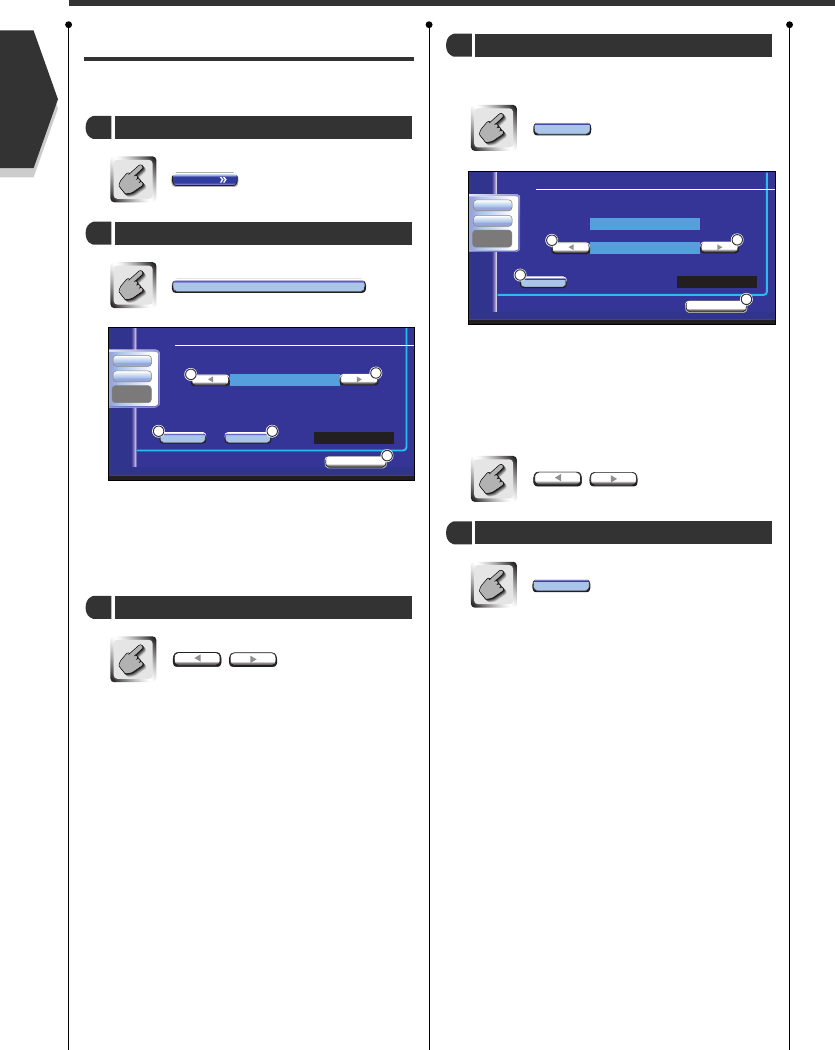

Setup Menu

Channel Level

Set the volume at each setup position.

Channel Level setup screen

1Left front speaker

2Right front speaker

3Left rear speaker

4Right rear speaker

5Center speaker

Adjust the volume

Set Up

Select a speaker you wish to adjust

DTA Setup

Manually set the sound output timing of each

channel.

(P60 5)

DTA Setup screen

1Selects a speaker to be adjusted.

2Sets the distance between the selected speakers

to adjust delay time.

3Stores the adjusted status in memory or calls it

from memory.

4Returns to the Car Type Set Up screen.

1Front speaker

2Rear speaker

3Subwoofer

4Center speaker

Select a speaker you wish to adjust

DTA

Display the DTA Setup screen

English

62 English

+10dB

Cent er

Channel Level

Test

Set Up

SRC

Audio

Return

DTA

Pr e s e t

0.50 feet

Front

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ62

The speakers are virtually moved to the desired

distance.

When the values of center speaker and front

speakers increase, they are virtually moved forward.

When the values of rear speakers and subwoofer

increase, they are virtually moved backward.

To store your setup in memory

Continue to touch more than 2 seconds.

To call your setup from memory

Preset

Store or call your setup into/from memory

Set a delay time

English 63

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ63

Setup Menu

High Pass Filter Setup

You can manually set a High Pass Filter of

Crossover Network.

(P61 7)

1Sets a crossover frequency of Front High Pass

Filter.

2Sets a crossover slope of Front High Pass Filter.

3Sets a crossover frequency of Rear High Pass

Filter.

4Sets a crossover slope of Rear High Pass Filter.

5Sets a crossover frequency of Center High Pass

Filter.

6Sets a crossover slope of Center High Pass Filter.

7Returns to the Speaker Set Up screen.

"HPF Center" can be set only when "Multi

Channel" (see page 61) is set to "3/2" or "3/0".

X' Over HPF

Low Pass Filter Setup

You can manually set a Low Pass Filter of

Crossover Network.

(P61 8)

1Sets a crossover frequency of Low Pass Filter.

2Sets a crossover slope of Low Pass Filter.

3Sets the phase of subwoofer output.

The phase is reversed 180 degrees when set to

"Reverse".

4Returns to the Speaker Set Up screen.

X' Over LPF

English

64 English

HPF F r ont

100 Hz 100 Hz 100 Hz

HPF Rear

100 Hz

Reverse

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ64

English 65

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ65

Displaying the DVD SETUP 1

screen

DVD SETUP 1 screen

DVD SETUP

Setup Menu

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Selects a disc menu language.*1

(See <Language Setup>, page 68)

5Selects a subtitle language.*1

(See <Language Setup>, page 68)

6Selects an audio language.*1

(See <Language Setup>, page 68)

7Sets the dynamic range.*2 (Wide)

The dynamic range is reduced by changing from

"Wide" to "Normal" and from "Normal" to "Midnight".

You can easy to listen a small sound when the

dynamic range is narrow.

This is effective only when you are using a Dolby

Digital software.

8Displays the DVD SETUP 2 screen.

If is not shown,

touch or to display it.

DVD SETUP

Menu LANG

Subtitle LANG

Audio LANG

Dynamic Range Con t r o l

Mi dnight

Set

DVD S ETUP 1

Set Up

SRC

Audio

English

66 English

DVD Setup

You can set up the DVD play.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ66

9Sets an angle mark display. ( On)

pSelects the screen display mode.*1(16:9)

"16:9": Displays wide pictures.

"4:3 LB": Displays wide pictures in the Letter Box

format (having black stripes at the top and

bottom of screen).

"4:3 PS": Displays wide pictures in the Pan & Scan

format (showing pictures cut at the right

and left ends).

qDisplays the Parental Lock screen.*1(OFF)

(See <Parental Level Setup>, page 69)

wKeep "AUTO" to use.

eDisplays the DVD SETUP 1 screen.

*1Disabled when a DVD is being played.

*2Disabled when the Zone function is On.

Displaying the DVD SETUP 2

screen

DVD SETUP 2 screen

English 67

OffOn

Ang l e Mar k

Screen Rat io

Pa l ent a l L ev e l

Off

4:3 LB

Set

Output

AUTO

DVD S ETUP 2

Set Up

SRC

Audio

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ67

Setup Menu

Language Setup

Select a language you use for the speech and

menus.

See <Displaying the DVD SETUP 1 screen> (see

page 66) and select a language you wish to use.

1Enters a language code.

2Cancels the language setup and returns to the

DVD SETUP 1 screen.

3Clears the language code.

4Sets the original audio language.

(It appears during audio language setup.)

5Sets the language and returns to the DVD SETUP

1 screen.

(It appears after you have entered a language

code.)

See the Language Code Table shown at right to

select the desired language.

Enter

Set the language you use

Enter a language code

Display the Language Setup screen

Abbreviation

Language

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

German

Bhutani

Greek

English

Esperanto

Spanish

Estonian

Basque

Persian

Finnish

Fiji

Faroese

French

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Italian

Hebrew

Japanese

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laotian

Lithuanian

Abbreviation

Language Code Table

Language

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

Punjabi

Polish

Pashto, Pushto

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Romanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sangho

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tongan

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapuk

Wolof

Xhosa

Yoruba

Chinese

Zulu

EnterCancel

bcd e f g

hi jklmn

opqrstu

vwx yz

Clear

Audio LANG

ORIGN

English

68 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ68

Parental Level Setup

Sets a parental level.

(P67 q)

1Enters a code number.

2Cancels the current setup and returns to the DVD

SETUP 2 screen.

3Clears the code number.

4Displays the present parental lock level.

5Determines the code number and displays the

Parental Level Setup screen.

—

•The number you enter first is set as your code

number.

•You can clear the code number by pressing the

Reset button.

Enter the code number

Set

Display the Parental Level code number screen

1Sets a parental level.

2Returns to the DVD SETUP 2 screen.

•If a disc has a higher parental lock level, the

audience needs to enter the code number.

•The parental lock level varies depending on a

loaded disc.

•If a disc has no parental lock, any audience can

play it back even when you have set the

parental lock.

Return

Enter the parental level setup

Set a parental level

Enter

Display the Parental Level Setup screen

Cancel

Clear Enter

Parenta l Pass

Level5

* * * *

123

456

Return

Le v e l 5

Parenta l Level

English 69

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ69

Setup Menu

System Setup

You can set up the system parameters.

Displaying the System Set Up

1 screen

System Set Up 1 screen

Sys t em Set Up

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Turns the key touch tone On or Off. ( On)

5Allows scrolling of text display on the Source

Control screen. ( Auto)

"Auto": Scrolls the screen automatically.

"Manual": Allows you to scroll the screen manually.

6Selects a remote control signal. ( On)

When turned "Off", the remote control of TV

reception is rejected.

7Displays the System Set Up 2 screen.

If is not shown,

touch or to display it.

Sys t em Set Up

English

70 English

System Se t Up 1

OffOn

Beep

Scroll

Remo t e Sensor

Ma n ua l

Set Up

SRC

Audio

4 4

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ70

8Sets a music CD playback. ( 1)

"1":Automatically recognizes and plays back an

MP3/WMA disc, a DVD or a music CD.

"2":Forcibly plays back a disc as a music CD.

Select "2" if you wish to play a music CD having

a special format or if you cannot play a disc in

the "1" position.

• You cannot play an MP3/WMA/VCD disc in the "2"

position. Also, you may not play some music CDs

in the "2" position.

• Your setup is disabled when the disc is being

played.

9Selects an illumination color of receiver keys.

(Red)

"Green": Green

"Red": Red

pDisplays the System Set Up 1 screen.

Displaying the System Set Up

2 screen

System Set Up 2 screen

English 71

Key ILLUMI

CD Read

System Se t Up 2

Green

Set Up

SRC

Audio

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ71

Setup Menu

Displaying the AV I/F 1 screen

AV I/F 1 screen

AV I /F Set Up

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Selects a navigation system connection. ( RGB)

"RGB": Allows the Kenwood’s Navigation System

to connect via its interface cable.

"AV-IN": Allows a third-party navigation system to

connect via the AV INPUT port.

"OFF": Must be used if no navigation system is

connected. (The navigation display is

cancelled when the AV source is switched.)

5Sets a name to be displayed when you select a

system that is connected via the AV INPUT port.

(VIDEO)

If you have set the navigation system connection to

"AV-IN", the display is fixed to "NAV".

6Sets an image display of the system that is

connected via the AV INPUT port. ( Normal)

"Normal":When the image source is switched, an

image entered via the AV INPUT port is

displayed.

"AUTO": When an image signal is entered via the

AV INPUT port, this image is displayed.

7Sets how the rear camera image is displayed.

"Reverse": Displays with left and right reversed.

"Normal": Displays as it is.

"R-CAM View" can be set only when "AV-IN Name"

is set to "R-CAM".

8Displays the AV I/F 2 screen.

If is not shown,

touch or to display it.

AV I /F Set Up

AV I/F 1

Nor ma l

VIDEO

AV - I N

NAV

AV- I N Name

AV- I N

Nor ma l

R-CAM View

Set Up

SRC

Audio

English

72 English

AV Interface

You can set audio and visual (AV) interface parameters.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ72

9Selects an AV source to be output at the AV

OUTPUT port. ( AV-IN)

If you select DVD as a source when the optional

accessory DSP unit is connected, no DVD sound is

output to the AV output port.

pSelects speakers used for voice guidance of the

navigation system. ( F-Left)

"F-Left": Uses the front left side speaker for voice

guidance.

"F-Right": Uses the front right side speaker for voice

guidance.

"F-All": Uses both front speakers for voice

guidance.

qAdjusts the volume for voice guidance of the

navigation system. ( 19)

wMutes the volume during voice guidance of the

navigation system. ( On)

When turned "On", the volume level drops for voice

guidance.

eDisplays the AV I/F 1 screen.

Displaying the AV I/F 2 screen

AV I/F 2 screen

OffOn

AV -OUT

NAV Interruption

NAV Guide Volume Level

Line Mute

F-All

AV - I N

AV I/F 2

Set Up

SRC

Audio

English 73

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ73

Setup Menu

User Interface

You can set up user interface (IF) parameters.

Displaying the User I/F 1

screen

User I/F 1 screen

User I / F S e t Up

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Switches the wall paper.

5Displays the User I/F 2 screen.

If is not shown,

touch or to display it.

User I / F S e t Up

English

74 English

User I / F 1

Wall Paper

Wall

Set Up

SRC

Audio

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ74

6Sets an on-screen display of the navigation screen.

(Auto)

If you set to "Auto", an information is displayed for 5

seconds when updated.

7Sets an on-screen display of the video playback

screen. ( Auto)

If you set to "Auto", an information is displayed for 5

seconds when updated.

8Sets an on-screen display of the DVD playback

screen. ( MANU)

If you set to "Auto", an information is displayed for 5

seconds when updated.

9Sets an on-screen display of the TV screen.

(Auto) (optional accessory) (with the optional

accessory TV tuner connected only)

If you set to "Auto", an information is displayed for 5

seconds when updated.

pDisplays the User I/F 1 screen.

Displaying the User I/F 2

screen

User I/F 2 screen

English 75

User I / F 2

MANU

On SCRN NAV

On SCRN VIDEO MANU

On SCRN DVD MANU

On SCRN TV MANU

Set Up

SRC

Audio

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ75

Setup Menu

Touch Panel Adjust

You can adjust the touch panel operations.

If is not shown, touch

or to display it.

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Allows you to start touch panel adjustment.

1Cancels the adjustment and returns to the Touch

Panel Adjust screen.

2Resets to the initial status.

Set

Start to adjust the touch panel

Touch Adjust

Display the Touch Panel Adjust screen

Touch the center of left lower and right upper

when requested.

Adjustment

Set

Touch Adjust

T ou c h

Set Up

SRC

Audio

Touch Adjust

Cancel Reset

English

76 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ76

Clock

Adjusts the clock time

If is not shown, touch

or to display it.

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Clock time display.

5Adjusts hours.

6Adjusts minutes.

7Sets "00" minute.

Setup examples: 3:00~3:29 →3:00

3:30~3:59 →4:00

8Sets the clock time in synchronous with the time

data sent from the RDS station. ( Off)

When turned "On", the synchronous mode starts

and the clock cannot be adjusted manually.

Adjust the clock time

Clock Adjust

Display the Clock Screen

OffOn

PM 1 1 : 1 8

Reset

Clock

SYNC

Set Up

SRC

Audio

5 6

English 77

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ77

Setup Menu

English

78 English

Security Code Setup

You can set a security code to protect your

receiver system against theft.

When the Security Code function is activated, the

code can't be changed and the function can't be

released.

Note, the Security Code can be set as the 4 digit

number of your choice.

If is not shown, touch

or to display it.

1Returns to the Control screen of the previous

source.

2Calls the Sound Effects Menu. (see page 84)

3Calls the Setup Menu.

4Allows you to start security code registration.

5Turns the SI function On or Off.

If turned "On", the burglar alarm lamp flashes

when the vehicle ignition is off.

If you have already completed the code

registration, the is not displayed.

Set

Security Set Up

Display the Security Code Setup screen

1Enters a security code.

2Clears your entry.

3Cancels the registration and returns to the

Security Code Setup screen.

4Enters the security code.

—

Input a four-digit number.

Reenter the same security code as that you have

entered in Step 3 for confirmation.

If you enter a different security code, the screen

returns to Step 3 (for the first code entry).

Your security code has been registered.

If you press the Reset button or if you disconnect

your Receiver from the battery after the code

registration, you need to enter the registered

security code.

See below for details.

Enter

Reenter the security code

Enter

Enter a security code

Set

Start the security code registration

Security Code

Security

Set

Set Up

SRC

Audio

SI OffOn

EnterCancelClear

* * * *1 s t

123

456

Pa s s Wor d

234

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ78

English 79

If you have pressed the Reset button or if you

have disconnected the Receiver from battery...

—

You must enter the same security code as that you

have entered in Step 3 above.

Now, you can use your Receiver.

Enter

Enter the security code

Enter the correct security code

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ79

English

80 English

Setup Menu

Displaying the SIRIUS Set Up

screen

SIRIUS Set Up screen

SIRIUS Set Up

1Calls the Sound Effects Menu. (see page 84)

2Returns to the Control screen of the previous

source.

3Calls the Setup Menu.

4Displays the SIRIUS ID

If is not shown,

touch or to display it.

SIRIUS Set Up

SIRIUS Setup

You can display the SIRIUS ID.

SIR I US I D

SIRIUS Set Up

123456789012

Set Up

SRC

Audio

(with the optional accessory SIRIUS Tuner connected only)

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ80

1Calls the Setup Menu.

2Calls the Sound Effects Menu. (see page 84)

3Returns to the Control screen of the previous

source.

4Setup option and value display

5Select a setup option.

6Selects a set value.

7Enters the set value.

• If is not shown,

touch or to display it.

• For the model name of amp you can control from

the system, see the amp’s catalog.

• For the options and values you can change and

for the amp’s operation when changed, see the

amp’s instruction manual.

AMP Ctrl

Displaying the AMP Control

screen

AMP Control screen

AMP Ctrl

AMP Control (with the optional accessory LX Power AMP connected only)

Sets the power amp connected via the LX bus.

English 81

AMP Control

AMP 1 VOLT 14.4V

Set Up

SRC

Audio

Set

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ81

English

82 English

Displaying the DAB Set Up

screen

DAB Set Up screen

DAB Set Up

1Calls the Sound Effects Menu. (see page 84)

2Calls the Setup Menu.

3Returns to the Control screen of the previous

source.

4Turns the DAB Priority On or Off.

5Turns the Dynamic Range Control function On or

Off.

6Turns the Regional Announcement function On or

Off.

7Sets a program type to be selected automatically

when the receiving ensemble starts.

8Displays the Announcement Selection screen.

If is not shown,

touch or to display it.

DAB Set Up

PTY Watch Off

Off

Set

PTY Watch

Regional Int.

Announcement Select

DAB Se t Up

DAB P riority

Off

DRC

Off

Set Up

SRC

Audio

Setup Menu

DAB Set Up (with the optional accessory DAB Tuner connected only)

The DAB reception can be set.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ82

English 83

Announcement Selection

Various announcement reception parameters

can be set.

1Turns the Announcement Reception function On

or Off.

2Scrolls the Announcement items.

3Returns to the DAB Set Up screen.

etc.

Traffic News: Traffic information

Transport News: Time table information of public

transportation services

Warning: Lower priority items than alarms

(power failure, cutoff of water

supply and others)

News: News flash

Weather: Weather forecasting

Event: Event information

Special Event: Undetermined event information

Radio Info: Programme information, advance

notice

Sports news: Sports news

Financial news: Financial news

Return

Terminate the setup

ea t her

Set the announcement parameters

Set

Displays the Announcement Selection screen

Return

Off

Announcemen t

ea t her

Ev ent

Spe ci a l Ev ent

Radio I nfo

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ83

Sound Effects Menu

Displaying the Control screen

Control screen

Displaying the Sound Effects

Menu screen

Sound Effects screen

Audio

You can display the same Sound Effects Menu on

the Control screen of any source.

1Calls the Sound Effects Menu.

2Calls the Setup Menu. (see page 57)

3Returns to the Control screen of the previous

source.

• Your setup on the <Sound Effects Menu> is

adjusted automatically according to your <Audio

Set Up> (see page 58) on the Setup menu. We

recommend you to complete the <Audio Set Up>

first, then set up the <Sound Effects Menu>.

• Displayed items vary depending on the optional

accessory connected.

13:50

DVD V I DEO

REP

SCRL TIME

Set Up

Audio

Direct

SRC

Title 1 Chap 3 T0:05:20

KENWOOD

T-REP

Audio Control

Equalizer

Zone Con t r o l

Audio

Set Up

SRC

Audio

English

84 English

Sound Effects Menu

You can set up the receiver sound effects.

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ84

Displaying the Audio Control

1 screen

Audio Control 1 screen

Displaying the Audio Control

2 screen

Audio Control 2 screen

Audio Control

1Returns to the Control screen of the previous

source.

2Calls the Setup Menu. (see page 57)

3Calls the Sound Effects Menu.

4Adjusts the right and left volume balance.

5Adjusts the front and rear volume balance.

6Adjusts the volume of the present source based on

the difference level of original volume.

If you have increased the volume first, then

reduced it using the "Vol. Offset", the big sound

may suddenly be generated when you switch to

another source.

7Adjusts the subwoofer volume.

8Turns the Loudness control function On or Off.

(Does not appear when the optional accessory DSP

unit is connected.)

If turned "On", high and low tones are automatically

enhanced during low volume. ( On)

9Displays the Audio Control 2 screen.

pAdjusts the bass boost of the B.M.S power

amplifier (optional accessory).

You may not set some models of power amp boost

to "+18". See the catalog or instruction manual of

power amplifier.

qSet the center frequency of bass boost you have set

for the "AMP Bass".

If you set it to "Low", the center frequency is

dropped for 20 to 30%.

wDisplays the Audio Control 1 screen.

-15

Vol.Offset

Off

Aud i o Control1

LOUD

Front

Rear

FAD F1 2

BAL R1 2

SUB -1 5

Set Up

SRC

Audio

Flat

BMS AMP Bass

Normal Low

BMS AMP FREQ

Aud i o Control2

Set Up

SRC

Audio

English 85

Audio Control

You can adjust the front and rear and right and left audio balance.

10 10

11 11

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ85

Sound Effects Menu

Equalizer

You can set up the equalizer.

1Returns to the Control screen of the previous

source.

2Calls the Setup Menu. (see page 57)

3Calls the Sound Effects Menu.

4Select the adjustment items for the Tone Curve

setup. (Does not appear when the optional

accessory DSP unit is connected.)

If you set it to "Off", only "Level" can be set up for

Tone Curve.

5: Displays the Tone curve setup

screen. (see page 87)

: Displays the Parametric Equalizer

screen. (see <Parametric Equalizer>

page 88) (with the optional accessory

DSP unit connected)

You can adjust the value set for the

Equalizer Curve Type.

6Selects an equalizer curve type.

You can select any of the following equalizer curves.

System Q

• "Natural"

• "Rock"

• "Pops"

• "Easy"

• "Top 40"

• "Jazz"

• "User" (when the tone curve (page 87) is set up)

KBS (with the optional accessory DSP unit connected)

• "Natural"

• "Top 40"

• "Rock"

• "Dance"

• "Vocal"

• "Classic"

• "User" (when Parametric Equalizer (page 88) is

set up)

P-EQ

Tone

Displaying the Equalizer

screen

Equalizer screen

Equalizer

Off

Syst em Q -Ex

System Q

Natural

Tone

Set Up

SRC

Audio

English

86 English

DDX7015/7045_K(En)v3.9 04.4.18 9:42 AM ページ86

English 87

Tone curve setup

You can set a Tone curve.

Tone setup screen

1Bass adjustment items are displayed.

2Middle adjustment items are displayed.

3Treble adjustment items are displayed.

4Bass DC Extend settings

If turned "On", it extends the bass center

frequency to the low register by approximately

20%.

5Returns to the Equalizer screen.

Tone curve can be set for each source.

You can adjust the following frequency bands.

Bass: 60, 70, 80, 100/150 (When "Q Factor" is

"2.00") Hz

Middle: 500, 1k, 1.5k, 2k Hz

Treble: 10k, 12.5k, 15k, 17.5k Hz

Set a level

Set a center frequency

Treble

Midd l e

Bass

Select a frequency band you wish to adjust

Tone

Display the Tone setup screen

You can set it up only when Bass or Middle is

adjusted.

Return

Close the Tone setup screen

Set a Q factor

Off

FREQ

Level

Q Factor

- 5

1.0

Re t u r n

Bass

Midd l e

Bass DC EXT

Treble

Tone

FREQ

Level

Q Factor

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ87

Sound Effects Menu

English

88 English

Parametric Equalizer

You can Manually set the equalizer curve by

adjusting the center frequency, gain and Q

value. (with the optional accessory DSP unit

connected)

1234 Select a band to be adjusted.

5Sets a frequency.

6Sets a gain level.

7Sets a Q value.

8Store the present equalizer curve in memory, or

calls it from memory.

9Exits the Parametric Equalizer setup and returns

to the Equalizer screen.

—

You can adjust the following frequency bands.

160, 80, 100, 120, 160, 200, 250 Hz

2315, 400, 500, 630, 800, 1k Hz

31.25k, 1.6k, 2k, 2.5k, 3.15k, 4k Hz

45k, 6.3k, 8k, 10k, 12.5k, 16k Hz

Set a gain

Set a center frequency

Band4Band1

Select a frequency band you wish to adjust

P-EQ

Display the Parametric Equalizer screen

To store the equalizer curve in memory:

—

Continue to touch to more than

2 seconds.

To call the equalizer curve from memory:

—

Touch to of the equalizer curve

you wish to call from memory.

When you call an equalizer curve, its type is shown

as "User".

Return

Close the Parametric Equalizer screen

P3 P1

Store or call the equalizer curve into/from

memory

Set a Q value

3.00

+12

3.00

2.25

KH z

2.25

KH z

3.00

800

3.00

+12

Return

Paramet r ic Equalizer

P1 P2 P3

FREQ

Gain

Band4

Band3Band2Band1

134

FREQ

Gain

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ88

English 89

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ89

Sound Effects Menu

English

90 English

Zone Control

You can set the front and rear audio source.

Displaying the Zone Control

screen

Zone Control screen (when the Zone function is On)

Zone Con t r o l

1Returns to the Control screen of the previous

source.

2Calls the Setup Menu. (see page 57)

3Calls the Sound Effects Menu.

4Turns the Zone Function (that sets different source

sounds for front and rear speakers) On or Off.

When turned On, and are shown.

5Sets the front and rear audio source separately.

(This button appears when the Zone function is On.)

When the rear speaker sound is switched, the

audio source that is output at the AV OUTPUT

terminal is also switched to the same source.

However, if you have set the "Area" to "Reverse",

the audio source that is output at the AV OUTPUT

terminal is switched depending on the front sound

source.

6Switches the front and rear audio sources.

(This button appears when the Zone function is On.)

Use "Reverse" to change over the front and rear

audio sources.

If the zone function is turned on, the /

button appears on each source control screen, with

which you can adjust the volume balance between

the front and rear sources.

Menu Dual Zone

Rear

Front

DVD

Zone

Area

Zone Con t r o l

TUNER

Reverse

Set Up

SRC

Audio

13:50

DVD V I DEO

REPPBC

SCRL TIME

Set Up

Audio

Direct

SRC

Title 1 Chap 3 T0:05:20

KENWOOD

T-REP

F R

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ90

1Returns to the Control screen of the previous

source.

2Calls the Setup Menu. (see page 57)

3Calls the Sound Effects Menu.

4PCM Center

If you set to "On", a sound is output from the center

speaker.

5Turns the Dolby Pro Logic function on or off.

6Turns the Bi Phantom function on or off.

If you set to "On", the signal of the center channel is

controlled so that it can be exactly positioned.

7Sets up the dynamic range when the Dolby Digital

sound is used.

If you set to "On", it compresses the dynamic range

to control loud sounds.

8The DSP unit settings return to default.

• The Dolby Pro Logic and PCM Center functions

are effective when the 2ch PCM signal is used.

• You cannot set up "Bi Phantom" when "Dolby Pro

Logic" is "Off".

• You cannot set up "PCM Center" when "Dolby Pro

Logic" is "On".

Displaying the Digital Effect

screen

Digital Effect screen

Digital Effect

Digital Effect (with the optional accessory DSP unit connected only)

You can set up the Digital Effect.

English 91

Digital Effect

De f e at

On O f f

PCM Center

On O f f

Off

Dolby Pro Logic

Bi Phant om

Off

Dynam ic Range

Set Up

SRC

Audio

7 7

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ91

Sound Effects Menu

Displaying the Position screen

Position screen

Position

1Returns to the Control screen of the previous

source.

2Calls the Setup Menu. (see page 57)

3Calls the Sound Effects Menu.

4Sets a listening position.

You can select any of "Front R" (Right front), "Front

L" (Left front), "Front" (All front), "Rear" (All rear) and

"ALL" (All) positions.

The final distance is adjusted to the total of Car

Type Set Up value (see page 60) and Position

Setup (both Position and Position Fine Control)

value.

Po sition

Front

Set Up

SRC

Audio

English

92 English

Position (with the optional accessory DSP unit connected only)

You can adjust the sound effects according to your listening position.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ92

English 93

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ93

94 English

English

Glossary

DVD: Digital Versatile Disc

A type of disc which contains recording of

audio/video packaged media with high video and

audio quality, such as a movie, featuring large

recording capacity and digital signal processing

capability.

VCD: VIDEO CD

A type of CD which contains the recording of

moving images. It compresses image information

by about 1/120 and audio information by about 1/6

and accommodates up to 74 minutes of recording

in a disc with the same diameter as ordinary

music CD of 12 cm.

Some VCDs do not have the P.B.C. compatibility

and are capable of playback only, while some are

P.B.C.-compatible and are capable of various

special playback control operations. This player

can play both of these VCDs.

MPEG: Moving Picture Expert Group (DVD, VCD)

This is an international standard for digital video

and audio compression and decompression in

media.

Dolby Digital

This is a digital audio compression technology

developed by Dolby Laboratories. It is compatible

with 5.1-channel surround audio as well as normal

stereo (2-channel) audio and can accommodate a

large amount of audio data efficiently in a disc.

DTS

Name of a digital surround system developed by

Digital Theater Systems, Inc.

Top menu/menu (DVD)

Some DVDs display more than one title in a

screen. This screen is referred to as the top

menu.

The menu is the item display (menu screen) for

use in setting operations. The menu can be

recalled any time during playback to perform

settings according to the current software,

including the audio switching between Dolby

Digital and PCM, switching of language used in

the subtitles and spoken voice.

Title number (DVD)

The title is the largest unit of video and audio

recorded in a DVD. It usually corresponds to a

single movie of video software or an album

(sometimes a piece of music) of music software.

The numbers assigned to individual titles are

referred to as the title numbers.

Chapter number (DVD)

The chapter is a section of video and audio

recorded in a DVD. A title is composed of several

chapters. The numbers assigned to individual

chapters are referred to as the chapter numbers.

Subtitles (DVD)

Some DVD discs contains the recording of more

than one subtitle language. This player allow you

to select one of the recorded subtitle languages

during playback.

Track number (CD, VCD)

A track is also a section of video and audio

recorded in a disc. The numbers assigned to

individual tracks are referred to as the track

numbers.

With most of music CDs, a track is assigned to a

piece of music. However, with a VCD, the

sections of the contents do not always

correspond to the assigned tracks.

As (special) playback functions such as skipping

and programming of ordinary CDs are based on

track number data, such playback functions are

sometimes impossible with some VCDs.

P.B.C.: Play-Back Control (VCD)

When a VIDEO CD carries "Play Back Control

capable" or similar message on the disc or jacket,

desired scenes and information can be played

back in an interactive manner using a hierarchical

structure while viewing the menu screens

displayed on the TV screen.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ94

English 95

Troubleshooting Guide

Some system functions are limited to control depending on your setup.

¶The rear speakers of DTA cannot be set.

¶The "Channel Level" of rear speakers cannot be set.

"Multi Channel" has been set to "2/0"

or "3/0" (no rear speaker setting) on

the Speaker Set Up screen (page 61).

¶The subwoofer of DTA cannot be set.

¶The "Channel Level" of the subwoofer cannot be set.

¶The center speaker for DTA cannot be set.

¶The "Channel Level" of the center speaker cannot be set.

"Sub Woofer" has been set to "Off" on

the Speaker Set Up screen (page 61).

¶No signals can be set.

¶The "Equalizer" cannot be set.

¶The "Position" cannot be set.

¶The "Car Type Setup" value cannot be set.

¶The "Speaker Setup" value cannot be set.

¶No crossover frequency can be set.

¶The "Channel Level" (test signal output) cannot be set.

The Zone Control has been turned

On (page 90).

"Multi Channel" has been set to "2/0"

or "2/2" (no center speaker setting) on

the Speaker Set Up screen (page 61).

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ95

96 English

English

Troubleshooting Guide

What might appear to be a malfunction in your unit may just be the result of slight misoperation or

miswiring. Before calling service, first check the following table for possible problems.

■General

The power does not turn on.

•The fuse has blown.

The desired source is NOT selected although you pressed the SRC button.

•An optional unit required to listen to each source is

not connected yet.

•The RESET button is not pressed yet although the

optional unit has been connected to the system.

•The "O-N" switch of the optional unit is at the "O"

position.

•A disc changer not supported by the system is used.

Nothing happens when the buttons are pressed.

•The computer chip in the unit is not functioning

normally.

No television/video image appears.

•The unit is not connected to the parking brake

detection switch.

•The parking brake is not engaged.

The screen is dark.

•The unit is in a location where temperature is low.

The screen does not darken when the vehicle’s lights are turned on.

•The unit is set to auto dimmer.

•The illumination wire has not been connected. (If

manual dimmer is set)

AM/FM radio reception is poor and/or there is noise.

•The TV antenna and vehicle‘s radio antenna are too

close.

The remote controller does not operate.

•The remote control mode selector is not set

correctly.

•After checking for short circuits in the wires, replace the

fuse with one having the same rating.

•A non-connected source is not selected. See

<INSTALLATION MANUAL> and connect the unit correctly.

•Press the reset button (see page 4).

•Set the "O-N" switch to the "N" position.

•Use a disc changer supported by the system (see page 4).

•Press the reset button on the unit (see page 4).

•Make proper connections according to <INSTALLATION

MANUAL>.

•For safety reasons no television/video images are

displayed while the vehicle is moving. Engaging the

parking brake will cause images to be displayed.

•If the temperature of the monitor unit drops, the screen

may appear darker when power is first turned on due to

the characteristics of a liquid crystal panel. Wait a while

after turning power on for the temperature to rise. Normal

brightness will return.

•When the unit is set to auto dimmer, it is not linked to the

vehicle's light switch.

•Make proper connections according to <INSTALLATION

MANUAL>.

•Separate the two antennas as far as possible.

•Turn off the main unit.

•Switch the remote control mode selector according to the

source you select (see page 10).

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ96

English 97

No sound can be heard, or the volume is low.

•Attenuator is turned on.

•The fader or balance settings are set all the way to

one side.

•The input/output wires or wiring harness are

connected incorrectly.

The sound quality is poor or distorted.

•One of the speaker wires is being pinched by a

screw in the car.

•The speakers are not wired correctly.

Radio reception is poor.

•The car antenna is not extended.

•The antenna control wire is not connected.

The memory is erased when the ignition is turned off.

•The battery wire has not been connected to the

proper terminal.

•The ignition and battery wire are incorrectly

connected.

The sound/picture skips on a DVD/VCD/CD.

•The disc is scratched or dirty.

A track will not play.

•Random play has been selected.

A VCD cannot be played using menus.

•The VCD disc being played is not compatible with

P.B.C.

The subtitle is not displayed.

•The DVD disc being played does not contain the

recording of subtitles.

The voice (or subtitle) language cannot be changed.

•The DVD disc being played does not contain the

recording of more than one audio (or subtitle)

language.

•Turn off Attenuator.

•Reset the fader and/or balance settings.

•Reconnect the input/output wires or the wiring harness

correctly. See the section on <INSTALLATION MANUAL>.

•Check the speaker wiring.

•Reconnect the speaker wires so that each output terminal

is connected to a different speaker.

•Pull the antenna out all the way.

•Connect the wire correctly, referring to the section on

<INSTALLATION MANUAL>.

•Connect the wire correctly, referring to the section on

<INSTALLATION MANUAL>.

•Connect the wire correctly, referring to the section on

<INSTALLATION MANUAL>.

•Clean the disc, referring to the section on <Disc cleaning>

(see page 6).

•Turn off random play.

•Menu playback is available only with VCD discs recorded

with P.B.C.

•The subtitle cannot be displayed when the DVD disc being

played does not contain the recording of subtitles.

•The voice (or subtitle) language cannot be changed when

the DVD disc being played does not contain the recording

of more than one voice (or subtitle) language.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ97

98 English

English

Troubleshooting Guide

The viewing angle cannot be changed.

•The DVD disc being played does not contain the

recording of more than one angle.

•You are attempting to switch the angle in a DVD

section where more than one angle is not recorded.

Playback will not start even after a title is selected.

•A viewing restriction (RATING) has been set for the

disc.

The voice or subtitle language selected in the initial setting is not played.

•The DVD disc being played does not contain the

recording of the selected voice or subtitle language.

■Disc source

The disc control mode cannot be selected.

•No wire has been connected to the disc changer

input terminal on the unit.

The specified disc does not play, but another one plays instead.

•The specified CD is quite dirty.

•The CD is upside-down.

•The disc is loaded in a different slot from that

specified.

•The disc is severely scratched.

The sound skips.

•Something is touching the disc changer.

•The CD is scratched or dirty.

The display shows that the changer is being played, but no sound can be heard.

•The computer chip in the unit is not functioning

normally.

The specified track will not play.

•Random play or magazine random play has been

selected.

Track repeat, disc repeat, track scan, disc scan, random play, and magazine random play start by themselves.

•The setting is not cancelled.

Can’t remove disc.

•The cause is that more than 10 minutes has elapsed

since the vehicle ACC switch was turned OFF.

•The viewing angle cannot be changed when the DVD disc

being played does not contain the recording of more than

one angle.

•More than one viewing angle may be recorded only in

limited sections in a disc.

•Check the viewing restriction level (RATING) setting.

•Use a DVD disc containing the recording of the selected

voice or subtitle language.

•Connect the wire to the disc changer input terminal on the

unit.

•Clean the CD.

•Load the CD with the labeled side up.

•Eject the disc magazine and check the number for the

specified disc.

•Try another disc instead.

•Remove whatever is touching it.

•If skipping happens at the same place when the car is

stopped, something with the CD is wrong. Clean the CD.

•Press the reset button on the unit (see page 4).

•Turn off random play or magazine random play.

•The settings for these functions remain on until the

setting to off or the disc ejected, even if the power is

turned off or the source changed.

•The disc can only be removed within 10 minutes of the

ACC switch being turned OFF. If more than 10 minutes

has elapsed, turn the ACC switch ON again and press the

Eject button.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ98

English 99

■MP3/WMA source

Cannot play an MP3/WMA.

•The media is scratched or dirty.

The sound skips when an MP3/WMA is being played.

•The media is scratched or dirty.

•The recording condition is bad.

The MP3/WMA track time isn’t displayed correctly.

•---

Can’t display the ID3 tag information correctly.

•Record is not made in conformity with the ID3 tag

version 1.x.

The following messages are displayed when certain problems are occurring in your system. Take

the recommended actions.

Hot Error The protective circuit in the unit activates when the temperature inside the unit exceeds 60°C

(140°F), stopping all operation.

]Cool down the unit by opening the windows or turning on the air conditioner. As the

temperature falls below 60°C (140°F), the disc will start playing again.

Hold Error The protective circuit in the unit activates when the temperature inside the automatic disc

changer exceeds 60°C (140°F), stopping all operation.

]Cool down the unit by opening the windows or turning on the air conditioner. As the

temperature falls below 60°C (140°F), the disc will start playing again.

Mecha Error The disc player is malfunctioning.

]Eject the disc and try inserting it again. Contact the Kenwood dealer if this indicator continues

blinking or the disc cannot be ejected.

Disc Error The unplayable discs is inserted.

Read Error The disc is upside-down.

]Load the disc with the labeled side up.

The disc is quite dirty.

]Clean the disc, referring to the section on <Disc cleaning> (see page 6).

Region code Error The DVD software encoded for other region code.

Parental level Error The parental level is set to high levels.

Error 07 — 67 The unit is malfunctioning for some reason.

]Press the reset button on the unit. If the "Error ##" code does not disappear, consult your

nearest service center.

•Clean the media, referring to the CD cleaning of the

section on <About discs> (see page 6).

•Clean the media, referring to the CD cleaning of the

section on <About discs> (see page 6).

•Record the media again or use another media.

•There are times when it isn’t displayed correctly according

to the MP3/WMA recording conditions.

•Record in conformity with the ID3 tag version 1.x.

Also, the display may be incorrect if an MP3/WMA file

uses the ID3 tag v1.x standard and if this standard has

been expanded after production of the machine software.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ99

100 English

English

Specifications subject to change without notice.

Monitor section

Picture size................................6.4 inches (diagonal) wide

143.6(W)×77.1(H)mm

Display system ........................Transparent TN LCD panel

Drive system ..............................TFT active matrix system

Number of pixels....................336,960 (480H×234V×RGB)

Effective pixels ......................................................99.99%

Pixel arrangement......................RGB striped arrangement

Back lighting ....................Cold Cathode Fluorescent Tube

DVD section

D/A Converter ............................................................24Bit

Decoder ............Linear PCM/Dolby digital/dts/MP3/WMA

Wow & Flutter ............................Below Measurable Limit

Frequency response

(Sampling frequency;96k) ........................20~44,000Hz

(Sampling frequency;48k) ........................20~22,000Hz

(Sampling frequency;44.1k) ......................20~20,000Hz

Total harmonic distortion (1k) ................................0.010%

Signal to Noise ratio................................100dB (DVD 96k)

Dynamic range........................................100dB (DVD 96k)

DISC Format........................DVD-Video/VIDEO-CD/CD-DA

Sampling frequency........................44.1kHz/48kHz, 96kHz

Quantifying bit number ....................................16/20/24bit

FM Tuner section

Frequency range (200kHz)........................87.9~107.9MHz

Usable sensitivity (S/N=30dB) ............9.3dBf (0.8µV/75Ω)

Quieting sensitivity (S/N=50dB) ........15.2dBf (1.6µV/75Ω)

Frequency response (±3.0dB) ......................30Hz~15kHz

S/N (dB) (MONO) ......................................................72dB

Selectivity (±400kHz) ..............................................≥80dB

Stereo separation............................................38dB (1kHz)

AM Tuner section

Frequency range (10kHz) ......................530kHz~1700kHz

Usable sensitivity ....................................................28dBµ

Video section

Color system of external video input ........................NTSC

External video input level (RCA jacks) ..............1Vp-p/75Ω

External audio max input level(RCA jacks)............1V/22kΩ

Analog RGB input ..........................................0.7Vp-p/75Ω

Audio section

Maximum Power (Front&Rear) ..............................50Wx4

Full Bandwidth Power (Front&Rear)

(at Less than 1%THD) ........................................22Wx4

Preout level (V) ....................................................2V/10kΩ

Preout impedance ..................................................≤600Ω

Tone action

Bass........................................................100 Hz ±10 dB

Middle ......................................................1 kHz ±10 dB

Treble......................................................10 kHz ±10 dB

General

Operating voltage ....................................14.4V (11V~16V)

Current consumption ..................................................15A

Dimensions (W×H×D) ..............182mm×112mm×163mm

7-3/16×4-7/16×6-7/16inch

Operational temperature range ......................-10°C~60°C

Storage temperature range ............................-20°C~85°C

Weight ..........................................................2.8kg (6.2lbs)

Specifications

Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may

light incorrectly.

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ100

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home

and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is

prohibited.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc.

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous

radiation exposure.

In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser

product safety.

Location : Bottom Panel

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause

harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the

authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in

accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

NOTE

2CAUTION

KENWOOD CORPORATION

2967-3, ISHIKAWA-CHO,

HACHIOJI-SHI

TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS EQUIPMENT

CONFORMS TO DHHS REGULATIONS N0.21 CFR

1040. 10, CHAPTER 1, SUBCHAPTER J.

English 101

DDX7015/7045_K(En)v3.9 04.4.18 9:43 AM ページ101

Kenwood Excelon Ddx7015 Users Manual DDX7015_7045 (Revised)

Excelon DDX7015 B64-2841-10_En

DDX7015 to the manual 0beeae82-c5a3-43c5-ac03-9de20a336c95

Navigation menu

Versions of this User Manual:

Views

Navigation
