TK-980/981

(800/900 MHz) FM Mobile Radios

•Emergency Call Features

•DTMF Encode / Decode2

•Time Out Timer

•Timed Power Off

•ACC Cable Option

•Ignition Sense3

•Public Address / Horn Alert Option4

•Dynamic Mobile Mic Included

•MIL-Spec Noise-canceling Mic Option

•MIL-Spec 12-Key Noise-canceling Mic Option

•Windows®Programming & Tuning4

•Windows®Firmware Uploading5

•Front Panel Test / Tune

•Cloning

•MIL-STD-810 C/D/E/F

•NPSPAC Option

CONVENTIONAL ZONES

•QT / DQT

•Single Priority Group Scan

•Busy Channel Lockout

TRUNKED ZONES6

•Kenwood LTR®Features6

FleetSync® 7

•PTT ID Digital ANI

•Selective Call & Group Call

•Status Messaging

•Emergency Status

•Caller ID Display

•Short Text Messages8

•PC Serial Interface

GENERAL FEATURES

•15 W 800 & 900 MHz Models

•Trunked Format1

•LTR®Trunked Systems

•Conventional Systems

•32 Systems / 250 Groups

•System Scan

•List Type System Scan

•10 Character Alphanumeric Aliases

•Backlit Dot Matrix LCD

•3-Digit Sub-Display

•Function / Status LCD Icons

•Transmit / Busy / Call Alert / Warn LED

•6 Backlit PF Keys

•500 mW Speaker Audio

•Companded Audio

•Encryption / ANI Board Control

ADS#44307 Printed in USA

JQA-QMA1205

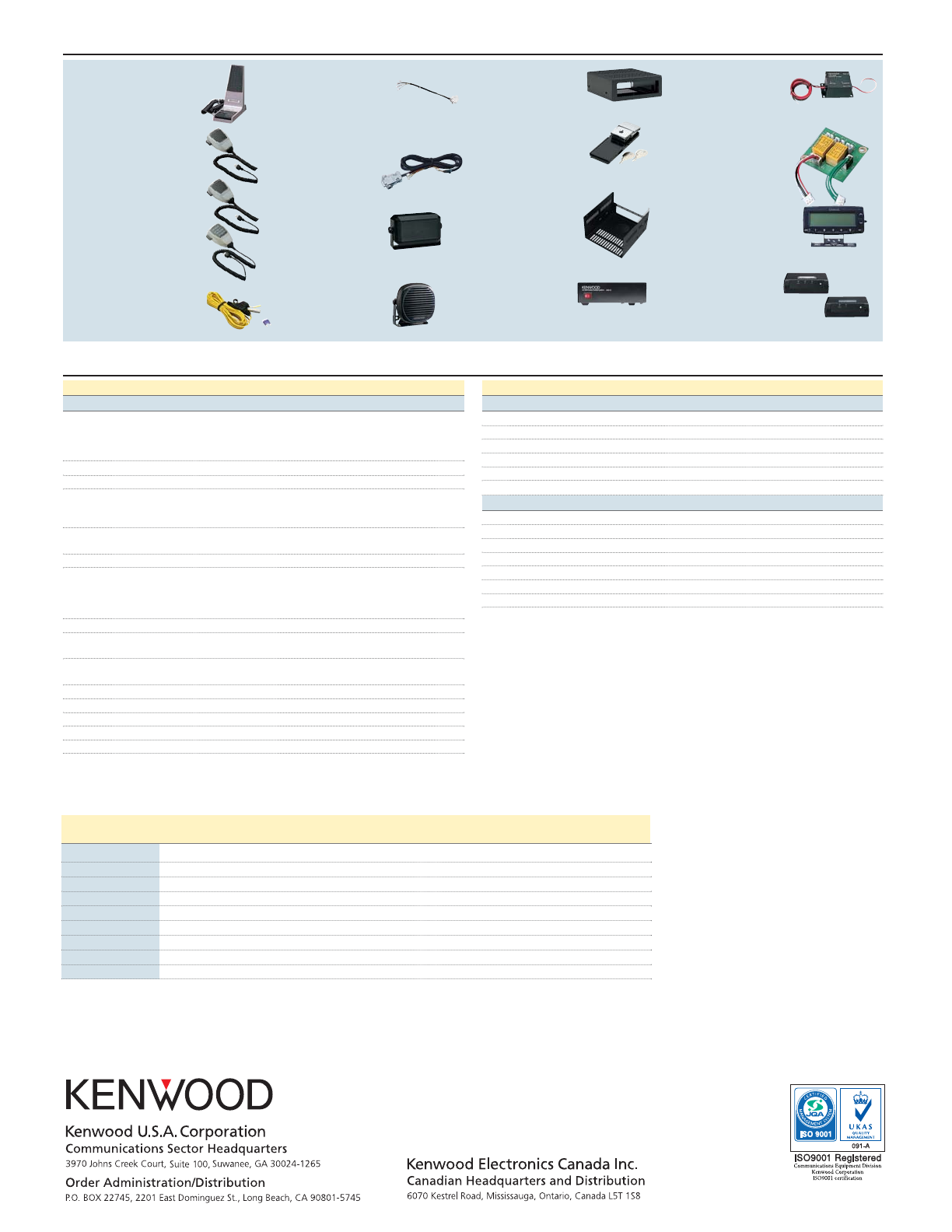

■KMC-9C

Control Station

Desktop Microphone

■KMC-27A

Microphone

(MIL-SPEC Noise-Canceling)

■KMC-27B

Microphone

■KMC-28A

Keypad Microphone

(MIL-SPEC Noise-Canceling)

■KCT-18

Ignition Sense Cable

■KCT-19

Accessories Connector

Cable

■KCT-31

PC Serial Interface

Cable

■KES-3

External Speaker

■KES-5

External Speaker

■KMB-2B

Mounting Case

■KMB-10

Key Lock Adapter

■KMB-20

Mounting Case

■KPS-15

DC Power Supply

■KLF-2

Line Noise Filter

■KAP-1

PA/HA Unit

■KDS-100

Mobile Data Terminal

■KGP-2A/2B

GPS Receiver /

Modem Unit

All accessories and options may not be available in all markets.

Contact an authorized Kenwood dealer for details and complete list of all accessories and options.

Options

Specifications

footnotes from Front:

1

Trunked Format: 32 Systems max. (prog. for LTR

®

or Conventional),

250 Groups per system max (limited per repeater channels

programmed).

2

DTMF Encode includes PTT ID, Emergency ANI, Manual Encode

(KMC-28A DTMF mic required), Auto-Dial (32 numbers); DTMF

Decode includes Stun (dead beat disable), primary/secondary

selective call with call alert and transpond.

3

Ignition sense requires KCT-34 ACC cable & KCT-18 Ignition

sense cable options.

4

Public Address / Horn Alert Option- requires KAP-1 PA/HA Unit and

KCT-34 ACC Cable options.

5

KPG-49D required: Windows

®

98/ NT/ 2000/ Me/XP compatible.

6

Kenwood LTR

®

Features: KPG-49D Group Delete/Add, LTR

®

Talk

Around, Scan Revert Group Display, System Scan, Group Scan,

Auto Search.

7

FleetSync

®

(not FleetSync

®

II capable)

8

Short Text Messages are radio stored & LCD displayed.

Model TK-980 TK-981

GENERAL

Frequency Range

Type 1 (RX) 851~870 MHz 935 ~ 941 MHz

Type 2 (TX) 806 ~ 825 MHz, 896 ~ 902 MHz,

Type 3 (Talk Around) 851 ~ 870 MHz 935 ~ 941 MHz

Systems Max. 32

Group Max. 250 per system

Channels

LTR®Mode Max. 600

(Conventional) Max. 250

PLL Channel Spacing 25 kHz 12.5 kHz

(PLL step: 12.5 kHz)

Operating Voltage 13.6 V DC ± 15 %

Current Drain

Standby Less than 0.4 A

Receive Less than 1.0 A

Transmit Less than 7.0 A

Duty Cycle Transmit: 20%

Operating Temperature -22° F ~ +140° F

Range (-30° C ~ +60° C)

Frequency Stability ±0.00015%

(-22° F ~ +140° F)

Antenna Impedance 50

Ω

Dimensions (W x H x D) 5-1/2 x 1-1/2 x 5-3/4 in. (140 x 40 x 145 mm)

Weight (net) 2.07 lbs. (940 g)

FCC ID ALH24563110 ALH24572110

IC Certification 282195546A 282195545A

Model TK-980 TK-981

RECEIVER (Measurements made per TIA/EIA-603)

Sensitivity (12 dB SINAD) 0.25 µV

Selectivity* 75 dB 68 dB

Intermodulation Distortion 70 dB 65 dB

Spurious Response* 80 dB

Audio Output 4 W with less than 5% distortion

Channel frequency spread 19 MHz 6 MHz

TRANSMITTER (Measurements made per TIA/EIA-603)

RF Power Output 15 W

Spurious & Harmonics 60 dB

Modulation 16KØF3E 11KØF3E

FM Noise 45 dB 40 dB

Audio Distortion Less than 3% Less than 5%

Microphone Impedance Low Impedance

Channel Frequency Spread 64 MHz 45 MHz

FleetSync®is a registered trademark of Kenwood Corporation.

LTR®is a registered trademark of Transcrypt International.

* Typical specifications

Kenwood follows a policy of continuous advancement in development.

For this reason specifications may be changed without notice.

GPS-2A

GPS-2B

Applicable MIL-STD

Standard MIL 810C MIL 810D MIL 810E MIL 810F

Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures

Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II

High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II

Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II

Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II

Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I

Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4

Sand & Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III

Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I

Shock 516.2/Procedure I, II, III, V 516.3/Procedure I, IV, V 516.4/Procedure I, IV, V 516.5/Procedure I, IV, V
