CD-RECEIVER

KDC-X791

KDC-MP735U

KDC-MP635

INSTRUCTION MANUAL

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best

performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the

warranty card, and in the space provided below. Refer to the model and serial numbers

whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-X791/MP735U/MP635 Serial number

US Residence Only

www.kenwoodusa.com

B64-3625-00_00.Indd 1B64-3625-00_00.Indd 1 06.12.25 7:19:51 PM06.12.25 7:19:51 PM

2 | English

Contents

Safety precautions 3

Notes 4

General features 7

Power

Selecting the Source

Volume

Attenuator

Audio Control

Adjusting the detail of Audio

Control

Audio Setup

Speaker Setting

Subwoofer Output

TEL Mute

Function Control mode

Display Type Selection

Status Setting

Graphic Display Selection

Text Display Selection

—Display Type B&E—

Text Display Selection

— Display Type C&D—

The text display

Font Color Selection

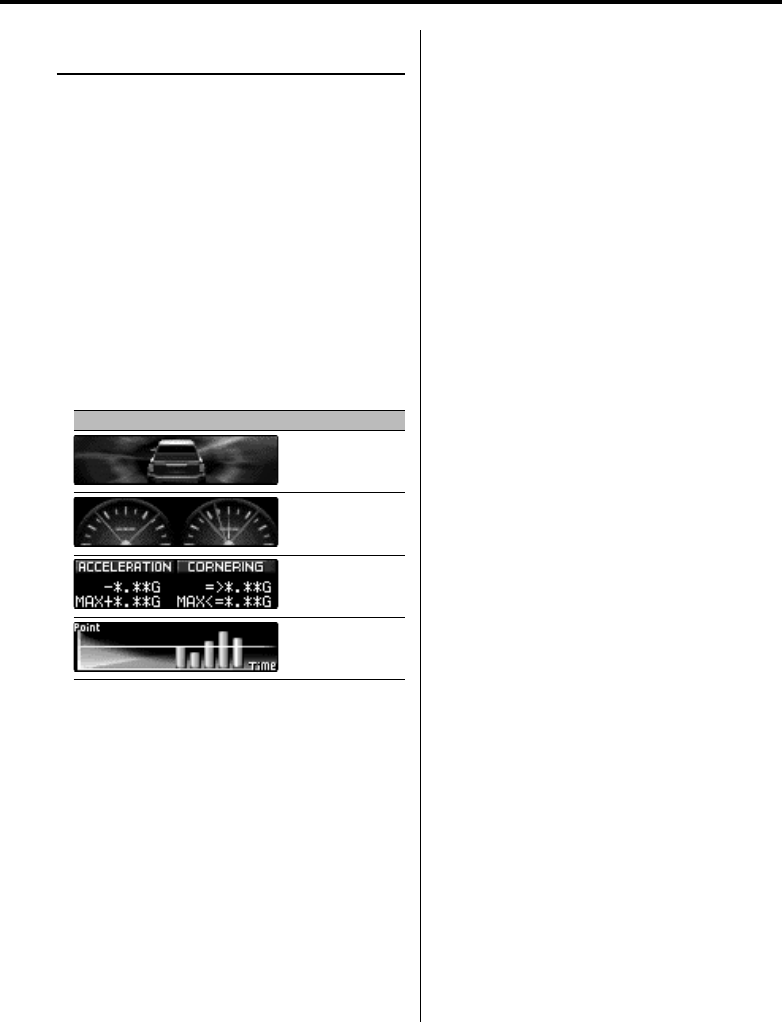

G-Analyzer display Selection

G-Analyzer Stop Watch

G-Analyzer Horsepower

Analysis

G-Analyzer Reset

G-Counter Level seting

G-Analyzer Calibration setup

G-Analyzer vehicle weight

setup

G-Analyzer vehicle class setup

Station/Disc Naming

(SNPS/DNPS)

Theft Deterrent Faceplate

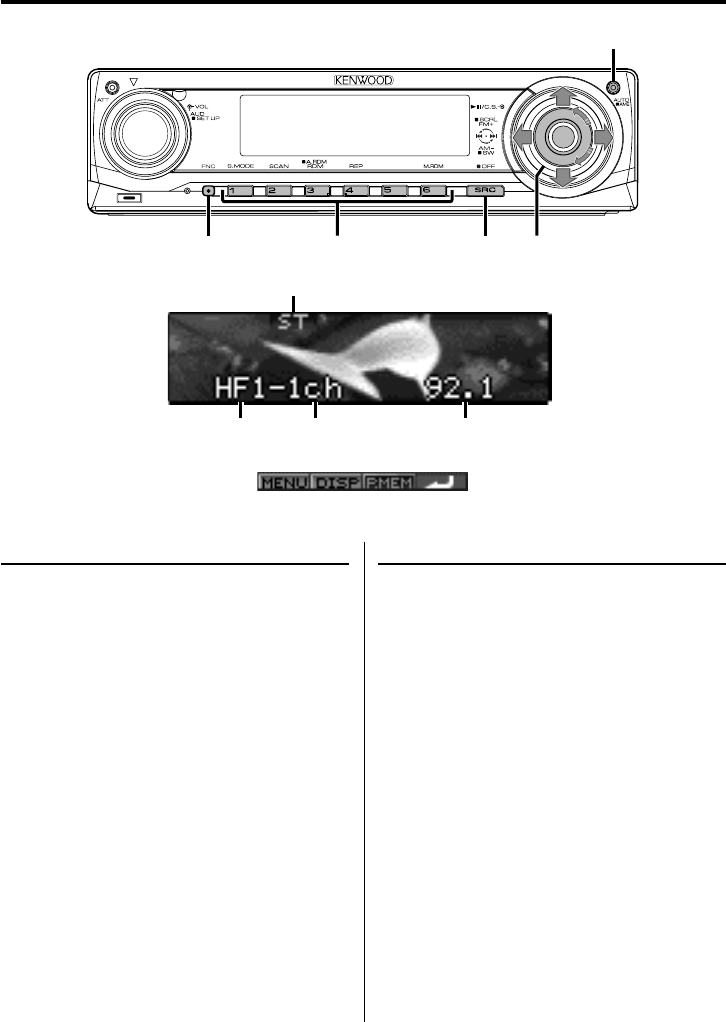

Tuner features 21

Tuning

Tuning Mode

Direct Access Tuning

Station Preset Memory

Auto Memory Entry

Preset Tuning

CD/USB device/Audio

file/External disc control

features 23

Playing CD & Audio file

Playing USB (iPod) device

Drive Search

Playing External Disc

Fast Forwarding and

Reversing

Music Search

Disc Search/Folder/Album

Direct Music Search

Direct Disc Search

Play function of CD and Audio

file

File Select

Text/Title Scroll

Satellite Radio tuner

control features 28

Select Satellite Radio Mode

Switching Seek Mode

Select the channel

Category and Channel Search

Direct Access Tuning

Selecting the Preset Band

Channel Preset Memory

Preset Tuning

Channel Scan

Text Scroll for Satellite Radio

source

HD Radio control features

About HD Radio

Tuning

Menu system 32

Menu System

Activating Security Code

Deactivating Security Code

Source Select Mode

iPod Mode Setting

Touch Sensor Tone

Manual Clock Adjustment

Date Adjustment

Date Mode

DSI (Disabled System

Indicator)

Display Illumination Control

Dimmer

Built-in Amp Setting

Dual Zone System Setting

Supreme Setting

B.M.S. (Bass Management

System)

B.M.S. Frequency Offset

AMP Control

CRSC (Clean Reception

System Circuit)

Receive mode Setting

Electronic Serial Number

(ESN) display

Auxiliary Input Display Setting

& Station/Disc Naming

Text Scroll

Built-in Auxiliary input Setting

CD Read Setting

Audio Preset Memory

Audio Preset Recall

Firmware version display

Demonstration mode setting

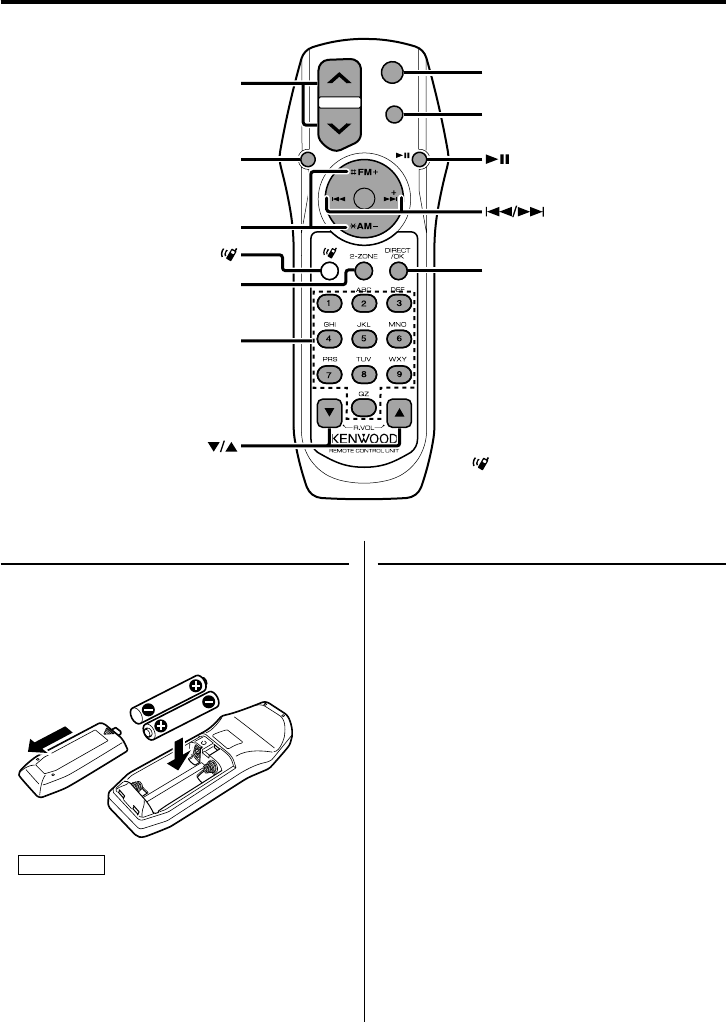

Basic Operations of remote

control 41

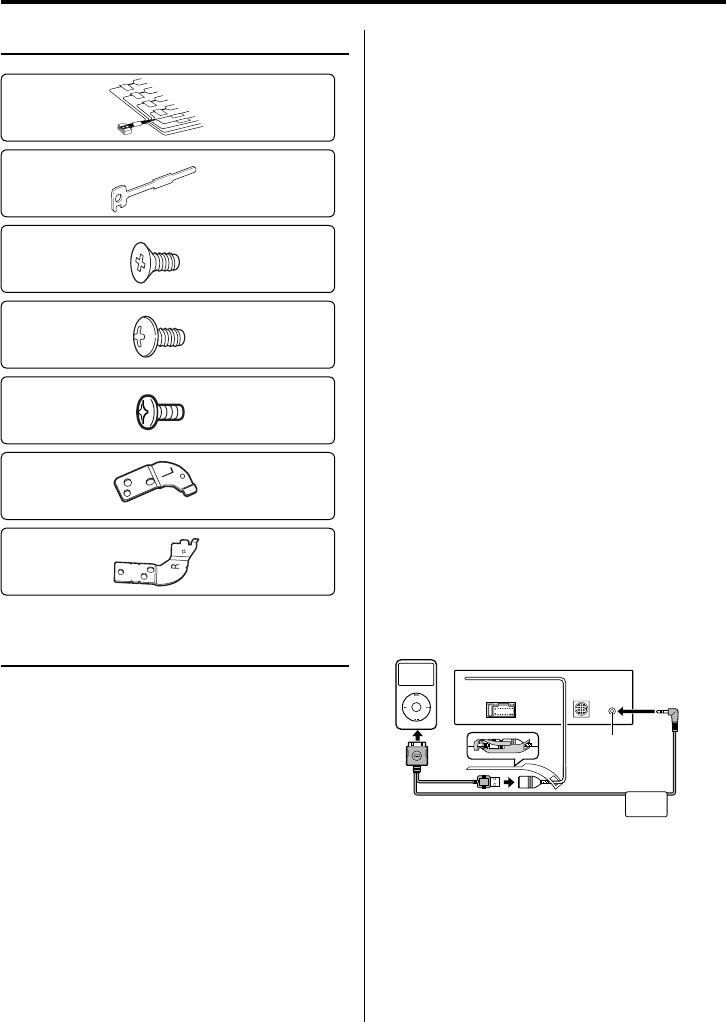

Accessories/ Installation

Procedure 43

Connecting Wires to

Terminals 44

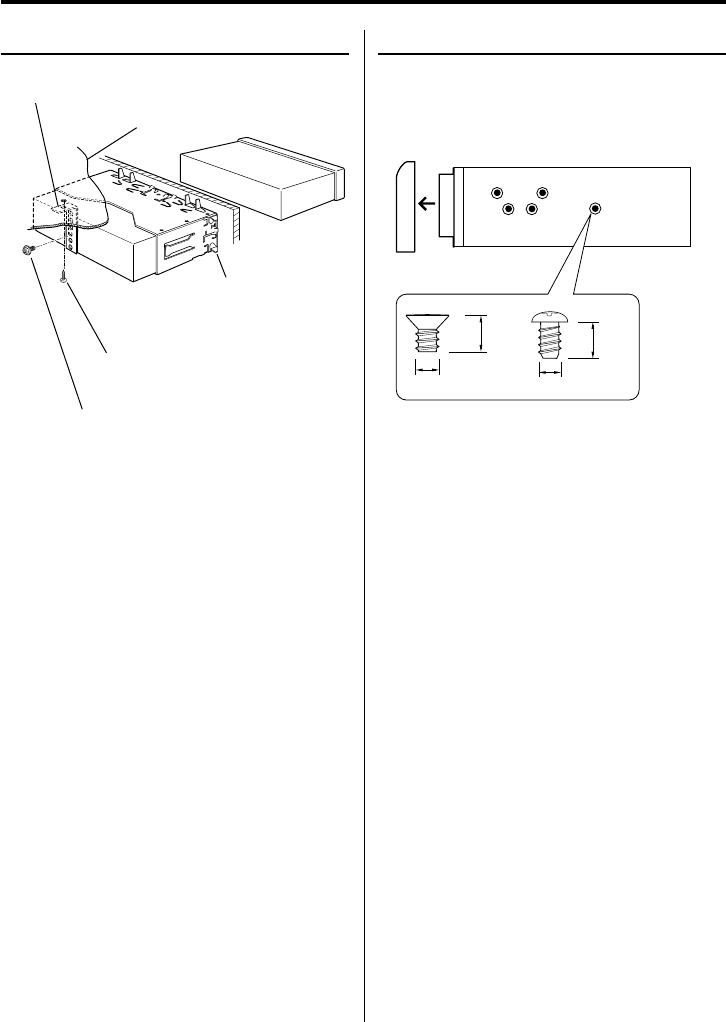

Installation 45

Troubleshooting Guide 47

Specifications 50

B64-3625-00_00.Indd 2B64-3625-00_00.Indd 2 06.12.25 7:19:52 PM06.12.25 7:19:52 PM

English | 3

2 WARNING

To prevent injury while using this

product, take the following safety

precautions:

• To prevent a short circuit and possible fire, never

put any metallic objects (such as coins or metal

tools) inside the product.

• If you are the driver and your vehicle is moving,

do not watch the product’s display or use its

controls for an extended period.

• Do not use this product in any way that prevents

you from driving safely.

• Follow all driving laws and use common sense

when using this product.

NOTE:

• Like your vehicle’s speedometer, G-Analyzer is

no more than a measuring function. The HP

or G value measured by this unit may not be

completely accurate due to its simplified method of

measurement. The G-Analyzer is only for reference

and should not be used to confirm the horsepower

specifications of your vehicle.

• Mounting and wiring this product requires skills and

experience. For safety’s sake, leave the mounting

and wiring work to professionals.

2CAUTION

To prevent damage to the machine, take

the following precautions:

• Make sure to ground the unit to a negative 12V DC

power supply.

• Do not install the unit in a spot exposed to direct

sunlight or excessive heat or humidity. Also avoid

places with too much dust or the possibility of

water splashing.

• Do not place the faceplate (and the faceplate case)

in areas exposed to direct sunlight, excessive heat or

humidity. Also avoid places with too much dust or

the possibility of water splashing.

• To prevent deterioration, do not touch the terminals

of the unit or faceplate with your fingers.

• Do not subject the faceplate to excessive shock, as it

is a piece of precision equipment.

• When replacing a fuse, only use a new fuse with

the prescribed rating. Using a fuse with the wrong

rating may cause your unit to malfunction.

• Do not apply excessive force to the open faceplate

or place objects on it. Doing so will cause damage

or breakdown.

• Use only the screws provided or specified for

installation. If you use wrong screws, you could

damage the unit.

Attach the panel while you are on the

vehicle

The panel lock arm appears when the panel is

removed. Therefore, the panel must be attached while

the electrical system of the car is operating.

Do Not Load 3-in. CDs in the CD slot

If you try to load a 3 in. CD with its adapter into the

unit, the adapter might separate from the CD and

damage the unit.

About CD players/disc changers connected

to this unit

Kenwood disc changers/ CD players released in 1998

or later can be connected to this unit.

Refer to the catalog or consult your Kenwood dealer

for connectable models of disc changers/ CD players.

Note that any Kenwood disc changers/ CD players

released in 1997 or earlier and disc changers made by

other makers cannot be connected to this unit.

Connecting unsupported disc changers/CD players to

this unit may result in damage.

Set the "O-N" Switch to the "N" position for the

applicable Kenwood disc changers/ CD players.

The functions you can use and the information that

can be displayed may differ depending on the models

being connected.

• You can damage both your unit and the CD changer if you

connect them incorrectly.

Lens Fogging

When you turn on the car heater in cold weather,

dew or condensation may form on the lens in the

CD player of the unit. Called lens fogging, this

condensation on the lens may not allow CDs to play.

In such a situation, remove the disc and wait for the

condensation to evaporate. If the unit still does not

operate normally after a while, consult your Kenwood

dealer.

iPod is a trademark of Apple Computer, Inc.,

registered in the U.S. and other countries.

The "AAC" logo is trademark of Dolby

Laboratories.

Safety precautions

B64-3625-00_00.Indd 3B64-3625-00_00.Indd 3 06.12.25 7:19:53 PM06.12.25 7:19:53 PM

4 | English

Notes

• If you experience problems during installation,

consult your Kenwood dealer.

• When you purchase optional accessories, check with

your Kenwood dealer to make sure that they work

with your model and in your area.

• We recommend the use of <Activating Security

Code> (page 33) to prevent theft.

• The characters conforming to ISO 8859-1 character

set can be displayed.

• There are places in this manual where lit indicators

are described; however, the only time an indicator

will light is in the following settings.

When Status Display is set to On as mentioned in

<Status Setting> (page 11).

• The illustrations of the display and the panel

appearing in this manual are examples used to

explain more clearly how the controls are used.

Therefore, what appears on the display in the

illustrations may differ from what appears on the

display on the actual equipment, and some of the

illustrations on the display may be inapplicable.

How to reset your unit

• If the unit fails to operate properly, press the Reset

button. The unit returns to factory settings when the

Reset button is pressed.

• Remove the USB device before pressing the Reset

button. Pressing the Reset button with the USB

device installed can damage the data contained in

the USB device. For how to remove the USB device,

refer to <Playing USB (iPod) device> (page 24).

• Press the reset button if the disc auto changer fails

to operate correctly. Normal operation should be

restored.

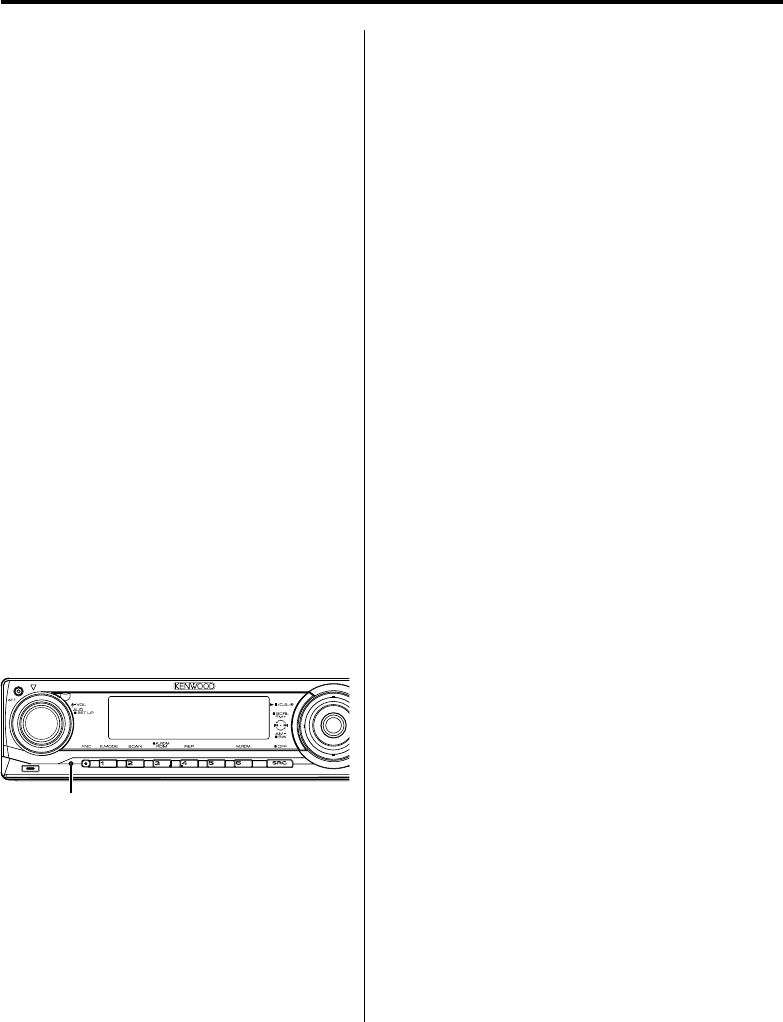

Reset button

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a

dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the stain off with

a cloth moistened with neutral cleaner, then wipe it

again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its

mechanical parts. Wiping the faceplate with a hard cloth or

using a volatile liquid such as thinner or alcohol may scratch

the surface or erases characters.

Cleaning the Faceplate Terminals

If the terminals on the unit or faceplate get dirty, wipe

them with a clean soft dry cloth.

Before using this unit for the first time

This unit is initially set on the Demonstration mode.

When using this unit for the first time, cancel the

<Demonstration mode setting> (page 40).

About KENWOOD "Music Editor" of PC

application attached to KDC-X791/MP735U

• "Music Editor" is recorded in the CD-ROM attached

to this unit.

• Refer to the attached installation manual for the

installation method of "Music Editor".

• Refer to the user’s manual recorded in the

installation CD-ROM and Help of "Music Editor" for

the operation method of "Music Editor".

• The unit can play CD/ USB device created by "Music

Editor".

• Information about "Music Editor" upgrade is put on

the site, www.kenwood.com.

B64-3625-00_00.Indd 4B64-3625-00_00.Indd 4 06.12.25 7:19:53 PM06.12.25 7:19:53 PM

English | 5

About Audio file

• Playable Audio file

AAC-LC (.m4a), MP3 (.mp3), WMA (.wma),

WAV (.wav) (KDC-X791/MP735U only)

• Playable disc media

CD-R/RW/ROM

• Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name.

• Playable USB device (KDC-X791/MP735U only)

USB mass storage class, iPod with KCA-iP200

• Playable USB device file system (KDC-X791/

MP735U only)

FAT16, FAT32

Although the audio files are complied with the

standards listed above, the play maybe impossible

depending on the types or conditions of media or

device.

• Playing order of the Audio file

In the example of folder/file tree shown below, the

files are played in the order from ① to ⑩.

v



()

<: Folder

v: Audio 



v



v

v

v.

 v

Folder

Audio file

An online manual about audio files is put on the

site, www.kenwood.com/audiofile/. On this online

manual, detailed information and notes which are not

written in this manual are provided. Make sure to read

through the online manual as well.

⁄

• In this manual, the word "USB device" is used for flash

memories and digital audio players which have USB

terminals.

• The word "iPod" appearing in this manual indicates the iPod

connected with the KCA-iP200 (optional accessory). The

iPod connected with the KCA-iP200 can be controlled from

this unit. iPods that can be connected with the KCA-iP200

are the iPod nano and the iPod with video. When an iPod

is connected using a commercially available USB cable, it is

handled as a mass-storage-class device.

• For the supported formats and types of USB device, refer to

www.kenwood.com/usb/.

About USB device

• Install the USB device in the place where it will not

prevent you from driving your vehicle properly.

• You cannot connect a USB device via a USB hub.

• Take backups of the audio files used with this unit.

The files can be erased depending on the operating

conditions of the USB device.

We shall have no compensation for any damage

arising out of erasure of the stored data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

• For how to play the audio files recorded in a USB

device, see <CD/USB device/Audio file/External disc

control features> (page 23).

• When connecting the USB device, usage of the CA-

U1EX (option) is recommended.

Normal playback is not guaranteed when a cable

other than the USB compatible cable is used.

Connecting a cable whose total length is longer

than 5 m can result in abnormal playback.

About Satellite Radio tuner

This unit supports Satellite Radio tuners which are

released by SIRIUS and XM.

Refer to the instruction manual of Satellite radio tuner.

About Bluetooth Hands free control

Refer to the instruction manual of the Bluetooth

Hands Free Box KCA-BT100 (optional accessory).

About Menu operation

For how to operate Menu, refer to <Menu System>

in this instruction manual. For the items to be set

up, refer to the instruction of Hands Free Box.

About display of Cell-Phone Status

Cell-Phone Status is displayed in the status display

of this unit. For the information about the displayed

B64-3625-00_00.Indd 5B64-3625-00_00.Indd 5 06.12.25 7:19:54 PM06.12.25 7:19:54 PM

6 | English

Notes

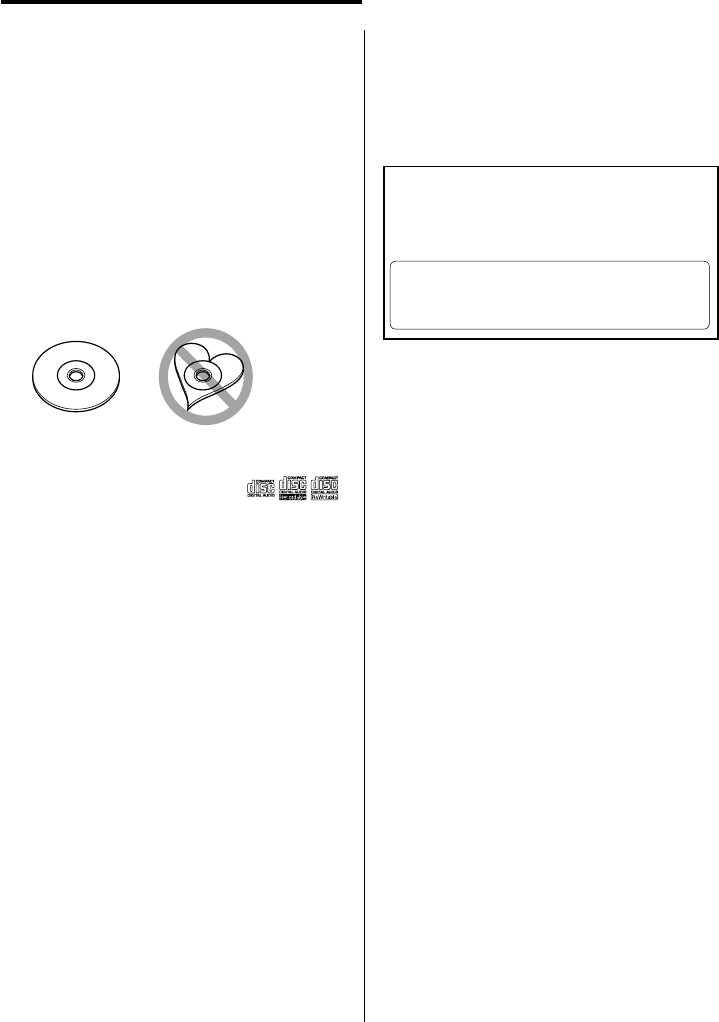

Handling CDs

• Do not touch the recording surface of the CD.

• Do not stick tape etc. on the CD, or use a CD with

tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move

outward.

• When removing CDs from this unit, pull them out

horizontally.

• If the CD center hole or outside rim has burrs,

use the CD only after removing the burrs with a

ballpoint pen etc.

CDs that cannot be used

• CDs that are not round cannot be used.

• CDs with coloring on the recording surface or CDs

that are dirty cannot be used.

• This unit can only play the CDs with .

This unit may not correctly play discs which do not

have the mark.

• You cannot play a CD-R or CD-RW that has not been

finalized. (For the finalization process refer to your

CD-R/CD-RW writing software, and your CD-R/CD-

RW recorder instruction manual.)

2CAUTION

Use of controls or adjustments or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

In compliance with Federal Regulations, following

are reproductions of labels on, or inside the product

relating to laser product safety.

Kenwood Corporation

2967-3, ISHIKAWA-MACHI,

HACHIOJI-SHI

TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS EQUIPMENT

CONFORMS TO DHHS REGULATIONS N0.21 CFR

1040. 10, CHAPTER 1, SUBCHAPTER J.

Location : Bottom Panel

FCC WARNING

This equipment may generate or use radio

frequency energy. Changes or modifications to this

equipment may cause harmful interference unless

the modifications are expressly approved in the

instruction manual. The user could lose the authority

to operate this equipment if an unauthorized change

or modification is made.

NOTE

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment may cause harmful interference to radio

communications, if it is not installed and used in

accordance with the instructions. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct

the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

B64-3625-00_00.Indd 6B64-3625-00_00.Indd 6 06.12.25 7:19:54 PM06.12.25 7:19:54 PM

English | 7

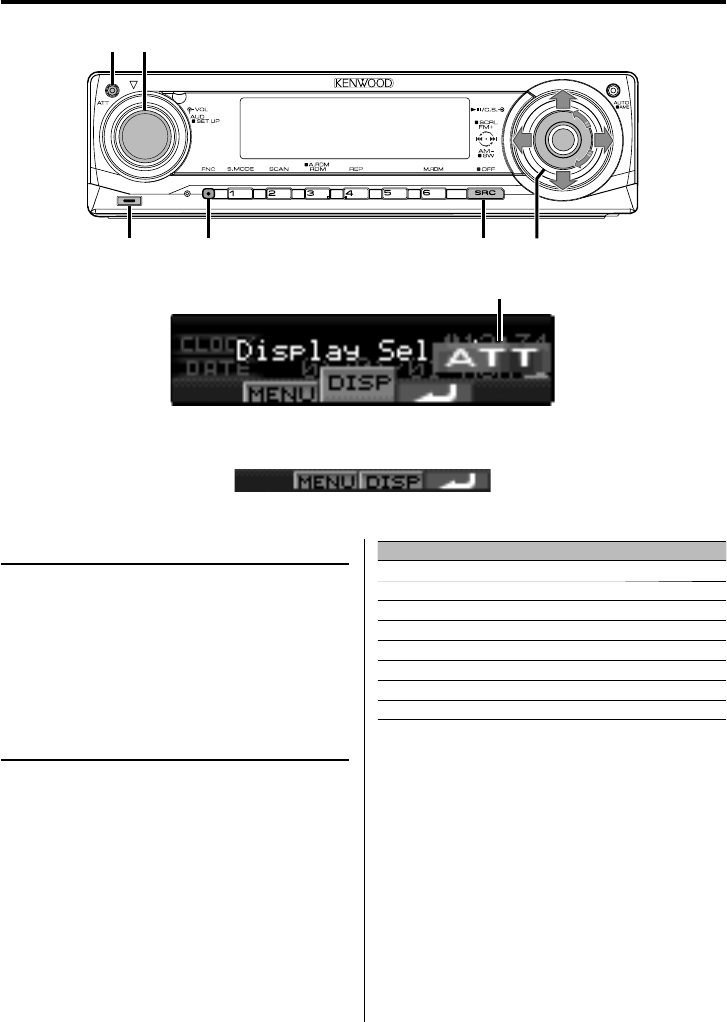

General features

Power

Turning ON the Power

Press the [SRC] button.

Turning OFF the Power

Press the [SRC] button for at least 1 second.

Selecting the Source

There are two types of source selection methods

depending on the setting.

SRC Select mode 1:

1 Press the [SRC] button.

2 Turn the Control knob or push it towards left or

right.

3 Press the Control knob.

SRC Select mode 2:

Press the [SRC] button.

Source required Display

Satellite radio (Optional accessory) "SAT"

Tuner or HD Radio (Optional accessory) "TUNER" or "HD Radio"

USB device (iPod)* "USB" ("iPod")

CD "Compact Disc"

External disc (Optional accessory) "CD Changer"

Auxiliary input* "AUX"

Auxiliary input (Optional accessory) "AUX EXT"

Standby (Illumination only mode) "STANDBY"

⁄

• * Function of KDC-X791/MP735U.

• When connection of the iPod is recognized, the source

display changes from "USB" to "iPod".

• Switch between SRC Select mode 1 and 2 in <Source

Select Mode> (page 34).

• USB (iPod) source is recognized as CD source on the

connected unit.

SRCFNC

ATT VOL

Release button Control knob

ATT indicator

Function icon

B64-3625-00_00.Indd 7B64-3625-00_00.Indd 7 06.12.25 7:19:54 PM06.12.25 7:19:54 PM

8 | English

General features

Volume

Increasing Volume

Turn the [VOL] knob clockwise.

Decreasing Volume

Turn the [VOL] knob counterclockwise.

Attenuator

Turning the volume down quickly.

Press the [ATT] button.

Each time you press the button, the Attenuator

turns ON and OFF.

When the Attenuator is ON, the "ATT" indicator

blinks.

Audio Control

1 Select the source to adjust

Press the [SRC] button.

Refer to <Selecting the Source> (page 7).

2 Enter Audio Control mode

Press the [VOL] knob.

3 Select the Basic Audio item to adjust

Press the [VOL] knob.

Each time you press the knob, the item to be

adjusted alternates between the items shown in

the table below.

4 Adjust the Basic Audio item

Turn the [VOL] knob.

Adjustment Item Display Range

Rear Volume "REAR VOLUME" 0 — 35

Subwoofer level "SUB-W LEVEL" –15 — +15

System Q "USER"/"ROCK"/

"POPS"/"EASY"/

"TOP40"/"JAZZ"/

"NATURAL"

User/Rock/

Pops/Easy/

Top 40/Jazz/

Natural

Bass level* "BASS LEVEL" –8 — +8

Middle level* "MIDDLE LEVEL" –8 — +8

Treble level* "TREBLE LEVEL" –8 — +8

Balance "BALANCE" Left 15 — Right 15

Fader "FADER" Rear 15 — Front 15

Exit Audio Control mode (Volume control mode)

* You can adjust these items in detail. Refer to <Adjusting

the detail of Audio Control>(Page8). (Function of KDC-

X791)

* Source tone memory: Puts the set up value in the

memory per source. (Detail Audio item is included)

⁄ About System Q

• You can recall the best sound setting preset for different

types of music.

• Change each setting value with the <Speaker Setting>

(page 10). First, select the speaker type with the Speaker

setting.

• "USER": The ranges selected lastly for Bass level, Middle

level, and Treble level are recalled automatically.

5 Exit Audio Control mode

Press any button.

Press a button other than the [VOL] knob and [ATT]

button.

Function of KDC-X791

Adjusting the detail of Audio Control

Among the Basic Audio items, you can adjust the Bass

level, Middle level, and Treble level in detail.

1 Select the Basic Audio item

Select the desired item to be set in detail from

followings;

• Bass level

• Middle level

• Treble level

For how to select Basic Audio items, see <Audio

Control> (page 8).

2 Enter Detail adjustment mode of Audio

Control

Press the [VOL] knob for at least 1 second.

3 Select the Detail Audio item to adjust

Press the [VOL] knob.

Each time you press the knob, the item to be

adjusted alternates between the items shown in

the table below.

4 Adjust the Detail Audio item

Turn the [VOL] knob.

Bass level

Adjustment Item Display Range

Bass Center Frequency "BASS FRQ" 40/50/60/70/80/100/

120/150 Hz

B64-3625-00_00.Indd 8B64-3625-00_00.Indd 8 06.12.25 7:19:56 PM06.12.25 7:19:56 PM

English | 9

Audio Setup

Setting the Sound system, such as Cross over

Network.

1 Select the source to adjust

Press the [SRC] button.

Refer to <Selecting the Source> (page 7).

2 Enter Audio Setup mode

Press the [VOL] knob for at least 1 second.

3 Select the Audio Setup item to adjust

Press the [VOL] knob.

Each time you press the knob, the item to be

adjusted alternates between the items shown in

the table below.

4 Setup the Audio item

Turn the [VOL] knob.

Adjustment Item Display Range

Front High Pass Filter "HPF-F Fc" Through/40*/60*/80/100/120/

150/180/220* Hz

Rear High Pass Filter "HPF-R Fc" Through/40*/60*/80/100/120/

150/180/220* Hz

Low Pass Filter "LPF-SW Fc" 50*/60/80/100*/120/

Through Hz

Subwoofer Phase "SW PHASE" Reverse (180°)/ Normal (0°)

Bass Q Factor "BASS Q FACTOR" 1.00/1.25/1.50/2.00

Bass Extend "BASS EXT" OFF/ON

Middle level

Adjustment Item Display Range

Middle Center Frequency "MIDDLE FRQ" 0.5/1.0/1.5/2.0 kHz

Middle Q Factor "MIDDLE Q FACTOR" 1.00/2.00

Treble level

Adjustment Item Display Range

Treble Center Frequency "TREBLE FRQ" 10.0/12.5/15.0/17.5 kHz

5 Exit the Detail Audio Control mode

Press the [VOL] knob for at least 1 second.

⁄

• When you set the Bass Extend to ON, low frequency

response is extended by 20%.

• You can exit the Audio Control mode at anytime by

pressing any button except for [VOL] knob and [ATT]

button.

Volume offset "VOL-OFFSET" –8 — ±0 (AUX: -8— +8)

Loudness "LOUD" OFF/ON

Dual Zone System "2 ZONE" OFF/ON

⁄

• * Function of KDC-X791/MP735U.

• Volume offset: Sets each source’s volume as a difference

from the basic volume.

• Loudness: Compensates for low and high tones

during low volume. (Only the low tone is

compensated for when the tuner is selected

as a source.)

• Dual Zone System

Main source and sub source (Auxiliary input) output

Front channel and Rear channel separately.

- Set up the channel of sub source by <Dual Zone

System Setting> (page 36).

- Select Main source by [SRC] button.

- Adjust the volume of Front channel by [VOL] knob.

- Adjust the volume of Rear channel by <Audio Control>

(page 8).

- The Audio Control has no effect on sub source.

• You can use the Dual Zone System with the Auxiliary

input sources listed below.

- Internal auxiliary input. (KDC-X791/MP735U only)

- CA-C1AX/ CA-C2AX (optional accessory) connected to

this unit directly. (KDC-MP635 only)

5 Exit Audio Setup mode

Press the [VOL] knob for at least 1 second.

B64-3625-00_00.Indd 9B64-3625-00_00.Indd 9 06.12.25 7:19:56 PM06.12.25 7:19:56 PM

10 | English

General features

Speaker Setting

Fine-tuning so that the System Q value is optimal

when setting the speaker type.

1 Enter Standby

Press the [SRC] button.

Refer to <Selecting the Source> (page 7).

Select the "STANDBY" display.

2 Enter Speaker Setting mode

Press the [VOL] knob.

"SP SEL" is displayed.

3 Select the Speaker type

Turn the [VOL] knob.

Each time you turn the knob, the setting alternates

between the settings shown in the table below.

Speaker type Display

OFF "OFF"

For 5 & 4 in. speaker "5/4inch"

For 6 & 6x9 in. speaker "6x9/6inch"

For the OEM speaker "O.E.M."

4 Exit Speaker Setting mode

Press the [VOL] knob.

Subwoofer Output

Turning the Subwoofer output ON or OFF.

Push the Control knob toward down for at least

2 seconds.

Each time you push the knob, Subwoofer output

switches ON and OFF.

When it is ON, "SUB WOOFER ON" is displayed.

TEL Mute

The audio system automatically mutes when a call

comes in.

When a call comes in

"CALL" is displayed.

The audio system pauses.

Listening to the audio during a call

Press the [SRC] button.

The "CALL" display disappears and the audio system

comes back ON.

When the call ends

Hang up the phone.

The "CALL" display disappears and the audio system

comes back ON.

⁄

• To use the TEL Mute feature, you need to hook up

the MUTE wire to your telephone using a commercial

telephone accessory. Refer to <Connecting Wires to

Terminals> (page 44).

Function Control mode

To set up various functions of this unit, select tree-

structured function items.

1 Enter Function Control mode

Press the [FNC] button.

2 Select your desired setup item

Select a setup item using the Control knob.

Operation type Operation

Movement between items Turn the Control knob.

Selection of item Press the Control knob.

Return to previous item Press the [FNC] button.

Functions of items are as follows:

Display Icon Function of setup item

"Menu" "MENU" Allows you to set up the environment. Refer

to <Menu system> (page 32).

"Display Select" "DISP" Allows you to set up the display. Refer to

page 11 to page 18.

"Preset Memory" "P.MEM" Allows you to put stations in the memory.

Refer to <Station Preset Memory> (page

22).

"File Scan" etc. "SCAN"

etc.

Allows you to set how to play the CD and

audio file. Refer to <Play function of CD

and Audio file> (page 26).

"Return" " " Returns to the previous item.

3 Select an option for the selected item

Refer to the related pages for the operation of

each option.

4 Exit Function Control mode

Press the [FNC] button for at least 1 second.

B64-3625-00_00.Indd 10B64-3625-00_00.Indd 10 06.12.25 7:19:56 PM06.12.25 7:19:56 PM

English | 11

Display Type Selection

Changing the display mode.

1 Enter Display Type Selection mode

Using the Control knob, select "DISP" > "TYPE".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the display Type

Turn the Control knob.

Select from the following display types:

Display Mode Display

"TYPE SELECT [A]"

"TYPE SELECT [B]"

"TYPE SELECT [C]"

"TYPE SELECT [D]"

"TYPE SELECT [E]"

"TYPE SELECT [F]"

1 Graphic display part

2 Status display

3 Text display part

4 Upper text display part

5 Middle text display part

6 Lower text display part

7 Text display part

8 Graphic display part

9 G-Analyzer display part

0 Text icon display part

! Source icon display part

3 Exit Display Type Selection mode

Press the Control knob.

⁄

• To change the information by the Display Type, refer

to the page on the following table for the methods to

alternate by the Display Type.

Display Type

ABCDEF

Graphic 112 12 — — — —

Status 211 11 — — — —

Text 3—12————

Upper 4— — 13 13 — —

Middle 5— — 13 13 — —

Lower 6— — 13 13 — —

Text 7———— 12 —

G-Analyzer 9————— 15

Display Type A/ Display Type B

Status Setting

Determine whether the On and Off statuses of

various functions are to be displayed on the Display

Type A/B.

1 Enter Status Setting mode

Using the Control knob, select "DISP" >

"STATUS".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the Status display

Turn the Control knob.

3 Exit Status Setting mode

Press the Control knob.

B64-3625-00_00.Indd 11B64-3625-00_00.Indd 11 06.12.25 7:19:56 PM06.12.25 7:19:56 PM

12 | English

General features

Display Type A/ Display Type B

Graphic Display Selection

Changing the graphic Display.

1 Enter Graphic Display Selection mode

Using the Control knob, select "DISP" >

"GRAPH".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the graphic display

Turn the Control knob or push it towards left

or right.

Select from the following displays:

Graphic display Display

Movie 1 – 2

Wallpaper 1 – 6

Wallpaper scan "SCAN"

3 Exit Graphic Display Selection mode

Press the Control knob.

⁄

• The setting of this function is available while "TYPE

SELECT [A]"/ "TYPE SELECT [B]" is selected for the Display

mode.

Text Display Selection

—Display Type B&E—

Selecting the text display.

1 Enter Text Dispaly Selection mode

Using the Control knob, select "DISP" > "TEXT".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the text

Turn the Control knob or push it towards left

or right.

See <The text display> (page 14).

Display Type B: Information of condition column

"3" is displayed.

Display Type E: Information of condition column

"7" is displayed.

3 Exit Text Dispaly Selection mode

Press the Control knob.

⁄

• When LX-AMP is connected, the item setup by the

Display mode of LX-AMP is displayed. (KDC-X791)

• When the music number exceeds 1000, only the last 3

digits of its number are displayed. (KDC-X791/MP735U)

• Album name cannot be displayed in WMA file. (KDC-

MP635)

• Music title, Artist name, and Album name cannot be

displayed in WAV file. (KDC-X791/MP735U)

• When playing music from iPod or music edited by "Music

Editor", the folder name display may show something

different such as playlist or artist name depending on

the music selection procedure. (KDC-X791/MP735U)

• In the Display Type B part, alternate information is

displayed when display without information is selected.

• In the Display Type E part, no information is displayed

when display without information is selected.

B64-3625-00_00.Indd 12B64-3625-00_00.Indd 12 06.12.25 7:19:57 PM06.12.25 7:19:57 PM

English | 13

Text Display Selection

— Display Type C&D—

Changing the text display.

1 Enter Text Display Selection mode

Using the Control knob, select "DISP" > "TEXT".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the text display part

Push the Control knob towards up or down.

The cursor (‰) moves to the selected text display

part.

Select the text

Turn the Control knob or push it towards left

or right.

See <The text display> (page 14).

Upper text display part: Information of condition

column "4" is displayed.

Middle text display part: Information of condition

column "5" is displayed.

Lower text display part: Information of condition

column "6" is displayed.

3 Exit Text Display Selection mode

Press the Control knob.

⁄

• When LX-AMP is connected, the item setup by the

Display mode of LX-AMP is displayed. (KDC-X791)

• When the music number exceeds 1000, only the last 3

digits of its number are displayed. (KDC-X791/MP735U)

• Album name cannot be displayed in WMA file. (KDC-

MP635)

• Music title, Artist name, and Album name cannot be

displayed in WAV file. (KDC-X791/MP735U)

• When playing music from iPod or music edited by "Music

Editor", the folder name display may show something

different such as playlist or artist name depending on

the music selection procedure. (KDC-X791/MP735U)

• Same information cannot be displayed in Upper text

display part, Middle text display part and Lower text

display part. However, the blank display is able to have

multiple selections.

• In the upper text display part, alternate information is

displayed when display without information is selected.

• In the middle text display part, the Kenwood logo is

displayed if the contents of the information cannot be

displayed. However, in the HD Radio source part, the

display becomes blank.

• In the lower text display part, no information is displayed

when display without information is selected.

B64-3625-00_00.Indd 13B64-3625-00_00.Indd 13 06.12.25 7:19:57 PM06.12.25 7:19:57 PM

14 | English

General features

The text display

In Tuner source

Information Display Condition

Station name "SNPS" 34

Frequency "Frequency" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In CD & External disc source

Information Display Condition

Disc title "Disc Title" 34567

Track title "Track Title" 34567

Track number & Play time "P-Time" 34

Disc name "DNPS" 34567

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In Audio file source

Information Display Condition

Music title & Artist name "Title/Artist" 34567

Album name & Artist name "Album/Artist" 34567

Folder name "Folder Name" 34567

File name "File Name" 34567

Play time & Music number "P-Time" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In Standby

Information Display Condition

Standby "Source Name" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In Auxiliary input source

Information Display Condition

Auxiliary input name "Source Name" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In HD Radio source

Information Display Condition

Station name "Station Name" 34

Title "Title" 34567

Frequency "Frequency" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

In Satellite radio source

Information Display Condition

Channel Name "Channel Name" 34567

Music Title "Song Title" 34567

Artist Name "Artist Name" 34567

Composer name "Composer Name" 34567

Category Name "Category Name" 34567

Label Name "Label Name" 34567

Comment "Comment" 34567

Band & Channel Number "Channel Number" 34

Clock "Clock" 34567

Date "Date" 34567

Blank "Blank" 567

Display Type B/ Display Type C/ Display Type D

Font Color Selection

Selecting the display font color.

1 Enter Font Color Selection mode

Using the Control knob, select "DISP" >

"COLOR".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the text display part (Display Type C/

Display Type D only)

Push the Control knob towards up or down.

The cursor (‰) moves to the selected text display

part.

3 Select the Font Color

Turn the Control knob or push it towards left

or right.

4 Exit Font Color Selection mode

Press the Control knob.

⁄

• When you selected the Display Type B display, select an

easy viewable font color.

B64-3625-00_00.Indd 14B64-3625-00_00.Indd 14 06.12.25 7:19:57 PM06.12.25 7:19:57 PM

English | 15

Display Type F

G-Analyzer display Selection

Changing the G-Analyzer display.

⁄

• Before alternating G-Analyzer display, you are required to

setup <G-Counter Level seting> (page 17), <G-Analyzer

Calibration setup> (page 18), <G-Analyzer vehicle weight

setup> (page 18) and <G-Analyzer vehicle class setup>

(page 18).

1 Enter G-Analyzer display selection mode

Using the Control knob, select "DISP" >

"GMENU".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the G-Analyzer display

Turn the Control knob.

Select from the following displays.

G-Force Sensor display

G- Graphic display

1 – 2

G-Meter display

(Graphic)

G-Meter display

(Text)

G-Counter display

⁄

• G-Graphic display

Displays the condition of G in horizontal direction

(e.g; when turning the curve) by the graphic.

• G-Meter display (Graphic)

Displays the maximum value of acceleration G, right

direction G, and left direction G by the numerical value.

• G-Meter display (Text)

The maximum value of acceleration G, right direction G,

and left direction G is displayed by the numerical value.

The value of G is only the reference, so is different from

the actual value.

• G-Counter display

Adds the point of the acceleration level. The point is

determined after a lapse of 1 hr drive or at power off

(ACC Off), and then it will be displayed by the graph.

Furthermore, the G-Counter displays the average of the

past data by the line. (The scale of graph is determined

along with the largest point among the past 10 data.)

• The value of G-Meter display and G-Counter display can

be reset by <G-Analyzer Reset> (page 17).

3 Exit G-Analyzer display selection mode

Press the Control knob.

B64-3625-00_00.Indd 15B64-3625-00_00.Indd 15 06.12.25 7:19:58 PM06.12.25 7:19:58 PM

16 | English

General features

Display Type F

G-Analyzer Stop Watch

The control of stop watch can be started by G-

Analyzer function.

• Do not use G-Analyzer stop watch on the Public roads.

1 Enter G-Analyzer Stop Watch mode

Using the Control knob, select "DISP" > "GMA"

> "STOP.W".

For the operation method, refer to <Function

Control mode> (page 10).

"STOP WATCH" is displayed.

2 Make the counter ready

Press the Control knob.

"Ready" is displayed.

3 Start Count

When G in the vertical direction is detected during

the travel, the count automatically starts.

"Running" is displayed.

⁄

• You can also start the counter by pressing the Control

knob.

4 Stop Count

Press the Control knob.

"Stop" is displayed.

⁄

• The control will start again when you accelerate or press

the Control knob.

Do the operation after step2.

When you Reset the Count

(While "Stop" is displayed)

Press the Control knob for at least 1 second.

⁄

• You can reset of count when the count is stopped.

5 Exit G-Analyzer Stop Watch mode

Press the [FNC] button.

⁄

• When Power off (ex; ACC OFF) while counting, the value

of 1 second or less will be "00".

Display Type F

G-Analyzer Horsepower Analysis

This measures the horsepower and displays graph

and max power. It automatically saves the highest

record.

• Do not use G-Analyzer Horsepower Analysis on the

Public roads.

• Do not use this product in any way that prevents you

from driving safely.

• Follow all driving laws and use common sense when

using this product.

⁄

• Before alternating G-Analyzer Horsepower Analysis, you

are required to setup <G-Analyzer vehicle weight setup>

(page 18) and <G-Analyzer vehicle class setup> (page

18).

1 Enter G-Analyzer Horsepower Analysis mode

Using the Control knob, select "DISP" > "GMA"

> "HP".

For the operation method, refer to <Function

Control mode> (page 10).

"HORSEPOWER" is displayed.

Previous max power and record are displayed.

2 Begin measurement

Press the Control knob.

"Ready" is displayed.

3 Start the car

"Measure" is displayed.

After 15 seconds of measurement, the result is

displayed.

Display the result

The graph shows the variation in horsepower

between 0.1 to 15.0 seconds. The maximum power

is displayed in red and the markings provided at

intervals of 5 seconds are displayed in blue.

• Pressing the Control knob also begins the measurement.

To prevent danger, push the control knob before starting

the car.

4 To display the maximum power in the section

Push the Control knob towards right or left.

Each time you push the Control knob, the

maximum power in the section is displayed.

5 Exit G-Analyzer Horsepower Analysis mode

Press the [FNC] button.

B64-3625-00_00.Indd 16B64-3625-00_00.Indd 16 06.12.25 7:19:58 PM06.12.25 7:19:58 PM

English | 17

⁄

• Like your vehicle’s speedometer, G-Analyzer is no more

than a measuring function. The HP or G value measured

by this unit may not be completely accurate due to its

simplified method of measurement. The G-Analyzer is

only for reference and should not be used to confirm the

horsepower specifications of your vehicle.

• Measuring after starting the car lowers the accuracy.

• The record will not be renewed if the measurement is

discontinued.

• The graph’s scale adjusts automatically to the

horsepower value.

• The value of max power and record can be reset by <G-

Analyzer Reset> (page 17).

Display Type F

G-Analyzer Reset

Resets the value of G-Meter, G-Counter and G-

Analyzer Horsepower Analysis.

1 Enter G-Analyzer Reset mode

Using the Control knob, select "DISP" > "GMA"

> "RESET".

For the operation method, refer to <Function

Control mode> (page 10).

"G-RESET" is displayed.

2 Select the Reset item

Turn the Control knob.

Display Setting

"Meter Reset" Reset the value of G-Meter.

"Power Reset" Reset the value of G-Analyzer Horsepower

Analysis.

"Counter Reset" Reset the value of G-Counter.

3 Determine the item you want to reset

Press the Control knob.

4 Reset the value

Select "YES" using the Control knob.

"Reset OK" is displayed.

5 Exit G-Analyzer Reset mode

Press the [FNC] button.

Display Type F

G-Counter Level seting

Calibrating G-Point. Setting the level according to

the kinds of vehicles.

1 Enter G-Counter Level setting mode

Using the Control knob, select "DISP" > "GMA"

> "LEVEL".

For the operation method, refer to <Function

Control mode> (page 10).

"G-COUNTER LEVEL" is displayed.

2 Select the G-Counter Level

Turn the Control knob.

Display Setting

"Level1" Counter is easy to go up.

"Level2"

…

"Level3" Counter is hard to go up.

3 Exit G-Counter Level setting mode

Press the Control knob.

⁄

• In the case of driving situations calling for few

accelerations, set the G-Point up to "Level1". In the case

of frequent accelerations, set it up to "Level3".

B64-3625-00_00.Indd 17B64-3625-00_00.Indd 17 06.12.25 7:19:58 PM06.12.25 7:19:58 PM

18 | English

General features

Display Type F

In Standby mode

G-Analyzer Calibration setup

G-Analyzer requires calibration for horizontal

acceleration and braking.

⁄

• To ensure accurate calibration, go through the following

steps at a level place where you can move the vehicle

straight ahead.

1 Park the vehicle in a horizontal location

2 Enter G-Analyzer Calibration setup mode

Using the Control knob, select "DISP" > "GMA"

> "CAL".

For the operation method, refer to <Function

Control mode> (page 10).

"G-CALIBRATION" is displayed.

3 Start Calibration of horizontal direction

Press the Control knob.

Once "Move Forward" appears on the display, the

vehicle must be advanced.

4 Start Calibration of straight direction

Start moving the vehicle ahead.

Calibration of straight direction automatically starts.

When the Calibration is finished, "Calibration OK" is

displayed.

⁄

• If you fail to complete the calibration, "No Calibration" is

displayed. In such a case, repeat steps 1 through 4.

5 Exit G-Analyzer Calibration setup mode

Press the [FNC] button.

Display Type F

In Standby mode

G-Analyzer vehicle weight setup

Enter vehicle weight to calculate horsepower.

1 Enter G-Analyzer vehicle weight setup mode

Using the Control knob, select "DISP" > "GMA" >

"HP SET" > "WEIGHT".

For the operation method, refer to <Function

Control mode> (page 10).

"WEIGHT INPUT" is displayed.

2 Select the weight numbers

Turn the Control knob.

⁄

• The weight input range is between 1000-9999 lbs.

3 Select the digits to enter

Push the Control knob towards right or left.

4 Repeat steps 2 and 3, and complete the weight

input.

5 Exit G-Analyzer vehicle wight setup mode

Press the Control knob.

Display Type F

In Standby mode

G-Analyzer vehicle class setup

Enter vehicle class to calculate horsepower.

1 Enter G-Analyzer vehicle class setup mode

Using the Control knob, select "DISP" > "GMA" >

"HP SET" > "CLASS".

For the operation method, refer to <Function

Control mode> (page 10).

"CLASS SELECT" is displayed.

2 Select vehicle class

Turn the Control knob.

Each time you push the knob, the vehicle class

alternates between the modes shown in the table

below.

Display

"Mid Size"

"Full Size"

"SUV"

"Van/ Mini-Van"

"Pickup Truck"

"Sporty"

"Compact"

3 Exit G-Analyzer vehicle class setup mode

Press the Control knob.

B64-3625-00_00.Indd 18B64-3625-00_00.Indd 18 06.12.25 7:19:59 PM06.12.25 7:19:59 PM

English | 19

Station/Disc Naming (SNPS/DNPS)

Attaching a title to a Station or CD.

1 Receive/play the station/disc you want to

attach a title to

⁄

• A title cannot be attached to MD or Audio file media.

2 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

3 Select Name set mode

Turn the Control knob.

Select the "Name Set" display.

4 Enter Name set mode

Press the Control knob for at least 1 second.

5 Move the cursor to the enter character

position

Push the Control knob towards right or left.

6 Select the character type

Press the Control knob.

Each time you press the knob, the character type

alternates between the types shown in the table

below.

Character type

Alphabet upper case

Alphabet lower case

Numbers and symbols

Special characters (Accent characters)

7 Select the characters

Turn the Control knob or push it towards up or

down.

⁄

• Enter characters by using a remote control with numbers

buttons.

Example: If you are entering "DANCE".

Character Button Times pressed

"D" [3] 1

"A" [2] 1

"N" [6] 2

"C" [2] 3

"E" [3] 2

8 Repeat steps 5 through 7 and enter the name.

9 Exit Menu mode

Press the [FNC] button.

⁄

• When operation stops for 10 seconds the name at that

time is registered, and Name Set mode closes.

• Memory numbers

- FM/AM: 30 stations

- Internal CD player: 10 discs

- External CD changer/ player: Varies according to the

CD changer/ player. Refer to the CD changer/ player

manual.

• Change the title of station/CD by the same operation

used to name it.

B64-3625-00_00.Indd 19B64-3625-00_00.Indd 19 06.12.25 7:19:59 PM06.12.25 7:19:59 PM

20 | English

General features

Theft Deterrent Faceplate

The faceplate of the unit can be detached and taken

with you, helping to deter theft.

Removing the Faceplate

1 Press the Release button.

Drop open the faceplate.

2 Drawing the faceplate to left side pull it to

forward and remove it.

• The faceplate is a precision piece of equipment and can

be damaged by shocks or jolts.

• Keep the faceplate in its faceplate case while detached.

• Do not expose the faceplate (and the faceplate case) to

direct sunlight or excessive heat or humidity. Also avoid

places with too much dust or the possibility of water

splashing.

Reattaching the Faceplate

1 Align the shaft on the unit with the depression

on the faceplate.

2 Push the faceplate in until it clicks.

The faceplate is locked in place, allowing you to use

the unit.

B64-3625-00_00.Indd 20B64-3625-00_00.Indd 20 06.12.25 7:19:59 PM06.12.25 7:19:59 PM

English | 21

Tuner features

Tuning

Selecting the station.

1 Select tuner source

Press the [SRC] button.

Select the "TUNER" display.

Refer to <Selecting the Source> (page 7).

2 Select the band

Push the Control knob towards [FM] or [AM].

Each time you push the knob toward [FM], it

switches between the FM1, FM2, and FM3 bands.

3 Tune up or down band

Push the Control knob towards [4] or [¢].

⁄

• During reception of stereo stations the "ST" indicator is

ON.

Tuning Mode

Choose the tuning mode.

Press the [AUTO] button.

Each time you press the button, the Tuning mode

alternates between the modes shown in the table

below.

Tuning mode Display Operation

Auto seek "Seek Mode:

Auto1"

Automatic search for a station.

Preset station seek "Seek Mode:

Auto2"

Search in order of the stations in

the Preset memory.

Manual "Seek Mode:

Manual"

Normal manual tuning control.

SRC

FNC

AUTO/AME

1 - 6

E

Control knob

ST indicator

Band display Frequency display

Preset station number

Function icon

B64-3625-00_00.Indd 21B64-3625-00_00.Indd 21 06.12.25 7:20:00 PM06.12.25 7:20:00 PM

22 | English

Tuner features

Function of remote control

Direct Access Tuning

Entering the frequency and tuning.

1 Select the band

Press the [FM] or [AM] button.

2 Enter Direct Access Tuning mode

Press the [DIRECT] button on the remote

control.

"– – – –" is displayed.

3 Enter the frequency

Press the number buttons on the remote

control.

Example:

Desired frequency Press button

92.1 MHz (FM) [0], [9], [2], [1]

810 kHz (AM) [0], [8], [1], [0]

Cancelling Direct Access Tuning

Press the [DIRECT] button on the remote

control.

Station Preset Memory

Putting a station in the memory.

1 Select the band

Push the Control knob towards [FM] or [AM].

2 Select the frequency to put in the memory

Push the Control knob towards [4] or [¢].

3 Enter Preset Memory mode

Using the Control knob, select "P.MEM".

For the operation method, refer to <Function

Control mode> (page 10).

4 Select the number to put in the memory

Turn the Control knob.

5 Determine the number to put in the memory

Press the Control knob.

6 Allow the determined number to take effect

Press the Control knob.

Cancelling the Preset Memory mode

Press the [FNC] button.

Auto Memory Entry

Putting stations with good reception in the memory

automatically.

1 Select the band for Auto Memory Entry

Push the Control knob towards [FM] or [AM].

2 Open Auto Memory Entry

Press the [AME] button for at least 2 seconds.

When 6 stations that can be received are put in the

memory Auto Memory Entry closes.

Preset Tuning

Recalling the stations in the memory.

1 Select the band

Push the Control knob towards [FM] or [AM].

2 Enter Preset Tuning Select mode

Turn the Control knob.

3 Select a desired station in the memory

Turn the Control knob.

4 Recall the station

Press the Control knob.

Cancelling Preset Tuning

Press the [FNC] button.

⁄

• This function can be operated with [1] — [6] button.

- Press the desired [1] — [6] button.

⁄

• This function can be operated with [1] — [6] button.

- Press the desired [1] — [6] button for at least 2 seconds.

B64-3625-00_00.Indd 22B64-3625-00_00.Indd 22 06.12.25 7:20:00 PM06.12.25 7:20:00 PM

English | 23

CD/USB device/Audio file/External disc control features

Playing CD & Audio file

When there is no disc inserted

1 Drop open the faceplate

Press the Release button.

2 Insert a disc.

3 Push the faceplate on the left side, and return it

to its former position.

• When the faceplate has been dropped open, it might

interfere with the shift lever or other vehicle function.

If this happens, pay attention to safety and move the

shift lever or take an appropriate action to remove the

obstacle, then operate the unit.

• Do not use the unit with the faceplate in the open

condition. If it’s used in the open position dust can enter

the inside part and cause damage.

⁄

• For the audio files and discs you can play with this unit,

refer to <About Audio file> (page 5).

• When a disc is inserted, the "IN" indicator is ON.

When a disc is inserted

Press the [SRC] button.

Select the "Compact Disc" display.

Refer to <Selecting the Source> (page 7).

Pause and play

Press the Control knob.

Each time you press the knob, the audio pauses or

plays.

Eject the disc

1 Drop open the faceplate

Press the Release button.

2 Eject the disc

Press the [0] button.

SRCFNC

S.MODE

SCAN RDM/

A.RDM

M.RDM

REP

E

Control knob

IN indicator

Play time

Release button

Function icon

File numberFolder number

Next page 3

B64-3625-00_00.Indd 23B64-3625-00_00.Indd 23 06.12.25 7:20:01 PM06.12.25 7:20:01 PM

24 | English

CD/USB device/Audio file/External disc control features

Function of KDC-X791/KDC-MP735U

Playing USB (iPod) device

When the USB device is not connected

Connect the USB device

Playback of the file contained in the USB device

starts.

When the USB device is connected

Select USB source

Press the [SRC] button.

Select the "USB" (or "iPod") display.

Refer to <Selecting the Source> (page 7).

⁄

• For the audio files that can be played with this unit and

the devices that can be connected to this unit, refer to

<About Audio file> (page 5).

• The word "iPod" appearing in this manual indicates the

iPod connected with the KCA-iP200 (optional accessory).

Refer to <About Audio file> (page 5).

• If you start playback after connecting the iPod, the music

that has been played by the iPod is played first.

In this case, "RESUMING" is displayed without displaying

a folder name, etc. Changing the browse item will

display a correct title, etc.

• When the iPod is connected to this unit, "KENWOOD" or

"✓" is displayed on the iPod to indicate that you cannot

operate the iPod.

• When the USB device is connected to this unit, it can be

charged up provided that this unit is powered.

• When the Multi Card Reader is used, refer to <Drive

Search> (page 24).

• After you stopped playing a file contained in the USB

device, you can restart playing the file from the point

where you stopped its playback.

Even after removing the USB device, you can restart

playing the file from the point where you stopped its

playback as long as the files contained in the USB device

are all the same.

• Be sure to insert the USB device connector as far as it will

go.

Pause and play

Press the [38] button.

Each time you press the knob, the audio pauses or

plays.

Removing the USB device

1 Drop open the faceplate

Press the Release button.

2 Set the remove mode as the USB source

Press the [0] button for at least 2 seconds.

The 0 indicator blinks.

3 Remove the USB device.

Function of KDC-X791/KDC-MP735U

Drive Search

Selecting the device inserted in the Multi Card

Reader.

1 Put the playback to pause

Press the [S.MODE] button.

2 Select a device

Push the Control knob towards up or down.

3 Restart playback

Press the Control knob.

⁄

• This unit is compliant with Multi Card Readers with a

maximum of 4 slots.

• If a device is inserted during connection of the Multi

Card Reader, it is not recognized. Select the Remove

mode with reference to <Playing USB (iPod) device>

(page 24), remove the Card Reader, and then insert the

memory.

3 Press the faceplate on the left side, and return it

to its former position.

⁄

• You can eject the disc for 10 minutes after switching off

the engine.

B64-3625-00_00.Indd 24B64-3625-00_00.Indd 24 06.12.25 7:20:01 PM06.12.25 7:20:01 PM

English | 25

Playing External Disc

Playing discs set in the optional accessory disc

player connected to this unit.

Press the [SRC] button.

Refer to <Selecting the Source> (page 7).

Select the display for the disc player you want.

Display examples:

Display Disc player

"CD Changer" CD changer

"MD Changer" MD changer

Pause and play

Press the Control knob.

Each time you press the knob, the audio pauses or

plays.

⁄

• The functions that can be used and the information that

can be displayed will differ depending on the external

disc players being connected.

Fast Forwarding and Reversing

Fast Forwarding

Hold down toward [¢] with the Control knob.

Release to resume the playback.

Reversing

Hold down toward [4] with the Control knob.

Release to resume the playback.

⁄

• There is no sound while the Audio file is being searched.

• You cannot fast Forwarding and Reversing while AAC file

is being played. (KDC-MP635)

Music Search

Switching between music contained in the disc or

folder being played now.

Push the Control knob towards [4] or [¢].

Function of disc changer/ Audio file

Disc Search/Folder/Album Search

Switching between folders/albums contained in

the disc in the disc changer, media, or device being

played now.

Push the Control knob towards up or down.

⁄

• This function is not available on iPod and the music

edited by "Music Editor".

Function of remote control

Direct Music Search

Doing Music Search by entering the music number.

1 Enter the music number

Press the number buttons on the remote

control.

⁄

• You can select Direct music Search up to 999.

2 Do music Search

Press the [4] or [¢] button.

Cancelling Direct Music Search

Press the [38] button.

⁄

• This function is not available on iPod and the music

edited by "Music Editor".

Function of disc changers with remote control

Direct Disc Search

Doing Disc Search by entering the disc number.

1 Enter the disc number

Press the number buttons on the remote

control.

2 Do Disc Search

Press the [FM+] or [AM–] button.

Cancelling Direct Disc Search

Press the [38] button.

B64-3625-00_00.Indd 25B64-3625-00_00.Indd 25 06.12.25 7:20:02 PM06.12.25 7:20:02 PM

26 | English

CD/USB device/Audio file/External disc control features

Play function of CD and Audio file

Setting up the Repeat Play and Scan Play

1 Set up the play function

Using the Control knob, set your desired setup

item to On/Off.

For the operation method, refer to <Function

Control mode>.

When the play function is turned on, “ON” is

displayed.

Display/Icon Press button*Function

"File Scan"/

"SCAN"

[SCAN] Plays the beginnings of the audio

files in the current folder or genre

one after another for 10 seconds

each.

"Folder RDM"/

"RDM"

[RDM] Plays the audio files in the current

folder or genre at random.

"All Random"/

"A.RDM"*1

[A.RDM]*2Plays the audio files in the current

disc or USB device at random.

"File Repeat"/

"FiREP"

[REP] Plays the current audio file

repeatedly.

"Folder Repeat"/

"FoREP"

[REP]*3Plays the audio files in the current

folder or genre repeatedly.

"(Track) Scan"/

"SCAN"

[SCAN] Plays the beginnings of the music

on the current CD/MD one after

another for 10 seconds each.

"Disc Random"/

"RDM"

[RDM] Plays the music on the current

CD/MD at random.

"Magazine RDM"/

"M.RDM"

[M.RDM] Plays the music in the disc changer

at random.

"(Track) Repeat"/

"T.REP"

[REP] Plays the current music on the

current CD/MD repeatedly.

"Disc Repeat"/

"D.REP"

[REP]*3Plays the music on the current

CD/MD repeatedly.

⁄

• * The functions listed in the table above can be

operated with buttons on the unit.

• *1 Function of KDC-X791/MP735U.

• *2 Press the [A.RDM] button for at least 1 second.

• *3 Press the [REP] button twice.

2 Select an option for the selected item

Press the Control knob.

Pressing the Control knob switches between

options.

3 Exit Play Function Set mode

Press the [FNC] button.

⁄

• Only the icons available to the current source are

displayed.

Function of Audio file

File Select

Selecting the music you want to listen to from the

device or media being played now.

1 Enter File Select mode

Turn the Control knob.

2 Search for music

Select the category item using the Control

knob.

Operation system for iPod

Operation type Operation

Movement between

items

Turn the Control knob.

Selection of item Press the Control knob.

Return to previous item Push the Control knob towards up.

Return to first item Push the Control knob towards up for at least

1 second.

Operation system for other than iPod

Operation type Operation

Movement between items Turn the Control knob.

Selection of item*1Push the Control knob towards right.

Selection of item*2Press the Control knob.

Push the Control knob towards right.

Return to previous item Push the Control knob towards left.

Return to first item Push the Control knob towards left for at least

1 second.

• *1 Function of KDC-X791/MP735U.

• *2 Function of KDC-MP635.

The "2" or "3" symbol shown beside the displayed

item indicates that the item is preceded or followed

by another item.

Selecting a music will play it from the beginning.

Cancelling File Select

Press the [FNC] button.

⁄

• Even when the iPod is connected, you can change the

operation method from <Operation method for iPod> to

<Operation method for other than iPod>. Refer to <iPod

Mode Setting> (page 34).

B64-3625-00_00.Indd 26B64-3625-00_00.Indd 26 06.12.25 7:20:02 PM06.12.25 7:20:02 PM

English | 27

Text/Title Scroll

Scrolling the displayed CD text, Audio file text, or

MD title.

Push the Control knob toward up for at least 2

seconds.

⁄

• When the <Display Illumination Control> (page 35) is set

to OFF, the display may black out while scrolling.

B64-3625-00_00.Indd 27B64-3625-00_00.Indd 27 06.12.25 7:20:02 PM06.12.25 7:20:02 PM

28 | English

Satellite Radio tuner control features

Select Satellite Radio Mode

Selecting the Satellite Radio Tuner (optional

accessory) connected to this unit.

Selecting Satellite Radio Mode

Press the [SRC] button.

Select the "SAT" display.

Refer to <Selecting the Source> (page 7).

⁄

• You need to register to the service provider to receive

the service by Satellite Radio. Consult the service

provider if "CALL TO SUBSCRIBE" appears.

• The radio may take a little time to start receiving after

you select the Satellite Radio source.

• If the signal reception fails, "Acquiring Signal" appears.

Switching Seek Mode

Sets the seeking mode.

Press the [AUTO] button.

Each time you press the button, the Seek mode

alternates between the operations shown in the

table below.

Display Operation

"Seek : Channel" Normal manual seeking control.

"Seek : Preset" Search in order of the channels in the Preset

memory.

Select the channel

Selecting the channel.

Push the Control knob towards [4] or [¢].

SRC

FNC

AUTO

1 - 6

E

Control knob

Channel number

Function icon

Band display

B64-3625-00_00.Indd 28B64-3625-00_00.Indd 28 06.12.25 7:20:02 PM06.12.25 7:20:02 PM

English | 29

Category and Channel Search

Selecting the channel and category you want to

receive.

1 Enter Category and Channel Search mode

Press the Control knob.

2 Select the Category

Push the Control knob towards up or down.

⁄

• It is the item when the category of Middle text display

part is selected.

3 Select the Channel

Push the Control knob towards [4] or [¢].

⁄

• You cannot Channel search until the category

information is acquired.

Cancelling Category and Channel Search mode

Press the Control knob.

Function of remote control

Direct Access Tuning

Entering the channel and tuning.

1 Enter Direct Access Tuning mode

Press the [DIRECT] button on the remote

control.

2 Enter the channel

Press the number buttons.

3 Do Channel Search

Push the Control knob towards [4] or [¢].

Cancelling Direct Access Tuning

Press the [DIRECT] button on the remote

control.

⁄

• If you make no button operation for 10 seconds, the

Direct Access Tuning mode is automatically canceled.

• If you cannot receive any signal in the input Channel due

to bad conditions on radio wave or other such problems,

"Acquiring Signal" appears.

Selecting the Preset Band

Push the Control knob toward [FM].

Each time you push the knob, the preset band

alternates between the SR1, SR2, SR3 and SR4.

Channel Preset Memory

Putting the channel in the memory.

1 Select the preset band

Push the Control knob toward [FM].

2 Select the channel to put in the memory

Push the Control knob towards [4] or [¢].

3 Enter Preset Memory mode

Using the Control knob, select "P.MEM".

For the operation method, refer to <Function

Control mode> (page 10).

4 Select the number to put in the memory

Turn the Control knob.

5 Determine the number to put in the memory

Press the Control knob.

6 Allow the determined number to take effect

Press the Control knob.

Cancelling the Preset Memory mode

Press the [FNC] button.

⁄

• Only the channel number is stored. Category information

is not stored.

• This function can be operated with [1] — [6] button.

Press the desired [1] — [6] button for at least 2 seconds.

B64-3625-00_00.Indd 29B64-3625-00_00.Indd 29 06.12.25 7:20:03 PM06.12.25 7:20:03 PM

30 | English

Satellite Radio tuner control features

Preset Tuning

Recalling the channels in the memory.

1 Select the preset band

Push the Control knob toward [FM].

2 Enter Preset Tuning Select mode

Turn the Control knob.

3 Select a desired station in the memory

Turn the Control knob.

4 Recall the station

Press the Control knob.

Cancelling Preset Tuning

Press the [FNC] button.

⁄

• This function can be operated with [1] — [6] button.

- Press the desired [1] — [6] button.

Channel Scan

Checks every receivable Channel for 10 seconds.

1 Start Channel Scan

Press the [AUTO] button for at least 2 seconds.

The channel number display blinks.

2 Release the button when the music you want

to hear is received

Press the [AUTO] button for at least 2 seconds.

Text Scroll for Satellite Radio source

Scrolls the displayed channel name and other items.

Push the Control knob toward up for at least 2

seconds.

⁄

• When the <Display Illumination Control> (page 35) is set

to OFF, the display may black out while scrolling.

B64-3625-00_00.Indd 30B64-3625-00_00.Indd 30 06.12.25 7:20:03 PM06.12.25 7:20:03 PM

English | 31

HD Radio control features

About HD Radio

• When you connect an HD Radio, Tuner features

of the unit are disabled and changed to HD Radio

tuner features. A portion of the setting methods

including the Tuning Mode will change.

• With the HD Radio tuner, you can use the similar

functions to <Station Preset Memory>, <Auto

Memory Entry>, and <Preset Tuning> of Tuner

features. Refer to Tuner features for how to use

the functions.

Tuning

Selecting the station.

1 Select HD Radio source

Press the [SRC] button.

Select the "HD Radio" display.

Refer to <Selecting the Source> (page 7).

2 Select the HD FM band

Push the Control knob toward [FM].

Each time you push the knob to [FM], the band

alternates between the HF1, HF2, and HF3 bands.

Select the HD AM band

Push the Control knob toward [AM].

3 Tune up or down band

Push the Control knob towards [4] or [¢].

SRCFNC

AUTO/AME

1 - 6

E

Control knob

ST indicator

Band display Preset station number Frequency display

Function icon

B64-3625-00_00.Indd 31B64-3625-00_00.Indd 31 06.12.25 7:20:03 PM06.12.25 7:20:03 PM

32 | English

Menu system

Menu System

Setting beep sound during operation, etc.

functions.

The Menu system basic operation method is

explained here. The reference for the Menu items

and their setting content is after this operation

explanation.

1 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

2 Select the menu item

Turn the Control knob or push it towards up or

down.

Example: When you want to set the beep sound

select the "Beep" display.

3 Set the menu item

Push the Control knob towards right or left.

Example: When you select "Beep", each time you

push the knob it alternates between

"Beep : ON" or "Beep : OFF". Select 1 of

them as the setting.

You can continue by returning to step 2 and

setting other items.

4 Exit Menu mode

Press the [FNC] button.

⁄

• When other items those applicable to the basic

operation method above are displayed, their setting

content chart is entered. (Normally the setting listed at

the top of the chart is the original setting.)

Also, the explanation for items that are not applicable

(<Manual Clock Adjustment> etc.) are entered step by

step.

• Three menu items appear on the display. The menu item

displayed at the center is the one you can adjust.

SRC

FNC

Control knob

Function icon

B64-3625-00_00.Indd 32B64-3625-00_00.Indd 32 06.12.25 7:20:04 PM06.12.25 7:20:04 PM

English | 33

In Standby mode

Activating Security Code

Activating the Security Code disables the usage

of audio unit by someone else. Once the Security

Code is activated, the entry of authorized Security

Code is required to turn on the audio unit when it is

removed from the vehicle. Indication of this Security

Code activation prevents your precious audio unit

from stealing.

⁄

• You can set the Security Code with a 4 digit number of your

choice.

• The Security Code cannot be displayed or referenced. Make

a note of the Security Code and treasure it up.

1 Enter Standby

Press the [SRC] button.

Select the "STANDBY" display.

Refer to <Selecting the Source> (page 7).

2 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

"Security Set" is displayed.

3 Enter Security Code mode

Press the Control knob for at least 1 second.

When "Enter" is displayed, "SECURITY SET" is also

displayed.

4 Select the digits to enter

Push the Control knob towards right or left.

5 Select the Security Code numbers

Turn the Control knob or push it towards up or

down.

6 Repeat step 4 and 5, and complete the Security

Code.

7 Confirm the Security Code

Press the Control knob for at least 3 seconds.

When "Re-Enter" is displayed, "SECURITY SET" is also

displayed.

8 Do the step 4 through 7 operation, and reenter

the Security Code.

"Approved" is displayed.

The Security Code function activates.

⁄

• If you enter the wrong code in step 4 through 6, repeat

from step 4.

In Standby mode

Deactivating Security Code

To deactivate the Security Code function.

1 Select Security Code mode

Turn the Control knob.

Select the "Security Clear" display.

2 Enter Security Code mode

Press the Control knob for at least 1 second.

When "Enter" is displayed, "SECURITY CLEAR" is also

displayed.

3 Select the digits to enter

Push the Control knob towards right or left.

4 Select the Security Code numbers

Turn the Control knob or push it towards up or

down.

5 Repeat steps 3 and 4, and complete the

Security Code.

6 Press the Control knob for at least 3 seconds.

"Clear" is displayed.

The Security Code function deactivates.

7 Exit Security Code mode

Press the [FNC] button.

⁄

• If a wrong security code is entered, "Error" is displayed.

Enter a correct security code.

9 Exit Security Code mode

Press the [FNC] button.

Resetting the Security Code function when the

audio unit is first used after removed from the

battery power source or the Reset button is

pressed

1 Turn the power ON.

2 Do the step 4 through 7 operation, and enter

the Security Code.

"Approved" is displayed.

Now, you can use the unit.

⁄

• When the Security Code function is activated, "Security

Set" changes to "Security Clear".

• To deactivate the Security Code function, see the next

section <Deactivating Security Code>.

B64-3625-00_00.Indd 33B64-3625-00_00.Indd 33 06.12.25 7:20:05 PM06.12.25 7:20:05 PM

34 | English

Menu system

In Standby mode

Source Select Mode

Setting up the Source Select mode.

Display Setting

"SRC Select : 1" Displays source icons for your choice.

"SRC Select : 2" Allows you to select sources one after another.

Function of KDC-X791/KDC-MP735U

In USB mode with iPod connected

iPod Mode Setting

Setting up the iPod operation method in File Select.

Display Setting

"iPod Mode : ON" Uses the operation method similar to that of

iPod.

"iPod Mode : OFF" Uses the operation method different from that

of iPod.

In Standby mode

Touch Sensor Tone

Setting the operation check sound (beep sound)

ON/OFF.

Display Setting

"Beep : ON" Beep is heard.

"Beep : OFF" Beep canceled.

In Standby mode

Manual Clock Adjustment

1 Select Clock Adjustment mode

Turn the Control knob.

Select the "Clock Adjust" display.

2 Enter Clock Adjust mode

Press the Control knob for at least 1 second.

The clock display blinks.

3 Selecting the item (hours or minutes) to adjust

Push the Control knob towards right or left.

The items that are blinking are items that you can

adjust.

4 Adjust each item

Turn the Control knob or push it towards up or

down.

5 Exit Clock adjustment mode

Press the [FNC] button.

In Standby mode

Date Adjustment

1 Select Date Adjust mode

Turn the Control knob.

Select the "Date Adjust" display.

2 Enter Date Adjust mode

Press the Control knob for at least 1 second.

The date display blinks.

3 Selecting the item (day, month, or year) to

adjust

Push the Control knob towards right or left.

The items that are blinking are items that you can

adjust.

4 Adjust each item

Turn the Control knob or push it towards up or

down.

5 Repeat step 3 and 4 operation and adjust the

date.

6 Exit Date adjustment mode

Press the [FNC] button.

B64-3625-00_00.Indd 34B64-3625-00_00.Indd 34 06.12.25 7:20:05 PM06.12.25 7:20:05 PM

English | 35

In Standby mode

Date Mode

Setting the date format.

1 Select Date Mode

Turn the Control knob.

Select the "Date Mode" display.

2 Enter Date mode

Press the Control knob for at least 1 second.

3 Select the date format

Turn the Control knob or push it towards up or

down.

4 Exit Date mode

Press the [FNC] button.

In Standby mode

DSI (Disabled System Indicator)

A red indicator will blink on the unit after the

faceplate is removed, warning potential thieves.

Display Setting

"DSI : ON" LED flashes.

"DSI : OFF" LED OFF.

Display Illumination Control

This function turns off the display when you

perform no operation for 5 seconds. This function is

effective when you are driving at night.

Display Setting

"Display : ON" Keeps the display on.

"Display : OFF" Turns off the display when you perform no

operation for 5 seconds.

⁄

• Set the Display Illumination Control when the

<Demonstration mode Setting> (page 40) is set to OFF.

• When the display is off, pressing any key will turn on the

display.

• When the display is off, you cannot perform any

operation except for the following:

• Volume

• Attenuator

• Selecting the source

• Turning off the power

• During function control, such as the Menu System, the

display stays on.

In Standby mode

Dimmer

Dimming this unit’s display automatically when the

vehicle light switch is turned ON.

Display Setting

"Dimmer : ON" The display dims.

"Dimmer : OFF" The display doesn’t dim.

In Standby mode

Built-in Amp Setting

Controlling the built-in amplifier.

Turning OFF this control enhances the preout

quality.

Display Setting

"AMP : ON" The built-in amplifier activates.

"AMP : OFF" The built-in amplifier deactivates.

B64-3625-00_00.Indd 35B64-3625-00_00.Indd 35 06.12.25 7:20:05 PM06.12.25 7:20:05 PM

36 | English

Menu system

In Audio file source

Supreme Setting

When AAC, MP3 or WMA files encoded at a low bit

rate (less than 96kbps (fs= 44.1k, 48kHz)) are played,

this function restores their high frequency region

to approach the sound quality of equivalents of

these files encoded at a high bit rate. Processing is

optimized for the compression format used (AAC,

MP3, or WMA), and adjustment is made for the bit

rate used.

Display Setting

"Supreme : ON" Plays sound using the Supreme function.

"Supreme : OFF" Plays the original sound stored in the audio file.

⁄

• The sound effect may be imperceptible depending

on the relationship between the audio file format and

setting.

• This function is not available on iPod.

Function of KDC-X791

Other than Standby mode

B.M.S. (Bass Management System)

Adjust the bass boost level of the external amplifier

using the main unit.

Display Setting

"AMP Bass : Flat" Bass boost level is flat.

"AMP Bass : +6" Bass boost level is low (+6dB).

"AMP Bass : +12" Bass boost level is mid (+12dB).

"AMP Bass : +18" Bass boost level is high (+18dB).

⁄

• Refer to the catalog or instruction manual for power

amplifiers that can be controlled from this unit.

• For amplifiers, there are the models you can set from Flat

to +18 dB, and the models you can set from Flat to +12

dB.

When an amplifier that can only be set to +12 is

connected to the unit, "AMP Bass : +18" will not work

correctly even if it is selected.

Function of KDC-X791

Other than Standby mode

B.M.S. Frequency Offset

Setting the central frequency, boosted by B.M.S.

Display Setting

"AMP FREQ : Normal" Boost with the normal central frequency.

"AMP FREQ : Low" Drop the normal central frequency 20%.

Other than Standby mode/

When the Dual Zone System is ON

Dual Zone System Setting

Setting the Front channel and Rear channel sound

in the Dual Zone System.

Display Setting

"Zone 2 : Rear" Sub source (Auxiliary input source) is to be rear

channel.

"Zone 2 : Front" Sub source (Auxiliary input source) is to be front

channel.

B64-3625-00_00.Indd 36B64-3625-00_00.Indd 36 06.12.25 7:20:05 PM06.12.25 7:20:05 PM

English | 37

Function of KDC-X791

When LX AMP unit connecting

AMP Control

You can control the LX AMP connected to the unit.

1 Select AMP Control mode

Turn the Control knob.

Select the "AMS Control" display.

2 Enter AMP Control mode

Press the Control knob for at least 1 second.

3 Select the AMP Control item for adjustment

Push the Control knob towards up or down.

⁄

• For the details on the AMP Control item, see the

Instruction manual attached to the LX AMP.

4 Adjust the AMP Control item

Push the Control knob towards right or left.

5 Exit AMP Control mode

Press the [FNC] button.

⁄

• You cannot use the LX AMP operation during standby

mode.

In FM reception

CRSC (Clean Reception System Circuit)

Temporarily have reception alternate from stereo to

mono to reduce multi-path noise when listening to

the FM station.

Display Setting

"CRSC : ON" The CRSC is ON.

"CRSC : OFF" The CRSC is OFF.

⁄

• Strong electrical fields (such as from power lines) may

cause unstable sound quality when CRSC is turned ON.

In such a situation, turn it OFF.

In HD Radio mode

Receive mode Setting

Sets the receive mode.

1 Select the Receive mode

Turn the Control knob.

Select the "Receive Mode" display.

2 Enter Receive mode

Press the Control knob for at least 1 second.

3 Set the Receive mode

Push the Control knob towards up or down.

Each time you push the knob, the Receive mode

alternates between the modes shown in the table

below.

Receive mode Display Operation

Auto mode "Auto" Analog broadcasts and digital

broadcasts will be switched

automatically.

When both are being transmitted,

the digital broadcast will have

priority.

Digital "Digital" Digital broadcasts only.

Analog "Analog" Analog broadcasts only.

4 Exit Receive mode

Press the [FNC] button.

⁄

• Even if the Receive mode is set to "Auto", when the Ball

game mode program (non-delayed broadcast program)

is received, the Receive mode will automatically switch

to Analog broadcast only.

In Satellite radio source

Electronic Serial Number (ESN)

display

Displaying the Electronic Serial Number.

Display

"ESN=************"

⁄

• Electronic Serial Number (ESN)

It is important to retain the unit serial number and the

electronic Satellite radio Identification number for service

activation and potential service changes.

B64-3625-00_00.Indd 37B64-3625-00_00.Indd 37 06.12.25 7:20:06 PM06.12.25 7:20:06 PM

38 | English

Menu system

Auxiliary Input Display Setting &

Station/Disc Naming

Selecting the display when changing to Auxiliary

input source. For the Station/Disc Naming refer to

the <Station/Disc Naming (SNPS/DNPS)> (page 19).

1 Select Auxiliary input source

Press the [SRC] button.

Select the "AUX"/"AUX EXT" display.

Refer to <Selecting the Source> (page 7).

2 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

"MENU" is displayed.

3 Select Auxiliary input display setting mode

Turn the Control knob.

Select the "Name Set" display.

4 Enter Auxiliary input display setting mode

Press the Control knob for at least 1 second.

The presently selected Auxiliary input display is

displayed.

5 Select the Auxiliary input display

Turn the Control knob or push it towards up or

down.

Each time you push the knob, the display alternates

as listed below.

• "AUX"/"AUX EXT"

• "DVD"

• "PORTABLE"

• "GAME"

• "VIDEO"

• "TV"

6 Exit Auxiliary input display setting mode

Press the [FNC] button.

⁄

• When operation stops for 10 seconds, the name at that

time is registered, and the Auxiliary input display setting

mode closes.

• The Auxiliary input display can be set only when the

built-in auxiliary input or the auxiliary input of optional

KCA-S220A is used.

Text Scroll

Setting the displayed text scroll.

Display Setting

"Scroll : Auto" Repeats scroll.

"Scroll : Manual" Scrolls when the display changes.

⁄

• The text scrolled is listed below.

- CD text

- Folder name/ File name/ Music title/ Artist name/

Album name

- MD title

- Radio text

- Text for the Satellite radio source, HD Radio source,

including Channel name, etc.

Function of KDC-X791/KDC-MP735U

In Standby mode

Built-in Auxiliary input Setting

Set the Built-in Auxiliary Input function.

Display Setting

"Built in AUX : OFF" When selecting the source there’s no Auxiliary Input.

"Built in AUX : ON" When selecting the source there’s Auxiliary Input.

In Standby mode

CD Read Setting

When there is a problem with playing a CD with

special format, this setting plays the CD by force.

Display Setting

"CD Read : 1" Play CD and Audio file.

"CD Read : 2" Play CD by force.

⁄

• Some music CDs may not play even in the "CD Read : 2"

mode.

B64-3625-00_00.Indd 38B64-3625-00_00.Indd 38 06.12.25 7:20:06 PM06.12.25 7:20:06 PM

English | 39

Other than Standby mode

Audio Preset Memory

Registering the value setup by Sound Control. The

memory cannot be erased by the Reset button.

1 Setup Sound Control

Refer to the following operations to setup the

Sound Control.

- <Audio Control> (page 8)

- <Audio Setup> (page 9)

2 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

"MENU" is displayed.

3 Select Audio Preset mode

Turn the Control knob.

Select the "Audio Preset" display.

4 Enter Audio Preset mode

Press the Control knob for at least 1 second.

5 Select the Audio Preset Memory

Turn the Control knob.

Select the "Memory" display.

6 Determine whether to put the Audio Preset in

the memory

Press the Control knob.

"Memory?" is displayed.

7 Put the Audio Preset in the memory

Select "YES" using the Control knob.

"Memory Completed" is displayed.

8 Exit Audio Preset mode

Press the [FNC] button.

⁄

• Register 1 pair of Audio Preset Memory. You cannot

• When you press the Reset, all the sources will be the

setting value which is registered.

• The following items cannot be registered.

Volume, Balance, Fader, Loudness, Volume offset, Dual

Zone System, Rear Volume

Other than Standby mode

Audio Preset Recall

Recalling the sound setup registered by <Audio

Preset Memory> (page 39).

1 Select the source

Press the [SRC] button.

Refer to <Selecting the Source> (page 7).

2 Enter Menu mode

Using the Control knob, select "MENU".

For the operation method, refer to <Function

Control mode> (page 10).

"MENU" is displayed.

3 Select Audio Preset mode

Turn the Control knob.

Select the "Audio Preset" display.

4 Enter Audio Preset mode

Press the Control knob for at least 1 second.

5 Select the Audio Preset Recall

Turn the Control knob.

Select the "Recall" display.

6 Determine whether to recall the Audio Preset

Press the Control knob.

"Recall?" is displayed.

7 Recall the Audio Preset

Select "YES" using the Control knob.

"Recall Completed" is displayed.

8 Exit Audio Preset mode

Press the [FNC] button.

⁄

• The User memory of "SYSTEM Q" in <Audio Control>

(page 8) is changed to the value which was recalled.

• The source tone memory item of <Audio Control> (page

8) is changed to the value which was recalled by the

selected source.

B64-3625-00_00.Indd 39B64-3625-00_00.Indd 39 06.12.25 7:20:06 PM06.12.25 7:20:06 PM

40 | English

Menu system

Function of KDC-X791/KDC-MP735U

In Standby mode

Firmware version display

Displaying the firmware version with the unit.

Turn the Control knob.

Select the "F/W Version : " display.

In Standby mode

Demonstration mode Setting

Sets the demonstration mode.

1 Select the Demonstration mode

Turn the Control knob.

Select the "DEMO Mode" display.

2 Set the Demonstration mode

Press the Control knob for at least 2 seconds.

Each time you press the knob at least 2 seconds,

the Demonstration mode alternates between the

settings shown in the table below.

Display Setting

"DEMO Mode : ON" The Demonstration mode function is ON.

"DEMO Mode : OFF" Exit Demonstration mode (Normal mode).

B64-3625-00_00.Indd 40B64-3625-00_00.Indd 40 06.12.25 7:20:06 PM06.12.25 7:20:06 PM

English | 41

Basic Operations of remote control

Loading and Replacing the battery

Use two "AA"/ "R6"-size batteries.

Slide the cover while pressing downwards to

remove it as illustrated.

Insert the batteries with the + and – poles aligned

properly, following the illustration inside the case.

2WARNING

• Store unused batteries out of the reach of children.

Contact a doctor immediately if the battery is

accidentally swallowed.

• Do not set the remote control in hot places such as on

the dashboard.

Basic operations

[VOL] buttons

Adjusts the volume.

[SRC] button

Each time you press the button, the source

alternates.

For the source alternating order refer to <Selecting

the Source> (page 7).

[ATT] button

Turns the volume down quickly.

When the button is pressed again, the volume

returns to the previous level.

SRC

VOL

AT T

AU D

ATT

DIRECT

[0] — [9]

SRC

VOL

AUD

FM/AM/

/–

2-ZONE

: This button is used when Kenwood Bluetooth

HANDS FREE BOX is connected. For more

information, refer to the instruction manual of

Bluetooth HANDS FREE BOX.

B64-3625-00_00.Indd 41B64-3625-00_00.Indd 41 06.12.25 7:20:07 PM06.12.25 7:20:07 PM

42 | English

Basic Operations of remote control

Audio Control

[AUD] button

Selects the Audio item to be adjusted.

[VOL] buttons

Adjusts the Audio item.

⁄

• Refer to <Audio Control> (page 8) for the operation

method, such as the procedures for Audio control and

others operations.

• The remote control can only select and adjust the Basic

Audio item. Selecting and adjusting of the Detail Audio

item cannot be done.

Dual Zone System

[2-ZONE] button

Each time you press the button, "2 ZONE" of

<Audio Setup> (page 9) is turned ON or OFF.

[5]/ [∞] buttons

Adjusts the volume of the rear channel.

The rear channel activates while the Dual Zone

System is ON.

In Tuner source

[FM]/ [AM] buttons

Selects the band.

Each time you press the [FM] button, the band

alternates between the FM1, FM2, and FM3 bands.

[4]/ [¢] buttons

Tune up or down band.

[0] — [9] buttons

Press buttons [1] — [6] to recall preset stations.

[DIRECT] button

Enters and cancels the <Direct Access Tuning>

(page 22) mode.

In Disc/USB source

[4]/ [¢] buttons

Going forwards and backwards between music.

[+]/ [–] buttons

Going forwards and backwards between disc/

folders.

[38] button

Each time you press the button, the music is played

or paused.

[0] — [9] buttons

When in <Direct Music Search> (page 25) and

<Direct Disc Search> (page 25), enters the music/

disc number.

In Satellite radio source

[FM] button

Selects the preset band.

[4]/ [¢] buttons

Searches up or down channels.

[0] — [9] buttons

Press buttons [1] — [6] to recall preset channels.

[DIRECT] button

Enters and cancels the <Direct Access Tuning>

(page 22) mode.

In HD Radio source

[FM] button

Selects the HD FM band.

Each time you press the [FM] button, the band

alternates between the HF1, HF2, and HF3 bands.

[AM] button

Selects the HD AM band.

[4]/ [¢] buttons

Tunes up or down bands.

[0] — [9] buttons

Press buttons [1] — [6] to recall preset stations.

B64-3625-00_00.Indd 42B64-3625-00_00.Indd 42 06.12.25 7:20:07 PM06.12.25 7:20:07 PM

English | 43

Accessories/ Installation Procedure

Accessories

..........1

..........2

..........4

..........2

..........1

Installation Procedure

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following

order: ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

2WARNING

If you connect the ignition wire (red) and the battery wire

(yellow) to the car chassis (ground), you may cause a short

circuit, that in turn may start a fire. Always connect those

wires to the power source running through the fuse box.

• If the power is not turned ON ("Protect" is displayed), the

speaker wire may have a short-circuit or touched the

chassis of the vehicle and the protection function may

have been activated. Therefore, the speaker wire should be

checked.

• If your car’s ignition does not have an ACC position, connect

the ignition wires to a power source that can be turned on

and off with the ignition key. If you connect the ignition

wire to a power source with a constant voltage supply, as

with battery wires, the battery may die.

• If the console has a lid, make sure to install the unit so that

the faceplate will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching

to cause a short circuit, then replace the old fuse with one

with the same rating.

• Insulate unconnected wires with vinyl tape or other similar

material. To prevent a short circuit, do not remove the caps

on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to

which they correspond. The unit may be damaged or fail to

work if you share the - wires or ground them to any metal

part in the car.

• When only two speakers are being connected to the

system, connect the connectors either to both the front

output terminals or to both the rear output terminals (do

not mix front and rear). For example, if you connect the +

connector of the left speaker to a front output terminal, do

not connect the - connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps,

blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

If You Want to Connect iPod

iPod

AUDIO OUT

KCA-iP200 (Optional accessory)

AUX input

• No other optional accessory can be connected because

the USB connector and the AUX input are used for iPod

connection.

• Dual Zone System in <Audio Setup> (page 9) will become

unavailable.

B64-3625-00_00.Indd 43B64-3625-00_00.Indd 43 06.12.25 7:20:07 PM06.12.25 7:20:07 PM

44 | English

Connecting Wires to Terminals

P.CONT

ILLUMI

ANT.

CONT

MUTE

EXT.

CONT

FRONT L

FRONT R

REAR L

REAR R

–

SUB

WOOFER

REAR

FRONT

REMO.CONT

FM/AM antenna input

Front left output (White)

Front right output (Red)

Fuse (10A)

Wiring harness

(Accessory1)

White/Black

Gray/Black

Green/Black

Purple/Black

White

Gray

Green

Purple

To front left speaker

To front right speaker

To rear right speaker

To rear left speaker

Ignition wire (Red)

Battery wire (Yellow)

Ground wire (Black) · (To car chassis)

Ignition key

switch

Car fuse box

(Main fuse)

ACC

Car fuse

box

Battery

If no connections are made, do not let the wire come out from the tab.

Power control wire (Blue/White)

Motor antenna control wire (Blue)

Dimmer control wire (Orange / White)

When using the optional power amplifier, connect to its power

control terminal.

To car light control switch

Depending on what antenna you are using, connect either to the

control terminal of the motor antenna, or to the power terminal

for the booster amplifier of the film-type antenna.

Sub Woofer left output (White)

Sub Woofer right output (Red)

To connect the Kenwood navigation system, consult your

navigation manual.

TEL mute wire (Brown) Connect to the terminal that is grounded when either the

telephone rings or during conversation.

To connect these leads, refer to the relevant instruction

manuals.

To Kenwood disc changer/ External optional accessory

Rear left output (White)

Rear right output (Red)

Do not remove the cap

when you do not use the

USB cable. The connector

will cause the unit to

malfunction if it gets in

touch with any metallic

part of the vehicle.

• Fasten the connector

with the tape so that the

cable will not come off.

USB connector (1m)

(KDC-X791/MP735U only)

To USB device

To "EXT.AMP.CONT." terminal of the amplifier

having the external amp control function.

(KDC-X791 only)

External amplifier control wire (Pink/Black)

To use the steering wheel

remote control feature,

you need to an exclusive

remote adapter (not

supplied) matches your

car is required.

Steering remote control

(Light Blue/Yellow)

(KDC-X791 only)

AUX input (Stereo)

Use the mini-plug which is stereo type and does

not have any resistance.

(KDC-X791/MP735U only)

Tape

B64-3625-00_00.Indd 44B64-3625-00_00.Indd 44 06.12.25 7:20:08 PM06.12.25 7:20:08 PM

English | 45

Installation

non-Japanese cars

Firewall or metal support

Screw (M4X8)

(commercially available)

Self-tapping screw

(commercially available)

Metal mounting strap

(commercially available)

Bend the tabs of the

mounting sleeve with a

screwdriver or similar utensil

and attach it in place.

⁄

• Make sure that the unit is installed securely in place. If the

unit is unstable, it may malfunction (for example, the sound

may skip).

Japanese cars

1 Refer to the section <Removing the hard rubber

frame> and then remove the hard rubber frame.

2 Align the holes in the unit (two locations on each

side) with the vehicle mounting bracket and secure

the unit with the accessory screws.

8 mm

MAX.

ø5mm ø5mm

8mm

MAX.

T/N

T: Toyota cars

N: Nissan cars

Accessory3...for Nissan car

Accessory4 ...for Toyota car

• During installation, do not use any screws except for

those provided. The use of different screws might result in

damage to the main unit.

• Damage may occur if a screwdriver or similar tool is used

with excessive force during the installations.

B64-3625-00_00.Indd 45B64-3625-00_00.Indd 45 06.12.25 7:20:09 PM06.12.25 7:20:09 PM

46 | English

Installation

Removing the hard rubber frame

1 Engage the catch pins on the removal tool and

remove the two locks on the upper level.

Upper the frame and pull it forward as shown in

the figure.

Catch

Lock

Accessory2

Removal tool

2 When the upper level is removed, remove the

lower two locations.

⁄

• The frame can be removed from the bottom side in the

same manner.

Removing the Unit

1 Refer to the section <Removing the hard rubber

frame> and then remove the hard rubber frame.

2 Remove the screw (M4 × 8) on the back panel.

3 Insert the two removal tools deeply into the slots

on each side, as shown.

4 Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards

the inside.

Screw (M4X8)

(commercially available)

Accessory2

• Be careful to avoid injury from the catch pins on the

removal tool.

5 Pull the unit all the way out with your hands, being

careful not to drop it.

Screwing the Faceplate on the Unit

If you want to fasten the faceplate to the main unit

so that it does not fall off.

1 Refer to the section <Removing the hard rubber

frame> and then remove the hard rubber frame.

2 Drop open the faceplate by pressing the Release

button.

3 Tighten the screw (ø2 × 5 mm) (Accessory 5) and

bracket (Accessory6 ) in the hole shown on the

diagram.

Accessory5

Accessory6

4 Tighten the screw (ø2 × 5 mm) (Accessory 5) and

bracket (Accessory7) in the hole shown on the

diagram.

Accessory5

Accessory7

• Never insert the screws in any other screw hole than the

one specified. If you screw them in another hole, it will

contact and may cause damage to the mechanical parts

inside the unit.

B64-3625-00_00.Indd 46B64-3625-00_00.Indd 46 06.12.25 7:20:09 PM06.12.25 7:20:09 PM

English | 47

Some functions of this unit may be disabled by

some settings made on this unit.

! Cannot switch to Aux source.

▲

• AUX is not turned on. ☞ <Built-in Auxiliary input

Setting> (page 38)

• AUX cannot be used when the KCA-iP200 is

connected.

! • Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

▲

• <Subwoofer Output> (page 10) is not set to On.

• The Dual zone function is enabled. ☞ <Audio

Setup> (page 9)

! • Cannot set up the high pass filter.

• Cannot set up the Fader.

▲

The Dual zone function is enabled. ☞ <Audio

Setup> (page 9)

! Cannot set up the subwoofer phase.

▲

Low pass filter is set to Through. ☞ <Audio Setup>

(page 9)

! • Cannot select the output destination of the

subsource in the Dual zone.

• Cannot adjust the volume of the rear speakers.

▲

The Dual zone function is disabled. ☞ <Audio

Setup> (page 9)

! No Audio control effect on AUX.

▲

The Dual zone function is enabled. ☞ <Audio

Setup> (page 9)

! • Cannot register a security code.

• Cannot set up Display Illumination Control.

▲

<Demonstration mode Setting> (page 40) is not

turned off.

! Cannot play audio files.

▲

<CD Read Setting> (page 38) is set to "2".

! • Cannot File select.

• Cannot direct music serch.

▲

The Random play function is enabled.

Troubleshooting Guide

What might seem to be a malfunction in your unit

may just be the result of slight misoperation or

miswiring. Before calling service, first check the

following table for possible problems.

General

? The Touch Sensor Tone doesn’t sound.

✔ The preout jack is being used.

☞ The Touch Sensor Tone can’t be output from the

preout jack.

Tuner source

? Radio reception is poor.

✔ The car antenna is not extended.

☞ Pull the antenna out all the way.

✔ The antenna control wire is not connected.

☞ Connect the wire correctly, referring to the

section on <Connecting Wires to Terminals>

(page 44).

Disc source

? The specified disc does not play, but another one

plays instead.

✔ The specified CD is quite dirty.

☞ Clean the CD.

✔ The disc is loaded in a different slot from that

specified.

☞ Eject the disc magazine and check the number

for the specified disc.

✔ The disc is severely scratched.

☞ Try another disc instead.

Audio file source

? The sound skips when an Audio file is being

played.

✔ The media is scratched or dirty.

☞ Clean the media, referring to the CD cleaning of

the section on <Handling CDs> (page 6).

✔ The audio file is broken or not supported.

☞ Damaged and unsupported files are skipped.

✔ The recording condition is bad.

☞ Record the media again or use another media.

B64-3625-00_00.Indd 47B64-3625-00_00.Indd 47 06.12.25 7:20:09 PM06.12.25 7:20:09 PM

48 | English

Troubleshooting Guide

HD Radio source

? No sound can be heard, or the volume is low.

✔ The preset broadcast station is not transmitting in

the mode that was set with <Receive mode Setting>

(page 37).

☞ Please set <Receive mode Setting> to "Auto".

✔ In digital AM broadcasting, receive mode switches

between stereo and monaural too often.

☞ Receiving condition is bad or unstable. Stereo is

chosen when receiving condition is good, and

it switches to monaural when the condition

becomes bad.

✔ HD Radio tuner is connected to KCA-S220A or other

units.

☞ Connect the HD Radio tuner directly to this unit.

USB device source

? The USB device is not detected.

✔ The USB connector is disconnected.

☞ Connect the connector of the USB device

properly.

? The USB device does not play its audio files.

✔ The USB connector is disconnected.

☞ Connect the connector of the USB device

properly.

The messages shown below display your

systems condition.

Eject: • No disc magazine has been loaded in

the changer. The disc magazine is not

completely loaded.

• No CD in the unit.

No Disc: No disc has been loaded in the disc

magazine.

TOC Error: • No disc has been loaded in the disc

magazine.

• The CD is quite dirty. The CD is upside-

down. The CD is scratched a lot.

Read Error: • The number of files or folders which are

stored in the connected USB device is above

the limitation.

• The file system of the connected USB device

is broken.

➪ Copy the files and folders for the USB

device again referring to http://www.

kenwood.com/usb/. If the error message is

still displayed, initialize the USB device or

use other USB devices.

Error 05: The disc is unreadable.

Blank Disc: Nothing has been recorded on the MD.

No Track: No tracks are recorded on the MD, although it

has a title.

Error 15: Media was played that doesn’t have data

recorded that the unit can play.

No Panel: The faceplate of the slave unit being

connected to this unit has been removed.

Error 77: The unit is malfunctioning for some reason.

➪ Press the reset button on the unit. If the

"Error 77" code does not disappear, consult

your nearest service center.

Mecha Error: Something is wrong with the disc magazine.

Or the unit is malfunctioning for some reason.

➪ Check the disc magazine. And then press

the reset button on the unit. If the "Mecha

Error" code does not disappear, consult

your nearest service center.

B64-3625-00_00.Indd 48B64-3625-00_00.Indd 48 06.12.25 7:20:10 PM06.12.25 7:20:10 PM

English | 49

Hold Error: The protective circuit in the unit activates

when the temperature inside the automatic

disc changer exceeds 60°C (140°F), stopping

all operation.

➪ Cool down the unit by opening the

windows or turning on the air conditioner.

As the temperature falls below 60°C

(140°F), the disc will start playing again.

No Name: Attempted to display DNPS during the CD

play having no disc names preset.

Waiting: Text for the Satellite Radio tuner source is

being received.

Load: Discs are being exchanged in the Disc

changer.

Reading: The unit is reading the data on the disc.

IN (Blink): The CD player section is not operating

properly.

➪ Reinsert the CD. If the CD cannot be

ejected or the display continues to flash

even when the CD has been properly

reinserted, please switch off the power

and consult your nearest service center.

Protect (Blink): The speaker wire has a short-circuit or

touches the chassis of the vehicle, and then

the protection function is activated.

➪ Wire or insulate the speaker cable properly

and press the reset button. If the "Protect"

code does not disappear, consult your

nearest service center.

Unsupported File:

An Audio file is played with a format that this

unit can’t support.

➪ ----

Copy Protection:

A copy-protected file is played.

➪ ----

DEMO MODE (Blink):

The Demonstration mode has been selected.

➪ The <Demonstration mode Setting> (page

40) is ON. Turn it OFF.

No Device: The USB device is selected as a source

although no USB device is connected.

➪ Change the source to any source other

than USB. Connect an USB device, and

change the source to USB again.

N/A Device: An unsupported USB device is connected.

➪ For the supported USB devices, refer to

<http://www.kenwood.com/usb/>.

No Music Data/ Error 15:

• The connected USB device contains no

playable audio file.

• Media was played that doesn’t have data

recorded that the unit can play.

USB Error: The connected USB device is rated a current

capacity higher than the allowable limit.

➪ Check the USB device with reference to

<http://www.kenwood.com/usb/>.

Some trouble may have occurred to the

connected USB device.

➪ Change the source to any source other

than USB. Remove the USB device.

iPod Error: Connection to the iPod has failed.

➪ Remove the USB device and then

reconnect it.

➪ Confirm that the software for the iPod is

the latest version.

USB REMOVE: The Remove mode has been selected for the

USB device. You can remove the USB device

safely.

B64-3625-00_00.Indd 49B64-3625-00_00.Indd 49 06.12.25 7:20:10 PM06.12.25 7:20:10 PM

50 | English

Specifications

FM tuner section

Frequency range (200 kHz space)

: 87.9 MHz – 107.9 MHz

Usable sensitivity (S/N = 30dB)

: 9.3dBf (0.8 V/75 Ω)

Quieting Sensitivity (S/N = 50dB)

: 15.2dBf (1.6 V/75 Ω)

Frequency response (±3 dB)

: 30 Hz – 15 kHz

Signal to Noise ratio (MONO)

: 70 dB

Selectivity (±400 kHz)

: ≥ 80 dB

Stereo separation (1 kHz)

: 40 dB

AM tuner section

Frequency range (10 kHz space)

: 530 kHz – 1700 kHz

Usable sensitivity (S/N = 20dB)

: 28 dBµ (25 µV)

CD player section

Laser diode

: GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

: 1 Bit

Spindle speed

: 1000 – 400 rpm (CLV 2times)

Wow & Flutter

: Below Measurable Limit

Frequency response (±1 dB)

: 10 Hz – 20 kHz

Total harmonic distortion (1 kHz)

: 0.008 % (KDC-X791)

: 0.010 % (KDC-MP735U/MP635)

Signal to Noise ratio (1 kHz)

: 110 dB (KDC-X791/MP735U)

: 105 dB (KDC-MP635)

Dynamic range

: 93 dB

MP3 decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AAC decode

: AAC-LC ".m4a" files

WAV signal

: Linear-PCM (KDC-X791/MP735U)

USB Interface (KDC-X791/MP735U)

USB Standard

: USB1.1/ 2.0

Maximum Supply current

: 500 mA

File System

: FAT16/ 32

MP3 decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AAC decode

: AAC-LC ".m4a" files

WAV signal

: Linear-PCM

Audio section

Maximum output power

: 50 W x 4

Full Bandwidth Power (at less than 1% THD)

: 22 W x 4

Speaker Impedance

: 4 – 8 Ω

Tone action

Bass : 100 Hz ±8 dB

Middle : 1 kHz ±8 dB

Treble : 10 kHz ±8 dB

Preout level / Load (during disc play)

: 4000 mV/10 kΩ (KDC-X791)

: 2500 mV/10 kΩ (KDC-MP735U/MP635)

Preout impedance

: ≤ 80 Ω (KDC-X791)

: ≤ 600 Ω (KDC-MP735U/MP635)

Auxiliary input

Frequency response (±1 dB)

: 20 Hz – 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 100 kΩ

General

Operating voltage (11 – 16V allowable)

: 14.4 V

Current consumption

: 10 A

Installation Size (W x H x D)

: 182 x 53 x 155 mm

7-3/16 x 2-1/16 x 6-1/8 inch

Weight

: 3.1 lbs (1.4 kg)

Specifications subject to change without notice.

B64-3625-00_00.Indd 50B64-3625-00_00.Indd 50 06.12.25 7:20:10 PM06.12.25 7:20:10 PM

B64-3625-00_00.Indd 51B64-3625-00_00.Indd 51 06.12.25 7:20:11 PM06.12.25 7:20:11 PM

B64-3625-00_00.Indd 52B64-3625-00_00.Indd 52 06.12.25 7:20:11 PM06.12.25 7:20:11 PM

Kenwood Kdc X791 Owner S Manual B64 3625 00_00.Indd

Kenwood-Kdc-Mp735U-Owner-S-Manual kenwood-kdc-mp735u-owner-s-manual

Kenwood-Kdc-Mp635-Owner-S-Manual kenwood-kdc-mp635-owner-s-manual

KDC-MP635 B64-3625-00_00

KDC-MP635 to the manual e5f373c9-f999-4838-b13b-c63597c44426

Navigation menu

Versions of this User Manual:

Views

Navigation
