CD-RECEIVER
DPX-MP2090U
INSTRUCTION MANUAL
© B64-3433-00/00 (MW)
B64-3433-00_English_r1.indd 1B64-3433-00_English_r1.indd 1 06.3.14 6:54:12 PM06.3.14 6:54:12 PM
2 | English
Contents
Safety precautions 3
Notes 4
About CDs 6
About USB device 7
About AAC, MP3 and WMA 8

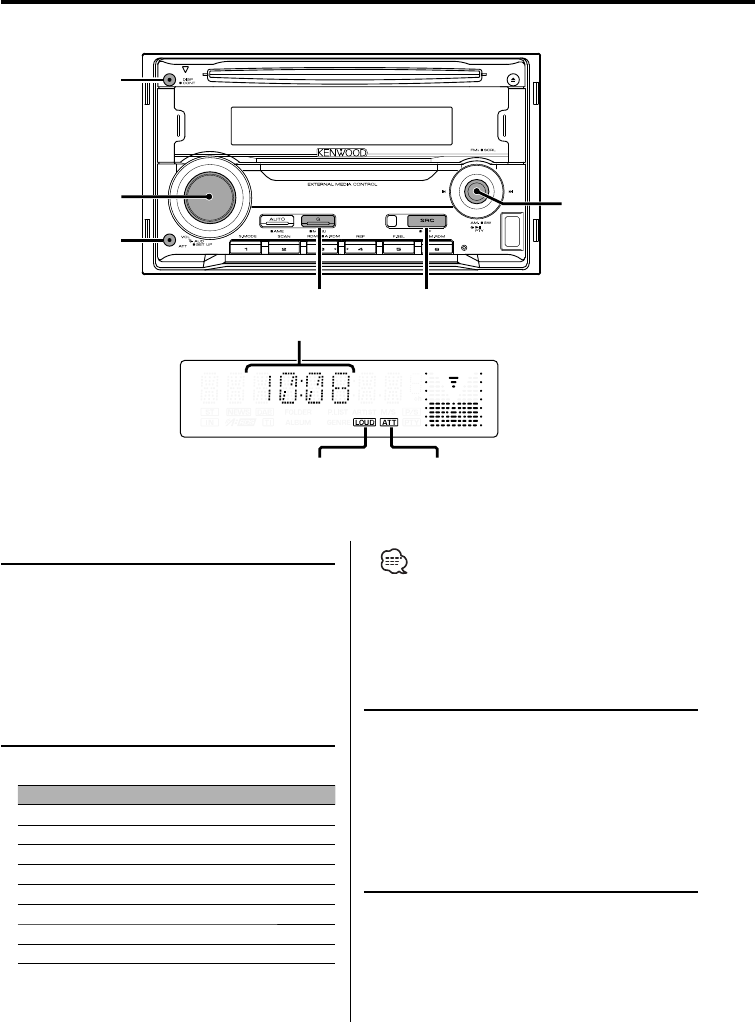

General features 10
Power
Selecting the Source
Volume
Attenuator
System Q
Audio Control
Adjusting the detail of Audio Control
Audio Setup
Speaker Setting
Subwoofer Output
TEL Mute
Switching Display

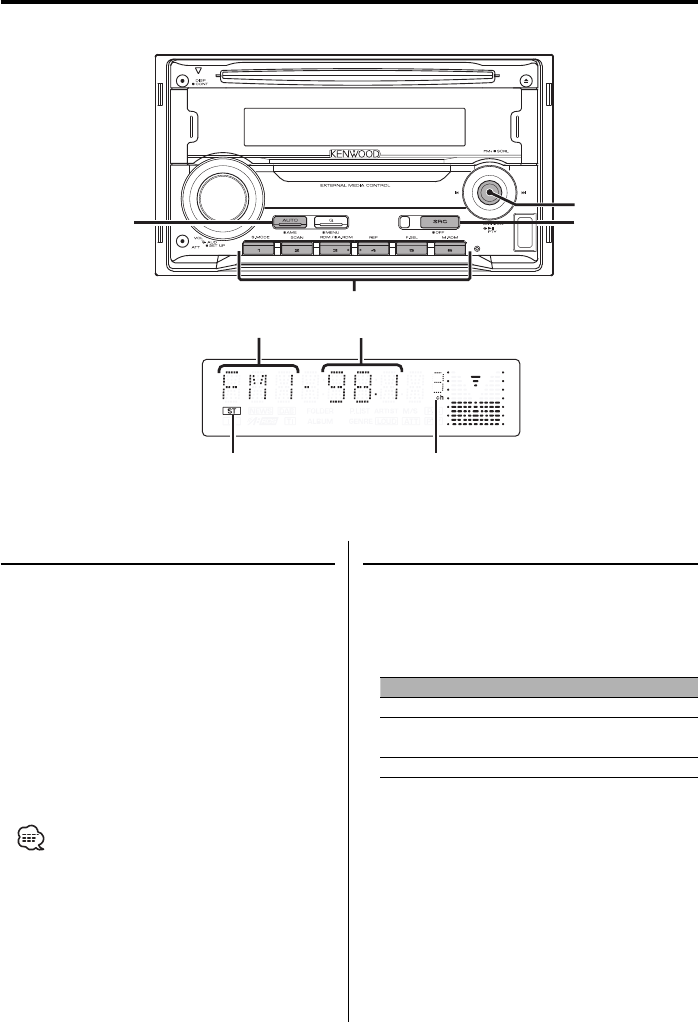

Tuner/TV control features 15
Tuning
Tuning Mode
Direct Access Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
Frequency Step Setting
TV Tuning
TV channel Preset Memory
Preset TV Tuning
Direct TV Tuning

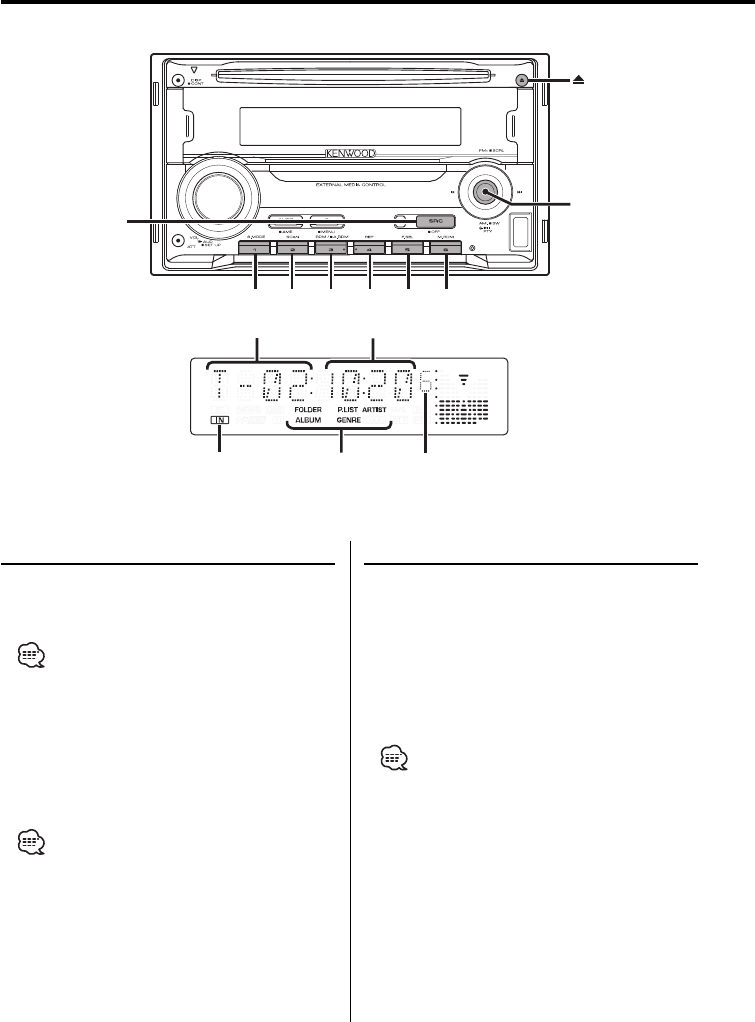

CD/USB device/Audio file/External
disc control features 18
Playing CD & Audio file
Playing USB device
Playing External Disc
Fast Forwarding and Reversing
Track/File Search
Disc Search/Folder Search
Direct Track/File Search
Direct Disc Search
Track/File/Disc/Folder Repeat
Scan Play
Random Play
Magazine Random Play
All Random Play
Select mode
File Select mode
Folder Select 1 mode
Folder Select 2 mode
Switching the Play mode
Letter Seek
Text/Title Scroll
Menu system 25
Menu System
Activating Security Code
Deactivating Security Code
Touch Sensor Tone
Manual Clock Adjustment
Indirect Lighting
Display Illumination Control
Dimmer
Switching preout
Built-in Amp Setting
Dual Zone System Setting
B.M.S. (Bass Management System)
B.M.S. Frequency Offset
AMP Control
CRSC (Clean Reception System Circuit)
Auxiliary Input Display Setting
Text Scroll
Built-in Auxiliary input Setting
CD Read Setting
Voice Index
ACDrive firmware version display
Unique ID display
Audio Preset Memory
Audio Preset Recall
Basic Operations of remote control
32

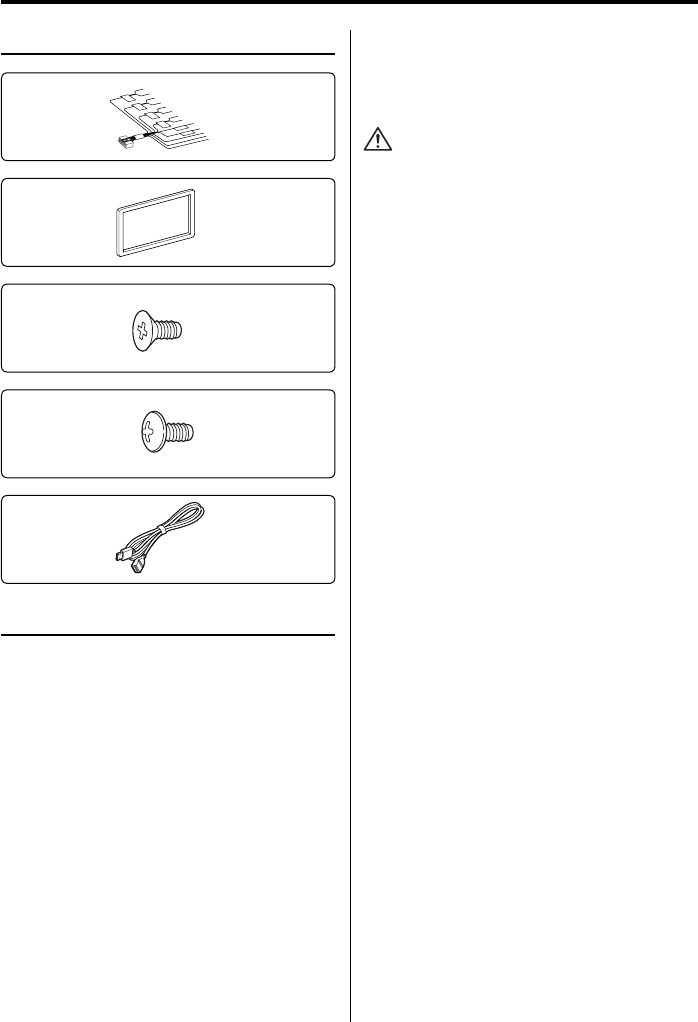

Accessories/ Installation Procedure
34
Connecting Wires to Terminals 35
Installation 36
Troubleshooting Guide 37
Specifications 41
B64-3433-00_English_r1.indd 2B64-3433-00_English_r1.indd 2 06.3.14 6:54:12 PM06.3.14 6:54:12 PM
English | 3
About CD players/disc changers
connected to this unit
Kenwood disc changers/ CD players released in
1998 or later can be connected to this unit.
Refer to the catalog or consult your Kenwood
dealer for connectable models of disc changers/
CD players.
Note that any Kenwood disc changers/ CD players
released in 1997 or earlier and disc changers made
by other makers cannot be connected to this unit.
Connecting unsupported disc changers/CD players
to this unit may result in damage.
Set the "O-N" Switch to the "N" position for the
applicable Kenwood disc changers/ CD players.
The functions you can use and the information
that can be displayed may differ depending on the
models being connected.
• You can damage both your unit and the CD changer if
you connect them incorrectly.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
CD player of the unit. Called lens fogging, this
condensation on the lens may not allow CDs to
play. In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit still
does not operate normally after a while, consult
your Kenwood dealer.
2WARNING
To prevent injury or fire, take the
following precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
• Mounting and wiring this product requires
skills and experience. For safety’s sake, leave the
mounting and wiring work to professionals.
2CAUTION
To prevent damage to the machine, take
the following precautions:
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of
water splashing.
• Do not subject the faceplate to excessive shock,
as it is a piece of precision equipment.
• When replacing a fuse, only use a new fuse with
the prescribed rating. Using a fuse with the wrong
rating may cause your unit to malfunction.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
Do Not Load 8 cm (3 in.) CDs in the CD
slot
If you try to load a 8 cm (3 in.) CD with its adapter
into the unit, the adapter might separate from the
CD and damage the unit.
The "AAC" logo is trademark of Dolby
Laboratories.
Safety precautions
B64-3433-00_English_r1.indd 3B64-3433-00_English_r1.indd 3 06.3.14 6:54:12 PM06.3.14 6:54:12 PM
4 | English
• No USB device comes with this unit. You need to
purchase a commercially available USB device. For
the types of available USB devices, refer to <About
USB device> (page 7).
• If you experience problems during installation,
consult your Kenwood dealer.
• When you purchase optional accessories, check
with your Kenwood dealer to make sure that they
work with your model and in your area.
• We recommend the use of <Activating Security
Code> (page 26) to prevent theft.
• The characters which can be displayed by this
unit are A-Z 0-9 @ " ‘ ` % & * + – = , . / \ < > [ ] ( ) : ;
^ - { } | ~ .
• The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on the
display on the actual equipment, and some of the
illustrations on the display may be inapplicable.
How to reset your unit
• If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed.
• Remove the USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained
in the USB device. For how to remove the USB
device, refer to <Playing USB device> (page 18).
• Press the Reset button if the disc auto changer
fails to operate correctly. Normal operation should
be restored.
Reset button
Notes
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
About "Media Manager" of PC application
attached to DPX-MP2090U
• "Media Manager" is recorded in the CD-ROM
attached to this unit.
• Refer to the attached installation manual for the
installation method of "Media Manager".
• Refer to the user’s manual recorded in the
installation CD-ROM and Help of "Media Manager"
for the operation method of "Media Manager".
• The unit can play CD/ USB device (hereafter called
"ACDrive media") created by "Media Manager".
• Refer to the following site for the updated
information of "Media Manager".
http://www.kenwood.mediamanager.jp
• Contact Kenwood for the function and operation
of the "Media Manager".
• "Media Manager" is a product of PhatNoise.
B64-3433-00_English_r1.indd 4B64-3433-00_English_r1.indd 4 06.3.14 6:54:13 PM06.3.14 6:54:13 PM
English | 5
About DAB Tuner control
Refer to A group on the Instruction manual of DAB
Tuner KTC-9090DAB (optional accessory) for the
control method of DAB Tuner function.
However, the following control methods of the
function for this unit may be differed from the
Instruction manual; therefore, refer to the following
supplemental instruction.
<Auto Ensemble Memory Entry>
1. Select the preset band for Auto Ensemble
Memory Entry.
2. Press the [AME] button for at least 2 seconds.
Open Auto Ensemble Memory Entry.
After memory storage is finished, the number of
the pre-set buttons and the ensemble label are
displayed.
<Searching by programme type and language>
and <Languages to be displayed> in
<Programme Type (PTY) Function>
At the operation to press [DISP] button, use [AUTO]
button instead.
<Automatic Switching DAB priority>
This function cannot be used.
The marking of products using lasers
(Except for some areas)
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. This means that the unit
is utilizing laser beams that are of a weaker class.
There is no danger of hazardous radiation outside
the unit
B64-3433-00_English_r1.indd 5B64-3433-00_English_r1.indd 5 06.3.14 6:54:13 PM06.3.14 6:54:13 PM
6 | English
Handling CDs
• Do not touch the recording surface of the CD.
• CD-R and CD-RW are easier to damage than a
normal music CD. Use a CD-R or a CD-RW after
reading the caution items on the package etc.
• Do not stick tape etc. on the CD, or use a CD with
tape stuck on it.
When using a new CD
If the CD center hole or outside rim has burrs,
use the CD only after removing the burrs with a
ballpoint pen, etc.
CD accessories
Do not use disc type accessories.
CD cleaning
Clean from the center of the disc and move
outward.
About CDs
Burrs
Burrs
Removing CDs
When removing CDs from this unit, pull them out
horizontally.
CDs that cannot be used
• CDs that are not round cannot be used.
• CDs with coloring on the recording surface or CDs
that are dirty cannot be used.
• This unit can only play the CDs with
.
This unit may not correctly play discs which do
not have the mark.
• You cannot play a CD-R or CD-RW that has not
been finalized. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
CD storage
• Do not place CDs in direct sunlight (On the seat
or dashboard etc.) or where the temperature is
high.
• Store CDs in their cases.
B64-3433-00_English_r1.indd 6B64-3433-00_English_r1.indd 6 06.3.14 6:54:13 PM06.3.14 6:54:13 PM
English | 7
About USB device
Notes on Use of the USB device
This unit can play audio files stored in the flash
memory and digital audio player that have a USB
port (these devices are referred to as USB devices in
this document).
The following restrictions are placed on the types
and usage of available USB devices:
Available USB devices
• USB devices belonging to the USB mass storage
class.
• USB devices whose maximum current
consumption is 500 mA or less.
For the supported formats and USB device types,
refer to http://www.kenwood.com/usb/.
• USB Mass Storage Class:
USB devices that the PC can recognize as an external
storage without using any special driver or application
software.
• Contact the sales agent as to whether your USB device
conforms to the USB mass storage class specs.
• Using an unsupported USB device can result in abnormal
playback or display of the audio file.
Even if you use the USB device conforming to the above
specs, audio files cannot be played normally depending
on the type or condition of the USB device.
About the Connection of the USB device
• Do not directly connect the USB device to the
USB connector on the panel. Connect it using a
cable.
• When connecting the USB drive, usage of the
supplied USB cable is recommended.
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
Connecting a cable whose total length is longer
than 5 m can result in abnormal playback.
• You cannot connect a USB device via a USB hub.
• Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
• Do not leave the USB device in the vehicle for a long
time. It can deform or damage due to direct sunlight,
high temperature, etc.
• Take backups of the audio files used with this unit.
The files can be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage arising
out of erasure of the stored data.
• Leave the cap on when not using an USB device.
About USB device Operation
• USB device operation is the same as audio
file operation unless otherwise some notice is
indicated.
• USB source is recognized as CD source on the
connected unit.
B64-3433-00_English_r1.indd 7B64-3433-00_English_r1.indd 7 06.3.14 6:54:14 PM06.3.14 6:54:14 PM
8 | English
About AAC, MP3 and WMA
The playable AAC/MP3/WMA file (hereafter called
Audio file) and the media format has the following
limitation. The Audio file, which is not conforming
to the specification, may not play normally, or the
file and folder names may not display correctly.
Playable Audio file
• AAC, MP3, WMA
• Attach the correct extension for the Audio file (AAC:
".M4A", MP3: ".MP3", WMA: ".WMA")
• Do not attach the extensions to files other than the
Audio file. If the extension is attached, the file, which is
not the Audio file, will play and outputs a loud noise,
causing damage to the speaker.
• The files with copy protection cannot be played.
• Audio files cannot be played depending on the encoding
software setting, USB device type, and/or recording
conditions.
• The unit may not be compatible with upgrade
of compression format standard and additional
specifications.
• For details on the formats used for USB devices and
restrictions, refer to http://www.kenwood.com/usb/.
Playable AAC file
• ".m4a" file encoded by AAC-LC format.
Refer to
http://www.kenwood.mediamanager.jp
for the details.
Playable MP3 file
• MPEG 1/2 Audio Layer 3 file
• Transfer bit rate: 8-320 kbps
• Sampling frequency: 16, 22.05, 24, 32, 44.1, 48 kHz
Playable WMA file
• The file in accordance with Windows Media Audio
(Except for the file for Windows Media Player 9 or
after which applies the new functions)
• Transfer bit rate: 48-192 kbps
• Sampling frequency: 32, 44.1, 48 kHz
Playable Storage media
• CD-ROM, CD-R, CD-RW
• USB device
• CD-RW discs which are quick formatted by the writing
software cannot be used.
• When recording to the maximum CD-R/RW media
capacity at once, the writing software is set to "Disc at
once".
• For details on the available USB devices, refer to <About
USB device> (page 7).
Playable CD-R/RW format
• ISO 9660 Level 1/2
• Joliet
• Romeo
• Long file name.
Playable file format of USB device
• For the formats supported by USB devices, refer to
http://www.kenwood.com/usb/.
The maximum number of characters for
display (CD-R/RW)
File/Folder name: 128 characters
MP3 ID3 Tag/ WMA Contents property:
30 characters
AAC song information: 60 characters
• File/Folder name is the number of the characters
including the extensions.
• This unit can display the following versions of MP3 ID3
tag: version 1.0/ 1.1/ 2.3
• AAC ID3 Tag cannot be displayed.
Limitation of structure for the file and the
folder (CD-R/RW)
• Maximum number of directory levels: 8
• Maximum number of folders: 100
• Maximum number of files per folder: 4096
About partition of the USB device
• While using the USB device, virtual folders are
created to control the partition in the USB device.
These folders appear in the first level (root)
directory as "#:". "#" is an alphabet to identify each
partition.
• Even when the USB device does not have
partition, "A:" folder is created, and audio files are
controlled inside this folder.
B64-3433-00_English_r1.indd 8B64-3433-00_English_r1.indd 8 06.3.14 6:54:14 PM06.3.14 6:54:14 PM
English | 9
Playing order of the Audio file
• The Audio file plays in the order which is written
by CD writing software. You may be able to set
the playing order by writing the play sequence
numbers such as "01" to "99" at the beginning of
the file name.
• Audio files are played in the order the files are
written. You can specify the order of playback by
numbering files in a folder and writing them by
folder. (USB device)
Example
CD
¡!
2
(1)
^: Folder
¡: Audio file
3
¡$
4
¡"
¡#
¡P
5¡%
Folder
Audio file
• Playing order
Playing order after ¡! play.
➡ ¡", ¡#, ¡$, ¡%...
• File search
Forward file search during ¡" play.
Push the Control knob towards [¢] ➡ ¡#
• Folder search
Forward folder search during ¡" play.
Push the Control knob towards [FM] ➡ 4, 5...
• File select
When the selection is set to file ¡%.
Push the Control knob towards [¢]
➡ ¡%...P, %...
• Folder select 1
When the selection is set to directory 4, and you
want to skip to the folder 2 at the same level.
Push the Control knob towards [4] ➡ 2
When the selection is set to directory 3, moves
the level up by folder select.
Push the Control knob towards [AM] ➡ 2
• Folder select 2
When the selection is set to directory 1, and you
want to skip to the folder 4.
Push the Control knob towards [¢] ➡ 3, 4...
B64-3433-00_English_r1.indd 9B64-3433-00_English_r1.indd 9 06.3.14 6:54:14 PM06.3.14 6:54:14 PM
10 | English
General features
Power
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Selecting the Source
Press the [SRC] button.
Source required Display
Tuner "TUNER"
USB device "USB"
CD "CD"
TV (Optional accessory) "TV"
External disc (Optional accessory) "CD CH"
Auxiliary input *1"AUX"
Auxiliary input (Optional accessory) "AUX EXT"
Standby (Illumination only mode) "STANDBY"
• *1 You can operate this function when <Built-in
Auxiliary input Setting> (page 29) is set to "AUX ON".
Volume
Increasing Volume
Turn the [VOL] knob clockwise.
Decreasing Volume
Turn the [VOL] knob counterclockwise.
Attenuator
Turning the volume down quickly.
Press the [ATT] button.
Each time you press the button, the Attenuator
turns ON and OFF.
When the Attenuator is ON, the "ATT" indicator
blinks.
Q SRC
DISP
VOL
ATT
Control knob
LOUD indicator ATT indicator
Clock display
B64-3433-00_English_r1.indd 10B64-3433-00_English_r1.indd 10 06.3.14 6:54:16 PM06.3.14 6:54:16 PM
English | 11
System Q
Selecting the best sound setting preset for
different types of music.
1 Select the source to set
Press the [SRC] button.
2 Select the Sound type
Press the [Q] button.
When you press the button once, the current
sound setting is displayed.
Each time you press the button, the sound
setting alternates.
Sound setting Display
User memory "USER"
Rock "ROCK"
Pops "POPS"
Easy "EASY"
Top 40 "TOP 40"
Jazz "JAZZ"
Natural "NATURAL"
• User memory: The values set on the <Audio Control>
(page 11).
• Change each setting value with the <Speaker
Setting> (page 13).
First, select the speaker type with the Speaker setting.
Audio Control
1 Select the source to adjust
Press the [SRC] button.
2 Enter Audio Control mode
Press the [VOL] knob.
3 Select the Basic Audio item to adjust
Press the [VOL] knob.
Each time you press the knob, the item to be
adjusted alternates between the items shown in
the table below.
4 Adjust the Basic Audio item
Turn the [VOL] knob.
Adjustment Item Display Range
Rear Volume *1"R-VOL" 0 — 35
Subwoofer level*2,3 "SW L" –15 — +15
Bass level*4"BAS L" –8 — +8
Middle level*4"MID L" –8 — +8
Treble level*4"TRE L" –8 — +8
Balance "BAL" Left 15 — Right 15
Fader*3"FAD" Rear 15 — Front 15
Exit Audio Control mode (Volume control mode)
• *1 You can control this item when "2ZON" of <Audio
Setup> (page 12) is set to "ON".
• *2 You can control this item when <Switching preout>
(page 27) is set to "SWPRE SW".
• *2 You can control this item when <Subwoofer
Output> (page 13) is set to "SW ON".
• *3 You can control this item when "2ZON" of <Audio
Setup> (page 12) is set to "OFF".
• *4 You can adjust these items in detail. Refer to
<Adjusting the detail of Audio Control>(Page12).
• *4 Source tone memory: Puts the set up value in the
memory per source. (Detail Audio item is included)
5 Exit Audio Control mode
Press any button.
Press a button other than the [VOL] knob and
[ATT] button.
B64-3433-00_English_r1.indd 11B64-3433-00_English_r1.indd 11 06.3.14 6:54:17 PM06.3.14 6:54:17 PM
12 | English
General features
Adjusting the detail of Audio
Control
Among the Basic Audio items, you can adjust the
Bass level, Middle level, and Treble level in detail.
1 Select the Basic Audio item
Select the desired item to be set in detail from
followings;
• Bass level
• Middle level
• Treble level
For how to select Basic Audio items, see <Audio
Control> (page 11).
2 Enter Detail adjustment mode of Audio
Control
Press the [VOL] knob for at least 1 second.
3 Select the Detail Audio item to adjust
Press the [VOL] knob.
Each time you press the knob, the item to be
adjusted alternates between the items shown in
the table below.
4 Adjust the Detail Audio item
Turn the [VOL] knob.
Bass level
Adjustment Item Display Range
Bass Center Frequency "BAS F" 40/50/60/70/80/100/
120/150 Hz
Bass Q Factor "BAS Q" 1.00/1.25/1.50/2.00
Bass Extend "B EX" OFF/ON
Middle level
Adjustment Item Display Range
Middle Center Frequency "MID F" 0.5/1.0/1.5/2.0 kHz
Middle Q Factor "MID Q" 1.0/2.0
Treble level
Adjustment Item Display Range
Treble Center Frequency "TRE" 10.0/12.5/15.0/17.5 kHz
5 Exit the Detail Audio Control mode
Press the [VOL] knob for at least 1 second.
• When you set the Bass Extend to ON, low frequency
response is extended by 20%.
• You can exit the Audio Control mode at anytime
by pressing any button except for [VOL] and [ATT]
buttons.
Audio Setup
Setting the Sound system, such as Cross over
Network.
1 Select the source to adjust
Press the [SRC] button.
2 Enter Audio Setup mode
Press the [VOL] knob for at least 1 second.
3 Select the Audio Setup item to adjust
Press the [VOL] knob.
Each time you press the knob, the item to be
adjusted alternates between the items shown in
the table below.
4 Setup the Audio item
Turn the [VOL] knob.
Adjustment Item Display Range
Front High Pass Filter*2"HPF" Through/40/60/80/100/120/
150/180/220 Hz
Rear High Pass Filter*2"HPR" Through/40/60/80/100/120/
150/180/220 Hz
Low Pass Filter*1,2 "LPF" 50/60/80/100/120/
Through Hz
Subwoofer Phase*1,2,3 "PHAS" Reverse (180°)/ Normal (0°)
Volume offset "V-OFF" –8 — ±0
Loudness "LOUD" OFF/ON
Dual Zone System "2ZON" OFF/ON
• Volume offset: Sets each source’s volume as a
difference from the basic volume.
• Loudness: Compensates for low and high tones
during low volume.
• *1
You can control this item when <Switching preout>
(page 27) is set to "SWPRE SW".
• *1 You can control this item when <Subwoofer
Output> (page 13) is set to "SW ON".
• *2 You can control this item when "2ZON" of <Audio
Setup> (page 12) is set to "OFF".
• *3 You can control this item when Low Pass Filter is not
set to Through.
• Dual Zone System
Main source and sub source (Auxiliary input) output
Front channel and Rear channel separately.
- Set up the channel of sub source by <Dual Zone
System Setting> (page 28).
- Select Main source by [SRC] button.
- Adjust the volume of Front channel by [VOL] knob.
- Adjust the volume of Rear channel by <Audio
Control> (page 11).
- The Audio Control has no effect on sub source.
B64-3433-00_English_r1.indd 12B64-3433-00_English_r1.indd 12 06.3.14 6:54:17 PM06.3.14 6:54:17 PM
English | 13
• You can use the Dual Zone System with the internal
auxiliary input.
5 Exit Audio Setup mode
Press the [VOL] knob for at least 1 second.
Speaker Setting
Fine-tuning so that the System Q value is optimal
when setting the speaker type.
1 Enter Standby
Press the [SRC] button.
Select the "STANDBY" display.
2 Enter Speaker Setting mode
Press the [VOL] knob.
3 Select the Speaker type
Turn the [VOL] knob.
Each time you turn the knob, the setting
alternates between the settings shown in the
table below.
Speaker type Display
OFF "SP OFF"
For 5 & 4 in. speaker "SP 5/4"
For 6 & 6x9 in. speaker "SP 6*9/6"
For the OEM speaker "SP OEM"
4 Exit Speaker Setting mode
Press the [VOL] knob.
Subwoofer Output
Turning the Subwoofer output ON or OFF.
Push the Control knob toward [AM] for at
least 2 seconds.
Each time you push the knob, Subwoofer output
switches ON and OFF.
When it is ON, "SW ON" is displayed.
• You can control this function when <Switching
preout> (page 27) is set to "SWPRE SW".
• You can control this function when "2ZON" of <Audio
Setup> (page 12) is set to "OFF".
TEL Mute
The audio system automatically mutes when a
call comes in.
When a call comes in
"CALL" is displayed.
The audio system pauses.
Listening to the audio during a call
Press the [SRC] button.
The "CALL" display disappears and the audio
system comes back ON.
When the call ends
Hang up the phone.
The "CALL" display disappears and the audio
system comes back ON.
• To use the TEL Mute feature, you need to hook up
the MUTE wire to your telephone using a commercial
telephone accessory. Refer to <Connecting Wires to
Terminals> (page 35).
B64-3433-00_English_r1.indd 13B64-3433-00_English_r1.indd 13 06.3.14 6:54:18 PM06.3.14 6:54:18 PM
14 | English
General features
Switching Display
Changing the information displayed.
Press the [DISP] button.
Each time the button is pressed, the display
switches as shown below.
In Tuner source
Information Display
Frequency "FREQ"
Clock "CLOCK"
In CD & External disc source
Information Display
Disc title "D-TITLE"*
Track title "T-TITLE"*
Track number & Play time "P-TIME"
Clock "CLOCK"
In Audio file source
Information Display
Song title & Artist name "TITLE"*
Album name & Artist name "ALBUM"*
Folder name "FOLDER"
File name "FILE"
Track number & Play time "P-TIME"
Clock "CLOCK"
In Standby/ Auxiliary input source
Information Display
Source name "SRC NAME"
Clock "CLOCK"
• * If the contents of the information cannot be
displayed, Play time is displayed.
• When LX-AMP is connected, the item setup by the
Display mode of LX-AMP is displayed.
• Track number at Audio file displays the last 3 digits
when it exceeds 1000 songs.
• When you select the clock display, the display setting
of each source will be changed to the clock display.
B64-3433-00_English_r1.indd 14B64-3433-00_English_r1.indd 14 06.3.14 6:54:18 PM06.3.14 6:54:18 PM
English | 15
Tuner/TV control features
Tuning
Selecting the station.
1 Select tuner source
Press the [SRC] button.
Select the "TUNER" display.
2 Select the band
Push the Control knob towards [FM] or [AM].
Each time you push the knob toward [FM], it
switches between the FM1, FM2, and FM3 bands.
3 Tune up or down band
Push the Control knob towards [4] or
[¢].
• During reception of stereo stations the "ST" indicator
is ON.
Tuning Mode
Choose the tuning mode.
Press the [AUTO] button.
Each time you press the button, the Tuning
mode alternates between the modes shown in
the table below.
Tuning mode Display Operation
Auto seek "AUTO 1" Automatic search for a station.
Preset station seek "AUTO 2" Search in order of the stations
in the Preset memory.
Manual "MANUAL" Normal manual tuning control.
SRC
AUTO/AME
1 - 6
Control knob
Frequency display
Band display
ST indicator Preset station
number
B64-3433-00_English_r1.indd 15B64-3433-00_English_r1.indd 15 06.3.14 6:54:18 PM06.3.14 6:54:18 PM
16 | English
Tuner/TV control features
Function of remote control
Direct Access Tuning
Entering the frequency and tuning.
1 Select the band
Press the [FM] or [AM] button.
2 Enter Direct Access Tuning mode
Press the [DIRECT] button on the remote
control.
"– – – –" is displayed.
3 Enter the frequency
Press the number buttons on the remote
control.
Example:
Desired frequency Press button
92.1 MHz (FM) [0], [9], [2], [1]
810 kHz (AM) [0], [8], [1], [0]
Cancelling Direct Access Tuning
Press the [DIRECT] button on the remote
control.
Station Preset Memory
Putting a station in the memory.
1 Select the band
Push the Control knob towards [FM] or [AM].
2 Select the frequency to put in the memory
Push the Control knob towards [4] or
[¢].
3 Put the frequency in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 station can be put in the
memory on each [1] — [6] button.
Auto Memory Entry
Putting stations with good reception in the
memory automatically.
1 Select the band for Auto Memory Entry
Push the Control knob towards [FM] or [AM].
2 Open Auto Memory Entry
Press the [AME] button for at least 2 seconds.
"A-MEMORY" is displayed.
When 6 stations that can be received are put in
the memory, Auto Memory Entry closes.
Preset Tuning
Recalling the stations in the memory.
1 Select the band
Push the Control knob towards [FM] or [AM].
2 Recall the station
Press the desired [1] — [6] button.
Frequency Step Setting
Changing the tuning frequency step.
The original setting is FM band 50 kHz, and AM
band 9 kHz.
1 Turn the power OFF
Press the [SRC] button for at least 1 second.
2 Switch the frequency step
While pressing the [1] and [5] buttons, press
the [SRC] button.
Release the [SRC] button first, after the display
appears, release your fingers from the [1] and [5]
buttons.
The frequency step changes to FM band 200 kHz,
and AM band 10 kHz.
• When the same operation is repeated, the frequency
step returns to the original setting.
• When the frequency step is changed, the frequencies
in the memory are deleted.
B64-3433-00_English_r1.indd 16B64-3433-00_English_r1.indd 16 06.3.14 6:54:19 PM06.3.14 6:54:19 PM
English | 17
Function of LX BUS Television
TV Tuning
Selecting the TV channel of a connected LX BUS
Television (optional accessory).
The action depends on the setting of the
connected LX BUS Television. Refer to the user
instruction of the LX BUS Television for details.
1 Select TV source
Press the [SRC] button.
Select the "TV" display.
2 Select the TV band and Video input
Push the Control knob toward [FM].
Each time you push the knob to [FM], TV bands
and Video input alternate.
3 Select the TV channel
Push the Control knob towards [4] or
[¢].
Function of LX BUS Television
TV channel Preset Memory
Putting the TV channels in the memory.
1 Select the TV band
Push the Control knob toward [FM].
2 Select the TV channel to put in the memory
Push the Control knob towards [4] or
[¢].
3 Put the TV channel in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 TV channel can be put in the
memory on each [1] — [6] button.
Function of LX BUS Television
Preset TV Tuning
Recalling the TV channels in the memory.
1 Select the TV band
Push the Control knob toward [FM].
2 Recall the TV channel
Press the desired [1] — [6] button.
Function of remote control
Direct TV Tuning
Entering the TV channel and tuning.
1 Select the TV band
Press the [FM] button.
2 Enter Direct TV Tuning mode
Press the [DIRECT] button on the remote
control.
"– –" is displayed.
3 Enter the TV channel
Press the number buttons on the remote
control.
Example:
Desired channel Press button
8 ch [0], [8]
Cancelling Direct TV Tuning
Press the [DIRECT] button on the remote
control.
B64-3433-00_English_r1.indd 17B64-3433-00_English_r1.indd 17 06.3.14 6:54:19 PM06.3.14 6:54:19 PM
18 | English
CD/USB device/Audio file/External disc control features
Playing CD & Audio file
When a disc is inserted
Press the [SRC] button.
Select the "CD" display.
• When a disc is inserted, the "IN" indicator is ON.
Pause and play
Press the Control knob.
Each time you press the knob, the audio pauses
or plays.
Eject the disc
Press the [0] button.
• You can cancel the announcement when selecting
the folder by <Voice Index> (page 30) during the play
of the ACDrive media.
Playing USB device
Playing USB device
1 Select a source other than the USB device
Press the [SRC] button.
2 Connect the USB device.
3 Select USB source
Press the [SRC] button.
Select the "USB" display.
• For the types of available USB devices and how to
connect USB devices, refer to <About USB device>
(page 7).
• After you stopped playing a file contained in the USB
device, you can restart playing the file from the point
where you stopped its playback.
Even after removing the USB device, you can restart
playing the file from the point where you stopped
its playback as long as the files contained in the USB
device are all the same.
• Be sure to insert the USB device connector as far as it
will go.
• You can play the disc (ACDrive media) made by Media
Manager by the same operation.
SCANS.MODE REP F.SEL M.RDM
RDM/
A.RDM/3
SRC
Control knob
Track number Play time
IN indicator Disc number
Play mode
B64-3433-00_English_r1.indd 18B64-3433-00_English_r1.indd 18 06.3.14 6:54:20 PM06.3.14 6:54:20 PM
English | 19
• You can cancel the announcement when selecting
the folder by <Voice Index> (page 30) during the play
of the ACDrive media.
Pause and play
Press the Control knob.
Each time you press the knob, the audio pauses
or plays.
Removing the USB device
1 Select a source other than the USB device
Press the [SRC] button.
2 Remove the USB device.
• Removing the USB device with it selected as a source
can damage the data stored in the USB device.
• You can remove the USB device safely with the unit
power turned off.
Playing External Disc
Playing discs set in the optional accessory disc
player connected to this unit.
Press the [SRC] button.
Select the display for the disc player you want.
Display examples:
Display Disc player
"CD CH" CD changer
"MD CH" MD changer
Pause and play
Press the Control knob.
Each time you press the knob, the audio pauses
or plays.
• Disc 10 is displayed as "0".
• The functions that can be used and the information
that can be displayed will differ depending on the
external disc players being connected.
Fast Forwarding and Reversing
Fast Forwarding
Hold down toward [¢] with the Control
knob.
Release to resume the playback.
Reversing
Hold down toward [4] with the Control
knob.
Release to resume the playback.
• There is no sound while the Audio file is being
searched.
• You cannot fast Forwarding and Reversing depending
on AAC file format.
Track/File Search
Searching for a song on the disc or in the Audio
file folder.
Push the Control knob towards [4] or
[¢].
Function of disc changer/ Audio file
Disc Search/Folder Search
Selecting the disc set in the Disc changer or the
folder recorded on the Audio file media.
Push the Control knob towards [FM] or [AM].
B64-3433-00_English_r1.indd 19B64-3433-00_English_r1.indd 19 06.3.14 6:54:20 PM06.3.14 6:54:20 PM
20 | English
CD/USB device/Audio file/External disc control features
Function of remote control
Direct Track/File Search
Doing Track/File Search by entering the track/file
number.
1 Enter the track/file number
Press the number buttons on the remote
control.
• You can select Direct File Search up to 999.
2 Do Track/File Search
Press the [4] or [¢] button.
Cancelling Direct Track/File Search
Press the [38] button.
Function of disc changers with remote control
Direct Disc Search
Doing Disc Search by entering the disc number.
1 Enter the disc number
Press the number buttons on the remote
control.
2 Do Disc Search
Press the [+] or [–] button.
Cancelling Direct Disc Search
Press the [38] button.
• Input "0" to select disc 10.
Track/File/Disc/Folder Repeat
Replaying the song, disc in the Disc changer or
Audio file folder you are listening to.
Press the [REP] button.
Each time you press the button, the Repeat Play
alternates between the modes shown in the
tables below.
In CD & External disc source
Repeat play Display
Track Repeat "TRAC REP"
Disc Repeat (In Disc Changer) "DISC REP"
OFF "REP OFF"
In Audio file source
Repeat play Display
File Repeat "FILE REP"
Folder Repeat "FOLD REP"
OFF "REP OFF"
Scan Play
Playing the first part of each song on the disc
or Audio file folder you are listening to and
searching for the song you want to hear.
1 Start Scan Play
Press the [SCAN] button.
"TRAC SCN"/ "FILE SCN"/ "SCAN ON" is displayed.
2 Release it when the song you want to listen
to is played
Press the [SCAN] button.
Random Play
Play all the songs on the disc or Audio file folder
in random order.
Press the [RDM] button.
Each time you press the button, Random Play
turns ON or OFF.
When the Random mode is ON, "DISC RDM"/
"FOLD RDM"/ "RDM ON" is displayed.
• When you push the Control knob toward [¢], the
next random song starts.
B64-3433-00_English_r1.indd 20B64-3433-00_English_r1.indd 20 06.3.14 6:54:20 PM06.3.14 6:54:20 PM
English | 21
Function of disc changer
Magazine Random Play
Play the songs on all the discs in the disc changer
in random order.
Press the [M.RDM] button.
Each time you press the button, the Magazine
Random Play turns ON or OFF.
When the Magazine Random mode is ON,
"MGZN RDM" is displayed.
• When you push the Control knob toward [¢], the
next random song starts.
Function of Audio file
All Random Play
Playing randomly from all of the Audio files
recorded in the media.
Press the [A.RDM] button for at least 1
second.
When the random mode is ON, "ALL RDM" is
displayed.
Cancelling the All Random Play
Press the [A.RDM] button.
• When you push the Control knob toward [¢], the
next random song starts.
Function of Audio file
Select mode
Quickly selecting the file or folder you want to
hear.
1 Select the Select mode
Press the [F.SEL] button.
Display Select mode
"FILE SEL"*1Refer to <File Select mode> (page 22).
"FLD SEL1"/ "FLD SEL" Refer to <Folder Select 1 mode> (page 22).
"FLD SEL2" *2Refer to <Folder Select 2 mode> (page 23).
Exit the Select mode
• The Select mode does not function when <All
Random Play> (page 21) is ON.
• *1 You cannot operate this function when <Random
Play> (page 20) is set to "ON".
• *2 You cannot operate this function when <Switching
the Play mode> (page 23) is set to other than
"FOLDER" while playing ACDrive media.
2 Select the file/ folder
Refer to the explanation of the procedure
performed in each select mode.
Scrolling the file/ folder name display
Push the Control knob toward [FM] for at
least 2 seconds.
• You can cancel the announcement when selecting
the folder by <Voice Index> (page 30) during the play
of the ACDrive media.
• In the File Select mode, the <Voice Index> (page 30)
announcement is not made.
B64-3433-00_English_r1.indd 21B64-3433-00_English_r1.indd 21 06.3.14 6:54:21 PM06.3.14 6:54:21 PM
22 | English
CD/USB device/Audio file/External disc control features
Function of Audio file
File Select mode
You can select an audio file in the folder currently
being played by file name.
1 Enter File Select mode
Press the [F.SEL] button.
Select the "FILE SEL" display.
Refer to <Select mode> (page 21).

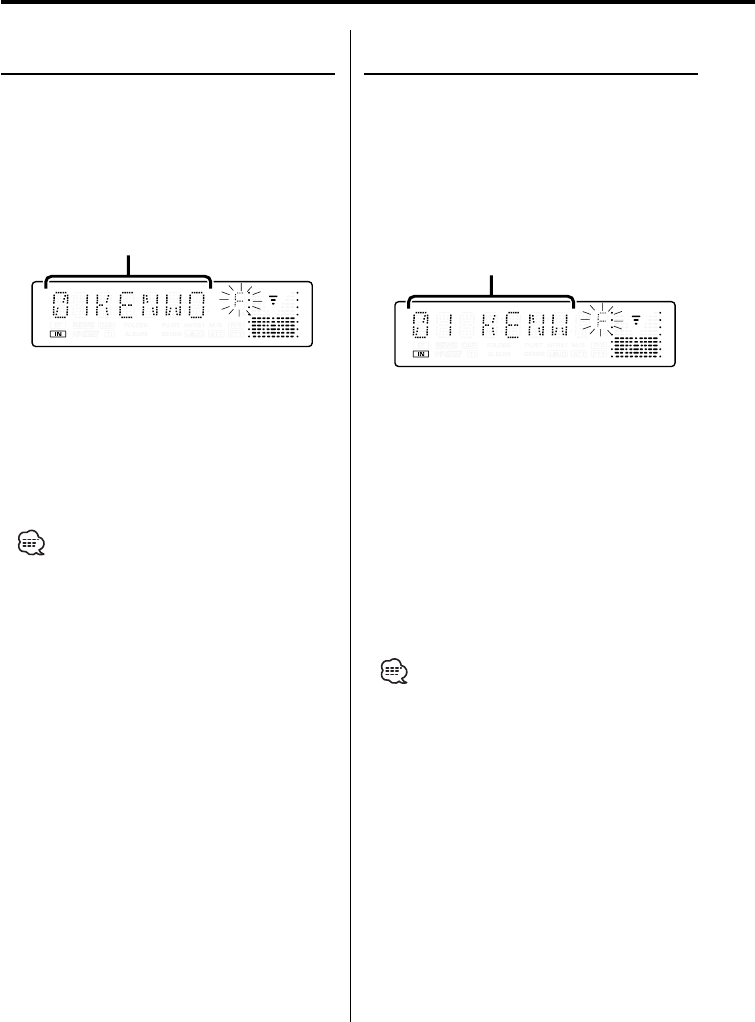

File name display
Displays the current file name.
2 Select the file
Push the Control knob towards [4] or
[¢].
Switching between files in units of 10 songs
Push the Control knob towards [FM] or [AM].
With the [FM] button, you move 10 songs up and
with the [AM] button, 10 songs down.
• You can select File Select mode up to 999.
3 Decide the file to play
Press the Control knob.
The File Select mode releases, and the Audio file
being displayed plays.
Function of Audio file
Folder Select 1 mode
Select the target folder by tracing the hierarchical
levels of folders. This is convenient when
managing audio files by folder.
1 Enter Folder Select 1 mode
Press the [F.SEL] button.
Select the "FLD SEL1"/ "FLD SEL" display.
Refer to <Select mode> (page 21).
Folder name display
Displays the current folder name.
2 Select the folder level*
Push the Control knob towards [FM] or [AM].
With the [FM] button, you move 1 level down
and with the [AM] button, 1 level up.
Selecting a folder in the same level
Push the Control knob towards [4] or
[¢].
With the [4] of the Control knob, you move
to the previous folder, and with the [¢] of the
Control knob, to the next folder.
Returning to the top level*
Press the [3] button.
• * You cannot operate this function when <Switching
the Play mode> (page 23) is set to other than
"FOLDER" while playing ACDrive media.
3 Decide the folder to play
Press the Control knob.
The Folder Select mode releases, and the Audio
file in the folder being displayed plays.
B64-3433-00_English_r1.indd 22B64-3433-00_English_r1.indd 22 06.3.14 6:54:21 PM06.3.14 6:54:21 PM
English | 23
Function of Audio file
Folder Select 2 mode
Select the target folder within the folders
containing audio files. The folder which contains
playable audio files is only displayed.
1 Enter Folder Select 2 mode
Press the [F.SEL] button.
Select the "FLD SEL2" display.
Refer to <Select mode> (page 21).
Folder name display
Displays the current folder name.
2 Select the folder
Push the Control knob towards [4] or
[¢].
Each time you push the knob, the folders
containing audio files are displayed one after
another.
Check the name of upper level folder
Push the Control knob towards [FM] or [AM].
With the [FM] button, the folder name in the
upper level is displayed.
With the [AM] button, the folder name in the
lower level is displayed.
"" is displayed while the upper level folder is
displayed.
3 Decide the folder to play
Press the Control knob.
The Folder Select mode releases, and the Audio
file in the folder being displayed plays.
Function of ACDrive media
Switching the Play mode
Arrange the playing orders of the songs by
categories.
Press the [S.MODE] button.
Each time you press the button, the Play mode
alternates between the modes shown in the
table below.
The Play mode indicator is ON.
Play mode Category which is to be arranged
"PLAYLIST" Play list order.
"GENRE" By genre.
"ARTIST" By artist.
"ALBUM" By album.
"FOLDER" By the folder recorded in media
• The category information of each song is the data
registered in Media Manager when ACDrive media is
being generated.
• You can cancel the announcement made when the
mode is changed by <Voice Index> (page 30).
• You can select the advancement of the Play mode
information by [AM] and [FM] knob.
B64-3433-00_English_r1.indd 23B64-3433-00_English_r1.indd 23 06.3.14 6:54:22 PM06.3.14 6:54:22 PM
24 | English
CD/USB device/Audio file/External disc control features
Function of ACDrive media
Letter Seek
You can search for the song, you want to play, by
selecting the initial of Genre name, Artist name,
or Album name.
1 Enter the Letter Seek mode
Press the [S.MODE] button for at least 1
second.
• This operation does not function when <All Random
Play> (page 21) is ON.
• This function is available only when the Play mode is
set Genre, Artist, or Album.
Cancelling the Letter Seek
Press the [S.MODE] button.
2 Start the Letter Seek
Push the Control knob towards [4] or
[¢].
The initial of Genre name, Artist name, or Album
name is displayed and announced in order.
• The announcement of the initial can be canceled by
<Voice Index> (page 30).
• When you push the Control knob to the reverse [4]
or [¢] during Letter Seek, the initial is displayed and
announced in the reversed order.
• Once Letter Seek starts, it cannot be cancelled.
3 Select the song to play
Press the Control knob when the initial of
the song you are searching is displayed and
announced.
The selected initial group plays.
Text/Title Scroll
Scrolling the displayed CD text, Audio file text, or
MD title.
Push the Control knob toward [FM] for at
least 2 seconds.
• When the <Display Illumination Control> (page 27) is
set to OFF, the display may black out while scrolling.
B64-3433-00_English_r1.indd 24B64-3433-00_English_r1.indd 24 06.3.14 6:54:23 PM06.3.14 6:54:23 PM
English | 25
Menu system
Menu System
Setting beep sound during operation, etc.
functions.
The Menu system basic operation method is
explained here. The reference for the Menu items
and their setting content is after this operation
explanation.
1 Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
2 Select the menu item
Push the Control knob towards [FM] or [AM].
Example: When you want to set the beep sound
select the "BEEP" display.
3 Set the menu item
Push the Control knob towards [4] or
[¢].
Example: When you select "BEEP", each time you
push the knob it alternates between
"BEEP ON" or "BEEP OFF". Select 1 of
them as the setting.
You can continue by returning to step 2 and
setting other items.
4 Exit Menu mode
Press the [MENU] button.
• When other items those applicable to the basic
operation method above are displayed, their setting
content chart is entered. (Normally the setting listed at
the top of the chart is the original setting.)
Also, the explanation for items that are not applicable
(<Manual Clock Adjustment> etc.) are entered step
by step.
MENU SRC
Control knob
Menu display
B64-3433-00_English_r1.indd 25B64-3433-00_English_r1.indd 25 06.3.14 6:54:23 PM06.3.14 6:54:23 PM
26 | English
Menu system
In Standby mode
Activating Security Code
Activating the Security Code disables the usage
of audio unit by someone else. Once the Security
Code is activated, the entry of authorized Security
Code is required to turn on the audio unit when
it is removed from the vehicle. Indication of this
Security Code activation prevents your precious
audio unit from stealing.
• You can set the Security Code with a 4 digit number of
your choice.
• The Security Code cannot be displayed or referenced.
Make a note of the Security Code and treasure it up.
1 Enter Standby
Press the [SRC] button.
Select the "STANDBY" display.
2 Enter Menu mode
Press the [MENU] button for at least 1 second.
When "MENU" is displayed, "CODE SET" is also
displayed.
3 Enter Security Code mode
Press the Control knob for at least 1 second.
When "ENTER" is displayed, "CODE" is also
displayed.
4 Select the digits to enter
Push the Control knob towards [4] or
[¢].
5 Select the Security Code numbers
Push the Control knob towards [FM] or [AM].
6 Repeat steps 4 and 5, and complete the
Security Code.
7 Confirm the Security Code
Press the Control knob for at least 3 seconds.
When "RE-ENTER" is displayed, "CODE" is also
displayed.
8 Do the step 4 through 7 operation, and
reenter the Security Code.
"APPROVED" is displayed.
The Security Code function activates.
9 Exit Security Code mode
Press the [MENU] button.
• If you enter the wrong code in steps 4 through 6,
repeat from step 4.
Resetting the Security Code function when
the audio unit is first used after removed
from the battery power source or the Reset
button is pressed
1 Turn the power ON.
2 Do the step 4 through 7 operation, and enter
the Security Code.
"APPROVED" is displayed.
Now, you can use the unit.
• When the Security Code function is activated, "CODE
SET" changes to "CODE CLR".
• To deactivate the Security Code function, see the next
section <Deactivating Security Code>.
In Standby mode
Deactivating Security Code
To deactivate the Security Code function.
1 Select Security Code mode
Push the Control knob towards [FM] or [AM].
Select the "CODE CLR" display.
2 Enter Security Code mode
Press the Control knob for at least 1 second.
When "ENTER" is displayed, "CODE" is also
displayed.
3 Select the digits to enter
Push the Control knob towards [4] or
[¢].
4 Select the Security Code numbers
Push the Control knob towards [FM] or [AM].
5 Repeat steps 3 and 4, and complete the
Security Code.
6 Press the Control knob for at least 3 seconds.
"CLEAR" is displayed.
The Security Code function deactivates.
7 Exit Security Code mode
Press the [MENU] button.
B64-3433-00_English_r1.indd 26B64-3433-00_English_r1.indd 26 06.3.14 6:54:23 PM06.3.14 6:54:23 PM
English | 27
In Standby mode
Touch Sensor Tone
Setting the operation check sound (beep sound)
ON/OFF.
Display Setting
"BEEP ON" Beep is heard.
"BEEP OFF" Beep canceled.
In Standby mode
Manual Clock Adjustment
1 Select Clock Adjustment mode
Push the Control knob towards [FM] or [AM].
Select the "CLK ADJ" display.
2 Enter Clock Adjust mode
Press the Control knob for at least 1 second.
The clock display blinks.
3 Adjust the hours
Push the Control knob towards [FM] or [AM].
Adjust the minutes
Push the Control knob towards [4] or
[¢].
4 Exit Clock adjustment mode
Press the [MENU] button.
In Standby mode
Indirect Lighting
You can illuminate the area around the display
with soft indirect lighting.
Display Setting
"LGHT ON" Turns indirect lighting on.
"LGHT OFF" Turns indirect lighting off.
Display Illumination Control
This function turns off the display when you
perform no operation for 5 seconds. This function
is effective when you are driving at night.
Display Setting
"DISP ON" Keeps the display on.
"DISP OFF" Turns off the display when you perform no
operation for 5 seconds.
• When the display is off, pressing any key will turn on
the display.
• When the display is off, you cannot perform any
operation except for the following:
• Volume
• Attenuator
• Selecting the source
• Ejecting the disc
• Turning off the power
• During function control, such as the Menu System, the
display stays on.
In Standby mode
Dimmer
Dimming this unit’s display automatically when
the vehicle light switch is turned ON.
Display Setting
"DIM ON" The display dims.
"DIM OFF" The display doesn’t dim.
In Standby mode
Switching preout
Alternating the preout between the rear and
subwoofer. (With the subwoofer the sound
outputs without being effected by fader control.)
Display Setting
"SWPRE R" Rear preout.
"SWPRE SW" Subwoofer preout.
• If a wrong security code is entered, "ERROR" is
displayed. Enter a correct security code.
B64-3433-00_English_r1.indd 27B64-3433-00_English_r1.indd 27 06.3.14 6:54:24 PM06.3.14 6:54:24 PM
28 | English
Menu system
In Standby mode
Built-in Amp Setting
Controlling the built-in amplifier.
Turning OFF this control enhances the preout
quality.
Display Setting
"AMP ON" The built-in amplifier activates.
"AMP OFF" The built-in amplifier deactivates.
Other than Standby mode/
When the Dual Zone System is ON
Dual Zone System Setting
Setting the Front channel and Rear channel
sound in the Dual Zone System.
Display Setting
"ZONE2 R" Sub source (Auxiliary input source) is to be rear
channel.
"ZONE2 F" Sub source (Auxiliary input source) is to be front
channel.
Other than Standby mode
B.M.S. (Bass Management System)
Adjust the bass boost level of the external
amplifier using the main unit.
Display Setting
"BMS FLT" Bass boost level is flat.
"BMS +6" Bass boost level is low (+6dB).
"BMS +12" Bass boost level is mid (+12dB).
"BMS +18" Bass boost level is high (+18dB).
• Refer to the catalog or instruction manual for power
amplifiers that can be controlled from this unit.
• For amplifiers, there are the models you can set from
Flat to +18 dB, and the models you can set from Flat
to +12 dB.
When an amplifier that can only be set to +12 is
connected to the unit, "BMS +18" will not work
correctly even if it is selected.
Other than Standby mode
B.M.S. Frequency Offset
Setting the central frequency, boosted by B.M.S.
Display Setting
"BMSF NML" Boost with the normal central frequency.
"BMSF LOW" Drop the normal central frequency 20%.
When LX AMP unit connecting
AMP Control
You can control the LX AMP connected to the
unit.
1 Select AMP Control mode
Push the Control knob towards [FM] or [AM].
Select the "AMP CTRL" display.
2 Enter AMP Control mode
Press the Control knob for at least 1 second.
3 Select the AMP Control item for adjustment
Push the Control knob towards [FM] or [AM].
• For the details on the AMP Control item, see the
Instruction manual attached to the LX AMP.
4 Adjust the AMP Control item
Push the Control knob towards [4] or
[¢].
5 Exit AMP Control mode
Press the [MENU] button.
• You cannot use the LX AMP operation during standby
mode.
In FM reception
CRSC (Clean Reception System
Circuit)
Temporarily have reception alternate from
stereo to mono to reduce multi-path noise when
listening to the FM station.
Display Setting
"CRSC ON" The CRSC is ON.
"CRSC OFF" The CRSC is OFF.
B64-3433-00_English_r1.indd 28B64-3433-00_English_r1.indd 28 06.3.14 6:54:24 PM06.3.14 6:54:24 PM
English | 29
• Strong electrical fields (such as from power lines) may
cause unstable sound quality when CRSC is turned
ON. In such a situation, turn it OFF.
Auxiliary Input Display Setting
Selecting the display when changing to Auxiliary
input source.
1 Select Auxiliary input source
Press the [SRC] button.
Select the "AUX"/ "AUX EXT" display.
2 Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
3 Select Auxiliary input display setting mode
Push the Control knob towards [FM] or [AM].
Select the "NAME SET" display.
4 Enter Auxiliary input display setting mode
Press the Control knob for at least 1 second.
The presently selected Auxiliary input display is
displayed.
5 Select the Auxiliary input display
Push the Control knob towards [4] or
[¢].
Each time you push the knob, the display
alternates as listed below.
• "AUX"/ "AUX EXT"
• "DVD"
• "PORTABLE"
• "GAME"
• "VIDEO"
• "TV"
6 Exit Menu mode
Press the [MENU] button.
• When operation stops for 10 seconds, the name at
that time is registered, and the Auxiliary input display
setting mode closes.
• The Auxiliary Input Display can be set only when the
built-in auxiliary input or the auxiliary input of optional
KCA-S210A is used.
Text Scroll
Setting the displayed text scroll.
Display Setting
"SCL AUTO" Repeats scroll.
"SCL MANU" Scrolls when the display changes.
• The text scrolled is listed below.
- CD text
- Folder name/ File name/ Song title/ Artist name/
Album name
- MD title
In Standby mode
Built-in Auxiliary input Setting
Set the Built-in Auxiliary Input function.
Display Setting
"AUX OFF" When selecting the source there’s no Auxiliary Input.
"AUX ON" When selecting the source there’s Auxiliary Input.
In Standby mode
CD Read Setting
When there is a problem with playing a CD with
special format, this setting plays the CD by force.
Display Setting
"CD READ 1" Play CD and Audio file.
"CD READ 2" Play CD by force.
• Setting "CD READ 2" cannot play Audio file.
Some music CDs may not play even in the "CD READ
2" mode.
B64-3433-00_English_r1.indd 29B64-3433-00_English_r1.indd 29 06.3.14 6:54:25 PM06.3.14 6:54:25 PM
30 | English
Menu system
Function of ACDrive media
Voice Index
Setting the announcement during the play of
ACDrive media.
Display Setting
"V-ID ON" Guide is announced.
"V-ID OFF" Not be announced.
In CD/ USB mode
ACDrive firmware version display
Displaying the firmware version with the ACDrive
function.
1 Select the firmware version display mode
Push the Control knob towards [FM] or [AM].
Select the "ACD VER" display.
2 Display the ACDrive firmware version
Push the Control knob towards [4] or
[¢].
In CD/ USB mode
Unique ID display
Displaying the serial number for each product.
1 Select the unique ID display mode
Push the Control knob towards [FM] or [AM].
Select the "ACD ID" display.
2 Display the unique ID
Push the Control knob towards [4] or
[¢].
Other than Standby mode
Audio Preset Memory
Registering the value setup by Sound Control. The
memory cannot be erased by the Reset button.
1 Setup Sound Control
Refer to the following operations to setup the
Sound Control.
- <Audio Control> (page 11)
- <Audio Setup> (page 12)
2 Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
3 Select Audio Preset mode
Push the Control knob towards [FM] or [AM].
Select the "A-PRESET" display.
4 Enter Audio Preset mode
Press the Control knob for at least 1 second.
5 Select the Audio Preset Memory
Push the Control knob towards [FM] or [AM].
Select the "MEMORY" display.
6 Put the Audio Preset in the memory
Press the Control knob for at least 2 seconds.
The "MEMORY" display blinks 1 time.
7 Exit Audio Preset mode
Press the [MENU] button.
• Register 1 pair of Audio Preset Memory. You cannot
register by the source.
• When you press the Reset, all the sources will be the
setting value which is registered.
• The following items cannot be registered.
Volume, Balance, Fader, Loudness, Volume offset, Dual
Zone System, Rear Volume
B64-3433-00_English_r1.indd 30B64-3433-00_English_r1.indd 30 06.3.14 6:54:25 PM06.3.14 6:54:25 PM
English | 31
Other than Standby mode
Audio Preset Recall
Recalling the sound setup registered by <Audio
Preset Memory> (page 30).
1 Select the source
Press the [SRC] button.
2 Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
3 Select Audio Preset mode
Push the Control knob towards [FM] or [AM].
Select the "A-PRESET" display.
4 Enter Audio Preset mode
Press the Control knob for at least 1 second.
5 Select the Audio Preset Recall
Push the Control knob towards [FM] or [AM].
Select the "RECALL" display.
6 Recall the Audio Preset
Press the Control knob for at least 2 seconds.
The "RECALL" display blinks 1 time.
7 Exit Audio Preset mode
Press the [MENU] button.
• The User memory of <System Q> (page 11) is
changed to the value which was recalled.
• The source tone memory item of <Audio Control>
(page 11) is changed to the value which was recalled
by the selected source.
B64-3433-00_English_r1.indd 31B64-3433-00_English_r1.indd 31 06.3.14 6:54:26 PM06.3.14 6:54:26 PM
32 | English
Basic Operations of remote control
Loading and Replacing the battery
Use two "AA"/ "R6"-size batteries.
Slide the cover while pressing downwards to
remove it as illustrated.
Insert the batteries with the + and – poles aligned
properly, following the illustration inside the case.
2WARNING
• Store unused batteries out of the reach of children.
Contact a doctor immediately if the battery is
accidentally swallowed.
• Do not set the remote control in hot places such as
on the dashboard.
Basic operations
[VOL] buttons
Adjusts the volume.
[SRC] button
Each time you press the button, the source
alternates.
For the source alternating order refer to
<Selecting the Source> (page 10).
[ATT] button
Turns the volume down quickly.
When the button is pressed again, the volume
returns to the previous level.
ATT
DIRECT
[0]—[9]
SRC
38
VOL
AUD
4/¢
FM/AM/
+
/–
2-ZONE
SRC
DIRECT
/OK2-ZONE
ABC DEF
JKLGHI MNO
TUV
QZ
R.VOL
PRS WXY
VOL
AT T
AU D
FM+
AM–
38
¢
4
Not Used
B64-3433-00_English_r1.indd 32B64-3433-00_English_r1.indd 32 06.3.14 6:54:26 PM06.3.14 6:54:26 PM
English | 33
Audio Control
[AUD] button
Selects the Audio item to be adjusted.
[VOL] buttons
Adjusts the Audio item.
• Refer to <Audio Control> (page 11) for the operation
method, such as the procedures for Audio control and
others operations.
• The remote control can only select and adjust the
Basic Audio item. Selecting and adjusting of the Detail
Audio item cannot be done.
Dual Zone System
[2-ZONE] button
Each time you press the button, "2ZON" of
<Audio Setup> (page 12) is turned ON or OFF.
[5]/ [∞] buttons
Adjusts the volume of the rear channel.
The rear channel activates while the Dual Zone
System is ON.
In Tuner source
[FM]/ [AM] buttons
Selects the band.
Each time you press the [FM] button, the band
alternates between the FM1, FM2, and FM3
bands.
[4]/ [¢] buttons
Tune up or down band.
[0] — [9] buttons
Press buttons [1] — [6] to recall preset stations.
[DIRECT] button
Enters and cancels the <Direct Access Tuning>
(page 16) mode.
In Disc/USB source
[4]/ [¢] buttons
Going forwards and backwards between track/
files.
[+]/ [–] buttons
Going forwards and backwards between disc/
folders.
[38] button
Each time you press the button, the song pauses
or plays.
[0] — [9] buttons
When in <Direct Track/File Search> (page 20) and
<Direct Disc Search> (page 20), enters the track/
file/disc number.
In TV source
[FM] button
Selects the TV band and Video input.
Each time you press the [FM] button, TV bands
and Video input alternates.
[4]/ [¢] buttons
Selects the TV channel.
[0] — [9] buttons
Press buttons [1] — [6] to recall preset TV
channels.
[DIRECT] button
Enters and cancels the <Direct TV Tuning> (page
17) mode.
B64-3433-00_English_r1.indd 33B64-3433-00_English_r1.indd 33 06.3.14 6:54:27 PM06.3.14 6:54:27 PM
34 | English
Accessories/ Installation Procedure
Accessories
1
..........1
2
..........1
3
..........6
4
..........6
5
..........1
Installation Procedure
1. To prevent a short circuit, remove the key from
the ignition and disconnect the - battery.
2. Make the proper input and output wire
connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the
following order: ground, battery, ignition.
5. Connect the wiring harness connector to the
unit.
6. Install the unit in your car.
7. Reconnect the - battery.
8. Press the reset button.
2WARNING
If you connect the ignition wire (red) and the battery wire
(yellow) to the car chassis (ground), you may cause a short
circuit, that in turn may start a fire. Always connect those
wires to the power source running through the fuse box.
• If the power is not turned ON (or it is ON, but will be OFF
immediately), the speaker wire may have a short circuit
or touched the chasis of the vehicle and the protection
function may have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC position,
connect the ignition wires to a power source that can be
turned on and off with the ignition key. If you connect
the ignition wire to a power source with a constant
voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so
that the faceplate will not hit the lid when closing and
opening.
• If the fuse blows, first make sure the wires aren’t touching
to cause a short circuit, then replace the old fuse with
one with the same rating.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent a short circuit, do not remove
the caps on the ends of the unconnected wires or the
terminals.
• Connect the speaker wires correctly to the terminals to
which they correspond. The unit may be damaged or fail
to work if you share the - wires or ground them to any
metal part in the car.
• When only two speakers are being connected to the
system, connect the connectors either to both the front
output terminals or to both the rear output terminals
(do not mix front and rear). For example, if you connect
the + connector of the left speaker to a front output
terminal, do not connect the - connector to a rear
output terminal.
• After the unit is installed, check whether the brake lamps,
blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
B64-3433-00_English_r1.indd 34B64-3433-00_English_r1.indd 34 06.3.14 6:54:27 PM06.3.14 6:54:27 PM
AUX IN
–
+
P.CONT
MUTE
ANT. CONT
ILLUMI
FRONT L
FRONT R
REAR L
REAR R
EXT. CONT
FM/AM
antenna input
Front left output (White)
Front right output (Red)
Fuse (10A)
To Kenwood disc changer/
External optional accessory
Wiring harness
(Accessory1)
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left
speaker
To front right
speaker
To rear right
speaker
To rear left
speaker
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
To connect these leads, refer to the
relevant instruction manuals.
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
When using the optional power amplifier, connect
to its power control terminal.
To car light control switch
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for the
booster amplifier of the film-type antenna.
TEL mute wire (Brown) Connect to the terminal that is grounded when
either the telephone rings or during conversation.
To connect the Kenwood navigation
system, consult your navigation manual.
AUX left input (White)
AUX right input (Red)
Rear left output/ Sub Woofer left output (White)
Rear right output/ Sub Woofer right output (Red)
External amplifier control wire
(Pink/Black) To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
English | 35
Connecting Wires to Terminals
B64-3433-00_English_r1.indd 35B64-3433-00_English_r1.indd 35 06.3.14 6:54:27 PM06.3.14 6:54:27 PM
36 | English
When performing a check of the CD operation prior
to installation, place this unit in a horizontal position
and perform a loading/eject of the CD.
When a ground wire is included in the wiring kit (which
is sold separately), fasten the ground wire with the
binding screw located on the rear panel of this unit.
Accessory3
(M5 × 6 mm)
or Accessory4
(M5 × 7 mm) Accessory2
(Only for NISSAN car)
Screw (M4× 8)
(commercially available)
Installation
Install onto the car bracket using the supplied
screws (M5 × 6 mm, M5 × 7 mm). The holes of the
car bracket to use will differ depending on the car
model.
• During installation, do not use any screws except for
those provided. The use of different screws might result
in damage to the main unit.
• Damage may occur if a screwdriver or similar tool is used
with excessive force during the installations.
USB Device Connection
1 Remove the cap and connect the USB cable
(Accessory5).
2 Connect the USB device to the unit using the
supplied cable.
Installation
B64-3433-00_English_r1.indd 36B64-3433-00_English_r1.indd 36 06.3.14 6:54:30 PM06.3.14 6:54:30 PM
What might seem to be a malfunction in your unit
may just be the result of slight misoperation or
miswiring. Before calling service, first check the
following table for possible problems.
General
? The power does not turn ON.
✔ The fuse has blown.
☞ After checking for short circuits in the wires,
replace the fuse with one with the same
rating.
? There’s a source you can’t switch.
✔ There’s no media inserted.
☞ Set the media you want to listen to. If there’s
no media in this unit, you can’t switch to each
source.
✔ The Disc changer isn’t connected.
☞ Connect the Disc changer. If the Disc changer
isn’t connected to it’s input terminal, You can’t
switch to an external disc source.
? The memory is erased when the ignition is
turned OFF.
✔ The ignition and battery wire are incorrectly
connected.
☞ Connect the wire correctly, referring to the
section on <Connecting Wires to Terminals>
(page 35).
? There’s no loudness effect.
✔ You’re using Subwoofer preout.
☞ Loudness has no effect in Subwoofer preout.
? The TEL mute function does not work.
✔ The TEL mute wire is not connected properly.
☞ Connect the wire correctly, referring to the
section on <Connecting Wires to Terminals>
(page 35).
? The TEL mute function turns ON even though the
TEL mute wire is not connected.
✔ The TEL mute wire is touching a metal part of the
car.
☞ Pull the TEL mute wire away from the metal
part of the car.
? Even if Loudness is turned ON, high-pitched tone
isn’t compensated for.
✔ Tuner source is selected.
☞ High-pitched tone isn’t compensated for when
in Tuner source.
? No sound can be heard, or the volume is low.
✔ The fader or balance settings are set all the way to
one side.
☞ Center the fader and balance settings.
✔ The input/output wires or wiring harness are
connected incorrectly.
☞ Reconnect the input/output wires or the
wiring harness correctly. See the section on
<Connecting Wires to Terminals> (page 35).
✔ The values of Volume offset are low.
☞ Turn up the Volume offset, referring to the
section on <Audio Setup> (page 12).
✔ The <Built-in Amp Setting> (page 28) is OFF.
☞ Turn it ON.
? The sound quality is poor or distorted.
✔ One of the speaker wires is being pinched by a
screw in the car.
☞ Check the speaker wiring.
✔ The speakers are not wired correctly.
☞ Reconnect the speaker wires so that each
output terminal is connected to a different
speaker.
? The Touch Sensor Tone doesn’t sound.
✔ The preout jack is being used.
☞ The Touch Sensor Tone can’t be output from
the preout jack.
✔ The <Touch Sensor Tone> (page 27) is OFF.
☞ Turn it ON.
? The Dimmer function does not work.
✔ The Dimmer wire is not connected correctly.
☞ Check the Dimmer wire connection.
✔ The <Dimmer> (page 27) is OFF.
☞ Turn it ON.
? The sound is not output from Subwoofer or it
outputs the different sound.
✔ When "2ZON" of <Audio Setup> (page12) is set to
ON.
☞ Set "2ZON" of <Audio Setup> to OFF.
? The display blacks out while scrolling.
✔ <Display Illumination Control> is set to OFF.
☞ Refer to <Display Illumination Control> (page
27).
English | 37
Troubleshooting Guide
B64-3433-00_English_r1.indd 37B64-3433-00_English_r1.indd 37 06.3.14 6:54:30 PM06.3.14 6:54:30 PM
Tuner source
? Radio reception is poor.
✔ The car antenna is not extended.
☞ Pull the antenna out all the way.
✔ The antenna control wire is not connected.
☞ Connect the wire correctly, referring to the
section on <Connecting Wires to Terminals>
(page 35).
? The desired frequency can’t be entered with the
Direct Access Tuning.
✔ A station that can’t be received is being entered.
☞ Enter a station that can be received.
✔ You’re trying to enter a frequency with a 0.01 MHz
unit.
☞ What can be designated in the FM band is to
0.1 MHz.
Disc source
? "AUX EXT" is displayed without achieving
External disc control mode.
✔ Unsupported disc changer is connected.
☞ Use the disc changer mentioned in the
<About CD players/disc changers connected
to this unit> (page 3) of the section on <Safety
precautions>.
? The specified disc does not play, but another one
plays instead.
✔ The specified CD is quite dirty.
☞ Clean the CD.
✔ The disc is loaded in a different slot from that
specified.
☞ Eject the disc magazine and check the
number for the specified disc.
✔ The disc is severely scratched.
☞ Try another disc instead.
? A CD ejects as soon as it is loaded.
✔ The CD is quite dirty.
☞ Clean the CD, referring to the CD cleaning of
the section on <About CDs> (page 6).
? Can’t remove disc.
✔ The cause is that more than 10 minutes has
elapsed since the vehicle ACC switch was turned
OFF.
☞ The disc can only be removed within 10
minutes of the ACC switch being turned OFF.
If more than 10 minutes has elapsed, turn
the ACC switch ON again and press the Eject
button.
? The disc won’t insert.
✔ There’s already another disc inserted.
☞ Press the [0] button and remove the disc.
? Direct Search can’t be done.
✔ Another function is ON.
☞ Turn Random Play or other functions OFF.
? Track Search can’t be done.
✔ For the discs/folders first or last song.
☞ For each disc/folder, Track Search can’t be
done in the backward direction for the first
song or in the forward direction for the last
song.
Troubleshooting Guide
38 | English
B64-3433-00_English_r1.indd 38B64-3433-00_English_r1.indd 38 06.3.14 6:54:31 PM06.3.14 6:54:31 PM
Audio file source
? Cannot play an Audio file.
✔ The media is scratched or dirty.
☞ Clean the media, referring to the CD cleaning
of the section on <About CDs> (page 6).
? The sound skips when an Audio file is being
played.
✔ The media is scratched or dirty.
☞ Clean the media, referring to the CD cleaning
of the section on <About CDs> (page 6).
✔ The recording condition is bad.
☞ Record the media again or use another media.
? The Audio file track time isn’t displayed correctly.
✔ ---
☞ There are times when it isn’t displayed
correctly according to the Audio file recording
conditions.
USB device source
? The USB device is not detected.
✔ The USB connector is disconnected.
☞ Connect the connector of the USB device
properly.
? The USB device does not play its audio files.
✔ The USB connector is disconnected.
☞ Connect the connector of the USB device
properly.
The messages shown below display your
systems condition.
EJECT: No disc magazine has been loaded in
the changer. The disc magazine is not
completely loaded.
➪ Load the disc magazine properly.
No CD in the unit.
➪ Insert the CD.
NO DISC: No disc has been loaded in the disc
magazine.
➪ Load a disc into the disc magazine.
TOC ERR: No disc has been loaded in the disc
magazine.
➪ Load a disc into the disc magazine.
The CD is quite dirty. The CD is upside-
down. The CD is scratched a lot.
➪ Clean the CD and load it correctly.
READ ERR: • The number of files or folders which are
stored in the connected USB device is
above the limitation.
• The file system of the connected USB
device is broken.
➪ Copy the files and folders for the USB
device again referring to http://www.
kenwood.com/usb/. If the error
message is still displayed, initialize the
USB device or use other USB devices.
E-05: The CD is upside-down.
➪ Load the CD correctly.
BLANK: Nothing has been recorded on the MD.
NO TRACK: No tracks are recorded on the MD,
although it has a title.
NO PANEL: The faceplate of the slave unit being
connected to this unit has been removed.
➪ Replace it.
E-77: The unit is malfunctioning for some reason.
➪ Press the reset button on the unit. If the
"E-77" code does not disappear, consult
your nearest service center.
E-99: Something is wrong with the disc
magazine. Or the unit is malfunctioning for
some reason.
➪ Check the disc magazine. And then
press the reset button on the unit. If the
"E-99" code does not disappear, consult
your nearest service center.
English | 39
B64-3433-00_English_r1.indd 39B64-3433-00_English_r1.indd 39 06.3.14 6:54:31 PM06.3.14 6:54:31 PM
HOLD: The protective circuit in the unit activates
when the temperature inside the
automatic disc changer exceeds 60°C
(140°F), stopping all operation.
➪ Cool down the unit by opening
the windows or turning on the air
conditioner. As the temperature falls
below 60°C (140°F), the disc will start
playing again.
LOAD: Discs are being exchanged in the Disc
changer.
READING: The unit is reading the data on the disc.
IN (Blink): The CD player section is not operating
properly.
➪ Reinsert the CD. If the CD cannot be
ejected or the display continues to flash
even when the CD has been properly
reinserted, please switch off the power
and consult your nearest service center.
PROTECT: The speaker wire has a short-circuit or
touches the chassis of the vehicle, and
then the protection function is activated.
➪ Wire or insulate the speaker cable
properly and press the reset button.
NA FILE: An Audio file is played with a format that
this unit can’t support.
➪ ----
COPY PRO: A copy-protected file is played.
➪ ----
NO DVICE: The USB device is selected as a source
although no USB device is connected.
➪ Change the source to any source other
than USB. Connect an USB device, and
change the source to USB again.
NA DVICE: An unsupported USB device is connected.
➪ For the supported USB devices, refer to
<About USB device> (page 7).
NO MUSIC:
E-15: • The connected USB device contains no
playable audio file.
• Media was played that doesn’t have data
recorded that the unit can play.
➪ Use media that has data recorded that
the unit can play.
USB ERR: The connected USB device is rated a
current capacity higher than the allowable
limit.
➪ Check the USB device with reference to
<About USB device> (page 7).
Some trouble may have occurred to the
connected USB device.
➪ Remove the USB device and then
reconnect it. When the same message
displays again, use another USB device.
Troubleshooting Guide
40 | English
B64-3433-00_English_r1.indd 40B64-3433-00_English_r1.indd 40 06.3.14 6:54:32 PM06.3.14 6:54:32 PM
English | 41
Specifications
Specifications subject to change without notice.
FM tuner section
Frequency range
(50 kHz space) : 87.5 MHz – 108.0 MHz
(200 kHz space): 87.9 MHz – 107.9 MHz
Usable sensitivity (S/N = 30dB)
: 9.3dBf (0.8 μV /75 Ω)
Quieting Sensitivity (S/N = 50dB)
: 15.2dBf (1.6 μV /75 Ω)
Frequency response (±3.0 dB)
: 30 Hz – 15 kHz
Signal to Noise ratio (MONO)
: 70 dB
Selectivity (±400 kHz)
: ≥ 80 dB
Stereo separation (1 kHz)
: 40 dB
AM tuner section
Frequency range
(9 kHz space) : 531 kHz – 1611 kHz
(10 kHz space): 530 kHz – 1700 kHz
Usable sensitivity (S/N = 20dB)
: 28 dBμ (25 μV)
CD player section
Laser diode
: GaAlAs
Digital filter (D/A)
: 8 Times Over Sampling
D/A Converter
: 1 Bit
Spindle speed (Audio file)
: 1000 – 400 rpm (CLV 2times)
Wow & Flutter
: Below Measurable Limit
Frequency response (±1 dB)
: 10 Hz – 20 kHz
Total harmonic distortion (1 kHz)
: 0.008 %
Signal to Noise ratio (1 kHz)
: 105 dB
Dynamic range
: 93 dB
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC ".m4a" files
USB Interface
USB Standard
: USB 1.1/ 2.0
Maximum Supply current
: 500 mA
File System
: FAT16/ 32
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC ".m4a" files
Audio section
Maximum output power
: 50 W x 4
Full Bandwidth Power (at less than 1% THD)
: 22 W x 4
Speaker impedance
: 4 – 8 Ω
Tone action
Bass : 100 Hz ±8 dB
Middle : 1 kHz ±8 dB
Treble : 10 kHz ±8 dB
Preout level / Load (during disc play)
: 2500 mV/10 kΩ
Preout impedance
: ≤ 600 Ω
Auxiliary input
Frequency response (±1 dB)
: 20 Hz – 20 kHz
Input Maximum Voltage
: 1200 mV
Input Impedance
: 100 kΩ
General
Operating voltage (11 – 16V allowable)
: 14.4 V
Current consumption
: 10 A
Installation Size (W x H x D)
: 178 x 100 x 155 mm
Weight
: 1.60 kg
B64-3433-00_English_r1.indd 41B64-3433-00_English_r1.indd 41 06.3.14 6:54:32 PM06.3.14 6:54:32 PM
B64-3433-00_English_r1.indd 42B64-3433-00_English_r1.indd 42 06.3.14 6:54:32 PM06.3.14 6:54:32 PM
B64-3433-00_English_r1.indd 43B64-3433-00_English_r1.indd 43 06.3.14 6:54:32 PM06.3.14 6:54:32 PM
B64-3433-00_English_r1.indd 44B64-3433-00_English_r1.indd 44 06.3.14 6:54:32 PM06.3.14 6:54:32 PM

Navigation menu
