Kenwood Car Stereo System Dpx U5130 Users Manual

Kenwood Car Stereo System DPX-U5130BT 51256c4834293

DPX-U5130BT to the manual 88d15e36-2978-457c-add6-a640eeb1c010

: Kenwood Kenwood-Kenwood-Car-Stereo-System-Dpx-U5130-Users-Manual-263110 kenwood-kenwood-car-stereo-system-dpx-u5130-users-manual-263110 kenwood pdf

Open the PDF directly: View PDF .
Page Count: 48

B64-5068-00/00 (MW)© 2012 JVC KENWOOD Corporation

DPX-U5130BT

DPX-U5130

DUAL DIN SIZED CD RECEIVER

INSTRUCTION MANUAL

13-2DIN_M_EN_00.indb 1 12/11/26 15:59

2 | DPX-U5130BT/ DPX-U5130

Contents

Before use 4

Safety precaution

Important information

Regulatory Compliance

Appendix 5

Trademarks

Specifications

Basic operations 8

Component names

Preparations

How to select the item

Adjusting the clock

General operations

Audio adjustments 11

Audio control

Listen to the iPod 12

Models of iPods/iPhones that can be connected

to this unit

Playing music

Music search

Alphabet search

Skip search ratio setting

Play function

APP & iPod Mode

Pandora® internet radio 15

Requirements Pandora® internet radio

Listening to the Pandora® internet radio

Basic operation

Station search

New station registration

Station preset memory

Preset tuning

Pandora source control

Aha Radio 18

Requirements Aha™

Listening to the Aha Radio

Basic operations

Station search

Calling a number in the content

Listen to the CD/ Audio le 20

Playing music

Music search

Skip search ratio setting

Play function

Direct music search

About the Audio file

About the USB device

About “KENWOOD Music Editor Light” and

“KENWOOD Music Control”

About the discs used with this unit

Handling discs

Listen to the tuner 23

Listening to the radio

Station preset memory

Auto memory

Preset tuning

Tuner setting

Direct access tuning

Frequency Step Setting

Listen to the AUX 25

Start listening

Auxiliary input display setting

Display settings 26

Illumination color selection

Adjusting the Illumination color

Display & Illumination setting

Text Display Selection

Text scroll

General settings 28

Muting the audio upon reception of a phone call

Demonstration mode setting

Initial settings

Registering a Bluetooth

(Function of DPX-U5130BT) 30

About the Bluetooth module

Registering a Bluetooth device

Selecting the Bluetooth device you wish to

connect

Deleting a registered Bluetooth device

Bluetooth device registration test

13-2DIN_M_EN_00.indb 2 12/11/26 15:59

English | 3

Hands-free phoning

(Function of DPX-U5130BT) 32

Receiving a call

Calling a number in the phone book

Alphabet search

Dialing a number

Calling a number in the call log

Speed dialing (Preset dial)

Registering in the preset dial number list

During a call

Switching between Two Connected Cell-phones

Clearing the disconnection message

Making a call by voice dialing

Display of phone number types (categories)

Bluetooth audio

(Function of DPX-U5130BT) 35

Before use

Basic operations

Play function

Bluetooth settings

(Function of DPX-U5130BT) 36

Registering the PIN code

Downloading the phone book

Deleting the phone book

Displaying the firmware version

Bluetooth detail setting

Basic operation of remote control 38

Before using remote control

Basic opreation

Troubleshooting guide 40

Setting error

Operation/wiring error

Error messages

Accessories/ Installation Procedure 43

Connecting Wires to Terminals 44

Installation 46

13-2DIN_M_EN_00.indb 3 12/11/26 15:59

4 | DPX-U5130BT/ DPX-U5130

Before use

Safety precaution

# WARNING

To prevent injuries or a re, take the following

precautions:

• Stop the car before operating the unit.

• To prevent a short circuit, never put or leave any

metallic objects (such as coins or metal tools) inside

the unit.

! CAUTION

• Adjust the volume so that you can hear the sound

outside the car. Driving with the volume too high

may cause an accident.

• Wipe off the dirt on the panel with a dry silicon or

soft cloth.

Failure to observe this precaution may result in

damage to the monitor or unit.

• If you experience problems during installation,

consult your Kenwood dealer.

Condensation

When the car is air-conditioned, moisture may collect

on the laser lens. This may cause disc read errors. In

this case, remove the disc and wait for the moisture

to evaporate.

How to reset your unit

If the unit fails to operate properly, press the Reset

button. The unit returns to the factory settings when

the Reset button is pressed.

Reset button

Important information

Notes

• If you experience problems during installation,

consult your Kenwood dealer.

• When you purchase optional accessories, check with

your Kenwood dealer to make sure that they can

work with your model and in your area.

• Characters that conform to ISO 8859-1 can be

displayed.

• The illustrations of the display and panel appearing

in this manual are examples used to explain more

clearly how the controls are used. Therefore, what

appears on the display in the illustrations may differ

from what appears on the display on the actual

equipment, and some of the images on the display

may be inapplicable.

Regulatory Compliance

The marking of products using lasers

The label is attached to the chassis/case and says

that the component uses laser beams that have been

classified as Class 1. It means that the unit is utilizing

laser beams that are of a weaker class. There is no

danger of hazardous radiation outside the unit.

13-2DIN_M_EN_00.indb 4 12/11/26 15:59

English | 5

Appendix

Trademarks

• The “AAC” logo is a trademark of Dolby Laboratories.

• “Made for iPod” and “Made for iPhone” mean that an

electronic accessory has been designed to connect

specifically to iPod or iPhone, respectively, and has been

certified by the developer to meet Apple performance

standards. Apple is not responsible for the operation of

this device or its compliance with safety and regulatory

standards. Please note that the use of this accessory with

iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are

trademarks of Apple Inc., registered in the U.S. and other

countries.

• iTunes is a trademark of Apple Inc.

• Microsoft and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

• The Bluetooth word mark and logos are owned by

the Bluetooth SIG, Inc. and any use of such marks by

JVC KENWOOD Corporation is under license. Other

trademarks and trade names are those of their respective

owners.

• PANDORA, the PANDORA logo, and the Pandora trade dress

are trademarks or registered trademarks of Pandora Media,

Inc., used with permission.

• aha, the Aha logo, and the Aha trade dress are trademarks

or registered trademarks of HARMAN International

Industries, used with permission.

• Android is a trademark of Google Inc.

• BlackBerry®, RIM®, Research In Motion® and related

trademarks, names and logos are the property of Research

In Motion Limited and are registered and/or used in the U.S.

and countries around the world. Used under license from

Research In Motion Limited.

13-2DIN_M_EN_00.indb 5 12/11/26 15:59

6 | DPX-U5130BT/ DPX-U5130

Specifications

FM tuner section

Frequency range

200 kHz space

: 87.9 MHz – 107.9 MHz

50 kHz space

: 87.5 MHz – 108.0 MHz

Usable sensitivity (S/N = 26dB)

: 7.2dBf (0.63 μV/75 Ω)

Quieting Sensitivity (DIN S/N = 46dB)

: 15.2dBf (1.6 μV/75 Ω)

Frequency response (±3 dB)

: 30 Hz – 15 kHz

Signal to Noise ratio (MONO)

: 75 dB

Stereo separation (1 kHz)

: 45 dB

AM tuner section

Frequency range

Band1 (MW) : 530 kHz – 1700 kHz (10 kHz space)

: 531 kHz – 1611 kHz (9 kHz space)

Band2 (SW1) : 2940 kHz – 7735 kHz (5 kHz space)

Band3 (SW2) : 9500 kHz – 10135 kHz / 11580 kHz

- 18135 kHz (5 kHz space)

Usable sensitivity (S/N = 20dB)

MW : 31 dBµ (36 µV)

SW : 32 dBµ (40 µV)

CD player section

Laser diode

: GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

: 24 Bit

Spindle speed (Audio files)

: 500 – 200 rpm (CLV)

Wow & Flutter

: Below Measurable Limit

Frequency response (±1 dB)

: 20 Hz – 20 kHz

Total harmonic distortion (1 kHz)

: 0.01 %

Signal to Noise ratio (1 kHz)

: 105 dB

Dynamic range

: 90 dB

MP3 decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AAC decode

: AAC-LC “.m4a” files

USB interface

USB Standard

: USB1.1/ 2.0 (Full speed)

File System

: FAT12/ 16/ 32

Maximum Supply current

: DC 5 V = 1 A

MP3 decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AAC decode

: AAC-LC “.m4a” files

WAV decode

: Linear-PCM

Appendix

13-2DIN_M_EN_00.indb 6 12/11/26 15:59

English | 7

Audio section

Maximum output power

: 50 W x 4

Full Bandwidth Power (at less than 1% THD)

: 22 W x 4

Speaker Impedance

: 4 – 8 Ω

Tone action

Bass : 100 Hz ±8 dB

Middle : 1 kHz ±8 dB

Treble : 12.5 kHz ±8 dB

Preout level/ Load (CD)

: 2500 mV/10 kΩ

Preout impedance

: ≤ 600 Ω

Bluetooth section (DPX-U5130BT)

Version

: Bluetooth Ver.2.1+EDR Certified

Frequency range

: 2.402 – 2.480 GHz

Output Power

: +4dBm (MAX), 0dBm (AVE) Power Class 2

Maximum Communication range

: Line of sight approx.10m (32.8 ft)

Profiles

: HFP (Hands Free Profile)

: SPP (Serial Port Profile)

: PBAP (Phonebook Access Profile)

: OPP (Object Push Profile)

: A2DP (Advanced Audio Distribution Profile)

: AVRCP (Audio/Video Remote Control Profile)

Auxiliary input

Frequency response (±3 dB)

: 20 Hz – 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 10 kΩ

General

Operating voltage

DPX-U5130BT

: 14.4 V (10.5 – 16V allowable)

DPX-U5130

: 14.4 V (11 – 16V allowable)

Maximum Current consumption

: 10 A

Installation Size (W x H x D)

: 182 x 111 x 157 mm

Weight

: 1.5 kg

Specications subject to change without notice.

13-2DIN_M_EN_00.indb 7 12/11/26 15:59

8 | DPX-U5130BT/ DPX-U5130

Basic operations

Component names

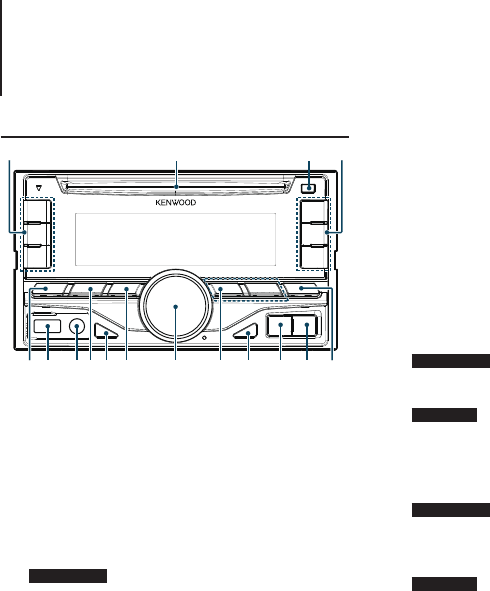

(2) (2)(3)(1)

(17)(4) (15)

(16)

(13)

(14)

(12)(5) (8) (9) (10) (11)(6)(7)

(1) Disk slot

Insert a disc (label side up) in this slot.

(2) [1] - [6] button

When listening to the radio, press the button to call

a registered station.

When listening to the CD/USB/iPod, press the

button to perform the following operations:

- DPX-U5130BT [1] [2] : Selecting an audio file folder.

- [3] : Selecting Random Play.

- [4] : Selecting Repeat Play.

- [5] : Selecting App & iPod Control Mode.

(3) [G] button

Press the button to eject the disc.

(4) [SRC] button

Press the button to switch among sources.

(5) USB terminal

Connect the iPod or USB device to this terminal.

(6) Auxiliary input

Connect the output of an external device using a

stereo mini-jack.

(7) [1] button

When listening to the iPod, audio file, or CD, press

the button to enter the search mode.

When listening to the radio, press the button to

select a band.

(8) [DISP] button

Press the button to switch between display modes.

(9) [6] button

In each of the selected modes, press the button to

return to the previous item.

(10) [Control knob] (Volume knob)

In the normal mode, turn the knob to adjust the

volume or press the knob to turn down the volume

quickly.

In the Function mode, turn the knob to select an

item or press the knob to determine the selection.

(11) [E]/ [F] button

Press the button to select a song or station.

(12) [L] button

Press the button to switch between play/pause.

(13) DPX-U5130BT [7] button

Press the button to select the Phone Book.

(14) DPX-U5130 [S] button

Press the button to select an audio file folder or

broadcast band (AM), or use it as a thumbs down

button on Pandora.

(15) DPX-U5130BT [Ú] button

Press the button to make, answer, or disconnect a

hands-free call.

(16) DPX-U5130 [R] button

Press the button to select an audio file folder or

broadcast band (FM), or use it as a thumbs up

button on Pandora.

(17) [AUDIO] button

Press the button to enter the Audio Control mode.

13-2DIN_M_EN_00.indb 8 12/11/26 15:59

English | 9

Preparations

Exiting the Demonstration mode

Turn o the Demonstration mode when you use the

unit for the rst time after installation.

 Press the [Control knob] to quit the

Demonstration mode when the message

“CANCEL DEMO PRESS VOLUME KNOB”

appears (approx. 15 seconds).

 Turn the [Control knob] to select the “YES” and

then press the [Control knob].

The Demonstration mode can also be canceled

in the Function Setting mode. Refer to

<Demonstration mode setting> (page 28).

How to select the item

For how to select setting items such as a function

setting item, see the following example:

Example: Adjusting the text scroll of the

display

 Press and hold the [AUDIO] button.

“Function” appears and enters the Function setting

mode.

 Select the Text scroll function item

INITIAL SET

TUNER SET

DEMO MODE

CLOCK

DISP OFF MODE

DISP DIMMER

SETTINGS

DISP & KEY

TEXT SCROLL

Turn the [Control knob] to select “SETTINGS”,

and then press the [Control knob].

Next, turn the [Control knob] to select “DISP &

KEY”, and then press the [Control knob].

Finally, turn the [Control knob] to select “TEXT

SCROLL, and then press the [Control knob].

Press the [6] button to return to the previous

item.

 Turn the [Control knob] to select a value

(AUTO, ONCE, OFF), and then press the

[Control knob].

The previous item appears.

 Press and hold the [6] button.

Exit the Function setting mode.

About the description in this manual

“Function” appears and enters the Function setting mode.

2 Use the [Control knob] to select “SETTINGS” > “DISP

& KEY” > “TEXT SCROLL”.

3 Use the [Control knob] to select a value (AUTO,

ONCE, OFF).

13-2DIN_M_EN_00.indb 9 12/11/26 15:59

10 | DPX-U5130BT/ DPX-U5130

Basic operations

General operations

Power

Turn the power on by pressing the [SRC]

button.

Press and hold [SRC] button to turn the power

o.

Source selection

Press the [SRC] button.

Pressing the button switches among sources.

Source Display

Standby “STANDBY”

Tuner “TUNER”

USB “USB”

iPod[1] “iPod”

Pandora® internet radio[1] “PANDORA”

aha™[1][2] “AHA”

Bluetooth audio[2] “BT AUDIO”

CD[1] “CD”

Auxiliary Input “AUX”

[1] This source can be selected only when it can be played.

[2] Function of DPX-U5130BT.

Source switching setting

• “PANDORA”, “AHA”, and “AUX” sources are not selectable

when not in use. For more details, see <Initial settings>

(page 29).

Volume

Turn the [Control knob].

USB terminal

A USB device or iPod can be connected.

The CA-U1EX (optional accessories) or KCA-

iP102 (optional accessories) is recommended to

connect a USB device or iPod.

Auxiliary input

A portable audio device can be connected with

a stereo mini-plug (3.5 mm ø).

Adjusting the clock

 Press and hold the [Control knob].

The hour display blinks.

 Turn the [Control knob] to adjust the hour,

and then press the [Control knob].

The minute display blinks.

 Turn the [Control knob] to adjust the minute,

and then press the [Control knob].

13-2DIN_M_EN_00.indb 10 12/11/26 15:59

English | 11

Audio adjustments

( : Factory setting)

[1] “USER”: The customized Bass, Middle, and Treble settings

are effective.

[2] “SUB-W LEVEL”/ “LPF SUBWOOFER”/ “SUB-W PHASE” is

selectable only if “SUBWOOFER SET” is set to “ON”.

[3] SUB-W LEVEL”/ “SUBWOOFER SET”/ “LPF SUBWOOFER”/

“SUB-W PHASE” is selectable only if “SWITCH PREOUT”

is set to “SUB-W”. (DPX-U5130 only : See <“SWITCH

PREOUT”> (page 29).

[4] “SUB-W PHASE” is selectable only if a setting other than

“THROUGH” is selected for “LPF SUB-W”.

[5] “SUPREME SET” is selectable only when playing back an

MP3/WMA/AAC/WAV disc, USB device or iPod.

[6] Function of DPX-U5130BT.

Adjusting Bass, Middle, and Treble levels

• You can set Bass, Middle, and Treble levels for each source.

 Use the [Control knob] to select a value.

The previous item appears.

Exit the Audio control mode.

Press and hold the [6] button.

About Supreme

• Technology to extrapolate and supplement with proprietary

algorithm, the high-frequency range that is cut off when

encoding at low bit rate.

Supplementing is optimized by compression format (AAC,

MP3, WMA or WAV) and processed according to bit rate.

The effect is negligible with music that is encoded at high

bit rate, variable bit rate or has minimal high frequency

range.

Audio control

You can adjust the audio control items.

 Select the source.

Refer to <Source selection> (page 10).

 Press the [AUDIO] button.

Enter the Audio control mode.

 Use the [Control knob] to select a audio item.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

Display Audio setting item Range

“SUB-W LEVEL”[2][3] Subwoofer level –15 — +15 (dB) (0)

“BASS LEVEL” Bass level –8 — +8 (dB) (8)

“MID LEVEL” Middle level –8 — +8 (dB) (2)

“TRE LEVEL” Treble level –8 — +8 (dB) (3)

“EQ PRO”

“BASS ADJUST”

“BASS CTR FRQ” Bass Center Frequency 60/ 80/ 100/ 200 (Hz)

“BASS LEVEL” Bass level –8 — +8 (dB) (8)

“BASS Q FACTOR” Bass Q Factor 1.00/ 1.25/ 1.50/ 2.00

“BASS EXTEND” Bass Extend OFF/ ON

“MID ADJUST”

“MID CTR FRQ” Middle Center

Frequency

0.5/ 1.0/ 1.5/ 2.5 (kHz)

“MID LEVEL” Middle level –8 — +8 (dB) (2)

“MID Q FACTOR” Middle Q Factor 0.75/ 1.00/ 1.25

“TRE ADJUST”

“TRE CTR FRQ” Treble Center

Frequency

10.0/ 12.5/ 15.0/

17.5 kHz

“TRE LEVEL” Treble level –8 — +8 (dB) (3)

“PRESET EQ” Preset Equalizer curve “ROCK”/ “POPS”/

“EASY”/ “TOP40”/

“JAZZ”/ ”POWERFUL”/

“NATURAL”/ “USER”[1]

“BASS BOOST” Bass Boost “OFF”/ “LV1”/ “LV2”/

”LV3”

“LOUDNESS” Loudness “OFF”/ “LV1”/ “LV2”

“BALANCE” Balance Left 15 — Right 15 (0)

“FADER” Fader Rear 15 — Front

15 (0)

“SUBWOOFER SET”[3] Subwoofer output OFF/ ON

“DETAILED SET”

“HPF”[6] High Pass Filter Through/ 100/ 120/

150 (Hz)

“LPF

SUBWOOFER”[2]

[3]

Low Pass Filter 85/ 120/ 160/

Through (Hz)

“SUB-W

PHASE”[2][3][4]

Subwoofer Phase Reverse (180°)/

Normal (0°)

“SUPREME

SET”[5]

Supreme setting ON/ OFF

“VOLUME

OFFSET”

Volume offset –8 — ±0 (dB)

(AUX: -8 — +8) (0)

13-2DIN_M_EN_00.indb 11 12/11/26 15:59

12 | DPX-U5130BT/ DPX-U5130

Listen to the iPod

Models of iPods/iPhones that can be

connected to this unit

Made for

• iPod nano (6th generation)

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPod nano (2nd generation)

• iPod nano (1st generation)

• iPod with video

• iPod classic

• iPod touch (4th generation)

• iPod touch (3rd generation)

• iPod touch (2nd generation)

• iPod touch (1st generation)

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

• For information on the compatibility with iPod/

iPhone software, visit www.kenwood.com/cs/ce/

ipod/.

• Types of available control vary depending on the

type of connected iPod. Visit www.kenwood.com/

cs/ce/ipod/ for further details.

• The word “iPod” appearing in this manual indicates

the iPod or the iPhone connected with the iPod

connection cable (optional accessory).

• Refer to the web site for connectable iPods and iPod

connection cables.

www.kenwood.com/cs/ce/ipod/

Notes

• If you start playback after connecting the iPod, the music

that was playing on the iPod is played first.

In this case, “RESUMING” appears without displaying a folder

name, etc. Changing the browse item will display a correct

title, etc.

• You cannot operate the iPod if “KENWOOD” or “ä” appears

on the iPod.

Playing music

Playing an iPod

Connect the iPod to the USB terminal using the

KCA-iP102 connecter (optional accessory).

When it is connected, the source is switched

automatically and playback starts.

When playback of iPod touch or iPhone does not start

• If an unsupported application has started when connecting

iPod touch or iPhone, “APP&iPod MODE” appears and

sometimes playback does not starts. Press the [5] button

(DPX-U5130BT) or press and hold the [iPod] button

(DPX-U5130).

Selecting a song

Press the [E] or [F] button.

Fast-forwarding or fast-backwarding a song

Press and hold the [E] or [F] button.

Pause and play a song

Press the [L] button.

Removing iPod

Press the [SRC] button to switch the source to a

device other than iPod, Pandora Internet radio,

and Aha Radio, and then remove the iPod.

Data contained in the iPod may be damaged

if you remove it when it is used as the active

source.

13-2DIN_M_EN_00.indb 12 12/11/26 15:59

English | 13

Music search

You can search for the song you want to play.

 Press the [1] button.

“SEARCH” appears and enters the Music search

mode.

 Search for a song

Operation type Operation

Selecting items Turn the [Control knob].

Determining selection Press the [Control knob].

Skip Search Press the [E] or [F]./

Press and hold the [E] or [F].

Returning to previous item Press the [6] button.

Returning to Top menu Push the [5] button.

- indicator: Audio file

_ indicator: Artist

` indicator: Album

; indicator: Folder

Canceling the Music search mode

Press and hold the [6] button.

Undisplayable titles

• If a song name can not be displayed for some reason,

browse item name and digits are displayed (ex. PLIST***)

instead.

Items Display

Playlists “PLIST***”

Artists “ART***”

Albums “ALB***”

Songs “PRGM***”

Podcasts “PDCT***”

Genres “GEN***”

Composers “COM***”

Alphabet search

You can select an alphabetic character from the

list in the browse item (artist, album, etc.) currently

selected.

 Press the [1] button.

“SEARCH” appears and enters the Music search

mode.

 Press the [1] button.

Enter the Alphabet search mode and “SEARCH

<_ >” appears.

 Select a character.

Operation type Operation

Entry of character Turn the [Control knob].

Movement of character

entry position

Press the [E] or [F].

Determination of entered

character

Press the [Control knob].

Returning to the Music search mode.

Canceling the Alphabet search mode

Press and hold the [6] button.

Alphabet search notes

• Turning the [Control knob] fast in the Music search mode

allows you to enter the alphabet search mode.

• The time of Alphabet search may become long depending

on the number of items (songs) in iPod.

• To search for a character other than A to Z and 1, enter “*”.

• If the first character string begins with an article “a”, “an”,

or “the” in the alphabet search mode, it is searched for in

defiance of the article.

13-2DIN_M_EN_00.indb 13 12/11/26 15:59

14 | DPX-U5130BT/ DPX-U5130

Listen to the iPod

APP & iPod Mode

Allowing you to operate iPod with the control on

the iPod.

Press the [5] button.

When the APP & iPod mode is selected, ”MODE ON”

appears.

Canceling the APP & iPod mode

Press the [5] button.

Operation when “APP&iPod MODE” is “ON”

• When “APP&iPod MODE” is set to “ON”, this unit can control

only the “Pause and play”, “Selecting a song”, and “Fast

Forward or Fast Backward of the Song” functions.

Skip search ratio setting

You can change the ratio of skip performed as

mentioned in <Skip Search> (page 13).

 Select the iPod source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“SKIP SEARCH”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a ratio (0.5, 1,

5, 10).

The previous item appears.

Exit the Function setting mode

Press and hold the [6] button.

Play function

Repeat play

Press the [4] button.

Switches between Repeat (“FILE REPEAT”) and off (“REPEAT

OFF”) when pressed.

Random play

Press the [3] button.

Randomly plays the music.

Pressing the button toggles the setting between Random

play on (“FOLDER RANDOM”) and off (“RANDOM OFF”).

Press this button again cancels the Random play.

All Random play

Press and hold the [3] button.

All songs in iPod are played at random.

Pressing the button toggles the setting between All

random play on (“ALL RANDOM”) and off (“RANDOM OFF”).

Press this button again cancels the All Random play.

Notes

• The time required to turn on the all random function may

become longer depending on the number of songs in iPod.

• Turning on the all random function changes the iPod

browse item to “Songs”. This browse item will not be

changed even if the all random function is turned off.

• If the browse item is changed to search for music while the

all random function is on, the all random function is turned

off and the songs in the browse item are played at random.

13-2DIN_M_EN_00.indb 14 12/11/26 15:59

English | 15

Pandora® internet radio (Function of iPhone®/ Bluetooth device)

Requirements Pandora® internet

radio

Requirements for listening to the Pandora® internet

radio are as follows:

• In the application on your device, log in and create

an account with Pandora.

(If you are not already a registered user, an account

can also be created at www.pandora.com.)

• Internet connection by 3G, LTE, EDGE, or WiFi.

iPhone or iPod touch

• Use an Apple iPhone or iPod touch running under

iOS3 or later.

• Search for “Pandora” in the Apple iTunes App Store

to find and install the most current version of the

Pandora® application on your device.

• iPhone/ iPod touch connected to this unit with a

KCA-iP102.

Android™

• Visit the Google play and search for Pandora to

install.

• Bluetooth must be built in and the following profiles

must be supported.

- SPP (Serial Port Profile)

- A2DP (Advanced Audio Distribution Profile)

BlackBerry®

• Visit www.pandora.com from the built in browser to

download the Pandora application.

• Bluetooth must be built in and the following profiles

must be supported.

- SPP (Serial Port Profile)

- A2DP (Advanced Audio Distribution Profile)

Notes

• Pandora® is currently available only in the U.S, Australia and

New Zealand.

• Because Pandora® is a third-party service, the specifications

are subject to change without prior notice. Accordingly,

compatibility may be impaired or some or all of the services

may become unavailable.

• Some functions of Pandora® cannot be operated from this

unit.

• For issues using the application, please contact Pandora® at

pandora-support@pandora.com

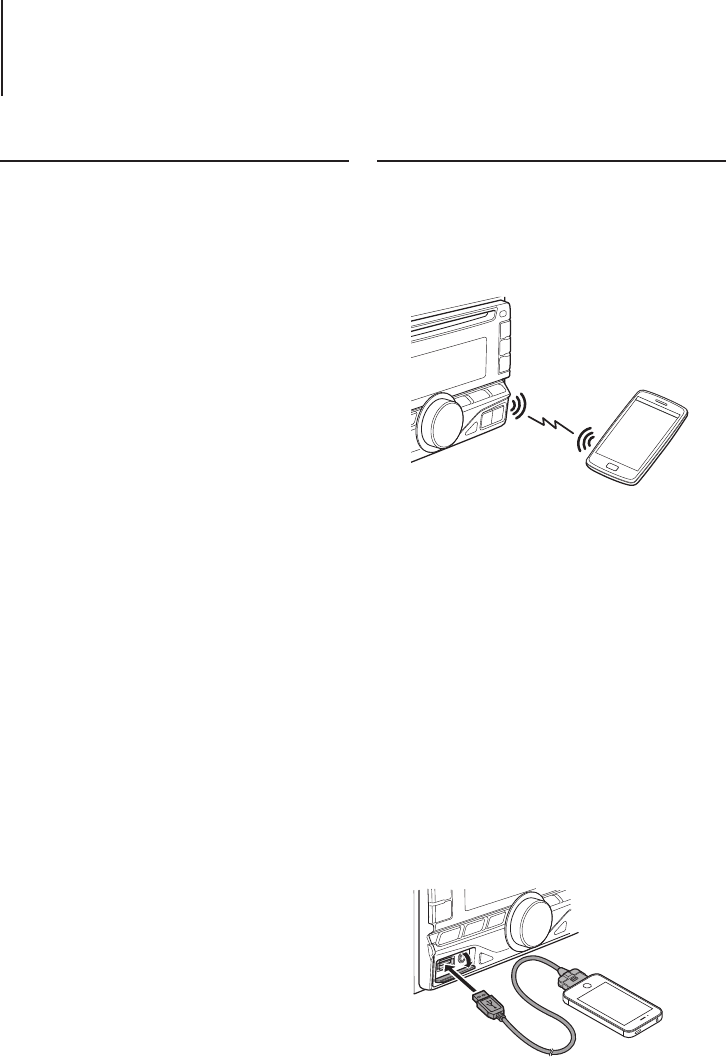

Listening to the Pandora® internet

radio

Android or BlackBerry (DPX-U5130BT only)

• You need to register your cell-phone before using it with

this unit. See <Registering a Bluetooth device> (page 30).

• Disconnect the iPhone or iPod touch.

 Connect the Android/BlackBerry smartphone

via Bluetooth.

Speakers from which audio is output change

depending on the Bluetooth setting “BT HF/AUDIO”.

The default is Front. See <Bluetooth detail setting>

(page 37).

 Open the Pandora® application on your

device.

 Press the [SRC] button to select a Pandora

(“PANDORA”) source.

Refer to <Source selection> (page 10).

iPhone or iPod touch

 Open the Pandora® application on your

device.

 Open the cover.

 Connect the iPod to the USB terminal using

the KCA-iP102 connecter (optional accessory).

The source switches, and broadcasting starts

automatically from your current station.

.

13-2DIN_M_EN_00.indb 15 12/11/26 15:59

16 | DPX-U5130BT/ DPX-U5130

Station search

You can select the station you want to listen to from

your station list.

 Press the [1] button.

“SEARCH” appears and enter the Station List mode.

 Use the [Control knob] to select a sort type.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

“A-Z”: Stations are displayed in alphabetical order.

“By Date”: Stations are displayed in date order.

 Use the [Control knob] to select a station.

Basic operation

Thumbs up

DPX-U5130BT

Press and hold the [1] button.

DPX-U5130

Press and hold the [R] button.

Thumbs down

DPX-U5130BT

Press and hold the [2] button.

DPX-U5130

Press and hold the [S] button.

Song skip

Press the [F].

Pause and play a song

Press the [L] button.

Pandora® internet radio

13-2DIN_M_EN_00.indb 16 12/11/26 15:59

English | 17

New station registration

You can search for a desired station. You can register

the displayed station as a new station in your

station list.

 Press and hold the [1] button.

“NEW STATION” appears and enter the New station

registration.

 Use the [Control knob] select a search method.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

- “FROM ARTIST”: Searches for a song by the name

of the artist you are listening to.

- “FROM TRACK”: Searches for a song by the name

of the track you are listening to.

When you select a search method, a new station

name is created.

 Use the [Control knob] to select a station.

The broadcast from the selected station is received

and the station is registered in the station list.

Station preset memory

You can store a station in the memory.

 Press the [E] or [F] button to select the

station.

 Press and hold the button ([3] to [5]) to which

you want to assign the selected station.

“STORED” appears and the channel is registered.

Preset tuning

Recalling a channel from the memory.

Press the button ([3] to [5]) corresponding to

the station you want to listen to.

Pandora source control

You can turn on/o the Pandora source.

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “INITIAL SET”

> “PANDORA SRC”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a Pandora

source control method.

“ON”: Turns on the Pandora source.

“OFF”: Turns off the Pandora source.

Exit the Function setting mode

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 17 12/11/26 15:59

18 | DPX-U5130BT/ DPX-U5130

Aha Radio (Function of iPhone®/ Android)

Requirements Aha™

Requirements for listening to Aha™ are as follows:

• In the application on your device, log in and create

a free account with Aha.

• Internet connection by 3G, LTE, EDGE, or WiFi.

iPhone or iPod touch

• Use an Apple iPhone or iPod touch running iOS4

or later.

• Search for “Aha” in the Apple iTunes App Store to

find and install the most current version of the Aha™

application on your device.

• iPhone/ iPod touch connected to this unit with a

KCA-iP102.

Android™

• Use Android OS 2.2 or later.

• Download the Aha™ application to your

smartphone from the Google play.

• Bluetooth must be built in and the following profiles

must be supported.

- SPP (Serial Port Profile)

- A2DP (Advanced Audio Distribution Profile)

Notes

• Because Aha™ is a third-party service, the specifications

are subject to change without prior notice. Accordingly,

compatibility may be impaired or some or all of the services

may become unavailable.

• Some Aha™ functionality cannot be operated from this unit.

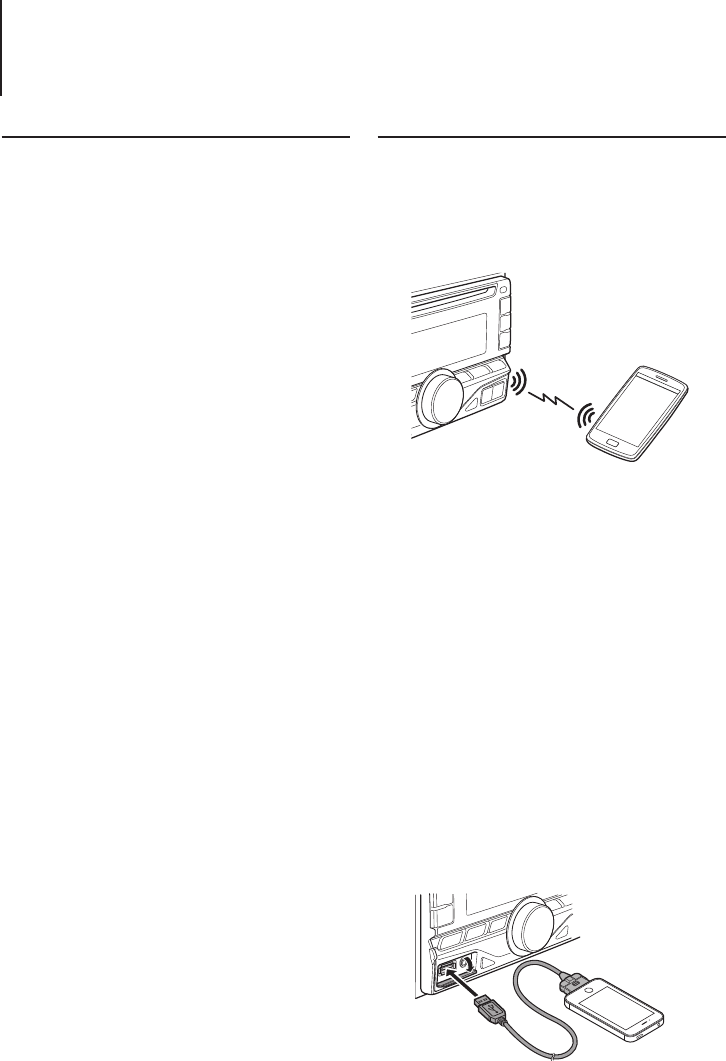

Listening to the Aha Radio

Android or BlackBerry (DPX-U5130BT only)

• You need to register your cell-phone before using it with

this unit. See <Registering a Bluetooth device> (page 30).

• Disconnect the iPhone or iPod touch.

 Connect the Android/BlackBerry smartphone

via Bluetooth.

Speakers from which audio is output change

depending on the Bluetooth setting “BT HF/AUDIO”.

The default is Front. See <Bluetooth detail setting>

(page 37).

 Open the Aha Radio application on your

device.

 Press the [SRC] button to select an Aha Radio

(“AHA”) source.

Refer to <Source selection> (page 10).

iPhone or iPod touch

 Open the Aha Radio application on your

device.

 Open the cover.

 Connect the iPod to the USB terminal using

the KCA-iP102 connecter (optional accessory).

 Press the [SRC] button to select an Aha Radio

(“AHA”) source.

Refer to <Source selection> (page 10).

13-2DIN_M_EN_00.indb 18 12/11/26 15:59

English | 19

Basic operations

Pause and play a content

Press the [L] button.

Selecting a content

Press the [E] or [F] button.

Forward 30 seconds a content

Press and hold the [F] button.

Backward 15 seconds a content

Press and hold the [E] button.

“Likes” current content

Press the [1] button.

To unvote, press the button again.

“Dislikes” current content

Press the [2] button.

To unvote, press the button again.

Station search

You can select the station you want to listen to from

your station list.

 Press the [1] button.

“SEARCH” appears and enter the Station List mode.

 Use the [Control knob] to select a station.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a content.

Calling a number in the content

You can call the phone number obtained from the

content from a smartphone connected to this unit

via Bluetooth.

 Press the [3] button.

“MAKE A CALL” appears.

 Press the [Control knob] to make a call.

“CALL” appears.

Canceling the confirmative display

Press and hold the [6] button.

Disconnecting a call

Press the [Ú] button.

13-2DIN_M_EN_00.indb 19 12/11/26 15:59

20 | DPX-U5130BT/ DPX-U5130

Listen to the CD/ Audio le

Playing music

Playing a disc

Insert a disc in the Disc slot.

When it is inserted, the source is switched

automatically and playback starts.

Playing a USB device

Connect a USB device to the USB terminal using

the CA-U1EX connecter (500 mA Max.:optional

accessory).

When it is connected, the source is switched

automatically and playback starts.

Selecting an audio file folder

DPX-U5130BT

Press the [1] or [2] button.

DPX-U5130

Press the [R] or [S] button.

Selecting a song (track or file)

Press the [E] or [F] button.

Fast-forwarding or fast-backwarding a song

(track or file)

Press and hold the [E] or [F] button.

Pause and play a song (track or file)

Press the [L] button.

Removing disc

Press the [G] button.

Removing USB device

Press the [SRC] button to switch the source to

a device other than USB, and then remove the

USB device.

Data contained in the USB device may be

damaged if you remove it when it is used as the

active source.

Music search

You can select the music you want to listen to from

the device or media being played now.

 Press the [1] button.

“SEARCH” appears and enters the Music search

mode.

 Search for music

Audio file

Operation type Operation

Selecting folders/files Turn the [Control knob].

Determining selection Press the [Control knob].

Skip Search (Music Editor media) Press the [E] or [F]./

Press and hold the [E] or

[F].

Returning to previous folder Press the [6] button.

Returning to root folder Press the [5].

Cancellation of Music search mode Press and hold the [6] button.

- indicator: Audio file

; indicator: Folder

CD source

Operation type Operation

Selecting track Turn the [Control knob].

Determining selection Press the [Control knob].

Returning to first track Press the [5].

Cancellation of Music

search mode

Press and hold the [6] button.

Skip search ratio setting

You can change the ratio of skip performed as

mentioned in <Skip Search (Music Editor media)>

(page 20).

 Select the USB source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“SKIP SEARCH”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a ratio.

The previous item appears.

Exit the Function setting mode

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 20 12/11/26 15:59

English | 21

Play function

Repeat play

Press the [4] button.

Switches between Track Repeat (“TRACK REPEAT”) and OFF

(“REPEAT OFF”) when pressed while playing a CD.

Switches between File Repeat (“FILE REPEAT”), Folder

Repeat (“FOLDER REPEAT”), and OFF (“REPEAT OFF”) when

pressed while playing an Audio file.

Random play

Press the [3] button.

Randomly plays the music in the disc or folder.

When Random Play is turned on, “DISC RANDOM”/

“FOLDER RANDOM” appears.

Press this button again cancels the Random play.

All Random play

Press and hold the [3] button.

All songs in the disc/USB are played at random.

Pressing the button toggles the setting between All

random play on (“ALL RANDOM”) and off (“RANDOM OFF”).

Press this button again cancels the All Random play.

Direct music search

(Function of remote control)

You can search for music by entering the track

number.

 Press the [DIRECT] button on the remote

control.

“– –” appears and enter the Direct Music search

mode.

 Press the number buttons on the remote

control to enter the music number.

 Press the [ENT] button on the remote control.

Canceling the Direct music search mode

Press the [6] button on the remote control.

About the Audio file

• Playable Audio les

AAC-LC (.m4a), MP3 (.mp3), WMA (.wma), WAV of

USB device (.wav)

• Playable disc media

CD-R/RW/ROM

• Playable disc le formats

ISO 9660 Level 1/2, Joliet, Long file name.

• Playable USB devices

USB mass storage class

• Playable USB device le systems

FAT12, FAT16, FAT32

Even if the audio files comply with the standards

listed above, playback may be impossible depending

on the type or condition of the medium or device.

• Playback order of the Audio les

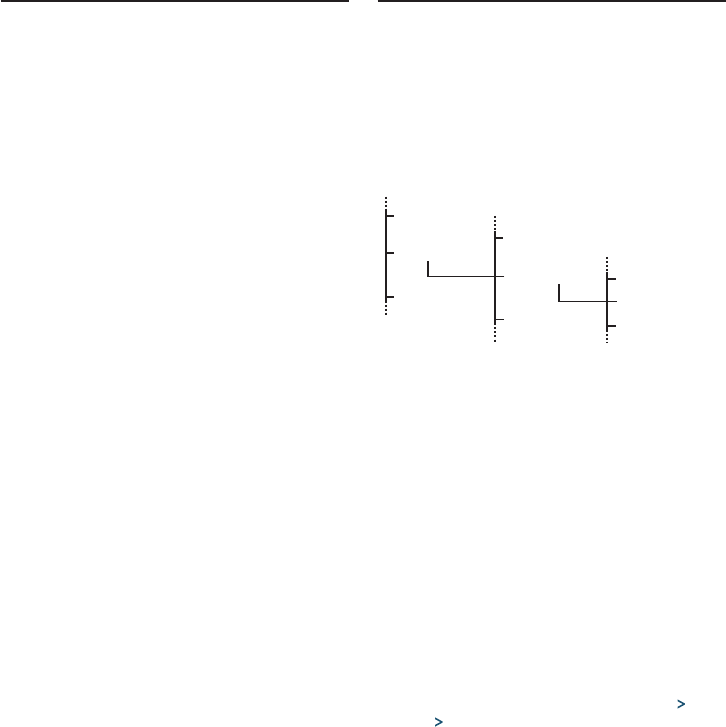

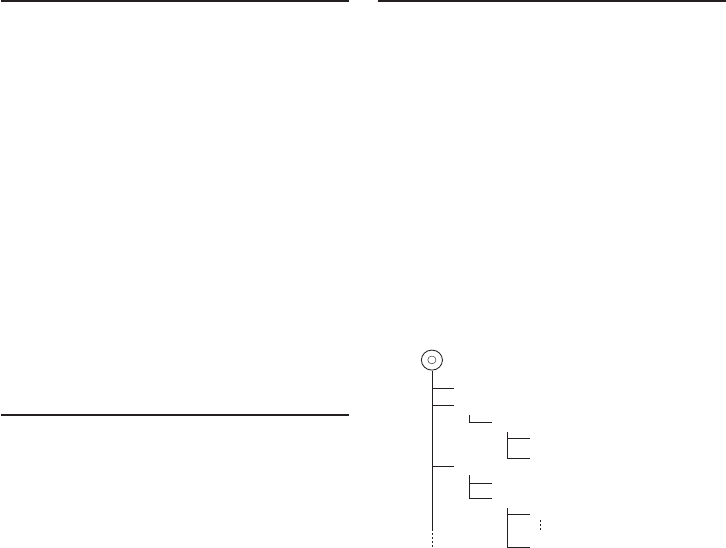

In the example of folder/file tree shown below, files

are played in the order of number from (1) to (6).

CD/USB(1)

¡(1)

2 3

¡(4)

4

¡(2)

¡(3)

¡(6)

5 ¡(5)

;: folder

-: Audio file

For the online manual describing audio files, visit

www.kenwood.com/cs/ce/audiofile/. In this online

manual, detailed information and notes which are

not provided in this manual are provided. Make sure

to read through the online manual as well.

What is a USB device?

• In this manual, the term “USB device” indicates a flash

memory or digital audio player which has a USB terminal.

13-2DIN_M_EN_00.indb 21 12/11/26 15:59

22 | DPX-U5130BT/ DPX-U5130

About the USB device

• When the USB device is connected to this unit, it is

charged when this unit is powered.

• Install the USB device in the place where it will not

prevent you from driving your vehicle properly.

• You cannot connect a USB device via a USB hub or

multi card reader.

• Save backups of the audio files used with this unit.

The files can be erased depending on the operating

condition of the USB device.

We shall not be liable for any damage arising out of

erasure of the stored data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

• When connecting the USB device, use of the

CA-U1EX (option) is recommended.

• Normal playback is not guaranteed when a cable

other than the USB compatible cable is used.

Connecting a cable whose total length is longer

than 4 m can result in abnormal playback.

About “KENWOOD Music Editor Light”

and “KENWOOD Music Control”

• This unit supports the PC application “KENWOOD

Music Editor Light” (hereinafter “KME-Light”), and

Android™ application “KENWOOD Music Control”

(hereinafter “KMC”).

• When you use the audio file with database

information added by the “KENWOOD Music Editor

Light” or “KENWOOD Music Control”, you can search

for a file by title, album or artist name using Music

Search.

• “KENWOOD Music Editor Light” and “KENWOOD

Music Control” are available from the following web

site: www.kenwood.com/cs/ce/

Listen to the CD/ Audio le

About the discs used with this unit

• This unit can only play the CDs with .

• The following discs cannot be used:

- A discs that is not round

- A discs with coloring on the recording surface or a

disc that is dirty

- A recordable/rewritable disc that has not been

finalized (For the finalization process, refer to

the instruction manual that came with your disc

writing software or your disc recorder.)

- An 8 cm (3 inch) disc (An attempt to insert using

an adapter can cause malfunction.)

Handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with

tape stuck on it.

• Do not use any accessories for the disc.

• Do not use any solvents to clean discs. Use a dry

silicon or soft cloth.

• Clean the disc by moving the cloth outward from

the center of the disc.

• When removing a disc from this unit, pull it out

horizontally.

• If the center hole or outside rim of a disc has burrs,

remove them before inserting a disc.

13-2DIN_M_EN_00.indb 22 12/11/26 15:59

English | 23

Listen to the tuner

Listening to the radio

Selecting a tuner source

Press the [SRC] button to select a “TUNER”.

Selecting a band

Press the [1] button.

Pressing the button switches the receiving band (FM1,

FM2, FM3, MW, SW1, SW2).

Selecting a station

Press the [E] or [F] button.

The tuning mode can be changed. Refer to

<Tuner setting> (page 23).

Station preset memory

You can store a station in the memory.

 Press the [E] or [F] button to select the

channel.

 Press and hold the button ([1] to [6]) to which

you want to assign the selected station.

“STORED” appears and the station is registered.

About the Mix station preset mode

• In this mode, different bands and tuner sources can be

saved in the same preset layer, which allows you to recall

the desired station without switching between bands or

tuner sources.

Auto memory

You can register 6 (FM)/ 6 (AM) stations with good

reception automatically.

 Select the Tuner source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“AUTO MEMORY”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select “YES”.

When 6 (FM)/ 6 (AM) stations that can be received

are stored in the memory, the process in this mode

is completed.

Preset tuning

Recalling a station from the memory.

 Press the [1] button to select a band.

 Press the button ([1] to [6]) corresponding to

the station you want to listen to.

Tuner setting

You can set up the tuner.

 Select the Tuner source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a Tuner

setting item

Display Description

“LOCAL SEEK” Only stations whose reception is good are searched in

auto seek tuning. (FM only)

“ON” / “OFF”

“SEEK MODE” Sets the tuning mode.

“AUTO1”: Automatic search for a station.

“AUTO2”: Search in order of the stations in the preset

memory.

“MANUAL”: Normal manual tuning.

“MONO SET” You can reduce the noise when stereo broadcasts are

received as monaural. (FM only)

“ON” / “OFF”

( : Factory setting)

 Use the [Control knob] to select a setting.

The previous item appears.

Exit the Function setting mode.

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 23 12/11/26 15:59

24 | DPX-U5130BT/ DPX-U5130

Direct access tuning

(Function of remote control)

You can search for a station directly by entering

frequency.

 Press the [DIRECT] button on the remote

control.

“– – – –” appears and enter the Direct access tuning

mode.

 Press the number buttons on the remote

control to enter the frequency.

Example:

Desired frequency Press the following buttons

92.1 MHz (FM) [9], [2], [1]

810 kHz (AM) [8], [1], [0]

 Press the [ENT] button on the remote control.

Canceling Direct access tuning mode

Press the [6] button on the remote control.

Frequency Step Setting

Changing the tuning frequency step.

The original setting is FM band 50 kHz, and AM

band 9 kHz.

 Press and hold the [SRC] button to turn the

power OFF.

 While pressing the [1] and [5] buttons, press

the [SRC] button to switch the frequency step.

Release your fingers from the button after the

display appears.

The frequency step changes to FM band 200 kHz,

and AM band 10 kHz.

Notes

• When the same operation is repeated, the frequency step

returns to the original setting.

• When the frequency step is changed, the frequencies in the

memory are deleted.

Listen to the tuner

13-2DIN_M_EN_00.indb 24 12/11/26 15:59

English | 25

Listen to the AUX

Start listening

 Connect a portable audio player with 3.5 mm

stereo mini plug audio cable (commercially

available).

 Select the AUX source.

Refer to <Source selection> (page 10).

 Turn on the portable audio player and start

playback.

Auxiliary input display setting

You can set the display when switched the AUX

source.

 Select the AUX source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“AUX NAME SET”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a display

(“AUX”, “DVD”, “PORTABLE”, “GAME”, “VIDEO”,

or “TV”).

Exit the Function setting mode.

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 25 12/11/26 15:59

26 | DPX-U5130BT/ DPX-U5130

Display settings

Illumination color selection

You can select the illumination color of the panel.

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“DISP & KEY” > “COLOR SELECT”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a illumination

part.

Display Part

“ALL” All

“DISP” Display

“KEY” Button

 Use the [Control knob] to select a color

(“VARIABLE SCAN”/ “COLOR01” —

“COLOR24”).

Exit the Function setting mode.

Press and hold the [6] button.

Adjusting the Illumination color

You can adjust the illumination color of the panel.

 Select the illumination color you want to

adjust.

Select from among “COLOR01” to “COLOR24”

with reference to <Illumination color selection>

(page 26).

 Press and hold the [Control knob].

The RGB value of the selected illumination color

appears and enters the Detail color adjustment

mode.

 Set the color.

Operation type Operation

To select the color to adjust (Red,

Green, or Blue)

Press the [E] or [F].

To adjust color (Range: 0 – 9) Turn the [Control knob].

Determination of the adjusted color. Press the [Control knob].

The color you created can be called by selecting

“USER”.

Exit the Function setting mode.

Press and hold the [6] button.

Display & Illumination setting

You can set the display and illumination.

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “SETTINGS” >

“DISP & KEY”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a Display &

Illumination setting item.

Display Description

“DISP DIMMER” Dims the display part in conjunction with the

Light switch of the vehicle.

“DIM OFF”: Does not dim the display.

“DIM AUTO”: Dims the display in conjunction

with the Light switch of the vehicle.

“DIM MANUAL1”: Dims the display constantly.

“DIM MANUAL2”: Dims the display darker

than that in the Manual1 mode.

“TEXT SCROLL” Sets the method of scrolling to view hidden

texts.

“SCROLL AUTO” : Scrolls.

“SCROLL ONCE” : Scrolls once.

“SCROLL OFF” : Does not scroll.

“DISP OFF MODE” Sets the clock and button illumination when

“DISP OFF MODE” is selected as described in

<Text Display Selection> (page 27).

“CLOCK” “CLOCK ON” : Displays the clock.

“CLOCK OFF” : Dims the clock.

“KEY ILLUMI” “KEY ON” : Turns on the button illumination.

“KEY OFF” : Dims the button illumination.

“ILLUMI DIMMER” Reduces the key Illumination brightness.

“DIM OFF”: Does not dim the illumination.

“DIM AUTO”: Dims the illumination in

conjunction with the Light switch of the

vehicle.

“DIM MANUAL1”: Dims the illumination

constantly.

“DIM MANUAL2”: Dims the illumination

darker than that in the Manual1 mode.

“BT DVC STATUS” You can display the connection status, signal

strength, and battery level.

HF-CON : Connection status for cell-phone.

(1/: One cell-phone is connected, 1/2: Two

cell-phones are connected, NO: No cell-phone

is connected.)

AD-CON : Connection status for BT Audio. (YES:

Connected, NO: Not connected)

BATT : Battery level of cell-phone.

SIGNAL : Signal strength of cell-phone.

(Function of DPX-U5130BT)

( : Factory setting)

13-2DIN_M_EN_00.indb 26 12/11/26 15:59

English | 27

 Use the [Control knob] to select a setting.

The previous item appears.

Exit the Function setting mode.

Press and hold the [6] button.

Text Display Selection

You can change the information displayed on each

of the following sources:

 Press the [DISP].

On Audio file/ iPod source

Information Display

Title and Artist name “TITLE/ARTIST”

Album and Artist name “ALBUM/ARTIST”

Folder name “FOLDER NAME”

File name “FILE NAME”

Play time “P-TIME”

Display off “DISP OFF MODE”

On Pandora source

Information Display

Station name “STATION NAME”

Title and Artist name “TITLE/ARTIST”

Album and Artist name “ALBUM/ARTIST”

Play time “P-TIME”

Display off “DISP OFF MODE”

DPX-U5130BT

On Aha Radio source

Information Display

Content Provider “PROVIDER“

Content information 1 “CONTENT INFO1”

Content information 2 “CONTENT INFO2”

Content rating information “CONTENT RATE”

Station name “STATION NAME“

Display off “DISP OFF MODE”

On CD source

Information Display

Disc title “DISC TITLE”

Track title “TRACK TITLE”

Play time “P-TIME”

Display off “DISP OFF MODE”

On Tuner source

Information Display

Frequency “FREQUENCY”

Display off “DISP OFF MODE”

DPX-U5130BT

On Bluetooth audio source

Information Display

Title and Artist name “TITLE/ARTIST”

Album and Artist name “ALBUM/ARTIST”

Play time “P-TIME”

Display off “DISP OFF MODE”

On Standby/ Auxiliary input source

Information Display

Source name “SOURCE NAME”

Display off “DISP OFF MODE”

Text display notes

• When you select the Display off mode, the display setting of

each source will be changed to the Display off.

• If the selected display item does not have any information,

alternative information appears.

• If you select “FOLDER NAME” while playing music on the

iPod, names will be displayed depending on the currently

selected browsing items.

• If you select the APP & iPod Control mode while playing

music on the iPod, “APP&iPod MODE” appears.

• If all characters cannot be displayed while music is played

on the iPod, the file number in the list appears.

Information Display

Music title “TITLE***”

Folder name “FOLDER***”

File name “FILE***”

Text scroll

Press and hold the [DISP].

The displayed text scrolls.

13-2DIN_M_EN_00.indb 27 12/11/26 15:59

28 | DPX-U5130BT/ DPX-U5130

General settings

Muting the audio upon reception of a

phone call

Function of DPX-U5130

The audio system automatically mutes when it

receives an incoming call.

When a call comes in

“CALL” appears.

The audio system pauses.

Listening to the audio during a call

Press the [SRC] button.

The “CALL” display disappears and the audio system

comes back ON.

When the call ends

Hang up the phone.

The “CALL” display disappears and the audio system

comes back ON.

To use this function

• To use the TEL Mute feature, you need to hook up the MUTE

wire to your telephone using a commercial telephone

accessory. Refer to <Connecting Wires to Terminals> (page

44).

Demonstration mode setting

You can turn on/o the demonstration mode.

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “DEMO

MODE”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select a setting

(“ON” or “OFF”).

Exit the Function setting mode.

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 28 12/11/26 15:59

English | 29

Initial settings

You can congure initial settings of this unit.

 Select the Standby source.

Refer to <Source selection> (page 10).

 Press and hold the [AUDIO] button.

Enter the Function setting mode.

 Use the [Control knob] to select “INITIAL SET”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select an Initial

setting item.

Display Description

“PRESET TYPE” Sets the Tuner preset type.

“TYPE NORMAL”: 1 station can be assigned to

1 preset button in each of 4 bands (FM1, FM2,

FM3, and AM), i.e., a total of 24 stations (6

stations x 4 bands) can be preset.

“TYPE MIX”: A total of 6 stations can be

assigned to a total of 6 preset buttons

regardless of band (FM1, FM2, FM3, and

AM). You can recall a preset station without

switching between bands.

“KEY BEEP” Setting the operation check sound (beep

sound) ON/OFF.

“ON” / “OFF”

“PANDORA SRC” Sets whether to display Pandora during source

selection.

“ON” / “OFF”

“AHA SRC” Sets whether to display aha during source

selection.

“ON” / “OFF”

(Function of DPX-U5130BT)

“BUILT-IN AUX” Sets whether to display AUX during source

selection.

“ON” / “OFF”

“CD READ” Sets the method for reading CD.

When unable to play a special format CD, set

this setting to “2” to force playing. Note that

some music CDs may be unplayable even

when set to “2”.

In addition, audio files cannot be played when

set to “2”. Normally, keep this set to “1”.

1: Automatically distinguishes between the

audio file disc and music CD when playing

a disc.

2: Forces playing as a music CD.

“SWITCH PREOUT” Switches the preout between rear output and

subwoofer output.

“REAR”: Rear output

“SUB-W”: Subwoofer output

(Function of DPX-U5130)

“SP SELECT” Sets the speaker type so that the System Q

value is optimal.

“OFF”: OFF

“5/4”: For 5 & 4 in. speaker

“6*9/6”: For 6 & 6x9 in. speaker

“O.E.M.”: For the OEM speaker

“F/W UPDATE” Upgrades the firmware.

When the firmware version appears, press

[Control knob].

Selecting “YES” and then pressing the [Control

knob] starts upgrading the firmware.

For how to update the firmware, access our

web site.

http://www.kenwood.com/cs/ce/

( : Factory setting)

 Use the [Control knob] to select a setting.

The previous item appears.

Exit the Function setting mode.

Press and hold the [6] button.

13-2DIN_M_EN_00.indb 29 12/11/26 15:59

30 | DPX-U5130BT/ DPX-U5130

Registering a Bluetooth (Function of DPX-U5130BT)

Bluetooth module that can be used with this unit

• For details on the Bluetooth cell-phone with the hands-free

function, see <About the Bluetooth module> (page 30).

About automatic connection of the iPod touch or iPhone

through Bluetooth

• This unit is compatible with an Apple Auto Pairing function.

Connecting the iPod touch or iPhone to this unit with USB

cable will automatically register it as a Bluetooth device. See

<“AUTO PAIRING”> (page 37).

1. The Bluetooth function of the iPod touch or iPhone is

turned on first.

2. Connect an iPod touch or iPhone to the USB terminal.

3. Press the volume knob to pair once you have confirm the

passcode.

When registration is impossible

• If there are 5 Bluetooth devices registered, you cannot

register a new Bluetooth device.

• When any error code appears while the pairing is in

progress, refer to <Error messages> (page 41).

When SMS is received

• When the connected Bluetooth device receives SMS, “SMS

RECEIVE” is displayed on this unit.

Selecting the Bluetooth device you

wish to connect

When two or more Bluetooth devices have already

been registered, you need to select the Bluetooth

device you wish to use.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS”

> “PAIRING” > “PHONE SELECT” (to select the

cell-phone) or “AUDIO SELECT” (to select the

audio player).

For how to use the [Control knob], refer to <How to

select the item> (page 9).

“(name)” appears.

 Use the [Control knob] to select an Bluetooth

device.

‘*(name)’ or ‘-(name)’ appears.

“*”: The selected Bluetooth device is busy.

“-”: The selected Bluetooth device is on standby.

“ “ (blank): The Bluetooth device is deselected.

Exit the Bluetooth mode.

Press the [Ú] button.

About the Bluetooth module

This unit conforms to the following Bluetooth

specifications:

Version Bluetooth Ver.2.1+EDR Certified

Profile HFP (Hands Free Profile)

SPP (Serial Port Profile)

PBAP (Phonebook Access Profile)

OPP (Object Push Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile)

For the cell-phones verified for compatibility, access

the following URL:

http://www.kenwood.com/cs/ce/bt/

Notes

• The units supporting the Bluetooth function have been

certified for conformity with the Bluetooth Standard

following the procedure prescribed by Bluetooth

SIG. However, it may be impossible for such units to

communicate with your cell-phone depending on its type.

• HFP is a profile used to make a hands-free call.

• OPP is a profile used to transfer data such as a phone book

between units.

Registering a Bluetooth device

You can register your Bluetooth device in this unit.

 Start registering a unit by operating the

Bluetooth device.

By operating the Bluetooth device, register

the hands-free unit or audio unit (pairing).

Select “DPX-U51**BT” (for DPX-U5130BT) from the

list of found units.

 If “PAIRING PASS ****** (Bluetooth device

name) PRESS VOLUME KNOB” appears,

proceed to step 4.

 Input the PIN code (“0000”) in the Bluetooth

device.

Check that registration is complete on the

Bluetooth device. PIN code is set to “0000” as the

default. You can change this code.

See <Registering the PIN code> (page 36)

“PAIRING PASS ****** (Bluetooth device name)

PRESS VOLUME KNOB” appears.

 Press the [Control knob].

Pairing starts. When is it completed, “PAIRING OK”

appears.

13-2DIN_M_EN_00.indb 30 12/11/26 15:59

English | 31

When no device can be selected

• If a cell-phone is already selected, deselect it, and then

select a different one.

• If you cannot select a device using the audio player,

connect the device with the audio player.

Deleting a registered Bluetooth

device

You can delete a registered Bluetooth device.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS” >

“PAIRING” > “DEVICE DELETE”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

“(name)” appears.

 Use the [Control knob] to select an Bluetooth

device.

 Use the [Control knob] to select “YES”.

“COMPLETED” appears.

Exit the Bluetooth mode.

Press the [Ú] button.

When a registered device is deleted

• When a registered cell-phone is deleted, its phone Book,

and log are also deleted.

Bluetooth device registration test

You can check whether a Bluetooth device can be

registered by operating this unit.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “BT TEST

MODE”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

“PLEASE PAIR YOUR PHONE” appears.

 By operating the Bluetooth device, register

the hands-free unit or audio unit (pairing).

Select “DPX-U51**BT” (for DPX-U5130BT) from the

list of found units.

 If “(Bluetooth device name)” appears, proceed

to step 6.

 Input the PIN code (“0000”) in the Bluetooth

device.

 Use the [Control knob] to select an Bluetooth

device.

When pairing is completed successfully, a

connection test starts automatically.

When the connection test is completed, test results

are displayed on a function basis (“OK”: Enabled;

“NG”: Disabled).

Display Description

“PAIRING” Registration in this unit

“HF CNT” Hands-free phoning

“AUD CNT” Audio playback

“PB DL” Phone Book downloading

 Press the [Control knob].

Exit the test mode.

13-2DIN_M_EN_00.indb 31 12/11/26 15:59

32 | DPX-U5130BT/ DPX-U5130

Hands-free phoning (Function of DPX-U5130BT)

Alphabet search

You can search for a name in the phone book by the

alphabet.

 Press the [7] button.

 Press the [1] button.

Enter the Alphabet search mode and

“<ABCDEFGHIJK>” appears.

 Search for a name in the phone book.

Operation type Operation

Selection of initial Turn the [Control knob].

Page feeding of

alphabetical list

Press the [E] or [F].

Determine the initial Press the [Control knob].

 Use the [Control knob] to select a name.

 Search for a number in the phone book.

Operation type Operation

Selection of number list Turn the [Control knob].

Switching to name list Press the [6].

 Press the [Control knob].

Make a call.

Canceling the Alphabet search mode

Press and hold the [6] button.

Dialing a number

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “NUMBER

DIAL”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Enter a phone number.

Operation type Operation

Selection of number Turn the [Control knob].

Selection of digit Press the [E] or [F].

 Press the [Control knob].

Make a call.

Number of digits that can be input

• You can input a maximum of 32 digits.

Receiving a call

You can answer a phone call

Press the [Ú] button.

The following operations disconnect the line

• Inserting a CD.

• Connecting a USB device.

Rejecting an incoming call

Press the [SRC] button.

Calling a number in the phone book

 Press the [7] button.

 Search for a name in the phone book.

Operation type Operation

Selection of name list Turn the [Control knob].

Switching to number list Press the [Control knob].

 Search for a number in the phone book.

Operation type Operation

Selection of number list Turn the [Control knob].

Switching to name list Press the [6].

 Press the [Control knob].

Make a call.

When there is no phone book

• If the phone book has not yet been downloaded

automatically, download it according to <Downloading the

phone book> (page 36).

Display of phone book

• During search, a non-accent character such as “u” is

searched for instead of an accent character such as “ü”.

13-2DIN_M_EN_00.indb 32 12/11/26 15:59

English | 33

Calling a number in the call log

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “CALL

HISTORY”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Turn the [Control knob] to select a name and

phone number.

I : Incoming calls

O : Outgoing calls

M : Missed calls

 Press the [Control knob].

Make a call.

Speed dialing (Preset dial)

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Press number button ([1] to [6]).

 Press the [Control knob].

Make a call.

Registering a dial number

• You need to register the preset dial number. Refer to

<Registering in the preset dial number list> (page 33).

Registering in the preset dial number

list

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Enter the phone number you wish to register

Enter the phone number with reference to the

following:

<Calling a number in the phone book> (page

32)

<Dialing a number> (page 32)

<Calling a number in the call log> (page 33)

 Press and hold number button ([1] to [6]).

During a call

Disconnecting a call

Press the [SRC] button.

Switching to the Private mode

Press the [L] button.

Pressing this knob each time switches between the

private talk mode (“PV TALK”) and hands-free talk

mode (“HF TALK”).

When the previous source is restored in the Private mode

• Depending on the type of your cell-phone, switching

to the private talk mode may select the source that was

used before commencing the hands-free connection. If

this happens, the source cannot be switched back to the

hands-free talk mode by operating this unit. Operate your

cell-phone to return to the hands-free talk mode.

Adjusting the voice volume during a call

Turn the [Control knob].

13-2DIN_M_EN_00.indb 33 12/11/26 15:59

34 | DPX-U5130BT/ DPX-U5130

Hands-free phoning

Clearing the disconnection message

Press the [Ú] button.

“HF DISCONCT” disappears.

Making a call by voice dialing

You can make a voice call using the voice

recognition function of the cell-phone.

 Press and hold the [Ú] button to start voice

recognize.

“VOICE CONTROL” appears.

 Pronounce the name registered in the cell-

phone.

Make a call.

Canceling the voice recognize

Press and hold the [Ú] button.

About voice recognition

• If “NO SUPPORT” appears, your cell-phone does not support

the voice recognition function.

• If “N/A VOICE TAG” appears, your cell-phone cannot start

voice recognition.

• If your voice cannot be recognized, a message appears.

Press and hold the volume knob to terminate voice

recognition. Retry it again from the beginning.

• Audio sound is not output during voice recognition.

Display of phone number types

(categories)

The category items in the phone book are displayed

as follows:

Display Information

Home

Mobile

Office

General

Other

Switching between Two Connected

Cell-phones

When two Bluetooth devices are connected, you

can assign the Bluetooth device to be used in

priority to the other Bluetooth device.

When selecting the priority device using the

button

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Press and hold [Ú] button.

The device given priority is changed.

When selecting the priority device from the

menu

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “DVC

PRIORITY”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Turn the [Control knob] to select a “MAIN” or

“SUB”.

 Press the [Control knob].

When Sub is selected, the device given priority is

changed.

Exit the Bluetooth mode.

Press the [Ú] button.

Notes

• You cannot switch between the connected cell-phones

during downloading of the Phone Book.

• Only the main cell-phone from which you can make a call.

• Both the main and sub cell-phones can receive an

incoming call.

• If the other cell-phone receives an incoming call while you

are talking on the active cell-phone, you must finish the

current call to answer the incoming call to the other cell-

phone.

• If the main cell-phone is disconnected when it is taken out

of the vehicle, the sub cell-phone becomes the main cell-

phone if it is held connected. When the disconnected cell-

phone is brought back into the vehicle, it is reconnected as

the sub cell-phone.

13-2DIN_M_EN_00.indb 34 12/11/26 15:59

English | 35

Bluetooth audio (Function of DPX-U5130BT)

Before use

• You need to register your Bluetooth audio player

before using it with this unit. For more details, see

<Registering a Bluetooth device> (page 30).

• You need to select the Bluetooth audio player you

wish to connect. Refer to <Selecting the Bluetooth

device you wish to connect> (page 30).

Basic operations

Selecting a Bluetooth audio source

Select the Bluetooth audio source.

Refer to <Source selection> (page 10).

Pause and play a song

Press the [L] button.

Selecting a song

Press the [E] or [F] button.

Fast-forwarding or fast-backwarding a song

Press and hold the [E] or [F] button.

Selecting an audio file folder

Press the [1] or [2] button.

Preparation for using a Bluetooth audio player

• All or some of the operations above cannot be performed if

the Bluetooth audio player is not ready for remote control.

• Switching between Bluetooth audio sources does not start

or stop playback automatically. Perform the operation for

starting or stopping playback.

• Some audio players cannot be controlled remotely or

reconnected after Bluetooth disconnection. Operate the

main unit of the audio player to connect a Bluetooth

device.

Play function

Random play

Press the [3] button.

Switches between Folder Random (“FOLDER RANDOM”),

All Random (“ALL RANDOM”), and OFF (“RANDOM OFF”).

Repeat play

Press the [4] button.

Switches between File Repeat (“FILE REPEAT”), All Repeat

(“ALL REPEAT”), and OFF (“REPEAT OFF”).

Functions that can be used

• The available playback functions differ depending on the

type of the connected Bluetooth audio player.

13-2DIN_M_EN_00.indb 35 12/11/26 15:59

36 | DPX-U5130BT/ DPX-U5130

Bluetooth settings (Function of DPX-U5130BT)

Registering the PIN code

By operating the Bluetooth device, specify the PIN

code necessary for registering this unit.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS” >

“DETAILED SET” > “PIN CODE EDIT”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Input the PIN code

Operation type Operation

Selection of numbers Turn the [Control knob].

Movement to the next digit Press the [F].

Deletion of the last digit Press the [E].

Transmission of PIN code Press the [Control knob].

If “COMPLETED” appears and registration is

complete.

Exit the Bluetooth mode.

Press the [Ú] button.

Notes on PIN code input

• By default, “0000” is specified.

• A PIN code can be specified with up to eight digits.

Downloading the phone book

If the phone book is not downloaded automatically

to this unit to which a cell-phone -which is not

compatible with PBAP- is connected, download it in

the following manner:

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS” >

“TRANSFER PB”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

When downloading starts, “PB DL ###” appears.

Exit the Bluetooth mode.

Press the [Ú] button.

Maximum number of phone numbers that can be

registered

• Up to 400 phone numbers can be registered for each

registered cell-phone.

• Up to 32 digits can be registered for each phone number

along with up to 50* characters representing a name.

(* 50: Number of alphabetical characters. Fewer characters

can be input depending on the type of characters.)

Cancellation of downloading

• To cancel downloading of the phone book data, operate

the cell-phone.

13-2DIN_M_EN_00.indb 36 12/11/26 15:59

English | 37

Deleting the phone book

You can delete the phone book stored in this unit to

which a cell-phone − which is not compatible with

PBAP − is connected.

 Press the [7] button.

 Search for a number/name in the phone book.

Operation type Operation

Selection of name list and number list Turn the [Control knob].

Switching to number list Press the [Control knob].

Switching to name list Press the [6].

 Press and hold the [Control knob].

 Use the [Control knob] to select the item to be

deleted.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

Display Item to be deleted

“DELETE ONE” When a name is selected, all phone numbers

registered to the name are deleted.

When a phone number is selected, only the selected

phone number is deleted.

“DELETE ALL” When a name is selected, all the registered phone

books are deleted.

When a phone number is selected, all the phone

books having the name to which the selected

number are deleted.

 Use the [Control knob] to select “YES”.

“COMPLETED” appears.

Displaying the firmware version

You can view the version of the rmware of this

unit.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS” >

“DETAILED SET” > “BT F/W UPDATE”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

The firmware version appears.

Exit the Bluetooth mode.

Press the [Ú] button.

How to update

• For how to update the firmware, access our web site.

www.kenwood.com/cs/ce/bt/

Bluetooth detail setting

You can congure the initial settings of this unit.

 Press the [Ú] button.

“BT MODE” appears and enter the Bluetooth mode.

 Use the [Control knob] to select “SETTINGS” >

“DETAILED SET”.

For how to use the [Control knob], refer to <How to

select the item> (page 9).

 Use the [Control knob] to select an Bluetooth

detail setting item.

Display Description

“AUTO ANSWER” Automatically answers a call after lapse of the

preset time interval.

“OFF”: Does not answer the phone call

automatically.

“1” – “8” – “99”:

Automatically answers the phone call after lapse

of 1 – 99 seconds.

“RECONNECT” When set to “ON”, starts re-pairing with the

registered Bluetooth device automatically when

it becomes unpaired.

“ON” / “OFF”

“AUTO PAIRING” When set to “ON”, performs Bluetooth pairing

automatically when the iPhone is connected to

the USB terminal.

“ON” / “OFF”

“BT HF/AUDIO” Specifies the output speakers for hands-free

voice communication and Bluetooth audio

sound.

“FRONT” : Outputs sound from the front

speakers.

“ALL” : Outputs sound from the front and rear

speakers.

“CALL BEEP” Sets whether to output a beep from the speaker

when a call comes in.

“ON” : Outputs a beep.

“OFF” : Does not output a beep.

“MIC GAIN” Adjusts the sensitivity of the microphone for

telephone call or adjusts the voice of the caller.

“-20” – ”0” – “+8”

“ECHO CANCEL” Sets the echo cancellation level.

“1” – ”4” – “10”

( : Factory setting)

 Use the [Control knob] to select a setting.

The previous item appears.

Exit the Bluetooth mode.

Press the [Ú] button.

13-2DIN_M_EN_00.indb 37 12/11/26 15:59

38 | DPX-U5130BT/ DPX-U5130

Basic operation of remote control

Before using remote control

Preparing the remote control unit

Pull the battery sheet out from the remote control

unit in the direction of the arrow.

Changing the battery of the remote control

unit

(1)

(2)

Use a commercially available button battery (CR2025).

Insert the battery with the + side facing upward,

following the illustration inside the case.

(1) Keep on sliding.

(2) Pull out.

! CAUTION

• Keep battery out of reach of children and in

original package until ready to use. Dispose of

used batteries promptly. If swallowed contact

physician immediately.

• Do not leave the battery near re or under

direct sunlight. A re, explosion or excessive

heat generation may result.

• Do not set the remote control in hot places

such as on the dashboard.

• The Lithium battery is in danger of explosion

if replaced incorrectly. Replace only with the

same or equivalent type.

Basic opreation

ATT

0 — 9

SRC

VOL

FM

AM

DIRECT/OK

5/∞

AUD

ENT

General control

• Volume control: [VOL]

• Source selection: [SRC]

Press and hold to turn off the power.

• Volume reduction: [ATT ]

When the button is pressed again, the volume

returns to the previous level.

• Returning to previous item: [6]

• Selection of item: [R]/[S]

• Determination: [ENT]

• Enter Audio Control mode: [AUD]

About power on

• The remote control cannot be used to turn the power on.

Press the [SRC] button on the main unit.

On Tuner source

• Band selection: [FM]/[AM]

• Station selection: [E]/[F]

• Recall preset stations: [1] – [6]

On CD/Audio file source

• Music selection: [E]/[F]

• Folder selection: [FM]/[AM]

• Pause/Play: [ENT]

• Enter the Music search mode: [R]/[S]

• Selecting folders/les during Music search

mode: [R]/[S]

• Returning to previous folder: [6]

13-2DIN_M_EN_00.indb 38 12/11/26 15:59

English | 39

On iPod source

• Enter Music search mode: [R]/[S]

• Selecting items during Music search mode: [R]/

[S]

• Returning to previous item: [6]

• Pause/Play: [ENT]

On Pandora internet radio source

• Song skip: [F]

• Pause/Play: [ENT]

• Enter the station list mode: [R]/[S]

- Select item: [R]/[S]

- Exit the station list mode: [6]

On Aha source

• Selecting a content: [E]/[F]

• Pause/Play: [ENT]

• Enter the station search mode: [R]/[S]

- Select item: [R]/[S]

- Exit the station search mode: [6]

Hands-free phone control

Making a call

• Enter Bluetooth mode: [Ú]

• Select a dialing method: [R]/[S] Á [ENT]

• Number dial input:

- Input a digit: [0] – [9]

- Input “+”: [F]

- Input “#”: [FM]

- Input “*”: [AM]

- Clear the entered phone number: [E]

• Make a call: [ENT]

Receiving a call

• Answer the call: [Ú]

During a call

• End the call: [Ý]

13-2DIN_M_EN_00.indb 39 12/11/26 15:59

40 | DPX-U5130BT/ DPX-U5130

Troubleshooting guide

Setting error

Some functions of this unit may be disabled by

some settings made on this unit.

ö Cannot set up display.

Í The demonstration mode is not turned off as

mentioned in <Demonstration mode setting> (page

28).

ö Cannot set up the subwoofer.

ö Cannot set up the low pass lter.

ö No output from the subwoofer.

Í “SUBWOOFER SET” is not set to ON as mentioned in

<Audio control> (page 11).

ö Cannot set up the subwoofer phase.

Í “LPF SUBWOOFER” is set to “THROUGH” as mentioned

in <Audio control> (page 11).

Operation/wiring error

What might seem to be a malfunction in your unit

may just be the result of a slight operation error or a

wiring error. Before calling for service, rst check the

following table for possible problems.

General

ö The key beep does not sound

Í The Preout jack is in use.

ò The key beep cannot be output from the Preout

jack.

ö Sound cannot be heard.

Í Adjust the volume to the optimum level.

Í Check the cords and connections.

Tuner source

ö Radio reception is poor.

Í The car antenna is not extended.

ò Pull the antenna out all the way.

Disc source

ö The specied disc does not play, but another one

plays instead.

Í The specified CD is quite dirty.

ò Clean the CD with reference to <Handling discs>

(page 22).

Í The disc is severely scratched.

ò Try another disc instead.

ö Disc cannot be ejected.

Í The unit is malfunctioning for some reason.

ò Press and hold [G] to forcibly eject the disc. Be

careful not to drop the disc when it is ejected. If

this does not solve the problem, reset the unit.

Audio le source

ö The sound skips when an Audio le is being played.

Í The media is scratched or dirty.

ò Clean the CD with reference to <Handling discs>

(page 22).

Í The recording condition is bad.

ò Play the media again or use another media.

Bluetooth source

ö The hands-free talk volume is low.

Í The hands-free talk volume can be adjusted

independently.

ò Adjust it during hands-free talk. “MIC GAIN” of

<Bluetooth detail setting> (page 37).

ö No beep is heard at reception of an incoming call.

Í No beep is heard depending on the type of your cell-

phone.

ò The “CALL BEEP” of <Bluetooth detail setting>

(page 37) is set ON.

ö Voice is not recognized.

Í The vehicle window is open. If the surrounding noise

is large, voice cannot be recognized properly.

ò Close the vehicle windows to reduce noise.

Í Small voice. If voice is too small, it cannot be

recognized properly.

ò Speak into the microphone a little more loudly

and naturally.

ö The sound from the Bluetooth audio player is

discontinuous.

Í Another Bluetooth device is affecting the Bluetooth

communication. Turn off another Bluetooth device.

Move another Bluetooth device away from this unit.

Í Another Bluetooth device or profile is used for

communication. The downloading of the Phone book

disconnects the sound.

13-2DIN_M_EN_00.indb 40 12/11/26 15:59

English | 41

Error messages

The messages shown below indicates your system

condition.

ö “PROTECT” (blink)

Í The speaker wire has short-circuited or touched

the chassis of the vehicle, and then the protection

function has been activated.

ò Lay or insulate the speaker cable properly and

press the Reset button. If “PROTECT” does not

disappear, consult your nearest service center.

Disc/ USB/ iPod Messages

ö “COPY PRO”

Í A copy-protected file is played.

ö “iPod ERROR”

Í Connection to the iPod has failed.

ò Remove the iPod/ iPhone and then reconnect it.

ò Reset iPod/ iPhone.

ö “NA DEVICE”

Í An unsupported USB device is connected.

ò Check that the connected USB device is

supported. See <About the USB device> (page

22).

Í Connection to the iPod has failed.

ò Check that the connected iPod is supported. See

<Models of iPods/iPhones that can be connected

to this unit> (page 12) for information on

supported iPods.

ö “NA FILE”

Í An Audio file is played in a format that is not

supported by this unit.

ö “NO DEVICE”

Í A USB device is selected as a source although no USB

device is connected.

ò Change the source to any source other than the

USB device. Connect an USB device, and change

the source to the USB device again.

ö “NO MUSIC”

Í The connected USB device contains no playable

audio file.

Í A medium that does not have playable data has been

played.

ö “PLEASE EJECT”

Í The unit is malfunctioning for some reason.

ò Press and hold [G].

ò Press the reset button on the unit. If the “PLEASE

EJECT” code does not disappear, consult your

nearest service center.

ö “READ ERROR”

Í The file system of the connected USB device is

broken.

ò Copy the files and folders for the USB device

again. If “Read Error” is still displayed, initialize the

USB device or use another USB device.

ö “TOC ERROR”

Í The CD is quite dirty. The CD is upside-down. The CD

is scratched a lot.

Í The disc is unreadable.

ö “USB ERROR”

Í Some trouble may have occurred to the connected

USB device.

ò Remove the USB device, then cycle the power

switch to ON. If the same display is repeated, use

another USB device.

Bluetooth Messages

ö “AUD DISCONCT”

Í The unit cannot communicate with the Bluetooth

audio player.

ö “DEVICE FULL”

Í 5 Bluetooth device have already been registered. No

more Bluetooth devices are registered.

ö “HF DISCONCT”

Í The unit cannot communicate with the cell-phone.

ö “HF ERROR 68”

Í The unit cannot communicate with the cell-phone.

ò Cycle the power switch. If this message still

appears, press the Reset button on the control

unit.

ö “HF ERROR 89”

Í Update of the firmware has failed.

ò Retry update of the firmware.

ö “NO DATA”

Í There is no outgoing call list.

Í There is no incoming call list.

Í There is no missed call list.

Í There is no phone book list.

Í Data is not contained in the phone book.

ö “NO ENTRY”

Í The cell-phone has not been registered (pairing).

ö “NO ACTIVE DVC”

Í No cell-phone is connected.

ö “NO NUMBER”

Í The calling party does not notify a caller ID.

Í There is no phone number data.

ö “NO SUPPORT”

Í Your cell-phone does not support the voice

recognition function.

ö “N/A VOICE TAG”

Í Your cell-phone cannot start voice recognition.

ö “PAIRING NG”

Í Pairing error.

13-2DIN_M_EN_00.indb 41 12/11/26 15:59

42 | DPX-U5130BT/ DPX-U5130

Troubleshooting guide

Pandora Messages

ö “ADD ERROR”

Í Registration of the station has failed.

ö “CHECK DEVICE”

Í Any device ready for Pandora internet radio

reception is not connected to this unit.

Í Pandora application has not started, you have not

signed in, or system maintenance is in progress.

ö “CONNECT ERROR”

Í Communication is unstable.

ö “LICENSE ERROR”

Í The Pandora® internet radio is accessed from a

country to which it is not delivered.

ö “NO CONTENT”

Í There is no receivable content.

ö “NO SKIPS”

Í No more skips are allowed now.

Retry after a while.

ö “NO STATIONS”

Í There is no receivable station.

ö “NOT EXIST”

Í The registered station has been deleted or the device

is not the registered one.

ö “RATING ERROR”

Í Registration of Thumbs Up/Down has failed.

ö “SEARCH ERROR”

Í No station could be searched for.

ö “STATION LIMT”

Í The number of registered stations has reached the

upper limit.

ò Retry after deleting an unnecessary station.

ö “UPGRADE APP”

Í The Pandora application is an older version which

the unit can not support. Confirm that the Pandora

application is the latest version.

Aha Messages

ö “ACTN DISABLED”

Í You performed an unavailable operation.

ö “AHA APP UPDATE REQUIRED”

Í Upgrade the aha application to the latest version.

ö “AHA UNAVAILABLE”

Í Your smartphone cannot be connected to Aha Radio

server.

ö “CHECK APP”

Í Log in to aha.

ö “CHECK DEVICE”

Í Aha application has not started, you have not signed

in, or system maintenance is in progress.

ö “CONNECT PHONE”

Í Connect the cell-phone.

ö “LOGIN FAILED”

Í Logging in to aha has failed.

ö “NETWORK UNAVAILABLE”

Í The network has been disconnected.

ö “NO CONTENT”

Í There is no receivable content.

ö “POOR GPS”

Í The GPS reception condition of your smartphone is

poor.

13-2DIN_M_EN_00.indb 42 12/11/26 15:59

English | 43

Installation accessories

1

..........1

2

..........1

3

..........6

4

..........6

5

..........2

6 (DPX-U5130BT only)

3 m .....1

Installation Procedure

 To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

 Make the proper input and output wire

connections for each unit.

 Connect the speaker wires of the wiring harness.

 Connect the wiring harness wires in the following

order: ground, battery, ignition.

 Connect the wiring harness connector to the unit.

 Install the unit in your car.

 Reconnect the - battery.

 Press the reset button.

# WARNING

• If you connect the ignition wire (red) and the battery wire

(yellow) to the car chassis (ground), you may cause a short

circuit, that in turn may start a fire. Always connect those

wires to the power source running through the fuse box.

! CAUTION

• Mounting and wiring this product requires skills and

experience. For safety’s sake, leave the mounting and wiring

work to professionals.

• Make sure to ground the unit to a negative 12V DC power

supply.

• Do not install the unit in a spot exposed to direct sunlight

or excessive heat or humidity. Also avoid places with too

much dust or the possibility of water splashing.

• Do not use your own screws. Use only the supplied screws.

Using wrong screws, could damage the unit.

• If the power is not turned ON (“PROTECT” appears), the

speaker wire may have a short-circuit or touched the chassis

of the vehicle and the protection function may have been

activated. Therefore, the speaker wire should be checked.

• If your car’s ignition key switch does not have an ACC

position, connect the ignition wires to a power source

that can be turned on and off with the ignition key. If you

connect the ignition wires to a constant-voltage power

source, as with battery wires, the battery may die.

• If the console has a lid, make sure to install the unit so that

the faceplate will not hit the lid when it is closed or opened.

• If the fuse blows, first make sure the wires are not touching

other parts to cause a short circuit, and then replace the old

fuse with one with a new the same rating.

• Insulate unconnected wires with vinyl tape or other similar

materials. To prevent a short circuit, do not remove the caps

on the ends of the unconnected wires and terminals.

• Connect the speaker wires correctly to the corresponding

terminals. The unit may be damaged or fail to work if you

share the - wires or ground them to any metal part in

the car.

• When connecting only two speakers, connect the

connectors either to both of the front output terminals

or to both of the rear output terminals (do not mix front

and rear terminals). For example, if you connect the +

connector of the left speaker to a front output terminal, do

not connect the - connector to a rear output terminal.

• After the installing the unit, check whether the brake lamps,

blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

• Reception may become poor if there are metal objects near

the Bluetooth antenna. (DPX-U5130BT only)

Bluetooth antenna unit

For Good Reception

To assure good reception, note the following:

• Communicate with the cell-phone within the line-

of-sight distance of 10 m (30 ft). The communication

range becomes shorter depending on the surrounding

environment. The communication range also becomes

shorter when there is an obstacle between this unit and the

cell-phone. The above maximum communication range (10

m) is not always assured.

• A broadcast station or walkie-talkie located nearby can

interfere with communication due to a too strong signal.

Accessories/ Installation Procedure

13-2DIN_M_EN_00.indb 43 12/11/26 15:59

44 | DPX-U5130BT/ DPX-U5130

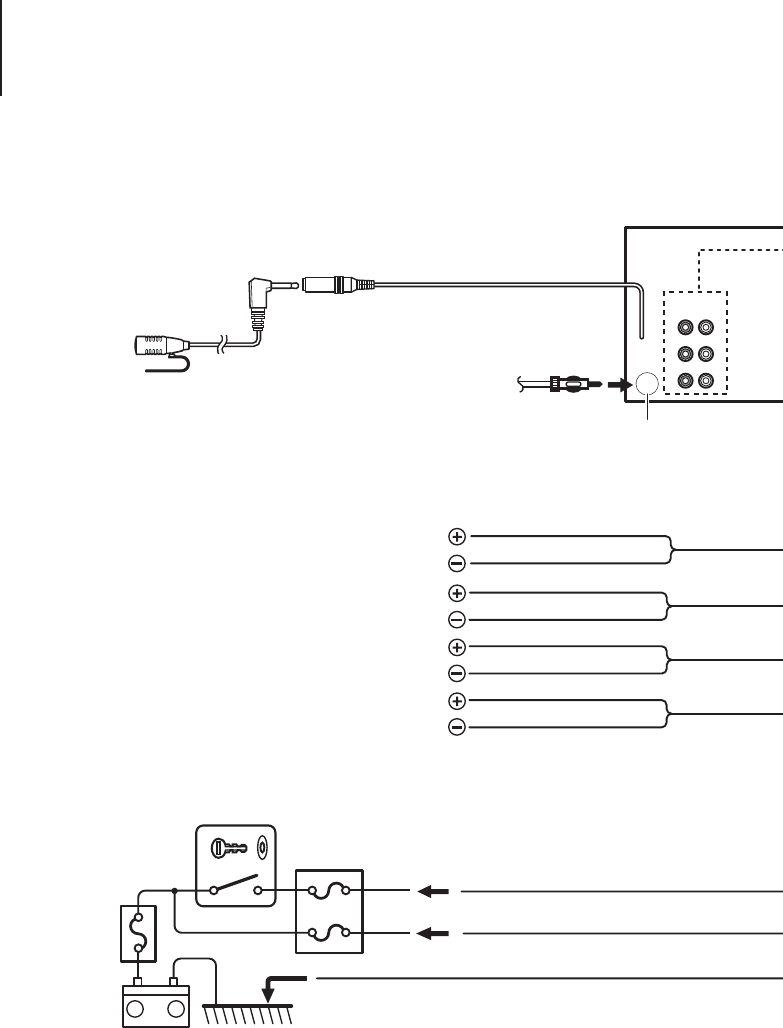

Connecting Wires to Terminals

P.CONT

ILLUMI

REMOTE CONT

REMOTE INPUT

STEERING WHEEL

ANT.

CONT

MUTE

–

+

LR

LR

Antenna Cord

FM/AM antenna input

White/Black

Gray/Black

Green/Black

Purple/Black

White

Gray

Green

Purple

To front left speaker

To front right speaker

To rear right speaker

To rear left speaker

Red (Ignition wire)

Yellow (Battery wire)

Black (Ground wire) · (To car chassis)

Ignition key

switch

Car fuse box

(Main fuse)

ACC

Car fuse

box

Battery

Microphone

(Accessory6)

Microphone input (DPX-U5130BT only)

13-2DIN_M_EN_00.indb 44 12/11/26 15:59

English | 45

P.CONT

ILLUMI

REMOTE CONT

REMOTE INPUT

STEERING WHEEL

ANT.

CONT

MUTE

–

+

LR

LR

FM/AM antenna input

Fuse (10A)

Wiring harness

(Accessory 1)

If no connections are made, do not let the wire come out from the tab.

Blue/White

(Power control wire)

Blue (Antenna control wire)

Orange/ White

(Dimmer control wire)

When using the optional power amplifier, connect

to its power control terminal.

To car light control switch

Depending on what antenna you are using,

connect either to the control terminal of the motor

antenna, or to the power terminal for the booster

amplifier of the film-type or short pole type

antenna. (Max 300mA, 12V DC)

Brown (Mute control wire)

To use the steering wheel remote control feature,

an exclusive remote adapter (not supplied) that

matches your car is required.

Light Blue/ Yellow

(Steering remote control wire)

Connect to the terminal that is grounded when

either the telephone rings or during conversation.

⁄ To connect the Kenwood navigation system,

consult your navigation manual.

Front output

Sub Woofer output (DPX-U5130BT only)

Rear output/ Sub Woofer output (DPX-U5130 only)

Rear output (DPX-U5130BT only)

13-2DIN_M_EN_00.indb 45 12/11/26 15:59

46 | DPX-U5130BT/ DPX-U5130

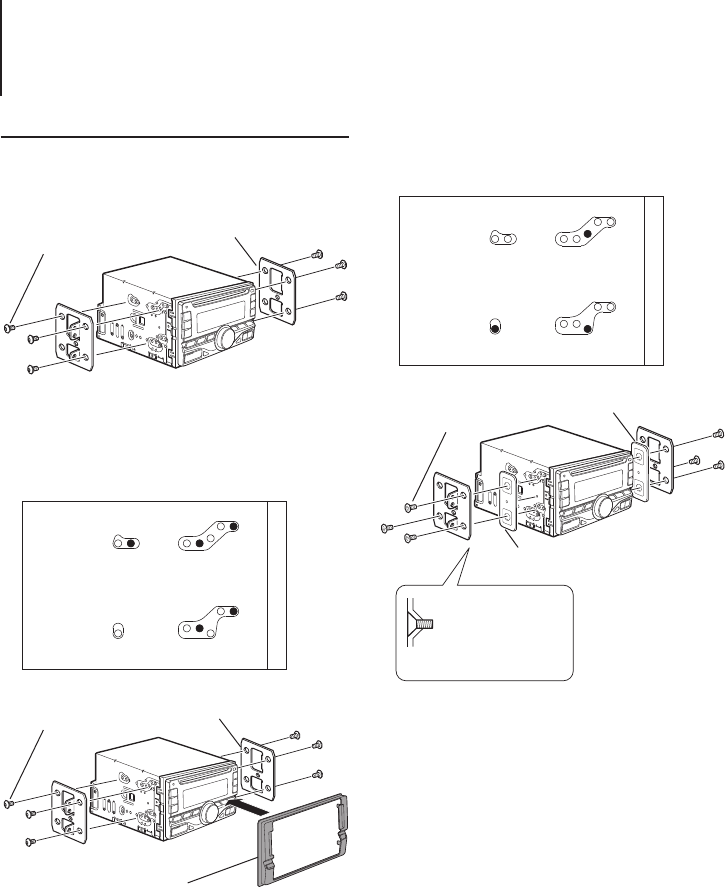

Installation

Installation

Install onto the car bracket using the supplied screws (M5 × 8

mm). The holes of the car bracket to use will differ depending

on the car model.

Accessory 3 (M5 × 8 mm)

or Accessory 4 (M5 × 8 mm) Car Bracket

Installing Toyota Cars

Install onto the car bracket using the supplied screws

(Accessory 4). Use the mounting holes (¦ in the illustration

shown below) that fit the car bracket.

Accessory 4 (M5 × 8 mm) Car Bracket

Accessory 2

(Only for TOYOTA car)

Installing Nissan Cars that uses accessory 3

Install onto the car bracket using the supplied screws

(Accessory 3). Use the mounting holes (¦ in the illustration

shown below) that fit the car bracket.

Accessory 3 (M5 × 8 mm) Car Bracket

Accessory 5

(Only for NISSAN car)

For the car bracket

that uses accessory

3, use accessory 5.

13-2DIN_M_EN_00.indb 46 12/11/26 15:59

English | 47

DPX-U5130BT only

Installation the Microphone Unit

 Check the installation position of the microphone

(accessory 6).

 Remove oil and other dirt from the installation surface.

 Install the microphone.

 Lay the cable up to the unit with it secured at several

positions using tape or the like.

⁄

• Install the microphone as far as possible from the cell-

phone.

Peel off the release coated

paper of double-face adhe-

sive tape to secure the

microphone on the place

shown above.

Adjust the direction of the

microphone to the driver.

Fix a cable with a commercial item of tape.

Accessory 6

13-2DIN_M_EN_00.indb 47 12/11/26 15:59

13-2DIN_M_EN_00.indb 48 12/11/26 15:59
