Kenwood Car Stereo System Kdc Bt755Hd Users Manual

KDC-BT755HD to the manual 4a55eb0c-b639-45d5-8f2e-b39e065c5ddb

2015-01-23

: Kenwood Kenwood-Kenwood-Car-Stereo-System-Kdc-Bt755Hd-Users-Manual-263157 kenwood-kenwood-car-stereo-system-kdc-bt755hd-users-manual-263157 kenwood pdf

Open the PDF directly: View PDF PDF.
Page Count: 28

IM368_Ref_K_en_02© 2012 JVC KENWOOD Corporation
KDC-X797
KDC-BT755HD
CD-RECEIVER
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new
CD-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided
below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the
product.
Model KDC-X797/ KDC-BT755HD Serial number
US Residents Only
Register Online
Register your Kenwood product at www.Kenwoodusa.com
Before reading this manual, click the button below to check the latest edition
and the modified pages.
Check the latest edition
2 | KDC-X797/ KDC-BT755HD English | 3
0. Contents
1. SAFETY 4
1.1 Safety precaution
1.2 Important information
1.3 Regulatory Compliance
2. GETTING STARTED 8

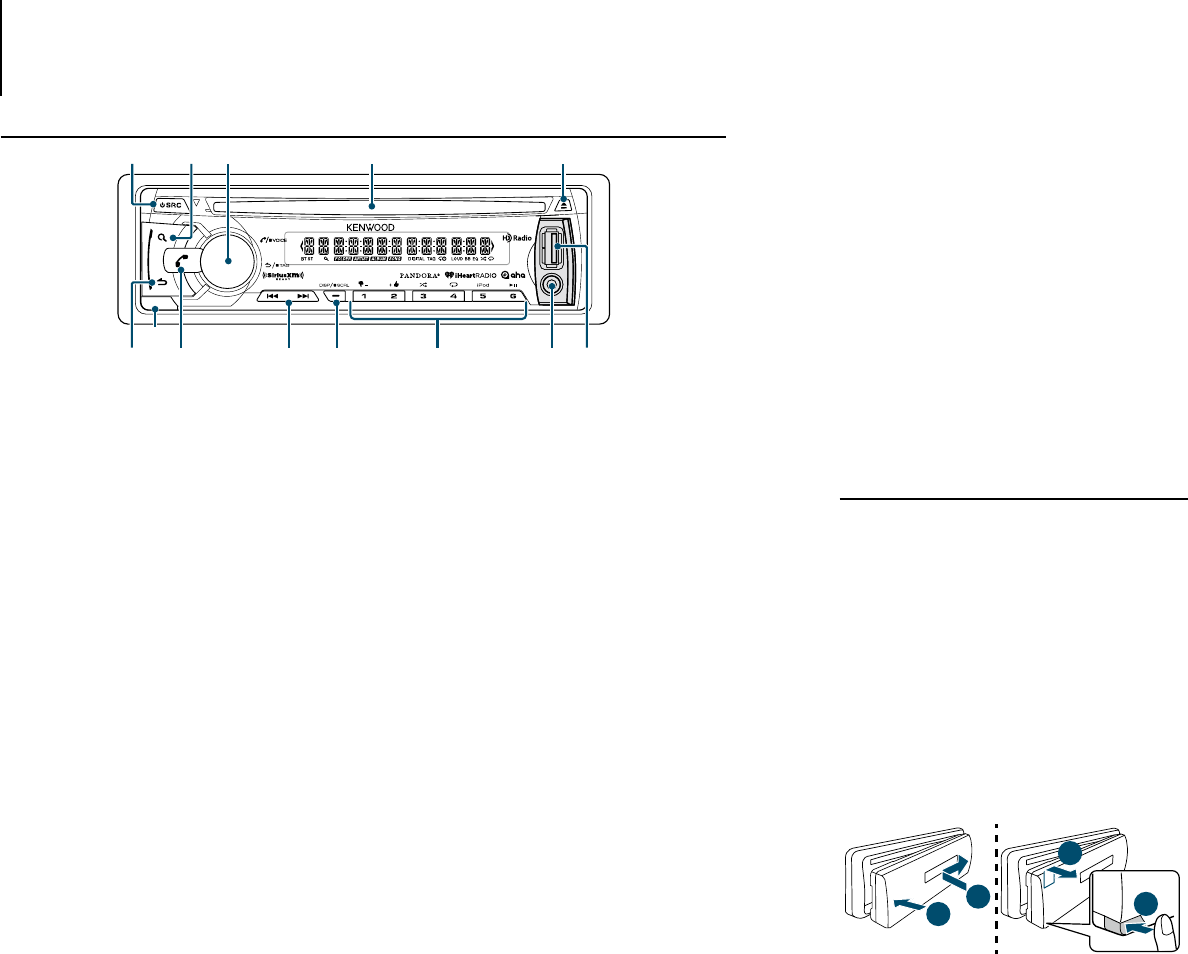

2.1 Component names and functions
2.2 Preparation
3. GENERAL 10
3.1 Basic operations
3.2 Adjusting the clock
3.3 Changing the initial settings
3.4 Setting the demonstration mode

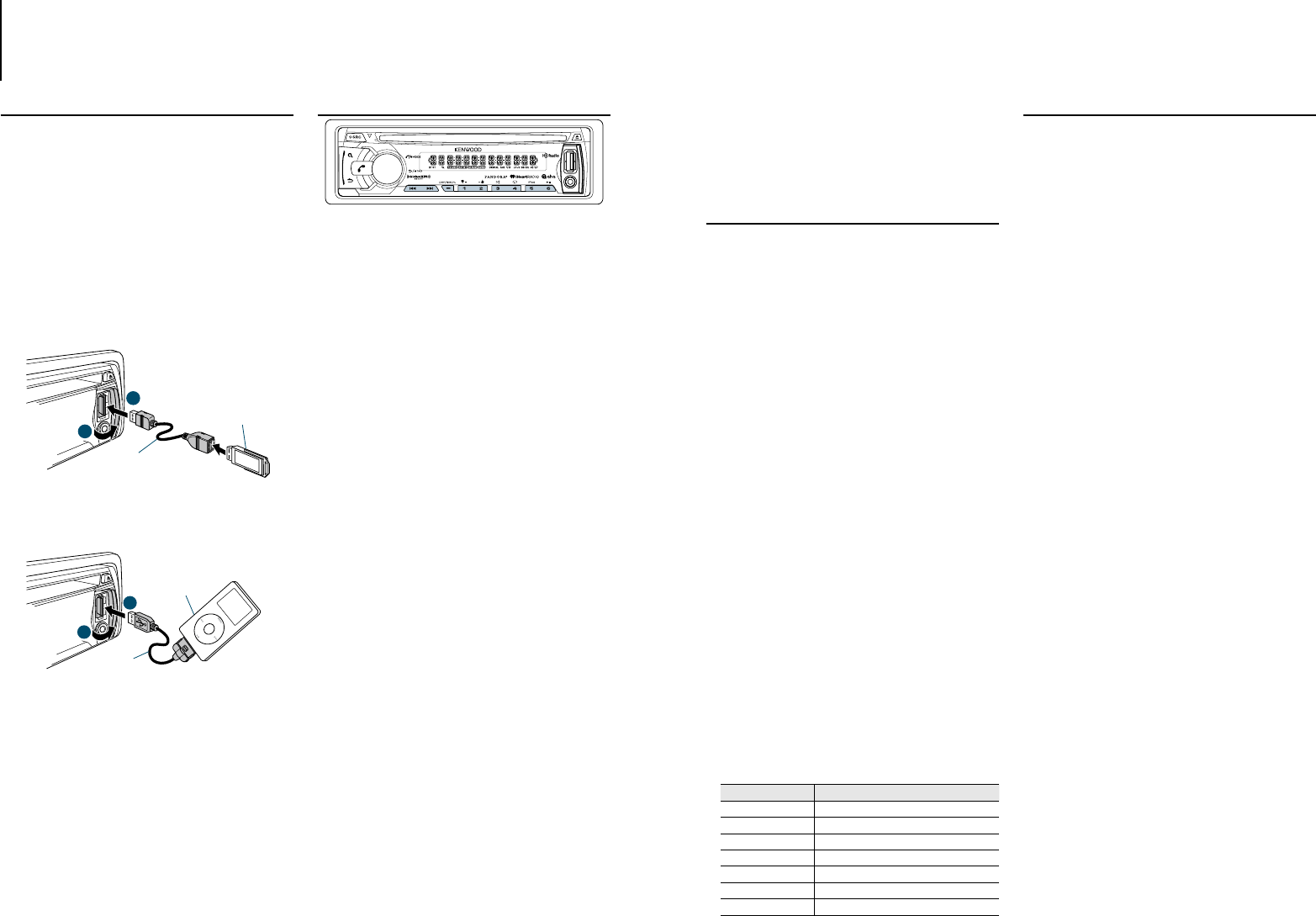

4. CD/ USB/ iPod 12
4.1 Start playback
4.2 Basic operations
4.3 Music search
4.4 Alphabet search
4.5 Direct Music Search using the remote control
(RC-406)
4.6 Setting the skip search ratio
4.7 More information
5. Pandora® 16
5.1 Requirements Pandora®
5.2 Start listening
5.3 Basic operations
5.4 New station creation
5.5 Pandora source control
6. iHeartRadio™ 18
6.1 Requirements iHeartRadio™
6.2 Start listening
6.3 Basic operations
6.4 Station search
6.5 Alphabet search
6.6 Station delete
6.7 iHeartRadio source control
7. Aha™ RADIO 22
7.1 Requirements Aha™
7.2 Start listening
7.3 Basic operations
7.4 Calling a number in the content
7.5 Aha source control

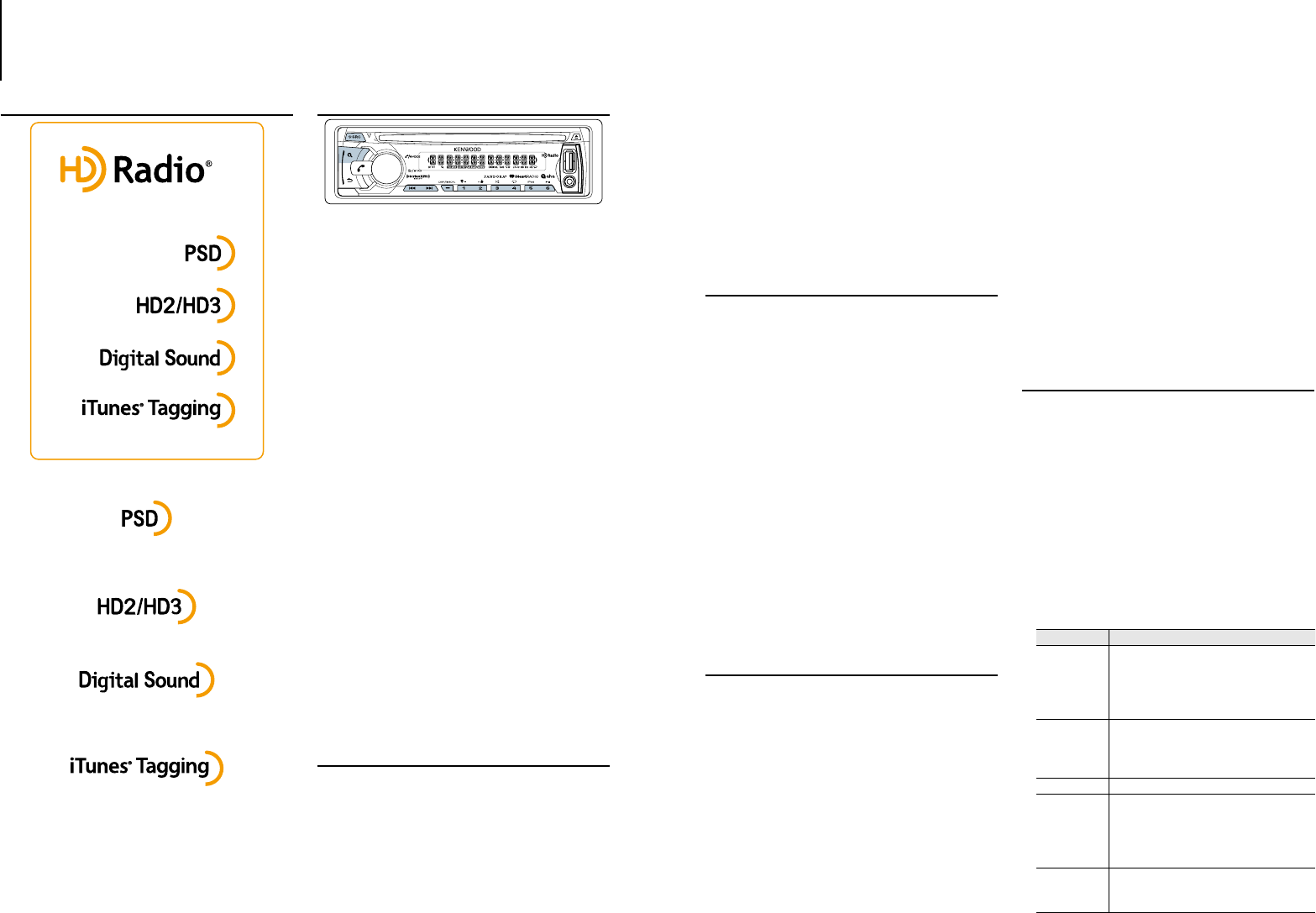

8. HD Radio™ TECHNOLOGY 24
8.1 About HD Radio™ Technology
8.2 Basic operations
8.3 Auto memory
8.4 Direct Access Tuning using the remote control
(RC-406)
8.5 iTunes Tagging
8.6 Changing the HD Radio settings
9. AUX 26
9.1 Start listening
9.2 Set the AUX name
10. AUDIO SETTINGS 27
10.1 Audio controls
11. DISPLAY SETTINGS 28
11.1 Display & Illumination setting
11.2 Adjusting the Illumination color
12. GETTING STARTED OF Bluetooth® 30
12.1 About the Bluetooth module
12.2 Registering a Bluetooth device
12.3 Transferring the Phone Book
12.4 Bluetooth device registration test
13. HANDS-FREE PHONING 32
13.1 Receiving a Call
13.2 During a Call
13.3 Calling a Number in the Phone Book
13.4 Calling a Number in the Call Log
13.5 Dialing a Number
13.6 Speed Dialing (Preset Dial)
13.7 Registering in the preset dial number list
13.8 Make a Voice Dialing Call
13.9 Switching between Two Connected Cell-
phones
13.10 Clearing the disconnection message
13.11 SMS notification
14. Bluetooth AUDIO 35
14.1 Start listening
15. Bluetooth SETUP 36
15.1 Selecting the Bluetooth Device
15.2 Deleting a registered Bluetooth device
15.3 Registering the PIN code
15.4 Changing the Bluetooth detail settings
16. SiriusXM™ 38
16.1 Before use
16.2 Basic operations
16.3 Category search
16.4 Direct Access Tuning using the remote
control (RC-406)
16.5 SiriusXM Replay™
16.6 iTunes Tagging
16.7 Changing the SiriusXM tuner setting
16.8 Channel Lock (Parental Lock)
16.9 Setting Parental Lock for Mature content
16.10 Parental Lock pass code setting
16.11 Channel skip

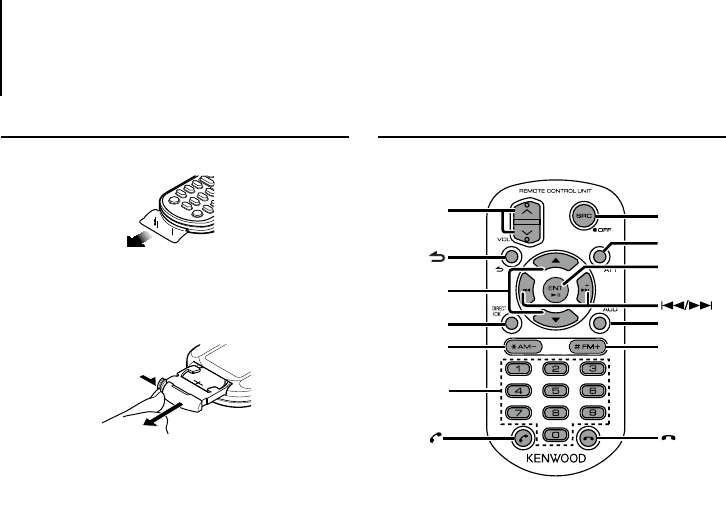

17. REMOTE CONTROL 44
17.1 Before using remote control
17.2 Basic operations
18. TROUBLESHOOTING 46
18.1 Setting error
18.2 Operation/wiring error
18.3 Error messages
19. SPECIFICATIONS 50
19.1 Specifications of each section
19.2 Trademarks
4 | KDC-X797/ KDC-BT755HD English | 5
1. SAFETY
1.1 Safety precaution
# WARNING
Do not operate any function that takes your
attention away from safe driving.
# CAUTION
Volume setting:
• Adjust the volume so that you can hear sounds
outside the car to prevent accident.
• Lower the volume before playing digital sources
to avoid damaging the speakers by the sudden
increase of the output level.
General:
• Avoid using the USB device or iPod/iPhone if it
might hinder driving safety.
• Make sure all important data has been backed
up. We shall bear no responsibility for any loss of
recorded data.
• Never put or leave any metallic objects (such as
coins or metal tools) inside the unit, to prevent a
short circuit.
• If a disc error occurs due to condensation on the
laser lens, eject the disc and wait for the moisture to
evaporate.
Remote control (RC-406):
• Do not leave the remote control in hot places such
as on the dashboard.
• The Lithium battery is in danger of explosion if
replaced incorrectly. Replace it only with the same
or equivalent type.
• The battery pack or batteries shall not be exposed
to excessive heat such as sunshine, fire or the like.
• Keep battery out of reach of children and in
original package until ready to use. Dispose of used
batteries promptly. If swallowed, contact a physician
immediately.
1.2 Important information
Maintenance
• Cleaning the unit: Wipe off the dirt on the panel
with a dry silicon or soft cloth.

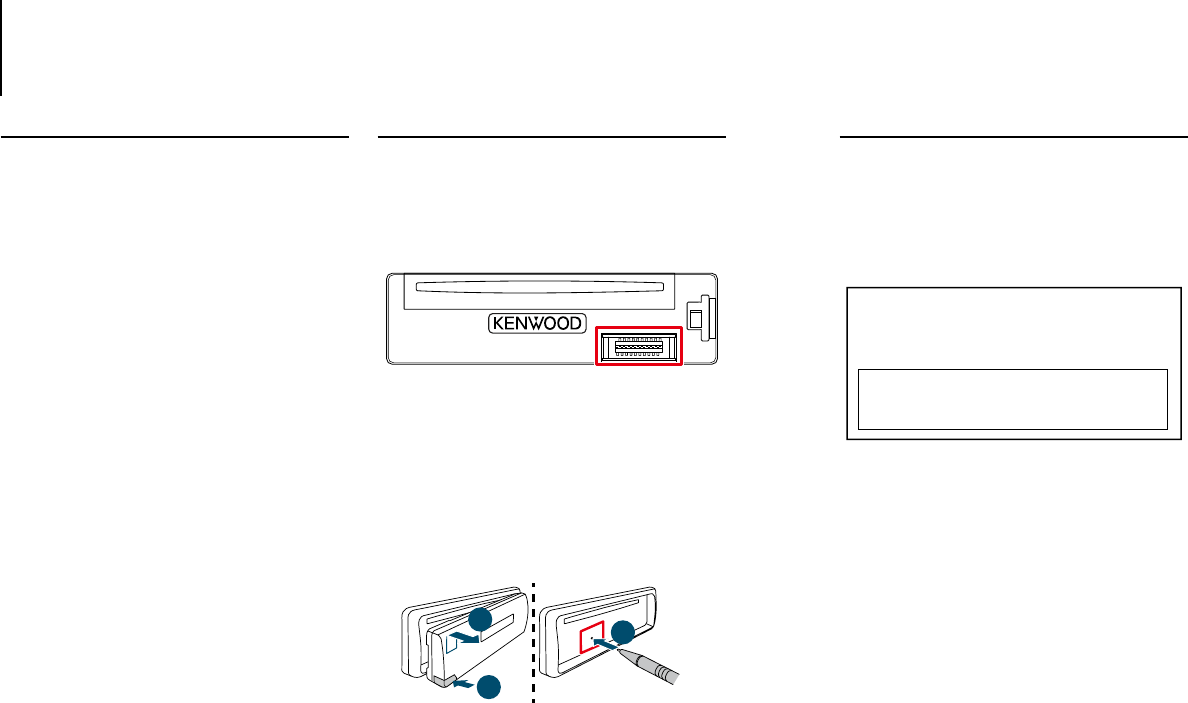

• Cleaning the connector: Detach the faceplate
and clean the connector with a cotton swab gently,
being careful not to damage the connector.
Condensation
When the car is air-conditioned, moisture may collect
on the laser lens. This may cause disc read errors. In
this case, remove the disc and wait for the moisture
to evaporate.
How to reset your unit
If this unit fails to operate properly, press the reset
button. The unit returns to the factory settings when
the reset button is pressed.
23
1
Notes
• When you purchase optional accessories, check with
your Kenwood dealer to make sure that they can
work with your model and in your area.
• Characters that conform to ISO 8859-1 can be
displayed.
• The illustrations of the display and panel appearing
in this manual are examples used to explain more
clearly how the controls are used. Therefore, what
appears on the display in the illustrations may differ
from what appears on the display on the actual
equipment, and some of the images on the display
may be inapplicable.
1.3 Regulatory Compliance
#CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS RULES
21 CFR SUBCHAPTER J IN EFFECT AT DATE OF
MANUFACTURE.
Location : Top plate
FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in the
instruction manual. The user could lose the authority
to operate this equipment if an unauthorized change
or modification is made.
FCC NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment may cause harmful interference to radio
communications, if it is not installed and used in
accordance with the instructions. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
IC (Industry Canada) Notice
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)This device may not cause interference, and
(2)this device must accept any interference, including
interference that may cause undesired operation of
the device.
The term “IC: ” before the certification/ registration
number only signifies that the Industry Canada
technical specification were met.
#CAUTION
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment has very low levels of RF energy that
it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the radiator
at least 20cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
----------------------------------------------------------------------
• Contains Transmitter Module
FCC ID : XQN-BTR60X
• Contains Transmitter Module
IC: 9688A-BTR601
----------------------------------------------------------------------
CALIFORNIA, USA ONLY
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material – special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
6 | KDC-X797/ KDC-BT755HD English | 7
1. SAFETY
Información acerca de la eliminación de
equipos eléctricos y electrónicos al nal
de la vida útil (aplicable a los países que
hayan adoptado sistemas independientes
de recogida de residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la
vida útil, deberán ser reciclados en instalaciones
que puedan dar el tratamiento adecuado a
estos productos y a sus subproductos residuales
correspondientes. Póngase en contacto con su
administración local para obtener información sobre
el punto de recogida más cercano. Un tratamiento
correcto del reciclaje y la eliminación de residuos
ayuda a conservar los recursos y evita al mismo
tiempo efectos perjudiciales en la salud y el medio
ambiente.
Para cumplimiento de la COFETEL:
La operacion de este equipo esta sujeta a las
siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su
operacion no deseada.
8 | KDC-X797/ KDC-BT755HD English | 9
2. GETTING STARTED

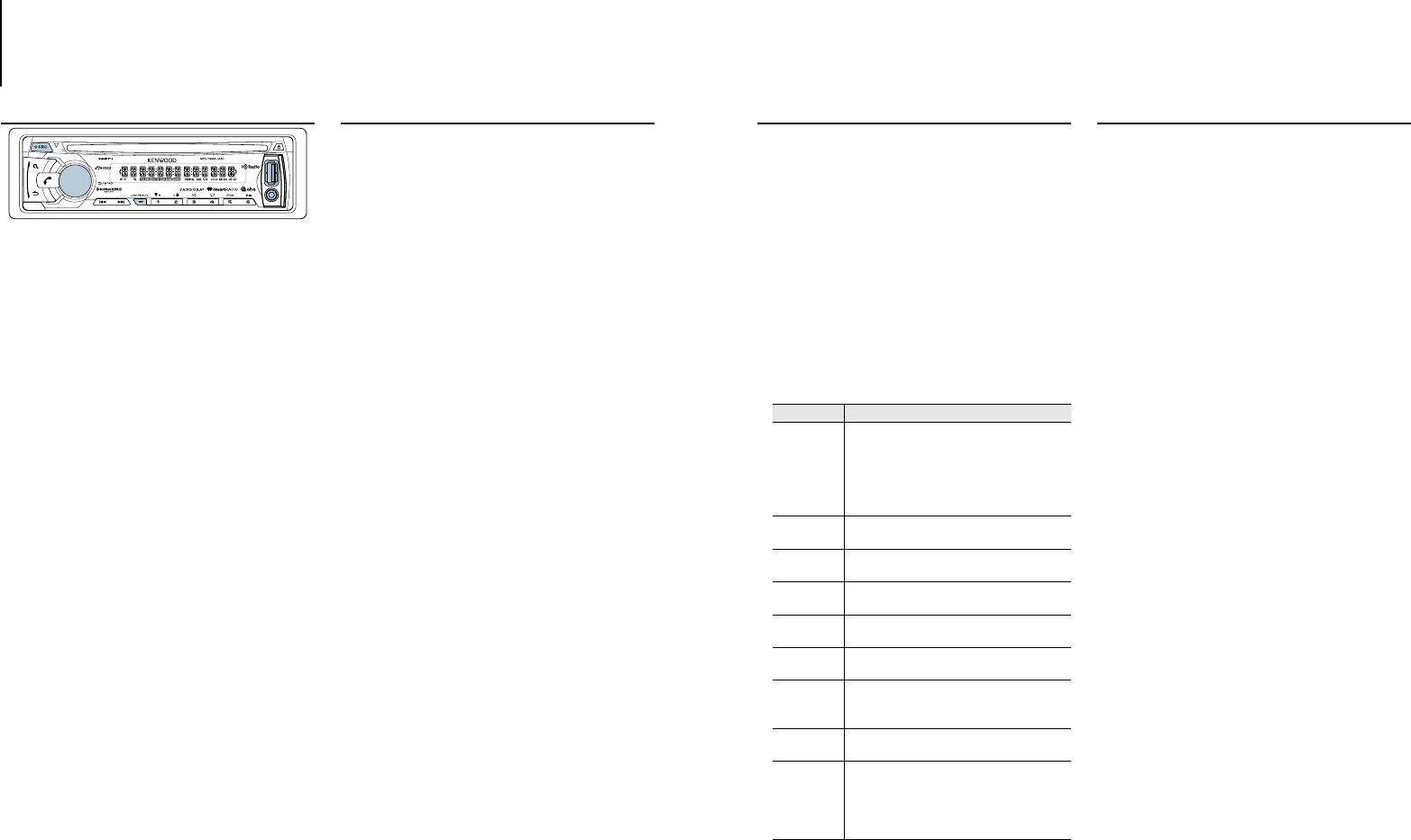

2.1 Component names and functions
3 4 5
679 810
12
1113
1 2
(1) [8SRC] button
Press the button to turn on the unit and select the
Source.
Press and hold the button to turn off the unit.
(2) [ 1 ] button
When listening to the radio, press the button to
select a band.
During CD, USB, iPod, Pandora, Aha or iHeartRadio
source playback, press the button to enter the
search mode.
(3) Volume knob
Turn the knob to adjust volume.
Press the knob to enter Function mode.
Turn and press the knob to select menu setting
item.
(4) Disc slot
(5) [G] button
Press the button to eject a disc.
(6) USB terminal
A USB device or an iPod can be connected.
(7) Auxiliary input
Portable audio device can be connected with the
mini-plug (3.5 mm ø).
(8) [1/ 5–] [2/ 4+] [3/ 9] [4/ /] [5/ iPod] [6/ L]
button
When listening to the radio, press the button to call
a preset station.
During CD/USB/iPod source playback, press the
button to perform the following operations:
- [1/ 5–] [2/ 4+] : Selects an audio file folder.
- [3/ 9] : Selects Random Play.
- [4/ /] : Selects Repeat Play.
- [5/ iPod] : Selects App & iPod Control Mode
- [6/ L] : Pauses or plays
(9) [DISP/ SCRL] button
Press the button to change display item.
Press and hold the button to scroll through texts
on the display.
Press and hold the button to enter the clock
adjustment mode directly while in clock display
screen.
(10) [E]/ [F] button
Press the button to select a station and song.
(11) [ Ú ] button
Press the button to enter Bluetooth mode.
Press the button to answer an incoming call.
Press and hold the button to start voice
recognition.
(12) Release button
Press the button to detach the faceplate.
(13) [ 6 ] button
In each of the selected modes, press the button to
return to the previous item.
When listening to HD Radio or SiriusXM source
playback, press and hold the button to retrieve tag
information.
The following indicator lights up when...
BT: Bluetooth cell-phone connection status.
ST: A stereo broadcast is received.
1: Indicates that the Music Search, Station Search,
Category Search, or Channel Search mode is
selected now.
FOLDER: Folder information is displayed in the Music
Search mode.
ARTIST: Artist information is displayed in the Music
Search mode.
ALBUM: Album information is displayed in the Music
Search mode.
SONG: The source is CD, USB, iPod, Pandora.
When displaying song information in the
Music Search mode.
DIGITAL: HD Radio digital broadcast is tuned in.
Blinks when changed to analog broadcast.
TAG: The song information can be registered.
+: Indicates that the Replay function is ON.
LOUD: “LOUDNESS” is set to “LV1” or “LV2”. See
<LOUDNESS> (page 27).
BB: “BASS BOOST” is set to “LV1”, “LV2” or “LV3”. See
<BASS BOOST> (page 27).
EQ: “PRESET EQ” is set to an EQ mode other than
“NATURAL”. See <PRESET EQ> (page 27).
9: Indicates that the Disc Random, Folder Random
or All Random function is ON.
/: Indicates that the Track Repeat, Folder Repeat or
File Repeat function is ON.
2.2 Preparation
How to read this manual
Operations explained mainly using buttons on the
faceplate.
• [ ] indicates the buttons on the panel.
•
XX
indicates the selected items.
How to attach/detach the faceplate
• Do not expose the faceplate to direct sunlight,
excessive heat, or humidity. Also avoid places with
too much dust or the possibility of water splashing.
• Keep the faceplate in its casing while detached.
• The faceplate is a precision component of the unit
and can be damaged by shocks or jolts.
• To prevent deterioration, do not touch the terminals
of the unit and faceplate with your fingers.
2
1
2
1
Canceling the demonstration mode
The display demonstration is always turned on unless
you cancel it.
When you turn on the power (or after you reset the
unit), the display shows:
“CANCEL DEMO” X “PRESS” X “VOLUME KNOB”
Press the volume knob.
“YES” is selected for the initial setting.
Press the volume knob again.
“DEMO OFF” appears.
- If no operation is done for about 15 seconds or
if you turn the volume knob to select “NO” in
step 2, “DEMO MODE” appears and the display
demonstration starts.
Setting the clock
Press [SCRL DISP] repeatedly to select the
clock.
Press and hold [SCRL DISP] to enter clock
adjustment mode.
Turn the volume knob to adjust the hour, then
press to enter minute adjustment.
Turn the volume knob to adjust the minute,
then press the knob.
- Press [E] / [F] to move between the hour
and minute adjustment.
Changing the initial settings
Refer to <3.3 Changing the initial settings> (page
11)
10 | KDC-X797/ KDC-BT755HD English | 11
3.3 Changing the initial settings
You can change an initial setting item(s) according
to your viewing or listening preference
Press [8SRC] to select
STANDBY
.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
INITIAL SET
,
then press the knob.
Turn the volume knob to select a desired
setting item, then press the knob.
- See table below for selection.
- Press [ 6 ] to return to the previous item.
Press and hold [6] to exit.
Item Description
PRESET TYPE NORMAL: Memorizes one station or channel for each
preset button in each band (FM1/ FM2/ FM3/ AM/
SXM1/ SXM2/ SXM3/ SXM4). ;
MIX: Memorizes one station or channel for each preset
button regardless of the selected band (FM1/ FM2/
FM3/ AM/ SXM1/ SXM2/ SXM3/ SXM4).
KEY BEEP ON/ OFF: Activates/deactivates tone emission when
a key is pressed.
PANDORA SRC ON/ OFF: Select whether to display Pandora during
source selection.
IHEART SRC ON/ OFF: Select whether to display iHeartRadio
during source selection.
AHA SRC ON/ OFF: Select whether to display aha during source
selection.
BUILT-IN AUX ON: Enables AUX in source selection. ;
OFF: Disables.
CD READ “1”: Automatically distinguishes between audio file
disc and music CD. ; “2”: Forces to play as a music CD.
No sound can be heard if an audio file disc is played.
SP SELECT OFF / 5/4 / 6×9/6 / OEM: Select the speaker size for
optimum performance.
F/W UPDATE Upgrades the firmware.
YES: Starts upgrading the firmware. ;
NO: Does not upgrade firmware.
For details on how to update the firmware, see: www.
kenwood.com/cs/ce/
(Colored text: Factory setting)
3.4 Setting the demonstration mode
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
DEMO MODE
,
then press the knob.
Turn the volume knob to select
ON
or
OFF
.
If “ON” is selected, display demonstration starts if no
operation is done for about 20 seconds.
Press and hold [6] to exit.
3. GENERAL
3.1 Basic operations
Turning the power ON/OFF
Press and hold [8SRC] to turn the power on.
Press and hold [8SRC] to turn the power o.
Selecting a source
Press [8SRC] repeatedly to select your desired
source.
SiriusXM*1 (“SIRIUS XM”) Á HD Radio (“HD RADIO”)
Á USB or iPod*2 (“USB” or “iPod”) Á Pandora*3
(“PANDORA”) Á iHeartRadio*3 (“IHEARTRADIO”) Á
Aha*3 (“AHA”) Á Bluetooth audio (“BT AUDIO”) Á
CD*2 (“CD”) Á Auxiliary input*3 (“AUX”) Á Standby
(“STANDBY”)
*1 This source can be selected only when connected to an
optional SiriusXM Vehicle Connect Tuner.
*2 This source can be selected only when it can be played.
*3 “PANDORA”, “IHEARTRADIO”, “AHA”, and “AUX” sources are
not selectable when not in use. See <3.3 Changing the
initial settings> (page 11).
Adjusting the volume
Turn the volume knob to adjust the sound
volume.
Switching display
Press [SCRL DISP] repeatedly to select an
information.
Press and hold [SCRL DISP] to scroll the current
display information.
USB terminal
Open the cover.
Connect a USB device or iPod.
CA-U1EX or KCA-iP102 (optional accessories) is
recommended to connect a USB device or iPod.
Auxiliary input
Open the cover.
Connect a portable audio device using a
stereo mini-plug (3.5 mm ø) audio cable.
3.2 Adjusting the clock
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CLOCK
, then
press the knob.
Turn the volume knob to select
CLOCK
ADJUST
, then press the knob.
Turn the volume knob to adjust the hour, then
press to enter minute adjustment.
Turn the volume knob to adjust the minute,
then press the knob.
- Press [E] / [F] to move between the hour
and minute adjustment.
Press and hold [6] to exit.
Setting the clock
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CLOCK
, then
press the knob.
Turn the volume knob to select
TIME SYNC
,
then press the knob.
Turn the volume knob to select
ON
or
OFF
,
then press the knob.
”ON”: Synchronizes the unit’s time to the Radio
Data Broadcast System station time.
“OFF”: Cancels the usage of Radio Data Broadcast
System station time.
Press and hold [6] to exit.
12 | KDC-X797/ KDC-BT755HD English | 13
4. CD/ USB/ iPod
4.2 Basic operations
Selecting a Song
Press [E] or [F].
Selecting an audio file folder
Press [1 –] or [2 +].
Fast-forwarding or fast-backwarding a Song
Press and hold [E] or [F].
Pause and play
Press [6 L].
Selecting Repeat Play
Press [4 /] repeatedly to make a selection.
Audio CD : TRACK REPEAT, REPEAT OFF
Audio File : FILE REPEAT, FOLDER REPEAT, REPEAT
OFF
iPod/ KME-Light/ KMC : FILE REPEAT, REPEAT OFF
Selecting Random Play
Press [3 9] repeatedly to make a selection.
Audio CD : DISC RANDOM, RANDOM OFF
Audio File/ iPod/ KME-Light/ KMC :
FOLDER RANDOM, RANDOM OFF
All Random Play
Press and hold [3 9].
Pressing this button again plays songs in the
normal mode starting.
Audio File/ iPod/ KME-Light/ KMC :
ALL RANDOM, RANDOM OFF
- Changes the iPod browsing item to “songs”.
Selecting App & iPod Control Mode
Press [5 iPod] repeatedly to select the control
mode.
- MODE ON : From the iPod *. “APP&iPod MODE”
appears on the display.
- MODE OFF : From the unit.
* You can still select an audio file, play/pause and fast-
forward/fast- reverse a song of audio file in the iPod
from the unit.
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
CD: DISC TITLE ; TRACK TITLE ; P-TIME (Track number
and playing time) ; CLOCK
4.1 Start playback
Playing a disc
Insert a disc into the loading slot.
Playback starts automatically.
Removing the disc
Press [G] to eject a disc.

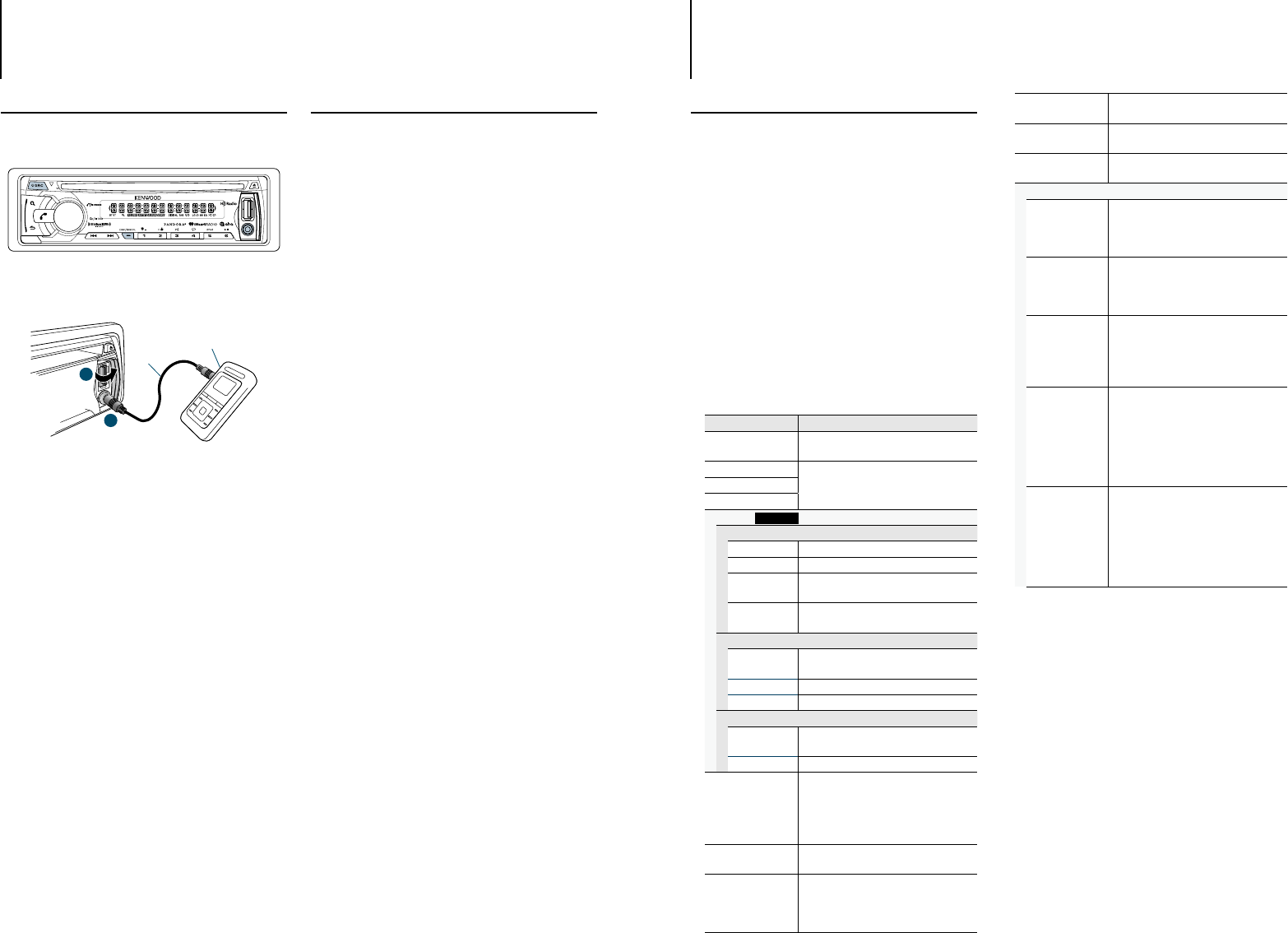

Playing a USB device or iPod
Open the cover.
Connect a USB device or iPod to the USB
terminal.
The source automatically switches, and playback
starts.

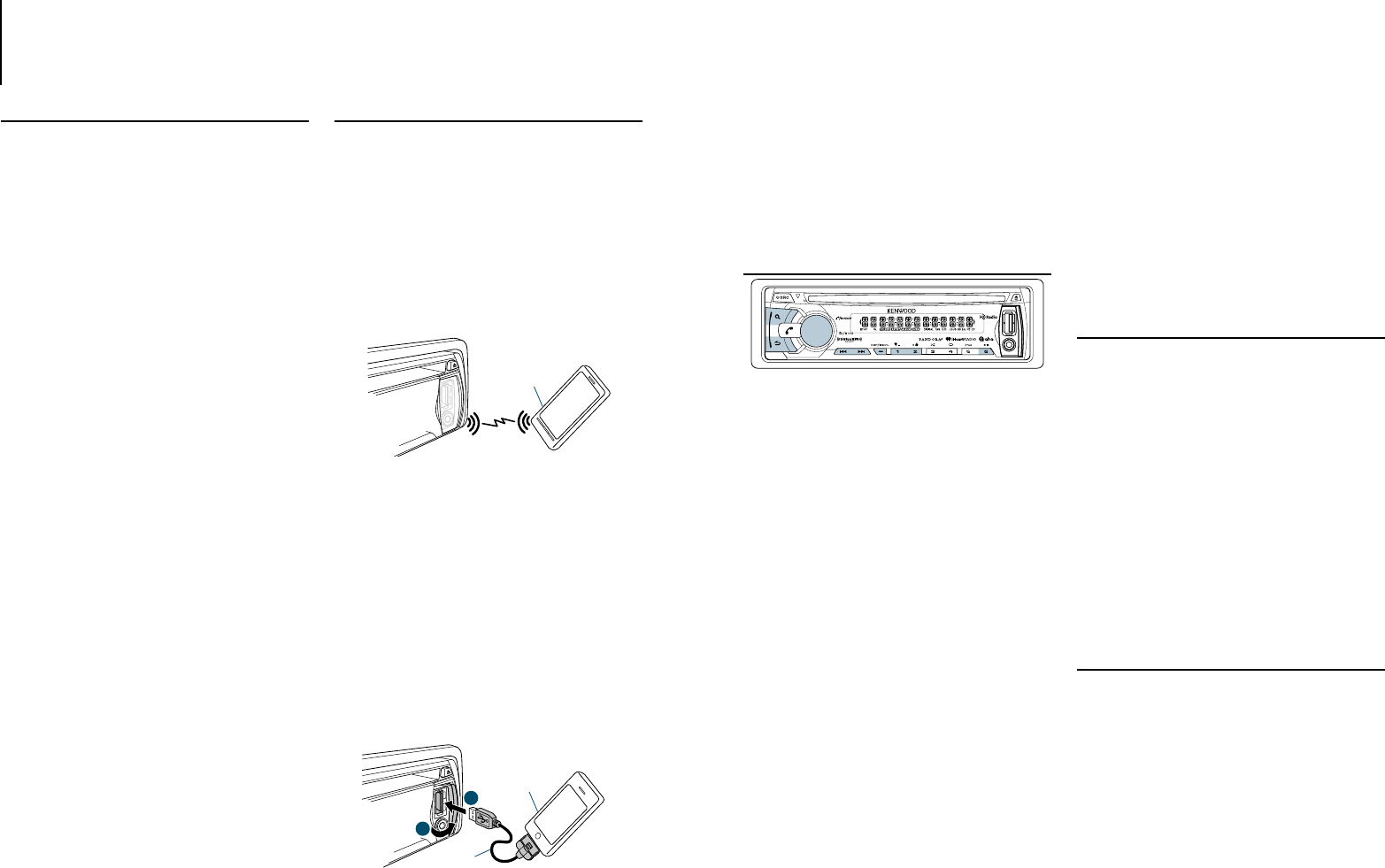

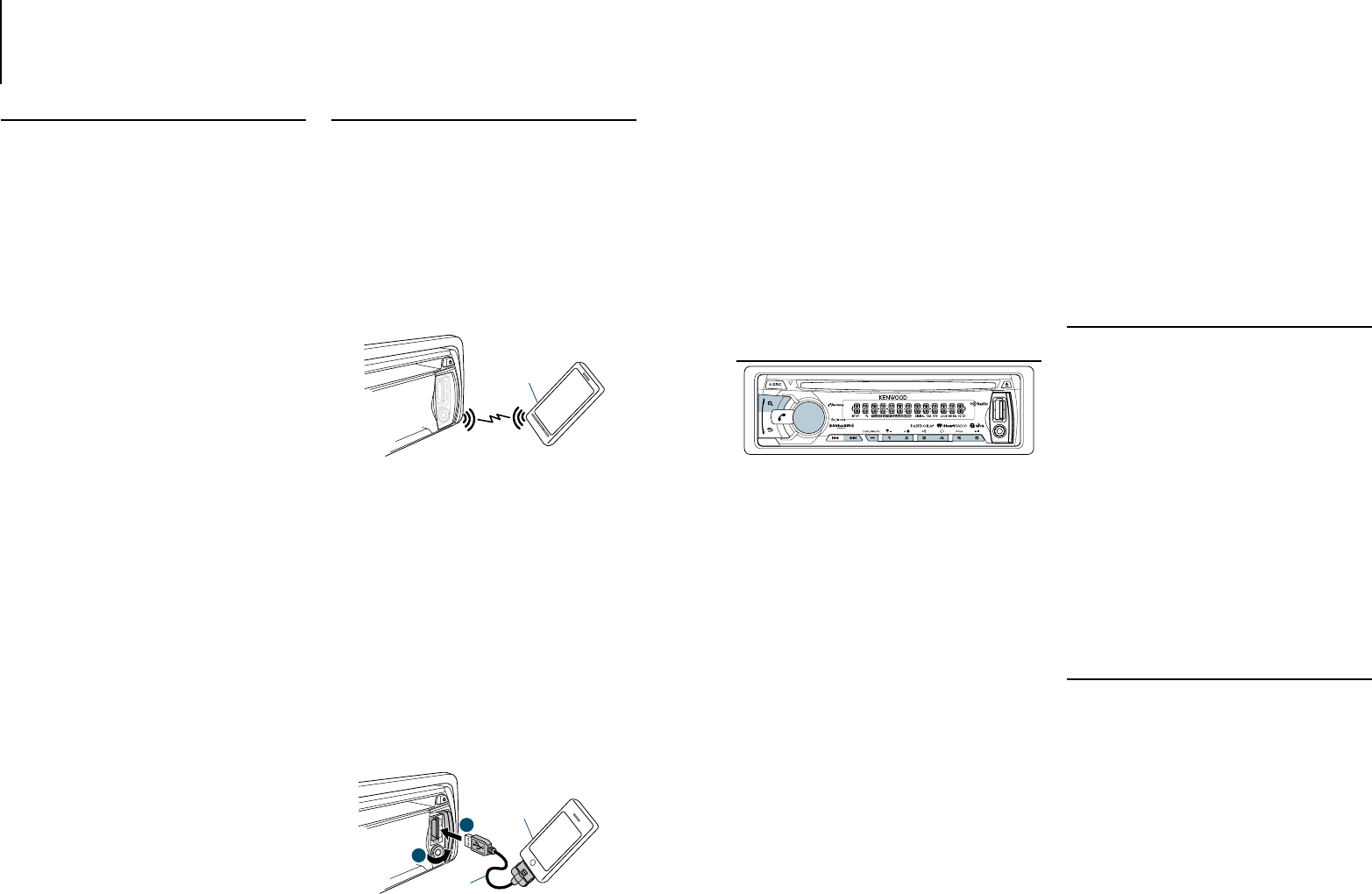

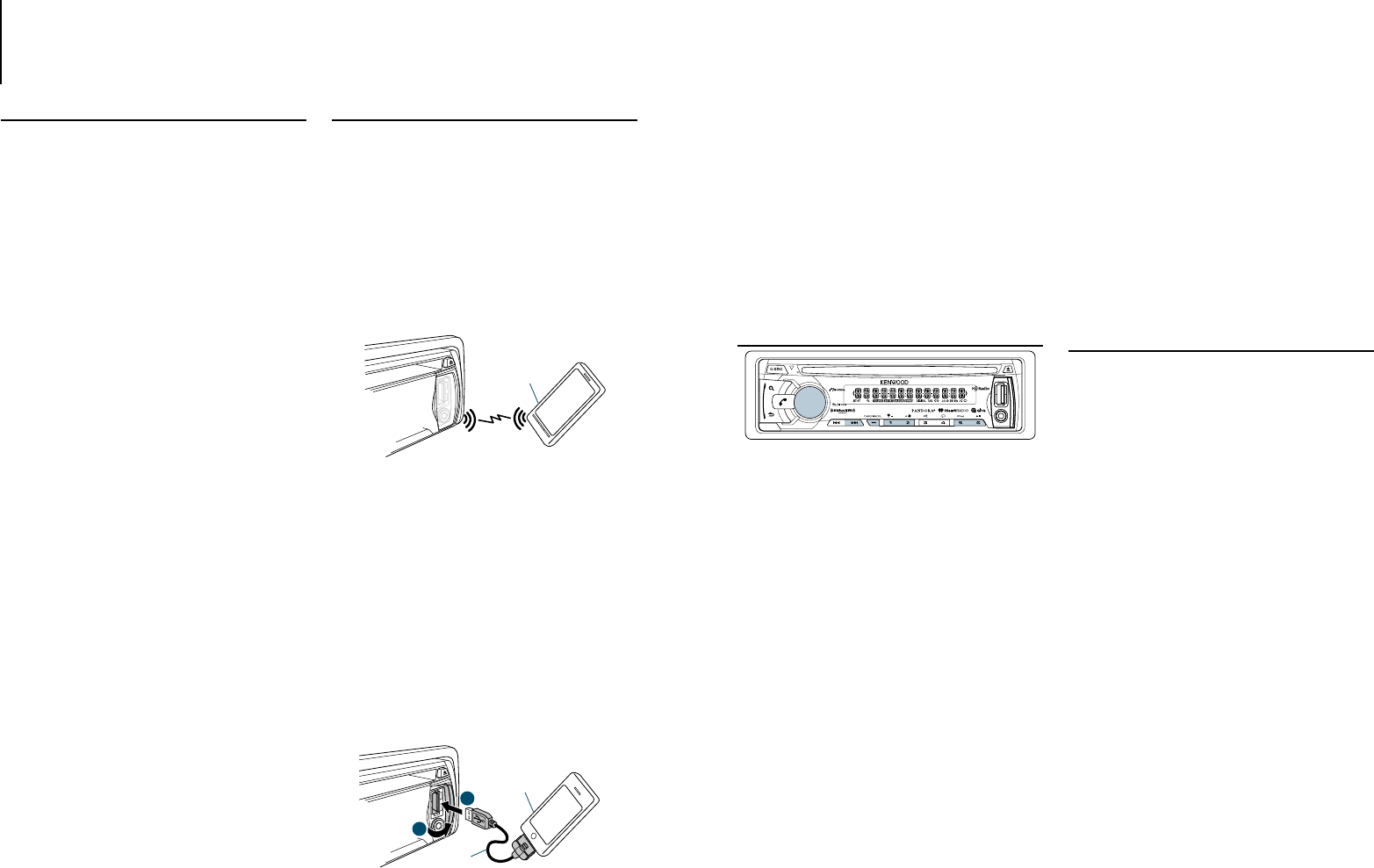

(a)
(b)
1
2
(a) CA-U1EX (500 mA Max.: optional accessory) is
recommended to connect a USB device.
(b) USB device (commercially available)
(a)
(b)
1
2
(a) KCA-iP102 (optional accessory) is required to
connect an iPod.
(b) Apple iPod (commercially available)
When playback of iPod touch or iPhone does not start
• If an unsupported application has started when connecting
iPod touch or iPhone, “APP&iPod” appears and sometimes
playback does not starts. Press [5 iPod].
Removing the USB device or iPod
Press [8SRC] to select a source other than
“USB”, “PANDORA”, “AHA“, “IHEATRADIO“ or
“ i P o d ”.
Remove the USB device or iPod.
Audio File/ iPod/ KME-Light/ KMC:
TITLE/ARTIST ; ALBUM/ARTIST ; FOLDER NAME ; FILE
NAME ; P-TIME (Track number and playing time) ;
CLOCK
iPod (MODE ON): APP&iPod MODE ; CLOCK
4.3 Music search
You can search for the song you want to play.
Press [ 1 ] to enter Music Search mode.
“SEARCH” appears, then the current file name
appears on the display.
Turn the volume knob to select a folder/ track/
le, then press the knob.
CD: Select the desired track.
Audio file: Select the desired folder, then a file.
iPod/ KME-Light/ KMC: Select the desired file
from the list (PLAYLISTS, ARTISTS, ALBUMS, SONGS,
PODCASTS*, GENRES, COMPOSERS*).
* Only for iPod.
- To skip songs, press [E]/ [F]. Holding [E]/
[F] for 3 seconds or longer skips songs at 10%
regardless of the selected skip ratio. <4.6 Setting
the skip search ratio> (page 14)
This operation is effective only for the iPod, KME-
Light/ KMC media.
- Turning the volume knob fast in the Music search
mode allows you to enter the alphabet search
mode. <4.4 Alphabet search> (page 13)
- To return to the root folder (audio file), top menu
(iPod, KME-Light/ KMC media) or first track (audio
CD), press [5].
- To return to the previous folder, press [ 6 ].
- < or > on the display indicates that preceded/
next item is available.
To cancel the Music search mode
Press and hold [ 6 ].
Undisplayable titles
• If characters of a song name cannot be read, the browse
item name and digits are displayed such as “PLIST***”
instead.
Items Display
Playlists “PLIST***”
Artists “ART***”
Albums “ALB***”
Songs “PRGM***”
Podcasts “PDCT***”
Genres “GEN***”
Composers “COM***”
4.4 Alphabet search
(Function of iPod)
You can select an alphabetic character from the
list in the browse item (artist, album, etc.) currently
selected.
Press [ 1 ] to enter Music Search mode.
“SEARCH” appears, then the current file name
appears on the display.
Press [ 1 ] again to enter Alphabet Search
mode.
“SEARCH <_ >” appears.
Turn the volume knob to select the character
to be searched for.
Press [E] / [F] to move to the entry
position.
Press the volume knob to start searching.
After this step, see step 2 of <4.3 Music search>
(page 13) to select a song.
To cancel the Alphabet search mode
Press [ 6 ].
To cancel the Music search mode
Press and hold [ 6 ].
Alphabet search notes
• The time of Alphabet search may become long depending
on the number of items (songs) in iPod.
• To search for a character other than A to Z and 0 to 9, enter
“*”.
• If the first character string begins with an article “a”, “an”,
or “the” in the alphabet search mode, it is searched for in
defiance of the article.
14 | KDC-X797/ KDC-BT755HD English | 15
4.5 Direct Music Search using the
remote control (RC-406)
Not available if Random Play, KME-Light/ KMC
media, iPod playback is selected.
Press DIRECT to enter Direct Music Search
mode.
“– – –” appears.
Press the number buttons to enter the track
number.
Press [E] / [+F] to search for the music.
To cancel the Direct Music Search mode
Press [ 6 ].
4.6 Setting the skip search ratio
(Function of iPod, KME-Light/ KMC media)
You can change the ratio of skip performed as
mentioned in <4.3 Music search> (page 13).
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
SKIP SEARCH
,
then press the knob.
Turn the volume knob to select the skip search
ratio from the following options then press
the knob.
0.5%/ 1%/ 5%/ 10% : Sets the ratio of skip when
searching for a song in Music Search mode.
(Holding [E] / [F] for 3 seconds or longer skips
songs at 10% regardless of the selected ratio.)
Press and hold [6] to exit.
4.7 More information
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move
outward.
• Clean the disc with a dry silicon or soft cloth. Do not
use any solvents.
• When removing discs from this unit, pull them out
horizontally.
• Remove the rims from the center hole and disc
edge before inserting a disc.
Discs that cannot be used
• This unit can only play the CDs with .
• Discs that are not round.
• Discs with coloring on the recording surface or discs
that are dirty.
• You cannot play a Recordable/ReWritable disc that
has not been finalized. (For the finalization process
refer to your disc writing software, and your disc
recorder instruction manual.)
• 3-inch CD cannot be used. Attempt to insert using
an adapter can cause malfunction.
About Audio le
• Playable Audio file
: AAC-LC (.m4a), MP3 (.mp3), WMA (.wma), WAVE
(.wav)*1
*1: Only for USB device.
• Playable disc media: CD-R/RW/ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet,
Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
Although the audio files are complied with the
standards listed above, the play maybe impossible
depending on the types or conditions of media or
device.
• Detailed information and notes about the playable
audio files are stated in an online manual on the
following site:
www.kenwood.com/cs/ce/audiofile/
4. CD/ USB/ iPod
About USB device
• This unit can play audio files stored on a USB mass
storage class device.
• Install the USB device in a place where it does not
interfere with your driving.
• You cannot connect a USB device via a USB hub and
Multi Card Reader.
• Make sure all important data has been backed up to
avoid losing the data.
• Connecting a cable whose total length is longer
than 5 m can result in abnormal playback.
• A USB connection cable, CA-U1EX (optional
accessory) is required for connecting a USB device.
About compatible iPod/iPhone
Made for
- iPod touch (4th generation)
- iPod touch (3rd generation)
- iPod touch (2nd generation)
- iPod touch (1st generation)
- iPod classic
- iPod with video
- iPod nano (6th generation)
- iPod nano (5th generation)
- iPod nano (4th generation)
- iPod nano (3rd generation)
- iPod nano (2nd generation)
- iPod nano (1st generation)
- iPhone 4S
- iPhone 4
- iPhone 3GS
- iPhone 3G
- iPhone
• Latest compatible list of iPod/iPhone.
For details, see: www.kenwood.com/cs/ce/ipod
• Type of control available varies depending on the
type of connected iPod.
For details, see: www.kenwood.com/cs/ce/ipod
• The word “iPod” appearing in this manual indicates
the iPod or iPhone connected to this unit with a
connection cable, KCA-iP102 (optional accessory).
• If you start playback after connecting the iPod, the
music that has been played by the iPod is played
first.
In this case, “RESUMING” appears without displaying
a folder name, etc. Changing the browse item will
display a correct title, etc.
• You cannot operate iPod if “KENWOOD” or “å”
displayed on iPod.
About “KENWOOD Music Editor Light” and
“KENWOOD Music Control”
• This unit supports the PC application “KENWOOD
Music Editor Light” (hereinafter “KME-Light”), and
Android™ application “KENWOOD Music Control”
(hereinafter “KMC”).
• When you use the audio file with database
information added by the “KENWOOD Music Editor
Light” or “KENWOOD Music Control”, you can search
for a file by title, album or artist name using Music
Search.
• “KENWOOD Music Editor Light” and “KENWOOD
Music Control” are available from the following web
site: www.kenwood.com/cs/ce/
16 | KDC-X797/ KDC-BT755HD English | 17
5.2 Start listening
Android or BlackBerry
Preparation :
• You need to register your smartphone before using it with
this unit. See <12.2 Registering a Bluetooth device> (page
30).
• Disconnect the iPhone or iPod touch.
• Make sure “ON” is selected for “PANDORA SRC”. <5.5 Pandora
source control> (page 17)
Open the Pandora® application on your
smartphone.
Press [8SRC] to select
PANDORA
.
(a)
(b)
(a) Connection through Bluetooth
(b) Android or BlackBerry smartphone
(commercially available)
- Speakers are selectable by the Bluetooth setting
“BT HF/AUDIO”. The default is the front speakers.
See <BT HF/AUDIO> (page 37).
iPhone or iPod touch
Preparation :
• Make sure “ON” is selected for “PANDORA SRC”. <5.5 Pandora
source control> (page 17)
Open the Pandora® application on your
smartphone.
Open the cover.
Connect an iPhone to the USB terminal.
The source switches, and broadcasting starts
automatically from your current station.
(a)
(b)
2
3
(a) KCA-iP102 connector (optional accessory)
(b) iPhone or iPod touch (commercially available)
5. Pandora®
5.1 Requirements Pandora®
Requirements for listening to Pandora® are as follows:
• A smartphone with the latest Pandora application
installed.
• A Pandora account (if you do not have an account,
create one for free using the mobile app or on
www.pandora.com).
• An active internet connection.
iPhone or iPod touch
• Apple iPhone or iPod touch with iOS 3 or later
isntalled
• Latest version of the Pandora application (search
App Store for Pandora and install).
• iPhone/ iPod touch connected to this unit with a
KCA-iP102.
Android™
• Latest version of the Pandora Android application
(search Google Play for Pandora and install).
• Bluetooth must be built in and the following profiles
must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
BlackBerry®
• Visit www.pandora.com from the built in browser to
download the Pandora application.
• Bluetooth must be built in and the following profiles
must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
Notes
• Pandora® is available only in the U.S, Australia and New
Zealand.
• Because Pandora® is a third-party service, the specifications
are subject to change without prior notice. Accordingly,
compatibility may be impaired or some or all of the services
may become unavailable.
• Some functions of Pandora® cannot be operated from this
unit.
• For issues using the application, please contact Pandora® at
pandora-support@pandora.com
Removing the iPhone
Press [8SRC] to select a source other than
“PANDORA”, “AHA“, “IHEATRADIO“ or “iPod”.
Remove the iPhone.
Error messages
• CHECK DEVICE: Any device ready for Pandora internet
radio reception is not connected to this unit.
• UPGRADE APP: The Pandora application is an older version
which the unit can not support. Confirm that the Pandora
application is the latest version.
• LICENSE ERROR: The Pandora® internet radio is accessed
from a country to which it is not delivered.
5.3 Basic operations
Thumbs up
Press [2 4].
Thumbs down
Press [1 5].
Song skip
Press [F].
Pause and play
Press [6 L].
Station Search mode
Press [ 1 ] to enter Station Search mode.
Turn the volume knob to select
A–Z
(stations
are displayed in alphabetical order) or
BY
DATE
(stations are displayed in date order),
then press the knob.
Turn the volume knob to select a desired
station, then press the knob.
Station Preset Memory
Press and hold [3] to [5] to memorize the
current station.
“STORED” appears.
Recall the stations in the memory
Press [3] to [5] to recall memorized station.
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
STATION NAME ; TITLE/ARTIST ; ALBUM/ARTIST ;
P-TIME (playing time) ; CLOCK
Error messages
• RATING ERROR: Registration of Thumbs Up/Down has
failed.
• NO SKIPS: No more skips are allowed now. Retry after a
while.
• NO STATIONS: There is no receivable station.
• SEARCH ERROR: No station has been searched for.
• NOT EXIST: The registered station has been deleted or the
device is not the registered one.
5.4 New station creation
You can create a new station name using the name
of the song or artist you are listening.
Press and hold the volume knob.
“NEW STATION” appears.
Turn the volume knob to select
FROM ARTIST
(creation from an artist name) or
FROM TRACK
(creation from a song name), then press the
knob.
“*** STATION” appears.
To cancel the New station registration
Press [ 6 ].
Error messages
• ADD ERROR: Registration of the station has failed.
• STATION LIMT: The number of registered stations has
reached the upper limit. Retry after deleting an unnecessary
station.
5.5 Pandora source control
You can turn on/o the Pandora source.
Press [8SRC] to select
STANDBY
.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
INITIAL SET
,
then press the knob.
Turn the volume knob to select
PANDORA
SRC
, then press the knob.
Turn the volume knob to select
ON
or
OFF
,
then press the knob.
ON: Turns on the Pandora source.
OFF: Turns off the Pandora source.
Press and hold [6] to exit.
18 | KDC-X797/ KDC-BT755HD English | 19
6. iHeartRadio™
6.1 Requirements iHeartRadio™
Requirements for listening to iHeartRadio are as
follows:
• In the application on your device, log in and create
a free account with iHeartRadio.
• Internet connection by 3G, LTE, EDGE, or WiFi.
iPhone or iPod touch
• Use an Apple iPhone or iPod touch running iOS4
or later.
• Search for “iHeart Link for KENWOOD” in the Apple
iTunes App Store to find and install the most current
version of the iHeartLink application on your device.
• iPhone/ iPod touch connected to this unit with a
KCA-iP102.
Android™
• Use Android OS 2.2 or later.
• Download the “iHeart Link for KENWOOD”
application to your smartphone from the Google
play.
• Bluetooth must be built in and the following profiles
must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
Notes
• Because iHeartRadio™ is a third-party service, the
specifications are subject to change without prior notice.
Accordingly, compatibility may be impaired or some or all
of the services may become unavailable.
• Some iHeartRadio™ functionality cannot be operated from
this unit.
6.2 Start listening
Android
Preparation :
• You need to register your smartphone before using it with
this unit. See <12.2 Registering a Bluetooth device> (page
30).
• Disconnect the iPhone or iPod touch.
• Make sure “ON” is selected for “IHEARTRADIO SRC”. <6.7
iHeartRadio source control> (page 21)
Open the iHeart Link application on your
smartphone.
Press [8SRC] to select
IHEARTRADIO
.
(a)
(b)
(a) Connection through Bluetooth
(b) Android smartphone (commercially available)
- Speakers are selectable by the Bluetooth setting
“BT HF/AUDIO”. The default is the front speakers.
See <BT HF/AUDIO> (page 37).
iPhone or iPod touch
Preparation :
• Make sure “ON” is selected for “IHEARTRADIO SRC”. <6.7
iHeartRadio source control> (page 21)
Open the iHeart Link application on your
smartphone.
Open the cover.
Connect an iPhone to the USB terminal.
Press [8SRC] to select
IHEARTRADIO
.
(a)
(b)
2
3
(a) KCA-iP102 (optional accessory)
(b) iPhone or iPod touch (commercially available)
Removing the iPhone
Press [8SRC] to select a source other than
“PANDORA”, “AHA“, “IHEATRADIO“ or “iPod”.
Remove the iPhone.
Error messages
• IHEARTLINK UPDATE REQUIRED.: The iHeart Link
application is an older version which the unit can not
support. Confirm that the iHeart Link application is the
latest version.
• NOT CONNECTED: Link to the application is impossible.
• DISCONNECTED: Check the connection to the device.
6.3 Basic operations
Stop/Pause and play a song
Press [6 L].
Skip track (Custom station)
Press [F].
Thumbs up (Custom station)
Press [2 4].
Thumbs down (Custom station)
Press [1 5].
Station scan (Live station)
Press [5].
Randomly selects a station.
Creating a custom station name (Live station)
Press and hold the volume knob.
You can create a new custom station name using
the name of the song you are listening.
Adding to favorite stations
Press and hold [5].
You can add the current station to the favorite
category.
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
STATION NAME ; TITLE/ARTIST ; CLOCK
Custom station note
• If “Explicit Content” in [Account Settings] is checked in
the web version of iHeartRadio, some stations become
unavailable.
Error messages
• NO SKIPS: No more skips are allowed now. Retry after a
while.
• THUMB FAILED: Registration of Thumbs Up/Down has
failed.
• PLEASE LOGIN: You haven’t log in. Log in again.
• CANNOT CREATE: Creation of a custom station name
failed.
• CANNOT SAVED: Addition to the favorite category failed.
• STATION NOT SELECTED: No station is selected.
• STATION NOT AVAILABLE: Broadcast from the station is
over.
• STREAM ERROR: Broadcast data is interrupted.
6.4 Station search
You can select the station you want to listen to from
your station list.
Press [ 1 ] to enter Station Search mode.
“SEARCH” appears.
Turn the volume knob to select a category and
station, then press the knob.
Select the desired file from the list (MY STATIONS,
LOCAL, GENRES, CITIES).
- Turning the volume knob fast in the city list
allows you to enter the alphabet search mode.
<6.5 Alphabet search> (page 20)
- To return to the previous item, press [ 6 ].
- < or > on the display indicates that preceded/
next item is available.
To cancel the Station search mode
Press and hold [ 6 ].
20 | KDC-X797/ KDC-BT755HD English | 21
6.5 Alphabet search
When a state or city list is displayed <6.4 Station
search> (page 19), you can search for a state or
city by the alphabet.
Press [ 1 ] to enter Station Search mode.
“SEARCH” appears, then the current file name
appears on the display.
Turn the volume knob to select
CITIES
, then
press the knob.
Press [ 1 ] again to enter Alphabet Search
mode.
“<ABCDEFGHIJK>” appears.
Turn the volume knob to select the character
to be searched for.
- To move to the next row, press [E] / [F].
Press the volume knob to start searching.
After this step, see step 2 of <6.4 Station search>
(page 19) to select a state or city.
To cancel the Alphabet search mode
Press [ 6 ].
To cancel the Station search mode
Press and hold [ 6 ].
6.6 Station delete
You can delete a custom or favorite station.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
STATION DEL
,
then press the knob.
Turn the volume knob to select
LIVE
or
CUSTOM
, then press the knob.
Turn the volume knob to select a station, then
press the knob.
Turn the volume knob to select
YES
, then
press the knob.
“COMPLETED” appears.
Press and hold [6] to exit.
6.7 iHeartRadio source control
You can turn on/o the iHeartRadio source.
Press [8SRC] to select
STANDBY
.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
INITIAL SET
,
then press the knob.
Turn the volume knob to select
IHEART SRC
,
then press the knob.
Turn the volume knob to select
ON
or
OFF
,
then press the knob.
ON: Turns on the iHeartRadio source.
OFF: Turns off the iHeartRadio source.
Press and hold [6] to exit.
6. iHeartRadio™
22 | KDC-X797/ KDC-BT755HD English | 23
7. Aha™ RADIO
7.1 Requirements Aha™
Requirements for listening to Aha™ are as follows:
• In the application on your device, log in and create
a free account with Aha.
• Internet connection by 3G, LTE, EDGE, or WiFi.
iPhone or iPod touch
• Use an Apple iPhone or iPod touch running iOS4
or later.
• Search for “Aha” in the Apple iTunes App Store to
find and install the most current version of the Aha™
application on your device.
• iPhone/ iPod touch connected to this unit with a
KCA-iP102.
Android™
• Use Android OS 2.2 or later.
• Download the Aha™ application to your
smartphone from the Google play.
• Bluetooth must be built in and the following profiles
must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
Notes
• Because Aha™ is a third-party service, the specifications
are subject to change without prior notice. Accordingly,
compatibility may be impaired or some or all of the services
may become unavailable.
• Some Aha™ functionality cannot be operated from this unit.
7.2 Start listening
Android
Preparation :
• You need to register your smartphone before using it with
this unit. See <12.2 Registering a Bluetooth device> (page
30).
• Disconnect the iPhone or iPod touch.
• Make sure “ON” is selected for “AHA SRC”. <7.5 Aha source
control> (page 23)
Open the Aha™ application on your
smartphone.
Press [8SRC] to select
AHA
.
(a)
(b)
(a) Connection through Bluetooth
(b) Android smartphone (commercially available)
- Speakers are selectable by the Bluetooth setting
“BT HF/AUDIO”. The default is the front speakers.
See <BT HF/AUDIO> (page 37).
iPhone or iPod touch
Preparation :
• Make sure “ON” is selected for “AHA SRC”. <7.5 Aha source
control> (page 23)
Open the Aha™ application on your
smartphone.
Open the cover.
Connect an iPhone to the USB terminal.
Press [8SRC] to select
AHA
.
(a)
(b)
2
3
(a) KCA-iP102 (optional accessory)
(b) iPhone or iPod touch (commercially available)
Removing the iPhone
Press [8SRC] to select a source other than
“PANDORA”, “AHA“, “IHEATRADIO“ or “iPod”.
Remove the iPhone.
Error messages
• CHECK DEVICE: Any device ready for aha reception is not
connected to this unit.
• CHECK APP: The Aha application is stopped. Start the Aha
application of the your device.
• AHA APP UP DATE REQUIRED: The Aha application is an
older version which the unit can not support. Confirm that
the Aha application is the latest version.
7.3 Basic operations
Pause and play a content
Press [6 L].
Selecting a content
Press [E] or [F].
Forward 30 seconds a content
Press and hold [F].
Backward 15 seconds a content
Press and hold [E].
“Likes” current content
Press [2 4].
Press [2 4] again to unvote.
“Dislikes” current content
Press [1 5].
Press [1 5] again to unvote.
Station Search mode
Press [ 1 ] to enter Station Search mode.
Turn the volume knob to select station, then
press the knob.
Turn the volume knob to select a desired
content, then press the knob.
- To return to the station list, press [ 6 ].
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
PROVIDER ; CONTENT INFO1 ; CONTENT INFO2 ;
CONTENT RATE ; STATION NAME ; CLOCK
Note
• You can not perform the above operations depending on
the selected station.
Error messages
• NO SKIPS: No more skips are allowed now. Retry after a
while.
• NO STATIONS: There is no receivable station.
• NO CONTENT: There is no receivable content.
• AHA UNAVAILABLE: Your smartphone cannot be
connected to Aha Radio server.
• ACTN DISABLED: You performed an unavailable operation.
• POOR GPS: The GPS reception condition of your
smartphone is poor.
• NETWORK UNAVAILABLE: The network has been
disconnected.
7.4 Calling a number in the content
You can call the phone number obtained from
the content from a smartphone or cell-phone
connected to this unit through Bluetooth.
Press [3].
“MAKE A CALL” appears.
Press the volume knob to make a call.
“CALL” appears.
Canceling the confirmative display
Press [ 6 ].
Disconnecting a call
Press [ Ú ].
Note
• You can not perform the above operations depending on
the selected station.
7.5 Aha source control
You can turn on/o the aha source.
Press [8SRC] to select
STANDBY
.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
INITIAL SET
,
then press the knob.
Turn the volume knob to select
AHA SRC
, then
press the knob.
Turn the volume knob to select
ON
or
OFF
,
then press the knob.
ON: Turns on the aha source.
OFF: Turns off the aha source.
Press and hold [6] to exit.
24 | KDC-X797/ KDC-BT755HD English | 25
8.2 Basic operations
Search for a station
Press [8SRC] to select
HD RADIO
.
Press [ 1 ] repeatedly to select a band (FM1,
FM2, FM3, AM).
Press [E] / [F] to select a station or
channel.
“LINKING” appears while linking to a multicast
channel.
- The tuning mode can be changed. Refer to <SEEK
MODE> (page 25).
Station Preset Memory
Press and hold [1] to [6] to memorize the
current station.
“STORED” appears.
Recall the stations in the memory
Press [1] to [6] to recall memorized station.
About Mix Station preset mode
• In Mix Station preset mode, different bands and tuner
sources (HD Radio, SiriusXM) can be saved in the same
preset layer, which allows you to recall the desired station
without switching between bands or tuner sources.
A maximum of six stations can be preset in the Mix Station
preset mode. See <PRESET TYPE> (page 11)
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
STATION NAME ; TITLE/ARTIST ; ALBUM/ARTIST ;
FREQUENCY ; CLOCK
8.3 Auto memory
You can register 6 stations with good reception
automatically.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
AUTO
MEMORY
, then press the knob.
8. HD Radio™ TECHNOLOGY
8.1 About HD Radio™ Technology
This HD Radio receiver enables:
• Program Service Data provides song name, artist,
station ID, and other relevant data streams
• Adjacent to traditional main stations are HD2/HD3
Channels, providing new original formats on the
FM dial
• HD Radio broadcasts deliver crystal clear, CD-like
digital audio quality to consumers
• iTunes® Tagging provides users the means to
“tag” broadcast radio content for later review and
purchase from the iTunes Store
HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio™ and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital
Corp.
Turn the volume knob to select
YES
, then
press the knob.
When 6 stations that can be received are stored
in the memory, the process in this mode is
completed.
Preparation
• Selectable only if “NORMAL” is selected for “PRESET
TYPE”. See <PRESET TYPE> (page 11).
8.4 Direct Access Tuning using the
remote control (RC-406)
Press [FM+] / [AM–] to select a band.
Press [DIRECT] repeatedly to select the tuning
item.
“– – – –” appears.
Press [DIRECT] to enter Direct Access Tuning
mode.
Tuning item: Frequency “– – – –”, Channel “HD –”, or
Cancelling Direct Access Tuning
Press the number buttons to enter the
frequency or channel.
Press [E] / [+F] to tune in to the entered
frequency or channel.
To cancel Direct Access Tuning mode
Press [ 6 ].
Automatic cancellation
• If no operations is done for 10 seconds after step 3, Direct
Access Tuning is automatically canceled.
8.5 iTunes Tagging
You can stores the tag of the information about the
song being received, and send it to the connected
iPod. You can easily nd the song on the iTunes
Store according to the tag sent to the iPod.
Press and hold [ 6 ].
“TAG” will be indicated on the display when song
information can be registered.
“TAG STORING” is indicated on the display while
a tag is being stored in this unit. “TAG STORED” is
indicated on the display after the tag has been
stored.
When your iPod is connected to this unit, “TAG
TRANSFERD” is indicated on the display and the tag
is sent to the iPod.
Eective use of iTunes
• The song corresponding to the tag sent to the iPod is
indicated in the playlist of the synchronized iTunes or iPod.
By clicking your desired song in the playlist, you can easily
find it on the iTunes Store and buy it from the iTunes Store.
Number of tags that can be stored
• A total of fifty song information tags can be stored in
this unit including the song information tags stored by
the SiriusXM tuner function mentioned in <16.6 iTunes
Tagging> (page 40). When a tag has been sent to the
iPod, the tag stored in this unit is cleared.
Error messages
• MEMORY FULL: The tag memory of HD Radio tuner and
SiriusXM tuner is FULL.
• iPod FULL: The iPod memory is FULL.
• NO TAG FNC: An iPod which does not support the tag
memory has been connected.
• TAG ERROR: The unit is unable to complete transferring the
tagged information to the iPod.
8.6 Changing the HD Radio settings
You can change a HD Radio setting item(s)
according to your listening preference.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select a desired
setting item, then press the knob.
- See table below for selection.
- Press [ 6 ] to return to the previous item.
Press and hold [6] to exit.
Item Description
IF BAND AUTO: Increases the tuner selectivity to reduce
interference noises from adjacent stations. (Stereo
effect may be lost.) ; WIDE: Subjects to interference
noises from adjacent stations, but sound quality will
not be degraded and the stereo effect will remain.
SEEK MODE Sets the tuning mode.
AUTO1: Automatic search for a station. ;
AUTO2: Search in order of the stations in the preset
memory. ; MANUAL: Normal manual tuning.
AUTO MEMORY Refer to <8.3 Auto memory> (page 24).
RECEIVEMODE Sets the receive mode of the HD Radio receiver.
AUTO: Automatically tunes to analog broadcast
when there is no digital broadcast. ; DIGITAL: Tunes
in to digital broadcast only. ; ANALOG: Tunes in to
analog broadcast only.
TAGMEMORY Displays the tag memory usage of the HD Radio
receiver.
0 — 50: Up to 50 tags can be registered to this unit.
(Colored text: Factory setting)
26 | KDC-X797/ KDC-BT755HD English | 27
10. AUDIO SETTINGS
BALANCE L15 to R15 (0): Adjust the left and right
speaker output balance.
FADER R15 to F15 (0): Adjust the rear and front
speaker output balance.
SUBWOOFER SET ON: Turns on the subwoofer output. ;
OFF: Turns off the subwoofer output.
DETAILED SET
HPF THROUGH: All signals are sent to the front
speaker. ;
100/ 120/ 150 (HZ): Frequencies lower than
the specified value are cut off.
LPF SUBWOOFER†THROUGH: All signals are sent to the
subwoofer. ; 85HZ/ 120HZ/160HZ:
Frequencies higher than the specified value
are cut off.
SUB-W PHASE†REVERSE (180°)/ NORMAL (0°): Select the
phase angle of the subwoofer output to be
in line with the speaker output for optimum
performance. (Selectable only if a setting other
than “THROUGH” is selected for “LPF SUB-W”.)
SUPREME SET ON: Creates realistic sound by interpolating
the high-frequency components that are lost
in MP3/WMA/AAC/WAV audio compression
and iPod. ;
OFF: Disables creation. (Selectable only when
playing back an MP3/WMA/AAC/WAV disc,
USB device or iPod.)
VOLUME OFFSET –8 to +8 (0) (for AUX) ; –8 to 0 (for other
sources): Presets the volume adjustment
level of each source. The volume level will
automatically increase or decrease when
you change the source. (Before making an
adjustment, select the source you want to
adjust.)
(Colored text: Factory setting)
† “SUB-W LEVEL”/ “LPF SUBWOOFER”/ “SUB-W PHASE” is
selectable only if “SUBWOOFER SET” is set to “ON”.
About Supreme
• Technology to extrapolate and supplement with proprietary
algorithm, the high-frequency range that is cut off when
encoding at low bit rate.
Supplementing is optimized by compression format (AAC,
MP3, WMA or WAV) and processed according to bit rate.
The effect is negligible with music that is encoded at high
bit rate, variable bit rate or has minimal high frequency
range.
10.1 Audio controls
You can adjust audio by setting the following audio
control items;
Press [8SRC] to select a source other than
“STANDBY”.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
AUDIO
CONTROL
, then press the knob.
Turn the volume knob to select an audio
control item, then press the knob.
- See table below for selection.
- Repeat step 4 until the desired item is selected/
activated.
- Press [ 6 ] to return to the previous item.
Press and hold [6] to exit.
Display Description
SUB-W LEVEL†–15 to +15 (0): Adjust the subwoofer output
level.
BASS LEVEL –8 to +8 (0): Adjust the level to memorize in
each source. (Before making an adjustment,
select the source you want to adjust.)
MID LEVEL
TRE LEVEL
EQ PRO (for KDC-X797)
BASS ADJUST
BASS CTR FRQ 60/ 80/ 100/ 200: Select the center frequency.
BASS LEVEL –8 to +8 (0): Adjust the level.
BASS Q FACTOR 1.00/ 1.25/ 1.50/ 2.00: Adjust the quality
factor.
BASS EXTEND ON: Turns on the extended bass. ;
OFF: Turns off the extended bass.
MID ADJUST
MID CTR FRQ 0.5K/ 1.0K/ 1.5K/ 2.5K: Select the center
frequency.
MID LEVEL –8 to +8 (0): Adjust the level.
MID Q FACTOR 0.75/ 1.00/ 1.25: Adjust the quality factor.
TRE ADJUST
TRE CTR FRQ 10.0K/ 12.5K/ 15.0K/ 17.5K: Select the
center frequency.
TRE LEVEL –8 to +8 (0): Adjust the level.
PRESET EQ NATURAL/ USER/ ROCK/ POPS/ EASY/
TOP40/ JAZZ/ POWERFUL: Select a preset
sound mode suitable to the music genre.
(Select “USER” to use the customized bass,
middle, and treble settings.)
BASS BOOST LV1/ LV2/ LV3: Select your preferred bass
boost level. ; OFF: Disables level selection.
LOUDNESS LV1/ LV2: Select your preferred low and high
frequencies boost to produce a well-balanced
sound at a low volume level. ; OFF: Disables
level selection.
9. AUX
9.1 Start listening
Preparation:
• Select “ON” for “BUILT-IN AUX”. See <3.3 Changing
the initial settings> (page 11)
Open the cover.
Connect a portable audio player
(commercially available).
(a)
(b)
1
2
(a) 3.5 mm stereo mini plug audio cable
(commercially available)
(b) Portable audio device (commercially available)
Press [8SRC] to select
AUX
.
Turn on the portable audio player and start
playback.
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
SOURCE NAME ; CLOCK
9.2 Set the AUX name
You can set the AUX name to be displayed when
switching to the AUX source.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
AUX NAME
,
then press the knob.
Turn the volume knob to select a desired AUX
name to be displayed for AUX source and then
press the knob.
“AUX”, “DVD”, “PORTABLE”, “GAME”, “VIDEO”, or “TV”.
Press and hold [6] to exit.
28 | KDC-X797/ KDC-BT755HD English | 29
11. DISPLAY SETTINGS
11.2 Adjusting the Illumination color
You can adjust the illumination color of the panel.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
DISP & KEY
,
then press the knob.
Turn the volume knob to select
COLOR
SELECT
, then press the knob.
Turn the volume knob to select
COLOR 01
—
COLOR 24
or
USER
.
Press and hold the volume knob to enter the
detailed color adjustment.
Press [E] / [F] to select the color (R/ G/ B)
to adjust.
Turn the volume knob to adjust the level (0 —
9), then press the knob.
Press the volume knob to exit the detail color
adjustment.
 Press and hold [6] to exit.
11.1 Display & Illumination setting
You can set the display and illumination.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
DISP & KEY
,
then press the knob.
Turn the volume knob to select a desired
setting item, then press the knob.
- See table below for selection.
- Press [ 6 ] to return to the previous item.
Press and hold [6] to exit.
Display Description
COLOR SELECT “VARIABLE SCAN”/ “COLOR 01” — “COLOR
24”/ “USER”: Select your preferred key
illumination color.
You can create your own color. See <11.2
Adjusting the Illumination color> (page 28).
DISP DIMMER “ON”: Dims the display illumination. ;
“OFF”: Does not dim.
TEXT SCROLL “AUTO”/ “ONCE”: Select whether to scroll the
display information automatically, or scroll only
once. ; “OFF”: Disables scroll function.
KEY DIMMER “DIMMER LV1”: Dims the key illumination
constantly. ; “DIMMER LV2”: Dims the key
illumination darker than “DIMMER LV1”. ;
“DIMMER OFF”: Does not dim.
BT DVC STATUS You can display the connection status, signal
strength, and battery level of Bluetooth device.
HF-CON: Connection status for cell-phone. ;
AD-CON: Connection status for BT Audio. ;
BATT: Battery level of cell-phone. ;
SIGNAL: Signal strength of cell-phone.
(Colored text: Factory setting)
30 | KDC-X797/ KDC-BT755HD English | 31
12. GETTING STARTED OF Bluetooth®
12.2 Registering a Bluetooth device
Start registering this unit by operating the
Bluetooth device.
By operating the Bluetooth device, register the
hands-free unit or audio unit (pairing).
Select “KDC-X7***” (for KDC-X797)/ “KDC-BT7***HD”
(for KDC-BT755HD) from the list of found units.
If “PAIRING” Á “PASS XXXXXX” Á (Bluetooth device
name) Á “PRESS” Á “VOLUME KNOB” appears,
proceed to step 3.
Input the PIN code (“0000”) in the Bluetooth
device.
Check that registration is complete on the
Bluetooth device. PIN code is set to “0000” as the
default. You can change this code.
See <15.3 Registering the PIN code> (page 37)
“PAIRING” Á “PASS XXXXXX” Á (Bluetooth device
name) Á “PRESS” Á “VOLUME KNOB” appears.
Press the volume knob.
When registration is completed, “PAIRING OK”
appears.
Bluetooth modules that can be used with this unit
• For details on the Bluetooth cell-phone with the hands-free
function, see <12.1 About the Bluetooth module> (page
30).
About automatic connection of the iPod touch or
iPhone through Bluetooth
• This unit is compatible with an Apple Auto Pairing function.
Connecting the iPod touch or iPhone to this unit with USB
cable will automatically register it as a Bluetooth device. See
<AUTO PAIRING> (page 37).
1. The Bluetooth function of the iPod touch or iPhone is
turned on first.
2. Connect an iPod touch or iPhone to the USB terminal.
3. Press the volume knob to pair once you have confirm the
passcode.
Error messages
• DEVICE FULL: 5 Bluetooth device have already been
registered. No more Bluetooth device cannot be registered.
• PAIRING NG: Pairing error.
12.1 About the Bluetooth module
This unit conforms to the following Bluetooth
specications:
Version Bluetooth Ver. 2.1+EDR Certified
Profile HFP (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
OPP (Object Push Profile)
For the cell-phones verified for compatibility, access
the following URL:
http://www.kenwood.com/cs/ce/bt/
Notes
• The units supporting the Bluetooth function have been
certified for conformity with the Bluetooth Standard
following the procedure prescribed by Bluetooth
SIG. However, it may be impossible for such units to
communicate with your cell-phone depending on its type.
• HFP is a profile used to make a hands-free call.
• OPP is a profile used to transfer data such as a phone book
between units.
12.3 Transferring the Phone Book
To transfer automatically
If the cell-phone supports a Phone Book Access
Prole (PBAP), the phone book is transferred
automatically after Bluetooth connection.
Notes
• Setting on the cell-phone may be required.
• Up to 1000 phone numbers can be registered for each
registered cell-phone.
• Up to 32 digits can be registered for each phone number
along with up to 32* characters representing a name.
(* 32: Number of alphabetical characters. Fewer characters
can be input depending on the type of characters.)
• If no phone book data is found in the unit even after the
compete display, your cell-phone may not support a phone
book data automatic downloading function. In this case, try
downloading manually.
To transfer from the cell-phone manually
Use this procedure when your cell-phone does not
support Phone Book Access Prole (PBAP).
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
TRANSFER PB
,
then press the knob.
“DL PB ***” appears.
By operating the cell-phone, send the phone
book data to this unit
By operating the cell-phone, transfer the phone
book data to this unit.
When transferring is completed, press the
volume knob.
Notes
• The manually transferred phone book data can contain up
to 400 phone numbers.
• To cancel transferring of the phone book data, operate the
cell-phone.
12.4 Bluetooth device registration
test
You can check whether your Bluetooth device can
be registered using this unit.
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
BT TEST
MODE
, then press the knob.
“PLEASE PAIR YOUR PHONE” appears.
Search for this unit from the Bluetooth device.
Select “KDC-X7***” (for KDC-X797)/ “KDC-BT7***HD”
(for KDC-BT755HD) from the list of found units.
If “(Bluetooth device name)” appears, proceed to
step 5.
Input the PIN code (“0000”) in the Bluetooth
device.
Check that registration is complete on the
Bluetooth device. PIN code is set to “0000” as the
default. You can change this code.
See <15.3 Registering the PIN code> (page 37)
“(Bluetooth device name)” appears.
Press the volume knob.
The connection result, “OK” (Enabled) or “NG”
(Disabled), is displayed.
- “PAIRING”: Registration to this unit
- “HF CNT”: Hands-free phoning
- “AUD CNT”: Audio playback
- “PB DL”: Phone Book downloading
Press [ Ú ] to exit pairing mode.
Note
• Data (Phone Book, etc.) of the cell-phone checked for
connection does not remain in this unit.
Error messages
• PAIRING NG: Pairing error.
32 | KDC-X797/ KDC-BT755HD English | 33
13. HANDS-FREE PHONING
13.3 Calling a Number in the Phone
Book
Preparation :
• You need to register your cell-phone before using it with
this unit. See <12.2 Registering a Bluetooth device> (page
30).
• To use the Phone Book, it must be downloaded to this unit
in advance. See <12.3 Transferring the Phone Book> (page
31).
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
PHONE BOOK
,
then press the knob.
Press [ 1 ] to enter alphabet search mode.
Turn the volume knob to select the character
to be searched for.
- To move to the next row, press [E] / [F].
- To return to the Phone Book mode, press [ 6 ].
Press the volume knob to start searching.
Turn the volume knob to select a name, then
press the knob.
Turn the volume knob to select a phone
number.
Press the volume knob to make a call.
Display of Phone Book
• During search, a non-accent character such as “u” is
searched for instead of an accent character such as “ü”.
• The category items in the Phone Book are displayed as
follows.
GE: General ; HM: Home ; OF: Office ;
MO: Mobile ; OT: Others
If “TRANSFER PB” appears, transfer the Phone
Book.
“PB DL MODE” appears.
By operating the cell-phone, send the phone
book data to this unit
When transferring is completed, return to
Phone Book operation.
- To cancel the download mode, press [ 6 ].
If the Phone Book is transferred manually, its
entries can be deleted.
Press and hold the volume knob in step 6 or 7.
Turn the volume knob to select
DELETE ONE
or
DELETE ALL
, then press the knob.
13.1 Receiving a Call
Preparation :
• You need to register your cell-phone before using it with
this unit. See <12.2 Registering a Bluetooth device> (page
30).
Answering a Phone Call
Press [ Ú ] or the volume knob.
- The following operations disconnect the line:
Insert a CD. Connect a USB device.
- The name of the calling party is displayed if it has
already been registered in the Phone Book.
Rejecting an Incoming Call
Press [8SRC].
13.2 During a Call
Disconnecting a Call
Press [ Ú ] or [8SRC].
Switching to the Private Mode
Press [6] to switches between Private talk
(“PRIVATE TALK”) and Hands-free talk (“HANDS
FREE”).
Adjusting the Voice Volume during a Call
Turn the volume knob.
When Name is selected
- “DELETE ONE”: Deleting one name.
- “DELETE ALL”: Deleting all entries.
When Phone number is selected
- “DELETE ONE”: Deleting one phone number.
- “DELETE ALL”: Deleting all phone numbers in the
name.
Turn the volume knob to select YES, then
press the knob.
Press the volume knob.
“COMPLETED” appears.
Press the volume knob to return to Phone
Book operation.
13.4 Calling a Number in the Call Log
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
CALL HISTORY
,
then press the knob.
Turn the volume knob to select a name or
phone number.
- O: Outgoing call.
- I: Incoming call.
- M: Missed call.
- Press [SCRL DISP] to switch between name and
phone number.
Press the volume knob to make a call.
Note
• If your cell-phone cannot download the Phone Book
automatically, the outgoing call log, incoming call log,
and missed call log contain only the calls dialed from or
received by this unit.
13.5 Dialing a Number
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
NUMBER DIAL
,
then press the knob.
Turn the volume knob to select the phone
number
- To move to the next digit, press [F].
- To delete the last digit, press [E].
Press the volume knob to make a call.
Registering a dial number
• You can input max 32 digits.
13.6 Speed Dialing (Preset Dial)
Press [ Ú ] to enter Bluetooth mode.
Press [1] to [6].
Press the volume knob to make a call.
13.7 Registering in the preset dial
number list
Press [ Ú ] to enter Bluetooth mode.
Enter the phone number with reference to the
following:
- <13.3 Calling a Number in the Phone Book>
(page 32)
- <13.4 Calling a Number in the Call Log> (page
33)
- <13.5 Dialing a Number> (page 33)
Press and hold [1] to [6].
13.8 Make a Voice Dialing Call
You can make a voice call using the voice
recognition function of your cell-phone.
Press and hold [ Ú ] to start voice recognize.
“VOICE CONTROL” appears.
Pronounce the name registered in the cell-
phone.
Make a call.
Notes
• To cancel the voice recognize, press and hold the volume
knob.
• If “NO SUPPORT” appears, your cell-phone does not support
the voice recognition function.
• If “N/A VOICE TAG” appears, your cell-phone cannot start
voice recognition.
• If “NO ACTIVE DVC” appears, no cell-phone is connected.
• If your voice cannot be recognized, a message is displayed.
Press and hold the volume knob to terminate voice
recognition. Retry it again from the beginning.
• Audio sound is not output during voice recognition.
34 | KDC-X797/ KDC-BT755HD English | 35
13.9 Switching between Two
Connected Cell-phones
Switching by operating a button
Press [ Ú ] to enter Bluetooth mode.
Press and hold [ Ú ].
Sub cell-phone is switched to main cell-phone.
To switch the priority again, press and hold [ Ú ].
Switching by selecting from the menu
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
DVC PRIORITY
,
then press the knob.
Turn the volume knob to select
SUB-XXX
.
Press the volume knob.
SUB-XXX is switched to MAIN-XXX and the priority
is changed.
Notes
• You cannot switch between the connected cell-phones
during downloading of the Phone Book.
• Only the main cell-phone from which you can make a call.
• Both the main and sub cell-phones can receive an
incoming call.
• If the other cell-phone receives an incoming call while you
are talking on the active cell-phone, you must finish the
current call to answer the incoming call to the other cell-
phone.
• If the main cell-phone is disconnected when it is taken out
of the vehicle, the sub cell-phone becomes the main cell-
phone if it is held connected. When the disconnected cell-
phone is brought back into the vehicle, it is reconnected as
the sub cell-phone.
13.10 Clearing the disconnection
message
Press [ Ú ] to “HF DISCONCT” disappears.
13.11 SMS notification
When the phone receives a text message, the unit
rings and “SMS RECEIVED” appears.
Press any button to “SMS RECEIVED”
disappears.
Notes
• You cannot read, edit, or send a message through the unit.
13. HANDS-FREE PHONING 14. Bluetooth AUDIO
14.1 Start listening
Preparation:
• You need to register your audio player before using
it with this unit. See <12.2 Registering a Bluetooth
device> (page 30).
Press [8SRC] to select
BT AUDIO
.
Press [E] / [F] to selects a le.
Pause and play
Press [6 L].
Fast-forwarding or fast-backwarding a song
Press and hold [E] or [F].
Selecting an audio file folder
Press [1] or [2].
Selecting Repeat Play
Press [4 /] repeatedly to make a selection.
FILE REPEAT, ALL REPEAT, REPEAT OFF
Selecting Random Play
Press [3 9] repeatedly to make a selection.
RANDOM ON, RANDOM OFF
All Random Play
Press and hold [3 9].
Pressing this button again plays songs in the
normal mode starting.
ALL RANDOM, RANDOM OFF
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
TITLE/ARTIST ; ALBUM/ARTIST ; P-TIME (playing
time) ; CLOCK
Notes
• Bluetooth audio players that do not support AVRCP (Audio/
Video Remote Control Profile) cannot be used with this unit.
Operate from the audio player.
• Some functions cannot be operated from the Bluetooth
audio player.
• Speakers from which audio is output change depending on
the Bluetooth setting “BT HF/AUDIO”. The default is Front.
See <BT HF/AUDIO> (page 37).
36 | KDC-X797/ KDC-BT755HD English | 37
15. Bluetooth SETUP
15.2 Deleting a registered Bluetooth
device
You can delete a registered Bluetooth device.
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
PAIRING
, then
press the knob.
Turn the volume knob to select
DEVICE
DELETE
, then press the knob.
Turn the volume knob to select the Bluetooth
device, then press the knob.
Turn the volume knob to select
YES
, then
press the knob.
“COMPLETED” appears.
To cancel the Bluetooth mode
Press [ Ú ].
When a registered device is deleted
• When a registered cell-phone is deleted, its phone Book
and log are also deleted.
15.1 Selecting the Bluetooth Device
When two or more Bluetooth devices have already
been registered, you need to select the Bluetooth
device you wish to use.
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
PAIRING
, then
press the knob.
Turn the volume knob to select
PHONE SELECT
or
AUDIO SELECT
, then press the knob.
Turn the volume knob to select a Bluetooth
device name.
Press the volume knob to set up the Bluetooth
device.
- “* (device name)”: The selected Bluetooth device
is busy.
- “- (device name)”: The selected Bluetooth device
is on standby.
- “(blank) (device name)“: The Bluetooth device is
deselected.
- If two cell-phones or an audio player have already
been selected, deselect one device before
selecting a new Bluetooth device.
Press and hold [6] to exit.
To cancel the Bluetooth mode
Press [ Ú ].
When no device can be selected
• If a cell-phone is already selected, deselect it, and then
select a different one.
• If you cannot select a device using the audio player,
connect the device with the audio player.
15.3 Registering the PIN code
By operating the Bluetooth device, specify the PIN
code necessary for registering this unit.
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
DETAILED SET
,
then press the knob.
Turn the volume knob to select
PIN CODE
EDIT
, then press the knob.
Turn the volume knob to select the number.
- To move to the next digit, press [F].
- To delete the last digit, press [E].
Press the volume knob to register a PIN code.
“COMPLETED” appears.
To cancel the Bluetooth mode
Press [ Ú ].
Notes on pin code input
• By default, “0000” is specified.
• A PIN code can be specified with up to eight digits.
15.4 Changing the Bluetooth detail
settings
You can change a Bluetooth detail setting item(s)
according to your listening preference.
Press [ Ú ] to enter Bluetooth mode.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
DETAILED SET
,
then press the knob.
Turn the volume knob to select a desired
setting item, then press the knob.
- See table below for selection.
- Press [ 6 ] to return to the previous item.
To cancel the Bluetooth mode
Press [ Ú ].
Display Description
PIN CODE EDIT For details, see <15.3 Registering the PIN code>
(page 37).
AUTO ANSWER OFF: Does not answer the phone call
automatically. ; 1 – 8 –99: Automatically
answers the phone call after lapse of 1 – 99
seconds.
RECONNECT ON: Automatically reconnects the selected
Bluetooth device when radio wave becomes strong
enough, even after it is disconnected. ;
OFF: Not uses auto reconnect.
When this function is turned ON, the Bluetooth
device is reconnected if it has been disconnected
by selecting
PHONE SELECT
/
AUDIO SELECT
.
AUTO PAIRING ON: Automatically performs Bluetooth pairing
when the iPhone or iPod touch is connected to the
USB terminal. ; OFF: Not uses auto pairing.
BT HF/AUDIO FRONT: Outputs audio from the front-left and
front-right speakers. ;
ALL: Outputs audio from the all speakers.
CALL BEEP ON: Sets whether to output a beep from the
speaker when a call comes in. ; OFF: Not beeps.
BT F/W UPDATE Display the firmware version and update the
firmware. For how to update the firmware, access
our web site.
www.kenwood.com/cs/ce/bt/
MIC GAIN -20 — 0 — 8: Adjust the sensitivity of the
microphone for telephone call or adjusts the voice
of the caller.
ECHO CANCEL 1 — 4 — 10: Sets the echo cancellation level.
(Colored text: Factory setting)
38 | KDC-X797/ KDC-BT755HD English | 39
16. SiriusXM™
16.2 Basic operations
Search for a channel
Press [8SRC] to select
SIRIUS XM
.
Press [ 1 ] repeatedly to select a band (SXM1,
SXM2, SXM3, SXM4).
Press [E] / [F] to select a channel.
- The tuning mode can be changed. Refer to <SEEK
MODE> (page 40).
Channel Preset Memory
Press and hold [1] to [6] to memorize the
current channel.
“STORED” appears.
Recall the channels in the memory
Press [1] to [6] to recall memorized channel.
About Mix Station preset mode
• In Mix Station preset mode, different bands and tuner
sources (HD Radio, SiriusXM) can be saved in the same
preset layer, which allows you to recall the desired station
without switching between bands or tuner sources.
A maximum of six stations can be preset in the Mix Station
preset mode. See <PRESET TYPE> (page 11)
Display Selection
Press [SCRL DISP] repeatedly to select an
information.
CHANNEL NAME ; ARTIST NAME ; SONG TITLE ;
CONTENT INFO ; CATEGORY NAME ; CH (channel)
NUMBER ; CLOCK
16.1 Before use
SiriusXM Satellite Radio operation requires the
connection of the optional SiriusXM Connect Vehicle
Tuner. To activate the SiriusXM Vehicle Connect tuner,
you will need the Radio ID.
Make a note of your Radio ID
For each SiriusXM Vehicle Connect tuner, peculiar
Radio ID is assigned. To confirm your Radio ID, tune
to channel 0. The letters I, O, S and F are not used in
any Radio ID.
The Radio ID is also located on the label of the
SiriusXM Connect Vehicle Tuner.
How to activate your SiriusXM Service
Go to www.siriusxm.com/activatenow or call 1-866-
635-2349 to activate your SiriusXM Vehicle Connect
Tuner.
To activate SiriusXM Canada service go to www.xmradio.ca
and click on “ACTIVATE RADIO” in the top right corner, or call
1-877-438-9677
16.3 Category search
You can select the channel and category you want
to receive.
Press and hold [ 1 ] to enter Category Search
mode.
“CAT SEARCH” appears.
Turn the volume knob to select a category,
then press the knob.
Turn the volume knob to select a channel,
then press the knob.
You cannot search for a channel until the category
information is acquired.
To cancel the Category Search mode
Press [ 6 ] once or twice.
16.4 Direct Access Tuning using the
remote control (RC-406)
Press [DIRECT].
“– – –” appears.
Press the number buttons to enter the
channel.
Press [E] / [+F] to tune in to the entered
channel.
To cancel Direct Access Tuning mode
Press [ 6 ].
Automatic cancellation
• If no operations is done for 10 seconds after step 3, Direct
Access Tuning is automatically canceled.
16.5 SiriusXM Replay™
You can replay up to the last 60 minutes
broadcasting of current channel.
Press [ 6 ] to enter Replay mode.
“REPLAY MODE” appears.
The “+” indicator stays lit during Replay.
In Replay mode, you can use the following
playback functions:
- To skips songs, press [E]/ [F].
- To fast-forwarding or fast-backwarding a song,
press and hold [E] or [F].
- To pause and play, Press [6 L].
To exit Replay mode.
Press [ 6 ].
“LIVE MODE” appears, and then the on-air song is
received.
Replay mode is automatically cancelled and go to
Live mode when playback position is reached to
Live by skip up or other reasons.
When receiving channel is changed
• Recorded data of the previously received channel is cleared
immediately when a different channel is received.
40 | KDC-X797/ KDC-BT755HD English | 41
16.6 iTunes Tagging
You can stores the tag of the information about the
song being received, and send it to the connected
iPod. You can easily nd the song on the iTunes
Store according to the tag sent to the iPod.
Press and hold [ 6 ].
“TAG” will be indicated on the display when song
information can be registered.
“TAG STORING” is indicated on the display while
a tag is being stored in this unit. “TAG STORED” is
indicated on the display after the tag has been
stored.
When your iPod is connected to this unit, “TAG
TRANSFERD” is indicated on the display and the tag
is sent to the iPod.
Eective use of iTunes
• The song corresponding to the tag sent to the iPod is
indicated in the playlist of the synchronized iTunes or iPod.
By clicking your desired song in the playlist, you can easily
find it on the iTunes Store and buy it from the iTunes Store.
Number of tags that can be stored
• A total of fifty song information tags can be stored in this
unit including the song information tags stored by the
function of the HD Radio tuner function mentioned in <8.5
iTunes Tagging> (page 25). When a tag has been sent to
the iPod, the tag stored in this unit is cleared.
Error messages
• MEMORY FULL: The tag memory of HD Radio tuner and
SiriusXM tuner is FULL.
• iPod FULL: The iPod memory is FULL.
• NO TAG FNC: An iPod which does not support the tag
memory has been connected.
• TAG ERROR: The unit is unable to complete transferring the
tagged information to the iPod.
16.7 Changing the SiriusXM tuner
setting
You can change a SiriusXM tuner setting item(s)
according to your listening preference.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select a desired
setting item, then press the knob.
- See table below for selection.
- Press [ 6 ] to return to the previous item.
Press and hold [6] to exit.
Display Description
SEEK MODE CHANNEL: Normal manual seeking. ;
PRESET: Searches in order of the channels in
the preset memory.
CHANNEL SKIP
CHANNEL EDIT For details, see <16.11 Channel skip> (page
42).
CHANNEL CLEAR
CHANNEL LOCK
CODE SET For details, see <16.10 Parental Lock pass code
setting> (page 42).
CHANNEL EDIT For details, see <16.8 Channel Lock (Parental
Lock)> (page 41).
CHANNEL CLEAR
MATURE CH For details, see <16.9 Setting Parental Lock for
Mature content> (page 41).
SIGNAL LEVEL Displays the received signal strength of the
SiriusXM tuner.
BUFFER USAGE 0% – 100%: Displays the memory usage for
the function mentioned in <16.5 SiriusXM
Replay™> (page 39).
(Colored text: Factory setting)
16.8 Channel Lock (Parental Lock)
You can turn on/o Channel Lock for each channel.
Preparation :
• Select “OFF” for “MATURE CH”. See <16.9 Setting
Parental Lock for Mature content> (page 41)
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CHANNEL
LOCK
, then press the knob.
“ENTER CODE” appears.
Turn the volume knob to select the number.
- To move to the next digit, press [F].
- To delete the last digit, press [E].
- Pass code is set to “0000” as the default. You can
change this code.
See <16.10 Parental Lock pass code setting>
(page 42)
Press the volume knob.
Turn the volume knob to select
CHANNEL
EDIT
, then press the knob.
Turn the volume knob to select a category,
then press the knob.
Turn the volume knob to select a channel,
then press the knob.
The selected channel lock setting is turned on and
off alternately each time you press the volume
knob.
“L” is indicated for the selected channel number.
“X” is indicated for the channel that cannot be
locked.
Press and hold [6] to exit.
Deleting all channel lock settings
Operate the above-described steps 1-5.
Turn the volume knob to select
CHANNEL
CLEAR
, then press the knob.
Turn the volume knob to select
YES
, then
press the knob.
Listening to the locked channel
When you select a locked channel, “CH
LOCKED”Á”LOCK CODE” appears.
Turn the volume knob to select the number.
- To move to the next digit, press [F].
- To delete the last digit, press [E].
- Pass code is set to “0000” as the default. You can
change this code.
See <16.10 Parental Lock pass code setting>
(page 42)
Press the volume knob.
16.9 Setting Parental Lock for Mature
content
Your can turn on/o Parental Lock for the adult
channels assigned by SiriusXM.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CHANNEL
LOCK
, then press the knob.
“ENTER CODE” appears.
Turn the volume knob to select the number.
- To move to the next digit, press [F].
- To delete the last digit, press [E].
- Pass code is set to “0000” as the default. You can
change this code.
See <16.10 Parental Lock pass code setting>
(page 42)
Press the volume knob.
Turn the volume knob to select
MATURE CH
,
then press the knob.
Turn the volume knob to select
ON
, then press
the knob.
16. SiriusXM™
42 | KDC-X797/ KDC-BT755HD English | 43
16.10 Parental Lock pass code setting
You can set a new pass code for Channel Lock
setting.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CHANNEL
LOCK
, then press the knob.
“ENTER CODE” appears.
Turn the volume knob to select the number.
- To move to the next digit, press [F].
- To delete the last digit, press [E].
- Pass code is set to “0000” as the default. You can
change this code.
Press the volume knob.
Turn the volume knob to select
CODE SET
,
then press the knob.
“NEW CODE” appears.
Enter a new pass code in the same manner as
in step 4. Press the volume knob.
Enter the same pass code as that entered in
step 7. Press the volume knob.
The old pass code is changed to the new one and
“COMPLETED” appears.
16.11 Channel skip
You can register the channel you wish to skip.
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CHANNEL
SKIP
, then press the knob.
Turn the volume knob to select
CHANNEL
EDIT
, then press the knob.
Turn the volume knob to select a category,
then press the knob.
Turn the volume knob to select a channel,
then press the knob.
The selected channel skip setting is turned on and
off alternately each time you press the volume
knob.
“S” is indicated for the selected channel number.
“X” is indicated for channel numbers that cannot be
selected.
Press and hold [6] to exit.
Deleting all channel skip settings
Press the volume knob to enter Function
mode.
“FUNCTION” appears.
Turn the volume knob to select
SETTINGS
,
then press the knob.
Turn the volume knob to select
CHANNEL
SKIP
, then press the knob.
Turn the volume knob to select
CHANNEL
CLEAR
, then press the knob.
Turn the volume knob to select
YES
, then
press the knob.
16. SiriusXM™
44 | KDC-X797/ KDC-BT755HD English | 45
17. REMOTE CONTROL
17.2 Basic operations
ATT
0 — 9
SRC
VOL
FM
AM
DIRECT/OK
5/∞
AUD
ENT
General control
• Volume control: [VOL]
• Source selection: [SRC]
Press and hold to turn off the power.
• Volume reduction: [ATT]
When the button is pressed again, the volume
returns to the previous level.
• Return to previous item: [6]
• Selection of item: [R]/[S]
• Determination: [ENT]
• Enter Audio Control mode: [AUD]
On HD Radio tuner source
• Band selection: [FM]/[AM]
• Station selection: [E]/[F]
• Recall preset stations: [1] – [6]
On CD/Audio file source
• Music selection: [E]/[F]
• Folder selection: [FM]/[AM]
• Pause/Play: [ENT]
• Enter the Music search mode: [R]/[S]
• Movement between folders/les during Music
search mode: [R]/[S]
• Return to previous folder: [6]
17.1 Before using remote control
Preparing the remote control unit
Pull the battery sheet out from the remote control
unit in the direction of the arrow.
Changing the battery of the remote control
unit
(1)
(2)
Use a commercially available button battery (CR2025).
Insert the battery with the + side facing upward,
following the illustration inside the case.
(1) Keep on sliding.
(2) Pull out.
! CAUTION
• Keep battery out of reach of children and in
original package until ready to use. Dispose of
used batteries promptly. If swallowed contact
physician immediately.
• Do not leave the battery near re or under
direct sunlight. A re, explosion or excessive
heat generation may result.
• Do not set the remote control in hot places
such as on the dashboard.
• The Lithium battery is in danger of explosion
if replaced incorrectly. Replace only with the
same or equivalent type.
On iPod source
• Enter Music search mode: [R]/[S]
• Movement between items during Music search
mode: [R]/[S]
• Return to previous item: [6]
• Pause/Play: [ENT]
On Pandora internet radio source
• Song skip: [F]
• Pause/Play: [ENT]
• Enter the station list mode: [R]/[S]
- Select item: [R]/[S]
- Exit the station list mode: [6]
On iHeartRadio source
• Skip track (Custom station): [F]
• Stop or Pause/Play: [ENT]
• Enter the station search mode: [R]/[S]
- Select item: [R]/[S]
- Exit the station search mode: [6]
On Aha source
• Selecting a content: [E]/[F]
• Pause/Play: [ENT]
• Enter the station search mode: [R]/[S]
- Select item: [R]/[S]
- Exit the station search mode: [6]
On SiriusXM tuner source
• Channel selection: [E]/[F]
• Recall preset stations: [1] – [6]
• Enter the Category search mode: [R]/[S]
Hands-free phone control
Making a call
• Enter Bluetooth mode: [Û]
• Select a dialing method: [R]/[S] Á [ENT]
• Number dial input:
- Input a digit: [0] – [9]
- Input “+”: [F]
- Input “#”: [FM]
- Input “*”: [AM]
- Clear the entered phone number: [E]
• Make a call: [ENT]
Receiving a call
• Answer the call: [Û]
• Rejecting an Incoming Call: [Ý]
During a call
• End the call: [Ý]
46 | KDC-X797/ KDC-BT755HD English | 47
18. TROUBLESHOOTING
18.1 Setting error
If you make a mistake in setting a control item(s),
some functions of this unit may be disabled.
ö Cannot set up display.
Í The demonstration mode is not turned off as
mentioned in <3.4 Setting the demonstration mode>
(page 11).
ö Cannot set up the subwoofer.
ö Cannot set up the low pass lter.
ö No output from the subwoofer.
Í “SUB-W SET” is not set to ON as mentioned in <10.1
Audio controls> (page 27).
ö Cannot set up the subwoofer phase.
Í “LPF SUB-W” is set to “THROUGH” as mentioned in
<10.1 Audio controls> (page 27).
18.2 Operation/wiring error
What might seem to be a malfunction in your unit
may just be the result of a slight operation error or a
wiring error. Before calling for service, rst check the
following table for possible problems.
General
ö The key beep does not sound
Í The Preout jack is in use.
ò The key beep cannot be output from the Preout
jack.
Í “KEY BEEP” is set to “ON” as mentioned in <3.3
Changing the initial settings> (page 11).
ö Sound cannot be heard.
Í Adjust the volume to the optimum level.
Í Check the cords and connections.
Í The connectors are dirty.
ò Clean the connectors. Refer to <Maintenance>
(page 4).
ö The unit does not turn on.
ö Information shown on the display is incorrect.
Í The connectors are dirty.
ò Clean the connectors. Refer to <Maintenance>
(page 4).
Tuner source
ö Radio reception is poor.
Í The car antenna is not extended.
ò Pull the antenna out all the way.
Disc source
ö The specied disc does not play, but another one
plays instead.
Í The specified CD is quite dirty.
ò Clean the CD with reference to <Handling discs>
(page 14).
Í The disc is severely scratched.
ò Try another disc instead.
ö Disc cannot be ejected.
Í The unit is malfunctioning for some reason.
ò Press and hold [G] to forcibly eject the disc. Be
careful not to drop the disc when it is ejected. If
this does not solve the problem, reset the unit.
Audio le source
ö The sound skips when an Audio le is being played.
Í The media is scratched or dirty.
ò Clean the CD with reference to <Handling discs>
(page 14).
Í The recording condition is bad.
ò Play the media again or use another media.
iHeartRadio source
ö Station cannot be selected.
Í If “Explicit Content” in [Account Settings] is checked
in the web version of iHeartRADIO, some stations
become unavailable.
Bluetooth source
ö The hands-free talk volume is low.
Í The hands-free talk volume can be adjusted
independently.
ò Adjust it during hands-free talk. “MIC GAIN” of
<15.4 Changing the Bluetooth detail settings>
(page 37).
ö No beep is heard at reception of an incoming call.
Í No beep is heard depending on the type of your cell-
phone.
ò The “CALL BEEP” of <15.4 Changing the Bluetooth
detail settings> (page 37) is set ON.
ö Voice is not recognized.
Í The vehicle window is open. If the surrounding noise
is large, voice cannot be recognized properly.
ò Close the vehicle windows to reduce noise.
Í Small voice. If voice is too small, it cannot be
recognized properly.
ò Speak into the microphone a little more loudly
and naturally.
ö The sound from the Bluetooth audio player is
discontinuous.
Í Another Bluetooth device is affecting the Bluetooth
communication. Turn off another Bluetooth device.
Move another Bluetooth device away from this unit.
Í Another Bluetooth device or profile is used for
communication. The downloading of the Phone book
disconnects the sound.
18.3 Error messages
The messages shown below indicates your system
condition.
General
ö “PROTECT” (blink)
Í The speaker wire has short-circuited or touched
the chassis of the vehicle, and then the protection
function has been activated.
ò Lay or insulate the speaker cable properly and
press the Reset button. If “PROTECT” does not
disappear, consult your nearest service center.
Disc/ USB/ iPod Messages
ö “COPY PRO”
Í A copy-protected file is played.
ö “iPod ERROR”
Í Connection to the iPod has failed.
ò Remove the iPod/ iPhone and then reconnect it.
ò Reset iPod/ iPhone.
ö “NA DEVICE”
Í An unsupported USB device is connected.
ò Check that the connected USB device is
supported. See <About USB device> (page 15).
Í Connection to the iPod has failed.
ò Check that the connected iPod is supported. See
<About compatible iPod/iPhone> (page 15) for
information on supported iPods.
ö “NA FILE”
Í An Audio file is played in a format that is not
supported by this unit.
ö “NO DEVICE”
Í A USB device is selected as a source although no USB
device is connected.
ò Change the source to any source other than the
USB device. Connect an USB device, and change
the source to the USB device again.
ö “NO MUSIC”
Í The connected USB device contains no playable
audio file.
Í A medium that does not have playable data has been
played.
ö “PLEASE EJECT”
Í The unit is malfunctioning for some reason.
ò Press and hold [G].
ò Press the reset button on the unit. If the “PLEASE
EJECT” code does not disappear, consult your
nearest service center.
ö “READ ERROR”
Í The file system of the connected USB device is
broken.
ò Copy the files and folders for the USB device
again. If “Read Error” is still displayed, initialize the
USB device or use another USB device.
ö “TOC ERROR”
Í The CD is quite dirty. The CD is upside-down. The CD
is scratched a lot.
Í The disc is unreadable.
ö “USB ERROR”
Í Some trouble may have occurred to the connected
USB device.
ò Remove the USB device, then cycle the power
switch to ON. If the same display is repeated, use
another USB device.
HD Radio Messages
ö “iPod FULL”
Í The iPod memory is FULL.
ö “MEMORY FULL”
Í The tag memory of HD Radio tuner and SiriusXM
tuner is FULL.
ö “TAG ERROR”
Í The unit is unable to complete transferring the
tagged information to the iPod.
Bluetooth Messages
ö “AUD DISCONCT”
Í The unit cannot communicate with the Bluetooth
audio player.
ö “DEVICE FULL”
Í 5 Bluetooth device have already been registered. No
more Bluetooth devices are registered.
ö “HF DISCONCT”
Í The unit cannot communicate with the cell-phone.
ö “HF ERROR 68”
Í The unit cannot communicate with the cell-phone.
ò Cycle the power switch. If this message still
appears, press the Reset button on the control
unit.
ö “HF ERROR 89”
Í Update of the firmware has failed.
ò Retry update of the firmware.
ö “NO DATA”
Í There is no call history list.
Í There is no phone book list.
Í Data is not contained in the phone book.
ö “NO ENTRY”
Í The cell-phone has not been registered (pairing).
ö “NO ACTIVE DVC”
Í No cell-phone is connected.
ö “NO NUMBER”
Í The calling party does not notify a caller ID.
Í There is no phone number data.
ö “NO SUPPORT”
Í Your cell-phone does not support the voice
recognition function.
ö “N/A VOICE TAG”
Í Your cell-phone cannot start voice recognition.
ö “PAIRING NG”
Í Pairing error.
48 | KDC-X797/ KDC-BT755HD English | 49
Pandora Messages
ö “ADD ERROR”
Í Registration of the station has failed.
ö “CHECK DEVICE”
Í Any device ready for Pandora reception is not
connected to this unit.
Í Pandora application has not started, you have not
signed in, or system maintenance is in progress.
ö “CONNECT ERROR”
Í Communication is unstable.
ö “LICENSE ERROR”
Í The Pandora® is accessed from a country to which it
is not delivered.
ö “NO CONTENT”
Í There is no receivable content.
ö “NO SKIPS”
Í No more skips are allowed now.
Retry after a while.
ö “NO STATIONS”
Í There is no receivable station.
ö “NOT EXIST”
Í The registered station has been deleted or the device
is not the registered one.
ö “RATING ERROR”
Í Registration of Thumbs Up/Down has failed.
ö “SEARCH ERROR”
Í No station could be searched for.
ö “STATION LIMT”
Í The number of registered stations has reached the
upper limit.
ò Retry after deleting an unnecessary station.
ö “UPGRADE APP”
Í The Pandora application is an older version which
the unit can not support. Confirm that the Pandora
application is the latest version.
iHeartRadio Messages
ö “CANNOT CREATE”
Í Creation of a custom station name failed.
ö “CANNOT SAVE”
Í Addition to the favorite category failed.
ö “DELETE ERROR”
Í Deletion of the stored station has failed.
ö “DISCONNECT”
Í Check the connection to the device.
ö “NO CONTENT”
Í There is no receivable content.
ö “NO SKIPS”
Í No more skips are allowed now.
Retry after a while.
ö “NO STATIONS”
Í There is no receivable station.
ö “NOT CONNECT”
Í Link to the application is impossible.
ö “PLEASE LOGIN”
Í You haven’t log in. Log in again.
ö “STATION NOT AVAILABLE”
Í Broadcast from the station is over.
ö “STATION NOT SELECTED”
Í No station is selected.
ö “STREAM ERROR”
Í Broadcast data is interrupted.
ö “THUMB FAILED”
Í Registration of Thumbs Up/Down has failed.
ö “TIME OUT”
Í The request has resulted in time-out.
Aha Messages
ö “ACTN DISABLED”
Í You performed an unavailable operation.
ö “AHA APP UPDATE REQUIRED”
Í Upgrade the aha application to the latest version.
ö “AHA UNAVAILABLE”
Í Your smartphone cannot be connected to Aha Radio
server.
ö “CHECK APP”
Í Log in to aha.
ö “CHECK DEVICE”
Í Any device ready for aha reception is not connected
to this unit.
Í aha application has not started, you have not signed
in, or system maintenance is in progress.
ö “CONNECT PHONE”
Í Connect the cell-phone.
ö “LOGIN FAILED”
Í Logging in to aha has failed.
ö “NETWORK UNAVAILABLE”
Í The network has been disconnected.
ö “NO CONTENT”
Í There is no receivable content.
ö “POOR GPS”
Í The GPS reception condition of your smartphone is
poor.
SiriusXM Advisory Messages
ö “CH UNAVAIL”
Í The currently selected channel is unavailable.
ö “CHAN UNSUB”
Í The currently selected channel is not subscribed to.
ö “CHECK ANTENNA”
Í No antenna is connected to the SiriusXM tuner.
ò Check that an antenna is connected to the
SiriusXM tuner.
ö “CHECK TUNER”
Í A SiriusXM tuner is not connected to this unit.
ò Check the connection to the SiriusXM tuner
ö “iPod FULL”
Í The iPod memory is FULL.
ö “MEMORY FULL”
Í The tag memory of HD Radio tuner and SiriusXM
tuner is FULL.
ö “NO SIGNAL”
Í No SiriusXM radio signal is received.
ö “NO TAG FNC”
Í An iPod which does not support the tag memory has
been connected.
ö “SUBSCRIPTION UPDATED - PRESS ENTER TO
CONTINUE”
Í The SiriusXM subscription has been renewed.
ò Pressing the Volume knob will clear the error
message.
ö “TAG ERROR”
Í The unit is unable to complete transferring the
tagged information to the iPod.
ö “WRONG CODE”
Í The entered pass code is incorrect.
18. TROUBLESHOOTING
50 | KDC-X797/ KDC-BT755HD English | 51
FM tuner section
Frequency range (200 kHz step)
: 87.9 MHz — 107.9 MHz
Usable sensitivity (S/N = 30 dB):
: 9.3 dBf (0.8 μV/75 Ω)
Quieting sensitivity (DIN S/N = 46 dB):
: 10.2 dBf (1.13 μV/75 Ω)
Frequency response (±3 dB)
: 30 Hz – 15 kHz
Signal to Noise ratio (MONO)
: 75 dB
Stereo separation (1 kHz)
: 45 dB
Digital FM tuner section
Frequency range (200 kHz space)
: 87.9 MHz — 107.9 MHz
Frequency response (±3 dB)
: 20 Hz — 20 kHz
Signal-to-Noise ratio (STEREO)
: 75 dB
AM tuner section
Frequency range (10 kHz space)
: 530 kHz — 1,700 kHz
Usable sensitivity (S/N= 20 dB)
: 28 dBμ (25 μV)
Digital AM tuner section
Frequency range (10 kHz space)
: 530 kHz — 1,700 kHz
Frequency response (±3 dB)
: 40 Hz — 15 kHz
Signal-to-Noise ratio (STEREO)
: 70 dB
Bluetooth section
Technology
: Bluetooth Ver. 2.1+EDR Certified
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4 dBm (MAX), 0 dBm (AVE) Power Class 2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Profile
HFP (Hands Free Profile),
SPP (Serial Port Profile),
OPP (Object Push Profile),
PBAP (Phonebook Access Profile),
A2DP (Advanced Audio Distribution Profile),
AVRCP (Audio/Video Remote Control Profile)
CD player section
Laser diode
: GaAlAs
Digital filter (D/A)
: 8 Times Over Sampling
D/A Converter
: 24 Bit
Spindle speed (Audio files)
: 500 – 200 rpm (CLV)
Wow & Flutter
: Below Measurable Limit
Frequency response (±1 dB)
: 10 Hz – 20 kHz
Total harmonic distortion (1 kHz)
KDC-X797 : 0.008 %
KDC-BT755HD : 0.01 %
Signal to Noise ratio (1 kHz)
KDC-X797 : 110 dB
KDC-BT755HD : 105 dB
Dynamic range
: 90 dB
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC “.m4a” files
USB interface
USB Standard
: USB1.1/ 2.0 (Full speed)
File System
: FAT12/ 16/ 32
Maximum Supply current
: DC 5 V = 1 A
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC “.m4a” files
WAV decode
: Linear-PCM
19. SPECIFICATIONS
Audio section
Maximum output power
: 50 W x 4
Full Bandwidth Power (at less than 1% THD)
: 22 W x 4
Speaker Impedance
: 4 – 8 Ω
Tone action
Bass : 100 Hz ±8 dB
Middle : 1 kHz ±8 dB
Treble : 12.5 kHz ±8 dB
Preout level/ Load (CD)
KDC-X797 : 4,000 mV/ 10 kΩ
KDC-BT755HD : 2,500 mV/ 10 kΩ
Preout impedance
: ≤ 600 Ω
Auxiliary input
Frequency response (±3 dB)
: 20 Hz – 20 kHz
Input Maximum Voltage
: 1200 mV
Input Impedance
: 10 kΩ
General
Operating voltage
: 14.4 V (10.5 – 16V allowable)
Maximum Current consumption
: 10 A
Installation Size (W x H x D)
: 182 mm × 53 mm × 159 mm
: (7-3/16” × 2-1/16” × 6-1/4”)
Weight
: 2.65 lbs (1.2 kg)
Specifications subject to change without notice.
19.1 Specifications of each section
52 | KDC-X797/ KDC-BT755HD English | 53
19.2 Trademarks
• The “AAC” logo is a trademark of Dolby Laboratories.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has been
certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
• iTunes is a trademark of Apple Inc.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
• HD Radio Technology manufactured under license from
iBiquity Digital Corporation. U.S. and Foreign Patents.
HD Radio™ and the HD, HD Radio, and “Arc” logos are
proprietary trademarks of iBiquity Digital Corp.
• The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by
JVC KENWOOD Corporation is under license. Other
trademarks and trade names are those of their respective
owners.
• PANDORA, the PANDORA logo, and the Pandora trade dress
are trademarks or registered trademarks of Pandora Media,
Inc., used with permission.
• aha, the Aha logo, and the Aha trade dress are trademarks
or registered trademarks of HARMAN International
Industries, used with permission.
• iHeartRadio® is a registered mark of Clear Channel
Broadcasting, Inc. in the United States and other countries.
Such marks are used under license.
• Sirius, XM and all related marks and logos are trademarks of
Sirius XM Radio Inc. All rights reserved.
• Android is a trademark of Google Inc.
• BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of Research
In Motion Limited and are registered and/or used in the U.S.
and countries around the world. Used under license from
Research In Motion Limited.
