VR-509

Operations Preparation

Additional Information Remote Control

AUDIO VIDEO SURROUND RECEIVER

VR-509

INSTRUCTION MANUAL

KENWOOD CORPORATION

B60-4955-00 01 MA (K, P) 0009

About the supplied remote control

Compared to standard remote controls, the remote control supplied with this receiver has several operation

modes. These modes enable the remote control to control other audio/video components. In order to

effectively use the remote control it is important to read the operating instructions and obtain a proper

understanding of the remote control and how to switch its operation modes (etc.).

Using the remote control without completely understanding its design and how to switch the operation modes

may result in incorrect operations.

*509/01-06/EN 3/15/01, 2:00 PM1

Preparations

This unit is designed for operation as follows.

U.S.A. and Canada ........................................... AC 120 V only

Australia ........................................................... AC 240 V only

Europe and U.K. ............................................... AC 230 V only

China and Russia ............................................ AC 220 V only

Other countries ......... AC 110 - 120 / 220 - 240 V switchable

Unpack the unit carefully and make sure that all accessories are put aside

so they will not be lost.

Examine the unit for any possibility of shipping damage. If your unit is

damaged or fails to operate, notify your dealer immediately. If your unit

was shipped to you directly, notify the shipping company without delay.

Only the consignee (the person or company receiving the unit) can file a

claim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials

for use should you transport or ship the unit in the future.

Keep this manual handy for future reference.

Before applying the power

Caution : Read this page carefully to ensure safe

operation.

Unpacking

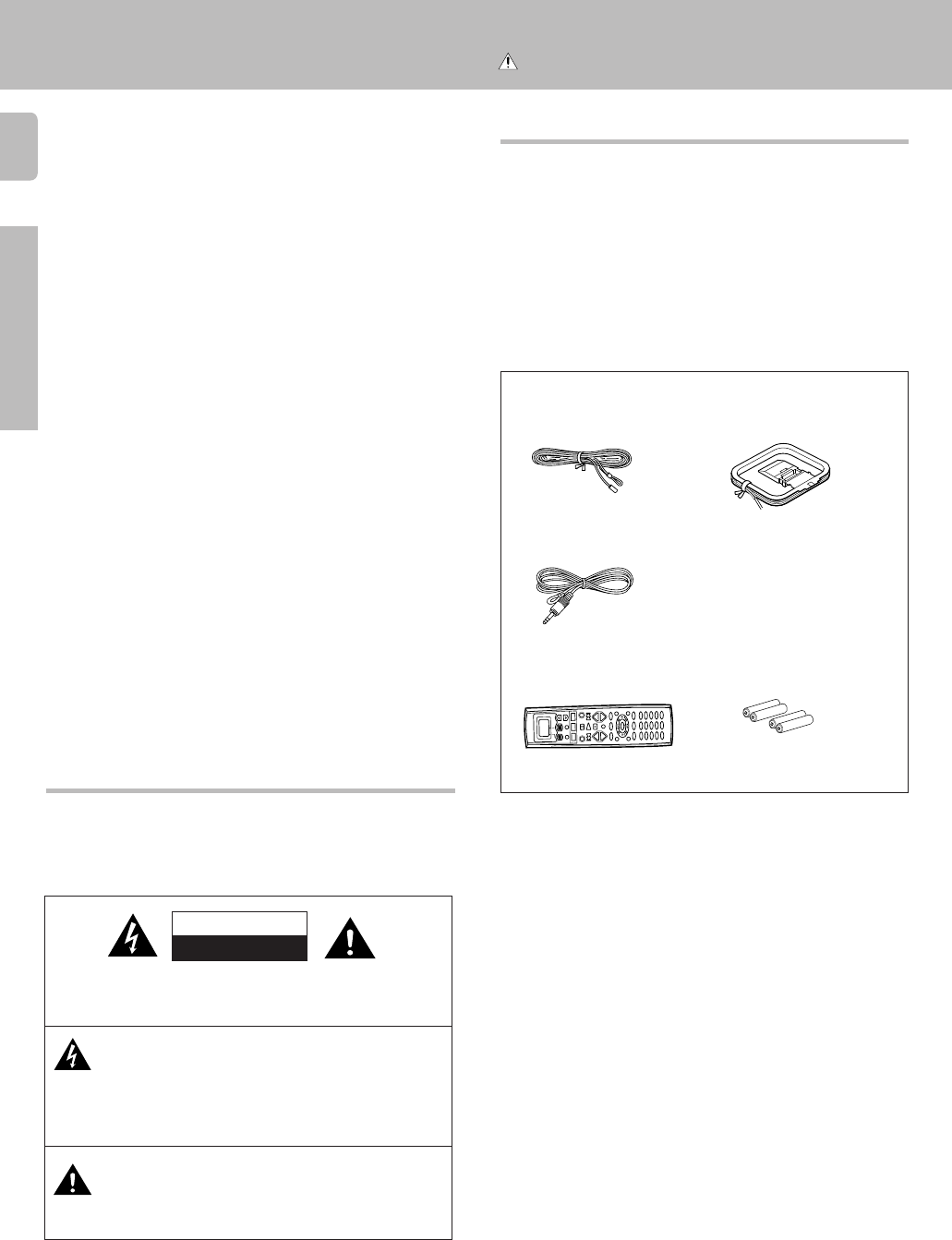

Accessories

FM indoor antenna (1) AM loop antenna (1)

RF remote antenna (1)

Remote control unit (1)

RC-R0811

Batteries (R6/AA) (4)

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS IN-

SIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,

WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT

THE USER TO THE PRESENCE OF UNINSULATED “DAN-

GEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE

THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTI-

TUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI-

ANGLE IS INTENDED TO ALERT THE USER TO THE PRES-

ENCE OF IMPORTANT OPERATING AND MAINTENANCE

(SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOM-

PANYING THE APPLIANCE.

WARNING :

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Safety precautions

–

*509/01-06/EN 3/15/01, 2:00 PM2

Operations Preparations

Remote Control

Additional Information

Before applying the power

For the U.S.A.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes

or modifications to this equipment may cause harmful interference

unless the modifications are expressly approved in the instruction

manual. The user could lose the authority to operate this equipment if an

unauthorized change or modification is made.

NOTE:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment may cause

harmful interference to radio communications, if it is not installed and

used in accordance with the instructions. However, there is no guaran-

tee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of

the following measures:

– – Reorient or relocate the receiving antenna.

– – Increase the separation between the equipment and receiver.

– – Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

– – Consult the dealer or an experienced radio / TV technician for help.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to

Article 820-40 of the NEC that provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to

the grounding system of the building, as close to the point of cable entry

as practical.

For the U.S.A.

As an ENERGY STAR® Partner, Kenwood Corporation

has determined that this product meets the ENERGY

STAR® guidelines for energy efficiency.

This product can save energy. Saving energy reduces air pollution and

lowers utility bills.

Maintenance of the unit

When the front panel or case becomes dirty, wipe with a soft, dry

cloth. Do not use thinner, benzine, alcohol, etc. for these agents may

cause discoloration.

In regard to contact cleaner

Do not use contact cleaners because it could cause a malfunction.

Be specially careful not to use contact cleaners containing oil, for

they may deform the plastic component.

Contents

Before applying the power .................... 2

Safety precautions ............................................. 2

Unpacking .......................................................... 2

How to use this manual ..................................... 4

Special features ................................................. 4

Names and functions of parts ................. 5

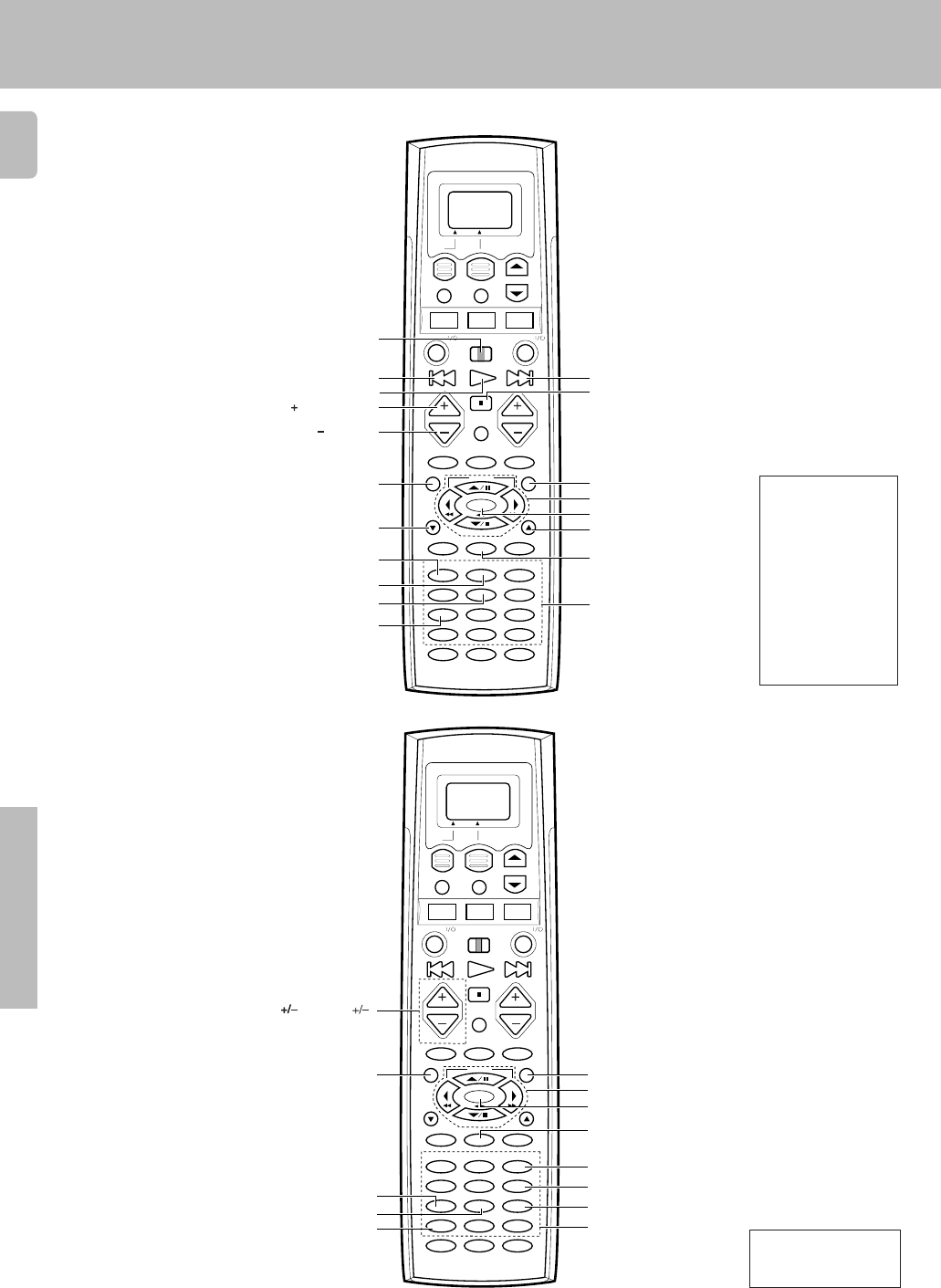

Remote control unit ............................ 6

Setting up the system .......................... 7

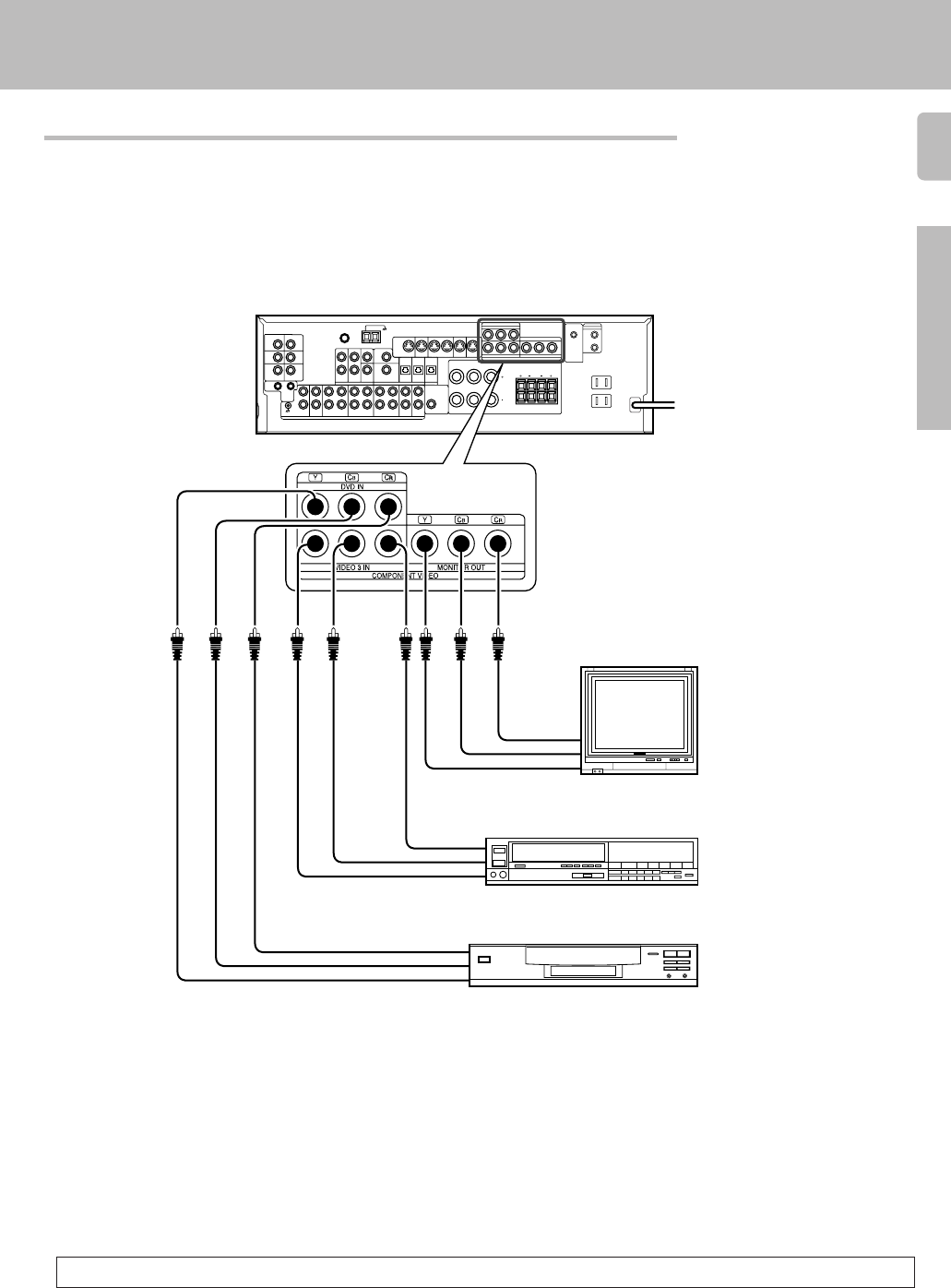

Connecting audio components .......................... 8

Connecting video components .......................... 9

Digital connections ........................................... 10

Connecting video components (COMPONENT

VIDEO) ............................................................. 11

Connecting a DVD player (6-channel input) ..... 12

Connecting the speakers ................................. 13

Connecting the terminals ................................. 14

Connecting to the AV AUX jacks ...................... 15

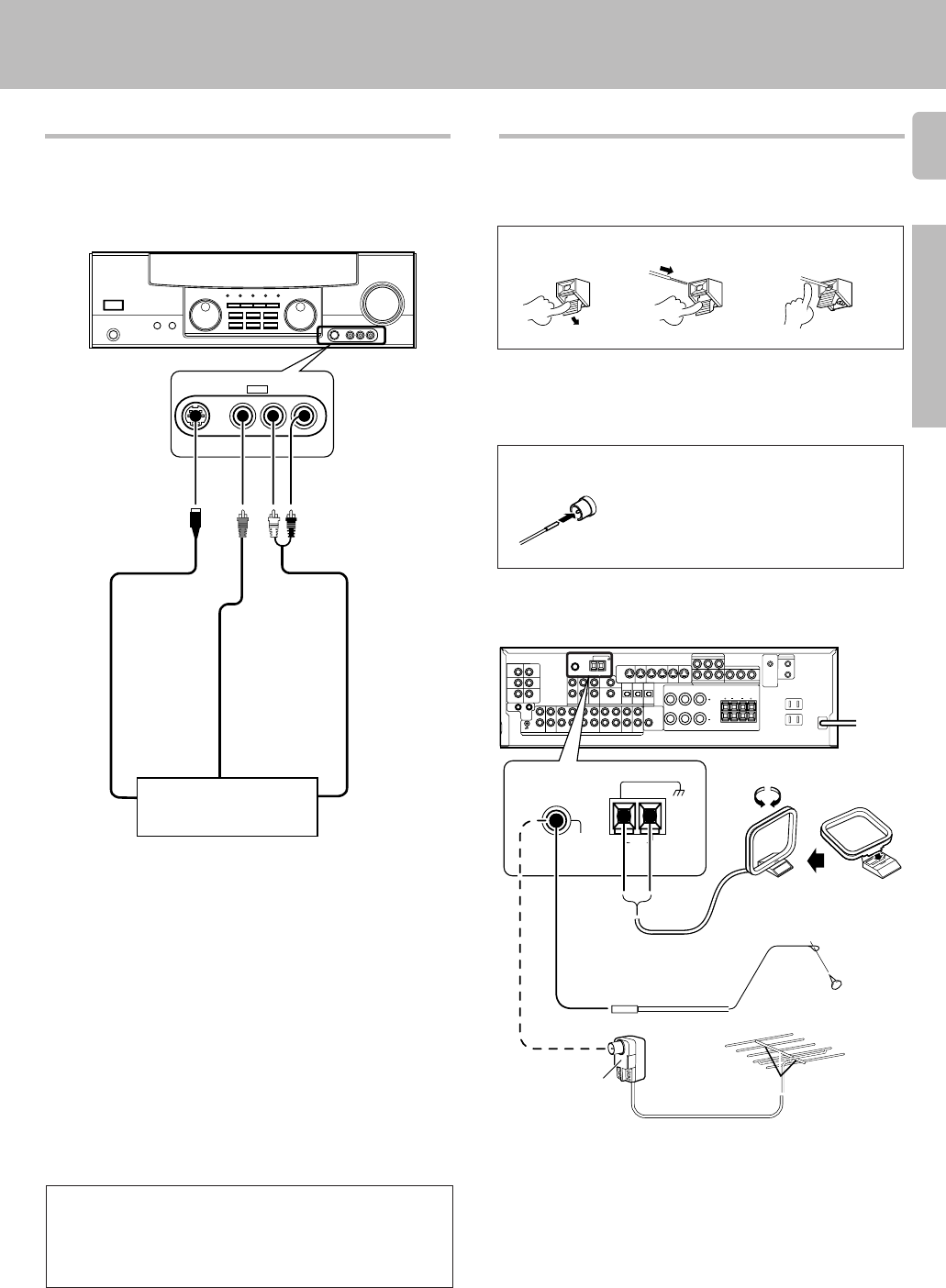

Connecting the antennas ................................. 15

Connecting the system control ........................ 16

RF remote control function............................... 17

How to use the display operation keys ............ 18

Connecting IR repeaters .................................. 19

Connecting the RF remote antenna ................. 19

Preparing for surround sound ............... 20

Speaker settings .............................................. 20

Normal playback .............................. 22

Preparing for playback ..................................... 22

Listening to a source component ..................... 22

Adjusting the sound ......................................... 23

Recording ...................................... 24

Recording audio (analog sources) .................... 24

Recording video ............................................... 24

Recording audio (digital sources) ..................... 24

Listening to radio broadcasts ............... 25

Tuning radio stations ........................................ 25

Presetting radio stations manually.................... 25

Receiving preset stations ................................. 25

Receiving preset stations in order (P.CALL) ..... 26

Ambience effects .............................. 27

Surround modes .............................................. 27

Surround play ................................................... 29

DVD 6-channel playback .................................. 30

Convenient functions ....................................... 30

Remote control operations .................. 33

Registering setup codes for other components 33

Operating other components ........................... 34

Changing (confirming) the operation mode ...... 35

Preparing for automatic operations

(MACRO play) .................................................. 35

Executing an automatic operation .................... 36

To delete the setup code ................................. 37

Storing the remote control code of the other

components ..................................................... 37

Restoring the original factory settings .............. 38

Displaying the CD TEXT data ........................... 39

Remote control operation of other

components.................................... 40

In case of difficulty ........................... 46

Specifications ................................. 48

Caution : Read the pages marked carefully to ensure

safe operation.

Additional

Information

Operations

Preparations

Remote Control

*509/01-06/EN 3/15/01, 2:00 PM3

Preparations

Special features

True home theater sound

This receiver incorporates a wide variety of surround modes to bring you

maximum enjoyment from your video software. Select a surround mode

according to your equipment or the software you are going to play and

enjoy! ¶

Dolby Digital

The DOLBY DIGITAL mode lets you enjoy full digital surround from

software processed in the Dolby Digital format. Dolby Digital provides

up to 5.1 channels of independent digital audio for better sound quality

and more powerful presence than conventional Dolby Surround.

Dolby Pro Logic II

DOLBY PRO LOGIC II, whilst totally compatible with its predecessor

PRO LOGIC, provides greater advantage in surround sound. It allows

the users to enjoy the conventional stereo or Dolby Surround with a

convincing “5.1 like” presentation. PRO LOGIC II offers special features

for controlling the overall spatial, dimesionality, and frontal sound field

imaging. PRO LOGIC II produces an impressive surround sound from

video software marked and three-dimensional space

from music CD. When listening to music, you will be able to enjoy the

experience of sheer STEREO surround sound.

How to use this manual

This manual is divided into four sections: Preparations, Operations,

Remote Control, and Additional Information.

Preparations

Shows you how to connect your audio and video components to the

receiver and prepare the surround processor.

We will guide you to make setting up your system as easy as possible.

However, since this receiver works with all of your audio and video

components, connecting the system can be fairly complex.

Operations

Shows you how to operate the various functions available from the

receiver.

Remote Control

Shows you how to operate other components using the remote control,

as well as a detailed explanation of all remote control operations. Once

you have registered your components with the proper setup codes, you’ll

be able to operate both this receiver and your other AV components (TV,

VCR, DVD player, LD player, CD player, etc.) using the remote control

supplied with this receiver.

Additional Information

Shows you additional information such as “In case of difficulty” (trouble-

shooting) and “Specifications”.

Before applying the power

Memory back up function

Please note that the following items will be deleted from the unit's

memory if the power cord is disconnected from the AC outlet for

approximately 2 days.

• Power mode.

• Input selector settings.

• Device preset.

• Picture output.

• Speaker ON/OFF

• Volume level.

• BASS, TREBLE, INPUT level.

• Subwoofer ON/OFF.

• Dimmer level.

• Monitor ON/OFF.

• MD/TAPE settings.

• 6ch/2ch input setting.

• Listen mode setting.

• Speaker settings.

• Input mode setting.

• Midnight mode setting.

• Broadcast band.

• Frequency setting.

• Preset stations.

• Tuning mode.

• CINEMA EQ.

• Source Direct.

• RF Band.

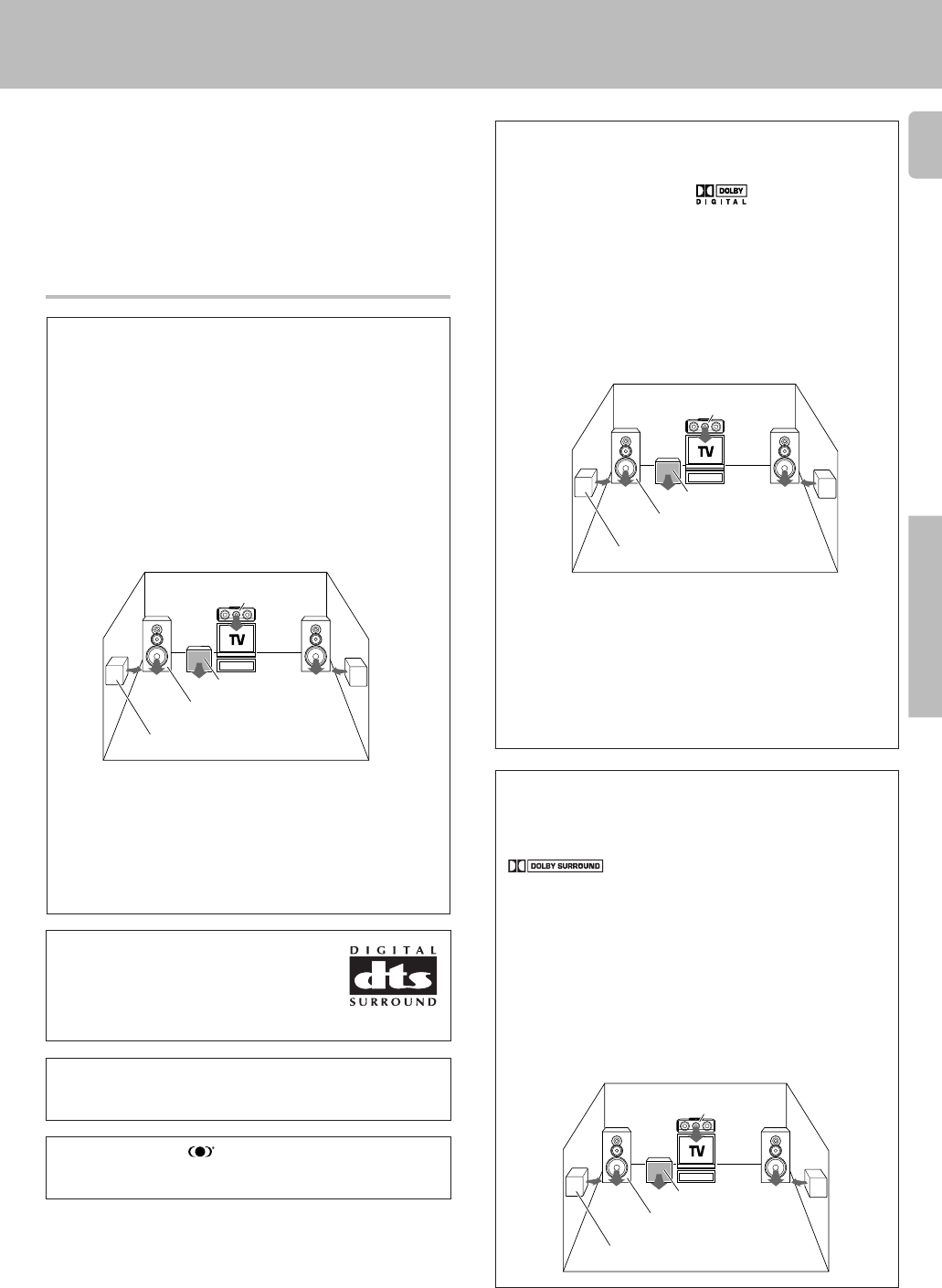

Dolby 3 Stereo

This surround system reproduces theater-like surround sound from

video software marked .

The 3 STEREO mode will redirect the Surround signal to the front left and

right speakers when only the front and center speakers are used.

DTS

DTS (Digital Theater System) is a 5.1 channel digital audio format that

provides five full-spectrum channels and one low-frequency (subwoofer)

channel for unprecedented clarity, optimum channel separation and a

(wide) dynamic range.

In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD

disc (carrying the “DTS” marking) can be played in Digital Surround.

Important:

When a DTS disc is played on a CD, LD or DVD player, noise may be

output from the analog output. It is recommended that you connect the

digital output of the player to the digital input of this unit.

Multi channel music (SRS Circle Surround )

SRS Circle surround enables you to listen to multi channel sound from the

stereo source. We assume you have already enjoyed listening to Dolby

digital sound/DTS multi channel sound with your multi speakers. Now,

this time try listening to the stereo source (ex. Audio CD) using your multi

speakers. You may discover a new type of “stereo” sound through SRS

Circle Surround.

DSP surround modes

The DSP (Digital Signal Processor) used for this receiver incorporates a

variety of high quality adjustable sound fields, like “ARENA”, “JAZZ”

CLUB”, “THEATER”, “STADIUM” and “DISCO”. It is compatible with

almost any kind of program source.

DVD 6-channel input

If you own a DVD player equipped with 6-channel output, this receiver

allows you to obtain the full surround sound impact of DVD source

material featuring multi-channel encoding. Since the source signals are

digital and each channel is input independently, the resulting ambience

is far superior to what can be achieved with conventional surround sound

systems.

CINEMA EQ.

Cinema EQ. mode will produce a more dynamic sound quality in any

condition. You can enjoy a more impressive sound effect when you

switch CINEMA EQ. ON during Dolby Digital and DTS playback.

Remote control

This remote control has two kinds of signal-

Universal IR (InfraRed) remote signal

In addition to the basic receiver, the remote control supplied with this

receiver can also operate almost all of your remote controllable audio and

video components. Just follow the simple setup procedure to register the

components you have connected.

RF remote signal

You can operate the receiver by sending RF remote signal from the

remote control. The controllable range of the remote control is not

influenced by surroundings such as distance or an obstruction.

MACRO play

The MACRO function lets you perform a series of operations automati

cally, like turning ON the power of the receiver and connected compo

nents, switching the input selectors, and starting playback. (Be sure to

*509/01-06/EN 3/15/01, 2:00 PM4

Preparation

A SPEAKERS B

STANDBY

AUDIO-VIDEO SURROUND RECEIVER VR-509

MULTI CONTROL

LISTEN MODE

SOUND

SOURCE DIRECT

AUTO/CINEMA EQ.

BAND MEMORY

INPUT SELECTOR

VOLUME CONTROL

UPDOWN

PRO LOGIC 3 STEREO CS 5·1

DOLBY

DIGITAL

DTS

INPUT MODESET UP

S-VIDEO V L – AUDIO – R

AV AUX

DIMMER MONITOR

PHONES

ON/STANDBY

TI.VOL

RDS EON PTY

TA NEWS

MHz

kHz

PRO LOGIC

3 STEREO

DOWNMIX

DIGITAL

S.DIRECT

MONITOR

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE SW

MUTE

S SRSL

POWER

DSP

CLIP

Display

Speaker selection indicators

Input channel indicators

Output channel indicators

Band indicators AUTO indicator

MEMO. indicator

ST. indicator

TUNED indicator

3 STEREO indicator

STEREO indicator

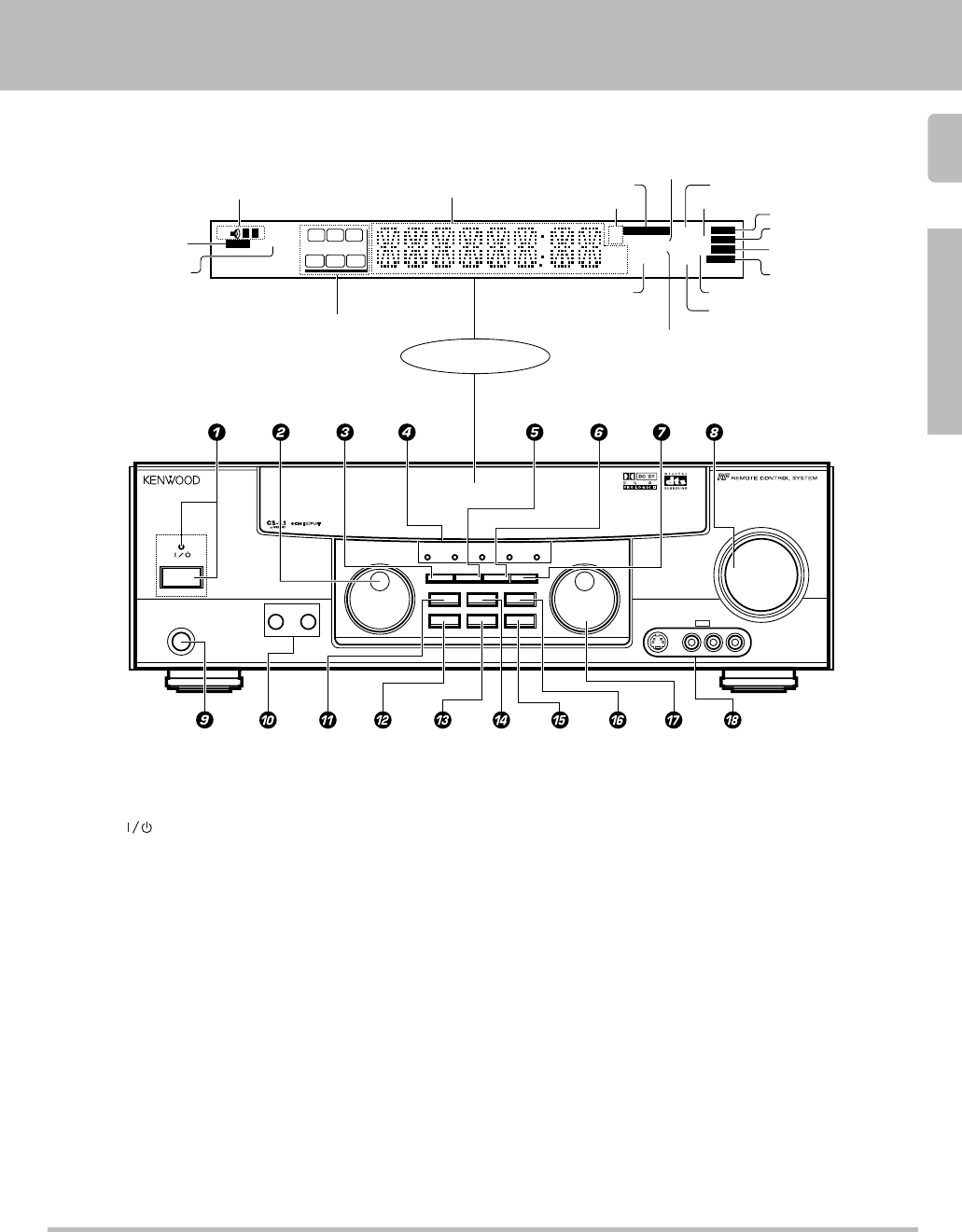

Names and functions of parts

Frequency display,

Input display,

Preset channel display,

Surround mode display

Speaker indicator

PRO LOGIC

indicator

S.DIRECT indicator

MONITOR indicator

DOWNMIX indicator

MUTE indicator

AUTO SOUND indicator DIGITAL indicator

1POWER ( ) key )

Use to switch the power ON/STANDBY.

STANDBY indicator

2MULTI CONTROL knob )

Use to control a variety of settings.

3SET UP key )

Use to select the speakers' settings etc.

4Surround indicators

DTS indicator ª

Lights when the receiver is in the DTS mode.

DOLBY DIGITAL indicator ª

Lights when the receiver is in the Dolby Digital

mode.

PRO LOGIC indicator ª

Lights when the receiver is in the PROLOGIC

mode.

3 STEREO indicator ª

Lights when the receiver is in the 3 STEREO

mode.

CS 5.1 indicator ª

Lights when the receiver is in the CS 5.1 mode.

5INPUT MODE key 7

Use to switch between the digital and analog

inputs.

6DIMMER key

Use to adjust the brightness of the display.¤

Use to select the REC MODE. ¢

7MONITOR key ¢

Use to monitor the source that is connected to

the MONITOR jack.

8VOLUME CONTROL knob ™

9PHONES jack £

Use for headphone listening.

0SPEAKERS A/B keys ™

Use to turn the A/B speakers ON/OFF.

!SOUND key £

Use to adjust the sound quality and the ambi-

ence effects.

@BAND key ∞

Use to select the broadcast band.

#AUTO/CINEMA EQ. key

se to change “TAPE” indication to “MD”.

™

Use to select the auto tuning mode. ∞

Use to switch the status of CINEMA EQ.£

$LISTEN MODE key ª

Use to select the listening mode.

%MEMORY key ∞

Use to store radio stations in the preset memory.

^SOURCE DIRECT key £

Use to pass the source material directly to the

amplifier.

&INPUT SELECTOR knob ™

Use to select the input sources.

*AV AUX (S VIDEO, V, AUDIO L/R) jacks

Standby mode

When standby indicator is lit, this receiver is in standby mode and consumes a small amount of current for back-up. This system can be switched on using

remote control.

DSP indicator

CLIP indicator

*509/01-06/EN 3/15/01, 2:00 PM5

Preparations

If the name of a function is different on

the receiver and on the remote control,

the name of the remote control key in

the manual is indicated in parentheses.

Names and functions of parts

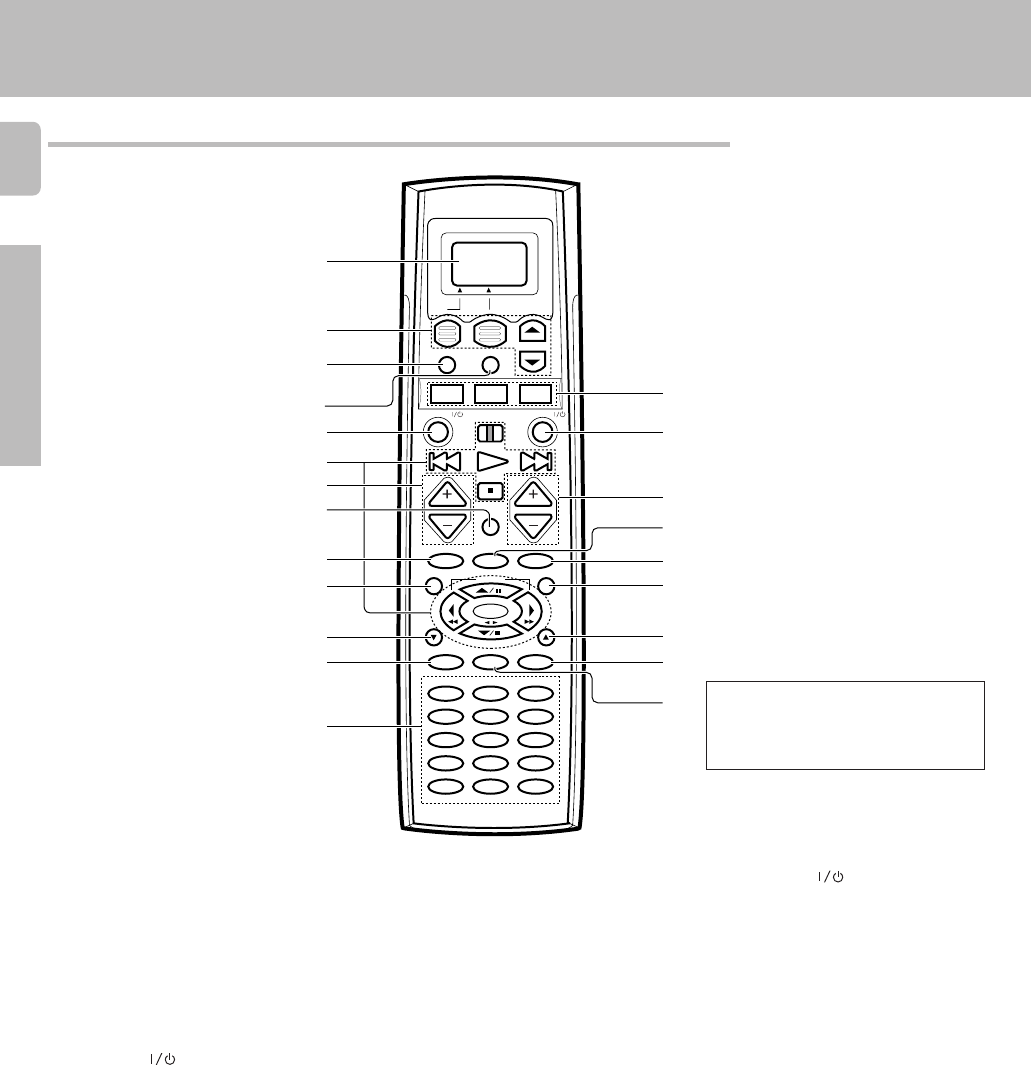

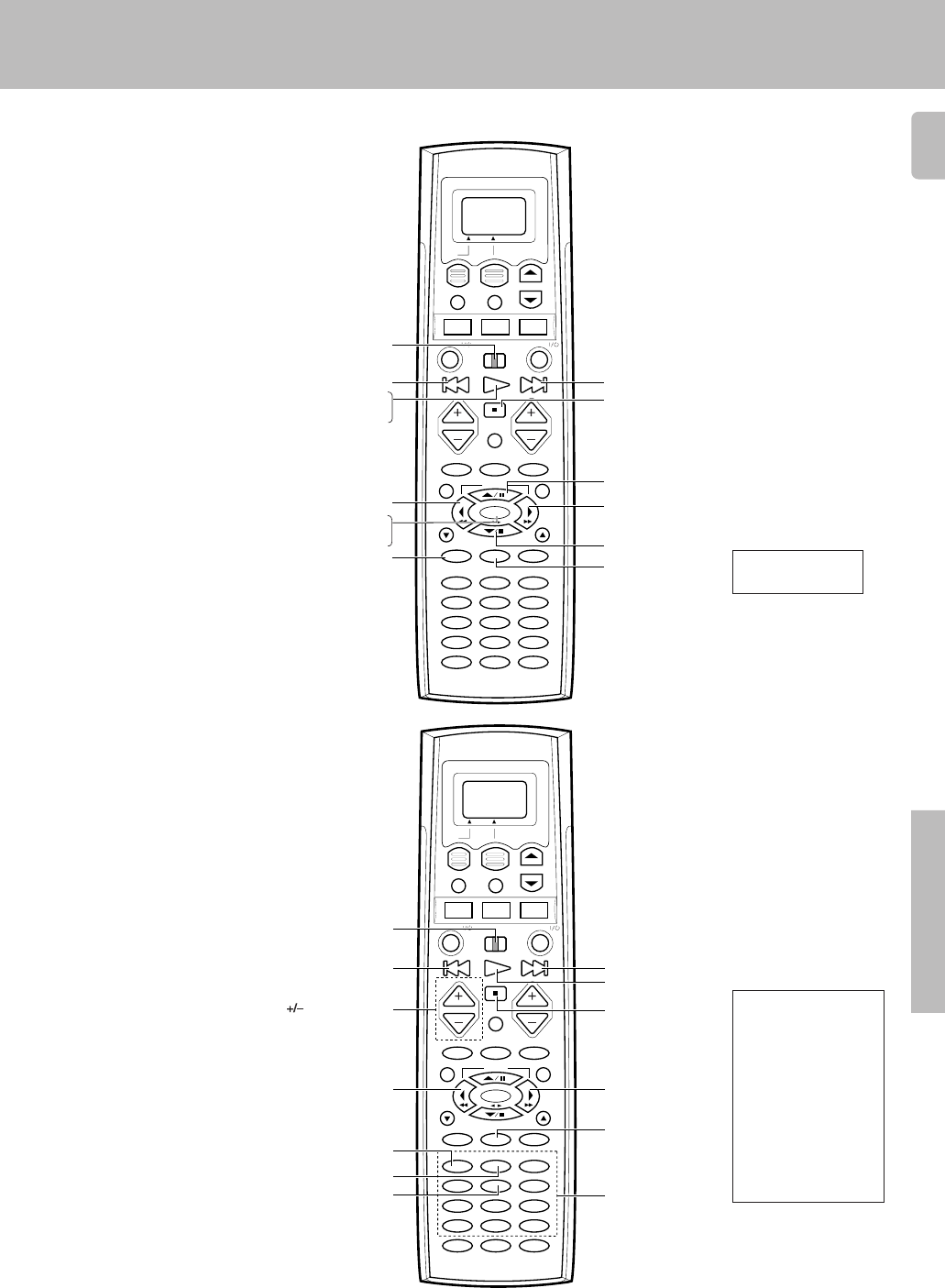

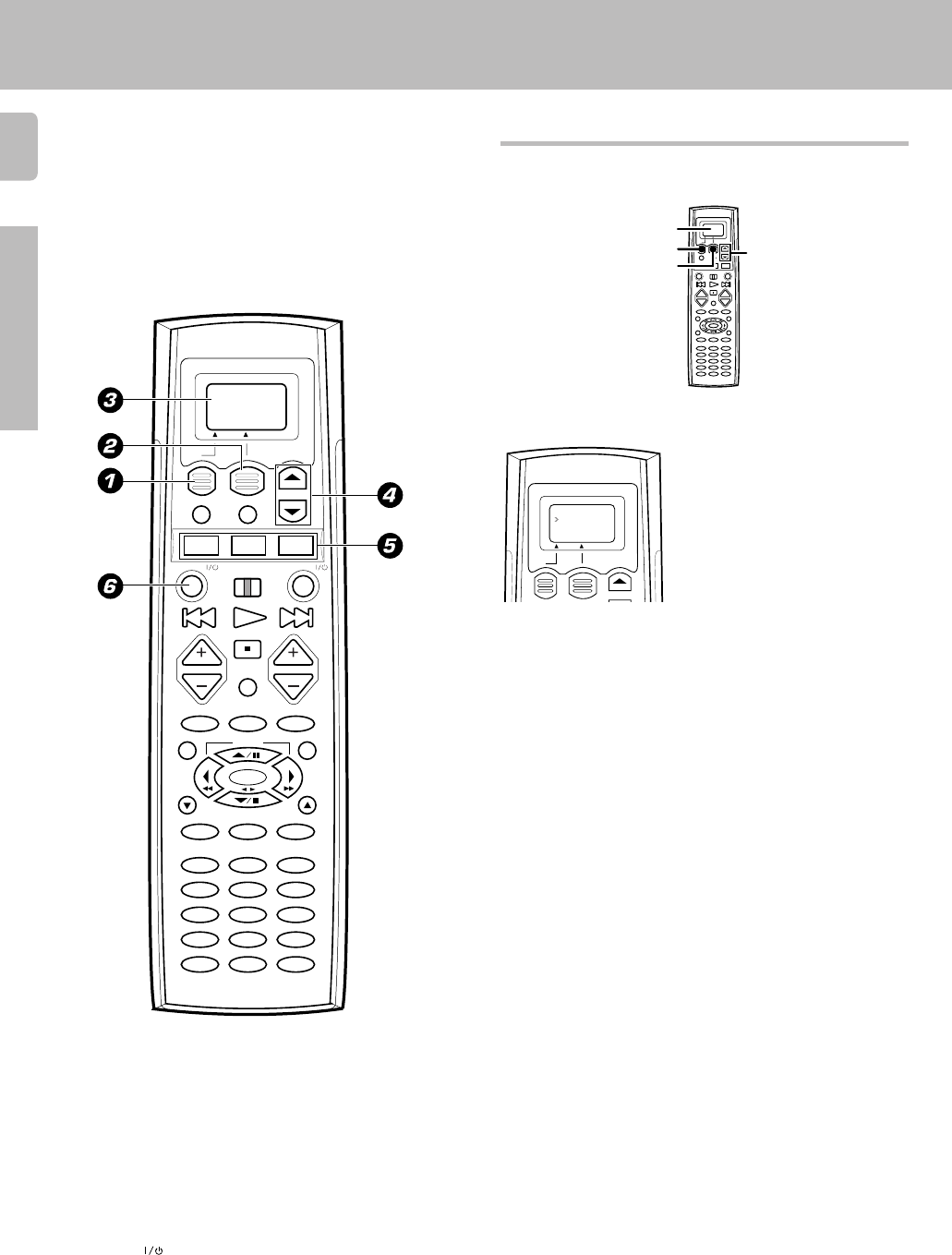

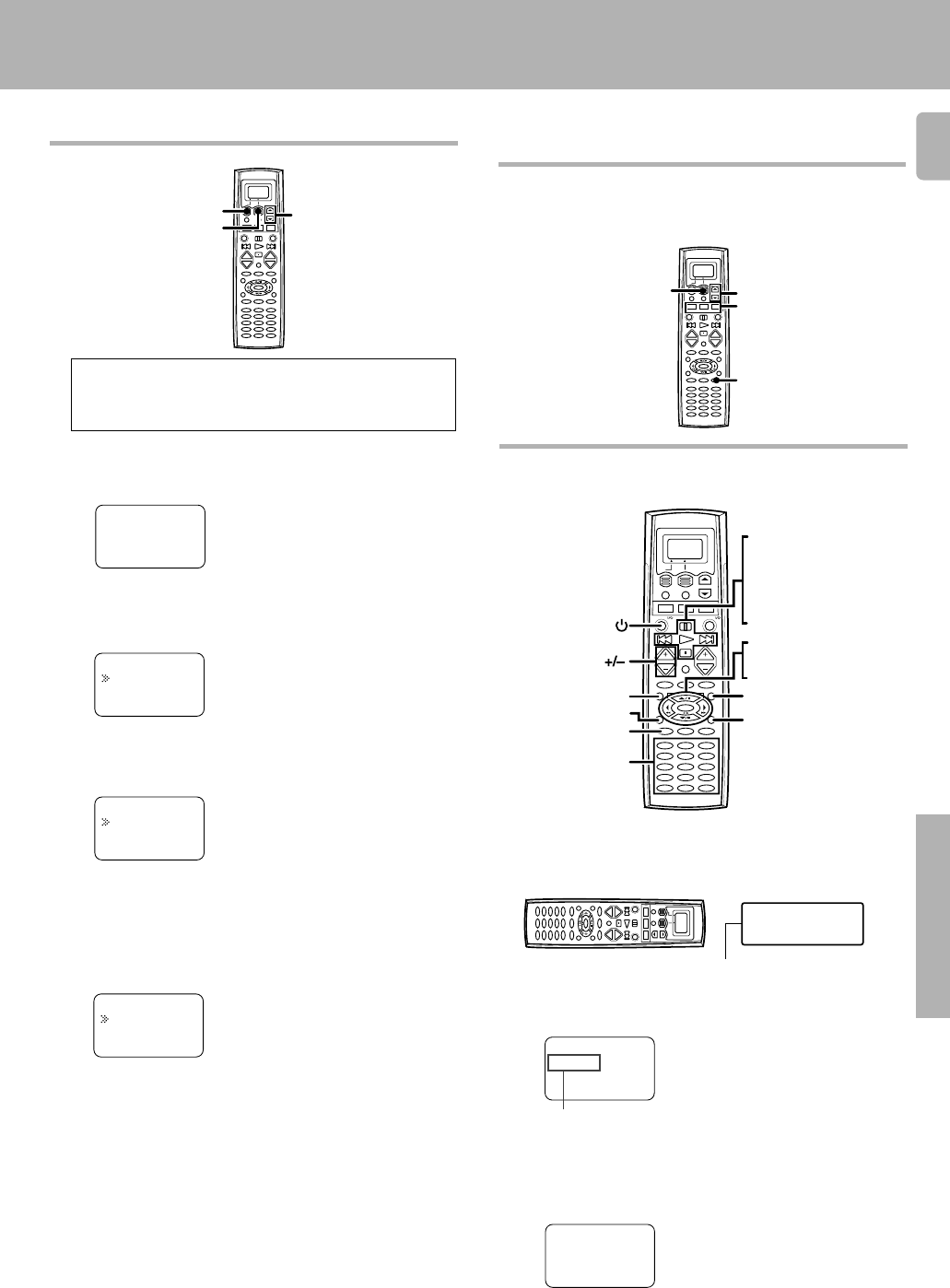

Remote control unit

RF REMOTE CONTROL UNIT

RC-R0811

SHIFT MACRO

MUSIC

LISTEN M.

BASS BOOST SUB.W.

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

REC MODE

F.SHIFTREC LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

DIMMER

TITLE/GUIDE MENU

SOUND

CINEMA EQ

MOVIE TV

AV POWER SYS. POWER

™

(

)

@REC key ‡

Use to operate the selected component.

REC MODE key

Use to select the REC MODE.

#Numeric keys/Source operation keys

∞

Provide functions identical to those of the

original remote control supplied with the

component you are controlling.

To access the functions printed above the

keys, press the numeric key after pressing

the F. SHIFT key. Function availability varies

for each component.

$MUSIC key *

Selects the audio inputs and sets the remote

control to operate the component regis-

tered at the respective input.

If you connect audio components from

KENWOOD and other makers to the MD/

TAPE or CD jacks, you can set the remote

control to operate these components by

registering the appropriate setup code at

the respective input.

MOVIE key *

Selects the video inputs and sets the remote

control to operate the component regis-

tered at the respective input.

TV key *

Sets the remote control to operate a TV or

cable box. This key does not change the

input selector on the receiver.

%SYS. POWER key )

Use to turn the receiver on and off.

^VOL. +/– keys ™

Use to adjust the receiver volume.

&LISTEN M. key ª

Use to select the listening mode.

BASS BOOST key (with F.SHIFT key)

Use to select the maximum adjustment set-

ting for the low frequency range.

*CINEMA EQ key )

Use to switch the status of CINEMA EQ.

SUB W. key (with F. SHIFT key) ¤

Use in combination with the volume +/–

keys to adjust the volume of the subwoofer.

(MENU key

Use to operate other components.

)5 key

Use to operate other components.

OSD/PAGE key ‡

Use to operate other components.

¡LEARN key ‡

Use to memorize the operation of the other

remote control units.

™F. SHIFT key £

Use in combination with the numeric keys to

execute alternate commands.

Turn the light of the display on and off by

pressing and holding this key for more than

2 seconds.

1Display *

2Display operation keys *

Use for operation on the display.

3SHIFT key ›

Use in combination with the MUSIC and

MOVIE keys to change the remote control

mode without changing the input selector.

4MACRO key ﬁ

Use in combination with the MUSIC, MOVIE,

or TV keys to execute a series of commands

automatically (MACRO PLAY).

5AV POWER key ›

Use to turn various components on and off.

6Multi control keys

Use to control a variety of settings.

Use to operate other components.

7CH +/– keys ‡

Use to select the channel.

8MUTE key £

Use to temporarily mute the sound.

9SOUND key £

Use to adjust the sound quality and ambi-

ence effects.

DIMMER key (with F.SHIFT key) ¤

Use to adjust the brightness of the display.

0TITLE/GUIDE key ‡

Use to operate other components.

!∞ key

Use to operate other components.

RETURN/PAGE key ‡

Use to operate other components.

*509/01-06/EN 3/15/01, 2:00 PM6

Preparations

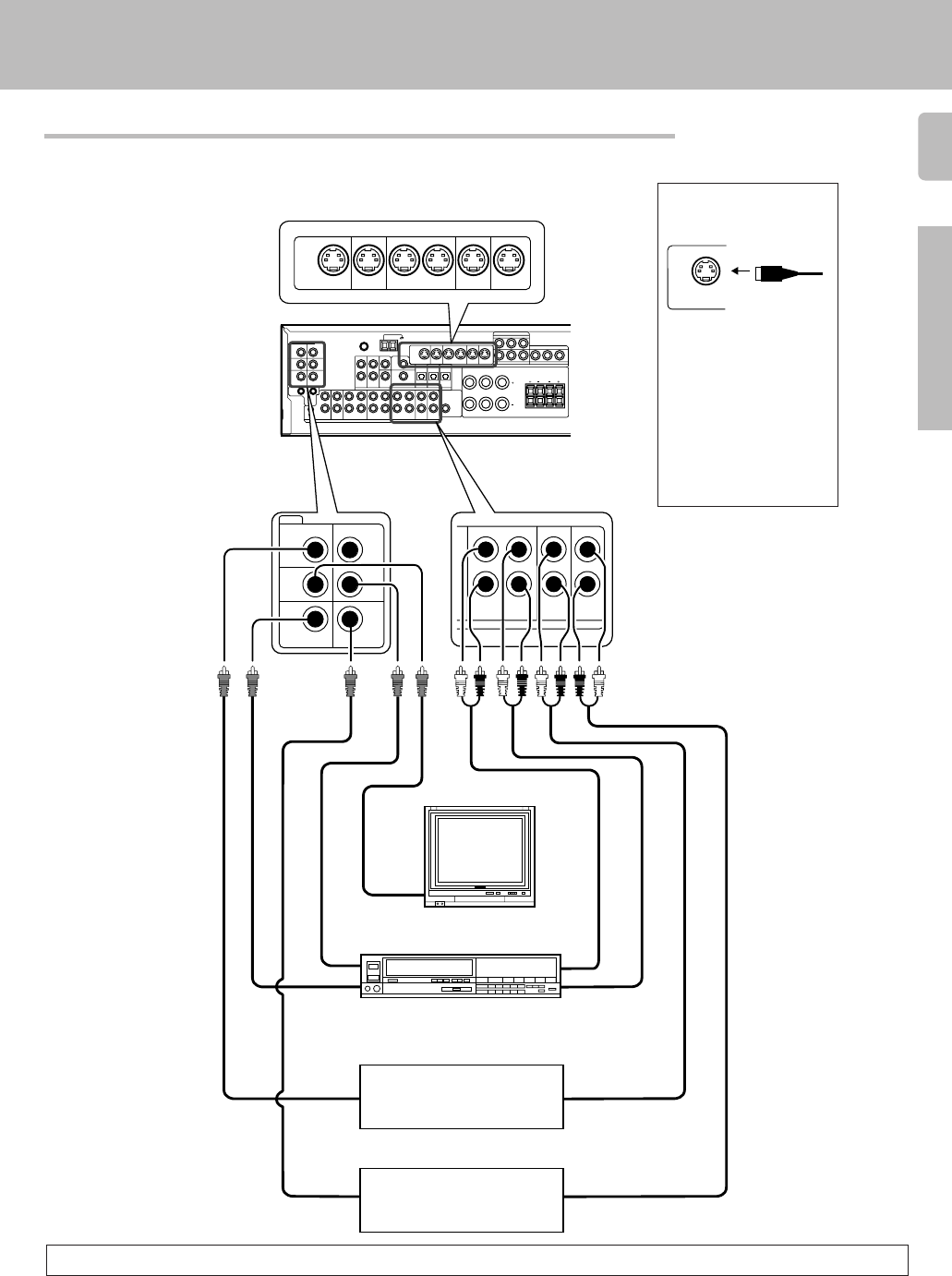

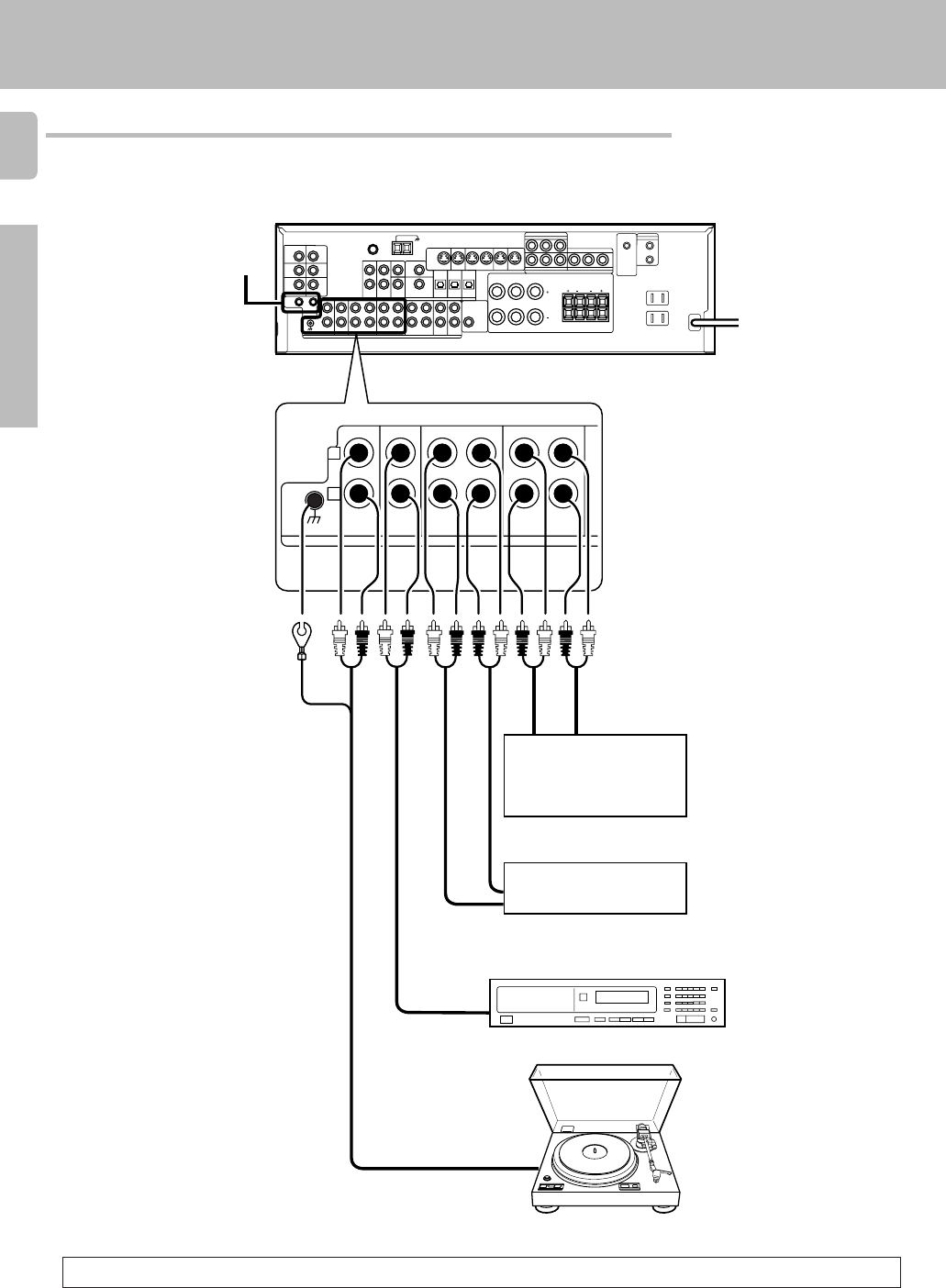

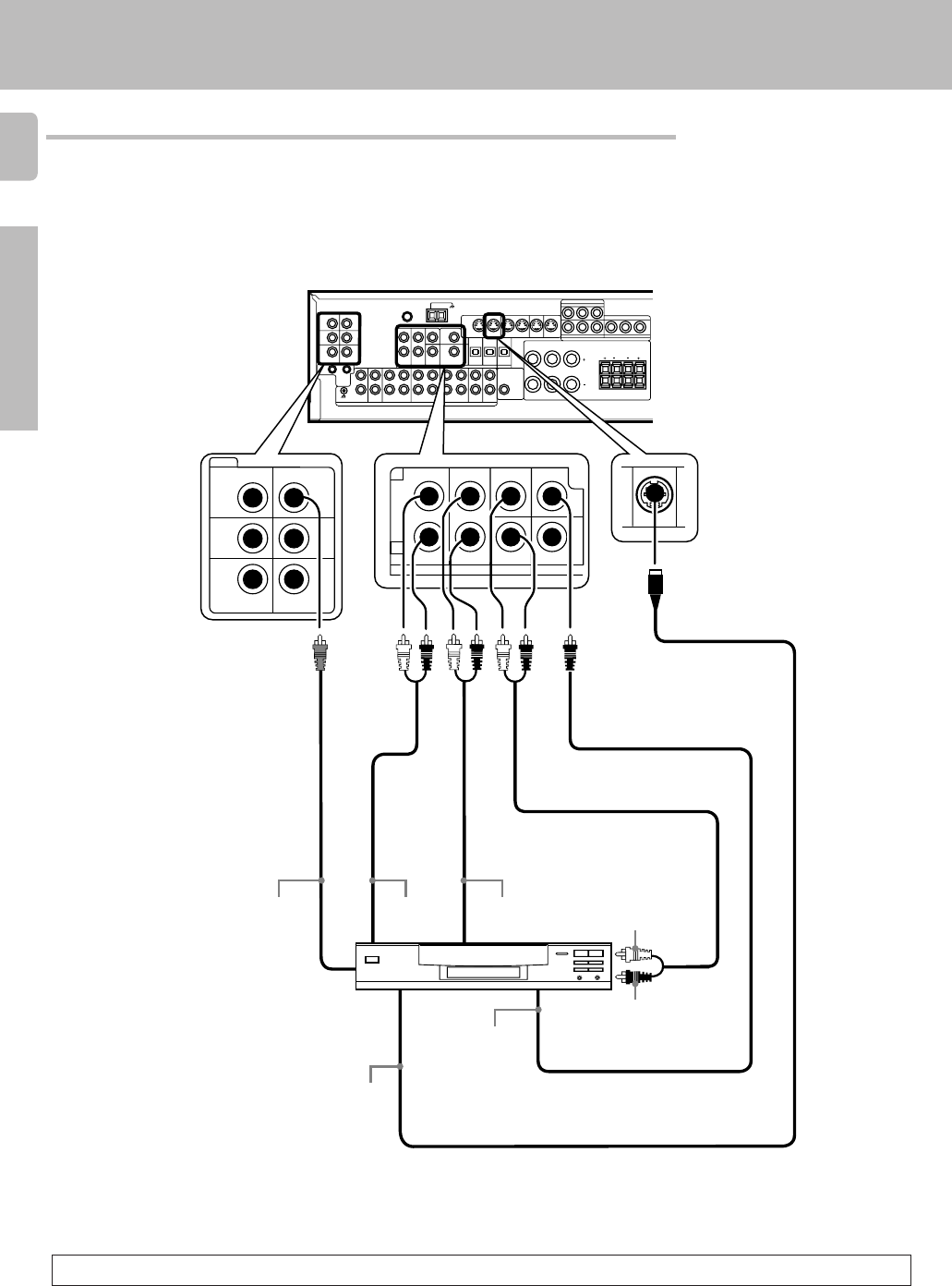

Make connections as shown on the following pages.

When connecting the related system components, be sure

to also refer to the instruction manuals supplied with the

components you are connecting.

Do not connect the power cord to a wall outlet until all

connections are completed.

Notes

1. Be sure to insert all connection cords securely. If their connections are

imperfect, the sound may not be produced or noise may interfere.

2. Be sure to remove the power cord from the AC outlet before plugging or

unplugging any connection cords. Plugging/unplugging connection cords

without disconnecting the power cord can cause malfunctions and may

damage the unit.

3. Do not connect power cords from components which power consump-

tion is larger than what is indicated on the AC outlet at the rear of this unit.

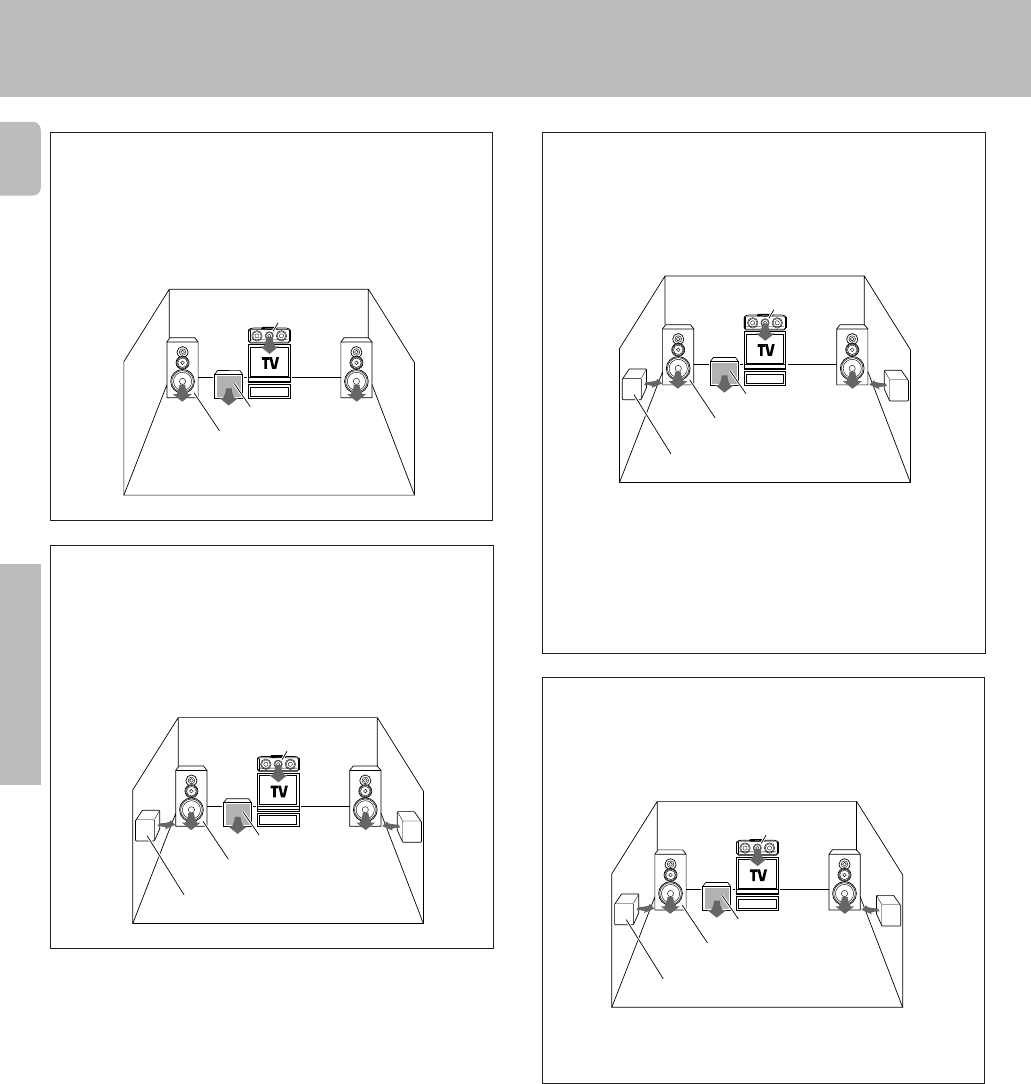

Setting up the system

DTS Digital Surround™ is a discrete 5.1 channel digital audio format

available on CD, LD, and DVD software which consequently cannot be

decoded and played back inside most CD, LD, or DVD players. For this

reason, when DTS-encoded software is played back through the analog

outputs of the CD, LD, or DVD player, excessive noise will be exhibited.

To avoid possible damage to the audio system, proper precautions

should taken by the consumer if the analog outputs are connected

directly to an amplification system. To enjoy DTS Digital Surround™

playback, an external 5.1 channel DTS Digital Surround™ decoder

system must be connected to the digital output (S/P DIF, AES/EBU, or

TosLink) of the CD, LD or DVD player.

DTS disclaimer clause

Analog connections

Audio connections are made using RCA pin cords. These cables transfer

stereo audio signal in an “analog” form. This means the audio signal

corresponds to the actual audio of two channels. These cables usually have

2 plugs on each end, one red for the right channel and one white for the left

channel. These cables are usually packaged with the source unit, or are

available at your local electronics retailer.

Microcomputer malfunction

If operation is not possible or an erroneous display appears, even though

all connections have been made properly, reset the microcomputer

referring to “In case of difficulty”. y

Be sure to adhere the followings. Or proper ventilation will be blocked

causing damage or fire hazard.

• Do not place any objects impairing heat radiation onto the top of unit.

CAUTION

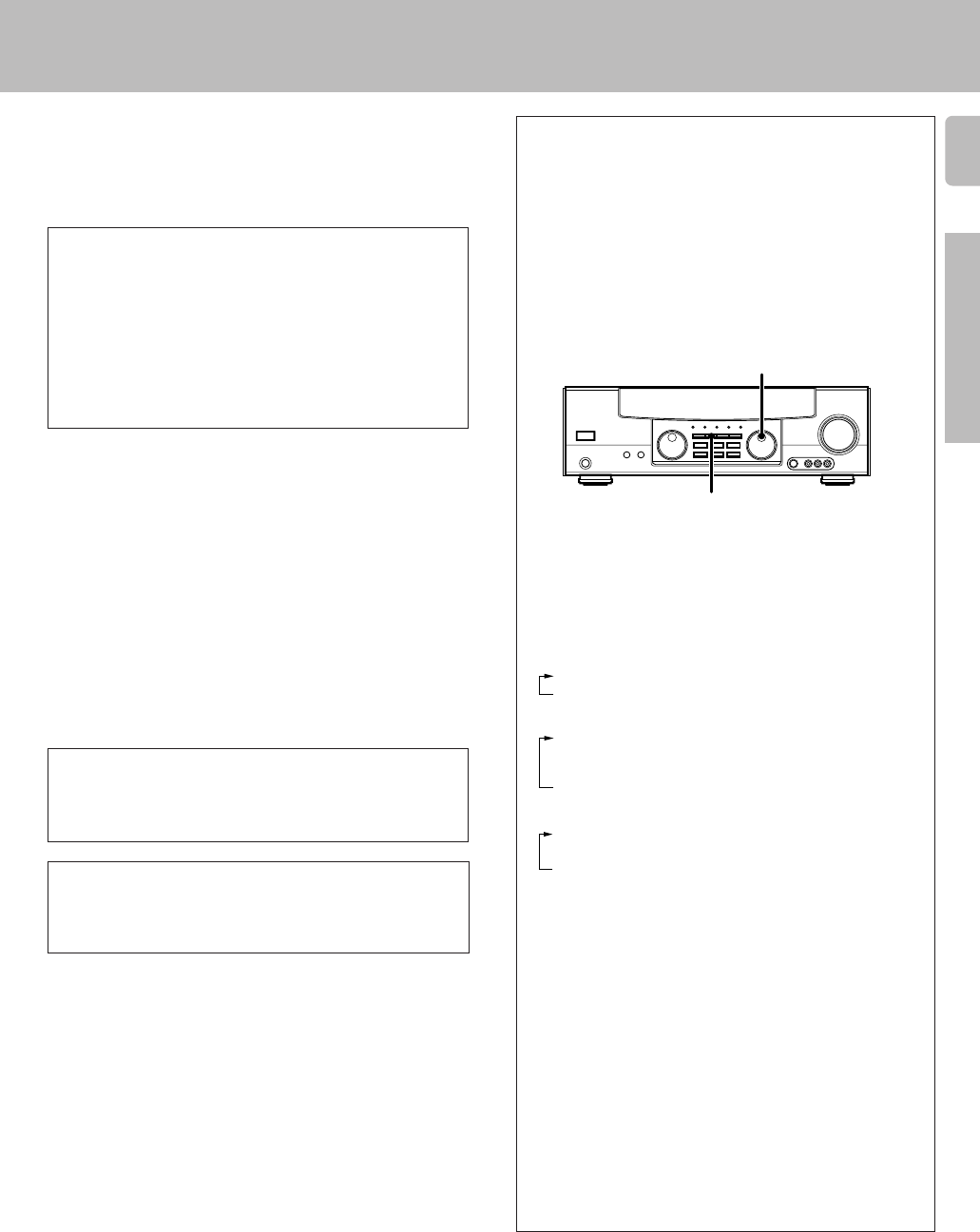

INPUT SELECTOR

INPUT MODE

Input mode settings

CD/DVD, DVD/6ch, VIDEO2 and VIDEO3 inputs each include jacks for

digital audio input and analog audio input.

You must select beforehand which type of input is to be used for each

connected component.

The initial factory settings for audio signal playback (CD/DVD,

DVD/6ch) and (VIDEO2, VIDEO3) are digital and analog respec-

tively.

To use the analog audio input for playback instead (if, for example, you

have connected a VCR to the VIDEO2 or VIDEO3 input), you must set

the input mode for the corresponding input to the analog mode.

After completing connections and turning on the receiver, follow the

steps below.

1Use the INPUT SELECTOR knob to select CD/DVD, DVD/6ch,

VIDEO2, or VIDEO3.

2Press the INPUT MODE key.

Each press switches the setting as follows:

In DTS play mode

1D-AUTO (digital input, auto sound)

2D-MANUAL (digital input, manual sound)

In DVD/6ch play mode

1D-AUTO (digital input, auto sound)

2D-MANUAL (digital input, manual sound)

36ch INPT (DVD/6ch input)

4ANALOG (analog input, manual sound)

In modes other than DTS or DVD/6ch play mode

1D-AUTO (digital input, auto sound)

2D-MANUAL (digital input, manual sound)

3ANALOG (analog input, manual sound)

Digital input:

Select this setting to play digital signals from a DVD, CD, or LD player.

Analog input:

Select this setting to play analog signals from a cassette deck, VCR,

or turntable.

Auto sound:

In the auto sound mode (AUTO SOUND indicator lights), the receiver

selects the listening mode automatically during playback to match the

type of input signal (Dolby Digital, PCM, DTS ) and the speaker setting.

The initial factory setting is auto sound on.

To keep the receiver set to the currently selected listening mode, use

the INPUT MODE key to select “D-MANUAL” (manual sound).

However, even when this setting is selected, there may be cases in

which the listening mode is selected automatically to match a Dolby

Digital source signal depending on the combination of listening mode

and source signal.

If the INPUT MODE key is pressed quickly, sound may not be

produced.

*509/07-18/EN 3/15/01, 2:01 PM7

Preparations

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

MONITOR

PLAY INPLAY IN REC OUT

AUDIO

MD/TAPE

CD/DVD

PHONOGND

REC OUT

Connecting audio components

To AC wall outlet

SYSTEM CONTROL

jacks ^

When you connect the unit and the CD or MD player with the digital connection, you can enjoy a better sound quality.

Setting up the system

Cassette deck or MD

recorder

CD player

IN OUT

Video component,

3 head cassette deck, or

Graphic equalizer ¢

OUT

Record player

Moving Coil (MC) cartridge

record player cannot be used

directly from the receiver

unit. It can only be used when

another equalizer amplifier

is connected

*509/07-18/EN 3/15/01, 2:01 PM8

Preparations

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

S-VIDEO

DVD VIDEO 1 VIDEO 1 VIDEO 2 VIDEO 3

MONITOR

OUT

PLAY IN REC OUT PLAY IN PLAY IN PLAY IN

VIDEO 1 VIDEO 2 VIDEO 3

PLAY IN PLAY IN PLAY INREC OUT

VIDEO

VIDEO 2 IN

VIDEO 1 IN VIDEO 3 IN

CD/DVD

DVD

MONITOR

OUT

VIDEO 1

OUT

Connecting video components

Setting up the system

A video component with digital audio outputs should be connected to the VIDEO2 or VIDEO3 jacks.

S Video jacks

About the S VIDEO

jacks

Use the S VIDEO jacks to

make connections to video

components with S VIDEO

IN/OUT jacks.

•If you use the S VIDEO

jacks to connect your video

playback components, be

sure to use the S VIDEO

jacks when connecting your

monitor and video record-

ing components.

S VIDEO

DVD player or LD player

OUT

Video deck

Monitor TV

OUT

DVD player or LD player

IN IN

OUT

Video Inputs

(Yellow RCA pin cord)

Video inputs and outputs

(Yellow RCA pin cords)

VIDEO

IN/OUT

OUT

IN AUDIO

IN/OUT

Audio inputs

and outputs

VIDEO

*509/07-18/EN 3/15/01, 2:01 PM9

Preparations

Setting up the system

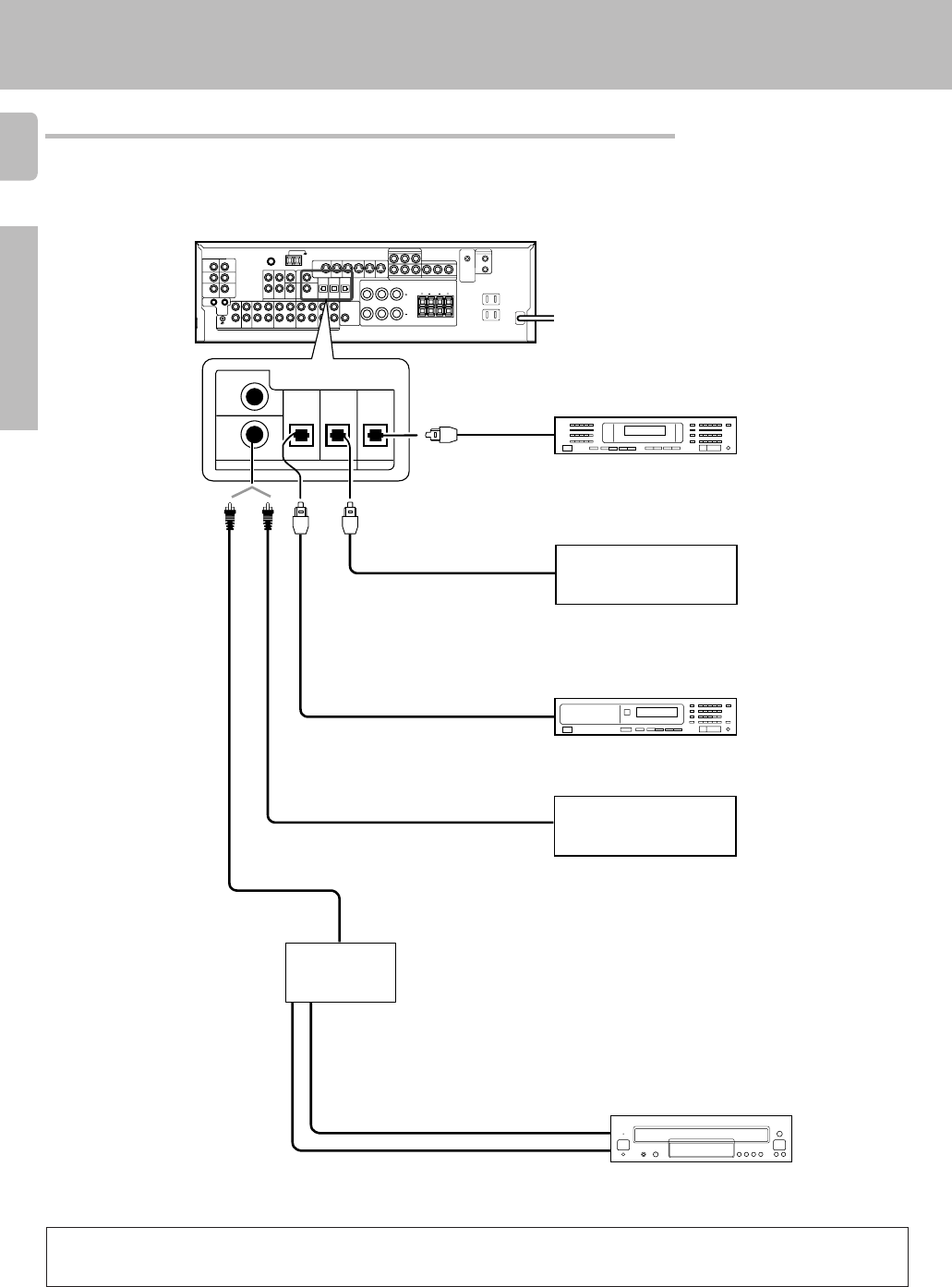

Digital connections

The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS,

Dolby Digital, or standard PCM (CD) format digital signals.

If you have connected any digital components to the receiver, be sure to read the “Input mode settings” section

carefully. 7

To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).

Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.

Connect the video signal and analog audio signals to the VIDEO 2 or VIDEO 3 jacks. (See “Connecting video components”.)

COAXIAL DIGITAL

OUT (AUDIO)

Connect the video signal and analog

audio signals to the VIDEO 2 jacks.

(See “Connecting video compo-

nents”.) 9

Component with DTS, Dolby

Digital, or PCM OPTICAL

DIGITAL OUT

Connect the video signal and digital

audio signals to the VIDEO 3 jacks.

(See “Connecting video compo-

nents”.) 9

DOLBY DIGITAL RF

OUT (AUDIO)

COAXIAL DIGITAL OUT

(AUDIO)

OPTICAL DIGITAL OUT

(AUDIO)

LD player

PCM OUT

CD player

Component with DTS, Dolby

Digital, or PCM COAXIAL

DIGITAL OUT

Optical fiber cable

OPTICAL DIGITAL

IN (AUDIO)

MD player

OPTICAL DIGITAL OUT

(AUDIO)

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

CD/DVD

OPTICAL VIDEO 3

OPTICAL MONITOR

OPTICAL

DIGITAL IN

DIGITAL OUT

VIDEO 2

COAXIAL

RF digital

demodulator

(DEM-9991D)

(sold separately)

*509/07-18/EN 3/15/01, 2:01 PM10

Preparations

Setting up the system

Connecting video components (COMPONENT VIDEO)

CB IN

DVD player (with component jacks)

Video Recorder, DVD Recorder,

Satellite Cable Tuner & Game Player

(with component jacks)

Monitor TV (with component jacks)

Y OUT

CR OUT

CR IN

Y IN

If you have connected the receiver to a video component with COMPONENT jacks, you can get a better picture

quality than by connecting to the S-VIDEO jacks.

CB OUT

Y OUT

CR OUT

CB OUT

• Connect to the VIDEO cord.

When connecting the TV to the COMPONENT jacks, be sure to connect all the other components to the COMPONENT jacks.

*509/07-18/EN 3/15/01, 2:01 PM11

Preparations

Setting up the system

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

PLAY IN

FRONT

LCENTER DVD

SURROUND

VIDEO 2

COAXIAL

SUB

WOOFER

DVD / 6CH. INPUT

VIDEO

VIDEO 2 IN

VIDEO 1 IN VIDEO 3 IN

CD/DVD

DVD

MONITOR

OUT

VIDEO 1

OUT

Connecting a DVD player (6-channel input)

FRONT

OUT L/R

S VIDEO

OUT

COAXIAL

DIGITAL

OUT

(AUDIO)

DVD player

S VIDEO cord

SURROUND

OUT L/R

VIDEO OUT

(Yellow RCA

pin cord)

CENTER OUT

SUBWOOFER OUT

If you have connected a DVD player to the receiver with digital connection, be sure to read the “Input mode settings”

section carefully. 7

To switch the speakers off , turn SPEAKERS A and B OFF or press MUTE key on the remote control unit.

*509/07-18/EN 3/15/01, 2:01 PM12

Preparations

Setting up the system

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

FRONT SPEAKERS CENTER SPEAKERS

SUB WOOFER

PRE OUT FRONT SPEAKERS

SURROUND SPEAKERS

(8 – 16Ω)

RED BLUE GREEN

GRAYORANGE

Right

Front Speakers A

LeftRight

Use the FRONT SPEAKERS

B terminals if you want to

connect a second front

speaker system.

Left

(Be sure to connect both surround speakers)

Center

Speaker

Surround Speakers

Powered

subwoofer

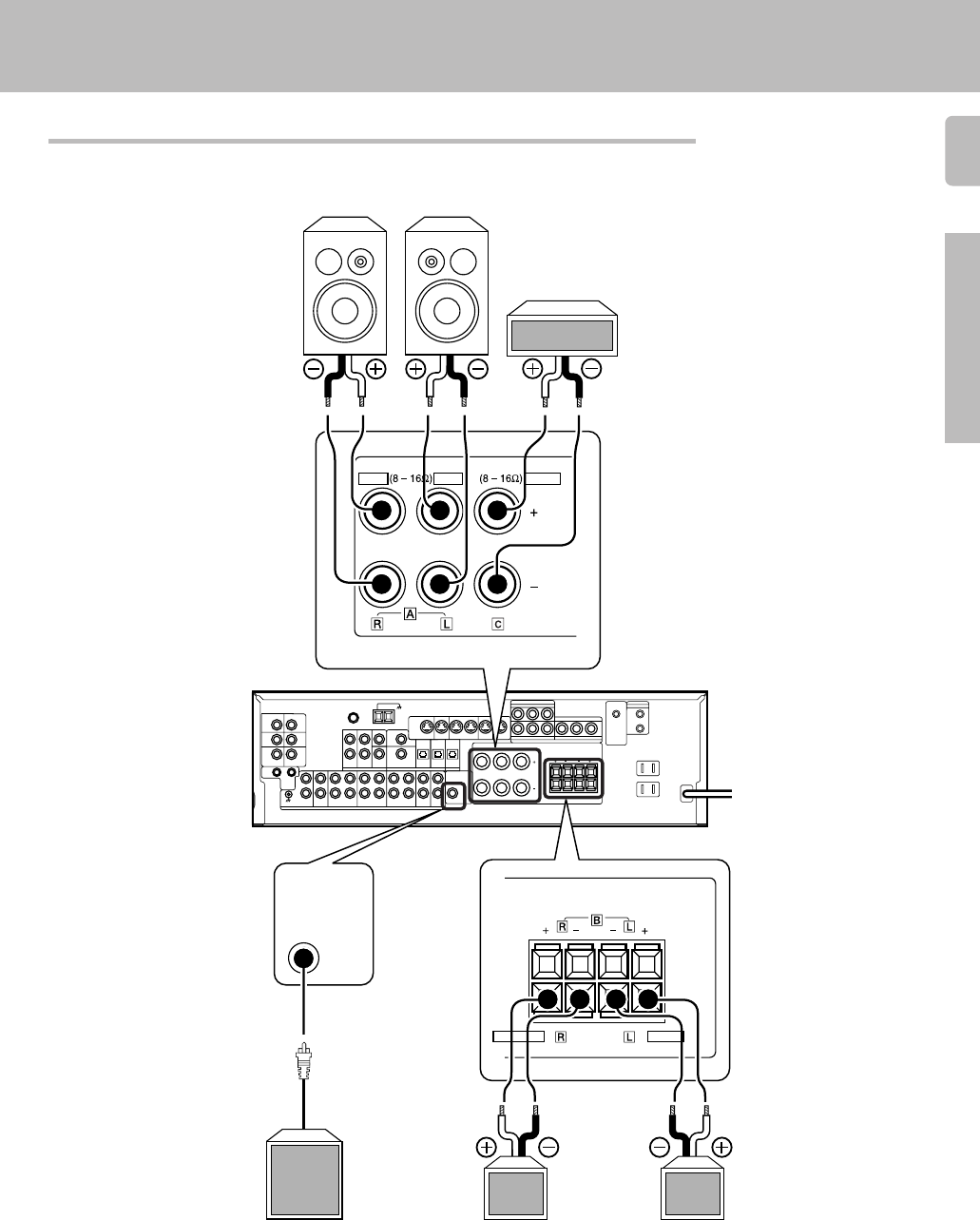

Connecting the speakers

*509/07-18/EN 3/15/01, 2:01 PM13

Preparations

Setting up the system

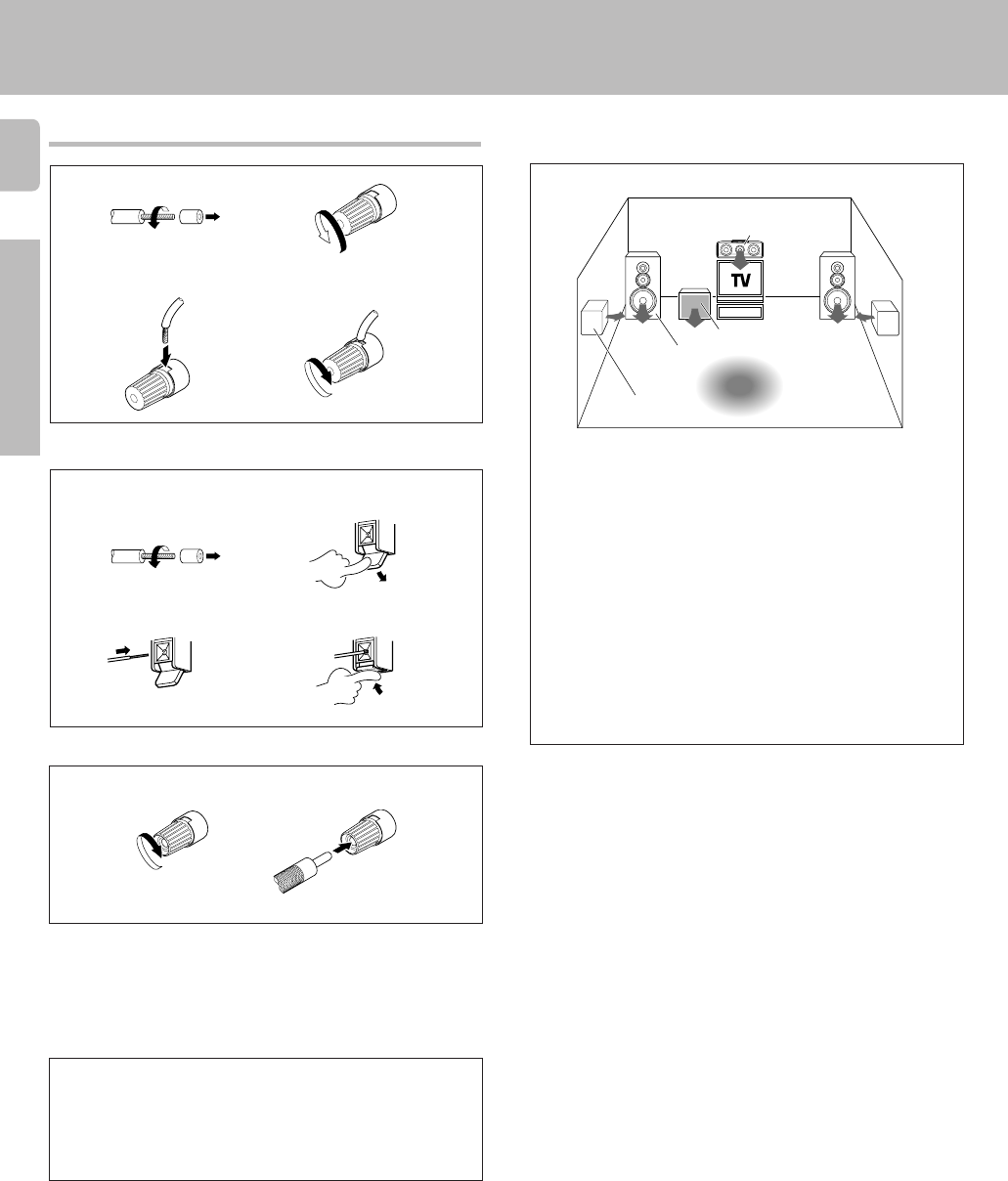

Connecting the terminals

1Strip coating. 2Loosen.

3Insert. 4Secure.

1Strip coating. 2Push the lever.

3Insert the cord. 4Return the lever.

Speaker placement

Subwoofer

Front speakers : Place to the front left and right of the listening position.

Front speakers are required for all surround modes.

Center speaker : Place front and center. This speaker stabilizes the

sound image and helps recreate sound motion. Be sure to connect a

center speaker when using the Dolby 3 Stereo mode.

Surround speakers : Place to the direct left and right, or slightly

behind, the listening position at even heights, approximately 1 meter

above the ears of the listeners. These speakers recreate sound motion

and atmosphere. Required for surround playback.

Subwoofer : Reproduces powerful deep bass sounds.

Front

speaker

Center speaker

Listening

position

Surround

speaker

• Although the ideal surround system consists of all the speakers listed

above, if you don't have a center speaker or a subwoofer, you can

divide those signals between the available speakers in the speaker

settings steps to obtain the best possible surround reproduction from

the speakers you have available. )

• Never short circuit the + and – speaker cords.

• If the left and right speakers are connected inversely or the speaker

cords are connected with reversed polarity, the sound will be unnatu-

ral with ambiguous acoustic imaging. Be sure to connect the speak-

ers correctly.

1Secure. 2Insert.

Connection of banana plugs

• Sound will not be heard if the speaker terminal is not fully secured.

Speaker impedance

After confirming the speaker impedance indications printed on the rear

panel of the receiver, connect speakers with matching impedance

ratings. Using speakers with a rated impedance other than that indi-

cated on the rear panel of the receiver could result in malfunctions or

damage to the speakers or receiver.

*509/07-18/EN 3/15/01, 2:01 PM14

Preparations

•To select the source connected to the AV AUX jacks, select AV

AUX by using the INPUT SELECTOR knob. ™

•When you connect the audio source such as the MD player, you

do not need to connect the video cable.

•When you connect the unit and the component with the S

VIDEO cord, you can get better picture quality.

S VIDEO V L – AUDIO – R

AV AUX

The AV AUX jacks are convenient for connection of video components

such as a camcorder or a video game.

Connecting to the AV AUX jacks

S VIDEO OUT

Camcorder, other VCR,

video game, digital camera,

or portable MD player

S VIDEO cord

VIDEO OUT

AUDIO OUT

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

75Ω

GND

ANTENNA

Connecting the antennas

AM antenna terminal connections

1Push lever. 2Insert cord.

AM loop antenna

The supplied loop antenna is for use indoors. Place it as far as possible from

the receiver, TV set, speaker cords and power cord, and adjust the direction

for best reception.

3Release lever.

AM loop antenna

FM indoor antenna

FM outdoor antenna

Use an antenna

adaptor

(Commercially

available)

FM indoor antenna

The supplied indoor antenna is for temporary use only. For stable signal

reception we recommend using an outdoor antenna. Disconnect the indoor

antenna when you connect one outdoors.

FM outdoor antenna

Lead the 75Ω coaxial cable connected to the FM outdoor antenna into the

room and connect it to the FM 75Ω terminal.

Attach to the stand

FM antenna terminal connections

Insert cord.

Setting up the system

*509/07-18/EN 3/15/01, 2:01 PM15

Preparations

Setting up the system

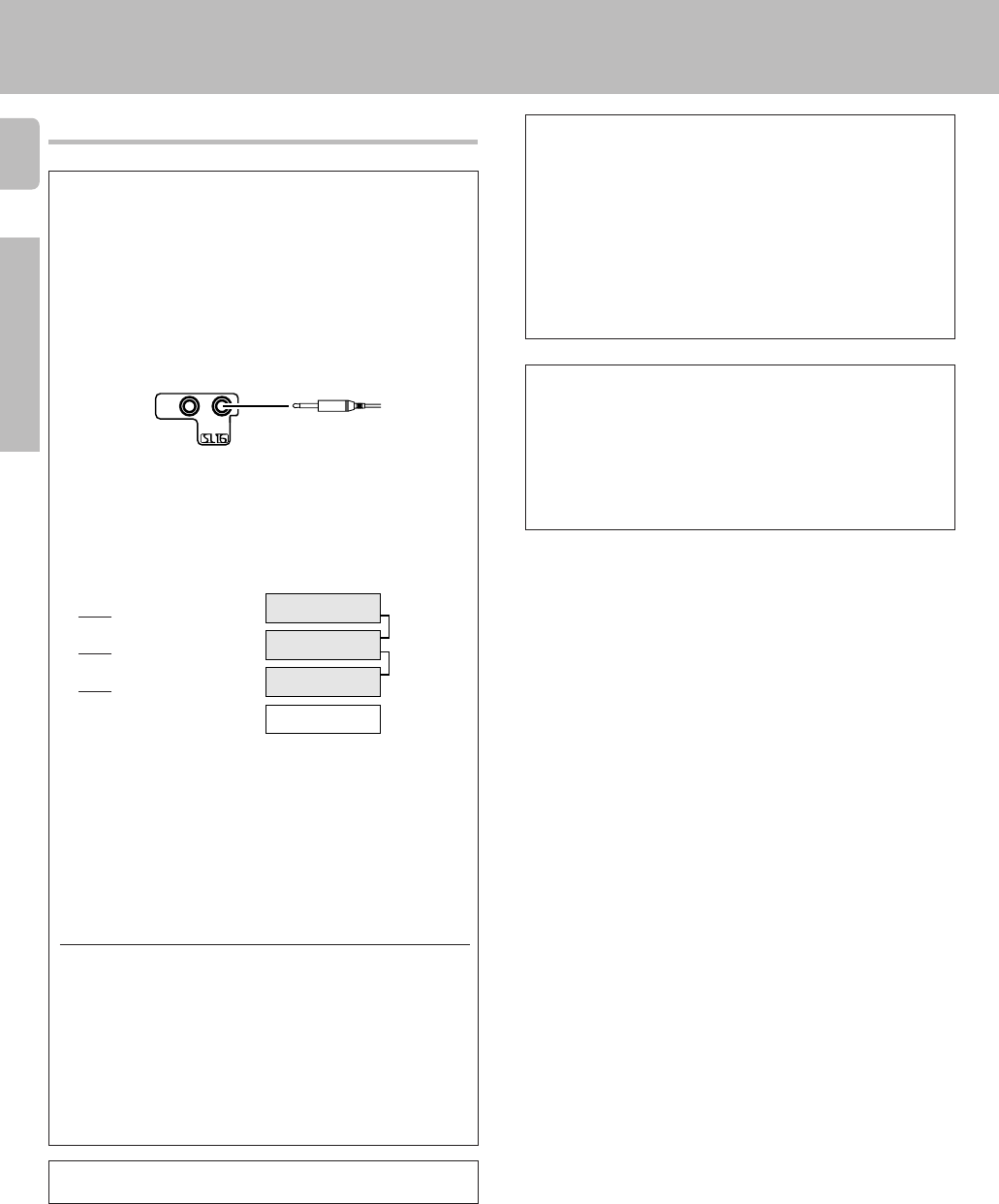

Connecting the system control

Connecting system control cords after connecting a KENWOOD

audio component system lets you take advantage of convenient

system control operations.

This unit is compatible only with the [SL-16] mode. The system

control operation is not available if the unit is connected in the

[XS8], [XS], or [XR] connection mode.

If your component has the mode select switch, set the connected

components to the [SL16] mode.

[SL16]

[SL16] [XS] [XS8] [XR]

[SL16] [XS] [XS8]

[XS]

SYSTEM

CONTROL

cord

Receiver

Cassette deck

or MD recorder

CD player

Record player

• In order to take advantage of the system control operations, the

components must be connected to the correct jacks. To use a CD

player it must be connected to the CD jacks. To use a cassette deck

(or MD recorder) it must be connected to the MD/TAPE jacks. When

using more than one CD player (etc.) only the one connected to the

specified jacks may be connected for system control.

• Some CD players and cassette decks are not compatible with the

[SL16] system control mode. Do not make system connections with

equipment that is not [SL16] compatible.

• Some MD players are not system control compatible. You cannot

make system control connections to this kind of equipment.

Notes

1. [SL16] equipment cannot be combined with [XR], [XS], and [XS8]

equipment for system operations. If your equipment consists of this

kind of combination, please do not connect any system control cords.

Even without system control cords, normal operations can be carried

out without effecting performance.

2. Do not connect system control cords to any components other than

those specified by KENWOOD. It may cause a malfunction and

damage your equipment.

3. Be sure the system control plugs are inserted all the way in to the

system control terminals.

• You may connect the system control cord to either the left or right jack.

EXAMPLE: [SL16] mode connections

The underlined portion represents the setting of the system control

mode.

SYSTEM CONTROL

cord

Do not connect a system control cord to a cassette deck

connected to the MONITOR jacks.

SYSTEM CONTROL OPERATIONS

Remote Control

Lets you operate this unit with the system remote supplied with the

receiver.

Automatic Operation

When you start playback from a source component, the input selector

on this unit switches to that component automatically.

Synchronized Recording

Lets you synchronize recording with the start of playback when record-

ing from CD, MD or analog discs.

Registering setup codes for KENWOOD audio components

• If you own remote controllable KENWOOD audio components that are

not compatible with system control, registering the setup code en-

ables you to control those components using the remote control

supplied with this unit (without connecting system control cords). To

components, see “Registering setup codes for other components”.

‹

SYSTEM

CONTROL

*509/07-18/EN 3/15/01, 2:01 PM16

Preparations

Setting up the system

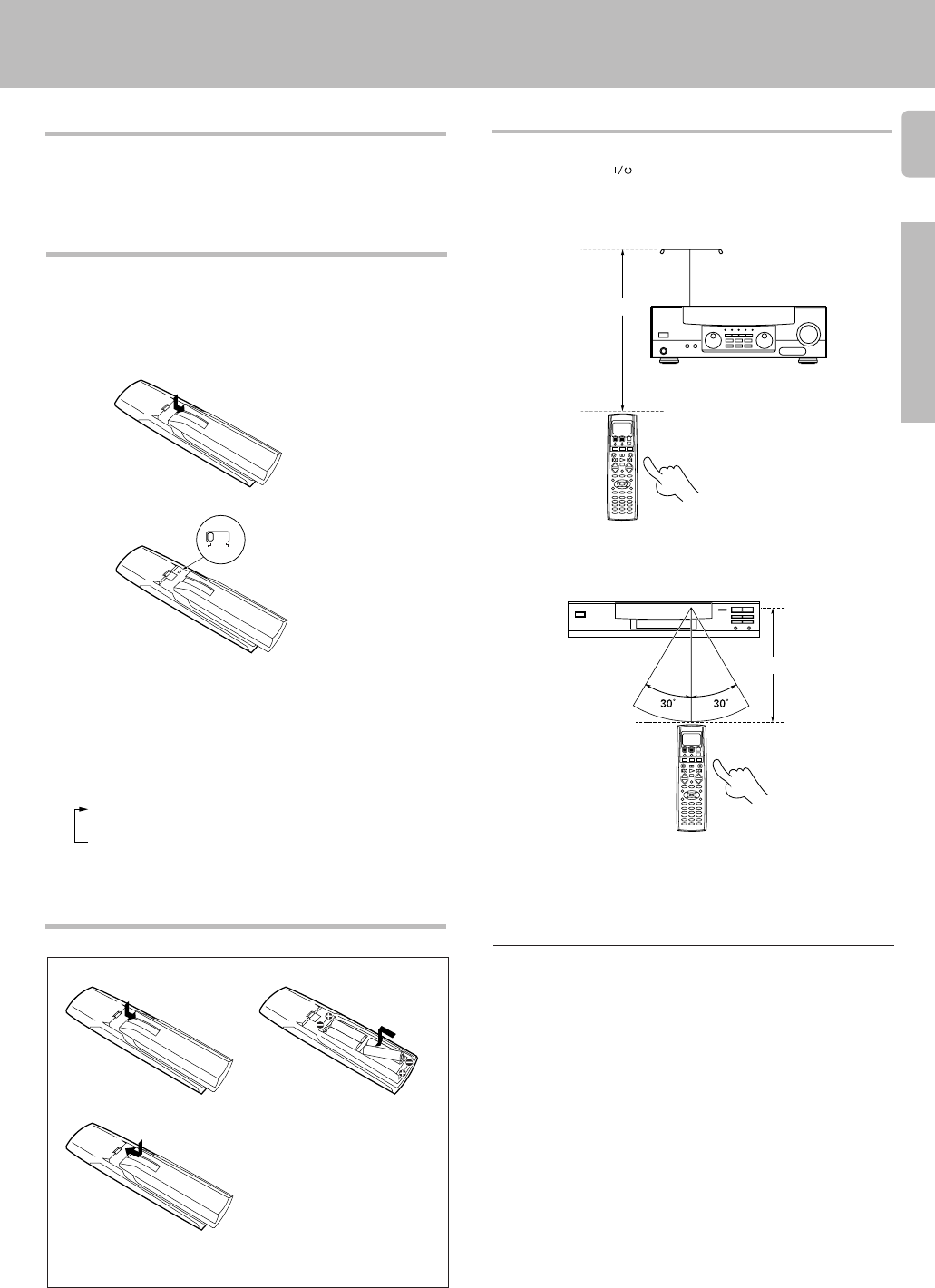

RF remote control function

The remote control has the RF remote function in addition to the IR remote

function. The VR-509 can receive the remote control commands even when

they are installed in a position where the IR remote signal can hardly access,

for example inside a cabinet. The receiver is not equipped with the RF

remote bi-directional communication function. The bi-directional commu-

nication is available only using the IR remote function.

1Open the battery cover on the rear.

After changing the RF frequency of remote control, be also sure to

change that of the receiver.

2Change the RF switch setting.

3Change the receiver’s RF reception frequency.

• Press and hold the SET UP key on the front panel of the receiver for

more than 2 seconds.

Each time you press the SET UP key, the RF reception frequency

changes as follows:

1“RF BAND 1”

2“RF BAND 2”

3“RF OFF”

• Select the same number as the position number of the RF switch of

the remote control.

The RF remote function may be unavailable due to radio wave cross talk,

etc. In this case, the transmission frequency can be changed.

To change the RF remote transmission frequency:

Changing the RF transmission frequency

OFF

Notes

1. The supplied batteries may have shorter lives than ordinary batteries due

to use during operation checks.

2. When the remote-controllable distance gets shorter than before, replace

all batteries with a new ones.

3. Placing the remote sensor in direct sunlight, or in direct light from a high

frequency flourescent lamp may cause a malfunction.

In such a case, change the location of the system installation to prevent

malfunction.

• The remote control signal received by the main unit are IR and RF

signals.

• When pressing more than one remote control key successively, press

the keys securely by leaving an interval of 1 second or more between

keys.

When the STANDBY indicator is lit, the power turns ON when you press

the SYS. POWER key on the remote control. When the power

comes ON, press the key you want to operate.

Operating receiver range (RF Transmitter)

10 m

RF Transmitter

RF Remote antenna

Operating other component range (IR Transmitter)

IR Transmitter

6 m

Remote control operation

Loading the batteries

• Insert four R6/AA-size alkaline batteries as indicated by the polarity

markings.

3Close the cover.

2Insert the batteries.

1Remove the cover.

*509/07-18/EN 3/15/01, 2:01 PM17

Preparations

Setting up the system

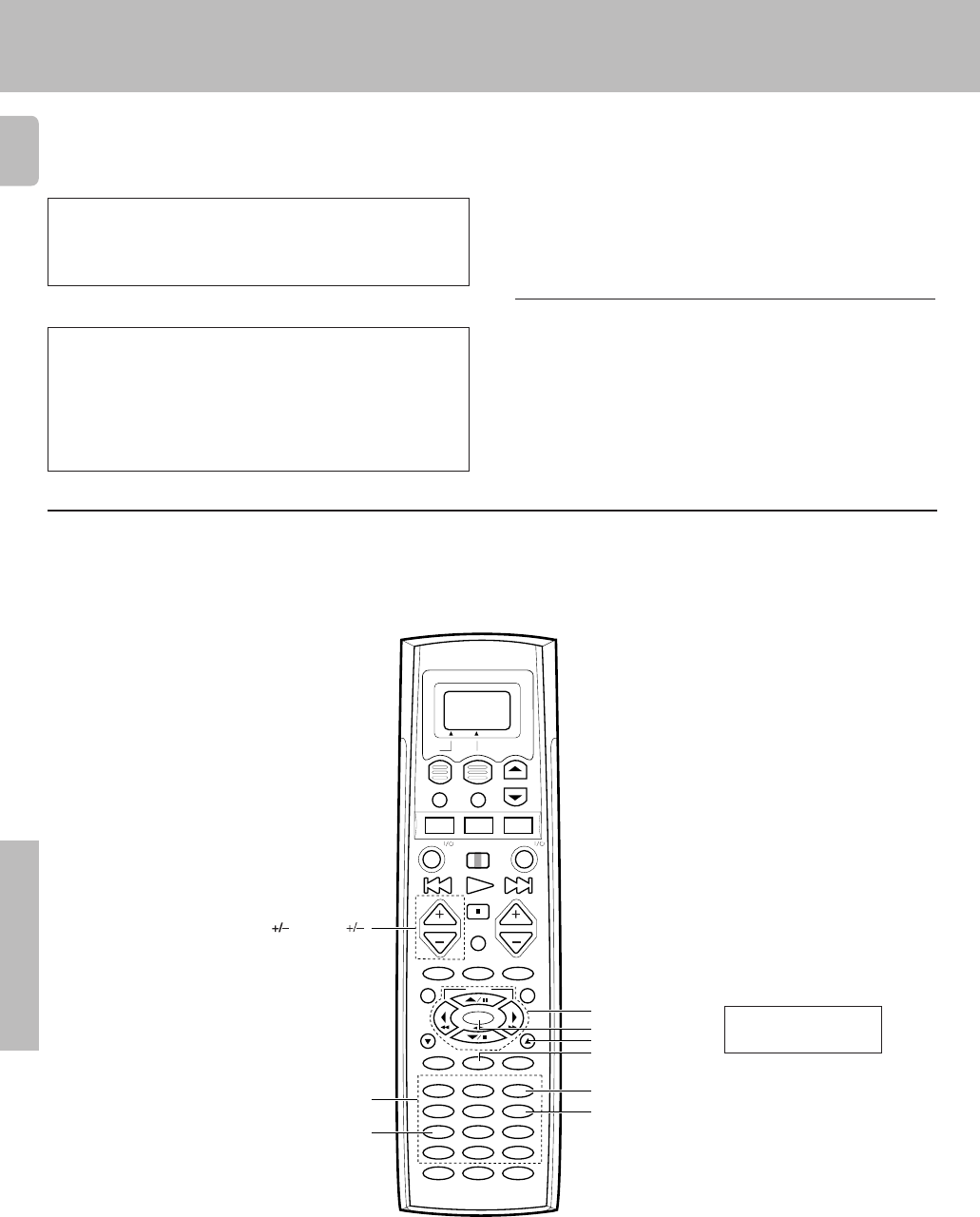

1Display operation 1 key

Use this key to go back to the previous display or initial display.

2Display operation 2 key

Gets you into and out of the preset code registration mode.

3Display

The information for setup is displayed.

45/∞ keys

Use these keys to select the source or setup code.

5MOVIE, MUSIC, and TV keys

Use these keys to select the input you want to register.

6AV POWER key

Once you have entered the setup code for another component, you can

press this key to turn power to that component on or off. This lets you

confirm that you entered the code properly.

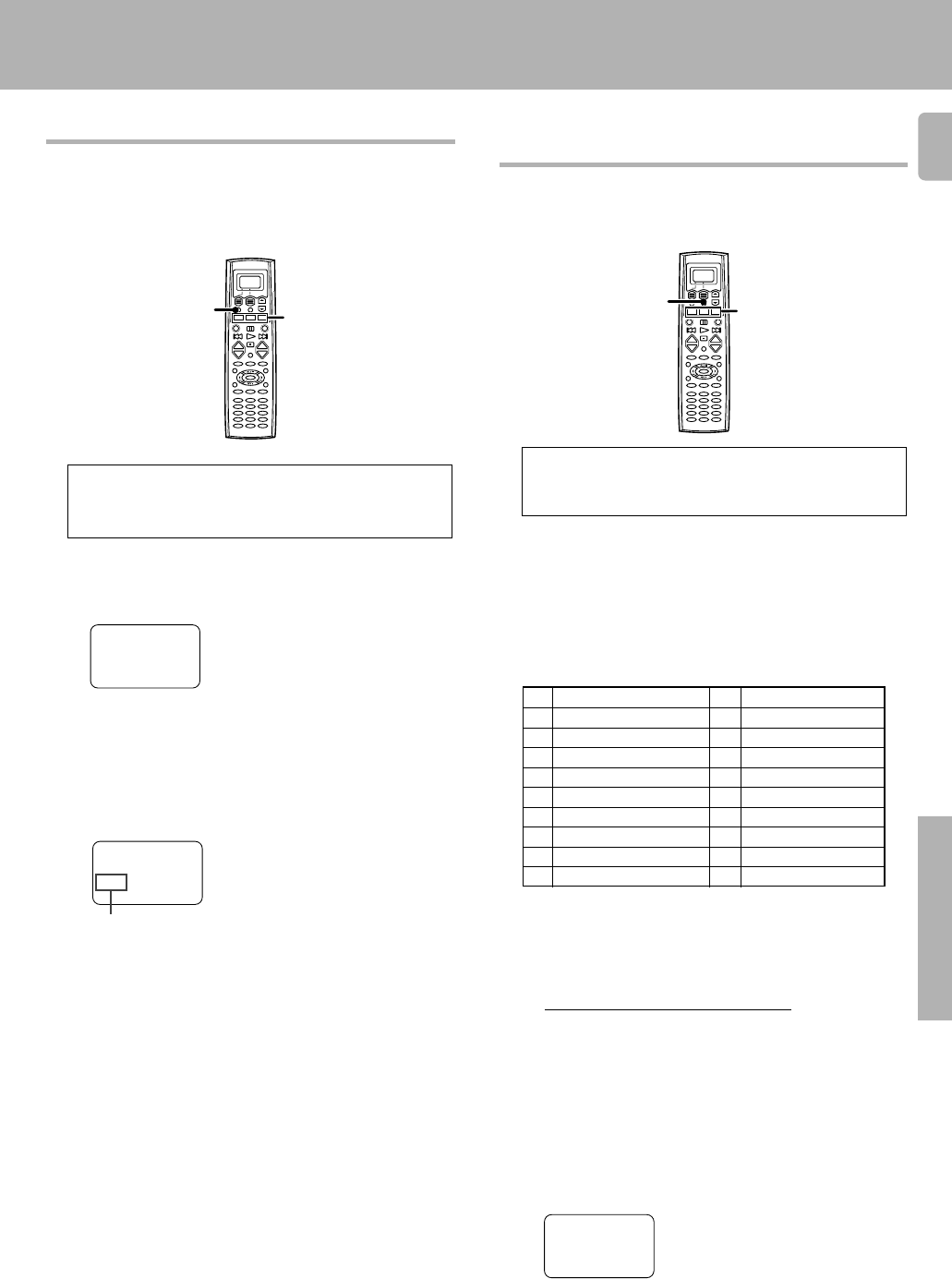

How to use the display operation keys

To register the setup code, use the display operation 1 key, display

operation 2 key, or 5/∞ keys.

The display operation 1 key and display operation 2 key work as the

function key displayed in the display above.

The display goes off automatically when you do not operate for more than

8 seconds. In this case, press the display operation 1 key, display

operation 2 key, or 5/∞ keys.

When the display goes off

Press the display operation 1 key repeatedly until “Menu” appears in the

display.

The display returns to the initial display.

When you are confused about what’s being displayed

>06.Cable

>05.VCR

Back Enter

The display operation 1 key

•[Back]

Go back to the previous display.

•[Home]

Go back to the initial display.

•[Clr]

Erase the internal memory.

The display operation 2 key

•[Enter]

Enter the selected item.

•[Menu]

Display the menu.

•[Setup]

Go to the setup display.

•[Exit]

Exit from the current operation.

•[Sel]

Select the item.

Display operation 1 5/∞

Display operation 2

—

Display

SHIFT MACRO

MUSIC

LISTEN M.

BASS BOOST SUB W.

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

REC MODE

F.SHIFTREC LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

DIMMER

TITLE/GUIDE MENU

SOUND

CINEMA EQ

MOVIE TV

AV POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

The remote control sends an RF (radio wave) signal to the receiver. For

equipment other than the receiver, an IR (infrared) signal is sent. For the

operation of the RF remote function, see page 18 and 19 of the instruction

of the unit.

The remote control supplied with this receiver is also capable of control-

ling components from a variety of manufacturers once you register the

appropriate setup codes into the remote control unit.

Refer to “Remote operation of other components” for details about the

operations available for each component.

‚

*509/07-18/EN 3/15/01, 2:01 PM18

Preparations

The remote control for the VR-509 incorporates the RF transmission

function. To make sure receiving the RF remote signal, connect the

provided RF remote antenna.

1Insert the jack of the provided RF remote antenna into the

ANTENNA RF REMOTE jack.

2Distribute the antenna wire vertically and fix it.

• Distribute the antenna away from the metallic panel.

Important notes

Here is list of adjustment which can maximize the operation of

your remote control. For optimal operation of the remote control:

1Aim the remote control toward the room where the receiver is

located.

2Do not position the receiver and remote control near metal (such as

heat ducts). Metal can absorb RF signals.

3Make sure the batteries in the remote control are fully charged. Weak

batteries will affect the range of the remote control.

4When there is an obstruction around other equipments that send

signal from the remote control, the control distance of the RF remote

signal will be short.

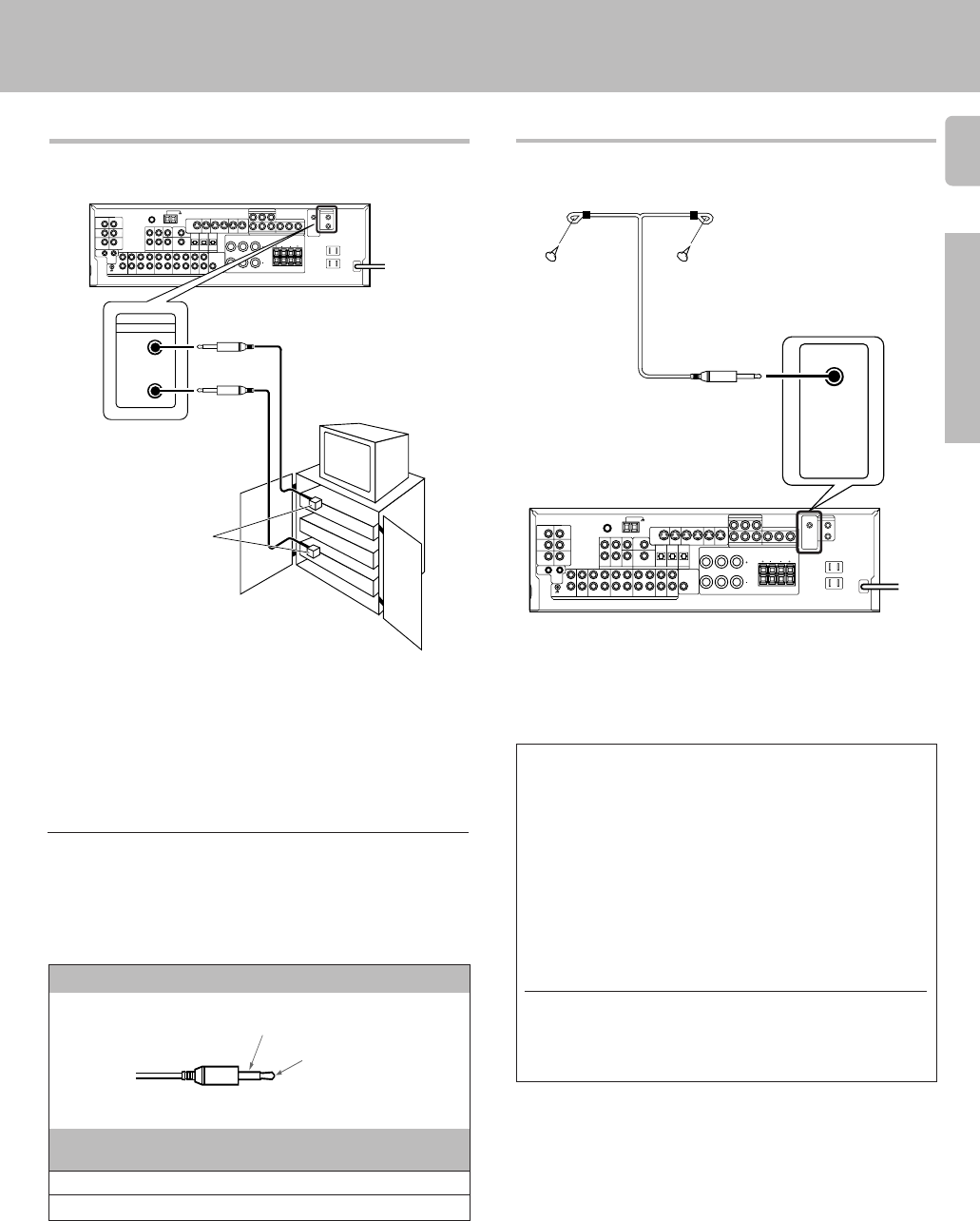

Connecting the RF remote antenna

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

ANTENNA

RF REMOTE

Note

• The tests for range limits of the remote control and the receiver are

conducted in open-air distance test. Actual distance of the signal

will be based on the construction of the building the unit is being

used in as well as other factors such as outside interference.

KENWOOD components (Except for DVD player): System control ^

Other components : IR REPEATER

1Connect the IR repeater to the device as described in the

repeater’s manual.

IR repeaters enable you to control components located in cabinets or

behind glass doors.

IR repeaters

2Connect the IR repeater cable(s) to the IR REPEATER OUT

jack(s).

Notes

• IR repeaters send a signal similar to the device’s own remote control.

Xantech repeaters (models 282-00, 286-00, or 283-00) are compatible

with your new audio-video receiver.

VIDEO 3VIDEO 2VIDEO 1

S VIDEO

RALC

LR B

PLAY INPLAY INPLAY INREC OUTPLAY IN

MONITOR

OUT VIDEO 1

DVD

IR REPEATER

OUT

Connecting IR repeaters

Shape of plug to be connected:

Please use this plug.

Tip

Sleeve

IR Repeater OUT

Mono Mini Plug

IR OUT specification :

Terminal IR OUT LCD

Remote

To Tip Signal

To Sleeve Ground

*509/19-21/EN 3/15/01, 2:02 PM19

Preparations

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

STEREO

4Use the MULTI CONTROL knob or 5/∞ keys to select the

appropriate front speakers setting.

1 FRNT NML (normal) :Average size front speakers are

connected to the receiver.

2 FRNT LRG (large) :Large front speakers are connected

to the receiver.

• For “FRNT LRG” selection, no sound will be heard from SUBW

even when it is set to ON. However, if you select CINEMA EQ.

when subwoofer is selected, you will be able to hear sound from

the subwoofer.

When in STEREO mode, the sound goes directly to front speaker.

5Press the SET UP or display operation 2 [Next] key to accept

the setting.

• The center speaker setting indication (CNTR) appears.

If you have selected “NML” as the front speakers setting,

1 CNTR ON : Center speaker setting mode to the receiver

is ON.

2 CNTR OFF : Center speaker setting mode to the receiver

is OFF.

7Press the SET UP or display operation 2 [Next] key to accept

the setting.

• The surround speaker setting indication (SURR) appears.

8Use the MULTI CONTROL knob or 5/∞ keys to select the

appropriate surround speaker setting,

If you have selected “LRG” as the center speaker setting,

1SURR LRG (large) :Large surround speakers are

connected to the receiver.

2SURR NML (normal) :Average size surround speakers are

connected to the receiver.

3SURR OFF : Surround speaker setting mode to

the receiver is OFF.

If you have selected other than “LRG” as the center speaker

setting,

1SURR ON : Surround speaker setting mode to the receiver

is ON.

2SURR OFF : Surround speaker setting mode to the receiver

is OFF.

9Press the SET UP or display operation 2 [Next] key to accept the

setting.

6Use the MULTI CONTROL knob or 5/∞ keys to select the

appropriate center speaker setting.

If you selected “LRG” as the front speakers setting,

1CNTR LRG (large) :A large center speaker is connected

to the receiver.

2CNTR NML (normal) :An average size center speaker is

connected to the receiver.

3CNTR OFF : Center speaker setting mode to the

receiver is OFF.

• The receiver enters the speaker volume level adjustment mode.

• In steps 3 and 4, indications appear only for the selected

channels of the speakers that require adjusting.

3Press the SET UP or display operation 2 [Next] key to accept the

setting.

• The front speakers setting indication (FRNT) appears.

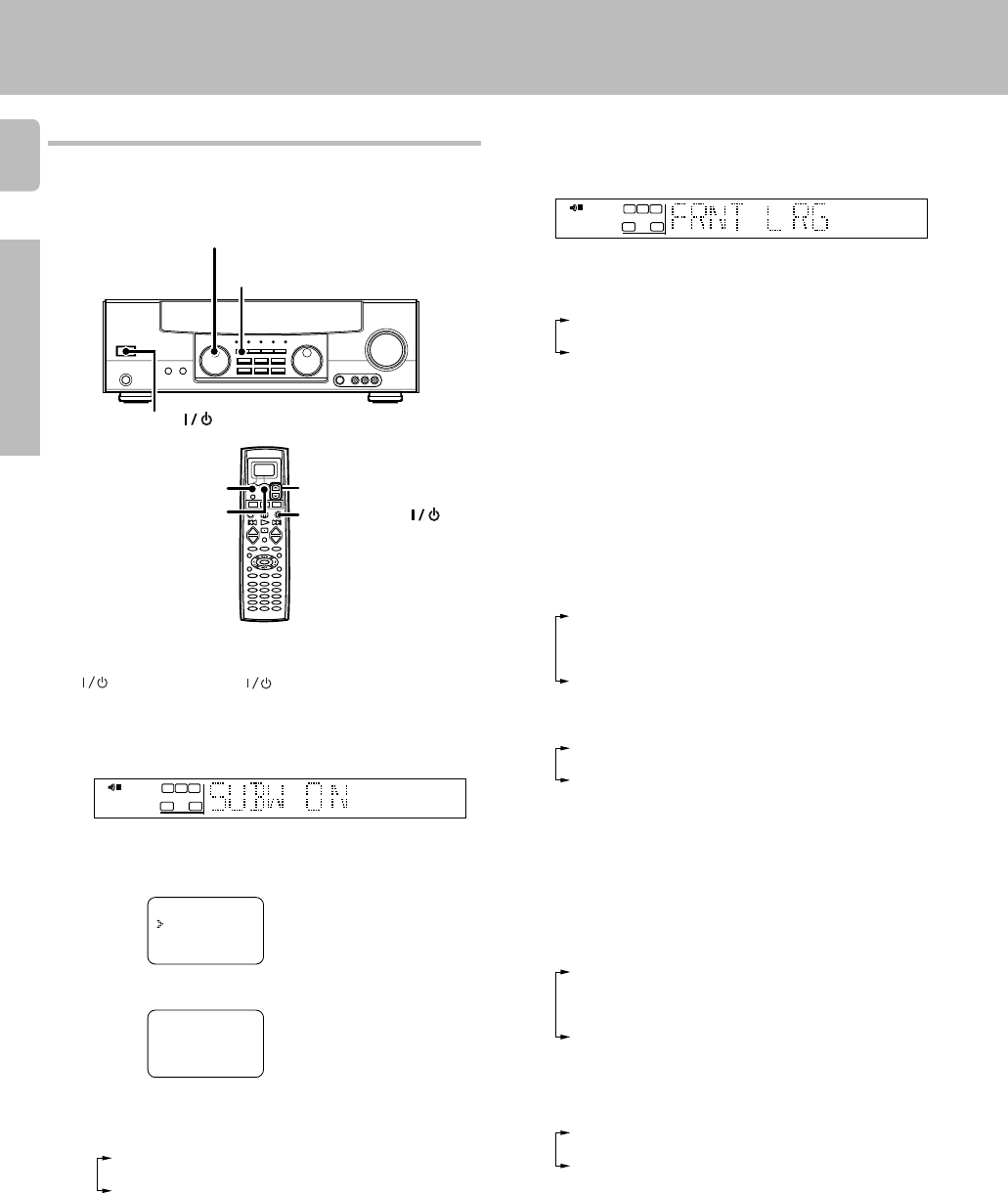

Speaker settings

To enable you to obtain optimum enjoyment from the receiver's listening

modes, make sure to complete the speaker settings (subwoofer, front,

center, and surround speakers) as described below.

Preparing for surround sound

1Press the SET UP key such that the subwoofer setting

indication (SUBW ON) appears.

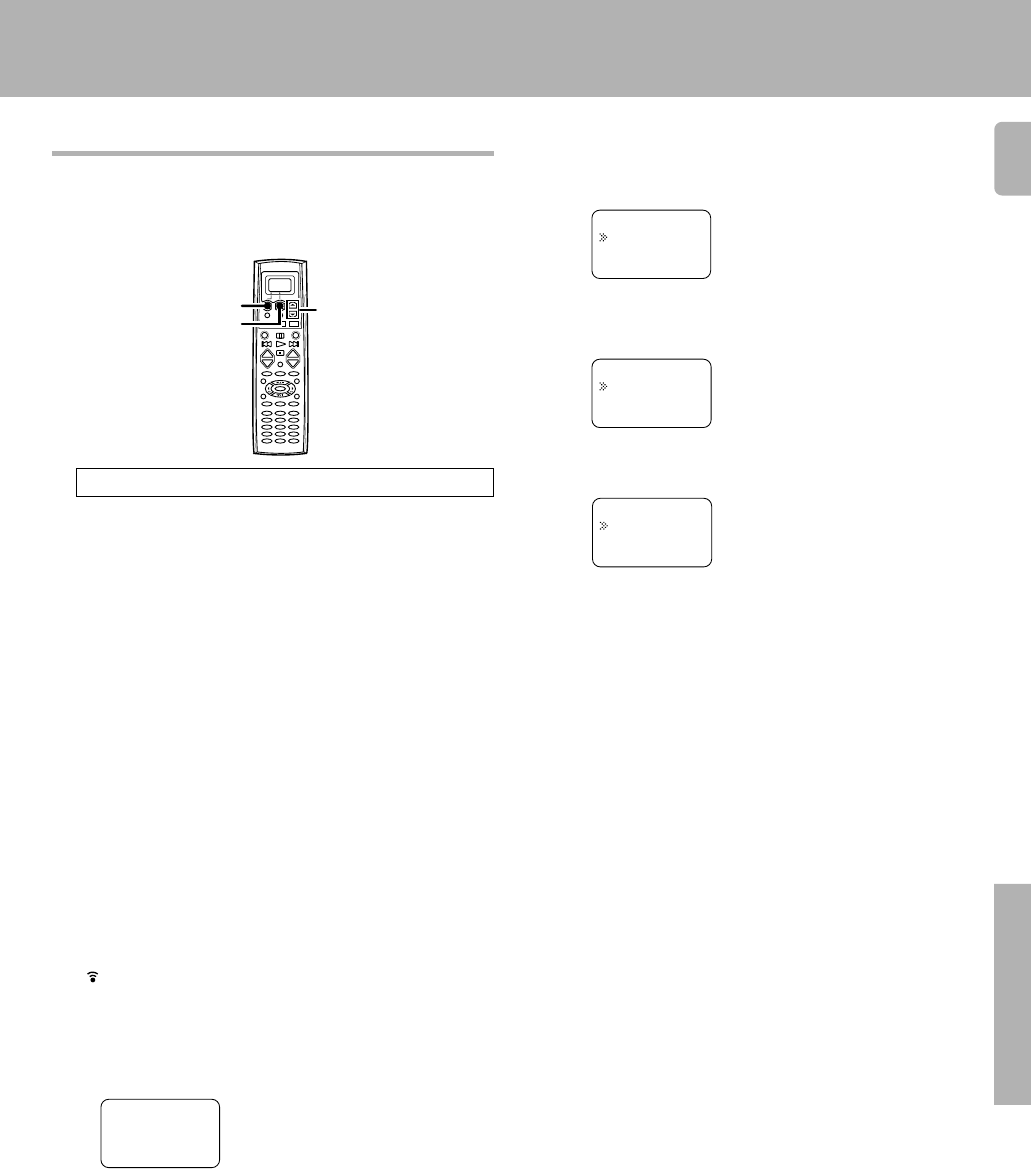

When you operate on the remote control unit

1Press the display operation 2 [Menu] key repeatedly until

“01.IR” appears in the display of the remote control unit.

2Press the 5/∞ keys to select “02.Surround”, then press

the display operation 2 [Enter] key.

2Use the MULTI CONTROL knob or 5/∞ keys to select the

appropriate subwoofer setting.

1SUBW ON : Subwoofer setting mode to the receiver is

ON.

2SUBW OFF : Subwoofer setting mode to the receiver is

OFF.

• The initial setting is “SUBW ON”.

• When “SUBW OFF” is selected, the front speakers are automatically

set to “FRNT LRG” and the procedure skips to step 5.

• When subwoofer output sound is required, selected “FRNT NML”.

—

MULTI CONTROL

SET UP

SYS. POWER ( )

Display operation 1

Display operation 2

5/∞

POWER ( )

>02.Surround

>01.IR

Home Enter

SetUp

Home Next

Turn on the power to this receiver by pressing POWER

( ) or SYS. POWER ( ) key.

Select a speaker system.

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

STEREO

*509/19-21/EN 3/15/01, 2:03 PM20

Preparations

5Setup is complete when the input indication reappears.

Display when all speakers have been selected.

• The speakers you have selected should appear on the display.

Confirm that all the speakers have been correctly selected.

The speaker indicator to be adjusted blinks.

Indication in feet Indication in meters

1Measure the distance from the listening position to each of

the speakers.

Jot down the distance to each of the speakers.

Distance to front speakers: ____ feet (meters)

Distance to center speaker: ____ feet (meters)

Distance to surround speakers: ____ feet (meters)

2Use the MULTI CONTROL knob or 5/∞ keys to select the

distance to the front speakers.

• The allowable setting range is 1 to 30 feet (0.3 to 9.0 m), adjustable

in 1 foot (0.3 m) increments.

3Press the SET UP or display operation 2 [Next] key.

4Repeat steps 2 and 3 to input the distance for each of the

speakers.

Input the distance to the speakers.

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP AR

• If you change the volume level settings for the speakers while

listening to music, the settings referred to on this page are also

changed º

• If the speaker setting selects are OFF, the speaker level settings

are reset.

2Press the SET UP or display operation 2 [Next] key.

• The test tone is turned off. The receiver enters the mode for inputting

the distance to the speakers.

Input level adjustment (analog sources only)

MEMO

ST.

TUNED

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

AUTO SOUND

AUTO

CLIP LFE SW

SRSLS

MUTE

TI.VOL

RDS EON PTY

TP TA NEWS

STEREO

SP A

L R

If the input level of an analog source signal is too high, the CLIP indicator

will blink. Adjust the input level.

1Use the INPUT SELECTOR knob to select the source which

input level you want to adjust.

• You can store a separate input level for each input source. If the

MONITOR function is ON, you can store an input level for when

MONITOR is on independently of the input levels for the input

sources.

2Press the SOUND key repeatedly until the “INPUT”

indication appears.

3Use the MULTI CONTROL knob or 5/∞ keys to adjust the

input level.

• The adjustment mode is displayed for approximately eight seconds.

• The input level may be adjusted to any one of three settings: 0dB,

-3dB, and -6dB. (The initial setting is 0dB.)

4Press the SOUND key again to return to the input indication.

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

STEREO

RDS

CLIP

The channel indication blinks while the test tone is being output.

From your usual listening position, adjust the volume levels. The volume

levels from each speaker should be the same.

1Use the MULTI CONTROL knob or 5/∞ keys to adjust the

volume of the test tone output from the speaker channel to be

adjusted.

The test tone is heard from the speakers in the following

sequence for 2 seconds each:

STEREO

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

= L = C = R = SR = SL = SW

Adjust the speaker volume.

Preparing for surround sound

*509/19-21/EN 3/15/01, 2:03 PM21

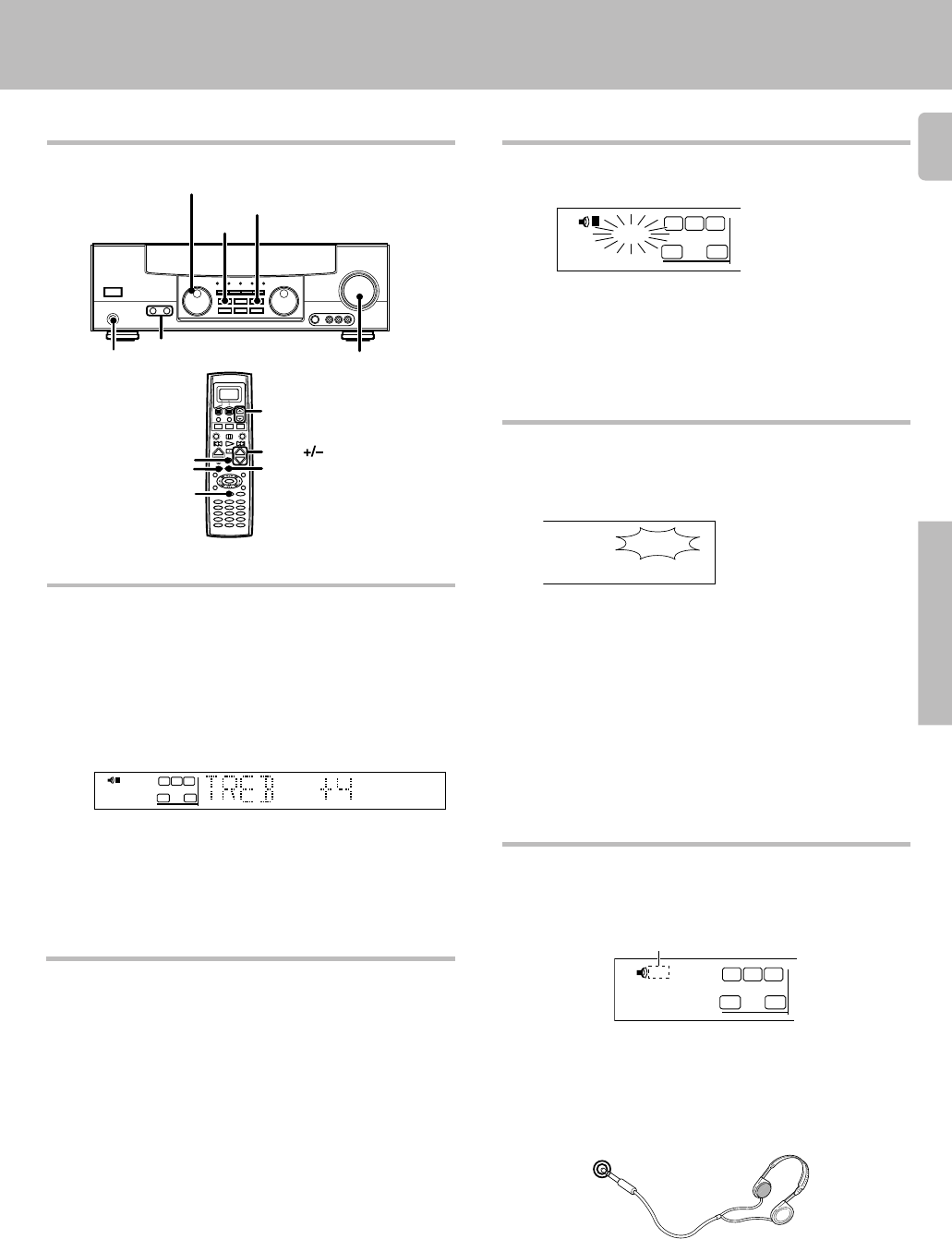

Operations

Normal playback

Operations

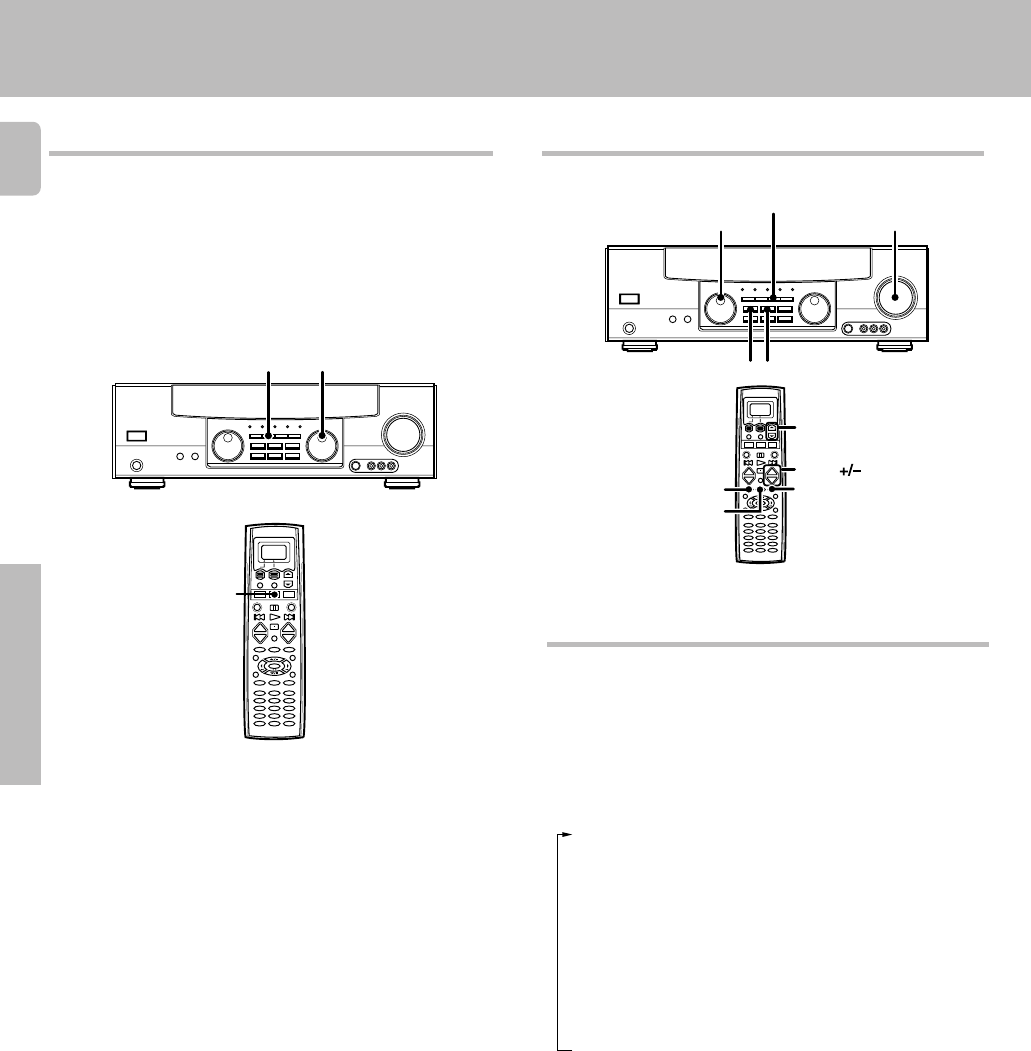

Preparing for playback

Some preparatory steps are needed before starting playback.

Turning on the receiver

1Turn on the power to the related components.

2Turn on the power to this receiver by pressing POWER( )

or SYS. POWER( ) key.

Selecting MD/TAPE

Select the source name corresponding to the component connected to

the MD/TAPE jacks. The initial factory setting is “TAPE”. To change the

source to “MD”, follow the steps below:

1Use the INPUT SELECTOR knob to select “MD/TAPE”.

2Hold down the AUTO/CINEMA EQ. key for more than 2 seconds.

• The source indication changes to “MD”.

• To return to the original indication, repeat procedure 2.

A ON : Sound from the speakers connected to the SPEAKERS A

terminals on the rear panel.

B ON : Sound from the speakers connected to the SPEAKERS B

terminals on the rear panel. No sound will be heard from the

subwoofer.

A+B ON : Sound from both the speakers connected to the SPEAKERS

A and B terminals on the rear panel.

A+B OFF : No sound from the speakers. Use this setting when listening

with headphones for stereo sound in all playback modes.

Selecting the input mode

If you have selected a component connected to the CD/DVD,DVD/6ch

VIDEO2, or VIDEO3 jacks, make sure that the input mode setting is

correct for the type of audio signal to be used. 7

LFE

SRSLS

TI.VOL

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

Selecting the speaker system

Press the SPEAKERS A or B key to select the speaker system to

be used.

The indicator for the speakers

you want to use should be lit.

• Selecting “6ch INPT” by pressing the INPUT MODE key, whereby

“DVD/6ch” is the input source will cause SPEAKERS A to be selected

automatically.

Listening to a source component

1“PHONO”

2“TUNER”

3“CD/DVD”

4“TAPE” or “MD”

5“VIDEO1”

6“VIDEO2”

7“VIDEO3”

8“DVD/6ch”

9“AV AUX”

—

INPUT SELECTOR

VOLUME CONTROL

MUSIC MOVIE

The input sources change as shown below:

Selecting a source using the INPUT SELECTOR knob

Use the INPUT SELECTOR knob, MUSIC key, or MOVIE key

to select the source you want to listen to.

Selecting a source using the MUSIC key

1“CD/DVD”

2“TAPE” or “MD”

3“TUNER”

4“PHONO”

1“VIDEO1”

2“VIDEO2”

3“VIDEO3”

4“DVD/6ch”

5“AV AUX”

Selecting a source using the MOVIE key

• MUSIC and MOVIE will not display input sources which are not pre-

setup.

Start playback from the selected source.

Use the VOLUME CONTROL knob or VOL. +/– keys to

adjust the volume.

AUTO/CINEMA EQ.

INPUT MODE

POWER ( )

INPUT SELECTOR

SPEAKERS A/B

*509/22-23/EN 3/15/01, 2:03 PM22

Operations

Normal playback

Adjusting the sound

Adjusting the tone

You can adjust the sound quality when the receiver is in the PCM stereo

and analog stereo mode.

1Press the SOUND key repeatedly to select the tone mode to be

adjusted.

• The bass and treble levels are adjustable from -10dB to +10dB in 2

step increments.

• The adjustment item is displayed for approximately 8 seconds.

2Use the MULTI CONTROL knob or 5/∞ keys to adjust the sound

quality.

BASS: Select this to adjust the low frequency range.

(Press the SOUND key once.)

TREB: Select this to adjust the high frequency range.

(Press the SOUND key twice.)

Once-touch low frequency emphasis (bass boost) (Remote

control only)

You can adjust the sound quality when the receiver is in the PCM stereo

and analog stereo modes.

Press the F.SHIFT key, then press BASS BOOST key on the

remote control.

• Press the key once to select the maximum (+10dB) low frequency

emphasis setting.

• This key does not function when the receiver is in the sound quality or

ambience effects adjustment mode.

Switching back to the previous setting

Press the BASS BOOST key again.

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

STEREO

Muting the sound

The MUTE key lets you mute the sound of the speakers.

Press the MUTE key.

To cancel

Press the MUTE key again so that the “MUTE” indicator goes off.

• MUTE ON can also be deactivated by turning the volume control

knob.

Blinks

SOURCE DIRECT playback (for analog sources only)

Use this function to pass the source material direct to the amplifier,

bypassing any audio processing.

To cancel

Press the SOURCE DIRECT key.

• When you press the LISTEN MODE, SOUND, or SET UP keys, or

switch to another input source, SOURCE DIRECT playback will be

canceled.

• If CINEMA EQ. is switched ON, SOURCE DIRECT key will not be

effective.

• If SOURCE DIRECT is switched ON, CINEMA EQ. function will not be

effective.

Listening with headphones

1Press the SPEAKERS A and B key so that the speaker indicator

goes off.

Make sure the SPEAKERS

indicators are turned off.

2Connect the headphones to the PHONES jack.

• If you turn off all of the speakers when in surround mode, the

surround mode will be canceled as well, resulting in stereo play-

back.

Press the SOURCE DIRECT key again.

• If SOURCE DIRECT playback was activated when using a surround

mode, canceling SOURCE DIRECT playback will reactivate the

previous surround mode.

LFE

SRSLS

TI.VOLB

CLIP

RDS EON PTY

TP TA NEWS

SP A

MUTE

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

PHONES

STEREO

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

S.DIRECT

3Use the VOLUME CONTROL knob (VOL. +/– keys) to adjust the

volume.

—

SOUND

VOLUME CONTROL

SOURCE DIRECT

PHONES

SPEAKERS A/B

MULTI CONTROL

VOL.

MUTE BASS BOOST

F.SHIFT

5/∞

SOUND

*509/22-23/EN 3/15/01, 2:03 PM23

Operations

1Use the INPUT SELECTOR knob to select the source (other than

“MD/TAPE”) you want to record.

2Set the cassette deck or MD recorder to record.

3Start playback, then start recording.

Recording audio (analog sources)

Recording

Recording a music source

1Press the MONITOR key.

2Use the INPUT SELECTOR knob to select a source other than

“MD/TAPE”.

3Start playback on the cassette deck connected to the MONITOR

jacks and start recording on the cassette deck or MD recorder

connected to the MD/TAPE jacks.

Recording tapes or MD (with MONITOR function)

1Use the INPUT SELECTOR knob to select “MD/TAPE”.

2Start playback on the cassette deck connected to the MD/TAPE

jacks and start recording on the cassette deck connected to the

MONITOR jacks.

MONITOR = MD/TAPE recording

MD/TAPE = MONITOR recording

• To copy tapes using a double cassette deck, refer to the instruction

manual of the double cassette deck.

INPUT SELECTOR

MONITOR

S.DIRECT

MHz

kHz

PRO LOGIC

DOWN MIX

DIGITAL

DSP

MEMO

ST.

TUNED

AUTO SOUND

AUTO

STEREO MONITOR

MONITOR function (analog sources only)

You can connect a cassette deck or graphic equalizer to the MONITOR

jacks of the receiver. If a graphic equalizer is connected, the MONITOR

key should be left in the on position. Alternately, if a cassette deck

equipped with a 3-head system is connected to the MONITOR jacks,

you will be able to monitor the just-recorded signal while making

recordings on the cassette deck. By switching the MONITOR key on

and off, you can compare the sound of the source signal and the just-

recorded signal. For more information, refer to the instruction manual of

the connected component.

1Use the INPUT SELECTOR knob to select the source (CD/DVD,

DVD/6ch, VIDEO2, or VIDEO3) you want to record.

2Set the cassette deck or MD recorder to record.

3Press and hold the DIMMER key for more than 2 seconds to

select the A-REC or M-REC mode.

• The mode changes every 2 seconds as shown below.

1Rec mode off : The digital input record mode is

switched off.

2A-REC : The digital input signals (DTS,

Dolby Digital, or PCM) are identi-

fied automatically and converted

into stereo signals that are ready

for recording.

3M-REC : The input signal type at the mo-

ment this mode is selected is held

throughout this mode.

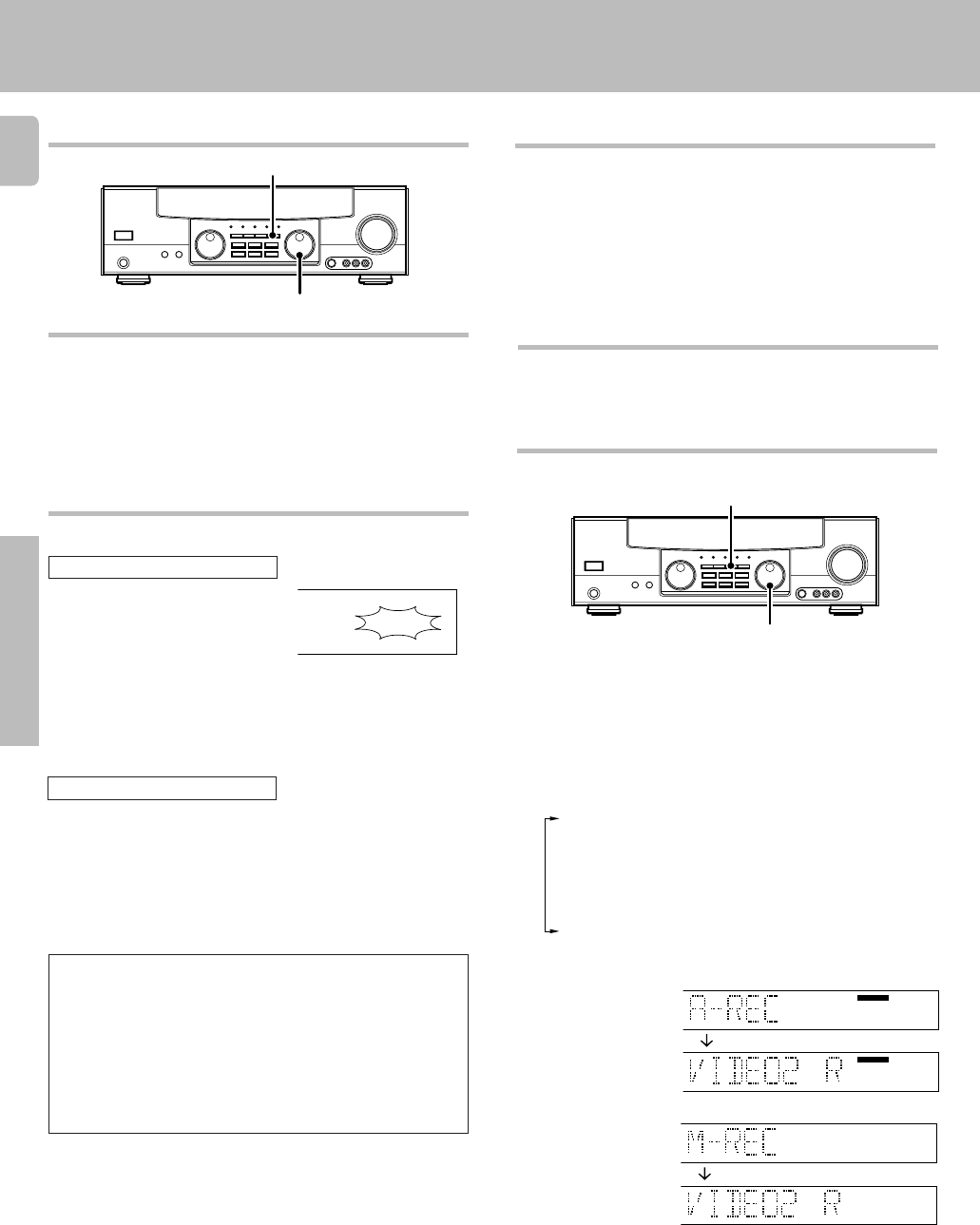

Recording audio (digital sources)

Switch on the REC mode to record a digital input source.

Usually use the A-REC (Auto-Record) mode to record audio input

sources. When the digital mode changes during recording in the A- REC

mode, the audio may be interrupted momentarily.

4Play the source from the beginning and start recording.

• If the audio reproduction stops in the middle due to change in the

input signals, etc., press the DIMMER key.

Recording video

1Use the INPUT SELECTOR to select the video source (other

than “VIDEO1”) you want to record.

2Set the video deck connected to VIDEO 1 to record.

• Select the REC MODE to record a digital input source.

3Start playback, then start recording.

• Recording may not be normal for some video software. This is due to

the copy guard condition.

Recording music in A-REC or M-REC mode

INPUT SELECTOR

DIMMER

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

PRO LOGIC

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

PRO LOGIC

STEREO

DIGITAL

AUTO SOUND

DIGITAL

AUTO SOUND

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

PRO LOGIC

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

PRO LOGIC

STEREO

DIGITAL

AUTO SOUND

DIGITAL

AUTO SOUND

For A-REC mode:

For M-REC mode:

*509/24-26/EN 3/15/01, 2:15 PM24

Operations

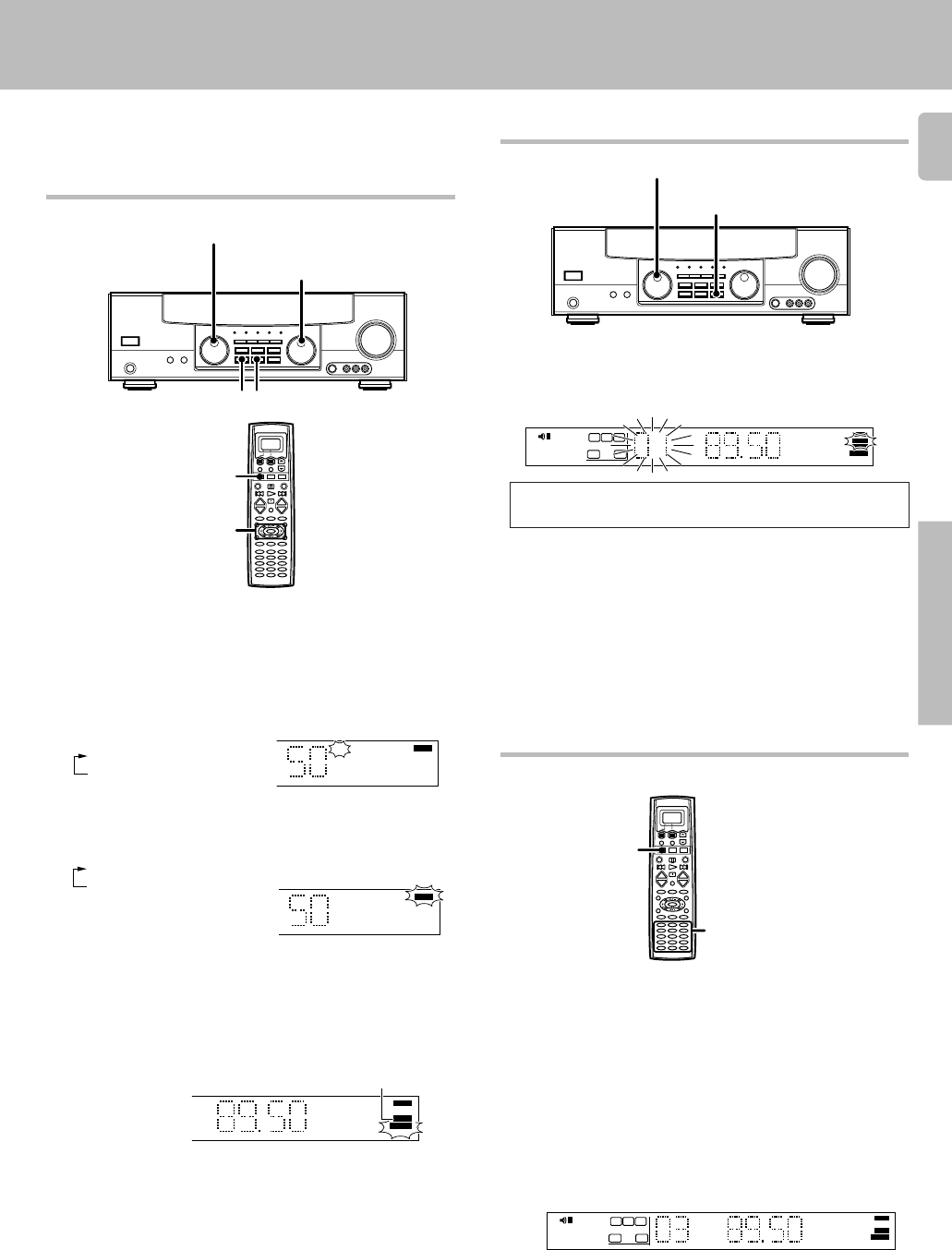

Listening to radio broadcasts

Each press switches the tuning method as follows:

Auto tuning : The next station is tuned automatically.

Manual tuning : Turn the knob (or press the keys) to select the

desired station.

Each press switches the band

as follows:

1 AUTO lit (auto tuning)

2 AUTO not lit (manual tuning)

Tuning radio stations

Frequency

display

“TUNED” appears in the

display when a station is

received.

• Normally, set to “AUTO” (auto tuning). If the radio waves are weak

and there is a lot of interference, switch to manual tuning. (With

manual tuning, stereo broadcasts will be received in monaural.)

“AM” or “FM” appears in the

display.

Use the INPUT SELECTOR knob or MUSIC key to select the

tuner.

Use the BAND key to select the desired broadcast band.

Use the AUTO/CINEMA EQ. key to select the desired

tuning method.

Use the MULTI CONTROL knob or TUNING

keys to

select the station.

1 FM

2 AM

Presetting radio stations manually

• Repeat steps 1, 2, 3, and 4 to store as many stations as necessary.

• If you store a station at a previously used preset, the old station will

be replaced by the new one.

Press the MEMORY key while receiving the station.

Proceed to step 3 within 5 seconds.

(If more than 5 seconds elapse, press the MEMORY key again).

Blinks for 5 seconds Lights for 5 seconds

Tune to the station you want to store.

Receiving preset stations

Enter the number of the preset you want to receive (up to

“40”).

Press the numeric keys in the following order:

For “15”, press .......... 0,5

For “20”, press .......... 0,0,)

• If you make a mistake entering a two digit number, press the +10 key

repeatedly to return to the original display and start again.

“ST.” lights up when a broadcast

is being received in stereo.

Use the MULTI CONTROL knob or TUNING

keys to

select one of the station presets (1 – 40).

Press the MEMORY key again to accept the setting.

Use the MUSIC key to select the tuner as the source.

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

MHz STEREO

AUTO

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO SOUND

MHz STEREO

AUTO

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

AUTO SOUND

MEMO

MHz STEREO

AUTO

TUNED

ST.

–

MUSIC

Numeric keys

MULTI CONTROL

MEMORY

“AUTO” indicator lights

up in the display.

The receiver can store up to 40 stations in the memory and recall them by

one-touch operation.

—

MULTI CONTROL

INPUT SELECTOR

BAND AUTO/CINEMA EQ.

TUNING2/3

BAND

AUTO

MUSIC

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

AUTO SOUND

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

MHz STEREO

AUTO

TUNED

ST.

MEMO

SP A

kHz

PRO LOGIC

DOWN MIX

DIGITAL

S.DIRECT

MONITOR

DSP

AUTO SOUND

LFE

SRSLS

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

MHz STEREO

AUTO

TUNED

ST.

MEMO

SP A

*509/24-26/EN 3/15/01, 2:15 PM25

Operations

Receiving preset stations in order

(P.CALL)

• Each time you press the key, another preset station is received in

order.

Pressing the ¢ key does the following:

= 01=02=03= …= … 38=39=40

Pressing the 4 key does the following:

01+02+03+ …+ … 38+39+40+

Holding down the ¢ or 4 key lets you skip through the

presets, receiving each preset station at 0.5 second intervals.

Use the MUSIC key to select the tuner as the source.

Use the

keys to select the desired station.

—

4/¢

MUSIC

Listening to radio broadcasts

*509/24-26/EN 3/15/01, 2:15 PM26

Operations

Ambience effects

This receiver is equipped with listening modes that allow

you to enjoy an enhanced sonic ambience with a variety of

video sources.

In order to obtain the optimum effect from the surround

modes, make sure to input the proper speaker settings

beforehand. )

Surround modes

Dolby Digital

The Dolby Digital surround format lets you enjoy up to 5.1 channels of

digital surround sound from Dolby Digital program sources (such as

Laserdisc or DVD software marked ). Compared with previous

Dolby surround, Dolby Digital provides even better sound quality,

greater spatial accuracy, and improved dynamic range.

Note

Although a full set of speakers (front left, right, and center, surround left

and right, and a subwoofer) is required for true 5.1 channel Dolby Digital

surround sound, this receiver lets you enjoy Dolby Digital (and Dolby

Surround) program sources, even if you connect only the front speakers.

* LFE = Low Frequency Effects. This channel delivers separate non-

directional bass signals to the subwoofer for more dynamic deep bass

sound effects.

Although only Dolby Digital soundtracks incorporate a separate low

frequency channel, connecting a subwoofer will also improve deep bass

performance in the other surround modes.

The indication “LFE” appears in the display when a signal is being input

for this channel.

Front speakers (L, R)

Subwoofer (SW)*

Center speaker

Surround speakers (L, R)

DTS

The DTS multi-channel audio format is available on CD, LD and DVD

software. DTS is a strictly digital format and can not be decoded inside

most CD, LD or DVD players. For this reason, if you attempt to listen to

DTS encoded software through the analog output of your new CD, LD

or DVD player, you will experience digital noise in most cases. This noise

can be quite loud if the analog output is connected directly to a high

power amplification system. Proper measures for playing the digital

output as described below should be taken to avoid this situation. To

enjoy DTS Digital Surround playback, an external 5.1 channel DTS

Digital Surround decoder system or an amplifier with a built-in DTS

Digital Surround decoder must be connected to the digital output (S/P

DIF, AES/EBU or TosLink) of a CD, LD or DVD player.

* Optional in this mode.

* LFE = Low Frequency Effects. This channel delivers separate non-

directional bass signals to the subwoofer for more dynamic deep

bass sound effects.

DTS has a .1 or LFE channel.

The indication “LFE” appears in the display when a signal is being

input for this channel.

Front speakers (L, R)

Subwoofer (SW)*

Center speaker

Surround speakers (L, R)

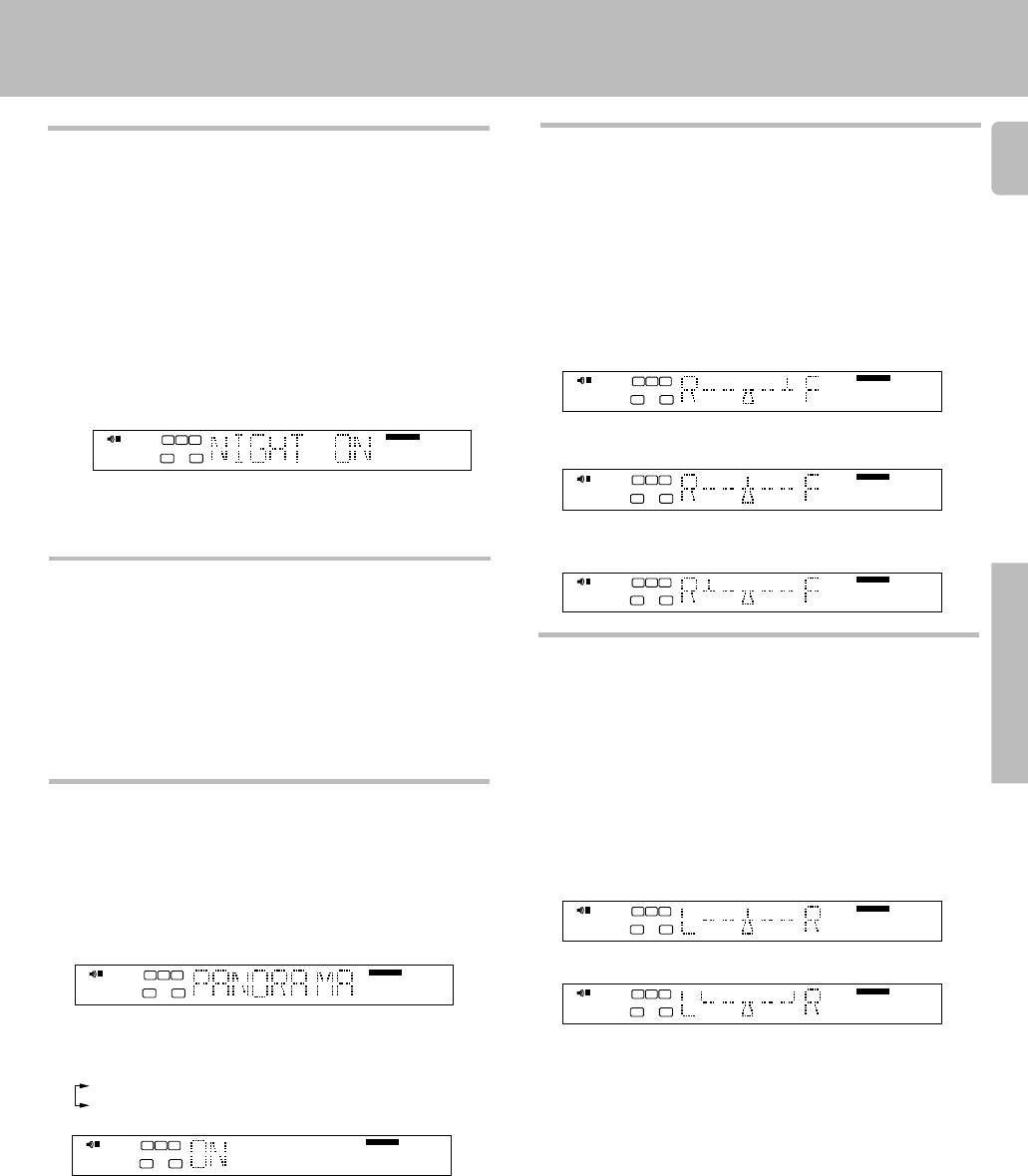

Dolby Pro Logic II

Dolby Pro Logic II was designed specifically to provide a new sense of

spatiality, directionality and articulation of sounds from Dolby Surround

encoded sources (such as video and Laserdisc software marked

). This is achieved with an intelligent, built-in feedback logic

design, a matrix surround decoding and the decoding of stereo, full

bandwidth surround outputs. The PRO LOGIC II modes programmed

into this receiver are “MOVIE”, “MUSIC” and “PRO LOGIC”. The

“MOVIE” mode of the PRO LOGIC II has preset characteristics to

produce a calibrated, high-level surround sound playback while the

“MUSIC” mode has user-adjustable characteristics to offer the optional

controls, like “Dimension”, “Center Width” and “Panorama mode” to

allow optimization of the soundfields as desired. The “Dimension”

control allows the user to gradually adjust the soundfield either towards

the front or towards the rear; the “Center Width” control allows various

adjustment of the left-center-right speakers' balance; the “Panaroma

mode” extends the front stereo image to include the surround speaker

for an exciting “wraparound” effect with side wall imaging.

Front speakers (L, R)

Subwoofer (SW)

Center speaker

Surround speakers (L, R)

Manufactured under license from Digital Theater

Systems, Inc. US Pat. No. 5,451,942 and other

worldwide patents issues and pending.

“DTS” and “DTS Digital Surround” are trademarks of

Digital Theater Systems, Inc.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”

and the double-D symbol are trademarks of Dolby Laboratories. Confidential

Circle Surround and the symbol are trademarks of SRS Labs, Inc.

in the United States and selected foreign countries. Circle Surround

technology is incorporated under license from SRS Labs, Inc.

*509/27-32/EN 3/15/01, 2:15 PM27

Operations

Ambience effects

Center speaker

DSP mode

The DSP mode lets you add the atmosphere of a live concert or hall to

almost any type of program source. These modes are particularly

effective when used with stereo program sources, like CD, television,

and FM radio. You might enjoy trying the ARENA, JAZZ CLUB,

THEATER, STADIUM or DISCO mode the next time you watch a concert

or sporting event!

Front speaker (L, R)

Subwoofer (SW)

Surround speaker (L, R)

What's DSP?

DSP stands for Digital Signal Processor.

The way a sound is heard in an actual environment depends on a variety

of different factors. One of the most important is reverberation (the act

of decaying elements of sound echoing in various places).

The DSP modes produce the feeling of presence by using the DSP to

create reverberation, without spoiling the sound quality of the original

signal.

DVD 6-channel mode

Using a DVD player or the like equipped with six (5.1) output channels

and the receiver, you can enjoy multi-channel encoded DVD source

material in all its splendor. Since the source signals are digital and each

channel is input independently, the resulting sound quality, sense of

spaciousness, and dynamic range are superb.

Front speakers (L, R)

Subwoofer (SW)*

Center speaker

Surround speakers (L, R)

* LFE = Low Frequency Effects. This channel delivers separate non-

directional bass signals to the subwoofer for more dynamic deep bass

sound effects.

Front speakers (L, R)

Subwoofer (SW)

Center speaker

Dolby 3 Stereo

Dolby 3 Stereo is available for systems that do not have surround

speakers. When in the Dolby 3 Stereo mode, the surround information

is redirected to the front left and right speakers. This mode is designed

for use with Dolby Surround program sources, but can also improve

sound field unity for programs that are not Dolby Surround encoded.

Dialog positioning and sound image definition, however, may not be as

accurate when used with programs that are not Dolby Surround

encoded.

SRS Circle surround enables you to listen to multi channel sound from

the stereo source. We assume you have already enjoyed listening to

Dolby digital sound/DTS multi channel sound with your multi speakers.

Now, this time try listening to the stereo source (ex. Audio CD) using your

multi speakers. You may discover a new type of “stereo” sound through

SRS Circle Surround.

Multi channel music (SRS Circle Surround)

Front speaker (L, R)

Subwoofer (SW)

Center speaker

Surround speakers (L, R)

*509/27-32/EN 3/15/01, 2:15 PM28

Operations

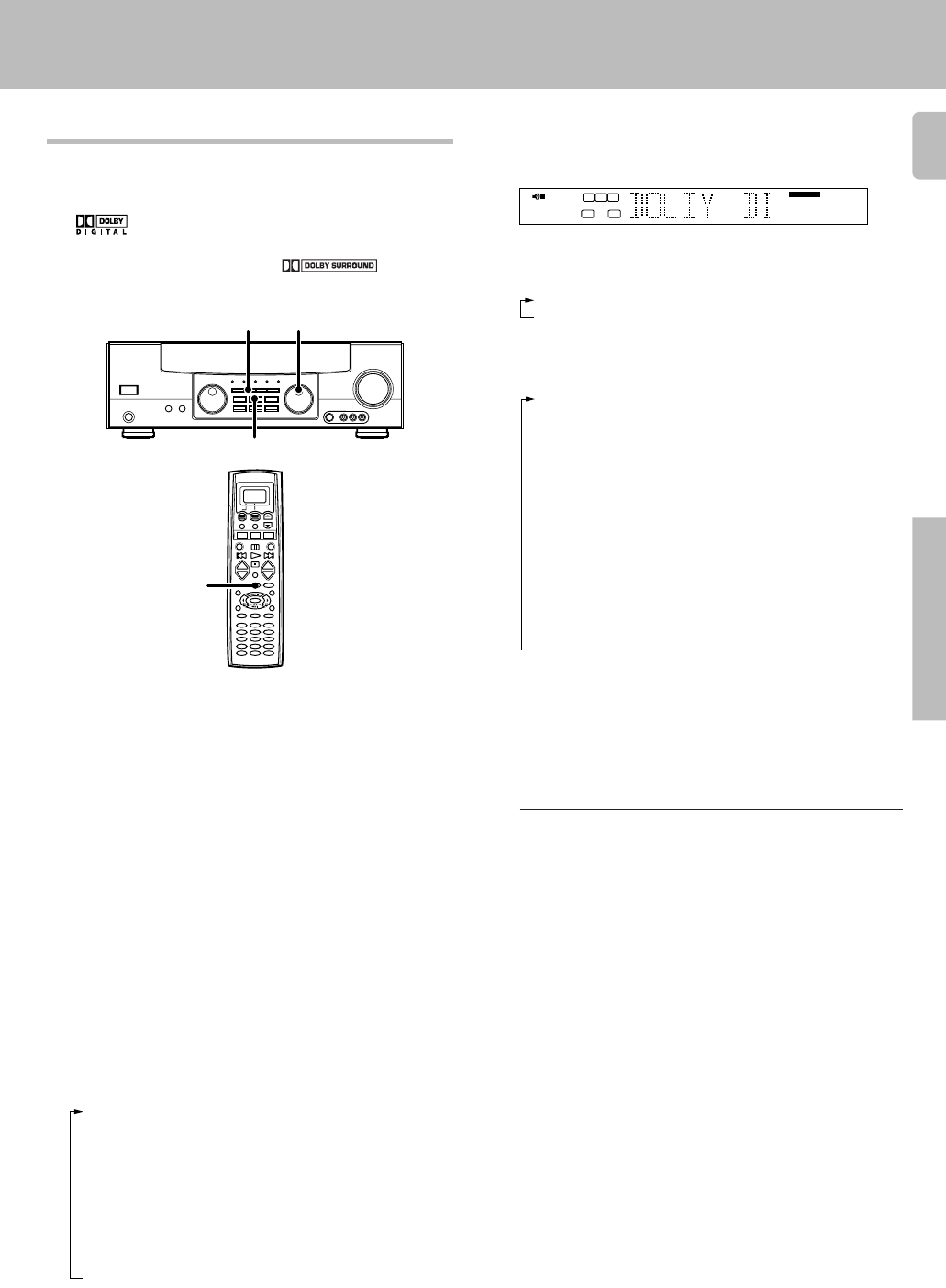

Surround Play

The DTS compatible models can reproduce a CD, DVD, or LD carrying

the DTS mark.

DOLBY DIGITAL can be used when playing DVD or LD software bearing

the mark and DOLBY DIGITAL format digital broadcasts (etc.).

DOLBY PRO LOGIC and DOLBY 3 STEREO can be used when playing

video, DVD, or LD software bearing the mark.

SRS Circle Surround enables you to listen to multi channel sound from the

stereo source.

• Turn ON related components.

• Complete “Preparing for surround sound” (speaker settings).)

• Use the INPUT SELECTOR to select the component you wish to play

back with surround sound.

• Use the INPUT MODE key to select the input mode (analog or digital)

for the source you wish to play back. 7

• Noise will be produced when a DTS source is played by selecting the

analog input.

Preparations

Start playing the video software.

Press the LISTEN MODE (LISTEN M.) key to select the

listening mode.

The listening mode settings are stored separately for each input. If the

input mode is set to digital auto (“AUTO SOUND” lights), the receiver

selects the optimal listening mode automatically based on the type of

input signal and the speaker settings.

Each press of the LISTEN MODE (LISTEN M.) key switches the

setting as listed below.

The listening mode settings are different depending on the type

of input signal.

When the DOLBY DIGITAL signal is input:

(The DOLBY DIGITAL, PRO LOGIC, or 3 STEREO indicator lights up.)

1DOLBY DIGITAL: DOLBY DIGITAL surround (The DOLBY

DIGITAL indicator lights up.)

2PL II MOVIE: PRO LOGIC II surround MOVIE mode (The

PRO LOGIC indicator lights up.)

3PL II MUSIC: PRO LOGIC II surround MUSIC mode (The

PRO LOGIC indicator lights up.)

4PRO LOGIC: PRO LOGIC II surround PRO LOGIC mode

(The PRO LOGIC indicator lights up.)

53 STEREO: 3-STEREO mode (The 3 STEREO indicator

lights up.)

6STEREO: Normal stereo playback.

When you select DOLBY DIGITAL

“DOLBY DIGITAL” will be scrolled from right to left.

When the DTS signal is input:

(The DTS indicator lights up.)

1DTS: DTS surround

2STEREO: Normal stereo playback

When the analog signal or the digital signal (except for

DOLBY DIGITAL or DTS signal) is input:

1PL II MOVIE: PRO LOGIC II surround MOVIE mode (The

PRO LOGIC indicator lights up.)

2PL II MUSIC: PRO LOGIC II surround MUSIC mode (The

PRO LOGIC indicator lights up.)

3PRO LOGIC: PRO LOGIC II surround PRO LOGIC mode

(The PRO LOGIC indicator lights up.)

43 STEREO: 3-STEREO mode (The 3 STEREO indicator

lights up.)

5CIRCLE SURROUND: CS 5.1 surround (The CS 5.1 indi-

cator lights up.)

6ARENA: DSP Surround ARENA mode.

7JAZZ CLUB: DSP Surround JAZZ CLUB mode.

8THEATER: DSP Surround THEATER mode.

9STADIUM: DSP Surround STADIUM mode.

0DISCO: DSP Surround DISCO mode.

-STEREO: Normal stereo playback. Sound is produced

from the two front channels only.

Ambience effects

INPUT SELECTOR

INPUT MODE

LISTEN MODE

—

LISTEN M.

STEREO

MHz

kHz

PRO LOGIC

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

MUTE

RDS EON PTY

TP TA NEWS

SP A

RCL

SRSL

LFE

AUTO SOUND

DIGITAL

Adjust the volume.

Notes

• Depending on the type of the signal or speaker setting, some

listening modes cannot selected.

• When playback is started, the sound may be cut or interrupted

before the input source is confirmed as Dolby Digital.

• To enjoy Dolby Digital surround (as well as all the other listening

modes) from a single component, be sure to use Dolby Digital

compatible source component's Dolby Digital format digital audio

signal to one of the DIGITAL INPUT jacks on the back of the

receiver. Connect the normal audio signal correctly to the respec-

tive component's AUDIO jacks. 890@

• If Dolby Digital or DTS signal having more channels than the

maximum number of playback channels available using the

receiver's current settings is input, the DOWNMIX indicator on the

front panel lights up and downmixing to match the number of

available channels.

*509/27-32/EN 3/15/01, 2:16 PM29

Operations

Ambience effects

DVD 6-channel playback

Using a DVD player or the like equipped with six (5.1) output channels and

the receiver, you can enjoy surround sound playback.

When you try to play a disc other than Dolby Digital such as DTS CD, no

sound is produced or, noise may be heard. To avoid this situation, make

sure that you connect the component to the receiver’s DVD/6ch. INPUT

jacks through a surround processor which can decode the surround

signal you want to listen to.

Connecting a DVD player which can decode the surround signal itself is

also acceptable.

Preparations

Use the INPUT SELECTOR to select “DVD/6ch” or MOVIE key

on remote control (if it was registered beforehand) as the

input source.

• If speaker system B is on when “DVD/6ch” is selected as the input

source, it switches off and speaker system A turns on automatically.

Start playback of the DVD software.

Adjust the volume.

• It is not possible to adjust the volume level or sound quality (SET UP,

SOUND) of the channels separately when the receiver is in the DVD/

6ch mode. Adjust the volume with the controls of the DVD player.

For the powered subwoofer, you can adjust the volume of the

subwoofer using the subwoofer’s own volume control.

• Connect your DVD player to the DVD/6ch jacks of the receiver.

• Turn on all other components that will be used.

• Complete “Preparing for surround sound”. )

INPUT SELECTOR

INPUT MODE

MOVIE

—

Select “6ch INPT” by pressing the INPUT MODE key.

Convenient functions

Adjusting the sound

You can make further adjustments to the sound while listening to

playback in the surround mode.

1Press the SOUND key until the desired item appears in the

display.

Each time you press the button, the menu changes as follows:

Note that some items are not displayed in certain modes.

1BASS (low frequency range sound quality adjustment - PCM and

analog stereo modes only) £

2TREB (high frequency range sound quality adjustment - PCM and

analog stereo modes only) £

3C (center speaker level adjustment)

4SR (right surround speaker level adjustment)

5SL (left surround speaker level adjustment)

6SW (subwoofer level adjustment)

7INPUT (input level adjustment - analog mode only) ¡

8NIGHT (midnight mode ON/OFF-Dolby Digital mode only)

9CINEMA or MUSIC (Circle Surround mode only)

0PANORAMA (Panorama mode ON/OFF*)

-DIMENSION (Dimension adjustment*)

=CENTER WIDTH (Center width adjustment*)

*Pro Logic II Music mode only

2Use the MULTI CONTROL knob or 5/∞ keys to adjust the

setting as desired.

• The adjustment item is displayed for approximately 8 seconds.

—

DIMMER/SOUND SUB W.

VOL.

MULTI CONTROL

SOUND LISTEN MODE

VOLUME

DIMMER

LISTEN. M

5/∞

*509/27-32/EN 3/15/01, 2:16 PM30

Operations

Ambience effects

1Press the SOUND key repeatedly until “NIGHT” appears in the

display.

• This can be selected only if CD/DVD, DVD/6ch, VIDEO2 or

VIDEO3 is selected as the source and the listen mode is set to

“DOLBY DIGITAL”.

2Use the MULTI CONTROL knob or 5/∞ keys to select the ON or

OFF setting.

• The adjustment item is displayed for approximately 8 seconds.

• Some Dolby Digital software may not be compatible with the Mid-

night mode.

SW STEREO

MHz

kHz

PRO LOGIC

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP ARCL

SRSL

LFE

DIGITAL

AUTO SOUND

Circle surround mode

When you enjoy multi sound from the stereo source (Circle Surround), you

can select the circle surround mode.

1Press the LISTEN MODE (LISTEN M.) key so that “CIRCLE

SURROUND” is displayed.

2Press the SOUND key so that “CINEMA” or “MUSIC” is displayed.

3Use the MULTI CONTROL knob or 5/∞ keys to select “CINEMA”

(for movies) or “MUSIC” (for music).

Panorama mode (Pro Logic II Music mode only)

When listening to music, you will be able to enjoy the “wraparound” sound

effect when you adjust the panorama mode.

1Press the SOUND key repeatedly until “PANORAMA” appears in

the display.

• The PANORAMA setting indication scrolls across the display.

“PANORAMA” will be scrolled from right to left.

2Use the MULTI CONTROL knob or 5/∞ keys to select

PANORAMA ON or OFF.

1ON :PANORAMA mode is ON.

2OFF :PANORAMA mode is OFF.

PRO LOGIC

CLIP

SP A

RCL

SRSL

AUTO SOUND

DIGITAL

PRO LOGIC

CLIP

SP A

RCL

SRSL

AUTO SOUND

DIGITAL

PRO LOGIC

CLIP

SP A

RCL

SRSL

AUTO SOUND

DIGITAL

PRO LOGIC

CLIP

SP ARCL

SRSL

AUTO SOUND

DIGITAL

When watching movies at night you might not be able to raise the volume

as loud as normal. Midnight mode compresses the dynamic range of

previously specified parts of the Dolby Digital sound track (like scenes with

sudden increases in volume) to minimize the difference in volume between

the specified and non-specified parts. This makes it easy to hear all of the

sound track, even when listening at low volumes.

Midnight mode (Dolby Digital mode only)

PRO LOGIC

CLIP

SP ARCL

SRSL

AUTO SOUND

DIGITAL

PRO LOGIC

CLIP

SP A

RCL

SRSL

AUTO SOUND

DIGITAL

Dimension mode (Pro Logic II Music mode only)

When listening to music with certain recordings, you will also be able to

achieve a suitable balance from all the speakers by adjusting the dimension

mode.

1Press the SOUND key repeatedly until “DIMENSION” appears

in the display.

• The DIMENSION indication scrolls across the display.

2Use the MULTI CONTROL knob or 5/∞ keys to adjust the

soundfield towards the rear or the front.

Soundfield is adjusted towards the front.

Soundfield is in neutral postion.

Soundfield is adjusted towards the rear.

Center width mode (Pro Logic II Music mode only)

Center width adjustment allows you to enjoy an enchanced sound when

listening to music through center image from only center speaker, or left and

right speakers or various combinations adjustments.

1Press the SOUND key repeatedly until “CENTER WIDTH”

appears in the display.

• The CENTER WIDTH indication scrolls across the display.

• When the center speaker is switched OFF, this mode will not be

effective.

2Use the MULTI CONTROL knob or 5/∞ keys to adjust the left-

center-right output.

Center image will be heard from center speaker only.

Center image will be heard from left and right speakers only.

• When in other positions, center image from center speaker, left and

right speakers can be heard simultaneously with various combinations.

PRO LOGIC

CLIP

SP A

RCL

SRSL

AUTO SOUND

DIGITAL

*509/27-32/EN 3/15/01, 2:16 PM31

Operations

Display dimmer adjustment

The dimmer function lets you select the brightness of the receiver's

display. You might find this useful if you darken your room to watch movies

or listen to music.

Each time you press the DIMMER key, the display brightness

changes among the three available settings. Select the bright-

ness level you find most pleasing.

When using the remote control unit, press F. SHIFT key, then

press DIMMER key

SRSL

LFE

DIGITAL

AUTO SOUND

STEREO

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

RCL

PRO LOGIC

LFE

DIGITAL

AUTO SOUND

STEREO

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

RCL

PRO LOGIC

LFE

DIGITAL

AUTO SOUND

STEREO

MHz

kHz

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

RCL

PRO LOGIC

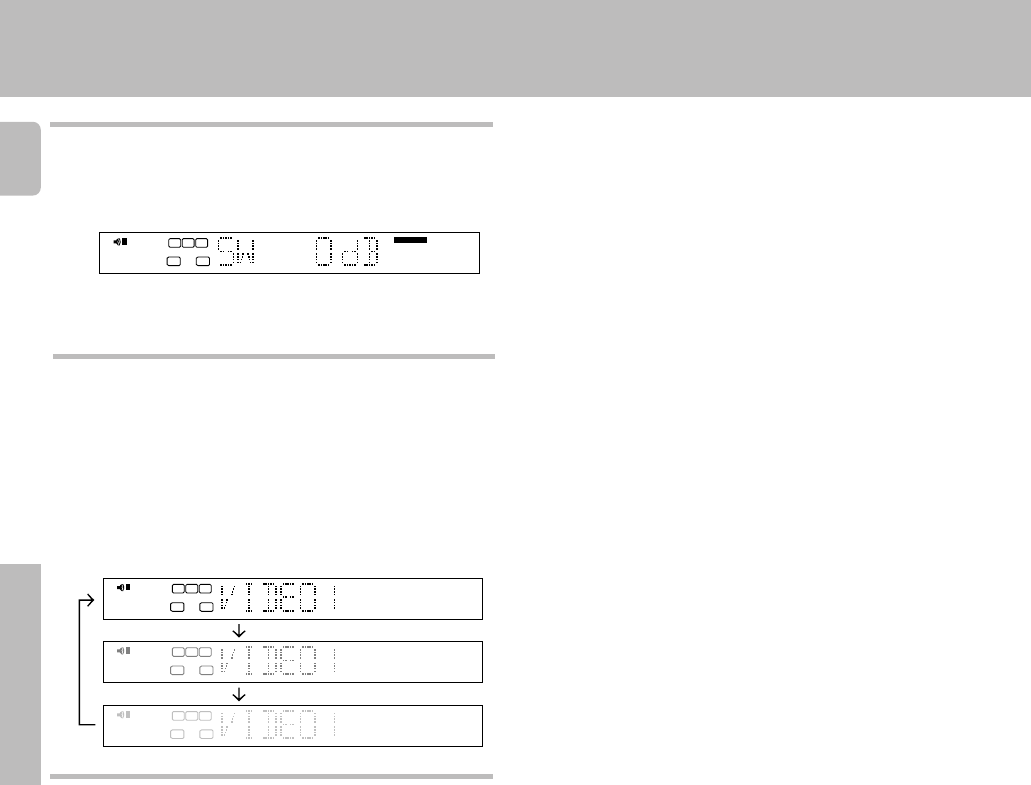

SUBWOOFER adjustment

It is easy to adjust the volume of the subwoofer using the remote control.

1Press the F. SHIFT key, then press the SUB W. key on the remote

control so that “SW” is displayed.

2Use the VOLUME keys (VOL. +/– keys) to adjust the volume.

•The adjustable range is -10 dB to +10 dB.

LFE

STEREO

MHz

kHz

PRO LOGIC

DOWN MIX

S.DIRECT

MONITOR

DSP

MEMO

ST.

TUNED

AUTO

TI.VOLB

CLIP MUTE

RDS EON PTY

TP TA NEWS

SP A

RCL

SRSL

DIGITAL

AUTO SOUND

96kHz LPCM playback

The receiver is compatible with the 96kHz LPCM playback. To play a

96kHz DVD, set the listen mode to “STEREO”.

• When “96kHz” appears in the display, press the LISTEN MODE key (the

listen mode changes to the STEREO mode).

Ambience effects

*509/27-32/EN 3/15/01, 2:16 PM32

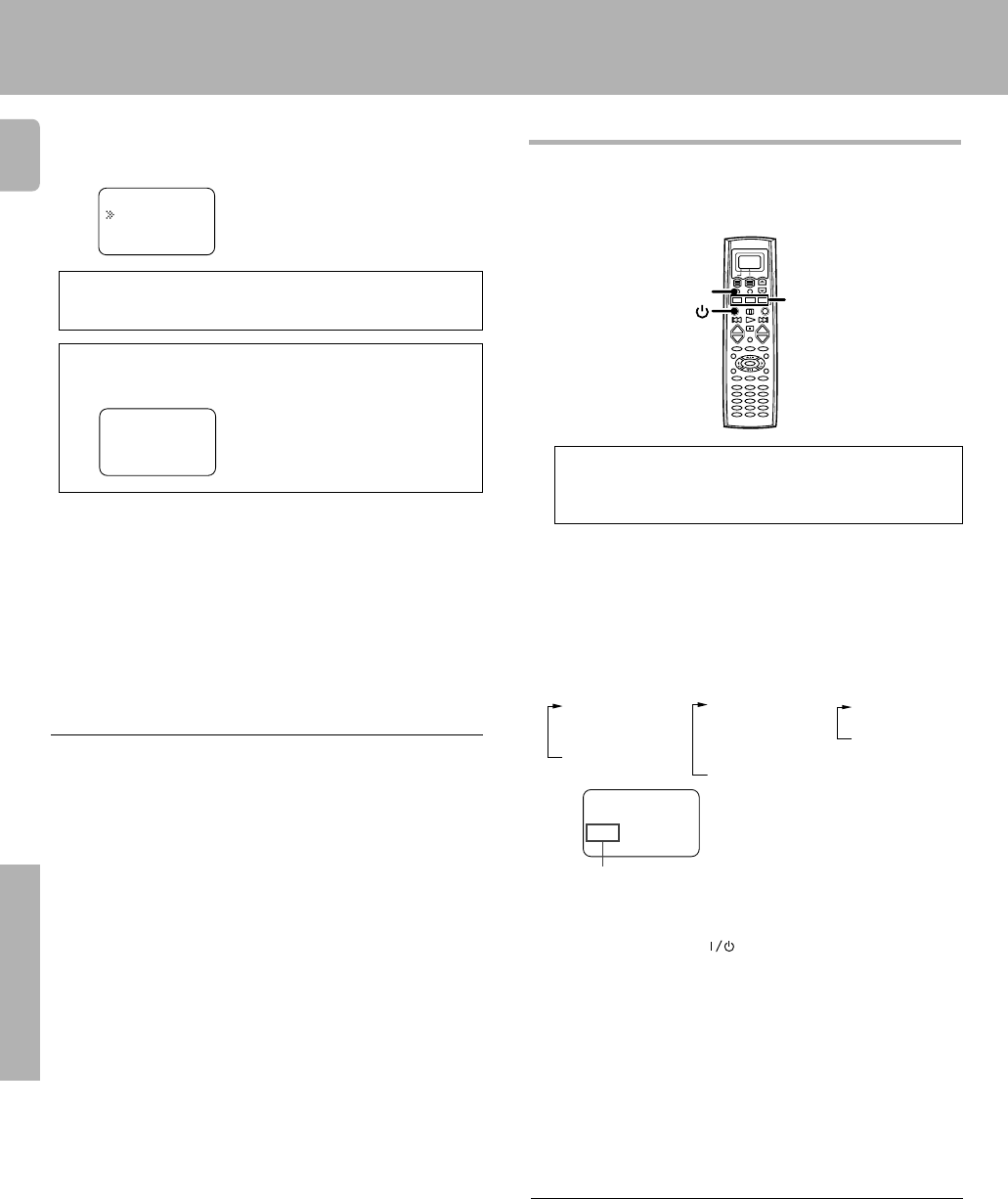

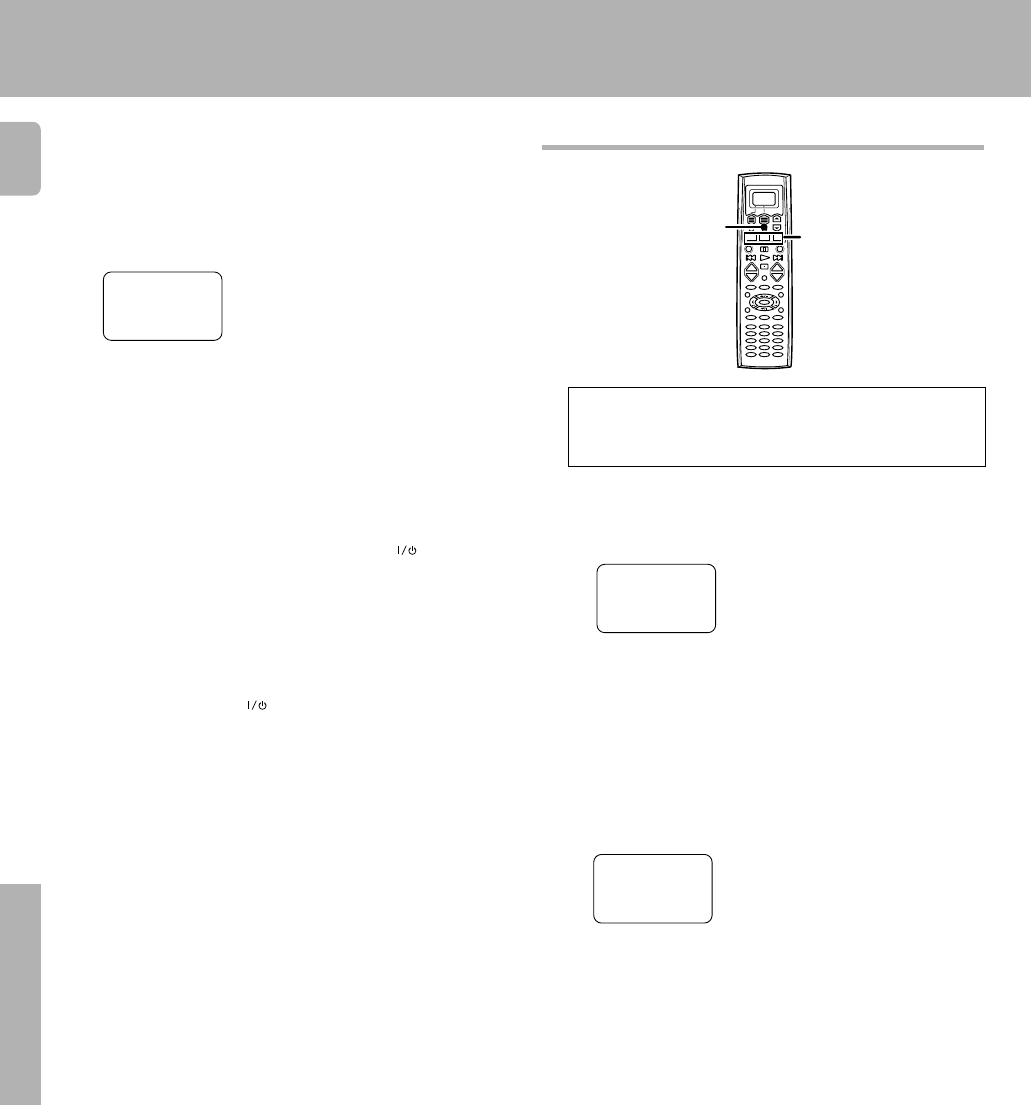

Remote Control

Press the display operation 1 key repeatedly until

“

” appears in the display.

Press the display operation 2 [Menu] key repeatedly until

“

01.IR

” appears in the display.

• At this time all inputs become available regardless of any earlier

registration.

For step 1 through step @, make sure you start the next step

within 8 seconds of completing the previous one. If more than

8 seconds elapses between any two steps, press the display

operation keys so that the display appears.

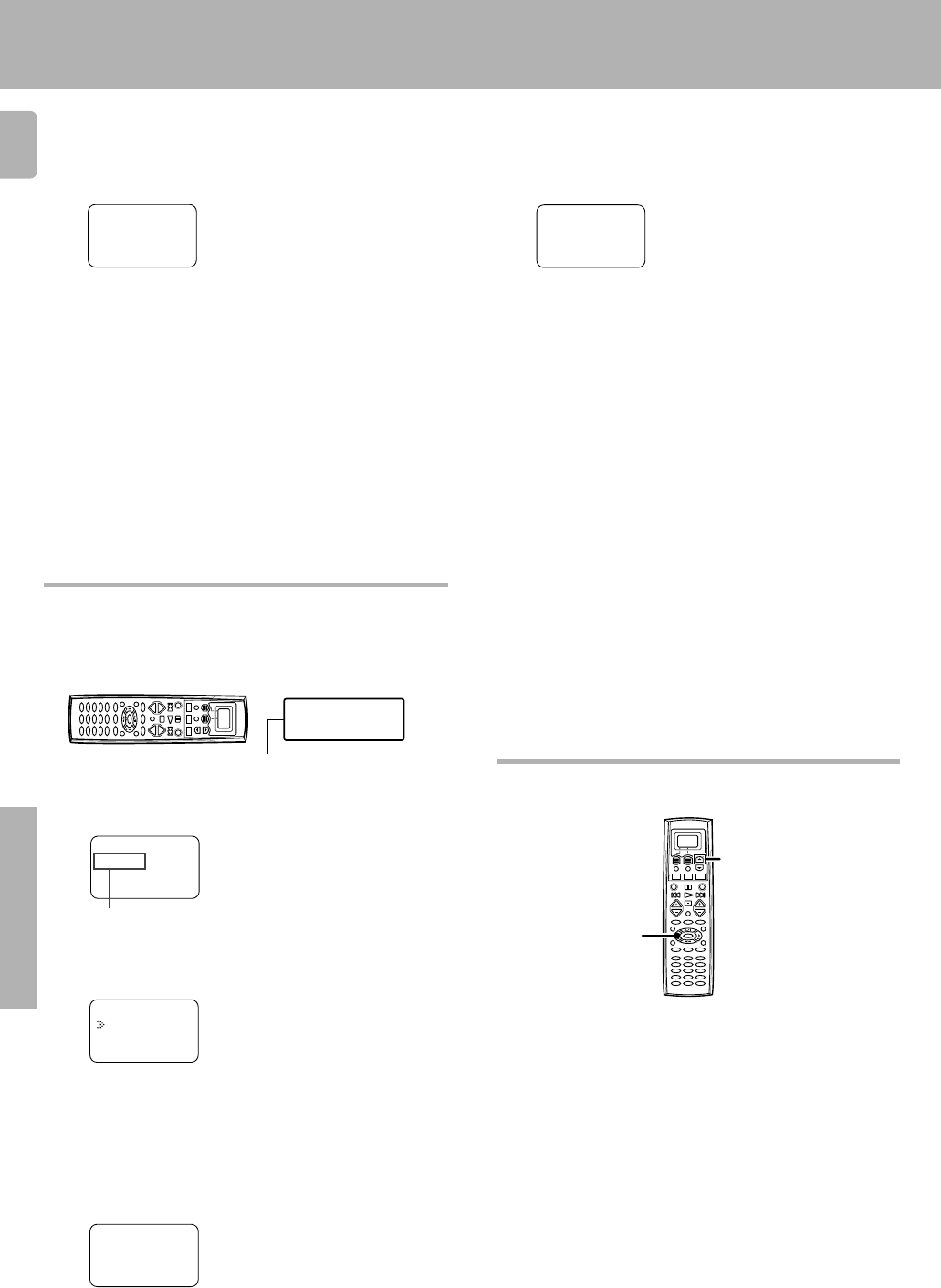

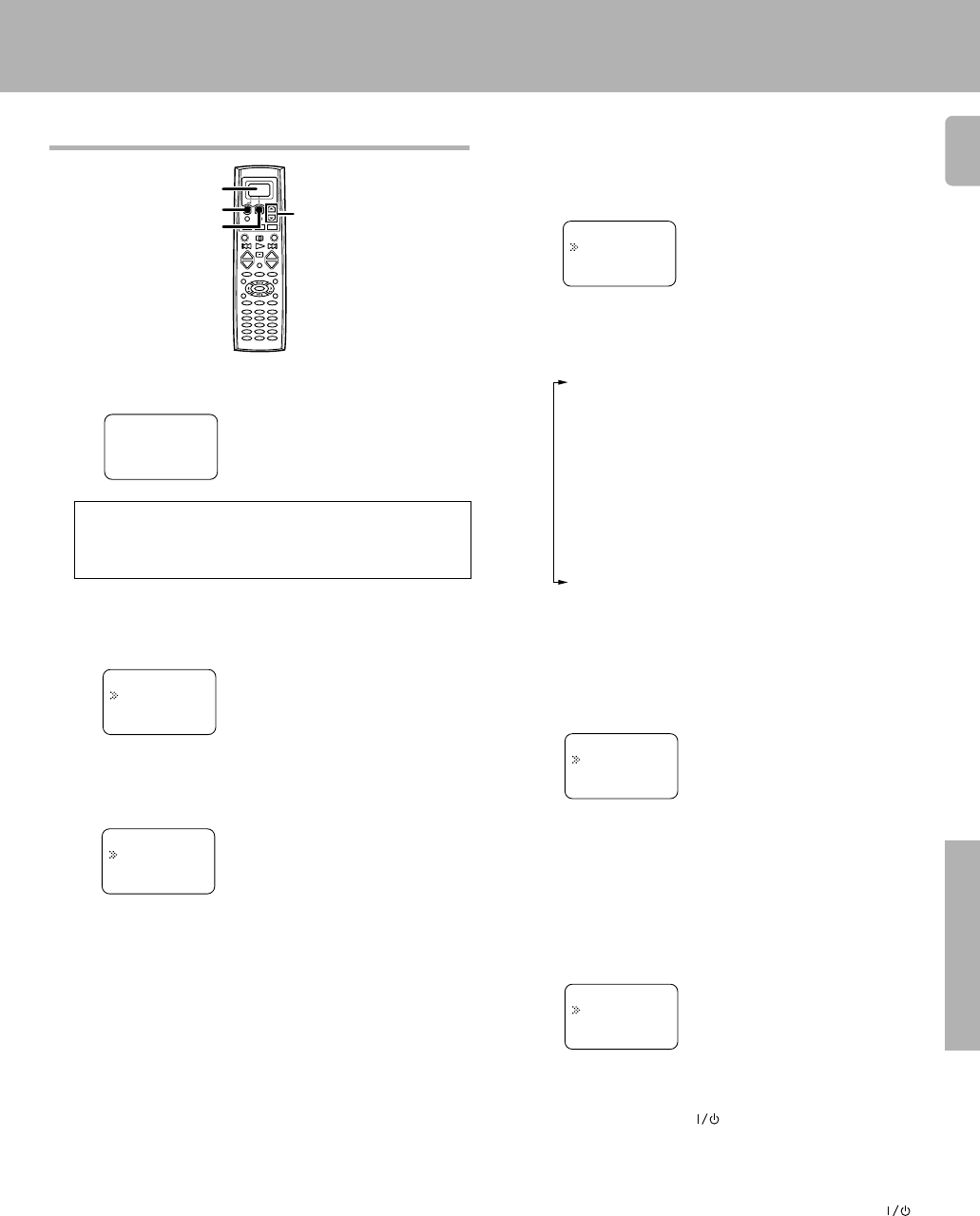

Registering setup codes for other components

VCR

Video1:

• The setup display appears.

Press the

∞

keys to select “

01.IR

”, then press the

display operation 2 [Enter] key.

• The input selecting display appears.

Press the

∞

keys to select the input that you want to

• Each time you press the 5/∞ key, the input changes as follows:

01: CD/DVD

02: MD/Tape

03: Video1

04: Video2

05: Video3

06: DVD

07: TV1

08: TV2

09: Cable

10: Phono

Display operation 1 5/∞

Display operation 2

—

Display

>04.Video2

>03.Video1

Back Enter

>02.Surround

>01.IR

Home Enter

• Example: To select the source connected to the VIDEO1 jack, select

“Video1”.

Press the display operation 2 [Enter] key.

• The source selecting display appears.

• When you select “Phono” in step 4, go to step 0.

Press the

∞

keys to select the source you want to

• Each time you press the 5/∞ key, the input changes as follows:

01: CD

02: Tape

03: MD

04: CD-R

05: VCR

06: Cable

07: Satellit

08: TV

09: LD

10: DVD

11: DSS

12: No type

13: Delete

• Select “No type” when the desired source does not appear in the

display.

• The selected input does not appears when you select “Delete”.

Press the display operation 2 [Enter] key.

• The maker selecting display appears.

Press the

∞

keys to select the maker you want to

• Press the 5/∞ keys until the desired maker appears in the display.

When the desired maker does not appear, select “Nothing”.

Press the display operation 2 [Enter] key.

• The setup code selecting display appears.

Press the

∞

keys to select the setup code.

Press the AV POWER key, and check to see that the

component you want to control turns on.

If the component does not react, and there is more than one

setup code, enter another setup code and try again.

• If the component is already on, pressing the AV POWER key

will turn it off.

>06.Cable

>05.VCR

Back Enter

>02:Nothing

>01:0056

Back Enter

>Admidral

>Kenwood

Back Enter

Remote control operations

Continued to next page

*509/33-39/EN 3/15/01, 2:16 PM33

Remote Control

VCR

Video1:

Repeat steps

to register additional components

until all components have been registered.

Press the display operation 2 [Enter] key.

• The display returns to the setup display.

To returns to the initial display, press display operation

1 [HOME] key repeatedly until “

” appears in the

display.

• Once registered, the display on the receiver shows the component

type instead of the default input name.

Example: if you register a VCR at the VIDEO 1 jacks, “Video1” and

“VCR” appear in the display.

• Any VIDEO or TV (TV1, TV2, CABLE) inputs that have not been

programmed with a setup code or Non-IR code are deleted from the

cyclic list.

Note

Although each setup code is designed to work with a number of different

models, certain codes may not work with some models. (Also, certain

codes may only operate some of the functions available on a given

model.)

Press the display operation 1 [Back] key repeatedly until the display

you want to re-operate appears.

When you make a mistake

>02.Surround

>01.IR

Home Enter

This operation lets you operate the registered components.

KENWOOD audio components with system control turn on and off

automatically with the receiver via the system control connections.

Use the MUSIC, MOVIE, or TV key to select the component

you desire.

• Pressing the MUSIC or MOVIE key also changes the input selector

on the receiver. If you do not want to change the current input, press

the SHIFT key before step 1.

Note

Be sure to point the remote control at the remote sensor on the receiver

when you want to operate KENWOOD components connected by

system control cords. Otherwise, point the remote control at the compo-

nent you want to operate.

MOVIE key

1Video1

2Video2

3Video3

4DVD 6CH

5AV AUX

MUSIC key

1CD/DVD

2TAPE or MD

3Tuner

4PHONO

TV key

1TV1

2TV2

3CABLE

Press the AV POWER key.

• The selected component turns on or off.

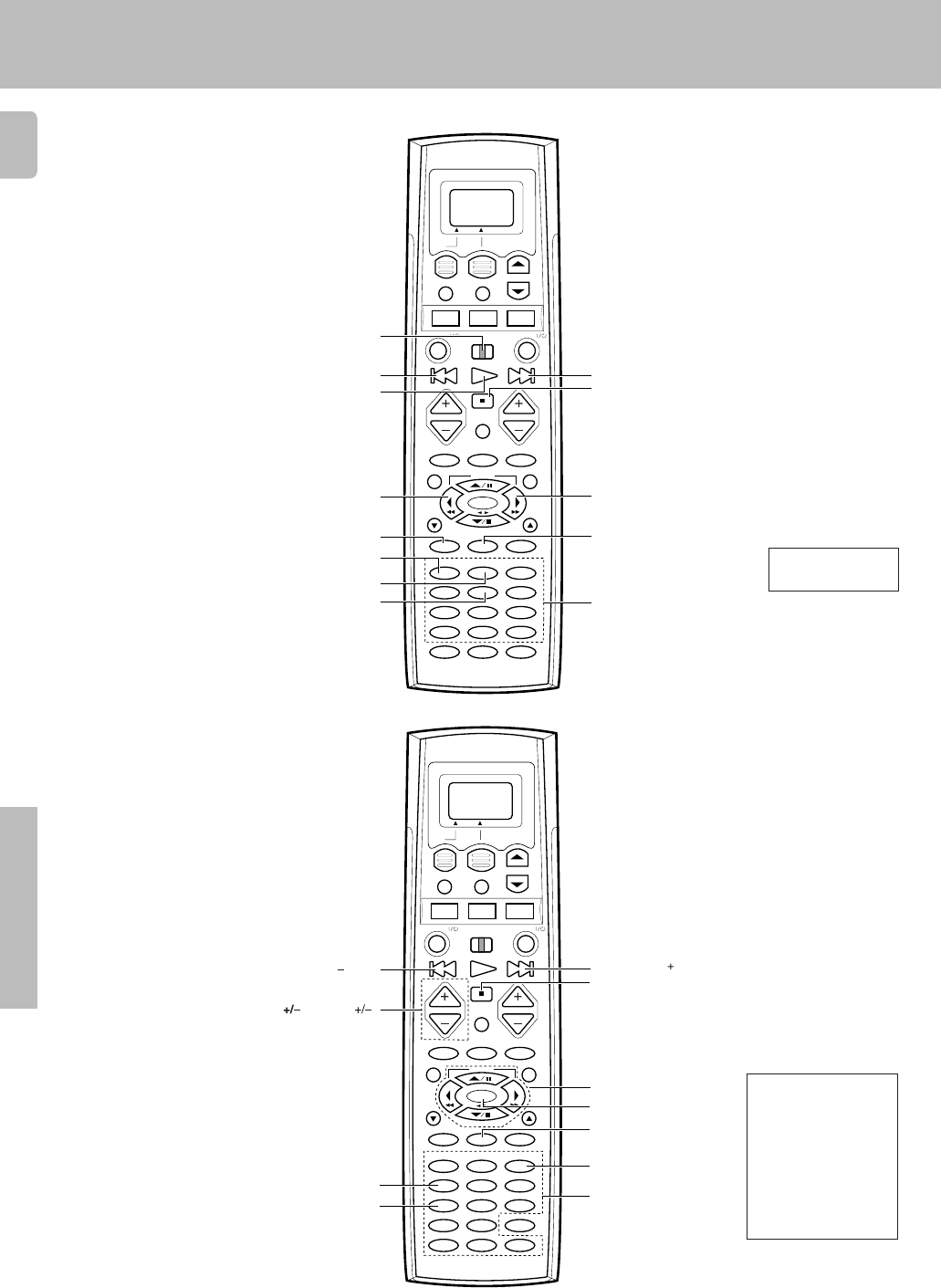

• See “Remote operation of other components” at the end of this

manual for a list of keys available with each component.

‚

The remote control mode remains in the set at the component

selected in step 1 mode until you select another component.

Press the operation keys you desire.

VCR

Video1:

Select source

During operation, make sure you start the next step within 8

seconds of completing the previous one. If more than 8

seconds elapse between any two steps, press the display

operation key so that the display appears.

AV POWER I / MUSIC, MOVIE,

–

SHIFT

• You cannot select the source that is not registered.

Operating other components

Remote control operations

*509/33-39/EN 3/15/01, 2:16 PM34

Remote Control

•“Shift” appears in the display.

Press the SHIFT key.

Press the MUSIC, MOVIE, or TV key repeatedly to display

the remote control mode for the component you want to

control.

Execute the desired operations.

• See “Remote operation of other components” for a list of keys

available with each component. ‚

The operation mode remains set at the component specified in

step 2.

To return control to the original component, press SHIFT and

then press the MUSIC or MOVIE key to return to the original

control mode.

• Pressing any other keys after the SHIFT key cancels the shift function

and sends the normal code associated with the respective key.

• The input selector does not change during this operation.

The component to be controlled

This operation lets you change the remote control operation mode without

changing the input selector.

You may find this useful when you want to control one component while

using another. (For example, if you want to rewind the tape deck while

listening to a CD.)

VCR

Shift

DVD

Shift

• To operate a TV, start form step 2.

Press the MUSIC, MOVIE, or TV key until the desired source

appears.

MUSIC, MOVIE,

–

SHIFT

During operation, make sure you start the next step within 8

seconds of completing the previous one. If more than 8

seconds elapse between any two steps, press the display

operation key so that the display appears.

Changing (confirming) the operation mode

The macro play function allows you to set the remote to control several

components in succession. After completing this setup, you can perform

a series of operations automatically. Enter the setup codes for the

components you want to control beforehand.

Preparing for automatic operations

(MACRO play)

Make a plan of the macro play you want to Setup.

The order of the operations may be fairly complex and you may

not be remember all of the necessary commands during the

setup procedure.

Use the space provided below to write down the operations in

the order you are going to enter them.

• The example below shows the plan for step 4 (which occupies a total

of 6 steps) :

1TV + AV. POWER 2 steps

2FUNCTION SHIFT + 3 2 steps

3MOVIE 1 steps

4AV. POWER 1 steps

Total 6 steps

• If you attempt to store more than 20 steps, “Full” appears and exit

the macro programming mode.

• Enter channel numbers (for the monitor TV, etc.) exactly as you would

using the original remote.

• When you select the input by using the MUSIC, MOVIE, or TV key,

it is counted as 1 step even if you press these keys repeatedly.

Press and hold the MACRO key for more than 2 seconds.

•“MACRO MEMORY” appears in the display.

Select MACRO

MACRO MEMORY

MACRO MUSIC, MOVIE,

–

During operation, make sure you start the next step within 8

seconds of completing the previous one. If more than 8

seconds elapses between any two steps, the remote control

unit exits from the MACRO play mode.

• Up to 20 steps can be memorized for each macro.

Remote control operations

*509/33-39/EN 3/15/01, 2:17 PM35

Remote Control

Select MACRO

MACRO1

Press the MUSIC, MOVIE, or TV key to select the macro

location. (MACRO1, 2, and 3 respectively)

• You can store up to 3 different macros, one at each key:

MUSIC = “MACRO 1”, MOVIE = “MACRO 2”, TV = “MACRO 3”

• Pressing a key other than MUSIC, MOVIE, or TV cancels the macro

program mode.

Press the keys to be operated in order.

Press the MACRO key.

• The macro is stored at the locations specified in step 3. If another

macro was previously stored at the same location, it is erased.

Repeat steps 1 through 5 to program up to 3 macros.

This completes the macro programming procedure.

EXAMPLE:

1Press the TV key, then press the AV POWER key to turn

on the TV.

2Press the F. SHIFT key, then press the “3” (INPUT SEL.) key

to set the TV to the appropriate video input.

3Press the MOVIE key to select the LD player registered at

VIDEO 2.

4Press the AV POWER key to turn on the LD player.

This example shows you how to create a macro that; turns on the TV,

sets the TV to the appropriate input, selects the receiver's input selector

to LD, and turns on the LD player. All you have to do is insert the laser

disc!

• Make sure you start the next operation within 8 seconds of complet-

ing the previous one. If more than 8 seconds elapses between any two

steps, exit the macro programming mode.

• In order to allow verification of the remote control mode, the name of

the selected input appears in the receiver's display when the MUSIC,

MOVIE, or TV key is pressed. When the MUSIC or MOVIE key is

pressed the receiver's input also changes.

When MUSIC is pressed.

Press the MUSIC, MOVIE, or TV key to execute the

corresponding macro play.

Press the MACRO key.

•"MACRO EXE" appears in the display and the pre-programmed macro

is performed:

MUSIC = “MACRO 1”, MOVIE = “MACRO 2”, TV = “MACRO 3”

• Some devices take up to 1 second to power on. The macro function

has an automatic delay after any power function output.

• Pressing a key other than MUSIC, MOVIE, or TV cancels the macro

program mode.

When MUSIC is pressed.

Select MACRO

MACRO EXE

Select MACRO

MACRO1 EXE

•“MACRO EXE” appears in the display.

MACRO MUSIC, MOVIE,

–

During operation, make sure you start the next step within 8

seconds of completing the previous one. If more than 8

seconds elapses between any two steps, press the display

operation key so that the display appears.

Executing an automatic operation

Remote control operations

*509/33-39/EN 3/15/01, 2:17 PM36

Remote Control

To delete the setup code

Press the display operation 1 key repeatedly until

“

” appears in the display.

VCR

Video1:

Press the display operation 2 [Menu] key repeatedly until

“

01.IR

” appears in the display.

Press the

∞

keys to select “

01.IR

”, then press the

display operation 2 [Enter] key.

• The setup display appears.

• The input selecting display appears.

Press the

∞

keys to select the input that you want to

delete, then press the display operation 2 [Enter] key.

Press the

∞

keys to select “

Delete

”.

Press display operation 2 [Enter] key.

• The setup code is deleted.

>04.Video2

>03.Video1

Back Enter

>02.Surround

>01.IR

Home Enter

During operation, make sure you start the next step within 8

seconds of completing the previous one. If more than 8

seconds elapse between any two steps, press the display

operation key so that the display appears.

>01:CD

>13:Delete

Back Enter

Display operation 1 5/∞

Display operation 2

–

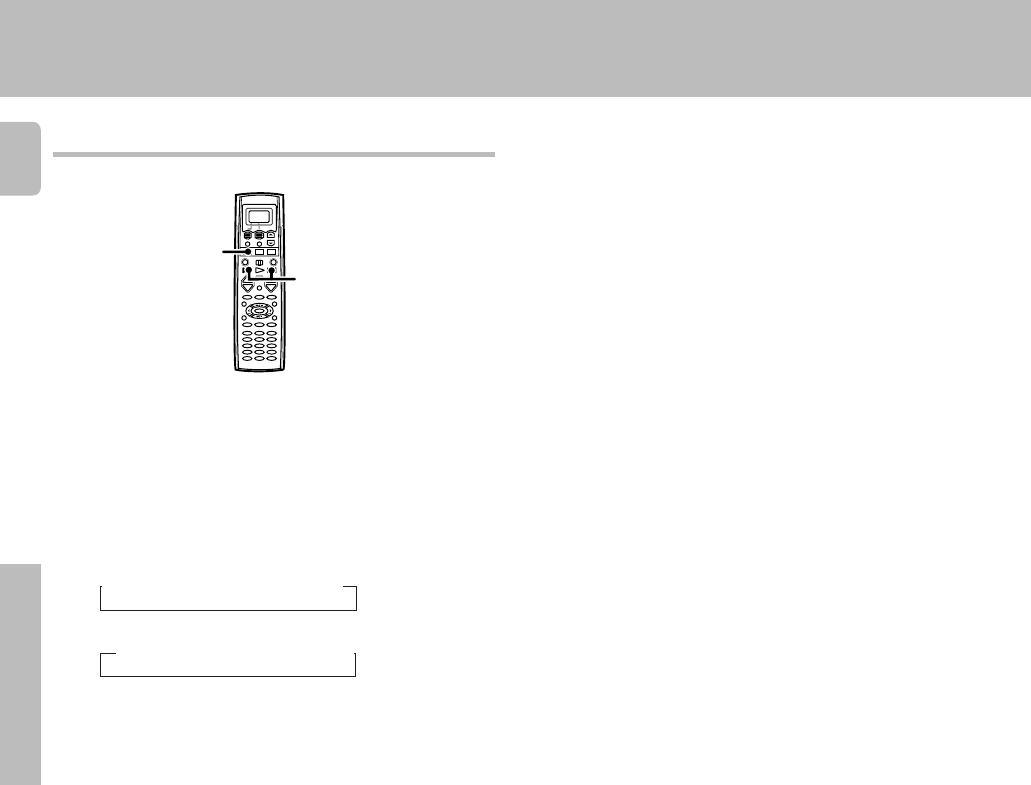

The remote control unit can store the remote control code of the other

components and you can operate the other components from the remote

control unit. The remote control code is stored on the key or memory of

the remote control unit.

Storing the remote control code of the other

components

MUSIC, MOVIE,

LEARN

–

Display operation 2 5/∞

2Press the MUSIC, MOVIE, or TV key to select the input of the

desired remote control unit.

VCR

Video1:

Selected input

3Press the LEARN key.

4Press the desired key of the remote control unit.

• The remote control is ready for receiving the remote control code.

Storing on the key

You can store the remote control code to the key as shown below:

1Point the infrared ray system part of another remote control unit

to the remote sensor of the remote control unit .

>Extend1

Waiting

Clr Exit

SHIFT MACRO

MUSIC

LISTEN M.

BASS BOOST SUB.W.

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

DIMMER

TITLE/GUIDE MENU

SOUND CINE.EQ

MOVIE TV

AV. POWER SYS. POWER

OSD/PAGE

‹Play

* Pause

& Stop

$ Rewind/skip

›Fast forward/skip

Cursor 5/∞/2/3

ENTER

TITLE/GUIDE

RETURN/PAGE

REC

Numeric keys

AV POWER I /

Infrared ray system part

Remote control

unit of the other

source.

—

Remote control operations

*509/33-39/EN 3/15/01, 2:17 PM37

Remote Control

5From the remote control unit of the other source, press the key

that you want to store.

• The remote code is sent to the remote control unit.

•“Complete” appears when finished.

• When it takes for more than 5 seconds or the remote control unit does

not receive the remote control code well, “Error” appears in the

display. In this case, re-operate from step 1.

6The remote control code is stored on the key of the remote

control unit.

To delete the memory stored on the key

Press the display operation 1 [Clr] key in step 4. “Cleared”

appears in the display.

The memory previously stored is cleared.

To operate other components

1Press the MUSIC, MOVIE, or TV key to select the desired input

source.

2Press the desired key.

1Point the infrared ray system part of the other remote control

unit to the remote sensor of the remote control unit .

Storing on the memory

2Press the MUSIC, MOVIE, or TV key to select the input of the

desired remote control unit.

You can store on the remote control unit up to 5 memories.

VCR

Video1:

Selected input

3Press the LEARN key.

• The Extend selecting display appears.

>Extend2

>Extend1

Home Enter

>Extend1

Complete

• When the setup code is not registered, any messages do not appear.

When the setup code is registered

4Press the 5/∞ keys to select the location.

•Extend1 – Extend5 are available.

5Press the display operation 2 [Enter] key.

• The remote control is sent for receiving the remote control code.

>Extend1

Waiting

Clr Exit

6From the remote control unit of the other source, press the key

that you want to store.

• The remote code is sent to the remote control unit.

•“Complete” appears when finished.

• When it takes for more than 5 seconds or the remote control unit does

not receive the remote control code well, “Error” appears in the

display. In this case, start from the step 1 again.

7The remote control code is stored on the memory (Extend1 –

Extend5) of the remote control unit.

To operate other components by using the stored memory

2Press the display operation 2 [MENU] key during “Menu”

appear in the display.

• The Menu display appears.

3Press the 5/∞ keys to select the memory you want to operate.

4Press the display operation 2 [Enter] key.

To delete the stored memory

Press the display operation 1 [Clr] key in step 5. “Cleared”

appears in the display and the memory that is selected in step 4

is erased.

1Press the MUSIC, MOVIE, or TV key to select desired input

source.

>Extend1

Complete

Extend 1

You can restore the setup codes or memories to their original default

settings.

•“Cleared” appears in the display, and the remote settings return to

their original default settings.

Insert the batteries while pressing and holding the

key

and

key.

Restoring the original factory settings

Infrared ray system part

Remote control

unit of the other

source.

—

Remote control operations

• To maintain the memory settings, complete the battery replacement

operation approximately within 10 minutes.

*509/33-39/EN 3/15/01, 2:17 PM38

Remote Control

When you connect a KENWOOD CD player (CD-425M, CD-4700M, CD-

4260M, DPF-J6030), you can display the CD TEXT data in the display of

the remote control unit.

Load the CD TEXT data to the CD player.

•“Text” appears when the CD TEXT data is read.

Before operation, register the setup code of the CD player.

1Press the MUSIC key to select “CD”.

2Press the display operation 2 [Menu] key repeatedly until

“SetUp” appears in the display.

3Press the 5/∞ keys to select “All Read” and press the display

operation 2 [Enter] key.

• The loading time may take a while.

Load the CD TEXT data of the CD player to the remote

control unit.

1Press the MUSIC key to select “CD”.

2Press the display operation 2 [Menu] key repeatedly until

“SetUp” appears in the display.

3Press the 5/∞ keys to select “Disc Title” and press the

display operation 2 [Enter] key.

• The remote control unit starts reading the CD TEXT data (disc titles

are also read).

• appears during reading.

• When “Text” does not appear, select “Track Title” in the

“SetUp” display and press the display operation 2 [Enter] key.

CD/DVD

Text Menu

Press the [Home] key.

Display operation 1 5/∞

Display operation 2

–

Displaying the CD TEXT data

• The display for selecting disc appears.

Press the display operation 1 [Text] key.

>002: TitleB

>001: TitleA

Home Sel

>06: Title6

>05: Title5

Back Sel

Press the

∞

keys to select the desired track, then press

the display operation 2 [Sel] key.

Press the

∞

keys to select the desired disc, then press

the display operation 2 [Sel] key.

Remote control operations

>02: Title2

>01: Title1

Back Sel

*509/33-39/EN 3/15/01, 2:17 PM39

Remote Control

You can operate other components by pressing keys or using the display.

The setup code for each component must be entered beforehand. ‹

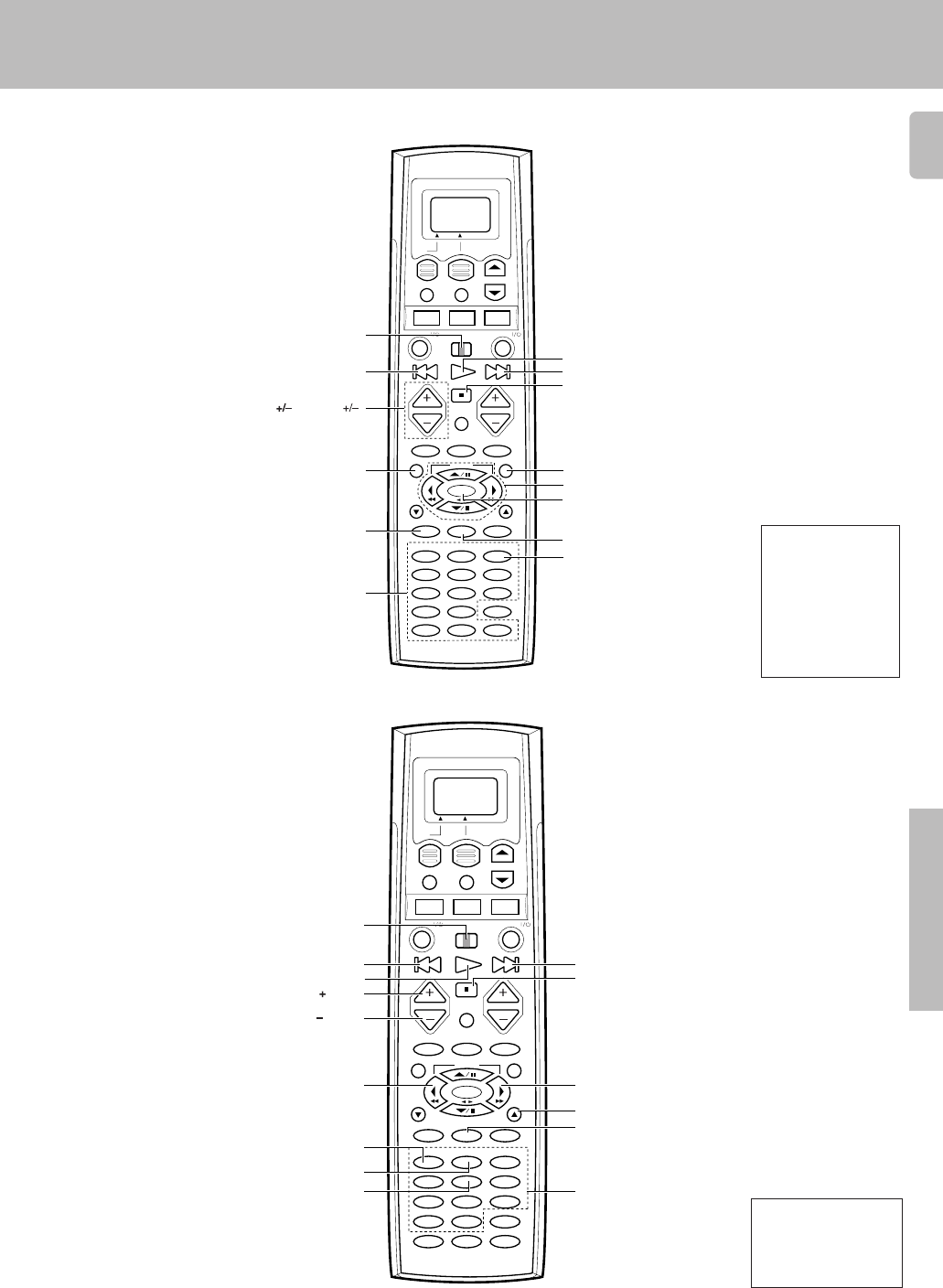

Remote control operation of other components

1Press the MUSIC, MOVIE, or TV key to select the component

you want to control.

2Press the keys corresponding to the operations you desire.

• To execute a FUNCTION SHIFT command, press the F. SHIFT key, then

press the corresponding key.

• When pressing keys in succession, press each key firmly and be sure to

wait at least 1 second before pressing the next key.

Notes

1. Although each setup code is designed to work with a number of different

models, certain codes may not work with some models. (Also, certain

codes may only operate some of the functions available on a given

model.)

2. The charts below show the typical functions available for each compo-

nent. Some manufacturers use different key combinations to perform

similar functions.

1Press the MUSIC, MOVIE, or TV key to select the component

you want to control.

2Press the display operation 2 [Menu] key so that the Menu

display appears.

3Press the 5/∞ keys to select desired item or memory, then

press the display operation 2 [Enter] key.

When you operate by using the keys

When you operate by using the display

Satellite tuner operations

Display operation

01-05: Extend 1-5

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

F.SHIFT + 7 (AUDIO)

F.SHIFT

Numeric keys

Cursor 5/∞/2/3

OSD

F.SHIFT + 3 (INPUT SEL.)

F.SHIFT + 6 (SELECT)

ENTER

CH. (Channel )

*509/40-48/EN 3/15/01, 2:17 PM40

Remote Control

CD player operations

Cassette deck operations

Remote control operation of other components

Display operation

01-05: Extend 1-5

Display operation

01: Disc Sel

02: Set

03: P.Mode

04: Check

05: Clear

06: Disc Title

07: Track Title

08: All Read

09: Subout Monitor

10: Continuous Play

11: All Info.

12-16: Extend 1-5

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC LEARN

RANDOMREPEAT

REC MODE

INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

$(Rewind A)

*(Pause A)

1(Rewind B)

REC (Recording)

F.SHIFT + ENTER (Reverse play B),

ENTER (Play B)

F.SHIFT

¡(Fast forward B)

8(Pause B)

›(Fast forward A)

#(Play A),

F.SHIFT + # (Reverse play A)

&(Stop A)

7(Stop B)

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

$(Skip down)

CH. (Disc skip %/ﬁ)

*(Pause)

1(Rewind)

F.SHIFT + 1 (REPEAT)

F.SHIFT

F.SHIFT + 2 (RANDOM)

F.SHIFT + 5 (DISPLAY) Numeric keys

(Select tracks)

¡(Fast forward)

›(Skip up)

#(Play)

&(Stop)

REC MODE

*509/40-48/EN 3/15/01, 2:17 PM41

Remote Control

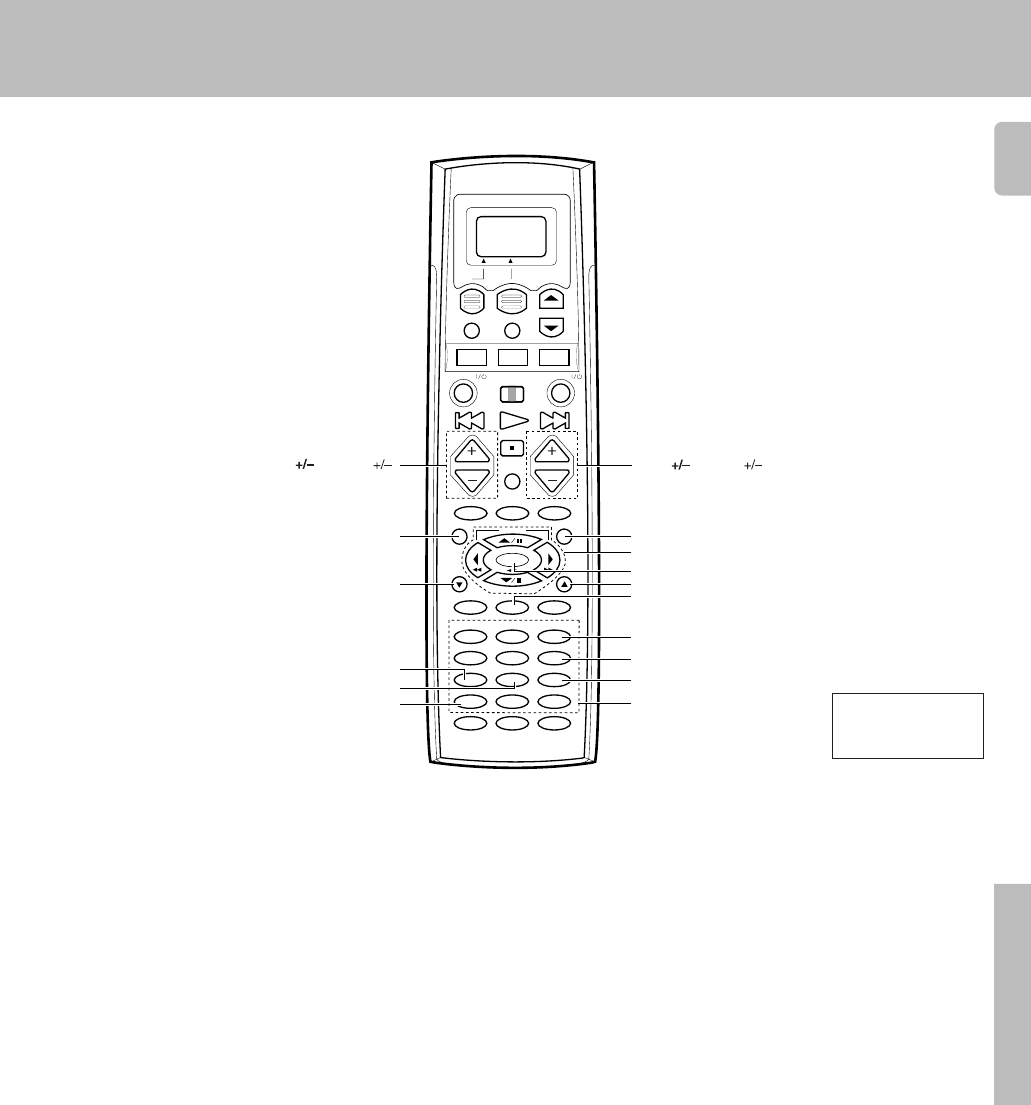

TV operations

MD recorder operations

Display operation

01-05: Extend 1-5

Display operation

01: -/--

02: >12

03: Wide

04: Picture in Picture

05: Text/Mix/TV

06: Text Off

07: Mix

08: Exit

09-13: Extend 1-5

Remote control operation of other components

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

$(Skip down)

*(Pause)

1(Rewind)

F.SHIFT + 1 (REPEAT)

REC (Recording) F.SHIFT

F.SHIFT + 2 (RANDOM)

F.SHIFT + 5 (DISPLAY) Numeric keys

(Select tracks)

¡(Fast forward)

›(Skip up)

#(Play) &(Stop)

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

CH. (Channel )

F.SHIFT + 7 (AUDIO)

F.SHIFT + 4 (TV SELECT)

F.SHIFT

Numeric keys

Cursor 5/∞/2/3

& (Mute)

F.SHIFT + 3 (INPUT SEL.)

ENTER

›(Volume )

(Volume ) $

*509/40-48/EN 3/15/01, 2:17 PM42

Remote Control

LD player operations

VCR operations

Display operation

01: Frame/Time

02: Side A or A/B

03: Side B

04-08: Extend 1-5

Display operation

01: Thumb Up

02: Thumb Down

03: Jump

04: Instant

Replay

05: Quick Skip

06: Exit

07-11: Extend 1-5

Remote control operation of other components

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

$(Skip down)

*(Pause)

1(Rewind)

CH. (Fast)

CH. (Slow)

F.SHIFT + 1 (REPEAT)

F.SHIFT

F.SHIFT + 2 (RANDOM)

F.SHIFT + 5 (DISPLAY) Numeric keys

(Select tracks)

¡(Fast forward)

OSD/PAGE

›(Skip up)

#(Play) &(Stop)

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

$(Rewind)

*(Pause)

TITLE/GUIDE

REC (Recording) F.SHIFT

F.SHIFT + 3 (INPUT SEL.)

Numeric keys

Cursor 5/∞/2/3

›(Fast forward)

#(Play)

ENTER

&(Stop)

CH. (Channel )

*509/40-48/EN 3/15/01, 2:17 PM43

Remote Control

DSS receiver operations

DVD player operations

Display operation

01: Exit

02-06: Extend 1-5

Display operation

01: Chapter/Time

02: Angle

03: PGM

04: DVD Set

05: Memory

06: Clear

07: Repeat A-B

08: Sub Title

09: Title Search

10: Aspect

11: On/Off

12-16: Extend 1-5

Remote control operation of other components

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV. POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

$(Skip down)

*(Pause)

GUIDE

RETURN

CH. (Fast forward)

CH. (Rewind)

F.SHIFT + 1 (REPEAT) F.SHIFT

F.SHIFT + 2 (RANDOM)

F.SHIFT + 5 (DISPLAY)

F.SHIFT + 7 (AUDIO)

Numeric keys

(Select tracks)

Cursor 5/∞/2/3

OSD/PAGE

›(Skip up)

#(Play)

ENTER

&(Stop)

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

CH. (Channel )

CHANNEL GUIDE

F.SHIFT + 7 (AUDIO)

F.SHIFT

F.SHIFT + 8 (THEME)

F.SHIFT + (+10) (INFO.) Numeric keys

Cursor 5/∞/2/3

F.SHIFT + 3 (INPUT SEL.)

F.SHIFT + 6 (SELECT)

F.SHIFT + 9 (FAVORITE)

ENTER

*509/40-48/EN 3/15/01, 2:17 PM44

Remote Control

Cable tuner operations

Display operation

01: A - B - C

04-08: Extend 1-5

Remote control operation of other components

SHIFT MACRO

MUSIC

MUTE

CH.

VOL.

TUNING

BAND

ENTER

AUTO/MONO

F.SHIFTREC

REC MODE

LEARN

RANDOMREPEAT INPUT SEL.

213

546

879

0+10 +100

1110 12

DISPLAYTV SELECT SELECT

THEMEAUDIO FAVORITE

EXITINFO. LAST CHANNEL

OSD

/PAGE

RETURN

/PAGE

TITLE/GUIDE MENU

MOVIE TV

AV POWER SYS. POWER

RF REMOTE CONTROL UNIT

RC-R0811

LISTEN M.

BASS BOOST SUB W.DIMMER

SOUND

CINEMA EQ

CH. (Channel ) VOL. (Volume )

CHANNEL GUIDE

F.SHIFT + 7 (AUDIO)

F.SHIFT

F.SHIFT + 8 (THEME)

F.SHIFT + (+10) (INFO.) Numeric keys

Cursor 5/∞/2/3

PAGE UP (5)PAGE DOWN (∞)

F.SHIFT + 3 (INPUT SEL.)

F.SHIFT + 6 (SELECT)

F.SHIFT + 9 (FAVORITE)

ENTER

*509/40-48/EN 3/15/01, 2:17 PM45

Additional Information

In case of difficulty

Resetting the Microcomputer

If the microcomputer may malfunction (unit cannot be operated,

or shows an erroneous display) if the power cord is unplugged

while the power is ON, or due to some other external factor. If this

happens, execute the following procedure to reset the micro-

computer and return the unit to its normal operating condition.

Unplug the power cord from the wall outlet, then plug it

back in while holding down the STANDBY key.

• Please note that resetting the microcomputer will clear the contents

of the memory and returns the unit to the state it was in when it left the

factory.

Amplifier

Cause

• The speaker cords are disconnected.

• VOLUME is set to the minimum position.

• MUTE is ON.

• The SPEAKERS switches are set to OFF.

• Speaker cords are short-circuited.

• The speaker cord is disconnected.

• The surround speaker cords and/or the center

speaker cord is disconnected.

• A surround mode has not been engaged.

• The surround and/or center volume controls are

set to the minimum level.

• The audio cord from the turntable is not con-

nected to the PHONO jacks.

• The turntable is not grounded.

• There are many possible causes for this prob-

lem, depending on the type of DVD player used.

• The input mode is set to digital manual.

• The software is copy-guarded.

Remedy

• Connect them properly referring to “Connecting

the speakers”. #

• Adjust the volume to a proper level.

• Turn OFF the MUTE. £

• Set the SPEAKERS switch(es) to ON. )

• Turn the power off, eliminate the short-circuit-

ing, then turn on the power again.

• Connect it properly referring to “Connecting the

speakers”.

• Connect it properly referring to “Connecting the

speakers”.

• Select a surround mode.

• Adjust the speaker levels using the test tone.

• Insert the audio cord plugs securely into the

PHONO jacks.

• Connect the grounding wire to the GND termi-

nal on the rear panel.

• Set the input mode to digital manual before

starting playback of the Dolby Digital source.

• Press the INPUT MODE key to select to digital

auto mode. 7

• Copy-guarded video software cannot be re-

corded.

Tuner

Cause

• No antenna is connected.

• The broadcast band is not set properly.

• The frequency of the desired station is not

tuned.

• Noise due to ignition noise from an automobile.

• Noise due to interference from an electric appli-

ance.

• Noise due to a nearby TV set.

• The preset station belongs to a frequency that

cannot be received.

• The preset memory was cleared because the

power cord had been unplugged for a long

period of time.

Remedy

• Connect an antenna. %

• Set the broadcast band properly.

• Tune the frequency of the desired station.

∞

• Install the outdoor antenna away from the road.

• Turn off the power to the appliance.

• Install the receiver farther away from the TV.

• Preset a station with a receivable frequency.

• Preset the station again.

Symptom

Radio stations cannot be received.

Interference.

A station which was preset cannot be re-

ceived by pressing the corresponding nu-

meric key.

Symptom

No sound from the speakers.

The standby indicator blinks and sound is

not output.

Sound is not output from one of the speakers.

Sound is not output from the surround

speakers and / or the center speaker, or their

sound is very small.

A humming noise is generated when the

PHONO input selector is selected.

When playing a Dolby Digital source signal

using a DVD player, the sound is cut off soon

after it starts.

No sound is produced during playback from

a DVD player.

A video source cannot be recorded

normally.

*509/40-48/EN 3/15/01, 2:17 PM46

Additional Information

Remote control unit

Cause

• The batteries are nearing exhaustion.

• Subwoofer is OFF.

• No setup codes registered at for the respective

input(s).

• The remote control is set to a different operation

mode.

• Batteries are exhausted.

• The remote control unit is too far away from the

main system, controlling angle is too large, or

there is an obstacle between the receiver and

the remote.

• The audio cords and system control cords are

not connected properly.

• No software is loaded in the source component.

• An attempt is made to play a tape which is being

recorded in the cassette deck.

• The remote control has not been set to the

operation mode for the component you wish to

control.

• The microprocessor of the remote control mal-

functions.

Remedy

• Replace with new batteries to preserve the

currently registered setup information. &

• Turn the subwoofer ON. )

• Register a setup code or Non-IR code at the

respective input(s). ‹

• Press the MUSIC, MOVIE, or TV keys to select

the appropriate operation mode.

• Replace with new batteries. &

• Operate the remote control unit within the con-

trollable range.

• Connect properly referring to “Setting up the

system”. 7

• Place software in the source component you

want to play.

• Wait until recording has completed.

• Press the MUSIC, MOVIE, or TV keys to acti-

vate the operation mode for the component you

want to control before operation. ›

• Reset the microprocessor. y

Symptom

The battery indicator flashes during opera-

tion.

Subwoofer volume cannot be adjusted.

Certain inputs cannot be selected using the

remote control.

Remote control operation is not possible.

In case of difficulty

*509/40-48/EN 3/15/01, 2:17 PM47

Notes

1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.

2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).

AUDIO section

Rated power output during STEREO operation

100 watts per channel minimum RMS, both channels driven, at

8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic

distortion. (FTC)

Effective power output during SURROUND operation

FRONT (20-20kHz, 0.7% T.H.D. at 8 Ω one channel driven)

.............................................................................. 100 W + 100 W

CENTER (20-20kHz, 0.7% T.H.D. at 8 Ω one channel driven)

............................................................................................. 100 W

SURROUND (20-20kHz, 0.7% T.H.D. at 8 Ω one channel

driven) .................................................................. 100 W + 100 W

Total harmonic distortion ........................... 0.05% (1 kHz, 50W, 8 Ω)

Frequency response

CD ............................................. 10 Hz ~ 60 kHz, +0 dB, –3.0 dB

Signal to noise ratio (IHF’66)

PHONO (MM) ........................................................................ 75 dB

CD ......................................................................................... 91 dB

Input sensitivity / impedance

PHONO (MM) ......................................................... 2.5 mV / 27 kΩ

CD ......................................................................... 200 mV / 47 kΩ

MONITOR IN ........................................................ 200 mV / 47 kΩ

DVD/6CH INPUT .................................................. 200 mV / 47 kΩ

Output level / impedance

TAPE REC .............................................................. 200 mV / 1 kΩ

MONITOR OUT ...................................................... 200 mV / 1 kΩ

PRE OUT (SUBWOOFER) ...................................... 1.5 V / 2.2 kΩ

Tone control

BASS ................................................................ ±10 dB (at 70 Hz)

TREBLE .......................................................... ±10 dB (at 10 kHz)

DIGITAL AUDIO section

Sampling frequency ...................... 32 kHz, 44.1 kHz, 48 kHz, 96kHz

Input level / impedance / wave length

Optical ............................. (-15 dBm ~ -21 dBm), 660 nm ±30nm

Coaxial ................................................................. 0.5 Vp-p / 75 Ω

VIDEO section

VIDEO inputs / outputs

VIDEO (composite) ............................................ 1 Vp-p / 75 Ω

S VIDEO (luminance signal) ................................ 1 Vp-p / 75 Ω

(chrominance signal) ..................... 0.286 Vp-p / 75 Ω

COMPONENT VIDEO (luminance signal) ............. 1 Vp-p / 75 Ω

(CB/CR -signal) ........ +/– 0.324 Vp-p / 75 Ω

FM tuner section

Tuning frequency range ................................... 87.5 MHz ~ 108 MHz

Usable sensitivity (MONO)

................ 1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)

50dB quieting sensitivity

STEREO ................................................... 28 µV (75 Ω)/ 40.2 dBf

Total harmonic distortion (1 kHz)

MONO ............................................................ 0.5% (65 dBf input)

STEREO ........................................................ 0.7% (65 dBf input)

Signal to noise ratio (1 kHz, 75 kHz DEV.)

MONO .......................................................... 75 dB (65 dBf input)

STEREO ...................................................... 68 dB (65 dBf input)

Stereo separation (1 kHz) ..........................................................40 dB

Selectivity (±400 kHz) ................................................................. 70 dB

Frequency response ................. (30 Hz ~ 15kHz), +0.5 dB, –3.0 dB

AM tuner section

Tuning frequency range

10 kHz step ................................................. 530 kHz ~ 1,700 kHz

Usable sensitivity ................................................. 16 µV / (600 µV/m)

Signal to noise ratio (30% mod. 1 mV input) ........................... 50 dB

GENERAL

Power consumption .................................................................... 2.6 A

AC outlet

SWITCHED ....................................... (total 150 W, 1.25 A max.)

Dimensions ..................................................... W : 440 mm (17-5/16")

H : 144 mm (5-11/16")

D : 399 mm(15-11/16")

Weight (Net) ................................................................ 8.8 kg (19.4 lb)

Specifications

Caution : Read this page carefully to ensure safe

operation.

For your records

Record the serial number, found on the back of the unit, in the spaces

designated on the warranty card, and in the space provided below. Refer

to the model and serial numbers whenever you call upon your dealer for

information or service on this product.

Model __________________ Serial Number ________________________

*509/40-48/EN 3/15/01, 2:17 PM48
