TK-2180/3180
VHF/UHF FM Portable Radios
❚WIDE BAND COVERAGE
❚5 WATT UHF & VHF MODELS
❚EXTRA LARGE CHANNEL CAPACITY
❚DUAL PRIORITY SCAN
❚DOT MATRIX DISPLAY
❚ENHANCED KENWOOD AUDIO
❚VOX READY
❚VOICE INVERSION SCRAMBLER
❚FleetSync
®
/ FleetSync
®
II
❚5-TONE SIGNALLING
❚LONE WORKER
❚TRANSPARENT DATA MODE
❚QT / DQT / DTMF
❚VGS-1 VOICE GUIDE & STORAGE UNIT (OPTION)
❚EASY OPTION PORT (26-PIN)
tk2180_3180uk.qxd 5/24/05 6:52 PM Page 2
WIDE BAND OPERATION
The TK-2180/3180 models feature wide band
UHF (70 MHz) and VHF (38 MHz) coverage in
one radio model.
NEW CONCEPT DESIGN
Kenwood employed premium industrial
design concepts to make the TK-2180/3180
portables functionally practical, rugged and
an attractive piece of equipment to carry.
TK-2180/3180
VHF/UHF FM Portable Radios
DOT MATRIX DISPLAY
The backlighting and
high-resolution dot
matrix 12-character
alphanumeric display
provides easy-to-read channel aliases day
or night. Also a 3-digit sub-display for
zone/channel numbers and icons for
function/status indicators make for intuitive
operation. The display can be dealer
customised for indication in languages
other than English.
KENWOOD ‘‘K’’LARITY —
ENHANCED AUDIO
Kenwood utilizes its long standing audio
heritage to optimize voice frequency
components so that the audio output cuts
through typical ambient noise. This
enhancement and the companded noise
reduction provide clarity and low distortion.
MEETS/EXCEEDS MIL-STD
BLOWING RAIN & IP54/55
The TK-2180/3180 is built to survive
the hard knocks, drops and harsh
weather environments of its users.
It meets or exceeds the stringent
IP54/55 dust and water
protection standards and the
MIL-STD 810 C, D, E & F
environmental standards
including the demanding
“blowing rain” test.
VOICE INVERSION SCRAMBLER
The built-in voice inversion scrambler provides
basic communications protection against
casual eavesdropping.
VOX READY
The TK-2180/3180 offers convenient
hands-free operation with a compatible
headset. The TK-2180/3180 internal VOX
(voice-operated transmission) circuitry
provides automatic PTT and a 10-level
sensitivity adjustment for different ambient
noise levels.
Meets the next generation in professional handheld communications
Kenwood’s TK-2180/3180 defines a bold new standard for portable radio
performance, scoring high marks for operating ease, versatility and reliability.
EXTRA LARGE CHANNEL CAPACITY
The large 512 channel / 128 zone capability*
accommodates virtually any current or future
capacity requirement.
*Maximum capacity notes
128 Conventional Zones cumulative maximum per radio
512 Conventional Channels cumulative maximum per
radio
250 Channels maximum per any Conventional Zone
tk2180_3180uk.qxd 5/24/05 6:52 PM Page 3
Outstanding Features
FleetSync®& FleetSync®II
Kenwood’s FleetSync®digital signalling system includes PTT ID
digital ANI for instant radio call identification and Emergency
status for personnel safety. FleetSync also includes status
messaging, selective calling and short/long text dispatch
messaging features. The TK-2180/3180 supports either original
FleetSync®or FleetSync®II*.
* FleetSync and FleetSync II are incompatible.
DUAL PRIORITY & VARIOUS SCANNING FUNCTIONS
Dual-Priority Scan automatically checks two important channels
for activity while channel scanning. Also, each radio can be
programmed to scan any organization of channels and talk groups
using the many programmable scan features and parameters.
5-TONE SIGNALLING
In addition to FleetSync®, the TK-2180/3180 includes the industry
standard signalling formats: QT/DQT, DTMF and 5-tone. In
particular, 5-tone signalling has been significantly enhanced for
greater flexibility, and current users of this format will welcome
the fact that it can be used in combination with FleetSync®for
Short/Long Text Messaging.
AVAILABLE SOFTWARE (OPT.)
ZVEI-Digital signalling and a voting function that utilizes the
signalling can be added as optional software.
VOICE GUIDE & STORAGE* (OPT.)
This innovative Kenwood option makes several functions possible.
‘‘Voice Guide’’ announces channel, zone, feature activation/
deactivation, etc. in a clear synthesised voice. ‘‘Voice Storage’’
records up to 300 seconds of receive audio for missed calls or
your own voice for memo recording. It also has an ‘‘Auto-Reply’’
greeting and can record voice messages for unattended radios
while away from the radio or while in a meeting (the calling unit
must send a FleetSync®selective call for activation).
* Announcement only available in English.
EASY OPTION PORT (26-PIN)
Kenwood’s plug-in option port enables
installation of the external boards such
as the VGS-1 Voice Guide and Storage
Unit quick and simple.
REAL-TIME CLOCK FOR TIME STAMPING
A new Kenwood feature, this real-
time clock can be used for basic
time-stamping.
LONE WORKER
This ingenious feature provides an extra layer of security and
safety for individuals who work remotely as well as for those
who work in hazardous areas. As long as the buttons are
pressed regularly, the radio operates normally; however, if there
is a long lapse (programmable), it will sound an alert. In the
absence of further response from the user, the TK-2180/3180
will place an emergency call to a pre-determined person or
group of people.
TRANSPARENT DATA MODE
Kenwood’s Transparent Data mode works in combination with
FleetSync®to enable full character transparency for exchanging
data with a transceiver linked to a PC or peripheral equipment.
This can be used for remote control and remote maintenance of
status monitoring, etc.
OTHER FEATURES
❚5-WATT UHF & VHF MODELS
❚BATTERY STATUS INDICATOR
❚PROGRAMMABLE FUNCTION KEYS
❚EMERGENCY KEY
❚WIDE/NARROW PER CHANNEL
❚RSSI LEVEL INDICATOR
❚EMBEDDED MESSAGES
❚TRANSCEIVER PASSWORD
❚FLASH MEMORY
❚WINDOWS PC PROGRAMMING & TUNING
❚QT/DQT & DTMF
TK-2180/3180
VHF/UHF FM Portable Radios
tk2180_3180uk.qxd 5/24/05 6:52 PM Page 4
CL589E-E-4
All accessories and options may not be available in all markets. Contact an authorized Kenwood
dealer for details and complete list of all accessories and options.
Specifications
TK-2180 E TK-3180 E
GENERAL
Frequency Range 136-174 MHz 400-470 MHz
Number of Channels* Max. 512 Ch’s total per Radio
Zone Max. 128 per Radio
Ch Max. 250 per Zone
Channel Spacing 25 kHz/20 kHz/12.5 kHz
Battery Voltage 7.5 V DC
±
20 %
Battery Life (5-5-90 duty cycle, during hi-power)
with KNB-31A (1700 mAh) Approx. 9 hours
with KNB-32N (2500 mAh) Approx. 14 hours
with KNB-33L (1700 mAh) Approx. 10 hours
Operating Temperature Range** -30 °C ~ +60 °C
Frequency Stability ±2.5ppm (-30 °C ~ +60 °C)
Antenna Impedance 50 Ω
Channel Frequency Spread 38 MHz 70 MHz
Dimensions (W x H x D), Projections not included
Radio Only 58 x 136 x 21.5 mm
with KNB-31A 58 x 136 x 39.5 mm
with KNB-32N 58 x 136 x 39.5 mm
with KNB-33L 58 x 136 x 33 mm
Weight (net)
Radio Only 260 g (includes supplied accessories)
with KNB-31A 530 g
[with antenna (KRA-22/23) and belt clip (KBH-11)]
with KNB-32N 560 g
[with antenna (KRA-22/23) and belt clip (KBH-11)]
with KNB-33L 400 g
[with antenna (KRA-22/23) and belt clip (KBH-11)]
Applicable Standards
EN300 086, EN300 113, EN300 219, EN301 489
EN60065, EN60950-1, EN60215
TK-2180 E TK-3180 E
RECEIVER
Sensitivity (EIA 12dB SINAD)
0.28 µV/0.28 µV/0.32 µV
Sensitivity (EN 20dB SINAD)
-3 dB µV/-3 dB µV/-2 dB µV
25 kHz/20 kHz/12.5 kHz
Adjacent Channel Selectivity 73 dB/73 dB/63 dB
25 kHz/20 kHz/12.5 kHz
Intermodulation 65 dB
Spurious Response Rejection 70 dB
Audio Output (8 Ωimpedance) 500 mW with less than 3 % distortion
Measurement EN Standards
TRANSMITTER
RF Power Output
High 5 W
Low 1 W
Modulation Limiting ±5.0 kHz at 25 kHz
±4.0 kHz at 20 kHz
±2.5kHz at 12.5 kHz
Spurious Emission -36 dBm ≤1 GHz, -30 dBm > 1 GHz
FM Noise (EIA) 45 dB/45 dB/40 dB
Modulation Distortion Less than 3%
Microphone Impedance 2 kΩ
Measurement EN standards
Kenwood reserves the right to change specifications and features without prior notice.
FleetSync®is a registered trademark of Kenwood Corporation.
Applicable MIL-STD & IP
Standard MIL 810C MIL 810D MIL 810E MIL 810F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II
Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV
International Protection Standard
Dust & Water Protection IP54/55
*Maximum capability depends on the number of programmed Zones and repeater channels.
**Operating temperature range of the KNB-32N/33L: -10 °C ~ +60 °C
JQA-QMA1205

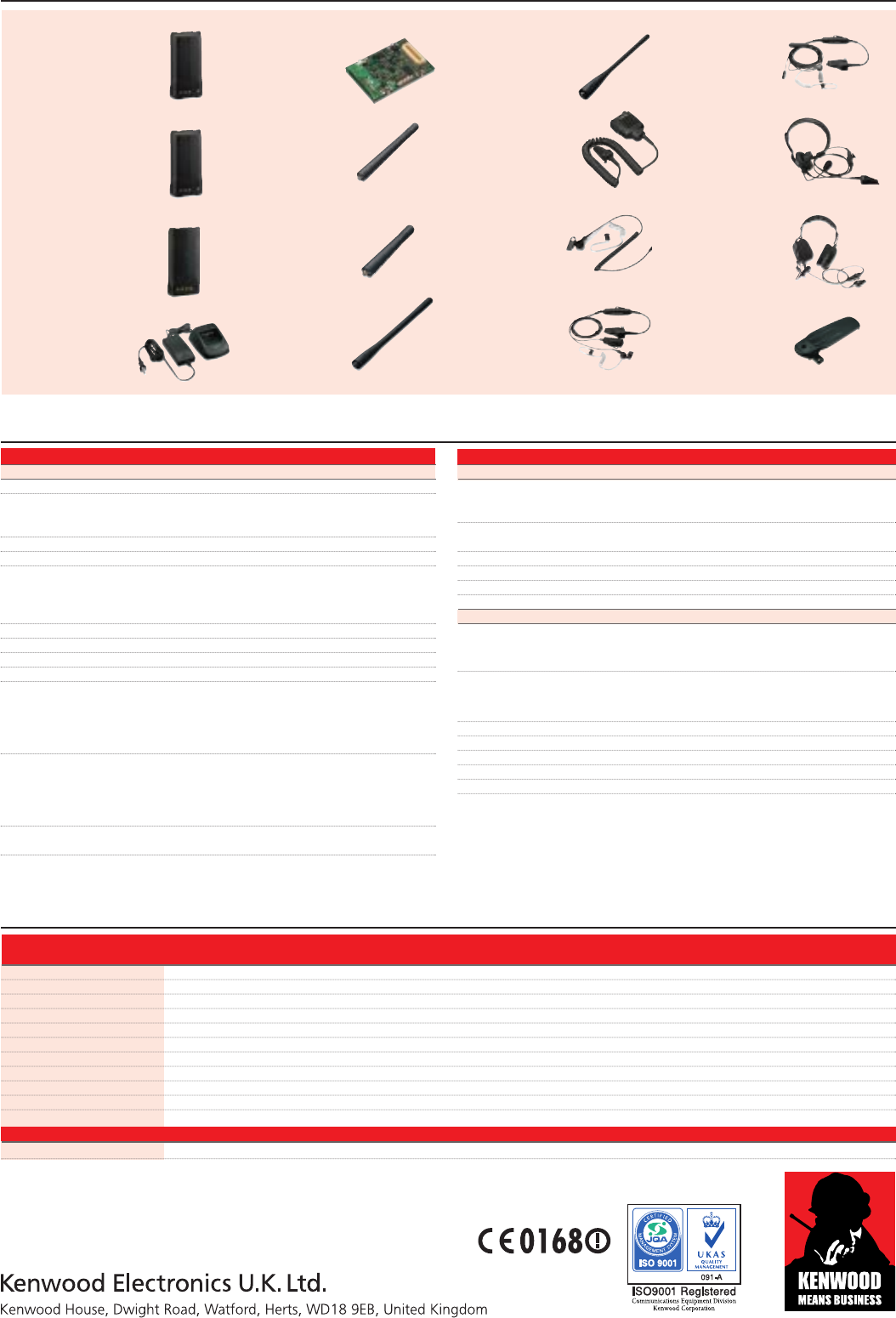

Options
■ KNB-31A
Ni-Cd Rechargeable
Battery Pack (1700 mAh)
■ KNB-32N
Ni-MH Rechargeable
Battery Pack (2500 mAh)
■ KNB-33L
Li-ion Rechargeable
Battery Pack (1700 mAh)
■ KSC-32
Tri-chemistry
Rapid Charger
■ VGS-1
Voice Guide &
Storage Unit
■ KRA-22
VHF Low Profile
Helical Antenna
■ KRA-23
UHF Low Profile
Helical Antenna
■ KRA-26
VHF Helical Antenna
■ KRA-27
UHF Whip Antenna
■ KMC-25
Speaker Microphone
■ KEP-1
Heavy-duty Earphone
■ KHS-11BL
2-Wire Palm Mic
with Earphone
■ KHS-12BL
3-Wire Mini Lapel Mic
with Earphone
■ KHS-14
Lightweight Single
Muff Headset
■ KHS-15-OH
Heavy-duty
Over-the-Head Headset
■ KBH-11
Belt Clip (2.5")
