Manual
1
2
IMPORTANT SAFEGUARDS
Safe Operation & Use
When using electrical appliances, basic safety precautions should be followed, including the following:
1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles and knobs when available.
3. This appliance must be properly installed and located in accordance with
these instructions before it is used.
4. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electrical shock or injury to persons.
5. Do not place on or near a hot gas or electric burner, or in a heated oven.
6. Do not use outdoors.
7. To protect against fire, electric shock and injury do not immerse cords,
plugs, or the appliance in water or any other liquid.
8. Do not overfill the Water Reservoir with water.
9. Use only water in this appliance! Do not put any other liquids or foods in
the Water Reservoir except as instructed in the Cleaning Instructions in
this guide.
10. Turn off and unplug the Brewer before cleaning or maintenance. Allow to
cool before putting on or taking off parts and before cleaning the
appliance.
11. For best operation, plug the appliance into its own electrical outlet on a
dedicated circuit to prevent flickering of lights, blowing of fuses or tripping
a circuit breaker.
12. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or is damaged in any manner. Contact Keurig®
Customer Service to report any malfunction of or damage to the Brewer.
13. Do not let the cord hang over the edge of the table or counter, or touch hot
surfaces.
14. To disconnect, press the Power Button on the Brewer to ‘OFF’ status and
then remove the plug from the wall outlet.
15. Close supervision is necessary when any appliance is used by or near
children.
16. Do not lift the Handle to open the Lid of the Brewer while brewing is
in progress.
17. Always keep the Water Reservoir Lid on the Water Reservoir unless you
are refilling it.
18. This appliance is equipped with a power cord having a grounding wire with
a grounding plug. The appliance must be grounded using a 3-hole
properly grounded outlet. In the event of an electrical short circuit,
grounding reduces the risk of electrical shock.
19. If the outlet is a standard 2-prong wall outlet, it is your personal
responsibility and obligation to have it replaced with a properly grounded
3-prong wall outlet.
20. Do not, under any circumstances, cut or remove the third (ground) prong
from the power cord or use an adapter.
21. Consult a qualified electrician if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is
properly grounded.
22. Do not use the appliance for other than its intended use.
3
CAUTION: There are two sharp needles that puncture the K-Cup® portion
pack, one above the K-Cup Holder and the other in the bottom of the K-Cup
Holder. To avoid risk of injury, do not put your fingers in the K-Cup
Assembly Housing.
CAUTION: There is extremely hot water in the K-Cup Holder during the
brew process. To avoid risk of injury, do not lift the Handle or open the K-
Cup Assembly Housing during the brewing process.
SHORT CORD INSTRUCTIONS: A short power supply cord is provided
to reduce the risk of becoming entangled in or tripping over a longer cord.
If an extension cord is used, (1) the marked electrical rating of the cord set
or extension cord should be at least as great as the electrical rating of the
appliance; (2) the cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or tripped over
unintentionally; and (3) the extension cord must include a 3-prong
grounding plug.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.
TABLE OF CONTENTS
KEURIG® GOURMET SINGLE CUP HOME BREWING SYSTEM
B81 — Using Your Brewer
SET-UP
Helpful Hints..........................................................................................4
Unpacking.............................................................................................4
Features................................................................................................5
SECTION 1 — SET-UP & FIRST BREW
Set-Up & First Brew..............................................................................6
SECTION 2 — CONTROLS & INDICATORS
Setting the Clock...................................................................................9
Programming On/Off Features..............................................................9
Programming Favorite Button 1 & 2.....................................................11
Programming Brew Temperature.........................................................12
SECTION 3 — CLEANING & MAINTENANCE
Cleaning...............................................................................................12
De-Scaling...........................................................................................13
Storage................................................................................................13
Record your Brewer Serial Number here.
4
Set-up
Helpful Hints
1. Keep your Brewer turned “ON” at all times. To brew a fresh cup of
coffee, tea or hot cocoa anytime you want, we suggest you keep
your Brewer turned “ON” all the time. However, the Brewer is fully
programmable so you can set it to turn on and off automatically to
match your schedule. Or, if you prefer, set the Brewer to
automatically turn off after a period of time. Follow the simple
instructions on pages 9–10 to make using the Brewer convenient
for you.
2. For the best tasting gourmet coffee, tea or hot cocoa, Keurig
recommends using bottled water or the Keurig® Water Filter Starter
Kit (available at www.keurig.com). Water quality varies from place
to place. If you notice an undesirable taste in your cup of coffee,
such as chlorine or other mineral tastes, we recommend you
consider using bottled water or water from a filtration system.
3. Customize the Size, Flavor & Brew That’s Perfect for You.™ With
the choice of over 200 varieties of K-Cups and 5 brew sizes (Extra-
Small Cup-3.25 oz., Small Cup-5.25 oz., Small Mug-7.25 oz., Large
Mug-9.25 oz., and Travel Mug-11.25 oz.) your Keurig® Brewer
gives you endless options to customize the size, flavor and brew
that’s perfect for you. For a strong, intense cup, select an Extra
Bold K-Cup® (with up to 30% more ground coffee than regular
varieties) and brew the size that’s right for you. The smaller the
brew size, the more intense flavor in your cup. The larger the brew
size, the less intense flavor in your cup.
4. Plug Brewer into its own grounded outlet. If the electric circuit is
overloaded with other appliances, your Brewer may not function
properly. The Brewer should be operated on its own circuit,
separate from other appliances.
5. Brewing into a travel mug. To brew into a travel mug, simply
remove the Drip Tray Assembly and place the travel mug on the
Drip Tray Base.
6. De-scale Brewer regularly. Please see page 13 for instructions.
Unpacking Instructions
1. Place Brewer box on a large steady surface (such as a table or
countertop) or on the floor. Open the box.
2. Remove enclosed literature.
3. Turn the box on its side with front of box face down.
4. Reach into the box and grasp the plastic bag that contains the
Brewer.
5. Carefully pull the plastic bag (and packaging materials) toward you
and out of the box. The Brewer will still be encased in the polyfoam
and be on its side. The Water Reservoir Assembly will be encased
on the opposite side of the polyfoam.
6. Before removing the Brewer from the polyfoam packaging material,
carefully lift the Water Reservoir Assembly out of the polyfoam and
place it upright on a flat, steady surface.
7. Once the Water Reservoir Assembly is unpacked, remove the top
polyfoam packaging material.
8. Carefully lift Brewer off of the bottom polyfoam and place it upright
on a flat, steady surface.
9. Lift plastic bag off of Brewer and Water Reservoir Assembly.
10. Record the serial number for this Brewer on page 3 of this guide.
The serial number can be found on the bottom of the Brewer box or
on the Brewer behind the Drip Tray (when removed).
11. Place the Brewer upright on a flat, steady surface. Remove the
tape from the Water Reservoir.
We recommend you save all packing materials in case future shipping
of the product is necessary.
WARNING:
Keep all plastic bags away from children.
5

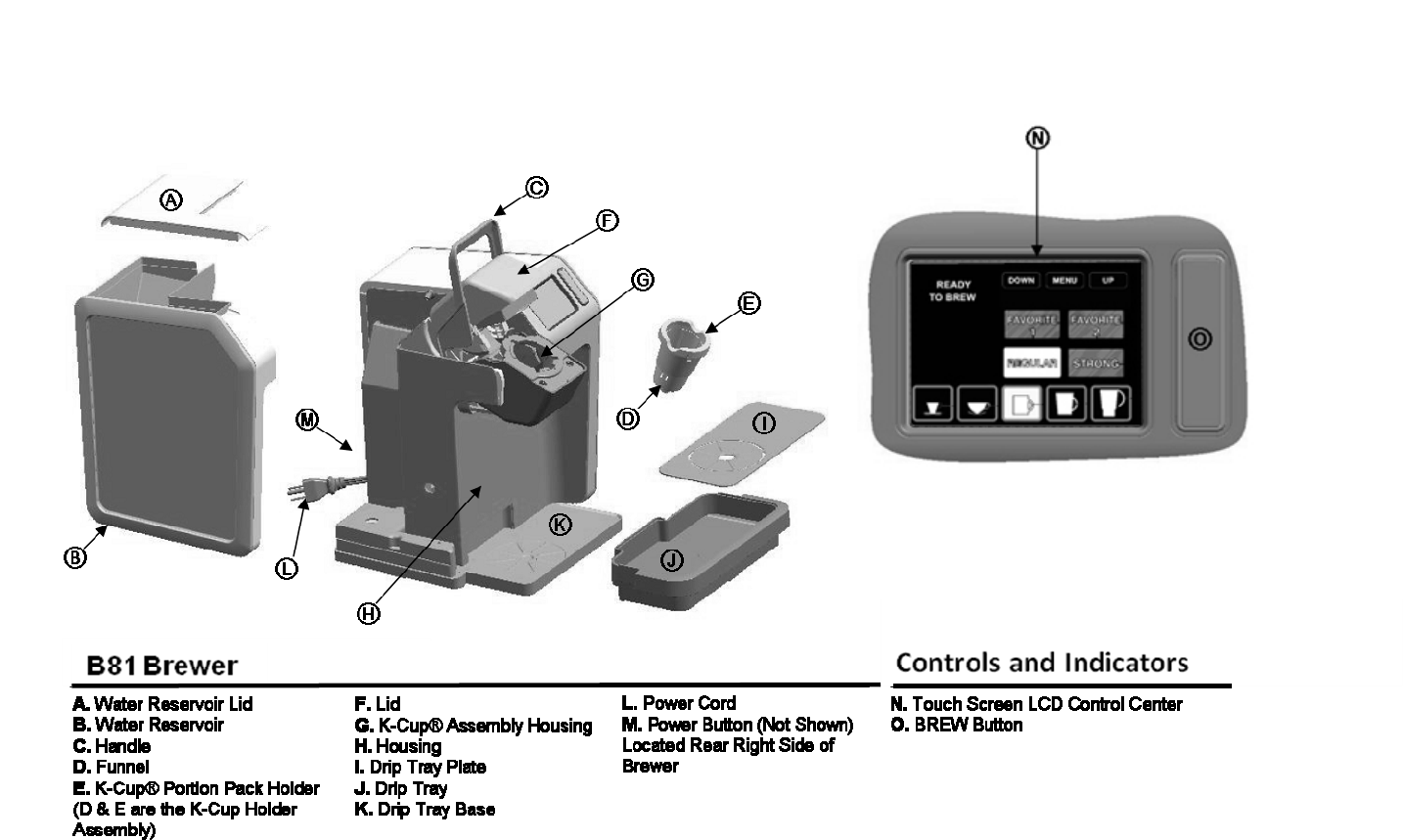

Features
–
Model B81 Brewer
6
SECTION 1
Set-Up & First Brew
IMPORTANT: You cannot use your Keurig® Brewer until it
has been set up for its first use.
NOTE: If Brewer has been exposed to temperatures below
freezing, allow Brewer at least two hours to reach room
temperature before brewing. A frozen or extremely cold
Brewer will not operate.
Setting Up Your Brewer
1.
Unwrap cord and plug the Brewer into a
grounded outlet. Remove all pieces of
packing tape and clear plastic sticker
from Touch Screen display.
2.
Place a large mug (10 oz. minimum) on
the Drip Tray Plate.
3.
Remove the Water Reservoir from
Brewer by first removing Lid from the
Water Reservoir (fig. 1), then lifting the
Water Reservoir straight up and to the
left of the Brewer. (may be tight), (fig. 2).
Rinse with fresh water.
4.
Fill Water Reservoir with bottled or
filtered water so that the water level is
just below the MAX fill line of the Water
Reservoir.
5.
Place Water Reservoir base into the left
side of the Brewer and be sure the
Water Reservoir Lock Tab engages with
the Brewer. Replace Lid on Water
Reservoir.
6.
Press and release the Power Button
found directly behind the right side of
the Brewer.
7.
The Touch Screen will come on and
indicate “NOT READY”.
NOTE: A K-Cup should not be used for this
sequence.
8.
The Brewer will automatically fill the
internal tank with water and then the
water will be heated. This will take about
4 minutes. During the heating period,
“NOT READY” (fig. 3) is displayed on
the Touch Screen. Do not lift Brewer
Handle during this ‘heating period’.
Once the water is heated, “READY TO
BREW” will be displayed and the BREW
Button will be illuminated (fig. 4).
9.
Press the BREW Button to start a
cleansing brew without a K-Cup. Pour
the hot water into the sink.
NOTE: A K-Cup should not be used for this
Sequence.
10.
The one-time set-up process is now
complete and you are ready to brew!
NOTE: The Brewer may take 15-30 seconds
between brews and then “READY TO
BREW” will be displayed.
Ready to Brew Your First Cup
1.
Touch Screen will indicate “READY TO
BREW”.
2.
Place a cup or mug on the Drip Tray
Plate.
3.
Lift the Handle and the K-Cup® Holder
will open toward you (fig. 5).
4.
Select a K-Cup portion pack.
NOTE: Do not remove
the foil lid or puncture
the K-Cup.
7
SECTION 1
Set-Up & First Brew (continued)
5.
Place a K-Cup portion pack in the K-
Cup Holder (fig. 6).
CAUTION: There are two sharp needles
that puncture the K-Cup, one above the
K-Cup Holder and the other in the
bottom of the K-Cup Holder. To avoid
risk of injury, do not put your fingers in
the K-Cup Assembly Housing.
6.
Lower the Handle to close the Lid over
the K-Cup Holder. (When it is closed
completely, the Touch Screen will
indicate “READY TO BREW”).
a.
All brew size icons are lit with the default
size is illuminated (fig. 7). To choose a
different size, press the cup icon of your
choice.
NOTE: The Small Mug (7.25 oz.
serving) is the factory set default brew
size. To program your favorite brew size
see page 11 “How to Program the Favorite
Button 1 & 2”.
b.
Your choices are an Extra-Small Cup
(3.25 oz serving), Small Cup (5.25 oz.
serving), a Small Mug (7.25 oz. serving),
a Large Mug (9.25 oz. serving) or a
Travel Mug (11.25 oz. serving).
c.
The strength of the brew can be
controlled by selecting the Regular or
Strong selections on the Touch Screen.
If you wish to have a more robust cup of
coffee select the Strong setting. This
unique “pulsating” brew setting slows
down the brewing process to allow the
water to have more contact time with the
coffee grinds.
NOTE: The Strong brew strength setting takes
longer to brew compared to the Regular brew
strength setting.
SPECIAL NOTE: For “Deluxe K-Cups” there
are programmed recipes and the touch screen
may differ from normal operation – please review
the insert sent with the K-Cups for information.
d.
Once size is chosen, press the BREW
Button. BREW Button will stop flashing.
7.
The Touch Screen will now display the
word ‘BREWING’ (fig. 8).
CAUTION: There is extremely hot water
in the K-Cup Holder during the brew
process. To avoid risk of injury, do not
lift the Handle or open the K-Cup
Assembly Housing during the brew
process.
8.
There may be a short pause prior to
coffee being dispensed. The entire brew
process lasts for approximately 1 minute
and ends with a burst of air to remove
all liquid from the K-Cup.
9.
Lift the Handle, remove and dispose of
the used K-Cup.
CAUTION: K-Cup will be hot.
10.
Enjoy your first cup of Keurig Brewed®
gourmet coffee, tea or hot cocoa!
11.
Your Brewer may display “NOT READY”
as it heats water for the next brew cycle.
The “READY TO BREW” and
“HEATING” indication will return to the
Touch Screen in about 15 seconds.
8
SECTION 1
Set-Up & First Brew (continued)
Stopping the Brew Process
If you need to stop the brewing after the process has started, press and
release the Power Button to turn the Brewer ‘OFF’. The flow of coffee, tea or
hot cocoa will stop, the heating element will shut off and the lights
illuminating the Touch Screen and Water Reservoir will disappear.
NOTE: You may not get the brew size selected in your cup during for your next
brew. We recommend that you perform a cleansing brew with water-only after a
terminated brew. Then your NEXT brew will be the volume you have selected.
Adding Water
The Touch Screen of your Brewer will indicate when the water level in the
tank is low or if the Water Reservoir has been removed by displaying the
words “ADD WATER” (fig. 9). The white light in the Water Reservoir will also
blink when water needs to be added. The Brewer will not allow you to brew
when “ADD WATER” is displayed (fig. 9).
The Water Reservoir can be filled in two ways.
1.
Lift off the Water Reservoir Lid and pour
water directly into the Water Reservoir
while it is still attached to the Brewer,
then replace the Lid.
2.
Remove the Water Reservoir from
Brewer by first removing Lid from the
Water Reservoir, then lifting the Water
Reservoir straight up and toward the left
of the Brewer. Fill with water. Place the
Water Reservoir back on the Brewer
and replace the Lid.
Note: In the back of the Water Reservoir
there is a finger indent for secure grip.
IMPORTANT: Do not remove the Water
Reservoir during the brewing process.
Brewing Hot Water
Your Brewer is able to produce hot water for making hot cocoa from a
packet, for use in cooking, for making soups, etc. Simply follow the
instructions on page 6 — “Ready To Brew Your First Cup” without adding a
K-Cup.
NOTE: After brewing a hot cocoa K-Cup, we recommend running a hot water brew
cycle without a K-Cup.
Purging the Brewer
If your Brewer has not been used for more than one week, you should purge
the water from the inner tank.
1.
If there is water in the Water Reservoir, remove the Lid, then lift the
rinse and refill with water. Place the Water Reservoir back on the
Brewer and replace the Lid. (If there is no water in the Water
Reservoir, simply refill.)
2.
Be sure the Brewer is turned on. Raise and lower the Handle on the
Brewer without inserting a K-Cup.
3.
The Touch Screen will display “READY TO BREW”. Brew a Travel
Mug (11.25 oz. serving) of water (do not use a K-Cup).
4.
Repeat steps 2 and 3 two more times to completely purge water
from inner tank.
If you are experiencing any problems with your Brewer, please contact
Customer Service at 1.866
9
SECTION 2
Controls & Indicators (Touch Screen)
Setting the Clock
Setting the clock is optional. When the clock is set, the time will appear in
the Touch Screen. NOTE: You must set the clock if you will be using the
On/Off Time programming feature.
1.
Press the MENU Button.
Note: If Touch Screen is not illuminated,
simply touch to illuminate options.
2.
The first time setting the time – the word
‘OFF’ will appear at the top of the Touch
Screen to indicate that the clock is not
set (fig. 10). The programming options
will appear on the Touch Screen with a
small arrow pointing to ‘SET CLOCK’.
The “H” icon is illuminated, Hour
numbers will flash.
3.
Press or hold the Up or Down Button
until you have reached the appropriate
hour. If the hour has passed 12, “PM”
will be shown. Once “H” is set, press
MENU once to set “M”. The “M” icon is
illuminated, Minute numbers will flash.
4.
Press or hold the Up or Down Button to
set the minutes.
5.
When you have reached the correct
time, press the MENU Button seven
times to scroll through the remaining
programming steps.
6.
The correct time should now be
displayed in the Touch Screen.
NOTE: If power is interrupted to the Brewer by unplugging
it, or if power is lost, follow the procedure above to reset the
time as the clock will not be visible until the time is set.
Brew size and brew temperature menu settings are
remembered and restored automatically. All other settings
will be restored automatically after clock is set.
Programming On/Off Features
The Brewer provides three modes so that you can enjoy gourmet coffee, tea
or hot cocoa on your own schedule. By programming your Brewer to turn on
each morning, you will never have to wait for the Brewer to warm up to brew
a gourmet cup of coffee. It will take the Brewer approximately 4 minutes to
warm up from room temperature.
1.
Leave it ON all the time. The Brewer
can be left on all the time so that it is
always ready to brew a fresh cup of
gourmet coffee, tea or hot cocoa. To
turn the Brewer off at any time, simply
press and release the Power Button.
Press and release the Power Button
again to restore power to the Brewer.
You will have to wait for the water to
heat up before the Brewer is ready to
brew.
2.
Set the Brewer to “AUTO OFF” following
a specified period of time after the last
brew.
a. Press the MENU Button three times to
program the Auto Off feature. The
Touch Screen will now display the
programming options with a small arrow
next to “SET AUTO OFF” (fig. 11).
b. Press or hold the Up or Down Button to
advance 1 hour at a time, up to 9 hours.
c. After setting the desired Auto Off time,
press the MENU Button six times to
scroll through the remaining
programming options and exit the
programming mode. “AUTO OFF SET”
(fig. 12) will now be displayed to indicate
that it has been set.
10
d. To cancel the Auto Off feature, press
the MENU Button three times to reach
the “AUTO OFF” programming mode.
Press or hold the Down or UP Button to
advance one hour at a time until “OFF”
is displayed.
3.
Program your Brewer for a specific
On/Off Time.
NOTE: To use this programming feature, the
clock must be set to the correct time. The
clock will not be displayed unless the time is
set.
a. After setting the correct time (required),
press the MENU Button four times to
program On Time feature. The Touch
Screen will show the programming
options with a small arrow next to “SET
ON TIME” (fig. 13).
b. Press or hold the Up or Down Button to
scroll through the hours to your desired
“ON TIME” hour. Press MENU to set M.
c. Press or hold the Down or Up Button to
scroll through the minutes to your
desired “ON TIME” minutes.
d. After setting the desired time, press the
MENU Button to save the “ON TIME”
and move to the “SET OFF TIME” (fig.
14).
e. If you want to set an “OFF TIME”, repeat
the procedure above in steps b & c to
set your desired “OFF TIME” (fig. 14).
f. To complete the process, press the
MENU Button two more times to exit the
programming mode. The Touch Screen
will now indicate the options you have
set.
g. The Auto On time and Auto Off time
functions operate independently from
one another. To cancel either set
function, follow the steps above and use
the UP and Down Buttons to advance to
12:00 AM. When you reach 12:00 AM,
the Touch Screen will display ‘OFF’ and
the function will be disabled.
EXAMPLE: If you chose to set the On
Time at 6:55 AM and the Off Time for
10:00 PM, then the Brewer will be
“READY TO BREW” and maintain hot
water in the tank during that time so that
it is always ready for you to brew. If you
wanted to brew outside this window,
simply press the Power Button and you
can brew as soon as the water is heated
and the “READY TO BREW” indicator is
displayed on the Touch Screen.
NOTE: The Auto Off timer and the
On/Off Time programming options
operate independently, but can also be
programmed to work together. For
example, you can set the On Time
function to turn on at 7:00 AM and then
set the Auto Off timer function to turn off
the Brewer two hours after the last brew.
11
How to Program the Favorite Button 1 & 2
Program two of your favorite brew selections. This function saves your
favorite two brew selections to memory. The Regular brew strength and the
small mug (7.25 oz serving) brew size are the factory default settings.
1.
If the Touch Screen is not illuminated, simply touch the screen.
2.
Press the Favorite 1 Button twice
quickly (fig. 15).
NOTE: The Favorite 1 Button will flash after
quickly pressing it twice.
3.
Select the brew strength by pressing
either the Regular or Strong Button and
then select the brew size by pressing a
brew size icon.
NOTE: Your choices are a stronger Extra-Small
Cup (3.25 oz serving), Small Cup (5.25 oz
serving), Small Mug (7.25 oz serving), a Large
Mug (9.25 oz serving) or a Travel Mug (11.25 oz
serving) (fig. 16).
4.
Press the Favorite 1 Button once to
confirm your selections to memory.
5.
Press the Favorite 2 Button twice
quickly and repeat steps 1-4 above to
program a second selection to memory.
NOTE: Press the Favorite 1 or Favorite 2 Button
to review the programmed brew strength and
brew size (fig. 15).
Brew Using the Favorite Button
1.
Touch screen will indicate “READY TO BREW”.
2.
Place a cup or mug on the Drip Tray Plate.
3.
Lift the Handle and the K-Cup® Holder will open.
4.
Select a K-Cup portion pack.
NOTE: Do not remove the foil lid or puncture the K-Cup.
5.
Place a K-Cup portion pack in the K-Cup Holder.
CAUTION: There are two sharp needles that puncture the K-Cup, one above
the K-Cup Holder and the other in the bottom of the K-Cup Holder. To avoid
risk of injury, do not put your fingers in the K-Cup Assembly Housing.
6.
Lower the Handle to close the Lid over the K-Cup Holder. (When it is
closed completely, the Touch Screen will indicate “READY TO BREW”
and the Brew Button will be illuminated for up to 60 seconds.
7.
Press either the Favorite 1 or Favorite 2 Button (fig. 15).
8.
Once the Favorite Button has been selected press the illuminated
BREW Button.
12
Programming Brew Temperature (187° – 197º F)
The Brewer brews at a preset temperature of 192°. You can adjust this
temperature up/down by 5 degrees if you prefer a cooler cup of coffee, tea
or hot cocoa. Simply follow the instructions below.
1.
Press the MENU Button on the Touch Screen eight times to program
the Brew Temperature feature.
2.
The Touch Screen will now display the programming options with a
small arrow next to “SET BREW TEMP” (fig. 17). Also, the temperature
192° (initial setting) will be displayed at the top of the Touch Screen to
indicate the current temperature setting.
3.
Press or hold the Down and Up Buttons to decrease or increase the
brew temperature.
4.
Once you have reached your desired brew temperature, press the
MENU Button once to exit the programming mode. “BREW TEMP SET”
will be displayed in the Touch Screen if you have changed it from 192°.
5.
To change the brew temperature again, repeat steps 1 through 3 to
change the temperature up or down, remembering that the temperature
can only be between 187° and 197°.
NOTE: At high altitudes (over 5,000 feet) if boiling occurs
use the temperature adjustment to lower the temperature.
SECTION 3
Cleaning & Maintenance
Cleaning External Parts
Regular cleaning of the Brewer’s external components is recommended.
1. Never immerse the Brewer in water or other liquids. The Housing
and other external components may be cleaned with a soapy, damp,
non-abrasive cloth.
2. The Drip Tray can accumulate up to 18 ounces of overflow. The
Drip Tray and Drip Tray Plate should be periodically inspected and
rinsed clean. To remove the Drip Tray Assembly, simply slide it toward
you, keeping it level at all times to avoid spilling. The Drip Tray and
Drip Tray Plate should not be placed in the dishwasher. They should
be cleaned with a damp, soapy, non-abrasive cloth and rinsed
thoroughly.
Cleaning the K-Cup Holder Assembly
1. Cleaning the Parts —The K-Cup Holder Assembly can be placed
onto the top shelf of a dishwasher. NOTE: Use low temperature
cycles in the dishwasher. To remove from the Brewer, open the
cover by lifting the Handle. Grasp the top of the K-Cup Holder with
one hand while pushing up on the bottom of the K-Cup® Holder
from underneath with the other until it releases. After cleaning, align
the K-Cup Holder with the opening using the two front ribs as a
guide, and snap into place from the top.
2. Cleaning the Funnel —The Funnel can
be removed from the K-Cup® Holder by pulling on
it until it pops off (fig. 18). The Funnel is
dishwasher safe. To replace it, just snap it back
onto the K-Cup Holder Assembly.
3. Cleaning the Exit Needle —The Exit
Needle is located on the inside bottom of the K-
Cup Holder Assembly. Should a clog arise due to
coffee grinds, it can be cleaned using a paper clip
or similar tool. Remove K-Cup Holder assembly
and detach Funnel. Insert the paper clip (as shown
in fig. 18) into the Needle to loosen the clog and
push it out. The K-Cup Holder is dishwasher safe.
13
CAUTION: There are sharp needles that puncture the K-Cup above the K-
Cup Holder and in the bottom of the K-Cup Holder. To avoid risk of injury,
do not put your fingers in the K-Cup Assembly Housing.
Cleaning the Water Reservoir & Water Reservoir Lid
The Water Reservoir Lid or Water Reservoir should not be put into the
dishwasher. They should be cleaned with a damp, soapy, non-abrasive cloth
and rinsed thoroughly. Do not dry the inside of the Water Reservoir with a
cloth as lint may remain.
CAUTION: Please rinse the Water Reservoir thoroughly after cleaning to ensure
that no cleaners or cleaning solutions remain in this area as they may contaminate
the water supply in the Brewer.
De-Scaling Your Brewer
Mineral content in water varies from place to place. Depending on the
mineral content of the water in your area, calcium deposits or scale may
build up in your Brewer. Scale is non-toxic, but left unattended, it can hinder
Brewer performance. De-scaling your Brewer helps maintain the heating
element and other internal parts of the Brewer that come in contact with
water.
The Brewer should be de-scaled every 3-6 months to ensure optimal
performance. It is possible for calcium deposits to build up faster, making it
necessary to de-scale more often.
This Brewer is equipped with sensors to
detect when scale buildup is interfering
with the performance of the Brewer.
When this is detected, “DE-SCALE” will
be displayed on the Touch Screen (fig.
19). However, even if “DE-SCALE” is
not displayed, you should continue to
de-scale your Brewer every 3-6 months.
You should promptly de-scale if “DE-
SCALE” is displayed on the Touch
Screen. Properly follow the de-scaling
procedure described.
NOTE: The Brewer will continue to function even when “DE-SCALE” is displayed.
However, if you do not de-scale soon after it is displayed; continued scale buildup
could damage the Brewer. If this occurs, “DE-SCALE” will begin to blink to alert
you to the potential damage to the Brewer if you do not de-scale immediately.
De-Scaling Instructions
A. PREPARE
Step 1: Make sure you have at least 48 ounces of undiluted white vinegar
on hand. You will also need an empty sink and a large ceramic mug
(do not use a paper cup).
Step 2: Empty the water in the Water Reservoir.
Step 3: Disable “Auto Off” features.
B. FILL AND CLEAN
Step 1: Pour the vinegar into the Water Reservoir to fill it.
Step 2: Place a large mug on the Drip Tray Plate and run a water brew
cycle. DO NOT USE A K-CUP, just select the Large Mug brew size.
Pour the contents of the large mug into the sink.
Step 3: Repeat the brew process 3 times.
Step 4: Now let the Brewer stand for at least 4 hours while still on.
C. RINSE
Step 1: Ensure the Water Reservoir is filled with fresh water.
Step 2: Place a large mug on the Drip Tray Plate and run a water brew
cycle. Pour the contents of the large mug into the sink.
Step 3: Repeat brew process until the Water Reservoir is empty.
Step 4: You may need to perform additional water brew cycles if you notice
any residual taste.
NOTE: If “DE-SCALE” is still displayed on the Touch Screen after completing the
procedure, repeat the de-scaling procedure above.
Service
Beyond these recommended cleaning and maintenance procedures this
Brewer is not user serviceable. For service, please refer to the Warranty
section of this guide.
Storage
Empty the Water Reservoir before storing, and take care to ensure that you store your
Brewer in a safe and frost free environment. Please be sure to store your Brewer in its
upright position to avoid water leakage from the inner tank. If you store the Brewer in a
cold environment, you run the risk of water freezing inside the Brewer and causing
damage. When you prepare to use it after storage, we recommend rinsing the Water
Reservoir with fresh water and running three cleansing brews without a K-Cup.
14
If you plan to move your Brewer to a different location, turn the Brewer off, unplug it,
and empty the Water Reservoir. If your Brewer has been in an environment below
freezing, please be sure to let it warm to room temperature for at least 2 hours before
using.
Addendum:
This device complies with FCC and Industry Canada RF radiation exposure
limits set forth for general population. It should be installed and operated
such that a minimum separation distance of at least 20cm is maintained
between the radiator (antenna) and the user's body, excluding hands and
wrists. This device must not be co-located or operating in conjunction with
any other antenna or transmitter.
Changes or modifications not expressly approved by Keurig, Inc. could void
the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC and Industry Canada
RF radiation exposure limits set forth for general
population. It should be installed and operated such
that a minimum separation distance of at least 20cm is
maintained between the radiator (antenna) and the
user's body, excluding hands and wrists. This device
must not be co-located or operating in conjunction with
any other antenna or transmitter."
Notes:
15
16
Domestic and International Patents Pending
60-201114-000 REV B
