User Manual

Wireless

Hand-held Barcode Reader

BL-N90 Series

User's Manual

Read this manual before using the system in order to

achieve maximum performance.

Keep this manual in a safe place after reading it so that it

can be used at any time.

Introduction

This manual contains information about procedures for handling, operations, warnings, and

precautions about the "Wireless Hand-held Barcode Reader BL-N90 Series".

Be sure to read this section thoroughly before use. Keep this manual in a safe place for

future reference.

bSymbols

The following symbols and conventions alert you to important messages.

Be sure to read these messages carefully.

Indicates reference pages in this or another manual.

bGeneral Cautions

•At startup and during operation, be sure to monitor the functions and performance of

the BL-N90 series.

•We recommend that you take substantial safety measures to avoid any damage in the

event of a problem occurring.

•Do not modify the BL-N90 series, or use it in any way other than described in the

specifications.

•When the BL-N90 series is used in combination with other devices, functions and

performance may be degraded, depending on the operating conditions and

surrounding environment.

•Do not use the BL-N90 series for the purpose of protecting the human body.

bApplications that Need Special Attention

When using the BL-N90 series under the following conditions, be sure to use the BL-N90

series under the specified rating or within the provided functions, or take sufficient safety

precautions such as providing a failsafe, and consult with KEYENCE sales staff.

•Under the conditions or environment not described in this manual

•For atomic controls, railway facilities, aviation facilities, vehicles, combustion devices,

medical equipment, amusement machines, or safety equipment

•For the applications that may affect human life or properties and particularly require

safety

Warranties and Disclaimers

(1) KEYENCE warrants the Products to be free of defects in materials and workmanship for a

period of one (1) year from the date of shipment. If any models or samples were shown to

Buyer, such models or samples were used merely to illustrate the general type and

quality of the Products and not to represent that the Products would necessarily conform

to said models or samples. Any Products found to be defective must be shipped to

KEYENCE with all shipping costs paid by Buyer or offered to KEYENCE for inspection

and examination. Upon examination by KEYENCE, KEYENCE, at its sole option, will

refund the purchase price of, or repair or replace at no charge any Products found to be

defective. This warranty does not apply to any defects resulting from any action of Buyer,

including but not limited to improper installation, improper interfacing, improper repair,

unauthorized modification, misapplication and mishandling, such as exposure to

excessive current, heat, coldness, moisture, vibration or outdoors air. Components which

wear are not warranted.

(2) KEYENCE is pleased to offer suggestions on the use of its various Products. They are

only suggestions, and it is Buyer's responsibility to ascertain the fitness of the Products

for Buyer's intended use. KEYENCE will not be responsible for any damages that may

result from the use of the Products.

(3) The Products and any samples (Products/Samples) supplied to Buyer are not to be used

internally in humans, for human transportation, as safety devices or fail-safe systems,

unless their written specifications state otherwise. Should any Products/Samples be used

in such a manner or misused in any way, KEYENCE assumes no responsibility, and

additionally Buyer will indemnify KEYENCE and hold KEYENCE harmless from any liability

or damage whatsoever arising out of any misuse of the Products/Samples.

(4) OTHER THAN AS STATED HEREIN, THE PRODUCTS/SAMPLES ARE PROVIDED WITH

NO OTHER WARRANTIES WHATSOEVER. ALL EXPRESS, IMPLIED, AND STATUTORY

WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-

INFRINGEMENT OF PROPRIETARY RIGHTS, ARE EXPRESSLY DISCLAIMED. IN NO

EVENT SHALL KEYENCE AND ITS AFFILIATED ENTITIES BE LIABLE TO ANY PERSON

OR ENTITY FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR

CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES

RESULTING FROM LOSS OF USE, BUSINESS INTERRUPTION, LOSS OF

INFORMATION, LOSS OR INACCURACY OF DATA, LOSS OF PROFITS, LOSS OF

SAVINGS, THE COST OF PROCUREMENT OF SUBSTITUTED GOODS, SERVICES OR

TECHNOLOGIES, OR FOR ANY MATTER ARISING OUT OF OR IN CONNECTION WITH

THE USE OR INABILITY TO USE THE PRODUCTS, EVEN IF KEYENCE OR ONE OF ITS

AFFILIATED ENTITIES WAS ADVISED OF A POSSIBLE THIRD PARTY’S CLAIM FOR

DAMAGES OR ANY OTHER CLAIM AGAINST BUYER. In some jurisdictions, some of the

foregoing warranty disclaimers or damage limitations may not apply.

BUYER'S TRANSFER OBLIGATIONS: If the Products/Samples purchased by Buyer are to

be resold or delivered to a third party, Buyer must provide such third party with a copy of this

document, all specifications, manuals, catalogs, leaflets and written information provided to

Buyer pertaining to the Products/Samples.

WARNING Failure to follow instructions may lead to physical injury, such as electric shock

or burns.

CAUTION Failure to follow instructions may lead to product damage.

Note Provides additional information on proper operations.

Reference Provides advanced and useful information for operation.

Safety Precautions

bSafety Precautions on Laser Products

The "Wireless Hand-held Barcode Reader BL-N90 Series" employs a visible light

semiconductor laser for its light source.The BL-N90 Series is classified as a Class 1 laser

under IEC standards (IEC 60825-1: "Safety of Laser Products").

WARNING Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

Item BL-N90/N90K

Wavelength 650 nm

Maximum

output 350 µW

Pulse width 1.5 ms

Class Class 1 (IEC 60825-1)

WARNING

•Do not look directly at laser light or reflected laser light from a mirrored

surface. Otherwise, eye injury may result. Laser light will not cause damage if

it strikes exposed skin, but laser light should not deliberately be aimed

towards a human body.

•Do not disassemble the BL-N90 Series. The BL-N90 Series does not

automatically stop emitting the laser when the reader is disassembled.

Therefore, if someone disassembles the reader, he/she may be exposed to

the laser beam and may suffer eye injury.

•Be sure to stop the laser emission before cleaning the portion of the laser

scanner where laser light is generated and received (emitter/receiver).

Otherwise, exposure to the laser may cause eye injury.

•Be careful of the path of the laser beam.

Be especially careful of reflected laser light from a mirrored surface.

Do not use the BL-N90 Series where the path of the laser beam is at the

same height as that of the human eye.

Handling the BL-N90 Series

bNotes about the default number of digits for reading

The number of digits of barcode for reading is set to three digits or more by default to prevent misreading.

How to count the digits varies depending on the barcode type, but the minimum number

of digits for reading by default is as follows.

If you read a barcode with less than three digits, change the setting with the Limit read

digits function.

WARNING

•

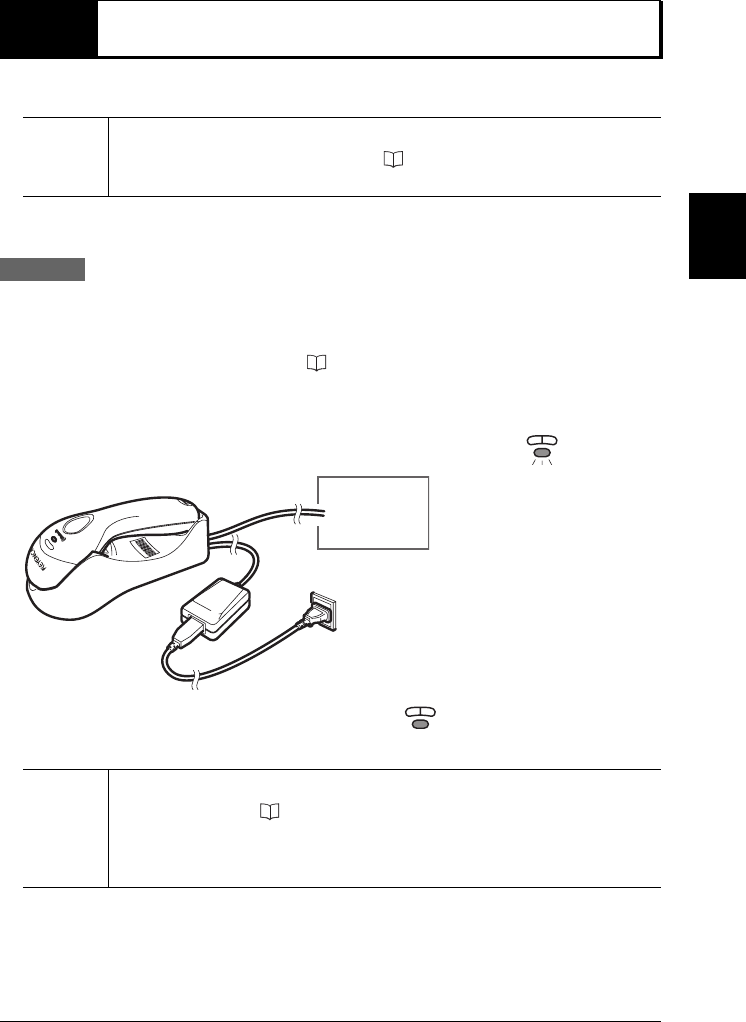

When recharging the BL-N90/N90K with BL-N9R, BL-N9UB, or BL-N9V, make sure

to check whether foreign materials have entered the charging terminal.The presence

of foreign materials may generate high heat or ignition, which may cause fires.

•Check whether dust covers the power plug of the AC adapter that connects to

BL-N9R, BL-N9UB, or BL-N9V, and clean it regularly.There is a danger that a

fire will start due to tracking.Also, remove the plug from the electrical outlet

when not using the BL-N90 Series for a long period of time.

•

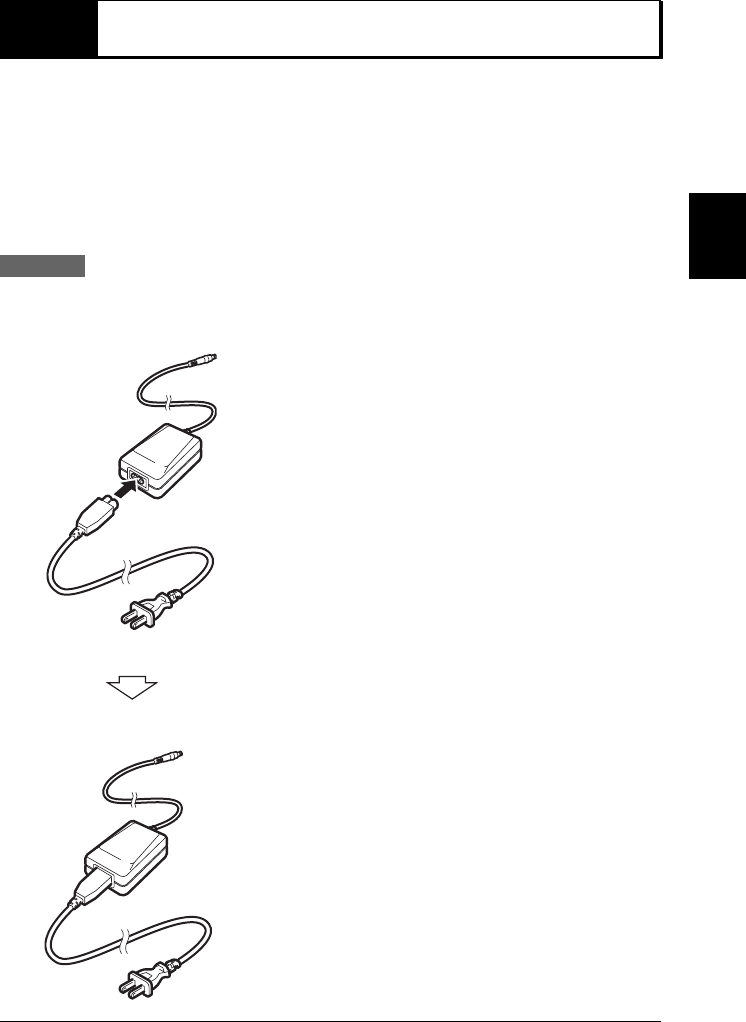

Always use the included AC adapter with BL-N9R, BL-N9UB, or BL-N9V.Using

another AC adapter may cause fire, electrical shock, or damage to the equipment.

CAUTION

•

Do not modify or disassemble the BL-N90 Series. Doing so may cause damage.

•

The BL-N90 Series is a precision instrument. Dropping it or applying strong shock may cause

damage to the instrument. Take appropriate precautions when transporting the BL-N90 Series.

•Do not place the BL-N90 Series in locations with large amounts of moisture or

dust.Also, do not leave small metallic objects, such as paperclips, near the

instrument. Doing so may cause fire or damage.

•Do not use the BL-N90 Series in the following locations. Usage in these

locations may cause damage or malfunctions.

–Locations where the ambient temperature exceeds the rated range.

–Locations where the ambient humidity exceeds the rated range.

–Locations exposed to direct sunlight.

–Locations where temperatures may increase greatly, such as within a

vehicle with the windows closed.

–Locations where sharp temperature changes may cause condensation.

–Locations with corrosive or flammable gases.

–Locations with a large amount of dust, salt, iron, or greasy fumes.

–Locations that are directly affected by vibrations or shock.

–Locations where the unit may be splashed by water, oil, or chemicals.

–Locations with strong magnetic or electrical fields.

Barcode type Example of barcode with three digits or more

CODE39 *123*

NW-7 A1A

ITF 1234

CODE128 123

Wireless Communication

The BL-N90 Series contains an internal wireless function based on Bluetooth wireless technology.

bPrecautions for wireless communication

•

Using the BL-N90 Series near wireless LAN equipment that operates in the same frequency band may

cause radio interference, reduce the communication speed, and make communication impossible.

•

Using the BL-N90 Series near equipment that operates in the same frequency band, such as microwave

ovens, industrial heaters, or high frequency medical equipment, may make communication impossible.

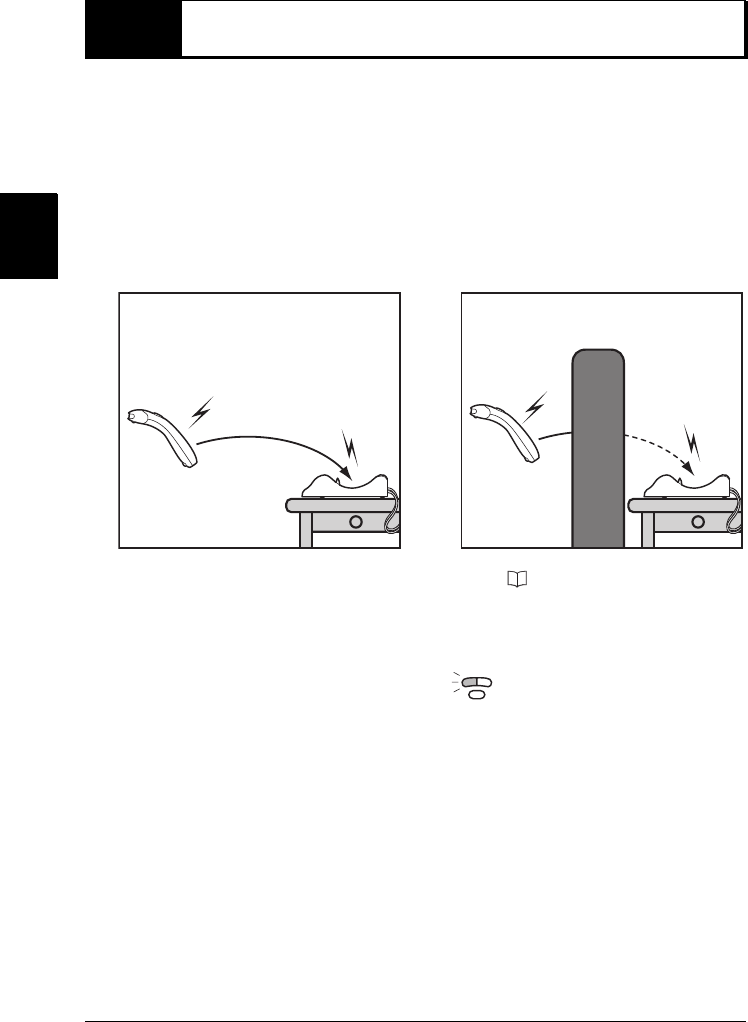

•The BL-N90 Series may not be able to communicate in the following types of locations.

–Locations close to metallic substances or with large amounts of metallic powder

–Locations surrounded by metallic walls

–Locations that are subject to strong vibrations

•The guideline for communication distance is a visible range of about 10 m, but there are

some environments where communication is not possible even within this range.Make

sure to check communication before installation.

•The BL-N90 Series employs the working frequency band used by premise radio stations

for identification of moving objects (radio station license is required) and specified low-

power radio stations (radio station license is not required) that are used by production

lines for factories that make industrial, chemical, or medical equipment.

•Before using the BL-N90 Series, confirm that premise radio stations for identification of

moving objects and specified low-power radio stations are not operated nearby.

•

In the unlikely event that waves from the BL-N90 Series cause radio interference with

premise radio stations for identification of moving objects, stop the equipment and contact

KEYENCE at the number below. Our representatives can help provide more information

about methods for avoiding interference, such as the installation of a partition.

•

If other problems occur, such as waves from the BL-N90 Series causing radio interference with specified

low power radio stations for identification of moving object, contact KEYENCE at the number below.

Contact: KEYENCE, TEL +81-6-6379-1151

2.4 :

Indicates that the wireless device is used in a 2.4 GHz band.

FH :

Indicates that the modulation system is FH-SS.

Indicates the estimated interference distance (

≤

10 m).

Indicates that the equipment uses the full

bandwidth and identification of moving

object equipment area cannot be avoided.

CAUTION

Disassembly or modification of the BL-N90 Series is prohibited under the

Japanese Electrical Appliance and Material Safety Law (DENAN). Do NOT

disassemble or modify the product.The BLN90 Series is specified as specified

low power radio equipment according to DENAN, and the appropriate

certification has been obtained

2.4 FH 1

Precautions on Safety Standards

Europe

bPrecautions on CE Marking

The BL-N90 series complies with the R&TTE Directive.

•Applicable standard ESTI EN300 328 V1.6.1

ESTI EN301 489-17 V1.2.1

EN60950-1

EN60825-1, Laser Class1

•Overvoltage category I (BL-N90/N90K)

II (BL-N9R/N9UB/N9V)

•Pollution degree 2

bCountries where the BL-N90 Series can be used

Among the EU member states, the BL-N90 Series can be used in the following countries.

v Austria v Belgium v Denmark v Estonia

v Finland v France v Germany v Greece

v Iceland v Ireland v Italia v Liechtenstein

v Luxemburg v Netherlands v Norway v Portugal

v Spain v Sweden v Switzerland v England

v Poland

North America

bPrecautions on FCC

The BL-N90 Series complies with the following FCC requirements.

•Approved standard FCC Part 15 Subpart B, Class B Digital Device

FCC Part 15 Subpart C

•FCC ID RF40823A (BL-N90/N90K)

RF40823B (BL-N9R/N9UB/N9V)

FCC WARNING

Changes or modifications not expressly apprvoed by the party responsible for

compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules and RSS-Gen of the IC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

bPrecautions on UL and CSA certificate

The BL-N90 Series complies with the following UL and CSA standards. The equipment

has received UL and C-UL certificate.

•Approved standard UL60950-1

CAN/CSA C22.2 No.60950-1-03

•UL File No. E167973

•UL category NWGQ/NWGQ7

•Pollution degree 2

•Overvoltage category I (BL-N90/N90K)

II (BN-N9R/N9UB/N9V)

Be sure to use the power supply that has the Class 2 output specified by NEPA70 (NEC:

National Electric Code).

bPrecautions on IC (Industry Canada)

The BL-N90 Series complies with the following IC regulation.

•Approved standards:

RSS-210-Low Power License-Exmpt Radio Communication Devices

ICES-003, Issue 4, Class B Digital Apparatus

•IC No. 5798A-0823A (BL-N90/N90K)

5798A-0823B (BL-N9R/N9UB/N9V)

Changes or modifications not expressly apprvoed by the party responsible for

compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules and RSS-Gen of the IC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Maintenance

Clean the following parts on the BL-N90/N90K and the communication unit periodically.

•BL-N90/N90K

Clean the laser emitter/receiver and the charging terminals.

•Communication unit

Clean the charging terminals.

bCleaning method

Laser emitter/receiver : Clean the surface using an eyeglass cleaning cloth or a soft cloth

that has been dampened with a specialty cleaner for plastics.

Charging terminals : Wipe the surface gently using a soft cloth moistened with

alcohol.

Charging

terminals

Laser emitter/

receiver

Charging

terminals

1-1

Overview

This chapter describes names and functions of each part of the

items in the package.

1-1 Checking the Package Contents . . . . . . . . . . . 1-2

1-2 Part Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

1-2

Overview

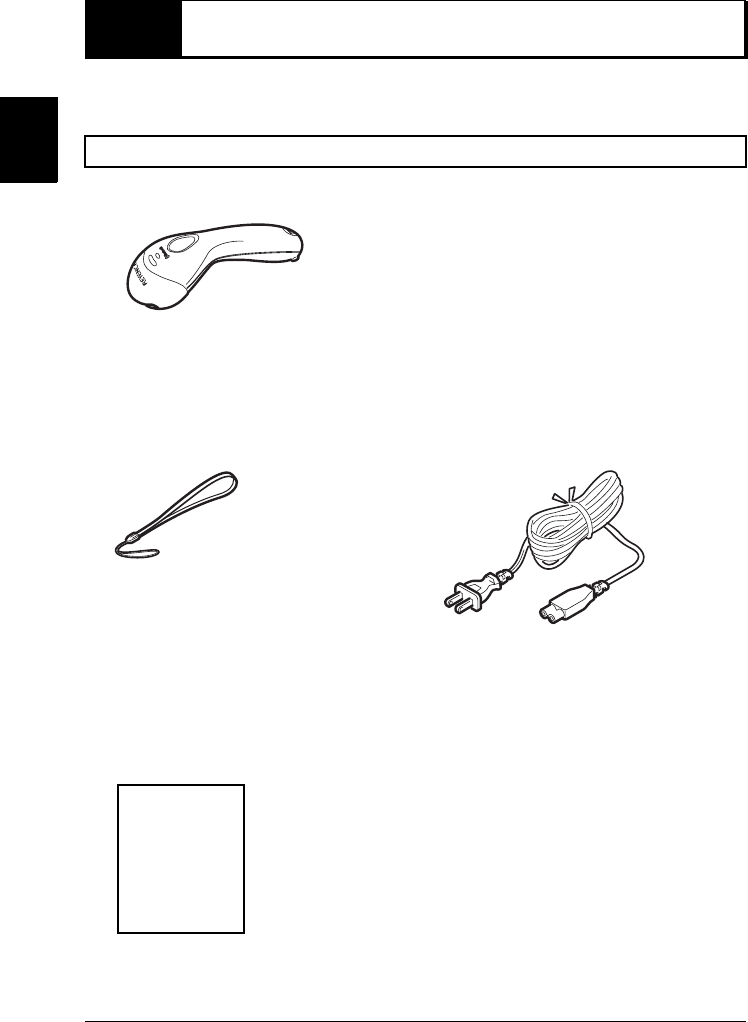

1-1 Checking the Package Contents

The BL-N90/N90K series comes with the following items. Check that all of the items are

included.

bBL-N90/N90K barcode reader: 1

bStrap: 1 bAC cable: 1

Supplies power by using the AC adapter

of the communication unit.

This cable is not included in the BL-N90K.

Please prepare one separately.

*This cable can be used in Japan only.

bUser's Manual: 1

Wireless Hand-held Barcode Reader BL-N90/N90K

1-1 Checking the Package Contents

1-3

Overview

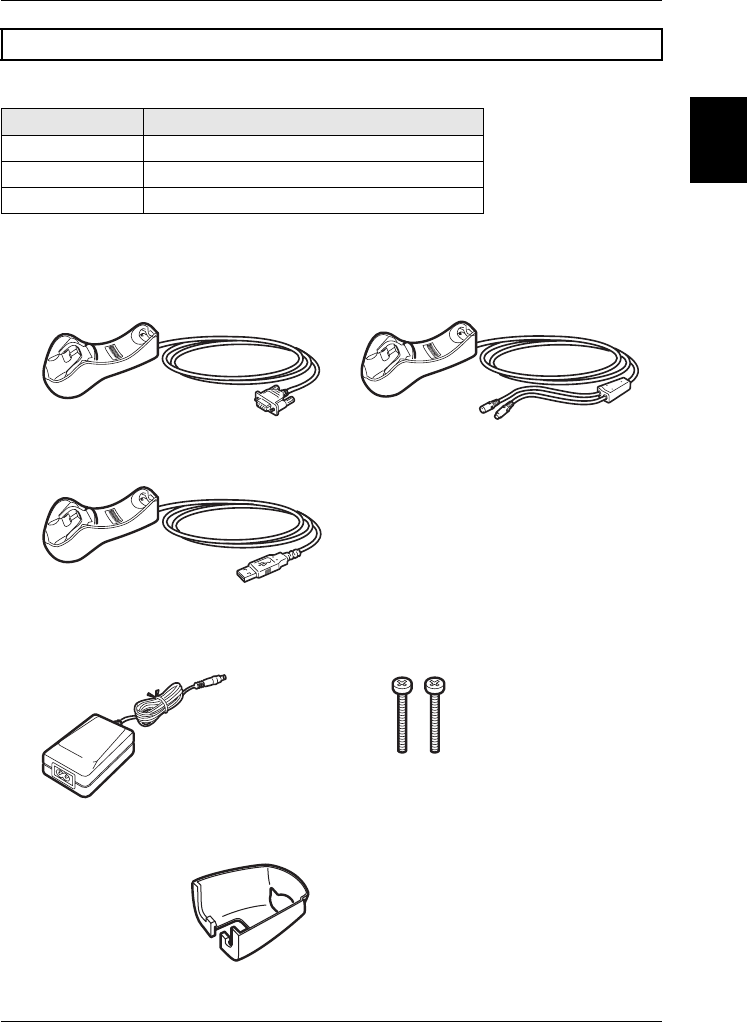

The following models are available for each communication interface:

bCommunication unit: 1

BL-N9R BL-N9V

BL-N9UB

bAC adapter: 1 bWall mount screw: 2

Used to mount the communication unit on a wall.

bCup holder bInstruction Manual: 1

Communication Unit BL-N9R/N9V/N9UB

Model Communication interface

BL-N9R RS-232C communication unit

BL-N9V Keyboard interface communication unit

BL-N9UB USB communication unit

ttac

er to t

communication unit to

secure the BL-N90/

N90K when the

communication unit is

used on a wall.

1-1 Checking the Package Contents

1-4

Overview

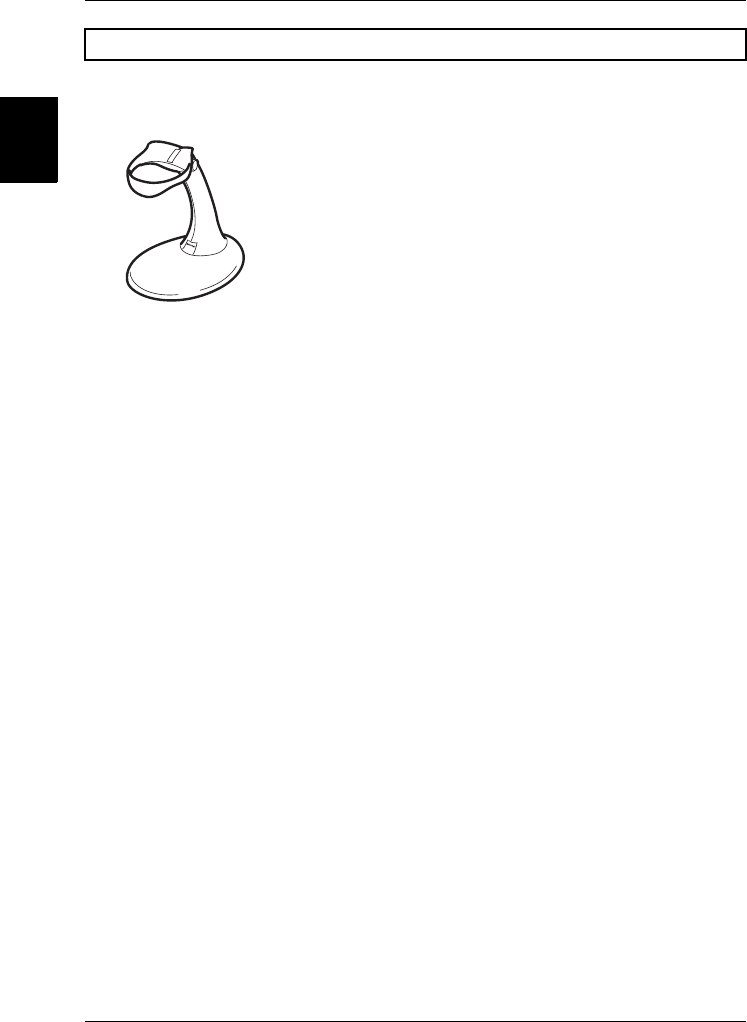

bStand OP-82191

Used to fix the BL-N90/N90K on a desktop to read barcodes by bringing them close to it.

Option

1-5

Overview

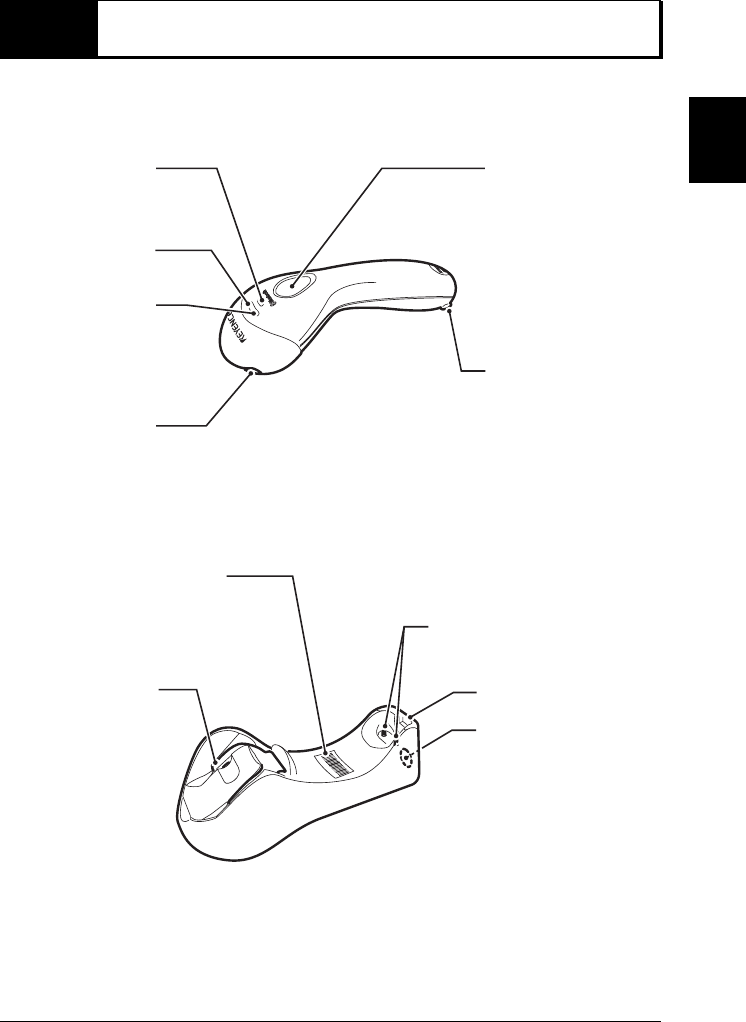

1-2 Part Names

This chapter describes names and jobs of each part of the BL-N90/N90K Series.

bBL-N90/N90K

bCommunication unit

Tr i gger switch:

Use the switch to read

a barcode.

Emitter/receiver:

Emits and

receives laser light.

Charging terminals

Ye llow operation

check LED

White operation

check LED

Blue operation

check LED

Page button:

When the scanner

associated with the

cradle cannot be found,

press the page button;

the scanner will begin

beeping and the blue

and yellow LEDs will

flash alternately.Press

the page button again to

stop the beep and LED

flashing.

BD address barcode

Read this barcode for

establishing connection (pairing)

with the BL-N90/N90K.

Wall mount hook:

In applications

where wall mount

becomes

necessary, the

hook will secure

the scanner into

place.

Blue operation check LED

Charging terminals

1-2 Part Names

1-6

Overview

Operation check LEDs

The LEDs illuminate or flash for each operation as shown in the following table.

A beep may sound at the same time for some operations.

bBL-N90/N90K

* The number beside the beep mark indicates the number of beeps.

bCommunication unit

LED lighting/flashing BL-N90/N90K status Beep*

Lights in blue

Emitting laser. –

Flashes in blue

•Not wirelessly connected with the communication unit.

•Out of the wireless communication range. –

Wireless communication is cut.

Lights in white.

Sending data to the communication unit.

Flashes in white.

Establishing wireless communication (flashes three

times).

Lights in yellow.

Charging complete. –

Flashes in yellow.

Mounted on the communication unit: Being charged. –

Flashes in blue, white,

and yellow. When checking the association using the page

button on the communication unit.

Press the page button again to stop.

LED lighting/flashing Communication unit status

Lights in blue The wireless connection is established and the unit can be used.

Flashes in blue •Wireless connection is not established with the BL-N90/N90K.

•Out of the wireless communication range.

Repea

2-1

First Steps

This chapter describes the procedures for connecting the

BL-N90/N90K to use for the first time.

2-1 The Setup Procedure . . . . . . . . . . . . . . . . . . . . 2-2

2-2 Connecting the Power Cable to the

Communication Unit . . . . . . . . . . . . . . . . . . . . . 2-3

2-3 Connecting the Communication Unit . . . . . . . 2-5

2-4 Charging the BL-N90/N90K. . . . . . . . . . . . . . . 2-11

2-5

Establishing a Connection

. . . . . . . . . . . . . . . . 2-13

2-6 Initial Setup for the BL-N90/N90K . . . . . . . . . 2-15

2-7 Reading a Barcode . . . . . . . . . . . . . . . . . . . . . 2-16

2-8 Wireless Connection Environment . . . . . . . . 2-18

2-2

First Steps

2-1 The Setup Procedure

Before using the BL-N90/N90K, the following connections must be set up.

Performing these connections establishes the following communications, enabling the BL-

N90/N90K for use.

•Communication unit to PC connection: Wired transmission

•BL-N90/N90K to communication unit connection: Wireless transmission (Bluetooth)

bFirst steps

Note After connecting the communication unit to the computer, be sure to charge

the BL-N90/N90K before use.

1Connect the power cable to the communication unit. ( page 2-3).

2Connect the communication unit to your computer ( page 2-5).

3Charge the BL-N90/N90K ( page 2-11).

4Establish a connection between the BL-N90/N90K and the communication

unit ( page 2-13).

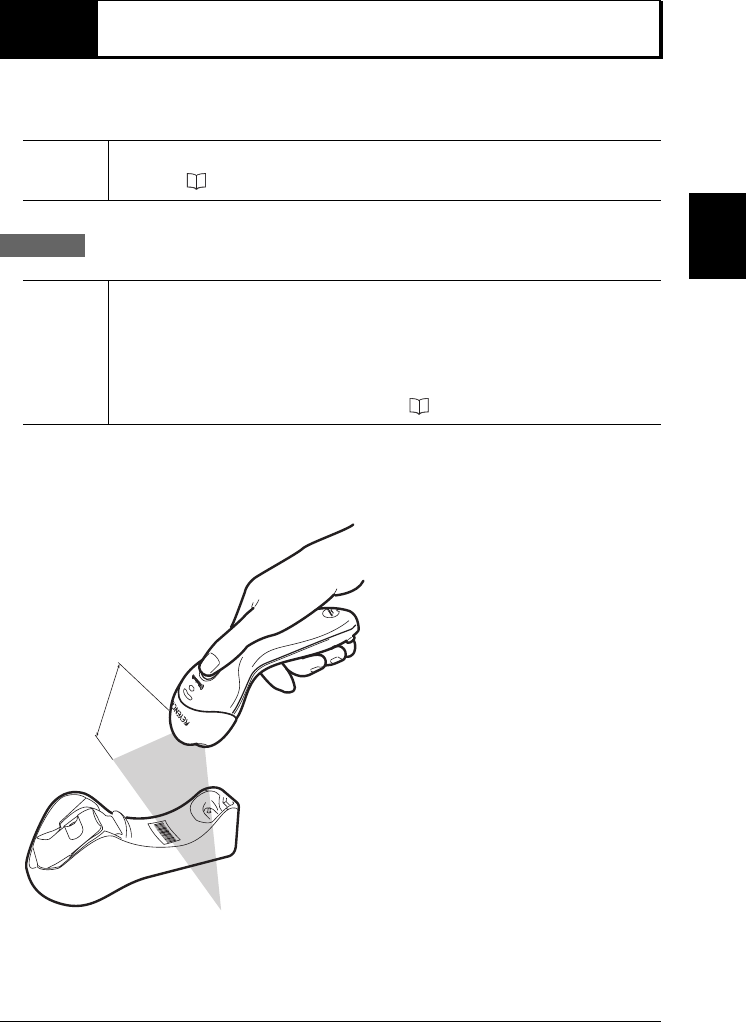

Use the BL-N90/N90K to read the BD address barcode attached to the

communication unit.

5Initialize settings for the BL-N90/N90K. ( page 2-15).

Read the initialization barcode using the BL-N90/N90K.

2-3

First Steps

2-2

Connecting the Power Cable to the Communication Unit

Connect the power cable to the communication unit before use.

bIncluded parts

•AC cable for the BL-N90

(The AC cable for the BL-N90K is not included. Please prepare one separately.)

•Communication unit

•AC adaptor for the communication unit

Procedure

1Connect the AC cable to the AC adaptor.

2-2 Connecting the Power Cable to the Communication Unit

2-4

First Steps

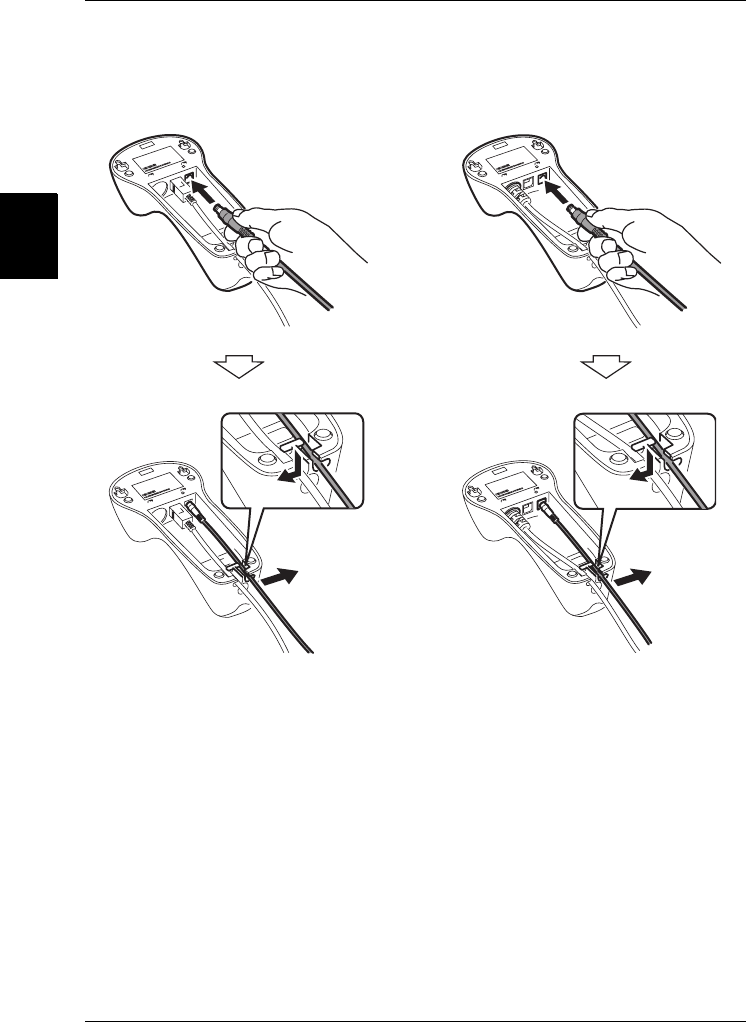

2Connect the AC adapter to the AC connector on the back of the communication unit.

After connecting the AC adaptor, snap the cable behind the hook.

BL-N9UB BL-N9V/N9R

2-5

First Steps

2-3 Connecting the Communication Unit

After connecting the power cable to the communication unit, connect the communication unit

to your computer using the interface provided.

Connecting the BL-N9UB to your Computer

Use the USB cable to connect the communication unit to your computer.

The barcode reader is compatible with Windows XP/2000/98.

Procedure

1Tu r n on your computer.

2Connect the communication unit's interface cable to the USB port on your computer.

3Connect the power cable to an AC outlet, and turn on the communication unit.

The blue LED on the communication unit will flash.

After connecting the device to your computer for the first time, install the USB driver ( page 2-6).

CAUTION •Be sure to use the AC adaptor provided with the device. Connecting to other

power sources may cause electric shock, fire or product damage.

BL-N9UB

Computer

USB port

(tyep A)

2-3 Connecting the Communication Unit

2-6

First Steps

When BL-N9UB is first connected to a computer running Windows 98, the USB driver

installation screen appears. Install the driver by following the directions given on the screen.

(This procedure is not necessary when using a computer running Windows XP/2000).

Procedure

1The "Add New Hardware Wizard" dialog appears and the message "This window searches

for new drivers for:USB human interface device" is displayed. Click on the [Next] button.

2The message "What do you want Windows to do?" is displayed. Select [Search for the best

driver for your device (Recommended).] and click on the [Next] button.

3Click on the [Next] button. "USB human interface device" is displayed and the message

"Windows driver search for the device:" appears. Click on the [Next] button.

4Windows begins installing the driver. When installation is complete, the message

"Windows has finished installing the software that your new hardware device requires."

appears. Click on the [Finish] button.

Installing the USB Driver

Note Connect the barcode reader after turning on the computer. If the barcode reader is

connected with the power off, turn the computer on.

Note The CD-ROM (Windows) may be required depending on the computer environment.

2-3 Connecting the Communication Unit

2-7

First Steps

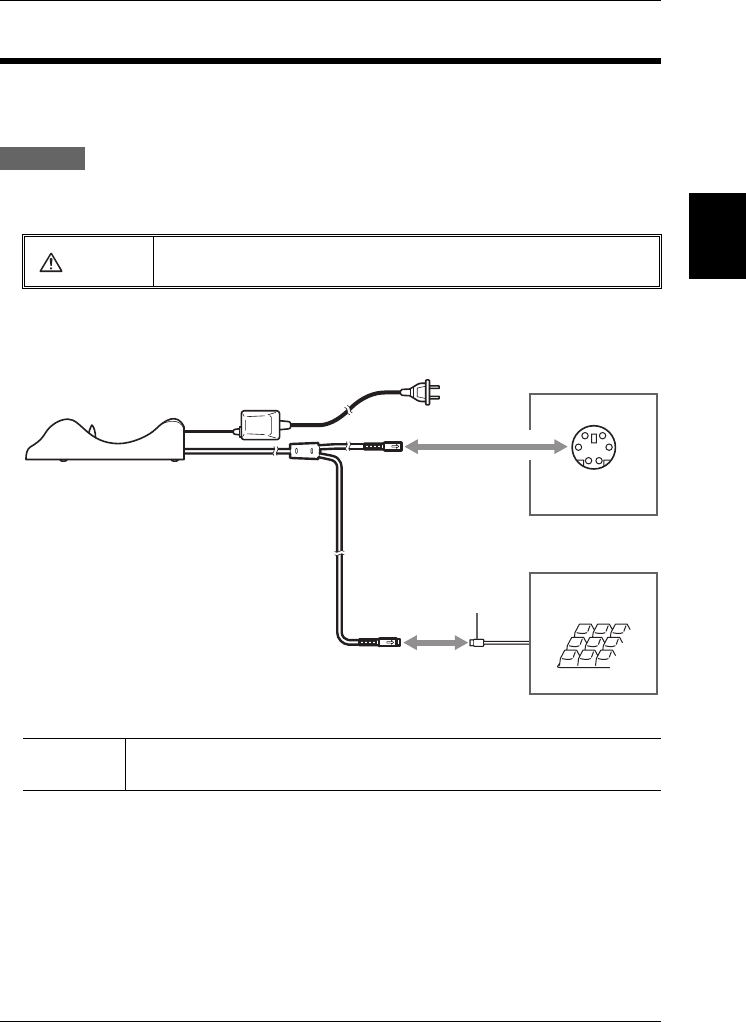

Connecting the BL-N9V to your Computer

Use the keyboard interface to connect the communication unit to your computer. Compatible

computers include PC/AT (DOS/V) machines.

Procedure

1Tu r n o ff the computer.

2Connect the communication unit's interface cable to your computer's keyboard connector,

as indicated in the diagram.

CAUTION Do not remove the cables while the computer is turned on.

This could cause damage to the computer and the barcode reader.

Reference When connecting a keyboard connector plug to an AT connector, use a commercial

keyboard conversion adapter for the connection.

BL-N9V

PS/2 connector

(mini-DIN 6-pin)

PS/2 connector

Computer

Keyboard

2-3 Connecting the Communication Unit

2-8

First Steps

3Connect the power cable to an AC outlet, and turn on the communication unit.

The blue LED on the communication unit will flash.

4Tur n on your computer.

CAUTION •Be sure to use the AC adaptor provided with the device. Connecting to other

power sources may cause electric shock, fire or product damage.

2-3 Connecting the Communication Unit

2-9

First Steps

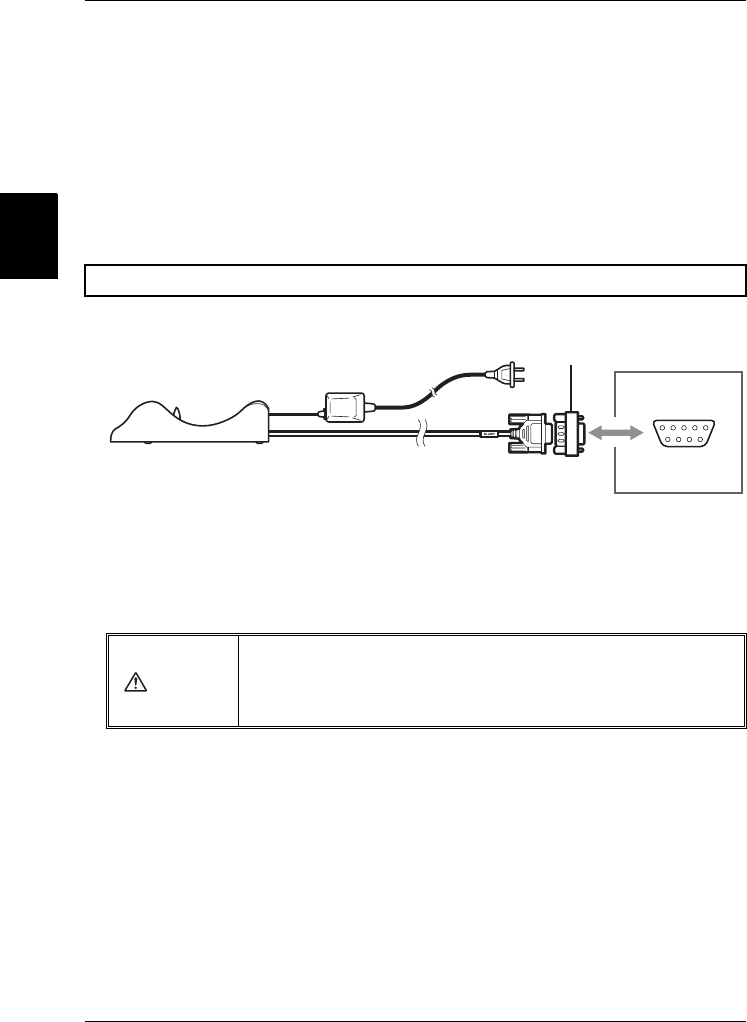

Connecting the BL-N9R to your Computer

A communication unit with an RS-232C interface may be used in conjunction with an RS-

232C enabled device. This section explains procedures for connecting the barcode reader

to a computer, as well as connecting the barcode reader to an AutoID data controller DV-90

(

page 2-10).

Procedure

1Tu r n on your computer.

2Connect the communication unit's interface cable to the RS-232C port on your computer.

3Connect the power cable to an AC outlet, and turn on the communication unit.

The blue LED on the communication unit will flash.

bRS-232C pin configuration of the BL-N9R

CAUTION •Be sure to use the AC adaptor provided with the device. Connecting to other

power sources may cause electric shock, fire or product damage.

BL-N9R

Computer

RS-232C

(D-sub 9-pin)

54321

9876

Pin No. Symbol Description

Signal direction

2SD (TXD)Sends data Output

3RD (RXD)Receives data Input

Do not make any connection

5SGSignal ground -

Do not make any connection

7CS (CTS)Send OK Input

8RS (RTS)Send request Output

D-sub 9-pin (female)

#4-40 screws

2-3 Connecting the Communication Unit

2-10

First Steps

bCommunication settings

Factory settings for the BL-N90 are given below. The settings can be changed. Make sure

that the settings for BL-N90/N90K and the connected computer are the same.

•Baud rate : 9600 bit/s

•Data length : 7 bits

•Parity : Even

•Stop bit : 1 bit

•Communication protocol: No protocol

To connect the device to a DV-90, an adaptor like the diagram below is required.

The following adaptor is recommended.

•Manufacturer : Elecom

•Product Name : Serial Reverse Adaptor

•Model : AD-R9

Connecting the DV-90

CAUTION

•Be sure to use the AC adaptor provided with the device. Connecting to other

power sources may cause electric shock, fire or product damage.

•Power is supplied by the AC adaptor. The D-sub connector does not supply

power.

BL-N9R

Conversion connector

DV-90

RS-232C

(D-sub 9-pin)

2-11

First Steps

2-4 Charging the BL-N90/N90K

The communication unit is used to charge the BL-N90/N90K.

bHow to charge

Procedure

1Connect the communication unit to your computer using the appropriate connection

method, and make sure both sides are powered on.

For details on connection methods, refer to "Connecting the Communication Unit" on page 2-5.

2Set the BL-N90/N90K into the communication unit securely, to ensure that the charging

terminals stay in place.

As the unit begins to charge, the yellow LED on the scanner begins to flash .

Charging is complete once the yellow LED stops blinking .

A full charge takes approximately 4 hours.

Note

The barcode reader is shipped with zero charge. Please charge the device before use.

The barcode reader may be used to scan ( page 2-13) after a charge of just 10

minutes.

Note

•Please periodically clean the charging terminals on the BL-N90/N90K and the

communication unit ( "Maintenance" (Page 6)).

Dirt in the terminals may interfere with charging.

•The BL-N90/N90K can be configured to sound an alarm when it is unable to charge

properly, such as when the charging terminals are misaligned.

To computer

2-4 Charging the BL-N90/N90K

2-12

First Steps

Rechargeable Batteries for the BL-N90/N90K

The BL-N90/N90K sounds an alarm when the battery is low.

When using the scanner, be mindful of the alarm and always maintain a charge.

bBattery low alarm

When the BL-N90/N90K battery level gets low, the following alarms are sounded.

•Each time a barcode is read, a beep sounds two times

bContinuous use capacity

The following table offers estimates of how long the BL-N90/N90K can be used

continuously on a full charge.

Since the BL-N90/N90K scanner and the communication unit are continuously communicating

wirelessly, battery power is depleted even when the BL-N90/N90K is not in use.

•

When not in use, it is recommended that you set the BL-N90/N90K in the communication unit.

•When not using the device for long periods, enabling sleep mode interrupts the wireless

communication, thereby saving battery power.

bCharging time

A fully depleted (no charge) battery takes approximately 4 hours to fully charge.

Reference

•If the "Trigger" switch is pressed but the laser light is short, or if the laser does

not light when reading a barcode, the battery may be low.

•If the laser does not light even when pressing the "Trigger" switch, then the

battery is completely depleted.

Usage Condition Estimated Continuous Use Length

One scan every 10 seconds Approx. 10 hours

One scan every 5 seconds Approx. 8.5 hours

Idle with full charge * Approx. 12 hours

Sleep mode with full charge * Approx. 54 hours

Note

•The continuous use times listed above are estimates. Actual times may vary.

•If the continuous use times decrease remarkably, then it is time to replace the

batteries. Contact your nearest KEYENCE office.

2-13

First Steps

2-5

Establishing a Connection

The BL-N90/N90K and the communication unit communicate as a pair. This section describes

how to establish a connection between the BL-N90/N90K and the communication unit.

Procedure

1Press the "Trigger" switch to activate the laser.

2Scan the barcode attached to the communication unit.

After 10 to 30 seconds, a connection will be established. Once a connection is established, the

devices will be in the following state:

• The blue LED on the scanner is lit.

• The blue LED on the communication unit is lit.

Note Perform the following operation with the communication unit connected to your

computer ( page 2-5).

Note

The following symptoms indicate that a connection is not established.

•The blue LED on the scanner is flashing

•The blue LED on the communication unit is flashing

At this stage, perform the following steps.

Note that even when using multiple BL-N90/N90K scanners, each scanner can only

communicate with its pair communication unit ( page 2-14).

100mm

2-5 Establishing a Connection

2-14

First Steps

Notes About Establishing a Connection Between the

Scanner and the Communication Unit

bReading a barcode

The BL-N90/N90K cannot read a barcode unless a connection has been established with

the communication unit.

(A beep will sound twice.)

bUsing multiple BL-N90/N90K barcode readers

•Only the connected barcode reader and communication unit pair can communicate with

one another.

•If multiple BL-N90/N90K barcode readers scan the same communication unit barcode,

only the first barcode reader to scan the communication unit can communicate with it.

To ch ange the pairing, follow the procedure below entitled "Swapping out the BL-N90/

N90K".

bSwapping out the BL-N90/N90K

When swapping one BL-N90/N90K barcode reader for another, follow the procedure

below.

Procedure

Hold down the trigger switch on the paired BL-N90/N90K for about 10 seconds to enable

sleep mode.

A beep will sound as sleep mode is enabled. ( page 1-6)

During sleep mode, the wireless connection is disabled, causing the blue LED on the

communication unit to blink. This connection must be disabled in order for the communication

unit to pair with another BL-N90/N90K.

2Use the second BL-N90/N90K to scan the barcode of the communication unit.

3Scan the initialization barcode. ( page 2-15)

2-15

First Steps

2-6

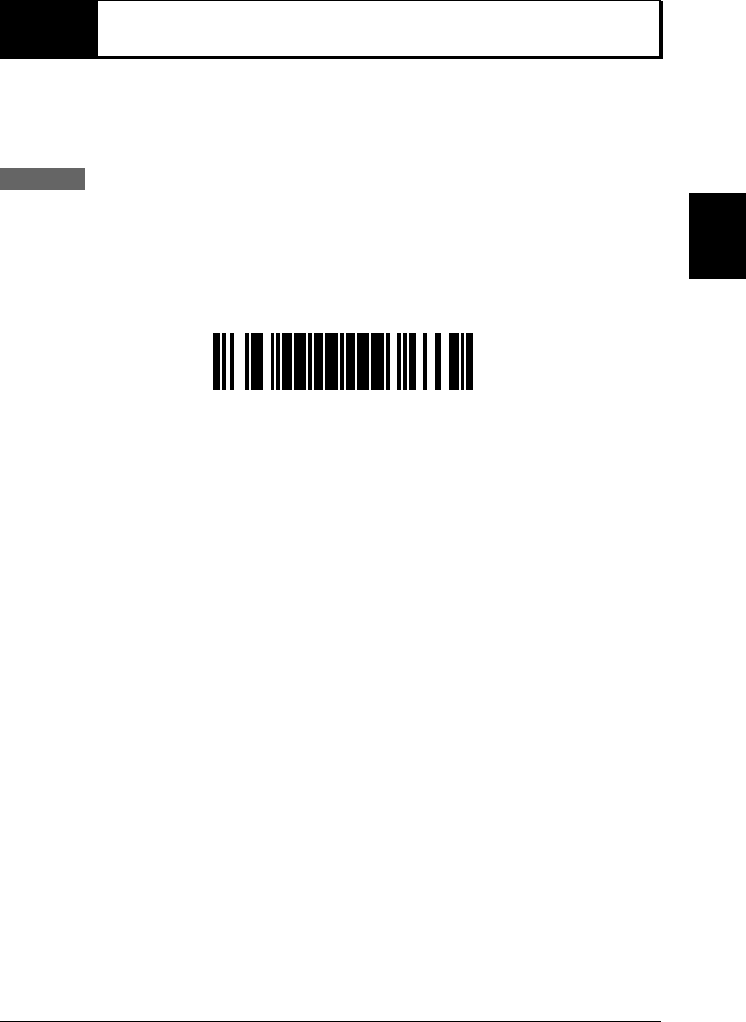

Initial Setup for the BL-N90/N90K

After establishing a connection between the BL-N90/N90K and the communication unit, be

sure to initialize its configuration. This ensures that the scanner's configuration is initialized to

match the interface type of the communication unit.

Procedure

1Press the "Trigger" switch to activate the laser.

2With the laser light about 100 mm from the page, scan the "Initialization" barcode below.

Once scanning of the "Initialization" barcode is complete, a beep will sound 3 times.

2-16

First Steps

2-7 Reading a Barcode

This section describes the basic barcode scanning operations.

Scanning a Barcode

The BL-N90/N90K is able to read barcodes when it is connected wirelessly to the communication unit.

The wireless connection can be verified by checking that the blue LED on the communication

unit is lit ( page 1-6).

1Press the "Trigger" switch to activate the laser.

As the laser is activated, the blue LED on the BL-N90/N90K lights up .

2Aim the laser to cover the entire barcode.

3Once scanning is complete, the white LED lights up , a beep will sound once ,

and data is transmitted to your computer.

Readable area

Laser light

Reading distance

100mm

Trigger switch

Operation check LED

2-7 Reading a Barcode

2-17

First Steps

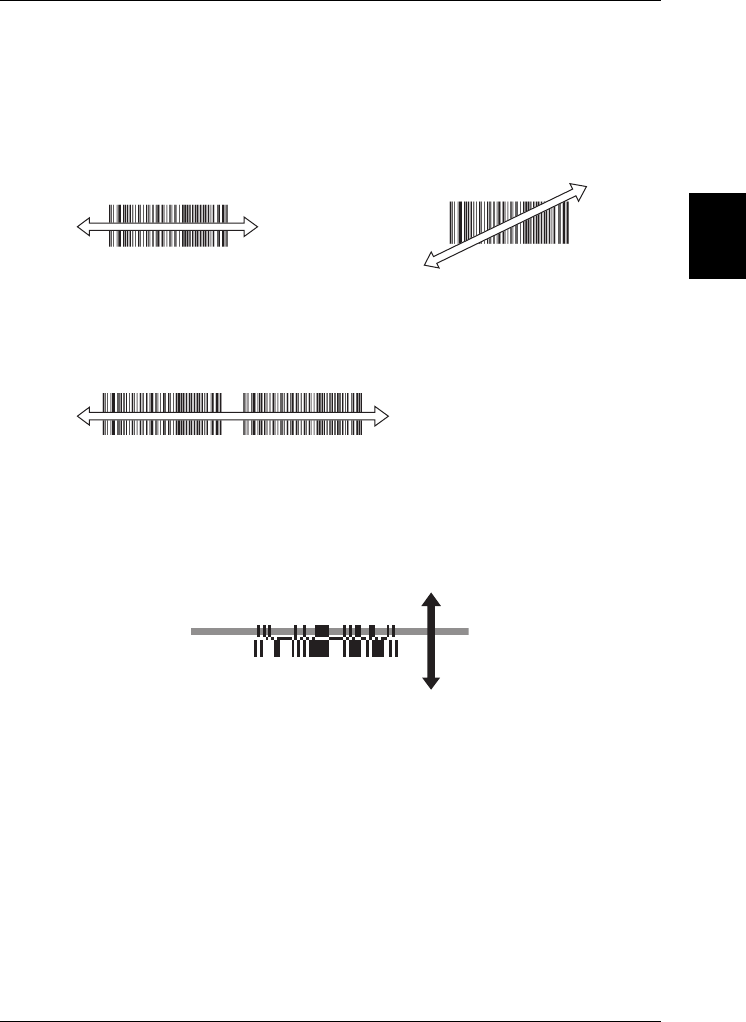

bPrecautions for reading

•If the BL-N90/N90K communicate with the communication unit wirelessly, then the

barcode will not be read.

(A low-pitched beep will sound twice.)

•Be sure to aim the laser to scan the entire length of the barcode.

{ Correct scan × Incorrect scan

•Only shine the laser light on one barcode at a time. Scanning multiple barcodes at once

can lead to scan errors, or barcodes being scanned out of order.

× Incorrect scan

•Depending on the laser reflection, interior lighting, or barcode label angle, light reflected

from the label may be partially reflected, resulting in scan errors.

In such situations, adjust the label and laser angle or distance.

•When scanning an RSS Stacked barcode, aim the laser and scan from the top of the

barcode to the bottom, or from the bottom to the top.

bCaution when using the BL-N9UB/N9V

When using the BL-N9UB/N9V, barcode data read by the BL-N90/N90K is treated as data

entered through the keyboard. In this way, data may be input directly into the running

application, without the need for special drivers.

When using the BL-N9UB/N9V, please note the following:

•Do not try to read a barcode while pressing down a key on the computer's keyboard. Do

not press a key while receiving the data. Data input will not be read correctly.

•If the computer has multiple language settings, make sure that the input mode is set for

single-byte alphanumeric characters.

Top

Bottom

2-18

First Steps

2-8 Wireless Connection Environment

The BL-N90/N90K and the communication unit use Bluetooth Version 1.2 for their wireless

communication. Please use in the following environment.

bTransmission range and surrounding conditions

The BL-N90/N90K and the communication unit have a line-of-sight range of approximately

10 meters.

However, obstacles placed between the BL-N90/N90K and the communication unit, such

as concrete or metal, may interrupt the wireless connection. Please use the device in an

environment free of these obstacles.

Also read the notes regarding wireless communication ( Page 3).

bWhen the wireless connection is interrupted

The following occur when the wireless connection is interrupted:

•The blue LED on the BL-N90/N90K flashes .

•The blue LED on the communication unit flashes.

Once a connection can be established again, the BL-N90/N90K and communication unit

automatically reconnect.

•Reconnection may take between 10 to 30 seconds.

•During this time, barcodes cannot be read.

(A low-pitched beep will sound twice.)

Good

Obstacle

Bad

A-1

Appendices

This chapter describes the specifications and outer dimensions.

A-1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .A-2

A-2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4

A-2

Appendices

A-1 Specifications

bBL-N90/N90K

*1 The continuous use time with wireless communication reading data once every 10 seconds.

Model BL-N90/N90K

Light source Visible semiconductor laser (Wavelength: 650 nm)

Maximum output 350 µW

Pulse width 1.5 ms

Class Class 1 (IEC 68025-1)

Scan rate 72 scans per second

Minimum resolution 0.127 mm

Reading distance 25 to 250 mm (Narrow bar width: 0.5 mm)

0 to 165mm (Narrow bar width: 0.25mm)

PCS 0.35 or more

Supported code

JAN/EAN/UPC (A, E), CODE39, CODE128/EAN128,

NW-7, CODE93, ITF, 2of5, RSS-14,

RSS-14 Truncated, RSS-14 Stacked,

RSS-14 Stacked Omnidirectional, RSS Limited,

RSS Expanded, RSS Expanded Stacked

Number of digits for reading

Maximum 40 digits

(Maximum 80 digits with CODE128 or CODE-C)

Wireless

communication

unit

Wireless standard Bluetooth Ver1.2

Frequency 2.4 GHz

Transmission

output Class 2 (2.5 mW max.)

Communication

distance 10 m visible

Internal battery

Internal lithium ion battery

Continuous use time: 10 hours *1

Cycle life: 500 times

Environmental

condition

Operating ambient

light 4800 lx

Operating ambient

temperature 0 to 40°C (32 to 104×F), No freezing

Operating ambient

humidity 35 to 85% RH (No condensation)

Operating

atmosphere No dust or corrosive gas

Outside Dimensions 199 x 77 (44) x 53 mm * Value inside ( ) is the grip

Weight Approx. 200g

A-1 Specifications

A-3

Appendices

bCommunication unit

*1 Compatible OS: Windows98, 2000, XP

Model BL-N9R BL-N9V BL-N9UB

Wired

communication

unit

Communication

standard RS-232C

Keyboard

Interface

USB-HID

Ver1.1 *1

Connector shape D-Sub 9-pin

(female) Mini DIN 6-pin USB (A type)

Wireless

communication

unit

Wireless standard Bluetooth Ver1.2

Wireless

frequency 2.4 GHz

Transmis sion

output Class 2 (2.5 mW max.)

Communication

distance 10 m visible

Charger Charging method Constant current, constant voltage (CCCV) method

Charging time Approx. 4 hours

Environmental

condition

Operating ambient

temperature 0 to 40°C (32 to 104×F), No freezing

Operating ambient

humidity 35 to 85% RH (No condensation)

Operating

atmosphere No dust or corrosive gas

Outside Dimensions 204 x 103 x 51 mm

Weight Approx. 230 g (Excluding cable)

AC adapter

specifications

Input 100-240 V AC, 50/60 Hz

Output 5 V DC, Max 2 A

Outside

Dimensions 72 x 47 x 27 mm (Excluding cable)

Weight Approx. 140g

A-4

Appendices

A-2 Dimensions

bBL-N90/N90K (units: mm)

bCommunication unit (units: mm)

bAC adapter (units: mm)

77 60.5

199

103 204

51 51

1800

7227
