Ki Ryung Electronics NICE1 Navigation System User Manual 538300

Ki Ryung Electronics Co., Ltd. Navigation System 538300

Users Manual

TransitionDiagram.doc Page 1
Clarion Navigation
“N.I.C.E”
Draft manual
APR. 25, 2005
FCC Warning
TransitionDiagram.doc Page 2
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
Note
This equipment has been tested and found to comply with Part 15 of the FCC Rules. These rules are designed to provide reasonable protection
against harmful interference. This equipment may cause harmful interference to radio communications if it is not installed and used in accordance
with these instructions. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and Sirius Receiver.
• Connect the equipment into an outlet on a circuit different from that to which the Sirius Receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Any Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
TransitionDiagram.doc Page 3
Brief Operation Manual for
Clarion Transportable Navigation

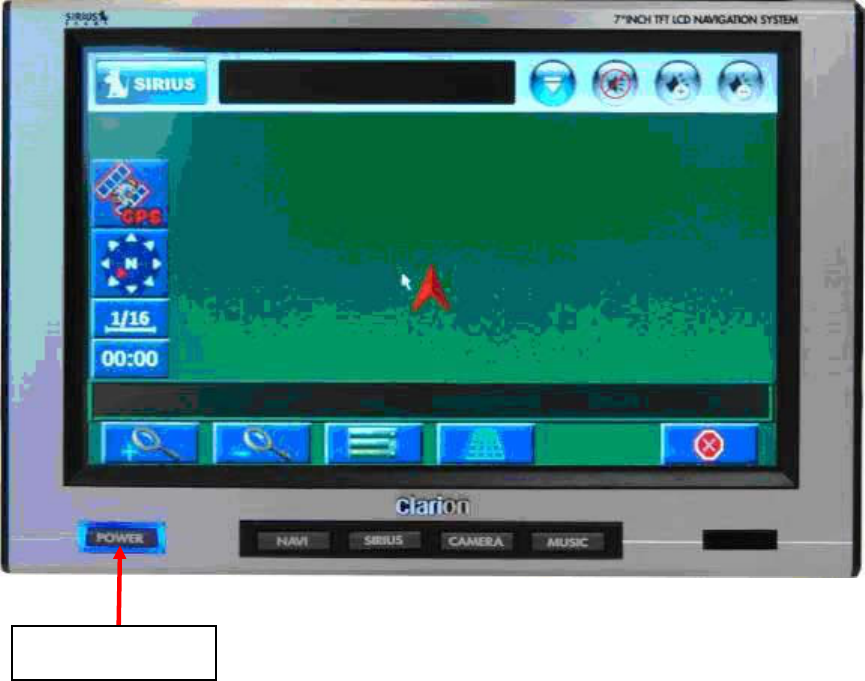

1. Turn On/ Off
Power On/Off
TransitionDiagram.doc Page 4

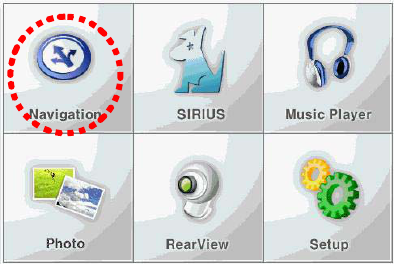

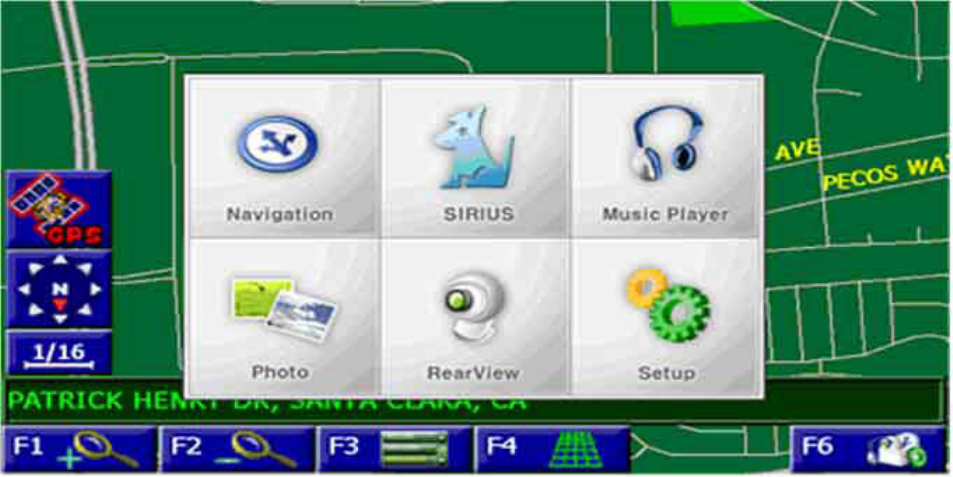

2. Main Menu
Please press screen button which you want to select.
TransitionDiagram.doc Page 5

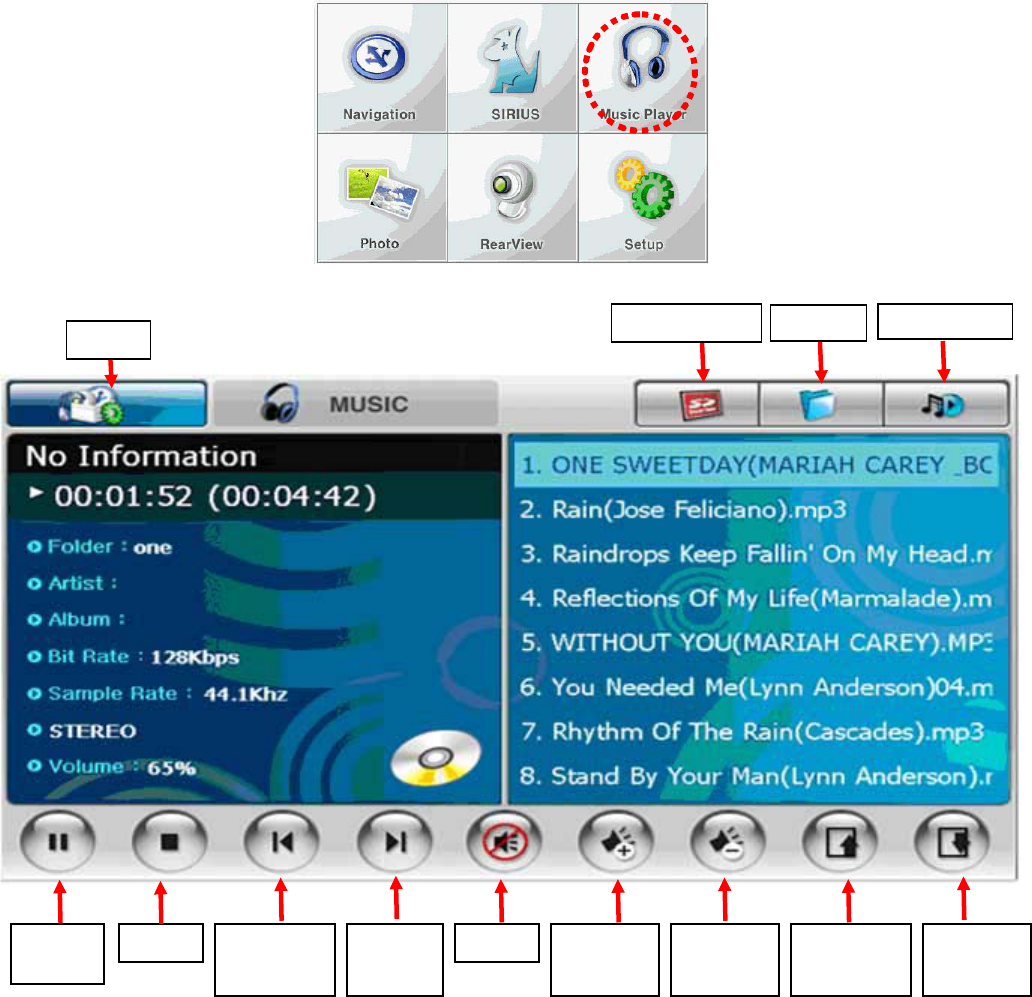

3. Music mode
Press Music Player ICON on main menu
Keys on Touch Screen
Pla
y
Device Folde
r
Pla
y
Mode
Main
Play /
Pause
Sto
p
Previous
Music
Next
Music
Mute Volume
Up
Volume
Down
Previous
Screen
Next
Screen
TransitionDiagram.doc Page 6
1) Select Play Device
<Music in Hard Disk> <Music in USB Memory>
2) Select Folder
<Before Folder Change> <After Folder Change>
Hard Disk USB Memor
Folde
r
Folde
r
TransitionDiagram.doc Page 7

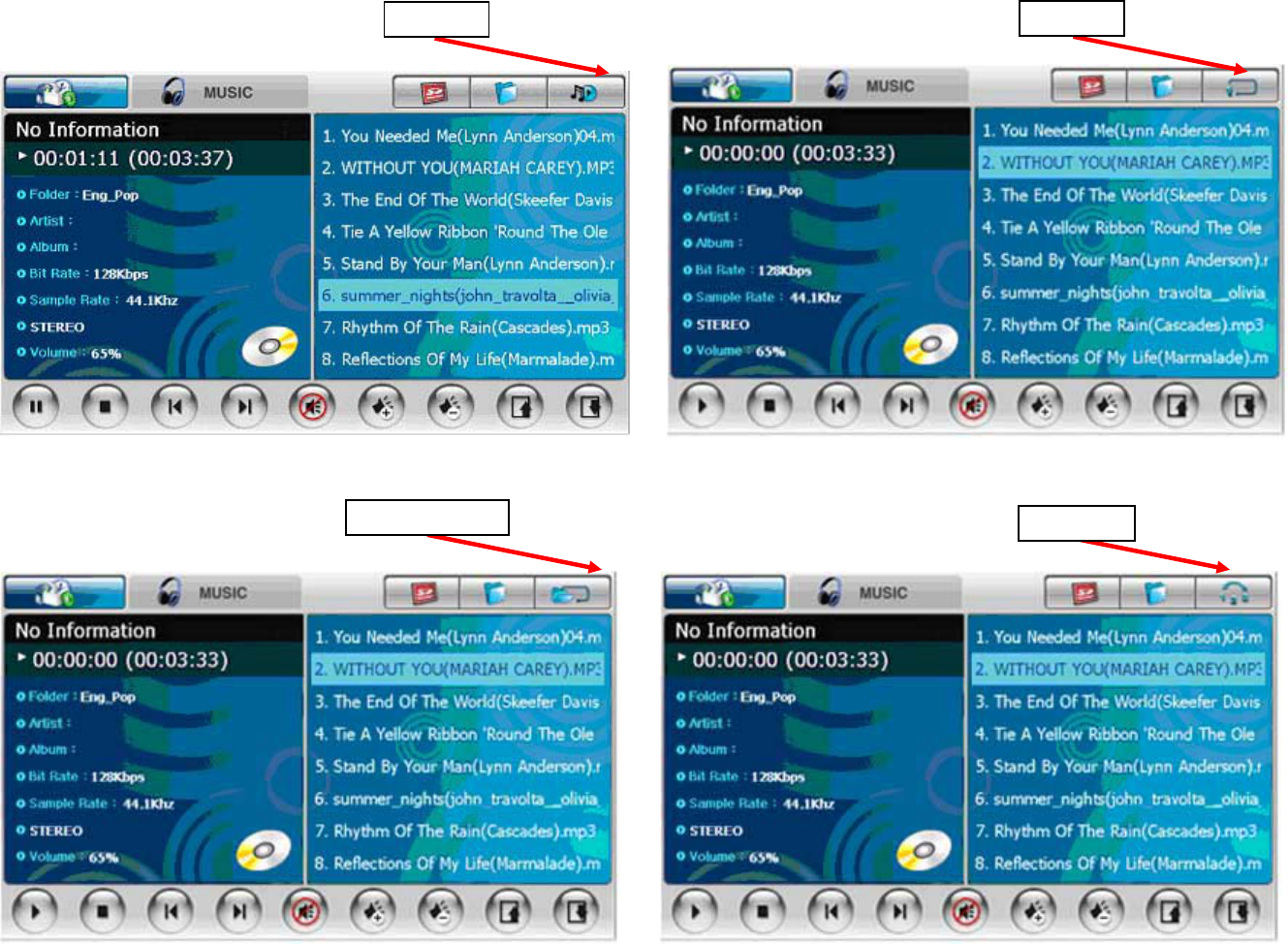

3) Select Play Mode
<Play Musics one time> <Play a Music reapeatly>
<Play Musics in a Folder repeatly> <Play Musics randomly>
Normal Re
p
eat
Folder Re
p
eat Random
TransitionDiagram.doc Page 8

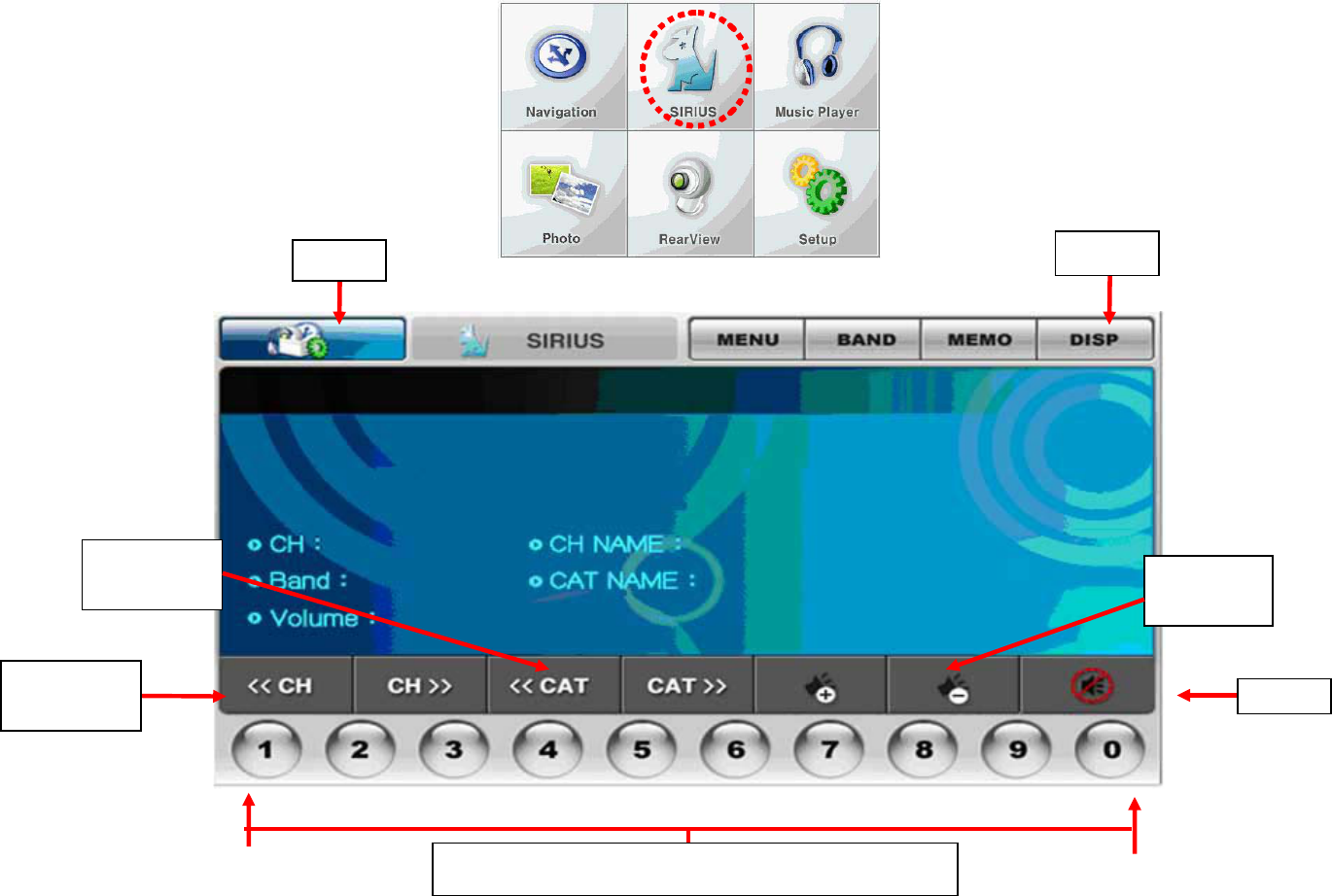

4. Sirius mode (Key Functions and Screen Description)
Press SIRIUS ICON on main menu
Keys on Touch Screen
Number Key 1 ~ 0 (Preset recall, save, Direct Tune)
Channel
Up/ Down
Category
Up/ Down Volume
Up/ Down
Mute
Menu Display
TransitionDiagram.doc Page 9

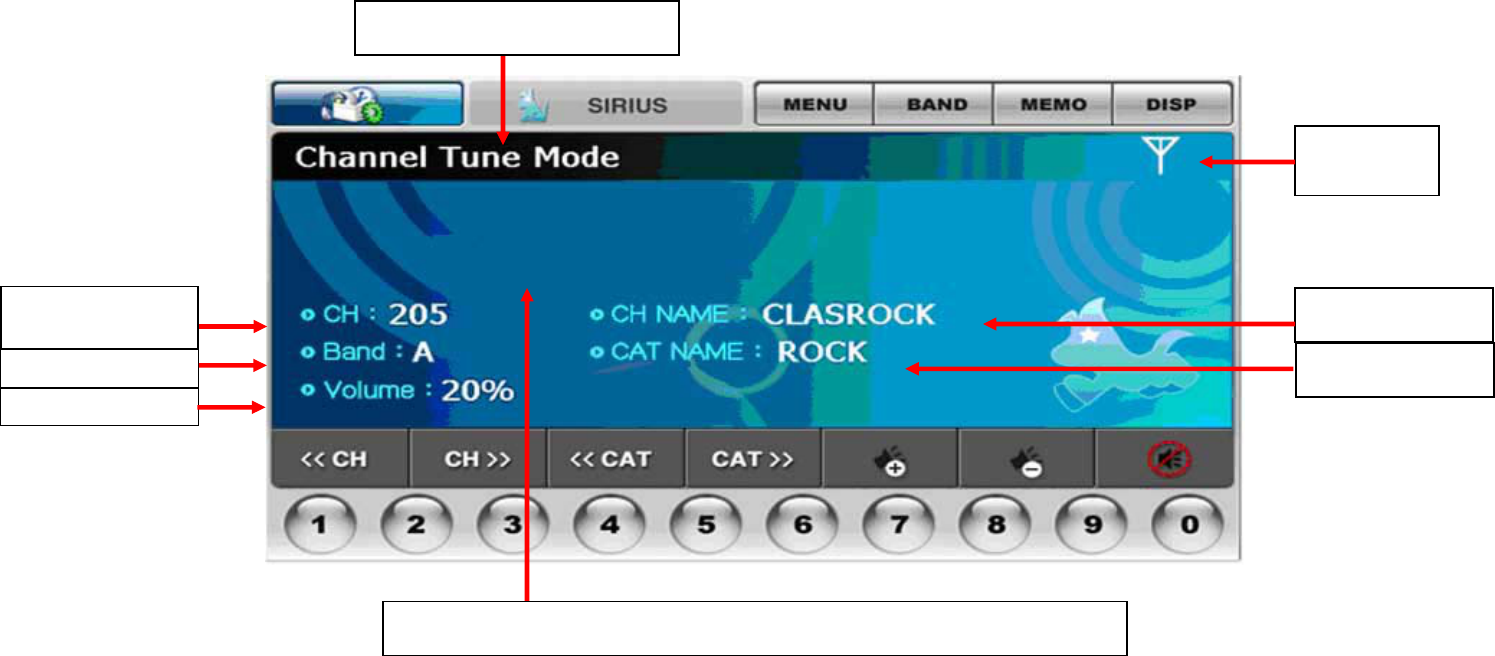

1) Default Mode – Channel Tune Mode
Channel Number
(
1~223
)
Antenna
Signal 0~3
Channel Name
Tune Mode (Channel, Preset)
Band & Preset Category Name
PDT (Artist, Composer and Song Title) will be displayed through two lines
Volume
TransitionDiagram.doc Page 10
Action Function
Press MENU Enters the user's setting menu
Press CH+ Channel up
Press CH- Channel down
Press CAT+
Press CAT- Enters the category list mode
Press Tune Mode Makes a direct tuning dialogue and confirms input to tune
Press Number 1~0 Jumps to a preset channel
Press-and-hold
Number 1~0 Presets a current channel to the pressed number
Press MENU Enters the user's setting menu
Press BAND Changes a preset band among A, B or C.
Press-and-hold BAND Enters the preset tuning mode.
Press DISP Toggles the LCD display (no changes in this product)
Press-and-hold DISP Enters the channel list mode
Press MEMO Memorizes the artist name and song title of the current
channel.
Press-and-hold MEMO Enters the memo recall list mode
2) Default Mode – Preset Tune Mode
Action Function
Press MENU Enters the user's setting menu
Press CH+ Preset channel up
Press CH- Preset channel down
Press-and-hold DISP Enters the preset channel list mode
TransitionDiagram.doc Page 11
3) Channel List Mode, Preset Channel List Mode, Category List Mode
<Channel List Mode>
Action Function
Press MENU Enters the user's setting menu
Press CH+ Scrolls channel up in the current category.
Press CH- Scrolls channel down in the current category.
Press ITEM Tunes to the selected channel.
Press DISP Changes the way how to show channels among in channel name,
artist name or song-title.
Channel List
Items
TransitionDiagram.doc Page 12

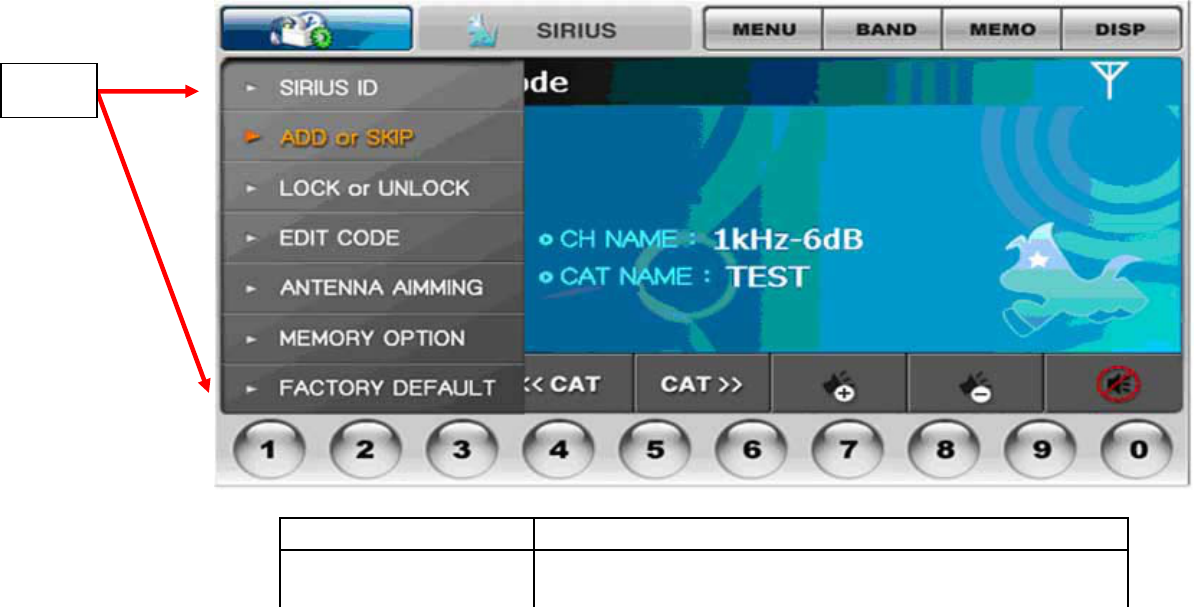

4) Menu Mode (Main Menu Screen)
Action Function
Press MENU Returns to default mode
Press ITEMS Enters each sub-menus.
Items
TransitionDiagram.doc Page 13

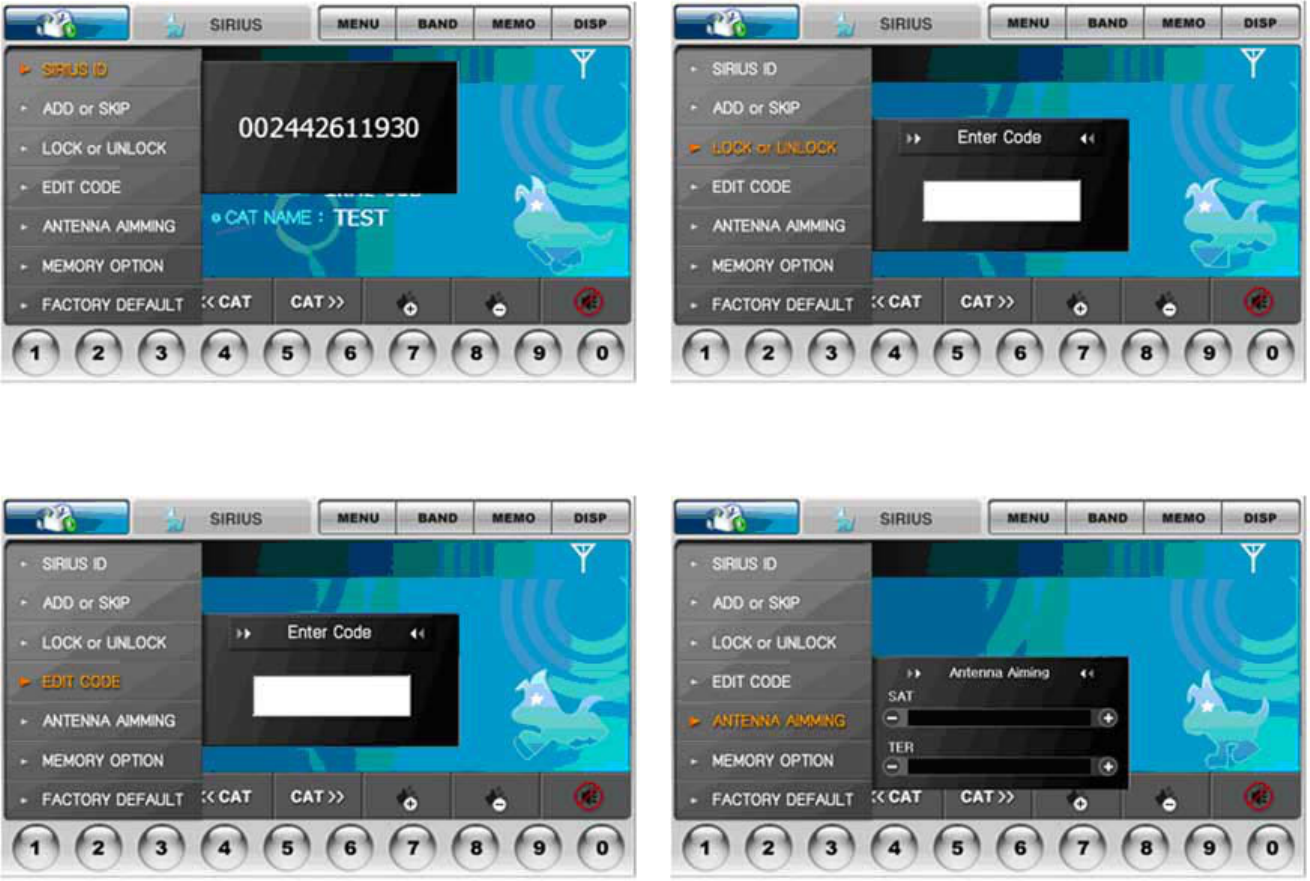

4-1 Sub Menu Screen
<SID – Sirius ID> <Lock or Unlock>
<Edit Code> <Antenna Aiming – satellite, terrestrial>
TransitionDiagram.doc Page 14

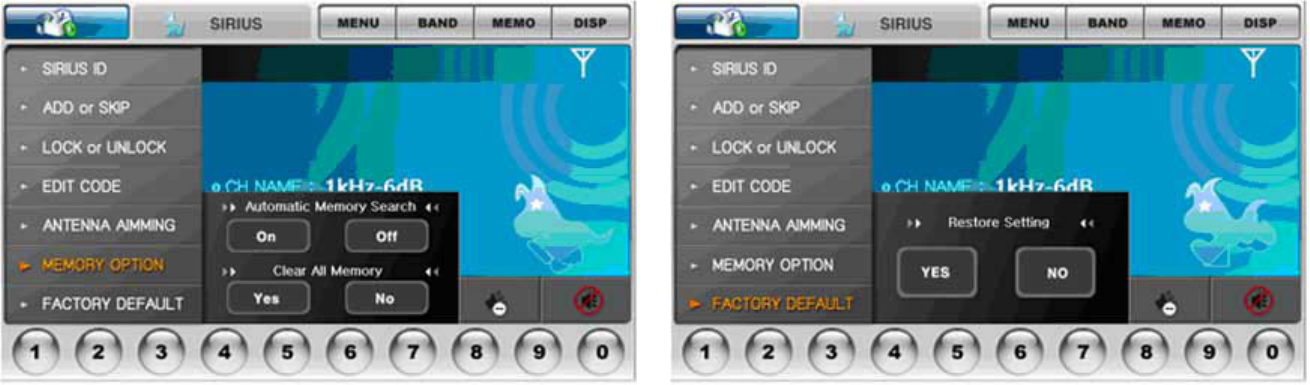

<Memory Option> <Factory Default>
TransitionDiagram.doc Page 15

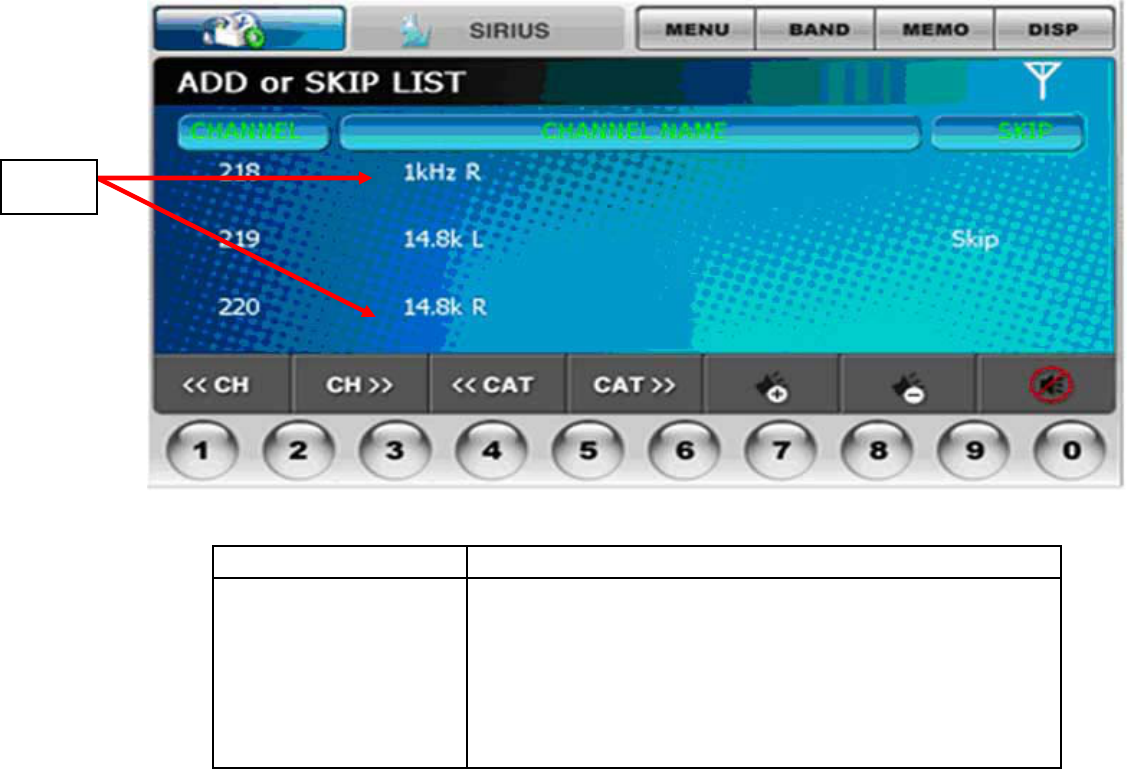

4-2 Sub Menu Screen – Add or Skip List Mode
Action Function
Press MENU Returns the user's setting menu
Press CH+ Scrolls channel up in the current category.
Press CH- Scrolls channel down in the current category.
Press ITEM Toggles a channel status to skip or lock
Press DISP Changes the way how to show channels among in channel
name, artist name or song-title.
Items
TransitionDiagram.doc Page 16

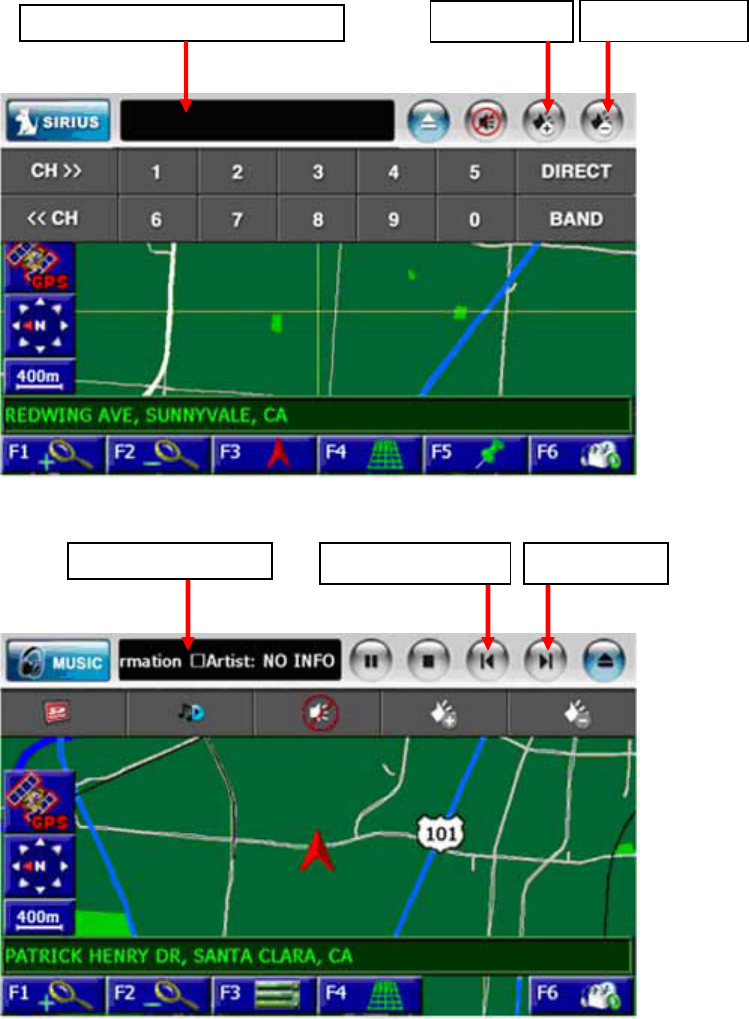

5. Navigation with Sirius Mode
6. Navigation with Music Mode
S
iri
us
C
h
a
nn
e
l Inf
o
rm
at
i
o
nVolume Up Volume Down
Previous Music Next Music M
us
i
c
Inf
o
rm
at
i
o
n
TransitionDiagram.doc Page 17

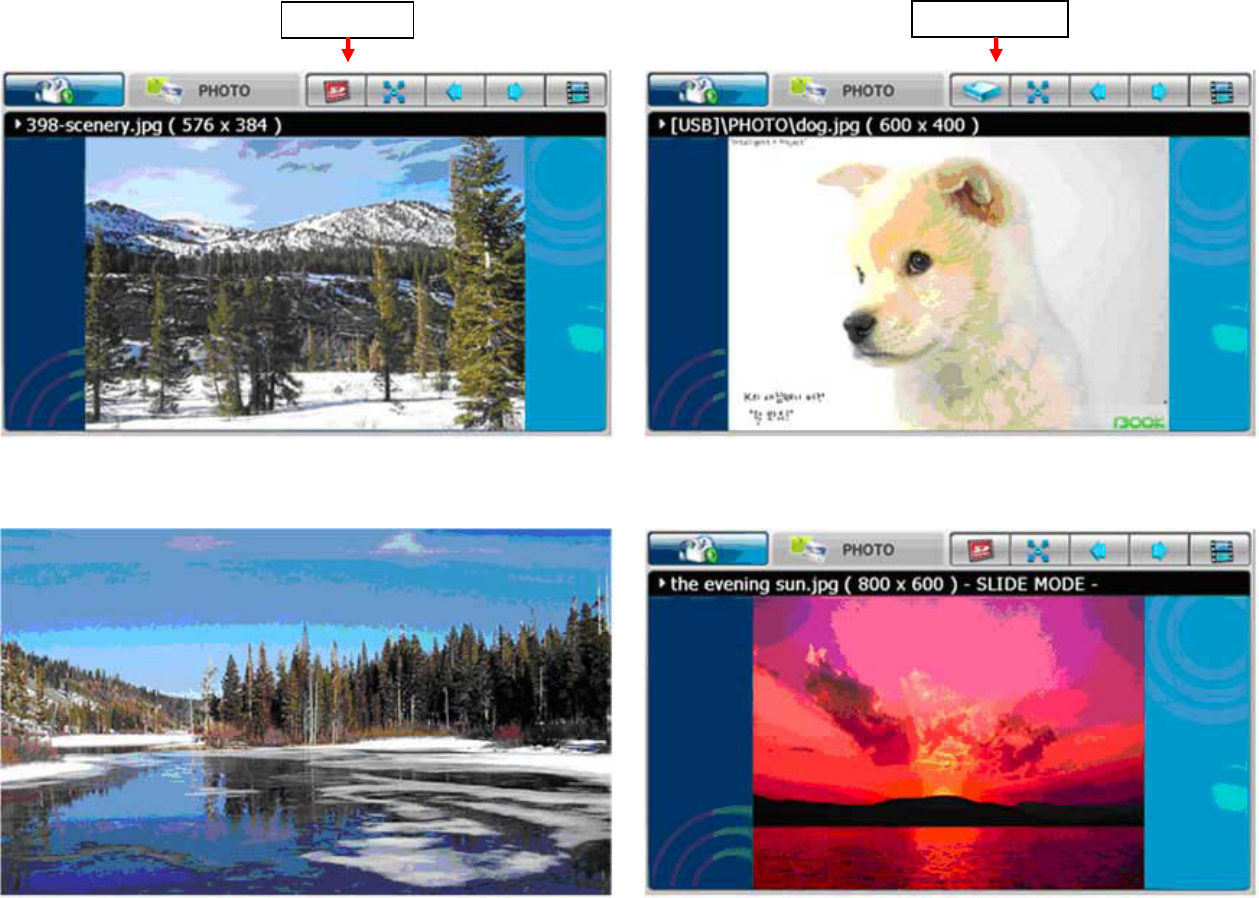

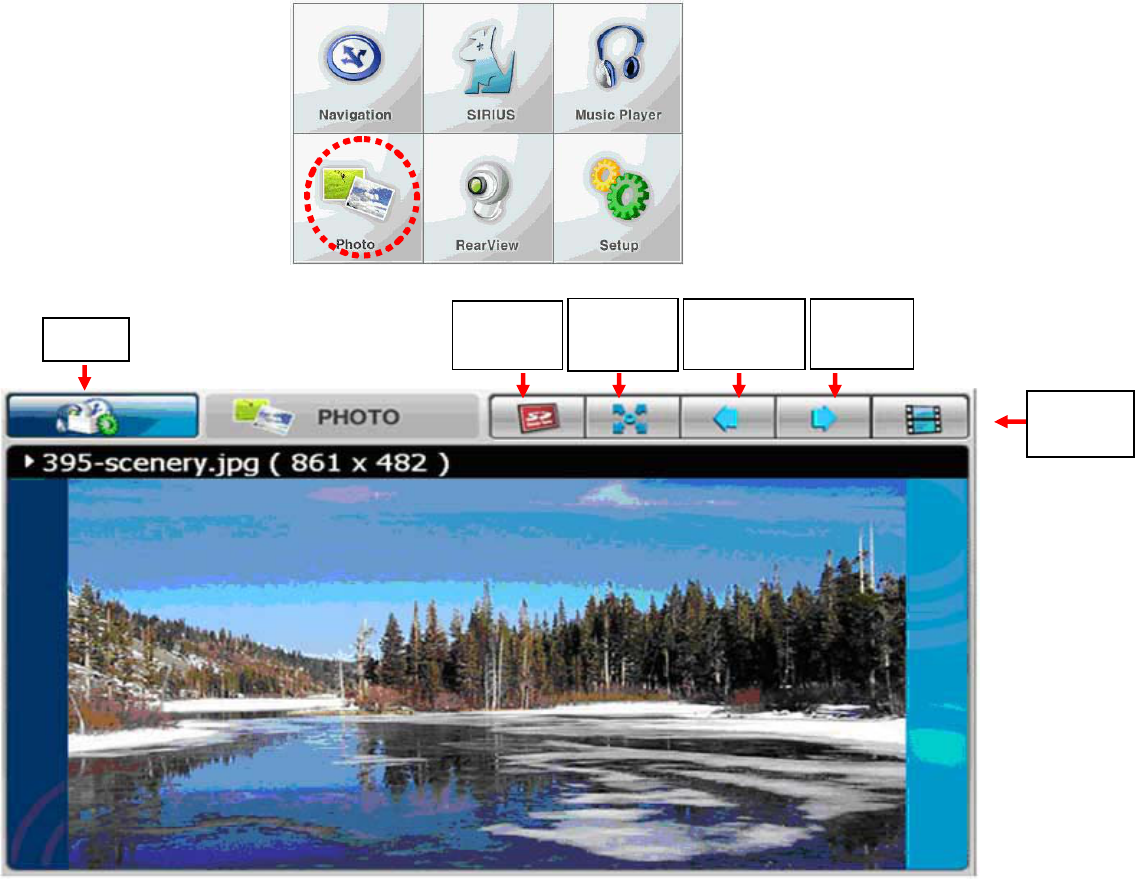

7. Photo Mode
Press Photo ICON on main menu
Keys on Touch Screen
Full
Screen
Previous
Screen
Next
Screen
Slide
Screen
Main Display
Device
TransitionDiagram.doc Page 18
1) Select Display Device
2) Select Display Mode
<Full Mode> <Slide Mode>
Hard Disk USB Memor
TransitionDiagram.doc Page 19

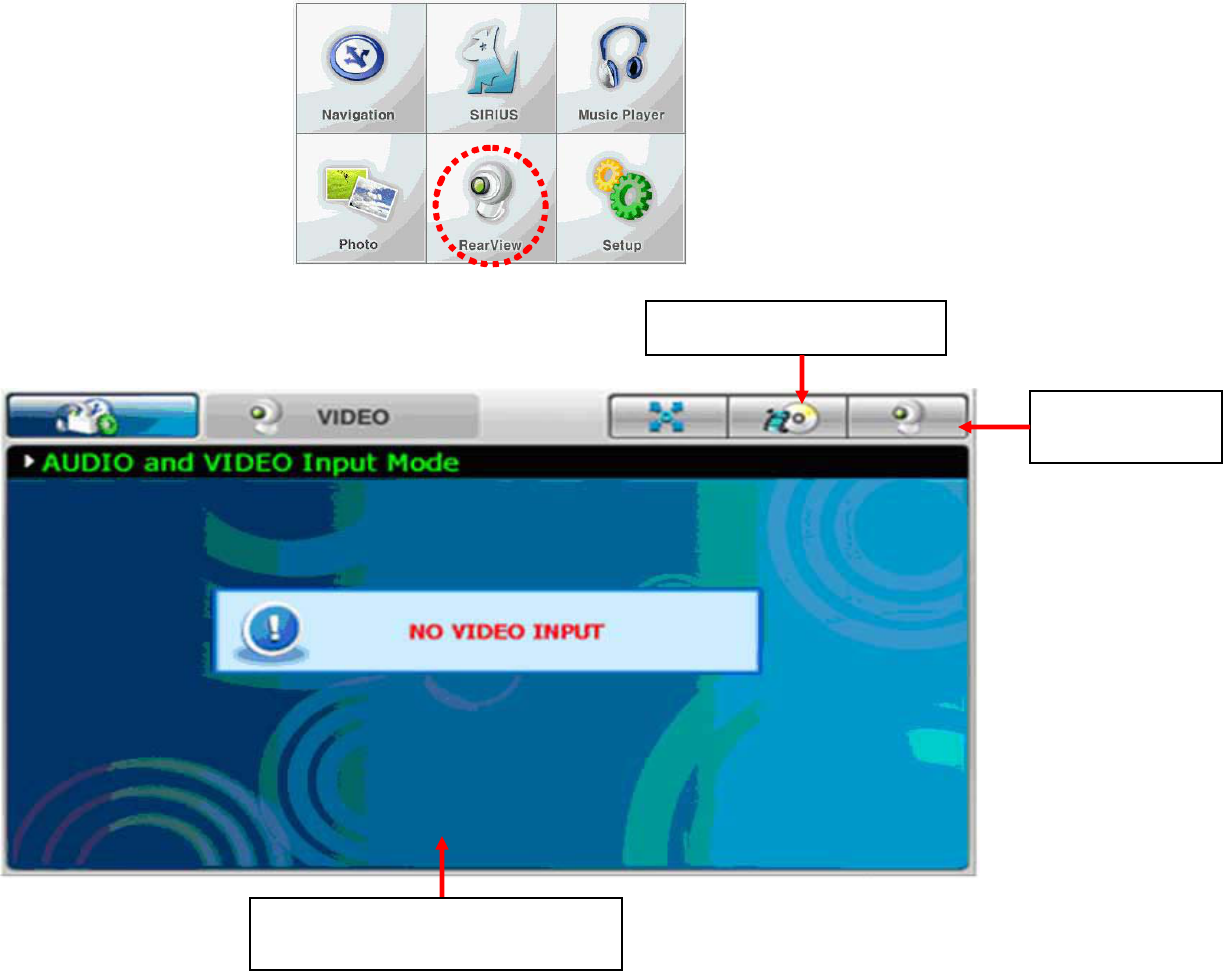

8. Rear View and A/V Mode
Press RearView ICON on main menu
Keys on Touch Screen
Will be displayed DVD input or
rearview camera input
DVD or Other A/V Input
Rearview
Camera Input
TransitionDiagram.doc Page 20

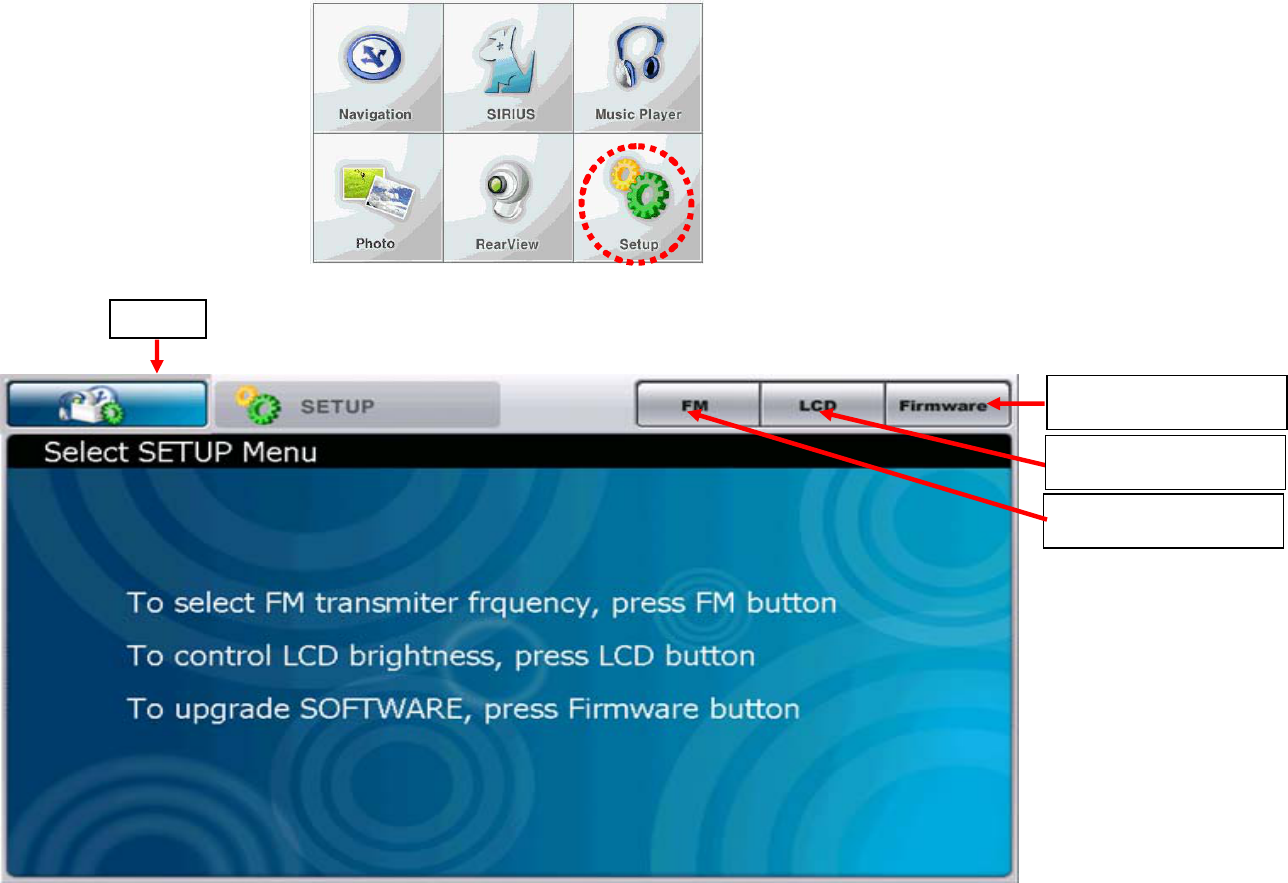

9. System Setup mode
Please do not adjust this set up mode.
Just press each icon and show.
Press Setup ICON on main menu
Keys on Touch Screen
Software Upgrade
LCD Brightness
FM Transmitter
Main
TransitionDiagram.doc Page 21
EG)

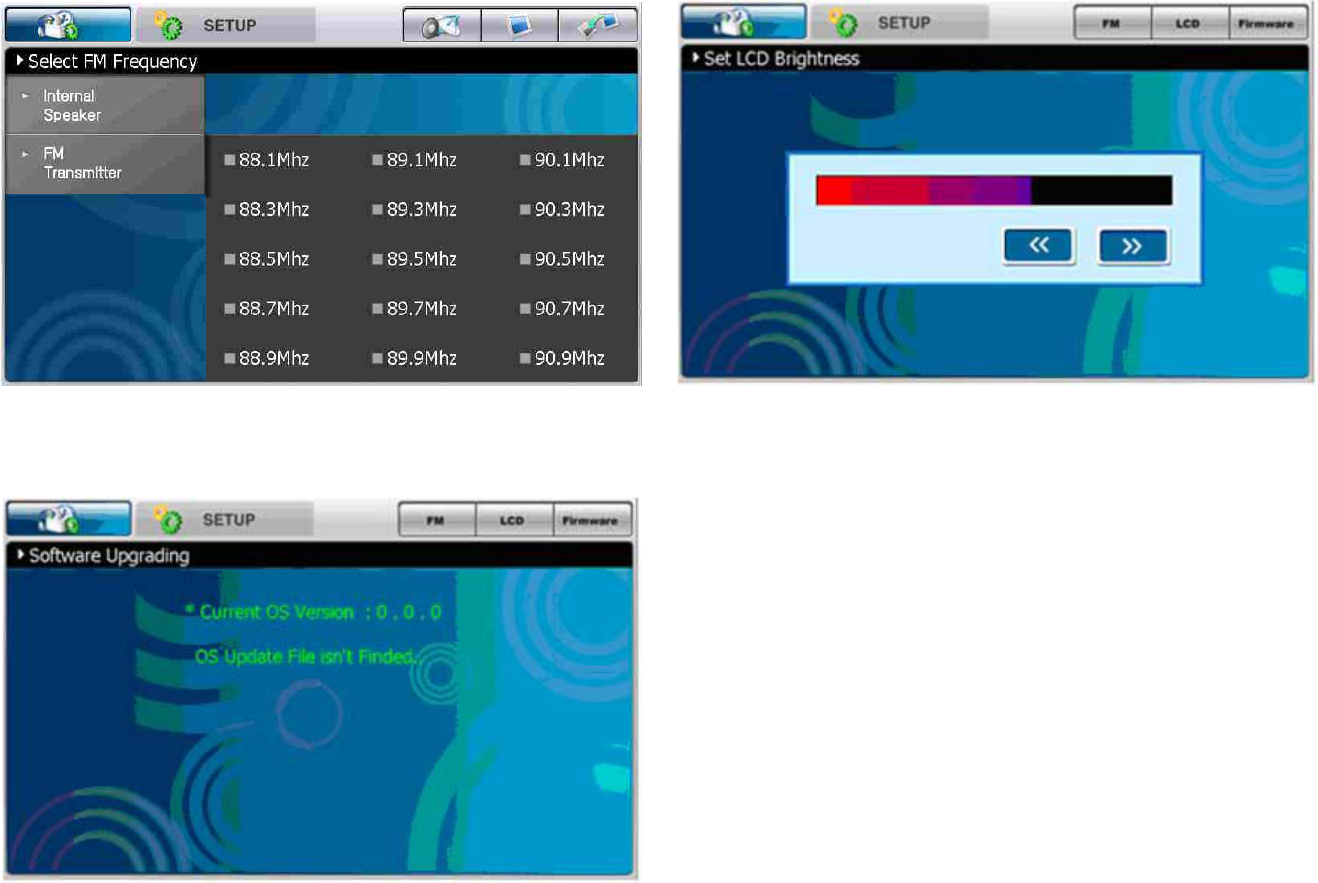

< FM Transmitter Set-up> < LCD Brightness Set-up>
< Software Upgrading Set-up>
TransitionDiagram.doc Page 22
Transition Diagram
for
Windows CE Navigation
User Interface Menu
TransitionDiagram.doc Page 23

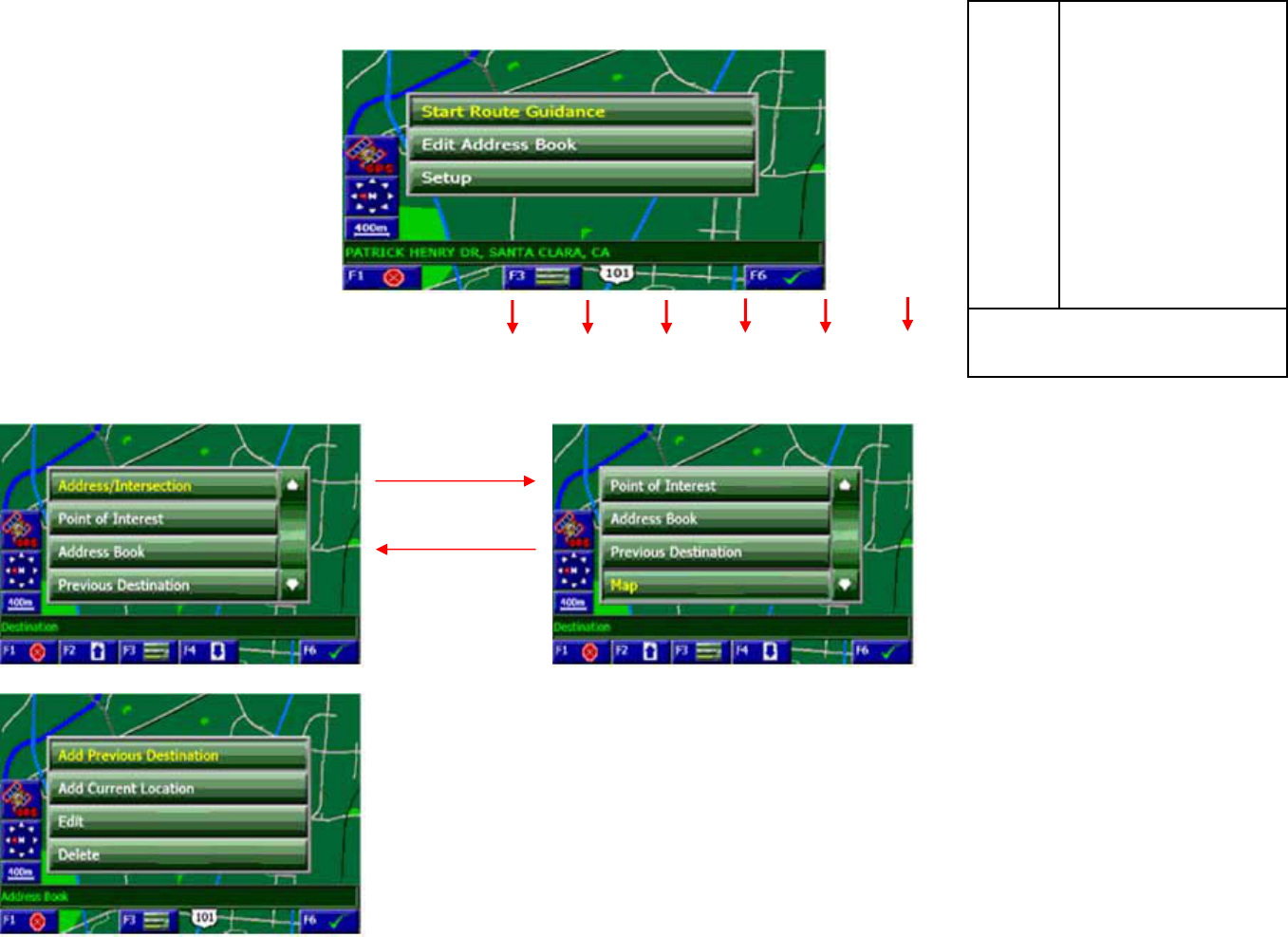

Start Menu
Fig. 1 – Start Menu
Fig. 1.1 – Start Route Guidance
Fig. 1.2 – Edit Address Book
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
NA
Accept
SK1 SK2 SK3 SK4 SK5 SK6
See Sections 1.1.1, 1.1.2,
1.1.3, 1.1.4 and 1.1.5.
See Sections 1.2.1, 1.2.2,
1.2.3 and 1.2.4.
Fig. 1, 1.1, 1.2 and 1.3 use this
soft key set.
Page Down
Page Up
TransitionDiagram.doc Page 24

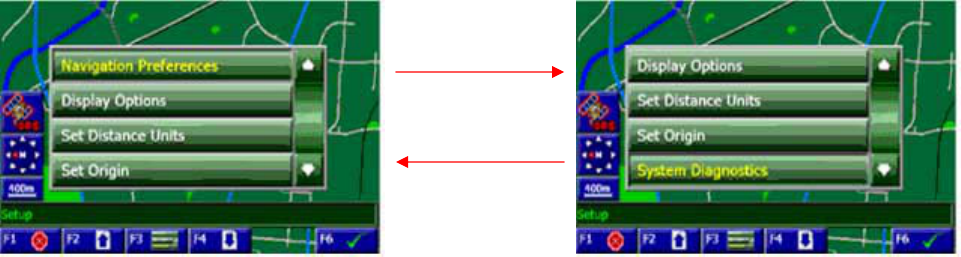

Fig. 1.3 – Setup
See Sections 1.3.1, 1.3.2, 1.3.3, 1.3.4,
1.3.4.1, 1.3.4.2, 1.3.4.3, 1.3.4.4, 1.3.4.5,
1.3.5, 1.3.5.1 and 1.3.5.2
Page Down
Page Up
TransitionDiagram.doc Page 25

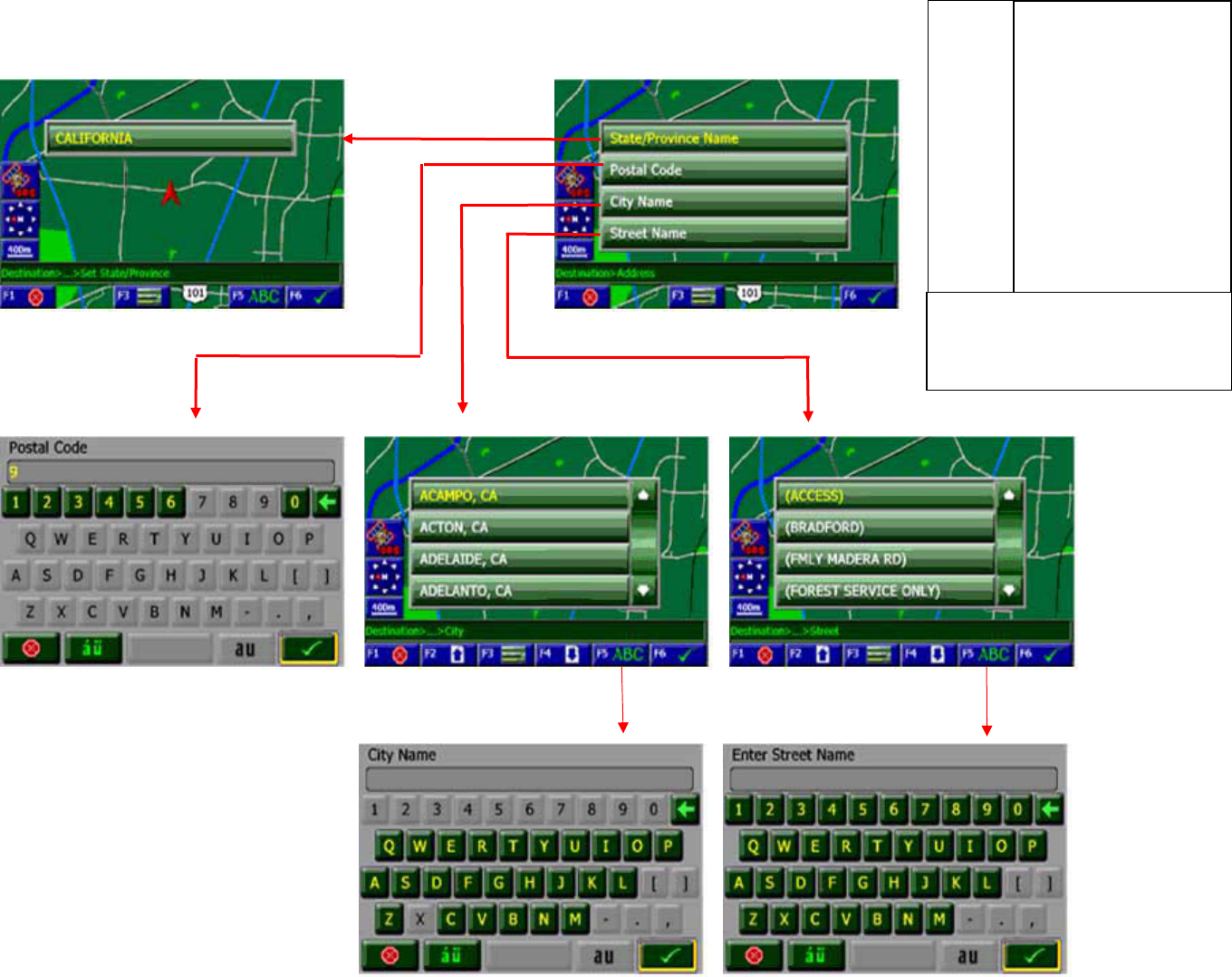

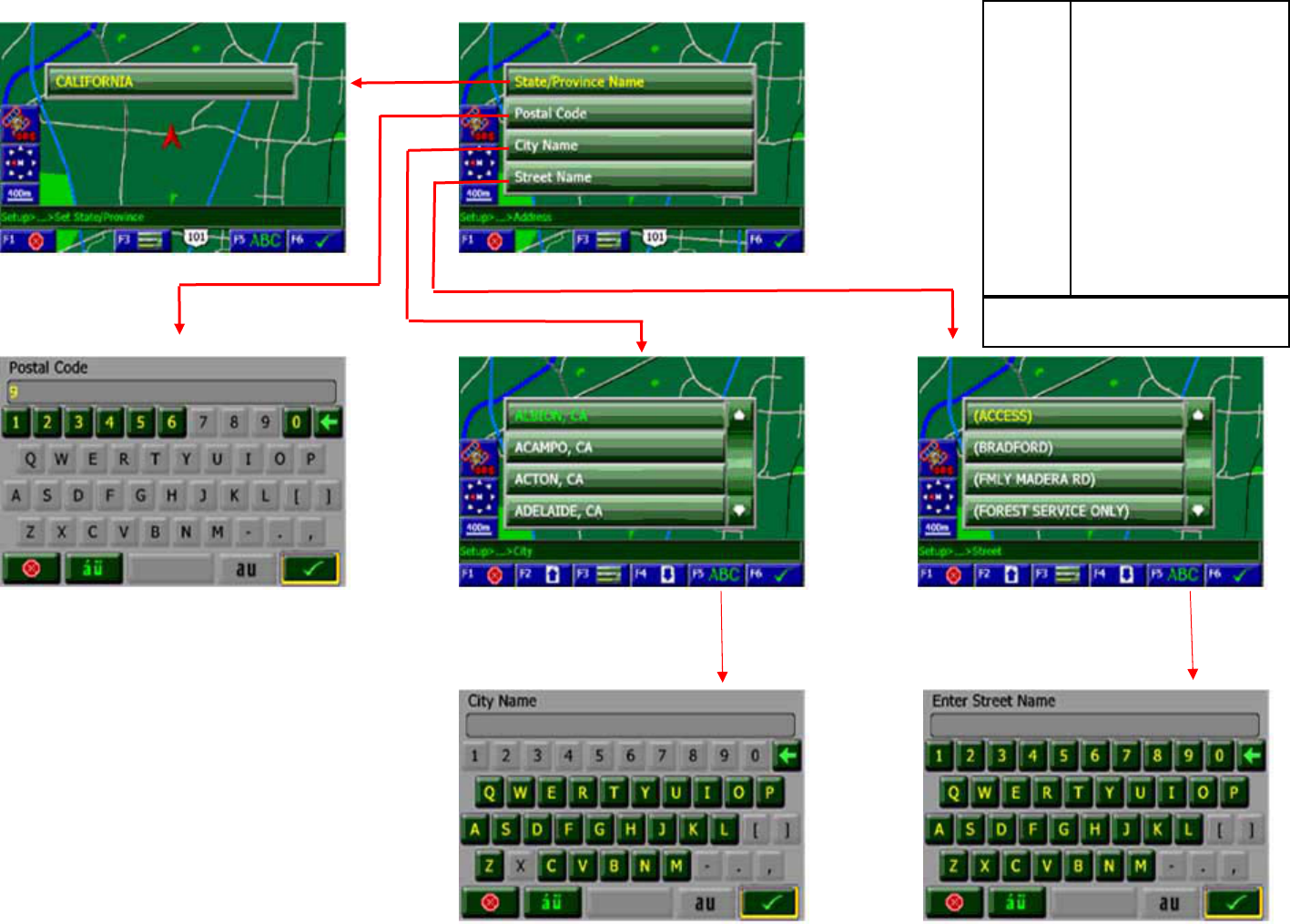

Section 1.1.1 - Destination->Address/Intersection
Fig. 1.1.1.1 – State/Province Name Fig. 1.1.1 – Address/Intersection
Fig. 1.1.1.2 – Postal Code Fig. 1.1.1.3 – City Name Fig. 1.1.1.4 – Street Name
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
Spell
Accept
See Fig. 1 for SK reference.
Fig. 1.1.1, 1.1.1.1, 1.1.1.3 and
1.1.1.4 use this soft key set.
TransitionDiagram.doc Page 26

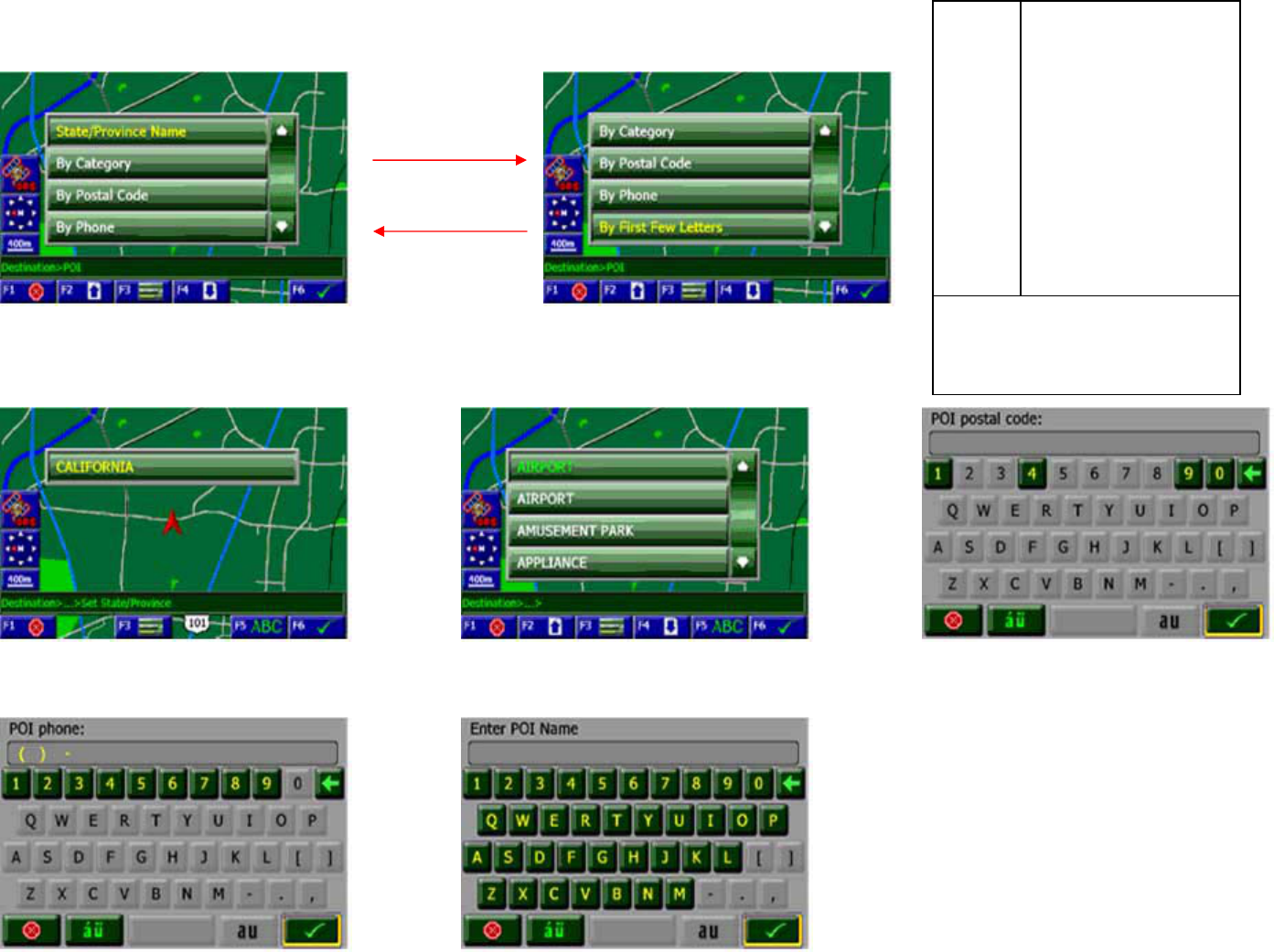

Section 1.1.2 - Destination->Point of Interest
Fig. 1.1.2 – Point of Interest
Fig. 1.1.2.1 – State/Province Name Fig. 1.1.2.2 – By Category Fig. 1.1.2.3 – By Postal Code
Fig. 1.1.2.4 – By Phone Fig. 1.1.2.5 – By First Few Letters
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
Spell
Accept
See Fig. 1 for SK reference.
Fig. 1.1.2, 1.1.2.1 and 1.1.2.2
use this soft key set.
Page Down
Page Up
TransitionDiagram.doc Page 27
Section 1.1.3 - Destination->Address Book
Fig. 1.1.3
Section 1.1.4 - Destination ->Previous Destination (Most Recently Used Locations)
Fig. 1.1.4
Section 1.1.5 - Destination->Map
Fig. 1.1.5
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
NA
Accept
See Fig. 1 for SK reference.
Fig. 1.1.3 and 1.1.4 use the
same set of soft key.
SK1
SK2
SK3
SK4
SK5
SK6
Zoom In
Zoom Out
Return current vehicle position
2D, 2.5D and Split screen
Accept cross point as new vehicle position
Return current vehicle position
See Fig. 1 for SK reference.
Fig 1.1.5 uses this soft key set.
TransitionDiagram.doc Page 28

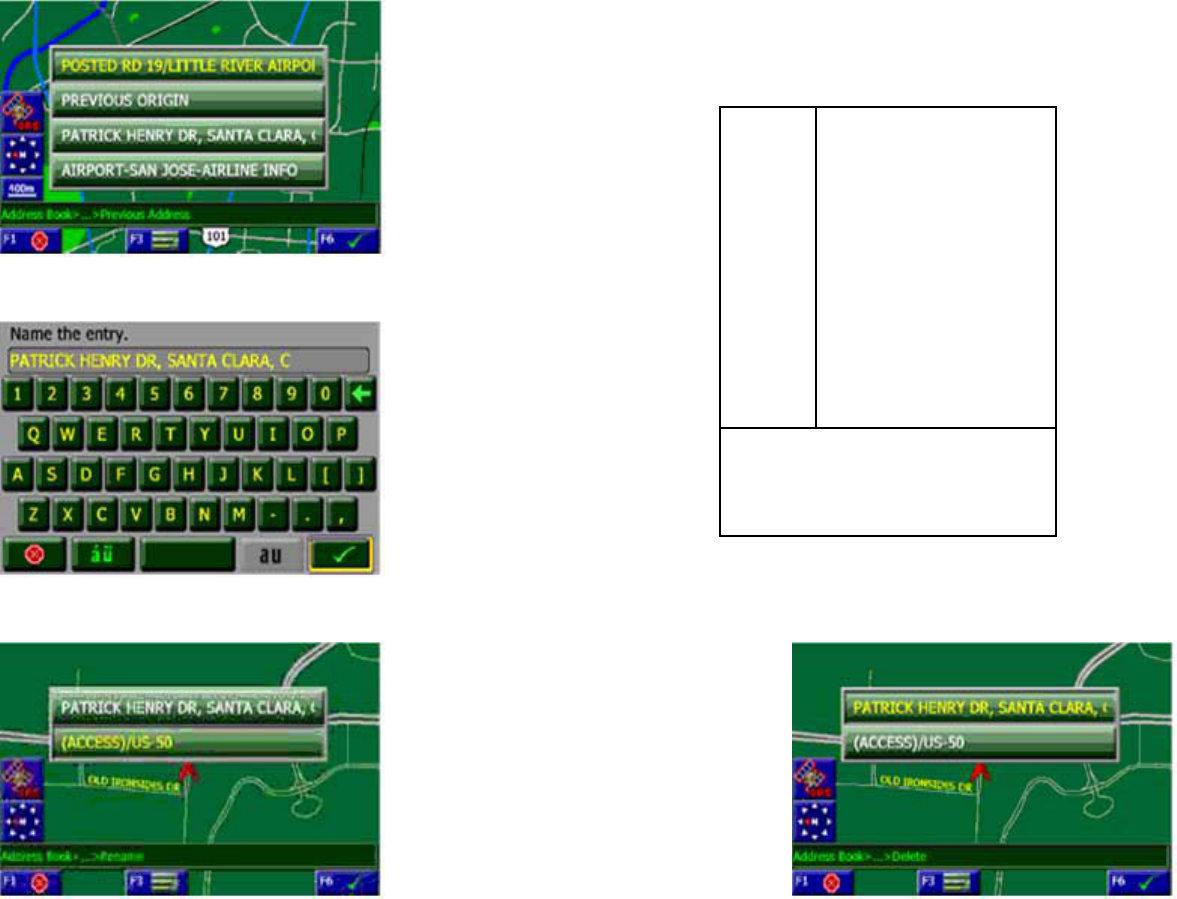

Section 1.2.1 - Edit Address Book->Add Previous Destination (Most Recently Used Locations)
Fig. 1.2.1
Section 1.2.2 - Edit Address Book->Add Current Location
Fig. 1.2.2
Section 1.2.3 - Edit Address Book->Edit Section 1.2.4 - Edit Address Book->Delete
Fig. 1.2.3 Fig.1.2.4
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
NA
Accept
See Fig. 1 for SK reference.
Fig. 1.2.1, 1.2.3 and 1.2.4 use
this soft key set.
TransitionDiagram.doc Page 29
Section 1.3.1 - Setup->Navigation Preferences (Preferences)
Fig. 1.3.1
Section 1.3.2 - Setup->Display Options
Fig. 1.3.2
Section 1.3.3 - Setup->Set Distance Units (Units) Section 1.3.4 - Setup->Set Origin
Fig. 1.3.3 Fig. 1.3.4
Page Down
Page Down
Page Up
Page Up
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
NA
Accept
See Fig. 1 for SK reference.
Fig. 1.3.1, 1.3.2, 1.3.3 and
1.3.4 use the same set of soft
ke
y
.
Page
Down
Page
Up
TransitionDiagram.doc Page 30
Section 1.3.4.1 - Setup->Set Origin->Address/Intersection
Fig. 1.3.4.1.1 – State/Province Name Fig. 1.3.4.1 – Setup->Set Origin->Address/Intersection
Fig. 1.3.4.1.2 – Postal Code Fig. 1.3.4.1.3 – City Name Fig. 1.3.4.1.4 – Street Name
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
Spell
Accept
See Fig. 1 for SK reference.
TransitionDiagram.doc Page 31

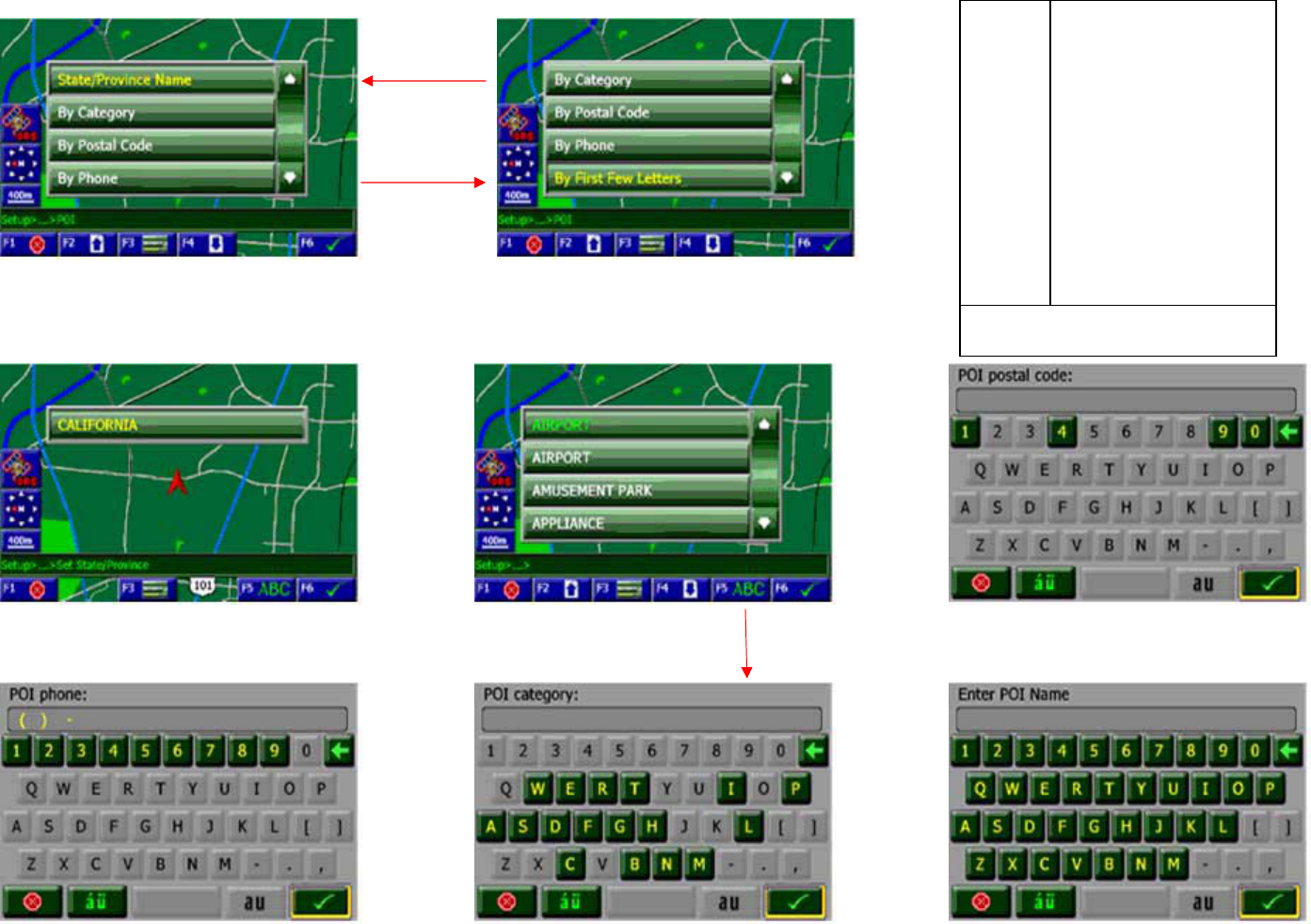

Section 1.3.4.2 - Setup->Set Origin->Point of Interest
Fig. 1.3.4.2 – Setup->Set Origin->Point of Interest
Fig. 1.3.4.2.1 – State / Province Name Fig. 1.3.4.2.2 – By Category Fig. 1.3.4.2.3 – By Postal Code
Fig. 1.3.4.2.4 – By Phone Fig. 1.3.4.2.5 – By First Few Letters
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
Spell
Accept
See Fig. 1 for SK reference.
Page Down
Page Up
TransitionDiagram.doc Page 32

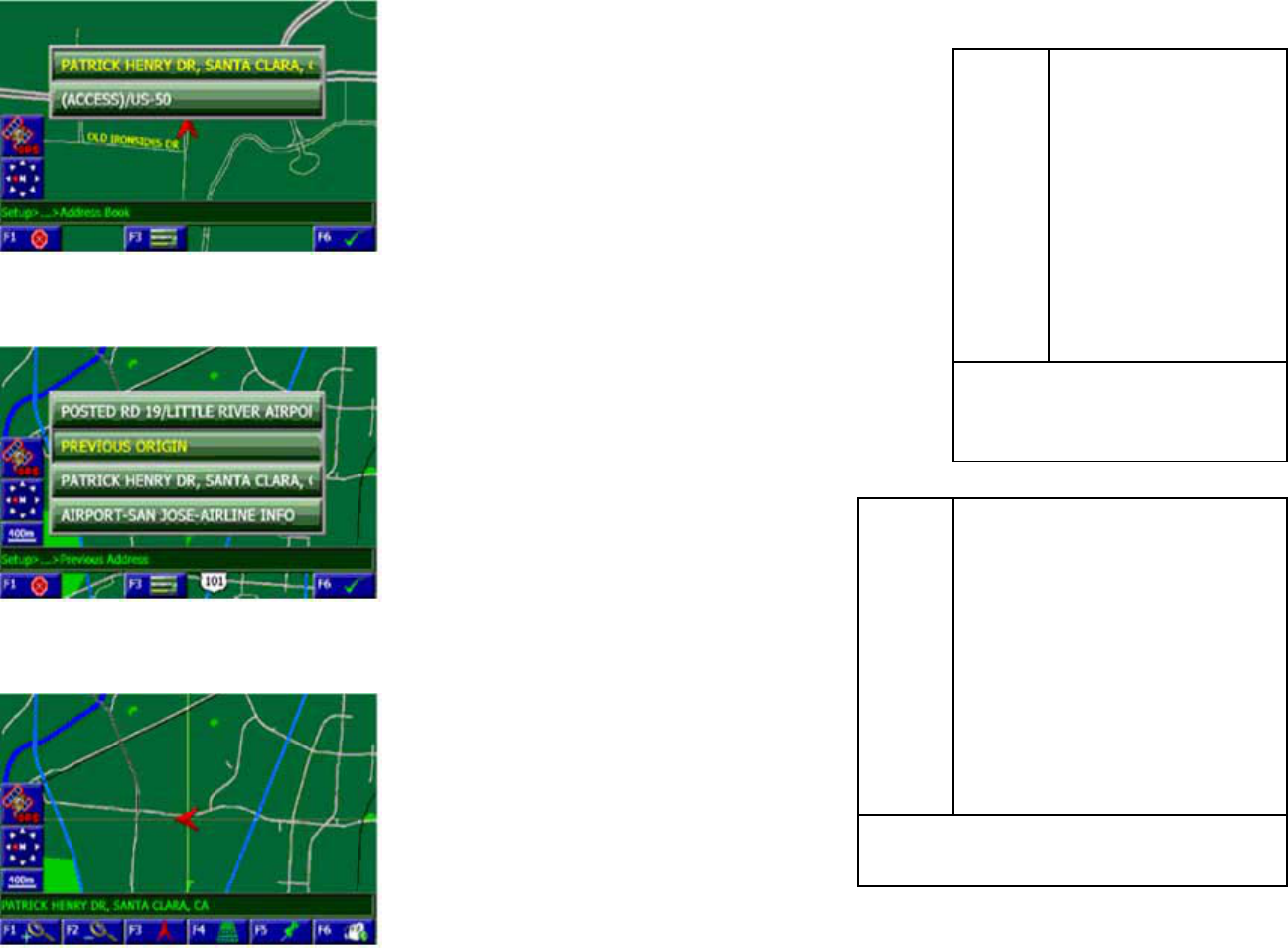

Section 1.3.4.3 - Setup->Set Origin->Address Book
Fig. 1.3.4.3
Section 1.3.4.4 - Setup->Set Origin->Previous Destination (Most Recently Used Locations)
Fig. 1.3.4.4
Section 1.3.4.5 - Setup->Set Origin->Map
Fig. 1.3.4.5
SK1
SK2
SK3
SK4
SK5
SK6
Return to map mode
Page up
Return previous level
Page down
NA
Accept
See Fig. 1 for SK reference.
Fig. 1.3.4.3 and 1.3.4.4 use this
soft key set.
SK1
SK2
SK3
SK4
SK5
SK6
Zoom In
Zoom Out
Return current VP
2D, 2.5D and Split screen
Accept cross point as new VP.
Return current VP
See Fig. 1 for SK reference.
Fig 1.3.4.5 uses this soft key set.
TransitionDiagram.doc Page 33

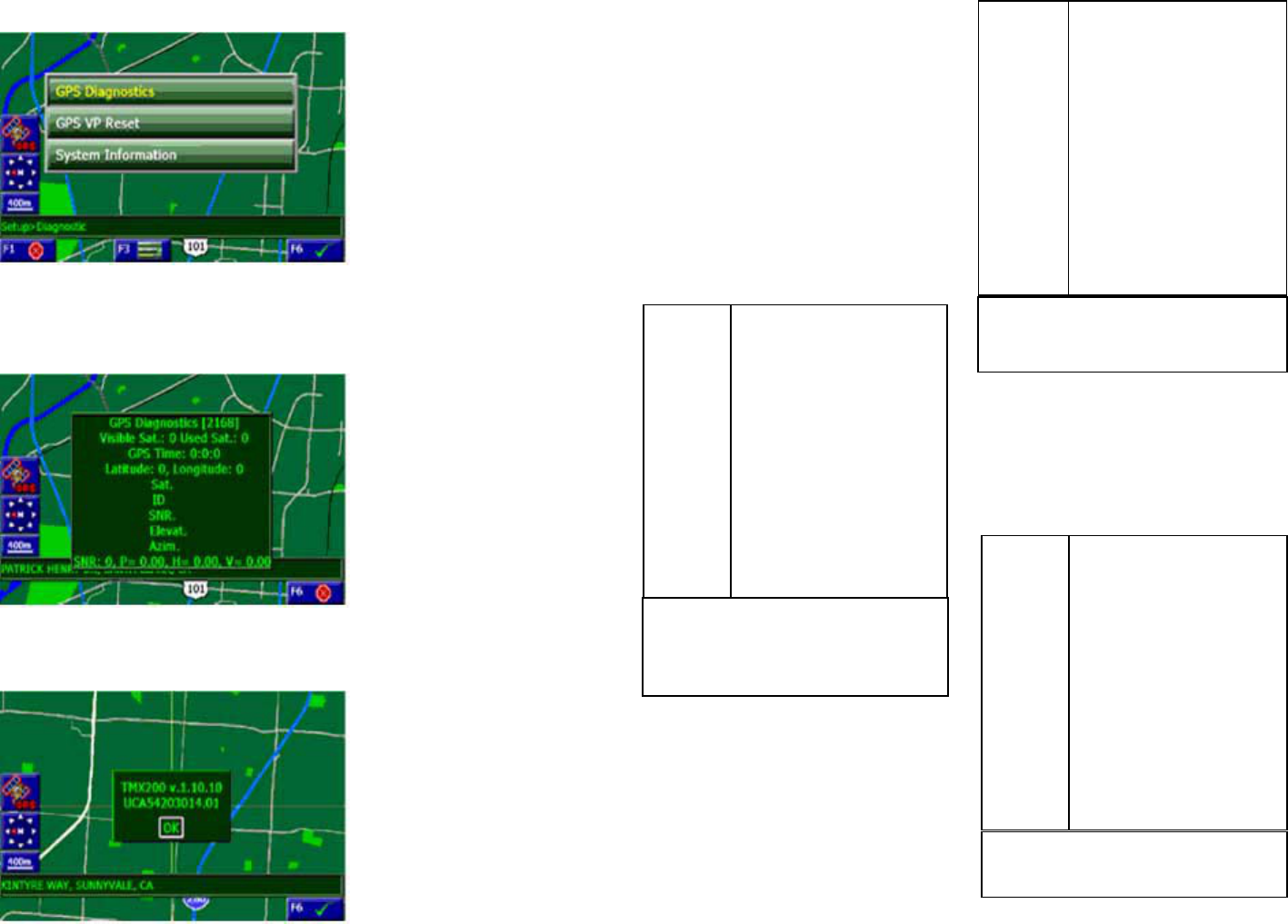

Section 1.3.5 - Setup->System Diagnostics (Diagnostic)
Fig. 1.3.5
Section 1.3.5.1 - Setup->System Diagnostics->GPS Diagnostics
Fig. 1.3.5.1
Section 1.3.5.2 - Setup->System Diagnostics-> System Information
Fig. 1.3.5.2
SK 1
SK2
SK3
SK4
SK5
SK6
Return to map mode
NA
Return previous level
NA
NA
Accept
See Fig. 1 for SK reference.
Fig. 1.3.5 uses this soft key set.
SK1
SK2
SK3
SK4
SK5
SK6
NA
NA
NA
NA
NA
Return previous level
See Fig. 1 for SK reference.
Fig. 1.3.5.1 uses this soft key
set.
SK1
SK2
SK3
SK4
SK5
SK6
NA
NA
NA
NA
NA
Accept
SK1
SK2
SK3
SK4
SK5
SK6
See Fig. 1 for SK reference.
Fig 1.3.5.2 uses this soft key

Navigation menu
