Ki Ryung Electronics Co., Ltd. Digital Satellite Radio Users Manual
Users Manual
SUPV1
SIRIUS Plug and Play Vehicle Kit
For use with most newer SIRIUS Plug and Play Radios
with the FM Extender Cable
Installation Guide
Congratulations on the Purchase of your new SUPV1 SIRIUS
Universal Plug and Play Vehicle Kit
Your new SUPV1 SIRIUS Universal Plug and Play Vehicle Kit lets you enjoy SIRIUS® Satellite
Radio’s digital entertainment in any vehicle. Use this manual as a guide for the installation.
The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit will work with the Sportster™ 4 and
most new SIRIUS plug and play satellite radios. See your Plug and Play user manual for
specific product compatibility.
For the latest information about this and other SIRIUS products and accessories, visit
http://www.sirius.com.
[ Table of Contents ] 3
Table of Contents
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 6
PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 19
Docking the SIRIUS Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maximizing Audio Quality From Your SIRIUS Radio . . . . . . . . . . . . . . . . . . 21
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 36
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
[ Warning and Safety Information ]
4
Warning and Safety Information
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident and/or personal injury.
Installation must be performed according to this installation guide. SIRIUS is not respon-
sible for issues arising from installations not performed according to the procedures in this
guide.
Do not operate the SIRIUS radio in a way that might divert your attention from driving
safely. As a driver, you alone are responsible for safely operating your vehicle in accor-
dance with traffic safety laws at all times.
Do not install the unit where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Before attaching the suction cup mount to your windshield, you should check your state
and local laws for regulations regarding mounting this device on your windshield.
Do not install the unit where it may hinder the function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning properly in the event of an accident.
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the vehicle dock.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect
the unit from any power source.
Do not drop the unit or subject it to strong shocks.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating this unit.
•
•
•
•
•
•
•
•
•
[ Warning and Safety Information ] 5

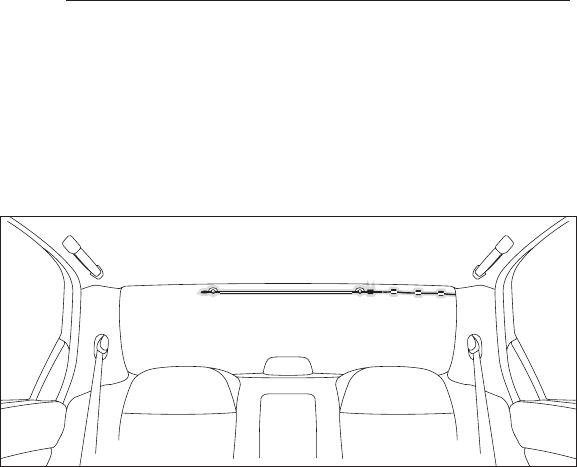

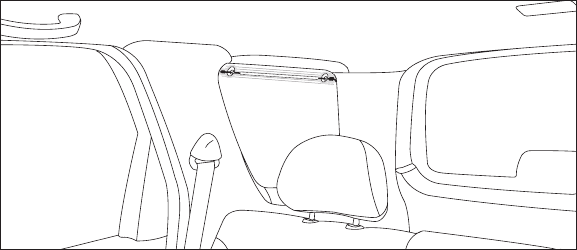

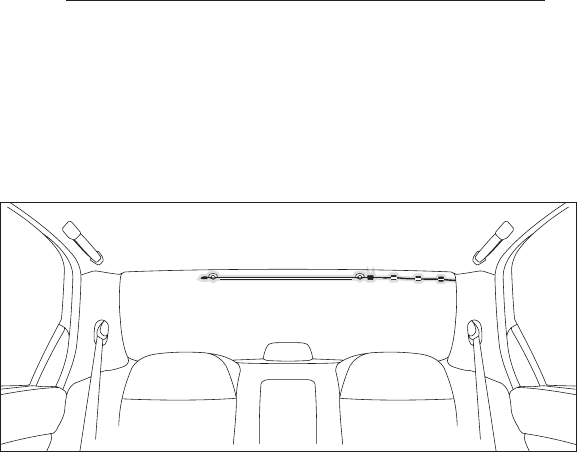

Do not install the FM Extender Cable where it will hinder or block your view. In some
states it may be illegal to mount it on the windshield of your vehicle. Check applicable law
for any restrictions or limitations before installing the extender cable on your windshield.
Do not install the FM Extender Cable where it may hinder the function of safety devices
such as an airbag. Doing so may prevent the airbag from functioning properly in the event
of an accident.
Warnings
Notice To Drivers In California and Minnesota
State law prohibits drivers in California and Minnesota from using suction mounts on their
windshields while operating motor vehicles. Other dashboard or friction mounting options
should be used. SIRIUS does not take any responsibility for any fines, penalties, or damages
that may be incurred as a result of disregarding this notice. (See California Vehicle Code Sec-
tion 26708(a); Minnesota Statutes 2005, Section 169.71)
Operating Temperature
The SIRIUS Cigarette Lighter Adapter is designed to operate between -20° to +85° C (-4° to
+185° F). Avoid leaving it in a vehicle or elsewhere where the temperature may fall outside
this range.
Cleaning and Maintenance
If the vehicle dock becomes dirty, turn the power off and wipe it clean with a soft cloth. Do
not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to
clean. These may cause damage to the unit.
Cigarette Lighter Adapter
The SUPV1 cannot be powered directly from a vehicle’s 12 VDC power system. It must be
powered using the included Cigarette Lighter Adapter only. Connecting the SUPV1 directly to
the vehicle’s 12 VDC power system may result in damage to the vehicle dock or SIRIUS radio,
or both.
•
•
[ Copyrights & Trademarks ]
6
Copyrights & Trademarks
© 2006 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of Sirius Satellite
Radio Inc. All Rights Reserved.
™ “Sportster” is a trademark of Sirius Satellite Radio Inc.
Hardware, subscription, and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.
[ Package Contents ] 7
Package Contents

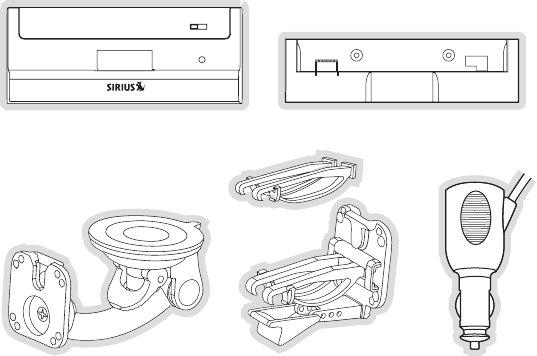

The following items are included with your purchase of the SUPV1 SIRIUS Universal Plug and
Play Vehicle Kit. Unpack the kit carefully and make sure that everything shown is present. If
anything is missing or damaged, or if the kit fails to operate properly, notify your dealer im-
mediately. It is recommended that you retain the original carton and packing materials in case
you need to ship your kit in the future.
Vehicle DockVehicle Dock Vehicle Dock AdapterVehicle Dock Adapter
Vent Mount &
Extended Vent Hooks
Vent Mount &
Extended Vent Hooks
Cigarette Lighter AdapterCigarette Lighter Adapter
Suction Cup MountSuction Cup Mount
[ Package Contents ]
8

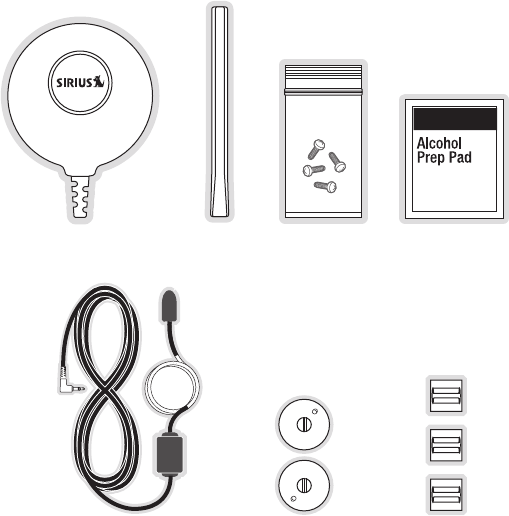

Magnetic AntennaMagnetic Antenna Alcohol SwabAlcohol Swab
Antenna
Cover/Tail
Antenna
Cover/Tail
Mounting
Screws
Mounting
Screws
Suction Cups (2)Suction Cups (2)FM Extender CableFM Extender Cable Self Adhesive
Cable Guides (3)
Self Adhesive
Cable Guides (3)
[ Controls ] 9
Controls

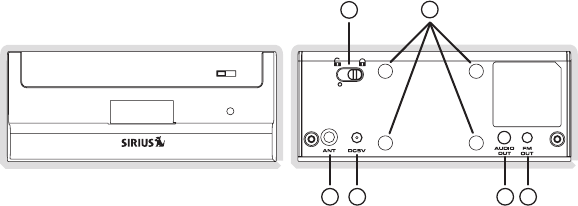

Figure 1 and the section following identify and describe the controls and connectors of the
vehicle dock.
1
56 43
2
Lock Switch: Locks and unlocks the SIRIUS radio in the vehicle dock.
Mounting Holes: Mounting holes for attaching the suction cup mount or the vent mount.

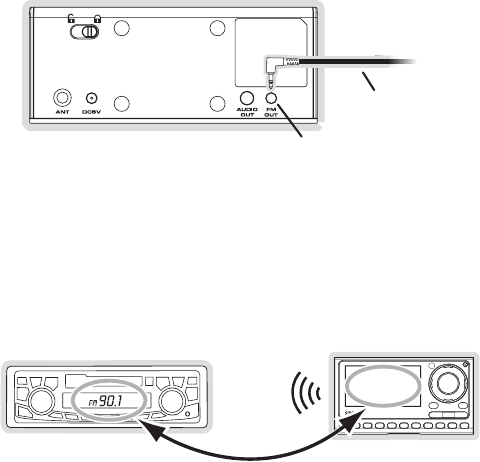

FM OUT Connector: FM output for use with the optional FM Direct Adapter.

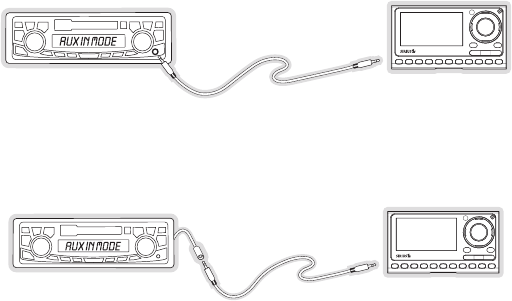

AUDIO OUT Connector: Optional audio output connection for connecting to your
vehicle’s audio system if you are not using the FM transmitter.
DC5V Power Connector: Power connection for the cigarette lighter adapter.
ANT Antenna Connector: Connection for the provided magnetic antenna.
1.
2.
3.
4.
5.
6.
Figure 1Figure 1
[ Installation ]
10
Installation
SIRIUS suggests professional installation of this product in your vehicle. Professional instal-
lation provides an experienced technician to install this product in your vehicle, advice for se-
lecting a suitable mounting location, installation of the antenna, and routing all the necessary
wires and cables. If the FM reception within your vehicle proves to be poor, an installer will
have the necessary accessories to install an optional FM Direct Adapter, or an audio cable, to
connect the audio output of the vehicle dock directly to your vehicle’s audio system. Ask your
SIRIUS retailer if they provide professional installation services, or can recommend a profes-
sional installation service.
Installing the Vehicle Dock
When installing the vehicle dock in your vehicle, choose a location in your vehicle where it
will not block your vision, interfere with the vehicle controls, or obstruct the air bag. The loca-
tion should be easily accessible and provide good visibility of the display, and should not be
located where it will be in direct sunlight which will affect the visibility of the display screen.
The mounting accessories necessary to install the vehicle dock in a vehicle are provided.

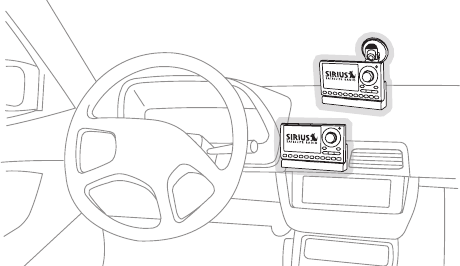

Figure 1 shows two examples of the SIRIUS radio mounted in a vehicle: A is the suction cup
mount method, and B is the vent mount method using the vent mount clip.
[ Installation ] 11
A.
B.
Depending upon the mounting location you select in your vehicle, the mount should be at-
tached to the vehicle dock and installed as described in the following sections.
Figure 1Figure 1
[ Installation ]
12
Suction Cup Mount Method (A)
The suction cup mount may be attached to any smooth surface. Before attaching the suction
cup mount to your windshield, you should check your state and local laws for regulations
regarding mounting this device on your windshield.
To mount the vehicle dock using the suction cup mount, assemble the mount as follows:

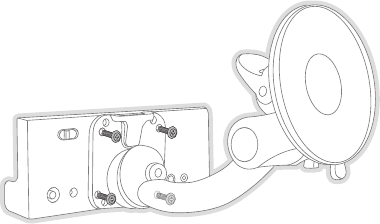

Attach the vehicle dock to the suction cup mount using the provided screws. (Figure 2)
Clean the area where you are attaching the suction cup with an alcohol wipe.
1.
2.
Figure 2Figure 2
[ Installation ] 13

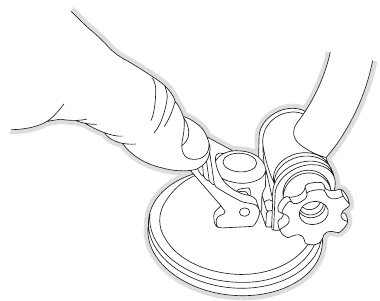

Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount
on the windshield or other location you which have chosen. Press the cam lever all the
way down towards the base of the mount until it locks to adhere the suction cup. (To
unlock the suction cup, lift the lever up.)
3.
Figure 3Figure 3
[ Installation ]
14
Vent Mount Method (B)

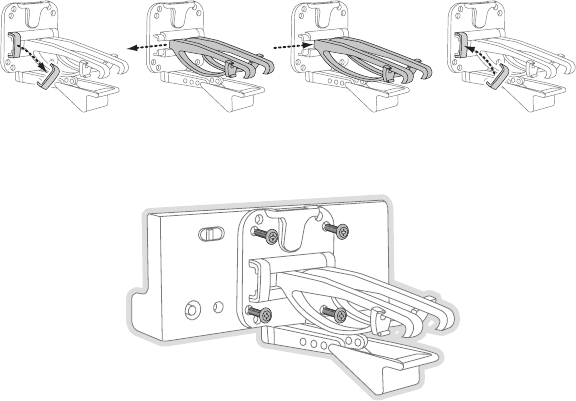

To mount the vehicle dock using the vent mount method, install the vent mount as follows:
If the vent louvers in your vehicle are recessed, you may need to use the longer vent
hooks with the vent mount. Refer to Figure 4 and install the longer vent hooks into the
vent mount. Be sure to observe the orientation of the vent hooks as shown.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
Attach the vent mount to the vehicle dock using the provided screws. (Figure 5)
1.
2.
Figure 4Figure 4
Figure 5Figure 5
[ Installation ] 15

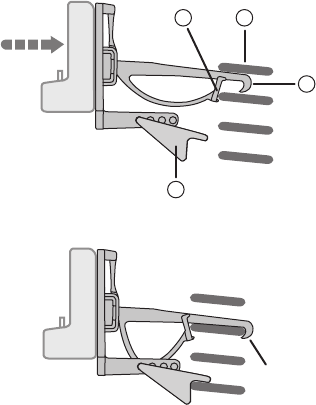

Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent in your
vehicle. Position the two tension springs A against a vent louver B. Then push the vent
mount into the vent, far enough so that the hooks C drop down and hook the rear of the
vent louver (Figure 7). Once you are sure that the hooks have grasped a vent louver, the
tension springs A will keep the vent mount hooked to the louver.
C
B
A
D
PUSH
HOOKED
3.
Figure 6Figure 6
Figure 7Figure 7
[ Installation ]
16
The angle of the vehicle dock may be changed by changing the position of foot D on the
vent mount (Figure 6) to a different adjustment hole. (Figure 8)
A
DJUSTMENT HOLES
Installing the Antenna

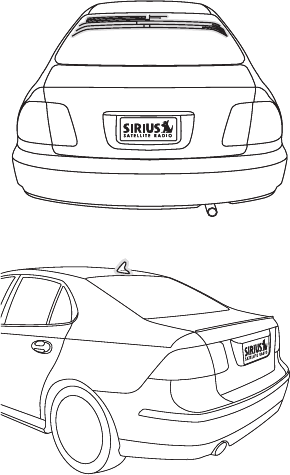

The optimum mounting location for the magnetic antenna is on the roof of the vehicle, with a
minimum unobstructed area of 12 inches by 12 inches, and exactly 6½ inches from the rear
roof edge of the vehicle (the length of the rubber antenna cable cover/tail). It is important to
avoid any obstructions that will block the SIRIUS signal, obstructions such as a roof rack,
a sunroof, roof mounted cargo containers, or other antennas. For convertible vehicles, the
antenna should be installed on the trunk lid.
For best performance, it is recommended that the antenna be installed with the rubber
antenna cable cover/tail. This rubber antenna cable cover/tail provides two benefits: first, it
positions the antenna the recommended distance from the rear window, rear door/hatch, or
trunk edge to give the antenna the best view of the sky. Secondly, it conceals and protects
the exposed antenna cable. The rubber antenna cable cover/tail has adhesive strips that hold
it securely in place.

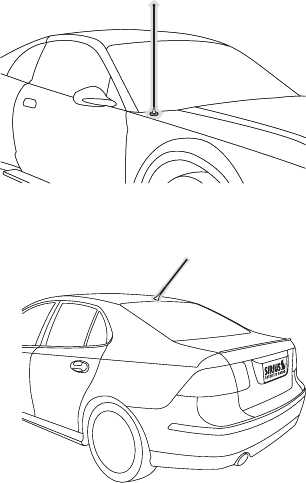

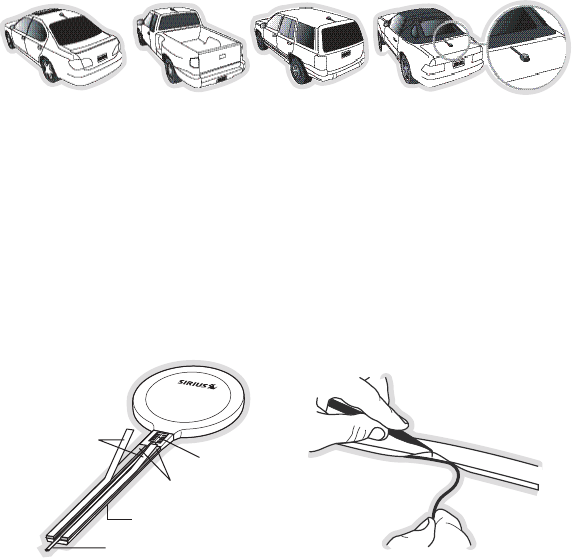

The following illustrations show the recommended mounting locations of the antenna for
several types of vehicles. (Figure 9) Follow these recommendations for best performance from
the antenna.
4.
Figure 8Figure 8
[ Installation ] 17
Sedan/Coupe. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear window.
Pickup Truck. Mount the antenna along the rear center-line of the cab roof, located at the
rear of the roof near the rear window.
SUV/Mini-Van. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear door/hatch.
Convertible. Mount the antenna along the center-line of the trunk lid, with the rubber antenna
cable cover/tail directed toward the rear window.
When you have selected a suitable mounting location, clean the area where the antenna and
rubber antenna cable cover/tail will be mounted with the supplied alcohol swab.
Rubber Antenna
Cover/Tail
Protective
Strips
Adhesive
Strain
Relief
Cable
Figure 9Figure 9
Figure 10Figure 10
Figure 11Figure 11
[ Installation ]
18
Connect the rubber antenna cable cover/tail to the antenna cable, making sure that the strain-
relief on the antenna sits into the rubber antenna cable cover/tail groove. (Figure 10) Route
the antenna cable through the wire channel in the rubber antenna cable cover/tail. Do not
remove the protective strips yet.
Temporarily position the antenna and rubber antenna cable cover/tail in the selected mounting
area and route the cable from the antenna to the vehicle’s interior by tucking it underneath the
rubber molding around rear window, as shown in Figure 11.
Route the cable from the lowest point of the rear window into the trunk. Take advantage of
any existing cable channels or wiring conduits. For SUVs, mini-vans and 5-door vehicles, bring
the cable into the vehicle under the rubber molding for the tailgate, and continue under the
interior trim.
From the trunk, or rear of the vehicle, route the cable around the passenger compartment and
to the front of the vehicle, to the radio. Take care not pull the cable across sharp edges that
could damage it, and keep it away from areas where it might entangle feet. Coil any excess
antenna cable in a location where it can be hidden.
Once the antenna cable is routed through the vehicle, and you are satisfied with the cable
routing, peel the protective material from the adhesive strips and press the rubber antenna
cable cover/tail firmly into place on the vehicle. Double check that the location of the antenna
and rubber antenna cable cover/tail are correct, and continue to press firmly down on rub-
Figure 12Figure 12
[ Installation ] 19
ber antenna cable cover/tail for another 30 seconds. (Figure 12) At room temperature (68
degrees), maximum adhesion usually occurs within 72 hours. During this period, avoid car
washes and other contact with the antenna and rubber antenna cable cover/tail.
Connect the antenna cable to the ANT connection at the rear of the vehicle dock. (Refer to
Figure 1 on page 9 for the location of this connector.)
Connecting the Cigarette Lighter Adapter
Connect the provided cigarette lighter adapter to the DC5V connection at the rear of the
vehicle dock. (Refer to Figure 1 on page 9 for the location of this connector.)
Docking the SIRIUS Radio

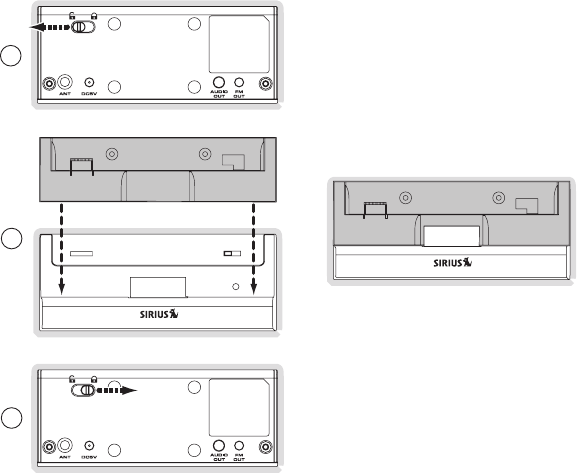

If your radio is a SIRIUS Plug and Play series ST or SV, you will need to install the vehicle
dock adapter provided with the kit. Refer to Figure 13 and place the vehicle dock lock in
the unlocked position (1). Install the adapter into the front of the vehicle dock, positioning it
behind the connector and against the backrest (2). Once the adapter is installed in the vehicle
dock, slide the lock to the locked position (3). The radio may now be placed into the vehicle
dock, pressing the radio down until it is fully seated.
[ Installation ]
20
1
2
3
For SIRIUS radios which do not require the adapter, make sure the lock on the vehicle dock
is set in the unlocked position and place the SIRIUS radio into the vehicle dock, pressing the
radio down until it is fully seated. Slide the lock into the locked position. (Refer to Figure 1 on
page 9 for the location of the lock.)
Figure 13Figure 13
[ Installation ] 21
Maximizing Audio Quality From Your SIRIUS Radio
There are two primary ways to connect your SIRIUS radio to your vehicle radio: Wireless
Connection or Direct Connection. The following sections will help you obtain the best perfor-
mance. For the latest information go to http://www.sirius.com/vehicleinstallation.
Wireless CONNeCTiON

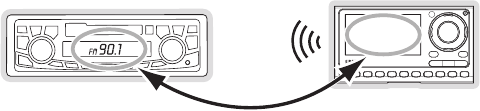

Your SIRIUS radio contains an FM transmitter. The FM transmitter sends the audio from your
SIRIUS radio to your vehicle radio. (Figure 14)
90.1
Included with your SIRIUS radio is an FM Extender Cable to maximize the audio quality of
your SIRIUS radio when using a wireless audio connection. Should the wireless audio quality
without the FM Extender Cable be not acceptable, you can try using the FM Extender Cable
(or opt for a direct connection).
Wireless Audio Connection Without the FM Extender Cable
To tune your vehicle’s FM radio and your SIRIUS radio to the same FM channel (Figure 14):
Turn off your SIRIUS radio and tune through the FM channels on your vehicle’s radio
to locate an FM channel that is not broadcasting in your area. If you use an FM channel
that is being used by a local broadcaster, it will interfere with the performance of your
SIRIUS radio. Once you have located an FM channel that is not broadcasting in your
area, save it as a preset on your vehicle radio. This will become your SIRIUS preset.
Turn on your SIRIUS radio. In the Settings or Menu in your SIRIUS radio, locate the FM
Frequency adjustments. Set the channel number on your SIRIUS radio to match the
SIRIUS preset on your vehicle’s radio. Refer to your user guide for detailed instructions
on how to do this.
1.
2.
Figure 14Figure 14
[ Installation ]
22
Note: The FM transmitter in your SIRIUS radio is automatically set to FM channel
88.1. This may not be the best channel in your area.
Tip: If you regularly travel between cities with different active FM channels, you may
need to find channels that are not broadcasting in each city. Several SIRIUS radio
models can store multiple FM transmit channels, so you can easily switch to the
best FM channel for each city. Refer to your user guide for details on this feature.
You will also want to set the FM channels that are not broadcasting in each city as
presets on your vehicle’s radio.
If you’re not sure which FM channels are not broadcasting in your home or travel cities, you
can also go to http://www.sirius.com/fmchannel and search for a suggested FM channel
based on your zip code.
Wireless Audio Connection Using the FM Extender Cable
The purpose of the FM Extender Cable is to maximize the audio quality of your SIRIUS radio
when using the FM transmitter in your SIRIUS radio to transmit the audio to your vehicle’s
FM radio. Proper placement of the FM Extender Cable inside your vehicle in close proximity
to the vehicle’s own FM antenna will provide a strong FM signal for good reception. The FM
Extender Cable has suction cup mounts or permanent adhesive mounts for installing it on your
vehicle’s window.
Because of the different kinds of FM antennas found in vehicles, and the varied locations of
the antenna in each vehicle, SIRIUS suggests professional installation of this product in your
vehicle. Professional installation provides an experienced technician to install this product in
your vehicle, knowledge of your vehicle for locating the vehicle’s FM antenna, installation of
this product, and routing the cable and connecting it to your SIRIUS radio. Ask your SIRIUS
retailer if they provide professional installation services, or can recommend a professional
installation service.
[ Installation ] 23
The FM antennas found in vehicles are of four distinct types:
Aerial Type Fender Mounted FM
Antenna: A fixed or retractable aerial
antenna located on the front or rear
fender of the vehicle.
•
Aerial Type Roof Mounted FM An-
tenna: A fixed aerial antenna mounted
on the roof (often at the front or rear of
the roof, just above the window glass).
•
[ Installation ]
24
Before attempting installation, you should verify the type and location of the FM antenna in
your particular vehicle. If you have trouble locating it, consult the manual which accompanied
your vehicle, consult a dealer for your type of vehicle, or consult a professional installer.
On Glass Type FM Antenna: Wires on
the window glass of the vehicle, usually
near the top of the window. It may be
located on the windshield glass, the rear
window glass, or a rear side window in
some SUV and mini-van type vehicles
(and other vehicles). It will look similar to
the rear window defroster wires found in
many vehicles.
•
“Shark Fin” Type FM Antenna: A device
resembling a shark fin (or other shape)
located on the vehicle roof above the rear
window.
•
[ Installation ] 25
The FM Extender Cable should be placed inside the vehicle, as close as possible to the
vehicle’s FM antenna. A test mounting should be done first using the included suction cup
mounts to test the installation. Once an acceptable location has been found, you will remove
the suction cups and permanently adhere the FM Extender Cable using the adhesive mounts.
To install the FM Extender Cable in your vehicle, follow these instructions:

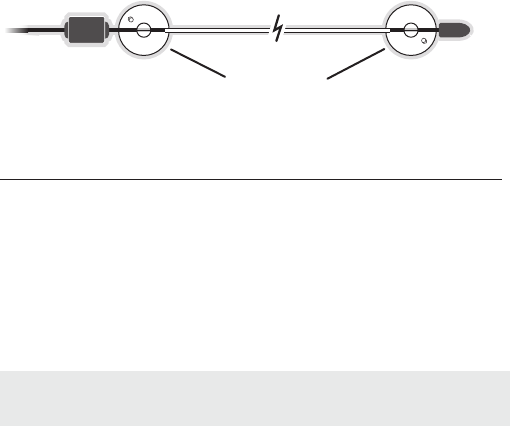

Attach the suction cups to the FM Extender Cable in the positions shown in Figure 15.
Suction Cups
In this step, follow the specific instructions in sub-step a, b, c, or d depending on the
type of FM antenna in your vehicle:
a. Installation Instructions for Vehicles with Aerial Type Fender Mounted FM Antenna.

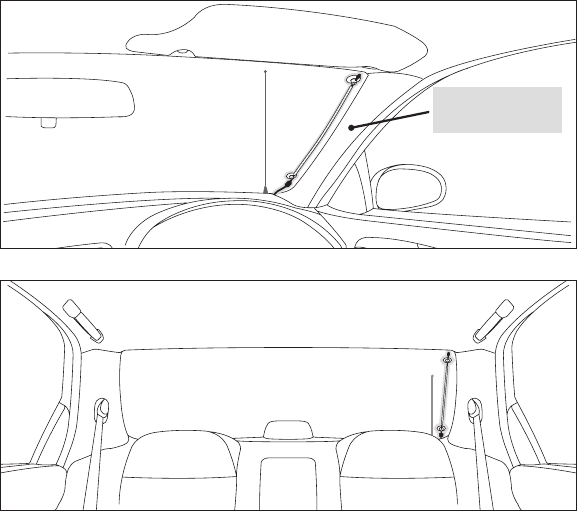

For vehicles where the FM radio antenna is located on the front fender, the FM
Extender Cable should be mounted vertically on the front windshield at the edge of
the glass nearest to the antenna. (Figure 16)
For vehicles where the FM radio antenna is located on the rear fender, the FM
Extender Cable should be mounted vertically on the rear window at the edge of the
glass nearest to the antenna. (Figure 17)
Attach the FM Extender Cable to the section of glass closest to the FM antenna in
a vertical orientation. (Figure 16 or Figure 17) The wire between the two suction
cups should be pulled taut and as straight as possible, and should not obstruct the
driver’s view.
1.
2.
Figure 15Figure 15
Important Caution: In some states it may not be legal to put the FM Extender
Cable on the windshield glass. In this case, the FM Extender Cable should be
mounted on the A-Pillar adjacent to the FM antenna. (Figure 16)
Important Caution: In some states it may not be legal to put the FM Extender
Cable on the windshield glass. In this case, the FM Extender Cable should be
mounted on the A-Pillar adjacent to the FM antenna. (Figure 16)
[ Installation ]
26
Alternate mounting
location on adjacent
A-Pillar
Figure 16Figure 16
Figure 17Figure 17
[ Installation ] 27
b. Installation Instructions for Vehicles with Aerial Type Roof Mounted FM Antenna.
For vehicles where the FM radio antenna is located on the front or rear of the roof
of the vehicle, the FM Extender Cable should be mounted horizontally on the front
or rear glass below the FM antenna, or installed into the headliner of the vehicle
under the FM antenna.
If you are installing the FM Extender Cable on the window glass, attach the suc-
tion cups to the glass under the FM antenna in a horizontal orientation. The wire
between the two suction cups should be pulled taut and as straight as possible,
and should not obstruct the driver’s view. (Figure 18)
If you are installing the FM Extender Cable into the headliner, remove the suction
cups and tuck the wire into the headliner, stretched taut and straight, and cen-
tered under the FM antenna.
•
•
Figure 18Figure 18
[ Installation ]
28
c. Installation Instructions for Vehicles with On Glass Type FM Antenna.
For vehicles where the FM radio antenna is located on the window glass, the FM
Extender Cable can be mounted horizontally on the glass, directly over the FM
radio antenna, or installed into the headliner of the vehicle directly above the FM
antenna.
If you are installing the FM Extender Cable on the window glass, attach the suc-
tion cups to the glass centered over the FM radio antenna in a horizontal orienta-
tion. The wire between the two suction cups should be pulled taut and as straight
as possible, and should not obstruct the driver’s view. (Figures 19 & 20)
If you are installing the FM Extender Cable into the headliner, remove the suction
cups and tuck the wire into the headliner, stretched taut and straight, and cen-
tered above the FM antenna.
•
•
Figure 19Figure 19
[ Installation ] 29
Figure 20Figure 20
[ Installation ]
30
d. Installation Instructions for Vehicles with Shark Fin Type FM Antenna.
For vehicles where the FM radio antenna is located on the rear of the roof of the
vehicle, the FM Extender Cable should be mounted horizontally on the glass below
the FM antenna, or installed into the headliner of the vehicle under the FM antenna.
If you are installing the FM Extender Cable on the window glass, attach the suc-
tion cups to the glass below the FM antenna in a horizontal orientation. (Figure
21) The wire between the two suction cups should be pulled taut and as straight
as possible, and should not obstruct the driver’s view.
If you are installing the FM Extender Cable into the headliner, remove the suction
cups and tuck the wire into the headliner, stretched taut and straight, and cen-
tered under the FM antenna.
•
•
Figure 21Figure 21
[ Installation ] 31
Plug the FM Extender Cable into the FM OUT connector of the vehicle dock. (Figure 22)
FM OUT
From FM
Extender Cable
Tune your vehicle’s FM radio and your SIRIUS radio to the same FM channel (Figure 23):
a. Turn off your SIRIUS radio and tune through the FM channels on your vehicle’s
radio to locate an FM channel that is not broadcasting in your area. If you use
an FM channel that is being used by a local broadcaster, it will interfere with the
performance of your SIRIUS radio. Once you have located an FM channel that is
not broadcasting in your area, save it as a preset on your vehicle radio. This will
become your SIRIUS preset.
90.1
b. Turn on your SIRIUS radio. In the Settings or Menu in your SIRIUS radio, locate the
FM Frequency menu. Set the channel number on your SIRIUS radio to match the
SIRIUS preset on your vehicle’s radio. Refer to the user guide which accompanied
your SIRIUS radio for detailed instructions on how to do this.
3.
4.
Figure 22Figure 22
Figure 23Figure 23
[ Installation ]
32
Note: The FM transmitter in your SIRIUS radio is automatically set to FM channel
88.1. This may not be the best channel in your area.
Tip: If you regularly travel between cities with different active FM channels, you may
need to find channels that are not broadcasting in each city. Several SIRIUS radio
models can store multiple FM transmit channels, so you can easily switch to the best
FM channel for each city. Refer to your user guide for details on this feature. You will
also want to set the FM channels that are not broadcasting in each city as presets
on your vehicle’s radio.
You should now hear the audio from your SIRIUS radio over your vehicle’s FM radio. If
the audio quality is not satisfactory, try moving the FM Extender Cable slightly to see if a
better signal can be obtained.
If you are mounting the FM Extender Cable in the headliner of the vehicle, skip this step.
When you are satisfied with the mounting location, remove the suction cup mounts and
peel the backing off the adhesive mounts. Permanently adhere it in the same position on
the glass (or A-Pillar), keeping it taut and as straight as possible. (Figure 24)
Adhesive Adhesive
Route the antenna cable to your SIRIUS radio. Use the included self adhesive cable
guides (if necessary) to hold the antenna wire in place until it reaches the weather
stripping or moulding at the edge of the window. Take advantage of any existing cable
channels or wiring conduits and route the cable around the passenger compartment to
the vehicle dock. Take care not pull the cable across sharp edges that could damage it,
and keep it away from areas where it might entangle feet. Coil and secure any excess
antenna cable in a location where it can be hidden and secured.
Plug the FM Extender Cable into the FM OUT connector of the vehicle dock (Refer to
Figure 22 on page 31.)
This completes the installation of the FM Extender Cable. If you’re not sure which FM chan-
nels are not broadcasting in your home or travel cities, you can also go to http://sirius.
com/fmchannel and search for a suggested FM channel based on your zip code.
5.
6.
7.
8.
Figure 24Figure 24
[ Installation ] 33
DireCT CONNeCTiONs
Direct connection provides better audio performance than a wireless connection and removes
the possibility of interference from local FM broadcasters.
Direct Wired Audio Connection
If your vehicle radio offers an “AUX IN” or “LINE IN” connection, it is the best audio connec-
tion available. If the “AUX IN” or “LINE IN” connector is located on the front of your vehicle
radio, this is also the easiest connection. (Figure 25)
Purchase an audio cable that matches the connection type of your vehicle radio and your
SIRIUS radio at your local electronics retailer. Your SIRIUS radio requires a 1/8” stereo
male connector. Your local electronics retailer can help you determine the proper con-
nection for your car radio.
Plug one end of the cable into the “AUDIO OUT” or “LINE OUT” jack on your SIRIUS
radio. Plug the other end into your “AUX IN” or “LINE IN” jack on your vehicle radio.
FM
TRANSMITTER
OFF
Note: Refer to your vehicle radio manufacturer’s guidelines for correct installation.
Note: If the “AUX IN” or “LINE IN” connection is on the back of your vehicle radio, you may
want to consider professional installation. (Figure 26)
FM
TRANSMITTER
OFF
1.
2.
Figure 25Figure 25
Figure 26Figure 26
[ Installation ]
34
Cassette Adapter
If your vehicle radio has a cassette player:
Purchase a Cassette Adapter at your local electronics retailer.
Connect the adapter between the “AUDIO OUT” or “LINE OUT” on your SIRIUS radio
and the vehicle radio’s cassette slot. (Figure 27)
FM
TRANSMITTER
OFF
Note: Refer to the cassette adapter manufacturer’s guidelines for correct use.
1.
2.
Figure 27Figure 27
[ Installation ] 35
SIRIUS FM Direct Adapter
If your vehicle radio does not have an “AUX IN” or “LINE IN” jack, the SIRIUS FM Direct
Adapter provides a wired connection between your SIRIUS radio and your vehicle radio, elimi-
nating the outside static and interference you sometimes experience when using a wireless
FM connection. (Figure 28)
FM
DIRECT
ADAPTER
90.1
Vehicle FM
Antenna
Professional installation may be required. See your local SIRIUS retailer.
For the latest information refer to http://www.sirius.com/vehicleinstallation. (The SIRIUS
FM Direct Adapter is available at your local SIRIUS retailer or at http://shop.sirius.com).
Figure 28Figure 28
[ Installation ]
36
Subscribing to the SIRIUS Service
Before you can listen to the SIRIUS service, you need to subscribe to the SIRIUS Satellite
Radio service. To subscribe, do the following:
Be sure that the SIRIUS radio is correctly installed, is in the vehicle or home dock, and
that the antenna is oriented to receive the SIRIUS signal.
Turn on the radio. After the startup sequence, it will update the SIRIUS channel line-up.
Wait until the channel updates have completed before pressing any buttons.
Once the channels have been updated, the display will change to
Call 1-888-539-SIRIUS to Subscribe and will tune to channel 184. You will not be able
to listen to other channels until you activate your SIRIUS subscription.
Use the radio’s channel up/down buttons to tune to channel 0 to display the radio’s
unique 12-digit SIRIUS ID Number (SID). (Figure 1) You can also tune to channel 0 by
using the remote control: Press the Select button then the 0 (zero) button and then
press the Select button again. The SID number is also available on the radio’s packag-
ing, and may also be accessed by pressing the MENU button and selecting Sirius ID.
Write the SID number down in the space provided near the end of this guide.
Have your credit card handy and contact SIRIUS on the Internet at:
https://activate.siriusradio.com/
and follow the prompts to activate your subscription. You can also call SIRIUS toll-free
at: 1-888-539-SIRIUS (1-888-539-7474).
When you have successfully subscribed to the SIRIUS service, and the radio has been
updated with your subscription information, an alert will be displayed. To continue, press
the Select button.
You are now ready to begin enjoying SIRIUS Satellite Radio’s digital entertainment, and can
tune to other channels!
1.
2.
3.
4.
5.
6.
[ Troubleshooting ] 37
Troubleshooting
Symptom Solution
SIRIUS radio does not
power on
Blown fuse, or the Cigarette Lighter Adapter is not properly con-
nected.
Check the Cigarette Lighter adapter connection. Refer to the
vehicle’s owners manual for the location of the vehicle’s fuse
panel and check for a blown fuse.
SIRIUS radio displays:
Antenna Not Detected
The satellite antenna is not connected to the vehicle dock.
Check the satellite antenna connection to the vehicle dock.
SIRIUS radio displays:
Acquiring Signal
No satellite signal is being received.
Check for obstacles over or around the satellite antenna.
Change the vehicle location to eliminate nearby obstacles
(bridges, overpasses, tress, buildings, etc).
Audio static or loss of
clarity
The FM frequency contains static.
Locate a quiet FM frequency on your vehicle radio and set the FM
transmitter frequency of the SIRIUS radio to match.
If using the Audio Out connector, check the cable connections.
No sound The audio cables are not connected, or the FM radio is set to
the wrong frequency. Check the audio cables at the radio and
the radio. Verify that the FM transmitter in the radio is set to On.
Tune the FM radio to the same FM frequency to which the radio
is tuned.
[ Optional Accessories ]
38
Optional Accessories
The following optional accessories are available for purchase from your SIRIUS retailer to
maximize your SIRIUS experience:
SUBX1 SIRIUS Plug and Play Universal Boombox
The SUBX1 SIRIUS Plug and Play Universal Boombox is a portable docking station and audio
system for use with the SIRIUS radio. With the built-in amplifier and speakers, the boombox
delivers rich, powerful sound indoors or outdoors, and features an auxiliary input for other
audio devices.
Included with the boombox is an adjustable indoor/outdoor windowsill antenna with 20’ of
cable and an AC adapter.
SUPH1 SIRIUS Universal Plug and Play Home Kit
The SUPH1 SIRIUS Universal Plug and Play Home Kit is a compact home dock that positions
the radio for easy viewing and operation. Designed for quick and easy self-installation, it
includes all necessary cabling to connect your SIRIUS radio to your home audio system.
The kit includes a compact tabletop/desktop home dock with FM output for wireless connec-
tivity, an audio cable for connection to any stereo bookshelf system, an adjustable indoor/out-
door windowsill antenna with 20’ of cable, and an AC Adapter.
[ Warranty ] 39
Warranty
12 Month Warranty
SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product
that should this product or any part thereof, under normal use and conditions, be proven defective in
material or workmanship within 12 months from the date of original purchase, such defect(s) will be
repaired or replaced with new or reconditioned product (at the Company’s option) without charge for
parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product
is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),
transportation prepaid, to the location shown below under WARRANTY RETURN.
This Warranty does not extend to the elimination of externally generated static or noise, to correction
of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to
damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company,
has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect,
accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT
OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, IN-
CLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURA-
TION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HERE-
UNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL
THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No
person or representative is authorized to assume for the Company any liability other than expressed
herein in connection with the sale of this product. Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the
above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
WARRANTY RETURN: To obtain repair or replacement within the terms of this Warranty, please re-
turn product to an authorized retailer or call Customer Service at 1-800-869-5187; proof of purchase
and description of defect are required. Products to be returned to an approved warranty station must
be shipped freight prepaid.
[ Specifications ]
40
Specifications
Cigarette Lighter Adapter Fuse Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A Slow Blow
Cigarette Lighter Adapter Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8m (6ft.)
Cigarette Lighter Adapter Operating Temperature . . . . . . . . . . -20° to +85° C (-4° to +185° F)
Vehicle Dock Power Requirements . . . . . . . . . . . . . . . . . . . .10-16 Volts, Negative Ground, DC
Antenna Type................................................Low Profile Magnetic
Antenna Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21’ (single micro-cable)
Connector Type ................................................ SMB (right-angle)
Audio Out Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8” / 3.5mm Stereo Jack
[ SIRIUS ID ] 41
SIRIUS ID
Write down the SIRIUS ID (SID) of your SIRIUS radio in the space provided below.
SID: _______________________________________
SIRIUS Customer Service: 1-888-539-7474
customercare@sirius-radio.com
SIRIUS Satellite Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
1-888-539-7474
http://www.sirius.com
SIRIUS SUPV1-FM Extender Cable (091806a)
SIRIUS Satellite Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
(800) 869-5590
http://sirius.com
