SP-R1 Satellite Radio Receiver User Guide
Sportster SP-R1 User Guide
2
CONGRATULATIONS! Your new Sirius Sportster™ SP-R1 portable Plug-n-Play Receiver kit lets you enjoy SIRIUS®
Satellite Radio’s digital entertainment anywhere you’ve installed the SP-H1 Home Docking Station, SP-C1 Mobile Docking
Station, or the SP-B1 Portable Boombox (each sold separately). Use this manual to familiarize yourself with all of Sirius
Sportster’s features and capabilities. For the latest information about this and other Sirius Sportster products, visit
www.sirius.com.
Table of Contents
Box Contents ............................................................................... 3
Safety Precautions ...................................................................... 3
FCC Warning .............................................................................. 5
Cleaning the Unit ........................................................................ 5
Receiver Controls and Features ............................................... 6
Remote Control .......................................................................... 8
Installing Batteries in the Remote ............................................. 8
Activating your SIRIUS Subscription .......................................... 9
Basic Operation ........................................................................ 10
Changing Channels ............................................................ 10
Display Button ...................................................................... 10
Search Modes (Category, Channel, Artist, Song Title) ....... 11
Searching Categories ......................................................... 11

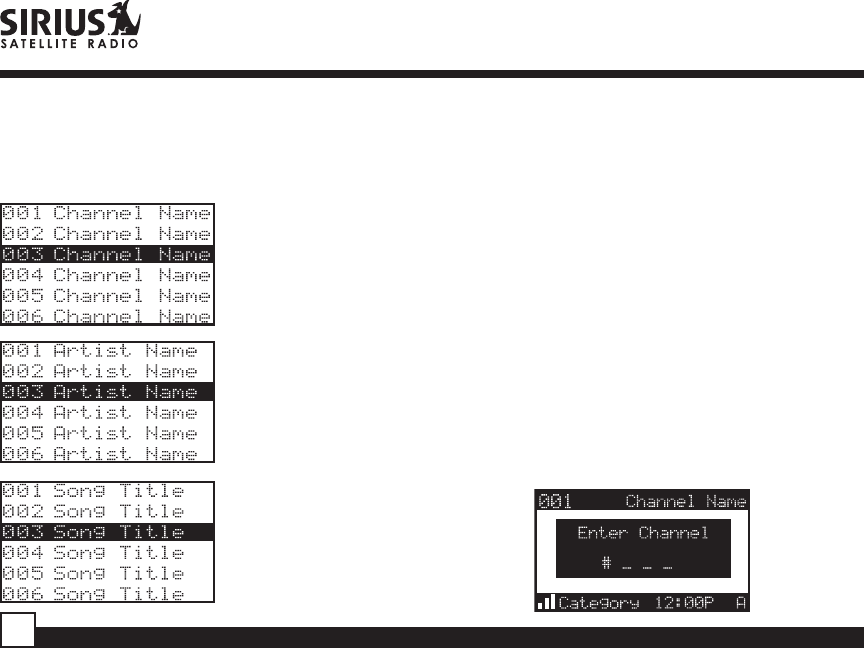

Searching Channels (Channel List Mode) ......................... 11
Direct Tuning ........................................................................ 12
Setting Channel Presets ..................................................... 13
Recalling Channel Presets ................................................. 13
Jump Preset Button ............................................................. 1 3
Searching for a Channel Preset (P.TUNE Mode) ............... 14
Preset Tune List Mode ......................................................... 15
Memory (MEMO) and Song Seek (S-Seek) Functions ....... 16
Storing Song Titles or Sports Games ................................ 16
Viewing Program Information stored in Memory ................ 1 8
Deleting a Song Title Stored into Memory .......................... 18
Activating the Song (S-Seek) Alert ....................................... 18
Game Alert ............................................................................ 20
Instant Replay ...................................................................... 21
Using Instant Replay ....................................................... 22
Menu Display Options .............................................................. 26
Sirius ID ................................................................................ 27
Game Alert ............................................................................ 27
Jump Settings ...................................................................... 29
Traffic .................................................................................... 29
JumpSet ............................................................................... 30
Display Settings ................................................................... 30
Confirm Tone Options ......................................................... 31
FM Transmitter Options ....................................................... 31
Channel Add or Skip ............................................................ 32
Lock Options ........................................................................ 32
Changing the Lock/Unlock Code ........................................ 33
Audio Level ........................................................................... 33

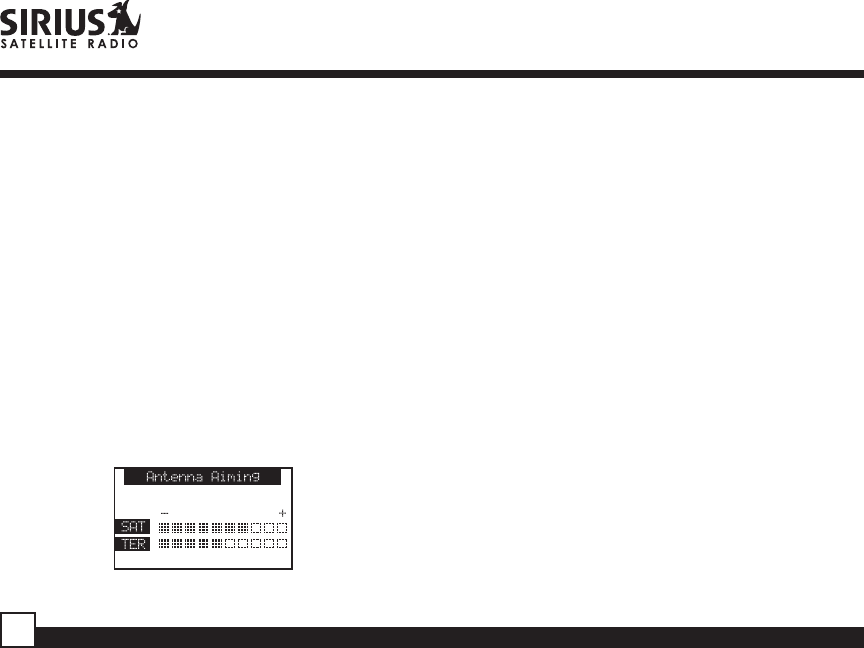

Antenna Aiming .................................................................... 34
Memory Options ................................................................... 34
Time-Based Features ......................................................... 35
Factory Default ..................................................................... 38
Troubleshooting ....................................................................... 39
Specifications ............................................................................ 40
Optional Accessories ............................................................... 43
Warranty .................................................................................... 44
Sportster SP-R1 User Guide 3
Box Contents
Unpack your Sirius Sportster Receiver carefully and
make sure that everything listed here is present:

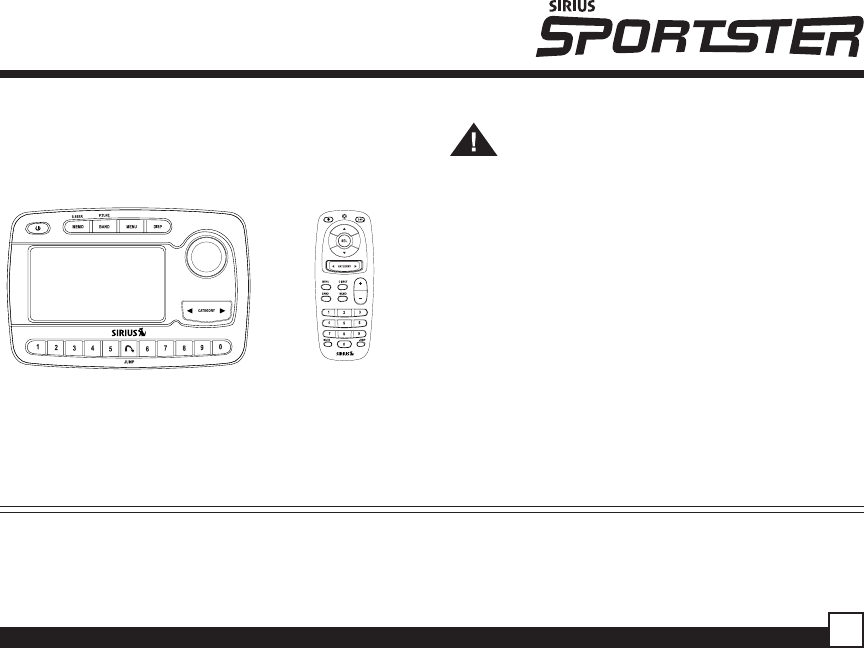

1 x Sportster Receiver 1 x Remote Control
If anything is missing or damaged, or if your Sirius
Sportster Receiver fails to operate, notify your
dealer immediately. It is recommended that you
retain the original carton and packing materials in
case you need to ship your Receiver in the future.
Safety Precautions
Warning
Take the following precautions to prevent traffic
accidents and avoid personal injury:
• Installation must be performed according to this user
guide. Sirius Satellite Radio is not responsible for
issues arising from installations not performed
according to the procedures in this manual.
• Do not install the unit where it may obstruct your view
through the windshield or of your vehicle’s indicator
displays.
• Do not install the unit where it may hinder the function
of safety devices such as an airbag. Doing so may
prevent the airbag from functioning properly in the
event of an accident.
© 2004 SIRIUS Satellite Radio Inc.
® “SIRIUS,” the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. “NFL” and the NFL Shield
logo, and the NFL Sunday Drive name and logo are registered trademarks of the National Football League. “NHL” and the NHL Shield
are registered trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are registered trademarks of NBA
Properties Inc. All other trademarks, service marks and logos are the property of their respective owners. All Rights Reserved.
Sportster SP-R1 User Guide
4
• The installation and use suggestions contained in this
manual are subject to any restrictions or limitations
that may be imposed by applicable law—the
purchaser should check applicable law for any
restrictions or limitations before installing and/or
operating this unit.
• Failure to follow these safety instructions and
warnings may result in a serious accident.
Warning
Take the following precautions to prevent fire and
avoid personal injury:
• To avoid short circuits, never put or leave any metallic
objects (coins, tools, etc.) inside the unit.
• If the unit emits smoke or unusual odors, turn the
power off immediately and consult your Sirius
Sportster retailer.
• Do not drop the unit or subject it to strong shocks.
• If the LCD display becomes damaged or broken, do
not touch the liquid crystal fluid. The fluid can be
dangerous to your health. If the liquid crystal fluid
contacts your body or clothing, immediately wash it off
with soap and water.
Caution
Take the following precautions to keep the unit in
proper working order:
• Be sure the unit is connected to a 12V DC power
supply with a negative ground connection.
• Do not open the unit.
• Do not install the unit where it will be exposed to high
levels of humidity, moisture, or dust.• When
replacing a fuse, use only a new one with the proper
rating. Using a fuse with the wrong rating may cause
the unit to malfunction.
• To prevent a short circuit when replacing a fuse, first
disconnect the wiring harness.
Note
If the unit doesn’t seem to be working properly:
• Turn the unit’s power off, wait 5 – 10 seconds, then
turn the power on again.
• If the unit still malfunctions, turn the unit’s power off,
remove it from the cradle, wait 5 – 10 seconds,
replace it in the cradle and turn the power back on. If
the problem persists, consult your Sirius Sportster
retailer.
Sportster SP-R1 User Guide 5
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
Sirius Sportster Receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the Sirius Sportster
Receiver is connected
• Consult the dealer or an experienced radio/TV
technician for help.
Cleaning the Unit
If the unit becomes dirty, turn its power off and wipe it
clean with a soft dry cloth. Do not use hard cloths or
paint thinner, alcohol, or other volatile solvents to
clean the unit. These may cause damage or remove
indicator characters.
Warning
Do not operate the unit in a way that might divert your
attention from driving safely. As a driver, you alone
are responsible for safely operating your vehicle in
accordance with traffic safety laws at all times.
FCC Warning
This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment
may cause harmful interference unless the
modifications are expressly approved in this User
Guide. The user could lose the authority to operate
this equipment if an unauthorized change or
modification is made.
Note
This equipment has been tested and found to comply
with Part 15 of the FCC Rules. These rules are
designed to provide reasonable protection against
harmful interference. This equipment may cause
harmful interference to radio communications if it is
not installed and used in accordance with these
instructions. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of
more of the following measures:
Sportster SP-R1 User Guide
6

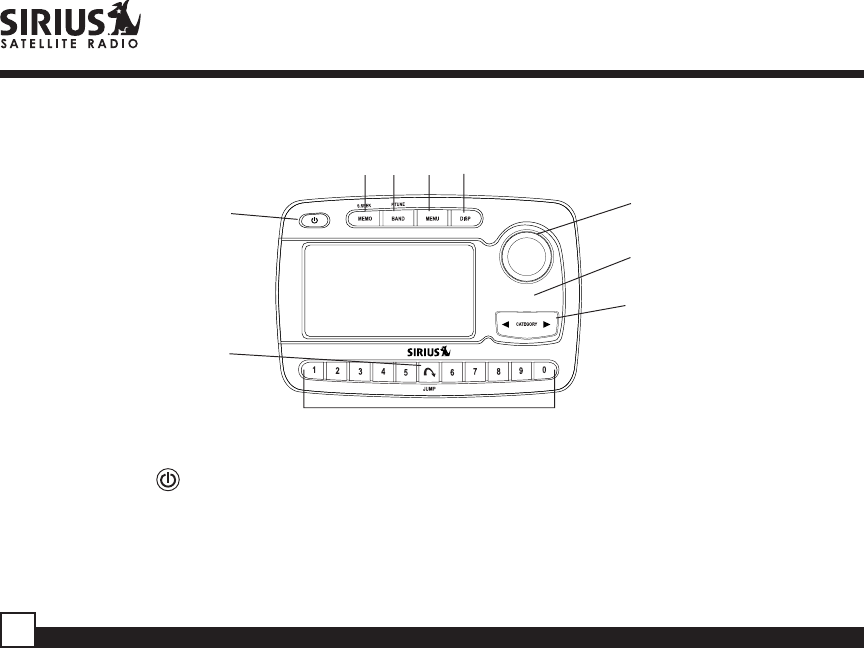

1. POWER Button : Turns Receiver On and Off.
2. Rotary Knob & Select Button: Navigates through display screens and makes selections of items highlighted
on the display. Rotating clockwise (CW) increases the channel number in list mode (down the list), and moves
down in the menu. Rotating counterclockwise (CCW) decreases the channel number in list mode (up the list),
and moves up in the menu.
12
3
4589
7
6
10
Receiver Controls and Features
Sportster SP-R1 User Guide 7
.
3. CATEGORY Buttons: Navigates through Category List Screen which displays Sirius Channel Categories.
4. Display (DISP) Button: Changes text size of artist names and song titles.
5. Menu Button: Used to access menu options to make setup and feature changes.
6. Jump Button: Used to quickly switch to a favorite channel then back to the original program.
7. Preset Number Buttons (0-9): Sets and selects preset channels.
8. Memory (MEMO) Button (S-Seek Function): Saves and recalls artist names and song titles. You can store
up to 20 artist/song title combinations.
9. Band Button (P.Tune): Pressing and releasing switches between preset banks A, B, and C, which hold 10
presets each. Pressing and holding enables “Preset Tune Mode”, which allows for viewing and listening of stored
presets with turn of Rotary Knob.
10. Remote Control Receiver: Receives signals from the included wireless remote control.
11. Play/Pause Button: Pause Function: Used to save a broadcast for Instant Replay. Play Function: Used to
play a broadcast saved to Instant Replay.
12. Fast Forward Button: Used to fast forward through a broadcast saved to Instant Replay.
13. Rewind Button: Used to rewind through a broadcast saved to Instant Replay.
Sportster SP-R1 User Guide
8

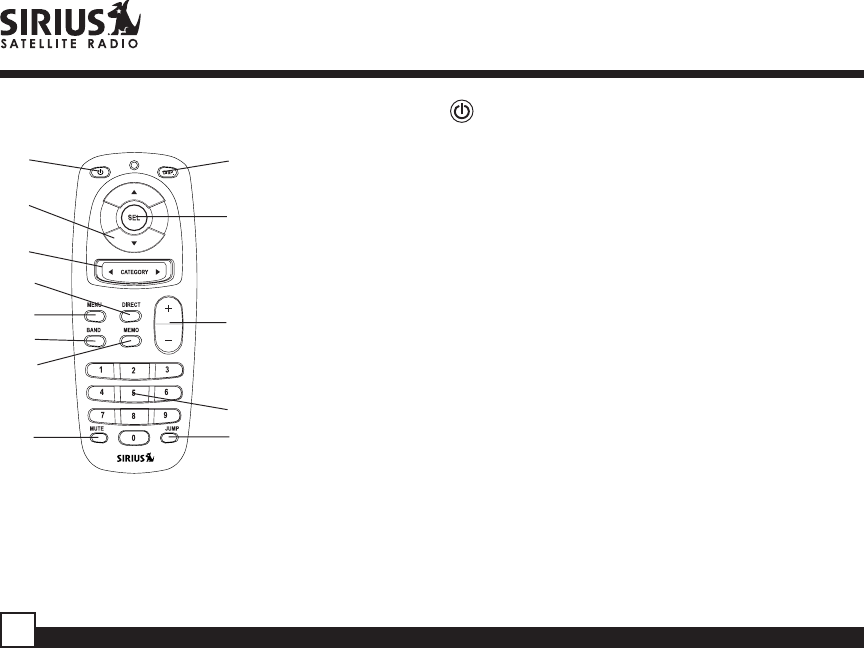

Remote Control 1. POWER Button : Turns Receiver ON and OFF.
2. Channel Buttons: Navigate through channels and display screens.
3. Category Buttons: Navigate through categories and display screens.
4. Mute Button: Mutes audio.
5. DIRECT Button: Accesses channels directly by number.
6. SELECT (SEL) Button: Selects items highlighted on the display; hold-
down to jump to the previously-received Channel.
7. MENU Button: Enters and exits the Setup Mode.
8. MEMORY (MEMO) Button: Saves & recalls song & artist information;
sets Parental Lock code number.
9. DISPLAY Button: Changes text size of artist names and song titles.
10. BAND Button: Switches between preset bands A, B, and C.
11. Number Buttons (0-9): Select channels directly and by preset.
12. Jump Button: Switches to a favorite channel then back to the original
program.
13. VOL+/ VOL- Buttons: Adjust the volume up & down.
14. Play/Pause Button: Pause Function: Used to save a broadcast for
Instant Replay. Play Function: Used to play a broadcast saved to
Instant Replay.
15. Fast Forward Button: Used to fast forward through a broadcast saved
to Instant Replay.
16. Rewind Button: Used to rewind through a broadcast saved to Instant
Replay.
Installing Batteries in the Remote
1. Remove the battery cover.
2. Install CR2025 battery. (+ side is up)
3. Replace the battery cover.
6
9
11
12
13
1
2
5
4
8
7
10
3
Sportster SP-R1 User Guide 9
Activating your SIRIUS Subscription
Before you can listen to the Receiver, you must
subscribe to SIRIUS Satellite Radio’s service.
1. Make sure that the Sirius Sportster Receiver is
properly connected and that its antenna is oriented to
receive the SIRIUS satellite signal (see
Docking
Station Installation and/or Boombox User Manuals
for details
).
2. Press the power button to turn the Receiver ON. After
displaying the SIRIUS logo, the Receiver will update
all the SIRIUS channels. The display will read
“UPDATING CHANNELS” on the top line and “X%
Completed” (0%-20%-40%-60%-80%-100%) on the
bottom line until the update completes.
NOTE: Don’t push any buttons or perform any
operations until updating has been completed.
Once updated and the SIRIUS channels are
received, the display will change to “Call 1-888-539-
SIRIUS to Subscribe” and will place you in SIRIUS
Satellite Radio’s Preview Channel. Channel 184 is
the SIRIUS preview channel. You will not be able to
tune to any other channels until you activate your
SIRIUS subscription.
4. Press the MENU button to enter the “Menu Options”
mode. The “Sirius ID” menu option will now be
highlighted.

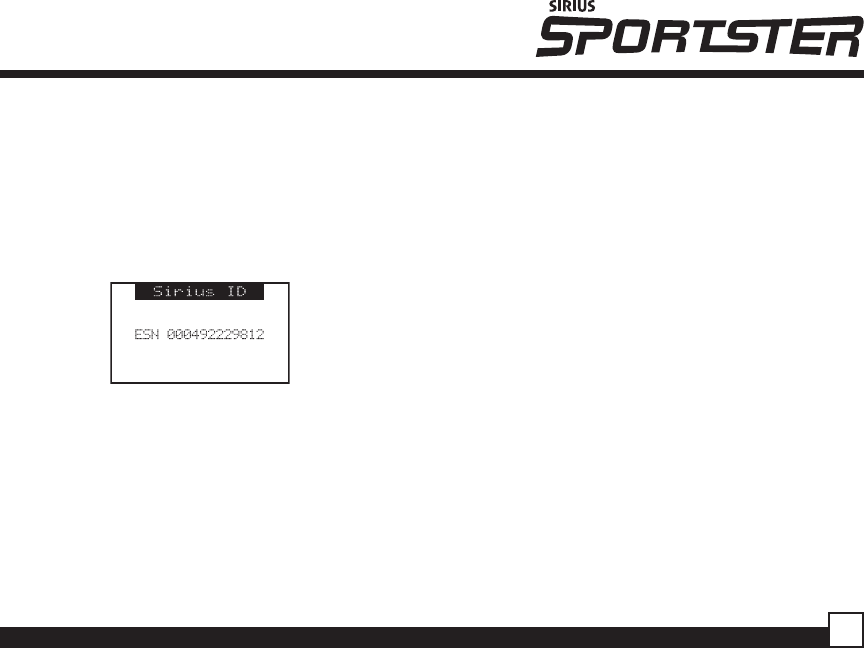

5. Push on the Rotary Knob to select “Sirius ID”. This
will display your unit’s unique 12-digit SIRIUS ID
Number. This SID number should also be available
on the Sirius Sportster Receiver packaging. Write
the number down and have your credit card handy. A
space has been provided at the end of this manual
to write your SID.
6. Contact SIRIUS on the Internet:
https://activate.siriusradio.com/
Follow the prompts to activate your subscription.
You can also call SIRIUS toll-free at:
1-888-539-SIRIUS
(1-888-539-7474)
Sportster SP-R1 User Guide
10
Display Button

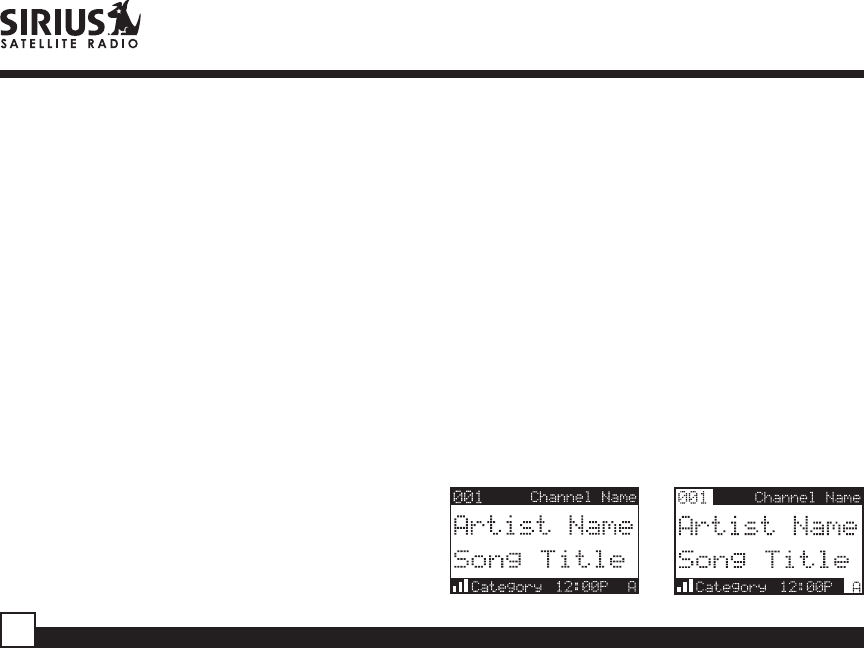

Pressing the DISP button from the Default display
toggles between the artist name/song title and large
character displayed text. In doing so, this will change
the character size and cause the field to scroll. This
feature is useful when viewing the display at a
distance.
NOTE: The displayed text will scroll only if the length
of the artist or title cannot be viewed in its entirety.
Pressing and holding the Display button will enter
the channel list mode.
Pressing DISP will switch between these two display views.
Changing Channels
Turning the Rotary Knob clockwise will increase, or
move up to the next channel. Turning the Rotary
Knob counterclockwise will decrease, or move
down to the previous channel.
Basic Operation
After you have successfully activated your SIRIUS
subscription, the Normal Operation (Default ) screen
will appear (
Below
): Use the Rotary Knob to select
channels.
• The selected channel will automatically start playing.
The name and artist of the currently playing song will
scroll across the display.
Channel
Name
Auto Sizing/
Scrolling
Artist Name
Clock
Band/Preset
Bank Number
Default Screen
3-Digit
Channel
Number
Auto Sizing/
Scrolling
Song Title
8-Character
Category
Name
Signal Strength
Meter
Sportster SP-R1 User Guide 11
Searching Channels (Channel List Mode)
It is possible to search for a different channel while
listening to your current channel. Be sure that the
display shows the Default screen prior to the
following steps:
1. Press and hold the DISP button for 2 seconds to
activate the Channel List Mode
(top right)
. The
Channel List screen will appear, showing all available
channels regardless of category:
• Pressing the DISP button
while in the Channel List
Mode will change between Channel Name, Artist
Name
(middle right)
, and Song Title
(bottom right)
.
You can use this feature to search for a specific
Artist or Song that may be playing at the time.
2. Turn the Rotary Knob to find the channel you want.
Search Modes (Category, Channel, Artist,
Song Title)
The Sirius Sportster Receiver has four ways to search
for and select music: by category, by channel, by
artist, and by song title.
Searching Categories
If you want to listen to a different entertainment
category, push the CATEGORY buttons to activate the
Category Select screen (
top right
):
1. Use the CATEGORY buttons to scroll through music
and entertainment categories.
2. When the category (ex. Rock) you want is displayed,
use the Rotary Knob to search available channels
within the category.
• Pressing the DISP button while in the Category
Search mode will change between Channel Name,
Artist Name, and Song Title to be able to preview
what is playing on other channels before selecting.
3. When the channel you want is highlighted, press the
Rotary Knob. The channel will change and the display
will revert to the Default screen for the new channel.
To exit this mode without changing to a new channel,
press and hold the DISP button for 1 second.
Sportster SP-R1 User Guide
12
Press and Hold the
DISP button to enter
the Channel List
Mode
Press DISP again to
show the Artist Name
Press DISP again to
show the Song Title
Press DISP again to go
back to Channel List
3. Press and release the Rotary Knob to select the
channel. To exit this mode without changing to a new
channel, press and hold the DISP button for 1
second.
Note: If you are in Channel List Mode and viewing a
sports category channel list (NFL Zone, NHL Zone),
pressing the DISP button will toggle between the
team names and the current score of any live play-
by-play game.
Direct Tuning
Channels can be directly accessed by pressing and
releasing the Rotary Knob and then using the 0-9
keys to enter the desired channel number. Once the
desired number has been entered, the channel will
change and the display will revert to the Default
screen for the new channel. The receiver will
change immediately if three numbers are entered
(ex. “0”, ”0”, “7”), but if just one or two digits are
entered, the unit will wait for 3 seconds before
changing the channel.
Sportster SP-R1 User Guide 13
Setting Channel Presets
You can store up to 30 of your favorite channels as
presets, for quick access. Presets are stored in 3
banks, A, B & C, each containing 10 channel presets.
1. Press the BAND button to activate the preset bank you
want. The selected bank is shown in the lower right
corner of the Default screen.
2. Select the channel you want to preset (see
Basic
Operation
and
Changing Channels
on page 9).
3. Hold the numbered preset button you want to store the
channel in for at least 2 seconds.
• The selected preset number will flash and then
remain lit on the display to show that it has been
memorized.
• If the preset button already has a channel stored in it,
the preset will be replaced by the new channel.
Recalling Channel Presets
The 10 presets in the active bank (A, B or C) can be
selected by pressing the “0” – “9” buttons.
1. Press the BAND button to activate the preset bank you
want. The selected bank is shown in the lower right
corner of the Default screen.
Jump Preset Button
The Sirius Sportster Receiver includes a special
preset button labeled Jump. It can be used for
channels that are accessed frequently and
temporarily such as traffic, weather, news or sports.
This button allows you to quickly tune to one
specific channel and then tune back to the original
channel.
Refer to the Jump Settings options section for
information on configuring your Jump preset button.
2. Press the desired preset button “0” – “9” to recall the
preset. The channel will change and the display will
revert to the Default screen for the new channel.
Sportster SP-R1 User Guide
14

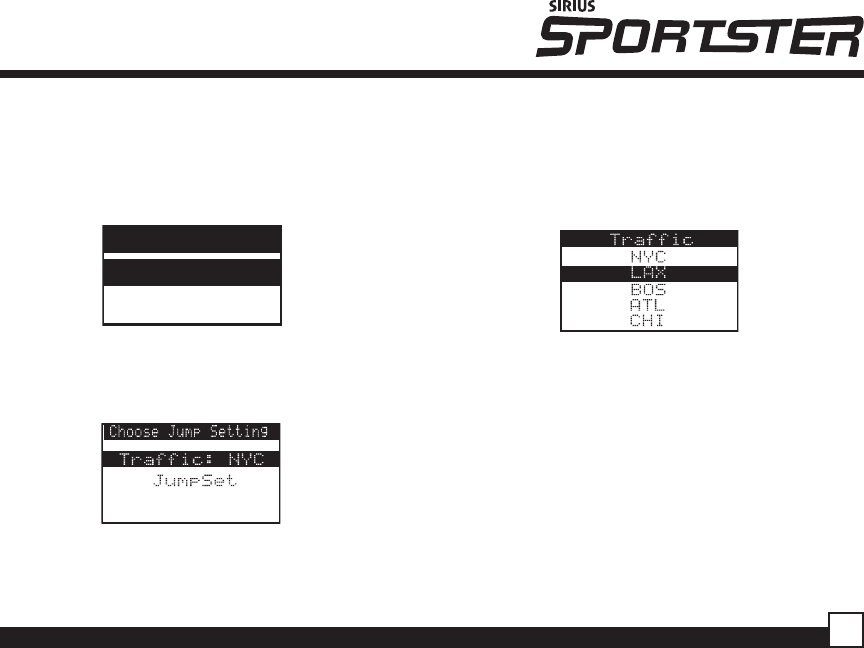

• If your Jump Setting is set to traffic, pressing the
Jump button will immediately begin searching for
your desired city’s traffic report. The band indicator
on the display will change to the Jump icon to
indicate a Jump search is active. Once your local
traffic is found, the Receiver will automatically tune to
that channel. You may have to wait up to 4 minutes
for your desired report. Pressing the Jump button
while the receiver is searching will cancel the search.
Pressing the Jump button after the receiver has
tuned to your traffic report will return to the previous
channel.
• If your Jump Setting is set to JumpSet, pressing the
jump button will immediately tune to your desired
channel. Pressing the Jump button again will return
to the previous channel.
Note: The channel preset for the Jump button
remains the same regardless of which preset bank
is currently selected.
Searching for a Channel Preset (P.TUNE Mode)
It is possible to quickly search through all of your
presets using the Rotary Knob.
1. Press and hold the BAND button to enter the Preset
Tune Mode (P.TUNE).
2. The bottom right portion of the display will change to
highlight the current preset.
3. Turn the Rotary Knob in either direction to move up
or down through your presets. The new channel will
start to play as soon as you stop turning the Rotary
Knob.
• Only stored presets will be displayed, regardless
of what bank they are stored in.
• Presets will be grouped and displayed by preset
bank and number (ex. A-1, A-2...B-1, B-2...C-1,C-
2...) and rotate all the way around back to the
beginning.
Default Display P.TUNE Display
Sportster SP-R1 User Guide 15
Preset Tune List Mode
In Preset Tuning Mode you can view your list of
presets showing Channel Name, Artist Name, or
Song Title just like in the Channel List Mode:
1. Press and hold the BAND button to enter the Preset
Tune Mode (P.TUNE).
2. Press the DISP button for 2 seconds which will bring
up the Preset Tune List Mode displaying up to 6
preset channel names.
• Pressing the DISP button while in this mode will
change between Channel Name
(right top)
, Artist
Name (right
middle)
, and Song Title list modes
(right bottom)
• The name field will scroll only if the length of the
artist or song title cannot be viewed in its entirety.
3. Use the Rotary Knob to select the desired preset.
4. Push and release the Rotary Knob to select the
preset. The channel will change and the display will
revert to the P.TUNE Display.
To exit Preset Tune Mode and return to Channel
Tuning Mode, press and hold the BAND button.

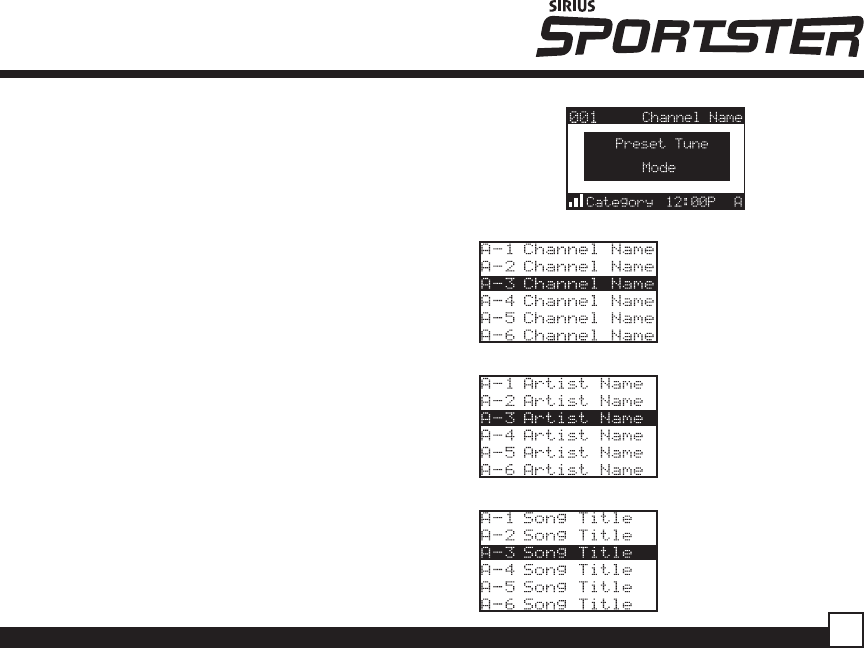

P.TUNE Channel
Name List
Display
P.TUNE Artist
Name List
Display
P.TUNE Song
Title List
Display
Sportster SP-R1 User Guide
16
memory, and Y being the total number of memory
listings still available for storage.

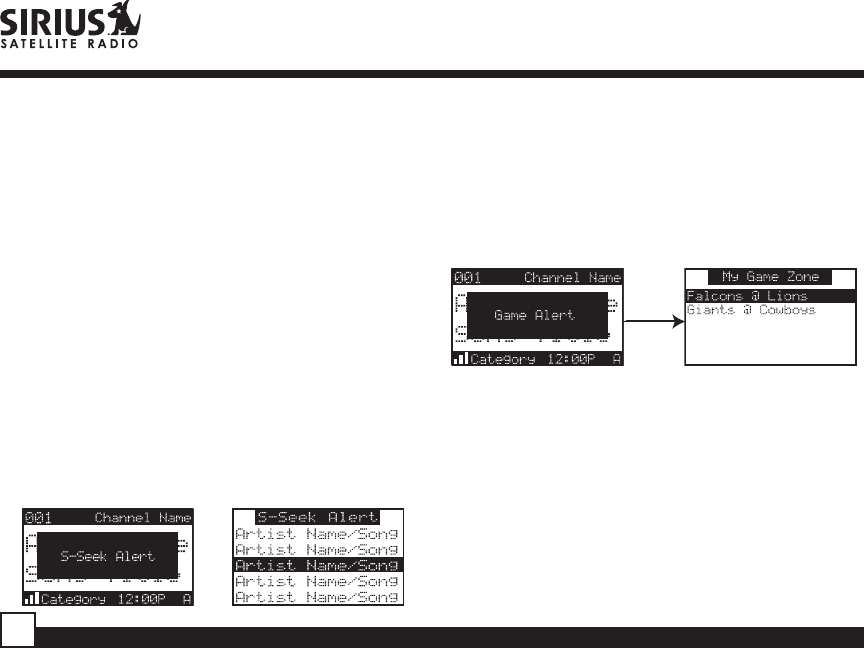

2. Sports Games: If the current tuned channel is an
NFL®, NBA®, NHL®, or College play-by-play sports
broadcast, pressing the MEMO button will allow you
to select one of the teams playing to be stored in
memory.
Turn the Rotary Knob to highlight the team you wish
to store in memory and press the Rotary Knob to
select. The next screen will ask which kind of alert
you wish to have.
Memory (MEMO) and Song Seek (S-Seek)
Functions
This feature allows the user to capture and store
information about the programming (Artist/Song,
sports team, or traffic city) on the currently tuned
channel, up to a total of 20 listings. The receiver
also has the capability to continuously search all
incoming SIRIUS channels and alert the user when
a saved program is being played. When a team (or
teams) are stored in memory, at the time receiver is
initially powered on, you will be alerted when the
teams are playing in a game being broadcast. Also,
while listening to your SIRIUS receiver, should one of
the teams begin to play a game, you will alerted.
Storing Song Titles or Sports Games
1. Song Titles or Traffic City: While the receiver is in
the default display mode, momentarily pressing and
releasing the MEMO button stores the current
program data information within the receiver’s

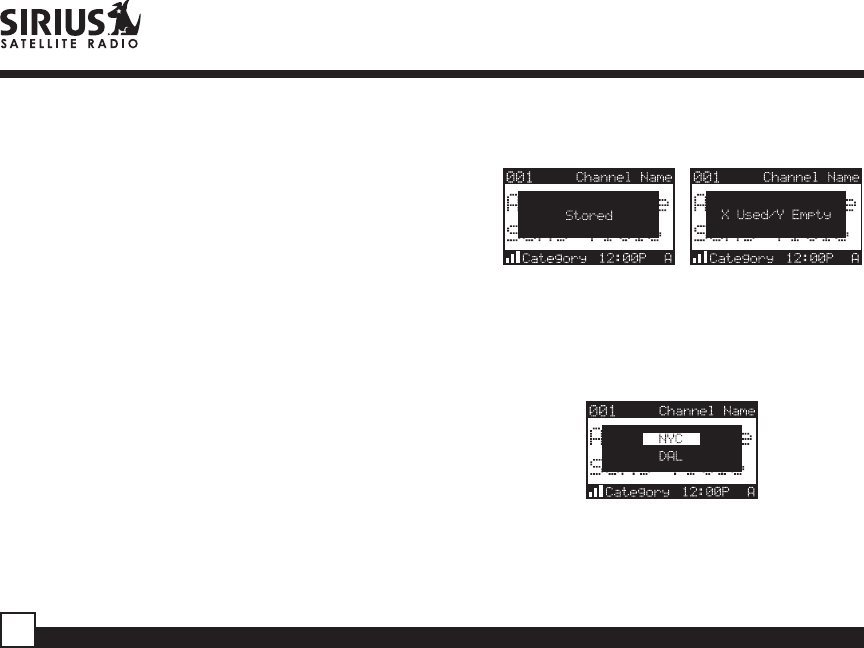

memory. A “Stored” pop-up screen, followed by
“X Used/Y Empty” will each appear for 1 second,
X being the total number of listings saved in
Sportster SP-R1 User Guide 17
Initial Game Alert
Score Updates
“Initial Game Alert” will sound an alert when the
team you have chosen is playing a game. “All
Score Updates” will sound an alert when the team
you have chosen is playing a game, and also when
the scores are updated for the team.
Turn the Rotary Knob to highlight the team you wish
to store in memory and press the Rotary Knob to
select.

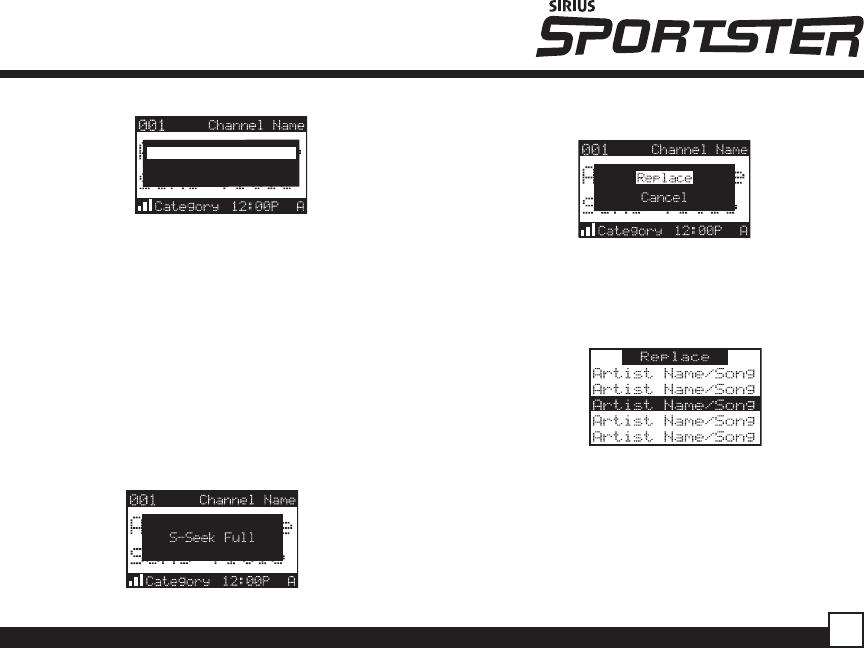

3. If the MEMO button is pressed and all of the
memory spaces are full, “S-Seek Full” will flash on
the display for 1 second.
A screen displaying the Replace-Cancel options
will follow.
This prompt allows you to make the following
Replace-Cancel choices:
Replace: The list of stored memory items will
appear.
Turn the Rotary Knob to choose the item that
you would like to overwrite with the new Artist/
Song Title, sports game, or traffic city. After
highlighting the selected item in the list, press
the Rotary Knob to delete the stored Artist/Song
Title, sports team, or traffic city and replace it
with the updated information. The display will
show the “Stored” screen
.
Sportster SP-R1 User Guide
18
Viewing Program Information stored in Memory
1. Press and hold the MEMO button for 3 seconds to
enter S-Seek Mode. The program information stored
in memory will be displayed one-at-a-time in page
format.
2. Use the Rotary Knob to scroll through the 20 page
listing. This function allows you to review previously
stored program information. The information will be
displayed as Sports League or College/Team Name
or Artist Name/Song Title.
Memory S X/Y
Artist Name
Song Title
Memory G X/Y
League/College
Team
Cancel: The Replace-Cancel prompt screen will
disappear and revert to the original screen.
Nothing will be stored.
Sportster SP-R1 User Guide 19
Deleting a Song Title Stored into Memory

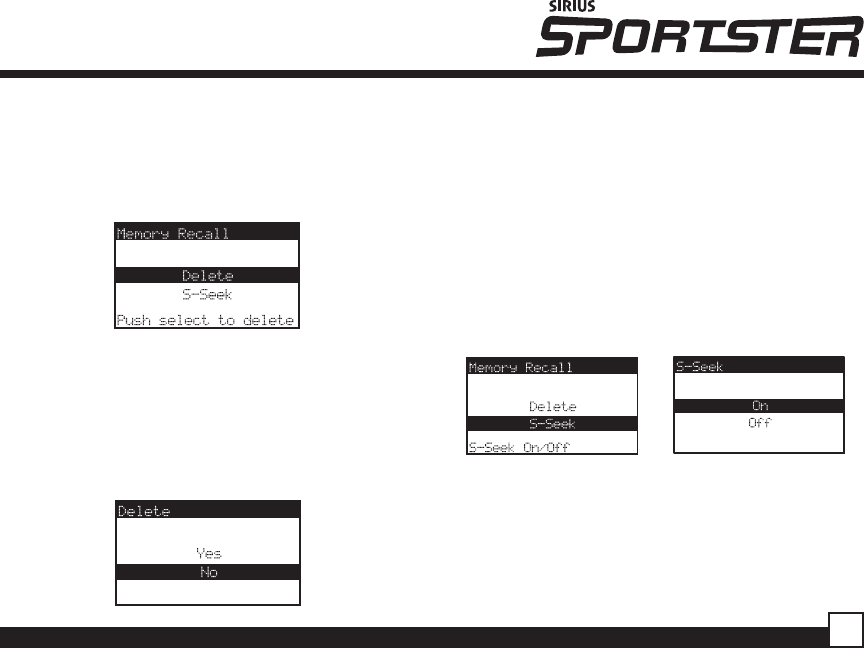

1. Press and release the Rotary Knob while in S-Seek
Mode. A pop-up screen displaying two selectable
options - “Delete” and “S-Seek” - is displayed.
2. Turn the Rotary Knob to highlight the “Delete” option.
3. Press the Rotary Knob and a Delete confirmation
screen will appear.
4. To permanently delete the program from your list,
select “Yes” using the Rotary Knob and press the
Knob in to confirm.
Activating the Song (S-Seek) Alert
1. Press and hold the MEMO button for 3 seconds to
enter the S-Seek Mode.
2. Press and Release the Rotary Knob. A pop-up screen
displaying two selectable options - “Delete” and “S-
Seek” will appear (below
left)
.
3. Use the Rotary Knob to highlight the “S-Seek” option.
4. Press and release the Rotary Knob and a S-Seek
confirmation screen will appear. Select the “Yes”
option using the Rotary Knob and press the Knob in
to confirm
(below right)
.
Whenever the Sirius Sportster Receiver is turned on,
it automatically searches the incoming channels to
determine if a match exists with the program
information stored in receiver’s memory. If one or
more matches are found, a pop-up screen
momentarily appears for 2 seconds and displays
Sportster SP-R1 User Guide
20
Game Alert
The Sirius Sportster Receiver can automatically
identify when your favorite team is playing. When a
game is found, the Game Alert screen is displayed,
followed by tuning information for that game. Use
the Rotary Knob to select and tune to the desired
channel.
See the Game Alert setting in the Menu Display
Options section for information on setting your
favorite team.
You can use the S-Seek feature to add Game Alerts
for additional teams. See the Setting S-Seek Alerts
section for more information.
“S-Seek Alert”. An audible beep tone will be heard
indicating that a match has been found. The display
then reverts to the S-Seek Alert screen which displays
the current matches. You can now select the Artist/
Song Title or game that you wish to listen to. No stored
match alert is provided for the currently selected
channel. To ensure that no duplicate entries are stored
in memory, the Receiver will check the stored input
data to ensure the information about to be stored is not
already in memory.
• If one or more matches are found, a list appears. You
can scroll through the list and select a program using
the Rotary Knob. Your selection will be tuned and the
display will revert to the last active display mode.
• If a selection is not chosen within 10 seconds, the
screen will revert to the last active display and tuning
modes.
NOTE: Play of the current selection will continue until
a new selection is made.
Sportster SP-R1 User Guide 21
Instant Replay
The Sirius Sportster Receiver is capable of storing
the audio of the channel to which you are listening
for later playback, approximately up to 44 minutes
depending upon the channel to which you are
tuned. As soon as you tune to a channel, the
Receiver automatically begins storing the audio,
enabling you to rewind at any time to replay the
audio again. If you unable to continue listening to a
channel, but do not want to miss the broadcast,
pressing the Play/Pause button will cause the
Receiver to mute the audio and mark the point in the
broadcast so you can resume listening at a later
time.
• Pause/Play button. When pressed, this places the
Receiver in the Instant Replay pause mode which
mutes the audio.
Pressing and releasing
the Pause/Play button
causes the Receiver to begin playing the stored
audio from the point at which the Receiver was
paused. During playback, the Receiver will continue
to store the channel audio until you exit the Instant
Replay mode.
Pressing and holding
the Play/Pause button changes

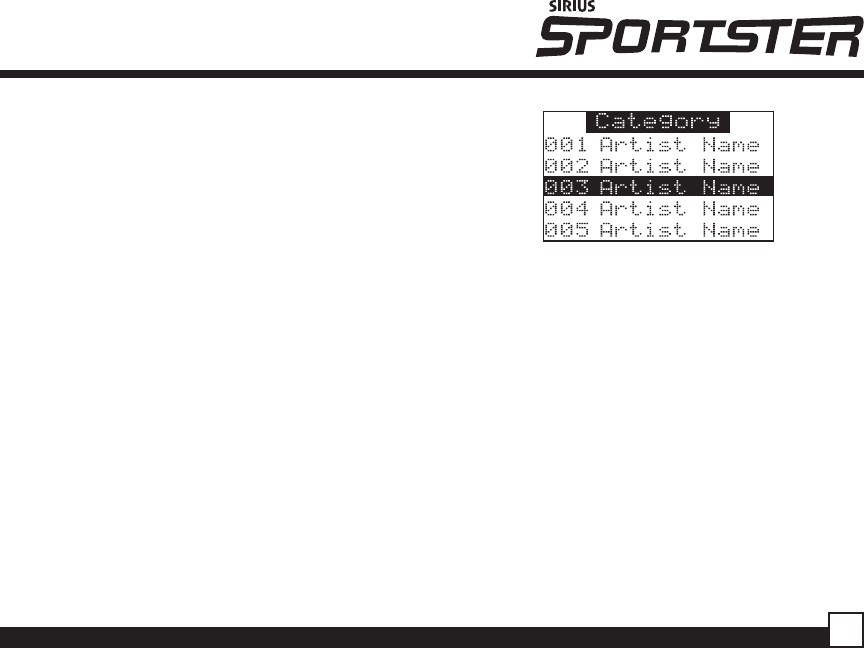

the display to a listing of the artist’s names in the
stored audio, from the most recent to the oldest,
beginning with an entry called “Live”. (Pressing the
DISP button will toggle the display between the artist
name list and the song/program title list.) An item
from the list may be chosen and the playback will
commence from that point in the stored audio, or,
“Live” may be chosen which will exit the Instant
Replay mode, and the Receiver will resume playing
the live broadcast.
Playlist
Live
Artist
Artist
Artist
Artist
Playlist
Live
Title
TitleArtist
Title
Title
• Fast Forward button. This fast forwards you
through the stored audio.
Pressing and releasing
the Fast-Forward button
forwards to the start of the next song or program in
the stored audio and playback automatically begins.
Repeatedly pressing and releasing the Fast-Forward
Sportster SP-R1 User Guide
22
button causes the Receiver to continue to move
forward in the stored audio to the start of each next
song or program until the end of the stored audio is
reached. When the end of the stored audio is
reached, a beep will be heard (if the Confirmation
Tone option is enabled), the Instant Replay mode will
be exited, and the Receiver will resume playing the
live broadcast.
Pressing and holding
the Fast-Forward button for
one second advances the playback forward in 10
second intervals, which increases to 15 and then 30
second intervals the longer the Fast-Forward button
remains pressed. Playback begins immediately
when the button is released. When the end of the
stored audio is reached, a beep will be heard, the
Instant Replay mode will be exited, and the Receiver
will resume playing the live broadcast.
• Rewind button. This rewinds (moves you
backwards) through the stored audio.
Pressing and releasing
the Rewind button rewinds to
the start of the current song or program in the stored
audio, and playback automatically begins.
Repeatedly pressing and releasing the Rewind
Button causes the Receiver to continue to move
backwards in the stored audio to the start of each
previous song or program until the beginning of the
stored audio is reached. If the beginning of the stored
audio is reached, a beep will be heard (if the
Confirmation Tone option is enabled) and playback
will automatically begin.
Note: Depending upon where in a particular
broadcast the channel was selected, the start of a
song or program may not be available in memory. If
this occurs, the playback will start from where the
audio began to be stored.
Pressing and holding
the Rewind button for one
second rewinds playback in 10 second intervals,
which increase to 15 and then 30 second intervals
the longer the Rewind button remains pressed.
Playback begins immediately when the button is
released. If the beginning of the stored audio is
reached while rewinding, a beep will be heard and
playback will automatically begin.
Using Instant Replay
To begin using the Instant Replay feature of the
Sportster SP-R1 User Guide 23
instructions for their use.
Note: If the Receiver is tuned to another channel
while in the Instant Replay mode, the Instant Replay
mode is exited, all the audio stored in the Instant
Replay memory is erased, and the tuned channel
begins to play. Also note that tuning to another
channel may automatically occur if another feature
of the Receiver has been programmed to do so.

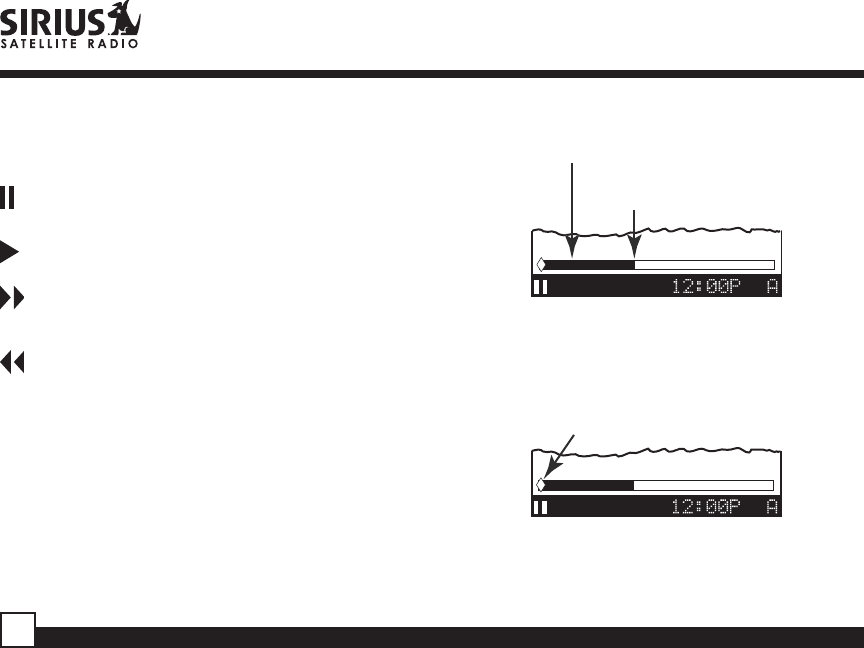

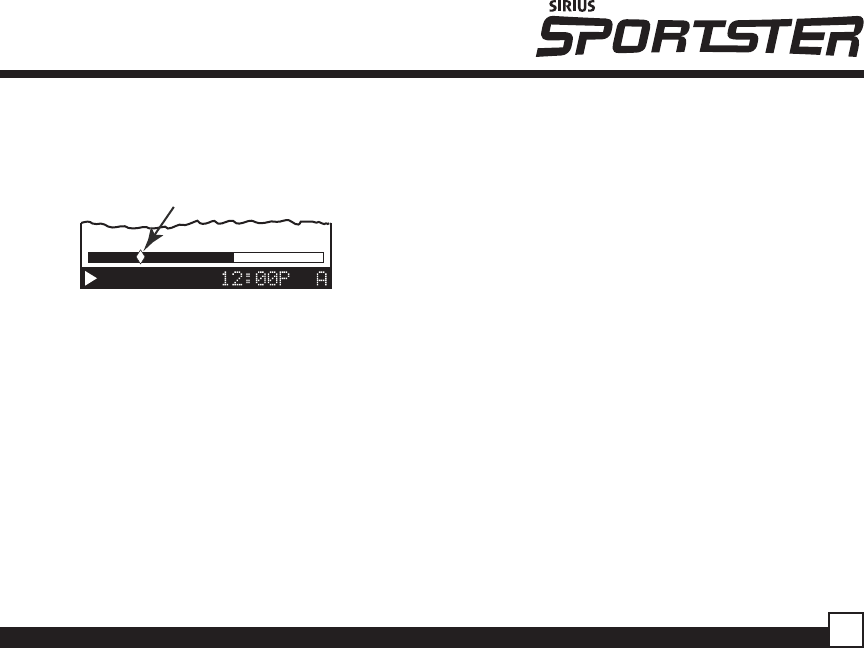

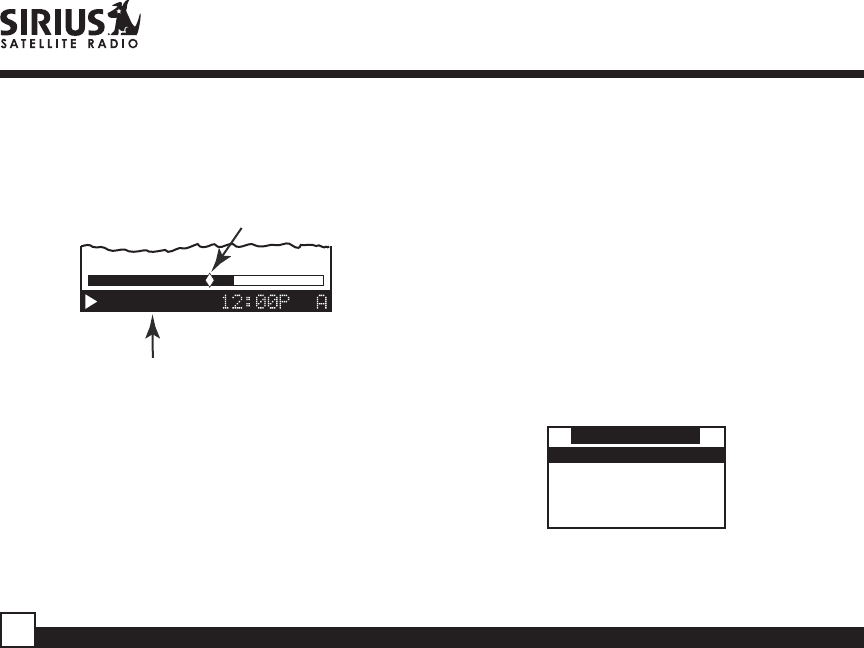

When the Instant Replay mode is active, status
information is shown at the bottom of the Receiver’s
display screen.
-0:01
Progress Bar
Play Position Indicator
Instant Replay Mode
Instant Replay Time Position
Receiver, press the Pause/Play button. This causes
the Receiver to enter the Instant Replay pause
mode, which mutes the audio from the Receiver. A
“Paused” message will be displayed for two
seconds to confirm that the Receiver has entered
the Instant Replay mode.
Artist Name
Song Title
-0:01
PAUSED
To listen to the audio that was stored, press the
Play/Pause button again and the Receiver will begin
to play back the audio stored in the Instant Replay
memory from the point where you pressed the Play/
Pause button.
As you are listening to the playback of the stored
audio, you may either fast forward or rewind through
the stored audio by pressing the fast-forward or
rewind buttons, without having to press the Play/
Pause button first. Refer to the sections describing
the Rewind and Fast-Forward buttons for specific
Sportster SP-R1 User Guide
24
The Instant Replay mode icon that is displayed at
the bottom left of the screen indicates the current
mode.
Pause mode. This indicates that the Receiver
is paused and muted.
Play mode. This indicates that you are in the
playback mode, listening to stored audio.
Fast Forward mode. This indicates that you are
fast forwarding through the stored audio.
Rewind mode. This indicates that you are
rewinding, or moving backwards, through the
stored audio.
The Progress Bar is a visual indicator of the status
of the Instant Replay memory. As the memory fills,
Progress Bar begins to fill from the left side
providing a visual indication of how much of the
Instant Replay memory is filled. The end of the bar
indicates the end of the stored audio, where the live
broadcast begins. When all available memory has
been used, the bar will be completely filled.
-16:05
Progress Bar Showing
A
mount of Memory Filled
End of Stored Audio
Beginning of Live Broadcas
t
A diamond-shaped Play Position indicator is
superimposed over the Progress Bar which
provides a visual indicator of the current playback
position in the Instant Replay memory.
-16:05
Play Position Indicator
The Play Position indicator shows your current
listening position in the stored audio. When you
press the Play/Pause button to begin playback of
the stored audio, this indicator will begin to move to
Sportster SP-R1 User Guide 25
the right showing the progression of the playback
through the Instant Replay memory, provided that
the memory is not full.
-16:05
Play Position Indicator
The portion of the Progress Bar behind the Play
Position indicator shows how much you can rewind
in the Instant Replay memory, while the filled portion
ahead of the Play Indicator shows how much you
can fast-forward in the memory.
While you are in the playback mode, the Receiver
continues to store the audio from the channel.
Obviously, you will be unable to “catch up” to the live
broadcast during playback, as new audio is being
stored at the same rate at which you are playing
back the stored audio. You can use the Fast-
Forward button to skip ahead or exit the Instant
Replay mode, and begin listening to the live
broadcast again.
Should you press the Play/Pause button to stop the
playback, the play position indicator will stop moving
and continue to provide a visual indication of your
current position in the Instant Replay memory.
When the Instant Replay memory is 10 seconds
from becoming full, two beeps will be heard (if the
Confirmation Tone option is enabled). When the
memory is full, the Receiver will automatically begin
playback, and will continue to store the channel
audio, overwriting the oldest portion of the audio
previously stored. When the memory is full, you will
be unable to rewind through the stored audio.
If you have partially played back the stored audio,
and have paused the Receiver again, the Play
Position indicator will begin to move left when the
Instant Replay memory becomes full, as it begins
overwriting the oldest portion of the audio previously
stored. When the Play Position indicator reaches
the left-most position, indicating that the memory is
full, the Receiver will automatically begin playback.
The Instant Replay Time Position provides the exact
amount of time the Play Position indicator is behind
Sportster SP-R1 User Guide
26
Menu Display Options
To enter the Menu Options page, press and release
the MENU Button. The “Menu Options” list will
appear on the display
(below)
.
Using the Rotary Knob, highlight the option you wish
to adjust and press the Knob. The following options
are available:
Sirius ID Lock Options
FM Transmitter Audio Level
Game Alert Antenna Aiming
Jump Settings Memory Options
Display Settings Time Based Features
Confirm Tone Options Factory Default
Add or Skip
Note: If a button is not pressed within 10 seconds,
the Receiver will exit the “Menu Options” function
and revert back to the Default screen display.
Menu Options
Sirius ID
FM Transmitter
Game Alert
Jump Settings
Display Settings
the live broadcast, expressed as
Hours:Minutes:Seconds, and displayed as a
negative number. (Hours are only displayed if the
amount of time is greater than one hour.)
-02:40
Time Position of
Play Position Indicator
Play Position Indicator
For example, if -02:40 is displayed, this would
indicate that the Play Position indicator is 2 minutes
and 40 seconds behind the live broadcast.
Sportster SP-R1 User Guide 27
Sirius ID
Displays your 12 digit Sirius ID (SID) number. The
SID is unique to every Sirius Sportster Receiver and
is required to activate your service. It is
recommended that you write this number in the
space provided on the last page of this user guide.
No adjustments are allowed in this mode. To exit this
option, press the Rotary Knob or Menu Button.
Game Alert
Game Alert allows you to store your favorite sports
teams in memory. The Sportster Receiver will
constantly scan the SIRIUS channels and will sound
an alert when a team you stored in memory is
playing, or when there is a score update for a team,
depending on which option you have chosen for the
team.
Teams which you have selected and are currently
playing will be displayed in a category called “My
Game Zone”.
You may select one team from each sports league
and the college category, however, more teams may
be chosen by using the MEMORY (MEMO) function.
(See the section titled, “Memory (MEMO) and Song
Seek (S-Seek) Functions” for more information to
add additional teams.)
To choose teams to add to your stored game alerts:
1. Turn the Rotary Knob to highlight “Game Alert” and
press the Rotary Knob to select.
2. Turn the Rotary Knob to highlight the sports league
or college category of the team you wish to add, and
press the Rotary Knob to select.
Sportster SP-R1 User Guide
28
NFL
NBA
NHL
Game Alert
3. Turn the Rotary Knob to highlight the league team
name or college team name you wish to add, and
press the Rotary Knob to select.
Anaheim Mighty Ducks
None
NHL
Atlanta Thrashers
None
COLLEGE
Colorado
Auburn
Note that for college teams, you will receive an alert
for all teams playing for that college. There are 30
college teams currently licensed for broadcast by
SIRIUS.
4. Turn the Rotary Knob to highlight which type of an
alert you want, and press the Rotary Knob to select.
Alert Type
Initial Game Alert
All Score Updates
When the SIRIUS receiver is powered on, and while
it is playing, “Initial Game Alert’ will sound an alert
when the team you have chosen is playing a game.
“All Score Updates” does the same but also
sounds an alert when the scores are updated for the
chosen team.
To exit the Game Alert menu, press the MENU
button.
Sportster SP-R1 User Guide 29
Jump Settings
You can access the Jump Settings menu by
pressing and holding the Jump button for 2 seconds
or by pressing Menu to enter the Menu Options list
and selecting Jump Settings using the Rotary Knob.
There are two options available for Jump button
settings – Traffic and JumpSet. The currently
selected option is indicated by a jump icon.

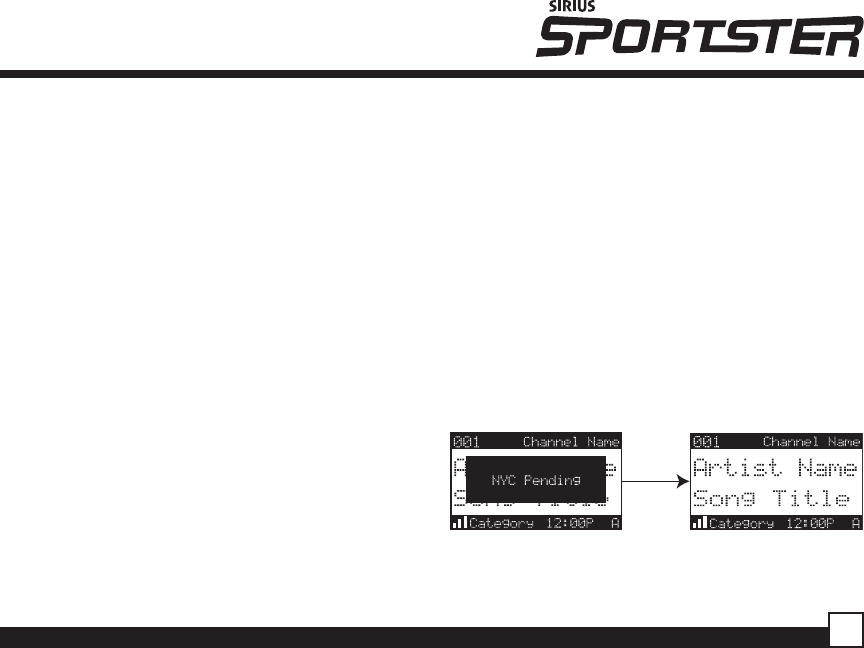

Traffic
1. Use the Rotary Knob to highlight the “Traffic”
option. Press the Rotary Knob to select.
2. Scroll to the city for which you would like to hear
traffic reports and press the knob. Use the Menu
button to exit this menu without changing your
current city selection.
Note: If the channel list has not yet been
downloaded from the satellite data stream, an
Updating City List notification will be displayed.
Please wait 10 minutes and try again.
Menu Options
Sirius ID
Game Alert
Sportster SP-R1 User Guide
30
JumpSet
Select JumpSet if you would like to use the Jump
button for any channel other than a traffic channel.
1. Use the Rotary Knob to highlight the “JumpSet”
option. Press the Rotary Knob to select.
2. After pressing Menu to exit to the Default Screen, the
Jump button can be programmed by tuning to your
desired channel and pressing & holding the Jump
button for 2 seconds, as described in the Setting
Channel Presets section.
Display Settings
It is possible to adjust the Contrast, Dimming and
Color of the Receiver’s display. While in the “Menu
Options” list perform the following steps:
1. Use the Rotary Knob to highlight the “Display
Settings” option. Press the Rotary Knob to select.
2. Select one of the following using the Rotary Knob:
a. Contrast Control: Adjusts the relationship
between the background and the text on the LCD
display. Use the Rotary Knob to adjust the contrast
up or down. The bar graph at the bottom of the
screen will move to indicate the change.
b. Color Option: You can set the color for the LCD
backlight and keypad LEDs. Use the Rotary Knob
to select which color you would like to adjust and
then select from the two options.
To exit the Display settings, simply push the MENU
button.
Sportster SP-R1 User Guide 31
Confirm Tone Options
The Sirius Sportster Receiver will sound an Audio
“Tone” alert when the unit powers ON and OFF as
well as when the S-Seek Alert is activated. The
default is ON. To change the tone options, perform
the following:
1. Use the Rotary Knob to highlight the “Confirm
Tone Options”. Press the Rotary Knob to select.
2. Use the Rotary Knob to Select “ON” or “OFF”.
Press the Knob to set the Tone Option.
To exit the Display settings, simply push the MENU
button.
FM Transmitter Options
If you would like to use the built-in FM Transmitter,
you must turn ON the function and select an FM
frequency:
1. Use the Rotary Knob to highlight the “FM
Transmitter Options”. Press the Rotary Knob to
select.
2. Use the Rotary Knob to Select “On/Off”. Press the
Knob to set the option.
3. Press Menu to return to the previous menu.

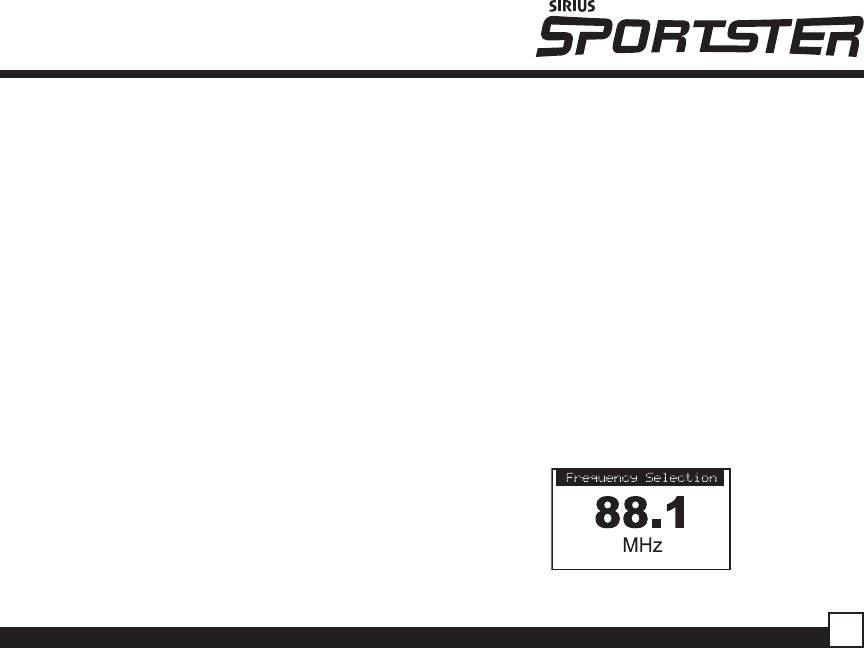

4. Use the Rotary Knob to highlight the “Frequency
Selection”. Press the Rotary Knob to select.
5. Use the Rotary Knob and Category Buttons to adjust
the FM frequency. The Rotary Knob adjusts in 0.1
MHz increments and the Category Buttons adjust in
1 MHz increments.
Sportster SP-R1 User Guide
32
Channel Add or Skip
The Sirius Sportster Receiver will allow you to skip
selected channels when changing channels via the
Rotary Knob. At any time you may select to add or
skip specific channels. While in the “Menu
Options” List mode, follow the steps below to Add
or Skip a channel:

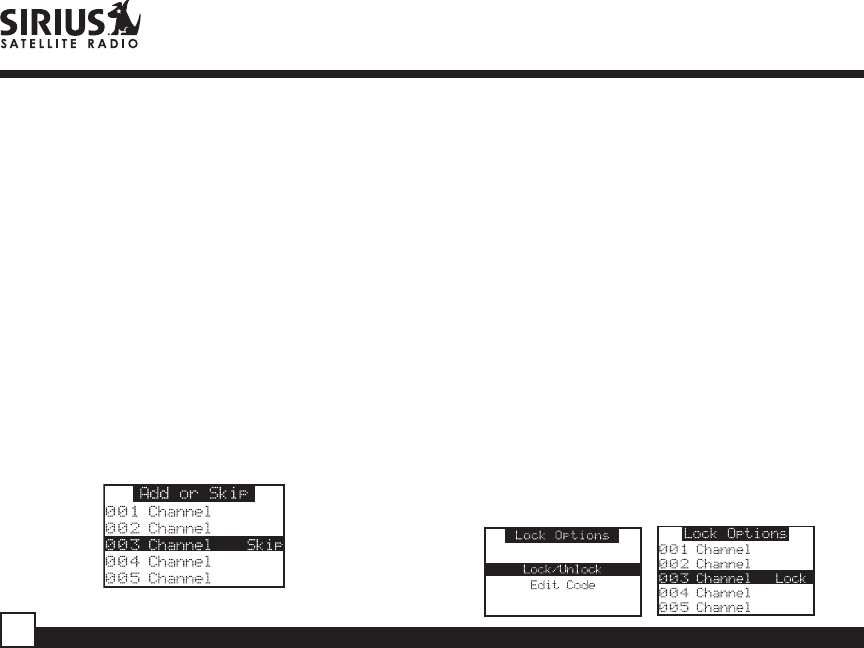

1. Use the Rotary Knob to highlight the “Add or Skip”.
Press the Rotary Knob to select.
2. Use the Rotary Knob to Select the channel you wish
to skip or add. Pressing the Rotary Knob will add the
text “Skip” next to the channel name to skip that
channel. To add the channel, simply press the
Rotary Knob and the text “Skip” will be removed.
Note: This feature only functions in normal channel
search modes. You can always access any skipped
channel using the Direct Tuning function.
Lock Options
The Sirius Sportster Receiver has the ability to
lockout the use of any channel, or channels you do
not want others to access without your permission.
Like the Skip feature, the locked channel will not
appear when the user changes channels with the
Rotary Knob. When the user tries to access the
locked channel using the Direct Tuning function, the
“Enter Code” screen will be displayed and the
channel will not be accessed until the proper code is
entered.
While in the “Menu Options” List mode, follow the
steps below to Lock a channel:
1. Use the Rotary Knob to highlight the “Lock
Options”. Press the Rotary Knob to select.
2. Select “Lock/Unlock” from the Lock Options Menu
(below left)
and press the Rotary Knob to select.
3. Use the Rotary Knob to select the channel you wish
to lock. Press the Knob in to select
(below right).
Sportster SP-R1 User Guide 33

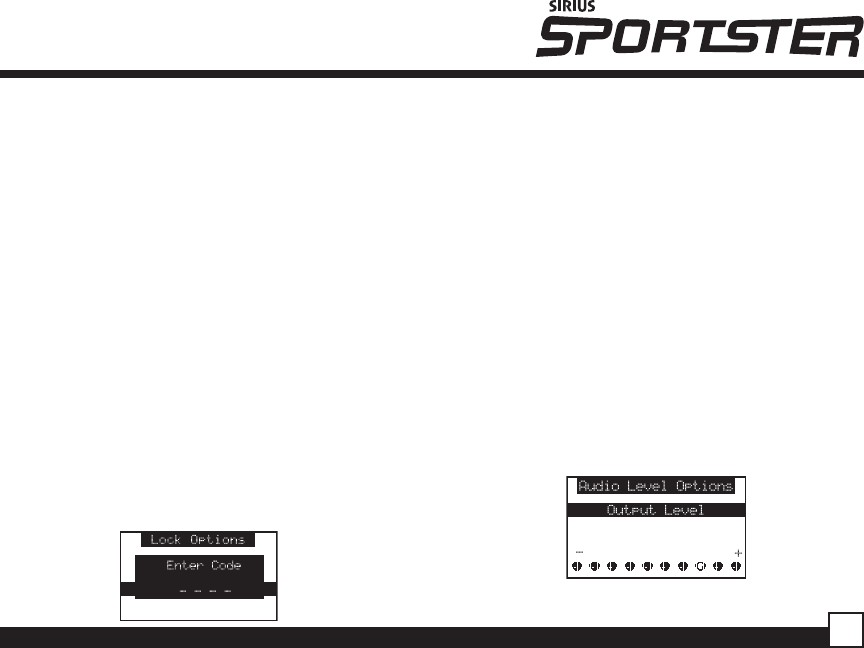

Changing the Lock/Unlock Code
The first time the Lock/Unlock function is accessed,
the user must enter the default lock code. The default
lock code is “0000”. This code can be maintained or
changed. To change the default lock code, perform the
following procedure while in the “Menu Options” List
mode:
1. Use the Rotary Knob to highlight the “Lock Options”.
Press the Rotary Knob to select.
2. Select “Edit Code” from the Lock Options Menu
(below left)
and press the Rotary Knob to select.
3. Enter the default code “0000”.
4. The “New Code” prompt will appear. Enter your new
four digit code using the 0-9 number buttons
(below
right)
. You will then be prompted to confirm the new
code by entering your code again.
5. The lock code is now changed.
Note: you can use this same method to Edit the code
once it is changed from the default.
Audio Level
The audio output of the Sirius Sportster Receiver
can be adjusted to fine-tune the audio signal level for
maximum performance. This is important when
using either the optional Home Docking Station or
the optional Mobile Docking Station. The following
setting affects both the line output and FM output
levels. To change the Audio Level, perform the
following procedure while in the “Menu Options”
List mode:
1. Use the Rotary Knob to highlight the “Audio Level
Options”. Press the Rotary Knob to select.
2. Use the Rotary Knob to adjust to the desired audio
output level. A 10 segment horizontal bar graph is
displayed with a “-” sign to the left and a “+” sign to
the right. To store your setting and exit this function,
press the Rotary Knob.
Sportster SP-R1 User Guide
34
Antenna Aiming
When using the optional Home Docking Station or
the Boombox indoors, it is important to locate the
antenna in an acceptable location (See the individual
installation guides for more information).
1. Use the Rotary Knob to highlight “Antenna Aiming”.
Press the Rotary Knob to select.
2. Two 10 segment horizontal bar graphs will be
displayed ( SAT and TER) with a “-“ sign to the left
and a “+” sign to the right. SAT indicated satellite
signal and TER indicates terrestrial signal – if
available.
3. Adjust the antenna for maximum performance as per
the manuals.
To exit this function, press the Rotary Knob or MENU
button.
Memory Options
In this mode, the user can turn the Memory Search
Function (S-Seek) ON or OFF. In addition, all 30
Preset Memory Locations can be cleared. To
change the Memory Options, use the following
procedure while in the “Menu Options” List mode:
1. Use the Rotary Knob to highlight the “Memory
Options”. Press the Rotary Knob to select.
2. Select one of the following Memory Options:
a. Automatic Memory Search function - On or
Off: Use the Rotary Knob to select between On
and Off by highlighting the desired selection. Then
press the Rotary Knob to store.
b. Clear All Memory Locations: Press and release
the Rotary Knob; a prompt display screen appears
confirming - Clear All Memory Select “Yes” or
“No” and press the Rotary Knob.
To exit this function, press the Rotary Knob or
MENU button.
Sportster SP-R1 User Guide 35
•Time Zone: Since the Clock adjusts the time
automatically, it is important to specify your
proper time zone. Use the Rotary Knob to select
the proper time zone. The following is a list of
time zones available:
(GMT-9:00) Alaska
(GMT-8:00) Pacific
(GMT-7:00) Mountain
(GMT-6:00) Central
(GMT-5:00) Eastern
(GMT-4:00) Atlantic
(GMT-3:30) Newfoundland (Abbreviated as
Newfndlnd)
•Daylight Savings Time (DST) Observance:
Activate this function if your area is subject to
DST; turn the Rotary Encoder to toggle
between DST Observed (default) or DST Not
Observed.
b. Alarm Clock: When this menu option is
highlighted and selected, you will be able to set the
unit to turn on at a specific time. The last selected
channel prior to shutdown will be present when the
Time-Based Features
This Menu Option allows for adjustments of the
following items:
Clock Auto Shutdown
Alarm Clock Sleep Mode
Program Alert
To change the Time-Based Features, use the
following procedure while in the “Menu Options”
List mode:
1. Use the Rotary Knob to highlight the “Time-Based
Features”. Press the Rotary Knob to select.
2. Use the Rotary Knob to select one of the following
Time-Based Features to adjust:
a. Clock: When entering this menu option, you can
setup the clock shown on the default display,
based on the format desired, and the time zone in
which you reside. The clock data is provided via
the Sirius Satellite data stream, and will update
based on the received signal.
• Format: The Clock Format option allows for
either 12 Hour (Default), or 24 Hour display. Use
the Rotary Knob to select the desired format.
Sportster SP-R1 User Guide
36
Alarm feature is activated. Alarm appears on the
first line of the display followed by the alarm
options:
•Set Alarm: Use the Rotary Knob to select “Set
Alarm” From the Alarm Clock Menu. Select
either “Alarm Off” (Default) or “Alarm On” from
the Menu and press the Rotary Knob to set.
•Alarm Time: Use the Rotary Knob to select
“Alarm Time” from the Alarm Clock Menu. Use
the Category buttons and the Rotary knob to set
the time (hours, minutes) you want to activate
the Receiver (Default is 12:00PM). Press the
Rotary knob to store the Alarm Time.
c. Program Alert: When this menu option is
highlighted and selected, you will be able to
program the unit to switch to a selected channel at
a specific time. Press the Rotary Knob to enter the
Program Alert Menu, The following adjustment
options are available:
•Program Time/Day: Turning the Rotary Knob
toggles between Time and Day. If Time is
selected, use the Category buttons and Rotary
Knob to set the hours and minutes. AM or PM
will switch automatically when the AM or PM
threshold has been exceeded. When the
desired time is displayed, press the Rotary
Knob. If Day is selected, the screen displays a
default day of Monday, with selectable choices
of Monday, Tuesday, Wednesday, Thursday,
Friday, Saturday or Sunday. Use the Rotary
Knob to increase (CW) or decrease (CCW) the
desired day in a circular motion (default value:
Monday).
• Channel: Turn the Rotary Knob to scroll
through a listing of all the Sirius channels. When
the desired channel is highlighted, press the
Rotary Knob.
• Program Alert On/Off (Default is Off): Rotate
the Rotary Knob to toggle between Program
Alert On or Program Alert Off. When the
desired alert status is highlighted, press the
Rotary Knob.
d. Auto Shutdown: You can program the unit to
automatically shut off after a one hour period
without any user intervention. After 59 minutes of
inactivity, a beep tone sounds and a display
Sportster SP-R1 User Guide 37
prompt appears on the screen, “Cancel Auto
Shutdown”. To activate the Auto Shutdown
feature, use the Rotary Knob to select it from the
Time Based Features Menu and press the Knob to
enter the menu. Once in the Auto Shutdown Menu,
use the Rotary knob to select either “Enable” or
“Disable” the feature.
•Cancel Auto Shutdown: If you want to
temporarily deactivate the Auto Shutdown
feature once the beep tone sounds, press the
Rotary Knob. The Auto Shutdown sequence will
reset to 1 hour.
e. Sleep Mode: You can program the unit to
shutdown after a selected period of time. The
screen displays Sleep Mode on the top line, with
optional time settings as follows:
Sleep Off
15 Minutes
30 Minutes
45 Minutes
60 Minutes
Use the Rotary Knob to select the desired Sleep
Time. When the desired time is highlighted, press
the Rotary Knob. The Receiver will now turn off
after the selected time has elapsed.
Sportster SP-R1 User Guide
38
If “Yes” is chosen, the unit reverts to the original
factory settings for the following parameters:
• All Presets revert to empty
• All Game Alerts Cleared

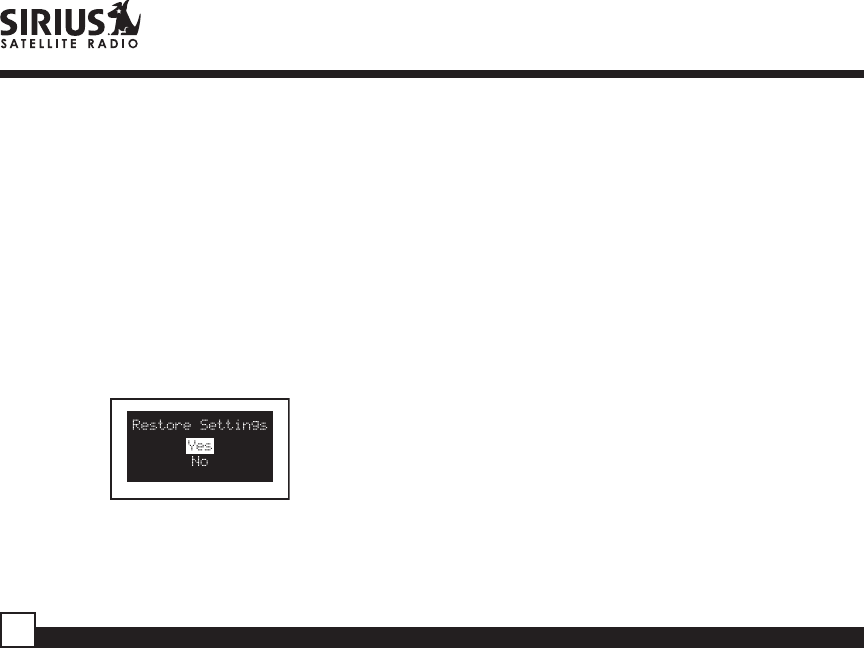

Factory Default
This Menu option will restore all original factory
settings. To activate this feature, perform the
following procedure while in the “Menu Options”
List Mode:
1. Press Menu to enter the Menu Options List.
2. Use the Rotary Knob to highlight the “Factory
Default” option. Press the Rotary Knob to select.
“Restore Settings” will pop up on the Receiver’s
display
.
3. Use the Rotary Knob to select “Yes” to restore all
settings or select “No” to return to the Menu
Options List Mode.
• Auto Dimming On
• Display Contrast to 50%
• Display Mode to Auto
• FM Modulator to On
• FM Frequency to 88.1 MHz
• Audio Output Level to 70%
• Access to all skipped Channels (Locked
channels remain locked)
• Memory Search On
• Memory Locations are erased
• 12 Hour Clock Format
• Eastern Time Zone
• Daylight Savings Time Observed
• Alarm Off
• Program Alert Off
• Auto Shutdown Off
• Sleep Mode Off
Sportster SP-R1 User Guide 39
Troubleshooting
FAULT PROBABLE CAUSE
No Sound
No signal on receiver
display
Audio static or loss of
clarity
“ANTENNA NOT
DETECTED”
message
Receiver does not turn on
1. Audio Cables not connected
2. Incorrect FM modulator frequency
Check for obstacles over or around
antenna
Vehicle antenna not connected to radio
FM modulator frequency contains static
Antenna or cable is faulty
Satellite antenna not connected
Blown Fuse, power cable not properly
connected
1. Check cables at Receiver and radio
2. Select another FM modulator
frequency.
Change location to eliminate nearby
obstacles (bridge, etc.)
Check vehicle antenna cable
Switch to another FM frequency
Contact system installer or vendor
Check satellite connection to receiver
Check fuse, check power cable
REMEDY
Sportster SP-R1 User Guide
40
Specifications
Audio Output .................................................................................................................... 2.2V (Peak-to-Peak)
Total Harmonic Distortion (THD) ........................................................................................................... <0.3%
Signal-to-noise (S/N) .......................................................................................................... Greater than 75dB
Fuse Requirement ...................................................................................................................... 3A Slow Blow
Power Supply .................................................................................................... 10-16V, Negative Ground, DC
Receiver Dimensions ............................................................................... 115mm(W) x 78mm(H) x 28mm(D)
............................................................................................................................. (4-1/2” W x 3” H x 1-1/8” D)
Receiver Weight ....................................................................................................................................... 7oz.
Remote Control Dimensions ................................................................... 49mm(W) x 104mm(H) x 23mm(D)
............................................................................................................................ (1-7/8””W x 4-1/8”H x 7/8”D)
Remote Control Battery Requirements .............................................................................................. CR2025
Note: Features and Specifications subject to change without notice.
Sportster SP-R1 User Guide 41
Notes:
Sportster SP-R1 User Guide
42
Optional Accessories for your Sirius Sportster Receiver
Add one or all of these accessories to maximize your Sirius experience.
SP-B1 Portable Boombox
The SP-B1 is a portable docking station and audio
system for the Sirius Sportster Receiver. With the
built-in amplifier and speakers, the SP-B1 delivers
rich, powerful sound indoors or outdoors.
Includes the Following:
• Portable Boombox with built-in amplifier and
speakers
• Auxiliary input for other audio devices
• Adjustable indoor/outdoor antenna with 20’ of
cable
• AC adapter
SP-H1 Home Docking Station
The SP-H1 is a compact docking cradle that
positions the receiver for easy viewing and
operation. Designed for quick and easy self-
installation, it includes all necessary cabling to
connect to your home audio system.
Includes the Following:
• Compact tabletop/desktop docking cradle
• Audio cable for connection to any stereo
bookshelf system
• Adjustable indoor/outdoor antenna with 20’ of
cable
• AC Adapter
Sportster SP-R1 User Guide 43
SP-C1 Mobile Docking Station
The SP-C1 is a compact docking cradle that positions the receiver for
easy wiring, viewing and operation. Designed for quick and easy self-
installation, it includes all necessary cabling to connect to your car audio
system.
Includes the Following:
• Mobile docking cradle
• Adhesive vehicle mount for easy installation
• Car power adapter
• Magnetic antenna with 21’ of cable
Sportster SP-R1 User Guide
44
12 MONTH LIMITED WARRANTY
Sirius Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product that should this product or any part
thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original
purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for
parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of
warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to the location shown below under
WARRANTY RETURN.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs
incurred for installation, removal or reinstallation of the product, or to damage to tapes, compact discs, speakers, accessories, or
vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged
through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s). THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID
BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR
BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in
connection with the sale of this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
WARRANTY RETURN: To obtain repair or replacement within the terms of this Warranty, please return product to an authorized Sirius
Sportster retailer or call Customer Service at (800) 869-5187; proof of purchase and description of defect are required. Products to be
returned to an approved warranty station must be shipped freight prepaid.
Sportster SP-R1 User Guide 45
IMPORTANT INFORMATION
SIRIUS ID (SID): __ __ __ __ __ __ __ __ __ __ __ __
PSN:__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
Customer Service: 1-800-869-5187
© 2004 Sirius Satellite Radio Inc.
Sirius Satellite Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
(800) 869-5590
sirius.com
SP-R1-OM (Rev. 1, June 2004)
