Ki Ryung Electronics SIRPNP4 Digital Satellite Radio User Manual PnP4 Draft Manual v1 1 0
Ki Ryung Electronics Co., Ltd. Digital Satellite Radio PnP4 Draft Manual v1 1 0
Users Manual
Basic Operation
After you have successfully activated your SIRIUS subscription, the Normal Operation (Default ) screen will appear
(Below): Use the Rotary Knob to select channels.
• The selected channel will automatically start playing. The name and artist of the currently playing song will
scroll across the display.
Changing Channels
Turning the Rotary Knob clockwise will increase, or move up to the next channel. Turning the Rotary Knob
counterclockwise will decrease, or move down to the previous channel.

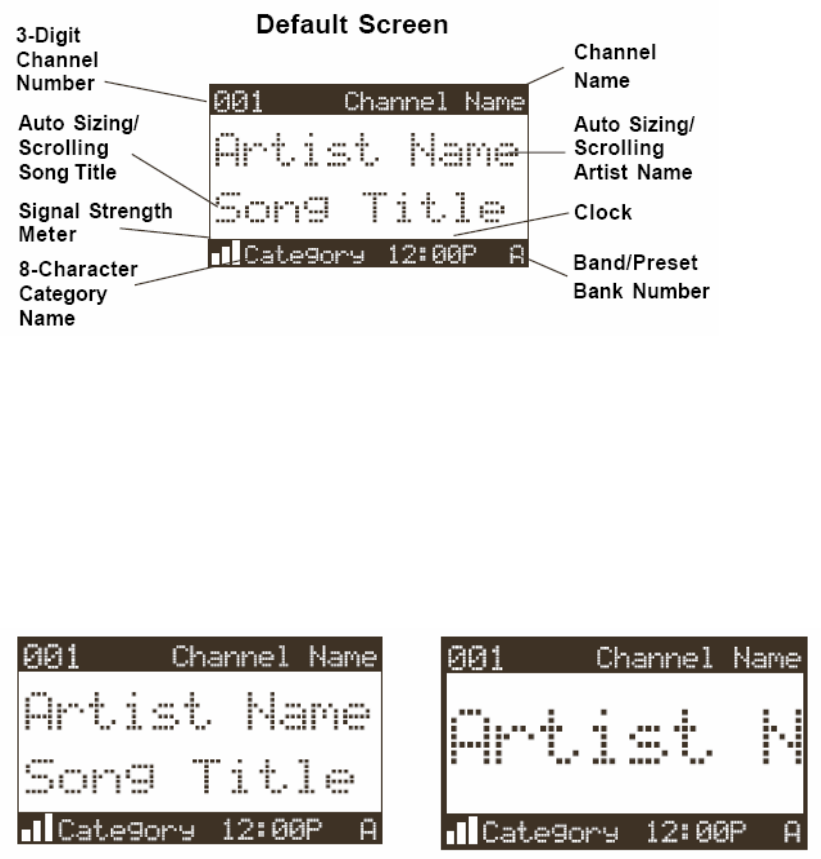

Display Button
Pressing the DISP button from the Default display toggles between the artist name/song title and large character displayed
text. In doing so, this will change the character size and cause the field to scroll. This feature is useful when viewing the
display at a distance.
NOTE: The displayed text will scroll only if the length of the artist or title cannot be viewed in its entirety. Pressing and
holding the Display button will enter the channel list mode.
Pressing DISP will switch between these two display views.
Search Modes (Category, Channel, Artist, Song Title)
The PnP4 Receiver has four ways to search for and select music: by category, by channel, by artist, and by song title.

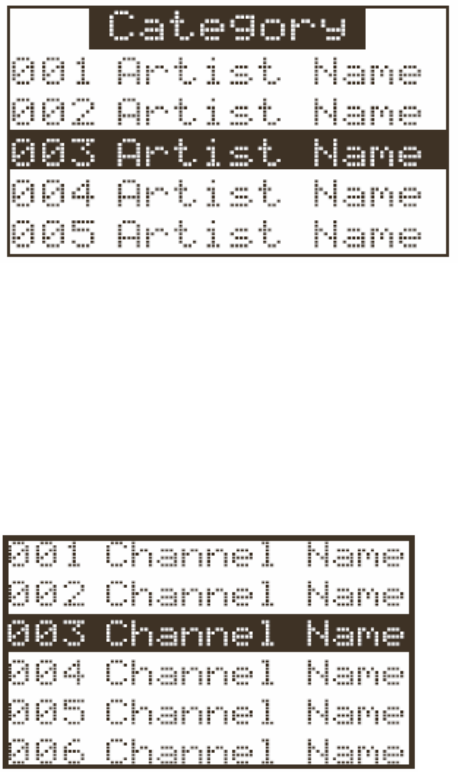

Searching Categories
If you want to listen to a different entertainment category, push the CATEGORY buttons to activate the Category Select
screen (top right):
1. Use the CATEGORY buttons to scroll through music and entertainment categories.
2. When the category (ex. Rock) you want is displayed, use the Rotary Knob to search available channels within the
category.
• Pressing the DISP button while in the Category Search mode will change between Channel Name, Artist Name, and
Song Title to be able to preview what is playing on other channels before selecting.
3. When the channel you want is highlighted, press the Rotary Knob. The channel will change and the display
will revert to the Default screen for the new channel. To exit this mode without changing to a new channel, press and hold
the DISP button for 1 second.
Searching Channels (Channel List Mode)
It is possible to search for a different channel while listening to your current channel. Be sure that the display shows the
Default screen prior to the following steps:
1. Press and hold the DISP button for 2 seconds to activate the Channel List Mode (top right). The Channel List screen
will appear, showing all available channels regardless of category:
• Pressing the DISP button while in the Channel List Mode will change between Channel Name, Artist Name (middle
right), and Song Title (bottom right). You can use this feature to search for a specific Artist or Song that may be playing at
the time.
2. Turn the Rotary Knob to find the channel you want.
3. Press and release the Rotary Knob to select the channel. To exit this mode without changing to a new
channel, press and hold the DISP button for 1 second.
Press and Hold the DISP button to enter the Channel List Mode
Press DISP again to show the Artist Name
Press DISP again to show the Song Title
Press DISP again to go back to Channel List
Note: If you are in Channel List Mode and viewing a sports category channel list (NFL Zone, NHL Zone), pressing the
DISP button will toggle between the team names and the current score of any live play-by-play game.

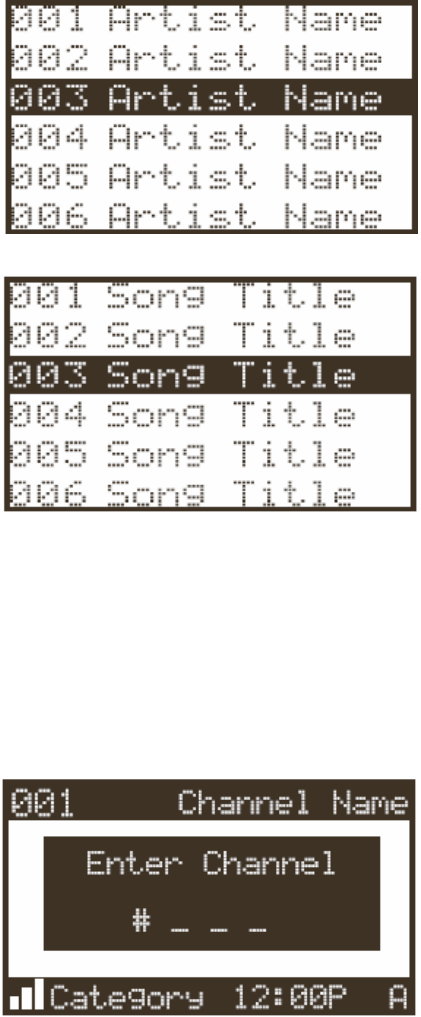

Direct Tuning Channels can be directly accessed by pressing and releasing the Rotary Knob and then using the 0-9
keys to enter the desired channel number. Once the desired number has been entered, the channel will change and the
display will revert to the Default screen for the new channel. The receiver will change immediately if three numbers are
entered (ex. “0”, ”0”, “7”), but if just one or two digits are entered, the unit will wait for 3 seconds before changing the
channel.
Setting Channel Presets
You can store up to 30 of your favorite channels as presets, for quick access. Presets are stored in 3 banks, A, B & C, each
containing 10 channel presets. 1. Press the BAND button to activate the preset bank you want. The selected bank is shown
in the lower right corner of the Default screen.
2. Select the channel you want to preset.
3. Hold the numbered preset button you want to store the channel in for at least 2 seconds.
• The selected preset number will flash and then remain lit on the display to show that it has been memorized.
• If the preset button already has a channel stored in it, the preset will be replaced by the new channel.
Recalling Channel Presets
The 10 presets in the active bank (A, B or C) can be selected by pressing the “0” – “9” buttons.
1. Press the BAND button to activate the preset bank you want. The selected bank is shown in the lower right
corner of the Default screen.
2. Press the desired preset button “0” – “9” to recall the preset. The channel will change and the display will revert to the
Default screen for the new channel.

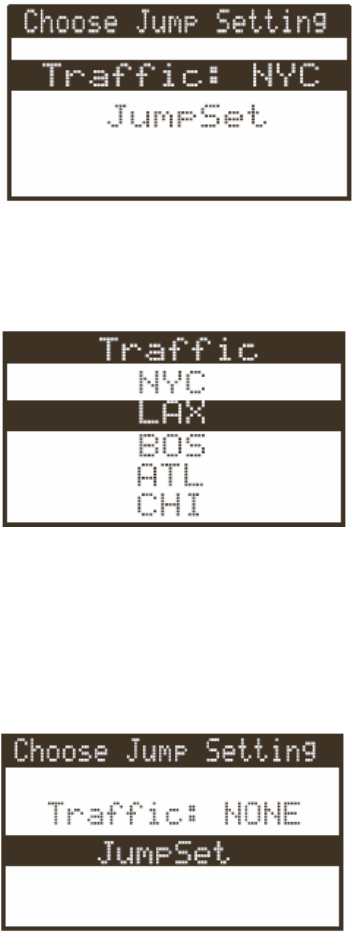

Jump Preset Button
The PnP4 Receiver includes a special preset button labeled Jump. It can be used for channels that are accessed frequently
and temporarily such as traffic, weather, news or sports. This button allows you to quickly tune to one specific channel
and then tune back to the original channel.
Refer to the Jump Settings options section for information on configuring your Jump preset button. the preset. The
channel will change and the display will revert to the Default screen for the new channel.

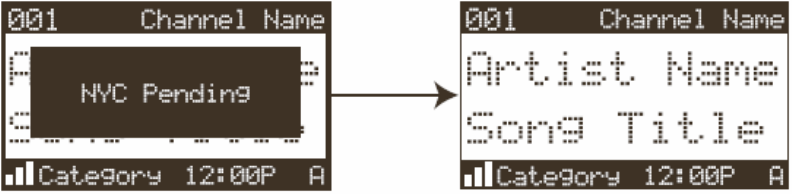

• If your Jump Setting is set to traffic, pressing the Jump button will immediately begin searching for your desired city’s
traffic report. The band indicator on the display will change to the Jump icon to indicate a Jump search is active. Once
your local traffic is found, the Receiver will automatically tune to that channel. You may have to wait up to 4 minutes for
your desired report. Pressing the Jump button while the receiver is searching will cancel the search.
Pressing the Jump button after the receiver has tuned to your traffic report will return to the previous channel.
• If your Jump Setting is set to JumpSet, pressing the jump button will immediately tune to your desired channel. Pressing
the Jump button again will return to the previous channel.
Note: The channel preset for the Jump button remains the same regardless of which preset bank is currently selected.
Searching for a Channel Preset (P.TUNE Mode)
It is possible to quickly search through all of your presets using the Rotary Knob.
1. Press and hold the BAND button to enter the Preset Tune Mode (P.TUNE).
2. The bottom right portion of the display will change to highlight the current preset.
3. Turn the Rotary Knob in either direction to move up or down through your presets. The new channel will
start to play as soon as you stop turning the Rotary Knob.
• Only stored presets will be displayed, regardless of what bank they are stored in.
• Presets will be grouped and displayed by preset bank and number (ex. A-1, A-2...B-1, B-2...C-1,C-2...) and rotate all the
way around back to the beginning.

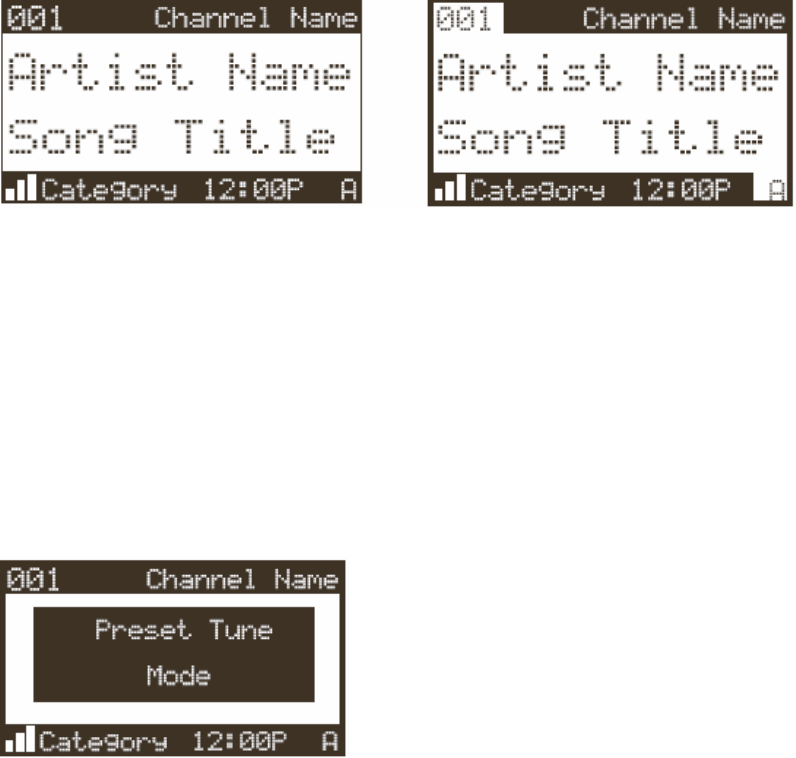

Default Display P.TUNE Display
To exit Preset Tune Mode and return to Channel Tuning Mode, press and hold the BAND button.
Preset Tune List Mode
In Preset Tuning Mode you can view your list of presets showing Channel Name, Artist Name, or Song Title just like in
the Channel List Mode:
1. Press and hold the BAND button to enter the Preset Tune Mode (P.TUNE).
2. Press the DISP button for 2 seconds which will bring up the Preset Tune List Mode displaying up to 6 preset channel
names.
• Pressing the DISP button while in this mode will change between Channel Name (right top), Artist Name (right middle),
and Song Title list modes (right bottom)
• The name field will scroll only if the length of the artist or song title cannot be viewed in its entirety.
3. Use the Rotary Knob to select the desired preset.
4. Push and release the Rotary Knob to select the preset. The channel will change and the display will revert to the
P.TUNE Display.

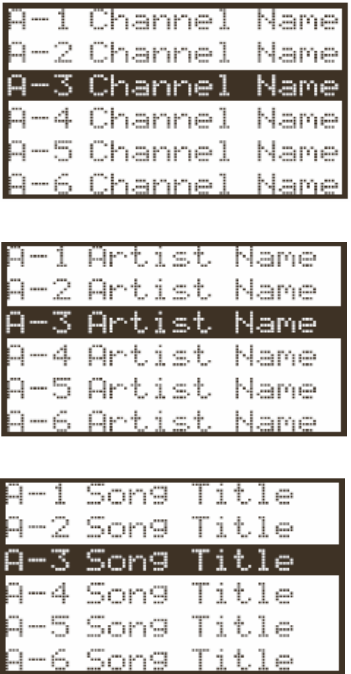

P.TUNE Channel Name List Display
P.TUNE Artist Name List Display
P.TUNE Song Title List Display
Memory (MEMO) and Song Seek (S-Seek)
Functions
This feature allows the user to capture and store information about the programming (Artist/Song, sports team, or traffic
city) on the currently tuned channel, up to a total of 20 listings. The receiver also has the capability to continuously
search all incoming SIRIUS channels and alert the user when a saved program is being played. When a team (or
teams) are stored in memory, at the time receiver is initially powered on, you will be alerted when the teams are playing
in a game being broadcast. Also, while listening to your SIRIUS receiver, should one of the teams begin to play a game,
you will be alerted.

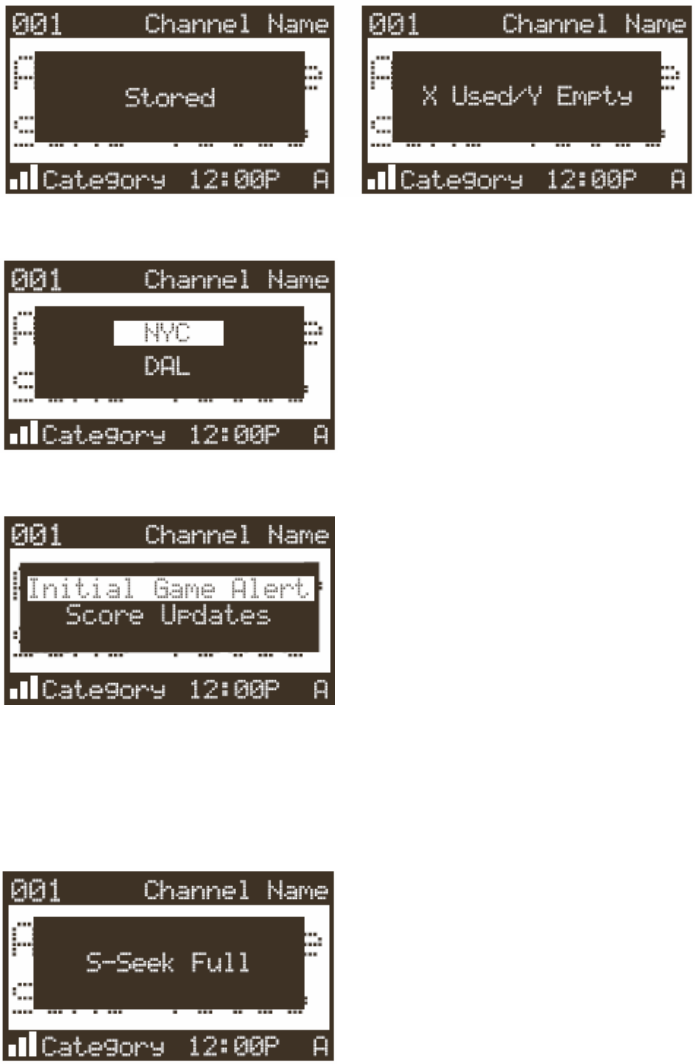

Storing Song Titles or Sports Games
1. Song Titles or Traffic City: While the receiver is in the default display mode, momentarily pressing and
releasing the MEMO button stores the current program data information within the receiver’s memory. A “Stored” pop-
up screen, followed by “X Used/Y Empty” will each appear for 1 second, X being the total number of listings saved in
memory, and Y being the total number of memory listings still available for storage.

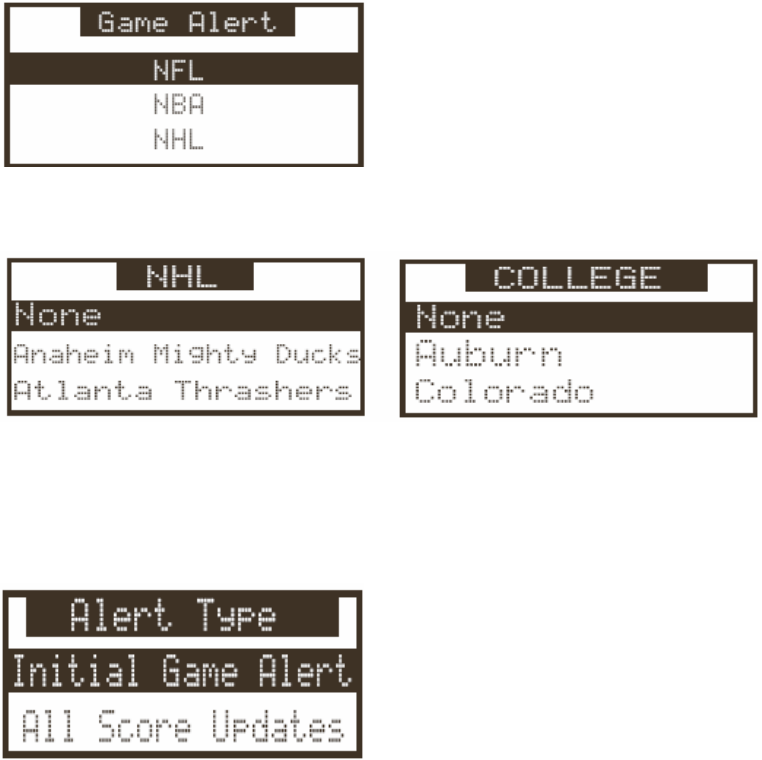

2. Sports Games: If the current tuned channel is an NFL®, NBA®, NHL®, or College play-by-play sports broadcast,
pressing the MEMO button will allow you to select one of the teams playing to be stored in memory.
Turn the Rotary Knob to highlight the team you wish to store in memory and press the Rotary Knob to select. The next
screen will ask which kind of alert you wish to have.
“Initial Game Alert” will sound an alert when the team you have chosen is playing a game. “All Score Updates” will
sound an alert when the team you have chosen is playing a game, and also when the scores are updated for the team. Turn
the Rotary Knob to highlight the type of alert you
wish to have and press the Rotary Knob to select.
3. If the MEMO button is pressed and all of the memory spaces are full, “S-Seek Full” will flash on
the display for 1 second.

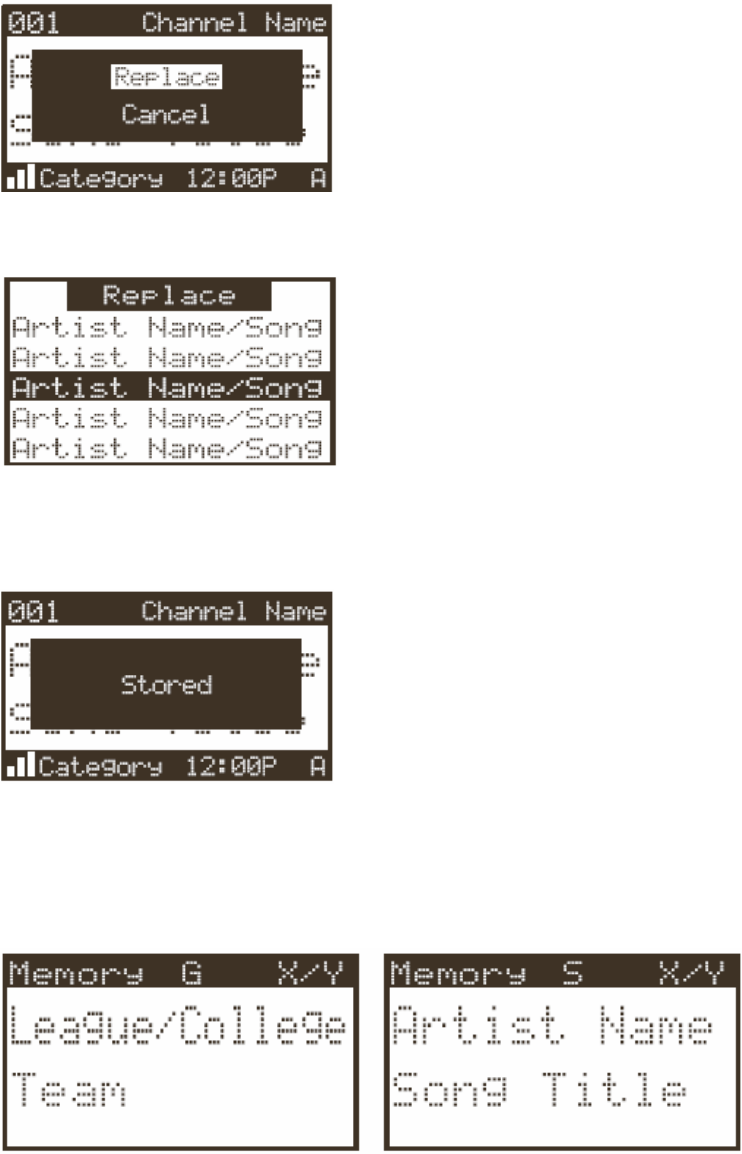

A screen displaying the Replace-Cancel options will follow.
This prompt allows you to make the following Replace-Cancel choices:
Replace: The list of stored memory items will appear.
Turn the Rotary Knob to choose the item that you would like to overwrite with the new Artist/Song Title, sports game, or
traffic city. After highlighting the selected item in the list, press the Rotary Knob to delete the stored Artist/Song Title,
sports team, or traffic city and replace it with the updated information. The display will
show the “Stored” screen.
Cancel: The Replace-Cancel prompt screen will disappear and revert to the original screen. Nothing will be stored.
Viewing Program Information stored in Memory
1. Press and hold the MEMO button for 3 seconds to enter S-Seek Mode. The program information stored in memory will
be displayed one-at-a-time in page format.
2. Use the Rotary Knob to scroll through the 20 page listing. This function allows you to review previously stored
program information. The information will be displayed as Sports League or College/Team Name
or Artist Name/Song Title.

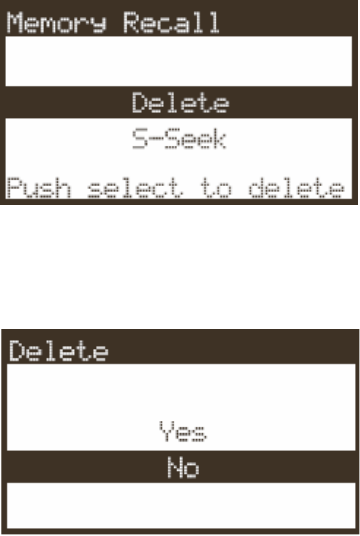

Deleting a Song Title Stored into Memory
1. Press and release the Rotary Knob while in Sseek Mode. A pop-up screen displaying two
selectable options - “Delete” and “S-Seek” – is displayed.
2. Turn the Rotary Knob to highlight the “Delete” option.
3. Press the Rotary Knob and a Delete confirmation screen will appear.
4. To permanently delete the program from your list, select “Yes” using the Rotary Knob and press the Knob in to
confirm.

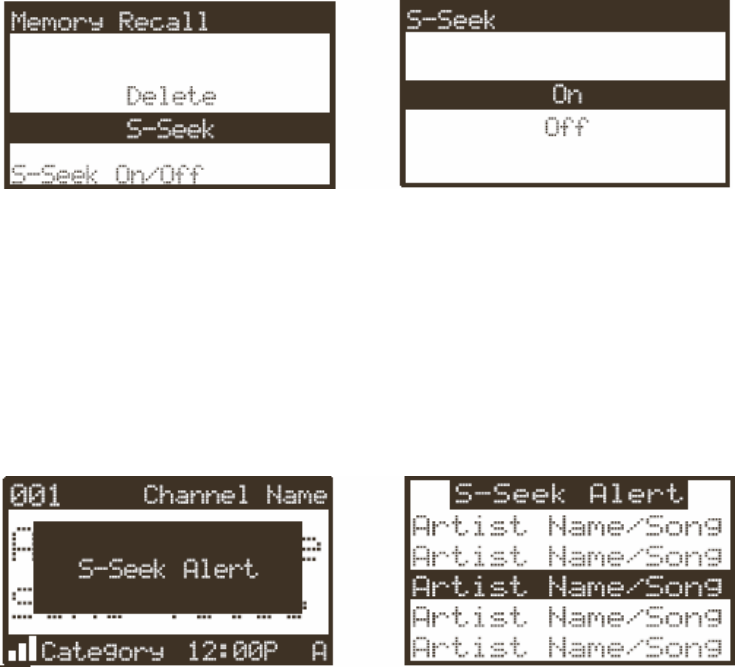

Activating the Song (S-Seek) Alert
1. Press and hold the MEMO button for 3 seconds to enter the S-Seek Mode.
2. Press and Release the Rotary Knob. A pop-up screen displaying two selectable options - “Delete” and “SSeek” will
appear (below left).
3. Use the Rotary Knob to highlight the “S-Seek” option.
4. Press and release the Rotary Knob and a S-Seek confirmation screen will appear. Select the “On” option using the
Rotary Knob and press the Knob in to confirm (below right).
Whenever the PnP4 Receiver is turned on, it automatically searches the incoming channels to determine if a match exists
with the program information stored in receiver’s memory. If one or more matches are found, a pop-up screen
momentarily appears for 2 seconds and displays “S-Seek Alert”.
An audible beep tone will be heard indicating that a match was found. The display then reverts to the SSeek
Alert screen which displays the current matches. You can select the Artist/Song Title or game that you wish to listen to.
No stored match alert is provided for the currently selected channel. To ensure that no duplicate entries are stored in
memory, the Receiver will check the stored input data to ensure the information about to be stored is not already in
memory.
• If one or more matches are found, a list appears. You can scroll through the list and select a program
using the Rotary Knob. Your selection will be tuned and the display will revert to the last active display mode.
• If a selection is not chosen within 10 seconds, the screen will revert to the last active display and tuning modes.

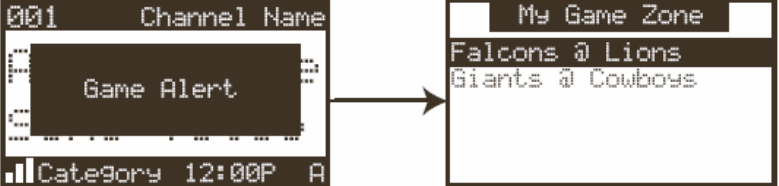

Game Alert
The PnP4 Receiver can automatically identify when your favorite team is playing. When a game is found, the Game Alert
screen is displayed, followed by tuning information for that game. Use the Rotary Knob to select and tune to the desired
channel.
See the Game Alert setting in the Menu Display Options section for information on setting your
favorite team. You can use the S-Seek feature to add Game Alerts for additional teams. See the Setting S-Seek Alerts
section for more information.

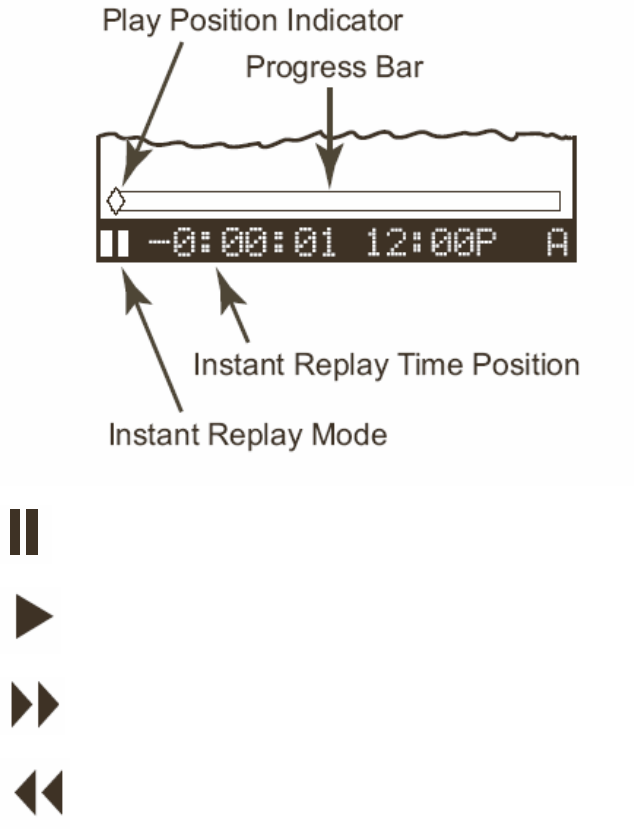

Instant Replay
The PnP4 Receiver is capable of storing the audio of the channel to which you are listening for later playback,
approximately up to 44 minutes depending upon the channel to which you are tuned. As soon as you tune to a channel, the
Receiver automatically begins storing the audio, enabling you to rewind at any time to replay the audio again. If you are
unable to continue listening to a channel, but do not want to miss the broadcast, pressing the Play/Pause button will cause
the Receiver to mute the audio and mark the point in the broadcast so you can resume listening at a later time.
• Pause/Play button. When pressed, this places the Receiver in the Instant Replay pause mode which mutes the audio.
Pressing and releasing the Pause/Play button again causes the Receiver to begin playing the stored audio from the point at
which the Receiver was paused. During playback, the Receiver will continue to store the live channel audio.
Pressing and holding the Play/Pause button changes the display to a listing of the artist’s names in the stored audio, from
the most recent to the oldest, beginning with an entry called “Live”. (Pressing the DISP button will toggle the display
between the artist name list and the song/program title list.) Use the rotary knob and SELECT to choose a song to play.
“Live” may be chosen which will exit the Instant Replay mode, and the Receiver will resume playing the live broadcast.
• Fast Forward button. This fast forwards you through the stored audio.
Pressing and releasing the Fast-Forward button forwards to the start of the next song or program in the stored audio and
playback automatically begins. Repeatedly pressing and releasing the Fast- Forward button causes the Receiver to
continue to move forward in the stored audio to the start of each next song or program until the end of the stored audio is
reached. When the end of the stored audio is reached, a beep will be heard (if the Confirmation Tone option is enabled),
the Instant Replay mode will be exited, and the Receiver will resume playing the live broadcast.
Pressing and holding the Fast-Forward button for one second advances the playback forward in 10 second intervals,
which increases to 15 and then 30 second intervals the longer the Fast-Forward button remains pressed. Playback begins
immediately when the button is released. When the end of the stored audio is reached, a beep will be heard, the Instant
Replay mode will be exited, and the Receiver will resume playing the live broadcast.
• Rewind button. This rewinds (moves you backwards) through the stored audio.
Pressing and releasing the Rewind button rewinds to the start of the current song or program in the stored
audio, and playback automatically begins. Repeatedly pressing and releasing the Rewind Button causes the Receiver to
continue to move backwards in the stored audio to the start of each previous song or program until the beginning of the
stored audio is reached. If the beginning of the stored audio is reached, a beep will be heard (if the Confirmation Tone
option is enabled) and playback will automatically begin.
Note: Depending upon where in a particular broadcast the channel was selected, the start of a song or program may not be
available in memory. If this occurs, the playback will start from where the audio began to be stored.
Pressing and holding the Rewind button for one second rewinds playback in 10 second intervals, which increase to 15 and
then 30 second intervals the longer the Rewind button remains pressed. Playback begins immediately when the button
is released. If the beginning of the stored audio is reached while rewinding, a beep will be heard and playback will
automatically begin.
Note: When the Receiver is tuned to another
channel, all audio stored in the Instant Replay
memory is erased and the tuned channel begins
to play. Tuning to another channel may
automatically occur if another feature of the
Receiver has been programmed to do so.
• Progress Bar. While playing from Instant Replay
memory, status information is shown at the
bottom of the Receiver’s display screen.
The Instant Replay mode icon that is displayed at the bottom left of the screen indicates the current mode.
Pause mode. This indicates that the Receiver is paused and muted.
Play mode. This indicates that you are in the playback mode, listening to stored audio.
Fast Forward mode. This indicates that you are fast forwarding through the stored audio.
Rewind mode. This indicates that you are rewinding, or moving backwards, through the stored audio.
The Progress Bar is a visual indicator of the status of the Instant Replay memory. As the memory fills, rogress Bar begins
to fill from the left side providing a visual indication of how much of the Instant Replay memory is filled. The end of
the bar indicates the end of the stored audio, where the live broadcast begins. When all
available memory has been used, the bar will be completely filled.
A diamond-shaped Play Position indicator is superimposed over the Progress Bar which provides a visual indicator of the
current playback position in the Instant Replay memory.
The Play Position indicator shows your
current listening position in the stored audio. When you press the Play/Pause button to begin playback of the stored audio,
this indicator will begin to move to the right showing the progression of the playback through the Instant Replay memory,
provided that the memory is not full.
The portion of the Progress Bar behind the Play Position indicator shows how much you can rewind in the Instant Replay
memory, while the filled portion ahead of the Play Indicator shows how much you can fast-forward in the memory. While
you are in the playback mode, the Receiver continues to store the audio from the channel. Obviously, you will be unable
to “catch up” to the live broadcast during playback, as new audio is
being stored at the same rate at which you are playing back the stored audio. You can use the Fast-Forward button to skip
ahead or exit the Instant Replay mode, and begin listening to the live broadcast again.
Should you press the Play/Pause button to pause the playback, the play position indicator will stop moving and continue
to provide a visual indication of your current position in the Instant Replay memory.
When paused and the Instant Replay memory is 10 seconds from becoming full, two beeps will be heard (if the
Confirmation Tone option is enabled). When the memory is full, the Receiver will automatically begin playback, and will
continue to store the channel audio, overwriting the oldest portion of the audio previously stored. The Instant Replay Time
Position provides the exact amount of time the Play Position indicator is behind the live broadcast, expressed as
Hours:Minutes:Seconds, and displayed as a negative number.
For example, if -02:40 is displayed, this would indicate that the Play Position indicator is 2 minutes and 40 seconds
behind the live broadcast.
Boom Box Volume Control
By pressing VOL- and VOL+ key, user can adjust Boom Box volume when the PnP4 unit is in Boom Box.

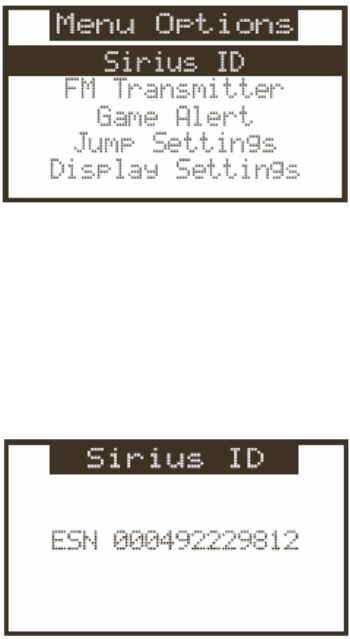

Menu Display Options
To enter the Menu Options page, press and release the MENU Button. The “Menu Options” list will appear on the
display (below). Using the Rotary Knob, highlight the option you wish to adjust and press the Knob. The following
options are available:
Sirius ID Lock Options
FM Transmitter Audio Level
Game Alert Antenna Aiming
Jump Settings Memory Options
Display Settings Time Based Features
Confirm Tone Options Factory Default
Add or Skip
To enter FM Transmitter menu directly, press and hold MENU Button.
Note: If a button is not pressed within 10 seconds, the Receiver will exit the “Menu Options” function and revert back to
the Default screen display.
Sirius ID
Displays your 12 digit Sirius ID (SID) number. The SID is unique to every PnP4 Receiver and is required to activate your
service. It is recommended that you write this number in the space provided on the last page of this user guide. No
adjustments are allowed in this mode. To exit this option, press the Rotary Knob or Menu Button.
Game Alert
Game Alert allows you to store your favorite sports teams in memory. The PnP4 Receiver will constantly scan the
SIRIUS channels and will sound an alert when a team you stored in memory is playing, or when there is a score update
for a team, depending on which option you have chosen for the team.
Teams which you have selected and are currently playing will be displayed in a category called “My Game Zone”. You
may select one team from each sports league and the college category, however, more teams may
be chosen by using the MEMORY (MEMO) function. (See the section titled, “Memory (MEMO) and Song
Seek (S-Seek) Functions” for more information to add additional teams.)
To choose teams to add to your stored game alerts:
1. Turn the Rotary Knob to highlight “Game Alert” and press the Rotary Knob to select.
2. Turn the Rotary Knob to highlight the sports league or college category of the team you wish to add, and press the
Rotary Knob to select.
3. Turn the Rotary Knob to highlight the league team name or college team name you wish to add, and
press the Rotary Knob to select.
Note that for college teams, you will receive an alert for all teams playing for that college. There are 30
college teams currently licensed for broadcast by SIRIUS.
4. Turn the Rotary Knob to highlight which type of an alert you want, and press the Rotary Knob to select.
When the SIRIUS receiver is powered on, and while it is playing, “Initial Game Alert” will sound an alert when the team
you have chosen is playing a game. “All Score Updates” does the same but also sounds an alert when the scores are
updated for the chosen team. To exit the Game Alert menu, press the MENU
button.
Jump Settings
You can access the Jump Settings menu by pressing and holding the Jump button for 2 seconds or by pressing Menu to
enter the Menu Options list and selecting Jump Settings using the Rotary Knob. There are two options available for Jump
button settings – Traffic and JumpSet. The currently selected option is indicated by a jump icon.
Traffic
1. Use the Rotary Knob to highlight the “Traffic” option. Press the Rotary Knob to select.
2. Scroll to the city for which you would like to hear traffic reports and press the knob. Use the Menu button to exit this
menu without changing your current city selection.
Note: If the channel list has not yet been downloaded from the satellite data stream, an Updating City List notification
will be displayed. Please wait 10 minutes and try again.
JumpSet
Select JumpSet if you would like to use the Jump button for any channel other than a traffic channel.
1. Use the Rotary Knob to highlight the “JumpSet” option. Press the Rotary Knob to select.
2. After pressing Menu to exit to the Default Screen, the Jump button can be programmed by tuning to your
desired channel and pressing & holding the Jump button for 2 seconds, as described in the Setting Channel Presets section.
Display Settings
It is possible to adjust the Contrast, Dimming and Color of the Receiver’s display. While in the “Menu Options” list
perform the following steps:
1. Use the Rotary Knob to highlight the “Display Settings” option. Press the Rotary Knob to select.
2. Select one of the following using the Rotary Knob:
a. Contrast Control: Adjusts the relationship between the background and the text on the LCD display. Use the Rotary
Knob to adjust the contrast up or down. The bar graph at the bottom of the screen will move to indicate the change.
Confirm Tone Options
The PnP4 Receiver will sound an Audio “Tone” alert when the unit powers ON and OFF as well as when the S-Seek Alert
is activated. The default is ON. To change the tone options, perform the following:
1. Use the Rotary Knob to highlight the “Confirm Tone Options”. Press the Rotary Knob to select.
2. Use the Rotary Knob to Select “ON” or “OFF”. Press the Knob to set the Tone Option.
To exit the Display settings, simply push the MENU button.
FM Transmitter Options
If you would like to use the built-in FM Transmitter, you must turn ON the function and select an FM
frequency:
1. Use the Rotary Knob to highlight the “FM Transmitter Options”. Press the Rotary Knob to select.
2. Use the Rotary Knob to Select “On/Off”. Press the Knob to set the option.
3. Press Menu to return to the previous menu.
4. Use the Rotary Knob to highlight the “Frequency Selection”. Press the Rotary Knob to select.
5. Use the Rotary Knob and Category Buttons to adjust the FM frequency. The Rotary Knob adjusts in 0.2 MHz
increments and the Category Buttons adjust in 1 MHz increments.

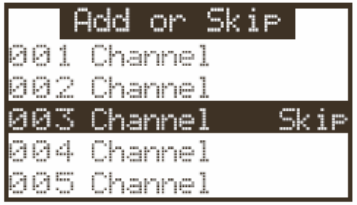

Channel Add or Skip
The PnP4 Receiver will allow you to skip selected channels when changing channels via the Rotary Knob. At any time
you may select to add or skip specific channels. While in the “Menu Options” List mode, follow the steps below to Add
or Skip a channel:
1. Use the Rotary Knob to highlight the “Add or Skip”. Press the Rotary Knob to select.
2. Use the Rotary Knob to Select the channel you wish to skip or add. Pressing the Rotary Knob will add the text “Skip”
next to the channel name to skip that channel. To add the channel, simply press the Rotary Knob and the text “Skip” will
be removed.
Note: This feature only functions in normal channel search modes. You can always access any skipped
channel using the Direct Tuning function.

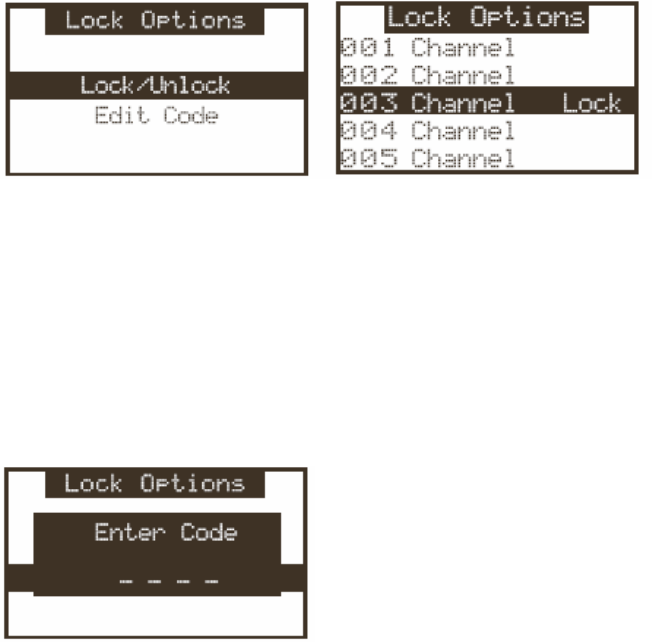

Lock Options
The PnP4 Receiver has the ability to lockout the use of any channel, or channels you do not want others to access without
your permission. Like the Skip feature, the locked channel will not appear when the user changes channels with the
Rotary Knob. When the user tries to access the locked channel using the Direct Tuning function, the “Enter Code” screen
will be displayed and the channel will not be accessed until the proper code is entered. While in the “Menu Options” List
mode, follow the steps below to Lock a channel:
1. Use the Rotary Knob to highlight the “Lock Options”. Press the Rotary Knob to select.
2. Select “Lock/Unlock” from the Lock Options Menu (below left) and press the Rotary Knob to select.
3. Use the Rotary Knob to select the channel you wish to lock. Press the Knob in to select (below right).
Changing the Lock/Unlock Code
The first time the Lock/Unlock function is accessed, the user must enter the default lock code. The default lock code is
“0000”. This code can be maintained or changed. To change the default lock code, perform the following procedure while
in the “Menu Options” List mode:
1. Use the Rotary Knob to highlight the “Lock Options”. Press the Rotary Knob to select.
2. Select “Edit Code” from the Lock Options Menu (below left) and press the Rotary Knob to select.
3. Enter the default code “0000”.
4. The “New Code” prompt will appear. Enter your new four digit code using the 0-9 number buttons (below right). You
will then be prompted to confirm the new code by entering your code again.
5. The lock code is now changed.
Note: you can use this same method to Edit the code once it is changed from the default.
Audio Level
The audio output of the PnP4 Receiver can be adjusted to fine-tune the audio signal level for maximum performance. This
is important when using either the optional Home Docking Station or the optional Mobile Docking Station. The following
setting affects both the line output and FM output levels. To change the Audio Level, perform the following procedure
while in the “Menu Options” List mode:
1. Use the Rotary Knob to highlight the “Audio Level Options”. Press the Rotary Knob to select.
2. Use the Rotary Knob to adjust to the desired audio output level. A 10 segment horizontal bar graph is
displayed with a “-” sign to the left and a “+” sign to the right. To store your setting and exit this function, press the
Rotary Knob.
Antenna Aiming
When using the optional Home Docking Station or the Boombox indoors, it is important to locate the
antenna in an acceptable location (See the individual installation guides for more information).
1. Use the Rotary Knob to highlight “Antenna Aiming”. Press the Rotary Knob to select.
2. Two 10 segment horizontal bar graphs will be displayed ( SAT and TER) with a “-“ sign to the left and a “+” sign to the
right. SAT indicated satellite signal and TER indicates terrestrial signal – if available.
3. Adjust the antenna for maximum performance as per the manuals.
To exit this function, press the Rotary Knob or MENU button.
Memory Options
In this mode, the user can turn the Memory Search Function (S-Seek) ON or OFF. In addition, all 30 Preset Memory
Locations can be cleared. To change the Memory Options, use the following procedure while in the “Menu Options” List
mode:
1. Use the Rotary Knob to highlight the “Memory Options”. Press the Rotary Knob to select.
2. Select one of the following Memory Options:
a. Automatic Memory Search function - On or Off: Use the Rotary Knob to select between On and Off by highlighting
the desired selection. Then press the Rotary Knob to store.
b. Clear All Memory Locations: Press and release the Rotary Knob; a prompt display screen appears confirming - Clear
All Memory Select “Yes” or “No” and press the Rotary Knob.
To exit this function, press the Rotary Knob or MENU button.
Time-Based Features
This Menu Option allows for adjustments of the following items:
Clock Auto Shutdown
Alarm Clock Sleep Mode
Program Alert
To change the Time-Based Features, use the following procedure while in the “Menu Options” List mode:
1. Use the Rotary Knob to highlight the “Time-Based Features”. Press the Rotary Knob to select.
2. Use the Rotary Knob to select one of the following Time-Based Features to adjust:
a. Clock: When entering this menu option, you can setup the clock shown on the default display, based on the format
desired, and the time zone in which you reside. The clock data is provided via the Sirius Satellite data stream, and will
update based on the received signal.
• Format: The Clock Format option allows for either 12 Hour (Default), or 24 Hour display. Use
the Rotary Knob to select the desired format.
• Time Zone: Since the Clock adjusts the time automatically, it is important to specify your proper time zone. Use the
Rotary Knob to select the proper time zone. The following is a list of time zones available:
(GMT-9:00) Alaska
(GMT-8:00) Pacific
(GMT-7:00) Mountain
(GMT-6:00) Central
(GMT-5:00) Eastern
(GMT-4:00) Atlantic
(GMT-3:30) Newfoundland (Abbreviated as
Newfndlnd)
• Daylight Savings Time (DST) Observance:
Activate this function if your area is subject to DST; turn the Rotary Encoder to toggle
between DST Observed (default) or DST Not Observed.
b. Alarm Clock: When this menu option is highlighted and selected, you will be able to set the unit to turn on at a
specific time. The last selected channel prior to shutdown will be present when
Alarm feature is activated. Alarm appears on the first line of the display followed by the alarm options:
• Set Alarm: Use the Rotary Knob to select “Set Alarm” From the Alarm Clock Menu. Select either “Alarm Off”
(Default) or “Alarm On” from the Menu and press the Rotary Knob to set.
• Alarm Time: Use the Rotary Knob to select “Alarm Time” from the Alarm Clock Menu. Use the Category buttons and
the Rotary knob to set the time (hours, minutes) you want to activate the Receiver (Default is 12:00PM). Press the Rotary
knob to store the Alarm Time.
c. Program Alert: When this menu option is highlighted and selected, you will be able to program the unit to switch to a
selected channel at a specific time. Press the Rotary Knob to enter the Program Alert Menu, The following adjustment
options are available:
• Program Time/Day: Turning the Rotary Knob toggles between Time and Day. If Time is selected, use the Category
buttons and Rotary Knob to set the hours and minutes. AM or PM will switch automatically when the AM or PM
threshold has been exceeded. When the desired time is displayed, press the Rotary Knob. If Day is selected, the screen
displays a default day of Monday, with selectable choices of Monday, Tuesday, Wednesday, Thursday, Friday,
Saturday or Sunday. Use the Rotary Knob to increase (CW) or decrease (CCW) the desired day in a circular motion
(default value: Monday).
• Channel: Turn the Rotary Knob to scroll through a listing of all the Sirius channels. When the desired channel is
highlighted, press the Rotary Knob.
• Program Alert On/Off (Default is Off): Rotate the Rotary Knob to toggle between Program Alert On or Program
Alert Off. When the desired alert status is highlighted, press the Rotary Knob.
d. Auto Shutdown: You can program the unit to automatically shut off after a one hour period without any user
intervention. After 59 minutes of inactivity, a beep tone sounds and a display prompt appears on the screen, “Cancel Auto
Shutdown”. To activate the Auto Shutdown feature, use the Rotary Knob to select it from the Time Based Features Menu
and press the Knob to enter the menu. Once in the Auto Shutdown Menu, use the Rotary knob to select either “Enable” or
“Disable” the feature.
• Cancel Auto Shutdown: If you want to temporarily deactivate the Auto Shutdown feature once the beep tone sounds,
press the Rotary Knob. The Auto Shutdown sequence will reset to 1 hour.
e. Sleep Mode: You can program the unit to shutdown after a selected period of time. The screen displays Sleep Mode on
the top line, with optional time settings as follows:
Sleep Off
15 Minutes
30 Minutes
45 Minutes
60 Minutes
Use the Rotary Knob to select the desired Sleep Time. When the desired time is highlighted, press the Rotary Knob. The
Receiver will now turn off after the selected time has elapsed.
Factory Default
This Menu option will restore all original factory settings. To activate this feature, perform the following procedure while
in the “Menu Options” List Mode:
1. Press Menu to enter the Menu Options List.

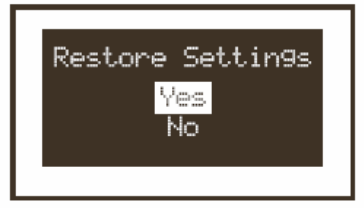

2. Use the Rotary Knob to highlight the “Factory Default” option. Press the Rotary Knob to select. “Restore Settings”
will pop up on the Receiver’s display
3. Use the Rotary Knob to select “Yes” to restore all settings or select “No” to return to the Menu Options List Mode.
If “Yes” is chosen, the unit reverts to the original factory settings for the following parameters:
• All Presets revert to empty
• All Game Alerts Cleared
• Auto Dimming On
• Display Contrast to 50%
• Display Mode to Auto
• FM Modulator to On
• FM Frequency to 88.1 MHz
• Audio Output Level to 70%
• Access to all skipped Channels (Locked channels remain locked)
• Memory Search On
• Memory Locations are erased
• 12 Hour Clock Format
• Eastern Time Zone
• Daylight Savings Time Observed
• Alarm Off
• Program Alert Off
• Auto Shutdown Off
• Sleep Mode Off
