Congratulations on the Purchase of your new SIRIUS Sportster
4 Plug-n-Play Receiver
Your new SIRIUS Sportster™ 4 Plug-n-Play Receiver lets you enjoy SIRIUS® Satellite Radio’s
digital entertainment anywhere you’ve installed the SUPH1 SIRIUS Universal Plug and Play
Home Kit, SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, or the SUBX1 SIRIUS Plug and
Play Universal Boombox (each sold separately). Use this manual to familiarize yourself with all
of SIRIUS Sportster’s features and capabilities. For the latest information about this and other
SIRIUS Sportster products and accessories, visit http://www.sirius.com.
[ Table of Contents ]
2
[ Table of Contents ] 3
Table of Contents
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4
FCC Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 7
PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SIRIUS Sportster Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Control Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . 11
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting an FM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 13
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Display (DISP) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Search Modes (Category, Channel, Artist, Song Title) . . . . . . . . . . . . . . . . 17
Direct Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Channel Presets (P.TUNE Mode) . . . . . . . . . . . . . . . . . . . . . . . . . 21
Memory (MEMO) and Song Seek (S-Seek) Functions . . . . . . . . . . . . . . . . . 23
Game Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Instant Replay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Sirius ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Game Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Confirm Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Memory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Time-Based Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Program Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Auto Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
[ Warning and Safety Information ]
4
[ Warning and Safety Information ] 5
Warning and Safety Information
FCC Warning
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
this owners guide. The user could lose the authority to operate this equipment if an unauthor-
ized change or modification is made.
FCC Compliance
This equipment has been tested and found to comply with Part 15 of the FCC Rules. These
rules are designed to provide reasonable protection against harmful interference. This equip-
ment may cause harmful interference to radio communications if it is not installed and used in
accordance with these instructions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one of more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the other equipment and the receiver.
Connect the other equipment to a different circuit from that to which the receiver is con-
nected.
Consult the dealer or an experienced radio technician for help.
•
•
•
•
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
Liquid Crystal Precautions
If the LCD screen on the SIRIUS Sportster is damaged, do not to touch the liquid crystal fluid.
If any of the following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not operate the SIRIUS Sportster in a way that might divert your attention from driving
safely. As a driver, you alone are responsible for safely operating your vehicle in accor-
dance with traffic safety laws at all times.
Do not install the unit where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Do not install the unit where it may hinder the function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning properly in the event of an accident.
Be sure the unit is installed as described in the installation instructions which accompany
each accessory kit. SIRIUS Satellite Radio is not responsible for issues arising from instal-
lations which were not installed according to the instructions.
1.
2.
3.
•
•
•
•
[ Warning and Safety Information ]
6[ Copyrights & Trademarks ] 7
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect
the unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from
the unit, wait 10 seconds, replace the battery and then turn it on again.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating this unit.
Operating Temperature
The SIRIUS Sportster is designed to operate between -20° to +85° C (-4° to +185° F). Avoid
leaving the unit in a vehicle or elsewhere where the temperature may fall outside this range.
Extreme temperatures or extreme temperature fluctuations can degrade the performance of
the LCD display screen, and possibly damage it.
Cleaning and Maintenance
If the SIRIUS Sportster becomes dirty, turn the power off and wipe it clean with a soft cloth.
Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents
to clean. These may cause damage to the unit.
•
•
•
•
•
Copyrights & Trademarks
© 2006 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS
Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo
are registered trademarks of the National Football League. “NHL” and the NHL Shield are
registered trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are
registered trademarks of NBA Properties Inc. All other trademarks, service marks, sports team
names, album art, and logos are the property of their respective owners. All Rights Reserved.
™ “Sportster” is a trademark of SIRIUS Satellite Radio.
Portions of the software on this receiver are licensed under the eCos License. Distribution of
eCos requires that the eCos source code be made available to Sirius Satellite Radio custom-
ers. The eCos License and eCos source code are available to the public at http://www.sirius.
com/ecoslicense.
Sirius Satellite Radio reserves all rights to all receiver software not covered under the eCos
license. This includes all portions of receiver software that were not distributed to Sirius as
part of the eCos operating system.
Hardware, subscription and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.
[ Package Contents ]
8[ Controls ] 9
Package Contents
The following items are included with your purchase of the SIRIUS Sportster SP4 receiver:
Unpack your SIRIUS Sportster receiver carefully and make sure that everything shown is pres-
ent. If anything is missing or damaged, or if your SIRIUS Sportster receiver fails to operate,
notify your dealer immediately. It is recommended that you retain the original carton and pack-
ing materials in case you need to ship your receiver in the future.
Sportster SP4 ReceiverSportster SP4 Receiver Remote
Control
Remote
Control
Controls

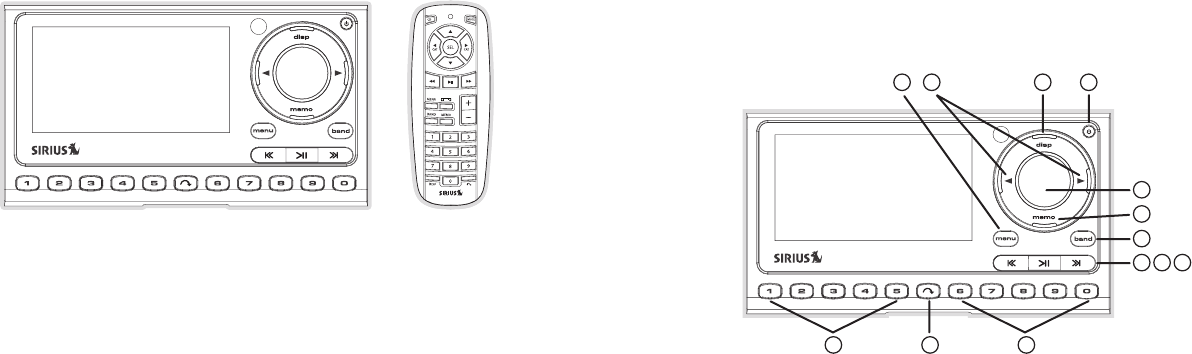

SIRIUS Sportster Reference Guide

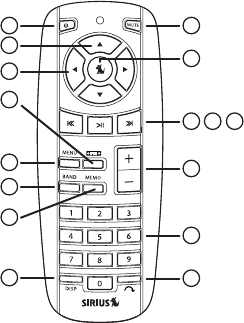

Figure 1 and the section following identify and describe the buttons and controls of the
SIRIUS Sportster.
4
6
8 9
10
3
11 12 11
1 2
7
5
Menu Button: Used to access the Menu Options to make setup and feature changes.
Pressing and holding the MENU button accesses the FM Transmitter setup menu to
change the frequency of the FM transmitter.
1.
Figure 1Figure 1
[ Controls ]
10
[ Controls ] 11
Category Buttons: Navigates through the category list screens which displays the
SIRIUS channel categories.
Display (DISP) Button: Changes text size of artist names and song titles on the display
screen. In list mode, it toggles between channel name, artist name and song title. Press-
ing and holding this button enters the channel list mode, or will exit a list mode.
Power Button: Turns the receiver On and Off.
Rotary Knob & Select Button: Navigates through display screens and makes selections
of items highlighted on the display screen. Rotating clockwise increases the channel
number (down the list), and moves down when in a menu list. Rotating counterclockwise
decreases the channel number (up the list), and moves up in when in a menu list. Press-
ing the Rotary Knob selects a highlighted item.
Memory (MEMO) Button (S-Seek Function): Pressing and releasing this button saves
artist names and song titles. You can store up to 30 artist/song title combinations,
including favorite teams and traffic channels. Pressing and holding the MEMO button will
enter the recall mode, displaying the stored artist/song titles.
Band Button (P.Tune): Pressing and releasing this button switches between the preset
banks A, B, and C, which hold 10 presets each for a total of 30. Pressing and holding
this button enables the Preset Tune Mode, which allows for viewing and browsing of
stored presets with turn of the Rotary Knob.
Rewind Button: Used to rewind through content saved to Instant Replay. Pressing and
releasing this button rewinds to the beginning of the song or program. Pressing and
holding rewinds by time through the saved content.
Play/Pause Button: Pauses and replays live or time-shifted content from the currently
tuned channel. Pressing and holding this button displays a list of songs in the saved
content.
Fast Forward Button: Used to fast forward through Instant Replay saved content.
Pressing and releasing this button fast-forwards to the beginning of the next song or
program. Pressing and holding fast-forwards by time through the saved content.
Preset Number Buttons (0–9): Sets and selects preset channels.
Jump Button: Jumps to a preset favorite channel. Pressing the button again returns
back to the original channel.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Remote Control Reference Guide
Figure 2 and the section following identify the buttons of the remote control.
91
8
3
5
4
6
7
2
11 12 13
14
15
16
10
Power Button: Turns the receiver On and Off.
Channel Buttons: Navigates through channels and display screens.
Category Buttons: Navigates through categories and display screens.
FM Frequency Button: Accesses the FM Transmitter menu to change the frequency of
the FM transmitter.
1.
2.
3.
4.
Figure 2Figure 2
[ Controls ]
12 [ Getting Started ] 13
MENU Button: Used to access the Menu Options to make setup and feature changes.
Pressing and holding the MENU button accesses the FM Transmitter setup menu to
change the frequency of the FM transmitter.
BAND Button: Pressing and releasing this button switches between the preset banks A,
B, and C, which hold 10 presets each for a total of 30. Pressing and holding this button
enables the Preset Tune Mode, which allows for viewing and browsing of stored presets.
Memory (MEMO) Button (S-Seek Function): Pressing and releasing this button saves
artist names and song titles. You can store up to 30 artist/song title combinations.
Pressing and holding will enter the recall mode, displaying the stored artist/song titles.
Display (DISP) Button: Changes text size of artist names and song titles on the display
screen. In list mode, it toggles between channel name, artist name and song title. Press-
ing and holding the this button enters the channel list mode, or will exit a list mode.
Mute Button: Mutes the audio of the receiver.
SELECT Button: Selects items highlighted in a list; hold-down to jump to the previously-
received channel. When not in a menu or list, pressing the SELECT button selects the
channel entered using the number buttons.
Rewind Button: Used to rewind through content saved to Instant Replay. Pressing and
releasing this button rewinds to the beginning of the song or program. Pressing and
holding rewinds by time through the saved content.
Play/Pause Button: Pauses and replays live or time-shifted content from the currently
tuned channel. Pressing and holding this button displays a list of songs in the saved
content.
Fast Forward Button: Used to fast forward through Instant Replay saved content.
Pressing and releasing this button fast-forwards to the beginning of the next song or
program. Pressing and holding fast-forwards by time through the saved content.
VOL+/ VOL– Buttons: Increases or decreases the audio volume.
Number Buttons (0–9): Selects channels directly and selects presets.
Jump Button: Jumps to a preset favorite channel. Pressing the button again returns
back to the original channel.
Remote Control Battery Installation
To install the remote control battery, turn the remote control over and locate the battery cover
near the bottom edge. Open the battery compartment and place the battery in the compart-
ment with the + side of the battery facing up. Replace the battery cover on the remote control.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Getting Started
SIRIUS suggests professional installation of this product in your vehicle. Professional instal-
lation provides an experienced technician to install this product in your vehicle, advice for
selecting a suitable mounting location, installation of the antenna, and routing all the neces-
sary wires and cables. If the FM reception within your vehicle proves to be poor, an installer
will have the necessary accessories to install an optional FM relay switch, or an audio cable
to connect the audio output of the SIRIUS Sportster directly to your vehicle’s audio system.
Ask your SIRIUS retailer if they provide professional installation services, or can recommend a
professional installation service.
Selecting an FM Frequency
To listen to the audio from the SIRIUS Sportster, you will need to tune the FM radio in your
vehicle or home and the FM transmitter in the SIRIUS Sportster to the same FM frequency.
The FM transmitter in the SIRIUS Sportster defaults to 88.1 MHz, so you can begin by tuning
your vehicle or home FM radio to 88.1 MHz. If there is an FM station broadcasting on that
frequency, you will have to search for a different FM frequency to use, and then change the
FM frequency that the SIRIUS Sportster will use to transmit.
The FM transmitter frequency of the SIRIUS Sportster may be changed using the Menu
Options, or by pressing and holding the MENU button to access the FM Transmitter menu
option. Details for changing the FM frequency are found in the FM Transmitter section.
Subscribing to the SIRIUS Service
Before you can listen to the SIRIUS service, you need to subscribe to the SIRIUS Satellite
Radio service. To subscribe, do the following:
Be sure that the SIRIUS Sportster is correctly installed, is in the vehicle or home dock,
and that the antenna is oriented to receive the SIRIUS signal.
1.
[ Getting Started ]
14 [ Operation ] 15
Turn on the SIRIUS Sportster. After the startup sequence, it will update the SIRIUS
channel line-up. Wait until the channel updates have completed before pressing any
buttons.
Once the channels have been updated, the display will change to
Call 1-888-539-SIRIUS to Subscribe and will tune to channel 184. You will not be able
to listen to other channels until you activate your SIRIUS subscription.

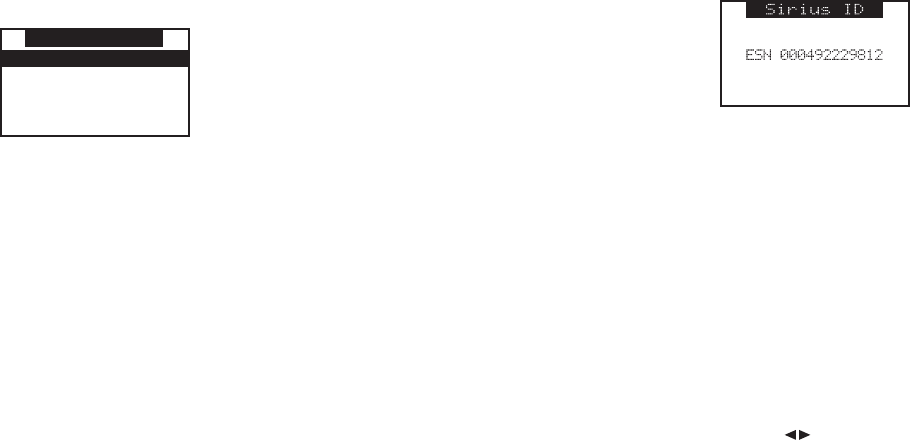

Use the Rotary Dial to tune to channel 0 to display the SIRIUS Sportster’s unique 12-
digit SIRIUS ID Number (SID). (Figure 1) You can also tune to channel 0 by using the
remote control: Press the Select button, then the 0 (zero) button, and then the Select
button again. The SID number is also available on the SIRIUS Sportster’s packaging,
and may also be accessed by pressing the MENU button and selecting Sirius ID. Write
the SID number down in the space provided near the end of this guide.
Have your credit card handy and contact SIRIUS on the Internet at:
https://activate.siriusradio.com/
and follow the prompts to activate your subscription. You can also call SIRIUS toll-free
at: 1-888-539-SIRIUS (1-888-539-7474).
When you have successfully subscribed to the SIRIUS service, and the SIRIUS Sport-
ster has been updated with your subscription information, an alert will be displayed. To
continue, press the Rotary Dial.
You are now ready to begin enjoying SIRIUS Satellite Radio’s digital entertainment, and can
tune to other channels!
2.
3.
4.
5.
6.
Operation
Display Screen Information
The display screen of the SIRIUS Sportster provides information about the operation of the
receiver, such as the currently tuned channel, song or show being played, artist name, time
and other information. This screen is referred to as the Default display screen in this manual.
Figure 1 identifies the information displayed when listening to a typical broadcast.
Figure 1Figure 1
[ Operation ]
16
[ Operation ] 17
Navigating Menus and Lists
The menu and list structures in the SIRIUS Sportster are navigated by turning the Rotary
Knob to scroll through a menu or list to highlight your choice, and then pressing the Rotary
Knob to select the choice. When using the remote control, menus and lists are navigated by
pressing the Channel buttons, and then pressing the Select button to select the choice.
Display (DISP) Button
Pressing and releasing the DISP button from the Default display screen toggles between the
artist name/song title and large character displayed text. (Figure 2) The large character format
will change the character size and cause the field to scroll from right to left. This feature is
useful when viewing the display screen from a distance. Note that the displayed text will scroll
only if the length of the artist or title cannot be viewed in its entirety.
Pressing and holding the DISP button will enter the channel list mode and display the channel
names, and allow you to scroll through the channels and select another channel if desired.
(Figure 4) If the DISP button is pressed again while in the channel list mode, the display will
list the song titles/show names for each channel. Pressing the DISP button yet again will
display the artist names for each channel. To exit the channel list mode, press and hold the
DISP button.
Figure 2Figure 2
Search Modes (Category, Channel, Artist, Song Title)
The SIRIUS Sportster receiver has four ways to search for and select music: by category, by
channel, by artist, and by song title. Each search method is discussed in the sections which
follow.
Searching Categories
If you want to browse different entertainment categories, push either Category button to
activate the category search screen. (Figure 3)
Use the Category buttons to scroll through the music and entertainment categories.
When the category you want is displayed (for example, Rock), use the Rotary Knob to
browse the available channels within the category. Pressing the DISP button while in the
category search mode will change between Channel Name, Artist Name, and Song Title
to enable you to preview what is playing on other channels before making a selection.
When the channel you want is highlighted, press the Rotary Knob. The channel will be
selected and the display will revert to the Default screen for the selected channel.
To exit the category mode without changing to a new channel, press and hold the DISP
button for one second.
Searching Channels (Channel List Mode)
It is possible to search for a different channel while listening to your current channel. Be sure
that the display shows the Default display screen prior to the following steps:
Press and hold the DISP button for two seconds to activate the channel list mode. The
channel list screen be displayed, showing all available channels regardless of category.
1.
2.
3.
4.
1.
Figure 3Figure 3
[ Operation ]
18
[ Operation ] 19
Direct Tuning
Channels can be directly accessed by pressing and releasing the Rotary Knob and then
using the 0–9 keys to enter the desired channel number. (Figure 5) Once the desired number
has been entered, the channel will change and the display will revert to the default screen
for the selected channel. The receiver will tune the channel immediately if three numbers are
entered (for example, “0”, ”0”, “7”), but if just one or two digits are entered, the receiver will
tune to the new channel after three seconds.
Enter Channel #
Channel Presets
Channel presets allow you to store up to 30 of your favorite channels as presets for quick
access with the press of a button.
Setting Channel Presets
Presets are stored in three banks, A, B, and C, each containing 10 channel presets.
Press the BAND button to activate the preset bank you want. The selected bank is
shown in the lower right corner of the Default display screen.
Select the channel you want to preset.
Press and hold for two seconds the numbered preset button (0–9) in which you want to
store the channel.
The selected preset number will flash and then remain lit on the display to show that it
has been memorized.
1.
2.
3.
4.
Figure 5Figure 5
Pressing the DISP button while in the channel list mode will change between channel

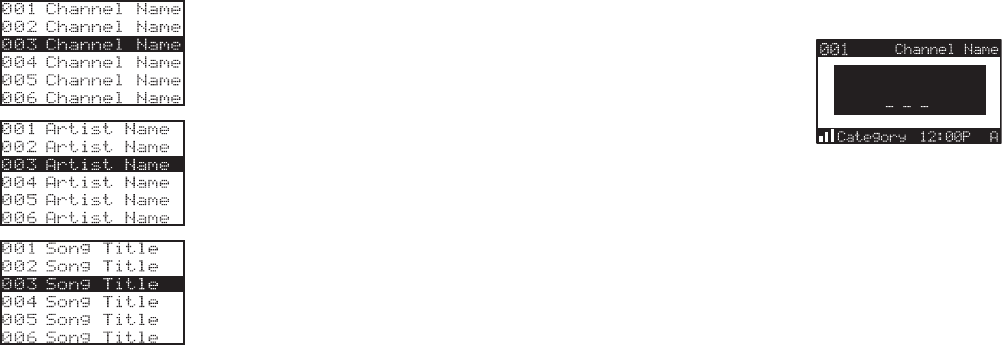

name, artist name, and song title. (Figure 4) You can use this feature to search for a
specific artist, song, or show that may be playing at the time.
Turn the Rotary Knob to locate the channel you want.
Press and release the Rotary Knob to select the channel. To exit the channel list mode
without changing to a new channel, press and hold the DISP button for one second.
Note: If you are in the channel list mode and viewing a sports category channel list (NFL®
Zone, NHL® Zone, NBA® Zone), pressing the DISP button will toggle between the team
names and the current score of any live play-by-play game.
2.
3.

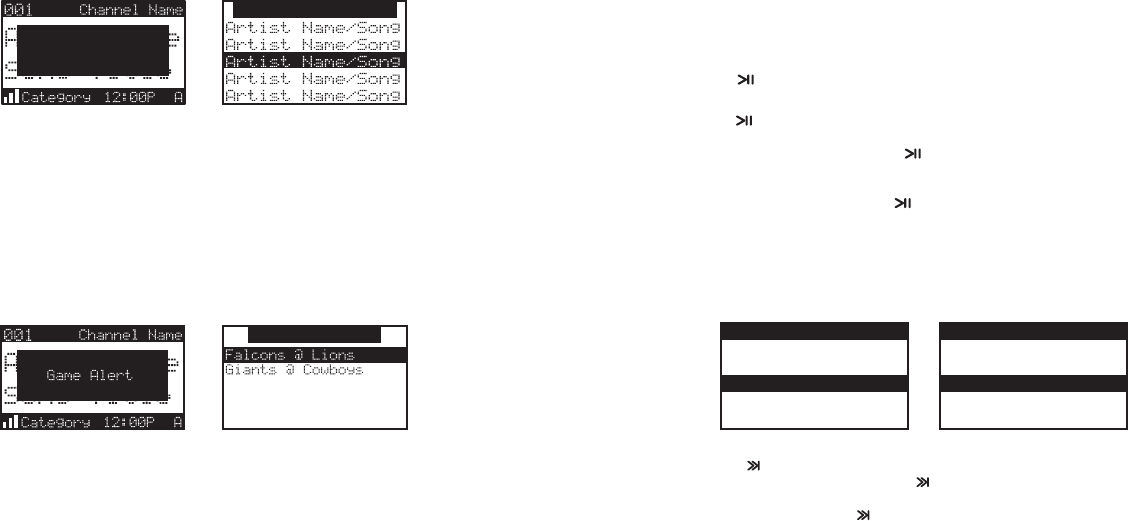

Figure 4Figure 4
Press and hold the DISP button
to enter the channel list mode
Press the DISP button again to
display the artist’s names
Press the DISP button again to
display the song titles
Press the DISP button again to
return to the channel list
[ Operation ]
20
[ Operation ] 21
If the preset button you selected already has a channel stored in it, the preset will be replaced
with the newly stored channel.
Recalling Channel Presets
The 10 presets in the active bank (A, B, or C) can be selected by pressing the 0 through 9
buttons.
Press the BAND button to activate the preset bank you want. The selected bank is
shown in the lower right corner of the default display screen.
Press the desired preset button 0–9 to recall the preset. The channel will change and
the display will revert to the default display screen for the new channel, with the preset
shown in the lower right corner.
Jump Button
The SIRIUS Sportster receiver features a special button called Jump . This button can be
programmed to jump to a channel which is accessed frequently and temporarily such as traf-
fic, weather, news, or sports. This button allows you to quickly tune to a specific channel and
then tune back to the original channel by pressing the button again. (Figure 6)
Refer to the Jump Settings section in the Menu Options section for information on configur-
ing the Jump button.

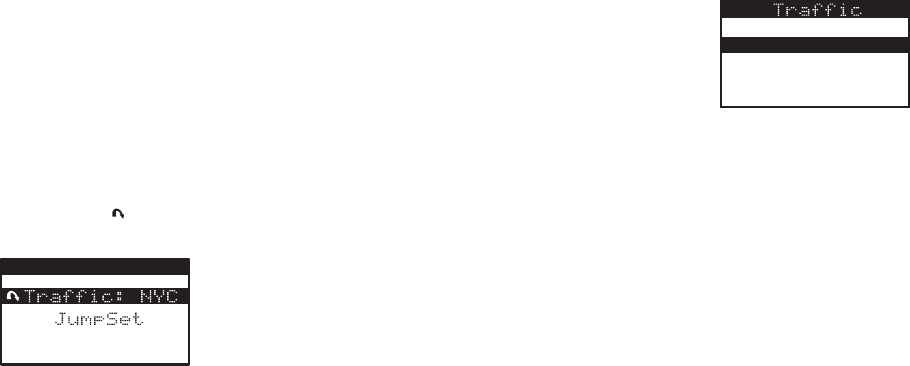

NYC Traffic
If the jump button is set to Traffic, pressing the Jump button will take you to your stored
traffic channel. If your traffic report is not immediately available, the band indicator on the
display will change to the jump icon to indicate a jump is active. Once your local traffic report
is ready, the receiver will automatically tune to your stored traffic channel. You may have to
1.
2.
Figure 6Figure 6
wait a few minutes for your desired report.
Pressing the Jump button while the receiver is searching will cancel the search. Pressing
the Jump button after the receiver has tuned to your traffic report will return to the channel
to which you had been listening immediately prior to pressing the Jump button.
If the jump button is set to JumpSet, pressing the Jump button will immediately tune to the
programmed channel. Pressing the Jump button again will return to the channel to which
you had been listening immediately prior to pressing the Jump button.
Note: The jump button setting remains the same regardless of which preset bank is currently
selected.
Channel Presets (P.TUNE Mode)
Searching for a Channel Preset
It is possible to quickly search through all of your presets using the Rotary Knob:
Press and hold the BAND button to enter the preset tune mode (P.TUNE).
The bottom right portion of the display will change to highlight the current preset num-
ber. (Figure 7)
Turn the Rotary Knob in either direction to move through the presets. The selected
preset channel will begin to play as soon as you stop turning the Rotary Knob.
Only stored presets will be displayed, regardless of what bank they are stored in. Presets will
be grouped and displayed by preset bank and number (for example, A-1, A-2...B-1, B-2...C-
1,C-2...) and rotate through all the presets and return back to the beginning preset.
To exit the preset tune mode and return to Default display screen, press and hold the BAND
button.
1.
2.
3.
Figure 7Figure 7
[ Operation ]
22
[ Operation ] 23
Preset Tune List Mode
While in the preset tune mode, you can view your list of presets showing channel name, artist
name, or song title, just like in the channel list mode:
Press and hold the BAND button to enter the preset tune mode (P.TUNE).
Press the DISP button for two seconds which will bring up the preset tune mode dis-
playing up to 6 preset channel names.
Pressing the DISP button again while in this mode will change between channel name,
artist name, and song title list modes. (Figure 8) The name field will scroll only if the
length of the artist name or song title cannot be viewed in its entirety.
Use the Rotary Knob to select the desired preset.
Press and release the Rotary Knob to select the preset. The channel will change and
the display will revert to the P.TUNE display screen.
A-1 Channel Name
A-2 Channel Name
A-3 Channel Name
A-4 Channel Name
A-5 Channel Name
A-6 Channel Name
A-1 Artist Name
A-2 Artist Name
A-3 Artist Name
A-4 Artist Name
A-5 Artist Name
A-6 Artist Name
A-1 Song Title
A-2 Song Title
A-3 Song Title
A-4 Song Title
A-5 Song Title
A-6 Song Title
1.
2.
3.
4.
5.
Figure 8Figure 8
Memory (MEMO) and Song Seek (S-Seek) Functions
This feature allows you to capture and store information about the programming (artist, song,
sports team, or traffic city) on the currently tuned channel, up to a total of 30 items. The
receiver then continuously searches all the SIRIUS channels and alerts you when a match to
a saved program is being played. When a sports team (or teams) are stored in memory, at the
time the receiver is initially powered on, you will be alerted when the sports teams are playing
in a game being broadcast. Also, while listening to your SIRIUS receiver, should one of the
teams begin to play a game, you will be alerted.
Storing Artist Names, Song Titles, and Sports Teams to Memory
If you are listening to a song or other entertainment channel, or a sports team, and wish to
save the artist, song, or sports team selection to memory for future S-Seek alerts, do the fol-
lowing:
For Artist Names or Song Titles: If the currently tuned channel is a music or entertain-
ment channel, momentarily press and release the MEMO button. The receiver will display a
menu to choose to store the artist name or the song title. (Figure 9)
Store Artist?
Store Song?
If either the artist name or song title is not available to save, the choice will be displayed
as unavailable. (Figure 10)
Figure 9Figure 9
Press and hold the DISP button to
enter the preset tune mode
Press the DISP button again to
display the artist’s names
Press the DISP button again to
display the song titles
Press the DISP button again to
display the channel names
[ Operation ]
24
[ Operation ] 25
Store Artist?
Song Unavailable
Artist Unavailable
Store Song?
Turn the Rotary Knob to highlight Store Artist or Store Song (when available) and press
the Rotary Knob to save the current selection to memory.
If both the artist and song are available to save, you will be prompted again to save which-
ever one you haven’t yet saved, song title or artist name. If you do not wish to save, press
the MEMO button to exit. (Figure 11)
Artist Stored
Store Song?
Store Artist?
Song Stored
For Sports Games: If the current tuned channel is an NFL, NBA, NHL, or College play-by-
play sports broadcast, momentarily press and release the MEMO button. The receiver will
display a menu to choose which sports team should be saved to memory. (Figure 12)
Store NYG?
Store DAL?
Figure 10Figure 10
Figure 11Figure 11
Figure 12Figure 12
If either of the teams is not available to save, that team will be displayed as unavailable.
(Figure 13)
Store NYG?
Team2 Unavailable
Turn the Rotary Knob to highlight the desired sports team (when available) and press the
Rotary Knob to save the current selection to memory. The next screen will ask which kind
of alert you wish to have. (Figure 14)
Initial Game Alert
All Score Updates
Alert Type
Initial Game Alert will provide an alert when the team you have chosen is playing a game.
All Score Updates will provide an alert when the team you have chosen is playing a game,
and also when the scores are updated for the team.
Turn the Rotary Knob to highlight the desired alert and press the Rotary Knob to save the
selection to memory. (Figure 15)
If both teams are available to save, you will be prompted again to save the other team.
(Figure 15) If you wish to save the team, follow the same procedure as when saving the
first team. If you do not wish to save, press the MEMO button to exit.
Figure 13Figure 13
Figure 14Figure 14
[ Operation ]
26
[ Operation ] 27
Store DAL?
NYG Stored
Store NYG?
DAL Stored
The receiver will then revert to the last active display mode.
If the new alert was successfully stored in memory, an Artist/Song/Game Stored pop-up
screen followed by an X Used/Y Empty screen will be displayed for one and two seconds
respectively. X is the total number of listings stored in memory, and Y is the total number of
memory listings still available for storage. (Figure 16)
Artist Stored X Used/Y Empty
If the MEMO button is pressed, and all of the memory spaces are full, an Memory Full screen
will be displayed for one second. (Figure 17)
Memory Full
Figure 15Figure 15
Figure 16Figure 16
Figure 17Figure 17
A Replace–Cancel screen will then be displayed which will allow you to choose whether to re-
place an existing alert stored in memory, or to cancel storing the alert to memory. (Figure 18)
Replace
Cancel
Turn the Rotary Knob to select whether to replace an existing alert or cancel saving the alert
to memory. If you choose to cancel saving the alert, the receiver will revert to the last active
display mode. If you have chosen to replace an existing alert, a listing of all the alerts stored in
memory will be displayed. (Figure 19)
Artist Name/Song Title
Artist Name
Sports Team
Artist Name/Song Title
Sports Team
Replace X/Y
Turn the Rotary Knob to highlight the alert that you would like to replace and press the
Rotary Knob to store the new alert. If the new alert was successfully stored in memory, a
Artist/Song/Game Stored pop-up screen followed by an X Used/Y Empty screen will be
displayed for one and two seconds respectively. (Figure 17) X is the total number of listings
stored in memory, and Y is the total number of memory listings still available for storage. The
receiver will revert to the last active display mode.
Viewing Program Information stored in Memory
To view the program information stored in memory:
Press and hold the MEMO button for three seconds to enter the S-Seek mode. The
program information stored in memory will be displayed in one-at-a-time page format.
1.
Figure 18Figure 18
Figure 19Figure 19
[ Operation ]
28
[ Operation ] 29
Use the Rotary Knob to scroll through the listings. This function allows you to review
previously stored program information. The information will be displayed as sports
league or college/team name or artist name/song title. (Figure 20)
Memory 1/30 Memory 1/30
Artist Name
Song Title
League/College
Team
Deleting a Song Title Stored in Memory
To delete a song title stored in memory:
Press and release the Rotary Knob while in S-Seek mode. A pop-up screen displaying
three selectable options, Seek On, Seek Off and Delete will be displayed. (Figure 21)
Seek On
Seek Off
Delete
Memory Recall
Turn the Rotary Knob to highlight the Delete option.
Press the Rotary Knob and a Delete confirmation screen will appear. (Figure 22)
Yes
No
Delete
2.
1.
2.
3.
Figure 20Figure 20
Figure 21Figure 21
Figure 22Figure 22
To permanently delete the program from your list, highlight Yes using the Rotary Knob
and press the Rotary Knob to confirm.
A Deleted popup screen followed by an X Used/Y Empty screen will be displayed for
one and two seconds respectively. X is the total number of listings stored in memory,
and Y is the total number of memory listings still available for storage. The receiver will
revert to the last active display mode.
Activating the Song (S-Seek) Alert
When S-Seek alerts are enabled, whenever the SIRIUS Sportster receiver is turned on, it au-
tomatically searches the channels to determine if a match exists with the program information
stored in receiver’s memory. If one or more matches are found, a pop-up screen momentarily
appears for two seconds which displays S-Seek Alert and an audible beep tone will be heard
indicating that a match was found. The display then changes to the S-Seek Alert screen
which displays the current matches. You can select the artist/song, title, or sports game that
you wish to listen to. (No stored match alert is provided for the currently tuned channel.) To
ensure that no duplicate entries are stored in memory, the receiver will check the stored data
to ensure the information about to be stored is not already in memory.
To turn on S-Seek alerts:
Press and hold the MEMO button for three seconds to enter the S-Seek mode.
Press and release the Rotary Knob. A pop-up screen displaying three selectable op-
tions, Seek On, Seek Off and Delete , are displayed. (Figure 23)
Seek On
Seek Off
Delete
Memory Recall
Use the Rotary Knob to highlight the Seek On option.
Press and release the Rotary Knob to turn on S-Seek.
When the S-Seek option is on, when ever the receiver is turned on, it automatically searches
the incoming channels to determine if a match exists with the program information stored in
the S-Seek memory. If one or more S-Seek matches are found, a list appears. (Figure 24) You
4.
5.
1.
2.
3.
4.
Figure 23Figure 23
[ Operation ]
30
[ Operation ] 31
can scroll through the list and select a program using the Rotary Knob. Your selection will be
tuned and the display will revert to the last active display screen.
SIRIUS SEEK LIST
Artist Alert
If a selection is not made within 10 seconds, the screen will revert to the last active display
screen and tuning mode.
Game Alert
The SIRIUS Sportster receiver can automatically identify when your favorite team is playing.
When a game is found, Game Alert is displayed and the My Game Zone screen is displayed
listing the sports games which are currently being played. (Figure 25) Use the Rotary Knob to
select and tune to the desired game.
MY GAME ZONE
Refer to the Game Alert section in the Menu Options section for information on setting your
favorite sports team. You can also use the S-Seek feature to add game alerts for additional
teams. Refer to the Storing Artist Names, Song Titles, and Sports Teams to Memory section
within the Memory (MEMO) and Song Seek (S-Seek) Functions section for more informa-
tion.
Figure 24Figure 24
Figure 25 Figure 25
Instant Replay
The SIRIUS Sportster receiver is capable of storing the audio of the channel to which you
are listening for later playback, approximately up to 44 minutes depending upon the channel
to which you are tuned. As soon as you tune to a channel, the receiver automatically begins
storing the audio, enabling you to rewind at any time to replay the audio again. If you are
unable to continue listening to a channel, but do not want to miss the broadcast, pressing
the Play/Pause button will cause the receiver to mute the audio and mark the point in the
broadcast so you can resume listening at a later time.
Pause/Play button. When pressed, this places the receiver in the Instant Replay
pause mode which mutes the audio.
Pressing and releasing the Play/Pause button again causes the receiver to begin play-
ing the stored audio from the point at which the receiver was paused. During playback, the
receiver will continue to store the live channel audio.
Pressing and holding the Play/Pause button changes the display to a listing of the
artist’s names in the stored audio, from the most recent to the oldest, beginning with an
entry called “Live”. Pressing the DISP button will toggle the display between the artist
name list and the song/program title list. (Figure 26) Use the Rotary Knob to highlight a
song to play and press the Rotary Knob to select. Live may be chosen which will exit the
Instant Replay mode, and the receiver will resume playing the live broadcast.
Playlist
<<LIVE>>
Artist
Artist
Artist
Artist
Playlist
<<LIVE>>
Title
TitleArtist
Title
Title
Fast Forward button. This fast forwards you through the stored audio.
Pressing and releasing the Fast-Forward button forwards to the start of the next song
or program in the stored audio and playback automatically begins. Repeatedly pressing
and releasing the Fast-Forward button causes the receiver to continue to move forward
in the stored audio to the start of each next song or program until the end of the stored
•
•
Figure 26Figure 26
[ Operation ]
32
[ Operation ] 33
audio is reached. When the end of the stored audio is reached, a beep will be heard (if
the Confirmation Tone option is enabled), the Instant Replay mode will be exited, and the
receiver will resume playing the live broadcast.
Pressing and holding the Fast-Forward button for one second advances the playback
forward in 10 second intervals, which increases to 15 and then 30 second intervals
the longer the Fast-Forward button remains pressed. Playback begins immediately
when the button is released. When the end of the stored audio is reached, a beep will be
heard, the Instant Replay mode will be exited, and the receiver will resume playing the live
broadcast.
Rewind button. This rewinds (moves you backwards) through the stored audio.
Pressing and releasing the Rewind button rewinds to the start of the current song or
program in the stored audio, and playback automatically begins. Repeatedly pressing and
releasing the Rewind button causes the receiver to continue to move backwards in
the stored audio to the start of each previous song or program until the beginning of the
stored audio is reached. If the beginning of the stored audio is reached, a beep will be
heard (if the Confirmation Tone option is enabled) and playback will automatically begin.
Note: Depending upon where in a particular broadcast the channel was selected, the start
of a song or program may not be available in memory. If this occurs, the playback will start
from where the audio began to be stored.
Pressing and holding the Rewind button for one second rewinds playback in 10 sec-
ond intervals, which increase to 15 and then 30 second intervals the longer the Rewind
button remains pressed. Playback begins immediately when the button is released. If
the beginning of the stored audio is reached while rewinding, a beep will be heard and
playback will automatically begin.
Note: When the receiver is tuned to another channel, all audio stored in the Instant Replay
memory is erased and the tuned channel begins to play. Tuning to another channel may auto-
matically occur if another feature of the receiver has been programmed to do so.

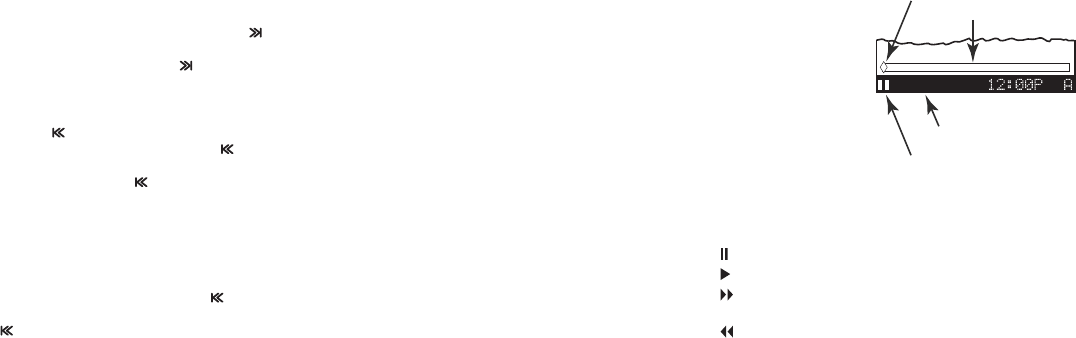

Progress Bar. While playing from Instant Replay memory, status information is shown at
the bottom of the receiver’s display screen. (Figure 27)
•
•
-0:00:01
Progress Bar
Play Position Indicator
Instant Replay Mode
Instant Replay Time Position
The Instant Replay mode icon that is displayed at the bottom left of the screen indicates the
current mode.
Pause mode. This indicates that the receiver is paused and muted.
Play mode. This indicates that you are in the playback mode, listening to stored audio.
Fast Forward mode. This indicates that you are fast forwarding through the stored
audio.
Rewind mode. This indicates that you are rewinding, or moving backwards, through the
stored audio.
The Progress Bar is a visual indicator of the status of the Instant Replay memory. (Figure 28)
As the memory fills, the Progress Bar begins to fill from the left side providing a visual indica-
tion of how much of the Instant Replay memory is filled. The end of the bar indicates the end
of the stored audio, where the live broadcast begins. When all available memory has been
used, the bar will be completely filled.
Figure 27Figure 27
[ Operation ]
34
[ Operation ] 35
-0:16:05
Progress Bar Showing
Amount of Memory Filled
End of Stored Audio
Beginning of Live Broadcast

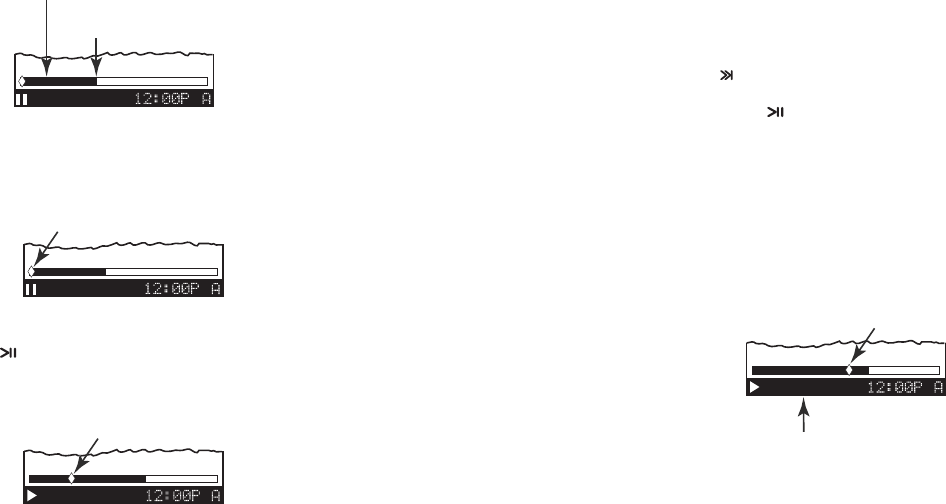

A diamond-shaped Play Position indicator is superimposed over the Progress Bar which pro-
vides a visual indicator of the current playback position in the Instant Replay memory. (Figure
29)
-0:16:05
Play Position Indicator
The Play Position indicator shows your current listening position in the stored audio. When
you press the Play/Pause button to begin playback of the stored audio, this indicator will
begin to move to the right showing the progression of the playback through the Instant Replay
memory, provided that the memory is not full. (Figure 30)
-0:16:05
Play Position Indicator
Figure 28Figure 28
Figure 29Figure 29
Figure 30Figure 30
The portion of the Progress Bar behind the Play Position indicator shows how much you can
rewind in the Instant Replay memory, while the filled portion ahead of the Play Position indica-
tor shows how much you can fast-forward in the memory.
While you are in the playback mode, the receiver continues to store the audio from the chan-
nel. Obviously, you will be unable to “catch up” to the live broadcast during playback, as new
audio is being stored at the same rate at which you are playing back the stored audio. You
can use the Fast-Forward button to skip ahead or exit the Instant Replay mode, and begin
listening to the live broadcast again.
Should you press the Play/Pause button to pause the playback, the play position indicator
will stop moving and continue to provide a visual indication of your current position in the
Instant Replay memory.
When paused, and the Instant Replay memory is 10 seconds from becoming full, two beeps
will be heard (if the confirmation tone option is enabled). When the memory is full, the receiver
will automatically begin playback, and will continue to store the channel audio, overwriting the
oldest portion of the audio previously stored.
The Instant Replay Time Position provides the exact amount of time the Play Position indicator
is behind the live broadcast, expressed as Hours:Minutes:Seconds, and displayed as a nega-
tive number. (Figure 31)
-0:02:40
Time Position of
Play Position Indicator
Play Position Indicator
For example, if -02:40 is displayed, this would indicate that the Play Position indicator is 2
minutes and 40 seconds behind the live broadcast.
Figure 31Figure 31
[ Menu Options ]
36
[ Menu Options ] 37
Menu Options
Menu options allows you to set and/or change the various features and settings of the SIRIUS
Sportster. To enter the menu options, press and release the MENU button. The Menu Options
screen will be displayed. (Figure 1)
Menu Options
Sirius ID
FM Transmitter
Game Alert
Settings
Time Based Features
The menu options are navigated by turning the Rotary Knob to highlight a selection in the
menu list and then press in the Rotary Knob to select the highlighted menu option. To exit a
menu, press the MENU button.
The following selections (shown in bold text) are available from the Menu Options screen, and
allow you to change the parameters for the items listed under the heading:
Sirius ID Time Based Features
FM Transmitter Clock
Game Alert Alarm
Settings Program Alert
Jump Settings Auto Shutdown
Display Options Sleep Mode
Memory Options Signal Indicator
Audio Level Factory Default
Confirmation Tone
Parental Control
Each of these menu options are explained in the sections which follow. Note that if a selection
is not made within 10 seconds, the receiver will exit the Menu Options screen and revert back
to the Default display screen.
Figure 1Figure 1
Sirius ID
This menu option displays your 12 digit SIRIUS ID (SID) number. (Figure 2) The SID is unique
to each SIRIUS Sportster receiver, and is required to activate your service. It is recommended
that you write this number in the space provided near the end of this user guide. No adjust-
ments are allowed in this mode. To exit, press the Rotary Knob or press the Menu button.
FM Transmitter Options
The FM Transmitter menu option allows you to enable or disable the receiver’s built-in FM
transmitter, and select an FM frequency.
Turning the FM Transmitter On/Off
To turn the FM transmitter on or off:
Select the FM Transmitter menu option.
Select the FM On/Off menu option.
Select On to enable the FM Transmitter, or Off to disable the FM transmitter.
Press the MENU button to return to the previous menu.
Selecting an FM Frequency
To select an FM frequency for the FM transmitter:
Select the FM Transmitter menu option.
Select the FM Frequency menu option.

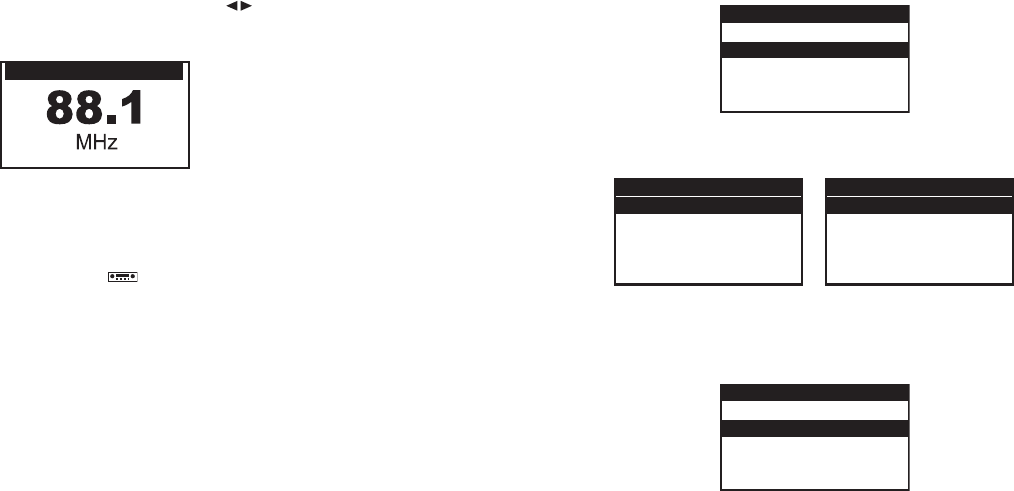

Use the Rotary Knob and Category buttons to adjust the FM frequency. The
1.
2.
3.
1.
2.
3.
Figure 2Figure 2
[ Menu Options ]
38
[ Menu Options ] 39
Rotary Knob adjusts in 0.1 MHz increments and the Category buttons adjust in 1
MHz increments. (Figure 3)
FM Frequency
Press the Rotary Knob to set the selected FM frequency.
To exit FM Transmitter, press the MENU button.
Note that the FM Frequency screen can be accessed directly by pressing and holding the
MENU button, or by pressing the FM Frequency button on the remote control.
Game Alert
Game Alert allows you to store your favorite sports teams in memory. The SIRIUS Sportster
receiver will constantly scan the channels and will sound an alert when a sports team you
stored in memory is playing a game, or when there is a score update for a team, depending
upon which option you have chosen for the sports team.
Sports teams which you have selected and are currently playing will be displayed in a cat-
egory called My Game Zone.
You may select one team from each sports league and the college category, however,
more teams may be chosen by using the MEMORY (MEMO) function. Refer to the Memory
(MEMO) and Song Seek (S-Seek) Functions section for more information to add additional
teams.
To choose teams to add to your stored game alerts:
Select Game Alert from the menu options.
Select the sports league or college category of the team you wish to add. (Figure 4)
4.
1.
2.
Figure 3Figure 3
NFL
NBA
NHL
College
Game Alert
Select the league team name or college team name you wish to add. (Figure 5)
None
Anaheim Mighty Ducks
Atlanta Thrashers
Boston Bruins
Buffalo Sabres
NHL COLLEGE
None
Alabama
Army
Auburn
Colorado
Note that for college teams, you will receive an alert for all teams playing for that col-
lege. There are 30 college teams currently licensed for broadcast by SIRIUS.
Select the type of alert you want for that team. (Figure 6)
Initial Game Alert
All Score Updates
Alert Type
Initial Game Alert: This option will sound an alert when the receiver is powered on and
the sports team is playing, and when the sports team begins playing a game.
All Score Updates: This option does the same but in addition sounds an alert when the
scores are updated for the sports team.
To exit the Game Alert menu, press the MENU button.
3.
4.
Figure 4Figure 4
Figure 5Figure 5
Figure 6Figure 6
[ Menu Options ]
40
[ Menu Options ] 41
Settings
The Settings menu allows you access the Jump Settings, Display Options, Memory Options,
Audio Level, Confirmation Tone, and Parental Control menu options, which are described in
the sections following.
Jump SettingS
You can access the Jump Settings menu by pressing and holding the Jump button for two
seconds or by pressing the MENU button to enter Menu Options, selecting Settings, and then
selecting Jump Settings.
There are two options available for jump button settings: Traffic and JumpSet. (Figure 7) The
currently selected option is indicated by the jump icon.
Jump Settings
Setting the Jump Button to Traffic
To set the jump button to jump to traffic reports:
Select the Traffic menu option. (Figure 8)
Select the city for which you would like to hear traffic reports. (Figure 7) (Use the MENU
button to exit this menu without changing your current city selection, if desired).
1.
2.
Figure 7Figure 7
NYC
LAX
BOS
ATL
CHI
Note: If the channel list has not yet been downloaded from the SIRIUS data stream, an Updat-
ing City List notification screen will be displayed. Wait 10 minutes and then try selecting a
city again.
Setting the Jump Button to a Channel
To set the jump button to any channel other than a traffic channel:
Select the JumpSet menu option. (Figure 7)
Press the MENU button to exit the menu options and return to the Default display
screen. The jump button can now be programmed by tuning to your desired channel
and pressing and holding the Jump button for two seconds, as described in the Setting
Channel Presets section.
DiSplay OptiOnS
The brightness and contrast of the receiver’s display screen may be adjusted. To adjust these
settings:
Select the Display Options menu option.
Select one of the following two options:
Brightness: You can set the brightness for the LCD backlight and keypad. Use the
Rotary Knob to adjust the brightness up or down. The bar graph at the bottom of the
display screen will move to indicate the change.
Contrast: This setting adjusts the relationship between the background and the text on
the LCD display screen. Use the Rotary Knob to adjust the contrast up or down. The
bar graph at the bottom of the display screen will move to indicate the change.

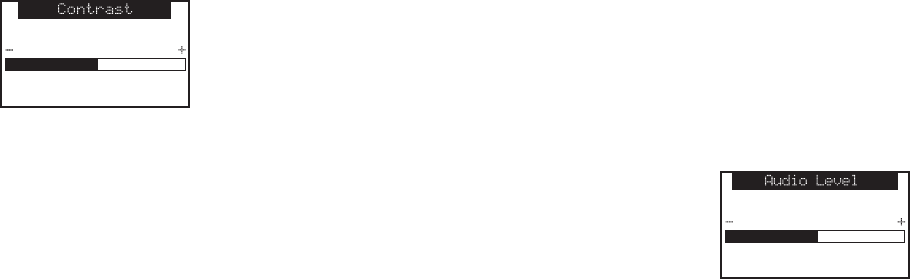

(Figure 9) Press the Rotary Knob to select the setting.
1.
2.
1.
2.
Figure 8Figure 8
[ Menu Options ]
42
[ Menu Options ] 43
To exit Display Options, press the MENU button.
COnfirm tOne
The SIRIUS Sportster receiver can sound an audio tone alert when the receiver powers On
and Off, as well as when an S-Seek Alert is activated. The default setting is On. To change
the tone options:
Select the Confirm Tone menu option.
Select On to enable the confirmation tone, or Off to disable the confirmation tone.
To exit Confirm Tone, press the MENU button.
memOry OptiOnS
Memory Options provides for turning the memory search function (S-Seek) On or Off. In addi-
tion, all 30 presets can be cleared.
To change the memory options:
Select the Memory Options menu option.
Select one of the following menu options:
Auto Memory Search: When this option is selected, you will be prompted to select On
or Off to turn the S-Seek function on or off.
Clear All Memory: Select this menu option to clear all presets. When selected, a Clear
All Memory confirmation screen will be displayed. Select Yes to clear all S-Seek presets
or No cancel.
To exit, press the MENU button.
1.
2.
1.
2.
Figure 9Figure 9
auDiO level
The audio output level of the SIRIUS Sportster receiver can be adjusted to fine tune the audio
level for best performance. This is important when using either the optional Home Docking
Station or the optional Mobile Docking Station. The audio level setting affects both the line
output and FM transmitter output audio levels.
To change the audio level:
Select the Audio Level menu option.
A horizontal bar graph is displayed with a – sign to the left and a + sign to the right.
(Figure 10) Use the Rotary Knob to adjust to the desired audio output level.
To select the new setting and exit, press the Rotary Knob.
1.
2.
3.
Figure 10Figure 10
[ Menu Options ]
44
[ Menu Options ] 45
parental COntrOl
The SIRIUS Sportster receiver has the ability to lock a channel (or channels) you do not want
others to access without your permission. Like the Skip channel feature, the locked channel
will not appear when browsing channels with the Rotary Knob. In addition, when the anyone
tries to access the locked channel using the Direct Tuning function, an Enter Code screen will
be displayed and the channel cannot be accessed until the correct code is entered.
Locking or Unlocking a Channel
To lock or unlock a channel:
Select the Lock Options menu option.
Select the Lock/Unlock menu option. (Figure 11) You will need to enter the lock code to
proceed. Refer to the following section for information on how to set the lock code.

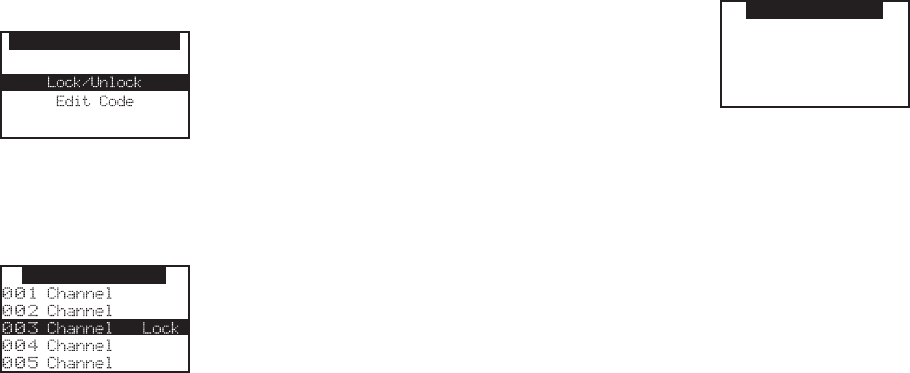

Parental Control
Select the channel you wish to lock or unlock from the channel list. (Figure 12) Pressing
the Rotary Knob will either add the text Lock next to the channel name to indicate that
the channel will be locked, or unlock a locked channel by removing the text Lock.
Lock / Unlock
1.
2.
3.
Figure 11Figure 11
Figure 12Figure 12
Changing the Lock/Unlock Code
The first time the Lock/Unlock menu is accessed, you must enter the default lock code. The
default lock code is 0000. This code can be kept or changed. To change the lock code:
Select the Lock Options menu option.
Select the Edit Code menu option.
Enter the default lock code (0000) or the current lock code if you have changed it from
the default code.
The Enter Code prompt will be displayed. (Figure 13) Enter your new four digit code
using the 0–9 number buttons. You will then be prompted to enter the new code again
to confirm.
Enter Code
# _ _ _ _
When the new lock code is confirmed, the lock code is changed.
Note: You can use this same method to edit the lock code again once it has been changed
from the default code.
1.
2.
3.
4.
5.
Figure 13Figure 13
[ Menu Options ]
46
[ Menu Options ] 47
Time-Based Features
The Time-Based Features menu allows you access the Clock, Alarm, Program Alert, Auto
Shutdown, and Sleep Mode menu options, which are described in the sections following.
ClOCk
The Clock menu option allows you to setup the clock shown on the Default display screen,
based on the format desired and the time zone in which you reside. The actual time is provid-
ed via the SIRIUS satellite signal, and will automatically update based on the received signal.
When the Clock menu option is selected, the following menu options are displayed:
Format: The clock format menu option allows for either 12-hour (default) or 24-hour dis-
play. Select the desired clock format.
Time Zone: Since the clock adjusts the time automatically, it is important to specify your
specific time zone. The following is a list of available time zones:
(GMT-9:00) Alaska Time Zone
(GMT-8:00) Pacific Time Zone
(GMT-7:00) Mountain Time Zone
(GMT-6:00) Central Time Zone
(GMT-5:00) Eastern Time Zone
(GMT-4:00) Atlantic Time Zone
(GMT-3:30) Newfoundland Time Zone
Select your particular time zone.
Daylight Savings Time: You can activate this function if your area observes Daylight Sav-
ings Time. Select DST Observed (default) or DST Not Observed.
alarm
The Alarm menu option allows you to set the receiver to turn on at a specific time. The last
selected channel prior to shutdown will be played when the receiver powers on.
When the Alarm menu option is selected, the following menu options are displayed:
Set Alarm: This menu option allows you to turn the alarm feature on or off. Select On to
enable the alarm clock, or Off to disable the alarm clock feature.
Alarm Time: This menu option allows you to set the alarm time. Use the Category
buttons and the Rotary Knob to select the time when you want the receiver to power on.
(Default time is 12:00 PM). When the desired time is displayed, press the Rotary Knob.
prOgram alert
The Program Alert menu option allows you to program the receiver to switch to a selected
channel at a specific time. When this menu option is selected, the following menu options are
displayed:
Program Time/Day: This menu option allows you to choose the time and day for the
program alert feature.
If Time is selected, use the Category buttons and Rotary Knob to set the hours
and minutes. AM or PM will change automatically when the AM or PM threshold has
been exceeded. When the desired time is displayed, press the Rotary Knob.
If Day is selected, the screen displays a default day of Monday, with choices of Mon-
day through Sunday. Select the desired day.
Channel: This menu option selects the channel to be played. Select the channel desired.
Program Alert On/Off (Default is Off): Select Program Alert On to enable the Program
Alert feature or Program Alert Off to disable the Program Alert feature.
autO ShutDOwn
The Auto Shutdown menu option allows you to program the receiver to automatically shut off
after a one hour period without any user intervention. After 59 minutes of inactivity, a beep
tone will sound and a Cancel Auto Shutdown display prompt appears on the screen to allow
you to delay the automatic shutdown. When the Auto Shutdown menu option is selected,
select Enable to activate the auto shutdown, or Disable to cancel an auto shutdown.
When the Cancel Auto Shutdown screen is displayed after 59 seconds and the beep is
heard, if you want to reset the auto shutdown feature press the Rotary Knob. The auto shut-
down sequence will then reset to 1 hour.
[ Menu Options ]
48
[ Menu Options ] 49
Sleep mODe
The Sleep Mode menu option allows you to program the receiver to shutdown after a selected
period of time. When the Sleep Mode menu option is selected, the following menu options are
displayed:
Off
15 Minutes
30 Minutes
45 Minutes
60 Minutes
Select the desired sleep time, or select Off to cancel a previously selected sleep time.
Signal Indicator
When using the optional Home Docking Station or Boombox indoors, it is important to aim the
antenna for maximum signal reception. The Signal Indicator display screen visually shows the
strength of the signals being received. (Refer to the individual accessory installation guides
for more information.)
To view the SIRIUS signal strength:
Select the Signal Strength menu option.

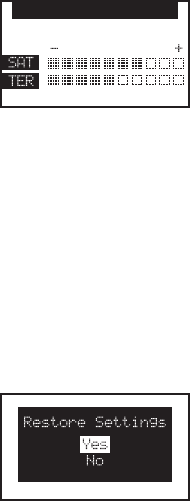

Two 10 segment horizontal bar graphs will be displayed (SAT and TER) with a – sign to
the left and a + sign to the right. (Figure 14) SAT indicates satellite signal strength and
TER indicates terrestrial signal strength, if available.
Adjust the antenna for maximum signal strength as described in the appropriate acces-
sory manual.
To exit, press the Rotary Knob or press the MENU button.
1.
2.
3.
Signal Indicator
Factory Default
The Factory Default option will restore all original factory settings in your SIRIUS Sportster
receiver. Note that factory default will not reset the lock code if you have changed it from the
default lock code.
To perform a factory default reset:
Select the Factory Default menu option.
Select Yes to restore all factory settings or select No to cancel and return to the Menu
Options screen. (Figure 15)
1.
2.
Figure 14Figure 14
Figure 15Figure 15
[ Menu Options ]
50 [ Troubleshooting ] 51
If Yes is chosen, the receiver reverts to the original factory settings for the following
parameters:
All presets revert to empty
Reset to Normal Tuning Mode
Reset to default screen (with 2-line PDT display)
Reset previous power state setting to: Off
FM Frequency Setting: 88.1MHz
FM Transmitter: On
Game Alert: Clear all favorite teams
Jump Settings: Clear jump setting
Display Brightness: 50%
Display Contrast: 50%
Auto Memory Search: On
Clear all S-Seek stored entries
Audio Level: -3dB
Confirmation Tone: On
Clock Format: 12 Hour
Clock Time Zone: Eastern Time Zone
Clock Daylight Savings Time: Observed
Alarm: Off
Alarm Time: Cleared (12:00pm)
Program Alert: Off
Program Alert Time: Cleared (12:00pm)
Program Alert Day: Cleared (Monday)
Program Alert Channel: Cleared (184)
Auto Shutdown: Disabled
Sleep Mode: Off
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Symptom Solution
SIRIUS Sportster
does not power on
Blown fuse, or the power cable is not properly connected.
Check for a bad fuse and check power cable connection
SIRIUS Sportster
displays: Antenna Not
Detected
The satellite antenna is not connected to the receiver dock.
Check the satellite antenna connection to the dock.
SIRIUS Sportster
displays: Acquiring
Signal
No satellite signal is being received.
Check for obstacles over or around the satellite antenna.
Change the vehicle location to eliminate nearby obstacles
(bridges, overpasses, tress, buildings, etc.).
Audio static or loss of
clarity
The FM frequency contains static.
Locate a quiet FM frequency on your vehicle radio and set the FM
transmitter frequency of the SIRIUS Sportster to match.
If using the AUX audio connector, check the cable connections.
No sound The audio cables are not connected, or the FM radio is set to the
wrong frequency. Check the audio cables at the receiver and the
radio. Tune the FM radio to the same FM frequency the receiver
is tuned.
[ Optional Accessories ]
52 [ Specifications ] 53
Optional Accessories
The following optional accessories are available for purchase from your SIRIUS retailer to
maximize your SIRIUS experience:
SUBX1 SIRIUS Plug and Play Universal Boombox
The SUBX1 SIRIUS Plug and Play Universal Boombox is a portable docking station and audio
system for use with the SIRIUS Sportster receiver. With the built-in amplifier and speakers,
the boombox delivers rich powerful sound indoors or outdoors, and features an auxiliary input
for other audio devices,
Included with the boombox is an adjustable indoor/outdoor windowsill antenna with 20’ of
cable and an AC adapter.
SUPH1 SIRIUS Universal Plug and Play Home Kit
The SUPH1 SIRIUS Universal Plug and Play Home Kit is a compact docking cradle that posi-
tions the receiver for easy viewing and operation. Designed for quick and easy self-installation,
it includes all necessary cabling to connect your SIRIUS receiver to your home audio system.
The kit includes a compact tabletop/desktop docking cradle with FM output for wireless
connectivity, an audio cable for connection to any stereo bookshelf system, an adjustable
indoor/outdoor windowsill antenna with 20’ of cable, and an AC Adapter.
SUPV1 SIRIUS Universal Plug and Play Vehicle Kit
The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit is a compact docking cradle that posi-
tions the receiver for easy wiring, viewing, and operation in a vehicle. Designed for quick and
easy self-installation, it provides several mounting options and includes all necessary cabling
to connect your SIRIUS receiver to your car audio system.
The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit will work with the Sportster 4 and
most new SIRIUS plug and play receivers.
The kit includes a mobile docking cradle, a suction cup vehicle mount, a vent mount, a ciga-
rette lighter adapter, and a magnetic antenna with 21’ of cable.
Specifications
Audio Output ..................................................1V (Peak-to-Peak)
Total Harmonic Distortion (THD)............................................<0.3%
Signal-to-noise (S/N)........................................... Greater than 75dB
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9-5.6 Volts, Negative Ground, DC
Operation Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20° to +85° C (-4° to +185° F)
Receiver Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 114.2mm(W) x 62.5mm(H) x 16.9mm(D)
(4.5” W x 2.5” H x 0.6” D)
Receiver Weight...................................................121g (4.2 oz.)
Remote Control Dimensions (Height x Width x Depth). . . . .41mm(W) x 105mm(H) x 18mm(D)
(1.6”W x 4.1”H x 0.7”D)
Remote Control Battery Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CR2025
[ Warranty ]
54 [ SIRIUS ID ] 55
Warranty
12 Month Warranty
SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product
that should this product or any part thereof, under normal use and conditions, be proven defective in
material or workmanship within 12 months from the date of original purchase, such defect(s) will be
repaired or replaced with new or reconditioned product (at the Company’s option) without charge for
parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product
is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),
transportation prepaid, to the location shown below under WARRANTY RETURN.
This Warranty does not extend to the elimination of externally generated static or noise, to correction
of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to
damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company,
has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect,
accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT
OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, IN-
CLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURA-
TION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HERE-
UNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL
THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No
person or representative is authorized to assume for the Company any liability other than expressed
herein in connection with the sale of this product. Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the
above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
WARRANTY RETURN: To obtain repair or replacement within the terms of this Warranty, please re-
turn product to an authorized retailer or call Customer Service at 1-800-869-5187; proof of purchase
and description of defect are required. Products to be returned to an approved warranty station must
be shipped freight prepaid.
SIRIUS ID
Write down the SIRIUS ID (SID) of your SIRIUS Sportster in the space provided below.
SID:
SIRIUS Customer Service: 1-888-539-7474
customercare@sirius-radio.com
SIRIUS Satellite Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
1-888-539-7474
http://www.sirius.com
SIRIUS Sportster SP4-TK1 (040406a)
SIRIUS Satellite Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
(800) 869-5590
http://sirius.com

Navigation menu
