Users Manual
SUV & Plane User Manual
-1-
Introduction
DRV SUV & Plane is an unique radio controlled vehicle. With a single radio control
handset you can control the vehicle and launch the plane. Double the fun. Double the
adventure.
Operating Instructions
SUV
1. Unscrew the battery cover on the bottom
of the truck with a Philips screw driver.
2. Install 4 AA alkaline batteries with polarities as
shown inside the battery compartment.
3. Replace the battery cover and replace
the screw.
Note: It is strongly NOT recommend using
rechargeable battery for SUV as plane CANNOT
BE FULLY CHARGED.
Handset
1. Unscrew the battery cover on the bottom of
the handset with a Philips screw driver.
2. Install a 9v battery with polarities as shown
inside the battery compartment.
3. Replace the battery cover and replace the screw.
Operation Tips
If your vehicle pulls to the right or left while driving
forward, you can adjust the steering with the calibrator.
The calibrator is located on the bottom of the vehicle.
Make slight adjustments until you have the correct
forward motion.
-2-

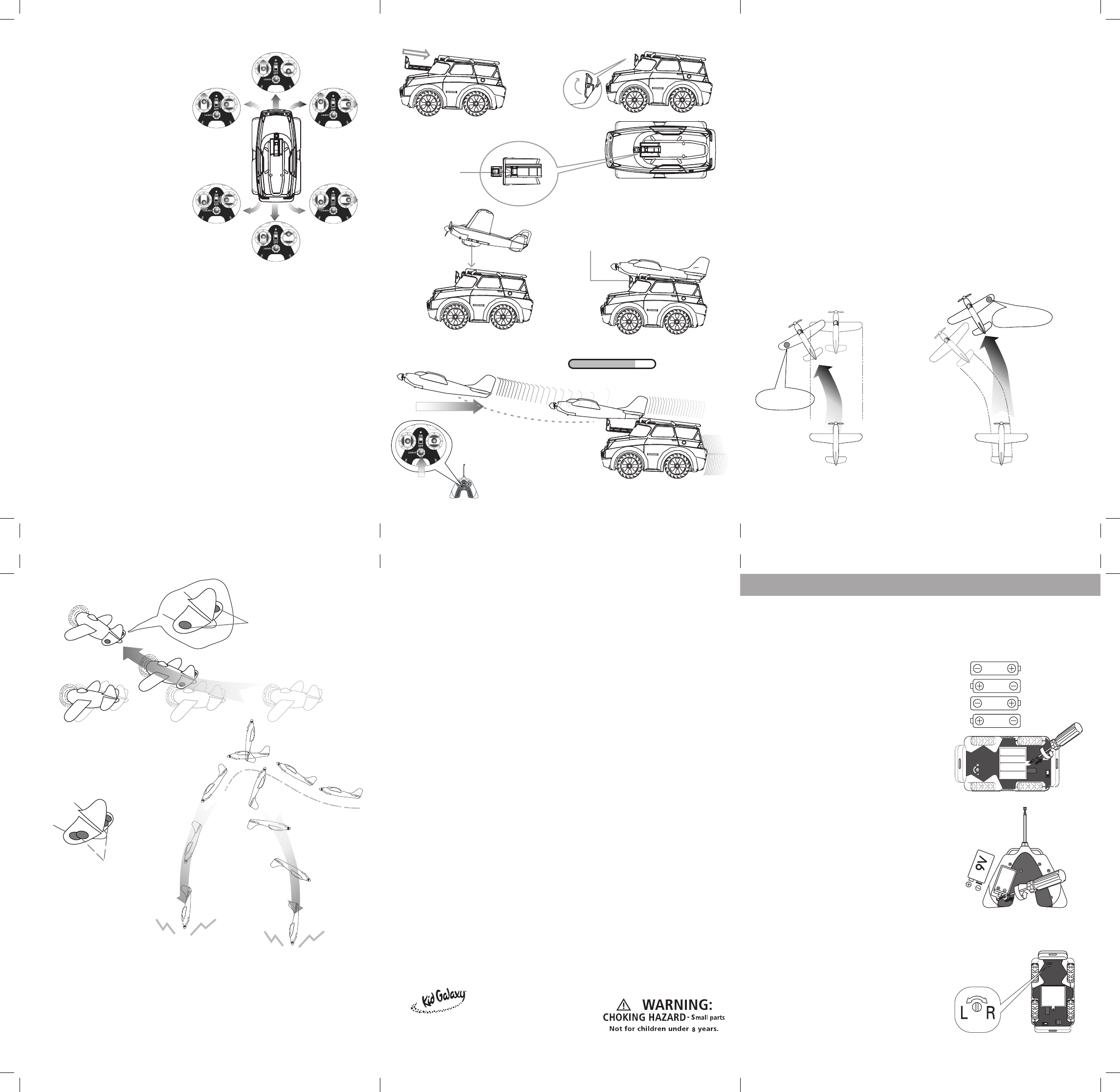

How to operate the SUV & Plane
SUV
1. Turn the switch located at the
bottom of the vehicle
to the ON position.
2. Turn the switch located
on the hand set to the
ON position.
3. Refer to the illustrations
to operate the truck.
Plane
1. Press the launching rod into the SUV and flip up the hook.
2. Place the hook of the launcher into the square opening located on the bottom
of the plane. Lower the tail of the plane onto the roof until it makes
contact with the contact plate.
3. Turn the switch located on the hand set to the ON position.
4. Drive the SUV 15 to 22 seconds to charge the plane. The plane cannot be
launched if it is not fully charged
5. Press on the RED button located on the hand set to launch the plane.
6. The plane flies better if launching against the wind.
Note:
Be sure to fly the plane in a grassy, wide-open area free of trees, overhead wires and
other obstructions. This will ensure soft landings, and will thus help extend the life of
your plane. If your plane gets caught in a tree or other object, NEVER climb up to get
it yourself. Call an adult for help
To Left
To Left
To Right
Forward
Backward
To Right
Press the launching rod backward
-3-
Launch
ON
OFF
Launch
Press the RED button
to launch the plane
15~22sec0"
Fly out
Hook of launcher must be placed
into the square opening on the
bottom of the plane
Charging time
Contact point
for charging
Flip up the hook
Wind Direction
-4-
illustration #2illustration #1
Flying Tips
The plane performs best & with the longest flying time when it flies in a pattern
with big left turning circle. In case the plane does not follow this flying pattern,
trim the plane with the label(s) included per instructions.
Notes:
- Apply one label at a time.
- Using bigger size label for sharper turning.
- The more labels (or bigger size label) you applied the sharper turning pattern
you will get.
A. If plane does not fly with a left turning pattern, apply label(s) at the tip of the
left wing (see illustration #1)
B. If plane flies with a sharp left turning pattern, apply label(s) at the tip of the
right wing (see illustration #2)
C. If plane does not climb up, apply the small size label(s) on both stabilizers
horizontally (see illustration #3). The more labels you used the bigger climbing
angle you will have. The plane will fly in a wavy (up & down) pattern if too
many labels are used.
Applied Label
Applied Label
-5-
CAUTION:
Plane contains a rechargeable cell. If fluid leaks from plane, avoid contact with eyes and
dispose of plane.
ONLY USE CHARGER SUPPLIED WITH DRV.
DO NOT USE ANY OTHER SOURCE TO CHARGE THE PLANE .
illustration #3
Applied the small size
labels on both stabilizers
If too many labels are applied,
the plane may drop easily.
CRUSH
DOWN
-6-
Warning: Changes or modifications to this unit not expressly approved by operator the
party responsible for compliance could void the user authority to the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Classs B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protestion against harmful interfenence in a residential installlation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
囗 Reorient or relocate the receiving antenna.
囗 Increase the separation between the equipment and receiver.
囗 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
囗 Consult the dealer or an experienced radio/TV technician for help.
Helpful Hints
囗 Use fresh batteries. The use of weak batteries may cause your vehicle to have slow
response times.
囗 Do not mix old and new batteries.
囗 Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd) batteries.
囗 Your vehicles will not run if the batteries are installed incorrectly, please refer to the
illustration located inside the battery compartment.
囗 Sometimes the vehicle is driven beyond the radio signal range causing loss of control.
Range in your vehicle is approximately 30' to 50'.
囗 Running times may very, alkaline batteries generally last between 25 to 40 minutes.
囗 Sometimes loss vehicle control is due to being in an area near interfering sources. CB
radios, microwave transmitters, cordless telephones, wireless communications, security
systems, high voltage transformer or even certain buildings can cause interference.
囗 Avoid driving in damp or wet areas.
Toll Free Kid Galaxy Hot Line:800-816-1135
C opyright © 200 5 Kid G ala xy,
Inc.
DRV Series
