2150

Eastern Avenue.

Gallipolis, Ohio 45631

ROTARY TILLER

OPERATOR MANUAL

Part No 999995 www.kingkutter.com

TO THE PURCHASER

This manual contains valuable information about your

new King Kutter II Rotary Tiller. It has been carefully prepared

to give you helpful suggestions for operating, adjusting, ser-

vicing and ordering repair parts.

Keep this manual in a convenient place for quick and

easy reference. Study it carefully. You have purchased a de-

pendable and sturdy tiller, but only by proper care and opera-

tion can you expect to receive the service and long life de-

signed and built into it.

Sometime in the future your tiller may need new parts to

replace those that are worn or broken. If so, go to your dealer

and provide him with the model and part number.

Customer Information

Name ______________________________________________

Purchased From ______________________________________

Date Purchased ______________________________________

Model No. ___________________________________________

Serial No. ___________________________________________

3

It is the purchaser and/or operator’s responsibility to….

- Read and understand the information contained in this

manual.

- Operate, lubricate, assemble and maintain the

equipment in accordance with all instructions and

safety procedures in this manual.

- Inspect the equipment and replace or repair any

parts that are damaged or worn which under contin-

ued operation would cause damage, wear to other

parts, or cause a safety hazard.

- Return the equipment or parts to the authorized

King Kutter dealer, from where it was purchased, for

service or replacement of defective parts that are

covered by warranty. (The King Kutter Factory may

inspect equipment or parts before warranty claims

are honored.)

- Payment of all costs incurred by the dealer for traveling

to or transporting the equipment for warranty inspection

and or claims.

4

5

CONTENTS

ITEM PAGE

Safety ......................................................................... 6

Assembly Instructions ................................................ 8

Before Putting Into Service ........................................ 8

Safety Training ......................................................... 11

Transportation Safety ............................................... 15

Attaching To Tractor ................................................. 16

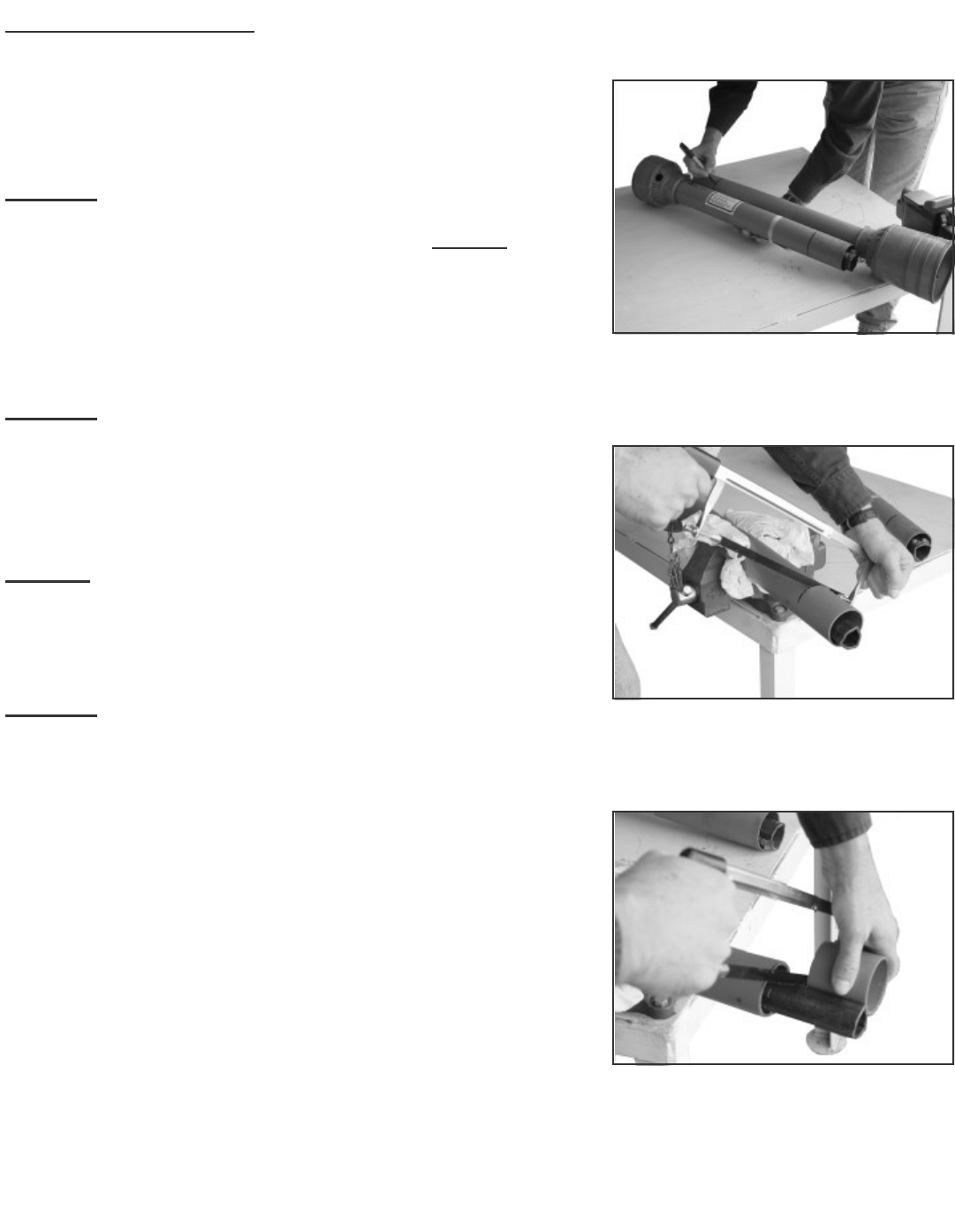

Sizing PTO ............................................................... 18

Operating Instructions .............................................. 19

Maintenance ............................................................ 20

Maintenance Safety ................................................. 20

Safety Decal's And Locations ................................... 22

Replacement Parts .................................................. 28

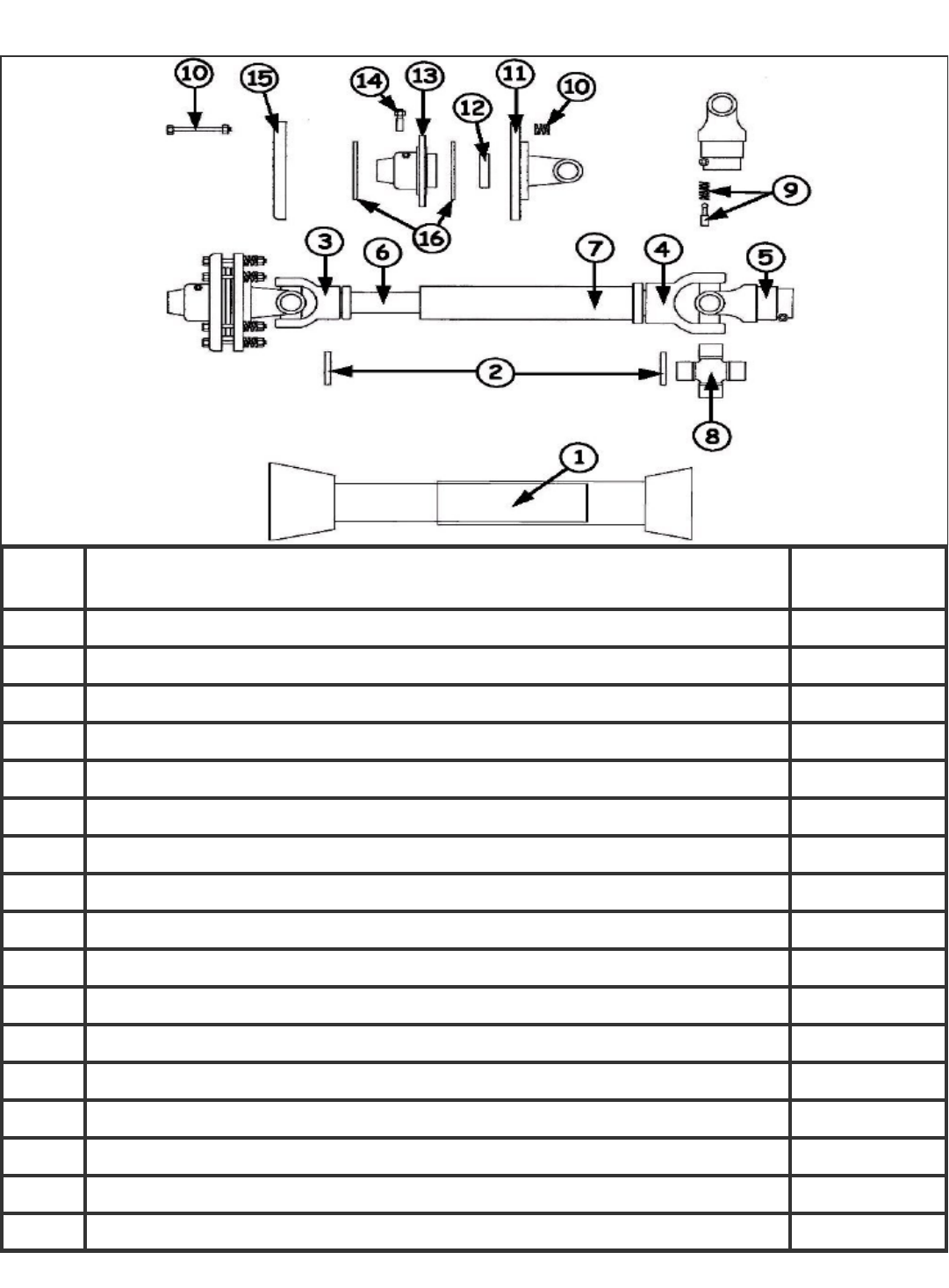

PTO Shaft Parts ....................................................... 30

Gearbox Parts .................................................... …..32

Warranty ………………………………………………...36

SAFETY

READ AND FOLLOW THE INSTRUC-

TIONS IN THIS MANUAL AND ESPE-

CIALLY IN THE SAFETY SECTION.

FAILURE TO DO SO CAN RESULT IN

SERIOUS INJURY OR DEATH.

TAKE NOTE! THIS SAFETY ALERT

SYMBOL FOUND THROUGHOUT

THIS MANUAL IS USED TO CALL

YOUR ATTENTION TO INSTRUC-

TIONS INVOLVING YOUR PERSONAL

SAFETY AND THE SAFETY OF OTH-

ERS.

THIS SYMBOL MEANS

ATTENTION!

BECOME ALERT!

YOUR SAFTEY IS INVOLVED

SIGNAL WORDS:

The signal words DANGER, WARNING and CAUTION are used with the

safety messages in this manual and with each safety signs. They are defined as

follows:

DANGER: Indicates an immediate hazardous situation that, if not avoided,

could result in serious injury or death. This signal word is to be limited to the

most extreme situations typically for machine components that, for functional

purposes, cannot be guarded.

WARNING: Indicates a potentially hazardous situation that, if not avoided,

could result in serious injury or death, and includes hazards that are exposed

when guards are removed. It may also be used to alert against unsafe practices.

CAUTION: Indicates a potentially hazardous situation that, if not avoided, may

result in minor or moderate injury. It may also be used to alert against unsafe

practice.

If you have any questions not answered in this manual or require additional cop-

ies or the manual is damaged, please contact your dealer or King Kutter, Inc.

P.O. Box 1200 Winfield, AL 35594 (205) 487-3202 or www.kingkutter.com

6

EQUIPMENT SAFETY GUIDELINES

- Safety of the operator and bystanders is one of the main concerns in designing and devel-

oping a tiller. However, every year accidents occur which could have been avoided by a

few seconds of thought and a more careful approach to handling equipment. You, the op-

erator, can avoid many accidents by observing the following precautions and insist those

working with you, or for you, follow them.

- In order to provide a better view, certain photographs or illustrations in this manual may

show an assembly with a safety shield removed. However, equipment should never be op-

erated in this condition. Keep all shields in place. If shield removal becomes necessary for

repairs, replace the shield prior to use.

- Replace any safety sign that is not readable or missing. Location of such safety signs are

indicated in this manual.

- Never use alcoholic beverages or drugs that can hinder alertness or coordination while op-

erating this equipment. Consult your doctor about operating this machine while taking pre-

scription medications.

- Under no circumstances should children under the age of 18 be allowed to work

with this equipment. Do not allow persons to operate or assemble this unit until

they have read this manual and have developed a thorough understanding of the

safety precautions and how it works. Review the safety instructions with all users annu-

ally.

- This equipment is dangerous to children and persons unfamiliar with its operation. The op-

erator should be a responsible, properly trained and physically able person familiar with

farm machinery and trained in this equipment’s operations. If the elderly are assisting with

farm work, their physical limitations need to be recognized and accommodated.

- Use a tractor equipped with a Roll Over Protective System and seat belts. (ROPS)

- Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely,

is in question- DON’T TRY IT.

- Do not modify the equipment in any way. Unauthorized modification could result in serious

injury or death and may impair the function and life of the equipment.

- In addition to the design and the confirmation of this implement, including safety signs and

safety equipment, hazard control and accident prevention are dependent upon the aware-

ness, concern, prudence, and proper training of personnel involved in the operation, trans-

port, maintenance, and storage of the machine. Refer also to safety messages and opera-

tion instruction in each of the appropriate sections of the tractor and tiller manuals. Pay

close attention to the safety signs affixed to the tractor and the tiller.

7

8

ROTARY TILLER ASSEMBLY INSTRUCTIONS

STEP 1 With rotary tiller still in crate, lay flat on a level surface. Cut banding

straps on the two (2) up right crate posts.

STEP 2 Remove the top & upper side sections of the crate, leaving the rotary tiller

resting on the bottom section. You may take the tiller off of crate but you must

swing stand arm down and lock in position. (See Figure D) Snap stand out of

clip, straight out, then swivel the stand down to locked position.

STEP 3 Remove tie wire holding the PTO shaft and set aside PTO.

STEP 4 Attach tiller according to your tractors manual and using the instructions on

pages 16 and 17.

STEP 5 Install tail back plate chain.

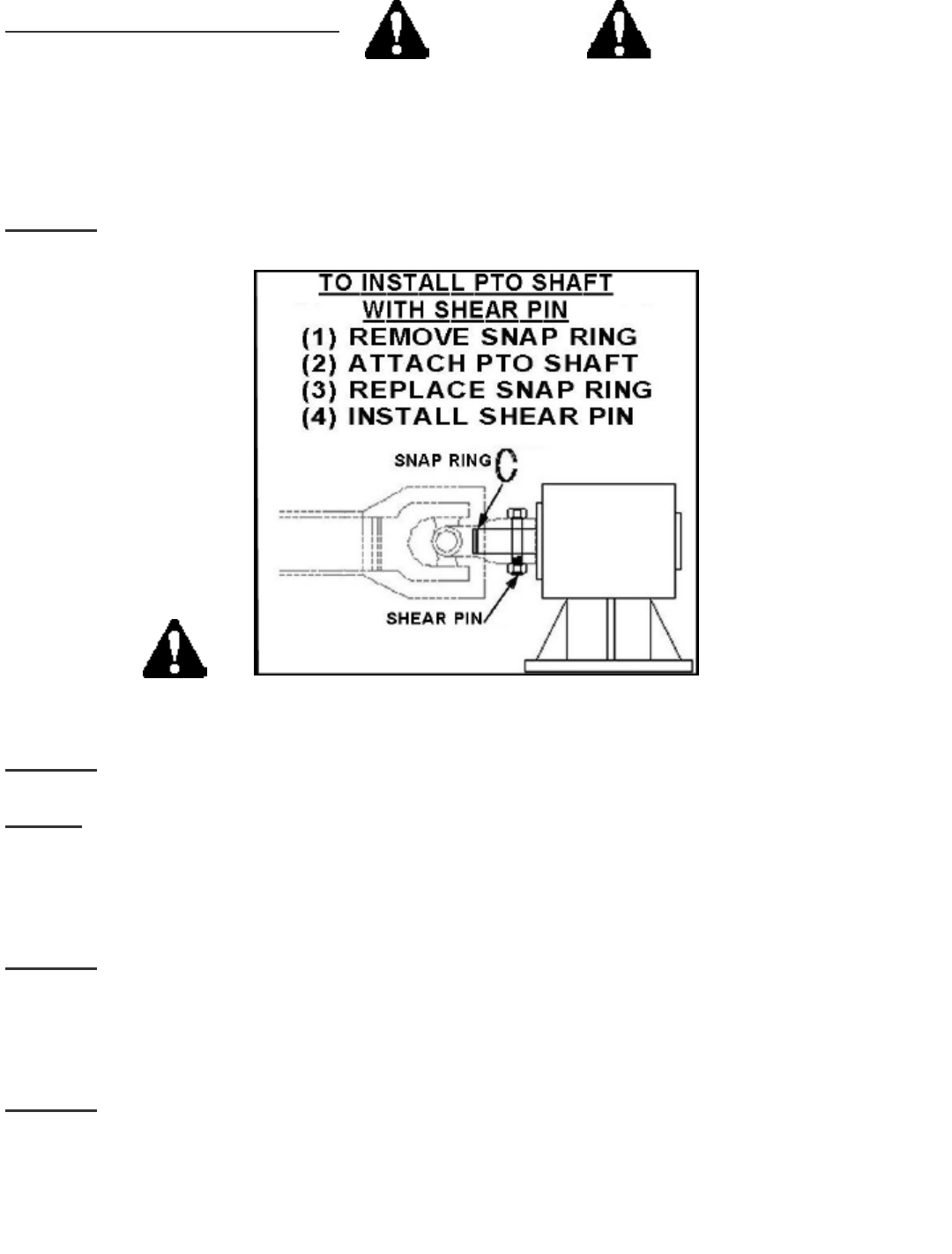

STEP 6 Install PTO shaft as outlined in the Attaching to Tractor Section, pg 16-

19.

Note: The safety chains on the PTO shaft should be attached to the tractor and

tiller to prevent the plastic safety shield from rotating.

BEFORE PUTTING ROTARY TILLER INTO SERVICE

(IMPORTANT- INSTRUCTIONS PRIOR TO START UP)

SHIPPED WITH OIL IN GEAR BOXES

SHIPPED WITHOUT GREASE IN GREASE FITTINGS.

UNIT MUST BE SERVICED BEFORE USING.

• In Gearboxes use gear oil (type GL5-85W 140 or Triple Zero

Grease; which can be poured, and has "EP" i.e. "Extreme

Pressure" additives.)

• For all Grease Fittings use TYPE/grade II tube grease.

STEP 1 Place rotary tiller so that the deck is secure and level.

STEP 2 Remove 1/2‖ Pipe Plug (Located at top of transmission gearbox). See Figure A.

STEP 3 Fill gearbox using gear oil until gearbox is approximately 1/2 full. See Figure B.

STEP 4 Replace and tighten the 1/2‖ pipe plug and clean away any excess oil.

See Figure C.

STEP 5 Remove 1/2‖ Pipe Plug (Located at top of side gearbox, See Figure E on page 10)

and the 1/8" check plug (Located in side of the side gearbox) if oil comes out of check

plug hole, replace plug immediately and go to STEP 7. If oil doesn’t come out go to

STEP 6.

9

STEP 6 Fill side gearbox using gear oil until the oil begins to overflow from the

check plug hole. See Figure F on next page.

STEP 7 Replace and tighten the 1/2‖ vent plug and the 1/8" check plug. Clean

away any excess oil. See Figure G on next page.

STEP 8 Grease the grease fitting on the "out-board hub," the two (2) grease fittings

on the PTO universal joints, the two (2) grease fittings on the PTO safety

shield and the inner surface portion of the PTO shaft. See Figures H, I

and J on next page.

CAUTION:

DO NOT over fill gearbox. This could cause damage to oil seals and can cause permanent damage

to the gearbox. This issue will not be covered under warranty.

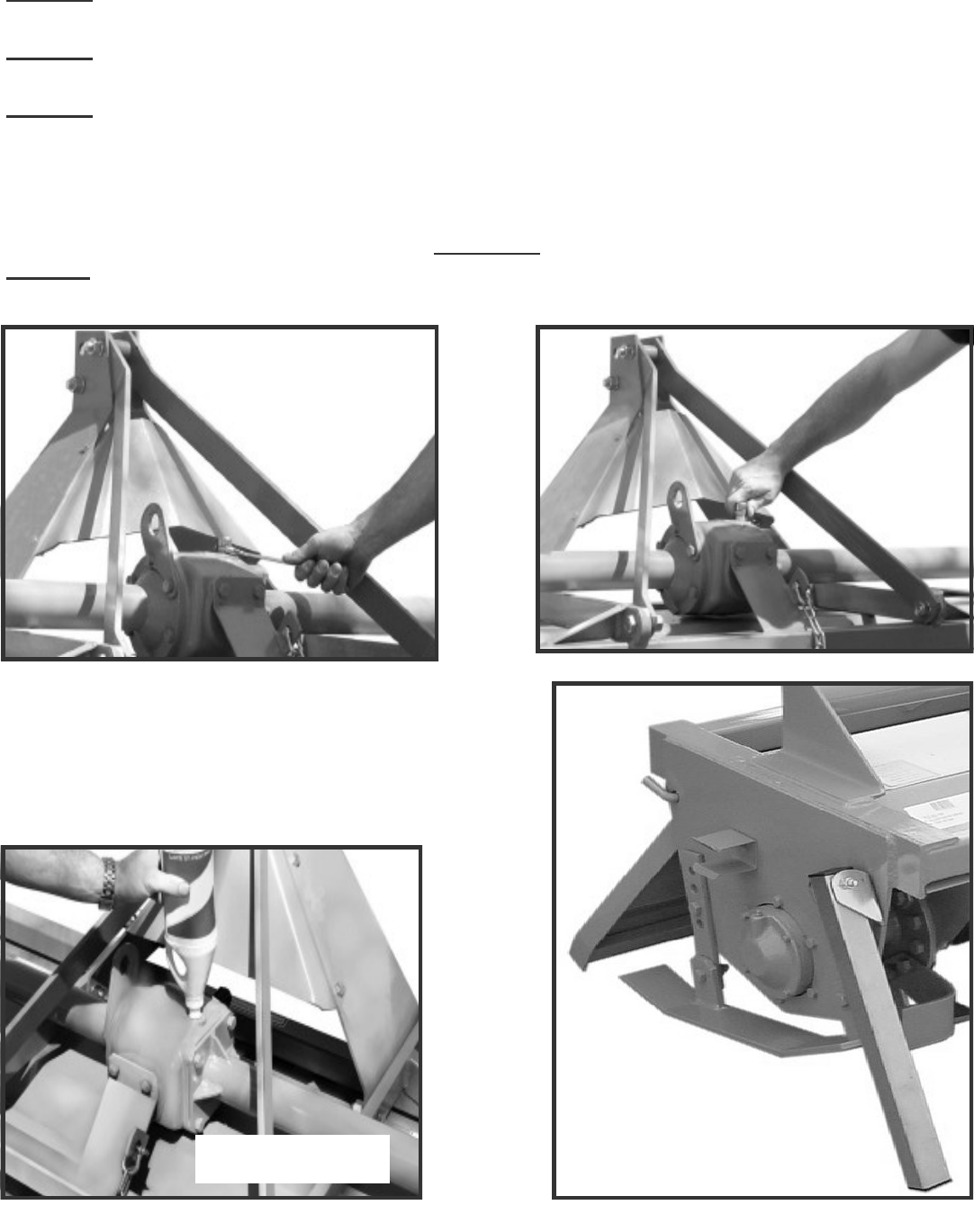

Figure A

Figure B

Figure C

Figure D

10

Figure E Figure F

Figure G Figure H

Figure I Figure J

SAFETY TRAINING

- Safety is a primary concern in the design and manufacturing of our product. Un-

fortunately, our efforts to provide safe equipment can be wiped out by a single

careless act of an operator or bystander.

- In addition to the design and configuration of equipment, hazard control and ac-

cident prevention are dependent upon the awareness, concern, prudence and

proper training of personnel involved in the operation, transport, maintenance

and storage of this equipment.

- It has been said, ― The best safety device is an informed, careful operator.‖ We

ask you to be that kind of operator. It is the operator’s responsibility to read and

understand all safety and operating instructions in the manual and to follow

them. Accidents can be avoided.

- Working with unfamiliar equipment can lead to careless injuries. Read this man-

ual, and the manual for your tractor, before assembly or operating, to acquaint

yourself with the machines. If this machine is used by any person other than

you, or is loaned or rented, it is the rotary tiller owner’s responsibility to make

certain that the owner's manual be available to the operator prior to operating:

1- Reads and understands the operator’s manuals.

2- Is instructed in safe and proper use.

- Know your controls and how to stop the tractor, engine, and tiller quickly in an

emergency. Read this manual and the one provided with your tractor.

- Train all new personnel and review instructions frequently with existing workers.

Be certain only a properly trained and physically able person will operate the

machinery. A person who has not read and understood all operating and safety

instructions is not qualified to operate the machine. An untrained operator ex-

poses himself and bystanders to possible serious injury or death. If the elderly

are assisting with farm work, their physical limitations need to be recognized and

accommodated.

11

PREPARTION

- Never operate the tractor and tiller until you have read and completely under-

stand this manual, the Tractor Operator’s Manual, and each of the safety mes-

sages found on the safety signs on the tractor and tiller.

- Personal protection equipment including hardhat, safety glasses, safety shoes, and gloves

are recommended during assembly, installation, operation, adjustment, maintenance, re-

pairing, removal, or moving the implement. Do not allow long hair, loose fitting clothing, or

jewelry to be around equipment.

- PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING

LOSS! Tractors with or without tillers attached can often be noisy enough to cause perma-

nent, partial hearing loss. We recommend that you wear hearing protection on a full-time

basis if the noise in the operator’s position exceeds 80 db. Noise over 80 db on a long-

term basis can cause severe hearing loss. Noise over 90 db adjacent to the operator over

a long-term basis may cause permanent, total hearing loss. NOTE: Hearing loss from loud

noise (from tractors, chain saws, radios, and other such sources close to the ear) is cumu-

lative over a lifetime without hope of natural recovery.

- Operate the tiller only with a tractor equipped with an approved Roll-Over-Protective Sys-

tem (ROPS). Always wear your seat belt. Serious injury or even death could result from

falling off the tractor — particularly during a turnover when the operator could be pinned

under the ROPS or the tractor.

- Clear area to be tilled of stones, branches or other debris that might be thrown or entan-

gled in the tiller, causing injury or damage.

- Operate only in daylight or good artificial light.

- Ensure tiller is properly mounted, adjusted and in good operating condition.

- Ensure that all safety shielding and safety signs are properly installed and in good condi-

tion.

STARTING AND STOPPING SAFETY

- Check the tractor master shield over the PTO stub shaft. Make sure it is in good condition

and fastened securely to the tractor. Purchase a new shield if old shield is damaged or

missing.

- All tractors that are not equipped with a ―live‖ power takeoff (PTO) need to be equipped

with an over-running PTO clutch. These are available through most farm equipment

stores. NOTE: The addition of an over-running PTO clutch may change the length of the

PTO driveline required. Pay extra attention to the instructions on the PTO Driveline Instal-

lation. Be sure that the driveline system guarding is adequate.

- Tiller operating power is supplied from the tractor PTO. Refer to your tractor manual for

PTO engagement and disengagement instructions. Know how to stop tractor and tiller

quickly in case of an emergency.

- When engaging PTO, the engine RPM should always be at idle speed. Once engaged and

ready to start tilling, raise PTO speed to 540-RPM and maintain throughout tilling opera-

tion.

12

13

OPERATIONAL SAFETY

- The use of this equipment is subject to certain hazards that cannot be protected

against by the mechanical means or product design. All operators of this equip-

ment must read and understand this entire manual, paying particular attention to

safety and operating instructions, prior to using. If there is something in this

manual you do not understand, ask your supervisor, or your dealer, to explain it

to you.

- Most accidents occur because of neglect or carelessness. Keep all helpers and

bystanders at least several hundred feet from an operating rotary tiller. Only

properly trained people should operate this machine.

- When machine is operated in populated areas where thrown objects could injure

persons or property, operation must be stopped when anyone comes within

several hundred feet.

- The majority of the accidents involve entanglement on the driveline, injury of by-

standers by the objects thrown by the rotating tines, and operators being

knocked off the tractor by low hanging limbs and then being run over by the

tiller. Accidents are most likely to occur with machines that are loaned or rented

to someone who has not read the owner’s manual and is not familiar with a ro-

tary tiller.

- The rotary tiller is designed for use only on tractors with the power take- off

(PTO) turning at 540-RPM.

- Install and secure all guards and shields before starting or operating. The tiller

tines, driveline guards and tractor, shields should be used and maintained in

good working condition. They should be inspected carefully, at least daily, for

missing or broken chain links, shields, or guards. (Worn items must be replaced

at once to reduce possibility of injury.)

- Disengage power takeoff (PTO) and place transmission in neutral before at-

tempting to start engine.

- Many varied objects, such as wire, cable, rope, or chains, can become entan-

gled in the operating parts of the tiller. These items could then swing outside the

housing at greater velocities than the tines. Such a situation is extremely haz-

ardous. Inspect the cutting area for such objects before tilling. Remove any like

objects from the site.

OPERATIONAL SAFETY continued...

- Never allow the tilling tines to contact such items. Never assume an area is

clear. Always Check!

- Always stop the tractor, disengage PTO, set brake, shut off the tractor engine,

remove the ignition key, lower implement to the ground and allow rotating pieces

to come to a complete stop before dismounting tractor. Never leave equipment

unattended with the tractor running.

- Never place hands or feet under tiller with tractor engine running or before you

are sure all motion has stopped. Stay clear of all moving parts.

- Do not reach or place any part of your body under equipment until it is blocked

securely.

- Do not allow riders on the rotary tiller or tractor at anytime. There is no safe

place for any riders.

- Do not operate unless all personnel, livestock, and pets are several hundred

feet away to prevent injury by thrown objects.

- Never operate tractor and rotary tiller under trees with low hanging limbs. Op-

erators can be knocked off the tractor and then run over by the rotating tines.

- The rotating parts of this machine have been designed and tested for rugged

use. However, they could fail upon impact with heavy, solid objects such as steel

guardrails and concrete abutment. Such impact could cause the broken objects

to be thrown outward at very high velocities. To reduce the possibility of property

damage, serious injury, or even death, never allow the tilling tines to contact

such obstacles.

- Stop rotary tiller and tractor immediately upon striking an obstruction. Turn en-

gine off, remove key, inspect and repair any damage before resuming operation.

- Stay alert for uneven terrain, holes, rocks, and roots and other hidden hazards.

Keep away from drop-offs and hazards that could cause roll over. Use extreme

care and maintain minimum ground speed when transporting or operating on

hillsides, over rough ground and when operating close to ditches or fences. Be

careful and slow down when turning sharp corners and changing direction on

slopes. Do not start or stop suddenly on slopes. Avoid operation on steep

slopes. In extremely uneven terrain, rear wheels weights, front tractor weight,

and/or tire ballast should be used to improve stability.

14

15

OPERATIONAL SAFETY continued...

- Pass rotary tiller diagonally through sharp dips and avoid sharp drops to prevent

―hanging up‖ tractor and rotary tiller. Practice will improve your skills in maneu-

vering on rough terrain. Always cut down slopes, never across the face. Always

check tractor manual for proper use on slopes.

- When using a unit, a minimum 20% of tractor and equipment weight must be on

tractor front wheels. Without this weight, tractor could tip over, causing personal

injury or death. The weight may be attained with a front- end loader, front wheel

weights, ballast in the tires or front tractor weights. When attaining a minimum

20% of tractor and equipment weight on the front wheels, you must not exceed

the ROPS weight certification. Weigh the tractor and equipment. Do not guess

or estimate!

TRANSPORT SAFETY

- Comply with state and local laws governing highway safety and movement of

farm machinery on public roads.

- The use of flashing amber lights is acceptable in most localities. However, some

localities prohibit their use. Local laws should be checked for all lighting and

marking requirements.

- At all times, when driving the tractor and equipment on the road or highway un-

der 20mph (32kph) use flashing amber warning lights and a slow moving vehicle

(SMV) identification emblem. Do not exceed 20 mph (32 kph). Reduce speed

on rough roads and surfaces.

- Plan your route to avoid heavy traffic.

- Always install transport locks, pins or brackets before transporting.

- Do not drink and drive.

- Be a safe and courteous driver. Always yield to oncoming traffic in all situations,

including narrow bridges, intersections, etc. Watch for traffic when operating

near or crossing roadways.

- Turn curves or go up or down hills only at a low speed and at a gradual steering

angle. Make certain that a least 20% of the tractor’s weight is on the front

wheels to maintain safe steerage. Slow down on rough or uneven surface. Al-

ways check tractor manual for proper use on slopes.

- Use extreme care and maintain minimum ground and when operating close to

ditches or fences. Be careful when turning sharp corners.

- Never allow riders on either tractor or tiller.

16

ATTACHING TO TRACTOR

STEP 1 Attach to tractor's category 1 three point hitch as described in

the Tractor's Operator’s Manual.

WARNING

Failure to install retaining clip on gearbox input shaft would allow driveline to

swing freely if bolt is sheared causing possible injury or death.

STEP 2

Determine if the PTO shaft needs to be shortened.

NOTE:

Due to the many variations in the tractor hitch points and distances between

equipment gearbox input shaft and tractor PTO out put shafts, some combina-

tions may require PTO shafts to be shortened as described by the following

steps.

STEP 3

Raise and lower rotary tiller in order to locate the shortest distance between

equipment gearbox input shaft and tractor PTO output shaft. With the rotary

tiller in the shortest distance position shut down the tractor and SECURELY

BLOCK ROTARY TILLER IN POSITION.

STEP 4

Pull apart PTO shaft and attach outer section to tractor PTO output shaft.

NOTE: Be sure to pull on PTO shaft section to ensure yoke has locked into

place.

WARNING

Never stand between

tractor and rotary tiller

while backing up tractor

to the hitch.

17

ATTACHING TO TRACTOR continued....

STEP 5

Place and hold inner PTO shaft section next to outer section and check if PTO

shaft is too long. Each section should end approximately 3 inches short of

reaching u-joint shield on the opposite section. If the shaft is too long measure

3 inches back from each u-joint shield and mark the other shaft section. Be sure

to do this for both PTO shaft halves. NOTE: Do not cut PTO shaft sections at

this time.

STEP 6

Raise rotary tiller and remove blocking. Raise and lower rotary tiller in order to

locate the longest distance between equipment input shaft and the tractor PTO

output shaft. With the rotary tiller in the longest distance position shut down the

tractor and SECURELY BLOCK THE ROTARY TILLER IN POSITION.

STEP 7

As in step 5 hold PTO shaft sections together and check for a minimum of 6

inches of overlap. If PTO shaft has been marked for cutting the overlap is the

distance measured between the two marks. If the PTO shaft has less than a 6

inch overlap, DO NOT USE. Contact your authorized King Kutter II Dealer.

NOTE

If the PTO shaft length is too long go to SIZING PTO SHAFT (pg. 18)

STEP 8

Apply any multi-purpose grease to the outside of the male (inner) PTO shaft

section. Assemble PTO shaft and install on rotary tiller and tractor.

STEP 9

Pull on tractor side of PTO shaft yoke to be sure it has locked in place. Make

certain PTO shaft shielding is in place and good working condition.

STEP 10

The PTO shaft shield is a non-rotating design and must be secured prior to

equipment use. Using the chain on each yoke shield attach to a fixed object on

the tractor and equipment ends that will not allow the PTO shaft shield to rotate

during operation.

18

SIZING PTO SHAFT

STEP 1

Cutting the PTO shaft to length. NOTE:

Be sure to cut equal lengths of each

PTO shaft section. Clamp end of PTO

shaft in a vice and cut off shield where

marked. (Figure 1-A & 1-B)

STEP 2

Using cut section of the shield as a

guide cut shaft off the same amount.

(Figure 2)

STEP 3

Repeat steps 1 and 2 for other PTO

shaft section.

STEP 4

Use a file to deburr PTO shafts. Clean

up all chips, burrs and filings from both

ends of the PTO shaft.

Note: If you shear the bolt that attaches

the PTO shaft to the gearbox re-

place with a grade 2 bolt only. Re-

placement with another grade of

bolt will void your warranty and may

cause terminal damage to the PTO

shaft, gearbox, or tractor.

Figure 1-A

Figure 1-B

Figure 2

19

OPERATING INSTRUCTIONS

STEP 1

Before each use perform the maintenance described in maintenance section (page

20).

STEP2

Read, understand, and follow the information on safety training, preparation, starting

and stopping safety, operational safety, transport safety warning sections of this man-

ual (pages 12 thru 15).

STEP 3

With the rotary tiller positioned on level ground, adjust the tractor lift arms so that

when lifted, the rotor bar remains parallel to the ground.

STEP 4

With the rotary tiller attached to the tractor, raise and support the tiller with suitable

blocks. Adjust the skids, located on the sides of the tiller. The adjustment bolts for

both right and left sides should be positioned in the same adjustment hole. This al-

lows the tiller to till the same depth on each side. Adjust the back plate, with regulat-

ing chain, until the desired mulching effect is found.

Note: Never attempt to adjust the rotary tiller while the tractor is

running.

STEP 5

Raise the tiller and remove the blocks. Lower the tiller to the ground.

STEP 6

With the tractor at idle RPM and the tiller lifted off of the ground, engage PTO and

slowly advance throttle to 540 PTO RPM. NOTE: Rotary tiller is designed to run at

540 PTO RPM only.

STEP 7

Select a low gear for the tractor and begin to move forward. Tractor

ground speed is to be controlled by gear selection only and not engine

speed. As the tractor moves forward, slowly lower the tiller down. Allow the

tiller tines to gradually engage the ground.

Never travel at a fast ground speed while using the tiller, this could damage it.

Never attempt to turn the tractor or travel in reverse with the PTO engaged and

the tiller in the ground. Always raise the tiller out of the ground when backing

up or attempting to turn. Failure to due so may cause damage to the tiller.

STEP 8

After each use clean all debris from the tiller tines. Replace any missing or illegible

safety decals. Inspect for any damaged or worn parts and replace before next use.

Store rotary tiller in a dry environment.

MAINTENANCE

1). Periodically check and maintain proper gear oil level.

2). Every 8 hours, (1) grease "out-board hub", (2) PTO shaft universal joints, (3)

PTO shaft safety shield and (4) PTO telescoping surface.

NOTE: Use only a grade Type II tube grease.

NOTE: Do not grease the slip clutch assembly.

3). Before each use check to make sure all safety shields are installed and working

properly.

4). Check tiller tines for cracks and breaks before every use.

5). Periodically check all nuts and bolts to insure they are tight and secure.

6). Periodically loosen torque spring bolts and allow slip clutch to slip for approxi-

mately two (2) revolutions. Loosen the bolts until the springs lose contact with

the flange yoke. This ensures that the slip clutch is not in a "locked" position.

7). Make sure that the clutch slips.

8). To retighten the slip clutch, tighten the torque spring bolts until the nut makes

contact with the flange yoke and further tighten one and a half turns (1-1/2).

This is a good starting point , further adjustments may need to be made based

on soil conditions.

NOTE: Do not over or under tighten slip clutch assembly or damage may occur.

MAINTENANCE SAFETY

- Good maintenance is your responsibility. Poor maintenance is an invita-

tion to trouble.

- Follow good shop practices.

- Keep service area clean and dry.

NOTE: Do not allow the tractor engine or rotary tiller to bog down or stall. This

causes undue wear and tear on the tiller and tractor. If this continues to happen

reduce ground speed and raise tilling depth of rotary tiller. Never attempt to re-

move objects from the rotor bar until the tractor has been shut down and the

tiller tines have completely stopped.

WARNING

20

- Be sure electrical outlets and tools are properly grounded

- Use adequate light for the job at hand.

- Make sure there is plenty ventilation. Never operate the engine of the towing

vehicle in a closed building. The exhaust fumes may cause asphyxiation.

- Before working on this machine, disengage the PTO, shut off the engine, set the

brakes, and remove the ignition keys.

- Be certain all moving parts on attachments have come to a complete stop be-

fore attempting to perform maintenance.

- Never work under equipment unless it is blocked securely.

- Always use personal protection devices such as eye, hand and hearing protec-

tors, when performing any service or maintenance.

- Frequently check tiller tines. They should be sharp, free of nicks and cracks and

securely fastened.

- Periodically tighten all bolts, nuts, and screws and check that all cotter pins are

properly installed to ensure unit is in safe condition.

- When completing a maintenance or service function, make sure all safety

shields and devices are installed before placing unit in service.

- After servicing, be sure all tools, parts and service equipment are removed from

tiller.

- Do not allow debris, grease or oil to build up on any deck or platform.

- Where replacement parts are necessary for periodic maintenance and servicing,

genuine factory replacement parts must be used to restore your equipment to

original specifications.

- The manufacturer will not be responsible for injuries or damages caused by use

of unapproved parts and/or accessories.

- A fire extinguisher and the first aid kit should be kept readily accessible while

performing maintenance on this equipment.

STORAGE SAFETY

- Following operation, or when unhooking the tiller, stop the tractor, set the

brakes, disengage the PTO, shut off the engine and remove the ignition keys.

- Store the unit in an area away from human activity.

- Do not park equipment where it can be exposed to direct contact to livestock for

long periods of time. Damage and livestock injury could result.

- Make sure all parked machines are on a hard, level surface and engage all

safety devices.

21

22

SAFETY SIGN LOCATIONS

The types of safety signs and locations on the equipment are shown in the illustration

below. Good safety requires that you familiarize yourself with the various safety signs,

the type of warning and the area, or particular function related to that area, that re-

quires your SAFTY AWARENESS.

Note: The numbers represent the safety decals on the following pages.

REMEMBER: If safety signs have been damaged, removed, become illegible or parts

have been replaced without signs, new safety signs must be applied. New safety

signs are available from your authorized dealer, distributor or factory.

Top View

23

1

24

2

3

25

4

5

26

6

7

MODEL NO.

DESCRIPTION

SN# XXXXXXXXXX

27

NOTES:

TILLER: EXPLODED VIEW

28

Ref.

No.

Part Name

TG-48

TG-72

TG-60

1 Lift Arm Brace 380108 380108 380108

2 Lift Arm (Left hand) 310085 310085 310085

3 Lift Arm (Right hand) 310086 310086 310086

4 Tail Rod Assembly 505116 505116 505116

5 Center Piece Kit 505025 505025 505025

6 Lift Arm Spacer Kit 505030 505030 505030

7 Tine Pkg. (1-Right & 1- Left) w/ bolts 505002 505002 505002

7 Tine Pkg. (3-Right & 3- Left) w/ bolts 505006 505006 505006

7 4’ Complete Tine Pkg. (36 pcs.) 505036

7 5’ Complete Tine Pkg. (42 pcs.) 505042

7 6’ Complete Tine Pkg. (54 pcs.) 505054

8 Tine Bolt Pkg. (12 pcs.) 505012 505012 505012

8 Tine Bolt Pkg. (72 pcs.) 505072

8 Tine Bolt Pkg. (84 pcs.) 505084

8 Tine Bolt Pkg. (108 pcs.) 505108

9 Skid Assembly (Left Hand) 505050 505050 505050

10 Skid Assembly (Right Hand) 505057 505057 505057

11 Chain & Shackle Kit 505143 505143 505143

12 Top Gearbox Assembly 184064 184067 184066

13 Side Gearbox Assembly 184069 184069 184069

14 Lift Pins CAT. 1 (Pkg. 2) 500001 500001 500001

15 Rotor Assembly 402038 402053 402042

16 Back Plate Assembly 402041 402052 402046

17 Frame Assembly 402039 402054 402043

18 Outboard Hub Assembly (TG Series) 184070 184070 184070

19 PTO Shaft 147122 147122 147122

20 Support Stand Assembly 505022 505022 505022

TILLER: PARTS LIST

29

30

Ref.

No.

Part Name 147122

Part No.

1 Safety Shield 124311

2 Roll Pin 170120

3 Male Tube End Yoke 151045

4 Female Tube End Yoke 151050

5 Tractor End Yoke 151035

6 Inner Tube 14 Series 151090

7 Outer Tube 14 Series 151091

8 Cross Kit # 4 170015

9 Quick Disconnect Pin 170110

10 Clutch Spring w/ Compression Bolts & nuts (Pkg. 8) 500140

11 Flanged Yoke 140226

12 Bushing 140221

13 Friction Hub 140220

14 10 x 70 Bolt 140224

15 Pressure Plate (Outer) 140216

16 Friction Disc for 6‖ Slip Clutch (4-3/4‖ OD x 2-11/16‖ ID) 140219

16 Friction Disc for 7‖ Slip Clutch (5-1/2‖ OD x 3-5/16‖ ID) 196008

22” PTO 147122

31

TG SERIES OUT-BOARD HUB 184070

Ref.

No.

Part Name

184070

1 Hub Housing 902341

2 Cap 902342

3 Self Aligning Ball Bearing (1310) 902019

4 Seal Double Lip (Pkg. 2) 505017

5 Bolt M-6 -16 902345

6 Bolt M-12 –25 902011

7 Lock washer M-12 902010

8 Washer 902009

9 Grease Zerk 1/4‖ 902349

32

TG SERIES GEARBOX 184069

33

Ref.

No.

Part Name Part

Number

1 Retaining Ring 90mm 902005

2 Retaining Ring 40mm 902006

3 Pressure Plate Plug 1/2‖ - 14 NPT 902007

4 Sq. Hd. Plug 1/4‖ - 18 NPT 902008

5 Flat Washer (Main) 902009

6 Lock washer M-12 902010

7 Bolt M-12-25 902011

8 Bolt M-8-16 (Pkg. 12) 502247

9 Bolt M-10-25 (Pkg. 6) 502296

10 Bolt M-10-20 (Pkg. 6) 502207

11 Spacer (Output) 902015

12 Spacer (Input) 902016

13 Seal Double Lip (Pkg.2) 505017

14 3210 Double Bearing (Ball) 902018

15 1310 Self Aligning Bearing (Ball) 902019

16 Gear -34 Teeth 902021

17 Gear –16 Teeth 902022

18 Gear –28 Teeth 902020

19 Cover 902001

20 Side Box Outboard Hub Housing 902002

21 Housing 902003

22 Gasket 902004

TG SERIES SIDE GEARBOX PARTS LIST

34

TG SERIES TOP GEARBOX ASSEMBLY

35

TG SERIES TOP GEARBOX PARTS LIST

Ref.

No.

Part Name Part

Number

1 Retaining Ring 72mm 902301

2 Retaining Ring 40mm 902302

3 Housing RTA - 50 902329

4 Pressure Plate Plug 1/2‖ - 14 NPT 902304

5 Sq. Hd. Plug 1/4‖ - 18 NPT 902305

6 Bolt M-10-25 (Pkg. 6) 502296

7 Bolt M-10-30 (Pkg. 4) 505008

8 Spacer 902309

9 Shim Pack (Pkg. 8) 502243

10 Output Gasket 0.8mm 902314

10 Output Gasket 0.5mm 902315

11 Input Gasket 0.4mm 902316

11 Input Gasket 0.2mm 902317

12 Output Seal Double Lip 902318

13 Input Seal Double Lip 902319

14 Sealed Ball Bearing (6308) 902320

15 Ball Bearing (6308) 902321

16 Ball Bearing (6307) 902322

17 Ball Bearing (6207) 902323

18 Output Shaft TG-48 500mm 902324

18 Output Shaft TG-60 700mm 902330

18 Output Shaft TG-72 900mm 902331

19 Pinion Shaft 13 Teeth 902325

20 Output Gear 19 Teeth 902326

21 Cap Blank 902327

22 Cap Hub TG-48 500mm 902328

22 Cap Hub TG-60 700mm 902332

22 Cap Hub TG-72 900mm 902333

36

1. Limited Warranty.

King Kutter, Inc. (―King Kutter‖), P.O. Box 1200, Winfield, Alabama 35594, warrants to the original retail pur-

chaser (―Purchaser‖) that the product that is the subject of this sale is free from defects in material and work-

manship at the time of sale.

Under this warranty, King Kutter will repair the defective product free of charge to the Purchaser, with either

new or used and reconditioned replacement parts. All warranty service will be performed at service centers

designated by King Kutter. If King Kutter is unable to repair the product to conform to the warranty after a

reasonable number of attempts, King Kutter will provide, at its option, one of the following: (a) a replacement

for the product or, (b) a full refund of the purchase price. Repair, replacement, or refunds are the Pur-

chaser’s EXCLUSIVE remedies against King Kutter under this limited warranty. King Kutter will not be liable

for any special, incidental or consequential damages based upon breach or warranty, breach of contract, neg-

ligence, strict tort liability, or any other legal theory. Such damages include, but are not limited to, loss of prof-

its, loss of savings or revenue, loss of use of the product or any associated equipment, cost of capital, cost of

any substitute equipment, facilities or services, down time, the claims of third parties including customers, and

injury to property. These limitations also apply, to the extent allowed by law, to personal injury.

The purchaser must notify the Seller in writing of any defect in material or workmanship within one (1) year

following the date of purchase. If the equipment is used for commercial purposes, the Purchaser must notify

the Seller in writing of any defect in material or workmanship within ninety (90) days following the date of pur-

chase. In no event will King Kutter be liable under this warranty unless written notice is received by the Seller

within one (1) year from the date of original retail sale.

2. Warranty of Title.

King Kutter warrants that it transfers a good title to the product free of any encumbrances, and free of the

rightful claim of any third party for infringement of patent or copyright.

3. What is Not Covered by This Limited Warranty.

King Kutter will not be responsible for damage to or failure in the product which results from accident, misuse,

abuse, neglect, installation of attachments not provided by King Kutter, modifications to the product, or dam-

age caused by use of the product for purposes other than those for which it was designed.

4. No Other Warranties.

Unless modified in writing and signed by both parties, this agreement is understood to be the complete and

exclusive agreement and warranty between King Kutter and Purchaser, superseding all prior agreements,

oral and written, and all other communication between King Kutter and Purchaser related to the subject mat-

ter of this agreement.

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-

ING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED

WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. No employee of King Kutter nor anyone else is

authorized to make any warranty or representation in addition to or different from those made in this agree-

ment.

5. Allocation of Risk.

This agreement allocates the risk of product failure between King Kutter and the Purchaser. This Allocation is

recognized by both parties as reflected in the price of the goods. The Purchaser acknowledges that he or she

has read this agreement, understands it, and is bound by its terms.
