King of Fans 42CHAMD 42 inch Chamberlain User Manual
King of Fans, Inc. 42 inch Chamberlain Users Manual
Users Manual
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #
XXXX XXX XXX
Model #59242
UL Model #42-CHAM
CHAMBERLAIN 42-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
2
Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation ............................................................................ 6
Assembly .............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning ............................................................. 14
Troubleshooting .................................................................14
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL
Listed outlet boxes marked ”Acceptable for Fan Support of 35 lbs.
(15.9 kg) or less”.
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) clearance
from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL-listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
9. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: Suitable for use with solid-state speed
controls.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, “this fan should only be used with fan speed
control part no. AP-3RDL manufactured by Dawnsun
Electronic Co., LTD.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
SPECIFICATIONS

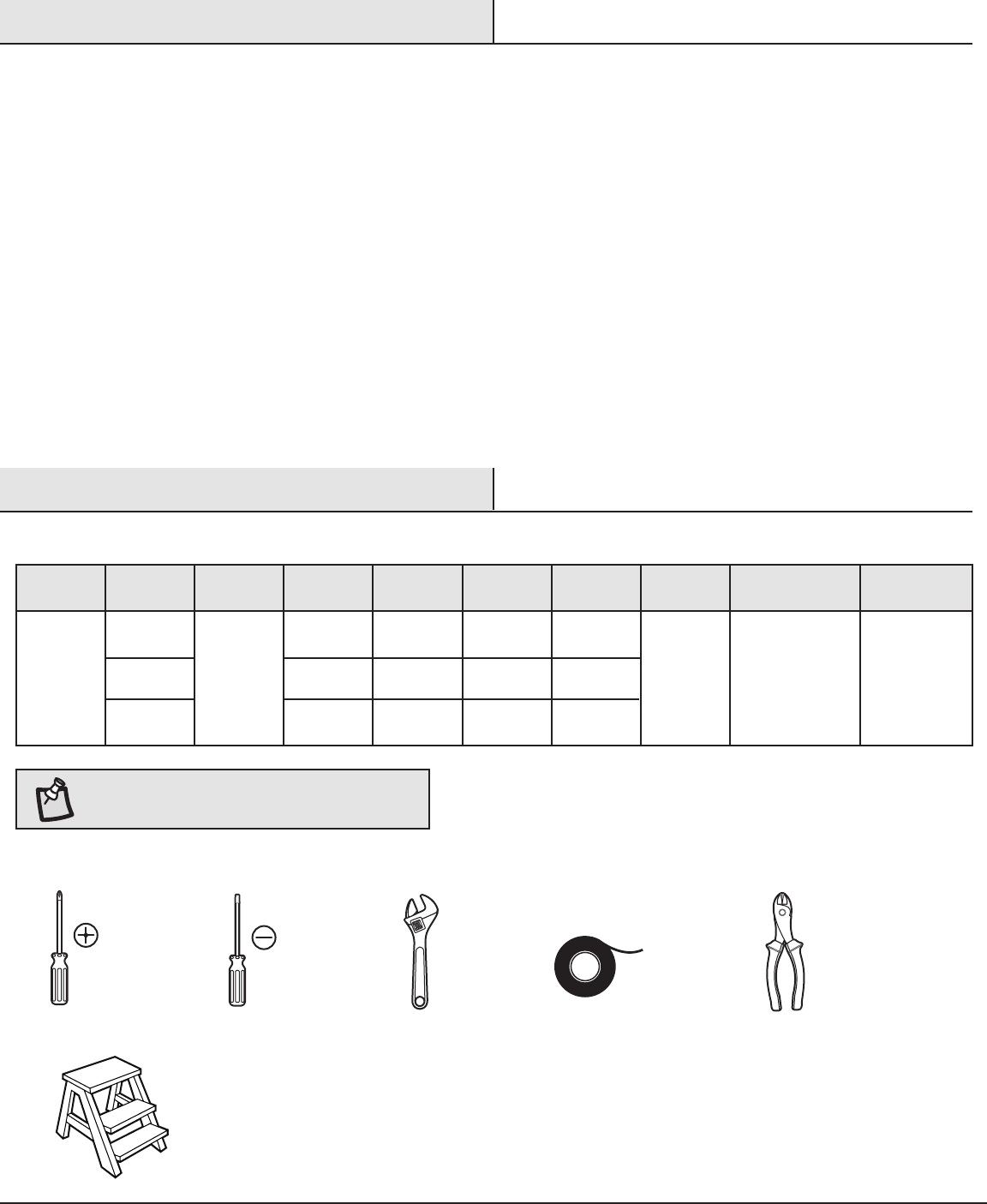

TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
42 in.
Low
Medium
High
120
X.XX
X.XX
X.XX
XX
XX
XXX
XX
XXX
XXX
XXXX
XXXX
XXXX
XX.XX lbs.
(X.X kg)
XX.XX lbs.
(X.X kg) X.XX ft.3
4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connector 3
Pre-Installation (continued)

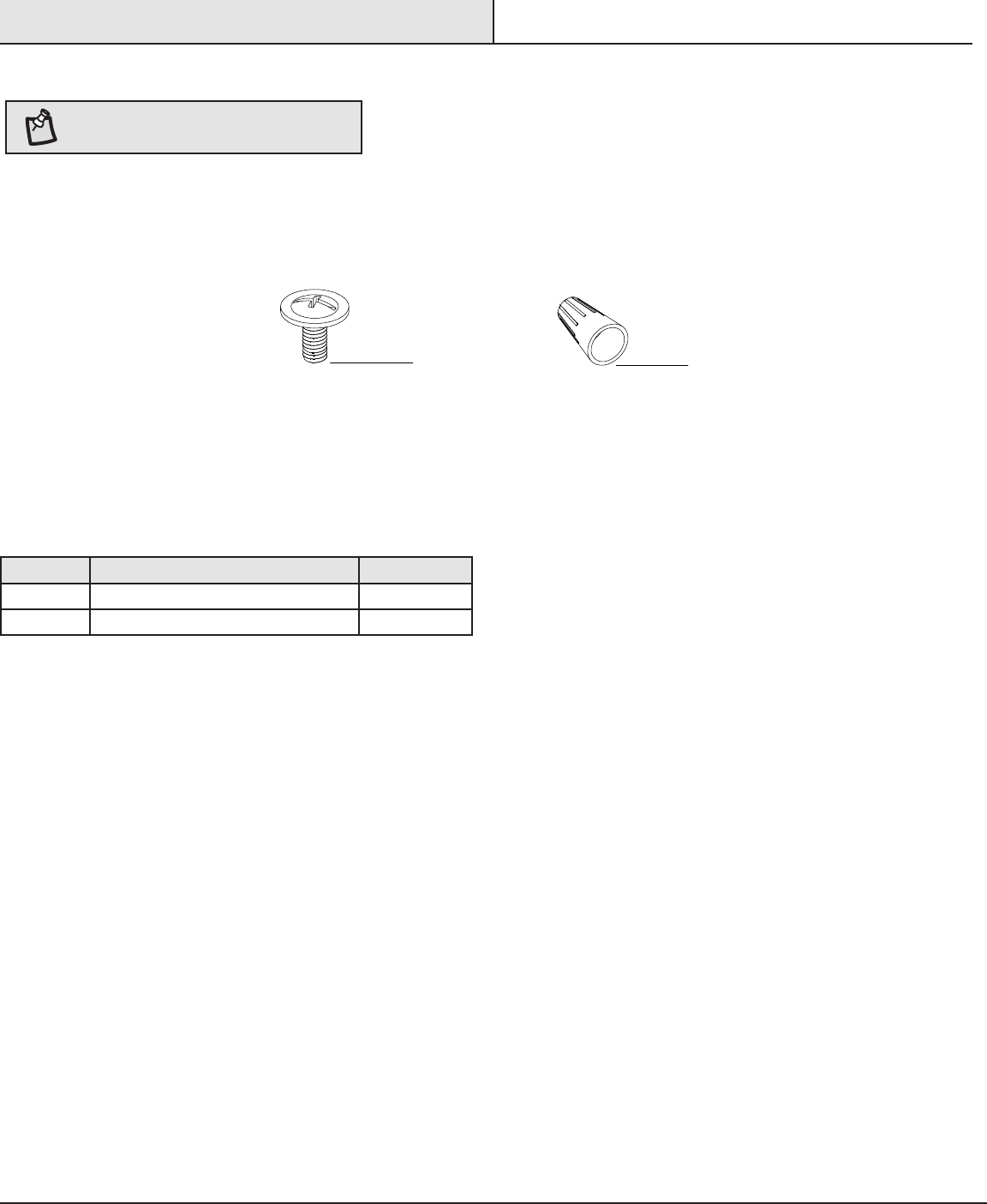

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Blade 5
G Light kit pan 1
H Light kit tter assembly 1
I GLASS 1
J Receiver 1
K Remote control (battery included) 1
L Extension lead wire 1
M LED bulb (6.5-Watt, Max) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
D
E
F
G
H
I
J
K
L
M
6
Installation

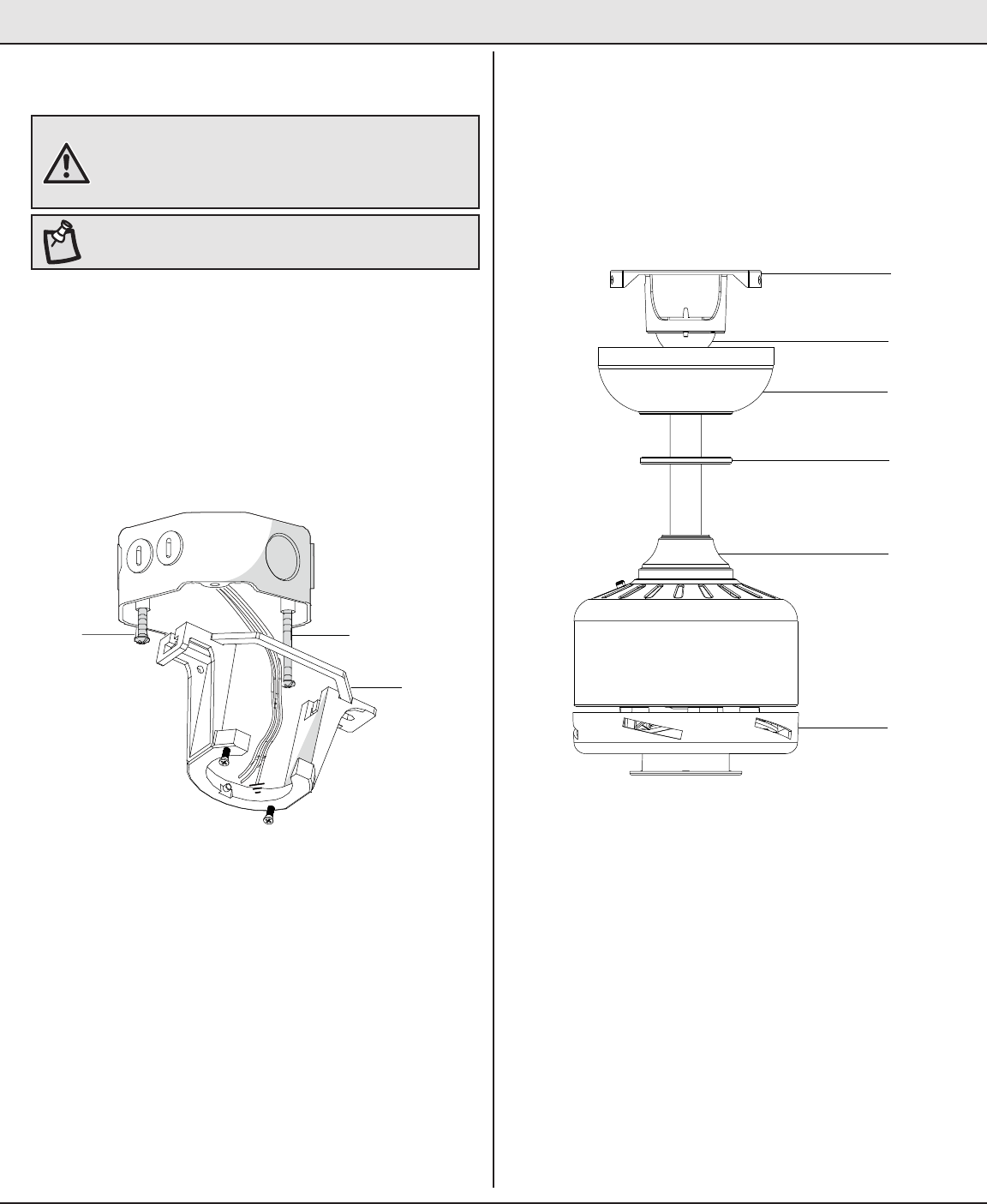

MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount the fan to an outlet box
marked “Acceptable for fan support of 35 lbs. (15.9
kg) or less” and use the screws provided with the
outlet box. An outlet box commonly used for the
support of lighting xtures may not be acceptable for
fan support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.

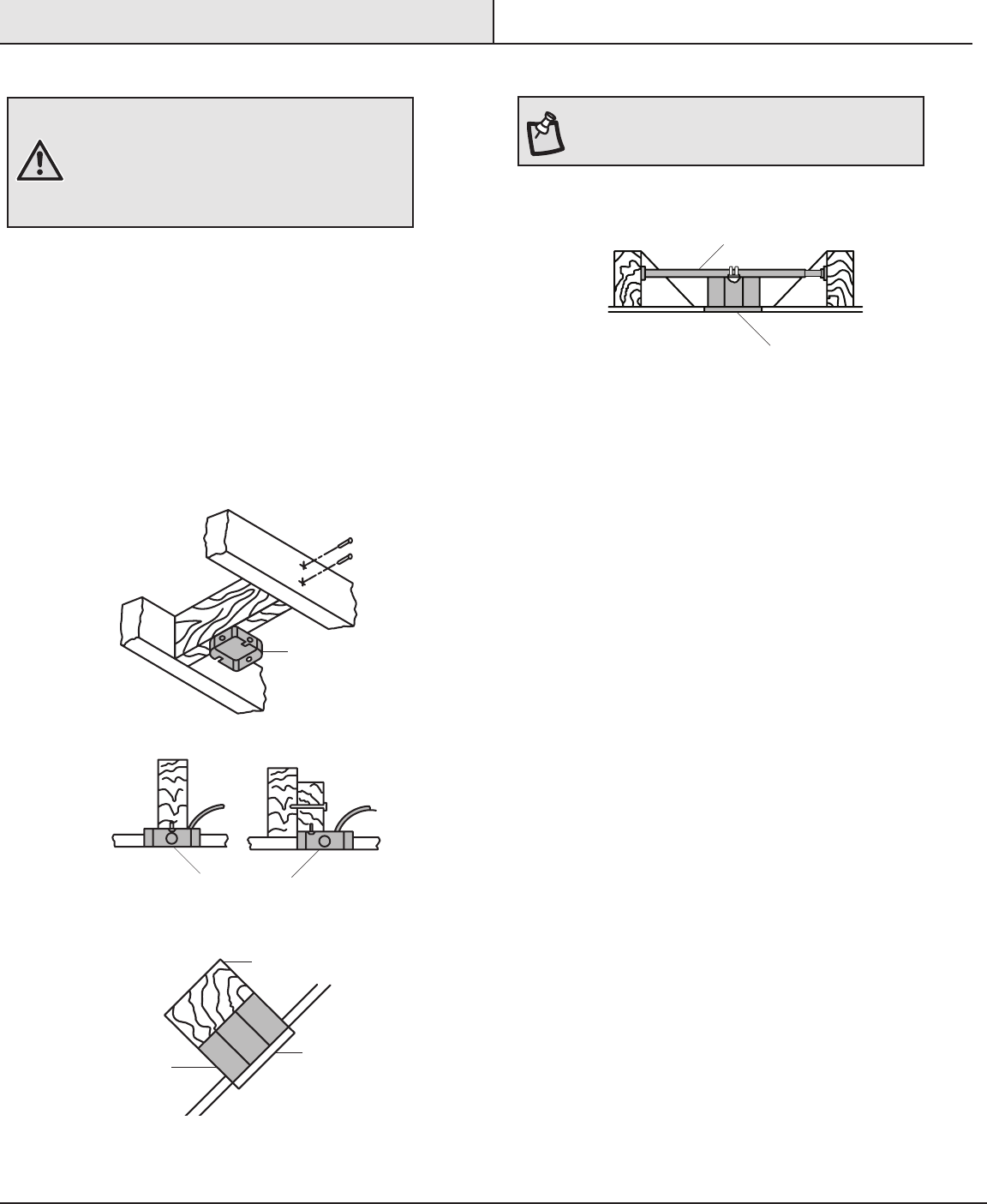

The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

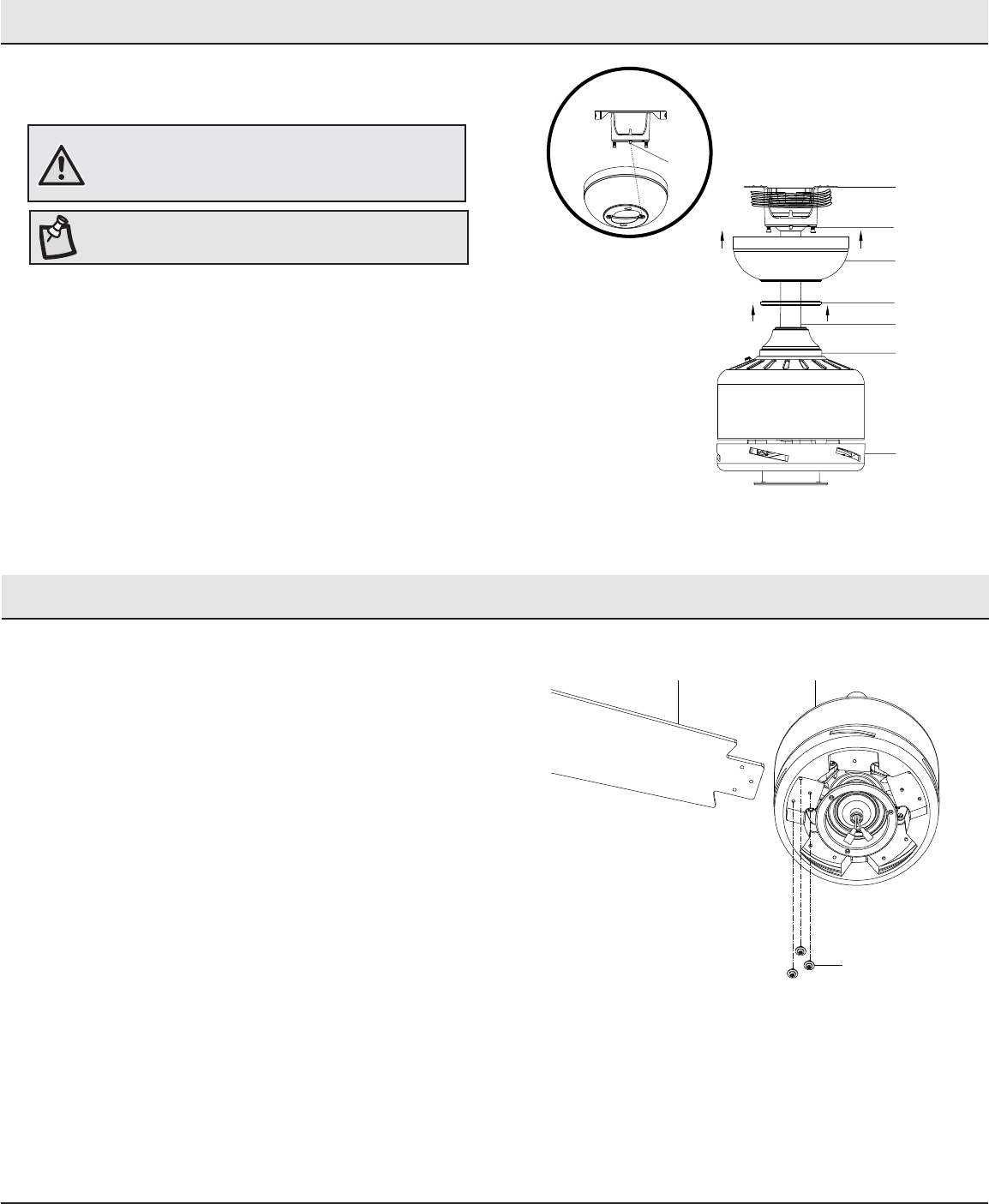

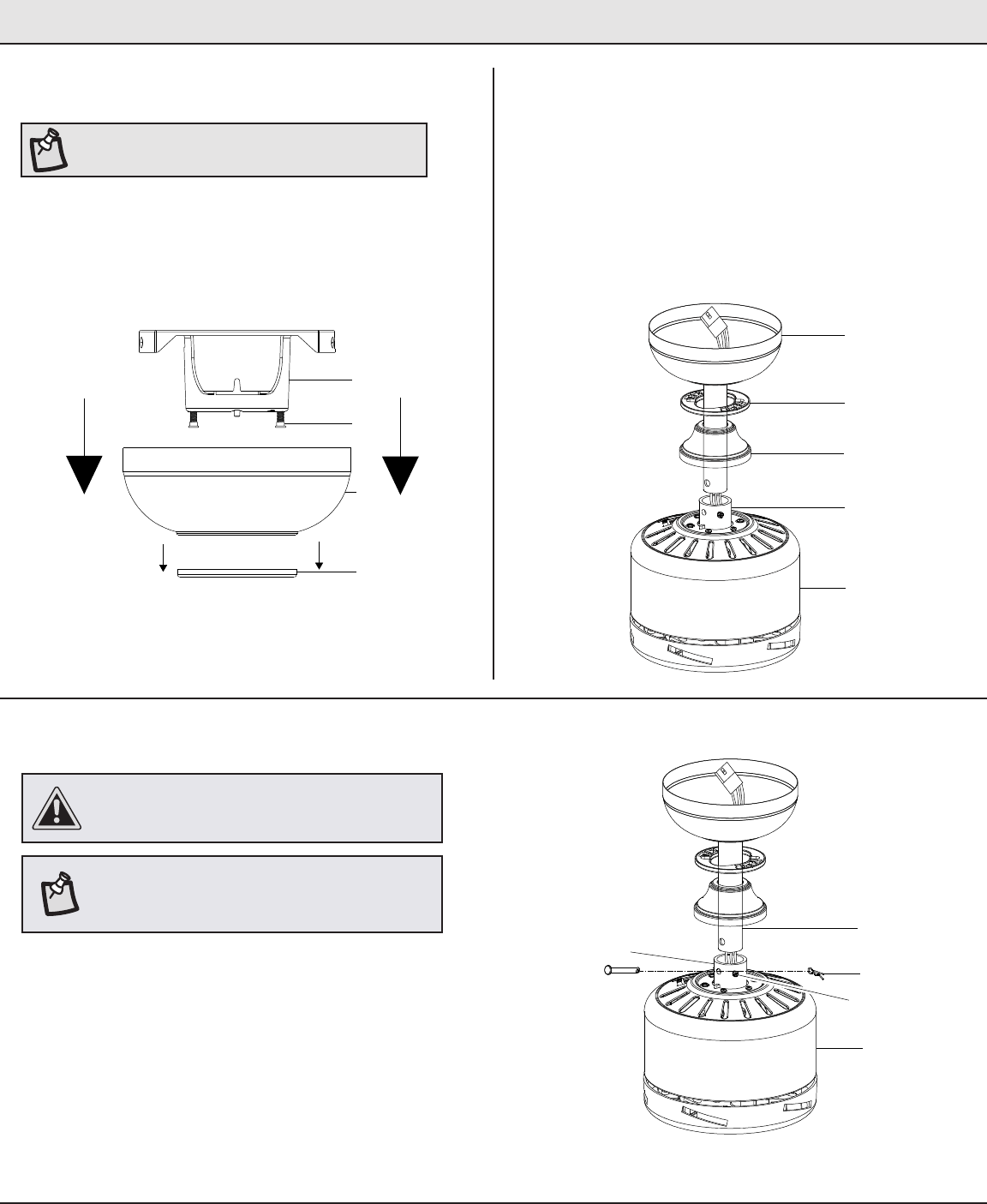

Assembly - Standard Ceiling Mount
Routing the wiresPreparing for standard mounting

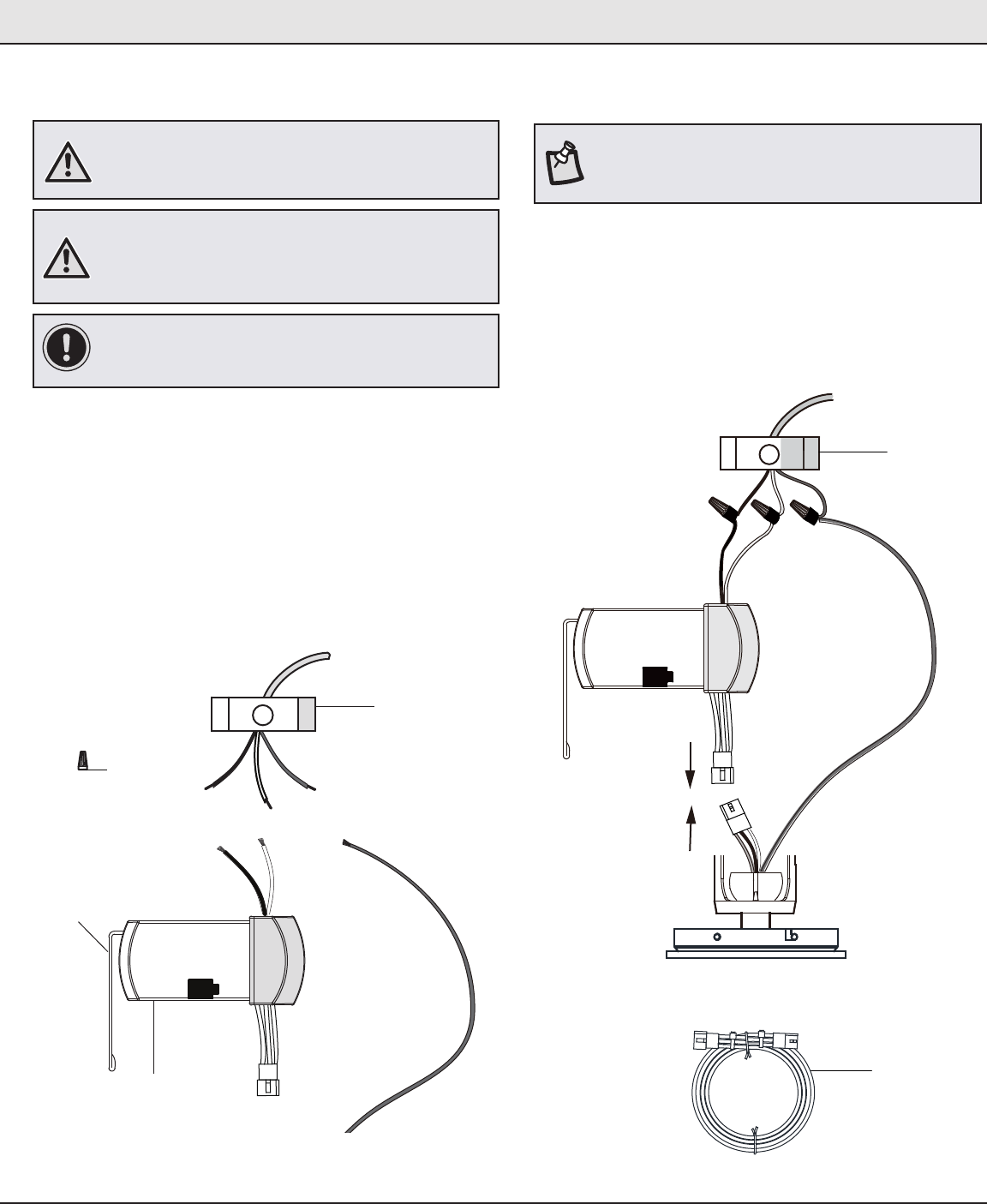

□Route the wires exiting the top of the fan motor assembly
(E) through the decorative motor collar cover (D) and then
the center of the canopy bottom cover (FF).
□Make sure the opening of canopy (C) is on top and insert
the ball/downrod (B) through the canopy (C).
□Route the wires exiting the top of the fan motor assembly
(E) through the downrod as shown.
21
□Pull off the canopy bottom cover (FF) from the canopy (C).
□Loosen the two canopy screws (DD) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from canopy (C).
Assembling the fan
□Loosen, but do not remove, the setscrew (GG) on the collar (II)
on top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar (II),
and aligning holes on both parts. Insert previously removed
pin through holes on collar (II) and downrod (B).
□Insert previously removed clip (HH) into pin until it snaps into
place. Tighten set screws.
3
NOTE: This fan is equipped with a safety tab (HH).
Should the setscrew (GG) ever become loose while
the fan is running in reverse, the safety tab (HH) will
engage and stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(GG) must be completely tightened.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
C
A
DD
FF
C
D
E
FF
B
E
B
II
HH
GG
8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□Install the ceiling slide-on mounting bracket (A) on the outlet
box by sliding the slide-on mounting bracket (A) over the two
screws (JJ) provided with the outlet box. If necessary, use leveling
washers (not included) between the slide-on mounting bracket
(A) and the outlet box. Note that the at side of the slide-on
mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
slide-on mounting bracket (A) socket is properly seated in the
groove in the hanger ball.
1 2
WARNING: To reduce the risk of re, electric shock, or other
personal injury, mount the fan to an outlet box or supporting
system marked “Acceptable for fan support of 35 lbs. (15.9
kg) or less” and use the mounting screws provided with the
outlet box.
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (JJ).
A
JJ
JJ
A
B
E
C
D
FF
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
3

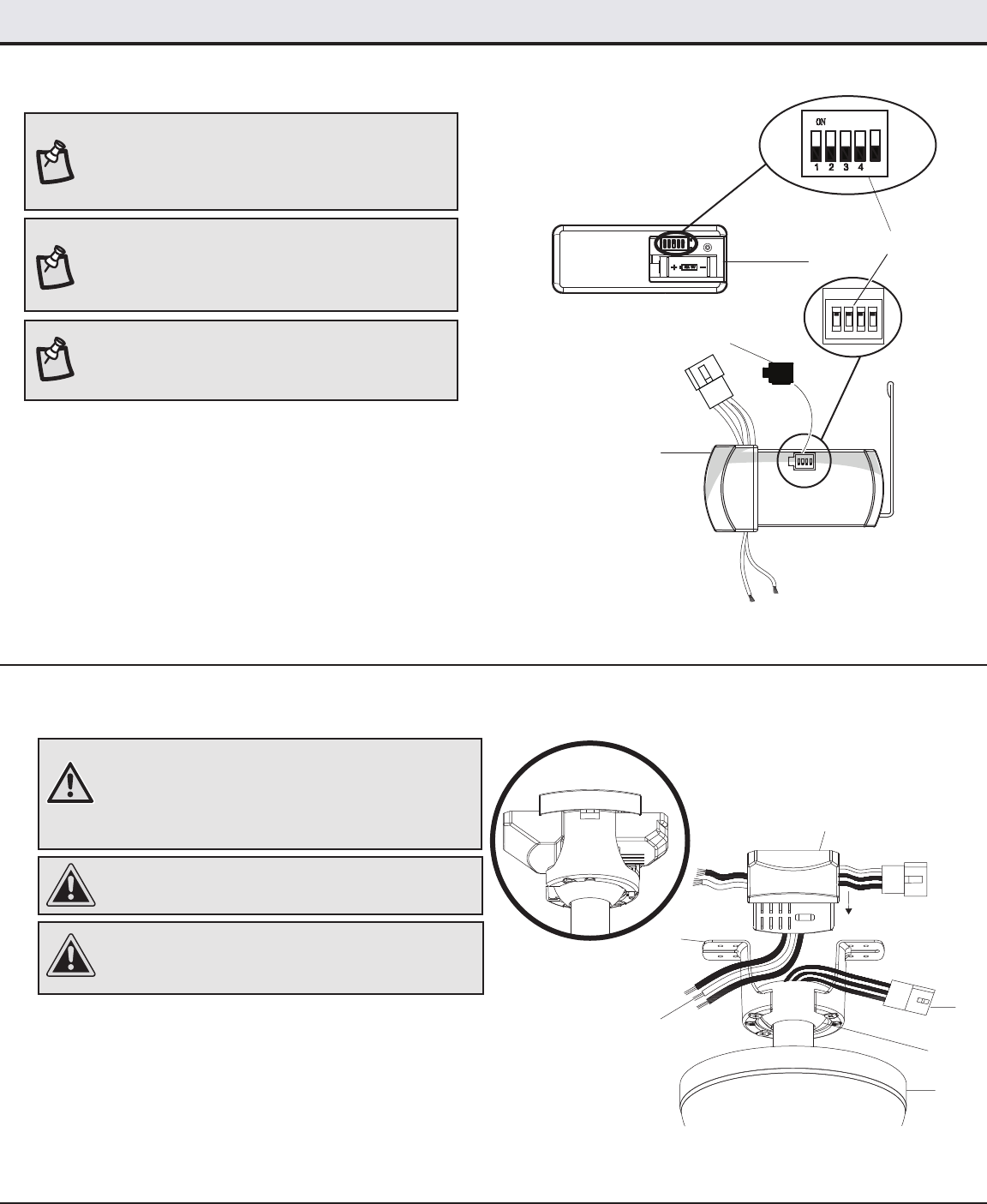

NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to “O” to
disable the dimming function. If using dimmable bulbs, set
the switch to “D” to enable the dimming function.
Setting the code on the remote
control and receiver
□Remove the remote control (K) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches (ZZ) to your choice of either up or
down. The factory setting is up.
□Slide the dip switches (ZZ) on the receiver (J) to the same
position as set on the remote control (K).
□Install the 23A 12V batteries (included).
□Replace the battery cover on the remote control (K).
□Insert the silicone rubber stopper (OO) into the hole on the
receiver (J) to cover the dip switches.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of used battery properly and keep the
battery out of the reach of children.
4Installing the receiver
□Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□Insert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
K
J
ZZ
1 2 3 4
ON DIP
1 2 3 4
ON
OO
D
O
B
C
AAA BBB
A
J
10
Assembly - Hanging the Fan (continued)
5Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver (J) black or red wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (J) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
Wiring the fan to the receiver
□If using the 6 in. ball downrod assembly (B) provided, wire
the receiver to the fan wires by connecting the molded
adaptor plug from receiver (J) with molded adaptor of the
fan motor assembly (E) together.
□If you wish to use longer downrod, you can use the
extension lead wire (42 in.) (L) provided by connecting the
molded adaptor together.
6
NOTE: The fan comes with 12 in. lead wires for use with the
provided 6 in. ball downrod assembly (B), if you wish to use
longer downrod, you can use the extension lead wire (42 in.) (L)
provided.
Black or Red
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (J)
BB (x3)
1 2 3 4
ON DIP
Outlet box
in the ceiling
(MM)
Green
1 2 3 4
ON DIP
L
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Attaching the Blades
Attaching the fan blades
1 □Attach a blade (F) to the fan-motor assembly (E) by inserting
the blade (F) into the slots in the side of the fan motor housing
and aligning the three screw holes in the blade with the holes
in the center ywheel and secure with screws (AA).
□Make sure all the screws are rmly tightened.
□Repeat these steps for the remaining blades.
Assembly - Hanging the Fan (continued)
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the canopy (C) with the two screws
(DD) and alignment post (KK) in the mounting bracket (A).
□Push up the canopy (C) and turn clockwise until the
alignment post (KK) engage to the round hole and the
screws (DD) engage to the key slots.
□Firmly tighten the two mounting screws (DD).
□Align the oval shape on the canopy (C) with canopy bottom
cover (FF), Push up the canopy bottom cover (FF) until the
screw (DD) heads engage to the slots on the canopy bottom
cover (FF) so that the magnetic canopy bottom cover (FF)
can be attached to the bottom of the canopy (C) properly.
7
WARNING: When using the standard ball/downrod mounting,
the tab in the ring at the bottom of the mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
C
A
DD
FF
B
E
KK
D
AA
E
F
12

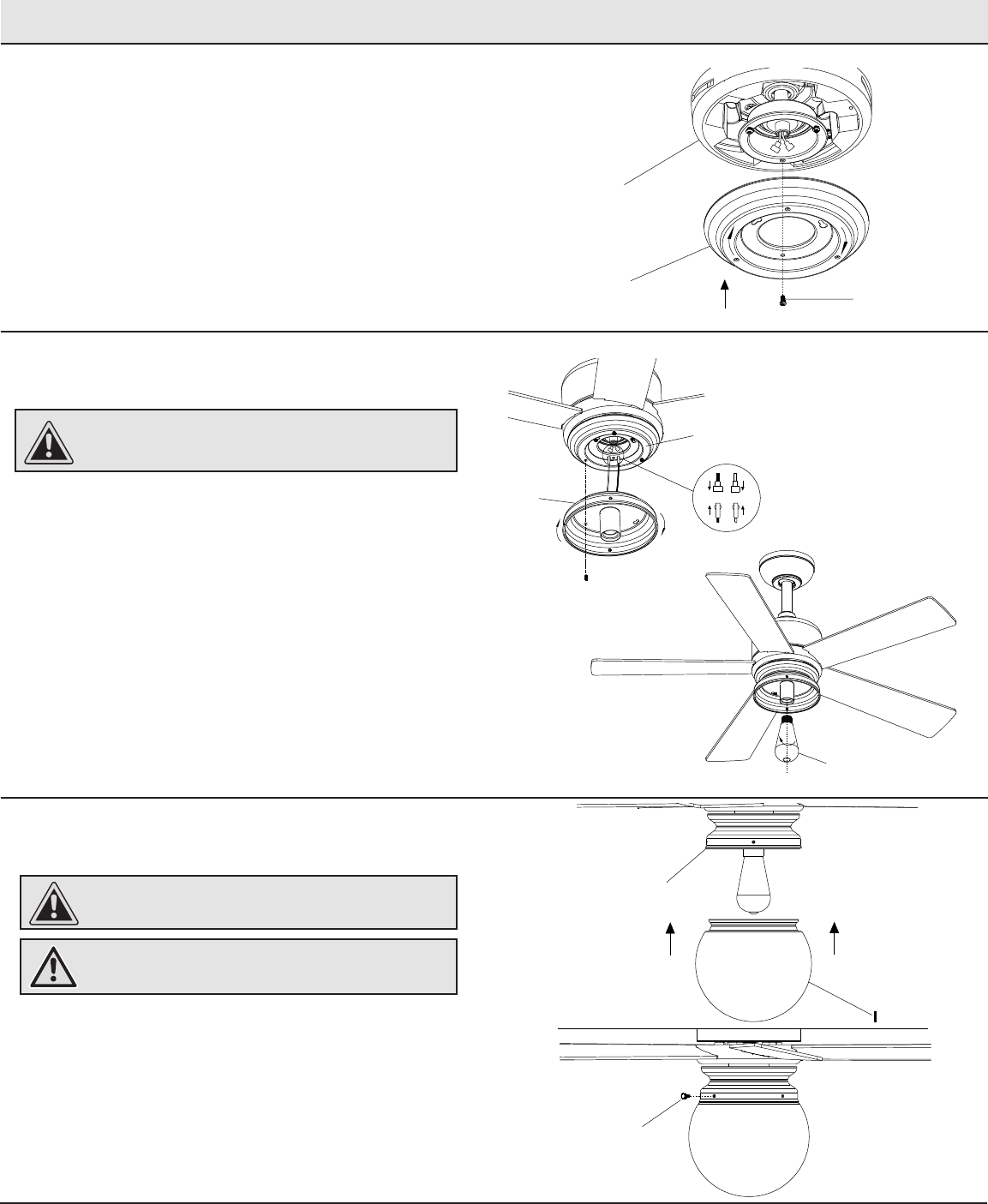

Assembly - Attaching the Light
Attaching the light kit tter assembly
and installing the light bulbs
2
□Remove one screw (LL) from the light kit pan (G), and loosen,
but do not remove the other two screws.
□Connect the wires from the light kit tter assembly (H) to
the wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□Push the light kit tter assembly (H) up to the light kit pan (G)
so that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (H) clockwise to secure.
□Re-install the screw (LL) that was removed in step 1.
□Make sure all the screws are rmly tightened.
□With power off, install the two light bulbs, (6.5-watt maximum
included)(M) by screwing into the light bulbs sockets.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
Installing the glass
3
□Remove the three screws (PP) from the light kit pan (H).
□Align the glass shade (I) with the round hole at the outer rim
of the light kit pan (H) and hang the glass shade (I) to round
hole in place.
□Carefully push up the glass shade (I) to the light kit pan (H),
align the three screws holes on the crystal shade (I) with the
three screws holes on the light kit pan (H).
□Re-install the three screws (PP) removed in step 1 and tighten
the screws to secure the glass shade (I) properly.
CAUTION: Make sure the power is off before attaching or
removing the glass shade.
WARNING: Allow the glass shade to cool completely before
removing.
Attaching the light kit pan
1 □Remove one screw (RR) from the black bracket below fan
motor assembly (E), and loosen, but do not remove the other
two screws.
□Push the light kit pan (G) up to the black bracket so that the
two loosened screw heads t into the keyhole slots. Turn the
light kit pan (G) clockwise to secure.
□Re-install the screw (RR) that was removed in step 1.
□Make sure all the screws are rmly tightened.
E
RR
G
H
G
M
PP
H
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

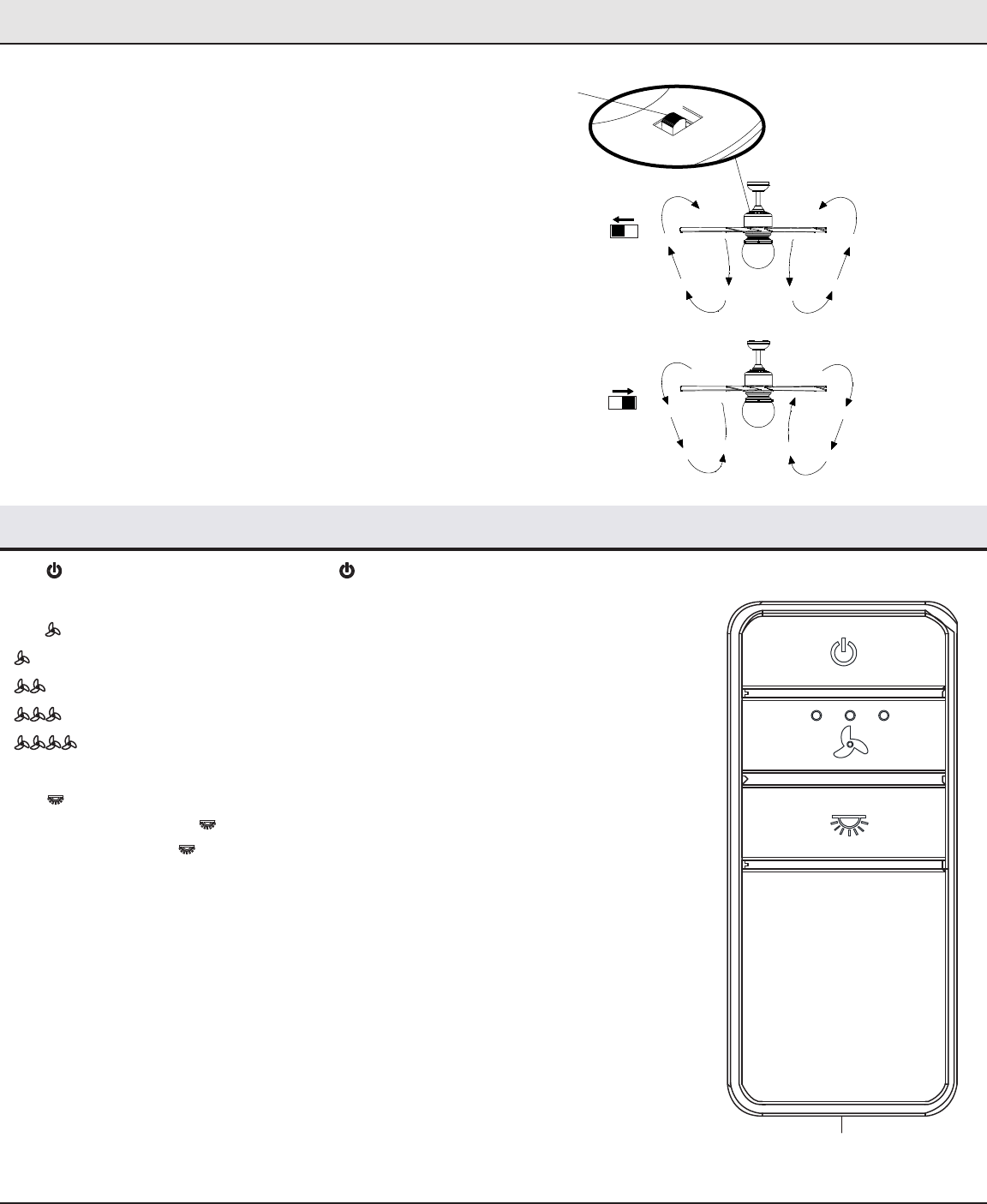

Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch (YY)
positioned to circulate air downward. If airow is desired in the
opposite direction, turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located on the top of the
motor housing) to the opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and reverse airow.
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
A. Warm weather
B. Cool weather
1. Power ON/OFF. - Press and release the button to turn the fan and light on or off.
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
3. Light ON/OFF
□Press and release the button to turn the light on or off.
□Press and hold the button to activate the dimmer function (as long as you have NOT
previously set O/D dip switch in your remote to the “ON” position).
Operating Your Fan and Remote Control
K
YY
14
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check to make sure the wall switch is in the on position if applicable.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the transmitter.
□Ensure you are in the normal range of 10-20 feet.
□Ensure the dip switch settings are the same on the transmitter and receiver.
□Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting bracket and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. Any measurement
deviation should be within 1/8”. Run the fan for ten minutes. If the fan continues to wobble please contact Customer
Service and a balancing kit will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
