King of Fans 44CRDS 44 inch Corrado User Manual
King of Fans, Inc. 44 inch Corrado
User Manual
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1001 xxx xxx
Model # 51549, 51543
UL Model # 44-CRD
USE AND CARE GUIDE
CORRADO 44-INCH CEILING FAN
2
Table of Contents ................................................................ 2
Safety Information ...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................6
Assembly ..............................................................................7
Operation ...........................................................................12
Care and Cleaning ............................................................. 14
Troubleshooting .................................................................14
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. MR140A, manufactured by Satellite
Electronic Co., LTD.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more
of the following measures:
- Reorient the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
44 in.
1
120
x xxxx xxxx
xx lbs
(x kgs)
xx lbs
(x kgs) xx pies³ (x m³)
2 x xxxx xxxx
3 x xxxx xxxx
4 x xxxx xxxx
4
Part Description Quantity
AA Blade attachment screws 16
BB Plastic wire connecting nut 3
Pre-Installation (continued)

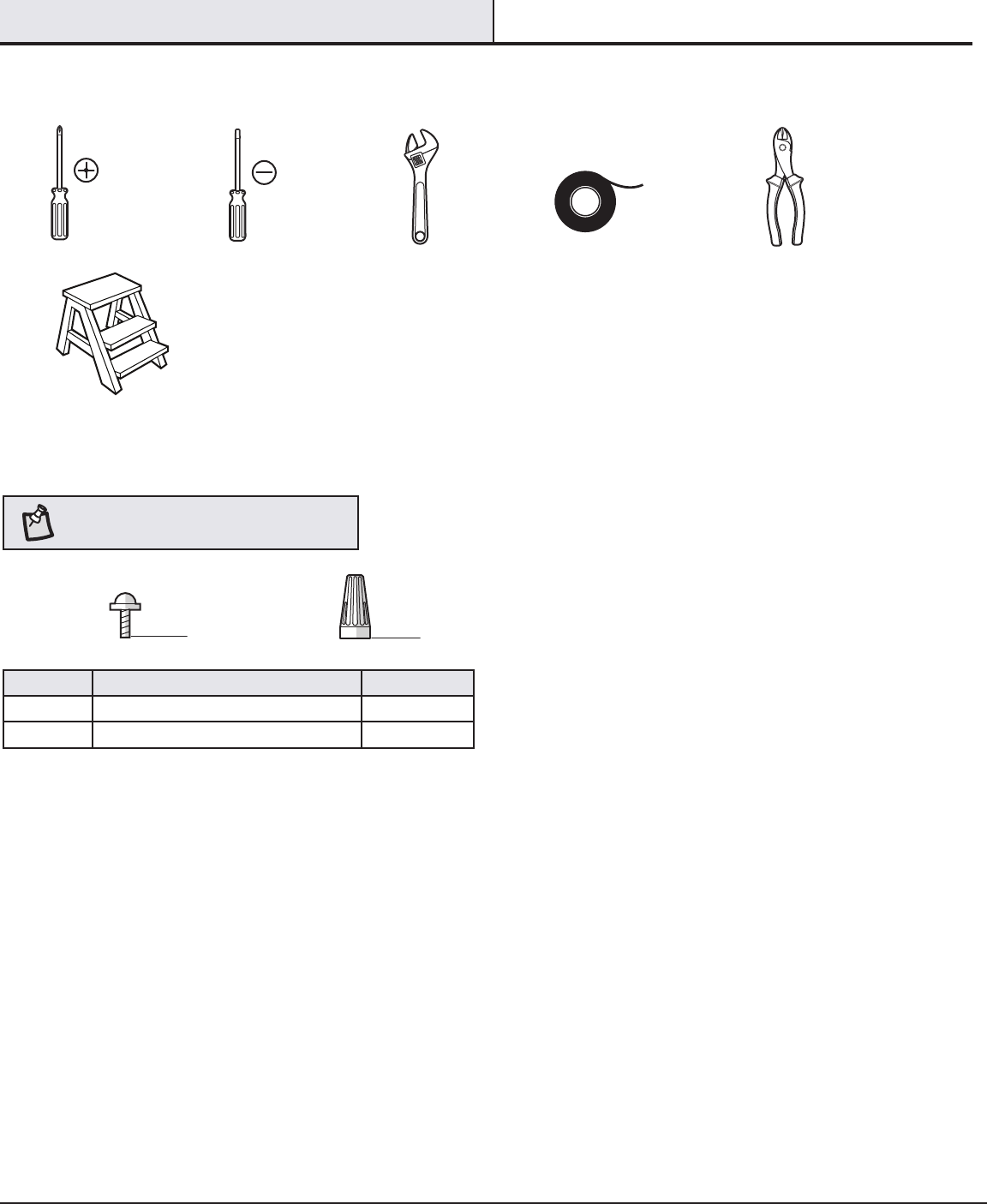

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Fan-motor assembly 1
C Blade 5
D Light kit tter assembly (LED included) 1
Part Description Quantity
E Glass bowl 1
F Receiver 1
G Transmitter (battery included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

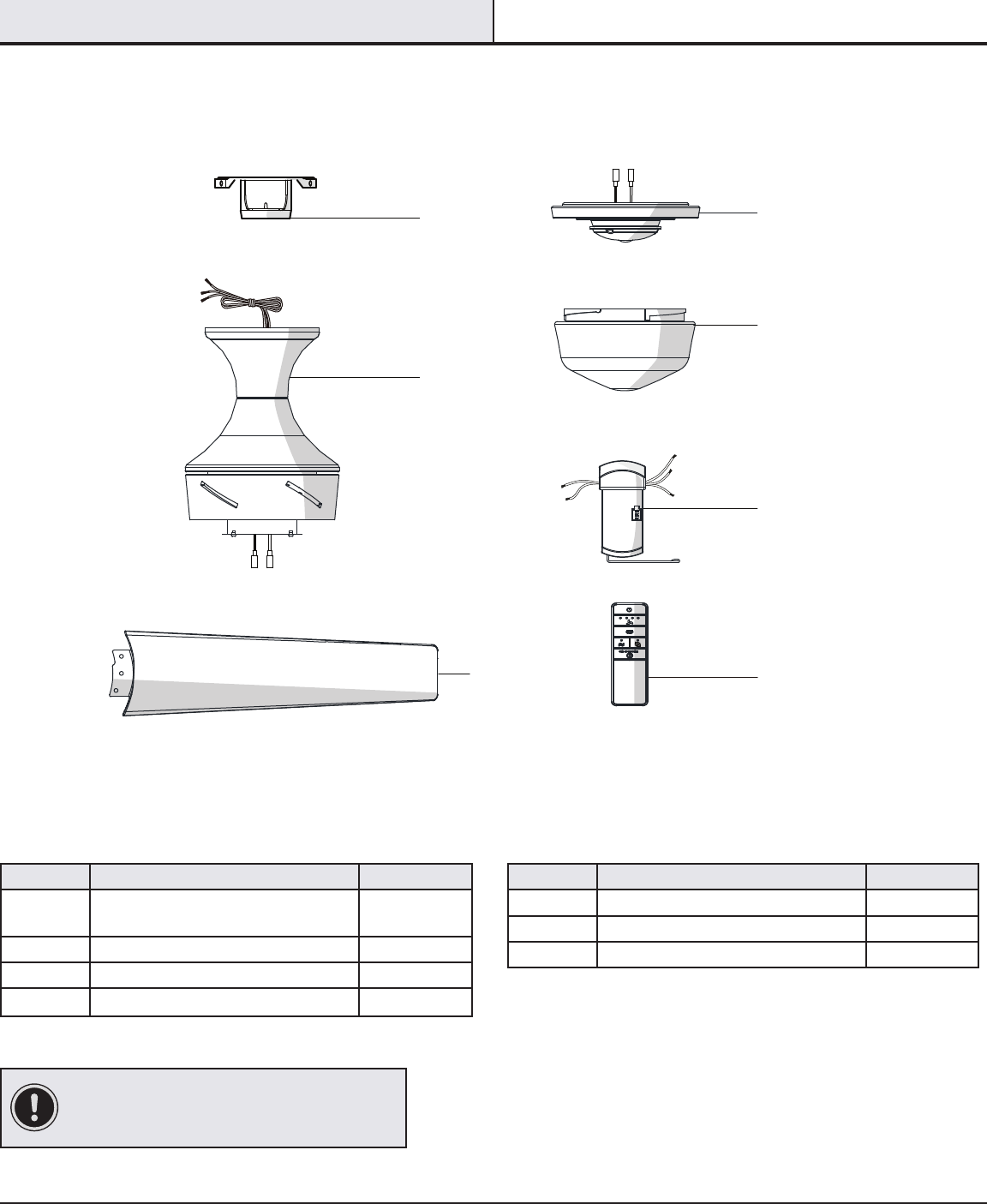

PACKAGE CONTENTS
A
B
C
D
E
F
G
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 Kg)
or less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs. (15.9kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support of
35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

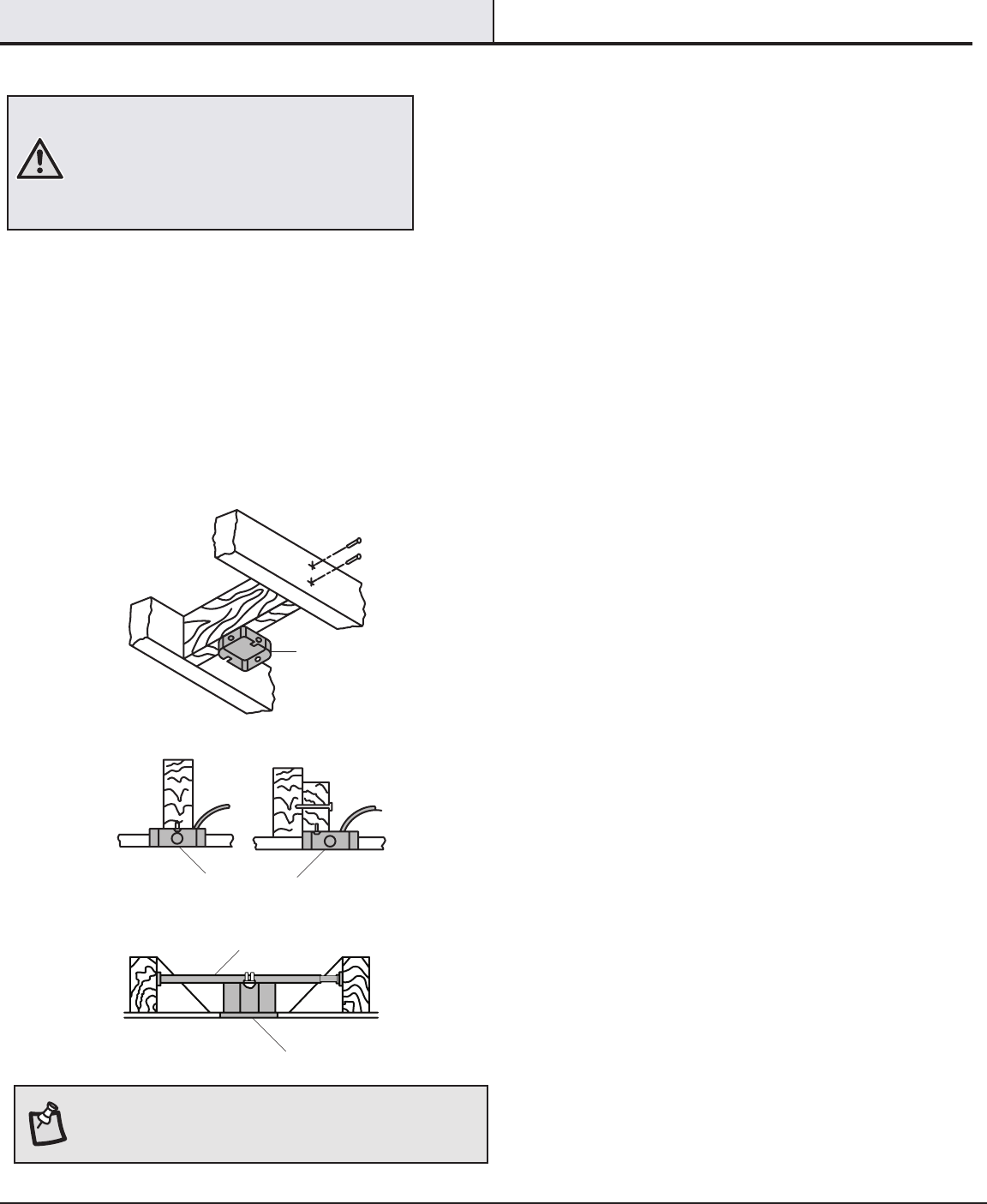

The illustrations below show three different ways to mount the
outlet box.
Outlet Box
Outlet Box
Outlet Box
Hanger Bar
NOTE: To hang your fan where there is an existing xture
but no ceiling joist, you may need an installation hanger
bar as shown above (available at any Home Depot store).
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount

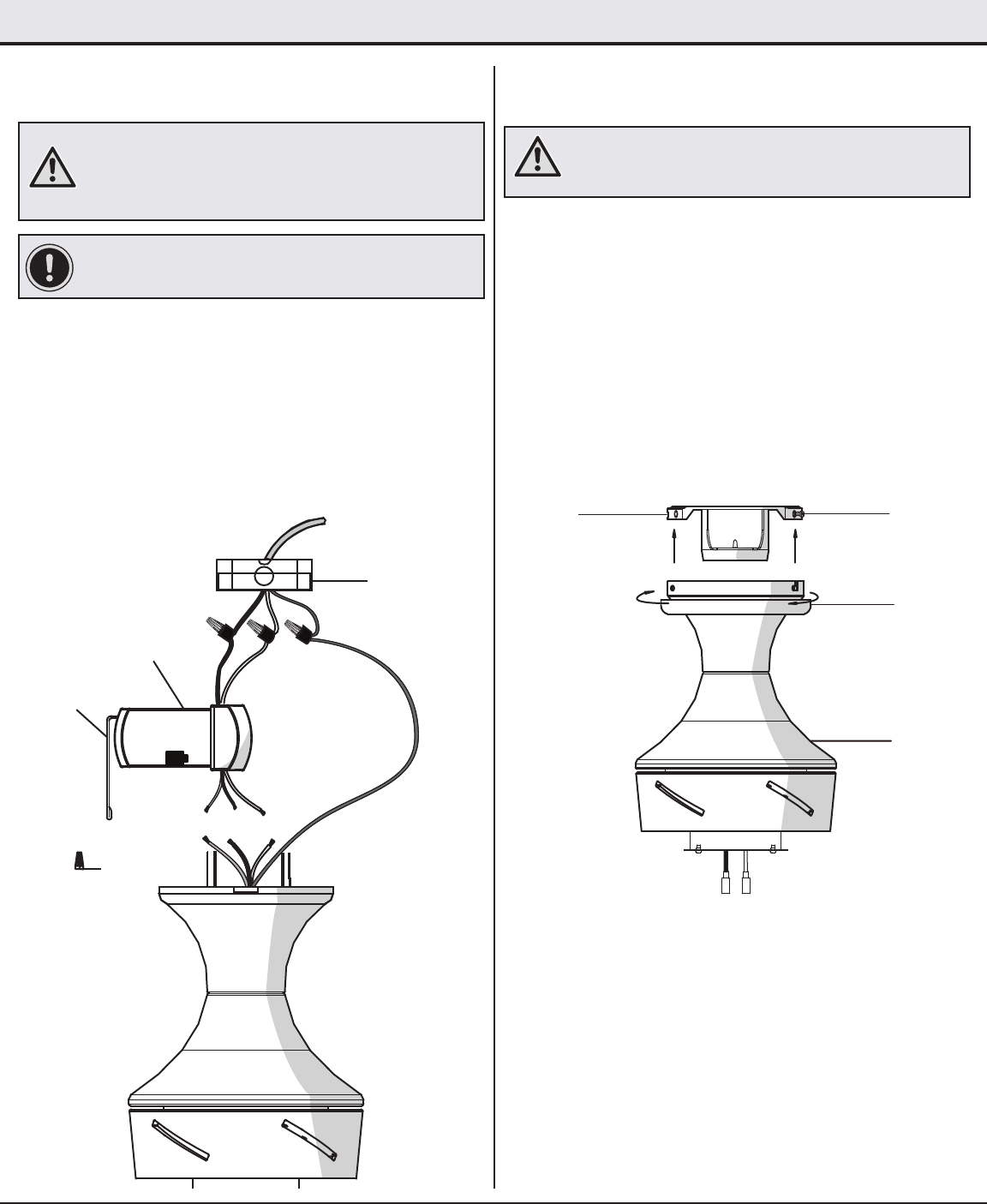

Preparing for mounting

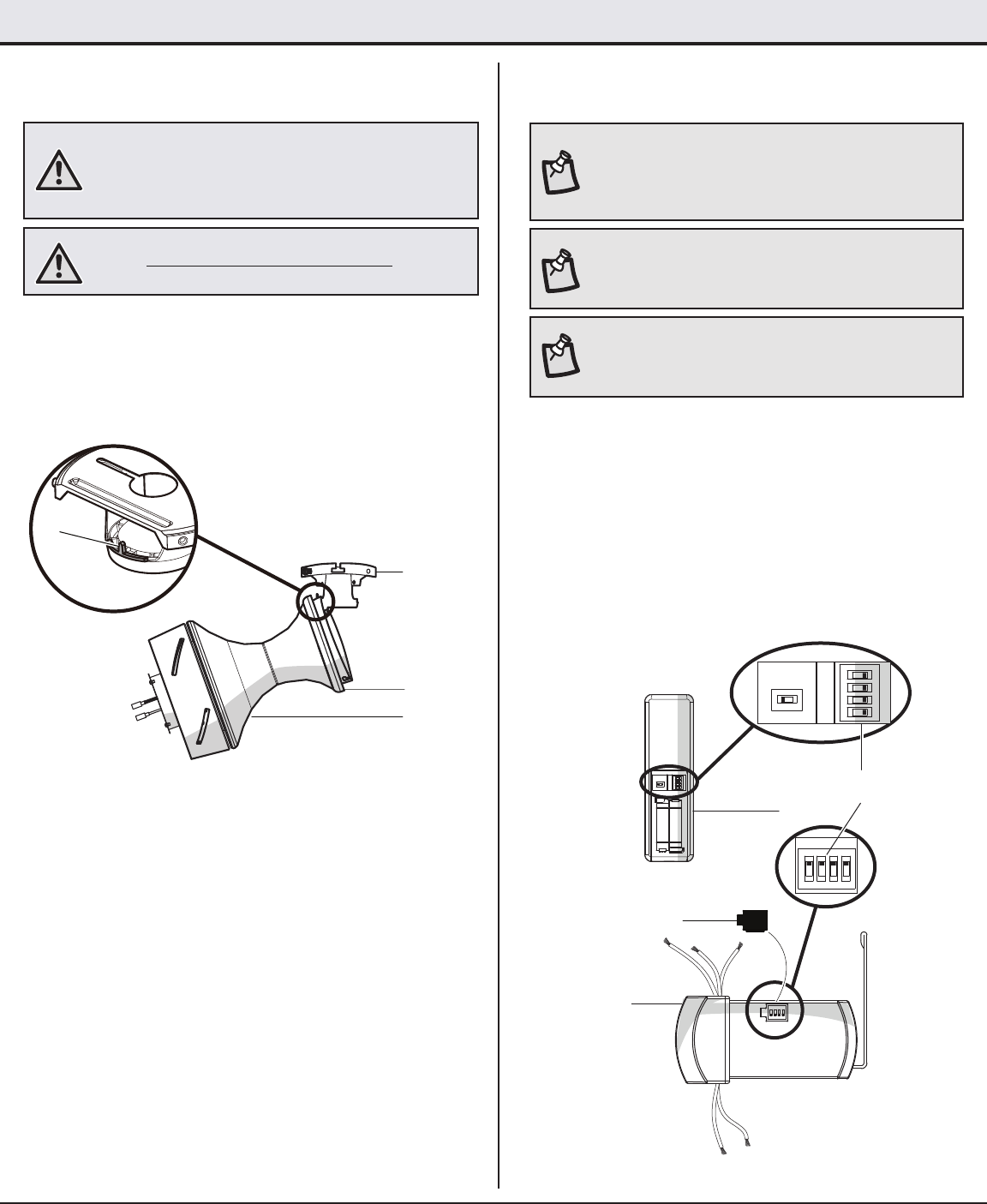

□Remove the canopy ring (EE) from the fan motor assembly
(B) by turning the ring counterclockwise until it unlocks.
□Remove the mounting bracket (A) from the fan motor
assembly (B) by loosening the two canopy screws (CC)
located in the “L shaped” slots.
□Remove and save the two canopy screws (DD) in the round
holes. This will enable you to remove the mounting bracket
(A).
1
A
EE
DD
CC
B
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
□Loosen the two mounting screws (II) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (II)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (II).
1
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.
A
II
II
NOTE: The mounting bracket (A) is designed to slide into place
on an outlet box with the outlet box screws (II) installed.
8
Assembly - Hanging the Fan (continued)
Hanging the fan

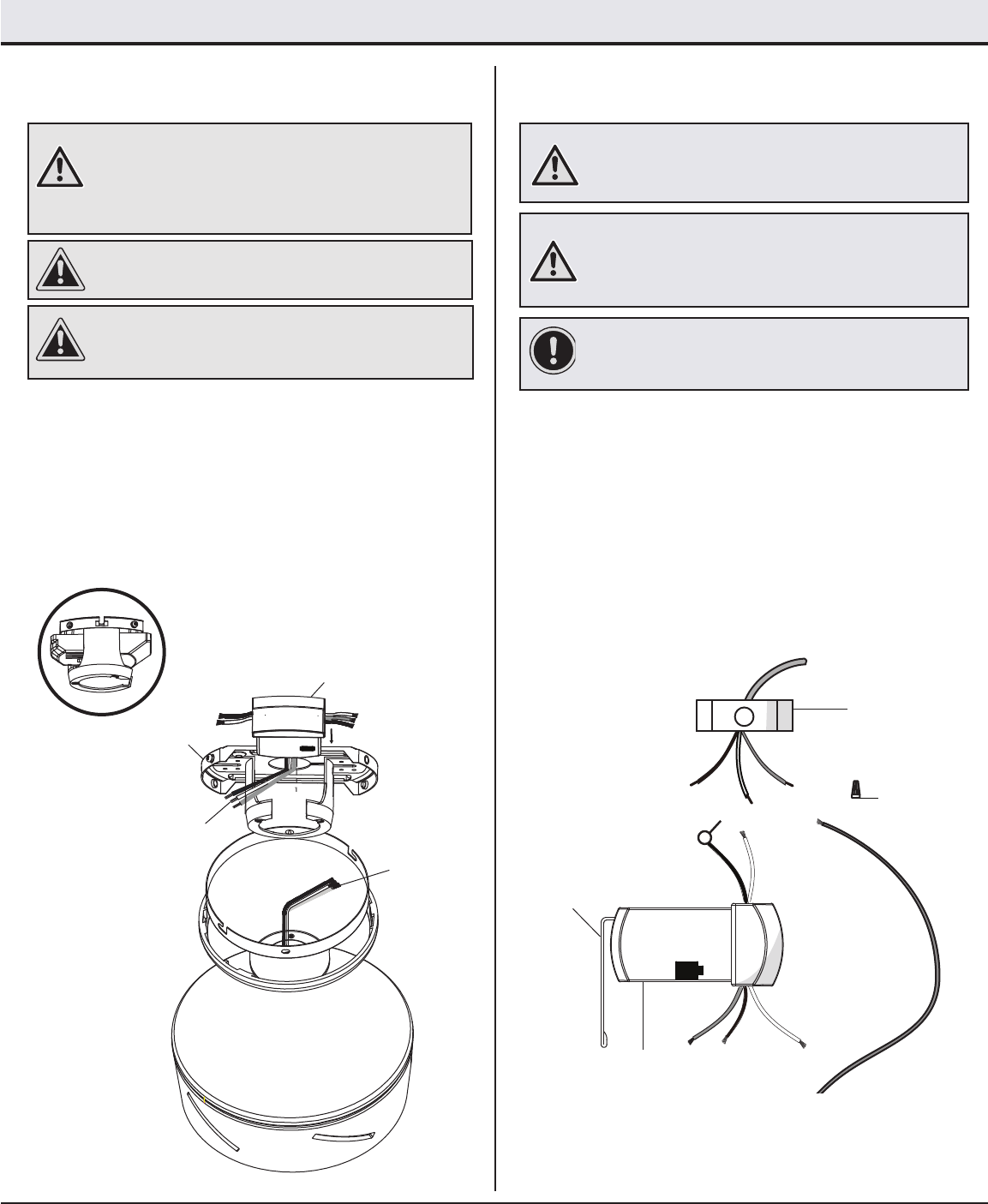

□Carefully lift the fan-motor assembly (B) up to the slide-on
mounting bracket (A).
□Hang the fan on the hook (FF) provided by utilizing one of
the non-slotted (round) holes at the outer rim of the fan-
motor assembly (B).
2
A
B
EE
FF
3
WARNING: The hook (FF) is only to balance the fan while
making the electrical connections. Failure to hang as shown
may result in the hook (FF) breaking, causing the fan to fall.
The hook must pass from the inside to the outside of the
canopy.
WARNING: When hanging the fan on the hook (FF) it is critical
that you use one of the non-slotted (round) holes in the fan-
motor assembly (B).
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit are
set to the same frequency. The dip switches on the hand unit
are located inside the battery compartment.
NOTE: The switch marked O/D controls the dimming function
of the light. Use a ballpoint pen or small screwdriver to
switch to O to disable the dimming function. The factory
preset is D.
Setting the code on the remote
control and receiver
□Remove the remote control (G) battery cover by pressing
rmly on the arrow and sliding the cover off.
□Slide the dip switches to your choice of either up or down.
The factory setting is up.
□Slide the dip switches (ZZ) on the receiver (F) to the same
position as set on the remote control (G).
□Install two 1.5V AAA batteries (included).
□Replace the battery cover on the remote control (G).
□Insert the silicone rubber stopper (OO) into the hole on the
receiver (F) to cover the dip switches.
G
F
ZZ
1 2 3 4
ON
D O
1 2 3 4
ON DIP
1 2 3 4
ON
D O
1 2 3 4
ON
OO
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of used battery properly and keep the
battery out of the reach of children.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Installing the receiver
□Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
□Insert the narrow end of the receiver (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
AAA
A
J
BBB
Assembly - Hanging the Fan (continued)
45Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied
with your fan. Secure the connectors with electrical tape and
ensure there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□Connect the receiver black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□Connect the receiver (F) white wire to the household white
wire (neutral) wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
Black
(or Red)
White
Black
Green (or Bare)
Green
Outlet Box
in the ceiling
(GG)
Receiver
Antenna
White
Receiver (F)
BB (x3)
1 2 3 4
ON DIP
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
10
Assembly - Hanging the Fan (continued)
Outlet box
in the ceiling
(GG)
Receiver (F)
Blue
Receiver
Antenna
Black White
Green
BB (x3)
1 2 3 4
ON DIP
Making the electrical connection
6
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wires to the household white
wire using a wire connecting nut (BB).
□Connect the fan motor black wires to the household black
wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box (GG).
Mounting the fan-motor assembly
□Align the locking slots of the fan-motor assembly (B) with the
two screws (CC) in the slide-on mounting bracket (A). Push up
to engage the slots, and turn clockwise to lock the fan-motor
assembly (B) in place.
□Firmly tighten the two mounting screws (CC).
□Install the two mounting screws (saved from Assembly Step
1 “Preparing for mounting”) into the holes in the fan-motor
assembly (B) and tighten rmly.
□Install the decorative canopy ring (EE) by aligning the ring’s
slots with the screws in the fan-motor assembly (B). Rotate
the canopy ring (EE) counterclockwise to lock it in place.
B
EE
ACC
7
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Attaching the fan blades
8
□Attach a blade (C) to the fan-motor housing (B) by inserting
the blade (C) into slots in the side of the fan motor housing
(B) and aligning the three screw holes in the blade with the
holes in the center ywheel and secure with screws (AA).
□Make sure all the screws are rmly tightened.
B
AA
C
Attaching the light kit tter
assembly
9
□Attach the light kit tter assembly (D), remove the one
screw (HH) in the round hole, from the switch cup (JJ), and
loosen, but do not remove the other three screws.
□Connect the blue wire exiting the bottom of the fan motor
assembly (B) with the black wire from the top of the light kit
tter assembly (D).
□Connect the white wire exiting the bottom of the fan motor
assembly (B) with the white wire from the top of the light kit
tter assembly (D).
□Push the light kit tter assembly (D) up to the light kit pan
so that the three loosened screw heads t into the keyhole
slots. Turn the light kit tter assembly (D) clockwise to
secure.
□Re-install the screw (HH) that was removed in step 1.
□Make sure all the screws are rmly tightened.
D
HH
B
JJ
12
1. Power ON/OFF. - Press and release the button to turn the fan on or off.
□Press and hold the button for 5 seconds to use the “walk away time delay”; this will active the light
for 30 seconds (the light will be activated at 50% brightness).
2. Fan Speed - LEDs on the fan speed button will illuminate to the corresponding speed.
- Press and release 1 time - turns the fan on low speed.
- Press and release 2 times - turns the fan on medium-low speed.
- Press and release 3 times - turns the fan on medium-high speed.
- Press and release 4 times - turns the fan on high speed.
- Press and release 5 times - turns the fan off.
3. Light ON/OFF
□Press and release the button to turn the light on or off.
□Press and hold the button to activate the dimmer function (as long as you have NOT previously set
O/D dip switch in your remote to the “ON” position).
4. Comfort BreezeTM
□Press and hold this button for 3 seconds to enable Comfort BreezeTM; this will change your fan speed
randomly, simulating a relaxing breeze. To cancel this feature press or .
5. Fan reverse button (Must be pushed when the fan is in operation)
□ Press and release the button to forward and reverse the fan.
6. Timer
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
Assembly - Hanging the Fan (continued)
Installing the glass bowl
10
□Place the bowl (E) into the light kit tter assembly (D),
by aligning the three at areas on the top ange of the
bowl (E) with the three raised dimples in the light kit tter
assembly (D).
□Turn the shade clockwise until it stops.
D
E
WARNING: To reduce the risk of injury, allow the glass to cool
completely before removing.
Operating Your Fan and Remote Control
G
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operating Your Fan and Remote Control (continued)
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depend on factors such as the
room size, ceiling height, number of fans and so on.

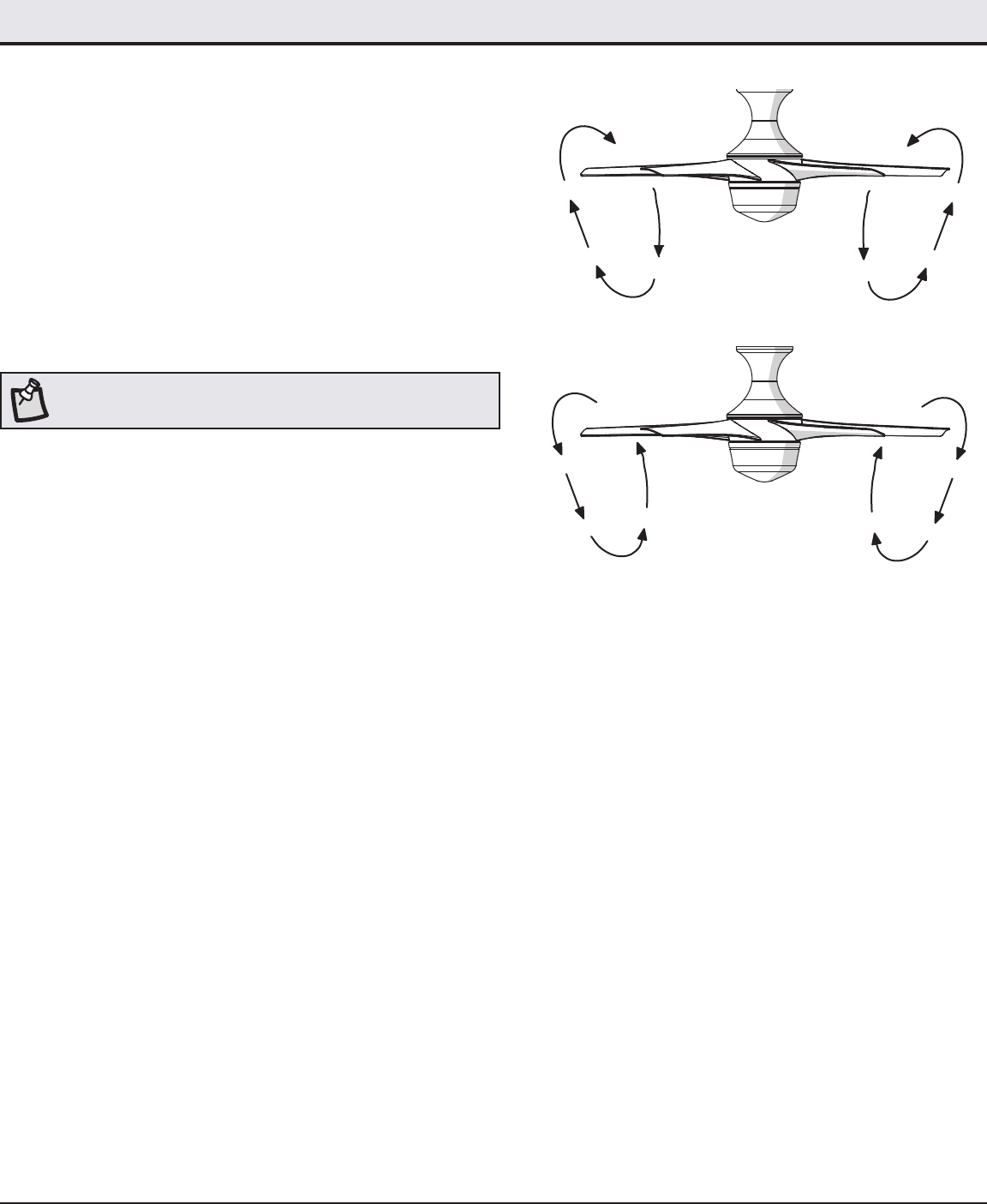

A. Warm weather - (Forward) A downward airow creates a cooling
effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse button.
The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
14
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
