USE AND CARE GUIDE
WINDWARD IV 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1000 020 187, 458 633,
458 611, 458 301
Model #26666, 26662, 26661, 26663
UL Model #52-WWDIV
Code ANSI/NFPA 70 and local electrical codes. Electrical
2
Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation ............................................................................ 6
Assembly .............................................................................. 7
Operation ........................................................................... 15
Care and Cleaning .............................................................16
Troubleshooting .................................................................16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL
Listed outlet boxes marked “Acceptable for Fan Support of 35
lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL-listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the instructions packaged with
the light kits and switches for proper assembly.
8. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35lbs. (15.9 Kg) or
less” and use screws provided with the outlet box.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL-listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. MR140A manufactured by Satellite
Electric Co., LTD.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
READ AND SAVE THESE INSTRUCTIONS.
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, This
fan must be installed with an isolating wall switch.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures:
- Reorient the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

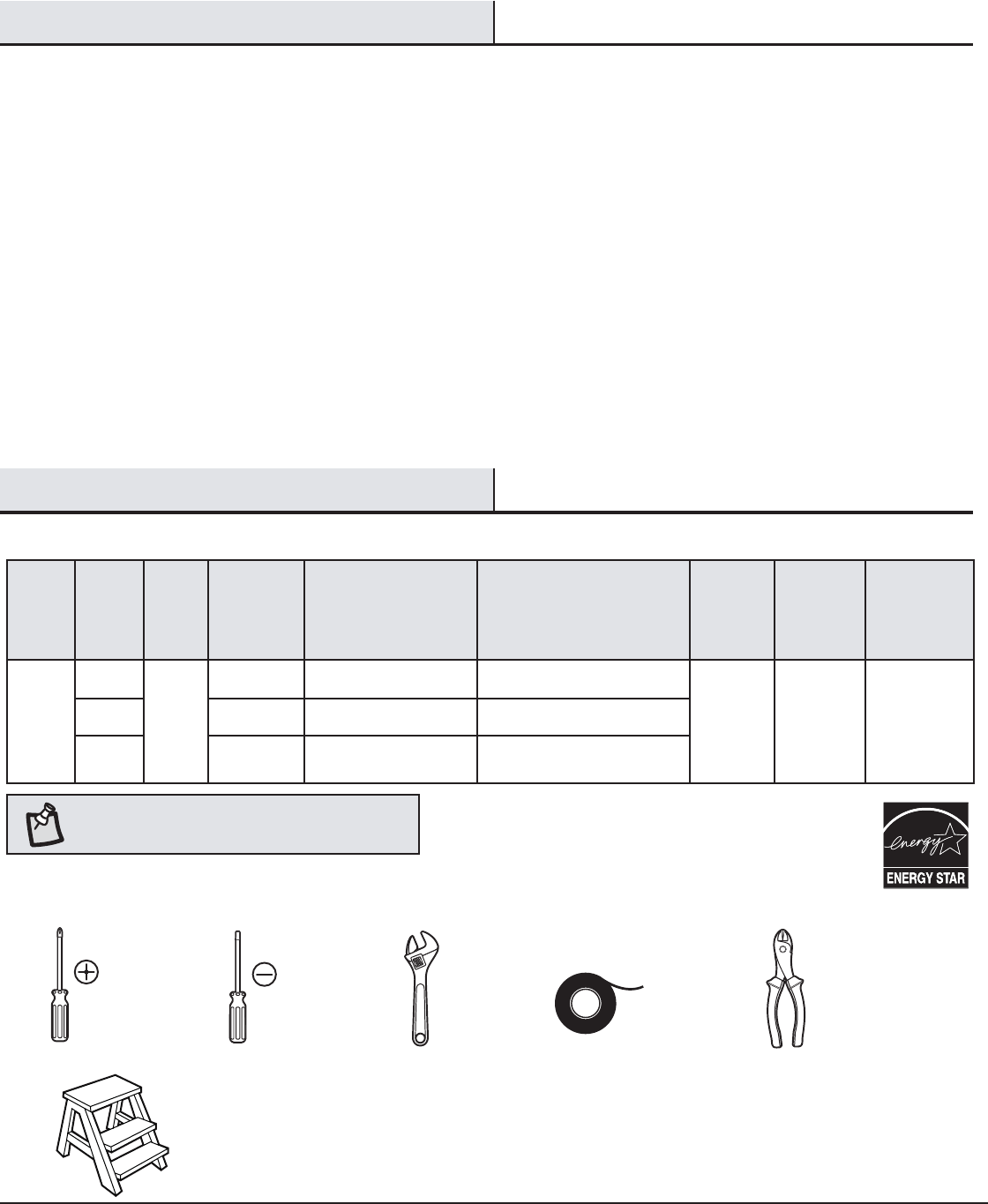

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Airow
CFM
Fan Power
Consumption
(Without Lights)
WATT
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cube Feet
52 in.
Low
120
XXXX XX XXX
20.2 lbs
(9.2 kgs)
23.1 lbs
(10.5 kgs) 1.7 ft.
Medium XXXX XX XXX
High XXXX XX XXX
4
Part Description Quantity
AA Blade attachment screws 16
BB Wire connecting nut 3
CC Rubber Gasket 1
Pre-Installation (continued)

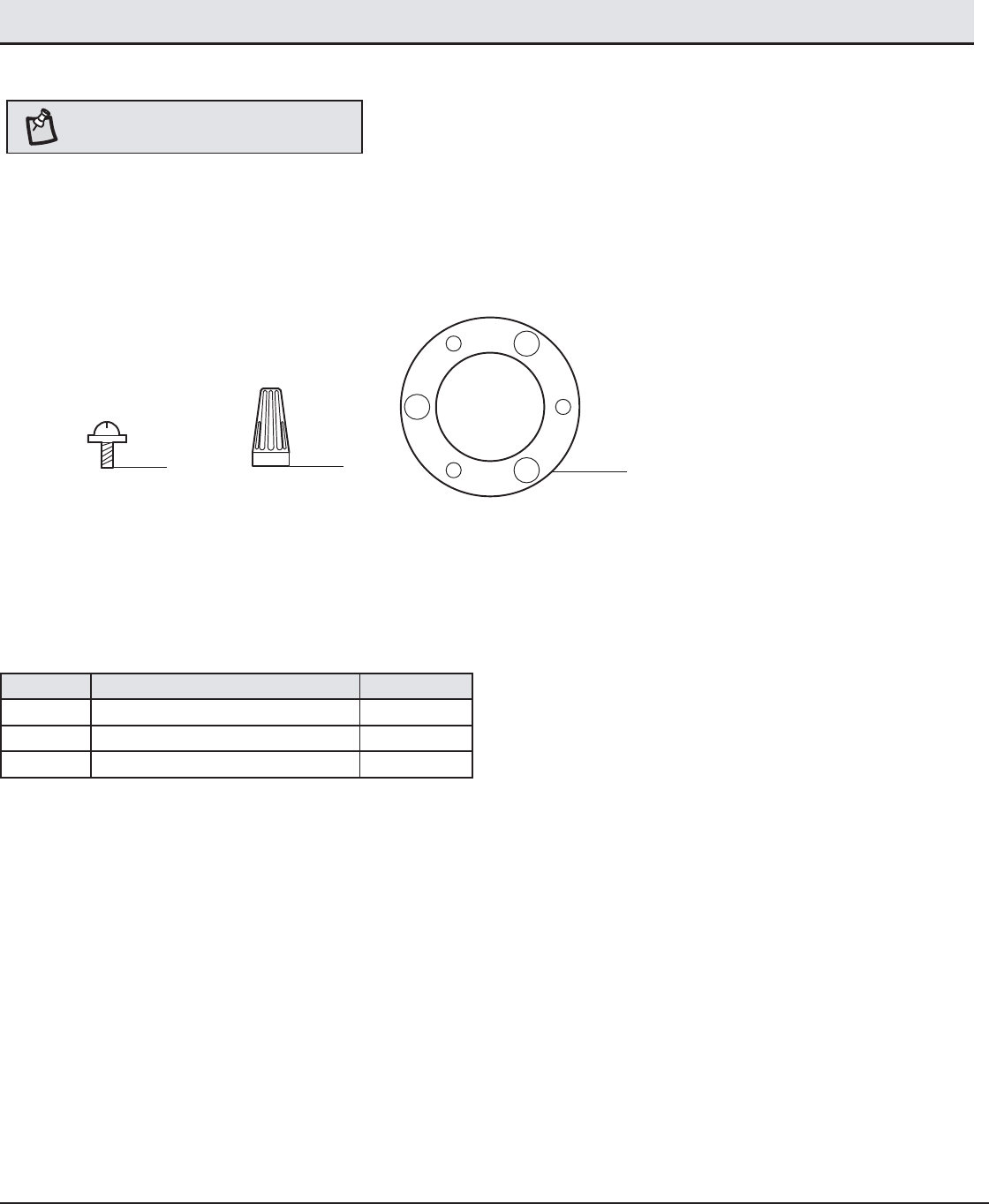

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Fan-motor assembly 1
E Light kit tter assembly 1
Part Description Quantity
F Decorative motor collar cover 1
G Blade 5
H Glass bowl 1
I CFL Bulb, 13-watts maximum 2
J Receiver 1
K Remote (batteries included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

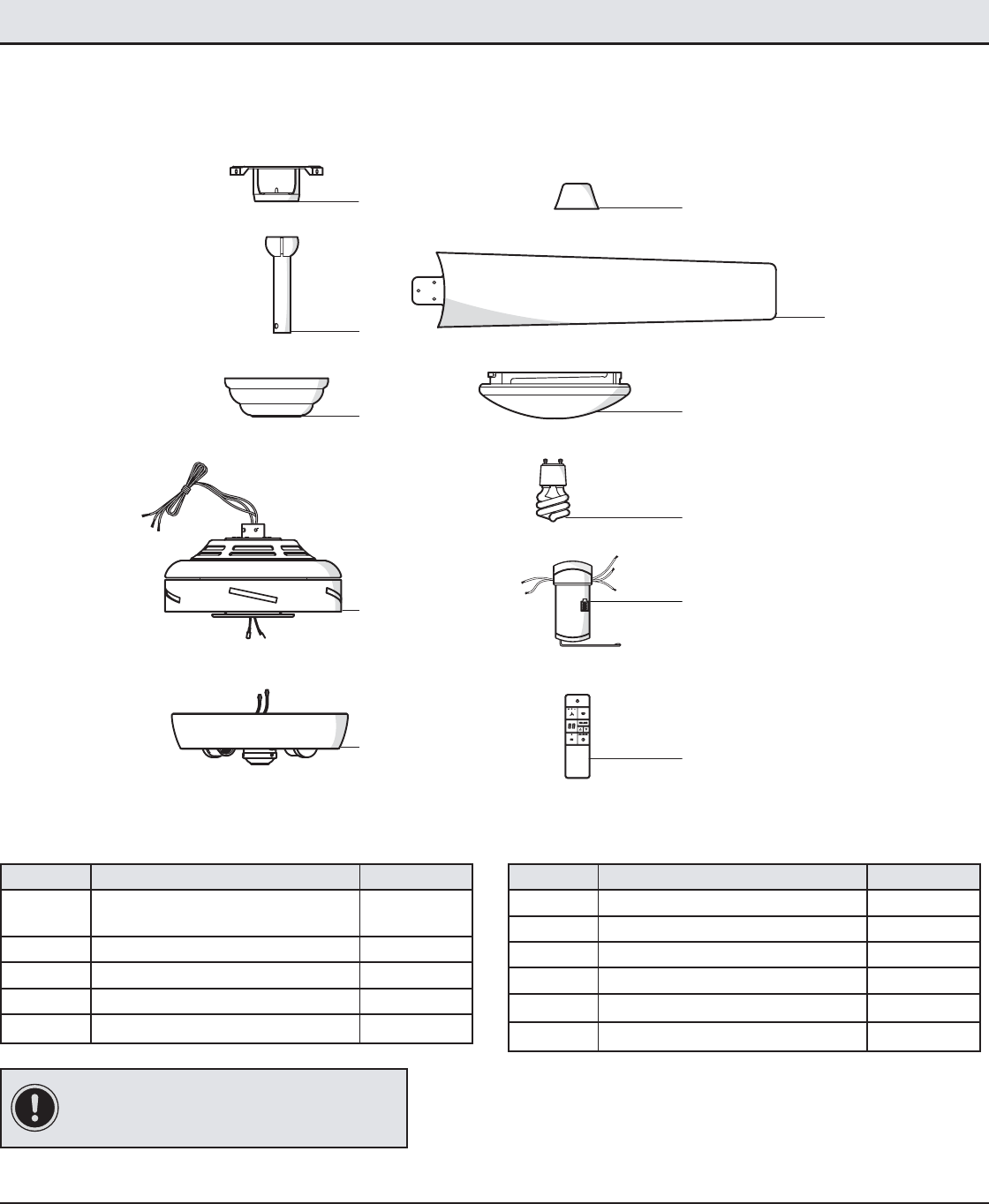

PACKAGE CONTENTS
1234
ON DIP
A
B
C
D
A
E
F
G
H
I
J
K
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “acceptable
for fan support of 35lbs. (15.9 Kg) or less” using the
screws provided with the outlet box. An outlet box
commonly used for the support of lighting xtures may
not be acceptable for fan support and may need to be
replaced. If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
ƑDisconnect the power by removing the fuses or turning off
the circuit breakers.
ƑSecure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs.). Do not use a plastic
outlet box.

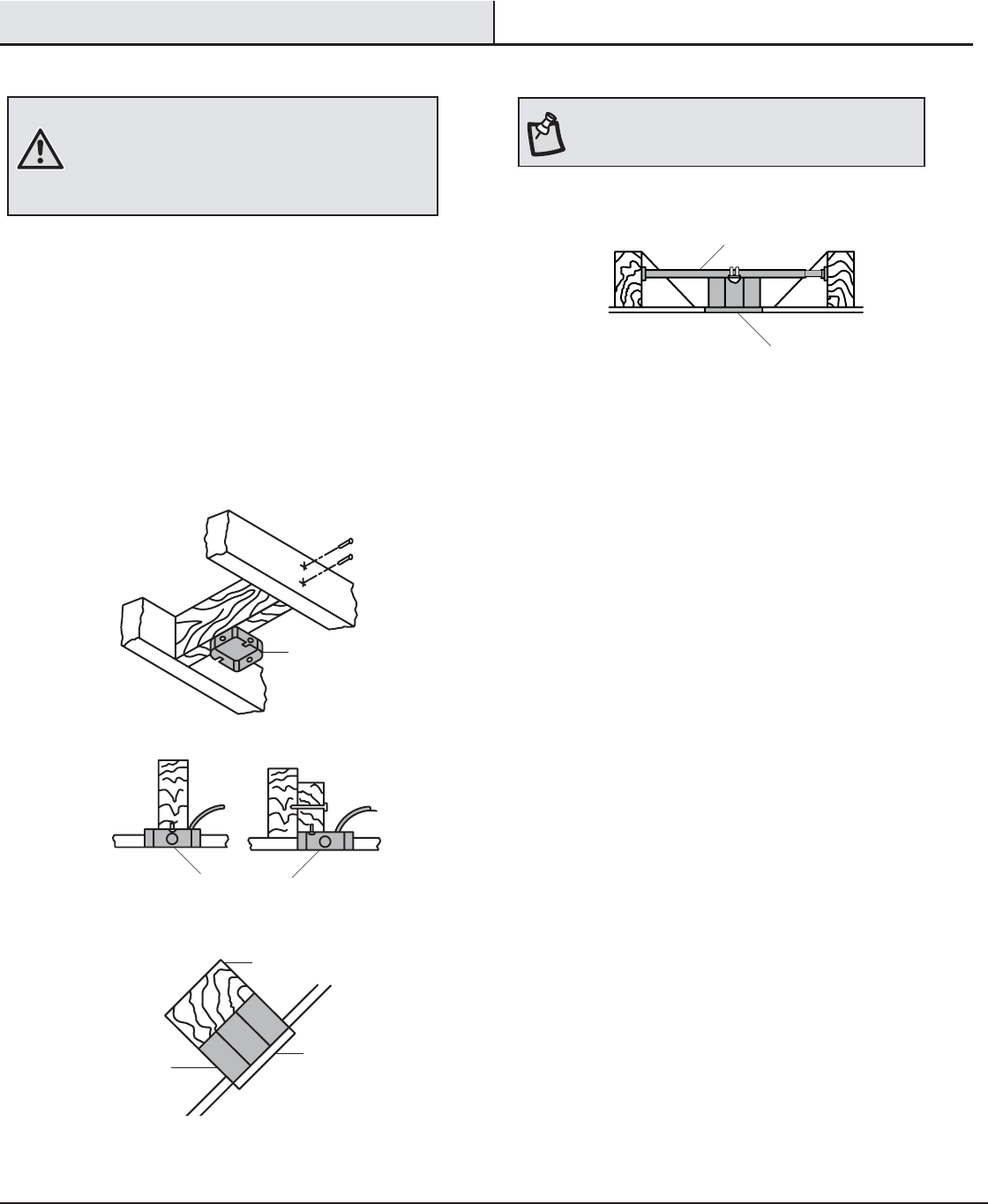

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

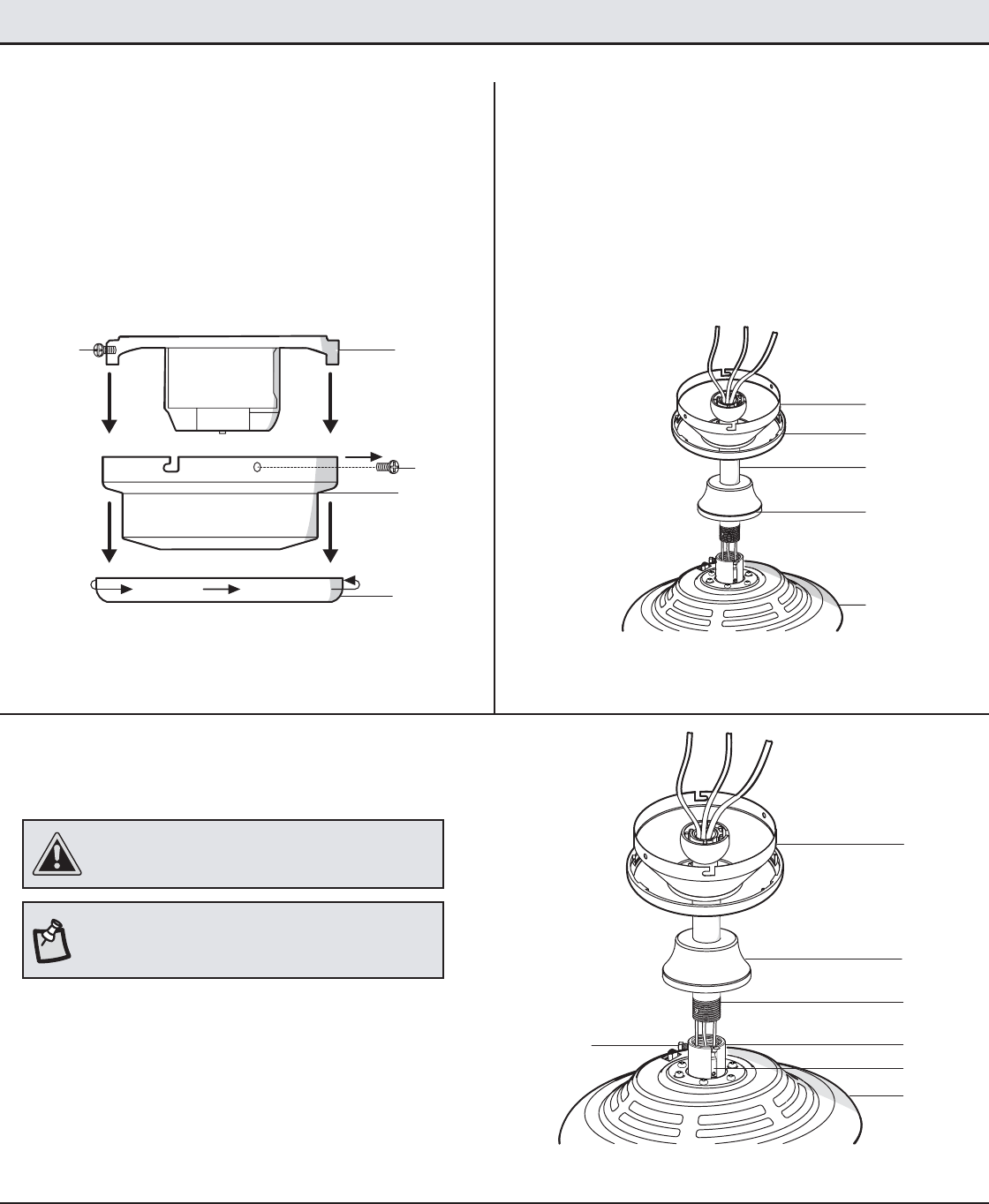

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting
ƑRemove the canopy ring (FF) from the canopy (C) by turning
the ring counter-clockwise until it unlocks.
ƑRemove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (JJ) located in the “L
shaped” slots.
ƑRemove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket
(A).
ƑRoute the wires exiting the top of the fan motor (D) into
the decorative motor collar cover (F) and through the
canopy ring (FF).
ƑMake sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
FF
JJ A
C
II
FF
C
B
F
D
DD M
D
B
EE
C
F
ƑRemove the setscrew (DD) by turning it counterclockwise.
ƑInstall the downrod (B) by inserting it into the motor collar (M),
and turning it clockwise until it is tight.
ƑReinstall the setscrew (DD) turning clockwise until tight.
NOTE: This fan is equipped with a safety tab (EE). Should
the setscrew (DD) ever become loose while the fan is
running in reverse, the safety tab (EE) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(DD) must be completely tightened
8

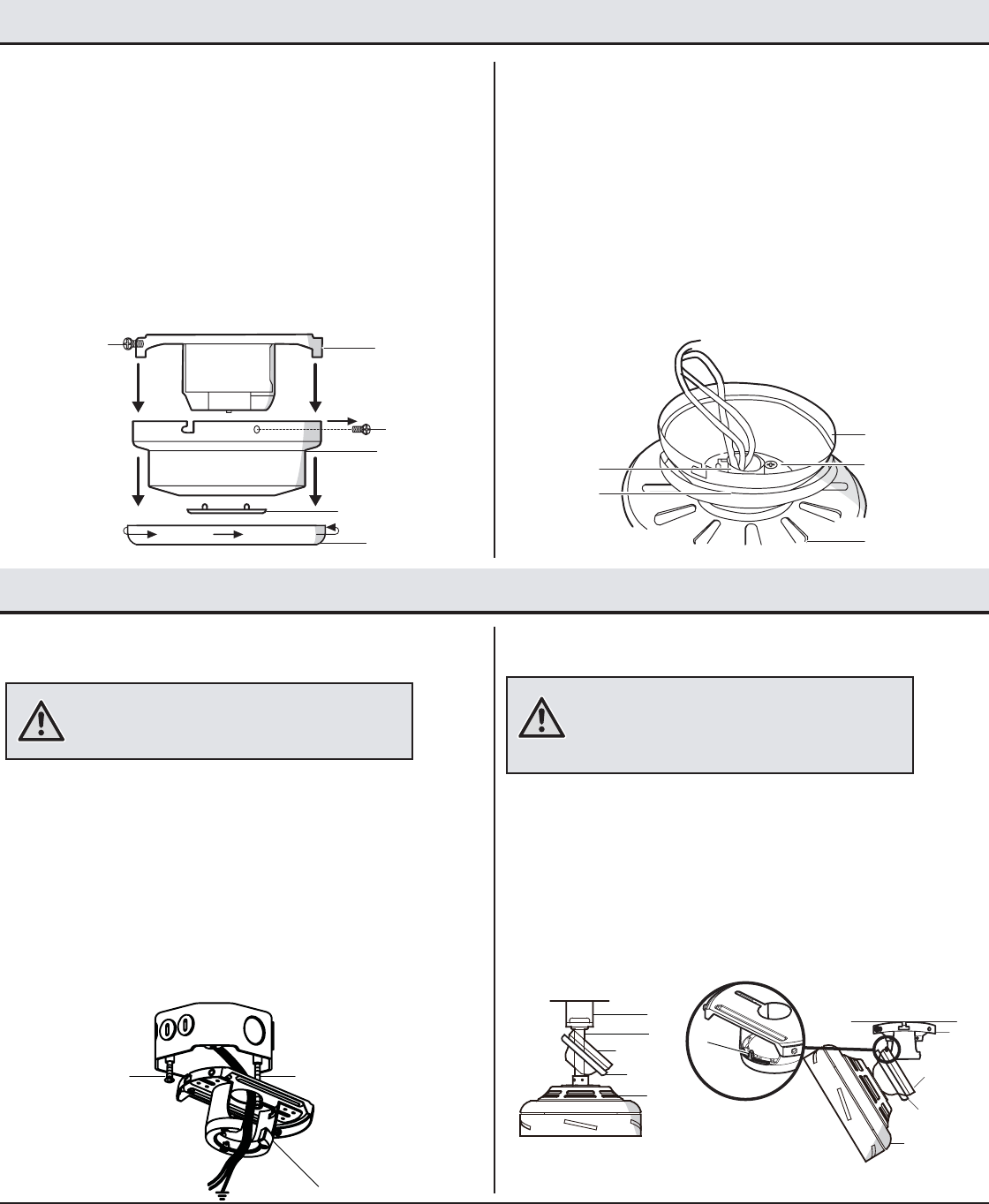

Assembly - Close-To-Ceiling Mount

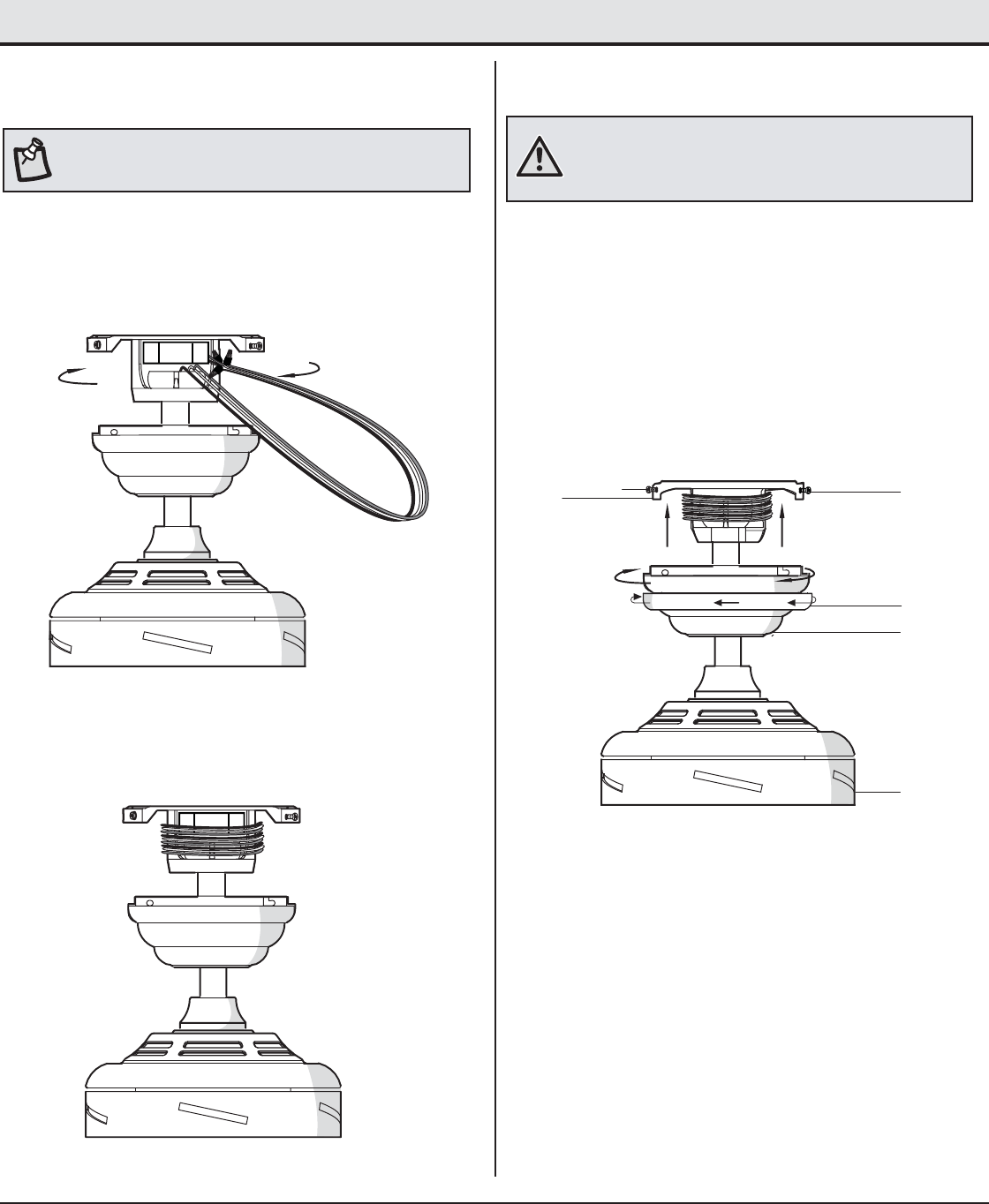

Assembly - Hanging the Fan

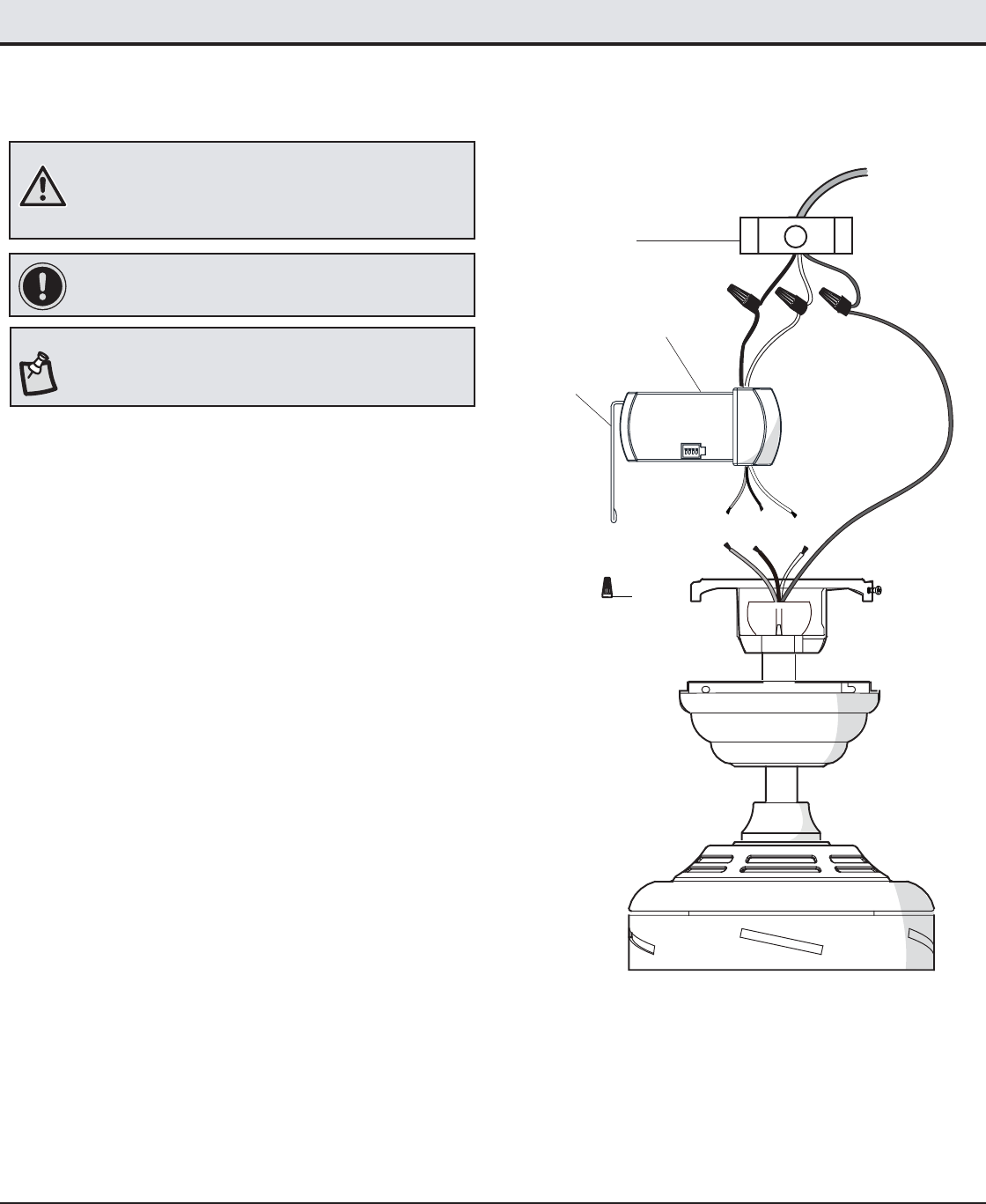

Attaching the fan to the electrical
box
ƑPass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
ƑInstall the ceiling mounting bracket on the outlet box by sliding
the mounting bracket (A) over the two screws (UU) provided with
the outlet box. If necessary, use leveling washers (not included)
between the mounting bracket (A) and the outlet box. Note that
the at side of the mounting bracket (A) is toward the outlet box.
When using close-to-ceiling mounting, it is important that the
mounting bracket be level.
ƑSecurely tighten the two mounting screws (UU).
3
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35lbs. (15.9 Kg) or
less” using the screws provided with the outlet box.
A
UU
UU
Close-to-Ceiling Mounting Routing the wires
12
ƑRemove the canopy ring (FF) from the canopy (C) by turning the
ring counter-clockwise until it unlocks.
ƑRemove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (JJ) located in the “L shaped”
slots.
ƑRemove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket (A).
ƑRemove the decorative canopy bottom cover (L) from the
canppy (C) by depressing the three studs.
ƑRemove three of the six screws and lock washers (every other
one) securing the motor collar (M) to the top of the fan motor
housing (D).
ƑPlace the rubber gasket (CC) over the remaining three screws,
route the wires exiting the top of the fan motor through the
canopy ring (FF) (make sure the slot opening is on top), then
proceed to place the ceiling canopy (C) over the collar at the
top of the motor (D).
ƑAlign the mounting holes with the holes in the motor (D) and
fasten, using the three screws and lock-washers removed
previously. Tighten the mounting screws securely.
C
D
CC
M
FF
FF
JJ A
C
II
L
Hanging the fan
ƑCarefully lift the fan motor assembly (D) up to the mounting
bracket (A).
ƑSeat the hanger ball portion of the ball/downrod assembly (B)
in the mounting bracket socket. Ensure that the tab on the
mounting bracket (A) socket is properly seated in the groove
in the hanger ball. If using close-to-ceiling mounting, hang the
fan on the hook provided by utilizing one of the holes at the
outer rim of the ceiling canopy (C).
4
WARNING: The hook as shown is only to balance the
fan while attaching wiring. Failure to hang as shown
may result in hook breaking, causing the fan to fall.
The hook must pass from inside to the outside of the
canopy.
C
A
B
D
Standard mount.
K
A
K
D
C
XX
Close to ceiling mount.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Setting the remote control codes
5Installing the receiver
6
AAA
C
B
J
BBB
A
ƑPosition the house supply wires (AAA) to one side of the
slide-on mounting bracket (A); position the fan wires (BBB)
to the opposite side.
ƑInsert the narrow end of the receiver (J) (as shown, at side
towards the ceiling) into the slide-on mounting bracket until
it rests on top of the ball/downrod assembly.
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must
meet all local and national electrical code requirements.
The electrical source and fan must be 110/120 volt, 60Hz.
Do not use this product in conjunction with any variable wall
control. Incorrect wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have this
unit installed by a licensed electrician.
CAUTION: Do not install the receiver in a damp location or
immerse in water (For indoor use only). Do not pull on or cut
the receiver leads shorter. Do not drop or bump the unit.
NOTE: The frequencies on your receiver and hand unit have
been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and hand unit
are set to the same frequency. The dip switches on the hand
unit are located inside the battery compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
hand unit. Dispose of the used battery properly and keep the
battery out of the reach of children.
NOTE: It is imperative that the code used for both transmitter
and receiver is exactly the same, otherwise remote controller
will not work.
ƑSetting the Code on the Remote
ƑRemove the battery cover on the back of the remote control
(K) by pressing rmly on the arrow and sliding the cover
off.
ƑSlide the code switches to your choice of either up or
down. The factory setting is up.
ƑFrom the factory, the remote displays °F, slide the dip
switch °C/°F to display °C.
ƑFor fans with incandescent bulbs, slide the dip switch O/D
to the position marked “D”, if you are not using incandes-
cent bulbs slide the dip switch to the “O” position.
ƑInstall 2 AAA batteries (included).
ƑReplace the battery cover on the remote control (K).
ƑSetting the Code on the Receiver
ƑSlide the code switches on the receiver (J) to the same
positions as set on the remote control (A).
ƑInsert the silicone rubber stopper into the hole on the
receiver (J) to cover the dip switches.
1234
ON DIP
MODEL: TR222A
FCC ID: KUJCE10320
IC ID:10786A-TR222A
MADE IN CHINA
MODELO: TR222A
FCC ID: KUJCE10320
IC ID: 10786A-TR222A
HECHO EN CHINA
MODèLE: TR222A
FCC ID: KUJCE10320
IC ID: 10786A-TR222A
FABRIQUé EN CHINE
WARNING:The remote must be
stored in a dry location when not
in use.
ADVERTENCIA:El control remoto
deberia estar guardado en una
lugar seco cuando no esta en uso.
123
ON
4
12 34
ON
D
O
J
ZZ
°C/°F
K
10
Assembly - Hanging the Fan (continued)

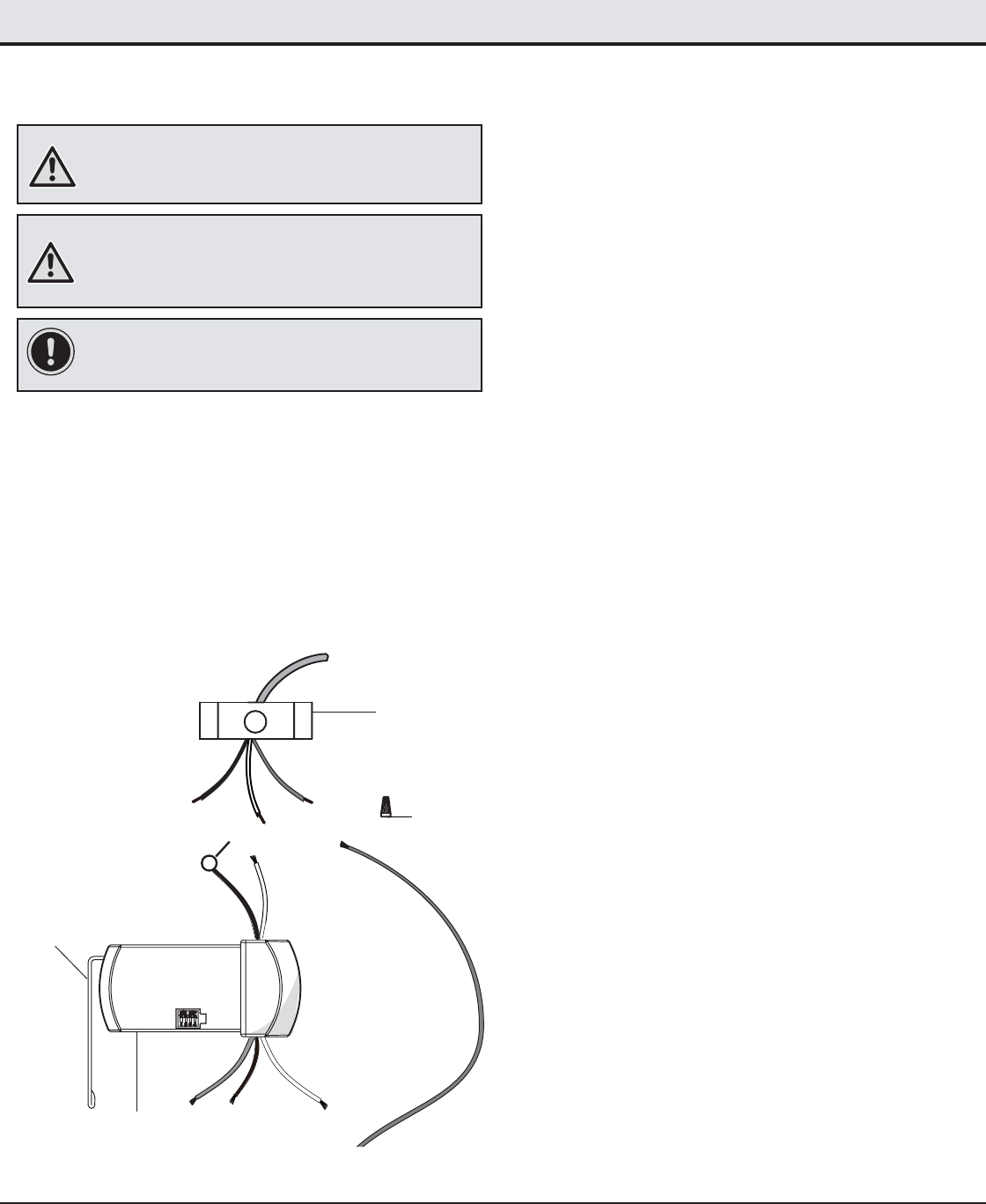

7Wiring the receiver to the household
wiring
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
ƑSpread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
ƑConnect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
ƑConnect the receiver black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
ƑConnect the receiver white wire to the household white wire
(neutral) wire using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
Black
(or Red)
White
Black
Green (or Bare)
Green
Outlet Box
in the ceiling
(LL)
Receiver
Antenna
White
Receiver (J)
BB (x3)
1 2 3 4
ON DIP
WARNING: To avoid possible electrical shock, turn the
electricity off at the main fuse box before wiring. If you
feel you do not have enough electrical wiring knowledge or
experience, contact a licensed electrician.
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Making the electrical connection
8
Outlet box
in the ceiling
(LL)
Receiver (J)
Blue
Receiver
Antenna
Black White
Green
BB (x3)
1234
ON DIP
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire not supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
NOTE: The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.).
ƑThe fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 4.5 in. ball/
downrod assembly (B) provided, you can cut the lead wires
to your desired length (no shorter than 12 in.) This will make
extra room in the canopy (C), if you do not wish to cut the
wires, you will need to neatly wrap them.
ƑConnect the fan motor white wire to the receiver white wire
using a wire connecting nut (BB).
ƑConnect the fan motor black wire to the receiver black wire
using a wire connecting nut (BB).
ƑConnect the fan motor blue wire to the receiver blue wire
using a wire connecting nut (BB).
ƑSecure each wire connecting nut using electrical tape.
ƑTurn the wire connecting nut (BB) upward and push the
wiring into the outlet box (LL).
Assembly - Hanging the Fan (continued)
12
Mounting the fan
ƑAlign the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock in place.
ƑFirmly tighten the two mounting screws.
ƑInstall the two mounting screws (saved from Assembly Step
1 “Prepairing for mounting”) into the holes in the canopy (C)
and tighten rmly.
ƑInstall the decorative canopy ring (FF) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
clockwise to lock in place.
10
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
D
AJJ
C
FF
II
Assembly - Hanging the Fan (continued)
Wrapping the extra wire
ƑGently wrap the excess wire around the mounting bracket,
under the receiver.
ƑSecure with electrical tape.
9
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan to the receiver.
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Close-to-Ceiling mounting
WARNING: The locking slots of the celling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
D
C
JJ
FF
AII
ƑCarefully unhook the fan from the mounting bracket (A) and
align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock the canopy (C) in place. Im-
mediately tighten the two mounting screws (JJ) rmly.
ƑInstall the remaining two mounting screws (II) into the holes in
the canopy (C) and tighten rmly.
ƑInstall the decorative canopy ring (FF) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
counter-clockwise to lock it in place.
Assembly - Hanging the Fan (continued)

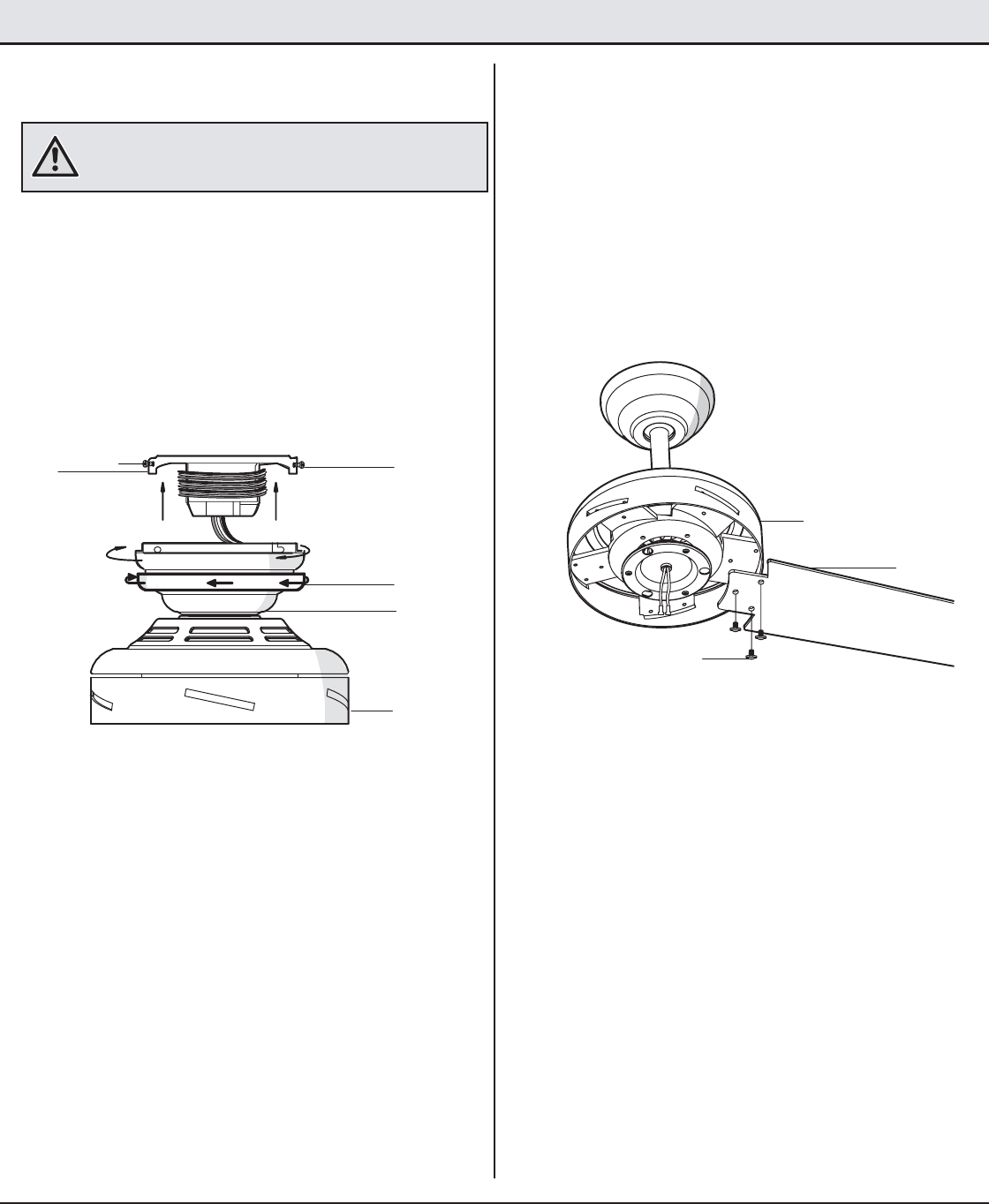

11 Attaching the fan blades
12
ƑAttach a blade (G) to the fan motor housing (D) by rst
inserting the blade (G) into the slot in the side of the fan
motor housing (D).
ƑInsert a screw (AA) into the bracket. Repeat for the two
remaining screws.
ƑTighten each screw (AA) securely.
ƑRepeat these steps for the remaining blades (G).
G
AA
D
14

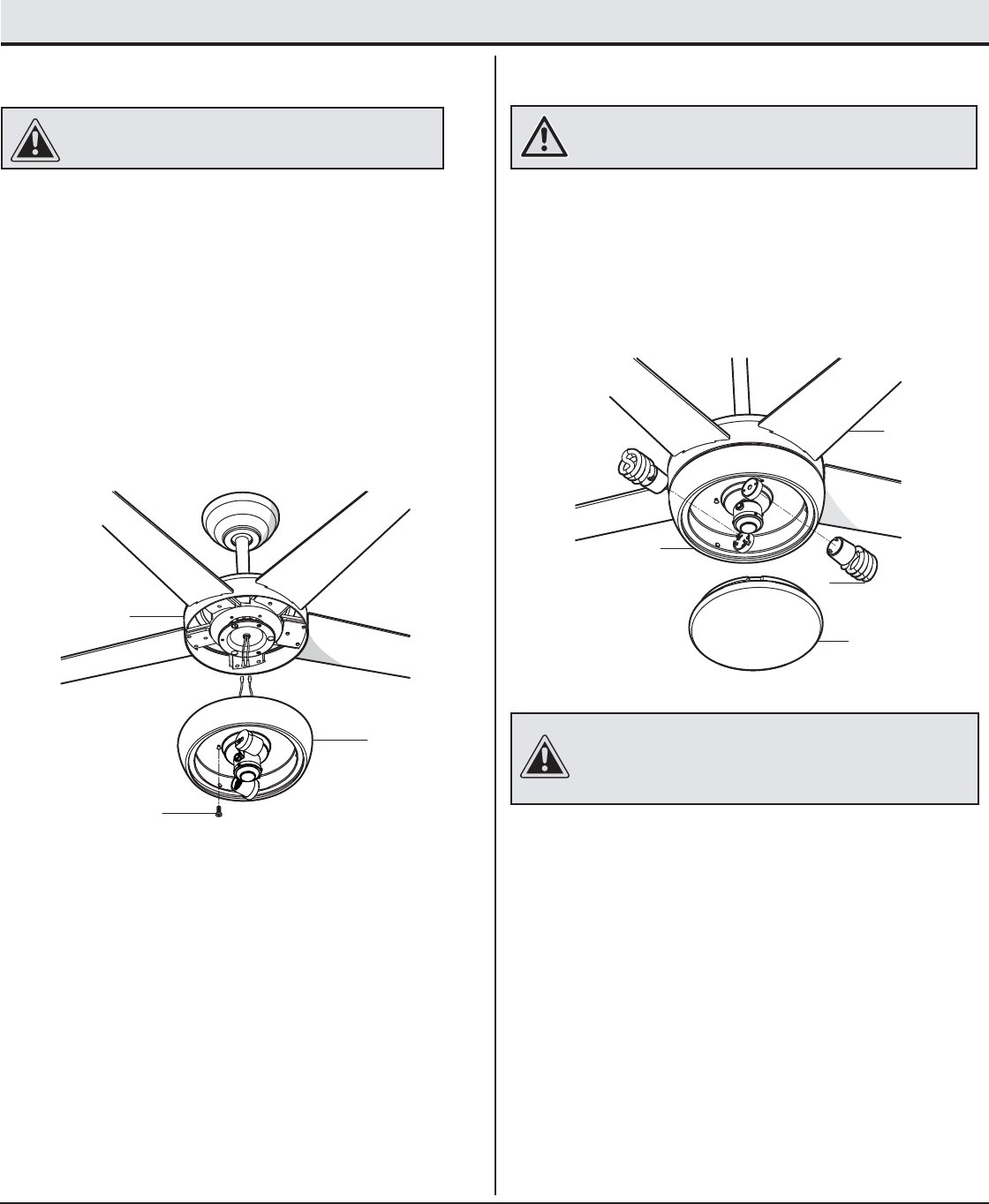

Assembly - Installing the Light Kit
Attaching the light kit Installing the Light bulbs
12
ƑRemove one screw (N) from the black bracket below the
fan motor assembly (D). Loosen, but do not remove the
other two screws.
ƑConnect the blue wire exiting the bottom of the fan motor
assembly (D) with the black wire from the top of the light
kit tter assembly (E).
ƑConnect the white wire exiting the bottom of the fan motor
assembly (D) with the white wire from the top of the light
kit tter assembly (E).
ƑAttach the light kit assembly (E) to the fan motor assembly
(D) by securing with the two screws loosened in rst step.
Push the light kit assembly (E) up to engage the screw
heads in the screw slots and turn to secure. Tighten each
screw rmly.
ƑWith the power off, install the two uorescent bulbs (I)
(Max. 13W, provided) into the light bulb sockets.
ƑPlace the glass bowl (H) into the light kit assembly (E),
aligning the three at areas on the top ange of the glass
bowl (H) with the three raised dimples in the light kit
assembly. Turn the glass bowl (H) clockwise until it stops.
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light kit.
CAUTION: Over lamping the fan will result in the fan lights
shutting down until the proper wattage of bulbs are installed.
Reset the lights by turning off the light and replacing the
bulbs with the correct wattage bulbs
WARNING: Do not overtighten when installing the glass shade
into the light kit assembly. Allow the glass shade to cool
completely before removing.
E
N
D
G
E
H
I
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

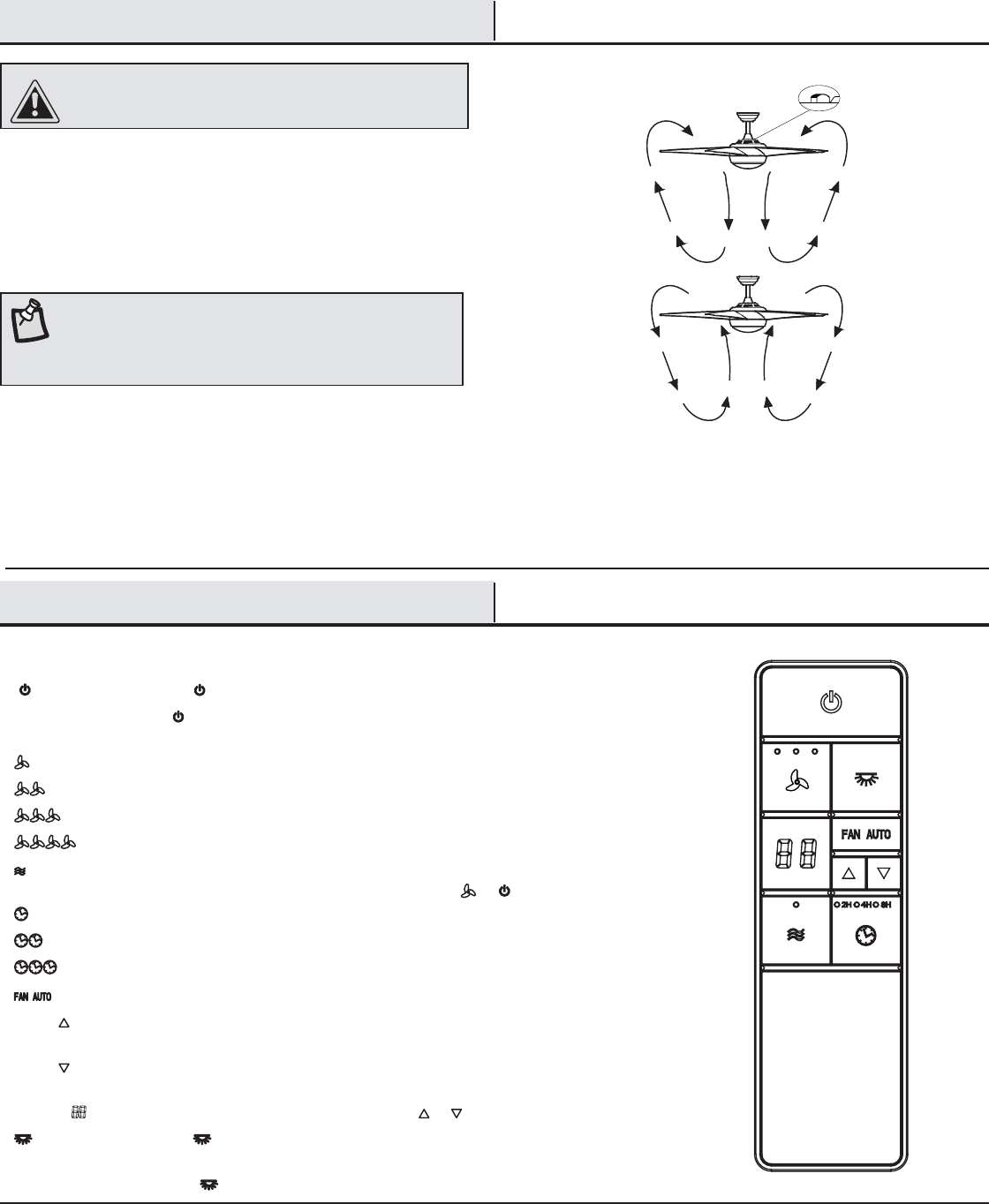

Operation
Remote Control - Your fan is equipped with a remote control to
operate the speed and lights of your new ceiling fan.
The appropriate speed settings for warm or cool weather depends
on factors such as the room size, ceiling height, and number of
fans.
Warm weather - (Forward) A downward airow creates a cooling ef-
fect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a cooler set-
ting without affecting your comfort.
NOTE: The reverse switch is located at the top of motor housing.
Shut the fan off then wait until the blades have completely
stopped before ipping the switch to reverse the direction of your
ceiling fan.
CAUTION: This device complies with part 15 of the FCC rules.
Changes or modications not expressly approved by the
manufacturer could void your authority to operate this equipment.
Remote Operation
- Press and release the button to turn the fan and the lights on or off.
ƑPress and hold the button for 3 seconds to use the “walk away time delay”; this will activate the
light for 30 seconds (if you are using dimmable bulbs the light will be activated at 50% brightness).
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and hold this button for 3 seconds to enable Comfort BreezeTM; this will change your fan speed
randomly, simulating a relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
- This setting allows the fan to automatically turn on and off at a previously set room temperature.
- Press 1 time to adjust the set temperature + 1°, press and hold to raise the set temperature
multiple degrees.
- Press 1 time to adjust the set temperature - 1°, press and hold to lower the set temperature
multiple degrees.
- Digital display shows the set temperature when or is pressed.
- Press and release the button to turn the light on or off.
If you are using dimmable bulbs and you have previously set O/D dip switch in your remote to the “D”
position, press and hold the button to activate the dimmer function.
1Operating the remote control
16
Troubleshooting
Problem Solution
The fan will not start ƑCheck the main and branch circuit fuses or breakers.
ƑCheck the line wire connections to the fan and switch wire connections in the switch housing.
ƑCheck the battery in the remote control.
ƑEnsure you are in the normal range of 10-20 feet.
ƑTurn the power off and ensure that the dip switch settings are the same on the remote control and receiver.
The fan is noisy ƑEnsure all motor housing screws are snug.
ƑEnsure the screws that attach the fan blade bracket to the motor hub are tight.
ƑEnsure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
ƑAllow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
ƑIf you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
ƑEnsure the canopy is a short distance from the ceiling. It should not touch the ceiling.
ƑEnsure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles ƑCheck that all blade and blade arm screws are secure.
ƑMost fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Hampton Bay Customer Service and a balancing kit
will be sent to you at no charge.
ƑBecause of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
ƑClean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
ƑYou can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
ƑYou do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
