King of Fans 96CORDR 96 inch Cordoba User Manual
King of Fans, Inc. 96 inch Cordoba
User manual
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #xxxx xxx xxx, xxxx xxx xxx
Model #51890, 51894
ETL Model #96-CORD
USE AND CARE GUIDE
CORDOBA 96-INCH CEILING FAN
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
2
Table of Contents ................................................................ 2
Safety Information ............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation ............................................................................ 6
Assembly .............................................................................. 7
Operation ........................................................................... 13
Care and Cleaning ............................................................. 16
Troubleshooting .................................................................16
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs. (15.9
kg). Use only UL-listed outlet boxes marked “Acceptable for
Fan Support of 35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) of
clearance from the trailing edge of the blades to the oor.
5. Do not place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
7. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
8. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do
not insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Electrical diagrams are for reference
only. If you are using a light kit, refer to the light kit
instructions manual to make the electrical
connections. Optional use of any light kit shall be
UL-listed and marked suitable for use with this fan.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 kg) or
less”, and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. RH789NRD, manufactured by Rhine
Electronic Co., LTD.
CAUTION: Do NOT use this fan with a dimmer switch
or wall control. Using a dimmer switch or wall control
will damage the fan.
CAUTION: Changes or modications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date
of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior
model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any
accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,
including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,
including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any
implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by
law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.
SPECIFICATIONS
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Size Speed Volts
Fan Power
Consumption
(without lights)
WATT
Airow
CFM
Airow Efciency
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
96 in.
Low
120
XX XXXX XXX
XX.XX lb
(XX.X kg)
XX.X lb
(XX.X kg)
X.X cu. ft.
(X.XX m³)
Medium XX XXXX XXX
High XX XXXX XXX
TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire cutter
/ Stripper
Step ladder
4
Part Description Quantity
AA Blade attachment screws 25
BB Plastic wire connecting nut 3
CC Extra mounting screw #10-32 for outlet box 2
Pre-Installation (continued)

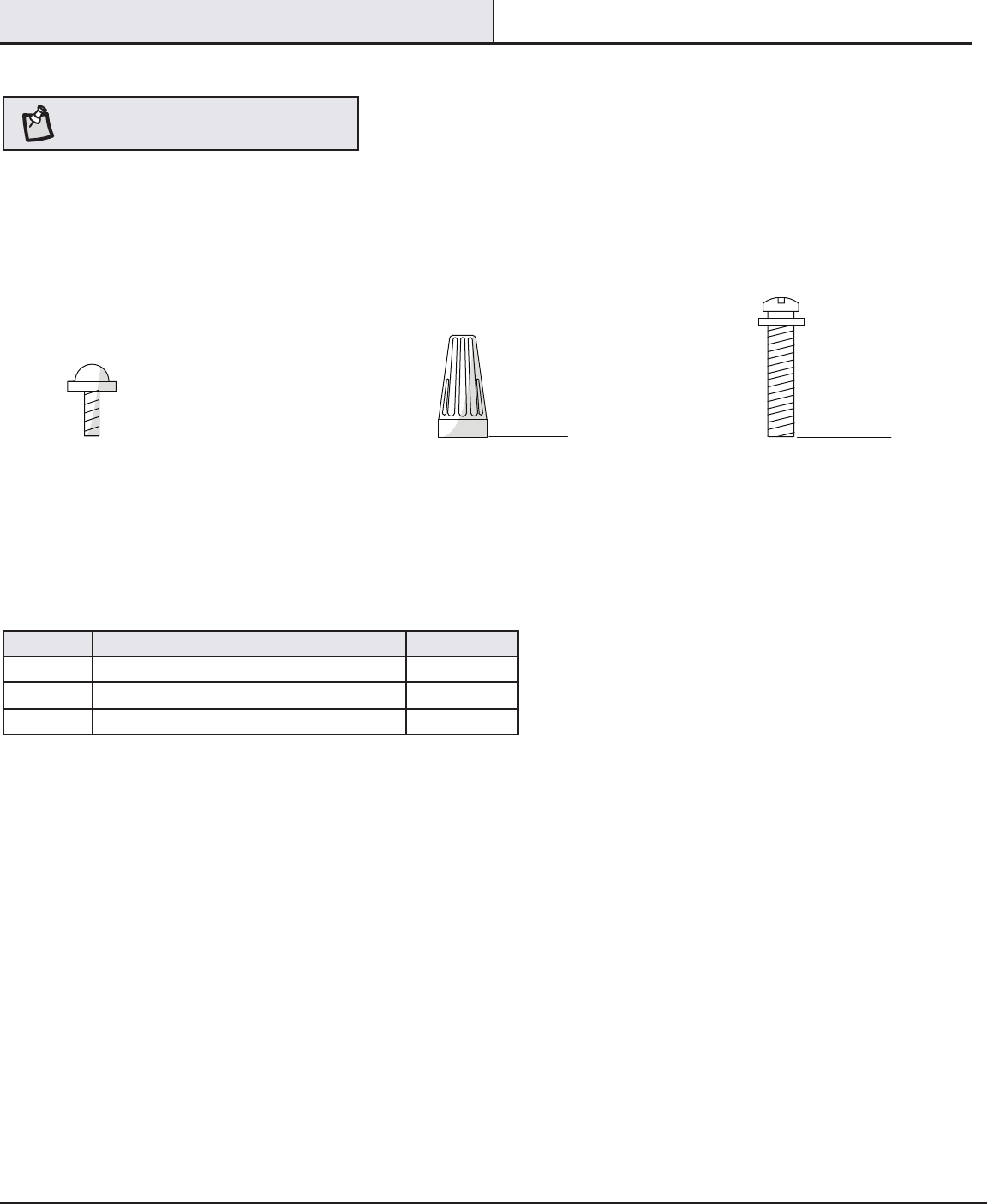

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

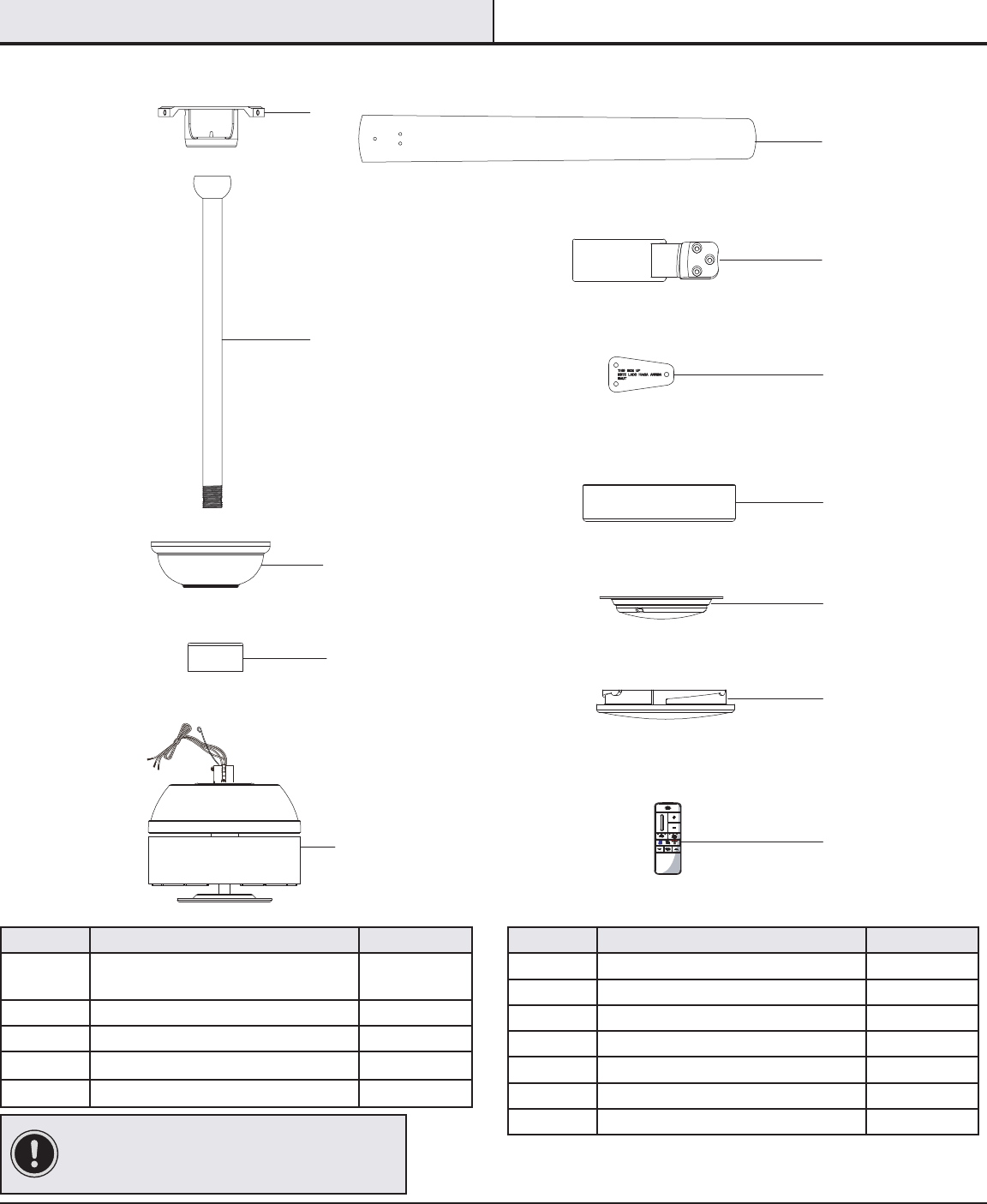

Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Decorative motor collar cover 1
E Fan-motor assembly 1
Part Description Quantity
F Blade 8
G Blade arm 8
H Blade support plate 8
I Light kit pan 1
J Light kit tter assembly 1
K Shatter resistant shade 1
L Remote control (batteries included) 1
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
D
E
G
H
I
J
K
F
2H 4H 8H
L
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 Kg)
or less”, and use screws provided with the outlet
box. An outlet box commonly used for the support
of lighting xtures may not be acceptable for fan
support and may need to be replaced. If in doubt,
consult a qualied electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
support structure must be securely mounted and capable of
reliably supporting a minimum of 35 lbs. (15.9kg). Use only
UL-listed outlet boxes marked “Acceptable for fan support of
35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

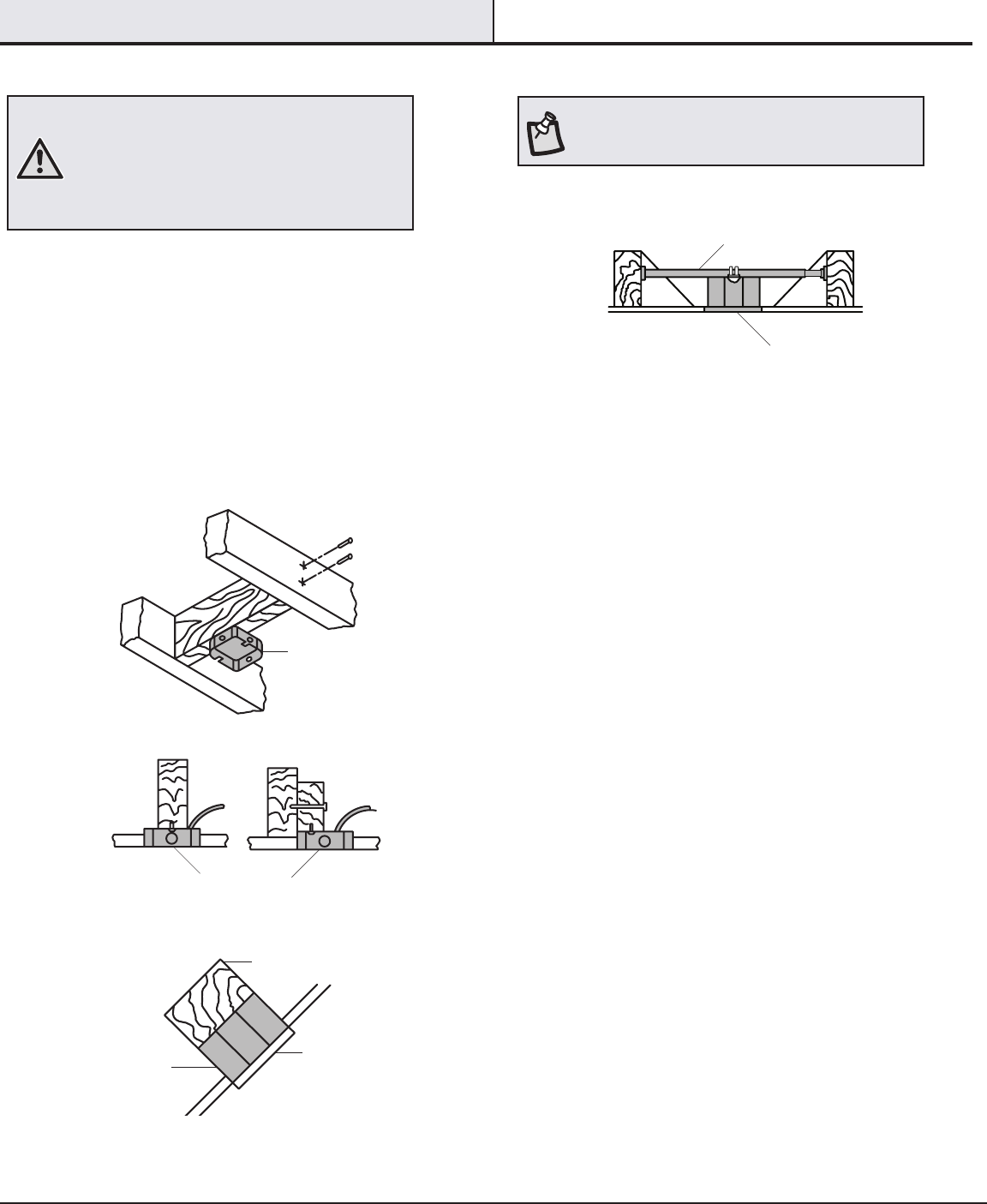

The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover, and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for mounting
□Remove the canopy ring (FF) from the canopy (C) by turning
the ring counter clockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (DD) located in the “L
shaped” slots.
□Remove and save the two canopy screws (EE) in the round
holes. This will enable you to remove the mounting bracket (A).
□Routing the wires exiting the top of the fan motor assembly
(E) through the center of the canopy ring (FF). Make sure the
slots on the canopy ring (FF) are on top.
□Insert the balldownrod (B) through the canopy (C) and slide
the decorative motor collar cover (D) onto the end of the
ball/ downrod (B). Make sure the slots on the canopy (C) are
on top.

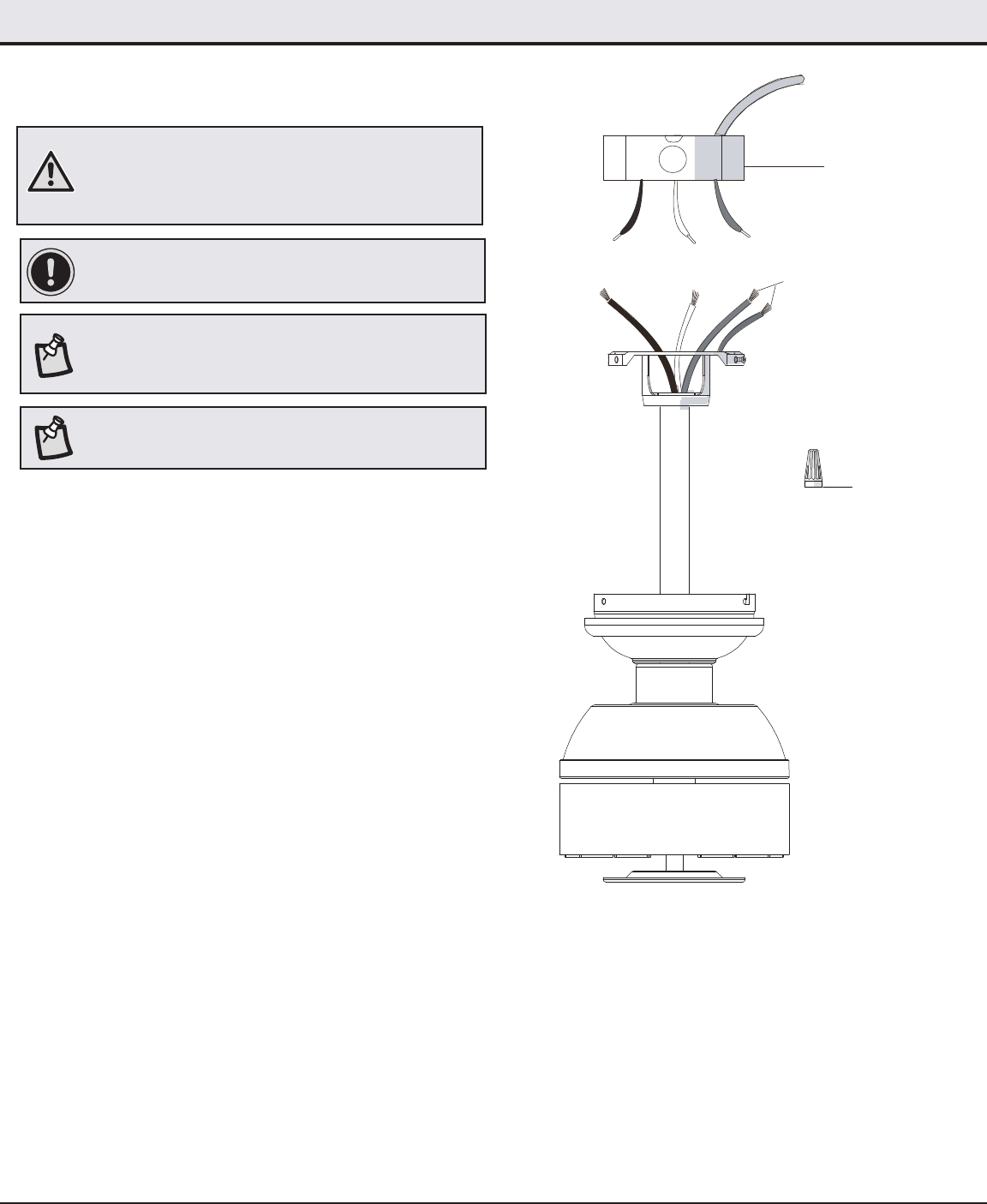

□Route the wires exiting the top of the fan motor assembly (E)
through the downrod (B) as shown.
2
3
1
□Loosen, but do not remove, the setscrew (GG) on the collar (HH)
on top of the fan-motor assembly (E).
□Install the downrod (B) by inserting it into the motor collar (HH),
and turning it clockwise until it is tight.
□Re-tighten the setscrew (GG) on the collar (HH) on top of the fan-
motor assembly (E).
NOTE: This fan is equipped with a safety tab (II). Should
the setscrew (GG) ever become loose while the fan is
running in reverse, the safety tab (II) will engage and
stop the fan from falling.
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew
(GG) must be completely tightened.
A
C
FF
EE
DD
B
E
D
FF
C
B
E
HH
II
GG
D
FF
C
8

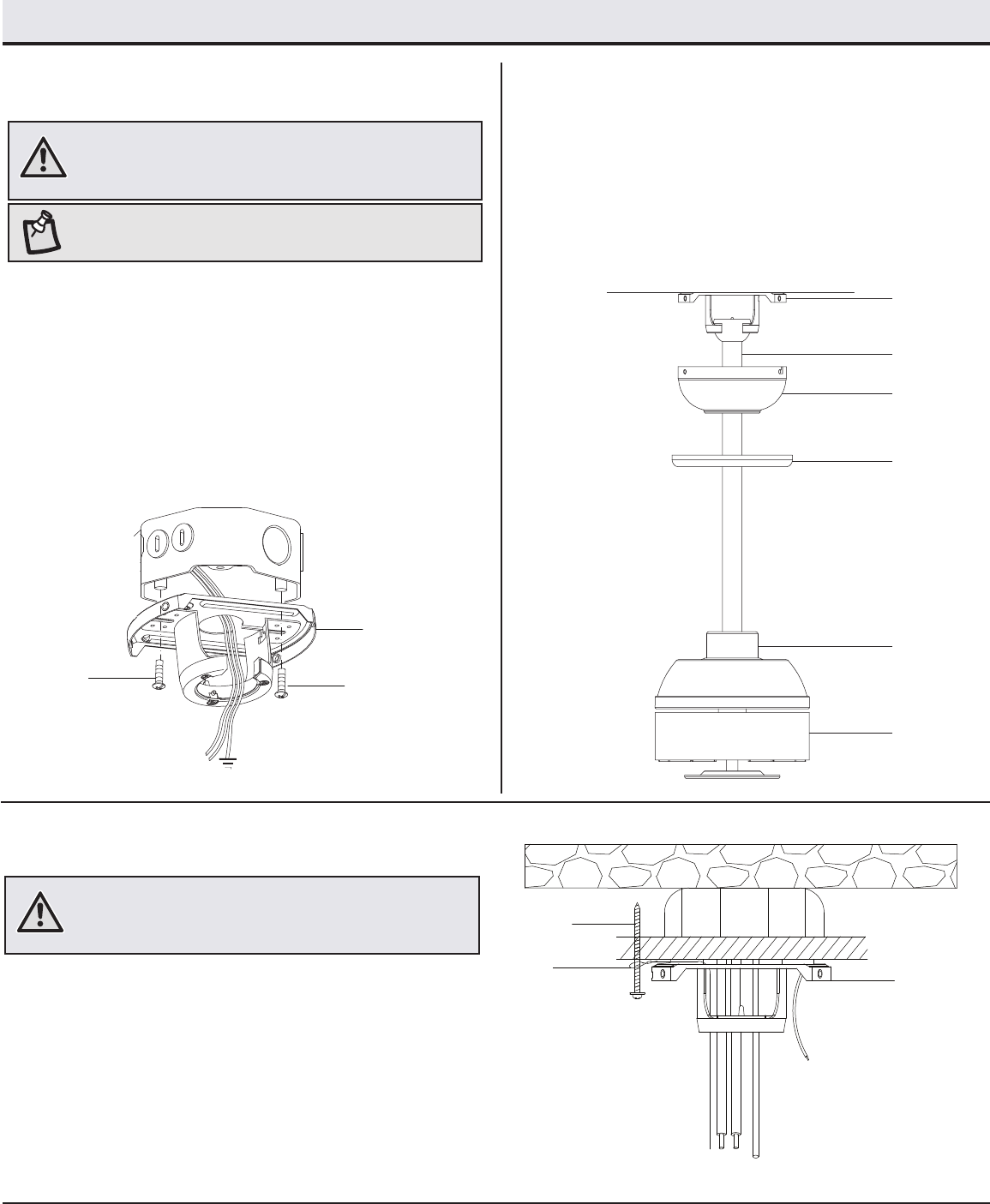

Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Loosen the two mounting screws (JJ) in the outlet box.
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Slide the mounting bracket (A) on to the mounting screws (HH)
and center the mounting bracket (A) in relation to the outlet box.
If necessary, use leveling washers (not included) between the
slide-on mounting bracket (A) and the outlet box. The at side of
the slide-on mounting bracket (A) should face toward the outlet
box, as shown.
□Securely tighten the two mounting screws (JJ).
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket (A).
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket (A) aligned
with the slot in the ball.
12
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.
NOTE: The mounting bracket (A) is designed to slide into place on
an outlet box with the outlet box screws (HH) installed.
JJ
A
JJ
A
B
C
FF
D
E
Connecting the safety cable
3
KK
A
LL
□Turn the wood screw (KK) (not provided) into the ceiling.
□Place the looped end of the safety cable (LL) onto the wood
screw rmly, or connect the safety cable directly to the
outer joist.
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35 lbs. 15.9 kg) or less”, and use screws provided with the
outlet box.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly - Hanging the Fan (continued)
Making the electrical connection
4
IMPORTANT: Use the plastic wire connectors (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
□The fan comes with 78 in. lead wires for use with an extended
ball/ downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.). This will make extra
room in the canopy (C). If you do not wish to cut the wires,
you will need to neatly wrap them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white wires to the household white
wire using a wire connecting nut (BB).
□Connect the fan motor black wires to the household black
wire using a wire connecting nut (BB).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box (MM).
NOTE: The fan comes with 78 in. lead wires for use with an
extended ball/ downrod assembly. If using the 6 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.)
NOTE: The blades must be installed before attempting to operate
the fan. If the blades are not installed, the motor will not function
properly.
BB
Outlet box
in the ceiling (MM)
Green or bare wire
Black White
Black White Green(2)
10
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the ceiling fan (C) with the two screws
in the mounting bracket (A). Push up to engage the slots and
turn clockwise to lock in place.
□Firmly tighten the two mounting screws (DD).
□Install the two mounting screws (saved from Assembly step 1
“Preparing for mounting”) into the holes in the canopy (C) and
tighten rmly.
□Install the decorative canopy ring (FF) by aligning the ring’s slots
with the screws in the canopy (C). Rotate the ring clockwise to
lock in place.
Assembly - Hanging the Fan (continued)
6
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
5
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
DD A
C
FF
D
E
11 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

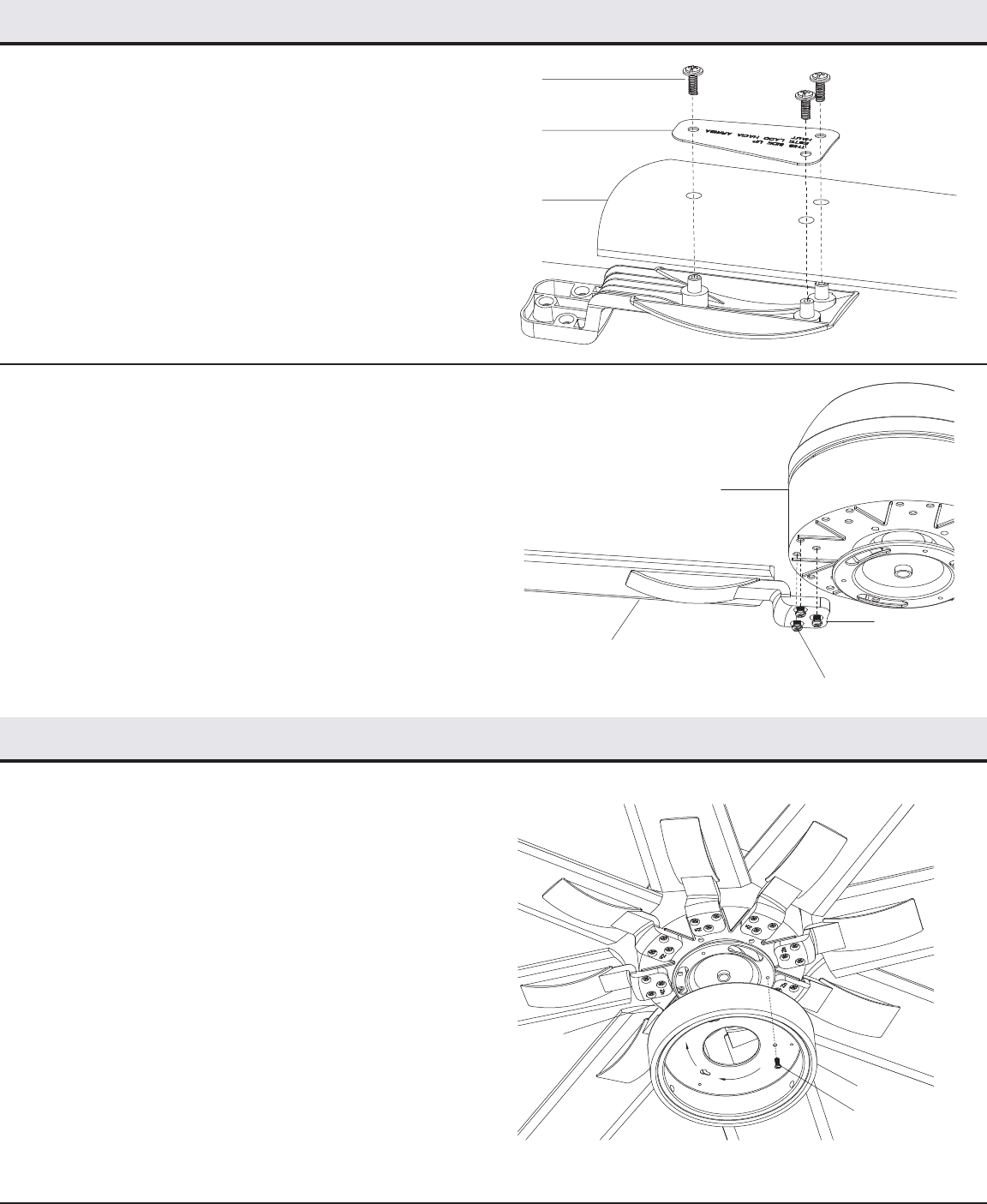

Installing the blades to the blade
brackets
1
□Attach a blade (F) to the blade bracket (G) by aligning the holes
on the blade support plate (H) with the holes on blades (F) and
blade arms (G), inserting the screws (AA) into the holes in the
blade support plate (HH) and through the blade (F) and blade
arm (G).
□Tighten each screw to secure the blade (F).
□Repeat this step for each blade (F) and blade bracket (G).
Assembly - Attaching the Fan Blade
Assembly - Attaching the Accessories
Installing the light kit pan
1
□Remove one screw (RR) from the black bracket below the fan
motor assembly (E), and loosen but do not remove the other
two screws.
□Push the light kit pan (I) up to the fan motor assembly (E) so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit pan (I) clockwise.
□Re-install the screw (RR) that was removed in the rst step.
□Make sure all the screws are rmly tightened.
AA
H
F
G
Attaching the blade assemblies to
the motor.
2
□Attaching the blade assemblies to the motor by aligning the
screw holes on the blade arm (G) with the screws holes on the
bottom of the fan motor assembly (E) and tightening with the
blade bracket screws (SS). The blade bracket screws (SS) are
pre-installed into the blade bracket (G).
□Repeat this step for the remaining the blade assemblies.
F
G
SS
E
E
I
RR
12
Assembly - Attaching the Accessories (continued)

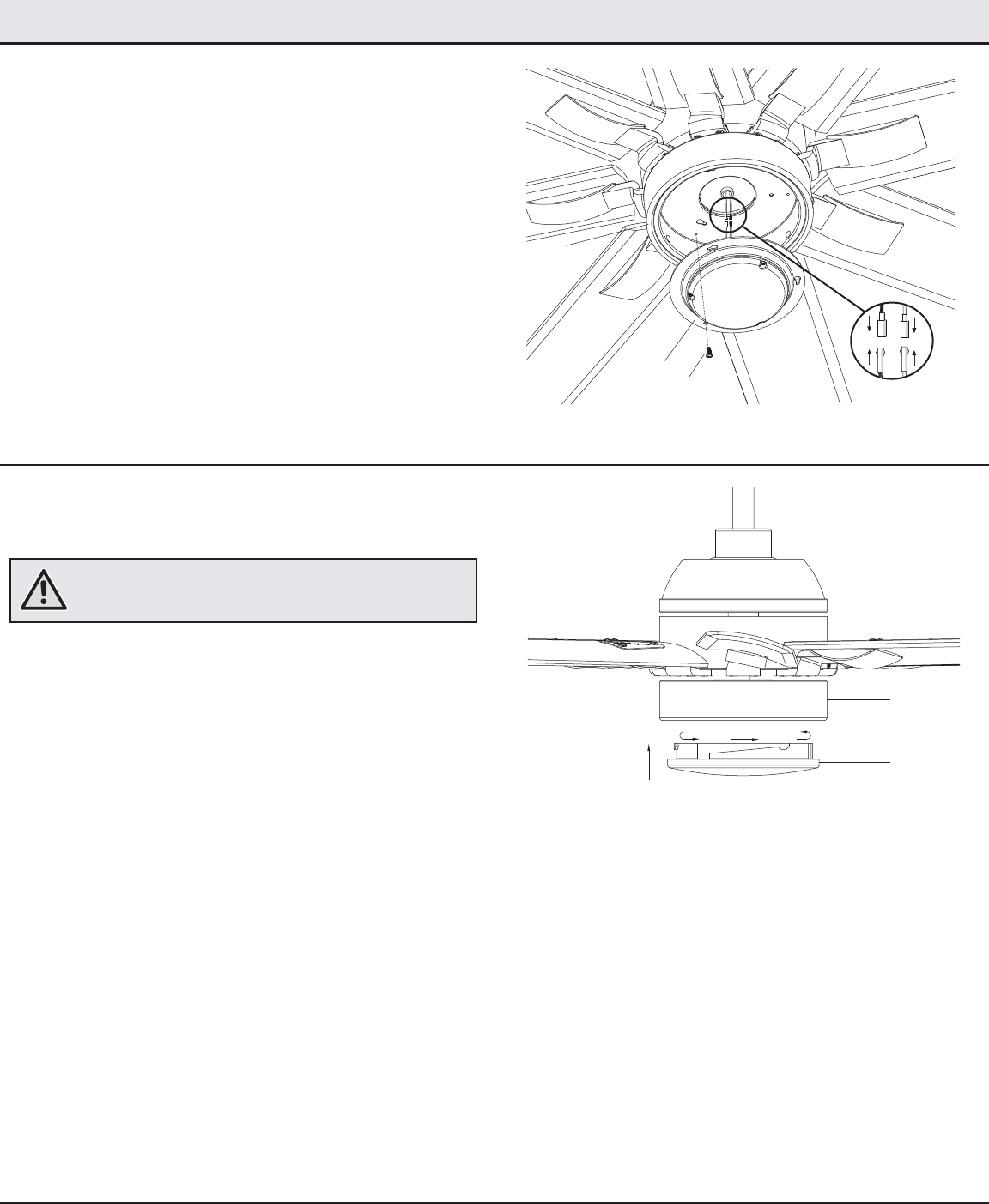

Attaching the light kit tter assembly
2
□Remove one screw (TT) from the light kit pan, and loosen, but
do not remove the other two screws.
□Connect the wires from the light kit tter assembly (J) to the
wires from the fan motor assembly (G) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
□Push the light kit tter assembly (J) up to the light kit pan so
that the two loosened screw heads t into the keyhole slots.
Turn the light kit tter assembly (J) clockwise to secure.
□Re-install the screw that was removed in the rst step.
□Make sure all the screws are rmly tightened.
Installing the shatter resistant shade
3
□Place the shatter resistant shade (K) into the light kit (I),
aligning the three at areas on the top of the ange of the
shatter resistant shade (K) with the three raised dimples in the
light kit (I). Turn the shade clockwise until it stops.
WARNING: Do not overtighten when installing the shatter
resistant shade into the light kit. Allow the shatter resistant
shade to cool completely before removing.
TT
J
I
I
K
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

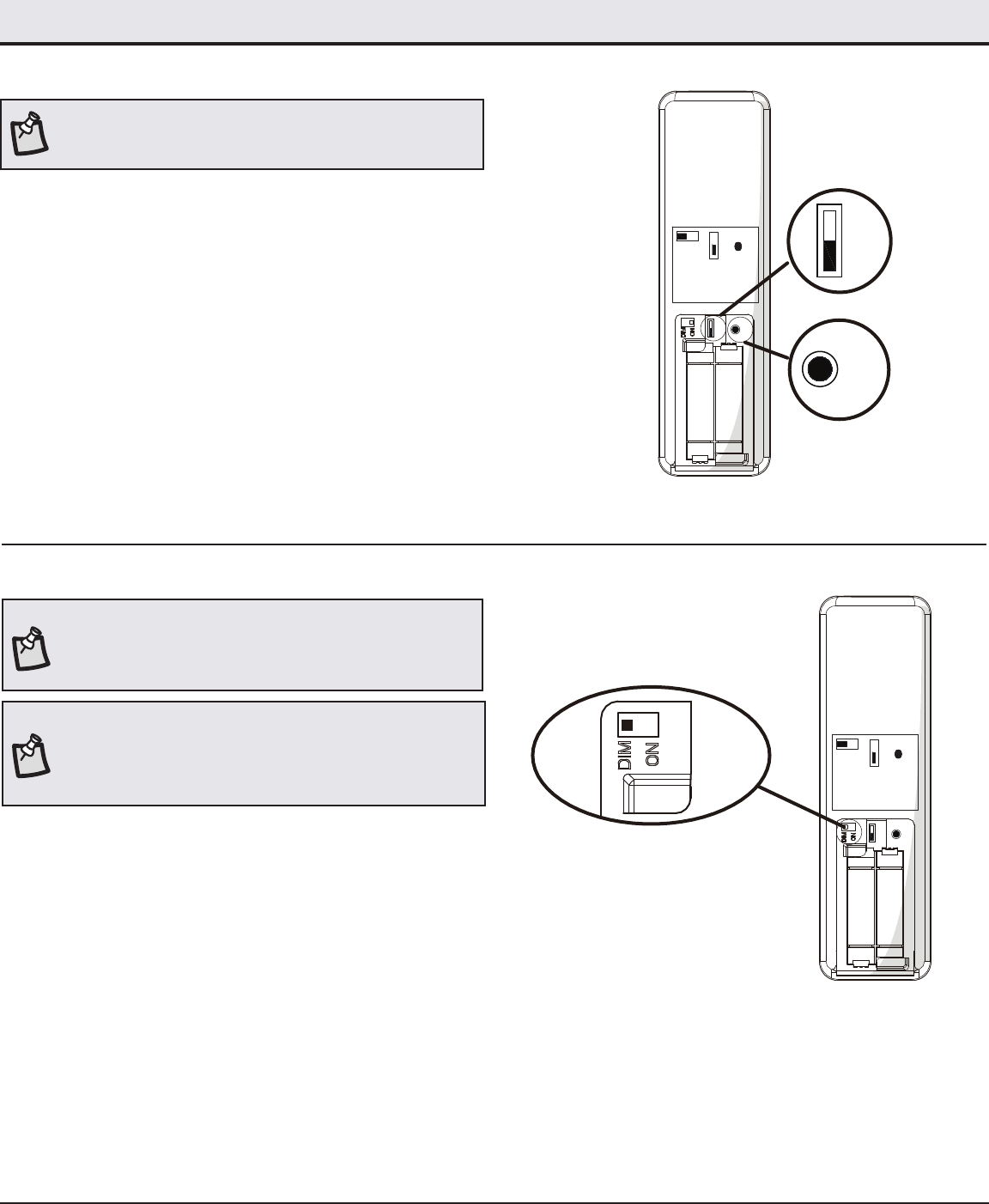

Preparing the Remote Control
Setting the light function on your remote
□Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□If your fan is equipped with a light kit and using dimmable bulbs,
slide the dip switch from “on” to “dim” (for non-dimmable bulbs,
the dip switch must be set to “on”).
□Install two 1.5V AAA batteries (included).
□Replace the battery cover on the remote control.
NOTE: The battery will weaken with age and should be replaced
before leaking takes place as this will damage the remote control.
Dispose of used battery properly and keep the battery out of the reach
of children.
NOTE: The switch marked ON/DIM controls the dimming function of
the lights: If using non-dimmable bulbs, use a ballpoint pen or small
screwdriver to set the switch to ON to disable the dimming function.
If using dimmable bulbs, set the switch to DIM to enable the dimming
function.
0 1
LEARN
REGULADOR
ENCENDIDO
0 1
APRENDER
□Slide the dip switch in the battery compartment to the “1” setting.
□Conrm that the power to the fan is off at either the wall switch or
breaker box.
□Return power to the fan at the wall switch or breaker box.
□Press and release the “Learn” button located in the remote’s battery
compartment within 30 seconds.
□If pairing is successful, the fan’s light kit will ash and the blades
will begin to spin.
Pairing the Remote Control
NOTE: The remote control has already been paired to the ceiling fan
for your convenience. If you have two of the same model fans in your
home, please follow the steps below to control each fan independently.
0 1
0 1
LEARN
LEARN
REGULADOR
ENCENDIDO
0 1
APRENDER
14

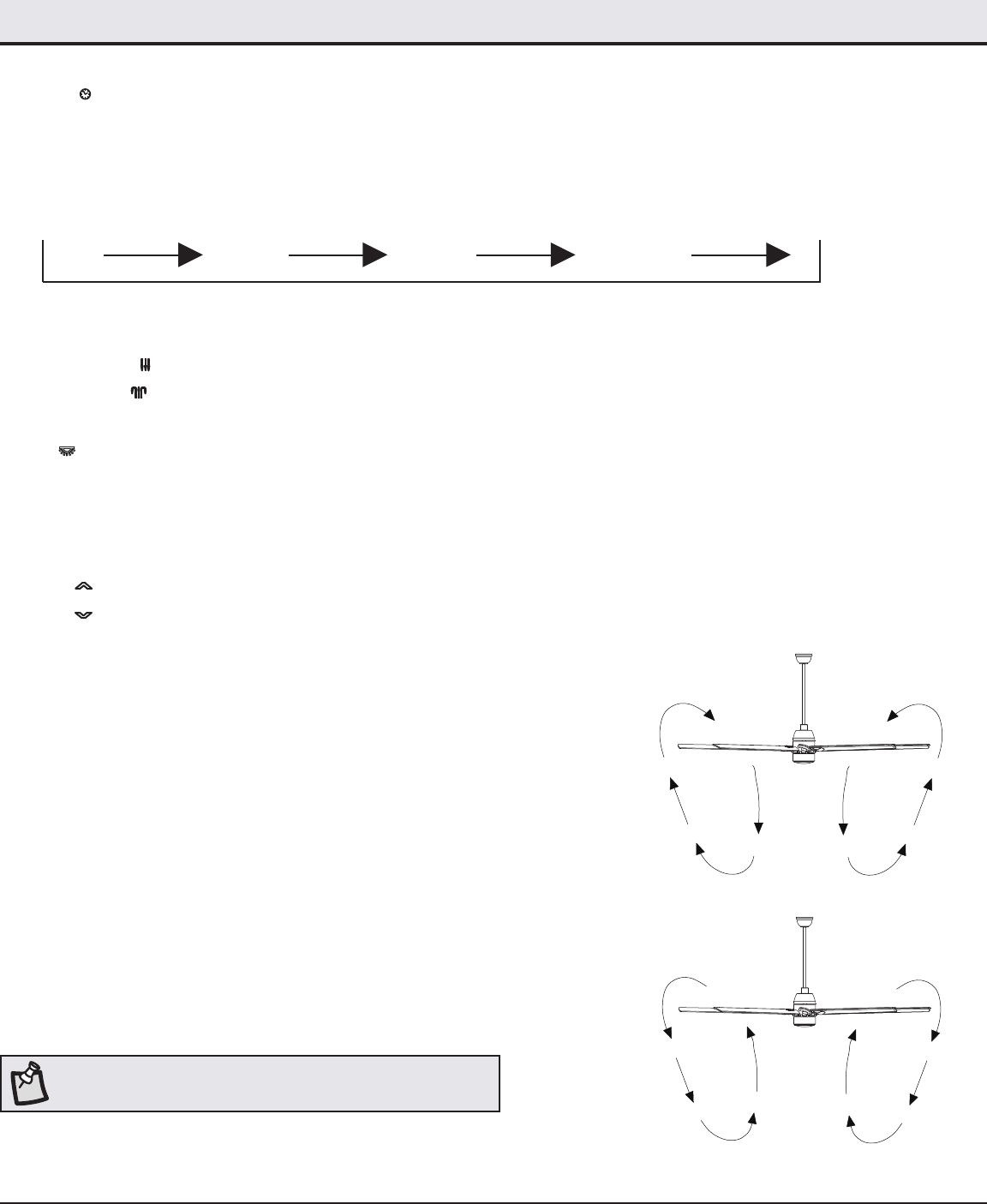

Operating Your Fan and Remote Control
2. Speed functions
+ button, increases the fan speed
□Pressing and releasing the + button one time will increase the speed of the fan. Each setting increase will cause the LED bar to
illuminate slightly more, until the fan has reached the maximum speed setting. At that time the LED bar will be fully illuminated.
□Pressing and holding the + button will increase the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is fully illuminated, the fan has reached maximum speed setting.
□Pressing the + button while in Comfort BreezeTM mode, will automatically cancel the Comfort BreezeTM mode and resume normal
fan operation.
– button, decreases fan speed
□Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar
to dim slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25%
illuminated.
□Pressing and holding the - button will decrease the fan speed automatically through the speed settings and the increments will be
denoted on the LED bar. When the LED bar is 25% illuminated, the fan has reached the minimum speed setting.
□Pressing the - button while in Comfort BreezeTM mode, will automatically cancel the Comfort BreezeTM mode and resume normal
fan operation.
3. Comfort BreezeTM
There are three Comfort BreezeTM settings. Pressing the button will activate the Comfort BreezeTM mode.
□Setting 1: Alternates through speeds 1 – 3, the LED bar should ll approximately 33%.
□Setting 2: Alternates through speeds 1 – 6, the LED bar should ll approximately 66%.
□Setting 3: Alternates through speeds 1 – 9, the LED bar should be fully illuminated.
Off Setting 1 Setting 2 Setting 3 Disable Comfort BreezeTM
Note: If you are currently using Comfort BreezeTM mode,
pressing the button will cancel Comfort BreezeTM mode and
resume normal fan operation.
Note: You must turn the fan on prior to using the timer function.
Timer
Decreases fan speed
Increases fan speed
Fan on/off
Light on/off
Decreases the
light level
(Dimmer)
Warm weather
(Forward)
Comfort BreezeTM
LED bar
Scale indicating
fan speed
Cool weather
(Reverse)
Increases the
light level
(Dimmer)
1. Fan button. - Press and release the button to turn the fan on
or off.
□Fan on. The fan memory function will resume the speed set on the
fan prior to the power being turned off. The LED bar will display the
current settings for 5 seconds after the button is released.
□Fan off. The fan memory function will store the current setting for
the next time the fan is in use.
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operating Your Fan and Remote Control
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan.
Speed setting for warm or cool weather depend on factors such as the
room size, ceiling height, number of fans and so on.
A. Warm weather - (Forward) A downward airow creates a cooling ef-
fect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
B. Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Do not wait for the fan to stop before pressing the reverse button.
The fan will not reverse direction if the fan is not moving.
A. Warm weather
B. Cool weather
4. Timer
□Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the
LED to the left of the time above the clock will illuminate.
Off 2H 4H 8H Disables timer
5. Fan reverse button (Must be pushed when the fan is in operation)
□Warm weather: LED bar will illuminate and the lights will ow from high to low.
□Cool weather: LED bar will illuminate and the lights will ow from low to high.
6. Light
□Press and release the light button to turn the light on or off
□Light on: The fan memory function will resume the light setting (on or off and dim) on the fan prior to the power being turned off.
7. Dimmer
□Press to increase desired light level.
□Press to decrease the desired light level.
16
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check the battery in the remote control.
□Ensure you are in the normal range of 10-20 feet.
□Remember to turn off the power supply before checking the dip switch settings.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Customer Service and a balancing kit will be sent
to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
