User manual

P2578

93089911_A

Limited Lifetime Warranty

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

111017

P2578

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical

defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and

metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from

the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/

or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for

ENERGY STAR® qualied products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal

conditions of use, are warranted to be free from defects in material and workmanship which cause the light

sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase

on the LED Light modules and electrical components for fans used in single family residences, and (ii) three

(3) years from the date of purchase on the LED Light modules and electrical components for fans used in

multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other

than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the

rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)

678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall

be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor

(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,

misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser

or a third party, including without limitation improper voltage supply or power surge, use of improper parts or

accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION

AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.

PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,

INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF

BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN

IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations

of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This

warranty gives you specic rights and you may have other rights which vary from state to state.

Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable

for Fan Support of 35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of

7 feet clearance from the trailing edge of the blades to the

oor.

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned off and blades stopped before

reversing blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

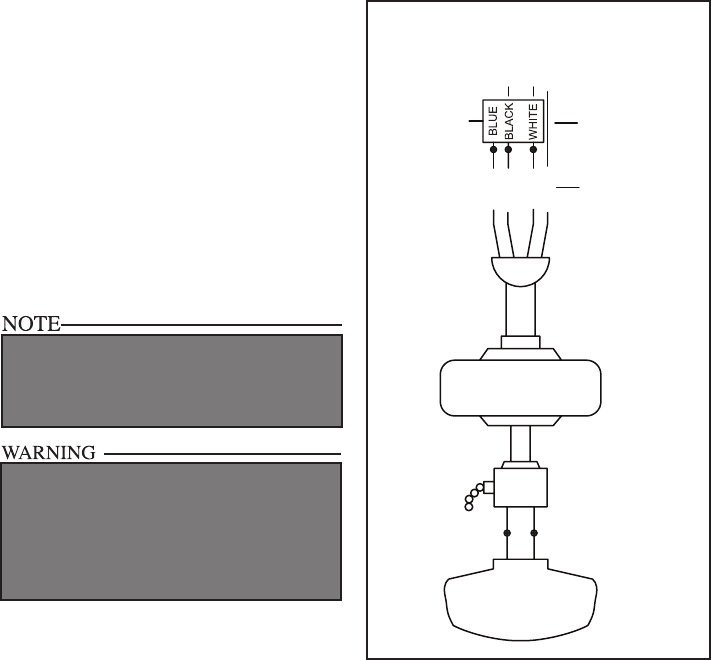

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing.

Switches must be UL General Use Switches. Refer to the

instructions packaged with the light kits and switches for

proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock, do

not use this fan with any solid-state speed control device.

14. Use With Speed Controller UC7067RYE, manufactured by

Rhine Electronic Co., Ltd only.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION CONTROL/SWITCH.

a. Blade attachment hardware

(15 Screws)

b. Electrical hardware and Balancing kit

(3 plastic wire connectors, blade

balancing kit)

c. Blade bracket hardware (11 Screws)

d. Blade decorative hardware (15 Screws)

6. Blade Bracket (5)

7. Blades (5)

8. Light Kit Pan

9. Light Kit Fitter Assembly

10. Glass Shade

11. Transmitter and Receiver

1. Mounting Bracket (inside canopy)

2. 4.5” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

2. Unpacking Your Fan

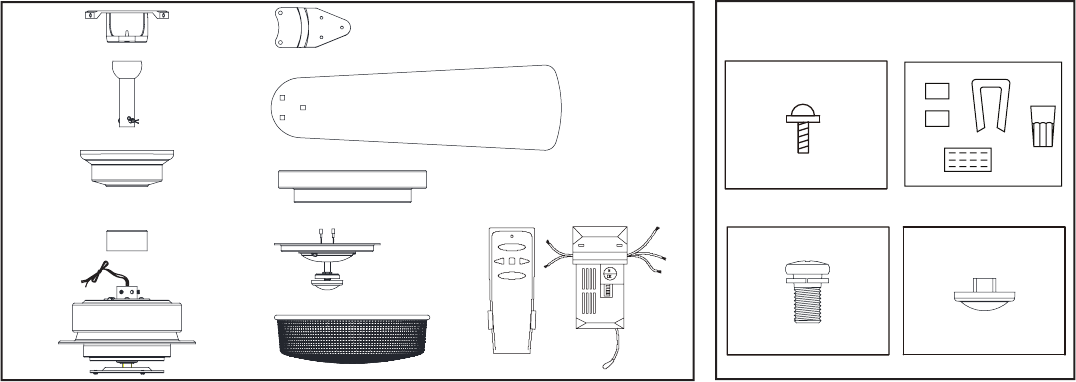

Unpack your fan and check the contents. You should have the following items:

c d

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

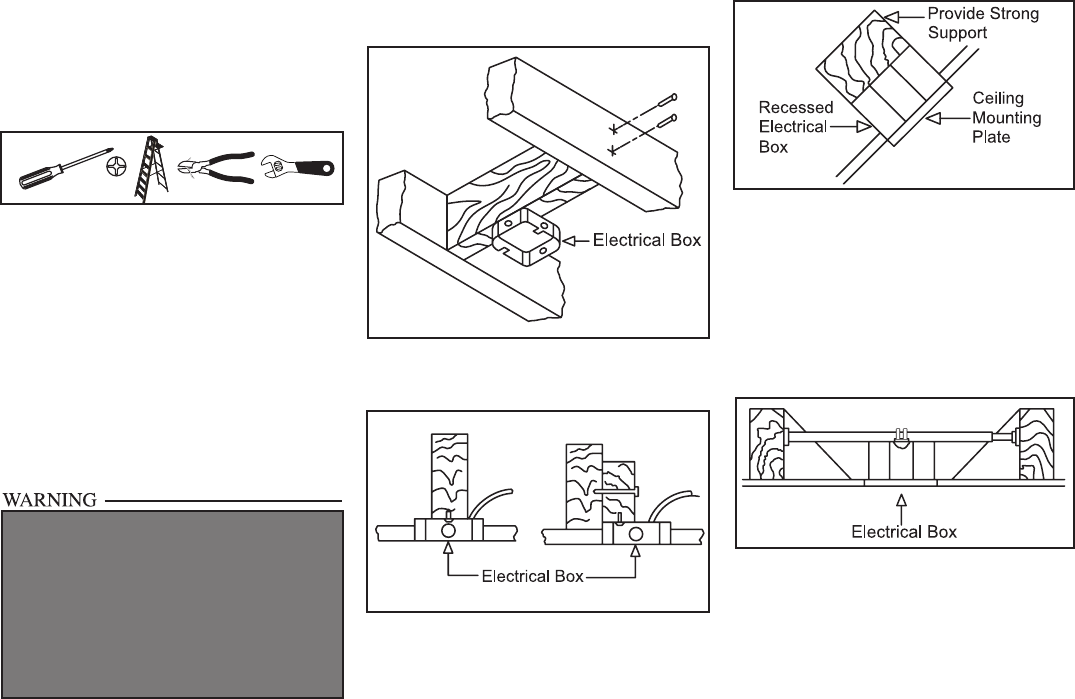

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 20˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 4.5 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 10 inches.

Standard Ceiling Mounting

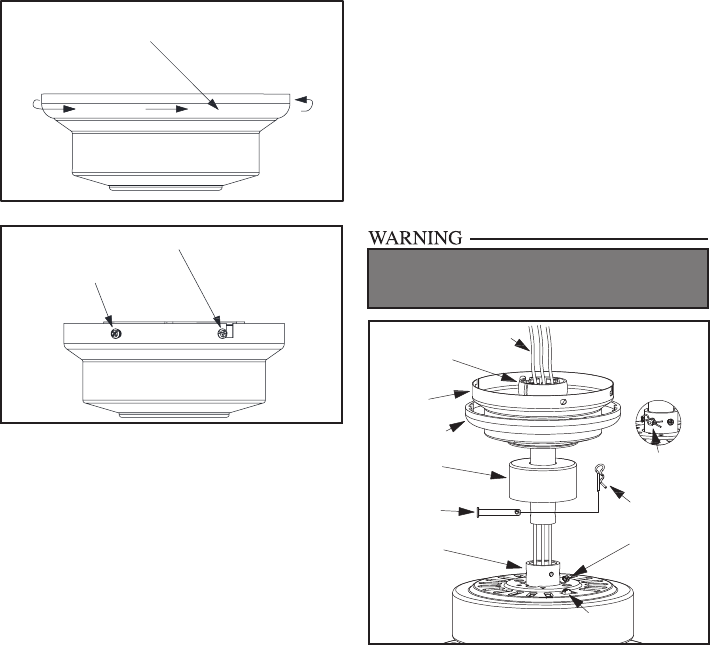

1. Remove the canopy ring from the canopy

by turning the ring counter-clockwise

until it unlocks. (Figure 5)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly

4. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly. (Figure 7)

Remove

Loosen but Do Not Remove

Turn Canopy to Remove

Figure 5

Figure 6

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Motor collar

Pin in locked

position

Locking pin

Tighten

screws

Reverse

switch

Hanger pin

Motor collar

cover

Canopy ring

Motor wires

Ball/Downrod

assembly

Canopy

Installing Fan to

the Electrical Box

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING BRACKET MUST BE MOUNTED

SO THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

BRACKET FROM THE TOP DOWN.

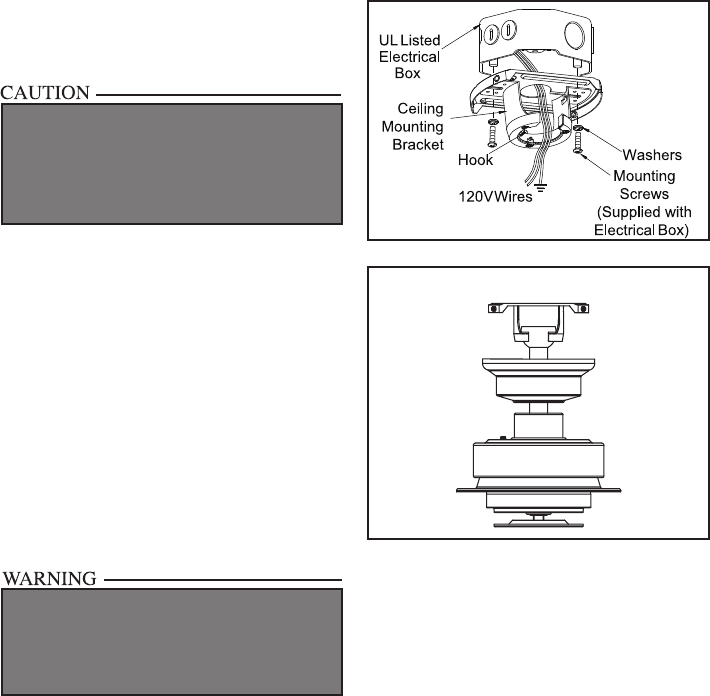

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 9)

Figure 8

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

Standard mounting

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE PLASTIC WIRE CONNECTORS

SUPPLIED WITH YOUR FAN. SECURE THE

CONNECTORS WITH ELECTRICAL TAPE AND

ENSURE THERE ARE NO LOOSE STRANDS OR

CONNECTIONS.

BLUE

BLACK

WHITE

GREEN

BLUE

BLACK WHITE

WHITE

SUPPLY CIRCUIT

BLACK

WHITE

Grounding

Conductor

Green

Grounding

Lead

Remote

Receiver

Figure 10

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan and

supplied with remote control. Secure the

connectors with electrical tape. Make sure there

are no loose strands or

connections. (Figure 10)

1. Connect the ground conductor of the 120v

supply (this may be a bare wire or a wire

with green colored insulation) to the green

ground lead(s) of the fan. (Figure 10)

2. Connect the fan motor white wire to the

receiver white wire using a wire nut.

(Figure 10)

3. Connect the fan motor black wire to the

receiver black wire using a wire nut.

(Figure 10)

4. Connect the fan motor blue wire to the

receiver blue wire using a wire nut.

t(Figure 10)

5. Connect the receiver black wire to the

supply black (hot) wire using a wire nut.

(Figure 10)

6. Connect the receiver white wire to the

supply white (neutral) wire using a wire

nut. (Figure 10)

7. After connecting the wires, spread them

apart so that the green and white wires are

one side of the electrical box and the black

wire is on the other side.

8. Turn the wire connecting nuts upward and

carefully push the wiring into the electrical

box.

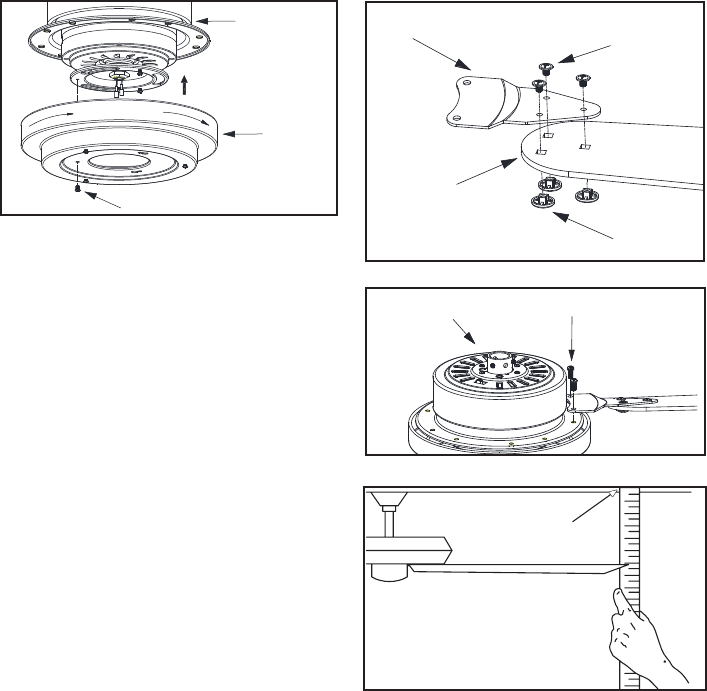

Attaching the Fan

Blades

1. Attach a blade to blade bracket using

the decorative nuts and blade attachment

screws provided. Insert a blade attachment

screw through the hole in the blade bracket

and blade and into the decorative nut.

Tighten each screw securely. (Figure 12)

2. Repeat these steps for each blade and blade

bracket. (Figure 12)

3. Attach the blade assemblies to the motor by

aligning the two screw holes in the blade

bracket with the screw holes in the center

ywheel and secure with screws. (Figure

13)

4. Repeat this step for the remaining blade

assemblies. (Figure 13)

Figure 13

Figure 14

Blade Balancing

All blades are grouped by weight. Because natural

woods vary in density, the fan may wobble even

though the blades are weight matched.

The following procedure should correct most fan

wobble. Check after each step.

1. Check that all blade screws are secure.

2. Most fan wobble problems are caused when blade

levels are unequal. Check this level by selecting

a point on the ceiling above the tip of one of the

blades. Measure from a point on the center of

each blade to the point on the ceiling. Measure

this distance as shown in Figure 14. Rotate the fan

until the next blade is positioned for measurement.

Repeat for each blade. Measurements deviation

should be within 1/8”. Run the fan for 10 minutes.

3. Make sure that canopy is tightened securely to

ceiling mounting bracket and that the ceiling

mounting bracket is tightened securely to the

electrical box.

4. Interchanging two adjacent blades can redistribute

the weight and possibly result in the smoother

operation.

5. Use the enclosed Blade Balancing Kit if the blade

wobble is still noticeable.

Touching

Ceiling

1. Remove one screw from the black bracket

below fan motor assembly, loosen but do

not remove the other two screws. (Figure

11)

2. Push the light kit pan up to the fan motor

assembly so that the two loosened screw

heads t into the keyhole slots. Turn the

light kit pan clockwise. Re-install the screw

that was removed in step 1. Make sure all

the screws are rmly tightened. (Figure 11)

7. Assembling the Fan

Screws

Motor Assembly

Attaching the Light Kit

Pan

Blade

Screws

Decorative

Nuts

Blade arm

Figure 12

Motor

Assembly

Light Kit

Pan

Screws

Figure 11

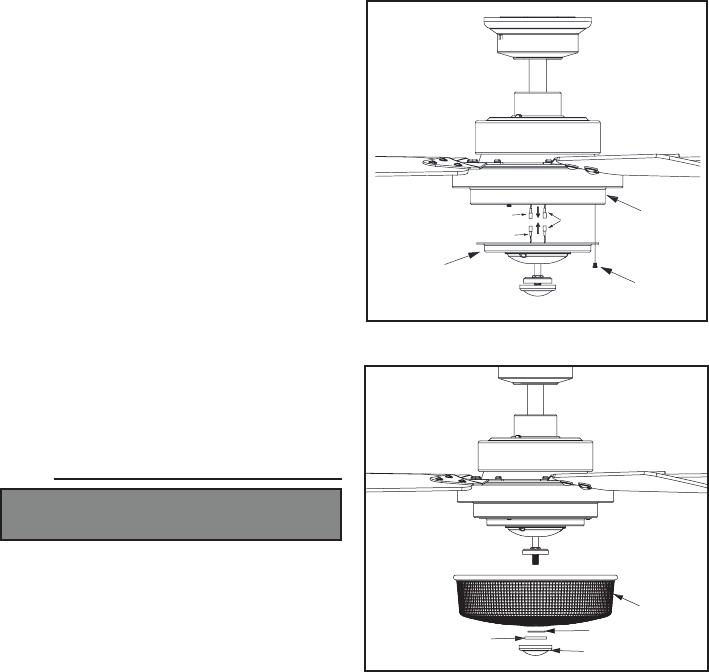

Installing the Light Kit

Fitter Assembly/Glass

Bowl

CAUTION - To reduce the risk of electrical

shock, disconnect the electrical supply circuit

to the fan before installing the light kit.

THE GLASS IS FRAGILE, USE CARE WHEN

INSTALLING THE LIGHT KIT AND THE

GLASS SHADE

1. Remove one screw from the light kit pan

and loosen, but do not remove the other

two screws. Connect the wires from the

light kit tter assembly to the wires from

the fan motor assembly by connecting the

molded adaptor plugs together. Carefully

tuck all wires and splices into the switch

cap. (Figure 15)

2. Push the light kit tter assembly up so

that the two loosened screw heads t into

the keyhole slots. Turn the light kit tter

assembly clockwise, tighten the screws.

Re-install the screw that was removed in

step 1 and tighten rmly. (Figure 15)

3. Remove the rubber gasket, nut and nial

from the threaded nipple of the light kit

tter assembly. Position the glass bowl over

the threaded nipple. Re-install the rubber

gasket, nut and nial to the threaded nipple

to secure the glass bowl properly. (Figure

16)

Screws

Light Kit

Pan

Light Kit Fitter

Assembly

Blue

Black

White

Glass

Shade

Rubber washer

Finial

Nut

Figure 15

Figure 16

DO NOT OVER TIGHTEN THE NUT.

OVERTIGHTENING THE NUT MAY CAUSE THE

GLASS TO BREAK.

NOTE

Finishing the Fan

Installation

1. Align the locking slots of the ceiling

canopy with the two screws in the

mounting bracket. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws rmly.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. Install the decorative canopy ring by

aligning the ring’s slots with the screws in

the canopy. Rotate the ring clockwise to

lock in place.

9. Operating Your Fan

Speed settings for warm or cool weather depend

on factors such as room size, ceiling height,

number of fans, and so on.

The fan shipped from the factory with the

reversing switch positioned to circulate air

downward. If airow is desired in the opposite

direction, turn your fan off and wait for the

blades to stop turning, then slide the reversing

switch (located at the top of the motor housing,

refer to gure 11 on page 5) to opposite position,

and turn fan on again. The fan blades will turn

in the opposite direction and reverse airow. Figure 17

Figure 18

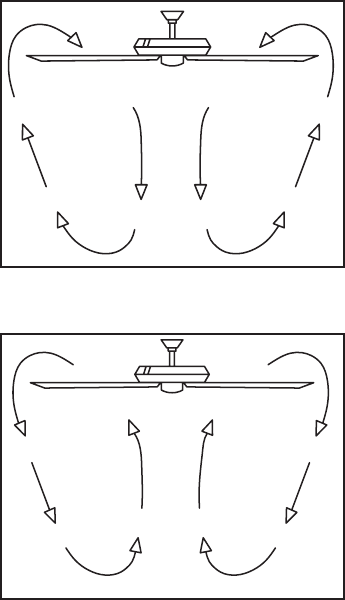

Warm weather - (Forward) A downward air

ow creates a cooling effect as shown in Figure

17. This allows you to set your air conditioner

on a higher setting without affecting your

comfort.

Cool weather - (Reverse) An upward air ow

moves warm air off the ceiling are as shown in

Figure 18. This allows you to set your heating

unit on a lower setting without affecting your

comfort.

10. Care of Your Fan and Troubleshooting

Care of Your Fan

Here are some suggestions to help you

maintain your fan.

1. Because of the fan’s natural movement,

some connections may become loose.

Check the support connections, brackets,

and blade attachments twice a year. Make

sure they are secure. (It is not necessary to

remove fan from ceiling.)

2. Clean your fan periodically to help maintain

its new appearance over the years. Do not

use water when cleaning, this could damage

the motor, or the wood or possibly cause

an electrical shock. Use only a soft brush

or lint-free cloth to avoid scratching the

nish. The plating is sealed with a lacquer

to minimize discoloration or tarnishing.

Warning - Make sure the power is off

before cleaning your fan.

3. You can apply a light coat of furniture polish

to the wood for additional protection and

enhanced beauty. Cover small scratches

with a light application of shoe polish.

4. There is no need to oil your fan.

The motor has permanently lubricated

sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX

BEFORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,

“MAKING ELECTRICAL CONNECTIONS.”

Fan will not start

Fan sounds noisy

1. Check main and branch circuit fuses or breakers

2. Check line wire connections to the fan and switch wire connections in

the switch housing. CAUTION: Make sure main power is off.

3. Check batteries in the transmitter. Does the red LED light come on?

Are you standing close enough to the fan? (Normal range is 10-20

feet.) Are the dip switch settings the same on the transmitter (hand unit)

and receiver? REMEMBER TO TURN OFF POWER SUPPLY

BEFORE CHECKING THE DIP SWITCH SETTINGS IN

RECEIVER.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade bracket to the motor hub

are tight.

3. Make sure wire nut connections are not rattling against each other or

the interior wall of the switch housing.

CAUTION: Make sure power is off.

4. Allow a 24-hour “breaking in” period. Most noises associated with a

new fan disappear during this time.

5. If using the Ceiling Fan light kit, make sure the screws securing the

glassware are tight. Check that the light bulb is also secure.

6. Make sure the canopy is a short distance from the ceiling.

It should not touch the ceiling.

7. Make sure your electrical box is secure and rubber isolator pads were

used between the mounting bracket and electrical box.

Troubleshooting

Problem Solution

11. Specications

FAN

SIZE SPEED VOLTS

FAN POWER

CONSUMPTION

(WITHOUT LIGHTS)

WATTS

AIRFLOW

CFM

AIRFLOW

EFFICIENCY

(HIGHER IS BETTER)

CFM/WATT

NET

WEIGHT

GROSS

WEIGHT

CUBE

FEET

52”

Low

120

xx xxxx xxx xx.xx

Lbs

xx.xx

Lbs x.x

Med xx xxxx xxx

High xx xxxx xx

701 Millennium Blvd.,

Greenville, SC 29607

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

King of Fans P2578R 52 inch Tempt User Manual

King of Fans, Inc. 52 inch Tempt

User manual

Navigation menu

Namespaces

Views

Navigation
