General Information
Copyright
This document is protected by copyright. Any reproduc-
tion or reprint, even in parts, and any reproduction of the
illustrations, even in a changed state, is strictly prohibi-
ted without the written consent of the manufacturer.
Information on environmental protection
The packaging material used is recyclable. Dispose
of packaging material which is no longer needed in
accordance with the locally applicable regulations.
This product must not be disposed of in the normal
household waste within the European Union.
Dispose of the device via the communal collecting
points.
23
MUSIC 44
Guarantee / Warranty
This product has been thoroughly checked for quality
and functionality before dispatch. 12 month warranty
form the date of purchase for the speaker, 6 months for
the integrated battery. We will replace or repair defective
products free of charge during the guarantee period. The
guarantee is not extended in the course of a repair or an
exchange, exchanged parts become our property. Ple-
ase contact us before sending a guarantee consignment.
The guarantee is excluded in the following cases:
■in the case of faulty installation,
■in the case of changes to the system without our
approval,
■in the case of damages due to moisture, damages
caused by dropping or damaged cables,
■if there is no proof of purchase.
24
MUSIC 44
Declaration of conformity
The CE declaration of conformity for this product can be
downloaded from our website:
www.mobiset.de
Symbols used
WARNING
Is used for a possible dangerous situation which could
lead to serious injuries or death.
►Follow the instructions given here in order to avoid
danger.
NOTE
►A note marks additional information which facilita-
tes the handling of the product.
25
MUSIC 44
Intended use
This device is only intended for the reproduction of audio
signals of optional Bluetooth audio devices. Additionally,
you can connect the device to a Bluetooth telephone and
use the device as hands-free equipment.
Any other use or use beyond what is specied is regar-
ded as not intended.
WARNING
The device can be dangerous in the case of uninten-
ded use and / or different use.
►Only use the device as intended.
►Comply with the procedures described in these
operating instructions.
26
MUSIC 44
Claims of any kind due to damages as a result of unin-
tended use are excluded.
This risk is borne exclusively by the operator.
Limitation of liability
All technical information, data and notes for connection
and operation contained in these operating instructions
correspond to the latest status during printing and are
carried out to the best of our knowledge, taking into con-
sideration our experience and knowledge up to now.
No claims can be derived from the data, illustrations and
descriptions in these operation instructions.
The manufacturer does not assume any liability for da-
mages due to non-compliance with the operating instruc-
tions, non-intended use, improper repairs, unauthorised
changes or use of unauthorised spare parts.
27
MUSIC 44
Safety
Handling (storage) batteries
WARNING
►The device must not be opened, thrown into re,
dipped in uids or be short-circuited.
►Charge the device only with the delivered rechar-
ger cable. Using a wrong charger can lead to re,
explosion and acid burns.
►In the case of damage and improper use of the
storage battery, vapours can escape. Supply fresh
air and consult a doctor in case of complaints. The
vapours can irritate the airways.
28
MUSIC 44
WARNING
►In the case of a damaged storage battery, battery
uid can leak. If one of the storage batteries has
leaked, please avoid contact of the skin, the eyes
and the mucous membranes with the battery uid.
In the case of contact with the battery uid, imme-
diately rinse the corresponding spots with plenty of
clear water and consult a doctor promptly.
Basic safety information
■Check the device for any visible external damage
before use. Do not put into operation a damaged or
fallen device.
■Persons, who are not in a position to safely operate
the product due to their physical, mental or motor
skills, may only use the device under supervision or
instruction by a responsible person.
29
MUSIC 44
■Children are only allowed to use the device under
supervision.
■The device may only be repaired by authorised
specialised companies or the customer service. Im-
proper repairs can lead to signicant dangers for the
user, and to the expiry of the warranty claim.
■Protect the device from moisture and the penetration
of uids.
■Avoid direct sun radiation.
Requirements concerning the installation site
For a safe and faultless operation of the device, the ins-
tallation site has to meet the following requirements:
■The device has to be placed on a rm, at and hori-
zontal base.
■Do not place the device in a hot, wet or very wet
environment or near ammable material.
30
MUSIC 44
Before rst use
Unpacking
Take the device and the operating instructions out of
the cardboard box.
Remove all packaging materials and protective lms
from the device before rst use, especially the pro-
tective lm at the bottom side of the device.
NOTE
►Keep the original packaging during the warranty
and / or guarantee period of the device so that you
can dispatch the device in case of warranty and /
or guarantee properly packed. Transport damages
will cause the warranty and / or guarantee claim to
expire.
31
MUSIC 44
Checking the scope of delivery
Check the content for completeness and visible
damages.
Immediately inform your supplier about any incom-
plete or damaged delivery.

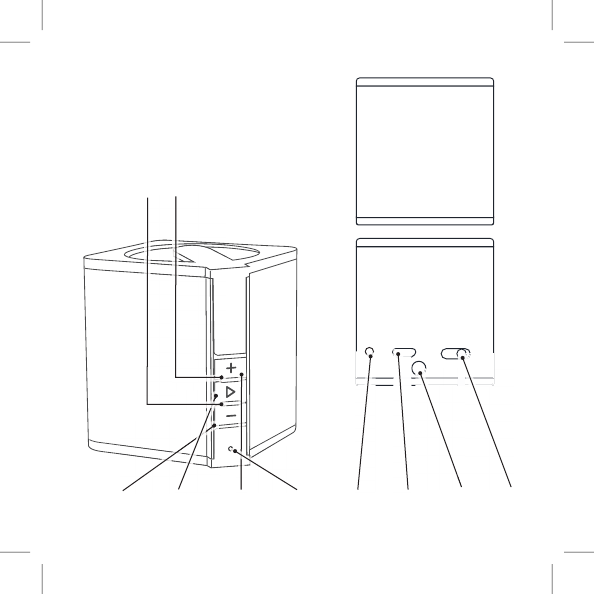

Device description
(Illustrations see front cover page)
1 Micro USB charging
port
2 AUX IN port
3 ON/OFF switch
4 Skip forward/Increa-
se volume
5 Green LED, cable-
connected operation
6 Play/Pause; accept/end
call hands-free operation;
change of operating mode
7 Blue LED, Bluetooth ope-
rating mode
8 Skip back/Decrease
volume
9 Microphone
10 Red charging indicator
lamp
32
MUSIC 44
Operation

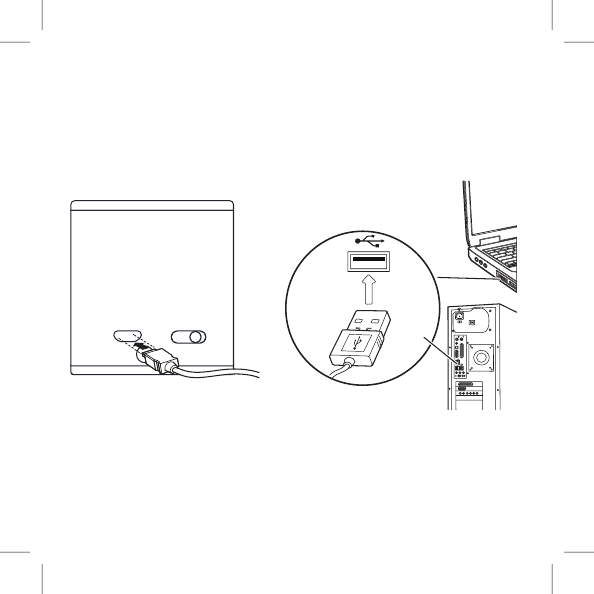

Charging the battery
(see illustration back cover page)
Turn off the device.
Connect the included recharger cable to the charger
connection (1) of the device.
Connect the recharger cable to a free USB port of
a computer or to a suited USB charger (max. input
voltage 5V).
During the loading process, the indicator lamp (10)
ashes red. After termination of the loading process the
indicator lamp goes out.
NOTE
►The charging time takes approx. 2 – 3 hours.
33
MUSIC 44
Description of control buttons
The MUSIC 44 Speaker support stereo audio transmissi-
on and audio control.
Name Status Operating
Play / Pause
Operating mode switching;
accept/end call in hands-
free mode
Long press
Playback Short press: Pause/Play
Pause / Stop Short press: Play / Pause
Back, volume
decrease
Short press: Jump to the preceding title
Long press: Decrease volume
Next / Volume
increase
Short press: Jump to the next title
Long press: Increase volume
ON/OFF switch Slide the switch to ON to turn on the speaker; now it is in pairing mode.
Slide the switch to OFF to turn off the speaker.
34
MUSIC 44
LED light indicator
Device status LED Status
Turn on Blue LED ashing slowly
Charging The red LED is lit while charging and goes out when the battery
has been charged completely
Pairing Blue LED ashing quickly
Connecting Blue LED ashing slowly
Cable operation Green LED is lit
35
MUSIC 44
Bluetooth pairing
Before you can use playback via Bluetooth, you must
pair your player with the speaker. Procedure:
Turn the speaker on and then search for new Bluetooth
accessories with your player.
Select the device “MUSIC44” and conrm the pairing.
If you are asked for a password, use “0000” (four
times the number zero).
Pairing mode is available for 30 seconds after the spea-
ker has been turned on. Turn the speaker off and on
again to restart it.
Cable operation with 3.5 mm stereo cable
Keep the Play/Pause button pressed to disconnect a
player connected via Bluetooth. Then you can connect
an audio source which is not Bluetooth-enabled via the
36
MUSIC 44
supplied cable to the 3.5 mm input jack (AUX IN) of the
speaker.
In this mode, the connected device cannot be controlled
via the buttons on the speaker.
Music playback
After successful connection, you can play your music
with the best possible quality via the speaker. In the
case of a Bluetooth connection, you can even control the
music playback directly on the speaker, without touching
your player. Refer to the table listed above for the key
functions.
In the case of a cable connection, you can only control
the volume from the speaker; all other operations must
be performed on the connected player.
37
MUSIC 44
Hands-free operation
When your mobile phone is connected to the speaker via
Bluetooth, music playback is paused with incoming calls.
You can accept and end the call with the Play/Pause but-
ton on the speaker.
Troubleshooting - Pairing not possible
Conrm that the speaker is in pairing mode. If the blue
LED does not ash, this indicates that the speaker is no
longer in pairing mode.
In this case, turn the speaker off and on again to start
pairing mode again.
Connection to a paired player not possible
Conrm that the Bluetooth function of the player is active
38
MUSIC 44
and that the distance between the device and the spea-
ker is less than 10 m. Turn the Bluetooth function of the
player off and on again.
Technical Data
Dimensions (L x B x H) 55 x 55 x 60 mm
Weight approx. 115 g
Battery Lithium-polymer-battery
450 mAh
Distortion ≤0,5%
Transmission mode Bluetooth class 3
Range max. 10 m
RMS-performance 3 W
Signal-to-noise ratio ≥95 dB
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
KingBoard Technology Co.,LTD may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
Shenzhen KingBoard Technology Co., Ltd.
Bldg. A, Dakanglong Industry Zone, Dabuxiang, Guanlan, Shenzhen, China
Tel: +86-755-28026161 Fax: +86-755-28029040
