KingBoard Technology KTS-645 Bluetooth Speaker User Manual 1

Shenzhen KingBoard Technology Co., Ltd. Bluetooth Speaker 1

Contents

User manual

KTS-645
KTS-645
Features:
Bluetooth wireless connec vity
Support USB/TF card
FM Radio
AUX func on
Rechargeable Lithium ba ery
Built-in microphone
Hands –free Call

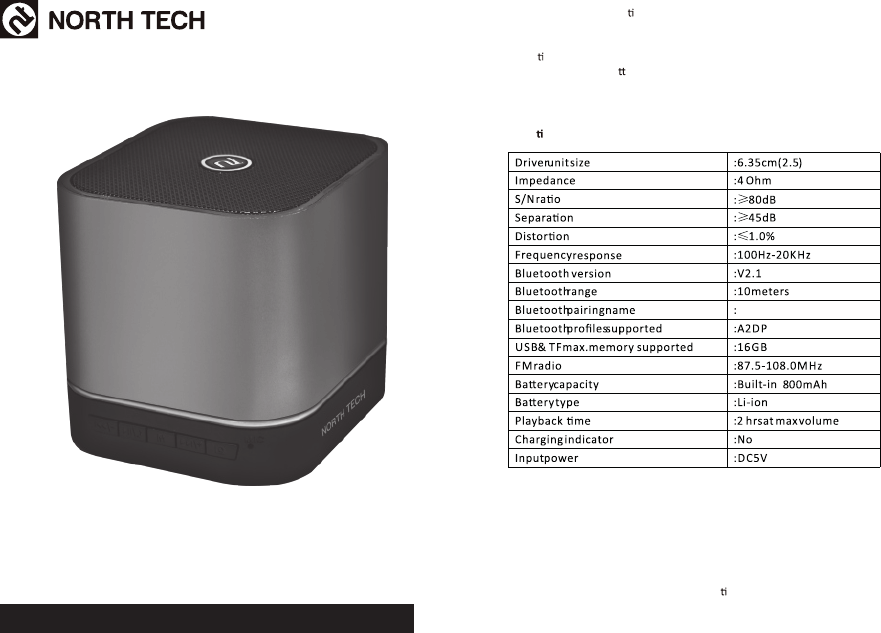

Specifica on:
Accessory：
USB charging cable: 1 piece;
3.5MM audio cable: 1 piece;
User manual: 1 piece
Connect to Bluetooth device
Turn on the speaker unit and the Bluetooth switch on your mobile or other device
and search for the speaker model name " ". Pair the device.
Once device is paired Bluetooth will automa cally connect when unit is turned on
subsequently.
FM/SD/MP3 Aux-IN port to connect with PC/Smartphone
USER MANUAL
KTS-645
Turn on the speaker, It come into the Bluetooth model directly .A er pair the device, it can
play the music, Shor me Press the “ ” to Play/Pause, press the " "and the " " to Prev
and Next. Lon me press the" " and " " bu on to turn down and turn up the Volume.
AUX-IN, Using the audio cable into AUX solt, and press the “ ” to switch to Aux in Model .
Lon me press the" " and " " bu on to turn down and turn up the Volume.
In the AUX IN status, it couldn’t shi rev and Next by Bluetooth speaker, but can control by
connec on device.
USB/TF Card
Insert the U flash memory or Micro-TF card into the USB/T F slot., NT-640 will read the MP3
format music automa cally. Press the “ ” to Play/Pause, shor me press the" " and the
" "to Prev. and Next, Lon me press the" "and " "bu on to turn down and turn up
the Volume.
Bluetooth
AUX-IN
Charging
Please use the original charging cable to charge,Red LED on when charging.
1. OFF/ON: Power Switch, push switch to ON posi on to turn on, push OFF is turn off
the speaker.
2. Aux: Audio input jack when connect. Enable the sound source connec on ac ve
devices(PC, digital media player, mobile phones and other audio-visual products).
3. DC-5V: Please use the original charging cable to charge. The red LED is on when
charging, when charging is completed m the red LED will be off.
4. USB slot: Used to read the Mp3 files in FAT32 format with maximum size of 16G B
5. TF slot: Used to read the Mp3 files in FAT32 format with maximum size of 16G B
6. Play/Pause: Under U SB/TF/Bluetooth mode, short press for play and pause;
7. M: Press to change mode during USB/T F, Bluetooth, FM and Aux-in mode.
8. PREV/skip back: Under US B/TF/Bluetooth/FM/Aux-in mode, short press to move
to previous channel/track. Long press to turn down the volume.
9. NEXT/skip forward: Under USB/T F/Bluetooth/FM/Aux-in mode, short press to
move to next channel/track. Long press to turn up the volume.
10. Onekey photograph.
FM Radio
Press M to switch to Radio Model . Short press and to Prev. and Next, Long
press and button to turn down and turn up the Volume.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
WARNING
