KingBoard Technology KTS1050ABC BLUETOOTH SPEAKER User Manual
Shenzhen KingBoard Technology Co., Ltd. BLUETOOTH SPEAKER
User Manual

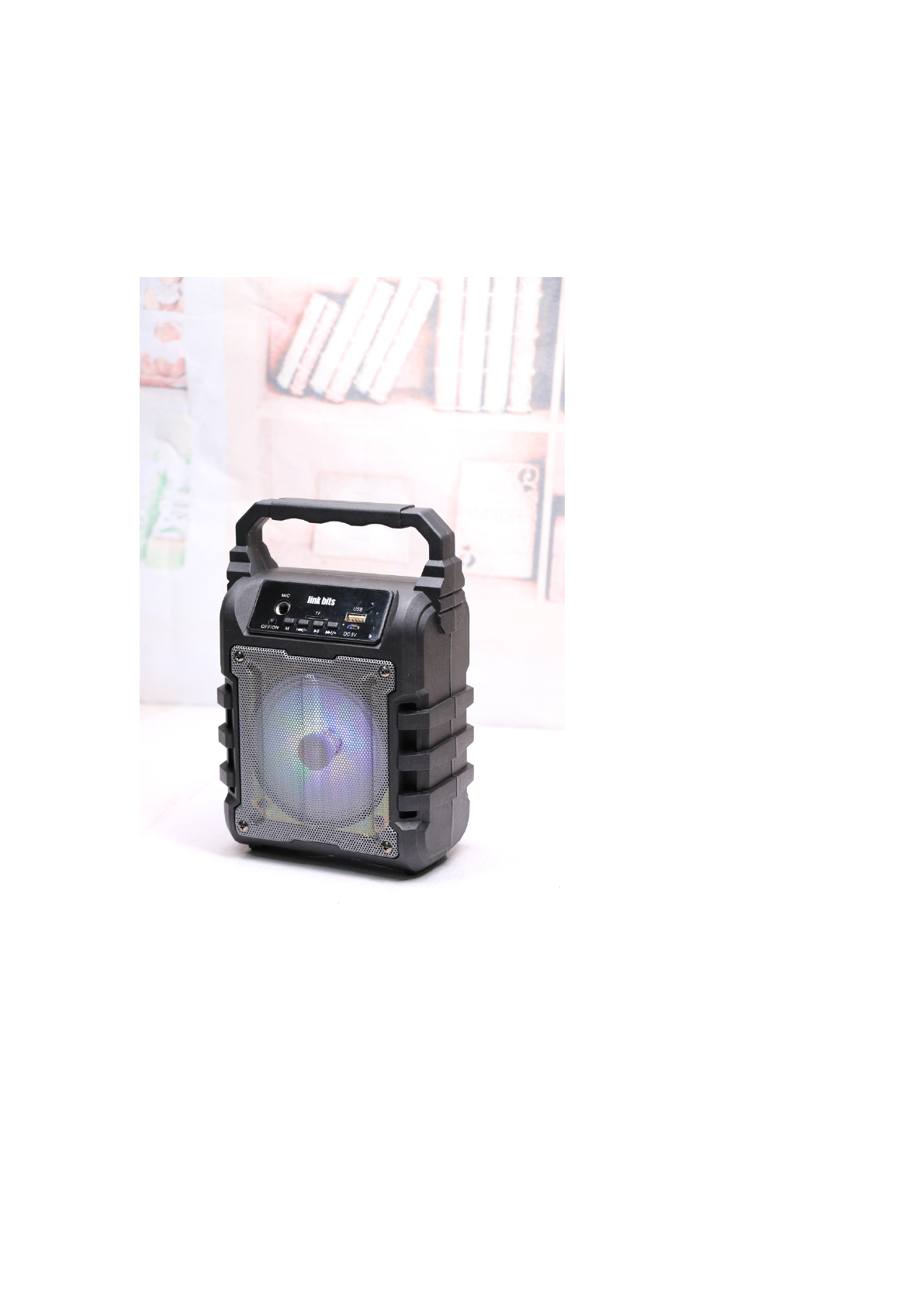

BLUETOOTH SPEAKER MANUAL
MODEL NO.: KTS-1050A
Specification
Wireless version: 4.2+EDR
Speaker driver unit size: 4 INCH
Output power: 5W
Speaker impedance: 4 Ohm
Frequency response: 100Hz-20KHz
Signal to noise ratio: >=85dB
FM scan range: 87.5-108.0Mhz
Wireless range: 10 meter
Max memory USB/SD: 32GB
USB charging: DC 5V
Battery capacity: 800mAh
Backup time via wireless mode: Approx 1 hours at max volume
Backup time via USB mode: Approx 1 hours at max volume
Charging via USB port (PC): 1.5 hours
Accessory：
Charging and audio 2 in 1cable: 1 piece;
User manual: 1 piece
Connect to Bluetooth device
Turn on the unit and switch on your mobile Bluetooth, then search for the speaker model name
"KTS-1050A"and pair the device.
Once device is paired, Bluetooth will automatically connect when unit is turned on subsequently.

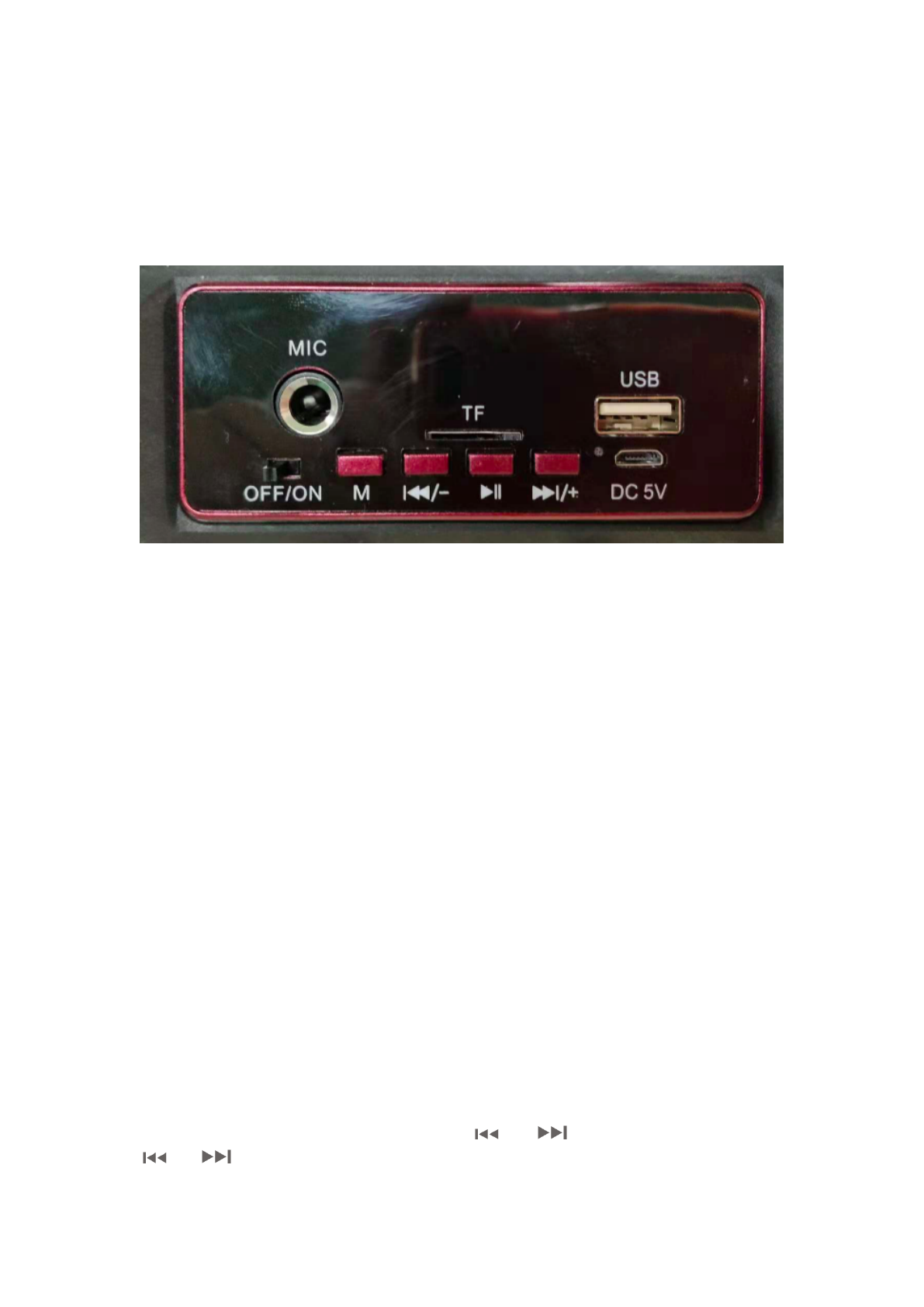

1. OFF/ON: To turn ON/OFF the speaker.
2. DC 5V: Plug the Micro USB cable to the speaker and connect other end USB port to the power
source. (DC 5V)
Aux: Audio input jack when connect. Enable the sound source connection active devices (PC,
digital media player, mobile phones and other audio-visual products).
3. USB slot: Used to read the Mp3 files in FAT32 format with maximum size of 32GB
4. TF slot: Used to read the Mp3 files in FAT32 format with maximum size of 32GB
5. Play/Pause: Under USB/TF/Bluetooth mode, short press for play and pause;
6. M: To change mode during USB/TF, Bluetooth, FM and Aux-in mode.
7. PREV/VOL-: USB/TF/Bluetooth/FM mode: Swipe left to move previous FM channel / track.
Swipe left and long press to decrease the volume.
8. NEXT/VOL+: USB/TF/Bluetooth/FM mode: Swipe right to move next FM channel / track. Swipe
right and long press to increase the volume.
9. MIC-IN: Connect with the MIC when you need.
NOTE: If FM mode reception is not good, connect a Micro USB cable for better FM reception.
Bluetooth
Turn on the speaker, It comes into the Bluetooth mode directly. After pair the device, it can play
the music, Short Press ll to Play/Pause, press and to Prev and Next. Long press
and button to turn down and turn up the Volume.
AUX-IN
AUX-IN, Using the audio cable into AUX jack, press M to switch to Aux in Mode. Long press
and button to turn down and turn up the Volume.
In the AUX IN mode, it couldn’t shift Prev and Next by Bluetooth speaker, but can control by
connection device.
USB/TF Card
Insert the U flash memory or Micro-TF card into the USB/TF slot. it will read the MP3 format
music automatically. Press ll to Play/Pause, short time press and to Prev. and
Next, Long press and button to turn down and turn up the Volume. Press 1~9999 to
select the song and play.
FM Radio
Press M to switch to FM Mode. Short press and to Prev. and Next, Long press
and button to turn down and turn up the Volume.
Charging
Please use the original charging cable to charge,
Red LED on when charging.
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference, and 2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radiation Exposure Statement
This device complies with RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
