Kingsun MA-3125 Bluetooth Speaker User Manual

Shenzhen Kingsun Enterprises Co., Ltd. Bluetooth Speaker

User Manual.pdf

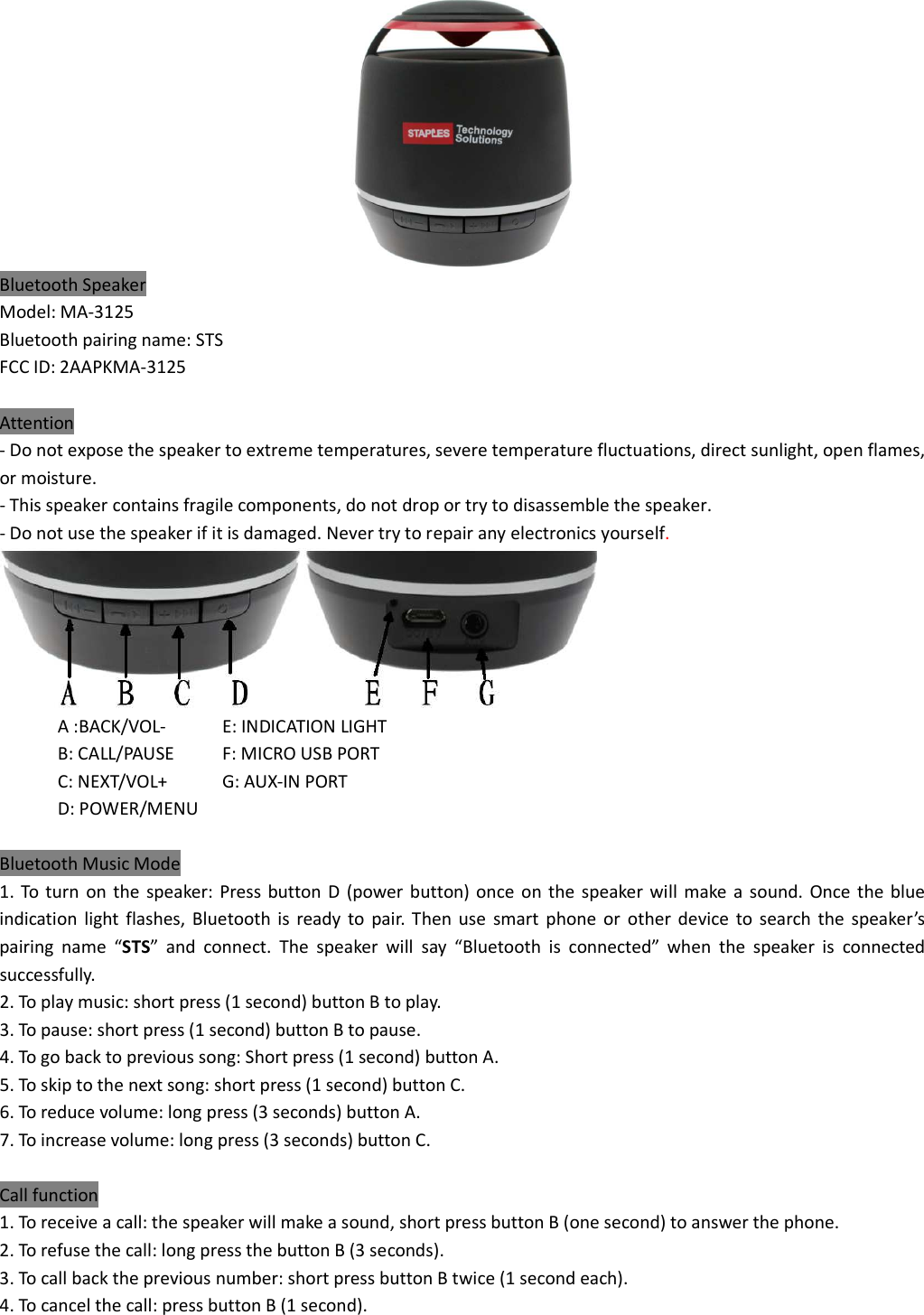

Bluetooth Speaker Model: MA-3125 Bluetooth pairing name: STS FCC ID: 2AAPKMA-3125 Attention - Do not expose the speaker to extreme temperatures, severe temperature fluctuations, direct sunlight, open flames, or moisture. - This speaker contains fragile components, do not drop or try to disassemble the speaker. - Do not use the speaker if it is damaged. Never try to repair any electronics yourself. A :BACK/VOL- E: INDICATION LIGHT B: CALL/PAUSE F: MICRO USB PORT C: NEXT/VOL+ G: AUX-IN PORT D: POWER/MENU Bluetooth Music Mode 1. To turn on the speaker: Press button D (power button) once on the speaker will make a sound. Once the blue indication light flashes, Bluetooth is ready to pair. Then use smart phone or other device to search the speaker’s pairing name “STS” and connect. The speaker will say “Bluetooth is connected” when the speaker is connected successfully. 2. To play music: short press (1 second) button B to play. 3. To pause: short press (1 second) button B to pause. 4. To go back to previous song: Short press (1 second) button A. 5. To skip to the next song: short press (1 second) button C. 6. To reduce volume: long press (3 seconds) button A. 7. To increase volume: long press (3 seconds) button C. Call function 1. To receive a call: the speaker will make a sound, short press button B (one second) to answer the phone. 2. To refuse the call: long press the button B (3 seconds). 3. To call back the previous number: short press button B twice (1 second each). 4. To cancel the call: press button B (1 second).
AUX-IN When the audio plug is inserted into the hole AUX, Bluetooth speaker will make a sound “line in mode”. The LED indicator light will be blue. Reminder: In Line in mode, the button A, B, and C will not be in function to control the source of the audio. Charging the Device When charging, the LED indication light will be red. Light will turn off when full charged. Product Parameters 1.Input Voltage : 5V/300MA 2.Battery : Li-Battery 3.Capacity : 3.7V/400mAh 4.Output : 3W*1 5.Frequency Response : 80HZ~20KHZ 6.S/N :80DB 7.Audio port :A. Bluetooth transmission B. AUX 8.Bluetooth Version : RDA V2.1 9.Working Range : 10M FCC rules Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Vendor Name INDesigns Global Inc, Overland Park KS,USA.
