Kingwave Technology K71216P 2.4GHz GFSK Transceiver module User Manual K71216 manual
Kingwave Technology Co., Ltd. 2.4GHz GFSK Transceiver module K71216 manual
User manual
- 1-
K71216P 2.4GHz GFSK Transceiver module Manual
1. Introduction
K71216P is a 2.4GHz ISM band transceiver.
It provides one type of digital modulation GFSK, and on-air data rate support 3Mbps. The proprietary
low MAC feature coupled with high-speed multimedia processor enables a very high quality wireless
multimedia application and a great interference immunity capability.
2. Pin Assignment
1
5
10
14
ANT PORT
- 2-

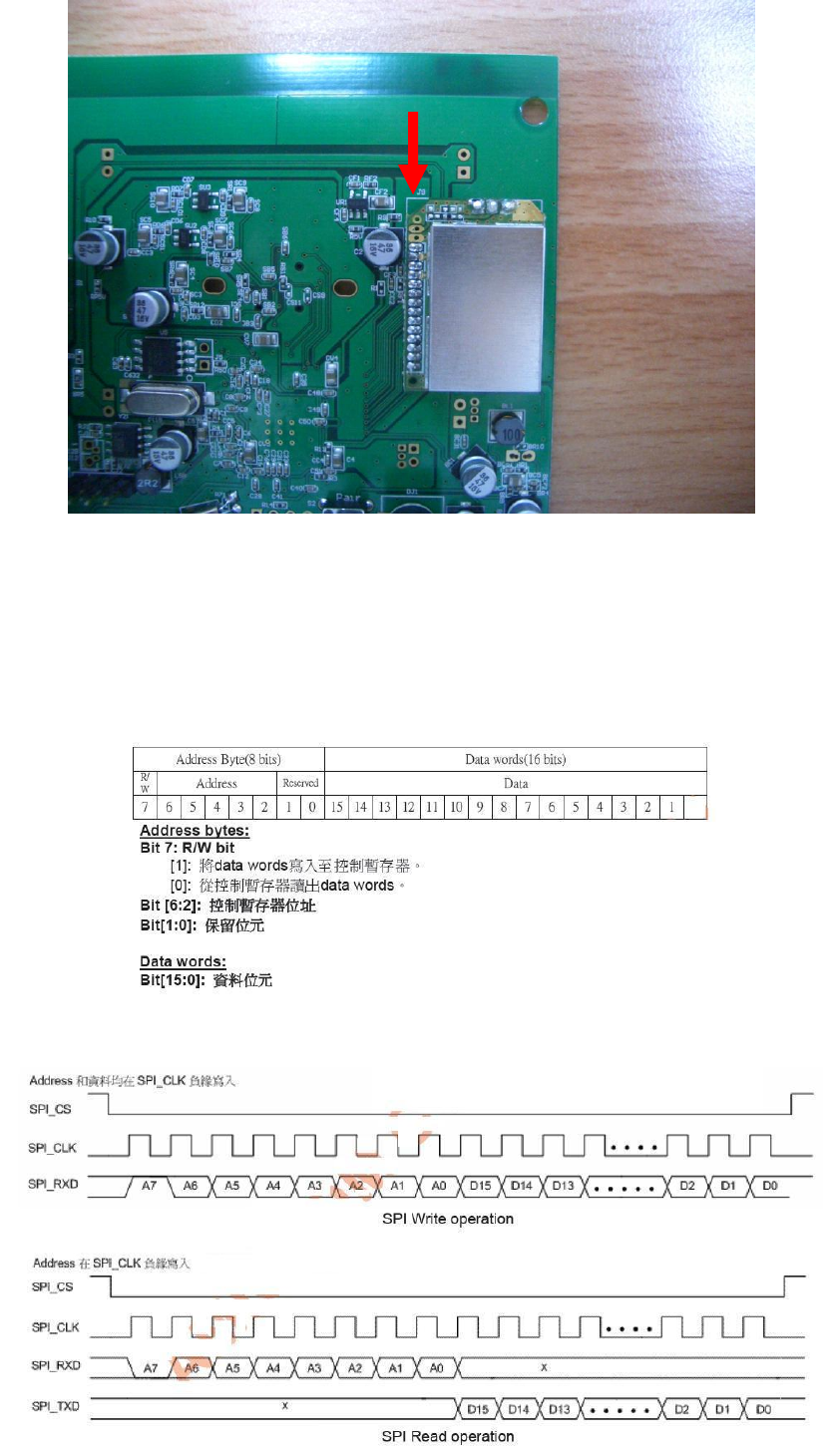

3. Installation
Putting the module on the carrier board with socket.
4. SPI Digital Interface
All configurations of K71216P are defined by the values of register map.
The register map can be accessed via SPI digital interface coupled with external MCU.
All configuration values need to be properly set into four types of register maps.
5. SPI format
- 3-

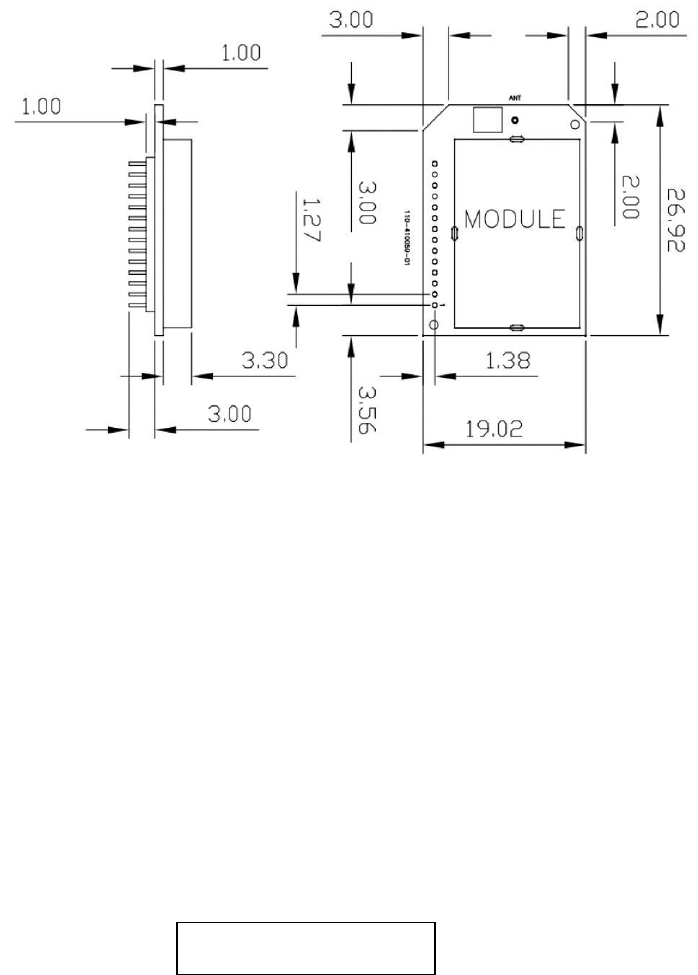

6. Dimension
NOTICE : The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, No
change to the antenna or the device is permitted. Any change to the
antenna or the device could result in the device exceeding the RF
exposure requirements and void user’s authority to operate the device.
FCC ID Label Graph:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: If the product is too small to make so many text labels, only need to indicate the
FCC ID number on the label, but the above text will be printed in the manual or
packaging box.
FCC ID : TJI-K71216P
FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Changes Warning
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC Labeling While the FCC user ID is placed on the master device circuit board, compliant
labeling shall also be placed on the end product housing exterior.
FCC Antenna usage Antennas are required to be permanently attached or of non-standard
connection method to prevent the end user from altering the installation’s performance. The
installer shall be responsible for ensuring that the proper antenna is employed so that the transmit
power limits are not exceeded. Non-approved antennas should not be used. This device has been
designed to operate with the antennas listed below. Antennas not included in this list are strictly
prohibited for use with this device.
FCC Modular approval configuration control
Control of the end product into which the module will be installed must be maintained such that full
compliance of the end product is always ensured. The modular transmitter must comply with any
specific rule or operating requirements applicable to the transmitter and the manufacturer must
provide adequate instructions along with the module to explain any such requirements. It is the
responsibility of the OEM or module level customer to install the master device in accordance with
the guidelines of this manual. In order to maintain compliance with FCC regulations, the module
installer must adhere to the guidelines listed in the installation section of this manual
