SP70C Pocket PC Phone
User Manual
Chapter 1
Getting Started
1.1 Package Content
1.2 Views of the Pocket PC Phone
1.3 Installing the SIM Card and Battery
1.4 Charging the Battery
1.5 Turning the Pocket PC Phone On and Off
1.6 Expanding the Pocket PC Phone
SP70C User Manual 1-2
Getting Started
1.1 Package Content
Congratulations on purchasing your Pocket PC Phone. Its powerful features and functions help you manage
effectively your most important business and personal information. You can also use the Pocket PC Phone
to make phone calls as well as send or receive emails.
Please verify that you have the items listed below as soon as you unpack your Pocket PC Phone box. If any
item is damaged or missing, notify your dealer immediately.
n SP70C Pocket PC Phone
n Battery
n Stylus (x2)
n USB cable plus USB connector
n AC charger
n Stereo earphone
n Strap
n Getting Started Disc
n Numeric Dummy Keypad
n User Manual and Quick Start Guide
1-3 SP70C User Manual
Getting Started
1.2 Views of SP70C
OK Button
Functions as “X” or “OK” located at the
top-right corner of the screen.
Hook Button
Ends or rejects a call by using th key.
Left Soft Key
Press to perform the
command shown
on the bottom-left
corner of the screen.
Navigation Keys
Includes five direction keys for
moving up, down, left or right, and
enter/confirm function. .
Call Button
Makes or answers a
phone call.
AC Power Indicator
Slot Cover
With the cover removed, you
may install an optional numeric
dummy keypad.
miniSD Slot
Insert a miniSD card
here.
Battery Switch
Slide the latch to
remove the battery.
Earphone Jack
Right Soft Key
Press to perform the command shown on
the bottom-right corner of the screen.
Start Menu
Button
Displays the Start
menu.
Touch Panel
GSM/Notication
Indicator
Indicates the GSM
signal status and
notifications.
: Call Indicator : WLAN Indicator : DV Mode Indicator
: Voice Recording Indicator : Bluetooth Indicator
SP70C User Manual 1-4
Getting Started
Camera Lens
Reset Switch
Press to restart the
Pocket PC Phone.
LED Photoash
Capture Key
Press to take pictures or
record videos.
Volume±/
Zoom in/out
Press to adjust the
volume in Standard
mode; or zoom in/out
in Camera mode.
Power Key
Press for 2 seconds
to turn GSM/WLAN
module off; or
press to wake up the
device from suspend/
sleep mode.
Voice Recording
Button
Press to start Notes
options; press
and hold to start
recording, and
release to stop
recording.
Stylus
Allows you to tap,
write or draw on the
touch panel.
USB Port
Connects the AC charger
for charging or USB
cable for data transfer and
synchronization.
IrDA Port
Transfers data with
other devices.
Microphone
Serves as the phone
receiver. It also receives
sound for recording.
1-5 SP70C User Manual
Getting Started
1.3 Installing the SIM Card and Battery
Apply for a Subscriber Identification Module (SIM) card from your mobile phone service provider. The SIM
card contains information of security certifications, and can store your contact data.
The Pocket PC Phone functions are only available when a SIM card is installed securely.
1. Insert the SIM card with the contact area facing inside of
the Pocket PC Phone and the angled corner in the upper-left
position, and then slide the SIM card towards the bottom into the
slot.
2. Press the SIM card and slide the SIM card lock towards top to
secure the SIM card.
3. Insert the three extruding parts on the battery into the holes in
the battery compartment, and then press to close the battery. A
click sound indicates that the battery is locked.
• Insert or remove the SIM card with great care. Do not bend the SIM card or scratch the contact
area.
• Do not disassemble, squeeze, or pierce the battery, or store the battery where the temperature is
over 60°C (140°F), or dispose of used batteries carelessly.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries in accordance with local environmental regulations.
1.4 Charging the Battery
1. Connect the DC end of the AC charger to the converter.
2. Connect the coverter to the USB connector on the bottom of the
Pocket PC Phone, and the other end of the AC charger into a
wall outlet.
AC power indicator will light up when SP70C detects battery
charging by the AC Charger or USB. Please check the power
setting of the SP70C for the status of the battery.
SP70C User Manual 1-6
Getting Started
3. After the charging is complete, press on both sides of the
converter to detach it from the Pocket PC Phone.
• Charge the battery fully before turning on the Pocket PC Phone for use. When charging the
battery for the very first time, you should charge it for at least 10 hours.
• Fully charging a discharged battery takes about 2.5 hours. The actual charging time may vary
depending on the using conditions.
• A new battery will reach the optimal performance after several cycles of using and charging.
• Upon a warning of low power, turn off the Pocket PC Phone and recharge the battery at once.
• The estimated operating hours of the battery in different conditions are as follows:
Flight mode operation: 16 hours
Talk time: 5 hours
Standby time: 190 hours
• The actual talk time and standby time vary depending upon local network status and user
behavior.
• Recommend using AC charger instead of USB for accelerated charging time.
1.5 Turning the Pocket PC Phone On and Off
Initial Startup
The Pocket PC Phone automatically performs the initial startup after the installation of the battery.
It will start the initialization/calibration procedure.
1. The backlight of the keypad lights up, accompanied with the
Loading screen.
2. The Windows Mobile screen appears after about 5 seconds.
Initializing and Calibrating the Pocket PC Phone
1. On the Windows Mobile screen, use the stylus to tap the screen
to enter the align screen screen.
2. Follow and tap the “+” positions. Then tap Finish.
3. On the stylus screen, tap Next.
4. On the pop-up menus screen, tap and hold the “9” position.
5. On the pop-up menu that appears, tap Cut.
6. Tap and hold the “11” position on the next screen.
7. On the pop-up menu that appears, tap Paste.
8. You have scheduled an appoinment using pop-up menus
successfully. Tap Next.
9. On the location screen, select your time zone and then tap Next.
10. On the complete screen, tap anywhere on the screen to enter the
Today screen.
1-7 SP70C User Manual
Getting Started
Turning Off
After the initial startup, press the power key to enter the standby mode. To turn off the Pocket PC Phone
(and enter the suspend mode), press and hold the power key for 2 seconds.
• By default, your Pocket PC Phone will automatically suspend after 1 minute (default setting) of
inactivity when operating on battery power. You can change the setting by tapping → Settings
> System > Power > Advanced.
1.6 Expanding the Pocket PC Phone
Using miniSD Cards
You can use the miniSD card slot of the Pocket PC Phone to back up
or transfer files and data.
To insert a miniSD card, open the cover of the miniSD card slot first.
With the label of the miniSD card facing front and its connector
pointing to the slot, insert the card into the slot.
To remove the miniSD card, make sure that no application is accessing the card, slightly push the top edge
of the card to release it and then pull it out of the slot.
• Keep the miniSD card in a well-protected box or bag to avoid dust and humidity when you are
not using it.
• A miniSD card should be formatted before use.
• With File Explorer, you can save data to a miniSD card. For information on using File Explorer,
see section 15.8.
i
Precautions
n Use only the AC adapter and battery supplied with the Pocket PC Phone, and keep them away
from high temperature and a humid environment. Using other AC adapters or batteries may cause
malfunction or danger.
n Should the battery becomes deformed, please do not use to avoid danger.
n Removing the battery incorrectly may cause danger.
n Use the battery according to the instructions in the document.
n Recycle used batteries. Dispose of used batteries according to the instructions.
n Do not disassemble the Pocket PC Phone by yourself. Only the authorized service personnel can do
that.
n Keep the Pocket PC Phone and its accessories in a dry place.
n Do not knock, shake, or toss the Pocket PC Phone; otherwise it may cause leakage, overheating, or
fire.
n Do not touch or scratch the screen surface with hard objects.
n Do not use detergent on the screen surface. Use the special clean cloth to clean the screen surface.
n Avoid placing the Pocket PC Phone in a location subject to high humidity, extreme temperature or
heavy dust.
n Keep the Pocket PC Phone away from direct sunlight to avoid leakage, overheating, or fire.
n Heavy weight pressure or dropping of device may cause the damage of panel which is not covered by
the warranty.
This manual is created by professional service people with assistance from the engineering team. Its content is helpful
for rst-time users to understand the operations and details of the Pocket PC Phone. In addition to this manual, a Quick
Start Guide and other documentation are also provided for users of this products. Read these documents carefully and
following the instructions to use this Pocket PC Phone. You will enjoy using it.
This manual does not offer any warranty. The manufacturer is not liable for the printing errors, accuracy of the information
provided and improvement on the Pocket PC Phone. The manual content is subject to change without notice.
ii
Specications
Item Description
Network & Functions
GSM 900/1800/1900 MHz, GPRS Class B / Multi-slot Class 10,
Conference Call, Hands Free, Speed Dialing, Phone Recording,
Voice Dialing, Caller ID, Prole...
Display 2.8” 262,144 colors LTPS TFT LCD, 240x320 Pixels
DSC/DV
1.3 Mega Pixels Camera, up to 2.0 Mega Pixels via software
enhancement, pack 8x linear digital zoom-in/out, LED Flash,
supports 1600*1280, 1280*1024, 640*480, 320*240, 176*144.
Recording rate up to 30 frames per second
CPU Freescale i.MX21
Operating System Microsoft Windows Mobile 5.0 Pocket PC Phone Edition
Memory 128MB Flash ROM, 64MB SDRAM
Size & Weight 109(L) x 55(W) x 21.5(H) mm, 140g (With battery）
Battery & Capacity 1300mAh Li-Polymer battery; Talk-time 5 hrs*, Standby 190 hrs
(max.)*
Input Method Stylus/Soft keyboard (supports Block Recognizer/Keyboard/Letter
Recognizer/Transcriber)
Connectivity IrDA, USB, Bluetooth v1.2, WLAN 802.11 b
Expansion Slot miniSD
Ringtone
Supports up to 192 polyphony (Polyphonic, Monophonic, AMR
(Narrow Band .awb), MIDI (rmi, mmf, mid), MP3, WAV, WMA,
AAC, AAC+
Support Java, SMS, MMS, E-mail
Audio Format MP3, WAV, SMAF, MIDI, AMR, AAC, AAC+, WMA, MMF, RMI
Video Format MPEG4, H.263, 3GP, ASF, WMV
Image Format JPEG, PNG, BMP, GIF
*Actual talk-time and standby time vary due to local network condition and usage behavior.
*Acutal specification are in accordance with the device, deviations may occur without notice.
iii
NOTE
Kinpo Electronics, Inc. (herein after referred to as “Kinpo”) is the sole owner of this product, including
its accessories, software and hardware. No imitation, copy, plagiarism or translation is allowed without
Kinpo’s permission.
All brand names, product names, and pictures used in this user manual are trademarks, registered trademarks,
or trade name of their respective holders.
©Copyright 2006 Kinpo Electronics, Inc. All rights reserved. No reproduction is allowed.
iv
Customer Service Information
Congratulations on purchasing SP70C Pocket PC Phone. You will enjoy a whole new experience
using it.
For further information on using SP70C, please contact our customer service center:
e-mail: service@iDo-mobile.com
Website: www.iDo-mobile.com
v
Table of Contents
Precautions .................................................................................................................i
Specifications ............................................................................................................ ii
1 Getting Started .............................................................................. 1-1
1.1 Package Content .......................................................................................... 1-2
1.2 Views of SP70C ........................................................................................... 1-3
1.3 Installing the SIM Card and Battery ............................................................ 1-5
1.4 Charging the Battery.................................................................................... 1-5
1.5 Turning the Pocket PC Phone On and Off................................................... 1-6
Initial Startup ............................................................................................... 1-6
Initializing and Calibrating the Pocket PC Phone ....................................... 1-6
Turning Off .................................................................................................. 1-7
1.6 Expanding the Pocket PC Phone ................................................................. 1-7
Using miniSD Cards .................................................................................... 1-7
2 Basic Operation............................................................................. 2-1
2.1 Using the Stylus........................................................................................... 2-2
2.2 Input Methods .............................................................................................. 2-2
2.3 Using the Navigation Keys .......................................................................... 2-2
2.4 Today Screen ............................................................................................... 2-2
2.5 Volume Adjustment ..................................................................................... 2-3
2.6 Navigation Bar and Command Bar ............................................................. 2-3
2.7 Status Icons .................................................................................................. 2-4
2.8 Using Programs ........................................................................................... 2-4
2.9 Shortcut Menus ............................................................................................ 2-6
2.10 Notifications ................................................................................................ 2-6
2.11 Entering Information ................................................................................... 2-6
Using the Input Panel .................................................................................. 2-7
Writing on the Screen .................................................................................. 2-8
Drawing on the Screen ................................................................................ 2-9
Using My Text ............................................................................................. 2-9
3 Using the Phone Feature .............................................................. 3-1
3.1 Making a Call .............................................................................................. 3-2
Using the On-Screen Phone Keypad ........................................................... 3-2
From Contacts ............................................................................................. 3-2
From Call History ........................................................................................ 3-3
Using Speed Dial ......................................................................................... 3-3
3.2 Answering a Call ......................................................................................... 3-3
3.3 Using the Speakerphone and Muting a Call ................................................ 3-4
Speakerphone .............................................................................................. 3-4
Muting ......................................................................................................... 3-4
3.4 Taking Notes During a Call ......................................................................... 3-5
3.5 Creating a Speed Dial Entry ........................................................................ 3-6
vi
From Phone ................................................................................................. 3-6
From Contacts ............................................................................................. 3-6
3.6 Call History ................................................................................................. 3-7
Changing the Call History View .................................................................. 3-7
Call Timers .................................................................................................. 3-7
3.7 Changing Phone Settings............................................................................. 3-8
Changing the Ring Type .............................................................................. 3-8
Changing the Ring Tone .............................................................................. 3-8
Changing the Keypad Tone ......................................................................... 3-9
Securing Your Phone ................................................................................... 3-9
Changing Phone Service Settings ................................................................ 3-9
Changing Phone Network Settings ............................................................ 3-10
3.8 SIM Contacts ............................................................................................. 3-10
3.9 Turning the Phone On and Off .................................................................. 3-11
4 Contacts ........................................................................................ 4-1
4.1 Creating a Contact ....................................................................................... 4-2
For Microsoft Contacts ................................................................................ 4-2
For SIM Card ............................................................................................... 4-3
4.2 Managing Contacts ...................................................................................... 4-3
Editing a Contact ......................................................................................... 4-3
Deleting a Contact ....................................................................................... 4-3
4.3 View Modes ................................................................................................. 4-4
4.4 Changing List View Settings ....................................................................... 4-4
5 Recording Messages .................................................................... 5-1
5.1 Recording Messages in Notes ..................................................................... 5-2
Creating a Recording ................................................................................... 5-2
Recording Formats ...................................................................................... 5-2
5.2 AMR Recorder ............................................................................................ 5-3
6 Customizing Personal Settings ..................................................... 6-1
6.1 Buttons......................................................................................................... 6-2
6.2 Input ............................................................................................................. 6-2
6.3 Lock ............................................................................................................. 6-3
6.4 Menus .......................................................................................................... 6-3
6.5 MSN Options ............................................................................................... 6-3
6.6 Owner Information ...................................................................................... 6-4
6.7 Phone ........................................................................................................... 6-4
6.8 Sounds & Notifications ............................................................................... 6-4
6.9 Today ........................................................................................................... 6-5
6.10 Today Plus ................................................................................................... 6-5
6.11 Voice Commander ....................................................................................... 6-5
7 Customizing System Settings ....................................................... 7-1
7.1 About ........................................................................................................... 7-2
vii
7.2 Backlight ..................................................................................................... 7-2
7.3 Certificates ................................................................................................... 7-2
7.4 Clock & Alarms ........................................................................................... 7-3
7.5 Contrast ....................................................................................................... 7-3
7.6 Error Reporting ............................................................................................ 7-4
7.7 GPS .............................................................................................................. 7-4
7.8 Memory ....................................................................................................... 7-4
7.9 Microphone Environment ............................................................................ 7-5
7.10 Power ........................................................................................................... 7-5
7.11 Regional Settings ......................................................................................... 7-5
7.12 Remove Programs ....................................................................................... 7-6
7.13 Screen .......................................................................................................... 7-6
7.14 System Information ..................................................................................... 7-6
7.15 Wake Up Screen .......................................................................................... 7-8
7.16 SmartX ......................................................................................................... 7-8
7.17 Ring Tone .................................................................................................... 7-8
8 Getting Connected ........................................................................ 8-1
8.1 GPRS Auto Configuration ........................................................................... 8-2
8.2 Beam ............................................................................................................ 8-2
Sending Information .................................................................................... 8-2
Receiving Information ................................................................................. 8-3
8.3 Bluetooth ..................................................................................................... 8-3
Turning on and off Bluetooth ...................................................................... 8-3
Bluetooth Information Exchange ................................................................ 8-3
Bonding with Other Devices ....................................................................... 8-4
8.4 Connections ................................................................................................. 8-4
Connecting to the Internet ........................................................................... 8-5
Connecting to Work ..................................................................................... 8-5
Setting up VPN Server Connections ........................................................... 8-6
Setting up Proxy Server Settings ................................................................. 8-6
8.5 Wireless Manager ........................................................................................ 8-7
9 Internet Explorer............................................................................ 9-1
9.1 Using Internet Explorer ............................................................................... 9-2
Sending a Link via Email ............................................................................ 9-2
9.2 Viewing Favorites ........................................................................................ 9-2
Synchronizing a Favorite Link .................................................................... 9-2
Synchronizing a Mobile Favorite ................................................................ 9-3
9.3 Changing Settings........................................................................................ 9-3
10 Microsoft Pocket Outlook ............................................................ 10-1
10.1 Calendar ..................................................................................................... 10-2
Creating an Appointment ........................................................................... 10-2
View Modes ............................................................................................... 10-2
viii
Using the Calendar Summary Screen ........................................................ 10-3
Sending Meeting Requests ........................................................................ 10-3
10.2 Tasks .......................................................................................................... 10-4
Creating a Task .......................................................................................... 10-4
Using the Tasks Summary Screen ............................................................. 10-4
10.3 Notes .......................................................................................................... 10-5
Creating a Note .......................................................................................... 10-5
Viewing Notes ........................................................................................... 10-5
10.4 Messaging (Outlook, SMS, MMS)............................................................ 10-5
Synchronizing Outlook Email Messages .................................................. 10-6
Connecting to a Mail Server ...................................................................... 10-6
Downloading Messages from the Server ................................................... 10-7
Reading and Responding to Messages ...................................................... 10-8
Composing and Editing a Message ........................................................... 10-9
Message Folders ...................................................................................... 10-11
10.5 MMS Messages ....................................................................................... 10-13
11 Microsoft ActiveSync ................................................................... 11-1
11.1 Installing Microsoft ActiveSync ................................................................ 11-2
11.2 Connecting to Your Desktop Computer ..................................................... 11-3
11.3 Synchronizing with Your Desktop Computer ............................................ 11-3
11.4 Synchronizing Directly with Exchange Server ......................................... 11-4
11.5 Changing the Synchronization Schedule ................................................... 11-4
11.6 Backup and Restore ................................................................................... 11-4
12 Today Plus................................................................................... 12-1
12.1 Programs .................................................................................................... 12-2
12.2 Media Content ........................................................................................... 12-2
12.3 Games ........................................................................................................ 12-2
12.4 Phone Records ........................................................................................... 12-3
12.5 Settings ...................................................................................................... 12-3
13 VideoCam ................................................................................... 13-1
13.1 Using the Camera ...................................................................................... 13-2
Taking a Picture ......................................................................................... 13-2
Taking Continuous Pictures ....................................................................... 13-3
13.2 Using the DV ............................................................................................. 13-3
13.3 Changing VideoCam Settings .................................................................... 13-4
Standard Settings ....................................................................................... 13-4
Camera Settings ......................................................................................... 13-4
Digital Video Settings ................................................................................ 13-5
14 Using MyAlbum ........................................................................... 14-1
14.1 Starting MyAlbum ..................................................................................... 14-2
14.2 Opening a Picture or Video ....................................................................... 14-2
14.3 Editing Pictures ......................................................................................... 14-3
ix
14.4 Using the FaceMagic Feature .................................................................... 14-3
14.5 Using Effects ............................................................................................. 14-4
Painting ...................................................................................................... 14-4
Effect ......................................................................................................... 14-4
Frame ......................................................................................................... 14-4
Stamp ......................................................................................................... 14-5
Adjustment ................................................................................................ 14-5
Note ........................................................................................................... 14-5
14.6 Sending Files ............................................................................................. 14-6
14.7 View Modes ............................................................................................... 14-6
15 More Programs ........................................................................... 15-1
15.1 Word Mobile .............................................................................................. 15-2
Creating a Document ................................................................................. 15-2
Opening an Existing Document ................................................................ 15-2
15.2 Excel Mobile ............................................................................................. 15-2
Creating a Workbook ................................................................................. 15-2
Opening an Existing Workbook ................................................................ 15-3
15.3 PowerPoint Mobile .................................................................................... 15-3
15.4 Windows Media Player ............................................................................. 15-3
Starting Windows Media Player ................................................................ 15-3
Screens and Menus .................................................................................... 15-4
Libraries ..................................................................................................... 15-5
Updating a Library .................................................................................... 15-5
Playback .................................................................................................... 15-6
Controls ..................................................................................................... 15-6
Playing an Item on a Network ................................................................... 15-7
Playlists ..................................................................................................... 15-7
Synchronization ......................................................................................... 15-7
Copying Files to Your Pocket PC Phone ................................................... 15-7
Licenses and Protected Files ..................................................................... 15-8
Changing Windows Media Player Settings ............................................... 15-8
15.5 Pictures & Videos ...................................................................................... 15-9
Viewing Pictures and Videos ..................................................................... 15-9
Sending Pictures and Videos ..................................................................... 15-9
Slideshow of Pictures ................................................................................ 15-9
Setting a Picture as Background .............................................................. 15-10
15.6 Java .......................................................................................................... 15-10

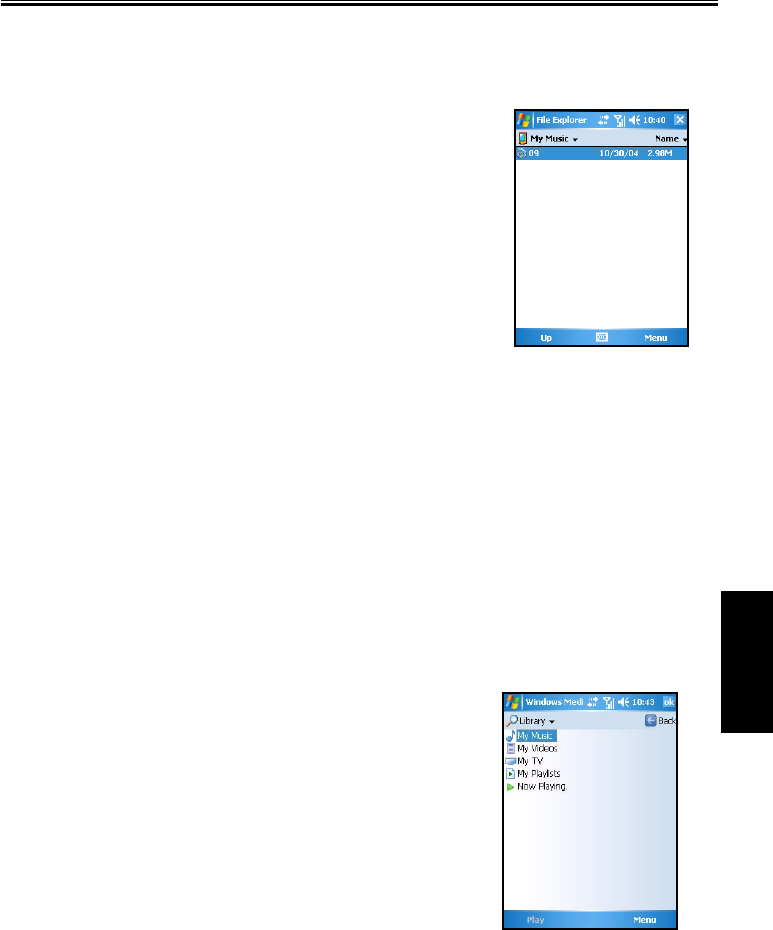

15.7 File Explorer ............................................................................................ 15-10

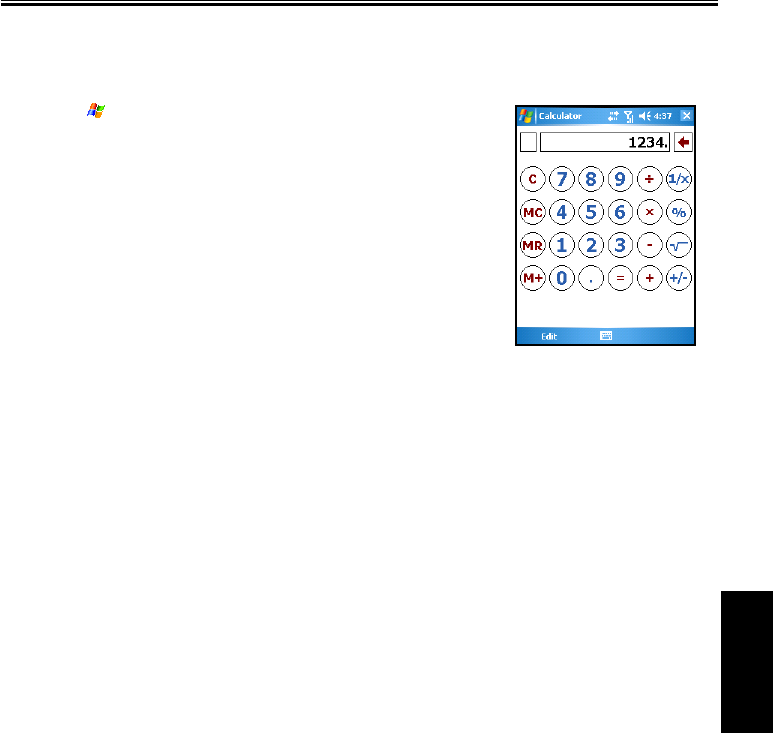

15.8 Calculator ................................................................................................ 15-10

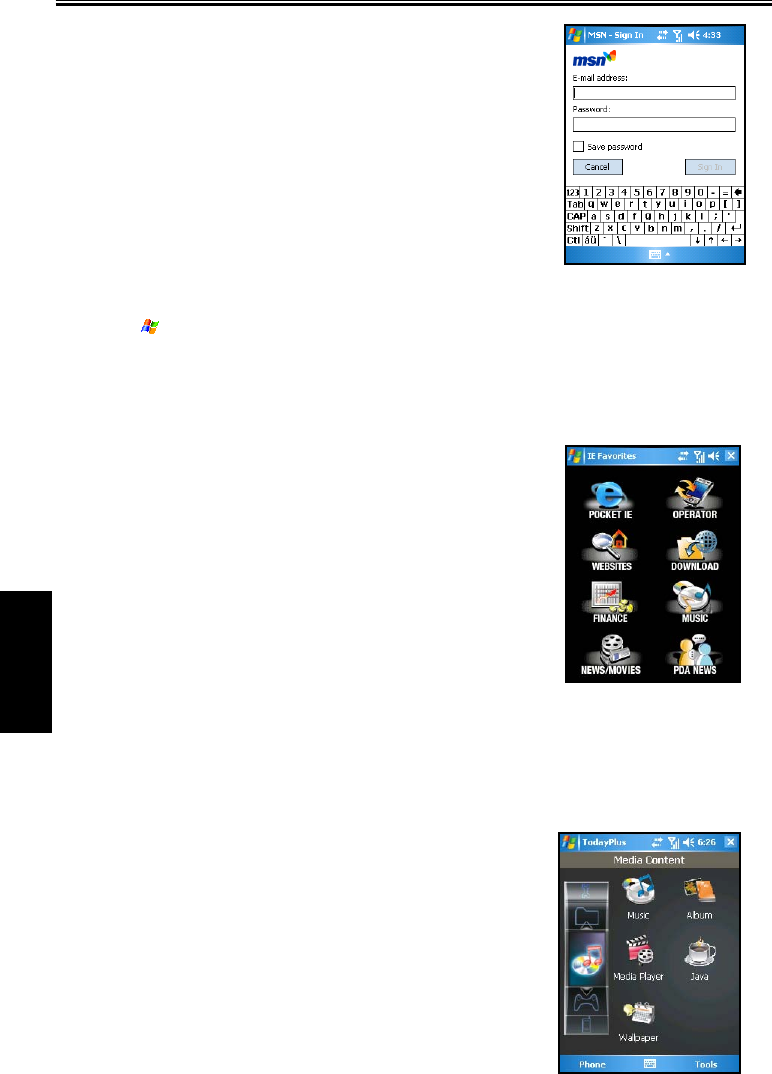

15.9 Pocket MSN ............................................................................................ 15-11
Sign in to Pocket MSN ............................................................................ 15-11
MSN Messenger ...................................................................................... 15-11
15.10 IE Favorites .............................................................................................. 15-12
15.11 Media Content ......................................................................................... 15-12
Media Content Items ............................................................................... 15-13
x
15.12 SIM Contacts ........................................................................................... 15-14
15.13 Search ...................................................................................................... 15-15

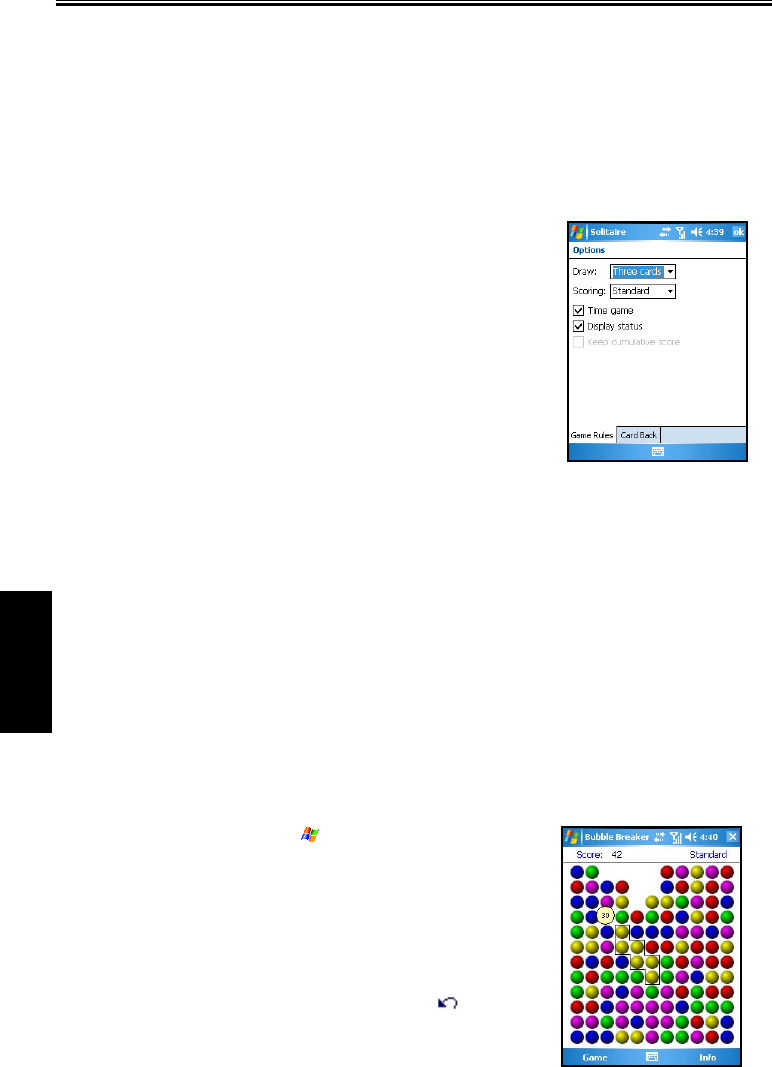

15.14 Games ...................................................................................................... 15-15
Solitaire ................................................................................................... 15-15
Bubble Breaker ........................................................................................ 15-16
15.15 Voice Commander ................................................................................... 15-17
15.16 Profiles ..................................................................................................... 15-17
15.17 SmartX ..................................................................................................... 15-18
16 Troubleshooting .......................................................................... 16-1
16.1 Resetting the Pocket PC Phone ................................................................. 16-2
16.2 Restoring Factory Defaults ........................................................................ 16-2
16.3 Power Problems ......................................................................................... 16-2
16.4 Memory Problems ..................................................................................... 16-3
16.5 Screen Problems ........................................................................................ 16-3
16.6 Connection Problems ................................................................................ 16-3
16.7 Hardware Problems ................................................................................... 16-4
16.8 Software Problems .................................................................................... 16-5
16.9 Other Problems .......................................................................................... 16-6
17 Appendix ..................................................................................... 17-1
17.1 European Declaration of Conformity .................................................... 17-2
Chapter 2
Basic Operation
2.1 Using the Stylus
2.2 Input Methods
2.3 Using the Navigation Keys
2.4 Today Screen
2.5 Volume Adjustment
2.6 Navigation Bar and Command Bar
2.7 Status Icons
2.8 Using Programs
2.9 Shortcut Menus
2.10 Notifications
2.11 Entering Information
2-2 SP70C User Manual
Basic Operation
2.1 Using the Stylus
The stylus is a tool for you to communicate with your Pocket PC Phone. With the stylus, you can navigate
and select objects on the screen.
The stylus allows you to:
n Tap Touch the screen once with the stylus to open items and select options.
n Drag
Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to
select multiple items.
n Tap and hold Tap and hold the stylus on an item to see a list of actions available for that item. On the
shortcut menu that appears, tap the action you desire.
2.2 Input Methods
The Pocket PC Phone provides several input methods for your
selection. (See Section 2.11 for more information.) You can tap
>
Settings
>
Personal
>
Input to select the most desired input method.
This way, you do not need to change the input method every time when
you enter information.
2.3 Using the Navigation Keys
The navigation keys includes five direction keys for moving up,
down, left or right, and enter/confirm function on the screen for
selection.
In a text field, use the navigation keys to move the cursor right or
left, character by character.
At the center of the navigation keys is the OK key for you to activate
the selected item.
2.4 Today Screen
When you turn on your Pocket PC Phone for the first time each day (or
after 3 hours of inactivity), you will see the Today screen. You can also
display it by tapping and then Today.
The Today screen displays important information, such as today’s
appointments and status icons for your device. Tap the information
listed on the Today screen to open the associated program.

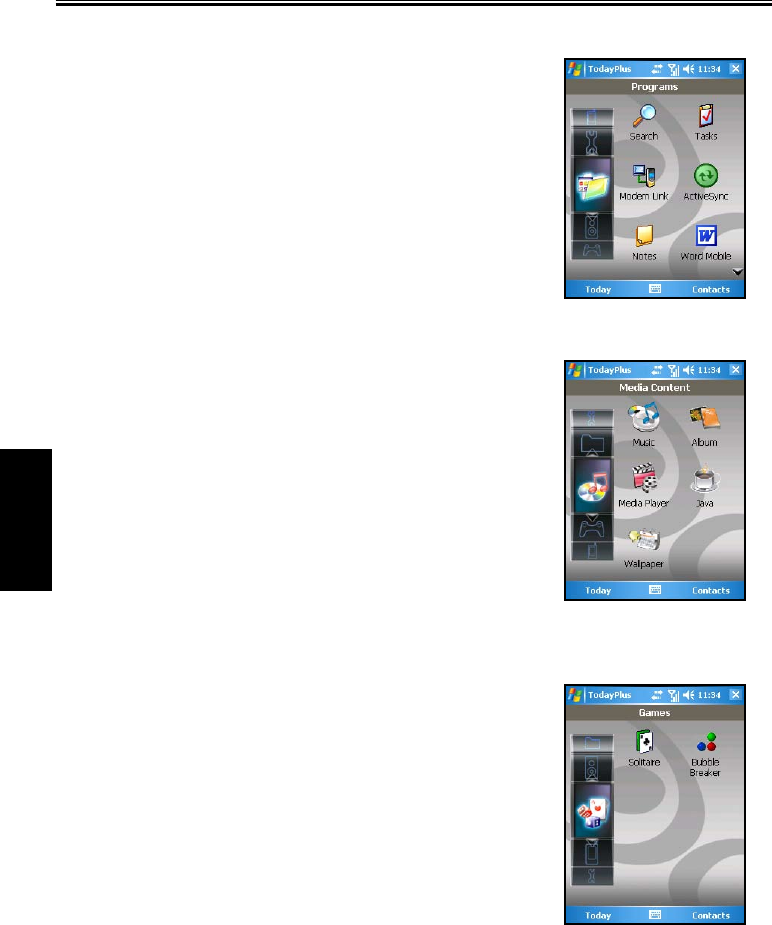

You can also tap Today Plus to quickly access more functionalities.
See Chapter 12 for detailed information on Today Plus. Today Plus
allows you to achieve single-hand operation via the navigation keys
and OK button.
• To customize what is displayed on the Today screen, tap > Settings > Personal > Today.
SP70C User Manual 2-3
Basic Operation

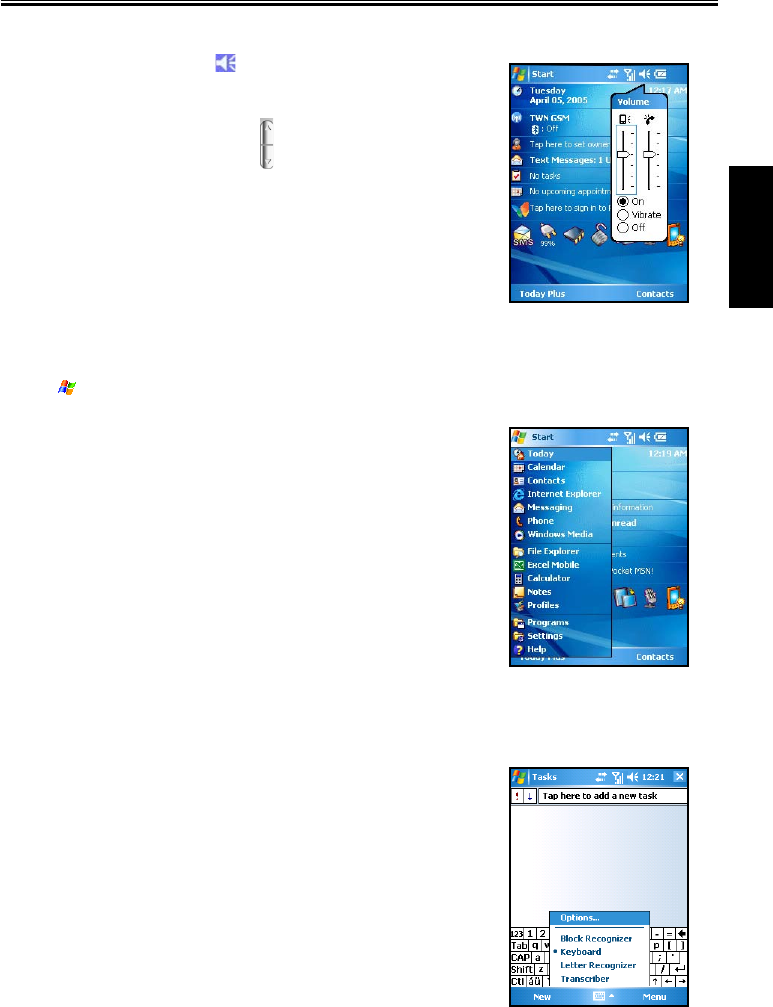

2.5 Volume Adjustment
You can tap the volume icon on the Today screen to adjust the
system volume, such as the sound you hear when you tap on program
names and menu options, and the phone volume.
You can also press the volume keys on the side of the Pocket PC
Phone to easily adjust the volume during a phone call.
2.6 Navigation Bar and Command Bar
The navigation bar, located at the top of the screen, displays the active programs and current time.
Tap
to open the Start menu and select the desired program.
Tap OK (if displayed on the upper-right
corner of the screen) to save the changes you made and exit the current screen.
The navigation bar and Start menu are shown in the figure to the
right.

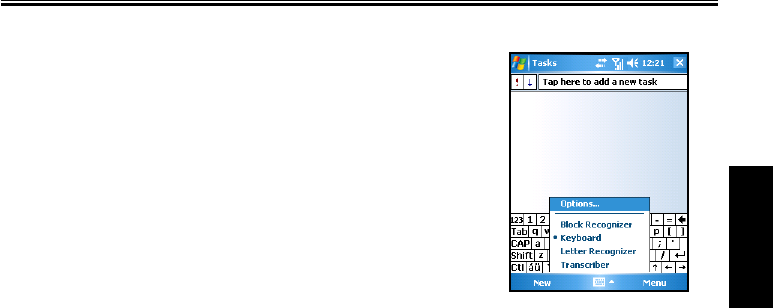

Use the command bar at the bottom of the screen to perform tasks in programs.
The command bar includes the left and right soft keys, and the input panel button. You can tap the
arrow next to the input panel to select an input method.
The command bar is shown in the figure to the right.
2-4 SP70C User Manual
Basic Operation
2.7 Status Icons
Status icons are displayed on the navigation bar and command bar of the Today screen. You can tap a status
icon to display the associated control panel or more information related to the item.
Icon Description
The speaker is on.
The speaker is off.
The battery is charging.
The battery power is low.
The battery power is very low.
The battery is fully charged.
The connection is active.
The connection is not active.
One or more email or text messages were received.
There are more icons not displayed due to insufficient display memory. Tap the icon to
view all status icons.
2.8 Using Programs
While using the Pocket PC Phone, you do not need to exit a program to open another or to conserve
memory. The system manages memory automatically. To switch between programs:
n Tap and select the Start menu.
n Tap > Programs to access additional programs. Tap the program icon to launch a program.
n Press the program hot keys on the
Pocket PC Phone to quickly open a program.
The table below shows the list of the programs and their icons.
Icon Program Description
ActiveSync
Synchronizes information between your Pocket PC Phone and desktop
computer.
Calendar Schedules and keeps track of your appointments and create meeting
requests.
Contacts Creates and displays your address book.
Messaging Sends and receives email, text and multimedia messages.
Internet Explorer Browses web sites and downloads new programs and files from the
Internet.
Windows Media Plays digital audio and video files.
Notes Creates handwritten or typed notes, drawings and recordings.
Tasks Creates and displays your tasks.
Excel Mobile Creates new workbooks, or view and edit Excel workbooks created on
your desktop computer.
SP70C User Manual 2-5
Basic Operation
Icon Program Description
Word Mobile Creates new documents, or view and edit Word documents created on
your desktop computer.
MyAlbum Displays pictures and videos.
AMR Recorder Records sound or voice messages.
VideoCam Takes pictures or records videos.
SIM Contacts Displays the contact information stored in the SIM card.
Calculator Performs basic arithmetic.
Pocket MSN Allows you to register MSN Messenger.
Search Finds files or items on your Pocket PC Phone quickly.
Games Allows you to play games.
Phone Starts the phone program for phone calls and settings.
Pictures & Videos Displays or transfers the pictures and videos on the Pocket PC Phone.
File Explorer Browses and manages files and folders on the Pocket PC Phone.
Java Installs and manages Java programs.
GPRS Auto
Configuration
Performs auto configuration of the GPRS connection on the Pocket PC
Phone.
Download Agent Downloads files for software update.
PowerPoint
Mobile
View PowerPoint files created on your desktop computer.
Modem Link Transforms your SP70C into an external modem.
Profiles Selects a mode for SP70C to notify you of events.
Sim Toolkit Accesses additional services that you have subscribed from your mobile
phone service provider.
Terminal Service
Client
Allows you to use programs on a remote desktop computer.
TodayPlus Accesses more functionalities quickly.
Wireless Manager Selects Phone, Bluetooth, and Wi-Fi settings.
SmartX Performs a smart close function to quickly close running programs.
Rotate Screen Tap to rotate the screen at 90 degrees clockwise.
Memory Tap to quickly enter Settings > System > Memory > Running
Programs to stop the desired program.
Keypad Lock Tap to lock/unlock the keypad.
SMS Message Tap to compose a SMS text message.
2-6 SP70C User Manual
Basic Operation
Icon Program Description
Power Tap to view the remaining battery power.
Voice Commander To launch application via voice commander.
Brightness Tap to adjusts the brightness of the display.
IE Favorites Allows you to use the built-in Web links quickly.
2.9 Shortcut Menus
With shortcut menus, you can quickly choose an action for an item.
For example, you can use the shortcut menu in the contact list to
quickly delete a contact, make a copy of a contact or send an email
message to a contact. The actions in the shortcut menus vary from
program to program. To access a shortcut menu, tap and hold the
stylus on the name of the item that you want to perform the action on.
When the menu appears, lift the stylus and tap the action you want to
perform. Or tap anywhere outside the menu to close the menu without
performing an action.
2.10 Notications
Your Pocket PC Phone reminds you in a variety of ways when
you have something to do. For example, if you have set up an
appointment in Calendar, a task with a due date in Tasks or an alarm
in Clock, you will be notified in any of the following ways:
n A message appears on the screen.
n A warning sound that can remind you.
n The GSM/notification indicator flashes.
You can choose customized reminder types by tapping > Settings
> Personal > Sounds & Notifications.
2.11 Entering Information
Your Pocket PC Phone provides several options for entering new information:
n Use the Input panel to enter typed texts
n Write directly on the screen.
n Draw pictures on the screen.
n Speak into the microphone to record a message.
SP70C User Manual 2-7
Basic Operation
Using the Input Panel
Use the Input panel to enter information in any program on your
Pocket PC Phone. You can either type words by
n using the soft keyboard; or
n writing with your hand.
In any case, the characters appear as typed text on the screen.
To show or hide the Input panel, tap the Input panel button. Tap the
arrow next to the Input panel button to see your choices.
When you use the Input panel, your Pocket PC Phone anticipates the
word you are typing or writing and displays it above the Input panel.
When you tap the displayed word, it is inserted into your text at the
insertion point. The more you use your Pocket PC Phone, the more
words it learns to anticipate.
Block Recognizer
With Block Recognizer, you can use the stylus to input characters using strokes that are similar to the
Palm™ Graffiti® method.
To type with Block Recognizer:
1. Tap the arrow next to the Input panel button and then tap Block Recognizer.
2. Write a letter in the box.
When you write a letter, it is converted to typed text that appears on the screen. For specific instructions
on using Block Recognizer, open Block Recognizer and then tap the question mark next to the writing area.
Letter Recognizer
With Letter Recognizer, you can write letters using the stylus just as you would use a pen on paper.
To type with Letter Recognizer:
1. Tap the arrow next to the Input panel button and then tap Letter Recognizer.
2. Write a letter in the box.
When you write a letter, it is converted to typed text that appears on the screen. For specific instructions
on using Letter Recognizer, open Letter Recognizer and then tap the question mark next to the writing area.
Transcriber
With Transcriber you can write anywhere on the screen using the stylus just as you would on paper. Unlike
Letter Recognizer and Block Recognizer, you can write a sentence or more of information; then, you pause
and let Transcriber change the written characters to typed characters.
To type with Transcriber:
1. Tap the arrow next to the Input panel button then tap Transcriber.
2. Write anywhere on the screen.
For specific instructions on using Transcriber, open Transcriber and then tap the question mark in the lower-
right corner of the screen.
2-8 SP70C User Manual
Basic Operation
Writing on the Screen
In any program that accepts writing—such as the Notes program and the Notes tab in Calendar, Contacts and
Tasks—you can use your stylus to write directly on the screen. Write the way you do on paper. You can edit
and format what you have written and convert the information to text later.
Writing
To write on the screen, tap Menu > Draw to switch to writing mode. This action displays lines on the
screen to help you write.
Editing Your Writing
If you want to edit or format writing, you must first select the writing and then edit it.
1. Tap and hold the stylus next to the text you want to select until the insertion point appears. Without
lifting, drag the stylus across the text you want to select.
2. You can also select text by tapping the Menu > Draw to deselect it and then dragging the stylus across
the screen.
3. Tap and hold the selected words and then tap an editing command (cut, copy or paste) on the shortcut
menu or tap the command on the Menu > Edit menu.
If you accidentally write on the screen, tap Menu > Undo and try again.
Converting Your Writing to Text
1. If you want to convert only certain words, select them before going to the next step.
2.
To convert writing to text, tap
Menu >
Tools
>
Recognize or tap and hold the selected words and then tap
Recognize on the shortcut menu. Your writing is turned into text. If a word is not recognized, it is left as
writing.
If the conversion is incorrect, you can select different words from a list of alternates or return to the
original writing.
1. Tap and hold the incorrect word (tap one word at a time).
2. On the shortcut menu, tap Alternates. A menu with a list of alternate words appears.
3. Tap the word you want to use or tap the writing at the top of the menu to return to the original writing.
Some tips for getting good recognition are listed below:
n Write neatly.
n Write on the lines and draw descenders below the line. Write the cross of the “t” and apostrophes
below the top line so that they are not confused with the word above. Write periods and commas above
the line.
n For better recognition, tap Menu
→
Zoom to increase the zoom level to 300%.
n Write the letters of a word close together and leave big gaps between words.
n Hyphenated words, foreign words that use special characters, such as accents, some punctuation
cannot be converted.
n If you add writing to a word to change it (such as changing a “3” to an “8”) after you attempt to
recognize the word, the writing you add will not be included if you attempt to recognize the writing
again.
SP70C User Manual 2-9
Basic Operation
Drawing on the Screen
You can draw on the screen in the same way that you write on the screen. The difference between writing
and drawing on the screen is how you select items and how they can be edited. For example, selected
drawings can be resized, while writing cannot.
Creating a Drawing
1. To create a drawing, cross three ruled lines on your first stroke. A drawing box appears.
2. Subsequent strokes in or touching the drawing box become part of the drawing. Drawings that do not
cross three ruled lines will be treated as writing.
Editing Your Drawing
If you want to edit or format a drawing, you must select it first.
1. Tap and hold the stylus on the drawing until the selection handle appears. To select multiple drawings,
deselect the Pen button and then drag to select the drawings you want.
2. Tap and hold the selected drawing and then tap an editing command (cut, copy or paste) on the shortcut
menu or tap the command on the Edit menu.
3. To resize a drawing, make sure the Pen button is not selected and then drag a selection handle.
• Not every program supports the drawing mode.
• You may want to change the zoom level so that you can more easily work on or view your
drawing. Tap Menu > Zoom and then choose a zoom level. You can also tap > Settings >
Personal > Input > Options to set the default zoom level.
Using My Text
When using Inbox or MSN Messenger, use My Text to quickly insert
preset or frequently used messages into the text entry area. To insert
a message, tap Menu
>
My Text and then tap a message.
To edit a My Text message, tap Tools
>
Edit My Text Messages.
Select the message you wish to edit and make desired changes.
Chapter 3
Using the Phone Feature
3.1 Making a Call
3.2 Answering a Call
3.3 Using the Speakerphone and Muting a Call
3.4 Taking Notes During a Call
3.5 Creating a Speed Dial Entry
3.6 Call History
3.7 Changing Phone Settings
3.8 SIM Contacts
3.9 Turning the Phone On and Off
SP70C User Manual 3-2
Using the Phone
Feature
3.1 Making a Call
The phone mode indicator glows in green when you use the phone feature.
Using the On-Screen Phone Keypad
There are several ways to make a call. The most direct method is by
using the Phone keypad.
1. Tap > Phone, or press the Call button.
2. From the on-screen Phone keypad, tap the number you want to
call.
3. Tap Talk to dial the number.
From Contacts
You can make a call from Contacts without having to look up or manually enter the number.
1. Tap > Contacts, or tap the Contacts soft key.
2. The screen displays your contact list. From here, you can:
2.1 Tap and hold the contact, and then tap Call Work, Call
Home, or Call Mobile.
2.2 Tap to open the contact, and then tap the number you want
to call.
3-3 SP70C User Manual
Using the Phone
Feature
From Call History
Use Call History to quickly call someone you have recently called or
someone who has just called you.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Call History.
3. Tap the icon (such as ) next to the desired number.
Using Speed Dial
Speed dial numbers enable you to quickly place a call without having
to actually enter the number. Before making a call using speed
dial, you need to create a speed dial entry first. (See Section 3.6 for
information on speed dial.)
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Speed Dial.
3. You can:
• Tap the speed dial location number of the desired contact.
• Tap and hold the speed dial location number assigned to a
contact directly from the Phone keypad.
3.2 Answering a Call
When you receive a phone call, a message will appear, giving you an
option to either answer or ignore the incoming call.
To answer a call, tap Answer or press the Call button.
SP70C User Manual 3-4
Using the Phone
Feature
During a call, you can do the following:
n To end a call, tap End or press the Hook button.
n To hold a call, tap Hold, or press and hold the Call button.
To ignore a call, tap Ignore or press the Hook button.
3.3 Using the Speakerphone and Muting a Call
Speakerphone
During a call, you can use the speakerphone function to send out the
other party’s voice through the speaker.
To use the speakerphone function, tap Speaker On. Tap Speaker
Off to disable the speakerphone function.
Muting
During a call, you can mute your microphone so that the person with
whom you are speaking cannot hear you, but you can still hear him
or her. This is useful when, for example, you do not want the other
person to hear a conversation or background noise on your side of
the call.
To mute a call, tap Mute. Tap Unmute to unmute a call.
3-5 SP70C User Manual
Using the Phone
Feature
3.4 Taking Notes During a Call
You can take notes on the Pocket PC Phone during a call.
1. During a call, tap Note.
2. Enter your note on the note screen or record a message. When
finished, tap OK.
3. The note will appear on your note list.
To access a note you created during a call:
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Call History.
3. In the Call History list, tap and hold the name or number for the
phone call entry containing the note, and then tap View Note.
SP70C User Manual 3-6
Using the Phone
Feature
3.5 Creating a Speed Dial Entry
You can create speed dials to call frequently-called numbers with a single tap. Before you can create a
speed dial entry for a phone number, that number must already exist in Contacts.
From Phone
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Speed Dial > Menu > New.
3. Tap the desired contact name and number.
4. In the Location field, tap the Up/Down arrows to select an
available location to assign as the new speed dial entry, and then
tap OK.
5. The new speed dial entry will appear on the speed dial list.
• The first speed dial location is reserved for your voice mail.
From Contacts
1. Tap > Contacts, or tap the Contacts soft key.
2. Tap and hold the contact name, and then tap Add to Speed Dial.
3. In the Location field, tap the Up/Down arrows to select an
available location to assign as the new speed dial entry, and then
tap OK.
• To delete a speed dial entry, tap > Phone > Speed Dial, tap and hold the contact name in the
box to the right of the assigned speed dial number, and then tap Delete.
3-7 SP70C User Manual
Using the Phone
Feature
3.6 Call History
Call History provides the time and duration of all incoming,
outgoing, and missed calls, and a summary of total calls. Call
History also provides easy access to any notes taken during a call
(see Section 3.5 for more information).
To view Call History:
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Call History.
3. To quickly see the date, time, and duration of a call, tap the
white area of the call’s entry.
Changing the Call History View
To change the Call History view, tap Menu > Filter, and select a
different view. For example, you can view only missed or incoming
calls, or view calls alphabetically by caller name.
Call Timers
You can tap Menu > Call Timers to view the during and number of
All Calls and Recent Calls.
You can reset the Recent Calls counter by tapping Reset. The All
Calls counter cannot be reset.
You can delete Call History items older than a week, a month, or
a different time period. Tap Menu > Call Timers, and then, under
Delete call history items older than, select a time period.
SP70C User Manual 3-8
Using the Phone
Feature
3.7 Changing Phone Settings
You can customize phone settings, such as the ring type and ring tone to be used for incoming calls,
and the keypad tone to be used when entering phone numbers. You can also protect your phone from
unauthorized use.
Changing the Ring Type
You can change the way that you are notified of incoming calls. For example, you can choose to be notified
by a ring, a vibration, or a combination of both.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Phone.
3. Tap the Ring type list, select the desired option, and tap OK.
Changing the Ring Tone
You can select a different sound to notify you of incoming calls.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Phone.
3. Tap the Ring tone list, select the desired option, and tap OK.
• To select .mp3, .wav, .mid or .wma files as your ring tone, first use the ActiveSync on the
desktop computer to copy the files to the \Windows\Rings folder on the Pocket PC Phone. For
information on copying files to the Pocket PC Phone, see the ActiveSync Help on the desktop
computer.
3-9 SP70C User Manual
Using the Phone
Feature
Changing the Keypad Tone
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Phone.
3. Tap the Keypad list, select the desired option, and tap OK.
Securing Your Phone
You can protect your phone from unauthorized use by assigning a
type of password called a PIN (Personal Identification Number).
Your first PIN will be given to you by your mobile phone service
provider.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Services.
3. Select Require PIN when phone is used, and tap OK.
• To change the PIN, tap Change PIN. You need to enter the
old PIN, enter the new PIN, and then re-enter the new PIN
for confirmation.
• Emergency calls can be placed at any time, without
requiring a PIN.
Changing Phone Service Settings
You can access and configure settings for the phone services subscribed from your mobile phone service
provider. For example, you may want to block certain types of incoming and/or outgoing calls, forward
incoming calls to a different phone number based on your situation, be notified of incoming calls when
you’re already in a phone session, or let others know your identity when making calls.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Services.
3. Tap a service, and then tap Get Settings.
• Call Barring blocks certain types of incoming and/or
outgoing calls.
• Caller ID lets people to know your identity when calling
them by displaying your caller ID.
• Call Forwarding forwards all incoming calls to a different
number.
• Call Waiting notifies you of incoming calls when you are
already in a phone session.
• Voice Mail or Text Message Phone Number changes the
voice mail or text message phone number.
SP70C User Manual 3-10
Using the Phone
Feature
Changing Phone Network Settings
You can view available networks and change their settings.
1. Tap > Phone, or press the Call button.
2. From the Phone keypad, tap Menu > Options > Network.
3. The network your device is currently using will be listed at the
top of the screen. You can specify whether you want to change
networks manually or automatically, and determine the order in
which your phone accesses another network if the current one is
unavailable.
3.8 SIM Contacts
On your Pocket PC Phone, there can be two kinds of independent
contact lists. One is stored in the Pocket PC Phone’s memory by
Microsoft Contacts; the other is stored in the SIM card. By default,
you can use Contacts to load the contact information stored in
the Pocket PC Phone’s memory (see Chapter 4 for information
on Microsoft Contacts), and use SIM Contacts to load the contact
information stored in the SIM card.
Tap > Programs > SIM Contacts. When running SIM Contacts
for the first time after turning the Pocket PC Phone on, it may take a
few minutes to load the contact informaion.
After the loading is completed, you can tap Tools > Select All >
Tools > Copy to Contacts to copy your contacts to Contacts.
• Some Chinese contact info stored in the SIM card may appear in scrambled code while it is
copied to the Pocket PC Phone.
3-11 SP70C User Manual
Using the Phone
Feature
3.9 Turning the Phone On and Off
You can turn your phone on and off while keeping your actual device On. Your phone is off when it is in
flight mode.
Turning the phone off:
1. Tap the signal icon on the navigation bar, and then tap Wireless Manager on the pop-up message.
2. Tap Phone. The phone signal status will show Off.
>
Turning the phone on:
1. Tap the signal icon on the navigation bar, and then tap Wireless Manager on the pop-up message.
2. Tap Phone. The phone signal status will show On.
>
Chapter 4
Contacts
4.1 Creating a New Contact
4.2 Managing Contacts
4.3 View Modes
4.4 Changing List View Settings
4-2 SP70C User Manual
Contacts
4.1 Creating a Contact
Microsoft Contacts maintains a list of your friends and colleagues so that you can easily find the
information you’re looking for, whether you’re at home or on the road. You can enter both personal and
business information.
From Microsoft Contacts, you can create a new contact to store in Microsoft Contacts or on the SIM card.
For Microsoft Contacts
1. Tap > Contacts, or tap the Contacts soft key.
2. By default, the screen displays all contacts stored in Contacts.
The bottom of the screen displays the current caller picture
preview of the selected contact, the picture filename and ring
tone file name.
3. To add a new contact, tap New, or Menu > New Contact.
4. Enter the name and other contact information. You will need to
hide the Input panel to see all available fields.
5. To set a caller picture, tap Select a picrure in Picture and
browse for a picture stored on the Pocket PC Phone or miniSD
card (if inserted).
The picture formats supported by the Pocket PC Phone include:
JPEG, PNG, BMP, GIF.
SP70C User Manual 4-3
Contacts
6. To set a caller ring tone, tap Ring tone and browse for a
sound file stored on the Pocket PC Phone or miniSD card
(if inserted).
The sound formats supported by the Pocket PC Phone
include: Polyphonic, Monophonic, MIDI, AMR, WAV,
MP3, WMA, AAC, and AAC+.
5. You can assign a contact to a category so that you can use
these groupings to quickly display only the information
you want.
Tap Categories. Select the categories that you want to
assign the contact to.
To create a new category, tap New, enter the category
name, and then tap Done.
Tap OK to return to the previous screen.
6. Tap Notes. You can add written or typed notes and even recordings to a contact. For information
on Notes, see Section 10.3.
7. Tap OK to return to the contact list. The new contact is added to the list.
For SIM Card
1. Tap > Contacts, or tap the Contacts soft key.
2. To add a new SIM card contact, tap Menu > New SIM
Contact.
3. Enter the name and phone number of the contact, and tap
OK.
SIM contacts appear at the bottom of the contact list in
alphabetical order.
4.2 Managing Contacts
Editing a Contact
1. Tap > Contacts, or tap the Contacts soft key.
2. Tap to open the contact to edit, and tap Menu > Edit.
3. Make the changes and tap OK.
Deleting a Contact
1. Tap > Contacts, or tap the Contacts soft key.
2. Tap to open the contact to delete, and tap Menu > Delete.
3. Tap Yes to confirm.
4-4 SP70C User Manual
Contacts
4.3 View Modes
You can display the contact list in Name or Company view.
1. Tap > Contacts, or tap the Contacts soft key.
2. Tap Menu > View By > Name or Company.
In Name view, you can search for a contact by entering a name or
number, or by using the alphabetical index.
In Company view, you can view a list of contacts employed by a
specific company.
4.4 Changing List View Settings
1. Tap > Contacts, or tap the Contacts soft key.
2. Tap Menu > Options.
3. To display a greater number of contacts, select the Show contact names only check box, and clear the
Show alphabetical index check box.
Chapter 5
Recording Messages
5.1 Recording Messages in Notes
5.2 AMR Recorder
5-2 SP70C User Manual
Recording
Messages
5.1 Recording Messages in Notes
In any program where you can write or draw on the screen, you can also quickly capture thoughts,
reminders and phone numbers by recording a message. The recordings will be saved as .wav files in the
\My Documents folder on the Pocket PC Phone.
You can record a message when the Record button appears on the command bar. In Pocket Word, use the
recording function by the View menu.
Creating a Recording
1. Hold your Pocket PC Phone’s microphone near your mouth or
other source of sound.
2. Hold down the Voice Recording button. When you hear the
beep, begin your recording.
3. Keep holding down the Voice Recording button during the
recording.
4. Release the button when you are finished. You will hear two
beeps.
5. The new recording is stored as a stand-alone recording if no note
is open. Tap the recording file to play back.
• The voice recording indicator glows in red when a recording is in process.
• You can use the Record/Playback toolbar for recording and playback.
• Tap > Settings > Personal > Input > Options to select the voice recording format.
Recording Formats
Your Pocket PC Phone supports several formats for voice notes. The formats vary in both the quality of the
recording and the size of the sound file. When selecting a recording format, you should consider the quality
you need as well as how much storage memory the recording will use on your Pocket PC Phone.
Not all recording formats are compatible with other software or computers. If you will share your record-
ings with others or transfer a recording to your desktop computer, be sure to choose a recording format that
is supported by the software used to play recordings on the other computer.
To select a recording format, tap > Settings > Personal > Input
> Options to select a recording format. The list of recording formats
on your Pocket PC Phone indicates the sample rate, whether the
format is stereo or mono and how much storage memory is required
per second of recording. You may need to experiment with different
sample rates and formats to determine which format best suits your
needs.
SP70C User Manual 5-3
Recording
Messages
5.2 AMR Recorder
Besides the built-in recording program described in the previous section, you can also use the AMR Recorder
program to record messages. AMR Recorder will save the recordings as AMR files in the My Device\My
Documents\Recording folder on the Pocket PC Phone.
1. Tap > Programs >
AMR
Recorder.
2. Hold your Pocket PC Phone’s microphone near your mouth or other source of sound. Then tap the
icon to start recording.
3. To stop recording, tap the icon. The recording will appear on the list. (To delete a recording, tap and
hold the file on the list, and then tap Delete.)
• The recording indicator glows in red when a recording is in process.
• If the earphone is already connected to the Pocket PC Phone, then the recording will receive
sounds from the speaker on the earphone.
You can change the following settings in Recorder:
n To chnage the storage location of the recording files, tap Tools >
Settings.
n To change the recording quality, tap Tools > Microphone
Setting. When finished, tap OK to save the change.
Fast backward
Recording/
playback progress
Tap to play back Adjusting playback volume
Fast forward
Chapter 6
Customizing Personal Settings
6.1 Buttons
6.2 Input
6.3 Lock
6.4 Menus
6.5 MSN Options
6.6 Owner Information
6.7 Phone
6.8 Sounds & Notifications
6.9 Today
6.10 Today Plus
6.11 Voice Commander
SP70C User Manual 6-2
Customizing
Personal Settings
6.1 Buttons
Tap > Settings > Personal > Buttons.
Use this item to assign programs to the hardware buttons and set the repeat rate of the Up/Down direction
keys.
6.2 Input
Tap > Settings > Personal > Input.
This item sets up items related to Block Recognizer, soft keyboard, Letter Recognize, Transcriber input
methods and voice recording format.
6-3 SP70C User Manual
Customizing
Personal Settings
6.3 Lock
Tap > Settings > Personal > Lock.
This item allows you to set a password for security.
1. Tap > Settings > Personal > Password.
2. Check the Prompt if device unused item and select a value to
set the time for the Pocket PC Phone to prompt for password
after idling.
3. Select the type of password you would like to use. You can set a
four-digit password or a long password containing a combination
of at least seven characters, numbers or punctuation.
4. Tap the numbers or characters to set your password.
5. To keep a hint for yourself in case you forget your password, tap
Prompt and enter the prompt for password.
6. Tap OK.
6.4 Menus
Tap > Settings > Personal > Menus.
This item allows you to customize what appears on the Start menu.
On the program list, the selected items will appear on the Start
menu, and the unselected items appear in Programs.
6.5 MSN Options
Tap > Settings > Personal > MSN Options.
Use this item to manage your Pocket MSN settings.
SP70C User Manual 6-4
Customizing
Personal Settings
6.6 Owner Information
Tap > Settings > Personal > Owner Information.
Use this item to enter your personal information.
6.7 Phone
Tap > Settings > Personal > Phone.
This item changes the phone-related settings. See Section 3.8 for
detailed information.
6.8 Sounds&Notications
Tap > Settings > Personal > Sounds & Notifications.
This item sets the conditions and types of the sounds, system volume and methods of notifications.
6-5 SP70C User Manual
Customizing
Personal Settings
6.9 Today
Tap > Settings > Personal > Today.
Tap Appearance to select a desired theme for the background. You
can also tap Beam to exchange favorite themes with your friends.
Tap Items to select the information you want displayed on the Today
screen. You can also select a period of time (4 hours by default) for
your Pocket PC Phone to automatically return to the Today screen.
6.10 Today Plus
Tap > Settings > System > Today Plus.
Use this item to configure the displayed items in Today Plus. See
Chapter 12 for detailed information on Today Plus.
6.11 Voice Commander
It provides the voice simulation function to help facilitate the identi-
fication such that the user’s specific speech sounds may be identified
easily.
It offers the voice identification/simulation function for operations in
Contacts, Applications, Music, and Digit, etc.
Chapter 7
Customizing System Settings
7.1 About
7.2 Backlight
7.3 Certificates
7.4 Clock & Alarms
7.5 Contrast
7.6 Error Reporting
7.7 GPS
7.8 Memory
7.9 Microphone Environment
7.10 Power
7.11 Regional Settings
7.12 Remove Programs
7.13 Screen
7.14 System Information
7.15 Wake Up Screen
7.16 SmartX
7.17 Ring Tone
SP70C User Manual 7-2
Customizng
System Settings
7.1 About
Tap > Settings > System > About.
This item shows the hardware information of the Pocket PC
Phone and defines the device name that your Pocket PC Phone
uses for identifying itself to other computers.
7.2 Backlight
Tap > Settings > System > Backlight.
This item adjusts the brightness of the display and sets the automatic turnoff for power saving purposes.
7.3 Certicates
Tap > Settings > System > Certificates.
You may add/delete the public key certificates to/from your Pocket PC Phone. These certificates help
establish your identity when you are logging into a secured network, such as a corporate network.
Certificates also help establish the identity of other computers, such as servers, with which you
connect. This helps prevent unauthorized users from accessing your Pocket PC and information.
You can store two types of certificates on your Pocket PC: Personal Certificates that establish your
identity, and Root Certificates that establish the identity of servers with which you connect.
7-3 SP70C User Manual
Customizng
System Settings
ManagingCerticates
1. Tap > Settings > System > Certificates.
2. The list displays the names of the certificate issuers and
the expiration date.
3. To view more information about a certificate, tap it in the
list.
4. To delete a certificate, tap and hold it in the list and then
tap Delete.
7.4 Clock & Alarms
Tap > Settings > System > Clock & Alarms.
This item allows you to change the date and time and to set
alarms.
7.5 Contrast
Tap > Settings > System > Contrast.
Use this item to adjust the contrast of the screen.
SP70C User Manual 7-4
Customizng
System Settings
7.6 Error Reporting
Tap > Settings > System > Error Reporting.
Use this item to send information needed by technical support
groups to diagnose a program error.
7.7 GPS
Tap > Settings > System > GPS.
This item is used to configure the GPS port settings. However,
your Pocket PC Phone does not support the GPS function.
Beside you buy a GPS receiver to support GPS function.
7.8 Memory
Tap > Settings > System > Memory.
This item displays the amount of memory allocated for storage and program memory, as well as the
memory on the storage card (if installed). You can also use this item to manually stop a program.
7-5 SP70C User Manual
Customizng
System Settings
7.9 Microphone Environment
Tap > Settings > System > Microphone Environment.
This item sets the microphone environment for the recording mode.
7.10 Power
Tap > Settings > System > Power.
This item shows the remaining battery power and sets the time for the Pocket PC Phone to turn off
automatically.
7.11 Regional Settings
Tap > Settings > System > Regional Settings.
This item specifies the region of your location and the formats of the
number, currency, time and date.
SP70C User Manual 7-6
Customizng
System Settings
7.12 Remove Programs
Tap > Settings > System > Remove Programs.
This item allows you to remove programs you have added
to the memory of your Pocket PC Phone. Tap the desired
program and then tap Remove.
7.13 Screen
Tap > Settings > System > Screen.
This item allows you to adjust the touch screen for accurate screen taps and to enable ClearType feature for
easier reading of text in programs that support ClearType.
7.14 System Information
Tap > Settings > System > System Information.
n Tap Version to view the software version of the Pocket PC
Phone.
7-7 SP70C User Manual
Customizng
System Settings
n Tap Hardware to view the hardware information of the
Pocket PC Phone.
n Tap Identity to view the model name and operating
system of the Pocket PC Phone.
n Tap Log to view the talk time for incoming and outgoing
phone calls.
SP70C User Manual 7-8
Customizng
System Settings
7.15 Wake Up Screen
Tap > Settings > System > Wake Up Screen.
Use this item to select the displayed screen when the Pocket
PC Phone wakes up from the standby mode.
7.16 SmartX
Tap > Settings > System > SmartX.
You can customize the displayed items on the SmartX menu.
The items for selection include:
n Auto close closes the current program.
n Close All closes all running programs.
n Close Inactive closes inactive programs.
n Running Program displays the running program(s).
n Rotate screen left (disabled by default) rotates the screen at 90
degrees counterclockwise.
n Rotate screen right (disabled by default) rotates the screen at
90 degrees clockwise.
n Settings displays the SmartX settings.
See Section 15.18 for detailed information on SmartX.
7.17 Ring Tone
Tap > Settings > System > Ring Tone.
This item sets the ring tone file. The screen displays all sound files
stored on the Pocket PC Phone with the format of AMR ( .awb),
MIDI ( .rmi, .mmf, .mid), MP3, WAV, WMA, AAC, and AAC+.
Chapter 8
Getting Connected
8.1 GPRS Auto Configuration
8.2 Beam
8.3 Bluetooth
8.4 Connections
8.5 Wireless Manager
SP70C User Manual 8-2
Getting Connected
8.1 GPRSAutoConguration
GPRS is a high-speed transmission through the mobile phone network, which provides permanent on-line
connection.
When you apply for the GPRS service, your service provider may have already set up a GPRS connection
for you. You can also perform automatic GPRS configuration on your Pocket PC Phone.
• If you have subscribed to the GPRS and MMS services from your mobile phone service provider,
GPRS connection is active, and so is MMS connection.
Tap > Settings > Connections > GPRS Auto Configuration.
Select Auto Configuration, select your mobile phone service
provider, and then tap OK.
8.2 Beam
Use beaming software and hardware, such as infrared (IR), to send and receive information and files
between mobile devices. If an IR port is installed on your desktop computer, you can send and receive
information and files between your device and desktop computer.
When data transmission is not available, please note:
n Transfer only one file, or no more than 25 contact cards, at a time.
n When using IR, make sure nothing is between the two IR ports.
n Adjust the room lighting or move to another location (some types of light interfere with beaming).
Sending Information
1. Switch to the program where you created the item you want to
send and locate the item in the list.
2. Tap and hold the item and tap Beam File on the pop-up menu.
• In Tasks, tap Beam Task.
• In Contacts, tap Beam Contact.
• In Calendar, tap Beam Appointment.
3. Align the IR ports so that they are unobstructed and within a
close range.
8-3 SP70C User Manual
Getting Connected
Receiving Information
1. Before receiving beamed information, tap > Settings >
Connections > Beam.
2. Select Receive all incoming beams, and tap OK.
3. Align the IR ports so that they are unobstructed and within a
close range.
4. The Pocket PC Phone will search for the other device and
receive information automatically.
8.3 Bluetooth
Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can
exchange information over a distance of about 10 meters (30 feet) without requiring a physical connection.
You can use Bluetooth in the following ways:
n Beam information, such as files, appointments, tasks, and contact cards, between devices that have
Bluetooth capabilities.
Turning on and off Bluetooth
1. Tap > Settings > Connections > Bluetooth.
2. To turn on Bluetooth, select the Turn on Bluetooth check box.
To make your device discoverable for information exchange,
select the Make this device discoverable to other devices
check box.
To turn off Bluetooth, clear the Turn on Bluetooth check box.
3. Tap OK.
• By default the Bluetooth is turned off. If you turn it on,
and then turn off your device, the Bluetooth also turns off.
When you turn on your device again, the Bluetooth turns
on automatically.
Bluetooth Information Exchange
Beaming Information with Bluetooth
1. Turn on the Bluetooth as described earlier in the “Turning on and off Bluetooth” section.
2. Tap and hold an item to beam, such as an appointment in Calendar, a task in Tasks, a contact card in
Contacts, or a file in File Explorer.
3. Tap Beam [type of item].
4. Your Pocket PC Phone will search for Bluetooth devices within a range of about 10 meters (30 feet) and
display the device names on the screen. Tap the device to which you want to send the beam.
SP70C User Manual 8-4
Getting Connected
Receiving a Bluetooth Beam
1. Tap > Settings > Connections > Beam.
2. Turn on the Bluetooth as described earlier in the “Turning on and off Bluetooth” section.
3. Make sure that the device is powered on, discoverable, and within 10 meters (30 feet) of your device.
4. When prompted to receive an incoming beam, tap Yes.
Bonding with Other Devices
A bond is a relationship that you create between your Pocket PC Phone and another Bluetooth device in
order to help exchange information in a secure manner. Creating a bond involves entering the same PIN
on the two devices you want to bond. Once a bond is created, the devices need only have their Bluetooth
turned on to exchange information; they do not need to be in discoverable mode.
Creating a Bond
1. Make sure that the two devices are placed within 10 meters of one another and that Bluetooth is in
discoverable mode on both devices.
2. Tap > Settings > Connections > Bluetooth > Devices > New Partnership.
3. Your device searches for other Bluetooth devices and displays them in the list.
4. Tap the name of the other device, and then Next.
5. In Passkey, enter a passkey of between 1 and 16 characters and tap Next.
6. Enter the same passkey on the other device.
7. If you want, in Display Name, edit the name of the other device. You may use any name.
8. Tap Finish.
Accepting a Bond
1. Make sure that the two devices are placed within 10 meters of one another and that Bluetooth is in
discoverable mode on both devices.
2. When prompted to bond with the other device, tap Yes.
3. In Passkey, enter a passkey of between 1 and 16 characters and tap Next. You must enter the same
passkey that was entered on the device requested the bond.
4. If you want, in Display Name, edit the name of the other device. You may use any name.
5. Tap Finish. The bond is created. You can now exchange information with the other device.
8.4 Connections
You can set up connections to the Internet and corporate network at work in order to do such activities
as browse the Internet or intranet, send/receive email and instant messages, and synchronize information
using ActiveSync.
Your device has two groups of connection settings:
n My ISP settings are used to connect to the Internet.
n My Work Network settings can be used to connect to any private network, such as a corporate
network you use at work.
8-5 SP70C User Manual
Getting Connected
Connecting to the Internet
1.
Obtain the following information from your ISP: ISP server
phone number, user name, and password.
2. Tap > Settings > Connections > Connections.
3. In My ISP, tap Add a new modem connection.
4. Enter a name for the connection, such as your company’s name.
In the Select a modem list, tap your modem type.
Tap Next.
5. Enter the phone number. Tap Next.
6. Enter your user name, password, and domain name as provided
by your ISP. If a domain name was not provided, try the
connection without entering a domain name. You need not to
change any advanced settings. Tap Finish.
Connecting to Work
1. Obtain the following information from your network
administrator: server phone number, user name, and password.
2. Tap > Settings > Connections > Connections.
3. In My Work Network, tap Add a new modem connection.
SP70C User Manual 8-6
Getting Connected
4. Enter a name for the connection, such as your company’s name.
In the Select a modem list, tap your modem type.
Tap Next.
5. Enter the phone number. Tap Next.
6. Enter your user name, password, and domain name as provided
by your network administrator. If a domain name was not
provided, try the connection without entering a domain name.
You need not to change any advanced settings. Tap Finish.
Setting up VPN Server Connections
A VPN connection helps you to securely connect to servers, such as a corporate network, via the Internet.
Ask your network administrator for your user name, password, domain name, TCP/IP settings, and host
name or IP address of the VPN server.
1. Tap > Settings > Connections > Connections.
2. In My Work Network, tap Add a new VPN server connection.
3. In Name, enter a name for the connection, such as your
company name.
In Host name/IP, enter the name and IP address of the VPN
server.
Next to VPN type, select the type of authentication to use with
your device: IPSec/L2TP or PPTP. If you aren’t sure which
option to choose, ask your network administrator.
Tap Next.
4. Select the type of authentication. If you select A pre-shared
key, enter the key provided by your network administrator.
Tap Next.
5. Enter your user name, password, and domain name as provided
by your network administrator. If a domain name was not
provided, try the connection without entering a domain name.
You should not need to change any advanced settings. Tap
Finish.
Setting up Proxy Server Settings
If you are connected to your ISP or private network during synchronization, your mobile device should
download proper proxy settings during synchronization from your desktop computer. If these settings are not
on your desktop computer or need to be changed, ask your ISP or network administrator for the proxy server
name, server type, port, type of Socks protocol used, and your user name and password.
8-7 SP70C User Manual
Getting Connected
1. Tap > Settings > Connections > Connections.
2. In My Work Network, tap Add a new proxy server.
3. Select This network connects to the Internet and This
network uses a proxy server to connect to the Internet. In the
Proxy server box, enter the proxy server name.
4. To change such settings as port number or proxy server type, tap
Advanced and change desired settings.
5. When you are finished, tap OK.
8.5 Wireless Manager
Wireless Manager provides a quick way to control the Bluetooth, Phone, and WLAN settings.
1. On the Today screen, tap the Wireless Manager area.
2. You can do the following:
• To enable or disable the Bluetooth function, tap Bluetooth.
• To change the Bluetooth settings, tap Menu > Bluetooth
Settings.
• To enable or disable the phone , tap Phone.
• To change the Phone settings, tap Menu > Phone Settings.
• To enable or disable the Wi-Fi, tap Wi-Fi.
• To change the Wi-Fi settings, tap Menu > Wi-Fi settings.
Chapter 9
Internet Explorer
9.1 Using Internet Explorer
9.2 Viewing Mobile Favorites
9.3 Changing Settings
SP70C User Manual 9-2
Internet Explorer
9.1 Using Internet Explorer
You can use Internet Explorer Mobile to view Web pages on your mobile device in two ways:
n downloading pages through synchronization (See Chapter 11.)
n connecting to the Internet (see Chapter 8)
To switch to the program, tap > Internet Explorer Mobile. The Internet Explorer Mobile home page
appears.
Sending a Link via Email
1. Tap > Internet Explorer Mobile.
2. Go to the page you want to send.
3. Tap Menu > Tools > Send Link via E-mail. A new message is created with the page address inserted
in the message body.
9.2 Viewing Favorites
Your Pocket PC Phone has incorporated some of the useful favorites for your use.
On the Internet Explorer screen, tap Favorites to open the favorite list.
If you are using Microsoft Internet Explorer 4 or greater on the desktop computer, you can synchronize
favorite links. If you are using Microsoft Internet Explorer 5 or later versions on the desktop computer, you
can also synchronize mobile favorites. Synchronizing favorite links enable you to have the URLs of your
favorite Web sites at your fingertips. Synchronizing a mobile favorite enables you to view Internet content
on your device while you are disconnected from your Internet service provider and desktop computer.
Favorites are stored in the Mobile Favorites subfolder of Favorites in Internet Explorer on the desktop
computer. This folder will be created when you select the Favorites information type for synchronization in
ActiveSync on your desktop computer. Favorites must be stored in this folder to be synchronized.
Synchronizing a Favorite Link
1. In ActiveSync on your desktop computer, click Tools > Options, and select Favorite. For more
information on using ActiveSync, see ActiveSync Help.
2. In Internet Explorer on your desktop computer, save or move favorite links to the Mobile Favorites
subfolder in the Favorites list. For more information on using Internet Explorer, see Internet Explorer
Help on the desktop computer.
3. Connect your mobile device to your desktop computer. If synchronization does not start automatically,
in ActiveSync on your desktop computer, click Sync.
Favorites
Web address Link to
9-3 SP70C User Manual
Internet Explorer
Synchronizing a Mobile Favorite
1. In ActiveSync on your desktop computer, click Tools > Options, and select Favorite. For more
information on using ActiveSync, see ActiveSync Help.
2. In Internet Explorer 5 or later versions on your desktop computer, browse to the page you want to view
offline.
3. Click Tools > Create Mobile Favorite.
4. To change the link name, enter a new name in the Name box.
5. In the Update box, select a desired update schedule to keep the page in the Mobile Favorites folder up
to date. You can also update content by clicking Tools > Synchronize in Internet Explorer.
6. To save the link in a subfolder of Mobile Favorites, click Create In and select the desired subfolder.
7. Click OK. Internet Explorer will download the latest version of the page.
8.
To download the pages that are linked to the mobile favorite you just created, in Internet Explorer on
the desktop computer, right-click the mobile favorite and then click Properties. On the Download tab,
specify the number of links deep you want to download. To conserve device memory, only go one level
deep.
9. Connect your Pocket PC Phone to the desktop computer. If synchronization between your device and
desktop computer does not start, in ActiveSync on your desktop computer, click Sync.
9.3 Changing Settings
You can tap Menu > View on the main page of Internet Explorer
Mobile to change the display settings.
You can also tap Menu > Tools > Options on the main page of Internet Explorer Mobile to custmize more
settings.
Item Description
General Enables you to change the home page or the displayed language.
Memory Enables you to set the period before clearing the visiting history, and delete
temporary files.
Security Enables you to accept or clear cookies, and send out a warning when visiting
unsecure Web pages.
Chapter 10
Microsoft Pocket Outlook
10.1 Calendar
10.2 Tasks
10.3 Notes
10.4 Messaging (Outlook, SMS, MMS)
10.5 MMS Messages
10-2 SP70C User Manual
Microsoft Pocket
Outlook
10.1 Calendar
Use Calendar to schedule appointments, including meetings and other events. You can check your
appointments in one of several views (Agenda, Day, Week, Month and Year) and set Calendar to remind
you of appointments with a sound or other method. Appointments for the day can be displayed on the
Today screen.
Creating an Appointment
1. Tap > Calendar.
2. Tap Menu > New Appointment.
3. To select a new date from a pop-up calendar, tap the display
date. To enter or select a new time, tap the display time. Enter
other appointment details. You will need to hide the Input panel
to see all available fields.
4. You can assign an appointment to a category so that you can
use these groupings to quickly display only the information you
want.
Tap Categories. Select the categories that you want to assign
the appointment to. To create a new category, tap New, enter the
category name, and then tap Done.
Tap OK to return to the previous screen.
5. Tap Notes. You can add written or typed notes and even
recordings to an appointment. For information on Notes, see
Section 10.3.
6. Tap OK to save the change.
• You can view appointments in one of several views. To change the view mode, tap the
appropriate view icons on the command bar.
• Tap the Down arrow in the Subject and Location fields to quickly select from built-in or
previous entries.
• If you set a reminder for an appointment, the Pocket PC Phone will remind you according to the
settings in Sounds & Notifications.
• To make an appointmnet recurring, tap Occurs and select a pattern from the list. Or, to create a
new pattern, tap Edit pattern, and follow the steps in the wizard.
View Modes
You can view appointments in one of several views (Agenda, Day, Week, and Month).
Agenda View
In Agenda view, upcoming appointments are displayed in bold.
Day View
In Day view, the subject of an appointment is displayed on the right of the appointment’s time.
Week View
Week view displays blue boxes to indicate the dates and time of appointments.
SP70C User Manual 10-3
Microsoft Pocket
Outlook
Month View
Month view displays symbols to indicate the types of appointments you have on a given day. An upward
triangle indicates a morning appointment; a downward triangle indicates an afternoon appointment. If you
have appointments in the morning and afternoon, a solid square is displayed. If you have an all day event
not marked Free, a hollow square is displayed.
Using the Calendar Summary Screen
When you tap an appointment in Calendar, a summary screen is
displayed. To change the appointment, tap Edit.
Sending Meeting Requests
Use Calendar to schedule meetings with people who use Outlook or Pocket Outlook. When attendees
receive a meeting request, they can accept or decline the meeting. If they accept, the meeting is
automatically added to their schedule. In addition, their response is sent back to you, and your calendar is
updated.
Before you can send a meeting request, you must enter email addresses in Contacts and set up Messaging
to send and receive messages.
1. Tap > Calendar.
2. Tap Menu > New Appointment.
3. Enter the meeting information.
4. Tap Attendees (you will need to hide the input panel to see this
box).
5. Select the contacts you want to invite. Only those contacts with
email addresses will be displayed.
6. Tap OK. Messaging automatically creates a meeting request and
sends it to the attendees the next time you synchronize with your
desktop computer. Any textual notes entered in the Notes tab
(excluding writing or recordings) will be sent also.
• If you are sending the meeting request through a connection to an ISP or the network,
rather than through synchronization with your desktop computer, tap Menu > Options >
Appointments. In Send meeting requests via, tap the service you want to use to send the
meeting request.
10-4 SP70C User Manual
Microsoft Pocket
Outlook
10.2 Tasks
Use Tasks to keep track of things you need to do. A variety of task information can be displayed on the
Today screen.
• To see the start and due date for a task in the task list, tap Tools > Options.
Creating a Task
1. Tap > Programs > Tasks.
2. Tap Menu > New Task.
3. Enter detailed information, such as start and due dates. You will
need to hide the Input panel to see all available fields.
4. You can assign a task to a category so that you can use these
groupings to quickly display only the information you want.
Tap Categories. Select the categories that you want to assign
the appointment to. To create a new category, tap New, enter the
category name, and then tap Done.
Tap OK to return to the previous screen.
5. Tap Notes. You can add written or typed notes and even
recordings to an appointment. For information on Notes, see
Section 10.3.
6. Tap OK to save the change.
• If you set a reminder for a task, the Pocket PC Phone will remind you according to the settings in
Sounds & Notifications.
• To quickly create a task, enter text in the “Tap here to add a new task” field at the top of the
screen. If you don’t see this box, tap Menu > Options > Show Tasks entry bar.
Using the Tasks Summary Screen
The task list displays a list of your tasks. Overdue tasks are
displayed in bold and in red.
If you have a long list of tasks, tap Menu > Sort By and select the
option you want to sort on.
To see more task information, tap the task.To change a task, tap it in
the task list, and then tap Edit.
SP70C User Manual 10-5
Microsoft Pocket
Outlook
10.3 Notes
Notes may help you quickly capture your ideas, notes, and thoughts. You can create a note using written
and typed text, drawings, and recordings. You can also share your notes with others through email, infrared,
and synchronization with your desktop computer.
Creating a Note
1. Tap > Programs > Notes.
2. Tap New.
3. Enter your note information. For information on entering information, see Section 2.11.
Viewing Notes
The note list displays a list of your notes and recordings. If you have
a long list, tap Sort By and select the option you want to sort on. To
open a note or play a recording, tap it.
10.4 Messaging (Outlook, SMS, MMS)
You can receive Internet email messages, text messages (SMS) and multimedia messages (MMS)
in Messaging. Internet email messages are sent by using an address you receive from your Internet
service provider (ISP) or your employer. SMS and MMS messages are sent and received through your
wireless phone service provider by using a phone number as the message address.
You can send and receive email by synchronizing with your desktop computer, or by connecting to a
Post Office Protocol 3 (POP3) or Internet Message Access Protocol 4 (IMAP4) mail server. You need
to set up an email account for each method that you use except for an Outlook email account, which is
set up by default. The Outlook Email account on your device is used to store messages that you send
and receive through synchronization with a desktop computer. Account names will appear when you
open the folder list (located on the left, under the navigation bar) in the message list view.
With synchronization, messages are synchronized between the device Inbox folder for the Outlook
Email account and the desktop computer Inbox by using ActiveSync and Microsoft Exchange or
Microsoft Outlook. For more information, see the “Synchronizing Outlook Email Messages” section
later in this chapter.
When connecting to a POP3 or IMAP4 server, use a modem to connect to your Internet service
provider (ISP), or a modem or Ethernet card to connect to the local area network that your email server
is connected to. You can also use your phone to connect by using a cellular line connection. For more
information, see Chapter 8.
10-6 SP70C User Manual
Microsoft Pocket
Outlook
Synchronizing Outlook Email Messages
After selecting Inbox for synchronization in ActiveSync, Outlook email messages are synchronized as
part of the general synchronization process.
During synchronization:
n Messages are copied from the Inbox folder on your desktop computer or the Microsoft Exchange
server to the Inbox folder of the Outlook Email account on your device. (Note that you can only
synchronize information directly with an Exchange Server if your company is running Microsoft
Mobile Information Server 2003 or later.) By default, you’ll receive messages from the last three
days only, the first 100 lines of each new message, and file attachments of less than 100 KB in
size.
n Messages in the Outbox folder on your device are transferred to Exchange or Outlook and then
sent from those programs.
n The messages on the two computers are linked. When you delete a message on your device, it’s
deleted from your desktop computer the next time you synchronize.
n Messages in subfolders in other email folders in Outlook are synchronized only if they have been
selected for synchronization in ActiveSync.
• For information on initiating Outlook email synchronization or changing synchronization
settings, see ActiveSync Help on the desktop computer.
• Text messages are not received through synchronization. Instead, they are sent to your device
via your service provider.
Connecting to a Mail Server
Setting up a POP3 or IMAP4 Email Account
1. Tap > Messaging.
2. Tap Menu > Tools > New Account.
3. Enter the email address and then tap Next.
4. The Pocket PC Phone will start the auto configuration. Auto
configuration attempts to connect to your email server and
download necessary settings so that you do not need to enter
them manually. If auto configuration is successful, you may
begin downloading messages from the server.
5. If auto configuration is unsuccessful, tap Next for manual
configuration. Enter the displayed name, the user name and
password provided by your ISP or network administrator. You
can select Save password to avoid having to reenter it later.
6. In the Account type list, tap POP3 or IMAP4. (POP3 is the
most common mail protocol for ISPs.)
In Your name, enter a unique name for the account, such as
Work or Home. This name cannot be changed later.
Then Tap Next.
SP70C User Manual 10-7
Microsoft Pocket
Outlook
7. In Incoming mail, enter the name of your email server.
In Outgoing mail, enter the name of your Simple Mail Transfer
Protocol (SMTP) host.
If you are using a network connection, in Domain, enter your
domain name.
8. Select if you want to download the messages of this account
immediately.
Deleting an Account
1. Tap > Messaging.
2. Tap Menu > Tools > Options.
3. Tap and hold the name of the account, and then tap Delete.
• You can set up several email accounts including your Outlook email account, but you can set up
only one text message account.
• You cannot delete your text message account.
Downloading Messages from the Server
1. In Messaging, tap Accounts > Connect to open a connection to the Internet or your corporate
network, depending on the account. For information on connections, see Chapter 8.
2. The messages on your device and email server are synchronized: new messages are downloaded to
the device Inbox folder, messages in the device Outbox folder are sent, and messages that have been
deleted from the server are removed from the device Inbox.
3. Tap a message in the message list to open it.
4. If you read a message and decide that you need the full copy:
• Tap Edit > Mark for Download while in the message window.
• If you are in the message list, tap and hold the message, and then tap Mark for Download.
5. When finished, tap Accounts > Disconnect.
10-8 SP70C User Manual
Microsoft Pocket
Outlook
• If you selected some items when setting up an email account, then the mail attachments or entire
messages may be downloaded.
• Receiving entire messages consumes storage memory.
• The size column in the message list displays the local size and server size of a message. Even
when a message has been downloaded fully, these numbers may differ, because the size of a
message can vary between the server and the device.
Reading and Responding to Messages
Downloading Messages
The way you download copies of messages depends on how you are receiving messages:
n If you receive email messages through ActiveSync, synchronization will be started.
n If you receive email messages through a remote email server, see the “Downloading Messages from
the Server” section earlier in this chapter.
n Text messages will be automatically received when your phone is turned on. Otherwise, messages will
be held by your service provider until the next time your phone is turned on.
Replying to or Forwarding a Message
1. Tap > Messaging.
2. Tap to open the message.
3. Tap Menu, and then tap Reply, Reply All, or Forward.
4. Enter your response. To quickly add common messages, tap My
Text and tap a desired message.
5. Tap Send.
• Selections in Menu > Tools > Options > Message
determine whether the original text is included.
Receiving Attachments
An attachment sent with an email message or downloaded from the server appears as an icon at the bottom
of the message in its own window pane. Tapping the attachment icon opens the attachment if it has been
fully downloaded. You can mark an attachment for downloading (IMAP4 account only) the next time when
the phone is connected.
If you receive messages through synchronization:
1. Start ActiveSync on your desktop computer.
2. Click File > Mobile Device, and then select your Pocket PC Phone.
3. Click Tools > Options.
4. Select the message account, and then click Settings > Include File Attachments.
SP70C User Manual 10-9
Microsoft Pocket
Outlook
If you receive messages through a remote email server and have an IMAP4 account:
1. Tap > Messaging.
2. Tap Menu > Switch Accounts > IMAP4.
3. Tap Next until you reach Server Information, and then tap Options.
4. Tap Next twice, and then select Get full copy of messages and When getting full copy, get
attachments.
• Embedded images and objects cannot be received as attachments.
• An embedded message can be viewed as an attachment when you are using IMAP4 to receive
email. However, this feature will not work if TNEF is enabled so that you can receive meeting
requests.
Receiving Meeting Requests
If you receive your email messages through ActiveSync, you will automatically receive meeting requests.
If you connect directly to an email server, the server must be running Microsoft Exchange Server 5.5 or
2000 for you to receive meeting requests. If you are running Microsoft Exchange Server 2000, you will
automatically receive meeting requests in your Inbox.
To receive meeting requests on Microsoft Exchange Server 5.5:
n Ask your system administrator to activate Rich Text Format and TNEF support for your account. If
TNEF is enabled, you will not receive messages that are included in other messages as attachments,
and you will not be able to tell if a message has an attachment until you get the full copy. In addition,
download time may be longer.
n While setting up your mail account, select Get file attachments.
After you are set up to receive meeting requests:
1. If you connect directly to an email server and only receive message headers and/or a limited number of
lines per message, tap and hold the message that you think is a meeting request, and then tap Mark for
Download.
2. Open the meeting request.
3. Tap Menu > Accept, Tentative, or Decline. If you want, you can also include a written message with
the response. The response will be sent the next time that you synchronize or connect to your email
server, and your device Calendar will be updated.
Composing and Editing a Message
Composing and Sending a Message
1. Tap > Messaging.
2. In the message list, tap Menu > Switch Accounts, and select the
desired email account.
3. Tap New.
4. Enter the email address or text message address of one or
more recipients, separating them with a semicolon. To access
addresses and phone numbers from Contacts, tap To.
5. Enter your message. To quickly add common messages, tap My
Text and tap a desired message.
6. Tap Send. If you are working offline, the message will be moved
to the Outbox folder and will be sent the next time you connect.
10-10 SP70C User Manual
Microsoft Pocket
Outlook
• If you are sending a text message and want to know whether it was received, before sending
the message, tap Menu > Tools > Options> Text Messages, and select Request delivery
notifications.
Attaching a File to a Message
1. Tap > Messaging.
2. In the message list, tap Menu > Switch Accounts, and select the
desired email account.
3. Tap New.
4. Enter the email address or text message address of one or more
recipients, separate them with a semicolon. To access addresses
and phone numbers from Contacts, tap To.
5. Enter your message. To quickly add common messages, tap My
Text and tap a desired message.
6. Tap Menu > Insert > File.
7. Select the file you want to attach. OLE objects cannot be
attached to Messaging messages. Messaging automatically
converts Pocket Word files that you attach to messages to .doc
format and Pocket Excel files to .xls format.
8. Tap Send. If you are working offline, the message will be moved
to the Outbox folder and will be sent the next time you connect.
Inserting a Recording
1. Tap > Messaging.
2. In the message list, tap Menu > Switch Accounts, and select the
desired email account.
3. Tap New.
4. Enter the email address or text message address of one or more
recipients, separate them with a semicolon. To access addresses
and phone numbers from Contacts, tap To.
5. Enter your message. To quickly add common messages, tap My
Text and tap a desired message.
6. Tap Menu > Insert > Voice Note.
7. Tap the Recording button to start recording, and the Stop button
to stop. The recording will appear as an attachment.
8. Tap Send. If you are working offline, the message will be moved
to the Outbox folder and will be sent the next time you connect.
SP70C User Manual 10-11
Microsoft Pocket
Outlook
Creating a Signature
1. Tap > Messaging.
2. Tap Menu > Tools > Options.
3. Tap Signatures.
4. Select an account for which you want to create or change a
signature.
5. Select Use signature with this account if the check box is not
selected.
6. Select Use when replying and forwarding if wanted.
7. Enter a signature in the box.
8. Tap OK twice to return to the message list.
• To stop using a signature, clear the Use signature with this
account check box.
• You can use a different signature with each account.
Message Folders
Each email account and text message account has its own folder hierarchy with five default folders:
Inbox, Outbox, Deleted Items, Drafts, and Sent Items. The messages you receive and send through the
mail account are stored in these folders. You can also create additional folders within each hierarchy.
The Deleted Items folder contains messages that have been deleted from the device. The behavior of the
Deleted Items and Sent Items folders depends on the Messaging options you have chosen.
The behavior of the folders you create depends on whether you are using an Outlook email, text message,
POP3, or IMAP4 account.
n If you use an Outlook email account, email messages in the Inbox folder in Outlook will automatically
be synchronized with your device. You can select to synchronize additional folders by designating
them for ActiveSync. The folders you create and the messages you move will then be mirrored on the
server. For example, if you move two messages from the Inbox folder to a folder named Family, and
you have designated Family for synchronization, the server will create a copy of the Family folder and
copies the messages into that folder. You can then read the messages while away from your desktop
computer.
n If you use a text message account, messages will be stored in the Inbox folder.
n If you use a POP3 account and you move email messages to a folder you created, the link will be
broken between the messages on the device and their copies on the mail server. The next time you
connect, the mail server will see that the messages are missing from the device Inbox folder and delete
them from the server. This prevents you from having duplicate copies of a message, but it also means
that you will no longer access messages that you move to folders created from anywhere except the
device.
10-12 SP70C User Manual
Microsoft Pocket
Outlook
n If you use an IMAP4 account, the folders you create and the email messages you move will be
mirrored on the server. Therefore, messages are available anytime while you connect to your mail
server, whether it is from your device or desktop computer. This synchronization of folders occurs
whenever you connect to your mail server, create new folders, or rename/delete folders when
connected.
Managing Folders
For all accounts except Outlook Email, you can access folder options
by tapping Menu > Tools > Manage Folders.
1. Tap > Messaging.
2. Tap Menu > Switch Accounts, and then select the correct
account.
3. Tap Menu > Tools > Manage Folders.
4. Tap and hold the desired folder to:
• Tap New Folder to create a new folder under the folder
that is currently selected.
• Tap a current folder, and then tap Rename to change the
folder name. Default folders, such as Inbox, cannot be
renamed.
• Tap Delete to delete a folder and its contents.
• Tapping Folder Options to set folder synchronization
settings on a per-folder basis by selecting the check box
next to the folder you want to synchronize.
• You must be online to delete or rename an IMAP4 folder.
SP70C User Manual 10-13
Microsoft Pocket
Outlook
10.5 MMS Messages
The MMS program has been incorporated into the Messaging feature of your Pocket PC Phone.
Tap > Messaging > Accounts > MMS to access the MMS folders.
To compose an MMS message:
1. Tap New > Custom.
2. Enter the email address or mobile phone number of one or more
recipients
3. Enter the message subject.
4. Tap the photo insertion area to select a picture or video.
5. Tap the text insertion area to enter text information.
6. Tap the audio insertion area to create an audio file.
7. When it is completed, tap Send.
• You need to subscribe to the GPRS and MMS services with
your service provider and configure your Pocket PC Phone
properly before you can send and receive MMS messages.
Chapter 11
Microsoft ActiveSync
11.1 Installing Microsoft ActiveSync
11.2 Connecting to Your Desktop Computer
11.3 Synchronizing with Your Desktop Computer
11.4 Synchronizing Directly with Exchange Server
11.5 Changing the Synchronization Schedule
11.6 Backup and Restore
11-2 SP70C User Manual
Microsoft
ActiveSync
11.1 Installing Microsoft ActiveSync
With Microsoft ActiveSync on both your desktop computer and Pocket PC Phone, you can exchange
information between a desktop computer or server and your Pocket PC Phone. To synchronize your Pocket
PC Phone with your desktop computer, you must install ActiveSync on the desktop computer.
Using ActiveSync, you can:
n Synchronize information between your Pocket PC Phone and desktop computer or server so that you
have the latest information in all locations.
n Change synchronization settings and synchronization schedule.
n Copy files between your Pocket PC Phone and desktop computer.
n Add or remove programs to/from your Pocket PC Phone.
An Microsoft Companion CD is supplied with your Pocket PC Phone. You need to use the CD to install
ActiveSync on the desktop computer before perfoming synchronization.
Follow this procedure:
1. Turn on the desktop computer.
2. Insert the Companion CD into the CD-ROM drive of the desktop computer.
3. On the first screen, click the arrow to enter the main screen and click Start Here.
4. On the next screen, click Next to pop up Get Ready to Synchronize screen.
5. The Microsoft ® ActiveSync® installation wizard appears. Click Next.
6. The License Agreement appears, choose ‘I accept the terms in the license agreement’, and click Next.
7. The Customer Information screen appears, please enter user name and organization, and click Next.
8. The Destination Folder screen appears, click Next.
9. The Ready to Install the Program screen appears, click Install.
10. After the file transfer is completed, the installation is finished. Click Finish.
11. Click Close back to Windows to start ActiveSync.
12. When prompted, connect one end of the USB cable to the converter, and then connect the converter to
the USB port on the bottom of your Pocket PC Phone.
13. Connect the other end of the USB cable to the USB port of the desktop computer.
14. Follow the on-screen instructions to establish a partnership between your Pocket PC Phone and your
desktop computer. Select the types of information for synchronization. After your first synchronization,
the data you have stored on your desktop computer such as Calendar, Contacts and Tasks are copied to
your Pocket PC Phone.
SP70C User Manual 11-3
Microsoft
ActiveSync
• If you do not establish a standard partnership with the desktop computer, then you cannot
perform synchronization between two devices, and you will need to select a desired partnership
every time you connect to the desktop computer.
11.2 Connecting to Your Desktop Computer
You can connect your Pocket PC Phone to a desktop computer in several ways:
n Use the USB cable or an optional cradle.
n Use the IR port in place of using a cable. (For complete instructions on connecting to your desktop
computer by infrared, see the ActiveSync Help on your desktop computer.)
n Use a network or dial-up connection.
11.3 Synchronizing with Your Desktop Computer
1. Connect your Pocket PC Phone to your desktop computer.
2. On your Pocket PC Phone, tap > Programs > ActiveSync.
3. Tap to start synchronization.
11-4 SP70C User Manual
Microsoft
ActiveSync
11.4 Synchronizing Directly with Exchange Server
1. Make sure that the Pocket PC Phone is not turned on.
2. Connect to the Internet. (See Chapter 8 for more information.)
3. In ActiveSync on the device, tap Menu > Add Server Source.
5. In Server address, enter the name of the server running Exchange Server, and tap Next.
6. Enter your name, password, and domain, and tap Next.
7. Select the check boxes for the types of information items that you want to synchronize with Exchange
Server.
8. To change available synchronization settings, select the type of information and tap Settings.
9. Tap Finish.
10. Make sure that the server is powered on.
11. Connect the Pocket PC Phone to the Internet. (See Chapter 8 for more information.)
11.5 Changing the Synchronization Schedule
1. In ActiveSync on the device, tap Menu > Schedule.
2. Do one or more of the following:
• When you are working or e-mail volume is high, select a shorter interval in the Peak times list.
• When e-mail volume is low, select a longer interval or As items arrive in the Off-peak times list.
• While roaming, tap Use above settings while roaming.
• When you select Send in Messaging on the device, select the Send outgoing items immediately
check box.
11.6 Backup and Restore
Use the USB cable to connect the SP70C to your PC.
The icon appears on the taskbar. Click guest partnership and click Next.
Use the backup/restore function of Active Sync\Tools.
Update your data for backup and then perform the backup procedure.
When the backup procedure is completed, click OK. If you select the restoring function, click Restore.
Click guest partnership and click OK.
Select to execute the restoring program.
When the restoring procedure is completed, click OK to restart the device.
Start the file menu of the device and exit.
Chapter 12
Today Plus
12.1 Programs
12.2 Media Content
12.3 Games
12.4 Phone Records
12.5 Settings
12-2 SP70C User Manual
Today Plus
12.1 Programs
Tap Today Plus on the Today screen and then tap the Programs icon.
Programs provides shortcuts to items in Start\Programs, such as
Word Mobile, Excel Mobile, PowerPoint Mobile, File Explorer,
Tasks, Notes, etc.
12.2 Media Content
Tap Today Plus on the Today screen and then tap the Media Content
icon.
Media Content provides shortcuts to items in the Media Content
folder, such as Music, Album, Media Player, Java, and Wallpaper.
12.3 Games
Tap Today Plus on the Today screen and then tap the Games icon.
Games allows you to select and execute items in the Start\Programs\
Games folder quickly.
SP70C User Manual 12-3
Today Plus
12.4 Phone Records
Tap Today Plus on the Today screen and then tap the Phone Records
icon.
Phone Records provide shortcuts to select options in Missed Call,
Received Call, Dialed Call, SMS, MMS, E-Mail, Call Guard, and
Call Answer.
12.5 Settings
Tap Today Plus on the Today screen and then tap the Settings icon.
Settings provides shortcuts to items in Start\Settings.
Chapter 13
VideoCam
13.1 Using the Camera
13.2 Using the DV
13.3 Changing VideoCam Settings
SP70C User Manual 13-2
VideoCam
13.1 Using the Camera
The Pocket PC Phone is installed with the VideoCam program for you to take pictures.
Taking a Picture
1. Press the Capture key on the side of the Pocket PC Phone, or tap > Programs > VideoCam, to
enter the Camera mode.
2. By default, the screen is displayed in the landscape mode.
You can use one hand to hold the Pocket PC Phone’s bottom for easy operations. Be careful not
to let your fingers cover the camera lens. You can press the Volume/Zoom key to adjust the size of
the image.
3. Frame the subject to be photographed in the viewing window. When it is ready, press the Capture key
on the side of the Pocket PC Phone to capture the picture.
The Pocket PC will preview the picture on the screen shortly. You can:
• Tap to save the picture and continue taking pictures
• Tap to send the picture in an email.
• Tap to delete the picture.
• Tap to switch to MyAlbum.
(You can also press the Left/Right key to switch between the four icons.)
By default, the new picture is stored in the My Device\My Documents\My Album folder on the
Pocket PC Phone in five seconds. The picture is stored in the JPEG format, and its filename starts with
DSC00001 and goes on in the ascending order until the Pocket PC Phone is out of storage space.
4. 6. To view the picture you took, tap to switch to MyAlbum. (See Chapter 14 for information on
MyAlbum.)
Camera mode
Remaining amount
of pictures to take
Standby mode
Picture size
Zoom setting
Switches to DV mode
Closes the program.
Opens or closes the brightness
adjustment bar.
Rotates the screen.
Tool Settings.
Brightness adjustment bar
Selects the picture mode.
Opens MyAlbum.
System time
Battery power
13-3 SP70C User Manual
VideoCam
Taking Continuous Pictures
VideoCam allows you to take continuous pictures. By default, VideoCam takes one single picture. There-
fore, you need to change the setting first.
1. After you start VideoCam, tap on the screen.
2. Tap Camera.
3. In Shooting Mode, select Continuous Shooting and tap OK.
4. Take pictures according to the procedure described in the “Taking a Picture” section earlier in this
chapter.
After the pictures are captured, the screen displays the thumbnail view of these continuous pictures.
The time interval for the continuous pictures is 0.7 second.
• You cannot use the Record key in the Camera mode.
• You cannot use the Camera and DV features at the same time.
13.2 Using the DV
The VideoCam program also allows you to record videos.
1. Press the Capture key on the side of the Pocket PC Phone, or tap > Programs > VideoCam, to
enter the Camera mode.
2. By default, the screen is displayed in the landscape mode.
Tap to switch to the DV mode. You can use one hand to hold the Pocket PC Phone’s bottom for easy
operations. Be careful not to let your fingers cover the camera lens.
3. Frame the subject to be photographed in the viewing window. When it is ready, press the Capture key
on the side of the Pocket PC Phone to start recording. Press the Capture key again to stop recording.
The Pocket PC will preview the first picture of the video on the screen shortly. You can:
• Tap to save the video and continue recording.
• Tap to send the video in an e-mail.
• Tap to delete the video.
• Tap to switch to MyAlbum.
(You can also press the Left/Right key to switch between the four icons.)
By default, the new video is stored in the My Device\My Documents\My Album folder of the Pocket
PC in five seconds. The video is stored in the MPEG4/3GP format, and its filename starts with
DV00001 and goes on in the ascending order until the Pocket PC is out of storage space.
4. To view the video you recorded, tap to switch to MyAlbum. (See Chapter 14 for information on
MyAlbum.)
• The DV mode indicator glows in orange when you using the DV feature.
• If you answer a call in the DV mode, then the video will be saved and VideoCam closed. If you
reject the call, the screen will remain the same.
DV mode
Switches to Camera mode
SP70C User Manual 13-4
VideoCam
13.3 Changing VideoCam Settings
In the Camera/DV mode, you can tap on the screen to access the setting items.
Standard Settings
On the Setting screen, tap Standard.
Item Description
Backlight for
Preview
Sets whether to turn on the backlight for picture/video preview.
Preview Image or
Video
Sets whether to keep the preview for five seconds before the next shooting.
Glitter Frequency While using VideoCam, please setup Glitter Frequency according to your
environment for improving the preview quality of the VideoCam.
Camera Settings
On the Setting screen, tap Camera.
Item Description
Scene Mode Selects the desired scene mode: Standard, Nightshot, Portrait, Grayscale,
Sepia, or Document.
Resolution
Selects the desired image resolution: 1600*1280, 1280*1024, 640*480 (Normal),
320*240 (Basic), or 176*144 (Compact).
Self-Timer Sets the time lag between releasing the shutter and shooting the picture. The
options are 5 sec, 10 sec or 15 sec.
Flash Turns on or off the flash.
White Balance Changes the setting for white balance.
Shooting Mode Selects the single or continuous shooting.
Filename recount Resets the filename counter, starting from DSC00001.
Folder Selects the storage location for the picture.
13-5 SP70C User Manual
VideoCam
Digital Video Settings
On the Setting screen, tap Digital Video.
Item Description
Scene Mode Selects the desired scene mode: Standard, Nightshot, Grayscale or Sepia.
Resolution
Selects the desired image resolution: Large, High Quality; Large, Long Time;
Small, High Quality; Small, Long Time.
Self-Timer Sets the time lag between releasing the shutter and shooting the picture. The
options are 5 sec, 10 sec or 15 sec.
Format Selects the desired video format: MP4:MPEG4+ACC, MP4:MPEG4+AMR,
3GP:MPEG4+AMR, or 3GP:H.263+AMR.
Silence Shoot Allows you to record only images without sounds.
Filename recount Resets the filename counter, starting from DV00001.
Image size setting Allows you to set the size limit for recorded videos.
Folder Selects the storage location for the videos.
Chapter 14
Using MyAlbum
14.1 Starting MyAlbum
14.2 Opening a Picture or Video
14.3 Editing Pictures
14.4 Using the FaceMagic Feature
14.5 Using Effects
14.6 Sending Files
14.7 View Modes
14-2 SP70C User Manual
Using MyAlbum
14.1 Starting MyAlbum
The MyAlbum program is very useful for viewing picture and video files. The supported formats include:
.bmp, .png, .jpeg, .gif, .3gp and .mpeg4.
To start MyAlbum, you can:
n Tap > Programs > MyAlbum.
n Tap in the Camera/DV mode.
n Today plus > Media Content > Album.
The startup screen of MyAlbum displays the file list.
The top of the screen displays the name of the current folder (the default setting is the My Device\My Doc-
ument\My Album folder) and the sorting method (the default setting is Name). The middle of the screen
displays the information about the picture: the preview of the pictures on the left; the filename, resolution,
saving time, file format and file size on the right.
• You can tap Edit and Menu on the command bar for advanced features. See the later sections in
the chapter.
14.2 Opening a Picture or Video
To have a closer view of a picture or video, tap the specific thumbnail view in the Report mode of
MyAlbum.
Below is the screen of an opened picture:
Total number of files
Number of current file
SP70C User Manual 14-3
Using MyAlbum
In this mode, you can:
n Tap / or press the Left/Right key to browse for the previous/next file of the current folder.
n Tap / or press the Up/Down key to zoom in/out of the image.
n Tap to zoom the picture to best fit the screen.
n Tap to rotate the picture at 90 degrees.
n Tap to switch to full screen.
n Tap to return to the Report mode.
• You can tap Edit and Menu on the command bar for advanced features. See the later sections in
the chapter.
14.3 Editing Pictures
In the Report mode or opened picture mode, you can tap Edit on the command bar to cut, copy, paste,
rename or delete the selected or opened file. You can also select all files, or save the selected file as a new
file.
14.4 Using the FaceMagic Feature
Tapping Menu > FaceMorph on the command bar allows you
to create special changes on the person’s expression. On the
positioning screen, tap Reset, and follow the screen tips to perform
positioning on the person’s face.
After positioning, tap FaceMagic > Morph (as an example). The
screen displays the expression items and the adjustment bar for you
to customize and create special effects. You can also tap FaceMagic
> Comic or Avatar for more special expression effects.
14-4 SP70C User Manual
Using MyAlbum
14.5 Using Effects
Tap Effect on the command bar to create special effects on the selected or opened picture. The picture with
effects will be saved as a new file with “-1” added to the filename.
Painting
1. Tap Menu > Effect > Painting.
2. You can paint on the picture.
Or, tap to add text on the picture. Tap the screen, and a
editing cursor will appear. You can start to enter the texts and
change the text’s font, font size and color.
3. Press the OK key or tap OK to save the changes as a new file.
Effect
1. Tap Menu > Effect > Effect.
2. Tap the desired effect: Normal ( ), Black/White ( ), Sepia (
), Emboss ( ), Blur ( ) or Mosaic ( ).
3. Press the OK key or tap OK to save the changes as a new file.
Selecting Normal (icon) will not save the picture as a new file.
Frame
1. Tap Menu > Effect > Frame.
2. Tap the desired picture frame from the option bar at the bottom
of the screen. The screen will display the applied picture for
viewing immediately. You can tap the arrows on both sides of the
option bar for more frame options.
3. Press the OK key or tap OK to save the changes as a new file.
SP70C User Manual 14-5
Using MyAlbum
Stamp
1. Tap Menu > Effect > Stamp.
2. Tap the desired stamp from the option bar at the bottom of the
screen. The screen will display the applied picture for viewing
immediately. You can tap the arrows on both sides of the option
bar for more stamp options.
3. Press the OK key or tap OK to save the changes as a new file.
Adjustment
1. Tap Menu > Effect > Adjustment.
2. Tap the list to select the item for adjustment: Brightness,
Contrast, Saturation, Smart Color, Portrait, Landscape and
Document.
3. Adjust the value by tapping and draging on the adjustment bar.
Note
1. Tap Menu > Effect > Note.
2. You can enter note text in the box, or tap the recording button to
create a recording as a note. The added text or recording will be
saved as a stand-alone file.
3. Tap OK to save the note.
4. The note icon ( ) in the list mode indicates that a note has been
added to the picture.
14-6 SP70C User Manual
Using MyAlbum
14.6 Sending Files
Tapping Menu > Send on the command bar allows you to send the file by:
n MMS
Send an MMS message including the selected picture.
n E-Mail
Send an email message including the selected picture.
n Beam File
Use the infrared or bluetooth to beam picture.
14.7 View Modes
MyAlbum provides four view modes for viewing picture and video files.
n Large mode
n Middle mode
n Small mode
n Report mode (default mode)
Chapter 15
More Programs
15.1 Word Mobile
15.2 Excel Mobile
15.3 PowerPoint Mobile
15.4 Windows Media Player
15.5 Pictures & Videos
15.6 MIDlet Manager
15.7 File Explorer
15.8 Calculator
15.9 Pocket MSN
15.10 IE Favorites
15.11 Media Content
15.12 SIM Contacts
15.13 Search
15.14 Games
15.15 Voice Commander
15.16 Profiles
15.17 SmartX
15-2 SP70C User Manual
More Programs
15.1 Word Mobile
You can create and edit documents and templates in Microsoft Word Mobile just as you do in Microsoft
Word on your desktop computer.
Creating a Document
1. Tap > Programs > Word Mobile.
2. Tap New. You’ll see either a blank document or a template.
3. You can enter information by working in different modes, which
you select from the View menu.
4. When you have finished entering the information and tap OK,
the document is automatically saved. Word documents are
usually saved as .psw files, but you can also save them in other
file formats, such as .doc, .rtf or .txt.
Opening an Existing Document
In the document list, tap the document you want to open. If you don’t see the document in the list, make
sure you’ve chosen the correct folder in the folder list (labeled All Folders by default).
You can have only one document open at a time. When you open a second document, the first one is saved
and closed automatically.
• If you’re opening a Word document that was created on a desktop computer, you may want to
select View > Wrap to Window so that you can see the entire document.
15.2 Excel Mobile
You can create and edit workbooks and templates in Microsoft Excel Mobile just as you do in Microsoft
Excel on your desktop computer.
Creating a Workbook
1. Tap > Programs > Excel Mobile.
2. Tap New. You’ll see either a blank workbook or template.
3. You can enter formulas and functions, and then filter data to see
the subset of information.
4. When you have finished entering the information and tap OK,
the document is automatically saved. Excel Mobile workbooks
are usually saved as .pxl files, but you can also save them in .xls
format.
SP70C User Manual 15-3
More Programs
Opening an Existing Workbook
In the workbook list, tap the file you want to open. If you don’t see the workbook in the list, make sure
you’ve chosen the correct folder in the folder list (labeled All Folders by default).
• You can open only one workbook at a time; when you open a second workbook, you will be
asked to save the first.
15.3 PowerPoint Mobile
With PowerPoint Mobile, you can open and view slide show presentations created on your desktop
computer. Whether the presentation is opened from an email message, downloaded from a file share or the
Internet, copied to the Pocket PC Phone via a storage card, or obtained by synchronizing with your desktop
computer, slide shows created in *.ppt and *.pps format with PowerPoint ‘97 and later can be viewed on
your Pocket PC Phone. Note that PowerPoint Mobile is a viewer only.
Tap > Programs > Word Mobile. In the presentation list, tap the
presentation you want to open. If you don’t see the presentation in
the list, make sure you’ve chosen the correct folder in the folder list
(labeled All Folders by default).
15.4 Windows Media Player
Use Microsoft® Windows Media® Player 10 Mobile for Pocket PC Phone to play digital audio and video
files that are stored on your device or on the Web.
By default, Windows Media Player can play Windows Media or MP3 files (including files with the extensions .asf,
.wma, .wmv, .mp3).
Starting Windows Media Player
To start Windows Media Player, tap > Windows
Media.
By default, Windows Media Player displays the Library screen as
the startup screen after the Pocket PC Phone is turned on.
15-4 SP70C User Manual
More Programs
Screens and Menus
Windows Media Player has three primary screens:
n Playback screen
The screen that displays the playback controls (such as Play, Pause, Next, Previous, and Volume), the
album art window, and the video window. You can change the appearance of this screen by choosing a
different skin.
n Now Playing screen
The screen that displays the Now Playing playlist. This special playlist indicates the currently playing
file and any files that are “queued up” to play next.
n Library screen
The screen that lets you quickly find your audio files, video files, and playlists. It contains categories
such as My Music, My Video, My TV, and My Playlists.
At the bottom of each screen is Menu. The commands on this menu change depending upon which screen
you are viewing.
n Playback screen menu
Item Description
Play/Pause Starts or pauses playback.
Repeat Plays the items in the Now Playing playlist repeatedly.
Stop Stops playback.
Full Screen When a video is playing, displays it by using the entire screen.
Library Displays the Library screen so you can choose a file to play.
Open URL Lets you play a file on a network, such as the Internet.
Options Lets you adjust various Windows Media Player options, including net-
work, skin, and hardware button options. (See the “Changing Windows
Media Player Settings” section later in the chapter.)
Properties Displays information about the currently playing file.
About Displays information about Windows Media Player, such as the version
number.
n Now Playing screen menu
Item Description
Library Displays the Library screen so you can choose a file to play.
Move Up Moves the selected item up in the playlist order.
Move Down Moves the selected item down in the playlist order.
Delete from Playlist Deletes the selected item from the playlist.
Clear Now Playing Deletes all items from the Now Playing playlist.
Error Details Displays error information about the selected item (an exclamation mark
appears before the item name if error details are available).
Properties Displays information about the selected file.
SP70C User Manual 15-5
More Programs
n Library screen menu
Item Description
Queue Up Adds the selected item to the end of the current (Now Playing) playlist.
Delete from Library Deletes the selected item from the library.
Update Library Adds new items to the library by searching your device or storage card.
Open File Lets you find and play files that are stored on your device or storage card
but that are not in the library.
Properties Displays information about the selected file.
Libraries
The library contains links to your audio files, video files, and playlists. As in the desktop Player, you will
be allowed to sort your content by criteria such as artist name, album title, genre, or actor.
Unlike the desktop Player, the Pocket PC Phone Player can have multiple libraries. Each library represents
an available storage location. For example, if you store some content in the internal storage location on the
device (known as random access memory or RAM), the My Device library will contain links to those files.
If you also store content on removable storage cards, you will have additional libraries for each of those
cards.
On the Library screen, you can switch between the My Device library and any other libraries that are
available to your device.
By default, Windows Media Player automatically searches the internal storage location of your device for
compatible digital media files. If it finds any, they will be added to the My Device library.
Similarly, when you insert a removable storage card into your device, Windows Media Player automatically
searches it for content and adds it to a Storage Card library.
If the Player does not detect new files that you copy to your device, you can manually update the library by
using the Update Library command.
Updating a Library
In most cases, Windows Media Player automatically updates your libraries as necessary. However, you can
manually update a library to ensure that it has links to any new files that you might have recently copied to
your Pocket PC Phone or a removable storage card.
1. Tap > Windows Media.
2. If you are not already on the Library screen, tap Menu >
Library.
3. On the Library screen, tap the Library arrow (near the top of
the screen), and then tap the library that you want to update (for
example, Storage Card).
4. Tap Menu > Update Library.
5. Tap Search, wait for the files to be added, and then tap Done.
15-6 SP70C User Manual
More Programs
Playback
Playing Items on Your Pocket PC Phone
Use the library to find and play songs, videos, and playlists that are stored on your Pocket PC Phone or
removable storage card.
1. Tap > Windows Media.
2. If you are not already on the Library screen, tap Menu >
Library.
3. On the Library screen, tap the Library arrow (near the top of
the screen), and then tap the library that you want to update (for
example, Storage Card).
4. Tap a category (for example, My Music or My Playlists), tap and
hold the item that you want to play (such as a song, album, or
artist name), and then tap Play or Queue Up.
5. Tap Play to start playing back the selected file.
• To play a file stored on your device but that is not in a library, on the Library screen, tap Menu >
Open File. Tap and hold the item that you want to play (such as a file or a folder), and then tap
Play or Queue Up.
Controls
Item Description
Plays a file.
Pauses a file.
Skips to the beginning of the current file or to the previous file.
Skips to the next file.
Adjusts the playback progress of a selected file.
Increases the volume level.
Decreases the volume level.
SP70C User Manual 15-7
More Programs
Item Description
Turns the sound on or off.
Displays a video by using the entire screen (full screen).
Displays a Web site, such as WindowsMedia.com, where you can find music and
videos to play.
If your device hardware supports it, you can rewind and fast-forward files by
pressing and holding the Left/Right controls.
Playing an Item on a Network
Use the Open URL command to play a song or video that is stored on the Internet or on a network server.
1. Tap > Programs > Windows Media.
2. If you are not on the Playback screen, tap OK to close the current screen and display the Playback
screen.
3. Tap Menu > Open URL.
4. In the URL box, enter a network address. Or, in the History box, tap a URL that you have previously
used.
• To play an item on a network, the phone must be connected to a network. For more information
on creating a remote connection between your portable device and a network, see Chapter 8.
Playlists
A playlist is a list of digital media files that play in a specified order. By using the playlist, you can group
audio and video files together for convenient playback.
For example, in the desktop Player, you can create a playlist of upbeat songs to listen to when you exercise
or a playlist of soothing songs to enjoy during a long flight. When you synchronize with the desktop
version of Windows Media Player 10, your favorite playlists are automatically copied to your Pocket PC
Phone.
Your playlists are available in the library (in the My Playlists category). A temporary playlist, called Now
Playing, is available from the Now Playing menu. It lists the currently playing file, as well as any files that
have been “queued up” to play next.
Synchronization
Use the Sync feature in the desktop version of Windows Media Player 10 to automatically copy your
favorite audio files, video files, and playlists from your desktop Player library to your Pocket PC Phone
Player library every time you connect your Pocket PC Phone to your computer.
For more information on synchronization, see the Windows Media Player Help on the desktop computer.
Copying Files to Your Pocket PC Phone
Use the desktop version of Windows Media Player 10 to synchronize digital media files to your Pocket PC
Phone (instead of dragging a file from a folder on your desktop computer to a folder on your Pocket PC
Phone, for example). Using the desktop Player ensures that licenses are copied with protected files.
For more information on copying files to your Pocket PC Phone, see the Windows Media Player Help on
the desktop computer.
15-8 SP70C User Manual
More Programs
Licenses and Protected Files
Protected files are digital media files that are secured with a license to prevent unauthorized distribution or
playback.
The license specifies how you can use the file. For example, a license can specify how many times you can
play a file. A license can also specify whether you can burn the file to a CD or synchronize (copy) the file
to a portable device.
The terms of the license are specified by the person or company that provided the file. Most people obtain
protected files from online stores, such as MSN Music and Napster.
When copying a protected file from your computer to your Pocket PC Phone, always use the desktop
version of Windows Media Player 10 to synchronize (copy) the file to your Pocket PC Phone. For example,
do not use Windows Explorer to drag and drop files from your computer to your Pocket PC Phone.
For more information on copying files to your Pocket PC Phone, see the Windows Media Player Help on
the desktop computer.
• You can view the protection status for a file by checking its file properties (Menu > Properties).
Changing Windows Media Player Settings
1. Tap > Programs > Windows Media.
2. If you are not on the Playback screen, tap OK to close the
current screen and display the Playback screen.
3. Tap Menu > Options to customize Windows Media Player
settings.
Item Description
Change player appearance Tap Skins. Tap Previous or Next until you find the skin that
you want to use.
Shrink oversized video Tap Audio/Video. Select the Shrink to fit window check
box.
Play video in full screen Tap Audio/Video. In Play video in full screen, select the
desired option.
Change background playback Tap Playback. Select or clear the Pause playback while
using another program check box.
Change how time is displayed Tap Playback. In the Show time as box, select the desired
option.
Change playback after a phone call Tap Playback. Select or clear the Resume playback after a
phone call check box.
Change network connection speed Tap Network. In the Internet Connection Speed box, tap
the speed of your network connection.
SP70C User Manual 15-9
More Programs
Item Description
Change network protocol options Tap Network. In Protocol, select the check box for each
protocol you want to enable.
Change the startup screen Tap Library.
Select the Start Player on Library screen check box to
show the Library screen when you start Windows Media
Player.
Clear the Start Player on Library screen check box to
show the Playback screen when you start Windows Media
Player.
15.5 Pictures & Videos
Use Pictures & Videos to view pictures or videos stored on your device or on a storage card, send pictures or
videos to others, view a slideshow of your pictures, or set a picture as the background on the Today screen.
Viewing Pictures and Videos
1. You can copy pictures or videos from your desktop computer to the My Pictures folder, within the My
Documents folder on your Pocket PC Phone. For more information on copying files from your desktop
computer to your Pocket PC Phone, see ActiveSync Help on your desktop computer.
2. To view pictures or videos in a storage card, insert the card.
3. Tap
>
Programs
>
Pictures & Videos.
4. By default, the program displays thumbnails of the pictures and
videos in the My Pictures folder, within the My Documents
folder on your Pocket PC Phone. To view the pictures and videos
in a storage card, tap the icon. To view pictures and videos on
the Pocket PC Phone, tap the icon.
5. Thumbnails of pictures and videos appear on the screen. You can
tap one of them to view the picture in full screen.
Sending Pictures and Videos
You can send a .jpg picture to others as an email attachment. The picture is resized to approximately 30
KB, making it easier to send over wireless connections.
1. Tap
>
Programs
>
Pictures & Videos.
2. Tap the picture you want to send as an email attachment.
3. Tap Tools
>
Send via Email to create an email message with the picture attached.
Slideshow of Pictures
You can view your pictures as a slideshow on your device. Pictures & Videos will display slides of the
pictures shown in thumbnail view with 5-second intervals between slides.
1. Tap
>
Programs
>
Pictures & Videos.
2. Tap the icon to view pictures as a slideshow.
3. Tap anywhere on the screen to display the Slideshow toolbar, which you can use to pause the
slideshow, rotate the view, and more.
15-10 SP70C User Manual
More Programs
Setting a Picture as Background
1. Tap
>
Programs
>
Pictures & Videos.
2. Tap the picture you want to set as the background.
3. Tap Tools
>
Set as Today Wallpaper.
15.6 Java
Java is a programming environment targeting various applications
running on mobile devices, such as games and useful applets.
Downloading Java applications may be charged or free of charge. For
free Java applications, download them from the Internet or WAP sites.
For charged Java applications, consult your mobile phone service
provider for purchase. To use Java, you need to subscribe to the GPRS
or LAN service from your mobile phone service provider, and make
sure that you have set up the GPRS or WLAN connection on the
Pocket PC Phone.
You can use the Java program to download Java games or
applications. Tap
>
Programs
>
Java.
15.7 File Explorer
File Explorer allows you to explore and manage the folders and files stored on the Pocket PC Phone or
storage card.
1. Tap
>
Programs
>
File Explorer.
2. Tap the folder list (labeled My Documents by default) and then
the folder that you want to view.
3. To open an item, tap it.
4. To quickly delete, rename, copy, or move an item, tap and hold.
Then, on the pop-up menu, tap Copy, Delete, or Rename.
• To select multiple items, tap and drag.
SP70C User Manual 15-11
More Programs
15.8 Calculator
You can use Calculator to perform any of the standard operations for which you would normally use a
handheld calculator.
1. Tap
>
Programs
>
Calculator.
2. Use the Calculator buttons or the input panel to enter numbers
and perform calculations.
• To clear the current calculation or the displayed number, tap
C.
• To clear the last digit entered in a multidigit entry, tap the
arrow to the right of the entry box.
• To clear memory, tap MC.
15.9 Pocket MSN
Pocket MSN on your Pocket PC Phone provides practically instant access to your up-to-date MSN Hotmail
Inbox, your MSN Messenger Contacts list, and options for customizing your Pocket MSN experience.
You need to connect the Pocket PC Phone to the Internet to access the Pocket MSN web site. (See
information in Chapter 8.)
Sign in to Pocket MSN
The sign-in process helps to maintain secure access to your MSN
Hotmail and MSN Messenger accounts.
1. To sign in to Pocket MSN, go to the Today screen, and then tap
Tap here to sign in to Pocket MSN.
2. Type the e-mail address and password you use to sign in to MSN
Mobile.
3. Tap Sign in.
MSN Messenger
MSN Messenger on your mobile device provides the same chat environment as MSN Messenger on your
desktop computer. These features include:
n Seeing who is online.
n Sending and receiving instant messages.
n Having an instant message conversation with a group of contacts.
n Telling contacts that you are unavailable.
n Blocking contacts from seeing your status or sending you messages.
Setting Up an Account
Before you can use MSN Messenger, you must set up the instant messaging account(s) to use. For MSN
Messenger Service, you must have a Microsoft Passport or Hotmail account. For Exchange Instant
Messaging, you must have an Exchange account.
To set up a Microsoft Passport account, go to http://www.passport.com. To set up a Hotmail account, go to
http://www.hotmail.com. To set up an Exchange account, see your network administrator.
15-12 SP70C User Manual
More Programs
1. Create a connection for your
Pocket PC Phone. (See Chapter 8 for
more information.)
2. In MSN Messenger, tap Menu > Options > Messenger.
3. Select Enable MSN Messenger Service. Your sign-in name
and password are established the first time you sign in to Pocket
MSN.
4. Select Enable MSN Messenger Service and/or Enable
Exchange Instant Messaging.
5. If necessary, select which account to sign in to first, under Sign
in using this account first.
Signing In and Out
1. Tap > Programs > MSN Messenger.
2. To sign in, tap anywhere on the screen. Follow the directions on the screen.
3. To sign out, tap Menu > Sign out.
15.10 IE Favorites
Tap Start>Programs>IE Favorites to access the IE Favorites main page.
IE Favorites provides several categories of links for quick access.
n POCKET IE
n WEBSITES
n FINANCE
n NEWS/MOVIES
n OPERATOR
n DOWNLOAD
n MUSIC
n PDA NEWS
15.11 Media Content
To access Media Content, tap Today Plus on the Today screen, and then tap the Media Content icon. Media
Content includes Music, Album, Media Player, Java and Wallpaper items.
The main page of Media Content is shown to the right.
SP70C User Manual 15-13
More Programs
Media Content Items
Music
On the main page of Media Content, tap Music to quickly access the
contents in the My Device\My Documents\My Music folder.
Tap the desired item for playback. Your Pocket PC Phone will use
Windows Media Player to play the selected item.
For information on Windows Media Player, see Section 15.5.
Album
On the main page of Media Content, tap Album to quickly start
MyAlbum.
For information on MyAlbum, see Chapter 14.
Media Player
On the main page of Media Content, tap Media Player to quickly
start Windows Media Player.
For information on Windows Media Player, see Section 15.5.
15-14 SP70C User Manual
More Programs
Java
On the main page of Media Content, tap Java to quickly start the
Java program.
For information on Java, see Section 15.7.
Wallpaper
On the main page of Media Content, tap Wallpaper to quickly
access the setting items of the Today screen.
n Tap Appearance to change the theme picture of the Today
screen.
n Tap Items to set the items to be diaplayed on the Today
screen. You can also set the time for the Pocket PC Phone
to automatically return to the Today screen after a period of
inactivity (4 hours by default).
For information on Settings, see Chapter 6.
15.12 SIM Contacts
On your Pocket PC Phone, there can be two kinds of independent contact lists. One is stored in the Pocket PC
Phone’s memory by Microsoft Contacts; the other is stored in the SIM card. By default, you can use Contacts
to load the contact information stored in the Pocket PC Phone’s memory (see Chpater 4 for information on
Contacts), and use SIM Contacts to load the contact information stored in the SIM card.
SP70C User Manual 15-15
More Programs
Tap
>
Programs
>
SIM Contacts. When running SIM Contacts
for the first time after turning the Pocket PC Phone on, it may take a
few minutes to load the contact informaion.
After the loading is completed, you can tap Copy Now to copy your
contacts to Contacts.
15.13 Search
The Search feature on your Pocket PC Phone helps you quickly locate information.
1. Tap
>
Programs
>
Search.
2. Enter the text you want to find, and select a data type.
3. Tap Search to start the search.
4. Tap the desired item to open on the result list.
15.14 Games
Solitaire
The object of Solitaire is to use all the cards in the deck to build up the four suit stacks in ascending order,
beginning with the aces.
1. To open Solitaire, tap
>
Programs
>
Games
>
Solitaire.
2. A new game is started. You can also tap Menu > New Game on
the command bar to start a new game.
15-16 SP70C User Manual
More Programs
3. You can:
• To move a card to one of the stacks, drag the card. Build the row stacks in descending order, from
king to two, alternating between red and black cards.
• To display cards in the upper-left stack, tap the stack.
• In the row stacks, turn a card face-up by tapping it. You can move a king to an empty row stack.
• To undo a move, tap Menu > Undo.
Setting solitaire Options
To change the setting options, tap Menu
>
Options.
n Game Rules
• Draw selects one card or three cards for each draw.
• Scoring selects the Standard or Vegas scoring system, or no scoring.
• Time game enables the timing function.
• Display status shows the elasped time and scores of games.
• Keep cumulative score keeps a cumulative score when using the Vegas scoring system.
n Card Back
You can select a desired card back.
Bubble Breaker
To play Bubble Breaker, you need to align similar bubbles in order to form large blocks of bubbles before
bursting them. The more bubbles in the block before they are burst, the greater number of points you will
receive.
1. To open Bubble Breaker, tap
>
Programs
>
Games
>
Bubble Breaker.
2. Tap a bubble that is connected to other similar bubbles. Those
connected bubbles (at least two bubbles) will be highlighted,
and a new bubble will pop up displaying that block’s potential
bubble points.
3. Tap on your selection again in order to burst the bubbles. All
bubbles above your burst block will now fall down.
To take back the last move you have made, tap the icon.
4. To start a new game, tap Games
> New Game.
5. To view the statistics, tap Info
> Statistics.
SP70C User Manual 15-17
More Programs
Setting Bubble Breaker Options
To change the setting options, tap Game
> Options.
n Play Sounds sets whether or not you want Bubble Breaker to
make sounds.
n Confirm End Game sets Bubble Breaker to pop up a
confirmation dialog when the “End Game” menu item is
selected.
n Display Burst sets to display the burst of bubbles or not.
n Guest Mode plays the game without affecting the statistics
n Game Style selects one of the following game styles.
• Standard The default mode of play where there is a set
number of bubble that will not increase.
• Continuous In this style, whenever a vertical set of bubbles has been burst and the remaining
bubbles have shifted over to the right, a new randomly selected column of bubbles will pop up on
the left, thereby allowing a game to be played for an extended amount of time.
• Shifter In this style, when a set of bubbles has been burst, all remaining bubbles to the top and
left will shift down and to the right.
• MegaShift This style is a combination of the shifter and continuous styles in that bubbles will
shift down and to the right while empty columns will fill on the left.
n Breaker set changes the color of the bubbles.
15.15 Voice Commander
According to the command instructions, users may activate
applications, dial phone numbers, and inquire contacts or
conferences, etc., by voice commander.
15.16 Proles
Profiles allows you to select a desired ring tone setting that suits your
need.
The available Profiles options include: General, Silence, Meeting,
Outdoor, Car and Headset.
15-18 SP70C User Manual
More Programs
15.17 SmartX
Your Pocket PC Phone has a smart close (SmartX) function to
quickly close running programs.
Tap and hold on the top-right corner of the screen to display the
SmartX menu.
By default, the SmartX menu displays the following items:
n Close closes the current program.
n Minimize minimizes the current program.
n Close All closes all running programs.
n Close Inactive closes inactive programs.
n [program name] displays the running program(s).
n Settings displays the SmartX settings.
By default, the SmartX function is enabled. You can clear the
Enable Smart Close function item to disable the SmartX
function.
You can customize the displayed items on the SmartX menu.
The items for selection include:
• Auto close
• Close All
• Close Inactive
• Running Program
• Rotate screen left (disabled by default)
• Rotate screen right (disabled by default)
• Settings
Chapter 16
Troubleshooting
16.1 Resetting the Pocket PC Phone
16.2 Restoring Factory Defaults
16.3 Power Problems
16.4 Memory Problems
16.5 Screen Problems
16.6 Connection Problems
16.7 Hardware Problems
16.8 Software Problems
16.9 Other Problems
16-2 SP70C User Manual
Troubleshooting
16.1 Resetting the Pocket PC Phone
Occasionally, you may need to reset your Pocket PC Phone when your Pocket PC Phone stops
responding (it appears to be “frozen” or “locked up”).
1. Remove the miniSD card (if installed).
2. Use the stylus to press the Reset button on the rear of your Pocket PC Phone.
16.2 Restoring Factory Defaults
In some cases, you may need to restore your Pocket PC Phone to the factory default state by clearing
the memory of your Pocket PC Phone. For example, you should clear the memory:
n When your Pocket PC Phone cannot be powered on, even if you remove and then re-install the
battery.
n When you forget your password.
n When you want to remove the additional programs that you installed by yourself.
Before clearing the Pocket PC Phone memory and restoring the factory default state, make sure that
you have copied your data to the desktop computer or miniSD card.
• Pressing the Power key, Reset button and Call button at the same time will restore the
factory defaults, and clear the data and programs in the memory.You need to reinstall the
additional programs.
16.3 Power Problems
Problem Solution
The device cannot
be powered on when
using battery power.
The remaining battery power may be too low to run your SP70C. Connect
the AC charger to your SP70C and to external AC power. Then, turn on your
SP70C.
Battery runs out of
power quickly.
You might be using your SP70C in a manner that drains power quickly. Use
SP70C with the AC adaptor.
SP70C keeps
showing the low
battery power
messages.
Make sure
SP70C
is fully charged. In such cases, backup your data via Activesync,
restore the device to the factory default state (see Section 16.1), and then fully
charge the device. If the problem persists, send your SP70C to the authorized dealer
for inspection.
Battery does not
work correctly.
When the battery fails to charge and discharge, and it is not man-made
damage and still in the warranty period, send it to the authorized dealer for
replacement.
SP70C User Manual 16-3
Troubleshooting
16.4 Memory Problems
Problem Solution
SP70C sends
out warnings of
insufficient memory.
Please perform the following:
n Delete files that you no longer need: tap > Programs > File Explorer.
n Delete programs that you no longer need: tap > Settings > System >
Remove Programs.
n Delete all files and history in Internet Explorer: tap > Programs >
Internet Explorer > Menu > Tools > Options > Memory.
n Stop running programs: tap > Settings > System > Memory >
Running Programs; or tap on the Today screen.
n Save data to a miniSD card.
How to find out the
memory capacity
after resetting?.
Tap > Settings > System > Memory > Main.
16.5 Screen Problems
Problem Solution
Screen is off. n Connect the AC charger to your device and to external AC power.
n Remove the battery and then reinstall it.
Screen responds
slowly.
n The battery power may be low. Connect the AC charger to your device and
to external AC power.
n Probably too many programs are in use. Stop the running programs: tap
> Settings > System > Memory > Running Programs.
Screen is not clear
or is hard to read.
n Turn on the backlight of the display.
n Move to a location with enough light.
Inaccurate response
to stylus taps.
n Realign the touch panel: tap > Settings > System > Screen > Align
Screen.
n If there’s a screen protective film supplied, please apply it firmly and
properly on the screen.
16.6 Connection Problems
Problem Solution
Synchronization
with the desktop
computer fails.
n Make sure that you have installed the correct version of ActiveSync on
your desktop computer. ActiveSync version 4.1 or later is recommended.
n Make sure that the cable connection is correct.
n Disconnect and then re-connect the cable.
n Remove the driver for SP70C and ActiveSync on the desktop computer,
and then reinstall them. Do not connect the cable during ActiveSync
installation.
Using infrared to
beam information
fails.
n Transfer only one file, or no more than 25 contact cards, at a time.
n When using IR, make sure nothing is between the two IR ports.
n Adjust the room lighting or move to another location (some types of light
interfere with beaming).
Network connection
is not working
properly.
n Make sure the network connection settings are correct: tap > Settings
> Connections > Connections.
n Consult the network administrator if the user name and password are
correct.
16-4 SP70C User Manual
Troubleshooting
Problem Solution
Connection to the
desktop computer
automatically
disconnects.
Disconnect the USB cable from the desktop computer, and then re-connect
it. Allow the desktop computer to find SP70C again. If the network is
still automatically disconnected, send SP70C to an authorized dealer for
inspection. If necessary, the dealer will update the firmware of SP70C for you.
Make sure to back up your data first because updating firmeare will restore
the factory default state.
The device cannot
receive various
beamed information
from other devices
via infrared. Only
contact information
and picture
exchange could
work.
Infrared information exchange is mainly for contact information exchange
with other mobile devices. Currently, most traditional mobile phones could
only exchange contact information and group pictures. The resources and
compatibility of information exchange with SP70C is still limited.
However, regarding data sharing and program installation, you can still make
use of the connection to the desktop compouter.
When the wireless
network is
unavailable
n Please make sure the wireless network is enabled.
n Check whether there’s any wireless network available and ensure
messages are transmitted correctly.
When Bluetooth is
not recognized
Please ensure both identification codes are correct.
16.7 Hardware Problems
Problem Solution
What is the CPU
and memory of
SP70C?
The CPU of your device is ARM iMX21 350MHz, with memory containing
128MB RAM.
How to clean the
camera lens?
There is an acrylic material protecting the camera lens inside. Therefore, you
only need to clearn the external acrylic material.
What miniSD cards
are compatible with
SP70C?
SP70C supports miniSD cards manufactured by SanDisk, KingMAX,
Transcend, A-DaTa, and so on.
The infrared
information
exchange only
applies to contact
information and
picture receipt?
Infrared information exchange is mainly for contact information exchange
with other mobile devices. Currently, most traditional mobile phones could
only exchange contact information and group pictures. The resources and
compatibility of information exchange with SP70C is still limited.
SP70C may often connect to the desktop computer using the USB cable for
data sharing and program installation. Due to the above fact, the USB cable is
supplied as a standard accessory for your use.
SP70C User Manual 16-5
Troubleshooting
16.8 Software Problems
Problem Solution
Is there a limit for
assigning ring tone
groups?
No, there is no such limit on your SP70C.
Does SP70C
supoport Java and
Bluetooth?
1. Yes, Java (MIDP 2.0) is supported.
2. Yes, the device supports Bluetooth.
How to play back
MPEG files from
desktop computer
on SP70C?
To play back MPEG files from the desktop computer, you need to use
Microsoft codecs to transfer them for playback on SP70C.
How to use key
words to find a
contact?
Take “John” for example: enter John.
Cannot log in to
MSN Messenger
from SP70C?
If your device is not updated since October 15, 2003, you will need to
updated the your device and MSN Messenger. Connect to Microsoft Web site
for updates. After updating, press the Reset button to complete the update
procedure. Then restart SP70C and log in to MSN Messenger.
How to copy MP3
files to SP70C?
You can copy files from the desktop computer to your SP70C using
Activesync or Card Reader. See ActivSync Help on the desktop computer.
How to set up the
GPRS configuratoin
on SP70C?
Tap > Settings > Connections > GPRS Auto Configuration. Select Auto
Configuration, select your mobile phone service provider, and then tap OK.
Why is it not
working to copy
data and MP3 files
from the supplied
miniSD card to a
newly-purchased
miniSD card?
You cannot copy files between two miniSD cards. Follow this procedure:
1. Format the new card.
2. Install ActiveSync using the supplied CD on the desktop computer.
3. Use ActiveSync to copy files from the supplied miniSD card to the desktop
computer, and then copy those files from the desktop computer to the new
card.
Some MP3 files
cannot play back on
SP70C.
Your SP70C supports the standard MP3 format only. You need to purchase an
audio format transfer program to transfer files using non-standard codecs.
SP70C can send but
cannot receive text
messages.
There may be too many text messges stored in SP70C. Clear the non using
text messages in SP70C for receiving new text messages.
How does SP70C
connect to the
Internet via the
desktop computer?
Connect to the desktop computer using the USB cable. In ActiveSync on
the desktop computer, click File > Connection Settings > This computer
connects to, and change the connection to Internet.
Failure occurs
during program
installation on
SP70C.
The possible reasons are:
1. There is not enough memory. Delete the programs you no longer need.
2. There are some running programs.
16-6 SP70C User Manual
Troubleshooting
Problem Solution
SP70C cannot
switch to the GSM
mode from the flight
mode.
After switching to the flight mode, wait for 20 seconds to one minute before
switching back to the GSM mode.
Can I save the
text messages and
contact information
to a miniSD card?
Due to the limits of the operating system, you cannot save the text messages
and contact information to a miniSD card.
Why can’t I zoom
in/out and change
brightness when
using the camera
feature?
Please close the VideoCam application, and check if the zoom in/out keys and
navigation keys are working normally.
Note that the zoom in/out function is not available in DV mode.
16.9 Other Problems
Problem Solution
Some peripheral
devices are not
compatible with
SP70C.
Your SP70C uses the new Windows Mobile Version 5.0 operating system.
The drivers of some peripheral devices may not support the operating system.
Contact the dealers of the peripheral devices to see if they can provide drivers
supporting the operating system.
The programs
are missing after
removing the
battery.
When you remove the battery for over five minutes or reset SP70C, it will
restore the factory default state. All data stored in the memory will be erased.
You are strongly recommended to back up your data regularly.
SP70C is broken,
and I cannot access
the data.
If SP70C is broken and unable to restart, you have to restore it to the factory
default state and all unsaved data will be lost. To protect the data on your
SP70C (including all files, system settings and additional programs), we
strongly recommend you to back up your data regularly.
SP70C retains the
contact information
from the old SIM
card after changing
the SIM card.
SP70C loads the contact information from the SIM card to SP70C. When
changing the SIM card, SP70C will compare the contact information of
the new SIM card with the old one, and then remove the old information.
Wait for about two minutes for the comparison and deletion to complete.
Otherwise, the old contact information may not be deleted. In this case, insert
another SIM card into SP70C. Turn the Pocet PC Phone on and wait for two
minutes for SP70C to load and update the contact information. Then replace
the old SIM card and wait for two minutes for SP70C to delete old contact
information completely.
Chapter 17
Appendix
17.1 European Declaration of Conformity
17-2 SP70C User Manual
Appendix
17.1 FCC Regulations:
17.1 FCC Regulations:
This pocket PC phone complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This pocket PC phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
RF Exposure Information (SAR)
This pocket PC phone meets the government’s requirements for exposure to radio waves. This device
is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the device transmitting at its highest certi-
fied power level in all tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating can be well below the maximum value.
This is because the device is designed to operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is
0.184 W/kg for GSM850 / 0.052 W/kg for PCS1900 and when worn on the body, as described in this
user guide, is 0.545 W/kg for GSM850 / 0.282 W/kg for PCS1900 and 0.123 W/kg for WLAN Body
SAR . (Body-worn measurements differ among device models, depending upon avalabel enhancements
and FCC requirements.) While there may be differences between the SAR levels of various devices
and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evalu-
ated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file
with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID: ESN-SP70C.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for
use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from
the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines.
If you do no t use a body-worn accessory and are not holding the device at the ear, position the handset
a minimum of 1.5 cm from your body when the device is switched on.
