user manual
tablet pc
Brand Name: Kinwei/Titan
Model Name: KW-PC7801Q
FCC ID: BRCKW-PC7801Q
MID user manual
Kintech Co., Ltd
2
PC7801Q User Manual
MID user manual
Kintech Co., Ltd
3
Content
1. Preface
2. Safety Notice
3. Ready to use
3.1 Packing List
3.2 Product Appearance
3.3 Instructions on Keys
3.4 Features Overview
4. Quick Guides
4.1 Switch On/Off
4.2 Battery Management and Charging
4.3 Operation of the Function Icons
5 Operation Details
5.1.1 Music
5.1.2 Video
5.1.3 Gallery
5.1.4 Sound Recorder
5.1.5 Explorer
5.1.6 Web Browser
5.1.7 E-Book Reader
5.1.8 Calculator
5.1.9 Clock
5.2.0 Camera
5.2.1 External Storage
5.2.2 APK Installer
5.2.3 External Keyboard & Mouse
5.2.4 HD Television
6. Settings
6.1.1 WIFI
6.1.2 Bluetooth
6.1.3 External 3G USB Dongle function
6.1.4 External RJ45 USB Dongle function
6.1.5 Sound
6.1.6 Display
6.1.7 Storage
6.1.8 Battery
6.1.9 APPS
6.2.0 Location & Security
6.2.1 Language Keyboard
6.2.2 Backup & reset
6.2.3 Date and time
6.2.4 Accessibility
6.2.5 Developer options
MID user manual
Kintech Co., Ltd
4
6.2.6About Tablet
6.3 Add, Move, or Delete Desktop Icon
7. Firmware Update
8. Troubleshooting and FAQ
1. Preface
Dear Customers,
Thanks very much for purchasing our product!
This Tablet PC is a built-in high performance WIFI receiver module, supporting an external 3G USB-DONGLE wireless network card, using
broadband wireless networks, breaking through the restraint of network cables; it will bring you into the portable media player world and fulfill
your entertainment needs. It also supports picture browsing, e-book reading, games, online chat and other functions; various settings will fully
show your individuality.
To operate this player easily, first, please read this User Manual included with the player. Then you will have a better understanding of the
operations. Before operating this player, please carefully read all data we provide about the player, so that you will have a better understanding
of the product and its operations.
The Company will not be responsible for any loss of personal data and damage caused by incorrect operation of the Software/Hardware,
artificial damages, replacement of batteries or any other accident. To avoid loss of your data, please backup your data to your computer at all
times.
Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against the manual, the Company will not take
any relevant responsibility for any accidental loss potentially occurring in the process of using this manual.
Due to constant product development, the information in this manual is subject to change without any prior notice.
This manual is protected by copyright and no part is permitted to be copied or reproduced in any way without prior written permission of the
Company.
The Company reserves the final explanation right of this manual, warranty as well as its related information.
(Note: When compiling this manual, we are very careful to provide you completely reliable information. However, there is inevitably some error
and oversight, please understand, and we welcome your suggestions. If any problem occurs during your use of this product, please
immediately contact your local seller)
Thanks for your support and please pay attention to our other products.
2. Safety Notices
1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product.
2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use, because this may cause surface scratches on
the Tablet PC, battery damage, data loss or other damage to the hardware.
3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet PC could disable it to the extent of
being beyond repair.
4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and corrode the finish.
5) You are recommended not to use the headset with the volume at its highest settings, please adjust the volume to an appropriate safe level
and limit the amount of time you spend using headphones to avoid possible damage to your hearing. Excessive volume will cause permanent
hearing damage.
6) Please do not cut off the power abruptly during software updates or downloading, because this may cause data loss or system errors.
7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must be avoided to prevent the possibility of
overheating or fire.
8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands.
9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed as an infringement to the laws of
copyright.
10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when the usage of the Tablet PC will cause
interference and possible danger.
11) All the wireless equipment is subject to external interference and this can affect its performance.
12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of the plane; please consult the relevant
airline company if you intend to use the Tablet PC on a plane.
13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals.
14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting operations are in progress.
15) Only qualified maintenance personnel can install or repair the Tablet PC. Opening the Tablet PC in any way will invalidate the warranty.
16) Please use the original accessories and battery provided with the Tablet PC, do not use the incompatible products.
17) The Tablet PC is not waterproof, please keep it dry.
18) For the sake of data safety, please back up any important information on the Tablet PC, or keep a handwritten record.
MID user manual
Kintech Co., Ltd
5
19) When connecting with other devices please read the user manual for detailed safety instructions and do not connect the Tablet PC to
incompatible products.
20) Please upgrade device with enclosed optical disk when the device is set to operate in a different way.
Note: When the Tablet PC is connected to the computer, the computer must be equipped the play for Windows Media Player 10, Windows
Media Player 11 or above version.
3. Ready to Use
3.1 Packing List
3.2 Product Appearance
Components
Qty
MID Device
1
Leather Case（ Optional ）
1
Keyboard/Mouse（ Optional ）
1
TF Card（ Optional ）
1
Power Adaptor
1
Earphone（ Optional ）
1
USB Cable
1
USB Host Cable(Optional)
1
3G USB Dongle( Optional)
1
RJ45 USB Dongle( Optional)
1
Use manual（ Optional）
1
CD-ROM (Firmware+Manual)
1
Warranty Card（ Optional）
1
MID user manual
Kintech Co., Ltd
6

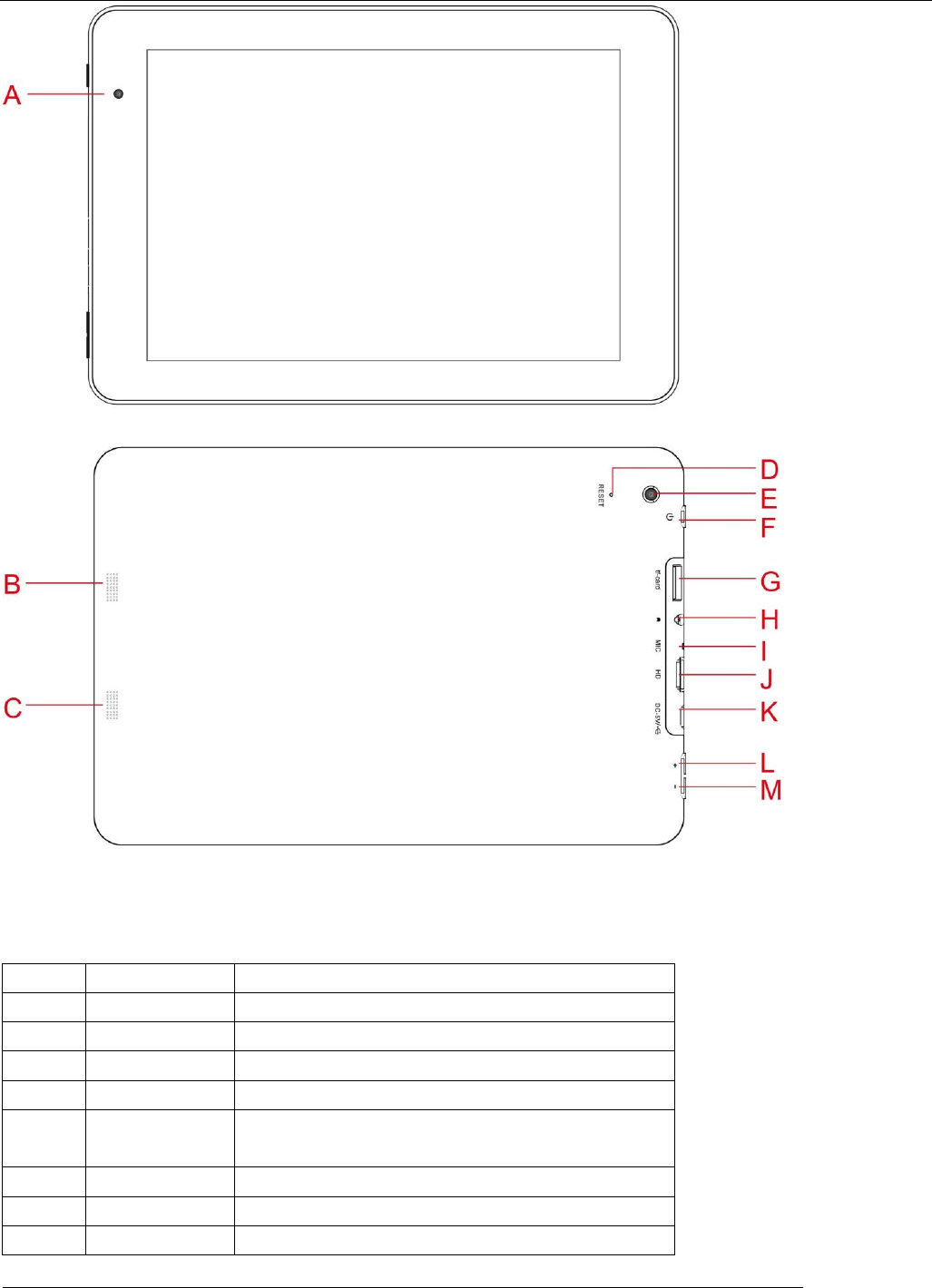

3.3 Instructions on Keys
Symbol
Name
Description
A
Front Camera
Front Camera（Pixel Optional）
B/C
Speaker
Speaker
D
Reset
Short press to reset the system when the Tablet PC is halted
E
Rear Camera
Rear Camera（Pixel Optional）
F
Power
Short press to enter sleep or wake up mode, long press to switch
ON/OFF
G
TF Card Slot
TF-Card Slot
H
Earphone Jack
3.5mm Stereo Earphone Jack
I
MIC
Microphones hole
MID user manual
Kintech Co., Ltd
7
J
HD
HD output interface
K
USB/OTG/DC
MIC_5PIN interface/5V DC Socket
L/M
Volume
Volume “+ -”
3.4 Features
3.4.1 Features preview
Adopts the RK3188 as the main chip (28nm), ARM Cortex A9 at peak 1.6GHz processor, GPU Mali-400 MP4@533 MHz, support
Android smart operation system & flash player 11.1
DDRIII 1GB to 2GB optional
Built-in 4GB~64GB Flash memory (Optional), supports max.32GB external tf card.
7.85 inch IPS multi touch LCD display with high resolution1024*768
Supports HD 1080P AVI、MPG、MKV、RM、RMVB、MP4、MOV、VOB、DAT、FLV、TS、3GP、WEBM（VP8）etc Video
formats. Max resolution supported is 1920*1080 /30fps。
Supports JPG, JPEG, BMP, GIF, PNG, JFIF etc. Picture formats, Max resolution supported is 8000*8000.
Supports MP1, MP2, MP3, WMA, WAV, OGG, OGA, APE, FLAC, AAC, M4A, 3GPP audio formats and multi EQ modes, and support
Lyrics synchronized display or full-page display.
Supports TXT, LRC, PDF, Html, Htm, EPUB file formats and auto-browse, zoom, bookmarks, flip over functions etc.
Build-in Wi-Fi, you can connect with broadband wireless internet and operate various software in the Android 4.1 OS, the system is preset
parts of third software: Office (Open Office version), Google browser, IM (MSN/QQ), Web TV, Online MP3, online novel, network games,
E-book, etc
Supports built-in microphone record function.
Supports USB-HOST function for external U-disk, Keyboard, Mouse,3G Dongle (by OTG cable) etc.
Supports built-in 0.3MP front camera and 2.0MP back camera, 2.0MP+2.0MP or 2.0MP+5.0MP for optional.
Built-in Bluetooth for data transfer (Optional)
Supports G-sensor screen rotation function.
Supports built-in speaker and stereo earphone.
Supports multiple languages
Can be used as a USB portable hard disk, driver not needed for WIN2000 or above.
Note: The Android 4.x OS adopts MTP protocol for file transfer, not the MSC protocol like the normal USB Disk. And only the Windows Media
Player 10 and Windows Media Player 11 (or above version) could support MTP protocol at present, so please kindly install the above media
players before connecting the Tablet PC with PC, or your PC can not recognize it.
3.4.2 Technical Specifications：
LCD display
Size
7.85” HD LCD capacitive display
Resolution
1024*768
PC Interface
USB port，USB OTG 2.0/USB Host2.0 (MIC 5PIN/ 4PIN HOST)
CPU
RK3188 (28nm)，ARM Cortex A9 peak at 1.6GHz
Built-in Flash
Flash Memory ：4G－32G
Built-in RAM
ROM：DDRIII 1GB， 2GB DDR(Optional)
Capacity Expansion
Support TF card, capacity 1GB~32GB
MID user manual
Kintech Co., Ltd
8
Power Supply
Built-in3.7V@4000mAH Lithium rechargeable battery AC charger, Input: AC110V~240V,
Output: DC 5V@2A.
Music Function
Format
MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、
AAC、M4A、3GPP
Headset max. output
（L）5mW＋（R）5mW（32Ohm）
MP3 Bit rate
8Kbps ~ 392 Kbps
WMA, WMV, Bit rate
5Kbps ~ 192 Kbps
Frequency response
20Hz 至20KHz
SN ratio
90dB
Distortion
＜0.05%
Music Function
Play format
AVI、MPG、MKV、RM、RMVB、MP4、MOV、VOB、DAT、
FLV、TS、3GP、WEBM（VP8）etc.
Max Resolution
1920*1080
Ratio
4:3, 16:9, full screen for option
Photo Browse
Support JPG、JPEG、BMP、GIF、PNG、JFIF etc.,max. 8000x8000.
E-book Function
Format
TXT、LRC、PDF、Html、Htm、EPUB etc.
Max. capacity
5M
HD output
Main chipset
IT66121FN
Resolution
720P, 1080P,
WIFI Function
Main chipset
J25931
Transmission rate
Max54Mbps
Transmission range
Max100m
Format
b/g/n
Bluetooth Function
(optional)
Protocol
Bluetooth 2.1 + EDR (basically supported) 802.11
b/g/n
Main chipset
J25931
Bluetooth Transmission range
5~10m(max)
Record Function
Forma
WAV
Working temperature
-5 ~ 40 ℃
Supported OS
Windows2000/XP/WIN7/Vista Mac OS V9.0/10.0
4 Quick Guides
4.1 Switch On/Off

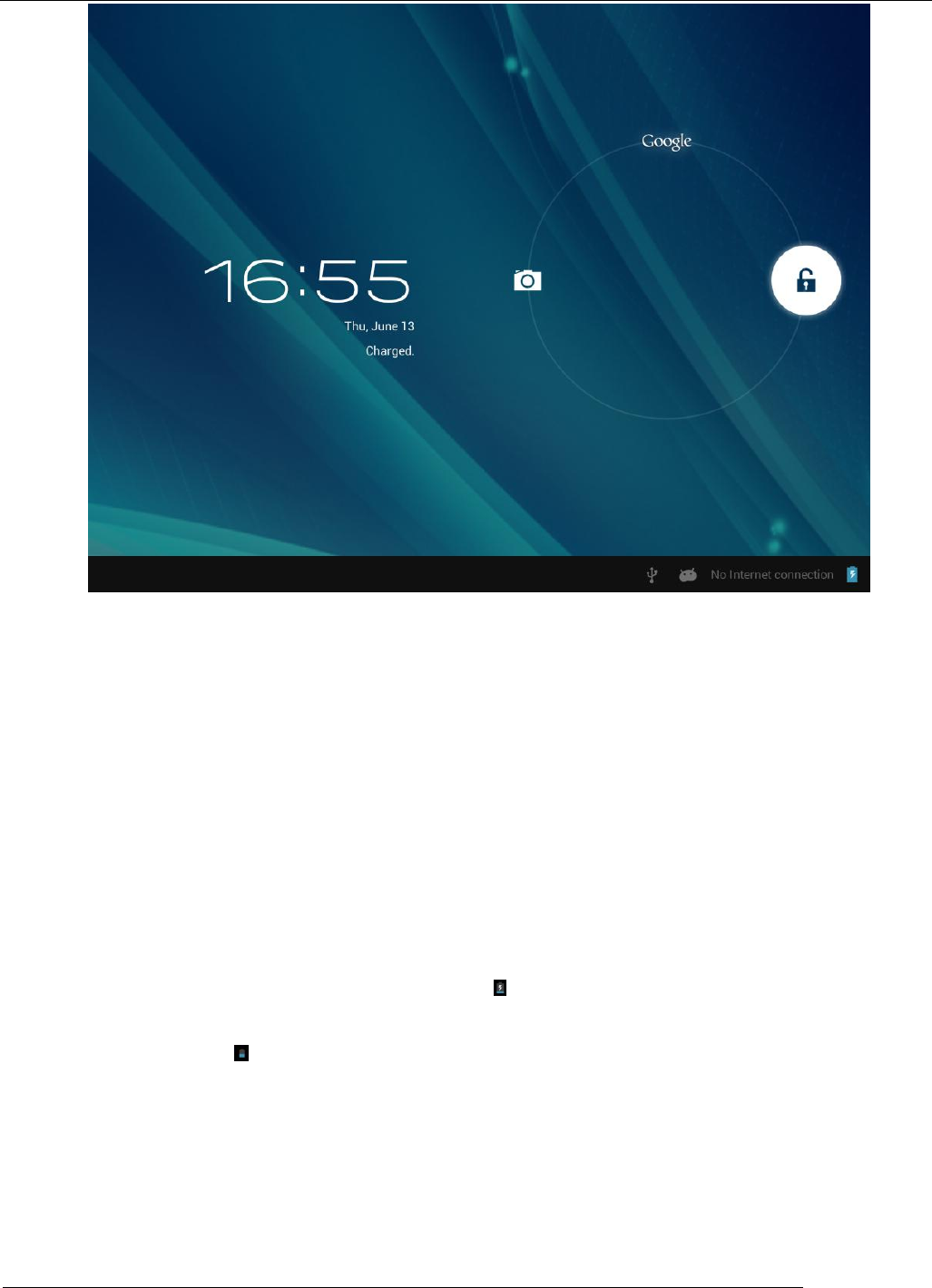

Switch ON and Unlock: When the Tablet PC is in OFF mode, press the “POWER” key for 3 seconds to enter the Android startup process. The
Tablet PC will take about 100 seconds to enter the system desktop, with the display in locked mode, please press and move the icon to the
white circle, the display will unlock automatically, see the image below:

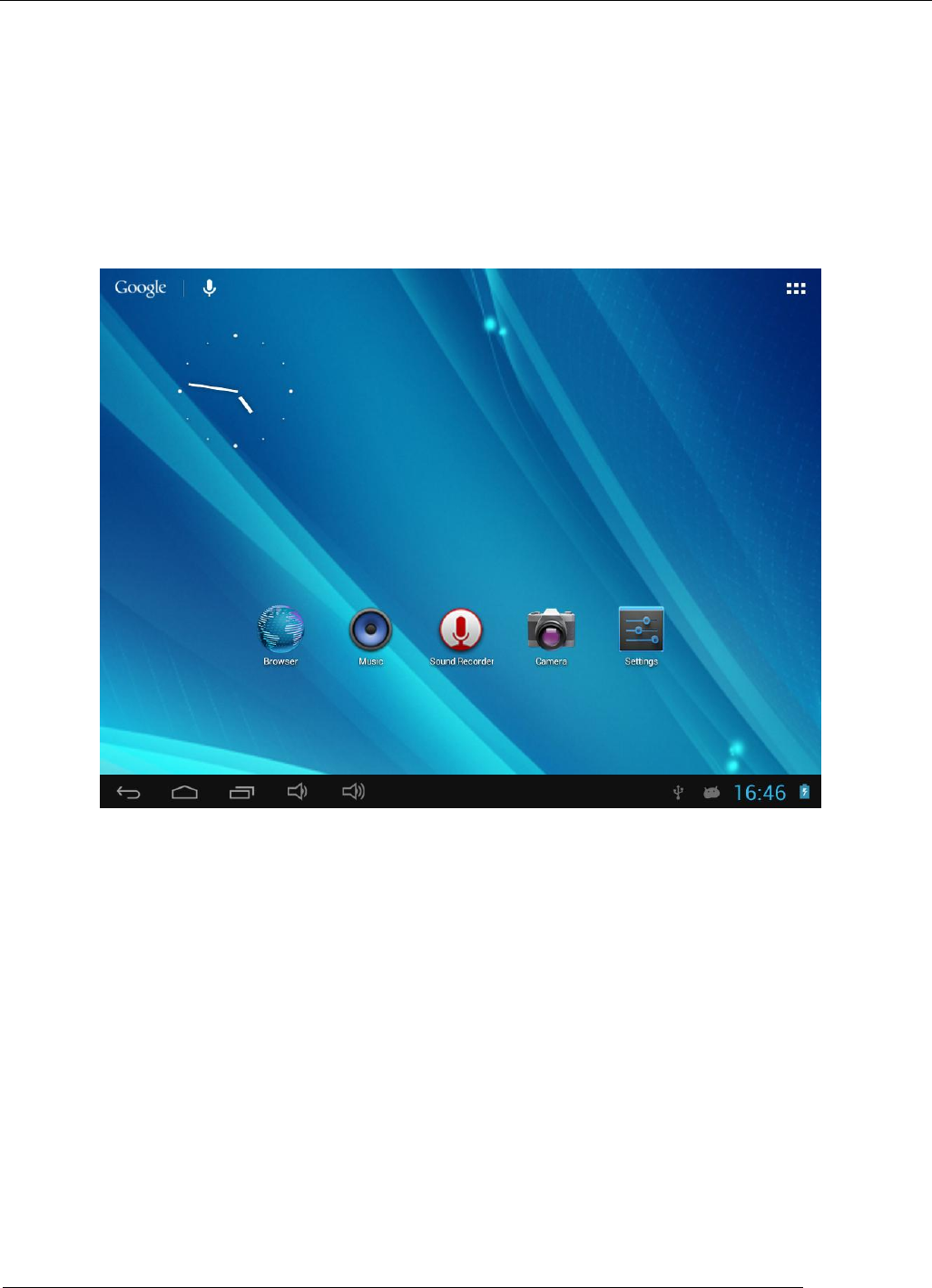

When the Tablet PC is in use, please put it into SLEEP mode, then the Tablet PC will be ready to use whenever you like, and you don’t need to
start the Android operating system again.
MID user manual
Kintech Co., Ltd
9
Power Saving Mode and Locked Mode: Pressing the “POWER” key when the Tablet PC is in use will make the system enter into SLEEP
power save and locked mode. Pressing the “POWER” key or tapping the touch screen for 3 seconds, will return the system to locked mode
within 1 second.
Note: The primary operation of the Tablet PC will not stop under the power saving mode, it is just the display that is turned off and showing
a black screen. This means that music play, movies play etc. will still continue to run.
Switch OFF: When the Tablet PC is in use, press and hold the “POWER” key for 3 seconds, the screen will display the power off interface,
choose the power off option to confirm your selection and the system will shut down automatically.
Note 1: When system halted or device under blank screen, please restart the device after device automatic power off by pressing reset key
or long pressing power key for 6 second.
Note 2: When the Tablet PC is running low on battery power, it will sound an alarm and then shut down automatically if it isn’t plugged into
a power source for charging. If the Tablet PC cannot start up please check if the battery power is too low by charging it.
4.2 Battery Management and Charging:
a. Charge the battery about 8-12 hours to make sure the battery is fully charged for the first time.
Insert the adaptor into the DC slot on the Tablet PC, and connect the other side with the power socket. Then the Power indicating lamp of
the Tablet PC will be high lighted blue, the desktop icon of the battery keeps rolling to show it is charging, please wait until the battery
is fully charged, don’t disconnect the power when charging. Once the battery is fully charged, the indicating lamp will change into dark
blue, the Icon on the desktop will stop rolling.
b. When the battery is exhausted completely, please charge at least one minute before starting it up.
Note: In order to keep the battery working to its full potential, please pay attention to the following advice:
Don’t charge the power in excessively high temperatures.
There is no need to run down the power for this Li-ion battery, you can charge the battery even when there is still power left in the
battery without it affecting the lifespan of the battery.
MID user manual
Kintech Co., Ltd
10
In order to keep the battery in good condition, Make sure you charge it at least once every two weeks if the Tablet PC hasn’t been
used for a long time

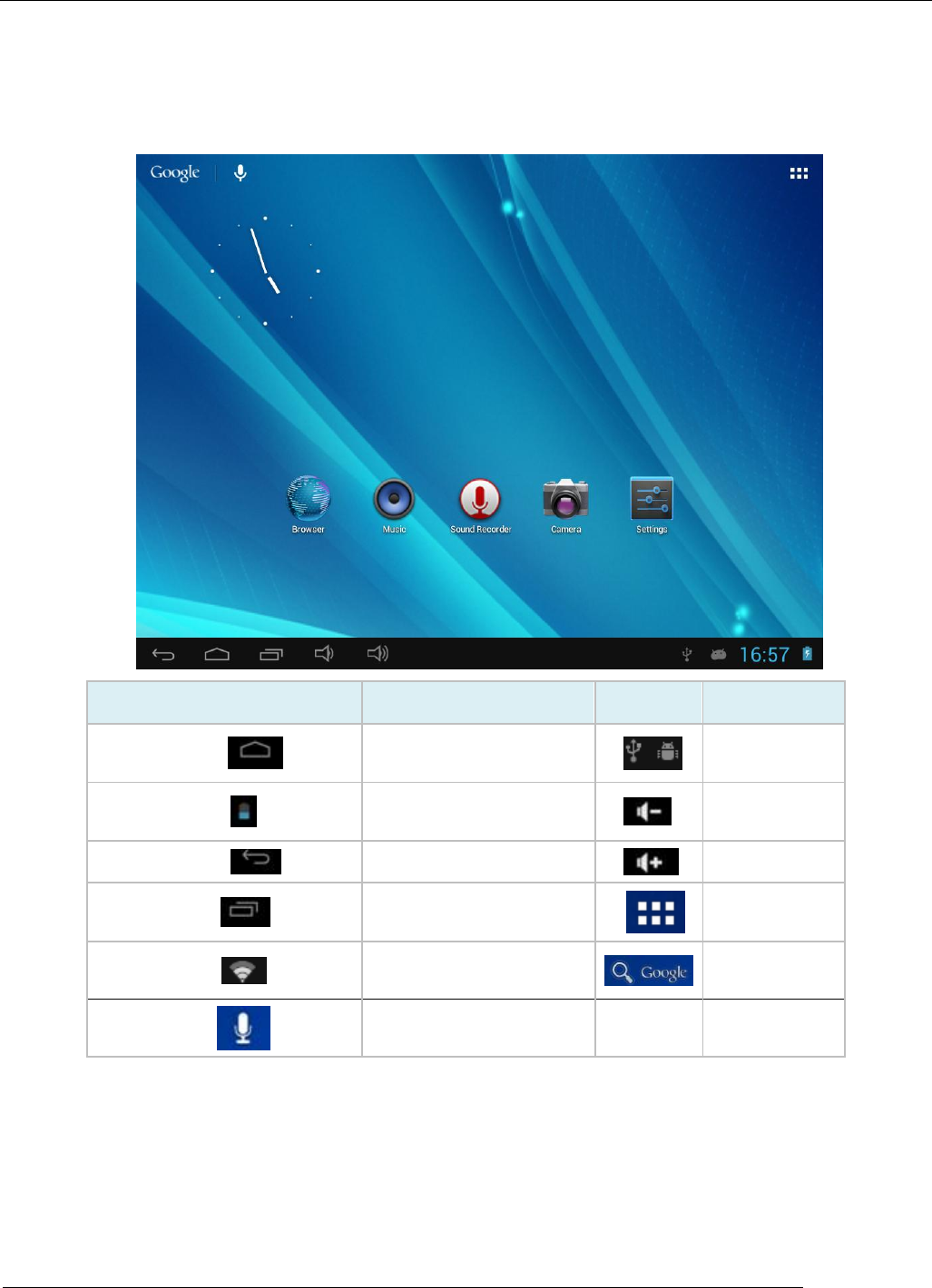

4.3 Operation of the Function Icons:
a. Definition of the Function Icons:
Icon
Function
Icon
Function
Back to main menu
Notifications
Power Status
Reduce the
volume
Return
Increase the
volume
Recent Browse
Function Menu
WiFi Status
Google Search
Voice Search
5 Operation Details：
MID user manual
Kintech Co., Ltd
11
5.1.1 Music：

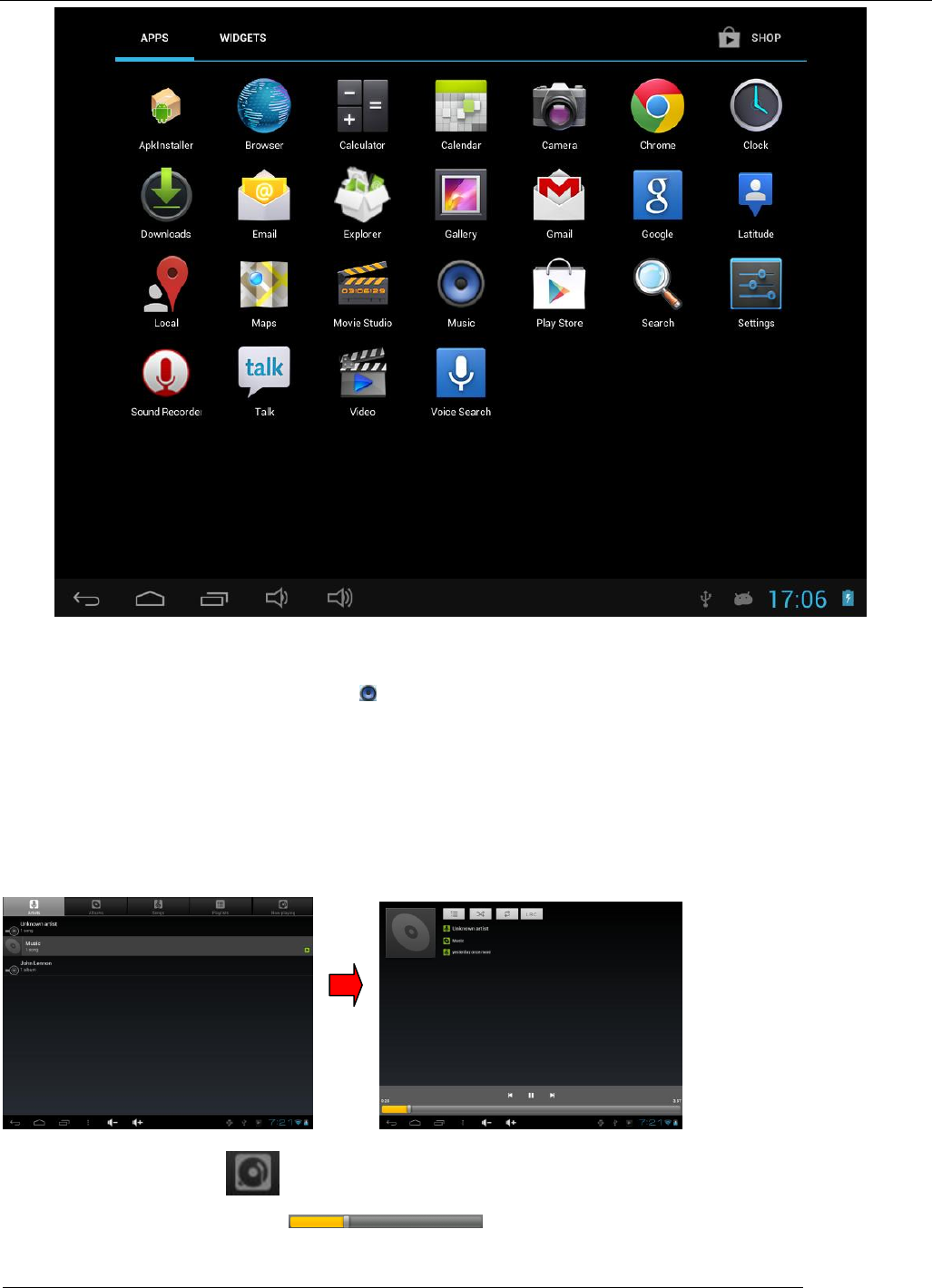

In the application menu or on the desktop, tap the icon to enter the main interface of the Music Player as below:
If there are no music files in the audio player playlist, the system will automatically load any music files from the micro SD card to
the audio player playlist after the audio player is launched. The device supports the following audio file formats: mp3, wav, midi and
wma.
If there are many videos available, slide up/down the list by using the touch screen.
Double-click the song you want from the list to start playing.
When in playing, click can enter into play list.
Drag the playback progress bar to adjust video playback progress.

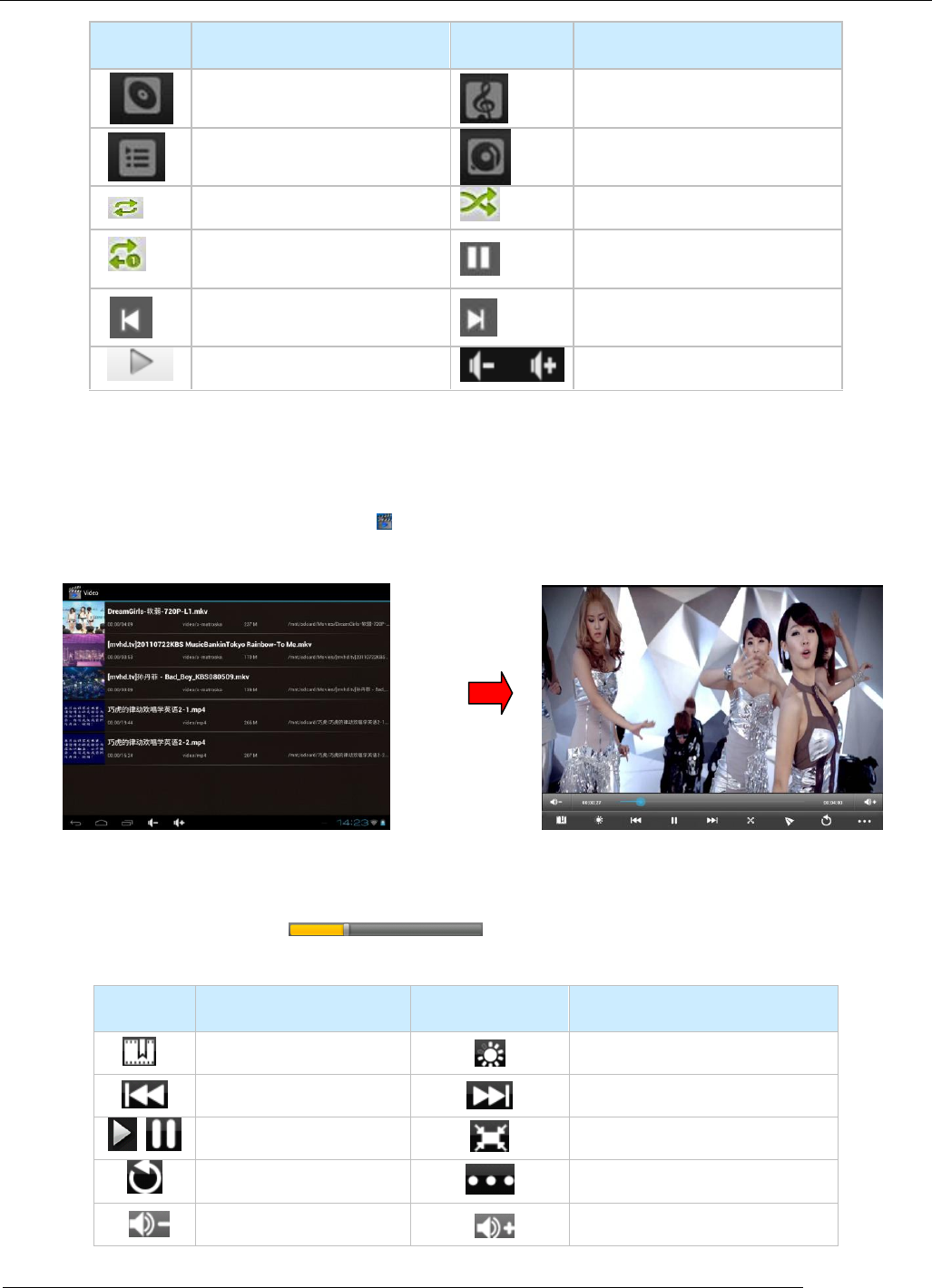

Music Player Icons Description:
MID user manual
Kintech Co., Ltd
12
Icon
Function
Icon
Function
Albums
song
Playing music list
Current Playing
Loop playback
Random play
Repeat Single
Pause
Play the last song
Play the next song
Play Audio
volume control
Note: Audio player can play WAV audio files.
5.1.2 Video
In the application menu or on the desktop, tap the icon to enter the video player interface as below, and double-click the movie to start
playing.
This device supports the following video file formats: MKV, AVI, RM, RMVB, MP4, MOV, VOB, DAT, FLV, 3GP.
The system will automatically load any video files from the tf card to the playlist after the video player has been launched.
Drag the playback progress bar to adjust video playback progress.
Video Player Icons Description:
Icon
Function
Icon
Function
Adding video bookmarks
Brightness adjusting
Go to previous chapter
Skip to next chapter
Play and pause a video
Video format 16:9 /4:3
Quit
Menu
Lower the volume
Raise the volume
MID user manual
Kintech Co., Ltd
13
Adding video bookmarks
When in video playing, you can tap icon to set up clear bookmark or play mode as picture below.

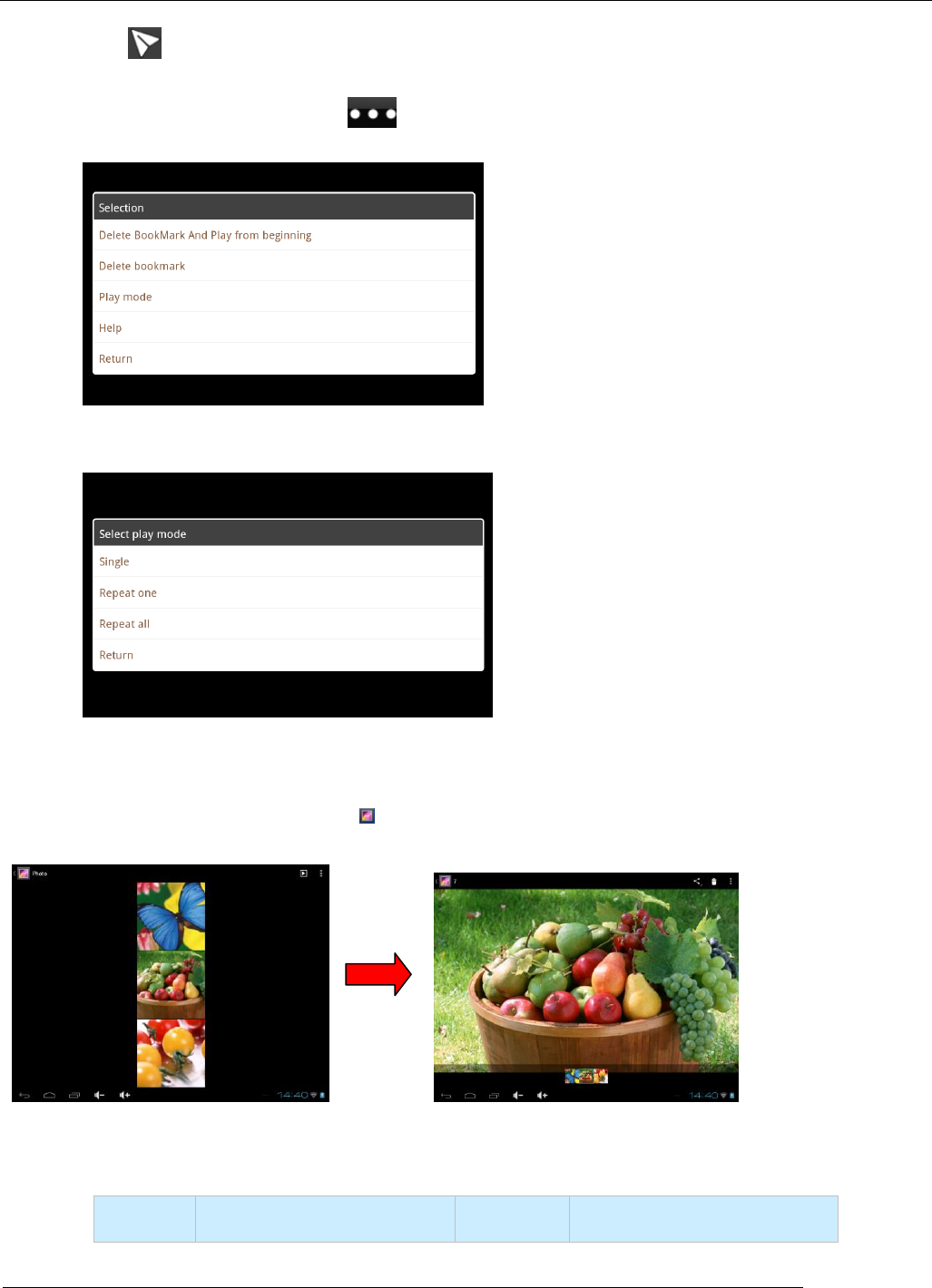

Tap play mode to choose the options as picture shows below.
5.1.3 Gallery
In the application menu or on the desktop, tap the icon to enter the picture browser as below:
Gallery Player Icons Description:
Icon
Function
Icon
Function
MID user manual
Kintech Co., Ltd
14
Delete the picture
See more functions
The Tablet PC supports the BMP, JPG, JPEG, PNG and GIF formats.
The system will automatically load the image files from the tf card to the photo browsing list after the photo browser has launched.
Tap icon to slide show, browse images, set the image as wallpaper, edit, rotate, crop or resize your image.
Icon
Function
Icon
Function
set image as wallpaper
edit
Left-hand rotation
Slide show
Right-hand rotation
Crop and resize
5.1.4 Recording
In the application menu or on the desktop, tap the icon to enter into the sound recorder.
1> Tap the record icon to start recording, to stop recording, and to playback.
2> Once you finish the recording, you will be asked if you want to “Discard” or “Save” the recording.
3>Recording playback: To playback a recording, use Explorer to find the Record folder on the Internal Memory storage, select and
click the recording to playback. See chapter 5.1.1.
MID user manual
Kintech Co., Ltd
15
5.1.5 Explorer

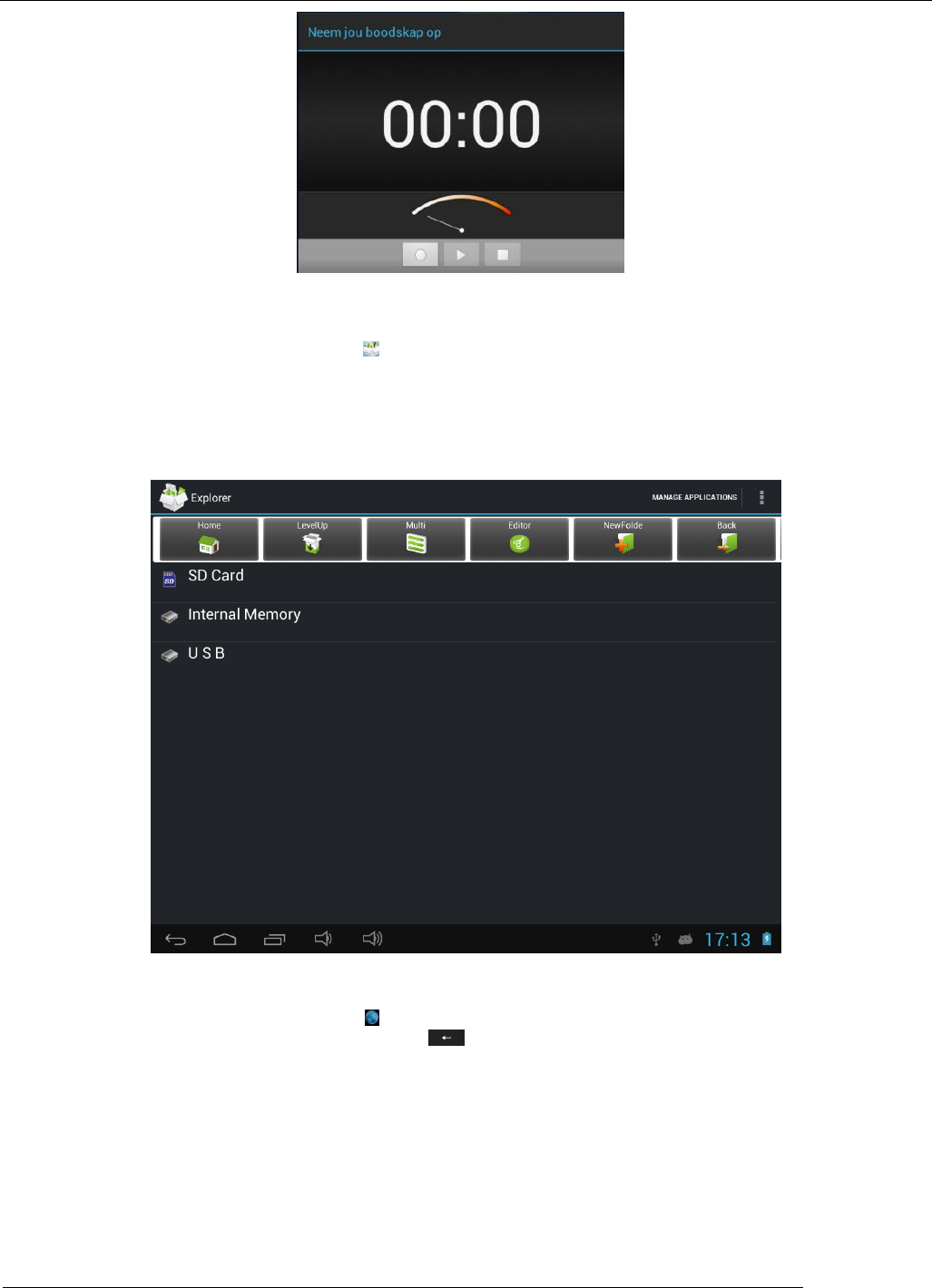

In the application menu or on the desktop, tap the icon to enter the Management Interface, tap SD Card, Internal Memory or USB to open
their root directory folders to open the root directory of the appropriate storage. To navigate around the file system, you can tap on the folders
name or use the “Back” and “Next” functions.
Press and hold down on the icon of a file or folder that you want to manage; the system will pop up the file or folder operations window, then you
can choose to Copy, Delete, Move, Rename, Send the file or folder.
5.1.6 Web Browser

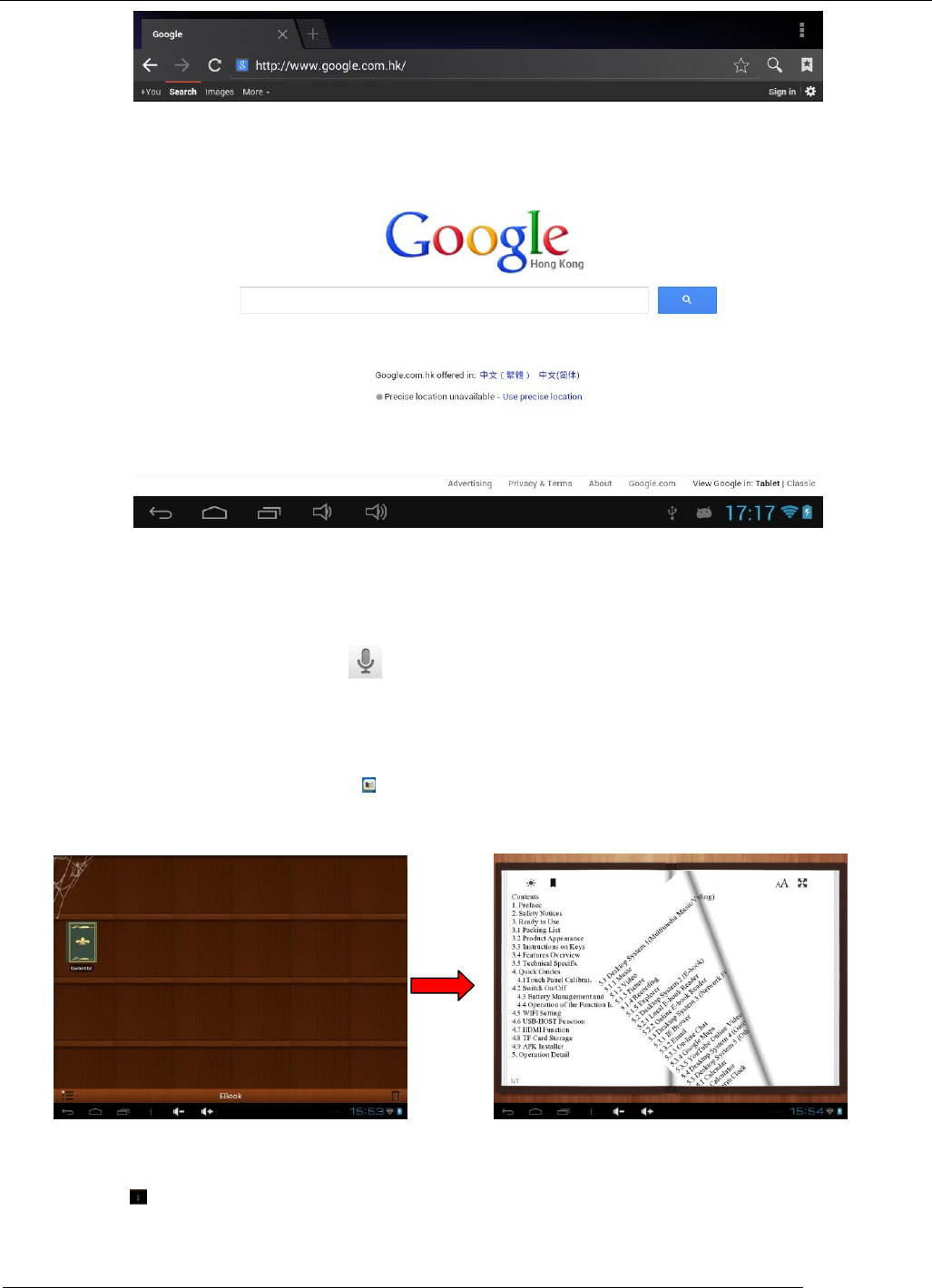

In the applications menu or on the desktop, tap the icon to enter to the Web Browser interface; tap the address bar of the browser and input
the website by the keyboard on the screen and tap the Enter icon to browser the Internet as you like as below:
MID user manual
Kintech Co., Ltd
16
Note: The IE Explorer uses the popular third-party IE Explorer software; please follow the IE Explorer's standard operating mode to operate.

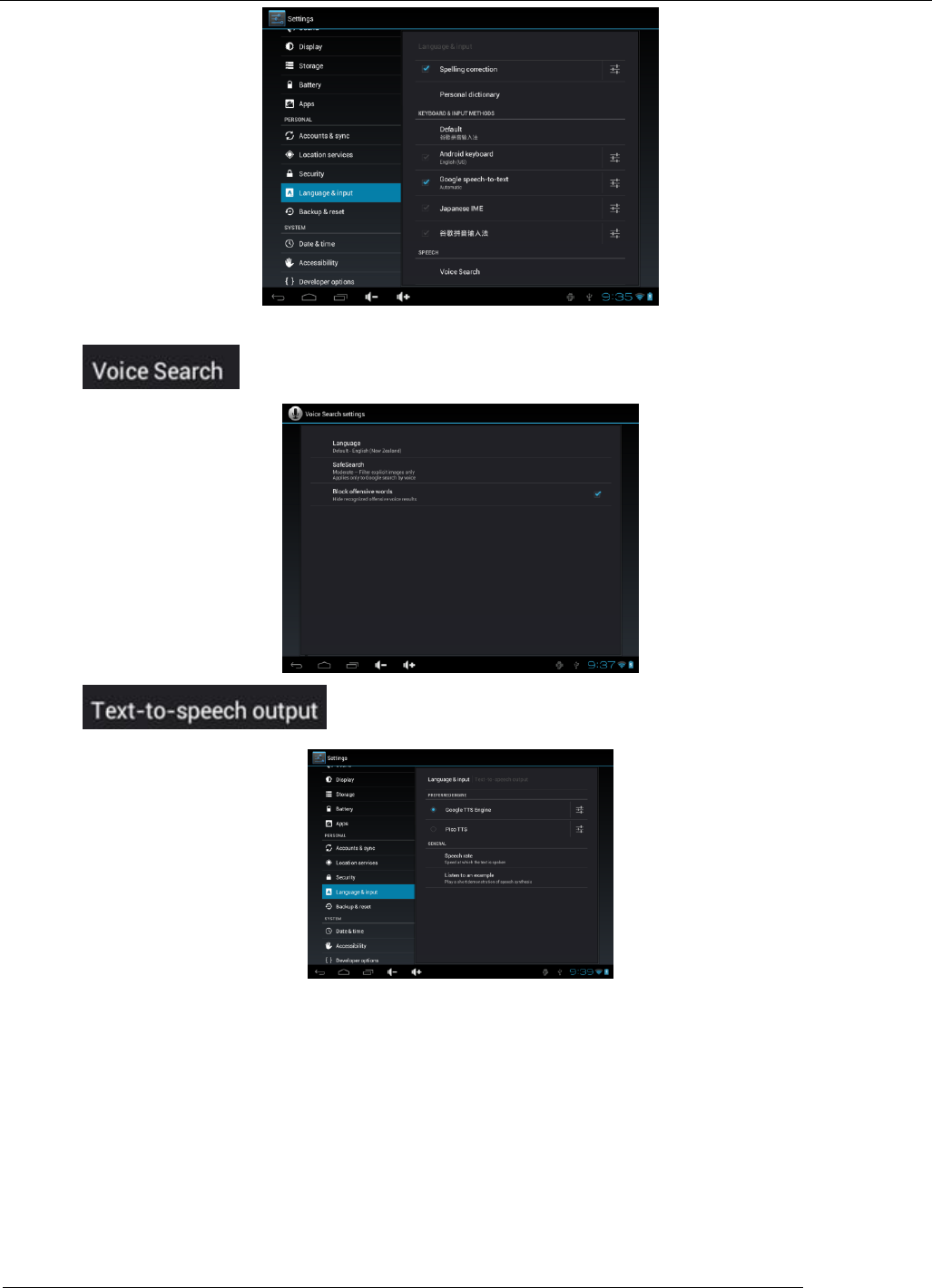

Voice Search
In the application menu or on the desktop, tap the icon and enter into the voice search page: Once you have entered in, you can speak out
the content to the device with standard language, and then the device will recognize your voice and automatically search what you have said.
5.1.7 E-Book Reader
In the application menu or on the desktop, tap the icon on the desktop, to enter into the E-Book reader. Open the folder and select the text
file; tap the E-Book files to read, tap the left/right side of the touch screen to flip over as below:
Tap the menu icon on the bottom of the screen to check more functions as shown below:
MID user manual
Kintech Co., Ltd
17
Tap the touch screen left/right or transverse swiping can realize flip the page.
Tap which is a short cut can check the front size
Font Size: tap to set the font size, available font sizes: S, M, L, XL, and XXL.
Page skip setting : tap then a dialog box pops up, input the number of pages you want then tap confirm so that it will
automatically jump to the specified page
Bookmarks: tap to add, delete display the Bookmarks;
Book info: tap view the book name and information about the author.
Auto Flip: Tap to set up the auto flip time or manual flip.

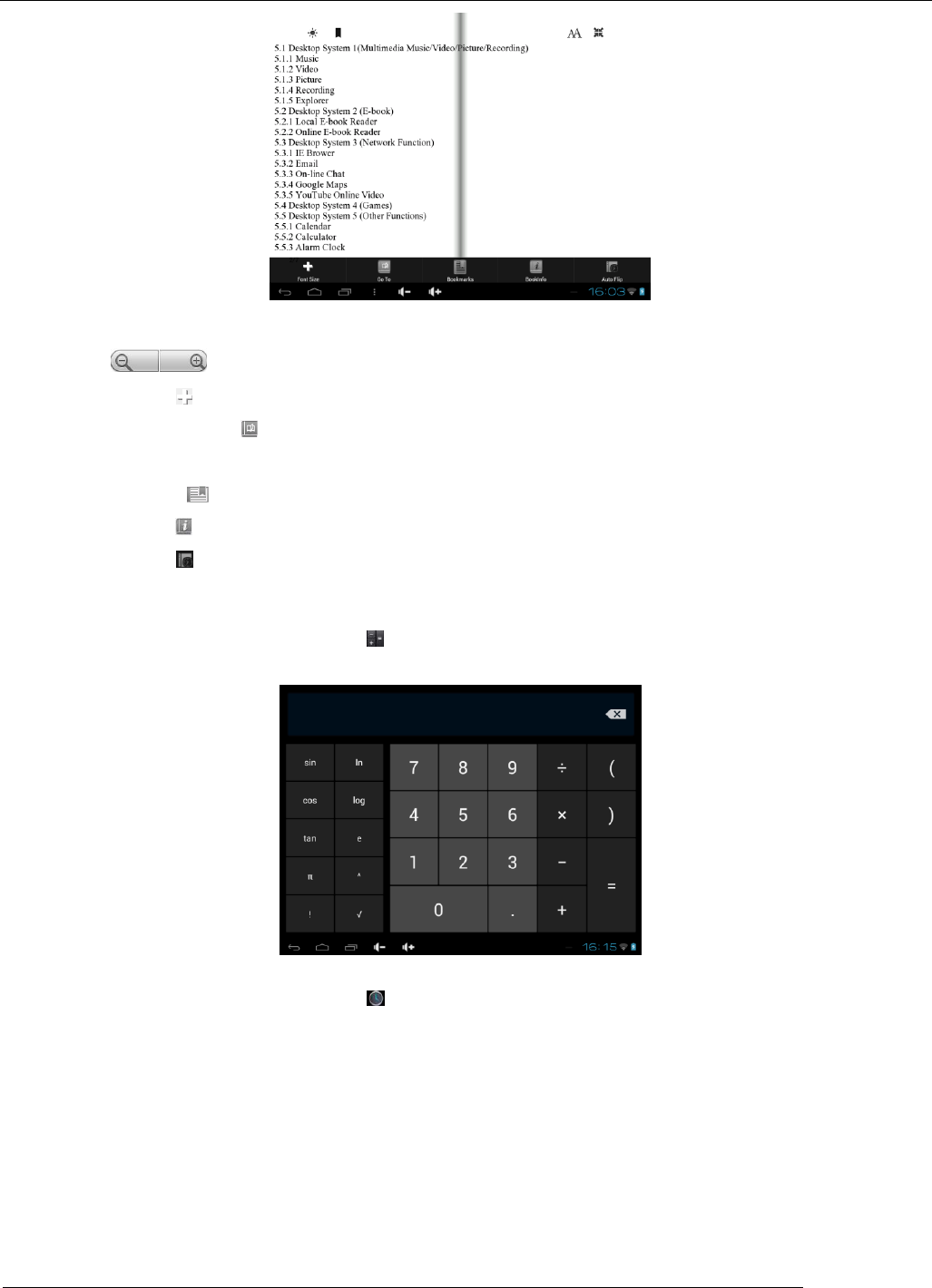

5.1.8 Calculator
In the applications menu or on the desktop, tap the icon on the desktop to open the calculator:
5.1.9 Clock
In the applications menu or on the desktop, tap the icon to enter the Clock interface as below:
MID user manual
Kintech Co., Ltd
18

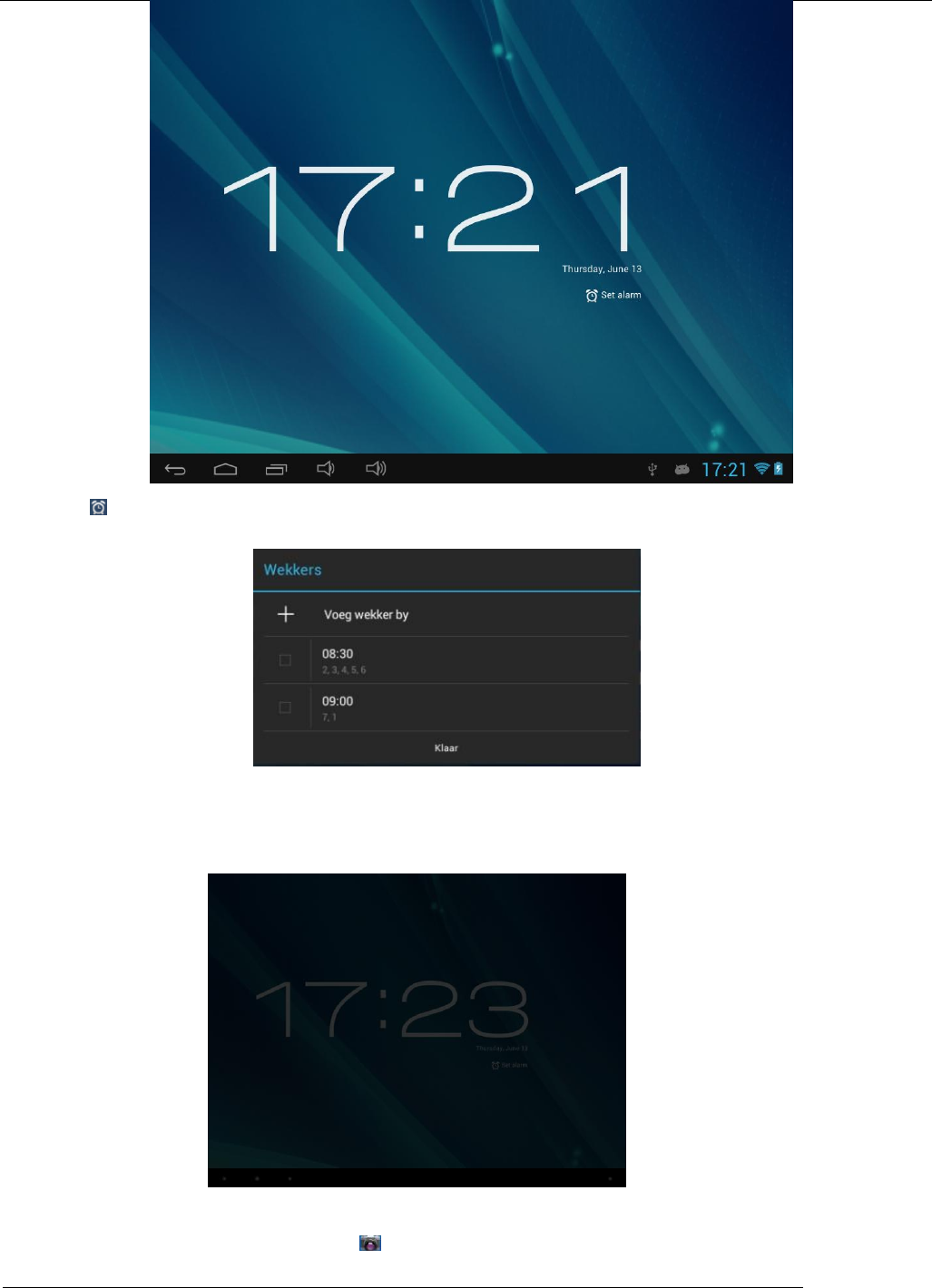

In the clock interface you can enter into video and audio playback
Tap the icon to set Alarms.
Tap any of the alarm tock boxes to set up an alarm: The time, bell, vibration, repeating and label can all be set.
Flexible time: you can choose the date to set, such as Monday to Friday in 7 o’clock, and then alarm will repeat at 7 o’clock from Monday to
Friday. The time and date are set as you need.
Once you finished setting of time and alarm you can adjust to power saving mode as you like. Tap the screen it will enter in to power saving
mode, and touch again it become normal. See as shown picture:
5.2.0 Camera

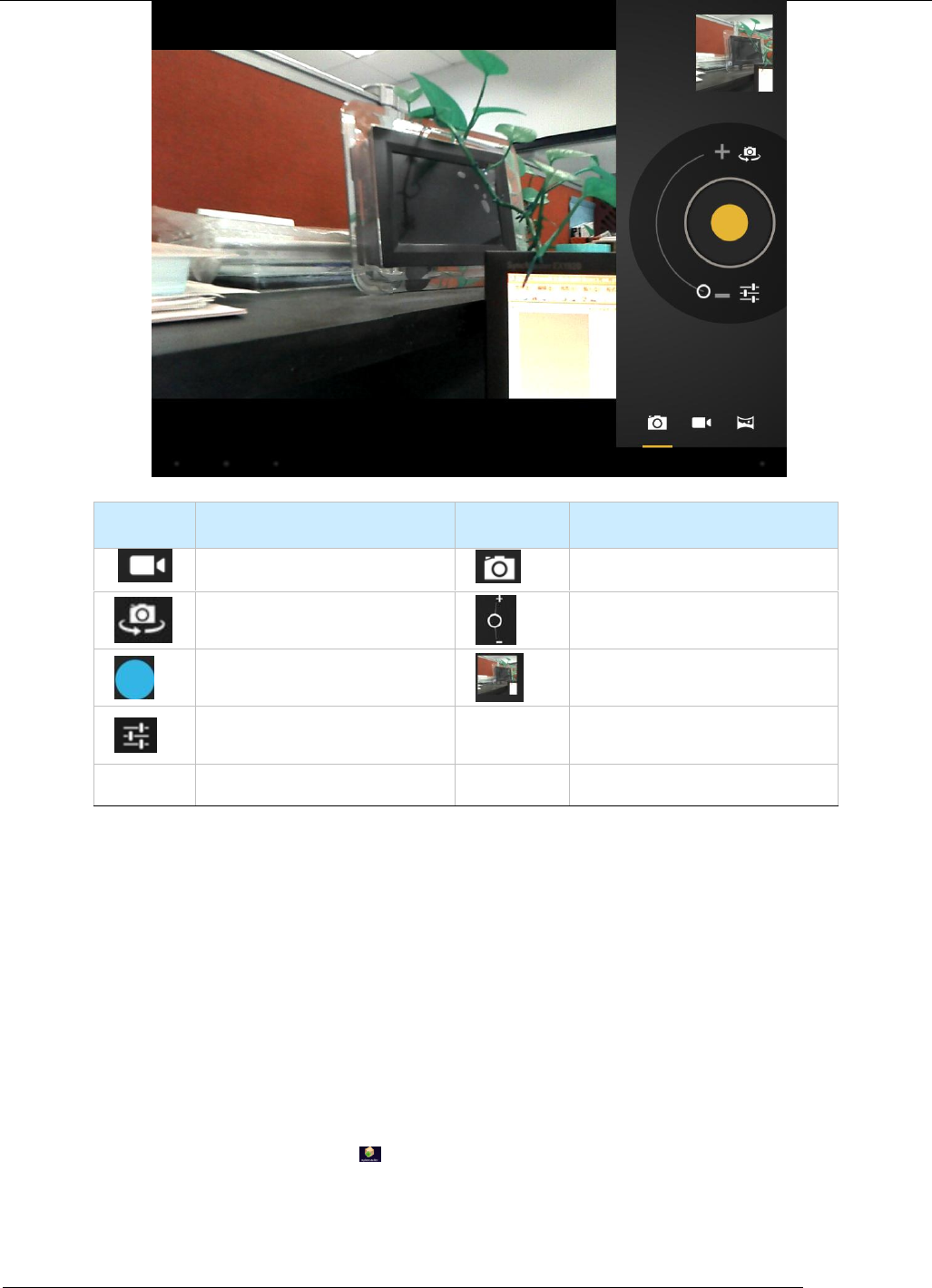

In the application menu or on the desktop, tap the icon to enter into the camera function interface:
MID user manual
Kintech Co., Ltd
19
Icon
Description
Icon
Description
Video Icon
Photo Icon
Camera switch
photo focus
Shutter
Photo/Video Preview
More functions
5.2.1 Usage of TF Card
This Tablet PC supports reading files on TF card. Insert the card into the card slot by the right way, and follow the advices when using the card
slot as below:
a. Insert the memory card into the card slot on the right side.
b. Please do not pull out the card when it is in use (reading, copying), otherwise, it may cause data errors.
c. Please do not use the memory card in high temperature conditions.
d Keep the memory card away from the liquid and erosive materials.
5.2.2 Apk Installer
The Tablet PC supports installing third party applications programs designed to run on Android. Many application programs could be
downloaded from internet and then installed by the APK Installer.
In the application menu or on the desktop, tap the icon to enter the Apk Installer interface as below:
MID user manual
Kintech Co., Ltd
20

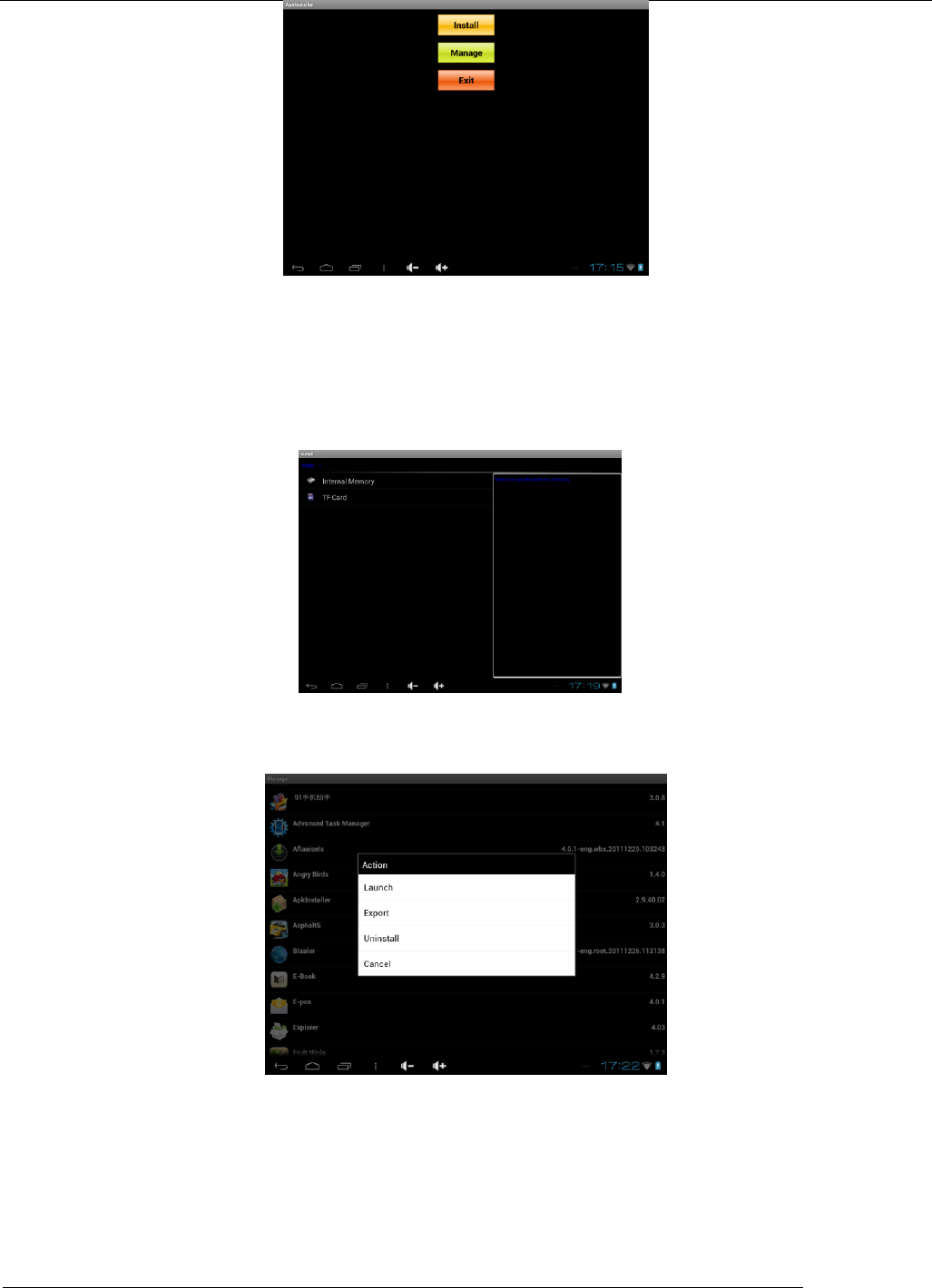

Install: Tap “Install” to enter into the APK installer interface. Files can be put into Internal Memory and RF card
1) Internal Memory which means the built-in storage.
2) tf card which means a memory card inserted into the tf card slot.
Select the program to be installed from the right window, tap it to install and follow the prompts. Once you have set successfully please return to
the main menu. You will see foreboding software menu.
Uninstall: Tap “Management” to enter into the third-party software menu.
Note: This system can only uninstall the APK software, but can not delete or uninstall the default software.
Launch: Tap to run the software
Export: Tap to export the software to the tf card.
Uninstall: Tap to uninstall the software.
Cancel: cancel the operation
Quit: Tap to return to the main menu.
Note: Only the user-installed applications could be uninstalled.
5.2.3 External Keyboard & Mouse
MID user manual
Kintech Co., Ltd
21
Connect the USB mouse to the Tablet PC by USB OTG cable. When the mouse is connected, the screen will show the mouse pointer as below, left
mouse button is for the confirm function, right mouse button is for the return function, the middle slider is for the upper and lower function.
NOTE: Some keys of the standard keyboard on the market can not work on this Tablet PC. They should be revised according to the Android system
definition, so you are recommended to use the USB keyboard provided by the factory.
5.2.4 Connect to HD television

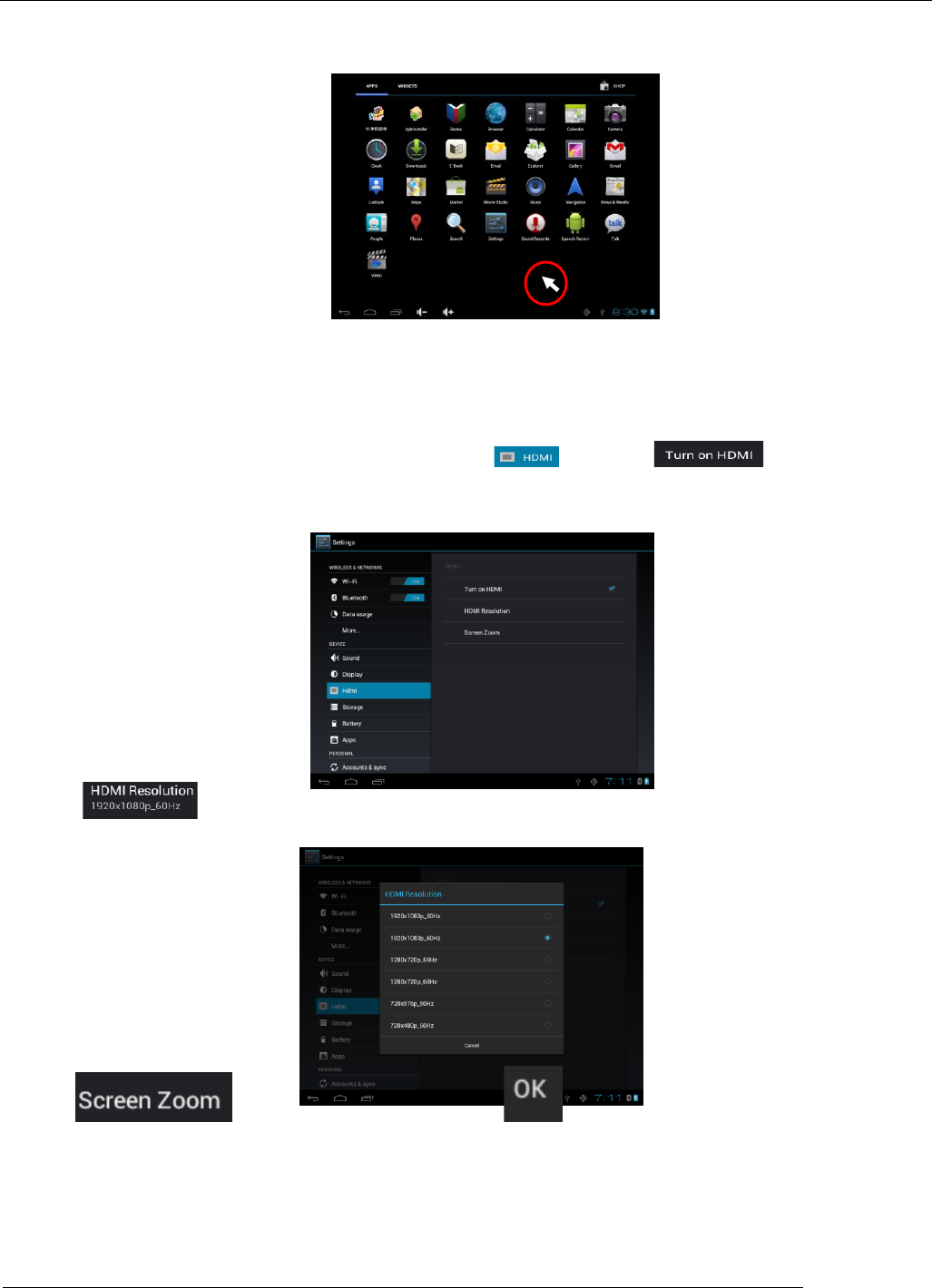

Connect the Tablet PC with the HD TV with the HD cable, then tap the icon and then tap . After that the image and
sound signals of the Tablet PC will switch to the HD TV automatically.
Tap the icon to choose resolution option according to the video devices or TVs as below:
Tap the icon to adjust the output screen size, and then tap as below
MID user manual
Kintech Co., Ltd
22
6 System setting

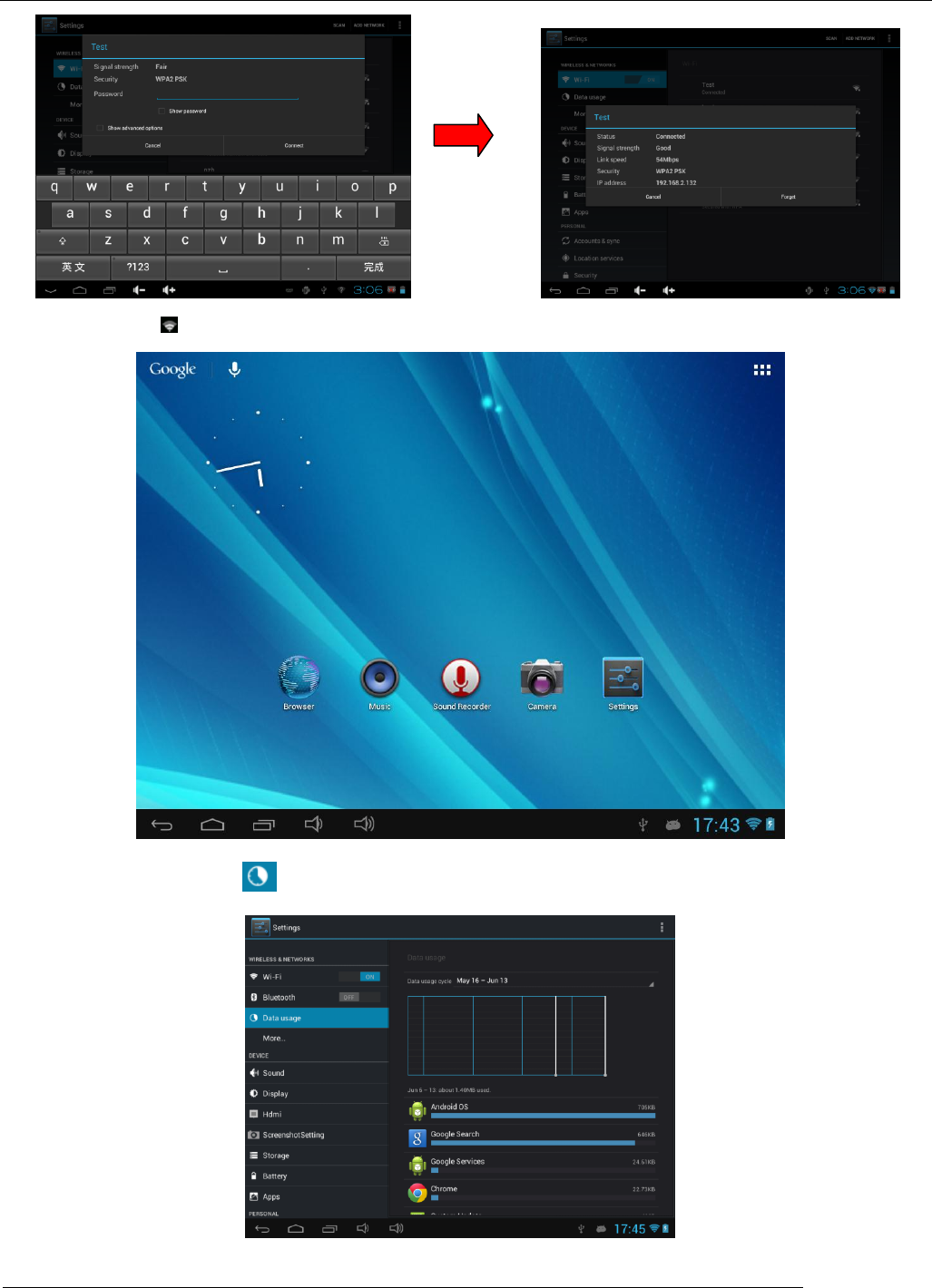

6.1.1 WIFI Setting
In the applications menu or on the desktop tap to enter into the setting interface, and then tap
a. The Tablet PC will find the WiFi networks automatically. Please refer to the example picture below, it has found several WiFi network names:
b Connection ( It is connected by dynamic IP address and needn’t set the IP address)
The dynamic IP address is assigned by WIFI router. If it is automatically assigned the IP address, and then click the WiFi network name. For example,
click “Test” it will pop up a connection window where you can input the correct security code and then tap “connect”. The system will connect to the
network automatically, and once connected will show a Status of “Connected” You can see the network connection status by pressing the network name, see
the figure below:
MID user manual
Kintech Co., Ltd
23
There will be a WIFI icon in the bottom right corner as below:
Date usage statue checking: tap the icon to check the date usage
MID user manual
Kintech Co., Ltd
24

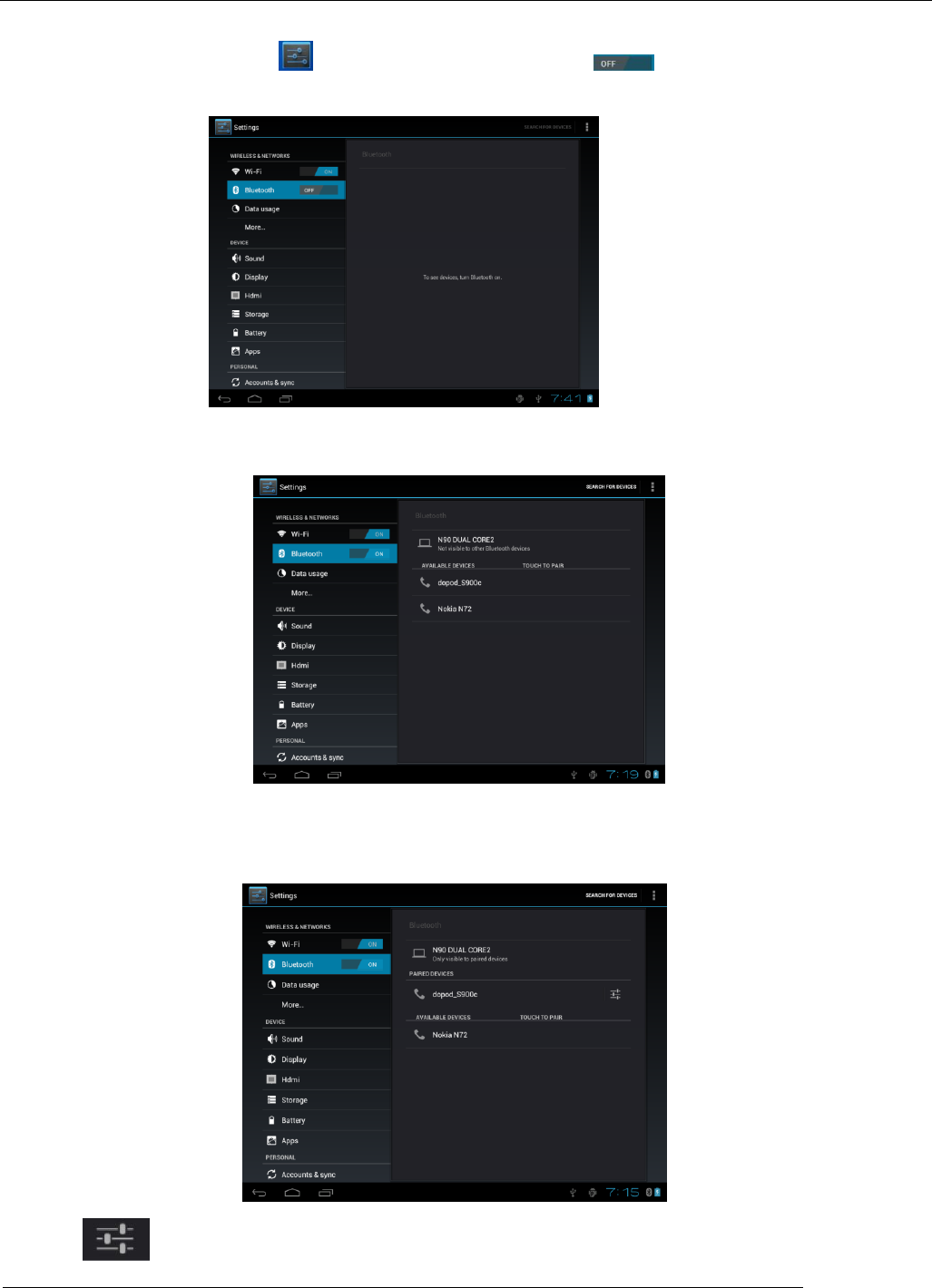

6.1.2 Bluetooth setting (optional):
In the applications menu or on the desktop tap to enter into the setting interface, and then tap

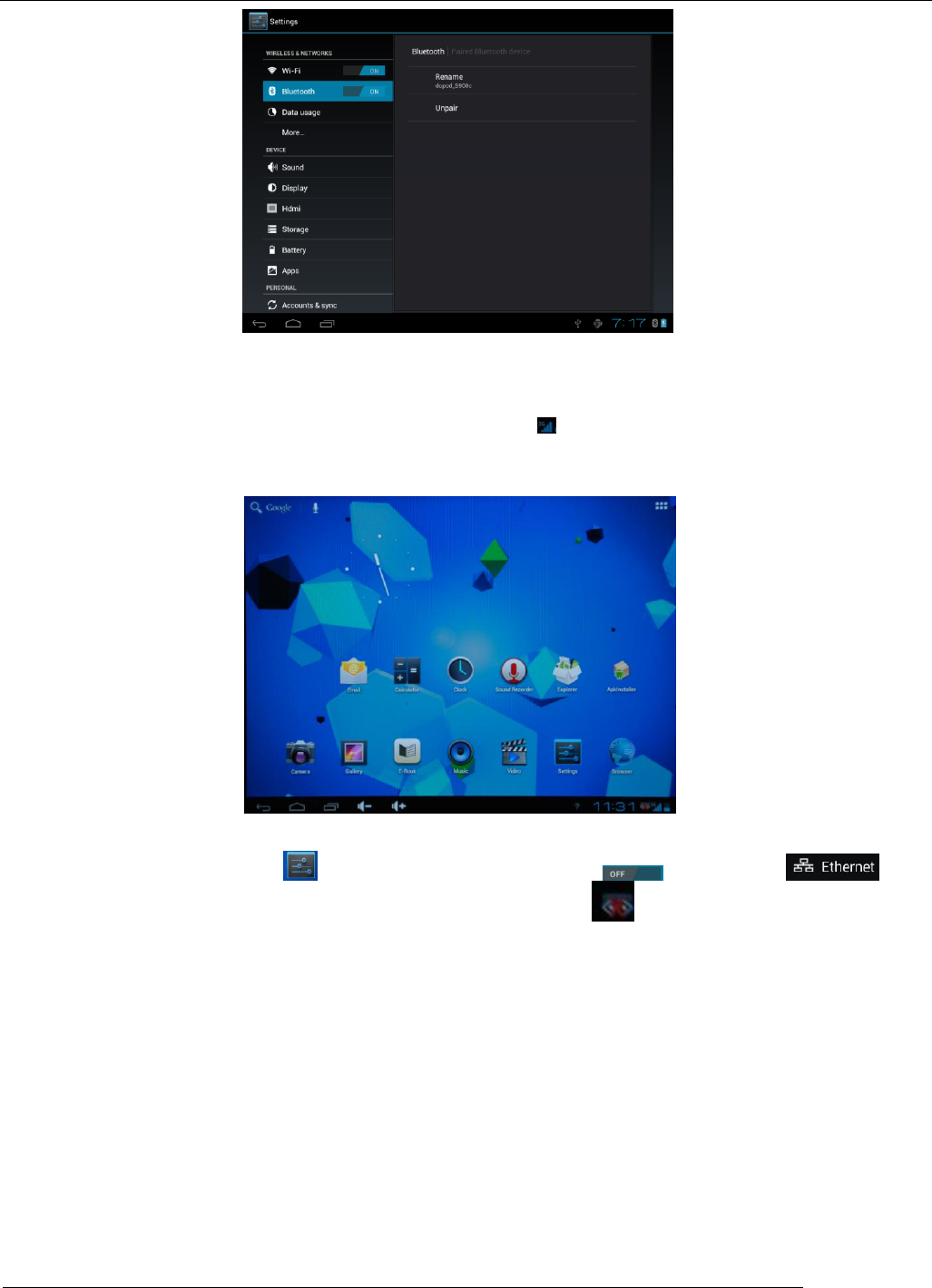

a. Tap “Bluetooth” to turn on it: The Tablet PC will detect other Bluetooth devices automatically. Tab the tablet name to set “Visible to
all nearby Bluetooth devices” or “Not visible to other Bluetooth devices” as below:
b. Bluetooth connection (for example set the PIN by self and connect to the other Bluetooth devices):
Tap the name of the detected Bluetooth devices (“dopod_S900c”), the tablet will prompt to input the PIN of the devices. After input the PIN (for example
“1234”) the detected Bluetooth devices will prompt to input the same PIN. After input the right PIN (“1234”) the tablet will connect with the detected
devices automatically. After connecting successfully, the tablet will show the Paired Devices information as below:
Tap the icon in the right side, see as shown picture:
MID user manual
Kintech Co., Ltd
25
The Tablet PC will disconnect with the paired devices by rename the Bluetooth devices.
6.1.3 External 3G USB Dongle function
Connect the 3G USB-Dongle to the Tablet PC by USB HOST cable. The 3G network icon will be showed in the bottom right corner of the screen when
Tablet PC connects the 3G successfully as below:
6.1.4 External RJ45 USB Dongle function
（1）If the router setting is automatically getting the IP Address
In the applications menu or on the desktop tap to enter into the setting interface, and then tap in the right side of . If the
router is automatically getting the IP Address, you can connect the RJ45 USB dongle to the tablet PC by USB HOST cable, the tablet PC will automatically
get the IP address and without any setting. In the bottom right corner of the screen will show icon once it connected successfully, show as below
picture:
MID user manual
Kintech Co., Ltd
26

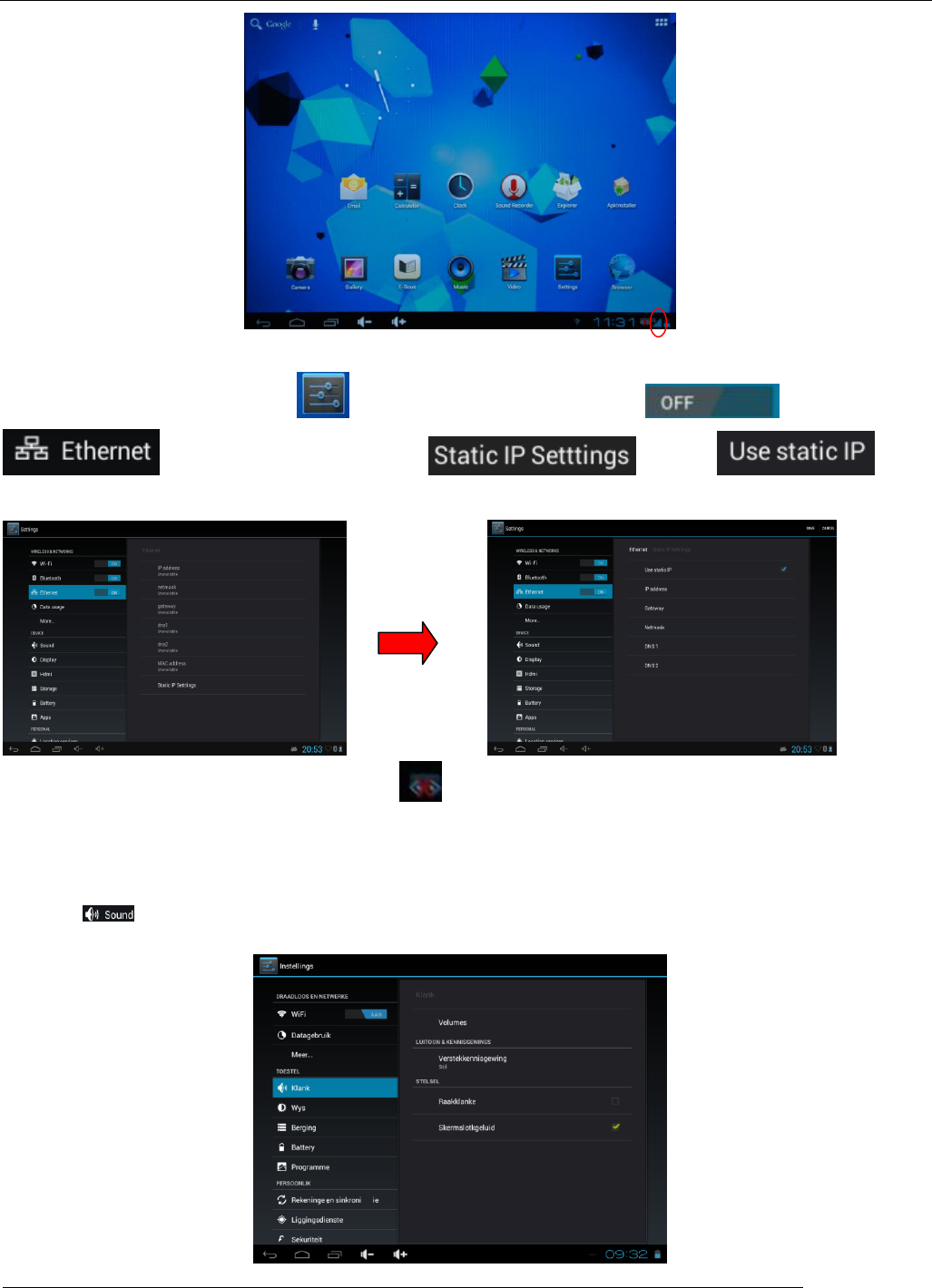

（2）If the router setting is using static IP address
In the application menu or the desktop tap to enter into setting interface, and then tap in the right side of
. If the router setting is using static IP, tap and choose see as
below picture:
Then set the Static IP, default gateway, subnet mask, domain name by manual. Once set successfully, connected RJ45 USB dongle to the tablet by USB
HOST cable. In the bottom right corner of the screen will show icon once it connected successfully, show as below picture:

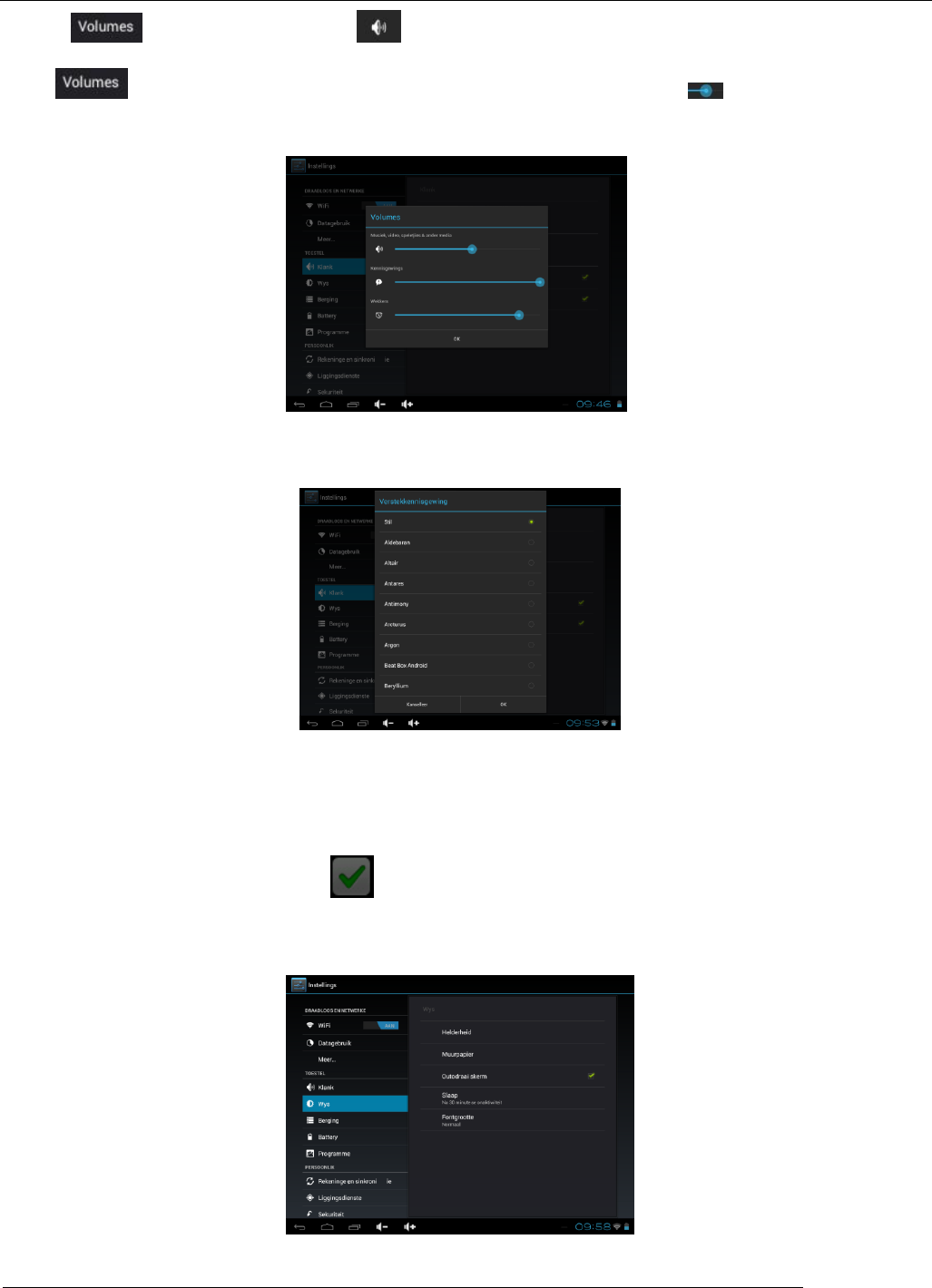

6.1.5 Sound setting
Tap the icon to enter the sound setting interface as below:
MID user manual
Kintech Co., Ltd
27
a. Tap to enter into sound setting, and tap to let the tablet PC turn into silence.
b. Tap to increase or reduce Media sound, Notifications sound and the Alarms sound by dragging the as below:
c Ring setting
In the setting interface, tap “Ring notice” to enter into Ring setting interface:
d stem indicator sound setting
touch indicator sound ( tap the touch screen)
Lock indicator sound (lock and unlock the screen broadcast voice
Vibrate when touch the screen ( if the device is equipped with vibration motors, when you tap the touch screen it will have slight vibration)
All this functions are optional, if you need just tap it is ok.
6.1.6 Display of wallpaper setting:
MID user manual
Kintech Co., Ltd
28
a Auto rotate screen
In the Orientation Toolbar tap and then auto rotate screen will automatically change according to direction when rotating tablet PC
b Wallpaper setting
Tap setting Appsdisplaywallpaper, and then You can choose the wallpaper as you like, such as live wallpaper - gallery (custom) - wallpaper (system) -
video wallpaper, as shown in picture:
Or you tap and hold any blank space in the desktop to change the wallpaper, the screen menu appears as shown below:
c brightness
Tap “Brightness” to increase or reduce the brightness of the system by dragging the as below:
d leep time selection: Select Device Standby Sleep Time
MID user manual
Kintech Co., Ltd
29

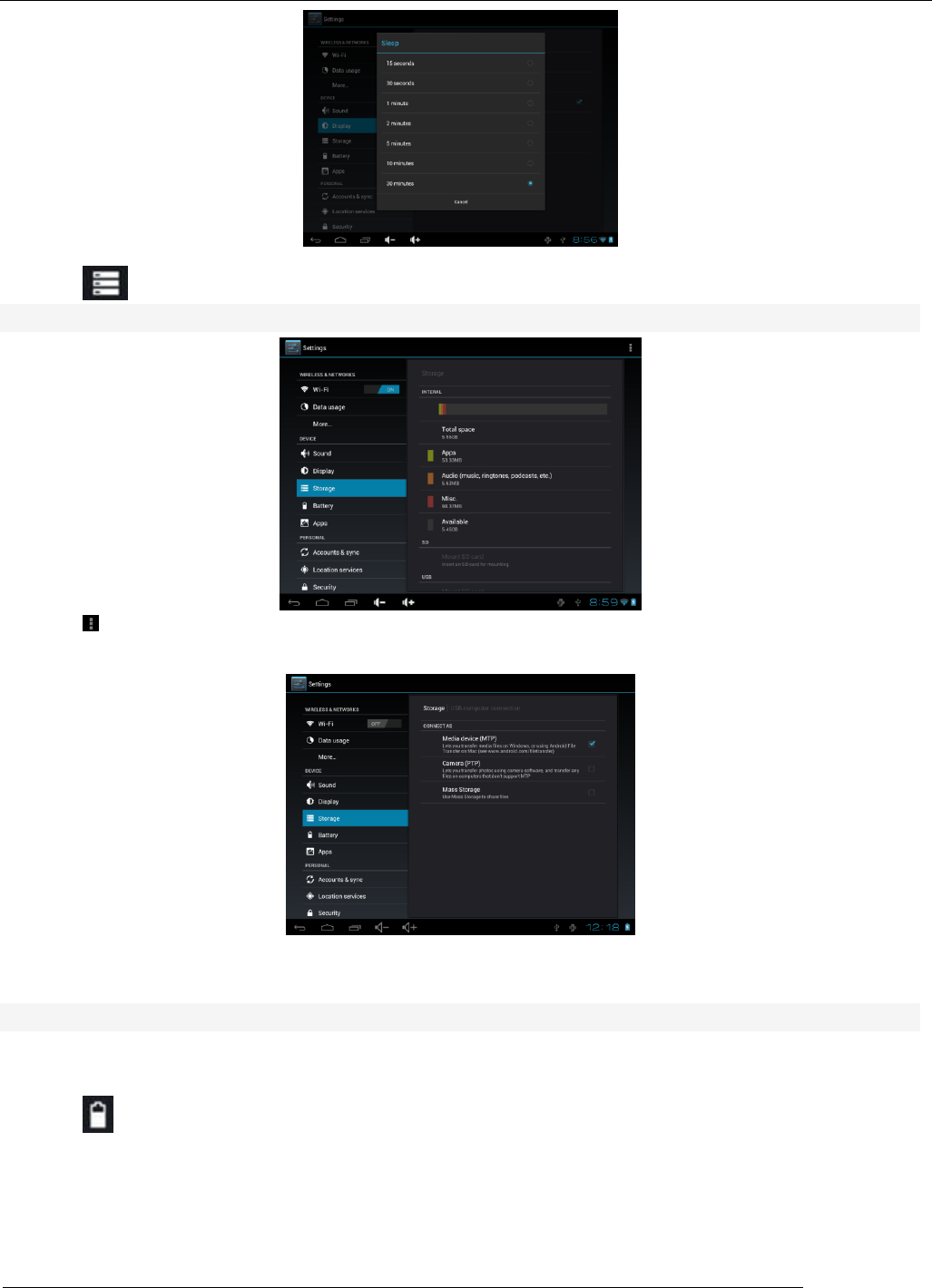

6.1.7 Storage
Tap the icon to check the storage using status of the internal and external memory as below:
To view the total capacity of FLASH, TF card, available space, etc.
Tap the icon on the top right corner of the screen to set the USB computer connection mode as below
1) media device mode (MTP)
2) camera mode (PTP)
3) storage device mode
6.1.8 Battery
Tap the icon to check the battery using status as below:
MID user manual
Kintech Co., Ltd
30
6.1.9 Apps
Tab the icon to enter the Application setting interface as below:
Running service settings
Tap the “RUNNING” to check and control the running apps as below:
MID user manual
Kintech Co., Ltd
31
6.2.0 Location services

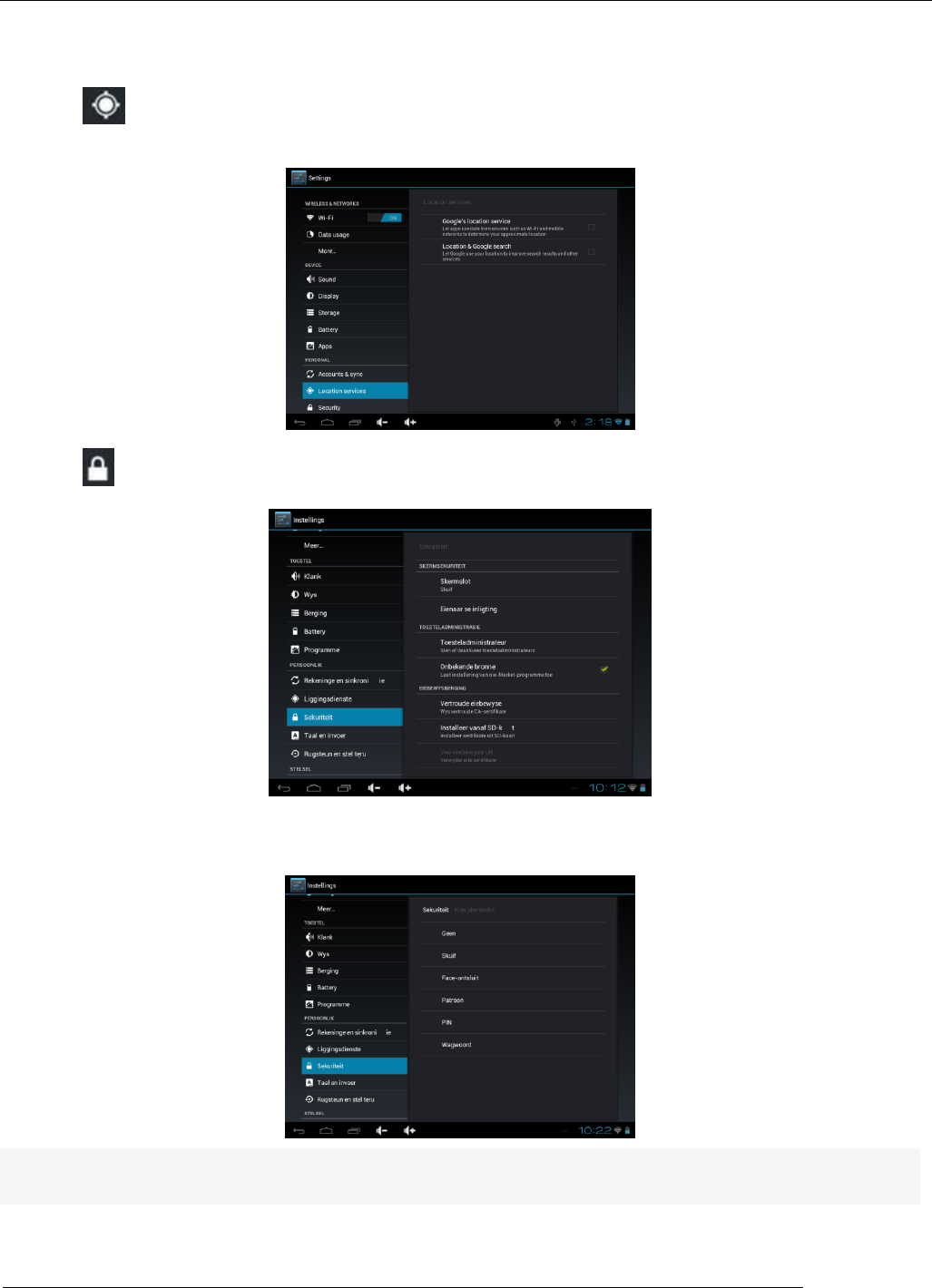

Tap the icon to set the Google’s location service and Location & Google search as below:

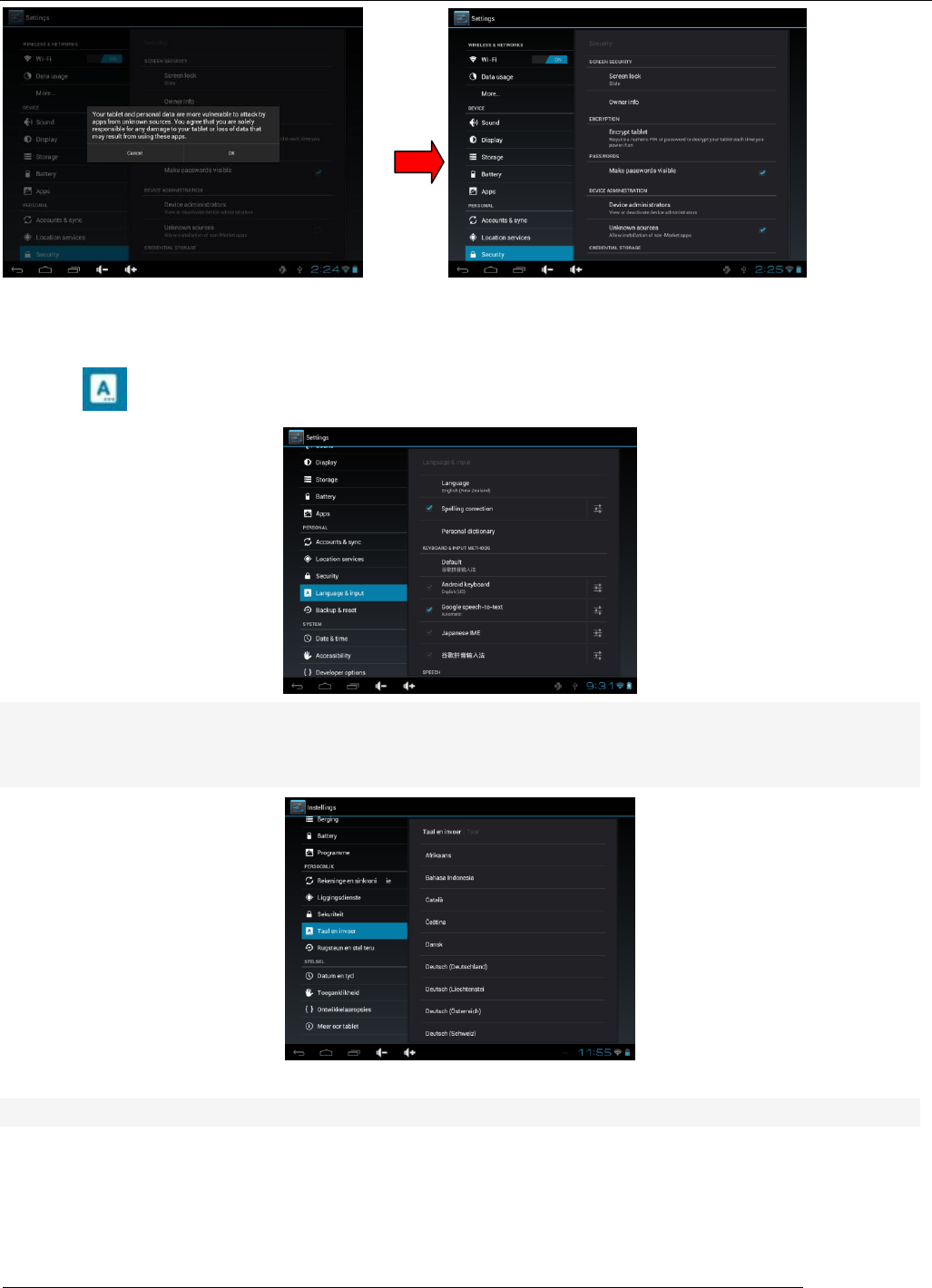

Tap the icon to enter the security settings interface as below:
Screen Unlock: Tap “screen lock” to select screen unlocked with none, slide, pattern, or PIN, password.

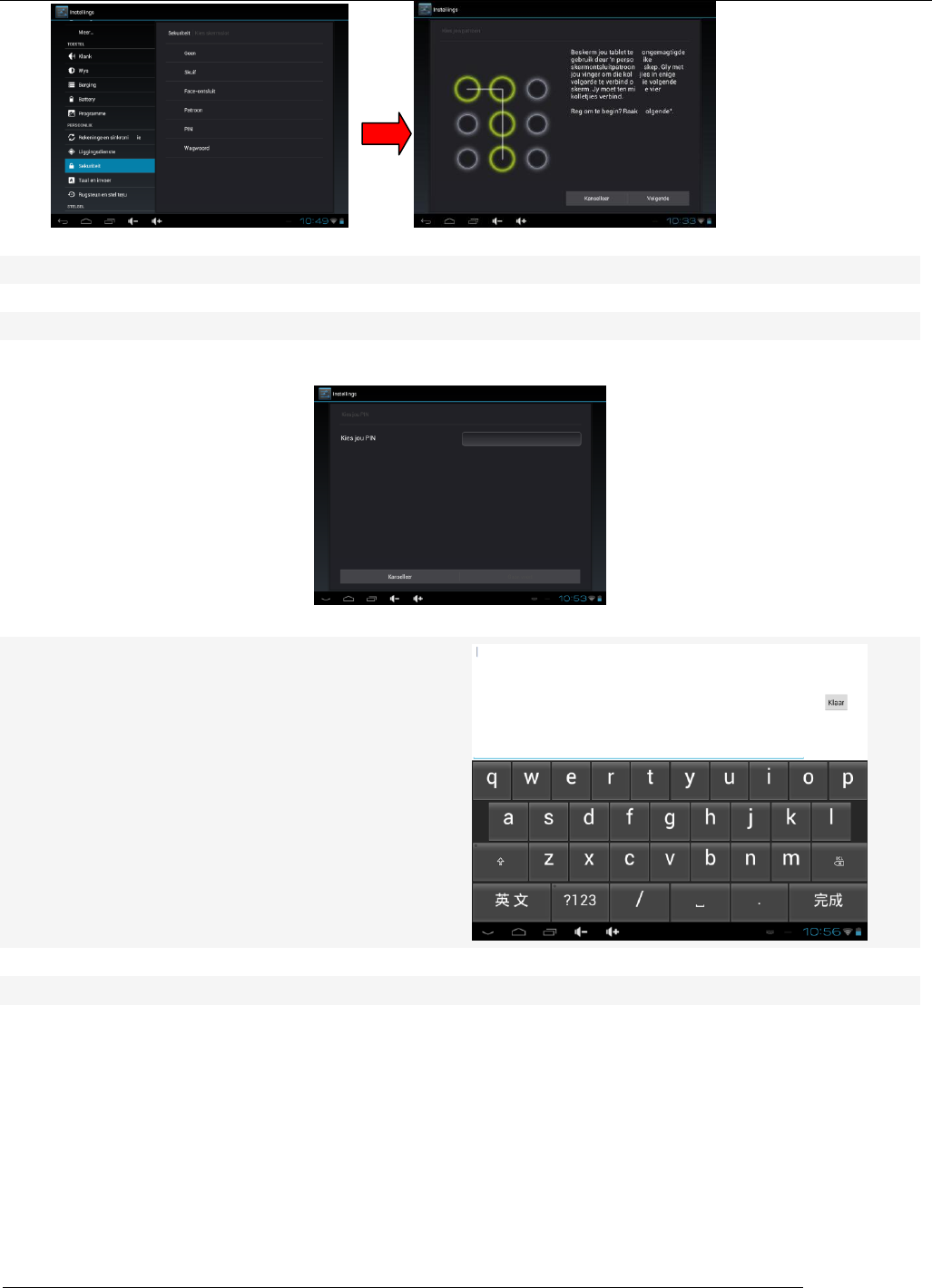

Set unlock pattern, For the screen saver password. Enter the settings interface to click security -screen lock –then click [Pattern] According to
prompt settings as Pic
MID user manual
Kintech Co., Ltd
32
Unlock screen by a pattern: Draw the unlock pattern with a minimum of 4 points, tap “Continue” to compete the setting
Set up unlock PIN password: Screen saver password
After inputting a password with 4 characters, tap “OK” to compete the setting. The screen has been locked. (Remember this password)
When the Tablet PC is turned on after standby will prompt you to set a password
Your can choose the screen lock mode according to your own needs
Device Administrator:
After tick the box Unknown sources in Security interface, the system will allow installation of APK applications in your tablet PC.
MID user manual
Kintech Co., Ltd
33
6.2.1 Language & input
Tap the icon to enter the language and input method settings interface to choose the language as you need as below:
language settings.
The Tablet PC supports multi-languages. You can select an operation interface of corresponding language according to your needs. Tap the corresponding
language options
Keyboard and input settings
According to your needs to set the corresponding input method
MID user manual
Kintech Co., Ltd
34
Voice search settings:
Tap the icon to enter the voice search settings to select different languages.
Tap the icon to enter the Text-to speech output
6.2.2 Backup & reset
Backup my date
MID user manual
Kintech Co., Ltd
35
Note: Please back up all your data of the internal memory before reset the Tablet PC.
6.2.3 Date & time

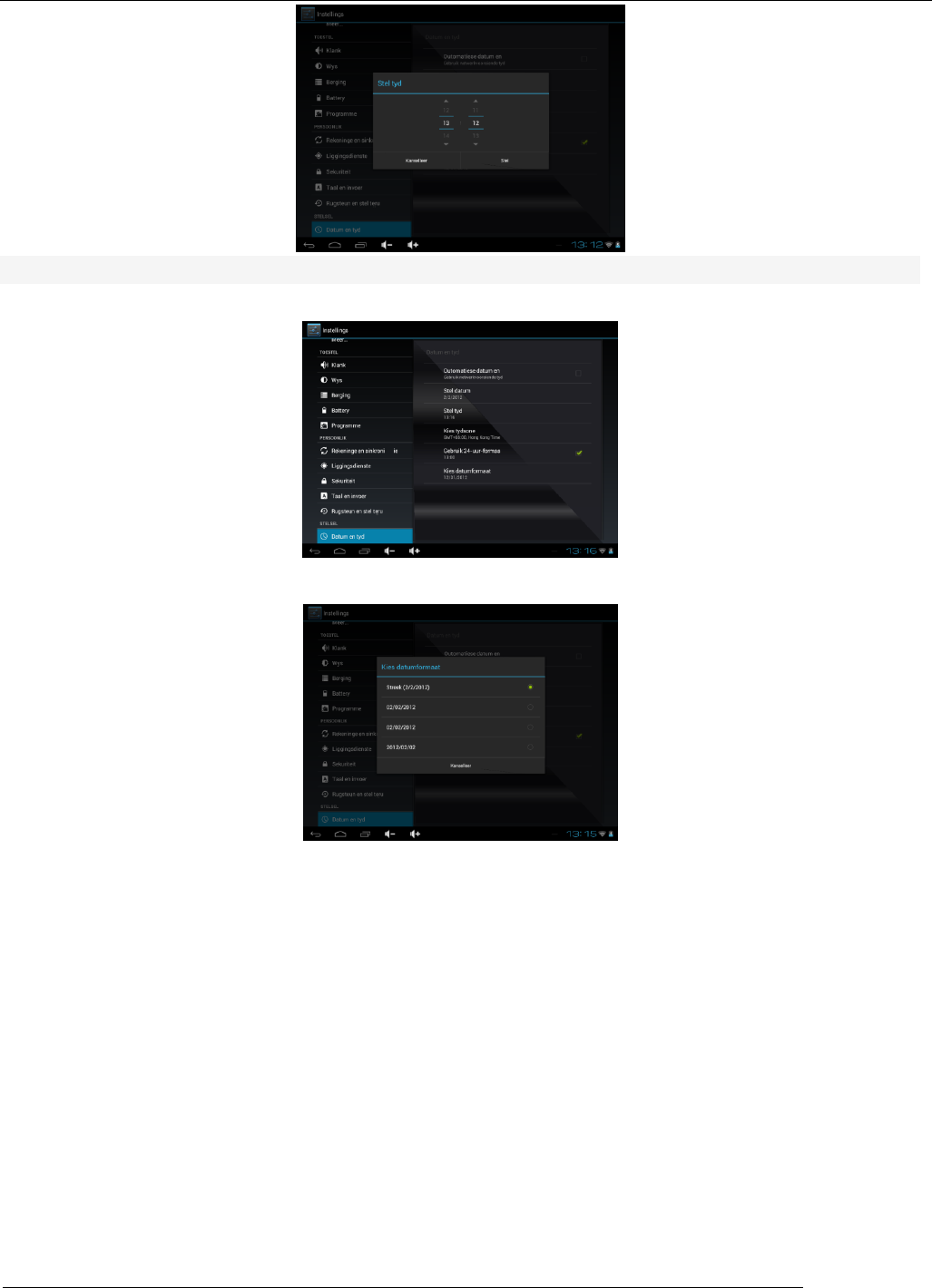

Tap the icon to enter the date and time setting interface, Untick the box behind the “Automatic” (click date & time) to modify the system date
and time by manual as below
Set Date
Click set date and tap and button to select Day, Month and Year, then tap “ ” to finish the setting
Select time zone
Select your time zone to finish the setting
Set time
Click set time and tap and button to select hours , minutes, For example. 10:56 then tap “ ” to finish the setting
MID user manual
Kintech Co., Ltd
36
Use 24-hour format
date format
6.2.4 accessibility

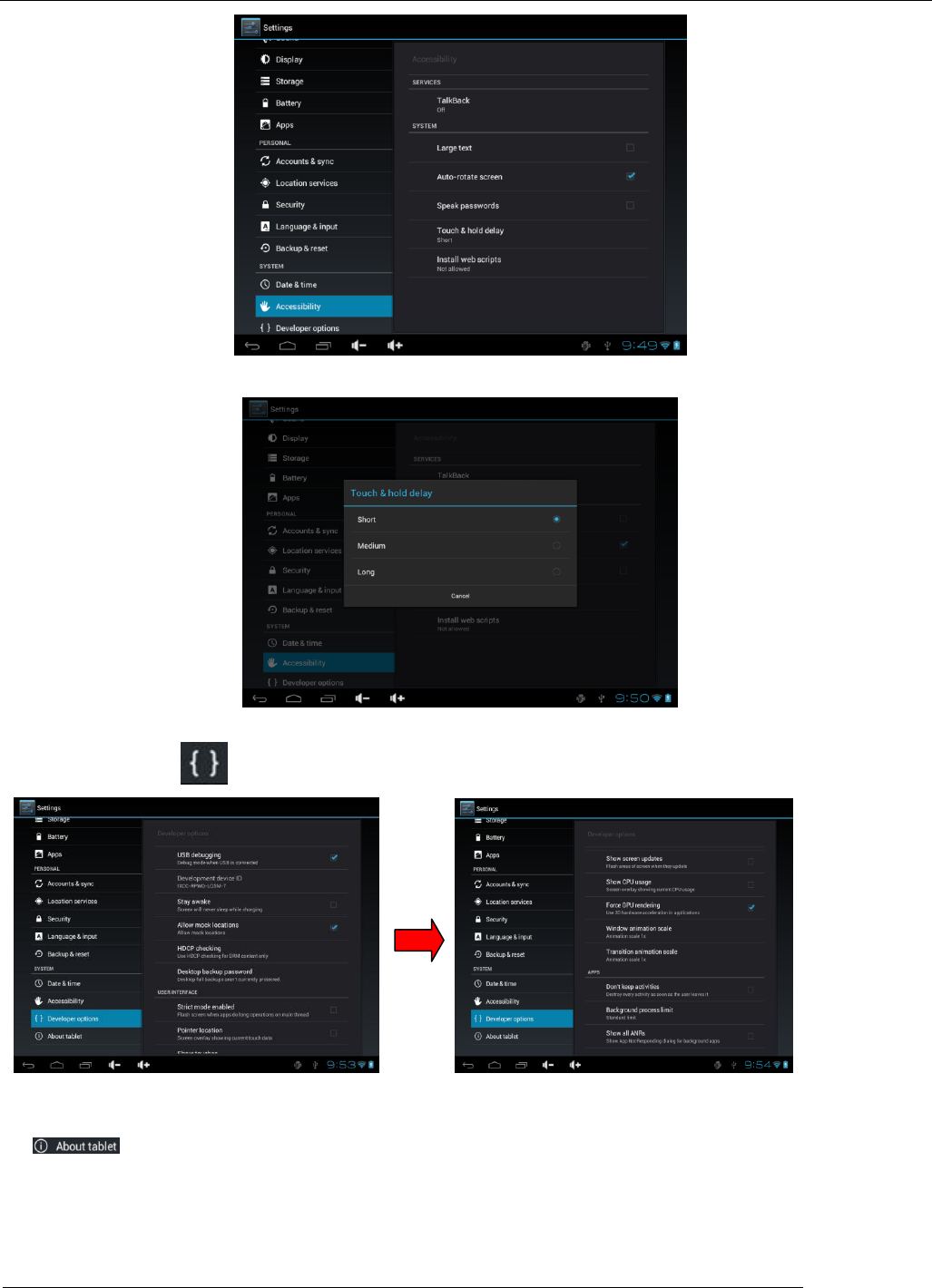

Can set the Auto-rotate screen etc, interface as below:
MID user manual
Kintech Co., Ltd
37
Touch & hold delay
6.2.5 Developer options: It is recommended to use the factory default developer options setting, or some changes may affect the functions
of the Tablet PC. tab the icon to enter the developer options setting interface as below:
6.2.6 About Tablet
Tap to check System updates, Status and Legal information as below:
MID user manual
Kintech Co., Ltd
38
:
6.3 Add, Move or Delete Desktop Icon
Tap the icon on the desktop to enter the app menu list. lay out all the application icons with paging display, Tap and drag the application icon to the
current desktop
Long tap the app icon on the desktop to enter the editing mode and you can remove the icon and set its location. When you drag the icon to the ,
it turns into the delete function, release the icon to delete it as below:
7 . Firmware Upgrade
Press the “POWER” key to turn off the Tablet PC before upgrading
(Note: Press and hold the “POWER” key for at least 6 seconds if the Tablet PC can not be turned on normally, The system will automatically power off) ,
Because the CD is read-only file,Insert the Driver CD and copy the file named “RK3188 Android Upgrade Tool” to your computer desktop. click the button
MID user manual
Kintech Co., Ltd
39
and choose “update.img” from the popup window, click open, as shown in the picture below:
After the Tablet PC has been turned off, hold the “Volume+” key without releasing; connect the tablet to the computer by the USB cable provided in the

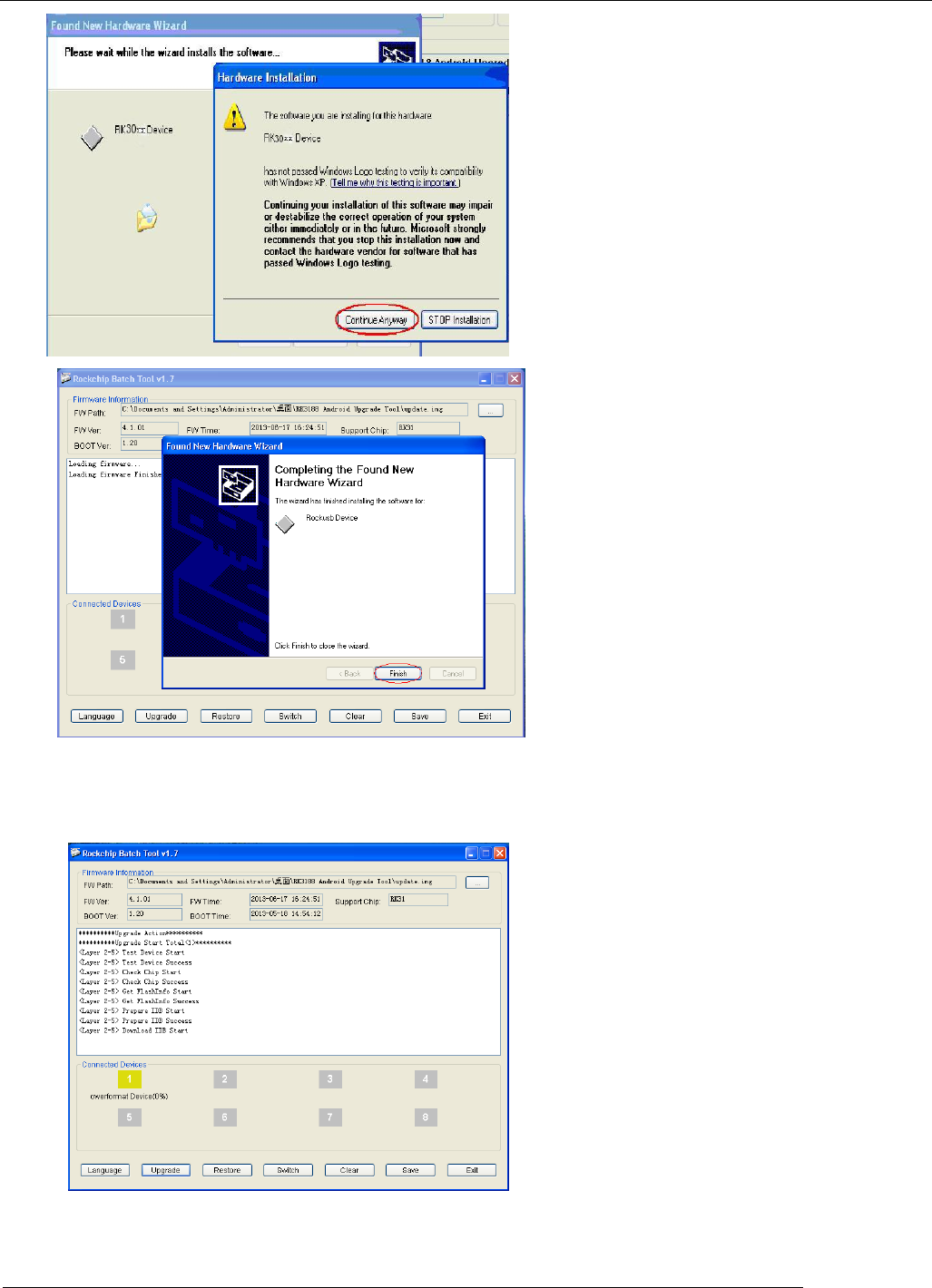

packing. The “Found New Hardware Wizard” window will pop up on the bottom right corner of the computer.
Choose “Install from a list or specific location (Advanced)”, and then click “Next” to install the USB driver, see the picture below:
Note: The USB port of the computer must be USB2.0, or it cannot be used to update the Tablet PC.
Select “Include this location in the search”, and navigate to the following folder “RK3188 Android Upgrade Tool” - “30xxDriver” > “x86” > “XP” on the
CD ROM, then click “OK”. The system will detect and install the driver automatically, finally click “Finish”, see the pictures as below:
MID user manual
Kintech Co., Ltd
40
After successful driver installed, Release the "Volume-" key after icon labeled “1” has turned green in the RKBatchTool, see the picture as below:
Then click “Upgrade” to start the updating process. During this process lots of information will be shown in the update status box as below:
Note: While the system is being updated, the Tablet PC must not be operated in anyway.
MID user manual
Kintech Co., Ltd
41

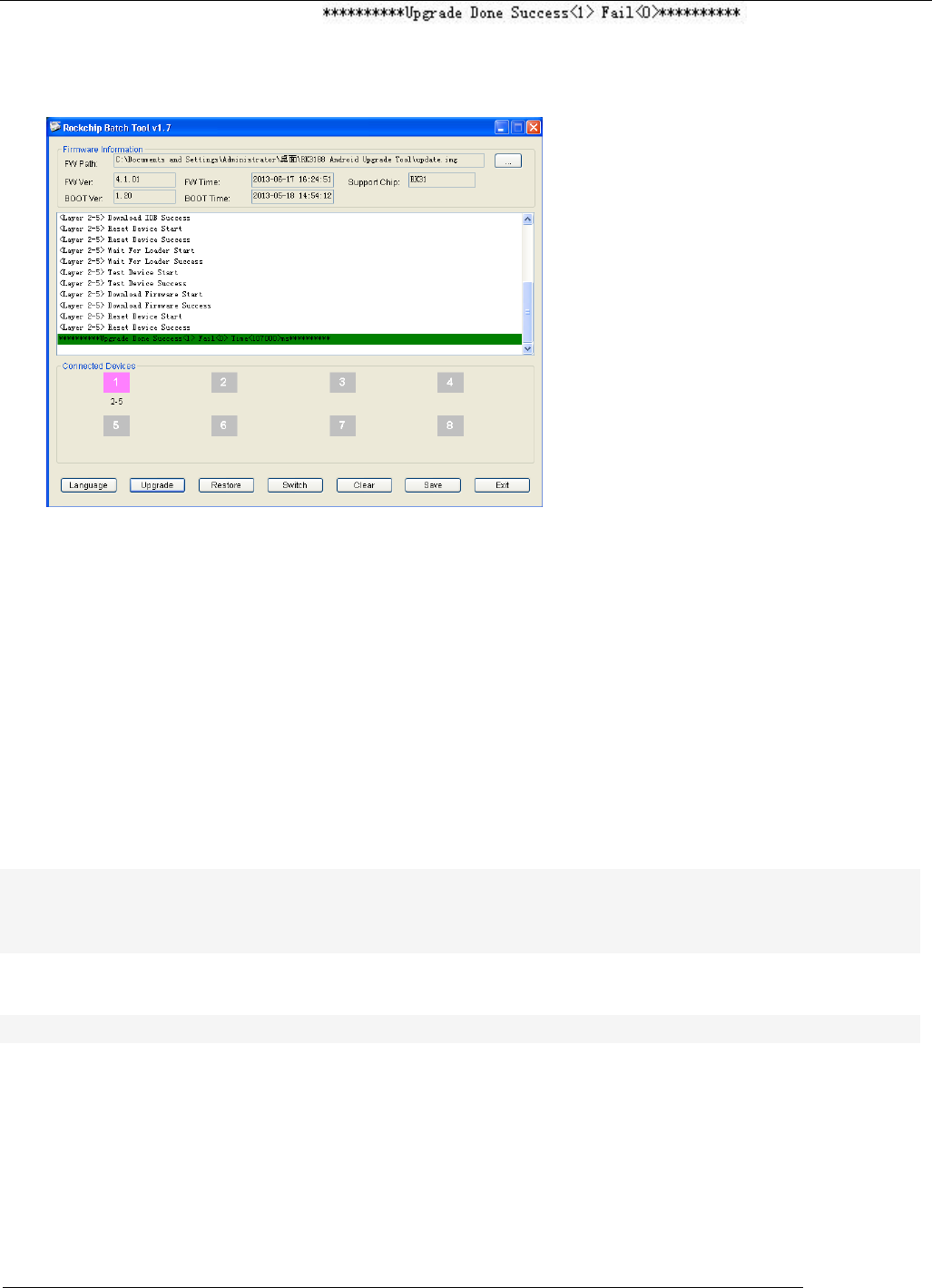

The system has been updated successfully when the “ ” notice appears in the status
bar as shown below, Tablet PC will come to the desktop after run system. (Note: Please don’t disconnect the USB cable during the updating process because
this will cause update failure or possible system failure of the Tablet PC.)
8 Troubleshooting
8.1 Tablet PC doesn’t turn on
You can not turn on the Tablet PC when the battery charge is below the critical level, please charge the battery by USB connecting with computer or power
adapter to make sure your power before attempting to turn on.
Press the “RESET” key of the Tablet PC and check if it is restarting is normally or not.
Check if the charger is connected correctly.
8.2 The stand-by time of the Tablet PC is too short
The duration of the lithium battery varies with environmental temperature changes and the service conditions. If the environment temperature is too
low or too high, the duration of the battery will be affected. It is recommended to use the Tablet PC at normal temperature.
Battery life is dependent on usage. High volume, WIFI and the frequent use may cause the battery to be drained at a higher rate. From usage point of
view, the battery consumption is relatively with big screen, but also by increasing the volume, open the speaker, frequent operation and other factors, the
actual use of the time there will be some differences.
8.3 No sound via earphone
Please check if the volume setting is 0.
Please check if audio file is broken, and try to play another audio file to confirm. If the audio file is broken, it may cause severe noise or static.
8.4Can not copy files
Please check if the Tablet PC is connected to the computer correctly.
Please check if the memory storage space is full
Please check if the USB cable is broken.
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF warning for Portable device: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure condition
without restriction.
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -5℃ or maximum
over 40℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
