Kintech PC7028 tablet pc User Manual KW GPS 4301

Kintech Co. Ltd tablet pc KW GPS 4301

User manual

MID User Manual
User Manual
1
PC7028L User Manual
MID User Manual
User Manual
2
Content
1. Preface
2. Safety Notices
3. Ready to Use
3.1 Packing List
3.2 Product Appearance
3.3 Instructions on Keys
3.4 Features Overview
4. Quick Guides
4.1 Switch On/Off
4.2 Battery Management and Charging
4.3 Operation of the Function Icons
5. Operation Details
5.1.1 Music Player
5.1.2 Video Player
5.1.3 Picture Player
5.1.4 Sound Recorder
5.1.5 File Manager
5.1.6 Web Browser
5.1.7 Calculator
5.1.8 Clock
5.1.9 Camera
5.2.0 External Storage
5.2.1 APK install & uninstall
5.2.2 External mouse/keyboard
6. Device setting
6.1.1 WIFI
6.1.2 External 3G USB Dongle：
6.1.3 External RJ45 USB Dongle
6.1.4 Sound
6.1.5 Display
6.1.6 Storage
6.1.7 Battery
6.1.8 Apps
6.1.9 Personal settings
6.2.0 Language & input
6.2.1 Backup & reset
6.2.2 Date & time
6.2.3 Accessibility
6.2.4 Developer options
6.2.5 About tablet
MID User Manual
User Manual
3
6.3 Add, Move or Delete Desktop Icon
7. Firmware Upgrade
8. Troubleshooting
1. Preface
Dear Customers,
Thanks very much for purchasing our product!
This Tablet PC is a built-in high performance Wi-Fi receiver module, supporting an external 3G
USB-DONGLE wireless network card, using broadband wireless networks, breaking through the
restraint of network cables; it will bring you into the portable media player world and fulfill your
entertainment needs. It also supports picture browsing, e-book reading, games, online chat and other
functions; various settings will fully show your individuality.
To operate this player easily, first, please read this User Manual included with the player. Then you will
have a better understanding of the operations. Before operating this player, please carefully read all data
we provide about the player, so that you will have a better understanding of the product and its
operations.
The Company will not be responsible for any loss of personal data and damage caused by incorrect
operation of the Software/Hardware, artificial damages, replacement of batteries or any other accident.
To avoid loss of your data, please backup your data to your computer at all times.
Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against
the manual, the Company will not take any relevant responsibility for any accidental loss potentially
occurring in the process of using this manual.
Due to constant product development, the information in this manual is subject to change without any
prior notice.
This manual is protected by copyright and no part is permitted to be copied or reproduced in any way
without prior written permission of the Company.
The Company reserves the final explanation right of this manual, warranty as well as its related
information.
(Note: When compiling this manual, we are very careful to provide you completely reliable information.
However, there is inevitably some error and oversight, please understand, and we welcome your
suggestions. If any problem occurs during your use of this product, please immediately contact your
local seller)
Thanks for your support and please pay attention to our other products
2. Safety Notices
1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product.
2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use,
because this may cause surface scratches on the Tablet PC, battery damage, data loss or other damage to
the hardware.
3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet
PC could disable it to the extent of being beyond repair.
4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and
corrode the finish.
5) You are recommended not to use the headset with the volume at its highest settings, please adjust the
volume to an appropriate safe level and limit the amount of time you spend using headphones to avoid
possible damage to your hearing. Excessive volume will cause permanent hearing damage.
6) Please do not cut off the power abruptly during software updates or downloading, because this may
cause data loss or system errors.
7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must
be avoided to prevent the possibility of overheating or fire.
8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands.
9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed
as an infringement to the laws of copyright.
MID User Manual
User Manual
4
10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when
the usage of the Tablet PC will cause interference and possible danger.
11) All the wireless equipment is subject to external interference and this can affect its performance.
12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of
the plane; please consult the relevant airline company if you intend to use the Tablet PC on a plane.
13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals.
14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting
operations are in progress.
15) Only qualified maintenance personnel can install or repair the Tablet PC. Opening the Tablet PC in
any way will invalidate the warranty.
16) Please use the original accessories and battery provided with the Tablet PC, do not use the
incompatible products.
17) The Tablet PC is not waterproof, please keep it dry.
18) For the sake of data safety, please back up any important information on the Tablet PC, or keep a
handwritten record.
19) When the Tablet PC is connecting with other devices, please read the user manual for detailed safety
instructions. Don’t connect the Tablet PC to incompatible products.
20) Please upgrade device with enclosed optical disk when the device is set to operate in a different way.
Note: When the Tablet PC is connected to the computer, the computer must be equipped the play for
Windows Media Player 10, Windows Media Player 11 or above version.
3. Ready to Use
3.1 Packing list
3.2 Product Appearance
Accessories
Quantity
Device
1
Leather Case (Optional)）
1
Keyboard/Mouse
(Optional)
1
TF (Micro SD) Card
(Optional)
1
Adaptor
1
Earphone(optional)
1
USB Cable
1
3G USB
Dongle(Optional)
1
RJ45 USB
Dongle(Optional)
1
Paper User
Manual(optional)
1
CD-ROM (Firmware)
1
Warranty Card(optional)
1
HOST cable(Optional)
1
MID User Manual
User Manual
5

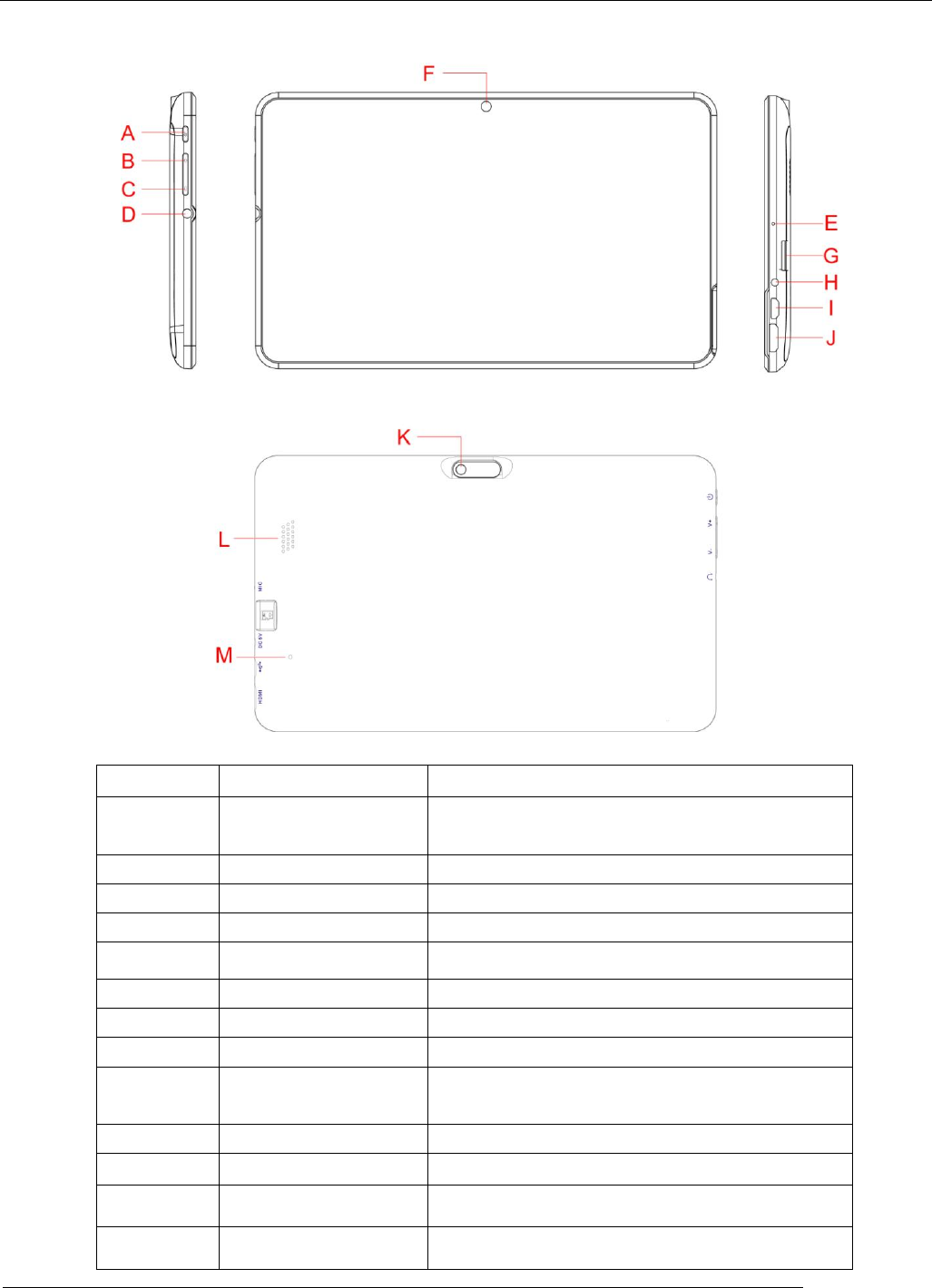

3.3 Instructions on Keys
Symbol
Name
Description
A
Power
Short press the button to enter sleeping/wake
up mode, long press to switch ON/OFF
B
Volume+
Short pres to increase the volume
C
Volume -
Short pres to decrease the volume
D
Earphone Jack
Stereo Earphone Jack
E
MIC
Recording
F
Front Camera
0.3MP Front Camera
G
TF card slot
External storage TF card slot
H
DC In
DC-5V
I
Micro USB port
Port for USB, HOST, external 3G Dongle &
charger
J
HD Output Port
HD Output Port(Optional function)
K
Rear Camera
2.0 MP Rear Camera(Optional function)
L
Speaker
Speaker
M
Reset
Press to Reset the Table
MID User Manual
User Manual
6
3.4 Features Overview
Adopts the Boxchip A20 as the main chip, ARM® Cortex™-A7 dual core at 1.2GHZ Processor,
ARM® Mali400MP2 2D/3D graphics accelerator, 128k L1 & 256k L2 cache：OpenGL ES2.0/1.1,
Mali-400, support ANDROIED4.2 smart operation system & flash player 11.1
Support 1G DDR3
Built-in 4GB~16GB Flash memory (Optional), supports max.32GB external TF card
7” 65K TFT display, capacitive single-point or 5-point optional.
Support HD 1080P AVI、MPG、MKV、RM、RMVB、MP4、MOV、VOB、DAT、FLV、TS、
3GP、WEBM（VP8）etc video format. Max resolution support: 1920*1088/30fps.
Support JPG、JPEG、BMP、GIF、PNG、JFIF etc picture format, max resolution support:8000*8000．
Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP
etc audio formats and multi EQ modes, and support Lyrics synchronized display or full-page
display.
Supports TXT, LRC, PDF, Html, Htm, EPUB etc file formats, supports auto-browse, zoom,
bookmarks, flip over functions.
Wi-Fi ready, you can connect with broadband wireless internet and operate various software in the
Android 4.2 OS, the system is preset parts of third software: Office (Open Office version), Google
browser, IM (MSN/QQ), Web TV, Online MP3, online novel, network games, E-book, etc
Built-in microphone record/ voice call function。
Supports USB-HOST function for external U-disk, Keyboard, Mouse & 3g dongle etc.
Built-in 0.3MP front camera and 2.0MP back camera, support VOIP & Video call.
Supports G-sensor screen rotation function
Supports built-in speaker and external stereo earphone
Supports multiple languages
Can be used as a USB portable hard disk, driver not needed for WIN2000 or above.
Technical Specifications：
Dimensions
LHT 190MM*125mm*11mm
Weight
305g
LCD Display
7.0” TFT display
800*480 or 1024*600
PC Interface
USB2.0 （HS）
CPU
ARM Cortex ™-A7 dual core at 1.2GHz, ARM® Mali400MP2
2D/3D graphics accelerator, 128k L1 & 256k L2 cache：OpenGL
ES2.0/1.1.
Built-in Flash
Flash Memory ：4GB－16G
Built-in RAM
ROM：DDRIII 512MB～1GB
Capacity Expansion
Support TF Card 1GB~32GB
Power Supply
Built-in 3.7V@2500mAH Lithium rechargeable battery
AC charger Input: AC110V~240V /Output: DC 5V@1.5A
Music Function
MP1、MP2、MP3、WMA、WAV、OGG、
OGA、APE、FLAC、AAC、M4A、3GPP
（L）5mW＋（R）5mW（32Ohm）
MID User Manual
User Manual
7
8Kbps ~ 392 Kbps
5Kbps ~ 192 Kbps
20Hz to 20KHz
90dB
＜0.05%
Video Function
AVI、MPG、MKV、RM、RMVB、MP4、
MOV、VOB、DAT、FLV、TS、3GP、
WEBM（VP8）etc.
1920*1088
4：3、16：9、full screen optional.
Photo Browse
Support format: JPG、JPEG、BMP、GIF、PNG、JFIF etc., max
resolution support: 8000*8000．
E-book Function
TXT、LRC、PDF、Html、Htm、EPUB etc
5M
Wi-Fi Function
RTL8188
Max150Mbps
Max100m
2.4GHz
802.11b/g/n
Record Function
WAV
Working temperature
-5 ~ 40 ℃
Supported OS
Windows2000/XP/WIN7/Vista Mac OS V9.0/10.0
4. Quick Guides
4.1 Switch On/Off

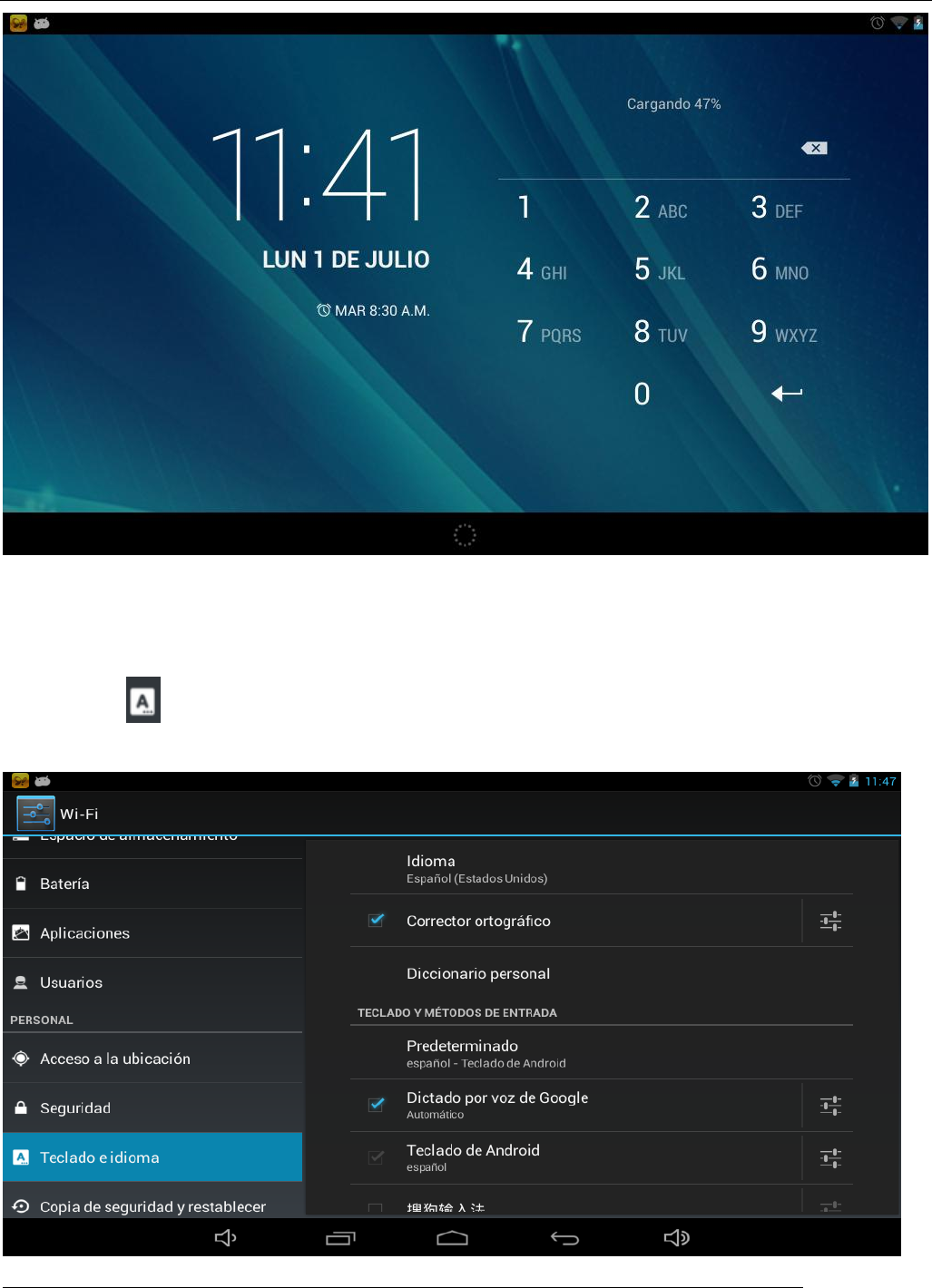

Switch ON and Unlock: When the Tablet PC is in OFF mode, please press and hold the “POWER” key
for 3 seconds to enter the Android startup process. The Tablet PC will take about 50 seconds to enter the

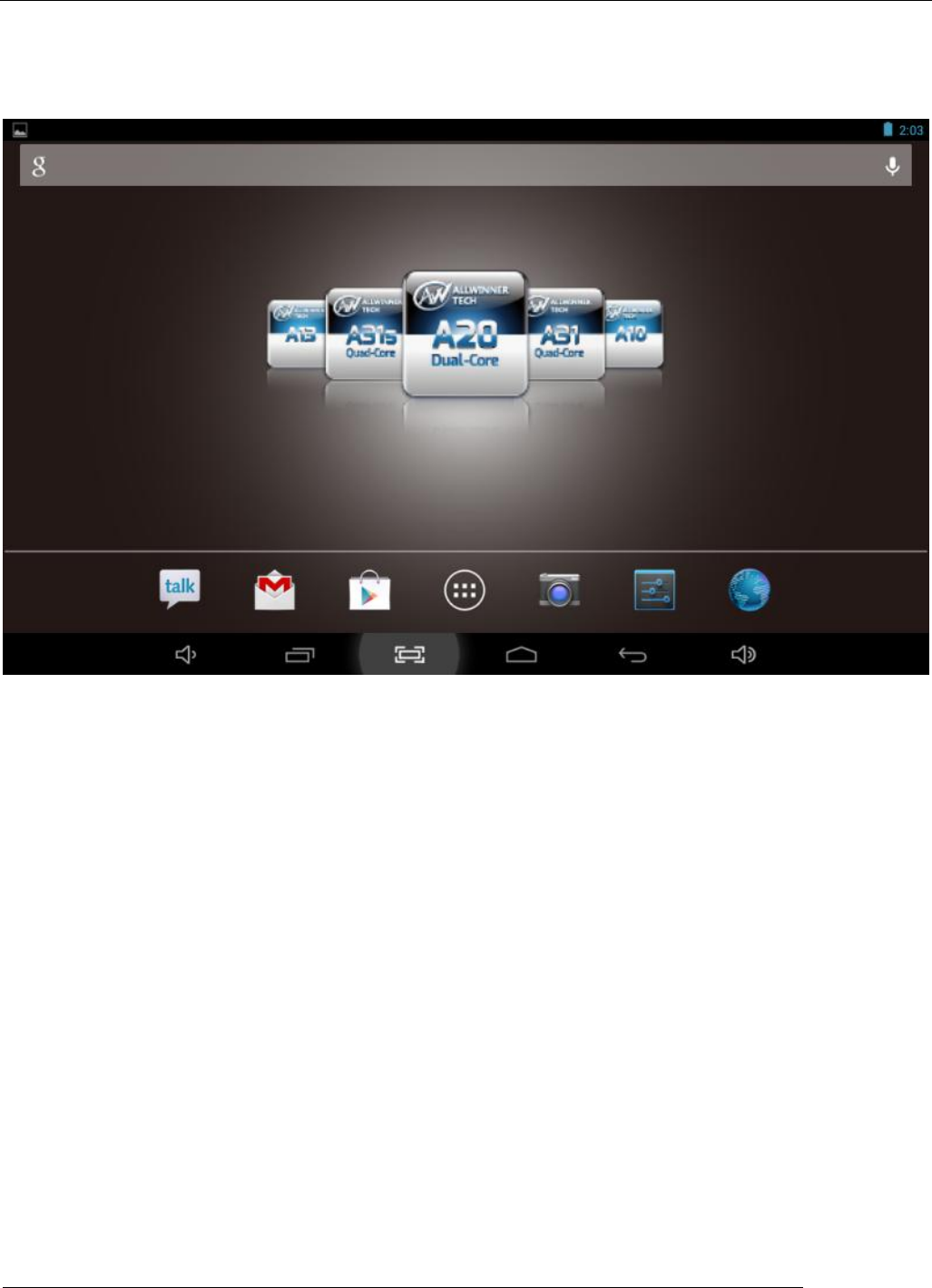

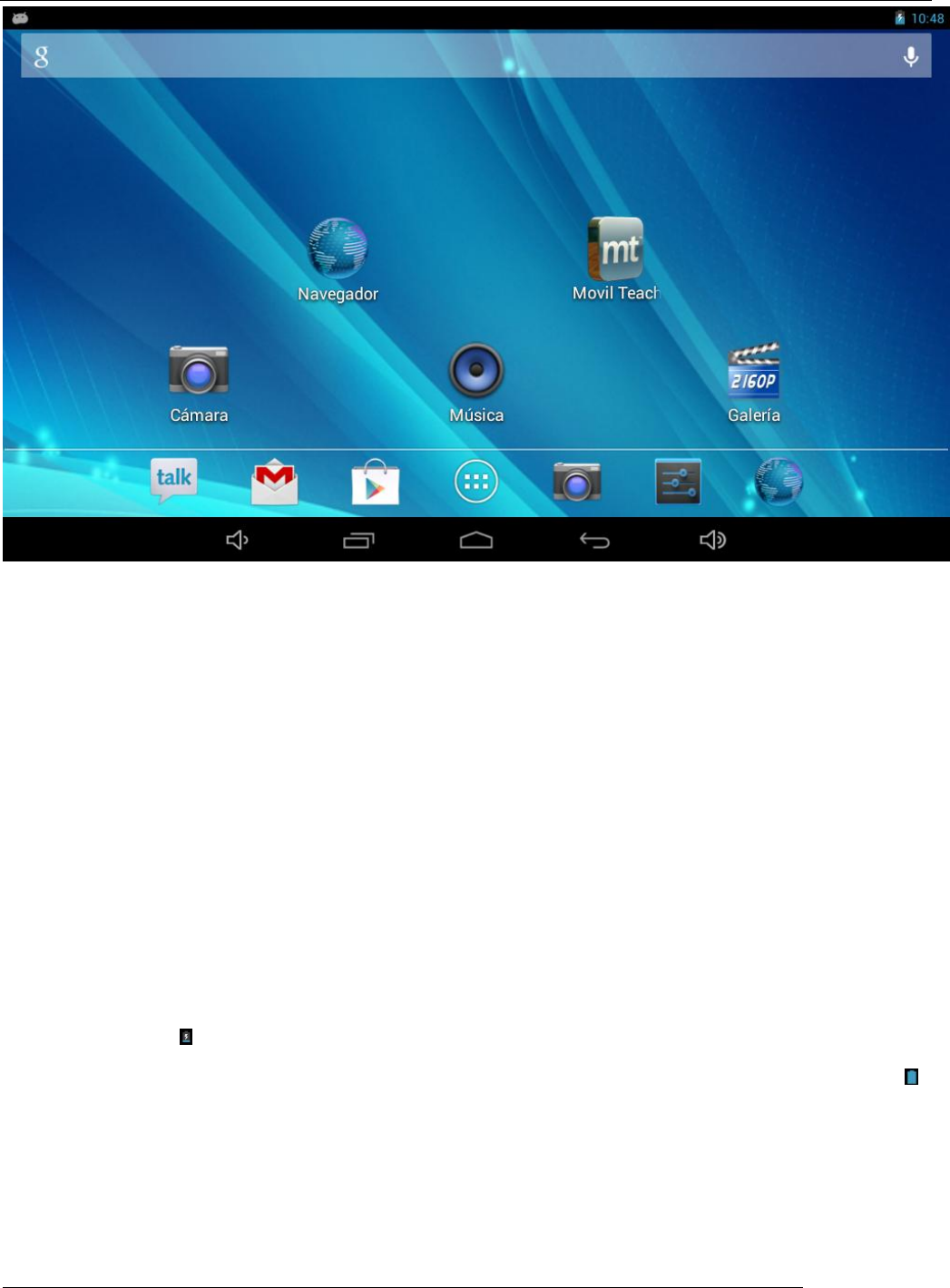

system desktop with the display in locked mode. Please press and move right the icon to ,

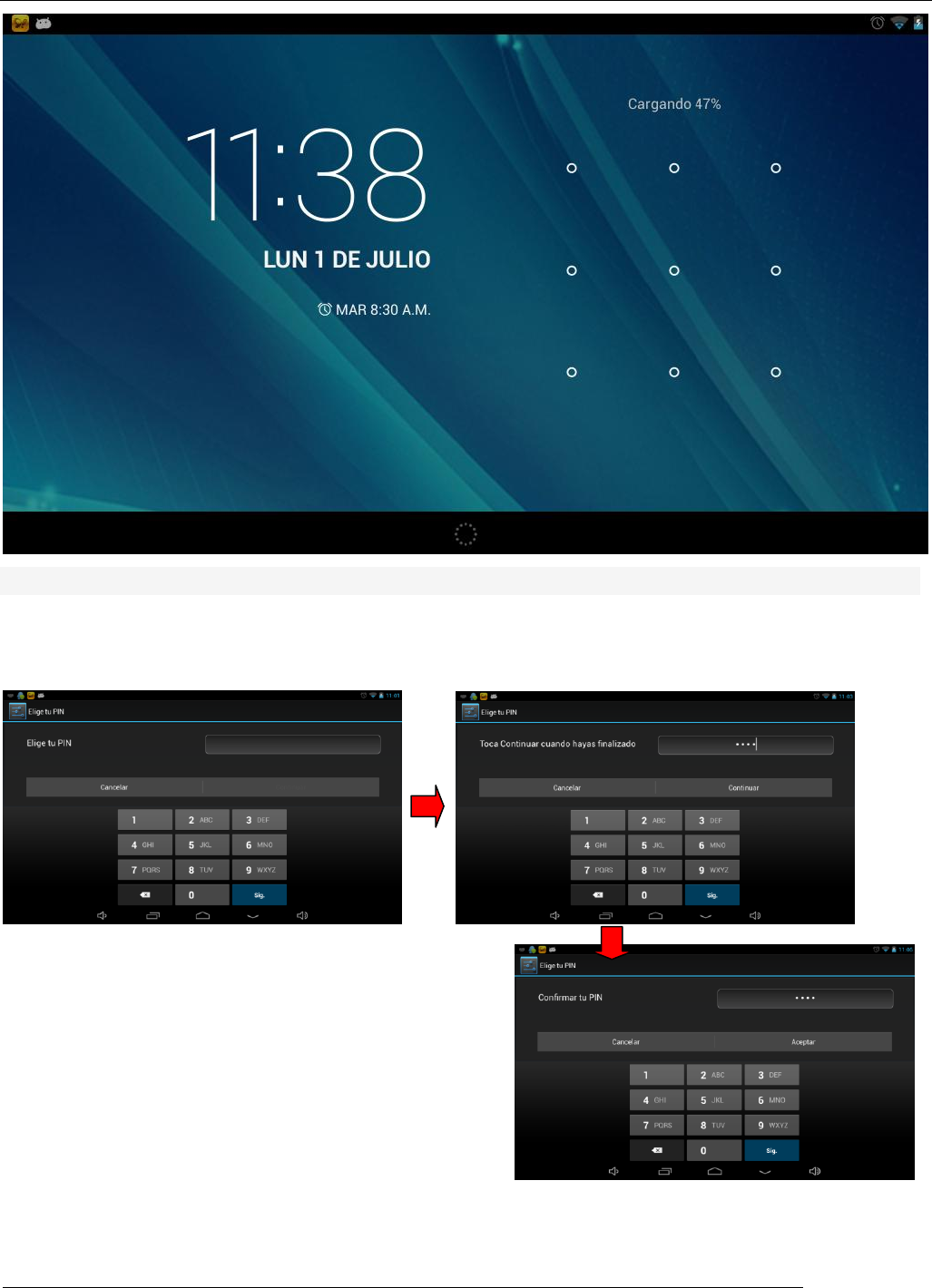

the display will unlock automatically, see the image below:
Note: When the Tablet PC is in use, please put it into SLEEP mode, then the Tablet PC will be ready to
use whenever you like, and you don’t need to start the Android operating system again.
MID User Manual
User Manual
8
Power Saving Mode and Locked Mode: Pressing the “POWER” key when the Tablet PC is in use will
result in the system entering SLEEP power save and locked mode. Press the “POWER” key or tap the
touch screen for 3 seconds, the Tablet PC will return the system to locked mode within 1 second.
Note: The primary operation of the Tablet PC will not stop under the power saving mode, just the
display is turned off and showing a black screen with the Power light is on. This means that music play,
movies play etc. will still continue running in the system.
Switch OFF: When the Tablet PC is in use, please press and hold the “POWER” key for 3 seconds, the
screen will display the power off interface, choose the power off option to confirm your selection and
the system will shut down automatically.
Note:When system halted or device under blank screen, please restart the device after device automatic
power off by pressing reset key or long pressing power key for 6 second.
Note: When the Tablet PC is running low on battery power, it will sound an alarm and then shut
down automatically if it isn’t plugged into a power source to start charging. If the Tablet PC can’t
start up please check if the battery power is too low.
4.2 Battery Management and Charging
Note: Charge the battery at least 8 hours to make sure the battery is fully charged for the first time.
·Insert the adaptor into the DC slot on the Tablet PC, and connect the other side with the power socket.
Then the Power indicating lamp on the top right side of the Tablet PC will turn purple, and the desktop
icon of the battery keeps rolling to show it is charging. Note: Please wait until the battery is fully
charged and do not disconnect the adaptor when charging.
·Once the battery is fully charged, the indicating lamp will change into blue, the Icon on the desktop
will stop rolling.
· When the battery is exhausted completely, please charge at least 5 minutes before starting it up.
Note: In order to keep the battery working to its full potential, please pay attention to the following
advice:
1) Don’t charge the power in excessively high temperatures.
2) There is no need to run down the power for this Li-ion battery, you can charge the battery even when
there is still power left in the battery without it affecting the lifespan of the battery.
3) In order to keep the battery in good condition, Make sure you charge it at least once every two weeks
if the Tablet PC hasn’t been used for a long time.
MID User Manual
User Manual
9

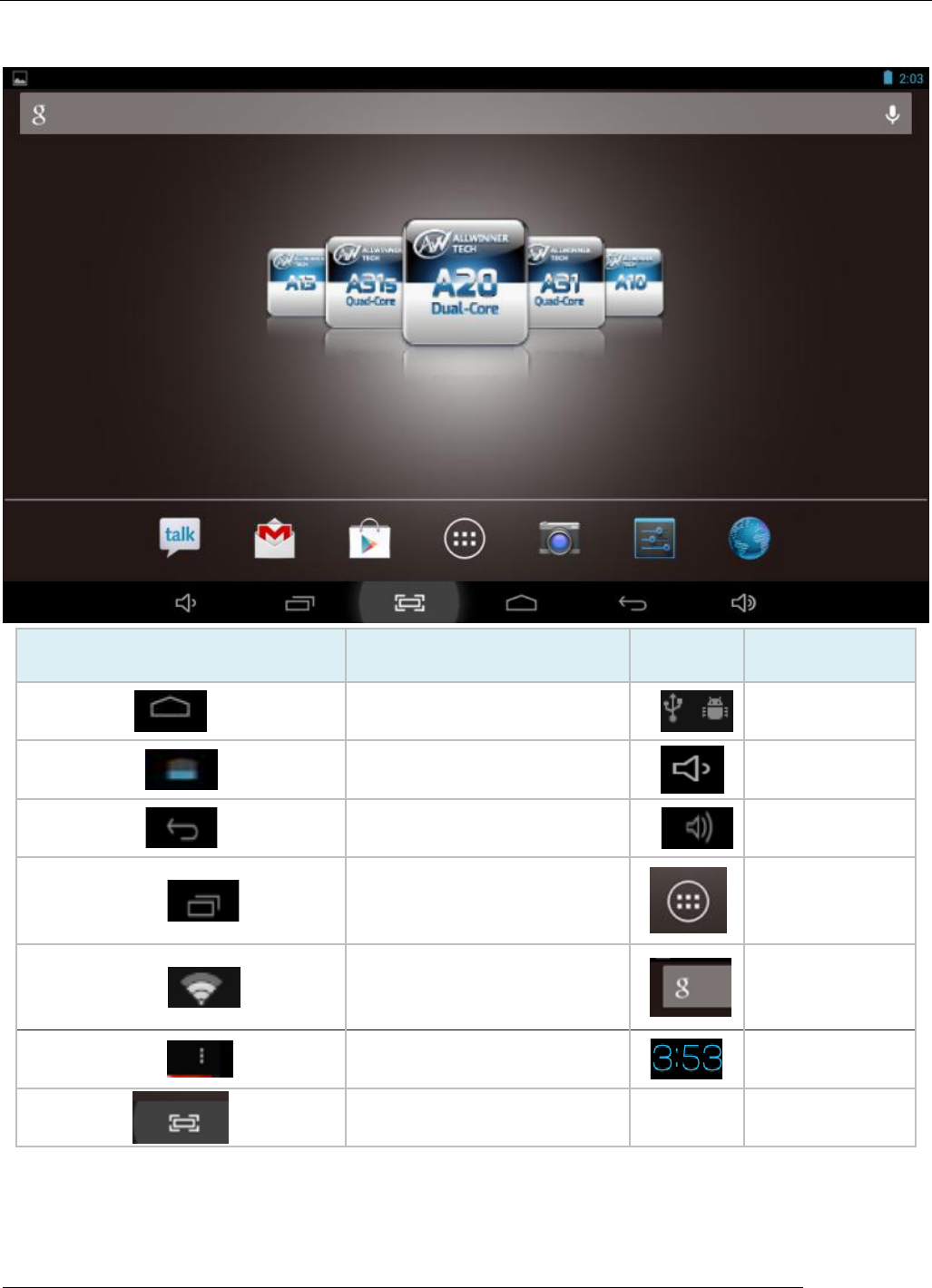

4.3 Operation of the Function Icons
Icon
Function
Icon
Function
Back to main menu
Notifications
Power Status
Reduce the
volume
Return
Increase the
volume
Recent apps and other options
Function Menu
Wi-Fi Status
Google Search
Wallpaper, Manage apps,
System setting
System Time
Screenshots
5. Operation Details
5.1.1 music Player
MID User Manual
User Manual
10

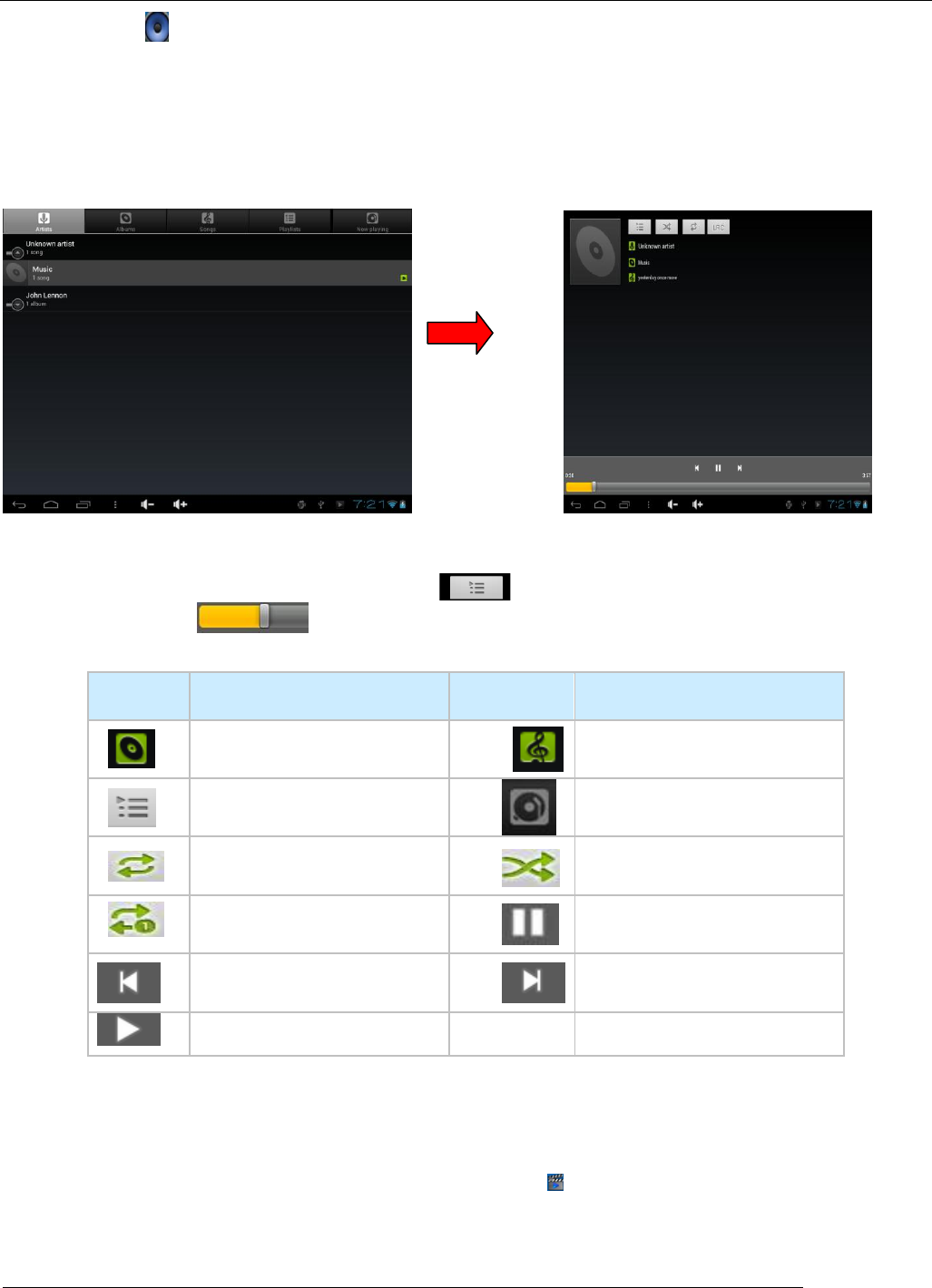

Press audio icon which is in main menu or desktop to enter audio playing.
If there is no music file in the player, files in sd or tf card will be loaded to the
playlist automatically. The device support music file format is : mp3、wav、midi、
wma.etc. The playlist shown as below picture.
In the playlist, paddle up or down on the screen for page turning. Double press your
favored songs to enter playing interface and start to pay audio files.
Label1
When in playing, click to enter into play list; Drag the playback
progress bar to adjust video playback progress.
Music Player Icons Description：
Icons
description
Icons
description
Albums
song
Music list
Current Playing
Loop playback
Random play
Repeat Single
Pause
Play the last song
Play the next song
Play Audio
Note: Audio player can play WAV audio files.
5.1.2 Video
In the application menu or on the desktop, tap the icon to enter the video and picture player
interface as below:
MID User Manual
User Manual
11

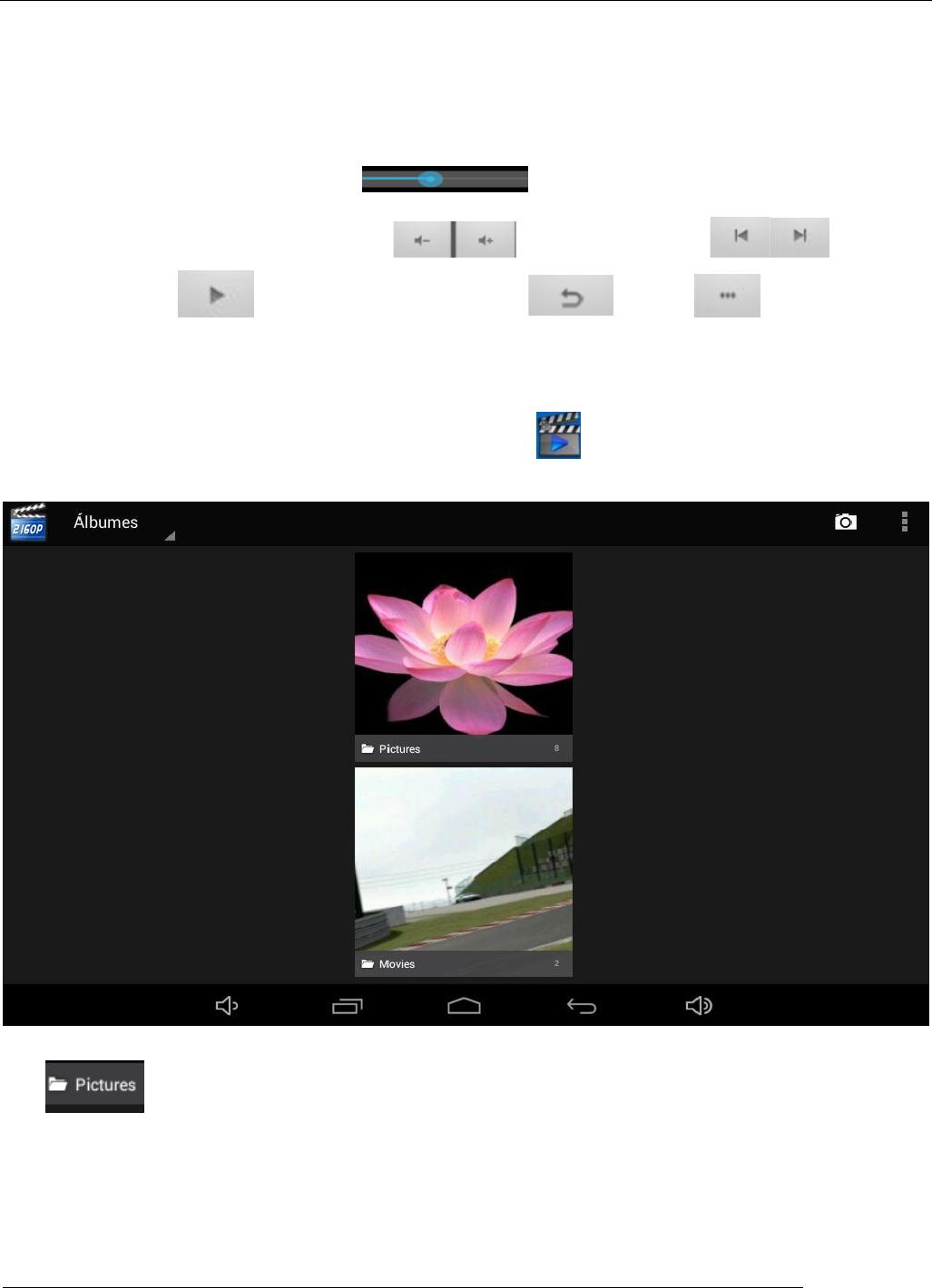

Tap to video browsing as below shown:
Tap to start playing.
MID User Manual
User Manual
12
Video formats support：MKV、AVI、RM、RMVB、MP4、MOV、VOB、DAT、FLV、3GP
etc.
The system will automatically load any video files from the TF card to the playlist after the
video player has been launched.
Drag the playback progress bar to adjust video playback progress
During video playing, you can tap to control volume，to change
chapter， to play and pause the video，to return, for more such as
subtitle selection, audio track, Video Scaling Option etc.
5.1.3 Gallery

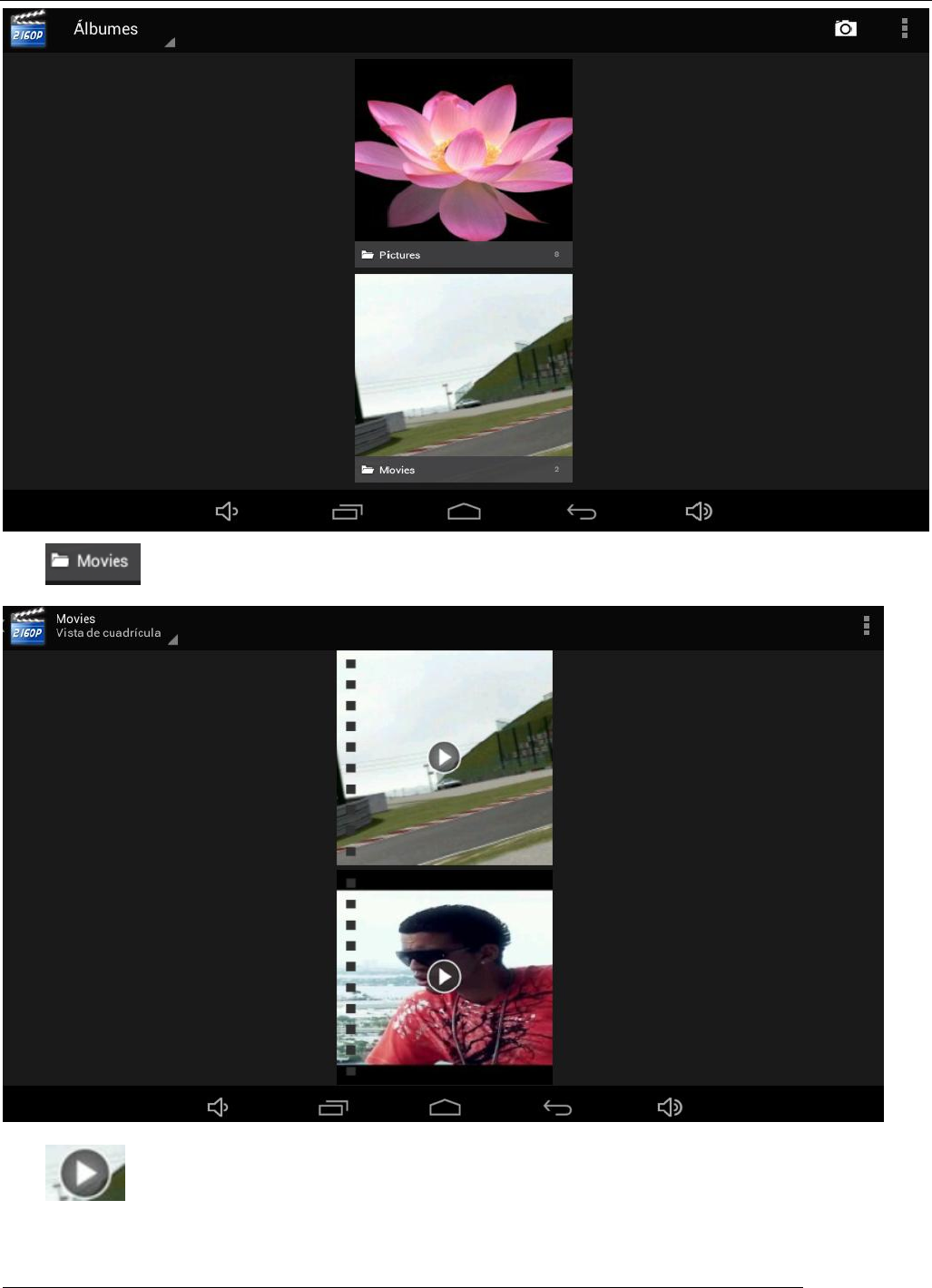

In the application menu or on the desktop, tap the icon，tap to enter the video and picture player
interface as below:
Tap to picture browsing as below shown:
MID User Manual
User Manual
13
Picture Player Icons Description:
Icon
Function
Icon
Function
Delete the picture
Edit the picture
More functions

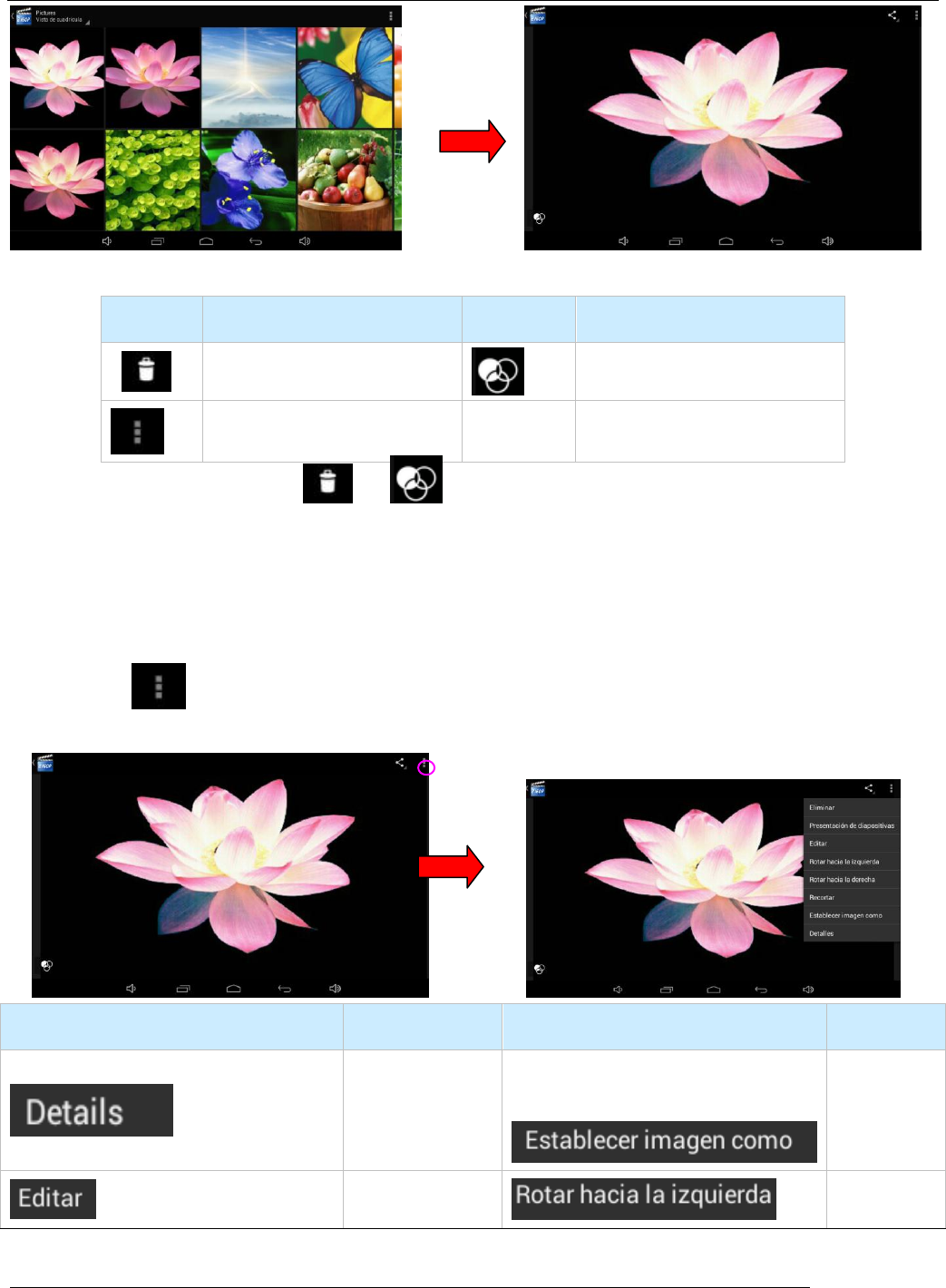

In picture playing, icon & will hide automatically, tap or touch the display to see
them.
The Tablet PC supports the BMP, JPG, JPEG, PNG and GIF formats.
The system will automatically load the image files from the TF card to the photo browsing list
after the photo browser has launched.
Tap to slide show, browse images, set the image as wallpaper, edit, rotate, crop or resize
your image.
Icon
Function
Icon
Function
set image
as
wallpaper
edit
Rotate left
MID User Manual
User Manual
14
Slide show
Rotate
right
Crop and resize
Delete
5.1.4 Recording

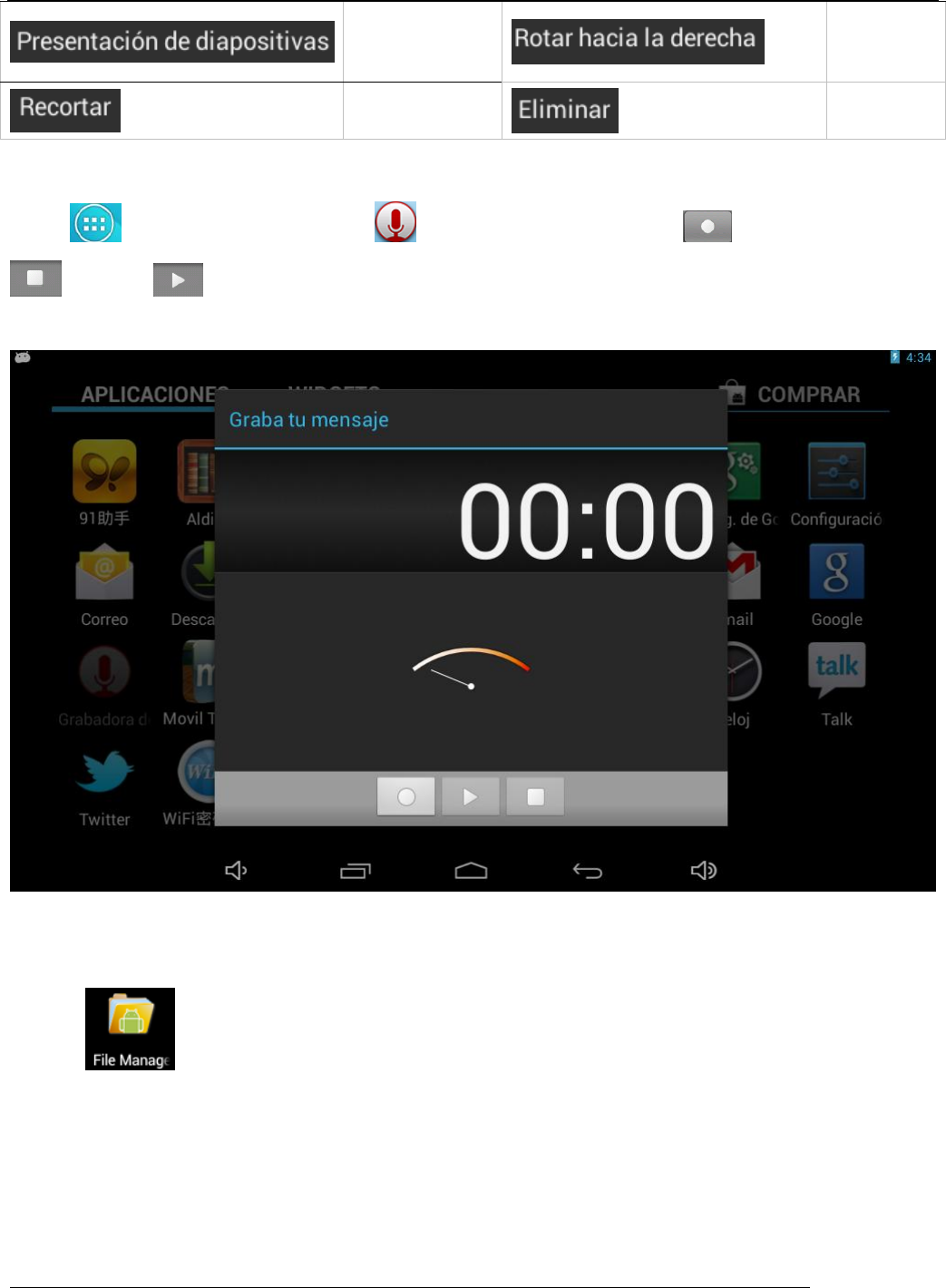

Taping to the main interface，click to the recording interface，tap to start recording,
to pause。 to play. When recording finish, you’ll be asked if you wanna “Discard” or “Save”
the recording.
5.1.5 File Manager

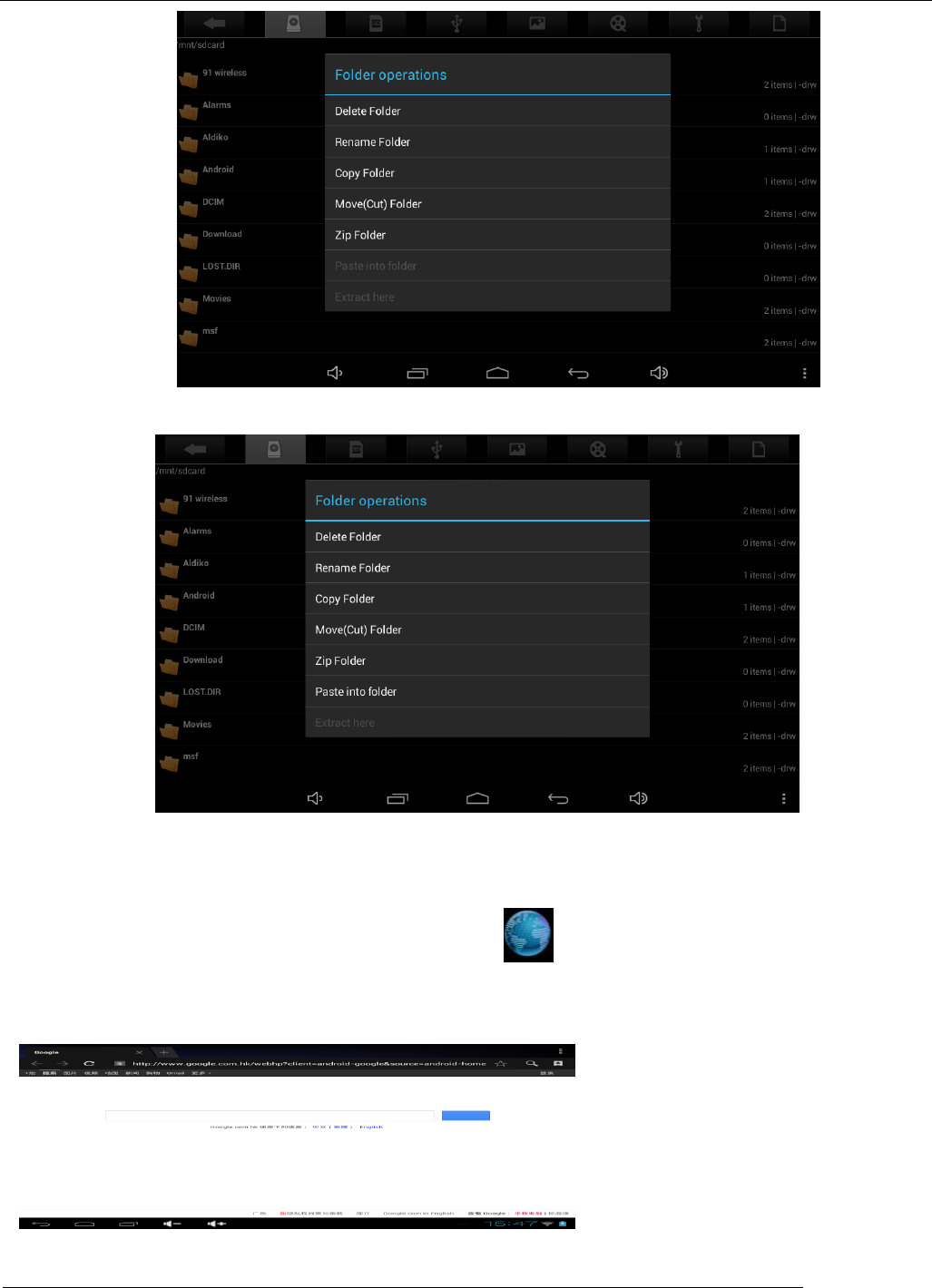

Tap icon on the menu or desktop to enter the interface of File Manager as shown below: Long
press the file or folder if you want to manage; the system will pop up the file or folder operations
window, then you can choose to Copy, Delete, Move, Rename etc. See picture below:
MID User Manual
User Manual
15
When copy or move a file/folder, find the target folder and long press, choose paste into folde.
5.1.6 Web Browser
Under WIFI connected,(see chapter6.1.1 WiFi), tap icon enter to the Web Browser interface; tap
the address bar of the browser and input the website and enter.
MID User Manual
User Manual
16
Note: The IE Explorer uses the popular third-party IE Explorer software; please follow the IE Explorer's
standard operating mode to operate.
5.1.7 Voice Search
In the application menu or on the desktop, tap the icon and enter into the voice search page: Once
you have entered in, you can speak out the content to the device with standard language, and then the
device will recognize your voice and automatically search what you have said.
5.1.8 Calculator
Tap icon to open the calculator.
5.1.9 Clock:
Click icon to the interface of clock.
MID User Manual
User Manual
17

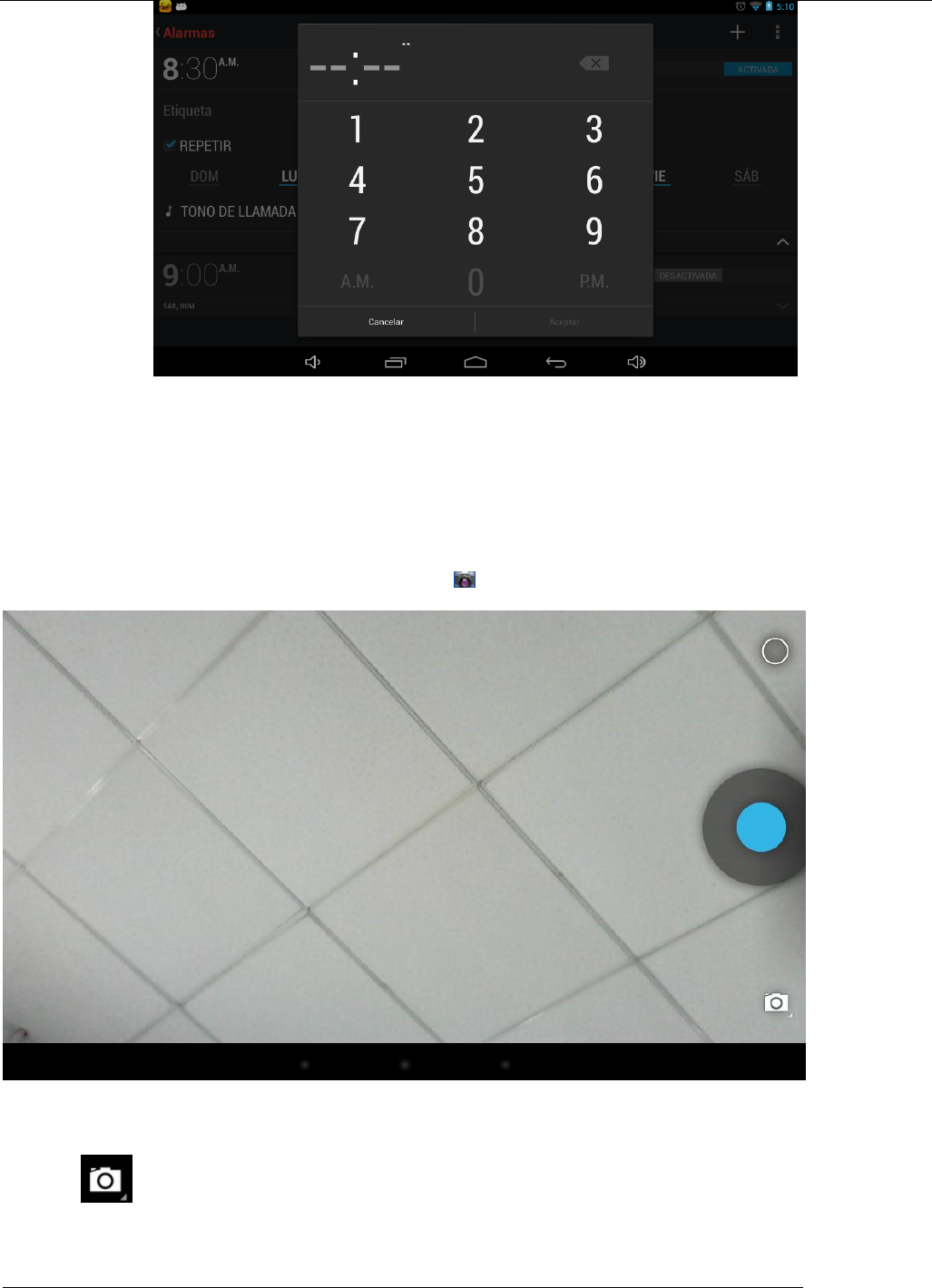

Tap set up accordingly, as shown below:
Before setting：make sure the top-right button is opening, then tap and open to set up The time, bell,
vibration, repeating and label etc. as picture shown:
Tap to set up the time, as below:
MID User Manual
User Manual
18
Repeating: choose accordingly the day that the clock be expected to ring-down.
Flexible time: you can choose the date to set, such as Monday to Friday in 7 o’clock, and then alarm will
repeat at 7 o’clock from Monday to Friday. The time and date are set as you need. Once you set ok, the
front color of the set time will be turn in white and other will be gray.
5.2.0 Camera Operation
In the applications menu or on the desktop, tap the icon to enter into the camera function interface as
below:
video and camera shift
Press you will see the video and camera button and you can shift them as you need, see as
below picture:
MID User Manual
User Manual
19
Press and it will show function settings of the camera, they are: front camera and rear camera
switching, camera brightness adjustment, pixel set, camera environment setting, focusing function which
is to set the zoom of shooting area, see as below picture:
Icons
Description
Icons
Description
s
Video Icon
Photo Icon
MID User Manual
User Manual
20
Front and rear Camera
switch
White balance
Shutter
Exposure
(for photo only)
More functions
More settings
5.2.1 Usage of TF or SD Card
This device has SD or TF card slot and can read files in those cards. Operating should be in the right
way when plug in or take out those cards.
Icon will appear if cards are inserted properly and it shows the SD card is connected to the
device.
Do not take out card if you want to copy or read files in card, or it will cause data mistake or lost
problem
Avoid high temperature and wet environment when using the card
Avoid liquid and corrosive materials.

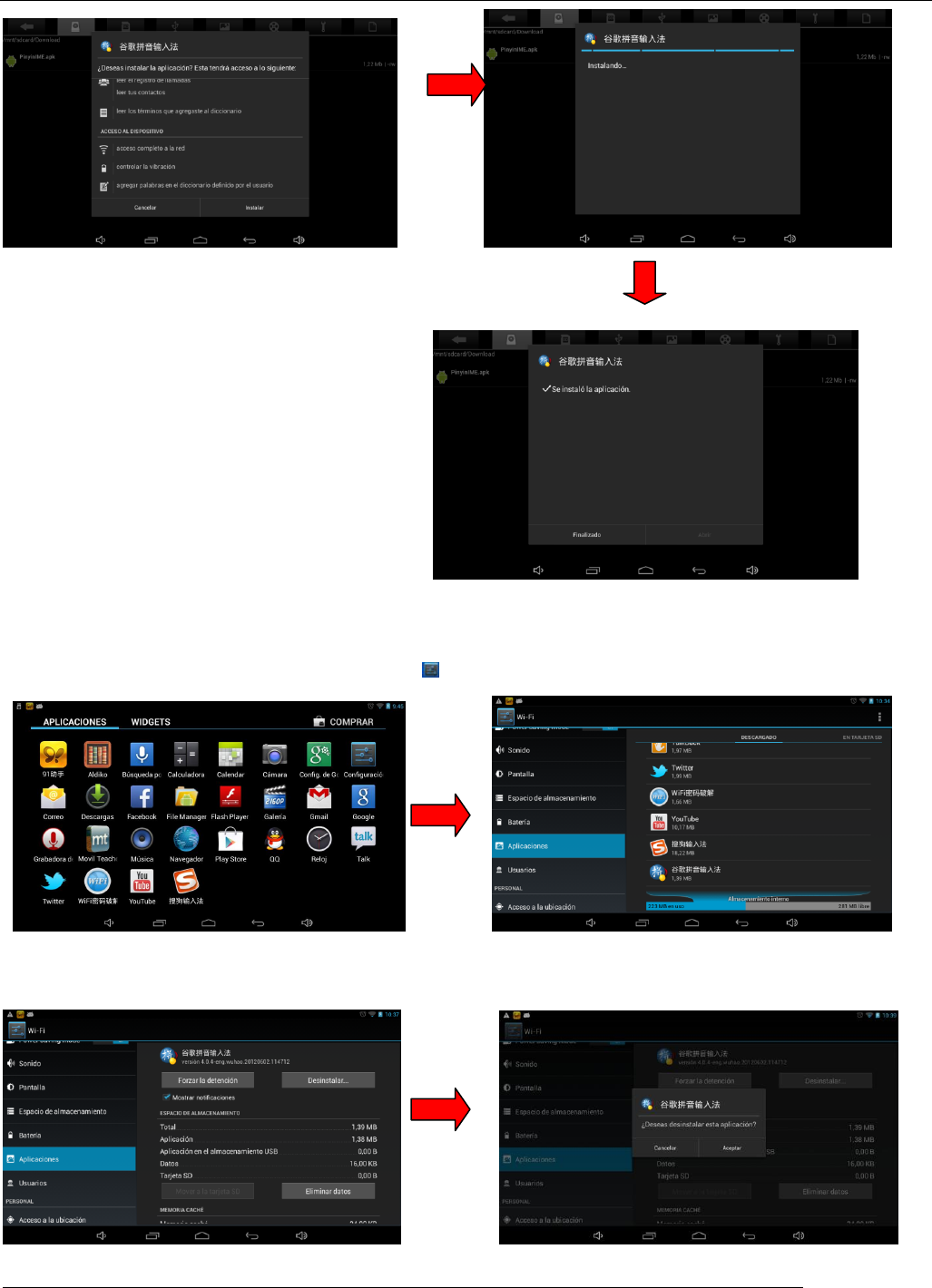

5.2.2 APK software install and uninstall

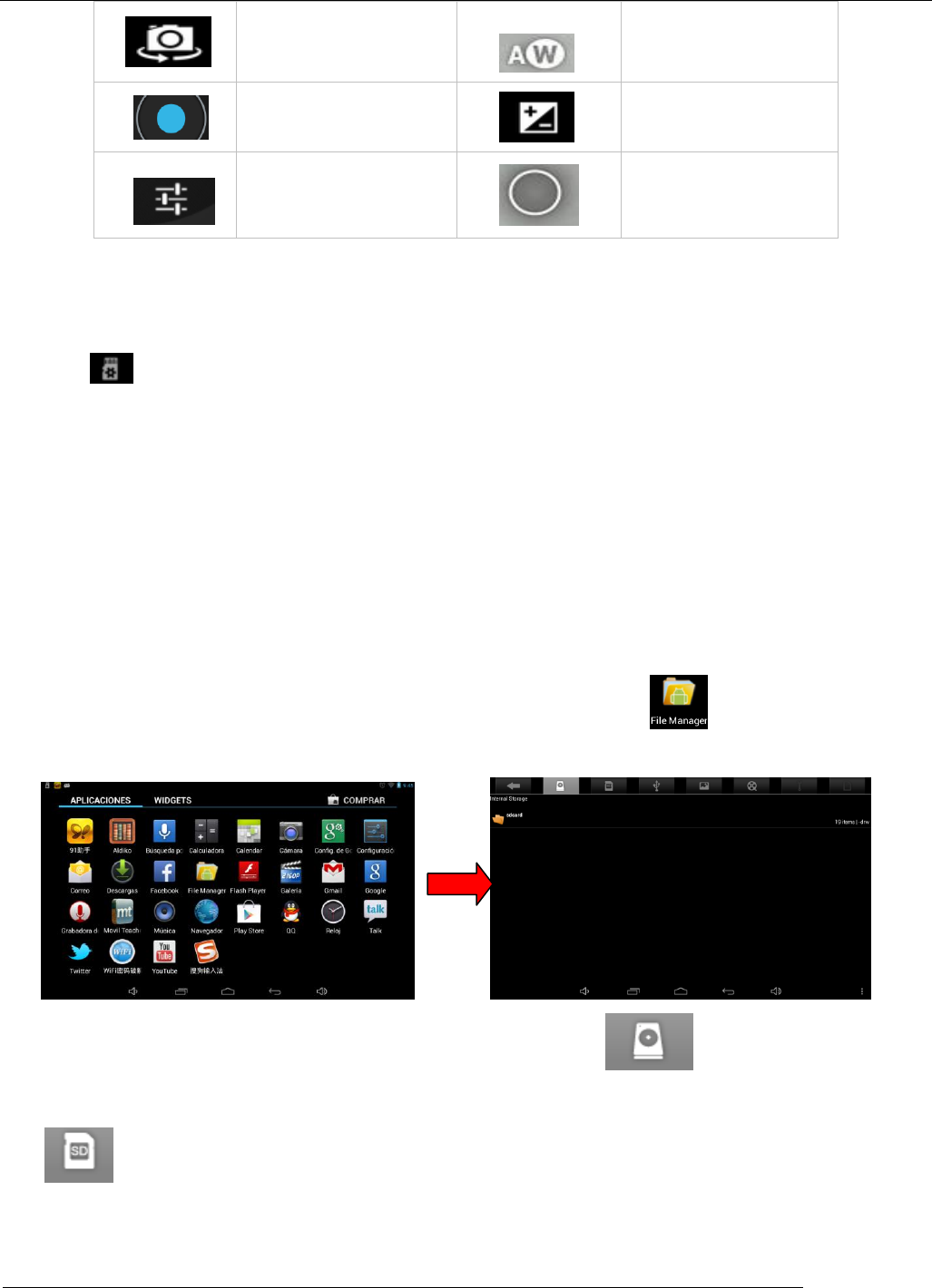

This tablet PC can directly install the software in File manager, but first should copy the APK software
into the tablet pc’s flash or TF card, and then go to main menu click for installation, see as
below picture:
If you have already downloaded in the tablet pc please click and enter into internal
storageSD card and then you will see the APK file. If you have put it into the TF card you can
click and enter into external storageext SD and then you will find the APK file, see as below
picture:
MID User Manual
User Manual
21

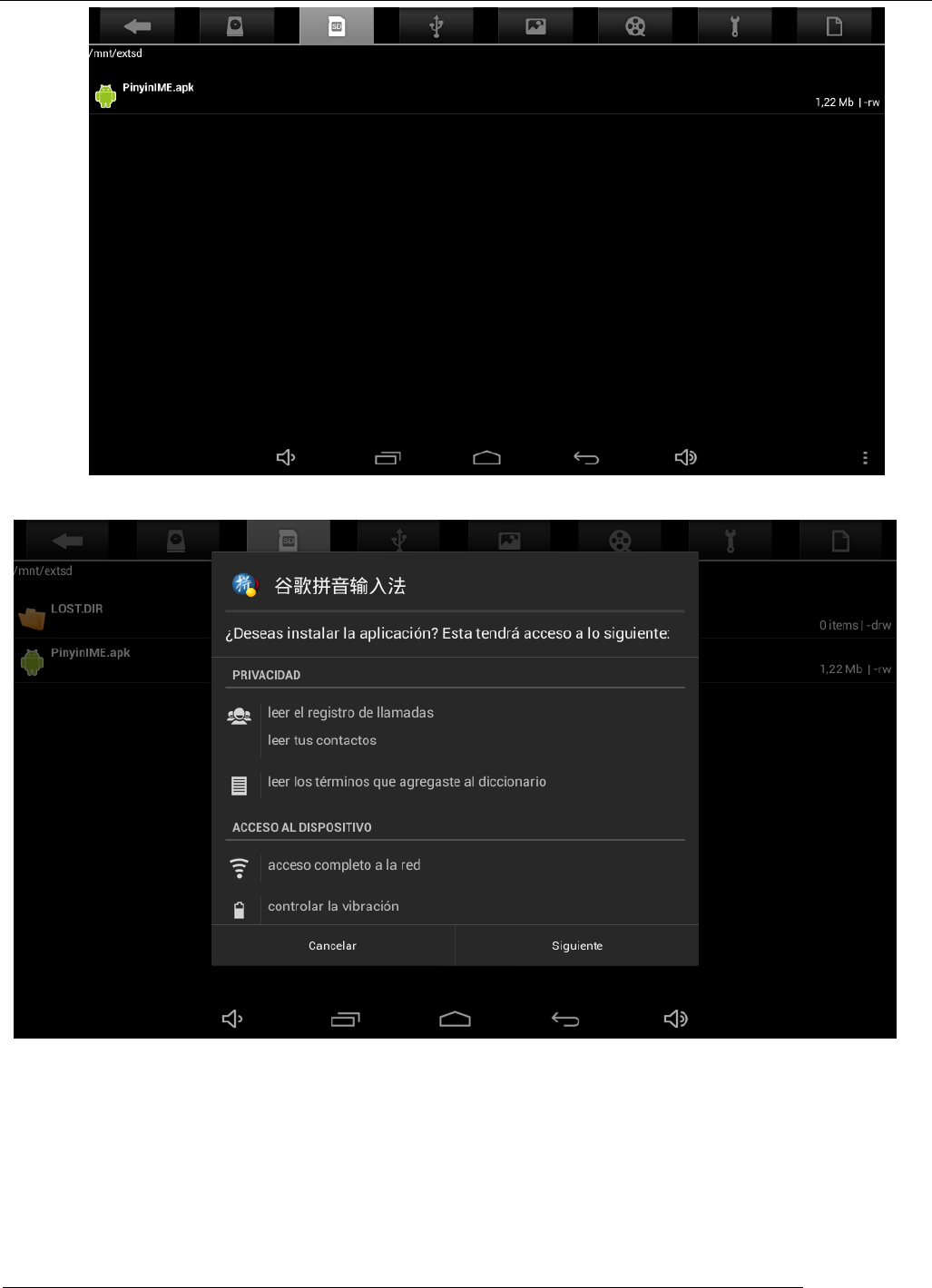

Click the install APK file see as shown picture:
Click next to install the file see as below picture:
MID User Manual
User Manual
22
Click Finish and then return to main menu you will see the corresponding APK icon.

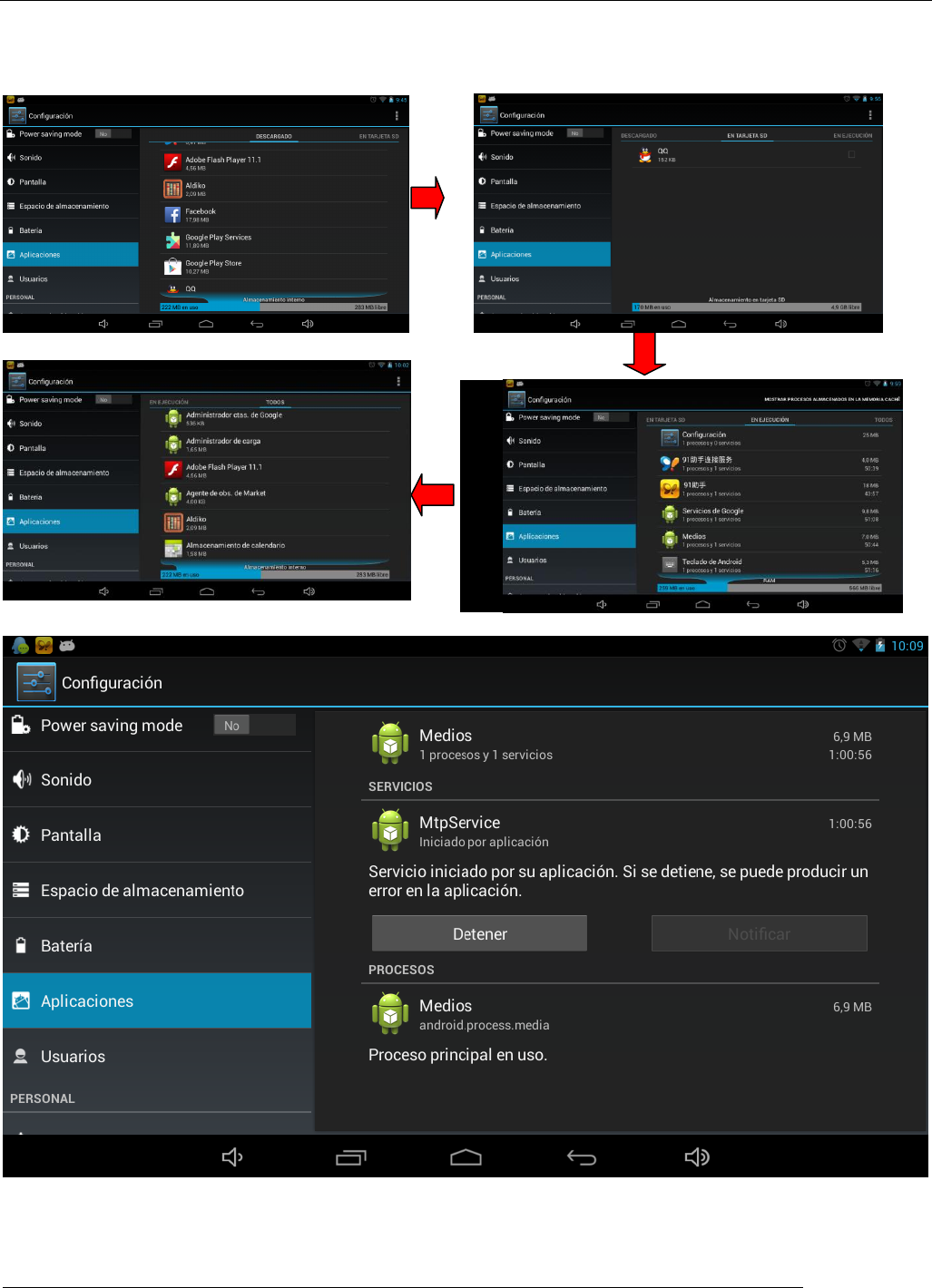

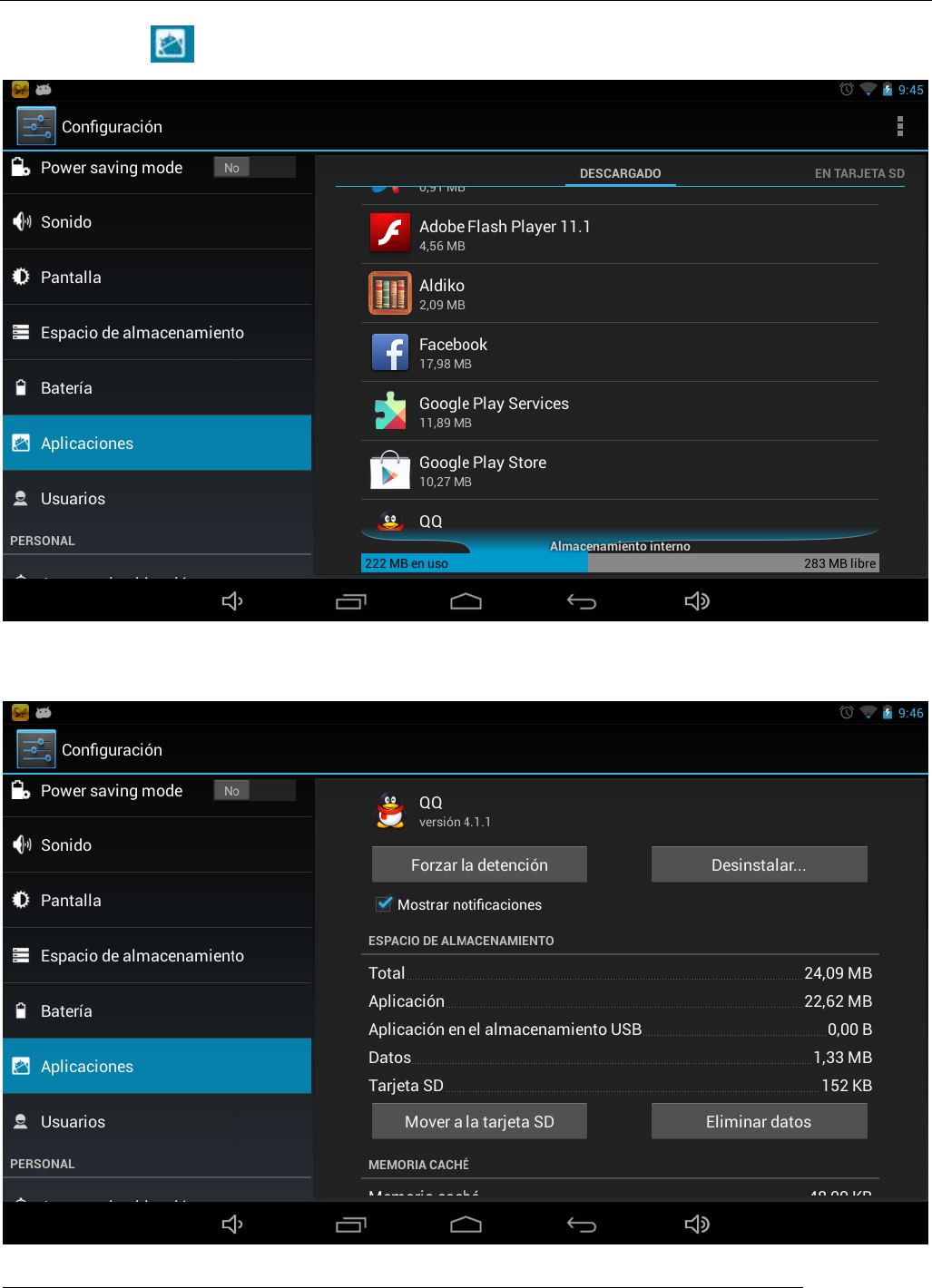

Uninstall: To uninstall from the application settings.
In the applications menu or on the desktop, tap to enter into the setting interface, see as below picture:
Then click APK Icon which you want to uninstall in the right side-uninstallOK. See as below
picture:
MID User Manual
User Manual
23
Once you have uninstalled successfully, the APK icon will disappear in the main menu.
5.2.3 External Keyboard & Mouse
Connect the USB mouse to the Tablet PC by USB OTG cable
Note: For the standard keyboard some buttons are not available, it needs o reset the keyboard software
according to ANDROIED system. We suggest you can use the default USB keyboard. Once you
connected the keyboard you will see in the left side of the tablet PC:
MID User Manual
User Manual
24
6 System setting
6.1.1：WIFI Setting

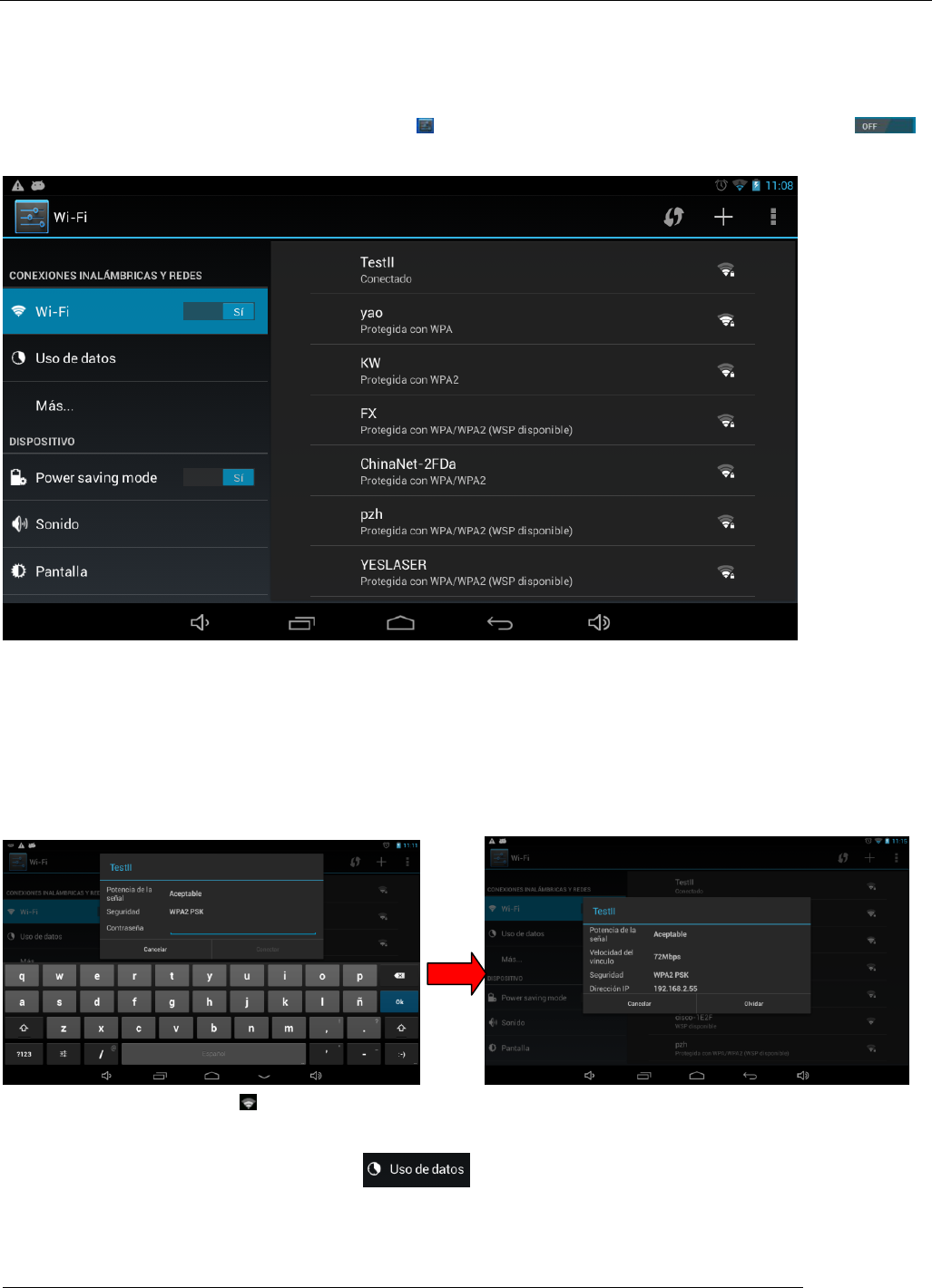

In the applications menu or on the desktop tap to enter into the setting interface, and then tap
a. Press WIFI and the system will search wireless networks automatically. Shown as below picture.
b. Connection ( It is dynamic IP address and needn’t set the IP address)
The dynamic IP address is assigned by WIFI router. If it is automatically assigned the IP address, and
then click the WiFi network name. For example, click “TestII” it will pop up a connection window
where you can input the correct security code and then tap “connect”. The system will connect to the
network automatically, and once connected will show a Status of “Connected” You can see the network
connection status by pressing the network name, see the figure below:
There will be a WIFI icon in the bottom right corner once it connected successfully.
Date usage statue checking: tap the icon to check the date usage
MID User Manual
User Manual
25

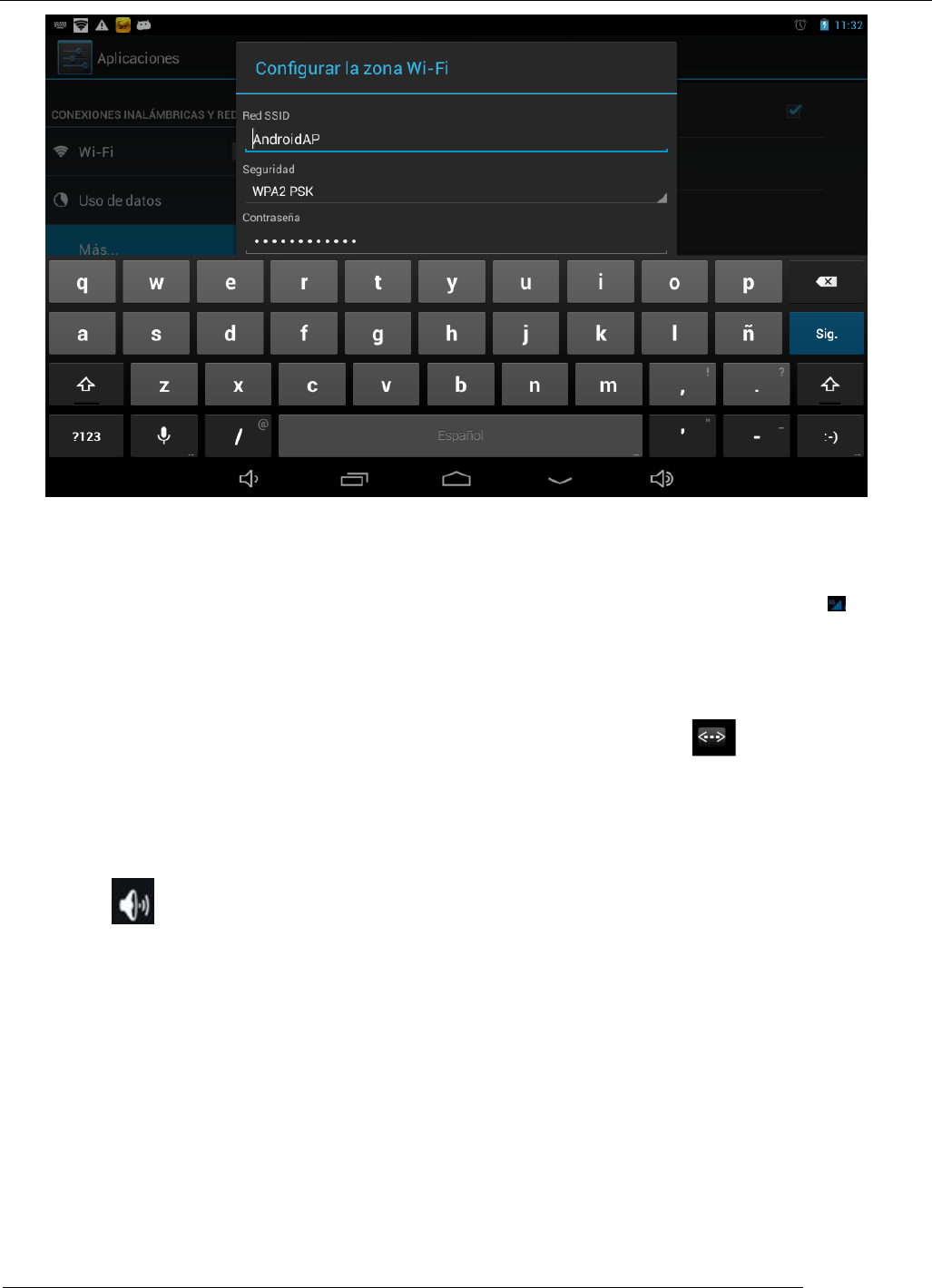

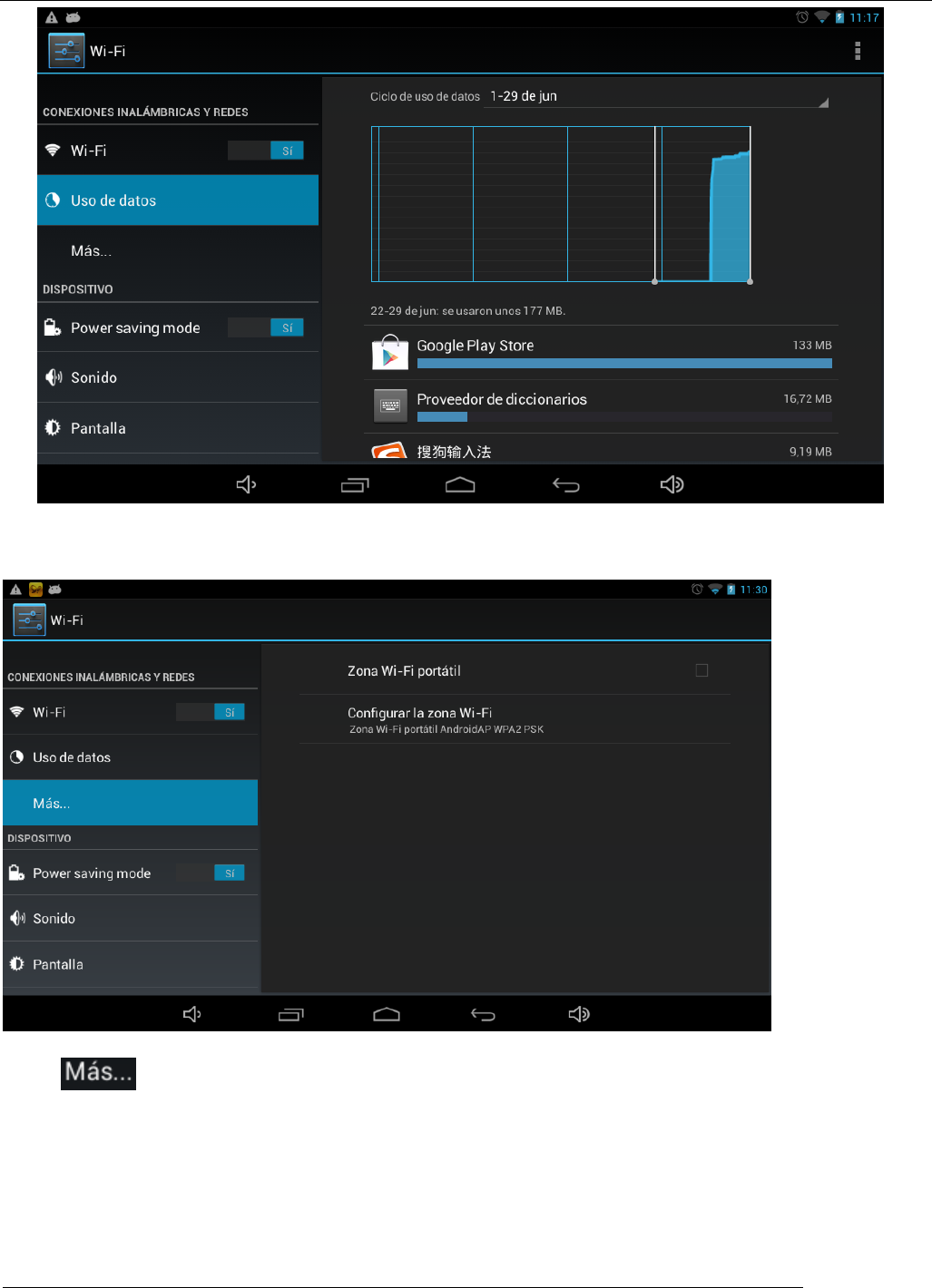

WIFI hotspot setting
Enter into wireless network: click portable hotspot setting:
l
Click and choose portable WIFI, now the tablet pc output as a wireless router and can be
found in other WIFI devices.
Click WIFI hotspot setting page and you can change the network SSID and password as you like, see as
below picture:
MID User Manual
User Manual
26
6.1.2 ：External 3G USB Dongle function
Connect the 3G USB-Dongle to the Tablet PC by USB HOST cable. The 3G network icon will be
showed in the bottom right corner of the screen when Tablet PC connects the 3G successfully
6.1.3 External RJ45 USB Dongle function
Automatically get the IP address, no need to make settings
Connected RJ45USB Dongle to the tablet PC by USB HOST cable, the iocn appears in the right
lower corner when it is connect well, then the network is available.
6.1.4 Sound setting
Tap the icon to enter the sound setting interface as below:
MID User Manual
User Manual
27

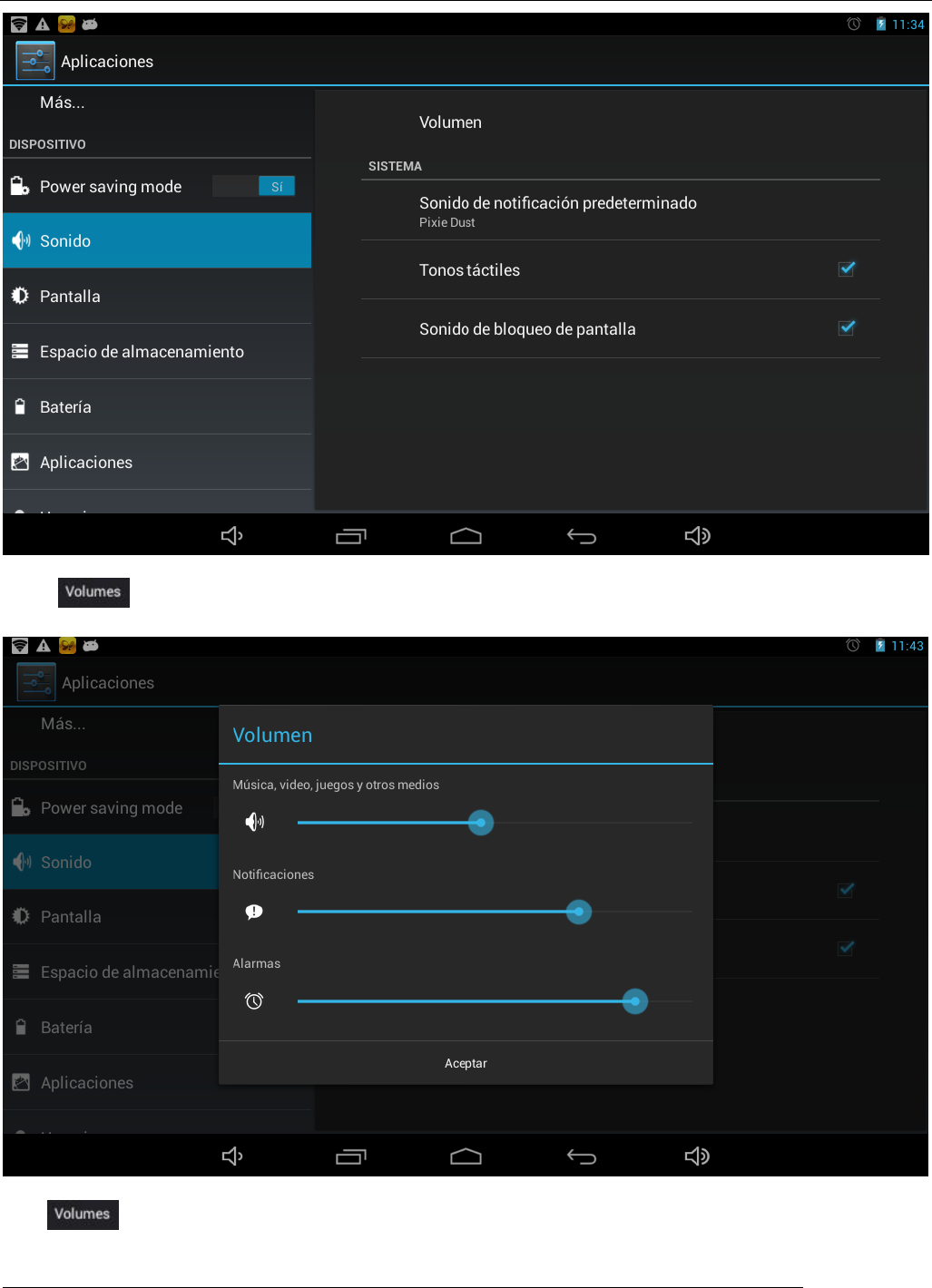

Tap to enter into sound setting which includes below functions:

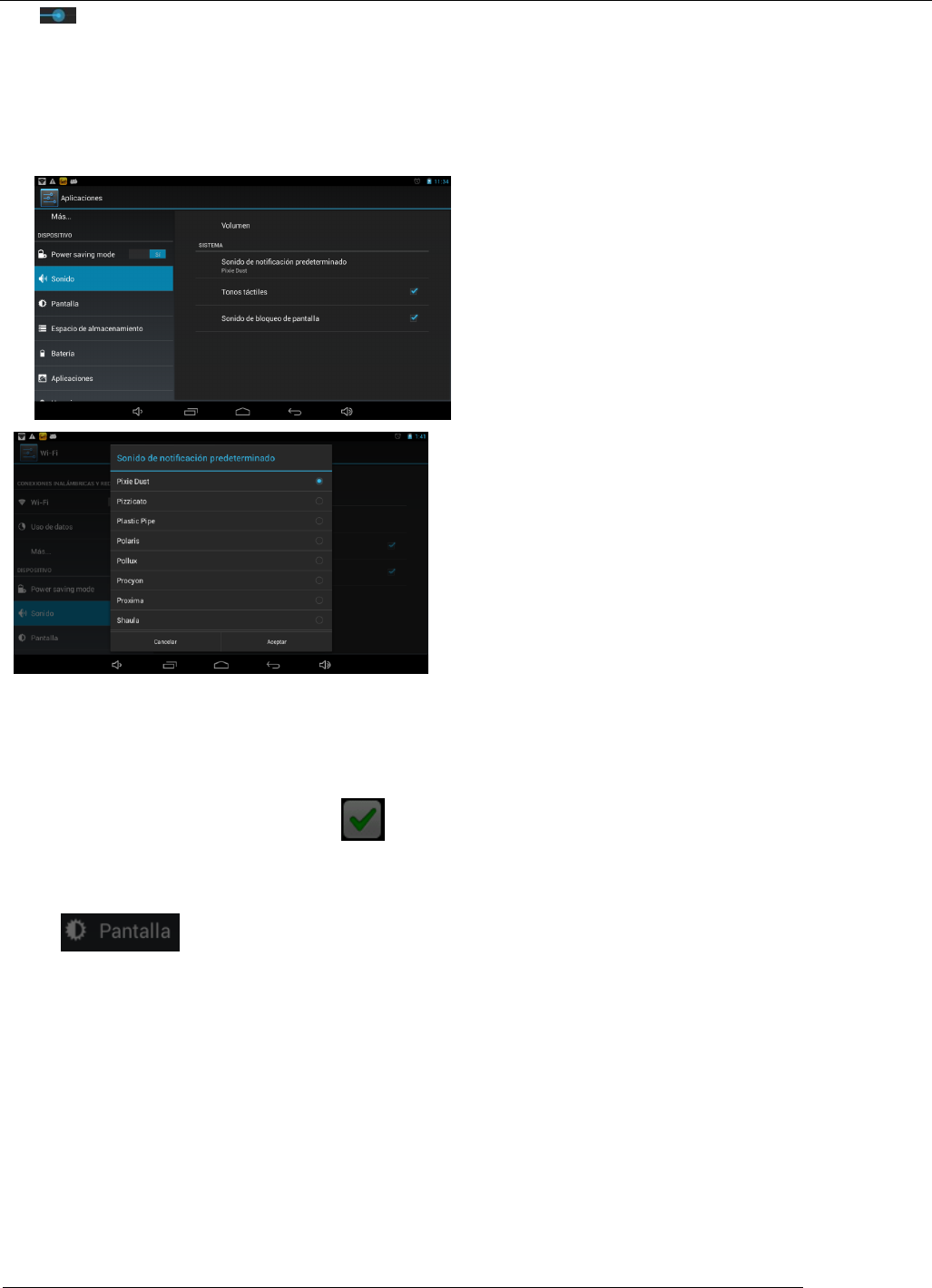

Tap to increase or reduce Media sound, Notifications sound and the Alarms sound by dragging
MID User Manual
User Manual
28
the .
Once set successfully please click Aceptar.
Ring setting
In the setting interface, tap “Ring notice” to enter into Ring setting interface:
Once you have set successfully please click Aceptar and then finish setting.
System indicator sound setting
touch indicator sound ( tap the touch screen)
Lock indicator sound (lock and unlock the screen broadcast voice
This two functions are optional, press to enter mute state if you do not want those functions.
6.1.5 Display setting
Click in the main menu and enter into setting interface:
MID User Manual
User Manual
29

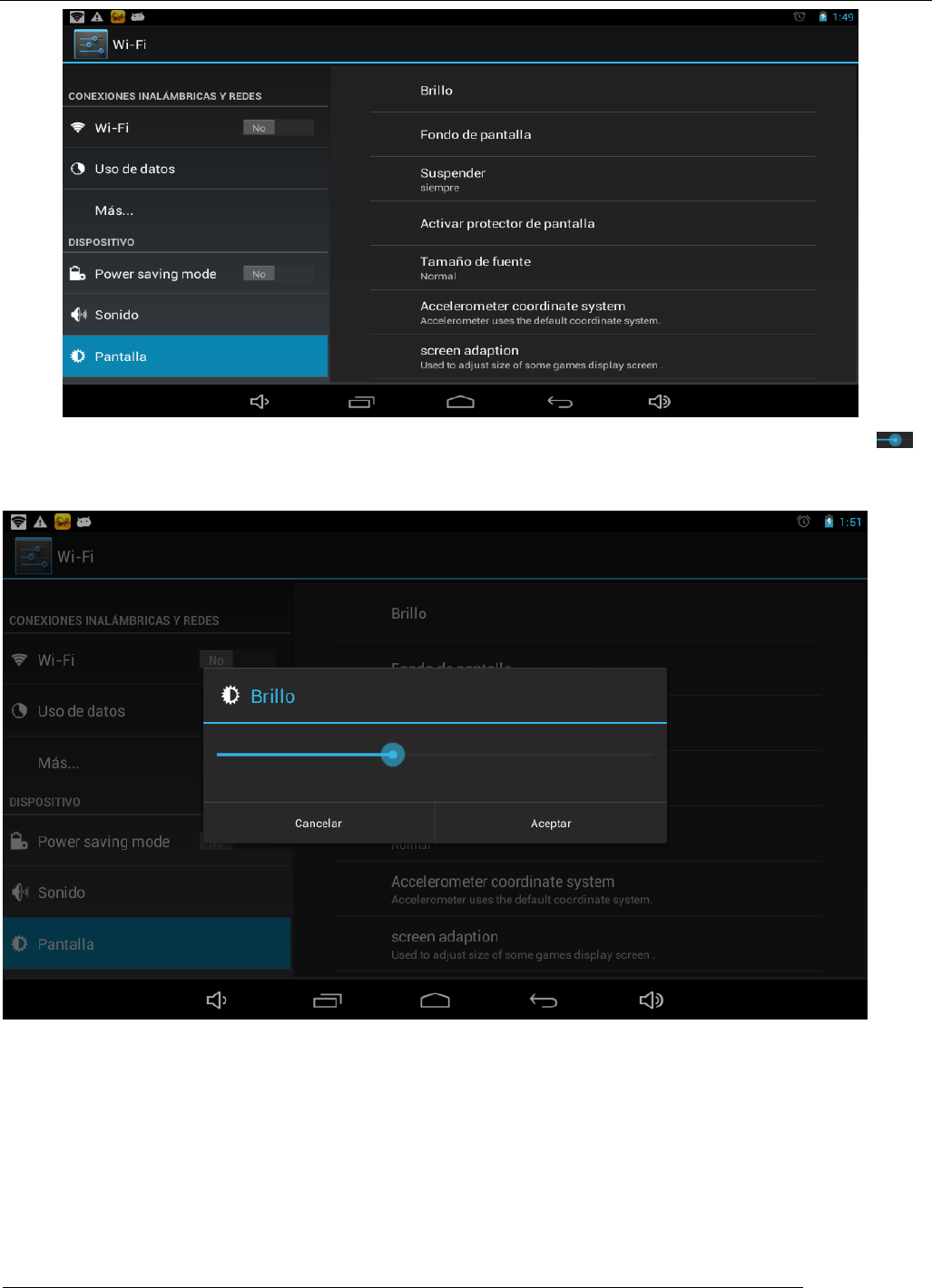

A Brightness: Tap “Brightness” to increase or reduce the brightness of the system by dragging the ,
click ok and return to main menu.
B Wallpaper setting
Tap setting Appsdisplaywallpaper, and then You can choose the wallpaper as you like, such as live
wallpaper - gallery (custom) - wallpaper (system) - video wallpaper, as shown in picture:
MID User Manual
User Manual
30
Click and enter into live wallpaper see below:
Choose any live wallpaper as you like see as below picture:
MID User Manual
User Manual
31
Click in the bottom middle and then set successfully.
It is the same setting method between live wallpaper and static wallpaper.
If you want to change the wallpaper you can long press the blank position of the desktop and you will
see the menu as shown in below picture:
C Auto rotate screen
In the Orientation Toolbar tap and then auto rotate screen will automatically change direction
MID User Manual
User Manual
32
when rotating tablet PC

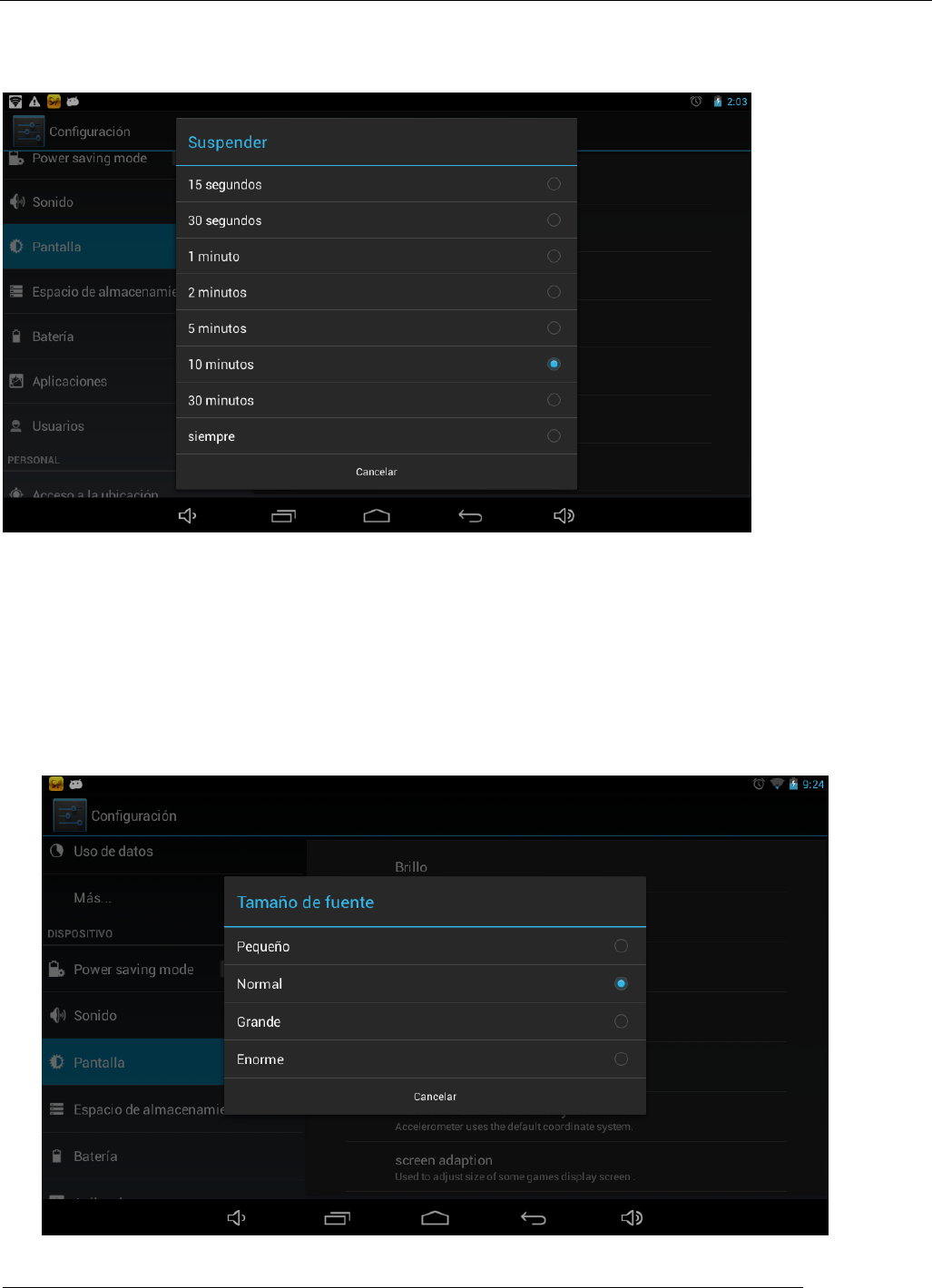

D Tap “Sleep” to set the inactive time for system sleep mode.
Set the time which you need and click ok.
E Interactive screen saver
Enter into the Interactive screen saver interface, click the sliding block icon in the right side to set the
picture which in the tablet pc as screen saver. And click return to start this function in the top right
corner. Once it enter this function the picture will play in slide form.
Note: The picture of Interactive screen saver can be JPEG format.
F Font size
Tap “Font size” to set the Small, Normal, Large or Huge size.
MID User Manual
User Manual
33

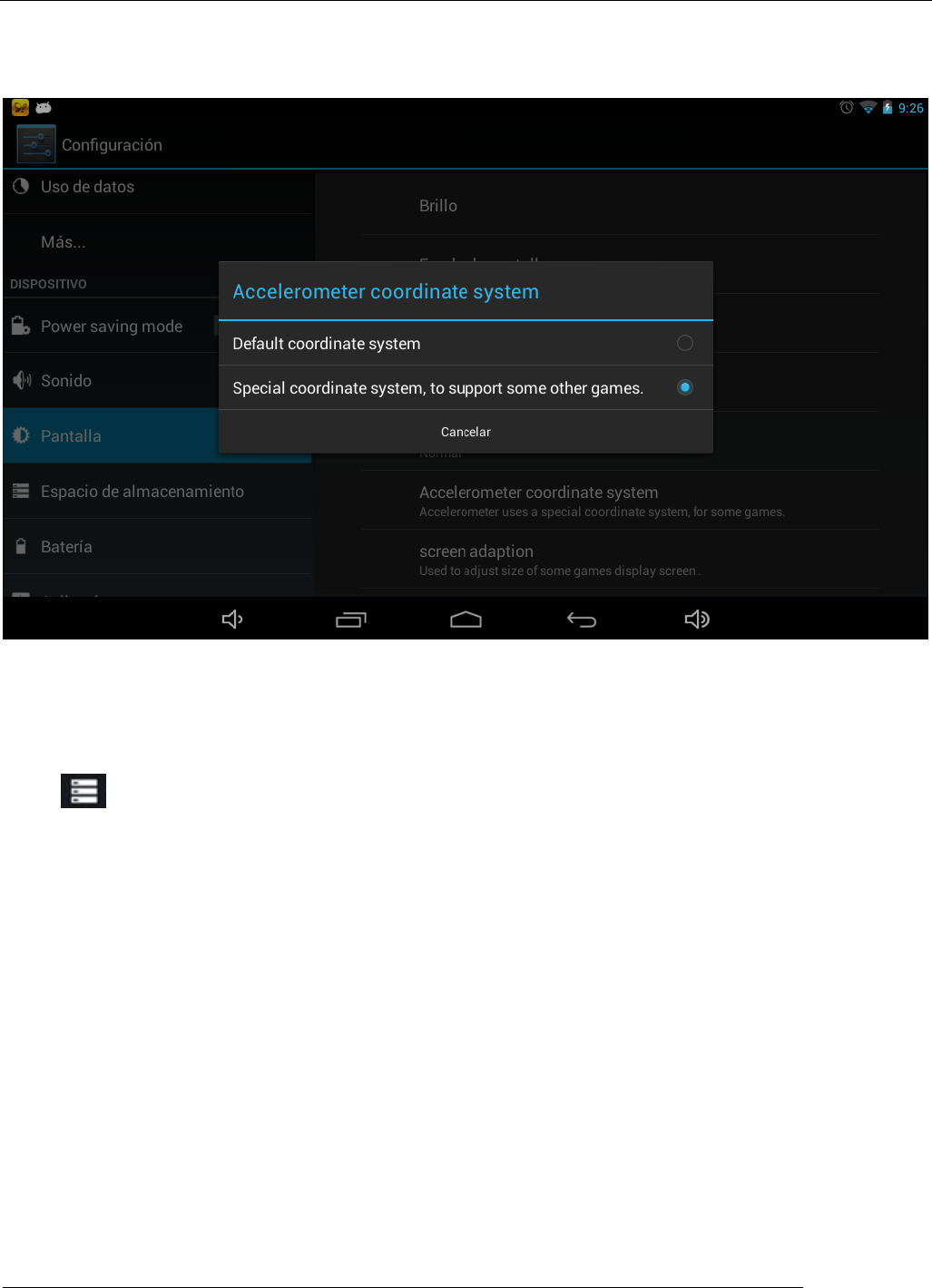

G：G-sensor coordinate system
Special games need to select the coordinates which can be supported (as some car racing game with a
G-Sensor)
H : Screen adaptation
The screen revolution

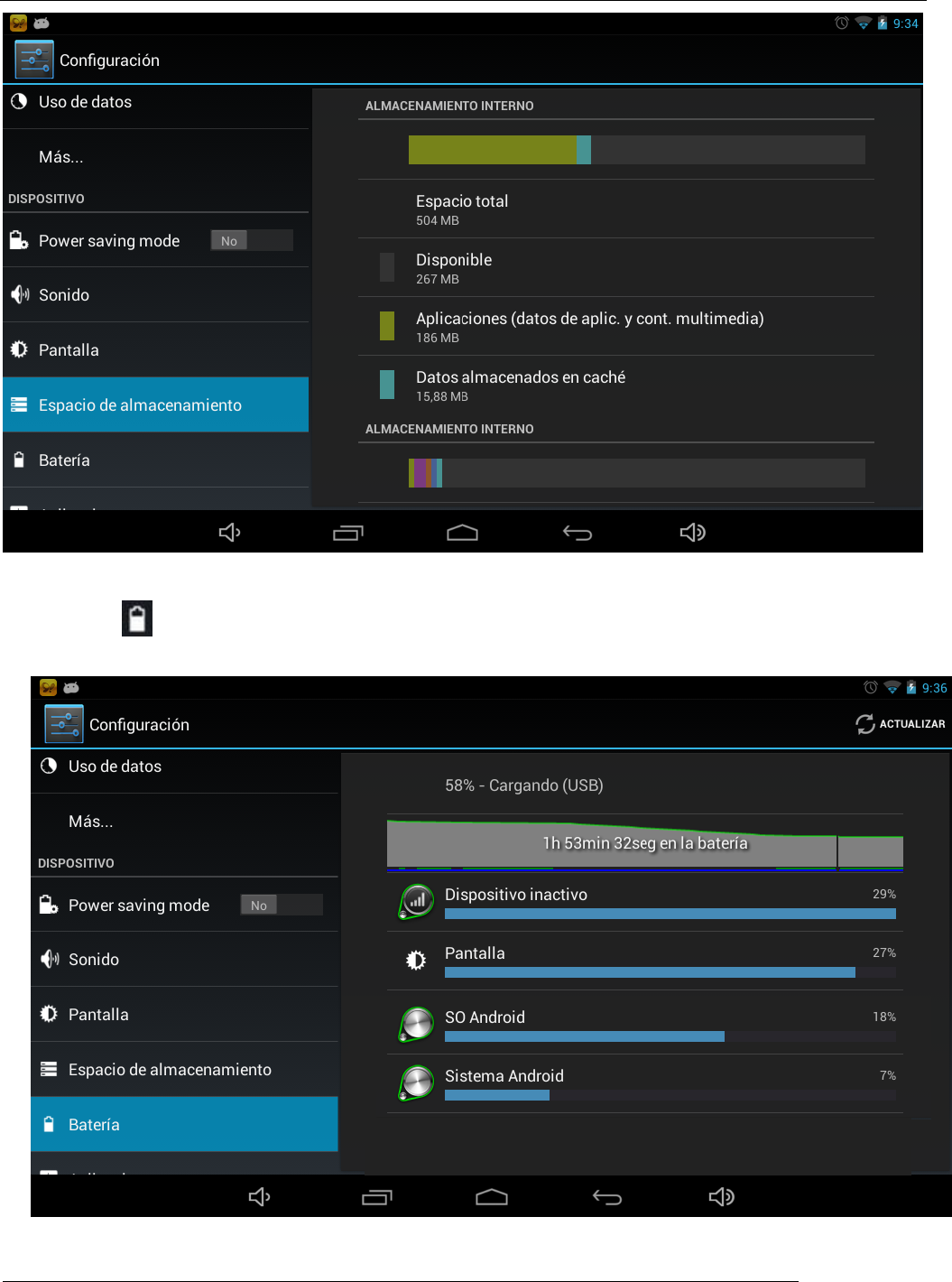

6.1.6 Storage
Click in the setting application interface, it will show all the storages status:
It can check the flash storage, SD storage, available storage and so on.
MID User Manual
User Manual
34
6.1.7 Battery status
Tap the icon to check the battery using status
MID User Manual
User Manual
35
6.1.8 Apps
Tab the icon to enter the Application setting interface as below:
Tab the icon of the apps you can choose to “Uninstall” , “Move” , “Force stop”, or “Clear data” of the
selected application.
MID User Manual
User Manual
36
Running service settings
Tap the “RUNNING” to check and control the running apps as below
MID User Manual
User Manual
37
6.1.9 Personal settings
6.2.0 Location & security services

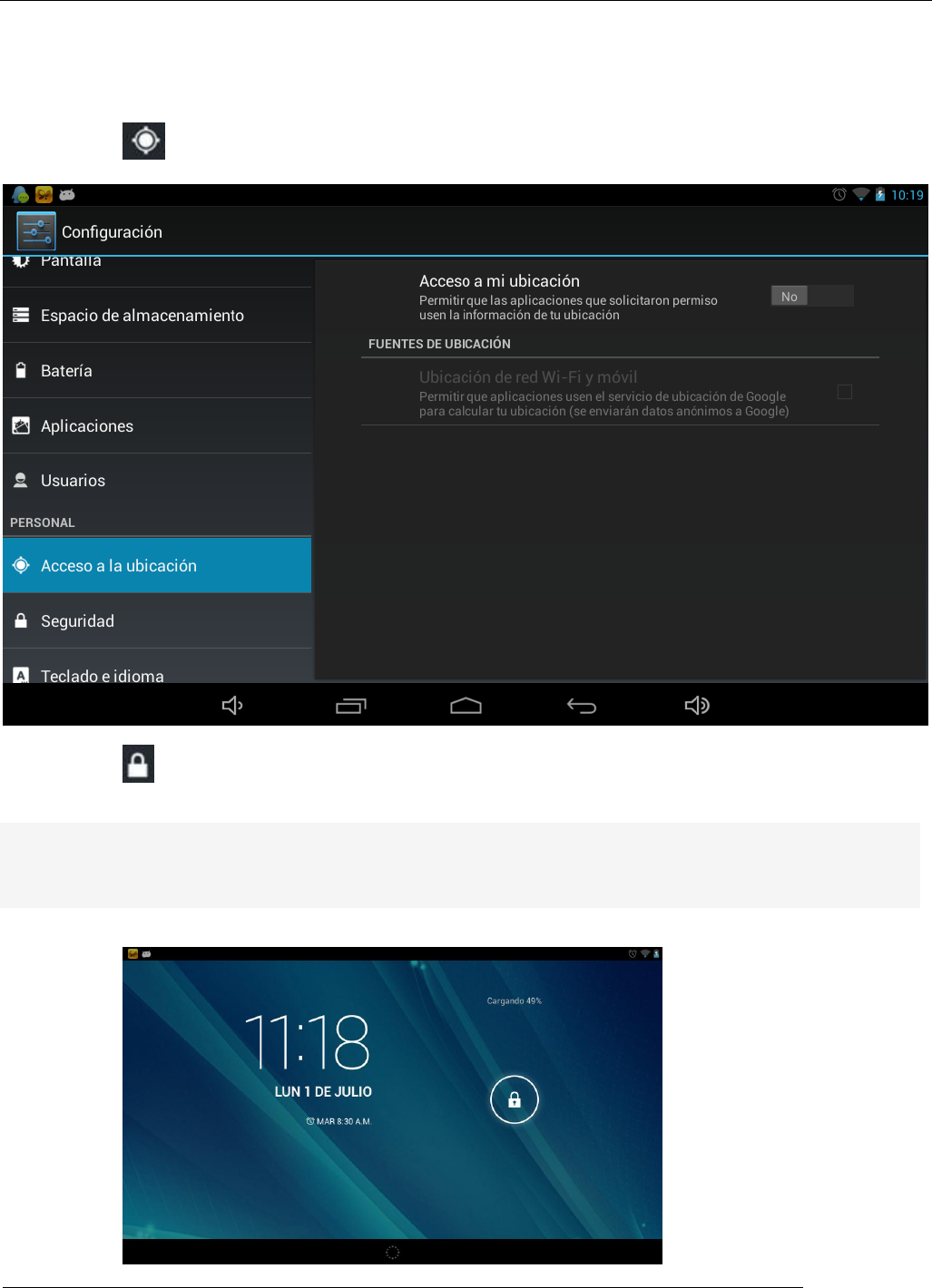

Tap the icon to set the Google’s location service and Location & Google search as below
Tap the icon to enter the security settings interface as below:
A Screen Lock 1.None 2.Slide 3. Face Unlock 4.Pattern 5.PIN 6.Password
a.None: After setting with “None”, the device can be used directly without unlocking when it is turned
on
b.Slide: After booting the desktop has a lock icon
MID User Manual
User Manual
38
Click the slide to the right to unlock

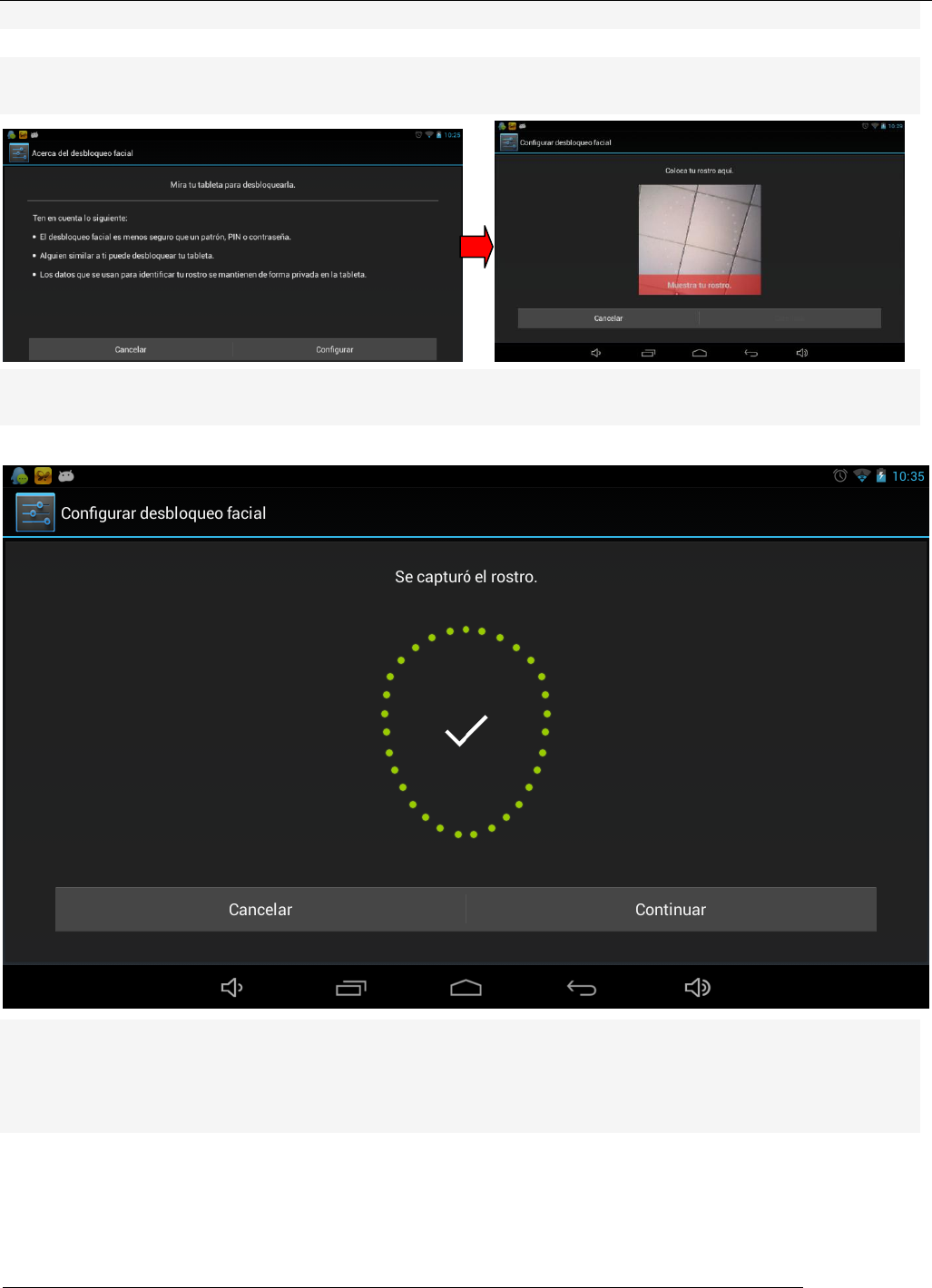

c.Face Unlock: After enter into” Face Unlock”, then select the ”Cancel” or “Set it up” , click” Set it up”
—“Continue” to appear the Face Recognition interface as below
Ensure a clear image does not show visible red box below the image area about five seconds before you
set successfully as below:
Click Continue after successfully set will be displayed when the face recognition function does not
recognize. How do you want to unlock? There are two options for patterns and PIN. Pick an option to
set an alternate unlocking
After set successfully, turn off or sleep to wake up, there will be face unlock image, as below
MID User Manual
User Manual
39
Align the camera and When set image displayed in the image area, Will automatically unlock,If the
image is not displayed within three seconds, then the screen will appear just set alternate way to unlock.
d. Pattern
Draw the unlock pattern with a minimum of 4 points, tap “Continue” to compete the setting as below
Click Continue to appear draw pattern again to confirm, Just draw the recorded pattern again, then tap
“Continue” to compete the setting, At this point device with sleep to reawake up or turn off to reboot
will display the screen as below:
MID User Manual
User Manual
40
Slide the recorded pattern to unlock
e. Set up unlock PIN password
Tap “PIN” — input PIN password with 4 characters. — Continue—input PIN password again—OK,
compete the setting as below
tap “OK” to compete the setting. The screen has been locked. (Remember this password) When the
Tablet PC is turned on after standby will prompt you to set a password
MID User Manual
User Manual
41
Input the recorded PIN password to unlock

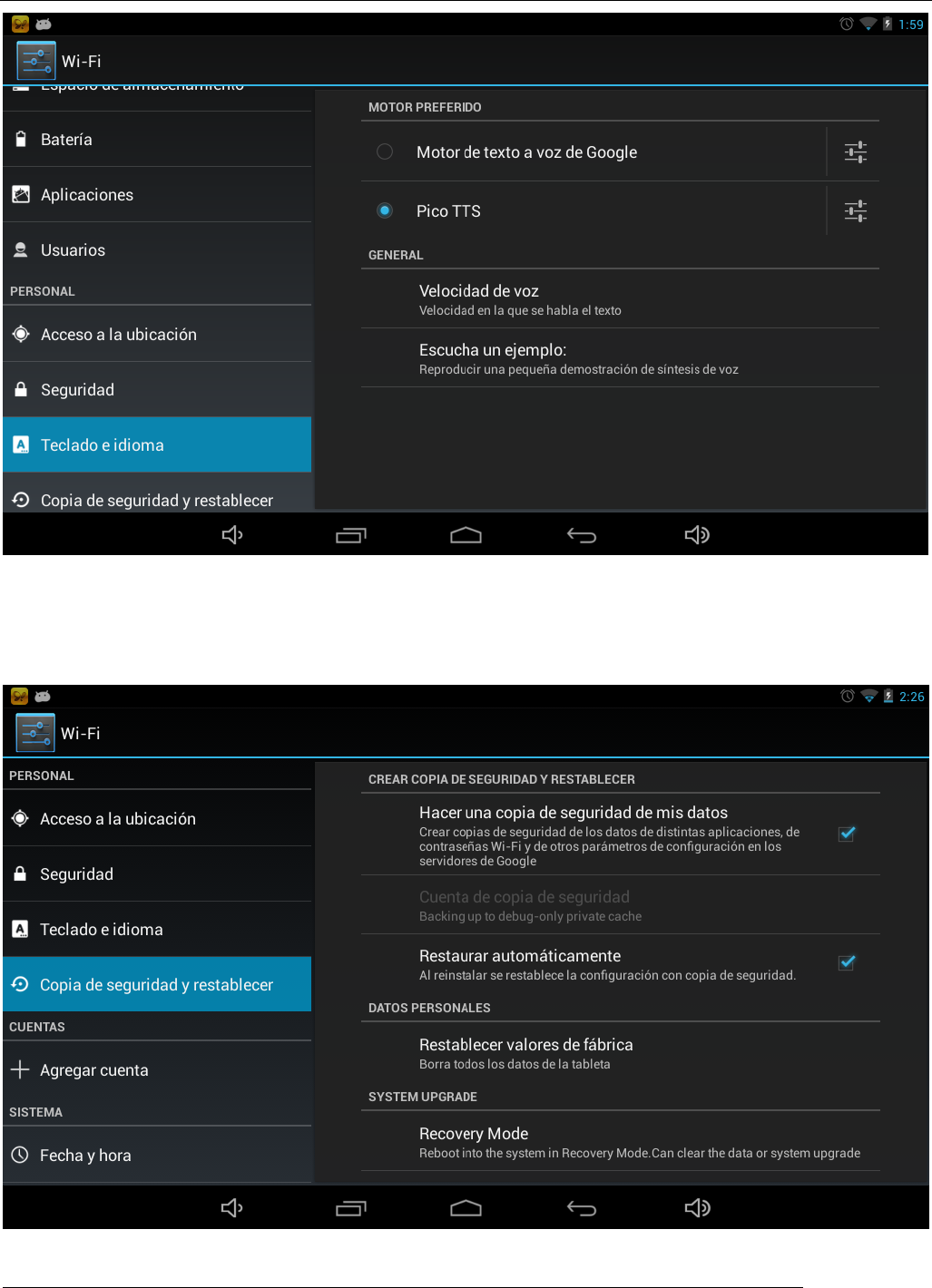

6.2.1 Language & input
Tap the icon to enter the language and input method settings interface to choose the language as
you need as below
MID User Manual
User Manual
42
language settings.

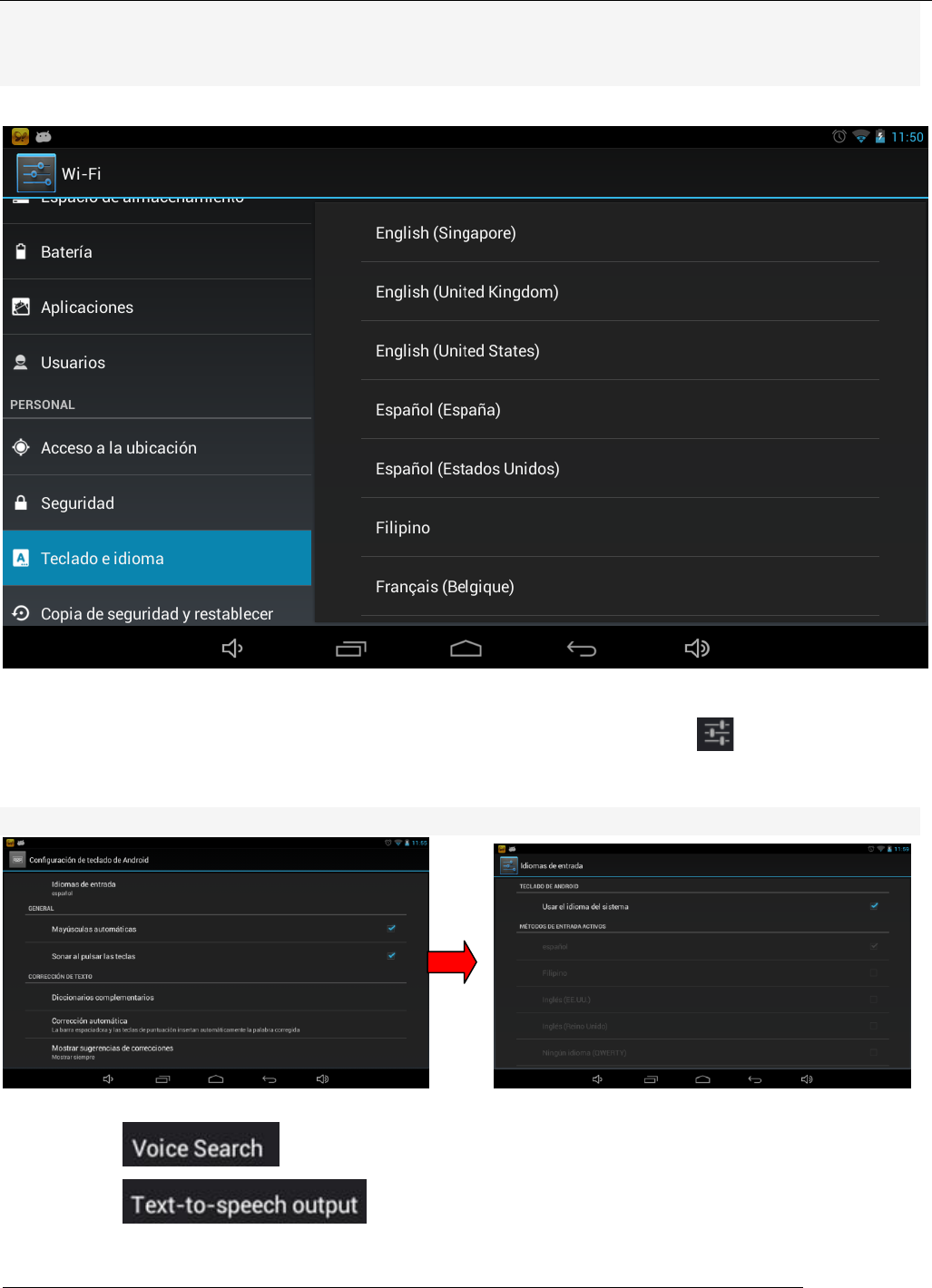

The Tablet PC supports multi-languages. You can select an operation interface of corresponding
language according to your needs. Tap the corresponding language options
Keyboard and input settings
According to your needs to set the corresponding input method: Tap the icon to enter the settings
interface, Tap settingsLanguage & inputAndroid keyboard settingsinput language, see as below
Voice search settings:
Tap the icon to enter the voice search settings to select different languages.
Tap the icon to enter the Text-to speech output
MID User Manual
User Manual
43
6.2.2 Backup & reset
Backup my date
MID User Manual
User Manual
44
Tab the icon to enter the settings interface as below
Tab the icon to compete the recovery

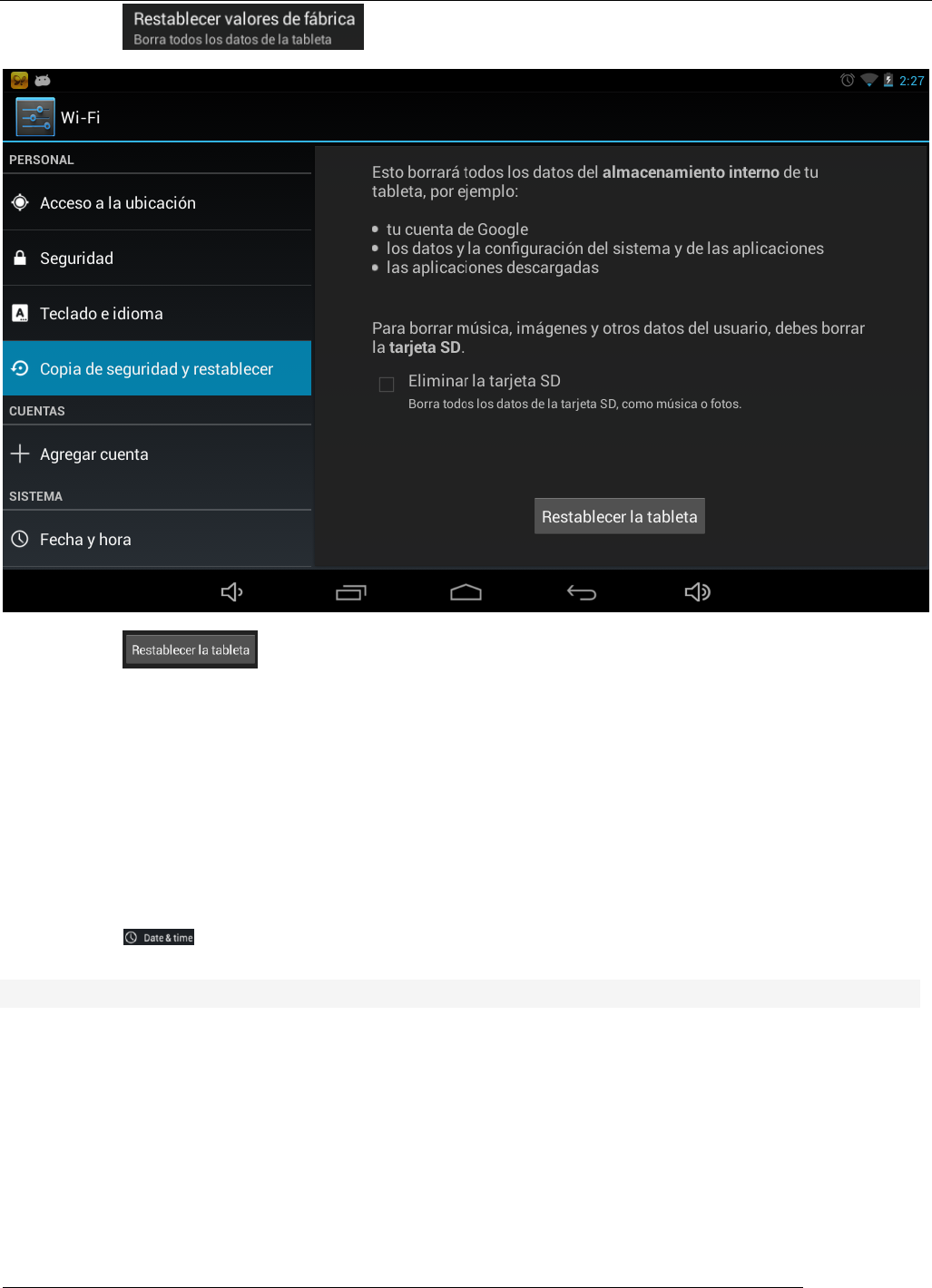

Note: Please back up all your data of the internal memory before reset the Tablet PC, or you will lose all
the data.
6.2.3 Add Account
Add an Exchange account
6.2.4 Date & time
Tap the icon to enter the date and time setting interface, click the box behind the “Automatic”
(click date & time) to modify the system date and time by manual as below

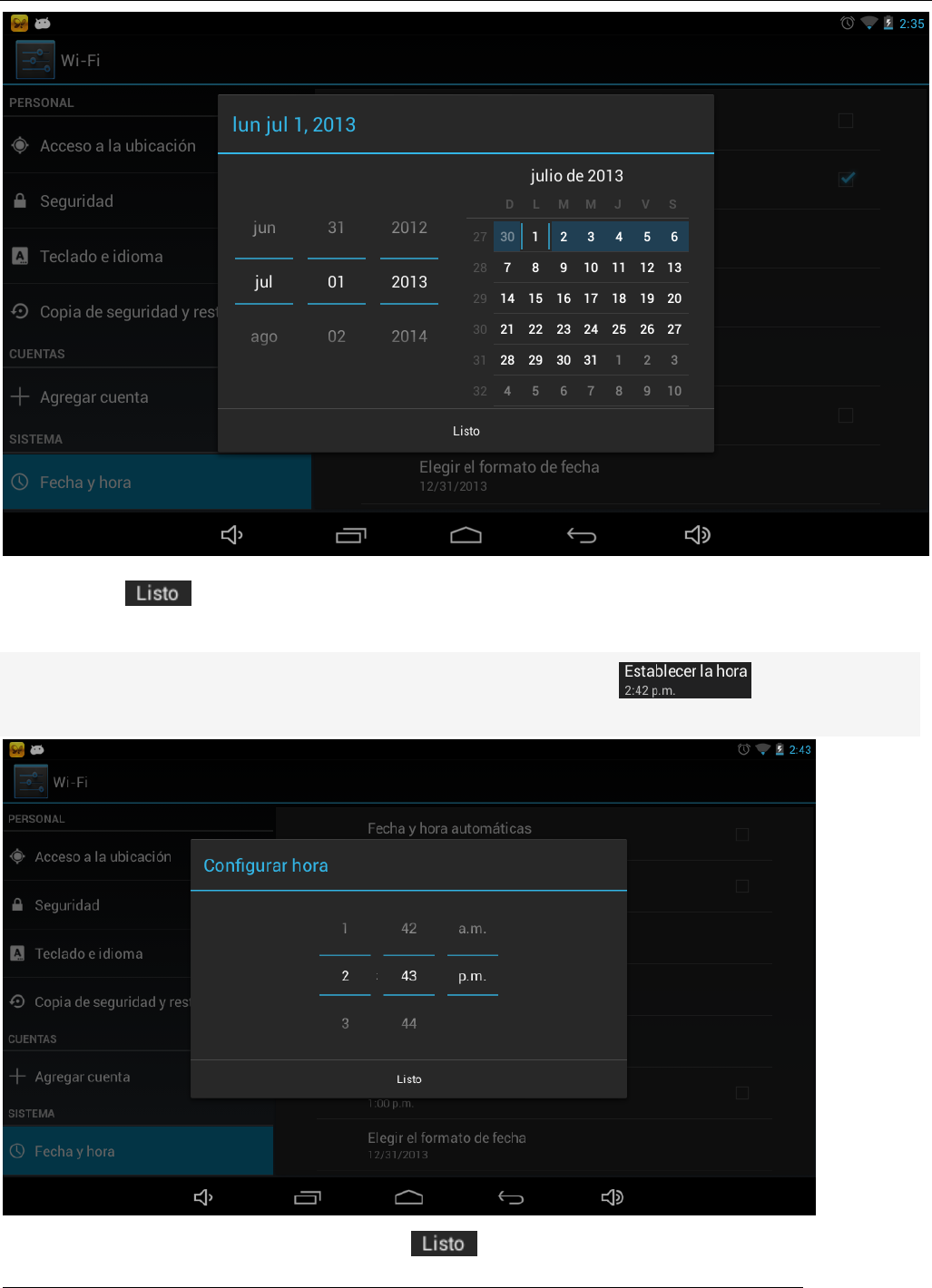

Set Date: tap up and down button to select Day, Month and Year or click the right numbers
MID User Manual
User Manual
45
then tap “ ” to finish the setting
Set time
After cancelling the automatically determined date and time, Tap to enter the time
setting as below
tap up and down button to set time, then tap “ ” to finish the setting
MID User Manual
User Manual
46

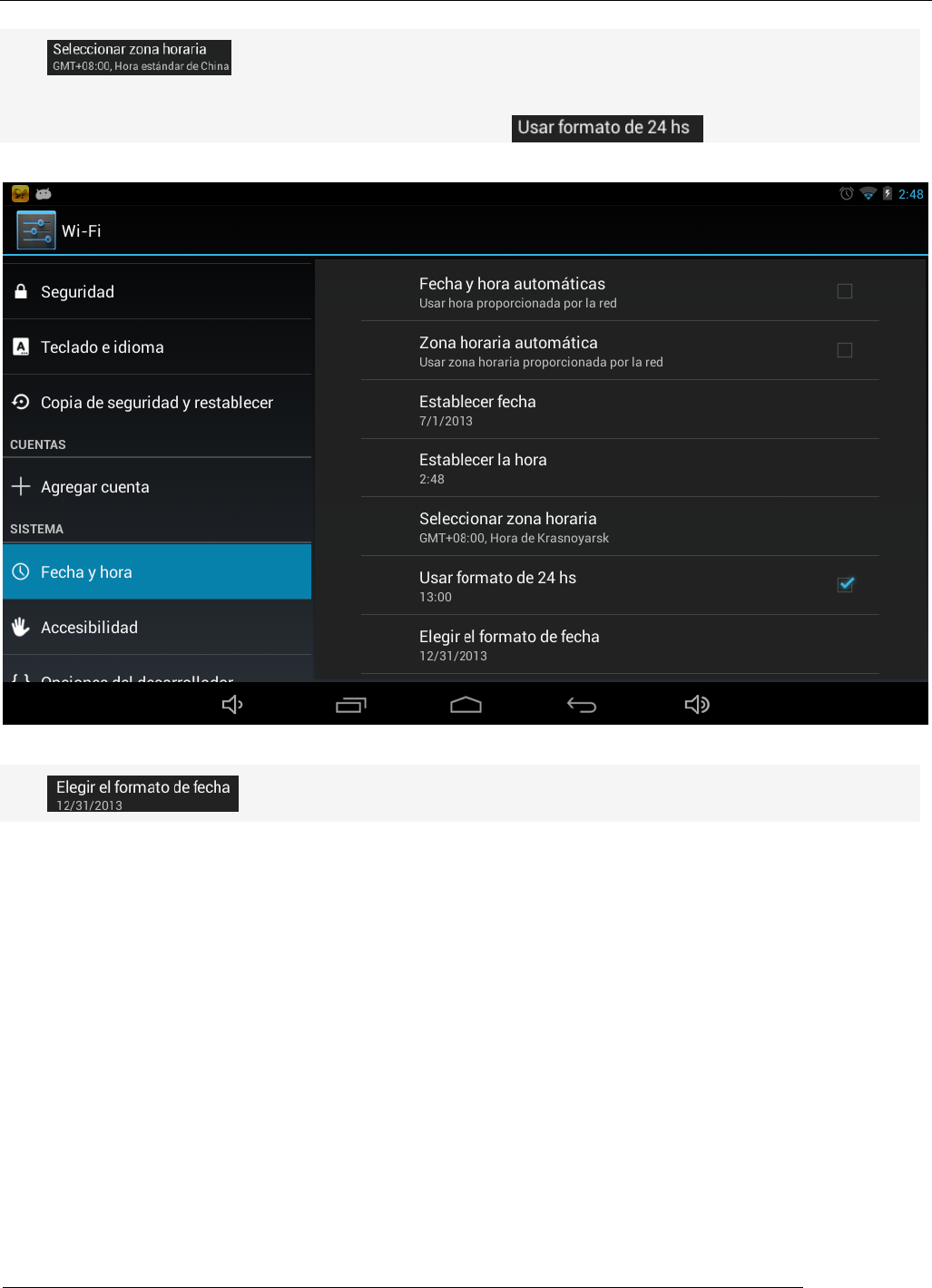

Select time zone: Cancel the automatically determined time zone
Tap to enter the setting, select the time zone you want to set
switching time format
If you use the 24-hour format, Untick the box behind the “ ”
Date format

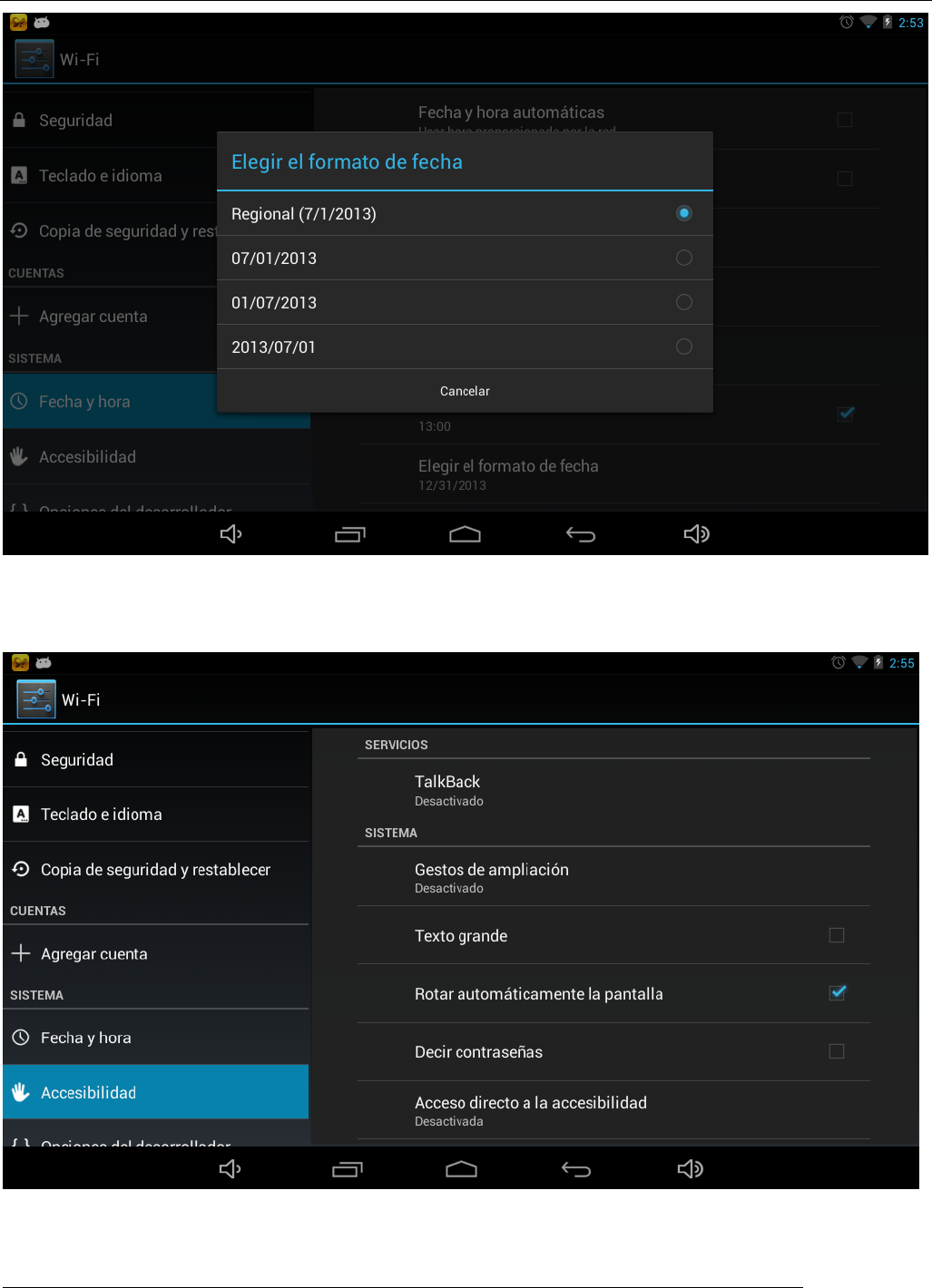

Tap to enter date format, Total three formats for your option as below:
1. 月 日 年 Month Date Year
2. 日 月 年 Date Month Year
3. 年 月 日 Year Month Date
MID User Manual
User Manual
47
6.2.5 Accessibility

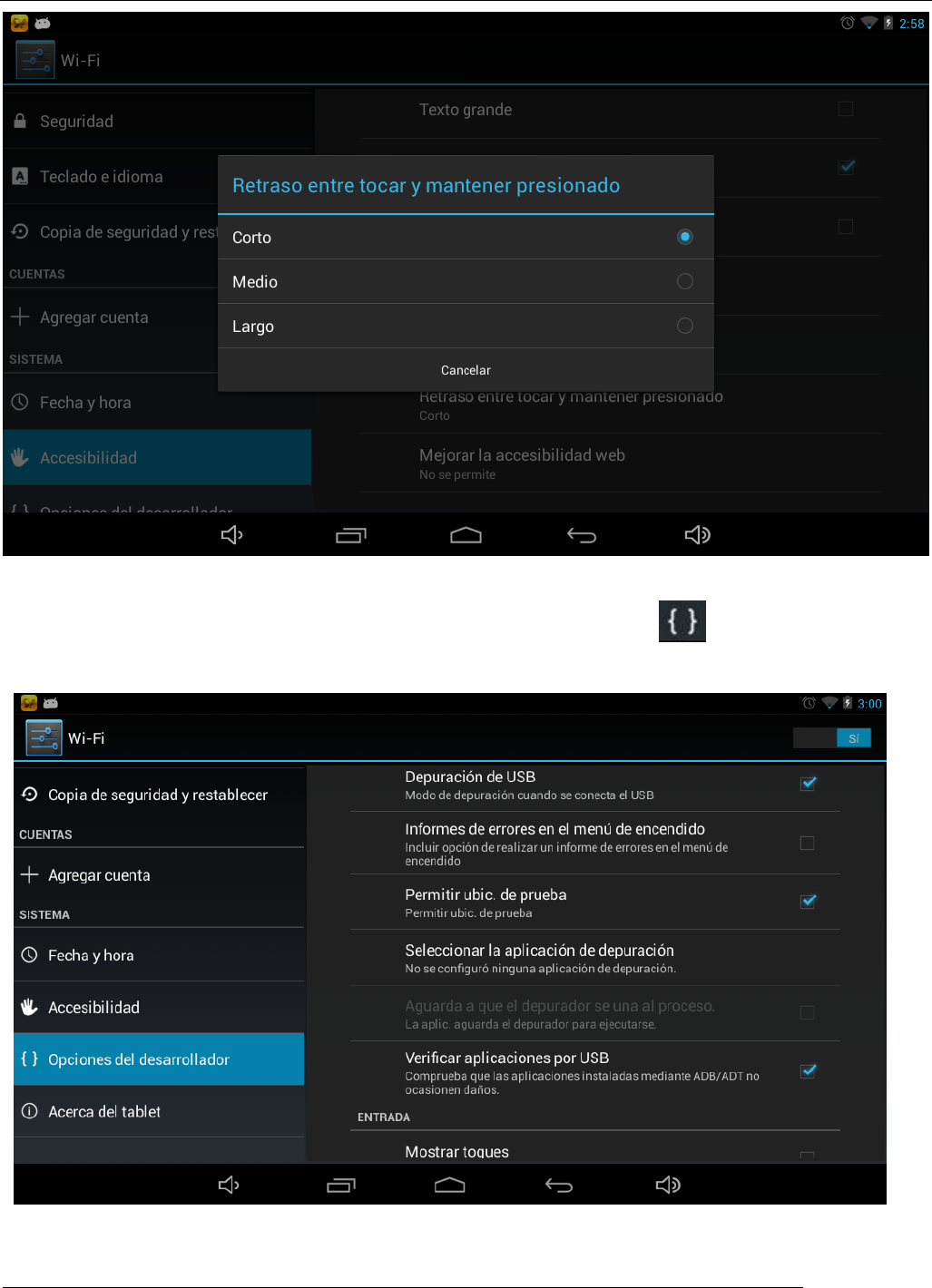

Can set the Auto-rotate screen, large test etc, as below
Touch & hold delay
MID User Manual
User Manual
48
6.2.6 Developer options: It is recommended to use the factory default developer options setting, or
some changes may affect the functions of the Tablet PC. tab the icon to enter the developer
options setting interface as below
MID User Manual
User Manual
49
6.2.7 About Tablet

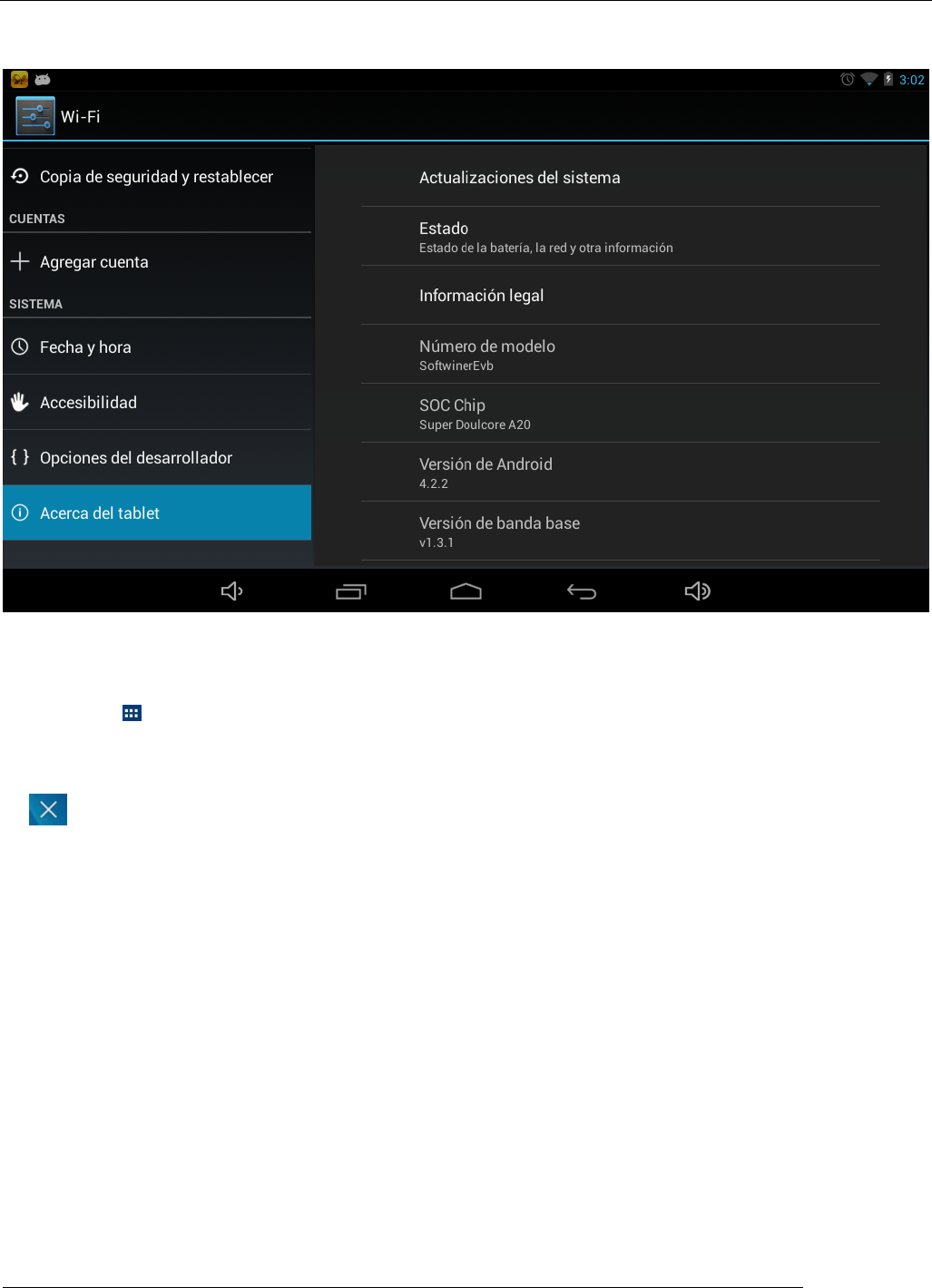

Check System updates, Status, Legal information and software version as below:
6.3 Add, Move or Delete Desktop Icon

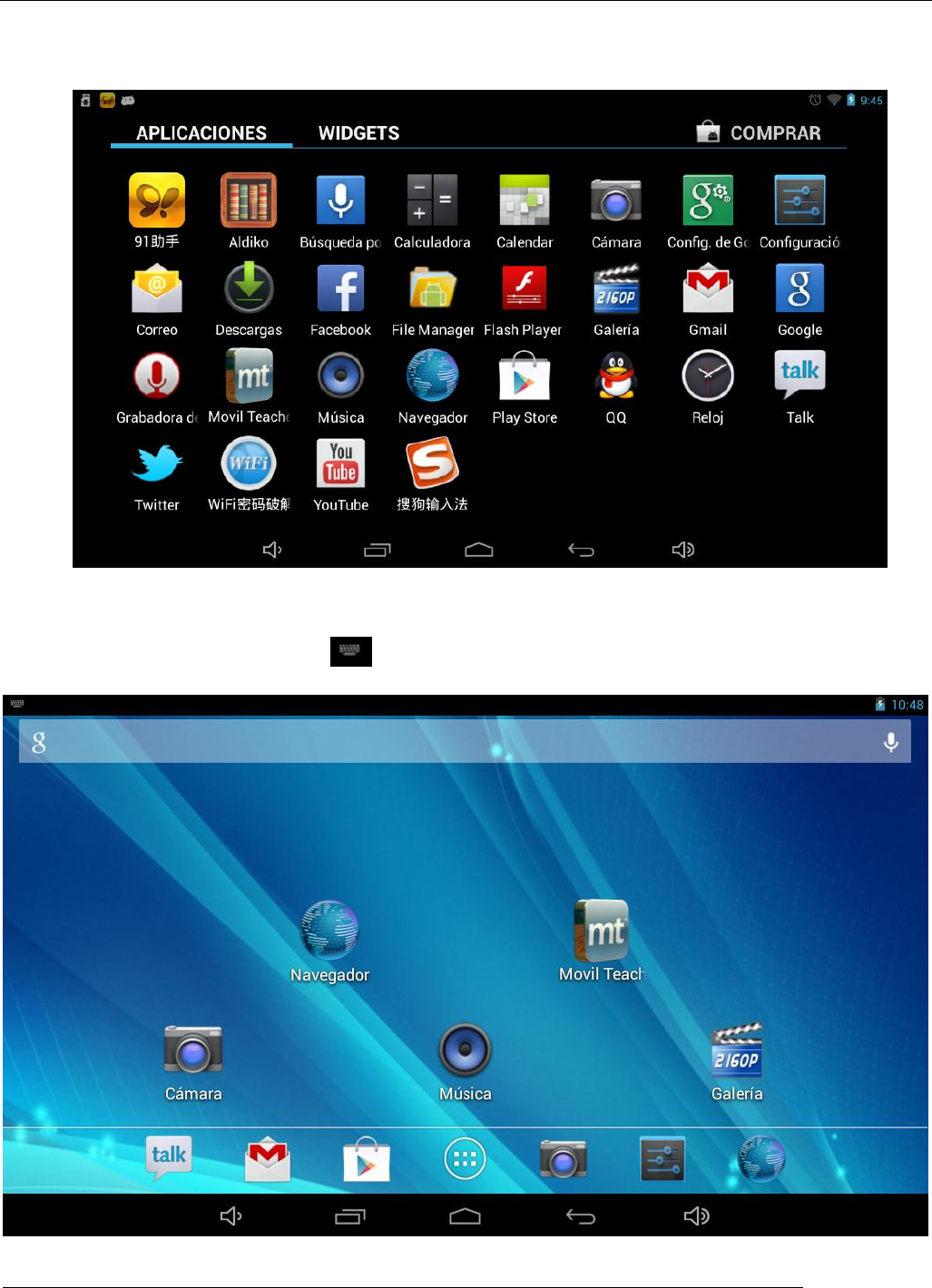

Tap the icon on the desktop to enter the app menu list. lay out all the application icons with paging
display, Tap and drag the application icon to the current desktop, Long tap the app icon on the desktop
to enter the editing mode and you can remove the icon and set its location. When you drag the icon to
the , it turns into the delete function, release the icon to delete it as below:
MID User Manual
User Manual
50
7 firmware upgrade
7.1 install phonenixsuit tool
Notes:
1) Do not run PhoenixSuit together with other firmware tools such as LiveSuit, etc.
2) Do not run PhoenixSuit together with software such as PeaPod or 91 Mobile Phone
Assistance.
3) You must Copying firmware (PC7052L XXXX)to PC desktop.
Run PhoenixSuit
Click
The main interface of PhoenixSuit is shown below:
MID User Manual
User Manual
51
USB Device Installation
1) New driver installation

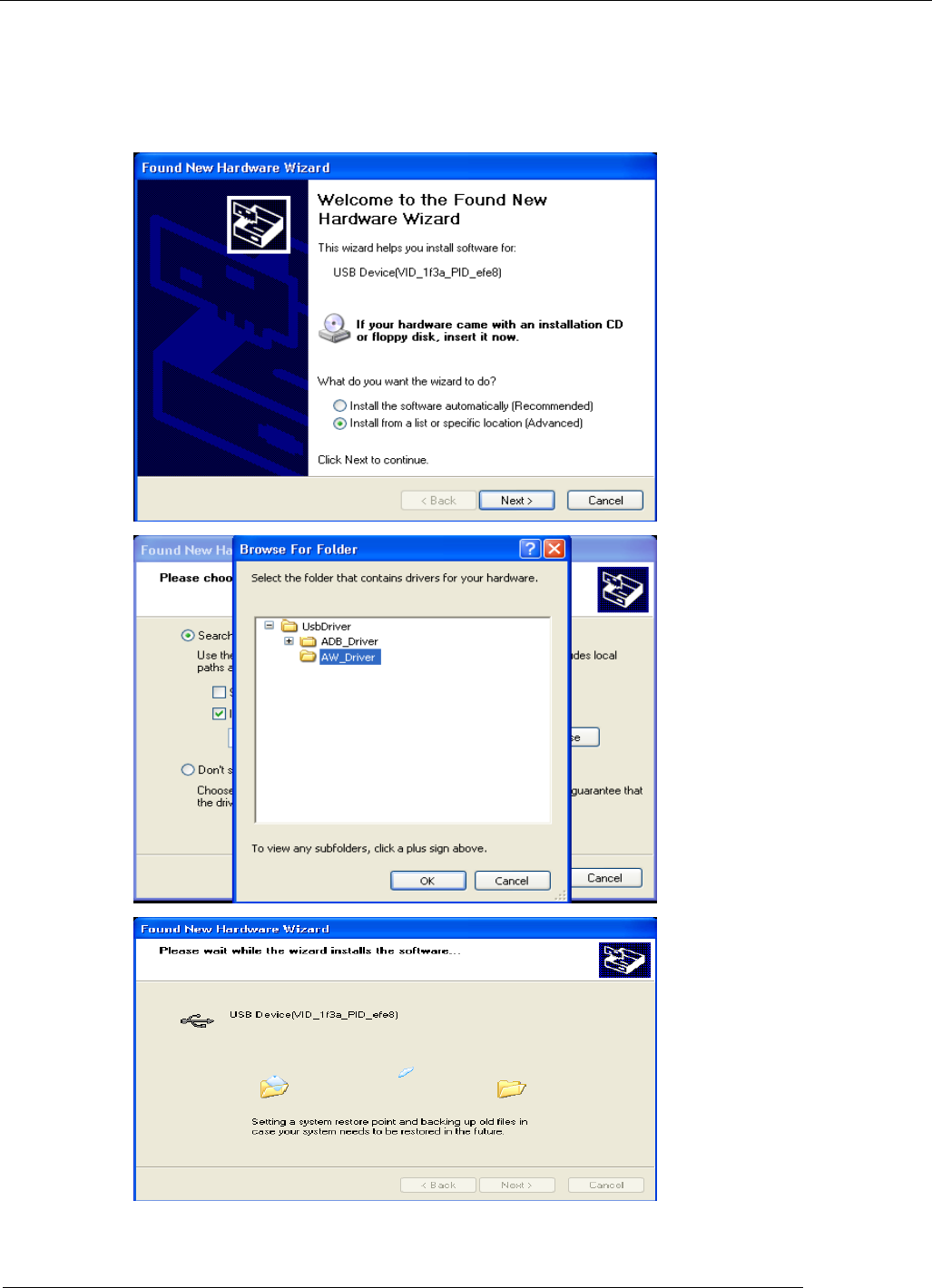

When the software is installed for the first time, you will be prompted to install a driver, as
shown below. Following steps can be followed.
MID User Manual
User Manual
52
7.2 hoenixSuit Operations
PhoenixSuit Interface
The Client Area on the top has four function buttons, and you can access each function by
clicking on corresponding button. PhoenixSuit stays in Home interface after running by
default;
There are three command buttons on the right of the client area, you
can click on for help, click on to minimize the window to the system task
bar, and click on to exit the PhoenixSuit.
Firmware
After the device is connected, firmware can be loaded to it. You can click on to
enter the firmware flash interface, as shown below:
MID User Manual
User Manual
53

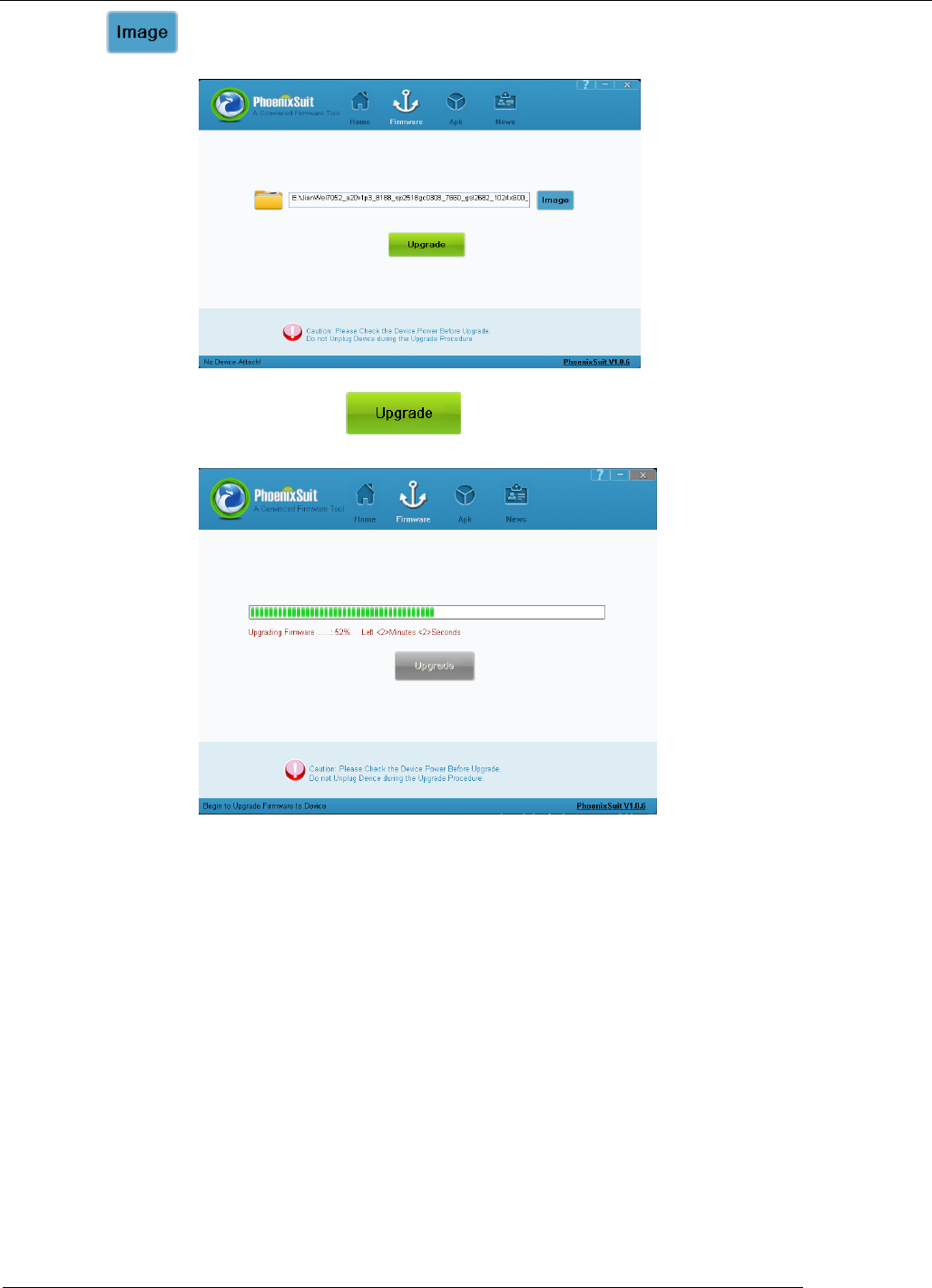

Click on to select the target firmware file, as shown below:
After select the firmware, click on to load firmware into the
device, as shown below:
]
Note that:
1) Do not disconnect the device during the firmware loading;
2) If the firmware fails to be loaded to the device, following steps can be taken to make it:
a. Select the target firmware;
b. Press and hold the power key for above 10 seconds to power the device off, then
release the power key;
c. Press and hold any key (except the power key), connect the device to PC, and
press
and release the power key for five to ten times, and then release all keys, you will find
that the device automatically enters the upgrade mode;
d. If it doesn’t work, repeat Step a to c again;
APK
The PhonenixSuit supports apk backup, restore, installation, device reboot and recovery.
MID User Manual
User Manual
54

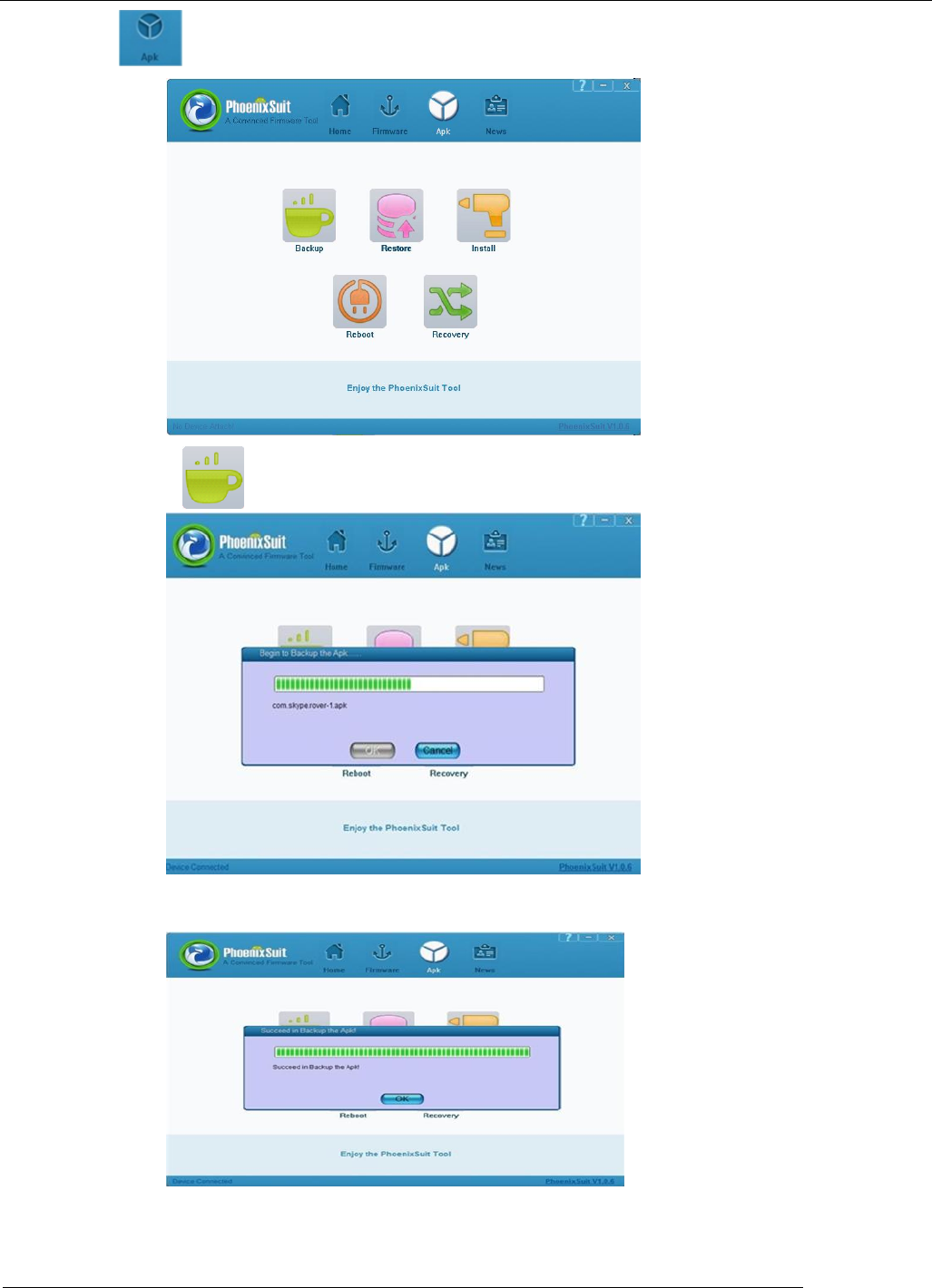

Click on to enter the APK interface, as shown below:
Backup: click on for APK backup, and you can also click on Cancel to exit the backup.
After the backup finishes, you can see following interface:
The original APK will be stored at My Documents\ PhoenixSuit\Backup.
MID User Manual
User Manual
55

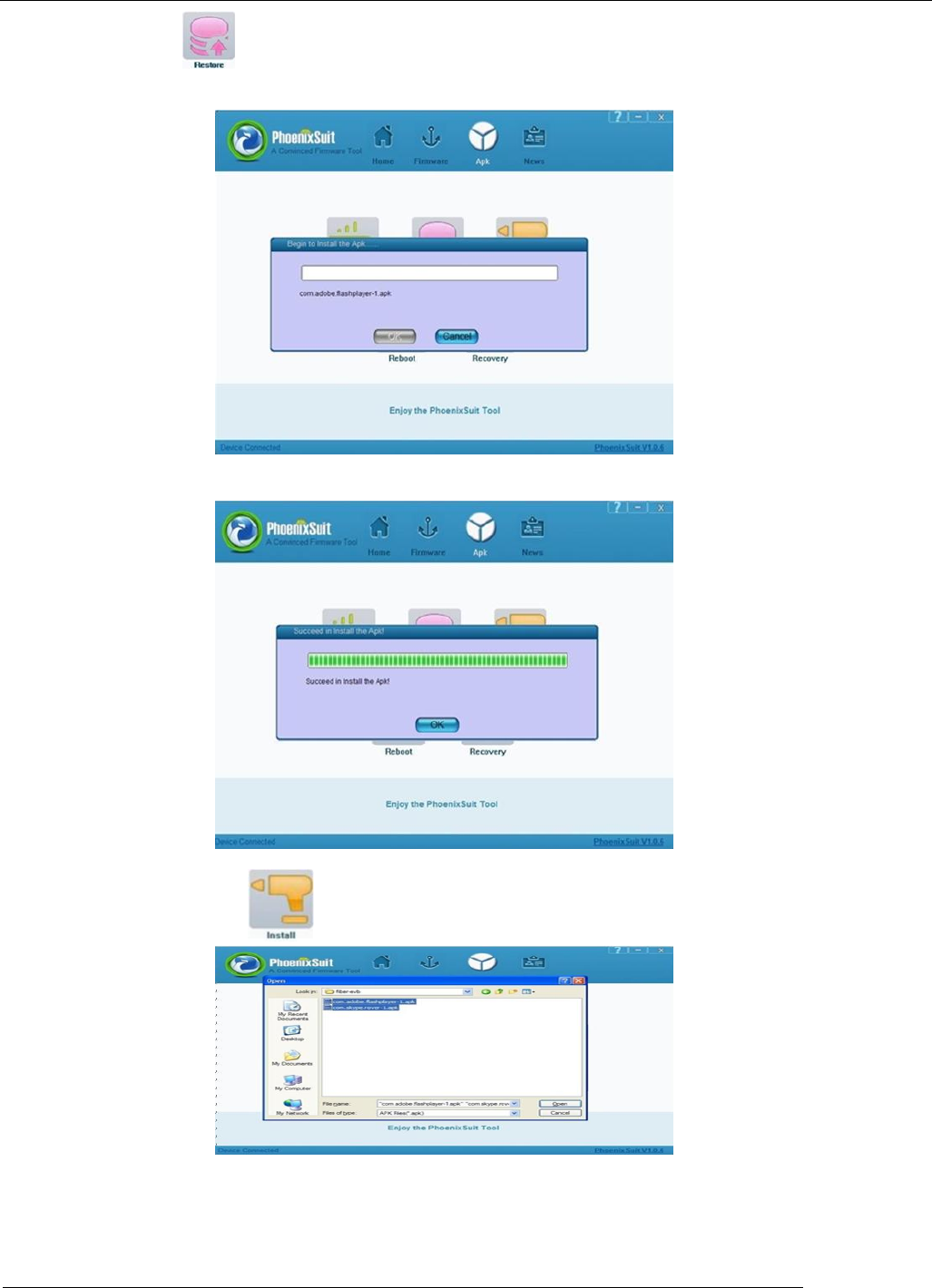

Restore: Click on to reload the backup APK into the device. You can also
click on Cancel to exit the restore.
After the restore finishes, you can see following interface:
Installation: Click on and select the APKs you want to install (multiple APKs can be selected once), as
shown below:.
The installation interface is shown below:
MID User Manual
User Manual
56
You can also click on Cancel to exit the installation.

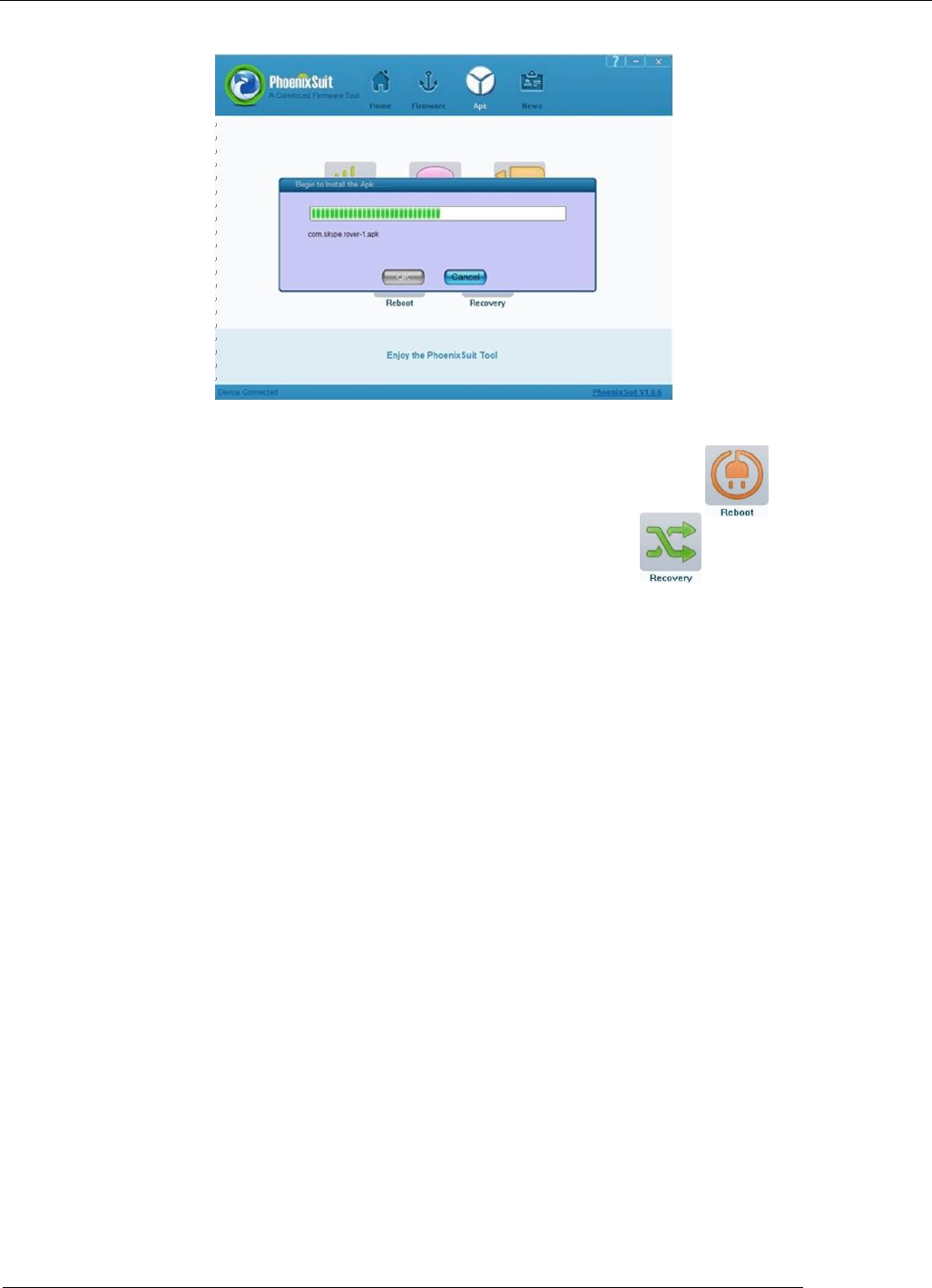

Reboot: When the smart device is dead, you can restart it by click on
Recovery: the device can enter Recovery mode by clicking on. If
the
device doesn’t support Recovery mode, it will directly go to Android
mode after
restart.
8. Troubleshooting
8.1 Tablet PC doesn’t turn on
You can not turn on the Tablet PC when the battery charge is below the critical level, please charge the
battery by USB connecting with computer or power adapter to make sure your power before attempting
to turn on.
Press the “RESET” key of the Tablet PC and check if it is restarting is normally or not
Check if the charger is connected correctly
8.2 The stand-by time of the Tablet PC is too short
The duration of the lithium battery varies with environmental temperature changes and the
service conditions. If the environment temperature is too low or too high, the duration of the
battery will be affected. It is recommended to use the Tablet PC at normal temperature.
Battery life is dependent on usage. High volume, WIFI and the frequent use may cause the battery
to be drained at a higher rate. From usage point of view, the battery consumption is relatively
with big screen, but also by increasing the volume, open the speaker, frequent operation and other
factors, the actual use of the time there will be some differences.
8.3 No sound via earphone
Please check if the volume setting is 0
Please check if audio file is broken, and try to play another audio file to confirm. If the audio file is
broken, it may cause severe noise or static
MID User Manual
User Manual
57
8.4 Can not copy files
Please check if the Tablet PC is connected to the computer correctly
Please check if the memory storage space is full
Please check if the USB cable is broken.

Navigation menu
