User Manual
1
TABLET PC7089 USER MANUAL
FCC ID: BRCPC7089
Content
1. Preface ......................................................................................................................................................................................... 1
2. Safety Notices ............................................................................................................................................................................. 1
3. Ready to Use ............................................................................................................................................................................... 2
4. Quick guides ................................................................................................................................................................................ 5
5. Operation Details ......................................................................................................................................................................... 7

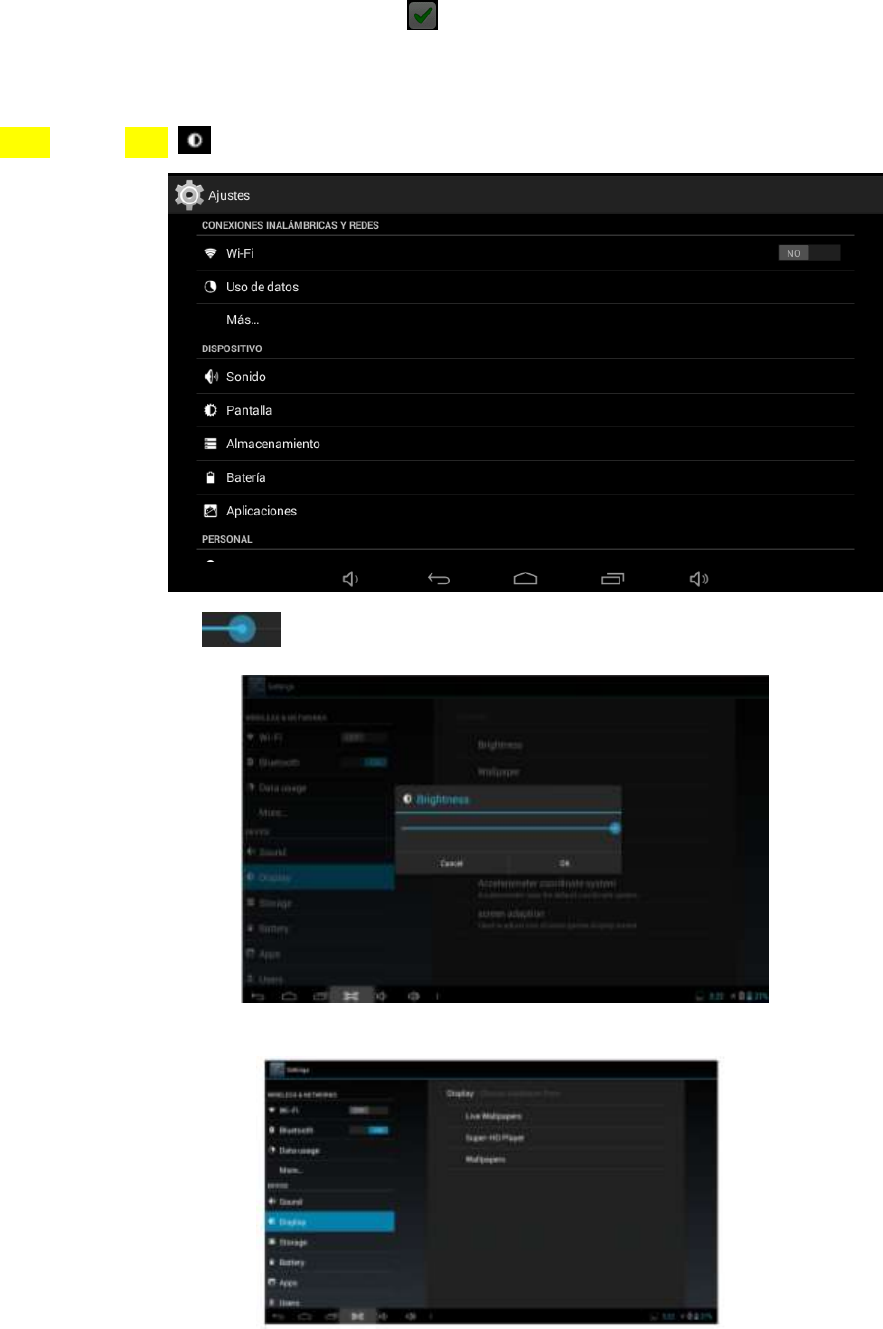

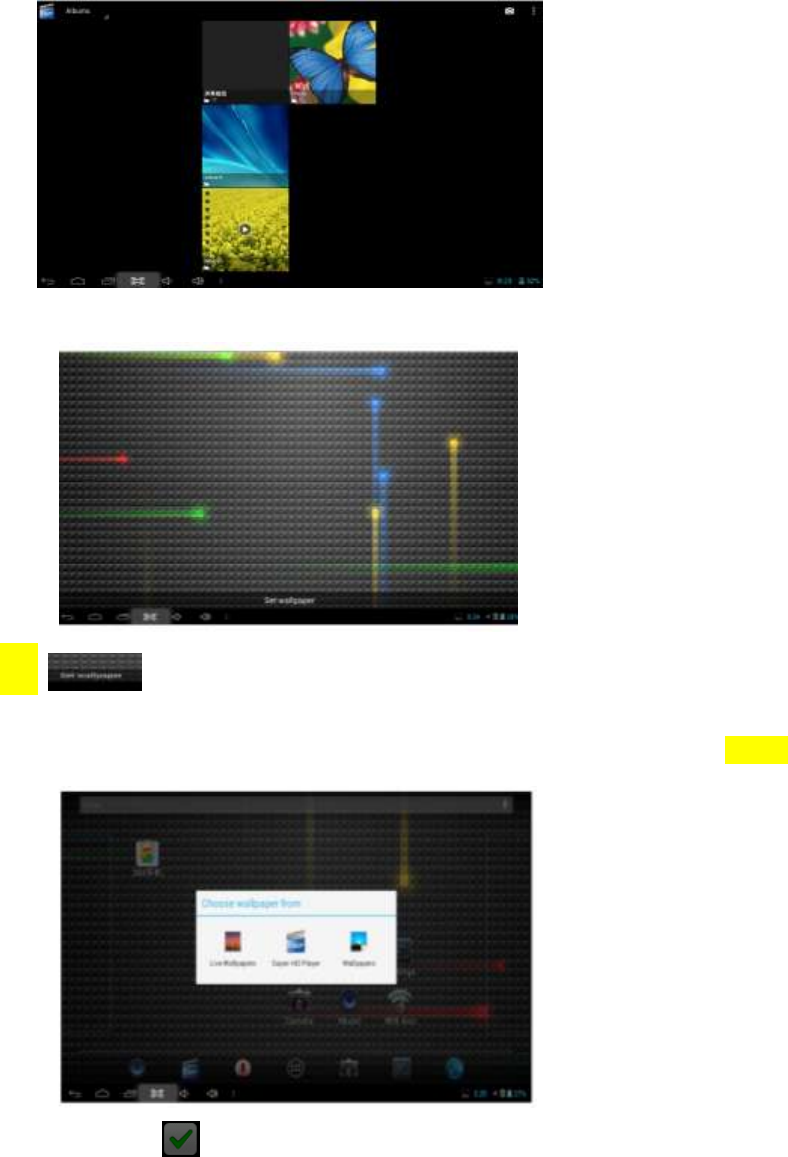

6.1.5 Display wallpaper Settings ...................................................... 20
Click on the icon to enter into display setting. .................................. 20
9. Troubleshooting and FAQ ......................................................................................................................................................... 45
1. Preface
Dear Customers,
Thanks very much for purchasing our product!
This Tablet PC is a built-in high performance Wi-Fi receiver module, supporting an external 3G USB-DONGLE
wireless network card, using broadband wireless networks, breaking through the restraint of network cables; it will
bring you into the portable media player world and fulfill your entertainment needs. It also supports picture browsing,
e-book reading, games, online chat and other functions; various settings will fully show your individuality.
To operate this player easily, first, please read this User Manual included with the player. Then you will have a better
understanding of the operations. Before operating this player, please carefully read all data we provide about the
player, so that you will have a better understanding of the product and its operations.
The Company will not be responsible for any loss of personal data and damage caused by incorrect operation of the
Software/Hardware, artificial damages, replacement of batteries or any other accident. To avoid loss of your data,
please backup your data to your computer at all times.
Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against the manual,
the Company will not take any relevant responsibility for any accidental loss potentially occurring in the process of
using this manual.
Due to constant product development, the information in this manual is subject to change without any prior notice.
This manual is protected by copyright and no part is permitted to be copied or reproduced in any way without prior
written permission of the Company.
The Company reserves the final explanation right of this manual, warranty as well as its related information.
(Note: When compiling this manual, we are very careful to provide you completely reliable information. However,
there is inevitably some error and oversight, please understand, and we welcome your suggestions. If any problem
occurs during your use of this product, please immediately contact your local seller)
Thanks for your support and please pay attention to our other products.
2. Safety Notices
1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product.
2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use, because this may
cause surface scratches on the Tablet PC, battery damage, data loss or other damage to the hardware with the
result that it can’t start up.
2
3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet PC could
disable it to the extent of being beyond repair.
4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and corrode
the finish.
5) You are recommended not to use the headset with the volume at its highest settings, please adjust the volume to
an appropriate safe level and limit the amount of time you spend using headphones to avoid possible damage to
your hearing. Excessive volume will cause permanent hearing damage.
6) Please do not cut off the power abruptly during software updates or downloading, because this may cause data
loss or system errors.
7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must be avoided
to prevent the possibility of overheating or fire.
8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands.
9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed as an
infringement to the laws of copyright.
10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when the usage of
the Tablet PC will cause interference and possible danger.
11) All the wireless equipment is subject to external interference and this can affect its performance.
12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of the plane;
please consult the relevant airline company if you intend to use the Tablet PC on a plane. You must be very careful
when using electronic equipment in flight.
13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals.
14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting operations are in
progress.
15) Only qualified maintenance personnel can install or repair the Tablet PC.
16) Please use the original accessories and battery provided with the Tablet PC, do not use the incompatible
products.
17) The Tablet PC is not waterproof, please keep it dry.
18) For the sake of data safety, please back up any important information stored in MID or keep a handwritten
record.
19) When the Tablet PC is connecting with other devices, please read the user manual for detailed safety
instructions. Don’t connect the Tablet PC to incompatible products.
20) Please upgrade device with enclosed optical disk when the practical usage of the device is inconsistent with this
manual caused by the loss of firmware.
Note: Android4.4.2 system using the MTP protocol transfer files, rather than the original MSC agreement (ordinary
U-disk), currently supports the MTP protocol only (10) and (11) in Windows Media Player or above version. If there
are no updates to the above two versions of the Player, the computer will not recognize MID or existing file cannot
be copied down, etc., please correct in the computer, which is connected with the MID above installed version of the
Player, can be installed to the computer, do not need to run for connection to the MID.
3. Ready to Use
3.1 Packing list
3
3.2 Product Appearance
3.3 Instructions on Keys
Symbol
Name
Description
A
POWER
Short press this button to enter sleeping/wake up mode,
press long to switch ON/OFF
B
Earphone hole
Earphone port
C
USB Port
Micro USB port
D /E
Volume +/-
Increase volume/ Decrease volume
F
TF card port
TF (Micro SD) Card Slot
G
Front camera
0.3MP
H
Speaker
speaker sound output
I
Reset
Reset button to boot
3.4 Features Overview
Components
Quantity
MID Device
1
Leather Case (Optional)
1
Keyboard/Mouse (Optional)
1
TF Card (Optional)
1
Power Adaptor
1
Earphone
1
USB Cable
1
USB HOST Cable (Optional)
1
3G USB Dongle(Optional)
1
RJ45 USB Dongle (Optional)
1
Manual
1
CD
1
Warranty Card
1
4
Adopt A23 processor，CPU Dual-Core Cortex-A7 1.5GHZ, GPU Mail-400MP2 support OPENGL ES2.0/VG1.1
STANDARDS，support ANDROIED 4.4OS；
support RAM 512M/1G DDR3；
support built-in ROM Flash 4GB/8GB/16GB(optional)，
external TF card 1G~32GB storage
support 7 寸TFT screen 800*480，Multipoint capacitive touch
Support AVI（H.264, DIVX, DIVX, XVID,MKV（H.264, DIVX, DIVX, XVID), WMV, MOV, MP4（H.264, MPEG,
DIVX, XVID), MPEG, MPG, FLV（H.263，H.264) etc.
Support JPG、JPEG、BMP、GIF、PNG forma image browsing.
Support MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV audio Forma.
Support TXT、LRC、PDF、Html、Htm、EPUB，e book format, supporting automatic browsing, scaling, bookmarks,
flip, and other functions.
support built-in WIFI access to broadband wireless Internet access, working software on ANDROIED operating
system are colorful, some of the commonly used software system preset: Google Internet browser (IE), online
video, e-books, etc
Support built-in microphone recording function, can realize voice recording and video call function.
Support USB (1XOTG 1XHOST), can be in external connection U disk，mouse，keyboard，3G Dongle and other
equipment.
Support built-in font and rear one camera 0.3MP.
Support G-Sensor Screen direction rotation function
Support stereo headphones and two speakers sound output.
support language: many languages
USB mobile disk, WIN_2000 drive system free from above
3.4 Technical Specifications
Overall dimensions
Weight
Display
Size
7inch TFT screen
resolution
800*480
PC Interface
USB port，USB OTG 2.0/USB Host2.0 (MIC 5PIN shift 4PIN HOST)
CPU
A23,Dual core Cortex-A7， 1.5G 1.5GHZ
Built-in Flash
Flash Memory ：8GB
Built-in RAM
ROM：DDRIII 512M
Capacity Expansion
Support TF Card 1GB~32GB
Power Supply
Built-in 3.7V@2000mAH, output DC5V/1.2A Adaptor
Music Function
Play format
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3
GP,WAV
Headset max.
output
（L）5mW＋（R）5mW（32Ohm）
MP3 Bit rate
8Kbps ~ 392 Kbps
WMA 、WMV Bit
rate
5Kbps ~ 192 Kbps
Frequency
response
20Hz~20KHz
SN ratio
90dB
Distortion
＜0.05%
Video Function
Play format
AVI，MPEG，MPG ，WMV， MOV, MP4,etc
5
Photo Browse
Support JPG, JPEG, GIF, BMP, PNG
E-book
Format
TXT、LRC、PDF、Html、Htm、EPUB etc.
Max. capacity
5M
WIFI
Transmission
rate
Max54Mbps
Transmission
range
Max100m
WI-FI agreement
802.11b/g/n
record
Support format
Support WAV record
Supported OS
Windows2000/XP/WIN7/Vista Mac OS V9.0/10.0
4. Quick guides
4.1 Switch on/off
Switch on and unlocked:
When the devices is in powered OFF mode, press and hold the Power key for 5 seconds to enter the Android startup
process. The device will take about 30 seconds to enter the system desktop, with the display in locked mode, please
press and move the icon by the white circle, the display will unlock automatically, see the image below:

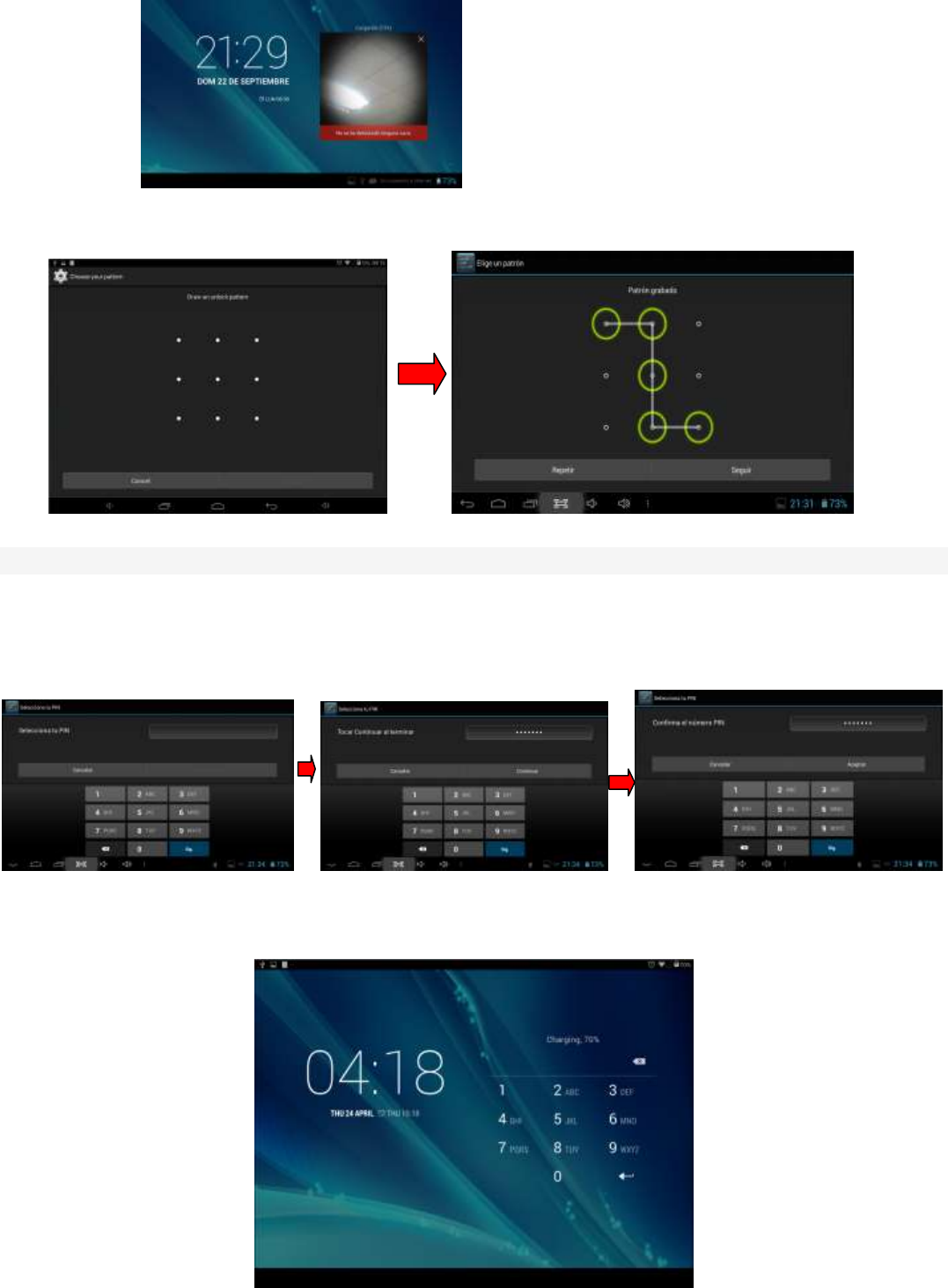

Sleep mode and lock screen:
After the device turns on, press and hold the POWER key shortly to enter into the SLEEP power-saving mode. The
screen comes into black and locks at the same time. Press the POWER key again to wake up the screen. The
system will restore bright screen within 1S and then drag up to unlock.
Note: under the sleep mode, the operation of the original function will not be interrupted, it will continue to work. At
this time only close the screen with the black screen state. For example: play the music, movies, etc
Switch off：
When the device is in use, press and hold the POWER key for 3 seconds, the screen will display the power off
interface; choose the power off option to confirm your selection and the system will shut down automatically.
Note: If the device is in crash or blank screen, please press and hold the POWER key for 6 seconds to let the
system power off automatically, and then turn it on.
6
[Note]: When the device is running low on battery power, it will sound an alarm and then shut down automatically if it
isn’t plugged into a power source to start charging. If the device cannot start up please check if the battery power is
too low by charging the device.
4.2 Battery management and charging
a. Charge the battery about 8-12 hours to make sure the battery is fully charged for the first time.
Insert the adaptor into the DC slot on the Tablet PC, and connect the other side with the power socket. The desktop
icon of the battery keeps rolling to show it is charging, please wait until the battery is fully charged.
b. When the battery is exhausted completely, please charge at least one minute before starting it up.
Note: In order to keep the battery working to its full potential, please pay attention to the following advice:
Don’t charge the power in excessively high temperatures.
There is no need to run down the power for this Li-ion battery, you can charge the battery even when there is still
power left in the battery without it affecting the lifespan of the battery.
In order to keep the battery in good condition, Make sure you charge it at least once every two weeks if the
Tablet PC hasn’t been used for a long time
4.3 Operation of the Function Icons
Definition of the Function Icons
Icon
Function
Icon
Function
Back to main menu
Notifications
Power Status
Reduce the volume
Return
Increase the volume
Recent Browse
Function Menu
7
Wi-Fi Status
Google Search
Browser
5. Operation Details
5.1.1 Music
In the application menu or on the desktop, tap the icon to enter the main interface of the Music Player as
below:
If there are no music files in the audio player playlist, the system will automatically load any music files from the
micro SD card to the audio player playlist after the audio player is launched. The device supports the following
audio file formats: mp3, wav, midi and wma.
If there are many videos available, slide up/down the list by using the touch screen.
Double-click the song you want from the list to start playing.
When in playing, click can enter into play list.
Drag the playback progress bar to adjust video playback progress.
Music Player Icons Description：
Icons
description
Icons
description
Albums
song
Playing music list
Current Playing
Repeat play all the songs
Play mode(adjustable)
Single cycle
Pause
Last song
Next song
Play Audio
Note: Audio player can play WAV audio files.
5.1.2 Video
8

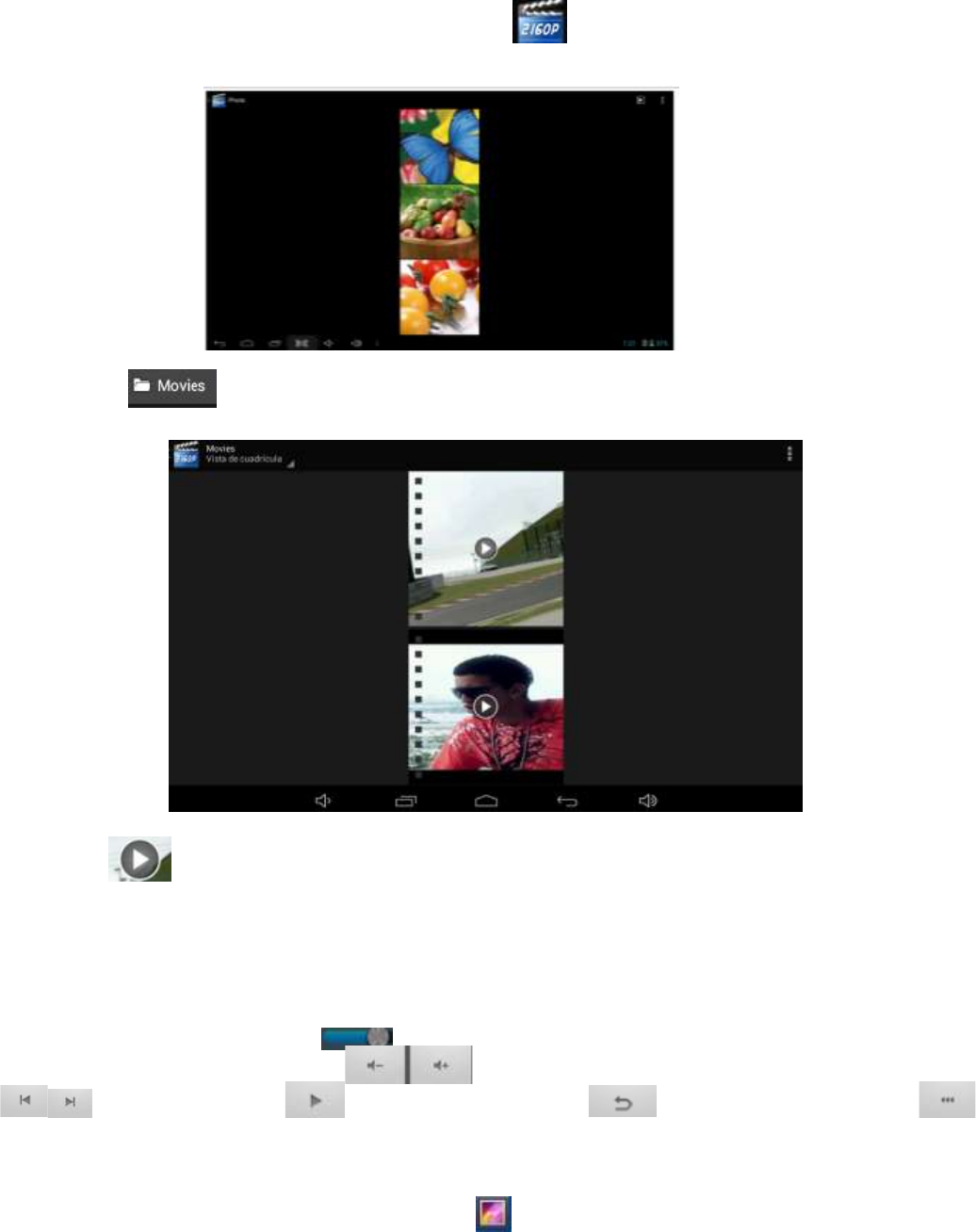

In the application menu or on the desktop, tap the icon to enter the video player interface and picture
browsing as below.
Tap the icon to enter the video browsing:
Tap the icon will play your favorite movie.
This device supports the following video file formats：Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,
WMV9/VC-1 etc.
The system will automatically load any video files from the TF card to the playlist after the video player has been
launched.
Drag the playback progress bar, to adjust video playback progress.
In the process of playing video, tap you can increase or decrease the volume,
Can switch the video, can play or pause the video, can return to the last interface. Is
the menu, it includes subtitles selection, audio and video scaling model.
5.1.3 Picture
In the application menu or on the desktop, tap the icon to enter the picture browser as below：
9
Picture Player Icons Description:
icon
description
icon
description
Delete picture
Choose and edit picture
Add images:（The Tablet PC supports the BMP, JPG, JPEG, PNG and GIF format）
The system will automatically load the image files from the TF card to the photo browsing list after the photo
browser has launched.
Tap icon to slide show, browse images, set the image as wallpaper, edit, rotate, crop or resize your
Picture can be selected by long press mages as shown above, this can add new options: sent to nearby
people or sent by Email
Icon
Function
Icon
Function
Image play
Crop
Edit
Set picture as
Rotate left
Picture details
Rotate right

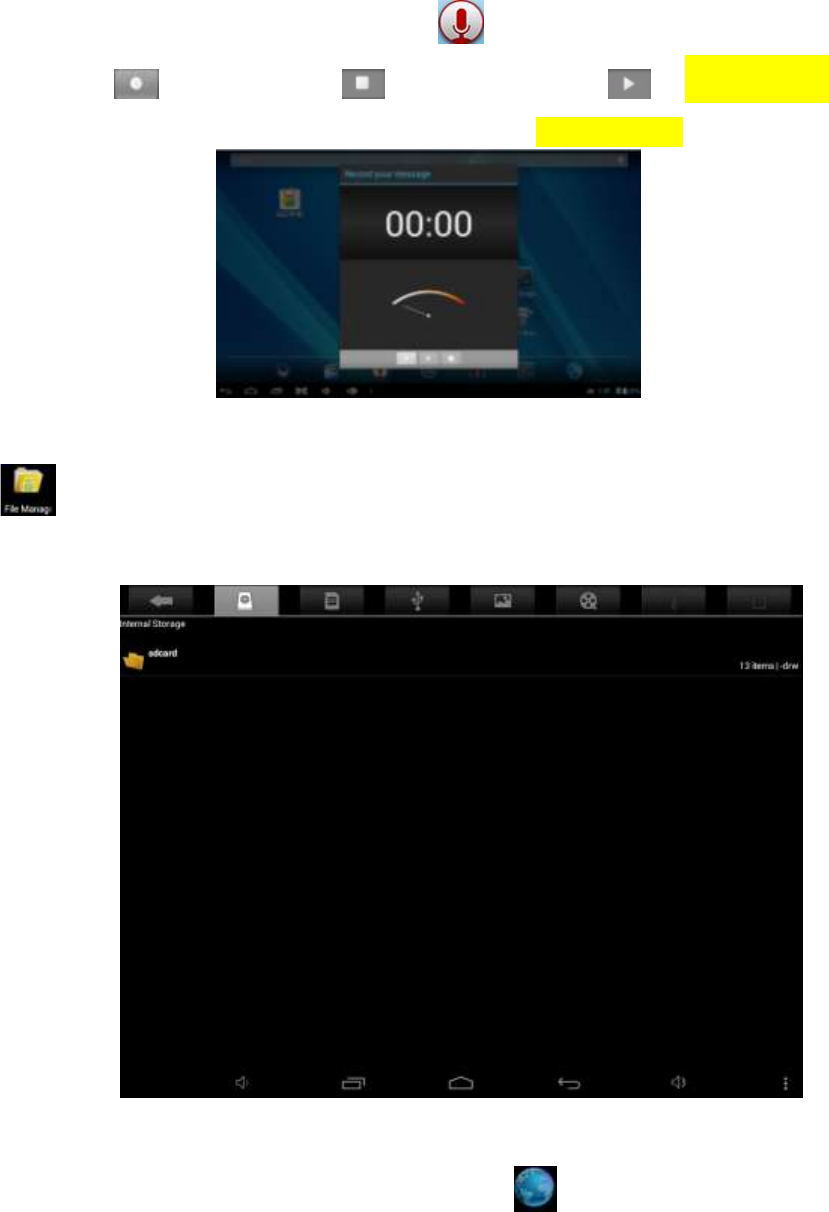

5.1.4 Sound Recorder
10
In the application menu or on the desktop, tap the icon to enter into the sound recorder.
Tap the record icon to start recording, to stop recording, and to playback. Once you finish the
recording, you will be asked if you want to “Discard” or “Save” the recording. More details in 5.1.1（Music ）
5.1.5 File Manager
Tap icon on the menu or desktop to enter the interface of File Manager as shown below: Long press the file or
folder if you want to manage; the system will pop up the file or folder operations window, then you can choose to
Copy, Delete, Move, Rename etc. See picture below:

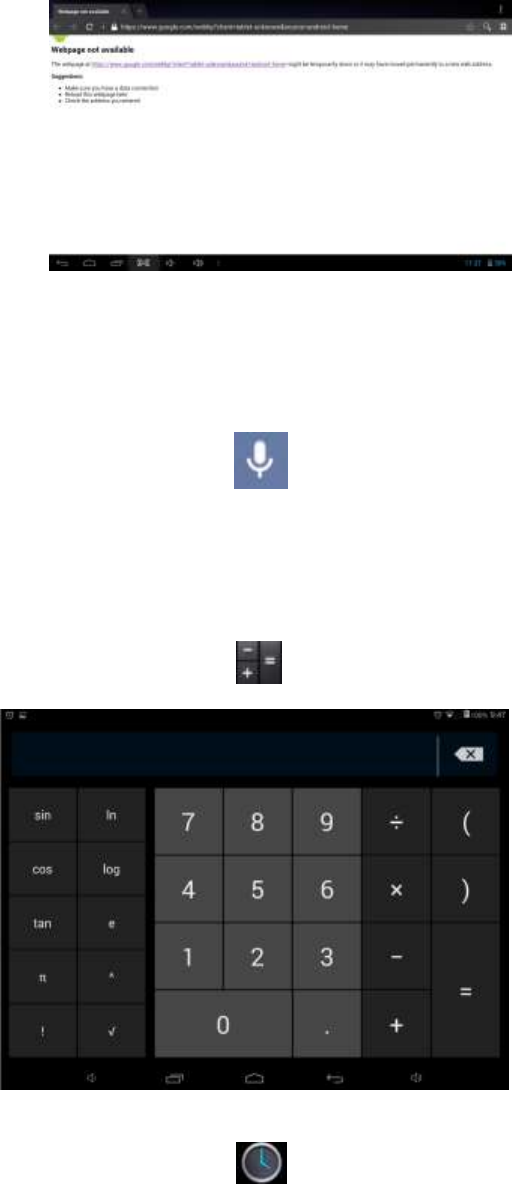

5.1.6 IE Browser
Under WIFI connected, (see chapter6.1.1 Wi-Fi), tap icon enter to the Web Browser interface; tap the
address bar of the browser and input the website and enter.
11
Note: The IE Explorer uses the popular third-party IE Explorer software; please follow the IE Explorer's standard
operating mode to operate.
Voice Search：
In the application menu or on the desktop, tap the icon and enter into the voice search page: Once you have
entered in, you can speak out the content to the device with standard language, and then the device will recognize
your voice and automatically search what you have said.
5.1.7 Calculator
In the application menu or on the desktop, tap the icon and enter into the calculator：
5.1.8 Clock
In the application menu or on the desktop, tap the icon to the interface of clock
12
In the clock interface, you can choose time zone and set the alarm clock, etc Tap set up accordingly, as
shown below:
Detail setting: slip the right button to opening status and then click the button , clock time, bell, repeat, label
setting as shown below:

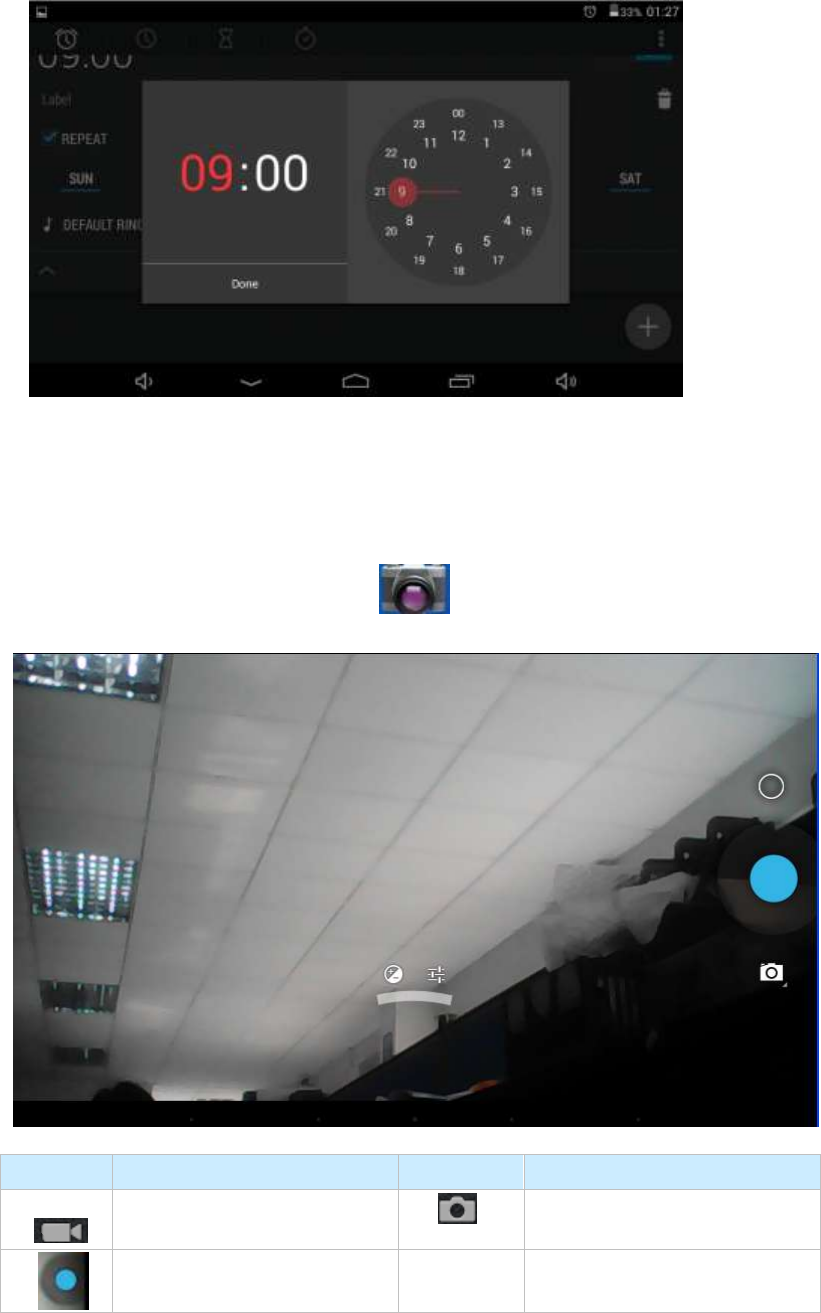

Click the symbol to set clock time, as shown below:
13
Repeating: choose accordingly the day that the clock is expected to ring-down.
Flexible time: you can choose the date to set, such as Monday to Friday in 9 o’clock, and then alarm will repeat at 9
o’clock from Monday to Friday. The time and date are set as you need. Once you set ok, the front color of the set
time will be turn in white and other will be gray.
5.19 Camera:
In the applications menu or on the desktop, tap the icon to enter into the camera function interface as
below:
Icons
Description
Icons
Description
Video mode
Camera mode
Shutter
5.2.0 TF (Micro SD) Card Storage
This Tablet PC supports reading files on TF card. Insert the card into the card slot by the right way. Take out
the TF card, please push the card into the slot, and then released. TF card will automatically pop up, and then
remove the card.
14
a. Insert the memory card into the card slot on the right.
b. Please do not pull out the card when it is in use (reading, copying), otherwise, it may cause data errors.
c. Please do not use the memory card in high temperature conditions.
d. Keep the memory card away from the liquid and erosive materials.
5.2.1 APK software installs and uninstall
Open the file manager and install the APK directly. Firstly copy the APK file to built-in flash or external TF card and
enter into main menu ,click the icon as shown below:
If the file copied inside the machine just click on and enter into the internal memory, then click on the
folder called SD card , you can see the APK what you want to install. If the file copied in the TF card, then click on
the right side icon into the external memory, Strike “extsd” can see the need APK as follows:
Choose the APK which need to be installed, as shown picture:
15
Enter into next step, as shown picture:
Click ok, Return to the main interface after finished, there will be related software menu.
Uninstall: Enter into setting and uninstall the APK.
Click on” ” on the desktop or main menu, then click on apps as shown below:
Click on the APK icon on the right which needs to be uninstalled, click on uninstall and choose OK as shown below:
5.2.2 External Mouse and Keyboard
Connect the USB mouse to the Tablet PC by USB OTG cable。The left mouse button is confirmation key, right is the
return key, middle pulley key is moving up and down:
16
Note: For the standard keyboard some buttons are not available, it needs to reset the keyboard software
according to ANDROIED system. We suggest you can use the default USB keyboard.
6. System setting
6.1.1 Wi-Fi Setting
On the desktop, tap to enter into the setting interface，enter WIFI function，and then tap
17
a. Press WIFI and the system will search wireless networks automatically. Shown as above picture.
b. Connection ( It is dynamic IP address and needn’t set the IP address)
The dynamic IP address is assigned by WIFI router. If it is automatically assigned the IP address, and then click
the Wi-Fi network name. For example, click “Test II” it will pop up a connection window where you can input the
correct security code and then tap “connect”. The system will connect to the network automatically, and once
connected will show a Status of “Connected” You can see the network connection status by pressing the network
name, see the figure below:
There will be a WIFI icon in the top right corner once it connected successfully.
Date usage statue checking: tap the icon to check the date usage
WIFI hot setting:

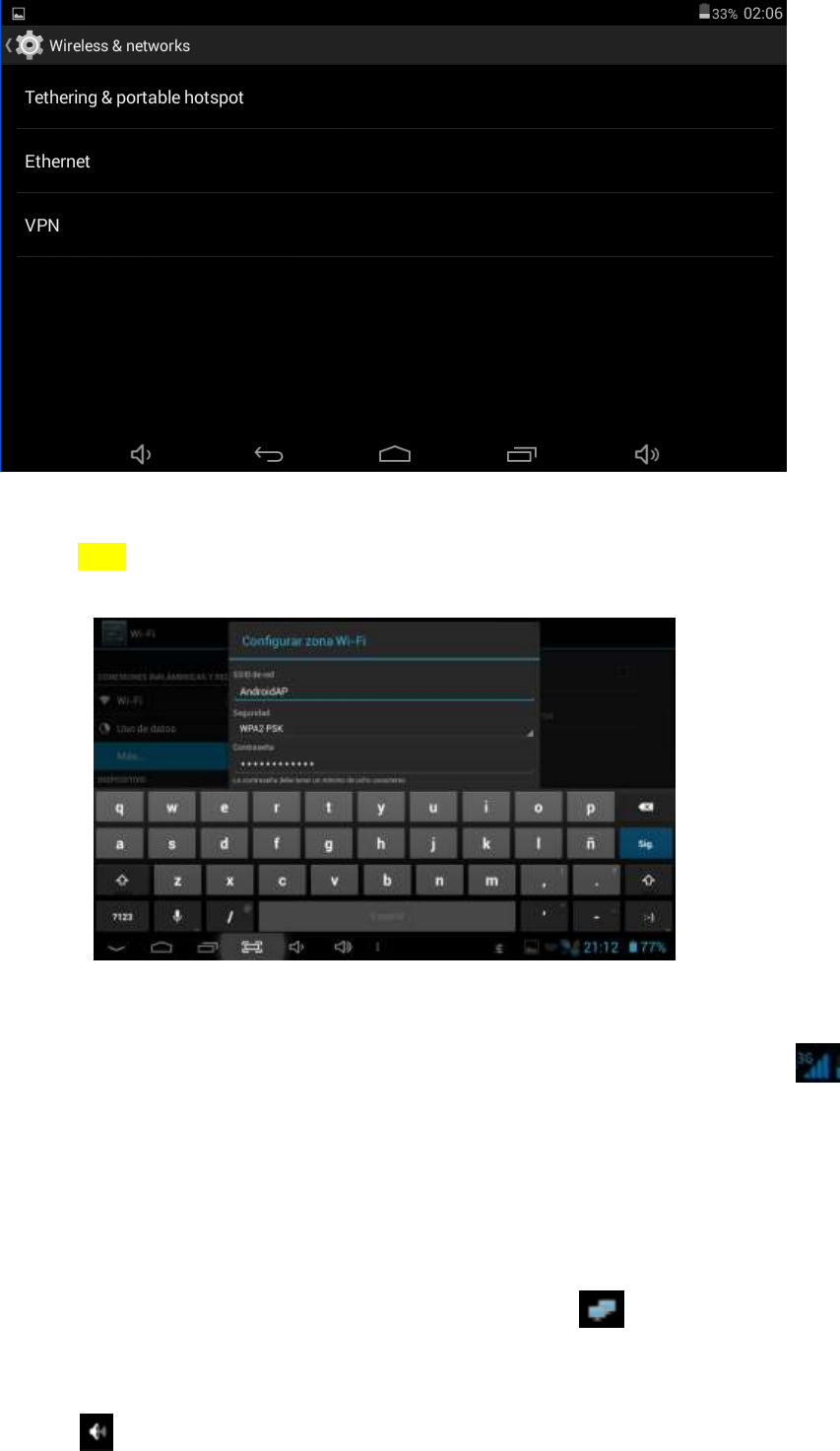

Enter into wireless & networks: choose a portable hotspot into portable hot settings, click on “more”…
18
Hook the portable Wi-Fi, this machine as a wireless router output, can be found in other WIFI devices in this
machine
Click and set Wi-Fi hotspot setting interface: change the network SSID and password according to your requirement
as shown below:
6.1.2 External 3G USB Dongle function：
Connect the 3G USB-Dongle to the Tablet PC by USB HOST cable. The 3G network icon will be showed in
the top right corner of the screen when Tablet PC connects the 3G successfully:
6.1.3 External RJ45 USB Dongle function
If Router Automatically get the IP address
1、Connected RJ45USB Dongle to the tablet PC by USB HOST cable, MID will automatically get the IP address.
When it is connect well, and then the network is available. The icon appears in the right lower corner.

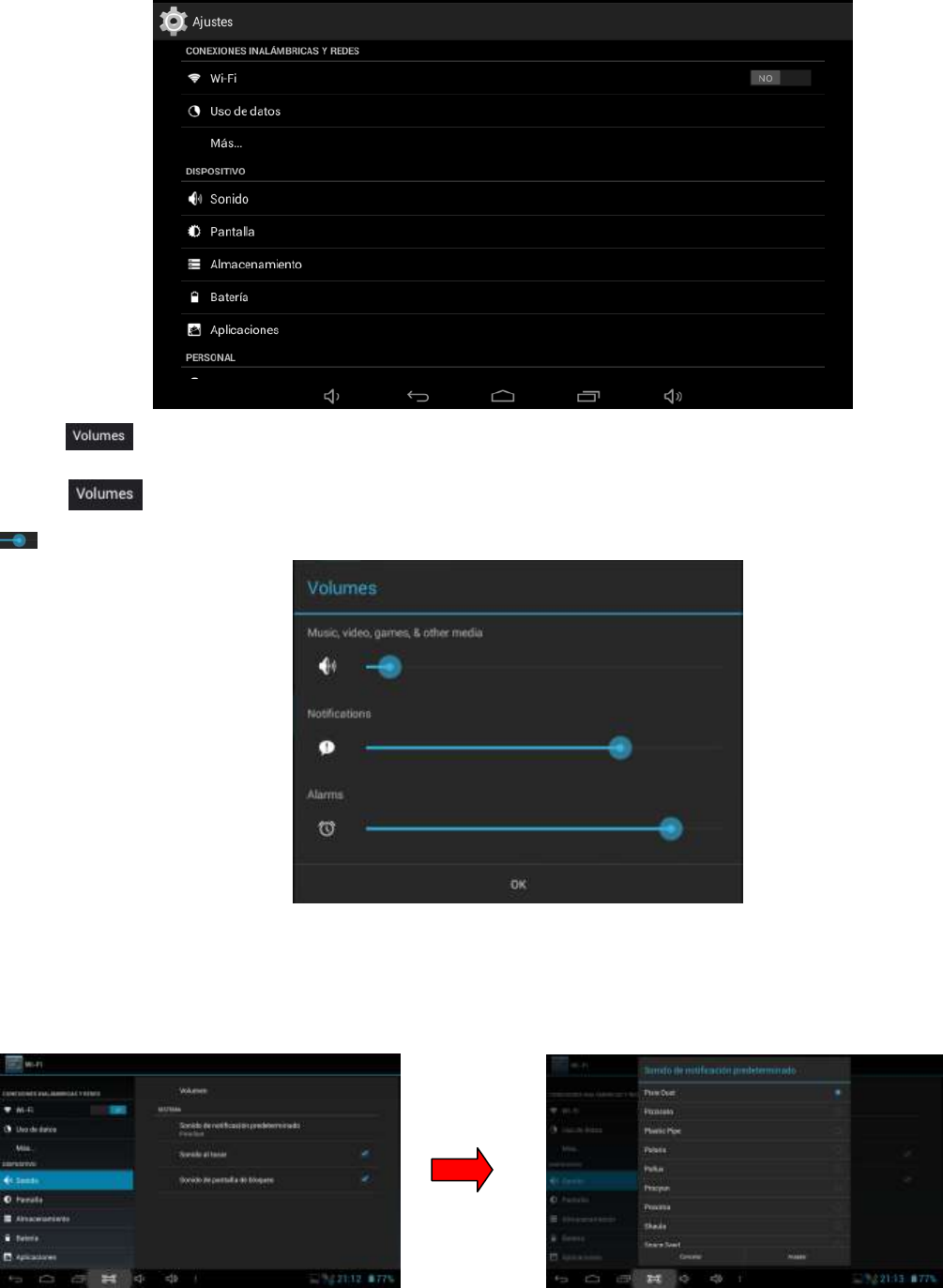

6.1.4 Sound
Tap the icon to enter the sound setting interface as below:
19
a. Tap to enter into sound setting which includes below functions:
b. Tap to increase or reduce Media sound, Notifications sound and the Alarms sound by dragging the
.
C Ring setting
In the setting interface, tap “Ring notice” to enter into Ring setting interface:
System indicator sound setting
touch indicator sound ( tap the touch screen)
20
Lock indicator sound (lock and unlock the screen broadcast voice
These two functions are optional, press to enter mute state if you do not want those functions.

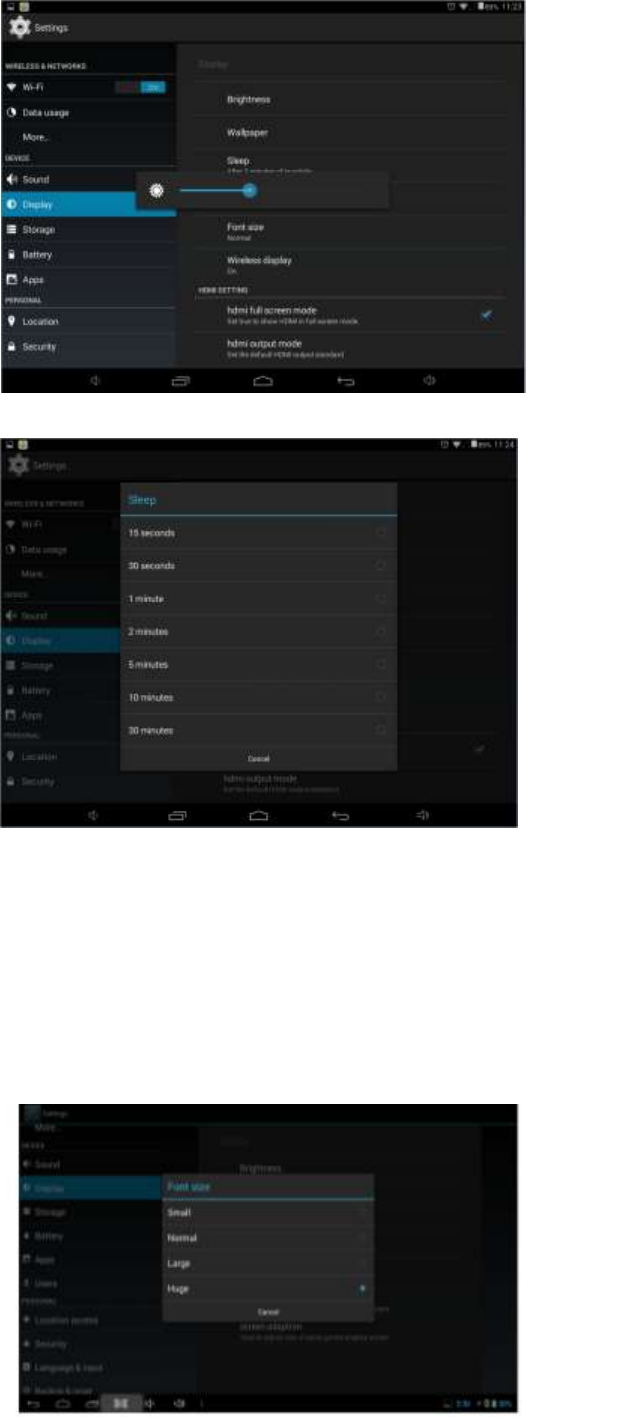

6.1.5 Display wallpaper Settings
Click on the icon to enter into display setting.
a.【brightness】Slip to adjust brightness according to your requirement. Click on ok and return.
B 【wallpaper Settings】Tap “setting” Appsdisplaywallpaper, and then you can choose the wallpaper as you
like, as shown in picture:
Tap and enter into live wallpaper, as shown below:
21
Choose any one of live wallpapers, as shown below:
Tap the middle below icon can set successfully
Wallpapers setting and live wallpaper setting is the method.
Long press any blank space on the desktop can change wallpapers. Then below menu will show on screen.
C: 【Automatic rotary screen】 Tap in the direction bar, it will change the direction when rotating the screen.
22
D【Choose sleep time】Choose tablet sleep time
E【The interactive screen saver】
After entering into the interface, tap the right side sliding block icon to choose internal pictures of the machine as a
screen saver pattern. And then tap the started immediately on top right corner. Machine will broadcast images in
slide form after entering the screen saver interface.
Note: the interactive screen saver pictures must be in JPEG format.
F【font size】
Font has small, average, big, oversized 4 kinds in total. Choose the font you require will be ok.

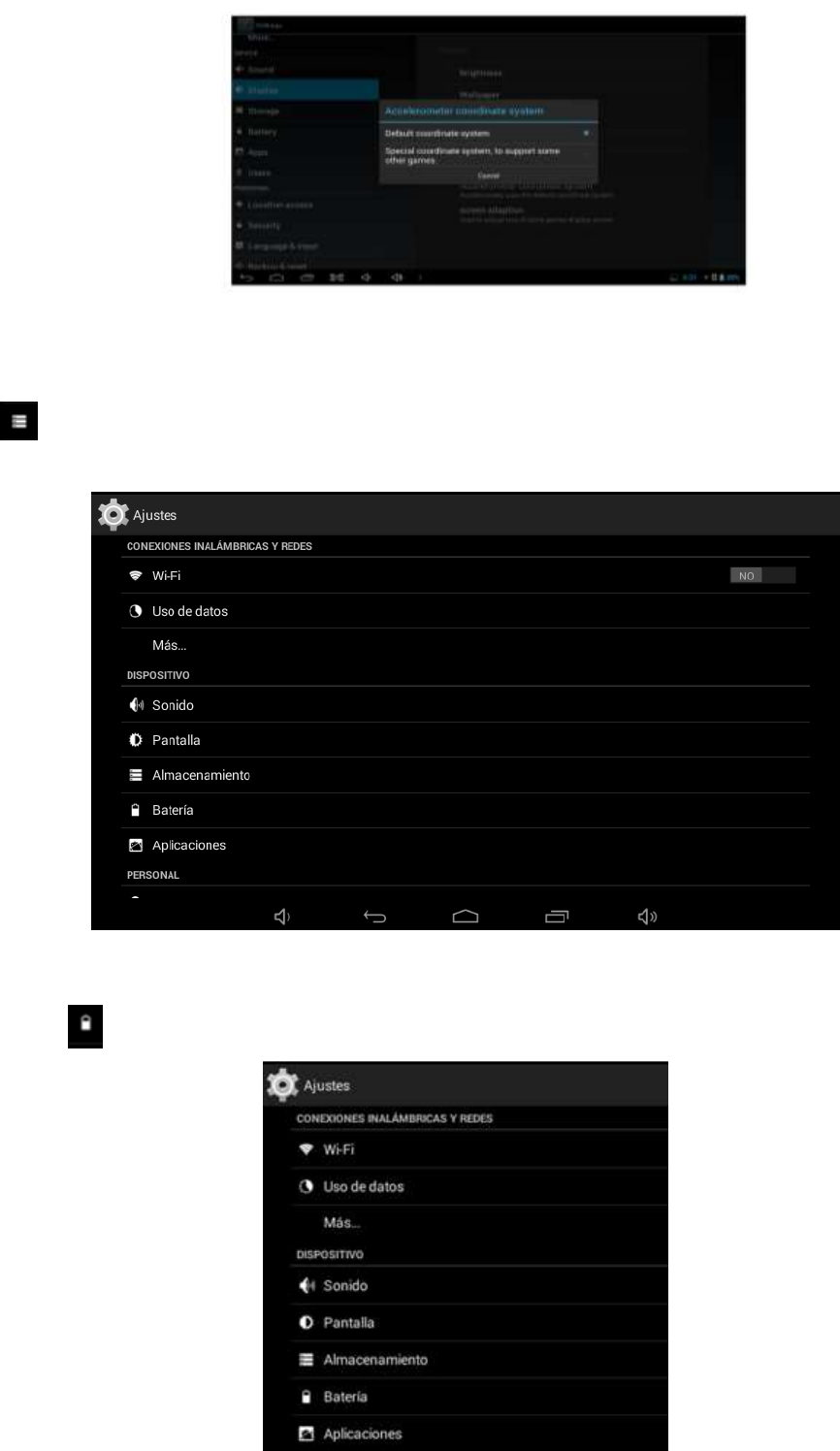

G.[ Gravity sensor coordinate system]
Special games need to choose this coordinate（such as car race game with Gravity sensor）
23
H.[ Screen adaptation] show screen resolution.
6.1.6 Storage
Click in the setting application interface, it will show all the storages status:
It can check the flash storage, SD storage, available storage and so on.
6.1.7 Battery
Tap the icon to check the battery using status
24

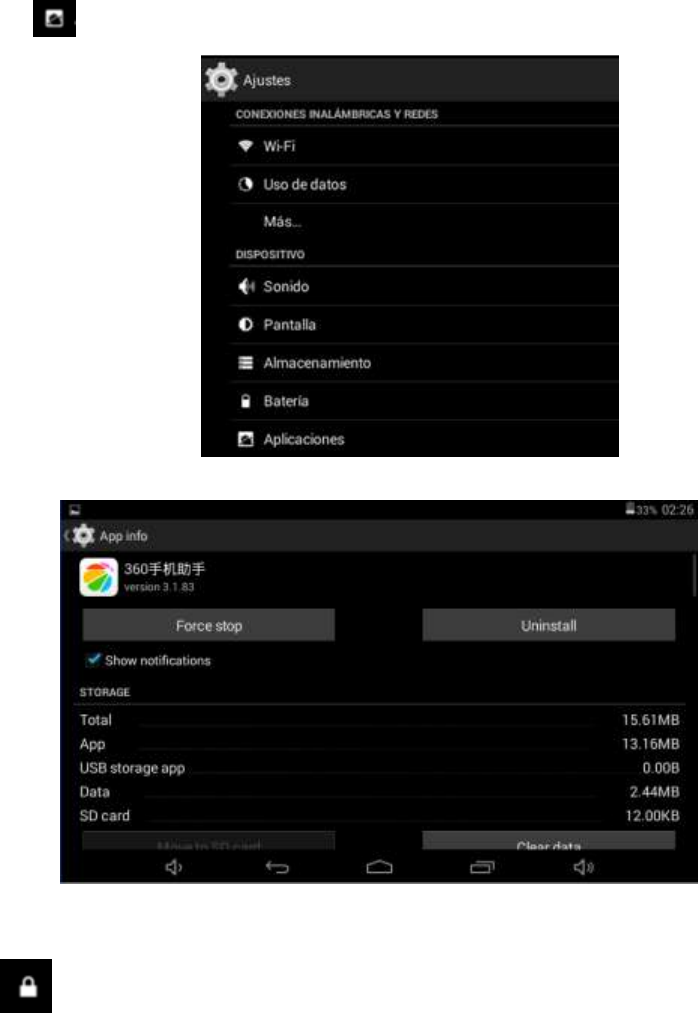

6.1.8 Apps
Tab the icon to enter the Application setting interface as below:
App program interface can uninstall APK, move APK, stop APK, delete data etc. As shown below:
6.1.9 Location & security services
Tap the icon to enter the location service interface as below:
25

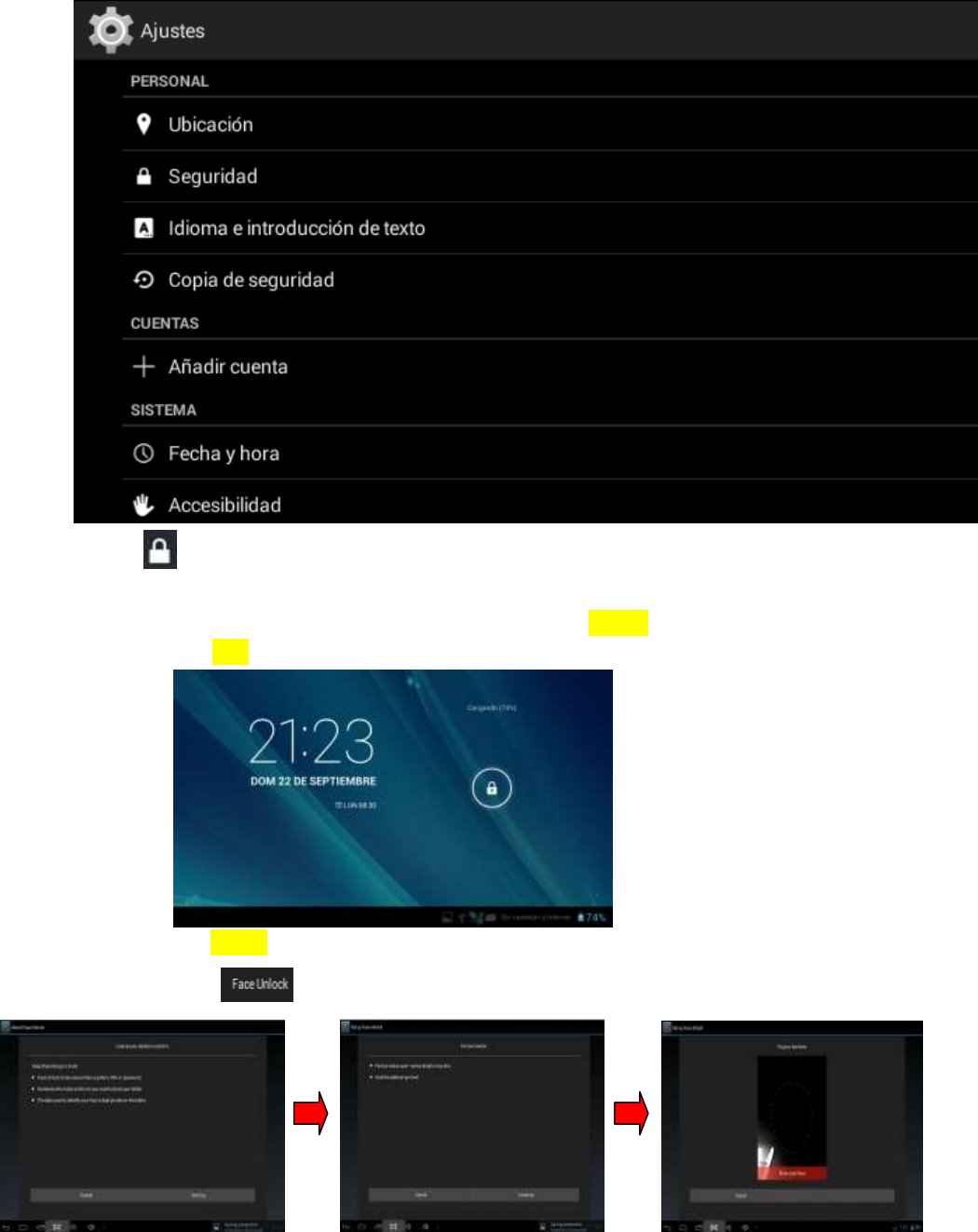

Tap the icon to enter the security settings interface as below:
Screen 1.Nothing Lock 2. Slide 3. Face Unlock 4.Pattern 5.PIN 6.Password
a. nothing: can use tablet directly after setting nothing, no need Unlock
b. slide: With a lock icon:
Slide to the right can unlock.
c. Face Unlock: Tap , Click on setting—continue and will show the picture of face recognition as below:
Make sure the image clear and keep 5 seconds no red dialog box under the image, as shown below:
26
【Setting unlock pattern】unlock pattern for the screen password. Enter setup interface of the safety lock screen click
[pattern] according to prompt setting as below:
Slide the recorded pattern to unlock
Set up unlock PIN password
Tap “PIN” — input PIN password with 4 characters —once input password—click OK. Set successfully as shown
below:
(Remember this password)
When turn on the tablet, you need to input the password as shown below:
Input the PIN password set before .
27

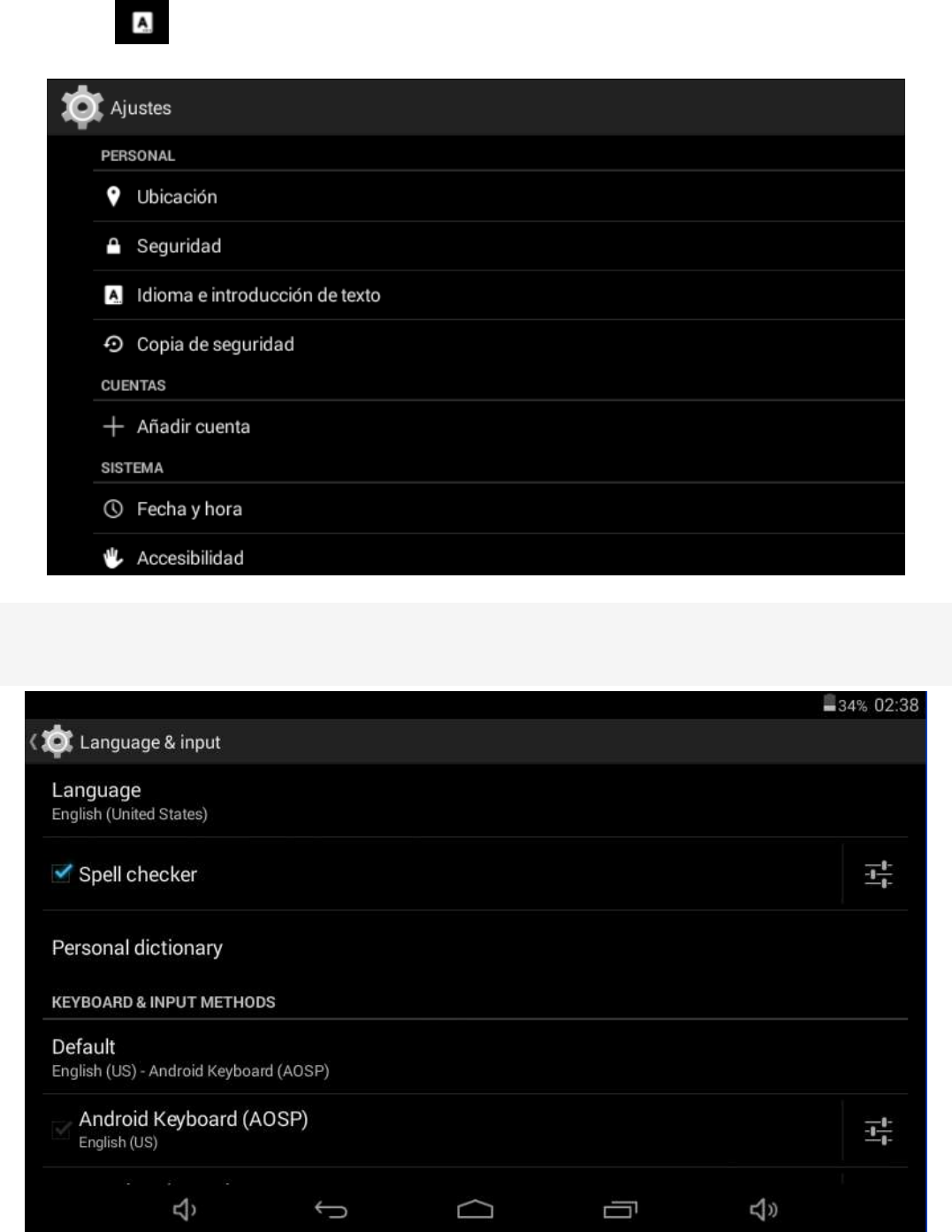

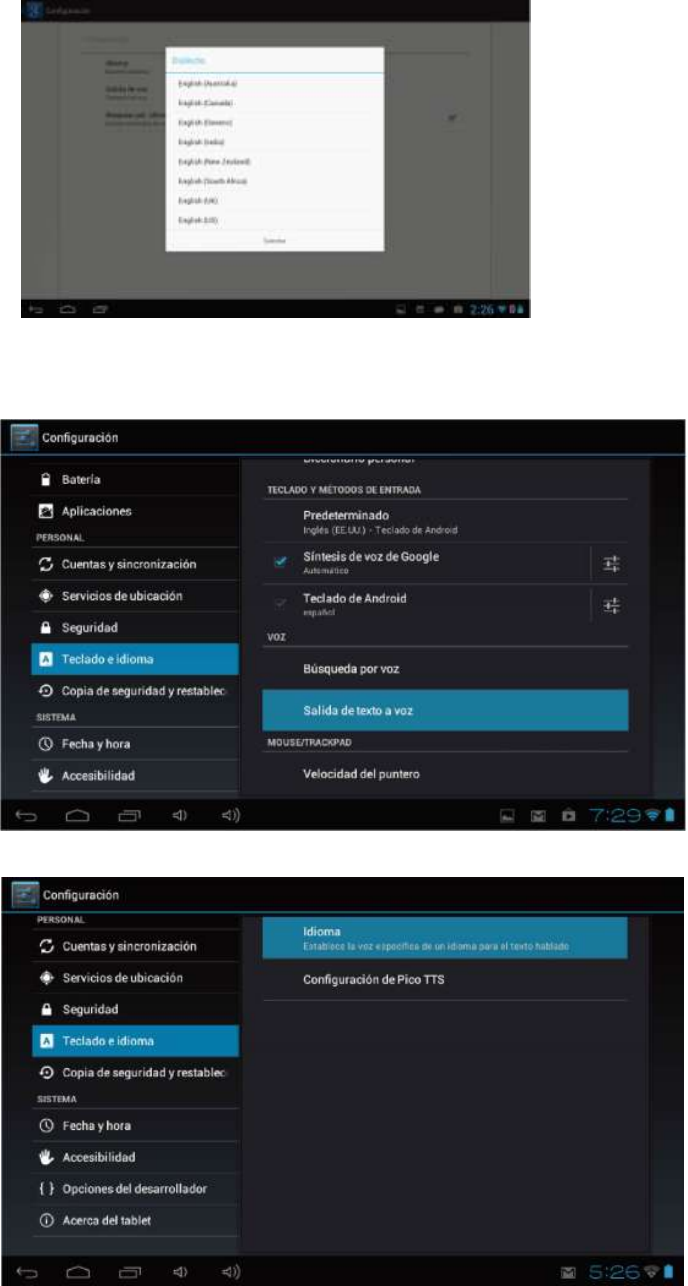

6.2.0 Language & input
Tap the icon to enter the language and input method settings interface to choose the language as you need
as below

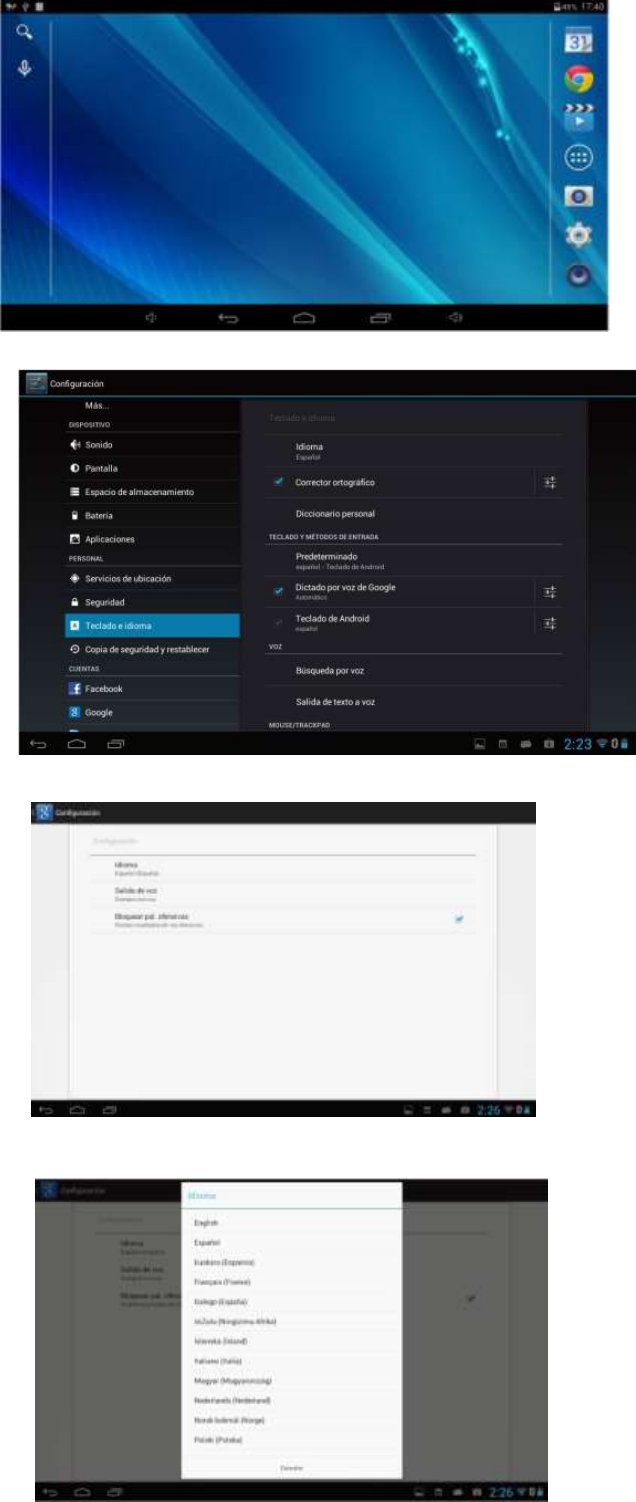

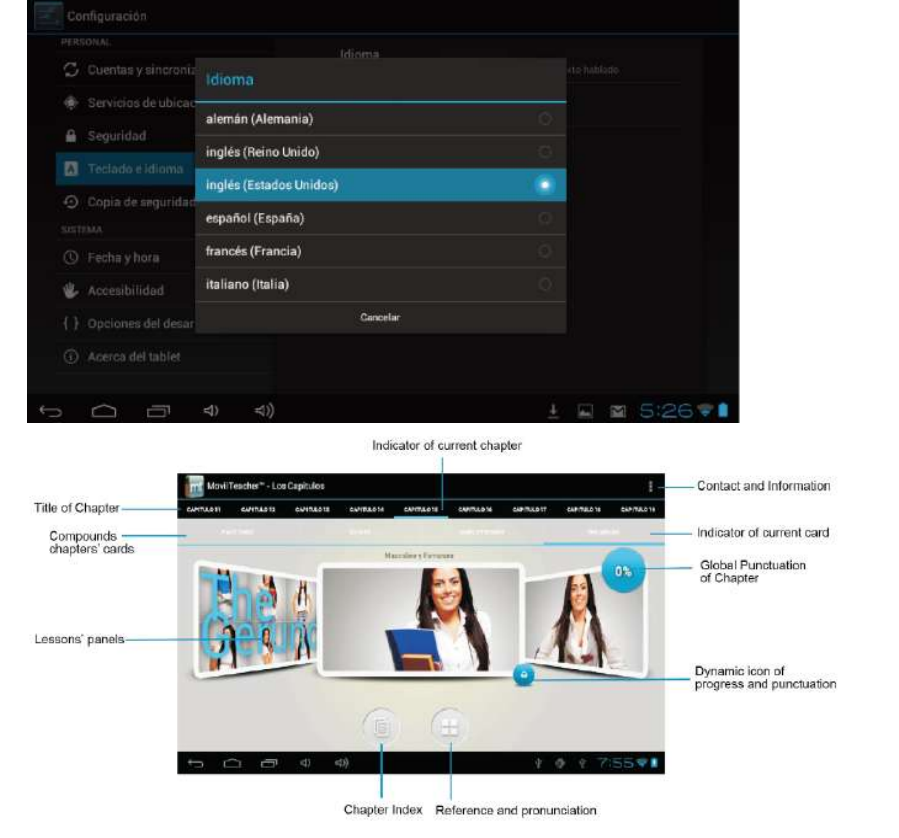

Language settings.
The Tablet PC supports multi-languages. You can select an operation interface of corresponding language
according to your needs. Tap the corresponding language options

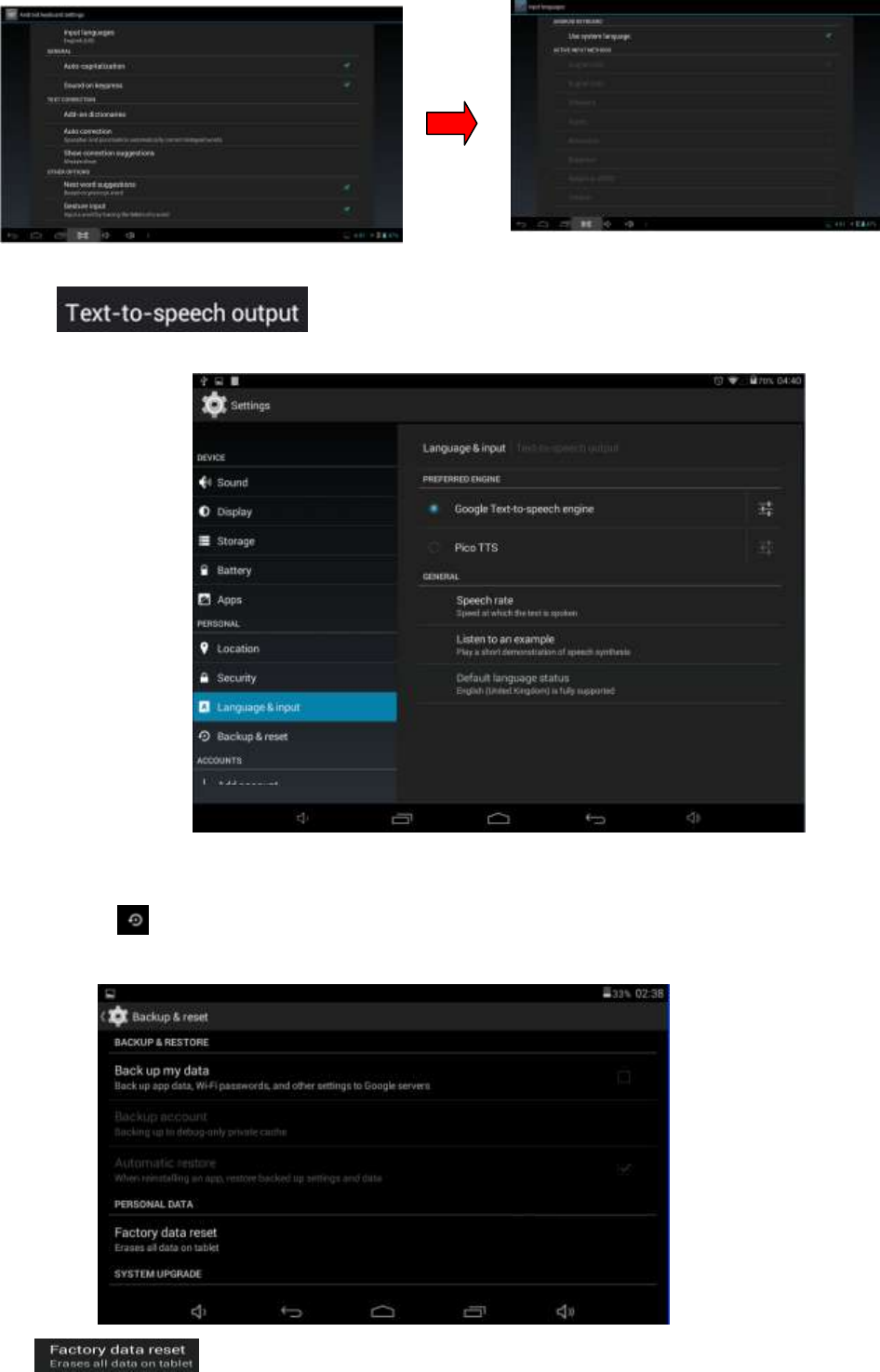

Keyboard and input settings
28
According to your needs to set the corresponding input method:
Click enter font voice input：
6.2.1 Backup & reset
Tab the icon to enter the settings interface as below:

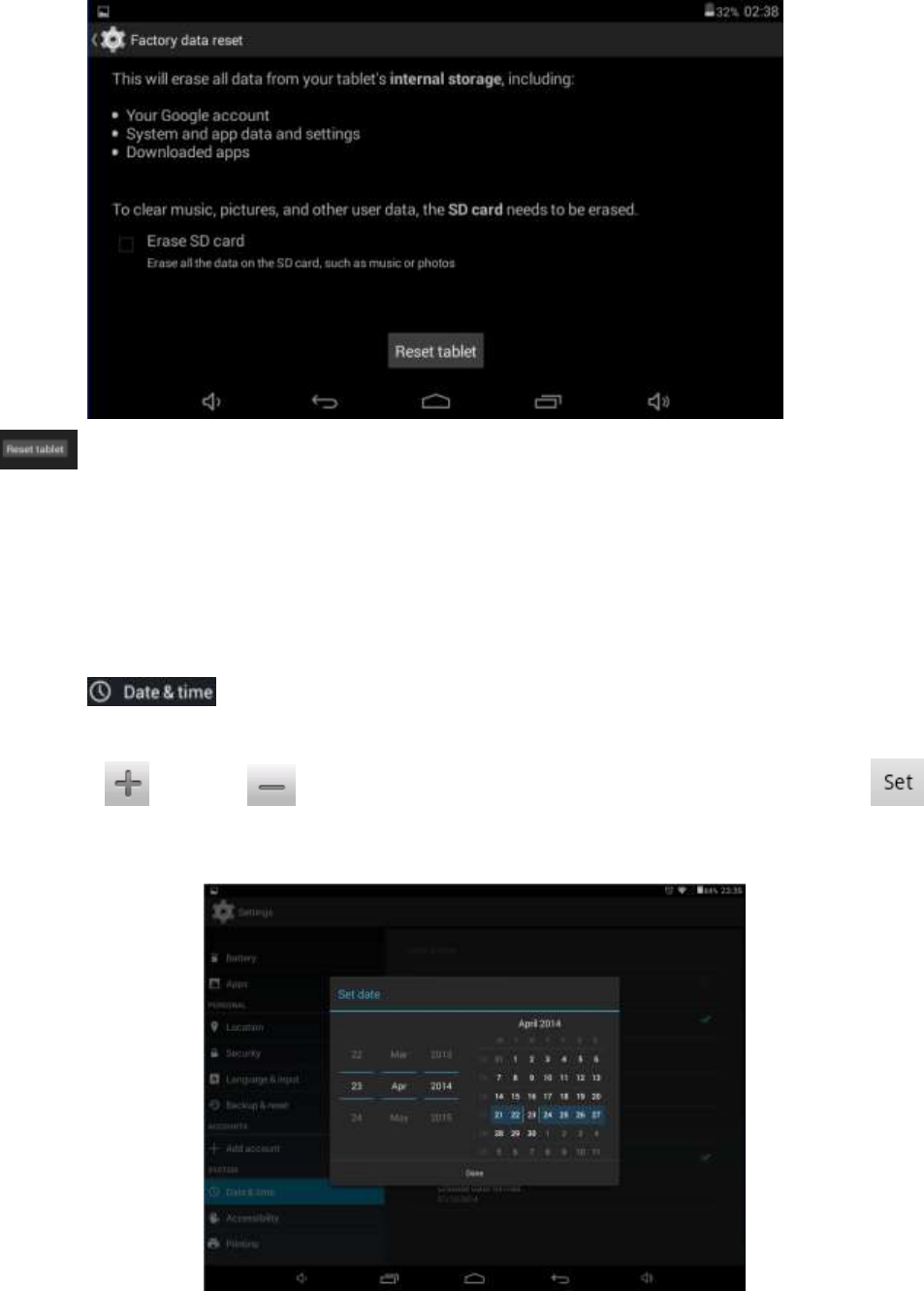

Restore the factory default:
Tap to enter into below interface:
29
Tap can restore successfully.
Note: Remember to copy your own file when you reset tablet pc.
6.2.2 Add account.
Add “Exchange” account.
6.2.3Date & time
Tap the icon to enter the date and time setting interface, click the box behind the “Automatic” (click
date & time) to modify the system date and time by manual as below
Set Date: tap up and down button to select Day, Month and Year or click the right numbers
Select time zone: Cancel the automatically determined time zone：
30
Time format:
If use 24 hours format, remove the hook behind will be ok.
Set time
Tap “set time” to enter up and down button to do the time setting as below

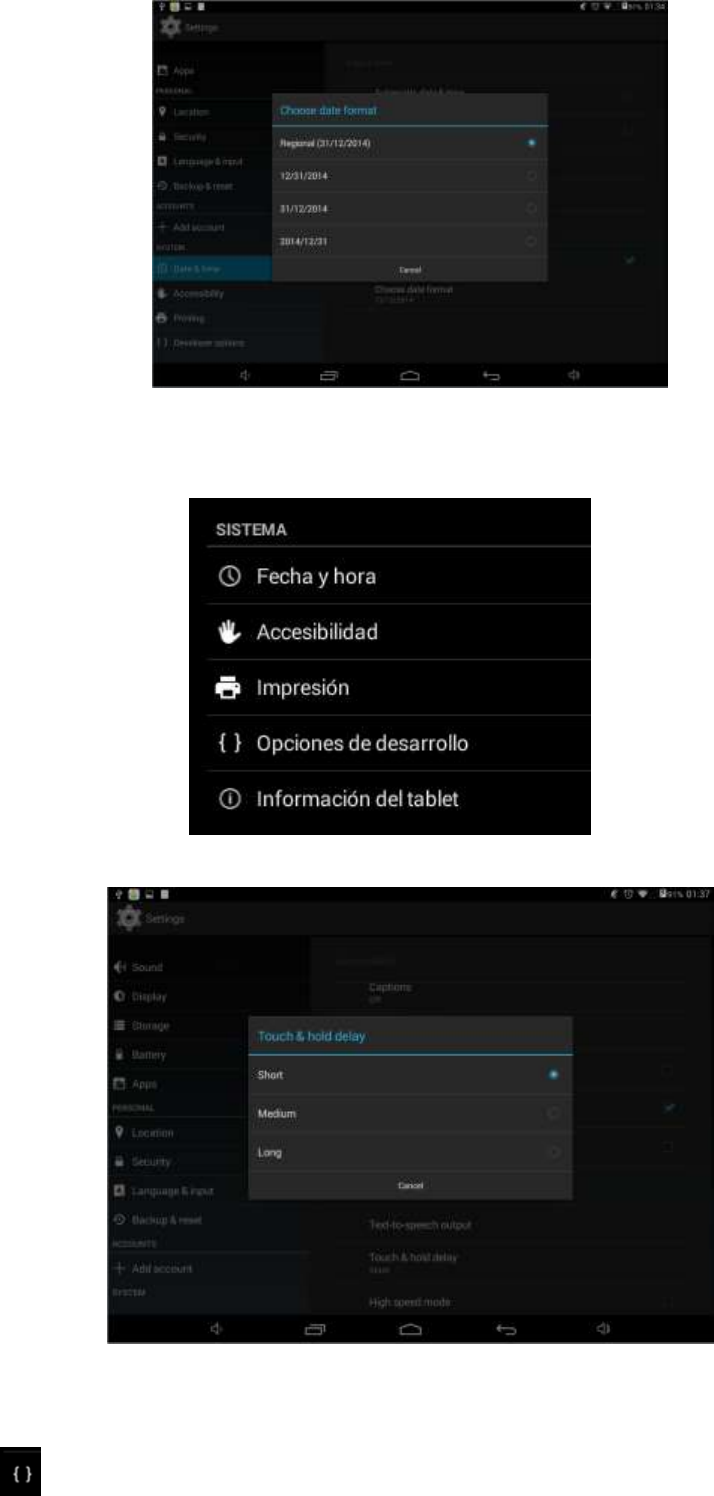

Date format
Tap to enter date format, Total three formats for your option as below:
31
6.2.4 Accessibility
Can set the Auto-rotate screen, font size and so on.
Touch & hold delay

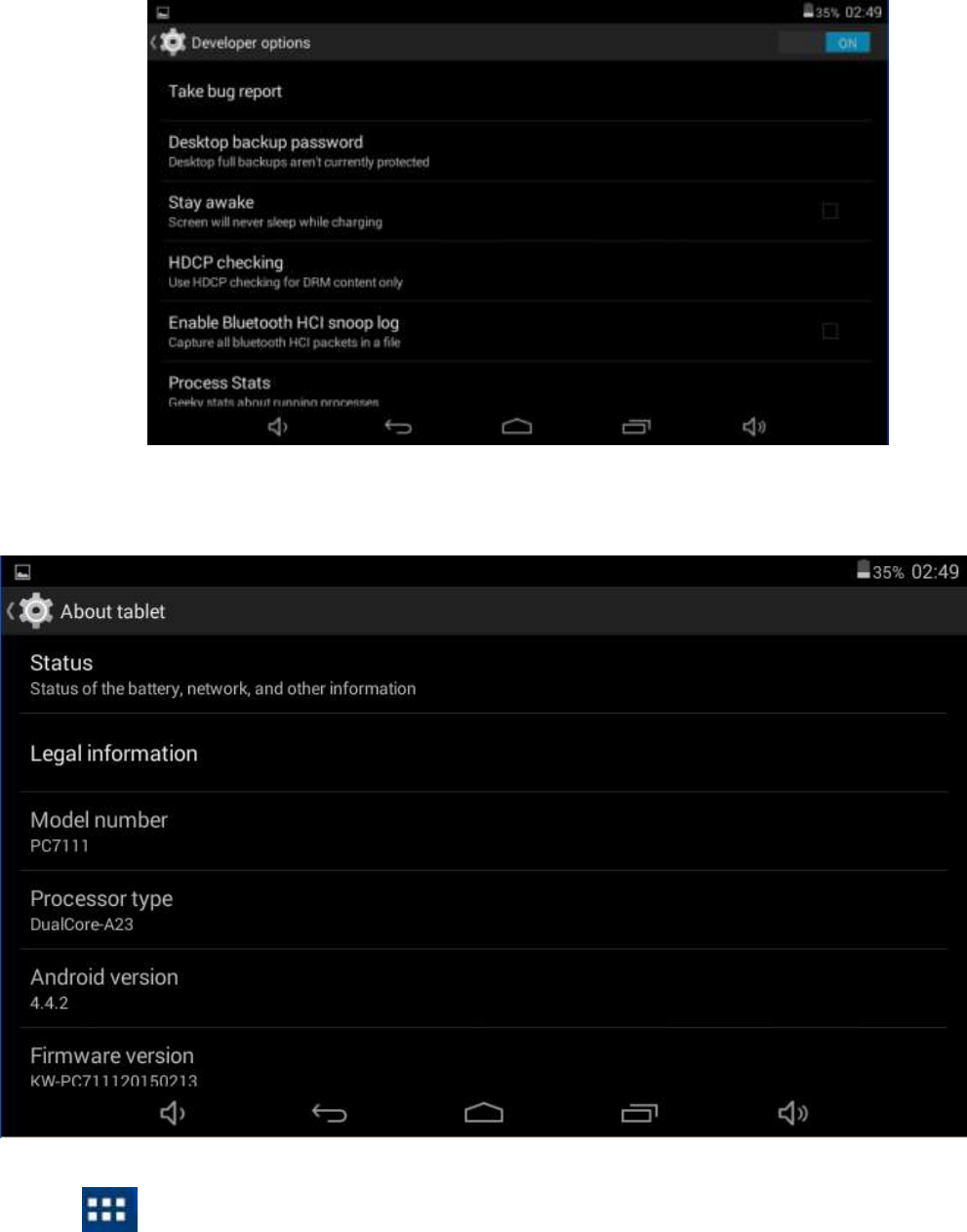

6.2.5 Developer options
It is recommended to use the factory default developer options setting, or some changes may affect the functions of
the Tablet PC.
Tab the icon to enter the developer options setting interface as below:
32
6.2.6 about Tablet
Check System updates, Status, Legal information and software version as below:

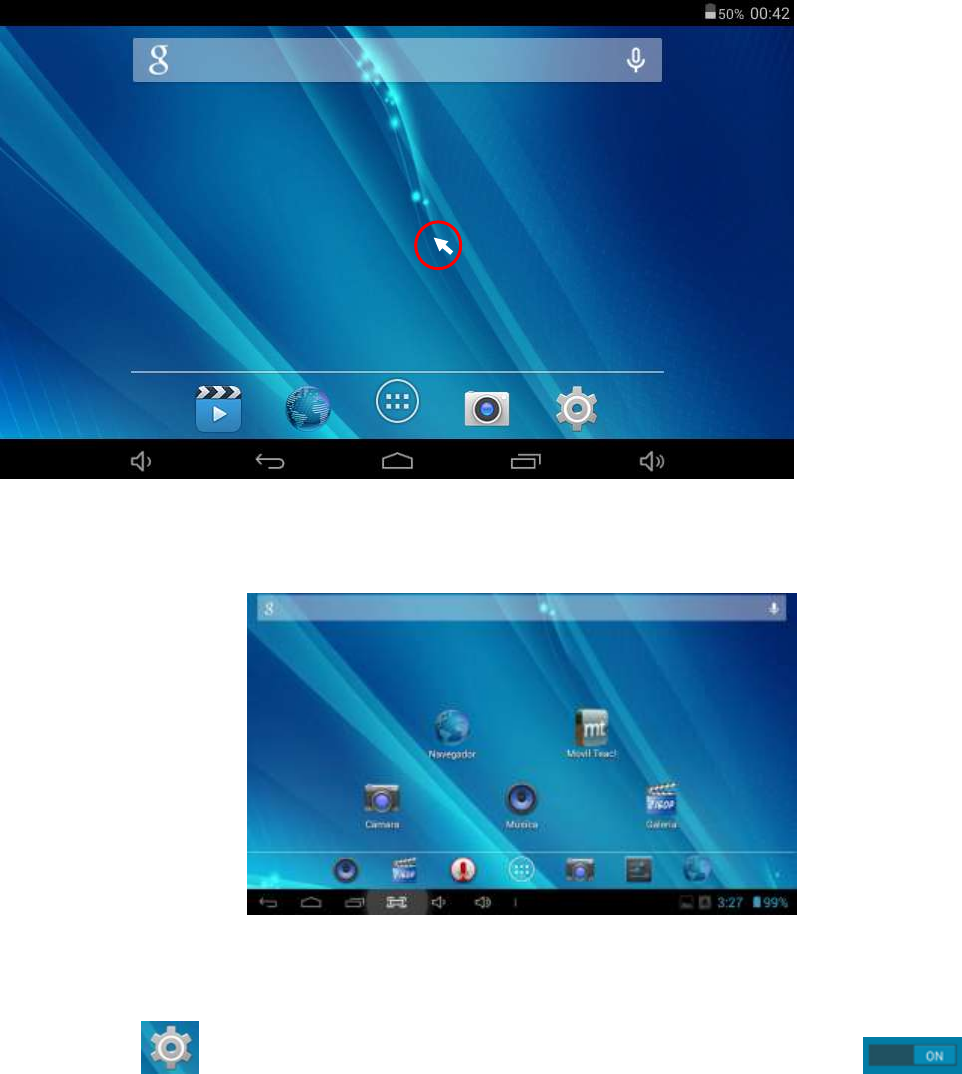

6.3 Add, Move or Delete Desktop Icon
Tap the icon on the desktop to enter the app menu list. Lay out all the application icons with paging display,
Tap and drag the application icon to the current desktop.
33
7 . Upgrade the firmware
Note：
1) Do not run Phoenix Suit together with other firmware tools such as Live Suit, etc.
2) Do not run Phoenix Suit together with software such as Peapod or 91 Mobile Phone Assistance.
3) You must Copying firmware (PC7810H XXXX) to PC desktop.
7.1 install Phoenix Suit
Click and install Phoenix Suit, install default is ok, as shown below:
7.2 Run Phoenix Suit ：

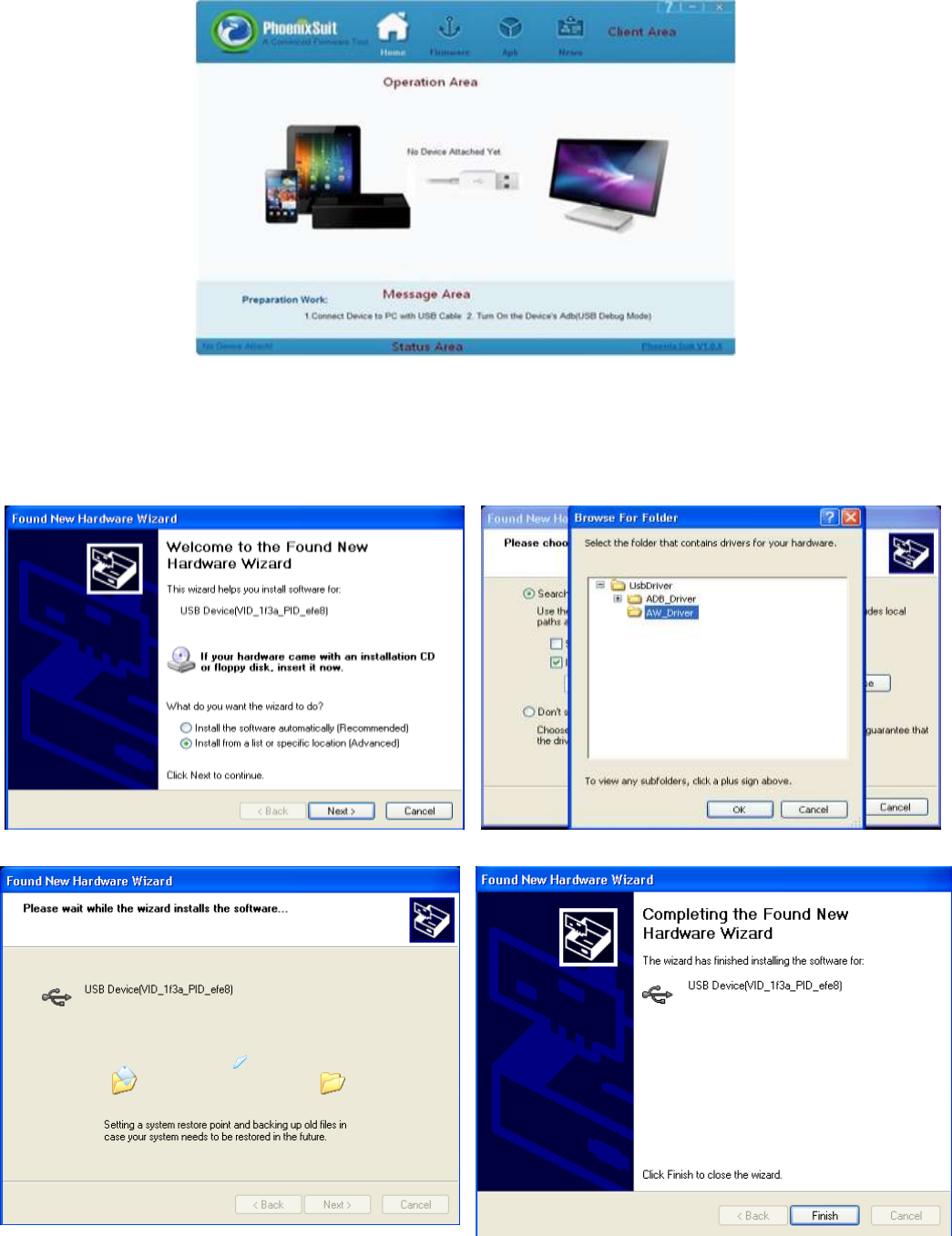

The main interface of Phoenix Suit is shown below:
34
7.3 USB Device Installation
1) New driver installation
When the software is installed for the first time, you will be prompted to install a driver, as shown
below. Following steps can be followed.

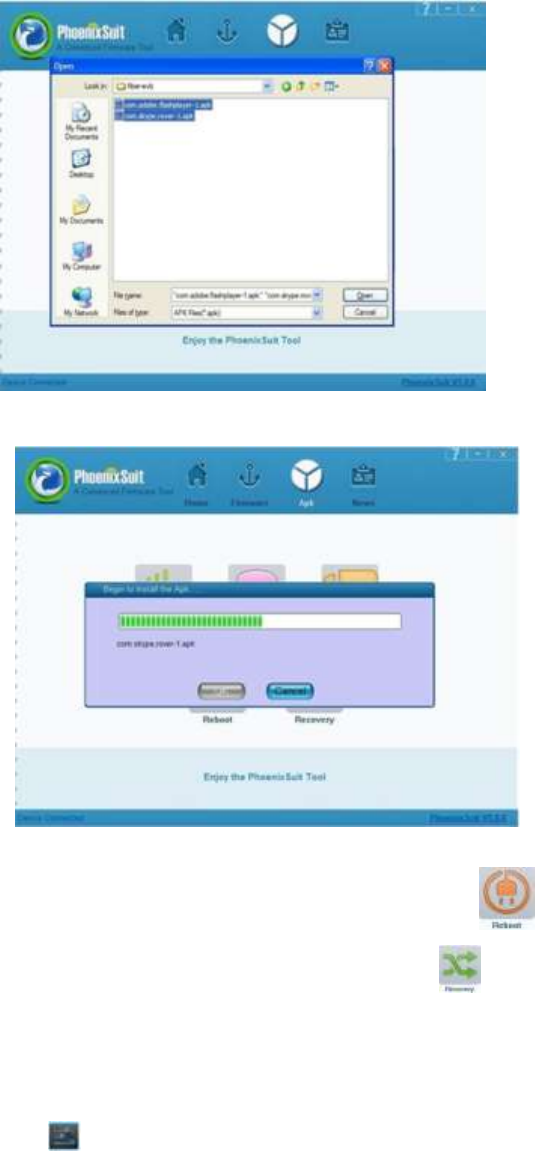

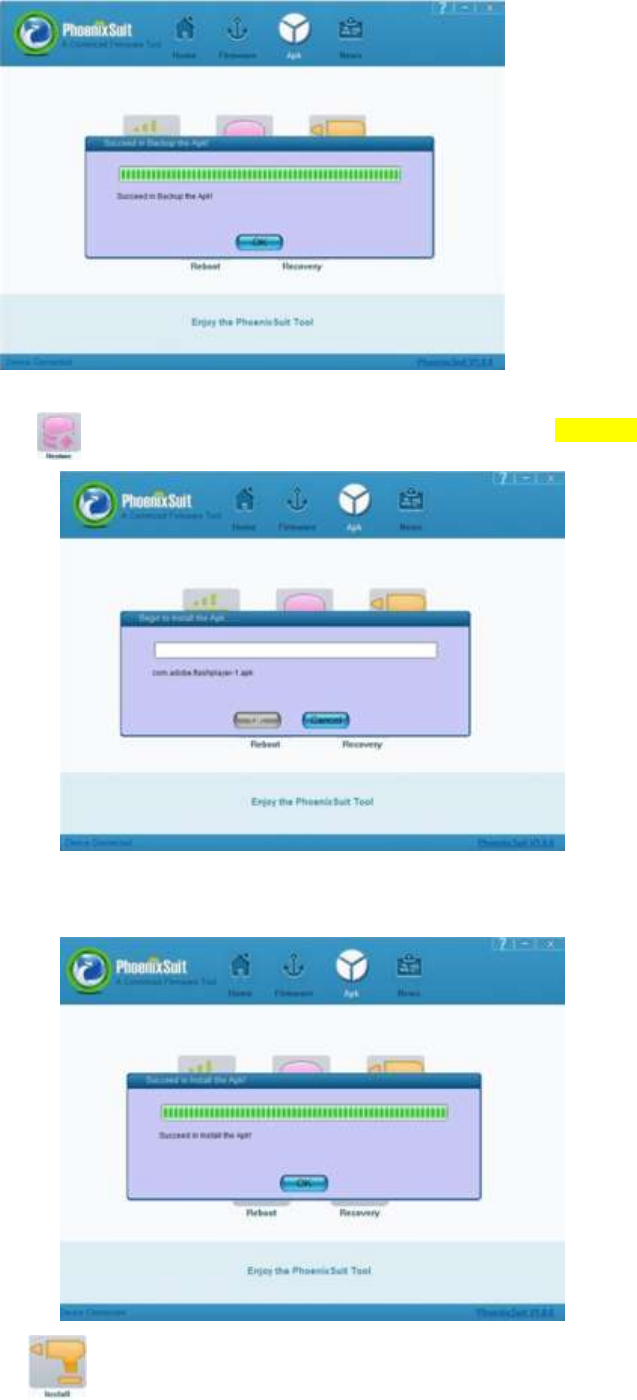

7.4 Phoenix Suit Operations
35
7.5 Phoenix Suit Interface
The Client Area on the top has four function buttons, and you can access each function by
clicking on corresponding button. Phoenix Suit stays in Home interface after running by
default;
There are three command buttons on the right of the client area, you can click on for help,
Click on to minimize the window to the system taskbar, and click on to exit the Phoenix Suit.

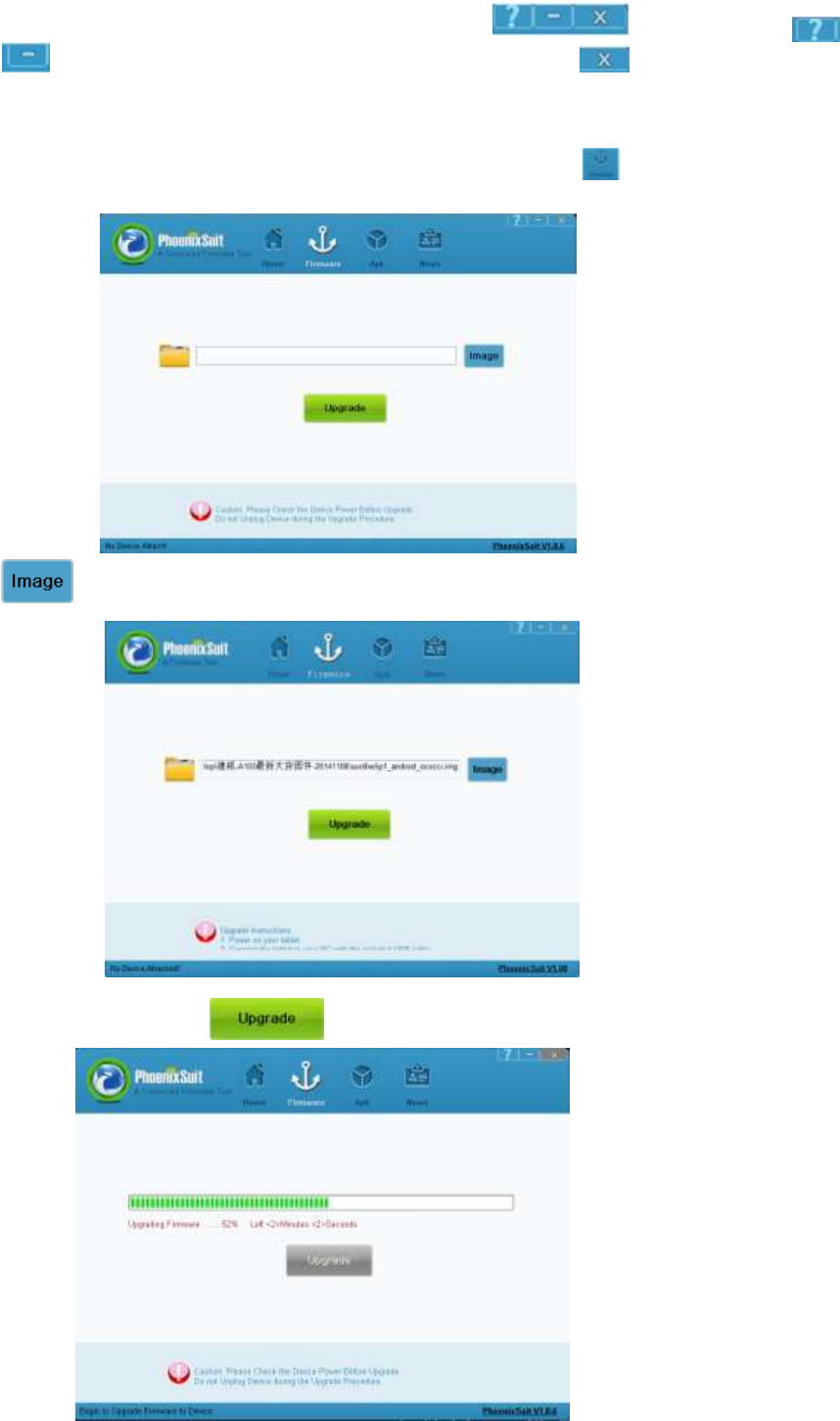

7.6 Firmware
After the device is connected, firmware can be loaded to it. You can click on to enter the firmware flash interface,
as shown below:
Click on to select the target firmware file, as shown below:
After select the firmware, click on to load firmware into the device, as shown below:
36
Note that:
1) Do not disconnect the device during the firmware loading;
2) If the firmware fails to be loaded to the device, following steps can be taken to make it:
a. Select the target firmware;
b. Press and hold the power key for above 10 seconds to power the device off, then release the
power key;
c. Press and hold any key (except the power key), connect the device to PC, and
press and
release the power key for five to ten times, and then release all keys, you will find that the device
automatically enters the upgrade mode;
d. If it doesn’t work, repeat Step a to c again;
7. 7 APK
The PhonenixSuit supports apk backup, restore, installation, device reboot and recovery. Click on to enter the
APK interface, as shown below:
1) Backup: click on for APK backup, and you can also click on Cancel to exit the backup.
After the backup finishes, you can see following interface:
37
The original APK will be stored at My Documents\ Phoenix Suit\Backup.
2) Restore: Click on to reload the backup APK into the device. You can also click on Cancel to exit the restore.
After the restore finishes, you can see following interface:
3)Installation: Click on and select the APKs you want to install (multiple APKs can be selected once), as shown
below:.
38
The installation interface is shown below:
You can also click on Cancel to exit the installation.
4) Reboot: When the smart device is dead, you can restart it by click on
5) Recovery: the device can enter Recovery mode by clicking on if the
device
doesn’t support Recovery mode, it will directly go to Android mode after
restart.
8. Mobil Teachers (Optional)
8.1 Device setting
1, Click the "Setting" icon to enter in the setting panel.
39
Locate and choose "Language and keyboard" and select "Voice Search"
Select "Language"
Select “English”
40
Under "Dialect" choose, select English (US)
Select "Keyboard and Language", and select "Output of Voice Text" on the right
Select “Language”
Select in the menu that appears "English (United States)"
41
8.2 User’s interface
8.3 Navigation
The main screen contains the Main Menu of each chapter.
From here you can enter all of the chapters of course.
There are two methods of navigation between chapters.

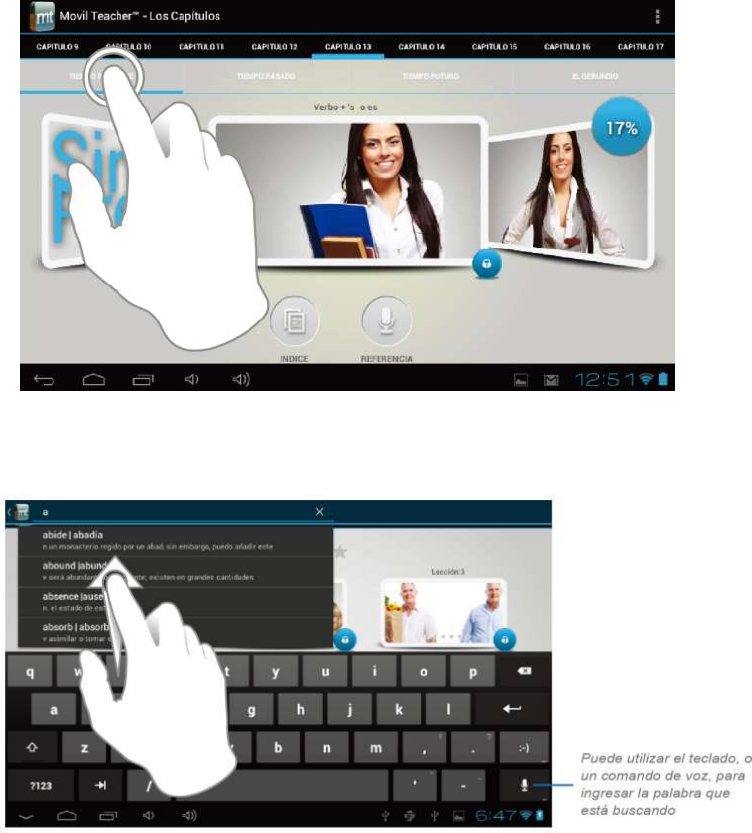

You can move forwards and back from one chapter to another as shown in the following image.
42
Drag the tabs to navigate between chapters.
Drag lessons’ panels for details of that lesson
In compounds chapters touch tabs to access that section
43
Once you enter a letter or a word in the "search query" in the dictionary, you can scroll through all the words in the
dictionary, or choose the word that interests you to access more options
Once you choose a word from the list, you will see the dictionary.
From here you can:
• See the translation of the word.
• See the definition of the word.
• Practice writing.
• Listen to the pronunciation.
• Practice your pronunciation of the word.
44

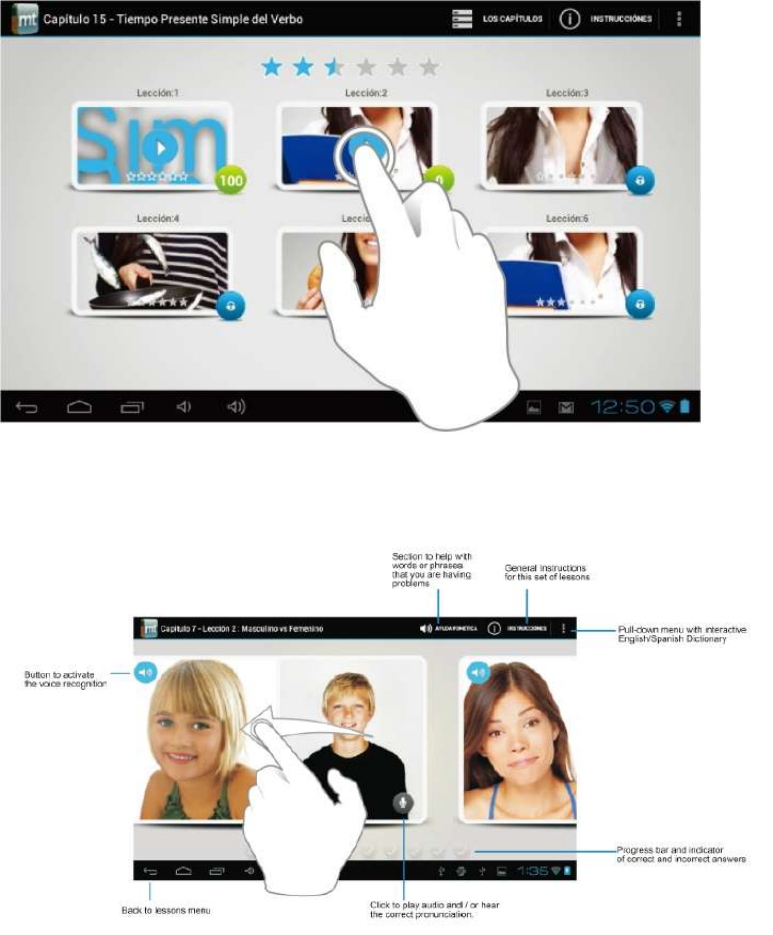

Touch the panels to access the main menu of the lessons in this chapter
The main menu of the lessons allows access to each individual lesson and also displays information about your
score and progress in each lesson.
To unlock the padlock and enter the next lesson, you should get 50% or more in the previous lesson
Once the lock is opened, you will see the blue button 'play' to begin the next lesson
45
As you progress through the chapter, you will have access to more lessons.
You can always go back and review the finished lesson to review topics or improve your score.
The lessons have several different types of activities, all complete with instructions and guidance. In all the lessons
you can find the same functionality and continuity of concepts of user's interface.
9. Troubleshooting and FAQ
1. Device doesn’t turn on
1) You cannot turn on the device when the battery charge is below the critical level, please charge the battery.
2) Press the RESET button on the top of the device and check if it is restarting normally or not.
3) Check if the charger is connected correctly.
2. The stand-by time of the device is too short
1) The duration of the lithium battery varies with environmental temperature changes and the service conditions. If
the environment temperature is too low or too high, the duration of the battery will be affected. It is recommended to
use this device at normal temperature.
2) Battery life is dependent on usage. High volume, WIFI, and the frequent use may cause the battery to be drained
at a higher rate.
3. No sound via earphone
1) Please check if the volume setting is 0.
46
2) Please check if audio file is broken, and try to play another audio file to confirm. If the audio file is broken, it may
cause severe noise or static.
4. Cannot copy files
1) Please check if the device is connected to the computer correctly.
2) Please check if the memory space is full.
3) Please check if the USB cable is broken.
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF warning for Portable device: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure condition
without restriction.
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -10 ℃ or maximum
over 50℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
