User Manual
PV0006 user manual
FCC ID: BRCPCPV0006

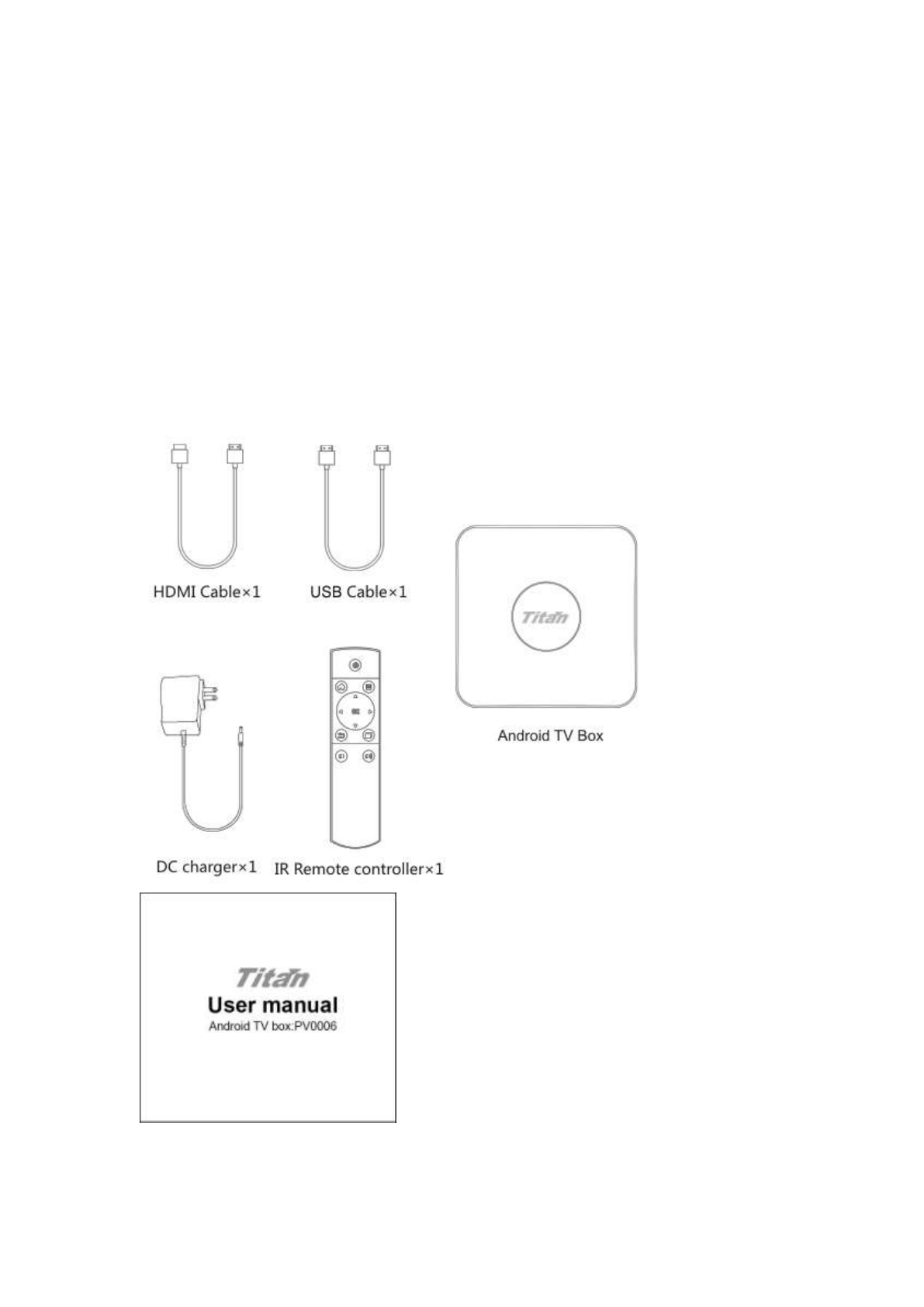

1. Packing List
HDMI cable*1
USB cable*1
DC charger*1
IR remote controller*1
PV0006 android TV box *1
User manual*1
User manual

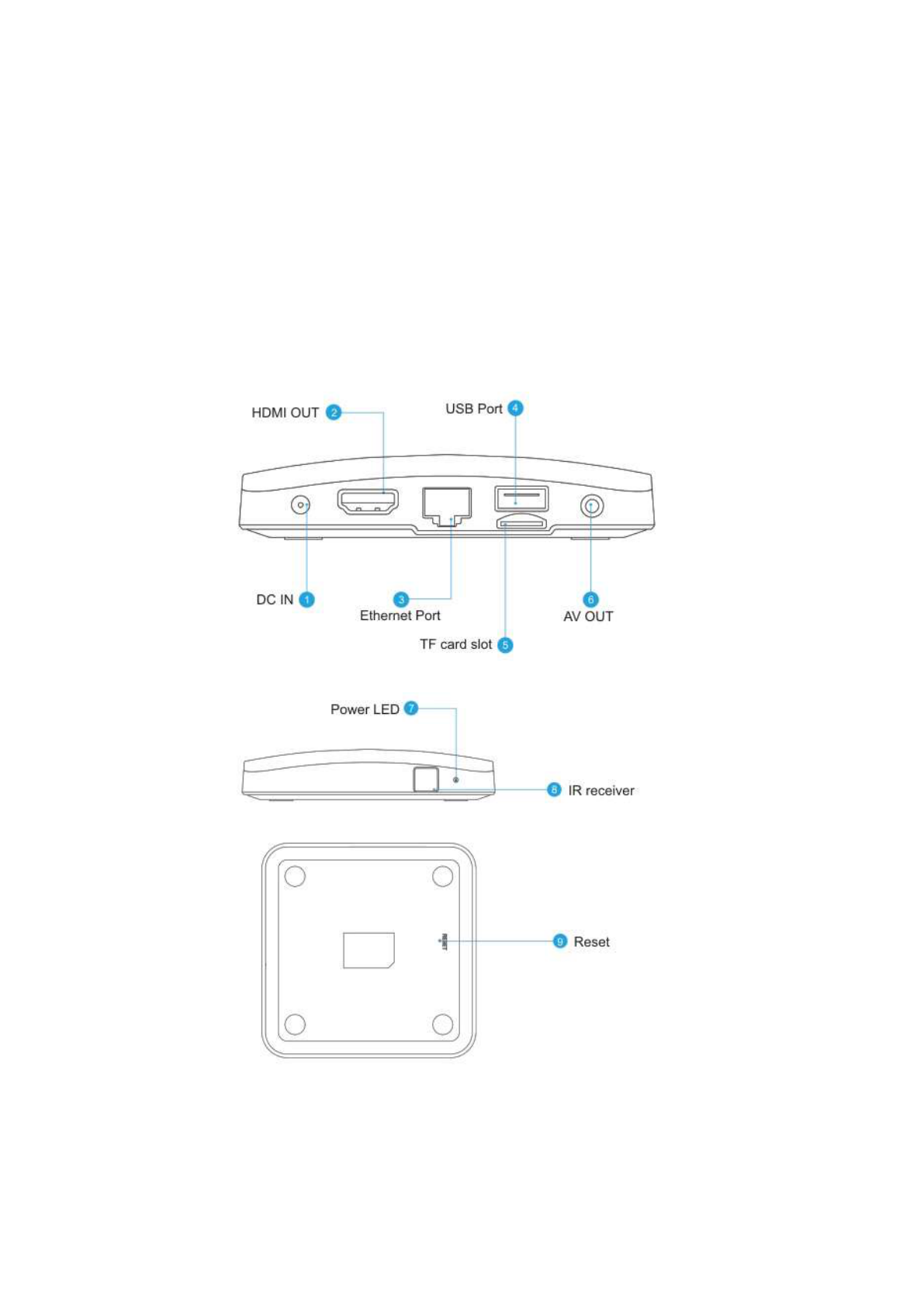

2. Product appearance
① DC IN
② HDMI OUT
③ Ethernet port(LAN port)
④ USB port
⑤ TF card slot
⑥ AV OUT
⑦ Power LED
⑧IR receiver
⑨Reset
3. Installation
① Connect to TV
With HDMI high-definition output and AV composite video output function, you can enjoy visual
pleasure simply by connecting PV0006 and TV set with HDMI cable.
② start up
After the box connects the power supply, it will automatically start system.
③ Networking
PV0006 TV box support both the wired and wireless network Access.
·Wire Access: Connect the router and the PV0006 TV box by one networking cable via Ethernet
port (LAN port) (the networking cable is required to be purchased individually).
·Wireless Access: Go to the “Networking setting” of the box, select the available Wi-Fi hot points.
Completion!
Now please freely enjoy the audio-visual experience of the PV0006 TV box.

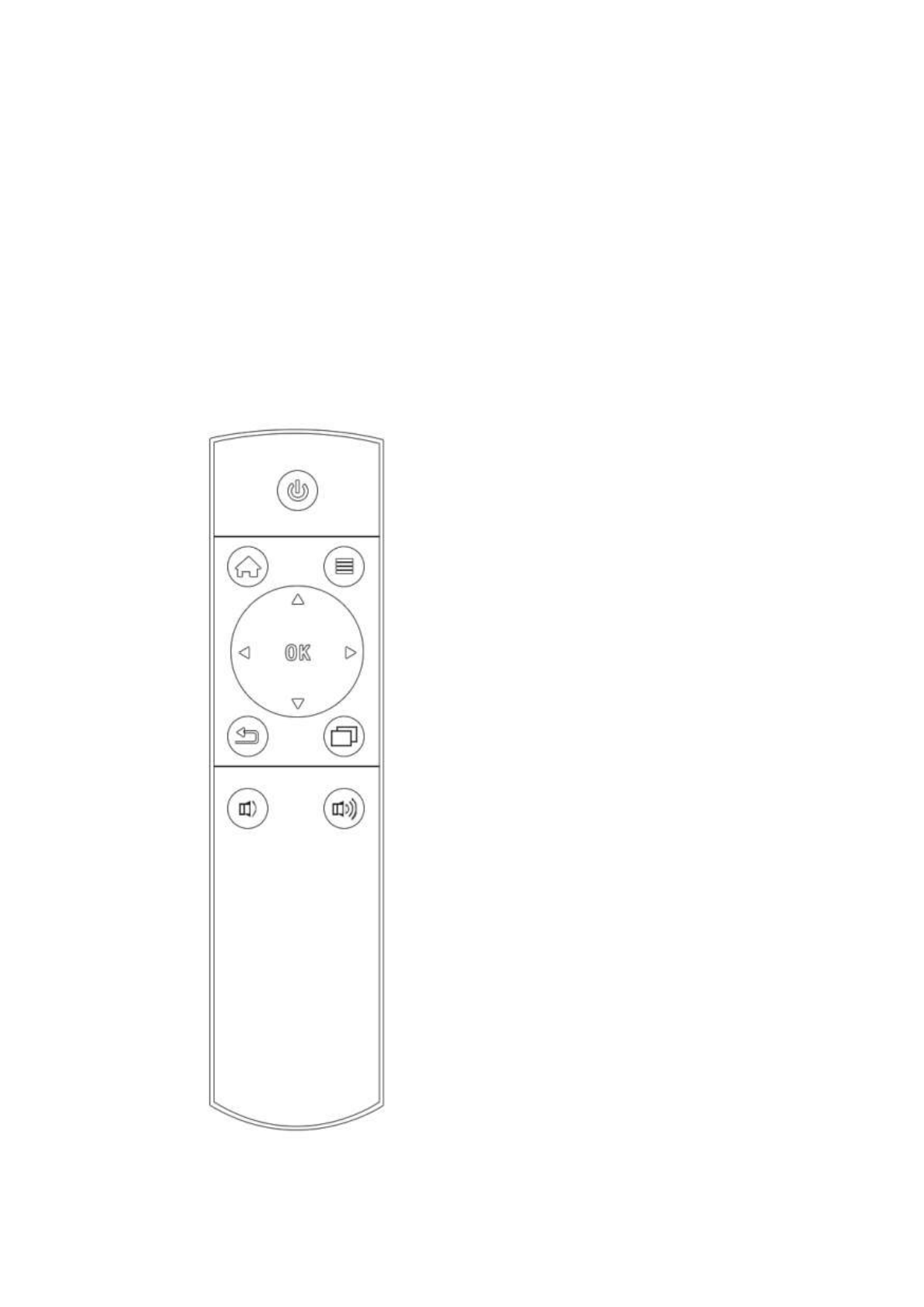

4. introduction of remote control
power on/off
Homepage
Menu
Back
Browse menu
Volume-
Volume+
OK: Identify key
Direction key :up/down/left/right
5. Other Functions introduction
① play video/picture files from peripheral equipment’s
PV0006 TV box can play the video /picture files from the SD card/TF card/USB disk, hard disk,
mobile phone, personal PC which are inserted in or connected to PV0006.The box supports all
formats high definition video, music and picture like m2ts/flac/jpeg.
②DLNA multimedia sharing
The box supports DLNA multimedia sharing. Just simply make your device like mobile
phone/tablet pc and the PV0006 in the same local area network, now you can share the
video/music from your phone/tablet pc onto the TV screen via the PV0006.
Note: The mobile devices must be Android 4.0 above or installed the DLNA client already.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: Modifications to this product will void the user’s authority to operate this equipment.
