Kirisun Communication PT6700 Two Way Radio User Manual PT6700 Instruction Manual
Kirisun Communications Co., Ltd Two Way Radio PT6700 Instruction Manual
user manual
Two-way Radio
User Manual
Model: PT6700
FCC ID: Q5EPT6700
Kirisun Communications Co., Ltd
Content
1. Unpacking and Checking
2. Preparation
2.1 Charging the Battery
2.2 Installing/Removing the Battery
2.3 Installing the Antenna
2.4 Installing the External Speaker/Microphone
2.5 Installing the Belt Clip
3. Radio Overview
4. Basic Operation
5. Functions of Programmable Buttons
6. Auxiliary Functions
7. Scan
8. Wired Clone Mode
8. Troubleshooting
9. Specifications
10. FCC Notice
1. Unpacking and Checking
Unpack the radio carefully. We recommend that you check the radio and the supplied
accessories listed in the following table before discarding the packing material. If any damage or
loss has occurred during shipment, please contact the dealer without delay.

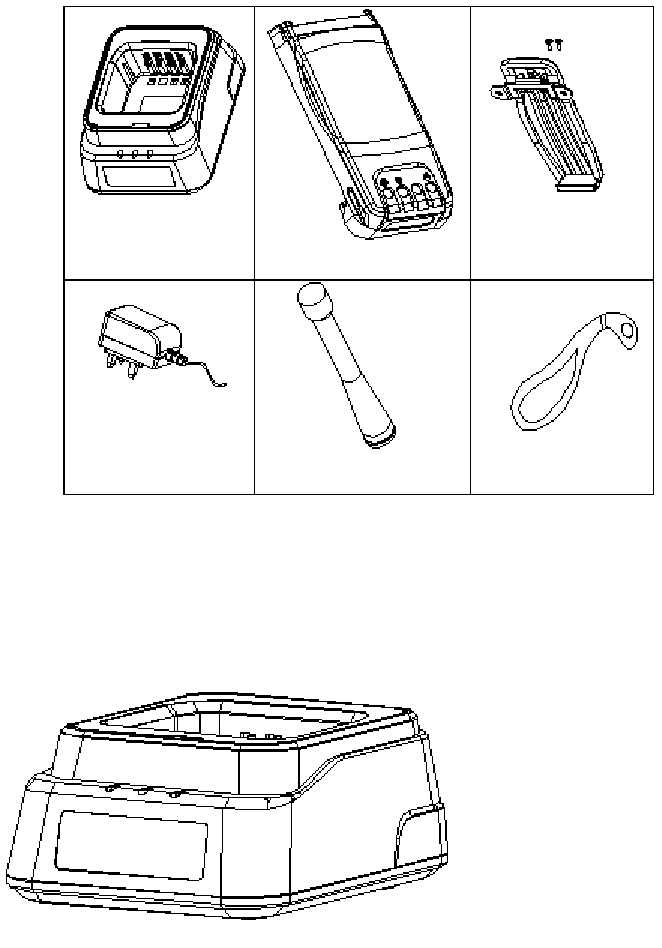

Supplied Accessories
Item Quantity
Antenna 1
Battery 1
Belt Clip 1
Charger 1
Power Adapter 1
Hand Strap 1
Instruction Manual 1
2. Preparation
2.1 Charging the Battery
Plug the adapter into an applicable AC outlet and connect the power adapter to the battery
charger. Three LED indicators light up for 1s and then green LED lights up.

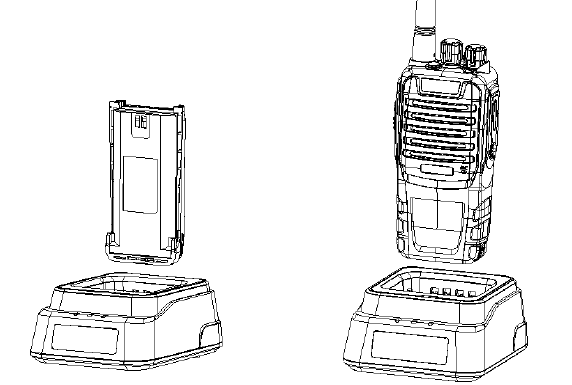

Plug the battery or radio into the charger slot, and make sure the radio has been turned off.
Make sure the battery is well connected with the charger. Then red LED lights up, which
indicates that the charging starts.
After about 5 hours of charging, red LED lights off, and green LED lights up. This indicates
that the battery is fully charged.
Before taking out the battery, keep it in this state for 1~2 hours to achieve its best performance.
Then plug off the adapter from AC outlet.
If the temperature or the circuit is abnormal, and the LED flashes yellow, the charger enters
protection mode. At this moment, do not charge the battery by force. Please remove the battery
and cut off the power supply of the charger.
Note:
* The radio battery is not fully charged in the factory. Before the initial use, please charge the new
battery.
* KB-56A Li-poly battery/KB-56B Li-poly battery of Kirisun is applicable to this radio.
* When charging the battery for the first time after purchase or long-time storage (over 2 months),
please repeat charging several times for the battery to achieve normal capacity. Meanwhile, please
make sure the battery is charged at least once every three months.
* Do not recharge the battery if it has been fully charged or the radio is not in the low battery
alarm state; otherwise, it will have bad effects on the battery’s service life and performance.
Remove the battery from the charger after charging.
* When the radio is in the low battery alarm state, please recharge the battery before use. Do not
turn the radio power on by force; otherwise, it will have bad effects on its service life and
performance.
* KB-56A/KB-56B has built-in protection circuit. When the battery voltage is too low, the battery
stops supplying power automatically. Plug the battery into the charger, red LED lights up after 1~5
minutes, and the charging begins.

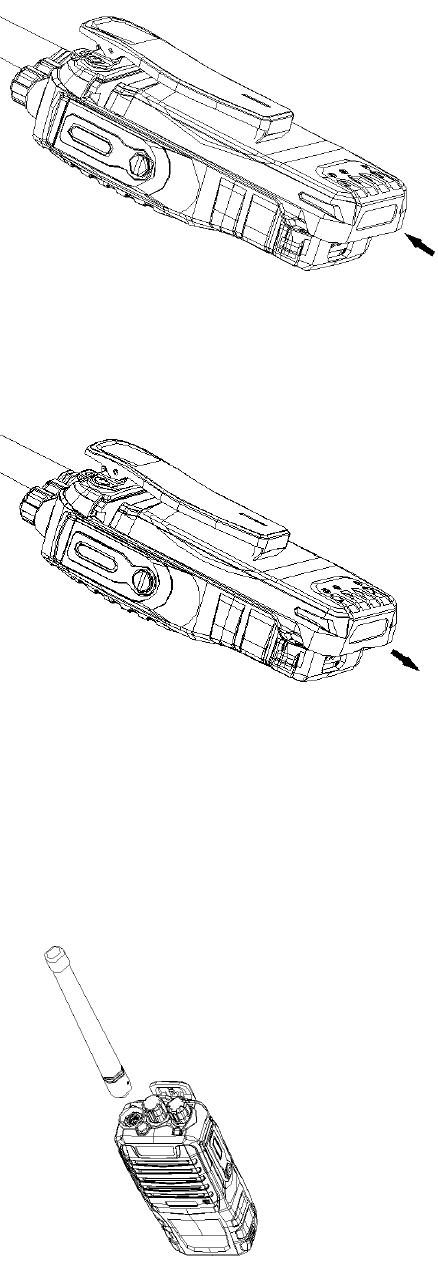

2.2 Installing/Removing the Battery
Installing the Battery:
Press and hold the top of the belt clip; match the battery with the two slots on the radio and
push forward until a click is heard. Then the battery is fixed.
Removing the battery
Press down the battery latch, and push the battery pack downwards until it separates from the
radio.
Note:
* Do not short-circuit the battery terminals or dispose battery in fire.
* Do not disassemble the battery casing by yourself.

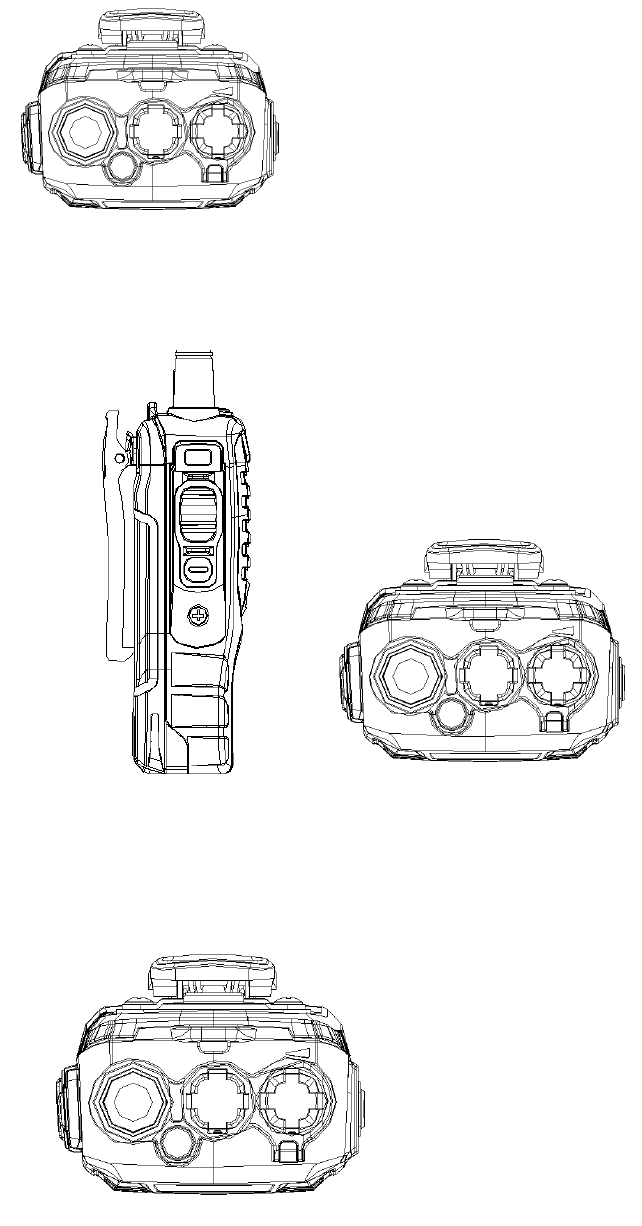

2.3 Installing the Antenna
Hold the bottom of the antenna and turn the antenna clockwise into the connector on the top of
the radio until secure.

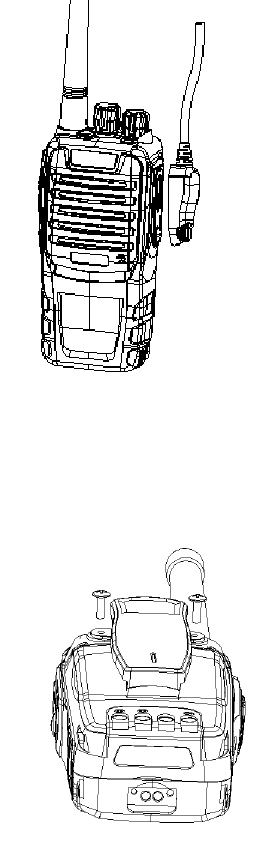

2.4 Installing the External Speaker/Microphone
Open the cover for external speaker/microphone jack, and then insert the external
speaker/microphone plug into the jack on the radio.
2.5 Installing the Belt Clip
Match the two holes of the belt clip with those on the rear of the radio, and then fix the belt
clip to the radio with two 2.5*8.0 screws. Loose the fixing screws to remove the belt clip.

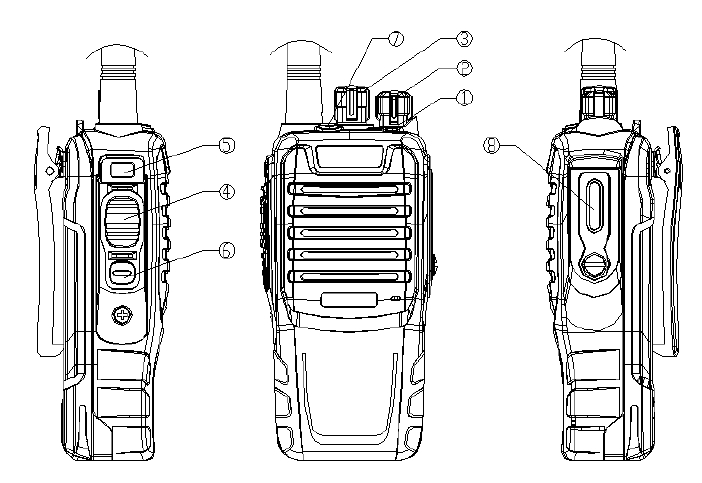

3. Radio Overview
1. LED Indicator
Lights up red while transmitting; lights up green while receiving; flashes red when the radio is
in low voltage.
2. On/Off/Volume Control Knob
Turn clockwise until you hear a click to turn the radio power on. Turn counterclockwise until
you hear a click to turn it off.
Rotate it to adjust the volume after turning on the radio.
3. Channel Selector Knob
Rotate to select channel 1-16.
4. PTT (Push-To-Talk) Button
Press and hold the PTT button and speak into the microphone, your voice can be sent to the
recipient. Release the PTT button to receive.
5. Side Button 1 (programmable button)
6. Side Button 2 (programmable button)
7. Top Button (programmable button)
8. External Speaker/Microphone Jack
External speaker/microphone can be connected to the radio through this jack.
4. Basic Operation
4.1. Switch On
Switch on the radio by turning the On/Off/Volume control knob clockwise until a click is
heard. If programmed, a beep tone will be heard.
4.2 Adjust Volume
Press the programmed “Squelch Off” button to hear background noise. Then rotate the
On/Off/Volume control knob to adjust the volume.
4.3 Select a Channel
Rotate the channel selector knob to select the required channel. You will hear voice from the
speaker while receiving valid signals.
4.4 Make a Call
To make a call, select the desired channel, press and hold the PTT button, and speak to the
microphone in normal voice. Please keep your mouth 5-10cm away from the microphone.
4.5 Receive a Call
Release the PTT button to receive a call.
Your dealer can set QT/DQT signaling on your radio channels by PC software. If you select a
channel that has been preset with the signaling, you will not hear other calls except those from
your own system.

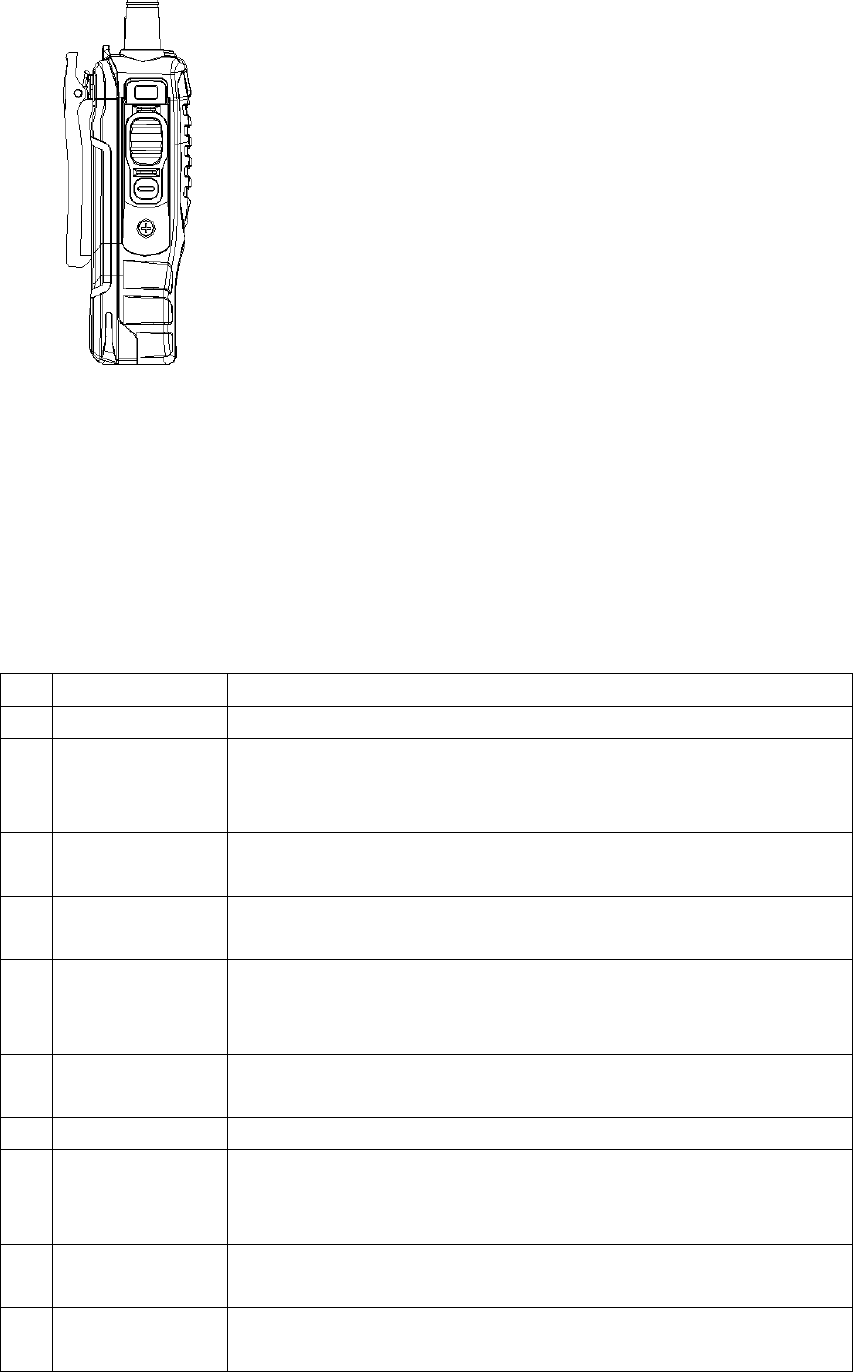

5. Functions of Programmable Buttons
The dealer can assign one of the following auxiliary functions to the top button, side button 1
or side button 2.
No. Function Description
0 None No function is assigned.
1 Voice
Annunciation
Press the preprogrammed “Voice Annunciation” button to change the
language and mode of voice annunciation, meanwhile, the current
channel number can be heard.
2 Talkaround When the preprogrammed “Talkaround” button is pressed, the next
transmission will be at the same frequency as at which it is received.
3 Lone Worker Press the preprogrammed “Lone Worker” button to start/stop lone
working.
4 Emergency
Alarm
Press the preprogrammed “Emergency Alarm” button to make an alarm
tone according to the setting of the programming software or send your
ID or background sound to your partner or the system.
5 Emergency
Alarm Off
Press the preprogrammed “Emergency Alarm Off” button to quit the
Emergency Alarm Mode.
6 Scan Press the preprogrammed “Scan” button to start/stop scanning.
7 Nuisance Delete
(temporary)
If the radio stays at a noise channel while scanning, press the
preprogrammed “Nuisance Delete” button to delete the noise channel
temporarily.
8 High/Low Power
Switch
Press the preprogrammed “High/Low Power Switch” button to switch
between high and low transmitting power of the radio.
9 Momentary
Monitor
Press and hold the preprogrammed “Momentary Monitor” button to
disable QT、DQT signaling, and release the button to resume normal
operation.
10 Monitor Press the preprogrammed “Monitor” button to disable QT、DQT
signaling, and you can receive signals that cannot be heard under
normal operation. Press it again to resume normal operation.
11 Momentary
Squelch Off
Press and hold the preprogrammed “Momentary Squelch Off” button to
open squelch; release it to resume normal operation.
12 Squelch Off Press the preprogrammed “Squelch Off” button to open squelch. Press
it again to resume operation.
13 Lone Worker
Reset
Press the preprogrammed “Lone Worker Reset” button while the radio
is in Lone Worker Mode to reset the lone worker timer, and the timer
starts again.
6. Auxiliary Functions
6.1 TOT (Time-Out-Timer)
1) TOT Function
a) The time-out-timer can prevent the user from continuously talking overlong and occupying one
certain channel for an extended period of time, and prevent the radio from heating due to
continuous transmitting.
b) The radio is set with a continuous transmitting limit. If the radio is continuously transmitting
longer than the time preset by the dealer, the radio will make alarm and stop transmitting.
2) TOT Rekey Time
a) A period in which the radio is forbidden to transmit after its overtime activity.
b) During the period, if the PTT button is pressed, an alert tone will be sounded, and the
transmission is forbidden.
3) TOT Pre-alert
a) The pre-alert will sound before the TOT action.
b) After the pre-alert tone, the timer will action when the transmitting time has gone beyond the
limit.
4) TOT Reset Time
a) The time delay from releasing the PTT button to the resetting of the timer is limited.
b) The countdown will go on if the time after releasing the PTT key is shorter than the reset time.
6.2 Battery Saving
The dealer can set the power saving mode by programming.
If this function is enabled, and the radio hasn’t receive any signal or no operation is being
acted for 10 seconds, the radio will enter Battery Saving Mode. When a signal is received or any
operation occurs, it will exit the Battery Saving Mode automatically.
There are four types for battery saving: 1:1, 1:2, 1:4 and Off.
The automatic battery saving function can reduce power consumption of the radio.
6.3 Low Battery Warning
When the battery voltage drops too low, the LED will flash. When the battery voltage drops
too low while transmitting, the LED flashes red and then the radio stops transmitting. You need to
recharge or change the battery.
6.4 Voice Annunciation
This function can be enabled or disabled by the dealer. There are two languages available:
Chinese and English. After selecting a channel by turning the channel selector knob, the channel
number will be annunciated.
6.5 QT/DQT
The dealer can set QT/DQT tones on radio channels, which enables you to ignore (not hear)
calls from other irrelevant parties who are using the same channel. When you receive a signal that
has a tone different from the one set on your radio, you will not hear the signal. Likewise, signals
that you transmit will only be received by parties whose QT/DQT tones are the same as yours.
Note:
* Using a QT/DQT channel doesn’t mean your calls are private. If other parties’ QT/DQT tones
are identical with yours, they can hear your calls.
* Set the battery saving mode to be “Off” or “1:1” if the QT/DQT decoding time is long.
6.6 Talkaround
You can expand the communication range of your network through a repeater. If the radio is
out of the communication range, you can connect with other radios through “Talkaround” mode.
Press the preprogrammed “Talkaround” button to switch between “Talkaround” mode and
“Repeater” mode.
6.7 Scan Function
In order to receive calls from many different channels, the radio can be programmed to scan
these channels.
6.7.1 Starting/Stopping Scan
a) Press the button set as “Scan” to start scanning. While in scanning, the radio checks every
channel in the scan list and stops on which a signal is detected until that signal disappears. If
interval between signal disappearing and continuing scanning has been preset, the radio will
remain on that channel.
b) Priority Scan:
One channel in the scan list can be set as the priority channel, which enables it to have the
highest priority during scanning. The radio will scan a non-priority channel firstly, then the
priority channel, and then the next non-priority channel, and then the priority channel again, and
the scan goes on like this.
If the priority channel and the “lookback time” have been set for the scan list, when the radio
is receiving signals on a non-priority channel, and the scanning is paused, the radio will check the
priority channel at the preset intervals. If there are signals in the priority channel, it will stay at the
priority channel; if there is no signal, it will return to the original channel.
c) The revert channel (Tx channel) during the scan can be designated by the dealer. There are
following options available:
Selected Channel: When pressing the PTT button, the radio will transmit from the first channel of
the scan list.
Selected Channel + Currently Working Channel: When pressing the PTT button during
scanning, the radio will always transmit from the first channel in the scan list. When pressing the
PTT button during the scanning pause, the radio will always transmit from the currently working
channel.
Priority Channel: The radio will transmit from the priority channel in the scan list when pressing
the PTT button.
Priority Channel + Currently Working Channel: When pressing the PTT button during
scanning, the radio will always transmit from the priority channel. When pressing the PTT button
during the scanning pause, the radio will transmit from the currently working channel.
Last Called Channel: When pressing the PTT button, the radio will transmit from the last
channel that received a call.
Last Used + Currently Working Channel: When pressing the PTT button during the scanning,
the radio will transmit from the last channel that transmits signals. When pressing the PTT button
during the scanning pause, the radio will transmit from the currently working channel.
6.7.2 Nuisance Delete
During scanning, if a channel continually generates unwanted noise or interference, you can
press the preprogrammed “Nuisance Delete” button to remove the channel from the scan list
temporarily.
Note:
* The priority channel and the last channel in the scan list cannot be deleted.
* Quit the scan mode and enter it again, the deleted channel will be added to the scan list
again.
6.8 Lone Worker
If lone worker function is enabled by PC software, you can press the button set as lone worker
to start lone working. This mode is to ensure the safety of the user while using the radio separately.
The lone worker timer starts upon pressing the preprogrammed “Lone Worker” button. If the
preset lone worker time expires, the radio will make an alert tone. If the preset remind time
expires, the radio will enter Emergency Mode and make alarm.
In the Lone Worker Mode, press the preprogrammed “Lone Worker” button again to quit Lone
Worker Mode.
In the Lone Worker Mode, press the preprogrammed “Lone Worker Reset” button (if a button
is designated as the lone worker timer reset button) or any button (if any button is designated as
the lone worker timer reset button) to restart the lone worker timer.
6.9 Emergency Alarm
Press the preprogrammed “Emergency Alarm” button (the pressing time should be longer than
the debounce time of the emergency alarm switch) to enter the Emergency Alarm Mode. You can
give the warning tone according to the programming software, or send the background sound to
your partner or the system.
Press the preprogrammed “Emergency Alarm Off” button to quit the Emergency Alarm Mode,
the radio stops the alert and resumes normal operation.
7. Wired Clone Mode
If the wired clone function is enabled by PC software, after entering the Wired Clone Mode,
the radio needs to be restart to return to user mode.
The operating steps go as follows:
1. Press and hold side button 2 while turning the radio power on to enter Clone Mode. If the wired
clone function is disabled, the radio will enter User Mode.
2. Connect the slave radio with the master radio by a clone cable. Then switch on the slave radio.
3. Press side button 1 of the master radio, the cloning starts. During the data transmission process,
the Led indicator of master radio will light red, and that of the slave radio will light green. When
the cloning is finished, the red LED of the master radio will be off, and the slave radio will restart
automatically.
4. You can continue to clone data according to step 3.
Note: The wired clone function can be enabled or disabled by the PC programming software.
Once the wired clone function is disabled, the radio cannot enter Wired Clone Mode.
8. Troubleshooting
No. Problem Causes and Solutions
1 The radio cannot be
switched on or no
display after being
switched on.
A. The battery and the radio are not reliably connected. Please
reinstall the battery.
B. The fuse of the power supply is burnt out. Please change it.
C. The power switch is in failure. Please change it.
D. The battery is out of power, please recharge it or change it.
E. The CPU is broken, please change it.
2 Phase lock loop
unlocked (Beeping)
A. The channel frequency setting is out of range, please reset the
channel data.
B. The crystal oscillator of phase lock loop is broken, please
change it.
C. The oscillating tube is broken, please change it.
D. The phase lock loop IC is broken, please change it.
3 Cannot transmit A. The frequencies of both users are not the same. Please select the
same frequency channel again.
B. The QT/DQT signals of both users are not the same. Please reset
it.
C. The radio is out of effective communication range.
4 No signal A. The antenna is in poor contact. Please fasten the antenna head.
B. The HF amplifier is broken, please change it.
C. The squelch level is so high that the squelch cannot be opened.
Please reset the squelch level.
D. The mixer tube is broken, please change it.
E. The FM processing IC is broken, please change it.
5 The transmitting red
light is on, but no
voice is heard.
A. The power module is broken, so there is no power output.
Please change it.
B. The microphone is broken, please change it.
6 The receiving green
light is on, but no
voice is heard.
A. The speaker is broken, please change it.
B. The audio amplifier is broken, please change it.
9. Specifications
General Specification PT6700
Frequency 400-470MHz UHF
Number of channels 16
Channel spacing 12.5kHz
Dimension(H×W×D) 122mm×54mm×33mm
Weight 298g(including battery and antenna)
Operating temperature -25℃~+55℃
Receiving sensitivity ≤ 0.28μV
Frequency stability 2.5ppm
Tx power 4W (UHF)
Max. frequency deviation ±2.5KHz(N)
Max. audio power ≥ 1000mW
Power supply DC7.4V
10. FCC Notice
Your Kirisun Communications Co., Ltdradio generates RF electromagnetic
energy during transmit mode. This radio is designed for and classified as “Occupational Use
Only”, meaning it must be used only during the course of employment by individuals aware of the
hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the
“General Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use
Only”. In addition, your Kirisun Communications Co., Ltd radio complies with the following
Standards and Guidelines with regard to RF energy and electromagnetic energy levels and
evaluation of such levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC
Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave.
The aforementioned accessories are authorized for use with this product. Use of accessories other
than those (listed in the instruction) specified may result in RF exposure levels exceeding the FCC
requirements for wireless RF exposure.
To ensure that your expose to RF electromagnetic energy is within the FCC
allowable limits for occupational use, always adhere to the following guidelines
DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and
may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied
with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use
with this radio.
DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit
by pressing the “PTT” switch.
ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and
only use the KIRISUN belt-clip which is listed in instructions when attaching the radio to your
belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the
recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches)
from your mouth, and slightly off to one side.
The information listed above provides the user with the information needed to make him or her
aware of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure
limits of this radio.
Electromagnetic Interference/Compatibility During transmissions, your Kirisun
Communications Co., Ltd radio generates RF energy that can possibly cause interference with
other devices or systems. To avoid such interference, turn off the radio in areas where signs are
posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic
radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use The radio transmitter is used in situations in which persons are
exposed as consequence of their employment provided those persons are fully aware of the
potential for exposure and can exercise control over their exposure.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely before using the transceiver
SAVE THIS INSTRUCTION MANUAL- This instruction manual contains important operating
instructions for the Two-Way Radio

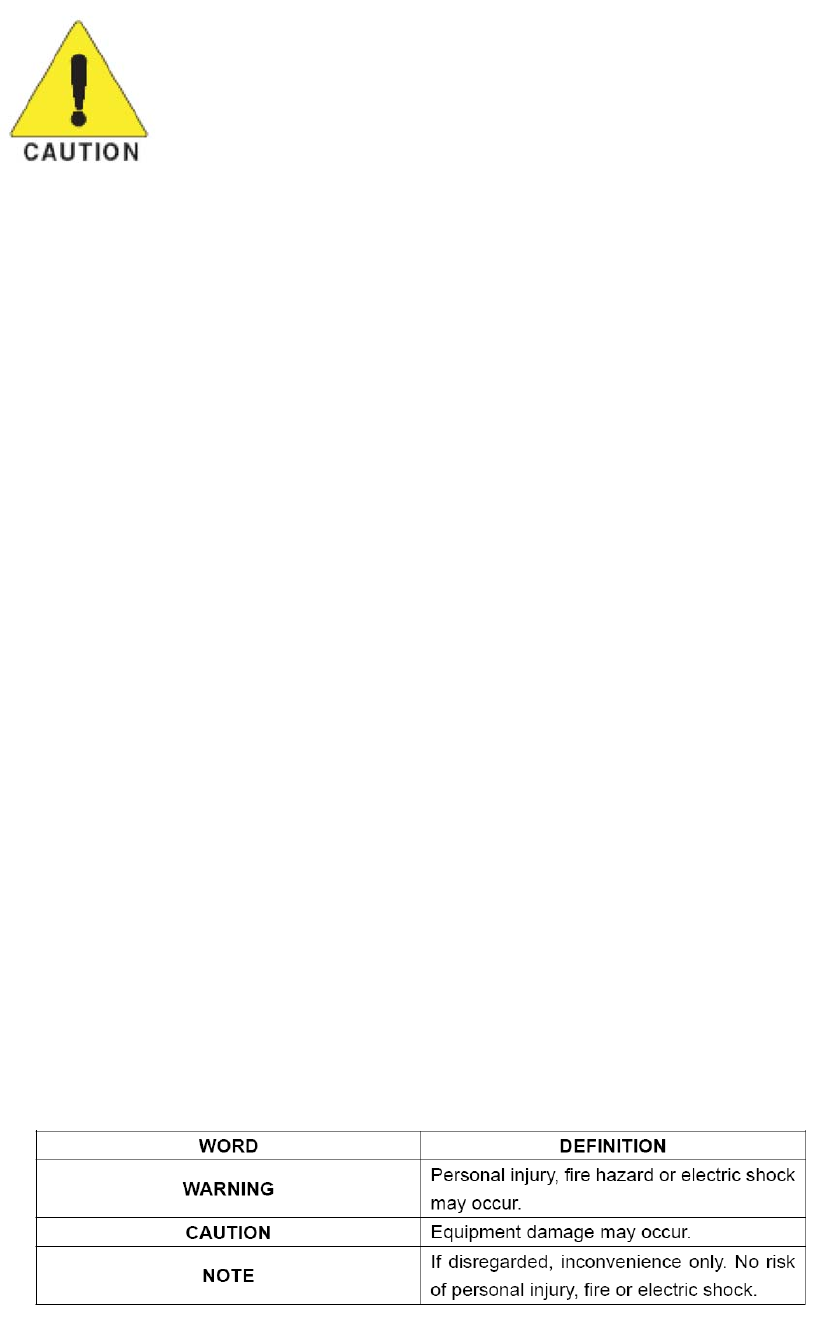

EXPLICIT DEFINITIONS
OPERATING NOTES
When transmitting with a portable radio, hold the radio in a vertical position with its microphone 5
to 10 cm (2 to 4 inches) away from your mouth. Keep the antenna at least 2.5 cm (1 inch) from
your head and body.
If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5
centimeters (1 inch) from your body when transmitting.
PRECAUTIONS WARNING!
NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The transceiver will perform best if the
microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the transceiver is vertical.
WARNING!
NEVER operate the transceiver with a headset or other audio accessories at high volume levels.
CAUTION!
NEVER short the terminals of the battery pack. NEVER connect the transceiver to a power
source other than the Battery listed above. Such a connection will ruin the transceiver.
DO NOT push the PTT when not actually desiring to transmit.
AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below
–30°C (–22°F) or above +60°C (+140°F).
DO NOT modify the transceiver for any reason.
MAKE SURE the flexible antenna and battery pack are securely attached to the transceiver, and
that the antenna and battery pack are dry before attachment. Exposing the inside of the transceiver
to water will result in serious damage to the transceiver.
FCC CAUTION: Changes or modifications to this device, not expressly approved by KIRISUN,
could void your authority to operate this transceiver under FCC regulations.
