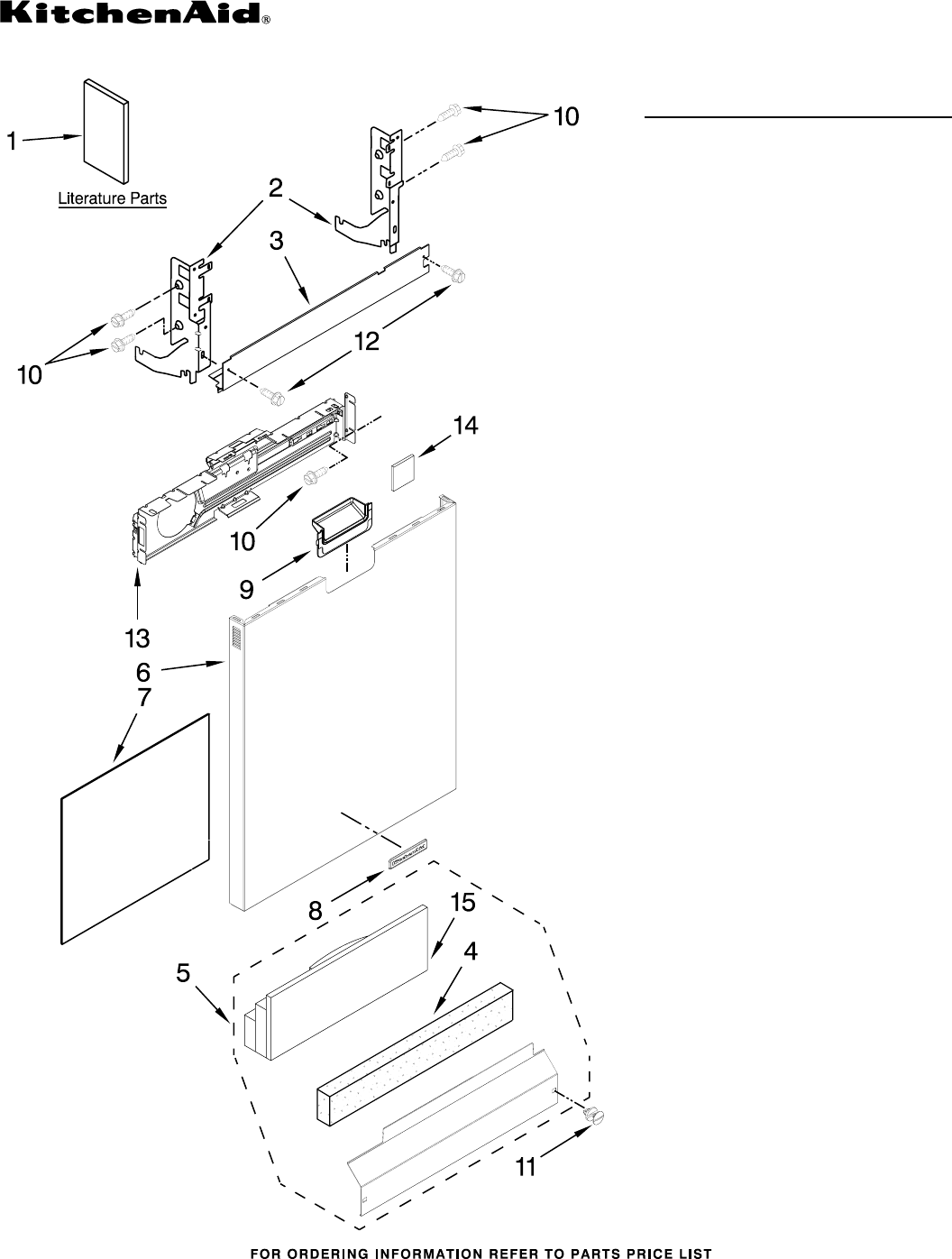

DOOR AND PANEL PARTS

1

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

3−12 Litho in U.S.A. (JCB) (psw) Part No. W10491612 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10321621

Instructions,

Installation

W10395348

Energy Guide

W10300928

Guide, Use & Care

English/French

W10300596

Guide, Use & Care

Spanish

W10321878

Tech Sheet/English

W10321879

Tech Sheet/French

2 Arm, Hinge

8534854 Left

8534853 Right

3

W10321449

Vapor Barrier

Assembly

4

W10385107

Insulation, Toe

Panel

5 Access Panel

W10368715

Black

W10368716

White

W10368717

Biscuit

6 Panel, Full Front

(Includes Items

8 & 9)

W10195532

Black

W10195533

White

W10195534

Biscuit

W10195531

Stainless

7

W10315897

Insulation,

Front Panel

8 Nameplate

W10243392

Black

W10243393

White

W10243394

Biscuit

W10243391

Stainless

9 Pocket Assembly

W10195653

Black

W10195654

White

W10195655

Biscuit

W10195656

Stainless

10 3400071 Screw

11 Fastener

W10331789

Black

W10331793

White

W10331794

Biscuit

12 304392 Screw

13

W10194911

Bracket, Panel

Control

14

W10354790

Block, Foam

15

W10350437

Insulation,

Three Layer

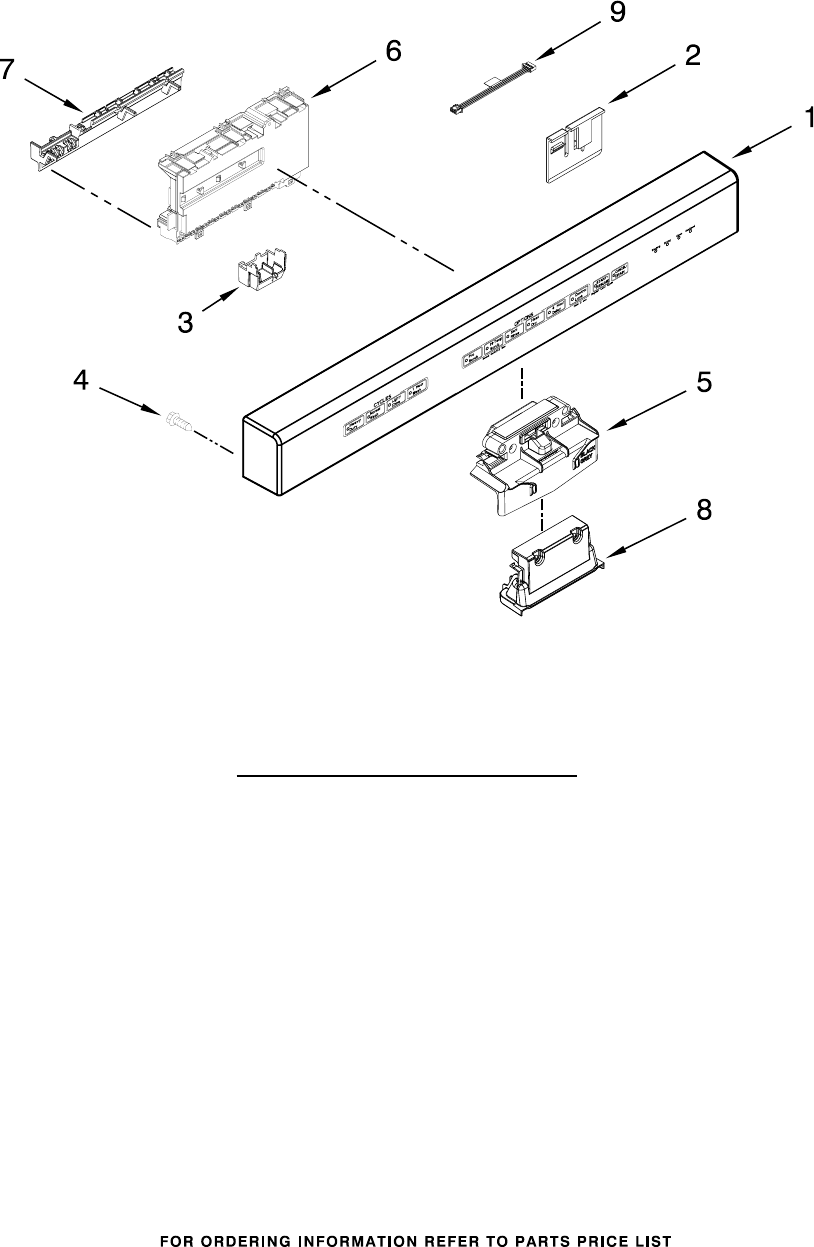

CONTROL PANEL AND LATCH PARTS

2

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

W10491612

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

W10386813

Black

W10386814

White

W10386815

Biscuit

W10386816

Stainless

2

W10195237

Clip, Control

3

W10401190

Box, Connector

4

W10348409

Screw

5

W10380262

Latch Assembly

(Includes Switch)

6

W10461372

Control,

Electronic

7

W10194937

Brace, Connector

8 Handle

W10195718

Black

W10195833

White

W10195834

Biscuit

W10195835

Midnight Grey

9

W10195666

Jumper

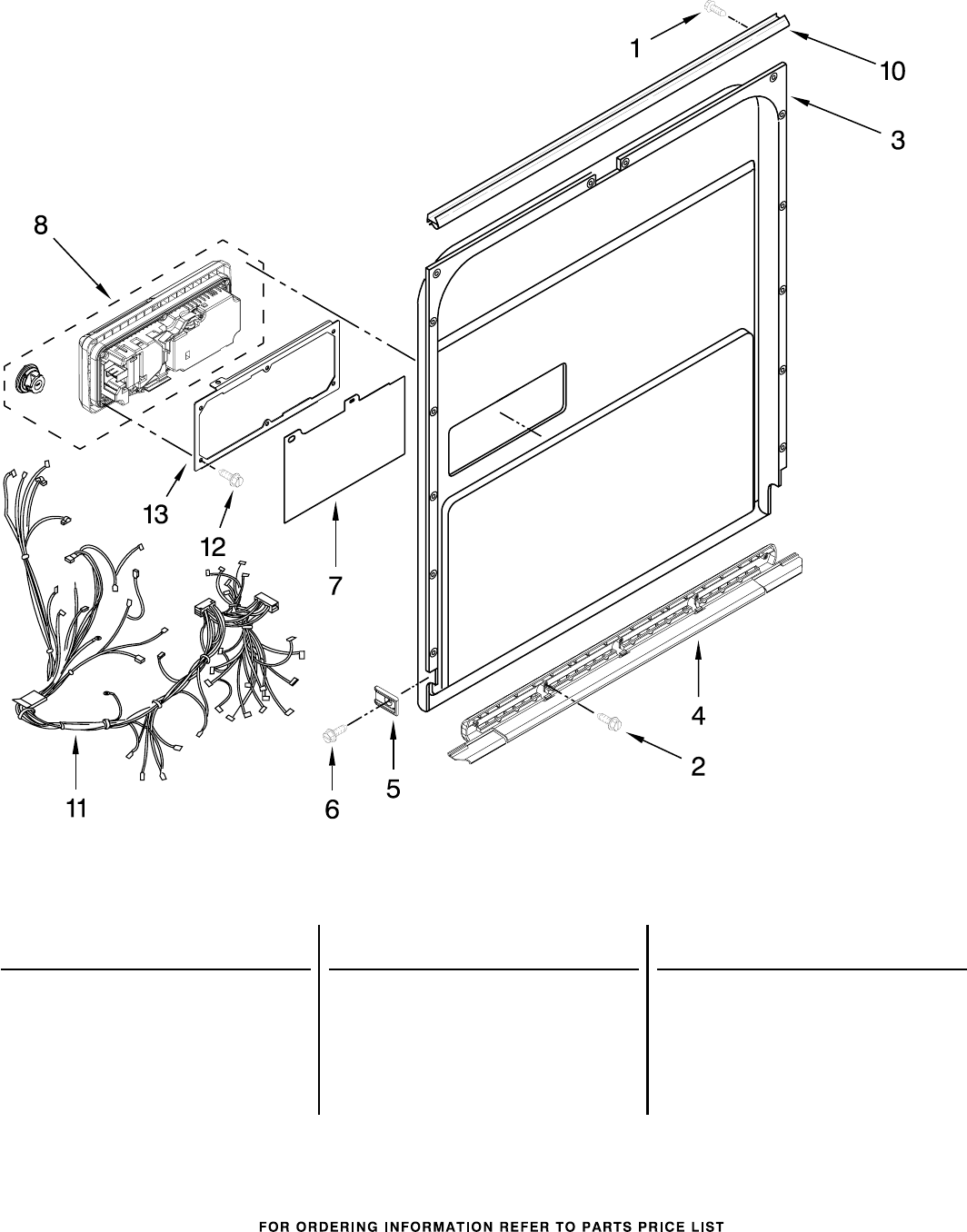

INNER DOOR PARTS

3

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1

W10348409

Screw, Door

2 8281217 Screw

3

W10480715

Inner Door &

Mastic Assembly

4

W10195543

Seal−Door

Bottom

5

W10195837

Barrier, Vapor

Door

6 3400071 Screw

7

W10385977

Shield,

Dispenser

8

W10304408

Dispenser,

Assembly

10

W10195007

Seal,

Console/Door

11

W10434893

Wiring Harness

12

W10177098

Screw

13

W10462232

Bracket

Dispenser

W10491612

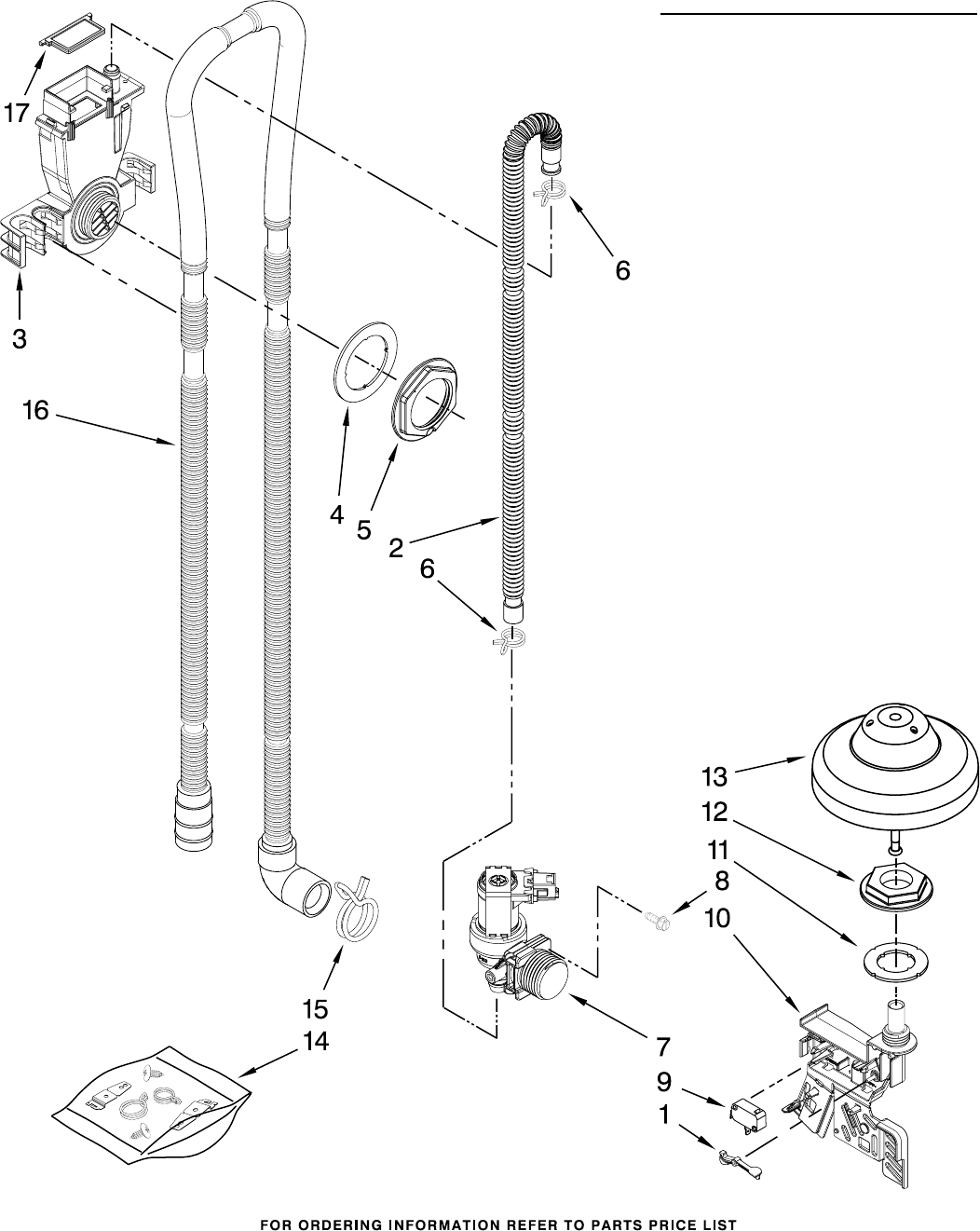

FILL, DRAIN AND OVERFILL PARTS

4

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1

W10195037

Lever, Overfill

Switch

2 8531412 Hose, Inlet

3

W10316375

Water Inlet

(Also Order

Items 4)

4 8531323 Gasket

5

W10213826

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7

W10316814

Fill Valve

Assembly

8 304392 Screw

9

W10195039

Switch, Overfill

Control

10

W10195035

Standpipe,

Overfill

(Also Order #11)

11 8531743 Gasket, Flat

12

W10195038

Nut, Standpipe

13

W10195036

Float & Retainer

Assembly

14

W10292152

Miscellaneous

Parts Bag

(Contains 2 Hose

Clamps, Screws &

2 Under Counter

Brackets)

15 370445 Clamp, Hose

16

W10195750

Drain Loop

with Check Valve

Assembly

17

W10316376

Flapper

W10491612

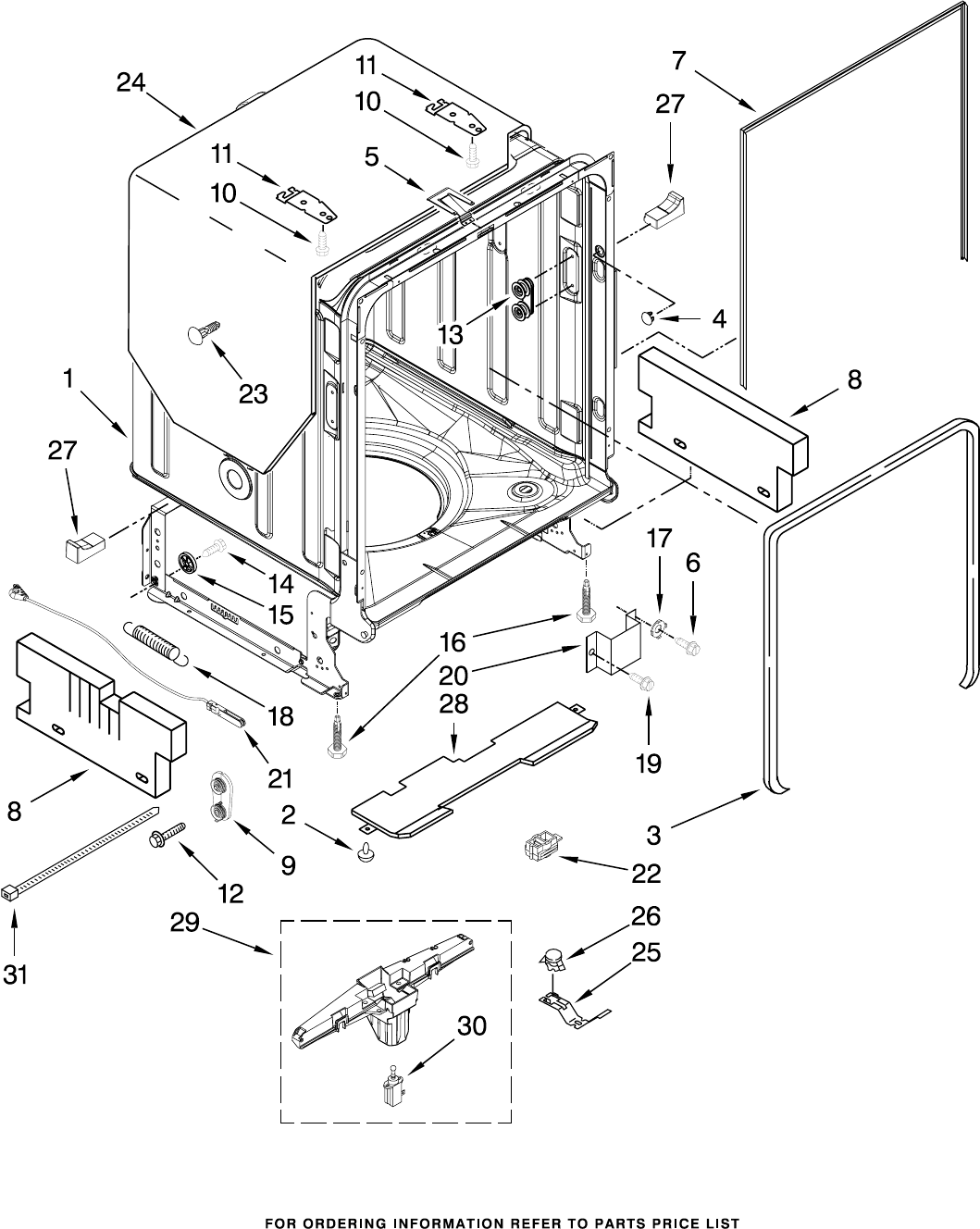

TUB AND FRAME PARTS

5

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

W10491612

TUB AND FRAME PARTS

6

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1

W10390308

Tub Assembly

(Also Includes

Heater Assembly)

2 3400924 Retainer, Push

3

W10300924

Seal, Door

4

W10082838

Plug, Tub

5

W10300779

Strike, Plate

6 3400014 Screw

7

W10179427

Seal, Cabinet

8

W10275523

Side Shield

(Right & Left)

9

W10084086

Door, Balance

Assembly

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13

W10195330

Wheel, Tub

14

W10348411

Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 3378128 Washer

Pronged Cup

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

21

W10158291

Cable, Door

Assembly

22

W10292870

Protector

23 304666 Retainer, Push

24 8573239 Shield, Sound

Tub

25

W10300703

Bracket,

Thermostat

26

W10339563

Thermostat

27 Spacer, Tub/Brace

W10195630

Left

W10195631

Right

28

W10195367

Insulation

Bottom

29 8572661 Actuator, Assembly

30

W10082769

Motor, Wax

31 8539404 Wrap−Tie

W10491612

PUMP AND MOTOR PARTS

7

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

W10491612

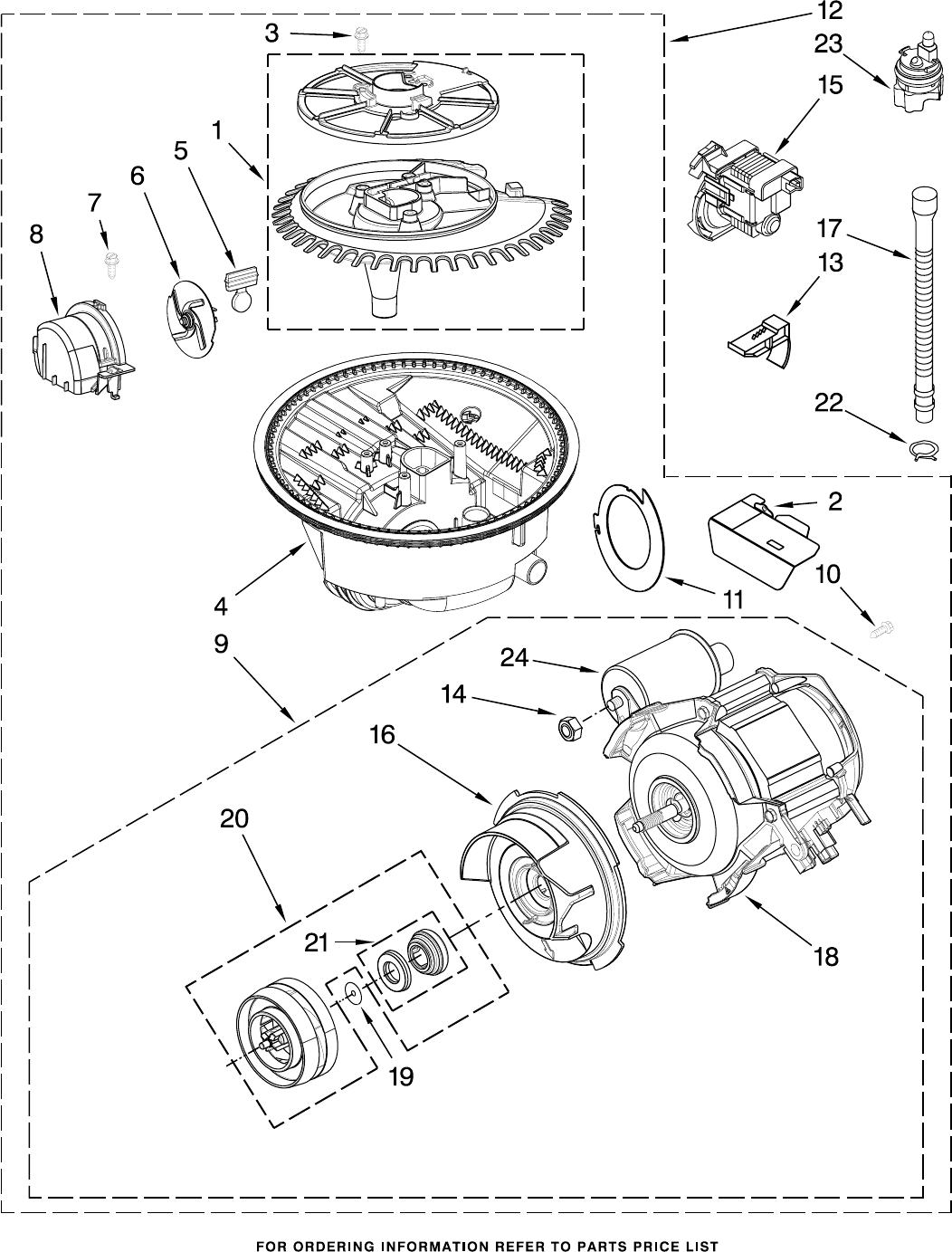

PUMP, WASHARM AND MOTOR PARTS

8

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy.

2 8283527 Shield

3

W10348405

Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

6

W10083957

Chopper Assy.

7 9741232 Screw

8 8531857 Protector, Inlet

9

W10239404

Motor Assembly

10 3400217 Screw

11

W10084567

Screen, Separation

12

W10237169

Sump & Motor

Assembly

13

W10300599

Tab, Sump

14 8533949 Nut

15 8558995 Pump, Drain

16

W10142656

Volute w/Seal

(Also Order

Items 19 & 21)

17 8269144 Hose, Drain

18

W10239401

Motor

19 8531018 Washer

20 8531017 Impeller

21 8268403 Face Seal Assembly

(Also Order

Item 19)

22 8269146 Hose Clamp

23

W10134017

Optical water

Indicator

24

W10334457

Capacitor

W10491612

UPPER WASH AND RINSE PARTS

9

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1

W10077859

Feed Tube

Assembly

(Also Includes

Item 3)

2

W10349488

Screw

3 8557720 Sprayarm, 3rd

Level

4

W10118464

Fastener. Push−In

5

W10082867

Mount

6

W10323424

Manifold

7

W10082832

Hanger

8 8268433 Seal

9

W10082831

Probe

10

W10082841

Sprayarm

11

W10077600

Manifold,

Turbozone

12

W10077903

Valve Assembly

W10491612

HEATER PARTS

10

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1

W10329322

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

5

W10343251

Shield, Heater Nut

NOTE:

If heater element is

removed, it must be replaced.

W10491612

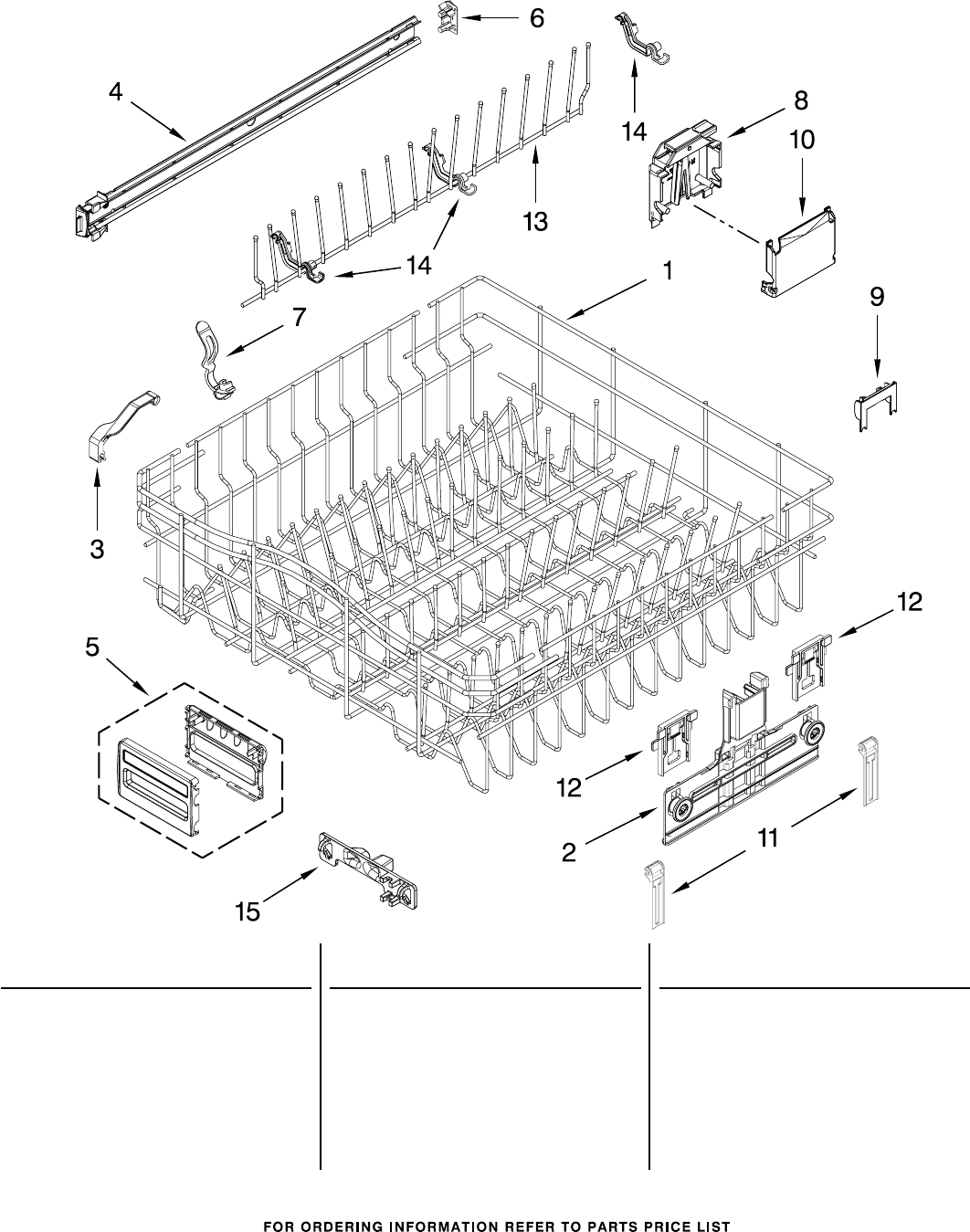

UPPER RACK AND TRACK PARTS

11

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1

W10312791

Dishrack, Upper

2

W10350376

Adjuster Assy

3

W10267076

Clip, Dispenser

Guard

4

W10324563

Track, Assembly

5

W10282826

Handle,

Dishrack

6

W10195622

Stop, Track

Non−Removable

7

W10077844

Clip,

No Flip

8 Housing, Adjuster

W10320664

Left Hand

W10320665

Right Hand

9

W10250160

Clip−Lock

Adjuster Arm

10

W10250162

Cover, Adjuster

11

W10195839

Strap,Tether

Adjuster

12

W10195840

Positioner,

Adjuster

13 8562030 Tine, Row

14

W10082853

Clip, Pivot

15 8539102 Positioner, Dual

W10491612

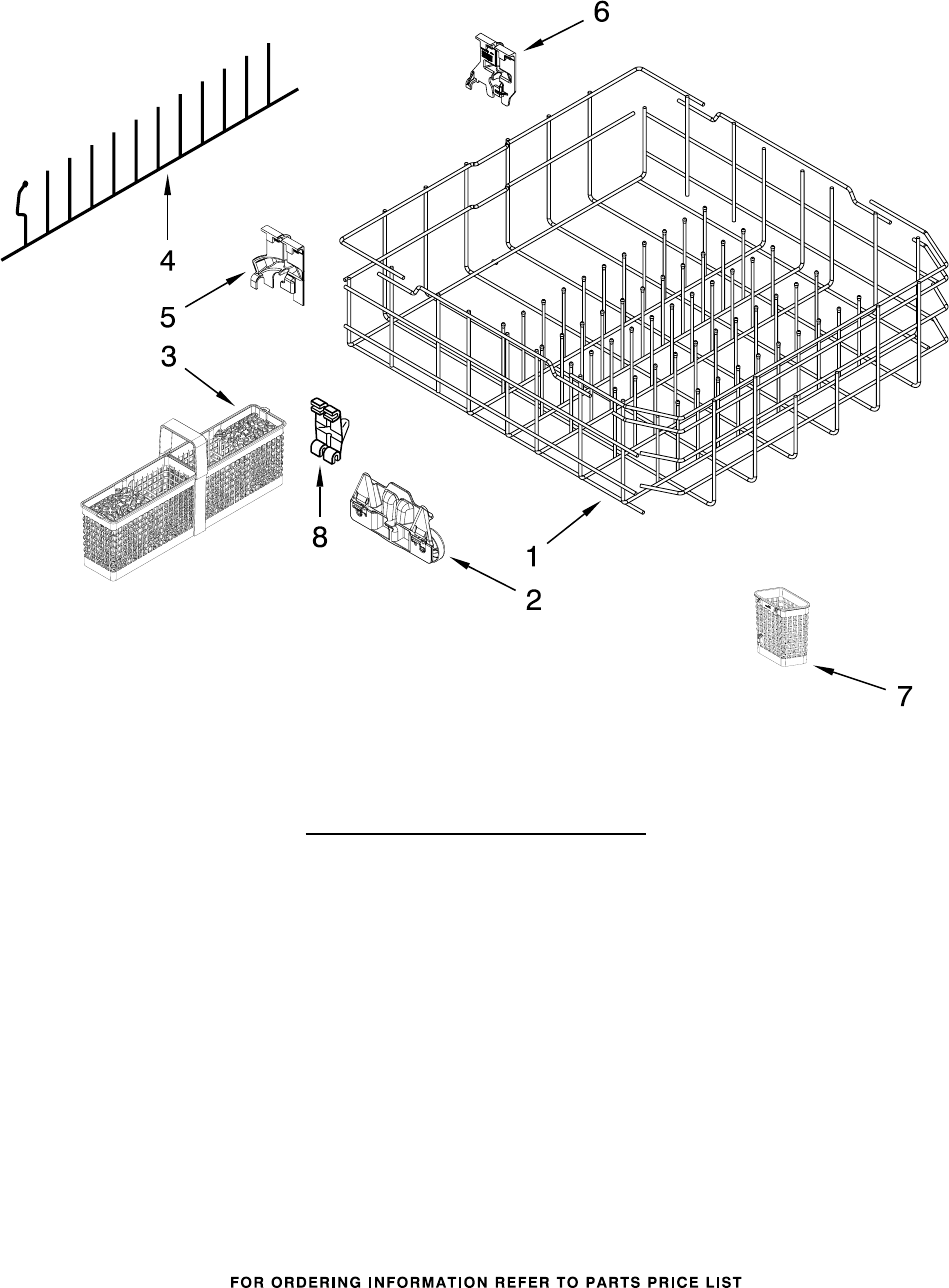

LOWER RACK PARTS

12

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1

W10056271

Lower Rack

2

W10195416

Wheel & Transport

Assembly

3

W10195723

Basket,

Silverware

4

W10056272

Tine, Row

5

W10078215

Retainer, Tine Row

6

W10078227

Clip, Pivot

7

W10482109

Basket, Utensil

8

W10175279

Retainer, Tine Row

W10491612

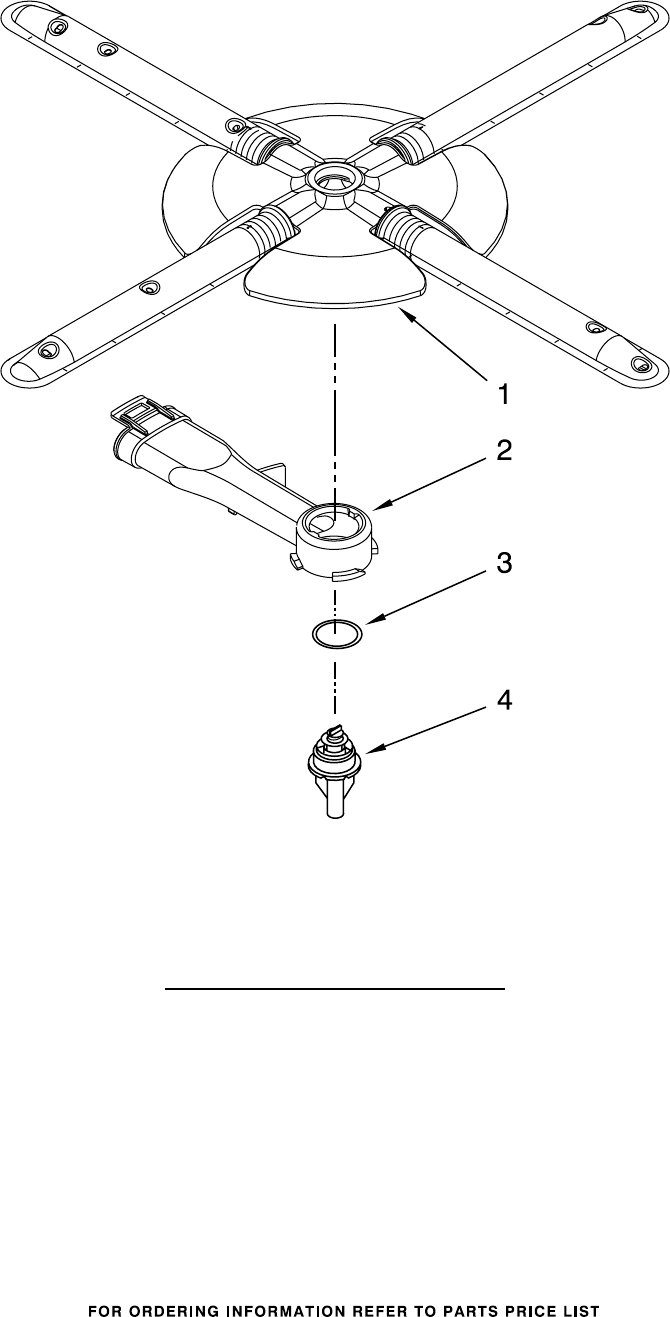

LOWER WASHARM AND STRAINER PARTS

13

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1

W10320510

Washarm Assembly

2

W10077899

Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

4

W10077898

Hub, Lwr Sprayarm

(Also Order

Item 3)

W10491612

OPTIONAL PARTS (NOT INCLUDED)

14

For Models: KUDS30IXBL7, KUDS30IXWH7, KUDS30IXBT7, KUDS30IXSS7

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ACCESSORIES

Side Panel Kits

8171656 White

8171657 Black

8171658 Biscuit

8171659 Stainless Steel

Custom Panel & Trim Kit

8212489 Black

Drain Hose

3385556 12 Ft.

Vinyl Touch−Up (4oz.)

676453 White

676455 Grey

4396853 Silver Atlantis

Moisture Barrier Kit

4396277 Kit

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

4392899 Biscuit

4396603 Meteorite

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

285006 Superior Black

4392901 Biscuit

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit

POWER CORD KIT

4317824 Power Cord Kit

(Includes Power

Cord & Misc.

Hardware)

ANTI−TIP KIT

8171477 Floor Mount Kit

8212560 Side Mount Kit

DISHRACK REPAIR

4396838 White

4396840 Grey

4396854 Silver Atlantis

W10491612
