Kitchen/kid"

UNDERCOUNTER DISHWASHER

(.. " .

LAVE-VAISSELLEENCASTRE

,_***,uc_u.,isation et d'ent_ €-:ea

Table of Contents/Table des mati_res.................... 2

_Save Water

•no pre-rinsing

Economie d'eau

sans prenncage

Models/ModUles KUDS25SH and KUDC25CH

9744039 www.kitchenaid.com

TABLEOF

CONTENTS

DISHWASHER SAFETY ................................................... 3

Before Using Your Dishwasher......................................... 4

PARTS AND FEATURES .................................................. 5

START-UP GUIDE ............................................................... 7

UsingYour New Dishwasher............................................ 7

LOADING YOUR DISHWASHER ....................................... 7

Loading Suggestions................................................. :...... 7

Loadingthe Top Rack ....................................................... 8

Loadingthe Bottom Rack ............................................. L.. g

Loadingthe Silverware Basket ....................................... 10

USING YOUR DISHWASHER ........................................... 11

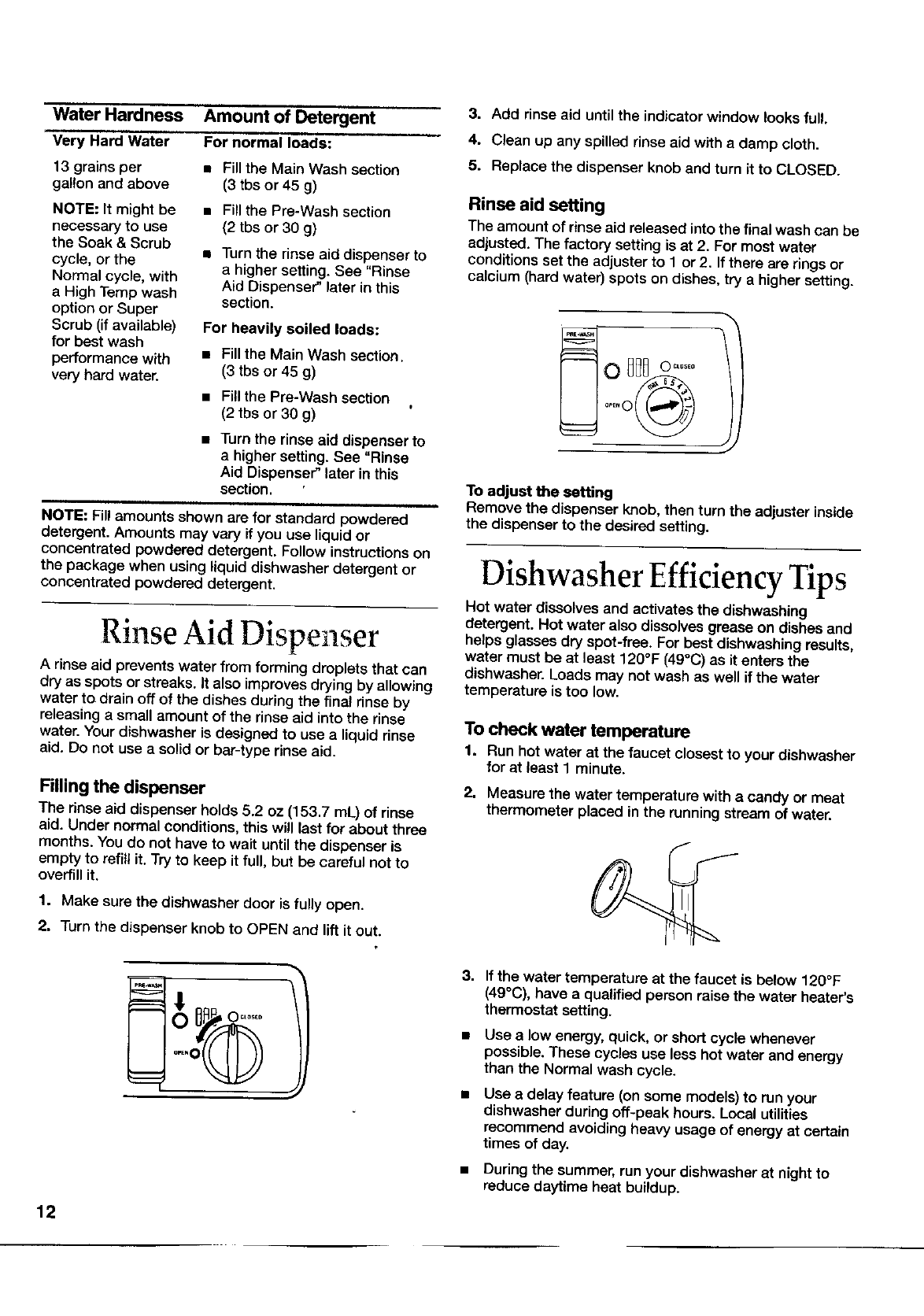

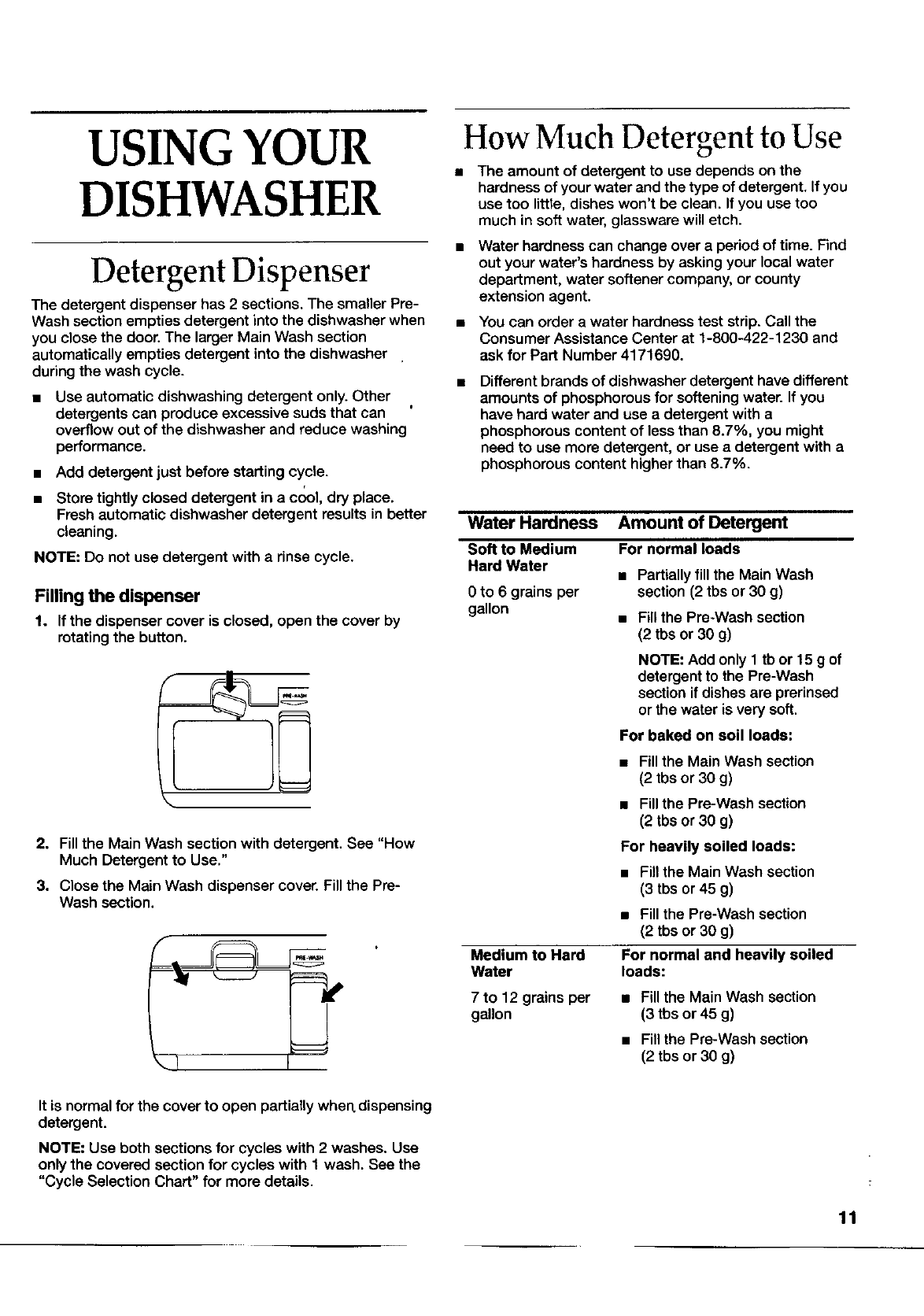

Detergent Dispenser....................................................... 11

How Much Detergent to Use ......................................... 11

Rinse Aid Dispenser ........................................................ 12

Dishwasher Efficiency Tips ............................................. 12

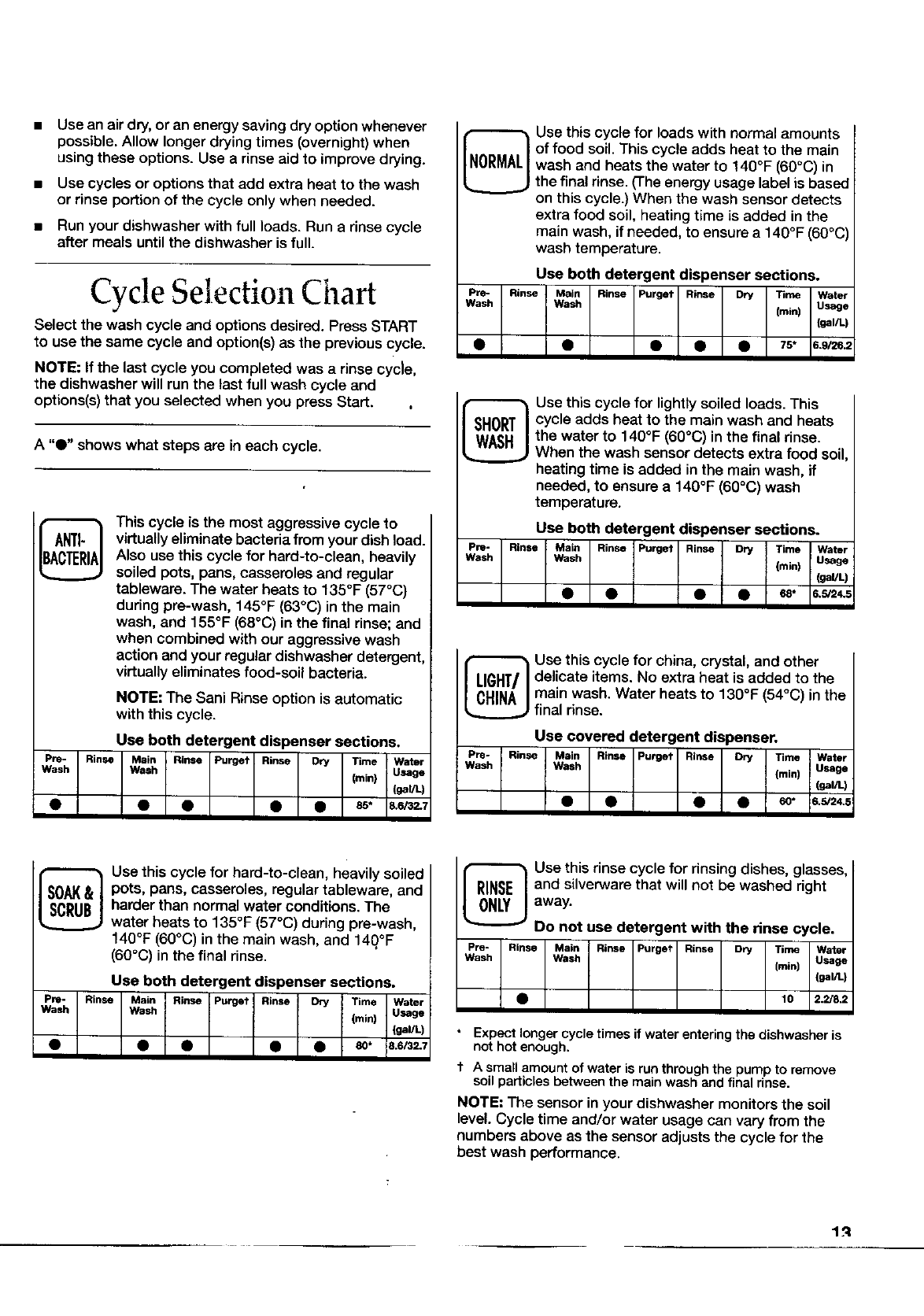

Cycle Selection Chart ..................................................... 13

Canceling aCycle ........................................................... 14

Changing aCycle or Setting ........................................... 14

Adding Items During a Cycle .......................................... 14

Option Selections ............................................................ 14

Control Panel Lights ........................................................ 15

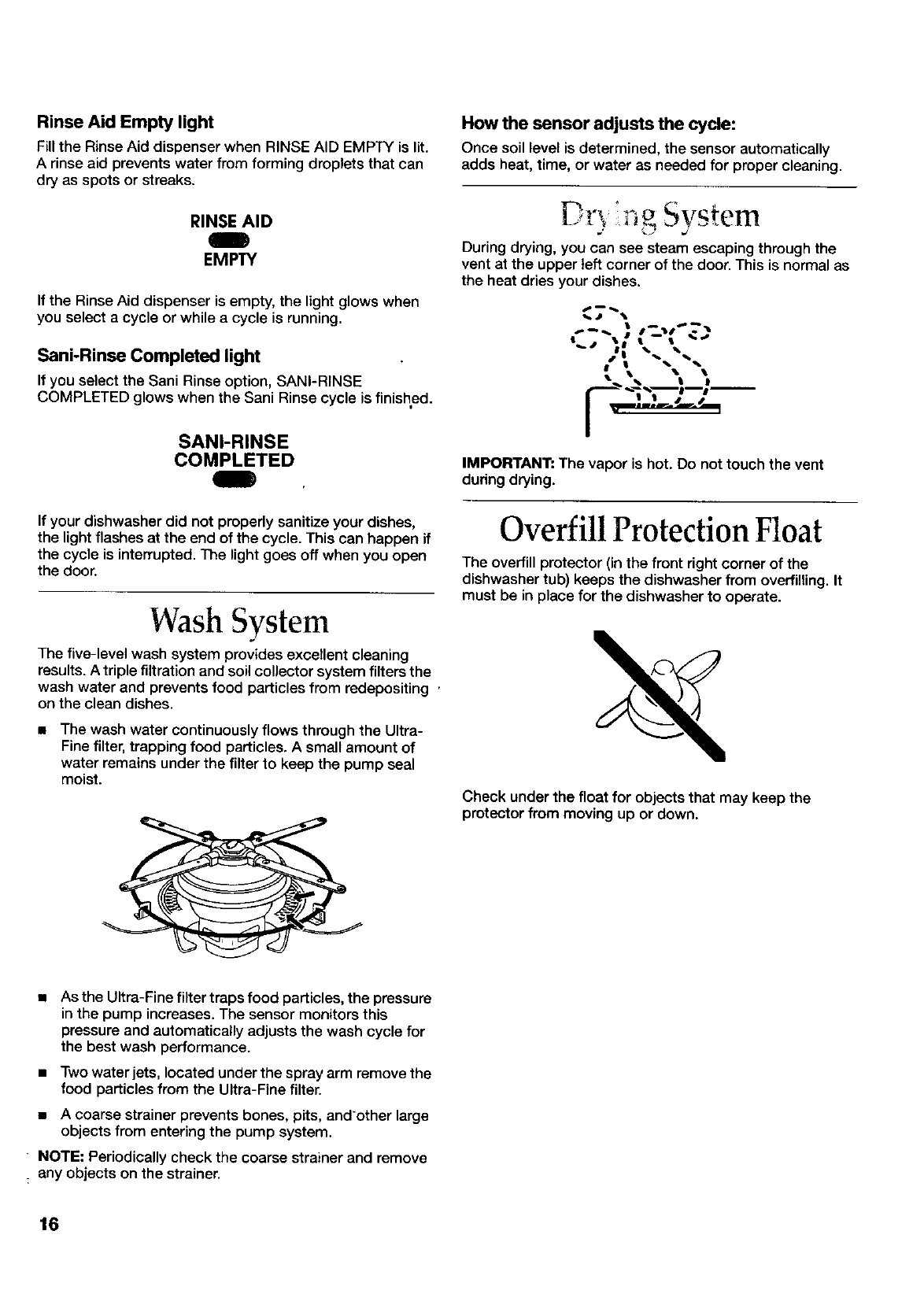

Wash System ................................................................. 16

Drying System ................................................................. 16

Overfill Protection Float ................................................... 16_

WASHING SPECIAL ITEMS ............................................. 17

CARING FOR YOUR DISHWASHER ............................... 18

Cleaning Your Dishwasher .............................................. 18

DrainAir Gap ................................................................... 18

Storing Your Dishwasher ................................................ 19

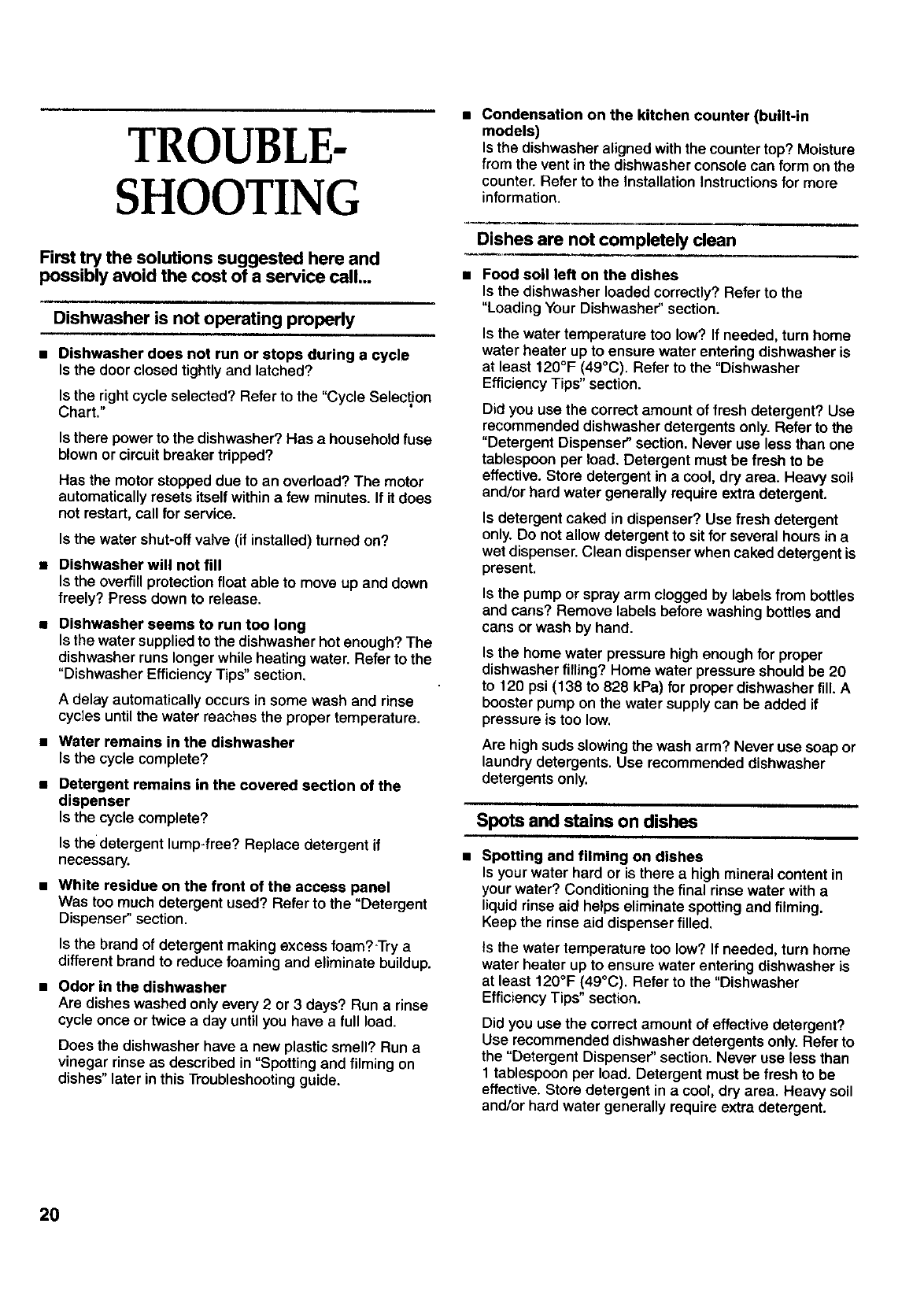

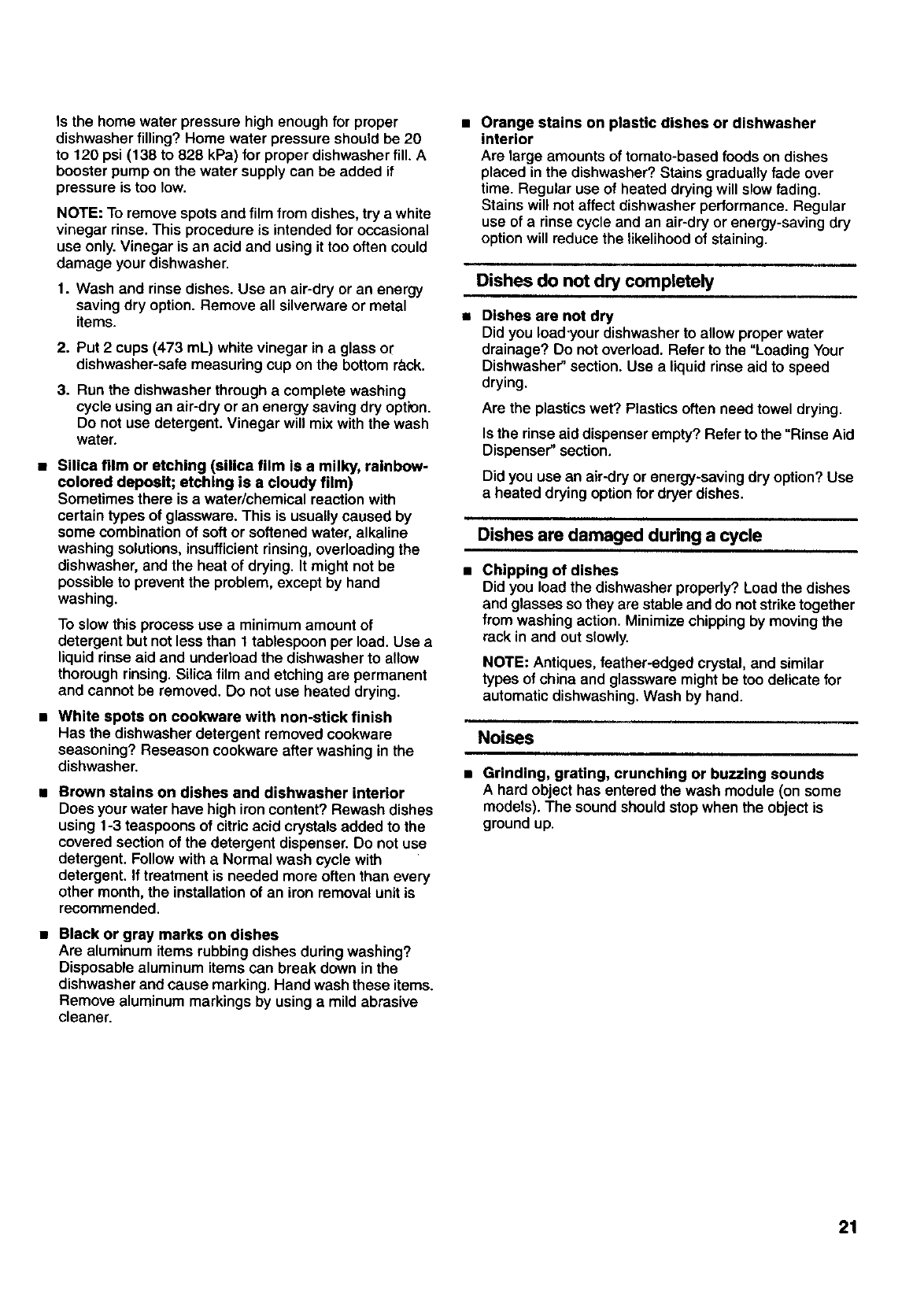

TROUBLESHOOTING ....................................................... 20

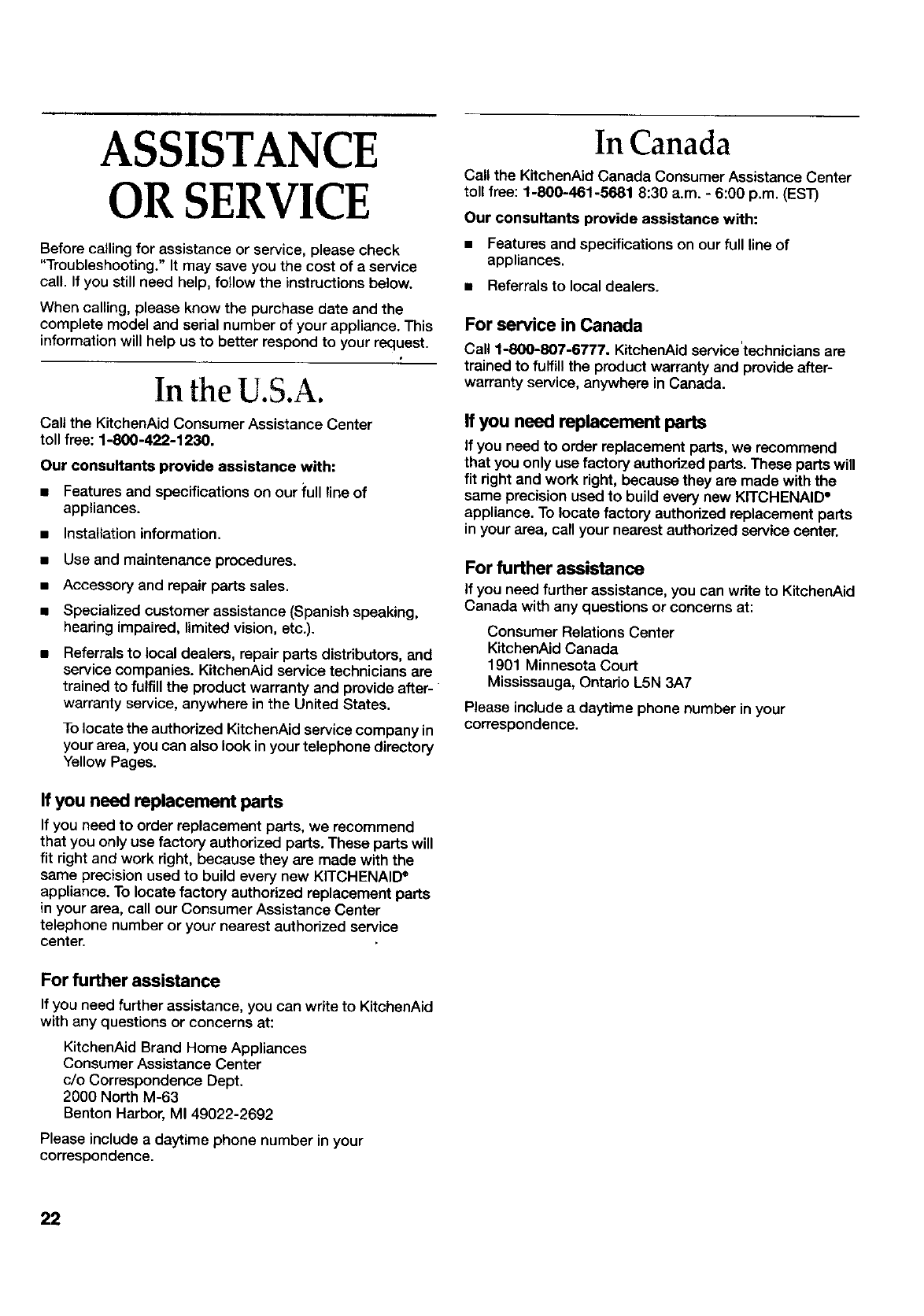

ASSISTANCE OR SERVICE ............................................. 22

In the U.S.A ..................................................................... 22

In Canada ........................................................................ 22

WARRANTY ....................................................................... 23

TABLEDES

MATIERES

LA S#CURITE DU LAVE-VAISSELLE ............................ 24

Avant d'utiliser le lave-vaisselle ...................................... 25

PI#CES ET CARACTleRISTIQUES ................................. 26

GUIDE DE MISE EN MARCHE ........................................ 28

Utilisation de votre nouveau lave-vaisselle .................... 28

CHARGEMENT DU LAVE-VAISSELLE ........................... 29

Suggestions de chargement ........................................... 29

Chargement du partier sup_rieur .................................... 29

Chargement du panier inf6deur ...................................... 31

Chargement du panier &couverts.................................. 32

UTILISATION DU LAVE-VAISSELLE .............................. 33

Distdbuteur de detergent ................................................ 33

Quantit6 de d6tergent _ utiliser ...................................... 33

Distdbuteur d'agent de dn_age ...................................... 35

Conseils d'efficacit6 pour le lave-vaisselle ..................... 35

Tableau de s_lection de programme .............................. 36

Annulation d'un programme ........................................... 37

Changement d'un programme ou r_glage ..................... 37

Addition de vaisselle durant un programme .................. 37

S61ection d'options ......................................................... 38

Lampes du tableau de commande ................................. 39

Syst6me de lavage .......................................................... 40

Systeme de s_chage ...................................................... 40

Dispositif de protection contre ddbordement ................ 40

LAVAGE D'ARTICLES SPI_CIAUX................................... 41

ENTRETIEN DU LAVE-VAISSELLE ................................. 42

Nettoyage du lave-vaisselle............................................ 42

Dispositif anti-refoulement.............................................. 42

Remisage du lave-vaisselle ............................................ 43

DEPANNAGE ..................................................................... 44

ASSISTANCE OU SERVICE ............................................. 47

Aux I_tats-Unis ................................................................ 47

Au Canada ...................................................................... 47

GARANTIE ......................................................................... 48

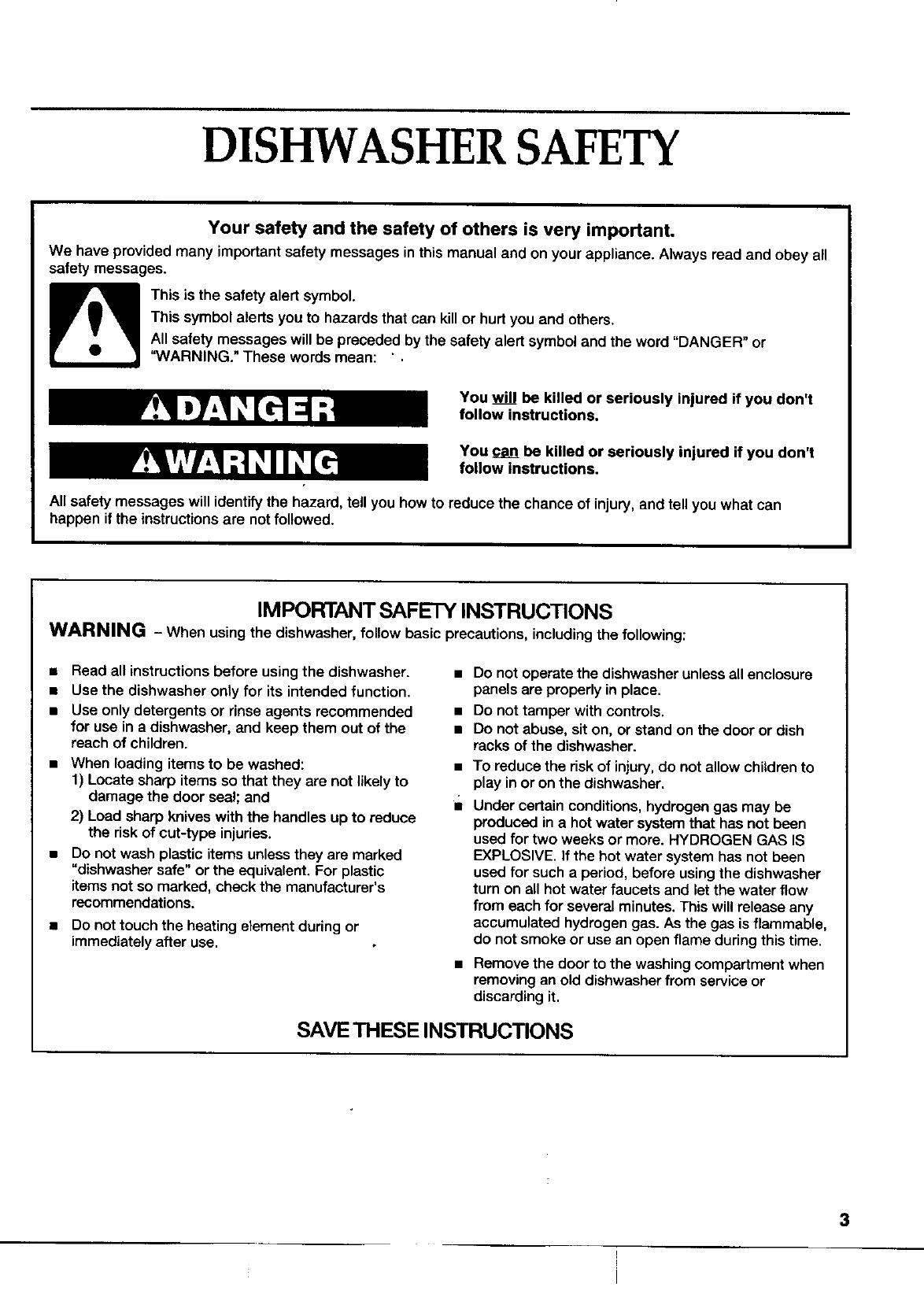

DISHWASHER SAFETY

Your safety and the safety of others is very important.

We have providedmany important safety messages in this manual and on your appliance. Always read and obey all

safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can killor hurt you and others,

All safety messages will be preceded by the safety alert symbol and the word "DANGER" or

"WARNING." These words mean:

You wiJ be killed or seriously injured if you don't

follow instructions.

You _ be killed or seriously injured if you don't

follow instructions.

All safety messages will identifythe hazard, tell you howto reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING -When usingthe dishwasher,follow basic precautions, includingthe following:

• Read all instructions before using the dishwasher.

• Use the dishwasher only for its intended function•

• Use only detergents or rinse agents recommended

for use in a dishwasher, and keep them out of the

reach of children.

• When loading items to be washed:

1) Locate sharp items so that they are not likelyto

damage the door seal; and

2) Load sharp knives with the handles up to reduce

the risk of cut-type injuries.

•Do not wash plastic items unlessthey are marked

"dishwashersafe" or the equivalent. For plastic

items not so marked, check the manufacturer's

recommendations.

•Do nottouch the heating element during or

immediately after use.

•Do not operate the dishwasher unless all enclosure

panels are properly inplace.

•Do not tamper with controls.

•Do not abuse, sit on, or stand on the door or dish

racks of the dishwasher.

To reduce the riskof injury,do not allow childrento

play in or on the dishwasher.

Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been

used for such a period, before usingthe dishwasher

turn on all hot water faucets and let the water flow

from each for several minutes. This will release any

accumulated hydrogen gas. As the gas is flammable,

do not smoke or use an open flame duringthis time.

• Remove the door to the washing compartment when

removing an old dishwasher from service or

discarding it.

SAVE THESE INSTRUCTIONS

(

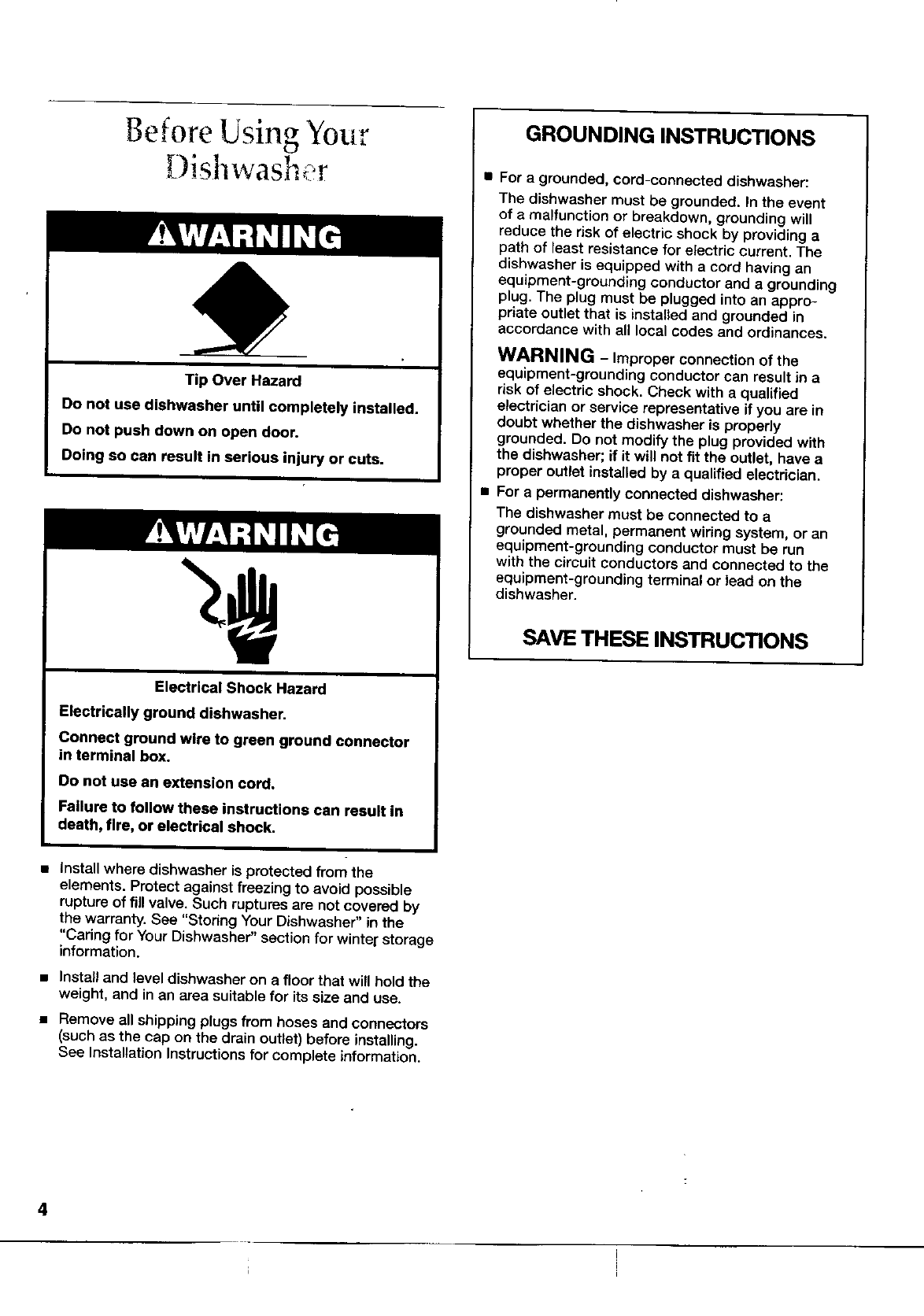

Before Using Your

") ° r_

shwash, r

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector

in terminal box,

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

•Installwhere dishwasher is protected from the

elements. Protect against freezing to avoid possible

rupture of fill valve. Such ruptures are not covered by

the warranty. See "Storing Your Dishwasher" in the

"Caring for Your Dishwasher" section for winter storage

information.

• Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use.

• Remove all shipping plugs from hoses and connectors

(such as the cap on the drain outlet) before installing.

See Installation Instructions for complete information.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event

of a malfunction or breakdown, grounding will

reduce the risk of electric shock by providing a

path of least resistance for electric current. The

dishwasher is equipped with a cord having an

equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appro-

priate outlet that is installed and grounded in

accordance with all local codes and ordinances.

WARNING - improper connection of the

equipment-grounding conductor can result in a

risk of electric shock. Check with a qualified

electrician or service representative if you are in

doubt whether the dishwasher is properly

grounded. Do not modify the plug provided with

the dishwasher; if it will not fit the outlet, have a

proper outlet installed by a qualified electrician.

• For s permanently connected dishwasher:

The dishwasher must be connected to a

grounded metal, permanent wiring system, or an

equipment-grounding conductor must be run

with the circuit conductors and connected to the

equipment-grounding terminal or lead on the

dishwasher.

SAVE THESE INSTRUCTIONS

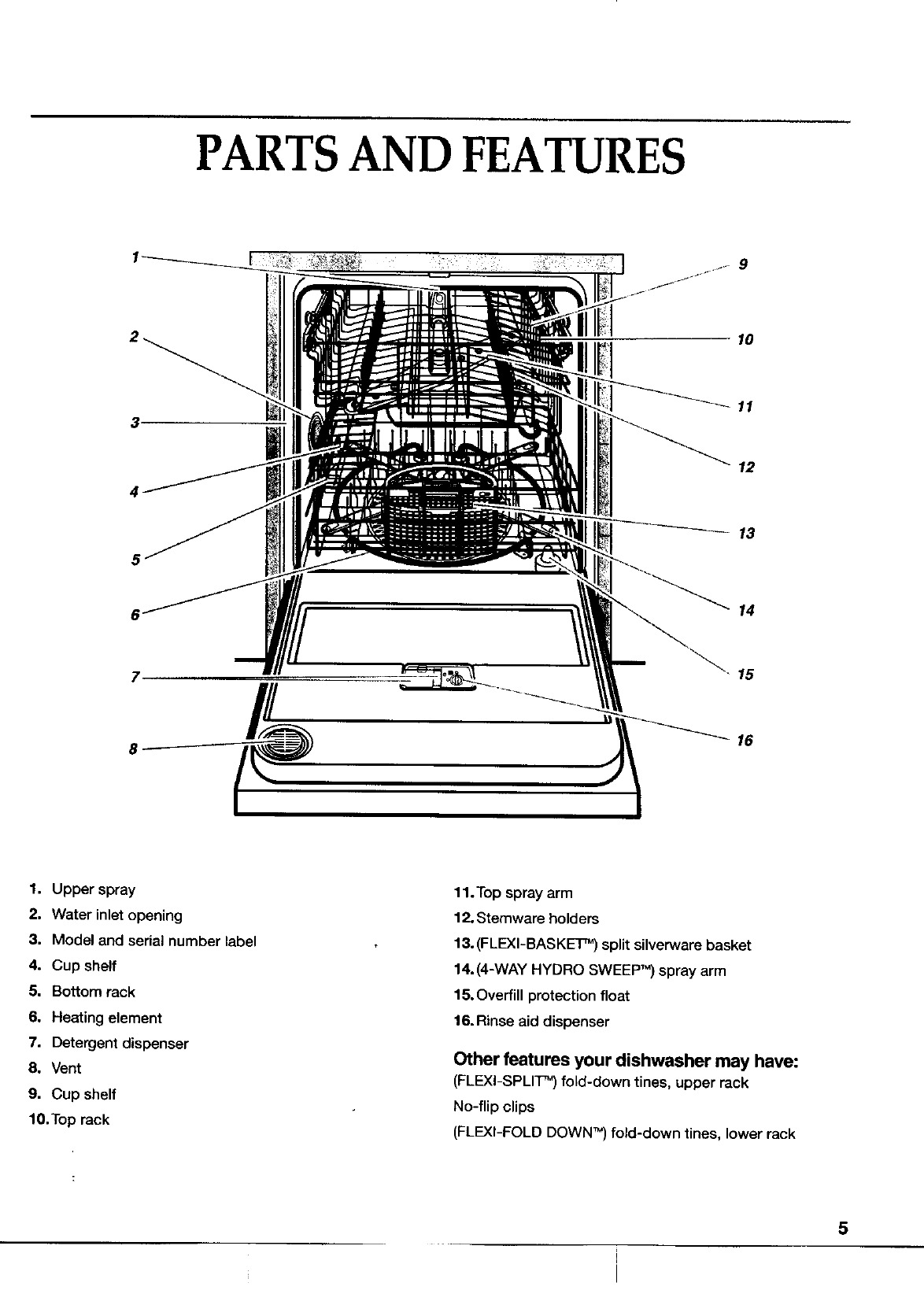

PARTS AND FEATURES

•15

816

1. Upper spray

2. Water inlet opening

3. Model and serial number label

4. Cup shelf

5. Bottom rack

6. Heating element

7. Detergent dispenser

8. Vent

9. Cup shelf

10.Top rack

11.Top spray arm

12. Stemware holders

13. (FLEXI-BASKET TM) split silverware basket

14. (4-WAY HYDRO SWEEPTM) spray arm

15. Overfill protection float

16. Rinse aid dispenser

Other features your dishwasher may have:

(FLEXI-SPLITTM) fold-down tines, upper rack

No-flip clips

(FLEXI-FOLD DOWNTM) fold-down tines, lower rack

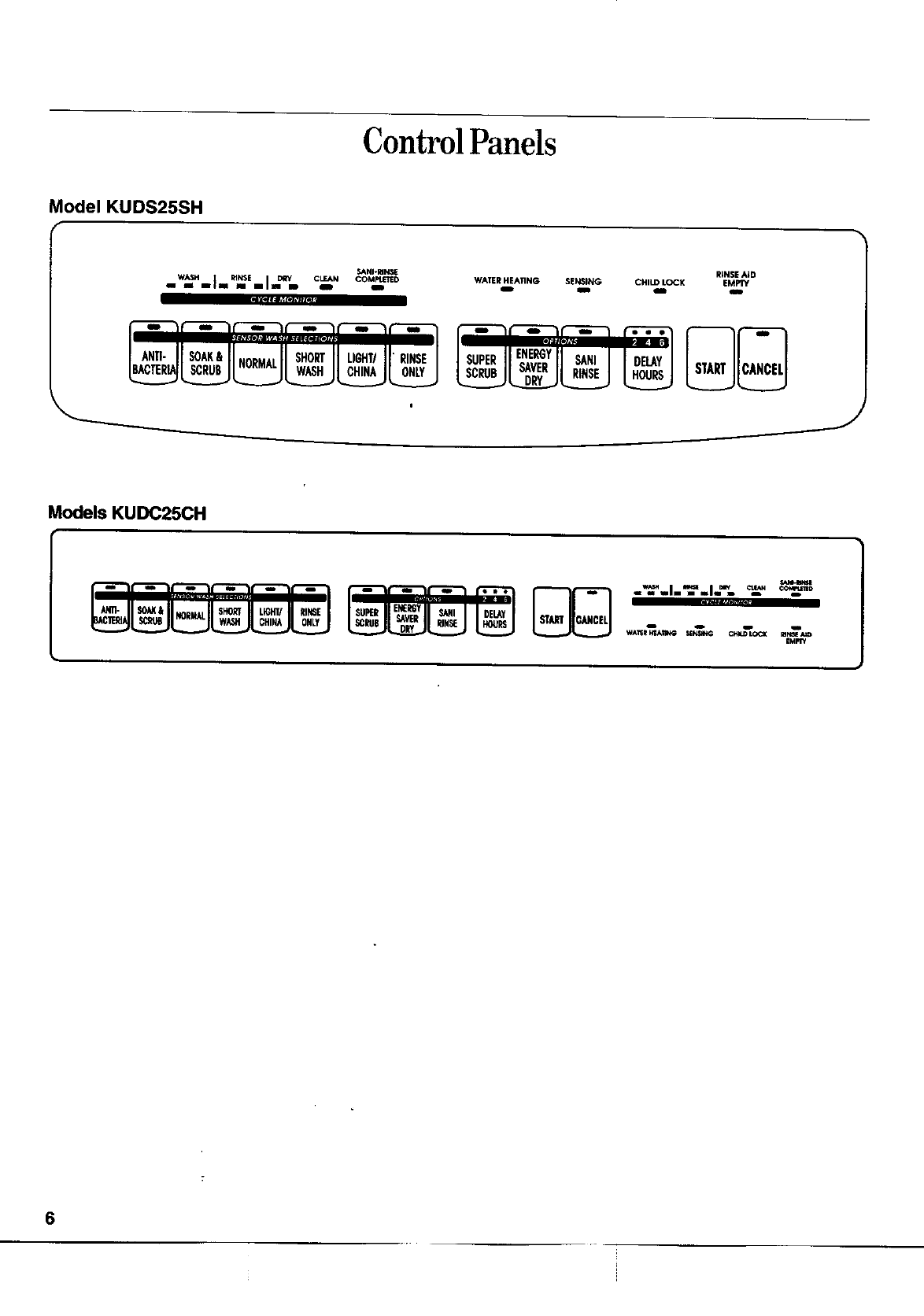

Control Panels

Model KUDS25SH

_NI-mN$£

WASH I RIN$1 I DRY CLEAN COMptETID

...,...,.. . .

I" if- ir.-..._,-. 11"II" I

|ANTI-]1 SOAK&II .nDu,,ll SHORT[I LIGHT/|l"RINSE/

RINSEAID

WATERHEAI1NG SENSING CHILD LOCK EMPTY

Models KUDC25CH

-- U"II "I

WA_R,_.AY11N_ _P_ C_I.OCK mt_

EMPTY

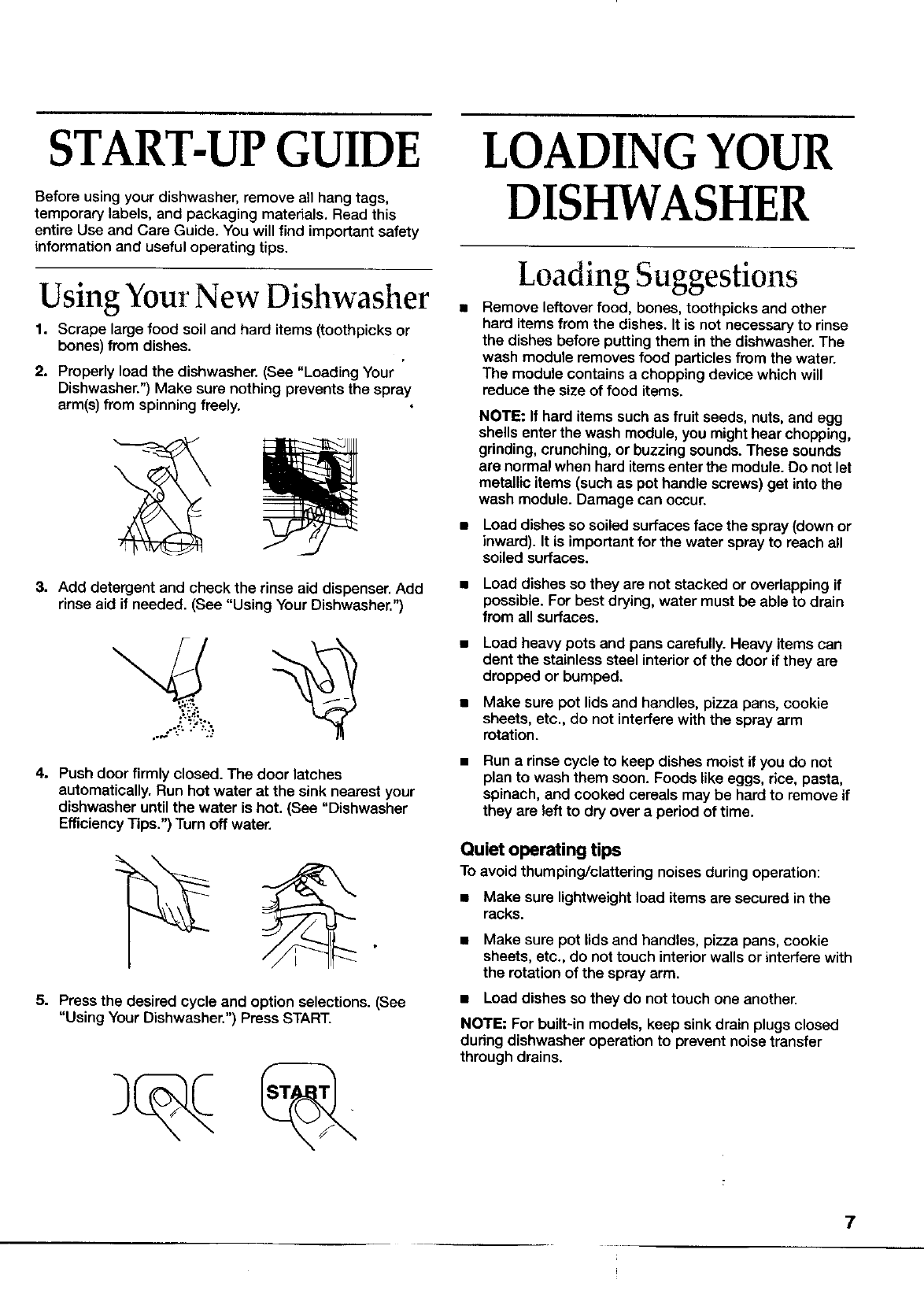

START-UP GUIDE

Before using your dishwasher, remove all hang tags,

temporary labels, and packaging materials. Read this

entire Use and Care Guide. You will find important safety

information and useful operating tips.

Using Your New Dishwasher

1. Scrape large food soil and hard items (toothpicks or

bones) from dishes.

2. Properly load the dishwasher. (See "Loading Your '

Dishwasher.") Make sure nothing prevents the spray

arm(s) from spinning freely.

3. Add detergent and check the rinse aid dispenser. Add

rinse aid if needed. (See "Using Your Dishwasher.")

4. Push door firmly closed. The door latches

automatically. Run hot water at the sink nearest your

dishwasher until the water is hot. (See "Dishwasher

Efficiency Tips.") Turn off water.

5. Press the desired cycle and option selections. (See

"Using Your Dishwasher.") Press START.

LOADING YOUR

DISHWASHER

Loading Suggestions

• Remove leftover food, bones, toothpicks and other

hard items from the dishes. It is not necessary to rinse

the dishes before putting them in the dishwasher. The

wash module removes food particles from the water.

The module contains a chopping device which will

reduce the size of food items.

NOTE: If hard items such as fruit seeds, nuts, and egg

shells enter the wash module, you might hear chopping,

grinding, crunching, or buzzing sounds. These sounds

are normal when hard items enter the module. Do not let

metallic items (such as pot handle screws) get into the

wash module. Damage can occur.

Load dishes so soiled surfaces face the spray (down or

inward). It is important for the water spray to reach all

soiled surfaces.

• Load dishes so they are not stacked or overlapping if

possible. For best drying, water must be able to drain

from all surfaces.

Load heavy pots and pans carefully. Heavy items can

dent the stainless steel interior of the door if they are

dropped or bumped.

Make sure pot lids and handles, pizza pans, cookie

sheets, etc., do not interfere with the spray arm

rotation.

Run a rinse cycle to keep dishes moist if you do not

plan to wash them soon. Foods like eggs, rice, pasta,

spinach, and cooked cereals may be hard to remove if

they are left to dry over a period of time.

Quiet operating tips

To avoid thumping/clattering noises during operation:

•Make sure lightweight load items are secured in the

racks.

• Make sure pot lids and handles, pizza pans, cookie

sheets, etc., do not touch interior walls or interfere with

the rotation of the spray arm.

• Load dishes so they do not touch one another.

NOTE: For built-in models, keep sink drain plugs closed

dudng dishwasher operation to prevent noise transfer

through drains.

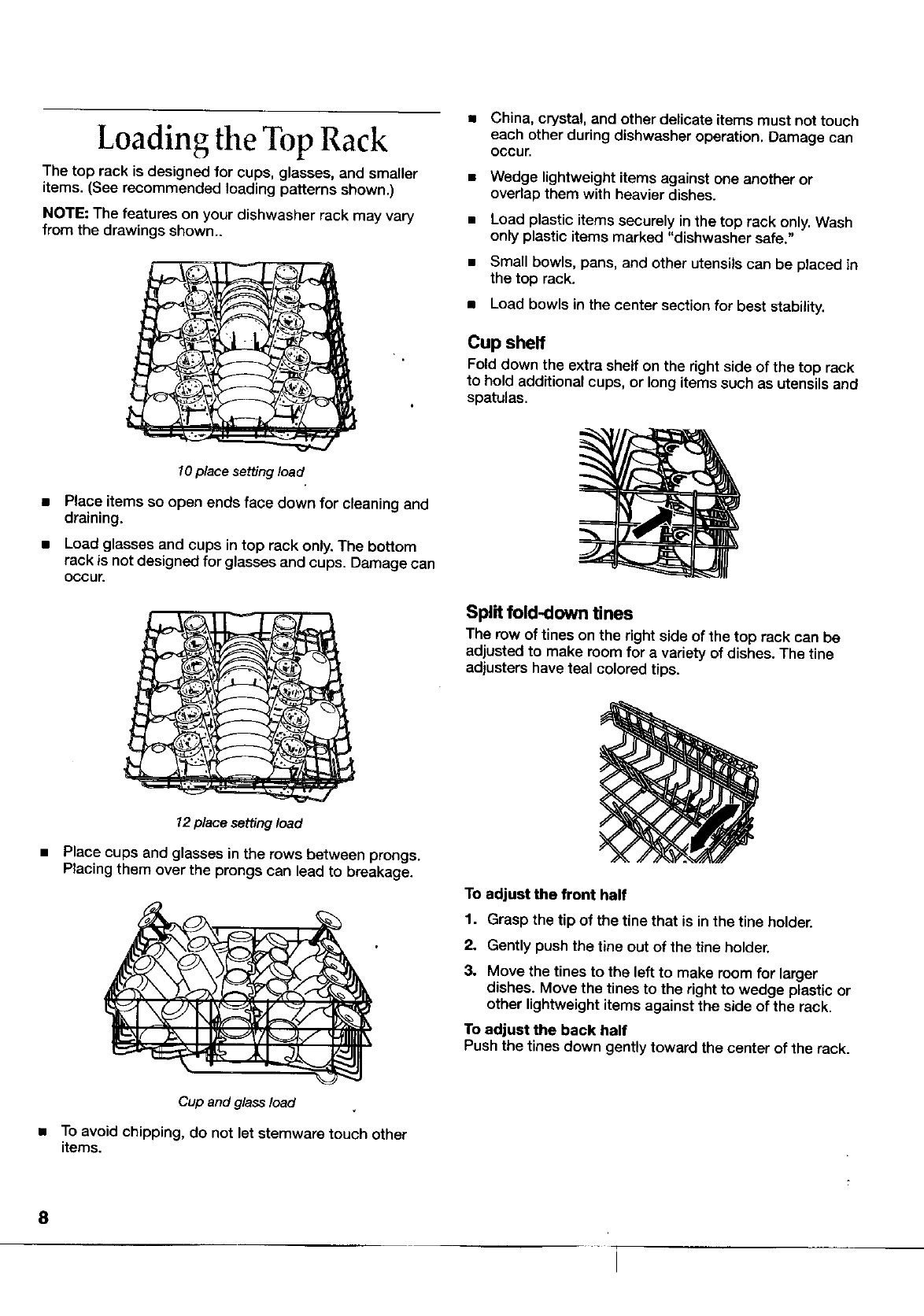

Loading the Top Rack

The top rack is designed for cups, glasses, and smaller

items. (See recommended leading patterns shown.)

NOTE: The features on your dishwasher rack may vary

from the drawings shown..

• China, crystal, and other delicate items must not touch

each other during dishwasher operation. Damage can

occur.

• Wedge lightweight items against one another or

overlap them with heavier dishes.

• Load plastic items securely in the top rack only. Wash

only plastic items marked "dishwasher safe."

•Small bowls, pans, and other utensils can be pieced in

the top rack.

• Load bowls in the center section for best stability.

Cup shelf

Fold down the extra shelf on the right side of the top rack

to hold additional cups, or long items such as utensilsand

spatulas.

10 place setting load

Place items so open ends face down for cleaning and

draining.

Load glasses and cups in top rack only. The bottom

rack is not designed for glasses and cups. Damage can

OCCU_

Split fold-down tines

The row of tines on the right side of the top rack can be

adjusted to make room for avariety of dishes. The tine

adjusters have teal colored tips.

12place setting load

Place cups and glasses in the rows between prongs.

Placing them over the prongs can lead to breakage.

Cup andg/assload

To adjust the front half

1. Grasp the tip of the tine that is inthe tine holder.

2. Gently push the tine out of the tine holder,

3. Move the tines to the left to make room for larger

dishes. Move the tines to the right to wedge plastic or

other lightweight items against the side of the rack.

To adjust the back half

Push the tines down gently toward the center of the rack.

• To avoid chipping, do not let stemware touch other

items.

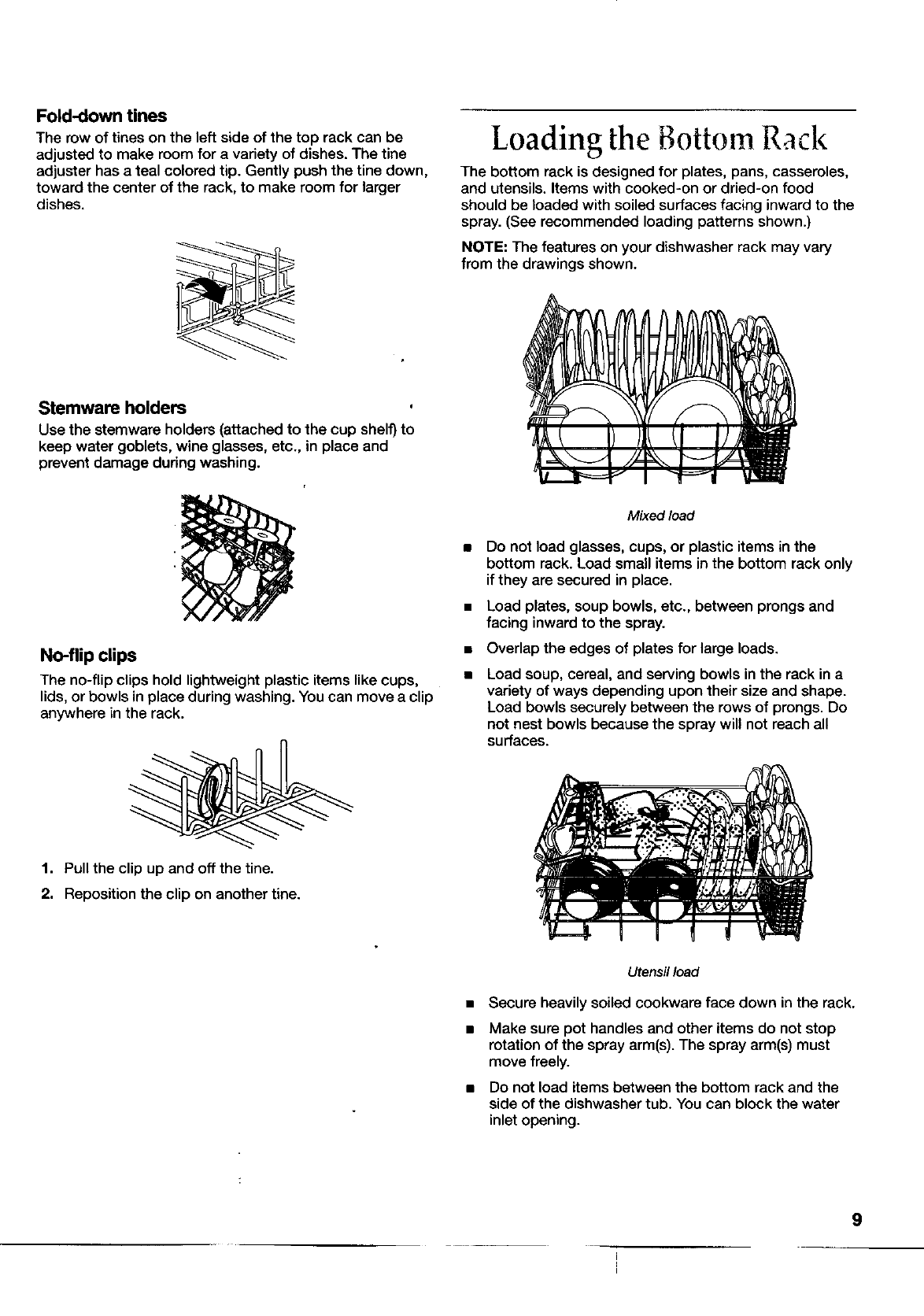

Fold-downtines

The row of tines on the left side of the top rack can be

adjusted to make room for a variety of dishes. The tine

adjuster has a teal colored tip. Gently push the tine down,

toward the center of the rack, to make room for larger

dishes.

Loading the Bottom Rack

The bottom rack is designed for plates, pans, casseroles,

and utensils. Items with cooked-on or dried-on food

should be loaded with soiled surfaces facing inward to the

spray. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may yaP/

from the drawings shown.

Stemware holders

Use the stemware holders (attached to the cup shelf) to

keep water goblets, wine glasses, etc., in place and

prevent damage during washing.

No-flip clips

The no-flip clips hold lightweight plastic items like cups,

lids, or bowls in place during washing. You can move a clip

anywhere in the rack.

Mixed load

Do not load glasses, cups, or plastic items in the

bottom rack. Load small items in the bottom rack only

if they are secured in place.

Load plates, soup bowls, etc., between prongs and

facing inward to the spray.

Overlap the edges of plates for large loads.

Load soup, cereal, and serving bowls in the rack in a

variety of ways depending upon their size and shape.

Load bowls securely between the rows of prongs. Do

not nest bowls because the spray wilt not reach all

surfaces.

1. Pull the clip up and off the tine.

2. Reposition the clip on another tine.

Utensil load

•Secure heavily soiled cookware face down in the rack.

•Make sure pot handles and other items do not stop

rotation of the spray arm(s). The spray arm(s) must

move freely.

•Do not load items between the bottom rack and the

side of the dishwasher tub. You can block the water

inlet opening.

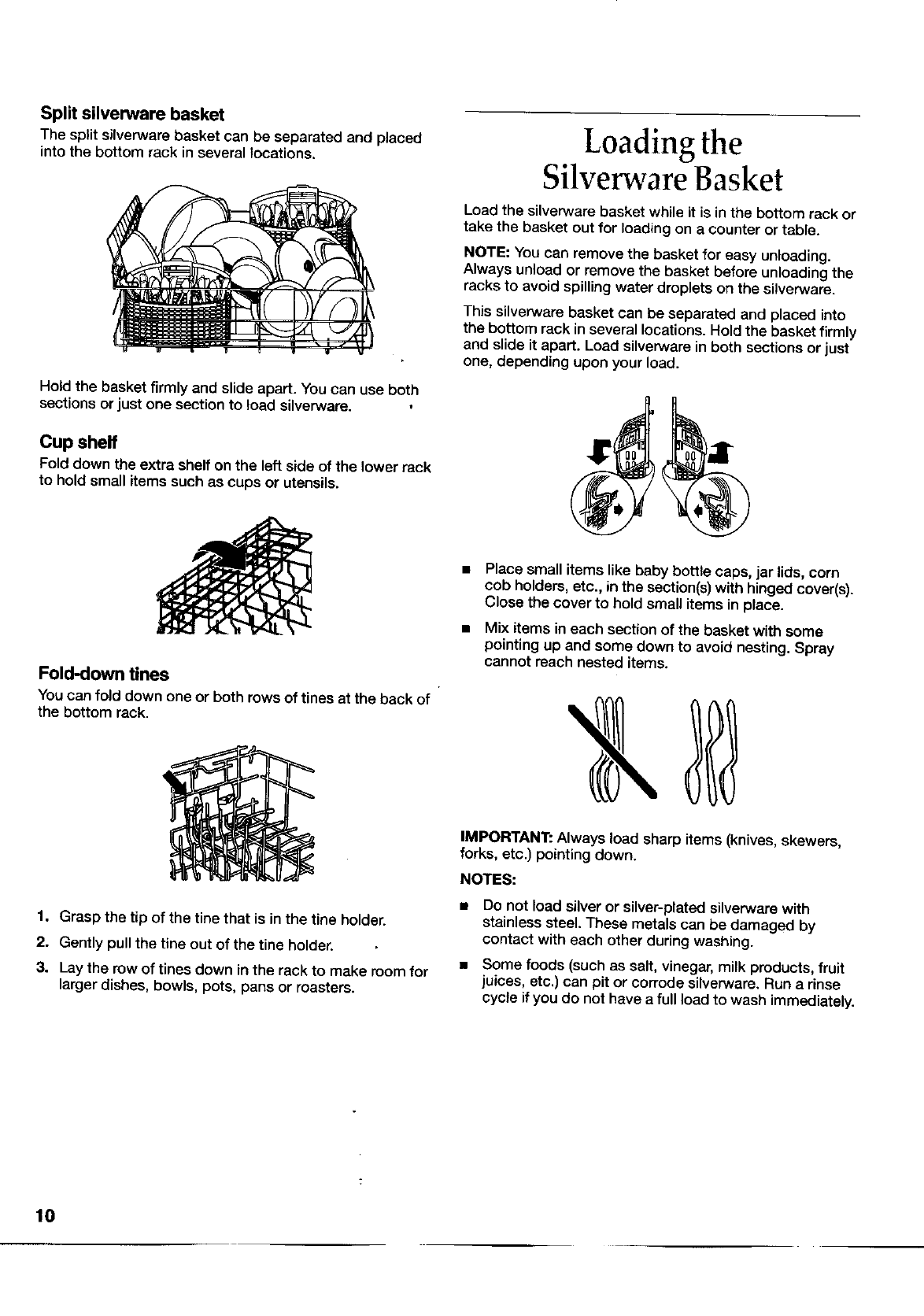

Split silverware basket

The split silverware basket can be separated and placed

into the bottom rack in several locations,

Hold the basket firmly and slide apart. You can use both

sections or just one section to load silverware.

Cup shelf

Fold down the extra shelf on the left side of the lower rack

to hold small items such as cups or utensils.

Fold-down tines

You can fold down one or both rows of tines at the back of

the bottom rack.

Loading the

Silverware Basket

Load the silverware basket while it is in the bottom rack or

take the basket out for loading on a counter or table.

NOTE: You can remove the basket for easy unloading.

Always unload or remove the basket before unloading the

racks to avoid spilling water droplets on the silverware.

This silverware basket can be separated and placed into

the bottom rack in several locations. Hold the basket firmly

and slide it apart. Load silverware in both sections or just

one, depending upon your load.

Place small items like baby bottle caps, jar lids, corn

cob holders, etc., in the section(s)with hinged cov'_(s).

Close the cover to hold small items in place.

Mix items in each section of the basket with soma

pointing up and some down to avoid nesting. Spray

cannot reach nested items.

1. Grasp the tip of the tine that is in the tine holder.

2. Gently pull the tine out of the tine holder.

3. Lay the row of tines down in the rack to make room for

larger dishes, bowls, pots, pans or roasters.

IMPORTANT: Always load sharp items (knives, skewers,

forks, etc.) pointing down.

NOTES:

• Do not load silver or silver-plated silverwarewith

stainless steel. These metals can be damaged by

contact with each other during washing.

• Some foods (such as salt, vinegar, milk products, fruit

juices, etc.) can pit or corrode silverware. Run a rinse

cycle if you do not have a full load to wash immediately.

USING YOUR

DISHWASHER

Detergent Dispenser

The detergent dispenser has 2 sections. The smaller Pre-

Wash section empties detergent into the dishwasher when

you close the door. The larger Main Wash section

automatically empties detergent into the dishwasher

during the wash cycle.

Use automatic dishwashing detergent only. Other

detergents can produce excessive suds that can

overflow out of the dishwasher and reduce washing

performance.

• Add detergent just before starting cycle.

• Store tightly closed detergent in a c(_ol, dry place.

Fresh automatic dishwasher detergent results in better

cleaning.

NOTE: Do not use detergent with a rinse cycle.

Filling the dispenser

1. If the dispenser cover is closed, open the cover by

rotating the button.

2. Fill the Main Wash section with detergent. See "How

Much Detergent to Use."

3. Close the Main Wash dispenser cover. Fill the Pre-

Wash section.

How Much Detergent to Use

• The amount of detergent to use depends on the

hardness of your water and the type of detergent. If you

use too little, dishes won't be clean. If you use too

much in soft water, glassware will etch.

• Water hardness can change over a period of time. Find

out your water's hardness by asking your local water

department, water softener company, or county

extension agent.

• You can order a water hardness test strip. Call the

Consumer Assistance Center at 1-800-422-1230 and

ask for Part Number 4171690.

Different brands of dishwasher detergent have different

amounts of phosphorous for softening water. If you

have hard water and use a detergent with a

phosphorous content of less than 8.7%, you might

need to use more detergent, or use a detergent with a

phosphorous content higher than 8.7%.

Water Hardness

Soft to Medium

Hard Water

0 to 6 grains per

gallon

Amount of Detergent

For normal loads

Partially fill the Main Wash

section (2 tbs or 30 g)

Fill the Pre-Wash section

(2 tbs or 30 g)

NOTE: Add only 1 tb or 15 g of

detergent to the Pre-Wash

section if dishes are prerinsed

or the water is very soft.

For baked on soil loads:

Medium to Hard

Water

• Fill the Main Wash section

(2 tbs or 30 g)

• Fill the Pre-Wash section

(2 tbs or 30 g)

For heavily soiled loads:

• Fill the Main Wash section

(3 tbs or 45 g)

• Fill the Pre-Wash section

(2 tbs or 30 g)

For normal and heavily soiled

loads:

7 to 12 grains per

gallon

• Fill the Main Wash section

(3 tbs or 45 g)

• Fill the Pre-Wash section

(2 tbs or 30 g)

It is normalfor the cover to open partially when, dispensing

detergent.

NOTE: Use both sections for cycles with 2 washes. Use

only the covered section for cycles with 1 wash. See the

"Cycle Selection Chart" for more details.

Water Hardness Amount of Detergent

very Hard Water For normal loads:

13 grains per

gallon and above

• Fillthe Main Wash section

(3 tbs or 45 g)

NOTE: It might be

necessary to use

the Soak & Scrub

cycle, or the

Normal cycle, with

a High Temp wash

option or Super

Scrub (if available)

for best wash

performance with

very hard water.

Fill the Pre-Wash section

(2 tbs or 30 g)

Turn the rinse aid dispenser to

a higher setting. See "Rinse

Aid Dispenser" later in this

section.

For heavily soiled loads;

•Fillthe Main Wash section.

(3 tbs or 45 g)

• Fill the Pre-Wash section

(2 tbs or 30 g)

• Turn the rinse aid dispenser to

a higher setting. See "Rinse

Aid Dispenser"later in this

section,

ii ,ll

NOTE: Fill amounts shown are for standard powdered

detergent. Amounts may vary if you use liquid or

concentrated powdered detergent. Follow instructions on

the package when using liquid dishwasher detergent or

concentrated powdered detergent.

Rinse Aid Dispenser

A rinse aid prevents water from forming droplets that can

dry as spots or streaks. It also improves drying by allowing

water to drain off of the dishes during the final rinse by

releasing a small amount of the rinse aid into the rinse

water. Your dishwasher is designed to use a liquid rinse

aid. Do not use a solid or bar-type rinse aid.

Filling the dispenser

The rinse aid dispenser holds 5.2 oz (153,7 mL) of rinse

aid. Under normal conditions, this will last for about three

months. You do not have to wait until the dispenser is

empty to refill it. Try to keep it full, but be careful not to

overfill it.

1. Make sure the dishwasher door is fully open.

2. Turn the dispenser knob to OPEN and lift it out.

3. Add rinse aid until the indicator window looks full.

4. Clean up any spilled rinse aid with a clamp cloth.

5. Replace the dispenser knob and turn it to CLOSED.

Rinse aid setting

The amount of rinse aid released into the final wash can be

adjusted. The factory setting is at 2. For most water

conditions set the adjuster to 1 or 2. If there are rings or

calcium (hard water) spots on dishes, try a higher setting.

To adjust the setting

Remove the dispenser knob, then turn the adjuster inside

the dispenser to the desired setting.

Dishwasher Efficiency Tips

Hot water dissolves and activates the dishwashing

detergent. Hot water also dissolvesgrease on dishes and

helps glasses dry spot-free. For best dishwashing results,

water must be at least 120°F (49°C) as it enters the

dishwasher. Loads may not wash as well if the water

temperature is too low.

To check water temperature

1. Run hot water at the faucet closestto your dishwasher

for at least 1 minute.

2. Measure the water temperature with acandy or meat

thermometer placed in the running stream of water.

3, If the water temperature at the faucet is below 120°F

(49°C), have aqualified person raise the water heater's

thermostat setting.

Use a low energy, quick, or short cycle whenever

possible. These cycles use tesshot water and energy

than the Normal wash cycle.

Use a delay feature (on some models) to run your

dishwasher during off-peek hours. Local utilities

recommend avoiding heavy usage of energy at certain

times of day,

During the summer, run your dishwasher at night to

reduce daytime heat buildup.

• Use an air dry, or an energy saving dry option whenever

possible. Allow longer drying times (overnight) when

using these options. Use a rinse aid to improve drying.

•Use cycles or options that add extra heat to the wash

or rinse portion of the cycle only when needed.

• Run your dishwasher with full loads. Run a rinse cycle

after meals until the dishwasher is full.

Cycle Selection Chart

Select the wash cycle and options desired. Press START

to use the same cycle and option(s) as the previous cycle.

NOTE: If the last cycle you completed was a rinse cyc)e,

the dishwasher will run the last full wash cycle and

options(s) that you selected when you press Start.

A "Q" shows what steps are in each cycle.

%This cycle is the most aggressive cycle to

virtually eliminate bacteria from your dish load.

Also use this cycle for hard-to-clean, heavily

soiled pots, pans, casseroles and regular

tableware. The water heats to 135°F (57°C)

during pre-wash, 145°F (63°C) in the main

wash, and 155°F (68°C) in the final rinse; and

when combined with our aggressive wash

action and your regular dishwasher detergent,

virtually eliminates food-soil bacteria.

NOTE: The Sani Rinse option is automatic

with this cycle.

Use both detergent dispenser sections.

Pre- Rinse Main Rinse Purger Rinse Dry Time Water

Wash Wash (min) Usage

(gaUL)

• • • • • ss* B,e,,3z_

Use this cycle for loads with normal amounts

of food soil. This cycle adds heat to the main

wash and heats the water to 140°F (60°C) in

the final rinse. (The energy usage label is based

on this cycle.) When the wash sensor detects

extra food soil, heating time is added in the

main wash, if needed, to ensure a 140°F (60°C)

wash temperature.

Use both detergent dispenser sections.

Pre- Rinse Main Rinse Purget Rinse Dry Time Water

Wash Wash (rain) Usage

(gauL)

• • • • • 7s* s._2e.2

%Use this cycle for lightly soiled loads. This

cycle adds heat to the main wash and heats

the water to 140°F (60°C) in the final rinse.

When the wash sensor detects extra food soil,

heating time is added in the main wash, if

needed, to ensure a 140°F (60°C) wash

temperature.

Use both detergent dispenser sections.

Pre- Rinse Main Rinse Purgat Rinse Dry Time Water

Wash Wash (min) Usage

(gaUL)

%Use this cycle for china, crystal, and other

delicate items. No extra heat is added to the

main wash. Water heats to 13g°F (54°C) in the

final rinse.

Use covered detergent dispenser.

Pre- Rinse Main Rinse Purger Rinse Dry Time Water

Wash Wash (min) Usage

(gaUL)

• • • • eO" _24.s

Use this cycle for hard-to-clean, heavily soiled

pots, pans, casseroles, regular tableware, and

harder than normal water conditions. The

water heats to 135°F (57°C) during pre-wash,

140°F (60°C) in the main wash, and 140°F

(60°C) in the final rinse.

Use both detergent dispenser sections.

Pre- I Rinse I Main IRinse [Purger] Rinse !DW ITime Water

Wash Wash (rain) Usage

I I

8(.6g_31/_)7

• , i.. . .

I I

Use this rinse cycle for rinsing dishes, glasses,

and silverware that will not be washed right

away.

Do not use detergent with the rinse cycle.

Pre- Rinse Main Rinse Purger Rinse Dry Time Water

Wash Wash (rain) Usage

(gaVL)

•10 2.2/8.2

*Expect longer cycle times if waterenteringthe dishwasheris

not hot enough.

t" A small amount of water is runthrough the pump to remove

soil particles betweenthe main wash andfinal rinse.

NOTE: The sensor in your dishwasher monitors the soil

level. Cycle time and/or water usage can vary from the

numbers above as the sensor adjusts the cycle for the

best wash performance.

1."4

Canceling a Cycle

Anytime during a cycle, press

CANCEL glows. The dishwasher pauses for 5 seconds and

starts a 2 minute drain (if needed). Let the dishwasher

drain completely. The light goes off when the dishwasher

finishes the drain. .

Changing a Cycle or Setting

During the first 2 minutes of a cycle

1. Press a new cycle and/or option(s).

2. Check the detergent dispensers. They must be filled

properlyfor the new cycle.

After the first 2 minutes of a cycle

Press

CANCEL glows. The dishwasher pauses for 5 seconds and

starts a 2 minute drain (if needed). Let the dishwasher

drain completely.

1. Check the detergent dispensers. They must be filled

properly for the new cycle.

2. Close the door.

3. Press a new cycle and/or option(s).

4. Press START.

Adding Items During a Cycle

You can add an item anytime before the main w_sh starts.

1. Lift up the door latch to stop the cycle. Wait for the

spraying action to stop before opening the door.

2. Open the door and add the item.

3. Close the door, but do not latch it. Wait 30 seconds for

the air in the dishwasher to warm up. This reduces the

amount of moisture escaping from the vent when

restarting a cycle.

4. Close the door firmly until it latches. The dishwasher

resumes the cycle after about a 5 second pause.

Option Selections

You can customize your cycles by pressing an option. If

you change your mind, press the option again to turn the

option off. Select a different option if desired.

You can change an option anytime before the selected

option begins. For example, you can press an unheated

drying option any time before drying begins.

Press START to use the same cycle and option(s) as the

previous wash cycle.

NOTE: If the last cycle you completed was a rinse cycle,

when you press Start, the dishwasher runs the last full

wash cycle and option(s).

Super Scrub

Select this high-temperature option for improved cleaning

of heavily soiled dishes. Selecting this option adds heat

and wash time to the wash cycle. Heating the water helps

improve washing results.

NOTE: Super Scrub is an option with the Anti-Bacteria,

Soak & Scrub and Normal cycles.

Energy Saver Dry

Select this option to dry dishes without heat and save

energy. The dishes take longer to dry and some spotting

can Occur.

For best drying, use a liquid rinse aid. Some items (such as

plastics) may need towel drying.

NOTE: Energy Saver Dry is an option with all cycles except

Rinse Only.

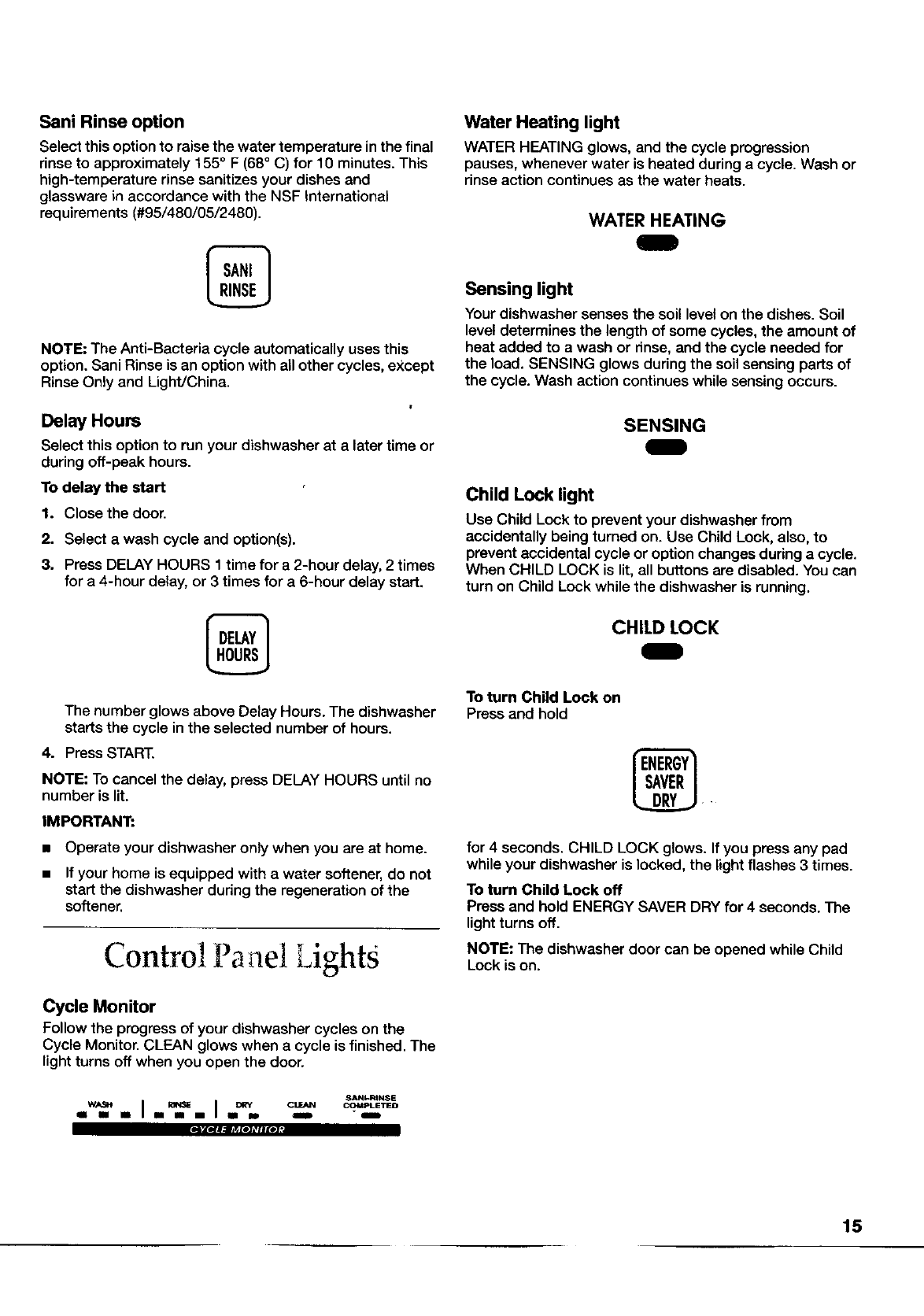

Sani Rinseoption

Select this option to raise the water temperature inthe final

rinse to approximately 155°F (68°C) for 10 minutes. This

high-temperature rinse sanitizes your dishes and

glassware in accordance with the NSF International

requirements (#95/480/05/2480).

NOTE: The Anti-Bacteria cycle automatically uses this

option. Sani Rinse is an option with allother cycles, except

Rinse Only and Light/China.

Delay Hours

Select this option to run your dishwasher at a later time or

during off-peak hours.

To delay the start

1. Close the door.

2. Select a wash cycle and option(s).

3. Press DELAY HOURS 1 time for a 2-hour delay, 2 times

for a 4-hour delay, or 3 times for a 6-hour delay start.

The number glows above Delay Hours. The dishwasher

starts the cycle in the selected number of hours.

4. Press START.

NOTE: To cancel the delay, press DELAY HOURS untilno

number is lit.

IMPORTANT:

Operate your dishwasher only when you are at home.

If your home is equipped with a water softener, do not

start the dishwasher during the regeneration of the

softener.

Control Paael Lights

Cycle Monitor

Follow the progress of your dishwasher cycles on the

Cycle Monitor, CLEAN glows when a cycle is finished,The

lightturns off when you open the door.

s| m m nm

)I_F_#I*I_KOJ_H£eT

SANI-RINSE

CLEAN COMPLETED

Water Heating light

WATER HEATING glows, and the cycle progression

pauses, whenever water is heated during a cycle. Wash or

rinse action continues as the water heats.

WATER HEATING

Sensing light

Your dishwasher senses the soil levelon the dishes. Soil

level determines the length of some cycles, the amount of

heat added to a wash or rinse, and the cycle needed for

the load. SENSING glows during the soil sensing parts of

the cycle. Wash action continues while sensing occurs.

SENSING

Child Lock light

Use Child Lock to prevent your dishwasher from

accidentally being turned on. Use Child Lock, also, to

prevent accidental cycle or option changes during a cycle.

When CHILD LOCK is lit, all buttons are disabled. You can

turn on Child Lock while the dishwasher is running.

CHILD LOCK

To turn Child Lock on

Press and hold

for 4 seconds. CHILD LOCK glows. If you press any pad

while your dishwasher is locked, the light flashes 3 times.

To turn Child Lock off

Press and hold ENERGY SAVER DRY for 4 seconds. The

lightturns off.

NOTE: The dishwasher door can be opened while Child

Lock is on.

Rinse Aid Empty light

Fill the Rinse Aid dispenser when RINSE AID EMPTY is lit.

A rinse aid prevents water from forming droplets that can

dry as spots or streaks.

RINSE AID

EMPTY

If the Rinse Aid dispenser is empty, the light glows when

you select a cycle or while ecycle is running.

Sani-Rinse Completed light

if you select the Sani Rinse option, SANI-RINSE

COMPLETED glows when the Sani Rinse cycle is finished.

SANI-RINSE

COMPLETED

I...JI

if your dishwasher did not properly sanitize your dishes,

the light flashes at the end of the cycle. This can happen if

the cycle is interrupted. The light goes off when you open

the door.

WashSystem

The five-level wash system provides excellent cleaning

results. A triple filtration and soil collector system filters the

wash water and prevents food particles from redepositing .

on the clean dishes.

•The wash water continuously flows through the Ultra-

Fine filter, trapping food particles. A small amount of

water remains under the filter to keep the pump seal

moist.

How the sensor adjusts the cycle:

Once soil level is determined, the sensor automatically

adds heat, time, or water as needed for proper cleaning.

D " gSy"

t, nstem

During drying, you can see steam escaping through the

vent at the upper _eftcorner of the door. This is normal as

the heat dries your dishes.

IMPORTANT: The vapor is hot. Do not touch the vent

during drying.

Overfill Protection Float

The overfill protector (in the front right corner of the

dishwasher tub) keeps the dishwasher from overfilling. It

must be in place for the dishwasher to operate.

Check under the float for objects that may keep the

protector from moving up or down.

As the Ultra-Fine filter traps food particles, the pressure

in the pump increases. The sensor monitors this

pressure and automatically adjusts the wash cycle for

the best wash performance.

• Two water jets, located under the spray arm remove the

food particles from the Ultra-Fine filter.

•A coarse strainer prevents bones, pits, and'other large

objects from entering the pump system.

NOTE: Periodically check the coarse strainer and remove

: any objects on the strainer,

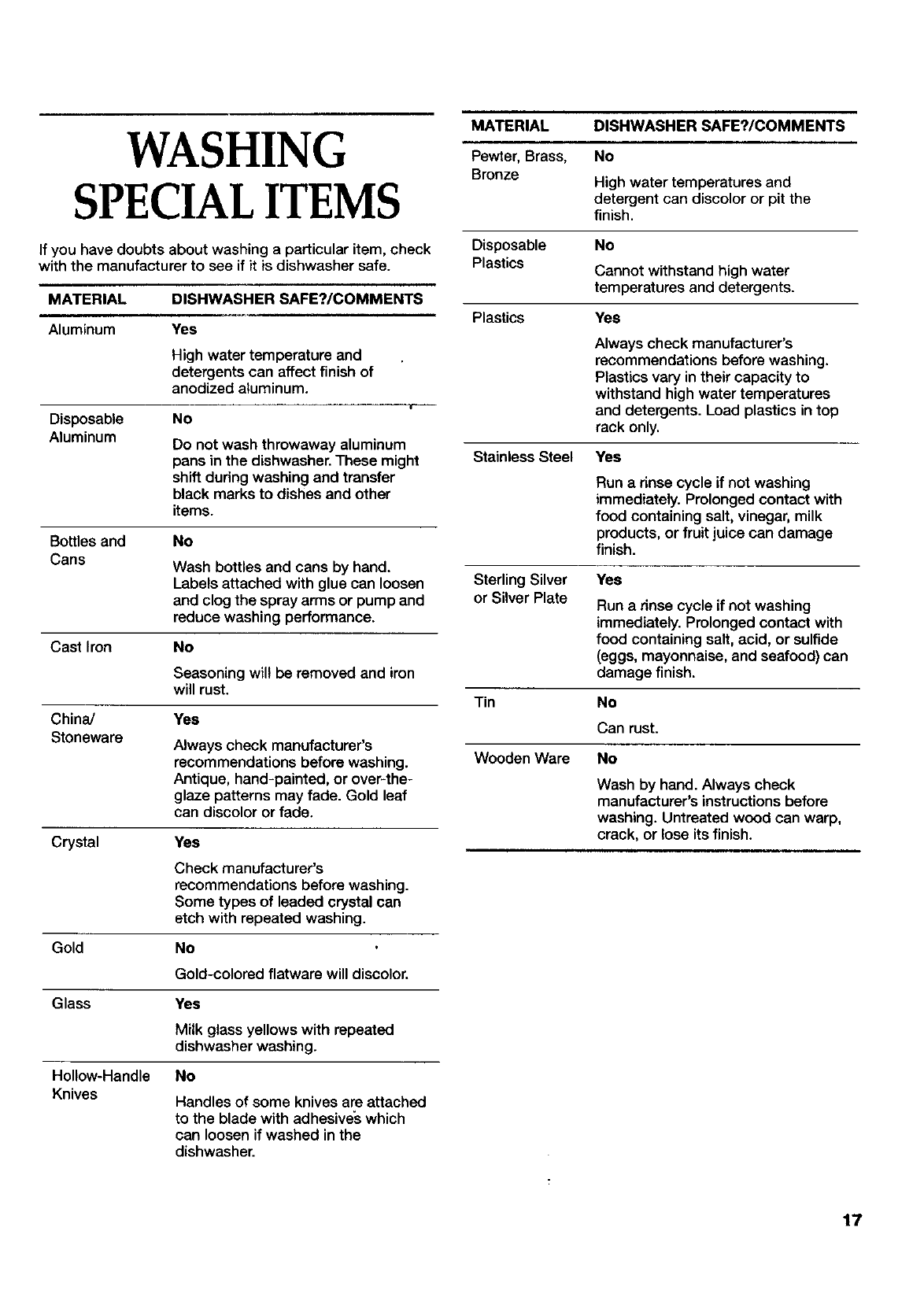

WASHING

SPECIALITEMS

If you have doubts about washing a particular item, check

with the manufacturer to see if it is dishwasher safe.

MATERIAL DISHWASHER SAFE?/COMMENTS

Aluminum Yes

High water temperature and

detergents can affect finish of

anodized aluminum.

Disposable No

Aluminum Do not wash throwaway aluminum

pans in the dishwasher. These might

shift during washing and transfer

black marks to dishes and other

items.

Bottles and No

Cans Wash bottles and cans by hand.

Labels attached with glue can loosen

and clog the spray arms or pump and

reduce washing performance.

Cast Iron No

Seasoning will be removed and iron

will rust.

China/

Stoneware

Yes

Always check manufacturer's

recommendations before washing.

Antique, hand-painted, or over-the-

glaze patterns may fade. Gold leaf

can discolor or fade.

Crystal Yes

Check manufacturer's

recommendations before washing.

Some types of leaded crystal can

etch with repeated washing.

Gold No

Gold-colored flatware will discolor.

Glass Yes

Milk glass yellows with repeated

dishwasher washing.

Hollow-Handle No

Knives Handles of some knives are attached

to the blade with adhesives which

can loosen if washed in the

dishwasher.

MATERIAL DISHWASHER SAFE?/COMMENTS

Pewter, Brass, No

Bronze High water temperatures and

detergent can discolor or pit the

finish.

Disposable No

Plastics Cannot withstand high water

temperatures and detergents.

Plastics Yes

Always check manufacturer's

recommendations before washing.

Plastics vary in their capacity to

withstand high water temperatures

and detergents. Load plastics intop

rack only.

Stainless Steel Yes

Run arinse cycle if not washing

immediately. Prolonged contact with

food containing salt, vinegar, milk

products, or fruit juice can damage

finish.

Sterling Silver

or Silver Plate

Yes

Run adnse cycle if not washing

immediately. Prolonged contact with

food containing salt, acid, or sulfide

(eggs, mayonnaise, and seafood) can

damage finish.

Tin No

Can rust.

Wooden Ware No

Wash by hand. Always check

manufacturer's instructions before

washing. Untreated wood can warp,

crack, or lose its finish.

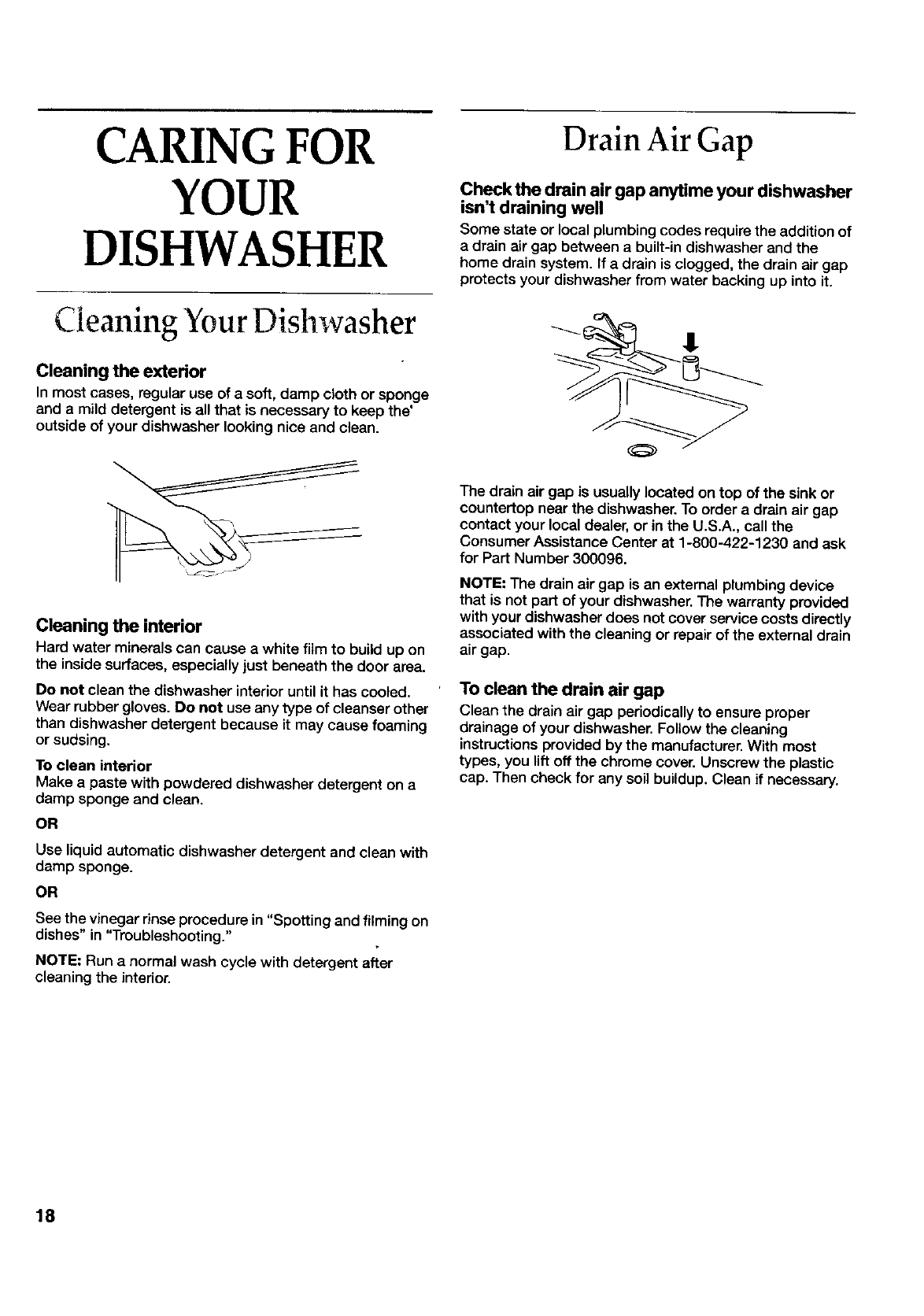

CARING FOR

YOUR

DISHWASHER

Cleaning Your Dishwasher

Cleaning the extedor

In most cases, regular use of a soft, damp cloth or sponge

and a mild detergent is all that is necessary to keep the'

outside of your dishwasher looking nice and clean.

Cleaning the interior

Hard water mineralscan cause a white film to build up on

the insidesurfaces, especially just beneath the door area.

Do not clean the dishwasher interioruntil it has cooled.

Wear rubber gloves. Do not use any type of cleanser other

than dishwasher detergent because it may cause foaming

or sudsing.

To clean interior

Make a paste with powdered dishwasher detergent on a

clamp sponge and clean.

Use liquid automatic dishwasher detergent and clean with

damp sponge.

See the vinegar rinse procedure in "Spotting and filming on

dishes" in "Troubleshooting."

NOTE: Run a normal wash cycle with detergent after

cleaning the interior.

Drain Air Gap

Check the drain air gap anytime your dishwasher

isn't draining well

Some state or local plumbing codes requirethe addition of

a drain air gap between a built-indishwasher and the

home drain system. If a drain is clogged, the drain air gap

protects your dishwasher from water backing up into it.

The drain air gap is usuallylocated on top of the sink or

countertop near the dishwasher. To order a drain air gap

contact your local dealer, or in the U.S.A., call the

Consumer Assistance Center at 1-800-422-1230 and ask

for Part Number 300096.

NOTE: The drain air gap is an external plumbing device

that is not part of your dishwasher. The warranty provided

with your dishwasher does not cover servicecosts directly

associated with the cleaning or repair of the external drain

air gap.

To clean the drain air gap

Clean the drain air gap periodically to ensure proper

drainage of your dishwasher. Follow the cleaning

instructions provided by the manufacturer. With most

types, you lift off the chrome cover. Unscrew the plastic

cap. Then check for any soil buildup. Clean if necessary.

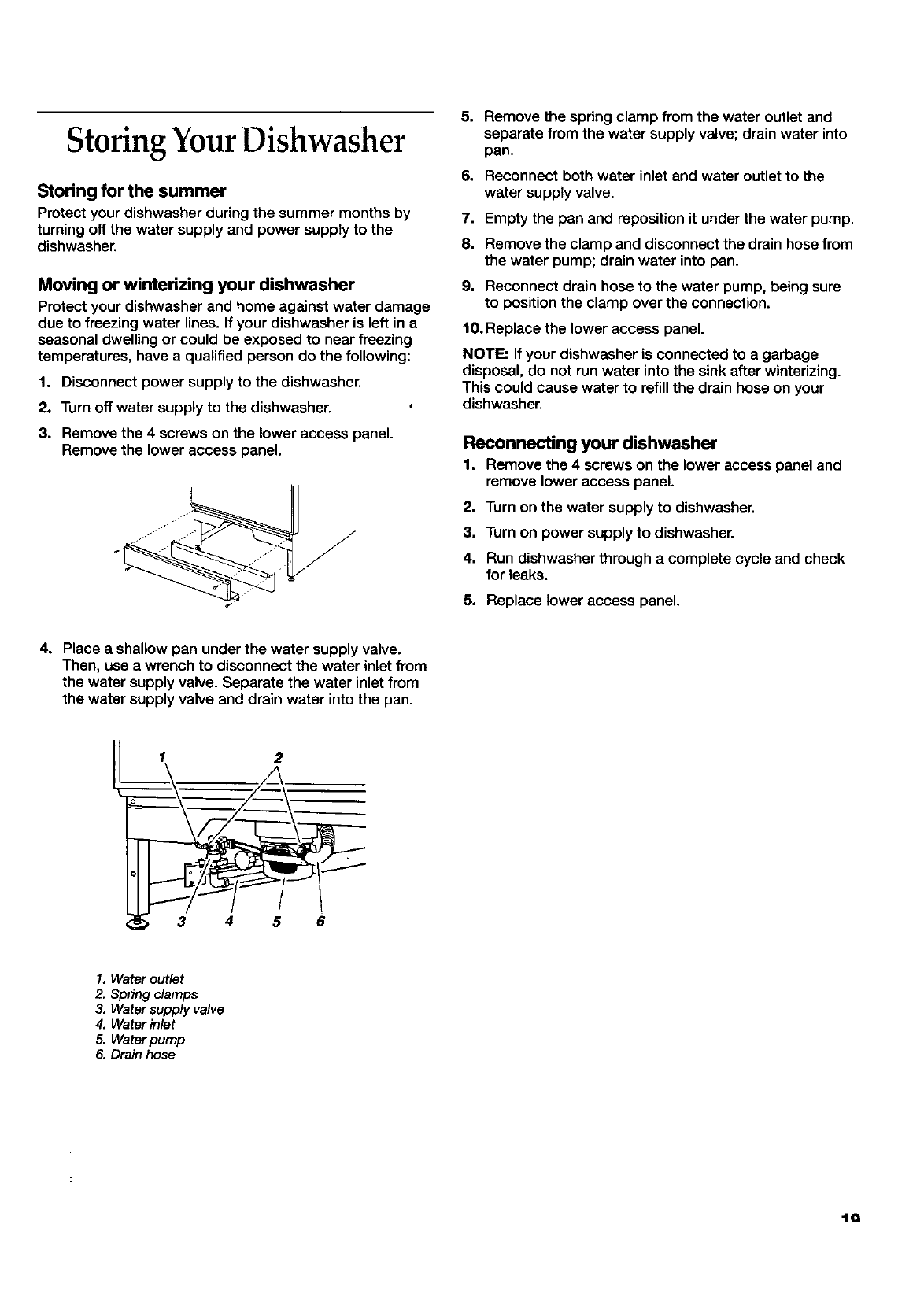

Storing YourDishwasher

Storing for the summer

Protect your dishwasher duringthe summer months by

turning off the water supply and power supply to the

dishwasher.

Moving or winterizing your dishwasher

Protect your dishwasher and home against water damage

due to freezing water lines. If your dishwasher is left in a

seasonal dwellingor could be exposed to near freezing

temperatures, have a qualified person do the following:

1, Disconnect power supply to the dishwasher.

2. Turn off water supply to the dishwasher.

3. Remove the 4 screws on the lower access panel.

Remove the lower access panel.

5. Remove the spring clamp from the water outlet and

separate from the water supply valve; drain water into

pan.

6. Reconnect both water inlet and water outlet to the

water supply valve.

7. Empty the pan and reposition it under the water pump.

8. Remove the clamp and disconnect the drain hose from

the water pump; drain water into pan.

9. Reconnect drain hose to the water pump, being sure

to position the clamp over the connection.

10. Replace the lower access panel.

NOTE: If your dishwasher is connected to a garbage

disposal, do not run water into the sink after winterizing.

This could cause water to refillthe drain hose on your

dishwasher.

Reconnecting your dishwasher

1. Remove the 4 screws on the lower access panel and

remove lower access panel.

2. Turn on the water supplyto dishwasher.

3. Turn on power supply to dishwasher.

4. Run dishwasher through a complete cycle and check

for leaks.

5. Replace lower access panel.

4. Place a shallow pan under the water supply valve.

Then, use a wrench to disconnect the water inlet from

the water supply valve. Separate the water inlet from

the water supply valve and drain water into the pan.

-----

3 4 5 6

1. Water outlet

2, Spring clamps

3. Water supply valve

4. Water inlet

5. Water pump

6. Drain hose

TROUBLE-

SHOOTING

First try the solutions suggested here and

possibly avoid the cost of a service call...

Dishwasher is not operating properly

•Dishwasher does not run or stops during a cycle

Is the doorclosed tightlyand latched?

Is the right cycle selected? Refer to the "Cycle Selection

Chart."

Is there power to the dishwasher? Has a household fuse

blown or circuit breaker tripped?

Has the motor stopped due to an overload? The motor

automatically resets itself within a few minutes. If it does

not restart, call for service.

Is the water shut-off valve (if installed) turned on?

•Dishwasher will not fill

Is the overfillprotection float able to move up and down

freely? Press down to release.

•Dishwasher seems to run too long

Is the water supplied to the dishwasher hot enough? The

dishwasher runs longer while heatingwater. Refer to the

"Dishwasher Efficiency Tips"section,

A delay automatically occurs in some wash and rinse

cycles untilthe water reaches the proper temperature.

•Water remains in the dishwasher

Is the cycle complete?

•Detergent remains in the covered section of the

dispenser

Is the cycle complete?

Is the detergent lump-free? Replace detergent if

necessary.

•White residue on the front of the access panel

Was too much detergent used? Refer to the "Detergent

Dispenser"section.

Is the brand of detergent making excess foam?_Try a

different brand to reduce foaming and eliminate buildup.

•Odor in the dishwasher

Are dishes washed only every 2 or 3 days? Run a rinse

cycle once or twice a day until you have a full load.

Does the dishwasher have a new plastic smell? Run a

vinegar rinse as described in "Spotting and filming on

dishes" later in this Troubleshooting guide.

•Condensation on the kitchen counter (built-in

models)

Is the dishwasher aligned withthe countertop? Moisture

fromthe vent in the dishwasher console can formon the

counter. Refer to the installation instructionsfor more

information.

Dishes are not completely clean

Food soil left on the dishes

Is the dishwasher loaded correctly? Refer to the

"Loading Your Dishwasher"section.

Is the water temperature too low? If needed, turn home

water heater up to ensure water entering dishwasher is

at least 120°F (49°C). Refer to the "Dishwasher

Efficiency Tips" section.

Did you use the correct amount of fresh detergent? Use

recommended dishwasher detergents only. Refer to the

"Detergent Dispenser" section. Never use less than one

tablespoon per load. Detergent must be fresh to be

effective. Store detergent in a cool, dry area. Heavy soil

and/or hard water generally require extra detergent.

Is detergent caked in dispenser? Use fresh detergent

only. Do not allow detergent to sit for several hours in a

wet dispenser. Clean dispenser when caked detergent is

present.

Is the pump or spray arm clogged by labels from bottles

and cans? Remove labels before washing bottles and

cans or wash by hand.

Is the home water pressure high enough for proper

dishwasher filling? Home water pressure should be 20

to 120 psi (138 to 828 kPa) for proper dishwasher fill. A

booster pump on the water supply can be added if

pressure is too low.

Are high suds slowingthe wash arm? Never use soap or

laundry detergents. Use recommended dishwasher

detergents only.

Spots and stains on dishes

•Spotting and filming on dishes

Is your water hard or is there a high mineral content in

your water? Conditioning the final rinse water with a

liquidrinse aid helps eliminate spotting and filming.

Keep the rinse aid dispenser filled,

ts the water temperature too low? If needed, turn home

water heater up to ensure water entering dishwasher is

at least 120°F (49°C). Refer to the "Dishwasher

Efficiency Tips" section.

Did you use the correct amount of effective detergent?

Use recommended dishwasher detergents only. Refer to

the "Detergent Dispenser" section. Never use less than

1tablespoon per load. Detergent must be fresh to be

effective. Store detergent in a cool, dry area. Heavy soil

and/or hard water generally require extra detergent.

Is the home water pressure high enough for proper

dishwasher filling? Home water pressure should be 20

to 120 psi (138 to 828 kPa) for proper dishwasher fill, A

booster pump on the water supply can be added if

pressure is too low.

NOTE: To remove spots and film from dishes, try a white

vinegar rinse. This procedure is intended for occasional

use only. Vinegar is an acid and using it too often could

damage your dishwasher.

1. Wash and rinse dishes. Use an air-dry or an energy

saving dry option. Remove all silverware or metal

items.

2. Put 2 cups (473 mL) white vinegar in a glass or

dishwasher-safe measuring cup on the bottom r_,ck.

3. Run the dishwasher through a complete washing

cycle using an air-dry or an energy saving dry option.

Do not use detergent. Vinegar will mix with the wash

water.

• Silica film or etching (silica film is a milky, rainbow-

colored deposit; etching is a cloudy film)

Sometimes there is a water/chemical reaction with

certain types of glassware. This is usuallycaused by

some combination of soft or softened water, alkaline

washing solutions, insufficientrinsing,overloading the

dishwasher,and the heat of drying. It might not be

possibleto prevent the problem, except by hand

washing.

To slow this process use a minimum amount of

detergent but not less than 1 tablespoon per load. Use a

liquid rinse aid and underload the dishwasher to allow

thorough rinsing. Silica film and etching are permanent

and cannot be removed. Do not use heated drying.

• White spots on cookware with non-stick finish

Has the dishwasher detergent removed cookware

seasoning? Reseason cookware after washing in the

dishwasher,

mBrown stains on dishes and dishwasher interior

Does your water have high iron content?Rewash dishes

using 1-3 teaspoons of citric acid crystalsadded to the

covered section of the detergent dispenser. Do not use

detergent. Follow with a Normal wash cycle with

detergent. If treatment is needed more often than every

other month,the installationof an iron removal unit is

recommended,

•Black or gray marks on dishes

Are aluminum items rubbing dishes during washing?

Disposable aluminum items can break down in the

dishwasher and cause marking. Hand wash these items.

Remove aluminum markings by usinga mild abrasive

cleaner.

•Orange stains on plastic dishes or dishwasher

interior

Are large amounts of tomato-based foods on dishes

placed in the dishwasher?Stains gradually fade over

time. Regular use of heated drying will slow fading.

Stains will not affect dishwasher performance. Regular

use of a rinse cycle and an air-dry or energy-saving dry

option will reduce the likelihood of staining.

Dishes do not dry completely

•Dishes are not dry

Did you load "yourdishwasher to allow proper water

drainage? Do not overload, Refer to the "Loading Your

Dishwasher"section. Use a liquidrinse aid to speed

drying.

Are the plastics wet? Plasticsoften need towel drying.

Is the rinse aid dispenser empty? Refer to the "Rinse Aid

Dispenser" section.

Did you use an air-dry or energy-saving dry option?Use

a heated drying option for dryer dishes.

Dishes are damaged during a cycle

Chipping of dishes

Did you load the dishwasher properly? Load the dishes

and glasses so they are stable and do not striketogether

from washing action. Minimize chipping by movingthe

rack in and out slowly.

NOTE: Antiques,feather-edged crystal, and similar

types of china and glassware might be too delicate for

automatic dishwashing.Wash by hand.

Noises

•Grinding, grating, crunching or buzzing sounds

Ahard object has entered the wash module (on some

models). The sound should stop when the object is

groundup.

ASSISTANCE

ORSERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service

cal!. If you still need help, follow the instructions below.

When calling, please know the purchase date and the

complete model and serial number of your appliance. This

information will help us to better respond to your request.

In the U.S.A.

Call the KitchenAid Consumer Assistance Center

toll free: 1-800-422-1230.

Our consultants provide assistance with:

•Features and specifications on our full line of

appliances.

•Installation information.

• Use and maintenance procedures.

• Accessory and repair parts sales.

• Specialized customer assistance (Spanish speaking,

hearing impaired, limited vision, etc.).

Referrals to local dealers, repair parts distributors, and

service companies. KitchenAid service technicians are

trained to fulfill the product warranty and provide after-

warranty service, anywhere in the United States.

To locate the authorized KitchenAid service company in

your area, you can also look in your telephone directory

Yellow Pages.

If you need replacement parts

If you need to order replacement parts, we recommend

that you only use factory authorized parts. These parts will

fit right and work right, because they are made with the

same precision used to build every new KITCHENAID°

appliance. To locate factory authorized replacement parts

in your area, call our Consumer Assistance Center

telephone number or your nearest authorized service

center.

For further assistance

If you need further assistance, you can write to KitchenAid

with any questions or concerns at:

KitchenAid Brand Home Appliances

Consumer Assistance Center

c/o Correspondence Dept.

2000 North M-63

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your

correspondence.

In Canada

Call the KitchenAid Canada Consumer Assistance Center

toll free: 1-800-461-5681 8:30 a.m. - 6:00 p.m. (ESF)

Our consultants provide assistance with:

• Features and specifications on our full line of

appliances,

• Referrals to local dealers.

For service in Canada

Call 1-800-807-6777, KitchenAid service'technicians are

trained to fulfill the product warranty and provide after-

warranty service, anywhere in Canada.

ff you need replacement parts

If you need to order replacement parts, we recommend

that you only use factory authorized parts. These partswill

fit rightand work right, because they are made with the

same precision used to build every new KITCHENAID"

appliance. To locate factory authorized replacement parts

in your area, callyour nearest authorized service center.

For further assistance

If you need furtherassistance, you can wdte to KitchenAid

Canada with any questions or concerns at:

Consumer Relations Center

KitchenAid Canada

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your

correspondence.

Kitchenaid KUDC25CHBL1 User Manual Dishwasher Manuals And Guides L9050329

KITCHENAID Dishwasher Manual L9050329 KITCHENAID Dishwasher Owner's Manual, KITCHENAID Dishwasher installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
