Quick Reference

Section

Introduction

Page

2

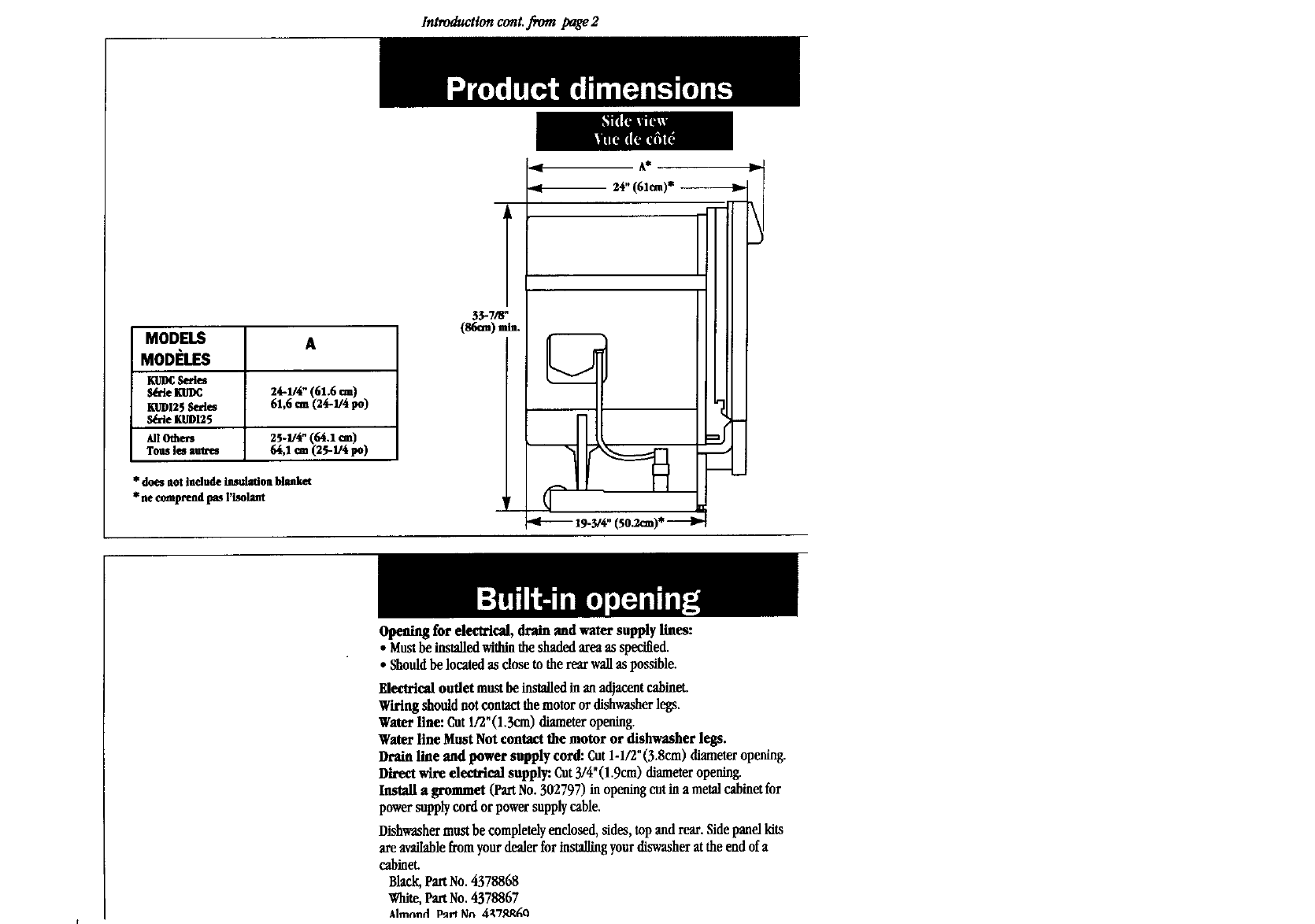

Product dlmenslons 3

Bullt-ln opening dlmenslons 3

Electrical requlremonts 4

Water requlrements 4

Draln requlrements 4

Installation steps 5 -

Need assistance? Back cover

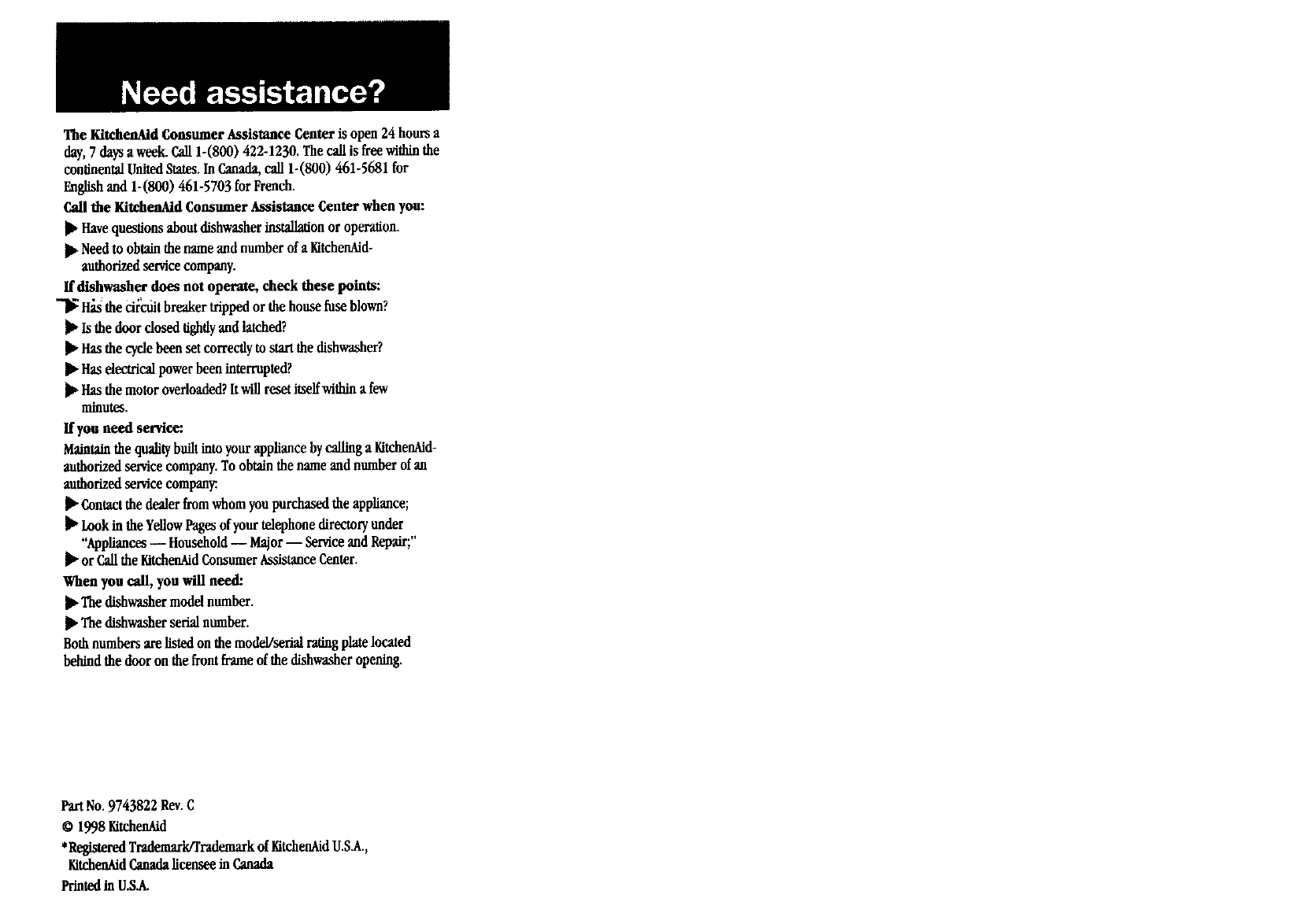

The KitchenAid ConsumerAssistance Centeris open 24 hoursa

day,7 daysa week. Call1-(800) 422-1230. Thecallis free withinthe

continentalUnitedStates.In Canada,call 1-(800) 461-5681 for

English,and 1-(800) 461-5703 for French.

Call t_ KitchenAtdConsumerAssistance Centerwhen you:

Havequestionsaboutdishwasherinstallationor operation.

1_ Needto obtainthenameand numberofa KitchenAid-authorized

servicecompany,

Important:

•Installer:. LeaveInstalLationInstructions withthe homeowner.

•Homeowner: KeepInstallationInstructionsfor future

reference.

•Save InstallationInstructionsfor localelectricalinspector's use,

PartNo. 9743822 Rev,C

Piece n° 9743822 R_. C

In_on s_s cont fmm _s

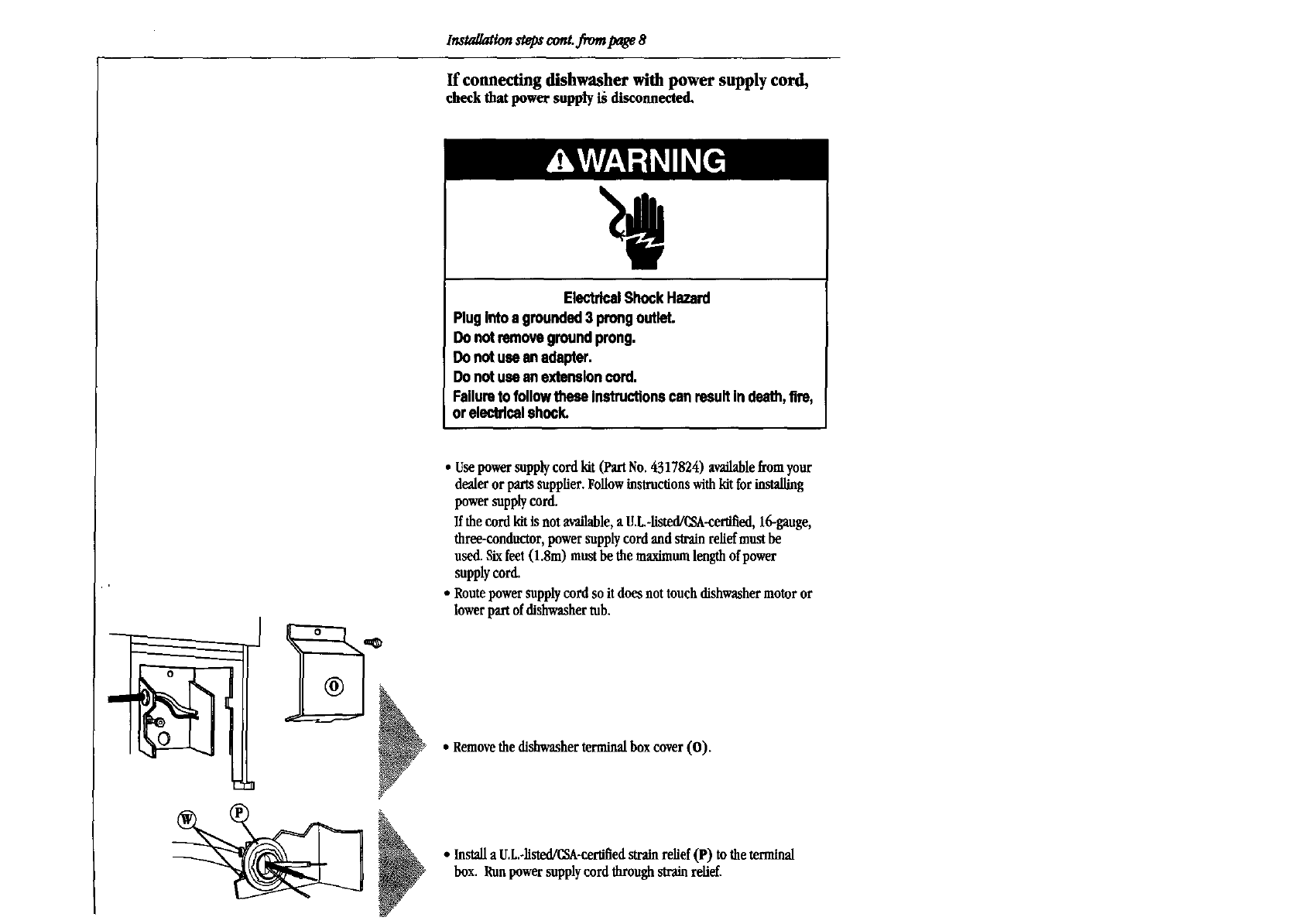

If connecting dishwasher with power supply cord,

check that power supply is dlsconne_ed.

ElectricalShockHazard

PlugIntoa grounded3 prongoutlet.

Donotremovegroundprong.

Do notusean adapter.

Donotusean extansloncord.

Failureto followthese InstructionscanresultIn death,fire,

orelectricalshock.

•Usepowersupply cord kit (Part No. 4317824) available fromyour

dealer or partssupplier.Followinstructionswithkit for installing

powersupplycord.

Ifthe cord kitis notacailable,a U.L.-listed/CSA-cerlifled,16-gauge,

three-conductor,power supplycord and m.ainreliefmust be

used.Sixfeet(1.8m) must be the maximumlengthof power

supplycord.

•Routepower supplycord so itdoesnot touchdishwashermotoror

lowerpartofdishwasherrob.

_*Removethedishwasherterminalboxcover(O).

• Installa U.L.÷listed/CSA-certiliedstrain relief(P) to theterminal

box. Runpower supplycord throughstrain relief.

®

A. electric drill

B. Phillips screwdriver

C. flat-blade screwdriver

D. 2 adjustable wrenches

E. pliers

F. measuring tape or ruler

G. pipe wrench

H. hole cutters (1/2", 3/4",

t-ln")

1. tubing cutter

J. wire stripper

K. utility knife

L. 11/32" and 1/4" nut driver

or hex socket

M. 2 twist-on wire connectors

for 16-gange wire

N. level

O. safety glasses

P. gloves

R. Teflon tape

S. Drain tube adapter

Part No. 9741366

(available from your

dealer) if connecting to a

1/2" I.D. drain line.

Not shown:

90 °elbow with 3/8" N.P.T.

external threads on one

end. The size of the other

end must fit your water

supply line.

A. 2 drain hose clamps

B. 2 No.-lO x 1/2" Phillips-head screws

Remove parts from bag. Check thatall parts were supplied.

2

/

(6xem)

34"(S6._)

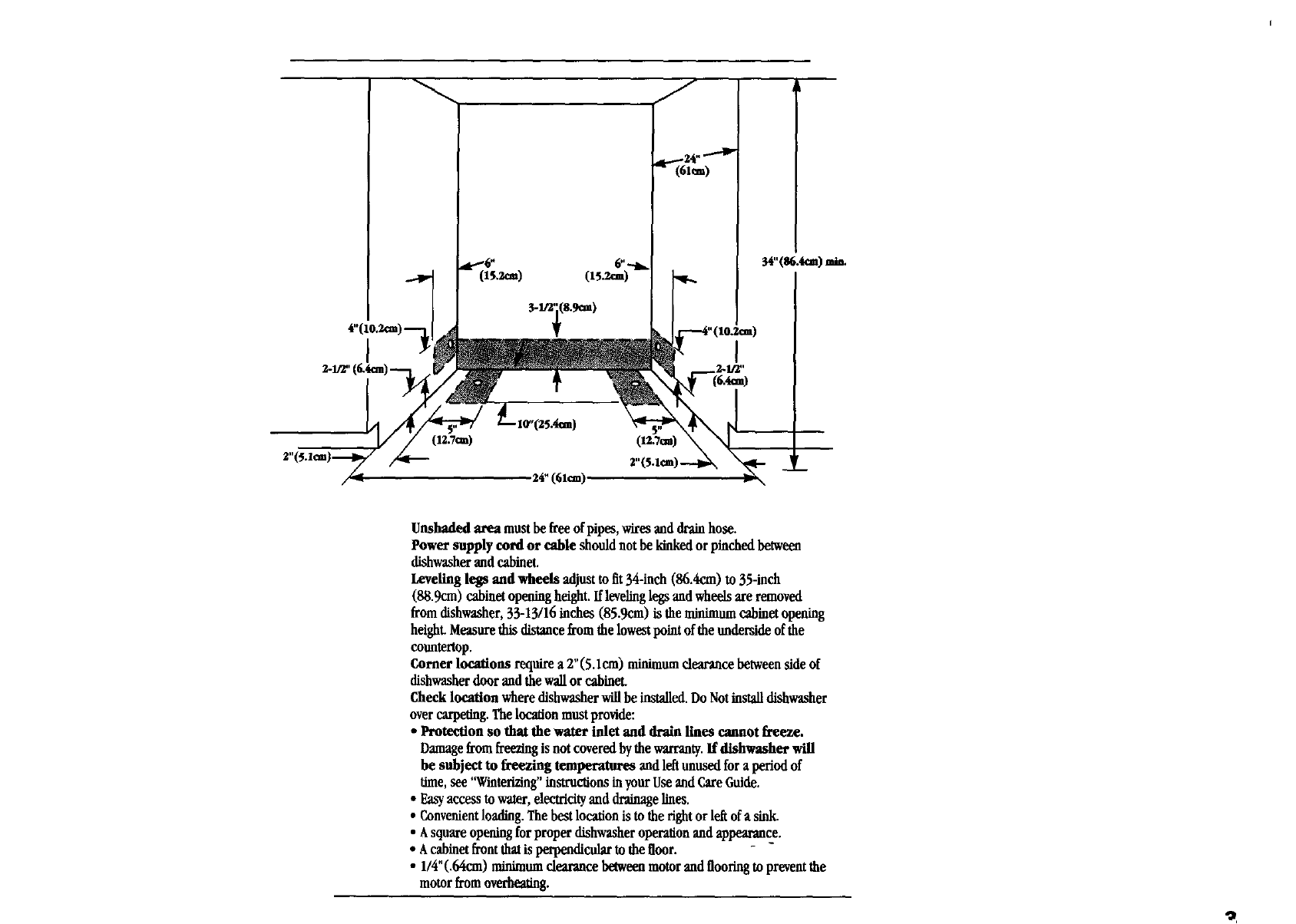

Unshaded area must be free ofpipes, wires anddrain hose.

Power supply cord or cable shouldnot bekinkedor pinchedbetwom

dishwasherandcab'met.

Leveling legs and wheels adjust to fit34-inch (86.4cm) to 35-inch

(88.9cm) cabinetopeningheight.Iflevelinglegsand wheelsare removed

from dishwasher, 33-13/16inches (85.9cm) istheminimumcabinetopening

height.Measurethisdistance from the lowestpoint ofthe underside ofthe

countertop.

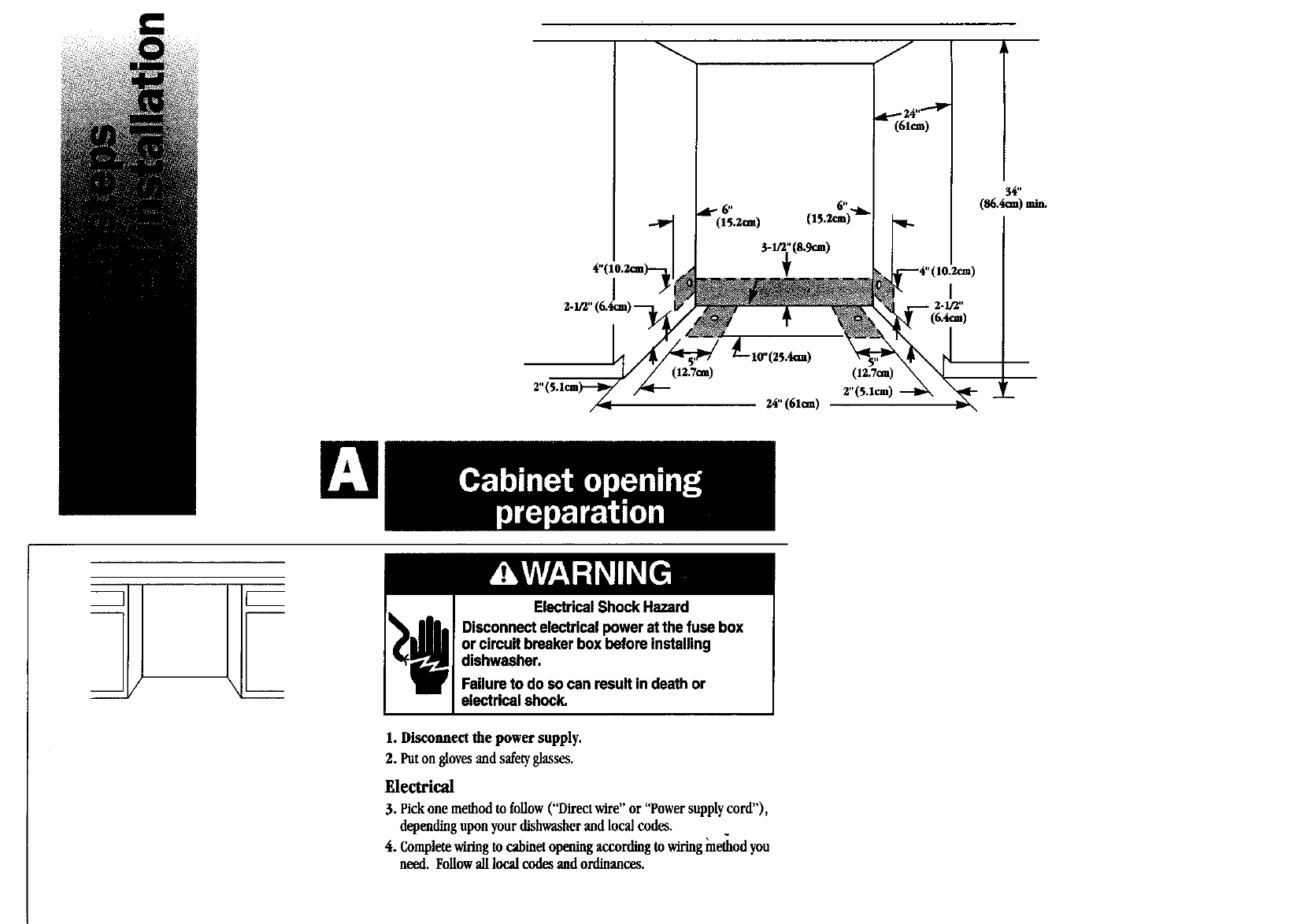

Cornerlocations requirea 2"(5.1cm) minimumclearancebetweenside of

dishwasherdoor and the wallor cabineL

Checklocation where dishwasherwillbe installed.Do Notinstalldishwasher

over carpeting.Thelocationmust provide:

• Protection so thatthe water inlet and drain lines cannot freeze.

Damagefromfreezingis notcoveredbythe warranty.If dishwasher will

be subject to freezing temperatures and leftunused fora periodof

time, see "Winterizing"instructionsinyourUseand CareGuide.

• Easyaccess to water,dectvidtyand drainagelines.

•Convenientloading.The best locationis to the rightor leftof a sink

• Asquareopeningfor proper dishwasheroperation and appearance.

*Acalfmetfruntthatis perpendicular tothe floor.

• 1/4"(.64cm) minimumclearancebetweenmotor and flooringto preventthe

motor from overheating.

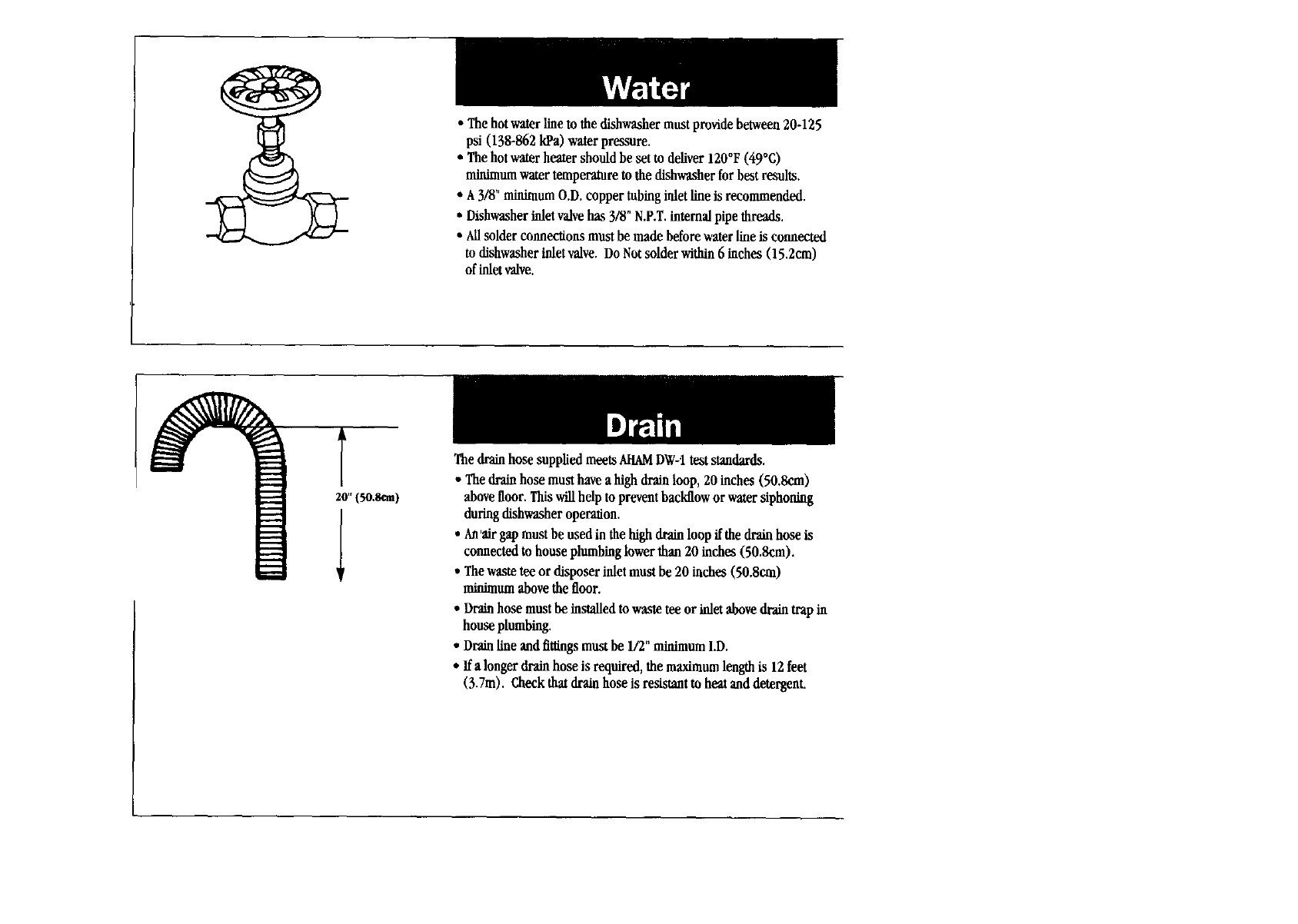

•The hot water line to the dishwasher must provide between 20-125

psi (138-862 kPa) water pressure.

•The hot water heater should be set to deliver 120°F (49°C)

minimum water temperature to the dishwasher for best results.

•A 3/8" minimum O.D. copper tubing inlet line is recommended.

• Dishwasher inlet valve has 3/8" N.P.T. internal pipe threads.

• Allsolder connections must be made before water line is connected

to dishwasher inlet valve. Do Not solder within 6 inches (15.2cm)

of inlet valve.

20-(so.san)

The drainhose suppliedmeetsAHAMDW-i teststandards.

•Thedrain hose musthavea highdrain loop,20 inches (50.8cm)

abovefloor.Thiswillhelp topreventbackflowor watersiphoning

during dishwasheroperation.

•An'airgap must be used in thehigh drain loop ffthedrain hoseis

connectedto house plumbinglower than20 inches(50.8cm).

• Thewastetee or disposerinletmust be 20 inches(50.8cm)

minimumabovethe floor.

• Drain hose must be installed to wasto tee or inlet above drain trap in

house plumbing.

• Drain line and fittings must be 1/2" minimum I.D.

•ff a longer drain hose is required, the _um length is 12 feet

(3.7m). Check thatdrain hose is resistant to heat and detergent.

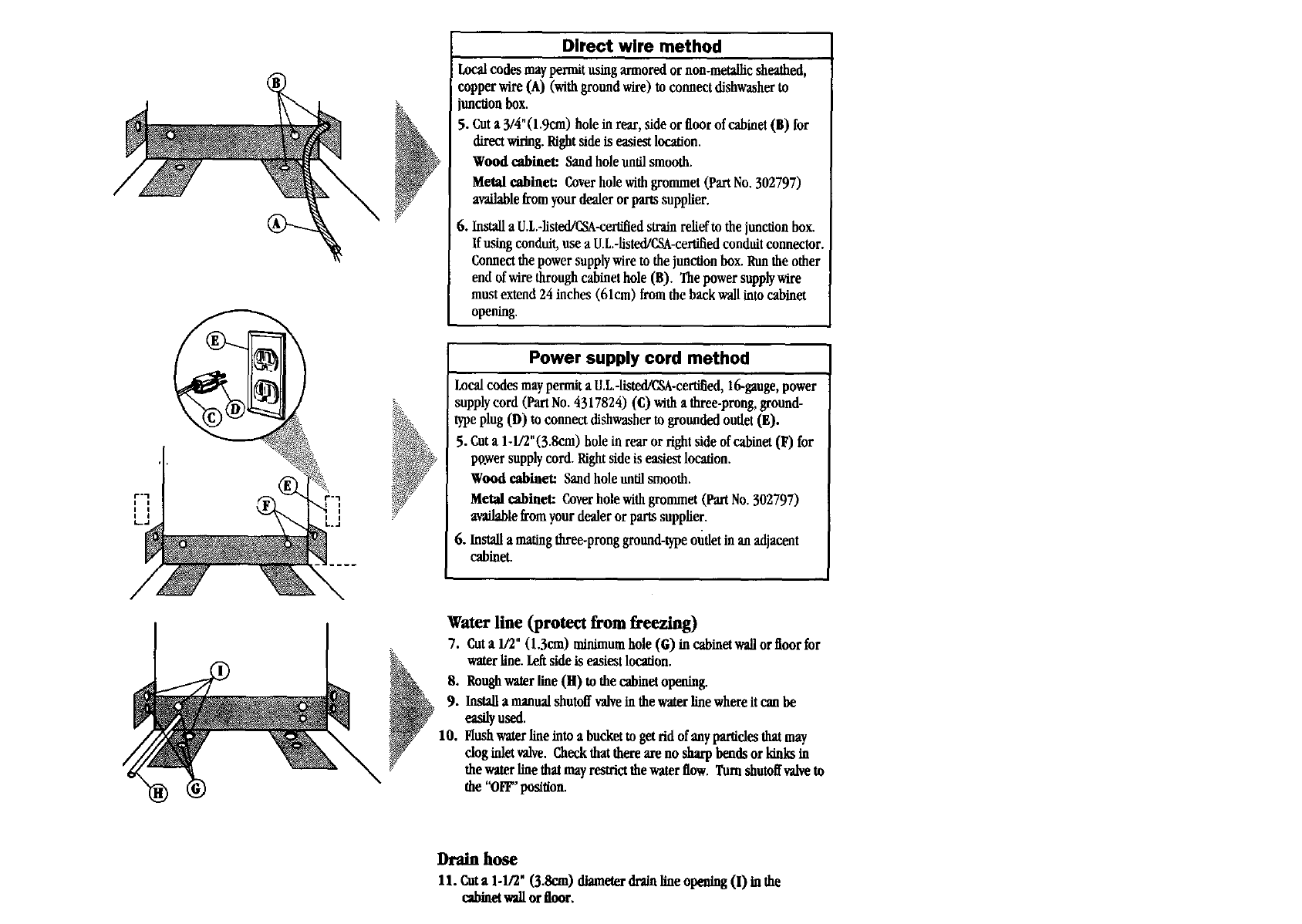

Direct wire method

Localcodes maypermitusingarmored ornon-metallicsheathed,

copper wire(A) (withgroundwire) to connectdishwasherto

unctionbox.

5. Cuta 3/4"(l.gcm) holein la_, sideor floorof cabinet(B) for

directwiring.Rightsideis easiestlocation.

Wood cabinet: Sandholeuntilsmooth.

Metal cabinet: Coverhole withgrommet (Part No.302797)

availablefrom your dealeror parts supplier.

6. InstallaU.L-listed/C_A-certffied strain relinfto the junction box.

If using conduit, use a Ui.-listed/CSA-cer tiffed conduit connector.

Connect the power supply wire to the junction box. Run the other

end of wire through cabinet hole (B). The power supply wire

must extend 24 inches (61cm) from the back wall into cabinet

opening.

Power supply cord method

Localcodes maypermit a U.L.-listed/_A-certiffed,16-gauge,power

supplycord (PartNo.4317824) (C) with a three-prong,ground-

typeplug (D) to connect dishwasherto grounded outlet (E).

5. Cuta 1-1/2"(3.8cm) hole in rear or rightside of cabinet(F) for

powersupplycord. Rightside is easiestlocation.

Wood cabinet: Sandhole until smooth.

Metal obinet: Coverhole withgrommet (PartNo.302797)

availablefromyour dealer or partssupplier.

6. Install a matingthree-pronggronnd-typeoudet in an adjacent

cabinet.

Waterline (protect from freezing)

7. CUta 1/2"(1.3cm) minimumhole (G) in cabinetwall orfloor for

water line.Loftsideis easiestlocation.

8. Roughwaterline(H) to the cabinetopening.

9. Install amanualshutoffvalvein the waterline whereitcan be

easilyused.

10. Flushwaterline into a bucket to getrid ofanyparticles thatmay

cloginlet valve. Checkthatthere are no sharp bends or ldnks in

thewaterlinethatmayrestrictthewaterflow. Turnshutoffvalveto

the "OFF"position.

Drain hose

11. CUta 1-1/2' (3.8on) diameter drain line op_ (I) in the

cabinetwallor floor.

Adjustthefrout levelinglegs (E) the numberof turnslistedin the

chart. Thedishwashershouldbe installedas levelas possible from

front to back.

Putthe spring-typedrain hose clamp(F) over thedrain connector

(G). Push drain hose (H) onto drain connector. Usepliers to open

clampand slideclamp overdrain hose and drain connector.Check

that drain hose is securelyattachedto drain connector.

Tilt dishwasher backwards on wheels when moving across

floor to prevent damage to floor covering.

Latch (I) the dishwasher door. Grasp the sides of the dishwasher door

near the console (J). Tilt dishwasher backwards on wheels. Move

dishwasher close to cabinet opening. Do Not push on the center of

the console. Discardshipping baseor hardboard.

Insert drain hose into holecut intocaFmet. Checkthatdrain hose

does not contactdoor springs,motor orwater line.

•Do Notrundrain hose over topof tub. Checkthatdrain hose is not

kinked or twisted.

m I m

__ m

Insert power supply cord into hole cut into cabinet. Ifusing power

supply wire, adjust wire and pull towards dishwasher terminal box.

• Do Not pinch power supply cord or ldnk power supply wire between

dishwasher and cab'met.

Movedishwashercompletelyinto cabinetopening. Centerdishwasher

in opening.Checkthat levelinglegs (K) are firmlyagainstthe floor.

Alignthe dishwasherdoor withfront of cab'metdoors. Checkthat

spacing (L) isthe same on bothsides.

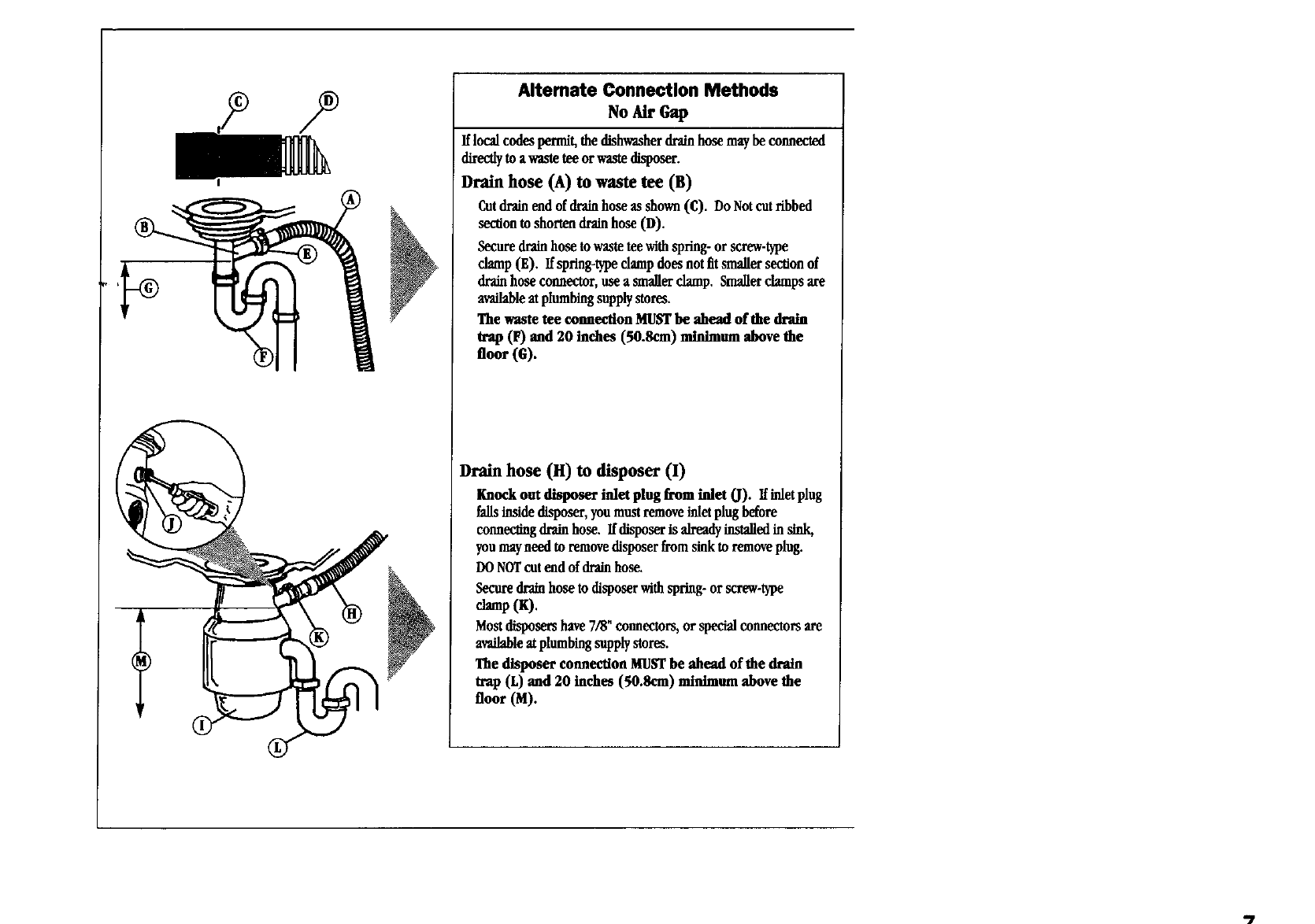

Altemate Connection Methods

NoAir Gap

Iflocal codespermit,thedishwasherdrainhosemaybe connected

direcOytoawasteteeorwastedispo .

Drain hose (A) to waste tee (B)

Cutdrain endof drain hose asshown(C). DoNotcot fibbed

sectionto shortendrainhose (D).

Secure drain hose towaste teewithspring- or screw-type

clamp (E). Ifspring-typeclampdoes not fitsmallersectionof

drain hoseconnector,use a smallerclamp. Smallerdamps are

availableat plumbingsupplystores.

The waste tee connection MUSTbe ahead of the drain

trap (F) and 20 inches (50.8cm) minimum above the

floor(6).

Drain hose (H) to disposer (I)

Knock out disposer inlet plug from inlet 0)- Ifinletplug

fallsinside disposer,youmust removeinletplugbefore

connec_ngdrainhose. If disposeris alreadyinstalledin sink,

youmay needto removedisposer from sinkto removeplug.

DONOTcutend of drain hose.

Securedrain hoseto disposerwithspring-or screw-type

damp (X).

Mostdisposershave7/8"connectors,or specialconnectorsare

availableatplumbingsupplystores.

The disposer connection MUSTbe ahead of the drain

trap (L) and 20 inches (50.8cm) minimum above the

floor (M).

7

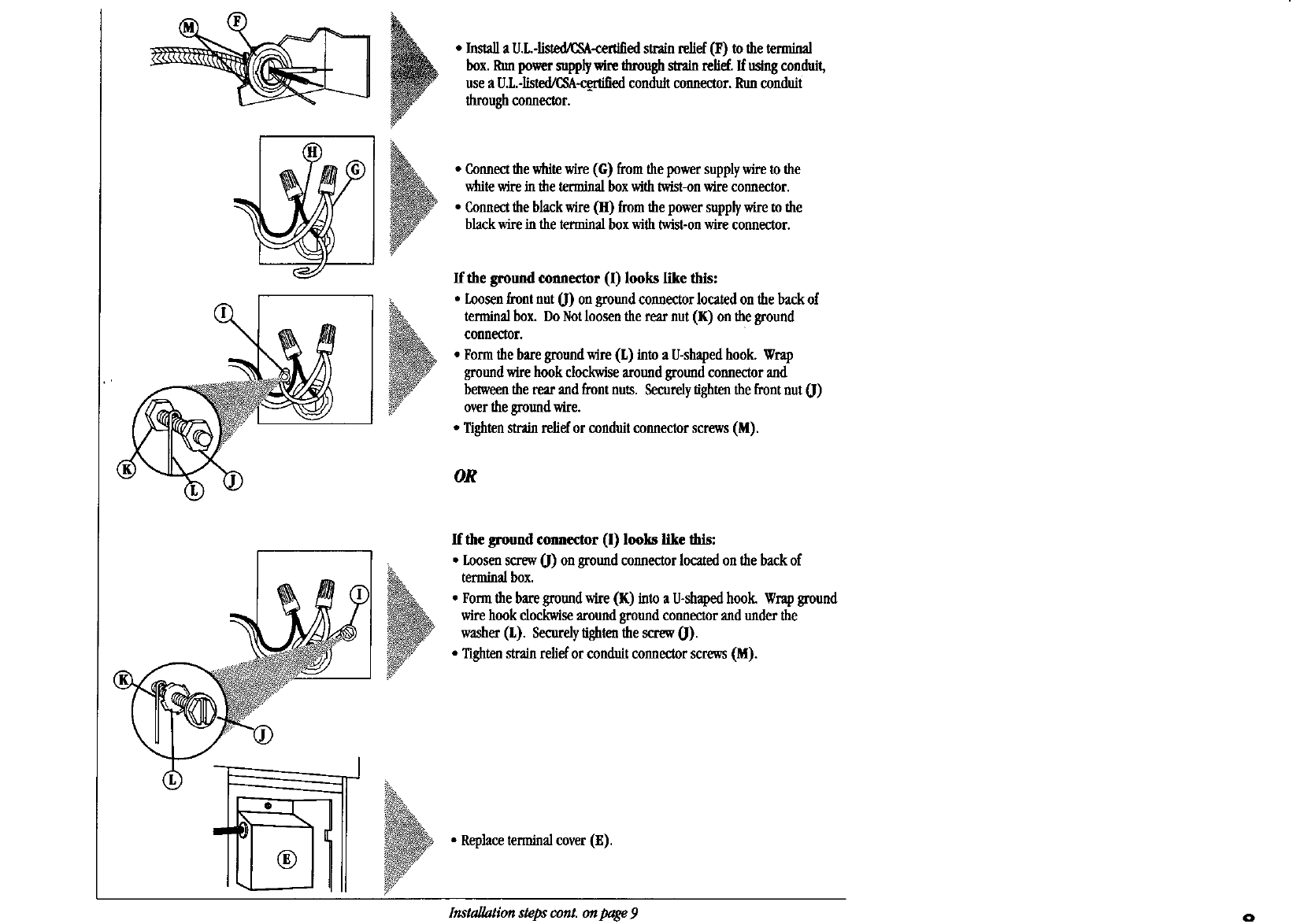

• Installa U.L-listed/t_-certiliedstrainrelief(F) to theterminal

box. Runpowersupplywire throughstrainrelief,ffusingconduit,

use a U.L.-listed/CA_-certiffedconduitconnncmr.Runconduit

throughconnector.

• Connectthewhitewire (G) from the power supplywireto the

whitewire in theterminalboxwithtwist-onwire connector.

•Connectthe blackwire (H) fi'omthe power supplywireto the

black wirein the terminalbox withtwist-onwireconnector.

If the ground connector (I) looks like this:

• Loosenfront nutO) on groundconnectorlocatedon the backof

terminalbox. DoNotloosenthe rearnut(K) on the ground

connector.

• Form thebaregroundwire (L) into a U-shapedhook. Wrap

ground wire hookclockwisearound ground connectorand

betweenthe rearandfront nuts. Securelytightenthefront nut (J)

overthe groundwire.

•Tightenstrainreliefor conduitconnector screws (M).

OR

II

®

If the ground connector (i) looks like this:

• LoosenscrewO) onground connector locatedonthe backof

terminalbox.

•Formthe bareground wire (K) intoa U-shapedhook. Wrapground

wire hook clockwisearound ground connector and under the

washer(L).Securelytightenthescrew0).

• Tightenswainreliefor conduitconnectorscrews (M).

•Replaceterminalcover(E).

Installation steps cont. on page 9o

• Connectthewhitewire(Q) fromthe powersupplycordto the

whitewirein the terminalbox withtwist-onwireconnector.

• Connectthe black_(R) fromthepower supplycordto the

blackwirein the terminalboxwithtwist-onwireconnector.

i

If the ground connector (S) looks like this:

•Loosenfrontnut(T) on ground connector locatedon thebackof

terminalbox. DoNotloosenthe rearnut(U) on theground

connector.

•Formthebaregroundwire(V) into a U-shapedhook. Wrap

groundwirehook clockwisearoundgroundconnectorand

betweenthe rearand fi'ontouts. Securelytightenthe front not (T)

overtheground wire.

• Tightenstrainreliefscrews (W).

OR

ffthe ground connector (S) looks like this:

• Loosenscrew (1")onground connector locatedon theback of

terminalbox.

•Formthebaregronndwire (U) into a U-shapedhook Wrap

ground wirehookclockwisearound ground connectorand under

thewasher(V). Securelytightenthe screw(T).

•Tightenstrainreliefscrews(W).

Illl

J

mI

(o_1

•Replaceterminalcover(0).

•Plug power supply cord (X) into mating grounded outlet (Y).

Q

O

Opendoor about 3 inches (7.6cm) and checkfor equalspacing (C)

betweeninner door and tubsides. If spacingis notequal,loosen

bracket screwsand shifttub. Tightenbracket screws.Remove

newstraperor towelfrom dishwasher.

Openand close door severaltimes.Thedoorshouldopen and close

easily.Ifdoor doses too quicklyor fallsopen, adjust door

springs(D) bymovingspringends to differentholes (£) inbase.

tN

access andlower panelto dishw_herso thatthebottomedge

of thelower panelcontactsthe floor.

Your installation is now complete.

Keep Installation Instructions and Use and Care Guide

close to dishwasher for easy reference.

nYour safety and the safety of others

is very Important.

We have provided many important safety

messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol. This symbol

alerts you to hazards that can kill or hurt

you and others. All safety messages will be

preceded by the safety alert symbol and the word

"DANGER" or "WARNING". These words mean:

You will be killed or seriously Injured if you

don't follow instructions.

You can be killed or seriously injured if you

don't follow instructions.

All safety messages will identify the hazard,

tell you how to reduce the chance of injury, and tell

you what can happen if the instructions are

not followed.

•Observe all governing codes and ordinances.

• complywiththeinstallationspecificationsand dimensions.

•properlyinstalldishwasher.

•makesure you haveeverythingnecessaryfor proper installation.

• contacta qualifiedinstallerto insure thatthe electricalandplumbing

installationsmeet allnationaland local codes andordinances.

Keep cardboard shipping base or hardboard under

dishwasher until it is installed. The shipping base or -

hardboard will help Io protect floor covering when

dishwasher is moved across the floor during installation.

Introduction cont.from page2

MODELS A

MODI_LIES

KUDC Series

Stifle KUDC 24-1/4" (61.6 ore)

10UDI25 Series 61,6 cta (24-1/4 po)

Sl_de KIJDI25

All Others 25-1/4" (64.1 an)

TOllS lea anwes 64,1 can (25-1/4 po)

* does not include insulation bhmket

* ne comprend pas l'isolant

35-7.'8"

(_) a_.

A*

91- 24"(61cm)* --

19-3/4" (50.2{_)*

Opening for electrical, drain and water supply lines:

•Mustbeinstalledwithinthe shaded area as specified.

•Shouldbe located as close to the rear wallas possible.

Electrical outlet must be installedin an adj_cut cabinet.

Wiring should not contact the motor or dishwasher legs.

Water line: CutI/2"(1.3cm) diameter opening.

W_ter line Must Not contact the motor or dishwasher legs.

Drain line and power supply cord: Cut I-I/2"(3.8cm) diameter opening.

Direct wire electrical suppl],: Cut 3/4"(1.9cm) diameter opening.

Install a grommet (Part No. 302797) in opening cut in a metal cabinet for

power supply cord or power supplycable.

Dishwashermust be completely enclosed, sides, top and rear. Side panel ldts

are available fromyour dealer for installing yourdiswasher at the end of a

cabinet.

Bl_k, Part No. 4378868

White,PartNo. 4378867

Almnnfl P_rt MO _TP_ql_Q

O}

Ill

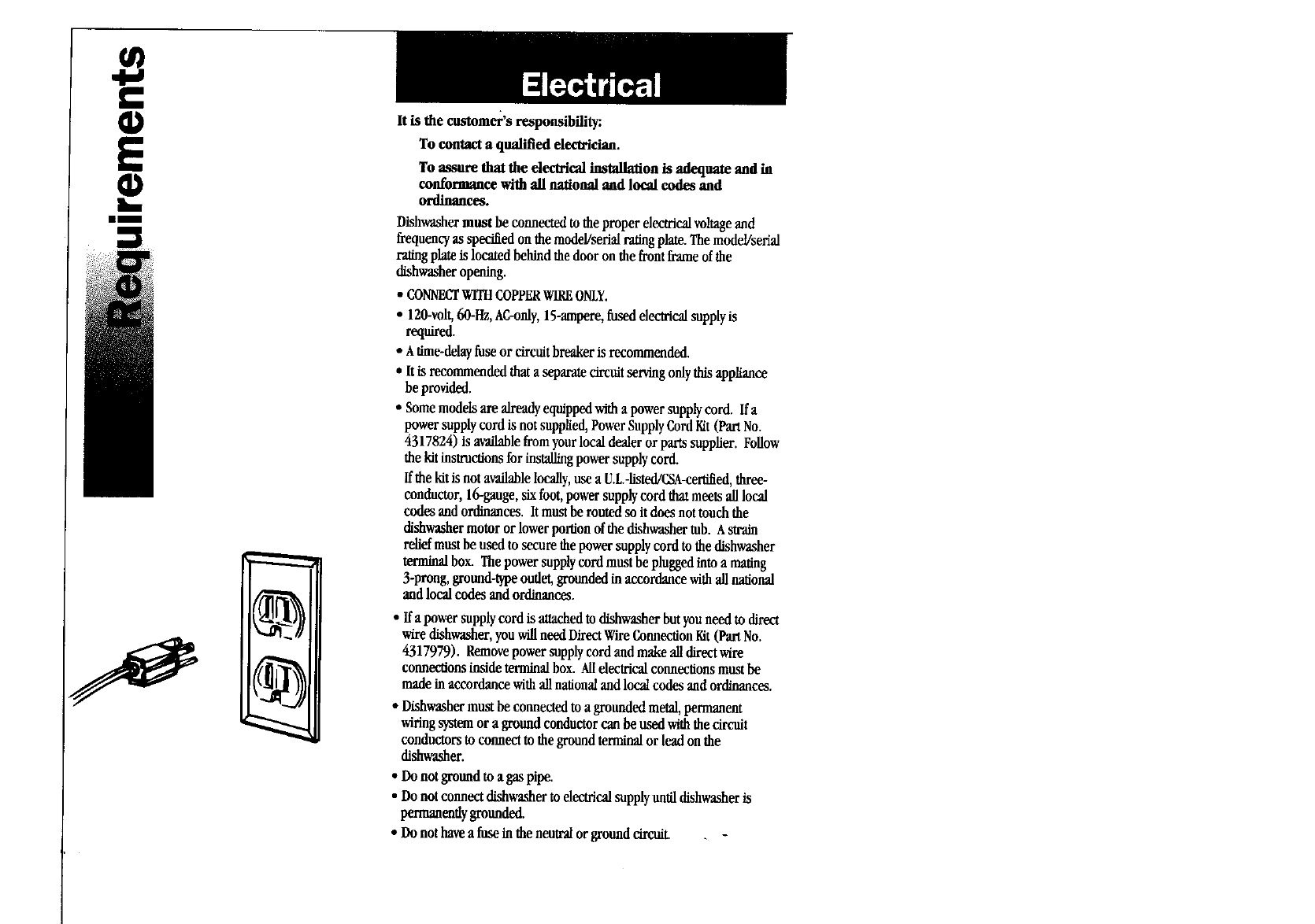

It is the customer's responsibility:.

To contact a qualified electrician.

To assure that the electrical installation is adequate and in

conformancewith all national and local codes and

ordinances.

Dishwashermust be connectedto theproperelectricalvoltageand

flequencyas specifiedon themodel/serialratingplate.Themodel/serial

ratingplateis locatedbehindthedoor on thefrontframeof the

dishwasheropening.

•CONNECTWITHCOPPERWIREONLY.

•120-volt, 60-Hz, AC-unly,15-ampere, fused electrical supply is

required.

• A time-delayfuse or circuit breaker is recommended.

•It is recommended that a separate circuit servingonly this appliance

be provided.

• Some models are already equipped with a power supplycord. If a

power supply cord is not supplied, Power Supply Cord Kit (Part No.

4317824) is available from your local dealer or parts supplier. Follow

the kit instructions for installing power supply cord.

If the kit is not available locally, use a U.L-listed/CA*_-certified,three-

conductor, 16-gauge, six foot, power supply cord thatmeets all local

codes and ordinances. It must be routed so it does not touch the

dishwasher motor or lower portion of the dishwasher tub. A swain

reliefmust be used to secure the power supply cord to the dishwasher

terminal box. The power supply cord must be plugged into a mating

3-prong, ground-type oudet, grounded in accordance with all national

and local codes and ordinances.

•Ifapowersupplycord is attachedto dishwasherbutyouneed to direct

wiredishwasher,youwillneedDirectWireConnectionKit(Part No.

4317979). Removepowersupplycordand make alldirectwire

connectionsinsideterminalbox. Allelectricalconnectionsmustbe

madein accordancewithallnationaland localcodesandordinances.

• Dishwashermustbeconnectedto agroundedmetal,permanent

wiringsystemor a ground conductorcan be usedwiththedt_-'uit

conductorsto connectto thegroundterminalor leadonthe

dishwasher.

• Do not groundto a gaspipe.

• Do not connectdishwashertoelectricalsupplyuntildishwasheris

permanentlygrounded.

• Donot haveafusein theneutralor ground circuit.

/

24,,'''_

(61_m)

ElectricalShock Hazard

Disconnectelectricalpower at the fuse box

or circuit breakerbox before installing

dishwasher.

Failure to do so can result in death or

electricalshock.

1. Disconnectthe power supply.

2. Putonglovesandsafetyglasses.

Electrical

3. Pickone methodto follow("Directwire" or "Power supplycord"),

dependinguponyourdishwasherand local codes.

4. Completewiringto cabinetopeningaccording towiring_nethodyou

need. Followalllocalcodes and ordinances.

Tip Over Hazard

Do not use dishwasher untilcompletely

installed.

Do notpush down on open door.

Doing so can result in seriousinjury or cuts.

Excessive Weight Hazard

Use two or morepeopleto move and Install

dishwasher.

Failureto do so can result in back or other injury.

Keep cardboard shipping base or hardboard under

dishwasher until it is installed. The shipping base or

hardboard will help to protect floor covering during

installation.

Removethefour screws attachingaccess panel (A) andlower panel

(B) to dishwasherusinga1/4"hexsocket, nut driveror PhiLlips

screwdriver. Removepanelsand set panelsaside on aprotective

surface.

Mill,

Cutout

"" Height

34"(s6.4cm)

34-1/8" (86.7c_m)

34-5/16"(87.2cm)

34-1/2"(87.6_n)

For additional height:

1. Add shims under the wheels.

Wheel Number Of Turns

Position To Adjust

(See Illustration) Levelers

1 9

2 6

3 3

4 0

2. Turn front levelers (each turn is approximately 1/16"

(1.6ram) in height).

Measureheightof cabinetopening(C) fi'omundersideof countertop

to floor. Checkchartfor thatheight opening. Putwheels(D) in the

requiredposition,

(I r ! I'1

Connectdrainhoseto an air gaporwasteteeusing one of the

recommendedor alternatemethods.

Recommended Connection Methods

Install Air Gap Kit (Part No. 300096) (A) according to kit

instructions. If adifferent air gap is used, it should be checked to

make sure it allows for the same air flow.

Drain hose (B) to air gap (A) to waste tee (C)

Cutdrain cod of drain hose as shown (D). Do Notcut ribbed

sectionto shortendrainhose (E).

,t,

Securedrainhose toairgapwithspring-typeclamp(F). If

spring-typeclampdoesnotfit smallersection of drainhose

connector,use a smallerclamp. Smallerclampsareavailableat

plumbingsupplystores.

Connectthe air gap towastetee usingarubberconnector(G)*

and spring-orscrew-typodamps (H).

The waste tee connection MUSTbe ahead of the drain

trap (I) and 20 inches (50.8om) minimum above the

floor O).

Drain hose (K) to air gap (L) to disposer (M)

Knock out disposer inlet plug (N) from inlet. Ifinletplug

fallsinside disposer,youmust removeinletplugbefore

connectingdrainhose. Ifdisposeris alreadyinstalledin sink,

you may needto removedisposerfromsinkto removeplug.

DONOTcutendof drainhose.

Securedrain hose to air gapwithspring-typeclamp(0).

Connectthe airgapto disposer using a rubberconnector (P)*

andspring- or serew-typoclamps(Q).

Mostdisposershave7/8"connectors,or specia]connectorsare

availableatplumbingsupplystores.

The disposer connection MUSTbe ahead of the drain

trap (It) and 20 inches (50.8cm) minimum above the

floor (S).

* All parts are available from your dealer.

o

ApplyTeflontapeto 90° elbowfitting(A) and connectfittingdirectly

to waterinletvalve(B). Attachwatersupplyline(C) to fitting.

Do Not allow the waterpipe or tubing to contact the motor or

dishwasher legs (D). Turnon watersupplyand check forleaks.

Check electrical requirements. Be sure you have correct

electrical supply and recommended grounding method. See

Page 4.

If connecting dishwasher using direct wire method,

check that power supply is disconnected.

ElectricalShockHazard

Electricallygrounddishwasher.

Connectgroundwireto green groundconnectorinterminal

box.

Donot usean extensioncord.

Failureto doso can resultindeath,fire, orelectricalshock.

• Removethedishwasherterminalbox cover (E).

Tip Over Hazard

Do not use dishwasheruntil completely

installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

Opendishwasherdoor and removeall shippingmaterials. Remove

bottomrzck Placenewspaper (A) or toweloverbottom of

dishwasherto preventscrewsfrom fallingintopump area when

securingdishwasherto countertop.

ThedishwasherMUSTbe secured to countertoporfloorto keepit

fromtippingwhen door is opened.

Countertop attachment: Secure dishwasherto counter_p withtwo,

No. 10x 1/2"Phillips-headscrews(it).

DoNotdropscrewsintothe bottom of thedishwasher.Screws,if

droppedin pumparen,maycausedamageto pumpor motur.

Floor attachment: Usefloor attachmentkit (Part No.4378968)

availablefrom your dealer.

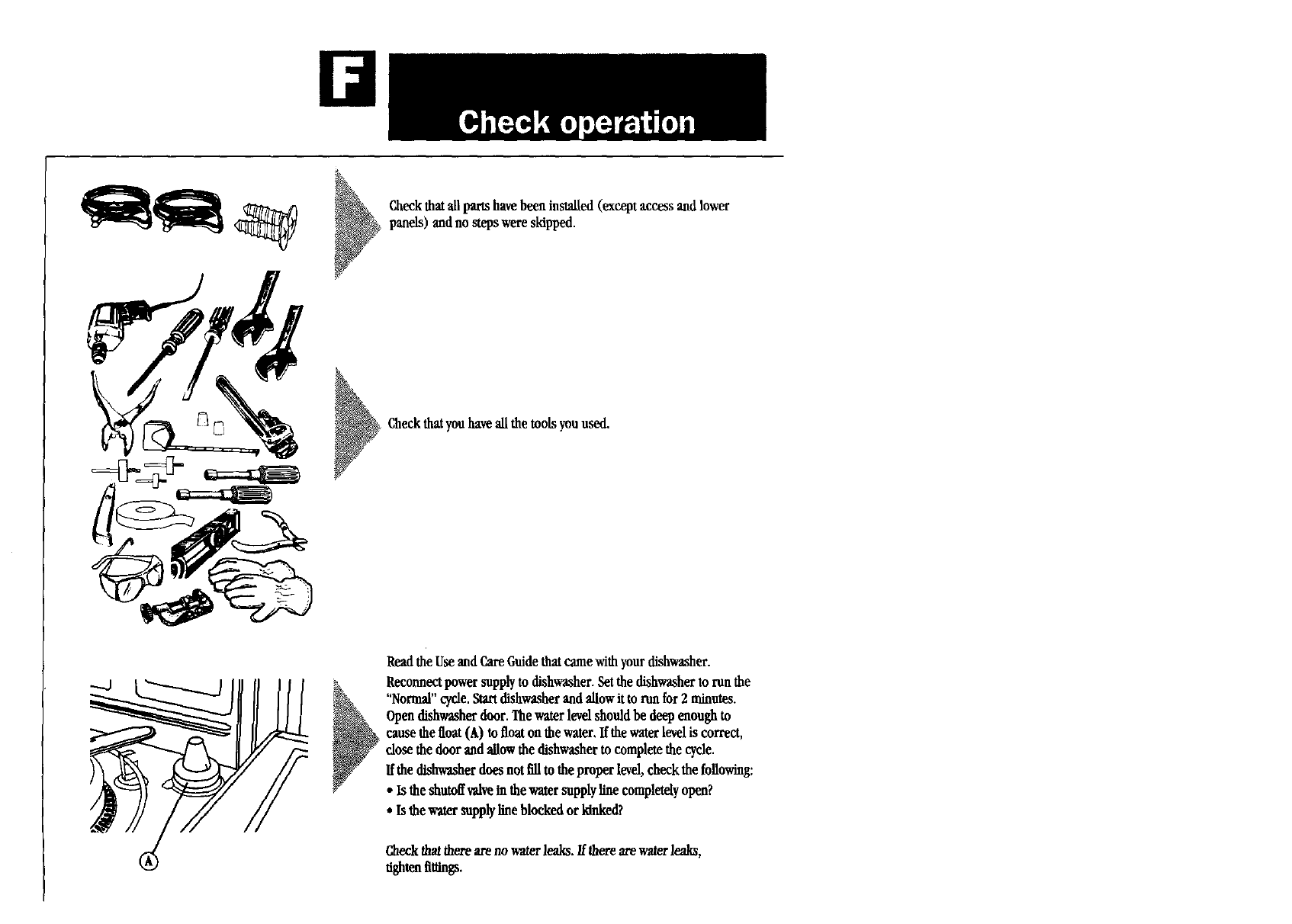

Checkthatallparts havebeen installed (except accessand lower

panels) and no stepswereskipped.

_ Checkthatyouhaveallthe toolsyouused.

Readthe Useand CareGuidethat camewithyourdishwasher.

,,Reconnec,t, power supplyto dishwasher.Setthe dishwasherto runthe

'Normal' cycle.Startdishwasherand allowitto runfor 2 minutes.

Opendishwasherdoor. Thewaterlevelshouldbe deep enoughto

causedieflent(A)mfloatonthewater,ffthewaterleveliscorrect,

close the door andallowthe dishwasherto completethe cycle.

_ff the dishwasherdoes not fallto theproper level,checkthe following:

• Is theshutoffvalvein thewatersupplylinecompletelyopen?

•Is the watersupplylineblocked or kinked?

Checkthatthere ure no waterleaks. Ifthereare waterleaks,

aghtenllmngs.

The KltchenAidConsumer Assistance Centeris open 24 hoursa

day,7 daysa week.Call1o(800) 422-1230. Thecallis freewithinthe

continentalUnitedSta_. InCanada,call 1-(800) 461-5681 for

Englishand 1-(800) 461-5703 for French.

Callthe KitchenAid Consumer Assistance Center when you:

• Havequestionsabout dishwasherinstallationor operation.

1_Needto obtain thename and number of a KitebenAid-

authorizedservicecompany.

If dishwasher does not operate, check these points:

"]ff FI_ the cir_it breaker trippedor the housefuse blown?

•Is the door dosed tightlyand latched?

• Hasthecyclebeenset correctlyto start thedishwasher?

Haselectricalpower beenInterrupted?

•Hasdie motor overloaded?It willresetitselfwithina few

minutes.

If you need service:

Maintainthequalitybuiltintoyour appliancebycallinga KitcbenAid-

authorizedservicecompany.Toobtain the name and number ofan

authorizedservicecompany:.

•Contactthe dealerfrom whom youpurchased the app_ance;

• LookIn the YellowPagesofyour telephone directoryunder

"Appliances-- Household-- Major-- Serviceand Repair;"

• or Calldie KitcbenAidConsumerAssistanceCenter.

When you call, you will need:

II_Thedishwashermodelnumber.

Thedishwasher serialnumber.

Bothambers are listedon the model/serialratingplatelocated

behind the door on the_out frameof the dishwasheropening.

Part No.9743822 Rev.C

©1998 rdtchen_d

*RegisteredTrademark/Trademarkof KitchenAidU.S.A.,

KitchenAidCanadalicenseein Canada

PrintedIn U.S.A.
