1

CABINET PARTS

For Model: KSSC36QMS01

(Stainless Steel)

6−04 Litho In U.S.A. (mek) Part No. 8199090

36" BUILT IN

REFRIGERATOR

2

CABINET PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2266808 Use & Care Guide

2307357 Energy Label

2306332 Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

2302865 Main Control

Service Sheet

Sheet

2266811 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2004514 Clamp, Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 Cap, Water Filter

2186494B Black

9 2006442 Mounting Stud,

Grill

10 2005004 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 934011 Clip, Water Tube

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209024B Black

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 Grille Bottom,

Front

2209425B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 2209709 Union

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

3

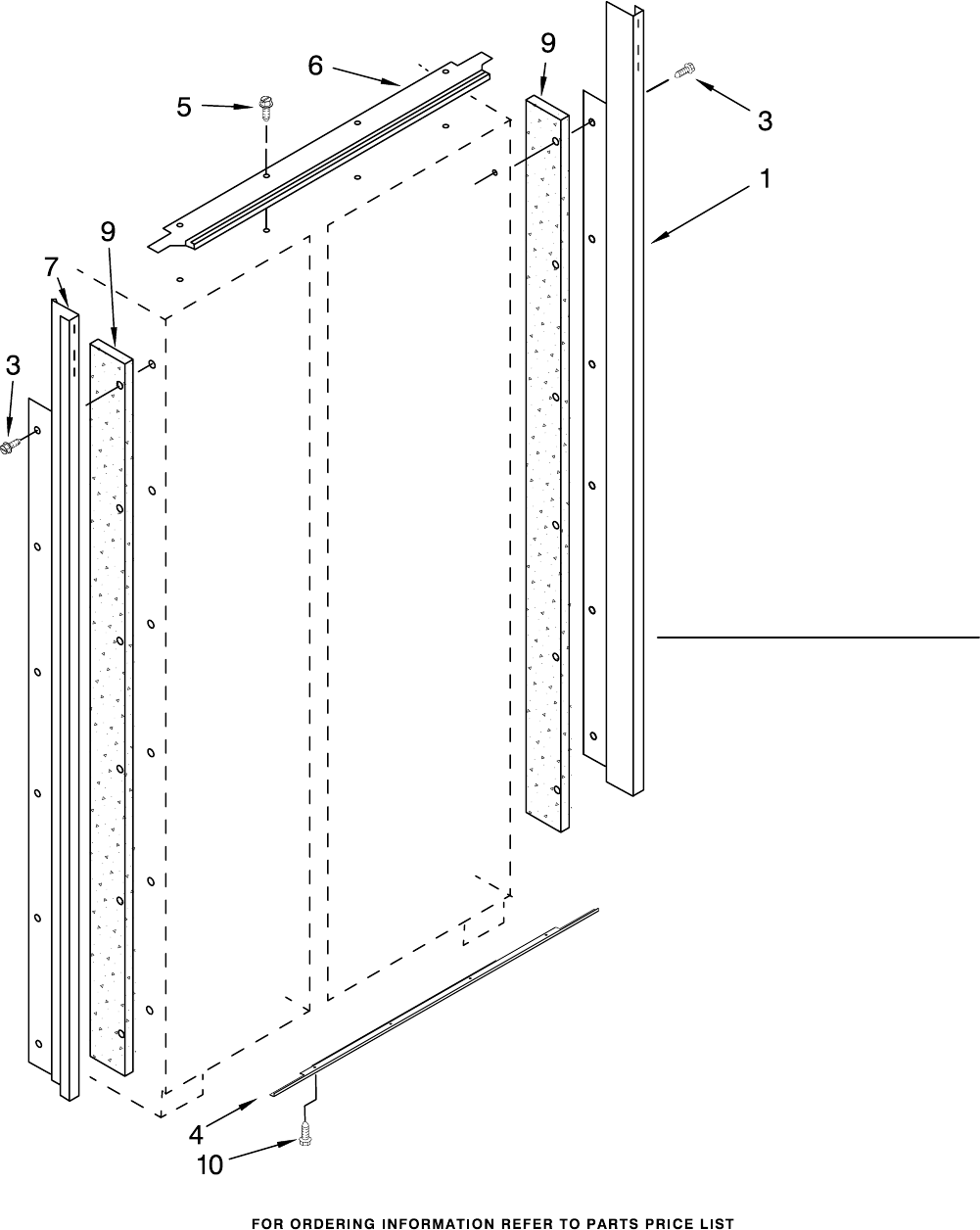

CABINET TRIM PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

2222552S Stainless Steel

3 Screw

1163283 Stainless Steel

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257366 Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

2222553S Stainless Steel

9 2005925 Seal−Trim, Side

10 489464 Screw

4

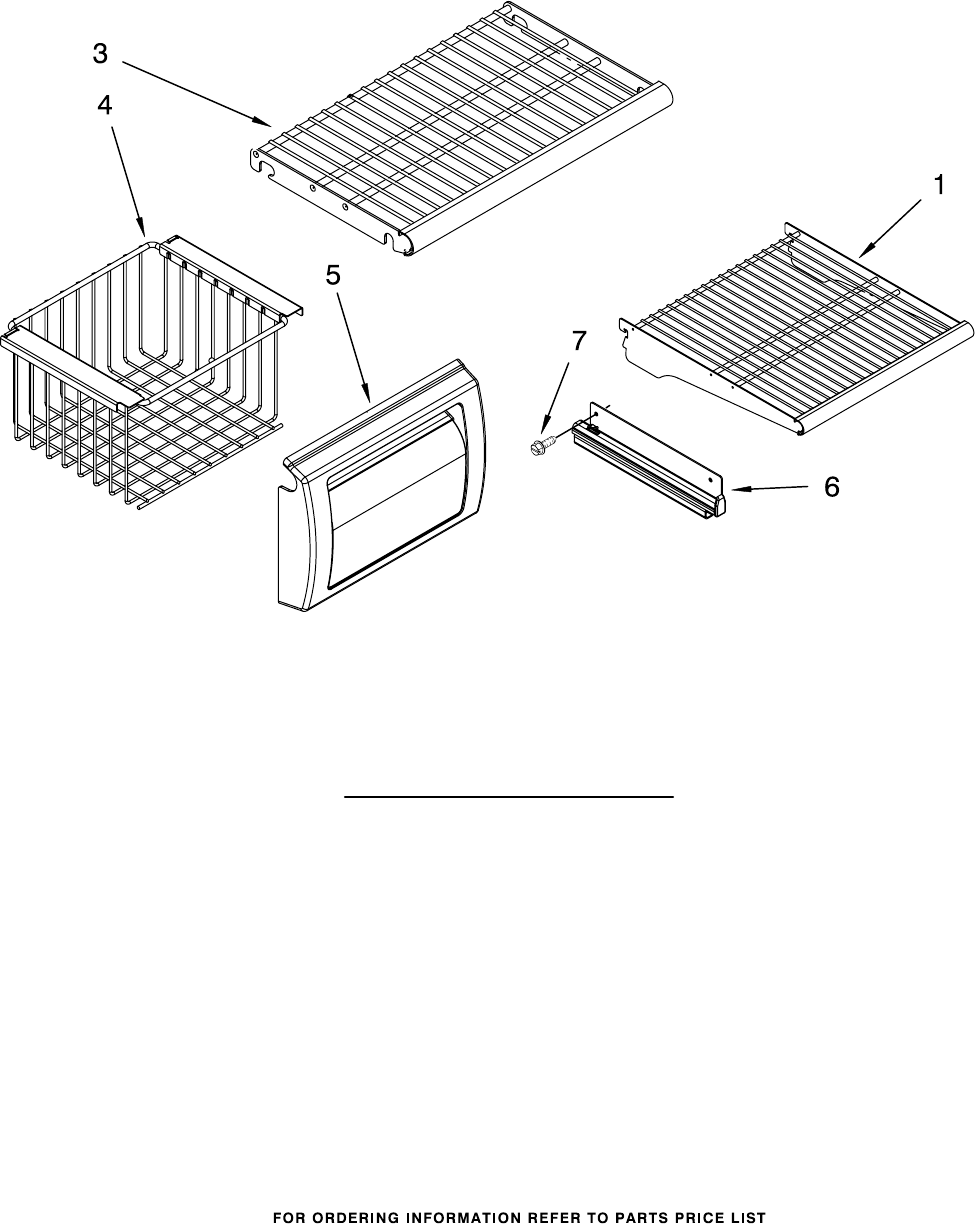

FREEZER SHELF PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 2302867 Wire, Shelf

3 2302882 Shelf, Fixed (2)

4 2259081 Basket

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

5

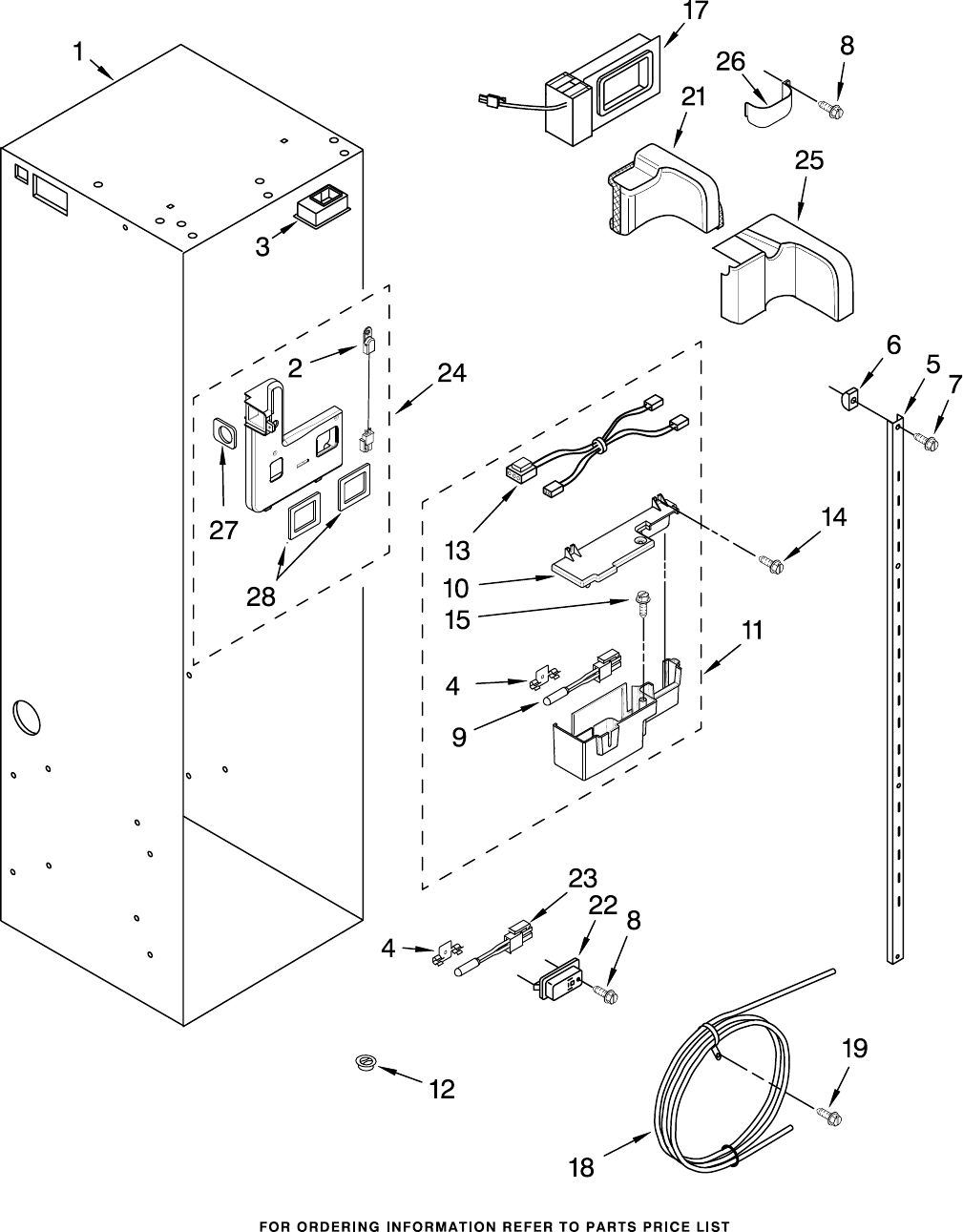

REFRIGERATOR LINER PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

6

REFRIGERATOR LINER PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

11 2302987 Baffle, Control

Assembly

12 2171846 Release Valve

13 2187619 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

18 2209687 Reservoir

19 488280 Screw

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2215728 Cover, Diffuser

26 2259066 Cover, Air Return

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

7

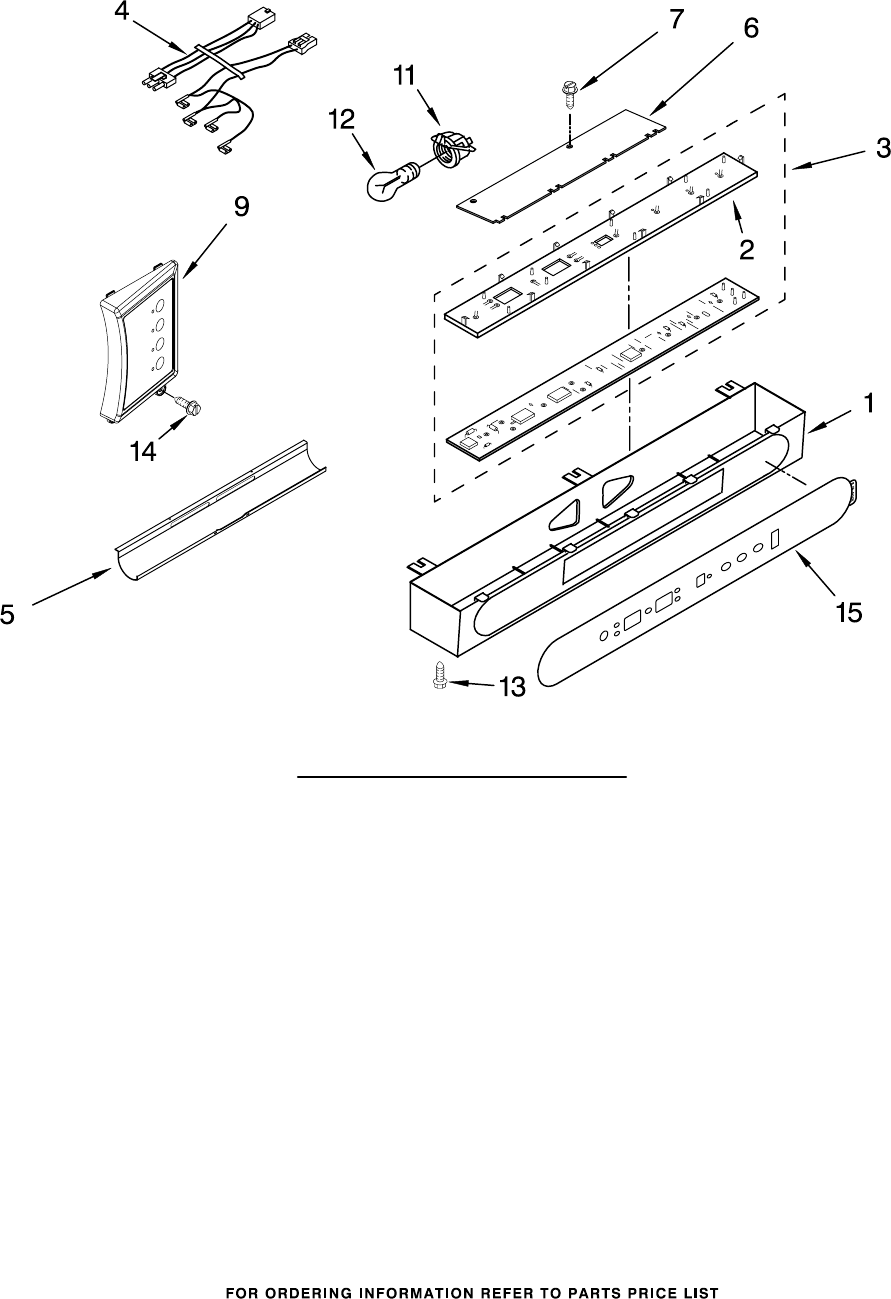

CONTROL PANEL PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 2302771 Control Box

2 2215670 Insert, Control

Box

3 2266951 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

5 2302727 Shield, Light

6 2221121 Support, Control

Box

7 489006 Screw (2)

9 2306086 Display Board,

Ingredient

Care Center

11 2162085 Socket, Light

12 2255743 Light Bulb

13 486194 Screw

14 8281185 Screw

15 2257518 Overlay

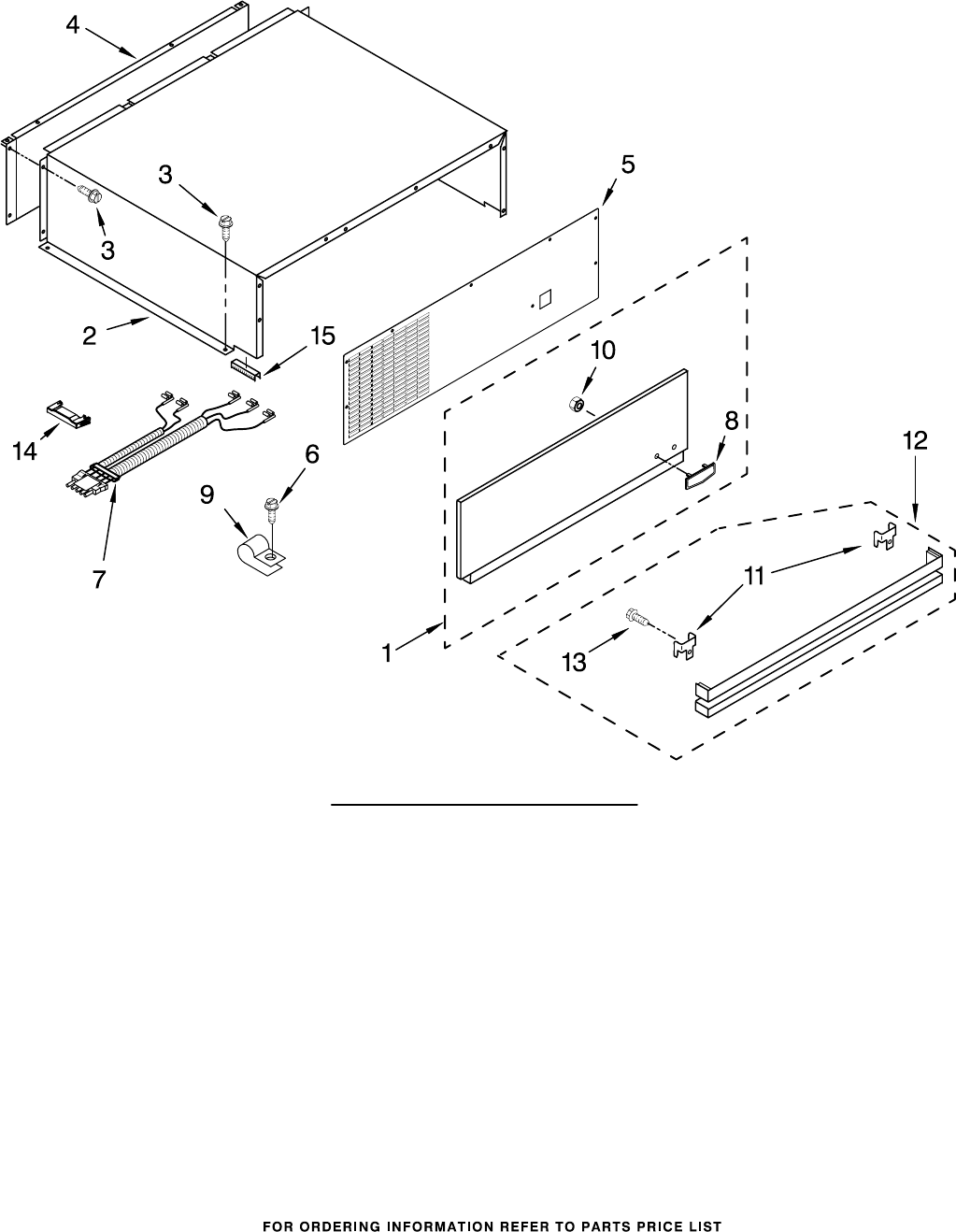

TOP GRILLE AND UNIT COVER PARTS

8

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorative

Assembly

2257410S Stainless Steel

2 2259320 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

5 2302974 Cover, Unit Front

6 487415 Screw

7 2187429 Wire Assembly

RC/FC Light Switch

8 2005292 Badge, Kitchen Aid

9 489348 Clamp

10 2004333 Nut

11 2254759 Bracket, Louver

12 Louver, Grille

2254760S Stainless Steel

13 488879 Screw

14 2221297 Enclosure,

Connector

15 2215910 Grommet

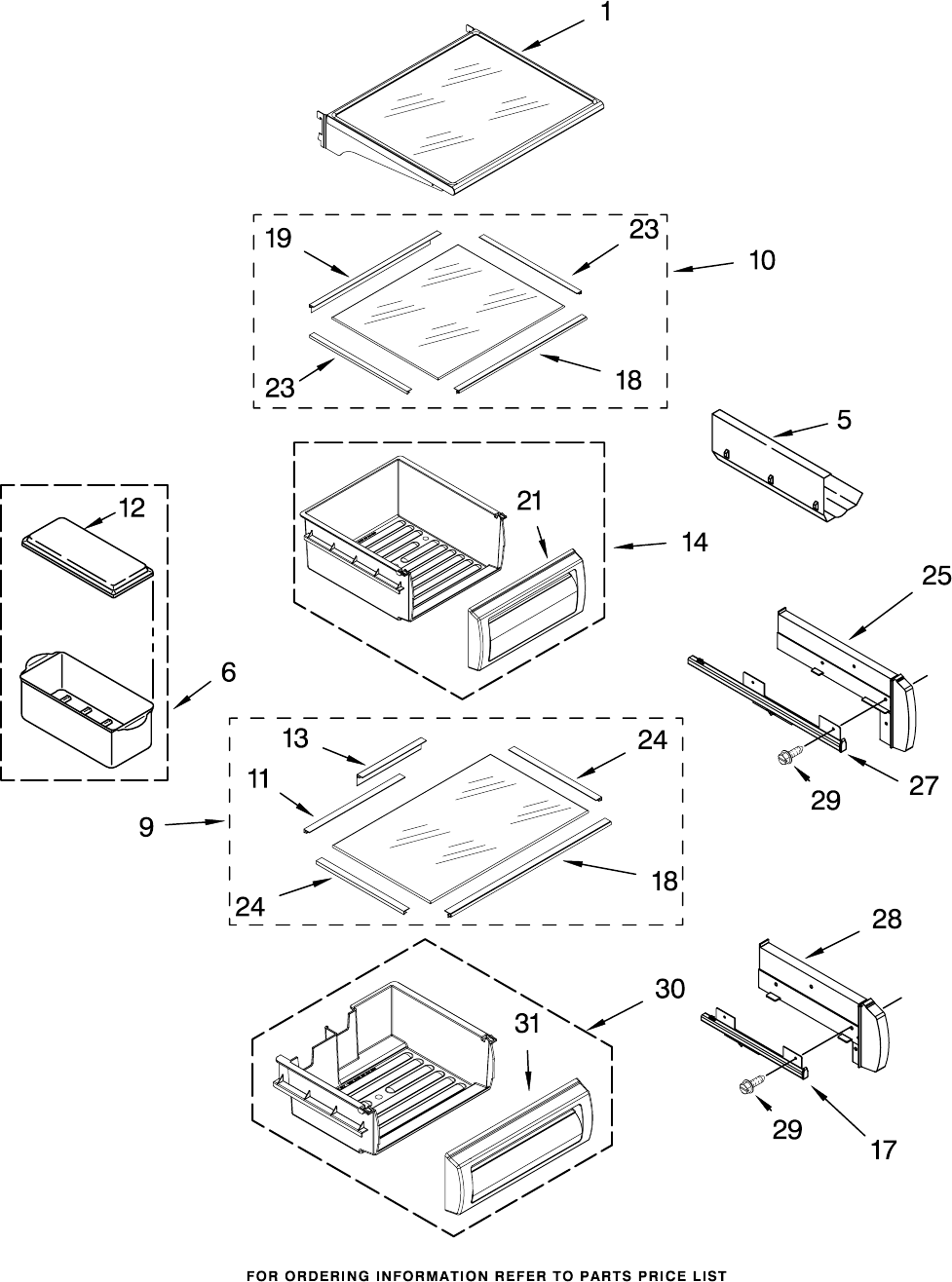

REFRIGERATOR SHELF PARTS

9

For Model: KSSC36QMS01

(Stainless Steel)

8199090

REFRIGERATOR SHELF PARTS

10

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assembly

5 2179404 Rack, Wine

6 2221071 Egg Bin

9 2302841 Meat Pan Cover

Assembly

10 2302834 Crisper Cover

Assembly

11 2257611 Trim, Glass Rear

Side

12 2169935 Cover

13 2257581 Trim, Glass Rear

14 2252411 Crisper Pan (2)

17 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

18 Trim, Glass Front

(Not Serviced)

19 2256253 Trim, Glass Rear

21 2256247 Front, Crisper

Pan

23 2252255 Trim, Glass Side

Crisper Pan

24 2256250 Trim, Glass Side

Meat Pan

25 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

28 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

29 Screw

8533929 Right Side

8533928 Left Side

30 2256368 Pan Assembly

Meat

31 2256365 Front, Meat Pan

11

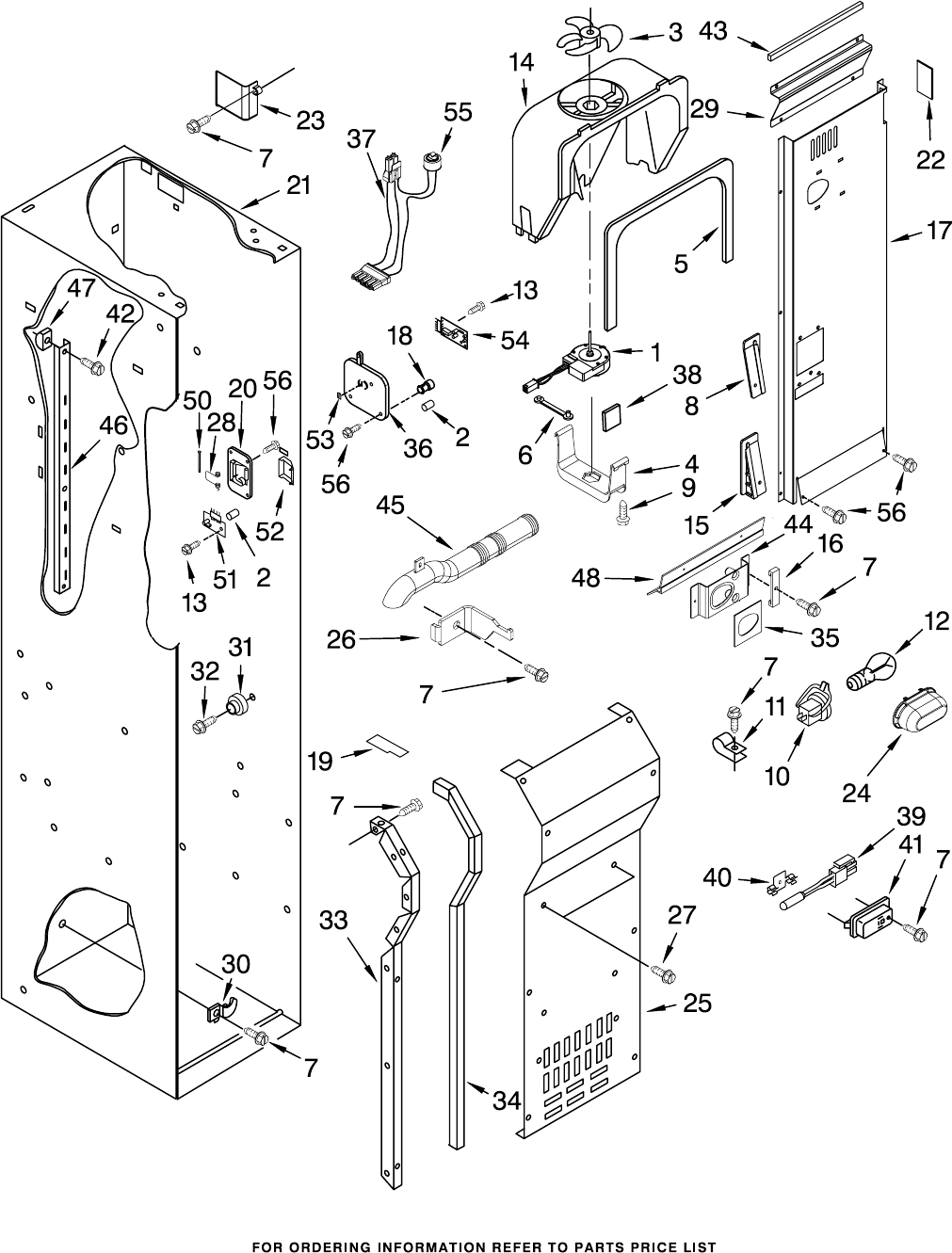

FREEZER LINER AND AIR FLOW PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

12

FREEZER LINER AND AIR FLOW PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2259385 Fan Motor

2 2198665 Tube, P.C. Board

3 2169142 Fan Blade

4 2223733 Retainer,

Fan Motor

5 2302816 Gasket, Cover

6 2223986 Grommet

7 486194 Screw

8 2259464 Wedge, Air Duct

9 488500 Screw, Ground

10 2162085 Socket, Light (2)

11 488937 Clamp, Nylon

12 2255743 Light Bulb

13 489214 Screw

14 2182119 Scroll, Fan

15 2259465 Wedge, Air Duct

16 2259446 Spacer, Light

Bracket

17 2306045 Air Duct

18 2198643 Lens

19 Block, Fan Scroll

2209481 Right

2209066 Left

20 2215650 Cover, Emitter

21 Liner (Not A

Serviceable Part)

22 2306055 Pad, Air Duct

23 2259025 Cover, Air Outlet

24 2259367 Light Shield

25 2306048 Cover, Evaporator

26 2302925 Bracket, Vent Tube

27 487539 Screw

28 2198635 Spring

29 2306037 Deflector, Air

Duct

30 1112260 Support,

Evaporator

31 2196483 Shelf, Stud (20)

32 8281158 Screw

33 Evaporator,

Cover Rail

2221107 Left Side

2259355 Right Side

34 2220904 Gasket (2)

Evaporator Cover

35 2302777 Seal, Light Socket

36 2259493 Cover, Receiver

37 2187673 Harness, Evap Fan

(Includes Item 55)

38 2220241 Insulation (4)

39 2213442 Thermistor

40 2209204 Clip, Thermistor

41 1116793 Cover, Thermistor

42 2006475 Screw

43 2306051 Gasket, Air Duct

44 2257571 Bracket, Light

45 2302933 Tube, Vent

46 2259032 Ladder, Shelf

47 2259397 Support, Screw

48 2302849 Support, Air Duct

50 2198634 Pin

51 2220398 P.C. Board

Emitter

52 2198633 Flipper

53 2255563 Slide, Icemaker

Shut Off

54 2255114 P.C. Board,

Receiver

55 2306462 Defrost, Bi−Metal

56 8281185 Screw

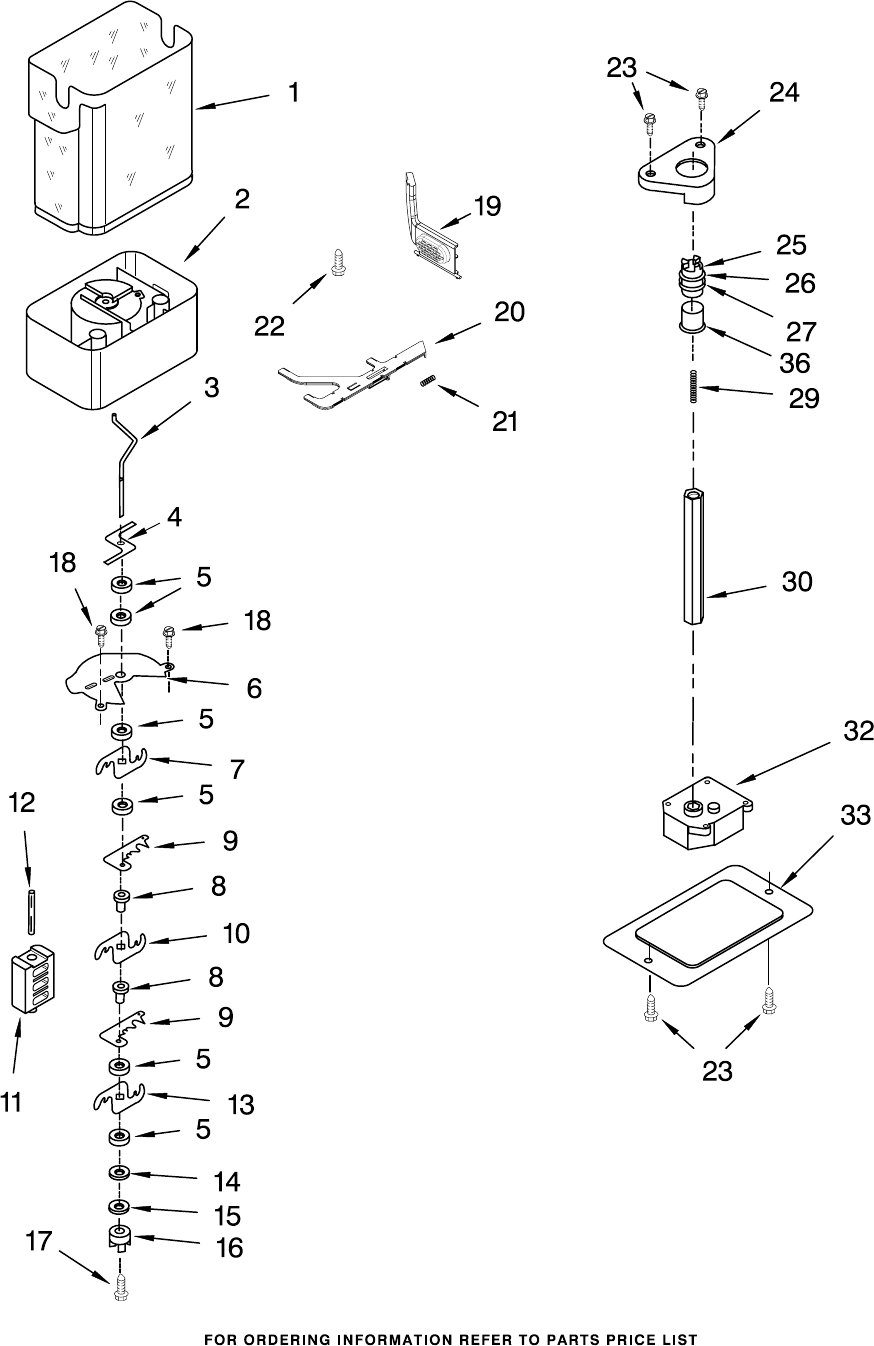

MOTOR AND ICE CONTAINER PARTS

13

For Model: KSSC36QMS01

(Stainless Steel)

8199090

MOTOR AND ICE CONTAINER PARTS

14

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 2222960 Ice Bin

2 2222959 Crusher Bin

3 2211590 Auger

4 2198603 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2198601 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling, Top

17 8281164 Screw

18 3400065 Screw

19 2252265 Button, Bin

20 2252206 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw (2)

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

32 2212363 Dispenser, Motor

33 2222862 Cover

36 2212365 Sleeve. Coupling

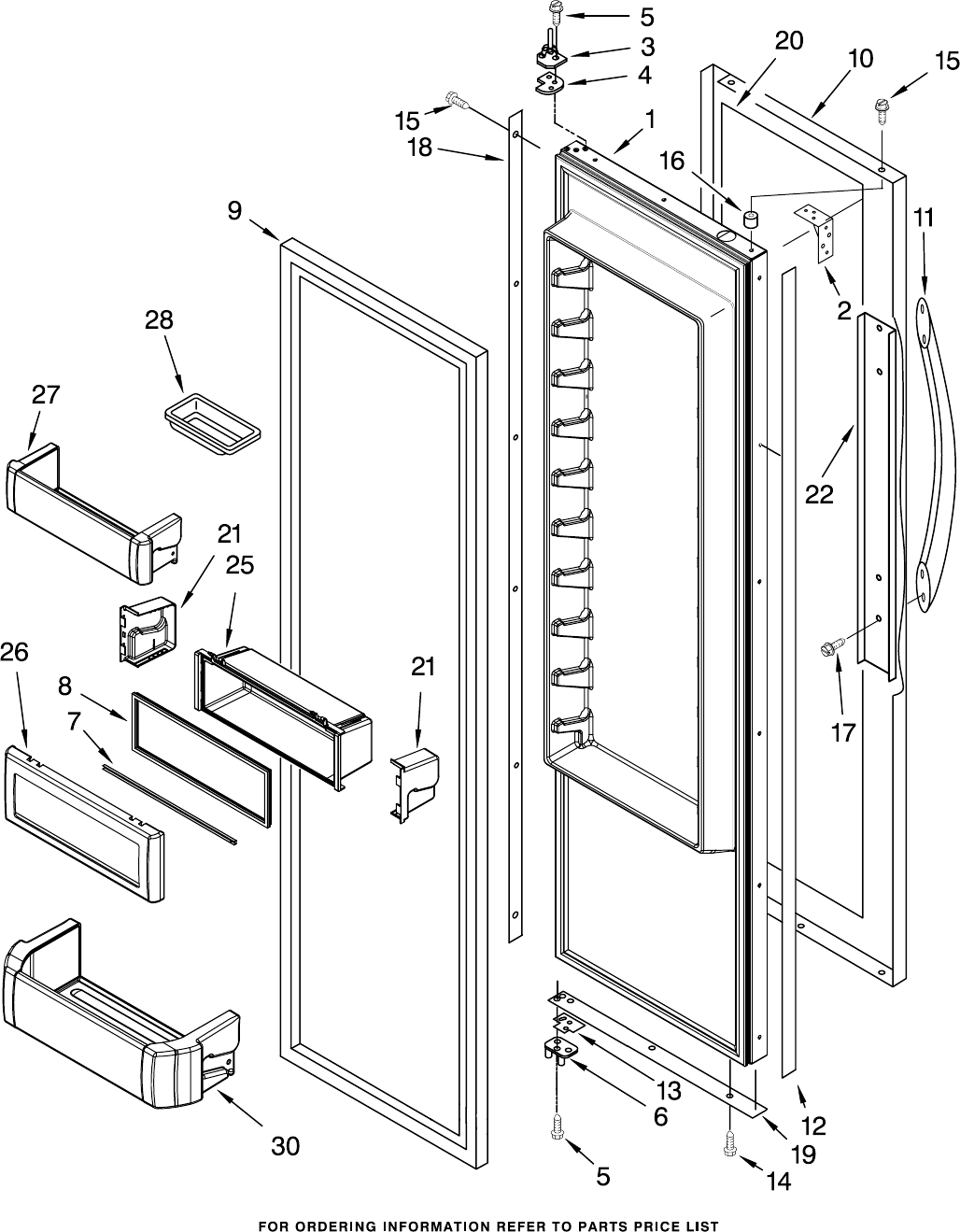

REFRIGERATOR DOOR PARTS

15

For Model: KSSC36QMS01

(Stainless Steel)

8199090

REFRIGERATOR DOOR PARTS

16

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 2252329 Refrigerator

Door Panel

(Includes

Item #9)

2 2258951 Brace, Door Corner

3 2266854 Hinge Assembly,

Top

4 2256381 Spacer−Door,

Top

5 489282 Screw

6 2302878 Hinge Assembly,

Bottom

7 2222795 Rail, Lid

8 2222981 Gasket, Utility

Bin

9 2222810 Door Gasket,

Magnetic

10 Skin, Door

2306155 Stainless Steel

11 Handle, Door

2005290 Stainless Steel

12 2309060 Spacer, Door−Skin

(Handle Side)

13 2257637 Door, Spacer

Bottom

14 488568 Screw

15 Screw, 8−15 x .500

8281250 Stainless Steel

16 2005433 Spacer, Door−Skin

(Top)

17 308544 Screw, Handle

18 2005030 Spacer, Door−Skin

(Hinge Side)

19 2004933 Spacer, Door−Skin

(Bottom)

20 2005323 Filler, Door

21 End Cap

2222919 Right Side

2222920 Left Side

22 2306398 Plate, Door−Handle

25 2222921 Bin, Utility

Center

26 2222924 Door, Utility Bin

27 2222772 Door Shelf

28 2165792 Butter Tray

30 2222769 Shelf, Gallon

Door

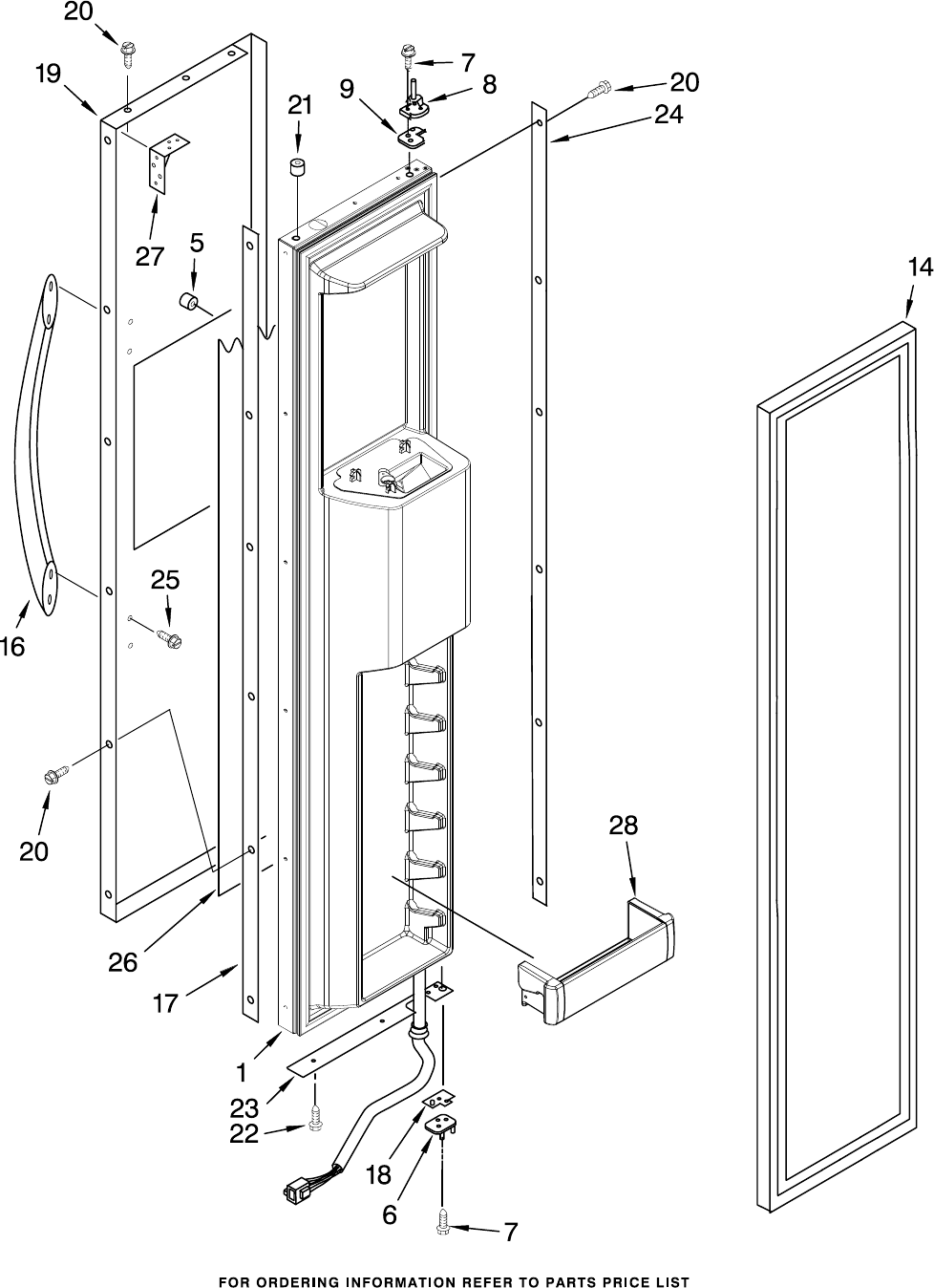

FREEZER DOOR PARTS

17

For Model: KSSC36QMS01

(Stainless Steel)

8199090

FREEZER DOOR PARTS

18

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

Panel (Includes

Item #14)

2252323B Black

5 2252354 Spacer

6 2302879 Hinge, Bottom

7 489282 Screw

8 2266854 Hinge, Top

9 2256381 Spacer−Door,

Top

14 2222813 Door Gasket,

Magnetic

16 Handle, Door

2005290 Stainless Steel

17 2309060 Spacer, Door−Skin

(Handle Side)

18 2257637 Door, Spacer

19 Skin, Door

2306162 Stainless Steel

20 Screw

8281250 Stainless Steel

21 2005433 Spacer, Door−Skin

(Top)

22 488568 Screw

23 2257384 Spacer, Door−Skin

(Bottom)

24 2005030 Spacer, Door−Skin

(Hinge Side)

25 308544 Screw, Handle

26 2252390 Filler, Door

27 2258951 Brace, Door Corner

28 2222775 Bin, Shelf

F.C. (3)

19

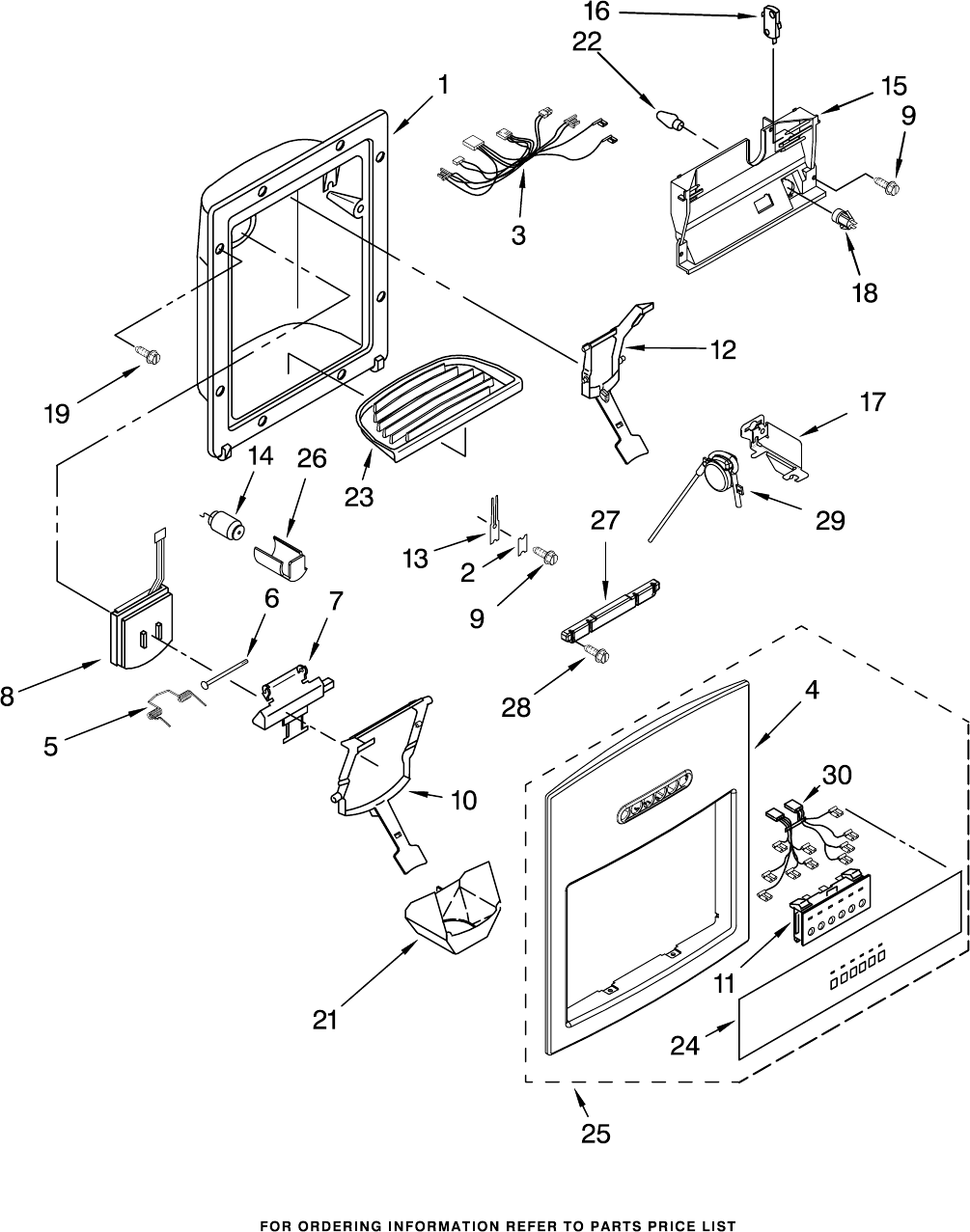

DISPENSER FRONT PARTS

For Model: KSSC36QMS01

(Stainless Steel)

8199090

DISPENSER AND FRONT PARTS

20

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 Housing, Dispenser

(Not Serviced)

2 2195051 Strain Relief

3 2187755 Wire Assembly

4 Cover, Dispenser

(Not Available−

Order Item 25)

5 2256199 Spring, Torsion

6 2196195 Pin

7 2206423 Ice Door Mechanism

8 2180353 Door, Ice

9 489000 Screw

10 Lever, Ice

Dispenser

2259396B Black

11 Switch Assembly

(Not Available

Order Item 25)

12 Lever, Water

Dispenser

2259395B Black

13 2194719 Spring, Lever

14 2205686 Delay Mechanism

15 2183771 Bracket, Control

16 2162361 Switch (4)

17 2259209 Bracket, Anti−

Drip Valve

18 2180200 Lamp Holder

19 3400091 Screw

21 2180224 Guide, Ice

22 3406124 Light Bulb

23 Grille, Overflow

2302944B Black

24 Overlay, Cover

(Not Available−

Order Item 25)

25 Front Cover

Assembly

(Includes Items

4, 11, & 24)

2306001B Black

26 2252127 Sleeve, Delay

Mechanism

27 2306077 Spacer, Dispenser

28 8281163 Screw

29 2257420 Valve, Anti−Drip

30 2187623 Harness, Switch

Jumper Assembly

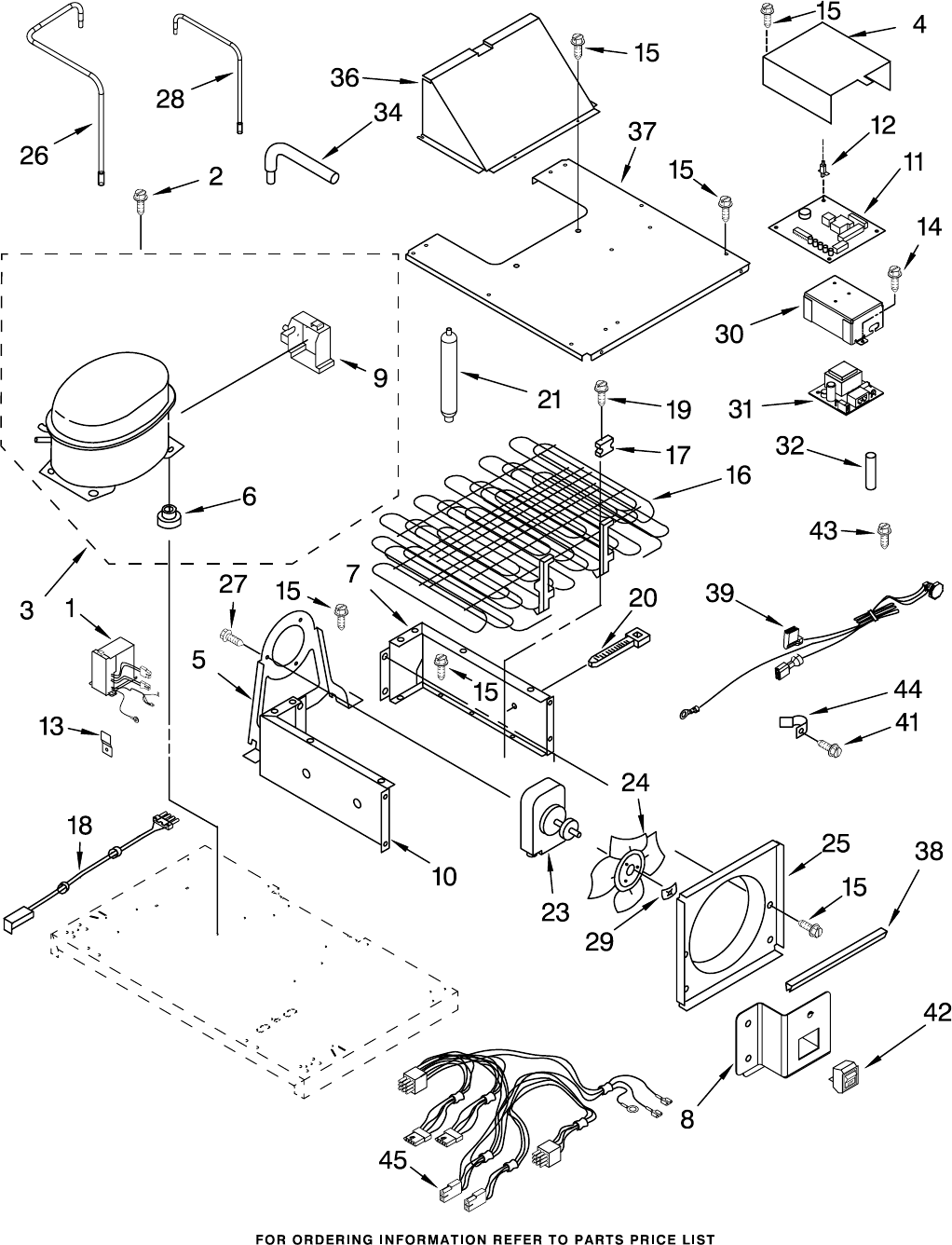

UPPER UNIT PARTS

21

For Model: KSSC36QMS01

(Stainless Steel)

8199090

UPPER UNIT PARTS

22

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2306957 Inverter Box

2 489373 Screw, Compressor

Mounting (4)

3 2302967 Compressor

(Includes Items

6 & 9)(Also Order

876765 Tube Kit)

4 2257354 Housing, Control

Board

5 2215641 Bracket, Fan Motor

6 1100826 Grommet, Mounting

7 2266803 Shroud, Condenser

(Right)

8 2302969 Bracket, Switch

9 2215676 Terminal Cover

10 2302973 Shroud, Condenser

(Left)

11 2303934 Control Board

12 2203075 Spacer (5)

13 2256328 Bracket, Inverter

Box

14 8281149 Screw

15 1157158 Screw

16 2259307 Condenser

17 943447 Grommet (4)

18 2187629 Wire, Jumper

19 487522 Screw

20 2155774 Wire Tie

21 2252363 Drier

23 2206036 Motor, Fan

24 2190685 Blade, Fan

25 2003169 Orifice, Fan

26 2300190 Tube, Drier

Transition

27 8281160 Screw

28 2259301 Tube, Heat Loop

Transition

29 486692 Speed Nut

30 2259349 Housing, Power

Supply

31 2259350 Power Supply,

Ingredient

Care Center

32 2000645 Sleeve,

Condenser

34 2194319 Process, Tube

36 2209495 Cover, Fan

37 2259092 Cover, Condenser

38 2307907 Grommet, Edge

39 2259197 Service Cord

41 486194 Screw

42 2266802 Switch, Power

Disconnect

43 487294 Screw, Ground

44 549193 Clamp, Cord

45 2187900 Wiring Harness,

Unit Compartment

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

6.25 oz.

(R−134A)

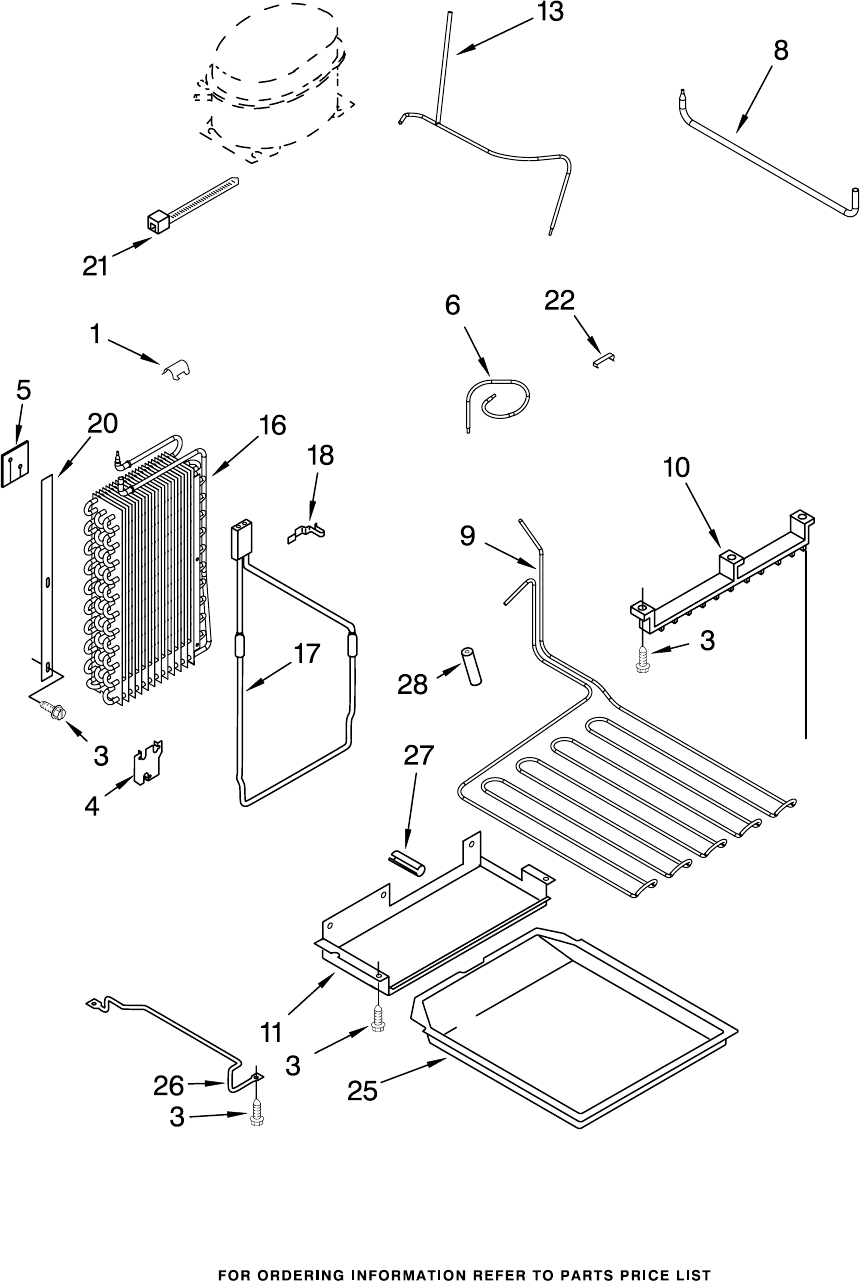

LOWER UNIT AND TUBE PARTS

23

For Model: KSSC36QMS01

(Stainless Steel)

8199090

LOWER UNIT AND TUBE PARTS

24

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION

1 9791833 Clip

3 486194 Screw

4 2215508 Bracket

5 2302929 Side Support

6 2259303 Suction Tube

8 2300191 Tube, Connect

(Drier/Restrictor)

9 2259329 Heater, Drain Pan

10 2209450 Hanger, Heater

11 2005908 Shield, Drain Pan

13 2259352 Tube, Discharge

16 2306092 Evaporator

17 2306387 Heater, Defrost

18 1113048 Clamp, Heater (2)

20 2220832 Gasket, Evaporator

21 2155774 Wire Tie

22 2215691 Clip, Heat

Exchanger

25 2001264 Drain Pan

26 Bracket, Drain Pan

1113206 Left

1113207 Right

27 513942 Dampener

28 2215648 Damper, Heater

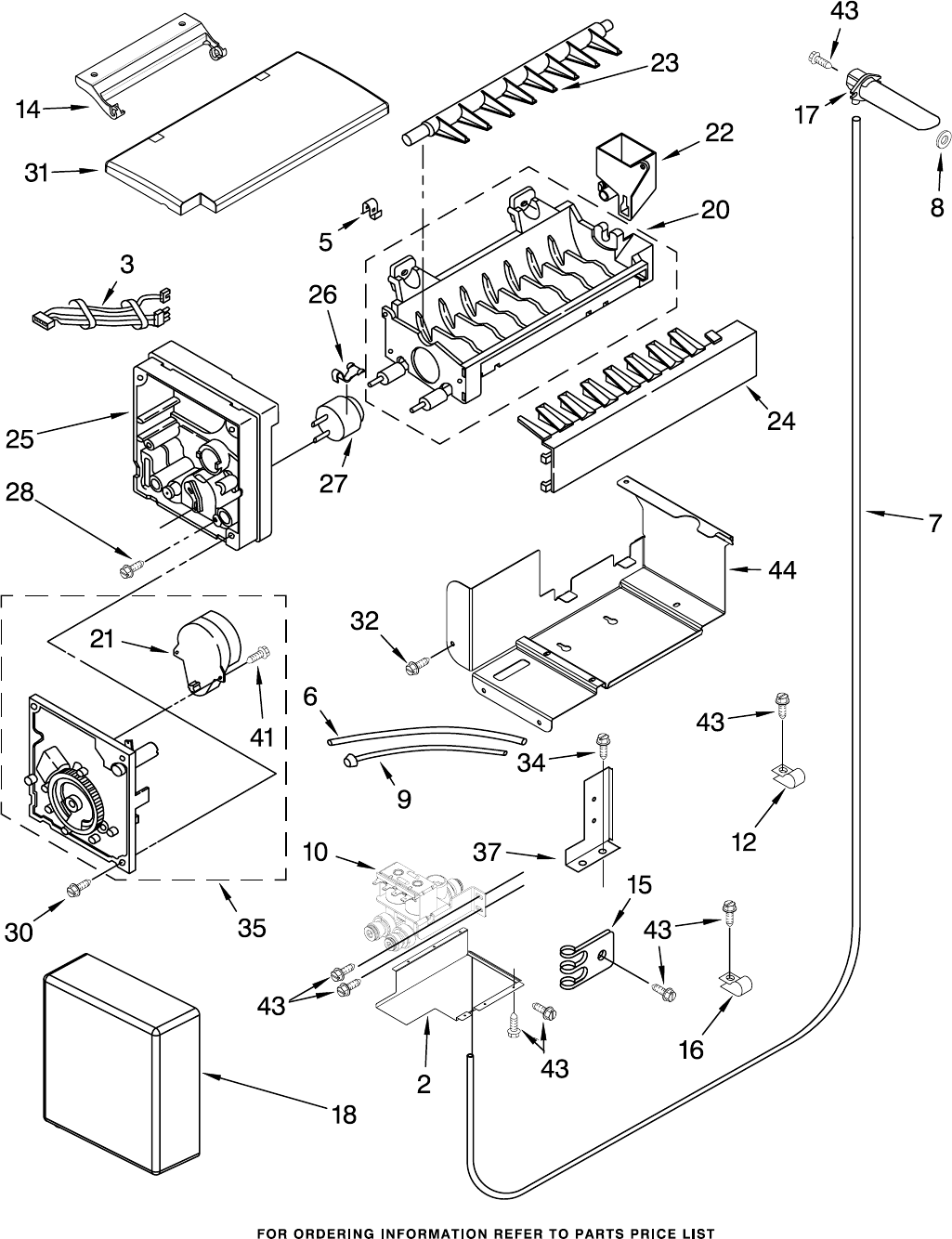

ICEMAKER PARTS

25

For Model: KSSC36QMS01

(Stainless Steel)

8199090

ICEMAKER PARTS

26

For Model: KSSC36QMS01

(Stainless Steel)

8199090

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 2300104 Cover−Bottom,

Electrical

3 2187622 Wire Assembly,

Icemaker

5 628379 Clip, Fuse

6 2214613 Tube, Filter Inlet

7 2252393 Water Inlet

Tube Assembly

8 2302758 Seal Gasket

9 2302719 Tube, Filter

Outlet

10 2307811 Valve, Solenoid

12 2221070 Clamp, Tube

14 2198641 Bracket, Icemaker

Cover

15 2208136 Clamp, Nylon

Valve

16 488937 Clamp Tube

17 2302756 Tube, Water Inlet

18 2257538 Cover

20 2212351 Mold & Heater

(Also Order

542638 Silicone

Grease)

21 628398 Motor

22 628356 Cup−Water Fill

23 2212320 Ejector

24 2212318 Ice Striper

25 2194712 Support

26 627796 Retainer

Thermostat (2)

27 627985 Thermostat

(Also Order

542639 Cement

Alumilastic)

28 8533917 Screw

30 489276 Screw

31 2222962 Cover, Icemaker

32 489474 Screw

34 489464 Screw

35 628399 Module Assembly

(Includes Items

21 & 41)

37 2306081 Water Valve

Mounting Bracket

41 489136 Screw (2)

43 486194 Screw

44 2300167 Bracket, Icemaker

Mounting

100 2306089 Complete Icemaker

Assembly

Following Parts Not Illustrated

(Optional Parts Only)

2261590 Cleaner,

Stainless Steel

2222958 Ice Container

Assembly
