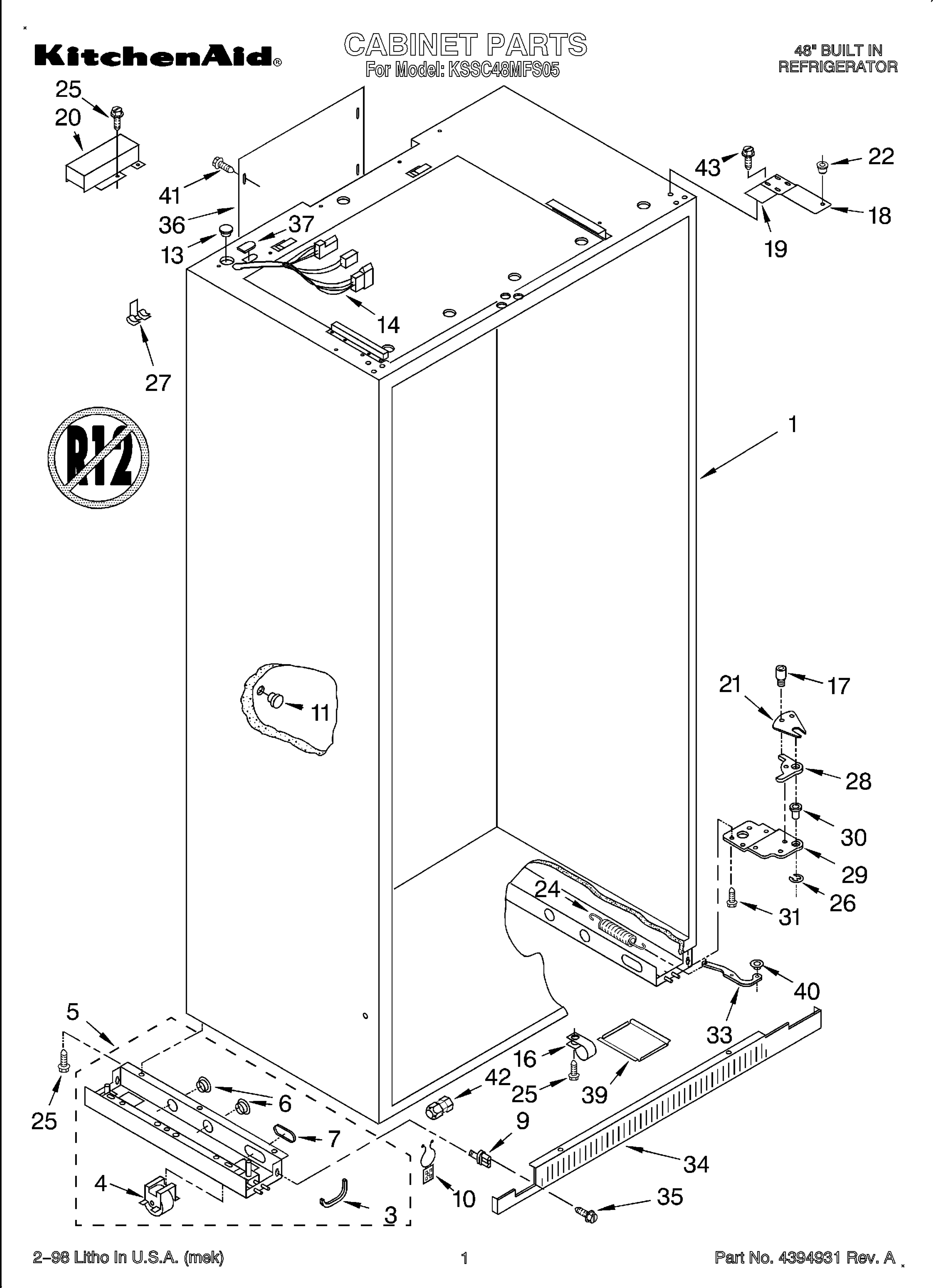

1 Cabinet (Not A Serviceable Part)

3 2005004 Grommet, Tube Crossover

4 1112023 Roller, Front & Rear (4)

5 Support, Leveler Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet, Flexible

9 2004852 Mounting Stud, Grill

10 2005237 Wire Clip

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2004913 Wiring Harness, Cabinet

16 488946 Tube, Clamp

17 2005378 Screw, Door Stop

18 Hinge (Top)

2005252 Left Side

2005251 Right Side

19 2005294 Shim, Hinge Top

20 1112805 Guard, Wiring

21 2004994 Lock, Adjustable Bushing

22 2002903 Bushing

24 Spring, Door Closure

2004566 Refrigerator Side

2004567 Freezer Side

25 486194 Screw

26 2005008 Retaining Ring, Adjustable Bushing

27 1113227 Fastener (3)

28 2004867 Gap, Cover Assembly (Bottom)

29 Hinge (Bottom)

2004539 Freezer Side

2004507 Refrigerator Side

30 2005293 Bushing, Adjustable

31 3400207 Screw

33 2004516 Linkage, Door Closure

34 Grille Base, Front

2004532 Black

35 489238 Screw

36 2004512 Cover, Rear

37 1113123 Grommet, Wiring

39 2004595 Cup, Wiring

40 2004565 Bushing, Door Closure

41 1163283 Screw

42 2150347 Union

43 3400207 Screw (4)

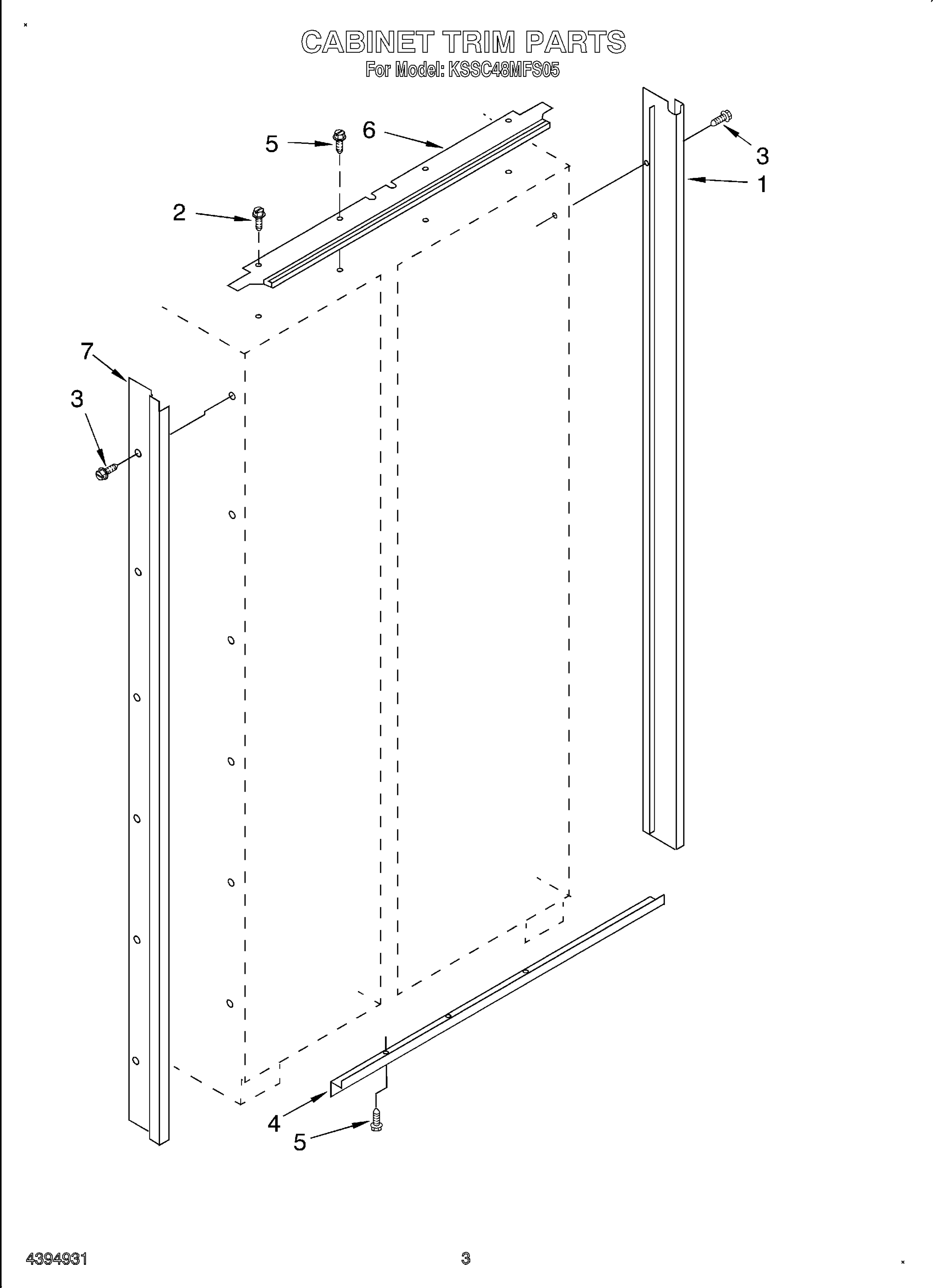

1 2005256 Cabinet, Trim Right Side

2 2003857 Screw

3 1163283 Screw

4 2004538 Cabinet, Trim (Bottom)

5 486194 Screw

6 2003647 Cabinet, Trim Top

7 2005493 Cabinet, Trim Left Side

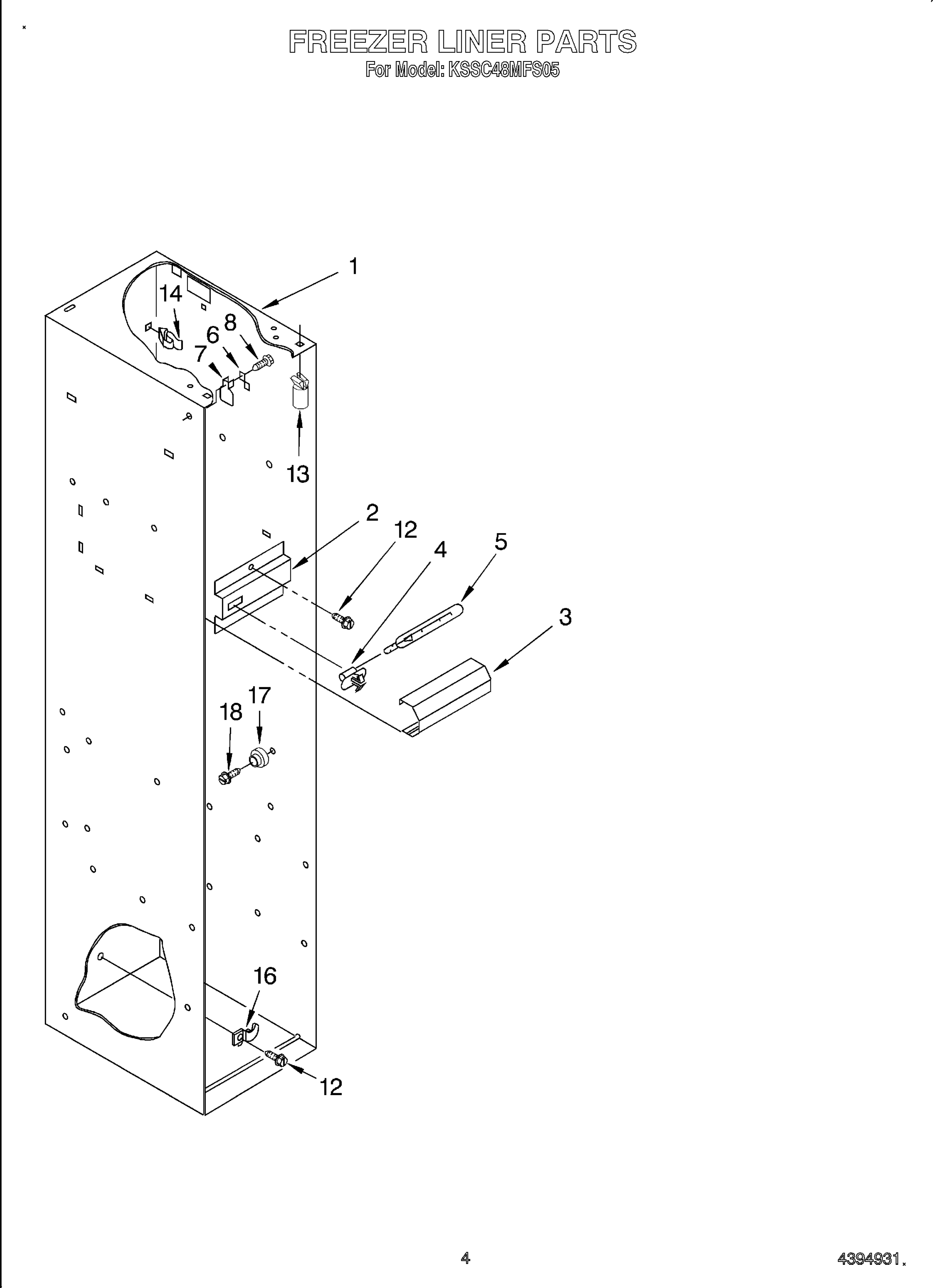

1 Liner (Not A Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Lens

4 1112613 Light, Socket

5 548049 Light, Bulb

6 538533 Support Clip, Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support, Evaporator

17 2004068 Stud, Shelf (20)

18 487559 Screw

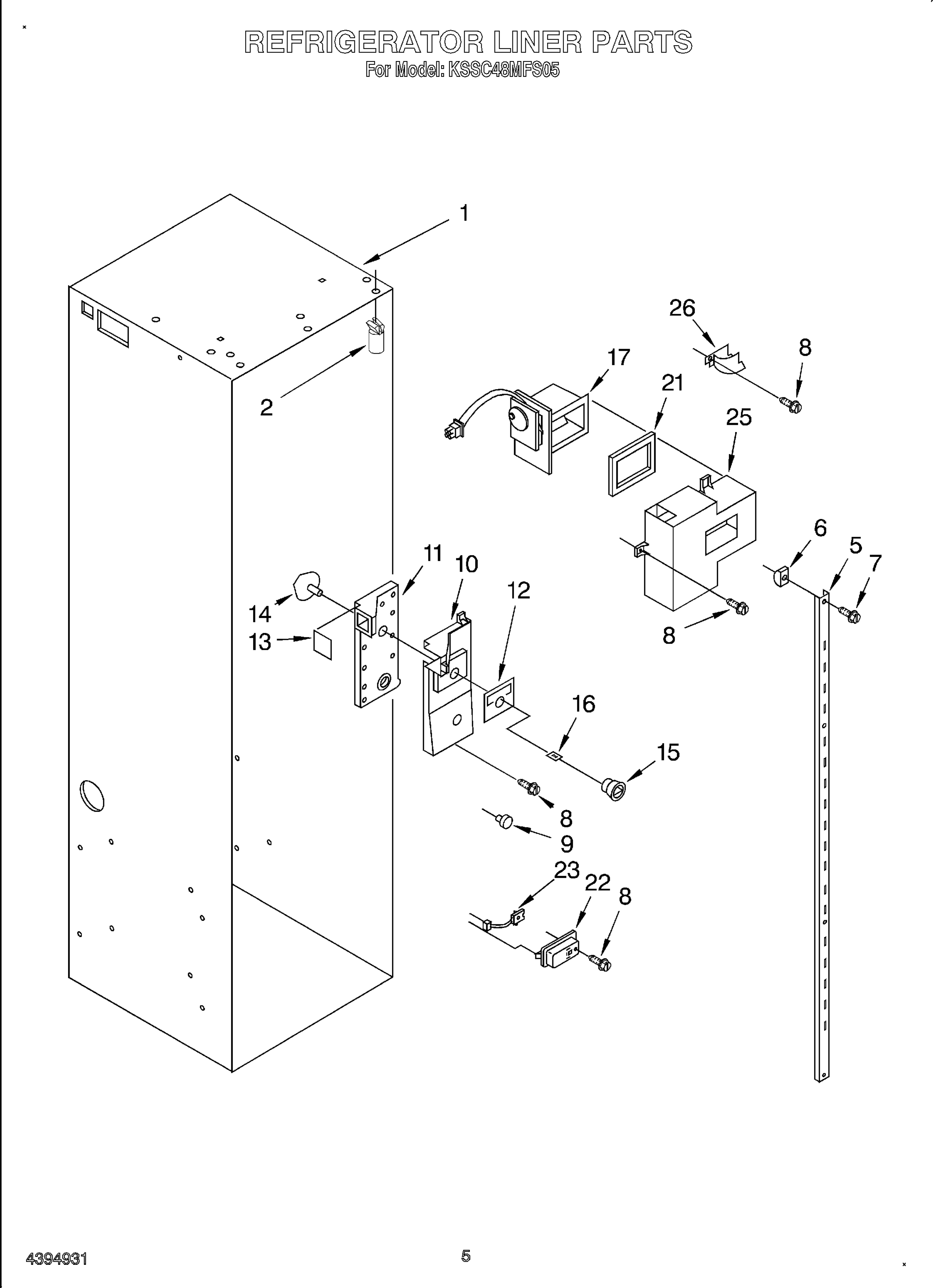

1 LINER (Not A Serviceable Part)

2 1112591 Spacer, Control Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support, Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2003579 Meat Pan, Air Duct Cover

11 2000337 Meat Pan, Air Duct

12 2003299 Inlay, Control Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control, Meat Pan

15 2003811 Control Knob, Meat Pan

16 2003841 Retainer, Knob

17 2004484 Air Baffle Assembly

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2003578 Air Baffle Cover

26 2003577 Guard, Air Return

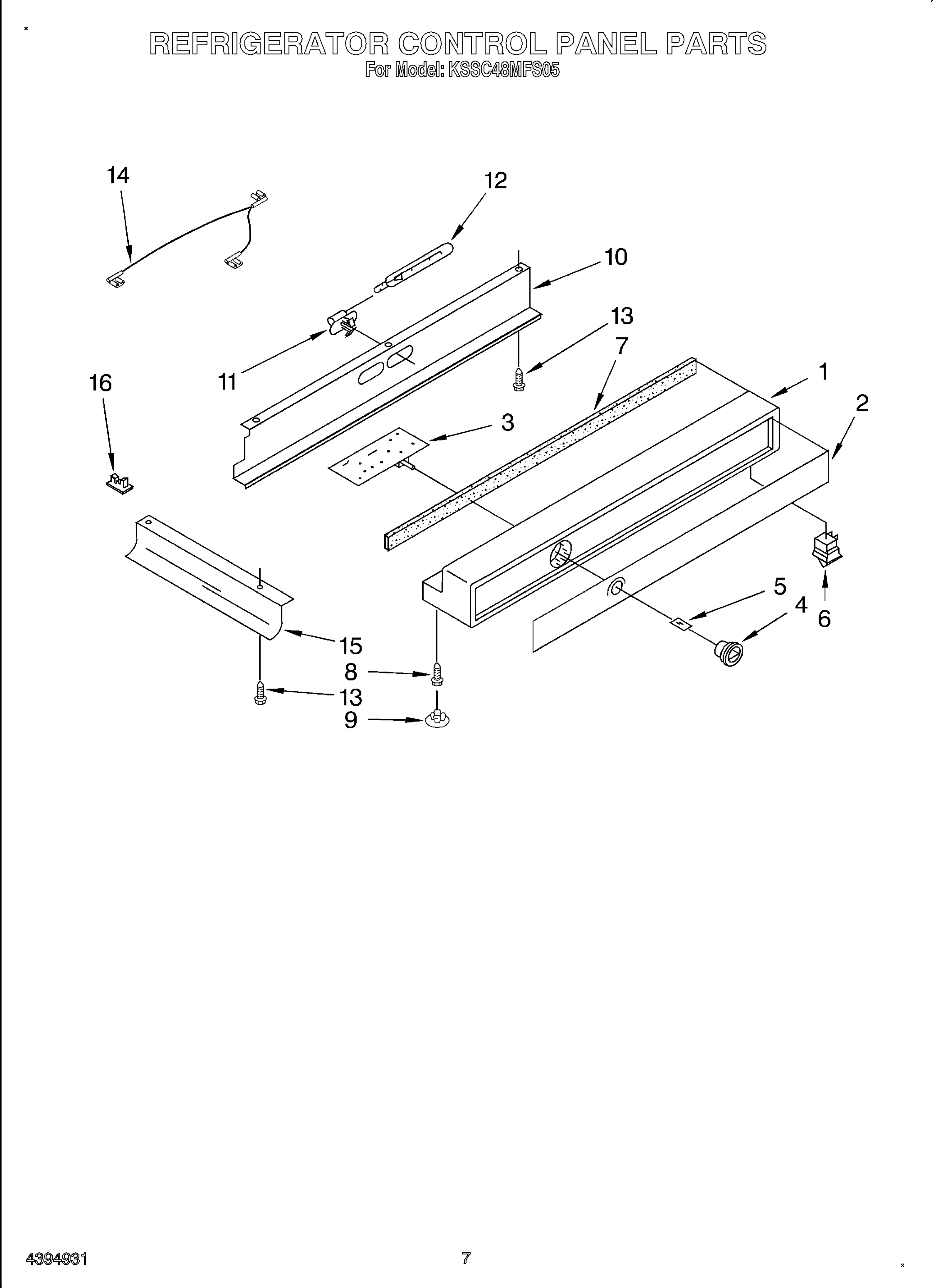

1 1112642 Control Panel

2 2003303 Inlay, Control Panel

3 2004005 Circuit Board

4 2003842 Control Knob

5 2003841 Retainer, Knob

6 1118894 Switch, Rocker Arm

7 1113137 Seal, Control Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113775 Shield, Control Panel

11 1112613 Socket, Light (2)

12 548049 Light Bulb (2)

13 486194 Screw

14 2003758 Wire, Light

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (2)

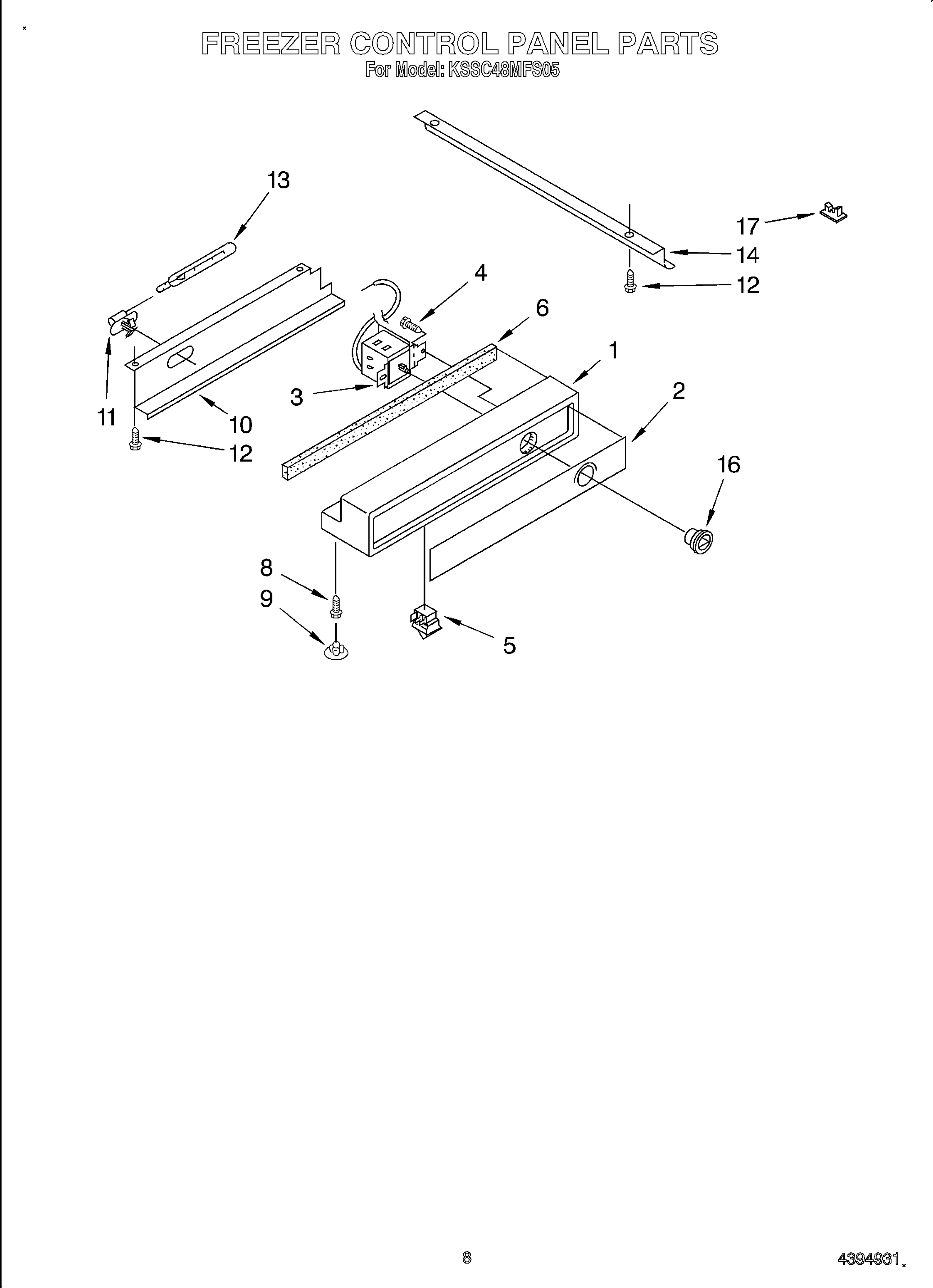

1 1113627 Control Panel

2 2003309 Inlay, Control Panel

3 1113466 Thermostat & Barrier Assembly

4 488974 Screw (2)

5 1115373 Switch, Rocker Arm

6 1113136 Seal, Control Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113769 Shield, Control Panel

11 1112613 Socket, Light

12 486194 Screw

13 548049 Light Bulb

14 2001974 Channel, Wiring

16 2182112 Knob, Thermostat

17 1115375 Clip, Wiring

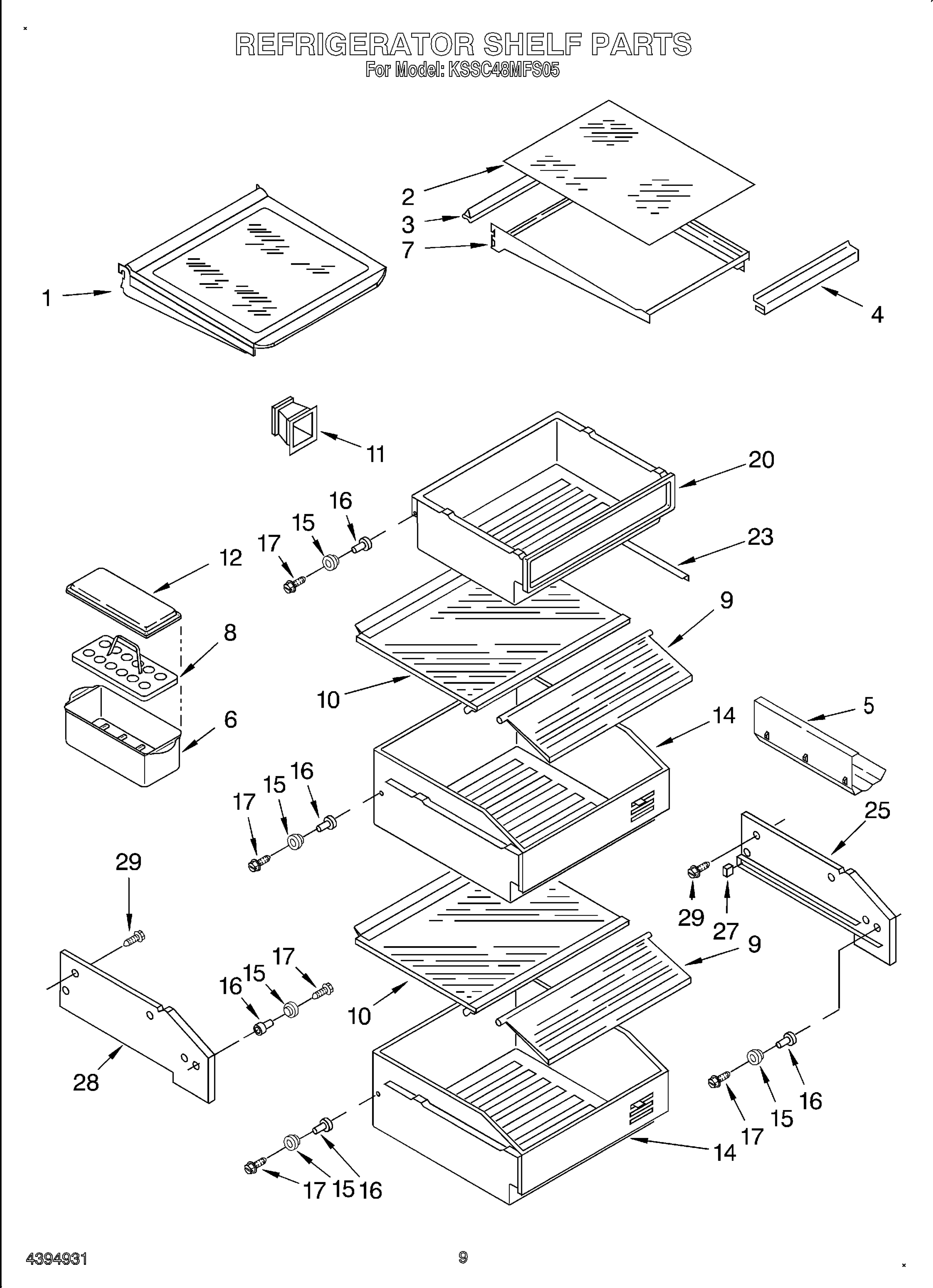

1 2174404 Frame, Shelf

2 2003377 Glass, Shelf

3 1112006 Reflector, Shelf

4 1113792 Gasket, Glass (2)

5 2179375 Rack, Wine

6 2169933 Egg Bin

7 2003327 Frame, Assembly Meat Pan

8 2164373 Egg Carrier

9 1112247 Cover, Crisper

10 2003380 Glass, Crisper (Includes #9)

11 2000742 Meat Pan, Connector

12 2169935 Cover

14 2003317 Crisper Pan (2)

15 2174388 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

20 2003322 Meat Pan

23 2002181 Retainer, Glass

25 2003411 Crisper Spacer, Right Side (2)

27 1113169 Stop, Roller

28 2003410 Crisper Spacer, Left Side (2)

29 486194 Screw

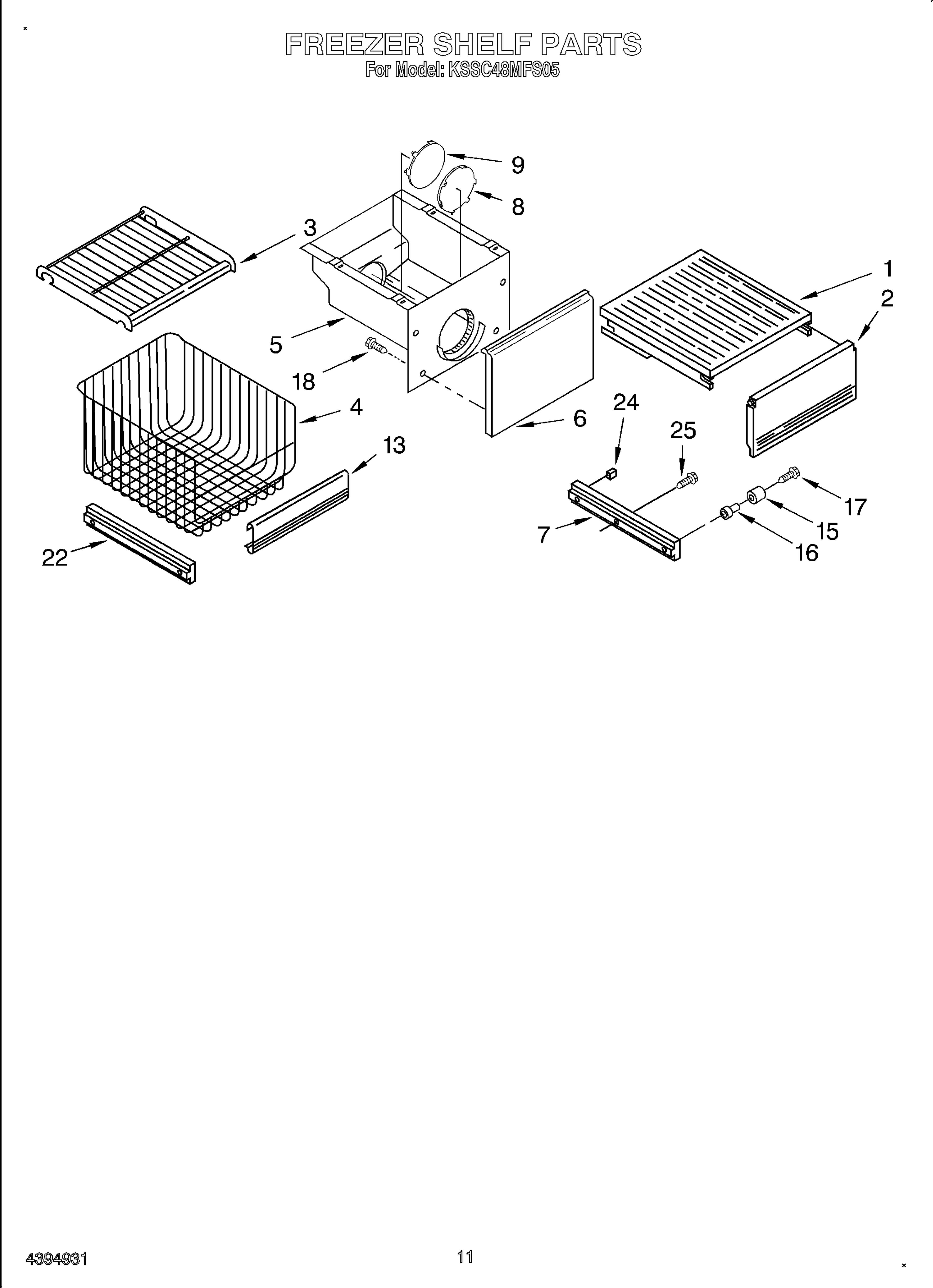

1 2003144 Solid Shelf

2 2003135 Front, Ice Compartment

3 1113638 Shelf, Fixed (2)

1112052 Shelf, Fixed-Deep

4 2001626 Basket (2)

5 2002727 Ice Container

6 2003045 Front Cover

7 Slide, Container

2002720 Right Side

2002721 Left Side

8 2003046 Hole Plug, Front

9 2003047 Hole Plug, Rear

13 2003114 Trim, Basket

15 2174388 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

18 488886 Screw

22 Basket Slide

2000061 Right Side

2000062 Left Side

24 1113169 Stop, Roller

25 486194 Screw

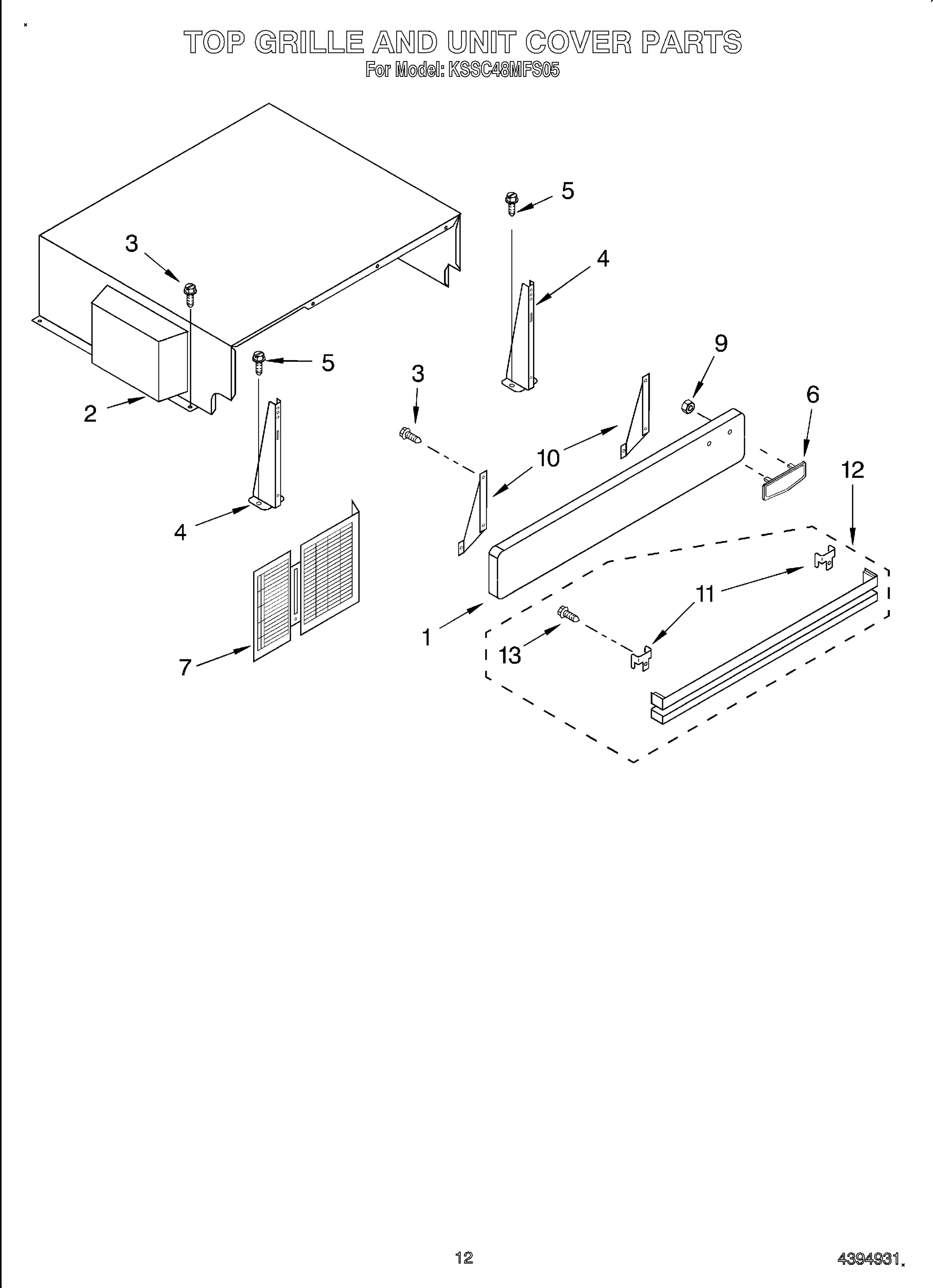

1 2005314 Top Grille Assembly

2 2005549 Cover, Unit

3 486194 Screw

4 2002484 Grille, Bracket

5 2001415 Screw

6 2005292 Nameplate

7 2005534 Guard, Compressor Wiring

9 2004333 Nut

10 2005485 Bracket, Trim Panel

11 2005483 Louver, Bracket

12 2005259 Vent, Louver

13 488649 Screw

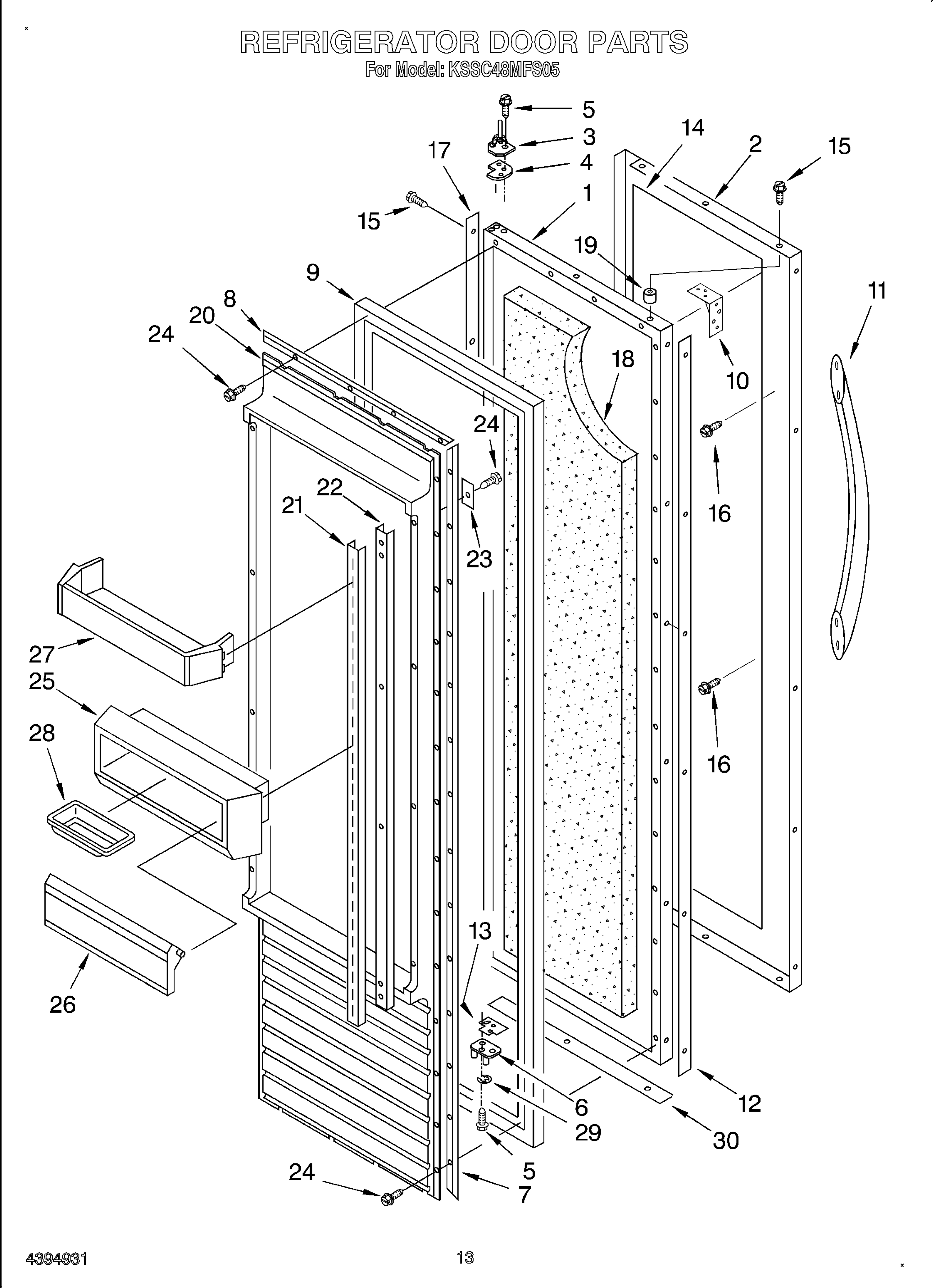

1 2003872 Refrigerator Door Panel (Includes Insulation)

2 2005283 Door Skin

3 2005329 Hinge Assembly, Top

4 2004520 Spacer-Door, Top

5 489282 Screw

6 2004523 Hinge Assembly, Bottom

7 1112533 Gasket Retainer, Side (2)

8 1112542 Gasket Retainer, Top & Bottom

9 2001049 Door Gasket, Magnetic

10 2004447 Door Brace, Corner

11 2005290 Handle, Door

12 2005320 Spacer, Handle Side

13 2004549 Door, Spacer Bottom

14 2005327 Filler, Door

15 Screw

487052 Stainless Steel

16 90864 Screw

17 2005030 Spacer, Hinge Side

18 2005058 Insulation, Encapsulated

19 2005433 Spacer, Top

20 1113950 Panel, Interior Door

21 1113949 Ladder, Shelf (2)

22 1113948 Retainer, Shelf Ladder (2)

23 1112514 Back Up Plate (8)

24 486194 Screw

25 1113955 Gasket

26 2003465 Door, Utility Bin

27 2003132 Door Shelf (4)

28 2165792 Butter Tray

29 2004881 Retaining Ring, Door-Closure

30 2004935 Spacer-Door, Skin

1 2003878 Freezer Door Panel (Includes Insulation)

2 2004520 Spacer-Door, Top

3 2004524 Hinge, Bottom

4 489282 Screw

5 2005329 Hinge, Top

6 2004881 Retaining Ring Door-Closure

7 1112533 Gasket Retainer, Side (2)

8 1112539 Gasket Retainer, Top & Bottom

9 2000878 Door Gasket, Magnetic

10 486194 Screw (34)

11 2005290 Handle, Door

12 90864 Screw

13 2004549 Door, Spacer

14 487052 Screw

15 2005433 Spacer, Top

16 2004447 Door Brace, Corner

17 2004933 Spacer-Door, Skin

18 2005030 Spacer, Hinge Side

19 2000179 Interior Door Panel

20 2003129 Shelf Bin (4)

22 2005054 Insulation, Encapsulated

23 2005323 Filler, Door

24 2005289 Door Skin

25 2005330 Spacer, Handle Side

1 2003398 Assembly, Unit Base

2 2163787 Clip, Compressor Mounting (4)

3 2183420 Compressor (Includes Items 7, 8, 9, 11, 12 & 21) (Also Order)

876765 Tube Kit

4 680975 Washer

5 2003389 Bushing, Foam

6 2163786 Grommet, Mounting

7 1127675 Wire Assembly

8 2176858 Overload (Includes Relay)

9 2162358 Terminal Cover

11 1108143 Relay

12 2169137 Capacitor

14 486899 Screw

15 487869 Screw

16 2003392 Condenser

17 943447 Grommet (4)

18 1113019 Clamp (4)

19 487522 Screw

20 851095 Wire Tie (2)

21 2164492 Drier

23 2169135 Motor, Fan

24 1108179 Blade, Fan

25 2003169 Orifice, Fan

27 489099 Screw (3)

29 486692 Speed Nut

30 2162044 Defrost Timer

31 488911 Screw

32 2000645 Sleeve, Condenser

34 2003011 Process, Tube

35 486194 Screw

36 2003174 Cover, Fan

37 2005535 Cover, Condenser

38 2003263 Air Vane

39 2003381 Service Cord

41 1113162 Clamp, Cord (2)

42 1113229 Switch, Power Disconnect

43 488879 Screw, Ground

44 653035 Clip, Cord Plug

45 2003356 Wiring Harness, Unit Compartment

Following Parts Not Illustrated and Optional Parts Not Included

978025 Valve, Access (1/4")

978026 Valve, Access (5/16")

978027 Valve, Access (3/8")

978028 Valve, Access (1/2")

978029 Valve, Access (5/8")

978030 Valve, Access (3/4")

876764 Valve, Access (3/16")

REFRIGERANT CHARGE 7.5 oz. (R-134A)

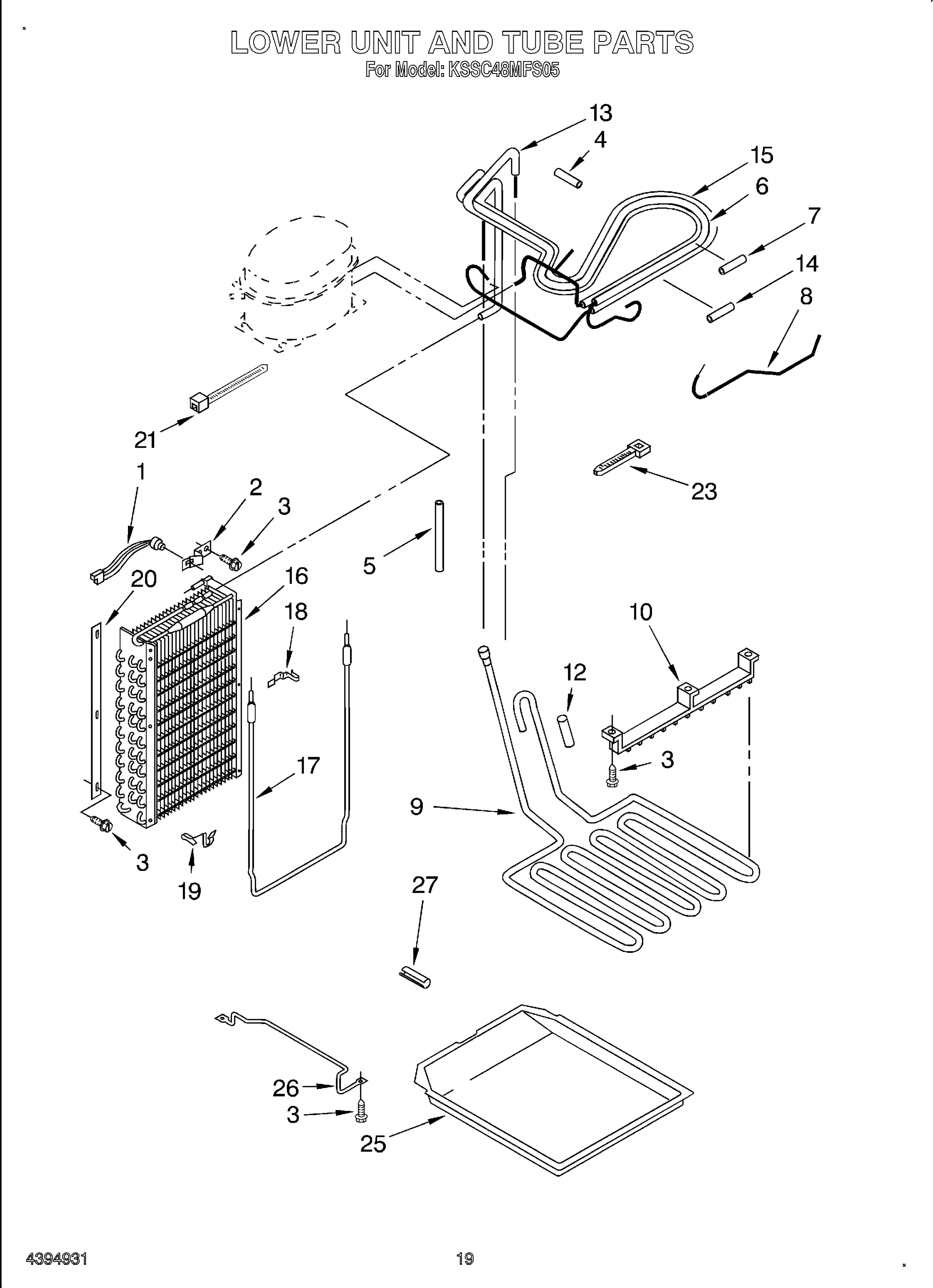

1 2000528 Defrost Bi-Metal

2 1113043 Clamp, Bi-Metal

3 486194 Screw

4 2003271 Sleeve

5 2002171 Sleeve

6 2002999 Condenser Inlet Tube

7 2003484 Sleeve

8 2003015 Tube, Connect (Drier)

9 2004545 Heater, Drain Pan

10 1113062 Hanger, Heater

12 2002448 Sleeve

13 2002995 Tube, Discharge

14 2003272 Sleeve

15 2003003 Heat Exchanger

16 2002966 Evaporator

17 2001608 Heater, Defrost

18 1113048 Clamp, Heater (2)

19 1108431 Clamp, Heater (2)

20 1112844 Gasket, Evaporator

21 857547 Wire Tie

23 851095 Strap

25 2001264 Drain Pan

26 Bracket, Drain Pan

1113206 Left

1113207 Right

27 513942 Dampener

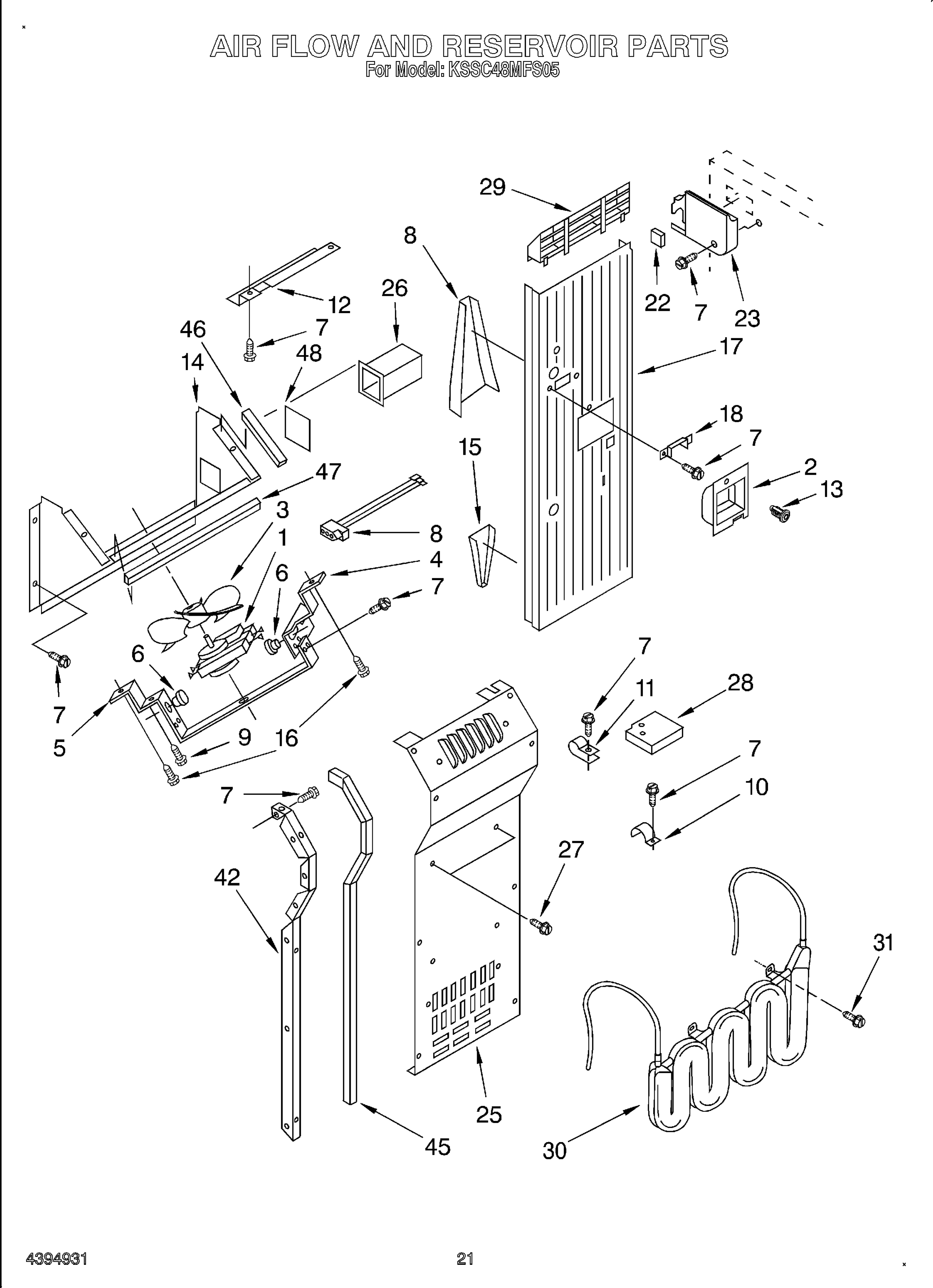

1 2003200 Fan Motor

2 2002732 Cup, Clearance

3 2169142 Fan Blade

4 548263 Bracket (Double)

5 938224 Bracket (Single)

6 548268 Grommet

7 486194 Screw

8 2003926 Deflector, Air Duct

9 488500 Screw, Ground

10 488366 Clamp, Tube

11 489348 Clamp, Nylon

12 2001145 Channel, Wiring

13 1112871 Fastner

14 2000783 Scroll, Fan

15 2003929 Deflector, Air Duct

16 488772 Screw

17 2004907 Assembly, Air Duct (Also Order Items8&15)

18 2000048 Air Deflector, Icemaker

22 1112869 Gasket, Air Baffle

23 2003576 Cover, Air Outlet

25 2005037 Cover, Evaporator

26 2000796 Connector, Meat Pan Duct

27 487539 Screw

28 1112840 Baffle, Evaporator

29 1112853 Diffuser, Air Duct

30 2004947 Reservoir

31 488280 Screw

42 Evaporator, Cover Rail

2000686 Left Side

2000685 Right Side

45 2001337 Gasket (2) Evaporator Cover

46 2001079 Gasket (2)

47 2001080 Gasket

48 2001081 Gasket

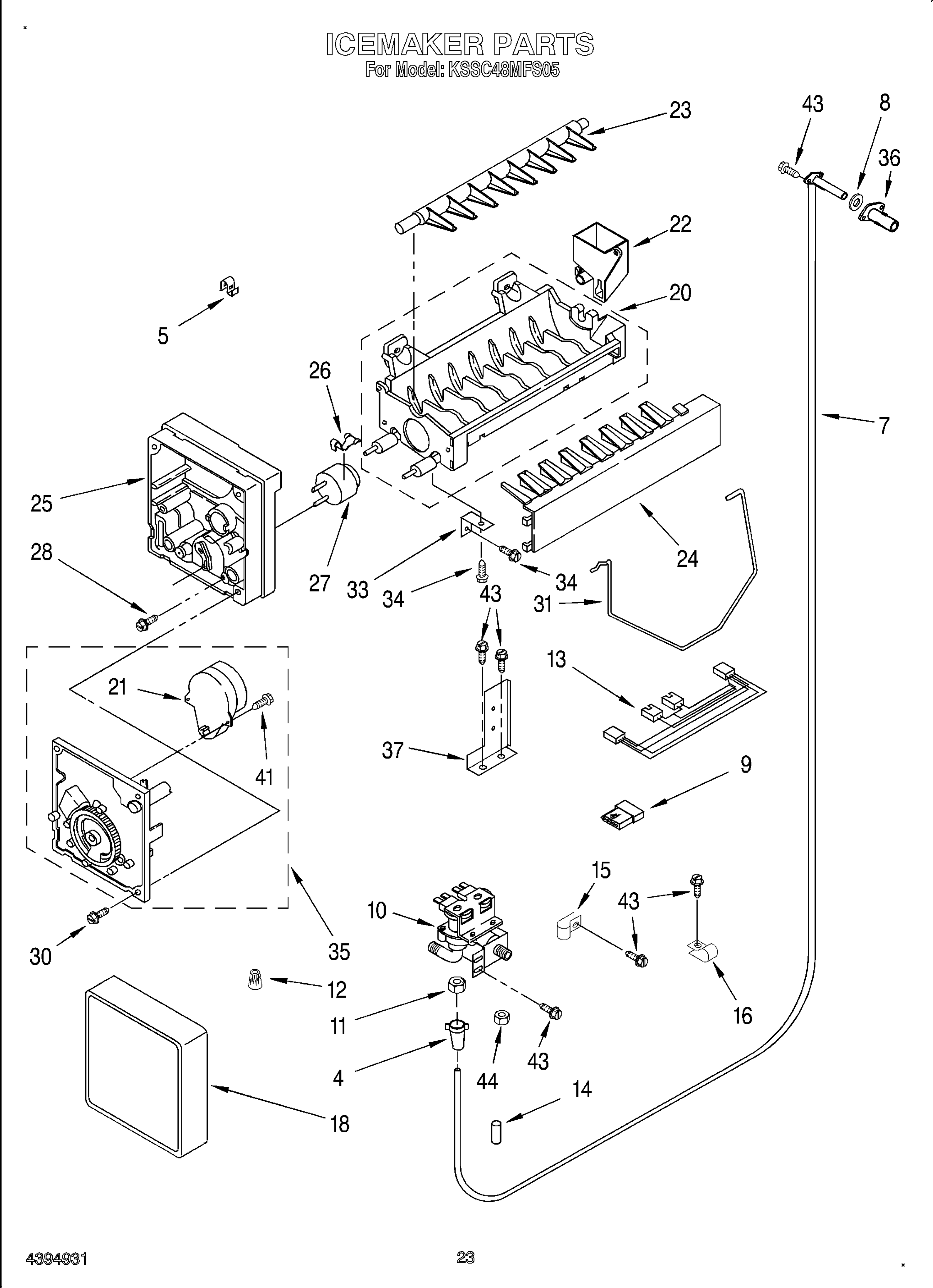

4 841707 Insert, Tube

5 628379 Clip, Fuse

7 2005009 Water Inlet Tube Assembly

8 1106508 Seal Gasket

9 2154472 Connector

10 2003791 Valve, Solenoid

11 627018 Nut, Compression

12 227991 Connector, Wire

13 2004547 Water Valve, Harness

14 2005038 Plug, Water Valve

15 489348 Clamp, Nylon Valve

16 488946 Clamp Tube

18 2174155 Cover

20 628228 Mold & Heater (Also Order)

542638 Silicone Grease

21 628398 Motor

22 628356 Cup-Water Fill

23 627843 Ejector

24 2182124 Ice Striper

25 2194712 Support

26 627796 Retainer Thermostat (2)

27 627985 Thermostat (Also Order)

542639 Cement Alumilastic

28 489322 Screw

30 489276 Screw

31 2171593 Shut Off Arm

33 2171952 Bracket

34 489478 Screw

35 628399 Module Assembly (Includes Items 21 & 41)

36 2004594 Heater, Fill Tube

37 2004914 Water Valve Mounting Bracket

41 489136 Screw (2)

43 486194 Screw

44 1129179 Compresion Nut

100 4317943 Complete Icemaker Assembly

Following Parts Not Illustrated (Optional Parts Only)

4318637 Front Panel Kit (White)

4318634 Front Panel Kit (Black)

4318640 Front Panel Kit (Almond)

4318643 Front Panel Kit (Stainless Steel)

978849 Black Acrylic Static Cleaner

LITERATURE PARTS

LIT2005291 Use & Care Guide

LIT2005275 Energy Label

LIT2005002 Service & Wiring Sheet

LIT628370 Modular Icemaker Service Sheet

LIT2005277 Installation Instructions
