Knogo North America P-2000 User Manual

Knogo North America Inc

User Manual

1P-2000 Installation ProcedureCautionChanges or modifications not expressly approved by the party responsible forcompliance to the FCC rules could void the user’s authority to operate this equipment.Pre-installation requirements:1. Pedestals must be mounted at least 2-3 feet away from all mechanical and electricaldevices or large metal objects to avoid spurious resonances and noise sources. Thisincludes doorframes, window frames, walls, beams, alarm wiring, etc.1. All system wiring (including the AC power) must enter and exit the center of everyantenna base at a 90-degree angle (down the middle at a right angle to the antennabase). If the wiring makes a turn before it enters or after it exits the base, the turnmust occur at least 1 foot away from the base.2. All system wiring must never run vertically near the antenna. Wiring should rununderneath the floor or on top of the floor in electrical metallic tubing or metallicfloor molding. If the wiring must run vertically, make sure it is at least 3’ away fromthe antenna.3. AC power should be a 3-wire dedicated line.Connect the 18VAC from the transformer to TB4 pin 1 and pin 3 on the RV.Using the red/black 18ga. Twisted pair provided;Connect the red wire from TB4 pin 1 on the RV to TB1 pin 1 on the TX.Connect the black wire from TB 4 pin 3 on the RV to TB1 pin 3 on the TX.All wiring should be run perpendicular to the antennae.Installation:1. Mount the RV antenna and the TX antenna so that the aisle-width is 3 feet.2. Verify that the controls on the TX PCB are set as follows:R45 Center Freq. Pre-set at factory for 8.2MHzR17 Sweep Width Pre-set at factoryR36 Transmit Level Pre-set at factoryJP1 Slave termination HI-ZJP6 MSTR installedJP7 FBR SLV not installedJP8 WRD SLV not installed

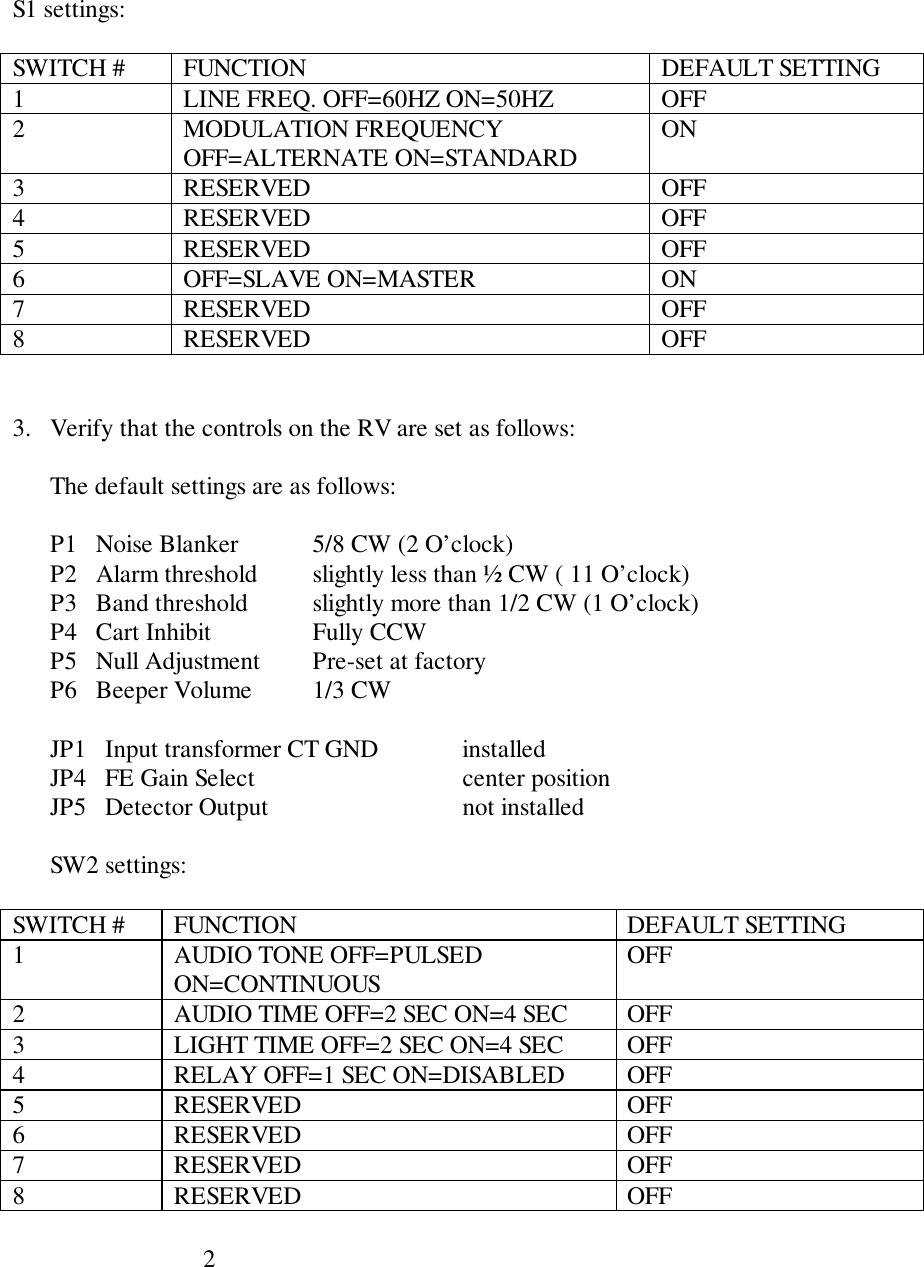

2S1 settings:SWITCH # FUNCTION DEFAULT SETTING1 LINE FREQ. OFF=60HZ ON=50HZ OFF2 MODULATION FREQUENCYOFF=ALTERNATE ON=STANDARD ON3 RESERVED OFF4 RESERVED OFF5 RESERVED OFF6 OFF=SLAVE ON=MASTER ON7 RESERVED OFF8 RESERVED OFF3. Verify that the controls on the RV are set as follows:The default settings are as follows:P1 Noise Blanker 5/8 CW (2 O’clock)P2 Alarm threshold slightly less than ½ CW ( 11 O’clock)P3 Band threshold slightly more than 1/2 CW (1 O’clock)P4 Cart Inhibit Fully CCWP5 Null Adjustment Pre-set at factoryP6 Beeper Volume 1/3 CWJP1 Input transformer CT GND installedJP4 FE Gain Select center positionJP5 Detector Output not installedSW2 settings:SWITCH # FUNCTION DEFAULT SETTING1 AUDIO TONE OFF=PULSEDON=CONTINUOUS OFF2 AUDIO TIME OFF=2 SEC ON=4 SEC OFF3 LIGHT TIME OFF=2 SEC ON=4 SEC OFF4 RELAY OFF=1 SEC ON=DISABLED OFF5 RESERVED OFF6 RESERVED OFF7 RESERVED OFF8 RESERVED OFF
39 LINE FREQ. OFF=60HZ ON=50HZ OFF10 MODULATION FREQUENCYOFF=ALTERNATE ON=STANDARD ON4. Connect a DVM set for VDC to TP4 (AGC) and TP5 (GND). Verify that the voltageis between –6VDC and +6VDC.5. Connect a DVM set for VAC RMS to TP1 (VIDEO) and TP5 (GND) on the RV.Adjust P7 until the DVM reads 1 VRMS maximum.6. The TP2 (DISPLAY DAC) test point is multiplexed into eight cells. In order to viewthis test point you must synchronize your scope to the square wave on TP3(DISPLAY SYNC). Set the scope for (+ ) edge trigger and adjust the timebase todisplay only the positive portion of the square wave on TP3. Connect a second scopeprobe to TP2, adjust the GND reference at the bottom of the display, adjust thevertical sensitivity for .5V/div. and set the scope for CHOP. Adjust the TP2 scopeinput for DC couple and observe that the trace has approximately 2.5VDC offset(DAC offset). You should see four discrete traces from left to right (easier to view ifyou shut off the trace for the display sync.). The cells are as follows:Signal ChannelNoise ChannelLow band energy levelHigh band energy levelAlthough the Alarm threshold has been pre-set, it can be adjusted. Adjust P2 on theRV until the signal channel is approximately 0.7VDC lower than the noise channel.When the signal channel exceeds the noise channel and the high band energy levelexceeds the low band energy level the alarm is triggered.7. Set the TP3 scope input for (-) edge trigger to view the remaining four cells which areas follows:Short term averagerDifferential averagerBeacon displayLong term averager8. Observe the short term averager on TP3 as outlined in the previous step. Thesynchronous energy on the short term averager should be less that 0.5Vp-p.9. Remove all test equipment and close the antenna base covers. Verify that the system

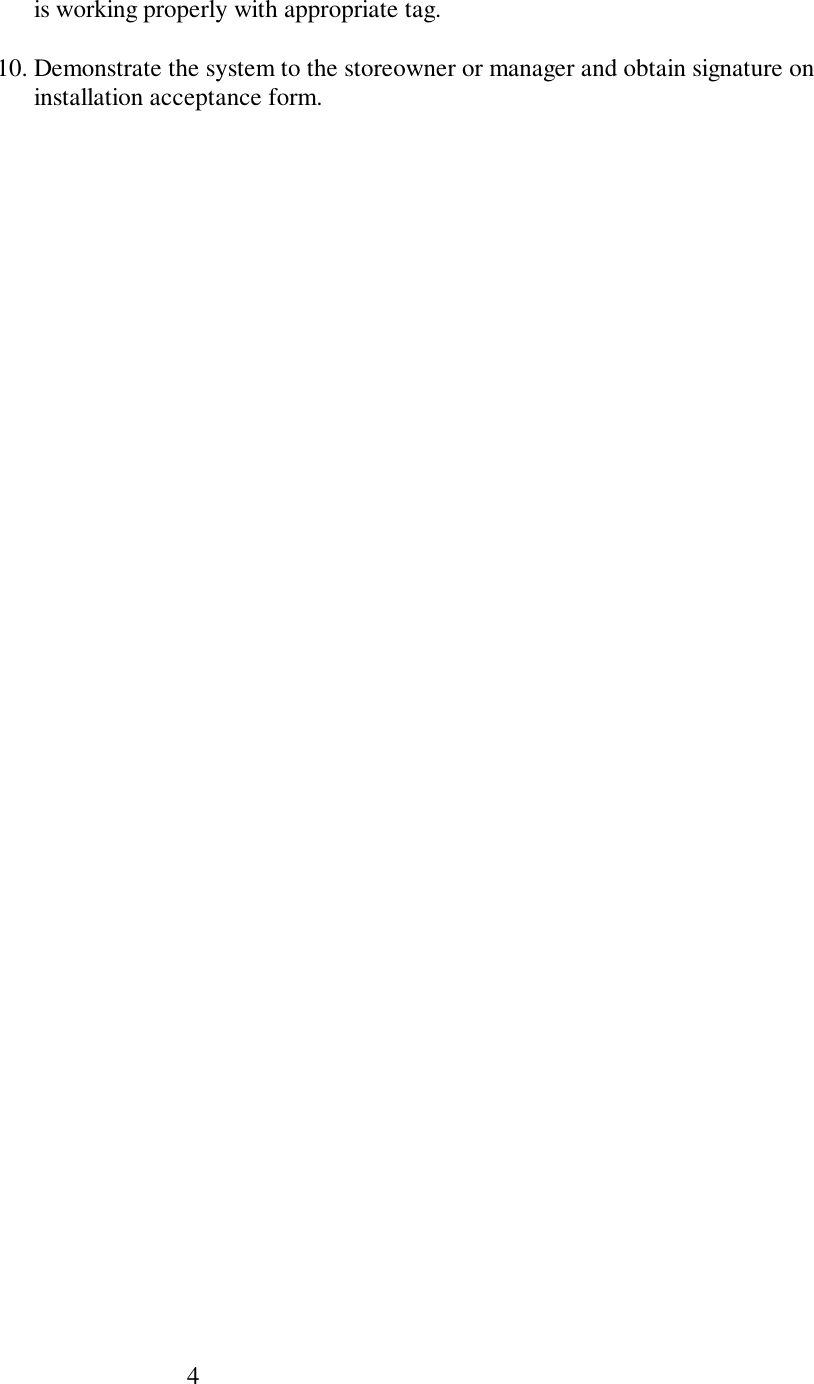

4is working properly with appropriate tag.10. Demonstrate the system to the storeowner or manager and obtain signature oninstallation acceptance form.
