USER'S MANUAL
MY9308P/844522/844523
Table of Contents
Table of Contents......................................P1
Features..................................................P2
Unit at a Glance .......................................P3
Getting Started....................................P4-P5
About Applications...............................P5-P6
Preinstalled Applications...........................P6
Connect to a Wi-Fi network....................P7-P8
Optional Connections................................P9
Specifications.........................................P10
1
Features
Browse the Web.
Visit your favorite websites
Check your e-mail
Keep in touch with friends and family
Watch YouTube™ videos
Browse the world’ s most popular
video- sharing community
Read your favorite books
Download thousands of books with the
included E-book reader *
Discover thousands of apps for Android™
Games, applications, and more with
marketplace(need for customer installed)
Connect to the Internet wirelessly
High-speed Wi-Fi 802.11 b/g/n networking
Enjoy your media library anywhere
Portable powerhouse plays popular music,
video,and photo formats
microSD memory card reader
Increase your storage capacity (up to 32 GB
supported)
Built-in camera
Convenient front-facing camera(0.3MP),
Automatic orientation detection
Read any way you want; the display adjusts
automatically!
Reading books in the ePub format requires
the included E-book reader application.
2
Unit at a Glance
5. Headphone
Audio output connection for headphones.
6. Micro SD card
Load external micro SD memory cards here.
7. Micro USB OTG
Connect to a USB device.
Warning: Do not force when you plug
your device with the accessories.
8.DC IN 5V
Change and power the tablet with the included
power adapter.
1.ESC
Press this button to return to a previous screen.
2/3. VOL+/VOL-
Press VOL+ to increase the volume level.
Press VOL- to decrease the volume level.
4. POWER
Press to turn the unit on, or to turn the screen on
or off.
Press and hold to access the Power Off menu.
3
Getting Started
Turning the Tablet on or off
To turn the tablet on:
Press and hold the Power key until the LCD
screen turns on. Wait until the Home screen
appears; the tablet is now ready for use.

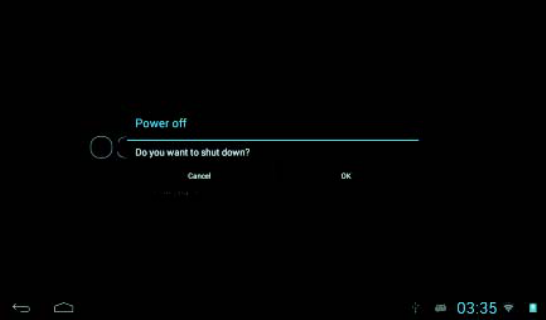

To turn the tablet off:
1.Press and hold the Power key until the
Device Options menu appears.
Turning the Screen On or off
(Standby)
When the tablet is on, you can turn off the
screen to conserve battery power. Simply press
the Power key once to turn the screen
off. Press the Power key again to turn the
screen back on.
To conserve battery power, the screen
can be set to turn off automatically when
the tablet is not in use (between
15 seconds and 30 minutes).
This Screen timeout option can be found
in the Display menu.
2. Touch ok the screen to turn off the tablet.
4
.
Getting Started

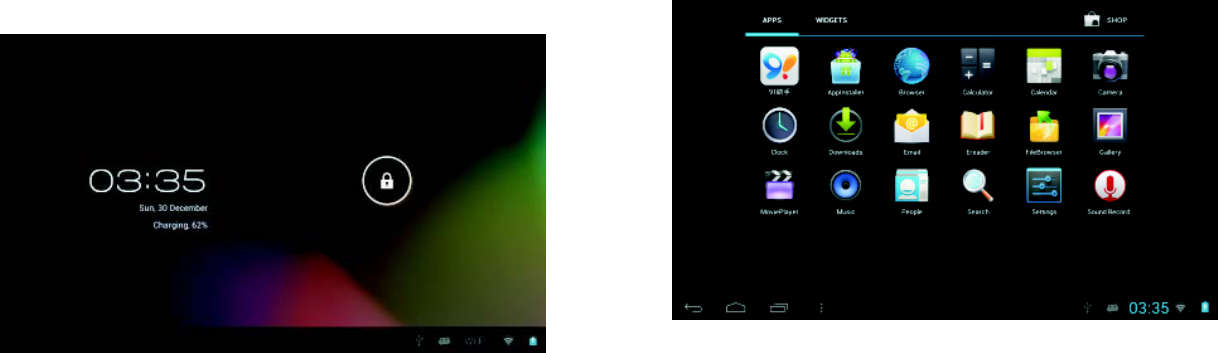

Unlocking the Screen
When the screen turns off, you will have to
unlock the screen
when you turn it back on.
To unlock the screen, drag the lock icon across
the screen towards the lock icon.
About Applications
To open an application, touch the application
icon on the home screen or in the Launcher
where you can tap the icon right up on the
home screen to get in..
Launcher screen:
The screen shown above is for illustrative
purposes only. Reserves the right to modify
and improve the final list of applications
available on the tablet.
5
About Applications
Preinstalled Applications
Some applications have been installed on your
tablet for your convenience.
These applications include:
Browse the web.
Perform simple mathematical operations.
Take pictures or videos with the
frontfacing camera.
Check your e-mail.
Play music.
Access the Settings menu to adjust the
tablet’ s options.
Preinstalled Applications
Installing Applications
You can also download an install additional
applications from the device’ s applications
marketplace, the web browser, or other
sources.
The tablet must be set to allow installation of
applications from non-Market sources. The
Unknown sources option can be set in the
Application settings menu.
6

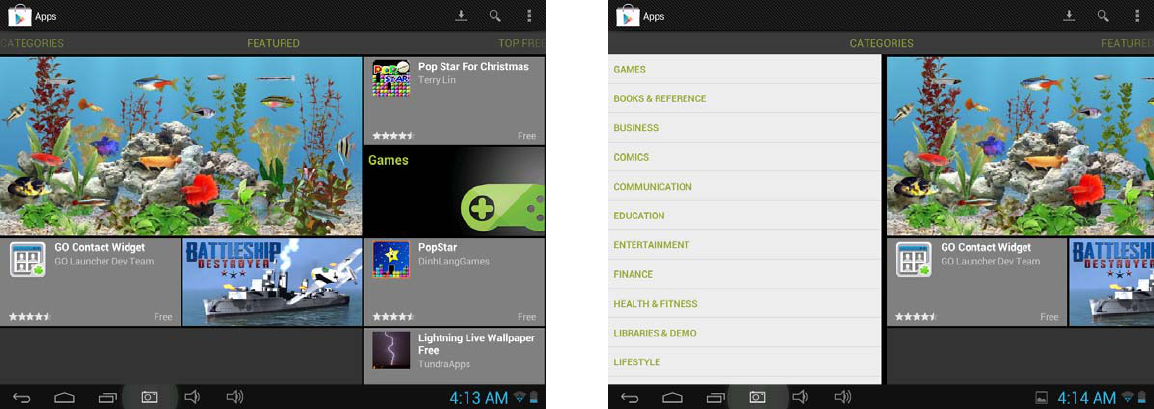

Download Applications:
The device has a default configuration which include some applications.
Discover all others apps by using Goolge Play(Play Store).
You will be able to connect with Wifi for example, and by signing in the
application with just an email
Connect to a Wi-Fi network
The Notification bar displays icons that indicate
your tablet’ s Wi-Fi status.
Notification that an open Wi-Fi network is
in range.
Connected to a Wi-Fi network (waves
indicate connection strength).
[no icon] There are no Wi-Fi networks in
range, or the Wi-Fi radio is off.
1. Turn on the Wi-Fi radio if it is not already
on. To turn on Wi-Fi:
a.Go to the Home screen: Press the Home
key.
b.Open the Settings menu: tap the icon right
up on the home screen to get into the
launcher, then touch Settings icon.
c.Open the Wireless & networks menu: Slide
the icon to ON status.
When Wi-Fi is on, the tablet will look for and
display a list of available Wi-Fi networks.
If a network that you have connected to
previously is found, the tablet will
connect to it.If you don’ t see your
network in the list, you can force the
tablet to re-scan. To scan for networks,
tap the Menu key, and then touch Scan.
7
Connect to a Wi-Fi network
2. Select an available Wi-Fi network to connect
to:
In the same Wi-Fi settings menu above,touch a
network in the list.
If the network is open,the tablet will prompt you to
confirm connection to the network. Touch Connect
to confirm.
If the network is secured (as indicated by a Lock
icon),the tablet will prompt you to enter a
password or other credentials.Touch the Wireless
password box to show the on-screen keyboard
and then use it to enter the password. Touch
Connect to confirm.
When you have successfully connected to a
Wi-Fi network, the Notifications bar at the the low
of the screen will show a Wi-Fi signal indicator.
To learn about how to add a Wi-Fi network
when it is not in range or when the router is
set to obscure the network name (SSID);
or to configure advanced Wi-Fi options,
please refer to the manual.
8
Optional Connections

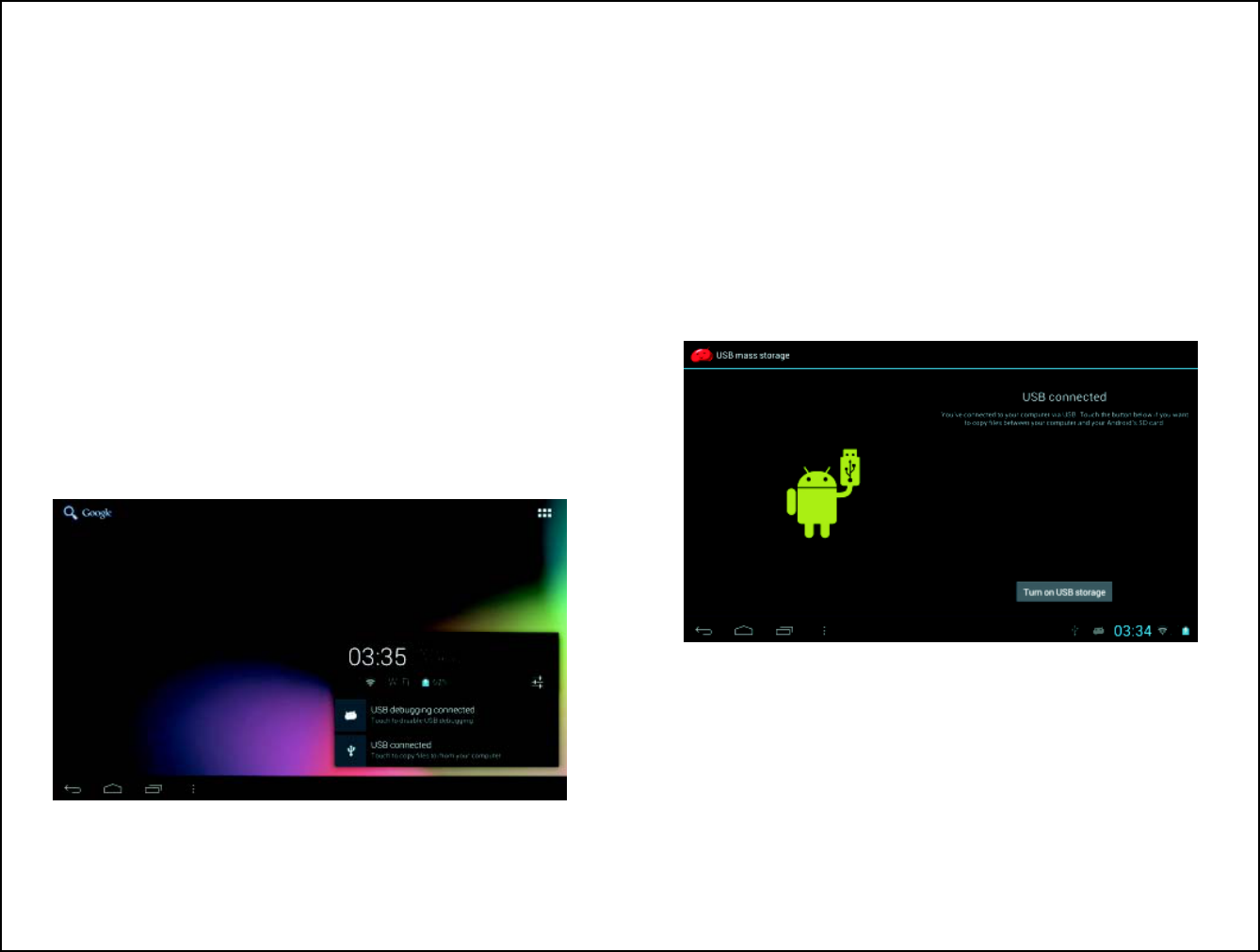

Connecting to a Computer 3.Mount the storage.
Touch button Turn on USB storage to mount the
Connect the tablet to a computer to transfer files.
1.Connect your tablet to the computer.
With the included USB cable: Plug the small end
of the cable into the USB 2.0 high speed
connector of the tablet. Plug the large end of the
cable into an available USB 2.0 high speed port
on the computer.
2.When your tablet is connected,slide up the
USB icon right down on the screen and then
touch icon USB connected.
tablet’ s built-in storage. When it is mounted,
you can copy files to or from your tablet.
9
Processor Amlogic MXS Dual core 1.5GHz(cortex A9)
RAM 1GB DDR3
Storage 4 GB(option) flash built-in; micro
SD card slot (max.32GB supported)
Display
9.0” TFT
LCD(800x480),
Capcitive
touchscreen
Wi-Fi Networking IEEE 802.11 b/g/n
Audio Output 3.5mm headphone
PC Interface USB 2.0 high speed
Additional Features Built-in microphone
Front facing camera(0.3MP)
Operating System Android™ 4.1
Power Rechargeable Li-poly battery power
Adapter(DC 5V, 2A)
Playback Time
(hours) Up to 9 hours music,
3 hours video,
3 hours web browsing
Specifications
Music was tested with a 128 kbps MP3 file; video
was tested with a 1920x1080 MPEG-4/AVC file;
browsing was tested with the screen brightness
set to default. Actual playback results may vary.
10
2
1.Correct Disposal of this product.
This marking indicates that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or human health from
uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material
resources. To return your used device, please use
the return and collection systems or contact the
retailer where the product was purchased. They
can take this product for environmental safe
recycling.
.A mettre a l'interieur du manuel
d'instructions si l'appareil ou accessoires inclus
(telecommande) necessitent des piles
3.To prevent possible hearing damage,
do not listen at high volume levels of long periods.
4.NOTE: The socket must be installed near the
equipment and must be easily accessible.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
