Kobian Canada HSSCNR44 Wi-Fi Portable Scanner User Manual TSN44WFVD R1 0 120322 FCC

Kobian Canada Inc., Wi-Fi Portable Scanner TSN44WFVD R1 0 120322 FCC

Contents

User manual

HS-SCNR44W manual
FC ID: YH5-HSSCNR44
1. Key features
• Scan color & monochromatic (mono) images, documents, books and magazines
• 300/600/900 dpi scan resolution
• Directly save files in JPG or PDF format to microSD card
• Supports microSD/microSDHC card up to 32GB
• Transfer files via Wi-Fi connection
• Driver-free for Windows XP, Windows Vista, Windows 7 and
Mac OS 10.4 or above
(Directly plug-in, driver installation not required)

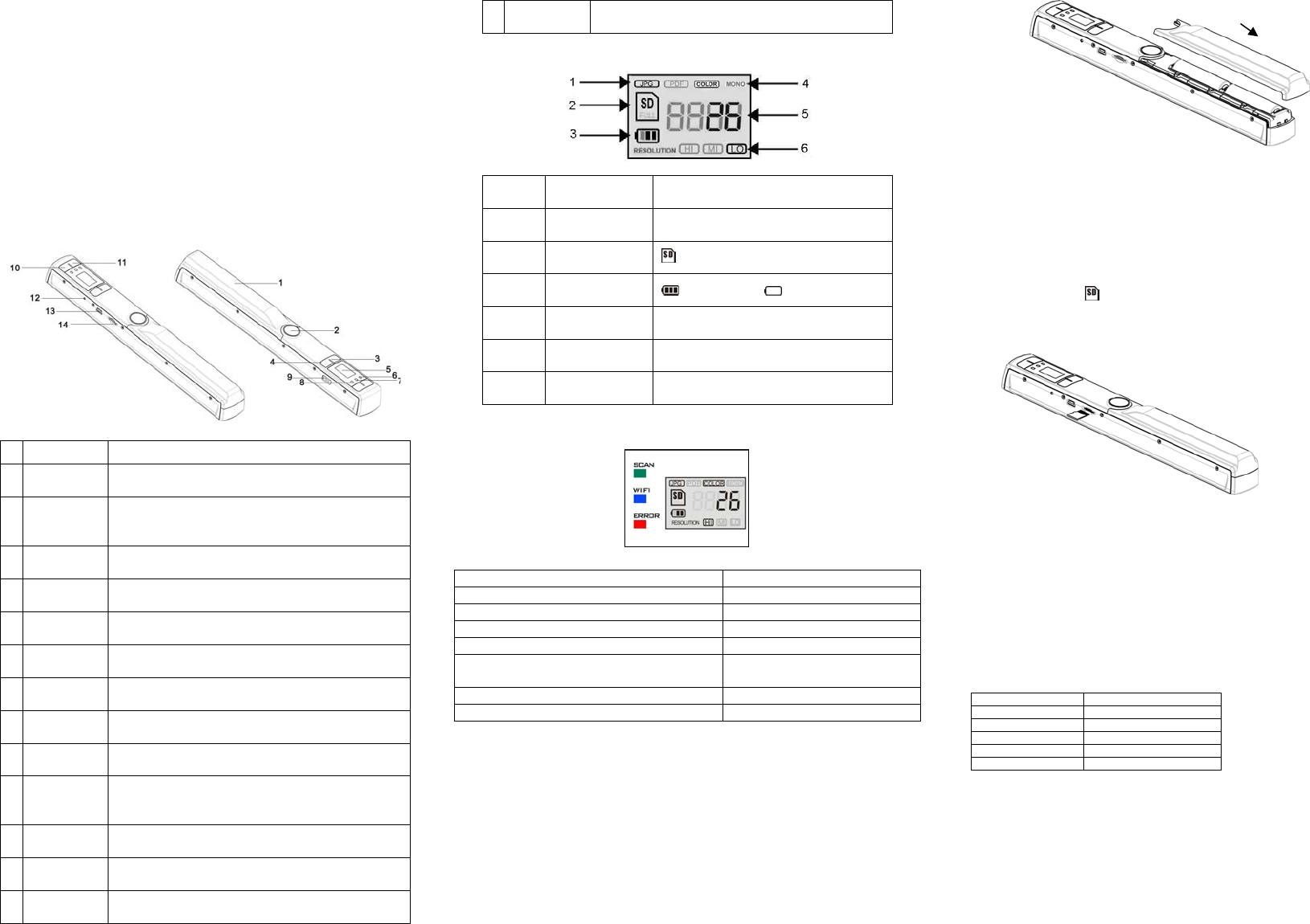

2. Functional parts
Part Function
1 Battery cover Open to store 2x AA alkaline batteries
2 Power/Scan
Power On/ Off: Press and hold this key for 2 seconds to turn
power on or off. When the scanner is on, press this button to
start scanning, press this button again to stop
3 Format button Format the microSD card will delete all data from memory card
4 Color/Mono Select Color/Mono scan option
Color/Mono mode icon will be displayed on status LCD
5 LCD screen Scanning status display
6 Error LED
indicator Indicates scan error or over speed
7 WIFI LED
indicator Indicates Wi-Fi status
8 Scan LED
indicator Shows the scanning status; ready for scan
9 Wi-Fi switch Slide to turn Wi-Fi on/off
10 DPI
Scan resolution setting for High(900dpi) / Medium(600dpi) /
Low(300dpi); High/Medium/Low resolution mode icon will be
displayed on status LCD
11 JPG/PDF Select scan file format with JPG/PDF button, JPG/PDF mode
icon will be displayed on status LCD
12 Time set Press this button to enter Time and Date setting mode
13 USB interface Connect to a computer via USB cable provided to view
and transfer files
14 microSD card
slot microSD card storage location
3. Explanation of the status icons
Item Function Description
1 File Format JPG/PDF
2 SD card indicator Photos will be stored in microSD card
3 Battery indicator Battery is full Empty battery
4 Scan Color COLOR/MONO
5 Counting Indicator Shows scanned files in the microSD card
6 Scan resolution HI:900 dpi / MI:600 dpi / LO:300 dpi
4. LED light indications
LED indication Description
Green LED ON Scanning in progress.
Green LED OFF Scanning is ready or completed.
BLUE LED OFF Wi-Fi is off.
BLUE LED ON Wi-Fi is initializing
BLUE LED flashes every 3 seconds Wi-Fi is ready for connection or
enabled
BLUE LED flashes rapidly Data is transferring via Wi-fi mode
RED LED ON Scanning too fast
5. Using the scanner
5.1 Installing the battery
1. Open the battery cover by sliding the battery compartment downwards then lift up as
indicated by the arrow in the diagram below.
2. Insert 2x AA alkaline batteries into the battery compartment.
3. Turn on the scanner by pressing the [POWER] button for 2 seconds.
5.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD card (not supplied) to record and store your
pictures. Insert the microSD meory card:
1. Turn ON the scanner.
2. Insert the microSD card into the microSD card slot (with metal side facing up).
Gently press in until card is latched and clicked into place.
3. The SD card indicator must appear on the LCD screen.
Note:
1. Do not force the card into the slot; forcing may damage both the scanner and the MicroSD card.
Align the microSD card position (as marked) and try again.
5.3 Time and Date setting
1. Press [TIME SET] button once to enter time setting mode by using a thin, blunt object, such
as the end of a paperclip to access the button. The LCD status display screen will show
“1 ##” (step 1) for the year. “##” is a set of number that would be changed to correspond to
the actual time/date setting. The numbers 1-5 in front of “##” indicates each step in the
settings.
2. Press the [JPG/PDF] or [DPI] button to select the current Year.
3. Press [SCAN] button once to confirm setting.
4. Repeat step 2 and 3 to continue the Time and Date setting process
Indicator Setting
1 ## Year
2 ## Month
3 ## Date
4 ## Hour
5 ## Minute
5. After setting the Minute, “5##”, press the [TIME SET] button again to complete the Time and
Date setting.
5.4 Formatting the microSD memory card
Note: All content on the microSD card will be erased during formatting.
1. Insert a microSD card into the scanner with metal side facing up.
2. Turn on the scanner by pressing the [Power/Scan] button for 2 seconds.
3. Press the format button. An “F” will display on the LCD status display screen.
4. Press the [SCAN] button once to format the microSD card.
5. The SD card indicator will flash until the formatting process is complete.
5.5 Setting the resolution
Press the [DPI] button to select High / Medium / Low resolution. High/Medium/Low resolution
icon will be displayed on status LCD.
5.6 Setting the scan mode
Press the [JPG/PDF] button to select JPG/PDF mode. JPG/PDF icon will be displayed on status
LCD.
5.7 Setting the color/mono mode
Press the [COLOR/MONO] button to select scan type Color/Monochromatic mode. Color/Mono
icon will be displayed on status LCD.
5.8 Calibrating the scanner
NOTE: Perform calibration only when white balance needs adjustment
1. With the dry cleaning cloth provided, clean the scanning lens located on the bottom of the
scanner.
2. Turn on the scanner by pressing the [POWER] button. Place the scanner on the white
area of the White Balance Calibration paper provided.
3. Press and hold the [COLOR/MONO] button. While holding the [COLOR/MONO] button,
press the [POWER] button and then release both buttons to enter into auto-calibration
mode. SD symbol will flash and then stop. “GREEN” and “RED” LED light will turn on.
4. Do not move the scanner. Wait until the “RED” LED turns off. “GREEN” LED will stay on.
5. With only the “GREEN” LED light on, start scanning the white paper by sliding the scanner
across the paper until the “GREEN” LED light turns off. (Slide the scanner backwards if
necessary).
6. Press and hold the [POWER] button to power off the scanner. Calibration is complete.

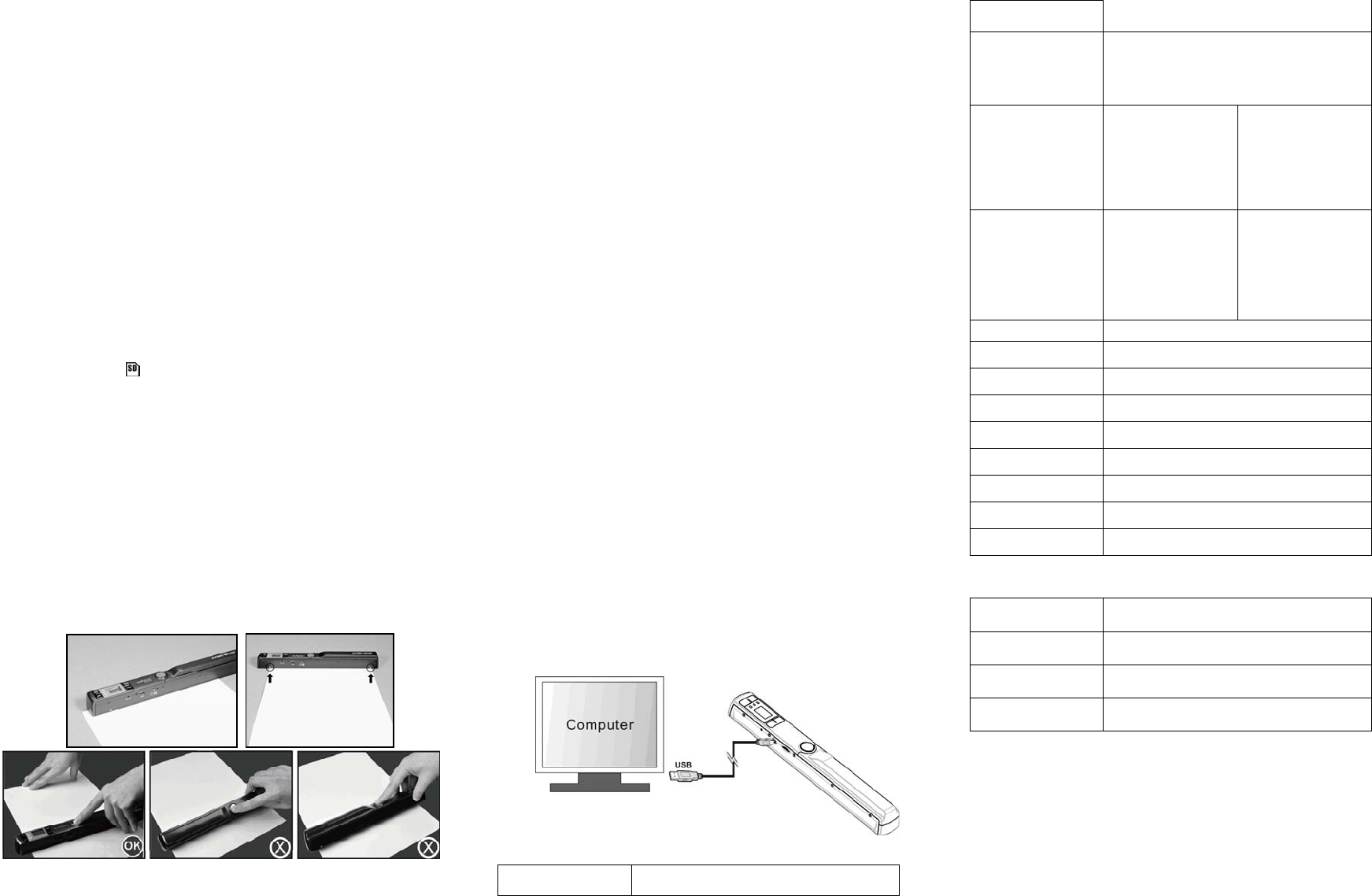

5.9 Scanning a document
NOTE: To scan, make sure your scanner is not connected to the computer.
1. Turn on scanner by pressing the [Power/Scan] button for 2 seconds.
2. Hold the document firmly with one hand on a flat surface.
3. Place the scanner on the edge of the paper approximately 5/8 to 3/4 of an inch onto the page to
ensure the whole document can be scanned. Make sure to keep the scanning area in between
the scanning width indicators marked on the side of the scanner.
4. Hold the scanner flat against the material and then press the [SCAN] button once.
5. Slide the scanner slowly, keeping your hand stable to get the best quality picture.
6. Press the [SCAN] button again to stop scanning.
6. Using Wi-Fi function
6.1 Enabling Wi-Fi function
View and transfer file from the scanner to your computer, laptop, smart devices and tablets via
Wi-Fi mode.
1. Turn on the scanner and slide the Wi-Fi switch ON. “BLUE” Wi-Fi LED light will be lit.
2. Wait 15-20 seconds for Wi-Fi to initialize
3. “BLUE” LED light will flash every 3 seconds once Wi-Fi mode is enabled and ready for
connection. “口口口口” will display on status LCD.
NOTE: The use of Wi-Fi function will reduce battery life more rapidly. Turn Wi-Fi mode
OFF when not in use to save battery. In Wi-Fi mode, Can not use the scanner to scan file.
6.2 View files from Internet Browser via Wi-Fi
1. Turn on Wi-Fi mode on your scanner.
2. Go to network setting on your computer/smart device to enable Wi-Fi setting
3. Search the “WIFISCAN” network
4. Enter password “123456789” to connect to the scanner
5. Open Internet browser and input “192.168.1.2” or “wifi.scan” at the address bar to enter
navigation page to view and download files.
6. In navigation page, click FILE button to preview and download files stored in the scanner.
6.3 Using the Free App
1. Search Scan+ app from the Apple App store
2. Download and install the app to your smart device
3. Turn on Wi-Fi mode on the scanner
4. Go to network setting on your smart device and enable Wi-Fi setting.
5. Search for “WIFISCAN” network
6. Enter password “123456789” to connect to the scanner. Open your app..
NOTE: Refer to App page for detail operation description
7. USB Connection with Computer
1. Connect your scanner to your computer and then turn on your scanner.
2. Your computer will recognize the scanner as a “Removable Disk”,”口口口口” symbol will
display on status LCD. Click “Open folder to view files” to view, import, copy, move or
delete scanned files.
NOTE: If the Removable Device Window did not launch automatically, go to your “My Computer”
and find the device under Removable Storage.
8. Specifications
Image sensor Color Contact Image Sensor
Number of sensor 5136 dots (1st~5104 dots available)
Resolution
Low resolution: 300x300 dpi
Middle resolution: 600x600 dpi
High resolution: 900x900 dpi
Maximum scanning speed
for Letter size document
Color High resolution
Mono High resolution
Color Medium resolution
Mono Medium resolution
Color Low resolution
Mono Low resolution
12.0 Seconds
10.0 Seconds
8.0 Seconds
6.0 Seconds
3.0 Seconds
2.0 Seconds
Capacity (Based on
1GB microSD card.
Scan Letter size file, the
quantity of scans varies
depending on the content
complexity)
Color High resolution
Mono High resolution
Color Medium resolution
Mono Medium resolution
Color Low resolution
Mono Low resolution
300 Scans (Min.)
320 Scans (Min.)
640 Scans (Min.)
700 Scans (Min.)
1600 Scans (Min.)
1800 Scans (Min.)
Scan width 212mm
Scan length (max.) 300dpi: 98", 600dpi: 45", 900dpi:35"
File format JPG/PDF
LCD Scanning status display
Auto Power Off 3 Minutes
USB Port USB 2.0 high speed
External memory microSD/microSDHC memory card to up 32GB
Standard Battery 2X AA alkaline batteries
Wi-Fi® 802.11b/g/n
9. Computer system minimum requirement
Operating System Windows 7 / Vista / XP and Mac OS 10.4 or above
(Driver Free))
CPU Pentium Ⅲ or above
RAM At least 256MB
Interface USB port
10. Troubleshooting
Problem Cause Solution
Cannot turn on the
scanner
1. Low battery power.
2. Battery not inserted
properly
Replace or install the
battery correctly
Pictures cannot be saved
when you are scanning
them
1. The microSD card has
not been installed
2. Memory is full
3. The MicroSD card has
not been formatted
properly
1. Install microSD card
2. Download the pictures
from the scanner to the
computer to create
storage space
3. Reformat mircoSD card
Please refer to section 5.4
Computer does not
recognize your scanner
when connected (You
cannot find removable
disk)
Connection failure.
Make sure all cable
connections are secured.
Restart the computer if
necessary
The battery life is very
short Use wrong type of battery Replace with new
2x AA alkaline batteries
Blurry images
1. The lens of scanner is
dirty.
2. Contact Image Sensor
aged.
1. Clean the lens with soft
dry cloth.
2. Recalibrate scanner.
Refer to section 5.8
ERR. LED is on after
powering on scanner Sensor off-set Recalibrate the scanner.
Refer to section 5.8
ERR. LED is on when
scanning a document Scanning speed is too fast
Press the Power/Scan
button to reset and scan the
document again
Black Images/Black or
white vertical lines
1. Scanner senor
protective glass is dirty.
2. Calibration data is
off-set.
1. Clean the sensor’s
protective glass with clean
and soft dry cloth.
2. Recalibrate scanner.
Refer to section 5.8
Wi-Fi abnormal
connection
1. Abnormal connection
2. The battery is low.
1. Reconnect Wi-Fi. Refer
to section 6
2. Replace with new 2x
AA alkaline batteries

IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any
interference that may cause undesired operation.
WARNING:
Ad Hoc function is supported but not able to operate on non-US frequencies.---WIFI
Do not use the device with the environment which below minimum -10
or maximum over.
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

Navigation menu
