©Eastman Kodak Company, 2003

May 2003 • E-190

TECHNICAL DATA /

COLOR NEGATIVE FILM

KODAK PROFESSIONAL PORTRA

160NC, 160VC, 400NC, 400VC,

400UC, and 800 Films

KODAK PROFESSIONAL PORTRA Films offer

photographers both variety and consistency. You have your

choice of speed, color saturation, and format for virtually any

shooting situation. PORTRA Films deliver beautifully

matched final prints across speeds and formats: 35 mm, 120,

220, and sheet formats; NC (natural color), VC (vivid color),

and UC (ultra color); 100T, 160, 400 and 800 speeds. The

PORTRA Film family yields consistently rich and detailed

negatives with a neutrally balanced tone scale from shadows

to highlights. An emulsion overcoat and scanner friendly

design make PORTRA Films the perfect choice for

photographers and labs who scan negatives.

KODAK PROFESSIONAL PORTRA 160NC Film

features natural colors and medium speed. Use 160NC Film

for smooth, natural flesh tones in controlled lighting

situations.

KODAK PROFESSIONAL PORTRA 160VC Film

features vivid colors and medium speed. Use 160VC Film

for rich, enhanced colors in controlled lighting situations.

KODAK PROFESSIONAL PORTRA 400NC Film

features natural colors and high speed. Use 400NC Film for

smooth, natural flesh tones in low light or on-camera flash

situations.

KODAK PROFESSIONAL PORTRA 400VC Film

features vivid colors and high speed. Use 400VC Film for

enhanced colors in low light or on-camera flash situations.

KODAK PROFESSIONAL PORTRA 400UC Film

features very vivid ("ultra") colors and high speed. Use

400UC Film for the highest color saturation in low light or

on-camera flash situations.

KODAK PROFESSIONAL PORTRA 800 Film

features the highest film speed with neutral flesh-tone

reproduction, tight grain, and medium color saturation. Use

PORTRA 800 Film when using long lenses, shooting action,

or shooting in low light.

KODAK PROFESSIONAL PORTRA 100T Film

delivers color accuracy under tungsten illumination (3200K)

and allows long exposure times with minimum effect on

color balance and contrast.

*

For more information about this PORTRA Film, see KODAK Publication

No. E-2468.

Try This KODAK

PROFESSIONAL Film

For

Daylight Balanced

PORTRA 160NC • Smooth, natural flesh tones

• Controlled lighting situations

PORTRA 160VC • Vivid colors

• Controlled lighting situations

PORTRA 400NC

• Smooth, natural flesh tones

• Location photography

• On-camera flash

PORTRA 400VC

• Vivid colors

• Location photography

• On-camera flash

PORTRA 400UC

• Very vivid colors

• Location photography

• On-camera flash

PORTRA 800

• Smooth, natural flesh tones

• Low-light photography

• Action photography

• Location photography

Tungsten balanced

PORTRA 100T

*

• Tungsten-balanced lights

• Controlled lighting situations

2KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

KODAK PROFESSIONAL PORTRA Films offer the

following features.

Suggested applications for KODAK PROFESSIONAL

PORTRA Films are given below.

FEATURES BENEFITS

•Single Channel

Printing technology

•Beautifully matched prints across

speeds and formats

•Convenient analyzing and printing

for the lab

•Uses the same scanner setup for

all PORTRA Films

•True-to-speed

shooting at 160, 400,

and 800

•Shoot at box speed in all lighting

conditions

•No second-guessing film exposure

•Wider exposure

latitude

•Better highlight and shadow detail

•Forgiveness for up to two stops for

underexposure or overexposure

•High-Efficiency

T-GRAIN Emulsions

•Captures the fine details of your

subject

•Excellent scanning

performance

•High-quality prints from digital

output systems

•Outstanding

performance in mixed

daylight and

fluorescent lighting

•Shoot under mixed lighting

situations and still get neutral prints

•Excellent flesh tones •Kodak’s legendary reproduction of

the world’s flesh tones

•Exacting color

reproduction

•No surprises with

hard-to-reproduce colors

Application KODAK PROFESSIONAL PORTRA Film

160NC 160VC 400NC 400VC 400UC 800

Advertising/

Illustration ✔✔✔✔✔✔

Architecture ✔✔✔✔✔

Corporate/

Industrial ✔✔✔✔✔✔

Fashion/

Glamour ✔✔✔✔✔

Museum/Art/

Copy ✔✔

Portraiture—

Low Light ✔✔✔✔

Portraiture—

Daylight and

Electronic

Flash

✔✔✔✔✔

Wedding—

Low Light ✔✔✔✔

Wedding—

Daylight and

Electronic

Flash

✔✔✔✔✔

Digital Film

Recorders ✔✔

SIZES AVAILABLE

Availability may differ from country to country. See your

dealer who supplies KODAK PROFESSIONAL Products.

KODAK PROFESSIONAL PORTRA 160NC Film

KODAK PROFESSIONAL PORTRA 160VC Film

KODAK PROFESSIONAL PORTRA 400NC Film

Size/Format Code Base

135 160NC 0.13 mm (0.005 inch)

acetate

120 160NC 0.10 mm (0.004 inch)

acetate

220 160NC 0.10 mm (0.004 inch)

acetate

Long Rolls 160NC

0.13 mm (0.005 inch)

acetate,

0.10 mm (0.004 inch)

ESTAR Thick

Sheets 0.19 mm (0.007 inch)

ESTAR Thick

Size/Format Code Base

135 160VC 0.13 mm (0.005 inch)

acetate

120 160VC 0.10 mm (0.004 inch)

acetate

220 160VC 0.10 mm (0.004 inch)

acetate

Long Rolls 160VC

0.13 mm (0.005 inch)

acetate,

0.10 mm (0.004 inch)

ESTAR Thick

Sheets 0.19 mm

(0.007 inch)

ESTAR Thick

READYLOAD

Single-Sheet

Packets

Size/Format Code Base

135 400NC 0.13 mm (0.005 inch)

acetate

120 400NC 0.10 mm (0.004 inch)

acetate

220 400NC 0.10 mm (0.004 inch)

acetate

Long Rolls 400NC

0.13 mm (0.005 inch)

acetate,

0.10 mm (0.004 inch)

ESTAR Thick

Sheets 0.19 mm (0.007 inch)

ESTAR Thick

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 3

KODAK PROFESSIONAL PORTRA 400VC Film

KODAK PROFESSIONAL PORTRA 400UC Film

KODAK PROFESSIONAL PORTRA 800 Film

Size/Format Code Base

135 400VC 0.13 mm (0.005 inch)

acetate

120 400VC 0.10 mm (0.004 inch)

acetate

220 400VC 0.10 mm (0.004 inch)

acetate

Long Rolls 400VC

0.13 mm (0.005 inch)

acetate,

0.10 mm (0.004 inch)

ESTAR Thick

Size/Format Code Base

135 400UC 0.13 mm (0.005 inch)

acetate

120 400UC 0.10 mm (0.004 inch)

acetate

220 400UC 0.10 mm (0.004 inch)

acetate

Long Rolls 400UC 0.13 mm (0.005 inch)

acetate

Size/Format Code Base

135 800 0.13 mm (0.005 inch)

acetate

120 800 0.10 mm (0.004 inch)

acetate

220 800 0.10 mm (0.004 inch)

acetate

STORAGE AND HANDLING

Store unexposed film at 21°C (70°F) or lower in the original

sealed package. For extended periods, store film at

13°C(55°F) to preserve consistency.

To avoid moisture condensation on film that has been

refrigerated, allow the film to warm up to room temperature

before opening the package. Typical warm-up times are

given in the table below.

Load and unload roll-film cameras in subdued light. Total

darkness is required when you load and unload sheet film

holders.

Process film as soon as possible after exposure. Protect

negatives from strong light, and store them in a cool, dry

place. For long-term storage, keep negatives at a temperature

between 2°C (35°F) and 13°C (55°F) and at a relative

humidity between 30 and 35 percent.

Note: High speed films, such as PORTRA 800 Film, are

sensitive to environmental radiation. Expose and process this

film promptly. As exposure to radiation is cumulative, you

may want to request visual inspection of PORTRA 800 film

at airport and other security x-ray inspection stations.

DARKROOM RECOMMENDATIONS

Do not use a safelight. Handle unprocessed film in total

darkness.

Size

Warm-Up Times (Hours) to Reach Room

Temperature of 21°C (70°F) From a

Storage Temperature of:

-18°C (0°F) 2°C (35°F) 13°C (55°F)

120/220 1

3

⁄

41

⁄

2

135 magazine 1

1

⁄

2

1

1

⁄

4

1

35 mm long roll 5 3 2

70 mm long roll 10 5 3

10-sheet box 1

1

⁄

2

11

50-sheet box 3 2 2

4KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

EXPOSURE

Film Speed

Use the speed numbers in the tables below with cameras or

meters marked for ISO, ASA, or DIN speeds or exposure

indexes (EIs). Do not change the film-speed setting when

metering through a filter. Metering through filters may affect

light meter accuracy; see your meter or camera manual for

specific information. For critical work, make a series of test

exposures.

*

For best results without special printing.

Note: The latitude of PORTRA 160NC and 160VC Films

allows you to use 100-speed proofing products for test

exposures.

Daylight

Use the exposures in the table below for average frontlit

subjects from 2 hours after sunrise to 2 hours before sunset.

*

Use f/5.6 for backlit close-up subjects.

†

Use f/8 for backlit close-up subjects.

‡

Subject shaded from the sun but lighted by a large area of sky.

Light

Source

KODAK

WRATTEN

Gelatin

Filter

*

ISO Speed

160NC and

160VC

Films

400NC,

400VC,

and

400UC

Films

800 Film

Daylight or

Electronic

Flash

None 160 400 800

Photolamp

(3400 K) No. 80B 50 125 250

Tungsten

(3200 K) No. 80A 40 100 200

Lighting

Conditions

Shutter Speed (second)

and Lens Opening

160NC and

160VC

Films

400NC,

400VC, and

400UC Films

800 Film

Bright or Hazy Sun

on Light Sand or

Snow

1/125

f/16

1/500

f/16

1/1000

f/16

Bright or Hazy Sun

(Distinct Shadows)

1/125

f/11

*

1/500

f/11

*

1/500

f/16

†

Weak, Hazy Sun

(Soft Shadows)

1/125

f/8

1/500

f/8

1/500

f/11

Cloudy Bright

(No Shadows)

1/125

f/5.6

1/500

f/5.6

1/250

f/11

Heavy Overcast or

Open Shade

‡

1/125

f/4

1/500

f/4

1/125

f/11

Electronic Flash

Use the appropriate guide number in the table below as

starting-point recommendations for your equipment. Select

the unit output closest to the number given by your flash

manufacturer. Then find the guide number for feet or metres.

To determine the lens opening, divide the guide number by

the flash-to-subject distance. If negatives are consistently too

dense (overexposed), use a higher guide number; if they are

too thin (underexposed), use a lower number.

*

BCPS = beam candlepower seconds

Unit

Output

(BCPS)

*

Guide Number

Distances in Feet/Metres

160NC and

160VC Films

400NC, 400VC,

and 400UC

Films

800 Film

350 55/17 85/26 120/36

500 65/20 100/30 140/42

700 75/22 120/36 170/50

1000 90/27 140/42 200/60

1400 110/33 170/50 240/70

2000 130/40 200/60 280/85

2800 150/46 240/70 340/100

4000 180/55 280/85 400/120

5600 210/65 340/100 470/140

8000 250/75 400/120 560/170

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 5

Fluorescent and High-Intensity Discharge

Lamps

Use the color-compensating filters and exposure adjustments

in the tables below as starting points to expose

PORTRA Films under fluorescent or high-intensity discharge

lamps. For critical applications, make a series of test

exposures under your actual conditions.

To avoid the brightness and color variations that occur

during a single alternating-current cycle, use exposure

times of 1⁄60 second or longer with fluorescent lamps; with

high-intensity discharge lamps, use exposure times of

1⁄125 second or longer.

*

CCT = Correlated Color Temperature. Phosphor emission emulates the color temperature of a continuous spectrum lamp, such as tungsten.

*

CCT = Correlated Color Temperature. Phosphor emission emulates the color temperature of a continuous spectrum lamp, such as tungsten.

Adjustments for Long and Short Exposures

No filter correction or exposure compensation is required for PORTRA 160NC, 160VC, 400NC, PORTRA 400VC, or PORTRA

400UC Films for exposures from 1⁄10,000 second to 10 seconds. For PORTRA 800 Film, no adjustments are required for exposures

from 1⁄10,000 second to 1 second. For critical applications with longer exposure times, make tests under your conditions.

Type of Fluorescent

Lamp

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

160NC/VC and 400NC/VC Films 400UC Film 800 Film

Daylight 20R + 5M + 1 stop 20R + 5M + 1 stop 40R + 1 1/3 stop

White 40B + 5C + 1 2/3 stop 50C + 30M + 1

2

⁄

3

stops 30C + 40M + 1 2/3 stop

Warm White 40B + 40C + 2 stops 40B + 50C + 2 stops 50B + 5C + 2 stops

Warm White Deluxe 40B + 50C + 2 stops 90C + 30M + 2 stops 40B + 40C + 2 stops

Cool White 30B + 1 stop 30B + 1 stop 30M + 1 stop

Cool White Deluxe 40C + 10M + 1 stop 40C + 10M + 1 stop 20B + 20C + 1 stop

T8 741 (CCT = 4100 K)

*

40B + 20C + 1 2/3 stop 40B + 20C + 1

2

⁄

3

stops 20B + 20M + 1 2/3 stop

T8 830 (CCT = 3000 K)

*

50B + 60C + 2 1/3 stops 50B + 60C + 2

1

⁄

3

stops 55B + 20C + 2 1/3 stops

T8 835 (CCT = 3500 K)

*

40B + 40C + 1 2/3 stop 40B + 40C + 1

2

⁄

3

stops 40B + 1 2/3 stop

T8 841 (CCT = 4100 K)

*

50C + 20M + 1 1/3 stop 50C + 20M + 1

1

⁄

3

stops 20B + 10C + 1 1/3 stop

High-Intensity

Discharge Lamp (CCT)

*

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

KODAK Color

Compensating

Filter(s)

Exposure

Adjustment

160NC/VC and 400NC/VC Films 400UC Film 800 Film

High-Pressure Sodium

Vapor (2700 K) 50B + 70C + 2 2/3 stops 50B + 70C + 2

2

⁄

3

stops 60B + 50C + 2 2/3 stops

High-Pressure Sodium

Vapor (2200 K) 50B + 90C + 3 stops 50B + 90C + 3 stops 120C + 50M + 3 1/3 stops

High-Pressure Sodium

Vapor (2100 K) 200C + 20M + 4 stops 20M + 200C + 4 stops 55B + 100C + 4 stops

Metal Halide (4300 K) 5C + 10M + 2/3 stop 10M +

2

⁄

3

stop 5R + 20M + 1 stop

Metal Halide (3200 K) 80C + 10M + 1 2/3 stop 80C + 10M + 1

2

⁄

3

stops 20B + 30C + 1 2/3 stop

Mercury Vapor (3700 K) 30B + 5C + 1 stop 20B + 10C + 1 stop 30M + 1 stop

6KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

PROCESSING

Process PROFESSIONAL PORTRA Films in KODAK FLEXICOLOR Chemicals for Process C-41 with the following

replenishment and wash rates.

Replenishment and Wash Rates / PORTRA 160NC and 160VC Films

*

Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.

Replenishment and Wash Rates / PORTRA 400NC, 400VC and 400UC Films

*

Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.

Replenishment and Wash Rates / PORTRA 800 Film

*

Rates are for first wash and a two-stage countercurrent final wash. Double these rates for a single stage final wash.

Film Size KODAK FLEXICOLOR

Developer Replenisher

KODAK FLEXICOLOR

Developer Replenisher

LORR

KODAK

FLEXICOLOR

Bleach III, Fixer,

and Stabilizer

Wash Water

*

135 1012 mL/m

2

94 mL/ft

2

506 mL/m

2

47 mL/ft

2

861 mL/m

2

80 mL/ft

2

31 L/m

2

2.9 L/ft

2

120/220 1012 mL/m

2

94 mL/ft

2

506 mL/m

2

47 mL/ft

2

1023 mL/m

2

95 mL/ft

2

31 L/m

2

2.9 L/ft

2

4 x 5 inch 1245 mL/m

2

116 mL/ft

2

622 mL/m

2

58 mL/ft

2

1152 mL/m

2

107 mL/ft

2

59 L/m

2

5.5 L/ft

2

Film Size KODAK FLEXICOLOR

Developer Replenisher

KODAK FLEXICOLOR

Developer Replenisher

LORR

KODAK

FLEXICOLOR

Bleach III, Fixer,

and Stabilizer

Wash Water

*

135 1400 mL/m

2

130 mL/ft

2

700 mL/m

2

65 mL/ft

2

861 mL/m

2

80 mL/ft

2

31 L/m

2

2.9 L/ft

2

120/220 1400 mL/m

2

130 mL/ft

2

700 mL/m

2

65 mL/ft

2

1023 mL/m

2

95 mL/ft

2

31 L/m

2

2.9 L/ft

2

4 x 5 inch 1722 mL/m

2

160 mL/ft

2

861 mL/m

2

80 mL/ft

2

1152 mL/m

2

107 mL/ft

2

59 L/m

2

5.5 L/ft

2

Film Size KODAK FLEXICOLOR

Developer Replenisher

KODAK FLEXICOLOR

Developer Replenisher

LORR

KODAK

FLEXICOLOR

Bleach III, Fixer,

and Stabilizer

Wash Water

*

135 1400 mL/m

2

130 mL/ft

2

700 mL/m

2

65 mL/ft

2

861 mL/m

2

80 mL/ft

2

31 L/m

2

2.9 L/ft

2

120/220 1400 mL/m

2

130 mL/ft

2

700 mL/m

2

65 mL/ft

2

1023 mL/m

2

95 mL/ft

2

31 L/m

2

2.9 L/ft

2

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 7

JUDGING NEGATIVE EXPOSURES

You can check the exposure level with a suitable electronic

densitometer equipped with a filter such as a KODAK

WRATTEN Gelatin Filter No. 92 or the red filter for

Status M densitometry. Depending on the subject and the

light source used for exposure, a normally exposed and

processed color negative measured through the red filter

should have the approximate densities listed below.

Because of the extreme range in skin color, use these red

density values for a normally lit forehead only as a guide. For

best results, use a KODAK Gray Card (gray side).

Area Measured

Density Reading

160NC and

400NC FIlms

160VC and

400VC Films

KODAK Gray Card (gray

side) receiving same

illumination as subject

0.77 to 0.87 0.81 to 0.93

Lightest step (darkest in the

negative) of a KODAK Paper

Gray Scale receiving same

illumination as subject

1.13 to 1.23 1.22 to 1.34

Highest diffuse density on

normally lighted forehead

—light complexion

—dark complexion

1.08 to 1.18

0.93 to 1.03

1.16 to 1.28

0.98 to 1.10

Area Measured

400UC Film

Density Reading

EI 400 EI 800

(Push 1)

KODAK Gray Card (gray

side) receiving same

illumination as subject

0.80 to 1.00 1.00 to 1.20

Lightest step (darkest in the

negative) of a KODAK Paper

Gray Scale receiving same

illumination as subject

1.25 to 1.45 1.40 to 1.60

Highest diffuse density on

normally lighted forehead

—light complexion

—dark complexion

1.00 to 1.30

0.80 to 1.15

1.20 to 1.50

0.95 to 1.30

Area Measured

800 Film

Density Reading

EI 800 EI 1600

(Push 1)

EI 3200

(Push 2)

KODAK Gray Card

(gray side) receiving

same illumination as

subject

0.80 to 1.00 0.75 to 0.95 0.70 to 0.90

Lightest step (darkest

in the negative) of a

KODAK Paper Gray

Scale receiving same

illumination as subject

1.15 to 1.35 1.15 to 1.35 1.15 to 1.35

Highest diffuse

density on normally

lighted forehead

—light complexion

—dark complexion

1.08 to 1.18

0.93 to 1.03

0.85 to 1.20

0.60 to 0.95

0.80 to 1.15

0.55 to 0.90

RETOUCHING

You can retouch the sheet and 120 / 220 sizes on both the

base side and the emulsion side. Retouch only the emulsion

side on the 135 size.

For information on retouching equipment, supplies, and

techniques, see KODAK Publication No. E-71, Retouching

Color Negatives.

PRINTING NEGATIVES

This film is optimized for printing on KODAK

PROFESSIONAL PORTRA ENDURA, SUPRA ENDURA

and ULTRA ENDURA Papers, KODAK PROFESSIONAL

DURAFLEX Plus Digital Display Material, and on KODAK

PROFESSIONAL ENDURA Metallic Paper.

Make color slides and transparencies by printing the

negatives on KODAK PROFESSIONAL ENDURA

Transparency Optical Display Material or KODAK

PROFESSIONAL ENDURA Clear Optical Display

Material.

Make black-and-white prints on KODAK PANALURE

SELECT RC Paper for conventional black-and-white

processing, or KODAK PROFESSIONAL PORTRA Black

& White Paper for Process RA-4.

To set up a color printer or negative analyzer, use the

following control negatives.

*

This set includes one each: very under, under, normal, over, and very

over negatives.

Digital Files

You can scan your image to a file and print digitally to —

KODAK PROFESSIONAL PORTRA ENDURA Paper

KODAK PROFESSIONAL SUPRA ENDURA Paper

KODAK PROFESSIONAL ULTRA ENDURA Paper

KODAK PROFESSIONAL ENDURA Transparency

Digital Display Material

KODAK PROFESSIONAL ENDURA Clear Digital

Display Material

KODAK PROFESSIONAL DURAFLEX Plus Digital

Display Material

KODAK PROFESSIONAL Day/Night Digital Display

Material

KODAK PROFESSIONAL ENDURA Metallic Paper

KODAK PROFESSIONAL PORTRA

Printer Control Negative CAT No.

Set / Size 135

*

179 8511

Normal / Size 120 846 0958

Very Under / Size 120 107 1398

Under / Size 120 841 1902

Over / Size 120 177 1302

Very Over / Size 120 144 5741

8KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

SCANNING NEGATIVES

You can easily scan PROFESSIONAL PORTRA Film

negatives with a variety of linear-array-CCD,

area-array-CCD, and PMT film scanners. You can scan

negatives on desktop scanners as well as high-end drum

scanners.

Because no standards exist to define the colored filter sets

that film scanners use to capture the red, green, and blue

information of the film image, each manufacturer’s scanner

has its own characteristic output. The output depends on the

scanner’s sensitivity to the dyes in the film. This sensitivity

is determined by the spectral distribution of the colored filter

sets and/or the spectral sensitivity of the

charge-coupled-device (CCD). In addition to these spectral

specifications, scanner output depends on the look-up tables

or matrices that the scanner uses to output information for

CRT monitors, transmission, etc. These tables or matrices

are part of either “plug-in” programs used with specific

software packages designed for image manipulation,

updateable ROMs included with the equipment, or fixed

algorithms for calibrating and balancing, similar to those

used in photographic color printing equipment.

The generic “color negative film” channel designation

available with scanner software is only a starting point. You

can adjust the final color balance and the scene-dependent

contrast and brightness of an image by using the scanner’s

controls during pre-scan, or by using an image-manipulation

software program or workstation after acquisition. Some

scanners allow you to use “plug-in” programs to customize

scanner setups.

For more information, visit the following Web sites.

To access Go to

Film Terms for KODAK

PHOTO CD Imaging

Workstations

www.kodak.com/go/pcdFilmTerms

Drivers for KODAK Film

Scanners www.kodak.com/go/scannerDrivers

IMAGE STRUCTURE

Print Grain Index

The Print Grain Index number refers to a method of defining

graininess in a print made with diffuse-printing illumination.

It replaces rms granularity and has a different scale which

cannot be compared to rms granularity.

•The method uses a uniform perceptual scale, with a

change of four units equaling a just noticeable

difference in graininess to 90 percent of observers.

•A Print Grain Index rating of 25 on the scale represents

the approximate visual threshold for graininess. A

higher number indicates an increase in the amount of

graininess observed.

•The standardized inspection (print-to-viewer) distance

for all print sizes is 14 inches, the typical viewing

distance for a 4 x 6-inch print.

•In practice, larger prints will likely be viewed from

distances greater than 14 inches, which reduces

apparent graininess.

•Print Grain Index numbers may not represent graininess

observed from more specular printing illuminants, such

as condenser enlargers.

Negative Size: 24 x 36 mm (Size 135)

Negative Size: 6 x 6 cm (Size 120/220)

Negative Size: 4 x 5 Inches (Sheets)

For more information, see KODAK Publication No.

E-58, Print Grain Index—An Assessment of Print Graininess

from Color Negative Films.

Print Size in inches 4x6 8x10 16x20

Magnification 4.4X 8.8X 17.8X

Print Grain Index for—

160NC Film

160VC Film

400NC Film

400VC Film

400UC Film

800 Film

36

40

44

48

40

50

58

62

66

70

62

72

87

91

96

99

92

101

Print Size in inches 4x6 8x10 16x20

Magnification 2.6X 4.4X 8.8X

Print Grain Index for—

160NC Film

160VC Film

400NC Film

400VC Film

400UC Film

800 Film

Less than 25

28

32

36

28

38

36

40

44

48

40

50

58

62

66

70

62

72

Print Size in inches 4x6 8x10 16x20

Magnification 1.2X 2.1X 4.2X

Print Grain Index for—

160NC Film

160VC Film

400NC Film

Less than 25

Less than 25

Less than 25

Less than 25

Less than 25

28

35

39

43

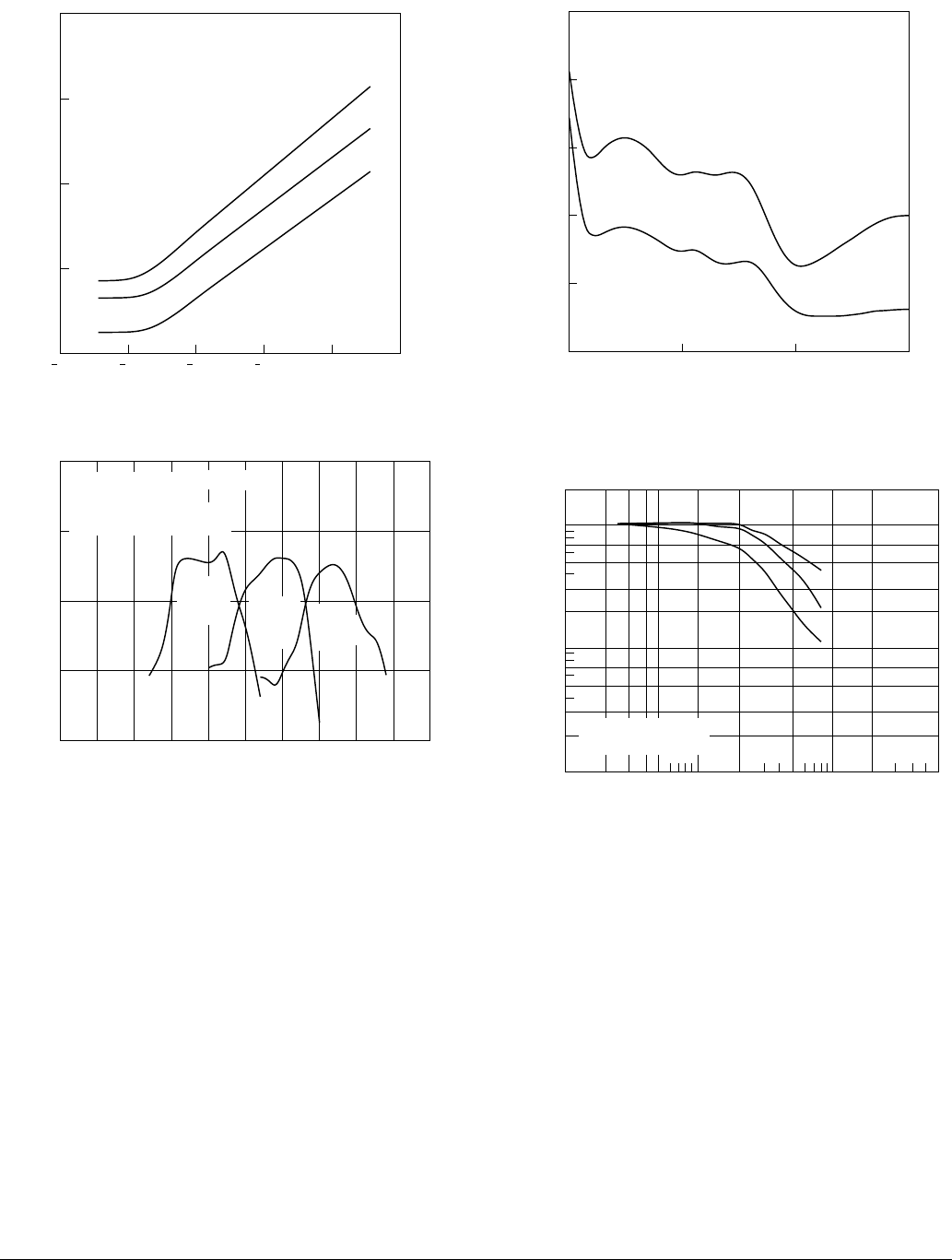

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 9

CURVES

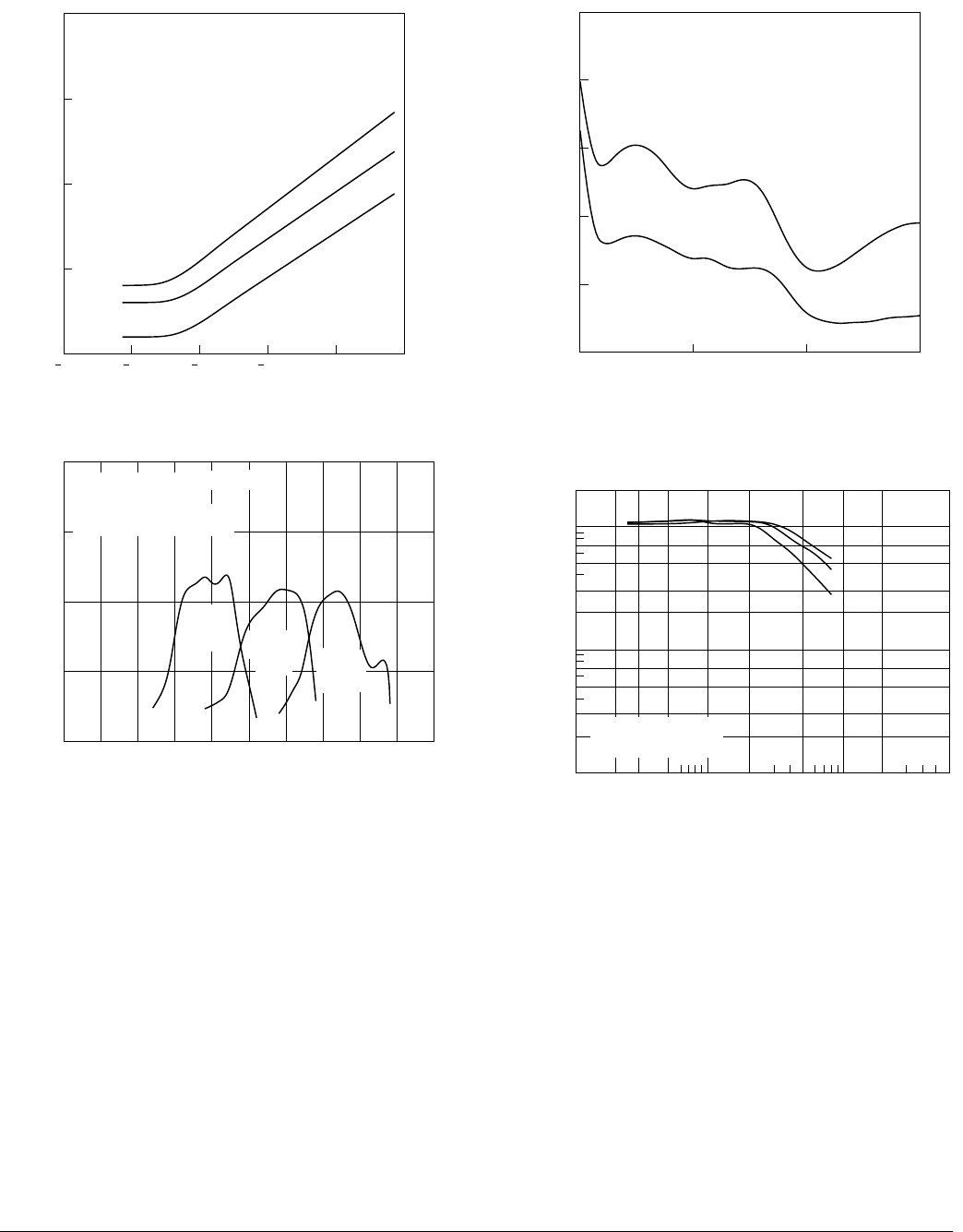

KODAK PROFESSIONAL PORTRA 160NC Film

Characteristic Curves

Spectral-Sensitivity Curves

4.0

F009_0153AC LOG EXPOSURE (lux-seconds)

3.0

0.0

2.0

DENSITY

1.0

2.0

3.0

4.0

1.0 0.0

Densitometry:

Process: C-41

Status M

B

G

R

1.0

F009_0180AC

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2 above D-min

Density:

C-41

Densitometry:

Effective Exposure:

Process:

1/25 second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG SENSITIVITY

2

WAVELENGTH (nm)

to produce specified density

*Sensitivity = reciprocal of exposure (ergs/cm ) required

250 300 350 400 450 500 550 600 650 750700

Spectral-Dye-Density Curves

Modulation Transfer Function

F009_0185AC

500

0.0

400

WAVELENGTH (nm)

600

DIFFUSE SPECTRAL DENSITY

1.0

0.5

2.0

1.5

2.5

700

Typical densities for a midscale neutral subject

and D-min.

C-41

Process:

Midscale Neutral

Minimum Density

B

G

R

200

50

70

100

20

30

7

3

5

2

1

10

RESPONSE (%)

SPATIAL FREQUENCY (cycles/mm)

60020050201054321 100

Process: C-41

Exposure: Daylight

NOTICE: The sensitometric curves and data in this publication represent product tested

under the conditions of exposure and processing specified. They are representative of

production coatings, and therefore do not apply directly to a particular box or roll of

photographic material. They do not represent standards or specifications that must be met

by Eastman Kodak Company. The company reserves the right to change and improve

product characteristics at any time.

10 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

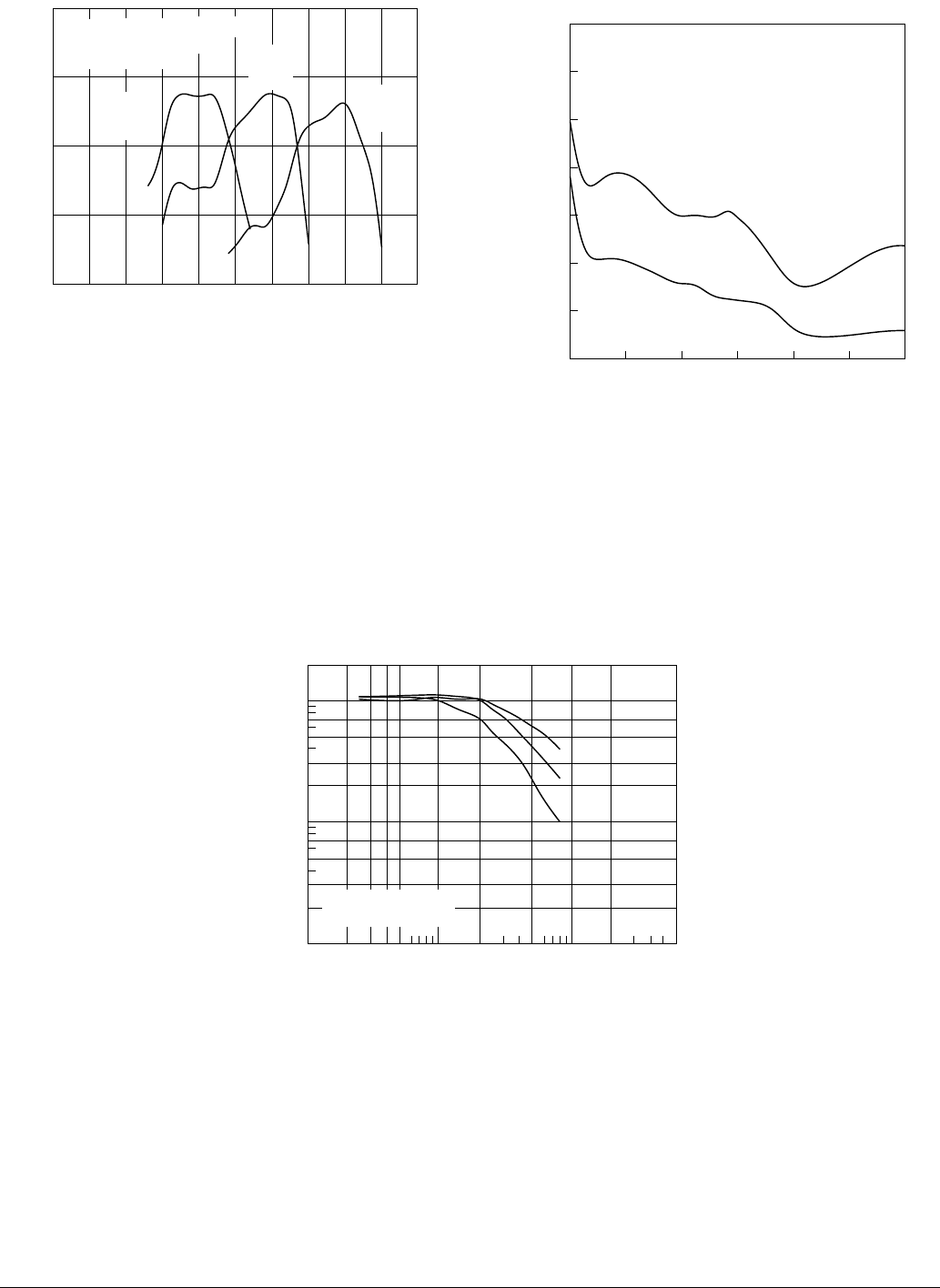

KODAK PROFESSIONAL PORTRA 160VC Film

Characteristic Curves

Spectral-Sensitivity Curves

F009_0154AC

1.0

R

G

B

Status M

C-41

Process:

Densitometry:

0.01.0

4.0

3.0

2.0

1.0

DENSITY

2.0

0.0

3.0

LOG EXPOSURE (lux-seconds)

4.0

F009_0180AC

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2 above D-min

Density:

C-41

Densitometry:

Effective Exposure:

Process:

1/25 second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG SENSITIVITY

2

WAVELENGTH (nm)

to produce specified density

*Sensitivity = reciprocal of exposure (ergs/cm ) required

250 300 350 400 450 500 550 600 650 750700

Spectral-Dye-Density Curves

Modulation Transfer Function

F009_0186AC

500

0.0

400

WAVELENGTH (nm)

600

DIFFUSE SPECTRAL DENSITY

1.0

0.5

2.0

1.5

2.5

700

Typical densities for a midscale neutral subject

and D-min.

C-41

Process:

Midscale Neutral

Minimum Density

B

G

R

200

50

70

100

20

30

7

3

5

2

1

10

RE

S

P

O

N

S

E (%)

SPATIAL FREQUENCY (c

y

cles/mm)

60

0

20050201054321 100

C-41

Process:

Exposure: Daylight

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 11

KODAK PROFESSIONAL PORTRA 400NC Film

Characteristic Curves

Spectral-Sensitivity Curves

1.0

F009_0155AC

1.0

R

G

B

Status M

C-41

Process:

Densitometry:

0.02.0

4.0

3.0

2.0

1.0

DENSITY

3.0

0.0

4.0

LOG EXPOSURE (lux-seconds)

F009_0181AC

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2 above D-min

Density:

C-41

Densitometry:

Effective Exposure:

Process:

1/50 second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG SENSITIVITY

2

WAVELENGTH (nm)

to produce specified density

*Sensitivity = reciprocal of exposure (ergs/cm ) required

250 300 350 400 450 500 550 600 650 750700

Spectral-Dye-Density Curves

Modulation Transfer Function

F009_0187AC

500

0.0

400

WAVELENGTH (nm)

600

DIFFUSE SPECTRAL DENSITY

1.0

0.5

2.0

1.5

2.5

700

Typical densities for a midscale neutral subject

and D-min.

C-41

Process:

Midscale Neutral

Minimum Density

C-41

Daylight

Exposure:

Process:

1001 2 3 4 5 10 20 50 200 600

SPATIAL FREQUENCY (c

y

cles/mm)

RE

S

P

O

N

S

E (%)

10

1

2

5

3

7

30

20

100

70

50

200

R

G

B

12 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

KODAK PROFESSIONAL PORTRA 400VC Film

Characteristic Curves

Spectral-Sensitivity Curves

F009_0156AC

1.0 1.0

R

G

B

Status M

C-41

Process:

Densitometry:

0.02.0

4.0

3.0

2.0

1.0

DENSITY

3.0

0.0

4.0

LOG EXPOSURE (lux-seconds)

F009_0181AC

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2 above D-min

Density:

C-41

Densitometry:

Effective Exposure:

Process:

1/50 second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG SENSITIVITY

2

WAVELENGTH (nm)

to produce specified density

*Sensitivity = reciprocal of exposure (ergs/cm ) required

250 300 350 400 450 500 550 600 650 750700

Spectral-Dye-Density Curves

Modulation Transfer Function

F009_0188AC

Minimum Density

Midscale Neutral

Process: C-41

and D-min.

Typical densities for a midscale neutral subject

700

2.5

1.5

2.0

0.5

1.0

DIFFUSE SPECTRAL DENSITY

600

WAVELENGTH (nm)

400

0.0

500

Daylight

C-41

Exposure:

Process:

1001 2 3 4 5 10 20 50 200 600

SPATIAL FREQUENCY (cycles/mm)

RE

S

P

O

N

S

E (%)

10

1

2

5

3

7

30

20

100

70

50

200

R

G

B

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 13

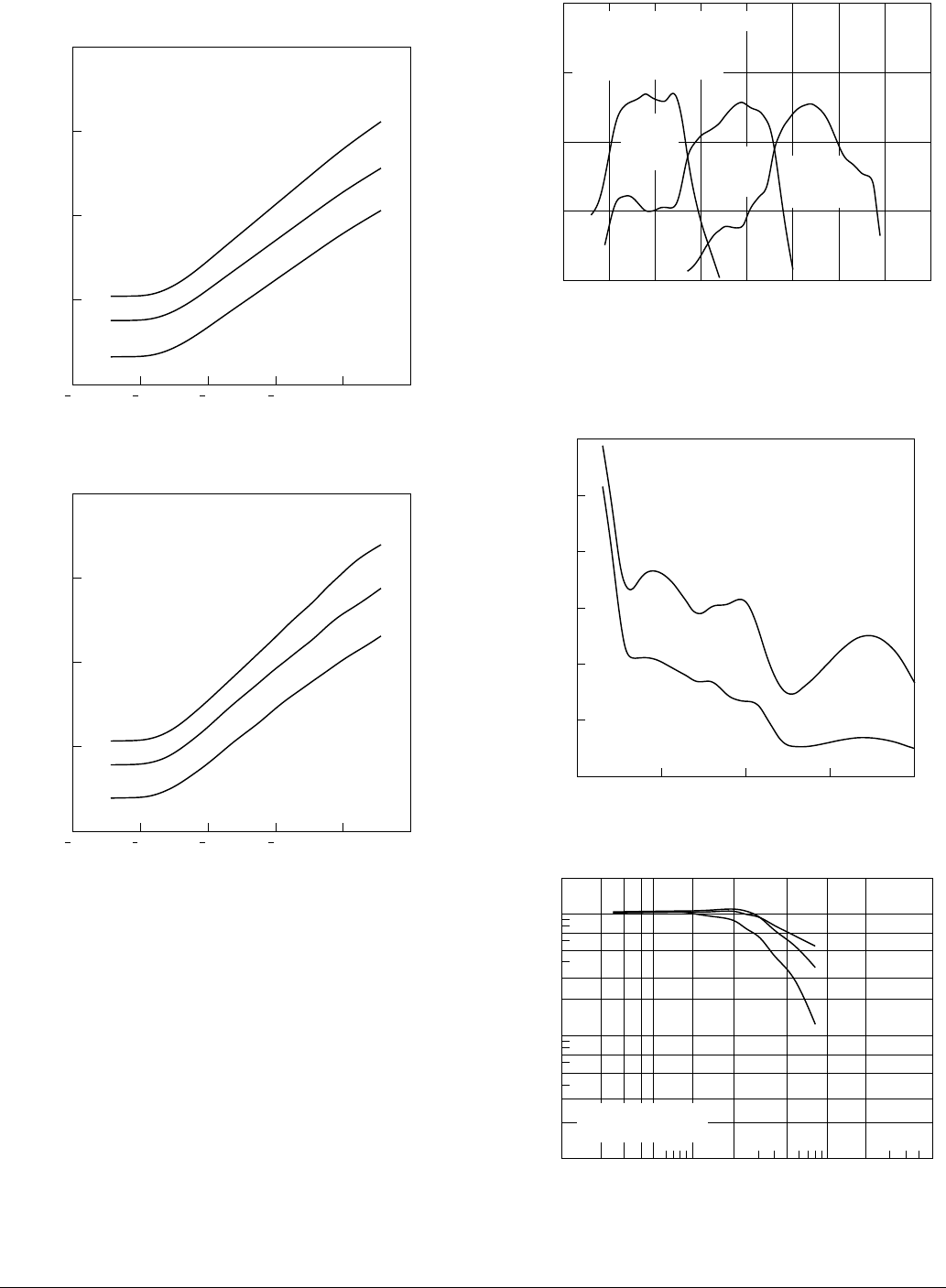

KODAK PROFESSIONAL PORTRA 400UC Film

Characteristic Curves, EI 400

Characteristic Curves, EI 800 (Push 1)

3.0 1.0

R

G

B

Status M

Daylight

C-41

Process:

Exposure:

Densitometry:

0.01.0

4.0

3.0

2.0

1.0

DEN

S

ITY

2.0

0.0

4.0

LOG EXPOSURE (lux-seconds)

3.0 1.

0

R

G

B

Status M

Daylight

C-41, Push1

Process:

Exposure:

Densitometry:

0.01.0

4.0

3.0

2.0

1.0

DEN

S

ITY

2.0

0.0

4.0

LOG EXPOSURE

(

lux-seconds

)

Spectral-Sensitivity Curves

Spectral-Dye-Density Curves

Modulation Transfer Function

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2 > D-min

Density:

C-41

Densitometry:

Effective Exposure:

Process:

1/50 Second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG SENSITIVITY

2

WAVELENGTH (nm)

to produce specified densit

y

*Sensitivity = reciprocal of exposure (erg/cm ) required

350 400 450 500 550 600 650 750700

750

C-41

Midscale Neutral

3.0

2.5

2.0

Process:

and D-min.

1.5

1.0

0.5 Minimum Density

650550

WAVELENGTH

(

nm

)

450350

0.0

DIFFU

S

E

S

PE

C

TRAL DEN

S

ITY

Typical densities for a midscale neutral subject

B

G

R

200

50

70

100

20

30

7

3

5

2

1

10

RE

S

P

O

N

S

E

(

%

)

SPATIAL FREQUENCY (c

y

cles/mm)

60020050201054321 100

Process:

Exposure:

C-41

Daylight

14 KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190

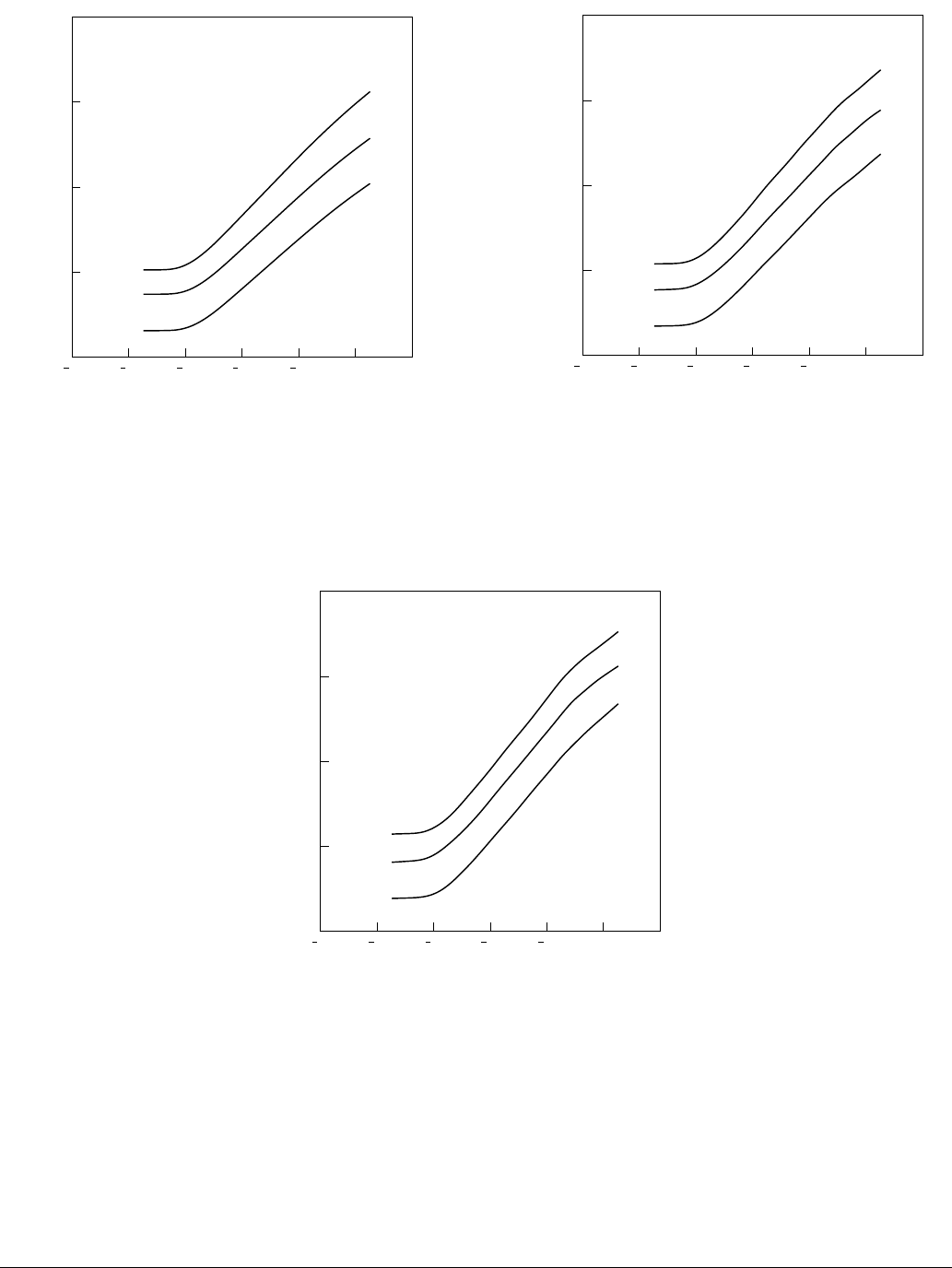

KODAK PROFESSIONAL PORTRA 800 Film

Characteristic Curves, EI 800

LOG EXPOSURE (lux-seconds)

5.0

0.0

4.0

DENSITY

1.0

2.0

3.0

4.0

2.0

Densitometry:

Exposure:

Log H Ref: -1.74

Daylight

Status M

B

G

R

1.03.0 1.0 0.0

F009_0507AC

Characteristic Curves, EI 1600 (Push 1)

Log H Ref: -1.74

LOG EXPOSURE (lux-seconds)

5.0

0.0

4.0

DENSITY

1.0

2.0

3.0

4.0

2.0

Densitometry:

Exposure:

Process: 1 Stop Push

Daylight

Status M

B

G

R

1.03.0 1.0 0.0

F009_0508AC

Characteristic Curves, EI 3200 (Push 2)

0.01.03.0 1.0

R

G

B

Status M

Daylight

2 Stop Push

Process:

Exposure:

Densitometry:

2.0

4.0

3.0

2.0

1.0

DENSITY

4.0

0.0

5.0

LOG EXPOSURE (lux-seconds)

-1.74

Log H Ref:

F009_0509AC

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC, and 800 Films • E-190 15

Spectral-Sensitivity Curves

Layer

Forming

Cyan-

Layer

Forming

Magenta-

Layer

Forming

Yellow-

0.2>D-min

Density:

Densitometry:

Effective Exposure:1/200 second

Status M

4.0

3.0

2.0

1.0

*

0.0

LOG

SENSITIVITY

2

WAVELENGTH (nm)

to produce specified density

*Sensitivity = reciprocal of exposure (erg/cm ) required

250 300 350 400 450 500 550 600 650 750700

F009_0510AC

Spectral-Dye-Density Curves

650600550500450

3.0

2.5

2.0

1.5

1.0

0.0

400

WAVELENGTH (nm)

DIFFUSE SPECTRAL DENSITY

0.5

3.5

700

Typical densities for a midscale neutral subject

and D-min.

Midscale Neutral

Minimum Density

F009_0511AC

Modulation Transfer Function

B

G

R

200

50

70

100

20

30

7

3

5

2

1

10

RESPONSE (%)

SPATIAL FREQUENCY (cycles/mm)

60020050201054321 100

Process:

Exposure: Daylight

C-41

KODAK PROFESSIONAL PORTRA 160NC, 160VC, 400NC, 400VC, 400UC,

and 800 Films

Minor Revision 5-03

Printed in U.S.A.

KODAK PROFESSIONAL PORTRA

160NC, 160VC, 400NC, 400VC,

400UC, and 800 Films

KODAK Publication No. E-190

MORE INFORMATION

Kodak has many publications to assist you with information

on Kodak products, equipment, and materials.

The following publications are available from Kodak

Customer Service, from dealers who sell Kodak products, or

you can contact Kodak in your country for more information.

E-30 Storage and Care of KODAK Photographic

Materials—Before and After Processing

E-58 Print Grain Index

E-71 Retouching Color Negatives

E-4021 KODAK PROFESSIONAL PORTRA and

SUPRA ENDURA Papers

E-4020 KODAK PROFESSIONAL ULTRA

ENDURA Paper

E-4030 KODAK PROFESSIONAL ENDURA

Transparency and Clear Optical Display

Materials

E-4031 KODAK PROFESSIONAL ENDURA

Transparency and Clear Digital Display

Materials

E-4028 KODAK PROFESSIONAL ENDURA

Metallic Paper

E-2468 KODAK PROFESSIONAL PORTRA 100T

Film

G-4006 KODAK PROFESSIONAL PORTRA

Black-and-White Paper

G-4019 KODAK PROFESSIONAL PORTRA Sepia

Black-and-White Paper

G-27 KODAK PROFESSIONAL PANALURE

SELECT RC Paper

J-38 Using KODAK FLEXICOLOR Chemicals in

Sink-Line, Bath, and Rotary-Tube

Processors

Z-131 Using KODAK FLEXICOLOR Chemicals

For the latest version of technical support publications for

KODAK PROFESSIONAL Products, visit Kodak on-line at:

http://www.kodak.com/go/professional

If you have questions about KODAK PROFESSIONAL

Products, call Kodak.

In the U.S.A.:

1-800-242-2424, Ext. 19, Monday–Friday

9 a.m.–7 p.m. (Eastern time)

In Canada:

1-800-465-6325, Monday–Friday

8 a.m.–5 p.m. (Eastern time)

Note: The Kodak materials described in this publication for

use with KODAK PROFESSIONAL PORTRA Films are

available from dealers who supply KODAK

PROFESSIONAL Products. You can use other materials,

but you may not obtain similar results.

Kodak, Kodak Professional, Duraflex, Endura, Estar, Flexicolor, Panalure, Portra,

Readyload, Select, Supra, T-Grain, Ultra, and Wratten are trademarks.
