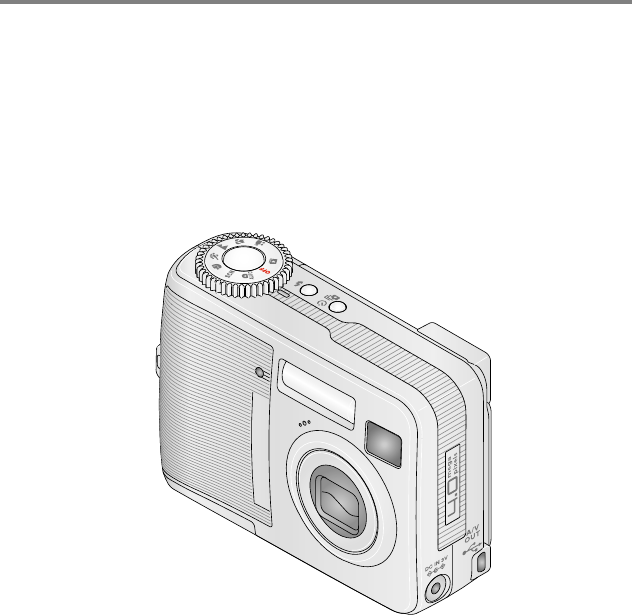

Kodak EasyShare CD43
zoom digital camera
User’s guide
www.kodak.com
For interactive tutorials, www.kodak.com/go/howto
For help with your camera, www.kodak.com/go/cd43support
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2005
All screen images are simulated.
Kodak, EasyShare, and Retinar are trademarks of Eastman Kodak Company.
P/N 4J4296_en
Product features
www.kodak.com/go/support i
Front View
1 Microphone 7 Self-timer/Burst button
2 Wrist strap post 8 Flash
3 Self Timer /Video light 9 Viewfinder
4Mode dial: camera
modes/power settings
10 Lens
5 Shutter button 11 USB, A/V Out
6 Flash button 12 DC-In (3V) ,for
optional AC adapter
4
2
8
7
6
1
10
11
5
3
12
9
ii www.kodak.com/go/support
Product features
Side View
1 Dock connector 9 Delete button
2 Tripod socket 10 Zoom (Wide Angle/Telephoto)
3 LCD screen 11 4-way controller
4 Viewfinder 12 OK button
5 Ready light 13 Slot for optional xD-Picture Card
6 Review button 14 Share button
7 Menu button 15 Battery compartment
8 LCD On/Off/Status
button
2
3
1
7
6
12
45
11
14
15
10
89
13
www.kodak.com/go/support iii
Table of contents 1
1 Setting up your camera .........................................................................1
Attaching the wrist strap ............................................................................... 1
Loading the batteries ....................................................................................1
Turning on the camera .................................................................................. 2
Setting the date/time, first time .....................................................................2
Setting the language and date/time, other times............................................3
Storing pictures on an xD-Picture Card...........................................................3
2 Taking pictures and videos ....................................................................4
Taking a picture ............................................................................................ 4
Using optical zoom ....................................................................................... 8
Using the flash..............................................................................................9
Reviewing pictures and videos.......................................................................9
Protecting pictures and videos from deletion................................................12
3 Transferring and printing pictures .......................................................14
Installing the software.................................................................................14

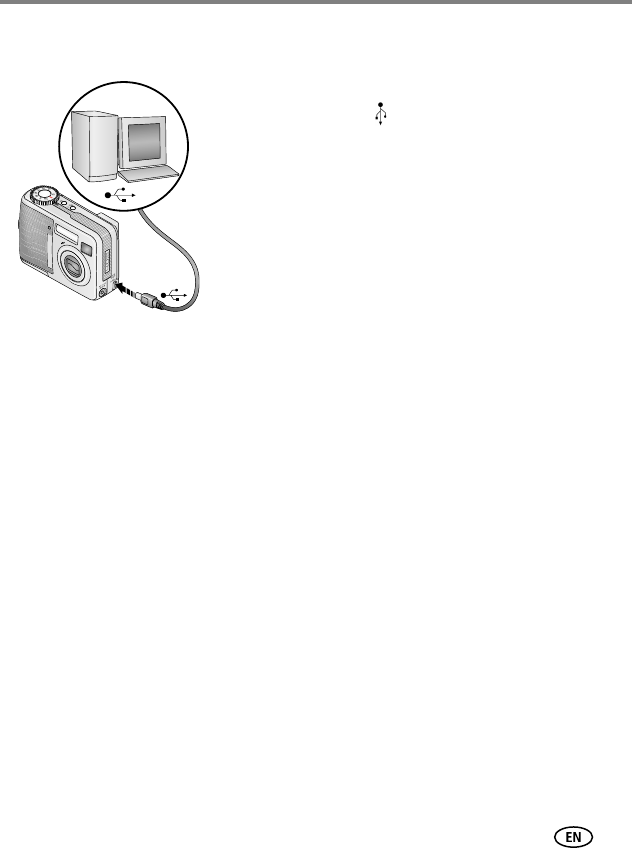

Transferring pictures with the USB cable...................................................... 15
Printing pictures.......................................................................................... 16
Dock compatibility for your camera.............................................................. 19
4 Doing more with your camera .............................................................20
Using the self-timer.....................................................................................20
Using burst .................................................................................................21
Running a slide show ..................................................................................22
Copying pictures and videos ........................................................................24
Changing the flash settings .........................................................................25
Picture-taking modes .................................................................................. 26
Changing picture-taking settings .................................................................28
iv www.kodak.com/go/support
Table of contents
Customizing your camera ............................................................................31
Viewing picture/video information ............................................................... 33
Pre-tagging for album names ...................................................................... 34
Sharing your pictures................................................................................... 36
5 Troubleshooting ..................................................................................41
Camera problems........................................................................................41
Computer/connectivity problems..................................................................43
Picture quality problems .............................................................................. 43
Camera ready light status............................................................................44
Direct printing (PictBridge) problems............................................................ 45
6 Getting help ........................................................................................46
Helpful links................................................................................................ 46
Telephone customer support ....................................................................... 47
7 Appendix .............................................................................................49
Camera specifications .................................................................................49
Storage capacities .......................................................................................53
Power-saving features.................................................................................54
Important safety instructions ....................................................................... 54
Battery information ..................................................................................... 56
Upgrading your software and firmware........................................................ 57
Additional care and maintenance ................................................................ 58
Warranty..................................................................................................... 58
Regulatory compliance ................................................................................ 61
www.kodak.com/go/support 1
1Setting up your camera
Attaching the wrist strap
Loading the batteries
1Open the battery door.
2Load the batteries, then close the battery door.
For information on replacing batteries and extending battery life, see page 56.
CRV3 lithium
(non-rechargeable) Ni-MH rechargeable
battery pack
2-AA
lithium, Ni-MH,
or oxy-alkaline
2www.kodak.com/go/support
Setting up your camera
Turning on the camera
Setting the date/time, first time
2
1 At the prompt, press OK.
to change.
for previous/next field.
OK to accept.
Setting up your camera
www.kodak.com/go/support 3
Setting the language and date/time, other times
Storing pictures on an xD-Picture Card
Your camera has 16 MB of internal memory. You can purchase an xD-Picture Card to
conveniently store more pictures and videos.
NOTE: We recommend Kodak xD-Picture Cards. When using the card for the first time, format it in this
camera before taking pictures (see page 32).
CAUTION:
A card can only be inserted one way; forcing it may cause
damage. Inserting or removing a card when the Ready light is
blinking may damage pictures, card, or camera.
See page 53 for storage capacities. Purchase xD-Picture Cards at a dealer of Kodak
products or www.kodak.com/go/cd43accessories.
2
1
3
Press Menu.
to highlight Setup Menu
then press OK.
to highlight Language
or Date/Time , then press OK.
If setting the date/time:
to change.
for previous/next field.
to accept.
OK
xD-Picture
Card (optional)
4www.kodak.com/go/support
2Taking pictures and videos
Taking a picture
Taking a video
2
4
3
1
Frame your
subject in the
Viewfinder
or LCD screen.
Press Shutter button
halfway to focus and
set exposure.
When the Ready light
turns green, press the
button completely down.
Turn on camera.
Ready light
Press the Shutter button
completely down
and release.
To stop recording,
press and release the
Shutter button again.
Turn on camera.
Frame your
subject in the
Viewfinder
or LCD screen.
1
2
3
Taking pictures and videos
www.kodak.com/go/support 5
Reviewing the picture or video just taken
After you take a picture or video, the LCD screen displays a Quickview for
approximately 5 seconds.
While the picture or video and are displayed:
To view pictures and videos anytime, see page 9.
Checking camera and picture status
Press the LCD On/Off/Status button to see the active camera
and picture settings.
If you press
no buttons, the
picture/video is
saved.
Tag a picture/video for email or as a
favorite, or tag a picture for print.
Delete
OK to play/pause a video
(adjust the volume on your Video
Out device.)
Press once to turn off
the icons of the active
camera and picture settings.
Press twice to turn off
the screen entirely.
(Press again to turn on icons and
picture settings.)
Status
button
6www.kodak.com/go/support
Taking pictures and videos
Using the auto-focus framing marks (pictures)
When using the LCD screen as a viewfinder, framing marks indicate where the camera
is focusing. For the best pictures, the camera attempts to focus on foreground
subjects, even if the subjects are not centered in the scene.
1Press the Shutter button halfway.
When the framing marks turn green, focus is accomplished.
2If the camera is not focusing on the desired subject (or if the framing marks
disappear), release the Shutter button and recompose the scene.
3Press the Shutter button completely down to take the picture.
NOTE: Framing marks do not appear in Landscape, Fireworks, or Video mode. When you use Focus Zone
(page 29) and set Center Zone, the framing marks are fixed at Center Wide.
While the shutter button is pressed halfway:
Center focus
Center wide focus
Side focus
Center and side focus
Left and right focus
Framing marks
Taking pictures and videos
www.kodak.com/go/support 7
Capture mode
Picture size
Pictures/time remaining
Storage location
Focus zone
White balance
ISO
Low battery
Camera mode
Exposure compensation
Album name
Date stamp
Self Timer/Burst
Flash Mode
Zoom:
digital
telephoto
wide
8www.kodak.com/go/support
Taking pictures and videos
Using optical zoom
Use optical zoom to get up to 3X closer to your subject. Optical zoom is effective
when the lens is no closer than 2 ft (0.6 m) to the subject or 5 in. (13 cm) in Close-up
mode. You can change optical zoom before (but not during) video recording.
1Use the Viewfinder or LCD screen to frame your
subject.
2Press Telephoto (T) to zoom in. Press Wide Angle
(W) to zoom out.
The Zoom indicator shows zoom status.
3Press the Shutter button halfway to set the
exposure and focus, then press completely down
to take the picture. (When taking videos, press and
release the Shutter button.)
Using digital zoom
Use digital zoom in any Still mode to get an additional 5X magnification beyond
optical zoom. Combined zoom settings are from 3X to 15X.
1Press the Telephoto (T) button to the optical zoom limit (3X). Release the button,
then press it again.
The Zoom indicator shows zoom status.
2Take the picture.
NOTE: You cannot use digital zoom for video recording. You may notice decreased image quality when
using digital zoom. The blue slider on the zoom indicator pauses and turns red when the picture
quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
Zoom indicator
Digital zoom range
Optical zoom
range
Taking pictures and videos
www.kodak.com/go/support 9
Using the flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows.
To change the flash settings, see page 25.
Reviewing pictures and videos
Press the Review button to view and work with your pictures and videos.
To save battery power, use the optional Kodak EasyShare camera or printer dock, or
Kodak 3-volt AC adapter. (See www.kodak.com/go/cd43accessories.)
NOTE: Pictures taken at the 3.5 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a black bar
at the top of the screen.
Flash-to-subject distance
Zoom position Flash distance
Wide angle 2–12 ft (0.6–3.6 m) @ ISO 140
Telephoto 2–7 ft (0.6–2.1 m) @ ISO 140
Press the
through flash modes (see Flash modes table).
The active flash icon is displayed in the
LCD screen.
button repeatedly to scroll
(previous/next)
Videos:
OK to play/pause
Adjust the volume
Review
(Press again to exit)
Next picture/video (during playback)
1
2
Rewind to beginning (during playback)
10 www.kodak.com/go/support
Taking pictures and videos
What the review icons mean
Email tag
Favorite tag
Print tag/number of prints Protected
Picture number
Image storage
Review mode
Scroll arrows
location
Email tag
Favorite tag
Video length
Press OK to Play
Protected
Video number
Review mode
Image storage
location
or Pause
Taking pictures and videos
www.kodak.com/go/support 11
Magnifying a picture during review
Viewing multi-up (thumbnails) during review
Cropping a picture during review
NOTE: Cropping may not be supported for images captured on other digital cameras.
Pictures under 2.1 MP cannot be cropped.
W/T
view other parts of the picture.
return to 1X.
OK
magnify 1X–8X.
OK
view previous/next thumbnail.
view multi-up thumbnails.
view previous/next row of thumbnails.
view single picture.
Highlight Crop , then press OK.
Press Menu. (To exit, press Menu again.)
Follow on-screen instructions.
move crop box.
(Crop box turns red at maximum zoom.)
zoom out or in.
OK crop and save picture. (Original picture is kept.)
W/T
1
2
3
12 www.kodak.com/go/support
Taking pictures and videos
Protecting pictures and videos from deletion
The picture or video is protected and cannot be deleted. The Protect icon appears
with the protected picture or video.
Press the Menu button to exit the menu.
CAUTION:
Formatting internal memory or an xD-Picture Card deletes all
(including protected) pictures, videos. (Formatting internal
memory also deletes email addresses, album names, and
favorites. To restore them, see EasyShare software Help.)
highlight Protect ,
1
2
Press Review. (To exit, press
Review again.)
for previous/next.
Press Menu.
Press to
then press OK.
Note: To cancel Protect,
press OK again.
4
3
Taking pictures and videos
www.kodak.com/go/support 13
Deleting pictures and videos
PICTURE or VIDEO—deletes the displayed picture or video.
EXIT—exits the Delete screen.
ALL—deletes all pictures and videos from your current storage location.
NOTE: To delete protected pictures and videos, remove protection before deleting.
1
2
4Follow the screen prompts.
for previous/next.
Press Delete.
Press Review. (To exit, press
Review again.)
3
14 www.kodak.com/go/support
3Transferring and printing
pictures
Installing the software
CAUTION:
Install Kodak EasyShare software
before
connecting the camera or
optional dock to the computer. Failure to do so may cause the
software to load incorrectly.
1Close all software applications that are open on your computer (including
anti-virus software).
2Place the Kodak EasyShare software CD into the CD-ROM drive.
3Load the software:
Windows OS—if the install window does not appear, choose Run from the Start
menu and type d:\setup.exe where d is the drive letter that contains the CD.
Mac OS X—double-click the CD icon on the desktop, then click the Install icon.
4Follow the on-screen instructions to install the software.
Windows OS—select Complete to automatically install the most commonly used
applications. Select Custom to choose the applications you wish to install.
Mac OS X—follow the on-screen instructions.
NOTE: When prompted, register your camera and software. Registering lets you sign up for information
that keeps your system up-to-date. To register later, visit
www.kodak.com/go/register.
5If prompted, restart the computer. If you turned off anti-virus software, turn it back
on. See the anti-virus software manual for details.
For information on the software applications included on the Kodak EasyShare
software CD, click the Help button in the Kodak EasyShare software.
Transferring and printing pictures
www.kodak.com/go/support 15
Transferring pictures with the USB cable
1Turn off the camera.
2Plug the labeled end of the USB cable into the
labeled USB port on your computer. See your
computer user’s guide for details.
3Plug the other end of the USB cable into the labeled
USB port on the camera.
4Turn on the camera.
Kodak EasyShare software opens on your computer.
The software prompts you through the transfer
process.
NOTE: Visit
www.kodak.com/go/howto
for an online tutorial on connecting.
Also available for transferring
You can also use these Kodak products to transfer your pictures and videos.
■Kodak EasyShare camera dock, Kodak EasyShare printer dock (see page 19)
■Kodak 8-in-1 card reader
Purchase these and other accessories at a dealer of Kodak products or
www.kodak.com/go/cd43accessories.
16 www.kodak.com/go/support
Transferring and printing pictures
Printing pictures
Printing with a Kodak EasyShare printer dock
Dock your camera to the Kodak EasyShare printer dock and print directly—with or
without a computer. The printer dock may require a D-22 adapter (see page 19).
Purchase this and other accessories at a dealer of Kodak products or
www.kodak.com/go/cd43accessories.
Direct printing with a PictBridge enabled printer
Your camera is compatible with PictBridge technology, so you can print directly to
PictBridge enabled printers. You need:
Connecting the camera to a PictBridge enabled printer
1Turn off the camera and printer.
2Optional: If you have a Kodak 3-volt AC adapter (optional accessory), plug it into
the camera and into an electrical outlet.
3Connect the appropriate USB cable from the camera to the printer. (See your
printer user guide or www.kodak.com/go/cd43accessories for details.)
■Camera with fully-charged batteries, or
with optional Kodak 3-volt AC adapter
■PictBridge enabled printer
■USB cable (may be sold separately)
Transferring and printing pictures
www.kodak.com/go/support 17
Printing from a PictBridge enabled printer
1Turn on the printer. Turn on the camera.
The PictBridge logo is displayed, followed by the current picture and menu. (If no
pictures are found, a message is displayed.) If the menu interface turns off, press any
button to redisplay it.
2Press to choose a printing option, then press the OK button.
NOTE: During direct printing, pictures are not permanently transferred or saved to the computer or printer.
To transfer pictures to your computer, see page 14. In Favorites mode, the current favorite picture
is displayed.
Current Picture Press to choose a picture. Choose the number of copies.
Tagged Pictures If your printer is capable, print pictures that you tagged for
printing and choose a print size.
Index Print Print thumbnails of all pictures. This requires one or more sheets
of paper. If the printer is capable, choose a print size.
All Pictures Print all pictures in internal memory, on a card, or in Favorites.
Choose the number of copies.
Image Storage Access internal memory, a card, or Favorites.
18 www.kodak.com/go/support
Transferring and printing pictures
Disconnecting the camera from a PictBridge enabled printer
1Turn off the camera and printer.
2Disconnect the USB cable from the camera and the printer.
Ordering prints online
Kodak EasyShare
Gallery (www.kodakgallery.com) is one of the many online print
services offered in the Kodak EasyShare software. You can easily:
■Upload your pictures.
■Edit, enhance, and add borders to your pictures.
■Store pictures, and share them with family and friends.
■Order high-quality prints, photo greeting cards, frames, and albums—and have
them delivered to your door.
Printing pictures from your computer
For details on printing pictures from your computer, click the Help button in the Kodak
EasyShare software.
Printing from an optional xD-Picture Card
■Automatically print tagged pictures when you insert your card into a printer with
an xD-Picture Card slot. See your printer user’s guide for details.
■Take the card to your local photo retailer for professional printing.
Transferring and printing pictures
www.kodak.com/go/support 19
Dock compatibility for your camera
Purchase camera docks, printer docks, and other accessories at a dealer of Kodak
products or www.kodak.com/go/cd43accessories.
Kodak EasyShare dock Docking configuration
■printer dock
■printer dock plus
■printer dock 6000
■camera dock 6000
■others, including series 3
printer docks and camera
docks
■printer dock 4000
■camera dock II
■LS420, LS443 camera dock
Not compatible
Custom
camera insert
Kodak dock
adapter kit
D-22
Dock
Custom
camera insert
(included with
camera)
Dock
20 www.kodak.com/go/support
4Doing more with your camera
Using the self-timer
To cancel the self-timer before the picture is taken, press the Self-timer button.
The self-timer cancels after you take the picture.
Using the self-timer for video
Use the same procedure as above, but:
■Turn the Mode dial to video .
■Press the Shutter button completely down.
NOTE: The video stops when you press the Shutter button or when no storage space remains.
In any Still mode, press
1
2
3
4
Place camera on a tripod or flat surface.
Compose the scene.
Press the Shutter button halfway, then completely
down.
Once for a 10-second delay (so you have time to get
into the scene)
Once more for a 2-second delay (for a steady,
auto-shutter release on a tripod)
The picture is taken in 10 or 2 seconds.
Doing more with your camera
www.kodak.com/go/support 21
Using burst
1In most Still modes, press the Self Timer/Burst button repeatedly to choose the
Burst option.
2Press the Shutter button halfway to set the auto focus and exposure.
3Press the Shutter button completely down and hold it to take the pictures.
The camera stops taking pictures when you release the Shutter button, when the
pictures are taken, or when there is no more storage space.
NOTE: During Quickview, you can delete all pictures in the burst series. To delete selectively, do so in
Review (see page 13).
Option Description Purpose
Burst
Camera takes up to 3 pictures (2 per second) while the
Shutter button is pressed.
Capture an expected
event.
Example:
A person swinging a
golf club.
First 3 pictures
are saved.
22 www.kodak.com/go/support
Doing more with your camera
Running a slide show
Use the Slide Show to display your pictures and videos on the LCD screen.
To run a slide show on a television or on any external device, see page 23.
To save battery power, use an optional Kodak 3-volt AC adapter.
(Visit www.kodak.com/go/cd43accessories.)
Starting the slide show
1Press the Review button, then press the Menu button.
2Press to highlight Slide Show , then press the OK button.
3Press to highlight Begin Show, then press the OK button.
Each picture and video is displayed once.
To interrupt the Slide Show, press the OK button.
Changing the slide show display interval
The default interval setting displays each picture for 5 seconds. You can set the display
interval from 3 to 60 seconds.
1On the Slide Show menu, press to highlight Interval, then press the
OK button.
2Select a display interval.
To scroll through the seconds quickly, press and hold .
3Press the OK button.
The interval setting remains until you change it.
Doing more with your camera
www.kodak.com/go/support 23
Running a continuous slide show loop
When you turn on Loop, the slide show is continuously repeated.
1On the Slide Show menu, press to highlight Loop, then press the OK button.
2Press to highlight On, then press the OK button.
The slide show repeats until you press the OK button or until battery power is
exhausted. The Loop feature remains until you change it.
Displaying pictures and videos on a television
You can display pictures and videos on a television, computer monitor, or any device
equipped with a video input. (Image quality on a television screen may not be as good
as on a computer monitor or when printed.)
NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see page 31). The slide show stops if you
connect or disconnect the cable while the slide show is running.
1Connect an audio/video cable (sold separately) from the camera USB, A/V Out port
to the television video-in port (yellow) and audio-in port (white). See your
television user’s guide for details.
2Review pictures and videos on the television.
24 www.kodak.com/go/support
Doing more with your camera
Copying pictures and videos
You can copy pictures and videos from a card to internal memory or from internal
memory to a card.
Before you copy, make sure that:
■A card is inserted in the camera.
■The camera’s picture storage location is set to the location from which you are
copying. See Image Storage, page 30.
NOTE: If Auto is selected as your camera's image storage location, you can only copy pictures and videos
from the memory card.
Copy pictures or videos:
1Press the Review button, then press the Menu button.
2Press to highlight Copy , then press the OK button.
3Press to highlight an option:
PICTURE or VIDEO—copies the current picture or video.
EXIT—returns to the Review menu.
ALL—copies all pictures and videos from your selected storage location to the
other location.
4Press the OK button.
NOTE: Pictures and videos are copied, not moved. To remove pictures and videos from the original location
after copying, delete them (see page 13).
Tags that you applied for print, email, and favorites are not copied. Protection settings are not
copied. To apply protection to a picture or video, see page 12.
Doing more with your camera
www.kodak.com/go/support 25
Changing the flash settings
NOTE: Flash settings are pre-set for each picture-taking mode. Some of the flash settings may not be
available in all Capture or Scene modes. When you change to Auto or Red-eye in some of these
modes, it becomes the default until you change it.
Flash modes Flash fires
Auto
Flash
When the lighting conditions require it.
Fill Every time you take a picture, regardless of the lighting conditions. Use
when the subject is in shadow or is “backlit” (when light is behind the
subject). In low light, hold the camera steady or use a tripod.
Red-eye Once, so the subject’s eyes become accustomed to the flash, then fires
again when the picture is taken. (If the lighting conditions require flash
but do not require Red-eye reduction, the flash may fire only once.)
Off Never
Press the Flash button repeatedly to scroll
through flash modes
(see Flash modes table).
The active flash icon is displayed
on the LCD screen.
Flash button
26 www.kodak.com/go/support
Doing more with your camera
Picture-taking modes
Use this mode For
Auto General picture-taking—offers an excellent balance of image quality
and ease of use.
Scene Point-and-shoot simplicity when taking pictures under 11 special
conditions including Color, Black & White, and Sepia.
(For SCN modes, see page 27.)
Portrait Full-frame portraits of people. Use Telephoto to exaggerate
background blur.
Sport Subjects that are in motion. Shutter speed is fast.
Landscape Distant subjects. Flash does not fire unless you turn it on. Auto-focus
framing marks (page 6) are not available in Landscape.
Close-up Close subjects 5–27.6 in. (13–70 cm) from the lens in Wide Angle;
8.7–27.6 in. (22–70 cm) in Telephoto. Use available light instead of
flash if possible. Use the LCD screen to frame the subject.
Video Capturing video with sound (see page 4).
Choose the mode that best
suits your subjects and
surroundings.
Doing more with your camera
www.kodak.com/go/support 27
Scene modes
1Turn the Mode dial to Scene .
2Press to display Scene mode descriptions.
NOTE: If the Scene mode description turns off, press the OK button.
3Press the OK button to choose a Scene mode.
Use this SCN mode For
Children Action pictures of children in bright light.
Party People indoors. Minimizes red eye.
Night
Portrait
Reduces red eye of people in night scenes or low-light conditions.
Place the camera on a flat, steady surface or use a tripod.
Beach Bright beach scenes.
Snow Bright snow scenes.
Fireworks Flash does not fire. Place the camera on a flat, steady surface or use a
tripod.
Self-
Portrait
Close-ups of yourself. Assures proper focus and minimizes red eye.
Backlight Subjects that are in shadow or “backlit” (when light is behind the
subject).
28 www.kodak.com/go/support
Doing more with your camera
Changing picture-taking settings
You can change settings to get the best results from your camera:
1Press the Menu button. (Some settings are unavailable in some modes.)
2Press to highlight the setting you wish to change, then press the OK button.
3Choose an option, then press the OK button.
4Press the Menu button to exit.
Setting Icon Options
Exposure Compensation
(Still mode)
Choose how much light
enters the camera.
This setting remains until you
turn the Mode dial.
If pictures are too light, decrease the value.
If pictures are too dark, increase the value.
NOTE: When the LCD screen is on in any Still capture mode, press
to adjust exposure compensation.
Exposure Compensation returns to zero if Long Time
Exposure is set.
Unavailable in Video mode.
Picture Size
Choose a picture resolution.
This setting remains until you
change it.
4.0 MP (default)—for printing up to 20 x 30 in.
(51 x 76 cm); pictures are highest resolution and
largest file size.
3.5 MP (3:2 Best)—ideal for printing 4 x 6 in.
(10 x 15 cm) prints without cropping. Also for printing
up to 20 x 30 in. (51 x 76 cm); some cropping may
result due to the 3:2 aspect ratio.
3.1 MP—for printing up to 11 x 14 in. (28 x 36 cm);
pictures are medium resolution with smaller file size.
2.1 MP—for printing up to 8 x 10 in. (20 x 25 cm);
pictures are medium resolution with smaller file size.
1.1 MP—for printing up to 5 x 7 in. (13 x 18 cm); for
emailing, Internet, or screen display; pictures are
lowest resolution and smallest file size.
Doing more with your camera
www.kodak.com/go/support 29
Video Size
Choose a video resolution.
This setting remains until you
change it.
320 x 240—Video plays in a 320 x 240 pixel
window (QVGA).
White Balance
Choose your lighting
condition.
This setting remains until you
turn the Mode dial.
Auto (default)—automatically corrects white
balance. Ideal for general picture taking.
Daylight—for pictures in natural lighting.
Tungsten—corrects the orange cast of household
light bulbs. Ideal for indoor pictures under tungsten or
halogen lighting without flash.
Fluorescent—corrects the green cast of fluorescent
lighting. Ideal for indoor pictures under fluorescent
lighting without flash.
Unavailable in Video mode.
ISO Speed
Control the camera’s
sensitivity to light
This setting remains until you
turn the Mode dial.
Choose a lower ISO setting in brightly lit scenes; use
a higher ISO for low-light scenes. Choose Auto
(default), 80, 100, 200, 400.
NOTE: ISO speed changes depending on whether the flash is on
or off.
ISO returns to Auto when the camera is set to Sport,
Portrait, or Scene mode, or during Long Time Exposure.
Unavailable in Video mode.
Focus Zone
Select a large or concentrated
area of focus.
This setting remains until you
turn the Mode dial.
Multi-zone (default)—evaluates 2 zones to give
an even picture focus. Ideal for general picture taking.
Center-zone—evaluates the small area centered in
the viewfinder. Ideal when precise focus of a specific
area in the picture is needed.
NOTE: For the best pictures, the camera is set to Multi-zone when
in Landscape mode.
Unavailable in video mode.
Setting Icon Options
30 www.kodak.com/go/support
Doing more with your camera
Color Mode
Choose color tones.
This setting remains until you
turn the Mode dial or turn off
the camera.
Color (default)
Black & White
Sepia—for pictures with a reddish-brown, antique
look.
NOTE: EasyShare software also lets you change a color picture to
black-and-white or sepia.
Unavailable in Video mode.
Long Time Exposure
Choose how long the shutter
stays open.
This setting remains until you
turn the Mode dial.
Up to 4 seconds.
NOTE: When Long Time Exposure is set, Exposure Compensation
is set to zero and ISO is set to Auto.
Image Storage
Choose a storage location for
pictures and videos.
This setting remains until you
change it.
Auto (default)—the camera uses the card if one is
in the camera. If not, the camera uses internal
memory.
Internal Memory—the camera always uses
internal memory, even if a card is installed.
Set Album
(Still)
Choose Album names.
This setting remains until you
change it. You can apply
different Set Album choices.
On or Off.
Pre-select album names before you take pictures or
videos. Then, all the pictures or videos you take are
tagged with those album names. See page 34.
Video Length
Choose video duration.
Continuous (default)— as long as there is room on
the card or internal memory, or until the Shutter
button is pressed.
5, 15, or 30—seconds
Setup Menu
Choose additional settings.
See Customizing your camera.
Setting Icon Options
Doing more with your camera
www.kodak.com/go/support 31
Customizing your camera
Use Setup to customize your camera settings.
1In any mode, press the Menu button.
2Press to highlight Setup , then press the OK button.
3Press to highlight the setting you wish to change, then press the OK button.
4Choose an option, then press the OK button.
5Press the Menu button to exit.
Setting Icon Options
Return to previous menu.
Liveview
Change Liveview default to on or off.
On
Off (default)
Available only in Auto and Landscape.
Auto Power Off
Select when you would like the camera
to turn off.
3 minutes (default)
1, 3, 5, or 10 minutes
Date & Time See page 2.
Video Out
Choose the regional setting that lets you
connect the camera to a television or other
external device.
NTSC (default)—used in North
America and Japan; most common
format.
PAL—used in Europe and China.
Orientation Sensor
Orient pictures so that they are displayed
with the correct side up.
On (default)
Off
Date Stamp
Imprint the date on pictures.
Choose a date option, or turn off the
feature. (Default is off.)
32 www.kodak.com/go/support
Doing more with your camera
Video Date Display
Display Date/Time at the start of
video playback.
On (default)—choose from 3 date
formats.
Off
Language
Choose a language.
See page 3.
Format
CAUTION:
Formatting deletes all
pictures and videos,
including those that are
protected. Removing a
card during formatting
may damage the card.
Memory Card—deletes everything
on the card; formats the card.
Cancel—exits without making a
change.
Internal Memory—deletes
everything in internal memory
including email addresses, album
names, and favorites; formats the
internal memory.
About
View camera information and firmware
version.
Setting Icon Options
Doing more with your camera
www.kodak.com/go/support 33
Viewing picture/video information
In Review mode, press the Menu button to access optional review settings.
Changing other settings
Album (page 34)Copy (page 24)
Crop (page 11) Protect (page 12)
Slide Show (page 22) Image Storage (page 30)
Multi-up (page 11) Setup Menu (page 30)
1
2
Press Review.
Press Status
button
To exit Review,
press the Review button.
.
34 www.kodak.com/go/support
Doing more with your camera
Pre-tagging for album names
Use the Set Album (Still or Video) feature to pre-select album names before you take
pictures or videos. Then, all the pictures or videos you take are tagged with those
album names.
First—on your computer
Use Kodak EasyShare software that came with your camera to create album names on
your computer. Then copy up to 32 album names to the album name list on your
camera the next time you connect the camera to the computer. See Kodak EasyShare
software Help for details.
Second—on your camera
1In any mode, press the Menu button.
2Press to highlight Set Album , then press the OK button.
3Press to highlight an album name, then press the OK button. Repeat to
mark pictures or videos for albums.
Selected albums are noted with a check mark.
4Highlight Exit, then press the OK button.
Your selections are saved. If you turn on the LCD screen, your album selection is
displayed on the screen. A plus (+) after the album name means more than one album
is selected.
5Press the Menu button to exit the menu.
To remove a selection, highlight an album name and press the OK button. To remove
all album selections, select Clear All.
Third—transfer to your computer
When you transfer the tagged pictures and videos to your computer, Kodak EasyShare
software opens and categorizes your pictures and videos in the appropriate album.
See Kodak EasyShare software Help for details.
Doing more with your camera
www.kodak.com/go/support 35
Tagging pictures/videos for albums
Use the Album feature in Review mode to tag the pictures and videos in your camera
with album names.
First—on your computer
Use Kodak EasyShare software that came with your camera to create album names on
your computer, then copy up to 32 album names to the camera’s internal memory. See
Kodak EasyShare software Help for details.
Second—on your camera
1Press the Review button, then locate the picture or video.
2Press the Menu button.
3Press to highlight Album , then press the OK button.
4Press to highlight an album folder, then press the OK button.
To add other pictures to the same album, press to scroll through the pictures.
When the picture you want is displayed, press the OK button.
To add the pictures to more than one album, repeat step 4 for each album.
The album name appears with the picture. A plus (+) after the album name means the
picture was added to more than one album.
To remove a selection, highlight an album name and press the OK button. To remove
all album selections, select Clear All.
Third—transfer to your computer
When you transfer the tagged pictures and videos to your computer, Kodak EasyShare
software opens and categorizes your pictures and videos in the appropriate album.
See Kodak EasyShare software Help for details.
36 www.kodak.com/go/support
Doing more with your camera
Sharing your pictures
When they are transferred to your computer, you can share them by:
■Print (page 36).
■Email (page 37).
■Favorites (page 38).
When can I tag my pictures and videos?
Press the Share button to tag pictures/videos:
■Any time. (The most recent picture/video taken is then displayed.)
■Just after you take a picture/video, during Quickview (see page 5).
■After pressing the Review button (see page 9).
Tagging pictures for printing
1Press the Share button. Press to locate a picture.
2Press to highlight Print , then press the OK button.
3Press to select the number of copies (0-99). Zero removes the tag for that
picture.
The Print icon appears in the status area. The default quantity is one.
4Optional: You can apply a print quantity to other pictures. Press to locate a
picture. Keep the print quantity as is, or press to change it. Repeat this step
until the desired print quantity is applied to the pictures.
Press the Share button to
“tag” your pictures and videos. Share button
Doing more with your camera
www.kodak.com/go/support 37
5Press the OK button. Then press the Share button to exit the menu.
NOTE: To tag all pictures in the storage location, highlight Print All, press the OK button, then indicate the
number of copies. To remove print tagging for all pictures in the storage location, highlight Cancel
Prints, then press the OK button. Print All and Cancel Prints are not available in Quickview.
Printing tagged pictures
When you transfer the tagged pictures to your computer, the Kodak EasyShare
software print screen opens. For details on printing, click the Help button in the Kodak
EasyShare software.
For more information on printing from your computer, printer dock, PictBridge
enabled printer, or card, see page 16.
NOTE: For the best 4 x 6 in. (10 x 15 cm) prints, set the camera to the 3.5 MP (3:2) print quality setting.
See page 28.
Tagging pictures and videos for emailing
First—on your computer
Use Kodak EasyShare software to create an email address book on your computer.
Then, copy up to 32 email addresses to the camera’s internal memory. For details,
click the Help button in the Kodak EasyShare software.
Second—tag pictures/videos on your camera
1Press the Share button. Press to locate a picture/video.
2Press to highlight Email , then press the OK button.
The Email icon appears in the status area.
3Press to highlight an email address, then press the OK button.
To tag other pictures/videos with the same address, press to scroll through
them. When the picture you want is displayed, press OK.
To send the pictures/videos to more than one address, repeat step 3 for each
address.
Selected addresses are checked.
38 www.kodak.com/go/support
Doing more with your camera
4Press to highlight Exit, then press the OK button.
5Press the Share button to exit the menu.
To remove a selection, highlight a checked address and press the OK button. To
remove all email selections, highlight Clear All.
Third—transfer and email
When you transfer the tagged pictures/videos to your computer, the Email screen
opens and lets you send them to the addresses you specified. For details, click the
Help button in the Kodak EasyShare software.
Tagging pictures as favorites
You can preserve your favorite pictures in the Favorites section of your camera’s
internal memory, then share them with friends and family.
NOTE: When you transfer pictures from your camera to your computer, all pictures (including favorites) are
stored on your computer at full size. Favorite pictures—smaller copies of your originals—are loaded
back to your camera, so you can share and enjoy more.
Share your favorite pictures in 4 easy steps:
1. Take pictures
2. Tag pictures as
favorites
1Press the Share button. Press to locate a picture.
2Press to highlight Favorite , then press the OK button.
The Favorite icon appears in the status area. To remove the tag,
press the OK button again.
Press the Share button to exit the menu.
Doing more with your camera
www.kodak.com/go/support 39
NOTE: The camera holds a limited number of favorites. Use Camera Favorites in the EasyShare software to
customize the size of your camera Favorites section. Videos tagged as favorites remain in the
Favorites folder in the EasyShare software. For more information, click the Help button in the Kodak
EasyShare software.
Optional settings
In Favorites mode, press the Menu button to access optional settings.
NOTE: Pictures taken at the 3.5 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a black bar
at the top of the screen. (See Picture Size, page 28.)
3. Transfer
pictures to your
computer
1To enjoy full functionality, install and use the EasyShare software
that was packaged with this camera. (See page 14.)
2Connect the camera to the computer using the USB cable (see
page 15) or an EasyShare dock.
The first time you transfer pictures, the software helps you make
choices about your favorite pictures. Then, your pictures are
transferred to the computer. Favorite pictures (smaller versions of the
originals) are loaded to the Favorites section of your camera’s internal
memory.
4. View favorites
on your camera
1Turn the Mode dial to Favorites .
2Press to scroll through favorites.
To exit Favorites mode, turn the Mode dial to any
other position.
Slide Show (page 22) Picture Information (page 33)
Multi-up (page 11) Remove all favorites (page 40)
Setup Menu (page 30)
40 www.kodak.com/go/support
Doing more with your camera
Removing all favorites from your camera
1Turn the Mode dial to Favorites .
2Press the Menu button.
3Highlight , then press the OK button.
All pictures stored in the Favorites section of internal memory are removed. Favorites are
restored the next time you transfer pictures to the computer.
4Press the Menu button to exit the menu.
Preventing favorites from transferring to the camera
1Open the Kodak EasyShare software. Click the My Collection tab.
2Go to the Albums view.
3Click the Camera Favorites Album for your camera.
4Click Remove Album.
The next time you transfer pictures from your camera to the computer, use the Camera
Favorites Wizard/Assistant in the Kodak EasyShare software to either recreate your
Camera Favorites Album or to turn off the Camera Favorites feature.
Printing and emailing favorites
1Turn the Mode dial to Favorites . Press to locate a picture.
2Press the Share button.
3Highlight Print or Email , then press the OK button.
NOTE: Favorites that were taken on this camera (not imported from another source) are good for prints up
to 4 x 6 in. (10 x 15 cm).
www.kodak.com/go/support 41
5Troubleshooting
For step-by-step product support, visit www.kodak.com/go/cd43support and select
Interactive Troubleshooting & Repairs.
Camera problems
If... Try one or more of the following
Camera does not
turn on
■Remove battery and verify that it’s the correct type, then reinsert it.
■Insert a new or charged battery.
■Connect the camera to a Kodak 3-volt AC adapter (sold separately),
then try again. See page 56 for more battery information.
Camera does not
turn off and the lens
does not retract
Camera buttons and
controls do not
function
Lens does not extend
when camera turns
on or does not retract
■Confirm that the battery in camera is charged.
■Turn camera off, then on again. (Lens does not extend in Favorites
mode.)
■If problem still exists, get help (page 46).
In Review, a blue or
black screen is
displayed instead of
a picture
■Transfer the picture to the computer.
■Transfer
all
pictures to the computer (page 15).
■Take another picture. If problem still continues try internal memory
and/or another memory card.
Pictures remaining
number does not
decrease after taking
a picture
■Continue taking pictures. The camera is operating normally.
(The camera estimates the number of pictures remaining after each
picture is taken, based on picture size and content.)
42 www.kodak.com/go/support
Troubleshooting
Flash does not fire ■Check the flash setting and change as needed (page 25).
NOTE: The flash does not fire in all modes.
Storage location is
almost or entirely full
■Transfer pictures to the computer (page 15).
■Delete pictures from the card or insert a new one (page 13).
■Change image storage location to internal memory (page 30).
Battery life is short ■Make sure the correct battery type is loaded (page 1).
■Wipe the contacts with a clean, dry cloth (page 57) before inserting
a battery in the camera.
■Insert a new or charged battery (page 1).
You cannot take a
■Turn the camera off, then on again. Make sure the camera is not in
Favorites mode.
■Depress shutter button completely down (page 4).
■Insert a new or charged battery (page 1).
■Wait until the Ready light glows green before attempting to take
another picture.
■Memory full. Transfer pictures to the computer (page 15), delete
pictures from the camera (page 13), change image storage
location, or insert a new card.
Error message
appears on LCD
screen
■Turn the camera off.
■Remove memory card from the camera.
■Remove the battery and wipe the contacts with a clean, dry cloth
(page 57).
■Insert a new or charged battery (page 1).
■Turn on the camera.
■If all else fails, get customer support help (page 46).
Memory card not
recognized or camera
freezes with card.
■Card may be corrupted. Format card in camera (page 32).
■Use another memory card.
If... Try one or more of the following
Troubleshooting
www.kodak.com/go/support 43
Computer/connectivity problems
Picture quality problems
If... Try one or more of the following
Computer does not
communicate with
the camera
■Insert a charged battery (page 1).
■Turn on the camera.
■Make sure proper USB cable is securely connected on camera and
computer port (page 15). (If using an EasyShare dock, check all
cable connections. Make sure the camera is seated on the dock.)
■Make sure the EasyShare software is installed (page 14).
Pictures do not
transfer to computer
■Click the Help button in the EasyShare software.
Slide Show does not
run on an external
video device
■Adjust the camera Video Out setting (NTSC or PAL, page 31).
■Make sure the external device settings are correct (see the device’s
user’s guide).
If... Try one or more of the following
Picture is too dark
or underexposed
■Reposition camera for more available light.
■Use Fill flash (page 25) or change your position so light is not behind
the subject.
■Move so that the distance between you and the subject is within the
effective flash range (page 9).
■To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light glows green, press the Shutter
button completely down to take the picture.
■Adjust the exposure compensation (page 28).
44 www.kodak.com/go/support
Troubleshooting
Camera ready light status
Picture is too light ■Reposition camera to reduce the amount of available light.
■Turn flash off (page 25).
■Move so that the distance between you and the subject is within the
effective flash range (page 9).
■To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light glows green, press the Shutter
button completely down to take the picture.
■Use Auto, Landscape, or Close-up to adjust the exposure
compensation.
Picture is not clear ■To automatically set exposure and focus, press the Shutter button
halfway. When the Ready light glows green, press the Shutter
button completely down to take the picture.
■Clean the lens (page 58).
■Make sure camera is not in Close-up mode if you are more than
27.6 in. (70 cm) from your subject.
■Place the camera on a flat, steady surface or use a tripod, especially
in high-zoom settings or in low light.
If... Try one or more of the following
Ready light does
not turn on and the
camera does not
work
■Turn on the camera (page 2).
■Recharge the battery or install a new one (page 1).
■Mode dial was on when battery was reloaded. Turn Mode dial off, then
back on.
Ready light blinks
green
■Picture is being processed and saved to the camera. Camera is
operating normally.
■Camera is connected. Camera is operating normally.
Ready light blinks
red and camera
turns off
■Recharge the battery or install a new one (page 1).
If... Try one or more of the following
Troubleshooting
www.kodak.com/go/support 45
Direct printing (PictBridge) problems
Ready light glows
steady green
■Shutter button is pressed halfway down. Focus and exposure are set.
Camera is operating normally.
Ready light glows
steady orange
■The Mode dial is set to Favorites. Camera is operating normally.
Ready light blinks
orange
■Flash is not charged. Wait. Resume picture-taking when the light stops
blinking and turns off.
■Auto exposure or auto-focus are not set. Release the Shutter button
and recompose the picture.
Ready light glows
steady red
■Camera’s internal memory or card is full. Transfer pictures to the
computer (page 15), delete pictures from camera (page 13), switch
image storage locations (page 30), or insert card with available
memory (page 3).
■Camera processing memory is full. Wait. Resume picture-taking when
the light turns off.
■Card is read-only. Change image storage location to internal memory
(page 30), or use a different card.
Status Solution
Cannot locate desired picture. ■Turn the Mode dial to Auto. Make sure the camera is
not in Favorites mode.
■Use the Direct print menu to change the image storage
location.
The Direct print menu interface
turns off.
■Press any button to redisplay the menu.
Cannot print pictures. ■Ensure that there is a connection between camera and
printer (page 16).
■Ensure the printer and camera have power (page 17).
Camera or printer display an
error message.
■Follow the prompts to resolve the issue.
46 www.kodak.com/go/support
6Getting help
Helpful links
Camera Get support for your product (FAQs,
troubleshooting information, etc.)
www.kodak.com/go/cd43support
Purchase camera accessories (camera
docks, printer docks, lenses, cards, etc.)
www.kodak.com/go/cd43accessories
Download the latest camera firmware
and software
www.kodak.com/go/cd43downloads
See online demonstrations of your
camera
www.kodak.com/go/howto
Software Get information on EasyShare software www.kodak.com/go/easysharesw
(or click the Help button in the
EasyShare software)
Get help with the Windows operating
system and working with digital pictures
www.kodak.com/go/pcbasics
Other Get support for other cameras, software,
accessories
www.kodak.com/go/support
Get information on Kodak EasyShare
printer docks
www.kodak.com/go/printerdocks
Get information on Kodak inkjet
products
www.kodak.com/go/inkjet
Optimize your printer for truer, more
vibrant colors
www.kodak.com/go/onetouch
Register your camera www.kodak.com/go/register
Getting help
www.kodak.com/go/support 47
Telephone customer support
If you have questions concerning the operation of the software or camera, you may
speak with a customer support representative. Before you call, have the camera or
dock connected to your computer. Be at your computer, and have the following
information available:
NOTE: See next page for customer support numbers.
■Computer model, Operating system
■Processor type and speed (MHz)
■Amount of memory (MB) & free hard
disk space
■Camera serial number
■Version of Kodak EasyShare software
■Exact error message you received
48 www.kodak.com/go/support
Getting help
For the most up-to-date listings, visit: http://www.kodak.com/go/dfiswwcontacts
Australia 1800 147 701 Netherlands 020 346 9372
Austria 0179 567 357 New Zealand 0800 440 786
Belgium 02 713 14 45 Norway 23 16 21 33
Brazil 0800 150000 Philippines 1 800 1 888 9600
Canada 1 800 465 6325 Poland 00800 4411625
China 800 820 6027 Portugal 021 415 4125
Denmark 3 848 71 30 Singapore 800 6363 036
Ireland 01 407 3054 Spain 91 749 76 53
Finland 0800 1 17056 Sweden 08 587 704 21
France 01 55 1740 77 Switzerland 01 838 53 51
Germany 069 5007 0035 Taiwan 0800 096 868
Greece 00800 44140775 Thailand 001 800 631 0017
Hong Kong 800 901 514 Turkey 00800 448827073
India 91 22 617 5823 United Kingdom 0870 243 0270
Italy 02 696 33452 United States 1 800 235 6325
585 781 6231 (toll)
Japan 03 5540 9002 International Toll Line +44 131 458 6714
Korea 00798 631 0024 International Toll Fax +44 131 458 6962
www.kodak.com/go/support 49
7Appendix
Camera specifications
For more specifications, visit www.kodak.com/go/cd43support.
Kodak EasyShare CD43 zoom digital camera
CCD (charge-coupled device)
CCD 1/2.5 in. CCD, 4:3 aspect ratio
Output image size 4.0 MP (Best): 2304 x 1728 pixels
3.5 MP (Best 3:2): 2304 x 1536 pixels
3.1 MP (Better): 2048 x 1536 pixels
2.1 MP (Good): 1664 x 1248 pixels
1.1 MP (E-mail): 1216 x 912 pixels
Displays
Viewfinder Optical real image
Field-of-view: 86% @wide/tele
Magnification: 0.34 (wide)–0.93 X (tele)
Diopter: -1.0 +/- 1.0 [m-1]
Color display 1.5 in. (4 cm) color hybrid LCD, 280 x 220 (61 K) pixels
Preview Frame rate: 30 fps; Field-of-view: 100%.
Lens
Taking lens 3X optical zoom, aspheric all-glass Kodak Retinar lens, f/2.7–4.6
(35 mm equivalent: 34–102 mm)
50 www.kodak.com/go/support
Appendix
Focus system* TTL-AF; auto, Multi-zone AF, Center-zone AF; Normal mode,
Landscape mode, and Macro mode (selectable)
Working range:
(0.6 m)–(Infinity) @ normal
(10 m)–(Infinity) @ Landscape
(0.13 m)–(0.7 m) @ macro, wide
(0.22 m)–(0.7 m) @ macro, tele
Digital zoom 1.2X–5X
Not supported for movie capture
Lens barrier Integrated in lens barrel
Exposure
Exposure metering TTL-AE, Center-weighted
Exposure
compensation*
+/-2.0 EV with 0.5 EV step
Shutter speed Mechanical with CCD electrical
Auto: 4 - 1/1400 sec.
Long time exposure* 0.7, 1.0, 1.5, 2.0, 3.0, 4.0 sec.
ISO speed* Auto: 80 to 160
Selectable: 80, 100, 200, 400
Flash
Electronic flash Working range: @ ISO 140: 2–12 ft (0.6–3.6 m) @ Wide;
@ ISO 140: 2–7 ft (0.6–2.1 m) @ Tele
Flash modes Auto, Fill, Red-eye, Off
Kodak EasyShare CD43 zoom digital camera
Appendix
www.kodak.com/go/support 51
Capture
Capture modes Auto, SCN (Children, Party, Night Portrait, Beach, Snow, Fireworks,
Self-Portrait, and Backlight), Portrait, Sport, Landscape, Close-up,
Video
Burst mode Maximum 3 pictures, 1.8 fps
Video capture QVGA (320 x 240 pixels) @ 20 fps
Image file format Still: EXIF 2.2 (JPEG compression); file organization DCF
Video: QuickTime (CODEC Motion JPEG)
Image storage Optional xD-Picture Card
Internal storage
capacity
16 MB internal memory/13 MB available for image storage
(1 MB equals one million bytes).
Review
Quickview Yes
Video output NTSC or PAL
Power
2 Kodak oxy-alkaline digital camera batteries AA ZR6 (non-rechargeable); 2-AA lithium digital
camera batteries; 2 Kodak Ni-MH rechargeable digital camera batteries AA; 1 Kodak lithium
digital camera battery CRV3 (non-rechargeable); 1 Kodak Ni-MH rechargeable digital camera
battery KAA2HR
Communication with computer
USB 2.0 (PIMA 15740 protocol), via USB cable model U-8, EasyShare camera dock or printer
dock
Kodak EasyShare CD43 zoom digital camera
52 www.kodak.com/go/support
Appendix
*Available only in Auto, Landscape, and Close-up modes.
Other features
PictBridge printer
support
Yes
Self-timer 10 seconds, 2 seconds selectable
White balance* Auto, Daylight, Tungsten, Fluorescent
Auto power off Selectable 1, 3, 5, or 10 minutes.
Color modes Color, Black & White, Sepia
Date stamp None, YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY
Tripod mount 1/4 inch
Operating temperature 32-104°F (0-40°C)
Size 3.6 in. (91.5 mm) x 2.6 in. (65 mm) x 1.4 in. (35 mm) @ power off
Weight 5.6 oz (160 g) without battery or card
Kodak EasyShare CD43 zoom digital camera
Appendix
www.kodak.com/go/support 53
Storage capacities
Actual storage capacity varies depending on subject composition, card brand, and
other factors. You may be able to store more or fewer pictures and videos. Favorites
take up additional space in internal memory.
Picture storage capacity
Video storage capacity
Number of pictures
4.0 MP 3.5 MP 3.1 MP 2.1 MP 1.1 MP
16 MB internal memory 16 18 20 29 48
16 MB xD-Picture Card 19 21 24 34 57
32 MB xD-Picture Card 39 43 48 70 115
64 MB xD-Picture Card 79 88 98 140 231
128 MB xD-Picture Card 159 177 196 282 464
256 MB xD-Picture Card 318 354 394 565 929
512 MB xD-Picture Card 637 709 788 1130 1858
Minutes/seconds of video
QVGA (320 x 240)
16 MB internal memory 44 secs.
16 MB xD-Picture Card 53 secs.
32 MB xD-Picture Card 1 min. 46 secs.
64 MB xD-Picture Card 3 min. 32 secs.
128 MB xD-Picture Card 7 min. 6 secs.
256 MB xD-Picture Card 14 min. 12 secs.
512 MB xD-Picture Card 28 min. 24 secs.
54 www.kodak.com/go/support
Appendix
Power-saving features
Important safety instructions
Using this product
■Read and follow these instructions before using Kodak products. Always follow
basic safety procedures.
■Use only a USB 2.0 certified computer equipped with a current-limiting
motherboard. Contact your computer manufacturer if you have questions.
■The use of an accessory attachment that is not recommended by Kodak, such as an
AC adapter, may cause fire, electric shock, or injury.
■If using this product in an airplane, observe all instructions of the airline.
CAUTION:
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. Do not expose
this product to liquid, moisture, or extreme temperatures. Kodak AC
adapters and battery chargers are intended for indoor use only. The
use of controls, adjustments, or procedures other than those specified
herein may result in exposure to shock and/or electrical or mechanical
hazards.
If no action for The camera To turn it back on
1 minute Screen turns off. Press any button.
3 minutes or select
1, 5, or 10 minutes
Enters auto power off. Turn the Mode dial off and on again.
Appendix
www.kodak.com/go/support 55
Battery safety and handling
CAUTION:
When removing batteries, allow them to cool first; batteries may be
hot.
■Read and follow all warnings and instructions supplied by the battery
manufacturer.
■Use only batteries that are approved for this product.
■Keep batteries out of the reach of children.
■Do not allow batteries to touch metal objects, including coins. Otherwise, a battery
may short circuit, discharge energy, become hot, or leak.
■Do not disassemble, install backward, or expose batteries to liquid, moisture, fire,
or extreme temperature.
■Replace all batteries of a set at the same time. Do not mix new batteries with used
ones. Do not mix rechargeable and non-rechargeable batteries. Do not mix lithium,
Ni-MH, and Ni-Cd batteries together. Do not mix batteries of different chemistry
types, grades, or brands. Failure to observe this precaution may cause leakage.
■Remove batteries when the product is stored for an extended period of time. In the
unlikely event that battery fluid leaks inside the product, contact your local Kodak
Customer Service representative.
■In the unlikely event that battery fluid leaks onto your skin, wash immediately with
water and contact your local health provider. For additional health-related
information, contact your local Kodak Customer Service representative.
■Dispose of batteries according to local and national regulations.
■Do not charge non-rechargeable batteries.
For more information on batteries, see
www.kodak.com/global/en/service/batteries/batteryUsage.jhtml
56 www.kodak.com/go/support
Appendix
Battery information
Battery life for Kodak C-series digital cameras
Use the following batteries. Actual battery life may vary based on usage.
We do not recommend or support alkaline batteries. For acceptable battery
life, and to make sure your camera operates dependably, use the replacement
batteries listed above.
Extending battery life
■Limit the following activities that quickly deplete battery power:
– Reviewing your pictures on the LCD screen (see page 9)
– Using the camera LCD screen as a viewfinder (see page 6)
– Excessive use of the flash (see page 25)
0 500
350–500
275–375
250–350
200–300
60-175
CRV3 lithium battery
AA (2) lithium batteries
KAA2HR Ni-MH rechargeable
KAARDC Ni-MH AA (2)
KAADC oxy-alkaline AA ZR6 (2)
battery pack (per charge)
rechargeable batteries (per charge)
non-rechargeable batteries
Battery Life (Approx. number of pictures in Auto mode)
Battery life test method: CIPA (Camera & Imaging Products Association)
Memory card used in test: Kodak xD-Picture Card 128 MB
Appendix
www.kodak.com/go/support 57
■Dirt on the battery contacts can affect battery life. Wipe the contacts with a clean,
dry cloth before loading batteries in the camera.
■Battery performance is reduced at temperatures below 41°F (5°C). When using
your camera in cold weather, carry spare batteries and keep them warm. Do not
discard cold batteries that do not work; when they return to room temperature,
they may be usable.
■Visit www.kodak.com/go/cd43accessories for:
Kodak EasyShare camera dock—powers your camera, transfers pictures to
your computer, and charges the available Kodak Ni-MH rechargeable digital
camera battery KAA2HR.
Kodak EasyShare printer dock—powers your camera, makes
4 x 6 in. (10 x 15 cm) prints with or without a computer, transfers pictures, and
charges the available Kodak Ni-MH rechargeable digital camera battery KAA2HR.
Kodak 3-volt AC adapter—powers your camera.
IMPORTANT:
Do not use the AC adapter included with the Kodak EasyShare camera dock
or printer dock to power your camera.
Upgrading your software and firmware
Download the latest versions of the software included on the Kodak EasyShare
software CD and the camera firmware (the software that runs on the camera). See
www.kodak.com/go/cd43downloads.
58 www.kodak.com/go/support
Appendix
Additional care and maintenance
■If the camera has been subjected to inclement weather or you suspect water has
gotten inside the camera, turn off the camera and remove the batteries and card.
Allow all components to air-dry for at least 24 hours before using the camera
again.
■Blow gently on the lens or camera screen to remove dust and dirt. Wipe gently
with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning
solutions unless designed specifically for camera lenses. Do not allow chemicals,
such as suntan lotion, to contact painted surfaces.
■Service agreements are available in some countries. Contact a dealer of Kodak
products for more information.
■For digital camera disposal or recycling information, contact your local authorities.
In the US, visit the Electronics Industry Alliance Web site at www.eiae.org or the
Kodak Web site at www.kodak.com/go/cd43support.
Warranty
Limited warranty
Kodak warrants Kodak EasyShare digital cameras and accessories (excluding
batteries) to be free from malfunctions and defects in both materials and
workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be required
with any request for warranty repair.
Appendix
www.kodak.com/go/support 59
Limited warranty coverage
This limited warranty will be honored only in the geographical location
that Kodak digital cameras and accessories were purchased.
Kodak will REPAIR or REPLACE Kodak EasyShare digital cameras and accessories if
they fail to function properly during the warranty period, subject to any conditions
and/or limitations stated herein. Such repair service will include all labor as well as
any necessary adjustments and/or replacement parts. Such repair or replacement is
the sole remedy under this warranty.
If replacement parts are used in making repairs, these parts may be remanufactured,
or may contain remanufactured materials. If it is necessary to replace the entire
product, it may be replaced with a remanufactured product.
Limitations
Request for Warranty service will not be accepted without proof of date of purchase,
such as a copy of the original dated Kodak EasyShare digital camera or accessory
sales receipt. (Always keep the original for your records.)
This warranty does not apply to the battery(s) used in digital cameras or accessories.
This warranty does not cover circumstances beyond Kodak’s control, nor problems
caused by failure to follow the operating instructions in the Kodak EasyShare digital
cameras and accessories User’s Guides.
This warranty does not apply when failure is due to shipping damage, accident,
alteration, modification, unauthorized service, misuse, abuse, use with incompatible
accessories or attachments, failure to follow Kodak’s operation, maintenance or
repacking instructions, failure to use items supplied by Kodak (such as adapters and
cables), or claims made after the duration of this warranty.
Kodak makes no other express or implied warranty for this product. In the event that
the exclusion of any implied warranty is ineffective under the law, the duration of the
implied warranty will be one year from the purchase date.
60 www.kodak.com/go/support
Appendix
The option of replacement is Kodak’s only obligation. Kodak will not be responsible
for any special, consequential or incidental damages resulting from the sale, purchase,
or use of this product, regardless of the cause. Liability for any special, consequential
or incidental damages (including but not limited to loss of revenue or profit,
downtime costs, loss of the use of the equipment, cost of substitute equipment,
facilities or services, or claims of your customers for such damages resulting from the
purchase, use or failure of the product), regardless of cause or for breach of any
written or implied warranty is expressly disclaimed and excluded here from.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty gives you specific rights, and you may have other rights which vary from
state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of
this warranty may be different. Unless specific Kodak warranty is communicated to the
purchaser in writing by a Kodak company, no warranty or liability exists beyond any
minimum requirements imposed by law, even though defect, damage, or loss may be
by negligence or other act.
Appendix
www.kodak.com/go/support 61
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed or used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures: 1) reorient
or relocate the receiving antenna; 2) increase the separation between the equipment
and the receiver; 3) connect the equipment to an outlet on a circuit different from that
to which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Where shielded
interface cables have been provided with the product or specified additional
components or accessories elsewhere defined to be used with the installation of the
product, they must be used in order to ensure compliance with FCC regulation.
Kodak EasyShare CD43 zoom digital camera
62 www.kodak.com/go/support
Appendix
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian
ICES-003.
Observation des normes-Class B—Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Waste Electrical and Electronic Equipment labeling
VCCI Class B ITE
English translation:
This is a Class B product based on the standard of the Voluntary Control Council for
Interference from Information Technology Equipment (VCCI). If this is used near a
radio or television receiver in a domestic environment, it may cause radio interference.
Install and use the equipment according to the instruction manual.
In the European Union, do not discard this product as unsorted municipal waste.
Contact your local authorities or go to www.kodak.com/go/recycle for recycling
program information.
www.kodak.com/go/support 63
Index 1
A
A/V out, 23
AA battery, installing, 1
about this camera, 32
AC adapter, 57
accessories, 15
AC adapter, 57
battery, 56
buying, 46
camera dock, 57
memory card, 3
printer dock, 16, 57
xD-Picture Card, 3
album, 30
albums, tagging pictures for, 34, 35
alkaline batteries, warning, 1
auto
flash, 9
focus framing marks, 6
power-down, 54
B
backlight, 27
batteries
expected life, 56
extending life, 56
loading, 1
types, 56
battery
safety, 55
beach, 27
burst, using, 21
button
burst, 21
delete, 5
flash/status, 9
review, 9
zoom, 8
C
cable
audio/video, 23
USB, 15
camera dock, 57
camera dock connector, ii
camera screen
reviewing pictures, 9
reviewing videos, 9
Canadian compliance, 62
card
storage capacities, 53
storing pictures on, 3
caring for your camera, 58
children, 27
clock, setting, 2, 3
color mode, 30
computer
connecting camera, 14
transfer to, 14
connector for camera dock, ii
copy pictures
card to memory, 24
memory to card, 24
to computer via USB cable, 14
64 www.kodak.com/go/support
Index
CRV3 battery
loading, 1
customer support, 47
customizing camera settings, 31
D
date & time, 31
date setting, 2, 3
date stamp, 31
DC-in, i
deleting
during quickview, 5
from internal memory, 13
from memory card, 13
protecting pictures, videos, 12
digital zoom, using, 8
displaying slide show, 22
disposal, recycling, 58, 62
dock
camera, 57
printer, 16, 57
downloading pictures, 14
E
EasyShare software, 14
emailing pictures, videos, 37
expected life, 56
exposure compensation, 28
external video device
viewing pictures, videos, 23
F
favorites
removing, 40
settings, 39
tagging, 38
FCC compliance, 61
fireworks, 27
firmware, upgrading, 57
flash
settings, 9
focus framing marks, 6
focus zone, 29
format, 32
G
guidelines, battery, 56
H
help
web links, 46
I
icons, mode dial, 26
image storage, 30
installing
batteries, 1
memory card, 3
software, 14
internal memory
storage capacity, 53
K
Kodak digital camera batteries, 1
Kodak EasyShare software
installing, 14
upgrading, 57
Kodak web sites, 46
www.kodak.com/go/support 65
Index
L
language, 32
lens, i
cleaning lens, 58
liveview, 31
loading
batteries, 1
memory card, 3
software, 14
M
Macintosh OS, installing software on, 14
maintenance, camera, 58
memory
inserting card, 3
storage capacities, 53
memory card
inserting, 3
printing from, 18
storage capacities, 53
mode dial, 26
modes
backlight, 27
beach, 27
children, 27
fireworks, 27
night portrait, 27
party, 27
SCN, 26
self-portrait, 27
snow, 27
N
night portrait, 27
O
online prints, ordering, 18
optical zoom, 8
P
party, 27
PictBridge enabled printer, 16
picture quality, 28
pictures
checking settings, 10
copying, 24
deleting, 13
emailing tagged, 37
printing, 18
printing tagged, 36
protecting, 12
reviewing, 9
storage capacity, 53
tagging, 34, 35
taking, modes, 26
transfer via USB cable, 14
power
auto off, 54
camera, 2
printer dock, 16, 57
printing
from an xD-Picture Card, 18
from computer, 18
optimizing printer, 46
order online, 18
PictBridge technology, 16
tagged pictures, 18
with EasyShare printer dock, 16
protecting pictures, videos, 12
66 www.kodak.com/go/support
Index
Q
quickview
using, 5
R
recycling, disposal, 58, 62
red-eye, flash, 9
regulatory information, 61
removing favorites, 40
review button, 9
reviewing pictures
as you take them, 5
camera screen, 9
deleting, 13
protecting, 12
slide show, 22
reviewing videos
camera screen, 9
deleting, 13
protecting, 12
slide show, 22
running slide show, 22
S
safety
battery, 55
SCN, 26
self timer
with pictures, 20
with videos, 20
self-portrait, 27
service and support
telephone numbers, 47
set album, 30
setting
album, 30
color mode, 30
date & time, 31
date and time, 2, 3
date stamp, 31
flash, 9
focus zone, 29
image storage, 30
language, 32
liveview, 31
picture quality, 28
picture taking mode, 26
self timer, 20
video date display, 32
video out, 31
video quality, 29
white balance, 29
Setup Menu, 30
setup mode, using, 31
shutoff, auto, 54
shutter
self timer delay, 20
shutter, problems, 42
sleep mode, 54
slide show
continuous loop, 23
problems, 43
running, 22
snow, 27
software
installing, 14
upgrading, 57
speaker, i
www.kodak.com/go/support 67
Index
specifications, camera, 49
storage capacity, 53
support, technical, 47
T
tagging
favorites, 38
for email, 37
for print, 37
tagging pictures
for albums, 34, 35
telephone support, 47
television, slide show, 23
time, setting, 2, 3
timer, shutter delay, 20
tips
battery guidelines, 56
care & maintenance, 58
transfer, via USB cable, 14
trash can, deleting, 5
turning camera on and off, 2
U
upgrading software, firmware, 57
URLs, Kodak web sites, 46
USB (universal serial bus)
transferring pictures, 14
V
VCCI compliance, 62
video date display, 32
video length, 30
video out, 31
video quality, 29
videos
checking settings, 10
copying, 24
deleting, 13
emailing tagged, 37
protecting, 12
reviewing, 9
storage capacities, 53
transfer to computer, 14
viewing, 9
viewing picture
after taking, 5, 9
W
warranty, 58
WEEE labeling, 62
white balance, 29
Windows OS-based computers
installing software, 14
X
xD-Picture Card
inserting, 3
printing from, 18
storage capacities, 53
storing pictures on, 3
Z
zoom
digital, 8
optical, 8

Navigation menu
